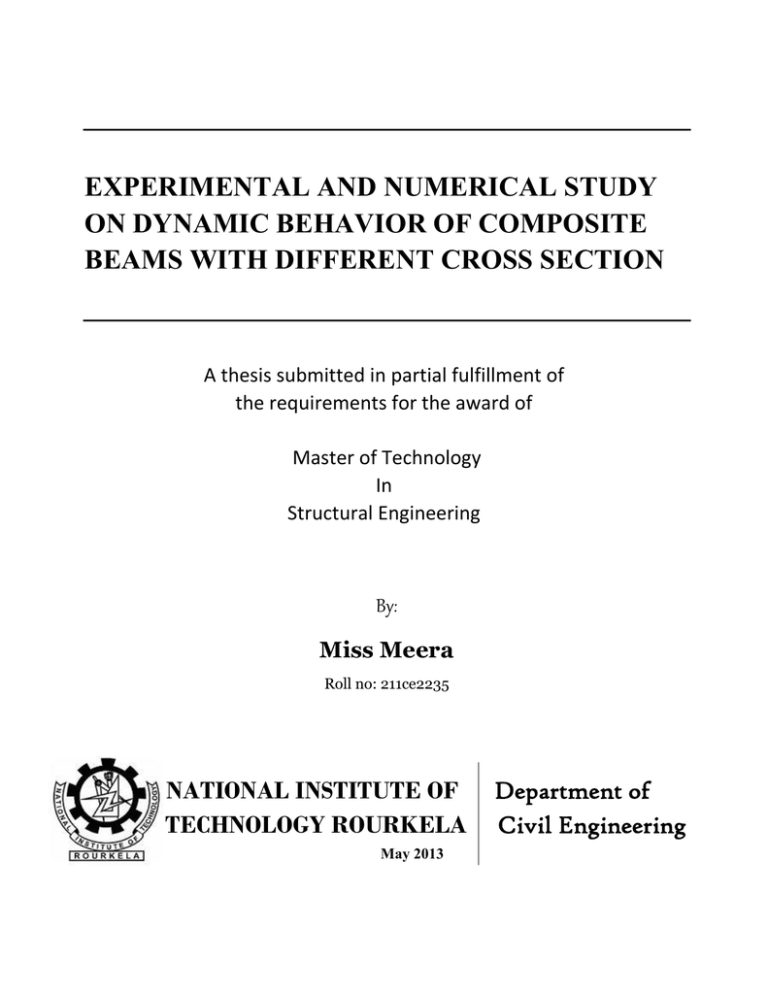

EXPERIMENTAL AND NUMERICAL STUDY ON DYNAMIC BEHAVIOR OF COMPOSITE

EXPERIMENTAL AND NUMERICAL STUDY ON DYNAMIC BEHAVIOR OF COMPOSITE

EXPERIMENTAL AND NUMERICAL STUDY

ON DYNAMIC BEHAVIOR OF COMPOSITE

BEAMS WITH DIFFERENT CROSS SECTION

A thesis submitted in partial fulfillment of the requirements for the award of

Master of Technology

In

Structural Engineering

By:

Miss Meera

Roll no: 211ce2235

NATIONAL INSTITUTE OF

Department of

TECHNOLOGY ROURKELA

Civil Engineering

May 2013

“Experimental and Numerical study on dynamic behavior of Composite Beam with Different Cross Section”

A THESIS SUBMITTED IN PARTIAL FULFILLMENT OF

THE REQUIREMENTS FOR THE DEGREE OF

Master of Technology

In

Structural Engineering

By

Miss Meera

Roll No. 211CE2235

Under the guidance of

Prof. Shishir Kumar Sahu

DEPARTMENT OF CIVIL ENGINEERING

NATIONAL INSTITUTE OF TECHNOLOGY

ROURKELA-769008

MAY 2011

Email Id: [email protected]

Tele: 0661- 2462322

NATIONAL INSTITUTE OF TECHNOLOGY

ROURKELA - 7689008

Prof. (Dr.) Shishir Kumar Sahu

Professor, Civil Engineering

NIT Rourkel

CERTIFICATE

This is to certify that the thesis entitled, “Experimental and Numerical

Studies on Dynamic behavior of Composite Beams with different Cross Section” submitted by Miss Meera in partial fulfillment of the requirements for the award of

Master of Technology Degree in Civil Engineering with specialization in

“Structural Engineering” at National Institute of Technology, Rourkela is an authentic work carried out by her under my supervision and guidance. To the best of my knowledge, the matter embodied in this thesis has not been submitted to any other university/ institute for award of any Degree or Diploma.

She has taken keen and genuine interest in acquiring knowledge and presentation of data in an organized manner.

She is very sincere and hard working towards her work and would provide herself as an asset to the organization that employes her.

I wish her all success in her future endeavor.

Prof. Shishir Kumar Sahu

Dept. of Civil Engineering

National Institute of Technology, Rourkela

Dedicated to

MY BELOVED PARENTS

Acknowledgement

“Although we know there's much to fear, we were moving mountains long before we knew we could…..now I'm standing here, my heart's so full I can't explain.” The words were out from my heart when I was going to write this part. I cannot help giving special recognitions to the following colleagues and friends as angles

God sent out to help me moved this mountain and warmed me throughout the journey.

First and foremost, Porf. Shishir Kumar Sahu, It was who make me to come into

NIT Rourkela and make this journey possible. Also, his immeasurable contribution through the gift of knowledge, advice and guidance over the last two years is greatly appreciated. I really couldn’t have asked better supervision. It is my honor to work for a highly respected professor who is undoubtedly one of the leading names in Plate and Shells vibrations in the world.

I express my sincere thanks to Prof. S. K. Sharangi, Director of NIT, Rourkela &

Prof. N. Roy, Professor and HOD, Dept. of Civil Engineering NIT, Rourkela for providing me the necessary facilities in the department.

A special thanks to Prof. K.C. Biswal, my faculty and adviser and all faculties

Prof. P. Sarkar, Prof. R. Davis, Prof A.K Sahoo, and Prof. A Patel, for helping me settle down during the first year when I came in. Without their input, time and expertise to many aspects of this research, it would not have been as successful.

I would like to thanks to Prof. M. R. Barik, for teaching me MATLAB that the computer package I used and Prof.A. V Asha, PG Coordinator, for providing suitable slots during presentation and Viva and helping me in ANSYS.

I am also thankful to staff members of Structural Engineering Laboratory for their assistance & for their incorporating my demanding needs for technician time and assistance throughout my experimental work.

The facilities and co-operation received from the staffs of INSTRON Laboratory of

Metallurgical & Material Engg. Deptt. and mechanical Engg. Deptt. and CENTRAL

WORKSHOP is thankfully acknowledged.

I like to say a huge thanks to my friends Krishna, Satish, sahadaf, Anusmita and

Monalisha for their generous help in simulation and experimental setup. In addition,

I thank to Ansuman, Himansu, Swayanjit, my beloved juniors for assistance on hammer impact tests. I am very grateful for their help.

It is so pleasure to thank some awesome friends Satya, Asit, Sohrab, Brajendra,

Kennedy, Rashmi, Ashish, Kuppu, Somyashree, Abhishek Anand, Abhishek,

Satish, Sofia who made the stay enjoyable here at NIT Rourkela. Thanks for cheered me up and needless to say for your moral support, also thanks for making me laugh when I was down. Thanks for the unforgettable time!

Last but not least I would like to thanks to my father Mr. Pitambar Behera and mother Mrs. Phularani Behera, who taught me the value of hard work by their own example. Thanks a lot for your understanding and constant support, and to my brother Arabinda Behera for his encouragement. They rendered me enormous support during the whole tenure of my study at NIT Rourkela.

Meera

May 20, 2013

ABSTRACT

The increasing use of composite materials across various fields such as aerospace, automotive, civil, naval and other high performance engineering applications are due to their light weight, high specific strength and stiffness, excellent thermal characteristic, ease in fabrication and other significant attributes. The present study deals with experimental investigation on free vibration of laminated composite beam and compared with the numerical predictions using finite element method (FEM) in

ANSYS environment. A program is also developed in MATLAB environment to study effects of different parameters. The scope of the present work is to investigate and understand the effect of different parameters including cross sectional shape on modal parameters like modal frequency, mode shapes.

Experimental investigation is carried out by Impulsive frequency response test under fixed- free and fixed-fixed boundary conditions. Composites

Beams are fabricated using woven glass fabric and epoxy by hand layup technique. Modal analysis of various cross sectional beams were reported, compared and discussed. The finite element modeling has been done by using ANSYS 14 and compared with the experimental results. Two-node, finite elements of three degrees of freedom per node and rectangular section are presented for the free vibration analysis of the laminated composite beams in this work.

The effects of different parameters including ply orientation, number of layers, effect of the length of the beam and various boundary conditions of the laminated composite beams are discussed.

LIST OF TABLE

Figure Page No

Table 4.1 Size of the specimen for tensile test .........................................................................27

Table 4.2 Proporties of composite beam specimen .................................................................31

Table 5.1 Input data for Modelling of the beam ......................................................................28

Table 6.1 First three non-dimensional frequencies of isotropic beam .....................................41

Table 6.2 Comparison of Natural frequencies (Hz) of [30/50/30/50] composite beam ..........42

Table 6.3 First five non-dimensional frequencies of composite channel section of .............44

8 layers with Fixed-Fixed Boundary condition

Table 6.4 First five non-dimensional frequencies of composite channel section of ................44

6 layers with Fixed-Fixed Boundary condition

Table 6.5 First five non-dimensional frequencies of composite channel section of…………45

4 layers with Fixed-Fixed Boundary condition

Table 6.6 First five non-dimensional frequencies of composite box section of .....................45

8 layers with Fixed-Fixed Boundary condition

Table 6.7: First five non-dimensional frequencies of composite box section of .....................46

6 layers with Fixed-Fixed Boundary condition

Table 6.8: First five non-dimensional frequencies of composite box section of .....................46

4 layers with Fixed-Fixed Boundary condition

Table 6.9: First five non-dimensional frequencies of composite box section of .....................47

8 layers with Cantilever Boundary condition

Table 6.10 First five non-dimensional frequencies of composite box section of ......................47

6 layers with Cantilever Boundary condition

Table 6.11 First five non-dimensional frequencies of composite box section of ......................48

4 layers with Cantilever Boundary condition

Table 6.12 First five non-dimensional frequencies of composite channel section of ................48

8 layers with Cantilever Boundary condition

Table 6.13 First five non-dimensional frequencies of composite channel section of ................49

4 layers with Cantilever Boundary condition

LIST OF FIGURE

Figure Page No

Figure 3.1 Schematic diagram cantilever composite beam ........................................................16

Figure 3.2 Components of the composite beam and dividing them into the finite number ........18

of element

Figure.3.3 Flowchart utilized in Free vibration analysis ...........................................................22

Figure 4.1 (a) Three point bend test setup and fixture .....................................................................26

Figure 4.1 (b) Schematic diagram of three point bending test ........................................................26

Figure 4.2(a) Diamond cutter for cutting specimens .....................................................................28

Figure 4.2(b) Specimens in Y direction .........................................................................................28

Figure 4.2 (c) Specimens in 45 direction ........................................................................................28

Figure 4.2 (d) Specimens in X direction ........................................................................................28

Figure 4.3 Tensile test of woven fiber glass/epoxy composite specimens ................................29

Figure 4.4 Failure pattern of woven fiber glass/epoxy composite specimen .............................30

Figure 4.5 glass/epoxy composite specimen fabricated with different shapes ...........................31

Figure 4.6 Modal Impact Hammer(type 2302-5) .......................................................................32

Figure 4.7. Accelerometer (4507) ................................................................................................32

Figure 4.8 Bruel & Kajer FFT analyzer .....................................................................................33

Figure 4.9 Display unit ...............................................................................................................33

Figure 5.1 FE-Analysis Steps (type 2302-5)………………………...…………………………37

Figure 6.1 1 st

four natural frequency mode shapes .....................................................................41

Figure6.2 Four natural frequency mode shapes of composite beams ........................................43

Figure 6.3: The different peaks of FRF shows the different modes of vibrations and the……...43

coherence

Figure 6.4 The comparison between computational and Experimental results of channel…….50

section under different boundary condition.

Figure 6.5 Effect of layers on free vibration of a cantilever channel section…………….…..50

Figure 6.6 Effect of length on free vibration of a Fixed-Fixed channel section. .....................51

Figure 6.7: Effect of Shape on free vibration of a box section. The natural frequency is…….51

minimum for cantilever and maximum for fixed beam

Figure 6.8: Modal analysis of a 8 layer channel beam at fixed-fixed boundary condition…….52

by Ansys

Figure 6.9: Four natural frequency mode shapes of a 8 layer channel beam at fixed-fixed…....53

boundary condition by Ansys

2

TABLE OF CONTENTS

CHAPTER TITLE PAGE

ACKNOWLEDGEMENT i

ABSTRACT ii

TABLE OF CONTENTS iii

LIST OF TABLES iv

LIST OF FIGURES v

LIST OF SYMBOLS vi

1 INTRODUCTION

1.1 Introduction

1.2 Research Context

1.3 Purpose and Objectives of Study

1.4 Organization of Thesis

1

2

2

4

4

LITERATURE REVIEW

2.1 Introduction

2.2 Reviews on Vibration of Composite Beam

2.3 Critical Discussion

2.4 Scope of Present Study

6

7

7

11

12

3

MATHEMATICAL FORMULATIONS

3.1 Introduction

3.2 The Methodology

3.3 Governing Equation

3.4 Mathematical Model

3.4.1 Vibration study analysis

13

14

14

14

16

17

3.4.2 Derivation of Element Matrices

3.4.3 Stress-Strain matrix

18

19

3.4.4 Element stiffness matrix 19

3.4.5 Generalized element mass matrix 20

3.5 Flow Chart of Program 22

4

EXPERIMENTAL PROGRAMME

4.1 Introduction

4.2 Experimental program for static analysis

4.2.1 Materials

4.2.2 Fabrication of specimens

4.2.3 Bending test

23

24

24

24

25

4.3 Determination of material constants

4.4 Experimental program for vibration study

4.4.1 Fabrication of specimens

4.4.2 Equipments for vibration test

4.4.3 Procedure for free vibration test

27

30

30

31

33

5

6

MODELING IN ANSYS

5.1 Introduction

5.2 Procedure in Modeling ANSYS

5.2.1 Requirement Specification

5.2.2 Idealization Specification

5.2.3 Mesh Generation

5.2.4 Analysis

5.2.5 Post-processing

RESULTS AND DISCUSSIONS

6.1 Introduction

39

40

6.2 Comparison with Previous Studies 40

6.2.1 Vibration analysis studies of isotropic beam 40

6.2.2 Vibration analysis studies of composite beam 41

6.3 Experimental and Numerical Results

6.3.1 Fixed-Fixed Boundary Condition

43

44

6.3.2 Fixed-Free Boundary Condition

6.4 Analysis Results

46

48

4.4.1 Effect of Boundary Condition

4.4.2 Effect of Layers

4.4.3 Effect of Length

4.4.4 Effect of Shape

48

48

49

49

35

36

37

37

38

38

38

38

Chapter 1

INTRODUCTION

1 | P a g e

INTRODUCTION

1.1 Introduction

The widespread use of composite structures in aerospace applications has stimulated many researchers to study various aspects of their structural behavior. These materials are particularly widely used in situations where a large strength-to-weight ratio is required.

Similarly to isotropic materials, composite materials are subjected to various types of damage, mostly cracks and delamination. These result in local changes of the stiffness of elements for such materials and consequently their dynamic characteristics are altered. This problem is well understood in case of constructing elements made of isotropic materials, while data concerning the influence of fatigue cracks on the dynamics of composite elements are scarce in the available literature.

This chapter contains a general introduction of the research that was carried out within the framework of this thesis. The research context is described in Sec.2.1. The focus of the thesis as well as the main objectives is discussed in Sec.2.2.

1.2 Research Context

The beam is manufactured from a Glass Fibre Reinforced Polymer (GFRP) and its box and

Channel like beam. This beam was actually used as a prototype for footbridge. The GFRP

(Glass Fibre Reinforced Polymer) composite materials are being utilized in more structures like bridges as the technology. GFRP composite are ideal for structural applications where high strength to weight and stiffness to weight ratios are needed. As the technology progresses, the cost involved in manufacturing and designing composite material will reduce, thus bringing added cost benefits also.

The vibration analyses in composite beams have been a problem for structural designer for years and have increased recently. Though, all elements have natural frequencies with the

2 | P a g e

potential to suffer excessive vibrations under dynamic load. This is done by using modal analysis, which allows one to determine the natural frequencies of the structure, associated mode shapes and damping. And once natural frequencies are known, thus making structure suitable for the task designed for.

This is mainly due to the human feeling of vibration while crossing a footbridge with a frequency close to the first (fundamental) natural frequency of the bridge, although the vibration caused by the pedestrians are far from harmful to the bridge. Therefore vibration analysis of such structure can be considered to be a serviceability issue. Modal parameters of a structure are frequency, mode shape and damping. Frequency is directly proportional to structure’s stiffness and inverse of mass.

Nevertheless, modal parameters are functions of physical properties of the structure. Thus, changes in the physical properties such as, beginning of local cracks and/or loosening of a connection will cause detectable changes in the modal properties by reducing the structure’s stiffness.

The design of GFRP (Glass Fibre Reinforced Polymer) bridge deck established to promote the use of innovative material and lead to use in footbridge construction to improve the reliability for proper safety and serviceability. The Aberfeldy cable-stayed was the first

GFRP footbridge, built back in 1992. There are only two GFRP footbridge existing in UK knows as the Halgavor and Willcot. The use of glass or carbon fibre reinforced polymer was due to its advantages, for they are easily drawn into having a high strength-to-weight ratio, low maintenance and lightweight.

In this research, Finite element models for different boundary conditions are constructed using the commercial finite element software package ANSYS to support and verify the dynamic measurements. Initial FRP (Fibre Reinforced Polymer) composite channel section and box section beams were created. Furthermore, the FEM results of the beams are compared to the experimental solution for understanding of the relationship between the FE results. The natural frequencies and mode shapes of the composite beam are obtained after performing modal analysis which the author contribution to this area of research.

3 | P a g e

1.3 Purpose and Objectives of Study

The main objective of this thesis is to study and compare the numerical and experimental result of free vibration analysis of composite Fibre Reinforced Polymer (FRP) beam. The present investigation mainly focuses on the study of vibration of industry driven woven fiber glass/epoxy composite beams. A first order shear deformation theory based on finite element model is developed for studying the free vibration, The influence of shape of the beams, boundary conditions, number of layers, fiber orientations and aspect ratio on the free vibration of composite beams are investigated experimentally also examined numerically.

1.4 Organization of Thesis

This thesis contains six chapters. In Chapter 1, a brief introduction of the importance of the study has been outlined.

In Chapter 2, a detailed review of the literature pertinent to the previous research works made in this field has been listed. A critical discussion of the earlier investigations is done. The aim and scope of the present study are also outlined in this chapter.

In Chapter 3, a description of the theory and formulation of the problem and the finite element procedure used to analyse the vibration of composite beams is explained in detail.

The computer program used to implement the formulation is briefly described.

In Chapter 4, the experimental investigation for free vibration and static stability of different shaped composite beam, are described in detail. This chapter includes fabrication procedures for samples, test set-up, apparatus required for different tests and determination of material constants.

In Chapter 5, the 3D finite Element Modelling with the help of ANSYS for free vibration and static stability of different shaped composite beam, are described in detail. This chapter includes procedures of modeling.

4 | P a g e

In Chapter 6, the results and discussions obtained in the study have been presented in detail.

The natural frequency of composite beams, are studied experimentally; the influence of boundary conditions, number of layers, shape, and aspect ratio on the free vibration of channel section and box section composite beams are investigated experimentally and numerically.

In Chapter 7, the conclusions drawn from the above studies are described. There is also a brief note on the scope for further investigation in this field.

In Chapter 8, Some important publications and books referred during the present investigation have been listed in the References.

5 | P a g e

Chapter 2

LITERATURE

REVIEW

6 | P a g e

2.1 Introduction

LITERATURE REVIEWS

The widespread use of composite structures in aerospace applications has stimulated many researchers to study various aspects of their structural behavior. These materials are particularly widely used in situations where a large strength-to-weight ratio is required.

Similarly to isotropic materials, composite materials are subjected to various types of damage, mostly cracks and delamination. These result in local changes of the stiffness of elements for such materials and consequently their dynamic characteristics are altered.

Therefore a comprehensive understanding of the behavior is of fundamental importance in the assessment of structural performance of laminated composites. Thus the dynamic characteristics are of great technical importance for understanding the dynamic systems under periodic loads. Though the present investigation is mainly focused on free vibration of composite beams, some relevant researches on free vibration and static stability or buckling of beams are also studied for the sake of its relevance and completeness.

2.2 Review on vibration of composite beam

Nikpour & Dimarogonas (1988) presented the local compliance matrix for unidirectional composite materials. They have shown that the interlocking deflection modes are enhanced as a function of the degree of anisotropy in composites.

Ostachowicz & Krawczuk (1991) presented a method of analysis of the effect of two open cracks upon the frequencies of the natural flexural vibrations in a cantilever beam. Two types of cracks were considered: double-sided, occurring in the case of cyclic loadings, and singlesided, which in principle occur as a result of fluctuating loadings. It was also assumed that the cracks occur in the first mode of fracture: i.e., the opening mode. An algorithm and a numerical example were included.

7 | P a g e

Krawczuk (1994) formulated a new beam finite element with a single non-propagating oneedge open crack located in its mid-length for the static and dynamic analysis of cracked composite beam-like structures. The element includes two degrees of freedom at each of the three nodes: a transverse deflection and an independent rotation respectively. He presented the exemplary numerical calculations illustrating variations in the static deformations and a fundamental bending natural frequency of a composite cantilever beam caused by a single crack.

Krawczuk & Ostachowicz (1995) investigated eigen frequencies of a cantilever beam made from graphite-fiber reinforced polyimide, with a transverse on-edge non-propagating open crack. Two models of the beam were presented. In the first model the crack was modeled by a massless substitute spring Castigliano‟s theorem. The second model was based on the finite element method. The undamaged parts of the beam were modeled by beam finite elements with three nodes and three degrees of freedom at the node. The damaged part of the beam was replaced by the cracked beam finite element with degrees of freedom identical to those of the non-cracked done. The effects of various parameters the crack location, the crack depth, the volume fraction of fibers and the fibers orientation upon the changes of the natural frequencies of the beam were studied. Computation results indicated that the decrease of the natural frequencies not only depends on the position of the crack and its depth as in the case of isotropic material but also that these changes strongly depend on the volume fraction of the fiibers and the angle of the fibers of the composite material.

Ghoneam (1995) presented the dynamic characteristics laminated composite beams (LCB) with various fiber orientations and different boundary fixations and discussed in the absence and presence of cracks. A mathematical model was developed, and experimental analysis was utilized to study the effects of different crack depths and locations, boundary conditions, and various code numbers of laminates on the dynamic characteristics of CLCB. The analysis showed good agreement between experimental and theoretical results.

Kisa (2003), investigated the effects of cracks on the dynamical characteristics of a cantilever composite beam, made of graphite fibre-reinforced polyamide. The finite element and the component-mode synthesis methods were used to model the problem. The cantilever

8 | P a g e

composite beam divided into several components from the crack sections. The effects of the location and depth of the cracks, and the volume fraction and orientation of the fibers on the natural frequencies and mode shapes of the beam with transverse non-propagating open cracks, were explored. The results of the study leaded to conclusions that, presented method was adequate for the vibration analysis of cracked cantilever composite beams, and by using the drop in the natural frequencies and the change in the mode shapes, the presence and nature of cracks in a structure can be detected.

Li Jun, Hua Hongxing(2008) presented the exact dynamic stiffness matrix of a uniform laminated composite beam based on trigonometric shear deformation theory. The dynamic stiffness matrix is formulated directly in an exact sense by solving the governing differential equations of motion that describe the deformations of laminated beams according to the trigonometric shear deformation theory, which includes the sinusoidal variation of the axial displacement over the cross-section. The derived dynamic stiffness matrix is then used in conjunction with the Wittrick–Williams algorithm to compute the natural frequencies and mode shapes of the composite beams.

Volkan Kahya(2011) studied on a multilayered shear deformable beam element for dynamic analysis of laminated composite beams subjected to moving loads. The laminated beam element includes separate rotational degrees of freedom for each lamina while it does not require any additional axial and transversal degrees of freedom beyond those necessary for a single lamina. The shape functions are selected to ensure compatibility and continuity between the laminae. Interracial slip and domination are not allowed. Results are given for moving load-induced vibrations of laminated composite beams. Effects of the load speed, boundary conditions, and laminate lay-up on the beam response is studied.

Jeong et al.(1995) investigated experimentally the dynamic characteristics of high strength symmetrically laminated carbon fiber epoxy composite thin beams were in a vacuum chamber equipped with a fiber optic vibrometer and the electromagnetic hammer. It was found that the macromechanical theory could accurately predict the dynamic characteristics of the carbon fiber epoxy composite thin beams when the undirectional properties of the composite material were known.

9 | P a g e

Gil Lee et al. (1998) investigated in order to improve the damping capacity of the column of a percision mirror surface grinding machine tool, a hybrid column was manufactured by adhesively bonding glass fiber reinforced epoxy composite plates to a cast iron column. To optimize the damping capacity of the hybrid column, the damping capacity of the hybrid column was calculated with respect to the fiber orientation and thickness of the composite laminate plate and compared to the measured damping capacity. From experiments, it was found that the damping capacity of the hybrid column was 35% higher than that of the cast iron column.

Jaehong Lee(2000) investigated on free vibration analysis of a laminated beam with delaminations is presented using a layerwise theory. Equations of motion are derived from the Hamilton's principle, and a finite element method is developed to formulate the problem.

Numerical results are obtained addressing the effects of the lamination angle, location, size and number of delamination on vibration frequencies of delaminated beams. It is found that a layerwise approach is adequate for vibration analysis of delaminated composites.

Lee and Kim (2002) developed a general analytical model applicable to the dynamic behavior of a thin-walled I-section composite. This model is based on the classical lamination theory, and accounts for the coupling of fexural and torsional modes for arbitrary laminate stacking sequence configuration, i.e. unsymmetric as well as symmetric, and various boundary conditions. A displacement-based one-dimensional finite element model is developed to predict the natural frequencies and corresponding vibration modes for a thin walled composite beam. Equations of motion are derived from Hamilton's principle.

Numerical results are obtained for thin-walled composites addressing the effects of fiber angle, modulus ratio, height-to-thickness ratio, and boundary conditions on the vibration frequencies and mode shapes of the composites.

Lee and Kim (2002) developed a general analytical model applicable to the dynamic behavior of a thin-walled channel section composite. This model is based on the classical lamination theory, and accounts for the coupling of fexural and torsional modes for arbitrary laminate stacking sequence configuration, i.e. unsymmetric as well as symmetric, and various boundary conditions. A displacement-based one-dimensional finite element model is

10 | P a g e

developed to predict the natural frequencies and corresponding vibration modes for a thin walled composite beam. Equations of motion are derived from Hamilton's principle.

Numerical results are obtained for thin-walled composites addressing the effects of fiber angle, modulus ratio, height-to-thickness ratio, and boundary conditions on the vibration frequencies and mode shapes of the composites.

He and Zhu (2011) investigated on Fillets which are commonly found in thin-walled beams.

Ignoring the presence of a fillet in a finite element (FE) model of a thin-walled beam can significantly change the natural frequencies and mode shapes of the structure. A large number of solid elements are required to accurately represent the shape and the stiffness of a fillet in a FE model, which makes the size of the FE model unnecessarily large for global dynamic and static analyses. The natural frequencies and mode shapes of a thin-walled Lshaped beam specimen calculated using the new methodology are compared with its experimental results for 28 modes. The maximum error between the calculated and measured natural frequencies for all the modes is less than 2% and the associated modal assurance criterion values are all above 95%.

Senthamaraikanan and Raman(2012) investigated on vibration characteristic of carbon epoxy composite beams await increased attention due to their successful usage in structural industries. The effect of cross sectional shape on modal parameters like modal frequency, modal shapes and damping behavior under Fixed-Free, Fixed-Fixed boundary condition.

2.6 Critical discussion

The present review indicates that more studies are conducted on laminated composite plate, beams and shells. However studies involving vibration studies of composite laminates are very limited. As regards to methodology, the researchers are more interested to use numerical methods instead of analytical methods. With the advent of high speed computers, more studies are made using finite element method. From the present review of literature, the lacunae of the earlier investigations which need further attention of future researchers.

11 | P a g e

2.4 Scope of Present Study

An extensive review of the literature shows that a lot of work was done on the vibration and static stability of delaminated composite beams. The woven composite is a new class of textile composite and has many industrial applications. Very little work has been done on vibration analysis of composite beams with different cross section. The present study is mainly aimed at filling some of the lacunae that exist in the proper understanding of the vibration analysis of industry driven woven fiber beams. Based on the review of literature, the different problems identified for the present investigated for free vibration of composite beams with different cross section. The present study mainly focuses on the parametric resonance characteristics of homogeneous composite beams. The influence of various parameters such as aspect ratio, number of layers, effect of boundary condition, effect of shapes on composite beams are examined experimentally and numerically using ANSYS and finite element method.

12 | P a g e

Chapter 3

MATHEMATICAL

FORMULATIONS

13 | P a g e

MATHEMATICAL FORMULATIONS

3.1 Introduction

This chapter represents the theory and finite element formulation (FEM) for free vibration, static and dynamic analysis of the composite beam of different cross sections. The basic configuration of the problem investigated here is a composite beam of any boundary condition, however, a typical cantilever composite beam, which has tremendous applications in aerospace structures and high-speed turbine machinery, is considered.

3.2 The Methodology

The governing equations for the vibration analysis of the composite beam are developed. The stiffness matrix and mass matrix of composite beam element is obtained by Krawczuk &

Ostachowicz (1995).

The assumptions made in the analysis are: i. The analysis is linear. This implies constitutive relations in generalized

Hook‟s law for the materials are linear. ii. The Euler–Bernoulli beam model is assumed. iii. The damping has not been considered in this study.

3.3 Governing Equation

The differential equation of the bending of a beam with a mid-plane symmetry (B

ij

= 0) so that there is no bending-stretching coupling and no transverse shear deformation ( Ԑxz= 0) is given by;

IS

11

d

4

dx

4

q

x

14 | P a g e

It can easily be shown that under these conditions if the beam involves only a one layer, isotropic material, then IS

11

= EI = Ebh

3

/12 and for a beam of rectangular cross-section

Poisson‟s ratio effects are ignored in beam theory, which is in the line with Vinson &

Sierakowski (1991).

In Equation 1, it is seen that the imposed static load is written as a force per unit length.

For dynamic loading, if Alembert‟s Principle are used then one can add a term to Equation.1 equal to the product mass and acceleration per unit length. In that case Equation.1 becomes

IS

11

d

4

dx

4

q x

,

t

A

2

(

x

,

t

)

x

2

Where ω and q both become functions of time as well as space, and derivatives therefore become partial derivatives, ρ is the mass density of the beam material, and here A is the beam cross-sectional area. In the above, q(x, t) is now the spatially varying time-dependent forcing function causing the dynamic response, and could be anything from a harmonic oscillation to an intense one-time impact.

For a composite beam in which different lamina have differing mass densities, then in the above equations use, for a beam of rectangular cross-section,

ρA = ρbh =

k

N

1

b h

h k

1

However, natural frequencies for the beam occur as functions of the material properties and the geometry and hence are not affected by the forcing functions; therefore, for this study let q(x, t) be zero.

Thus, the natural vibration equation of a mid-plane symmetrical composite beam is given by;

IS

11

d

4

dx

4

A

2

(

x

,

t

)

x

2

0

It is handy to know the natural frequencies of beams for various practical boundary conditions in order to insure that no recurring forcing functions are close to any of the natural

15 | P a g e

frequencies, because that would result almost certainly in a structural failure. In each case below, the natural frequency in radians/unit time are given as

n

2

(

IS

11

AL

4

)

1

2

Where is the co-efficient, which value is catalogued by Warburton, Young and Felgar and

Once is known then the natural frequency in cycles per second (Hertz) is given by f =

n

n

/2π, which is in the line with Vinson & Sierakowski (1991).

3.4 Mathematical Modeling

The model chosen is a cantilever composite beam of uniform cross-section A, The width, length and height of the beam are B, L and H, respectively in Figure.3.1. The angle between the fibers and the axis of the beam is ‘α’.

Figure 3.1 Schematic diagram cantilever composite beam

16 | P a g e

3.4.1 Vibration Study Analysis

Mass and sti ffness matrices of each beam element are used to form global mass and stiffness matrices. The dynamic response of a beam for a conservative system can be formulated by means of Lagrange‟s equation of motion in which the external forces are expressed in terms of time-dependent potentials and then performing the required operations the entire system leads to the governing matrix equation of motion

M q

K e

P

(

t

)

K g q

0 where “q” is the vector of degree of freedoms.

M

,

K e

,

K g

are the mass, elastic stiffness and geometric stiffness matrices of the beam. The periodic axial force

P t

P o

P t

Cos

t

, where Ω is the disturbing frequency, the static and time dependent components of the load can be represented as a fraction of the fundamental static buckling load Pcr hence putting

P t

P cr

P cr

Cos

t

. i.

In this analysis, the computed static bucking load of the composite beam is considered the reference load. Further the above equation reduces to other problems as follows.

Free vibration with α = 0, β = 0 and ω = Ω/2 the natural frequency

K e

2

M q

0 ii. Static stability with α = 1, β = 0, Ω = 0

K e

P cr

K g q

0

17 | P a g e

3.4.2 Derivation of Element Matrices

In the present analysis two noded composite beam element with three degree of freedom (the axial displacement, transverse displacement and the independent rotation) per node is considered. The characteristic matrices of the composite beam element are computed on the basis of the model proposed by Oral (1991). The stiffness and mass matrices are developed from the procedure given by Krawczuk & Ostachowicz (1995).

Figure 3.2 Components of the composite beam and dividing them into the finite number of elements.

The linear strain can be described in terms of displacements as

B

 where displacement vector in the element reference beam is given as

 

u

1

v

1

1

u

2

v

2

2

T

18 | P a g e

3.4.3 Stress-Strain matrix

D

S

S

11

13

S

S

13

33 where the element of the matrix D are expressed in Appendix A.

Following standard procedures the element stiffness matrix, mass matrix and geometrical stiffness matrix can be expressed as follows:

3.4.4 Element stiffness matrix

Element stiffness matrix for a three-nodes composite beam element with three degrees of freedom δ = (u, v, θ) at each node, for the case of bending in the x, y plan, are given in the line Krawczuk & Ostachowicz (1995) as follows:

K e

IS

11

v

 

T

D B dv

where [B] =

x

2

N

 strain displacement matrix, [N] = shape function matrix and

K e

 

ij

6

6

where

 

ij

6

6

= ( i= j= 1, 2……..6) are

k

11

k

55

7

BHS

33

/ 3

L e

,

k

12

k

21

 

k

56

 

k

65

BHS

33

/ 2

k

13

k

31

k

35

k

53

 

8

BHS

33

/ 3

L k

14

k

41

k

36

k

63

 

k

23

 

k

32

 

k

45

 

k

54

 

2

BHS

33

/ 3

k

15

k

51

BHS

33

/ 3

L e

,

19 | P a g e

k

16

k

61

 

k

25

 

k

52

 

BHS

33

/ 6 ,

k

22

k

66

BH

( 7

H

2

S

11

/ 36

L

L S

33

/ 9 )

k

24

k

42

k

46

k

64

BH

(

2

H

2

S

11

/ 9

L

L S

33

/ 9 )

k

26

k

62

BH

(

H

2

S

11

/ 36

L

L S

33

/ 18 )

k

33

 

16

BHS

33

/ 3

L e

,

k

44

BH

( 4

H

2

S

11

/ 9

L

4

L S

33

/ 9 )

k

34

k

43

0 where B is the width of the element, H is the height of the element and L denotes the length of the element.

S

11

, S

13

, and

S

33

are the stress-strain constants.

3.4.5 Generalized element mass matrix

Element mass matrix of the non-cracked composite beam element is given in the line

Krawczuk & Ostachowicz (1995) as

K e

v

 

T

N dv

M e

 

ij

6

6

where

 

ij

6

6

= ( i= j= 1, 2…….6) are

m

11

m

55

2

BHL e

/ 15 ,

m

12

m

21

 

m

56

 

m

65

BHL

2

/ 180 ,

m

13

m

31

m

35

m

53

BHL e

/ 15 ,

20 | P a g e

m

14

m

41

 

m

45

 

m

54

 

BHL

2

/ 90

m

15

m

51

 

BHL

/ 30

m

16

m

61

 

m

25

 

m

52

BHL

2

/ 180 ,

m

22

m

66

BHL

(

L

2

/ 1890

H

2

/ 360 ),

m

24

m

42

m

46

m

64

BHL

(

L

2

/ 945

H

2

/ 180 ),

m

26

m

62

BHL

(

L

2

/ 1890

H

2

/ 360 ),

m

33

8

BHL

/ 15 ,

m

44

BHL

( 2

L

2

/ 945

2

H

2

/ 45 ),

m

34

m

43

m

36

m

63

m

23

m

32

0 , where ρ is the mass density of the element, B is the width of the element, H is the height of the element and L denotes the length of the element.

21 | P a g e

3.5 Flow Chart of Program

Read Beam geometry

Material properties, boundary conditions

Expression for Standard Procedure:

Element stiffness matrix [Ke], mass matrix [M]

Boundary coditions:

[ Ke], [M]

Free Vibration

Given λ,

Find ω

Determine

Non-dimensional Parameter as: ωn

Determined Vibration Modes

Fig.3.5 Flowchart utilized in Free vibration analysis

22 | P a g e

Chapter 4

EXPERIMENTAL

PROGRAMME

23 | P a g e

EXPERIMENTAL PROGRAMME

4.1 Introduction

This chapter deals with the details of the experimental works conducted on the static analysis and free vibration of industry driven woven roving composite beams. Therefore composite beams are fabricated for the aforementioned experimental work and the material properties are found out by tensile test as per ASTM D3039/ D3039M (2008) guidelines to characterize the composite beams. The experimental results are compared with the analytical or numerical predictions. The experimental work performed is categorized in three sections as follows:

Static analysis

Determination of material constants

Vibration study

4.2 Experimental program for static analysis

4.2.1 Materials

The following constituent materials were used for fabricating the laminate:

Woven roving glass fiber as reinforcement

Epoxy as resin

Hardener

Polyvinyl alcohol as a releasing agent

4.2.2 Fabrication of specimens

In the present investigation, the glass epoxy laminate was fabricated in a proportion of 50:50 by weight fractions of fiber matrix. Araldite LY-556, an unmodified epoxy resin based on

24 | P a g e

Bisphenol-A and hardener (Ciba-Geig, India) HY-951, aliphatic primary amine were used with woven roving E-glass fibers treated with silane based sizing system (Saint-Gobain

Vetrotex) to fabricate the laminated composite beam. Woven roving glass fibers were cut into required shape and size for fabrication. Epoxy resin matrix was prepared by using 10% hardeners. Contact moulding in an open mould by hand lay-up was used to combine plies of woven roving (WR) in the prescribed sequence. A flat plywood rigid platform was selected.

A plastic sheet i.e. a mould releasing sheet was kept on the plywood platform and a thin film of polyvinyl alcohol was applied as a releasing agent. Laminating starts with the application of a gel coat (epoxy and hardener) deposited on the mould by brush, whose main purpose was to provide a smooth external surface and to protect the fibers from direct exposure to the environment. Subsequent plies were placed one upon another with the matrix in each layer to obtain sixteen stacking plies. The laminate consisted of 8 layers of identically 0 oriented woven fibers as per ASTM D2344/ D2344M (2006) specifications. The mould and lay up were covered with a release film to prevent the lay up from bonding with the mould surface.

Then the resin impregnated fibers were placed in the mould for curing. The laminates were cured at normal room temperature under a pressure of 0.2 MPa for three days. After proper curing of the composite beams, the release films were detached. From the laminates the specimens were cut for three-point bend test (Figure 4.1a & 4.1b) by brick cutting machine into 45 x 6mm (Length Breadth) size as per ASTM D2344/ D2344 specification and the thickness was taken as per the actual measurement. The average thickness of specimens for bend test is 3.0 mm.

4.2.3 Bending test

The most commonly used test for ILSS is the short beam strength (SBS) test under three point bending. The SBS test was done as per ASTM D 2344/ D 2344 M (2006) by using the

INSTRON 1195 material testing machine. The specimens were tested at 2, 50, 100, 200 and

500 mm/minute cross head velocities with a constant span of 34 mm to obtain interlaminar shear strength (ILSS) of samples. Before testing, the thickness and width of the specimens were measured accurately. The test specimen was placed on the test fixtures and aligned so

25 | P a g e

that its midpoint was centered and its long axis was perpendicular to the loading nose. The load was applied to the specimen at a specified cross head velocity. Breaking load of the sample was recorded. About five samples were tested at each level of experiment and their average value along with standard deviation (SD) and coefficient of variation (CV) were reported in result part. The interlaminar shear strength was calculated using the formula,

S = (0.75Pb)/bd as per ASTM D 2344

Where Pb is the breaking load in kg; b is the width in mm and d is the thickness in mm.

Figure 4.1 (a): Three point bend test setup and fixture

Figure 4.1 (b): Schematic diagram of three point bend test

26 | P a g e

4.3 Determination of material constants

Laminated composite plates behave like orthotropic lamina, the characteristics of which can be defined completely by four material constants i.e. E1, E2, G12, and V12 where the suffixes 1 and 2 indicate principal material directions. For material characterization of composites, laminate having eight layers was fabricated to evaluate the material constants.

The constants are determined experimentally by performing unidirectional tensile tests on specimens cut in longitudinal and transverse directions, and at 45° to the longitudinal direction, as described in ASTM standard: D 3039/D 3039 M (2008). The tensile test specimens are having a constant rectangular cross section in all the cases. The dimensions of the specimen are mentioned below in Table 4.1.

Table 4.1: Size of the specimen for tensile test

Length(mm) Width(mm)

Thickness(mm)

200

Width(mm) Thickness(mm)

25 3

The specimens were cut from the plates themselves by diamond cutter or by hex saw as per requirement as shown in Figure 4.2 (a). Four replicate sample specimens were tested and mean values were adopted. The test specimens are shown in Figure 4.2. (b) to Figure 4.2(d).

27 | P a g e

Figure 4.2(a)

Figure 4.2(b)

Figure 4.2(c) Figure 4.2(d)

Figure 4.2(a): Diamond cutter for cutting specimens, (b) Specimens in Y direction,

(c) Specimens in 45 direction, (d) Specimens in X direction.

Coupons were machined carefully to minimize any residual stresses after they were cut from the plate and the minor variations in dimensions of different specimens are carefully measured. For measuring the Young's modulus, the specimen was loaded in INSTRON 1195 universal testing machine (as shown in Figure 4.3) monotonically to failure with a recommended rate of extension

(rate of loading) of 0.2 mm/minute. Specimens were fixed in the upper jaw first and then gripped in the movable jaw (lower jaw). Gripping of the specimen should be as much as possible to prevent the slippage. Here, it was taken as 50mm in each side for gripping. Initially strain was kept at zero. The load, as well as the extension, was recorded digitally with the help of a load cell

28 | P a g e

and an extensometer respectively. Failure pattern of woven fiber glass/epoxy composite specimen is shown in Figure 4.4. From these data, engineering stress vs. strain curve was plotted; the initial slope of which gives the Young's modulus. The ratio of transverse to longitudinal strain directly gives the Poisson's ratio by using two strain gauges in longitudinal and transverse direction. But here Poisson.s ratio is taken as 0.3.

The shear modulus was determined using the following formula from Jones [1975] as:

The values of material constants finally obtained experimentally for vibration are presented in

Chapter-6.

Figure 4.3: Tensile test of woven fiber glass/epoxy composite specimens

29 | P a g e

Figure 4.4: Failure pattern of woven fiber glass/epoxy composite specimen

4.4 Experimental programme for vibration study

4.4.1 Fabrication of specimens

The fabrication procedure for preparation of the composite beams of channel section and box section in case of vibration study was bit difficult. Artificial metal moulds were fabricated to maintain the shape. Specimens are fabricated by hand layup technique and cured under room temperature. The laminate consisted of eight layers of identically 0- 90° oriented woven fibers to maintain thickness of the beam as 5mm. Beams are fabricated by maintaining constant moment of inertia and uniform cross sectional area with uniform length of 400mm in order to evaluate the shape Effect. After completion of all the layers, again aplastic sheet was covered on the top of last ply by applying polyvinyl alcohol inside thesheet as releasing agent. Again one flat ply board and a heavy flat metal rigid platformwas kept at the top of the beams for compressing purpose. The plates were left for aminimum of 48 hours before being transported and cut to exact shape for testing. All the specimens are tested for free vibration analysis. The geometrical dimensions (i.e.length, breadth, and thickness), ply orientations of the fabricated beams are shown in Table-4.2. All the specimens described in Table 4.2 were tested for its vibration characteristics. To study the effect of boundary condition on the natural frequency of fabricated beams, the beams were tested for three different boundary

30 | P a g e

conditions (B.C) i.e. for cantilever, Fixed-Fixed, Free-Free. For different boundary conditions, one iron frame was used.

Sections

Figure 4.4: glass/epoxy composite specimen fabricated with different shapes

Height

H(m)

Width

B(m)

Weight

(kg)

Area

(m

2

) box 0.04 0.03 0.31 4.5 channel 0.04 0.03 0.32 5.3

Table 4.2 Proporties of composite beam specimen

4.4.2 Equipments for vibration test

In order to achieve the right combination of material properties and service performance, the dynamic behavior is the main point to be considered. To avoid the typical problems caused

31 | P a g e

by vibrations, it is important to determine the natural frequency of the structure and the modal shapes to reinforce the most flexible regions or to locate the right positions where weight should be reduced or damping should be increased. The fundamental frequency is a key parameter. The natural frequencies are sensitive to the orthotropic properties of composite plates and design-tailoring tools may help in controlling this fundamental frequency. Due to the advancement in computer aided data acquisition systems and instrumentation, experimental modal analysis or free vibration analysis has become an extremely important tool in the hands of an experimentalist. The apparatus which are used in free vibration test are

Modal hammer ( type 2302-5)

Accelerometer (type 4507)

FFT Analyzer (Bruel Kajer FFT analyzer type .3560)

Notebook with PULSE software.

Specimens to be tested

The apparatus which is used in the vibration test are shown in Figure 4.7 to Figure 4.10.

Figure 4.7: Modal Impact Hammer(type 2302-5) Figure 4.8: Accelerometer (4507)

32 | P a g e

Figure 4.9: Bruel & Kajer FFT analyzer Figure 4.10: Display unit

4.4.3 Procedure for free vibration test

The setup and the procedure for the free vibration test are described sequentially as given below. The test specimens were fitted properly to the iron frame. The connections of FFT analyzer, laptop, transducers, modal hammer, and cables to the system were done. The pulse lab shop version-10.0 software key was inserted into the port of the computer. The beams were excited in a selected point by means of small impact with an impact hammer (Model

2302-5) for cantilever, Fixed-Fixed and Free-Free boundary condition. The input signals were captured by a force transducer, fixed on the hammer. The resulting vibrations of the specimens on the selected point were sensed by an accelerometer. The accelerometer (B&K,

Type 4507) was mounted on the specimen by means of bees wax. The signal was then processed by the FFT Analyzer and the frequency spectrum was also obtained. Both input and output signals are investigated by means of spectrum analyzer (Bruel & kajer) and resulting frequency response functions are transmitted to a computer for modal parameter extraction. The output from the analyzer was displayed on the analyzer screen by using pulse software. Various forms of frequency response functions (FRF) were directly measured.

However, the present work represents only the natural frequencies of the beams. For FRF, at each singular point the modal hammer was struck five times and the average value of the response was displayed on the screen of the display unit. At the time of striking with a modal

33 | P a g e

hammer to the points on the specimen precaution were taken for making the stroke to be perpendicular to the surface of the beams. Then by moving the cursor to the peaks of the FRF graph the frequencies are measured.

34 | P a g e

Chapter 5

MODELING

IN ANSYS

35 | P a g e

MODELING IN ANSYS

5.1 Introduction

The finite element simulation was done by FEA package known as ANSYS. The FEA software package offerings include time-tested, industry-leading applications for structural, thermal, mechanical, computational fluid dynamics, and electromagnetic analyses, as well as solutions for transient impact analysis. ANSYS software solves for the combined effects of multiple forces, accurately modelling combined behaviours resulting from "multiphysics" interactions.

This is used to perform the modelling of the beam and calculation of natural frequencies with relevant mode shapes.This is used to simulate both the linear & nonlinear effects of structural models in a static or dynamic environment. The advanced nonlinear structural analysis includes large strain, numerous nonlinear material models, nonlinear buckling, post-buckling, and general contact. Also includes the ANSYS Parametric Design Language (APDL) for building and controlling user-defined parametric and customized models.

The purpose of the finite element package was utilised to model the Fibre reinforced polymer

(FRP) beam in 3-D as SHELL93 (8node93). This package enables the user to investigate the physical and mechanical behavior of the beam.

The FE-model parameters extracted from the Strongwell manual [19] provided with the composite beam specimen. The FE-model constructed along the vertical direction only which made it applicable to the real bridge model. The load applied from pedestrian used to come in vertical directions during the walking or movement along the bridge that is why the analysis is being done toward vertical directions. Though, the specimen has anisotropy properties but we have only considered the vertical direction that is why the linear isotropic parameter only used.

36 | P a g e

5.2 Procedure in Modelling ANSYS

There are major and sub important steps in ANSYS model, pre-processing, solution stage and post-processing stage.

Figure 6.1: FE-Analysis Steps

5.2.1 Requirement Specification

This step is done in pre-processing in ANSYS. In this work the beam element model used know was SHELL93 and it was specification at the pre-processing stage. The SHELL93 element is applicable to this model for the structural meshing and boundary condition applications.

37 | P a g e

Geometry Definition

Thickness

Young modulus

Density

Width

Length of the beam

Values

3.57e-4m

1.46e9

1660

0.05m

0.40m

Poisson Ratio 0.3

Table 5.1:Input data for Modelling of the beam

The parameter specified in the table above indicated that only vertical direction analysis was carried on the beam. This is applicable to the modal analysis experiment in the previous section.

5.2.2 Idealization Specification

This is sub-stepping procedure in model context represents a 3D shell definition. This model is optimized for rapid FEM analysis and is composed of 2D geometry, beam surface model. It is easy to locate and calculate the numerical position in shell geometry; beam shell model can be defined of the 3D definition. The analysis type is defined as modal

5.2.3 Mesh Generation

The generation of a mesh on the idealized geometry is done through meshed model. The meshing depend on the configuration for the model, the general rules are carried out by setting a density for the mesh. In this application, loads and boundary conditions are added in the input file. The solver input file consists of mesh elements, nodes and load cases. The input file is generated from the application containing mesh elements, nodes and boundary conditions are added to the file.

5.2.4 Analysis

This is a stage where solution was conducted. It was the step to pre-processing and different stages of analysis took place. The load is applied to edges of beam, this was easier to implement in SHELL model. And the other entire complex algorithm in FEM solved.

5.2.5 Post-processing

At this stage the results of analysis are obtained numerically and graphically.

38 | P a g e

Chapter 6

RESULT &

DISCUSSION

39 | P a g e

RESULT AND DISCUSSION

6.1 Introduction

In this chapter the results obtained from ANSYS 12 software package are used for the numerical results given below, the procedure to obtained the results on ANSYS given on the chapter 5 and

Experimental procedure for the experimental results are given in chapter 4. The ANSYS program must be first verified in order to ensure the subsequent analyses are free of error.

Therefore the result obtained from the analysis is compared with available results of references.

Natural frequencies obtained from experimental and ANSYS are listed in tables and thoseresults comparing with the available results of references for thecomposite laminated beam with different boundary conditions. And mode shapes are presented by graphs for different boundary conditions.

6.2 Comparison with Previous Studies

In order to check the accuracy of the present analysis, the case considered in Kisa (2004) is adopted here for Isotropic beam and the case considered in Li Jun (2008) is adopted for

Composite beam.

To find out the natural frequencies and mode shapes of beam, finite element solution program done by ANSYS.

6.2.1 Vibration analysis studies of isotropic beam

Length, L = 0.2m, Breadth , b= 0.0078m

Depth, d= 0.025m, E= 216.19e9 Nm-2

V= 0.28, P = 7.85×10^3.

Cantilever boundary condition considered.

40 | P a g e

Natural frequencies Present study Kisa (1998)

1 st

Mode

2 nd

mode

3 rd

mode

4 th

mode

1038.21

6506.89

18229.11

35780.05

1037.01

6458.34

17960.54

34995.429

Table 6.1: First three non-dimensional frequencies of isotropic beam

Figure 6.1 : 1 st

four natural frequency mode shapes

6.2.2 Vibration analysis studies of Composite beam

Modulus of elasticity, E11 =144.80 Pa

E22 = 9.65 Pa

Modulus of rigidity, G12 = 4.14 pa

G13 = 3.45 pa

41 | P a g e

Poisson’s Ratio,

= 0.3

Mass density, ρ = 1389.23kg/m3

Length , L = 0.381m,

Height, h = 25.4*10^-3 m,

Breadth, b = 25.4*10^-3 m

Both Cantiliver and Fixed boundary condition is considerd

Clamp -Clamp Clamp -Free

Natural

frequencies

1 st

Mode

Present study

637.74

Jun,Honhxing

(2009)

638.5

Present study

105.37

Jun,Honhxing

(2009)

105.39

2 nd

mode 1656.41 1657.3 636.71 637.67

3 rd

mode

4 th

Mode

3032.19 3034.0 1696.94 1698.0

4663.51 4661.2 2391.11 2392.3

5 th

Mode 4780.74 4784.6 3119.27 3121.0

Table 6.2 Comparison of Natural frequencies (Hz) of [30/50/30/50] composite beam

0.45

0.4

0.35

0.3

0.25

0.2

0.15

0.1

0.05

0

-0.05

0 0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1

0

-0.1

-0.2

-0.3

-0.4

0

0.5

0.4

0.3

0.2

0.1

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1

42 | P a g e

0.5

0.4

0.3

0.2

0.1

0

-0.1

-0.2

-0.3

0 0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1

0.5

0.4

0.3

0.2

0.1

0

-0.1

-0.2

-0.3

-0.4

0 0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1

Figure6.2: Four natural frequency mode shapes of composite beams

6.3 Experimental and Numerical Results

Numerical (FEM) and experimental results of frequencies of vibration for [0/0]8s woven fiber

Glass/Epoxy composite beams are obtained for different boundary conditions. The boundary conditions considered for the present numerical analysis as well as experimental work are - cantilever, Fixed-Fixed, simply supported.

Figure 6.3: The different peaks of FRF shows the different modes of vibrations and the coherence

43 | P a g e

6.3.1 Fixed-Fixed Boundary Condition

Channel section; fixed-fixed; 8 layers

Frequency

ω 1

ω 2

ω 3

ω 4

ω 5

Experimental

(L=400mm)

272

436

652

-

-

L=400mm

246.05

420.85

647.72

892.77

910.67

ANSYS

L=600mm

137.34

193.45

335.91

458.26

521.00

L=800mm

87.882

110.11

204.43

275.26

301.41

Table 6.3: First five non-dimensional frequencies of composite channel section of 8 layers with Fixed-Fixed Boundary condition

Channel section; fixed-fixed ; 6 layers

ANSYS

Frequency

ω 1

ω 2

ω 3

ω 4

ω 5

L=400mm

245.68

415.96

591.84

704.77

767.58

L=600mm

121.98

199.41

305.91

448.47

513.23

L=800mm

Table 6.4: First five non-dimensional frequencies of composite channel section of 6 layers with Fixed-Fixed Boundary condition

44 | P a g e

Channel section; Fixed-Fixed; 4 layer

Frequency

ω 1

ω 2

ω 3

ω 4

ω 5

L=400mm

225.61

404.23

512.27

514.15

552.28

ANSYS

L=600mm

109.58

187.41

278.69

437.52

480.20

L=800mm

66.169

106.71

168.55

258.98

291.45

Table 6.5: First five non-dimensional frequencies of composite channel section of 4 layers with Fixed-Fixed Boundary condition

Box section; fixed-fixed; 8 layers

Frequency

ω 1

ω 2

ω 3

ω 4

ω 5

Experimental

(L=400mm)

532.0

604.0

1187.0

1397.6

1612.0

L=400mm

526.95

593.41

1295.7

1457.9

1598.4

ANSYS

L=600mm

249.23

281.12

652.22

734.12

1075.0

L=800mm

143.51

162.01

385.53

434.54

732.24

Table 6.6: First five non-dimensional frequencies of composite box section of 8 layers with

Fixed-Fixed Boundary condition

45 | P a g e

Box section; fixed-fixed ; 6 layers

Frequency

ω 1

ω 2

ω 3

ω 4

ω 5

L=400mm

512.81

582.46

1258.0

1420.2

1461.3

ANSYS

L=600mm

241.92

276.30

634.13

720.09

1061.4

L=800mm

139.13

159.29

374.45

426.95

711.79

Table 6.7: First five non-dimensional frequencies of composite box section of 6 layers with

Fixed-Fixed Boundary condition

Box section; Fixed-fixed; 4 layer

Frequency

ω 1

ω 2

ω 3

ω 4

ω 5

L=400mm

498.64

566.97

1152.0

1200.0

1379.0

ANSYS

L=600mm

235.86

268.12

615.59

700.39

1021.6

L=800mm

135.71

154.33

364.71

414.57

690.08

Table 6.8: First five non-dimensional frequencies of composite box section of 4 layers with

Fixed-Fixed Boundary condition

46 | P a g e

6.3.2 Fixed-Free Boundary Condition

Box section; cantilever ; 8 layers

Frequency

ω 1

ω 2

ω 3

ω 4

ω 5

Experimental

(L=400mm)

136

-

532.00

657

872

ANSYS

L=400mm

91.116

102.90

532.62

599.16

806.23

L=600mm

40.801

46.099

248.34

279.99

538.19

L=800mm

23.011

26.004

142.17

160.45

390.07

Table 6.9: First five non-dimensional frequencies of composite box section of 8 layers with

Cantilever Boundary condition

Box section; cantilever ; 6 layers

Frequency

ω 1

ω 2

ω 3

ω 4

ω 5

ANSYS

L=400mm L=600mm

88.228

101.19

517.45

588.45

800.43

39.488

45.336

240.83

275.27

535.09

L=800mm

22.267

25.574

137.75

157.79

378.47

Table 6.10: First five non-dimensional frequencies of composite box section of 6 layers with

Cantilever Boundary condition

47 | P a g e

Box section; cantilever ; 4 layer

Frequency

ω 1

ω 2

ω 3

ω 4

ω 5

Ansys

L=400mm L=600mm

86.071 35.524

97.900

503.35

571.65

792.97

43.835

234.84

266.82

532.43

L=800mm

21.723

24.721

134.37

152.77

368.69

Table 6.11: First five non-dimensional frequencies of composite box section of 4 layers with

Cantilever Boundary condition

Channel section; Cantilever; 8 layers

Frequency Experimental

(L=400mm)

L=400mm

ANSYS

L=600mm L=800mm

ω 1

ω 2

ω 3

ω 4

ω 5

83.00

89.00

201.0

323.0

-

69.244

72.570

192.62

305.84

419.34

30.889

39.323

99.677

171.82

191.31

17.397

23.940

63.739

108.58

111.34

Table 6.12: First five non-dimensional frequencies of composite channel section of 8 layers with Cantilever Boundary condition

48 | P a g e

Channel section; Cantilever; 6 layers

Frequency

ω 1

ω 2

ω 3

ω 4

ω 5

L=400mm

63.902

68.521

182.79

275.27

414.52

L=600mm

30.565

34.420

89.714

146.20

189.28

Table 6.12: First five non-dimensional frequencies of composite channel section of 6 layers with Cantilever Boundary condition

Channel section; Cantilever; 4 layer

Frequency

ω 1

ω 2

ω 3

ω 4

L=400mm

52.319

67.101

172.25

241.09

ANSYS

L=600mm

28.678

29.931

81.862

123.72

L=800mm

16.857

18.487

49.140

78.737

Table 6.13: First five non-dimensional frequencies of composite channel section of 4 layers with Cantilever Boundary condition

49 | P a g e

6.4 Analysis Results

4.4.1 Effect of Boundary Condition

1000

900

800

700

600

500

400

300

200

100

0

ω1 ω2 ω3 experimental cantiliver ansys cantiliver experimental fixed-fixed ansys fixed-fixed

ω4

Figure 6.4 The comparison between computational and Experimental results of channel section under different boundary condition. The natural frequencies are much same.

4.4.2 Effect of Layers

450

400

350

300

250

200

150

100

50

0

8 layers

6 layers

4 layers

ω1 ω2 ω3 ω4 ω5

Figure 6.5 Effect of layers on free vibration of a cantilever channel section. The natural frequency increases with increases in no. of layers.

50 | P a g e

4.4.3 Effect of Length

2000

1800

1600

1400

1200

1000

800

600

400

200

0

ω1 ω2 ω3 ω4 ω5

L=800mm

L=600mm

L=400mm

Figure 6.6 Effect of length on free vibration of a Fixed-Fixed channel section. The natural frequency decreases with increases in length of the beam.

4.4.4 Effect of Length

1600

1400

1200

1000

800

600

400 channel box

200

0

ω1 ω2 ω 3 ω 4

Figure 6.7: effect of Shape on free vibration of a box section. The natural frequency is minimum for cantilever and maximum for fixed beam

51 | P a g e

Figure 6.8: Modal analysis of a 8 layer channel beam at fixed-fixed boundary condition by Ansys

52 | P a g e

Figure 6.9: Four natural frequency mode shapes of a 8 layer channel beam at fixed-fixed boundary condition by Ansys

53 | P a g e

Chapter 7

CONCLUSION

54 | P a g e

CONCLUSION

The following conclusions can be made from the present investigations of the box and channel shaped composite beam finite element. This element is versatile and can be used for static and dynamic analysis of a composite or isotropic beam.

(1) The natural frequencies of different boundary conditions of composite beam have been reported. The program result shows in general a good agreement with the existing literature.

(3) It is found that natural frequency is minimum for clamped –free supported beam and maximum for clamped-clamped supported beam.

(4) Mode shape was plotted for differently supported laminated beam with the help of

ANSYS [58] to get exact idea of mode shape. Vibration analysis of laminated composite beam was also done on ANSYS [58] to get natural frequency and same trend of natural frequency was found to be repeated.

(5) There is a good agreement between the experimental and numerical results.

(6) The Finite Element method defined previously is directly applied to the explained examples of generally laminated composite beams to obtain the natural frequencies, the impact of Poisson effect, slender ratio, material anisotropy, shear deformation and boundary conditions on the natural frequencies of the laminated beams are analyzed. And it is found that the present results are in very good agreement with the theoretical results of references.

(7) We assumed different examples and it is found that natural frequencies increase with the value of E1 increases.

(8) It is found that natural frequencies decrease with the increase of beam length.

(9) It is observed that natural frequency increases with increase in number of layers and aspect ratios for both box and channel shaped beams

55 | P a g e

(10) The material anisotropy has a relatively negligible effect on the mode shapes and the slenderness ratio has considerable effect on all five modes especially on the fifth mode.

7.2 SCOPE OF FUTURE WORK

1.

An analytical formulation can be derived for modelling the behaviour of laminated composite beams with integrated piezoelectric sensor and actuator. Analytical solution for active vibration control and suppression of smart laminated composite beams can be found.

The governing equation should be based on the first-order shear deformation theory .

2.

The dynamic response of an unsymmetrical orthotropic laminated composite beam, subjected to moving loads, can be derived. The study should be including the effects of transverse shear deformation, rotary and higher-order inertia. And also we can provide more number of degree of freedom about 10 to 20 and then should be analyzed by higher order shear deformation theory.

3.

The free vibration characteristics of laminated composite cylindrical and spherical shells can be analyzed by the first-order shear deformation theory and a meshless global collocation method based on thin plate spline radial basis function.

4. An algorithm based on the finite element method (FEM) can be developed to study the dynamic response of composite laminated beams subjected to the moving oscillator. The first order shear deformation theory (FSDT) should be assumed for the beam model.

5. The damping behavior of laminated sandwich composite beam inserted with a visco elastic layer can be derived.

6. Static and dynamic stability of composite beams with cracks, delaminations under hygrothermal condition

56 | P a g e

REFERENCES

1) Adams R. D., Cawley, P. C., Pye J. and Stone J. (1978). A vibration testing for nondestructively assessing the integrity of the structures. Journal of Mechanical Engineering

Sciences 20, 93-100.

2) Ahmed Maher et al, Modelling of vibration damping in composite structures, Composite

Structures (1999): 163-170

3) Banerjee J. R. (2001). Frequency equation and mode shape formulae for composite

Timoshenko beams. Composite Structures 51 (2001) 381-388.

4) Binici B. (2005) Vibration of beams with multiple open cracks subjected to axial force. J

Sound Vib; 287(1-2):277–95.

5) Broek D. Elementary Engineering Fracture Mechanics. Martinus Nijhoff; 1986.

6) Chandrupatla T. R., Belegundu A. D. Introduction to finite elements in engineering. New

Jersey: Prentice-Hall; 1991.

7) Dai Gil lee et al, Experimental investigation of the dynamic characteristic of carbon fibre epoxy composite thin beams, Composite Structures 33, Issue 2, (1995) 77-86

8) Dimarogonas A.D. (1996), Vibration of Cracked Structures: A State of the Art Review.

Engineering Fracture Mechanics, 55(5), 831-857.

9) D G Lee et al, Damping improvement of machine tool column with polymer matrix fibre composite material, Composite Structures (1998): 155-163

10) Dai Gil lee et al, Steel composite hybrid headstock for high precision grinding machines,

Composite Structures (2001): 1-8

11) Dai Gil lee et al, Damping characteristic of composite hybrid spindle covers for high speed machine, Journal of Materials processing technology, 113, (2001); 178-183

57 | P a g e

12) Ghoneam S. M. (1995). Dynamic analysis of open cracked laminated composite beams.

Composite Structures 32 (1995) 3-11.

13) Gounaris G.D., Papadopoulos CA, Dimarogonas AD. (1996). Crack identification in beams by coupled response measurement. Comput Struct; 58(2):299–305.

14) Goyal Vijay K., Kapania Rakesh K. (2008). Dynamic stability of laminated beams subjected to non-conservative loading. Thin-Walled Structures 46 (2008) 1359– 1369.

15) Hamada A. Abd El-Hamid (1998). An investigation into the eigen-nature of cracked composite beams. Composite Structure Vol. 38, No. l - 4, pp. 45-55.

16) Jones R. M. Mechanics of composite materials. Taylor & Francis Press; 1999.

17) Jaehong Lee, Free vibration analysis of delaminated composite beams, Composite

Structures, 2002; Page 123-129

18) Jaehong Lee et al, Free vibration of thin walled composite beams with I shaped cross sections. Composite Structures, 2002; Page 205-215

19) Jaehong Lee et al, Flextural- Torsional coupled vibration of thin walled composite beams with channel sections. Composite Structures, 2002; Page 133-144

20) Kaihong Wang, Daniel J. Inmana & Charles R. Farrar (2005).Modeling and analysis of a cracked composite cantilever beam vibrating in coupled bending and torsion. Journal of

Sound and Vibration 284 (2005) 23–49. 63

21) K.He, W.D.Zhu, Modelling of fillets in thin walled beams using Shell/Plate and Beam finite element, J.of vibration and acoustics; 131, 2009,051002

22) Kisa Murat (2003). Free vibration analysis of a cantilever composite beam with multiple cracks. Composites Science and Technology 64 (2004) 1391–1402.

23) Krawczuk M, (1994). A new finite element for the static and dynamic analysis of cracked composite beams. Composite & Structures Vol. 52. No. 3, pp. 551-561, 1994.

58 | P a g e

24) Ostachowicz W.M. and Krawczuk M (1991). Analysis of the effect of cracks on the natural frequencies of a cantilever beam. Journal of Sound and Vibration (1991) 150(2),

191-201.

25) Krawczuk M., Ostachowicz W. and Zak A. (1997). Modal analysis of cracked, unidirectional composite beam. PIh $0022-1694(97)00045-0S1359-8368(96)00081-9.

26) Krawczuk M., and Ostachowicz W.M., (1995). Modelling and Vibration Analysis Of a

Cantilever Composite Beam with a Transverse Open Crack. Journal of Sound and

Vibration (1995) 183(1), 69-89.

27) L.Balis Crema et al, Damping Characteristic of Fabric and laminated kalver composites,

Composite Structure, 1989; 593-596

28) Lu Z.R., Law S.S. (2009).Dynamic condition assessment of a cracked beam with the composite element model. Mechanical Systems and Signal Processing 23 (2009) 415–

431.

29) Manivasagam S. & Chandrasekharan K. (1992). Characterization of damage progression in layered composites. Journal of Sound and Vibration 152, 177-179.

30) Michele F.Ashby, Materials Seclection in Mechanical Design, Elsveior, 4 th

Edition

31) Nikpour K. and Dimarogonas A.D. (1988). Local compliance of composite cracked bodies. Journal of Composite Science and Technology 32,209-223.

32) Nikpour K. (1990). Buckling of cracked composite columns. Journal of Solids and

Structures 26, 371-1386.

33) Oral S. (1991). A shear flexible finite element for non-uniform laminated composite beams. Computers and Structures 38, 353-360.

34) Ozturk Hasan, Sabuncu Mustafa (2005). Stability analysis of a cantilever composite beam on elastic supports. Composites Science and Technology 65 (2005) 1982–1995.

59 | P a g e

35) Przemieniecki J. S. Theory of Matrix Structural Analysis. London: McGraw Hill first edition (1967).

36) Przemieniecki J. S. and Purdy D. M. (1968). Large deflection and stability analysis of two dimensional truss and frame structure. AFFDL-TR-68-38.

37) Reddy J N. Mechanics of laminated composite plates theory and analysis. New York:

CRS Press; 1997. 64

38) R.B.Ingle et al, An experimental investigation on dynamic analysis of high speed carbonepoxy shaft in aerostatic conical journal bearings, Composite Science & Technology,

2006;604-612

39) Sih G. C. and Chen E. P. (1981) in Mechanics of Fracture. Cracks in composite materials

London: Martinus Nijho first edition.

40) Timoshenko S. (1940), Theory of Plates and Shells, McGraw Hill Book Company Inc.,

New York & London.

41) Vinson J. R. and Sierakowski R. L. Behaviour of Structures Composed of Composite

Materials. Dordrecht: Martinus Nijho first edition (1991).

42) Wauer J. (1991). Dynamics of cracked rotors: a literature survey. Applied Mechanics

Reviews 17, 1-7.

43) Wang Kaihong and Inman Daniel J. (2002). Coupling of Bending and Torsion of a

Cracked Composite Beam. Center for Intelligent Material Systems and Structures

Virginia Polytechnic Institute and State University Blacksburg, VA 24061-0261.

44) Yang J., Chen Y. (2008). Free vibration and buckling analyses of functionally graded beams with edge cracks. Composite Structures 83 (2008) 48–60.

45) Zak A., Krawczuk M. and Ostachowicz W. M. (2000). Numerical and experimental investigation of free vibration of multilayered delaminated composite beams and plates.

Composite Mechanics 26 (2000) 309-315.

60 | P a g e

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
