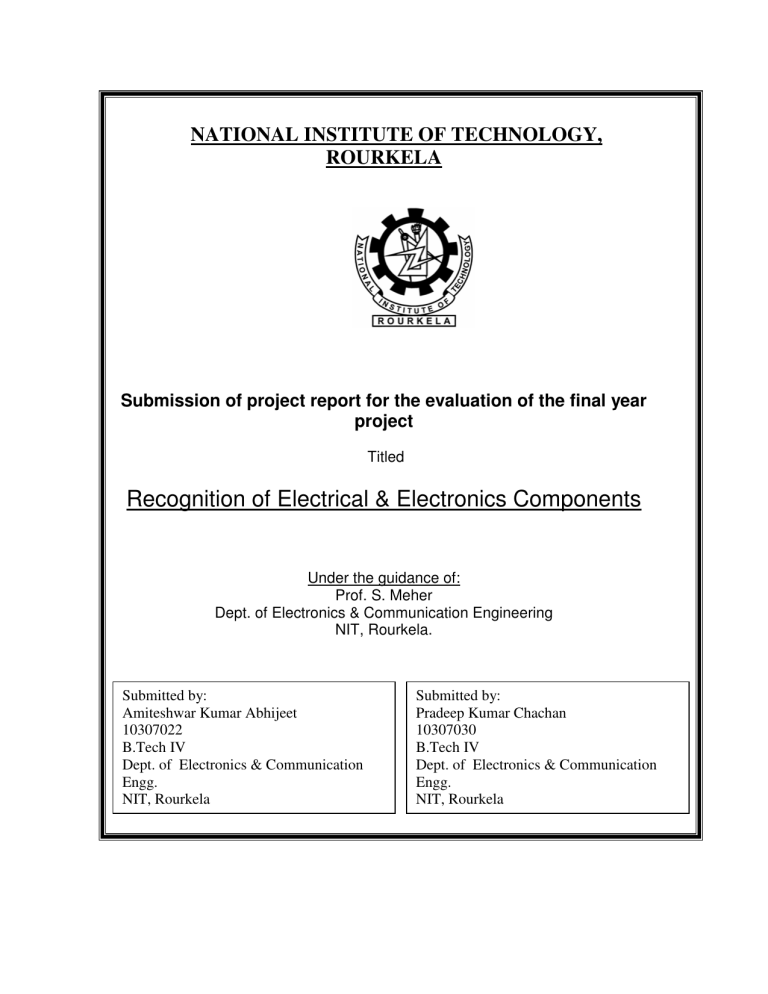

Recognition of Electrical & Electronics Components NATIONAL INSTITUTE OF TECHNOLOGY, ROURKELA
NATIONAL INSTITUTE OF TECHNOLOGY,
ROURKELA
Submission of project report for the evaluation of the final year project
Titled
Recognition of Electrical & Electronics Components
Submitted by:
10307022
B.Tech IV
Engg.
NIT, Rourkela
Under the guidance of:
Prof. S. Meher
Dept. of Electronics & Communication Engineering
NIT, Rourkela.
Amiteshwar Kumar Abhijeet
Dept. of Electronics & Communication
Submitted by:
Pradeep Kumar Chachan
10307030
B.Tech IV
Dept. of Electronics & Communication
Engg.
NIT, Rourkela
NATIONAL INSTITUTE OF TECHNOLOGY,
ROURKELA
Submission of project report for the evaluation of the final year project
Titled
Recognition of Electrical & Electronics Components
Under the guidance of:
Prof. S. Meher
Dept. of Electronics & Communication Engineering
NIT, Rourkela.
Submitted by:
Amiteshwar Kumar Abhijeet
10307022
B.Tech IV
Dept. of Electronics & Communication
Engg.
NIT, Rourkela
Submitted by:
Pradeep Kumar Chachan
10307030
B.Tech IV
Dept. of Electronics & Communication
Engg.
NIT, Rourkela
National Institute of Technology
Rourkela
CERTIFICATE
This is to certify that the thesis entitled, “RECOGNITION OF ELECTRICAL &
ELECTRONICS COMPONENTS” submitted by Sri AMITESHWAR KUMAR
ABHIJEET and Sri PRADEEP KUMAR CHACHAN in partial fulfillments for the requirements for the award of Bachelor of Technology Degree in Electronics &
Instrumentation Engg. at National Institute of Technology, Rourkela (Deemed
University) is an authentic work carried out by him under my supervision and guidance.
To the best of my knowledge, the matter embodied in the thesis has not been submitted to any other University / Institute for the award of any Degree or Diploma.
Date:
Dr. S. Meher
Dept. of Electronics &
Communication Engg.
NIT, Rourkela.
ACKNOWLEDGEMENT
I wish to express my deep sense of gratitude and indebtedness to Dr.S.Meher,
Department of Electronics & Communication Engg. , N.I.T Rourkela for introducing the present topic and for his inspiring guidance, constructive criticism and valuable suggestion throughout this project work.
I would like to express my gratitude to Dr. G. Panda (Head of the Department) for his constant support and encouragement. I am also thankful to all staff members of
Department of Electronics & Communication Engg. NIT Rourkela.
04
TH
May 2007 Amiteshwar Kumar Abhijeet
Roll: 10307022
Pradeep Kumar Chachan
Roll: 10307030
Chapter 1
CONTENTS
GENERAL INTRODUCTION
Chapter 2
1.1 Introduction
FUNDAMENTALS OF IMAGE PROCESSING
2.1 Introduction
2.2 Image Definition
2.3 Image Types
2.3.1 Intensity Image
2.3.2 Binary Image
2.3.3 Indexed Image
2.3.4 RGB Image
2.4
Image Segmentation
2.5 Thinning
2.6 Morphological Image Processing
2.6.1 Hit & Miss Transform
Chapter 3 OBJECT RECOGNITION TECHNIQUES
3.1 Introduction
3.2 Pattern & Pattern Classes
3.3 Recognition based on DecisionTheoretic Methods
3.3.1 Forming Pattern Vector
3.3.2 Matching
3.3.3 Pattern Matching Using Minimum Distance Classifiers
3.3.4 Matching by Correlation
3.4 Structural Recognition
Chapter 4
3.4.1 String Matching
ELECTRICAL & ELECTRONICS COMPONENTS
4.1 Capacitors
4.2 Diodes
4.3
5.1
Resistors
Chapter 5
4.4 Transistors
EXPERIMENTS & RESULTS
Quantitative Approach
By finding Roundness of Objects 5.2
Chapter 6
5.3
Matching by Correlation
CONCLUSION
REFERENCES
Page No
910
1012
12
3
34
49
20
2122
2223
2324
2528
2934
3436
3638
39
40
1215
16
1617
1720
Chapter
1
GENERAL INTRODUCTION
1.1
INTRODUCTION
Recognition or more specifically Pattern or Object recognition is a typical characteristic of human beings and other living organisms. The term pattern or object means something that is set as an idea to be imitated. For example, in our childhood a shape ‘A’ is shown to us and we are asked to imitate that. So the shape is the ideal one. On the other hand, if what we produce or draw obeying that instruction is close to that shape, our teacher identifies that as ’A’. this identification is called recognition and the shapes we draw (that is object we made) may be termed as patterns. Thus, the pattern recognition means identification of the real object.
Recognition should, therefore, be preceded by the development of the concept of the ideal or model or prototype. This process is called Learning. In most real life problems no ideal example is available. In that case, the concept of ideal is abstracted from many near perfect examples. Under this notion learning is of two types : supervised learning if appropriate label is attached to each of these examples ; and unsupervised learning if no labeling is available. It is obvious that for recognizing an object we must receive or sense some information or features from that object. Based on these features we assign object being considered to one of the following classes each of which represents a pattern. Hence classification is the actual task to be done and we call it recognition. If the classes are labelled with particular patterns.
Sometimes, learning and recognition works together; outcome of recognition process modifies knowledge about the pattern classes. Unsupervised methods usually fall in this category.
Usually recognition process deals with physical items. Thus, it depends on features from the items. Such process is called sensory recognition. There is another kind of recognition process which deals with abstract items such as an idea, theory, a solution to a problem, a philosophical question etc. this may be termed as conceptual recognition.
Since objects are assigned to classes based on invariant features associated with them, it is obvious that objects of same class possess similar features and those which belong to different classes possess different features. Therefore, the set of features that distinguishes objects of different classes and is common to objects of the same classes is the key for classification and recognition. Identifying such a minimal feature set is an important step in the process of recognition. The process is called feature selection. Another major step is designing the decision process. The decision procedure should be optimum in a sense that the classification error must be minimum. This is developed usually through learning. That means given a set of training data, a set of decision rules is to devised so that the training data are separated into given sets of classes in an optimum way. Note that each training data is feature vector along with the class level which the object actually belongs to. This is an example of supervised learning. Unsupervised learning may be exemplified by clustering where feature vectors are
supplied along with some indirect information about the class. This may include number of classes, interclass distance and interclass distance among feature vectors. Decision methodology adopt one of two major approaches : mathematical and heuristic. Mathematical approaches are based on the given set of models and decision rules are devised satisfying optimal criteria of classification. On the other hand when no such model is available decision rules are designed using human intuition and experience for a specific problem. The mathematical approaches includes deterministic, statistical, fuzzy set theoretic and syntactic recognition; while heuristic methods include graph matching, tree searching etc.
Object recognition is used in many computer vision applications. It is particularly useful for industrial inspection tasks, where often an image of an object must be aligned with a model of the object.
In most cases, the model of the object is generated from an image of the object. A large number of object recognition strategies exist. In most 2D matching object recognition implementations the search is usually done in a coarsetofine manner. The simplest class of object recognition methods is based on the gray values of the model and image itself and uses normalized cross correlation. A more complex class of object recognition methods does not use the gray values of the model or object itself, but uses the object’s edges for matching.
Central idea to the theme of recognition is the concept of learning from sample patterns. We call objects as patterns. Approaches to computerized pattern recognition may be divided into two principle areas: decisiontheoretic and structural. The first category deals with patterns described using quantitative descriptors, such as length, area, texture etc. The second category deals with patterns best represented by symbolic information, such as strings under structural recognition techniques.
Chapter
2
Fundamentals of Image Processing
2.1
Introduction
Modern digital technology has made it possible to manipulate multidimensional signals with systems that range from simple digital circuits to advanced parallel computers. The goal of this manipulation can be divided into three categories:
• Image Processing
• Image Analysis
• Image Understanding
We will focus on the fundamental concepts of image processing. Space does not permit us to make more than a few introductory remarks about image analysis. We will restrict ourselves
to two–dimensional (2D) image processing although most of the concepts and techniques that are to be described can be extended easily to three or more dimensions.
An image defined in the “real world” is considered to be a function of two real variables, for example, a(x,y) with a as the amplitude (e.g. brightness) of the image at the real coordinate position (x,y). An image may be considered to contain subimages sometimes referred to as regions–of–interest, ROIs, or simply regions. This concept reflects the fact that images frequently contain collections of objects each of which can be the basis for a region. In a sophisticated image processing system it should be possible to apply specific image processing operations to selected regions. Thus one part of an image (region) might be processed to suppress motion blur while another part might be processed to improve color rendition. The amplitudes of a given image will almost always be either real numbers or integer numbers. The latter is usually a result of a quantization process that converts a continuous range (say, between 0 and 100%) to a discrete number of levels. In certain imageforming processes, however, the signal may involve photon counting which implies that the amplitude would be inherently quantized. In other image forming procedures, such as magnetic resonance imaging, the direct physical measurement yields a complex number in the form of a real magnitude and a real phase.
2.2
Digital Image Definition
A digital image a[m,n] described in a 2D discrete space is derived from an analog image a(x,y) in a 2D continuous space through a sampling process that is frequently referred to as digitization. For now we will look at some basic definitions associated with the digital image. The effect of digitization is shown in Figure.
The 2D continuous image a(x,y) is divided into N rows and M columns. The intersection of a row and a column is termed a pixel. The value assigned to the integer coordinates [m,n] with
{m=0,1,2,…,M–1} and {n=0,1,2,…,N–1} is a[m,n]. In fact, in most cases a(x,y)—which we might consider to be the physical signal that impinges on the face of a 2D sensor—is actually a function of many variables including depth (z), color (l), and time (t).
Figure represents Digitization of a continuous image. The pixel at coordinates [m=10, n=3] has the integer brightness value 110.
The image shown in Figure above has been divided into N = 16 rows and M = 16 columns.
The value assigned to every pixel is the average brightness in the pixel rounded to the nearest integer value. The process of representing the amplitude of the 2D signal at a given coordinate as an integer value with L different gray levels is usually referred to as amplitude quantization or simply quantization.
2.3 Image Types
The toolbox supports four types of images:
•
Intensity images
•
Binary images
•
Indexed images
•
RGB images
2.3.1 Intensity Images :
An intensity image is a data matrix whose values have been scaled to represent intensities. When the elements of an intensity image are of class uint8, or class uint16, they have integer values in the range [0, 255] and [65535], respectively. If the image is of class double, the values are floatingpoint numbers. Values of scaled, class double intensity images are in the range [0,1] by convention.
This figure depicts an intensity image of class double.
2.3.2 Binary Images :
In a binary image, each pixel assumes one of only two discrete values. Essentially, these two values correspond to on and off. A binary image is stored as a logical array of 0's (off pixels) and 1's (on pixels). Pixels in a Binary Image Have Two Possible
Values: 0 or 1. An array of 0s and 1s whose values are of data class, say, uint8, is not considered a binary image in MATLAB. A numeric array is converted to binary using function logical. Thus, if A is a numeric array consisting of 0s and 1s, a logical array B can be created using the statement
B= logical (A)
If A contains elements other than 0s and 1s, use of logical function converts all nonzero quantities to logical 1s and all entries with with value 0 to logical 0s.using relational and logical operators also creates logical arrays.
The figure below depicts a binary image :
2.3.3 Indexed Images :
A
n indexed image has two components: a data matrix of integers,
X, and a color map matrix, map. Matrix map is an m x 3 array of class double containing floating point values in the range [0,1]. The length m of the map is equal to the number of colors it defines. Each row of map specifies the red, green and blue components of a single color. An indexed image uses “direct mapping” of pixel intensity values to color map values.
The color of each image pixel is determined by using the corresponding value of X as an index into map. The value 1 points to the first row in map, the value 2 points to the second row, and so on. A colormap is often stored with an indexed image and is automatically loaded with the image when you use the imread function. The color of each pixel is determined by using the corresponding value of integer matrix X as pointer into map. If X is of class double, then all of its components with values less than or equal to 1 point to the first row in map, all components with value 2 point to the second row, and so on. If X is of class uint8 or uint16, then all components with value 0 point to the first row in the map, all components with value 1 point to the second row, and so on. The offset is also used in graphics file formats, to maximize the number of colors that can be supported. In the image above, the image matrix is of class double. Because there is no offset, the value 5 points to the fifth row of the colormap.
The figure below illustrates the structure of an indexed image. The pixels in the image are represented by integers, which are pointers (indices) to color values stored in the colormap.
2.3.4 RGB Images :
An RGB image, sometimes referred to as a "truecolor" image. RGB images do not use a palette. It is an M x N x 3 array of color pixels, where each color pixel is a triplet corresponding to the red, green, and blue components of an RGB image at a specific spatial location. An RGB image may be viewed as a “stack” of three grayscale images that,
when fed into the red, green and blue inputs of a color monitor, produce a color image on the screen. By convention, the three images forming an RGB color image are referred to as the red, green and blue component images. The data class of the component images determines their range of values. If an RGB image of class double, the range of values is [0, 1]. Similarly, the range of values is [0, 255] or [0, 65535] for RGB images of class uint8 or uint16 respectively.
The number of bits used to represent the pixel values of the component images determines the bit depth of an RGB image. For example, if each component image is an 8bit image, the corresponding RGB image is said to be 24 bits deep. Generally the number of bits in all the component images is the same. In this case the number of possible colors in an RGB image is
(2 b
)
3
, where b is the number of bits in each component images. For the 8bit case, the number is 1677216 colors.
A pixel whose color components are (0,0,0) is displayed as black, and a pixel whose color components are (1,1,1) is displayed as white. The three color components for each pixel are stored along the third dimension of the data array. For example, the red, green, and blue color components of the pixel (10,5) are stored in RGB(10,5,1), RGB(10,5,2), and RGB(10,5,3), respectively.
The figure below shows an RGB image of class double :
2.4 Image Segmentation
Image segmentation refers to the decomposition of an image into its components. It is a key step in image analysis. Segmentation accuracy determines the eventual success or failure of computerized analysis procedures. For this reason, considerable care should be taken to improve the probability of rugged segmentation. Segmentation is an important part of practically any automated image recognition system, because it is at this moment that one extracts the interesting objects, for further processing such as description or recognition.
Segmentation of an image is in practice the classification of each image pixel to one of the image parts. If the goal is to recognize black characters, on a grey background, pixels can be classified as belonging to the background or as belonging to the characters: the image is composed of regions which are in only two distinct greyvalue ranges, dark text on lighter background. The greylevel histogram, viz. the probability distribution of the greyvalues, has two separated peaks, i.e. is clearly bimodal. In such a case, the segmentation, i.e. the choice of a greylevel threshold to separate the peaks, is trivial. The same technique could be used if there were more than two clearly separated peaks. A variety of techniques for automatic threshold selection exists. A relatively successful method for certain applications where it is suggested that a modified histogram is employed by using only pixels with a small gradient magnitude, i.e. pixels which are not in the region of the boundaries between object and background.
In many cases, segmentation on the basis of the greyvalue alone is not efficient. Other features like colour, texture, gradient magnitude or orientation, measure of a template match etc., can be put to use. This produces a mapping of a pixel into a point in an
n
dimensional feature space, defined by the vector of its feature values. The problem is then reduced to partitioning the feature space into separate clusters, a general pattern recognition problem that is discussed in the literature.
The two halves of the image labelled ``original'' contain peaks of random height, but of different shape: in the bottom half, the peaks are steeper than in the top half. The greylevel histogram of the original image is clearly not bimodal. We create two different morphological features, and show them in the images labelled ``feature1'' and ``feature2''. We now enter, for all pixels, the greyvalue of feature1 against that of feature2, into a twodimensional histogram
(``feature space''); in this representation it is easy to distinguish the two clusters.
2.5 Thinning
Thinning is a morphological operation that is used to remove selected foreground pixels from binary images, somewhat like erosion or opening. It can be used for several applications, but is particularly useful for skeletonization. In this mode it is commonly used to tidy up the output of
edge detectors by reducing all lines to single pixel thickness. Thinning is normally only applied to binary images, and produces another binary image as output. The thinning operation is related to the hitandmiss transform, and so it is helpful to have an understanding of that operator before reading on. Like other morphological operators, the behavior of the thinning operation is determined by a structuring element. The binary structuring elements used for thinning are of the extended type described under the hitandmiss transform (
i.e.
they can contain both ones and zeros).
In everyday terms, the thinning operation is calculated by translating the origin of the structuring element to each possible pixel position in the image, and at each such position comparing it with the underlying image pixels. If the foreground and background pixels in the structuring element
exactly match
foreground and background pixels in the image, then the image pixel underneath the origin of the structuring element is set to background (zero).
Otherwise it is left unchanged. Note that the structuring element must always have a one or a blank at its origin if it is to have any effect. The choice of structuring element determines under what situations a foreground pixel will be set to background, and hence it determines the application for the thinning operation.
We have described the effects of a single pass of a thinning operation over the image. In fact, the operator is normally applied repeatedly until it causes no further changes to the image (
i.e.
until
convergence
). Alternatively, in some applications,
e.g.
pruning
, the operations may only be applied for a limited number of iterations. Thinning is the dual of thickening,
i.e.
thickening the foreground is equivalent to thinning the background.
Figure below shows the result of this thinning operation on a simple binary image.
The following figure displays the results of the thinning operation, reducing the original objects to a single pixel wide lines. It represents Original Image (top left), Binary Image (top right),
Thinned Image (bottom left) and Inverse Thinned Image (bottom right) :
Each successive thinning iteration removed pixels marked by the results of the hitormiss operation as long as the removal of the pixels would not destroy the connectivity of the line.
2.6 Morphological Image Processing
Morphological image processing is a collection of techniques for digital image processing based on mathematical morphology. Since these techniques rely only on the relative ordering of pixel values, not on their numerical values, they are especially suited to the processing of binary images and grayscale images whose light transfer function is not known.
Four most common morphological operations used in image processing are :
erosion, dilation
,
opening
&
closing
. In erosion, every object pixel that is touching a background pixel is changed into a background pixel. In dilation, every background pixel that is touching an object pixel is changed into an object pixel. Erosion makes the objects smaller, and can break a single object into multiple objects. Dilation makes the objects larger, and can merge multiple objects into one.
opening
is defined as an erosion followed by a dilation. The opposite operation of
closing
, defined as a dilation followed by an erosion. As illustrated by these examples,
opening
removes small islands and thin filaments of
object pixels.
Likewise,
closing
removes islands and thin
filaments of
background pixels
. These techniques are useful for handling noisy images where some pixels have the wrong binary value. For instance, it might be known that an object cannot contain a "hole", or that the object's border must be smooth.
The figure below shows an example of morphological processing. Figure (a) is the binary image of a fingerprint. Algorithms have been developed to analyze these patterns, allowing individual fingerprints to be matched with those in a database. A common step in these algorithms is shown in (b), an operation called
skeletonization
. This simplifies the image by
removing
redundant pixels; that is, changing appropriate pixels from black to white. This results in each ridge being turned into a line only a single pixel wide.
2.6.1 HitandMiss Transform
The hitandmiss transform is a general binary morphological operation that can be used to look for particular patterns of foreground and background pixels in an image. It is actually the basic operation of binary morphology since almost all the other binary morphological operators can be derived from it. As with other binary morphological operators it takes as input a binary image and a structuring element, and produces another binary image as output.
The structuring element used in the hitandmiss is a slight extension to the type that has been introduced for erosion and dilation, in that it can contain both foreground and background pixels, rather than just foreground pixels,
i.e.
both ones and zeros. Note that the simpler type of structuring element used with erosion and dilation is often
depicted
containing both ones and zeros as well, but in that case the zeros really stand for `don't care's', and are just used to fill out the structuring element to a convenient shaped kernel, usually a square. In all our illustrations, these `don't care's' are shown as blanks in the kernel in order to avoid confusion. An example of the extended kind of structuring element is shown in Figure below. As usual we denote foreground pixels using ones, and background pixels using zeros.
Figure :
Example of the extended type of structuring element used in hitandmiss operations.
This particular element can be used to find corner points, as explained below.
The hitandmiss operation is performed in much the same way as other morphological operators, by translating the origin of the structuring element to all points in the image, and then comparing the structuring element with the underlying image pixels. If the foreground and background pixels in the structuring element
exactly match
foreground and background pixels in the image, then the pixel underneath the origin of the structuring element is set to the foreground color. If it doesn't match, then that pixel is set to the background color.
For instance, the structuring element shown in Figure below can be used to find right angle convex corner points in images. Notice that the pixels in the element form the shape of a bottomleft convex corner. We assume that the origin of the element is at the center of the 3×3 element.
In order to find all the corners in a binary image we need to run the hitandmiss transform four
times with four different elements representing the four kinds of right angle corners found in binary images. Figure below shows the four different elements used in this operation :
Figure
represents Four structuring elements used for corner finding in binary images using the hitandmiss transform. Note that they are really all the same element, but rotated by different amounts.
After obtaining the locations of corners in each orientation, We can then simply OR all these images together to get the final result showing the locations of all right angle convex corners in any orientation. Figure below shows the effect of this corner detection on a simple binary image.
Implementations vary as to how they handle the hitandmiss transform at the edges of images where the structuring element overlaps the edge of the image. A simple solution is to simply assume that any structuring element that overlaps the image does not match underlying pixels, and hence the corresponding pixel in the output should be set to zero.
Chapter
3
Object Recognition Techniques
3.1 Introduction
Pattern recognition aims to classify data (patterns) based on either
a priori
knowledge or on statistical information extracted from the patterns. The patterns to be classified are usually groups of measurements or observations, defining points in an appropriate multidimensional space. An intriguing problem in pattern recognition yet to be solved is the relationship between the problem to be solved (data to be classified) and the performance of various pattern
recognition algorithms (classifiers). Holographic associative memory is another type of pattern matching scheme where a target small patterns can be searched from a large set of learned patterns based on cognitive metaweight.
Typical applications are automatic speech recognition, classification of text into several categories (e.g. spam/nonspam email messages), the automatic recognition of handwritten postal codes on postal envelopes, or the automatic recognition of images of human faces. The last two examples form the subtopic image analysis of pattern recognition that deals with digital images as input to pattern recognition systems. Pattern recognition is more complex when templates are used to generate variants. For example, in English, sentences often follow the "NVP" (noun  verb phrase) pattern, but some knowledge of the English language is required to detect the pattern. Pattern recognition is studied in many fields, including psychology, ethology, and computer science.
3.2 Pattern & Pattern Classes
A pattern is an arrangement of descriptors that are useful when working with region boundaries. A pattern class is a family of patterns that share a set of common properties. Pattern classes are denoted by ω
1
, ω
2
, …, ω
W
, where W is the number of classes. Pattern recognition by machine involves techniques for assigning patterns to their respective classes – automatically and with as little human intervention as possible.
The nature of the components of a pattern vector depends on the approach used to describe the physical pattern itself. For example, consider the problem of automatically classifying alphanumeric characters. Descriptor suitable for a decision theoretic approach might include measures such 2D moment invariants or a set of Fourier coefficients describing the outer boundary of the characters.
In some applications, pattern characteristics are best described by structural relationships. For example, fingerprint recognition is based on the interrelationships of print features called
minutiae
. Together with their relative sizes and locations, these features are primitive components that describe finger print ridge properties, such as abrupt endings, branching, merging and disconnected segments. Recognition problems of this type, in which not only quantitative measures about each feature but also the spatial relationships between the features determine class membership, generally are best solved by structural approaches. A complete pattern recognition system consists of a sensor that gathers the observations to be classified or described; a feature extraction mechanism that computes numeric or symbolic information
from the observations; and a classification or description scheme that does the actual job of classifying or describing observations, relying on the extracted features.
The classification or description scheme is usually based on the availability of a set of patterns that have already been classified or described. This set of patterns is termed the training set and the resulting learning strategy is characterized as supervised learning. Learning can also be unsupervised, in the sense that the system is not given an
a priori
labeling of patterns, instead it establishes the classes itself based on the statistical regularities of the patterns.
The classification or description scheme usually uses one of the following approaches: statistical
(or decision theoretic), syntactic (or structural). Statistical pattern recognition is based on statistical characterizations of patterns, assuming that the patterns are generated by a probabilistic system. Structural pattern recognition is based on the structural interrelationships of features.
3.3 Recognition based on DecisionTheoretic methods
Decision theoretic approaches to recognition are based on the use of decision or discriminant functions. Let
x
= (x
1
, x
2
,…,x n
)
T
represent an n dimensional pattern vector. For W pattern classes
ω
1
, ω
2
, …, ω
W
, the basic problem in decisiontheoretic pattern recognition is to find W decision functions d
1
(x), d
2
(x), …, d
W
(x) with the property that, if a pattern x belongs to the class
ω i
, then d i
(x)>d j
(x) j=1,2,….,W; j ≠ i
In other words, an unknown pattern x is said to belong to the ith pattern class if, upon substitution of x into all decision functions, di(x) yields the largest numerical value. Ties are resolved arbitrarily.
The decision boundary separating class ω i from ω j is given by values of x for which d i
(x)=d j
(x) or equivalently by values of x for which
d i
(
x
)d j
(
x
)=0
Common practice is to identify the decision boundary between two classes by the single function d ij
(
x
)= d i
(
x
)d j
(
x
)=0. Thus d ij
(
x
)>0 for patterns of class ω i and d ij
(
x
)<0 for patterns of class ω j
.
3.3.1 Forming Pattern Vectors
Pattern vectors can be formed from quantitative descriptors. For example, suppose that we describe a boundary by using Fourier descriptors. The value of the ith descriptor becomes the value of xi, the ith component of a pattern vector. In addition, we could append other components to pattern vector. Another approach used quite frequently when dealing with
(registered) multispectral images is to stack the images and then form vectors from corresponding pixels in the images. The images are stacked by using function cat :
S= cat(3, f1, f2, …., fn)
Where S is the stack and f1, f2, …., fn are the images from which the stack is formed. The vectors then are generated by using function imstack2vectors.
3.3.2 Matching
Recognition techniques based on matching represent each class by a prototype pattern vector. An unknown pattern is assigned to the class to which it is closest in terms of a predefined metric.
The simplest approach is the minimum distance classifier, which, as its name implies, computed the Euclidean distance between the unknown and each of the prototype vectors. It chooses the smallest distance to make a decision.
3.3.3 Pattern Matching Using Minimum Distance Classifiers
Suppose that each pattern class, ω j
, is characterized by a mean vector m j
. That is, we use the mean vector of each population of training vectors as being representative of that class of vectors: m j
= (1/N j
) Σ
x
x Є ω j
; j = 1,2,….,W where Nj is the number of training pattern vectors from class ω j and the summation is taken over these vectors. One way to determine the class membership of an unknown pattern vector x is to assign it to the class of its closest prototype. Using Euclidean distance as a measure of closeness reduces the problem to computing the distance measures :
D j
(
x
) =
x

m
j
 j = 1,2,…,W
We then assign x to class ω i if D i
(x) is the smallest distance. That is, the smallest distance implies the best match in this formulation. Suppose that all the mean vectors are organized as rows of a matrix
M
. Then computing the distances from an arbitrary pattern x to all the mean vectors is accomplished.
It is not difficult to show that selecting the smallest distance is equivalent to evaluating the functions
D j
(x) =
x
T
m
j
– (1/2)
m
j
T
m
j j = 1,2,…..,W
And assigning x to class ω i if d i
(
x
) yields the largest numerical value. This formulation agrees with the concept of a decision function.
The decision boundary between classes ω i and ω j for a minimum distance classifier is d ij
(
x
) = d i
(
x
) – d j
(
x
)
=
x
T
(
m
i

m
j
) – (1/2)(
m
i

m
j
)
T
(
m
i
+
m
j
) = 0
The surface given by this equation is the perpendicular bisector of the line segment joining mi and mj. For n = 2, the perpendicular bisector is a line, for n = 3 it is a plane, and for n>3 it is called a hyperplane.
3.3.4 Matching by Correlation
Correlation is quite simple in principle. Given an image f(x, y), the correlation problem is to find all places in the image that match a given subimage (also called a mask or template) w(x, y).
Typically, w(x,y) is much smaller than f(x, y). one approach for finding matches is to treat w(x, y) as a spatial filter and compute the sum of products (or normalized version of it) for each location of w in f. Then best match or matches of w(x, y) in f(x, y) is/are the location(s) of the maximum value(s) in the resulting correlation image. Unless w(x, y) is small, the approach just described generally becomes computationally intensive. For this reason, practical implementations of spatial correlation typically rely on hardware oriented solutions.
For prototyping, an alternative approach is to implement correlation in the frequency domain, making use of correlation theorem, which, alike the convolution theorem which relates spatial correlation to the product of the image transforms. Letting “ ◦ ” denote correlation and “*” the complex conjugate, the correlation theorem states that f(x, y)
◦
w(x, y) <=> F(u, v)H*(u, v)
In other words, spatial correlation can be obtained as the inverse Fourier transform of the product of the transform of one function times the conjugate of the transform of the other. Conversely it follows that f(x, y)w*(x, y) <=> F(u, v)
◦
H(u, v)
This second aspect of the correlation theorem is included for its completeness.
3.4 Structural Recognition
Structural recognition techniques are based generally on representing objects of interest as strings, trees or graphs and then defining descriptors and recognition rules based on those representations. The key difference between decision theoretic and structural methods is that the former uses quantitative descriptors expressed in the form of numerical vectors. Structural techniques, on the other hand, deal principally with symbolic informations. For instance, suppose that object boundaries in a given application are represented by minimum perimeter polygons. A decision theoretic approach might be based on forming vectors whose elements are the numeric values of the interior angles of the polygons, while a structural approach might be based on defining symbols for ranges of angle values and then forming a string of such symbols to describe the patterns.
3.4.1 String Matching
Suppose that two region boundaries, a and b, are coded into strings a
1 a
2
….am and b
1 b
2
….b
n
, respectively. Let α denote the number of matches between these two strings, where a match is said to occur in the kth position if a k
=b k
. The number of symbols that do not match is
β
=max(a,b) –
α
Where arg is the length (number of symbols) of the string in the argument. It can be shown that
β =0 if and only if a and b are identical strings.
A simple measure of similarity between a and b is the ratio
R= α / β = α /max(a,b) – α
This measure, proposed by Sze and Yang, 1981 is infinite for a perfect match and 0 when none of the corresponding symbols in a and b match ( α is zero in this case).
Chapter
4
Electrical & Electronics Components
In this chapter we are going to explain some well known facts about the electrical and electronics components that we used for recognition:
4.1 Capacitors
A
capacitor
is an electrical device that can store energy in the electric field between a pair of closelyspaced conductors (called 'plates'). When voltage is applied to the capacitor, electric charges of equal magnitude, but opposite polarity, build up on each plate. Capacitors are used in electrical circuits as energystorage devices. They can also be used to differentiate between highfrequency and lowfrequency signals and this makes them useful in electronic filters. Capacitors are occasionally referred to as
condensers
. This is now considered an antiquated term.
Capacitor types
•
Metal film
: Made from high quality polymer film and metal foil (usually polycarbonate, polystyrene, polypropylene, polyester (Mylar), and for high quality capacitors polysulfone), with a layer of metal deposited on surface. They have good quality and stability, and are suitable for timer circuits. Suitable for high frequencies.
•
Mica
: Similar to metal film. Often high voltage. Suitable for high frequencies.
Expensive.
•
Paper
: Used for high voltages.
•
Glass
: Used for high voltages. Expensive. Stable temperature coefficient in a wide range of temperatures.
•
Ceramic
: Chips of altering layers of metal and ceramic. Depending on their dielectric, whether Class 1 or Class 2, their degree of temperature/capacity dependence varies. They
often have (especially the class 2) high dissipation factor, high frequency coefficient of dissipation, their capacity depends on applied voltage, and their capacity changes with aging. However they find massive use in common lowprecision coupling and filtering applications. Suitable for high frequencies.
•
Electrolytic
: Polarized. Constructionally similar to metal film, but the electrodes are made of aluminium etched to acquire much higher surfaces, and the dielectric is soaked with liquid electrolyte. They suffer from poor tolerances, high instability, gradual loss of capacity especially when subjected to heat, and high leakage. Special types with low equivalent series resistance are available. Tend to lose capacity in low temperatures. Can achieve high capacities.
•
Tantalum
: Like electrolytic. Polarized. Better performance with higher frequencies.
High dielectric absorption. High leakage. Has much better performance in low temperatures.
•
Supercapacitors
: Made from carbon aerogel, carbon nanotubes, or highly porous electrode materials. Extremely high capacity. Can be used in some applications instead of rechargeable batteries.
4.2 Diodes
In electronics, a
diode
is a component that restricts the direction of flow of charge carriers.
Essentially, it allows an electric current to flow in one direction, but blocks it in the opposite direction. Thus, the diode can be thought of as an electronic version of a check valve. Circuits that require current flow in only one direction will typically include one or more diodes in the circuit design.
Early diodes included "cat's whisker" crystals and vacuum tube devices (called
thermionic valves
in British English Dialect). Today the most common diodes are made from semiconductor materials such as silicon or germanium.
Types of semiconductor diode
Diode
Zener
Diode
Schottky
Diode
Tunnel
Diode
Lightemitting diode
Photodiode
Some diode symbols
4.3 Resistors
Varicap SCR
A
resistor
is a twoterminal electrical or electronic component that resists an electric current by producing a voltage drop between its terminals in accordance with Ohm's law: V=IR. The
electrical resistance
is equal to the voltage drop across the resistor divided by the current through the resistor. Resistors are used as part of electrical networks and electronic circuits.
Identifying resistors
Most axial resistors use a pattern of colored stripes to indicate resistance. Surfacemount ones are marked numerically. Cases are usually brown, blue, or green, though other colors are occasionally found such as dark red or dark gray. One can use a multimeter or ohmmeter to test the values of a resistor.
Fourband axial resistors
It has been suggested that this section be split into a new article entitled
Electronic color code
.
Fourband identification is the most commonly used color coding scheme on all resistors. It consists of four colored bands that are painted around the body of the resistor. The scheme is simple: The first two numbers are the first two significant digits of the resistance value, the third is a multiplier, and the fourth is the tolerance of the value. Each color corresponds to a certain number, shown in the chart below. The tolerance for a 4band resistor will be 2%, 5%, or 10%.
The Standard EIA Color Code Table per EIARS279 is as follows:
Color 1 st
band 2 nd
band 3 rd
band (multiplier) 4 th
band (tolerance) Temp. Coefficient
Black 0
Brown 1
0
1
×10
0
×10
1
±1% (F) 100 ppm
Red 2
Orange 3
Yellow 4
Green 5
2
3
4
5
×10
2
×10
3
×10
4
×10
5
±2% (G)
±0.5% (D)
50 ppm
15 ppm
25 ppm
Blue 6
Violet 7
Grey 8
White 9
6
7
8
9
×10
6
×10
7
×10
8
×10
9
±0.25% (C)
±0.1% (B)
±0.05% (A)
Gold ×0.1 ±5% (J)
Silver
None
×0.01 ±10% (K)
±20% (M)
Note
: red to violet are the colors of the rainbow where red is low energy and violet is higher energy.
As an example, let us take a resistor which (read left to right) displays the colors
yellow, purple, yellow, brown
. We take the first two bands as the value, giving us
4, 7
. Then the third band, another
yellow
, gives us the multiplier 10
4
. Our total value is then
47 x 10
4
Ω , totalling
470,000
Ω or
470 k
Ω . Our brown is then a tolerance of ±1%.
Resistors use specific values, which are determined by their tolerance. These values repeat for every exponent; 6.8, 68, 680, and so forth. This is useful because the digits, and hence the first
two or three stripes, will always be similar patterns of colors, which make them easier to recognize.
4.4 Transistors
A
transistor
is a semiconductor device, commonly used as an amplifier. The transistor is the fundamental building block of the circuitry that governs the operation of computers, cellular phones, and all other modern electronics. Because of its fast response and accuracy, the transistor may be used in a wide variety of digital and analog functions, including amplification, switching, voltage regulation, signal modulation, and oscillators. Transistors may be packaged individually or as part of an integrated circuit chip, which may hold thousands of transistors in a very small area.
Modern transistors are divided into two main categories: bipolar junction transistors (BJTs) and field effect transistors (FETs). Application of current in BJTs and voltage in FETs between the input and common terminals increases the conductivity between the common and output terminals, thereby controlling current flow between them. The transistor characteristics depend on their type. The term "transistor" originally referred to the point contact type, but these only saw very limited commercial application, being replaced by the much more practical bipolar junction types in the early 1950s. Ironically both the term "transistor" itself and the schematic symbol most widely used for it today are the ones that specifically referred to these longobsolete devices.
[1]
For a short time in the early 1960s, some manufacturers and publishers of electronics magazines started to replace these with symbols that more accurately depicted the different construction of the bipolar transistor, but this idea was soon abandoned.
In analog circuits, transistors are used in amplifiers, (direct current amplifiers, audio amplifiers, radio frequency amplifiers), and linear regulated power supplies. Transistors are also used in digital circuits where they function as electronic switches, but rarely as discrete devices, almost always being incorporated in monolithic Integrated Circuits. Digital circuits include logic gates, random access memory (RAM), microprocessors, and digital signal processors (DSPs).
The transistor's low cost, flexibility and reliability have made it a universal device for nonmechanical tasks, such as digital computing. Transistorized circuits have replaced electromechanical devices for the control of appliances and machinery as well. It is often less expensive and more effective to use a standard microcontroller and write a computer program to carry out a control function than to design an equivalent mechanical control function.
Types
PNP Pchannel
NPN Nchannel
BJT JFET
BJT and JFET symbols
Transistors are categorized by:
•
Semiconductor material: germanium, silicon, gallium arsenide, silicon carbide
•
Structure: BJT, JFET, IGFET (MOSFET), IGBT, "other types"
•
Polarity: NPN, PNP (BJTs); Nchannel, Pchannel (FETs)
•
Maximum power rating: low, medium, high
•
Maximum operating frequency: low, medium, high, radio frequency (RF), microwave
(The maximum effective frequency of a transistor is denoted by the term
f
T
, an abbreviation for "frequency of transition". The frequency of transition is the frequency at which the transistor yields unity gain).
•
Application: switch, general purpose, audio, high voltage, superbeta, matched pair
•
Physical packaging: through hole metal, through hole plastic, surface mount, ball grid array, power modules
Thus, a particular transistor may be described as:
silicon, surface mount, BJT, NPN, low power, high frequency switch
.
Other transistor types
•
Heterojunction Bipolar Transistor
•
Unijunction transistors can be used as simple pulse generators. They comprise a main body of either Ptype or Ntype semiconductor with ohmic contacts at each end
(terminals
Base1
and
Base2
). A junction with the opposite semiconductor type is formed at a point along the length of the body for the third terminal (
Emitter
).
•
Dual gate FETs
have a single channel with two gates in cascode; a configuration that is optimized for
high frequency amplifiers
,
mixers
, and oscillators.
•
Transistor arrays
are used for general purpose applications,
function generation
and lowlevel,
lownoise amplifiers
. They include two or more transistors on a common
substrate
to ensure close parameter matching and thermal tracking, characteristics that are especially important for
long tailed pair
amplifiers.
•
Darlington transistors comprise a medium power BJT connected to a power BJT. This provides a high current gain equal to the product of the current gains of the two transistors. Power diodes are often connected between certain terminals depending on specific use.
•
Insulated gate bipolar transistors (IGBTs) use a medium power IGFET, similarly connected to a power BJT, to give a high input impedance. Power diodes are often connected between certain terminals depending on specific use. IGBTs are particularly suitable for heavyduty industrial applications. The Asea Brown Boveri (ABB)
5SNA2400E170100
[4] illustrates just how far power semiconductor technology has advanced. Intended for threephase power supplies, this device houses three NPN IGBTs in a case measuring 38 by 140 by 190 mm and weighing 1.5 kg. Each IGBT is rated at
1,700 volts and can handle 2,400 amperes.
•
Singleelectron transistors (SET) consist of a gate island between two tunnelling junctions. The tunnelling current is controlled by a voltage applied to the gate through a capacitor. [5][6]
•
Nanofluidic Transistor Control the movement of ions through submicroscopic, waterfilled channels. Nanofluidic transistor, the basis of future chemical processors
•
Trigate transistors (Prototype by Intel)
•
Avalanche transistor
•
Ballistic transistor Electrons bounce their way through maze.
•
Spin transistor Magneticallysensitive
•
Thin film transistor Used in LCD display.
•
Floatinggate transistor Used for nonvolatile storage.
•
Photo transistor React to light
•
InvertedT field effect transistor
•
Ion sensitive field effect transistor To measure ion concentrations in solution.
•
FinFET The source/drain region forms fins on the silicon surface.
•
FREDFET FastReverse Epitaxal Diode FieldEffect Transistor
•
EOSFET ElectrolyteOxideSemiconductor Field Effect Transistor (Neurochip)
Chapter
5
EXPERIMENTS & RESULTS
For the recognition of electrical and electronics components, we adopted basically three techniques as follows :
(i) Quantitative Approach
(ii) By finding Roundness of Objects
(iii) Matching by Correlation
5.1
Quantitative Approach
In this approach, the objects are being recognized based on its physical appearances viz length, breadth, number of legs of the electrical & electronics components. The algorithms followed in this approach is described below :
5.1.1
Algorithm for recognition by Quantitative method :
(i) First of all, read input image which is an RGB image.
(ii) Then, convert the RGB image into Binary image to make the processing operation easier.
(iii) Find the centroid of the image so that we can find a point which should be inside the image.
(iv) Find the length of the image. For finding the length, we keep y constant and move along xdirection. In 1 st
case we increase x position till we find boundary and count the number of pixels. Similarly in second case, this is done by decreasing x position.
(v) Find the breadth of the object. As in step (iv) in the same manner we find the breadth of the image by increasing and decreasing y position keeping x constant.
(vi) Find the number of legs of the image. For finding number of legs, we move towards boundary and upon finding it, our count is increased by a predetermined position by taking that point we move perpendicular to it. A leg can be indicated by changing of pixel from white to black and then the counter count the number of legs.
(vii) Finally we decide what kind of object it may be depending on the length breadth ratio and the number of legs of the objects.
5.1.2
MATLAB CODE :
clc clear all
%input image i=imread('capa2.jpg');
%show input image imview(i)
%converting input image to binary image g=graythresh(i); bw=im2bw(i,g);
% imview(bw);
%finding centroid of given image
[n m]=size(bw); k=0; j=0; d=0; for x=1:m
for y=1:n
if bw(y,x)==0
k=k+x;
j=j+y;
d=d+1;
end
end end xcor=k/d; x=round(xcor); ycor=j/d; y=round(ycor); centroid=[x y]
%length of input image
Length=0; %intialising length
Legs1=0; %intialising legs of image
Legs2=0;
Legs3=0;
Legs4=0; for k=x:m
if bw(y,k)==0
Length=Length+1;
else
k=k+100;
for j=1:n5
if bw(j,k)==1 && bw(j+1,k)==0
Legs1=Legs1+1;
else
continue;
end
end
break;
end end for k=x:1:1
if bw(y,k)==0
Length=Length+1;
else
k=k20;
for j=1:n5
if bw(j,k)==1 && bw(j+1,k)==0
Legs2=Legs2+1;
else
continue;
end
end
break;
end end if Length>0
%Width of image
Width=0; %intialising width
for k=y:n
if bw(k,x)==0
Width=Width+1;
else
k=k+20;
for j=1:m5
if bw(k,j)==1 && bw(k,j+1)==0
Legs3=Legs3+1;
else
continue;
end
end
break;
end
end
for k=y:1:1
if bw(k,x)==0
Width=Width+1;
else
k=k20;
for j=1:m5
if bw(k,j)==1 && bw(k,j+1)==0
Legs4=Legs4+1;
else
continue;
end
end
break;
end
end
%finding ratio of length & Width
Ratio=Length/Width
R=Ratio;
%output depend on condition
if R<.75 && Legs3==2
imview('capacitor1.jpg')
elseif R<10 && Legs3==3
Legs=Legs3;
Legs
imview('triode1.jpg')
elseif R>.75 && R<1.3 && Legs3==2
imview('roundcap1.jpg')
elseif R<3
imview('resistor1.jpg')
elseif R>3
imview('diode1.jpg')
else
imview('Blue hills.jpg')
end else
Length=0;
Legs1=0;
Legs2=0;
Legs3=0;
Legs4=0;
for k=x:m
if bw(y,k)==1
Length=Length+1;
else
k=k+20;
for j=1:n5
if bw(j,k)==1 && bw(j+1,k)==0
Legs1=Legs1+1;
else
continue;
end
end
break;
end
end
for k=x:1:1
if bw(y,k)==1
Length=Length+1;
else
k=k20;
for j=1:n5
if bw(j,k)==1 && bw(j+1,k)==0
Legs2=Legs2+1;
else
continue;
end
end
break;
end
end
% if Length>0
%Width of image
Width=0;
for k=y:n
if bw(k,x)==1
Width=Width+1;
else
k=k+100;
for j=1:m5
if bw(k,j)==1 && bw(k,j+1)==0
Legs3=Legs3+1;
else
continue;
end
end
break;
end
end
for k=y:1:1
if bw(k,x)==1
Width=Width+1;
else
k=k20;
for j=1:m5
if bw(k,j)==1 && bw(k,j+1)==0
Legs4=Legs4+1;
else
continue;
end
end
break;
end
end
%finding ratio of length & Width
Ratio=Length/Width
R=Ratio;
%output depend on condition
if R<.75 && Legs3==2
Legs=Legs3;
Legs
imview('capacitor1.jpg')
elseif R<10 && Legs3==3
Legs=Legs3;
Legs
imview('triode1.jpg')
elseif R>.75 && R<1.3 && Legs3==2
Legs=Legs3;
Legs
imview('roundcap1.jpg')
elseif R<3
imview('resistor1.jpg')
elseif R>3
imview('diode1.jpg')
else
imview('Blue hills.jpg')
end end
5.2 By finding Roundness of Objects :
In this method, the objects are being recognized based on its roundness by using a specific MATLAB tool for it. The algorithms adopted in this method is described below.
5.2.1
Algorithms for Roundness method :
(i) First of all we need to create a database of standard objects or images with which we are going to compare the input images.
(ii) Then, read the input object which is to be compared with the standard one in the database.
(iii) We use ‘
bwboundaries’
function as present in MATLAB Image Processing toolbox to find the boundary of the objects.
(iv) Find area & perimeter of the object.
(v) We compute the roundness using the following formula :
metric = 4*pi*area/perimeter^2
(vi) Compare the roundness of the selected object with the standard image in the database
(vii) Then, finally we make decision about the object.
5.2.2 MATLAB CODE :
clc; clear all;
P=imread('roundcap.jpg'); %input image imview(P) %show input image for i=1:6
if i==2
RGB=imread('capacitor.jpg');
elseif i==3
RGB=imread('triode.jpg'); %database standard image
elseif i==4
RGB=imread('resistor.jpg');
elseif i==5
RGB=imread('diode.jpg');
elseif i==6
RGB=imread('roundcap.jpg');
else
RGB = P;
end
I = rgb2gray(RGB); %convert rgb to grayscale image threshold = graythresh(I); %finding threshold bw = im2bw(I,threshold); %convert into binary image
%concentrate only on the exterior boundary.option noholes will accelerate
%the processing by preventing bwboundaries from searching ofinner contour
[B,L] = bwboundaries(bw,'noholes');
% hold on
% loop over the boundaries for k = 1:length(B)
boundary = B{k}; end stats = regionprops(L,'Area','Centroid');
% obtain (X,Y) boundary coordinates corresponding to label 'k', here k=1
boundary = B{1};
% compute a simple estimate of the object's perimeter
delta_sq = diff(boundary).^2;
perimeter = sum(sqrt(sum(delta_sq,2)));
% obtain the area calculation corresponding to label 'k'
area = stats(1).Area;
% compute the roundness metric
metric(i) = 4*pi*area/perimeter^2; end
%find error vector for i=2:6
if(metric(1)metric(i)>0)
e(i)=metric(1)metric(i);
else
e(i)=metric(i)metric(1);
end end err=min(abs(e)); %find min error if e(2)==err
imview('capacitor1.jpg') elseif e(3)==err
imview('triode1.jpg') elseif e(4)==err
imview('resistor1.jpg') elseif e(5)==err
imview('diode1.jpg') elseif e(6)==err
imview('roundcap1.jpg') end
5.3
Matching by Correlation :
In this method, we tried to correlate the input image with the standard image in the database. The algorithms adopted in this method is described below.
5.3.1
Algorithms for Matching by Correlation method :
(i) First of all create database of standard images.
(ii) Read input image.
(iii) Correlate each input image with database images.
(iv) Choose a threshold value.
(v) Determine no of pixels greater & less than threshold value.
(vi) Decision based on maximum correlation.
5.3.2
MATLAB CODE :
clc; clear all; ip=imread('roundcap.jpg'); %input image imview(ip)
%database images cap=imread('capacitor.jpg'); rcap=imread('roundcap.jpg'); tri=imread('triode.jpg');
%converting all images into binary images ip1=graythresh(ip); cap1=graythresh(cap); rcap1=graythresh(rcap); tri1=graythresh(tri); ip2=im2bw(ip,ip1); cap2=im2bw(cap,cap1); rcap2=im2bw(rcap,rcap1); tri2=im2bw(tri,tri1);
%converting binary image matrix into numerical data matrix ip3=im2double(ip2); cap3=im2double(cap2); rcap3=im2double(rcap2); tri3=im2double(tri2);
%change resolution of image window ip4=imresize(ip3,[64 64],'bilinear'); cap4=imresize(cap3,[64 64],'bilinear'); rcap4=imresize(rcap3,[64 64],'bilinear'); tri4=imresize(tri3,[64 64],'bilinear'); imview(ip4) %input image after resizing q=xcorr2(ip4); %finding auto correlation of i/p image q1=max(max(q)); %find max value of pixel in autocorrelation matrix
%find a threshold value for x=1:64
for y=1:64
if q(y,x)==q1
q2=(q(y,x)+q(y+1,x)+q(y1,x)+q(y,x1)+q(y,x+1)+q(y+1,x+1)+q(y+1,x1)+q(y
1,x+1)+q(y1,x1))/9
else
continue;
end
end end
%find no. of pixels grater than the threshold value after correlation k1=xcorr2(ip4,tri4); count1=0; for t=1:64
for p=1:64
if k1(p,t)>q2
count1= count1+1;
else
continue;
end
end end count1 k2=xcorr2(ip4,cap4); count2=0; for t=1:64
for p=1:64
if k2(p,t)>q2
count2= count2+1;
else
continue;
end
end end count2 k3=xcorr2(ip4,rcap4); count3=0; for t=1:64
for p=1:64
if k3(p,t)>q2
count3= count3+1;
else
continue;
end
end end count3 if count1>count2 && count1>count3
imview('triode1.jpg') elseif count3>count1 && count3>count2
imview('roundcap1.jpg') else
imview('capacitor1.jpg')
end
Chapter
6
CONCLUSION
CONCLUSION:
We have presented a new approach to shape matching. Our project in object recognition began a transition from processes whose outputs are images to processes whose outputs are attributes about those images. Although our step is introductory in nature and the thesis is fundamental to understanding the state of the art in object recognition. A key characteristic of our approach is the estimation of shape similarity and correspondences based on quantitative approach by analyzing the physical appearance of the objects (viz length, breadth, lengthbreadth ratio, no of legs etc) and matching using correlation method. Our approach is simple and easy to apply. It can be implemented for parts identification on assembly lines, defects and fault inspection of the electronic components and devices in industrial automation. In our experiments, we have converted an RGB image to Binary image so that the processing can be made easy as its matrix deals with binary values.
If we combine regionbased and contourbased segmentation techniques for object recognition at a level, where both pathways interpret the image data on the level of complete regions and contour groups. With this combination and a topdown strategy including a region memory handling different time scales the object recognition process is significantly improved in situations where projections of 3D surfaces are merged due to homogeneous on extensions of pixel values. In fact, recognition of individual objects is a logical place to conclude. Specifically our next step would be the development of image analysis methods whose proper development requires concepts from machine intelligence. As we know that machine intelligence and some areas in digital image processing depend on image analysis and computer vision. Solutions of image analysis problems today are characterized by heuristic approaches. While these approaches are indeed varied, most of them share a significant base of techniques.
REFERENCES :
Digital Image Processing by Rafael C. Gonzalez, Richard E. Woods
Digital Image Processing Using MATLAB by Rafael C. Gonzalez, Richard
E. Woods & Steven L. Eddins
Digital Image Processing & Analysis by B. Chanda & D. Dutta Majumdar
UMBAUGH, S. E. Computer Vision and Image Processing http://www.wikipedia.org http://www.mathworks.com http://www.mathtools.net/MATLAB/Image_Processing/ http://www.dspexperts.com/ http://www.imageprocessingplace.com http://www.ph.tn.tudelft.nl
* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
Related manuals
advertisement
