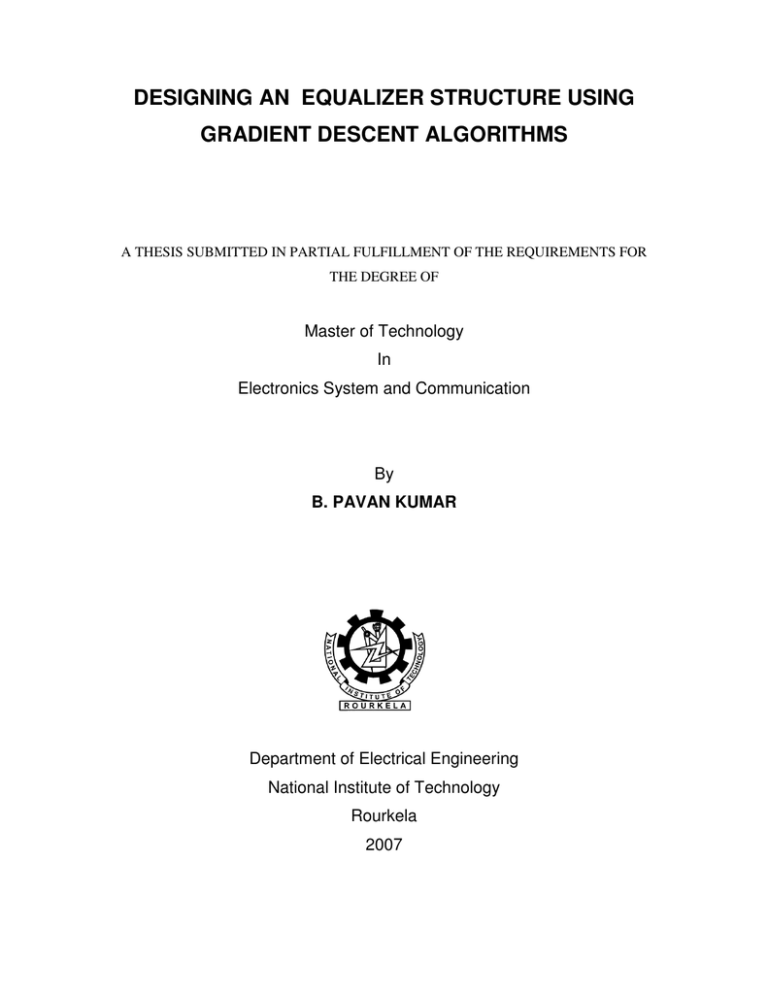

# DESIGNING AN EQUALIZER STRUCTURE USING GRADIENT DESCENT ALGORITHMS

**DESIGNING AN EQUALIZER STRUCTURE USING **

**GRADIENT DESCENT ALGORITHMS **

A THESIS SUBMITTED IN PARTIAL FULFILLMENT OF THE REQUIREMENTS FOR

THE DEGREE OF** **

## Master of Technology

## In

## Electronics System and Communication

## By

**B. PAVAN KUMAR **

## Department of Electrical Engineering

## National Institute of Technology

## Rourkela

## 2007

**DESIGNING AN EQUALIZER STRUCTURE USING **

**GRADIENT DESCENT ALGORITHMS **

A THESIS SUBMITTED IN PARTIAL FULFILLMENT OF THE REQUIREMENTS FOR

THE DEGREE OF** **

## Master of Technology

## In

## Electronics System and Communication

## By

**B. PAVAN KUMAR **

## Under the Guidance of

**Prof. J. K. Satapathy **

## Department of Electrical Engineering

## National Institute of Technology

## Rourkela

## 2007

**National Institute of Technology **

**Rourkela **

**CERTIFICATE **

This is to certify that the thesis entitled, “**Designing An Equalizer Structure Using Gradient **

**Descent Algorithms**” submitted by Mr. **B. Pavan Kumar **in partial fulfillment of the requirements for the award of MASTER of Technology Degree in** Electrical Engineering** with specialization in “**Electronics System and Communication**” at the National Institute of

Technology, Rourkela (Deemed University) is an authentic work carried out by him/her under my/our supervision and guidance.

To the best of my/our knowledge, the matter embodied in the thesis has not been submitted to any other University/ Institute for the award of any degree or diploma.

Date: Prof. J. K. Satapathy

Dept.of Electrical Engg.

National Institute of Technology

Rourkela - 769008

**DEDICATED TO MY PARENTS AND FRIENDS**

**ACKNOWLEDGEMENT**

I express my sincere gratitude and appreciation to many people who helped keep me on track toward the completion of my thesis. Firstly, I owe the biggest thanks to my supervisor,

**Prof. J. K. Satapathy**, whose advice, patience, and care boosted my morale.

I am very much thankful to our HOD, **Prof. P. K. Nanda**, for providing us with best facilities in the department and his timely suggestions. I also thank all the teaching and nonteaching staff for their cooperation to the students.

My special thanks to Mrs. K. R. Subhashini and Mr. T. Vamsi Krishna for helping me in understanding the thesis in the beginning days and providing me good company in the lab. I also thank all my friends, without whose support my life might have been miserable here.

I wish to express my gratitude to my parents, whose love and encouragement have supported me throughout my education.

**B. Pavan Kumar **

**Roll No: 20502005**

**CONTENTS**

**Abstract **

**List of Figures **

**1. Introduction **

1.1 Background

1.2 Motivation

1.3 Thesis Contribution

1.4 Thesis Layout

**2. Equalization using Neural Networks **

2.1 Introduction

2.2 Neural Network Equalizer

2.3 Decision Feedback Equalization

**3. Performance of Equalizer under the influence of parameter variations. **

3.1 Effect of additional noise level

3.2 Effect of Equalizer order

3.3 Effect of Feedback order

3.4 Effect of decision delay

**4. RLS based BP Algorithm **

4.1 Introduction to RLS

4.2 Neural Network training using RLS

**5. Results and Discussion **

6.1 RLS based BP Algorithm

**6. Conclusion **

**References **

**22**

23

26

27

28

**31**

32

34

**47**

48

**57 **

**59 ii iii **

**1**

2

7

11

14

17

8

9

**10 **

i

**ABSTRACT**

In recent years, a growing field of research in “Adaptive Systems” has resulted in a variety of adaptive automatons whose characteristics in limited ways resemble certain behaviors of living systems and biological adaptive processes. The essential and principal property of the adaptive systems is its time-varying, self-adjusting performance by using a process called “learning” from its environment. A channel equalizer is a very good example of an adaptive system, which has been considered in this work to assess its performance with reference to various novel learning algorithms developed.

The two main threats for the digital communication systems are Inter-symbol

Interference (ISI) and the presence of noise in the channels which are both time varying. So, for rapidly varying channel characteristics, the equalizer too need to be adaptive. In order to combat with such problems various adaptive equalizers have been proposed. Particularly, when the decision boundary is highly nonlinear, the classical equalizers (so called linear ones) do not perform satisfactorily.

The use of Artificial Neural Networks (ANNs) provides the required nonlinear decision boundary. The Back Propagation (BP) algorithm revolutionized the use of ANNs in diverse fields of science and engineering. The main problem with this algorithm is its slow rate of convergence. But the high speed digital communication systems, in the presence of rapidly fading channels, demand for faster training. To overcome this problem a faster method of training the neural network using RLS algorithm is proposed in this thesis work.

But both the BP and RLS based BP algorithms belong to the family of Gradient-based algorithms, which have the inherent problem of getting trapped in local minima. Since obtaining a global solution is the main criterion for any adaptive system, an efficient search technique is highly desirable. Tabu Search serves this purpose. ii

**LIST OF FIGURES**

1.1 Schematic of Digital communication system

1.2 Adaptive Equalizer

1.3 Classification of adaptive equalizers

1.4. Channel State Diagram for an Ideal Channel

2.1 Channel State diagram for

*H*

(

1

*z*

)

2.2 Channel State diagram for

*H*

2

(

*z*

)

2.3 Neural Network Equalizer

2.4 Hyperbolic Tangent Function with varying slopes

13

14

15

2.5 BER comparison for FIR filter and Neural Network equalizer for

*H*

( 17

2

*z*

)

2.6 Channel state diagram for overlapping channel H

3

(z)

2.7 Decision Feedback Neural Network Equalizer

18

19

2.8 BER comparison for

*H*

3

(

*z*

) with feedback and without feedback 20

3

4

5

6

13

21 2.9. BER Comparison for

*H*

4

(

*z*

) with DF and without DF

3.1 Channel State Diagram for

*H*

( at SNR=5dB

5

*z*

)

3.2 Channel State Diagram for

*H*

5

(

*z*

) at SNR=10dB

24

24

25 3.3 Channel State Diagram for

*H*

( at SNR=15dB

5

*z*

)

3.4 Channel State Diagram for

*H*

( at SNR=20dB

5

*z*

)

3.5 BER comparison for

*H*

) with varying *m *

6

(

*z*

3.6 BER performance comparison for varying feedback order for

*H*

( )

3

*z*

3.7 Channel state diagram for

*H*

7

(

*z*

) with

*d*

=

0 and

*SNR*

=

20

*dB*

3.8 Channel state diagram for

*H*

7

(

*z*

) with

*d*

=

1 and

*SNR*

=

20

*dB*

3.9 Channel state diagram for

*H*

7

(

*z*

) with

*d*

=

2 and

*SNR*

=

20

*dB*

25

26

27

28

28

29

3.10 Channel state diagram for

*H*

7

(

*z*

) with

*d*

=

3 and

*SNR*

=

20

*dB*

3.11 BER performance comparison for varying decision delays for

*H*

( )

7

*z*

6.1 Convergence plots for BP and RLS algorithms

6.2 SNR Vs BER plots for RLS and BP when trained for 150 iterations

6.3 SNR Vs BER for BP trained with 2000 iterations and RLS trained for 2000 iterations

29

30

49

49

50 iii

6.4 SNR Vs BER for Tabu based weight adaptation and BP algorithms for same structure

6.5 SNR Vs BER for Tabu based Weight adaptation and BP algorithm for different structures.

6.6 SNR Vs BER plot for Algorithm-1and BP algorithm.

6.7 SNR Vs BER plot for Algorithm-2 and BP algorithm

6.8 SNR Vs BER plot for Algorithm-2 for varied slope ranges

6.9 SNR Vs BER plots for various Tabu based algorithms

6.10 SNR Vs BER for Tabu based algorithms and BP algorithm for 2-tap channel

6.11

SNR Vs BER comparison for Tabu based Algorithms and BP Algorithm for a 3-tap channel

6.12

SNR Vs BER comparison for Tabu based Algorithms and BP Algorithm for a 4-tap channel

51

51

53

53

54

54

55

56

56 iv

**INTRODUCTION **

Background

Motivation

Thesis Contribution

Thesis Layout

**INTRODUCTION**

The advent of cheap high speed global communication ranks as one of the most important developments of human civilization in the second half of twentieth century. This was only feasible with the introduction of digital communication systems. Today there is a need for high speed and efficient date transmission over the communication channels. This is really a challenging task for the engineers to provide a reliable communication service by utilizing the available resources effectively in spite of there being many factors, as explained in the later sections, which distorts the signal transmitted through the communication channels. The main objective of the digital communication system is to transmit symbols with minimum errors. The high speed digital communication requires large bandwidth, which is not possible with a practical channel.

**1.1 BACKGROUND**

In this section we will consider the case of a practical channel and explore the reasons for the distortion of signals in them. The two principal causes of distortion in the communication channel are ISI and Noise.

**1.1.1 Intersymbol Interference (ISI) **

Ideally, the impulse response of a linear transmission medium is defined by

*h*

(

*t*

)

=

*A*

δ

(

*t*

−

τ

) (1.1) where

*t*

denotes continuous time,

*h*

(*t* ) designates the impulse response,

*A*

is an amplitude scaling factor,

δ

(*t* ) is the Dirac delta function and

## τ

denotes the propagation delay incurred in the course of transmitting the signal over the channel. Equivalently, in frequency domain the above equation can be written as

*H*

(

*j*

ω

)

=

*A*

exp(

−

*j*

ωτ

) (1.2) where

*H*

(

*j*

## ω

) is the frequency response of the transmission media. In practice, it is impossible for any physical channel to satisfy the stringent requirements embodied in equations (1.1) and (1.2). The best we can do is to approximate equation (1.2) over a band of frequencies representing the essential spectral content of the transmitted signal, which makes the channel ‘

*dispersive’*

[1]. This channel impairment gives rise to ‘

*Inter-symbol *

*Interference’.*

- A smearing of the successive pulses into one another with the result that they are no longer distinguishable.

2

**1.1.2 Noise **

Some form of noise is always present at the output of every communication channel.

The noise can be internal to the system, as in case of thermal noise generated by the amplifier at the front end of the receiver or external to the system, due to interfering signal originated from other sources.

The net result of the two impairments is that the signal received at the channel output is a noisy and distorted version of the signal that is transmitted. The function of the receiver is to operate on the received signal and deliver a reliable estimate of the original message signal to a user at the output of the system.

Hence there is a need for adaptive equalization. By equalization we mean the process of correcting channel induced distortion. This process is said to be adaptive when it adjusts itself continuously during data transmission by operating on the input [2].

The digital communication scenario is illustrated in Fig.1.1.

*Fig..11 Schematic of Digital communication system *

In the figure

*s*

(*k* ) is the transmitted data, the term

*N*

(*k* ) represents the Additive White

Gaussian Noise (AWGN),

*r*

(*k* ) is the received signal and

*s*

(

*k*

−

*d*

) is an estimate of the transmitted data. Here the term

*d*

is called the decision delay, the importance of which is explained in chapter 3. Simply speaking the equalizer must perform the inverse operation of the channel [3, 4]. The channel transfer function

*H*

(*z* ) accounts for the ISI introduced by it.

**1.1.3 Adaptive Equalization**

It is very difficult for estimating both the channel order and the distribution of energy among the taps and even it is very difficult to predict the effect of the environment on these taps. Hence it is a must for the equalization process to be adaptive. The equalizer need to be adapted very frequently with the changing environment. This includes two phases [5]. Firstly the equalizer needs to be trained with some known samples in the presence of some desired response (Supervised Learning). After training the weights and various parameters associated

3

with the equalizer structure is frozen to function as a detector. These two processes are frequently implemented to keep the equalizer adaptive. We call ‘the Equalizer is Frozen’ if we keep the adaptable parameters of the equalizer constant. Figure 1.2 depicts how the equalization process is adaptive.

*Fig. 1.2 Adaptive Equalizer*

The received data is fed to an equalizer, the output of which is compared with some desired response, which here is the transmitted data with some decision delay, to get some error

*e*

(

*k*

) . This error is used to update the adaptable parameters of the equalizer using some adaptive algorithm. These steps constitute the training process of the equalization. After the completion of training, the equalizer output is compared with some threshold and decision is made regarding the symbol received.

**1.1.4 FIR model of a channel: **

The channel can be characterized by a FIR filter (which accounts for ISI) with additive noise source [6]. The channel impulse response in the

*z*

-domain can be represented by

*H*

(

*z*

)

=

*n a*

∑

−

1

*a i z*

−

*i i*

=

0

=

*a*

0

+

*a*

1

*z*

−

1

+

*a*

2

*z*

−

2

+

....

(1.3)

Where

*n*

represents the length of the channel impulse response (channel order) and the

*a*

channel provides the dispersion upto

*n*

samples. The coefficients

*a a*

represent the strength

*i*

of the dispersion. The channel taps can be complex valued. The output from FIR modeled channel is described as

*r*

(

*k*

)

=

*n a*

∑

−

1

*a i s*

(

*k i*

=

0

−

*i*

)

+ Ν

(

*k*

) (1.4)

4

Where

*r*

(*k* ) is the observed channel output (which is input to the equalizer) and

Ν

(*k* ) represents (AWGN). For the case of computer simulations the taps of the FIR filter are chosen at the signal’s sampling interval and coefficients chosen to accurately model the impulse response.

**1.1.5 Classification of adaptive equalizers: **

In general adaptive equalizers are either supervised or unsupervised. The equalizers with unsupervised training are called blind equalizers. The classification of the equalizers is shown in the figure.

*Adaptive equalizers *

*Supervised training Unsupervised or blind training *

*Sequence estimation *

*(MLSE) *

*Symbol detection *

*Nonlinear equalizers *

*(ANN) *

*(Fuzzy systems) *

*Linear equalizers *

*Transversal, Lattice *

*(LMS, RLS...) *

*Fig. 1.3 Classification of adaptive equalizers *

Only supervised training has been considered in this thesis. The process of supervised learning can again be classified into either Sequence estimation or symbol detection.

Sequence estimation equalizers depend on the principle of maximum likelihood detection.

The optimal solution for this class of equalizers is the maximum likelihood Viterbi algorithm

(MLVA) which determines the estimated symbol sequence [6]. This MLVA provides the lowest error rate attainable for any equalizer when the channel is known but computationally very expensive. As this needs the estimation of the channel this family of equalizers are not considered in this work.

The symbol detectors can be further classified as either linear or nonlinear depending on the structure and training algorithm used. The linear equalizers may be either transversal or lattice. The main advantage of lattice equalizer is its numerical stability and faster convergence [7]. These linear equalizers can be trained using algorithms like

5

(1) Zero Forcing Algorithm(ZF)

(2) Least Mean Square Algorithm(LMS)

(3) Recursive Least squares Algorithm(RLS)

The non-linear equalizers are used in applications where the channel distortion is too severe for a linear equalizer to handle. There are few channels for which the decision boundary is very complicated and a simple linear filter equalizer cannot perform well in those cases. Further the process of equalization can be considered as the classification problem in which the equalizer needs to classify the input vector into a number of transmitted symbols.

The optimal solution for the symbol detection equalizer is given by the Bayes Decision theory [6, 8] which inherently is a nonlinear classifier. Hence structures which can incorporate some amount of nonlinearity are required to obtain optimal or near optimal solution. Some of the examples of nonlinear equalizers include those using Artificial Neural

Networks (ANNs), Fuzzy Systems etc. The thesis work mainly concentrates on the neural network equalizers. The well known algorithm for training the neural network equalizer is the

Back Propagation (BP) Algorithm.

**1.1.6 Channel State Diagram **

A channel state diagram is a plot drawn between the present received sample

*r*

(*k* ) ,on x-axis and the previous sample

*r*

1 )

, on y-axis.

1.5

Centers for symbol -1

Centers for symbol +1

1

0.5

-2 -1.5

-1 -0.5

0

0

-0.5

0.5

1 1.5

2

-1

-1.5

**r(k)**

*Fig 1.4. Channel State Diagram for an Ideal Channel *

6

Fig. 1.4 is the channel state diagram of an ideal channel. It has four states, two belong to one class and the remaining two corresponds to other class. The two states, shown by triangles correspond to the centers for the transmitted bit being -1. The reaming two states shown by rectangles correspond to centers for the transmitted bit being +1.

As explained earlier, the practical channels are not ideal. They have the inherent problem of ISI and Noise. Due to the presence of ISI, the number of channel states increases from 4 to 2

*n a*

+

1

. And the presence of noise makes these states into clusters with the present state deviated from any of its original state by an amount which depends on the SNR at the receiver.

Since this channel state diagram is a plot between

*r*

(

*k*

) and

*r*

1 )

, this explains the classification feasibility for that channel at a specified SNR. The arrangement of the clusters determines the required equalizer order and channel delay (details are explained in chapter 3).

And even the channel state diagram for some channels explains the need for equalization.

**1.2 MOTIVATION **

The adaptive equalizers have undergone many changes in the last two decades with the introduction of ANNs and many modifications in their training algorithms [9-12]. Almost much of the research was on modification of BP algorithm to improve its convergence [10,

11] or improving the performance of equalizer in some form. But the BP algorithm and its derivatives are all Gradient-based methods. Since these techniques converge locally, they often become trapped at sub-optimal solutions depending on the serendipity of the initial stating point. Since obtaining an optimal solution is the goal of ANN training, a global search technique seems more suitable for this difficult nonlinear optimization problem.

The popularity of Tabu search (TS) has grown significantly in the past few years as a global search technique [13, 14]. The main principle of TS is that it has some memory of the states that it has some memory of the states that has already been investigated and it does not revisit those states. It considers the set of all possible neighbor states and takes the best one, but it will also take the best move in the neighborhood which might be worse than the current move. The TS focuses greatly on expanding the global search area and avoiding the search of the same area. It can always get much better global solutions. The TS uses a Tabu list (TL) to memorize the visited states and keep from recurrent search. Aspiration criterion (AC) is set to activate the ‘‘tabued state’’ in the TL around which some good global states may be found.

Most related researches of TS are focused on the combinatorial optimization problems, such as assignment problem, scheduling problem and TSP [13-15]. Few research

7

works were done in the neural network learning. TS helps the NN learning process to the gradient technique ‘‘jump out of’’ the local minima and get a great improvement on the gradient technique. The TS can also be combined with other improved learning algorithms.

**1.3**

**THESIS CONTRIBUTION **

The main aim of the thesis is to develop novel neural network training algorithms that overcome the problem of local minima and to reduce the structural complexity of the neural network equalizer so that it can facilitate real time implementation with much ease.

Firstly a faster RLS based neural network training algorithm is developed. Here we use the Recursive Least Squares (RLS) algorithm for updating the synaptic weights of the neural network. It can be noted that using this algorithm convergence and hence training is faster. But this RLS algorithm is also a Gradient based Algorithm [1]. Hence this algorithm also has the problem of converging to local minima and hence no much improvement in performance in terms of BER can be noted, with having the only advantage of reducing the training time.

Secondly, the Tabu search (TS), which is famous as a global search algorithm, is used in the training process of the equalizer. The work includes development of three neural network learning algorithms, all based on TS. They can be summarized into two classes as follows

(a) Tabu based BP algorithm: Here the synaptic weights of the neural network are adapted using Tabu search (TS). This algorithm includes two phases -

Superficial Search (SS) and Deep Search (DS). BP algorithm is used in both the SS and DS.

(b) Slope Adaptation using Tabu search: The slope of the activation function, which is hyperbolic tangent in this case, is adapted using Tabu search. This can again be done in two ways.

(i) First adapt the synaptic weights using BP algorithm and then use TS for adapting the slope of the activation function.

(ii) In this case, both the weights and the slopes are adapted parallely in each iteration. BP algorithm is used to adapt weight and TS for adapting the slope.

Results show that the use of TS in both the cases, weight adaptation and slope adaptation, improves the performance of the equalizer in terms of Bit Error Rate (BER) and also reduces the structural complexity of the neural network.

8

**1.4**

**THESIS LAYOUT**

The transmitted symbols

*s*

(*k* ) and the channel taps

*a*

can be complex valued. Here

*i*

they are restricted to real valued. This corresponds to the use of multilevel pulse amplitude modulation (

*M*

-ary PAM) with a symbol constellation defined by

*s i*

=

2

*i*

−

*M*

−

1 , 1

≤

*i*

≤

*M*

(1.5)

Concentration on the simpler real case allows us to highlight the basic principles and concepts. Hence binary symbols

(

*M*

=

2 )

have been considered in the thesis as it provides a very useful geometric visualization of equalization process. For the equalizer to classify, the decision boundary must effectively partition the

*m-*

dimensional space into

*M-*

decision regions.

In chapter 2, the use of neural networks as a nonlinear equalizer is explained. Here the improvement in BER performance of the neural network equalizer over the linear equalizers trained using LMS algorithm is shown. Also the need for nonlinear equalizers and decision feedback is demonstrated in terms of the channel state diagrams. The decision feedback equalizers (DFE) are explained.

Chapter 3 is dedicated to the discussion on various parameters influencing the performance of the equalizer. The effect of changing these parameters is explained in this chapter. Also, in this chapter, the importance of decision delay and its effect on BER performance of the equalizer is considered.

In chapter 4 a new method of training the neural network using RLS is proposed. The basic idea behind the RLS is explained and the proposed algorithm is given.

In chapter 5, the concept of Tabu search (TS) is explained and its application to neural network is given. The algorithm for adapting the weights and slopes of the neural network is presented. Chapter 6 is dedicated for results and discussion.

9

**EQUALIZATION USING NEURAL NETWORKS **

Introduction

Neural Network Equalizer

Decision Feedback Equalization

**EQUALIZATION USING NEURAL NETWORKS **

**2.1**

**INTRODUCTION**

Numerous advances have been made in developing intelligent systems, inspired by biological neural networks. Researchers from many scientific disciplines are designing artificial neural networks (ANNs) to solve a variety of problems in pattern recognition,

Function approximation, prediction, optimization, associative memory, and control.

Conventional approaches have been proposed for solving these problems. Although successful applications can be found in certain well-constrained environments, none is flexible enough to perform well outside its domain. ANNs provide exciting alternatives, and many applications could benefit from using them.

**2.2.1 Definition of Neural network **

A neural network is a machine that is designed to model the way in which the brain performs a particular task or function of interest. To achieve good performance, they employ a massive interconnection of simple computing cells referred to as ‘Neurons’ or ‘processing units’. Hence a neural network viewed as an adaptive machine can be defined as [16]

*A neural network is a massively parallel distributed processor made up of simple processing units, which has a natural propensity for storing experimental knowledge and making it available for use. It resembles the brain in two respects: *

*1. Knowledge is acquired by the network from its environment through a learning process. *

*2. Interneuron connection strengths, known as synaptic weights, are used to store the acquired knowledge. *

**2.1.2 Importance **

It is apparent that a neural network derives its computing power through, first, its massively parallel distributed structure and, second, its ability to learn and therefore generalize. The use of neural networks offers the following useful properties and capabilities: o

Massive parallelism o

Distributed representation and computation o o o

Learning ability

Generalization ability

Input-output mapping

11

o o

Adaptivity

Uniformity of Analysis and Design o o o

Fault tolerance

Inherent contextual information processing

VLSI implentability.

The advent of neural networks marked the modeling of nonlinear adaptive systems which could provide high degree of precision, fault tolerance and adaptability compared to other forms of mathematical modeling [9]. So the artificial neural networks are predominantly used for equalization. The Back Propagation (BP) algorithm is the best known and widely used learning algorithm for training ANNs since its proposal by Rumelhart and

LeCun.

**2.1.3 Need for nonlinear equalizers **

The main reason nonlinear equalizers are preferred over their linear counterpart is that the linear equalizers do not perform well on channels which have deep spectral nulls in the passband. In an attempt to compensate for the distortion, the linear equalizer places too much gain in the vicinity of the spectral nulls, thereby enhancing the noise present in these frequencies.

Non-linear equalizers outperform the linear equalizers in terms of BER [17]. Also the linear equalizers view equalization as inverse problem while non-linear equalizers view equalization as a pattern classification problem.

Consider the following example of the channel states for the two channels.

*H*

1

(

*z*

)

=

1

+

0 .

5

*z*

−

1 and

*H*

2

(

*z*

)

=

0 .

3482

+

0 .

8704

*z*

−

1

+

0 .

3482

*z*

−

2

The channel state diagram for the channel

*H*

( ) is shown in figure 2.1 and that of

1

*z*

channel

*H*

( is shown in figure 2.2. For these two channels, the channel state diagram are

2

*z*

) plotted for

*d*

=

0

and at a

*SNR*

=

20

*dB*

. It can be noted that for channel

*H*

1

(

*z*

) , we can easily draw a linear decision boundary. And hence the positive and negative centers can be easily classified. Basically this channel

*H*

( is a minimum phase channel and hence classification

1

*z*

) is not a big problem in this channel. Problem starts when equalizing the non-minimum phase channels [17].

12

-3.33

-3.33

-2.33

-2.33

-1.33

2.5

0.5

-0.33

0

-0.5

2

1.5

1

-1

-1.5

-2

-2.5

**r(k)**

0.67

Centres For Symbol -1

Centres For Symbol +1

1.67

2.67

*Fig. 2.1 Channel State diagram for *

*H*

(

1

*z*

)

2.5

2

Centres For Symbol -1

Centres For Symbol +1

-1.33

1.5

1

0.5

-0.33

0

-0.5

-1

-1.5

-2

-2.5

**r(k)**

0.67

1.67

2.67

*Fig. 2.2 Channel State diagram for *

*H*

2

(

*z*

)

13

One of the popular channels belonging to this family is

*H*

( . It can be noted in

2

*z*

) figure 2.2, for this channel, a simple linear decision boundary cannot classify the symbols easily. It needs a nonlinear decision boundary or even a hyper-plane in multi-dimensional channel space. Such a decision boundary cannot be achieved using a linear filter. Hence we go for nonlinear structures which can adapt well to its environment are needed. Neural networks serve this purpose.

**2.2**

**NEURAL NETWORK EQUALIZER**

These neural networks construct a functional relationship between input and output patterns through the learning process, and memorize that relationship in the form of weights for later applications [10]. The neural network equalizer outperforms the Linear Transversal filters in terms of bit error rate (BER) as most of the communication channels requires nonlinear decision boundary [17]. The structure of neural network equalizer is shown in the figure.

In the figure

*r*

(*k* ) represents received signal. The structure constitutes three significant parts- one input layer, a set of hidden layers, one output layer. All the nodes are interconnected by the weights

*l*

*w *, where

*i*

represents the destination node and

*j*

represents

*ij*

the source node. The superscript

*l*

gives the layer number.

An equalizer of order *m *implies that it has *m *input nodes in its input layer as shown in the figure. An equalizer will have a single node in its output layer. The signal received sequentially is allowed to propagate through the hidden layers up to the node in the output layer [9, 16].

*Fig.2.3 Neural Network Equalizer *

14

The output of the each node

*y i l*

is the weighted sum of outputs of all the nodes in the previous layer and affected by the activation function, which here is the hyperbolic tangent function given by

φ

(

*x*

)

1

−

*e*

−

*ax*

=

1

+

*e*

−

*ax*

where *a * represents the slope of the activation function.

(2.1)

*Fig. 2.4 Hyperbolic Tangent Function with varying slopes*

The figure 2.4 shows the hyperbolic tangent activation function with slope *a *varying at 0.4, 0.8, 1.2 and 1.6. As slope increases the function tends towards threshold function. The function attains a maximum value of +1 at

*x*

= ∞ and a minimum value of -1 at

*x*

= −∞

.

Hence the output of each node of the neural network will be in the range (-1, 1). Since we are using binary PAM signal which takes either of the two values -1 or +1, this function is very much suitable for equalization process.

Mathematically the forward propagation of the neural network is given by [16]

*v i l*

=

*l*

*N*

∑ −

1

(

*w ij l*

−

1

*j*

=

1

⋅

*y l*

−

1

*j*

)

(2.2)

*i l*

*y *=

φ

(

*v l i*

) (2.3)

15

where

*v l*

is called the induced local field or activation potential of node *i *in layer *l * and

*i*

*N*

is the number of neurons in the layer

*l*

−

1

( − 1 ) .

**2.2.1 Back Propagation Algorithm **

The BP algorithm is a very good example for the Gradient-based algorithms. The BP algorithm consists of two passes through the different layers of the network: a forward pass and a backward pass [16]. In the forward pass, as mentioned earlier, an activity pattern (input vector) is applied to the sensory nodes of the network and its effect propagates through the network layer by layer. Finally an output is obtained at the output node as the actual response of the network. During the forward pass the synaptic weights are kept constant.

In the backward pass, on the other hand, the synaptic weights are all adjusted in accordance with the error correction rule. The error signal, which is obtained by comparing the output of the node in the output layer with the desired response, is allowed to pass against the direction of synaptic weights (hence the name back propagation algorithm for this training process) and local gradients

*i l*

δ

at each node is computed as given by Eqn.2.4.

δ

*l j*

=

φ ′

(

*v l j*

)

⋅

*N l*

∑

+

1

(

δ

*i l*

+

1

*i*

=

1

⋅

*w l ji*

) (2.4)

The local gradient

δ

*j*

(*n* ) depends on whether neuron j is an input node or a hidden node:

(1) If neuron j is an output node,

δ

*j*

(*n* ) equals the product of the derivative ϕ ′

*j*

(

*v j*

(

*n*

)) and the error signal

*e j*

(*n* ) , both of which are associated with neuron *j.*

(2) If neuron *j *is a hidden node,

δ

*j*

(*n* ) equals the product of the associated derivative ϕ ′

*j*

(

*v j*

(

*n*

)) and the weighted sum of the

δ s computed for the neurons in the next hidden or output layer that are connected to neuron *j.*

Due to the lack of availability of desired response at the hidden layers, it is not possible to compute the error at these nodes. Hence this local gradient is very important in providing the error measure at the hidden nodes. Using these local gradients the synaptic weights update is given by Eqn. 2.5

*Weight*

*Correction*

=

∆

*w l ji learningra te*

η

*parameter*

•

*local gradient*

δ

*j l*

+

1

*inputsigna*

•

*ofneuron y i l l*

(2.5)

The weight correction

∆

*w l ji*

is added to the present weight after each iteration. Once the weights are updated till the mean square error (MSE) is below some desired threshold, the

16

weights are kept fixed. Now the designed equalizer is tested for its performance with samples. This is called the testing phase of the equalizer. This testing is done by calculating the bit error rate (BER) at different signal to noise ratio (SNR) values. This plot of SNR Vs

BER is the performance plot for an equalizer.

Now consider the example of channel

*H*

2

(

*z*

) . If we observe the performance plots for the neural network equalizer trained using the BP algorithm and a linear transversal filter equalizer trained using the LMS algorithm, as shown in Fig 2.5, it can be noted that the neural network equalizer has a better BER performance.

0

0

-0.5

5 10 15 20 25

LMS

BP

-1

-1.5

-2

-2.5

-3

-3.5

-4

-4.5

**SNR**

*Fig. 2.5 BER comparison for FIR filter and Neural Network equalizer for*

*H*

2

(

*z*

)

The plots in the above figure are for an equalizer order of

*m*

=

4 , delay

*d*

=

1 . For the equalizer we have chosen here 4-3-1 structure, which means the neural network has only one hidden layer with 3 nodes in it, 4 inputs and one output node. The main disadvantage of using neural networks is that their convergence is slower compared to linear filters.

**2.3**

**DECISION FEEDBACK EQUALIZATION**

In this section the need for decision feedback, its structure and its importance is described. The advantage of using the decision feedback equalizer is that ISI is eliminated with out enhancement of noise by using past decisions to subtract out a portion of the ISI in addition to the feedforward filter [18]; a disadvantage is that decision error tend to propagate

17

because they result in residual ISI and a reduced noise margin against noise at future decisions.

**2.3.1 Need for decision feedback **

There are some channels for which the negative centers and positive centers are very near and overlap in many cases due to the presence of additive noise. Such channels are called overlapping channels. One of the good examples of such a channel is

*H*

3

(

*z*

)

=

0 .

4084

+

0 .

8164

*z*

−

1

+

0 .

4084

*z*

−

2

.

The channel state diagram for this channel for

*d*

=

1 is shown in the Fig 2.6.

2.5

2

-3.33

-2.33

-1.33

-0.33

0

-0.5

-1

1.5

1

0.5

0.67

1.67

2.67

-1.5

-2

Centers for Symbol -1

Centers for Symbol +1

-2.5

**r(k)**

*Fig.2.6 Channel state diagram for overlapping channel H*

*3*

*(z) *

Hence we need a decision feedback equalizer to classify these overlapping patterns.

Earlier it is stated that equalization process can be considered as a classification problem and the advantage of using the feedback concept is that it reduces the number of states for decision making and hence ease the classification.

**2.3.2 Decision Feedback Neural Network Equalizer **

The structure of the decision feedback neural network equalizer is shown in Fig. 2.7**. **

It can be noted from figure that it is very much similar to the simple neural network equalizer except the inclusion of additional taps for feedback elements. This feedback is called decision feedback as we are feeding back the previous decisions. Number of feedbacks included is called feedback order

*n b*

. Then the number of additional delay elements required is

*n b*

−

1 .

18

*Fig. 2.7 Decision Feedback Neural Network Equalizer*

Hence, now, the total number of nodes in the input layer becomes *m *+

*n b*

.in the absence of feedback number the transmitted symbols that influence the equalizer decision are

{

*s*

(

*k*

),

*s*

(

*k*

−

1 ),......,

*s*

(

*k*

−

*m*

−

*n a*

+

2

}

(2.6)

Thus the channel input sequence has

*n s*

=

2

*m*

+

*n a*

−

1 combinations among which

*n s*

/ 2 constitute centers belonging to symbol +1 and the remaining

*n s*

/ 2 are for centers corresponding to symbol -1. Hence here all the

*n s*

states are required for decision making.

If we include feedback then the number of transmitted symbols that influence the equalizer performance are

{

*s*

(

*k*

),

*s*

(

*k*

−

1 ),....

*s*

(

*k*

−

*m*

−

*n a*

+

2 ) ,

*s*

ˆ

(

*k*

−

*d*

−

1 )....

*s*

ˆ

(

*k*

−

*d*

−

*n a*

)

}

(2.7)

Hence the feedback vector has

*n f*

=

2

*n b*

states. As a result of feedback, only a fractional number of these states,

*n s*

/

*n f*

are needed for decision making. It can be noted that it is sufficient to employ a feedback order

*n b*

, given by [6]

*n b*

=

*n a*

+

*m*

−

2

−

*d*

(2.8)

In the next chapter the effect of changing the feedback order and its optimal values are explained. Fig. 2.8 shows the importance of decision feedback. It can be noted that for the channel

*H*

3

(

*z*

) , the performance of the neural network equalizer with out feedback is very poor. But if we use feedback for this channel, the BER performance will improve. In this

19

example an equalizer order of

*m*

=

3 , in both cases (with feedback and without feedback), feedback order is

*n b*

=

2 and a decision delay of

*d*

=

1 has been considered.

-1.5

-2

-2.5

-3

-3.5

-4

0

0

-0.5

-1

5 10 15 20

Without DF

With DF

25

-4.5

-5

**SNR**

*Fig.2.8 BER comparison for *

*H*

3

(

*z*

)

*with decision feedback and without decision feedback*

The neural network structure chosen is a three layered i.e. 5 , 1 FNN, which means one hidden layer with 5 neurons in it and one output node. It can be noted that there is an improvement of almost 3dB in terms of BER at 20dB SNR. The feedback improves the performance of not only the overlapping channels but also other channels. Now consider the case of channel

*H*

4

(

*z*

)

=

0 .

2

+

0 .

8

*z*

−

1

+

1 .

0

*z*

−

2

This channel does not have any of its states overlapping. It can be seen in Fig. 2.9 that the use of decision feedback improves the performance of equalizer. In this example an equalizer order of

*m*

=

3 , feedback order of

*n b*

=

2 , decision delay of

*d*

=

3 have been considered. And the 5 , 1 neural network structure has been used in both the cases. It can be noted that the use of feedback improves the BER performance of more than 2dB at 20dB

SNR, the reason is that, as mentioned earlier, it eliminates ISI without enhancing noise by using past decisions to suppress the ISI. Also the number of states for decision making has been reduced. Hence decision boundary can be easily constructed between the centers

20

belonging to symbol +1 and the centers belonging to symbol -1 and even the dimensionality of the decision boundary can be reduced as there are lesser number of states.

0

0 5 10 15 25 20

Without DF

With DF

-1

-2

-3

-4

-5

-6

**SNR**

*Fig. 2.9. BER Comparison for *

*H*

4

(

*z*

)

*with DF and without DF *

Thus there is an additional advantage of using the decision feedback equalizers. They reduces the equalizer order and hence the structural complexity of the equalizer.

21

**PERFORMANCE OF EQUALIZER UNDER THE **

**INFLUENCE OF PARAMETER VARIATIONS **

Effect of Additional noise level

Effect of Equalizer Order

Effect of Feedback Order

Effect of Decision Delay

**PERFORMANCE OF EQUALIZER UNDER THE INFLUENCE **

**OF PARAMETER VARIATIONS **

In this his chapter we will consider the influence of different parameters on equalizer performance. In the symbol-by-symbol detection procedure for equalization we apply the channel output which will be corrupted by both ISI and Noise, as described in the previous chapter, to the equalizer which will classify the symbols into their respective classes. The main goal of equalization is to minimize the misclassification rate.

It has been noted that the BER performance of the equalizer are influenced by many factors which include the additional noise level, the equalizer order, the decision delay, number of samples used for training, and the neural network structure we have considered. It is noted in the earlier chapters that, for some channels classification is not possible without feedback as they may have overlapping states and also seen that the BER performance of the equalizer improves with the inclusion of feedback. Hence we get one more factor influencing the classification capability of the equalizer.

So, we can say that the principal parameters that affect the equalizer’s BER performance are

(1) Additional noise level

(2) Equalizer order, *m *

(3) Feedback order,

*n b*

(4) Decision delay, *d *

In sections 3.1, 3.2, 3.3 and 3.4 we will compare the performance variations of the equalizers with the change in any of these principal parameters. However, as mentioned, there are others factors too, but their effect is not so appreciable. This will be discussed later in this chapter in section 3.4 and 3.5.

**3.1**

**EFFECT OF ADDITIONAL NOISE LEVEL**

As explained in chapter 1, for an ideal channel, which is not affected by ISI and

Noise, the channel state diagram will have only four states. Due to the presence of ISI the number of channels increases. As the noise increases a point in the channel state diagram deviates from its state. As the noise level increases (SNR decreases), the spread of the clusters increases and hence the classification capability decreases for the equalizer.

Figures 3.1, 3.2, 3.3 and 3.4 are the channel state diagrams for the channel

*H*

5

(

*z*

)

=

0 .

5

+

1 .

0

*z*

−

1

,

*d*

=

1

23

-6.67

-5.33

-4.67

-2.67

5

1

-0.67

0

-1

4

3

2

-2

-3

-4

-5

**r(k)**

1.33

Centers For Symbol -1

Centers For Symbol +1

3.33

5.33

*Fig. 3.1 Channel State Diagram for *

*H*

5

(

*z*

)

*at SNR=5dB *

4

Centers For Symbol -1

Centers For Symbol +1

3

-3.33

2

1

-1.33

0

0.67

-1

-2

2.67

4.67

-3

-4

**r(k)**

*Fig. 3.2 Channel State Diagram for *

*H*

5

(

*z*

)

*at SNR=10dB *

24

-3.33

-3.33

-2.33

-1.33

2.5

0.5

-0.33

0

-0.5

2

1.5

1

-1

-1.5

-2

-2.5

**r(k)**

0.67

1.67

2.67

Centers For Symbol -1

Centers For Symbol +1

-2.33

*Fig. 3.3 Channel State Diagram for *

*H*

5

(

*z*

)

*at SNR=15dB *

2.5

-1.33

2

1.5

1

0.5

-0.33

0

-0.5

-1

-1.5

-2

-2.5

**r(k)**

0.67

1.67

2.67

Centers For Symbol -1

Centers For Symbol +1

*Fig. 3.4 Channel State Diagram for *

*H*

5

(

*z*

)

*at SNR=20dB *

25

Fig. 3.1 is plotted at an SNR=5dB. Here it can be noted that the point belonging to the cluster of a positive centre and those of negative centers overlap to a large extent, hence classification becomes difficult. Fig. 3.2, 3.3, 3.4 corresponds to the SNR values of 10dB,

15dB and 20dB respectively. As SNR increases, the problem of classification becomes easier.

**3.2**

**EFFECT OF EQUALIZER ORDER**

The effect of equalizer order is directly related to Covers Theorem [16]. This theorem on the separability of patterns, which, in qualitative terms, may be stated as follows,

“*A complex pattern-classification problem cast in a high-dimensional space *

*nonlinearly is more likely to be linearly separable than in a low-dimensional space.”*

According to this theorem, as we move to higher dimensional space, classification becomes easier. For an equalizer, increase in the equalizer order, *m *, increases the dimensionality of the pattern space. And hence, an increase in the equalizer order eases the pattern classification.

0

0 5 10 15 20 25

-1 m=2 m=3 m=4 m=5 m=6

-2

-3

-4

-5

-6

**SNR**

*Fig. 3.5 BER comparison for *

*H*

6

(

*z*

)

*with varying m*

Fig. 3.5 is the BER plot with varying equalizer order *m *. The plots are drawn for equalizers of order

*m*

=

2 , 3 , 4 , 5 , 6 , for the channel

*H*

6

(

*z*

)

=

0 .

2

+

0 .

3

*z*

−

1

+

1 .

0

*z*

−

2

+

0 .

3

*z*

−

3

26

-1.5

-2

-2.5

-3

-3.5

-4

-4.5

For this channel, the plots are obtained with a 5 , 1 FNN structure and for decision delay

*d*

=

2 . It can be seen from the plots that with an increase in equalizer order from 2 to 3, there is an increase in equalizer performance of almost 1dB in terms of BER at the SNR value of

20dB. But if we increase the equalizer order further to 4, 5 or 6, there is no appreciable change in performance. This is because for an equalizer, for a fixed value of decision delay, *d *, an equalizer order of

*m*

= *d* +

1 is sufficient [6]. And for the equalizer order of

*m*

> *d* +

1 will almost have a similar performance and there will be no much appreciable change in BER performance. Even in the example of

*H*

6

(

*z*

) , this phenomenon can be noted.

We have chosen an equalizer order of

*d*

=

2 . And hence there will be no much improvement in BER performance for

*m*

>

3 compared to

*m*

=

3 .

**3.3**

**EFFECT OF FEEDBACK ORDER**

As mentioned in the previous chapter, with the introduction of feedback, number of states present while decision making decreases, hence classification becomes easier. Also as feedback order increases, number of states decreases, hence performance increases as there is an increase in margin existing between states. Fig. 3.6 shows the plots for varying feedback order for the channel

*H*

3

(

*z*

) , with decision delay

*d*

=

1 , equalizer order

*m*

=

2 , and a neural network structure 5 , 1 .

0

0

-0.5

-1

2 4 6 8 10 12 14 16 18 20 nb=0 nb=1 nb=2

**SNR**

*Fig. 3.6 BER performance comparison for varying feedback order for *

*H*

3

(

*z*

)

27

**3.4**

**EFFECT OF DECISION DELAY**

The effect of decision delay *d *, can be easily understood by observing its effect on the channel state diagram.

2.5

Centers For Symbol -1

Centers For Symbol +1

2

-3.33

-2.33

-1.33

1.5

1

0.5

-0.33

0

-0.5

-1

-1.5

-2

-2.5

**r(k)**

0.67

1.67

2.67

-3.33

*Fig. 3.7 Channel state diagram for *

*H*

7

(

*z*

)

*with d*

=

0

*and *

*SNR*

=

20

*dB*

2.5

Centers For Symbol -1

Centers For Symbol +1

2

-2.33

-1.33

0.5

-0.33

0

-0.5

1.5

1

-1

-1.5

-2

-2.5

**r(k)**

0.67

1.67

2.67

*Fig. 3.8 Channel state diagram for *

*H*

7

(

*z*

)

*with d*

=

1

*and *

*SNR*

=

20

*dB*

28

-3.33

-2.33

-1.33

2.5

0.5

-0.33

0

-0.5

2

1.5

1

-1

-1.5

-2

-2.5

**r(k)**

0.67

Centers For Symbol -1

Centers For Symbol +1

1.67

2.67

-3.33

*Fig. 3.9 Channel state diagram for *

*H*

7

(

*z*

)

*with d*

=

2

*and *

*SNR*

=

20

*dB*

2.5

Centers For Symbol -1

Centers For Symbol +1

2

1.5

1

-2.33

-1.33

0.5

-0.33

0

-0.5

-1

-1.5

0.67

1.67

2.67

-2

-2.5

**r(k)**

*Fig. 3.10 Channel state diagram for *

*H*

7

(

*z*

)

*with d*

=

3

*and *

*SNR*

=

20

*dB*

The channel which has been considered for plotting the above figures 3.7-3.10, has a transfer function given by

*H*

7

(

*z*

)

=

0 .

407

−

0 .

815

*z*

−

1

−

0 .

407

*z*

−

2

29

The channel state diagrams for the channel

*H*

( are drawn for the delay values of

7

*z*

)

*d*

=

0 , 1 , 2 , 3 in Fig.3.7, 3.6, 3.9, 3.10 respectively. It can be noted from the above figures that for the delay values of

*d*

=

1 , 2 classification will be easier compared to those for delay

*d*

=

0 , 3 . Hence certainly a superior performance is expected with the former delay values.

This can be seen in Fig. 3.11. there is a superior performance for delay values of

*d*

=

1 , 2 .

0

0

-0.5

5 10 15 20 25

-1

-1.5

d=0 d=1 d=2 d=3

-2

-2.5

-3

-3.5

-4

-4.5

-5

**SNR**

*Fig. 3.11 BER performance comparison for varying decision delays for*

*H*

(

7

*z*

)

Here a 5 , 1 FNN equalizer has been considered with out decision feedback with an equalizer order

*m*

=

2 .

However, the parameters

*m*

,

*d*

,

*n b*

are interdependent because, as explained earlier in section 3.2, an equalizer order of

*m*

= *d* +

1 is sufficient, any value more than this will not give an appreciable increase in performance. From Eqn. 2.8,

*n b*

=

*n a*

+

*m*

−

2

−

*d*

Hence substituting

*m*

=

*d*

+

1 in above equation we get,

*n b*

=

*n a*

−

1

(3.1)

(3.2)

I.e. a proper combination of these parameters, for a chosen channel order, is required to obtain a better performance (near optimal) of the equalizer.

30

**RLS BASED BP ALGORITHM **

Introduction to RLS

Neural Network Training using RLS

**RLS BASED BP ALGORITHM**

In this chapter, the novel method of training the neural network using RLS algorithm is introduced. In section 4.1, a brief introduction to the RLS algorithm is given and in section

4.2 the proposed method of training neural networks using RLS is explained and the corresponding algorithm is given.

**4.1**

**INTRODUCTION TO RLS**

RLS algorithm was actually introduced to improve the rate of convergence of the linear adaptive filters. This RLS algorithm is an extension to the method of least squares [1].

This algorithm was developed on the basis of a relation in matrix algebra known as “*Matrix *

*Inversion Lemma”*. An important feature of this algorithm is that its rate of convergence is typically an order of magnitude faster than the simple LMS filter, due to the fact that the RLS filter whitens input data by using the inverse correlation matrix of the data, assumed to be of zero mean.

The recursive implementations of the method of least squares starts with prescribed initial conditions and use the information contained in new data samples to update the old estimates. Hence here the length of the observable data is variable. Accordingly, the cost function [1, 4] to be minimized can be expressed as

ξ

(

*k*

)

=

*k*

∑

λ

*k*

−

*i i*

=

1

*e*

(

*i*

)

2

(4.1) where *k *is the variable length of the observable data,

λ is a positive constant close to but less than unity and is called the *“Forgetting Factor”*. The use of this forgetting factor is intended to ensure that data in the distant past are “forgotten” in order to afford the possibility of the statistical variations of the observable data when the filter operates in a non-stationary environment. The special case of

λ

=

1 corresponds to the ordinary method of least squares.

**4.1.1 Regularization **

Least-squares estimation, like the method of least-squares, is an ill-posed inverse problem, in that the input data consisting of tap-input vector

**y**

(*k* ) and the corresponding desired response

*d*

(*k* ) for varying

*k*

are given, and the requirement is to estimate the unknown parameter vector of a multiple regression model that relates

*d*

(*k* ) to

**y**

(*k* )

.

The ill-posed nature of least squares estimation is due to the following reasons:

32

•

There is insufficient information in the input data to reconstruct the input-output mapping uniquely.

•

The unavoidable presence of noise or imprecision in the input data adds uncertainty to the reconstructed input-output mapping.

To make the estimation problem “well posed”, some form of prior information about the input-output mapping is needed. This, in turn, means that the formulation of the cost function must be expanded to take the prior information into account. To satisfy this objective, the cost function to be minimized can be written as,

ξ

(

*k*

)

=

*k*

∑

λ

*k*

−

*i i*

=

1

*e*

(

*i*

)

2

+

θλ

*k*

**w**

(

*k*

)

2

(4.2)

The second term in the summation is called the regularization term and θ is a positive real number called the “

*Regularization Parameter”*

. Except for the factor

*k*

θλ , the regularization term depends on the tap weight vector

**w**

(*n* ) .

Hence the

*M *×

*M*

time-average correlation matrix of the input vector

**y**

(*i* ) can be given by

Φ

(

*k*

)

=

*k*

∑

λ

*k*

−

*i*

**y**

(

*i*

)

**y**

*H i*

=

1

(

*i*

)

+

θλ

*k*

Ι

(4.3)

In the above equation,

Ι is the

*M *×

*M*

identity matrix. It can be noted that the addition of the regularization term has the effect of making the correlation matrix

Φ

(*k* ) nonsingular at all stages of the computation, starting from

*k*

=

0 .The weight update in the RLS algorithm is given by

(

*k*

)

=

(

*k*

−

1 )

+

**g**

(

*k*

)

## ξ

∗ (

*k*

)

Where

**g**

(*k* ) is called the gain vector, which is given by

(4.4)

**g**

(

*k*

)

= Φ

−

1

(

*k*

)

**y**

(

*k*

) (4.5)

Hence the weight update requires the calculation of the inverse of the correlation matrix

Φ

(*k* ) .

**4.1.2 The Matrix Inversion Lemma **

Let **A** and **B** be two positive-definite *M *×

*M*

matrices related by

**A**

=

**B**

−

1

+

**CD**

−

1

**C**

*H*

(4.4)

Where

**D **

is a positive-definite *N *×

*M*

matrix and

**C**

is an *M *×

*N*

matrix. According to the matrix inversion lemma, the inverse of the matrix

**A**

can be expressed as

**A**

−

1

=

**B**

−

**BC**

(

**D**

+

**C**

*H*

**BC**

) −

1

**C**

*H*

**B**

(4.5)

33

The main advantage of using this concept is that, it helps update weights with out actually determining the inverse of the correlation matrix. It instead updates the gain vector itself.

Here we first declare some matrix

**P **

as the inverse of the correlation matrix. We initialize it with some small values and then update it in each iteration. Using this updated inverse correlation matrix we determine the gain vector

**g**

(*k* ) in each iteration and use it in updating the weights.

**4.1.3 Importance of RLS **

a.

In the LMS algorithm, the correction that is applied in updating the old estimate of the coefficient vector is based on the instantaneous sample value of the tap-input vector and the error signal. On the other hand, in the RLS algorithm the computation of this correction utilizes all the past available information. b.

In the LMS algorithms, the correction applied to the previous estimate consists of the product of three factors: the (scalar) step-size parameter

η

,* *the error signal

*e*

1 ) , and the tap-input vector u(*n*-1). On the other hand, in the RLS algorithm this correction consists of the product of two factors: the true estimation error

ξ

1 ) * *and the gain vector

**g**

(*k* )

. The gain vector itself consists of

Φ

−

1

(

*k*

)

,* *the inverse of the deterministic correlation matrix, multiplied by the tap-input vector

**y**

(*k* ) *. *The major difference between the LMS and RLS algorithms is therefore the presence of

Φ

−

1

(

*k*

) in the correction term of the RLS algorithm that has the effect of de-correlating the successive tap inputs, thereby making the RLS algorithm *self-orthogonalizing. *

Because of this property, we find that the RLS algorithm is essentially independent of the eigen value spread of the correlation matrix of the filter input. c.

The LMS algorithm requires approximately 20*M* iterations to converge in mean square, where *M *is the number of tap coefficients contained in the tapped-delay-line filter. On the other band, the RLS algorithm converges in mean square within less than 2*M* iterations. The rate of convergence of the RLS algorithm is therefore, in general, faster than that of the LMS algorithm by an order of magnitude.

*d.*

* *Unlike the LMS algorithm, there are no approximations made in the derivation of the

RLS algorithm. Accordingly, as the number of iterations approaches infinity, the least-squares estimate of the coefficient vector approaches the optimum Wiener value, and correspondingly, the mean-square error approaches the minimum value possible.

34

In other words, the RLS algorithm, in theory, exhibits zero mis-adjustment. On the other hand, the LMS algorithm always exhibits a nonzero mis-adjustment; however, this mis-adjustment may be made arbitrarily small by using a sufficiently small stepsize parameter

η

.* *

**4.2**

**NEURAL NETWORK TRAINING USING RLS**

The method of training the neural network using the RLS algorithm is explained in this section. The RLS algorithm is used to update the synaptic weights of the neural networks. The proposed algorithm is almost similar to the Back Propagation (BP) algorithm except the step of weight update changes. This algorithm also has two passes, a forward pass and a backward pass. In the forward ass, the inputs are allowed to propagate through the network, till it reaches the output node. Then, at the output node, error is calculated and back propagated through the network. During the back propagation of error, the local gradient,

δ

*l j*

, is computed at each node. The subscripts and superscripts used are already explained in chapter 2.

For using RLS to update the weights of the neural networks, each node in all the layers of the neural network should maintain a window of their past outputs. Also separate inverse correlation matrices and gain vectors need to be maintained at each node (including the input node and excluding the output node). The size of the window and the size of these matrices depend on the number of nodes in the next layer. Here the simple RLS algorithm is applied at each node.

**4.2.1 Algorithm **

The algorithm for the proposed method of training the neural network using the RLS algorithm is presented below: a.

Initialize the algorithm by setting small random values to all the synaptic weights. b.

Initialize the inverse correlation matrix

**P**

*i l*

( 0 ) ** **at each node.

**P**

*i l*

( 0 )

=

θ

−1

⋅

**I**

(4.6)

where *i *represents the

*i th*

node in layer *l *, this matrix is of the order

*N l*

+

1

×

*N l*

+

1

and

*N l*

+

1 represents number of nodes in layer ( + 1 ) , and

θ is a small constant. c.

Initialize

*n*

=

1 and continue steps d-j for maximum number of iterations. d.

Forward propagation of the inputs, which is same as in BP algorithm.

35

e.

Compute the error

*e*

at the output. f.

Back propagate the error to calculate the local gradient

δ

*i l*

(*n* ) at each node which is same as in BP algorithm. g.

Compute an intermediate matrix

π

*i l*

(*n* ) .

π

*i l*

(

*n*

)

=

**P**

*i l*

(

*n*

−

1 )

⋅

**Y**

*i l*

(

*n*

) (4.7)

Where

**Y**

*i l*

(*n* ) represents the windowed output at each node, the order of this matrix being

*N l*

+

1

×

1 . h.

Compute the gain vector

**K**

*l i*

(*n* ) , whose size is

*N l*

+

1

×

1 .

**K**

*l i*

(

*n*

)

=

(

λ

π

*i l*

(

*n*

)

+

**Y**

*i l*

*T*

(

*n*

)

⋅

π

*i l*

(

*n*

))

(4.8)

Where the constant

λ is called the forgetting factor, the superscript *T* represents the transpose of the matrix. i.

Update the weights.

*w l ji*

(

*n*

)

=

*w l ji*

(

*n*

−

1 )

+

*K l ji*

(

*n*

)

⋅

δ

*l*

+

1

*j*

(

*n*

) (4.9)

Where

*K l ji*

(*n* ) is a scalar and gives the

*th j*

value of the gain vector

**K**

*l i*

(*n* ) j. Update the inverse correlation matrix.

**P**

*i l*

(

*n*

)

= λ

−

1

⋅

**P**

*i l*

(

*n*

−

1 )

− λ

−

1

⋅

**K**

*l i*

(

*n*

)

⋅

**Y**

*i l*

*T*

(

*n*

)

⋅

**P**

*i l*

(

*n*

−

1 ) (4.10)

36

**RESULTS AND DISCUSSION **

RLS based BP algorithm

**RESULTS AND DISCUSSION**

In this chapter, the results obtained using the proposed algorithms of using RLS and TS for training the neural network are shown and the improvement in performance either in terms of convergence or bit error rate are discussed. In section 6.1 the results using the RLS algorithm for training ANNs are presented. In section 6.2, the behavior of the tabu based weight updating is discussed and in the last section, 6.3, the advantage of using the TS for slope adaptation is explained. All the programs are written in C and compiled using Microsoft

VC++ ver.6.0 and the plots are taken using Microsoft Excel-2003.

**6.1**

**RLS BASED BP ALGORITHM**

In this experiment, it is shown that when RLS algorithm is used to update the weights of a neural network, the rate of convergence is faster compared to training using simple BP algorithm. The channel, considered is having the transfer function

*H*

6

(

*z*

)

=

0 .

2

+

0 .

3

*z*

−

1

+

1 .

0

*z*

−

2

+

0 .

3

*z*

−

3

Here, the neural network structure used is

5 , 1 FNN with an equalizer order,

*m*

=

4 and the decision delay

*d*

=

3 . No feedback is employed in this experiment. The convergence plots, which is the plot of mean square error against the iteration number, for the channel is shown in Fig. 6.1 for the two cases of RLS based training and BP algorithm. The plots are taken for 1000 iterations. It can be noted from these convergence plots that the proposed algorithm provides a rate of convergence faster than the simple BP algorithm.

Hence the use of this algorithm reduces the training time and hence very much suitable for high speed digital communication systems.

When a neural network is trained for smaller number of iteration, then the RLS based training will have a superior performance, in terms of BER, compared to the case of training using BP algorithm. This is shown in Fig. 6.2, where the neural network is trained for 150 iterations and tested using improvement of over 1.5dB in terms of BER at 20dB SNR.

But when we train the neural network for more number of iteration then there may not be much improvement in performance. The reason being that both the BP algorithm and the

RLS based neural network training algorithms are derived from the Gradient-based learning algorithms. Hence it too have the problem of getting trapped in the local minima. Fig. 6.3 shows that the BP algorithm needs more iterations to achieve the same performance.

48

1.2

1

0.8

0.6

0.4

MLP-BP

MLP-RLS

0.2

0

0

-0.2

200 400 600 800 1000 1200

**Iterations**

*Fig. 6.1 Convergence plots for BP and RLS algorithms *

0

0

-0.5

-1

-1.5

-2

-2.5

-3

-3.5

-4

-4.5

5 10 15 20

MLP-BP

MLP-RLS

25

**SNR**

*Fig. 6.2 SNR Vs BER plots for RLS and BP when trained for 150 iterations *

49

-3

-3.5

-4

0

0

-0.5

-1

-1.5

-2

-2.5

5 10 15 20

MLP-BP

MLP-RLS

25

-4.5

-5

**SNR**

*Fig. 6.3 SNR Vs BER for BP trained for 2000 iterations and RLS trained for 200 iterations*

50

**CONCLUSION **

**CONCLUSIONS **

In this dissertation, the importance of artificial neural networks as nonlinear adaptive equalizers has been studied. The influence of different parameters on equalizers performance is observed. Various algorithms for training the neural network are presented. Among them the first one is the use of Recursive Least Square (RLS) algorithm for updating the weights of the neural network to improve the rate of convergence. It is noted that the use of this algorithm accelerates the training process and even provide better performance in terms of

Bit Error Rate (BER), when trained for smaller number of iterations. But if they are trained with more number of iterations, there may not be appreciable increase in performance compared to that of training using BP algorithm, as both of them belong to the family of

Gradient-based training algorithms, which are more likely to stop at some local minima.

Results show that the two proposed algorithms give superior performance. But among applications. It is also shown that the proposed algorithms not only improves the equalizer performance but also reduces the structural complexity of the neural network.

Any other superior optimization algorithms like Particle Swarm Optimization (PSO) may be used to adapt the weights. The use of these algorithms may give a superior result.

58

**REFERENCES**

[1] Haykin. S. Adaptive Filter Theory. Delhi: * *4 th

Ed, Pearson Education, 2002

[2] Haykin. S. Digital Communication. Singapore: John Wiley & Sons Inc,1988.

[3] Proakis. J. G. Digital Communications.* *New York: McGraw-Hill, 1983.

[4] Qureshi. S. U. H, *“*Adaptive equalization,” Proc. IEEE,* *vol. 73, no.9, pp.1349-

1387, 1985.

[5] Widrow. B and Stearns. S. D. Adaptive Signal Processing. Englewood Cliffs, NJ:

Prentice Hall, 1985.

[6] Chen. S, Mulgrew. B and Mclaughlin. S, “Adaptive Bayesian equalizer with decision feedback”, IEEE Trans. Signal Processing, Vol. 41, No. 9, Sept 1993

[7] T. S. Rapport. Wireless Communications. Delhi: Pearson Education, 2000.

[8] Duda. R. O and Hart. P. E. Pattern Classification and Scene Analysis*. *New York:

John Wiley & Sons Inc, 1973.

[9] Lippmann. R. P, “An Introduction to Computing with Neural Nets”,* *IEEE ASSP

Magazine, pp.4-22, April 1987.

[10] Kim. M. C and Choi. C. H, "Square root learning in batch mode BP for classification problems," Proc. of ICNN, pp. 2769-2774, Nov. 1995.

[11] Zainuddin. Z, Mahat. N, Abu Hassan. Y, “Improving the Convergence of the

Backpropagation Algorithm Using Local Adaptive Techniques”, Proc. of ICCI, pp.173-176, Dec. 2004.

[12] Zhang. De-Xian, Liu. Can, Wang. Zi-Quiang, Liu. Nan-Bo, “A New Fast

Learning Algorithm for Multilayer Feed Forward Neural Network”, IEEE Proc. of

ICMLC, (August 2006): pp- 2928-2934.

[15] Hertz A, Taillard E, de Werra D. “A Tutorial on Tabu Search”. Proc. of Giornate di Lavoro AIRO'95 (Enterprise Systems: Management of Technological and

Organizational Changes), (1995), pp13-24.

[16] Haykin. S. Neural Networks: A Comprehensive Foundation. Delhi: 2 nd

Ed,

Pearson Education, 2001

[17] Gibson. G. J, Siu. S, Cowan. C. F. N, “Multilayer Perceptron Structures Applied to Adaptive Equalizers for Data Communications”,* *International Conference on

Acoustics, Speech and Signal Processing, vol. 2, pp.1183-1186, May 1989.

59

[18] Siu. S, Gibson. G. J and Cowan. C. F.N, “Decision feedback equalization using neural network structures and performance comparison with standard architecture”, IEE Proceedings part I, vol. 137, no. 4, pp. 221-225, Aug 1990.

60

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

### Related manuals

advertisement
