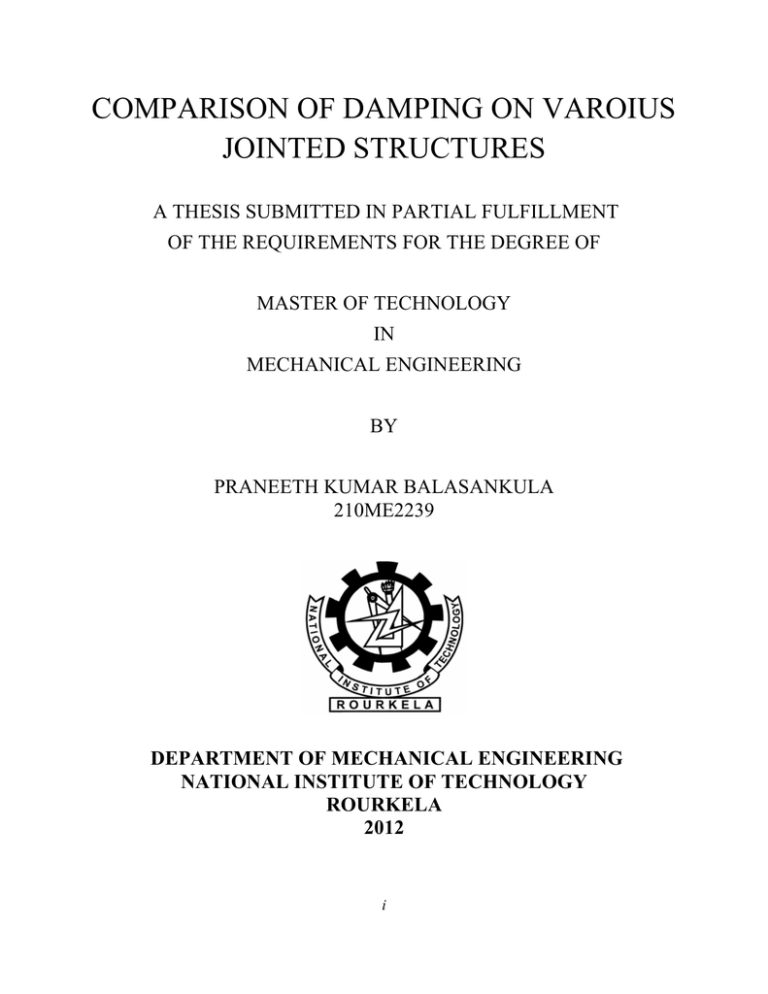

COMPARISON OF DAMPING ON VAROIUS JOINTED STRUCTURES

COMPARISON OF DAMPING ON VAROIUS JOINTED STRUCTURES
COMPARISON OF DAMPING ON VAROIUS
JOINTED STRUCTURES
A THESIS SUBMITTED IN PARTIAL FULFILLMENT
OF THE REQUIREMENTS FOR THE DEGREE OF
MASTER OF TECHNOLOGY
IN
MECHANICAL ENGINEERING
BY
PRANEETH KUMAR BALASANKULA
210ME2239
DEPARTMENT OF MECHANICAL ENGINEERING
NATIONAL INSTITUTE OF TECHNOLOGY
ROURKELA
2012
i
COMPARISON OF DAMPING ON VAROIUS
JOINTED STRUCTURES
A THESIS SUBMITTED IN PARTIAL FULFILLMENT
OF THE REQUIREMENTS FOR THE DEGREE OF
MASTER OF TECHNOLOGY
IN
MECHANICAL ENGINEERING
BY
PRANEETH KUMAR BALASANKULA
210ME2239
UNDER THE GUIDANCE OF
Prof. B.K. NANDA
DEPARTMENT OF MECHANICAL ENGINEERING
NATIONAL INSTITUTE OF TECHNOLOGY
ROURKELA
2012
ii
National Institute of Technology
Rourkela
CERTIFICATE
This is to certify that the thesis entitled, “COMPARISON OF DAMPING
ON VAROIUS JOINTED STRUCTURES” submitted by Mr.Praneeth kumar
balasankula in partial fulfillment of the requirements for the award of
Master of Technology degree in Mechanical Engineering with
specialization in Production Engineering during session 2010-2012 at
the National Institute of Technology, Rourkela.
It is an authentic work carried out by him under my supervision and
guidance. To the best of my knowledge, the matter embodied in the
thesis has not submitted to any other University/Institute for the award
of any degree or diploma.
Date:
Prof. B.K. Nanda
Dept. of Mechanical Engg.
National Institute of Technology
Place:
iii
ACKNOWLEDGEMENT
Successful completion of work will never be one man’s task. It requires hard work in
right direction. There are many who have helped to make my experience as a student a rewarding
one. In particular, I express my gratitude and deep regards to my thesis supervisor Dr. B.K.
Nanda, Professor, Department of Mechanical Engineering, NIT Rourkela for kindly
providing me to work under his supervision and guidance. I extend my deep sense of
indebtedness and gratitude to him first for his valuable guidance, inspiring discussions, constant
encouragement & kind co-operation throughout period of work which has been instrumental in
the success of thesis.
I extend my thanks to Dr. K.P. Maity, Professor and Head, Dept. of Mechanical
Engineering, Department of Mechanical Engineering, NIT Rourkela for extending all
possible help in carrying out the dissertation work directly or indirectly.
I greatly appreciate and convey my heartfelt thanks to my friends Piyush swamy, Elias
Eliot, D. Sahitya , Arundathi Pradhan ,Hemanth Rana , Ashirbad Swain , dear ones & all those
who helped me in completion of this work.
I feel pleased and privileged to fulfill my parent’s ambition and I am greatly indebted to
them for their moral support and continuous encouragement while carrying out this study. This
thesis is dedicated to my family.
PRANEETH KUMAR BALASANKULA
iv
Abstract
Light weight structures commonly have low connate structural damping. The damping
mechanism of various jointed structures can be explained by considering the energy loss due to
friction and the dynamic slip produced at the interfaces. The frictional damping is evaluated from
the relative slip between the jointed interfaces and is considered to be the most useful method for
inspect the structural damping. The damping characteristics in jointed structures are influenced
by the intensity of pressure distribution, micro-slip kinematic coefficient of friction and
logarithmic decrement at the interfaces. The effects of all these parameters on the mechanism of
damping have been extensively studied. All the above basic parameters are largely influenced by
the thickness ratio of the beam and thereby affect the damping capacity of the structures. In
addition to this, beam length of the structures and diameter of connecting rivet and bolt also play
key roles on the damping capacity of the jointed structures is assessable. For rivet bolt & welded
joints the theoretical analysis proposes two different methods to calculate damping: classical
method and finite element method. The analyses are based on the assumptions of Euler-Bernoulli
beam theory as the dimensions of test specimens satisfy the criterion of thin beam theory. The
effects of all these parameters are studied distinctly in the present investigation. It is established
that the damping capacity can be increased appreciably using larger beam length and their
diameters as well as lower thickness ratio of the beams. This design concept of using these
structures can be effectively utilized in trusses and frames, aircraft and aerospace structures,
bridges, machine members, robots and many other applications where higher damping is
required. Comprehensive experiments have been conducted on a number of mild steel specimens
under different initial conditions of excitation for establishing the accuracy of the theory
developed. Finally damping on various joint structures has been compared.
v
Contents
Certificate..................................................................................................................................................... iii
Acknowledgement ....................................................................................................................................... iv
Abstract ......................................................................................................................................................... v
List Of Tables ................................................................................................................................................ ix
Nomenclature ................................................................................................................................................ x
1 INTRODUCTION ...................................................................................................................................... 1
1.1
Damping........................................................................................................................................... 3
1.2
Classification of Damping .............................................................................................................. 4
1.2.1
Structural Damping at Joints and Interfaces ............................................................................. 4
1.3 Measurement of Structural Damping ................................................................................................ 5
1.3.1 Logarithmic Decrement (δ) ........................................................................................................ 5
1.3.2 Quality Factor (Q) ...................................................................................................................... 6
1.3.3 Damping Ratio (ζ) ...................................................................................................................... 8
1.3.4 Specific Damping Capacity (Ψ) ................................................................................................. 9
1.3.5 Loss Factor (η) ........................................................................................................................... 9
1.4 Linear Problem................................................................................................................................ 10
1.5 Beam Theories ................................................................................................................................ 11
1.6 Modeling of a Structure .................................................................................................................. 12
1.6.1 Classification of Joints According To Configuration .............................................................. 13
1.6.2 Damping Due To Sandwich Construction ............................................................................... 14
1.7 Different Techniques of Damping .................................................................................................. 14
1.8 Various Types of Jointed Structures ............................................................................................... 17
1.9 Aims and Objectives ....................................................................................................................... 19
2 LITERATURE SURVEY .......................................................................................................................... 20
3 THEORETICAL ANALYSIS ..................................................................................................................... 26
3.1
Interface Pressure Distribution....................................................................................................... 27
3.1.1 Determination of Pressure Distribution at the Interfaces for Riveted and Bolted Joints ......... 28
3.2 Dynamic Equations of Free Transverse Vibration of Fixed-Fixed Beams. .................................... 30
vi
3.2.1 Introduction .............................................................................................................................. 30
3.3 Dynamic equations for free transverse vibration on various joint structures. ................................. 30
3.3.1 Evaluation of Constants , , ........................................................................... 33
3.3.2 Evaluation of constants .................................................................................. 34
3.3.3 Evaluation of relative dynamic slip ......................................................................................... 36
3.3.5 Evaluation Of Damping Ratio.................................................................................................. 39
3.3.6 Logarithmic decrement ............................................................................................................ 39
4 EXPERIMENTATION ............................................................................................................................. 41
4.1 Experimental Set-Up ...................................................................................................................... 42
4.2 Instrumentation ............................................................................................................................... 47
4.3 Connecting an oscilloscope............................................................................................................. 50
4.4 Voltage ............................................................................................................................................ 52
4.5 Time period ..................................................................................................................................... 52
4.6 Dial indicator ................................................................................................................................... 52
4.7 Vibration pick-up ............................................................................................................................ 53
4.8 Theory of Operation ........................................................................................................................ 54
4.8.1 Signal Conventions ................................................................................................................... 55
4.8.2 Construction ............................................................................................................................. 55
4.9 Experimental Techniques................................................................................................................ 56
5 RESULTS AND DISCUSSION ................................................................................................................. 58
5.1 Results for coefficient of friction ∗ versus frequency ........................................................... 59
5.2 Results for variation of logarithmic decrement with length of specimen for fixed-fixed beams ...... 61
5.3 Result for variation of logarithmic decrement with amplitude of excitation for fixed-fixed beam by
varying length ......................................................................................................................................... 62
5.4 Result for variation of logarithmic decrement with torque for fixed-fixed beam: .......................... 63
5.5 Result for variation of logarithmic decrement with diameter of rivet and bolt joints ..................... 63
6 CONCLUSIONS AND SCOPE FOR FURTHER WORK ............................................................................ 65
REFERENCES ............................................................................................................................................. 68
vii
List of Figures
Figure.1 Q-factor method of damping measurement .................................................................................. 7
Figure 2 Free vibration of systems with different levels of damping. ........................................................ 9
Figure 3 Comparison of Linear and nonlinear systems .............................................................................. 11
Figure 4 Free body diagram of bolted joint showing influence zone.......................................................... 28
Figure 5 variation of damping in a fixed-fixed beam ................................................................................. 32
Figure 6 Details of mild steel specimens used in the experiment for the thickness ratio 1.0 for riveted,
bolted and welded joints ............................................................................................................................. 43
Figure 7 Schematic diagram of riveted joint in fixed-fixed beam ............................................................ 44
Figure 8 Schematic diagram of welded joint in fixed-fixed beam ............................................................ 45
Figure 9 Schematic diagram of bolted joint in fixed-fixed beam ............................................................. 45
Figure 10 storage oscilloscope .................................................................................................................... 49
Figure 11 nodes showing voltage vs time ................................................................................................... 51
Figure 12 dial gauge.................................................................................................................................... 53
Figure 13 vibration pickup ......................................................................................................................... 54
Figure 14 deflection for fixed-fixed beam................................................................................................... 59
Figure 15 Variation of α.µ with frequency of vibration for mild steel specimens with beam for rivet joint
.................................................................................................................................................................... 59
Figure 16 Variation of α.µ with frequency of vibration for mild steel specimens with beam for bolted
joint ............................................................................................................................................................. 60
Figure 17 Variation of α.µ with frequency of vibration for mild steel specimens with beam for welded
joint ............................................................................................................................................................. 60
Figure 18 Variation of logarithmic decrement with the length of specimen of mild steel with amplitude
of excitation 0.1 mm. .................................................................................................................................. 61
Figure 19 Variation of logarithmic decrement with the length using mild steel with amplitude of
excitation 0.2 mm........................................................................................................................................ 61
Figure 20 Variation of logarithmic decrement with the length using mild steel with amplitude of
excitation 0.3 mm........................................................................................................................................ 62
Figure 21 Variation of logarithmic decrement with initial amplitude of excitation ................................. 62
Figure 22 Variation of logarithmic decrement with applied tightening torque......................................... 63
Figure 23 Variation of logarithmic decrement with diameter of rivet of 1.0 thickness ratio.................... 63
Figure 24 Variation of logarithmic decrement with diameter of bolt of 1.0 thickness ratio ..................... 64
viii
List Of Tables
Table 1 Details of mild steel specimens used in the experiment for the thickness ratio 1.0 in riveted
joints............................................................................................................................................................ 46
Table 2 Details of mild steel specimens used in the experiment for the thickness ratio 1.0 in bolted joints
.................................................................................................................................................................... 46
Table 3 Details of mild steel specimens used in the experiment for the thickness ratio 1.0 in welded
joints............................................................................................................................................................ 47
ix
Nomenclature
English Symbols
A
Area of cross-section of the beam
Ao
Area of cross-section of the rivet
A′
Area under a connecting rivet head
d
Diameter of connecting rivet
E
Static bending modulus of elasticity
Ef
Energy loss per cycle due to friction at joints
E Loss
E Total energy loss per cycle
En
Energy stored in the system per cycle
E
Energy loss per cycle due to material and support friction
RMF
Maximum frictional force at the interfaces
I
Second moment of area
K
Static bending stiffness of the layered and jointed beam
K′
Static bending stiffness of the solid beam
l
Length of individual elements
L
Free length of the layered and jointed beam
M
Number of layers in a jointed beam
N
Total normal force under each connecting rivet
p
Interface pressure
P
Preload on a rivet
q
Number of rivets
x
R
Any radius within influencing zone
RB
Radius of the connecting rivet
RM
Limiting radius of influencing zone
t
time coordinate
Uo
friction
Relative dynamic slip between the interfaces at a riveted joint in the absence of
Ur
friction
Relative dynamic slip between the interfaces at a riveted joint in the presence of
U rm
vibration
Relative dynamic slip between the interfaces at the maximum amplitude of
W
Static load
a1, an+1
Amplitude of first cycle and last cycle, respectively
y (l, 0)
Initial free end displacement
n
Number of cycles
Greek Symbols
α
Dynamic slip ratio ()rouu
δ
Logarithmic decrement of the system
∆
Deflection due to static load
µ
Kinematic coefficient of friction
Natural frequency of vibration
ωd
Damped frequency of vibration
ρ
Mass density
σ0
Initial stress on a rivet
σs
Surface stress on the jointed structure
ξ
Damping ratio
xi
CHAPTER – 1
1 INTRODUCTION
1|Page
With accelerated growth and development of disenchanted contrive structures, efforts
have been made by engineers and technologists to improve their capabilities by checking
disastrous effects of vibration transmitted through foundation and chatter of fabricated structures.
Problems involving vibration occur in many areas of mechanical, civil and aerospace
engineering. Engineering structures are generally fabricated using a variety of connections such
as bolted, riveted, welded and bonded joints etc. The dynamics of mechanical joints is a topic of
special interest due to their strong influence in the performance of the structure. Further, the
inclusion of these joints plays a significant role in the overall system behavior, particularly the
damping level of the structures. However, the determination of damping either by analysis or
experiment is never straightforward owing to the complexity of the dynamic interaction of
components. The estimation of damping in beam-like structures with passive damping approach
is the essential problem addressed by the present research. The study of dynamics of fabricated
structures, a subject of comparatively of recent origin, enables us to design machines which
could minimize the machining error that are liable to creep into the job under the dynamic
condition, viz. deflection, positional error, error due to vibrational instability. The continuous
trend towards lighter structure, low noise, increased reliability, highly balance, less vibration
transmission to foundation and long life at higher operating speed requires that research work in
this field will remain important in future. Friction damping takes place whenever two surfaces
experience relative motion in the presence of friction. In case of a jointed structure, the relative
motion between contacting layers is a function of normal load which arises from the tightening
of the joints holding the components. When the joint is very loose, the normal load is
insignificant and the contact surface experiences pure slip. Since no work is required to be done
against friction, no energy is dissipated. On the other hand, when the joint is very tight, high
2|Page
normal loads cause the whole contact interface to stick. This results in no energy dissipation
again since no relative motion is allowed at the interfaces. For normal loads lying between these
two extremities, energy is dissipated and the maximum value of energy dissipation occurs within
this range. The contact pressure between the surfaces is generated by the clamping action of the
joints and plays a vital role in the joint properties. Due to uneven pressure distribution, a local
relative motion termed as micro-slip occurs at the interfaces of the connecting members. The
energy dissipated in most real structures is often very small, so that an undamped analysis is
sometimes realistic. When the damping is significant, its effect must be included in the analysis
particularly when the dynamic study of a structure is required. The energy of the vibrating
system is dissipated by various mechanisms and often more than one mechanism may be present
at the same time. Although the knowledge on the friction joint is limited, efforts have been put in
the present investigation to study the damping aspect of the friction joints in built-up structures.
1.1 Damping
Damping is the energy dissipation properties of a material or system under cyclic stress.
When a structure is subjected to an excitation by an external force then it vibrates in certain
amplitude of vibration, it reduces as the external force is removed. This is due to some résistance
offered to the structural member which may be internal or external. This resistance is termed as
damping.The origin and mechanism of damping are complex and sometimes difficult to
comprehend. The energy of the vibrating system is dissipated by various mechanisms and often
more than one mechanism may be present simultaneously. For convenience, damping is divided
into two major groups identified as:
3|Page
1.2 Classification of Damping
Damping can be broadly divided into two classes depending on their sources,
(1) Material damping
(2) System damping
Material Damping:
Material damping, also called solid or material damping, is related to the energy dissipation
within the volume of material. This mechanism is usually associated with internal
reconstructions of the micro and macro structure ranging from crystal lattice to molecular scale
effects, thermo-elasticity, grain boundary viscosity, point-defect relaxation, etc. [1, 2]. Besides,
there are two types of internal damping: hysteretic damping and visco-elastic damping.
System Damping:
System damping involves configuration of distinguishable part arises from slip and boundary
shear effects of mating surfaces. Energy dissipation during cyclic stress at an interface may occur
as a result of dry sliding (coulomb friction), lubricated sliding (viscous forces) or cyclic strain in
a separating adhesive (damping in visco-elastic layers between mating surfaces).
1.2.1 Structural Damping at Joints and Interfaces
Since the damping in the structural material is not significant, most of the damping in real
fabricated structures arises in the joints and interfaces [1]. It is the result of energy dissipation
caused by rubbing friction resulting from relative motion between components and by
intermittent contact at the joints in a mechanical system. However, the energy dissipation
4|Page
mechanism in a joint is a complex phenomenon being largely influenced by the interface
pressure and degree of slip at the interfaces. It is this slip phenomenon occurring in the presence
of friction at the joint interface that causes the energy dissipation and nonlinearity in the joints.
1.3 Measurement of Structural Damping
There are several ways of expressing the damping in a structure. They are time response
and frequency-response methods where the response of the system is expressed in terms of time
and frequency, respectively. Depending on the mathematical model of the physical problem, the
above two methods are used to measure the damping capacity of the structures. Logarithmic
decrement (δ) is determined using time domain method and the quality factor(Q) by frequency
domain method. However, the other nomenclatures such as; damping ratio(ζ), specific damping
capacity(ψ) and loss factor(η) are estimated from either of the above two methods for measuring
the damping.
1.3.1 Logarithmic Decrement (δ)
The logarithmic decrement method is the most widely used time-response method to
measure damping from the free-decay of the time history curve. When the structure is set into
free vibration, the fundamental mode dominates the response since all the higher modes are
damped out quickly. The logarithmic decrement represents the rate at which the amplitude of a
free damped vibration decreases. It is defined as the natural logarithm of the ratio of any two
successive amplitudes. Thus, the logarithmic decrement δ is obtained as;
δ=
ln( x1 )
=
x2
2Π ς
1− ς 2
(1)
5|Page
Where, x1 and x2 are the successive amplitudes and ζ is the damping ratio.
For small damping, the above relation is approximated as; δ ≃ 2πζ .
Generally for low damping, it is preferable to measure the amplitudes of oscillations of many
cycles so that an accurately measurable difference exists. In such a case,
δ=
1 x0
ln( )
n xn
(2)
where x0 , xn and n are the amplitudes of first and last cycles and number of cycles, respectively.
1.3.2 Quality Factor (Q)
The half-power point bandwidth method is a frequency-domain method used to
determine the damping in terms of quality factor (Q). This method is based on the magnitude
curve of the frequency-response function. When a structure is subjected to a forced vibration by
a harmonic exciting force, the ratio of maximum dynamic displacement (Xmax) at steady-state
condition to the static displacement ( Xs ) under a similar force is called the Q factor.
Q=
X max
1
=
XS
2ςQ
(3)
The above equation shows that the Q factor is equal to the reciprocal of twice the damping ratio
ζ. Since a structure is excited into resonance at any of its modes, a Q factor can be determined for
each mode. Systems with high Q factor have low damping and vice versa.
6|Page
Figure.1 Q-factor method of damping measurement
If the static displacement (Xs) cannot be determined, the Q factor is found out using the halfpower point method [1]. The half-power points are those points on the response curve with
amplitude 1.2 times the amplitude at resonance as presented in Fig. 1. This method requires very
accurate measurement of the vibration amplitude for excitation frequencies in the region of
resonance. Once the maximum dynamic displacement (X_max) and resonant frequency (ω) have
been located, the so-called half-power points are determined when the amplitude is (X) and the
corresponding frequencies on either side of resonant frequencies, ω1 and ω2 are determined.
Since the energy dissipated per cycle is proportional to the square of amplitude, the energy
dissipated is reduced by 50% when the amplitude is reduced by a factor
(1) ⁄√2. Thus the Q
factor is modified as:
7|Page
Q=
1
=ω n
2ς
∆w
(4)
where ∆ω is the frequency bandwidth at the half-power points.
1.3.3 Damping Ratio (ζ)
The damping ratio is another way of measuring damping which shows the decay of oscillations
in a system after a disturbance. Many systems show oscillatory behavior when they are disturbed
from their position of static equilibrium. Frictional losses damp the system and cause the
oscillations to gradually decay to zero amplitude. The damping ratio provides a mathematical
means of expressing the level of damping in a system. It is defined as the ratio of the damping
constant to the critical damping constant.
The rate at which the motion decays in free vibration is controlled by the damping ratio ζ, which
is a dimensionless measure of damping expressed as a percentage of critical damping. Figure 2
displays the free vibration response of several systems with varying levels of damping ratios. It is
observed that the amplitude of vibration decays more rapidly as the value of the damping ratio
increases.
8|Page
Figure 2 Free vibration of systems with different levels of damping.
1.3.4 Specific Damping Capacity (Ψ)
The damping capacity is defined as the energy dissipated per complete cycle of vibration. The
energy dissipation per cycle is calculated from the damping force
It is expressed in the integral for ∆U= ∮ f (
d
)
dx
(5)
This is given by the area of the hysteresis loop in the displacement force-plane. The specific
damping capacity (Ψ) is defined as the ratio of energy dissipated per cycle of vibration to the
total energy of the system. If the initial (total) energy of the system is denoted by U max , the
specific damping capacity is given by; Nψ =
∆U
U max
1.3.5 Loss Factor (η)
The loss factor η is the specific damping capacity per radian of the damping cycle and is widely
used in case of viscos-elastic damping. This is expressed as;
η=
∆U
2Π U max
(6)
9|Page
It is noted that U max is approximate equal to the maximum kinetic or potential energy of the
system when the damping is low. Finally, the general relationship among various nomenclatures
of damping measurement (valid for small values of damping) is given by;
1/Q =ψ/2π = 2ζ = δ/π = η = ∆U/〖2πU〗
(7)
1.4 Linear Problem
Most structural problems are studied based on the assumption that the structure to be analyzed is
either linear or nonlinear. In linear systems, the excitation and response are linearly related and
their relationship is given by a linear plot as shown in Fig. 3. For many cases, this assumption is
more often valid over certain operating ranges. Working with linear models is easier from both
an analytical and experimental point of view. For beams undergoing small displacements, linear
beam theory is used to calculate the natural frequencies, mode shapes and the response for a
given excitation.
It is very clear from Fig. 3 that the linear and nonlinear systems agree well at small values of
excitation, while they deviate at higher levels. The nonlinear beam theory is used for larger
displacements where the superposition principle is not valid. The linear vibration theory is used
when the beam is vibrated at small amplitudes and lower modes of vibration. The present
investigation mainly focuses on the study of damping of jointed fixed-fixed beams at lower
excitation levels which can be well considered as linear.
10 | P a g e
Figure 3 Comparison of Linear and nonlinear systems
1.5 Beam Theories
The beam is one of the fundamental elements of an engineering structure and finds application in
structural members like helicopter rotor blades, spacecraft antennae, flexible satellites, airplane
wings, gun barrels, robot arms, high-rise buildings, long span bridges, etc. These beam-like
structures are typically subjected to dynamic loads. Therefore, studying the static and dynamic
response, both theoretically and experimentally, of these structural components under various
loading conditions would help in understanding and explaining the behavior of more complex
and real structures.
The popular beam theories in use today are: (a) Euler-Bernoulli beam theory and (b) Timoshenko
beam theory. Dynamic analysis of beams is generally based on one of the above beam theories.
If the lateral dimensions of the beam are less than one-tenth of its length, then the effects of shear
deformation and rotary inertia are neglected for the beams vibrating at low frequency. The notransverse-shear assumption means that the rotation of cross section is due to bending alone. A
beam based on such conditions is called Euler-Bernoulli beam or thin beam.
If the cross-sectional dimensions are not small compared to the length of the beam, the effects of
shear deformation and rotary inertia are to be considered in the analysis. Timoshenko included
11 | P a g e
these effects and obtained results in accordance with the exact theory. The procedure presented
by Timoshenko is known as thick beam theory or Timoshenko beam theory. The present
investigation is based on the assumptions of Euler-Bernoulli beam theory as the beam is vibrated
at low frequency and the dimensions of test specimens are much smaller in the lateral directions
compared to length, thus satisfying the condition of thin beam theory.
1.6 Modeling of a Structure
It is essential to have a theoretical model to represent a structure in order to study its dynamic
characteristics. Theoretical modeling of the present problem considers two approaches using the
Euler-Bernoulli beam theory: continuous model approach and finite element model approach.
A continuous model is characterized by a partial differential equation with respect to spatial and
time coordinates which is often used for studying simple structures such as a uniform beam.
Exact solutions of such equations are possible only for a limited number of problems with simple
geometry, boundary conditions and material properties. However, real-life engineering structures
are generally very complex in geometry, boundary conditions and material properties. For this
reason, normally some kind of other approximate method is needed to solve a general problem.
The classical logarithmic decrement method is very popular for measuring damping in the time
domain. This method is mostly used for free vibration response of a lightly damped linear system
having low and medium frequency range. In this method, the damping is measured for a single
frequency oscillation directly from the decay of the system response. It is established that this
method is equally applicable to single as well as multiple degrees of freedom systems. In case of
multiple degrees of freedom systems, the damping for each mode is separately determined if the
decay of initial excitation takes place primarily in one mode of vibration.
12 | P a g e
1.6.1 Classification of Joints According To Configuration
An important step towards the analysis and representation of the mode of vibration of machine is
the analysis of spatial vibration behavior of the structure when vibrating in its resonance
frequencies. In order to examine a machine from structural point of view it is necessary to
provide a method by which a structural mode is abstracted from a machine. The modular
construction system for machine tool has recently become important not only to rationalize their
design and manufacturing procedure but also to evolve a feasible manufacturing system.
Fundamental shape, main cross-sectional shape and function of structural modules and relation
between adjacent structural configuration shows that a machine consists of many elementary
aggregate. This hierarchical property of machine structure suggests the possibility of defining a
concrete model suitable for each joint in machine tool. Following fundamental characteristics of
the joint are to be considered when replacing machine tool joints by mathematical model:
(1) The static stiffness of structures with joints is considerably lower than that of the equivalent
solid structures and joint stiffness show the non-linear characteristics.
(2) The damping capacity of jointed structures is higher than that of equivalent solid one, but the
natural frequency of jointed structures is less as compared to solid one.
(3) The characteristics mentioned above are in large dependence on the stiffness ratio of joint
surrounding.
13 | P a g e
Sliding joint
Here joint displacement to sum of the roughness ratio is smaller than unity. The ratio also
increases with an increasing interface pressure. In plain slide-ways the dynamic characteristics
are mainly determined by damping caused by friction, the mass of the carriage and the stiffness
and damping of the drive. The stiffness and the damping of the practical fabricated structures are
not always linear because of the existence of a certain preload is considered. The damping
caused by friction is non-linear and may be either positive or negative which means either stable
sliding or self-excited oscillations (stick-slip). Measurement shows that damping depends upon
slide ways materials, velocity, lubricant and mass. Mechanism of damping in a joint is not
merely due to friction but is a complex one of micro and macro friction and cyclic plastic
deformation is likely to be predominant mechanism to which energy dissipation could be
attributed.
(1) Macro-slip involving frictional damping
(2) Micro-slip involving very small displacement of asperities with respect to other surface.
1.6.2 Damping Due To Sandwich Construction
The forced vibration of beams and plates can be reduced by inserting a layer of damping material
at attachment point and by permitting some motion to take place. Core thickness equal to or
greater than the thickness of the metal constraining layer can provide high overall damping.
Artificial means of effecting interfacial damping is envisaged namely bolted, riveted, welded,
laminated adhesive joint to serve the dual purpose of fasting and damping the vibration.
Structural member can be joined by adhesive, fastener and welding method
14 | P a g e
1.7 Different Techniques of Damping
(i) Unconstrained construction:
Layer of viscoelastic layer is bonded to elastic one. In this case the viscoelastic layer to elastic
one, the viscoelastic layer is subjected to alternate extension and compression as the elastic layer
to which it is bonded experiences flexural vibrations, mostly applied to finished material
structure like automobile bodies, ship hulls, and air craft skin.
(ii) Constrained construction:
Viscoelastic layer is sandwiched between two elastic layers. Such an arrangement vibrating in
bending would cause shear strain in viscoelastic layer, causing energy dissipation. This type used
in printed circuit board for air craft missiles, mounting platforms for electronic and guidance
apparatus, air craft and missile structure, building bridges, ship engine. Constrained type of
treatment is seen to be more beneficial in practice as it is seen to be more beneficial in practice as
it is seen to provide more damping for the same total weight of structure. Adhesive layer in the
joint forms an equivalent solid coupling. Cyclic damping produced in thin layers of dissipative
material placed between two rigid surfaces is inversely proportional to adhesive layer thickness.
(iii) Laminated Construction:
Damping in plate type of structure can be significantly increased by using laminated plates
correctly fastened to allow interfacial slip during vibration. We know that considerable damping
can be achieved by using viscoelastic material in structures; the damping capacity of material is
both frequency and temperature sensitive to a much greater extent than that found in friction, so
that their use in the condition of changing temperature and frequency is limited. Viscoelastic
material is an extra structural element, so that further advantage of frictional damping is that it
15 | P a g e
does not require extra space for damping material to be filled in the structure. In this case panel
of thickness t is replaced by n laminates of total thickness T (each of thickness T/n). The
laminates were fastened together in such a way that as the panel vibrates interfacial slip occurs
between laminates, thus giving rise to frictional damping. This can be achieved by riveting.
Some suggestions are given for interface preparation and its effects on frictional damping in
joint. If fretting occurs in a joint at least two undesirable effects may occur.
(i) Fretting may introduce serious corrosion damage within the joint and initiate crack with
ultimate fatigue failure.
(ii) The fretting action may allow the joint to drift from any present clamping condition or even
cause jamming at critical clearance.
Shot peening and blasting both increase surface roughness and reduce surface damage compared
with ground surface, while metal spray show little surface damage but introduce some instability
in joint. However cyanide hardened surface show very stable condition with slight surface
damage without impairing energy dissipation capability of joint. As the material damping within
the structural members is of low magnitude, various other techniques are used to improve the
damping capacity of structures. These are: (i) Use of constrained/unconstrained viscoelastic
layers, (ii) fabrication using a multi-layered sandwich construction, (iii) use of stress raisers, (iv)
Insertion of special high-elasticity inserts in the parent structure, (v) application of spaced
damping techniques, (vi) Use of a viscous fluid layer, (vii) use of bonded joints and (viii)
fabricating layered and jointed structures.
16 | P a g e
1.8 Various Types of Jointed Structures
RIVETED:
A rivet is a perpetual mechanical fastener. Before being mounted a rivet involves in a
smooth cylindrical shaft with a head on one end. The end opposite the head is called the bucktail. On connection the rivet is placed in a pierced or pre-drilled hole, and the tail is upset,
or bucked (i.e. deformed), so that it expands to about 1.5 times the original shaft diameter,
holding the rivet in place. To extricate between the two ends of the rivet, the unique head is
called the factory head and the distorted end is called the shop head or buck-tail.
Because there is effectually a head on each end of an installed rivet, it can support tension loads
(loads parallel to the axis of the shaft); however, it is much more capable of supporting shear
loads (loads perpendicular to the axis of the shaft). Bolts and screws are better matched for
tension applications.
Fastenings used in traditional wooden boat building, like copper nails and clinch bolts, work on
the same standard as the rivet but were in use long before the term rivet came about and, where
they are recollected, are usually classified among the nails and bolts respectively.
BOLTED:
Bolted joints are one of the most collective elements in construction and machine design. They
entail of fasteners that capture and join other parts, and are protected with the mating of screw
threads. There are two chief types of bolted joint designs. In one method the bolt is stiffened to a
calculated clamp load, usually by smearing a measured torque load. The joint will be intended
17 | P a g e
such that the clamp load is never overwhelmed by the forces acting on the joint (and therefore
the joined parts see no relative motion). The other type of bolted joint does not have a intended
clamp
load
but
depend
on
on
the shear
strength of
the
bolt
shaft.
This
may
comprise clevis linkages, joints that can change, and joints that depend on on a locking
mechanism (like lock washers, thread adhesives, and lock nuts).The clamp load, also called
preload, of a clasp is created when a torque is smeared, and is commonly a percentage of the
fastener's resilient strength; a fastener is contrived to various values that define, among new
things, its asset and clamp load. Torque charts are accessible to identify the required torque for a
fastener created on its property class or grade. When a fastener is tightened, it is pushed and the
parts being joined are compressed; this can be modeled as a spring-like assemblage that has a
non-intuitive dissemination of strain. External forces are intended to act on the secured parts
appealing than on the fastener, and as time-consuming as the forces acting on the clasped parts
do not exceed the clamp load, the fastener is not subjected to any increased load.
WELDED:
Welding joints are shaped by welding two or more work pieces, made of metals or plastics,
according to a precise geometry. The most common types are butt and lap joints; there are
various minor used welding joints counting flange and corner joints. Here we used tack weld
which is a temporary fastener. The tack weld is a little small weld that is not designed to be of
any structural value. The tack weld is just a one second squash on the trigger. It would be much
easier for me to only slog off these small tack welds instead of a big long weld bead. So you can
see here what tack welding is and what it would be used for.
18 | P a g e
1.9 Aims and Objectives
Built-up structures are generally fabricated using many types of fasteners such as bolted, riveted
and welded joints. It is the well-known fact that the improvement in damping due to the
provision of welded joints is not appreciable compared to the use of bolted or riveted joints.
Therefore, the use of welded joints is usually avoided in structural applications where higher
damping is the main criterion. In case of bolted and riveted joints, the fundamental mechanism of
damping may be same, but they differ in their functional aspects. For example, the parameters
such as interface pressure distribution characteristics, zone of influence and preload are not same
in both cases. . However, a little amount of research has been reported till date on the welded
joints. The use of welding in such applications is cheaper compared to other fasteners thereby
giving low assembly cost. Since the zone of influence differs in both cases, the relative spacing
among the joints will be different thereby changing the relative dynamic slip at the interfaces.
These facts suggest that the damping action for both cases is not same. Further, the axial load on
a bolt can be varied by applying the tightening torque as per the clamping requirements of the
structure whereas the preload in a rivet is constant and cannot be changed in the latter part of the
design. Consequently, it is highly desirable that the machine members, building structures and
industries can definitely make use of jointed construction for the improvement of damping
without sacrificing strength where vibration is encountered. Moreover, the basic mechanism of
energy loss due to interface friction and slip is same in case of all the fasteners. Therefore, an
attempt has been made in the present investigation to study the mechanism of interface slip
damping considering the above concept for layered and these jointed structures.
19 | P a g e
CHAPTER-2
2 LITERATURE SURVEY
20 | P a g e
Structural damping is widely used for creating of many structures. Although an ample
amount of work has been reported on the study of damping in rivet and bolt structures with nonuniform pressure distribution at the interfaces, no generalized theory has been established for
these beams with uniform pressure distribution at the interfaces. Most engineering designs are
built up by connecting structural components through mechanical connections. Such assembled
designs need sufficient damping to limit excessive vibrations under dynamic loads. Damping in
such designs mainly starts from two sources. One is the internal or material damping which is
innately low [1] and the other one is the structural damping due to joints [2]. The behind one
offers a best source of energy dissipation, thereby sufficiently compensates the low material
damping of structures. It is estimated that structures consisting of bolted or riveted members
contribute about 90% and rest by others of the damping through the joints [3]. The work in this
thesis is oriented towards the use of mechanical systems fabricated in layers jointed with them
for achieving increased damping.
As discussed in the preceding paragraph, the arrangement of layers in association with
joints encourages large damping in built-up structures. These connections are identified as a
good source of energy dissipation and mostly affect the dynamic behavior in terms of natural
frequency and damping [4, 5]. This structural damping offers excellent potential for large energy
dissipation is associated with the interface shear of the joint. It is thus identified that the
provision of joints can effectually contribute to the damping of all fabricated structures.
Although most of the connate damping occurring in real structures arises in the joints, but a little
effort has been made to study this source of damping because of complex mechanism occurring
at the interfaces due to relative slip, coefficient of friction and pressure distribution
21 | P a g e
characteristics. It is therefore important to focus the contemplation to study these parameters for
accurate assessment of the damping capacity of structures.
Over the past few decades, most of the work has been done in the area of micro- and
macro-slip phenomena [6, 7]. These concepts are utilized to study the dynamic behavior of
jointed structures having friction contact [8-15]. This model is generally adopted when the
normal load at the interface is small. On the other hand, many researchers [13, 14] have utilized
the micro-slip concept considering the friction surface as an elastic body. In this case, the
interface undergoes partial slip at high normal load. Masuko et al. [16] and Nishiwaki et al. [17,
18] have found out the energy loss in jointed cantilever beams considering micro-slip and normal
force at the interfaces. Olofsson and Hagman [19] have shown that the micro-slip at the
contacting surfaces occur when a best frictional load is applied. They have also presented a
model for micro-slip between the flat smooth and rough surfaces covered with ellipsoidal elastic
bodies.
The role of friction is of paramount significance in controlling the dynamic
characteristics of engineering structures. This may be undesirable or desirable depending on the
type of applications. Friction is often considered unique in the design of moving parts. On the
other hand, this is desirable in fabricated structures for effective energy dissipation. Therefore,
this concept of design is always acknowledged in assembled structures requiring high damping.
The friction at the jointed interfaces arises when the layers experience relative movement under
transverse vibration. The Coulomb’s law of friction is widely used to represent the dry friction at
the contacting surfaces. The friction in a joint arises from shearing between the parts and is
governed by the tension in the bolt/rivet, surface properties and type of materials in contact [20].
Den Hartog [21] has analytically solved the steady state response of a simple friction-damped
22 | P a g e
system with dual Coulomb and viscous friction. Reviews on the effects of joint friction on
structural damping in built-up structures have been presented by many researchers [22, 5, 23].
Their findings have shown that the friction in structural joints is regarded as a major source of
energy dissipation in assembled structures.
The nature of pressure distribution through a beam layer is another important aspect
affecting the damping capacity of jointed structures. Several workers have tried over the years to
know the actual design of pressure distribution at the interfaces due to the clamping action on the
joint. Almost all previous researchers have seen the joints by assuming a uniform pressure
profile without considering the effects of surface irregularities and asperities [16-18]. In fact,
many authors [24-29] have conducted experiments to know the exact distribution characteristics.
These experiments have confirmed that the interface pressure is constant in original situation. In
particular, Gould and Mikic [28] and Ziada and Abd [29] have reported that the pressure
distribution at the interfaces of a bolted joint is parabolic in nature circumscribing the bolt which
is approximately 3.5 times the bolt diameter. Recently, Nanda and Behera [30] have developed a
theoretical session for the pressure distribution at the interfaces of a bolted joint by curve fitting
the earlier data reported by Ziada and Abd [31]. They have obtained an eighth order polynomial
even function in terms of normalized radial distance from the Centre of the bolt such that the
function assumes its maximum value at the Centre of the bolt and decreases radially away from
the bolt. They have used Dunn’s curve fitting software to calculate the perfect spacing between
bolts that would result in a uniform interfacial pressure distribution along the entire length of the
beam. Using exact spacing of 2.00211 times the diameter of the connecting bolts, Nanda and
Behera have been successful in simulating uniform interface pressure over the length of the
beam. Goodman and Klumpp [2] examined the energy dissipation due to slip at the interfaces of
23 | P a g e
a laminated beam. In fact, previous investigators such as; Cockerham and Symmons [32], Hess
et al. [33] and Guyan et al. [34] considered various friction and excitation models, while Barnett
et al. [35] and Maugin et al. [36] considered interfacial slip waves between two surfaces for the
measurement of damping capacity of structures. Studies by researchers such as; Goodman [37],
Earles [38], Murty [39] have shown that the energy dissipation at the joints occur due to
frictional energy loss at the interfaces which is more than the energy loss at the support. In fact
following the work of Goodman and Klumpp, early workers, such as Masuko et al [40],
Nishiwaki et al [41], and Motosh [42] studied the damping capacity of layered and bolted
structures assuming uniform intensity of pressure distribution at the interfaces of such structures.
However, their work is limited to the layered and jointed symmetric structures.
Hansen and Spies [43] investigated the structural damping in laminated beams due to
interfacial slip. They analyzed a two layered plate model with an assumption that there exists an
adhesive layer of negligible thickness and mass between the two layers such that some amount of
micro-slip originates at the frictional interfaces which contributes to the damping. They have also
shown that the restoring force is developed by this adhesive medium and is proportional to the
interfacial micro-slip. The effect of non-uniform interface pressure distribution on the
mechanism of slip damping for layered beams has also been examined recently by Damisa et al.
[44], but their analysis is limited to the case of static load. Damisa et al. [45] also examined the
effect of non-uniform interface pressure distribution on the mechanism of slip damping for
layered beams under dynamic loads. Though these researchers considered the in-plane
distribution of bending stresses but all the analysis is limited to the symmetric structures with
single interface. Many comprehensive review papers on joints and fasteners have appeared in
recent years. The small, localized motions during micro-slips result in energy losses at the joint,
24 | P a g e
which is perceived as localized damping of the structure. Berger [46] has studied the effect of
micro-slip on passive damping of a jointed structure. Beards [47] performed a series of
experiments showing that the damping in joints is much larger than the material damping.
Mayer and Gaul [48] discussed the segment- to-segment contact elements of a structure
having both linear and nonlinear constitutive contact behavior in normal and tangential
directions, including nonlinear micro-slip behavior. Further investigations into joints have been
undertaken at Sandia National Laboratories [49, 50], aimed at identifying the physics of joint
interfaces. A series of closely controlled experiments has established that there exists a powerlaw relationship between input force and energy dissipated per cycle [51], and further
experimental results identified the regions of micro-slip. Further work at Sandia examined the
use of Iwan models [52] to describe the dynamics of joints [53]. The Iwan model consists of a
continuum network of springs and sliders, with the break-free forces of the sliders being
described as a probability distribution function. Different distribution functions lead to different
power laws in the diagrams of input force vs. energy dissipated per cycle. Although a lot of
work has been carried out on the damping capacity of bolted structures, little work has been
reported on the mechanism of damping in layered and jointed welded structures. Recently, Singh
and Nanda [54] proposed a method to evaluate the damping capacity of tack welded structures.
They established that with the increase in the number of tack welds the damping capacity
decreases.
25 | P a g e
CHAPTER – 3
3 THEORETICAL
ANALYSIS
26 | P a g e
It is generally recognized that the damping capacity of the jointed beam and the
sandwiched beam may be determined by the frictional loss energy caused by the slip at the
interfaces of both steel beams and the slip between the steel beams and the sandwiched
viscoelastic material. The slip found between the interfaces of jointed beam however is very
small and shows very complicated characteristics, and moreover the coefficient of friction in this
case may be considered smaller than the macroscopic coefficient of friction used widely in the
field.
The logarithmic damping decrement, a measure of damping capacity of layered and
jointed structures, is usually determined by the energy principle taking into account the relative
dynamic slip and the interfacial pressure distribution at the contacting layers. The logarithmic
damping decrement is evaluated theoretically for the beams with different end conditions such
as; fixed-free and fixed-fixed respectively.
3.1 Interface Pressure Distribution
A layered and jointed construction is made by means of rivets that hold the members
together at the interfaces. Under such circumstances, the profile of the interface pressure
distribution assumes a significant role, especially in the presence of slip, to dissipate the
vibration energy. Consequently, it is necessary to examine the exact nature of the interface
pressure profile and its magnitude across a beam layer for the correct assessment of the damping
capacity in a jointed structure. This pressure distribution at the interfaces is due to the clamping
of the contacting members. When two or more members are pressed together by riveting, a circle
of contact will be formed around the rivet and bolt with a separation taking place at a certain
distance from the rivet hole as shown in figure below.
27 | P a g e
Figure 4 Free body diagram of bolted joint showing influence zone
The contact between the connecting members develops an interface pressure whose exact
nature and magnitude across the beam layer is very important for the correct assessment of
damping capacity of a jointed structure. As established, the contact pressure at the jointed
interface is non-uniform in nature being maximum at the rivet hole and decreases with the
distance away from the rivet. This allows localized slipping at the interfaces while the overall
joint remains locked. Minakuchi et al. [35] have found that the interface pressure distribution due
to this contact is parabolic with a circular influence zone circumscribing the rivet with diameter
equal to 4.125,5.0 and 5.6 times the diameter of the connecting rivet for thickness ratio of 2.0,
respectively.
3.1.1 Determination of Pressure Distribution at the Interfaces for Riveted
and Bolted Joints
The interface pressure distribution under each rivet in a non-dimensional polynomial for
layered and jointed structures is assumed as
P / σ S = C1 ( R / RB )10 + C 2 ( R / RB ) 8 + C 3 ( R / RB ) 6 + C 4 ( R / RB ) 4 + C 5 ( R / RB ) 2 + C 6
(8)
28 | P a g e
where P, σ S , R and R B are the interface pressure, surface stress on the layered and jointed
structure due to riveting, any radius within the influencing zone and radius of the connecting
rivet, respectively and constants 1C to 6C of the polynomial are evaluated from the numerical
data of Minakuchi et al. [35] by curve fitting using MATLAB software as shown. The surface
stress σ S depends upon the initial tension on the rivet (P) and the area under a rivet head (A′)
and is evaluated from the relation
P / σ S = P / A⋅
(9)
The distance between the rivets has been reduced in order to achieve the uniform pressure
conditions.
The above equation is an even function and a tenth order polynomial in terms of the normalized
radial distance from the center of the rivet such that the function assumes its maximum value at
the center of the rivet and decreases radially. It is evident that apart from the last two terms,
values of the coefficients are relatively insignificant. This suggests for a linear profile for the
pressure distribution across the interface. Damisa et al. [32] have used linear pressure profile in
their analysis as an approximation. But a higher order polynomial for non-uniform interface
pressure distribution has been used in the present investigation in order to obtain a good
accuracy.
29 | P a g e
3.2 Dynamic Equations of Free Transverse Vibration of FixedFixed Beams.
3.2.1 Introduction
This chapter gives a detailed description of the theoretical analysis by classical energy approach
for determining the damping capacity in layered and jointed fixed-fixed beam with welded joints.
A fixed-fixed beam model representing a continuous system based on the Euler-Bernoulli beam
theory has been used for deriving the necessary formulation.
3.3
Dynamic equations for free transverse vibration on various
joint structures.
The beam vibration is governed by partial differential equations in terms of spatial variables x
and time variable t. Thus, the governing differential equation for free vibration is given by:
+ =0
(10)
Where E, I, and A are modulus of elasticity, second moment of area of the beam, mass density
and cross-sectional area of the beam respectively. The free vibration given by eq. 10 contains
four spatial derivatives and hence requires four boundary conditions for getting a solution. The
presence of two time derivatives again requires two initial conditions, one for displacement and
another for velocity.
Eq. (11) is solved by method of separation of variables. The displacement y (x, t) is written as
the product of two function, one depends on only x and other depends only on t. Thus the
solution is expressed as:
y ( x, t) = X(x)× F(t)
(11)
30 | P a g e
Where X(x) and F (t) are the space and time function respectively.
Substituting eq. (11) into eq. (10) and rearrange results;
()
!
= -"(#)
$
(12)
Dividing eq. (12) by X (x)F (t) on both sides, variables are separated as;
% &
%'
$()
% %.
=-+, !() =/01
)*
(13)
Where the term /01 is the separation constant, representing the square of natural frequency.
This equation yields two ordinary differential equations.
The first one is given as;
Where 23 =
+,
)*
/01
!
- 23 X(x) =0
(14)
(15)
The required solution of eq. (15) is simplified as;
X(x) = 4 567 2# + 1 9:5 2# + ; 567ℎ 2# + 3 9:5ℎ 2#
(16)
Where constant 4 , 1 , ; =7>3 are determined from the boundary conditions of fixed-fixed
beam.
The second equation is given as;
$
+/01 T (t) = 0
(17)
31 | P a g e
This is the similar free vibration expression for an un-damped single degree of freedom system
having the solution
T (t) = A 9:5 /0 + B 567 /0 (18)
Dynamic equation for rivet joints is expressed by inserting the values of A and B
y ( x, t ) = Y ( x )
y0
cos ω n t
y (l / 2 )
(19)
Substituting the expression for space and time function as given by eq. (17) and eq. (18) into eq.
(12), the complete solution for the deflection of a beam at any section is expressed as;
y( x, t ) = (4 567 2# + 1 9:5 2# + ; 567ℎ 2# + 3 9:5ℎ 2#)×(A 9:5 /0 + B 567 /0 )
(20)
Figure 5 variation of damping in a fixed-fixed beam
32 | P a g e
3.3.1 Evaluation of Constants , , The boundary conditions for the fixed-fixed beam are given as;
At x = 0;
X (0) = 0;
At x = L;
X (L) = 0;
" C (0) = 0;
" C (D) = 0;
Writing the expression of space function as given in eq. (19) and its first derivative are written
as;
X(x) = 4 567 2# + 1 9:5 2# + ; 567ℎ 2# + 3 9:5ℎ 2#
" C (x) = 2(4 9:5 2# − 1 567 2# + ; 9:5ℎ 2# + 3 567ℎ 2#)
(21)
(22)
Putting the boundary conditions, eq. (22) is reduced to
X (0) = 4 + ; = 0;
(23)
" C (0) = 1 + 3 = 0;
(24)
X (L) = 4 567 2D + 1 9:5 2D + ; 567ℎ 2D + 3 9:5ℎ 2D= 0
(25)
" C (x) = 2(4 9:5 2D − 1 567 2D + ; 9:5ℎ 2D + 3 567ℎ 2D)= 0
i.e., 4 9:5 2D − 1 567 2D + ; 9:5ℎ 2D + 3 567ℎ 2D= 0
(26)
(27)
The eq. (24) can be represented in a matrix form as;
33 | P a g e
0
1
H
567 2D
9:5 2D
1
0
9:5 2D
− 567 2D
0
1
567ℎ 2D
9:5ℎ 2D
4
1
0
0
0
J H 1 J = H J
9:5ℎ 2D ;
0
567ℎ 2D 3
0
To get a non-trivial solution, setting the determinant equal to zero;
0
1
K
567 2D
9:5 2D
1
0
9:5 2D
− 567 2D
0
1
567ℎ 2D
9:5ℎ 2D
1
0
K = 0
9:5ℎ 2D
567ℎ 2D
The characteristic equation is given as;
cosh (2D) ×cos (2D) = 1
(29)
The constant 1 , ; =7>3 are dependent parameter but 4 is an independent parameter. 4 may
have any values. Taking4 = 1, the values of 1 , ; =7>3 are found as;
1 = LTUM PSRTUMO PSV; ; = −1;3 = − LTUM PSRTUMO PSV; 4 = 1
MN0O PQRMN0 PS
MN0O PQRMN0 PS
(30)
Now space function given by eq. (3.6) is modified as;
X(x) = 567 2# + L
i.e , X(x) =
MN0O PQRMN0 PS
TUM PSRTUMO PS
V 9:5 2# − 567ℎ 2# − L
MN0O PQRMN0 PS
TUM PSRTUMO PS
V 9:5ℎ 2#
(MN0 PRMN0O P)(TUMPSRTUMO PS)W(TUM PRTUMO P)(MN0O PSRMN0 PS)
(TUM PSRTUMO PS)
(31)
(32)
This equation gives the different mode shapes of vibration.
3.3.2 Evaluation of constants The general expression of deflection at any section of beam is given by;
Y( x , t) = X(x)× (A 9:5 /0 + B 567 /0 )
(33)
34 | P a g e
Taking the derivative with respect to time, the above equation reduced to;
X C (#, ) = "(#) × (−A /0 567 /0 + B /0 9:5 /0 )
(35)
i.e., X C L , 0V = 0, this yieldsB = 0;
(37)
The velocity of deflection at the mid-span of the beam is zero.
S
1
Hence the eq. (35) is reduced to;
Y( x , t) = X(x)× (A 9:5 /0 )
(38)
The deflection at the mid-span of the beam is taken equal to XL V and substituting the same in
S
1
eq. (37), we obtained;
yL , 0V = " L V × A
S
S
1
1
i.e., A =
Y
Y
!L V
(39)
L ,ZV
;
(40)
Substituting the values of A in eq. (36), the final equation for the deflection is found to be;
y( x, t) = X(x)× [
y( x, t)=]
Y
Y
!L V
L ,ZV
\ (9:5 /0 )
(41)
(567 2# − 567ℎ 2#)(9:52D − 9:5ℎ 2D) + L,ZV
TUM _` ^ [ Y \ (TUM
PSRTUMO PS)
(9:5 2# − 9:5ℎ 2#)(567ℎ 2D − 567 2D)
!L V
Y
(42)
This is the generalized deflection equation at any section of a fixed-fixed beam.
35 | P a g e
3.3.3 Evaluation of relative dynamic slip
The relative slip at the interface in the presence of friction during the vibration is given as;
ab (#, ) =∝ a(#, ) = 2 ∝ ℎ=7 e
Where ∝= slip ratio
f(,)
f
g
(43)
ℎ= thickness of the beam
X(#, ) = Deflection at a distance ‘x’ from the fixed end
a(#, ) = >X7=h695i6jk6ℎ:alm696:7
3.3.4 Analysis of energy dissipated
The energy is dissipated due to the friction and relative dynamic slip at the interface is given by;
u
v`
Y
QUMM = 2 nZ nZ ojp eq
tg >#>
frs (,)
f
(44)
Where o = coefficient of kinematic friction
p = uniform pressure distribution at the interface
L= length of the beam
/0 = natural frequency of vibration
The strain energy per half cycle of vibration is given by;
0w = L
4x1)*
Sy
V X 1 L1 , 0V
S
(45)
36 | P a g e

( 4h) 3 
where E,  I = b
 and y(l/2,0) are the modulus of elasticity, cross-sectional moment of
12 

inertia and transverse deflection at the midpoint of the fixed-fixed beam for rivets , respectively
E LOSS
E NET
where
l


 8µbhαy ( 2 ,0) 
=

192( EI ) y 2 ( l ,0) 

2 
l3
(46)
3
Replacing 192EI/l =kf, i.e., the static bending stiffness of the layered and riveted cantilever
beam, the above equation (42) reduces to


E LOSS  8µbhpα 
=

E NET
 k f y ( l ,0 ) 
2 

(47)
where kf is the static bending stiffness of the fixed-fixed beam.
Similarly the energy dissipated for bolted joints and the energy loss due to frictional force at the
interfaces per half-cycle of vibration is given by;
Π
ωn
1
E LOSS =
 ∂u r ( x, t )
}dxdt 
∂t

∫ ∫ µpb
0 0
(48)
The energy dissipated for welded joints is given by
I=
z(1O)y
41
, cross-sectional moment of inertia of the beam
X L1 , 0V= transverse deflection at the mid-point of the fixed-fixed beam
S
37 | P a g e
Substituting eq. (41) into eq. (42) and is given by;
u
v`
Y
fq|0L
QUMM = 4 ∝ ℎojp nZ nZ [
}~(.,')
Vt
}.
f
The slop is very small i.e. =7 L
V=
f(,)
f
\ >#>
(49)
f(,)
f
;
Hence eq. (44) reduced to
u
v`
Y
QUMM = 4 ∝ ℎojp nZ nZ
€ 1 X(#, )
€#€‚ >#>
(50)
The ratio of dissipated energy and strain energy is found out dividing eq. (46) by eq. (47) is
given by;
)ƒ„……
)`†
=[
3∝O‡ˆz
‰Š‹Œ
Y
L y V L ,ZV
Y
u
Y
\ nZv` nZ
€ 1 X(#, )
€#€‚ >#>
(51)
Substituting the boundary and initial conditions eq. (51) reduced to
)ƒ„……
)`†
:m,
=
Y
‰Š‹Œ
Y
L y V L ,ZV
Y
3∝O‡ˆzL ,ZV
)ƒ„……
)`†
=
Y
3∝O‡ˆzL ,ZV
Y
… L ,ZV
(52)
(53)
Where ŽM = static bending stiffness of fixed-fixed beam.
38 | P a g e
3.3.5 Evaluation Of Damping Ratio
The damping ratio, ψ, is expressed as the ratio of energy dissipated due to the relative dynamic
slip at the interfaces and the total energy introduced into the system for rivets is found to be


E
1
E net 
1 +

 Eloss 
loss
ψ =
=
E
 losss + E net  
(54)
where, Eloss and Ene are the energy loss due to interface friction and the energy introduced during
the unloading process Putting the values of
ψ =
ψ =
)ƒ„……
)`†
1
 l 
ky ( 2 ,0)
1+
[8µbphα ]
(55)
1
 l 
ky ( 2 ,0)
1+
[2µbpαh]
(56)
The above equations are used for calculating the damping ratio for the three joint structures.
3.3.6 Logarithmic decrement
Logarithmic decrement(δ), a measure of damping capacity, is defined as the natural logarithm of
the ratio of two consecutive amplitudes in a given cycle.
δ =  ln L“” V
4
“
•
(57)
39 | P a g e
Where xZ = amplitude of vibration of first cycle
x = amplitude of vibration of last cycle
n = number of cycles
Logarithmic decrement can also be written as;
δ= L
4 —˜™šš
1
—•›
V
(58)
The logarithmic decrement for rivet joints is given as
δ =
1  an    1
 = ln 
ln 
n  a n +1   1 − ψ

 / 2

(59)
By simplifying the above equation we get


1  8µαpbh 
δ = ln 1 +

l
2 
ky ( ,0) 
2 

(60)
Similarly the logarithmic decrement for bolted joints µ α is assumed to be constant and has been
found out from the experimental results for logarithmic damping decrement as



1
8µαpbh 
δ = ln 1 +

l
2 
ky ( ,0) 

2 
¡
1∝œžŸ L ,ZV
δ=[
¡
¢š L ,ZV
\
(61)
(62)
40 | P a g e
CHAPTER – 4
4 EXPERIMENTATION
41 | P a g e
4.1 Experimental Set-Up
In order to evaluate the effect of different parameters on damping capacity of various types of
riveted joint beams, experiments were carried out with a simple experimental set –up.
42 | P a g e
Figure 6 Set up and details of mild steel specimens used in the experiment for the thickness
ratio 1.0 for riveted, bolted and welded joints
43 | P a g e
Figure 7 Schematic diagram of riveted joint in fixed-fixed beam
44 | P a g e
Figure 8 Schematic diagram of welded joint in fixed-fixed beam
Figure 9 Schematic diagram of bolted joint in fixed-fixed beam
1. Output vibration pickup
2. Amplifier
3. Vibration acquisition
4. Vibration analyzer
5. Power supply
6. Distribution box
7. Power amplifier
8. Vibration generator 9. Input excitation pickup
10. Beam (riveted, welded, bolted) 11. Fixed end
45 | P a g e
Table 1 Details of mild steel specimens used in the experiment for the thickness ratio 1.0 in riveted
joints
Thickness X
width (mm x
mm)
Type of
specimen
Diameter of rivet
(mm)
Number of rivets
used
Fixed beam
length (mm)
(3 + 3) X 24.3
Jointed
12
12
291.6
(2 + 2) X 24.3
Jointed
12
10
243
(2 + 2) X 24.3
Jointed
12
9
218.7
Table 2 Details of mild steel specimens used in the experiment for the thickness ratio 1.0
in bolted joints
Thickness X
width (mm x
mm)
Type of
specimen
Diameter of bolt
(mm)
Number of bolts
used
Fixed beam
length (mm)
(3 + 3) X 24.3
Jointed
12
12
291.6
(2 + 2) X 24.3
Jointed
12
10
243
(2 + 2) X 24.3
Jointed
12
9
218.7
46 | P a g e
Table 3 Details of mild steel specimens used in the experiment for the thickness ratio 1.0
in welded joints
Thickness X
width (mm x
mm)
Type of
specimen
Tack length
(mm)
Number of tacks
used
Fixed beam
length (mm)
(3 + 3) X 24.3
Jointed
3
12
291.6
(2 + 2) X 24.3
Jointed
3
10
243
(2 + 2) X 24.3
Jointed
3
9
218.7
4.2 Instrumentation
In order to measure the logarithmic damping decrement, natural frequency of vibration of
different specimen the following instruments were used as shown in circuit diagram fig:(1) Power supply unit
(2) Vibration pick-up
(3) Load cell
(4) Oscilloscope
(5) Dial gauge
Load cell:
(1) Capacity: - 5 tones
47 | P a g e
(2) Safe Over load: - 150 % of rated capacity
(3) Maximum Overload:- 200 % of rated capacity
(4) Fatigue rating: - 105 full cycles
(5) Non-linearity:- ± 1% of rated capacity or better
(6) Hysteresis: - ± 0.5 % of rated capacity or better
(7) Repeatability: - ± 0.5 % of rated capacity or better
(8) Creep error: - ± 1% of rated capacity or better
(9) Excitation: - 5 volts D.C. 46
(10) Terminal Resistance:-350Ω (nominal)
(11) Electrical connection: - Two meters of six core shielded cable/connected
(12) Temperature: - ± 10ċ to 50 ċ
Environmental:0
0
(1) Safe operating temperature: - + 10 C to + 50 C
0
0
(2) Temperature range for which specimen hold good: - + 20 C to + 30 C
Oscilloscope: Display: - 8x10 cm. rectangular mono-accelerator c.r.o. at 2KV e.h.t.
Vertical Deflection: - Four identical input channels ch1, ch2, ch3, ch4.
Band-width: - (-3 db) D.C. to 20 MHz (2 Hz to 20 MHz on A.C.)
48 | P a g e
Sensitivity: - 2 mV/cm to 10 V/cm in 1-2-5 sequence.
Accuracy: - ± 3 %
Variable Sensitivity :-> 2.5 % 1 range allows continuous adjustment of sensitivity from 2mV/cm
to V/cm.
Input impedance: - 1M/28 PF 47
Figure 10 storage oscilloscope
An oscilloscope measures two things:
• Amplitude in time domain
• Amplitude in frequency domain
An electron beam is swept across a phosphorescent screen horizontally (X direction) at a known
rate (perhaps one sweep per millisecond). An input signal is used to change the position of the
beam in the Y direction. The trace left behind can be used to measure the voltage of the input
signal (off the Y axis) and the duration or frequency can be read off the X axis. An oscilloscope
49 | P a g e
is a instrument which admit you to look at the shape of electrical signals by arranging a graph of
voltage versus time on its screen. Gratitude with a 1cm grid enables you to calculate
measurements of voltage and time after the screen. The graph is the clear and is drawn by a beam
of electrons knock the phosphor coating of the screen and making it to emit, usually green or
blue. This resembles the way a television picture is produced. Oscilloscopes contain a vacuum
tube with a (negative electrode) at one end to emit electrons and an (positive electrode) to fasten
them so they move quickly down the tube to the screen. This compact is called an electron gun.
The tube also contains electrodes to avoid the electron beam up and down and left and right. The
electrons are termed cathode rays because they are released by the cathode and this provides the
oscilloscope its full term of cathode ray oscilloscope or CRO.
A dual dash oscilloscope can spectacle two traces on the screen, allowing you to easily analyze
the input and output of an amplifier. For example, It is well virtue paying the modest extra cost
to have this ability.
4.3 Connecting an oscilloscope
The Y INPUT lead to an oscilloscope should be a co-axial lead and the diagram shows its
agreement. The central wire transmits the signal and the screen is compared to earth (0V) to
shield the signal from electrical hindrance (usually called noise). Oscilloscopes require a BNC
Socket for the y input and the main is connected with a push and braid action to uncouples you
need to braid and pull.
An oscilloscope is connected like a voltmeter but you must be alert that the screen (black)
connection of the input lead is compared to earth at the oscilloscope! This means it need to be
connected to earth or 0V on the circuit presence is tested. Obtaining a fine and stable trace
50 | P a g e
Once you have affixed the oscilloscope to the circuit you desire to test you will need to adapt the
controls to obtain a clean and stable evident on the screen.
These are discerning on more-sophisticated analog oscilloscopes, which comprise a second set of
timebase circuits for a delayed sweep. A delayed sweep provides an in detail look at some small
selected chunk of the main time base. The main timebase assists as a controllable delay, after
which the overdue timebase starts. This can start when the delay finishes, or can be triggered
(only) after the delay lapses. Ordinarily, the delayed timebase is set for a earlier sweep,
sometimes much faster, such as 1000:1. At acute ratios, jitter in the delays on continuous main
sweeps demeans the display, but delayed-sweep triggers can over whelm that. The display shows
the vertical signal in one of numerous modes—the main timebase, or the delayed timebase only,
or a mixture. When the delayed sweep is active, the main ambit trace shines while the delayed
sweep is advancing. In one grouping mode, provided single on some oscilloscopes, the trace
vagaries from the main sweep to the hindered sweep once the delayed sweep starts, while less of
the delayed firm sweep is visible for longer delays. Another dual mode multiplexes (alternates)
the main and delayed arches so that both appear at once; a trace separation control move them.
Figure 11 nodes showing voltage vs time
51 | P a g e
4.4 Voltage
Voltage is shown on the vertical y-axis and the scale is concluded by the Y AMPLIFIER
(VOLTS/CM) control. Usually peak-peak voltage is measured because it can read correctly even
if the reference of 0V is not known. The amplitude is partial the peak-peak voltage. To read the
amplitude voltage directly you must inspect the position of 0V (normally halfway up the screen):
move the AC/GND/DC switch to GND (0V) and use Y-SHIFT (up/down) to compose the
position of the trace if needed, switch back to DC later you can see the signal again. Voltage =
distance in cm × volts/cm.
4.5 Time period
Time is shown on the horizontal x-axis and the scale is concluded by the TIMEBASE
(TIME/CM) control. The time period (often just called period) is the time for single cycle of the
signal. The frequency is the number of cycles per second, frequency = 1/time period. Ensure that
the variable time base bridle is set to 1 or CAL (calibrated) before attempting to take a time
reading.
4.6 Dial indicator
Dial indicator are instruments used to acutely measure a small distance. They may also be known
as a dial gauge, Dial test indicator (DTI), or as a “clock”. They are named so because the
measurement results are displayed in an enlarged way by means of a dial. Dial indicator may be
used to check the difference in tolerance during the examination process of a machined part,
measure the deflection of a beam or ring under laboratory conditions, as well as many other
locations where a small measurement needs to be recorded or indicated.
52 | P a g e
Figure 12 dial gauge
4.7 Vibration pick-up
Type: - MV-2000. Specifications:(1) Dynamic frequency range: - 2 c/s to 1000 c/s
(2) Vibration amplitude: - ±1.5 mm max.
(3) Coil resistance: - 1000Ω
(4) Operating temperature: - 10ċ to 40 ċ
(5) Mounting: - by magnet
(6) Dimensions: - cylindrical Length:-45 mm Diameter: - 19 mm
(7) Weight: - 150 grams
53 | P a g e
Figure 13 vibration pickup
Velocity Transducer
The velocity pickup is a very familiar transducer or sensor for well observing the vibration of
rotating machinery. This type of vibration transducer launches easily on machines, and generally
costs less than other sensors. For these two explanations, this type of transducer is suitable for
general drive machine applications. Velocity pickups have been used as vibration transducers on
spinning machines for a very separating time, and they are quiet employed for a variety of
utilizations today. Velocity pickups are amicable in many various physical configurations and
output sensitivities.
4.8 Theory of Operation
When a coil of wire is stir through a magnetic field, a voltage is fortified across the end wires of
the coil. The induced voltage is caused by the transferring of energy from the flux field of the
Magnet to the wire coil. As the coil is accused through the magnetic field by vibratory motion, a
voltage signal portray the vibration is produced.
54 | P a g e
4.8.1 Signal Conventions
A velocity signal formed by vibratory motion is commonly sinusoidal in nature. In other words,
in one cycle of vibration, the signal dashes a maximum value twice in one cycle. The second
maximum value is identical in magnitude to the first maximum value, but opposite in direction.
By its definition velocity can be measured in only one direction. Therefore, velocity
measurements are typically observed in zero to peak, RMS units. RMS units may be detailed on
permanent display installations to do correlation with evidence together from small data
collectors.
Another convention to consider is that motion towards the ground of a velocity transducer will
access a positive going output signal. In other words, if the transducer is held in its sensitive axis
and the base is tapped, the output signal will go positive when it is gruesomely tapped.
4.8.2 Construction
The velocity pickup is a self-generating sensor desires no external devices to produce a vibration
signal. This type of sensor is made of three components: a perennial magnet, a coil of wire, and
spring base for the coil of wire. The pickup is filled with an oil to dampen the spring action. Due
to gravity forces, velocity transducers are manufactured in a different way for horizontal or
vertical axis standing. With this in mind, the velocity sensor will have a sensitive axis that must
be considered when smearing these sensors to twirling machinery. Velocity sensors are also
prone to cross axis vibration, which if great enough may damage a velocity sensor.
Wire is wound onto a hollow spindle to form the wire coil. Sometimes, the wire coil is counter
wound (wound one direction and then in the opposite direction) to counteract external electrical
55 | P a g e
fields. The spindle is supported by thin, flat coils to position it precisely in the stable magnet's
field.
4.9 Experimental Techniques
In order to analyze the numerical results enumerated by the theory with the actual logarithmic
damping decrement of structural jointed beams, a series of experiments were conducted. The
experimental set-up for fixed-fixed beams with analyzed instrumentation is shown. All
specimens were tested for their natural frequency, amplitudes and logarithmic damping
decrement. A load cell was located on the ground and above it.
A fastening was given on which the specimen is kept. Above the plate a screwed spindle is
escalated by rotating the screw clockwise, load is initiated on the specimen as well as load cell.
A certain load as per experiment is applied at the fixed end of each of the specimens. The free
end and midpoint of fixed-fixed beams, respectively of the specimens was accelerated with a
spring. The excitation amplitude given to the specimen is indicated in the dial gauge. Vibration
signal was picked up with the help of vibration pick-up and it was fed to oscilloscope. From
there it is fed to oscilloscope where amplitude and frequency of the test signal were measured.
From this logarithmic damping decrement and frequency of vibration were calculated. The
specimens were prepared from commercial mild steel strips by joining layers using various
joints. The lengths of the specimens were assorted, the specimens are rigidly fixed to the support
to obtain perfect end conditions and the first experiments were conducted to determine the
bending modulus of elasticity (E) of the specimen materials. Solid specimens made from the
same set of commercial mild steel bands were held rigidly at the fixed end and their deflection
(Ä) was measured by applying variety of static loads W. From these static loads and the
56 | P a g e
corresponding deflections, the average static bending stiffness (W/Ä) was determined. The
bending modulus for the specimen material was then evaluated using the equation
W
E =
∆
3
 l 
  . The static bending stiffness (k) of the jointed specimens was actuated and found
 3I 
to be always lower than that of an equivalent solid specimen. The logarithmic damping
decrement and natural frequency of vibration of all the specimens were determined
experimentally at their first mode of free vibration. The lengths of these specimens were also
assorted during experimentation. A spring loaded exciter was used to excite the specimens. Tests
were conducted using various amplitudes of excitation (0.1, 0.2, 0.3, 0.4, 0.5 mm.) for all the
specimens tested under the different conditions. The free vibration was sensed with a magnet
based vibration pick-up and the corresponding signal was handed to a storage oscilloscope to
obtain a steady signal. The logarithmic damping decrement was then evaluated from the
measured values of the amplitudes of the first cycle (a1), last cycle (an+1) and the number of
cycles (n) of the steady signal by using the equation δ =
1  a1 
 . The corresponding natural
ln
n  a n +1 
frequency and time period for the first mode of vibration of the layered and jointed beam is
directly recorded from the storage oscilloscope.
57 | P a g e
CHAPTER – 5
5 RESULTS AND
DISCUSSION
58 | P a g e
Y
X
0
y
x
dx
Figure 14 deflection for fixed-fixed beam
By changing the pressure, width and thickness we can find the values of the influencing
parameters theoretically using matlab software.
5.1 Results for coefficient of friction ∗ versus frequency
Figure 15 Variation of α.µ with frequency of vibration for mild steel specimens for fixed
beam in rivet joint
59 | P a g e
Figure 16 Variation of α.µ with frequency of vibration for mild steel specimen for fixed
beam in bolted joint
Figure 17
Variation of α.µ with frequency of vibration for mild steel specimen for fixed
beam in welded joint
.
60 | P a g e
5.2 Results for variation of logarithmic decrement with length of specimen for fixed-fixed
beams
Figure 18 Variation of logarithmic decrement with the length of specimen of mild steel
with amplitude of excitation 0.1 mm.
Figure 19 Variation of logarithmic decrement with the length using mild steel with
amplitude of excitation 0.3 mm.
61 | P a g e
Figure 20 Variation of logarithmic decrement with the length using mild steel with
amplitude of excitation 0.5 mm.
5.3 Result for variation of logarithmic decrement with amplitude of excitation for fixedfixed beam by varying length
Figure 21 Variation of logarithmic decrement with initial amplitude of excitation
62 | P a g e
5.4 Result for variation of logarithmic decrement with torque for fixed-fixed beam:
Figure 22 Variation of logarithmic decrement with applied tightening torque
5.5 Result for variation of logarithmic decrement with diameter of rivet and bolt joints
Figure 23 Variation of logarithmic decrement with diameter of rivet of 1.0 thickness ratio
63 | P a g e
Figure 24 Variation of logarithmic decrement with diameter of bolt of 1.0 thickness ratio
DISCUSSION
(1) Damping ratio of jointed structures declines by increase in the initial amplitude of
excitation. Through an increase in initial amplitude of excitation the input strain energy
bowed on the structure is increased.
(2) Damping ratio of jointed structures increases with a rise in the length. The increase in
length results in an enlarged interface length thereby resulting in an amplified area for
energy dissipation of the structures. Thus increased contact area results in more energy
dissipation.
(3) Damping ratio increases by increase in diameter. The increase in initial amplitude results
that there is an increase in logarithmic decrement with diameter of rivet and bolt.
(4) The interface pressure distribution and relative space of the successive connecting bolts
rivets and tacks are found to play major roles on the damping capacity of the structures.
64 | P a g e
CHAPTER – 6
6 CONCLUSIONS AND
SCOPE FOR FURTHER
WORK
65 | P a g e
Conclusions
Automated joints and fasteners are primary sources of improving damping in structural
design caused by friction and micro-slip between the interfaces. The damping of jointed
structures has been studied hypothetically considering the energy loss due to friction and the
dynamic slip. Further, the theoretical results gained by using mathematical models like EulerBernoulli’s theory of continuous model approach have been verified by showing widespread
experiments for the validation of results.
From the prior discussions, it is found that the damping of bolted, welded and riveted
structures can be amended by the following influencing parameters: (a) amplitude of excitation,
(b) frequency of excitation, (c) length of specimens (d) end condition of the beam specimen (e)
tightening of torque for bolted (f) pressure distribution.
The damping capacity of fixed-fixed beams of thickness ratio 1 with riveted, bolted, and welded
joints has been evaluated theoretically using the energy approach.
The interface pressure distribution and relative spacing of the consecutive connecting
bolts and rivets are found to play major roles on the damping capacity of the
structures.
There is a decrease in the static bending stiffness with an increase in the length of the
specimen so that the strain energy presented into the system is declined There is an
increase in the amplitude of vibration results in more input strain energy to the system.
66 | P a g e
The damping capacity increases with increase in amplitude of excitation and length of
the fixed-fixed beam whereas the same decreases with increase in tightening torque
and frequency of vibration.
The values obtained from theoretical and experimental values concludes that damping
capacity is higher in bolted joints, moderate in riveted and least in welded joints.
These structures being largely used in bridges, pressure vessels, frames, trusses and
machine members can be effectually planned to improve the damping physiognomies so as to
minimize the devastating effects of vibration and thereby increasing their life.
SCOPE AND FURTHER WORK
In the current exploration, the appliance of damping and the various parameters affecting the
damping capacity of jointed structures have been obtained in detail to allow the engineers to
design the structures provisional upon their damping capacity in actual applications.
•
The problem can be studied considering the nonlinearity effects of slip, friction and joint
properties.
•
The analysis can be extended to other boundary conditions such as cantilever, fixedsupported, supported-supported, etc.
•
Present analysis can be extended for forced vibration conditions.
•
The analysis can be made for jointed beams of dissimilar materials.
•
The present analysis can be further studied by using cantilever beams.
67 | P a g e
REFERENCES
68 | P a g e
[1]
Cochardt, A.W., 1954, A method for determining the internal damping of machine
members, ASME, Journal of Applied Mechanics, Vol. 76, No. 9, pp. 257-262.
[2]
Goodman, L.E. and Klumpp, J.H., 1956, Analysis of slip damping with reference to
turbine-blade vibration, ASME, Journal of Applied Mechanics, Vol. 23, pp. 421–429.
[3]
Beards, C.F., 1992, Damping in structural joints, The Shock and Vibration Digest, Vol.
24, No. 7, pp. 3-7.
[4]
Ungar, E.E., 1973, The status of engineering knowledge concerning the damping of builtup structures, Journal of Sound and Vibration, Vol. 26, No. 1, pp. 141-154.
[5]
Gaul, L. and Nitsche, R., 2001, The role of friction in mechanical joints, ASME, Applied
Mechanics Reviews, Vol. 54, No. 2, pp. 93-106.
[6]
Hartwigsen, C.J., Song, Y., Mcfarland, D.M., Bergman, L.A. and Vakakis, A.F., 2004,
Experimental study of non-linear effects in a typical shear lap joint configuration, Journal
of Sound and Vibration, Vol. 277, No. 1-2, pp. 327-35.
[7]
Pratt, J.D. and Pardoen, G., 2002, Numerical modeling of bolted lap joint behavior,
Journal of Aerospace Engineering, Vol. 15, No. 1, pp. 20-31.
[8]
Beards, C.F. and Imam, I.M.A., 1978, The damping of plate vibration by interfacial slip
between layers, International Journal of Machine Tool Design and Research, Vol. 18, No.
3, pp. 131-137.
[9]
Beards, C.F. and Williams, J.L., 1977, The damping of structural vibration by rotational
slip in joints, Journal of Sound and Vibration, Vo1. 53, No. 3, pp. 333-340.
[10]
Beards, C.F. 1975, Some effects of interface preparation on frictional damping in joints,
International Journal Machine Tool Design and Research, Vol. 15, No. 1, pp. 77-83.
[11]
Menq, C.-H., Bielak, J. and Griffin, J.H., 1986, The influence of microslip on vibratory
response, Part I: A new microslip model, Journal of Sound and Vibration, Vol. 107, No.
2, pp. 279-293.
[12]
Menq, C.H., Griffin, J.H. and Bielak J., 1986, The influence of microslip on vibratory
response, Part II: A comparison with experimental results, Journal of Sound and
Vibration, Vol. 107, No. 2, pp. 295-307.
[13]
Hansen, S.W. and Spies, R.D., 1997, Structural damping in laminated beams due to
interfacial slip, Journal of Sound and Vibration, Vol. 204, No. 2, pp. 183-202.
69 | P a g e
[14]
Masuko, M., Ito, Y. and Yoshida, K., 1973, Theoretical analysis for a damping ratio of a
jointed cantibeam, Bulletin of JSME, Vol. 16, No. 99, pp. 1421-1432.
[15]
Nishiwaki, N., Masuko, M., Ito, Y. and Okumura, I., 1978, A study on damping capacity
of a jointed cantilever beam, 1st Report: Experimental results, Bulletin of JSME, Vol. 21,
No. 153, pp. 524-531.
[16]
Nishiwaki, N., Masuko, M., Ito, Y. and Okumura, I., 1980, A study on damping capacity
of a jointed cantilever beam, 2nd Report: Comparison between theoretical and
experimental values, Bulletin of JSME, Vol. 23, No. 177, pp. 469-475.
[17]
Olofsson, U. and Hagman, L., 1997, A model for micro-slip between flat surfaces based
on deformation of ellipsoidal elastic bodies, Tribology International, Vol. 30, No. 8, pp.
599-603.
[18]
Thomson, W.T., 1993, Theory of Vibration with Applications, 2nd Edition, George Allen
and Unwin, London.
[19]
Den Hartog, J.P., 1931, Forced vibrations with combined coulomb and viscous friction,
Transactions of the ASME, Vol. 53, No. 9, pp. 107-115.
[20]
Gaul, L. and Nitsche, R., 2000, Friction control for vibration suppression, Mechanical
Systems and Signal Processing, Vol. 14, No. 2, pp. 139-150.
[21]
Clarence W. de Silva, 2000, Vibration: Fundamentals and Practice, CRC Press LLC,
Boca Raton.
[22]
Sidorov, O.T., 1983, Change of the damping of vibrations in the course of operation in
dependence on the parameters of bolted joints, Strength of Materials, Vol. 14, pp. 671–
674.
[23]
El-Zahry, R.M., 1985, Investigation of the vibration behavior of pre-loaded bolted joints,
Dirasat-Engineering Technology, Vol. 12, pp. 201–223.
[24]
Marshall, M.B., Lewis, R. and Dwyer-Joyce, R.S., 2006, Characterization of contact
pressure distribution in bolted joints, Strain, Vol. 42, No. 1, pp. 31-43.
[25]
Kaboyashi, T. and Matsubayashi, T., 1986, Consideration on the improvement of the
stiffness of bolted joints in machine tools, Bulletin of JSME, Vol. 29, pp. 3934–3937.
[26]
Tsai, J.S. and Chou, Y.F., 1988, Modelling of dynamic characteristics of two-bolted
joints, Journal of Chinese Institute of Engineering, Vol. 11, pp. 235–245.
70 | P a g e
[27]
Shin, Y.S., Iverson, J.C. and Kim, K.S., 1991, Experimental studies on damping
characteristics of bolted joints for plates and shells, ASME, Journal of Pressure Vessel
Technology, Vol. 113, No. 3, pp. 402–408.
[28]
Gould, H.H. and Mikic, B.B., 1972, Areas of contact and pressure distribution in bolted
joints, ASME, Journal of Engineering for Industry, Vol. 94, No. 3, pp. 864–870.
[29]
Ziada, H.H. and Abd, A.K., 1980, Load pressure distribution and contact areas in bolted
joints, Institute of Engineers (India), Vol. 61, pp. 93–100.
[30]
Nanda, B.K. and Behera, A.K., 1999, Study of damping in layered and jointed structures
with uniform pressure distribution at the interfaces, Journal of Sound and Vibration, Vol.
226, No. 4, pp.607-624.
[31]
Goodman, L.E. and Klumpp, J.H. Analysis of Slip Damping With Reference to Turbine
Blade Vibration. Journal of Applied Mechanics, 1956, 23, 421.
[32]
Cockerham, C. and Symmons, G.R. Stability criterion for stick-slip motion using a
discontinuous dynamic friction model. Wear, 1976, 40, 113–120.
[33]
Hess, D.P. et al. Normal vibrations and friction at a Hertzian contact under random
excitation: theory and experiment. Journal of Sound and Vibration, 1992, 153 (3), 491–
508.
[34]
Guyan, A. et al. Dynamic with Friction, Modeling, Analysis and experiment, Series on
Stability, Vibration and Control of Systems. World Scientific, Singapore, 1996.
[35]
Barnett, D.M. et al. Slip wave along the interface between two anisotropic elastic halfspace in sliding contact. Proceedings of the Royal Society of London, Series A, 1988,
415, 389–419.
[36]
Maugin, G.A. et al. Interfacial waves in the presence of areas of slip, Geophysical Journal
International, 1994, 118, 305–316.
[37]
Goodman, L.E. A Review of Progress in Analysis of Interfacial Slip Damping, Structural
Damping. J. Ruzika, Ed. (ASME), New York, 1959.
[38]
Earles, S.W.E. Theoretical Estimation of the Frictional Energy Dissipation in a Simple
Lap Joint. Journal of Mechanical Engineering Sciences, 1966, 8, 207.
[39]
Murty, A.S. R. On damping of thin cantilevers, Ph.D. Thesis, Department of Mechanical
Engineering, I. I. T., Kharagpur, 1971.
71 | P a g e
[40]
Masuko, M., Ito, Y., and Yoshida, K. Theoretical analysis for a damping ratio of jointed
cantibeam. Bulletin of JSME, 1973, 16, 1421-143.
[41]
Nishiwaki, N., Masuko, M., Ito, Y., and Okumura, I. A study on damping capacity of a
jointed cantilever beam (1st Report; Experimental Results). Bulletin of JSME, 1978, 21,
524-531.
[42]
Motosh, M. Stress distribution in Joints of bolted or riveted connections. Transactions of
ASME, Journal of Engineering for Industry, 1975.
[43]
Hansen, S. W. and Spies, R. Structural Damping in Laminated Beams Due to Interfacial
Slip, Journal of Sound and Vibration, 1997, 204 (2), 183–202.
[44]
Nanda, B.K. and Behera, A.K. Study on Damping in Layered and Jointed Structures with
Uniform Pressure Distribution at the Interfaces. Journal of Sound and Vibration, 1999,
226 (4), 607-624.
[45]
Ziada, H.H. and Abd, A.K. Load pressure distribution and contact areas in bolted joints.
Institution of Engineers (India), 1980, 61, 93-100.
[46]
Nanda, B.K. and Behera, A.K. Damping in layered and jointed structures. International
Journal of Acoustics and Vibration, 2000, 5 (2), 89–95.
[47]
Nanda, B.K. and Behera, A.K. Improvement of damping capacity of structural members
using layered construction. Proceedings of Seventh International Congress on Sound and
Vibration, Garmisch-Partenkirchen, Germany, 2000, pp. 3059-3066.
[48]
Nanda, B.K. Study of the effect of bolt diameter and washer on damping in layered and
jointed structures. Journal of Sound and Vibration, 2006, 290, 1290-1314.
[49]
Damisa, O., Olunloyo, V. O. S., Osheku, C. A., and Oyediran, A. A. Dynamic Analysis
of Slip Damping in Clamped Layered Beams With Non-Uniform Pressure Distribution at
the Interface. Journal of Sound and Vibration, 2008, 309, 349–374.
[50]
Berger, E.J. Friction modeling for dynamic system simulation. Applied Mechanics
Reviews, 2002, 55 (6), 535–577
[51]
Beards, C.F. The damping of structural vibration by controlled interfacial slip in joints.
Journal of Vibration, Acoustics, Stress, and Reliability in Design, 1983, 105, 369–372
[52]
Mayer, M. A. and Gaul, L. Segment-to-segment contact elements for modelling joint
interfaces in finite element analysis. Mechanical Systems and Signal Processing, 2007,
21, 724–734
72 | P a g e
[53]
Gregory D. L., Smallwood, D. O., Coleman, R.G., and Nusser, M.A. Experimental
studies to investigate damping in frictional shear joints. Proceedings of 70th Shock and
Vibration Symposium, 1999.
[54]
Singh, B. and Nanda, B. K. Effect of welding on the slip damping of layered and jointed
structures. Journal of Engineering Mechanics, ASCE, 2010, 136 (7), 928–932.
73 | P a g e
