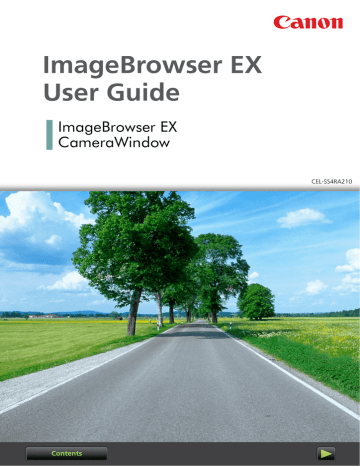

ImageBrowser EX
User Guide
ImageBrowser EX
CameraWindow
CEL-SS4RA210
Cont
Co
nten
ten
entts
ts
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Manual Conventions and Navigation
Conventions in This Manual
Manual Navigation
Supported Operating Environments
System Requirements
Conventions in This Manual
The following labels are used to distinguish sections in this manual:
Windows
Indicates operations in Windows environments.
Macintosh
Indicates operations in Macintosh environments.
Windows operations are used in some cases to illustrate instructions in this manual. The
Macintosh equivalent for [Ctrl] is [command] and for [Enter] is [return].
Screenshots in explanations are mainly from Windows. Some screen elements may be different in Macintosh environments.
Indicates operating precautions that should be followed, or important information to
note. Be sure to read these sections.
Indicates operating tips and convenient ways to use the software. Read these sections as
needed.
Cont
Co
nten
ten
entts
ts
2
Introduction
Basic Operations
More Advanced
Operations
Advanced Operations
Appendix
Manual Navigation
• Click tabs or buttons to access other pages.
Tabs
Click a tab on the top of the page to access the first page in that section.
Buttons
Navigation is also possible by clicking the buttons on the bottom of the page.
1
2
3
4
1 Jump to the table of contents (p. 7).
3 Jump to the previous page.
2 Return to the page shown before you
4 Jump to the next page.
clicked the link.
• Click links to access other pages.
Click links in the manual shown in blue, such as “XXXXX” or (p. XX), to access the page mentioned.
Supported Operating Environments
• Windows 7 and Mac OS X 10.6 screenshots and procedures are used to illustrate instructions
in this manual. If you are using another version of operating system, the actual screens and
procedures may be different.
• Screens and procedures may also vary depending on the model of camera/camcorder, and not
all functions may be available, as noted in relevant sections of this manual.
• Use the software when online to take advantage of auto updating. Note that auto updating is
not available when offline, which will prevent you from obtaining any new functions that are
released.
Cont
Co
nten
ten
entts
ts
3
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
System Requirements
Windows
Operating System
Computer
CPU (Still Images)
CPU (Movies)
RAM (Still Images)
RAM (Movies)
Interface
Free Hard Disk Space*3
Display
Windows 7 SP1 (Windows 7 SP1 only required for wireless connections*1)
Windows Vista SP2
Windows XP SP3
Computer running one of the above operating systems (preinstalled), with an included
USB port; Internet connection required for auto updating
1.6 GHz or higher
HD (720p), SD: Core 2 Duo 1.66 GHz or higher
Full HD (1080p): Core 2 Duo 2.6 GHz or higher
ALL-I, IPB: Core 2 Duo 3.0 GHz or higher
Windows 7 (64-bit): 2 GB or more
Windows 7 (32-bit): 1 GB or more
Windows Vista (64-bit, 32-bit): 1 GB or more
Windows XP: 1 GB or more (512 MB or more*2)
HD (720p), SD: 1 GB or more
Full HD (1080p): 2 GB or more
USB and wireless LAN*1
640 MB or more (440 MB or more*2)
1,024 x 768 resolution or higher
*1 Connections via wireless LAN require compatible computers.
*2 On computers that cannot run Digital Photo Professional.
*3 In Windows XP, Microsoft .NET Framework 3.0 or later (max. 500 MB) must be installed. Installation may take some time,
depending on computer performance.
Macintosh
Operating System
Computer
CPU (Still Images)
CPU (Movies)
RAM (Still Images)
RAM (Movies)
Interface
Free Hard Disk Space*3
Display
OS X 10.6 or 10.7 (OS X 10.6.8 or later required for wireless connections*1)
Computer running one of the above operating systems (preinstalled), with an included
USB port; Internet connection required for auto updating
10.6: Core Duo 1.83 GHz or higher
10.7: Core 2 Duo or higher
HD (720p) or SD: Core Duo 1.83 GHz or higher in 10.6, or Core 2 Duo or higher in 10.7
Full HD (1080p): Core 2 Duo 2.6 GHz or higher
ALL-I, IPB: Core 2 Duo 3.0 GHz or higher
10.6: 1 GB or more
10.7: 2 GB or more
HD (720p) or SD: 1 GB or more in 10.6, or 2 GB or more in 10.7
Full HD (1080p): 2 GB or more
USB and wireless LAN*1
750 MB or more (550 MB or more*2)
1,024 x 768 resolution or higher
*1 Connections via wireless LAN require compatible computers.
*2 On computers that cannot run Digital Photo Professional.
*3 Silverlight 4 or later (max. 100 MB) must be installed. Installation may therefore take some time, depending on computer
performance.
For the latest compatibility information, including supported OS versions, visit the Canon website.
Cont
Co
nten
ten
entts
ts
4
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Software Described in This Manual
CameraWindow and ImageBrowser EX
CameraWindow and ImageBrowser EX
Using mainly the following two programs, you can import images and manage them on your
computer.
CameraWindow
CameraWindow interacts with a connected camera/
camcorder, enabling the following tasks:
• Import images from the camera/camcorder
• Return images to the camera (camcorder: still images
only)
• Organize images on the camera/camcorder
• EOS camera users: Use EOS Utility for these operations. (Also refer to the EOS Utility Instruction Manual,
provided in PDF format.)
• Versions of EOS Utility before 2.10 are not compatible with ImageBrowser EX.
Cont
Co
nten
ten
entts
ts
5
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
ImageBrowser EX
Use this program to manage images imported
to your computer.
With ImageBrowser EX, you can browse, edit,
and print images on your computer.
Once you import images from your camera/
camcorder and close CameraWindow, the
main ImageBrowser EX window on the left is
displayed.
Windows
You can also start the program as follows:
• Double-click the desktop icon.
• In the taskbar, click the [Start] menu → [All Programs] → [Canon Utilities] →
[ImageBrowser EX] → [ImageBrowser EX] icon.
Macintosh
You can also start the program as follows:
• Click the [ImageBrowser EX] Dock icon.
• Navigate to the [Applications] folder → [Canon Utilities] folder →
[ImageBrowser EX] folder and double-click the [ImageBrowser EX] icon.
• Do not use operating system utilities or other software to move, delete, or
rename folders registered in ImageBrowser EX (or images in these folders) while
ImageBrowser EX is in use.
• To view which folders are registered in ImageBrowser EX, see “Configuring
Preference Settings”.
Accessing Help
Depending on the screen, a Help button (
description of screen elements.
Cont
Co
nten
ten
entts
ts
) or menu is displayed. Click for instructions or a
6
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Table of Contents
Manual Conventions and Navigation .............................................................................................. 2
Software Described in This Manual ................................................................................................. 5
Introduction ............................................................................................................... 8
Importing Images ........................................................................................................................... 8
Basic Operations ...................................................................................................... 13
Basic Operations in CameraWindow/EOS Utility ............................................................................ 13
Basic Operations in ImageBrowser EX ........................................................................................... 20
Updating the Software and Obtaining New Functions .................................................................. 27
Advanced Operations ............................................................................................. 28
Printing ........................................................................................................................................ 28
Organizing Images ....................................................................................................................... 31
Editing Still Images ....................................................................................................................... 32
Preference Settings ....................................................................................................................... 38
More Advanced Operations ................................................................................... 40
Editing Movies .............................................................................................................................. 40
Other Playback and Image Search ................................................................................................. 43
Using Online Services, Emailing Images ......................................................................................... 46
GPS .............................................................................................................................................. 53
Appendix ................................................................................................................. 56
Index ............................................................................................................................................ 56
Supported Image Formats ............................................................................................................ 57
Searching for Terms in This Manual .............................................................................................. 58
Uninstallation ............................................................................................................................... 59
Memory Card Folder Structure ..................................................................................................... 60
Troubleshooting ........................................................................................................................... 61
7
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Importing Images
Camera/Camcorder–Computer Connection Precautions
Wireless Features
Non-EOS Cameras: Importing Images with CameraWindow
EOS Cameras Only: Importing Images with EOS Utility
Camera/Camcorder–Computer Connection Precautions
• When connecting the camera/camcorder to a computer via an interface cable, connect the
interface cable directly to the USB port. Connection via a USB hub may prevent correct operation.
• Using other USB devices (except USB mouse devices or keyboards) when the camera/camcorder is connected may prevent correct operation. In this case, disconnect the other devices
from the computer and reconnect the camera/camcorder.
• Do not connect multiple cameras or camcorders to a single computer. This may prevent correct camera/camcorder operation.
• Do not allow the computer to enter sleep (or standby) mode while a camera/camcorder is connected via an interface cable. If this does happen, leave the interface cable connected to the
computer and try to wake the computer while the camera is still connected. Some computers
may not recover from sleep correctly if the interface cable is disconnected while they are in
sleep mode. For details on sleep or standby mode, refer to the computer user manual.
• Do not disconnect your camera/camcorder from the computer while the CameraWindow (or
EOS Utility) screen is displayed.
• When connecting a battery-powered camera/camcorder to the computer, make sure
the device is fully charged, or use an AC adapter kit or a compact power adapter
(may be sold separately, depending on your model).
• When connecting an AA battery-powered camera/camcorder to the computer, use
batteries with sufficient charge, optional fully charged AA NiMH batteries, or an
optional compact power adapter.
• For connection instructions, refer to the camera/camcorder user guide. For connection precautions, see “Camera/Camcorder–Computer Connection Precautions”.
Cont
Co
nten
ten
entts
ts
8
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Wireless Features
As described below, some CameraWindow functions may not be available over a wireless connection, depending on the operating system.
• For details on wireless LAN features, refer to the Wireless LAN Guide. (Cameras supporting wireless networking
only.)
Operating System
Functions
Movie preview display
Windows
Macintosh
×
×
My Camera
×
Editing the camera owner name
×
Returning images to the camera/camcorder
×
Sending personal information
×
Setting up linkage with CANON iMAGE
GATEWAY
×
Non-EOS Cameras: Importing Images with CameraWindow
Connect your camera/camcorder to the computer and import images as follows:
• Instructions in this ImageBrowser EX User Guide apply when the program has been installed correctly. For installation instructions, refer to the camera/camcorder user guide.
1
Connect your camera/camcorder to
the computer via the included interface cable.
2
Start CameraWindow.
Turn the camera/camcorder on and
prepare it for communication with
the computer.
• After the first time you connect the camera/
camcorder to the computer via the included
interface cable, CameraWindow will start up
automatically.
Cont
Co
nten
ten
entts
ts
9
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Camera
Windows
Follow these steps.
1. In the taskbar, click
.
2. After the screen on the left is displayed,
click the
icon to change the program.
3. Select [Downloads Images From Canon
Camera using Canon CameraWindow],
and then click [OK].
4. Double-click
.
• On the screen on the left, double-click [Change
general settings]. You can now adjust the settings so that whenever the camera/camcorder
and computer are ready for communication,
CameraWindow will start up automatically.
Windows Vista
On the screen displayed, select [Downloads
Images From Canon Camera using Canon
CameraWindow].
Windows XP
On the screen displayed, select [Canon
CameraWindow], and then click [OK].
Macintosh
Whenever the camera and computer are ready for communication,
CameraWindow will start up.
Camcorder
Cont
Co
nten
ten
entts
ts
Windows
Select [Canon CameraWindow]
and click [OK].
• Windows XP/Windows Vista:
When the [AutoPlay] window
appears, click [Downloads
Images From Canon Camera
using Canon CameraWindow].
• If a camcorder and memory
card reader are connected at
the same time, a dialog appears
allowing you to select the camcorder model. Confirm that
[Canon Camera] or your camcorder model name is displayed
and click [OK].
Macintosh
Whenever the camcorder and computer are ready for communication,
CameraWindow will start up.
10
Introduction
Basic Operations
Advanced Operations
3
More Advanced
Operations
Appendix
Click [Import Images from Camera],
and then click [Import Untransferred
Images].
• Only images that you have not transferred to
the computer will be imported.
• If you have used the GPS logger function, log
files will also be imported.
4
Click [OK] on the screen displayed
after importing, and then close
CameraWindow.
Imported images are now shown in the main
ImageBrowser EX window.
• On initial ImageBrowser EX startup, a screen
is displayed for specifying where to save
imported images. Follow the instructions displayed to choose the destination folder.
• Importing problems may occur if there are
too many images (more than 1,000) on the
memory card. In this case, use a memory card
reader to import the images. For instructions
on importing images from a memory card
reader, see “Importing Images from Memory
Cards”.
• Movies take longer to import, due to the
larger file size.
5
Turn the camera/camcorder off.
Windows
• Importing movies using built-in Windows 7 import functions may prevent them
from being shown in ImageBrowser EX. Instead, use CameraWindow for importing.
• CameraWindow may not start up in some versions of Windows, even when you
connect your camera/camcorder. In this case, click the [Start] menu and select [All
Programs]
[Canon Utilities]
[CameraWindow]
[CameraWindow].
Macintosh
• If CameraWindow does not start up even when you connect your camera, click the
[CameraWindow] Dock icon.
Cont
Co
nten
ten
entts
ts
11
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
EOS Cameras Only: Importing Images with EOS Utility
Connect your EOS camera to the computer and import images as follows:
• These instructions apply when EOS Utility has been installed correctly.
• For further details, refer to the EOS Utility Instruction Manual (provided in PDF format).
1
Connect your camera to the computer via the included interface cable.
2
Turn the camera on and start EOS
Utility.
Windows
Follow these steps.
1. In the taskbar, click
.
2. When the screen on the left is displayed,
.
double-click
• On the screen on the left, double-click
[Change general settings]. You can now
adjust the settings so that whenever the
camera and computer are ready for communication, EOS Utility will start up automatically.
Macintosh
3
Whenever the camera and computer are ready for communication,
EOS Utility will start up.
Configure EOS Utility so that
ImageBrowser EX starts up after
image importing.
1. On the EOS Utility menu screen, click
[Preferences].
2. On the [Linked Software] tab, select
[ImageBrowser EX] in [Software to link]
and click [OK].
4
Click [Starts to download images].
Imported images are now shown in the main
ImageBrowser EX window.
• On initial ImageBrowser EX startup, a screen
is displayed for specifying where to save
imported images. Follow the instructions
displayed to choose the destination folder
(p. 11).
5
Cont
Co
nten
ten
entts
ts
Click [Quit] to exit EOS Utility, and
then turn the camera off.
12
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Basic Operations in CameraWindow/EOS Utility
Basic Operations in CameraWindow
Other Uses of CameraWindow
Basic Operations in EOS Utility
Basic Operations in CameraWindow
This program is designed for cameras/camcorders other than EOS cameras.
The following screen is displayed when you connect your camera/camcorder to the computer.
Click a button to see available options.
Menu Screen
1
1 Information about memory cards or internal
2
memory in the camera/camcorder
2 Information about the camera/camcorder
3 Start the process of importing camera/camcorder
3
images to the computer.
4 Start the process of protecting, rotating, or delet-
ing camera/camcorder images. You can also return
images on the computer to your camera/camcorder.
4
5
6
5 Start the process of uploading camera/camcorder
movies to video-sharing websites.
6 Used for configuring camera/camcorder settings.
Configurable settings include:
• My Camera: Changing the Shutter Sound and
Startup Screen
• Registering Face ID Information (p. 44)
• Configuring Sharing Websites
• The buttons shown vary depending on camera/camcorder model.
Customizing CameraWindow Operation
button in the upper right of the screen. On this
Access program preferences by clicking the
screen, you can change the startup screen, automatic importing settings, the destination folder
for saving images, and other settings to make CameraWindow easier to use.
Basic Operations in EOS Utility
This program is designed for EOS cameras.
For detailed instructions, refer to the EOS Utility Instruction Manual (provided in PDF format).
Versions of EOS Utility before 2.10 are not compatible with ImageBrowser EX.
Cont
Co
nten
ten
entts
ts
13
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Other Uses of CameraWindow
Automatically Importing Images on CameraWindow Startup
Set up CameraWindow to import images automatically on program startup as follows:
1
in the upper right of the
Click
screen to access CameraWindow
preferences, and then click [Import].
2
On the [Auto Import] tab, choose
[Start importing images automatically when this software is launched].
Changing the Destination Folder
• By default, images imported using CameraWindow are saved in either the [Pictures] or [My Pictures] folder in
Windows or in the [Pictures] folder on Macintosh computers.
1
Click
in the upper right of the
screen to access CameraWindow
preferences, and then click [Import].
2
On the [Folder Settings] tab, click
[Browse], and then specify the destination on the next screen.
Changing the Program Launched after Import
Cont
Co
nten
ten
entts
ts
1
Click
in the upper right of the
screen to access CameraWindow
preferences, and then click [Import].
2
On the [After Import] tab, click
and choose the program to start after
image importing.
14
Introduction
Basic Operations
More Advanced
Operations
Advanced Operations
Appendix
Editing the Camera Owner Name
Edit the owner name for the connected camera as follows:
1
in the upper right of the
Click
screen to access CameraWindow
preferences, and then click [Camera].
2
On the [Set] tab, click [Edit] and enter
the new name in the box.
Importing Selected Images
To access the screen for choosing images to import, click [Import Images from Camera] on the
menu screen, and then click [Select Images to Import]. Select images to import and click
[Import] to start importing the images to your computer.
Viewer Window (Thumbnail Display)
1
3
4
1 Return to the menu screen.
5
2 Images on the camera/cam-
corder that match the conditions
you select here are shown on
the right.
2
6
3 Show/hide the shooting date/
time and file name below
thumbnails (in thumbnail display
mode).
7
4 Change thumbnail size (in
thumbnail display mode).
5 Switch display modes.
Thumbnail display
8
9
10
11
Preview display
Double-clicking an image
will also switch to preview
display.
Full-screen display
6 Indicates that the image has not been imported yet.
9 Select all images.
7 Show selected images against a blue background.
10 Clear image selection.
8 Rotate selected images 90° left or right.
11 Import selected images to the computer.
• The buttons shown vary depending on camera/camcorder model.
Cont
Co
nten
ten
entts
ts
15
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Importing All Images
Import all camera/camcorder images as follows:
On the menu screen, click [Import
Images from Camera], and then click
[Import All Images].
Importing Images from Memory Cards
ImageBrowser EX is used to import images from memory cards. You can use this program with
EOS cameras as well as other cameras/camcorders.
First, insert the memory card in the
memory card reader.
1
Windows
When a screen is displayed for
selecting an action, choose [View/
Download Images using Canon
ImageBrowser EX]. ImageBrowser
EX now starts up, and the screen
on the left is displayed.
Macintosh
When you insert a memory card
in the memory card reader,
ImageBrowser EX starts up and the
window on the left is displayed.
2
3
4
1 Import all images.
2 Import your selected images.
3 Choose the destination and configure other
Use this screen for import operations.
settings.
4 Exit importing.
Cont
Co
nten
ten
entts
ts
16
Introduction
Basic Operations
More Advanced
Operations
Advanced Operations
Appendix
Organizing Images on the Camera
To access the screen for organizing images on cameras/camcorders, click [Organize Images on
Camera] on the CameraWindow menu screen, and then click [Organize Images]. You can view
thumbnails of the images in each folder by selecting the desired folder in the area on the left.
The thumbnails are shown in the area on the right.
Viewer Window (Thumbnail Display)
1
3
1 Return to the menu screen.
5
4
2 Images on the camera/cam-
corder that match the conditions
you select here are shown on
the right.
2
6
3 Show/hide the shooting date/
time and file name below
thumbnails (in thumbnail display
mode).
7
4 Change thumbnail size (in
thumbnail display mode).
5 Switch display modes.
Thumbnail display
8
9
10
11
Preview display
Double-clicking an image
will also switch to preview
display.
Full-screen display
6 Indicates that the image has not been imported yet.
7 Show selected images against a blue background.
8 Rotate selected images 90° left or right.
9 Return images on the computer to your camera/
camcorder.
10 Protect selected images, or cancel protection.
11 Delete selected images.
• The buttons shown vary depending on camera/camcorder model.
Clicking
[Delete] will delete the selected images from your camera/camcorder. Be
careful when deleting images, because deleted images cannot be restored.
Cont
Co
nten
ten
entts
ts
17
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Returning Images to the Camera/Camcorder (Non-EOS Cameras)
Images imported to the computer can also be returned to your camera/camcorder.
This is convenient when you want to show your favorite images to friends, or when viewing
images on the larger screen of a television.
1
Connect your camera/camcorder to the computer to access
CameraWindow.
• For details, see steps 1–2 in “NonEOS Cameras: Importing Images with
CameraWindow”.
• If the main ImageBrowser EX window is
open when your camera/camcorder is connected (for example, immediately after images
are imported), access the CameraWindow
menu screen by clicking the [Import/Camera
Settings] launcher button, and then click
[Connect to Camera].
2
Click [Organize Images on Camera]
[Organize Images].
3
Click
[Upload] and select images.
• Movies can only be returned to cameras that support files in MOV format. For
details, refer to the camera user guide.
• Some camcorders do not support returning files to the camcorder.
• It may not be possible to return images after image editing or information modification on a computer.
Cont
Co
nten
ten
entts
ts
18
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Returning Images to Memory Cards
Images imported to the computer can also be returned to your camera, using a memory card
reader. The images you return can be viewed on the camera.
• EOS Utility cannot be used to return images directly to EOS cameras.
1
Insert a memory card that has been
formatted on the camera into the
memory card reader.
2
In the main ImageBrowser EX
window, select images to return to
the camera.
3
Click [Import/Camera Settings] and
choose [Transfer Images to Memory
Card].
• Only images in JPEG or MOV format can be returned. However, returning MOV files
requires a camera that supports this format. For details, refer to the camera user
guide.
• Only DCF-compliant images can be written to memory cards.
• It may not be possible to return images after image editing or information modification on a computer.
Cont
Co
nten
ten
entts
ts
19
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Basic Operations in ImageBrowser EX
Window Elements (Main Window)
Properties Window: Image Details
Switching Display Modes
Playing Movies
Browser Area Tasks
Window Elements (Main Window)
1 Launcher Area
1
Select tasks to perform.
3
2
2 Tree View
Select folders to view. For
details, see “Tree View”.
4
3 Toolbar
Rotate or delete images,
or perform other tasks. For
details, see “Toolbar”.
4 Browser Area
Rows of images are shown in
this area.
Icons near images indicate
image properties. For details,
see “Properties Icons” below.
5 Browser Control Bar
Settings governing display in
the browser area. For details,
see “Browser Control Bar”.
5
Properties Icons
: Images shot in Stitch Assist mode
: Movies
: RAW Images
To view RAW images shot in aspect ratios
other than 4:3, use Digital Photo Professional
(p. 36).
: Geotagged images
• The buttons shown vary depending on camera/camcorder model.
Cont
Co
nten
ten
entts
ts
20
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Tree View
Imported images are managed on the basis of folders. To view or browse images organized by
folders, shooting date, or other criteria, click the relevant item (folder) listed in the tree view.
• By default, importing images using CameraWindow will create new folders to store them, named with the
shooting dates.
1 Folders
1
Shows destination folders where images are stored.
2 Shooting Date
Images organized by shooting date. Browse images by selecting a date
(year/month/day).
2
3 People
People’s names (as assigned to images or acquired from cameras supporting Face ID) are listed here. This area is useful when browsing
shots of friends, family members, or other people. (Only available with
cameras supporting Face ID.)
3
4
4 History
Lists a record of operations.
• The buttons shown vary depending on camera/camcorder model.
Image Storage Location
By default, images imported using CameraWindow are stored in the following location in new
folders created based on shooting date:
Windows
• Windows 7 or Vista: On the C drive in [Users] → [XXXXX] (user login name)
→ [My Pictures] or [Pictures]
• XP: On the C drive in [Documents and Settings] → [XXXXX] (user login name)
→ [My Documents] → Stills: In [My Pictures]; Movies: In [My Videos] (may not
exist in some environments)
Macintosh
On the startup disk (Macintosh HD, for example) in [Users] → [XXXXX] (user
login name) → [Pictures]
Cont
Co
nten
ten
entts
ts
21
Introduction
Basic Operations
More Advanced
Operations
Advanced Operations
Appendix
Launcher Area
Many tasks in ImageBrowser EX can be done by clicking a launcher button in the main window
and following instructions in the new window displayed.
1
Click a desired launcher button.
2
Follow the instructions to complete
the task.
If a menu is displayed below the button,
select a desired item. These items may vary
depending on your model of camera/camcorder.
Launcher Buttons
Import/Camera Settings
Import images or return images to the
memory card.
Share
Attach images to email messages, or upload
them to sharing websites.
Edit
Edit images.
CANON iMAGE GATEWAY
Use CANON iMAGE GATEWAY services.
Print
Print images.
Map
View geotagged images on a map.
(Geotagged shots only.)
• The buttons shown vary depending on camera/camcorder model.
Cont
Co
nten
ten
entts
ts
22
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Toolbar
Rotate images and perform other tasks.
1
2
1 Back/Forward
View other folders as needed.
3
2 Rotate 90° Counterclockwise/Clockwise
Rotate selected images left or right 90°.
• To rotate original images to match the appearance of rotated images
on the screen, right-click images and choose [Rotate According to
Rotation Info].
3 Delete
Delete selected images.
Deleted images are moved to the [Recycle Bin] or [Trash] on the desktop.
Browser Control Bar
Settings governing display in the browser area.
1
2
3
5 6
4
7
4 Switch Display Modes
1 Sort
Sort images according to the
selected order.
2 Show Image Information
Show/hide the properties icon,
file name, and shooting date/
time near images in Thumbnail
mode.
3 Show Image Properties
Show the properties area, to the
right of the browser area.
Cont
Co
nten
ten
entts
ts
Clicking this button will switch
among display modes for the
main window.
Thumbnail Mode
Preview Mode
Full Screen
5 Fit to Screen
Resize images to fit the window.
(Only available in Preview mode)
6 Original Image Size
Show images at the original size.
(Only available in Preview mode)
7 Zoom In or Out
Zoom in or out (in Preview
mode) or resize thumbnails (in
Thumbnail mode).
23
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Switching Display Modes
Switch the browser area to a convenient display mode as needed.
Thumbnail Mode:
Browse images by reviewing rows of
thumbnails at a convenient size.
Preview Mode:
View the current image at a larger
size while browsing thumbnails.
Full-screen:
Full-screen display of the current
image.
Returning to the Original Display Mode from Full-Screen Display
To return to the original display mode from full-screen display, click (for still images) or doubleclick (for movies) the current image or movie.
Browser Area Tasks
You can do the following tasks in the browser area:
• Select Images (Thumbnail Mode)
Click images to choose them.
• To select multiple images, hold down the [Ctrl] key
as you click each image.
• To select a range of adjacent images, click the first
image and then hold down the [Shift] key as you
click the last image.
Convenient Shortcut Menus
Right-clicking a blank area of the screen or an image will display a shortcut menu. The menu
presents supported and convenient functions in one place. Try using these menus for greater
efficiency.
Using the Image Navigator
In Preview mode when you zoom in or out, a navigator window is shown to indicate the
in this navigator
current position. You can change the image area shown by dragging
window or by clicking in the window.
Cont
Co
nten
ten
entts
ts
24
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Properties Window: Image Details
To view image properties, select an image in the browser area and click
trol bar.
1
in the browser con-
1 Show/hide the information item.
2 Read-only
Prevent the image from being overwritten or deleted.
3 Shooting Info Tab
View a brightness histogram, the shutter speed, exposure compensation, and other shooting details.
2
3
Cont
Co
nten
ten
entts
ts
25
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Playing Movies
Movies can be played in Preview mode or at full screen.
Preview Mode
1 Play the movie, adjust volume.
When viewing super slow-motion movies,
you can use a playback speed bar and realtime playback button (
). Click the button
to watch the movie at the speed at which it
was actually recorded.
2 Trim unneeded scenes at the beginning or
end.
When viewing movies created in Movie
Digest mode, you can select unneeded
scenes and delete them.
1
2
Returning to the Original View from Full-Screen Display
To return to Preview mode from full-screen display, double-click the current movie.
Cont
Co
nten
ten
entts
ts
26
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Updating the Software and Obtaining New
Functions
Manually Updating ImageBrowser EX
Keep ImageBrowser EX up to date and obtain any new functions that are released as follows.
ImageBrowser EX will automatically check for updates or new functions when your computer is
connected to the Internet. If a message is displayed regarding installation, follow the instructions
to install the update.
Use ImageBrowser EX when online to take advantage of auto updating. This feature is not available when offline.
• The following task requires administrator rights.
• Internet access is required for updates. You must have an account with an Internet
service provider, a browser must be installed, and an Internet connection must be
established.
• As with ordinary Internet access, ISP connection or access fees may apply.
• If you cannot use auto updating, visit the Canon website for information about
ImageBrowser EX updates or new functions.
• If the user guide for your desired software is not updated automatically, download
it from the Canon website.
Manually Updating ImageBrowser EX
Click
and choose [Update to latest
version].
Cont
Co
nten
ten
entts
ts
27
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Printing
Printing Individual Images on a Sheet
Printing Contact Sheets
Printing Individual Images on a Sheet
Print individual images on single sheets of paper as follows:
Printing Scenes in Movies
Although movies cannot be printed, you can extract, save, and print still images from movies.
For instructions on extracting still images from movies, see “Extracting Multiple Images from
Movie”.
1
Cont
Co
nten
ten
entts
ts
Select an image to print, click [Print],
and then select [Print Images].
28
Introduction
Basic Operations
Advanced Operations
2
1
4
5
More Advanced
Operations
Appendix
Complete the print settings as
desired.
1 Specify the printer, paper size, borderless printing
options, and so on.
2 Select your preferred printing format for the shoot-
ing date/time.
3 Specify whether or not to maintain the aspect ratio
of cropped images when you print them.
2
4 Crop images to avoid printing unwanted image
areas.
3
5 Add text to images before printing.
3
Cont
Co
nten
ten
entts
ts
Click [Print].
The image is now printed.
29
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Printing Contact Sheets
Print rows of images as follows:
1
5
6
1
Select images to print, click [Print],
and then select [Print Contact Sheet].
2
Complete the print settings as
desired.
1 Specify the printer, paper size, and other options.
2 Specify the number of rows and columns.
4
3 Configure settings to print details such as shooting
information, a header or footer, and page numbers.
4 Select images to rotate or crop.
5 Rotate selected images.
6 Crop selected images to avoid printing unwanted
2
image areas.
3
3
Cont
Co
nten
ten
entts
ts
Click [Print].
The image is now printed.
30
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Organizing Images
Move Images
Changing the Image Sort Order
Move Images
Move images to other folders as desired.
Thumbnail Mode
Preview Mode
To move an image to another folder,
drag the image to the destination
folder under [All Images] and release
the mouse button.
• Images will be tagged instead of moved when the
selected original images are in [Shooting Date],
[People], or [History] and the destination folder is in
[All Images]. (In this case, the original images are not
moved.)
Changing the Image Sort Order
You can sort images in the browser area according to your selected criterion.
In the browser control bar, click
,
and in the menu, select the sorting criterion.
Cont
Co
nten
ten
entts
ts
31
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Editing Still Images
<Editing JPEG Images>
Adding Text to Images
Using PhotoStitch to Create a Panoramic
Correcting Red-Eye
Adjusting Images Automatically
Adjusting Color and Brightness
<Editing RAW Images>
Emphasizing Outlines in Images to Increase
Sharpness
Processing RAW Images with Digital Photo
Professional
Cropping Images
First Steps for All Editing Tasks
Cont
Co
nten
ten
entts
ts
1
In the browser area, select the image
to edit.
2
Click the [Edit] launcher button,
and in the menu, choose an editing
option.
3
Follow the instructions displayed to
complete the task.
32
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Correcting Red-Eye
Restore natural eye color if eyes appear red from the flash firing.
[Edit]
[Correct Red-eye]
Adjusting Images Automatically
Automatically adjusts image color tone and brightness.
[Edit]
[Auto Correct]
Adjusting Color and Brightness
Adjust image color tone and brightness using a variety of methods.
Windows
[Edit]
[Adjust Color and Brightness]
• On the screen displayed next, you can also adjust
images using a histogram and tone curves.
Macintosh
Cont
Co
nten
ten
entts
ts
[Edit]
[Adjust Color and Brightness]
[Edit]
[Correct Levels]
[Edit]
[Correct Tone Curves]
33
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Emphasizing Outlines in Images to Increase Sharpness
Make images appear sharper by emphasizing the outlines of people and other subjects.
[Edit]
Windows
[Increase Sharpness]
The Unsharp Mask [Radius] is the
size at which outlines are detected,
and the [Threshold] is a reference
value used to determine outlines.
Cropping Images
Crop images to remove unwanted outer portions and leave the desired area.
[Edit]
[Crop Image]
• You can also specify the area to crop by entering
numeric values or specifying an aspect ratio.
Adding Text to Images
Add text to images as follows:
[Edit]
[Insert Text]
• For smoother text edges, select the [Antialias] check
box. Text will blend into the background better.
Cont
Co
nten
ten
entts
ts
34
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Using PhotoStitch to Create a Panoramic Image
Create wide panoramic images from a series of shots taken while moving the camera slightly
before each shot.
[Edit]
[Stitch Photos]
If a message is displayed regarding insufficient memory, try the following:
• Close all programs other than PhotoStitch.
• Use fewer images. Reduce the file size of the images.
• On the [Save] tab, select [Adjust image] and specify a smaller size in [Saved Image
Size].
Using PhotoStitch with Stitch Assist
For images captured in Stitch Assist shooting mode, PhotoStitch can automatically detect the
image order and merge direction, making it easier to merge the images. (Some models of
camera/camcorder may not offer Stitch Assist mode.)
Cont
Co
nten
ten
entts
ts
35
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Processing RAW Images with Digital Photo Professional
RAW images can be converted to JPEG or TIFF format.
1
In ImageBrowser EX, click [Edit] and
choose [Process RAW Images].
Digital Photo Professional now starts up.
• You can also start the program by clicking
the [Start] menu, selecting [All Programs]
or [Programs], and then selecting [Canon
Utilities] → [Digital Photo Professional XXX]
(with XXX indicating the version number) →
[Digital Photo Professional].
Tool Palette in Digital Photo Professional
1 2 3
4
5
2
Select the folder where the images
are saved.
3
Select an image.
4
Click
5
Using the tool palette, adjust image
brightness and white balance as
needed.
(Edit image window).
The tool palette is displayed.
• Modification details (information on image processing conditions) are saved as a “recipe” with the
image.
• In Digital Photo Professional, optimal image adjustment for the scene or subject is possible by specifying a Picture Style.
• Image attributes that can be modified vary depending on your model of camera.
1 Tone curves can be used to adjust all RGB chan-
nels at once or each channel individually.
2 Reduce noise in evening shots or at high ISO
speeds.
3 Correct lens aberration in images shot with EOS
cameras.
4 Adjust image brightness, white balance, or the
Picture Style.
5 Adjust contrast, color tone, saturation, and other
attributes.
Cont
Co
nten
ten
entts
ts
36
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Printing
To print from Digital Photo Professional, select images in the main window and then select the
desired print function in the [File] menu. The following printing options are available:
Printing Option
Description
Print
Images are automatically arranged for printing one image per sheet.
Print with detailed setting
Arrange images as desired for printing one image per sheet. Add titles, shooting information, and so on, if you prefer.
Print contact sheets
Print rows of images on a single sheet. (You can also specify the layout and number of
images, add text, and more.)
• Shooting RAW images is only possible on cameras that support RAW format. For
details, refer to the camera user guide.
• Only RAW images supported by Digital Photo Professional can be processed by the
program. Be sure to refer to the camera user guide.
• A more detailed description of operations is available in the Digital Photo
Professional Instruction Manual, which EOS camera users can view from the
included CD-ROM and other users can download from the Canon website.
RAW Images Defined
RAW image files contain the unmodified data captured by the camera image sensor. Unlike
ordinary JPEG images, the data is essentially “raw” (unadjusted and uncompressed), which
enables image processing (conversion) on a computer with no loss of image quality.
Camera-Based Image Processing
Ordinary
Shooting
Image sensor data
from the shot
Computer-Based Image Processing
Image Adjustment
Compression
JPEG Image
Automatic image adjustment and compression
Shooting RAW Images
• Supported by most programs
• Data is already compressed, so image adjustment tends to reduce quality
RAW Image Processing in
Digital Photo Professional
RAW Image
Image Adjustment
Compression
JPEG/TIFF
Images
• View and adjust images without loss of image quality
• Requires processing in Digital Photo Professional
before viewing with most programs
Cont
Co
nten
ten
entts
ts
37
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Preference Settings
Configuring Preference Settings
My Camera: Changing the Shutter Sound and Startup Screen
Configuring Preference Settings
• For details on EOS Utility preferences, refer to the EOS Utility Instruction Manual (provided in PDF format).
ImageBrowser EX
1
Click
2
Configure settings as desired on the
Preferences screen.
.
• With some models of camera/camcorder, customization may require you to add another destination
folder. In this case, access ImageBrowser EX preferences to add a folder.
CameraWindow
Cont
Co
nten
ten
entts
ts
1
Click
.
2
Configure settings as desired on the
Preferences screen.
38
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
My Camera: Changing the Shutter Sound and Startup Screen
To customize operating sounds and the startup screen used by your camera/camcorder, select
sounds or screens designed for your model in My Camera settings and assign them to your
camera/camcorder.
1
Connect your camera/camcorder to the computer to access
CameraWindow.
• For details, see steps 1–2 in “NonEOS Cameras: Importing Images with
CameraWindow”.
2
Click [Camera Settings].
3
Click one of the following options, as
desired:
[Set Start-up Image]
[Set Sounds]
[Set Theme]
My Camera customization is only available if [Camera Settings] is shown in
CameraWindow for your camera/camcorder.
1 [Theme]: Choose to assign the startup screen,
2
3
startup sound, shutter sound, task sound, and
self-timer sound, collectively.
2 Current My Camera settings on your camera/
camcorder
3 Available My Camera settings
1
4
4 Select desired My Camera settings on the right
and click this button to assign them to your
camera/camcorder.
If multiple My Camera setting files are shown on
the left, select a file to replace before assigning
the new file.
Cont
Co
nten
ten
entts
ts
39
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Editing Movies
Editing Movies
Editing EOS Video Snapshot (EOS Cameras
Only)
Extracting Multiple Images from Movie
Editing Movies
Trim movies, combine movies and still images to create an original movie, or edit movies in other
ways as follows.
You can also add titles or other text, background music, and a variety of special effects.
1
Select a movie.
2
Click [Edit] and choose [Edit Movies].
3
Follow the instructions to complete
the task.
• Movies you edit this way cannot be returned to the camera.
• Playback of some scenes may not be smooth if you change the frame rate after
movie editing.
• Saving movies may take some time. In particular, saving movies in MOV format may
take a long time. Note that the time required may vary greatly depending on computer performance and movie size (resolution).
Cont
Co
nten
ten
entts
ts
40
Introduction
Basic Operations
Advanced Operations
Supported Movie Length
Maximum supported lengths of movies
you can save are shown on the right. A
message will be displayed if you attempt
to save a movie longer than this. In this
case, trim the movie or reduce the size
(resolution).
• Movies shot with EOS cameras that
you edit this way are converted to the
movie compression format specified by
ImageBrowser EX before saving. For this
reason, the movies may be in a different
movie compression format than specified
by the camera.
Size (Resolution)
1920 × 1080
1280 × 720
640 × 480
320 × 240
More Advanced
Operations
Appendix
Max. Length (MOV)
23.976 fps/
50 fps/59.94 fps*
25 fps/29.97 fps*
Less than 10 min.
—
Less than 20 min. Less than 10 min.
Less than 30 min. Less than 20 min.
Less than 60 min.
—
* On cameras, 23.976 fps is indicated as 24 fps,
29.97 fps as 30 fps, and 59.94 fps as 60 fps.
Size (Resolution)
1280 × 720
Max. Length (MP4)
Less than 30 min.
Trimming Movies
Trim unneeded portions at the beginning or end as follows:
1
Select a movie in Preview mode.
2
Click
3
To specify portions to trim, drag each
end of the bar shown on the left. The
left point indicates where the movie
begins, and the right point, where it
ends.
4
Click [Save].
.
• When viewing movies created in Movie Digest mode,
you can select unneeded scenes and delete them.
Cont
Co
nten
ten
entts
ts
41
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Extracting Multiple Images from Movie
Favorite scenes in movies can be saved separately as still images.
1
Select a movie.
2
Click [Edit] and choose [Extract
Multiple Images from Movie].
3
Follow the instructions to complete
the task.
Editing EOS Video Snapshot (EOS Cameras Only)
1
Select a video snapshot album.
2
[Edit]
To confirm that the file is a video snapshot,
access the properties.
[Edit EOS Video Snapshot]
EOS Video Snapshot Task starts up.
• The EOS Video Snapshot Task Instruction Manual
(in PDF format) can also be accessed from the EOS
Video Snapshot Task Help.
Cont
Co
nten
ten
entts
ts
42
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Other Playback and Image Search
Searching Images by Faces (Face ID-Compatible Cameras Only)
Searching Images by Faces (Face ID-Compatible Cameras
Only)
Faces in images are automatically detected when you import images into ImageBrowser EX, and
the images are sorted into groups by person. Entering personal information in ImageBrowser EX
enables you to search images by names or nicknames.
• You can also enter personal information on the camera in advance.
Entering Personal Information
1
Under [People] in the tree view, click
[Add Person].
A screen for entering personal information is
displayed.
Unwanted faces can be removed from
groups by clicking the
in the upper right
of the face image.
Cont
Co
nten
ten
entts
ts
2
Enter the person's name.
3
Choose an image to represent the
person, enter a name to display on
cameras supporting Face ID, and then
click [OK].
4
Click [Close].
When finished, press the [Enter] key.
The added person's name is now listed in
the tree view.
43
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Protecting Personal Information
• Your camera will store the face images registered using Face ID functions (information associated with faces), as well as the personal information (names and
birthdays). Shots on the camera will also include names of detected people in the
Exif data. For this reason, after using Face ID functions, be careful when giving the
camera or images to others, or when posting images online where many people can
view them.
• For instructions on removing personally identifiable information before you upload
to sharing websites, see ”Deleting Personal Information Before Uploading to
Sharing Websites”.
• To delete registered personal information, right-click the person's name in the tree
view and choose [Delete].
Editing Registered Personal Information
To edit registered personal information, right-click the person's name in the tree view and
choose [Edit face info].
Searching Images by Faces in Thumbnail Mode
Click a person's name in the tree view.
Images that may include the person are now
shown in the browser area.
• Images labeled with
in the lower right may not
include the person. Move the mouse over the frame
to view the message [Add this person?]. To add the
. Otherwise, click
.
person, click
Searching Images by Faces in Preview Mode
1
Select an image with people and
view it in Preview mode.
2
Click
in the browser area.
The person's name is now shown under their
face.
• Names labeled with [?] may not match the
person. Move the mouse over the frame and
click [Add this person] or [Do not add this
person].
• If only [?] is shown in the name box, click the
box and enter the person's name.
Cont
Co
nten
ten
entts
ts
44
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Using ImageBrowser EX’s Face ID Data on Cameras
Personal information you enter in ImageBrowser EX can be used by cameras that support Face ID
to identify people you shoot.
Linking ImageBrowser EX and Camera
• The first time you connect a camera supporting Face ID to the computer, a screen is displayed to confirm syncing of personal information. Select [Synchronize automatically].
• Linking is also possible by accessing [Camera Settings] in CameraWindow.
1
Connect your camera to the computer to access CameraWindow.
• For details, see steps 1–2 in “NonEOS Cameras: Importing Images with
CameraWindow”.
2
Cont
Co
nten
ten
entts
ts
Click [Yes] when a message is displayed about optimizing personal
information on the camera.
45
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Using Online Services, Emailing Images
Available Services
Using Extended ImageBrowser EX Functions
Available Services
A variety of online services can be used with ImageBrowser EX. Availability of CANON iMAGE
GATEWAY services varies by area.
CANON iMAGE GATEWAY
The CANON iMAGE GATEWAY website offers online photo services to Canon camera/camcorder
customers. After member registration (free of charge), you can share your shots in online photo
albums and take advantage of many other services.
Visit the CANON iMAGE GATEWAY website (http://canon.com/cig) for the latest information
on where the services are available around the world. Also check your regional CANON iMAGE
GATEWAY website to see which services are offered in your area.
• CANON iMAGE GATEWAY Member Registration (Free)
1
Click [CANON iMAGE GATEWAY] and
choose [Register/Add Product].
2
Follow the instructions to complete
the task.
Registering from the CD-ROM
Member registration is also possible using the included CD-ROM. In this case, click [Register]
on the CANON iMAGE GATEWAY installer panel.
Cont
Co
nten
ten
entts
ts
46
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
• Using CANON iMAGE GATEWAY
Click [CANON iMAGE GATEWAY] and
choose the desired option.
Using Extended ImageBrowser EX Functions
• Attaching Images to Email Messages
Your shots can be shared as email attachments.
• Uploading Images to Facebook
Your shots can be uploaded to Facebook. (Requires Facebook registration in advance. For details, visit
the Facebook website.)
• Uploading Movies to YouTube
Your movies can be uploaded to YouTube. (Requires YouTube registration in advance. For details, visit
the YouTube website.)
Cont
Co
nten
ten
entts
ts
47
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Using Extended ImageBrowser EX Functions
Attaching Images to Email Messages
Images can be sent as email attachments.
Windows
1
Select an image.
2
Click [Share] and choose [E-mail
Images].
3
Specify the image size and other
details, and then click [Attach to
Email].
The default email program now starts up,
showing the screen for composing your
message. Images you selected are shown as
attachments.
• Images will be saved in your designated destination
folder if you have selected [Save to Folder] under
[After Finishing the Task] in [Custom Settings].
• If the email program does not start up automatically,
save the images to your computer before starting
the program manually, and then attach and send the
images. Specify where images are saved in [Custom
Settings], as needed.
In order for your email program to start up automatically, the program must be configured as the MAPI client used on your computer.
Cont
Co
nten
ten
entts
ts
48
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Macintosh
1
Select an image.
2
Click [Share] and choose [E-mail
Images].
3
Specify the image size and other
details, and then click [Finish].
The default email program now starts up,
showing the screen for composing your message.
• Images are saved on the startup disk in [Users]
→ [XXXXX] (user login name) → [Library] →
[Preferences] → [SendEmailUserData], in the
[Email Images] folder.
• If the email program does not start up
automatically, start it manually from the
[Applications] folder.
4
Attach the saved images to email
messages.
Configuring the Email Program for Automatic Startup
Windows
• Windows 7: An email program must be installed in advance. To change the
default email program, click the [Start] menu and select [Default Programs].
• Windows Vista: Configure the settings in your regular email program. For
example, to configure Windows Mail, start Windows Mail, and in the [Tools]
menu, select [Options] → [Default Messaging Programs] → [This application
is not the default Mail handler] → [Make Default].
• Windows XP: Start Internet Explorer, and in the [Tools] menu, select [Internet
Options]. On the [Programs] tab, specify the program next to [E-mail].
Macintosh
In the [Applications] folder, double-click the [Mail] icon to start Mail. In
the [Mail] menu, select [Preferences], and then specify the program on the
[General] tab.
Cont
Co
nten
ten
entts
ts
49
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Uploading Images to Facebook: Uploader for Facebook
Upload shots to Facebook as follows. Use images already saved to your computer, or directly
upload images still on the camera.
1
Select an image.
2
Click [Share] and choose one of the
following options, as desired:
[Upload to Facebook Album]
[Upload to Facebook Wall]
Uploader for Facebook now starts up.
3
Enter a description, and then click
[Upload].
4
Enter your Facebook user name and
password, and then click [Log in].
• Future software operation cannot be guaranteed, in consideration of Facebook
specifications and changes in specifications.
• It may not be possible to upload images that have been edited on a computer.
• Uploading requires Internet access. You must have an account with an Internet
service provider, a browser must be installed, and an Internet connection must be
established.
• As with ordinary Internet access, ISP connection or access fees may apply.
Cont
Co
nten
ten
entts
ts
50
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Uploading Movies to YouTube: Movie Uploader for YouTube
Upload movies to YouTube as follows. Use movies already saved to your computer, or directly
upload movies still on the camera.
1
Select a movie.
2
Click [Share] and then [Upload
Movies to YouTube].
Movie Uploader for YouTube now starts up.
3
Enter a title and description, and
[Upload].
then click
4
Enter your YouTube user name and
password, and then click [Log in].
• Future software operation cannot be guaranteed, in consideration of YouTube specifications and changes in specifications.
• The maximum length for uploaded movies is less than 15 minutes, and the maximum file size is less than 2 GB.
• It may not be possible to upload movies that have been edited on a computer.
• Uploading requires Internet access. You must have an account with an Internet
service provider, a browser must be installed, and an Internet connection must be
established.
• As with ordinary Internet access, ISP connection or access fees may apply.
Uploading Movies on the Camera
Connect your camera to the computer to access CameraWindow. Select [Upload Images from
Camera] → [Upload Movies to YouTube]. Select a movie to upload on the next screen, and
[Next] to start Movie Uploader for YouTube. Follow steps 3 and later above.
then click
Cont
Co
nten
ten
entts
ts
51
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Deleting Personal Information Before Uploading to Sharing
Websites
1
Click [Share], and then select a sharing website.
2
On the next screen, select images in
[List].
3
Select [Delete privacy-related information (such as people and places)]
before uploading.
• To delete personal information from all
images, select [Apply to all images].
Cont
Co
nten
ten
entts
ts
52
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
GPS
Viewing Geotagged Images on a Map: Map Utility
Viewing Geotagged Images on a Map: Map Utility
Using geotagged images and GPS logs, you can easily see on a map where shots were taken and
view the route traveled with the camera.
It is also easy to add or delete location information.
This program uses Google Maps™ to display image locations and routes traveled on a map.
Location information in images and GPS logs is sent to service providers.
• Uploading requires Internet access. You must have an account with an Internet
service provider, a browser must be installed, and an Internet connection must be
established.
• As with ordinary Internet access, ISP connection or access fees may apply.
• Google, Google Maps, and Google Earth are trademarks of Google Inc.
• Geotagged shots and GPS logs may contain personally identifiable information. Be
careful when sharing the files or posting images online where many people can
view them.
• Do not use Map Utility with images you are currently editing in Digital Photo
Professional. This may prevent your changes from being saved correctly.
Cont
Co
nten
ten
entts
ts
53
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
1
Select an image.
2
Click [Map].
3
Select a display mode.
Appendix
Map Utility now starts up.
Viewing or editing routes
2
3
1
1 Lists the images selected in
ImageBrowser EX.
2 Enter a location to find corre-
8
sponding images.
3 Click to export location files
that can be viewed in Google
Earth. (Use of these files requires
Google Earth to be installed.
Note that display may be incorrect in some versions of Google
Earth.)
7
4 Add images.
5 Add or remove image location
information.
6 Label images in the current map
area with landmark names.
4
5
6
Map data ©2012 ZENRIN
7 Shooting locations are indicated
by pins on the map.
8 The current image is shown in a
pop-up window.
• The buttons shown vary depending on camera/camcorder model.
This Map Utility feature works with images geotagged by cameras with GPS functionality or cameras that can use smartphone GPS data.
Cont
Co
nten
ten
entts
ts
54
Introduction
Basic Operations
More Advanced
Operations
Advanced Operations
Appendix
Managing GPS logs
6
1 Lists GPS log files.
1
2 Import GPS log files from a
camera or memory card.
3 Add a GPS log file.
4 Change GPS log time difference
information.
5 Remove a GPS log file from the
list.
6 Click to filter log information
display.
Adjust display conditions as
needed for a better view of the
route on the map.
2
3
4
5
Map data ©2012 ZENRIN
• The buttons shown vary depending on camera/camcorder model.
This Map Utility feature works with GPS logs recorded by cameras that support logging.
Cont
Co
nten
ten
entts
ts
55
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Index
Importing/Returning Images
Editing Images
“Import images from other cameras/camcorders”
“Import images from EOS cameras”
“Import images from memory card readers”
“Import selected images”
“Return favorite images to the camera”
“Edit still images”
“Convert RAW images”
“Edit movies”
Browsing Images
“View images at full screen”
“View movies”
“Check image details”
“Search images by faces”
Printing
“Print individual images”
“Print rows of images as samples”
Other Operations
“Adjust software/camera operation”
Organizing Images
“Organize images into folders”
“Sort image display”
Cont
Co
nten
ten
entts
ts
56
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Supported Image Formats
ImageBrowser EX supports the following formats of images shot with Canon cameras or camcorders:
Still Images
• JPEG (.JPG)
Image format used by most cameras and camcorders. Images may appear grainy if edited and saved
repeatedly.
• RAW (.CRW/.CR2/.TIF)
Proprietary image format developed by Canon, designed to preserve digital camera image sensor output, with no loss of image quality. Some cameras may not support this format.
• TIFF (.TIF)
Widely used image format. Supported by many programs in both Windows and Macintosh environments.
Movies
• AVI (.AVI)
Standard Windows movie format. Files in this format are labeled with a movie icon in the browser
area of ImageBrowser EX.
• MOV (.MOV)
Movie format. Files in this format are labeled with a movie icon in the browser area of ImageBrowser
EX.
• MP4 (.MP4)
Movie format. Files in this format are labeled with a movie icon in the browser area of ImageBrowser
EX.
Cont
Co
nten
ten
entts
ts
57
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Searching for Terms in This Manual
This manual can be read using Adobe Reader. To find instances of specific terms or expressions,
you can use search functions in Adobe Reader.
Windows
Macintosh
Cont
Co
nten
ten
entts
ts
Enter the text to find.
58
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Uninstallation
Uninstall the programs when they are no longer needed, or when reinstalling the programs to
resolve software issues.
• Uninstallation of ImageBrowser EX is described here as an example. Other programs can be uninstalled the
same way.
The following task requires administrator rights.
Windows
1
Click the [Start] menu, select [All
Programs] or [Programs], and
then select [Canon Utilities]
[ImageBrowser EX]
[ImageBrowser
EX Uninstall].
The uninstallation process now begins, and
ImageBrowser EX will be removed from your
computer.
Macintosh
1
Drag the [ImageBrowser EX] folder
(in the [Applications] folder, in
[Canon Utilities]) to the [Trash].
2
Empty the trash.
If any folders in the program folder
contain imported images, be careful
not to drag them to the trash with
the program folder.
Cont
Co
nten
ten
entts
ts
59
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Memory Card Folder Structure
Folders for files used by the software described in this manual are as follows:
*
DCIM
One of the
following:
• xxx_ _ _mm
• xxx_mmdd
• xxxCANON
• xxxEOSxx
File Name
IMG_xxxx.CR2
_MG_xxxx.CR2
IMG_xxxx.CRW
_MG_xxxx.CRW
xxxx.TIF
ST _xxxx.JPG
MVI_xxxx.MOV
MVI_xxxx.AVI
MVI_xxxx.MP4
MDG_xxxx.MOV
Type of File
Image files in JPEG format
JPEG image files shot in the Adobe RGB color space
Image files in RAW format
RAW image files shot in the Adobe RGB color space
Image files in RAW format
RAW image files shot in the Adobe RGB color space
RAW image files shot with EOS-1D or EOS-1Ds
cameras
Image files shot in Stitch Assist mode
Movie files
Movie files
Movie files
Movie files created in Movie Digest mode
• xxxx represents a four-digit letter or number.
Folder containing files for managing images in the
DCIM folder
CANONMSC
yymmddx.LOG (GPS log files)
GPS
Folder created when DPOF settings are configured
Contains files for managing DPOF instructions.
MISC
• in file names of sets of images shot in Stitch Assist mode represents a letter, starting with A.
• In GPS log file names (for files in the [GPS] folder), yy represents the last two digits of the year.
• *All folders other than these contain image management files. Do not open or delete them.
• Some image formats may not be supported by your camera/camcorder.
Cont
Co
nten
ten
entts
ts
60
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Troubleshooting
Initial Troubleshooting Tips
Problems and Solutions
Resolve software issues as described in this section.
Initial Troubleshooting Tips
In case of problems, first check the following points:
• Does your computer meet the system requirements?
Refer to the system requirements in the camera/camcorder user guide.
• Is your camera/camcorder connected to the computer correctly?
For connection instructions, refer to the camera/camcorder user guide.
Also confirm that you are using the correct cable, and that it is firmly connected.
• Are your camera/camcorder and the computer ready to send or receive data?
Some models of camera/camcorder must be in playback mode before data can be sent or received
from a computer. For details, refer to the camera/camcorder user guide.
• Is there sufficient battery power?
When using a battery-powered camera/camcorder, confirm that there is enough charge left.
When connecting your camera/camcorder to a computer, you can conserve battery power by using an
AC adapter kit or a compact power adapter (may be sold separately, depending on your model).
Cont
Co
nten
ten
entts
ts
61
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
Problems and Solutions
In case of these problems, try the suggested solutions.
• Cannot find imported images.
Windows
Macintosh
See “Changing the Destination Folder” and check where images are being saved.
• Add New Hardware Wizard appears when the camera/camcorder is connected to the computer via an interface cable.
Windows
Click [Cancel] to close the wizard, and temporarily disconnect the camera/camcorder from the computer. Try to resolve the problem by referring to “Initial Troubleshooting Tips” on the previous page.
• Camera/camcorder not detected, Events dialog/AutoPlay/Device Stage not displayed, Images
not imported (when the camera/camcorder is connected to the computer via an interface
cable)
Windows
Your camera/camcorder may mistakenly be recognized as another device.
Uninstall the device as follows:
The following task requires administrator rights.
1
Access [Device Manager].
Windows 7:
Click the [Start] menu and select [Control
Panel] → [System and Security] → [System]
→ [Device Manager].
Windows Vista:
Click the [Start] menu and select [Control
Panel] → [System and Maintenance] →
[Device Manager].
Windows XP:
Click the [Start] menu and select [Control
Panel] → [Performance and Maintenance]
→ [System]. On the [Hardware] tab, click
[Device Manager].
Cont
Co
nten
ten
entts
ts
62
Introduction
Basic Operations
Advanced Operations
2
More Advanced
Operations
Appendix
Click [+] next to [Other devices],
[Portable Devices], or [Imaging
devices].
Your model of camera/camcorder or [Canon
Camera] will be listed in these categories
if the device is mistakenly recognized as
another device.
• Other factors may be causing the problem if
[Other devices], [Portable Devices], or [Imaging
devices] are not listed, or if your camera/camcorder model name or [Canon Camera] is not
listed. Go to step 5 and consider another solution or try again later.
3
Right-click on your camera/camcorder
model name or [Canon Camera], and
then select [Uninstall].
4
Click [OK] after the confirmation message is displayed.
If applicable, delete all instances of your
camera/camcorder model name or [Canon
Camera] listed in [Other devices], [Imaging
devices], or both categories.
5
Cont
Co
nten
ten
entts
ts
Close [Device Manager] and [System
Properties].
63
Introduction
Basic Operations
Advanced Operations
More Advanced
Operations
Appendix
ImageBrowser EX User Guide
1 Unauthorized reproduction of this guide in whole or part is prohibited.
2 Information in this guide is subject to change without notice.
3 Illustrations or screenshots in this guide may differ slightly from actual products.
4 Notwithstanding the preceding items, Canon cannot be held liable for any loss arising from the use of
this software.
© CANON INC. 2012
Cont
Co
nten
ten
entts
ts
64
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
