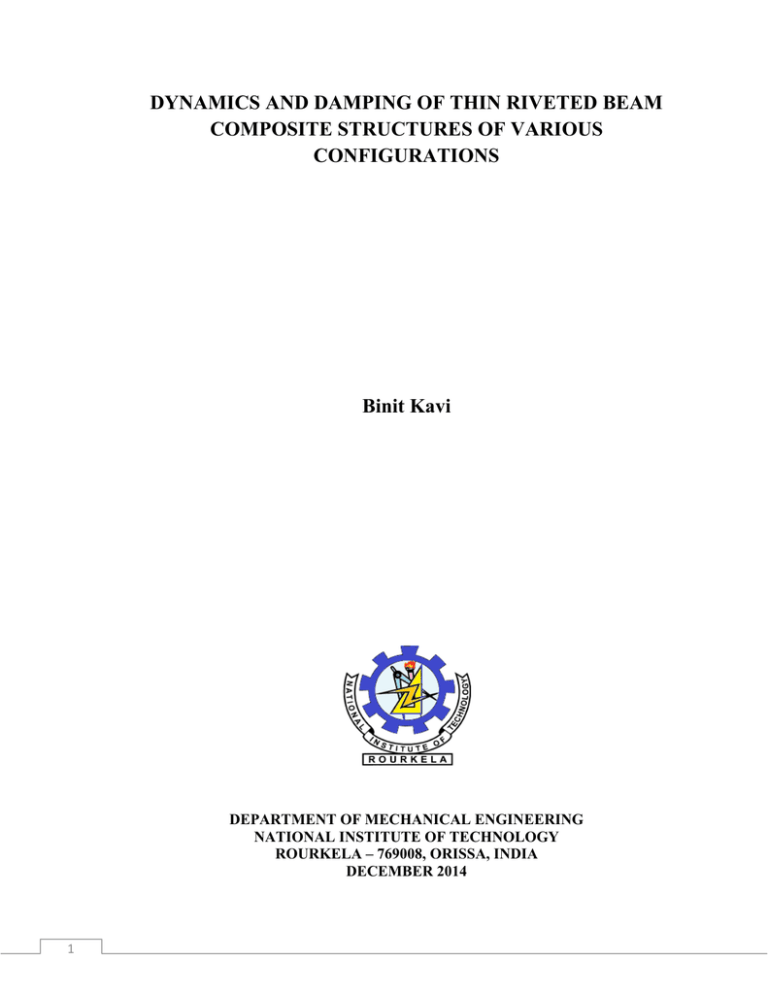

DYNAMICS AND DAMPING OF THIN RIVETED BEAM

COMPOSITE STRUCTURES OF VARIOUS

CONFIGURATIONS

Binit Kavi

DEPARTMENT OF MECHANICAL ENGINEERING

NATIONAL INSTITUTE OF TECHNOLOGY

ROURKELA – 769008, ORISSA, INDIA

DECEMBER 2014

2

DYNAMICS AND DAMPING OF THIN RIVETED BEAM

COMPOSITE STRUCTURES OF VARIOUS

CONFIGURATIONS

A THESIS SUBMITTED TO NATIONAL INSTITUTE OF TECHNOLOGY,

ROURKELA IN PARTIAL FULFILMENT OF THE REQUIREMENTS FOR THE

DEGREE OF

DOCTOR OF PHILOSOPHY

IN

MECHANICAL ENGINEERING

BY

Binit Kavi

(Roll : 509ME304)

UNDER THE GUIDANCE OF

Prof. Bijoy Kumar Nanda

DEPARTMENT OF MECHANICAL ENGINEERING

NATIONAL INSTITUTE OF TECHNOLOGY

ROURKELA – 769008, ORISSA, INDIA

DECEMBER 2014

3

Acknowledgement

I would like to express my deep sense of gratitude and sincere thanks to Dr. B. K. Nanda,

Professor, Mechanical Engineering Department for his constant guidance and valuable suggestions at the various levels of progress of my thesis work.

I take this opportunity of thanking Prof. R. K. Sahoo, Prof. K. P. Maity, ex Heads of department and Prof. S. S. Mahapatra, present Head of Department for providing me facilities for computational and experimental work. I am grateful to Prof. S. C. Mohanty, Prof. S. K. Sahoo of our department for providing experimental and instrumental facilities and Prof. D. R. K. Parhi for his encouraging remarks for my research work. I thank Dr. M. Panda and Dr. B. K. Ojha members of D. S. C. for their invaluable suggestions for my work.

I take this opportunity to express my gratefulness to our honorable director

Prof. S. K. Sarangi for his inspiring advices.

I extend my thanks to Mr. Kunal Nayak for his assistance in conducting experimental work.

I also thank my friends Dr. B. K. Chaudhary, Mr. S. C. Chaini and Mr. Abhishek Tiwari who helped me in various matters related to my work.

Lastly, I thank every individual of the department and my family members who helped me in successful completion of the present work.

(Mr. Binit Kavi)

4

Department of Mechanical Engineering

National Institute Technology

Rourkela-769008, Odisha, India

Certificate

This is to certify that the thesis entitled “Dynamics and damping of thin riveted beam composite structures of various configurations” being submitted to the National Institute of Technology, Rourkela by Mr. Binit Kavi for the award of the degree of Doctor of

Philosophy (Mechanical Engineering) is a record of bonafide research work carried out by him under my supervision and guidance. Mr. Kavi has worked for five years on the above problem and the work has reached the standard fulfilling the requirements and regulations for the degree. To the best of my knowledge, the work incorporated in this thesis has not been submitted in part or full to any other University or Institute for the award of any degree or diploma.

Rourkela (Prof. Bijoy Kumar Nanda)

Date: Supervisor

5

ABSTRACT

Composite structures built up of two or more layers of thin beams connected by an array of rivets or weldments have extensive industrial and structural applications because of their low vibration, high damping, reduced fatigue and low weight properties. In the present investigation dynamic and damping analysis of such structures of various configurations, have been made by classical energy and finite element methods.

In the first case, a continuous model is represented by a partial differential equation with respect to spatial and time coordinates. An analytical exact solution for the motion of composite beam with fixed fixed, fixed simply supported and simply supported simply supported boundary conditions has been obtained. Natural frequencies and normal modes of such structures have been determined by solving the frequency equations. Damping characteristics are evaluated by considering energy dissipation due to friction at the interfaces.

In the later case, the structure is represented by one dimensional beam elements with each element having two nodes, each with two degrees of freedom, i.e. transverse displacement and rotation. The equation of motion involving reduced mass and stiffness matrices has been derived and solved to determine natural frequencies and mode shapes. Energy of dissipation and stored energy has been determined in terms of nodal displacements and used to determine damping factor of beams.

An experimental set up has been developed to measure the dynamic and damping characteristics of prepared beam specimens with various configurations. There has been close agreement between theoretical and experimental results. Effect of geometrical and material parameters of beam, on its dynamic and damping properties have been reported.
