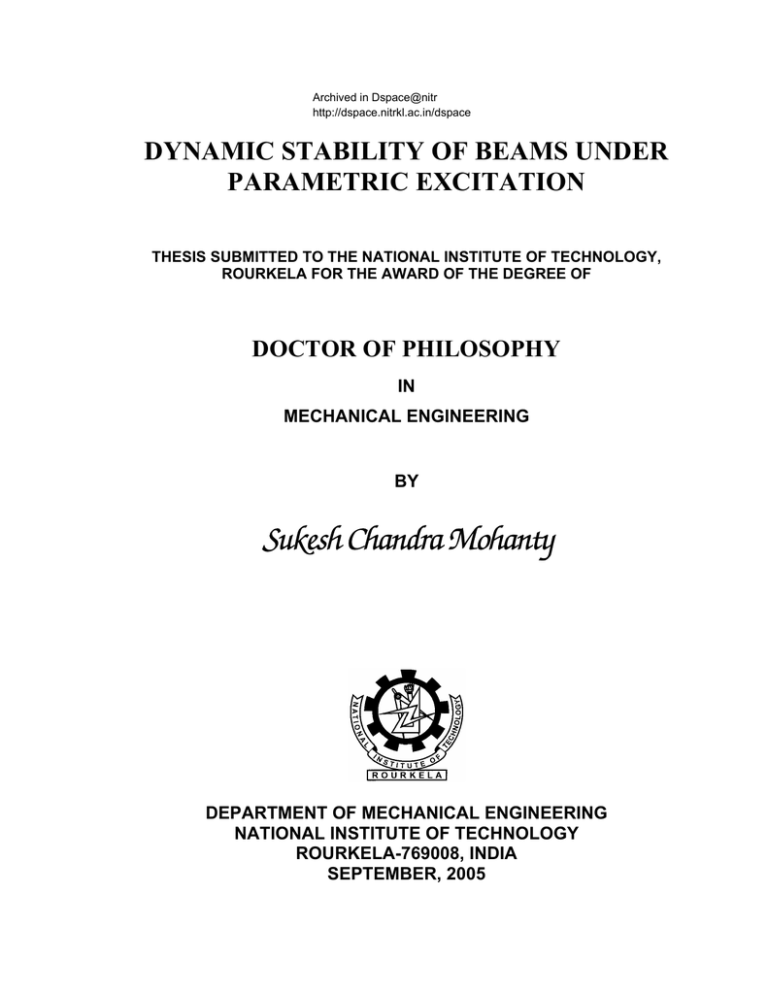

DYNAMIC STABILITY OF BEAMS UNDER

PARAMETRIC EXCITATION

THESIS SUBMITTED TO THE NATIONAL INSTITUTE OF TECHNOLOGY,

ROURKELA FOR THE AWARD OF THE DEGREE OF

DOCTOR OF PHILOSOPHY

IN

MECHANICAL ENGINEERING

BY

Sukesh Chandra Mohanty

DEPARTMENT OF MECHANICAL ENGINEERING

NATIONAL INSTITUTE OF TECHNOLOGY

ROURKELA-769008, INDIA

SEPTEMBER, 2005

To my parents

Certificate

This is to certify that the thesis entitled “Dynamic stability of beams under

parametric excitation”, being submitted to the National Institute of Technology,

Rourkela (India) by Mr. Sukesh Chandra Mohanty for the award of the degree of

Doctor of Philosophy (Mechanical Engineering) is a record of bonafide research work

carried out by him under my supervision and guidance. Mr. Mohanty has worked for more than three years on the above problem and it has reached the standard fulfilling the requirements of the regulations of the degree. The results embodied in this thesis have not been submitted in part or full to any other university or institute for the award of any degree or diploma.

Rourkela (Dr.Niranjan Kavi)

Date: Professor

Department of Mechanical Engineering

National Institute of Technology

Rourkela-769008

Orissa, India.

Acknowledgement

I express my deep sense of gratitude and reverence to my thesis supervisor

Dr.N.Kavi, Professor, Department of Mechanical Engineering, National Institute of

Technology, Rourkela, for his invaluable encouragement, helpful suggestions and supervision through out the course of this work.

I express my sincere thanks to the Director, N.I.T, Rourkela for providing me the necessary facilities for this study.

I would like to thank Prof. A.K.Behera and Prof. N.S.Dash ex-heads of the

Mechanical Engineering Department and Prof. B.K.Nanda present head of the department for their help and cooperation during the progress of this work.

My thanks are due to Prof. R.K.Sahoo and Dr.P.K.Roy of Mechanical

Engineering Department and Dr. M.R.Barik and Dr. S.K.Sahoo of Civil Engineering

Department for their valuable suggestions and help at various stages of the work.

I acknowledge with thanks the help rendered to me by my colleagues,

Dr. S.S.Mohaptra, Mr.R.K.Behera, Mr. Alok Satpathy and Dr. A.K.Satpathy.

The help extended by the staff of the Mechanical Engineering Department and

Central Workshop in fabrication of the experimental set up is acknowledged with thanks.

I am extremely grateful to my wife Madhumita and daughters Simun and Gungun for their loving support and sacrifice.

(Sukesh Chandra Mohanty)

ABSTRACT

The present investigation is an attempt to contribute towards the improved understanding of the dynamic stability of beams under parametric excitation. The dynamic stability of ordinary and sandwich beams subjected to longitudinal parametric excitation has been investigated theoretically and experiments have been carried out to validate some of the theoretical findings. The equations of motion have been derived using finite element method. For ordinary beams the instability regions have been established using Floquet’s theory and for sandwich beams modified Hsu’s method proposed by Saito and Otomi has been applied to determine the boundary frequencies of the instability regions.

The dynamic stability of a Timoshenko beam with localised damage and having fixed-free, pinned-pinned, fixed-fixed and fixed-pinned boundary conditions has been investigated to study the effects of parameters such as extent of damage, position of damage, static load factor and boundary conditions on its dynamic stability behaviour.

The parametric instability of a twisted cantilever beam with localised damage has been investigated to study the effect of angle of pretwist, location of damage, extent of damage and static load factor on its dynamic stability characteristics.

The governing equations of motion for a general multilayered symmetric cantilever sandwich beam subjected to parametric excitation have been derived.

Numerical results have been presented for three, five and seven layered beams to study the effects of various system parameters, such as core thickness parameter, core loss factor and number of layers on the stability behaviour of the sandwich beams. The dynamic stability behaviour of multilayered beams of various configurations based on some important criteria such as constant size, constant weight, constant flexural rigidity, constant size and flexural rigidity and constant weight and flexural rigidity has also been discussed.

Effects of static load factor and thermal gradient factor on the dynamic stability of a simply supported tapered beam with thermal gradient along its length have been studied.

Experimental work has been carried out to verify some of the theoretical results for beams with localised damage and multi layered symmetric cantilever sandwich beam.

Keywords: Parametric excitation, Dynamic stability, Localised damage, Boundary

condition, Pretwist, Thermal gradient, Sandwich beam, Simple resonance and combination resonance.

Contents

Abstract

Contents

iii

List of figures

List of tables

Nomenclature

vi xi xiii

1 Introduction

…………………………………………………………….………….

1

1.1 Introduction……………………………………………………………………..

1 i

1.2 Outline of the present work………………………………………………….….

4

2 Review of literature

……………………………………………………………...

6

2.1 Introduction……………………………………………………………………..

6

2.2 Methods of stability analysis of parametrically excited system………………… 7

2.3 Types of parametric resonance………………………………………………….

9

2.4 Effects of system parameters…………………………………………………… 9

2.4.1 Effect of localised damage……………………………………………… 9

2.4.2 Effect of pretwist angle………………………………………………...

10

2.5 Experimental 11

2.6 Sandwich 12

2.6.2

2.6.3

Static and dynamic analysis of sandwich beams…………………….....

Stability study of sandwich beams and columns…………………….....

14

16

2.6.4 Experimental 16

3 Dynamic stability of a Timoshenko beam with localised damage due to parametric excitation and to boundary conditions

……………………

18

3.1 Introduction……………………………………………………………………..

18

3.2 Formulation of the problem…………………………………………………….

19

3.2.1 Element 20

iii

3.2.2 Governing equations of motion………………………………………...

24

3.2.3 Regions of instability…………………………………………………..

25

3.3 Computational 29 and 31

3.5 Closure……………………………………………………………………….....

36

4 Dynamic stability of a pretwisted cantilever beam with localised damage under periodic axial force

…………………………………………..

49

4.1 Introduction…………………………………………………………………….

49

4.2 Formulation of the problem…………………………………………………….

50

4.2.1 Element 51

4.2.1 Governing equations of motion………………………………………...

55 and 57

4.4 Closure………………………………………………………………………….

60

5 Dynamic stability of a multilayered symmetric cantilever sandwich beam subjected to parametric excitation

…………………………………..

77

5.1 Introduction……………………………………………………………………. 77

5.2 Formulation of the problem…………………………………………………….

79

5.2.1 Element 80

5.2.1.1 Element matrix……………………………………..

80

5.2.1.2 Element matrix………………………………………...

83

5.2.2

5.2.3

5.2.1.3 Element geometric stiffness matrix………………………….

Governing equations of motion…………………………………….…..

Regions of instability……………………………………………….….

85

85

87

5.3 Computational 89 and 90

5.5 Closure………………………………………………………………………….

97

iv

6 Dynamic stability of a simply supported tapered beam with thermal gradient

….…………………………………………………………..……………...

111

6.1 Introduction………………………………………………………………….… 111

6.2 Formulation of the problem……………………………………………………. 112

6.2.2 Governing equations of motion………………………………………... 114

6.4 Closure…………………………………………………………………………. 119

7 Experimental

………………………………………………………………

125

7.1 Introduction……………………………………………………………………. 125

7.2 Description of the experimental set up………………………………………… 126

7.3 Preparation specimen……………………………………………………….. 127

7.6 Closure…………………………………………………………………….…… 133

8 Conclusion and scope for further research

.……………………………….

152

8.1 Conclusion……………………………………………………………………... 152

8.2 Scope for further research…………………………………………………….… 157

References

………………………………………………………………………….

Appendix-A:

Flow chart for calculating the lower and upper boundary limits of instability regions based on Floquet’s theory…………………….…….

158

170

Appendix-B:

Flow chart for calculating the lower and upper boundary limits of instability regions based on Hsu’s criteria……………………………...

171

List of publications

………………………………………………….………………. 172
