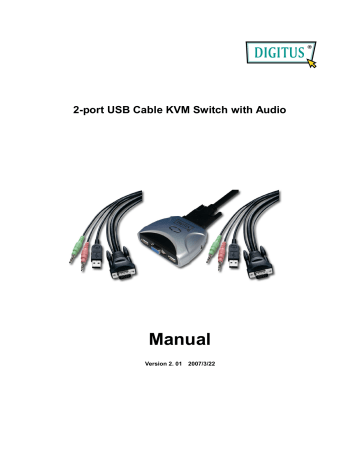

2-port USB Cable KVM Switch with Audio
Manual
Version 2. 01
2007/3/22
Index
1. INTRODUCTION… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 2
1.1 FEATURES … … … … … … … … .… ..… … … … … … … … … … … … … .… … … … … … … … … … … … … 2
1.2 PHYSICAL DIAGRAM… … .… … … … … … … … … … … … … ...… ..… … … … … … … … … … … … … … … 3
1.3 PACKAGE CONTENTS… … … … … … … … … … … … … ...… … … … … ..… … … … … … … … … … … … ...3
2. SPECIFICATIONS… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … .4
2.1 GENERAL… … … … … … … … … … … … … … … … … … … … … … … ...… … … … … … … … … … … … … 4
3. INSTALLING THE CABLE KVM SWITCH… … … … … … … … … … … … … … … … … … … … … … … … 5
3.1 SYSTEM REQUIREMENTS… … … … … … … … … … … … … … … … .… … … … … … … … … … … … … … .5
3.2 HARDWARE INSTALLATION… … … ...… … … … … … … … … ...… … … … … ..… … … … … … … … … … … 5
3.3 NOTICE FOR SUN MICRO SYSTEM USER… … … … … … … … … … … … … … … … … … … … … .… … … .6
3.4 HOT SWAPPABLE… … … … … … … … … .… … … … … ...… … … … … … … … ..… … … … … … … … … … .6
3.5 DRIVER INSTALLATION(W INDOWS 98/SE ONLY)..… … … … … … … … … … … … … … … … … … … … … 6
4. OPERATION… … … … … … … … … … … … … … … … … … … … … … … … … … … .… … .… … … … … … … .9
4.0 PUSH BUTTON… … ..… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … ..9
4.1 HOT-KEY OPERATION… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … .9
4.2 PC SELECTION… … … … … … … .… ..… … … … … … … … … … … … … … … … … … … … … … … … … … 9
4.3 AUTO-SCAN FUNCTION… … … .… … … .… … … … … … … … … … … … … … … … … … … … … … … … ..10
4. 4 (PC+AUDIO) COMBINATION SELECTION… … … … … .… … … … … … … … … … … … … … … … … … … 11
4.5 SINGLE AUDIO ( SPEAKER ) SELECTION… … … … … … .… … … … … … … … … … … … … … … … … … ..11
1
1. Introduction
Thank you for your purchase of the 2-port USB Cable KVM Switch with Audio! You now have
a high quality, durable system that enables you to control two computers and/or servers from
one console (USB Mouse, Keyboard, and Monitor). In addition, proprietary new technology
allows you to independently control and switch audio between two computers.
1.1 Features
1. Controls 2 computers from a single console (Keyboard/Mouse) over USB connection.
2. Support Window 98SE/ME/2000/XP/Vista/2003 server, Sun Micro , Mac , Linux
3. Allows sharing of audio devices.
4. Emulates a keyboard on each PC to allow your computers to boot normally without a
keyboard error.
5. Supports hot-swap. All devices connected to the KVM can be added or removed at any
time, without shutting the unit down.
6. Supports USB keyboard Hot-Key Switch and push buttons for easy operation.
7. Supports Auto-Scan function to alternate video between both computers in preset intervals.
8. Supports LED display for PC and audio status monitoring.
9. Supports VGA resolutions up to 2048x1536 @ 85HZ.
10. Supports Plug and Play.
11. Self powered through USB connection.
12. Provides innovative cable management system to prevent tangles.
2
1.2 Physical Diagram
PC connection 2 LED Indicators (Green)
PC connection 1 LED Indicators (Green)
PC 1 LED Indicators (Red)
PC 2 LED Indicators (Red)
USB Keyboard
VGA Output
USB Mouse
PC Selection Push Button
PC Selection Push Button
Speaker Jack
MIC Jack
·
PC LED Indicators:
RED LED indicates that the 2-port USB Cable KVM Switch is switched to the
corresponding PC.
·
PC connection LED Indicators:
GREEN LED indicates the status of PC connection.
1.3 Package Contents
The product you purchased should contain the following equipment and accessories:
1. One 2-port USB Cable KVM Switch with Audio.
2. User Manual.
3
2. Specifications
2.1 General
Specification
Number Of Computers Controlled
2
Selection Method
USB Keyboard Hot Key only
USB Versions supported
1.1
LEDs
Red for PC Selection
Green for PC ON-Line Selection
PC Connectors
Console Ports
USB
2 x Type A USB Connectors
Video
2 x HDB-15 male
Speaker
2 x Stereo speaker plugs
Microphone
2 x Mono microphone plugs
KVM Body
1 x DVI 24+5 Connector (male)
Keyboard / Mouse
2 x Type A USB Connectors (female)
Video
1 x HDB-15 female
Speaker
1 x Stereo speaker jack
Microphone
1 x Mono microphone jack
HOST
1 x DVI 24+5 Connector (female)
Auto-Scan Interval
5~60 Seconds
DDC, DDC2 monitor
Yes (Max. Resolution: 2048x1536)@85Hz
Hot Swappable
Yes
Operating systems supported
Windows 98SE/ME/2000/XP/Vista/2003 Server,
Sun Micro, Mac, Linux
Device driver
No
Power
By PC USB power
Cable Length
1.20 Meter
Dimensions (LxWxH)
65 x 85 x 25 (mm)
Unit Weight
450 g
4
3. Installing the Cable KVM Switch
3.1 System Requirements
A PC with USB port and 1 VGA port.
Windows 98 or later, Mac OS 8/9/OS X, Solaris 8 (SUN BLADE 100), Linux Kernel 2.3 or later.
USB Keyboard and mouse.
3.2 Hardware Installation
Plug the USB keyboard, USB mouse, and monitor into the corresponding connectors of your
2-port USB Cable KVM Switch.
Plug the speakers into the corresponding jacks of your 2-port USB Cable KVM Switch.
Connect the KVM cables into the corresponding ports on the computers.
5
3.3 Notice for Sun Micro System user
Since some Sun Micro system will detect the monitor information, if system fail to get information
from the Monitor, then you won’
t get any screen came out. So for safety, “YOU MUST SWITCH
USB KVM SWITCH TO THE SUN MICRO SYSTEM”before you power on the Sun Micro System.
After you seeing the screen from the Sun Micro System, then you can switch to any other Host. If
you have multiple Sun Micro systems, then you have to repeat this procedure one by one.
3.4 Hot Swappable
The 2-port USB Cable KVM Switch supports hot-swap technology. All the components can be
added or removed at any time without shutting the PC down.
3.5 Driver Installation (Windows 98/SE only)
After you connect the 2-port USB Cable KVM Switch to your PC, Win 98 will automatically detect
the device and prompt for the driver installation. Please install the 2-port USB Cable KVM Switch
by the following instruction from Step A-E. Please have your Windows 98 CD ready.
A. Press “Next”to Continue.
(Ref. Fig. A)
Fig. A
B. Select “Search for the best
driver for your device”and
press “Next”to continue.
(Ref. Fig. B).
Fig. B
6
C. Please insert the “Windows
98”CD into your CD-ROM
drive. Click “CD-Rom drive”
and press “Next”to continue.
(Ref. Fig. C)
Fig. C
D. Press “Next”to start the
installation process.
(Ref. Fig. D)
Fig. D
7
D1. Sometimes Windows
cannot locate the necessary
driver automatically. So you
need to choose “Browse”to
specify the location of the
driver on your “Windows 98”
CD manually. *
(Ref. Fig. D1)
Fig. D1
* The driver might be located in a different directory from the figure above.
D2. Press “OK”to continue
(Ref. Fig. D2)
Fig. D2
E. Press “Finish”and
Windows has finished
installing the USB Human
Interface Device driver for
PS/2 keyboard & mouse.
(Ref. Fig. E)
Fig. E
8
4. Operation
The 2-port USB Cable KVM Switch can switch the keyboard, video, mouse and audio
simultaneously.
Note: When using the two-step Hot Key sequences, the keys must be pressed within 5
seconds, otherwise the Hot Key action will terminate.
4.0 Push Button
User can switch PC by pressing push button.
4.1 Hot-Key operation
Note: If your keyboard is without < Scroll Lock > button, then you can change the hotkey
setting and use < Caps Lock > or <Num Lock > to instead of Scroll Lock (please reference
4.2).
4.2 PC Selection
Hot Key:
Switch to PC1
[Scroll] + [Scroll] + [ 1 ]
Switch to PC2
[Scroll] + [Scroll] + [ 2 ]
Switch to Next PC
[Scroll] + [Scroll] + [→ ] or [↓]
Switch to Previous PC
[Scroll] + [Scroll] + [← ] or [↑]
9
4.3 Auto-Scan Function
Hot Key:
[Scroll] → [Scroll] → [S] → [Esc] to BEGIN.
There is about 10 seconds for the initial time waiting.
Press the [Esc] key to STOP.
NOTE : [Esc] will stop the atuo-scan
operation and make the KMV jump to
the current scanning PC.
You can activate the Auto-Scan function by using the following two-step Hot Key
sequence. To send commands to the KVM Switch, press the [Scroll] key twice (Step 1), then
press [S] (Step 2). When you press the Auto-Scan hot key sequence, the KVM Switch
alternates between the two PCs and displays them on the monitor.
Each PC is display one of time interval from 5 ~ 60 seconds (The interval is adjustable) before
switching to the next. When you press any key on the keyboard, the Auto-Scan will stop and
the monitor screen will jump back to the original PC. During the Auto-Scan mode, the KVM will
ignore the mouse operation, if you move mouse you will not see the cursor move on the
screen.
Adjustable scan time interval setting ( 5 ~ 60 sec. )
Hot-key: Pressing the <Scroll >, <Scroll > then <S> and < n>
*n = 1~ 9
<n>
1
2
3
4
5
Scan time
interval
5
10
15
20
25
<n>
Scan time
interval
30
35
40
60
6
7
8
9
10
4. 4 (PC+Audio) Combination Selection
Hot Key:
[Scroll] → [Scroll] → [ F1 ] or
[Scroll] → [Scroll] → [ F2 ]
4.5 Single Audio ( Speaker ) Selection
Hot Key:
[Scroll] → [Scroll] → [Q] to select PC1 Speaker
[Scroll] → [Scroll] → [W] to select PC2 Speaker
Hot Key definition table
Step 1
Step 2
Action
[Scroll] +
[Scroll]
[Scroll] +
[Scroll]
[Scroll] +
[Scroll]
[Scroll] +
[Scroll]
[Scroll] +
[Scroll]
[Scroll] +
[Scroll]
[Scroll] +
[Scroll]
[→ ] or [& ]
Switch to the next PC
[1]
Switch the active connection to PC 1
[2]
Switch the active connection to PC 2
[F1]
Combined switching (PC+Audio) to PC 1
[F2]
Combined switching (PC+Audio) to PC 2
[S]
Activate the Auto-Scan mode, default 10 sec.
[S] + [1~9 ]
Select the Auto-Scan interval from 5 to 60 Sec.
11
Disclaimer
Information in this document is subject to change without notice. The manufacturer does not
make any representations or warranties (implied or otherwise) regarding the accuracy and
completeness of this document and shall in no event be liable for any loss of profit or any other
commercial damage, including but not limited to special, incidental, consequential, or other
damages.
No part of this document may be reproduced or transmitted in any form by any means, electronic
or mechanical, including photocopying, recording or information recording and retrieval systems
without the express written permission of the manufacturer.
All brand names and product names used in this document are trademarks, or registered
trademarks of their respective holders.
FCC Statement
This device generates and uses radio frequency and may cause interference to radio and
television reception if not installed and used properly. This has been tested and found to comply
with the limits of a Class B computing device in accordance with the specifications in Part 15 of
the FCC Rules. These specifications are designed to provide reasonable protection against such
interference in a residential installation. However, there is no guarantee that interference will not
occur in a particular installation. If this device does cause harmful interference to radio or
television reception, which can be determined by plugging the device in and out, the user can try
to correct the interference by one or more of the following measures:
·
·
·
·
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the computer into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
