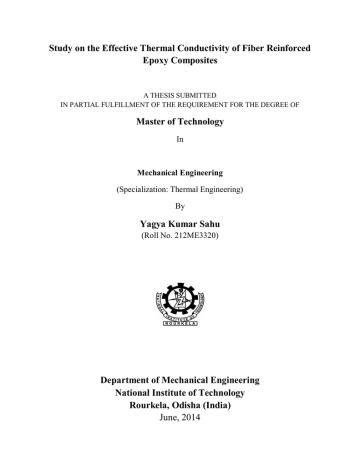

Study on the Effective Thermal Conductivity of Fiber Reinforced

Epoxy Composites

A THESIS SUBMITTED

IN PARTIAL FULFILLMENT OF THE REQUIREMENT FOR THE DEGREE OF

Master of Technology

In

Mechanical Engineering

(Specialization: Thermal Engineering)

By

Yagya Kumar Sahu

(Roll No. 212ME3320)

Department of Mechanical Engineering

National Institute of Technology

Rourkela, Odisha (India)

June, 2014

Study on the Effective Thermal Conductivity of Fiber Reinforced

Epoxy Composites

A THESIS SUBMITTED

IN PARTIAL FULFILLMENT OF THE REQUIREMENTSFOR THE DEGREE OF

Master of Technology

in

Mechanical Engineering

(Specialization: Thermal Engineering)

Submitted to

National Institute of Technology, Rourkela

By

Yagya Kumar Sahu

(Roll No. 212ME3320)

Under the supervision of

Prof. Alok Satapathy

Department of Mechanical Engineering

National Institute of Technology

Rourkela, Odisha (India)

June, 2014

Department of Mechanical Engineering

National Institute of Technology

Rourkela, Odisha (India)

C E RT I F I C A T E

This is to certify that the thesis entitled “Study on the Effective Thermal

Conductivity of Fiber Reinforced Epoxy Composites”, submitted by Yagya

Kumar Sahu (Roll No: 212ME3320)

has been carried out under my supervision in partial fulfilment of the requirements for the degree of Master of Technology in

Mechanical Engineering (Specialization: Thermal Engineering) during session

2013 - 2014 in the Department of Mechanical Engineering, National Institute of

Technology, Rourkela.

To the best of my knowledge, this work has not been submitted to any other

University/Institute for the award of any degree or diploma.

Place: Rourkela

Date:

Prof. Alok Satapathy

Associate Professor

Department of Mechanical Engineering

National Institute of Technology, Rourkela

Odisha, India

A C K N O W L E D G E M E N T

I would like to express my deep sense of gratitude and respect to my supervisor

Prof. Alok Satapathy for his invaluable guidance, motivation, constant inspiration

and above all for his ever co-operating attitude that enabled me in bringing up this thesis in the present form.

I consider myself extremely lucky to be able to work under the guidance of such a dynamic personality.

I am grateful to Prof. S. K. Sarangi, Director, National Institute of Technology,

Rourkela who has been a constant source of inspiration for me. I am also thankful to Prof. K. P. Maity, H.O.D, Department of Mechanical Engineering, National

Institute of Technology, Rourkela for his constant support and encouragement.

I would like to thank Alok Agrawal, Gaurav Gupta and Pravat Ranjan Pati

(Ph.D. Scholar, Thermal Engineering), and my all friends with whose additional help this study has been a succulent one.

My very special thanks go to all my family members. Their love, affection and patience made this work possible and the blessings and encouragement of my beloved parents greatly helped me in carrying out this research work.

Place: Rourkela

Date:

Yagya Kumar Sahu

Roll No. 212ME3320

Department of Mechanical Engineering

National Institute of Technology, Rourkela

Odisha, India

Figure 1.1

Figure 1.2

Figure 3.1

Figure 3.2

Figure 3.3

Figure 3.4

Figure 3.5

Figure 3.6

Figure 3.7

Figure 3.8

Figure 3.9

Figure 4.1

Figure 4.2

Figure 4.3

Figure 4.4

Figure 4.5

Figure 4.6

Figure 4.7

Figure 4.8

Figure 4.9

List of figures

Classification of composites based on reinforcement type

Different types of composites

Unmodified epoxy resin chain (‘n’ denotes number of polymerized unit)

Tri-ethylene-tetramine (hardener used for epoxy matrix)

Epoxy resin and hardener

Short glass fiber used as filler in the present work

Short banana fiber used as filler in the present work

Fiber reinforced epoxy composite fabrication by hand lay-up process

Short glass fiber reinforced epoxy composites

Short banana fiber reinforced epoxy composites

Determination of Thermal Conductivity Using Unitherm™ Model 2022

Boundary condition

Three dimensional view of short fiber in cube model (a) fiber arrangement within matrix body, (b) Meshing of such model

Temperature profile of composites with glass fiber loading of (a) 2.83 vol%

(b) 5.65 vol% (c) 7.54 vol% (d) 10.05 vol% (e) 12.56 vol% (f) 15.7 vol%

Temperature profile of composites with banana fiber loading of (a) 2.83 vol%

(b) 5.65 vol% (c) 7.54 vol% (d) 10.05 vol% (e) 12.56 vol% (f) 15.7 vol%

Effective thermal conductivity of short glass fiber/epoxy composites: Rule-of mixure, Maxwell’s model, Bruggeman model, Proposed model, FEM and

Experimental values

Effective thermal conductivity of short banana fiber/epoxy composites: Ruleof mixure, Maxwell’s model, Bruggeman model, Proposed model, FEM and

Experimental values

Comparison of the k eff

values for the proposed model for both the filler

Comparison of the k eff

values for the FEM model for both the filler

Comparison of the k eff

values for the experiment for both the filler i

List of tables

Table 2.1 Typical properties of glass fibers

Table 3.1 Some important properties of epoxy

Table 3.2 Some important properties of glass fiber

Table 3.3 Some important properties of banana fiber

Table 3.4 List of fiber-reinforced polymer composites fabricated by hand-lay-up technique for the validation of FEM modelling

Table 3.5 List of fiber-reinforced polymer composites fabricated by hand-lay-up technique for the validation of Mathematical model

Table 4.1 The k eff values for composites obtained from different methods for glass fiber reinforced epoxy composites

Table 4.2 The k eff values for composites obtained from different methods for banana fiber reinforced epoxy composites

Table 4.3 Percentage errors associated with respect to experimental value for glass fiber/epoxy composites

Table 4.4 Percentage errors associated with respect to experimental value for banana fiber/epoxy composites ii

A B S T R A C T

The present paper deals with the effect of volume fraction of fibers on the effective thermal conductivity (k eff

) for polymer composites. This work sees an opportunity of enhancement on insulation capability of a typical fiber reinforced polymer composite. A mathematical correlation for the effective thermal conductivity of polymer composites reinforced with fiber is developed using the law of minimal thermal resistance and equal law of the specific equivalent thermal conductivity. To validate this mathematical model, two sets of epoxy based composites, with fiber content ranging from 0 to 15.7 vol % have been prepared by simple hand lay-up technique.

For one set of composite, natural fiber i.e. banana fibers are incorporated in epoxy matrix and for another set a well-known synthetic fiber i.e. glass fiber is taken as a filler material whereas matrix material remains the same. Thermal conductivities of these composite samples are measured as per ASTM standard E-1530 by using the Unitherm™ Model 2022 tester, which operates on the double guarded heat flow principle. Further, finite element method (FEM) is implemented to determine the k eff

of such composites numerically using a commercially available finite element package ANSYS. Experimentally measured values are then compared with the values obtained from the proposed mathematical model, the numerical values and also with models established earlier, such as Rule-of-Mixture (ROM), Maxwell’s model, Nielson-

Lewis model and Bruggeman model. From the experimental and numerical output, it can be seen that with an increase in fiber content, there is gradual decrease in effective thermal conductivity value for both sets of composites. This comparison tells that while none of the established models are correctly predicting the effective thermal conductivity of the composites, the results obtained from the proposed model fits well with the experimental data. This study shows that the effective thermal conductivity reduces quite significantly as the fiber loading in the composite increases. A reduction of about 8 % in the value of thermal conductivity is recorded with addition of 15.7 vol % of glass fiber in epoxy resin whereas 12 % decrease is noticed when filler is banana fiber. This study validates the proposed model and also proves that finite element analysis can be an excellent methodology for such investigations. With light weight and reduced heat conductivity, these insulative, fibers reinforced polymer composites finds their potential applications in insulation boards, food containers, thermo flask, building materials etc. iii

List of contents

Chapter no. Description

Chapter 1 Introduction

1.1 Background and motivation

1.2 Composite materials

1.3 Types of composites

1.3.1 Metal matrix composites (MMC)

1.3.2 Ceramic Matrix Composites (CMC)

1.3.3 Polymer Matrix Composites (PMC)

1.4 Types of polymer composites

1.4.1 Fiber reinforced polymer (FRP)

1.4.2 Particle reinforced polymer (PRP)

1.5 Introduction to research work

1.6 Thesis outline

Chapter 2 Literature review

2.1 Study on the synthetic fiber based polymer composites

2.2 Structure and property of glass fiber

2.3 Study on glass fiber reinforced polymer composites

2.4 Study on natural fiber based polymer composites

2.5 Structure and property of banana fiber

2.6 Banana fiber reinforced thermoplastic composites

2.7 Banana fiber reinforced thermoset composites

2.8 Study on thermal conductivity of fiber reinforced polymer composites

2.9 Study on effective thermal conductivity analytical models

2.10 The knowledge gap

2.11 Objectives of the present work

Chapter summery

Chapter 3 Materials and methods

3.1 Material

3.1.1 Matrix Material

3.1.2 Filler material 1: (glass fiber)

16-18

18-19

19-20

20

21-35

21

21-23

23-24

10-20

10

11

11

11-12

13

13-14

14-15

16

Page no.

1-9

1-2

3-4

4

4-5

5

5

6

6

6

7-8

8-9

3.1.3 Filler material 2: (banana fiber)

3.2 Experimental details

3.2.1 Composite fabrication

3.3 Thermal conductivity characterization

3.3.1 Experimental determination of thermal conductivity

3.3.2 Operating principle of Unitherm

TM

2022

3.4 Numerical Analysis: Concept of Finite Element Method

(FEM) and ANSYS

3.4.1 Essential Steps in FEM

3.5 Advantages of the finite element method over other numerical methods are as follows:

3.6 A finite element package: ANSYS

Chapter summery

Chapter 4 Results and discussion

4.1 Numerical analysis and concept of finite element method

4.2 Description of the problem

4.3 Effective Thermal Conductivity of the composites

Chapter summery

Chapter 5 Conclusion and scope of future work

5.1 Conclusion

5.2 Scope of the future work

References

Appendix – A1

24-25

25

25-28

28

28

28-30

30-31

31-33

33

33-35

35

36-45

36

36-37

37-45

45

46-47

46

47

48-52

M. Tech Thesis

2014

Chapter – 1

INTRODUCTION

1.1 Background and Motivation

Requirement of Thermal Insulation

It is essential for comfort and in some cases, for the survival of humans and animals to retard the flow of heat by using some insulation medium. Insulation has many advantages in industry like it prohibits damage due to freezing of various articles or damage of articles by high temperatures, and lowers cost for heating and cooling. Heat flows from a hot body to a cold (i.e. less warm) body in one direction only so insulation helps to slow down this flow. In a refrigerator, for example, insulation retards the heat flow from the room air to the interior of the refrigerator. In a building, we can observe that insulation keeps out during summer heat and in during winter.

It can be observed that most of the studies in the field of thermal analysis of polymers are intended at enhancing the thermal conductivity of the polymer rather than trying to improve its insulation capabilities. In applications like pipe insulation, building insulation, thermo flasks and in food containers, thermal insulation is required. Also in space craft and automotive industries thermal insulation plays an important role.

Building materials that themselves are good insulators are used to insulate buildings. Building can be also insulated by providing spaces in walls and ceilings and by filling the spaces with an insulating material. Such simple building materials as the snow blocks of Eskimo igloos, the straw of thatched roofs, and the sun-baked clay houses in Northern Africa, the Middle East, and

Latin America offer good insulation.

Materials considered exclusively as insulation commonly come as loose fills or in the form of batts backed with foil or paper. They are set up between the interior and exterior walls and in the floor or ceiling of the attic. Windows and doors are insulated by weather stripping around the frame and by creating a dead-air space through the use of storm windows and storm doors. Many parts of the country know-how large changes in temperature from season to season. So, there is a great necessity for building materials with insulating properties. With the development of new technologies, the scenario in industries of all kinds, transportation sector, and entertainment

Department of Mechanical Engineering, NIT Rourkela

Page | 1

M. Tech Thesis

2014

sector and even in the field of medical services is much the same. The conventional engineering materials are not capable to meet the requirement of these special properties like high strength, low density and low conductivity. The demand for structurally stable, cost effective and lightweight insulation materials is therefore increasing day by day. Foamed plastic is one of the generally used thermal insulation materials. However, its application is limited considerably due to its poor mechanical properties.

Synthetic fibers like glass fiber, nylon, carbon fiber etc. are considered to be potential filler material for various applications like wear resistant and structural components.

Glass fiber reinforced polymer matrix composites are important engineering materials, mainly because of their low density in combination with excellent specific stiffness and strength. This synthetic fiber is found to be potential filler for improving insulation capability of various polymers because of its low thermal conductivity. But these synthetic fiber reinforced polymer composite have some disadvantages like they are corrosive and toxic in nature, higher cost and nonrecyclable.

It is remarkable to note that natural fibers such as sisal, jute, coconut coir, rice husk, banana etc., are richly available but are not optimally utilized. At present, the use of these fibers are in the production of mats, ropes, yarns and matting as well as in production of fancy articles like table mats, handbags, wall hanging and purses. Cotton, banana and pineapple are also used in making cloth in addition to being used in the paper industry. With growing environmental responsiveness and ecological concern, attention towards natural fiber reinforced composites have increased during the recent decades. The composites have many advantages, including low cost, light weight, nontoxic, biodegradable etc. Various natural fillers like pineapple, sisal and bamboo, coconut coir, jute etc. as the reinforcements in composites have been reported earlier. Apart from this, natural fibers possess very low thermal conductivity which is much lower than synthetic fiber and can be used as filler for various insulation applications.

Therefore, there has been a focus to fabricate a kind of light, porous material with better mechanical strength and good thermal insulation properties. Against this backdrop, emerged a class of promising engineering insulation material– polymer composites.

Department of Mechanical Engineering, NIT Rourkela

Page | 2

M. Tech Thesis

2014

1.2

Composite Materials

There are basic two phase of composite material, in which one is known as matrix material and another one is called reinforcing material. The reinforcing material is embedded over matrix material. The matrix material is continuous phase and reinforcing is discontinuous phase. The reinforcing phase is much harder than matrix phase. In composite material matrix phase removes the stresses between reinforcing phase and also protect from mechanical and environmental damage. The function of reinforcing material is to improve mechanical and thermal properties of composites. Composite are hybrid of two or more material such as reinforced polymer, metal or ceramics. The reinforcement may be in the form of fibers, particles, whiskers or lamellae, and are incorporated in a suitable matrix, thereby providing a material that combines the most useful properties of the constituents. Generally the properties of composites are superior to those of its individual constituents. High structural strength, glass fiber reinforced plastics were developed in the early 1940‟s and the technology of reinforced polymers has progressed significantly since then. In a typical glass fiber reinforced plastic composite, the strength and stiffness are provided by the glass fiber while the temperature capabilities of the composites is governed by the plastic matric. These composites are finding increasing application in air craft, automobile industry.

Matrix material: - A variety of matrix polymer, metal, alloy, intermetallic, ceramics, carbon, cement etc. have been used for making composites. The matrix material serves several functions which are vital to the performance of the composite material. These functions also depend upon the type of reinforcement such as dispersions, particulates, whispers, discontinuous or continuous fibers. The matrix enables the composite to withstand compression, flexural and shear forces or tensile loads. The polymer material for a matrix can be thermosetting or thermoplastic resins.

Thermoset resins, in the presence of a catalyst reaction or cure. Once cured these material can no longer flow. Thermosetting resins such as epoxies, bismaldeimides and cyanates can provide good strength properties. Thermoplastic resins are normally solids at room temperature but soften or melt when heated to elevated temperatures and become solid when cooled. Typical thermoplastic resins include polymide, polyami9de, polyphenylene sulphide (PPS), polyetherether ketone (PEEK), polyethylene terephthalate (PET), and polyetherulfone.

Department of Mechanical Engineering, NIT Rourkela

Page | 3

M. Tech Thesis

2014

Thus speciality epoxy resins and curing agent designed for use in high performance composites have excellent elevated temperature resistance, good mechanical properties, low water absorption and relatively high glass transition temperature. Hence a proper combination of epoxy resin, modifying resin, reinforcing fiber, curing agent and processing procedure are required to take full advantages of their properties. Since the relatively low strength polymers can be converted into high strength composites by reinforcement, this field of the composite industry is well established and is growing faster into newer application.

Reinforcement - The reinforcement for composites may be in the form of particles, whiskers, fibers, lamellae or a mesh. They may increase the strength, stiffness or modify the failure mechanism advantageously. There can be special cases where the fibers may conduct or resist heat and electricity. Whiskers of metals, inter-metallic, oxides, carbides and nitrides are frequently used as reinforcement. A variety of continuous fibers of glass, carbon Kevlar

(aramid), silicon carbide, alumina, boron, tungsten etc. are used as reinforcement.

1.3 Types of Composite Materials

On the basis of matrix material composite materials can be classified into three groups. They are:

1.3.1 Metal Matrix Composites (MMC)

1.3.2 Ceramic Matrix Composites (CMC)

1.3.3 Polymer Matrix Composites (PMC)

1.3.1 Metal matrix composites:

Metal matrix composite made a breakthrough in the development of useful properties of metals and alloys in relation to the traditional approach of alloying and heat treatment. These composites, containing discontinuous or continuous reinforcement with particulates, whiskers or fibers are capable of providing properties not achievable in monolithic alloys. Ceramic particles or whiskers dispersed in a metal matrix either by powder metallurgy or molten metal processing can enhance the modulus, strength, wear resistance, elevated temperature properties or control of thermal conductivity or coefficient of thermal expansion.

The improved thermal conductivity and controlled coefficient of thermal expansion of SiC particle reinforced aluminum matrix composites are finding newer application as electronics

Department of Mechanical Engineering, NIT Rourkela

Page | 4

M. Tech Thesis

2014

packaging matrerials. Many potential aerospace applications have been identified for MMC.

These are also having automotive applications.

1.3.2 Ceramic matrix composites:

Ceramics are characterized by lightness, hardness, corrosion and oxidation resistance and superior elevated temperature properties. Hence many ceramic matrix composites can be used as temperatures higher than those of the polymer and metal matrix composites. Important ceramic matrixes are oxides, carbides, nitrides, borides, glasses, glass-ceramics and silicates. The reinforcements used are SiC, Si3N4, Al2O3, BN, ZrO2, AIN and C in the form of fibers, whiskers or particulates. These composites are processed by sintering, hot pressing, hot isotactic pressing, infiltration, reaction bonding and combustion synthesis. Currently ceramic matrix composites are used as cutting tool inserts wear resistant composites, space shuttle tiles and aerospace components. Other potential application includes engine components, armor of military vehicles, and leading edge application in aerospace and high temperature corrosion resistant parts. Other potential application includes bio-ceramic and high temperature ceramic super conductor composite wires for power transmission cables, motors and super conducting magnetic energy storage system.

1.3.3 Polymer matrix composites:

In case of the reinforced plastics, the characteristics of the desired end product such as size, shape, function and quality determine the method by which the basic materials are combined, moulded, cured and machined. Prominent moulding process for reinforced plastics includes hand lay-up, spray up moulding, prepreg lay-up (vacuum bag and auto-clave moulding), press moulding (SMC, BMC etc.), resin injection moulding and filament winding. To make useful structure, the composite materials have to be joined and machined,

The industrial applications of reinforced plastics have spread a wide spectrum of consumer goods, constructions, chemical plants, marine and road transportation and aerospace components.

Mechanical engineering products include cylinders, rolls, shafts, coupling, spindles, robot arms, covering etc. the aerospace industry used a wide range of products including floor panels, skin panels, elevators, wings, flaps, covers, tanks, struts and rotor blades.

Department of Mechanical Engineering, NIT Rourkela

Page | 5

M. Tech Thesis

2014

1.4 Types of polymer composites

Broadly, polymer composites can be classified into three groups on the basis of reinforcing material. They are:

Fiber reinforced polymer ( FRP )

Particle reinforced polymer ( PRP )

1.4.1 Fiber reinforced polymer

It is also known as fibre-reinforced plastic. In this type of polymer composite fibres are reinforced with a polymer matrix. The common used fibres are glass, carbon, or aramid, while other fibres such as paper or wood or asbestos can also be used. The Fibre reinforced polymer composites can potentially application in the aerospace, automotive, marine, and construction industries.

Polymer

Composites

Particle-

Reinforced

Fiberreinforced

Large-sized particles

Micro-size particles

Continuous

(aligned)

Aligned

Discontinuous

(short)

Randomly oriented

Fig. 1.1 Classification of composites based on reinforcement type

1.4.2 Particle reinforced polymer

Particulate composites have an additive constituent which is essentially one or two dimensionally and macroscopic /microscopic. In some composites however, the additive constituent is macroscopically non-dimensionally, i.e., conceptually a point, as opposed to a line or an area.

Department of Mechanical Engineering, NIT Rourkela

Page | 6

M. Tech Thesis

2014

Only on the microscopic scales does it become dimensional, i.e., a particle, and thus the concept of composite must come down to the microscopic level if it is to encompass all the composite of interest of engineers. Particulate composites differ from the fiber flake types in that distribution of the additive constituent is usually random rather than controlled. Particulate composite are therefore usually isotropic. This family of composites includes dispersion-hardened alloy and cermet.

Fig. 1.2 Different types of composites

1.5 Introduction to research work

The main function of insulation is to retard the heat flow and maintain temperature. It serves as thermal resistance and therefore prevents the damage of various devices and other articles which need to be maintained at constant temperature range. A thermal insulation performance of composite is influenced by three factors, i.e. solid conduction, gas conduction, and radiation heat transfer. Cellulose based insulation materials are dry plant materials like rice husk, and other agriculture wastes. Other available insulating materials are mineral wool, fiberglass, asbestos, wood, concrete, vegetable fiber, vermiculite and foamed plastics such as polystyrene, some of which depend on air pockets for much of their insulating effect. These substances retard the conduction and convection of heat transfer. The demand for low cost, structurally stable, effective and light-weight insulation materials is therefore increasing day by day. Synthetic and

Department of Mechanical Engineering, NIT Rourkela

Page | 7

M. Tech Thesis

2014

natural both the fibers have good insulation properties. So these fibers have a lot of research in this field.

In view of this, the present work has been undertaken to investigate the effect of adding insulative short fibers on the thermal conductivity of polymer resin. The main objective of the present work includes fabrication of a new class of low cost composites in which short banana fibers and short glass fibers are used as reinforcement to enhance the insulating capabilities of epoxy resin. A mathematical model is developed to evaluate k eff

using the law of minimal thermal resistance and equal law of the specific equivalent thermal conductivity. Based on this model, a correlation between the effective thermal conductivity of the composite and the fiber content is proposed. Short glass fiber and short banana fiber are the two fillers used in present investigation reinforced individually in epoxy resin to fabricate two sets of composites by hand lay-up technique. The proposed model is then validated through experimentation conducted in controlled laboratory conditions. The k eff

of all the fabricated composites with different compositions are numerically evaluated using finite element method and the results are validated through measured values. The comparison of k eff values obtained from incorporation of two different fibers is also reported in present work.

1.6 Thesis outline

The remainder of this thesis is organized as follows:

Chapter 2: Includes a literature review designed to provide a summary of the base of knowledge already available involving the issues of interest. It presents the research works of previous investigators on fiber reinforced polymer composites with emphasis on their structural properties and thermal conductivity.

Chapter 3: Includes a description of the raw materials and the test procedures. It presents the details of fabrication and characterization of the composites under investigation. It also describes the steps of FEM analysis.

Chapter 4: Presents the results of numerical, mathematical model and experimental investigation on the thermal conductivity of the composites under study.

Chapter 5: Provides a summary of the findings of this research work outlines specific

Department of Mechanical Engineering, NIT Rourkela

Page | 8

M. Tech Thesis

2014

conclusions drawn from both the experimental and analytical efforts and suggests ideas and directions for future research.

********

Department of Mechanical Engineering, NIT Rourkela

Page | 9

M. Tech Thesis

2014

Chapter - 2

LITERATURE REVIEW

This chapter includes a survey of the past research already available involving the issues of interest. It presents the research works on the fiber reinforced polymer composites and the influence of various factors on the performance of composites studied by various investigators.

The literature review is done based in the following points:

2.1 Study on synthetic fiber based polymer composites

A great deal of work has been done by many researchers on synthetic fiber reinforced polymer composites. Marom et al. [1] concentrated on the elastic properties of synthetic fiber-reinforced polymer composite materials that pertain to biomedical applications and demonstrates the range of stiffness obtainable through selection of constituents and by choice of angle of reinforcement.

Vijay et al. [2] delivered an in depth analysis and comprehensive knowledge to the beginners in the field of natural cellulose fibers/polymer composites. The main aim of this review article is to reveal the current development and emerging applications of natural cellulose fibers and their polymer materials. Yongli [3] studied the mechanical behaviours of unidirectional flax and glass fiber reinforced hybrid composites with the aim of investigation on the hybrid effects of the composites made by natural and synthetic fibers. Cho et al. [4] investigated the mechanical behaviour of carbon fiber/epoxy composites and obtained that the composites reinforced with nanoparticles improved mechanical properties such as enhanced compressive strength and enplane shear properties. Chauhan et al. [5] studied on the influence of fiber loading on mechanical properties, friction and wear behaviour of vinyl ester composites under dry and water lubricated conditions and reported that the density of composite specimens is affected marginally by increasing the fiber content. Huang et al. [6] studied on effect of water absorption on the mechanical properties of glass/polyester composites. It was established that the breaking strength and tensile stress of the composites decreased gradually with increased water immersion time because the weakening of bonding between fiber and matrix.

Department of Mechanical Engineering, NIT Rourkela

Page | 10

M. Tech Thesis

2014

2.2 Structure and property of glass fiber

Glass fiber is one of the most widely used filler which are being incorporated in polymers. Glass fiber is a lightweight, extremely strong and robust material. Stephen and Thomas [7] studied that the bulk strength and weight properties of glass fiber are favorable properties when compared to metals, and also it is easily moldable. Jiang and Zhang [8] studied that the glass is considered a vitreous super cooled liquid that is in a thermodynamically metastable state between the molten liquid state and the crystalline state. Different glass structures are influenced by the thermal history of the cooling process. Some typical properties of two important classes of glass fibers are shown in Table 2.1.

Table 2.1 Typical properties of glass fibers

Material

S-Glass

E-Glass

Density

(g/cm3)

2.55

2.49

Tensile strength

(MPa)

3400

4400

Young’s

Modulus

(GPa)

73

86

2.3 Study on glass fiber reinforced polymer composites

CTE

(10-6K)

5.0

5.6

A great deal of work has been reported by many researchers on glass fiber based polymer composites. Alexander et al. [9] investigated the influence of filler structure on electrical and mechanical properties of unidirectional glass-fiber-reinforced polyethylene (GF/PE). Both, carbon black and recycled short carbon fibers were used. A good correlation was found between mechanical properties and the specific electrical conductivity of the thermoplastic composites.

Olmos and Benito [10] studied the effect that the use of glass fibers has on the morphology developed by a thermoplastic polymer modified epoxy. In particular, three surface modifications of the glass fibers were studied. These results might be attributed to a gradual phase separation process due to stoichiometric gradients which, on the other hand, seems to be conditioned by the nature of glass fibers surface. Bergeret et al. [11] studied the properties of short glass fiber reinforced thermoplastic composites based on poly (ethylene terephthalate), poly (butylene

Department of Mechanical Engineering, NIT Rourkela

Page | 11

M. Tech Thesis

2014

terephthalate) and polyamide-6, 6 in an aggressive environment is reported. Barre et al. [12] determined the tensile dynamic behavior of glass fiber-reinforced phenolic and polyester resins in order to find the influence of strain rate on the mechanical properties of composite materials produced by the resin transfer moulding (RTM) and pultrusion processes. The influence of the reinforcement structure is emphasized and shown to be effective. Rosa et al. [13] studied the application of life cycle assessment (LCA) methodology in order to explore the possibility of improving the eco efficiency of glass fiber composite materials by replacing part of the glass fibers with hemp mats. The main purpose and contribution of this study is the exploration of the eco-efficiency of this new material. The study is a development of a previous work conducted on a pipe system used to transport cooling sea waters in a Sicilian petrochemical company. Husic et al. [14] prepared two series of polyurethane resins using Soypolyol 204 derived from soyabean oil and petrochemical polyol Jeffol G30-650. Polyurethanes from soybean oil have good thermal, oxidative and weather stability, and can be used as a matrix in composite materials. The objective of this study was to compare the mechanical properties of untreated E-glass fiber reinforced composites prepared with soybean oil-based polyurethanes to that of the petrochemical polyol based ones.

2.4 Study on the natural fiber based polymer composites

In recent years, the interest of scientists and engineers has turned over on utilizing plant fibers as effectively and economically as possible to produce good quality fiber-reinforced polymer composites for structural, building, and other needs. It is because of the high availability and has led to the development of alternative materials instead of conventional or man-made ones. Many types of natural fibers have been investigated for their use in polymer such as wood fiber [15], sisal [16], pineapple [17], jute [18] and banana [19].

Bax and Mussing [20] investigated the mechanical properties of PLA reinforced with cordenka rayon fibers, respectively. A poor adhesion was observed using Scanning Electron Microscopy analysis. The highest impact strength and tensile strength were found for cordenka reinforced

PLA at fiber proportion of 30 %. Waikamboo and Ansell [21] evaluated the physical and mechanical properties of the natural fiber composites to assess their serviceability. Treated fibers with highest strength were used as reinforcement for cashew nut shell liquid matrix and

Department of Mechanical Engineering, NIT Rourkela

Page | 12

M. Tech Thesis

2014

determined tensile properties, porosity and also examined fracture surface topography of the composites. The objective was to maximize the amount of low cost natural resources in the composite. They concluded that the presence of lignin in the untreated hemp fiber offers additional cross linking sites and the untreated fiber surface is more compatible with CNSL

(Cashew Nut Shell Liquid resin) than alkali surface.

2.5 Structure and property of banana fiber

It is remarkable to note that natural fibers such as jute, coir, banana, sisal, etc., are richly available in developing countries like India, Srilanka and some of the African countries, but are not optimally utilized. At present, these fibers are used for the production of yarns, ropes, mats and matting as well as in making fancy articles like wall hanging, table mats, handbags and purses. Fibers such as cotton, banana and pineapple are also used in making cloth in addition to being used in the paper industry. It is a well-known fact that banana is one of the oldest cultivated plants in the world. The nutritional facts of the banana are (100g pulp); Carbohydrates

18.8 g; protein 1.15g; fat 0.18g; water 73.9g; vitamins C1 B1 B2 B6 E; other minerals 0.83 g and

81 kcal [22]. Banana-trees produce generally 30 large leaves (almost 2m long and 30-60cm wide) [23]. The micrographs of the longitudinal section and cross section of the banana fiber strands were taken. The cross sectional area of the banana fiber was investigated by using

Optical laser beam equipment by Murali et al [24], and it was found to be 0.3596mm2. The plot of stress vs. percentage of strain for banana fiber is approximately linear; witj a stress value of around 560 MPa, when the % of the strain is 3.5.

A truck model „Manaca‟ was developed and tested by Al-Qureshi [25], using banana fiber and epoxy resin. However, some special and critical panels were made of hybrid composites of glass/banana fibers. The vehicle went through many years of road performance tests and provided excellent results.

2.6 Banana fiber reinforced thermo plastic composites

Banana fiber was used as reinforcement with various thermoplastics, namely, Polypropylene

(PP), Low Density Polyethylene (LDPE), High Density Polyethylene (HDPE), Polystyrene (PS) and Poly Vinyl Chloride (PVC). A comparative analysis of the experimental tensile properties

Department of Mechanical Engineering, NIT Rourkela

Page | 13

M. Tech Thesis

2014

with various theories of reinforced was also made. It shows that the Modified Rule of mixture has better correlation with the experimental values. The influence of Sisal, banana, jute and flax fiber morphology on the mechanical properties was studied by Kristina et al [26]. The composites are produced by extrusion method. Of the various fibers compared, sisal fiber has better impact properties, because it has better elongation to break. The result shows that the micro fibrillar angle also has a significant effect on the properties of the fiber. The performance evaluation of the hybrid composite of banana/glass fiber with PP was carried out by Sushanta et al [27]. The study shows that the addition of fibers in the PP matrix increases the mechanical properties up to 30wt % of the banana and glass as reinforcement in equal proportion. The dynamic mechanical analysis shows that at all temperature ranges of 20-1000C; the storage modulus of the composite is superior to the matrix. The bio-degradability of banana, pineapple and bamboo fibers reinforce with PP matrix was studied by Sanjay et al [28]. The investigation shows that the composite exhibits only 5-15 % of degradation.

A comparative study of fibers from cotton, rice straw, and bagasse and banana plant as reinforcement in LDPE was conducted by Youssef et al [29]. The study revealed that better tensile and thermal properties are achieved when maleated low density polyethylene is used as a matrix, when compared to untreated LDPE. Further, it also shows that the chemical composition of the natural fibers has a sting influence on the mechanical properties of the composite.

The influence of the fiber content, fiber loading, and hybrid effect on the mechanical properties of banana/glass hybrid composite was studied by Anshida et al [30]. The modification of the banana fiber by alkali, benzoylation and PSMA treatments improved the interface adhesion, and hence, the mechanical properties of the composite. The experimental and theoretical comparison of the tensile properties shows close agreement, except for the parallel model of reinforcement.

The disagreement with the parallel model is due to formation of micro-voids and agglomeration of irregular shaped cellulose in the matrix, which decreases the stress transfer rate.

2.7 Banana fiber reinforced thermoset composites

Composite of various thermoset matrices (Polyester, Phenol formaldehyde, Urea Formaldehyde and epoxy) reinforced with banana fibers were investigated by various researchers. Banana fiber reinforced with polyester matrix was extensively investigated by Laly et al [31]. The studied

Department of Mechanical Engineering, NIT Rourkela

Page | 14

M. Tech Thesis

2014

shows that the effect of the fiber length and content on mechanical properties of the composite.

The investigation shows that the fiber length of 30-40 mm and 40 % volume content has better mechanical properties. Further, aging decreases the mechanical properties of the composite because of the affinity of the banana fibers towards moisture. The mechanical and water absorption behavior of banana fiber composite prepared by resin transfer moulding method shows that the maximum tensile, flexural and impact strength is achieved at 30 mm fiber length and 40vol%. It also showed that the maximum diffusion, sorption, and permeability coefficient are achieved at 50vol% [32]. The twisted form of banana yarn was placed on the warp direction and alternate bundles of banana and yarns are weaved in weft direction. It indicates that the tensile strength was the maximum for the two layered composite, whereas flexural strength is the maximum for the tri-layer and the impact strength increases with the number of layers. The storage modulus is maximum for the four layers woven composite, and further addition of layers shows the addition of peaks for the loss modulus of the hybrid woven composite. The effect of chemical treatment on the flexural, impact and water absorption properties of woven bananapolyester composite was analyzed by Jannah et al. [33]. The result indicates that up to 10vol % and 15vol% the flexural and impact strength of the treated composite increased. Further, the addition of fibers results in degrading the propertied due to poor adhesion. The chemical modification of banana fiber using silane as the coupling agent has showed that the dielectric constant values decreases due to the change in hydrophilic nature of the fiber surface. It also show that‟s that the dielectric constant measurement will serve as a tool for predicting the fibermatrix adhesion [34]. The effect of the layering arrangement on the storage modulus, loss modulus and damping property of banana/sisal hybrid composite was studied by Mariers et al.

[35] as the function of temperature and frequency. It shows that the trilayer composite of banana fiber as skin and sisal as the core layer has maximum stiffness property.

The comparative study of Phenol Formaldehyde (PF) reinforced with banana and glass fibers showed that optimum mechanical properties are achieved at different fiber lengths. The interface adhesion was better between banana fiber and phenol formaldehyde when compared with glass fiber and phenol formaldehyde, which was determined from the single fiber pull-out test. It also revealed that the specific properties of the banana fiber- PF are superior to those of the glass fiber- PF composite [36].

Department of Mechanical Engineering, NIT Rourkela

Page | 15

M. Tech Thesis

2014

2.8 Study on thermal conductivity of fiber reinforced polymer composites

A great deal of research work has been reported by various authors on the study of fiber reinforced composites. Dong-Pyo Kim et al [37] studied the glass fiber reinforced polymetalphosphate matrix composites prepared by a simple process displayed excellent thermal insulating and mechanical properties. Schuster et al [38] investigated the effect of threedimensional fiber reinforcement on the out-of-plane thermal conductivity of composite materials.

Using finite element models to better understand the behavior of the composite material, improvements to an existing analytical model were performed to predict the effective thermal conductivity as a function of the composite material properties and in-contact thermal material properties. Zhidong et al [39] studied the dependence of thermal conductivity of nanotubes on the atomic structure, the tube size, the morphology, the defect. The roles of particle/polymer and particle/particle interfaces on the thermal conductivity of polymer/CNT nano composites are discussed in detail. Yüksel et el [40] studied the temperature dependence of effective thermal conductivity (ETC) for samples of binary, ternary, and quadruple glass wools reinforced with aluminum foil was examined. The experiments were realized by the guarded hot plate in temperature differences of 5, 10 and 15 °C and the temperatures of 25 and 40 °C. The results revealed that in the case of reinforcing the aluminium foil, ETC increased with increasing the temperature or changing of temperature difference (5, and 15 °C). Hang et al [41] investigated thermal transport mechanisms and characterized when highly conductive fibers are embedded across the thickness of a three-dimensional polymer composite. An experimental setup was designed, fabricated and validated to measure through-thickness thermal conductivity.

2.9 Study on effective thermal conductivity analytical models

Numerous theoretical and empirical models have been proposed in the past to estimate and predict the effective thermal conductivities of fiber reinforced polymer composites.

Comprehensive review articles have discussed the pertinent applicability of many of these analytical models. The simplest alternative for a two-component composite system would be with the arrangement of materials in either parallel or series with respect to heat flow which gives the upper or lower bounds of effective thermal conductivity.

Department of Mechanical Engineering, NIT Rourkela

Page | 16

M. Tech Thesis

2014

For parallel conduction model [42, 43]

k c

1

 

2

k m

1

k f

1

2

k f

2

(2.1) where, k f1

, k f2

, k m

, k c

are thermal conductivities of 1 st filler, 2 nd

filler, composite matrix, conductivity of the composite as a whole and ϕ1 and ϕ2 are volume fractions of 1 st

and 2 nd

filler respectively.

For series conduction model [42, 43]

1

k c

1

 

2

k m

1

1

k k f

1

f

2

(2.2)

The correlations represented by Equations (3.1) and (3.2) are derived on the basis of the rules-ofmixture.

The geometric mean model [42, 43], also known as Ratcliffe Empirical Model gives the effective thermal conductivity as:

k c

k

1

m

 

2

k k f

1

f

2

2

(2.3)

Bruggeman [44] derived an equation employing different assumptions for permeability and field strength for dilute suspension of spheres for a homogeneous medium and the implicit equation is given as:

1

k c

k k m

k f f

k m k c

1

3

(2.4)

Maxwell [45] has obtained an exact expression for thermal conductivity, using potential theory for an infinitely dilute composite of spherical particulates dispersed randomly and devoid of mutual interaction in a homogeneous medium, which is given by

Department of Mechanical Engineering, NIT Rourkela

Page | 17

M. Tech Thesis

2014

k c

k m

k f k f

2

k m

2

2

k m

2

k f

k m k f

k m

(2.5)

Where, k c

, k m

and k f

are thermal conductivities of composite, continuous- phase (matrix), and dispersed-phase (filler) respectively, and ϕ is the volume fraction of the dispersed-phase.

Lord Reyleigh [45] extended Maxwell‟s solution by considering the thermal interaction between particles. For a cubic array the following expression was derived for the thermal conductivity:

k e

k m

2

k m

k f

2

0.525

2

k m

k f k m

k f

0.525

3

k m

3

k

4

k m

3

k f f

3

k m

3

k

4

k m

4

k f f

10 3

f

10 3

f

(2.6)

Here, k e

is the effective thermal conductivity of the composite. This reduces to Maxwell‟s equation whenever „ϕ‟ is sufficiently small and the last term may be neglected.

Lewis and Nielsen [42] derived a semi-theoretical model by modification of the Halpin-Tsai equation for a two phase system which assumes an isotropic particulate reinforcement and also takes into consideration the shape of particle as well as its orientation.

k c

k m

1

1

AB

B



(2.7)

B

k k f k k f m m

1

A

and

,

1

2

m

m

Where, k f

is thermal conductivity of filler material and „ϕ‟ is the volume fraction of filler material.

2.10 The knowledge gap

In the past, a number of studies have been published on the thermal conductivity of particulate composites but a very few investigation has been carried out on the thermal conductivity of fiber

Department of Mechanical Engineering, NIT Rourkela

Page | 18

M. Tech Thesis

2014

reinforced polymer composites so that there is a huge knowledge gap that demands a wellplanned and systematic research in this area of fiber reinforced polymer composites. A comprehensive evaluation of the available literature tells that:

 Most of the studies are intended at improving the heat conduction capacity of the polymer rather than trying to improve its insulation capability.

 Even though a large number of particulates and fibers have been used as fillers in the past, there is no report available on natural fibers like banana fiber being used for composite making for the insulation purpose.

 Investigation on heat conduction mechanism of fiber reinforced polymer composites is rare.

 The understanding of the relationship between the effective thermal conductivity of a composite material and the micro-structural properties (volume fractions, distribution of fibers, size of fibers, properties of individual components, etc.) is far from satisfactory.

Further, though it becomes clear that improvisation on thermal conductivity of polymers may be achieved either by molecular orientation or by the addition of conductive fillers, it is yet to be seen how the incorporation of natural fibers with poor heat conductivity affects the overall conductivity of any polymer composite.

2.11 Objective of the present investigation

The objectives of this work are outlined as follows:

1. To evaluate effective thermal conductivity of fiber reinforced polymer composites, a mathematical model is developed.

2. To validate this mathematical model, two sets of epoxy based composites have been fabricated.

Department of Mechanical Engineering, NIT Rourkela

Page | 19

M. Tech Thesis

2014

3. For one set of composite, a well-known synthetic fiber i.e. glass fibers are incorporated in epoxy matrix and for another set low cost natural fiber i.e. banana fiber is taken as a filler material whereas matrix material remains the same.

4. Objective of the study is improving the thermal insulation properties of fiber reinforced polyester composite with decreasing the effective thermal conductivity of composite system.

5. Measurement of effective thermal conductivity (K eff

) of the fabricated fiber reinforced polymer composite (with different volume fraction) experimentally.

6. Estimation of effective thermal conductivity of these fiber reinforced polymer composite systems using Finite Element Method (FEM).Three dimensional cylinders in cube models are constructed to simulate the microstructure of the composite materials for various filler concentrations.

7. Validation of the proposed model by comparing the thermal conductivity values obtained from the proposed model with the values obtained from the FEM analysis and experimentation.

8. Finally, recommending the above fabricated composites for specific applications.

Chapter Summary

This chapter has provided an exhaustive review of research works on fiber reinforced polymer composites, thermal conductivity of polymer matrix composites and on thermal conductivity models reported by various investigators. It has also clearly outlined the objectives of the present work.

The next chapter discusses the mathematical model development to evaluate effective thermal conductivity of fiber reinforced polymer composites.

********

Department of Mechanical Engineering, NIT Rourkela

Page | 20

M. Tech Thesis

2014

Chapter – 3

MATERIALS AND METHODS

The volume fraction and the fiber distribution are found to be more critical than polymer selection for enhancement thermal insulation. This chapter describes the materials and methods used for the processing of the composites under this investigation. It presents the details of the characterization and thermal conductivity tests which the composite samples are subjected. The numerical methodology related to the determination of thermal conductivity based on finite element method is also presented in this chapter.

3.1 Materials

3.1.1 Matrix material

Matrix materials are of different types like metals, ceramics and polymers. Polymer matrices are most commonly used because of cost efficiency, ease of fabricating complex parts with less tooling cost and they also have excellent room temperature properties when compared to metals and ceramic matrices. Polymer matrices can be either thermoplastic or thermoset. Thermoset matrices are formed due to an irreversible chemical transformation of the resin into an amorphous cross-linked polymer matrix. Due to huge molecular structures, thermoset resins provide good electrical and thermal insulation. They have low viscosity, which allow proper fiber wet out, excellent thermal stability and better creep resistance.

The most commonly used thermoset resins are epoxy, polyester, vinyl ester and phenolics.

Among them, the epoxy resins are being widely used for many advanced composites due to their excellent adhesion to a wide variety of fibers, superior mechanical and electrical properties and good performance at elevated temperatures. In addition to that they have low shrinkage upon curing and good chemical resistance. Due to several advantages over other thermoset polymers, epoxy (LY 556) is chosen as the matrix material for the present research work. It chemically belongs to the „epoxide‟ family. Its common name is Bisphenol-A-Diglycidyl-Ether (commonly abbreviated to DGEBA or BADGE) and its molecular chain structure is shown in Figure 3.1. It provides a solvent free room temperature curing system when it is combined with the hardener tri-ethylene-tetramine (TETA) which is an aliphatic primary amine with commercial designation

Department of Mechanical Engineering, NIT Rourkela

Page | 21

M. Tech Thesis

2014

HY 951 (Figure 3.2). The LY 556 epoxy resin (Figure 3.3) and the corresponding hardener HY-

951 are procured from Ciba Geigy India Ltd. Table 3.1 provides some of the important properties of epoxy.

Fig. 3.1 Unmodified epoxy resin chain („n‟ denotes number of polymerized unit)

Fig. 3.2 Tri-ethylene-tetramine (hardener used for epoxy matrix)

Table 3.1 Some important properties of epoxy

Density

Characteristic Property

Compressive strength

Tensile strength

Thermal conductivity

Glass transition temperature

Coefficient of Thermal expansion

Electrical conductivity

Inferences

1.1 gm/cc

90 MPa

58 MPa

0.363 W/m-K

104°C

62.83 ppm /°C

0.105 × 10

-16

S/cm

Department of Mechanical Engineering, NIT Rourkela

Page | 22

M. Tech Thesis

2014

Fig. 3.3 Epoxy resin and hardener

3.1.2 Filler material - 1 :( Glass fiber)

For fabrication of polymer composite a well-known synthetic fiber i.e. short glass fiber is used as filler material. It is the one of the most widely used reinforcements. Glass fiber is formed when thin strands of silica based or other formulation glass are extruded into many fibers with small diameters suitable for textile processing. The first commercial production of glass fiber was in

1936. Glass fiber is considered as a filler material because of its low density (1.5 gm/cm3); also it happens to be extremely strong and robust material. Most importantly it is insulating in nature

(0.18 W/m-K). Uses for regular glass fiber include mats and fabric for thermal insulation, electrical insulation, sound insulation, high strength fabric, heat and corrosion resistant fabric.

Glass fiber is extensively used for making FRP tanks and vessels. Glass fibers used in present investigation are procured from Saint Govion, India. Table 3.2 provides some of the important properties of glass fiber. Figure 3.4 shows short glass fiber used as filler in the present investigation.

Table 3.2 Some important properties of glass fiber

Density

Characteristic Property

Compressive strength

Tensile strength

Thermal conductivity

Inferences

1.5 gm/cc

1080 MPa

3445 MPa

0.18 W/m-K

Department of Mechanical Engineering, NIT Rourkela

Page | 23

M. Tech Thesis

2014

Fig. 3.4 Short glass fiber used as filler in the present work

3.1.3 Filler material - 2 :( Banana fiber)

For fabrication of second set of polymer composite natural fiber i.e. banana fiber is used as filler material. Scientific name of banana is musa acuminata.

They have a high tensile strength and resist rot. Historically they have been used to make rope. Main organic constituents of banana fiber are: cellulose, hemicellulose, pectin, lignin and some extractives. Banana fiber is considered to be remarkable filler because of its very low density (0.2 gm/cm

3

), low cost, nontoxic, biodegradable and environmental friendly nature. It possesses very low thermal conductivity (0.09 W/m-K) which is prime requirement for present investigation. Banana fibers are used for making cloths, paper, ropes etc. Banana fibers used in present investigation are procured from M/s ROPE (Rural Opportunity Production Enterprises) International, India. Table

3.2 provides some of the important properties of banana fiber. Figure 3.5 shows short banana fiber used as filler in the present work.

Table 3.3 Some important properties of banana fiber

Density

Characteristic Property

Compressive strength

Tensile strength

Thermal conductivity

Inferences

0.2 gm/cc

22.25 MPa

49.85 MPa

0.09 W/m-K

Department of Mechanical Engineering, NIT Rourkela

Page | 24

M. Tech Thesis

2014

Fig. 3.5 Short banana fiber used as filler in the present work

3.2 Experimental details

3.2.1 Composite fabrication

Set 1 Epoxy composites reinforced with short glass fibers for the validation of FEM Modeling

Low temperature curing epoxy resin (LY 556) and corresponding hardener (HY951) are mixed in a ratio of 10:1 by weight as recommended. Short glass fibers were reinforced in the resin to prepare the composites in different proportions according to the requirement. The uniformly mixed dough (epoxy filled with SGF) is then slowly decanted into the glass molds, coated beforehand with wax and a uniform thin film of silicone-releasing agent. The composites were cast in these molds so as to get disc type specimens (diameter 50 mm, thickness 3 mm).

Composites of 6 different compositions with different volume fraction are made. The castings were left to cure at room temperature for about 24 hours after which the glass moulds are broken and samples are released. Table 3.4 provides the details of different composition of fabricated composites using glass fiber as filler for the validation of FEM modeling.

A schematic diagram of the fabrication process using hand-layup technique for fiber reinforced epoxy composites is given in figure 3.6. Figure 3.7 and Figure 3.8 shows some of these composite samples prepared through this hand-layup technique.

Set 2 Epoxy Composites reinforced with short banana fibers for the validation of FEM Modeling

In a similar manner, epoxy composites of 6 more different compositions with different volume fraction were made for short banana fibers.

Department of Mechanical Engineering, NIT Rourkela

Page | 25

M. Tech Thesis

2014

Cup

Banana fiber epoxy composite

Fig. 3.6 Fiber reinforced epoxy composite fabrication by hand lay-up process

For each composition, the composites were cast in glass moulds so as to get both disc type specimens with similar dimensions. Table 3.4 also provides the details of different composition of fabricated composites using banana fiber as filler for the validation of FEM modeling.

Table 3.4 List of fiber-reinforced polymer composites fabricated by hand-lay-up technique for the validation of FEM modelling

Sample

1.

2.

3.

4.

5.

6.

Composition

(Glass fiber as filler material )

Epoxy + 2.83 vol% Glass fiber

Epoxy + 5.65 vol% Glass fiber

Epoxy + 7.54 vol% Glass fiber

Epoxy + 10.05 vol% Glass fiber

Epoxy + 12.56 vol% Glass fiber

Epoxy + 15.7 vol% Glass fiber

Composition

(Banana fiber as filler material )

Epoxy + 2.83 vol% Banana fiber

Epoxy + 5.65 vol% Banana fiber

Epoxy + 7.54 vol% Banana fiber

Epoxy + 10.05 vol% Banana fiber

Epoxy + 12.56 vol% Banana fiber

Epoxy + 15.7 vol% Banana fiber

Set 3 Epoxy Composites reinforced with short glass fibers for the validation of Mathematical

Model

Using the same hand lay-up technique, short glass fibers were reinforced in the resin to prepare the composites of 6 different compositions with different volume fraction. The composites were cast on to glass moulds so as to get disc type specimens of dimensions with similar dimensions which are shown in figure 3.7. Table 3.5 provides the details of different composition of fabricated composites using glass fiber as filler for the validation of Mathematical modelling.

Department of Mechanical Engineering, NIT Rourkela

Page | 26

M. Tech Thesis

2014

Set 4 Epoxy Composites reinforced with short banana fibers for the validation of Mathematical

Model

In a similar manner, epoxy reinforced with short banana fibers composites of 6 more different compositions were made and for each of these compositions, the composites were cast in glass moulds so as to get both disc type specimens with same dimensions which are shown in figure

3.8. Table 3.5 also provides the details of different composition of fabricated composites using banana fiber as filler for the validation of Mathematical modelling.

Table 3.5 List of fiber-reinforced polymer composites fabricated by hand-lay-up technique for the validation of Mathematical model

1.

2.

3.

4.

5.

6.

Sample Composition

(Glass fiber as filler material )

Epoxy + 2.83 vol% Glass fiber

Epoxy + 5.65 vol% Glass fiber

Epoxy + 7.54 vol% Glass fiber

Epoxy + 10.05 vol% Glass fiber

Epoxy + 12.56 vol% Glass fiber

Epoxy + 15.7 vol% Glass fiber

Composition

(Banana fiber as filler material )

Epoxy + 2.83 vol% Banana fiber

Epoxy + 5.65 vol% Banana fiber

Epoxy + 7.54 vol% Banana fiber

Epoxy + 10.05 vol% Banana fiber

Epoxy + 12.56 vol% Banana fiber

Epoxy + 15.7 vol% Banana fiber

Fig. 3.7 Short glass fiber reinforced epoxy composites

Department of Mechanical Engineering, NIT Rourkela

Page | 27

M. Tech Thesis

2014

Fig. 3.8 Short banana fiber reinforced epoxy composites

3.3 Thermal conductivity characterization

3.3.1 Experimental determination of thermal conductivity

:

Unitherm Model 2022 Guarded Heat Flow Meter Thermal Conductivity

Measurement System from Nortest.

The thermal conductivity of various materials is measured by the Unitherm Model 2022. These materials include polymers, composites, ceramics, glasses, rubbers, some metals and other materials of low to medium thermal conductivity. A minor sample test material is required to find out the thermal conductivity. Different containers are used to measure thermal conductivity of non-solids materials, such as glues or pastes or fluids. The tests are in accordance with ASTM

E-1530 Standard. A hermetically sealed section is used to make atmosphere free form moisture with dry air purge for testing at temperatures below ambient. The thermal conductivity of polymers is measured through the melt using Superior suppression cells.

3.3.2 Operating principle of Unitherm-TM 2022

:

Optional chiller circulator is provided for full utilization of the range of the instrument that can provide heat sink temperature to -10°C or for the cryogenic model, to -60°C. The Unitherm

Model 2022 is provided with one of three operating range modules. Different thermal resistance area is covered by each module and each of the modules is field replaceable.

Department of Mechanical Engineering, NIT Rourkela

Page | 28

M. Tech Thesis

2014

A uniform compressive load is given to sample test material between two surfaces which are controlled at a different temperature. Calibrated heat flow transducer is connected to the lower surface of sample test material.

The direction of the heat flow within the sample is from upper surface to the lower surface for the establishment of an axial temperature difference in the stack. When the thermal equilibrium is maintained, the heat flow transducer gives the output which is the temperature gradient through the sample and it is found with the help of reading of the transducer. The thermal conductivity of the sample test material is found using the measured values and the thickness of the sample. Temperature sensors are used to calculate the drop in temperature through the sample test material in the highly conductive metal surface layers on either side of the sample.

Fig. 3.8 Determination of Thermal Conductivity Using Unitherm™ Model 2022

We know that thermal conductivity of the material gives the amount of energy conducted through a body of unit area and unit thickness in unit time when the difference in temperature between the faces causing heat flow is unit temperature difference. The Fourier‟s equation for one-dimensional heat conduction is given as equation 3.1.

Department of Mechanical Engineering, NIT Rourkela

Page | 29

M. Tech Thesis

2014

Q

KA

T

1

T

2

x

Where,

Q = the heat transfer in W

K = the thermal conductivity of the material in W/m-K

A = the cross sectional area through which heat is transferred in m

2

T

1

-T

2

= the temperature difference in K and

X = the thickness of the sample in m.

The thermal resistance of a test sample material can be given as

R

T

1

T

2

Where,

R = the resistance of the sample in m

2

-K/W.

(3.1)

(3.2)

From Equations 4.1 and 4.2 we can derive that.

(3.3)

K

x

R

In Unitherm model2022, heat flux are measured with the help of heat flow transducer the temperature gradient through the sample test material between the upper plate and lower plate are obtained. Thus the thermal resistance of sample can be calculated between in the upper and lower surfaces. The thermal conductivity of the samples can be calculated using the input value of thickness and taking the known cross sectional area

3.4 Numerical analysis: concept of finite element method (FEM) and ANSYS

The finite element method (FEM), or finite element analysis (FEA), is very powerful and simple tool for the analysis of complex physical and engineering problems. In the FEM analysis, the domain of the complex problems or objects is converted into a finite no. of elements or pieces for making it simple analysis. The investigation is concentrated on these elements rather than the whole problem. The complex object has an infinite number of degrees-of-freedom (DOF), while

Department of Mechanical Engineering, NIT Rourkela

Page | 30

M. Tech Thesis

2014

the discretized model has a finite number of DOF. Because of this reason, this method is called as finite element method or finite element analysis. Firstly FEM is used to investigate the stress distribution in complicated aircraft structure. Then it is applied to other field of continuum mechanics, like that Acoustics, heat transfer, fluid mechanics, electromagnetic, biomechanics, aeromechanics. We can say that the FEM analysis can be gainfully used in our daily life problems and also in complex problems of engineering fields. . Powerful computational technique for the solution of differential equations too complicated to be solved satisfactorily by classical analytical methods. The FEM analysis was firstly used in 1956 by Turner. It is most a powerful and simple computational tool for imprecise solutions to a variability of "real-world" engineering problems. FEM analysis can be used for designing the physical phenomenon in various engineering disciplines.

In the FEM analysis, the domain or area of the continuum are converted into a finite number of sub areas i.e. elements which depend on the basis of FEM analysis. Biased residual methods are used for the construction of the orderly approximate solution. In the FEM analysis, the complex problem is reduced to simple analysis by dividing the domains or areas into finite no. of elements and these elements are associated an approximate function to express the unknown field variable.

These functions (also called interpolation functions) are defined in terms of the values of the field variables at specific points, referred to as nodes. Nodes are usually located along the element boundaries and they connect adjacent elements.

3.4.1 Essential steps in FEM

The steps for the finite element method are as follows.

• Discretization

• Selection of the Displacement Models

• Deriving Element Stiffness Matrices

• Assembly of Overall Equations /Matrices

• Solutions for Unknown Displacements

• Computations for the Strains /Stresses

First, the governing differential equation of the problem is converted into an integral form.

There are two techniques to achieve this:

Department of Mechanical Engineering, NIT Rourkela

Page | 31

M. Tech Thesis

2014

(i) Variational Technique

(ii) Weighted Residual Technique.

In the variational technique, the calculus of variation is used to obtain the integral form corresponding to the given differential equation. The solution of the problem is obtained by minimizing the integral.

In the second step, Discretization of the solution domain into appropriate computational of the mesh means problem is divided into a number of parts, called as elements.

(1-D) problems, the elements are nothing but line segments having only length and no shape. For problems of higher dimensions, the elements have both the shape and size. For two-dimensional

(2D) or axi-symmetric problems, the elements used are triangles, rectangles and quadrilateral having straight or curved boundaries.

When the domain boundary is curved, curved sided elements are good choice. For threedimensional (3-D) problems, the shapes used are tetrahedron and parallelepiped having straight or curved surfaces. Division of the domain into elements is called a mesh.

In this step, over a typical element, a suitable approximation is chosen for the primary variable of the problem using interpolation functions (also called as shape functions) and the unknown values of the primary variable at some pre-selected points of the element, called as the nodes.

Usually polynomials are chosen as the shape functions. For 1-D elements, there are at least 2 nodes placed at the endpoints. Additional nodes are placed in the interior of the element. For 2-D and 3-D elements, the nodes are placed at the vertices (minimum 3 nodes for triangles, minimum

4 nodes for rectangles, quadrilaterals and tetrahedral and minimum 8 nodes for parallelepiped shaped elements).

In the fourth step, the approximation for the primary variable is substituted into the integral form.

If the integral form is of variational type, it is minimized to get the algebraic equations for the unknown nodal values of the primary variable. If the integral form is of the weighted residual type, it is set to zero to obtain the algebraic equations.

Department of Mechanical Engineering, NIT Rourkela

Page | 32

M. Tech Thesis

2014

In this step, the post-processing of the solution is done. That is, first the secondary variables of the problem are calculated from the solution. Then, the nodal values of the primary and secondary variables are used to construct their graphical variation over the domain either in the form of graphs (for 1-D problems) or 2-D/3-D contours as the case may be.

3.5 Benefits of the FEM over former numerical methods are as follows:

In FEM no geometric limitation, it can be applied the body or region with any shape of product.

Boundary loading and conditions are not restricted (boundary condition and load may be applied to any portion of the body.

Domain problems consisting of more than one material (composite) can be easily analyzed.

The method can be used for any irregular-shaped domain and all types of boundary conditions.

Accuracy of the solution can be improved either by proper refinement of the mesh or by choosing approximation of higher degree polynomials. The algebraic equations can be easily generated and solved on a computer. In fact, a general purpose code can be developed for the analysis of a large class of problems.

FE structures closely resemble the actual body or region to be analyzed.

The results and the analysis are easily improved by mesh refinement.

In the finite element method it is easy to produce detailed visualizations of a complex problem.

3.6 A finite element package: ANSYS

For present work, finite element method is used for the study of thermal conductivity of the fiber reinforced polymer composite. A well-known finite element package ANSYS is used to calculate the effective thermal conductivity of fiber reinforced polymer composites. For the ANSYS modelling, short fibers, which are in cylindrical shape, are placed systematically in a cube lattice to simulate the microstructure of the composite lamina used. For different fiber loadings, the three dimensional physical model is prepared for the thermal analysis. Moreover, the effective thermal conductivity of these prepared epoxy composites reinforced with short fibers ranging from 0 to 15.7 vol % is numerically determined using ANSYS.

Department of Mechanical Engineering, NIT Rourkela

Page | 33

M. Tech Thesis

2014

The steps used in ANSYS for calculating the thermal conductivity are as follows:

1. In the very first step we have to select the preference for the study. There are so many fields are available in ANSYS like thermal, fluid dynamics, structural design etc. As the present study is based on the thermal analysis so preference is given as thermal.

2. In the second step we have to select the preprocessor. In this step element type, description of work and type of node is selected. For present work have selected the thermal solid mass with 8 node brick 70 node is used.

3. In this step the material types and properties are described. For present work materials used are epoxy, glass fiber and banana fiber. The thermal conductivity for all these materials is described in this step.

4. The next step is modeling of the composite lamina. The shape of epoxy resin is taken as square in which the short cylindrical fibers are placed systematically. Three dimensional cylinders in cube lattice array are arranged for the present work. The no. of fibers in the cube depends upon the fiber loading. Finally all the created geometry is overlapped on each other for the meshing.

5. Now in this step meshing of the geometry is done. The type of meshing, size of the meshing etc. are described in this step. The accuracy of the results depends of the meshing. As good as meshing, the accuracy of the results increase.

6. In the next step, solution of the problem is done. For the solution purpose we have to first define the loads on all the faces of composite lamina. For present work, only one dimensional heat transfer is assumed within the composite system so we have to select the input for heat conducting face. Input is given in form of temperature. On the opposite face we have to select the heat transfer coefficient for convection and also the ambient temperature. All the other face is assumed as adiabatic.

7. This is the last step in which results of the analysis are found. The temperature profile for the composite system is found in this step. With the help of temperature profile we can calculate the effective thermal conductivity of composite system.

Department of Mechanical Engineering, NIT Rourkela

Page | 34

M. Tech Thesis

2014

This is the procedure for calculating thermal conductivity of the composites with the help of

ANSYS.

Chapter Summary

This chapter has provided:

A description of the finite element method.

The description of the steps used in ANSYS.

The details of materials used in the experiments.

The details of fabrication of the composites by hand-lay-up technique.

The description of thermal conductivity measurement.

The next chapter presents the results of the numerical analysis, mathematical model and experiments conducted to measure the thermal conductivity of the polymer composites under study.

*******

Department of Mechanical Engineering, NIT Rourkela

Page | 35

M. Tech Thesis

2014

Chapter - 4

RESULTS AND DISCUSSION

4.1 Numerical analysis and theory of finite element method

The finite element analysis (FEA) or the finite element method (FEM) is a powerful tool used in numerical methods to arrive at approximate solutions to mathematical problems so that it can simulate the responses of physical systems to various forms of excitation. In the FEM analysis, the complex problems are reduced to simple one by converting the whole domain into a finite number of elements or pieces and for each element an approximate function is associated for the unknown field variables. Now the investigations are concentrated to these elements rather than the whole complex problem. Further, the analysis of thermal conductivity over the composite lamina is done with the help of a well-known FEM package ANSYS. For the ANSYS modelling, short fibers, which are in cylindrical shape, are placed systematically in a cube lattice to simulate the microstructure of the composite lamina used. For different fiber loadings, the three dimensional physical model is prepared for the thermal analysis. Moreover, the effective thermal conductivity of these prepared epoxy composites reinforced with short fibers ranging from 0 to

15.7 vol % is numerically determined using ANSYS.

4.2

Description of the problem

Fig. 4.1 shows the direction of heat flow within the composite lamina and the boundary conditions taken for the study of this heat transfer problem for the composite system reinforced by short fibers. The input of this heat transfer problem is in the form of temperature which is given at the nodules along the surface ABEF. The temperature on the surface ABEF is given as

100 o

C. There is a convective heat transfer from the composite lamina to the ambient air and the heat transfer coefficient for convection is supposed to be 2.5 W/m

2

-K at an ambient temperature of 27°C. All the other faces parallel to direction of the flow of heat are supposed adiabatic. The unknown temperatures at the inner nodes and on the other boundaries are obtained with the help of ANSYS.

Department of Mechanical Engineering, NIT Rourkela

Page | 36

M. Tech Thesis

A

B

Q

F

E a

C

G

D a

H

Fig. 4.1 Boundary condition a

2014

(a) (b)

Fig. 4.2 Three dimensional view of short fiber in cube model (a) fiber arrangement within matrix body, (b) Meshing of such model

4.3 Effective thermal conductivity of the composites

Fig. 4.2 shows the three dimensional view of short fiber in cube model. A typical arrangement of short fiber within the matrix body is shown in Fig. 4.2(a) where fibers are uniformly distributed within the resin and heat is transferred from top to bottom along the axial direction of the fiber.

Fig. 4.2(b) shows the meshed view of such fiber in cube model where size of the meshing element purely depends upon the dimension of short fiber.

By applying the various boundary conditions, the temperature profiles can be obtained which are presented in Fig. 4.3 and Fig. 4.4.

Department of Mechanical Engineering, NIT Rourkela

Page | 37

M. Tech Thesis

2014

Fig 4.3(a-f) shows the temperature profiles for glass fiber reinforced epoxy composites with fiber volume fraction of 2.83, 5.65, 7.54, 10.05, 12.56 and15.7 vol% respectively.

(a) (b)

(c)

(d)

(e) (f)

Fig. 4.3 Temperature profile of composites with glass fiber loading of (a) 2.83 vol% (b) 5.65 vol% (c) 7.54 vol% (d) 10.05 vol% (e) 12.56 vol% (f) 15.7 vol%

Department of Mechanical Engineering, NIT Rourkela

Page | 38

M. Tech Thesis

2014

The corresponding temperature profiles for banana fiber reinforced epoxy composites are shown in Fig. 4.4(a-f).

(a) (b)

(c)

(d)

(e) (f)

Fig. 4.4 Temperature profile of composites with banana fiber loading of (a) 2.83 vol% (b) 5.65 vol% (c) 7.54 vol% (d) 10.05 vol% (e) 12.56 vol% (f) 15.7 vol%

Department of Mechanical Engineering, NIT Rourkela

Page | 39

M. Tech Thesis

2014

With the help of various temperature profiles, k eff

values for different sets of epoxy-fiber composites are calculated.

The k eff

values for different methods along with the experimental values for glass fiber reinforced epoxy composites are shown in table 4.1. The similar values for banana fiber reinforced epoxy composites are shown in table 4.2.

Table 4.1 The k eff values for composites obtained from different methods for glass fiber reinforced epoxy composites

Sample

1

2

3

4

5

6

Fiber loading

(vol%)

Effective thermal conductivity of the composite (W/mK)

ROM Maxewell model

2.83 0.353 0.356

Lewis-Nilsen model

0.357

Proposed model

0.357

Experi. values

0.360

FEM

0.357

0.345

0.352

0.356

0.350

5.65

0.343

0.350

7.54

0.337

0.346

10.05

0.328

0.340

12.56

0.322

0.336

15.7

0.313

0.329

0.339

0.329

0.323

0.313

0.349

0.343

0.339

0.334

0.352

0.346

0.341

0.337

0.347

0.342

0.338

0.333

Table 4.2 The k eff

values for composites obtained from different methods for banana fiber reinforced epoxy composites

Sample

4

5

6

1

2

3

Fiber loading

(vol%)

Effective thermal conductivity of the composite (W/mK)

ROM Maxewell Lewis-Nilsen Proposed Experi. FEM model model model values

2.83 0.334 0.353

5.65 0.309 0.343

7.54 0.295 0.336

10.05 0.275 0.326

12.56 0.263 0.319

15.7 0.246 0.308

0.354

0.345

0.339

0.329

0.323

0.313

0.355

0.347

0.342

0.334

0.328

0.319

0.359

0.352

0.348

0.342

0.336

0.329

0.353

0.342

0.338

0.329

0.322

0.315

The comparison of effective thermal conductivity of glass fiber reinforced epoxy composites obtained from various established model like Rule of Mixture, Maxwell‟s model and

Bruggeman‟s model together with proposed model, FEM analysis and experimental values are shown in Fig. 4.5.

Department of Mechanical Engineering, NIT Rourkela

Page | 40

M. Tech Thesis

0.38

2014

0.34

0.3

0.26

0.22

0 2.83

5.65

7.54

10.05

Glass fiber content (Vol%)

12.56

15.7

Fig. 4.5 Effective thermal conductivity of short glass fiber/epoxy composites: Rule-of mixure,

Maxwell‟s model, Bruggeman model, Proposed model, FEM and Experimental values

0.38

Rule-of-mixture model

Proposed Model

Experimental values

Maxwell's model

Finite element method

Bruggeman model

0.34

0.3

0.26

0.22

0

Rule-of-mixture model

Proposed model

Experimental values

2.83

5.65

7.54

Maxwell's model

Finite element method

Bruggeman model

10.05

Banana fiber content (Vol%)

12.56

15.7

Fig. 4.6 Effective thermal conductivity of short banana fiber/epoxy composites: Rule-of mixure,

Maxwell‟s model, Bruggeman model, Proposed model, FEM and Experimental values

Department of Mechanical Engineering, NIT Rourkela

Page | 41

M. Tech Thesis

2014

The similar comparison for banana fiber reinforced epoxy composites are shown in Fig. 4.6.

From both the figures, it is observed that as the fiber loading in the epoxy resin increases, the values of k eff

decreases which is obvious because both the fibers possesses low value of intrinsic thermal conductivity as compared to epoxy resin. The trend is followed by all the analytical models, numerical model and measured values.

Further it is noticed that the values obtained from Maxwell‟s model, Bruggeman‟s model, proposed model and FEM analysis fit well with the experimental data whereas rule of mixture model is far from satisfaction.

The percentage error associated with each of the method used in present investigation for glass fiber-epoxy composites are presented in table 4.3.

The similar percentage error associated with each of the method used in present investigation for banana fiber-epoxy composites are presented in table 4.4.

Table 4.3 Percentage errors associated with respect to experimental value for glass fiber/epoxy composites

Sample

Fiber loading

(vol%)

1

2

3

4

5

6

2.83

5.65

7.54

10.05

12.56

15.7

Rule of mixture

1.983

3.790

4.451

5.487

5.901

7.667

Percentage errors with respect to experimental value

Maxewell model

Bruggeman model

Proposed model

FEM

1.123 0.841 0.843 0.840

1.714

1.424

1.424

1.714

1.734

1.764

1.488

2.431

1.149

1.169

1.186

1.813

1.734

1.765

1.488

2.431

1.440

1.169

0.887

1.201

From the tables it is observed that the errors associated with respect to the experimental values for glass fiber reinforced epoxy composite for proposed model, FEM values, Maxwell‟s model and Bruggeman‟s model lie in range of 0.8-2% and for rule-of mixture model it gets widen up to

2-8%.

Department of Mechanical Engineering, NIT Rourkela

Page | 42

M. Tech Thesis

2014

Table 4.4 Percentage errors associated with respect to experimental value for banana fiber/epoxy composites

1

2

3

4

5

6

Sample

Fiber loading

(vol%)

Rule of mixture

Percentage errors with respect to experimental value

Maxwell‟s

Bruggeman Proposed FEM model model model

2.83

5.65

7.485

13.548

7.54 17.966

10.05 24.363

12.56 27.756

15.7 33.739

1.608

2.624

3.571

4.908

5.329

6.818

1.699

2.924

3.571

5.231

5.660

6.818

1.127

1.441

1.754

2.395

2.439

3.135

1.169

2.924

2.958

3.951

4.347

4.444

Again for banana fiber reinforced epoxy composites the errors associated with respect to measured values for proposed model and FEM values lie in the range of 1-4%, for Maxwell‟s model and Bruggeman‟s model lie in range of 1.6-7% and for rule-of mixture it is in range of 7-

34%. It is observed that the values obtained from the proposed model and FEM simulation are showing least percentage variation with measured values when both sets of composites are considered for the complete range of fiber loading, whereas Maxwell‟s and Brugmann‟s model show more variation with respect to measured value for banana fiber epoxy composites as compared to glass fiber-epoxy composites. It is seen that rule-of-mixture model underestimates the measured values completely for both sets of composites. It can be observed that for predicting the effective thermal conductivity of composites for a wide range of fiber concentration, proposed model and FEM model are giving the most suitable results.

Further it can be seen that banana fiber reinforced epoxy composites shows much lower k eff values than that of glass fiber reinforced epoxy composites. The comparison of the k eff

values of both banana fiber and glass fiber reinforced epoxy composites for proposed model are given in

Fig. 4.7. The comparison of the k eff

values of both banana fiber and glass fiber reinforced epoxy composites for FEM model are given in Fig. 4.8.

The similar comparison of the k eff

values of both banana fiber and glass fiber reinforced epoxy composites for experiment are given in Fig. 4.9.

Department of Mechanical Engineering, NIT Rourkela

Page | 43

M. Tech Thesis

0.38

2014

0.36

0.34

0.32

Banana/epoxy composites

Glass/epoxy composites

0.3

0 2.83

5.65

7.54

Fiber content (Vol%)

10.05

12.56

15.7

Fig. 4.7 Comparison of the k eff

values for the proposed model for both the filler

0.38

0.36

0.34

0.32

Banana/epoxy composites

Glass/epoxy composites

0.3

0 2.83

5.65

7.54

Fiber content (Vol%)

10.05

12.56

Fig. 4.8 Comparison of the k eff

values for the FEM model for both the filler

15.7

Department of Mechanical Engineering, NIT Rourkela

Page | 44

M. Tech Thesis

2014

0.38

0.36

0.34

0.32

Banana/epoxy composites

Glass/epoxy composites

0.3

0 2.83

5.65

7.54

Fiber content (Vol%)

10.05

12.56

Fig. 4.9 Comparison of the k eff

values for the experiment for both the filler

15.7

It can be seen from the comparison graph that reduction in the k eff

values for banana fiber reinforced polymer composites is more than the glass fiber reinforced polymer composites which is obvious because banana fiber has lower thermal conductivity than glass fiber. Banana fibers have also properties like non-corrosive, biodegradable, low cost, recyclable etc. So it can be said that a natural fiber i.e. banana fiber can replace a well-known synthetic fiber i.e. glass fiber for insulation purpose used as reinforcement in composite materials.

Chapter summery

This chapter has presented the results of the numerical analysis and mathematical model and experiments conducted to evaluate the thermal insulation of the polymer composites under study.

The measured values of the effective thermal conductivity are obtained for different volume fractions of fibers. Incorporation of fiber results in reduction of thermal conductivity of epoxy resin and thereby improves its thermal insulation capability. A reduction of 8 % in k eff

is obtained for the composites with addition of 15.7 vol % of glass fiber whereas for banana fiber it goes down to 12 % for similar fiber loading. The next chapter presents the conclusions based on the research presented in this thesis along with recommendations for future work.

********

Department of Mechanical Engineering, NIT Rourkela

Page | 45

M. Tech Thesis

2014

Chapter - 5

CONCLUSİON AND SCOPE OF THE FUTURE WROK

5.1 Conclusion

Based on the numerical, analytical and experimental investigation on the thermal conductivity of fibers (glass fiber and banana fiber) reinforced composites, it can be concluded that:

1. Different sets of epoxy/ glass fiber and epoxy/banana fiber composites can be successfully fabricated by simple hand lay-up technique for varied volume concentration.

2. The values obtained from the proposed mathematical model are in close approximation with the measured values for all the fabricated composites over the entire range of fiber content.

3. The results obtained from the proposed mathematical model are also in closer approximation with the values obtained by FEM simulation using ANSYS.

4. It is seen that the Finite element method (FEM) can be gainfully employed for determination of effective thermal conductivity of fiber reinforced polymer composites with different volume concentration of fiber.

5. The study shows that the k eff

reduces quite significantly as the fiber loading in the composite increases. A reduction of about 8 % in the value of the k eff is recorded with addition of 15.7 vol % of glass fiber in epoxy resin whereas 12 % decrease is noticed when filler is banana fiber.

6. Also is can be concluded that banana fiber reinforced epoxy composites shows much lower k eff

values than that of glass fiber reinforced epoxy composites. Banana fibers have also properties like non-corrosive, biodegradable, low cost, recyclable etc. So it can be said that a natural fiber i.e. banana fiber can replace a well-known synthetic fiber i.e. glass fiber for insulation purpose used as reinforcement in composite materials.

7. With light weight and reduced heat conductivity, these fibers reinforced polymer composites finds their potential applications in insulation boards, food containers, thermo flasks, building material etc.

Department of Mechanical Engineering, NIT Rourkela

Page | 46

M. Tech Thesis

2014

5.2 Scope for future work

This work leaves a wide scope for future investigators to explore many other aspects of thermal behaviour of fiber reinforced polymer composites. Some recommendations for future research include:

Study on effect of filler orientation and size on thermal properties of the composites.

Investigation of new fillers and polymers for development of materials having low thermal conductivity and low electrical conductivity.

Possible use of other polymeric resins and natural fibers in the development of new hybrid composites.

Study on the response of these composites to other wear modes such as abrasion and slurry erosion.

Study on the effect of filler shape and size on thermal properties of the composites.

********

Department of Mechanical Engineering, NIT Rourkela

Page | 47

M. Tech Thesis

2014

References

[1] Gad Marom, Albert Reuveni and Daniel Cohn, “Stiffness Variability and Stress-Dependent

Elastic Response of Synthetic Fiber-Reinforced Composites for Biomedical Applications”,

Biomaterials, Vol. 14, No. 2, 1993.

[2] Vijay Kumar Thakur and Manju Kumari Thakur, “Processing and Characterization of

Natural Cellulose Fibers/Thermoset Polymer Composites”, Carbohydrate Polymers, Vol.109, pp. 102–117, 2014.

[3] Yongli Zhang, Yan Li, Hao Ma and Tao Yu, “Tensile and Interfacial Properties of Unidirectional

Flax/Glass Fiber Reinforced Hybrid Composites”, Composites Science and Technology, Vol. 88, pp. 172–177, 2013.

[4] Cho, J., Chen, J. Y. & Daniel, I. M. “Mechanical Enhancement of Carbon Fiber/Epoxy

Composites by Graphite Nanoplatelet Reinforcement”, Scripta materialia, Vol. 56 (8), pp. 685-

688, 2007.

[5] Chauhan, S. R., Gaur, B. & Dass, K. “Effect of Fiber Loading on Mechanical Properties, Friction and Wear Behaviour of Vinylester Composites Under Dry and Water Lubricated Conditions”,

International Journal of Material Science,Vol. 1(1), pp. 1-8, 2011.

[6] Huang, G. & Sun, H. “Effect of Water Absorption on the Mechanical Properties of

Glass/Polyester Composites”, Materials & design, Vol.28, pp.1647-1650. 2007.

[7] Stephen Tsai and Thomas Hann, “Introduction to Composite Materials”, Technomic

Publications, Lancaster, 1980.

[8] Zhong-Hong Jiang and Qin-Yuan Zhang, “The Structure of Glass: A Phase Equilibrium Diagram

Approach”, Progress in Materials Science, Vol. 61, pp. 144–215, 2014.

[9] Alexander Markov, Bodo Fiedler and Karl Schulte, “Electrical Conductivity of Carbon

Black/Fibers Filled Glass-Fiber-Reinforced Thermoplastic Composites”, Composites: Part A,

Vol. 37, pp. 1390–1395, 2006.

[10] D. Olmos and J. Gonzalez-Benito, “Visualization of the Morphology at the Interphase of Glass

Fiber Reinforced Epoxy-Thermoplastic Polymer Composites”, European Polymer Journal, Vol.

43, pp. 1487–1500, 2007.

Department of Mechanical Engineering, NIT Rourkela

Page | 48

M. Tech Thesis

2014

[11] A. Bergeret, L. Ferry and P. Ienny, “Influence of The Fiber/Matrix Interface on Ageing

Mechanisms of Glass Fiber Reinforced Thermoplastic Composites (PA-6, 6, PET, PBT) In A

Hygrothermal Environment”, Polymer Degradation and Stability, Vol. 94, pp. 1315–1324, 2009.

[12] S. Barre, T. Chotard and M. L. Benzeggagh, “Comparative Study of Strain Rate Effects on

Mechanical Properties of Glass Fiber- Reinforced Thermoset Matrix Composites” Composites

Part A, Vol. 27A, pp. 1169-1181, 1996.

[13] A.D. La Rosa, G. Cozzo, A. Latteri, A. Recca, A. Björklund, E. Parrinello and G. Cicala, “Life

Cycle Assessment of a Novel Hybrid Glass-Hemp/Thermoset Composite”, Journal of Cleaner

Production, Vol. 44, pp. 69-76, 2013.

[14] Suhreta Husic, Ivan Javni and Zoran S. Petrovic, “Thermal and Mechanical Properties of Glass

Reinforced Soy-Based Polyurethane Composites”, Composites Science and Technology, Vol.

65, pp. 19–25, 2005.

[15] Maldas, D. and Kokta, B.V. “Composites of Chlorinated Polyethylene Wood Fiber”, Journal of

Reinforced Plastics and Composites, Vol. 14, No. 5, pp. 458-470, 1995.

[16] Joseph, K., Harikumar, K R and Sabu, T. “Jute Sack Cloth Reinforced Polypropylene

Compositeses; Mechanical and Sorption Studies”, Journal of Reinforced Plastics and

Composites, Vol. 18, pp. 346-371, 1999.

[17] Mishra, S., Misra, M., Tripathy, S.S., Nayak, S.K. And Mohanty, A.K. “Potentiality of

Pineapple Leaf FiberAs Reinforcement In Palf-Polyester\ Composite: Surface Modification And

Mechanical Performance”, Journal Of Reinforced Plastics And Composites, Vol. 20, No. 4, pp.

321-334, 2001.

[18] Mohanty, S., Verma, S.K. And Nayak, S.K. “Dynamic Mechanical Properties and Thermal

Properties of MAPE Treated Jute/HDPE Composites”, Composite Science and Technology, Vol.

66, No. 3-4, pp. 583-547, 2006.

[19] Pothan, L.A., ZschariahOommenAndSabu Thomas, “Dynamic Mechanical Analysis of Banana

Fiber Reinforced Polyester Composites”, Composites Science and Technology, Vol. 63, No. 2 pp. 283-293, 2003.

[20] Bax, B. and Mussing, J. “Impact and Tensile Properties of PLA/Cordenka and PLA/Flax

Composities” Composites Science and Technology, Vol. 68, pp. 1601-1607, 2008.

[21] M Waikambo, L. Y. And Ansell, M. P. “Hemp Fiber Reinforced Chasew Nut Shell Liqiud

Composites”, Composite Science and Technology, Vol. 63, pp. 1297-1305, 2003.

Department of Mechanical Engineering, NIT Rourkela

Page | 49

M. Tech Thesis

2014

[22] Joshi, S. V., Drzal, L. T., Mohanty, A.K. and Arora, S., “Are Natural Fiber Composites

Environmentally Superior to Glass Fiber Reinforced Composites”, Compos-Part A Apple S,

Vol.35, pp.371-376, 2004.

[23] Shakila Umair, “Environmental Effect of Fiber Composite Materials-Study Of Life Cycle

Assessment of Materials Used for Ship Structure”. M.S. Thesis Dissertation, Royal Institute of

Technology, Stockholm, 2006.

[24] Murali Mohan Rao, K. and Mohana Rao, K. “Extraction and Tensile Properties of Natural

Fibers: Vakka, Date and Bamboo”, J. Compos Struct, Vol. 77, pp.288-295, 2007.

[25] Al-Qureshi, H.A. “The Use of Banana Fiber Reinforced Composites for the Development of a

Truck Body”, in Proc. 2 nd

International wood and natural fiber composite symposium, 1999.

[26] Kristiina Oksman, Aji P. Mathew, Runner Langstrom, Brigitha Nystrom And Kuruvilla Joseph,

“The Influence Of Fiber Microstructure On Fiber Breakage And Mechanical Properties Of

Natural Fiber Reinforced Poplypropylene” , Compos Sci Tecnol, Vol 69, Pp. 1874-1853,2009.

[27] Sushanta K. Samal, Smita Mohanty and Sanjay K. Nayak, “Banana/Glass Fiber-Reinforced

Polypropylene Hybrid Composites: Fabrication and Performance Evaluation”, Polym Plast

Technol Eng, Vol. 48, No. 4, Pp. 397-414, 2009.

[28] Sanjay Chattopadhyay, Sanjay Singh, Nilay Pramanik, Niyogi, U.K., Khandal, R.K. Ramagopal

Uppaluri And Aloke K. Ghoshal, “Biodegradability Studies On Natural Fibers Reinforced

Polypropylene Composites” , J. Appl Polym Sci, Vol. 121, Pp. 2226-2232, 2011.

[29] Youssef Habibi, Waleed K. El-Zawawy, Maha M. Ibrehim And Alian Dufresne, “Processing

And Characterization Of Reinforced Egyptian Agro-Industrial Residues”. Compos Sci Tecnol,

Vol. 68, Pp. 1877-1885, 2008.

[30] Anshida Haneefa, Panampilly Bindu, Indose Aravimd And Sabu Thomas, “Studies On Tensile

And Flexural Properties Of Short Banana/ Glass Hybrid Fiber Reinforced Polystyrene

Composites”, J. Compos Mater, Vol.42, Pp. 1471-1489, 2008.

[31] Laly Pothan, Sabu Thomas and Neelakantan, N.R. “Short Banana Fiber Reinforced Polyester

Composites: Mechanical, Failure and Aging Characteristics”, J. Reinf Plast Compos, Vol. 16, pp.

744-765, 1997.

[32] Sreekumar, P. A., Pradeesh Albert, Unnikrishnam, G., Kuruvilla Joseph and Sabu Thomas,

“Mechanical and Water Sorption Studied of Ecofriendly Banana Fiber-Reinforced Polyester

Composites Fabricated by RTM”, J. Appl Polym Sci, Vol. 109, pp. 1547-1555, 2008.

Department of Mechanical Engineering, NIT Rourkela

Page | 50

M. Tech Thesis

2014

[33] Jannah, M., Maiatti, M., Abu Baker, A. And Abdul Khalil, H. P. S., “Effect of Chemical

Surface Modification on the Properties of Woven Banana-Reinforced Unsaturated Polyester

Composites”, J. Reinf Plast Compos, Vol. 28, pp. 1519-1532, 2009.

[34] Laly Pothan, George, C. N., Maya Jacob and Thomas, S. “Effect of Chemical Modification on the Mechanical and Electrical Properties of Banana Fiber Polyester Composites”, J. Compos

Mater, Vol. 41, pp. 2371-2386, 2007.

[35] Maries Indicula, Malhotra, Kuruvilla Joseph and Sabu Thomas, “Effect of Layering Pattern on

Dynamic Mechanical Property of Randomly Oriented Short Banana/Sisal Hybrid Fiber-

Reinforced Polyester Composites”, J. Appl Polym Sci, Vol. 97, pp. 2168-2174, 2005.

[36] Seena Joseph, Oommen, Z. and Sabu Thomas, “Environmental Durability of Banana-Fiber-

Reinforced Phenol Formaldehyde Composites”, J. Appl Polym S, Vol. 100, No. 3. pp. 2521-

2531, 2006.

[37] Dong-Pyo Kim, M. Rusu, R. Neagu, and E. Neagu, “Fabrication and Properties of Thermal

Insulating Glass Fiber Reinforced Composites from Low Temperature Curable Polyphosphate

Inorganic Polymers”, Sage Publications, Journal of Thermoplastic Composite Materials, Vol.14, pp. 20-23, 2003.

[38] H.S. Schuster, D. Kumlutas, and I.H. Tavman, “Thermal Conductivities of Three-dimensionally

Woven Fabric Composites”, Denizli, pp. 96–304, 2008.

[39] T. Zhidong and L. Nielsen, “Thermal Conductivity of Carbon Nanotubes and Their Polymer

Nanocomposites: A Review”, Vol.14, pp. 1449-1471, 2011.

[40] N. Yüksel, A. Avcı and M.Kılıc, “The Temperature Dependence of Effective Thermal

Conductivity of the Samples of Glass Wool Reinforced with Aluminium Foil”, International

Communications in Heat and Mass Transfer, Vol. 37, pp. 675–680, 2010.

[41] J.Z. L Hang, F.H. Li, “An approach to enhance through-thickness thermal conductivity of poly[meric fiber composites”, Polymer Testing, Vol.25, pp. 527-531, 2013.

[42] Lewis T., Nielsen L., (1973) Thermal conductivity of particulate-filled polymers, Journal of

Applied Polymer Science, Vol. 29, pp 3819–3825.

[43] Kumlutas D., Tavman I. H., Coban M.T., (2003), Thermal Conductivity of Particle Filled

Polyethylene Composite Materials, Composites Science and Technology, 63(1), pp 113–117.

Department of Mechanical Engineering, NIT Rourkela

Page | 51

M. Tech Thesis

2014

[44] Bruggeman D.A.G. (1935), The calculation of various physical constants of heterogenous substances. i.e. the dielectric constants and conductivities of mixtures composed of isotropic substances, Annalen der Physik (Leipzig), 24, pp 636-64.

[45] Maxwell J.C. (1954), A treatise on electricity and magnetism, 3

rd

ed. New York: Dover, 2, pp

263-269.

********

Department of Mechanical Engineering, NIT Rourkela

Page | 52

M. Tech Thesis

2014

Appendix – A1

List of Publications from the Present Research Work

International Journal

1. Johan Banjare, Yagya Kumar Sahu, Alok Agrawal and Alok Satapathy. “Physical and thermal characterization of red mud reinforced epoxy composites: An experimental investigation” Procedia Materials Science (2014). (Accepted)

2.

Yagya Kumar Sahu, Johan Banjare, Alok Agrawal and Alok Satapathy.”An analytical, numerical and experimental investigation on heat conductivity of short fiber reinforced polymer composites”. Journal of Polymer Research (2014). (communicated)

International Conferences

1. Yagya Kumar Sahu, Johan Banjare, Alok Agrawal and Alok Satapathy. “Establishment of an analytical model to predict effective thermal conductivity of fiber reinforced polymer composites”. International Conference on Advancements in Polymeric

Materials-2014, CIPET Bhubaneswar.

2. Johan Banjare, Yagya Kumar Sahu, Alok Agrawal and Alok Satapathy.

”Development of Mathematical Model to Evaluate Effective Thermal Conductivity of

Particulate Filled Polymer Composites”. International conference Emerging Materials

and Processes- 2014, CSIR-IMMT Bhubaneswar.

3. AlokAgrawal, Yagya Kumar Sahu, Johan Banjare and Alok Satapathy.”Epoxy

Composites Filled with Micro-sized Al

2

O

3

Particles for Microelectronic Applications”.

International Conference on Functional Materials-2014, IIT Kharagpur.

Department of Mechanical Engineering, NIT Rourkela

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
