HY-JK02-M 5-axis interface board manual

HY-JK02-M 5-axis interface board manual

HY-JK02-M 5-axis interface board manual

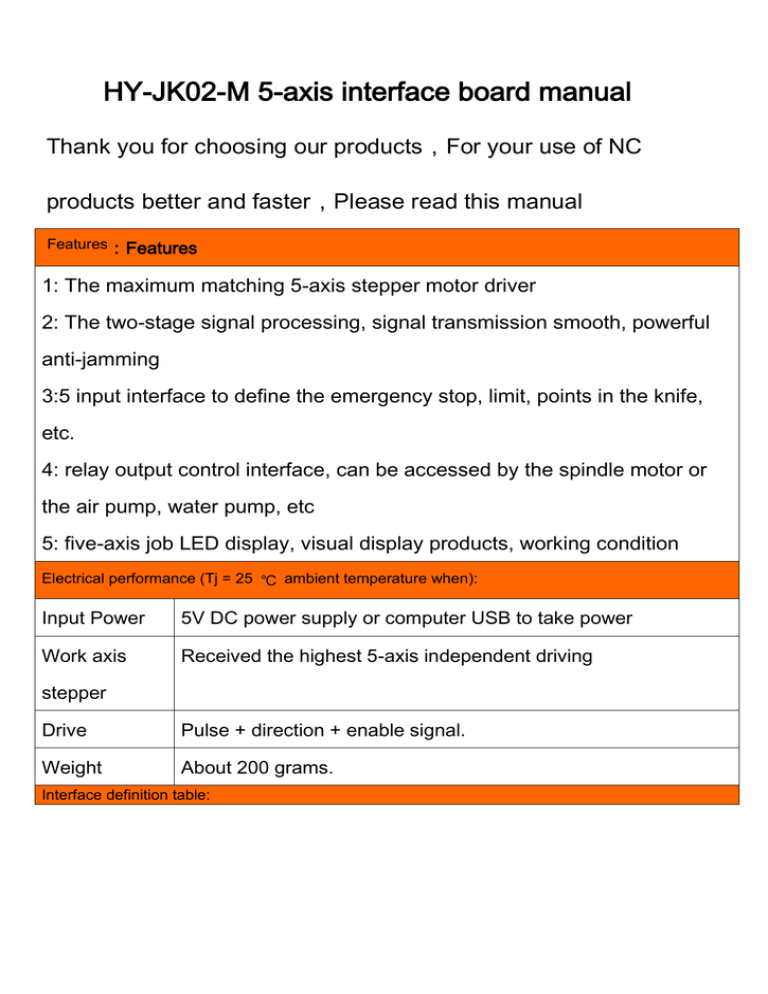

Thank you for choosing our products,For your use of NC products better and faster,Please read this manual

Features

:Features

1: The maximum matching 5-axis stepper motor driver

2: The two-stage signal processing, signal transmission smooth, powerful anti-jamming

3:5 input interface to define the emergency stop, limit, points in the knife, etc.

4: relay output control interface, can be accessed by the spindle motor or the air pump, water pump, etc

5: five-axis job LED display, visual display products, working condition

Electrical performance (Tj = 25

℃ ambient temperature when):

Input Power 5V DC power supply or computer USB to take power

Work axis Received the highest 5-axis independent driving stepper

Drive Pulse + direction + enable signal.

Weight About 200 grams.

Interface definition table:

Waveform and timing

Power output interface function

Interface, detailed drawing marked

In the test machine, note the following before

1, note that using the 5V power supply

2, determine the stepper driver works (Model0)

3, to determine the drive wiring step

Second, "the definition of the pin

1 "is defined as parallel control

PIN9

Spindl

PIN1 PIN2 enabled X

PIN14 PIN16 PIN3

X Y Y

PIN7

Z

PIN8

Z

PIN6 PIN5

A A

PIN4

B

PIN17

B e motor step dir step dir step dir step dir step dir

2 "hand control is defined as follows 1 ~ PIN15computer-15P interfaces and benchmarks within the

Digital ID)

P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15

B B A Z Y step dir dir step step

3 "The limit is defined as 1 to 5

X step

X dir enabl ed

5V/V

DD

5V/G

ND

A step

Z dir

Y dir enabl ed enabl ed

X -Limit Y- Limit Z- Limit A- Limit

急停

PLT-P10 PLT-P11 PLT-P12 PLT-P13 PLT-P15

5V 1A power supply, please take more than switching power supplies, power input received indicated on the map interface

Spindle motor control is controlled via the parallel port PIN1. Spindle motor voltage must comply with the supply voltage range.

Three "MACH software to use

Figure 1

Figure 1, open the MACH3 software, then select OK now mach3MILL

Figure 2

MACH3 open the interface shown in Figure 2, the action of commonly used button above, here we configure the MACH software.

Figure 3

Figure 3, open the config menu PORT & PIN menu

Figure 4

Figure 4

Place on lap 1 setting can set the fundamental frequency, the parameters of the motor rotation speed. After 2 laps to set the place selected, the configuration pin definitions, as shown in Figure 5

Figure 5

According to the definition of the board parallel port, follow the map on the circle to indicate the definition of modification of the software settings

Figure 6

Then select the output signals in part, as shown in Figure 6, according to insiders of the settings, set the corresponding entry

Motor reference set parameters, MACH3 software manual calculation in detail and description

Figure 7

Ok all set, you can open the need to run the G code, as shown in Figure 7

Figure 8

Figure 9

Open the G code, RESET can be seen flashing red, you can use mouse click the RESET make it stop flashing, then you can press the ring 2 position CYCLESTART run.
