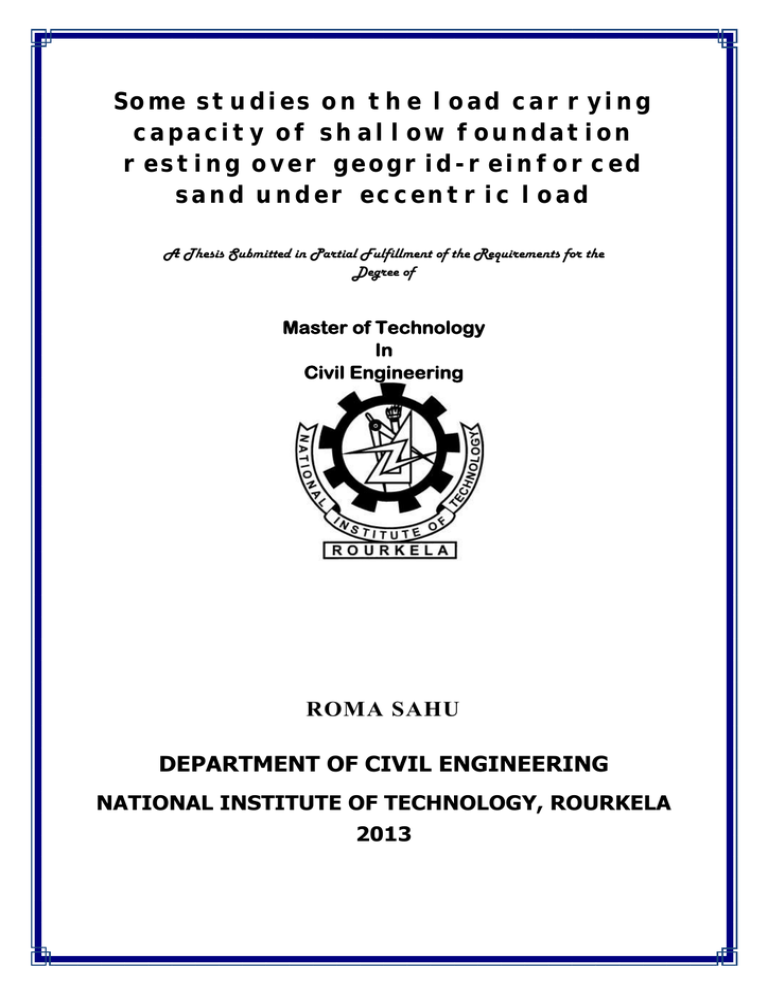

# Some studies on the load carrying capacity of shallow foundation

**Some studies on the load carrying capacity of shallow foundation resting over geogrid-reinforced sand under eccentric load**

*A Thesis Submitted in Partial Fulfillment of the Requirements for the *

*Degree of *

**Master of Technology **

**In **

**Civil Engineering **

**ROMA SAHU**

**DEPARTMENT OF CIVIL ENGINEERING **

**NATIONAL INSTITUTE OF TECHNOLOGY, ROURKELA **

**2013**

**Some studies on the load carrying capacity of shallow foundation resting over geogrid-reinforced sand under eccentric load **

*A Thesis Submitted in Partial Fulfillment of the Requirements for the *

*A Thesis Submitted in Partial Fulfillment of the Requirements for the*

*Degree of *

*Degree of*

*Master of Technology in *

*Civil Engineering *

Under the guidance and supervision of

Prof C.R.Patra

*Submitted By: *

**ROMA SAHU **

**(ROLL NO. 211CE1232)**

**DEPARTMENT OF CIVIL ENGINEERING **

**NATIONAL INSTITUTE OF TECHNOLOGY, ROURKELA **

**2013 **

**National Institute of Technology **

**Rourkela **

## CERTIFICATE

This is to certify that the thesis entitled “**Some studies on the load carrying **

*capacity of shallow foundation resting over geogrid-reinforced sand under *

*capacity of shallow foundation resting over geogrid-reinforced sand under*

**eccentric load**” being submitted by Roma Sahu in partial fulfillment of the

**eccentric load**

requirements for the award of **Master of Technology** Degree in **Civil **

**Engineering**with specialization in **GEOTECHNICAL ENGINEERING** at

National Institute of Technology Rourkela, is an authentic work carried out by her under my guidance and supervision.

To the best of my knowledge, the matter embodied in this report has not been submitted to any other university/institute for the award of any degree or diploma.

Dr. ChittaranjanPatra

Place: Rourkela Professor

Date: 31.05.2013 Department of Civil Engineering

NIT Rourkela

**ACKNOWLEDGEMENTS**

First of all, I would like to express my sincere gratitude to my supervisor **Prof**. **Chittaranjan **

**Patra**, for his guidance and constant encouragement and support during the course of my work

in the last one year. I truly appreciate and value his esteemed guidance and encouragement from the beginning to the end of the thesis.

I would like to thank **Prof. N Roy**, **Head of the Dept. of Civil Engineering, **National Institute of technology, Rourkela, who have enlightened me during my project.

I am also thankful to **Prof. S.K. Das**, **Prof. S.P. Singh** and all professors of Civil Engineering

Department.

A special words of thanks to **Mr. Rabi Narayan Behera**, Ph.D. scholar of Civil Engineering

Department, for his suggestions, comments and entire support throughout the project work.

I am also thankful to staff members of Geotechnical Engineering Laboratory especially Mr.

Rajesh, Mr. Chamuru suniani, Mr. Harihar Garnayak for their assistance &co-operation during the exhaustive experiments in the laboratory. I express to my special thanks to my dear friends

Sonia, Swagatika, Jajati , Sumant, Manaswini, Laxmi. Saini, Mona, Tulika, Usha for their continuous support, suggestions and love.

Friendly environment and cooperative company I had from my classmates and affection received from my seniors and juniors will always remind me of my days as a student at NIT Rourkela. I wish to thank all my friends and well-wishers who made my stay at NIT Rourkela, memorable and pleasant.

Finally, I would like to thank my parents and family members for their unwavering support and invariable source of motivation.

**Roma Sahu **

**i | **

P a g e

**ABSTRACT **

Several works have been done relating to the estimate of the ultimate bearing capacities of shallow foundations, supported by geogrid reinforced sand. Few experimental studies have been made on the evaluation of bearing capacity of shallow foundations on geogrid-reinforced sand under eccentric load. These studies relate to strip and a square foundation is yet to be done.

The purpose of this thesis is to conduct few model tests in the laboratory by using square surface foundation over the reinforced sand bed. The model footing used for the model tests in the laboratory is of size 10cm x 10cm. The average relative density maintained during all the tests is

69%. The reinforcing material used in the experiment is SS 20 in 2, 3 and 4 number of layers.

The load eccentricity is varied from 0 to 0.15*B* with an increment of 0.05*B*. The vertical distance of first geogrid layer from base, distance between the consecutive geogrid layers, and width of the geogrid has been kept constant. For each set up load intensity and corresponding settlements are observed which are plotted to get load-settlement curves for each set up. The load-settlement curve for each test is plotted to determine the ultimate bearing capacity. Parametric studies have been made to evaluate the influence of load eccentricity on bearing capacity of the foundation.

The ultimate bearing capacity of eccentrically loaded square footings can be computed by knowing the ultimate bearing capacity of square footing under central load and a reduction factor

(*R*

*kR*

) for reinforced condition. The reduction factor is developed based on the results of laboratory model tests on geogrid reinforced soil.

The existing data base of Patra et al*.* (2006) is used for predicting bearing capacity of strip footings over geogrid reinforced soil under eccentric load by using Artificial Neural Network

(ANN).

**ii | **

P a g e

**TABLE OF CONTENTS **

**Title **

**Page No.**

Acknowledgements ....................................................................................................... i

Abstract ........................................................................................................................ ii

Tables of contents ...................................................................................................... .iii

List of tables ................................................................................................................ vi

List of figures ............................................................................................................. vii

Notations ..................................................................................................................... ix

**CHAPTER 1 INTRODUCTION **

**CHAPTER 2 LITERATURE REVIEW **

2.1. Introduction ............................................................................................................ 3

2.1.1 Bearing capacity of foundation on homogeneous Soil under central

loading condition ................................................................................................. 4

2.1.2. Bearing capacity of foundation on homogeneous Soil under eccentric

loading condition ................................................................................................. 7

2.1.3. Bearing capacity of foundation supported over geogrid-reinforced soil ....... 11

**CHAPTER 3 MATERIALS USED AND EXPERIMANTAL PROCEDURE**

3.1. Introduction .......................................................................................................... 17

3.2. Material used ........................................................................................................ 17

3.2.1 Sand.................................................................................................................... 17

3.2.2 Geogrid .............................................................................................................. 19

3.3. Test tank ............................................................................................................... 19

3.4. Equipment used ................................................................................................... 20

**iii | **

P a g e

3.5. Sample preparation ............................................................................................. 21

3.6. Test procedure ..................................................................................................... 22

3.7. Geometric parameter ............................................................................................ 24

3.8. Model test series .................................................................................................. 25

**CHAPTER 4 EXPERIMENTAL RESULTS AND ANALYSIS **

4.1**. **Introduction .......................................................................................................... 26

4.2. Ultimate bearing capacity for unreinforced sand ................................................. 26

4.2.1 Model test results ............................................................................................... 26

4.3. Ultimate bearing capacity for reinforced sand .................................................... 30

4.3.1 Model test results ............................................................................................. 30

4.3.2 Analysis of test results ..................................................................................... 35

4.3.3 Conclusions ...................................................................................................... 43

**CHAPTER 5 NUMERICAL MODELLING by ANN **

5.1. Introduction ..................................................................................................... 44

5.2. Overview of artificial neural network ............................................................. 44

5.2.1 Biological model of a neuron .......................................................................... 44

5.2.2 Concept of artificial neural network ............................................................... 45

5.2.3 Application of ANN in geotechnical engineering .......................................... 46

5.4. Database and preprocessing ............................................................................. 48

5.5. Results and discussion ..................................................................................... 51

5.5.1 Sensitivity analysis.......................................................................................... 57

5.5.2 Neural interpretation diagram (NID) .............................................................. 59

5.5.3. ANN model equation ...................................................................................... 61

**iv | **

P a g e

5.6. Comparison with empirical equation by Patra et al. (2006) ........................... 63

5.7 Conclusions ...................................................................................................... 66

**CHAPTER 6 CONCLUSIONS AND SCOPE FOR FUTURE RESEARCH WORK **

6.1. Conclusion ........................................................................................................... 67

6.2. Scope for Future Work......................................................................................... 68

**References** .................................................................................................................. 69

**Published Papers **

**v | **

P a g e

**LIST OF TABLES**

Table 2.1: Summary of bearing capacity factor ........................................................... .6

Table 2.2: Values of a and k ........................................................................................ .9

Table 3.1: Geotechnical properties of sand ............................................................... .18

Table 3.2: Physical property of geogrid ..................................................................... .19

Table 3.3: Sequence of model test series for unreinforced case ................................ .25

Table 3.4: Sequence of model test series for reinforced case .................................... .25

Table 4.1: Calculated values of ultimate bearing capacity *q*

*u*

.................................... .28

Table 4.2: Values of reduction factor ........................................................................ .39

Table 4.3: Comparison of predicted reduction factor with those

Observed from experiments ...................................................................................... .42

Table 5.1: Dataset observed for training and testing of ANN model ....................... .49

Table 5.2: Statistical values of the parameters ......................................................... .52

Table 5.3: Values of connection weights and biases ............................................... .57

Table 5.4: Cross-correlation of the input and output for the reduction factor ......... .58

Table 5.5: Relative importance of different inputs as per Garson’s algorithm and connection weight approach reduction factor ................................................... .59

Table 5.6: Comparison of predicted reduction factor with those observed from experiments ....................................................................................................... .64

**vi | **

P a g e

**LIST OF FIGURES**

**Title **

** Page No**

Fig.2.1: Eccentrically loaded footing (Meyerhof, 1953) ............................................. 8

Fig.2.2: Wide-slab failure mechanism in reinforced

Sand supporting a strip foundation (Source Huang and Menq, 1997) ....................... 15

Fig.3.1: Grain size distribution curve of sand ............................................................. 18

Fig.3.2: Photographic image of sand sample at start of experiment ........................... 23

Fig.3.3:Placing of geogrid........................................................................................... 22

Fig.4.1: Comparison of load-settlement curve in various

Eccentricities in unreinforced soil (present experimental data) ............................... 26

Fig.4.2. Variation of *q*

*u*

* *with different *e/B*…….. ........................................................ 27

Fig.4.3: Variations of N

with

B (adapted after DeBeer, 1965) .............................. 28

Fig.4.4: Comparison of N

obtained from tests with small footing and

Large footing of 1m2 area on sand (adapted after DeBeer,1965) .............................. 29

Fig. 4.5: Variation of load-settlement curve with depth of reinforcement layer N=2 .................................................................................................................... 31

Fig.4.6: Variation of load-settlement curve with depth of reinforcement layer N= 3. .................................................................................................................. 31

Fig.4.7: Variation of load-settlement curve with depth of reinforcement layer N= 4 ................................................................................................................... 32

Fig.4.8: Variation of load-settlement curve with surface case (e/B=0) ...................... 33

Fig.4.9: Variation of load-settlement curve with surface case (e/B=0.05) ................. 33

Fig.4.10: Variation of load-settlement curve with surface case (e/B=0.1) ................. 34

**vii | **

P a g e

Fig.4.11: Variation of load-settlement curve with surface case (e/B=0.15) ............... 34

Fig.4.12: Assumed failure mode under a centrally loaded surface

Square foundation over geogrid-reinforced sand ....................................................... 36

Fig.4.13: Assumed failure mode under a eccentrically loaded surface

Square foundation over geogrid-reinforced sand ....................................................... 37

Fig 4.14: Variation of *q*

*uR(e) V*

ersus *e/B* and *d*

*f*

*/B* at *D*

*f*

*/B*=0 ......................................... 30

Fig 4.15: Variation of *R*

*KR*

V ersus *e/B* at *D*

*f*

*/B*=0 ......................................................... 40

Fig 4.16: Variation of *R*

*KR*

V ersus *d*

*f*

*/B *at *D*

*f*

*/B*=0 for e/B=0.05,0.1,0.15..................... 41

Fig 4.17: Variation of

*1*

with *e/B* .............................................................................. 42

Fig 5.1: Biological neuron (after Park, 2011) ............................................................. 45

Fig 5.2: Typical structure and operation of ANN ...................................................... 46

Fig. 5.3: The ANN architecture ................................................................................. 53

Fig. 5.4: Variation of hidden layer neuron with mean square error (mse) ................. 53

Fig. 5.5: Correlation between Predicted Reduction Factor with Experimental

Reduction Factor for training data .......................................................................... 56

Fig. 5.6: Correlation between Predicted Reduction Factor with Experimental

Reduction Factor for testing data ............................................................................ 56

Fig.5.7: Residual distribution of training data .......................................................... 57

Fig. 5.5: Neural Interpretation Diagram (NID) showing lines representing Factor with

Connection weights and effects of input on Reduction factor (RF) ....................... 60

Fig. 5.9: Comparison of Reduction Factor of present analysis with

Eqn in eccentric load supported by geogrid-reinforced sand .................................. 63

**viii | **

P a g e

* B *

*L *

* t*

* e u h *

*b*

*d*

*N*

**LIST OF NOTATIONS **

Width of foundation

Length of foundation

Thickness of foundation

Load eccentricity

Location of the top layer of reinforcement from the bottom the foundation

Depth of reinforcement layer

Number of reinforcement layer

Vertical distance between two consecutive layers width of reinforcement layer

*l* length of reinforcement layer

*d f*

Total depth from the bottom of foundation to depth of reinforcement layer.

Load inclination with the vertical

Ultimate load per unit length of the foundation

*Q u*

*d*

*d(max)*

*d(min)*

* *

*q u *

*N c*

*, N q*

*, N*

*s c*

*, s q*

*, s*

Unit weight of sand

Dry unit weight of sand

Maximum dry unit weight of sand

Minimum dry unit weight of sand

Friction angle of sand

Effective friction angle of sand

Ultimate bearing capacity

Bearing capacity factors

Shape factors

**ix | **

P a g e

*s *

*B*

*A*

Settlement

Effective width of foundation

Effective area of foundation

*C u*

*C c*

*G *

*D*

*10*

*D*

50

*D r*

Coefficient of uniformity

* *Coefficient of curvature

Specific gravity

Effective particle size

Mean particle size

Relative Density

*r *

*R*

*2*

Correlation coefficient

Coefficient of efficiency

*er *

Residual

**x | **

P a g e

# CHAPTER 1

# INTRODUCTION

Chapter 1

INTRODUCTION

Foundation is an integral part of a structure whether it may be a building, bridge and dam etc.

The function of the foundation is to receive the load from the superstructure and transmit it to the underlying soil or rock.

Soil is used as a construction material for various civil engineering structures. Structure on a ground with adequate bearing capacity is one of the basic requirements for the stability of a structure. Most of the studies for bearing capacity calculation are based on the foundation under vertical and central load. However in some cases due to bending moments and horizontal thrusts transferred from the superstructure, structures like retaining walls, abutments, waterfront structures, industrial machines and portal framed buildings are often subjected to eccentric load.

This may be due to (a) moments with or without axial forces (b) the oblique loading and (c) their location near the property line etc. When the load is transferred at the base of the footing, movement of the soil particles in the horizontal and vertical direction occurs. For the footings under eccentric loading, the two edges settle by different amounts, causing the footing tilt. The amount of tilt and the pressure at the base depend upon the value of eccentricity width ratio

(*e*/*B*). When this ratio is more than 1/6, the contact pressure will be tensile at the edge away from the load. However, since the soil is poor in tension, such situation cannot develop; hence, the footing loses contact with the soil and tilting of the footing occurs. Due to eccentric loading, the footing tilts and the pressure below the footing does not remain uniform. The tilt of footing increases with an increase in the eccentricity and the bearing capacity reduces. Many times reinforcing materials like geogrid, geotextile, geonet etc. are inserted into the granular materials to improve the bearing capacity of poor sub-soil.

Over the last two decades the use of geogrids for soil reinforcement has increased greatly because geogrids are dimensionally stable and combine feature such as high tensile modulus

**1 | **

P a g e

Chapter 1

INTRODUCTION

(low strain at high load), open geogrid structure, positive shear connection characteristics, light weight, and long service life. Geogrids are made of high-modulus polymer materials, such as polypropylene and polyethylene, and are prepared by tensile drawing. Nelton Ltd. of the United

Kingdom was the first producer of geogrids in 1982. The major function of geogrid is soil reinforcement interaction. There are two types of geogrid i.e. uniaxial and biaxial depending on the nature of manufacturing.

A number of laboratory test results and a few field test results have been published that relate to the ultimate and allowable bearing capacity of shallow foundations supported by multi-layered geogrid reinforced sand and clay. The techniques of ground improvement by providing reinforcement were also in practice in olden days. Babylonians built ziggurats more than three thousand years ago using the principles of soil reinforcement. A part of the Great Wall of China is also an example of reinforced soil. Basic principles underlying reinforced soil was not completely investigated till Henry Vidal of France (1966) who introduced the reinforcing mechanism.

**2 | **

P a g e

# CHAPTER 2

# LITERATURE REVIEW

Chapter 2 LITERATURE REVIEW

**2.1 INTRODUCTION **

Foundation is a lowest part of structure which transmits the load of superstructure to underlying soil. Foundation is of two types: shallow and deep foundation. In case of shallow foundation soil layer for supporting a structure at a relatively shallow depth but in case of deep foundation the upper layer of soil is not suitable to carry a structure. The weight of the structure is transferred to stable layer at a greater depth (piles, piers, caissons). The loads of the structures are transmitted to the underlying soils through the base of the foundations. The soil, which is a compressible material, is compressed due to the stresses transmitted to it. Apart from vertical axial loads, the foundations of portal-framed buildings are often subjected to eccentric loads caused by wind and earthquake forces. Sometimes the corner column of these portal-framed buildings is located very close to the property line, and hence subjected to the eccentric loading. Foundations of earth retaining structures, abutments, and similar structures may be subjected to eccentric loading caused by the moments in addition to the axial forces. Eccentric load due to (i) moments with or without axial forces (ii) the oblique loading (iii) their location near the property line. The two edges settle by different amounts, and the footing will be tilt. The amount of tilt and the pressure at the base depend upon the value of the eccentricity width ratio. When this eccentricity width ratio is more than 1/6, the contact pressure will be tensile. However, since the soil is not a tension medium, thus, this type of situation cannot develop; hence, the footing loses contact with the soil and causing the footing tilt. Due to eccentric loading, the footing tilts and the pressure below the footing does not remain uniform. The footing tilt increases with an increase in the eccentricity and the bearing capacity reduces. Mechanically stabilized earth (MSE) technology is now well established in the heavy construction industries as a reliable and useful method in the construction of structures such as retaining walls, embankment over soft soil, steep slopes and

**3 | **

P a g e

Chapter 2 LITERATURE REVIEW various other structures. MSE is a composite material consisting of compacted soil fill strengthened by the inclusion of tensile elements such as geogrid, geotextiles, metal rods and/or strips. Geogrid are relatively stiff material compared to geotextiles. They develop reinforcing strength at low strain level such as 2%. Therefore, it is intended to study the mechanism of shallow square foundations subjected to eccentric load underlying the geogrid reinforced soil mass.

**2.1.1 Bearing capacity of foundation on homogeneous soil under central loading condition **

The stability of a structure depends upon the stability of the supporting soil. For that the foundation must be stable against shear failure of the supporting soil and must not settle beyond a tolerable limit to avoid damage to the structure. For a given foundation to perform its optimum capacity, one must be ensured that it does not exceed its ultimate bearing capacity. The ultimate bearing capacity (*q*

*u*

) is defined as the pressure at which shear failure occurs in the supporting soil immediately below and adjacent to the foundation. Some important landmark theories on bearing capacity developed by the investigators in the past based on experimental and analytical studies are discussed in this section.

**Terzaghi (1948) **proposed a theory to determine the ultimate bearing capacity of a shallow,

rough, rigid continuous (strip) foundation supported by a homogeneous soil layer. The equation can be expressed as

*q u*

*cN c*

*qN q*

1 / 2

*BN*

(Continuous foundation)

*q u*

1 .

3

*cN c*

*qN q*

0 .

4

*BN*

(Square foundation)

(2.1)

(2.2)

*q u*

1 .

3

*cN c*

*qN q*

0 .

3

*BN*

(Circular foundation)

For granular soil the equation 2.1

is reduced to the form as expressed by:

*q u*

*qN q*

1 / 2

*BN*

(2.3)

(2.4)

**4 | **

P a g e

Chapter 2 LITERATURE REVIEW

**Meyerhof (1951)** suggested a generalized method to estimate the ultimate bearing capacity for

centrally vertically loaded foundation as

*q u*

*cN c*

*cs*

*cd*

*qN q*

*qs*

*qd*

1

2

*BN*

*s*

*d*

For granular soil the above equation (2.5) can be reduced to the form as

(2.5)

*q u*

*qN q*

*qs*

*qd*

1

2

*BN*

(2.6)

*q u*

= ultimate bearing capacity for a soil,

*q*

*D f*

= surcharge, width of the foundation.

*c*

= unit cohesion.

*cs*

,

*qs*

,

*s*

= shape factors

*cd*

,

*qd*

,

*d*

= depth factors,

*N c*

,

*N q*

,

*N*

=bearing capacity factors.

In the past many investigators have proposed bearing capacity factors as well as shape and depth factors for estimating the bearing capacity of footings in above conditions. These factors are summarized in table 2.1

**5 | **

P a g e

Chapter 2 LITERATURE REVIEW

**Bearing Capacity **

**Factors **

**Table 2.1: Summary of bearing capacity factors **

**Equation Investigator **

*N c *

*N c *

*N q *

*N q *

*N q *

*N*

*N*

*N*

*N*

*N*

*N*

*N c*

*N q*

1

cot

*N c*

*N q*

228

40

4 .

3

tan

2

( 45

2

)

*e*

tan

*N q*

*N q*

*N*

*N*

40

40

5

*e*

2

3

4

2

tan

2

2 cos 45

1 .

8

2

cot

1 .

5

*N*

*N q q*

1

1 tan

(tan

)

2

*N*

*N*

1 .

8 (

2

*N q*

*N q*

1

1 ) tan tan

*N*

*N*

2

1 .

5

*N*

*N q*

*c*

tan

1

tan( 1 .

4

)

Prandtl (1921), Reisnner

(1924), Terzaghi (1943),

Meyerhof (1963)

Krizek (1965)

Prandtl (1921), Reisnner

(1924), Terzaghi (1943),

Meyerhof (1963)

Krizek (1965)

Terzaghi (1943)

Terzaghi (1943)

Lundgren and Mortensen

(1953) and Hansen (1970)

Biarez et al (1961)

Vesic (1973)

Hansen (1970)

Meyerhof (1963)

Factors

Shape

**Summary of shape factors **

Equation

*S c*

For

=0,

*S c*

1

0 .

2 (

*B*

*L*

)

S q

= S

= 1

For

> 10,

1

0 .

2

*B*

*L*

tan

45

2

2

Investigator

Meyerhof (1963)

**6 | **

P a g e

Chapter 2

*q u*

*qN q*

*qd*

1

2

*B*

*N*

*d*

LITERATURE REVIEW

*S q*

*S*

*S*

1

0 .

1

*B*

*L c*

1

*N q*

*N c*

tan

45

*B*

*L*

2

2

[Use *N*

*c*

* *and *N*

*q*

* *given by Meyerhof

(1963)]

*S q*

*S*

1

*B*

tan

*L*

1

0 .

4

*B*

*L*

*S*

1 .

3

tan

2

0 .

5

0 .

5

*S c*

*S*

1

1 .

8

tan

2

0 .

1

*B*

*S q*

1

*L*

*L*

1

1

1 .

9

tan

2

0 .

6

tan

2

*B*

0 .

*L*

25

0 .

5

*B*

*L*

1 .

5

*e*

*B*

*L*

*B*

DeBeer (1970),Vesic

(1975)

Michalowski

(1997)

**2.1.2 Bearing capacity of foundation on homogeneous soil under eccentric loading condition **

**Meyerhof (1953) **proposed a semi-empirical procedure to estimate the ultimate bearing capacity

of shallow foundation subjected to eccentric loading which is generally referred to as the

“equivalent area method”. The ultimate bearing capacity

*q*

can be expressed as

*u q u*

*cN c*

*cd*

*qN q*

*qd*

1

2

*B*

*N*

*d*

For granular soil the Equation 2.10

is reduced to the form as expressed by

(2.7)

(2.8)

**7 | **

P a g e

Chapter 2 LITERATURE REVIEW

Where,

*q u*

= ultimate bearing capacity with load eccentricity e,

*q*

*D f*

,

is the unit weight of soil, *D*

*f *

*=*depth of foundation, B is the width of foundation,

*B*

'

*B*

2

*e*

, *e* is the load eccentricity,

*N*

*q*,

*N*

are the bearing capacity factors,

*F qd*

,

*F*

*d*

are the depth factor.

*Q = qA*

*' *

Where *A*

’

= effective area =B

’

G1 (for strip footing)

Figure 2.1: Eccentrically loaded footing (Meyerhof, 1953)

**Purkayastha and char (1977) **carried out stability analysis of eccentrically loaded strip

foundation on sand using the method of slices proposed by Janbu (1957). Based on this study, they proposed that

*q u q u*

*e*

0

1

*R*

*K*

*R*

*K*

1

*q u*

*eccentric*

*q u*

*centric*

(2.9)

(2.10)

**8 | **

P a g e

Chapter 2 LITERATURE REVIEW

Where, *R *= Reduction factor,

*q u*

*eccentric*

= ultimate bearing capacity of eccentrically loaded continuous foundations,

*q u*

*centric*

= ultimate bearing capacity of centrally loaded continuous foundations.

Where,

*R*

*K*

= Reduction factor

*a e*

*B*

*K*

(2.11) where, a and k are functions of the embedment ratio

*D f*

/

*B*

The values of a and k are presented in table 2.2 for different *D*

*f *

/ B

*D f*

* /B *

0.00

0.25

0.50

1.00

Combining equations 2.10 & 2.11

Table 2.2: Values of a and k

*a *

1.862

1.811

1.754

1.820

*q u*

*eccentric*

*q u*

*centric*

( 1

*R*

*K*

)

*q u*

*centric*

)

1

*a*

*e*

*B*

*K*

*k *

0.73

0.785

0.80

0.888

(2.12)

*q u*

*centric*

*qN q*

*qd*

1

2

*BN*

*d*

(c = 0)

(2.13)

From the analysis they concluded that the width of footing and friction angle has no influence on reduction factor.

**9 | **

P a g e

Chapter 2 LITERATURE REVIEW

**Prakash and saran (1971) **presented a comprehensive mathematical formulation to estimate the

ultimate bearing capacity for a rough foundation under eccentric loading. According to this theory for a strip foundation on sand

*q u*

*B*

*Q u*

1

*cN*

*C*

*D f*

*N q*

1

2

*BN*

(2.14)

Where,

*N c*

,

*N q*

,

*N*

are the bearing capacity factors for an eccentrically loaded continuous foundation. The bearing capacity factors are functions of *e/B *and

*. *The bearing capacity factors are presented in the form of figure for different *e/B* and

.* *

**Michalowski and You (1998) **presented the bearing capacity of eccentrically loaded footing

using the kinematic approach of limit analysis. Meyerhof suggested that for eccentricity of loading, footing width is reduced by twice-the-eccentricity to its effective size and sometimes this hypothesis has been criticized as over conservative. The effective width rule significantly underestimates the bearing capacity for clays (

* *= 0) only when the footing is bonded with the soil and the eccentricity is relatively large (*e/B >*0.25). For cohesive-frictional soils this underestimation decreases with an increase in the internal friction angle. The rule of effective width gives very reasonable estimates of the bearing capacity of eccentrically loaded footings on cohesive or cohesive-frictional soils when the soil-footing interface is not bonded, and for any type of interface when the eccentricity is small (*e/B *< 0.1). It also overestimates the bearing capacity for purely frictional soils when the surcharge load is relatively small. For cohesionless however, the effective width rule may overestimate the best upper bound and this overestimation increases with an increase in eccentricity.

**Mahiyar and Patel (2000) **carried out finite-element analysis of an angle shaped footing under

eccentric loading. One side vertical projection of footing confines the soil and prevents its lateral

**10 | **

P a g e

Chapter 2 LITERATURE REVIEW movement. It was concluded that footing subjected to uniaxial eccentric loads can be designed for no or negligible tilt.

**2.1.3 Bearing capacity of Foundations supported over soil geogrid-reinforced soil **

Some works done by the past investigators on the bearing capacity of shallow foundation on geogrid reinforced soil are briefly described in this section.

During the last twenty years, a number of laboratory model test results and a few field test results have been published that related to the ultimate and allowable bearing capacity of shallow foundations supported by multi-layered geogrid reinforced sand and clay. Some of the investigators have evaluated the beneficial effect of using geogrid as a soil reinforcement under the footings by conducting laboratory model tests (Guido et al. 1986; Omar et al. 1993; Das et al.1994; Das and Khing1994; Das and Omar 1994; Yetimoglu et al. 1994; Huang and Menq

1997; Das et al. 1998; Shin et al. 2002; Kumar and Saran 2003; Kumar et al. 2007) .Adams and

Collin (1997) conducted large scale model footing tests to study the ultimate bearing capacity on geogrid reinforced soil.

The model test results and analysis were done mostly for centric loading and surface footing. Patra et al. (2005), Patra et al. (2006) studied the behavior of eccentric load on strip foundation supported on geogrid reinforced foundation beds. Much research work has not been done in shallow foundations of square footing subjected to eccentric load resting on geogrid reinforced soil. In this project, it is intended to carry out research work on shallow foundations subjected to eccentric load supported by geogrid reinforced sand.

**Guido et al. (1986)** presented a comparison of the results of laboratory model tests used to study

the bearing capacity of geogrid and geotextile reinforced earth slabs. For both geogrid and geotextiles, after an optimum number of layers or width of reinforcement, the bearing capacity did not increase. The bearing capacity was largest for those geogrid and geotextile reinforced

**11 | **

P a g e

Chapter 2 LITERATURE REVIEW earth slabs where the first layer was closest to the footing and the spacing between the layers was the smallest. Bearing capacity increased directly with increasing reinforcement tensile strength for the geotextile; and for the geogrid, aperture size and reinforcement tensile strength must be looked at simultaneously.

**Yeo et al. (1992) **presented laboratory model test results for permanent settlement of a shallow

square foundation supported by geogrid-reinforced sand and subjected to cyclic loading. Tests were conducted with only one type of geogrid and at one relative density of compaction of sand.

Based on the model test results, the nature of variation of the permanent settlement of the foundation with the intensity of the static loading and the amplitude of the cyclic load intensity are presented in a non-dimensional form.

**Omar et al. (1993) **performed laboratory model test to study the ultimate bearing capacity of

strip and square foundations supported by sand reinforced with geogrid layers. Based on the model test results, the critical depth of reinforcement and the dimensions of the geogrid layers for mobilizing the maximum bearing-capacity ratio have been determined and compared. From this experiment they concluded that for development of maximum bearing capacity the effective depth of reinforcement are about 2B for strip footings and 1.4B for square footings and the maximum width of reinforcement layers for optimum mobilization of maximum bearing capacity ratio is 8B for strip footings and 4.5B for square footings.

**Das and Omar (1993)** carried out laboratory model test to determine the ultimate bearing

capacity of surface strip foundations on geogrid-reinforced sand and unreinforced sand. A fine uniform sand and one type of geogrid were used for the tests. The analysis of the test results revealed that the bearing capacity ratio of the sand-geogrid system decreased with an increase in foundation width. .

**12 | **

P a g e

Chapter 2 LITERATURE REVIEW

**Yetimoglu et al. (1994) **

investigated the bearing capacity of rectangular footings on geogridreinforced sand by performing laboratory model tests as well as finite-element analyses. For single-layer reinforced sand, 0.3B is an optimum embedment depth for the first reinforcement layer and for multilayer 0.25B is the embedment depth at which the bearing capacity is the highest. For multilayer reinforced sand, the optimum vertical spacing of reinforcement layers lies in between 0.2 to 0.4B and the effective zone lies approximately within 1.5B from both the base and edges of the footing. The bearing capacity of reinforced sand increase with reinforcement layer number and reinforcement size when the reinforcement was placed within a certain effective zone. In addition the analysis indicates that increasing reinforcement stiffness beyond a certain value would not being further increase in the bearing capacity.

**Das et al. (1994) **presented laboratory model test results for the ultimate bearing capacity of a

strip foundation supported by geogrid-reinforced sand and saturated clay. One type of geogrid was used for all the tests. On the basis of the model test results, the optimum depth and width of reinforcing layers and the optimum depth of the location of the first layer of the geogrid in sand and saturated clay were determined and compared.

**Huang **

**and **

**Menq (1997) **performed quantitative evaluations on two failure mechanisms (i.e. deep footing and wide slab mechanisms), that dominates the bearing capacity characteristics of sandy ground reinforced with horizontal reinforcing layers. The improvement contributed by reinforcement, creating a quasi-rigid, wide earth slab immediately under the footing to the bearing capacity is analyzed. The results of a total of 105 model tests are analyzed using calibrated internal friction angle of sand and an experimentally verified failure mechanism in reinforced sandy ground, namely, the deep footing mechanism. Based on this study to determine

**13 | **

P a g e

Chapter 2 LITERATURE REVIEW the ultimate bearing capacity of a strip surface foundation on reinforced sand based on wide-slab mechanism can be expressed as

*q u*

0 .

5

*B*

*B*

*N*

*dN q d*

*u*

(

*N*

1 )

*h*

*B*

2*d* tan

(2.15)

(2.16)

(2.17) tan

0 .

68

2 .

071

*h*

*B*

0 .

743

0 .

03

*b*

*B*

(2.18)

Where, *B* = foundation width, *d* = depth of Reinforcement measured from the bottom of the foundation, *u* = Location of the top layer of reinforcement measured from the bottom of the foundation, *N* = number of reinforcement layer, *h*=vertical distance between two consecutive layers, *CR* = cover ratio (*w/W*), *b* = width of reinforcement layer*, w* = width of longitudinal ribs,

*W* = Center-to-center of the longitudinal ribs. *N*

*, *

*N q*

are bearing capacity factors. *tan*

= loadspreading angle,

*B* = increase of footing width at depth d due to wide-slab effect.

Figure 2.2: Wide-slab failure mechanism in reinforced sand supporting a strip foundation (source

Huang and Menq, 1997)

**14 | **

P a g e

Chapter 2 LITERATURE REVIEW

**Kumar and Saran (2003) **performed laboratory model tests on closely spaced strip and square

footings on geogrid-reinforced sand. From the analysis of test results it was shown that the interference effects on bearing capacity and settlement of closely spaced square footings on reinforced sand were almost insignificant in comparison to those on isolated footings on reinforced sand; whereas a significant improvement in the tilt of adjacent square footings has been observed by providing continuous reinforcement layers in the foundation soil under the closely spaced footings.** **

**Patra et al. (2005) **conducted laboratory model tests on a strip foundation supported by multi-

layered geogrid-reinforced sand. The depth of embedment of the model foundation *d*

*f*

is varied from zero to *B* (width of foundation). Only one type of geogrid and one variety of sand at one relative density were used. The ultimate bearing capacity obtained from the model test program is compared with the theory proposed by Huang and Menq (1997). Based on the present tests, it appears that the theory provides a conservative prediction of the ultimate bearing capacity.

**Patra et al. (2006) **conducted laboratory model tests on strip foundation supported by geogrid-

reinforced sand subjected to eccentric load. Based on the laboratory test results, an empirical relationship called reduction factor is suggested that correlates the ratio of the ultimate bearing capacity of an eccentrically loaded foundation with that for a foundation where the load is applied centrally. The reduction factor is a function of *d*

*f *

*/ B* and *e/B*.

*q uR*

1

*R*

*KR q uR*

(2.19)

*R*

*KR*

4 .

97

*d f*

*B*

0 .

12

*e*

*B*

1 .

21

(2.20)

**15 | **

P a g e

Chapter 2 LITERATURE REVIEW

*q*

*uR (e)* = ultimate bearing capacity due to eccentric loading, *q*

*uR (e=0) =*

ultimate bearing capacity due to centric loading. *R*

*KR*

= reduction factor for geogrid-reinforced sand.

*d f*

= *D*

*f *

*+ d *

Where*, d *= depth of Reinforcement measured from the bottom of the foundation, *D*

*f*

= depth of foundation.

**16 | **

P a g e

# CHAPTER 3

# EXPERIMENTAL WORK

# AND METHODOLOGY

Chapter 3 EXPERIMENTAL WORK AND METHODOLOGY

**3.1 Introduction **

The experimental program was designed to study the bearing capacity of eccentrically loaded square footing on multi-layered geogrid reinforced sand bed. For this purpose, the laboratory model tests were conducted on square footings in one densities (i.e. dense), load eccentricity *e * was varied from 0 to 0.15*B *(*B *= width of strip footing), number of geogrid layer are varied (i.e.

*N* = 2, 3, 4). All tests have been conducted in surface case only. The ultimate bearing capacity was interpreted from each test and analyzed.

**3.2 Materials Used in the tests **

In this chapter two materials are used (sand and geogrids)

**3.2.1 Sand **

**Sample collection **

The sand used in the experimental program was collected from the river bed of a nearby Koel river. It is made free from roots; organic matters etc. by washing and cleaning. The above sample was then oven dried and properly sieved by passing through IS 710 micron and retained at IS

300 micron sieves to get the required grading. Dry sand is used as soil medium for the test as it does not include the effect of moisture and hence the apparent cohesion associated with it.

**Characteristics of sand **

The geotechnical properties of the sand used is given in Table 3.1. The grain size distribution curve is plotted in Figure 3.1.

All the tests were conducted in one density (dense) with relative densities of 69%. The average unit weight of relative densities is 14.32kN/m

3

. The friction angle at relative densities of 69% is 40.8

0

which are found out from direct shear tests.

**17 | **

P a g e

100

80

60

40

20

0

100

Chapter 3 EXPERIMENTAL WORK AND METHODOLOGY

**Property **

Table 3.1. Geotechnical property of sand

**Value **

Specific gravity *(G)*

Effective particle size (*D10*)

2.64

0.325mm

Mean particle size (*D50*)

Uniformity Coefficient (*Cu*)

Coefficient of Curvature (*Cc*)

Working dry density (

d

)

Maximum unit weight*(*

*d(max)*

*)*

Minimum unit weight *(*

*d(min)*

*)*

0.46mm

1.45

1.15

14.32 KN/m

3

15.19 KN/m

3

12.90 KN/m

3

120

1000

**Particle size (micron) **

Figure 3.1: Grain-size distribution curve of sand

**18 | **

P a g e

Chapter 3 EXPERIMENTAL WORK AND METHODOLOGY

**3.2.2 Geogrid **

Biaxial geogrid (SS20) is used for the present tests. Geogrid layers are placed inside the sand layer at desired values of *u/B* and *h/B. *The physical and mechanical properties of the geogrids as listed by the manufacturer are given below-:

Table 3.2: Physical properties of the geogrid:

**Parameters **

Polymer

Tensile strength at 2% strain

Tensile strength at 5% strain

**Quantity **

Polypropylene Pp

7 *KN/m*

14 *KN/m*

Aperture size

Aperture shape

Rib thickness

Junction strength

39*39 mm square

1.1 mm

95%

**3.3 Test tank **

A test tank of inside dimension 1.0m (length) 0.504m (width) 0.655m (height) is used. The two length sides of the tank were made of 12mm thick high strength fiberglass. The two width sides of tank are made up of mild steel of 8mm thickness. Scales are fitted on the middle of the four internal walls of the box so that it will be easier in maintaining the required density accurately.

All four sides of the tank are braced to avoid bulging during testing. The following considerations are taken into account while deciding the dimension of the tank. As per provision of IS 1888-1962 the width of the test pit should not be less than 5 times the width of the test plate, so that the failure zones are freely developed without any interference from sides. Chumar

**19 | **

P a g e

Chapter 3 EXPERIMENTAL WORK AND METHODOLOGY

(1972) has suggested that in case of cohesionless soil the maximum extension of failure zone is

2.5B to the both sides and 3B below the footing. By adopting the above tank size for the model footing (10cm x 10cm), it is ensured that the failure zones are fully and freely developed without any interference from the sides and bottom of the tank.

**3.4 Equipments used **

Load transferring shaft

Model footing

Proving ring

Dial gauge

a) Model footing

Model footing used for laboratory tests are made of mild steel plate of sizes 10

*cm*

10

*cm*

3

*cm*

.

One footing is meant for centroidal loading and other three are meant for eccentrical loading, the eccentricity being 0.05B, 0.1B, 0.15B respectively. The bottom of the footing was made rough by applying epoxy glue and then rolling the model footing over sand to give the effect of roughness of actual foundation. Circular depressions accommodating steel balls are made on the footings at proper points so that the loading pattern i.e. centroidal and eccentrical mode can be maintained. The load is transmitted from the loading pad to the footing through the combination of load transferring through spindle and steel ball. b) Proving ring

Three proving ring are used of 5 KN, 10 KN, 20 KN whose least count are 6.67N, 10.471N,

24.242N respectively. c) Dial gauge

Two dial gauges of following specifications are used during the tests.

**20 | **

P a g e

Chapter 3 EXPERIMENTAL WORK AND METHODOLOGY

Least count 0.01mm, Range 50 mm. The dial gauges are kept on the top portion of the longitudinal sides of the box because the top portion of the entire box has steel strip welded wide enough to accommodate the magnetic base of the dial gauge. The dial gauge needles are placed over the footing attached with the load transferring column. As the load is applied settlement occurs which is recorded by two dial gauges. The average of the two dial gauge readings is taken as required settlement in mm.

**3.5 Sample preparation **

First the internal dimensions of the tank are measured accurately and volume for the required thick layer (i.e. 2.5 cm) is calculated. After fixing a density, at which all the tests are to be done by we can calculate the weight of sand needed for that particular thickness of sand layer. Here the density to be maintained is 1.46 gm /cc and the layer of thickness is 2.5 cm. It is found that for maintaining the required density in 2.5 cm layer, required weight is 18.432 kg. The box is filled by sand using sand raining technique. Sand was poured into the test tank in layers of 2.5cm from a fixed height by raining technique to achieve the desired average unit weight of compaction. The height of fall was fixed by making several trials in the test tank prior to the model test to achieve the desired unit weight.

For the test without reinforcement footing is placed on the surface. For the application of eccentrically vertical loads to the footing, groove have been made on the top surface of footing at varying distance from the center of the footing as per the required eccentricity to be maintained.

For the test with reinforcement the first geogrid layer is placed at a depth of 0.35B from the base of the footing, the other subsequent layer of geogrid being placed at equal spacing of 0.25B.

After putting the geogrids, small weight are placed on them to keep the geogrids in position and then the required weight of sand is poured over it using sand raining technique.

**21 | **

P a g e

Chapter 3 EXPERIMENTAL WORK AND METHODOLOGY

**3.6 Test procedure **

After filling the tank surface to a desired height, the filled surface is leveled and the footing is placed on a predetermined alignment such that the load transferred vertically to the footing.

Then placing the steel ball over the circular groove of the footing, the load transferring shaft is placed over it, through which the load is transferred to the footing vertically.

Two dial gauges are placed over the footing on the opposite sides of the spindle. Then the initial readings of two dial gauges are noted.

The load is then applied and the footing is allowed to settle under the applied load. Each load increment is maintained till the footing settlement get stabilized which is measured from the two dial gauge readings.

The processes of load application is continued till there is failure of foundation soil due to sudden excessive settlement or up to 25mm settlement occur which can be observed in the proving ring of the jack where the load taken by the footing get decreased continuously.

On completion of the load test, the equipments are removed, tank emptied and the tank again filled for the next set of load test.

**22 | **

P a g e

Chapter 3 EXPERIMENTAL WORK AND METHODOLOGY

Figure 3.2: Photographic image of sand sample at the start of experiment

**23 | **

P a g e

Figure 3.3: Placing of geogrid

Chapter 3 EXPERIMENTAL WORK AND METHODOLOGY

**3.7 Geometric parameters **

A square foundation of width ‘B’ supported by geogrid-reinforced sand. There are four layers of geogrid, each having a width ‘b’. The top layer of geogrid is located at a depth u from the bottom of the foundation. The vertical distance between consecutive layers of geogrid is ‘h’. The primary aim has been to evaluate the following parameters in a dimensional form, from which the most beneficial effect of geogrid reinforcement can be derived. The reinforcement depth below the bottom of the foundation can be expressed as

*d*

*u*

*N*

1

*h*

The magnitude of the bearing capacity for a given foundation, sand and geogrid will depend on

*e/B, d/B. *In order to conduct a model tests with geogrid reinforcement in sand, it is important to decide the magnitude of *u/B *and *b/B* to derive maximum benefit in increasing the ultimate bearing capacity. Omar et al. (1992) was conducted a test for model strip and square foundation to decide the magnitude of *u/B. *By conducting model tests on surface foundation (*D*

*f *

= 0) supported by sand with multiple layer of reinforcement, which is shown by several previous investigators (Guido et al. 1987, Akhinmusuru and Akinbolande 1981, Yetimogulu et al. 1994,

Shin and Das 1999) for a given values of *h/B*, *d/B* and *b/B*. the magnitude of *BCR*

*u*

increases with

*(u/B)* and attains a maximum value at *(u/B)*

*cr*

. For *(u/B) > (u/B)*

*cr*

*,* the magnitude of *BCR*

*u*

decreases. By compiling several test results Shin and Das (1999) determined that *(u/B)*

*cr*

for strip foundations can vary between 0.25 and 0.5. Omar et al. (1993c) determined that *(b/B)*

*cr *

8 for strip footing and 4.5 for square footing. Guido et al. (1987) determined that *(h/B)*

*cr *

should be lie in between 0.25 to 0.4. Keeping all these factors in mind it is decided to adopt the following parameters for the present tests.

*u/B* = 0.35, *h/B* = 0.25, *b/B* = 4.5

**24 | **

P a g e

Chapter 3 EXPERIMENTAL WORK AND METHODOLOGY

**3.8 Model test series **

Table: 3.3: The sequence of the model test series (For unreinforced case)

**Test series **

1-4

*D f*

* / B *

0

*B/ L *

1

*e / B *

0,0.05,0.1,0.15

Table: 3.4: The sequence of the model test series (For reinforced case)

Test series

5-8

*D f*

* / B *

0

*B/ L *

1

*e / B *

0,0.05,0.1,0.15

*N *

0.6,0.85,1.1

9-12

13-16

0

0

1

1

0,0.05,0.1,0.15

0,0.05,0.1,0.15

0.6,0.85,1.1

0.6,0.85,1.1

**25 | **

P a g e

# CHAPTER 4

# EXPERIMENTAL RESULTS

# AND ANALYSIS

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

**4.1 Introduction **

The load tests for surface square footings of dimension (10cmx10cm) have been conducted in the laboratory with load eccentricity varying from 0 to 0.15*B* with an increment of 0.05*B* in unreinforced sand and with geogrid SS20 as reinforcement in 2, 3 and 4 number of layers in geogrid reinforced sand. The results of each load tests were plotted in arithmetic graph paper in the form of load-settlement curve. The analysis of the test results is discussed in detail in the following paragraphs.

**4.2 Ultimate bearing capacity for unreinforced sand (test series A***) *

*)*

**4.2.1 Model test results **

The combined graph showing load-settlement curve is shown in Figure 4.1. From Figure 4.1 it is seen that as the eccentricity ratio (*e*/*B*) increases, the load carrying capacity decreases as well as the total settlement decreases. At any load intensity, the increase in settlement is accompanied by increase in eccentricity or at any settlement, the increase in eccentricity is accompanied by decrease in load intensity.

**26 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

Figure 4.1: Plot of load-settlement curves for various eccentricity ratio in unreinforced sand

(Present experimental data)

From the load-settlement curves shown in Figure 4.1, the ultimate bearing capacities are determined for each test are shown in Figure 4.2 along with the theoretical values using well known available theories (Terzaghi, 1943; Meyerhof, 1953; Vesic, 1973; Hansen, (1970) and IS code IS: 6403-1981). It is seen that Meyerhof’s theory is in close agreement to those of experimental values obtained, otherwise, the values obtained by experiments is usually higher than those obtained using other theories. The corresponding values are also shown in Table 4.1.

It can be seen that experimental bearing capacities for a given *D*

*f*

* */*B *are significantly higher than those predicted by theory. Investigators like Balla 1962, Bolt 1982, Cichy et al. 1978, Ingra and

Baecher 1983, Hartikainen and Zadroga 1994, Milovic 1965, Saran and Agarwal 1991, Shiraishi

1990, and Zadroga 1975 revealed that bearing-capacity model test results which are being carried out in various geotechnical laboratories of shallow footings and strip foundations are, in general, much higher than those calculated by traditional methods

**27 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

Figure 4.2: Variation of *q*

*u*

with different *e/B*

1

2

3

4

Table 4.1 Calculated values of ultimate bearing capacity *q*

*u*

by Meyerhof (1951), Terzaghi

(1943), Vesic (1973), Hansen (1970), and IS code IS: 6403-1981* *

Sl no

*N e/B D f *

*/B*

Present Meyrhof Terzaghi Vesic I.S. code Hansen experiment

*q u*

(KN/m

2

)

*q u q u q u q u q u*

(KN/m

2

) (KN/m

2

) (KN/m

2

) (KN/m

2

) (KN/m

2

)

=40.8

=40.8

=40.8

=40.8

=40.8

0 0 0

0 0.05 0

0 0.1 0

0 0.15 0

121

102

85

72

116 77.47

100.67 69.82

86.59 62

73.16 54

54

48

43

37.65

72

64.62

57.46

50.3

39.37

35.4

31.47

27.55

**28 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

DeBeer (1965) compiled several bearing capacity test results which are shown in Figure 4.3 as a plot of *N*

vs.

*B*. The value of *N*

rapidly decreases with the increase in

*B*. In addition, DeBeer

(1965) compared the variation of *N*

obtained from small scale laboratory and large scale field test results, and these are given in Figure 4.4.

**29 | **

P a g e

Figure 4.3: Variation of *N*

with

*B *(adapted after DeBeer, 1965)

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

Figure 4.4: Comparison of *N*

obtained from tests with small footings and large footings of 1m² area on sand (adapted after DeBeer, 1965).

**4.3 Ultimate bearing capacity for geogrid reinforced sand (test series B) **

**4.3.1 Model test results **

The load tests have been conducted for surface square foundation (10cm x 10cm) supported by multi-layered geogrid reinforcement (i.e. *d/B* = 0.6, 0.85, 1.1) with load eccentricity *e/B* (=0.05,

0.1 and 0.15). The results of load intensity and corresponding settlement of each test have been plotted in arithmetic graph paper. The ultimate bearing capacity in each case has been determined by double tangent intersection method.

The combined load-settlement graphs are shown in Figures 4.5, 4.6, and 4.7 to quantify the effect of eccentricity at any number of reinforcement layer (i.e. *N*=2, 3 or 4). From Figures 4.5 through

4.7 it is seen that with any number of geogrid layers, as the eccentricity increases, the ultimate bearing capacity decreases. Furthermore, it is seen that with any number of geogrid layers, at any bearing pressure the settlement of footing increases with increase in eccentricity. Similarly, it is

**30 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS also seen that at any number of geogrid layers, bearing pressure at any settlement level decrease with increase in eccentricity of the load.

The bearing capacity of footing increases with the increase in number of geogrid layers and decreases with different eccentricity ratio.

Figure 4.5: Variation of load-settlement curve with depth of reinforcement layer *N*=2

Figure 4.6: Variation of load-settlement curve with depth of reinforcement layer *N*=3

**31 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

Figure 4.7: Variation of load-settlement curve with depth of reinforcement layer *N*=4

The load-settlement curves have been shown in Figures 4.8 through 4.11 to show the effect of number of geogrid layers on the load bearing capacity and settlement at any eccentricity of load application. It is seen that at any eccentricity, the bearing pressure increases with increase in the number of geogrid layers at any level of settlement. Similarly at any level of bearing pressure, the settlement of the footing decreases with increase in the number of reinforcing layer.

**32 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

Figure 4.8: Variation of load-settlement curve with surface case (*e/B*=0)

**33 | **

P a g e

Figure 4.9: Variation of load-settlement curve with surface case (*e/B*=0.05)

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

Figure 4.10: Variation of load- settlement curve with surface case (*e/B*=0.1)

**34 | **

P a g e

Figure 4.11: Variation of load-settlement curve with surface case (*e/B*=0.15)

**35 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

**4.3.2 Analysis of test results **

A reliable procedure for estimating the ultimate bearing capacity under centric loading for a strip foundation supported by geogrid reinforced sand is yet to be developed. Takemura et al. (1992) conducted several centrifuge tests for surface foundation to determine the ultimate bearing capacity of a strip foundation on geogrid reinforced sand. Based on the model tests they concluded that, just before load intensity reached its peak, a rigid soil block is formed under the foundation, and this block behaves as if it were an embedded foundation (Figure 4.12). The ultimate bearing capacity without depth factor can conservatively be given as

*q uR*

*d*

*N q*

1 2

*BN*

(4.1)

Where, *q*

*uR = *

Ultimate bearing capacity on geogrid-reinforced sand

*, *

*b* = width of reinforcement layer, *d* = depth of Reinforcement measured from the bottom of the foundation,

.6)

*d = u+ (N-1) h*

(4.2)

(4.6)

*N* = number of reinforcement layer; h= vertical distance between two consecutive layers;

.6)

*u* = location of the top layer of reinforcement measured from the bottom of the foundation.

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

*d h h u h h *

*B *

*Q uR *

Geogrid

1

*b *

Figure 4.12: Assumed failure mode under a centrally loaded surface square foundation over geogrid-reinforced sand (Source Takemura et al. 1992)

2

3

4

*N *

**36 | **

P a g e

Chapter 4

*Q uR(e) *

EXPERIMENTAL RESULTS AND ANALYSIS e

**F**igure 4.13: Assumed failure mode under an eccentrically loaded square foundation on geogrid-

reinforced sand** **

Assuming the failure mechanism under centric load as shown in Figure 4.12 to be correct, it appears that the ultimate bearing capacity due to eccentric loading (Figure 4.13) may be expressed in a form similar to Eq. 2.9.

*q uR*

*q uR*

1

*R*

*KR*

*R*

*KR*

1

*q uR*

(

*e*

)

*q uR*

(4.3)

(4.6)

.6)

(4.4)

(4.6)

.6)

**37 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

Where,

*q uR*

(*e* )

= Ultimate bearing capacity due to eccentric loading; capacity due to centric loading;

*R*

*KR*

= Reduction factor

In Figure 4.13,

*Q uR*

(*e* ) is the ultimate load per unit length of the foundation with a load eccentricity *e* and *d*

*f*

* *is the depth of reinforcement layer below the bottom of the foundation.

*d f*

*d*

The reduction factor may be expressed as

*R*

*KR*

1

*d f*

*B*

2

*e*

*B*

3

(4.5)

(4.6)

.6)

Here

*1, *

*2, *

*3*

are constants.

The purpose of this thesis is to conduct several laboratory model tests on square foundation over geogrid reinforced sand bed with varying *e/B* and *N* and evaluate the coefficients

*1, *

*2, *

*3* as given in Eq. 4.5

The ultimate load in each case of test series *B* has been determined and presented in Table 4.2 and Figure 4.14

. Using experimental ultimate bearing capacities as shown in Figure 4.14, the ratio

*q uR*

*q uR*

has been calculated in each case. The reduction factor *R*

*kR*

= 1 -

*q uR*

*q uR*

in each case is determined and shown in column 6 of Table 4.2. .

**38 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

**39 | **

P a g e

*D f*

*B*

0

0

0

0

0

0

0

0

0

Figure 4.14: Variation of *q*

*uR (e)* versus *e/B* and *d*

*f*

* /B* at *D*

*f *

*/ B*=0

*N *** **

2

2

2

3

3

3

4

4

4

Table 4.2 Values of reduction factor

*e*

*B*

*u*

exp

*erimentall y q uR*

*q uR*

*R*

*KR*

1

*q uR*

(

*e*

)

*q uR*

0.05

0.1

0.15

0.05

0.1

0.15

0.05

0.1

0.15

315kN/m

2

270kN/m

2

225 kN/m

2

340 kN/m

2

290 kN/m

2

240 kN/m

2

421 kN/m

2

342 kN/m

2

280 kN/m

2

0.875

0.75

0.625

0.85

0.725

0.6

0.79

0.64

0.528

0.125

0.25

0.375

0.15

0.275

0.4

0.21

0.36

0.472

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

The reduction factor *R*

*kR* has been shown in Figure 4.15.

From this figure it can be seen that for any given *d*

*f*

/B, the plot of *R*

*KR* versus *e/B* is approximately a straight line in a log-log plot. The average value of

*3*

is about 0.89

Thus

*R*

*KR*

(*e/B*)

0.89 (4.6)

Figure 4.15: Variation of *R *

*KR* verses *e/B* at *D*

*f *

*/B*=0

Figure 4.16 shows the plots of R

KR

versus *d*

*f *

/ B for *e/B* = 0.05, 0.1, 0.15. The slope of the average lines for all *e/B* values were found out and the value of

*2*

is 0.61.

*R*

*KR*

(*d*

*f*

*/B*)

0.61

(4.7)

**40 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

`

Figure 4.16: Variation of R

KR verses *d*

*f /*

*B* at *D*

*f *

*/B*=0 for *e/B*=0.05,0.1,0.15

Thus,

*R*

*KR*

1

*d f*

*B*

0 .

61

*e*

*B*

0 .

89

1

*d B*

*R f*

*KR*

0 .

61

0 .

89

(4.8)

(4.9)

Using the average lines for each *e/B* shown in Figure 4.16 the magnitudes of

*1*

were calculated.

These deduced values of

*1*

are plotted against the corresponding *e/B* in Figure 4.17. The average value of

1

from this plot is about 2.39.

**41 | **

P a g e

Chapter 4

3

2

EXPERIMENTAL RESULTS AND ANALYSIS

1

0

0.00

0.02

0.04

0.06

0.08

0.10

0.12

0.14

e/B

Figure 4.17: Variation of

1 with e/B

Thus,

*R*

*KR*

2 .

39

*d f*

*B*

0 .

61

*e*

*B*

0 .

89

(4.10)

Table 4.3 Comparison of predicted reduction factor with those observed from experiments

**Sl no **

1

2

3

*N *

2

*d f*

*/B *

0.6

0.6

0.6

*e/B *

0.05

0.1

0.15

*R*

*KR(Expt)*

0.125

0.25

0.375

*R*

*KR(pred)*

0.12

0.23

0.32

*%Deviation *

-2.74

-10.88

-15.94

4

5

6

7

8

9

4

3

0.85

0.85

0.85

1.1

1.1

1.1

0.05

0.1

0.15

0.05

0.1

0.15

0.15

0.275

0.4

0.21

0.36

0.472

0.15

0.28

0.40

0.18

0.33

0.47

0.31

1.37

0.00

-19.26

-10.32

-0.83

**42 | **

P a g e

Chapter 4 EXPERIMENTAL RESULTS AND ANALYSIS

**4.3.3 Conclusions **

The results of a number of laboratory model tests conducted to determine the ultimate bearing capacity of a square foundation supported by sand and subjected to an eccentrically load over geogrid-reinforced sand is presented here. Tests have been conducted on dense sand. All the tests were conducted in surface condition. The load eccentricity ratio *e*/*B *is varied from 0 to 0.15, and the number of geogrid layer is varied from *N *= 0, 2, 3 and 4. Based on the test results, following conclusions are drawn:

A comparison of the *R*

*KR* values obtained from the experiments as well as predicted from experiments has been made. The same is presented in Table 4.3

it is seen that in general the deviation is within 10% except in one case it is 20%.

It is to be pointed out that the present tests were conducted with one model footing and one type of sand. The existence of possible scale effects by changing the width of the foundation has not been verified. This may lead to changes in the magnitudes of the constants

*1*,

*2* and

*3*.

**43 | **

P a g e

# CHAPTER 5

# NUMERICAL MODELLING

Chapter 5

**5.1 Introduction**

NUMERICAL MODELLING BY ANN

Neural network model is developed to estimate the reduction factor (*RF*) for predicting the ultimate bearing capacity of eccentrically loaded shallow foundations on geogrid reinforced sand bed. The experimental database of Patra et al. (2006) is used for the analysis. Different sensitivity analysis was carried out to find out the important parameters affecting reduction factor. The concept of reduction factor i.e. the ratio of the ultimate bearing capacity of the foundation subjected to an eccentric load to the ultimate bearing capacity of the foundation subjected to a centric vertical load. Emphasis was given on the construction of neural interpretation diagram, based on the trained weights of the developed neural network model. An

ANN model equation is developed based on the trained weights of the neural network model.

Finally, the results from ANN are compared with the empirical equation given by Patra et al.

(2006). The predictability of ANN equation is found to be better than empirical one.** **

**5.2 Overview of artificial neural network **

**5.2.2 Biological model of a neuron **

McCulloch and Pitts (1943) developed the first artificial neuron. ANNs are a form of artiﬁcial intelligence (AI), which, simulate the biological structure of the human brain and nervous system. (Shahin *et al.* 2002). The artificial neural network is related to the biological counterparts. The characteristics of brain function that inspired the development of artificial neural network. The neuron is the basic unit for processing the signals in the biological nervous system. The neurons have three principal components. i)Dendrites, ii)cellbody. iii) axon. Each neuron receives and processes the signals from other neurons through the input paths called dendrites. The dendrites collect the signals and send them to the cell body, which sums the incoming signals. Then this charge produces an output signal.

**44 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

The output signal is then transmitted to the neighboring neurons through a single long stem like fibre that is called axon. The axon of a neuron connects to dendrites of the neighboring neurons through junctions called synapses.

Figure 5.1: Biological neuron (after Park, 2011)** **

**5.2.2 The concept of artificial neural network **

The architecture of ANNs consists of a series of processing elements (PEs), or nodes, that are usually arranged in layers: an input, output and one or more hidden layers, as shown in Figure

5.1. The determination of number of hidden layers and the number of neurons in each hidden layer is a significant task. The number of hidden layers is usually determined first and is a critical step. The number of hidden layers required generally depends on the complexity of the relationship between the input parameters and the output value (Park, 2011).

**45 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

Figure 5.2: Typical structure and operation of ANN

ANNs learn from data set presented to them and use these data to adjust their weights in an attempt to capture the relationship between the model input variables and the corresponding outputs. Consequently, Artificial Neural Networks do not need prior knowledge regarding the nature of the mathematical relationship between the input and output variables. This is the most beneficial effect of ANN.

**5. 2.3 Application of ANN in Geotechnical Engineering **

In case of many geotechnical engineering problems ANNs have been applied and have demonstrated some degree of success such as ANNs have been used in pile bearing capacity prediction, stress-strain modeling of sands interpretation of site investigation, seismic liquefaction assessment, earth retaining structures, settlement of structures, slope stability, liquefaction, soil compaction, soil swelling and classification of soils.

**5.3 Problem Definition **

Develop a neural network model from the results of extensive laboratory model tests conducted by Patra et al. (2006) .Extensive laboratory model tests have been conducted on a strip footing lying over sand bed subjected to an eccentric load to determine the ultimate bearing capacity

.The ultimate bearing capacity of footing at any depth of embedment subjected to eccentric load

**46 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN can be determined by knowing the ultimate bearing capacity of footing subjected to centric and vertical load at that depth of embedment and the corresponding reduction factor. This reduction factor (*RF*) is the ratio of the ultimate bearing capacity of strip footing on geogrid reinforced soil subjected to an eccentric load to the ultimate bearing capacity of the footing subjected to a centric vertical load at the same depth of embedment.

In the present study, the feedforward backpropagation neural network is trained with Levenberg-

Marquadrt algorithm, which is known as Levenberg-Marquadrt neural network (LMNN). Based on the trained weights of the developed neural network different sensitivity analysis are carried out to study the important parameters and Neural Interpretation Diagram (NID) is constructed to find out the direct or inverse effect of input parameters on the output. A prediction model equation is developed with the weights of the neural network as the model parameters.

Furthermore, the developed reduction factor is compared with the developed empirical equation by Patra et al. (2006).

**5.4 Database and Preprocessing **

The laboratory experimental data used for neural network model is presented in Table 5.1. The database consist of parameters like load eccentricity (*e*), embedment ratio (*d*

*f *

*/B*).Thirty six numbers of laboratory model tests results as conducted in this series have been considered for analysis. In this ANN model, two dimensionless input parameters are *e / B*and *d*

*f *

*/B *and the output is reduction factor (*RF)*.* *

*d f *

= *d *+ *D*

*f*

Where*, d* = depth of Reinforcement measured from the bottom of the foundation.

*D f*

= depth of foundation.

(5.1)

(4.6)

.6)

**47 | **

P a g e

*q*

*UR*

*e B*

,

*d f q*

*UR*

*e B*

0 ,

*d f*

*B*

*B*

*RF*

(5.2)

(4.6)

.6)

Chapter 5 NUMERICAL MODELLING BY ANN

Reduction factor (*R*

*KR*

) based upon Patra et.al. (2006) is given as below

*q*

*UR*

*e B*

,

*d f q*

*UR*

*e B*

0 ,

*d f*

*B*

*B*

1

*R*

*KR*

(5.3)

(4.6)

Where,

*q*

*UR*

*e B*

,

*d f*

*B*

,

.6)

=Ultimate bearing capacity of footing with eccentricity ratio *e*/*B *at an embedment ratio of *d*

*f*

/*B *on geogrid reinforced soil and

*q*

*UR*

*e B*

0 ,

*d f*

*B*

=Ultimate bearing capacity of footing with centric vertical loading (*e*/*B* = 0) at the same of embedment ratio.

Out of 36 test records as shown in Table 5.1, 27 tests are considered for training and the remaining 9 are reserved for testing. Each record represents a complete model test where an eccentrically loaded strip footing supported by geogrid reinforced sand bed was subjected to failure. All the variables (i.e. inputs and output) are normalized in the range [-1, 1] before training. A feed forward back-propagation neural network is used with hyperbolic tangent sigmoid function and linear function as the transfer function. The backpropagation algorithm trains the network by iteratively adjusting all the connection weights among neurons, with the goal of finding a set of connection weights that minimizes the error of the network, i.e. sum-ofthe-squares between the actual and predicted output (least squares error function, Olden 2000). A feedforward neural network has one-way connection to other units. Inputs are passed from layer to layer in a feed-forward manner. In the model, each input unit is connected to each hidden unit and then each hidden unit is connected to each output unit Ozesmi and Ozesmi 1999).The network is trained (learning) with Levenberg–Marquardt (LM) algorithm as it is e ﬃcient in comparison to gradient descent back-propagation algorithm (Goh et al. 2005; Das and Basudhar

2006). The ANN has been implemented using MATLAB V 7.11.0 (R2010b).

**48 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

Table5.1. Dataset used for training and testing of ANN model

**Experimental **

*e*

*B*

**Data type **

**(1) **

Training

**Expt. No. **

**(2) **

1

**(3) **

0.05

*d f *

*/B *

**(4) **

0.6

*q u*

**(kN/m**

**2**

**)*** *

**(5) **

174

*RF *

** (6) **

0.845

2

3

4

5

0.1

0.15

0

0.05

0.6

0.6

0.85

0.85

133

85.5

254

222

0.646

0.415

1.000

0.874

6

7

8

9

10

11

12

13

0.1

0

0.05

0.15

0

0.1

0.15

0.05

0.85

1.1

1.1

1.1

1.35

1.35

1.35

1.6

178

336

296

178

393

289

223

440

0.701

1.000

0.881

0.530

1.000

0.735

0.567

0.875

14

15

16

17

18

19

0.1

0.15

0

0.05

0.1

0

1.6

1.6

1.85

1.85

1.85

2.1

355

250

584

513

423

667

0.706

0.497

1.000

0.878

0.724

1.000

**49 | **

P a g e

Chapter 5

Testing

**Data type **

**(1) **

*e*

*B*

0.05

0

0.15

0.1

0.15

0

0.15

0.1

0.05

0

0.1

0.15

0.05

0.1

**(3) **

0.05

0.15

0

29

30

31

32

25

26

27

28

**Expt. No. **

**(2) **

20

21

22

23

24

33

34

35

36

1.35

1.6

1.85

2.1

1.6

0.6

0.85

1.1

1.1

1.6

1.1

1.1

1.6

1.6

*d f *

*/B *

NUMERICAL MODELLING BY ANN

**Experimental **

*q u*

**(kN/m**

**2**

**)*** *

*RF *

**(4) **

2.1

**(5) **

578

** (6) **

0.867

2.1

1.1

355

311

0.532

1.000

228

159

393

328

0.733

0.511

0.866

0.722

240

206

123

239

345

503

317

478

280

454

0.529

1.000

0.484

0.711

0.878

1.000

0.543

0.717

0.900

1.000

**50 | **

P a g e

Chapter 5

**5.5 Results and Discussion **

NUMERICAL MODELLING BY ANN

The maximum, minimum, average and standard deviation values of the two inputs and one output parameters used in the ANN model are presented in Table 2. They are computed from the database. The schematic diagram of ANN architecture is shown in Figure 2. The number of hidden layer neurons is varied and the mean square error (mse) was noted found to be 0.001 when there were two neurons in the hidden layer [Figure 3]. Therefore, the final ANN architecture is retained as 2-2-1 [i.e. 2 (input) – 2 (hidden layer neuron) – 1 (Output)].Mean

Square Error (MSE) is defined as

*MSE*

*i n*

1

*RF i n*

*RF p*

2

(5.4)

(4.6)

.6)

Coefficient of efficiency, *R*

2

is expressed as

*R*

2

*E*

1

*E*

2

*E*

1

(5.5)

(4.6)

.6) where

*E*

1

*i n*

1

*RF i*

*RF*

2

(5.6)

(4.6) and

*E*

2

*i n*

1

*RF*

*P*

*RF i*

2

.6)

(5.7)

(4.6)

.6)

Where

*RF i*

,

*RF*

,

*and RF p*

are the experimental, average experimental and predicted *RF* values respectively.

*n* = number of training data

**51 | **

P a g e

**52 | **

P a g e

Chapter 5

**Parameter **

*e/B*

*d f*

*/B*

*RF *

NUMERICAL MODELLING BY ANN

Table5.2. Statistical values of the parameters

**Maximum value Minimum value Average value Standard **

**Deviation **

0.15 0 0.075 0.056

2.1

1

0.6

0.415

1.35

0.774

0.456

0.185

[INPUT LAYER=I] [HIDDEN LAYER=m] [OUTPUT LAYER=n]

*e/B *

*RF d f *

*/B *

Figure .5.3: The ANN Architecture

Chapter 5

0.006

0.005

0.004

0.003

0.002

0.001

NUMERICAL MODELLING BY ANN

1.0

1.5

2.0

No. of hidden layer

2.5

3.0

Figure.5.4: Variation of hidden layer neuron with mean square error (mse)

The coefficient of efficiency (*R*

*2*

) are found to be 0.9964 for training & 0.9976 for testing as shown in Figures 5.5 and 5.6

. Data used in this analysis have been obtained from laboratory model tests. The details of the model tests are given below:

The model foundation used for this study had a width of 80 mm and length of 360 mm. It was made out with a mild steel plate with thickness of 25 mm. The bottom of the model foundation was made rough by coating it with glue and then rolling it over sand. Bearing capacity tests were conducted in a box measuring 0.8m (length)*0.365m (width)*0.7m (depth).The inside walls of the box and edges of the model were polished to reduce friction as much as possible. The sides of the box are heavily braced to avoid lateral yielding. Locally available sand was used for the present model tests. The used for the tests had 100% passing 0.7 mm size sieve and 0% passing

0.3 mm size sieve. For all the tests, the average unit weight and the relative density of compaction were kept at 14,81KN/m

3

and 72% respectively. The average peak friction angle

**53 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN of the sand at the tests conditions are determined from direct shear tests was 42.4

°

.Tensar biaxial geogrid (BX1100) was used for the present tests. In conducting a model test, sand was placed in lift of 25 mm in the test box. For each lift, the amount of the soil required to produce the desired unit weight was weighed and compacted using a flat bottom wooden block. Geogrid layers are placed in the sand at desired values of *u/B* and *h/B* .The model foundation was placed on the surface as well as at desired depths below the surface of the sand bed. Centric or eccentric load have been applied to the model foundation by an electrically operated hydraulic jack. Two dial gauges are used and having 0.01-mm accuracy placed on either side of the model foundation recorded the settlement of the foundation.. For the present test program, the following parameters were adopted for the geogrid reinforcement layers: *u/B* =0.35, *h/B* =0.25, *b/B*=5. All the data used in the training and the testing are from the same source and are of same nature. Probably, this may be one of the causes for better fitting in both testing and training phase as well. The weights and biases of the network are presented in Table.3.These weights and biases can be utilized for interpretation of relationship between the inputs and output, sensitivity analysis and framing an ANN model in the form of an equation. The residual analysis was carried out by calculating the residuals from the experimental reduction factor and predicted reduction factor for training data set. Residual (*e*

*r*

) can be defined as the difference between the experimental and predicted *RF* value and is given by

*e r*

*RF i*

*RF p*

(5.8)

(4.6) the residuals are distributed evenly along the horizontal axis of the plot. Therefore, it can be said that the network is well trained and can be used for prediction with reasonable accuracy.

**54 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

1.200

1.000

0.800

0.600

0.400

0.200

Training data y = 0.9963x + 0.0028

R² = 0.9964

0.000

0.000

0.200

0.400

0.600

0.800

**Reduction factorExpt **

1.000

1.200

figuer.5.5: Correlation between Predicted Reduction Factor with Experimental Reduction Factor for training data

1.200

1.000

0.800

Testing data y = 1.01x - 0.0131

R² = 0.9976

0.600

0.400

0.200

0.000

0.000

0.200

0.400

0.600

0.800

1.000

1.200

**Reduction factorExpt **

Figure .5.6: Correlation between Predicted Reduction Factor with Experimental Reduction

Factor for testing data

**55 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

Table5.3. Values of connection weights and biases

**Weight **

**Neuron Bias **

*W iK w k*

Hidden

Neuron 1

(k=1)

Hidden

Neuron 2

(k=2)

*e/B *

1.1141

-0.1711

*d f *

*/B *

-3.0435

-0.0064

*RF *

-0.2553

63.7472

*b hk*

-3.1742

1.9935

*b*

*0*

-61.3437

0.040

0.030

0.020

0.010

0.000

-0.010

0

-0.020

-0.030

-0.040

Training data

5 10

Experiment no

15 20 25 30

Figure 5.7: Residual distribution of training data

**5.5.1 Sensitivity Analysis**

Sensitivity analysis is carried out for selection of important input variables. Different approaches have been suggested to select the important input variables. The Pearson correlation coefficientis considered as one of the variable ranking criteria in selecting proper inputs for the ANN (Guyon

**56 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN and Elisseeff 2003; Wilby et al. 2003). Garson (1991) proposed a method, later on modiﬁed by

Goh (1995), for partitioning the neural network connection weights in order to determine the relative importance of each input variable in the network. It is important to mention that

Garson’s algorithm uses the absolute values of the connection weights when calculating variable contributions, and therefore does not provide the information on the effect of input variables in terms of direct or inverse relation to the output. Olden et al. (2004) proposed a connection weights approach based on the NID, in which the actual values of input-hidden and hiddenoutput weights are taken. It sums the products across all the hidden neurons, which is defined as

*S i*

. The relative inputs are corresponding to absolute *S*

*i*

values, where the most important input corresponds to highest *S*

*i*

value. The details of connection weight approach are presented in

Olden et al. (2004).

Table 5. 4. Cross-correlation of the input and output for the reduction factor

**Parameters **

*e/B*

*e/B*

1

*d f *

*/B*

0

*RF*

-0.986

*D f*

*/B*

*RF*

1 0.06

1

Table 5.4 shows the cross correlation of inputs with the reduction factor. From the table it is observed that *RF* is highly correlated to *e/B *with a cross correlation values of 0.986, followed by

*d f *

*/B*. The relative importance of the two input parameters as per Garson’s algorithm is presented in Table 5.5. The *e/B *is found to be the most important input parameter with the relative importance value being 61.59% followed by 38.40% for *d*

*f *

*/ B*. The relative importance of the present input variables, as calculated following the connection weight approach (Olden et al.

**57 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

2004) is also presented in Table 5.The*e/B *is found to be the most important input parameter (*S*

*i*

value =-11.1916) followed by *d*

*f *

*/ B *(*S*

*i*

value =0.369). The *S*

*i*

values being negative imply that

*e/B*are indirectly and *d*

*f *

*/B *is directly related to *RF* values. In other words, increasing *e/B *will lead to a reduction in the *RF *and hence leads to lower ultimate bearing capacity. Increasing *d*

*f*

* / *

*B *increases the *RF*, and hence increases the bearing capacity

Table.5.5: Relative Importance of different inputs as per Garson’s algorithm and Connection weight approach

**Parameters **

**Garson’s algorithm **

**Connection weight approach **

(1)

Relative

Importance (%)

Ranking of inputs as per relative importance

*S i*

values as per

Connection weight approach* *

Ranking of inputs as per relative importance

*e /B *

(2)

61.59

(3)

1

(4)

-11.191

(5)

1

*D f*

* / B *

38.40 2

**5.5.2 Neural Interpretation Diagram (NID) **

0.369 2

Ozesmi and Ozesmi (1999) proposed the Neural Interpretation Diagram (NID) for providing a visual interpretation of the connection weights among neurons, where the relative magnitude of each connection weight is represented by line thickness (i.e. magnitude of weights is proportional to line thickness) and line shading represents the direction of the weight (i.e. solid lines denote positive, excitatory signals and dashed lines denote negative, inhibitor signals). The relationship between the inputs and outputs is determined in two steps since there are input-

**58 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN hidden layer connections and hidden-output layer connections. Positive effects of input variables are depicted by positive input-hidden and positive hidden-output connection weights, or negative input-hidden and negative hidden-output connection weights. Negative effects of input variables are depicted by positive input-hidden and negative hidden-output connection weights, or by negative input-hidden and positive hidden-output connection weights. Therefore, the multiplication of the two connection weight directions (positive or negative) indicates the effect that each input variable has on the output variable. The input directly related to the output is represented with a grey circle and that having inverse effect with blank circle.

It is seen from Table 5.5 (4 th

Column) that *S*

*i*

values for parameters (*e/B*) are negative indicating that the parameters (*e/B*) are inversely related to *RF* values, whereas *S*

*i*

value for parameter (*d*

*f *

*/B*) being positive is directly related to *RF* values. This is shown in Figure 5.8. The ANN model is not a “black box” model and could explain the physical effect of the input parameters on the output.

*e/B *

1

*RF d f*

*/B*

2

Figure 5.8: Neural Interpretation Diagram (NID) showing lines representing connection weights and effects of inputs on Reduction Factor (*RF*)

**59 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

**5.5.3 ANN model equation for the Reduction Factor based on trained neural network **

A model equation is developed with the weights obtained from trained neural network as the model parameters (Goh et al. 2005). The mathematical equation relating input parameters (*e/B, d*

*f *

*/ B*) to output (Reduction Factor) can be given by

*RF n*

*f n b*

0

*k h*

1

*w k f n*

*b hk*

*i m*

1

*w ik*

*X i*

(5.9)

(4.6) where *RF*

*n*

= normalized value of *RF* in the range [-1, 1], *f*

*n*

= transfer function, *h* = no. of neurons in the hidden layer, *X*

*i*

= normalized value of inputs in the range [-1, 1], *m* = no. of input variables, *w*

*ik*

= connection weight between *i*

*th*

layer of input and *k*

*th *

neuron of hidden layer, *w*

*k*

= connection weight between *k*

*th*

neuron of hidden layer and single output neuron, *b*

*hk*

= bias at the

*k th*

neuron of hidden layer, and *b*

*o*

= bias at the output layer.** **

The model equation for Reduction Factor of eccentrically loaded strip foundation supported by geogrid reinforced sand bed was formulated using the values of the weights and biases shown in

Table 3as per the following steps.

Step – 1

The input parameters were normalized in the range [-1, 1] by the following expressions

*X n*

2

*X*

*X*

1 max

*X*

min

*X*

min

1

(5.10)

(4.6) where, *X*

*n*

= Normalized value of input parameter *X*

*1*

, and *X*

*max*

and *X*

*min *

are maximum and minimum values of the input parameter *X*

*1*

in the data set.

Step – 2

Calculate the normalized value of reduction factor (*RF*

*n*

) using the following expressions

**60 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

*A*

2

*A*

1

1 .

1141

*e B*

*n*

0 .

1711

*e B*

*n*

3 .

0435

*d f*

*B*

*n*

0 .

0064

*d f*

*B*

*n*

3 .

1742

1 .

9935

(5.11)

(5.12)

.6)

(4.6)

*B*

1

0 .

2553

*e*

*A*

1

*e*

*A*

1

*e*

*A*

1

*e*

*A*

1

(4.6)

*B*

2

63 .

7472

*e e*

*A*

2

*e*

*A*

2

*A*

2

*e*

*A*

2

.6)

(5.14)

(4.6)

*C*

1

61 .

3437

*B*

1

*B*

2

*RF n*

*C*

1

(4.6)

(5.16)

.6)

(4.6)

Step – 3

.6)

Demoralize the *RF*

*n *

value obtained from Eq. to actual *RF* as

*RF*

0 .

5

*RF n*

1

*RF*

max

*RF*

min

*RF*

min

(5.17)

*RF*

0 .

5

*RF n*

1

1

0 .

415

0 .

415

(4.6)

(5.18)

.6)

(4.6)

**5.6 Comparison with empirical equation by Patra et al. (2006) **

.6)

Patra et al. (2006), proposed an reduction factor (*R*

*KR*

) for eccentrically loaded strip foundation supported by geogrid-reinforced sand which is given by

*R*

*KR*

4 .

97

*d f*

*B*

0 .

12

1 .

21

*q*

*UR q*

*UR q*

*UR*

1

*R*

*KR*

Ultimate bearing capacity due to eccentric loading.

*R*

*KR*

Reduction factor for geogrid-reinforced sand.* *

*To compare wit*h the present developed equation (RF), the *R*

*KR*

will take the form as

(5.19)

(4.6)

(5.20)

.6)

(4.6)

.6)

**61 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

*RF*

1

*R*

*KR*

(5.21)

*RF*

1

4 .

97

*d f*

*B*

0 .

12

1 .

21

.6)

The results for reduction factor (*RF*) obtained from developed ANN equation (Eq. 5.18)

.6) compared with the developed empirical equation of Patra et al. (2006).The comparison of present analysis with Patra et al. (2006) is shown in Figure 5.9 and in Table 5.6 The comparison seems to be reasonably good. Hence, artificial neural network can be effectively used for the prediction of ultimate bearing capacity in geogrid reinforced soil under eccentric load.

1.1

1.0

0.9

0.8

0.7

0.6

0.5

0.4

Present Analysis

Patra et al. (2006)

0.3

0.3

0.4

0.5

0.6

0.7

0.8

RF - Experiment

0.9

1.0

1.1

Figure 5.9: Comparison of Reduction Factor of Present analysis with Eqn in eccentric inclined load supported by geogrid-reinforced sand** **

**62 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

Table 5.6 :Comparison of predicted reduction factor with those observed from experiments

*e / B d*

*f*

**/ ***B*

*B*

*q u *

**(kN/m**

**2**

**)*** *

*RF expt*

*RF*

*ANN*

*R*

*KR *

**Patra et al. (2006) **

0.05

0.1

0.6

0.6

174

133

0.845

0.646

0.845

0.643

0.859

0.674

1.6

1.85

1.85

1.85

1.35

1.35

1.6

1.6

2.1

2.1

1.1

1.1

1.1

1.35

0.6

0.85

0.85

0.85

0.15

0

0.05

0.1

0.1

0.15

0.05

0.1

0

0.05

0

0.05

0.15

0

0.15

0

0.05

0.1

85.5

254

222

178

336

296

178

393

289

223

440

355

250

584

513

423

667

578

0.415

1.000

0.874

0.701

1.000

0.881

0.530

1.000

0.735

0.567

0.875

0.706

0.497

1.000

0.878

0.724

1.000

0.867

0.416

1.003

0.876

0.706

1.002

0.879

0.523

1.000

0.725

0.533

0.875

0.722

0.531

0.996

0.873

0.719

0.994

0.870

0.704

0.517

0.875

0.710

0.527

1.000

0.877

0.715

1.000

0.879

0.468

1.000

0.865

0.688

1.000

0.869

0.505

1.000

**63 | **

P a g e

Chapter 5

0.15

0

0.1

0.15

0.05

0.1

0.15

2.1

1.1

1.1

1.1

1.6

1.6

1.6

355

311

228

159

393

328

240

0.532 0.524

NUMERICAL MODELLING BY ANN

0.542

1.000 1.002

0.733 0.725

0.511 0.523

0.866 0.875

1.000

0.697

0.505

0.875

0.722 0.722

0.529 0.531

0.710

0.527

0

0.15

0.1

0.05

0

0.15

0.1

0.05

0.6

0.85

1.1

1.35

1.6

1.85

2.1

1.1

206

123

239

345

503

317

478

280

1.000

0.484

0.711

0.878

1.000

0.543

0.717

0.900

0.995

0.471

0.725

0.878

0.998

0.528

0.716

0.879

1.000

0.490

0.697

0.872

1.000

0.535

0.720

0.869

0 1.6 454 1.000 0.998 1.000

**5.7 Conclusions **

Based on developed neural network model following conclusions may be drawn

As per residual analysis, the errors are distributed evenly along the horizontal axis. It can be concluded that the network is well trained and can predict the result with reasonable accuracy.** **

**64 | **

P a g e

Chapter 5 NUMERICAL MODELLING BY ANN

Based on Pearson correlation coefficient and Garson’s algorithm, it was observed that *e/B *is the most important input parameter followed by *d*

*f *

* /B*.** **

As per connection weight approach *e/B* is found to be the most important input parameter followed by *d*

*f *

*/B*. Hence, it may be concluded that sensitivity analysis using Connection weight approach is able to explore the inputs-output relationship using trained weights.

The developed ANN model could explain the physical effect of inputs on the output, as depicted in NID. It was observed that *e/B *was inversely related to *RF* values whereas *d*

*f *

*/ B* was directly related to *RF*. Model equation is developed based on the trained weights of the

ANN.

**65 | **

P a g e

# CHAPTER 6

# Conclusions and scope for future research work

Chapter 6 CONCLUSIONS AND SCOPE FOR FUTURE RESEARCH WORK

**6.1 Conclusions **

The results of laboratory model tests conducted to determine the ultimate bearing capacity of a square footing supported by multi-layered geogrid reinforced sand bed subjected to eccentric load have been reported. Tests have been conducted on dense sand. The load eccentricity ratio

*e*/*B *has been varied from 0 to 0.15, and the number of geogrid layers has been varied from 2 to 4.

Based on limited number of experiments conducted in laboratory an empirical equation has been developed for predicting the bearing capacity of square foundation on multi-layered geogrid reinforced sand subjected to eccentric load.

In addition to the above, an ANN model has been developed for the case of bearing capacity prediction of eccentrically loaded strip footing on geogrid-reinforced sand taking the database from Patra et al. (2006). The following are the conclusions:

For similar reinforcement conditions, the ratio of the ultimate bearing capacity of eccentrically loaded foundations to that loaded centrally can be related by a reduction factor. The reduction factor (*R*

*kR*

) predicted from the present experiments done in the laboratory is expressed as:

*R*

*KR*

2 .

39

*d f*

*B*

0 .

61

*e*

*B*

0 .

89

The reduction factor is a function of *d*

*f *

*/ B* and *e/B.*

At a particular settlement, the bearing capacity will be more in case of reinforced condition than unreinforced case.

In reinforced soil, the bearing capacity also decreases with increase in eccentricity.

An ANN model equation has been developed for reduction factor of eccentrically loaded strip footing on geogrid-reinforced sand considering the existing database

**67 | **

P a g e

Chapter 6 CONCLUSIONS AND SCOPE FOR FUTURE RESEARCH WORK

*RF*

0 .

5 (

*RF n*

1 )( 1

0 .

415 )

0 .

415

The results for strip footing from ANN model gives better result than the empirical model developed by Patra et al. (2006) for strip footing.

**6.2 Scope of future work **

The present thesis pertains to the study on the bearing capacity of eccentrically loaded strip footing on dry sand bed. Due to time constraint other aspects related to shallow foundations could not be studied. The future research work should address the below mentioned points:

The present work can be extended to foundations on cohesive soil

Large scale study to be carried out to validate the present developed equation.

The present work can be extended to eccentrically inclined loaded reinforced soil condition

This work can be extended by using different density of sand (i.e. dense sand, medium dense sand)

**68 | **

P a g e

# REFERNCES

**REFERENCES **

Adams, M.T., and Collin, J.C. (1977). “Large model spread footing load tests on geogridreinforced soil foundations.” *Journal of Geotechnical and Geoenvironmental Engineering*,

ASCE, 123(1), pp. 66-72.

Balla, A. (1962). "Bearing capacity of foundations." *J. Soil Mech. and Found. Div., *ASCE,

88(5), pp. 13-34.* *

Bolt, A. (1982). "Bearing capacity of a homogeneous subsoil under rigid footing foundation loaded with inclined and eccentric force." *In~ynieria Morska, *3(2), pp. 108-110.

Cichy, W., Dembicki, E., Odrobinski, W., Tejchman, A., and Zadroga, B. (1978). *Bearing *

*capacity of subsoil under shallow foundations: study and model tests. *Scientific Books of

Gdansk Technical University, Civil Engineering 22, pp. 1-214.

Das, B.M., and Omar, M.T. (1994). “The effects of foundation width on model tests for the bearing capacity of sand with geogrid reinforcement.” *Geotechnical and Geological *

*Engineering,* 12(2), pp. 133-141.

Das, et al. (2004). “Developments on the bearing capacity of shallow foundations on geogridreinforced soil-a review.” *Proceedings, International Conference on Geotechnical *

*Engineering*, Sharjah, United Arab Emirates, pp. 1-.29.

Das, S.K., and Basudhar, P.K. (2006). “Undrained lateral load capacity of piles in clay using artificial neural network .” *Computers and Geotechnics*, 33, pp. 454–459.

Das, S.K., and Basudhar, P.K. (2008). ”Prediction of residual friction angle of clays using artificial neural network.” *Engineering Geology*, 100, pp. 142-145.

**69 | **

P a g e

DeBeer, E.E. (1965). “Bearing capacity and settlement of shallow foundations on sand.”

*Proceedings*, *Symposium on Bearing Capacity and Settlement of Foundations, Duke *

*University,* pp. 15-33.

Garson, G.D. (1991). “Interpreting neural-network connection weights.” *Artif. Intell. Exp., *6**(**7), pp. 47–51.

Goh, A.T.C. (1994). “Seismic liquefaction potential assessed by neural network.” *J. Geotech. *

*Eng.*, ASCE, 120(90), pp. 1467-1480.

Goh, et al*.* (2005). “Bayesian neural network analysis of undrained side resistance of drilled shafts.” *J. Geotech. and Geoenv. Eng., *ASCE, 131(1), pp. 84-93.

Guido, et al*.* (1986). “ Comparison of geogrid and geotextile reinforced earth Slabs.”

*Canadian *

*Geotechnical Journal*, 23(4), pp. 435–440.

Guyon, I., and Elisseeff, A. (2003). “An Introduction to variable and feature selection.” *J.Mach. *

*Learn. Res.*, 3, pp. 1157-1182.

Hansen, J.B. (1970). “A revised and extended formula for bearing capacity.” *Bull. No. 28*,

Danish Geotechnical Institute, Copenhagen

Huang, C.C., and Menq, F.Y. (1997). “Deep-Footing and Wide-Slab effects in reinforced sandy ground.” *Journal of Geotechnical and Geoenviornmental Engineering*, ASCE, 123(1), pp.

30-36.

Ingra, T.S., and Baecher, G.B. (1983). “Uncertainty in bearing capacity of sands.” *J. Geotech. *

*Eng., *ASCE, 109(7), pp. 899-914.* *

Mahiyar, H., and Patel, A. N. (2000). “Analysis of angle shaped footing under eccentric loading.” *Journal of Geotechnical and Geoenvironmental Engineering*, ASCE, 126(12), pp.

1151-1156.

**70 | **

P a g e

Meyerhof, G.G. (1951). “The ultimate bearing capacity of foundations.” *Geotechnique*, 2, 301

Meyerhof, G.G. (1953)*. “*An Investigation for the Foundations of a Bridge on Dense Sand.”

*Proceedings of the 3 rd*

* International Conference on Soil Mechanics and Foundation *

*Engineering*, 2, pp. 66-70.

Michalowski, R.L., and You, L. (1998). “Effective width rule in calculations of bearing capacity of shallow footings.” *Comp. and Geotech.*, 23, pp. 237-253.

Milovic, D. M. (1965). “Comparison between the calculated and experimental values of the ultimate bearing capacity.” *Proc., 6th ICSMFE, Montreal 1965, *2, pp. 142-144.

Kumar, et al. (2007). “Analysis of square and rectangular footings subjected to eccentricinclined load resting on reinforced sand.” *Geotech and Geological Engineering*, 25, pp. 123-

127.

Olden, J. D. (2000). “An artificial neural network approach for studying phytoplankton succession.” *Hydrobiologia, *436, pp. 131-143.

Olden, et al*.* (2004). “An accurate comparison of methods for quantifying variable importance in artificial neural networks using simulated data.” *Eco. Model., *178(3), pp. 389-397.

Omar, et al. (1993). “ Ultimate bearing capacity of shallow foundations on sand with geogrid reinforcement.” *Canadian Geotechnical Journal*,

30(3), pp. 545–549.

Ozesmi, S.L., and Ozesmi, U. (1999). “An artificial neural network approach to spatial modeling with inter specific interactions.” *Eco. Model., *116, pp. 15-31.

Patra, et al*.* (2005). “Bearing capacity of embedded strip foundation on geogrid-reinforced sand.” *Geotextiles and Geomembranes,* 23, pp. 454-462.

Patra, et al. (2006). “Eccentrically loaded strip foundation on geogrid-reinforced sand.”*Geotextiles and Geomembranes*, 24, pp. 254–259.

**71 | **

P a g e

Prakash, S., and Saran, S. (1971). “Bearing capacity of eccentrically loaded footings.” *Journal *

*of Soil Mechanics and Foundation*, ASCE, 97(1), pp. 95-118.

Purkayastha, R.D., and Char, R.A.N. (1977). “Sensitivity analysis for eccentrically loaded footings.” *J.Geotech.Eng. Div*., ASCE, 103(6), 647.

Saran, S. and Agarwal, R.K. (1991). “Bearing capacity of eccentrically obliquely loaded foundation.” *J. Geotech. Eng.*, ASCE, 117(11), pp.1669-1690.

Shahin, M.A., Maier, H.R., and Jaksa, M.B. (2002). “Predicting settlement of shallow foundations using neural network.” *J. Geotech. and Geoenv. Eng.*, ASCE, 128(9), pp. 785-

793.

Shin, E.C., and Das, B.M. (2000). “Experimental study of bearing capacity of a strip foundation on geogrid reinforced sand.”*Geosynthetics International*, 7(1), pp. 59-71.

Shiraishi, S. (1990). "Variation in bearing capacity factors of dense sand assessed by model loading tests." *Soils and Found., *30(1), pp. 17-26.

Terzaghi, K. (1943). *Theoretical Soil Mechanics*, Wiley, New York.

Terzaghi, K., and Peck, R.B. (1948). *Soil mechanics in engineering practice, *1st Edition, John

Wiley & Sons, New York.

Vesic, A.S. (1973). “Analysis of ultimate loads of shallow foundations.” *J. of Soil Mech. and *

*Found. Div.*, ASCE, 99(1), pp. 45-73.

Yetimoglu, T., Jonathan, T. H. W., Saglamer, A. (1994). “Bearing Capacity of Rectangular

Footings on Reinforced Sand.” *Journal of Geotechnical Engineering*, ASCE, 120, 12.

Zadroga, B. (1975). "Bearing capacity of inclined subsoil under a foundation loaded with eccentric and inclined forces: Part 1--method review and own model tests." *Archive of *

*Hydroengrg., *22 (4), pp. 333-336.* *

**72 | **

P a g e

**73 | **

P a g e

**PUBLISHED PAPERS **

1. Sahu, R., Behera, R.N., Patra, C.R., (2013). “Settlement prediction of centric inclined loaded strip footing on granular soil by ANN” Symposium of sustainable infrastructure (SID), pp.195-

201.

2. Sahu, R., Behera, R.N., Patra, C.R., (2013). “Bearing capacity prediction of eccentrically loaded footing on reinforced sand by ANN” 5 th

International Geotechnical Symposium-Incheon,

22-24 May, 2013. (Accepted)
