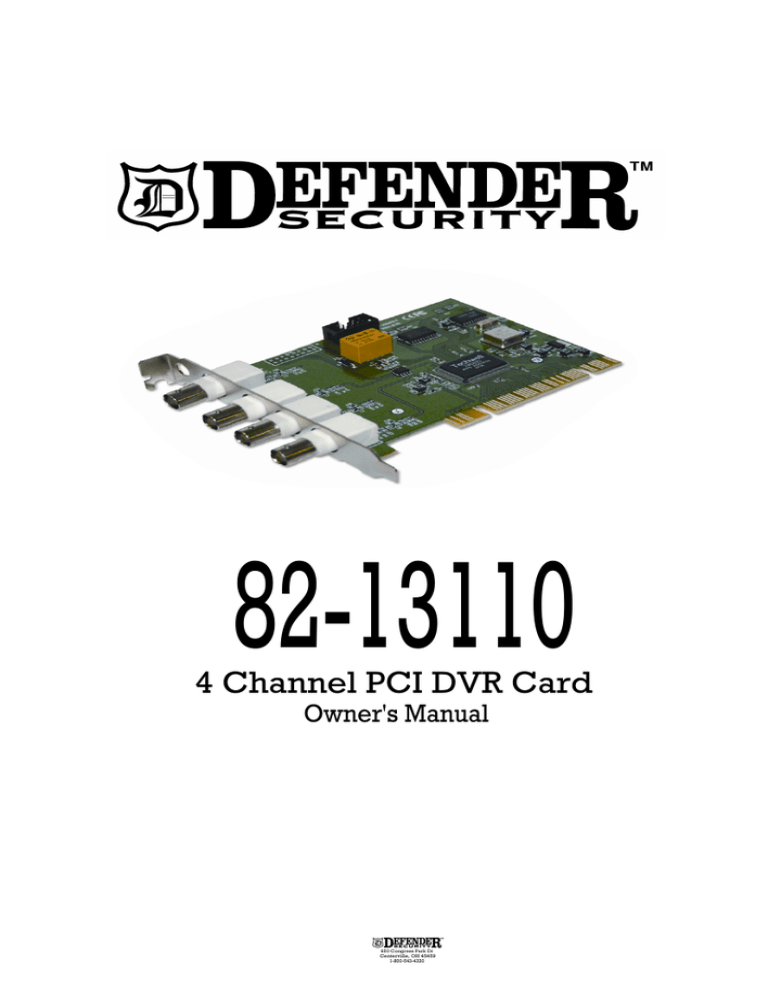

82-13110
4 Channel PCI DVR Card
Owner's Manual
650 Congress Park Dr
Centerville, OH 45459
1-800-543-4330
SuperDVR & TD Series Cards
User Manual
CONTENTS
CONTENTS
1 Introduction .................................................................................................. 1 1.1 Summarization .............................................................................................. 1 1.2 System Requirements ................................................................................... 3 1.2.1 TD3004~TD3216 Series Cards System Requirements .................................................... 3 1.2.2 TD3304/3308/3316 System Requirements ....................................................................... 3 1.2.3 TD3101/3104 USB Cards System Requirements ............................................................. 4 1.2.4 TD4104 /4404L/4404 Card System Requirements ........................................................... 4 1.2.5 TD4116/4316/4416L/4416 Card System Requirements.................................................... 5 1.2.6 TD4108/ 4308/4408/4408L Cards System Requirements ................................................. 6 1.3 System Specifications ................................................................................... 6 2 Hardware Installation ................................................................................... 7 2.1 Video Capture Card Hardware ...................................................................... 7 2.1.1 TD3004 Card Hardware .................................................................................................... 7 2.1.2 TD3304 Card Hardware .................................................................................................... 8 2.1.3 TD3008 Card Hardware .................................................................................................... 8 2.1.4 TD3016 Card Hardware .................................................................................................... 9 2.1.5 TD3116 Card Hardware .................................................................................................. 10 2.1.6 TD3216 Card Hardware .................................................................................................. 11 2.1.7 TD3308 Card Hardware .................................................................................................. 11 2.1.8 TD3316 Card Hardware .................................................................................................. 13 2.1.9 TD3101 USB Card Hardware ......................................................................................... 14 2.1.10 TD3104 USB Card Hardware ....................................................................................... 14 2.1.11 TD4104/4404L/4404 Card Hardware ............................................................................ 15 2.1.12 TD4116 Card Hardware ................................................................................................ 16 2.1.13 TD4316/4416L Card Hardware ..................................................................................... 17 2.1.14 TD4108/4308/4408/4408L Card Hardware ................................................................... 18 2.1.15 Alarm Board Hardware ................................................................................................. 20 2.1.16 Connect Audio Signal ................................................................................................... 20 2.2 Install Video Capture Card Driver ................................................................ 21 3 Main Display Interface ............................................................................... 24 3.1 Display Control Panel .................................................................................. 24 3.1.1 Display Control Panel ..................................................................................................... 24 3.1.2 Display Modes ................................................................................................................ 24 3.1.3 Flip Pages ....................................................................................................................... 25 3.1.4 Auto Dwell Display Mode ................................................................................................ 25 3.1.5 Capture ........................................................................................................................... 25 3.1.6 Urgent Record ................................................................................................................ 25 3.2 Login............................................................................................................ 25 3.3 Record ......................................................................................................... 25 3.3.1 Record Modes ................................................................................................................ 25 3.3.2 Record Setup .................................................................................................................. 26 3.3.3 Record Status Panel ....................................................................................................... 27 3.3.4 Manual Record Mode ..................................................................................................... 27 3.3.5 Sensor Alarm Record Mode ............................................................................................ 28 3.3.6 Motion Detection Record Mode ...................................................................................... 28 3.3.7 Schedule Record ............................................................................................................ 28 3.3.8 Recycling Record............................................................................................................ 28 i
CONTENTS
SuperDVR & TD Series Cards
User Manual
4 System Setup ............................................................................................. 29 4.1 Basic Configuration ..................................................................................... 29 4.2 Video Configuration ..................................................................................... 31 4.3 Motion Detection Configuration ................................................................... 32 4.3.1 Set Motion Detection Area .............................................................................................. 33 4.3.2 Set Motion Detection Area .............................................................................................. 33 4.4 Schedule Configuration ............................................................................... 33 4.5 Motion Detection Alarm Configuration ......................................................... 34 4.5.1 Alarm Triggering Conditions Configuration...................................................................... 34 4.5.2 Alarm Record .................................................................................................................. 35 4.5.3 Alarm Output ................................................................................................................... 35 4.5.4 Auto Mail Function .......................................................................................................... 36 4.6 E-map Configuration ................................................................................... 37 4.6.1 Edit Map.......................................................................................................................... 37 4.6.2 View Map ........................................................................................................................ 38 4.7 P.T.Z Control Configuration .......................................................................... 39 4.7.1 Protocol Setup ................................................................................................................ 39 4.7.2 Serial Ports Setup ........................................................................................................... 40 4.8 Users Configuration ..................................................................................... 41 4.8.1 Change User rights ......................................................................................................... 41 4.8.2 Add User ......................................................................................................................... 42 4.8.3 Delete User ..................................................................................................................... 42 5 P.T.Z Control ............................................................................................... 43 6 Record Search & Playing Back ................................................................. 46 6.1 Record Search ............................................................................................ 47 6.2 Playing Back and Control ............................................................................ 47 6.3 Other Functions ........................................................................................... 50 6.3.1 Record File Backup ........................................................................................................ 50 6.3.2 Delete Record Files ........................................................................................................ 51 6.3.3 Capture Pictures ............................................................................................................. 51 6.3.4 Image Zoom in/out .......................................................................................................... 53 7 IE Client ...................................................................................................... 55 Remote Live Surveillance .................................................................................. 55 7.1 Remote Surveillance Server Configuration.................................................. 55 7.2 Accessing IE client ...................................................................................... 56 7.3 Remote playing back ................................................................................... 58 7.3.1 Record play back and control ......................................................................................... 58 7.4 System setup............................................................................................... 61 7.4.1 Basic Configuration ......................................................................................................... 62 7.4.2 Camera setup ................................................................................................................. 64 7.4.3 Schedule configuration ................................................................................................... 64 7.4.4 Alarm configuration ......................................................................................................... 65 7.4.5 Record configuration ....................................................................................................... 66 7.4.6 Motion configuration ....................................................................................................... 67 7.4.7 EMAIL Configuration ....................................................................................................... 68 7.4.8 P.T.Z Configuration.......................................................................................................... 69 7.5 Mobile Surveillance ..................................................................................... 71 7.5.1 Introduction to Mobile Surveillance ................................................................................. 71 7.5.2 Client Configuration of Windows Mobile ......................................................................... 72 Appendix1 Frequently Asked Questions .................................................... 76 Appendix 2.1 Installation ................................................................................... 76 ii
SuperDVR & TD Series Cards
User Manual
CONTENTS
Appendix 2.1.1 Cannot Install the SuperDVR Driver ............................................................... 76 Appendix 2.1.2 Why cannot run SuperDVR at the windows 2003 operate system? ................ 76 Appendix 2.1.3 Can’t find TD series Devices in Device Manager ............................................ 76 Appendix 2.2 How to Use SuperDVR ................................................................ 77 Appendix 2.2.1 Meanings of the indicator lights....................................................................... 77 Appendix 2.2.2 How does the different record mode work?..................................................... 77 Appendix 2.2.3 How to set recycling record mode on the system............................................ 77 Appendix 2.2.4 How to set auto reboot function ...................................................................... 77 Appendix 2.2.5 How to quickly use the schedule record function ............................................ 78 Appendix 2.2.6 What are the byte rates for different image qualities from highest to normal? 78 Appendix 2.2.7 The frame rate seems to be lower than what I set? ........................................ 78 Appendix 2.2.8 Why I can’t select more channels to backup? ................................................. 78 Appendix 2.3 How to Use Network Function ..................................................... 78 Appendix 2.3.1 How to monitor on the client-side .................................................................... 78 Appendix 2.3.2 Why I can’t download the client-side software? .............................................. 78 Appendix 2.3.3 Why can’t the server be configured at the client-side?.................................... 79 Appendix 2.3.4 Why I can’t see the images? ........................................................................... 79 Appendix 2.3.5 What should I do if the Internet speed is quite slow? ...................................... 79 Appendix 2.3.6 Why I can’t start WebCam server or RPB server? .......................................... 79 Appendix 2.4 Other Questions .......................................................................... 79 Appendix 2.4.1 Why computer display doesn’t work, and why I can’t access window system?
................................................................................................................................................. 79 Appendix 2.4.2 Why I can’t find the recorded files? ................................................................. 80 Appendix 2.4.3 Why the screens display is unstable with dithering and water-wave images? 80 Appendix 2.4.4 Why does it delay to play back, and it’s slow to close and open the driver? ... 80 Appendix 2.4.5 Why I can’t play back? .................................................................................... 80 Appendix 2.4.6 Why do I see some gray blocks on time progress bar area when play back? . 80 Appendix 2.4.7 Why could I see some old record sections that didn’t be covered when playing
back? ....................................................................................................................................... 80 Appendix 2.4.8 Precautions on changing system time ............................................................ 81 Appendix 2.4.9 If system time must be changed, please do following preparations first ......... 81 Appendix 2.4.10 How to use REPAIRDB to repair SuperDVR database ................................. 81 Appendix 2.4.11 How to set power options of Microsoft VISTA system ................................... 81 Appendix2 Quick Start for Using ................................................................ 82 Appendix 3.1 Requirements .............................................................................. 82 Appendix 3.2 Installation Instructions ................................................................ 82 Appendix 3.3 Troubleshooting ........................................................................... 83 Appendix3.3.1 When opening the SuperDVR program, it says ‘ Can’t find card ’. ................... 83 Appendix 3.3.2 How to setup the web client to monitor from Internet ...................................... 83 Appendix3 Function Tree............................................................................. 85 Appendix 4.1 SuperDVR Function Tree ............................................................ 85 Appendix 4.2 System Configuration Tree .......................................................... 86 Appendix 4.3 IE Client Function Tree ................................................................ 87 Appendix 4.4 Remote Playback Function Tree.................................................. 88 iii
SuperDVR & TD Series Cards
User Manual
FIGURES
FIGURES
Figure2-1 Figure2-2 Figure2-3 Figure2-4 Figure2-5 Figure2-6 Figure2-7 Figure2-8 Figure2-9 Figure2-10 Figure2-11 Figure2-12 Figure2-13 Figure2-14 Figure2-15 Figure2-16 Figure2-17 Figure2-18 Figure2-19 Figure2-20 Figure2-21 Figure2-22 Figure2-23 Figure2-24 Figure2-25 Figure2-26 Figure2-27 Figure2-28 Figure2-29 Figure2-30 Figure2-31 Figure2-32 Figure2-33 Figure2-34 Figure2-35 Figure2-36 Figure2-37 Figure2-38 Figure2-39 Figure2-40 Figure2-41 Figure3-1 Figure3-2 Figure3-3 Figure3-4 Figure3-5 Figure3-6 Figure4-1 Figure4-2 Figure4-3 Figure4-4 iv
TD3004 Video Capture Card ................................................................................... 7 TD3304 Video Capture Card ................................................................................... 8 TD3008 Video Capture Card ................................................................................... 8 Pins Definitions of TD3008 Video Capture Card...................................................... 9 TD3016 Video Capture Card Circuit Link for Watchdog Function ............................ 9 TD3016 Video Capture Card Alarm Port ................................................................. 9 TD3116 Video Capture Card ................................................................................. 10 Reset Pins Definitions of TD3116 Video Capture Card.......................................... 10 Pins Definitions of TD3116 Video Capture Card .................................................... 10 TD3216 Video Capture Card ................................................................................. 11 Pins Definitions of TD3216 Video Capture Card.................................................... 11 TD3308 Video Capture Card ................................................................................. 11 Video Connector and Pins Definition ..................................................................... 12 TD3308 Video Capture Card Alarm Port ............................................................... 12 TD3316 Video Capture Card ................................................................................. 13 Audio Connector and Pins Definition ..................................................................... 13 Video Pins Definition ............................................................................................. 14 TD3101 USB Video Capture Card ......................................................................... 14 TD3104 USB Video Capture Card ......................................................................... 14 TD4104/4404L/4404 Video Capture Card ............................................................. 15 Definition of Audio and Video Connector’s Pins .................................................... 15 Multi-Card Connection ........................................................................................... 16 TD4116 Video Capture Card ................................................................................. 16 Audio Connector and Pins Definition ..................................................................... 17 Video Pins Definition ............................................................................................. 17 TD4316/4416L Video Capture Card ...................................................................... 17 Definition of Audio Connector and Pins ................................................................. 18 TD4108/4308/4408/4408L Video Capture Card .................................................... 18 Definition of Audio and Video Connector’s Pins .................................................... 19 Multi-Card Connection ........................................................................................... 19 Alarm Board .......................................................................................................... 20 Pins Definition of Alarm Board ............................................................................... 20 TD Series Video Capture Card Installation Interface ............................................. 21 Welcome Page ...................................................................................................... 21 Select Video Format .............................................................................................. 21 Rate of Progress of Driver Installation ................................................................... 22 Select Installation Folder ....................................................................................... 22 Register Application ............................................................................................... 22 Driver and Application Installation Finished ........................................................... 23 Shortcut of SuperDVR ........................................................................................... 23 Install the Software on VISTA ................................................................................ 23 SuperDVR Main Display Interface ......................................................................... 24 Display Control Panel ............................................................................................ 24 Display Modes Panel ............................................................................................. 24 Main Interface ........................................................................................................ 25 Record Configuration Panel .................................................................................. 26 Record Status Panel & Alarm Output Status Panel................................................ 27 Basic Configuration ............................................................................................... 29 Caption and General Configuration ....................................................................... 30 Record Data Storage Precept ................................................................................ 30 Computer System Reboot Setup ........................................................................... 31 SuperDVR & TD Series Cards
User Manual
FIGURES
Figure4-5 Video Configuration ............................................................................................... 31 Figure4-6 Motion Detection Configuration ............................................................................. 32 Figure4-7 Schedule Configuration ......................................................................................... 33 Figure4-8 Edit Schedule ........................................................................................................ 34 Figure4-9 Local Alarm Triggering Configuration..................................................................... 34 Figure4-10 Alarm Trigger Method Configuration ...................................................................... 35 Figure4-11 Alarm Output Configuration ................................................................................... 35 Figure4-12 Auto Mail Setup Interface ...................................................................................... 36 Figure4-13 Auto Mail Setup ..................................................................................................... 37 Figure4-14 Attachment Setup .................................................................................................. 37 Figure4-15 E-Map Edit ............................................................................................................. 38 Figure4-16 View Camera ......................................................................................................... 38 Figure4-17 PTZ Configuration Panel ....................................................................................... 39 Figure4-18 P.T.Z Protocol Setup .............................................................................................. 40 Figure4-19 P.T.Z Serial Port Setup .......................................................................................... 40 Figure4-20 User configuration ................................................................................................. 41 Figure4-21 User Password and Rights Edit ............................................................................. 41 Figure4-22 Add User ............................................................................................................... 42 Figure4-23 Confirm Delete User .............................................................................................. 42 Figure5-1 P.T.Z Control Interface ........................................................................................... 43 Figure5-2 P.T.Z Control Function Buttons Panel .................................................................... 43 Figure5-3 Speed Adjustment ................................................................................................. 44 Figure5-4 Preset and Group Select ....................................................................................... 44 Figure5-5 Preset .................................................................................................................... 45 Figure5-6 Group Configuration .............................................................................................. 45 Figure6-1 Search and Playback Interface .............................................................................. 46 Figure6-2 Record Search Area .............................................................................................. 47 Figure6-3 Playing Back and Control ...................................................................................... 47 Figure6-4 Play Speed Controller ............................................................................................ 48 Figure6-5 Record Files Browser ............................................................................................ 48 Figure6-6 Multiple Channels Playing Back Control ................................................................ 49 Figure6-7 Channel Configuration Dialog for Single Channel Playing Back Mode .................. 49 Figure6-8 Channel Configuration Dialog for 4-channel Playing Back Mode .......................... 49 Figure6-9 Channel Configuration Dialog for 9-channel Playing Back Mode .......................... 50 Figure6-10 Channel Configuration Dialog for 16-channel Playing Back Mode ........................ 50 Figure6-11 Recorded Files Backup ......................................................................................... 50 Figure6-12 Delete Recorded Files ........................................................................................... 51 Figure6-13 Color Control Panel ............................................................................................... 52 Figure6-14 Capture Multiple Images in Sequence ................................................................... 52 Figure6-15 Print Setup ............................................................................................................. 52 Figure6-16 Print Preview ......................................................................................................... 53 Figure6-17 Example: original size............................................................................................ 53 Figure6-18 Example: zoomed out ............................................................................................ 54 Figure6-19 Example: zoomed in .............................................................................................. 54 Fig 7.1 WebCam Server Configuration ........................................................................................... 55 Fig 7.2 WebCam install interface .................................................................................................... 56 Fig 7.3 WebCam Login interface .................................................................................................... 56 Fig 7.4 WebCam Main interface ..................................................................................................... 57 Fig 7.5 Remote play back ............................................................................................................... 59 Fig 7.6 Remote backup .................................................................................................................. 59 Fig 7.7 Channel configuration window for 1 channel play back mode ............................................ 60 Fig7.8 Channel configuration window for 4 channel playback mode .............................................. 60 Fig 7.9 Data Preview ...................................................................................................................... 61 Fig 7.10 Basic Configuration .......................................................................................................... 62 Fig 7.11 Basic setup ....................................................................................................................... 62 Fig 7.12 Computer System Reboot Setup ...................................................................................... 63 Fig 7.13 Alarm triggering configuration ........................................................................................... 63 v
SuperDVR & TD Series Cards
User Manual
TABLES
Fig 7.14 Camera setup configuration.............................................................................................. 64 Fig 7.15 Schedule configuration ..................................................................................................... 65 Fig 7.16 Alarm configuration ........................................................................................................... 65 Fig 7.17 Record configuration ........................................................................................................ 66 Fig 7.18 Record setup .................................................................................................................... 66 Fig 7.21 Email configuration ........................................................................................................... 68 Fig 7.22 Mail server setup .............................................................................................................. 68 Fig 7.23 Mail setup ......................................................................................................................... 69 Fig 7.24 Attachment setup .............................................................................................................. 69 Fig 7.25 P.T.Z Configuration ........................................................................................................... 70 Fig 7.26 P.T.Z Protocol setup .......................................................................................................... 70 Fig 7.27 P.T.Z Serial port setup....................................................................................................... 71 Fig 7.28 Open Web Brower ............................................................................................................ 72 Fig 7.29 Build a bookmark .............................................................................................................. 72 Fig 7.30 Connect to Server ............................................................................................................. 73 Fig 7.31 Confirmation Information Window ..................................................................................... 73 Fig 7.32 Installing Configuration Information .................................................................................. 73 Fig 7.33 Scam Shortcut icon in System Menu ................................................................................ 73 Fig 7.34 Main Layout of Scam ........................................................................................................ 74 Fig 7.35 Configuration Login Information........................................................................................ 74 Fig 7.36 Log in Successfully ........................................................................................................... 74 Fig 7.37 Alarm Setting .................................................................................................................... 75 TABLES
Table1-1 TD3004~TD3216 Series Cards System Requirements ..................................................... 3 Table1-2 TD3304/3308/316 System Requirements .......................................................................... 3 Table1-3 TD3101/3104 System Requirements ................................................................................. 4 Table1-4 TD4104/4404L/4404 System Requirements ...................................................................... 4 Table1-5 TD4116 /4316/4416L/4416System Requirements ............................................................. 5 Table1-6 Motherboards and VGA Cards Support XP OS ................................................................. 5 Table1-7 Motherboards and VGA Cards Support VISTA OS ............................................................ 6 Table1-8 TD4108/ 4308/4408/4408L System Requirements ............................................................ 6 Table2-1 TD3004 Card Pins ............................................................................................................. 7 Table2-2 TD3304 Card Pins ............................................................................................................. 8 Table2-3 Pins Definitions of TD3016 Card ...................................................................................... 10 Table2-4 Pins Definitions of TD3308 Card ...................................................................................... 12 Table 7-1 Mobile Phone of Supporting Mobile Surveillance............................................................ 72 vi
SuperDVR & TD Series Cards
User Manual
1 Introduction
1
Introduction
1.1 Summarization
Thank you for choosing our digital video capture cards.
1Channel, 4 Channel, 9 Channel, 16 Channel and 32 Channel cards adopt
H.264 compression format, and enable maximum 32 channels real-time or
none real-time surveillance. Our cards are mature and cost-effective products
that should be your ideal choices. They enable synchronous audio and video
compression and transmission, with their powerful compression rate and
network transmission function. They are widely used in banks, intelligent
communities, traffic management units, medical systems, educational
systems, armed forces and so on.
This manual is suitable for SuperDVR, which supports TD3004 (Defender
82-13110), TD3008, TD3016, TD3101, TD3104, TD3116, TD3216,
TD3304, TD3308, TD3316, TD4404L ,TD4104, TD4116, TD4108, TD4308,
TD4316 ,TD4404 ,TD4404L ,TD4408,TD4408L and TD4416L cards.
In this manual, you will learn how to install the hardware and driver (software),
and how to setup the systems of this range of products. Please make sure
your operations with the products are strictly in accordance with the manual,
so as to keep the stability of the digital surveillance systems.
The following are standard functions of the products:
•
•
•
Schedule record mode
Users can choose any term in a day to record and set up record modes,
i.e. sensor alarm record, motion detection record, manual record,
Schedule Record.
Motion detection mode
Motion detection areas are adjustable and maximum 16 areas for each
channel. Users can also set motion detection sensitivity for each channel.
The system begins to record only when motion of the detected object
happens, and it will stop recording after a certain period, this function is
adjustable by users.
Sensor alarm record mode
With extra alarm board, the system enables alarm input and output.
1
1 Introduction
•
SuperDVR & TD Series Cards
User Manual
Recycling record mode
Users can set recording storage sequence for HDD partitions. The
recording storage will automatically swap to the next partition when it is
full. If all the partitions are full and recycling record mode is enabled, the
former recorded data will be covered by new data. Users can also set
HDD minimum storage alarm. Then once the present storage space is
less then the minimum storage and recycling record mode is not enabled,
the record will automatically stop.
• P.T.Z control function
Support a number of decoders. Users can control multiple speed domes
and integrative cameras, including pan, tilt, zoom, focus and iris
adjustment for P.T.Z devices. Support preset point and auto scout.
• Users management
Different users have different rights, user names and passwords, so as to
ensure system security.
• Multi-channel display
Support different multi-channel display modes, full screen display and
auto dwell display.
• Watch dog function
The 16 Channels card has watchdog function. In case SuperDVR driver or
windows system is frozen, the watchdog will restart the computer and
login SuperDVR system again automatically.
• One PC support 1 to 4 cards of the same model, the maximum frame rate
can be 800 fps and 32 channels at most.
• Support 320x240 / 640x480 (NTSC), 352x288 / 704x576(PAL) standard
resolutions.
• Image color adjustable for each channel, including contrast, lightness, hue
and saturation.
• H.264 compression format, greatly reduce HDD usage
• Powerful video playing back functions, including playing back, pause, stop,
fast-forward, single-frame play and image capture.
• Support advanced search mode. Users can search by date/time, camera,
record mode, and random combination of the three methods.
• Support recorded files backup, delete by date/time, camera.
• Convenient to extend system functions by software upgrade.
• Supply multiple languages, including Chinese (Traditional), English,
German, Spanish, Portuguese and other customized languages.
• CPU and storage resources saving by advanced technology
• Remote Surveillance and P.T.Z control through LAN, Intranet, and
Internet.
• Support alarm pre-record.
• Support buzzer, email alarm out.
• Can greatly decrease fragmented files while using NTFS partition.
• User-friendly graphical user interface.
2
SuperDVR & TD Series Cards
User Manual
1 Introduction
1.2 System Requirements
Our TD series video card support running on Windows VISTA OS. And the
computer which connected the TD series video card required that
motherboard and VGA card could support Windows VISTA OS.
1.2.1 TD3004~TD3216 Series Cards System Requirements
Card
TD3004, TD3008, TD3016, TD3116, TD3216
PC Module
CPU
Intel PIII processor, minimum 800MHz
Motherboard
Intel 815/845/865/915 series
HDD
80G minimum
RAM
256M minimum
VGA
GeForce2,GeForce4,FX5200,ATI Rage128
OS
Windows2000 /XP /VISTA
DirectX
9.0
Table1-1 TD3004~TD3216 Series Cards System Requirements
NOTICE
Notice motherboards listed below which has passed the test can work well with
TD3004~TD3216:
• GIGA: GA-8IRXI (Intel 845D)
• GA-8IE2004 (Intel 845E)
• GA-6OXT (Intel 815EP)
• GA-8PE800 (Intel 845PE)
• GA-8IPE1000-G (Intel 865PE)
• ASUS: P4S8X (Sis 648)
• TUSL2-C (Intel 815EP)
• P4P800 (Intel 865PE)
• MSI: MS-6566E (Intel 845E)
• Intel845DDA+ (Intel 845E)
1.2.2 TD3304/3308/3316 System Requirements
Card
PC Module
CPU
Motherboard
HDD
RAM
VGA
OS
DirectX
TD3304,TD3308, TD3316
Intel P4 2.8G minimum
Intel 865/915
160G minimum
512M minimum
NVIDIA GeForce MX440/FX5200
ATI RADEON 7500/ X300/ X250/ X5518
Windows 2000(SP4 above) /Windows XP(SP2 above) /VISTA
9.0
Table1-2 TD3304/3308/3316 System Requirements
3
SuperDVR & TD Series Cards
User Manual
1 Introduction
NOTICE
1.The computer which installed TD3316 video card requires that motherboard and
VGA card could support Window VISTA OS.
2.Motherboards listed below which has passed the test can work well with TD3316:
• Foxconn 865A01(Intel 865)
• Ga-81pe1000-G 865(Intel 865)
• Asus P4p800 865(Intel 865)
• ASUS P5GD1-VM 915(Intel 915)
• MSI 6728 865(Intel 865)
• Abit IS7-E 865(Intel 865)
• ASUS-P4GPL-X 915(Intel 915)
• ASROCK 775I915PL-SATA2 915(Intel 915)
1.2.3 TD3101/3104 USB Cards System Requirements
Card
TD3101, TD3104
PC Module
CPU
Intel P4 Celeron processor,minimum 1700MHz
Motherboard
Intel 845/865/915 series
HDD
80G minimum
RAM
256M minimum
VGA
GeForce2,GeForce4,FX5200,ATI Rage128
Windows 2000(SP4 above) /2003(SP2 above) /XP(SP2 above)
/VISTA
9.0
OS
DirectX
USB
2.0
Table1-3 TD3101/3104 System Requirements
1.2.4 TD4104 /4404L/4404 Card System Requirements
Card
PC Module
CPU
TD4104, TD 4404L, TD 4404
Intel P4 Celeron processor 2.0G minimum
HDD
80G minimum
RAM
256M minimum
OS
DirectX
Windows 2000 /2003 /XP /VISTA
9.0
Table1-4 TD4104/4404L/4404 System Requirements
NOTICE
1. Motherboards listed below which have passed the test can work well with TD4104:
• Intel 865G
• GA-945PL-S3E
• GA965P-S3
• GA-K8V7890-9
• GA-8IE2004P
• ASUS P5PL2
• ASUS P5B-E
2. VGA cards listed below which have passed the test can work well with TD4104:
• ATI X1600
• ATI X300
• NVIDIA Geforce 7300LE
4
SuperDVR & TD Series Cards
User Manual
•
•
1 Introduction
NVIDIA Geforce 7600GS
NVIDIA Geforce 8500GT
If recorded disk partition’s format is FAT32 and the system has run for a long
time, the system will create a lot of data fragments that may results in system
runs slowly. It’s recommended to make disk defragmenter every 10 to 30 days.
We strongly suggest that use NTFS format for record disk partition.
1.2.5 TD4116/4316/4416L/4416 Card System Requirements
Card
PC Module
CPU
TD4116,TD 4316,TD 4416L,TD 4416
Intel P4 Celeron processor 2.0G minimum
HDD
80G minimum
RAM
256M minimum
OS
Windows 2000/2003/XP/VISTA
DirectX
9.0
Table1-5 TD4116 /4316/4416L/4416System Requirements
Motherboards and VGA cards listed below which have passed the test can
work well with TD4116 in Windows XP system:
Motherboard
VGA card
ATI HD2400
COLORFUL C975X-MVP
NVIDIA GeForce 7600
NVIDIA GeForce 7300
ATI HD2400
ASUS P5LD2-X
ATI X300
ATI HD2400
NVIDIA GeForce 7600
ASUS P5B
NVIDIA GeForce 7300
ATI X300
ATI HD2400
GA-965P-S3
NVIDIA GeForce 7300
ATI X300
ATI HD2400
GA-945PL-S3E
NVIDIA GeForce 7600
ATI X300
ATI HD2400
ASUS P5L-1394
NVIDIA GeForce 7600
ATI X300
ATI HD2400
NVIDIA GeForce 7600
ASUS P5GD1-VM
ATI X300
ATI X700
Table1-6 Motherboards and VGA Cards Support XP OS
Motherboards and VGA cards listed below which have passed the test can
work well with TD4116 in Windows VISTA system:
Motherboard
COLORFUL C975X-MVP
ASUS P5LD2-X
GA-965P-S3
VGA card
ATI HD2400
ATI HD2400
ATI X300
ATI HD2400
5
SuperDVR & TD Series Cards
User Manual
1 Introduction
Motherboard
VGA card
ATI X300
ATI HD2400
ASUS P5L-1394
ATI X300
ATI HD2400
ASUS P5GD1-VM
ATI X300
ATI X700
Table1-7 Motherboards and VGA Cards Support VISTA OS
1.2.6 TD4108/ 4308/4408/4408L Cards System Requirements
Card
Intel PD Dual-core 2.8 G above
HDD
TD4108,TD4308,
TD4408,TD4408L *one card
Intel P4 Celeron processor
3.0G minimum
80G minimum
RAM
512M minimum
2.0G minimum
PC Module
CPU
OS
DirectX
TD4108,TD4308,
TD4408,TD4408L *four cards
160G minimum
Windows 2000/2003/XP/VISTA
9.0
Table1-8 TD4108/ 4308/4408/4408L System Requirements
1.3 System Specifications
• Format: PAL/NTSC.
• Resolution: TD3004, 3008, 3016, 3116, 3216, 3101, 3104 support
320x240 / 640x480 (NTSC), 352x288 / 704x576(PAL),TD3304,3308 support
320x240(NTSC), 352x288(PAL),TD3316 supports 352 × 240 / 704 ×
480(NTSC), 352x288 / 704x576(PAL) ,TD4104 supports 320×240(NTSC) ,
352×288(PAL) ,TD4108 supports 320×240(NTSC) , 352×288(PAL) and TD
4308,4316,4404,4404L,4408,4408L,4416L supports 704x576(PAL).
• Maximum Frame rate per channel: 25 fps (PAL), 30 ftp (NTSC).
• Screen set: resolution 1024×768, color quality 16 bits or 32 bits.
• Compression code rate: 50kbps – 1.2Mbps.
• Data format: H.264
6
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
2
Hardware Installation
2.1 Video Capture Card Hardware
2.1.1 TD3004 Card Hardware
Figure2-1 TD3004 Video Capture Card
Pin Port
1PIN
2PIN
3PIN
4PIN
5PIN
6PIN
7PIN
8PIN
9PIN
10PIN
Define
Interpret
5V
Power Source (5V)
ALARM_COM
Alarm COM
ALARM_NC
Alarm Normal Close
ALARM_IN1
Alarm Input 1
ALARM_NO
Alarm Normal Open
ALARM_IN2
Alarm Input 2
GND
Ground
ALARM_IN3
Alarm Input 3
GND
Ground
ALARM_IN4
Alarm Input 4
Table2-1 TD3004 Card Pins
7
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
2.1.2 TD3304 Card Hardware
Figure2-2 TD3304 Video Capture Card
Pin Port
1PIN
2PIN
3PIN
4PIN
5PIN
6PIN
7PIN
8PIN
9PIN
10PIN
Define
Interpret
5V
Power Source (5V)
ALARM_COM
Alarm COM
ALARM_NC
Alarm Normal Close
ALARM_IN1
Alarm Input 1
ALARM_NO
Alarm Normal Open
ALARM_IN2
Alarm Input 2
GND
Ground
ALARM_IN3
Alarm Input 3
GND
Ground
ALARM_IN4
Alarm Input 4
Table2-2 TD3304 Card Pins
2.1.3 TD3008 Card Hardware
Figure2-3 TD3008 Video Capture Card
8
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
Figure2-4 Pins Definitions of TD3008 Video Capture Card
2.1.4 TD3016 Card Hardware
Figure2-5 TD3016 Video Capture Card Circuit Link for Watchdog Function
Figure2-6 TD3016 Video Capture Card Alarm Port
The Alarm Port pin definitions of TD3016 Card are as below:
Pin
Port
Pin1
Pin2
Pin3
Pin4
Pin5
Pin6
Pin7
Pin8
Pin9
Pin10
Pin11
Pin12
Pin13
Pin14
Pin15
Pin16
Define
Alarm_in1
Alarm_in2
Alarm_in3
Alarm_in4
Alarm_in5
Alarm_in6
Alarm_in7
Alarm_in8
Alarm_in9
Alarm_in10
Alarm_in11
Alarm_in12
Alarm_in13
Alarm_in14
Alarm_in15
Alarm_in16
Interpret
Alarm Input 1
Alarm Input 2
Alarm Input 3
Alarm Input 4
Alarm Input 5
Alarm Input 6
Alarm Input 7
Alarm Input 8
Alarm Input 9
Alarm Input 10
Alarm Input 11
Alarm Input 12
Alarm Input 13
Alarm Input 14
Alarm Input 15
Alarm Input 16
Pin
Port
Pin21
Pin22
Pin23
Pin24
Pin25
Pin26
Pin27
Pin28
Pin29
Pin30
Pin31
Pin32
Pin33
Pin34
Pin35
Pin36
Define
Interpret
Alarm_out5
Alarm_out6
Alarm_out7
Alarm_out8
Alarm_out9
Alarm_out10
Alarm_out11
Alarm_out12
Alarm_out13
Alarm_out14
Alarm_out15
Alarm_out16
Alarm_Com
Alarm_NO
Alarm_NC
GND
Alarm Output 5
Alarm Output 6
Alarm Output 7
Alarm Output 8
Alarm Output 9
Alarm Output 10
Alarm Output 11
Alarm Output 12
Alarm Output 13
Alarm Output 14
Alarm Output 15
Alarm Output 16
Alarm COM
Alarm Normal Open
Alarm Normal Close
Ground
9
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
Pin
Port
Pin17
Pin18
Pin19
Pin20
Define
Alarm_out1
Alarm_out2
Alarm_out3
Alarm_out4
Pin
Define
Port
Alarm Output 1
Pin37
GND
Alarm Output 2
Pin38
5V
Alarm Output 3
Pin39
Not Used
Alarm Output 4
Pin40
Not Used
Table2-3 Pins Definitions of TD3016 Card
Interpret
Interpret
Ground
Power Source (5V)
Not Used
Not Used
2.1.5 TD3116 Card Hardware
Figure2-7 TD3116 Video Capture Card
Figure2-8 Reset Pins Definitions of TD3116 Video Capture Card
Figure2-9 Pins Definitions of TD3116 Video Capture Card
10
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
2.1.6 TD3216 Card Hardware
Figure2-10 TD3216 Video Capture Card
Figure2-11 Pins Definitions of TD3216 Video Capture Card
2.1.7 TD3308 Card Hardware
Figure2-12 TD3308 Video Capture Card
11
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
P1
17
16
VINch1
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
VINch2
VINch3
VINch4
VINch5
VINch6
VINch7
VINch8
AGND
CONNECTOR DB15
AGND
PIN1 Video1
PIN6
Video6
PIN2 Video2
PIN7
Video7
PIN3 Video3
PIN8
Video8
PIN4 Video4
Pin9-pin15 GND
PIN5 Video5
Figure2-13 Video Connector and Pins Definition
Figure2-14 TD3308 Video Capture Card Alarm Port
Pin
Port
Pin1
Pin2
Pin3
Pin4
Pin5
Pin6
Pin7
Pin8
Pin9
Pin10
Pin11
Pin12
Pin13
Pin14
Pin15
Pin16
Pin17
Pin18
Pin19
Pin20
12
Define
Alarm_in1
Alarm_in2
Alarm_in3
Alarm_in4
Alarm_in5
Alarm_in6
Alarm_in7
Alarm_in8
Pin
Define
Port
Alarm Input 1
Pin21
Alarm Input 2
Pin22
Alarm Input 3
Pin23
Alarm Input 4
Pin24
Alarm Input 5
Pin25
Alarm Input 6
Pin26
Alarm Input 7
Pin27
Alarm Input 8
Pin28
Pin29
Pin30
Pin31
Pin32
Pin33
Pin34
Alarm_Com
Pin35
Alarm_NO
Pin36
GND
Pin37
GND
Pin38
5V
Pin39
Alarm_NC
Pin40
Table2-4 Pins Definitions of TD3308 Card
Interpret
Interpret
Alarm COM
Alarm Normal Open
Ground
Ground
Power Source (5V)
Alarm Normal Close
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
2.1.8 TD3316 Card Hardware
Figure2-15 TD3316 Video Capture Card
P2
DFD202-F-26-R-T
10
19
11
20
12
21
13
22
14
23
15
24
16
25
17
26
18
1
2
3
4
5
6
7
8
27
28
9
PIN1 AUDIO2 PIN11 AUDIO3
PIN2 AUDIO4 PIN12 AUDIO5
PIN3 AUDIO6 PIN13 AUDIO7
PIN4 AUDIO8 PIN14 AUDIO9
PIN5 AUDIO10 PIN15 AUDIO11
PIN6 AUDIO12 PIN16 AUDIO13
PIN7 AUDIO14 PIN17
PIN8 AUDIO15
GND
PIN9 AUDIO16 /
PIN10 AUDIO1 PIN26
Figure2-16 Audio Connector and Pins Definition
J1
GiL-G-8P-S3T2-E
J2
GiL-G-8P-S3T2-E
1
2
3
4
5
6
7
8
PIN1
PIN3
PIN5
PIN7
VIN-1
VIN-2
VIN-3
VIN-4
PIN2 GND
PIN4 GND
PIN6 GND
PIN8 GND
1
2
3
4
5
6
7
8
PIN1
PIN3
PIN5
PIN7
VIN-5 PIN2 GND
VIN-6 PIN4 GND
VIN-7 PIN6 GND
VIN-8 PIN8 GND
13
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
J3
GiL-G-8P-S3T2-E
J4
GiL-G-8P-S3T2-E
1
2
3
4
5
6
7
8
PIN1 VIN-9
1
2
3
4
5
6
7
8
PIN2 GND
PIN1 VIN-13 PIN2 GND
PIN3 VIN-10 PIN4 GND
PIN3 VIN-14 PIN4 GND
PIN5 VIN-11 PIN6 GND
PIN5 VIN-15 PIN6 GND
PIN7 VIN-12 PIN8 GND
PIN7 VIN-16 PIN8 GND
Figure2-17 Video Pins Definition
2.1.9 TD3101 USB Card Hardware
Figure2-18 TD3101 USB Video Capture Card
2.1.10 TD3104 USB Card Hardware
Figure2-19 TD3104 USB Video Capture Card
NOTICE
• Make sure that your PC USB interface is 2.0.
• TD3101/3104 card can only support USB 2.0.
Please accord to the following steps to safely remove the USB card: Right
clicks on the Taskbar Stop device pull out the USB card.
Using TD3101/3104 card with other USB device simultaneously may cause
14
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
PC cannot identify USB card.
Do not insert two or more USB video capture cards simultaneously.
Do not use with the other PCI video capture card simultaneously.
2.1.11 TD4104/4404L/4404 Card Hardware
Figure2-20 TD4104/4404L/4404 Video Capture Card
PIN1 VIDEO-1 PIN9 GND
PIN2 GND
PIN10 AUDIO-1
PIN3 VIDEO-2 PIN11 AUDIO-2
PIN4 GND
PIN12 AUDIO-3
PIN5 VIDEO-3 PIN13 AUDIO-4
PIN6 GND
PIN14 NULL
PIN7 VIDEO-4 PIN15 GND
PIN8 GND
Figure2-21 Definition of Audio and Video Connector’s Pins
NOTICE
Our TD4104 cards have two different ports; please refer to your user manual according
to the product you purchase.
When there are some TD4104 card connects together, please connect the
line as following figure.
15
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
Figure2-22 Multi-Card Connection
2.1.12 TD4116 Card Hardware
Figure2-23 TD4116 Video Capture Card
P2
DFD202-F-26-R-T
10
19
11
20
12
21
13
22
14
23
15
24
16
25
17
26
18
1
2
3
4
5
6
7
8
27
28
9
16
PIN1
PIN2
PIN3
AUDIO2
AUDIO4
AUDIO6
PIN11 AUDIO3
PIN12 AUDIO5
PIN13 AUDIO7
PIN4
AUDIO8
PIN14 AUDIO9
PIN5
AUDIO10 PIN15 AUDIO11
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
PIN6
AUDIO12 PIN16 AUDIO13
PIN7
AUDIO14 PIN17
PIN8
AUDIO15
GND
PIN9 AUDIO16 /
PIN10 AUDIO1 PIN26
Figure2-24 Audio Connector and Pins Definition
J1
GiL-G-8P-S3T2-E
1
2
3
4
5
6
7
8
PIN1
PIN3
PIN5
PIN7
J2
GiL-G-8P-S3T2-E
1
2
3
4
5
6
7
8
VIN-1 PIN2 GND
PIN1 VIN-5 PIN2 GND
VIN-2 PIN4 GND
PIN3 VIN-6 PIN4 GND
VIN-3 PIN6 GND
PIN5 VIN-7 PIN6 GND
VIN-4 PIN8 GND
PIN7 VIN-8 PIN8 GND
Figure2-25 Video Pins Definition
2.1.13 TD4316/4416L Card Hardware
Figure2-26 TD4316/4416L Video Capture Card
17
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
PIN1 AUDIO2 PIN11
AUDIO3
PIN2 AUDIO4 PIN12
AUDIO5
PIN3 AUDIO6 PIN13
AUDIO7
PIN4 AUDIO8 PIN14
AUDIO9
PIN5 AUDIO10 PIN15
AUDIO11
PIN6 AUDIO12 PIN16
AUDIO13
PIN7 AUDIO14 PIN17
PIN8 AUDIO15 PIN18
PIN9 AUDIO16
PIN10 AUDIO1 PIN19-26 GND
Figure2-27 Definition of Audio Connector and Pins
2.1.14 TD4108/4308/4408/4408L Card Hardware
Figure2-28 TD4108/4308/4408/4408L Video Capture Card
18
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
PIN1 VIDEO-1 PIN9 GND
PIN2 GND
PIN10 AUDIO-1
PIN3 VIDEO-2 PIN11 AUDIO-2
PIN4 GND
PIN12 AUDIO-3
PIN5 VIDEO-3 PIN13 AUDIO-4
PIN6 GND
PIN14 NULL
PIN7 VIDEO-4 PIN15 GND
PIN8 GND
Figure2-29 Definition of Audio and Video Connector’s Pins
When there are some TD4108 cards connect together, please connect the
line as following figure.
Figure2-30 Multi-Card Connection
19
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
2.1.15 Alarm Board Hardware
Figure2-31 Alarm Board
Figure2-32 Pins Definition of Alarm Board
Connect J2 to PC serial port and you may use alarm board by SuperDVR
system.
2.1.16 Connect Audio Signal
For TD3004/3008/3016/3304/3116/3216/4104/4108/4408, connect the audio
input device to the microphone connector on the motherboard.
Before installing the Video Capture Card hardware in PCI port of the
motherboard, make sure you’ve installed Microsoft DirectX 9.0. Then turn on
the computer, the system will remind you to ‘Found new hardware’.
NOTICE
Just click ‘Cancel’ and ignore the pop-up message.
Insert the CD that contains TD series capture card driver into the CD tray, and
run Setup.exe program to install the driver. The default installation path is
‘C:\Program Files\SuperDVR’.
NOTICE
In case it warns that ‘Can’t find card’ when running the SuperDVR software, please
restart the computer.
20
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
2.2 Install Video Capture Card Driver
STEP1:
Run Setup.exe, and the installation interface appears as below:
Figure2-33 TD Series Video Capture Card Installation Interface
Figure2-34 Welcome Page
STEP2:
Select video system, click “next”
Figure2-35 Select Video Format
21
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
STEP3:
Install driver first.
Figure2-36 Rate of Progress of Driver Installation
STEP4: After this process, it begins to install the application package
SuperDVR, as below:
Figure2-37 Select Installation Folder
STEP5:
Select the suitable option, and click ‘Next’.
Figure2-38 Register Application
STEP6:
22
Click ‘Next’.
SuperDVR & TD Series Cards
User Manual
2 Hardware Installation
Figure2-39 Driver and Application Installation Finished
STEP7: Click ‘Finish’.
STEP8: Now, after all the processes are finished, it will create a shortcut on
the desktop. Restart the computer and launch the surveillance program.
Figure2-40 Shortcut of SuperDVR
NOTICE
When you install the driver software on Microsoft VISTA system, you need select the
option as below figure first. And steps of install the driver software on Microsoft VISTA
system are the same as on Microsoft XP system.
Figure2-41 Install the Software on VISTA
In case users cannot run the SuperDVR program, users restart the computer.
23
SuperDVR & TD Series Cards
User Manual
3 Main Display Interface
3
Main Display Interface
Run SuperDVR program and the main display interface appear as below:
Figure3-1 SuperDVR Main Display Interface
3.1 Display Control Panel
3.1.1 Display Control Panel
Figure3-2 Display Control Panel
Display control panel includes Display Mode buttons and disk free space
indicator, ‘Auto Dwell’ button. Every button has its built-in indicator light.
When switch on and off the buttons, the relative indicator lights turn on and off
to indicate the working status.
NOTICE
Users can judge which buttons are working by the color of the buttons.
3.1.2 Display Modes
Figure3-3 Display Modes Panel
24
SuperDVR & TD Series Cards
User Manual
3 Main Display Interface
3.1.3 Flip Pages
When the display mode is 1CH, 4CH, 9CH, 16CH or 32 CH click
will display the next page according to the display mode.
, system
3.1.4 Auto Dwell Display Mode
In case users want to see all the channels in sequence, then click
enter Auto Dwell display mode.
and
3.1.5 Capture
In case users want to capture picture quickly, they can click
save 32 pictures to the default folder on disk, c:\ path.
, system will
3.1.6 Urgent Record
Click
, system will be recorded and saved all the cameras.
3.2 Login
Click
, and login window appears. Input the user name and password, the
default user name is ‘SYSTEM’ with no password, users can access to the
main interface. Users can change password for SYSTEM and create new
user names and passwords once has entered the system.
Figure3-4 Main Interface
3.3 Record
3.3.1 Record Modes
According to different record triggering methods, video capture cards offer
users with 4 kinds of record modes:
•
Schedule record mode (timer)
25
SuperDVR & TD Series Cards
User Manual
3 Main Display Interface
• Manual record mode
• Motion Detection record mode
• Sensor Alarm record mode
Motion Detection record mode and Sensor Alarm record mode are together
called as Alarm Record.
In case, users use multiple cameras to record, every camera works
separately and the record file also saved separately. The parameters, i.e.
camera ID, record date/time, and record mode are all saved together with the
record file.
3.3.2 Record Setup
Figure3-5 Record Configuration Panel
In the ‘Record Panel’ of the Basic Configuration page, users can set all kinds
of necessary parameters for recording.
1. Time Stamp
By selecting the options, the record date / time message appears in the
record file images.
2. Switch
By selecting the options, users can turn on corresponding cameras. In case
there is no camera for some channel, do not select the option so as to save
system resource.
3. Manual Record
By selecting the options, the relative camera images will be recorded and
saved all the time.
4. Manual Recording Frame Rate
Select the record frame rate for manual record mode.
5. Schedule Record
Schedule record option
6. Schedule Record Frame Rate
Select Schedule Record frame rate.
7. Motion Detection
By selecting the options, users can set relative channels’ record mode as
motion detection.
8. Motion Record Frame Rate
Select record frame rate for Motion Detection record mode. Users can set up
unified channel parameters in this item.
26
SuperDVR & TD Series Cards
User Manual
3 Main Display Interface
9. Sensor Record Frame Rate
If sensors are utilized to trigger recording, users can select record frame rate
here.
10. Camera Security
The users are divided into three standards: Normal user, Power user and
Administrator. By selecting the options, only administrators can see the
corresponding channels.
11. Record Quality
Select record image quality here.
12. Audio in
SuperDVR6.0 system can support one channel of microphone audio input
signal on the PC motherboard and audio inputs on the card if it has.. Users
can choose one video channel associate these audio signals.
NOTICE
Users can select more than one record mode.
3.3.3 Record Status Panel
Figure3-6 Record Status Panel & Alarm Output Status Panel
Meanings of indicator light colors in row one is as below:
•
Grey light: Normal State
•
Viridescent light: Manual Record State
•
Bottle-green light: Schedule Record State
•
Yellow light: Motion Detection Record State
•
Red light: Sensor Alarm Record State
•
Blue light: Video Loss State
When the indicator light color turns into red
alarm output.
in row two, it means there is
3.3.4 Manual Record Mode
Manual Record mode is the most commonly used record mode. In case there
is any special event happens, users can select this record mode and record
timely.
NOTICE
You can select high frame rate for short time manual record, while select low frame rate
for long time Schedule Record.
27
SuperDVR & TD Series Cards
User Manual
3 Main Display Interface
3.3.5 Sensor Alarm Record Mode
Users can use sensors to trigger sensor alarm record for relative channels. At
that time, the record status indicator light will turn red
.
3.3.6 Motion Detection Record Mode
It will enable the system to detect image changes and begin to record by
activating motion detection and motion alarm record. For instance, somebody
opens the door, and the system detects image changes and begins to record,
then users can play back the recorded file and find out who opened door.
When there is no movement, the system will not record and that is helpful for
saving system resource, and convenient for searching for event record file.
The indicator light color in the record status panel is yellow
.
NOTICE
Users may need to setup in three places to enable motion detection record.
• Select ‘Motion Detection’ for certain channels in ‘Basic Configuration’.
• Configure the motion detection areas for certain channels in ‘Motion Detection
Configuration’.
• Configure working schedule for certain channels in ‘Schedule Configuration’.
3.3.7 Schedule Record
Users can set working schedule for all kinds of record modes in ‘Schedule
Configuration’. The bottle-green light
in record status panel shows the
corresponding channel is in Schedule Record mode. Users can change
record mode to manual record at any time, and the bottle-green light
change into viridescent light
will
.
Please refer to ‘4.4 Configuration’ for details.
3.3.8 Recycling Record
If users enable Recycling Record function and all the selected HDD partitions
are full, the former record data will be covered by the latest record data.
Users can set recording storage sequence for HDD partitions. The recording
storage will automatically jump to the next partition when it’s full. If all the
partitions are full and recycling record mode has been enabled, the new data
will overwrite the former recorded data automatically. Users can also set HDD
minimum storage alarm. Then once the present storage space is less than the
minimum storage and recycling record mode has not been enabled, the
record will automatically stop.
28
SuperDVR & TD Series Cards
User Manual
4 System Setup
4
Click
System Setup
and enter the main setup interface.
Figure4-1 Basic Configuration
The definitions of the buttons in Figure4-1 are as below:
Basic Configuration
Schedule configuration
Video configuration
Motion Detection Configuration
Alarm Configuration
P.T.Z Configuration
User Configuration
Save and Return
4.1 Basic Configuration
Click
and enter the basic configuration page where users can setup the
system or just use the defaults.
29
SuperDVR & TD Series Cards
User Manual
4 System Setup
Figure4-2 Caption and General Configuration
1. Dwell Interval.
If users enable Auto Dwell function in the main interface page, users can set
the dwell time of a page here.
2. Caption
There are four options, None, ID, Name, and ID/Name for users to select for
all the channels.
• ‘None’ means no title;
• ‘ID’ means camera numbers, i.e. 1, 2, 3 and so on;
• ‘Name’ means camera names, i.e. Cam1, Cam2 and so on;
• ‘ID/Name’ means both camera number and camera name, i.e. 1/Cam1,
2/Cam2 and so on.
3. Resolution
There are several options:352×288、352×240 and 704×480、704×576for
users to select for all the channels.
4. Call Monitor
Users can connect another monitor to the card and select the display modes
here.
The following is about record data storage. Please check 3.3.8.
Figure4-3 Record Data Storage Precept
Above, Superdrug system shows all the available HDD partitions for users.
Users can select one or more of the partitions that will be used in sequence
from up to bottom. Please refer to chapter 3.3.8 to learn more about recycling
record.
In the following area in the basic configuration page, users can input the
computer user name and password in the relative boxes. Then when
restarting the computer system, it will access to the system with the user
name and password input in the boxes.
30
SuperDVR & TD Series Cards
User Manual
4 System Setup
Figure4-4 Computer System Reboot Setup
As the windows system may become unstable after a couple of days to
continue operating. It may cause SuperDVR system unstable. The software
support auto-reboot. Select
and set the interval by day,
which will guide the system to reboot automatically according to the setups.
5. Capture browse
This item is the save path of capture files
Users can fill in the specific save path for their capture pictures.
Click
to return to the main display interface.
4.2 Video Configuration
Click
and enter the video configuration page as below. Users can
change the values of corresponding items, i.e. contrast, brightness, hue,
saturation, auto gain, by drawing the levers on the bars. Click ‘Default’, and
all the values will return to the default value.
Figure4-5 Video Configuration
Definitions of the setup items:
1. Contrast
Set image color contrast.
2. Brightness
Set image brightness.
31
SuperDVR & TD Series Cards
User Manual
4 System Setup
3. Hue
Set image hue.
4. Saturation
Set image Saturation
5. Default
Load defaults, i.e. set the first four items value. The range of value is from
0—255.
4.3 Motion Detection Configuration
Click
and enter Motion Detection Configuration page,
Figure4-6 Motion Detection Configuration
Definition of the setup items:
1. Sensitivity
Users can set motion detection sensitivity here.
2. Speed
Motion detection sensitivity
3. Block Number
Set grid’s number.
4. Defaults
Set as default.
5. Select All
Select all the areas of the channel as detection area
6. Clear
Clear all the detection areas and then users can select customized detection
areas by cursor.
32
SuperDVR & TD Series Cards
User Manual
4 System Setup
4.3.1 Set Motion Detection Area
In case users want to customize the detection areas for a certain channel, first
select the camera, then select ‘Clear’ and drag the cursor in the box in the left
side. Now, users can see a green box appears which shows the motion
detection area. Users can select maximum 16 customized areas for each
channel.
4.3.2 Set Motion Detection Area
By click ‘Clear’, users can clear all the selected areas.
4.4 Schedule Configuration
Click
and enter Schedule Configuration page as below:
Figure4-7 Schedule Configuration
Our TD series system offers the users with powerful schedule configuration
options. Every channel has three kinds of record modes, i.e. schedule record,
motion detection record and sensor alarm record. We provide users to set
schedules from Sunday to Monday separately for all of the three record
modes. Sensor alarm recording mode has the highest priority among all
record modes. Here users can set schedules for it.
When users need to edit schedule for a channel, first select the camera name
in the three record modes group, and select the color bars on the right side,
then select ‘Edit’ to edit schedules. Click ‘Add’ to add schedule for a certain
channel.
NOTICE
The added schedule should not be reduplicate to the former settings.
Click ‘Delete’ to delete schedule. Click ‘Clear All’ to delete all the schedules
of a certain channel.
See the Figure 4-8 Edit Schedule and learn how to edit schedules for a
channel:
33
SuperDVR & TD Series Cards
User Manual
4 System Setup
Figure4-8 Edit Schedule
4.5 Motion Detection Alarm Configuration
4.5.1 Alarm Triggering Conditions Configuration
The system can receive alarm from both local place and network.
Local Alarm Record Triggering Configuration
Figure4-9 Local Alarm Triggering Configuration
Relative Explanations:
1. Buzzer
Users can select whether to open the computer buzzer if the alarms have
been triggered and also select how long the buzzer rings
2. Pre-Alarm Record
Users can select whether to enable alarm pre-record and also pre-record
time.
3. Big Screen Holding Time
The corresponding channel will be full screen when alarm triggered. Set the
full screen hold time here.
4. Motion Holding Time
The continuous recording time after motion stopped
5. Sensor Holding Time
The continuous recording time after sensor stopped
6. Disk Shortage Alarm
If the Partition free space is less than the set percent, it will stop recording or
recycling, but give alarm tips according to the settings.
34
SuperDVR & TD Series Cards
User Manual
4 System Setup
4.5.2 Alarm Record
Figure4-10 Alarm Trigger Method Configuration
Every sensor can trigger multiple channels to record. For example, if users
select CAM1, CAM4 and CAM5 for Sensor2, then once the sensor is
activated, CAM1, CAM4 and CAM5 will begin to record. Users can also select
the voltage, high and low, for alarm signals.
4.5.3 Alarm Output
Figure4-11 Alarm Output Configuration
Press
in the main interface and access to the following Alarm
Configuration area where users can make a setup for motion detection alarm,
sensor alarm setup and short of HDD space alarm setup.
35
SuperDVR & TD Series Cards
User Manual
4 System Setup
1. Video Loss
Users can select alarm output for this option. For example, users select
alarm_out1 and alarm_out3 for video loss. Then video loss of any channel will
trigger alarm_out1, alarm_out3 to show red light in the Alarm output status
panel (refer to Figure3-6 for reference).
2. Disk Alarm
When HDD available space is less than the set value (see Figure4-9), it will
trigger alarm.
3. Sensor
Sensor 1: If users have mounted sensors, when the sensors have been
activated, then it will trigger the selected output alarms.
Sensor 2 - Sensor 16: TwoTD4116 cards have maximum 16 sensors.
4. Motion
Motion 1: Users can set the output of motion detection alarm by different
alarms and remote alarm.
Motion 2 - Motion 16: 32CH card has maximum 16 motion alarms.
NOTICE
You should choose our additional alarm device board while using twoTD4116 cards for
alarm I/O.
4.5.4 Auto Mail Function
Now users can select the above-mentioned alarms to be output by Auto Mail.
Click ‘Auto Mail’ icon on the left top side of alarm configuration page and
enter the following area to make Auto Mail setup, referred Figure4-12.
Figure4-12 Auto Mail Setup Interface
In this area, users can set receiver and sender’s E-mail SMTP server and
address. Note: the address of receiver and sender can be the same.
36
SuperDVR & TD Series Cards
User Manual
4 System Setup
Figure4-13 Auto Mail Setup
To test the settings, click ‘Send Mail Test’. If all settings are okay, message
‘Message Sent Successfully’ will pop up. If some settings are wrong, there will
pop up corresponding warning message.
Enable ‘Attachment’, then the present image when an alarm triggered will be
sent to appointed mailbox, referred Figure4-14.
Figure4-14 Attachment Setup
NOTICE
For every alarm event, only one picture will be sent.
4.6 E-map Configuration
E-map is used to show full geographic range covered by the whole monitoring
system in the form of map .An E-map has the feature of simple operation and
direct display of status and it is generally graded or tiered in the form of a tree
diagram.
4.6.1 Edit Map
It supports only the image format of bmp or jpg.
to enter ‘Emap → Emap Edit’, press right key of Load Picture in
Click
the default interface of map and select the required map file in the related
folder, open the file and the map will be displayed in this interface, as
Figure4-15 E-Map Edit.
37
SuperDVR & TD Series Cards
User Manual
4 System Setup
Figure4-15 E-Map Edit
Draw the icon of camera to the corresponding position in the map, maximum
32 cameras can be set simultaneously, Click ‘change icon’ of camera by right
key to change icon and click ‘Delete’ to cancel camera. After editing, click
right key in the map and select ‘Save Map’ to save the current map.
A gray map icon can be drawn to the corresponding position in the map on the
right and set it as a sub-map of the current map, or click the gray map icon on
the left by right key and select ‘Open’ to build a new map. And you can also
click the blue map icon on the left by right key, and select ‘Rename’ to change
name of the map or select ‘Close’ to cancel this map.
4.6.2 View Map
Click
to enter E-map, where the user can view distribution of all
cameras in the map, as Figure4-16 View Camera.
Figure4-16 View Camera
38
SuperDVR & TD Series Cards
User Manual
4 System Setup
When a channel alarm, the camera icon will flash yellow alarm signal. Select
‘Auto Show’, in case of accident alarming, an alarming screen will pop out
automatically and you can know about the alarming position rapidly. Click the
camera head by right key to show the screen on the spot.
NOTICE
1. The map tree currently supports three levels and it is invalid for addition exceeding
three levels.
2. For loading of a picture, when any side of length and width of the picture exceeds size
of picture frame, it will be enlarged and shortened proportionally and standard size of
picture frame is 833*678.
3. On this interface, click camera by right key to display the spot and the 3316 card does
not support this function temporarily.
4. If ‘Auto Show’ is set in case that E-map pops up by automatic alarming, the E-map
interface set with ‘Holding Time’ without any operation and alarm will be close
automatically. ‘Auto Show’ is invalid when the E-map is opened manually.
5. The map in the E-map is the default demonstration map, and the user can invite an
engineering merchant to make the practical map or draw a map by their own according
to their actual needs, then scan and save it in the computer to picture.
4.7 P.T.Z Control Configuration
Click
and enter the following area:
Figure4-17 PTZ Configuration Panel
4.7.1 Protocol Setup
Users can select different protocols, serial port number for P.T.Z devices.
39
SuperDVR & TD Series Cards
User Manual
4 System Setup
Figure4-18 P.T.Z Protocol Setup
1. Port
Users can set serial port number.
2. Protocol
Communication protocol of P.T.Z device
3. Address
Communication address of P.T.Z device
4.7.2 Serial Ports Setup
Users should firstly enable the P.T.Z control function of a certain camera and
select a port number in P.T.Z Protocol Setup (refer to Figure4-18), and then
set corresponding parameters in the area below:
Figure4-19 P.T.Z Serial Port Setup
1. Port
Users can set port number.
2. Baud Rate
Set P.T.Z device Baud Rate, default value is 9600.
3. Data Bits
Default value is 8.
4. Parity
Odd and even parity bit, default Null.
5. Stop Bits
Default value is 1.
NOTICE
Users should look into the P.T.Z device and get the Baud Rate, Protocol, and Address
first, then set their values accordingly.
40
SuperDVR & TD Series Cards
User Manual
4 System Setup
4.8 Users Configuration
Click
and access the following area:
Figure4-20 User configuration
After installing the SuperDVR system, it will automatically create an
administrator user of which user name is SYSTEM with no password. Users
can use this username to log in the system and ‘Add’, ‘Edit’ or ‘Delete’ users’
parameters.
4.8.1 Change User rights
Select a user in User Configuration area (refer to Figure4-20), and click ‘Edit’
and enter Edit User area, as below:
Figure4-21 User Password and Rights Edit
Users can edit user’s password and rights here, but not the user name.
The system offers three kinds of rights:
• Administrator: this user possessed the highest rights to change all the
settings and playing back. Meanwhile, the user also has the right to authorize
power user rights and normal user rights.
• Power user: The right of this kind of users is authorized by the
administrator. The administrator endows rights to power users by ticking off
boxes in the right list. Please refer to the following figure.
41
SuperDVR & TD Series Cards
User Manual
4 System Setup
•
Normal User: Normal user’s right is also endowed by the administrator. They
have the same right list as power user. However, whether they can possess
some right should be decided by the administrator. Only if the administrator
ticks off some right, they will have the right. For example, if ticking off Basic
Configuration, the normal user can conduct this right.
NOTICE
Administrators can change and authorize rights to Power users and Normal users, but
they cannot change or authorize other administrators’ rights.
4.8.2 Add User
Click ‘Add’ in User Configuration (refer to Figure4-20), and access the
following area:
Figure4-22 Add User
Input user name, password, confirm password and select user rights, and
then click ‘OK’.
4.8.3 Delete User
Select the user name in User Configuration (refer to Figure4-20), and click
‘Delete’, and confirm delete. See below:
Figure4-23 Confirm Delete User
42
SuperDVR & TD Series Cards
User Manual
5 P.T.Z Control
5
P.T.Z Control
Click
in the SuperDVR main display interface (refer to Figure3-1) and
access to the following area:
Figure5-1 P.T.Z Control Interface
Users can control P.T.Z devices by the function buttons on the right side, see
as below:
Figure5-2 P.T.Z Control Function Buttons Panel
In the upper circle, there are five function buttons, i.e. upward button,
downward button, leftward button, rightward button, and stop button. The
other buttons are Focus buttons (+ and -), Zoom buttons (+ and -), Iris buttons
43
SuperDVR & TD Series Cards
User Manual
5 P.T.Z Control
(+ and -). Click
values.
and
to increase and decrease the corresponding
When users need to utilize P.T.Z control, first enter P.T.Z Control Interface
(refer to Figure5-1), and click the corresponding channel (users can see a red
fringe around the channel), then users can begin to control the enabled
P.T.Z control enabled camera.
NOTICE
After pressing left mouse button on any function button in P.T.Z Control Function Buttons
Panel (refer to Figure5-2), PTZ device starts moving, when user releases it, PTZ device
stops moving.
Figure5-3 Speed Adjustment
Users can select different Pan speed, Tilt speed, Focus speed and Zoom
speed for P.T.Z devices.
1. Pan Speed
Set horizontal rotating speed.
2. Tilt Speed
Set vertical rotating speed.
3. Focus Speed
Set camera focus speed.
4. Zoom Speed
Set zoom in/ zoom out speed.
and a pop-up window will appear; users can choose different
Click
preset or group set.
Figure5-4 Preset and Group Select
44
SuperDVR & TD Series Cards
User Manual
5 P.T.Z Control
to set Preset point and change Preset point name. Every
Click
Group includes multiple Preset points. In case users select preset1, preset2
and preset3 for group1, preset1, preset2 and preset3 will be automatically
accessed in sequence after users select group1 for auto scout.
Figure5-5 Preset
Click
, a pop-pup window as following will appear:
Dwell: users can set the dwell time of a preset here.
Figure5-6 Group Configuration
45
SuperDVR & TD Series Cards
User Manual
6 Record Search & Playing Back
6
Record Search & Playing Back
Click
in the SuperDVR Main Display Interface (refer to Figure3-1) and
access to the following areas:
Figure6-1 Search and Playback Interface
This interface is divided into 4 parts, i.e. record search area, record playing
back area, record play area, and other functions area.
Press
46
and return to the live surveillance status.
SuperDVR & TD Series Cards
User Manual
6 Record Search & Playing Back
6.1 Record Search
Figure6-2 Record Search Area
A, B and C marks the areas of three search methods.
• A: Search by date (range from Jan 1st, 1971 till now)
• B: Search in backup file and original file
• C: Search by record mode. This is useful when user wants to look through
some important events.
Users can select one or above of the three searching methods to search for
needed record file.
6.2 Playing Back and Control
Figure6-3 Playing Back and Control
Explain of the button function:
47
SuperDVR & TD Series Cards
User Manual
6 Record Search & Playing Back
•
: Play / Pause
•
: Stop
•
: Play backwards. This button is valid when playing back by single
channel
•
: Previous Section. This button is valid when playing back by single
channel
: Next Section. This button is valid when playing back by single
•
channel
•
: Previous Frame. This button is valid when playing back by single
channel playing back pause mode
: Next Frame. This button is valid when playing back by single
•
channel playing back pause mode
Users can select suitable play speed in the area as below:
Figure6-4 Play Speed Controller
The following area shows the record files of different channels:
Figure6-5 Record Files Browser
The upper bar shows the hours in a whole day. Click the bar, and it will be
magnified 10 times, therefore users can see the detailed time marks. When
searching for a certain section of the file, users can draw the scrolling-bar to
the area that most likely contains the needed section. If necessary, click the
bar once and see the magnified time marks for precise search.
The left side shows the available channels. When a certain channel has been
selected for playing back, the background color will be highlighted, or its dark
gray, and a tick sign will appear beside the channel title.
The main area at the center gives details of the record files. Different colors of
the bar show different kinds of record modes of the files. The following are the
definitions of the color bars:
•
•
•
48
Blue: Manual Record Events
Green: Schedule Record Events
Yellow: Motion Detection Record Events
SuperDVR & TD Series Cards
User Manual
•
6 Record Search & Playing Back
Red: Sensor Alarm Record Events
to play selected record files. The system offers playing back
Click
modes 1 Ch, 4CH, 9 CH, and 16CH. The following is multiple channels
playing back control area:
Figure6-6 Multiple Channels Playing Back Control
The system default playing back mode is one channel. That is Camera1. In
case users need to change to other channels, then click
of following channel configuration will appear, as below:
and the window
Figure6-7 Channel Configuration Dialog for Single Channel Playing Back Mode
Users can select one channel from all the available channels for playing back.
In case user needs to play back 4 channels at the same time, then click
and the following channel configuration window will appear, as below:
,
Figure6-8 Channel Configuration Dialog for 4-channel Playing Back Mode
Users can select any four channels from all the available channels for playing
back.
The system offers quick select methods for users. For example, by selecting
‘Third 4 Channels’, Camera9, Camera10, Camera11, and Camera12 will be
quickly selected simultaneously.
In case user need to playback 9 channels at the same time, then click
and the following channel configuration window will appear, as below:
,
49
SuperDVR & TD Series Cards
User Manual
6 Record Search & Playing Back
Figure6-9 Channel Configuration Dialog for 9-channel Playing Back Mode
Users can select any 9 channels from all the available channels for playing
back. Users can also use the quick select methods by the system.
In case user needs to play back 16 channels at the same time, then
click
below:
, and the following channel configuration window will appear, as
Figure6-10 Channel Configuration Dialog for 16-channel Playing Back Mode
Then click ‘OK’ to play back.
TIPS
Click any channel and magnify it to see the single channel. Click again to return to the
former playing back mode.
6.3 Other Functions
6.3.1 Record File Backup
Click
and enter the following menu:
Figure6-11 Recorded Files Backup
50
SuperDVR & TD Series Cards
User Manual
6 Record Search & Playing Back
Users can select corresponding cameras and copy the record files to another
path in this area. This is the file backup function of the system.
The interface is divided into four areas:
• A: Camera Selection Area
• B: Time and Date Selection Area
• C: Operation Area
• D: Information Area
In A area, users can select one or more cameras.
In B area, users can set start time/date and end time/date, and then backup
the files recorded by channels selected in an area by the time interval.
In C area, users can set backup path.
Click ‘Start’ to backup files.
6.3.2 Delete Record Files
Click
and the following window will appear:
Figure6-12 Delete Recorded Files
Users first select the channel on the left side, and then select start time/date
and end time/date of the record files, click ‘Start’ to delete files.
6.3.3 Capture Pictures
The definitions of the function buttons are as below:
: Capture picture
: Print setup
: Print captured picture
NOTICE
This
function is valid only in playback pause mode of single channel.
When in single channel playing back pause mode, automatically the following
color control panel (Figure6-13) will appear, by which user can make color
51
SuperDVR & TD Series Cards
User Manual
6 Record Search & Playing Back
rectification for the present channel, including brightness, contrast, saturation
and hue, and press ‘Default’ to recover to the original settings.
Figure6-13 Color Control Panel
When in the single channel playing back pause mode, click
following window will appear as below:
and the
Figure6-14 Capture Multiple Images in Sequence
Select path and click ‘Save’ to save the picture. User can also print the
images that have been captured.
Click
and make corresponding print setup as below:
Figure6-15 Print Setup
Click
52
users can have print preview as below:
SuperDVR & TD Series Cards
User Manual
6 Record Search & Playing Back
Figure6-16 Print Preview
Select
and then click
or
to move the picture upward,
downward, leftward and rightward. Select
and then click
and
to zoom in and out the image. Press
return to the original
settings. Press ‘Print’ in the print preview window, users can print the image
directly.
6.3.4 Image Zoom in/out
When in single channel playing back state, the zoom control icons
will appear. Select
and click on the channel will zoom out the image. By
clicking continuously, the image will be zoomed out continuously. Select
and do the some operations to get the opposite effect. Click
the original size. Take the following three pictures for example.
and recover
Figure6-17 Example: original size
53
SuperDVR & TD Series Cards
User Manual
6 Record Search & Playing Back
Figure6-18 Example: zoomed out
Figure6-19 Example: zoomed in
54
SuperDVR & TD Series Cards
User Manual
7 IE Client
7
IE Client
Remote Live Surveillance
Surveillance system supports Remote Surveillance through LAN, Internet,
and Intranet. Simply enable web cam function of the system on a computer
which is connected to Internet, and the computer system will become an
Internet web cam server. On any other computer that connects to Internet or
the same LAN network, input the SuperDVR server address in IE browser, the
end users can get high quality real time image from the server and also
control the P.T.Z devices.
7.1 Remote Surveillance Server Configuration
Users should firstly enable the Web Camera Services in Basic Configuration
(refer to Figure4-1) and set other settings as below:
Fig 7.1 WebCam Server Configuration
HTTP Port
Web service & download service port, default value is 80.
Data Port
Data transmission port, default value is 1159.
Command Port
Control command port, default value is 1160.X
Picture Quality
Default value is medium.
55
SuperDVR & TD Series Cards
User Manual
7 IE Client
7.2 Accessing IE client
If users want to remote view pictures, the IE client should be connected to
LAN or Internet. And then enable network server in the unit. Please refer to
Fig7.1 IE client Server Configuration. This unit supports IE browser, not any
client software installed. And it supports Win XP and vista.
Input the IE client server IP address in Internet Explorer and selected install
ActiveX control, then the following figure appears:
Fig 7.2 WebCam install interface
Click install button, then the WebCam main interface will appear as below:
Fig 7.3 WebCam Login interface
NOTICE: The default User name is SYSTEM with no password. Users
and then
can set user name and password at the server. Click
enter into WebCam Main interface.
56
SuperDVR & TD Series Cards
User Manual
7 IE Client
Fig 7.4 WebCam Main interface
Corresponding Explanations:
Icon
Description
means the dome rotate up.
means the dome
means the dome rotate left. means
rotate down.
the dome rotate right.
means the dome stop
rotating.
'Focus' button. Click
have long focus. Click
button near 'Focus' button to
button near 'Focus' button
button near 'Zoom' button to
'Zoom' button. Click
zoom in the locale picture of this camera. Click
button near 'Zoom' button to zoom out the locale
picture of this camera
button near 'Iris' button to
'Iris' button. Click
increase light of the dome. Click
button near 'Iris'
button to decrease light of the dome.
Go to the presenting Point
Set the Presetting Point
Speed dome.
Adjust PTZ speed. It sets the
rotational speed of the PTZ
57
SuperDVR & TD Series Cards
User Manual
7 IE Client
Single channel with full screen display
Four channel with four pictures display
Contrast adjustment
Brightness adjustment
Hue adjustment
Saturation adjustment
Log in/ Log out
Record playback
System Configuration
Enable the Lan that is Master stream, has higher
frame rate and needs higher network bandwidth;
Internet that is sub stream, has low frame rate and
requires low net work bandwidth. Users can select the
stream according to their bandwidth.
Table 7-1 the function of the main interface buttons
Click the right mouse in the main interface a sub menu will appear:
Open Stream: Click this item, selected channel will open
Close Stream: Click this item, selected channel will close
Close All: Click this item, all channels will close
Full Screen: Select this item, the picture will display in full screen. Double click
or click right mouse to return to the previous interface.
7.3 Remote playing back
7.3.1 Record play back and control
Click
button on the Webcam main interface, the remote play back
picture will appear:
58
SuperDVR & TD Series Cards
User Manual
7 IE Client
Fig 7.5 Remote play back
Explain of the button functions:
: Play/ Pause
: Stop
: Adjust the speed of playing back. Users can select suitable play
speed in needed.
: Playing back backup. Back up record data of server-end.
Users can click Backup, enter into the below interface:
Fig 7.6 Remote backup
STEP1: Select the date, channel, then click Search button. It will list all files
recorded in the day.
59
SuperDVR & TD Series Cards
User Manual
7 IE Client
STEP2: Click Browse button, set the saving path.
STEP3: Select files in the search area. Users can hold shift button of
keyboard and select multi files with mouse simultaneously.
STEP4: Click Backup button to do remote backup.
Notice: the backup files are AVI format. Users can play with the third
player directly.
Click the right mouse in the search area, a sub menu will appear:
If users select all channels, click Select all, then all check box before channels
will be selected. Users can click Clear all to clear all selected channels; if
users select a certain channel, click Select this channel, then just this channel
be selected only. Users can click Clear this channel to clear that selected
channels.
: Return to previous main interface
: Multiple Channels playing back control
The system default playing back mode are single and four channel. In case
users need to change to other channels, then click
channel configuration window will appear:
button, the following
Fig 7.7 Channel configuration window for 1 channel play back mode
Users can select one channel from all the available channels for playing back.
Click
, users can play back in four channels mode. Four channels
configuration window will as show as below:
Fig7.8 Channel configuration window for 4 channel playback mode
60
SuperDVR & TD Series Cards
User Manual
7 IE Client
Users can select any four channels from all the available channels for playing
back.
The following area shows the record files of different channels:
Fig 7.9 Data Preview
Data preview shows the record data for different channels in corresponding
time, the left side shows the available channels. When a certain channel has
been selected for playing back, the background color will be highlighted, or its
dark gray and a tick sign will appear beside the channel title.
The data preview area at the center gives details of the record files. Different
colors of the bar show different types of records. The following are the
definitions of the color bar:
: Manual Record Events
: Schedule Record Events
: Motion Detection Record Events
: Sensor Alarm Record Events
The ruler on top of the bar shows the hours in whole day. Right-click the ruler,
it will be magnified 10 multiples. Therefore, users can see the time marks in
details.
STEP1 When users want to search for a certain section of record, draw the
bar to the desired position. If necessary, right-click the bar to see the
magnified time marks for precise search.
button to play the selected record, Then
STEP2 Users can click
return to live display mode after finishing remote playback, it will display a
word ‘Connecting…’on the screen. And users may click “Large
Picture”or“Quad Picture”button to fresh screen to get live picture.
7.4 System setup
Click
and enter into the main setup interface.
61
SuperDVR & TD Series Cards
User Manual
7 IE Client
Fig 7.10 Basic Configuration
Notice: When multi-client accessed the system configuration interface
simultaneous, the user who enters into that interface priority and then
others will lack of accessing rights.
7.4.1 Basic Configuration
Fig 7.11 Basic setup
1. Caption
There are four options: None, ID, Name and ID/Name for select from.
z
‘None’means no title
z
‘ID’means camera numbers, i.e.1,2,3 and so on
z
‘Name’means camera names,i.e.Cam1, Cam2 and so on
z
‘ID/Name’means both camera number and camera name,i.e.1/Cam1,
2/Cam2 and so on
2. Live audio
Supports one channel of microphone audio input signal on the PC
motherboard and audio inputs on the card if it has… Users can choose on
video channel associate these audio signals.
In the following area in the basic configuration page, users can input the
computer user name and password in the relative boxes. Then when
restarting the computer system, it will access to the system with the user
name and password input in the boxes.
62
SuperDVR & TD Series Cards
User Manual
7 IE Client
Fig 7.12 Computer System Reboot Setup
As the windows system may become unstable after a couple of days to
continue operating. It may cause SuperDVR system unstable. The software
supports auto-reboot. Select
and set the interval by day, which
will guide the system to reboot automatically according to the setups.
3. Alarm setup
The Alarm setup configuration is show as below:
Fig 7.13 Alarm triggering configuration
Relative Explanations:
1. Buzzer
Users can select whether to open the computer buzzer if the alarms have
been triggered also select how long the buzzer rings
2. Full screen alarm
Users can select whether channel will be full screen when alarm triggered.
Set the full screen hold time here
3. Pre-alarm record
Users can select whether to enable alarm pre-record and also pre-record time
This option is for users to see remote live view.
4. Disk storage alarm
If the Partition free space is less than the set percent, it will stop recording or
recycling, but give alarm tips according to the settings
5. Motion holding time
The continuous recording time after motion stopped
6. Sensor holding time
The continuous recording time after sensor stopped
63
SuperDVR & TD Series Cards
User Manual
7 IE Client
7.4.2 Camera setup
Click
and the camera setup configuration will appear as below:
Fig 7.14 Camera setup configuration
1. Title
Channel name. Users can set the channel name from Cam1, Cam2, Cam3
and Cam4.
2. Camera security
Users are divided into two standards: normal user and super admin. By
selecting this option, only administrator can see corresponding channels.
3. Time stamp
If selecting the check box, record time will be displayed on the screen when
playing back the record
4. Net quality
There are five options to choose from: lowest, lower, medium, higher and
highest. Higher picture quality is, the picture is clearer.
5. Audio in
If users select the check box, Webcam will record audio when it records video.
Otherwise, it will not record audio.
Notice: The default setting is that Audio input1 matches channel1 and Audio
input2 matches channel2
, users could copy the setting of this channel to any other
If click
selected channel.
7.4.3 Schedule configuration
Click the
64
icon and enter Schedule Configuration page as below:
SuperDVR & TD Series Cards
User Manual
7 IE Client
Fig 7.15 Schedule configuration
There have three kinds of record modes: schedule record, motion detection
and Sensor alarm record. We provide users to set schedules from Sunday to
Monday separately for all of the three record modes. Sensor alarm recording
mode has the highest priority among others.
When users need to edit schedule for a channel, select the camera name in
the left Camera group firstly.
icon and brush on the weekday schedule to add time; click
Click
and click on the weekday schedule to delete time.
icon
If click
, users could copy the setting of this channel to any other
selected channel.
7.4.4 Alarm configuration
icon and enter into alarm configuration as show as below:
Click
Fig 7.16 Alarm configuration
Users can set the alarm type: Motion and other. There are two alarms out
options to choose from: Buzzer and Auto mail.
1. Buzzer
Enable buzzer on board for alarm
2. Auto mail
When alarm triggered, the system will send mail to users automatically.
65
SuperDVR & TD Series Cards
User Manual
7 IE Client
, users could copy the setting of this channel to any other
If click
selected channel.
7.4.5 Record configuration
Click
icon and enter into record configuration interface as below:
Fig 7.17 Record configuration
1. Record setup
Fig 7.18 Record setup
According to different record triggering methods, users can set three kinds of
record modes:
z
Manual record
z
Schedule record
z
Motion record
Users can use multiple cameras to record, every camera works separately
and record file also saves relatively.
a. Record quality
There are five modes can be selected from: lowest, lower, medium, higher
and highest. Higher the record quality is, clearer the record image is.
b. Manual record
By selecting this option, the relative camera image will be recorded and saved
all the time.
66
SuperDVR & TD Series Cards
User Manual
7 IE Client
c. Schedule record
Schedule record option
d. Motion record
By selecting this option, users can set relative channels’ record mode as
motion detection.
2. Storage disk
Fig 7.19 Storage disk
Users can store record file by selecting storage disk. Tick off ‘Recycle’check
box, users can set whether to continue recording to cover the earliest video
file when the disc storing video files is full.
If click
, users could copy the setting of this channel to any other
selected channel.
7.4.6 Motion configuration
icon and access to motion configuration interface as below:
Click
Fig 7.20 Motion configuration
Definition of the setup items:
1. Sensitivity
Users can set motion detection sensitivity here.
2. Speed
67
SuperDVR & TD Series Cards
User Manual
7 IE Client
Motion detection sensitivity
3. Block number
Set grid’s number
4. Select all
Select all the areas of the channel as detection area
5. Clear all
Clear all the detection areas and then users can select customized detection
areas by cursor.
, users could copy the setting of this channel to any other
If click
selected channel.
7.4.7 EMAIL Configuration
icon and access to Email configuration interface:
Click
Fig 7.21 Email configuration
1. Mail server setup
Fig 7.22 Mail server setup
In this area, users can set receiver and sender’s E-mail SMTP server and
address. Note: the address of receiver and sender can be the same.
Relative Definitions:
Smtp server: Sender’s SMTP, such as smtp.yahoo.com
User name: Sender’s User Name
Smtp port: Mail server’s port, the default value of mail server is25.
68
SuperDVR & TD Series Cards
User Manual
7 IE Client
Password: Sender’s Password
Users can select ‘My server requires a secure connections’ or ‘My outgoing
server (SMTP)requires authentication’check box according to server mail
service of mail service supplier.
2. Mail setup
Fig 7.23 Mail setup
Relative Definitions:
Send to: Receiver’s E-mail Address
E-Mail from: Sender’s E-mail Address
Subject: E-mail Subject
Users can select ‘Set Mail Internal’check box to set email send time, such
as 5 seconds, 10 seconds and so on.
3. Attachment setup
Fig 7.24 Attachment setup
Enable ‘Attachment’, then the present image will be sent to appointed
mailbox when an alarm triggered.
Relative Definitions:
Camera: Channel Name
Time: Display Time
Format: Image Format
Resolution: Cif and QCif
7.4.8 P.T.Z Configuration
Click
icon then enter into the P.T.Z configuration as below:
69
SuperDVR & TD Series Cards
User Manual
7 IE Client
Fig 7.25 P.T.Z Configuration
1. Protocol setup
Fig 7.26 P.T.Z Protocol setup
A. Protocol
Communication protocol of P.T.Z device
B. Port
Users can set serial port number
C. Address
Communication address of P.T.Z device
2. Serial port setup
Users should firstly enable the P.T.Z control function of certain camera and
select a port number in P.T.Z Protocol Setup (refer to Fig7-26), and then set
corresponding parameters in the area below:
70
SuperDVR & TD Series Cards
User Manual
7 IE Client
Fig 7.27 P.T.Z Serial port setup
A. Port
Users can set port number
B.Baud rate
Set P.T.Z device Baud rate, default value is 9600
C.Data bits
Default value is 8
D.Parity
Odd and even parity bit, default Null
E.Stop bits
Default value is 1
Notice: Users should look into the P.T.Z device and get Baud rate,
Protocol and Address firstly, and then set other values accordingly.
, users could copy the setting of this channel to any other
If click
selected channel.
7.5 Mobile Surveillance
7.5.1 Introduction to Mobile Surveillance
In SuperDVR system, the mobile surveillance can be realized by connecting
the mobile phone to the system. For time being, the function is supported by
Windows Mobile system and Symbian Series 60 Developer Platform 2.0
intelligent mobile phone system.
So far, the types of phones on which the function has been tested are shown
as below table.
Parameter
Brand
DOPOD
TYPE
Dopod 696
Dopod 818
Dopod 828+
Dopod 838 Pro(3G)
SYSTEM
Windows Mobile 2003
Windows Mobile 2003
Windows Mobile 2003
Windows Mobile 5.0
71
SuperDVR & TD Series Cards
User Manual
7 IE Client
Parameter
Brand
O2
NOKIA
NOKIA
TYPE
O2 Xda II
O2 Xda Atom(3G)
O2 Xda Mini
Nokia N70
Nokia N73
Nokia N80
Nokia N-Gage
Nokia 3230
Nokia 3250
Nokia 6260
Nokia 6630
Nokia 6680
Nokia 7610
Nokia N-95
SYSTEM
Windows Mobile 2003
Windows Mobile 5.0
Windows Mobile 2003
S60 OS8.1a
S60 OS9.1
S60 OS9.1
S60 OS6.1
S60 OS7.0s
S60 OS9.1
S60 OS7.0s
S60 OS8.0s
S60 OS8.0s
S60 OS7.0s
S60 OS9.2
Table 7-1 Mobile Phone of Supporting Mobile Surveillance
7.5.2 Client Configuration of Windows Mobile
Server configuration on SuperDVR needs to be set before the function on
phone is activated. Please refer to Section ‘Remote Live Surveillance’.
Client Configuration of Symbian 60:
Step1: Firstly, enable the network access on mobile phone and then run ‘Web
browser after the server configuration has been done.
Fig 7.28 Open Web Brower
Step2: Input the server address in a new-built bookmark. Click this bookmark
to connect to the server.
Fig 7.29 Build a bookmark
72
SuperDVR & TD Series Cards
User Manual
7 IE Client
Fig 7.30 Connect to Server
Step3: Click ‘Scam_S3_080919.sis’ to start downloading and a confirmation
information window will pop up after downloading is finished.
Fig 7.31 Confirmation Information Window
Step4: Click ‘OK’, the system reminds of whether to install the ‘Webcam’.
Fig 7.32 Installing Configuration Information
Step5: Click ‘Yes’ to start installing. A Scam shortcut icon appears on the
system menu after the installation has been done.
Fig 7.33 Scam Shortcut icon in System Menu
73
SuperDVR & TD Series Cards
User Manual
7 IE Client
Step6: Run ‘Scam’ by selecting the icon:
Fig 7.34 Main Layout of Scam
Step7: Enter the main menu by selecting ‘Live View’.A Setting window will pop
up and select ‘Login Setting ’to login.
Notice: In this interface, select ‘Image View’ users can browser and
preview the snapped pictures ‘System
,
Setting’means in case, an alarm
triggered, the alarm signal will pop up automatically to users’ mobile
phone whenever their made other operations in the background.
Fig 7.35 Configuration Login Information
HttpPort: server-side software to set the http port number, the default port
number is 80. Click ‘Options’ and enters into advanced setting window.
Notice: The default User name is SYSTEM without password. Users can
set user name and password at the server end.
Step8: Click Options to login, the live mobile surveillance is show as below:
Fig 7.36 Log in Successfully
Step9: Return to ‘Setting’interface, select ‘Alarm Setting’a dialogue will
appear as below, users can select items of alarm setting in needed.
74
SuperDVR & TD Series Cards
User Manual
7 IE Client Frequently Asked Questions
Fig 7.37 Alarm Setting
Sound Alarm: Sound alarm
Note: The software is running in the background, what kind of methods
(sound alarm or vibration tips) that users want to be informed when an
unusual occurs in remote site.
Volume: adjust the sound
Back light: background light for Normal open
Note: By default, the mobile phone didn’t do anything for 10 seconds,
the back light of phone screen will be shut down in which causes great
inconvenience to users for viewing site images in a long time, so open
the back lights have been provided almost.
75
SuperDVR & TD Series Cards
User Manual
Appendix1 Frequently Asked Questions
Appendix1 Frequently
Asked Questions
Appendix 2.1 Installation
Appendix 2.1.1 Cannot Install the SuperDVR Driver
Possible causes:
• TD series capture card has not been installed. Before installing driver,
users should install capture card hardware in the PCI slot in the computer
case.
• TD series capture card has not been installed correctly. Please unplug the
card and install it again or change to another PCI slot.
• Not compatible with PC hardware
Appendix 2.1.2 Why cannot run SuperDVR at the windows 2003 operate
system?
Enabled Hardware Acceleration and DirectX Acceleration:
• Hardware Acceleration
STEP1: Right-click the mouse on the desktop, then select
‘PropertiesÆSettingÆAdvancedÆTrouble Shooting’.
STEP2: Drag the acceleration bar to ‘Full’.
STEP3: Click ‘OK’ to save the modification.
• DirectX Acceleration
STEP1: Click ‘Start → Run’, it will pop up ‘Run’ window.
STEP2: Input ‘dxdiag’ and click ‘OK’.
STEP3: Select ‘Yes’ in the pop-up dialog box, it will pop up ‘DirectX Tools’
window.
STEP4: Select ‘Display’ option.
STEP5: Click the three buttons-‘DirectDraw’, ‘Direct3D’ and ‘AGP
Texture’.
STEP6: Click ‘Exit’ to exit the ‘Directx Tools’ window.
Appendix 2.1.3 Can’t find TD series Devices in Device Manager
Enter the Device Manager and cannot find corresponding TD series Devices,
the possible cause may be as below:
•
76
Windows system error. Restart computer.
SuperDVR & TD Series Cards
User Manual
•
•
Appendix1 Frequently Asked Questions
TD series card error. Change for a valid one.
Install SuperDVR.
Appendix 2.2 How to Use SuperDVR
Appendix 2.2.1 Meanings of the indicator lights
• Grey- Normal state
• Red - Sensor alarm
• Yellow - Motion detection alarm
• Blue - Video loss
• Bottle Green - Manual record state
• Reseda - Schedule record state
NOTICE
Users can refer to Figure3-6 to learn more.
Appendix 2.2.2 How does the different record mode work?
Users can set more than one record modes in Record setup (refer to
Figure3-5), but actually, there is only one valid record mode for recording.
The priority order of the record modes is: Sensor Alarm Record > Motion
Detection Record > Manual Record > Schedule Record
Appendix 2.2.3 How to set recycling record mode on the system
Select ‘Recycle’ in basic configuration, refers to Figure4-1.
Users can select the percent of used disk space to set up “disk shortage
alarm.” You can input percent manually or choose the selectable given items
such as, 25%, 50%, and 75% to set up. For example, if selecting 50%, it will
alarm to warn that your disk space has already been used 50%.
TIPS
It is recommended that install SuperDVR into the partition installed with windows system
(normally C:), and save record files in HDD partition D: .
Appendix 2.2.4 How to set auto reboot function
In case, Microsoft Windows system continuously runs for a couple of days.
The system may become unstable; therefore, it is suggested to restart the
computer every few of days.
In the basic configuration (refer to Figure4-1), input Windows user name and
password (It is not SuperDVR user name and password), and select time
interval, then the Windows system will automatically restart according to the
set time.
In case the Windows system closed abnormally, i.e. power supply is cut off,
and when computer reboot next time, SuperDVR system will automatically
restart, and keep the settings as before.
77
Appendix1 Frequently Asked Questions
SuperDVR & TD Series Cards
User Manual
TIPS
Users do not need enable auto reboot function, but it’s suggested to input the Windows
user name and password in the relative area, therefore when meeting abnormal system
exit, users don’t need to be troubled to input Windows and SuperDVR user names and
passwords.
Appendix 2.2.5 How to quickly use the schedule record function
Press ‘Shift’ or ‘Ctrl’ key, and draw the cursor in corresponding areas to make
schedules for multiple channels.
Appendix 2.2.6 What are the byte rates for different image qualities from
highest to normal?
When on PAL system and the frame rate is 25 fps, bit rate for the highest
image quality is about 120K Byte/s, and for the lowest image quality is about
30K Byte/s.
Appendix 2.2.7 The frame rate seems to be lower than what I set?
There is frame loss in image switch therefore the real record frame rate is
about relatively lower than the theoretic value.
Appendix 2.2.8 Why I can’t select more channels to backup?
Please draw the mouse in the channel selection area, or utilize Shift and Ctrl
key for assistance.
Appendix 2.3 How to Use Network Function
Appendix 2.3.1 How to monitor on the client-side
First enable ‘Web cameras service’ in basic configuration (refer to
Figure4-1).
Input the server Internet address in IE browser on the client-side, and the
necessary web cam driver will be downloaded automatically, and then users
need to install the driver. After access the web cam main interface, click
‘Login’ and input user name and password to log in the system.
Appendix 2.3.2 Why I can’t download the client-side software?
The possible causes:
• The client-side computer has not properly connected to Internet or LAN.
• The server-end has not enabled ‘Web Cameras Service’.
• The default Http port is 80. It may be conflict with other Web servers, for
example IIS. If true, please change another port.
• Windows XP SP2 will block the OCX download. You should enable
‘Internet Option Æ Security Settings Æ Download unsigned ActiveX controls’.
78
SuperDVR & TD Series Cards
User Manual
Appendix1 Frequently Asked Questions
Appendix 2.3.3 Why can’t the server be configured at the client-side?
The possible causes:
• It cannot be configured at the client-side, when the server is being
configured at the server-end.
• Only the last configuration is valid if server different configuration are
deployed simultaneously.
Appendix 2.3.4 Why I can’t see the images?
The possible causes:
• The VGA card is too outdated.
• Have not installed newer DirectDraw.
• SuperDVR cannot run in Window 98 system.
• Data port or command port is conflicts with other network services.
• The user is connected to Internet through LAN, and the network
administrator has not enabled corresponding data port or command port.
• The client-side has installed firewall software that may stop video
transmission.
• H.264 codec has not been installed properly, please download new
version WebCam.
• Slow network speed.
Appendix 2.3.5 What should I do if the Internet speed is quite slow?
The more channels opened, and the slower the video transmission speed,
therefore try to use one channel display mode when the network speed is
slow.
TIPS
There may be some surplus channels that have no video input. Switching off the channels
is of help to improve transmission speed. (Refer to ‘4.1 Basic Configuration’ about
switching on/off channels.)
Appendix 2.3.6 Why I can’t start WebCam server or RPB server?
Possible causes:
Other software is using these ports. If so, please change WebCam ports
configuration or stop other softwares.
Appendix 2.4 Other Questions
Appendix 2.4.1 Why computer display doesn’t work, and why I can’t
access window system?
The capture card may not be well installed. Unplug the card and try it again.
NOTICE
Please unplug the power plug of the computer, so as to avoid damaging the
motherboard chip set.
79
Appendix1 Frequently Asked Questions
SuperDVR & TD Series Cards
User Manual
Appendix 2.4.2 Why I can’t find the recorded files?
HDD space is not enough.
Appendix 2.4.3 Why the screens display is unstable with dithering and
water-wave images?
Possible causes:
• Camera electrical power is not enough.
• There is external electromagnetic disturbance, or electrostatic disturbance
of camera BNC connector (It is suggested to connect ground wire to the
connector).
• User has not installed necessary VGA driver.
• VGA card problem. Try reinstalling the VGA card, or changing another
VGA card.
Appendix 2.4.4 Why does it delay to play back, and it’s slow to close and
open the driver?
Possible causes:
• Windows system problem. Try to reboot the computer.
• There are too many recorded files or too many fragments on the HDD,
therefore it takes time to search for the files, you need delete the files that you
don’t need, or need to make disk defragmenter now.
• Capture card problem.
• Computer hardware system is too outdated.
Appendix 2.4.5 Why I can’t play back?
Windows media player has been damaged, or decoder has not been installed
properly. It is suggested to reinstall the relative software system.
Computer problem, recorded files have been damaged. It is suggested to fix
these files using SuperAVIFix program.
Appendix 2.4.6 Why do I see some gray blocks on time progress bar
area when play back?
Possible causes:
•
•
•
User has deleted these recorded files.
SuperDVR has deleted recorded file when recycle option being is chosen.
Recorded files cannot be opened because the recording is on.
Appendix 2.4.7 Why could I see some old record sections that didn’t be
covered when playing back?
Possible causes:
•
•
•
•
80
You have ever selected disk partitions different from the current.
These recorded files are being played back when covering it.
Database of recorded log was damaged.
You have ever installed SuperDVR on different directories.
SuperDVR & TD Series Cards
User Manual
Appendix1 Frequently Asked Questions
Appendix 2.4.8 Precautions on changing system time
• The superDVR system provides the retrieving mechanism for video files,
which must take the system time as a retrieving reference. To change the
computer time after installation will create a high risk of wrong time reference.
• Before superDVR is used, it must be confirmed whether the current
computer time is correct.
• Deactivate computer auto time updating function of system.
• Make sure the motherboard of the computer is in normal state.
Appendix 2.4.9 If system time must be changed, please do following
preparations first
1. If new time is later than current computer time (for example, change
2006/01/01 0:0:0 (current system time) to 2007/01/01 0:0:0 (target time)),
the change can be made directly.
2. If new time is before the current computer time (for example, change
2007/01/01 0:0:0 (current system time) to 2006/01/01 0:0:0 (target time)),
first stop the video recording, backup all video data. Turn off superDVR,
change computer time, and re-start SuperDVR.
Appendix 2.4.10 How to use REPAIRDB to repair SuperDVR database
Enter the installation directory of SuperDVR.
C:\ProgramFiles\SuperDVR\SuperDVR,open the REPAIRDB.EXE file. The
user ID is ‘SYSTEM’, and no password is needed to enter. After entering,
please select database to repair.
Appendix 2.4.11 How to set power options of Microsoft VISTA system
After install VISTA system, you should enter the Start menu to choose
‘Control Panel’. Select ‘System and Maintenance’ link. And select ‘Power’
option in ‘System and Maintenance’ window. Lastly, Select the ‘High
Performance Change Plan Setting’ option.
NOTICE
The digital video capture cards support Intel CPU on VISTA edition.
81
SuperDVR & TD Series Cards
User Manual
Appendix2 Quick Start for Using
Appendix2 Quick Start
for Using
Appendix 3.1 Requirements
Before installing the PCI card, check PC requirements:
•
•
•
•
•
•
Pentium 2.8 GHZ
512 MB RAM
Windows 2000 (SP4 min) or Win XP (SP2 min)
NVIDIA Video Card with 64 MB min or similar
DirectX 9.0 minimum
80 GB HDD
NOTICE
TD3104 and TD3316 support Windows 2000(SP4 min) or Windows XP(SP2 min).
Appendix 3.2 Installation Instructions
STEP1: Insert the PCI card (But do not connect the Camera yet).
STEP2: Launch windows.
STEP3: Windows will come up with Hardware wizard. Just click ‘Cancel’.
STEP4: Put the installation CD in and open up SuperDVR folder run the
‘Setup’ file.
STEP5: Follow the steps and in Windows XP, it will come up with a
message say this program has not passed windows logo testing, just
‘Continued anyway’.
STEP6: Reboot computer once it is completed.
For complete instructions, refer to user manual 1-7 chapters.
Once Boot up, On Desktop there will be ‘SuperDVR’ icon.
If this program recognizes the PCI card, program will open just fine. Please
log in first to the program.
Once your program is opened, now connect the Camera.
82
SuperDVR & TD Series Cards
User Manual
Appendix2 Quick Start for Using
Appendix 3.3 Troubleshooting
Appendix3.3.1 When opening the SuperDVR program, it says ‘ Can’t find
card ’.
Reboot one more time. If still same problem, click ‘Start - Program SuperDVR - Install’ and then uninstall the program. Reboot the computer.
After reboot, go back to ‘Start - Program - SuperDVR - Install’. Now click on
‘Install’ to reinstall driver. Then Reboot.
If for some reason still ‘Can’t find card ’, uninstall driver again. Shut down the
computer. Move PCI Card to another slot. Reboot it. And click ‘Cancel’ when
windows detect it.
Then reinstall driver by going to ‘Start - Program - SuperDVR - Install’.
For other setting in the program, please read user manual 1-7 chapters.
Appendix 3.3.2 How to setup the web client to monitor from Internet
1. On Main Computer where DVR Card Installed
STEP1: Make sure the computer connected to Internet. DSL or Cable
Modem preferably.
STEP2: Find out your IP address. You can go to this link to find the IP
address http://lawrencegoetz.com/programs/ipinfo/ .
STEP3: Open up the SuperDVR program and go to basic configuration.
Check and ENABLE Web Camera Service and Remote Play Back Service.
STEP4: Make Note on Data Port, Command Port and RPB port.
NOTICE
If you are connecting to internet using router, you need to configure the setup of the
router and do the port forwarding. Ports that need to be forwarded: 80, 1159, 1160 and
1161. Check your router manual on how to setup that.
2. On Remote Client Computer
STEP1: Minimum Requirement for the client computer:
- Pentium 2.8 GHZ
-512 MB RAM
- Windows 2000 (SP4 min) or Win XP (SP2 min)
- NVIDIA Video Card with 64 MB min or similar
- DirectX 9.0 minimum
- 80 GB HDD
STEP2: Open up Internet Explorer.
If you are running XP with SP2 follow the steps then: on Internet
explorer, click ‘Tools - Internet Option - Security - Custom Level’,
and enable ‘Download unsigned ActiveX controls’.
STEP3: In the IE textbox of the Internet explorer, input the IP address of
Main Computer.
STEP4: Select ‘Live Surveillance’ and click ‘OK’ on displayed page.
This will download the webcam program. And then you can
83
Appendix2 Quick Start for Using
STEP5:
icon.
STEP6:
SuperDVR & TD Series Cards
User Manual
download Remote Playback as well.
On Desktop now you should see ‘WebCam’ and ‘Remote Playback’
Open up webcam, click ‘Key’ symbol icon.
Username: system (Password blank unless you setup a password
within the main computer).
Server: this the IP address of the Main Computer.
Data port: 1159 and Command port: 1160.
Click ‘OK’. Now you should be able to view the live video from main
STEP7:
computer.
STEP8: To play back the Video that has been recorded in Main Computer,
Select ‘Remote Playback’ on displayed page.
STEP9: Click on ‘Config’.
Remote server: the IP address of main computer.
IP port: 1161.
STEP10: Then click ‘OK’.
STEP11: Click ‘Login’. Now you should be able to play back the recorded
video from Main Computer.
For more details information, please read user manual 1-7 chapters.
84
SuperDVR & TD Series Cards
User Manual
Appendix3 Function Tree
Appendix3 Function Tree
Appendix 4.1 SuperDVR Function Tree
Tree1 SuperDVR Function
85
SuperDVR & TD Series Cards
User Manual
Appendix3 Function Tree
Appendix 4.2 System Configuration Tree
Tree2 System Configuration
86
SuperDVR & TD Series Cards
User Manual
Appendix3 Function Tree
Appendix 4.3 IE Client Function Tree
Tree3 IE Client Function
87
SuperDVR & TD Series Cards
User Manual
Appendix3 Function Tree
Appendix 4.4 Remote Playback Function Tree
Tree4 Remote Playback Function
88
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
