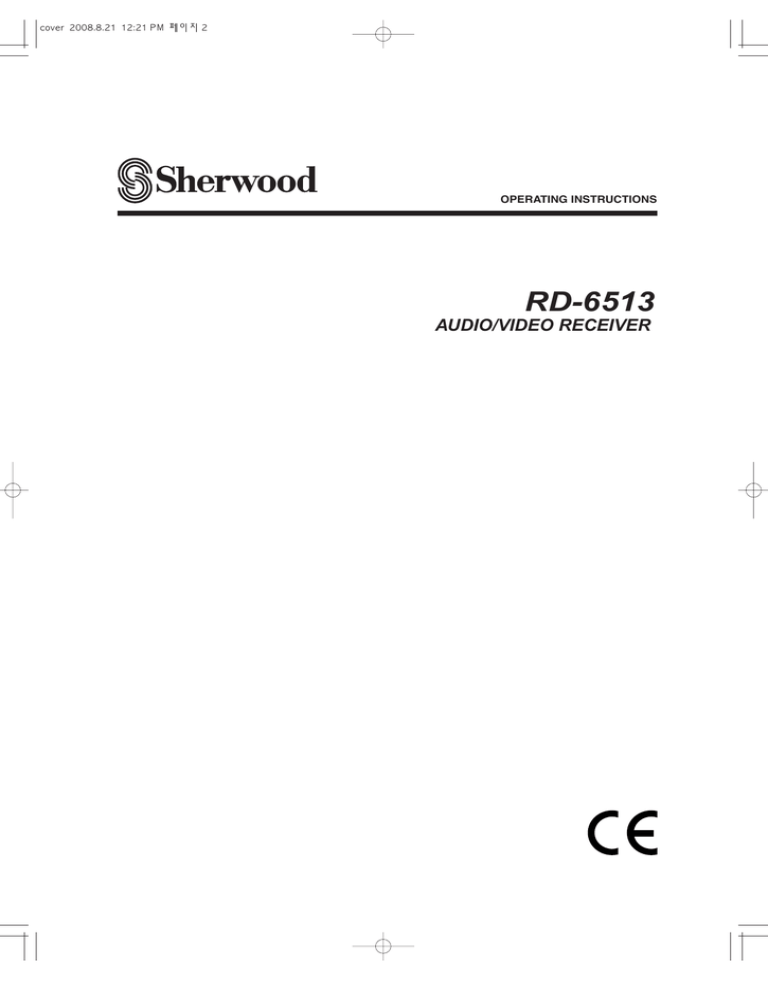

cover 2008.8.21 12:21 PM 페이지 2
OPERATING INSTRUCTIONS
RD-6513
AUDIO/VIDEO RECEIVER
RD-6513(G) 2008.8.21 12:22 PM 페이지 3
Introduction
This symbol is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
CAUTION
: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature accompanying
the appliance.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Caution regarding installation
Note : For heat dispersal, do not install this unit in a confined space such as
a bookcase or similar enclosure.
Do not block ventilation openings or stack other equipment on the top.
FOR YOUR SAFETY
EUROPE
AUSTRALIA
220 V
240 V
Units shipped to Australia are designed for operation on 230 V AC only.
To ensure safe operation, the three-pin plug supplied must be inserted only into a standard three-pin power point
which is effectively earthed through the normal household wiring. Extension cords used with the equipment must
be three-core and be correctly wired to provide connection to earth.
Improper extension cords are a major cause of fatalities. The fact that the equipment operates satisfactorily
does not imply that the power point is earthed and that the installation is completely safe. For your safety, if
in any doubt about the effective earthing of the power point, consult a qualified electrician.
PAN-EUROPEAN UNIFIED VOLTAGE
All units are suitable for use on supplies 220-240 V AC.
CAUTION
Information for Users on Collection and Disposal of
Old Equipment and used Batteries
• Leave a space around the unit for sufficient ventilation.
• Avoid installation in extremely hot or cold locations, or in an area
that is exposed to direct sunlight or heating equipment.
• Keep the unit free from moisture, water, and dust.
• Do not let foreign objects in the unit.
• The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, table-cloths, curtains,
etc.
• No naked flame sources, such as lighted candles, should be
placed on the unit.
• Please be care the environmental aspects of battery disposal.
• The unit shall not be exposed to dripping or splashing for use.
• No objects filled with liquids, such as vases, shall be placed on
the unit.
• Do not let insecticides, benzene, and thinner come in contact
with the set.
• Never disassemble or modify the unit in any way.
Notes on the AC power cord and the wall outlet.
• The unit is not disconnected from the AC power source(mains)
as long as it is connected to the wall outlet, even if the unit has
been turned off.
• To completely disconnect this product from the mains,
disconnect the plug from the wall socket outlet.
• When setting up this product, make sure that the AC outlet you
are using is easily acceptable.
• Disconnect the plug from the wall outlet when not using the unit
for long periods of time.
These symbols on the products, packaging, and/or
accompanying documents mean that used electrical
and electronic products and batteries should not be
mixed with general household waste. For proper
treatment, recovery and recycling of old products and
used batteries, please take them to applicable
collection points, in accordance with your national
legislation.
By disposing of these products and batteries correctly,
you will help to save valuable resources and prevent
any potential negative effects on human health and the
environment which could otherwise arise from
inappropriate waste handling.
For more information about collection and recycling of
old products and batteries, please contact your local
municipality, your waste diposal service or the point of
sale where you purchased the items.
[Information on Disposal in other Countries outside the
European Union]
These symbols are only valid in the European Union. If
you wish to discard these items, please contact your
local authorities or dealer and ask for the correct
method of diposal.
Note for the battery symbol (bottom two symbol
examples):
The sign Pb below the symbol for batteries indicates
that this batteries contains lead.
3
ENGLISH
READ THIS BEFORE OPERATING YOUR UNIT
RD-6513(G) 2008.8.21 12:22 PM 페이지 4
CONTENTS
Introduction
ENGLISH
• READ THIS BEFORE OPERATING YOUR UNIT ................................................................................................................. 3
System Connections ......................................................................................................................................................... 5
Front Panel Controls ....................................................................................................................................................... 10
Remote Controls ............................................................................................................................................................... 12
• REMOTE CONTROL OPERATION RANGE ....................................................................................................................... 13
• LOADING BATTERIES ....................................................................................................................................................... 13
Operations
• LISTENING TO A PROGRAM SOURCE ............................................................................................................................ 14
• SURROUND SOUND .......................................................................................................................................................... 17
• ENJOYING SURROUND SOUND ...................................................................................................................................... 18
• LISTENING TO RADIO BROADCASTS ............................................................................................................................. 23
• LISTENING TO RDS BROADCASTS (FM ONLY) .............................................................................................................. 25
( RDS Tuner (Regional Option for some countries in Europe, etc))
• RECORDING ....................................................................................................................................................................... 27
• OTHER FUNCTIONS .......................................................................................................................................................... 29
System Setup .................................................................................................................................................................... 30
• SETTING THE SYSTEM .................................................................................................................................................... 32
• SETTING THE INPUT ......................................................................................................................................................... 34
• SETTING THE SPEAKER SETUP ...................................................................................................................................... 35
• SETTING THE CH LEVEL .................................................................................................................................................. 40
• SETTING THE PARAMETER ............................................................................................................................................. 42
Troubleshooting Guide ................................................................................................................................................... 44
Specifications .................................................................................................................................................................... 45
4
RD-6513(G) 2008.8.21 12:22 PM 페이지 5
System Connections
ENGLISH
• Do not plug the AC input cord into the wall AC outlet until all connections are completed.
• Be sure to observe the color coding when connecting audio, video and speaker cords.
• Make connections firmly and correctly. If not, it can cause loss of sound, noise or damage to the receiver.
1. CONNECTING ANTENNAS
• Change the position of the FM indoor antenna until you
get the best reception of your favorite FM stations.
• A 75Ω outdoor FM antenna may be used to further
improve the reception. Disconnect the indoor
antenna before replacing it with the outdoor one.
• Place the AM loop antenna as far as possible from the receiver, TV set, speaker cords and the AC
input cord and set it to a direction for the best reception.
• If the reception is poor with the AM loop antenna, an AM outdoor antenna can be used in place of
the AM loop antenna.
5
RD-6513(G) 2008.8.21 12:22 PM 페이지 6
CONNECTING VIDEO COMPONENTS
ENGLISH
2.
• The jacks of VIDEO 1 may also be connected to a DVD recorder or other digital video recording component. For details, refer
to the operating instructions of the component to be connected.
• The jacks of VIDEO 2 can also be connected to an additional video component such as a cable TV tuner, an LD player or
satellite system.
• There are three types of video jacks (COMPONENT, S-VIDEO, (composite) VIDEO) for analog video connections and the HDMI
connectors for digital video and audio connections. Connect them to the corresponding video jacks according to their capability.
• For your reference, the excellence in picture quality is as follows : "HDMI” > "COMPONENT" > "S-VIDEO" > "(composite) VIDEO".
• When making COMPONENT VIDEO connections, connect "Y" to "Y", "PB/CB" to "CB"(or "B-Y", "PB") and "PR/CR" to "CR"(or
"R-Y", "PR").
Note :
• When recording video program sources through VIDEO 1 OUT jacks or viewing video program sources through MONITOR
OUT jack, you must use the same type of video jacks that you did connect to video playback components such as DVD
player, LD player, etc.
HDMI (High Definition Multimedia Interface) connection : (*)
• You can connect the source component (DVD player, etc.) to the display component (TV, projector, etc.) through this receiver
with using a commercially available HDMI cord.
• The HDMI connection can carry uncompressed digital video signals and digital audio signals.
• This receiver can output digital video and digital audio signals from the HDMI MONITOR OUT of this receiver without passing
through any circuits as they were input into the HDMI IN(, meaning the audio signals which are input into the HDMI IN cannot
be reproduced on this receiver).
• This receiver is HDMI Ver. 1.3 compatible.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.
Notes :
• Depending on the connected component, unreliable signal transfer may happen.
(For details, refer to the operating instruction of your component.)
• For stable signal transfer, we recommend using HDMI cords that are a maximum of 5 meters in length.
6
RD-6513(G) 2008.8.21 12:22 PM 페이지 7
3.
CONNECTING AUDIO COMPONENTS
ENGLISH
• The TAPE IN/OUT jacks can be connected to audio recording equipment such as a tape deck, an MD recorder, etc.
4.
CONNECTING EXTERNAL INs
• Use these jacks to connect the corresponding analog
outputs of 6 CH decoder or DVD player with 6 CH output
for Dolby Digital or DTS, etc.
(For details, see the operator's manual of the component
to be connected.)
7
RD-6513(G) 2008.8.21 12:22 PM 페이지 8
ENGLISH
5.
CONNECTING DIGITAL INs
• The OPTICAL and the COAXIAL DIGITAL OUTs of the
components that are connected to CD and VIDEO 1 ~
VIDEO 2 of this unit can be connected to these DIGITAL
INs.
• A digital input should be connected to the components
such as a CD player, LD player, DVD player, etc. capable
of outputting DTS Digital Surround, Dolby Digital or PCM
format digital signals, etc.
• For details, refer to the operating instructions of the
component connected.
• When making the COAXIAL DIGITAL connection, be sure
to use a 75 Ω COAXIAL cord, not a conventional AUDIO
cord.
• All of the commercially available optical fiber cords cannot
be used for the equipment. If there is an optical fiber cord
which cannot be connected to your equipment, consult
your dealer or nearest service organization.
Note :
• Be sure to make either a OPTICAL or a COAXIAL DIGITAL connection on each component. (You don’t need to do both.)
6. CONNECTING SUBWOOFER PRE OUT
• To emphasize the deep bass sounds, connect a powered
subwoofer.
7. CONNECTING SPEAKERS
• Be sure to connect speakers firmly and correctly according to
the channel(left and right) and the polarity(+ and -). If the
connections are faulty, no sound will be heard from the
speakers, and if the polarity of the speaker connection is
incorrect, the sound will be unnatural and lack bass.
• For installing the speakers, refer to "Speaker placement" on
page 9.
• After installing the speakers, first adjust the speaker settings
according to your environment and speaker layout.
(For details, refer to "SETTING THE SPEAKER SETUP" on
page 35.)
Caution :
• Be sure to use the speakers with the impedance of 6 ohms or
above.
• Do not let the bare speaker wires touch each other or any
metal part of this unit. This could damage this unit and/or the
speakers.
8
RD-6513(G) 2008.8.21 12:22 PM 페이지 9
8. AC INPUT CORD
ENGLISH
• Plug the cord into a wall AC outlet.
Speaker placement
Ideal speaker placement varies depending on the size of your
room and the wall coverings, etc. The typical example of
speaker placement and recommendations are as follows :
Front left and right speakers and center speaker
• Place the front speakers with their front surfaces as flush with
TV or monitor screen as possible.
• Place the center speaker between the front left and right
speakers and no further from the listening position than the
front speakers.
• Place each speaker so that sound is aimed at the location of
the listener’s ears when at the main listening position.
Surround left and right speakers
• Place the surround speakers approximately 1 meter (40
inches) above the ear level of a seated listener on the direct
left and right of them or slightly behind.
Subwoofer
• The subwoofer reproduces powerful deep bass sounds.
Place a subwoofer anywhere in the front as
desired.
1. TV or screen
2. Front left speaker
3. Front right speaker
4. Center speaker
5. Subwoofer
6. Surround left speaker
7. Surround right speaker
Notes :
• When using a conventional TV, to avoid interference with the
TV picture, use only magnetically shielded front left and right
and center speakers.
• To obtain the best surround effects, the speakers except the
subwoofer should be full range speakers.
9
RD-6513(G) 2008.8.21 12:22 PM 페이지 10
ENGLISH
Front Panel Controls
1. POWER switch
2. POWER ON/STANDBY button
3. STANDBY indicator
4. FLUORESCENT DISPLAY
For details, see below.
5. VIDEO INPUT SELECTOR button
6. AUDIO INPUT SELECTOR button
7. EXT.IN SELECTOR button
8. FM/AM button
9. MASTER VOLUME CONTROL knob
10. MULTI CONTROL knob (◀/▶)
11. HEADPHONE jack
12. SPEAKER button/indicator
13. REMOTE SENSOR
14. SURROUND MODE button
15. STEREO button
16. DISPLAY button
17. DIGITAL/ANALOG MODE button
18. SETUP button
19. CHANNEL LEVEL button
20. CONTROL UP/DOWN (▲/▼)
buttons
21. MEMORY/ENTER button
22. TUNING UP/DOWN (+/-) buttons
23. PRESET UP/DOWN (+/-) buttons
24. SETUP MIC JACK
For details, see next page.
25. FRONT AUX IN JACK
For details, see next page.
26. Bluetooth IN connector
For details, see next page.
FLUORESCENT DISPLAY
1. Input, frequency, volume level, operating information, etc.
2. Surround mode indicators
3. AUTO indicator
4. DIGITAL INPUT indicator
5. DIRECT indicator
6. Preset number, sleep time display
7. MEMORY indicator
10
8. PRESET indicator
9. SLEEP indicator
10. TUNED indicator
11. STEREO indicator
12. RDS indicators
(Regional option for Europe, etc.)
RD-6513(G) 2008.8.21 12:22 PM 페이지 11
• To use Auto Setup function, connect the supplied microphone to the SETUP MIC jack.(For details, refer to "When
selecting the AUTO SETUP" on page 36.)
Notes:
• Because the microphone for Auto Setup is designed for use with this receiver, do not use a microphone other than
the one supplied with this receiver.
• After you have completed the auto setup procedure, disconnect the microphone.
Microphone
FRONT AUX IN JACK
• The FRONT AUX IN jack can be connected to additional audio components such as an MP3 player, etc.
Note :
• When connecting this jack to an MP3 player, etc., you should use the stereo mini cord, not a mono mini cord.
Bluetooth IN CONNECTOR
• If the Bluetooth IN connector is connected to Sherwood Audio Receiver BTR7(sold separately) with Bluetooth wireless technology, you can enjoy music
wirelessly with a music player featuring Bluetooth wireless technology such
as MP3 player, mobile phone, etc..
(For information on Sherwood Audio Receiver BT-R7, contact your dealer.)
• The Bluetooth word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Sherwood Corporation is
under license. Other trademarks and trade names are those of their
respective owners.
Notes :
• For safe operation, turn the power off before connecting or disconnecting the
Audio Receiver BT-R7.
• When not using the Bluetooth IN connector, cover it with the supplied cap.
11
ENGLISH
SETUP MIC JACK
RD-6513(G) 2008.8.21 12:22 PM 페이지 12
ENGLISH
Remote Controls
Note :
• Some buttons (USB, VIDEO 3, AUX and USB transport buttons) are not available for this receiver.
12
RD-6513(G) 2008.8.21 12:22 PM 페이지 13
ENGLISH
REMOTE CONTROL OPERATION RANGE
• Use the remote control unit within a range of about 7 meters (23
feet) and angles of up to 30 degrees aiming at the remote sensor.
LOADING BATTERIES
1. Remove the cover.
2. Load two batteries ("AAA" size, 1.5 V) matching the
polarity.
• Remove the batteries when they are not used for a
long time.
• Do not use the rechargeable batteries (Ni-Cd type).
13
RD-6513(G) 2008.8.21 12:22 PM 페이지 14
Operations
ENGLISH
Note : Before operating this receiver, first set this unit as desired for optimum performance, doing the system setup
procedures. (For details, refer to "System Setup" on page 30.)
LISTENING TO A PROGRAM SOURCE
Before operation
• Enter the standby mode.
3. Select the desired input source.
• The STANDBY indicator lights up.
This means that the receiver is not
disconnected from the AC mains and a
small amount of current is retained to
support the operation readiness.
• To switch the power off, push the POWER
switch again.
• Then the power is cut off and the STANDBY
indicator goes off.
1. In the standby mode, turn the power on.
POWER
or
• Each time the "VIDEO" button on the front panel is
pressed, the input source changes as follows:
VIDEO 1 ↔ VIDEO 2
• Each time the POWER ON/STANDBY button on the front
panel is pressed, the receiver is turned on to enter the
operating mode or off to enter the standby mode.
• On the remote control, press the POWER ON button to
enter the operating mode or press the STANDBY button
to enter the standby mode.
• In the standby mode, if the INPUT SELECTOR button is
pressed, the receiver is turned on automatically and the
desired input is selected.
• Each time the "AUDIO" button on the front panel is
pressed, the input source changes as follows:
→ CD → F AUX → TAPE → BT IN
• Each time the "FM/AM" button is pressed, the band
changes as follows:
→ FM ST → FM MONO → AM
2. Switch the speakers on.
When selecting the EXTERNAL IN as desired
• "EXT IN" is displayed and 6 seperate analog signals
from the component connected to this input pass
through the tone and volume circuits only and can be
heard from your speakers.
• Selecting the desired input source to cancel the external
in function.
• These analog signals can be heard only, not recorded.
• Then the SPEAKER indicator lights up and the sound
can be heard from the speakers connected to the
speaker terminals.
• When using the headphone for private listening, press
the SPEAKER button again to switch the speakers off.
14
RD-6513(G) 2008.8.21 12:22 PM 페이지 15
When CD, VIDEO 1~ 2 is selected as an input source
4. Select the digital or the analog input
7. To mute the sound.
connected
ENGLISH
as desired.
• Each time this button is pressed, the corresponding input
is selected as follows:
→ o(ptical) → c(oaxial)1→ c(oaxial) 2 → A(nalog)
• “MUTE” will flicker.
• To resume the previous sound level, press it again.
Notes :
• When F AUX, TAPE, BT IN, EXT IN or tuner is selected as
an input source, the digital input cannot be selected.
• When the selected digital input is not connected, the
"DIGITAL" indicator flickers and the analog input is
automatically selected.
• The selected digital or analog input is automatically
assigned to the corresponding input source on the INPUT
setup menu. (For details, refer to "SETTING THE INPUT "
on page 34.)
• The sound from the component connected to the selected
digital input can be heard regardless of the selected input
source.
5. Operate the selected component for
8. To listen with the headphones.
playback.
• Be sure to switch the speakers off.
• When listening to a DTS or Dolby Digital program source,
if the headphones are plugged in and the SPEAKER
button is set to off, it enters the 2CH downmix mode
automatically. (For details, refer to "2CH downmix mode"
on page 18.)
• When playing back the program sources with surround
sound, refer to “ENJOYING SURROUND SOUND” on
page 18.
6. Adjust the (overall) volume.
DOWN
Note :
• Be careful not to set the volume too high when using
headphones.
UP
15
RD-6513(G) 2008.8.21 12:22 PM 페이지 16
When the TONE is set to ON to adjust the tone
(bass and treble).
Adjusting the tone (bass and treble)
9. Enter the tone mode.
11. Press the CURSOR UP(▲)/DOWN(▼)
ENGLISH
buttons to select the desired tone.
• Each time these buttons are pressed, the tone is
selected as follows :
→ BASS ↔ TRBL (treble) ↔ TONE : ON ←
• The tone mode is displayed for several seconds.
10. Press the CURSOR LEFT(◀)/RIGHT(▶)
12. Press the CURSOR LEFT(◀)/RIGHT(▶)
buttons to select the desired tone mode.
buttons to adjust the selected tone as desired.
• Each time these buttons are pressed, the tone mode is
selected as follows :
• The tone level can be adjusted within the range of -10 ~
+10 dB.
• In general, we recommend the bass and treble to be
adjusted to 0 dB (flat level).
• Extreme settings at high volume may damage your
speakers.
• To complete tone adjustment, repeat the above steps 11
and 12.
• If the tone display disappears, start from the step 9 again.
OFF : To listen to a program source without the tone
↕
effect. ("DIR" indicator lights up.)
ON : To adjust the tone for your taste.
("DIR" indicator goes off.)
Note :
• When the EXTERNAL IN is selected as an input source,
the TONE cannot be set to ON.
16
RD-6513(G) 2008.8.21 12:22 PM 페이지 17
SURROUND SOUND
Surround modes
• The following modes apply conventional 2-channel
signals such as digital PCM or analog stereo signals to
high performance Digital Signal Processor to recreate
sound fields artificially.
■DTS Digital Surround
DTS Digital Surround(also called simply DTS) is a multichannel digital signal format which can handle higher data
rates. Discs bearing the DTS logo include the recording of
up to 5.1 channels of digital signals, which can be generally
thought to provide better sound quality due to the lower
audio compression required.
It also provides wide dynamic range and separation,
resulting in magnificent sound.
Theater
This mode provides the effect of being in a theater-in-the
round when watching a play.
Movie
This mode provides the effect of being in a movie theater
when watching a movie.
■DTS 96/24
This is high resolution DTS with a 96 kHz sampling rate
and 24 bit resolution, providing superior fidelity. Use it with
DVDs bearing the DTS 96/24 logo.
Hall 1/2
This mode provides the ambience of a chamber hall for
chamber music or an instrumental solo(Hall 1) or concert
hall for orchestral music or an opera (Hall 2).
Manufactured under license under U.S. Patent #'s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,226, 616; 6,487,535 & other U.S.
and worldwide patents issued & pending. DTS and DTS Digital
Surround are registered trademarks and the DTS logos , Symbol and
DTS 96/24 are trademarks of DTS, Inc. ⓒ 1996-2007 DTS, Inc. All
Rights Reserved.
Stadium
This mode provides the expansive sound field to achieve
the true stadium effect when watching baseball or soccer
games.
Dolby Digital
Church
This mode provides the ambience of a church for baroque,
string orchestral or choral group music.
Dolby Digital is the multi-channel digital signal format
developed by Dolby Laboratories. Discs bearing the Dolby
Digital logo includes the recording of up to 5.1 channels of
digital signals, which can reproduce much better sound
quality, spatial expansion and dynamic range
characteristics than the previous Dolby Surround effect.
Club 1/2
This mode creates the sound field of a jazz club with a low
ceiling and hard walls (Club 1) or a live house with a
relatively spacious floor (Club 2).
Dolby Pro Logic II surround
This mode applies conventional 2-channel signals such as
digital PCM or analog stereo signals as well as Dolby
Surround signals, etc. to surround processing to offer
improvements over conventional Dolby Pro Logic circuits.
Dolby Pro Logic ll surround includes 3 modes as follows:
Arena 1/2
This mode provides a feeling of a live concert in a medium
sized (Arena 1) or large (Arena 2) arena.
Game
Use this mode to enjoy video game sources.
• Dolby Pro Logic ll Movie
When enjoying movies, this mode allows you to further
enhance the cinematic quality by adding processing that
emphasizes the sounds of the action special effects.
Matrix
This mode reproduces a delayed signals from the surround
channels to emphasize the sense of expansion for music
sources.
• Dolby Pro Logic ll Music
When listening to music, this mode allows you to further
enhance the sound quality by adding processing that
emphasizes the musical effects.
• Dolby Pro Logic ll Emulation
This mode expands any 2-channel sources(, including
Dolby Surround sources) for 4 channel(front left, center,
front right and surround) playback.
The surround channel is monaural, but is played through
two surround speakers.
Dolby, Pro Logic, and the double-D symbol are registered
trademarks of Dolby Laboratories.
• When the EXTERNAL INs is connected to the 6CH decoder for a surround such as Dolby Digital, etc., you can enjoy the
corresponding surround sound, too. (For details, see th operator's manual of the component to be connected.)
17
ENGLISH
• This receiver incorporates a sophisticated Digital Signal Processor that allows you to create optimum sound quality and sound
atmosphere in your personal Home Theater.
RD-6513(G) 2008.8.21 12:22 PM 페이지 18
ENJOYING SURROUND SOUND
ENGLISH
Notes:
• Before surround playback, first perform the speaker setup procedure, etc. on the SETUP menu for optimum performance. (For
details, refer to "SETTING THE SPEAKER SETUP" on page 35.)
• When the EXTERNAL IN is selected as an input source, the surround modes cannot be selected.
When CD or VIDEO 1 ~ 2 is selected as an input source
Select the auto surround mode or the manual surround mode depending on how to select a surround mode.
• Each time this button is pressed, the mode changes as follows :
Auto surround mode : The optimum surround mode will be automatically
("AUTO" indicator
selected depending on the signal format being input.
lights up.)
Manual surround mode : You can select the desired of different surround
modes selectable for the signal being input with
("AUTO" indicator
goes off.)
using the MULTI CONTROL knob or the
SURROUND MODE UP/DOWN (›/‹) buttons.
■Notes :
• When the input source other than CD and VIDEO 1 ~ 2 is selected, you cannot select the auto surround mode and can select
the surround mode as desired (the manual surround mode).
• When the auto surround mode is selected, the surround modes other than the optimum surround mode cannot be selected.
■Select the desired surround mode (when selecting the manual surround mode in case of CD, VIDEO 1 ~ 2)
• Each time the MULTI CONTROL knob is rotated or the
SURROUND UP / DOWN (›/‹) buttons are pressed,
the surround mode changes depending on the input
signal format as follows :
Selectable surround mode
Signal format being input
Dolby Digital 5.1 channel sources
DOLBY DIGITAL
Dolby Digital 2 channel sources
DOLBY PLII MOVIE, DOLBY PLII MUSIC, DOLBY PLII EMULATION
DTS sources, DTS 96/24 sources
DTS or DTS 96/24
96 kHz PCM(2 channel) sources
DOLBY PLII MOVIE, DOLBY PLII MUSIC, DOLBY PLII EMULATION
PCM (2channel) sources,
DOLBY PLII MOVIE, DOLBY PLII MUSIC, DOLBY PLII EMULATION, THEATER, MOVIE, HALL1,
Analog stereo sources
HALL2, STADIUM, CHURCH, CLUB1, CLUB2, ARENA1, ARENA2, GAME, MATRIX
To cancel the surround mode for stereo playback
• Depending on the signal format which is being input,
either the stereo mode or the 2CH downmix mode is
selected.
• To cancel either the stereo mode or the 2CH downmix
mode, select the surround mode with using the MULTI
CONTROL knob on the front panel or the SURROUND
MODE UP/DOWN (>/<) buttons on the remote control.
2CH downmix mode
• This mode allows the multi-channel signals encoded in DTS or Dolby Digital format to be mixed down into 2 front channels
and to be reproduced through only two front speakers or through headphones.
• When the SPEAKER button is set to off to listen with headphones while playing the multi-channel digital signals from DTS or
Dolby Digital sources, it will enter the 2CH downmix mode automatically.
18
RD-6513(G) 2008.8.21 12:22 PM 페이지 19
When adjusting the sound parameters
1. Press the SOUND PARAMETER button.
• Then "DRC : ~ " (or "PANO : ~ ") is displayed for several seconds.
• If the parameter mode disappears, press this button again.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired parameter.
• Each time these buttons are pressed, the parameter mode
changes as follows:
→
"DRC"
↔ "PANO" ↔ "C.WIDTH" ↔ "DIMEN" ←
(Dynamic Range Compression) (Panorama mode)
(Center width control)
(Dimension control)
• "DRC" can be selected only while playing digital signals from
Dolby Digital or DTS source.
• "PANO", "C.WIDTH" and "DIMEN" can be selected only while
listening in Dolby Pro Logic II Music mode.
3. Press the CURSOR LEFT(◀)/ RIGHT(▶) buttons to adjust the selected parameter as desired.
When selecting the "DRC(Dynamic Range Compression:
Night mode)"
This function compresses the dynamic range of previously specified
parts of Dolby Digital or DTS sound track (with extremely high volume)
to minimize the difference in volume between the specified and nonspecified parts. This makes it easy to hear all of the sound track when
watching movies at night at low levels. The night mode can be set to
OFF or ON (default value : OFF).
Note : In some Dolby Digital or DTS softwares, the night mode may
not be valid.
When selecting the "PANO (Panorama)" mode
This mode extends the front stereo image to include the surround
speakers for an exciting "wraparound" effect with side wall imaging.
Select "OFF" or "ON"(default value: OFF).
When selecting the "C. WIDTH (Center width)" control
This adjusts the center image so it may be heard only from the center
speaker, only from the left/right speakers as a phantom image, or from
all three front speakers to varying degrees.
The control can be set in 8 steps from 0 to 7(default value : 3).
When selecting the "DIMEN (Dimension)" control
This gradually adjusts the soundfield either towards the front or
towards the rear. The control can be set in 7 steps from -3 to +3
(default value : 0).
4. Repeat the above steps 2 and 3 to adjust other parameters.
19
ENGLISH
• While playing digital signals from Dolby Digital or DTS program source or listening in Dolby Pro Logic II Music mode, you
can adjust their parameters for optimum surround effect.
RD-6513(G) 2008.8.21 12:22 PM 페이지 20
Adjusting each channel level with test tone
ENGLISH
• The volume level of each channel can be adjusted easily with the test tone function.
Note : When the SPEAKER button is set to off, the test tone function does not work.
1. Enter the test tone mode.
• The test tone mode is displayed and will be heard from
the speaker of each channel for 2 seconds as follows:
→ FL → C → FR → SR → SL → SW
Front Left
Center
Front Right
Surround Right
Surround Left
Subwoofer
• When the speaker setting is "N (None or No)", the test
tone of the corresponding channel is not available.
2. At each channel, adjust the level as desired until the sound level of each speaker is heard to be equally loud.
• You can select the desired channel with the CONTROL
UP(▲)/DOWN(▼) buttons or the CURSOR UP(▲)/
DOWN(▼) buttons.
3. Cancel the test tone function.
20
RD-6513(G) 2008.8.21 12:22 PM 페이지 21
Adjusting the current channel level
ENGLISH
• After adjusting each channel level with test tone, adjust the channel levels either according to the program sources or to suit
your tastes.
• You can adjust the current channel levels as desired. These adjusted levels are just memorized into user’s memory ("CAL"),
not into preset memory("REF 1", "REF 2").
1. Press the CHANNEL LEVEL button.
• Then the memory mode ("REF 1", etc.) is displayed for
several seconds.
• When the memory mode or channel level disappears,
press this button again.
2. Select the desired channel.
• Each time these buttons are pressed, the corresponding
channel is selected as follows:
→ REF 1, 2 (or CAL) ↔ FL ↔ C ↔ FR ←
→ <DTS or DD> ↔ SW ↔ SL ↔ SR ←
< >: Only when the digital signals from Dolby Digital or DTS
program sources that include LFE signal are input, LFE level
can be displayed.
• Depending on the speaker settings ("N (None or No)") and
surround mode, etc., some channels cannot be selected.
• When the SPEAKER button is set to off, only the Front
Left and Front Right channels can be selected.
3. Adjust the level of the selected channel as desired.
• The LFE level can be adjusted within the range of -10~0
dB and other channel levels within the range of -15 ~ +15
dB.
• In general, we recommend the LFE level to be adjusted
to 0 dB. (However, the recommended LFE level for some
early DTS software is -10 dB.) If the recommended levels
seem too high, lower the setting as necessary.
4. Repeat the above steps 2 and 3 to adjust each channel level.
21
RD-6513(G) 2008.8.21 12:22 PM 페이지 22
Memorizing the adjusted channel levels
• You can memorize the adjusted channel levels into preset memory("REF 1", "REF 2") and recall the memorized whenever you
want.
ENGLISH
1. After performing the steps 1 ~ 4 in "Adjusting the current channel level" procedure on page 21, press the
(MEMORY/)ENTER button.
• Then "1" of "REF 1" indication flickers for several
seconds.
2. Select the desired one of REF 1 and REF
2.
• If the preset memory disappears, perform the above
step 1 again.
3. Confirm your selection.
• The adjusted channel levels have now been memorized
into the selected memory.
Recalling the memorized channel levels
1. Press the CHANNEL LEVEL button.
• "CAL " (or "REF 1", etc.) is displayed for several
seconds.
• If the channel level mode display disappears, press this
button again.
2. Select the desired one of REF 1 and REF 2.
• Then the channel levels memorized into the selected
preset memory are recalled.
22
RD-6513(G) 2008.8.21 12:22 PM 페이지 23
LISTENING TO RADIO BROADCASTS
1. Select the desired band.
Manual tuning
• Manual tuning is useful when you already know the
frequency of the desired station.
• After selecting the desired band, press the TUNING
UP(+) / DOWN(-) buttons repeatedly until the right
frequency has been reached.
• Each time this button is pressed, the band changes as
follows ;
→ FM ST → FM MONO → AM
("ST" lights up)
("ST" goes off)
Auto presetting
• When FM stereo broadcasts are poor because of weak
broadcast signals, select the FM mono mode to reduce
the noise, then FM broadcasts are reproduced in
monaural sound.
• Auto presetting function automatically searches for FM
stations only and store them in the memory.
• While listening to FM radio broadcasts, press and hold
down the (MEMORY/) ENTER button for more than 2
seconds.
2. Press the TUNING UP(+)/DOWN(-) buttons for
more than 0.5 second.
• Then "AUTO MEM" flickers and this receiver starts auto
presetting.
• To stop auto presetting, press this button again.
• Up to 30 FM stations can be stored.
Notes:
• FM stations of weak strength cannot be memorized.
• To memorize AM stations or weak stations, preform
"Manual presetting" procedure with using "Manual
tuning" operation.
• The tuner will now search until a station of sufficient
strength has been found. The display shows the tuned
frequency and "TUNE".
• If the station found is not the desired one, simply repeat
this operation.
• Weak stations are skipped during auto tuning.
23
ENGLISH
Auto tuning
RD-6513(G) 2008.8.21 12:22 PM 페이지 24
Manual presetting
Tuning to preset stations
• You can store up to 30 preferred stations in the memory.
• After selecting the tuner as an input source, select the
desired preset number.
ENGLISH
1. Tune in the desired station with auto or manual
tuning.
2. Press the (MEMORY/)ENTER button.
• When using the NUMERIC buttons on the remote control.
Examples) For “3” :
MEM
For “15” :
For “30” :
• "MEM" is flickering for several seconds.
3. Select the desired preset number (1~30) and
press the (MEMORY/)ENTER button.
• When using the NUMERIC buttons on the remote
control.
Examples) For “3” :
For “15” :
For “30” :
• The station has now been stored in the memory.
• When using the NUMERIC buttons, the station is stored
automatically without pressing the (MEMORY/)ENTER
button.
• A stored frequency is erased from the memory by
storing another frequency in its place.
• If “MEM” goes off, start again from the above step 2.
4. Repeat the above steps1 to 3 to memorize other
stations.
MEMORY BACKUP FUNCTION
The following items, set before the receiver is turned off,
are memorized.
• INPUT SELECTOR settings
• Surround mode settings
• Preset stations,etc.
24
RD-6513(G) 2008.8.21 12:22 PM 페이지 25
RDS Tuner (Regional Option for some countries in Europe, etc.)
RDS(Radio Data System) is a method for sending information signals together with the transmitter signals. Your tuner is
capable of translating these signals and putting the information on the display. These codes contain the following informations.
Program Service name (PS), A list of Program Types (PTY), Traffic Announcement (TA), Clock Time (CT), Radio Text (RT).
Note :
• In the other countries, RDS tuner function cannot be available.
RDS search
TP search
• Use this function to automatically search and receive
the stations offering RDS services.
• Use this function to automatically search and receive
the stations broadcasting the traffic program.
1. In the FM mode, select the RDS search mode.
1. In the FM mode, press the SEARCH MODE
button twice.
• Each time this button is pressed, the search mode
changes as follows;
→ RDS SRCH → TP SRCH → PTY SRCH → OFF
• "TP SRCH" is displayed.
2. When "TP SRCH" is displayed, press the ENTER
2. When "RDS SRCH" is displayed, press the
button.
ENTER button.
• The tuner automatically searches stations offering RDS
services and the station name is displayed.
• If no RDS station is found, "NO RDS" is displayed.
• When "RDS SRCH" is not displayed, repeat again from
the above step 1.
• The tuner automatically searches for stations
broadcasting the traffic program.
• "NO TRAFF" is displayed if the signal is too weak or
there are no stations broadcasting the traffic program.
• When "TP SRCH" is not displayed, repeat again from
the above step 1.
25
ENGLISH
LISTENING TO RDS BROADCASTS(FM ONLY)
RD-6513(G) 2008.8.21 12:22 PM 페이지 26
PTY search
DISPLAY
ENGLISH
• Use this function to automatically search and receive
the stations broadcasting the desired program type.
In the FM mode,
1. In the FM mode, press the SEARCH MODE
button three times.
• Each time this button is pressed, the display mode
changes as follows:
Program
→ Service name →
(PS)
• "PTY SRCH" is displayed.
Volume
2. When "PTY SRCH" is displayed, select the
←
Program
Type
(PTY)
Surround
mode
→
Clock
Time
(CT)
→
← Frequency
Radio
Text
(RT)
←
• If the signals are too weak or no RDS service is
available, "NO NAME", "NO PTY", "NO TIME" or "NO
TEXT" will be displayed.
desired program type.
• Each time these buttons are pressed, one of 32
different types of programs is selected.
(NEWS, AFFAIRS, INFO, SPORT, EDUCATE,
DRAMA, CULTURE, SCIENCE, VARIED, POP M,
ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M,
WEATHER, FINANCE, CHILDREN, SOCIAL,
RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ,
COUNTRY, NATION M, OLDIES, FOLK M,
DOCUMENT, TEST, ALARM, NONE)
• When "PTY SRCH" is not displayed, repeat again from
the above step 1.
3. When the desired program is displayed, press
the ENTER button.
• The tuner automatically searches a station offering PTY
services.
• If no station is found, "NO PROG" is displayed.
26
RD-6513(G) 2008.8.21 12:22 PM 페이지 27
• The analog signals from the EXTERNAL INs as well as the digital signals from the coaxial or optical digital input can be
heard but cannot be recorded.
• When recording the analog signals from CD, VIDEO 1 ~ 2, be sure to select th analog input.
(For details, refer to "When CD, VIDEO 1 ~ 2 is selected as an input source" on page 15.)
• The volume and tone (bass, treble) settings have no effect on the recording signals.
Recording with TAPE
1. Select the desired input as a recording source except for TAPE.
2. Start recording on the TAPE.
3. Start play on the desired input.
Dubbing from video components onto VIDEO 1
1. Select VIDEO 2 as a recording source.
2. Start recording on the VIDEO 1.
3. Start play on the VIDEO 2.
• The audio and video signals from the VIDEO 2 will be dubbed onto the VIDEO 1 and you can enjoy them on the TV set and
from the speakers.
27
ENGLISH
RECORDING
RD-6513(G) 2008.8.21 12:22 PM 페이지 28
Dubbing the audio and video signals separately onto VIDEO 1
ENGLISH
Example) When dubbing the VIDEO 2 video signal and the CD audio signal separately onto VIDEO 1.
1. Select VIDEO 2 as a video recording source.
2. Select CD as an audio recording source.
3. Start recording on the VIDEO 1.
4. Start play on the VIDEO 2 and the CD respectively.
• The audio signal from the CD and the video signal from the VIDEO 2 will be dubbed and you can enjoy them on the TV set
and from the speakers.
Note :
• Be sure to observe the order of the above steps 1 and 2.
28
RD-6513(G) 2008.8.21 12:22 PM 페이지 29
OTHER FUNCTIONS
• The sleep timer allows the system to continue to operate for a specified period of time before automatically shutting off.
• To set the receiver to automatically turn off after the specified period of time.
• Each time this button is pressed, the sleep time changes
as follows:
→ 10 → 20 → 30 → --- → 90 → OFF
Unit : minutes
• While operating the sleep timer, "
" lights up.
• When the sleep time is selected, the fluorescent display
is dimly lit.
Adjusting the brightness of the fluorescent display
• Each time this button is pressed, the brightness of
the fluorescent display changes as follows:
→ ON → dimmer → OFF
• In the display OFF mode, pressing any button will
restore the display ON mode.
Displaying the operation status
During playback,
• Each time this button is pressed, the display mode
changes as follows:
→
Surround
mode
→
Volume
→
Input
source
• When RDS tuner function is available in your country, for
details on the FM mode information, see "DISPLAY" on
page 26.
• When the EXTERNAL IN is selected as an input source,
the surround mode is not displayed.
29
ENGLISH
Operating the sleep timer
RD-6513(G) 2008.8.21 12:22 PM 페이지 30
System Setup
ENGLISH
• The setup menu is displayed on the fluorescent display and allows you to perform the setup procedures easily. In most situations,
you will only need to set this once during the installation and layout of your home theater, and it rarely needs to be changed later.
The setup menu consists of 5 main menus ; system, input, speaker setup, CH level and parameter. These menus are then divided
up into various sub-menus.
■Navigating through the setup menu
• The explanations here assume you are using the buttons on the remote control when performing the setup menu operation.
However, you can use the buttons on the front panel as well.
The buttons on the front panel correspond to those on the remote control as shown below.
1. Turn the setup menu on.
• The setup menu will be shown.
• To turn the menu off, press this button again.
2. Select the desired menu using the CURSOR UP(▲)/DOWN(▼) buttons.
3. Confirm your selection.
• When selecting "SYSTEM", see "SETTING THE
SYSTEM" on page 32.
• When selecting "INPUT", see "SETTING THE
INPUT" on page 34.
• When selecting "SPK SET", see "SETTING THE
SPEAKER SETUP" on page 35.
• When selecting "CH LEVEL", see "SETTING
THE CH LEVEL" on page 40.
• When selecting "PARAMTR", see "SETTING
THE PARAMETER" on page 42.
• When selecting "EXIT", the setup menu will be
turned off.
30
RD-6513(G) 2008.8.21 12:22 PM 페이지 31
ENGLISH
■Setup menu flow
• The setup menu flow is as follows :
• When "RETURN" is selected on a sub-menu, it will return to the previous menu.
■Note :
• During setup menu operation, only the (POWER ON/) STANDBY button and the buttons required for system setup will
function.
31
RD-6513(G) 2008.8.21 12:22 PM 페이지 32
ENGLISH
SETTING THE SYSTEM
• SW (SUBWOOFER) : To select the desired subwoofer mode.
• TONE : To adjust the tone (bass and treble) as desired.
• RMEQ (ROOM EQ) : To select the desired room EQ mode.
• RETURN : To return to the previous menu.
1. Press CURSOR UP(▲)/DOWN(▼) buttons to select the desired item.
2. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to set the selected item as desired.
When selecting the SUBWOOFER mode
• "SW +" mode is effective only when "FRONT", "CENTER" or "SURR" is set to "L" and "SUB- W" is set to "Y" on the SPK
SET menu. (For details, refer to "SETTING THE SPEAKER SETUP" on page 35.)
NORM : When the low frequency signals of channels set to "L" are reproduced from those channels only.
In this mode, the low frequency signals that are reproduced from the subwoofer channel is only the low frequency
signals of LFE (from the multi-channel sources that contains LFE (Low Frequency Effects) channel, also called the
".1" channel) and the channels set to "S".
SW +: When the low frequency signals of channels set to "L" are reproduced simultaneously from those channels and the
subwoofer channel.
In this mode, the low frequency range expands more uniformly through the room, but depending on the size and
shape of the room, interference may result in a decrease of the actual volume of the low frequency range.
32
RD-6513(G) 2008.8.21 12:22 PM 페이지 33
OFF : To listen to a program source without the tone effect. ("DIR" indicator lights up.)
↕
ON : To adjust the tone for your taste. ("DIR" indicator goes off.)
■Note :
• When the EXTERNAL IN is selected as an input source, the TONE cannot be set to ON.
■When the TONE is set to ON to adjust the tone (bass and treble)
① Press the ENTER button to enter the tone adjustment.
② Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired tone.
③ Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to adjust the selected tone as desired.
• The tone level can be adjusted within the range of -10 ~ +10 dB.
• In general, we recommend the bass and treble to be adjusted to 0
dB (flat level).
• Extreme settings at high volume may damage your speakers.
• To complete tone adjustment, repeat the above steps ② and ③.
When selecting the ROOM EQ mode
• The room EQ is a kind of room equalizer for your speakers. According to the acoustic characteristics of your room
measured by the auto setup, the room EQ automatically adjusts the frequency response of your speakers.
• If you use different brands or sizes of speakers for some channels or have a room with unique acoustic characteristics,
such as walls, furniture, and the dimensions or the shape of the room, we recommend using the room EQ.
■Note :
• When playing the 96 kHz PCM (2 channel) digital signals, the room EQ is invalid.
OFF : When turning off the room EQ.
↕
ON (AUTO SET) : To adjust the frequency response of all speakers to the flattest response.
• If you have never performed the auto setup, it will automatically enter the auto setup mode to measure
the acoustic characteristics of your room. In this case, you should perform the auto setup to set the
ROOM EQ to ON. (For details, refer to "When selecting the AUTO SETUP" on page 36.)
33
ENGLISH
When selecting the TONE
RD-6513(G) 2008.8.21 12:22 PM 페이지 34
ENGLISH
SETTING THE INPUT
• D.IN (DIGITAL IN) : To assign the connected DIGITAL INs to the desired input.
• AUTO (AUTO SURROUND) : To select the auto surround mode or the manual surround mode.
• RETURN : To return to the previous menu.
1.
Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired input source, then press the ENTER
button.
Example) When selecting the VIDEO 2
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired item.
3. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to set the selected item as desired.
34
RD-6513(G) 2008.8.21 12:22 PM 페이지 35
• You should assign the connected DIGITAL INs to the desired of CD and VIDEO 1 ~ VIDEO 2.
(For details, refer to "CONNECTING DIGITAL INs" on page 8.)
• You can select the desired of OPT (optical), COX 1(coaxial 1), COX 2(coaxial 2) and ANL (analog).
Note :
• In such a case that a DIGITAL IN is assigned to two input sources or more, when these input sources are selected, the digital
audio signals can be heard from the same DIGITAL IN.
When selecting the AUTO SURROUND
• Depending on how to select a surround mode, you can select the auto surround mode or the manual surround mode.
OFF
: You can select the desired of different surround modes selectable for the signal being input with
(Manual surround mode) using the MULTI CONTROL knob or the SURROUND MODE UP/DOWN (>/<) buttons.
↕
(For details, refer to "ENJOYING SURROUND SOUND" on page 18.)
ON
: The optimum surround mode will be automatically selected depending on the signal format being
(Auto surround mode)
input.
Notes :
• When the input source other than CD and VIDEO 1 ~ 2 is selected, you cannot select the auto surround mode and can
select the surround mode as desired(the manual surround mode).
• When the auto surround mode is selected, the surround modes other than the optimum surround mode cannot be selected.
SETTING THE SPEAKER SETUP
• After you have installed this receiver and connected all the components, you should adjust the speaker settings for the
optimum sound acoustics according to your environment and speaker layout.
• Even when you change speakers, speaker positions, or the layout of your listening environment, you should adjust the
speaker settings, too.
• When performing the AUTO SETUP precedure, you need not perform the CONFIGURATION, DISTANCE and CH LEVEL
setup procedures.
• AUTO SET (AUTO SETUP) : To set the speaker setup and channel level setup automatically.
• CONFIG (CONFIGURATION) : To select the sizes of the speakers that are connected.
• DISTANCE: To enter the distance between the listening position and each speaker to set the delay time automatically for
optimum surround playback.
• X-OVER (CROSSOVER) : To select the desired crossover frequency.
• RETURN : To return to the previous menu.
35
ENGLISH
When selecting the DIGITAL IN
RD-6513(G) 2008.8.21 12:22 PM 페이지 36
ENGLISH
When selecting the AUTO SETUP
• Auto Setup lets you avoid troublesome listening-based speaker setup and achieve good surround sound.
You should connect the supplied microphone to the SETUP MIC jack so that this receiver can analyze the information from a
series of test tones emitted from speakers and can adjust the configuration, distance, sound level and frequency response of
each speaker automatically.
• If you want to personalize your speaker setup and channel level setup by making the settings manually, perform "When
selecting the CONFIGURATION" on page 37, "When selecting the DISTANCE" on page 38, "When selecting the
CROSSOVER" on page 39, "Adjusting each channel level with test tone" on page 20 and "Adjusting the current channel level"
on page 21.
• After the auto setup has been completed, the ROOM EQ is automatically set to ON. (For details, refer to "When selecting the
ROOM EQ mode" on page 33.)
Preparations
①. Check that the speakers are securely connected to this receiver.
• If your subwoofer has adjustable volume and crossover frequency, set the volume halfway and set the crossover frequency
to the maximum or the low pass filter off.
②. Connect the supplied microphone to the SETUP MIC jack on the front panel.(For details, refer to "SETUP MIC JACK" on
page 11 .)
■Notes :
• Because the microphone for Auto Setup is designed for use with this receiver, to use the auto setup function, do not use a
microphone other than the one supplied with this receiver.
• After you have completed the auto setup procedure, disconnect the microphone.
1. Place the microphone on a flat level surface at the listening position.
• If possible, use a tripod, etc. to attach the microphone at the same height as your ears would be when you are seated in your
listening position.
• Ensure there are no obstacles between the speakers and the microphone.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the "AUTO SET", then press the ENTER button.
• Loud test tones are output from each speaker and then if the auto speaker setup procedure has been
completed and the results are memorized, the "AUTO SET" will be displayed.
• Check the results on each setup menu(CONFIGURATION menu on page 37, DISTANCE menu on page 38,
and CH LEVEL menu for "REF 1" mode on page 40.)
• If the results are not satisfactory, you can retry the auto setup precedure or personalize your speaker setup
and channel level setup by making the settings manually.
• To stop the auto setup procedure while outputting the test tones, press the ENTER button.
• If there may be a problem with speaker or microphone connection, "ERROR" will be displayed. In this case, turn
off the power, check the connection and then retry the auto setup procedure.
■Notes :
• Because the test tones are loud, ensure there no infants or small children in the room.
• For best results, ensure the room is as quiet as possible during the auto setup procedure.
If there is too much ambient noise, the results may not be satisfactory.
36
RD-6513(G) 2008.8.21 12:22 PM 페이지 37
When selecting the CONFIGURATION
ENGLISH
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the "CONFIG", then press the ENTER button.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired speaker.
3. Press the CURSOR LEFT(◀)/ RIGHT(▶) buttons to set the selected speaker as desired.
• Depending on your speaker type, you can select one of these
following speaker types.
L(Large): Select this when connecting speakers that can fully
reproduce sounds below crossover frequency.
S(Small) : Select this when connecting speakers that can not fully
reproduce sounds below crossover frequency. When
this is selected, sounds below crossover frequency are
sent to the subwoofer or speakers which are set to "L
(Large)" (when not using a subwoofer)
N(None): Select this when no speakers are connected. When this
is selected, sounds are sent to the speakers which are
not set to "N (None)".
Y(Yes)/N(No): Select the desired depending on whether a
subwoofer is connected or not.
Notes :
• When speakers are set to "S (Small)", you should set their crossover frequency correctly according to their frequency
characteristics. (For details, refer to "When selecting the CROSSOVER" on page 39.)
• When "SUB-W" is set to "N (No)", "FRONT" is automatically set to "L (Large)".
• When the "FRONT" is set to "S (Small)", "CENTER" and "SURR" cannot be set to "L (Large)".
4. Repeat the above steps 2 and 3 until the speakers are all set to the desired mode.
About the speaker size
• Select "L (Large)" or "S (Small)" not according to the actual size of the speaker but according to the speaker's capacity for
playing low frequency (bass sound below frequency set on the "X-OVER" menu) signals.
• If you do not know, try comparing the sound at both settings (setting the volume to a level low enough so as not to damage
the speakers) to determine the proper setting.
37
RD-6513(G) 2008.8.21 12:22 PM 페이지 38
When selecting the DISTANCE
button.
ENGLISH
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the DISTANCE, then press the ENTER
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired speaker.
Note :
• You cannot select the speakers set to "N (None)" and
the subwoofer.
3. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to set the selected speker as desired.
• You can set the distance within the range of 0.1 ~ 9.0
meters in 0.1 meter intervals.
4. Repeat the above steps 2 and 3 until the distances are all set as desired.
About the speaker distance
When enjoying multi-channel surround playback with Dolby Digital and DTS sources, etc., it is ideal that the center and surround
speakers should be the same distance from the main listening position as the front speakers. By entering the distance between
the listening position and each speaker, the delay times of center and surround speakers are automatically adjusted to create an
ideal listening environment virtually as if the center and surround speakers were at their ideal locations respectively.
38
RD-6513(G) 2008.8.21 12:22 PM 페이지 39
When selecting the CROSSOVER
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the "X-OVER", then press the ENTER button.
2. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to set the crossover frequency as desired.
• You can adjust the crossover frequency within the
range of 40 ~ 130 Hz in 10 Hz intervals.
About the crossover frequency
• When speakers are set to "S (Small)", low frequencies in those channels that are below the crossover frequency are to
output from subwoofer or front speakers which are set to "L (Large)" (when not using a subwoofer).
• Refer to the operating instructions of the speakers to be connected. If the frequency range of your speaker is 100 Hz~20
kHz, the crossover frequency should be set to 100 Hz(or slightly higher).
39
ENGLISH
• When speakers are set to "S (Small)", be sure to set their crossover frequency correctly according to their frequency
characteristics.
RD-6513(G) 2008.8.21 12:22 PM 페이지 40
ENGLISH
SETTING THE CH LEVEL
Note : Depending on the speaker settings ("N (None or No)"), some channels cannot be selected.
Adjusting the current channel level
• You can adjust the current channel levels as desired. These adjusted levels are just memorized into user’s memory("CAL"),
not into preset memory ("REF 1", "REF 2")
• After adjusting each channel level with test tone, adjust the channel levels either according to the program sources or to suit
your tastes. (For details, refer to "Adjusting each channel level with test tone" on page 20.)
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired channel.
Example) When selecting Dolby Digital source's LFE
2. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to adjust the level of the selected channel or
program
source's LFE as desired.
• The LFE level can be adjusted within the range of -10 ~ 0
dB and other channel levels within the range of -15 ~ +15 dB
• In general, we recommend the LFE level to be adjusted to
0 dB. (However, the rcommended LFE level for some
early DTS software is -10 dB.) If the recommended levels
seem too high, lower setting as necessary.
3. Repeat the above steps 1 and 2 to adjust each channel level.
40
RD-6513(G) 2008.8.21 12:22 PM 페이지 41
Memorizing the adjusted channel levels
• You can memorize the adjusted channel levels into preset memory("REF 1", "REF 2") and recall the memorized whenever
you want.
1. After performing the steps 1 ~ 3 in "Adjusting the current channel level" procedure on page 40, press the
ENGLISH
ENTER button.
• Then "1" of "REF 1" indication flickers.
2. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to select the desired preset memory, then press the
ENTER button.
• Each time the CURSOR LEFT(◀) or RIGHT(▶) button
is pressed, "REF 1" or "REF 2" is selected.
• The adjusted channel levels have now been memorized
into the selected memory.
Recalling the memorized channel levels
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the "MODE ~ ".
• "CAL" may be displayed instead of "REF 1" or "REF 2".
2. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to select the desired one of REF 1 and REF 2.
• Then the channel levels memorized into the selected
preset memory are recalled.
41
RD-6513(G) 2008.8.21 12:22 PM 페이지 42
ENGLISH
SETTING THE PARAMETER
• NIGHT M (NIGHT MODE) : To adjust the dynamic range compression that makes faint sound easier to hear at low volume
levels.
• PLII MSC (DOLBY PLII MUSIC) : To adjust the various surround parameters for optimum surround effect.
• RETURN : To return to the previous menu.
When selecting the NIGHT MODE
• This function compresses the dynamic range of previously specified parts of Dolby Digital or DTS sound track (with
extremely high volume) to minimize the difference in volume between the specified and non-specified parts.
This makes it easy to hear all of the sound track when watching movies at night at low levels.
Notes:
• The night mode setting is valid only when the digital signals from Dolby Digital or DTS program source are being input.
• In some Dolby Digital or DTS softwares, the night mode setting may not be valid.
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the "NIGHT M", then press the ENTER button.
2. Press the CURSOR LEFT(◀)/ RIGHT(▶) buttons to set the night mode as desired.
OFF : To turn off the night mode function.
↕
ON : To turn it on.
42
RD-6513(G) 2008.8.21 12:22 PM 페이지 43
When selecting the DOLBY PLII MUSIC
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the "PLII MSC", then press the ENTER
button.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired parameter.
3. Press the CURSOR LEFT(◀)/ RIGHT(▶) buttons to adjust the selected parameter as desired.
When selecting the "PANO (Panorama)" mode
This mode extends the front stereo image to include the surround
speakers for an exciting "wraparound" effect with side wall imaging.
Select "OFF" or "ON"(default value:OFF).
When selecting the "C. WIDTH (Center width)" control
This adjusts the center image so it may be heard only from the
center speaker, only from the left/right speakers as a phantom
image, or from all three front speakers to varying degrees. The
control can be set in 8 steps from 0 to 7 (default value : 3).
When selecting the "DIMEN (Dimension)" control
This gradually adjusts the soundfield either towards the front or
towards the rear. The control can be set in 7 steps from -3 to +3
(default value : 0).
4. Repeat the above steps 2 and 3 to adjust other parameters.
43
ENGLISH
• You can adjust the various surround parameters for optimum surround effect.
Note: The parameter settings are valid only when listening in Dolby Pro Logic II Music mode.
RD-6513(G) 2008.8.21 12:22 PM 페이지 44
ENGLISH
Troubleshooting Guide
If a fault occurs, run through the table below before taking your receiver for repair.
If the fault persists, attempt to solve it by switching the receiver off and on again. If this fails to resolve the situation,
consult your dealer. Under no circumstances should you attempt to repair the receiver yourself. This could void the
warranty.
PROBLEM
POSSIBLE CAUSE
REMEDY
No power
• The AC input cord is disconnected.
• Poor connection at AC wall outlet or the
outlet is inactive.
• Connect the cord securely.
• Check the outlet using a lamp or another
appliance.
No sound
• The speaker cords are disconnected.
• The master volume is adjusted too low.
• The MUTE button on the remote control is
pressed to ON.
• Speakers are not switched on.
• Incorrect selection of the input source.
• Incorrect connections between the
components.
• Check the speaker connections.
• Adjust the master volume.
• Press the MUTE button to cancel the
muting effect.
• Press the SPEAKER button to ON.
• Select the desired input source correctly.
• Make connections correctly.
No sound from the surround
speakers
• Surround mode is switched off(stereo
mode).
• Master volume and surround level are too
low.
• A monaural source is used.
• Surround speaker setting is “N”.
• Select a surround mode.
• Surround mode is switched off(stereo
mode).
• Center speaker setting is “N”.
• Master volume and center level are too low.
• Select the desired surround.
• No antenna is connected.
• The desired station frequency is not tuned
in.
• The antenna is in wrong position.
• Connect an antenna.
• Tune in the desired station frequency.
• An incorrect station frequency has been
memorized.
• The memorized stations are cleared.
• Memorize the correct station frequency.
Poor FM reception
• No antenna is connected.
• The antenna is not positioned for the best
reception.
• Connect an antenna.
• Change the position of the antenna.
Continuous hissing noise
during FM reception,
especially when a stereo
broadcast is received.
• Weak signals.
• Change the position of the antenna.
• Install an outdoor FM antenna.
Continuous or intermittent
hissing noise during AM
reception, especially at night.
• Noise is caused by motors, fluorescent
lamps or lightning, etc.
• Keep the receiver away from noise
sources.
• Install an outdoor AM antenna.
Remote control unit does not
operate.
• Batteries are not loaded or exhausted.
• The remote sensor is obstructed.
• Replace the batteries.
• Remove the obstacle.
No sound from the center
speaker
Stations cannot be received
Preset stations cannot be
received
44
• Adjust master volume and surround level.
• Select a stereo or surround source.
• Select the desired surround speaker
setting.
• Select the desired center speaker setting.
• Adjust master volume and center level.
• Move the antenna and retry tuning.
• Memorize the stations again.
RD-6513(G) 2008.8.21 12:22 PM 페이지 45
Specifications
DIGITAL AUDIO SECTION
• Sampling frequency .................................................................................................................................. 32, 44.1, 48, 96 kHz
• Digital input level
Coaxial, 75 Ω .......................................................................................................................................................... 0.5 Vp-p
Optical, 660 nm .......................................................................................................................................... -15 ~ -21 dBm
VIDEO SECTION
• Video format ....................................................................................................................................................................... PAL
• Input sensitivity (=Output level) , 75 Ω
Video (Composite (normal)) ........................................................................................................................................ 1 Vp-p
S-Video (luminance signal) ......................................................................................................................................... 1 Vp-p
(chrominance signal) .............................................................................................................................. 0.286 Vp-p
Component video (R-Y signal) ................................................................................................................................. 0.5 Vp-p
(B-Y signal) ................................................................................................................................ 0.5 Vp-p
(Y signal) .................................................................................................................................... 1.0 Vp-p
• HDMI connector ............................................................................................................................................................ 19 pin
FM TUNER SECTION
•
•
•
•
•
•
•
•
•
Tuning frequency range .................................................................................................................................. 87.5 ~ 108 MHz
Usable sensitivity, THD 3%, S/N 26 dB ...................................................................................................................... 12.8 dBf
46 dB quieting sensitivity, mono/stereo ........................................................................................................... 20.2 / 45.3 dBf
Signal to noise ratio, 65 dBf, mono/stereo ............................................................................................................... 55 / 50 dB
Total harmonic distortion, 65 dBf,1 kHz, mono/stereo .............................................................................................. 0.5 / 1.0 %
Frequency response, 30 Hz~12 kHz ............................................................................................................................ ±3.0 dB
Stereo separation, 1 kHz ................................................................................................................................................ 30 dB
Capture ratio ...................................................................................................................................................................... 4 dB
IF rejection ratio ............................................................................................................................................................... 80 dB
•
•
•
•
Tuning frequency range ................................................................................................................................... 522 ~ 1611 kHz
Usable sensitivity ....................................................................................................................................................... 500 µV/m
Signal to noise ratio ......................................................................................................................................................... 40 dB
Selectivity .......................................................................................................................................................................... 25 dB
•
•
•
•
Power supply ...................................................................................................................................................... 230 V ~ 50 Hz
Power consumption ........................................................................................................................................................ 330 W
Dimensions (W×H×D, including protruding parts) .............................. 440×141×370 mm (17-3/8×5-1/2×14-1/2 inches)
Weight (Net) .................................................................................................................................................... 9.2 kg (20.3 lbs)
AM TUNER SECTION
GENERAL
Note: Design and specifications are subject to change without notice for improvements.
45
ENGLISH
AMPLIFIER SECTION
• Power output, stereo mode, 6 Ω, THD 0.7%, 40 Hz~20 kHz ..................................................................................... 2×100 W
• Total harmonic distortion, 6 Ω, 100 W, 1 kHz ................................................................................................................. 0.09 %
• Intermodulation distortion
60 Hz : 7 kHz= 4 : 1 SMPTE, 6 Ω, 100 W .................................................................................................................. 0.1 %
• Input sensitivity, 47 kΩ
Line (CD, TAPE, VIDEO) ........................................................................................................................................ 280 mV
• Signal to noise ratio, IHF “A” weighted
Line (CD, TAPE, VIDEO) .......................................................................................................................................... 92 dB
• Frequency response
Line (CD, TAPE, VIDEO), 20 Hz~50 kHz ...................................................................................................... +0 dB, -3 dB
• Output level
TAPE REC, 2.2 kΩ .................................................................................................................................................. 280 mV
PRE OUT (Subwoofer), 1 kΩ ........................................................................................................................................ 1.0 V
• Bass/Treble control, 100 Hz/10 kHz ............................................................................................................................... ±10 dB
• Surround mode, only channel driven
Front power output, 6 Ω, 1 kHz, THD 0.7 % ................................................................................................ 110 W / 110 W
Center power output, 6 Ω, 1 kHz, THD 0.7 % .......................................................................................................... 110 W
Surround power output, 6 Ω, 1 kHz, THD 0.7 % .......................................................................................... 110 W / 110 W
cover 2008.8.21 12:21 PM 페이지 1
RD-6513
AUDIO/VIDEO RECEIVER
5707-00000-129-0S
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
