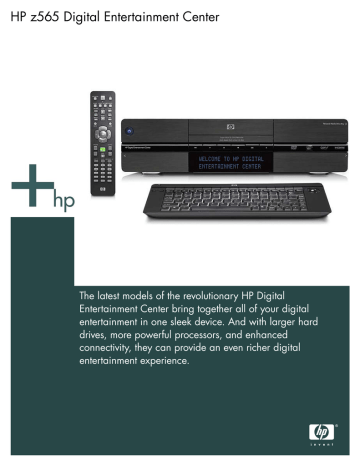

HP z565 Digital Entertainment Center
The latest models of the revolutionary HP Digital
Entertainment Center bring together all of your digital
entertainment in one sleek device. And with larger hard
drives, more powerful processors, and enhanced
connectivity, they can provide an even richer digital
entertainment experience.
Stay connected.
Stay connected. The HP Digital Entertainment Center works
beautifully with the rest of your home theater equipment, linking to your TV or projector through a broad variety of connections, including HDMI, DVI10, Component and VGA,
which transfer uncompressed digital audio and video for the
best possible image and sound quality.
Everything at your fingertips.
Quiet but sexy. The black, brushed-aluminum finish looks at
home in your living room or home theater. An ultra-quiet
design keeps your focus on your entertainment experience,
not on your system.
TV at your speed. Three high-performance TV tuners (two
standard-definition, one ATSC over-the-air high-definition3)
and a personal video recorder (PVR) let you pause, replay,
and record from cable, digital cable, digital satellite, or
over-the-air TV. Record up to three TV programs simultaneously.
TV on your time. Search for and record your must-see TV
shows with the included Electronic Program Guide.4 You
can capture single episodes or entire series on the HP
Digital Entertainment Center. You'll never miss another
episode of your favorite show!
Future-friendly. The HP Digital Entertainment Center is
specifically designed with the power and features needed
to upgrade to and run Windows Vista™ Premium—the
next generation of the industry-leading operating system.
Listen in. Burn your own CDs5 or enjoy the ones you
already have. You can even select individual songs, create playlists, or search for music by title, artist, and
album. It's like having a jukebox right in your living
room!
Everything at your fingertips. A single remote control
gives you instant access to all your digital entertainment —
TV, DVD movies, home videos, music, photos, and FM
radio — t h rough Microsoft® Windows® XP Media Center
Edition 2005.
Focus on fun.
Movie magic. Play your favorites or download new
ones—and get ready for crisp, clear images and unbeatable surround-sound from your big-screen TV.
Your turn to burn. Create your own media library when
you record TV shows, home videos, and music onto
space-saving DVDs with the DVD SuperMulti drive.5,6,7
Leave a lasting impression. Use LightScribe technology
and software to burn custom, laser-etched CD and DVD
labels.8 It's as easy as burn, flip, burn!
Hold everything. With the 500GB9 internal hard drive,
you'll have plenty of storage for hours of recorded TV
and other digital files. And the included 300GB HP Personal Media Drive gives you even more storage sp a c e —
in a convenient, removable package.9
Focus on fun. Transfer your latest and greatest digital photos using the front-panel 9-in-1 memory card reader, then
use your remote control to create slideshows for the whole
family.
Content-capable. The HP Digital Entertainment Center
uses dual-core Intel® processors1 and Intel Viiv™ compatibility to let you access a host of unique content features
and unlock an amazing new world of digital
entertainment throughout the home.2
Dual core is a new technology designed to improve performance of multithreaded software products and hardware-aware multitasking operating systems and may require appropriate operating system software for full benefit; check with software provider to determine suitability. Not all customers or software applications will necessarily benefit from use of this technology.
Home networking capability and many Intel Viiv technology-based usage models will require additional hardware devices, software, or services. Functionality of Intel Viiv technology-verified devices will vary; check product details for desired
features. System and component performance and functionality will vary depending on your specific hardware and software configurations. See www.intel.com/go/viiv_info for more information.
3
High-definition (HD) source content varies and will depend on broadcast signal, antenna, and other factors. In cities where local off-air HD programs are available, reception may vary based on geographic location. An external over-the-air
antenna that receives UHF and VHF signals is required fro ATSC reception. Viewing HD content will require a compatible high-definition display. Ability to record, edit, or transfer broadcast content such as TV programming may be limited
depending on the type of content.
4
Electronic Program Guide provided by Microsoft®. Broadband Internet access required at additional cost.
5
Intended only for creation and storage of original material and other lawful uses.
6
Actual speeds may vary. Does not permit copying of commercially available DVD movies or other copyrighted materials.
7
The PC ships with the Double Layer DVD writer, which supports single layer and Double Layer DVD media. Double Layer technology gives you greater capacity and allows you to store up to 8.5GB of data on double layer DVD+R media. Double Layer is a new technology. Double Layer media compatibility will widely vary with some home DVD players and DVD-ROM drives.
8
LightScribe creates a grayscale image similar to a black-and-white photograph. LightScribe media required and sold separately.
9
When referring to hard drive capacity, 1GB = 1 billion bytes. Actual formatted capacity is less.
10
Via included HDMI/DVI adapter.
1
2
2
Storage
Total Hard Drive Space
800GB (internal + secondary)1
Internal Hard Drive
500GB 7200RPM Serial ATA1
Secondary Hard Drive
(via HP Personal Media Drive bay)
300GB 7200RPM HP Personal Media Drive (included); Additional HP Personal Media Drives can be purchased to support larger media files collections
DVD Player and Recorder
Super Multi DL-DVD recorder: DVD-RAM,DVD+-R/RW,CD-RW LightScribe; Progressive Scan DVD movie playback at 480p (via DVI or Component video
out2); 16X max. DVD+R, 8X max. DVD+RW, 8X max. Double Layer DVD+R3; 16X max. DVD-R, 6X max. DVD-RW, 4X max. Double Layer DVD+R3; 16X
max. DVD-ROM, 5X DVD-RAM; 40X max. CD-R, 32X max. CD-RW, 40X max. CD-ROM3
Television and Video
Television Tuners
One NTSC dual TV tuners with pause, review, and programmable record capabilities; 30FPS, 60Hz frequency; One ATSC TV tuners with pause, review,
and programmable record capabilities; Support up to 1920 x 1080i (HDTV)
Television Inputs (per NTSC tuner)
One RF coaxial; One S-video; One composite video; Stereo RCA jacks (left/right)
Personal Video Recorder
Personal Video Recorder (PVR) with high performance hardware encoder; Records television digitally to internal hard drive or HP Personal Media Drive;
Features pause, instant replay and 30-second skip; Compatible with cable, digital cable, digital satellite TV and antenna; Records up to two NTSC TV
channels and one ATSC TV channel simultaneously & watch one prerecorded show or watch one of the shows currently being recorded
Electronic Programming Guide
14-day programming guide for use with Personal Video Recorder4; Downloadable at no charge via broadband/high-speed Internet connection5
Video Processor
256 MB NVIDIA GeForce 7600 GS; 16X PCI-Express
Rear Video Output Jacks
One HDMI (High-Definition Multimedia Interface) with Digital Audio, One VGA, One component video (YPbPr)
Audio
Audio Chip
Intel® High Definition Audio with 7.1 surround sound (pre-amp); Realtek ALC885 Hi-Def audio codec; Featuring 106dB DAC SNR and 101dB ADC SNR
(chip level)
Audio Support
Dolby Digital 5.1 surround sound support; Analog 7.1 pre-amp surround sound support; Supports playback of MP3, AAC, WMA, WAV and PCM music
files; Supports playback of audio CDs and DVD-video
Rear Audio Out Ports
Eight RCA audio jacks for 7.1 surround sound analog output; One Toslink optical for 5.1 digital output (S/PDIF); One coaxial for 5.1 digital output (S/PDIF);
Two RCA audio jacks for stereo line-level line-out
Front Audio Out Ports
One ¼” headphone
Front Audio In Ports
One microphone
FM Tuner
One FM tuner with pause and replay capabilities; Nine user-defined FM preset stations; Range 87.5 - 108.0 MHz; 75ohm RF coaxial antenna included
Computing Power
Processor Model
Intel® Pentium® D 945 dual core processor operating at 3.4GHz6
Secondary-Level Cache Size
2x2MB Integrated On-Die Level 2
Front-Side Bus Speed
CPU front side bus 800 MHz
Motherboard Chipset
Intel® (Intel Viiv ready)
System Memory
2GB DDR2 SDRAM (2x1024), expandable to 4GB
1
GB = 1 billion bytes when referring to hard drive capacity. Actual formatted capacity is less.
2
Desktop resolution must be set to 640 x 480 for DVD playback via Component Video.
3
Actual speeds may vary from maximum speeds. DVD formats not universally compatible.
4
EPG provided by Microsoft®.
5
Broadband Internet access requres payment of additional fees or subscription for use.
6
GHz refers to internal clock speed of the processor. Other factors besides clock speed may impact system and application performance.
3
Internet Connectivity
Ethernet
10/100/1000 Base-T Gigabit Ethernet (RJ-45)
WiFi
802.11a/b/g wireless receiver (removable antenna Included)
Peripheral Ports
USB
Two front Hi-Speed USB 2.0; Four rear Hi-Speed USB 2.0
FireWire (IEEE 1394)
One front 4-pin FireWire (IEEE 1394) for connectivity to camcorders; One rear 6-pin FireWire (IEEE 1394)
Media Card Reader
One USB 2.0 front-accessible 9-in-1 Flash Media Card Reader; Supports Secure Digital, xD, Smart Media, MultiMedia Card, Compact Flash Types I/II,
IBM MicroDrive, Memory Stick, Memory Stick Pro
Infrared Transmitter
Two rear infrared (IR) blaster ports with IR blaster cables included; Changes TV channels on digital cable and satellite set-top boxes
Case & Power
Product Finish
Black brushed-aluminum with HP Media Info Display
Power Supply
250W
Power Requirements
100-240V AC, 50/60Hz
Power Management
Energy Star Compliant*
Accessories
Keyboard and Trackball
HP lap-sized wireless entertainment keyboard with integrated trackball; Keyboard includes 7 multimedia control keys and 3 programmable keys
Supplied Accessories
HP Digital Entertainment Center infrared remote control; HP Digital Entertainment Center Set-up Book; HP Digital Entertainment Center Getting Started
Guide; Microsoft Windows Media Center Edition 2005 Software Guide
Supplied Cables
One power cable; One HDMI a/v cable; One HDMI to DVI-D adapter; One left/right RCA audio; Two infrared blasters to control set-top boxes
Supplied Antennas
Coaxial FM radio antenna; External 802.11b/g antenna
Dimensions & Weight
Unpackaged Dimensions
(Case Only) WxHxD
17.0 in./43.1 cm. x 4.4 in./11.1 cm x 16.6 in./42.2 cm.
Packaged Dimensions WxHxD
24.25 in./61.6 cm. x 11.50 in./29.2 cm. x 20.25 in./51.4 cm.
Unpackaged Weight
(Case only)
24.5 lb./11.1 kg.
Packaged Weight
41.0 lb./18.6 kg.
Software
Operating System
Microsoft® Windows® XP Media Center Edition 2005
Multimedia Applications
Sonic DigitalMedia Home to burn CDs/DVDs and make data back-ups; Sonic MyDVD Plus to make DVD Movies
Upcoming OS Support
Windows Vista™ Premium Ready†
*Can be configured to be Energy Star Compliant.
†
Not all Windows Vista features are available for use on all Windows Vista Capable PCs. All Windows Vista Capable PCs will run the core experiences of Windows Vista, such as innovations in organizing and finding information, security,
and reliability. Some features available in premium editions of Windows Vista -- like the new Windows Aero™ user interface -- require advanced or additional hardware. Check www.windowsvista.com/getready for details.
4
HP z565 Digital Entertainment Center
Operating requirements
Minimum
TV or high-resolution display with HDMI, *DVI, VGA or component video inputs; High-speeed Broadband Internet connection (to download Electronic TV
Programming Guide. Internet connection purchased separately); TV signal source (via cable, satellite or antenna); Self-powered amplified speakers or basic A/V
receiver
Recommended
High definition TV or display (LCD, plasma, rear projection, front projection); A/V receiver with 5.1 or greater surround sound output
Service and support information
Limited Warranty
One year parts and labor
Telephone Support
One year toll-free hardware support (24/7/365); 90 days toll-free software support
Repair Options
Order customer replaceable parts; Return to HP for repair; Use HP authorized service provider; Call HP for in-home servicing; Visit www.hp.com/support
for more information
Support Options
Click on desktop icon for built-in Help and Support Center; Visit www.hp.com/support for easy access to online FAQs and troubleshooting information;
Call HP Customer Care toll-free 24/7 for direct, knowledgable assistance
Extended service plan
Choose from a variety of HP Extended Service Plans to meet your unique needs; Call 1-866-234-1377 or visit www.hp.com/ownerservices for more
information
AUDIO OUT
WIRELESS LAN
AUDIO 7.1 PRE-OUT
SURROUND SURROUND
BACK
L
L
L
CENTER
FRONT
Y
802.11 a/b/g
REMOVABLE ANTENNA
L
Pb
ACTIVITY
LINK
TV SOURCE 1 IN
R
CABLE/ANT. IN FM ANTENNA IN
L
Pr
100-240V- 4/A 50/60Hz
AC IN
R
R
R
SUB
WOOFER
AUDIO
R
VIDEO
DUAL
TUNER
S-VIDEO
TV SOURCE 2 IN
75Ω
COAXIAL
HDTV / SDTV ANT. IN
COAXIAL
10/ 100/ 1000
R
AUDIO
L
S-VIDEO
ATSC TUNER
INFRARED TRANSMITTER OUT
OPTICAL
2
DIGITAL
AUDIO
OUT
HI SPEED USB 2.0
1394
ETHERNET
Product Number: RE501AA 08/04/r1_ch
