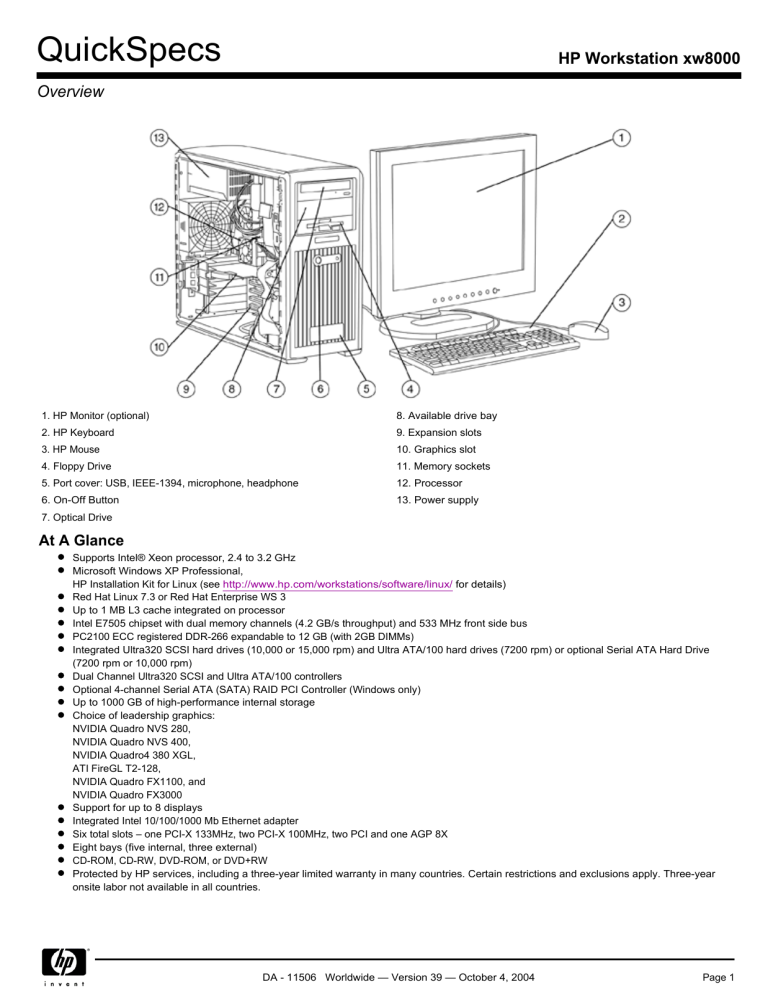

Overview
1. HP Monitor (optional)
8. Available drive bay
2. HP Keyboard
9. Expansion slots
3. HP Mouse
10. Graphics slot
4. Floppy Drive
11. Memory sockets
5. Port cover: USB, IEEE-1394, microphone, headphone
12. Processor
6. On-Off Button
13. Power supply
7. Optical Drive
At A Glance
Supports Intel® Xeon processor, 2.4 to 3.2 GHz
Microsoft Windows XP Professional,
HP Installation Kit for Linux (see http://www.hp.com/workstations/software/linux/ for details)
Red Hat Linux 7.3 or Red Hat Enterprise WS 3
Up to 1 MB L3 cache integrated on processor
Intel E7505 chipset with dual memory channels (4.2 GB/s throughput) and 533 MHz front side bus
PC2100 ECC registered DDR-266 expandable to 12 GB (with 2GB DIMMs)
Integrated Ultra320 SCSI hard drives (10,000 or 15,000 rpm) and Ultra ATA/100 hard drives (7200 rpm) or optional Serial ATA Hard Drive
(7200 rpm or 10,000 rpm)
Dual Channel Ultra320 SCSI and Ultra ATA/100 controllers
Optional 4-channel Serial ATA (SATA) RAID PCI Controller (Windows only)
Up to 1000 GB of high-performance internal storage
Choice of leadership graphics:
NVIDIA Quadro NVS 280,
NVIDIA Quadro NVS 400,
NVIDIA Quadro4 380 XGL,
ATI FireGL T2-128,
NVIDIA Quadro FX1100, and
NVIDIA Quadro FX3000
Support for up to 8 displays
Integrated Intel 10/100/1000 Mb Ethernet adapter
Six total slots – one PCI-X 133MHz, two PCI-X 100MHz, two PCI and one AGP 8X
Eight bays (five internal, three external)
CD-ROM, CD-RW, DVD-ROM, or DVD+RW
Protected by HP services, including a three-year limited warranty in many countries. Certain restrictions and exclusions apply. Three-year
onsite labor not available in all countries.
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 1
QuickSpecs
HP Workstation xw8000
Standard Features
Processor
Intel Xeon processor 2.4 GHz, 512 KB cache, 533 MHz front side bus
Intel Xeon processor 2.66 GHz, 512 KB cache, 533 MHz front side bus
Intel Xeon processor 2.8 GHz, 512 KB cache, 533 MHz front side bus
Intel Xeon processor 3.06 GHz, 512 KB cache, 533 MHz front side bus
Intel Xeon processor 3.2 GHz, 512 KB/1 MB L3 cache, 533 MHz front side bus
Operating System
Microsoft Windows XP Professional preinstall - SP1
HP Installer Kit for Linux (supports custom installations of Red Hat 7.2, 7.3, 8.0, 9 and Enterprise Workstation Edition
3).
Red Hat Enterprise Linux WS 3 (update 2)
Cache Memory
512 KB integrated, full speed Level 2 cache per processor
1 MB integrated, full speed Level 3 cache option on the 3.2 GHz processor
Chipset
Intel E7505 chipset
Processor Upgradability
Upgradable to dual processor
Memory
Standard
512-MB of PC2100 ECC registered DDR-266
Maximum
12-GB of PC2100 ECC registered DDR-266
NOTE: Microsoft Windows supports 4GB; Maximum configurable memory is 12GB; up to 8GB configurations are
supported on Linux only (2nd processor required).
Network Controller
Integrated Intel 10/100/1000 Mb Ethernet adapter
Expansion Slots
I/O (Total)
6, up to 5 available
PCI-X 1.0 64b/133MHz
1, up to 1 depending on model
PCI-X 1.0 64b/100MHz
2, up to 2 depending on model
PCI 2.2 32b/33MHz
2, up to 2 depending on model
AGP 8x Pro 50 (50w)
1, up to 1 depending on model
(Total/Available)
8 total/5available
Internal 3.5 inch
5 bays/4available
External 5.25 inch
2 bays/1 available
External 3.5 inch
1 external floppy drive
SCSI
Integrated dual channel Ultra320 SCSI controller
Ultra ATA/100
Integrated Ultra ATA/100
4-channel Serial ATA
SATA RAID PCI Controller (Windows only)
Expansion Bays
Controllers
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 2
QuickSpecs
HP Workstation xw8000
Standard Features
Storage
Interfaces
Diskette Drive
1.44 MB
Removable Media
CD-ROM, DVD-ROM, CD-RW, or DVD+ RW
Removable Storage
128 or 256 MB HP Drive Key (USB 2.0)
Hard Drive
40-GB, 80-GB, 160-GB, or 250-GB Ultra ATA/100 EIDE (7,200 rpm)
36-GB, or 73-GB Ultra320 SCSI (15,000 rpm);
36-GB, 73-GB, or 146-GB Ultra320 SCSI (10,000 rpm)
Parallel
One 25-pin (rear)
USB 2.0
6 (2 front, 4 rear)
Serial
One 9-pin DIN (rear)
Ultra320 SCSI
2 (68-pin internal and optional 68-pin external)
Ultra ATA/100
2 (internal)
IEEE 1394
2 (1 front, 1 back)
Keyboard (PS/2)
1 (rear)
Pointing Device (PS/2 mouse) 1 (rear)
Video
choice of professional graphics options
Network
1 RJ-45 connector (rear)
Microphone Jack
2 (front & rear)
Headphone Jack
1 (front)
Line-In Jack
1 (rear)
Line-Out Jack
1 (rear)
Graphics
One of the following:
NVIDIA Quadro NVS 280 (AGP)
NVIDIA Quadro NVS 400 (AGP)
NVIDIA Quadro4 380 XGL (AGP)
ATI FireGL T2-128
NVIDIA Quadro FX1100 (AGP)
NVIDIA Quadro FX3000 (AGP)
Input devices
Easy Access Keyboard (PS/2)
3-Button Mouse (PS/2)
Audio
AC97/16-bit stereo full-duplex and Integrated speaker
Sound Blaster Audigy 2 ZS PCI card
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 3
QuickSpecs
HP Workstation xw8000
Standard Features
Management
Bios Features
Advanced Configuration and Power Interface (ACPI) 1.0b
Desktop Management Interface (DMI) 2.0
System Management (SM) Bios 2.3.1
NIC Hardware
Remote Wakeup
Wake on LAN (WoL)
Web downloads
System Software Manager
Insight Management Agent
Altiris Express
Remote ROM Flash
Remote Shut Down
Security
Diskette write and boot control
Flash ROM lock
Network server mode
Parallel interface control
Power-on password
Serial interface control
Setup password
Cable lock provision
Power Supply
450 watts, with Power Factor Correction
Service and Support
Protected by HP services including a three-year, limited warranty with three-year parts coverage, three year, on-site
service, and three-year labor (in many countries); 7 x 24 hardware technical phone support and on-line support
through the Internet; Pre-Failure Warranty coverage of hard drives, memory.
NOTE: Certain restrictions and exclusions apply. Consult the customer support center for details. Three-year, onsite
and labor not available in all countries.
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 4
QuickSpecs
HP Workstation xw8000
Standard Features Pre-Configured Global Models
X8X/2.4/36S/512/Xd
Processor
Intel Xeon processor 2.4 GHz
DS729AW
Operating System
Microsoft Windows XP Professional
Cache Memory
512 KB integrated L2
Memory
512MB (2x256 MB) PC2100 ECC registered DDR-266
Optical Drive
16X/40X DVD-ROM Drive
Hard Drive
36 GB Ultra320 SCSI (10,000 rpm)
Graphics
Not included in base configuration – Please choose a graphics card option
below:
NVIDIA Quadro NVS 280
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse
HP scroll mouse (PS/2)
X8X/2.4/36S/512/Xd Country Code Key
N. America
DS729AW#ABA
Switzerland
DS729AW#AR8
Fr. Canada
DS729AW#ABC
Switzerland (Eng, It)
DS729AW#ACN
L. America
DS729AW#ABM
Europe (English, Fr, Ger, It, Dutch, Sp) DS729AW#AK6
Japan
DS729AW#ABJ
Thai
DS729AW#AKL
Japan (English)
DS729AW#ACF
Asia/Pacific (English)
DS729AW#AB4
UK
DS729AW#ABU
Korea
DS729AW#AB1
Germany
DS729AW#ABD
China
DS729AW#AB2
France
DS729AW#ABF
Taiwan
DS729AW#AB0
Italy
DS729AW#ABZ
India
DS729AW#ACJ
Netherlands
DS729AW#ABH
Aus/NZ
DS729AW#ABG
Spain
DS729AW#ABE
Denmark
DS729AW#ACE
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 5
QuickSpecs
HP Workstation xw8000
Standard Features Pre-Configured Global Models
X8X/2.8/36S/512/Xd
Processor
Intel Xeon processor 2.8 GHz
DS731AW
Operating System
Microsoft Windows XP Professional
Cache Memory
512 KB integrated L2
Memory
512MB (2x256 MB) PC2100 ECC registered DDR-266
Optical Drive
16X/40X DVD-ROM Drive
Hard Drive
36 GB Ultra320 SCSI (10,000 rpm)
Graphics
Not included in base configuration – Please choose a graphics card option
below:
NVIDIA Quadro NVS 280
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse
HP scroll mouse (PS/2)
X8X/2.8/36S/512/Xd Country Code Key
N. America
DS731AW#ABA
Switzerland
DS731AW#AR8
Fr. Canadian
DS731AW#ABC
Switzerland (Eng, It)
DS731AW#CAN
L. America
DS731AW#ABM
Europe (English, Fr, Ger, It, Dutch, Sp) DS731AW#AK6
Japan
DS731AW#ABJ
Thai
DS731AW#AKL
Japan (English)
DS731AW#ACF
Asia/Pacific (English)
DS731AW#AB4
UK
DS731AW#ABU
Korea
DS731AW#AB1
Germany
DS731AW#ABD
China
DS731AW#AB2
France
DS731AW#ABF
Taiwan
DS731AW#AB0
Italy
DS731AW#ABZ
India
DS731AW#ACJ
Netherlands
DS731AW#ABH
Aus/NZ
DS731AW#ABG
Spain
DS731AW#ABE
Denmark
DS731AW#ACE
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 6
QuickSpecs
HP Workstation xw8000
Standard Features Pre-Configured Global Models
X8X/3.06/36S/512/Xd
Processor
Intel Xeon processor 3.06 GHz
DS732AW
Operating System
Microsoft Windows XP Professional
Cache Memory
512 KB integrated L2
Memory
512MB (2x256 MB) PC2100 ECC registered DDR-266
Optical Drive
16X/40X DVD-ROM Drive
Hard Drive
36 GB Ultra320 SCSI (10,000 rpm)
Graphics
Not included in base configuration – Please choose a graphics card option
below:
NVIDIA Quadro NVS 280
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse
HP scroll mouse (PS/2)
X8X/3.06/36S/512/Xd Country Code Key
N. America
DS732AW#ABA
Switzerland
DS732AW#AR8
Fr. Canadian
DS732AW#ABC
Switzerland (Eng, It)
DS732AW#CAN
L. America
DS732AW#ABM
Europe (English, Fr, Ger, It, Dutch, Sp) DS732AW#AK6
Japan
DS732AW#ABJ
Thai
DS732AW#AKL
Japan (English)
DS732AW#ACF
Asia/Pacific (English)
DS732AW#AB4
UK
DS732AW#ABU
Korea
DS732AW#AB1
Germany
DS732AW#ABD
China
DS732AW#AB2
France
DS732AW#ABF
Taiwan
DS732AW#AB0
Italy
DS732AW#ABZ
India
DS732AW#ACJ
Netherlands
DS732AW#ABH
Aus/NZ
DS732AW#ABG
Spain
DS732AW#ABE
Denmark
DS732AW#ACE
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 7
QuickSpecs
HP Workstation xw8000
Configure to order options
Processor
Intel Pentium 4 processor 2.4-GHz, 512-KB cache, 533-MHz system bus
Intel Pentium 4 processor 2.66-GHz, 512-KB cache, 533-MHz system bus
Intel Pentium 4 processor 2.8-GHz, 512-KB cache, 533-MHz system bus
Intel Pentium 4 processor 3.06-GHz, 512-KB cache, 533-MHz system bus
Intel Xeon processor 3.2-GHz/533-MHz front side bus, 1-MB L3 cache
2nd Xeon processor 2.4-GHz, 512-KB cache, 533-MHz front side bus
2nd Xeon processor 2.66-GHz, 512-KB cache, 533-MHz front side bus
2nd Xeon processor 2.8-GHz, 512-KB cache, 533-MHz front side bus
2nd Xeon processor 3.06-GHz, 512-KB cache, 533-MHz front side bus
2nd Intel Xeon processor 3.2-GHz/533-MHz front side bus, 1-MB L3 cache
NOTE: When adding an additional processor, both processors must have the same speed and cache size.
Operating System
Windows XP Professional SP1a preloaded; incl. Windows XP recovery CD
HP Installer Kit for Linux
Red Hat Enterprise Linux WS Edition 3.0 (32-bit Update 2)
Memory (DDR-SDRAM)
256-MB PC2100 ECC registered DDR-266
512-MB PC2100 ECC registered DDR-266
1-GB PC2100 ECC registered DDR-266
1.5-GB PC2100 ECC registered DDR-266
2-GB PC2100 ECC registered DDR-266
3-GB PC2100 ECC registered DDR-266
4-GB PC2100 ECC registered DDR-266
6-GB PC2100 ECC registered DDR-266 (available on Linux models with 2nd processor only)
8-GB PC2100 ECC registered DDR-266 (available on Linux models with 2nd processor only)
NOTE: Microsoft Windows supports 4GB; Maximum configurable memory is 12GB; up to 8GB configurations are
supported on Linux only (2nd processor required). Memory must be added in like pairs.
Monitors
HP L1925 19-inch TFT Flat Panel Display – Analog/Digital
HP L2035 20-inch TFT Flat Panel Display
HP L2335 23-inch TFT Widescreen Flat Panel Display
HP p1230 22-inch (20.0-inch vis) Performance Natural-flat CRT Monitor
Graphic Card
(Video Card)
NVIDIA Quadro NVS 280 (AGP)
NVIDIA Quadro NVS 400 (AGP) for Windows models only
NVIDIA Quadro4 380 XGL (AGP)
ATI FireGL T2-128 (AGP)
NVIDIA Quadro FX1100 (AGP)
NVIDIA Quadro FX3000 (AGP) for Windows models only
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 8
QuickSpecs
HP Workstation xw8000
Configure to order options
Primary hard disks
(* SATA drives work with
Windows models only)
40-GB Ultra ATA/100 EIDE (7,200 rpm)
80-GB Ultra ATA/100 EIDE (7,200 rpm)
160-GB Ultra ATA/100 EIDE (7,200 rpm)
250-GB Ultra ATA/100 EIDE (7,200 rpm)
80-GB Serial ATA/150 (7,200 rpm)*
160-GB Serial ATA/150 (7,200 rpm)*
250-GB Serial ATA/150 (7,200 rpm)*
36-GB Serial ATA/150 (10,000 rpm)*
74-GB Serial ATA/150 (10,000 rpm)*
36-GB Ultra320 SCSI (10,000 rpm)
73-GB Ultra320 SCSI (10,000 rpm)
146-GB Ultra320 SCSI (10,000 rpm)
36-GB Ultra320 SCSI (15,000 rpm)
73-GB Ultra320 SCSI (15,000 rpm)
Secondary hard disks
40-GB Ultra ATA/100 EIDE (7,200 rpm)
80-GB Ultra ATA/100 EIDE (7,200 rpm)
160-GB Ultra ATA/100 EIDE (7,200 rpm)
250-GB Ultra ATA/100 EIDE (7,200 rpm)
80-GB Serial ATA/150 (7,200 rpm)*
160-GB Serial ATA/150 (7,200 rpm)*
250-GB Serial ATA/150 (7,200 rpm)*
36-GB Serial ATA/150 (10,000 rpm)*
74-GB Serial ATA/150 (10,000 rpm)*
36-GB Ultra320 SCSI (10,000 rpm)
73-GB Ultra320 SCSI (10,000 rpm)
146-GB Ultra320 SCSI (10,000 rpm)
36-GB Ultra320 SCSI (15,000 rpm)
73-GB Ultra320 SCSI (15,000 rpm)
Third hard disks
80-GB Serial ATA/150 (7,200 rpm)*
160-GB Serial ATA/150 (7,200 rpm)*
250-GB Serial ATA/150 (7,200 rpm)*
36-GB Serial ATA/150 (10,000 rpm)*
74-GB Serial ATA/150 (10,000 rpm)*
36-GB Ultra320 SCSI (10,000 rpm)
73-GB Ultra320 SCSI (10,000 rpm)
146-GB Ultra320 SCSI (10,000 rpm)
36-GB Ultra320 SCSI (15,000 rpm)
73-GB Ultra320 SCSI (15,000 rpm)
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 9
QuickSpecs
HP Workstation xw8000
Configure to order options
4th hard disks
80-GB Serial ATA/150 (7,200 rpm)*
160-GB Serial ATA/150 (7,200 rpm)*
250-GB Serial ATA/150 (7,200 rpm)*
36-GB Serial ATA/150 (10,000 rpm)*
74-GB Serial ATA/150 (10,000 rpm)*
36-GB Ultra320 SCSI (10,000 rpm)
73-GB Ultra320 SCSI (10,000 rpm)
146-GB Ultra320 SCSI (10,000 rpm)
36-GB Ultra320 SCSI (15,000 rpm)
73-GB Ultra320 SCSI (15,000 rpm)
5th hard disks
(SCSI only)
36-GB Ultra320 SCSI (10,000 rpm)
73-GB Ultra320 SCSI (10,000 rpm)
146-GB Ultra320 SCSI (10,000 rpm)
36-GB Ultra320 SCSI (15,000 rpm)
73-GB Ultra320 SCSI (15,000 rpm)
Optical Drives
48X CD-ROM
48X CD-RW
16X DVD-ROM
48X CD-RW/DVD-ROM combo
4.7-GB 8X DVD+RW for Windows models only
Removable storage
128 MB HP Drive Key (USB 2.0)
256 MB HP Drive Key (USB 2.0)
Input devices
Easy Access Keyboard (PS/2)
No Keyboard Kit
3-Button Mouse (PS/2)
Scroll Mouse (PS/2)
No Mouse Option
External SCSI connector
Ultra320 SCSI back panel connect on chassis (2nd channel of dual-channel Ultra320)
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 10
QuickSpecs
HP Workstation xw8000
After market options/Standalone accessories
Part Number
2nd Processor
Intel Xeon processor 2.4 GHz, 512 KB cache, 533 MHz front side bus
AA661A
Intel Xeon processor 2.66 GHz, 512 KB cache, 533 MHz front side bus
AA662A
Intel Xeon processor 2.8 GHz, 512 KB cache, 533 MHz front side bus
AA663A
Intel Xeon processor 3.06 GHz, 512 KB cache, 533 MHz front side bus
AA849A
Intel Xeon processor 3.06 GHz, 512 KB L2/1 MB L3 cache, 533 MHz front side bus
DG154A
Intel Xeon processor 3.2 GHz, 1 MB L3, 533 MHz front side bus cache
DP042A
NOTE: When adding an additional processor, both processors must have the same speed and
cache size.
Operating System
Red Hat Enterprise Linux WS 3.0 (32-bit Update 2)
PD862A
Memory
256 MB (1x256) PC2100 ECC registered DDR-266
DQ744A
512 MB PC2100 ECC registered DDR-266
AA656A
1 GB PC2100 ECC registered DDR-266
AA657A
2 GB PC2100 ECC registered DDR-266
AA834A
NOTE: Microsoft Windows supports 4GB; Maximum configurable memory is 12GB; up to 8GB
configurations are supported on Linux only. Memory must be added in like pairs.
Graphics
Hard Drives
NVIDIA Quadro NVS 280 (AGP)
AA931A
NVIDIA Quadro NVS 280 DVI Cables
DL929A
NVIDIA Quadro NVS 400 (AGP) for Windows models only
AA605A
NVIDIA Quadro NVS 400 DVI Cables
AA606A
NVIDIA Quadro4 380 XGL (AGP)
AA653A
ATI FireGL T2-128 (AGP)
AA929A
NVIDIA Quadro FX1100 (AGP)
DL489A
NVIDIA Quadro FX3000 (AGP) for Windows models only
DL488B
Ultra ATA/100 Drives
40-GB ATA/100 EIDE (7,200 rpm)
DC180A
80-GB ATA/100 EIDE (7,200 rpm)
DC181A
160-GB Ultra ATA/100 EIDE (7,200 rpm)
DC189A
250-GB Ultra ATA/100 EIDE (7,200 rpm)
DC516A
Serial ATA Drives (for Windows models only)
80-GB Serial ATA Hard Drive (7200 rpm)
DE705A
160-GB Serial ATA Hard Drive (7200 rpm)
DE706A
250-GB Serial ATA/150 Hard Drive (7200 rpm)
DS702A
36-GB Serial ATA Hard Drive (10,000 rpm)
DU962A
74-GB Serial ATA Hard Drive (10,000 rpm)
DX760A
Ultra320 SCSI Drives
36-GB Ultra320 SCSI (10,000 rpm)
AA612A
73-GB Ultra320 SCSI (10,000 rpm)
AA613A
146-GB Ultra320 SCSI (10,000 rpm)
AA614A
36-GB Ultra320 SCSI (15,000 rpm)
AA616A
73-GB Ultra320 SCSI (15,000 rpm)
AA617A
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 11
QuickSpecs
HP Workstation xw8000
After market options/Standalone accessories
Optical Drives
Removable Storage
Storage Controllers
Rack Options
Backup Devices
Communications
Input devices
48X CD-ROM Drive
DC143B
48X/24X/48X CD-RW Drive
DE205A
16X DVD Drive
AA620A
48X CD-RW/DVD-ROM combo drive
DE206A
4.7GB 8X DVD+R/RW Drive – 400i for Windows models only
DS703A
128 MB HP Drive Key (USB 2.0)
DQ819B
256 MB HP Drive Key (USB 2.0)
DL973B
Ultra320 Dual Channel SCSI Controller Card (PCI) cable sold separately
AA611A
Ultra320 SCSI back panel connect on chassis (2nd channel of dual-channel U320) cable sold
separately. Uses HDCI, HD68, or mini DB680 connector.
AA658A
4-channel Serial ATA (SATA) RAID PCI Controller
(A power cable is needed for every 2 drives. Power cords sold separately.)
DM294A
Cable, SATA power (1 required for every 2 SATA drives)
DN733A
Adaptec SCSI RAID 2120S Card (cable sold separately)
AA850A
5-device SCSI cable
AA818A
Rack mounting kits
AA640A
Fixed shelf kit
253449-B21
Sliding Shelf Kit
234672-B21
Depth Adjustable Rails
332558-B21
Exabyte 33/66 GB VXA-1 IDE Tape Drive
237109-B22
Exabyte 33/66 GB VXA-1 SCSI Tape Drive
237108-B22
TR5 10/20 GB iTape Drive (IDE, carbon)
294243-B22
Iomega ZIP 250 MB (internal, IDE, carbon)*
294416-B22
HP DAT24i Internal DDS3 tape drive
C1555D
HP DAT24e External DDS3 tape drive
C1556D
HP DAT40i Internal DDS4 tape drive
C5686B
HP DAT40e External DDS4 tape drive
C5687C
HP DAT72i Internal DAT72 tape drive
Q1522A
HP DAT72e External DAT72 tape drive
Q1523A
Intel Pro/1000 XT Server Adapter Gigabit PCI card
AA660A
Intel Pro 1000 MT NIC
DC193A
Broadcom Gigabit NIC
DC194A
PS/2 Easy Access keyboard (carbonite)
DC167B
Three button mouse-carbon (PS2)
AA778A
Scroll Mouse-Carbon (PS2)
DD440B
Spaceball 5000
DE934A
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 12
QuickSpecs
HP Workstation xw8000
After market options/Standalone accessories
Security
Other
Monitors
USB Fingerprint Identification
240238-B21
USB SmartCard Keyboard
267147-008
Corvadis USB Enhanced SmartCard Reader
240154-B21
Expansion kit
AA857A
Remote Workstation Sender Software Module
DM497A
Remote Workstation Receiver Software Module
DM498A
Sound Blaster Audigy 2 ZS
DV440A
HP L1925 19-inch TFT Flat Panel Display – Analog/Digital
P9626A
HP L2035 20-inch TFT Flat Panel Display
P9614A
HP L2335 23-inch TFT Widescreen Flat Panel Display
P9615A
HP p1230 22-inch (20.0-inch vis) Performance Natural-flat CRT Monitor
P9613A
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 13
QuickSpecs
HP Workstation xw8000
Memory
Standard Memory
This system supports PC-2100 DDR-266 DDR-SDRAM ECC. The mainboard is based on the E7505 chipset and has 6 DIMM slots with dual memory
channels (4.2 GB/s throughput). It ships with 512-MB as standard. It can support a maximum of 12-GB of RAM when optional memory upgrades are
included. Memory must be installed in like pairs. Only 266-MHz memory speed is supported.
NOTE: Microsoft Windows supports 4GB; Maximum configurable memory is 12GB; up to 8GB configurations are supported on Linux only (2nd
processor required).
These memory options are available from HP:
Part Number
256 MB upgrade kit PC2100 ECC registered DDR-266
DQ744A
512 MB upgrade kit PC2100 ECC registered DDR-266
AA656A
1 GB upgrade kit PC2100 ECC registered DDR-266
AA657A
2 GB upgrade kit PC2100 ECC registered DDR-266
AA834A
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 14
QuickSpecs
HP Workstation xw8000
Storage
Drive Bay Locations
Drive Support
Quantity
Supported
Position
Supported
Controller
1.44-MB Diskette Drive
Up to 1
3
Integrated
Optical Drives
Up to 2
CD-ROM Drive
1, 2
Integrated Ultra ATA/100
DVD-ROM Drive
1, 2
Integrated Ultra ATA/100
CD-RW Drive
1, 2
Integrated Ultra ATA/100
16x CD-RW/DVD-ROM
1, 2
Integrated Ultra ATA/100
DVD+RW
1, 2
Integrated Ultra ATA/100
Removable Media
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 15
QuickSpecs
HP Workstation xw8000
Storage
Hard Drives
Ultra320 SCSI Drives
1-inch
Up to 5
4, 5, 6, 7, 8
Integrated dual channel Ultra320 SCSI controller
Up to 2
5, 6
Integrated Ultra ATA/100 controller
Serial ATA Drives
Up to 4
(for Windows models only)
1, 2, 4, 5
4-channel Serial ATA (SATA) RAID PCI Controller
80-GB (7200 rpm)
160-GB (7200 rpm)
250-GB (7200 rpm)
36-GB (10,000 rpm)
74-GB (10,000 rpm)
1, 2, 4, 5
4-channel Serial ATA (SATA) RAID PCI Controller
36-GB 10,000 rpm
73-GB 10,000 rpm
146-GB 10,000 rpm
36-GB 15,000 rpm
73-GB 15,000 rpm
Ultra ATA Drives
1-inch
40-GB 7200 rpm
80-GB 7200 rpm
160-GB 7200 rpm
250-GB 7200 rpm
Up to 4
Maximum Storage Capacity
Internal
730-GB SCSI (assumes 5 SCSI drives installed)
500-GB Ultra ATA
1000 GB for SATA
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 16
QuickSpecs
HP Workstation xw8000
Technical Specifications
Base Workstation
System Characteristics
Processor
Intel Xeon
CPU Bus Speed Supported
533 MHz front side bus
Standard Cache
512 KB integrated, full speed Level 2
1 MB integrated, full speed Level 3 cache with 3.2GHz
model processors only
Upgradeable to up to 2 processors
System board with Intel E7505 Yes
chipset
Expansion Options
Memory Expansion Slots
6 DIMMs
Memory Type Supported
PC2100 ECC registered DDR-266 only
Maximum Memory
12-GB
Expansion Slots
I/O (Total)
6, up to 5 available
PCI-X 1.0 64b/133MHz
1, up to 1 depending on
model
PCI-X 1.0 64b/100MHz
2, up to 2 depending on
model
PCI 2.2 32b/33MHz
2, up to 2 depending on
model
AGP 8x Pro 50 (50w)
1, up to 1 depending on
model
(Total/Available)
8 total/5 available
Internal 3.5 inch
5 bays/4 available
External 5.25 inch
2 bays/1 available
External 3.5 inch
1 external floppy drive
Expansion Bays
Interfaces
Parallel
One 25-pin (rear)
USB 2.0
6 (2 front, 4 rear)
Serial
One 9-pin DIN (rear)
Ultra320 SCSI
2 (68-pin internal and optional 68-pin external)
Ultra ATA/100
2 (internal)
IEEE 1394
2 (1 front, 1 back)
Keyboard (PS/2)
1 (rear)
Pointing Device (PS/2 mouse) 1 (rear)
System Unit
Video
choice of professional graphics options
Network
1 RJ-45 connector (rear)
Microphone Jack
2 (front & rear)
Headphone Jack
1 (front)
Line-In Jack
1 (rear)
Line-Out Jack
1 (rear)
Tower Dimensions (HxWxD)
17.7 x 8.3 x 20.3 in (44.9 x 21 x 51.5 cm)
Weight
(standard configuration)
40 lb (18 kg)
Power Supply
Operating Voltage Range
100 VAC to 240 VAC
Rated Voltage Range
100 VAC to 120 VAC; 200
VAC to 240 VAC
Rated Line Frequency
50-Hz to 60-Hz
Rated Input Current
6.4A @ 100 VAC; 3.2A @
240 VAC
Maximum Rated Power
692-Watt input, 450-Watt
output
Physical Dimensions
3.85 x 6.3 x 7.35 in (9.78 x
16 x 18.67 cm)
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 17
QuickSpecs
HP Workstation xw8000
Technical Specifications
HP Easy Access Keyboard Dimensions (HxWxD)
Weight
<5.7 lb (<2.6 kg)
Temperature
(Values are subject to
change)
Operating
50° to 95° F
(10° to 35° C)
Non-operating
-40° to 158° F
(-40° to 70° C)
Humidity
(non-condensing)
(Values are subject to
change)
Operating
15% to 80%
Non-operating
10% to 90%
Maximum Altitude
(nonpressurized)
Operating
10000 ft (3100 m max)
Non-operating
15000 ft (4600 m max)
18.3 x 6.3 x 1.4 in (46.48 x 16.0 x 3.56 cm)
Weight
Approximately 2 lb (0.9 kg)
Input Specifications
Operating Voltage
+ 5VDC ± 5%
Power Consumption
50 mA maximum (with 3 LEDs on)
System Interface
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC98
Functionally compliant
Languages
18 available
Keycaps
Low-profile design
Switch Actuation
55 g nominal peak force with tactile feedback
Switch Life
20 million keystrokes (using Hasco modified tester)
Switch Type
Contamination resistant membrane
Key Leveling Mechanism
For all double wide and greater length keys
Cable Length
6 ft (1.8 m)
PC98-99
Mechanically compliant
Acoustics
50 dBA maximum sound pressure level
Operating Temperature
50° to 122° F (10° to 50° C)
Non-operating Temperature
-22° to 140° F (-30° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
50° to 122° F (10° to 50° C)
Mechanical
Environmental
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 18
QuickSpecs
HP Workstation xw8000
Technical Specifications
1.44-MB Diskette Drive
Size
3.5 in (8.89 cm)
LED Indicators (front panel) Green
HP 3-Button Mouse
Read/Write Capacity per
Diskette (high/low)
1.44 MB/720 KB
Drive Height
One-third
Drive Rotation
300 rpm
Transfer Rate (high/low)
500/250 KB/s
Bytes/Sector
512
Sectors/Track (high/low)
18/9
Tracks/Side (high/low)
80/80
Access Times
Track-to-Track (high/low)
3/6 ms
Average (high/low)
94/173 ms
Settling Time
15 ms
Latency Average
100 ms
Cylinders (high/low)
80/80
Read/Write Heads
Two
Dimensions/Weight
Height
1.42 in (3.6 cm)
Length
4.17 in (10.7 cm)
Width
2.87 in (7.4 cm)
Weight
5.20 oz (150 g)
Operating Temperature
32° to 104° F (0° to 40° C)
Non-operating Temperature
-4° to 140° F (-20° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Switch Life
1,000,000 operations (using Hasco modified tester)
Switch Type
Micro-switches
Tracking Mechanism Life
155 miles (250 km) at average speed of 10 in/s
Cable Length
6 ft (1.8 m)
PC98-99
Mechanically compliant
Compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, CTick
Environmental
Mechanical
Regulatory Approvals
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 19
QuickSpecs
HP Workstation xw8000
Technical Specifications
HP 2-Button Scroll Mouse
Scroll Wheel
8 mm
Maximum Rotation Speed 30 mm/s
Switch Type
Light force micro-switch
Switch Life
1 million operations
Mechanical Life
Minimum 200,000 revolutions
Environmental
Operating Temperature
50° to 122° F (10° to 50° C)
Non-operating Temperature
-22° to 140° F (-30° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
4 g peak acceleration
Operating Voltage
+ 5VDC ± 10%
Power Consumption
15mA
System Consumption
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC98
Functionally compliant
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Acceleration
100 in/s
Switch Actuation
85 g nominal peak force
Switch Life
1,000,000 operations (using Hasco modified tester)
Cable Length
2m
PC98-99
Mechanically compliant
Electrical
Mechanical
Regulatory Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C -Tick
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 20
QuickSpecs
HP Workstation xw8000
Technical Specifications
SpaceBall 5000
Features
Six degrees of freedom motion control through the X, Y, Z axis (pitch, roll, yaw)
Ball Diameter
2.2 in (5.6 cm)
Dimensions/Weight
Height
3.0 in (7.6 cm)
Length
6.0 in (15.2 cm)
Width
8.4 in (21.3 cm)
Weight
2.1 lb (9.94 kg)
Operating Temperature
50° to 104° F (10° to 40° C)
Non-operating Temperature
43° to 140° F (6° to 60° C)
Operating Humidity
8% to 80% (non-condensing at ambient)
Non-operating Humidity
5% to 80% (non-condensing at ambient)
Force range
0.5 - 8.2N (1.8 – 29.5 oz)
Torque range
0.085 – 0.33 oz-in. (6.91 Nmm)
Resolution
10 bits
Connector
9-pin D-subminiature receptacle (DB9S)
Cable Length
12.8 ft. (3.9 m)
Data rate
9600 bps
Environmental
Mechanical
Serial Specifications
Adaptec SCSI RAID 2120S
Card
Flow control
Xon/Xoff
Regulatory Approvals
Compliant
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV,
CISPR 22, EN 50082, IEC 1000 4-2, IEC 1000-4-3,
AS/NZS, VCCI, BSMI, C-Tick
Dimensions (H x D)
2.5 x 6.6 in (6.4 x 16.8 cm) Low profile card
RAID Level
0, 1, 10, 5, JBOD
Data Transfer Rate
Up to 320 MB/s
Cache Memory
64 MB (onboard)
Device Support
Up to 15 SCSI devices
Bus Type
64-bit/66MHz PCI
(Also support 32-bit/33MHz PCI)
Internal Connectors
One 68-pin high-density
External Connectors
One 68-pin VHDCI
System Requirements
Intel PC or equivalent with available PCI slot
Operating Temperature
32°to 131° F (0°to 55° C)
Power Requirements
4 amps @ +5V
Operating System Support Windows 2000 Professional, Windows XP Professional
Other
Optimized disk utilization
Online RAID Level Migration
Online capacity expansion
Immediate RAID availability (background initialization)
S.M.A.R.T. support
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 21
QuickSpecs
HP Workstation xw8000
Technical Specifications
4-channel Serial ATA
(SATA) RAID PCI
Controller
Dimensions (H x D)
2.375 x 5.5 in (6 x 14 cm)
RAID level
RAID 0+1 striping/mirroring; RAID 1 mirroring; RAID 0 striping
Data Transfer Rate
Up to 266MB/sec (66 MHz PCI); Up to 133MB/sec (33 MHz PCI)
Cache Memory
64 MB (onboard)
Device Support
Up to (4) Serial ATA/150 Drives
Bus Type
32-bit 33/66MHz PCI bus; PCI 2.3 compliant
BIOS
Optimizes drive performance by drive type; flashable for future upgrades; supports
multiple arrays; boots system from any array; BBS compliant; setup menus for custom
array creation
48-bit LBA Support
Recognizes drive capacities exceeding 137GB each
Data Protection Features
Mirrors data to second drive or drive pair for RAID 1 and RAID 0+1; offers hot spare
support for instant rebuild of failed drive in 2-drive RAID 1
Advanced Data Features
Bus mastering offloads data I/O handling from host CPU; CRC error-checking of Serial
ATA and Ultra ATA drives for data reliability during transfers; tagged command
queuing and elevator seek for optimized data handling
ACPI Support
S1, S3, & S4
Internal Connectors
4 standard 7-pin SATA connectors
External Connectors
None
System Requirements
Intel PC or equivalent with available PCI slot
Operating Temperature
32° F to 131° F (0° C to 55° C)
Power Requirements
4 amps @ +5V
Operating System
Support
Windows 2000 Professional, Windows XP Professional and RedHat Linux
Other
Optimized disk utilization
Monitors status of arrays, hard drives, and controller via TCP/IP
Synchronizes data in fault-tolerant arrays
Email notification for specified array events
S.M.A.R.T. support
NOTE: For Windows models only. A power cable is needed for every 2 drives. Power cords sold separately.
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 22
QuickSpecs
HP Workstation xw8000
Technical Specifications
Ultra ATA Hard Drives
40 GB, 4200rpm
Capacity
40 GB
Height
1.0 in (2.54 cm)
Width
2.75 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer
Rate (Maximum)
100 MB/s
Seek time
(typical reads, including
settling)
Single track
3 ms
Average
13 ms
Full-stroke
24.0 ms
Rotational speed
4200 rpm
Logical blocks
78,140,160
Operating temperature
41° to 131° F (5° to 55° C)
Average rotational latency 4.2 ms
80 GB, 7200rpm
Capacity
80 GB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer
Rate (Maximum)
100 MB/s
Seek time
(typical reads, including
settling)
Single track
0.8 ms
Average
9.0 ms
Full-stroke
17.0 ms
Rotational speed
7200 rpm
Logical blocks
156,301,488
Operating temperature
41° to 131° F (5° to 55° C)
Average rotational latency 4.2 ms
160 GB, 7200rpm
Capacity
160 MB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer
Rate (Maximum)
100 MB/s
Seek time
(typical reads, including
settling)
Single track
0.8 ms
Average
< 9.1 ms
Full-stroke
17.0 ms
Rotational speed
7200 rpm
Logical blocks
320,173,056
Operating temperature
41° to 131° F (5° to 55° C)
Average rotational latency 4.2 ms
250 GB, 7200rpm
Capacity
250 GB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer
Rate (Maximum)
100 MB/s
Seek time
Single track
DA - 11506 Worldwide — Version 39 — October 4, 2004
0.8 ms
Page 23
QuickSpecs
HP Workstation xw8000
Technical Specifications
Ultra320 SCSI Hard Drives
36 GB, 10K rpm
73 GB, 10K rpm
146 GB, 10K rpm
73 GB, 15K rpm
(typical reads, including
settling)
Average
9.0 ms
Full-stroke
17.0 ms
Rotational speed
7200 rpm
Logical blocks
488,397,168
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
36,400 MB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.6 ms
Average
4.5 ms
Full-stroke
11.0 ms
Rotational speed
10,000 rpm
Logical blocks
71,631,920
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
73,000 MB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.55 ms
Average
4.9 ms
Full-stroke
9.2 ms
Rotational speed
10,000 rpm
Logical blocks
143,374,744
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
146,000 MB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.55 ms
Average
4.9 ms
Full-stroke
9.2 ms
Rotational speed
10,000 rpm
Logical blocks
143,374,744
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
73,000 MB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 24
QuickSpecs
HP Workstation xw8000
Technical Specifications
Serial ATA Hard Drives
(Windows or Linux models
only)
80 GB, 7200rpm
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.4 ms
Average
3.8 ms
Full-stroke
6.7 ms
Rotational speed
15,000 rpm
Logical blocks
143,337,744
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
85,899,345,920 bytes
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
SATA
Synchronous Transfer
Rate (Maximum)
150 MB/s
Buffer
8 MB
Seek time
Single track
(typical reads, includes
Average
controller overhead, including
Full-stroke
settling)
160 GB, 7200rpm
Rotational speed
7,200 rpm
Logical blocks
160,086,528
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
171,798,691,840 bytes
Height
1.0 in (2.54 cm)
Width
4 in (10.2 cm)
Interface
SATA
Synchronous Transfer
Rate (Maximum)
150 MB/s
Buffer
8 MB
Seek Time (typical reads,
Single Track
includes controller overhead, Average
including settling)
Full-Stroke
250 GB, 7200rpm
0.9 ms
9.3 ms
9.2 ms
0.9 ms
9.3 ms
20 ms
Rotational Speed
7,200 rpm
Logical Blocks
320,173,056
Operating Temperature
41° to 131° F (5° to 55° C)
Capacity
250,000,000,000 bytes
Height
1 in (2.6 cm)
Width
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Interface
SATA
Synchronous Transfer
Rate (Maximum)
150 MB/s
Buffer
8 MB
Seek Time (typical reads,
Single Track
includes controller overhead,
DA - 11506 Worldwide — Version 39 — October 4, 2004
0.8 ms
Page 25
QuickSpecs
HP Workstation xw8000
Technical Specifications
including settling)
36 GB, 10K rpm
Full-Stroke
7,200 rpm
Logical Blocks
490,234,752
Operating Temperature
41° to 131° F (5° to 55° C)
Capacity
37,019,566,080 bytes
Height
1.028 in (25.4 mm)
Width
Media diameter: 3.3 in (84mm)
Physical size: 4 in (10.2 cm)
Interface
ESATA
Synchronous Transfer
Rate (Maximum)
150 MB/s
Buffer
8 MB
Seek Time (typical reads,
Single Track
includes controller overhead, Average
including settling)
Full-Stroke
74 GB, 10K rpm
<17.0 ms
Rotational Speed
0.3 ms
5.2 ms
9.5 ms
Rotational Speed
10,000 rpm
Logical Blocks
72,303,840
Operating Temperature
41° to 131° F (5° to 55° C)
Capacity
74,355,769,344 bytes
Height
1.028 in (25.4 mm)
Width
Media diameter: 3.3 in (84mm)
Physical size: 4 in (10.2 cm)
Interface
ESATA
Synchronous Transfer
Rate (Maximum)
150 MB/s
Buffer
8 MB
Seek time
Single track
(typical reads, includes
Average
controller overhead, including
Full-stroke
settling)
Rotational speed
10,000 rpm
Logical blocks
145,226,112
Operating temperature
41° to 131° F (5 to 55° C)
DA - 11506 Worldwide — Version 39 — October 4, 2004
0.3 ms
4.5 ms
10.2 ms
Page 26
QuickSpecs
HP Workstation xw8000
Technical Specifications
48X CD-ROM Drive
Capacity
650 MB CD disc
Dimensions (HxWxD)
1.7 x 5.9 x 8.0 in (4.3 x 15.0 x 20.3 cm)
Weight
2.6 lb (1200 g)
Interface
ATAPI
Mounting Orientation
Horizontal
Data Transfer Rates - Read Digital audio extraction (minimum) -1,200 KB/s
CD read - up to 7,200 KB/s
Media and Formats - Read Formats: CD-DA, CD-ROM (Mode 1 and 2), CD-XA Ready, Photo CD (Single and
Multi-session), Mixed Mode (Audio and Data combined), CD-I (FMV), CD Plus, CDExtra;
Media: stamped, CD-R, CD-RW
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 0 (16.7
MB/s); UltraDMA Mode 2 (33.3 MB/s)
Access Times (typical)
Random
< 100 ms @ 48x
Full-Stroke
< 150 ms
Start-up Time (typical)
< 7 s (single session)
< 30 s (multisession)
Stop Time (typical)
<4s
Read Buffer Size
128 KB (minimum)
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
80 dB
Channel Separation
65 dB
Configuration Jumper
Block
Master, slave, and cable
select modes
Operating Conditions
Temperature
41° to 122° F (5° to 50° C)
Humidity
10% to 80%
Approvals/
Environmental
UL 1950 (US and Canada), CSA, SEMKO, TUV; CE, FDA, FCC, IC, C-TICK
Operating Systems
Supported
Microsoft Windows 2000 and Microsoft Windows XP Pro.
Supplied Software
None
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 27
QuickSpecs
HP Workstation xw8000
Technical Specifications
48/24/48X CD-RW
Capacity
700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
2.0 lb (0.9 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,800 KB/s (12X)
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
Media and Formats - Read Formats: CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text, Photo CD (single and
multisession);
Media: stamped, CD-R, CD-RW
Data Transfer Rates Write
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3000 KB/s (20X) to 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
Media and Formats - Write Formats: CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text;
Media: CD-R, CD-RW (including ultra-speed)
Write Methods
Disc-at-once, session-at-once,, track-at-once, incremental fixed and variable packet,
multisession
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
CD-ROM Mode 1
100 ms
Full Stroke CD
160 ms (seek)
Start-up Time (typical)
<4 s (single session), <30 s (multisession)
Stop Time (typical)
<3 s
Write Buffer Size
2 MB
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
80 dB
Channel Separation
70 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 113° F (5° to 45° C)
Humidity
10% to 80%
Approvals/
Environmental
MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI
C63.4–1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA
C22.2 No. 950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV, EN60825-1
Operating Systems
Supported
Microsoft Windows 2000, Windows XP
Supplied software
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music and data
CDs, and data DVDs;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media.
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 28
QuickSpecs
HP Workstation xw8000
Technical Specifications
16X/40 DVD-ROM Read
Height
5.25-inch, half-height
Interface type
ATAPI
Dimensions–External,
Excluding Bezel (W x H)
5.88 x 1.71 in (14.9 x 4.34 cm)
Disc diameter
5 in, 3 in (12 cm, 8 cm)
Disc thickness
0.05 inch (1.2 mm)
Track pitch
1.6 µm (CD), 0.74 µm (DVD)
Disc center hole diameter 0.6 inch (15 mm)
Disc formats
DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0; DVD-RW
version 1.0 and 1.1; DVD-R/RW multi-border; DVD+RW; CD-ROM Mode 1 and 2; CDDA; CD-ROM XA Mode 2, Form 1 and 2; CD-extra; CD-text; CD-I Mode 2, Form 1 and 2;
CD-I ready; video CD, CD-bridge; PhotoCD (single and multi-session); CD-R; CD-RW
Disc capacity
DVD-ROM
4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB (DVD-10),
3.95 GB (DVD-R version 1.0), 4.7 GB (DVD-R version
2.0), 4.7 GB (DVD-RW version 1.0 and 1.1), 4.7 GB
(DVD+ RW)
CD-ROM
540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12 cm), 700
MB (80 minimum CD-R and CD-RW), 180 MB (8 cm)
Block size (bytes)
DVD-ROM – 2048; CD-ROM Mode 0 – 2352; CD-ROM Mode 1 – 2352, 2340, 2336,
2048; CD-ROM Mode 2 – 2352, 2340, 2336, 2048
Access times (typical
reads, including settling)
DVD-ROM single layer
< 120 ms
CD-ROM Mode 1
< 90 ms
Full stroke DVD
< 240 ms (seek)
Full stroke CD
< 160 ms (seek)
Data transfer rates
2600 – 6000 KB/s (40X CAV CD-ROM mode)
8100 – 21,600 KB/s (16X CAV DVD-ROM mode)
Data transfer modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 3 (44.4
MB/s)
Power
Source
Four-pin, DC power receptacle
DC power requirement
5 VDC ± 5%—100 mV ripple p-p
12 VDC ± 5%—200 mV ripple p-p
DC current
5 VDC - <800 mA typical, < 1000 mA maximum
12 VDC - < 870 mA typical
Audio Output Level
0.7 Vrms (typical)
Configuration Jumper
Block
Master, slave, and cable select modes
Data interface connector
40-pin, shrouded and keyed, flat ribbon
Environmental
(all conditions noncondensing)
Temperature (operating)
41° to 122° F (5° to 50° C)
Relative humidity
(operating)
10% to 85%
Maximum wet bulb
temperature (operating)
86° F (30° C)
Certifications, approvals
MMC II support, multi-read certification, Microsoft WHQL certification, ACA AS/NZS
3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE EN60950, EN 55022,
EN55024, SEMKO, NEMKO, DEMKO, FIMKO, EN 60825-1, UL 60950, CSA C22.2
60950-2000
Operating systems
supported
Microsoft Windows 2000, Windows XP Professional
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 29
QuickSpecs
HP Workstation xw8000
Technical Specifications
48/24/48+16X Combo CDRW/DVD-ROM
Capacity
4.7 and 9.4 GB DVD disc/700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
2.0 lb (0.9 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,200 KB/s (8X)
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
Media and Formats - Read CD Formats: CD-DA, CD-ROM (Modes 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed mode, CD-Extra, CD-I FMV, Video CD, Photo CD (single and multi-session), CDText, CD-Plus; CD Media: stamped, CD-R; CD-RW
DVD Formats: DVD-ROM, DVD-Video (with application support), DVD-R (version 1.0
and 2.0), DVD-RW (version 1.0 and 1.1), DVD-R multi-border;
DVD Media: stamped (single or dual layer, single sided), DVD+ RW, DVD+ R, DVD-R,
DVD-RW
Data Transfer Rates Write
CD-R write — 600 KB/s (4X)
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3600 KB/s (24X)
CD-R write — 4800 KB/s (32X)
CD-R write — 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
Media and Formats - Write CD Formats: CD-DA, CD-ROM (Mode 1), CD-ROM XA (Mode 2, Form 1 and 2), Mixed
mode, CD-Extra, CD-I FMV, Video CD, CD-Plus;
CD Media: CD-R; CD-RW
Write Methods
Disc-at-once, session-at-once,, track-at-once, incremental fixed and variable packet,
multisession
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
Random
120 ms
CD-ROM Mode 1
110 ms
Full Stroke DVD
210 ms
Full Stroke CD
160 ms
Start-up Time (typical)
<4 seconds (single session), <30 seconds (multisession)
Stop Time (typical)
4s
Write Buffer Size
2 MB (minimum)
Audio Output
Line-Out
0.75 VRMS
Signal-to-Noise Ratio
74 dB
Channel Separation
65 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 122° F (5° to 50° C)
Humidity
10% to 85%
Approvals/
Environmental
MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI
C63.4–1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA
C22.2 No. 950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV, EN60825-1
Operating Systems
Supported
Microsoft Windows 2000, Windows XP
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 30
QuickSpecs
HP Workstation xw8000
Technical Specifications
HP 400i DVD+RW
(8X/4X/12X/24X/10X/40X
(DVD+R/+RW)
Capacity
4.7 GB 5.25-inch
Orientation
Either horizontal or vertical
Interface Type
ATAPI
Dimensions (W x H x D)
8.0 x 5.9 x 1.7 in (20.3 x 15.0 x 4.4 cm)
half-height, tray-load
Track Pitch
1.6 um (CD), 0.74 um (DVD)
Reference Scanning
Velocity
1.2 m/s (CD); 3.49 m/s (DVD SL); 3.84 m/s (DVD DL)
Recording Method
Disc-at-once, Track-at-once, and Session-at-once; Variable Packet and Fixed Packet
Write Support
DVD+R, DVD+RW, CD-R, CD-RW
Read Support
DVD-ROM (single- and dual-layer), DVD+R, DVD+RW, DVD-R, DVD-RW, CD-ROM
Mode 1, CD-ROM XA (Mode 2, forms 1 and 2), CD TEXT, Photo CD single- and multisession), CD-DA (Audio CD), CD-Extra, CD-R, CD-RW (supports AM2)
Write Speed
DVD+R
8X CLV (10800 KB/s)
DVD+RW
4X CLV (5400 KB/s)
CD-R
24X CLV (3600 KB/s)
CD-RW
10X CLV (1500 KB/s)
DVD-ROM
12X CAV (6750 - 16200 KB/s)
DVD+R, DVD+RW,
DVD-R, DVD-RW
8X CAV (5400 - 10800 KB/s)
CD-ROM, CD-R,
CD-RW, CD-Audio
40X CAV (2550 to 6000 KB/s)
Read
2 MB
Write
2 MB
Random DVD
< 140 ms (typical)
Random CD
< 125 ms (typical)
Full Stroke DVD
< 250 ms (seek)
Full Stroke CD
< 210 ms (seek)
Read Speed
Date Buffer
Access Time
(typical reads, including
settling)
Operating Systems
Support
Microsoft® Windows® XP Professional
Power Requirement
5 V, +12 V (1.6A, 1.4A)
Front Panel Features
Disc loading tray, forced eject hole read/write indicator, eject button
Rear Panel Features
ATAPI interface, digital audio output 1, analog audio output, device configuration
jumper, DC input
DC Power Connector, 4 pin; Line Out Connector, 4 pin; IDE Bus Connector, 40 pin;
Configuration Jumper Pins; Label to identify each connect
Regulatory Approvals
UL, CSA, CB Report, FIMKO, SEMKO, FCC Class B, FDA, CE Marking, C-Tick, CISPR229, Korean EMC, Taiwan EMC
Option Kit contents
DVD+R/+RW Drive, InterVideo WinDVD, InterVideo WinDVD Creator, Roxio Easy CD
Creator, Dantz Retrospect Express Backup Software and DVD+R media.
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 31
QuickSpecs
HP Workstation xw8000
Technical Specifications
HP Drive Key (USB 2.0)
Dimensions (HxWxD)
0.9 x 0.7 x 3.9 in (2.3 x 1.8 x 9.8 cm)
Storage Capacity
128 MB or 256 MB
Weight
0.05 lb (0.02 kg)
Transfer Rates
Read-1023 KB/Sec; Write-850 KB/Sec
Operating Temperature
32° to 113° F (0° to 45° C)
Non-operating
Temperature
4° to 140° F (-20° to 60° C)
Operating System Support Microsoft Windows 2000, Windows XP Professional. No driver is required for this
device. Native support is provided by the operating system.
Intel Pro/1000 XT Server
Adapter Gigabit PCI card
Option Kit Contents
HP Drive Key, documentation
Network Interface
10Base-T, 100Base-TX, 1000Base-T
Expansion Bus
Architecture
PCI 2.2, PCI-X 1.0
Network Transfer Rate
10Base-T (Half-Duplex)
10-Mb/s
10Base-T (Full-Duplex)
20-Mb/s
100Base-TX (Half-Duplex)
100-Mb/s
100Base-TX (Full-Duplex)
200-Mb/s
1000Base-TX (Half-Duplex)
1000-Mb/s
Connectors
RJ-45
Standards Compliance
10-Mb/s Ethernet
IEEE 802.3
100-Mb/s Ethernet
IEEE 802.3µ
1000-Mb/s Ethernet
IEEE 80
I/O Address
Auto-configured
Remote Wakeup
Yes
Management capabilities
Wired for management (WfM) Baseline v2.0; DMI 2.0 support, WMI and SNMPmanageable; Offline diagnostics; ACPI Power Management; WoL
Operating Temperature
0° to 55° F (10° to 35° C)
Operating Humidity
(non-condensing)
85% at 131° F (55° C)
Operating Altitude
10,000 ft (3,048 m)
Communication
Processor
Intel 82559
Memory
64KB integrated
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 32
QuickSpecs
HP Workstation xw8000
Technical Specifications
Intel Pro 1000 MT NIC
DC193A
Dimensions
6.4 x 4.8 x 0.8 in (16.3 x 12.1 x 1.9 cm)
Connector
RJ-45
Controller
Intel 82540EM Gigabit Controller
Memory
Integrated 96 Kb frame buffer memory
Data rates supported
10/100/1000 Mbps
Compliance
IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture
PCI 2.2
Data path width
32-bit, 33/66 MHz bus interface
Data transfer mode
Bus-master DMA
Hardware certifications
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for
European Union
Power requirement
1.48 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
Operating temperature
32° to 131°F (0° to 55° C)
Operating humidity
85% at 131° F (55° C)
Management capabilities
ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility
Kit contents
The Intel Pro 1000 MT NIC, CD containing Intel PROset II NIC drivers, quick install guide,
product warranty statement
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 33
QuickSpecs
HP Workstation xw8000
Technical Specifications
NVIDIA Quadro NVS 280
Graphics Card
2D controller
Integrated Quadro 280 2-D graphics processor unit (GPU)
VGA controller
Integrated into the Quadro GPU
Bus type
AGP 8X
RAMDAC
Dual 350 MHz
Memory speed and type
200 MHz 8M x16 DDR
Memory amount
64 MB
Texture Memory
Unified with frame buffer
Form Factor
ATX
Controller clock speed
275 MHz
Color planes
32-bit color buffer
Overlay planes
1 16-bit Video overlay plane
Maximum vertical refresh 120 Hz
rate
Maximum pixel clock
350 MHz
Dual Screen support
Yes
Single DVI Support
Yes
Dual DVI Support
Yes
Operating systems
Microsoft Windows 2000: Full native Dual View mode, Span or Big Desktop mode, and
Clone mode
Microsoft Windows XP: Full native Dual View mode, Span or Big Desktop mode, and
Clone mode
Available graphics drivers See: http://www.hp.com/support/workstation_drivers/
NVIDIA Quadro NVS 280
Graphics Card display
resolutions & refresh
rates
Physical dimensions
2.586 x 6.6 in (6.57 x 16.76 cm)
High-definition Video
Processor (HDVP)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Analog Resolution
Maximum Colors Supported
Maximum Refresh Rate
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1920 x 1080
1920 x 1200
1920 x 1440
2048 x 1536
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
240 Hz
240 Hz
200 Hz
170 Hz
150 Hz
100 Hz
85 Hz
85 Hz
75 Hz
60 Hz
Digital Resolution Maximum
Colors Supported Maximum
Refresh Rate
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
75 Hz
75 Hz
75 Hz
60 Hz
60 Hz
60 Hz (primary only)
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 34
QuickSpecs
HP Workstation xw8000
Technical Specifications
NVIDIA Quadro NVS 400
Graphics Card
Form Factor
ATX
Graphics Controller
Integrated Quadro4 2D/3D 128-bit graphics processor unit (GPU)
Bus Type
PCI
RAMDAC
Dual 350 MHz
Memory
64 MB 220 MHz, 4mx 32 DDR per GPU, 32 MB per GPU unified frame buffer
Connectors
Dual LFH-60
Dimensions
Low-profile form factor
Multi-monitor support
1 to 4 displays with nView – with two cards (1 PCI per card), up to 8 monitors can be
driven
nView Hardware
Architecture
32-bit color
2048x1536 @ 75Hz maximum resolution
Dual 350MHz RAMDACs
Integrated TMDS
Digital Vibrance Control (DVC)
High-performance 2D rendering engine
Optimized for 32-, 24-, 16-, 15- and 8-bpp modes
High-definition video
processor (HDVP)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT Motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs
Fully compliant with OpenGL 1.3 and DirectX 8.1
Available graphics drivers Microsoft Windows XP and Microsoft Windows 2000, Linux
See: http://www.hp.com/support/workstation_drivers/
NVIDIA Quadro NVS 400
Graphics Card display
resolutions & refresh
rates
Single CRT display
Resolution
Maximum Refresh Rate
Bits per Pixel
640 x 480
120 Hz
8, 16, 24
800 x 600
120 Hz
8, 16, 24
1024 x 768
120 Hz
8, 16, 24
1152 x 864
120 Hz
8, 16, 24
1280 x 1024
120 Hz
8, 16, 24
1600 x 1200
100 Hz
8, 16
1600 x 1200
85 Hz
8, 16, 24
1920 x 1080
100 Hz
8, 16
1920 x 1080
75 Hz
8, 16, 24
1920 x 1200
85 Hz
8, 16
1920 x 1200
70 Hz
8, 16, 24
1920 x 1440
75 Hz
8, 16
1920 x 1440
60 Hz
8, 16, 24
2048 x 1536
60 Hz
8, 16
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 35
QuickSpecs
HP Workstation xw8000
Technical Specifications
NVIDIA Quadro4 380 XGL
Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV18GL GPU
Bus Type
AGP 8x Version 3.0 compliant AGP 4x/2x Version 2.0 compliant
RAMDAC
Dual 350MHz integrated
Memory
64MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
VGA DB-15 and DVI-I analog/digital monitor outputs,
4-pin mini DIN providing TV output
Dimensions
AGP full height ATX card. 4.25 x 6.875 in (10.795 x 17.463 cm)
Multi-monitor support
Dual monitor
Additional product
features
64 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
TV Output
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support for Windows 2000 and Windows XP
ACPI Version 1.0b Power Management support (all modes)
AGP 8x Version 3.0
compliant and 2x/4x
Version 2.0 compliant
including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast writes support
NV18GL GPU featuring:
275 MHz engine clock rate
250 MHz memory clock rate
128-bit memory interface
VGA controller
Dual integrated display controllers supporting up to 1920x1440 @ 85Hz and
2048x1536 @ 75Hz on both displays
4 parallel pixel pipelines
2 parallel geometry engines
nfiniteFX II programmable Vertex and Pixel Shader technology and NVIDIA OpenGL
extensions
Full hardware support for NVIDIA Cg shader programming language
Supported graphics APIs
OpenGL 1.3 (and OpenGL 2.0 when available) ICD with immediate mode support for
all OGL primitive types
DirectX 8 and above
Available graphics drivers HP-tested Windows 2000, HP-tested Windows XP, HP-tested Linux (1st Calendar
Quarter 2003)
HP qualified drivers may be preloaded or available from the HP support Web site:
http://www.hp.com/support/workstation_drivers/
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 36
QuickSpecs
HP Workstation xw8000
Technical Specifications
NVIDIA Quadro4 380 XGL
Graphics Card display
resolutions & refresh
rates
Monitor 1, 2 Analog/Digital
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 24
800x600
240Hz/200Hz
8, 16, 24
1024x768
170Hz/140Hz
8, 16, 24
1152x864
170Hz/100Hz
8, 16, 24
1280x720
150Hz/120Hz
8, 16, 24
1280x960
150Hz/85Hz
8, 16, 24
1280x1024
150Hz/75Hz
8, 16, 24
1600x900
120Hz/75Hz/
No Digital Display Support (unbold)
8, 16, 24
1600x1024
100Hz/72Hz/
No Digital Display Support
8, 16, 24
1600x1200
120Hz/60Hz/
No Digital Display Support
8, 16
1600x1200
100Hz/60Hz/
No Digital Display Support
24
1920x1080
100Hz/
No Digital Display Support
8, 16
1920x1080
85Hz/
No Digital Display Support
24
1920x1200
100Hz/
No Digital Display Support
8, 16
1920x1200
85Hz/
No Digital Display Support
24
1920x1440
85Hz/
No Digital Display Support
8, 16
1920x1440
75Hz/
No Digital Display Support
24
2048x1536
75Hz/
No Digital Display Support
8, 16
2048x1536
60Hz/
No Digital Display Support
24
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 37
QuickSpecs
HP Workstation xw8000
Technical Specifications
ATI FireGL T2-128
Graphics Card
Form Factor
ATX
Graphics Controller
ATI FGL 9600 VPU
Bus Type
AGP-8x/4x compliant
DAC
Dual 400MHz/16-bit
Memory
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
DVI-I and VGA monitor outputs
Dimensions
Single AGP/ATX card. 230.28mm x 107.96mm
Multi-monitor support
DVI-I and VGA connectors support dual display, maximum resolution of 2048x1536
analog, 1600x1200 digital
Additional product
features
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
64-KB BIOS Serial Flash ROM, reprogrammable by SW, 3.3V only, no Jumpers
2D and 3D acceleration provided for 16-bit and 32-bit RGB? modes
Hardware cursor with full color alpha channel
32-bit (24+8-bit stencil) Z buffer
Bus mastering support for 2D/3D display lists and local memory vertex list execution
Hardware lighting support for 8 light sources
Bilinear, Trilinear and Anisotropic texturing
Cubic Environment and Perturbation Bump Mapping
Projective Texture, 3D Texture and Video Texture support
Full Scene Anti-Aliasing (FSAA) support with up to 6 subsamples
Video Engine supports YCrCb (4:2:2, 4:1:0, 4:2:0) to RGB conversion
Video scaling and up to 4x4 tap filtering supported for all YUV and
RGB16/32 formats
Per pixel quad buffering on all screen resolutions
VESA compliant Stereoscopic Interface on MiniDin Connector
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP4x/8x Version 3.0
compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
AGP Read and AGP Write Support
8X Fast write support
FGL 9600 GPU featuring
VGA controller supporting full standard feature set
2D Engine with 128-bit datapath processing multiple pixels per clock
PIXEL TAPESTRY III, 3D rendering engine utilizing 2 parallel pipelines with two texture
blending units each capable, of handling up to 8 texels in a single pass, delivering 2.4
Gigatexels/s fill rate
CHARISMA ENGINE III, geometry unit utilizing 4 vertex processing engines, capable of
executing two instructions per clock cycle each, thus yielding up to 200 million
transformed, clipped and lit triangles per second.
VIDEO IMMERSION III, industry leading video technology supporting MPEG 2
encode/decode
Dual independent display controllers with 4K x 4K address space each
128-bit external frame buffer interface
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 9.0
Processor requirements
Intel Pentium 4, or Xeon processor
Available graphics drivers Windows 2000 with SP1 (or higher)
Windows XP
Linux
HP qualified drivers may be preloaded or available from the HP support Web site:
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 38
QuickSpecs
HP Workstation xw8000
Technical Specifications
http://www.hp.com/support/workstation_drivers/
ATI FireGL T2-128 Graphics
Card display resolutions &
refresh rates
Analog and Digital Display with 15-pin VGA Connector
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
100Hz
16, 32
800x600
100Hz
16, 32
1024x768
100Hz
16, 32
1152x864
100Hz
16, 32
1280x960
100Hz
16, 32
1280x1024
100Hz
16, 32
1600x1000
100Hz
16, 32
1600x1024
85Hz
16, 32
1600x1200
85Hz
16, 32
1792x1344
75Hz
16, 32
1920x1080
75Hz
16, 32
1920x1200
75Hz
16, 32
2048x1536
60Hz
16, 32
Digital Monitor with DVI Connector
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
75Hz
16, 32
800x600
75Hz
16, 32
1024x768
75Hz
16, 32
1152x864
75Hz
16, 32
1280x1024
75Hz
16, 32
1600x1000
60Hz
16, 32
1600x1024
60Hz
16, 32
1600x1200
60Hz
16, 32
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 39
QuickSpecs
HP Workstation xw8000
Technical Specifications
NVIDIA Quadro FX1100
Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV36GL GPU
Bus Type
AGP 8X Version 3.0 compliant
RAMDAC
Dual 400 MHz integrated
Memory
128 MB 650MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Multi-monitor support
Dual integrated analog display controllers supporting up to 2048 x1536 @ 85Hz on
both displays
Dual external digital display controllers supporting up to 1600 x 1200 @ 60Hz on both
displays
Additional product
features
128 MB DDR2 SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Compliant with Microsoft®/Intel® PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP1x/2x/4x/8x Version 3.0 Sideband Addressing
compliant including
AGP Texturing (Execute Mode)
Fast writes support
NV35GL GPU featuring
425 MHz engine clock rate
325 MHz memory clock rate
128-bit memory interface
VGA controller
128-bit precision throughout the graphics pipeline
12 bit sub-pixel precision
nfiniteFX II programmable vertex and pixel shader technology
Supported graphics APIs
OpenGL 2.0 ICD with immediate mode support for all OGL primitive types
DirectX 8,9
Available graphics drivers Microsoft: Windows® XP, Windows 2000
HP qualified drivers may be preloaded or available from the HP support Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 40
QuickSpecs
HP Workstation xw8000
Technical Specifications
NVIDIA Quadro FX 1100
Graphics Card display
resolutions & refresh
rates
Monitor 1, 2 Analog/Digital
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 32
800x600
240Hz/200Hz
8, 16, 32
1024x768
200Hz/140Hz
8, 16, 32
1152x864
170Hz/100Hz
8, 16, 32
1280x720
150Hz/120Hz
8, 16, 32
1280x960
150Hz/85Hz
8, 16, 32
1280x1024
150Hz/85Hz
8, 16, 32
1600x900
120Hz/75Hz
8, 16, 32
1600x1024
100Hz/72Hz
8, 16, 32
1600x1200
120Hz/60Hz
8, 16
1600x1200
100Hz/60Hz
32
1920x1080
100Hz/na
8, 16
1920x1080
85Hz/na
32
1920x1200
100Hz/na
8, 16
1920x1200
85Hz/na
32
1920x1440
85Hz/na
8,16, 32
2048x1536
85Hz/na
8, 16, 32
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 41
QuickSpecs
HP Workstation xw8000
Technical Specifications
NVIDIA Quadro FX3000
Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV35GL GPU
Bus Type
AGP 8X Version 3.0 compliant
RAMDAC
Dual 400MHz integrated
Memory
256 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dimensions
AGP full height ATX card. 4.25 x 6.875 in (10.795 x 17.463 cm)
Multi-monitor support
Dual integrated display controllers supporting up to 2048x1536 @ 85Hz on both
displays
Additional product
features
256 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
12-bit subpixel precision
128-bit precision graphics pipeline
Occlusion Culling
Dual Link DVI on one output enabling driving digital displays up to 2048x1536
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP8xVersion 3.0
compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast write support
NV35GL GPU featuring
400 MHz engine clock rate
425 MHz memory clock rate
250-bit memory interface
VGA controller
8 parallel pixel pipelines
3 parallel geometry engines
nfiniteFX II programmable dual Vertex Shader and Pixel Shader technology
Supported graphics APIs
OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 9
Available graphics drivers Windows 2000
Windows XP
HP-tested Linux
HP qualified drivers may be preloaded or available from the HP support Web site:
See: http://www.hp.com/support/workstation_drivers/
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 42
QuickSpecs
HP Workstation xw8000
Technical Specifications
NVIDIA Quadro FX3000
Graphics Card display
resolutions & refresh
rates
IT & Broadcast Rack Kit
MONITOR 1, 2 ANALOG/DIGITAL
Resolution
Maximum refresh rate
Bits per pixel
640x480
240Hz/240Hz
8, 16, 32
800x600
240Hz/200Hz
8, 16, 32
1024x768
200Hz/140Hz
8, 16, 32
1152x864
170Hz/100Hz
8, 16, 32
1280x720
150Hz/120Hz
8, 16, 32
1280x960
150Hz/85Hz
8, 16, 32
1280x1024
150Hz/85Hz
8, 16, 32
1600x900
120Hz/75Hz
8, 16, 32
1600x1024
100Hz/72Hz
8, 16, 32
1600x1200
120Hz/60Hz
8, 16
1600x1200
100Hz/60Hz
32
1920x1080
100Hz/60Hz in Dual Link Mode
8, 16
1920x1080
85Hz/60Hz in Dual Link Mode
32
1920x1200
100Hz/60Hz in Dual Link Mode
8, 16
1920x1200
85Hz/60Hz in Dual Link Mode
32
1920x1440
85Hz/60Hz in Dual Link Mode
8, 16, 32
2048x1536
85Hz/60Hz in Dual Link Mode
8, 16, 32
3840x1200
21Hz/24Hz
8, 16, 32
3840x2400
13Hz
8, 16, 32
Dimensions (H x W)
7.75 (5U) x 19 in (22.23 x 48.26 cm)
Rack Mounting Depth
Adjustable:
Minimum Mounting Depth: 19 inch (48.26 cm)
Maximum Mounting Depth: 31 inch (79.65 cm)
Weight Capacity
300 lb (136 kg)
Material
Steel (graphite color)
Rack Mounting kit
Left and right flanges with handles
Four M4 flathead screws
Left and right rails
Two glide strips
Top trim strip
3 mounting hardware kits (M6 for Compaq Racks, M5 for HP Series-E racks, rail
adapters and 10-32 hardware for racks with pre-threaded columns)
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 43
QuickSpecs
HP Workstation xw8000
Technical Specifications
Sound Blaster Audigy 2 ZS Audio Quality
PCI card
Signal to Noise Ratio
(SNR)
Sound Blaster 24-bit ADVANCED HD Quality
108dB
Max. Audio Resolution
Playback
24-bit/192kHz in Stereo
Max. Recording/
Sampling Rate
24-bit/96kHz
DACs
24-bit/192kHz
Max. No. of 3D Voices
64
Max. Channels in
3D Positional Audio
7.1
24-bit/96kHz in 5.1 DVD-Audio Quality
EAX® and EAX® ADVANCED Yes including Hardware Acceleration of EAX and/or EAX ADVANCED HD
HD™
Connectors
PCI 2.1 or higher compliant slot
Analog Speakers Support for Headphone, 2.1, 4.1, 5.1, 6.1, 7.1
Digital Speakers Support for Headphone, 2.1, 4.1, 5.1 and 24-bit/96kHz speakers
One High Speed FireWire® port
Additional product
features
Music Playback/
Music Creation
Integrated Digital Music Player
Integrated Digital Music Ripping (in Player) - MP3 &
WMA
True Bit Accurate Recording w/o SRC
Advanced Resolution DVD-Audio Playback
EAX® Music Enhancements
EAX Effects
CMSS 3D Up mixing of Stereo to Multi-Channels
Audio Clean-up
Smart Volume Management (SVM)
Karaoke
Multi-Channel Graphic Equalizer
Bass Boost
Virtual Surround over 2 Channel or Headphones
Full Support for Windows® Media 9 24-bit/96kHz 5.1
content
ASIO Low Latency Multi-Track Recording Support (16bit/48kHz)
ASIO 2.0 Direct Monitoring
Movies
THX Certification
THX Setup Console
Dolby Digital 5.1 Playback
Dolby Digital EX 6.1 Playback
DTS-ES 6.1 Playback
Gaming
EAX
EAX ADVANCED HD
Hardware Acceleration of EAX &/or EAX ADVANCED
HD
Up to 64 3D Voices
7.1 Max. Channels in 3D Positional Audio
Speaker Calibration for Optimal 3D Positional Audio
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 44
QuickSpecs
HP Workstation xw8000
Technical Specifications
HP L1925 19-inch TFT Flat
Panel Monitor
Panel
Video Input
Signal Interface/
Performance
Type
Thin film transistor (TFT)
Viewable Image Area
(diagonal)
19 in (48.25 cm) maximum viewable
Screen Opening (WxH)
14.9 x 11.9 in (37.8 x 30.3 cm)
Viewing Angle (typical)
170 degrees horizontal/170 degrees vertical
(10:1 minimum contrast ratio)
Brightness (typical)
Up to 250 nits (cd/m2)
Contrast Ratio (typical)
Up to 500:1 (typical)
Response Rate (typical)
<20 ms (typical rise + fall)
Pixel Pitch
0.294 mm
Color Depth Support
16.7 million colors
Plug and Play
Yes (supports VESA DDC2B; PC2001 compliant)
Input Signal
Two connectors: one 15-pin mini D-sub analog VGA;
and one DVI-I (VGA analog or digital)
Input Impedance
75 ohms ± 2%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
Video Cable
VGA and DVI-D
Video Cable Length
78 in (2.0 m)
Horizontal Frequency
30 to 82 kHz
Vertical Frequency
56 to 75 Hz
Graphics Controller
Pixelworks 131
Native Resolution
[email protected] analog
1280x [email protected] digital
On Screen Display (OSD)
Controls
Maximum Resolution
(Analog)
[email protected] analog
Maximum Resolution
(Digital)
[email protected] analog
Preset VESA Graphic
Modes (non-interlaced)
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
Preset MAC Mode
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
Preset VGA Mode
640 x 480 @ 60 Hz, 72 Hz
Preset SUN Mode
[email protected]
Fail Safe Mode
Yes (limits out of range signal messages)
Maximum Pixel Clock
Speed
140 MHz
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
AssetControl
Yes (accessible on HP/Compaq desktops featuring
Intelligent Manageability)
Default Color
Temperature
Yes (6500k, 9300k, Custom User)
Buttons or Switches
Power on/off; 4-button OSD; second level OSD buttons
include auto adjust and dual-input switch
Languages
English, Spanish, French, German, Dutch, Italian
User Controls
Size and Positioning
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 45
QuickSpecs
HP Workstation xw8000
Technical Specifications
Contrast
Brightness
Clock, Clock Phase
Selectable Color Temperature
Input Selection
Factory Reset
Individual Color Contrast
Full-screen Resolution
Power
Mechanical
Power Supply
Auto-ranging, 90 to 265 VAC; internal power supply,
47.5-63 Hz
Input Power
100 ~ 240 VAC
Nominal Current
1.5 A maximum
Frequency
50 ~ 60 Hz
Average
33 watts when displaying standard office software
Maximum
< 40 watts
Power Saving
< 2 watts
Off Mode
< 1 watts (switch off)
Power Cable Length
70 in (1.8 m); non-captive
Dimensions
(H x W x D)
Unpacked w/ stand
minimum height
14.8 x 16.4 x 8.2 in
(39.8 x 41.6 x 20.8 cm)
Unpacked w/ stand
maximum height
20 x 16.4 x 8.2 in
(50.8 x 41.6 x 20.8 cm)
Base Area (Footprint
d x w)
8.2 x 12.2 in
(20.8 x 30.9 cm)
Panel only (w/o stand)
(h x w x d)
13.5 x 16.4 x 2.6 in
(34.2 x 41.6 x 6.6 cm)
Packaged
26.0 x 26.0 x 26.0 in
(66.0 x 66.0 x 66.0 cm)
Unpacked w/ stand
17.6 lb (8 kg)
Unpacked w/o stand
12 lb (5.5 kg)
Packaged
23.5 l (10.7 kg)
Weight
Tilt Range
-5° to +20°
Swivel Range
± 45° horizontal swivel
Height Adjustable
Yes (4.3 in/110 mm adjustment range)
Pivot Rotation
Yes, 90 °
Base
Ships attached and is removable after installation
Temperature – Operating
41° to 95° F (5° to 35° C)
Temperature – Nonoperating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
20% to 80%
Humidity – Non-operating
5% to 95%
Altitude – Operating
0 to 13,000 ft (0 to 4,000 m)
Altitude – Non-operating
0 to 40,000 ft (0 to 12,192 m)
Options
PC Comm Station
Communication/audio hub that includes two stereo
speakers (8 PMPO each), integrated microphone/dual
function headset (phone and PC support), and USB
port. Optional, part number 304251-008 (US) or
P8814A (EMEA).
Other
Accessories Included
VGA cable, DVI-D cable, user CD-ROM with Portrait
software
User Guide Languages
English
Warranty Languages
English
Color
Carbon/Silver
Environmental
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 46
QuickSpecs
HP Workstation xw8000
Technical Specifications
VESA Mounting
Yes (swing arm/ wall mount not included; base is
shipped attached and must be removed for mounting
options)
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant,
FCC Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT
Guidelines, ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval,
MIC Requirements (New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,
Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed,
VCCI Approvals, Windows Certification.
Compatibility
VESA Video Signal Standard (VSIS) Compliant video cards have been tested and
proven compatible for use with the HP Flat Panel Monitor L1925. The HP L1925 has
been tested for use with all HP workstations.
NOTE: Features are subject to change without notice.
Service and Warranty
Limited three-year parts and repair labor, service provider labor, and on-site service.
Next Business Day advanced exchange direct replacement service available during
warranty period. Certain restrictions and exclusions apply. For details, contact HP
Customer Support at 970-635-1000 (USA) or 905-206-4663 (Canada).
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 47
QuickSpecs
HP Workstation xw8000
Technical Specifications
HP L2035 20-inch TFT Flat
Panel Monitor
Panel
Type
20-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
20.1 in (51 cm)
Screen Opening
(W x H)
16.2 x 12.17 in (41.1 x 30.9 cm)
Viewing Angle (typical)*
Up to 170° H/170° V (10:1 minimum contrast ratio)
Brightness (typical*
Up to 250 nits (cd/m2)
Contrast Ratio (typical)*
Up to 400:1
Response Rate (typical)*
16 ms (typical, rise + fall)
Pixel Pitch
0.255 mm
Color Depth Support
16.7 million colors
*All specifications are provided by the component manufacturers. Performance
specifications represent the highest specification of all HP's component
manufacturers' typical level specifications for performance. Actual performance may
vary either higher or lower.
On Screen Display
(OSD) Controls
Signal Interface/
Performance
Buttons or Switches
PiP (Picture in Picture), Input select, auto adjust, OSD
up, OSD down, OSD menu select, power
Languages
English, French, German, Spanish, Italian
User Controls
Brightness, contrast, positioning, color temperature,
individual color control, serial number display, full
screen resolutions, clock, clock phase, video picturein-picture (size and position), input selection (includes
separate direct access key for dedicated swap
between inputs 1 and 2), factory reset
Horizontal Frequency
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for
modes with pixel clock less than 157 MHz)
Vertical Frequency
48 to 85 Hz (VGA input); 30 to 92 KHz (DVI input) (for
modes with pixel clock less than 157 MHz)
Graphics Controller
Pixelworks PW171
Native Resolution
1600 x 1200 @ 60 Hz (recommended)
Preset VESA Graphic
Modes (non-interlaced)
1600 x 1200 @ 60 Hz, 75 Hz (VGA input)
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85 Hz
640 x 480 @ 60 Hz, 75 Hz, 85 Hz
Video Input
Text Mode
720 x 400 @ 70 Hz
Mac Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Sun Mode
1152 x 900 @ 66 Hz
Maximum Pixel Clock
Speed
202 MHz (VGA input); 162 MHz (DVI input)
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Color
Temperature
6500 K
Plug and Play
Yes
Input Signal
Four connectors, including one 15-pin mini D-sub VGA,
one DVI-I (VGA analog and digital input), one
composite video, and one s-video
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 48
QuickSpecs
HP Workstation xw8000
Technical Specifications
Power
Mechanical
Input Impedance
75 ohms ± 10%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
Video Cable
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
Video Cable Length
5.9 ft (1.8 m)
Input Power
Auto-Ranging, 90 to 132 VAC and 195 to 265 VAC;
internal power supply, 50 Hz/60 Hz
Frequency
47.5 to 63 Hz
Maximum
< 75 watts
Power Saving
< 5 watts
Power Cable Length
5.9 ft (1.8 m)
Dimensions (H x W x D)
Unpacked w/stand
17.36 to 20.9 x 17.8 x 8.27
in
(44.1 to 53.1 x 45.2 x 21.0
cm)
Unpacked w/o stand (head 14.29 x 17.8 x 3.19 in
only)
(36.3 x 45.2 x 8.1 cm)
Weight
Packaged
11.5 x 21.9 x 23.9 in
(29.2 x 55.6 x 60.6 cm)
Unpacked
With stand: 20.28 lb (9.2
kg);
Without stand: 12.35 lb
(5.6 kg)
Packaged
26.9 lb (12.2 kg)
Tilt Range
-5° to + 25° vertical
Swivel Range
-35° to + 35°
Height Adjustable
Yes, range 3.54 in (9.0 cm)
Pivot Rotation
Yes
Base
Attached
Temperature – Operating
46° to 95° F (10° to 35° C)
Temperature – Nonoperating
6° to 140° F (-10° to 60° C)
Humidity – Operating
20% to 80% non-condensing
Humidity – Non-operating
5% to 85%
Altitude – Operating
+12,000 ft
Altitude – Non-operating
+40,000 ft
Options
HP Desktop Access
Center
Sold separately, the HP Desktop Access Center
features integrated microphone/headset jacks, dual
function headset for phone/PC support, a MultiBay slot
for adding an optical drive (sold separately), and four
USB ports for easy integration of third-party digital
solutions; part number DK985A. For more information,
refer to the HP Desktop Access Center QuickSpecs.
Other
Accessories Included
VGA to VGA cable – connects the graphic card's VGA
analog connector to the monitor's input #1 (VGA
analog) connector
VGA to DVI-I cable – connects the graphic card's VGA
connector to the monitor's input #2 (DVI-I analog)
connector
DVI-D to DVI-I cable – connects the graphic card's DVID digital connector to the monitor's input #2 (DVI-I
digital) connector
User Guide Languages
English, B. Portuguese, French, LA Spanish, Korean,
S. Chinese, T. Chinese, Bahasa, Japanese, Danish,
Environmental
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 49
QuickSpecs
HP Workstation xw8000
Technical Specifications
Finnish, German, Norwegian, Spanish, Swedish,
Greek, Polish, Russian, Slovenian, Turkish
HP L2335 23-inch TFT
Widescreen Flat Panel
Display
Warranty Languages
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish, Swedish,
Bahasa Indonesian, Korean, T. Chinese, S. Chinese
Color
Carbonite/Silver
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant,
FCC Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT
Guidelines, ISO 13406-2 Pixel Defect Guidelines, Mexican NOM Approval, MIC
Requirements (New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,
Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed,
VCCI Approvals, Windows Certification (Microsoft® Windows® 98, Microsoft
Windows 2000, and Microsoft Windows XP)
Compatibility
Compatible with platforms using the VESA standard video modes and HP Compaq
Business Desktops d500, d300, and d200 Series, Compaq Evo Desktops, and HP
Business Desktops d300 series.
Service and Warranty
Limited three years parts, labor, and on-site service, including backlight. Availability
varies by region. Certain restrictions and exclusions apply. Consult HP Customer
Service for details.
Panel
Type
23-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
23 in (58.4 cm)
Screen Opening
(W x H)
19.53 x 12.24 in (49.6 x 31.1 cm)
Viewing Angle (typical)*
Up to 170° H/170° V (10:1 minimum contrast ratio)
Brightness (typical)*
Up to 250 nits (cd/m2)
Contrast Ratio (typical)*
Up to 350:1
Response Rate (typical)*
25 ms (typical, rise + fall)
Pixel Pitch
0.258 mm
Color Depth Support
16.7 million colors
* All specifications are provided by the component manufacturers. Performance
specifications represent the highest specification of all HP's component
manufacturers' typical level specifications for performance. Actual performance may
vary either higher or lower.
On Screen Display (OSD)
Controls
Signal Interface/
Performance
Buttons or Switches
PiP (Picture in Picture), Input Select, Auto Adjust, OSD
Up, OSD Down, OSD Menu Select, Power
Languages
English, French, German, Spanish, Italian
User Controls
Brightness, contrast, positioning, color temperature,
individual color control, serial number display, full
screen resolutions, clock, clock phase, video picturein-picture (size and position), input selection (includes
separate direct access key for dedicated swap
between inputs 1 and 2), factory reset
Horizontal Frequency
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input) (for
modes with pixel clock less than 157 MHz)
Vertical Frequency
48 to 85 Hz (VGA and DVI input)
Graphics Controller
Pixelworks PW172
Native Resolution
1920 x 1200 @ 60 Hz (recommended)
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 50
QuickSpecs
HP Workstation xw8000
Technical Specifications
Preset VESA Graphic
Modes (non-interlaced)
1920 x 1200 @ 60Hz
1600 x 1200 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 75Hz
640 x 480 @ 60 Hz, 75 Hz
Video Input
Power
Mechanical
Text Mode
720 x 400 @ 70 Hz
Mac Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Sun Mode
1152 x 900 @ 66 Hz
Maximum Pixel Clock
Speed
202 MHz (VGA input); 162 MHz (DVI input)
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Color
Temperature
6500 K
Plug and Play
Yes
Input Signal
Five connectors, including one 15-pin mini D-sub VGA,
one DVI-I (VGA analog and digital input), one
composite video, one s-video, component video
Input Impedance
75 ohms ± 10%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
Video Cable
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
Video Cable Length
5.9 ft (1.8 m)
Input Power
Auto-Ranging, 90 to 132 VAC and 195 to 265 VAC;
internal power supply, 50 Hz/60 Hz
Frequency
47.5 to 63 Hz
Maximum
< 100 watts
Power Saving
< 5 watts
Power Cable Length
5.9 ft (1.8 m)
Dimensions (H x W x D)
Unpacked
17.36 to 20.90 x 21.46 x
8.27 in
(44.1 to 53.1 x 54.5 x 21.0
cm)
Unpacked w/o stand
(head only)
14.57 x 21.46 x 3.35 in
(37.0 x 54.5 x 8.5 cm)
Unpacked
22.27 lb (10.1 kg)
Packaged
30.87 lb (14.0 kg)
Weight
Environmental
Tilt Range
-5° to + 25° vertical
Swivel Range
-35° to + 35°
Height Adjustable
Yes, range 3.54 in (9.0 cm)
Pivot Rotation
Yes
Base
Attached
Temperature –
Operating
46° to 95° F (10° to 35° C)
Temperature –
Non-operating
6° to 140° F (-10° to 60° C)
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 51
QuickSpecs
HP Workstation xw8000
Technical Specifications
Humidity – Operating
20% to 80% non-condensing
Humidity –
Non-operating
5% to 85%
Altitude – Operating
+12,000 ft
Altitude –
Non-operating
+40,000 ft
Options
HP Desktop Access
Center
Sold separately, the HP Desktop Access Center
Features integrated microphone/headset jacks, dual
function headset for phone/PC support, a MultiBay slot
for adding an optical drive (sold separately), and four
USB ports for easy integration of third-party digital
solutions; part number DK985A. For more information,
refer to the HP Desktop Access Center QuickSpecs.
Other
Accessories Included
VGA to VGA cable - connects the graphic card's VGA
analog connector to the monitor's input #1 (VGA
analog) connector
VGA to DVI-I cable - connects the graphic card's VGA
connector to the monitor's input #2 (DVI-I analog)
connector
DVI-D to DVI-I cable - connects the graphic card's DVID digital connector to the monitor's input #2 (DVI-I
digital) connector
User Guide Languages
English, B. Portuguese, French, LA Spanish, Korean,
S. Chinese, T. Chinese, Bahasa, Japanese, Danish,
Finnish, German, Norwegian, Spanish, Swedish,
Greek, Polish, Russian, Slovenian, Turkish
Warranty Languages
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish, Swedish,
Bahasa Indonesian, Korean, T. Chinese, S. Chinese
Color
Carbonite/silver
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant,
FCC Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT
Guidelines, ISO 13406-2 Pixel Defect Guidelines, Mexican NOM Approval, MIC
Requirements (New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,
Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed,
VCCI Approvals, Windows Certification (Microsoft® Windows® 98, Microsoft
Windows 2000, and Microsoft Windows XP).
Compatibility
Compatible with platforms using the VESA standard video modes and HP Compaq
Business Desktops d500, d300, and d200 Series, Compaq Evo Desktops, and HP
Business Desktops d300 series.
Service and Warranty
Limited three years parts, labor, and on-site service, including backlight. Availability
varies by region. Certain restrictions and exclusions apply. Consult HP Customer
Service for details.
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 52
QuickSpecs
HP Workstation xw8000
Technical Specifications
HP p1230 22-inch CRT
Monitor
Tube Type
Diamondtron NF Aperture Grille CRT
Picture Tube Size
(diagonal)
22 in (55 cm)
Viewable Image Area
(diagonal)
20 in (51 cm)
Aperture Grille Pitch
0.24 mm
Screen Curvature
Flat
Horizontal Frequency (kHz) 30 to 140 kHz
Vertical Frequency (Hz)
50 to 160 Hz
Maximum Resolution
2048 x 1536 @ 85 Hz (GTF)
Recommended Resolution 1600 x 1200 @ 85 Hz or 1280 x 1024 @ 85 Hz
Preset VESA Graphic
Modes (non-interlaced)
1920 x 1440 @ 60 Hz, 75 Hz
1792 x 1344 @ 60 Hz, 75 Hz
1600 x 1200 @ 75 Hz, 85 Hz
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1024 x 768 @ 75 Hz, 85 Hz
800 x 600 @ 75 Hz, 85 Hz
640 x 480 @ 60 Hz, 85 Hz
Preset MAC Mode
1152 x 870 @ 75 Hz
Preset VGA Mode
640 x 480 @ 60 Hz and 720 x 400 @ 70 Hz
Maximum Pixel Clock
Speed
420 MHz
User Programmable
Modes
15 (10 preset modes and 5 additional modes)
Anti-Glare
Yes
Anti-Static
Yes
Asset Control
Yes
Default Color
Temperature
9300 K
Buttons or Switches
OSD menu, brigthness, contrast, Super Bright, dual input, power on/off
Languages
English, Spanish, French, German, Italian, Japanese
User Controls
Brightness, contrast, pincushion, pincushion balance, trapezoid, tilt (rotation), color
temperature, degauss, parallelogram, individual color control, zoom, moiré
cancellation, convergence, corner purity, image control, language, OSD control,
factory reset
Plug and Play
Yes, DDC/CI compatible
Input Signal
Two 15-pin D-sub connections
Input Impedance
75 ohms
Sync Input
Separate sync (HSYNC/VSYNC)
Video Cable
Detachable 15-pin D-sub mini connector (included)
Video Cable Length
70 in (1.8 m); non-captive
Power Supply
Universal 100-120/220-240 VAC
Frequency
50/60 Hz
Maximum
135 watts
Power Saving
2 watts maximum
Off Mode
0 watts
Power Cable Length
70 in (1.8 m); non-captive
Dimensions (HxWxD)
Unpacked
(including pedestal)
19.1 x 19.5 x 18.8 in (48.6 x 49.5 x 47.7 cm)
Packaged
25.6 x 25.0 x 25.4 in (65.1 x 63.6 x 64.6 cm)
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 53
QuickSpecs
HP Workstation xw8000
Technical Specifications
Weight
Unpacked
66.1 lb (30 kg)
Packaged
77.1 lb (35 kg)
Tilt Range
10° upward and 5° downward
Swivel Range
90°either side of center
Temperature – Operating
41° to 90° F (5° to 35° C) Non-condensing
Temperature –
Non-operating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
10% to 90% non-condensing
Humidity –
Non-operating
10% to 90%
Altitude – Operating
0 to 7,200 ft (0 to 2,195 m)
Altitude –
Non-operating
0 to 30,000 ft (0 to 9,144 m)
Accessories Included
Power cable, video cable (D-sub to D-sub), documentation kit
User Guide Languages
English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese, Danish,
Finnish, Greek, Japanese, Korean, Latin American Spanish, Norwegian, Polish,
Russian, Slovenian, Turkish, Swedish, Traditional Chinese, Simplified Chinese
Warranty Languages
English, French, Spanish, Brazilian Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish, Swedish, Bahasa Indonesian, Japanese,
Korean, T. Chinese, S. Chinese
Color
Carbon and silver
Certification and
Compliance
MPR-II (Low Emissions), TCO '03, Energy Star Compliant, UL Listing, ISO9241-3 VOT
Guidelines Approval, FCC Approval, CE Mark (including PFC), GS Mark
Compatibility
Compatible with platforms using the VESA standard video modes and HP Compaq
Business Desktops d500, d300, and d200 Series, Compaq Evo Desktops, HP
workstations, and HP Business Desktops d300 series.
Warranty
Limited three-year parts and repair labor, service provider labor, and on-site service.
Next business day advanced exchange direct replacement service available during
warranty period. Certain restrictions and exclusions apply.
© Copyright 2002-2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft, Windows, and Windows NT are U.S. registered trademarks of Microsoft Corporation. Intel and Pentium are U.S. registered trademarks the
Intel Corporation. All other product names mentioned herein may be trademarks of their respective companies.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
DA - 11506 Worldwide — Version 39 — October 4, 2004
Page 54
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
