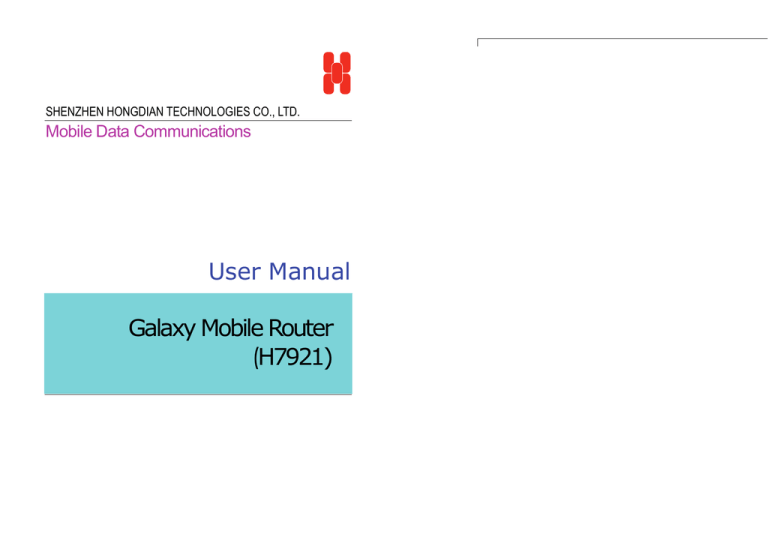

SHENZHEN HONGDIAN TECHNOLOGIES CO., LTD.
Mobile Data Communications
User Manual
Galaxy Mobile Router
(H7921)
MOBILE DATA COMMUNICATIONS
Galaxy Mobile Router
(H7921)
Notice:
Copyright
The contents of the manual are protected by Chinese law, any organization
and/or person can not copy this manual or part of contents without
Shenzhen Hongdian Technologies Co., Ltd. authorization in written.
Trademark
宏电
、
、 Hongdian, GPRS DTU, CDMA DTU, MDTU, Wireless DDN,
Hongdian, Hongdian Technologies and Shenzhen Hongdian are the logos
and trademarks of Shenzhen Hongdian Technologies Co., Ltd. The other
company trademarks and logos in this manual are owned by the owner,
Hongdian does not have the right for those trademarks and logos.
Hongdian
User Manual
Shenzhen Hongdian Technologies Co., Ltd.
West F6, Building 201, Terra Science & Tech Park, Chegongmiao, Shenzhen 51840, China
Tel: (755)83890580 Fax: (755)83890677
Postcode: 518040
Website: www.hongdian.com
www.mdtu.com
© Copyright 2006
M80-792101-01
Release 1.0.1
Abbreviations
GTP-id
GTP Identity
HLR
Home Location Register
HSCSD
High Speed Circuit Switch Data
IGMP
Internet Group Management Protocol
APN
Access Point Name
IGRP
Internet Gateway Routing Protocol
APP
Application
IN
Intelligent Network
ATM
Asynchronous Transfer Mode
IP
Internet Protocol
ATM
Auto Table Machine
IPv4
IP version 4
AuC
Authentication Centre
IPv6
IP version 6
BG
Border Gateway
IPSEC
IP Secure Protocol
BGP
Border Gateway Protocol
ISDN
Integrated Services Digital Network
BSC
Base Station Controller
ISP
Internet Service Provider
BSS
Base Station System
L2TP
Layer 2 Tunneling Protocol
BSSGP
BSS GPRS Protocol
LA
Location Area
BTS
Base Transceiver System
LAC
L2TP Access Concentrator
CDMA
Code Division Multiple Access
LLC
Logical Link Control
CDR
Call Detail Record
LNS
L2TP Network Server
CGF
Charging Gateway Function
MAP
Mobile Application Part
CLI
Command Line Interface
MDNS
Mobile Domain Name System
CSD
Circuit Switch Data
MDTU
Mobile Data Terminal Unit
DDN
Digital Data Network
MIB
Management Information Base
DHCP
Dynamic Host Configuration Protocol
MS
Mobile Station
DMZ
DeMilitarized Zone
MSC
Mobile Switching Center
DNS
Domain Name System
MT
Mobile Terminal
DSC
Data Service Center
MTBF
Mean Time between Failures
DTU
Data Terminal Unit
MTTR
Mean Time to Recovery
EDGE
Enhanced Data Rate for GSM Evolution
N/A
Not Applicable
EGP
External/Exterior Gateway Protocol
NAS
Network Access Server
EIGRP
External/Exterior Internet Group Routing Protocol
NAT
Network Address Translation
EMC
Electro Magnetic Compatibility
NTP
Network Time Protocol
ESP
Electro Static Precautions
O&M
Operations & Maintenance
ETSI
European Telecommunications Standards Institute
OSPF
Open Shortest Path First
GGSN
Gateway GPRS Support Node
PAP
Password Authentication Protocol
GMSC
Gateway MSC
PDP
Packet Data Protocol
GMSK
Gaussian Minimum Shift Keying
PDN
Packet Data Network
GPRS
General Packet Radio Service
PDSN
Packet Data Serving Node
GSM
Global System for Mobile Communications
PLMN
Public Land Mobile Network
GSN
GPRS Support Node
POS
Point of Sales
GTP
GPRS Tunneling Protocol
PTM-G
Point-to-Multipoint Group Call
PTM-M
Point-to-Multipoint Multicast
QoS
Quality of Service
RA
Routing Area
RADIUS
Remote Authentication Dial In User Service
RIP
Routing Information Protocol
RSC
Register Service Center
RTOS
Real Time Operating System
RTP
Real-time Transport Protocol
RTU
Remote Terminal Unit
RSVP
Resource reSerVation Protocol
SCADA
Supervisory Control and Data Acquisition
SGSN
Serving GPRS Support Node
SIM
Subscriber Identify Module
SMS
Short Message Service
SMSC
Short Message Service Center
SNMP
Simple Network Management Protocol
STK
SIM Tool Kits
TCP
Transmission Control Protocol
TDMA
Time Division Multiple Access
TFTP
Trivial File Transfer Protocol
TMN
Telecommunication Managed Network
UDP
User Datagram Protocol
UIM
User Identify Module
UMTS
Universal Mobile Telecommunication System
USSD
Unstructured Supplementary Service Data
UTK
UIM Tool Kits
VLR
Visitor Location Register
WAN
Wide Area Network
WAP
Wireless Application Protocol
WDDN
Wireless Digital Data Network
Contents
CHAPTER 3
ROUTER CONFIGURATION ............................................................13
INTRODUCTION ...................................................................................1
3.1 CONNECTION............................................................................................................13
1.1 GENERAL .....................................................................................................................1
3.2 CONFIGURATIONS ..................................................................................................17
1.2 SYSTEM FEATURES ..................................................................................................2
3.2.1 ROUTER STATUS ..................................................................................................20
1.3 SPECIFICATIONS .......................................................................................................3
3.2.2 ONLINE HELP ........................................................................................................21
1.4 TYPICAL APPLICATIONS ........................................................................................4
3.2.3 SYSTEM TOOLS.....................................................................................................21
1.5 TYPES DESCRIPTION ...............................................................................................6
3.2.4 NETWORK SETTING ............................................................................................26
CHAPTER 2
INSTALLATION.....................................................................................7
3.2.5 ROUTE CONFIGURATION ..................................................................................33
2.1 GENERAL .....................................................................................................................7
3.2.6 SPECIAL SETTING ................................................................................................48
2.2 OPEN BOX ....................................................................................................................7
3.2.7 HONGDIAN PRODUCTS.......................................................................................56
2.3 INSTALLATION AND CABLE CONNECTION......................................................7
3.2.8 LOGOFF ...................................................................................................................56
2.4 GROUND .....................................................................................................................11
3.2.9 FIRMWARE UPDATE............................................................................................56
2.5 POWER SUPPLY .......................................................................................................11
CHAPTER 4
2.6 CHECK THE MOBILE NETWORK .......................................................................12
4.1 PANEL INDICATION................................................................................................58
CHAPTER 1
OPERATION INSTRUCTION ............................................................58
4.2 OPERATION...............................................................................................................59
4.3 TROUBLE SHOOTING.............................................................................................59
APPENDIX 1: HYPERTEXT TERMINAL SETTING.................................................61
APPENDIX 2: FIRMWARE UPDATE TOOL ..............................................................65
Galaxy H7921 Mobile Router User Manual
Chapter 1
Chapter 1: Introduction
Chapter 1: Introduction
GPRS network theoretically can provide a maximum bandwidth 171.2Kbps,
actually; it works at 40~100Kbps bandwidth (it depends on service provider’s
operation policy). As we know, GPRS is packet based network which provides
TCP/IP communication channel.
Introduction
This chapter introduces the Galaxy H7921 Mobile Router general
descriptions, features and philosophy.
1.
2.
3.
4.
5.
Galaxy H7921 Mobile Router User Manual
EDGE stands for Enhanced Data Rate for GSM Evolution, it is capable of offering
data rates of 384 kbps and, theoretically, of up to 473.6 kbps. A new modulation
technique and error-tolerant transmission methods, combined with improved
link adaptation mechanisms, make these EGPRS rates possible. This is the key to
increased spectrum efficiency and enhanced applications, such as wireless
Internet access, e-mail and file transfers.
General
System Features
Specifications
Typical Applications
Types Description
1.1 General
2.5G mobile communication technology (GPRS/EDGE/CDMA 1x) has become
widely used of industrials and utilities in recent years and many customers are
seeking reliable, flexible and cost-effective data channel to build their
information system. Many applications such as ATM, POS, SCADA and
surveillance system will require data channels covered all country; this brings a
bright future for GPRS/EDGE and CDMA 1x data networks applications.
Same as GPRS/EDGE network, CDMA 1x network can provide a maximum
bandwidth up to 300Kb/s and actual transmitting and receiving bandwidth
reaches 100Kb/s.
Typical center to multipoint system configuration plan is as below.
H7921
VPN+IPSec Client
Requirements towards information system are varied because of different
features of numerous industrial applications. Mobile telecom service providers
are required to provide industrial application solutions not only meeting common
specifications and also individual special ones. Hence, Hongdian co-operates
with mobile service providers to design products and network configurations
suitable to industrial end users’ individualized applications. Hongdian has
developed embedded, advanced and reliable Galaxy mobile (GPRS/EDGE /CDMA
1x) router for the applications.
Operator’s Gateway
(GGSN)
(PDSN)
End-user
Gateway
with VPN +IPSec Server
IP Channel
GPRS/EDGE/CDMA 1X
GPRS/EDGE/CDMA 1X
End-user
End-user
LAN
LAN
or
or
WAN
WAN
H7921
VPN+IPSec Client
H7921
VPN+IPSec Server
LAN
LAN
or
or
WAN
WAN
Requirements are different from customer to customer; below paragraphs will
describe the typical applications.
Since Hongdian has many years experience of mobile data communication, it
proves that Hongdian products are widely applied and work stably. Galaxy router
is a dedicated ideal data transmission channel for industrial applications. The
manual explains setup procedure of H7921 router and provides the system
operation guide.
1.2 System Features
Basic Features
GPRS/EDGE Part
Support dual band GSM/GPRS/EDGE
Complies with ETSI GSM Phase 2+Standard
CDMA Part
Support 800/1900MHz band
Complies with FCC/SAR and CDG 1/2&3
M80-792001-01
1
M80-792001-01
2
Galaxy H7921 Mobile Router User Manual
Chapter 1: Introduction
Galaxy H7921 Mobile Router User Manual
Real time clock
Chapter 1: Introduction
Serial port (DB9): RS-232(DCE) or RS-485 (Optional)
Serial port data rate: 300~115,200 bits/s
Ethernet interface: 10/100BaseT/RJ45 (Auto sense)
Configuration: WEB/Telnet or RS-232
Enhanced Features
Support multiple protocol conversion
Support data center and network management
Online detection and redial
Online/Offline control
Online/Offline controlled by user’s equipment
Online/Offline triggered by user’s data
Timing online/offline
STK/UTK card special function configuration
Support Ethernet and RS-232/485 interface
Synchronize with CDMA network
Self-diagnostic
Optimize EMC design
Power
Others
Advanced Features
Built-in DHCP server
Firewall and NAT
Support OSPF
Support RIP (Routing Information Protocol)
Support VPN Client and Server (PPTP, L2TP + IPSec)
Support IPSec Encryption
Support DMZ host
Support Dynamic DNS
Support packet filtering
Support radio network data envelope counting
Support CLI operation
Support BTS testing
Ethernet or dial-up network routing (Backup)
WEB/Telnet management interface
Support Multi-language (i.e. Chinese, English, Spanish)
Local/remote firmware upgrade
Local/remote TFTP firmware upgrade
Local/remote profiles backup and retrieve
Urgent event alarm via SMS (Optional)
Voltage: +5VDC(+7.5~24VDC Optional)
Consumption
Max. current: [email protected]+5VDC
Standby: [email protected]+5VDC
Measurement: 98x100x23 (not including antenna and fixed parts)
Weight: 320g
Operation temperature: -10~+50ºC
Store temperature: -20~+75ºC
Relative humidity: 95%(non-condensing)
1.4 Typical Applications
Galaxy router typical applications are described as below.
Application 1: Direct connection
Refer to following diagram, connect Galaxy router to your terminal.
GPRS
GPRSoror
CDMA
CDMA1X
1X
Network
Network
Internet
Internet
1.3 Specifications
Application 2: Center to multipoint
GALAXY router specifications:
For industrial applications, it requires a device to collect information from
discrete remote sites. The application show as below diagram is a typical video
surveillance configuration. You can connect Galaxy router to a net-camera and
then setup the Data Service Center (DSC) IP address or domain name at Galaxy
router.
GPRS/EDGE data
GPRS/EDGE Class 2~10
Code plan: CS1~CS4
Complied with SMG31bis specifications
CDMA 1x data
Support IS 707 data service
Support 153kbps packet data
Support Class 2.0 Group 3 facsimile
CDMA 2000 spread spectrum
Complied with IS-95A, IS-95B CDMA interface
Interface
Antenna: 50Ω/SMA Female
SIM/R-UIM: 3V
M80-792001-01
3
M80-792001-01
4
Galaxy H7921 Mobile Router User Manual
Chapter 1: Introduction
Galaxy H7921 Mobile Router User Manual
Chapter 1: Introduction
GPRS
GPRSoror
CDMA
CDMA1X
1X
Network
Network
Internet
Internet
GPRS
GPRSoror
CDMA
CDMA1X
1X
Network
Network
Internet
Internet
RS-232
RS-232
Serial port/Mobile network transmission
It is the solution to convert and transmit non IP device data over TCP/IP based
mobile data network (GPRS/CDMA 1x). Connect the non IP device to the Galaxy
serial port.
Video Server
GPRS
GPRSoror
CDMA
CDMA1X
1X
Network
Network
Application 3: Ethernet connection
RS-232
Galaxy router can be configured as following network applications.
Internet
Internet
Ethernet/Mobile network routing.
Serial port/Ethernet converter.
Serial port/Mobile network transmission.
1.5 Types Description
Ethernet/Mobile network routing
By connecting your LAN and mobile network (WAN), you can share the GPRS or
CDMA 1x access to your LAN by built-in NAT (Network Address Translation)
technologies. Therefore, multiple IP terminals or PCs can share the Internet
access via Galaxy router.
Galaxy router is a product designed at Hongdian platform with customer
specified application options. It complies with the different industrial applications
and different service provider mobile data network. In order to identify different
products, we explain the type name as below:
Galaxy router type: H7921-XYZn
H7921
GPRS
GPRSoror
CDMA
CDMA1X
1X
Network
Network
Hongdian Galaxy
mobile router
H7921 platform
Internet
Internet
Serial port/Ethernet converter
For many non IP traditional terminals, you can also connect your non IP
terminals to Galaxy router via RS232/485 interface. After then, your non IP
terminal will become standard TCP/IP 10/100BaseT interface network
equipment. It is possible to connect many non IP terminals to IP network at
same place.
M80-792001-01
5
X-Data
interface
R-Router
Y-Mobile network
C-CDMA network
E-EDGE network
G-GPRS network
Zn- Radio Module
Manufacturer*
A-AnyData
B-BenQ
E-Sony Ericsson
H-Huawei
L-Bellwave
M-Motorola
S-Siemens
W-Wavecom
Z-ZTE
……
* Z=Radio Module Manufacturer, n=Radio Module (can be null), i.e.:
M2=Motorola G20
For Example: H7921-RGM2 -- Galaxy GPRS Router, built-in with Motorola G20
radio module.
M80-792001-01
6
Galaxy H7921 Mobile Router User Manual
Chapter 2
Chapter 2: Installation
Chapter 2: Installation
Galaxy router should be placed on desktop, wall or any other fixed place. There
is no special requirement for wiring and heating dispersion. However, it is
required to place Galaxy router apart from:
Installation
This chapter describes the Galaxy router installation procedures, power on and initial setup.
1.
2.
3.
4.
5.
6.
Galaxy H7921 Mobile Router User Manual
Heating device
Dusty and moist environments
Interference source, such as metal wall, microwave oven
General
Open Box
Installation and Cable Connection
Grounding
Power Supply
Check the Mobile Network
The antenna should be installed at correct place and angle to ensure the GPRS or
CDMA 1x signal receiving. Do not install antenna inside of metal cabinet.
Measurement
RUN
NET
The below diagram is Galaxy router outside and installation measurement.
LINK
Galaxy router should be installed and configured properly before putting it in
service. The installation and configuration should be done or supervised by
Hongdian qualified engineer.
10M
2.1 General
Attention:
Do not install Galaxy router or connect/disconnect its cable when it is power on.
2.2 Open Box
宏电
In order to protect products during shipment, Galaxy mobile router has been
packed properly. You may need to keep the packing materials for reshipping
after you open the pack box.
Hongdian
Galaxy
Galaxy mobile router package includes.
Galaxy mobile router
+5V power adapter
Fixed part
CAT-5 UTP cable
User manual
Qualified & Repair Card
1
1
1
1
1
1
CDMA 1x路由器
(packed according order)
(+12V power adapter Optional)
pair
型号:H7921-RCZ
接口:RS-232/Ethernet
电源:+7.5~+12VDC
深圳市宏电技术开发有限公司
Shenzhen Hongdian Technologies Co., Ltd.
http://www.hongdian.com
(CD-ROM)
Made in Shenzhen, China
Optional accessories
Standard antenna
Vehicle antenna
Directional antenna
Coaxial feeder (SMA interface)
After you open the box, you should count it carefully with your purchase order.
COM
RJ45
DC
2.3 Installation and Cable Connection
RESET ANT
Installation requirements
A PC with Ethernet interface and TCP/IP protocol
IE5.0 or up Internet browser
1024x768 monitor
A valid GPRS SIM card or CDMA 1X UIM card (Depends router type)
M80-792101-01
7
M80-792101-01
8
Galaxy H7921 Mobile Router User Manual
Chapter 2: Installation
Galaxy H7921 Mobile Router User Manual
Chapter 2: Installation
Connectors’ description:
Panels
COM: Serial port (RS-232/485), serial data port or console port.
RJ45: 10/100BaseT auto sense Ethernet interface.
DC: DC power supply interface (+5VDC, +7.5V~+24VDC optional,
check the label before power on.)
RESET: Reset button, press and hold for 5 seconds to reset the
Galaxy router back to its default factory configurations.
ANT: Antenna interface (SMA female), standard, vehicle antenna,
directional antenna optional.
Front Panel
Click “Start” -> “System Tools” -> “Default Setting” to reset the Galaxy router
back to its default factory configurations. If you have forgotten the login
password, press and hold RESET button for 5 seconds.
The Galaxy router will be back to the factory default configurations if the RESET
button is pressed up to 5 seconds.
Management webpage address: 192.168.8.1
Login name: admin, Password: hongdian
Galaxy H7921 Router Front Panel
Interface and cable connection
LED description:
10M: 10BaseT LED, lights up when connected with 10M link.
LINK: LAN LED, lights up when connected.
NET: Radio network LED, flinking during login, lights up when logged
in (Depends network, check the definitions at Online Help).
RUN: Galaxy router LED, fllinking means normal operation.
The SIM or UIM card can be inserted and released by pressing the SIM/UIM card
drawer button.
Rear Panel
All Galaxy router connectors are located at the rear panel.
COM – Serial Port
COM serial port is standard, DB9 (Female) RS-232(DCE) interface (RS-485
optional); it can be assigned to CONSOLE port or data port.
RS-232(DCE) connector PIN definition:
PIN
1
2
3
4
5
6
7
8
9
Signal
CD
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
DB-9 connector (DCE-Female)
Description
Carrier Detect
Received Data
Transmitted Data
Data Terminal Ready
Signal Ground
Data Set Ready
Request To Send
Clear To Send
Ring Indicator
Direction
-----
Note
-----
For CONSOLE mode, the PC serial port that connects the Galaxy router should be
configured to 57600, 8, N, 1; and then you can start a Hypertext Terminal at the
PC, type commands to manage Galaxy router.
Galaxy router has a feaure of the dial-up backup routing. Customer can connect
a dial-up modem to the router COM port. A special cable will be required. The
detail cable wiring is showed at the below diagram.
Galaxy Router Rear Panel
M80-792101-01
9
M80-792101-01
10
Galaxy H7921 Mobile Router User Manual
Chapter 2: Installation
CD
RX
TX
DTR
GND
DSR
RTS
CTS
RING
1
2
3
4
5
6
7
8
9
Chapter 2: Installation
Attention!
Normally, the power supply is +5VDC, +7.5V~+24VDC is optional. You
should check the Galaxy router label before power on.
Galaxy router should be powered by the AC adapter supplied by Hongdian.
Hongdian will not guarantee Galaxy router performance if it is powered by
any other unqualified AC adapter.
Connect antenna properly before power on.
RS-232 Modem
RS-232 DB9 (Male)
Galaxy H7921 Mobile Router User Manual
RS-232 DB9 (Male)
1
2
3
4
5
6
7
8
9
2.6 Check the Mobile Network
CD
RX
TX
DTR
GND
DSR
RTS
CTS
RING
Connect all signal and power cables, and double check it, connect antenna,
insert a valid SIM or UIM (depends your router type and network) and switch on
power. Galaxy H7921 router “RUN” LED will light up. If “RUN” LED is flashing, it
means the Galaxy is working normally. If the “LINK” LED is flashing, it means
there are data stream input/out over router data port. If the “NET” LED lights up,
it means that the Galaxy router has found and logged on mobile network.
(More information refer to Chapter 4)
RJ45 – Ethernet
It is standard 10/100BaseT Ethernet interface (Auto sense).
All cables should be connected correctly before switch on.
Antenna should be connected properly before switch on, otherwise it may
cause radio module problem.
DC – Power
DC power supply interface (+5VDC, +7.5V~+24VDC optional, check the label
before power on.)
The power adapter output current should be not less 2A; Power supply ripple
should be less 300mV.
ANT - Antenna
Standard 5OΩ/SMA RF connector (Female)
For outdoor use, lightning should be considered. We propose to install an
arrester between antenna and the ANT interface.
2.4 Ground
To ensure a safe, stable and reliable Galaxy mobile router operation, DTU
cabinet should be grounded properly. Connect the Galaxy mobile router cabinet
to site ground wire.
2.5 Power Supply
Galaxy router is designed with advanced power management technologies; it
can operate standalone. The input DC power voltage is +5VDC (+7.5V~+24VDC
optional). You should check the Galaxy router label before power on.
The power adapter output current should be not less 2A; Power supply ripple
should be less 300mV.
M80-792101-01
11
M80-792101-01
12
Galaxy H7921 Mobile Router User Manual
Chapter 3
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Router Configuration
Chapter 3: Router Configuration
Your PC
This chapter describes the Galaxy router parameters configuration before putting it in service.
1.
2.
Connection
Configurations
Thanks to the built-in web technology, Galaxy router can be easily configured
and managed. User may be required to configure associated parameters before
putting it in service. User can change settings and update firmware if it is
necessary.
By the Galaxy router management web pages, you can configure and manage
the router parameters. Refer to following description for details.
3.1 Connection
Normally, Galaxy router parameters should be configured through a PC. The PC
should meet the requirements:
Hardware
Software
PC with Ethernet interface, 1027x768 monitor
Windows 95/98/Me/NT/2000/XP operation system
IE 5.0 or up Internet browser
Two suggestions you can select accordingly.
Setup Correct Network Settings
You may be required to configure your PC IP address and associated parameters
after connecting the PC and router. You can set PC IP address “Obtain an IP
automatically” or set it manually. Refer to below descriptions for details.
Below is Galaxy router factory default setting; you can modify it accordingly.
IP Address: 192.168.8.1
Netmask: 255.255.255.0
Management Webpage IP address: 192.168.8.1
Login name: admin
Password: hongdian
The parameters in manual are Galaxy router default setting.
Pictures in this manual are captured at Windows XP and IE 6.0 platform.
Direct Connection
Connect Galaxy router RJ45 interface with PC Ethernet interface by the supplied
CAT-5 UTP cable, and then set up the PC’s IP address/subnet to start the
configurations.
Before Configuration – Setup your PC IP address
Double click “Network and Dial-up Connections” icon on the PC control panel,
you can find the Local Connection which is connected with Galaxy router (Direct
Connection) or the Local Connection that is connected with the LAN (LAN
connection).
LAN Connection
It is possible to connect Galaxy router to a hub or switch port at your the LAN
environment. Therefore, any PC at the LAN can access the router and manage it.
Right click the “Local Area Connection” icon, select “Properties”.
M80-792101-01
13
M80-792101-01
14
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Here, you can select “Obtain an IP automatically” or “Use the following IP
address”. If Galaxy router is connected to your PC directly, it is possible to select
“Obtain an IP automatically”. Galaxy router built-in DHCP server will assign an IP
address to the connected PC. Sometimes, the PC may be required to restart.
At LAN connection situation, the PC may be already assigned a LAN address
(Show as above picture). In order to keep this communication without any
interrupt, you can add a new IP address and subnet for Galaxy router
configuration. Click “Advanced (V)” button. (The “Default Gateway” is the access
to Internet for the PC. If you are not going to change the access to Internet, keep
the setting. If you are going to change the access to Internet via Galaxy router,
fill-in the router LAN address at “Default Gateway” setting, i.e. 192.168.8.1).
Select “Internet Protocol (TCP/IP)”; click “Properties”.
Click “Add” button at “IP Address (R)” item, fill-in the address which will add in
the PC.
M80-792101-01
15
M80-792101-01
16
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
The new add address should be limited at the subnet same as the Galaxy router,
i.e. 192.168.8.xxx (xxx is the number from 2 to 254). Subnet mask should be
255.255.255.0; and then click “Add (A)” button to add the address and subnet
into your PC. Your PC will be configured at the IP address “192.168.0.xxx” and
“192.168.8.xxx”. Click “OK” to complete configuration.
Before Configuration – Check your PC Settings
You can type “ping” command at DOS prompt to check the setting and
connection.
ping 192.168.8.1
If below information appears,
Pinging 192.168.8.1 with 32 bytes of data:
Reply from 192.168.8.1: bytes=32 time=2ms TTL=64
It indicates the connection between PC and Galaxy router is success; you can
start the configuration.
By typing “ipconfig” command at DOS prompt to check the IP address setting.
Input user name: “admin” and password: “hongdian”
It will display the main page “Welcome” if it is correct user name and password.
Click “Start” button to continue the management.
3.2 Configurations
Galaxy router can be managed via web interface or Console. The web interface
is an easy way to manage it. It will be described in details at following
paragraphs.
WEB Mode
With the built-in web server, Galaxy router can be easily managed via Internet
Explorer locally and remotely.
Open IE on your PC, type a URL address.
The default operation interface language is English. By clicking the right-bottom
word, the different language interface can be switched-over betoween them.
Due to the reasone of IE browser setting, the menu may not change when you
have clicked the language switch button. Click the “Refresh” button at IE
browser to sovle the problem.
The picture will appears.
Click the “Start” button to display main menu.
M80-792101-01
17
M80-792101-01
18
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Main Menu
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Console Mode
Router Status: Display major parameters
configuration and operation information.
Online Help: Provide online help.
System Tools: Provide a set of tools for
the router management, such as modifying
password, remote management, profile
backup, hardware & software information,
log and restart tool.
The Galaxy router RS-232 interface can configured for a data communication
port or a Console port. The Console port is only used for factory testing and
trouble shooting.
3.2.1 Router Status
Click "Start"->"Router Status" menu, the Galaxy router general operation
information will be displayed.
Network Setting: Provide LAN interface,
DHCP, mobile network parameters setting
and dynamic DNS configuration.
Route Configuration: Set up NAT, DMZ,
VPN and the route paths.
Hongdian Products: Browse Hongdian
Products catalogue.
Logoff: Exit router management pages.
Notice:
Galaxy router should be configured properly; the “Network Setting” is the
basically and necessarily settings. We recommend customer should configure
this parameter first. Meanwhile, we suggest customer reads paragraph 3.2.4
before setting.
As mentioned before, the router configuration works should be performed via a
PC that is configured. The relative descriptions refer to paragraph 3.1.
Galaxy router factory default setting:
LAN IP Address:
Subnet Mask:
Login Name:
Password:
The page displays the router interface IP and MAC address information:
eth0~eth2: the Ethernet interface IP and MAC address
IPSec0~IPSecN: the IPSec VPN channel information
By clicking the “Packet Information” button to view the interface traffic.
192.168.8.1
255.255.255.0
admin
hongdian
You can modify above settings accordingly; and you may need to modify the PC
IP address settings if the router settings have been changed.
Press and hold the “RESET” button for 5 seconds to restore the default setting.
Galaxy router is designed for industrial application and it works at
dial mode. However, at the beginning step, the router may not be
inserted a valid SIM/R-UIM card or configured incorrectly. The router
will try to dial and connect mobile network until establish the
communication channel. If it fails 3 tries, the router will restart
automatically. It will interrupt your configuration work. Therefore,
we recommend set dial mode to “Manual” by clicking
“Start”->“Network Setting”->“PPP Setting”.
M80-792101-01
19
M80-792101-01
20
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
3.2.2 Online Help
Click “Start”->"Online Help", a new windows will be opened, and the below
webpage picture appears.
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Configuration Profile
Mobile Network Testing
System Information
System Log
Restart
Router Administration
Click "Start"->"System Tools"->"Router Administration" menu to start this setup
page.
This is the detail operation instructions; all configuration and setting procedures
have been described in the Online Help file. Additionally, clicking the item “Online
Help” on the left of Help page, Galaxy router will connect to Hongdian website to
check updates.
Change Password
3.2.3 System Tools
The system administrator login name: admin;
Default password: hongdian
Click “Start”->"System Tools", the below picture will appear.
The default password should be modified and you need to input the original one
to modify it.
Press "RESET" button on router rear panel no less than five 5 seconds to reset
the password to factory default (hongdian).
Remote Configuration
GALAXY router is a web based controlling and management system. At normal
situation, operate it via LAN interface. Same as local LAN interface operations,
operator can certainly manage the router via mobile network at remote site.
For security reason, the default remote configuration function is disabled. It can
be enabled, and the access web port can be changed.
Type in Galaxy router connection URL at IE browser, then operator can remotely
manage Galaxy router. (It requires specifying the port if the webpage access
port is not 80. For example: http://220.192.11.22:8080)
There are six sub-menus at "System Tools".
Router Administration
M80-792101-01
21
M80-792101-01
22
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
The remote management port can be changed, and also the timeout period can
be specified. When the webpage access port is changed, LAN side management
webpage access port is changed as well.
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Mobile network testing function is a useful troubleshooting tool to locate the
problem on mobile network. It can test the cell information where the router
working and the neighbor cells information.
Clock (N/A at this version)
The function of GALAXY router built-in with real time clock, it will be
automatically synchronized with clock sources when it is powered on.
For CDMA version, Galaxy router will be locked at CDAM network clock source.
For GPRS version, Galaxy router will be synchronized to an Internet clock source
(NTP) when it has been connected to GPRS network. There is an option to enable
or disable NTP client; and also the NTP server can be specified accordingly.
When the clock is synchronized to an Internet clock source, there is a drop list to
select the time zone accordingly. Also there is an option to enable or disable NTP
client; and also the NTP server can be specified accordingly.
Press "Synch" button to synchronize the router manually.
Once router restarts, the clock may be reset to the initial time and then
re-synchronize after the GPRS network is connected.
Configuration Profile
Click "Start"->"System Tools"->"Configuration Profile" menu to start this setup
page.
Click “Neighbouring Cell” button to view the neighboring cells information
(Consult with the local mobile network operator for more information):
The configuration profiles can be retrieved and backuped individually, by
pressing associated “Browse” button to locate the configuration file and pressing
the “Upload” button to retrieve the configuration, and pressing the “Download”
button to backup the configuration.
Only the H7921-RGH type supports the Mobile Network Testing function at
present version.
Press "Default Setting" button to restore router to default factory setting.
System Information
Mobile Network Testing
M80-792101-01
23
M80-792101-01
24
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Click "Start"->"System Tools"->"System Information" menu to start this page.
Chapter 3: Router Configuration
PPTP Log
Click correspondence button to view the detail log information. Click the
“Setting” button to customize the log functions.
In order to save the system resources, the log default setting is disabled. It can
be enabled at the Syslog Setting page. Meanwhile, there are four options to
customize the log function, i.e. tick the PPP log Information to record the PPP
dial-up information.
There are reference information for router software upgrading and maintenance.
The page displays router type, hardware and software version, RF module type
and series number, router series number and so on.
System Log
Click "Start"->"System Tools"->"System Log" menu to start this page.
The log file can be sent to a log server by specifying an IP address and port. By
Typing in the log server IP address and port to enable this function.
Restart
Click "Start"->"System Tools"->"Restart" menu to restart Galaxy router.
3.2.4 Network Setting
Galaxy router should be configured with proper parameters. Network setting is
the basic and necessary configuration. Generally, LAN interface, mobile access
parameters and dial mode should be configured.
The router LAN interface, IP address and netmask can be modified if necessary.
At the initial phase, the PC that will connect to Galaxy router should be
configured as same as the router’s IP subnet mask (192.168.8.x/255.255.255.0,
here x=2 to 254). For more information regarding the PC IP address setting,
refer to this manual Paragraph 3.1. Once your PC is set up properly, open IE
browser and input Galaxy router LAN IP address to start the configuration.
Click “Start” > "Network Setting", the below picture will be displayed.
The operation log can be recorded at four categories:
PPP Log
SYSTEM Log
L2TP Log
M80-792101-01
25
M80-792101-01
26
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Default DNS: Configure the DNS server IP address, there are three DNS
server can be defined.
It can be modified in accordance with application requirement.
Press "Save" button to store the modification.
Reconnecting the host (or PC) after its IP address has been modified
successfully.
PPP Setting
Those parameters should be configured in accordance with the information
provided by local service provider.
There are five sub-menus at "Network Setting".
Click "Start"->"Network Setting"->"Network Basic Setting" menu to start this
setup page.
Network Basic Setting
PPP Setting
DHCP Configuration
SNMP Configuration
Dynamic DNS
Network Basic Setting
Click "Start"->"Network Setting"->"Network Basic Setting" menu to start this
setup page.
Dial
It controls the RF module dialup mode; the default setting is "Auto".
When it is set to "Auto" mode, Galaxy router will automatically dial mobile
network and will re-dial if the mobile link fails. After 3 failed dialing, Galaxy router
will automatically restart RF module. When it is set to "Manual" mode, the timing
work mode for special setting may not be active.
LAN Setting
There are three LAN IP addresses and netmasks that can be utilized. However,
the host (or PC) that connect with Galaxy router should be configured at the
same netmask as one of the three LAN addresses setting.
Service Code
Configure it with a correct service code provided by the service provider, the
default setting:
First LAN IP address (default): 192.168.8.1
LAN Netmask: 255.255.255.0
Default Route: Configure the default data transmission path.
M80-792101-01
Tick the “Default Route” option to route data via GPRS/EDGE or CDMA path.
27
M80-792101-01
28
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
GPRS: *99***1# (for China Mobile)
CDMA 1x: #777 (for China Unicom)
User Name and Password
Input a correct user name and password provides by local mobile service
provider; it will be required for dialing authentication:
For China Mobile's GPRS CMNET user, no user name and password
required. APN user should input correct information provide by
service provider.
For China Unicom's CDMA 1x user, user name is "card”, password is
"card".
APN
APN is the abbreviation of access point name; user should apply for it from the
service provider and then have it setup. For example, you can either input
“CMNET"/"CMWAP" for China Mobile or keep it in null. For other service
operators, please consult the local service provider.
PPP Detecting
It can be enabled or disabled. Also the detecting interval (second) and retries can
be specified accordingly.
The default setting is "Enable", "12" Second interval and "5" tries. With this
setting, the router will detect the PPP link status at 12 Seconds interval for 5
tries. If it is failed continually, the router will re-dial the radio link automatically.
When it fails redialing continually within 3 minutes, the router will be restarted.
ICMP Detecting
It is WAN side IP link status detecting; and it can be enabled or disabled. Also the
detecting interval (second), retries and destination (host) can be specified.
The default setting is “disable” since this detecting packets may be charged.
If it is enabled and fails the detecting at the specified interval, retries and
destination, the router will re-dial the radio link automatically.
PPP Advanced
Considering the difference of mobile network authorization, the Point to Point
Protocol connection should be compatible with different network. Advanced
setting is used for the PPP special setting. Click “PPP Advanced” button to start
settings.
Normally, it is not required to change the setting for most of networks and
applications. If it is necessary, please consult with the local mobile operator and
try different settings.
Dial Debug Info
It is a useful tool to check detail dial-up information. Select this option if the
router is unable to dial network, and send the dial-up information to Hongdian
for trouble shooting.
To enable the "Dialup Debug Info.", it will generate the log information of full
dialup progress.
Use Peer DNS
It is the option to utilize mobile network gateway (GGSN or PDSN) DNS setting.
MTU [
] Bytes
It is the data envelop package size transmitting to GGSN or PDSN during PPP
dialing.
MRU [
] Bytes
It is the data envelop package size receiving from GGSN or PDSN during PPP
dialing.
Set Local/Remote Interface IP
Specify local and remote IP address.
M80-792101-01
29
M80-792101-01
30
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Local IP address is the Galaxy router IP address obtained from mobile network.
Remote IP address is GGSN or PDSN IP address.
Set Netmask
Specify the Netmask.
PPP options
Disable
Disable
Disable
Disable
Disable
Protocol Field Compress
Address/Control Compress
Compress Control Protocol
the connection-ID Compress
Van Jacobson Style TCP/IP Header Compress
Try those settings to adapt mobile network.
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
DHCP Server: Enable or Disable.
Start IP Address/End IP Address: Specify DHCP server IP address
range.
Netmask: Specify DHCP server netmask (netmask 255.255.255.0
suitable for network within 256 hosts, 255.255.0.0 suitable for
network within 65536 hosts).
Default Gateway: It is a gateway for hosts connected to Galaxy router
to communicate with outside network. You can setup its IP address
as necessary. Normally, it is Galaxy router LAN interface IP address.
Default DNS: Default main DNS, it should be configured with
information provide by the local operator. The default setting is
Shenzhen city DNS IP addresses.
Second DNS: Alternative DNS; it could be null.
Third DNS: Same as the above.
Dynamic DNS
Others
As you know, there are many DNS server at Internet; it records and translates
the domain name into corresponding IP address. However, normal DNS server
only maps the domain name and static IP address.
Try other parameters to adapt mobile network.
DHCP Configuration
DHCP means Dynamic Host Configuration Protocol. With the built-in DHCP server
at Galaxy router, it assigns IP addresses to the hosts that connect with the
network.
Click "Start"->"Network Setting"->"DHCP Configuration" menu to start this
setup page.
Dynamic DNS service will map the specified domain name to a dynamic IP
address. With the built-in client in Galaxy router, the dynamic IP address
assigned by mobile network and the domain name applied from dynamic DNS
service provider will be registered at Dynamic DNS server when the Galaxy
router is connected. Meanwhile, the built-in client will update the operation
information at the interval defined by the dynamic DNS server.
Click "Start"->"Network Setting"->"Dynamic DNS" menu to start this setup
page.
There are following DHCP server settings.
Before enabling the dynamic DNS function, you should apply a valid account
from a service provider in the drop list. Input the following information.
M80-792101-01
31
M80-792101-01
32
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Service Provider
Host Name
User ID/E-Mail
Password/Key
You can get the information from dynamic DNS service provider after successful
application.
Dynamic DNS service provider list will be added or deleted accordingly.
SNMP Configuration
Click "Start">"Network Setting">"SNMP Configuration" menu to this setup page:
There are eight sub-menus at "Route Configuration".
NAT/NAPT Configuration
Security Configuration
L2TP Server Configuration
L2TP Client Configuration
PPTP Server Configuration
PPTP Client Configuration
IPSec Configuration
Routing Table
NAT/NAPT Configuration
NAT is the abbreviation of Network Address Translation. It maps the out side IP
address to a host or terminal in your LAN. It isolates unidentified data envelops
to guard the LAN against hacker’s attack.
SNMP: Enable or Disable, tick it to enable the SNMP function. It supports
SNMP V1 and V2C (V3 ready) automatically.
Set Community: Set the community name, such as "public".
IP: Set the SNMP management IP address. Usually, it is the router LAN
interface IP address.
System Name: Set the router name that will display on the NMS.
System Contact: Set the router contact name.
System Location: Set the router location.
Click "Start"->"Route Configuration"->"NAT/NAPT Configuration" menu to start
this setup page.
It may be required to save all settings and restart the router to affect it.
3.2.5 Route Configuration
Click “Start” > "Route Configuration", the below picture will be displayed.
M80-792101-01
33
M80-792101-01
34
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
At default setting, the network behind Galaxy router is isolated from outside
network to provide safety for the hosts. For SOHO application, you may need to
setup your own WEB/FTP or other kinds of service; NAT (Network Address
Translation) /NAPT (Network Address Port Translation) technology can meet
your requirements.
With this setting, the outer source ports can be mapped to a specified a host at
the LAN side. When the mapping scheme is defined, all the data traffic from/to
those mapped ports will be transferred to the specified host only.
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Protocol: The “TCP”, “UDP” and both of them (ALL) can be specified.
Source Port: It is the source data port.
Host IP Address: It is the destination host IP address.
Destination Port: It is the destination host post.
Press “Save” to store the port mapping.
The TCP, UDP or both protocols can be mapped to the destination ports. If the
destination port is not defined, it will be the same port as the source.
Additionally, there is a DMZ (DeMilitarized Zone) host that can be defined.
NAT/NAPT ports mapping is in higher priority than DMZ is. In other words, if a
port has been mapped to a host at the LAN, the data at this port will be
transferred to this host, and not be transferred to the defined DMZ host.
Galaxy router can map up to 16 ports (hosts).
Example.
WEB Server: maps port 80 to a LAN host address 192.168.8.8
Click “Add” button to add a port mapping policy:
M80-792101-01
35
M80-792101-01
36
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Common used ports list:
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Security Configuration
Protocol
Service
Port
TCP
AFP over TCP
548
TCP
AOL
5190~5194
TCP
BGP
179
UDP
DNS
53
TCP
FINGER
79
TCP
FTP
21
TCP
GOPHER
70
TCP
HTTP
80
TCP
HTTPS
443
UDP
IKE
500
TCP
POP3
110
TCP
PPTP
1723
With the security configuration function, you can control data envelops security
in/out your network. All outbound envelops are secured by this setting. Only
envelops to NAT or DMZ hosts toward inbound direction are secured.
Click "Start"->"Route Configuration"->"Security Configuration" menu to start
this setup page.
TCP
Real-Media
7070
UDP
RIP
520
TCP
RLOGIN
513
TCP
SMTP
25
UDP
SNMP
161
TCP
IMAP
143
TCP
InterLocator
389
TCP
IRC
6660~6669
TCP
L2TP
1701
TCP
LADP
389
TCP
NetMeeting
1503 & 1702
There are 32 policies can be defined. Also the inbound and outbound data
envelops can be controlled.
UDP
NFS
111
Press “Add” button to add a new security setting:
TCP
NNTP
119
UDP
NTP
123
UDP
PC Anywhere
5631~5632
TCP
SSH
22
UDP
SYSLOG
514
UDP
TALK
517~518
TCP
TELNET
23
UDP
TFTP
69
TCP
X-WINDOWS
6000~6063
TCP
WAIS
210
M80-792101-01
Selecting "Accept" or "Discard" action to protect the data envelops.
Accept: Accept data envelops that match settings only.
Discard: Discard all data envelops that match settings.
37
M80-792101-01
38
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
For each policy, there are following items can be defined.
Protocol: TCP, UDP, ICMP or All selectable.
Source IP address/Netmask: Define source data envelops IP address
and subnet.
Source port: Define source data envelops port.
Destination IP address/Netmask: Define destination data envelops IP
address and netmask.
Destination port: Define destination data envelops port.
Action: Define the data processing method, there are two options,
accept and discard.
It is possible to define the source and destination IP address with a subnet.
Therefore, one IP address (i.e.: 4.3.2.1) or one range (i.e.: 4.3.2.1~4.3.2.254)
IP address can be defined accordingly. Null netmask setting means all IP
address.
The netmask is described by a decimal number 8, 16, 24 or 32.
8=255.0.0.0, 16=255.255.0.0, 24=255.255.255.0, 32=255.255.255.255
For example:
4.3.2.1/32=one IP address only
4.3.2.1/24=a range IP address from 4.3.2.1 to 4.3.2.254
For source and destination port, you can specify one port (i.e.: 80) or one range
(i.e.: 1000-1999) port. Meanwhile, it is possible to select the TCP and UDP
protocol individually or both of them. Null port setting means all ports.
Type the account user name and password, tick the “Enable” option; and then
save it to create and take effect the account.
Press “L2TP Server Setting” button to setup L2TP server operation parameters.
If "ALL" or "ICMP" protocol option is selected, the port setting will not be active.
Save all the above settings.
L2TP Server Configuration
Click "Start"->"Route Configuration"->"L2TP Server Configuration" menu to
start this setup page to setup VPN L2TP Server parameters.
Press “Advanced” button to customize more settings.
Press “Add” button to create a new account (username with password).
M80-792101-01
39
M80-792101-01
40
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Enable VPN L2TP Server: Tick it to start L2TP server
Allocate from this IP range: Define the server IP address assignment
range for L2TP client.
These can connect as LAC's: Define the IP address range for the L2TP
client that can be connected.
Local IP to use: The local IP address for the L2TP server.
Report this as the Hostname: The L2TP server host name.
Only permit one tunnel per host: Tick it to limit the tunnel connection.
Except these hosts: Specify the host which can not be connected.
This guy can't connect: Specify the L2TP client which can not be
connected.
Use Hidden AVP's: Tick it to hidden the AVP.
Use Length Bit in Payload: Tick it to use the length bit in payload.
Authentication: Tick it accordingly.
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Press “Add” button to create a client setting.
L2TP Client Configuration
Click "Start"->"Route Configuration"->"L2TP Client Configuration" menu to start
this setup page to setup VPN L2TP Client parameters.
Click “Advanced” button to setup more options:
M80-792101-01
41
M80-792101-01
42
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
LNS: the L2TP server IP address or domain name.
User Name: the user account created at the L2TP server.
Password: the account password.
Enable: tick it to take effect the client setting.
Redial if disconnected: tick it to switch on the redial function; and
then setup the redial interval and retries.
Use Hidden AVP's: tick it to hidden the AVP.
Local IP Address: force the L2TP client local IP address to the
specified IP address.
Remote IP Address: force the L2TP client remote IP address to the
specified IP address.
Use Length Bit in Payload: tick it to use the length bit in payload.
Authentication: Tick it accordingly.
Default Route: tick it to route all data (except VPN tunnel) via default
routing.
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Enable VPN PPTP Server: tick it on to start the PPTP server.
Debug Enable: tick it on to enable the debug information and record
it at Syslog.
Speed: specify the traffic speed for the PPP daemon, the default value
is 115200 bauds.
Local IP Address: specify the PPTP server local IP address.
Remote IP Address: specify the PPTP server remote IP address
assignment range (i.e. 192.168.4.2-254)
Press “Add” button to create a PPTP client account at this server.
PPTP Server Configuration
Click "Start"->"Route Configuration"->"PPTP Server Configuration" menu to
start this setup page to setup VPN PPTP Server parameters.
Type in the account user name and password, tick the “Enable” option; and then
save it to create and take effect the account.
M80-792101-01
43
M80-792101-01
44
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
PPTP Client Configuration
Click "Start"->"Route Configuration"->"PPTP Client Configuration" menu to start
this setup page to setup VPN PPTP Client parameters.
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
IPSec Configuration (N/A for this version)
Click "Start"->"Route Configuration"->"IPSec Configuration" menu to start this
setup page.
Routing Table
Click "Start"->"Route Configuration"->"Routing Table" menu to start this setup
page.
Press “Add” button to create a client setting.
Routing table defines IP data packages transfer paths. If there are more subnets
and routers in the network, you have to define the correct data transmission
paths to ensure that the data packages can be exchanged between subnets.
There are 16 routing policies can be defined for Galaxy router. Each of source IP
address, subnet and gateway should be specified.
User Name: the user account created at the L2TP server.
Password: the account password.
PPTP Server: type in the PPTP server IP address or domain name.
Default Route: tick it to route all data (except VPN tunnel) via default
routing.
Enable: tick it to take effect the client setting.
M80-792101-01
45
M80-792101-01
46
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
For Example:
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
3.2.6 Special Setting (N/A for this version)
Galaxy router is not only integrated with router functionality, but also can be
configured for many other applications. The Special Setting function is designed
for industries and utilities. Several parameters can be configured accordingly.
With the Special Setting, a non IP based device (such as RS-232 interface POS)
data can be transmitted over Internet. There are many applications of center to
multi-point infrastructure, such as video surveillance system and SCADA system,
etc.
The Special Setting is designed for industrial application. It is not necessary to
set up special parameters if you are planning to use only route features, and the
default setting is “Disable”. The Data Service Center and associated parameters
should be configured properly if the Galaxy router is used for remote
management and surveillance.
Click “Start”->"Special Setting", the below picture will be displayed.
Network
Network
192.168.2.11
192.168.8.1
192.168.8.22
192.168.2.33
192.168.3.1
192.168.3.44
192.168.2.55
192.168.5.1
192.168.5.66
With the route policy showing above picture, the data envelops must be
transferred by gateway (192.168.2.33) if the transmitting data envelops are
from host 192.168.8.22 to 192.168.3.44.
Similarly, the data must be transferred by the gateway (192.168.2.55) if the
transmitting data envelops are from host 192.168.8.22 to 192.168.5.66.
There are four sub-menus in "Special Setting".
DTU Setting
Serial Port Setting
Operation Mode
Backup Routing
DTU Setting
Click "Start"->"Special Setting"->"DTU Setting" menu to start this setup page.
Save the settings when it is completed.
Note: The IP addresses on the picture are not the real addresses; it is used for
description only. Additionally, gateway IP address should be a static IP address
at real engineering.
M80-792101-01
47
M80-792101-01
48
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
For many applications, it requires to keep the links always online. The heartbeat
setting should be set to keep the links alive. However, the heartbeat is the data
traffic packets and it may be charged (depends service provider). You have to set
a right heartbeat interval in accordance with application. Normally, we suggest
the 50 seconds heartbeat interval for most of applications.
Registry ID and Password/Key
It is a Registry ID and Password/Key at your data service center. Set it as
application system planning.
Router ID
It is the router unique identity name at data service center. By the unique ID, you
can transmit/receive data to/from remote site and also manage remote router.
Set it according to the application system planning.
Serial Port Setting
Galaxy router can be used to connect non-IP based data terminal such as POS,
RTU and PC Hypertext Terminal. The serial port should be configured properly
before putting it in service.
Data Service Center (DSC)
DSC can be enabled or disabled. Default setting is "Enable".
Click "Start"->"Special Setting"->"Serial Port Setting" menu to start this setup
page.
Transmission Mode
Select "Transparence" option to provide a transparent channel between Galaxy
router serial port interface and your data service center.
Select "Protocol" option to provide a specified protocol channel between Galaxy
router serial port interface and your data service center. It is a good method for
traditional serial port device communication. To use this option, you have to
develop a data server, which the necessary SDK can be provided by Hongdian.
Protocol
There are TCP and UDP options for selection. Based on past experience, GPRS or
CDMA 1x channel is not reliable due to radio propagation. UDP is recommended
for transmitting real time information with data checksum, such as SCADA
system. TCP protocol may be better for transmitting files.
Main/Secondary DSC IP Address or Domain
Data Service Center (DSC) IP Address or Domain is the server address that
receives data from serial port device connecting with Galaxy router. A main and
secondary DSC can be defined for redundancy system infrastructure. It supports
IP address or domain name.
DSC Port
Serial Port
There are "Enable" and "Disable" switches.
Defining Data Service Center communication port, it can be changed with the
system planning. The default port is 5002.
Default setting: Disable.
Heartbeat Interval
M80-792101-01
49
M80-792101-01
50
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
If the serial port is enabled, the DSC IP address or domain name must be
specified.
Interface
Select serial port interface type: RS-232 or RS-485; RS-485 is not available at this
version hardware.
Rate
Setup serial port interface data rate:
300/600/1200/2400/4800/9600/19200/38400/57600/115200(BPS)
Parity
Select parity: None/Odd/Even
Data Bits
Setup data bits: 5/6/7/8bits
Timing1
Stop Bits
Online time: Galaxy router will dialup radio link and attach to GPRS or CDMA 1x
data channel at the setting time.
Setup stop bits: 1 or 2bits
Flow
Offline time: Galaxy router will close radio link at the setting time.
Setup flow control: None/Hardware/Software (Xon/Xoff)
The function should be activated with a real-time clock system. It is
recommended for CDMA network.
Operation Mode
For industrial applications, requirements may be different from customer to
customer. There are five modes available in Chinese market. Presently, there is
only one timing mode in English version available. Hongdian can design new
customized operation modes for any other market.
Click "Start"->"Special Setting"->"Operation Modes" menu to start this setup
page.
Timing2
Online Interval: To setup Galaxy router online interval.
Online Length: To setup Galaxy router online length. The route will be offline by
the end the length.
Backup Routing
For many applications, customer may require backup routings to protect their
communication. There are two backup channel can be set up, customer can set
the GPRS/CDMA 1x channel as the main channel, and set the Ethernet or dial-up
channel as the backup route.
Click "Start">"Special Setting">"Backup Routing" menu to start this setup page.
M80-792101-01
51
M80-792101-01
52
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
COM Port Setting:
Before enabling this function, it is required to connect a dial-up modem (ie. V.90
modem) to the Galaxy router’s COM interface. A special cable will be needed.
The cable wiring is showed at the below diagram.
RS-232 Modem
RS-232 DB9 (Male)
CD
RX
TX
DTR
GND
DSR
RTS
CTS
RING
This function can be "Enable" or "Disable".
When it is enabled, the "W-ICMP detecting" at the "Network Basic Setting" page
will not effect.
Default Route: Select Galaxy router default routing, it is the main route.
There are three types of route can be selected: Radio, Ethernet and COM
(connecting with a dial-up modem). When Ethernet or COM is set as default,
the Radio will be the backup.
RS-232 DB9 (Male)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
CD
RX
TX
DTR
GND
DSR
RTS
CTS
RING
Click the "COM Port Setting" button to this setup page.
Route Detecting: Detecting the destination host IP address, if there is no
response at the set time interval and times, the router will switch over to the
selected backup route.
When the "Radio" is set to the default route and the backup routing
function is enabled, we recommend setting the operator's gateway as
the destination IP address for detecting.
When the "Ethernet" or "COM" is set to the default route, we
recommend setting a reliable host in the Internet as the destination IP
address.
Attention: The destination host should work reliable. Otherwise, it will cause the
router switch over frequently.
Backup route: There are two options.
Gateway - When the "Enable Gateway" is enabled, the traffic will be
routed to this gateway via the Ethernet interface if the default route
failed. The gateway IP address is the network gateway IP address that
Galaxy router is connected.
COM - When the "COM" port is enabled, the traffic will be routed to
Galaxy router COM port if the default route failed, and then the
connected modem will dial a number that specified at COM port setting.
M80-792101-01
53
At this page, set up the COM port interface and the dialup parameters. Because
of the COM port may be connected with different types of modem, it provides a
script filed to fill-out the dial-up number and modem initialization strings (AT
command) in accordance with the associated modem.
M80-792101-01
54
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
For example, dial a number 83890677, fill in the below code at the “Dial Script”
filed.
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
3.2.7 Hongdian Products
----------------------------"" at
OK atxxx
OK atd83890677
TIMEOUT 30
CONNECT ""
-----------------------------
Click "Start"->"Hongdian Products" menu, it displays more Hongdian products.
For more information, click the links listed at this page.
atxxx is the modem extra command that may be used (depends on the
connected modem). It should be filled in with the connected modem parameter.
All extra AT commands should be added before dialing. In other words, all extra
AT commands should be added before the atd command.
If the telephone line is behind a PABX, it may be needed to dial a "0" and waiting
the dial tone. The atd command should be:
atd0,83890677
The COM port will try to dial the backup channel. If it fails the connection for 3
times, the router will switch back to the default routing and try another
sequence.
The route status will be displayed on the front panel LED.
RUN LED, blinking in 1 second interval; it indicates Galaxy router
works at default route (main route).
RUN LED, blinking in 2 second interval; it indicates Galaxy router
works at backup route.
3.2.8 Logoff
Click "Start"->"Logoff" menu to exit router configuration & management pages.
You may be required to enter correct user name and password when you
re-login.
3.2.9 Firmware Update
Galaxy router is capable to update by a special update tool. You can download
the update tools and associate firmware at Hongdian website.
Visit Hongdian website at "Support"->"Software Update" section for full details;
Or
Enter Galaxy router's "Online Help" page, click "Online Help" item to check
updates.
Or
http://www.hongdian.com/en/download/update.htm
There are two ways to update the router firmware:
TFTP
M80-792101-01
55
M80-792101-01
56
Galaxy H7921 Mobile Router User Manual
Chapter 3: Router Configuration
Galaxy H7921 Mobile Router User Manual
Chapter 4: Operation Instruction
Hongdian Update tool
Chapter 4
TFTP update
H7921 is built-in with a tftp client. Operator can update the firmware via a TFTP
sever. The latest version H7921 firmware has the tftp feature included.
Download the tftp server at:
Operation Instruction
This chapter introduces Galaxy H7921 router operation introductions.
1.
2.
3.
Panel Indication
Operation
Trouble Shooting
http://www.hongdian.com/en/download/software.htm
Start the tftp server at your PC, and copy the updated firmware at the same
folder of your tftp server.
4.1 Panel Indication
There are four LEDs at Galaxy H7921 router front panel; it indicates the router
and network operation status.
telnet and login H7921 router
tftp ipaddr
(The ipaddr is the tftp server IP address.)
get filename
(The filrname is the firmware filename; it should be copied at the same
folder of your tftp server.)
It will transfer the firmware to H7921 router’s RAM, and follow the prompt to
save it into flash.
LED
10M
LINK
NET
RUN
Save to flash? Press Y to save it.
Restart the router to take effect the update.
Status
Blinking (data detected)
Lights off
Lights up
Lights up/Blinking
Lights up
Blinking (1/2 second)
Blinking (1 second)
Blinking (2 second)
Description
Connected 10BaseT device and data
transmission detected
Connected 100BaseT device
Ethernet connected
Depends network & radio module (*)
Router self test and initializing
Router dialing
Normal operation (default route)
Normal operation (backup route)
(*) NET indication will depend on the type of radio module and network. The
detail information will be updated on website. Click “Start”->“Online Help” at
Galaxy router menu, and then click “Online Help”->“FAQ” at the help page for
details.
Attention!!! During the saving, please do not drop the H7921 power supply.
Refer below table for H7921-RGH and H7921-RGM2 NET LED indication
descriptions:
Hongdian Update Tool
The update tool instructions refer to Appendix 2.
M80-792101-01
57
H7921-RGH
NET LED
Lights up
Lights off
Blinking (1 second)
Blinking(1/4 second)
Lights up
Description
Radio Module Starting
No Power or sleeping (deeply)
No SIM card or searching GSM network
GPRS data transmitting
Calling
Note
H7921-RGM2
NET LED
Lights up
Lights off
Description
Logon GSM and normal operation
No Power or out of GSM service
Note
M80-792101-01
58
Galaxy H7921 Mobile Router User Manual
Chapter 4: Operation Instruction
4.2 Operation
Galaxy router is an embedded hardware and software platform. Normally, it is
working without any manual operation. It provides a reliable and flexible data
channel for industrial applications.
Galaxy H7921 Mobile Router User Manual
Chapter 4: Operation Instruction
(Note: Galaxy router’s LINK and PC’s Link should lights-up if it is
connection).
Check your TCP/IP setting.
(Note: If the Galaxy router LAN IP is 192.168.8.1, your PC local
connection IP address should be 192.168.8.xxx).
For more checking, type “ipconfig” command at DOS prompt.
Galaxy router should be installed at place with good radio signal receiving. For
the cabinet and basement environment, we recommend to extend the antenna.
For outdoor use, lightning should be considered. We propose to install an
arrester between antenna and the ANT interface. Contact Hongdian technical
support department for details.
(Type “ipconfig ?” Command for its help)
4.3 Trouble Shooting
Problem 1: All LEDs are not lights-up.
Check all cables that are connected to the router.
Check the power supply adapter output voltage.
If the power is correct and there is no LED lights-up, the router may be
failed. Contact to Hongdian or reseller for repairing.
Problem 2: Router works not stable after long time operation.
Check router cabinet temperature, if it is overheating, place the router at the
place with good ventilation.
Problem 3: Router does not run self-test when it is powered on.
Check the power adapter.
Problem 3: Update failed
System boot system and application program are stored at different memory
allocation; failed update will not affect the router rebooting. Re-update the
firmware until it is working.
Problem 5: time out when ping the router.
Pinging 192.168.8.1 with 32 bytes of date:
Request timed out.
It indicates that is something wrong during the installation, check following
items:
Check the Ethernet connection between your PC and Galaxy router.
M80-792101-01
59
M80-792101-01
60
Galaxy H7921 Mobile Router User Manual
Appendix 1: Hypertext Terminal Setting
Galaxy H7921 Mobile Router User Manual
Appendix 1: Hypertext Terminal Setting
The COM port parameters should be specified. Select COM number (i.e. COM2),
Bites per second, Data bits, Parity, Stop bits and and Flow control.
Appendix 1: Hypertext Terminal Setting
This Appendix introduces Microsoft Windows HyperTerminal setup instruction.
1.
2.
3.
4.
COM Port Setting
Properties
Codec Setting
ASCII Code
1. COM Port Setting
By Clicking Windows “Accessories”->”Communications”->”HyperTerminal” to
create a HyperTerminal. Refer to below picture to continue the settings.
Notice: “Flow control” should be set to “None”.
2. Properties
Start the created H7000 HyperTerminal connection. Click “File”->“Properties”
menu, click “Settings” tab, set it as show as the picture.
M80-792101-01
61
M80-792101-01
62
Galaxy H7921 Mobile Router User Manual
Appendix 1: Hypertext Terminal Setting
Galaxy H7921 Mobile Router User Manual
Appendix 1: Hypertext Terminal Setting
4. ASCII Setup
Click “ASCII Setup” button, set ASCII parameters.
3. Host System Encoding Method
Click “Input Translation” button, set host system encoding method.
M80-792101-01
63
M80-792101-01
64
Galaxy H7921 Mobile Router User Manual
Appendix 2: Firmware Update Tool
Galaxy H7921 Mobile Router User Manual
Appendix 2: Firmware Update Tool
Appendix 2: Firmware Update Tool
This appendix describes Galaxy router firmware update tool user instructions.
Galaxy H7921 Firmware Update Tool
Set up the PC IP address subnet same as the router that will be updated.
Copy the Router Update Tool to the PC and run it (Fig. 1):
Fig. 3
Fig. 4
Press “Update” button to update the router firmware (Fig. 5)
Fig. 1
Click “Browse” button to retrieve the .rom file (Fig. 2)
Fig. 5
Fig. 2
Input Router IP, factory default IP is 192.168.8.1; the Router IP could be the LAN
IP or WAN IP address (WAN IP is the address assigned by service provider
gateway; normally it is a dynamic address). Type the correct password (this is
the password you access router configuration web interface; factory default is
hongdian). Press “Connect” button (Fig. 3), and waiting few seconds. If dialogue
info appears (Fig. 4), it means the connection failed. Otherwise, it is successfully
connected.
M80-792101-01
65
Fig. 6
Waiting about 20 seconds, “Update success” info will appear. It means the router
has been update successfully, otherwise it fails.
Note: If you can not open the Galaxy router webpage after updating software,
reconnect your PC local connection.
M80-792101-01
66
Galaxy H7921 Mobile Router User Manual
Appendix 2: Firmware Update Tool
Warning
1. Do not disconnect or power off the router during firmware updating.
2. Mobile network may be failed sometimes; it is a high risk to update firmware
remotely.
M80-792101-01
67
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
