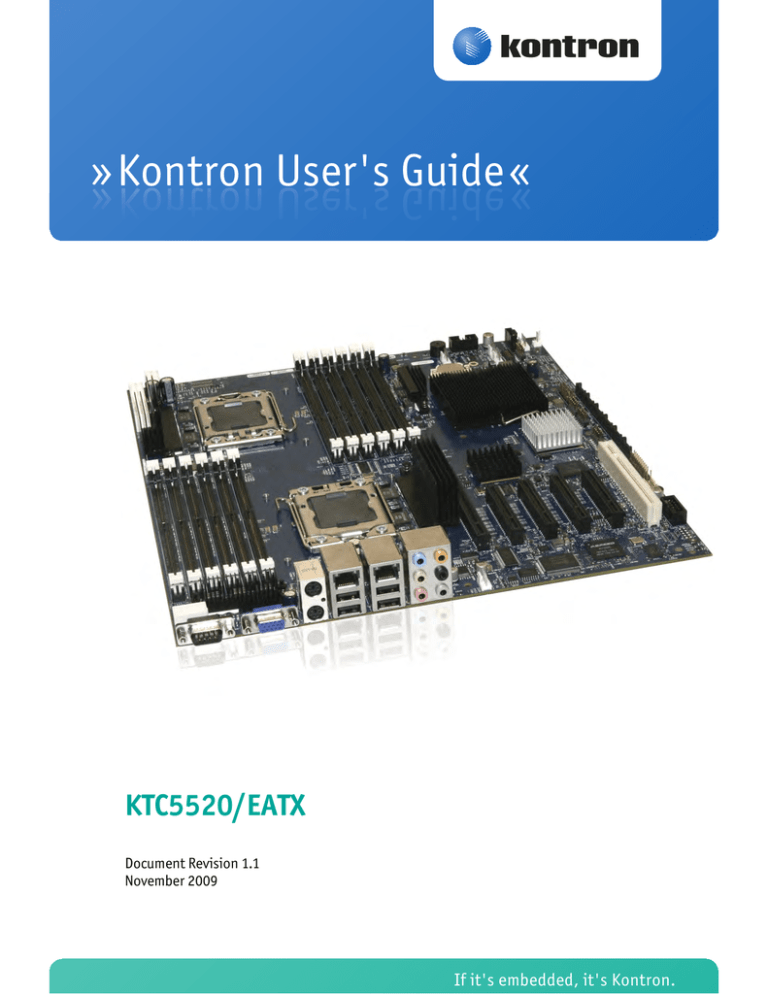

» Kontron User's Guide «
KTC5520/EATX
Document Revision 1.1
November 2009
If it's embedded, it's Kontron.
Revision History
Rev. Index
Brief Description of Changes
1.0
First Release
1.1
Second Release
Date of Issue
August 2009
November 2009
Customer Service
Contact Information:
Kontron Canada, Inc.
4555 Ambroise-Lafortune
Boisbriand, Québec, Canada
J7H 0A4
Tel: (450) 437-5682
(800) 354-4223
Fax: (450) 437-8053
E-mail: [email protected]
Kontron Modular Computer GMBH
Sudetenstrasse 7
87600 Kaufbeuren
Germany
+49 (0) 8341 803 333
+49 (0) 8341 803 339
[email protected]
Visit our site at: www.kontron.com
© 2009 Kontron, an International Corporation. All rights reserved.
The information in this user's guide is provided for reference only. Kontron does not assume any liability
arising out of the application or use of the information or products described herein. This user's guide may
contain or reference information and products protected by copyrights or patents and does not convey any
license under the patent rights of Kontron, nor the rights of others.
Kontron is a registered trademark of Kontron. All trademarks, registered trademarks, and trade names used
in this user's guide are the property of their respective owners. All rights reserved. Printed in Canada. This
user's guide contains information proprietary to Kontron. Customers may reprint and use this user's guide in
other publications. Customers may alter this user's guide and publish it only after they remove the Kontron
name, cover, and logo.
Kontron reserves the right to make changes without notice in product or component design as warranted by
evolution in user needs or progress in engineering or manufacturing technology. Changes that affect the
operation of the unit will be documented in the next revision of this user's guide.
i
KTC5520/EATX
www.kontron.com
Table of Contents
Table of Contents
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vii
Preventing Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Working with Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Replacing Lithium Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .x
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Customer Comments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Advisory Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Regulatory Compliance Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv
1.
2.
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1
Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2
What’s Included. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3
Board Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4
Virtualization Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Board Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2
System Core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.1
Intel 5500 family Processors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.2.2
Intel IOH 36D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.2.3
ICH10R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.3
USB 2.0 Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4
USB Flash Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.5
Serial ATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.5.1
RAID Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2.6
Video Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.7
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.8
PS2 Mouse & Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.9
Ethernet Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.10 Serial Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ii
KTC5520/EATX
www.kontron.com
Table of Contents
2.11 PCI & PCI express Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.12 Real Time Clock & NVRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.13 Baseboard Management Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.14 TPM (Trusted Platform Module) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.
Installing the Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.1
3.1.1
Jumper Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.1.2
Setting Jumper & Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.2
4.
Setting Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Board Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.2.1
Installing the I/O Shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3.2.2
Installing the Motherboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3.2.3
Connecting the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
3.2.4
Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
3.2.5
Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
3.3
Quick Reference Sheet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.4
Battery Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.4.1
Operation and Preventative Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
3.4.2
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.1
Connecting to the Web Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.2
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.2.1
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
4.2.2
Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
4.3
Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.3.1
4.4
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.4.1
Remote Power/Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
4.4.2
Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
4.5
Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.5.1
4.6
KVM/VM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.6.1
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
4.6.2
Firmware Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
4.6.3
Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
4.7
Logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
iii
KTC5520/EATX
www.kontron.com
Table of Contents
5.
Software Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.1
AMI BIOS Setup Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.1.1
Accessing the BIOS Setup Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
5.1.2
Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
5.1.3
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
5.1.4
Advanced menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
5.1.5
Security menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
5.1.6
Boot menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
5.1.7
System Management menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
5.1.8
Exit menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
5.2
Boot Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
5.2.1
5.3
BOOT Menu POP-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Console Redirection (VT100 Mode). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
5.3.1
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
5.3.2
ANSI and VT100 Keystroke Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
5.3.3
VT-UTF8 Keystroke Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
A.
PCI IDSEL and Device Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1
B.
BIOS Setup Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-1
B.1
Bootblock Initialization Code Checkpoints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-1
B.2
POST Code Checkpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-2
B.3
DIM Code Checkpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-4
B.4
Memory Initialization ERROR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-5
C.
Software Update & Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
D.
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1
E.
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-1
E.1
Returning Defective Merchandise. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-2
E.2
When Returning a Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-3
F.
Recycling your Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F-1
G.
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .G-1
iv
KTC5520/EATX
www.kontron.com
List of Figures
List of Figures
Figure 2-1: Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Figure 2-2: Sound Connectors Defaults Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Figure 3-1: Jumper Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Figure 3-2: Rear Panel I/O Shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Figure 3-3: Mounting Holes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Figure 3-4: Connecting the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Figure 3-5: Memory and CPU association . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Figure 3-6: Memory Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Figure 3-7: Processors Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Figure 3-8: Quick Reference Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Figure 4-1: Firmware Upgrade Step 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Figure 4-2: Firmware Upgrade Step 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Figure 4-3: Firmware Upgrade Step 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Figure 4-4: Firmware Upgrade Step 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
v
KTC5520/EATX
www.kontron.com
List of Tables
List of Tables
Table 1-1 Board Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Table 2-1 USB Rear Panel I/O Connector Pinout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Table 2-2 USB Header Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 2-3 Serial Interface Connector Pinout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 2-4 TPM Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 3-1 Jumper Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Table 3-2 Memory Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 3-3 Tested Memory List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 4-1 Payload impact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 4-2 Privilege Level Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
vi
KTC5520/EATX
www.kontron.com
Safety Instructions
Before You Begin
Before handling the board, read the instructions and safety guidelines on the following pages to prevent damage to the
product and to ensure your own personal safety. Refer to the "Advisory Convention" section in the Preface for advisory
conventions used in this user's guide, including the distinction between Warnings, Cautions, Important Notes, and Notes.
• Always use caution when handling/operating the computer. Only qualified, experienced, authorized electronics
service personnel should access the interior of the computer. The power supplies produce high voltages and
energy hazards, which can cause bodily harm.
• Use extreme caution when installing or removing components. Refer to the installation instructions in this
user's guide for precautions and procedures. If you have any questions, please contact Kontron Technical
Support
WARNING
High voltages are present inside the chassis when the unit's power cord is plugged
into an electrical outlet. Turn off system power, turn off the power supply, and then
disconnect the power cord from its source before removing the chassis cover. Turning
off the system power switch does not remove power to components.
vii
KTC5520/EATX
www.kontron.com
Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to
reduce the risk of damage to components. Kontron strongly encourages you to follow proper ESD procedure, which can
include wrist straps and smocks, when servicing equipment.
Take the following steps to prevent damage from electrostatic discharge (ESD):
• When unpacking a static-sensitive component from its shipping carton, do not remove the component's
antistatic packing material until you are ready to install the component in a computer. Just before unwrapping
the antistatic packaging, be sure you are at an ESD workstation or grounded. This will discharge any static
electricity that may have built up in your body.
• When transporting a sensitive component, first place it in an antistatic container or packaging.
• Handle all sensitive components at an ESD workstation. If possible, use antistatic floor pads and workbench
pads.
• Handle components and boards with care. Don't touch the components or contacts on a board. Hold a board by
its edges.
• Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or radioactive fields.
viii
KTC5520/EATX
www.kontron.com
Working with Batteries
Care and Handling Precautions for Lithium Batteries
Your computer board has a standard, nonrechargeable lithium battery.
• Do not short circuit
• Do not heat or incinerate
• Do not charge
• Do not deform or disassemble
• Do not apply solder directly
• Always observe proper polarities
ix
KTC5520/EATX
www.kontron.com
Replacing Lithium Batteries
Exercise caution while replacing lithium batteries!
WARNING
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries,
following manufacturer's instructions.
ATTENTION
Il y a danger d'explosion s'il y a remplacement incorrect de la batterie. Remplacer
uniquement avec une batterie du même type ou d'un type équivalent recommandé
par le constructeur. Mettre au rebut les batteries usagées conformément aux
instructions du fabriquant.
ACHTUNG
Explosionsgefahr bei falschem Batteriewechsel. Verwenden Sie nur die empfohlenen
Batterietypen des Herstellers. Entsorgen Sie die verbrauchten Batterien laut
Gebrauchsanweisung des Herstellers.
ATENCION
Puede explotar si la pila no este bien reemplazada. Solo reemplazca la pila con tipas
equivalentes segun las instrucciones del manifacturo. Vote las pilas usads segun las
instrucciones del manifacturo.
x
KTC5520/EATX
www.kontron.com
Preface
How to Use This Guide
This user's guide is designed to be used as step-by-step instructions for installation, and as a reference for operation,
troubleshooting, and upgrades.
For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of
third parties are concerned.
The following is a summary of chapter contents:
• Chapter 1, Product Description
• Chapter 2, Board Features
• Chapter 3, Installing the board
• Chapter 4, Management
• Chapter 5, Software Setup
• Appendix A, PCI IDSEL and Device Numbers
• Appendix B, BIOS Setup Error Codes
• Appendix C, Software Update & Drivers
• Appendix D, Troubleshooting
• Appendix E, Getting Help
• Appendix F, Recycling your Board
• Appendix G, Glossary
Customer Comments
If you have any difficulties using this user's guide, discover an error, or just want to provide some feedback, please send a
message to: [email protected] Detail any errors you find. We will correct the errors or problems as soon as
possible and post the revised user's guide on our Web site. Thank you.
xi
KTC5520/EATX
www.kontron.com
Advisory Conventions
Seven types of advisories are used throughout the user guides to provide helpful information or to alert you to the
potential for hardware damage or personal injury. They are Note, Signal Paths, Jumpers Settings, BIOS Settings, Software
Usage, Cautions, and Warnings. The following is an example of each type of advisory. Use caution when servicing electrical
components.
Note:
Indicates information that is important for you to know.
Signal Path:
Indicates the places where you can find the signal on the board.
Jumper Settings:
Indicate the jumpers that are related to this sections.
BIOS Settings:
Indicates where you can set this option in the BIOS.
Software Usage:
Indicates how you can access this feature through software.
CAUTION
Indicates potential damage to hardware and tells you how to avoid the problem.
WARNING
Indicates potential for bodily harm and tells you how to avoid the problem.
ESD Sensitive Device:
This symbol and title inform that electronic boards and their components are sensitive to static
electricity. Therefore, care must be taken during all handling operations and inspections of this
product, in order to ensure product integrity at all times.
Please read also the section "Special Handling and Unpacking Instructions".
CE Conformity:
This symbol indicates that the product described in this manual is in compliance with all applied CE
standards. Please refer also to the section "Regulatory Compliance Statements" in this manual.
Disclaimer: We have tried to identify all situations that may pose a warning or a caution condition in this user's guide.
However, Kontron does not claim to have covered all situations that might require the use of a Caution or a Warning.
xii
KTC5520/EATX
www.kontron.com
Unpacking
Follow these recommendations while unpacking:
• Remove all items from the box. If any items listed on the purchase order are missing, notify Kontron customer
service immediately.
• Inspect the product for damage. If there is damage, notify Kontron customer service immediately.
• Save the box and packing material for possible future shipment.
xiii
KTC5520/EATX
www.kontron.com
Regulatory Compliance Statements
FCC Compliance Statement for Class A Devices
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generated, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experience radio/TV technician for help.
WARNING
This is a Class A product. If not installed in a properly shielded enclosure and used in
accordance with this User's Guide, this product may cause radio interference in
which case users may need to take additional measures at their own expense.
Safety Certification
All Kontron equipment meets or exceeds safety requirements based on the IEC/EN/UL/CSA 60950-1 family of
standards entitled, "Safety of information technology equipment." All components are chosen to reduce fire
hazards and provide insulation and protection where necessary. Testing and reports when required are
performed under the international IECEE CB Scheme. Please consult the "Kontron Safety Conformity Policy
Guide" for more information.
CE Certification
The product(s) described in this user's guide complies with all applicable European Union (CE) directives if it has
a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining
CE compliance also requires proper cable and cabling techniques. Although Kontron offers accessories, the
customer must ensure that these products are installed with proper shielding to maintain CE compliance.
Kontron does not offer engineering services for designing cabling systems. In addition, Kontron will not retest or
recertify systems or components that have been reconfigured by customers.
xiv
KTC5520/EATX
www.kontron.com
Limited Warranty
Kontron grants the original purchaser of Kontron's products a TWO YEAR LIMITED HARDWARE WARRANTY as described in
the following. However, no other warranties that may be granted or implied by anyone on behalf of Kontron are valid
unless the consumer has the express written consent of Kontron.
Kontron warrants their own products, excluding software, to be free from manufacturing and material defects for a period
of 24 consecutive months from the date of purchase. This warranty is not transferable nor extendible to cover any other
users or long- term storage of the product. It does not cover products which have been modified, altered or repaired by any
other party than Kontron or their authorized agents. Furthermore, any product which has been, or is suspected of being
damaged as a result of negligence, improper use, incorrect handling, servicing or maintenance, or which has been
damaged as a result of excessive current/voltage or temperature, or which has had its serial number(s), any other
markings or parts thereof altered, defaced or removed will also be excluded from this warranty.
If the customer's eligibility for warranty has not been voided, in the event of any claim, he may return the product at the
earliest possible convenience to the original place of purchase, together with a copy of the original document of purchase,
a full description of the application the product is used on and a description of the defect. Pack the product in such a way
as to ensure safe transportation.
Kontron provides for repair or replacement of any part, assembly or sub-assembly at their own discretion, or to refund the
original cost of purchase, if appropriate. In the event of repair, refunding or replacement of any part, the ownership of the
removed or replaced parts reverts to Kontron, and the remaining part of the original guarantee, or any new guarantee to
cover the repaired or replaced items, will be transferred to cover the new or repaired items. Any extensions to the original
guarantee are considered gestures of goodwill, and will be defined in the "Repair Report" issued by Kontron with the
repaired or replaced item.
Kontron will not accept liability for any further claims resulting directly or indirectly from any warranty claim, other than
the above specified repair, replacement or refunding. In particular, all claims for damage to any system or process in which
the product was employed, or any loss incurred as a result of the product not functioning at any given time, are excluded.
The extent of Kontron liability to the customer shall not exceed the original purchase price of the item for which the claim
exists.
Kontron issues no warranty or representation, either explicit or implicit, with respect to its products reliability, fitness,
quality, marketability or ability to fulfil any particular application or purpose. As a result, the products are sold "as is,"
and the responsibility to ensure their suitability for any given task remains that of the purchaser. In no event will Kontron
be liable for direct, indirect or consequential damages resulting from the use of our hardware or software products, or
documentation, even if Kontron were advised of the possibility of such claims prior to the purchase of the product or
during any period since the date of its purchase.
Please remember that no Kontron employee, dealer or agent is authorized to make any modification or addition to the
above specified terms, either verbally or in any other form, written or electronically transmitted, without the company's
consent.
xv
KTC5520/EATX
www.kontron.com
Chapter 1
Product Description
1.1
1.2
1.3
1.4
Product Overview....................................................2
What’s Included .....................................................3
Board Specifications ...............................................3
Virtualization Capabilities ........................................4
www.kontron.com
1. Product Description
1.1
Product Overview
Designed with an extensive feature-set and two new Intel® Xeon® processor 5500 series quad-core
processors, the cost-effective Kontron KTC5520-EATX SSI EEB-compliant server board offers extreme
performance, high I/O bandwidth and exceptional reliability. This Kontron server board is expected to serve
OEMs in the designing of multiple applications found in the medical imaging, simulation, storage and
multimedia telecom and data center markets.
An attractive selling point for network managers is the server board’s built-in ability to be fully managed
remotely.Kontron uses an Integrated Management Processor (IMP) that integrates VGA/2D, Baseboard
Management Controler (BMC), and a Keyboard, Video, Mouse / Virtual Media (KVM/VM) emulator over IP to
support real-time access from any computer, anywhere. Intelligent Platform Management Interface (IPMI)
2.0 compliant using IPMI over LAN, the server board provides the OS-independent and cross-platform
interface for monitoring the server system’s temperature, voltage, and fan status, among other items, and
permits out-of-band management even when the main processors are not powered-in.
KVM over IP gives the possibility to work on the server and troubleshoot it from anywhere if there is any
problem. The VM over IP allows administrators to get a virtual local drive to target servers from a remote
drive (floppy, CD/DVD-ROM, flash device, HDD). With this tool, it is possible to install software/OS remotely
for convenient installation. IPMI proactively sends alarms about environmental issues that could threaten
the server's services, therefore reducing system downtime and operation costs.
Among an incredible feature-set, the Kontron KTC5520-EATX server board provides one dual port GbE
controller, eight USB 2.0 ports, four of them are accessible internally through two 9 pins headers; one of
these header is compliant with USB flash drive mezzanine, one TPM 1.2 header, one PCI 32 bits/33 MHz slot,
one PCI-Express x4 Gen1 and four x8 PCI-Express Gen2 slots. It also features six SATA II connectors, seven
fan headers, VGA, legacy PS/2 keyboard/mouse and HD audio interfaces.
The Kontron KTC5520-EATX server board uses the Intel® IOH 36D (I/OAT, VT-d) and Intel® ICH10R chipset
that offer significant new enhancements to accelerate I/O traffic and lower CPU utilization in both native and
virtualized environments. Memory options features are: 12 DDR3 ECC Registered DIMMs for up to 96GB DDR3
800/1066/1333 MHz. There are three channels of two DIMM sockets per CPU. Software support includes
Windows Server 2008 and Red Hat Enterprise Linux version 5.2 or later (64 bits) operating systems.
2
KTC5520/EATX
www.kontron.com
1.2
What’s Included
This board is shipped with the following items:
• One KTC5520/EATX server motherboard
• One rear IO Shield bracket
• Two SATA Cables
• One Documentation & Drivers disk
If any item is missing or damaged, contact the supplier.
1.3
Board Specifications
Table 1-1: Board Specifications
Features
Description
Supported Processors
•
•
Dual Intel® Xeon® Quad Core Processor 5500 Series up to 130W
Integrated DDR3 Memory Controller
Chipset
•
•
•
Intel® 5520 I/O Hub (IOH36D) and I/O Controller Hub (ICH10R)
Intel QuickPath Interconnect point-to-point links capable of up to 6.4 GT/s
PCI Express 2.0
Ethernet Controller
•
Intel® 82576EB Dual 1000BASE-T; supports virtualization
Memory
•
•
12 (twelve) DIMM sockets; 2 DIMMs per channel / 3 channels per CPU
96 GB DDR3 Registered ECC SDRAM 8GB RAM per DIMM
BIOS
•
BIOS based on AMiBIOS 8
I/O Features
•
•
•
•
•
•
Two 10/100/1000 Mbps Ethernet (Intel 82576EB)
Six SATA-II ports (Up to 3Gb/s)
One Serial Port
Integrated VGA (BMC) output to the rear panel
HD 7.1 Channel Audio
4 USB 2.0 ports on Rear Panel I/O
Expansion Features
•
•
•
•
•
•
1 PCIe 2.0 x8 using (x16) slot
3 PCIe 2.0 x8
1 PCIe x4 using x8 slot
1 PCI 32/33 MHz 5V
2 USB headers (one is flash drive compatible) providing 2 USB ports each
1 TPM 1.2 header
Keyboard/Mouse
•
PS/2 keyboard and mouse Mini DIN connector on the rear panel
Graphic
•
•
•
Standard DB15 connector
Maximum Display Resolution [email protected]
Aspeed AST2050
Battery
•
On board Lithium battery for the CMOS memory/RTC backup
•
Implements Audio input/output sextuplet stack earphone jack on the rear panel. The
connections are Line, mic, front, back, side, low-center, SPDIF out/in
Audio
3
KTC5520/EATX
www.kontron.com
Features
Description
Management Features
•
•
•
•
•
IPMI v2.0
Extensive sensors monitoring and event generation on thresholds
Remote management using web management interface
Built-in KVM/VM over IP (BMC)
IPMI Over LAN/ Serial over LAN (IOL/SOL)
Form Factor
•
Server System Infrastructure (SSI) :EEB Form factor
Dimensions
•
EATX (Extended ATX) 12 inches (304.8 mm) x 13 inches (330.2 mm)
Environmental
•
Designed for FCC A Certification with 6 dB margin
Thermal
•
0 -50 C* with sufficient airflow
*Temperature might be higher depending on the chassis. A validation is required.
Humidity
•
Designed to meet 5% to 95% non-condensing
Max consumption :
•
Setting: Intel® Xeon® Processor E5540 (80W), 48GB DDR3 memory, SATA HDD
•
Total: 310W
Power
•
•
Setting: Intel® Xeon® Processor L5518 (60W), 48GB DDR3 memory, SATA HDD
Total: 270W
•
•
Setting: Intel® Xeon® Processor W5580 (130W), 48GB DDR3 memory, SATA HDD
Total: 435W
Power supply must be compliant to the SSI specification
Software Support
•
Windows Server 2008 and Red Hat Enterprise Linux version 5.2 or later (64 bits)
Compliance
•
•
•
•
•
•
PCIe 2.0 specification
6 out of 6 to the RoHS/ WEEE European Directives, China RoHS requirements
ACPI rev 2.0
HPM.1
IPMI 2.0
SSI : Enterprise Electronics Bay Specification 2008, Version 1.
•
Designed to meet UL 60950-1 safety certification, EN55022 Class A, ETS-300-019 compliance,
EN-300-386, IEC 60950, CSA C22.2/60950 (Canada), EN 60950 (EU), EN 55024 (EU), EMC
Directive 89/336/EEC (EU), CE, NEBS Level 3 (designed for), FCC B
Target Certifications
1.4
Virtualization Capabilities
• Intel® Virtualization Technology in Intel® Xeon® processors (Intel® VT-x)
• Intel® Virtualization Technology for Directed I/O (Intel® VT-d)
• Intel® Virtualization Technology for Connectivity (Intel® VT-c)
4
KTC5520/EATX
www.kontron.com
Chapter 2
Board Features
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10
2.11
2.12
2.13
2.14
Block Diagram ........................................................ 6
System Core ........................................................... 7
USB 2.0 Interfaces................................................... 8
USB Flash Module.................................................... 9
Serial ATA .............................................................. 10
Video Interface ....................................................... 10
Audio.................................................................... 11
PS2 Mouse & Keyboard ............................................. 11
Ethernet Interfaces.................................................. 11
Serial Interfaces...................................................... 12
PCI & PCI express Slots ............................................. 12
Real Time Clock & NVRAM .......................................... 12
Baseboard Management Controller ............................. 13
TPM (Trusted Platform Module) .................................. 13
www.kontron.com
2. Board Features
2.1
Block Diagram
Figure 2-1: Block Diagram
6 DIMMs
6 DIMMs
Slot 6
Slot 5
Slot 4
PCIe Gen 2 x8
GbE LAN
PCIe Gen 2 x8
PCIe Gen 2 x4
PCIe Gen 2 x8
GbE LAN
PCIe Gen 2 x8
RMII
Slot 3
Video
Slot 2
PCIe Gen 1 x4
PCI 32
PCI 32
2 X USB 2.0
Slot 1
iBMC
LPC
External USB
Internal USB
4 X USB 2.0
Serial
TPM
header
4 X USB 2.0
SPI
Super
I/O
FLASH
AUDIO
Mouse
Keyboard
Codec
6 SATA
Boazman
6
KTC5520/EATX
www.kontron.com
2.2
System Core
2.2.1
Intel 5500 family Processors
• Built on 45 nanometer process technology.
• Quad core processor in 1366-land FCLGA.
• Instruction Cache = 32 KB, per core
• Data Cache = 32 KB, per core
• 256 KB Mid-Level Cache per core
• Up to 8 MB shared among cores (up to 4)
• Streaming SIMD Extension 2, 3 and 4 (SSE2, SSE3 and SSE4)
• Integrated 3-channel DDR3 memory controller
• Intel QuickPath Interconnect point-to-point links capable of up to 6.4 GT/s
• Intel 64 Architecture
• Enhanced Intel SpeedStep Technology
• Intel Virtualization Technology
• Simultaneous Multi-Threading
2.2.2
Intel IOH 36D
• QuickPath interconnect to the CPU
• 36 PCI Express 2.0 lanes (5.0Gb/sec/lane/direction)
• Enterprise South bridge Interface (ESI) x4 lanes for communicating with the Intel ICH10R
2.2.3
ICH10R
• Enterprise South bridge Interface (ESI) x4 lanes for communicating with the Intel IOH36D
• Real Time Clock
• Serial ATA controller
• RAID configuration available
7
KTC5520/EATX
www.kontron.com
• Advanced Host Controller Interface
• Intel Matrix Storage Technology
• Low Pin Count (LPC) Interface
• Serial Peripheral Interface
• DMA Controller, Timer/Counters, Interrupt Controller
• Universal Serial Bus (USB)
• GPIOs
• Enhanced Power Management
• System Management Bus 2.0 (SMBus)
2.3
USB 2.0 Interfaces
The board embeds a USB controller. This controller is compliant to USB 2.0. It provides four USB ports on the
Rear I/O Bracket. Those ports can be used for external storage and for booting
USB features include:
• Capability to daisy chain as many as 127 devices per interface
• Fast bi-directional
• Isochronous/asynchronous interface
• 480 Mbs transfer rate
• Standardization of peripheral interfaces into a single format
• Retro compatible with USB 1.1 devices
USB supports Plug and Play and hot-swapping operations (OS level). These features allows USB devices to be
automatically attached, configured and detached, without reboot or running setup.
Table 2-1: USB Rear Panel I/O Connector Pinout
Pin
Signal
1
VCC
2
DATA-
3
DATA+
4
GND
8
KTC5520/EATX
www.kontron.com
Table 2-2: USB Header Connector Pinout
Pin
Signal
Pin
Signal
1
VCC
2
VCC
3
DATA0-
4
DATA1-
5
DATA0+
6
DATA1+
7
GND
8
GND
9
KEYING
10
N.C.
Signal Path:
- 4 USB 2.0 on Rear Panel I/O
- 2 USB 2.0 headers (2 ports per header) on the motherboard
BIOS Settings:
Advanced --> USB Configuration
2.4
USB Flash Module
The KTC5520/EATX supports Solid State Drive. It is a NAND flash disk module with a USB 2.0 interface. The
module is socketed on a 2x5 header attached to the KTC5520/EATX PCB. Here are the main features:
• Many available sizes
• Mean-Time Between Failures (MTBF) of 5 millions hours
• 5 Years Useful Life under specific conditions
• Read throughput of 28MB/second
• Write throughput of 20MB/second
• I/O Operations per second of 100 (4KB random 2 Read + 1 Write)
• 5V operating voltage
• 0 to 70 Celcius operating temperature
Signal Path:
USB Flash Module Connector is located on the right side just below the Mem0 Fan connector.
BIOS Settings:
Advanced --> USB Configuration
9
KTC5520/EATX
www.kontron.com
2.5
Serial ATA
The KTC5520/EATX features six SATA connectors. The ports are provided from the ICH10R. They are SATA II
compatible. The ICH10R SATA host controller supports independent DMA operation and supports data
transfer rates of up to 3.0 Gb/s (300 MB/s).
2.5.1
RAID Support
The BIOS Setup Utility provides drive configuration options on the Advanced | Drive Configuration setup
page, some of which affect the ability to configure RAID. The On-board SATA Controller option is enabled by
default and when enabled, the SATA Mode option can be set to either one of the following three modes:
“IDE” It supports up to six SATA ports with IDE legacy Mode.
“AHCI” It supports all SATA ports using the Advanced Host Controller Interface.
“RAID” In this mode, the Intel Embedded Server RAID Technology II is enabled.It provides RAID modes 0 and
1. At least two disks must be connected to activate this option.
When RAID option is set, a reboot is required to activate the RAID controller
Software Usage:
To access the RAID utility interface, CTRL-I must be hit when prompted at startup.
2.6
Video Interface
The integrated VGA controller is fully compliant with the well-known legacy VGA standard. The maximum
graphics display resolution mode the board can support is [email protected] The video controller is not
optimized for 3D rendering.
Signal Path:
Video signals are available through the Rear Panel I/O connector.
Note:
When an external video card is installed, the onboar video will be disabled and the remote video
from the KVM will also be disabled.
10
KTC5520/EATX
www.kontron.com
2.7
Audio
High definition audio is available onboard through a Realtek ALC888 high-performance 7.1 Channel High
Definition Audio Codec providing eight DAC channels. All analog IO are input and output capable, and
headphone amplifiers are also integrated at each analog output. All analog IOs can be re-tasked according to
user’s definitions, or automatically switched depending on the connected device type. The defaults settings
are shown below.
Figure 2-2: Sound Connectors Defaults Settings
Front
Mic In
S/PDIF In
Line
Side
S/PDIF Out
Center/LFE
Rear
Signal Path:
The sound is available through the 6 audio connectors available on the rear bracket.
2.8
PS2 Mouse & Keyboard
Two PS2 connectors are available on the Rear Panel I/O bracket. One is for the keyboard and the other one is
for the Mouse.
2.9
Ethernet Interfaces
The KTC5520/EATX has an Intel 82576EB gigabit Ethernet controllers. Two ports are available through the
Rear Panel I/O.
The i82576EB features high performance with TCP/IP and UDP/IP checksum offloading for IPv4 and IPv6,
packet filtering, and jumbo frame up to 16K. See www.intel.com for additional details on the i82576EB.
The KTC5520/EATX has boot from LAN capability (PXE) on these ports. Enable the option from the BIOS Setup
Program. Please refer to Section 5.1, AMI BIOS Set-up Program.
Signal Path:
Two RJ45 connectors are available on the Rear Panel I/O.
BIOS Settings:
Advanced --> Onboard LAN Configuration
11
KTC5520/EATX
www.kontron.com
2.10 Serial Interfaces
The KTC5520/EATX has one serial port on the Rear Panel I/O for asynchronous serial communications. It is a
16C550 high-speed UART compatible and support 16-byte FIFO buffers for transfer rates from 9,6Kbps to
115,2Kbps.
Table 2-3: Serial Interface Connector Pinout
Pin
Signal
1
DCD
2
RXD#
3
TXD#
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
Signal Path:
The serial port is available through the DB9 connector located on the Rear Panel I/O shield
BIOS Settings:
System Management --> SuperIO Configuration
2.11 PCI & PCI express Slots
One PCI 32bit/33MHz 5V is available on slot 1 and allows the installation of a PCI expansion card. One PCI
express Gen1 x4 with a x8 connector is available on slot 2. Three PCI express Gen2 x8 with x8 connectors are
avaialable on slot 3, 4 & 5. One PCI express Gen2 x8 with a x16 connetor is available on slot 6.
Note:
If a PCI express x16 expansion card is installed in slot6, it will only work at PCI express x8.
2.12 Real Time Clock & NVRAM
This motherboard has a battery backup.
12
KTC5520/EATX
www.kontron.com
2.13 Baseboard Management Controller
The Baseboard Management Controller is provided using the Aspeed AST2050. This part provides video
display, KVM and VM support.
2.14 TPM (Trusted Platform Module)
The KTC5520/EATX has one TPM 1.2 header on the baseboard. This connector supports a TPM module, which
can securely store keys, digital certificates, passwords and data. It also helps to enhance network security,
protect digital identies and ensure platform integrity.
Table 2-4: TPM Pinout
Pin
Signal
Pin
Signal
1
LCLK
2
GND
3
LFRAME#
4
5
LRESET#
6
P5V
7
LAD3
8
LAD2
9
P3V
10
LAD1
11
LAD0
12
GND
13
SCL
14
SDA
15
P3VSB
16
SERIRQ
17
GND
18
CLKRUN#
19
LPCPD#
20
LDRQ0#
13
KTC5520/EATX
www.kontron.com
Chapter 3
Chapter 3
Installing the Board
3.1
3.2
3.3
3.4
Setting Jumpers ...................................................... 15
Board Installation ................................................... 16
Quick Reference Sheet .............................................. 22
Battery Backup ....................................................... 23
www.kontron.com
3. Installing the Board
3.1
Setting Jumpers
3.1.1
Jumper Description
Table 3-1: Jumper Description
Name
Description
Jumper
Onboard Video
If jumper is present, the video and the KVM video will be disabled
JP 3(7-8)
BMC Disabled
If jumper is present, it disables the BMC Operation
JP2 (1-2)
Clear CMOS Configuration
If jumper is present, it clears the CMOS Configuration
JP2 (9-10)
Firmware Write Protect
If jumper is present, it protects the Firmware
JP1 (7-8)
3.1.2
Setting Jumper & Locations
Figure 3-1: Jumper Locations
AST
2050
Slot 3
PCI Express Gen2 x8
Slot 2
PCI Express Gen1 x4
ICH10
Slot 1
PCI 32b / 33MHz
JP3
JP2
1
USB
FWM
MEZZ
Front Panel
Connector
5
4
JP1
1
1
3
2
TPM
Header
1
SATA
0
Sys2 Sys1
Fan Fan
A
POST Codes
Intrusion
Connector
Jumper Settings:
More details about jumper settings can be found in section 3.3.
15
KTC5520/EATX
www.kontron.com
3.2
Board Installation
3.2.1
Installing the I/O Shield
Install the I/O Shield from the inside of the chassis; audio connectors holes must be close to the PCI slots.
Figure 3-2: Rear Panel I/O Shield
3.2.2
Installing the Motherboard
Make sure all 10 chassis standoffs are properly aligned with the 10 mounting holes shown in red below.
Install the 10 fixing screws at their proper location. (screws are provided with your chassis)
Figure 3-3: Mounting Holes
EATX 12V
EATX POWER
Serial
DDR 3 ECC Registered Channel 2 Slot 0
Fill First
DDR 3 ECC Registered Channel 2 Slot 1
Fill Second
DDR 3 ECC Registered Channel 1 Slot 0
Fill First
Mem1
Fan
EATX 12V
CPU0 Fan
DDR 3 ECC Registered Channel 1 Slot 1 Fill Second
VGA
DDR 3 ECC Registered Channel 0 Slot 0
Fill First
DDR 3 ECC Registered Channel 0 Slot 1
Fill Second
CPU 0
PS2 kbd
mouse
RJ45 LAN2
USB
RJ45 LAN1
USB
CPU1 Fan
CPU 1
DDR 3 ECC Registered Channel 0 Slot 1 Fill Second
DDR 3 ECC Registered Channel 0 Slot 0
Audio
Fill First
DDR 3 ECC Registered Channel 1 Slot 1 Fill Second
DDR 3 ECC Registered Channel 1 Slot 0
Fill First
DDR 3 ECC Registered Channel 2 Slot 1 Fill Second
Sys3
Fan
Slot 5
PCI Express Gen2 x8
Super
I/O
AST
2050
DDR 3 ECC Registered Channel 2 Slot 0
Slot 6
PCI Express Gen2 x8
Fill First
i82576
Slot 4
PCI Express Gen2 x8
i5520
Battery
Mem0
Fan
Slot 3
PCI Express Gen2 x8
USB / USB Flash
IOH
Slot 2
PCI Express Gen1 x4
ICH10
Slot 1
PCI 32b / 33MHz
JP3
JP2
1
USB
FWM
MEZZ
Front Panel
Connector
Speaker
5
4
1
1
3
2
SATA
16
JP1
1
TPM
Header
0
Sys2 Sys1
Fan Fan
AUX Connector
POST Codes
Intrusion
Connector
KTC5520/EATX
www.kontron.com
3.2.3
Connecting the Power Supply
Connect both EATX 12V connectors and the 24-pin main power connector.
Figure 3-4: Connecting the Power
EATX 12V
Serial
EATX POWER
DDR 3 ECC Registered Channel 2 Slot 0
Fill First
DDR 3 ECC Registered Channel 2 Slot 1
Fill Second
DDR 3 ECC Registered Channel 1 Slot 0
Fill First
Mem1
Fan
EATX 12V
CPU0 Fan
DDR 3 ECC Registered Channel 1 Slot 1 Fill Second
VGA
DDR 3 ECC Registered Channel 0 Slot 0
Fill First
DDR 3 ECC Registered Channel 0 Slot 1
Fill Second
CPU 0
PS2 kbd
mouse
RJ45 LAN2
USB
RJ45 LAN1
USB
CPU1 Fan
CPU 1
DDR 3 ECC Registered Channel 0 Slot 1 Fill Second
DDR 3 ECC Registered Channel 0 Slot 0
Fill First
A di
WARNING
Heat sinks might have sharp hedges.
Note:
Power supply must be compliant to the SSI specification and it is recommended to use a 1000W
power supply.
3.2.4
Memory
The KTC5520/EATX has 6 memory channels, 3 for each CPU. There are 2 DIMMs per memory channels for a
total of 12 DDR3 memory sockets. The KTC5520/EATX accepts DDR3, 1.5V typical, registered, ECC, x4 or x8
memory with up to 4 ranks per DIMM. The DDR3 memory channels run at 800MHz, 1066MHz and 1333MHz
depending on your CPUs. The maximum DDR3 SDRAM size is 8GBytes per DIMM for a populated 96 gigabytes
maximum on the KTC5520/EATX. Memory modules shall have a validated thermal solution (heatsink) and
may require a certain class of chassis. It is recommended that modules have thermal sensors for accurate
temperature monitoring and to throttle the memory interface in case of overheating. Memory can perform
double refresh rate to get higher maximum operating temperature.
The content of the SDRAM is not affected by a warm reset.
A minimum memory size of 1 Gbyte is supported using a single DIMM. A maximum memory size of 96 Gbyte is
supported using 8 Gbyte technology DIMM in each slot.
Always populate Slot 0 first on each channel.
17
KTC5520/EATX
www.kontron.com
Table 3-2: Memory Configuration
DIMM Slots
per Channel
DIMM Populated
per Channel
POR Speeds
Rank per DIMM
Population Rules
(any combination)
2
1
800, 1066, 1333
SR, DR
2
1
800, 1066
QR
2
2
800, 1066
SR, DR
2
2
800
SR, DR, QR
1. Any combination of x4 and x8 RDIMMs, with
1Gb, or 2Gb DRAM density
2. Populate DIMMs starting with clock 0, furthest
from the CPU
Kontron recommends to use tested memory with this product. Thermal issues or other problems may arise if
you don’t use tested modules. At the time of publication of this user guide, the following memories (Table 33) were confirmed functional with the product. As the memory market is volatile, this list is subject to
change, consult the KTC5520/EATX web page for an up to date list.
3.2.4.1
Memory List and Characteristics:
Table 3-3: Tested Memory List
Manufacturer Part Number
Description
Company
VL33B2863E-F8MD
1GB PC3-8500 Registered ECC DIMM - 1 RANK - HEIGHT: 0,72''
Virtium
VL33B5663F-F8M
2GB PC3-8500 REGISTERED ECC DIMM - 2 RANK - HEIGHT: 0,700''
Virtium
VL33B5663E-F8MD
2GB PC3-8500 Registered ECC DIMM - 2 RANK - HEIGHT: 0,72''
Virtium
SG572568FH8P6LC1
2GB PC3-8500 Registered ECC DIMM - 2 RANK - HEIGHT: 0,74''
Smart Modular Technologies
SG572568FH8P6LC
2GB PC3-8500 REGISTERED ECC DIMM - 2 RANK - HEIGHT: 1,18''
Smart Modular Technologies
VL33B5160A-K9S
4GB PC3-10600 REGISTERED ECC DIMM- 2 RANK - HEIGHT: 1,181''
Virtium
VL33B5168F-F8M
4GB PC3-8500 REGISTERED ECC DIMM - 2 RANK - HEIGHT: 0,700''
Virtium
VL33B5160A-F8S
4GB PC3-8500 REGISTERED ECC DIMM - 2 RANK - HEIGHT: 1,181''
Virtium
SG5127RD325693-HB
4GB PC3-10600 REGISTERED ECC DIMM - 2 RANK
Smart Modular Technologies
18
KTC5520/EATX
www.kontron.com
3.2.4.2
Installing the Memory
It is highly recommended to populate equally the memory for each CPU beginning with channel 0.
Figure 3-5: Memory and CPU association
EATX 12V
Serial
EATX POWER
DDR 3 ECC Registered Channel 2 Slot 0
Fill First
DDR 3 ECC Registered Channel 2 Slot 1
Fill Second
DDR 3 ECC Registered Channel 1 Slot 0
Fill First
Mem1
Fan
EATX 12V
CPU0 Fan
DDR 3 ECC Registered Channel 1 Slot 1 Fill Second
VGA
DDR 3 ECC Registered Channel 0 Slot 0
Fill First
DDR 3 ECC Registered Channel 0 Slot 1
Fill Second
CPU 0
PS2 kbd
mouse
RJ45 LAN2
USB
RJ45 LAN1
USB
CPU1 Fan
CPU 1
DDR 3 ECC Registered Channel 0 Slot 1 Fill Second
DDR 3 ECC Registered Channel 0 Slot 0
LAN 2
Audio
Fill First
DDR 3 ECC Registered Channel 1 Slot 1 Fill Second
DDR 3 ECC Registered Channel 1 Slot 0
Fill First
DDR 3 ECC Registered Channel 2 Slot 1 Fill Second
LAN1
Sys3
Fan
DDR 3 ECC Registered Channel 2 Slot 0
Slot 6
PCI Express Gen2 x8
Fill First
WARNING
Unplug the power supply before manipulating the dimms
WARNING
Because static electricity can cause damage to electronic devices, take the following
precautions:
Wear a grounding wrist strap before removing the board from its package; this will
discharge any static electricity that may have built up in your body.
19
KTC5520/EATX
www.kontron.com
Figure 3-6: Memory Installation
Insert the memory module into a socket, aligning
the notches on the module with the socket’s key
inserts.
Push down the memory module until the retaining
clips lock on each side.
Repeat these steps to populate the other socket.
To remove a memory module from a socket, push
sideway the retaining clips on each side of the
socket, to release the module. Pull out the memory
from the socket.
20
KTC5520/EATX
www.kontron.com
3.2.5
Processor
All Intel Xeon Quad Core Processors 5500 Series up to 130W are supported.
Figure 3-7: Processors Locations
EATX 12V
Serial
EATX POWER
DDR 3 ECC Registered Channel 2 Slot 0
Fill First
DDR 3 ECC Registered Channel 2 Slot 1
Fill Second
DDR 3 ECC Registered Channel 1 Slot 0
Fill First
Mem1
Fan
EATX 12V
CPU0 Fan
DDR 3 ECC Registered Channel 1 Slot 1 Fill Second
VGA
DDR 3 ECC Registered Channel 0 Slot 0
Fill First
DDR 3 ECC Registered Channel 0 Slot 1
Fill Second
CPU 0
PS2 kbd
mouse
RJ45 LAN2
USB
RJ45 LAN1
USB
CPU1 Fan
CPU 1
DDR 3 ECC Registered Channel 0 Slot 1 Fill Second
DDR 3 ECC Registered Channel 0 Slot 0
Audio
Fill First
DDR 3 ECC Registered Channel 1 Slot 1 Fill Second
DDR 3 ECC Registered Channel 1 Slot 0
Fill First
DDR 3 ECC Registered Channel 2 Slot 1 Fill Second
3.2.5.1
Processor Installation
In the case only one processor is installed on the KTC5520/EATX, CPU1 shall be installed to keep the
temperature monitoring features of the CPU. Otherwise, if it is installed in the other CPU socket, the
processor temperature reading will not be possible and the fan management will raise CPU0 fan speed to
maximum. Sensors 08 and 09 values will display “No Reading” and sensors 44 and 45 status will indicate a
Configuration Error.
Make sure to follow the instructions provided with the processor and it’s thermal solution when installing it
and it’s thermal solution.
21
KTC5520/EATX
www.kontron.com
3.3
Quick Reference Sheet
Figure 3-8: Quick Reference Sheet
EATX 12V
EATX POWER
Serial
Serial
DDR 3 ECC Registered Channel 2 Slot 0
Fill First
DDR 3 ECC Registered Channel 2 Slot 1
Fill Second
DDR 3 ECC Registered Channel 1 Slot 0
Fill First
Mem1
Fan
EATX 12V
CPU0 Fan
DDR 3 ECC Registered Channel 1 Slot 1 Fill Second
VGA
DDR 3 ECC Registered Channel 0 Slot 0
Fill First
DDR 3 ECC Registered Channel 0 Slot 1
Fill Second
CPU 0
PS2 kbd
mouse
VGA
RJ45 LAN2
USB
Keyboard
RJ45 LAN1
USB
Mouse
CPU1 Fan
CPU 1
DDR 3 ECC Registered Channel 0 Slot 1 Fill Second
DDR 3 ECC Registered Channel 0 Slot 0
USB
RJ45 LAN 2
Audio
Fill First
DDR 3 ECC Registered Channel 1 Slot 1 Fill Second
DDR 3 ECC Registered Channel 1 Slot 0
Fill First
DDR 3 ECC Registered Channel 2 Slot 1 Fill Second
RJ45 LAN1
S/PDIF In
Line
Side
S/PDIF Out
Center/LFE
Slot 5
PCI Express Gen2 x8
Super
I/O
AST
2050
Link/Act
OFF: No Link
Green: Link
Blinking: Activity
Clear CMOS in Flash
Normal Operation
JP1 (7-8) Firmware Write Protect
USB / USB Flash
JP2
4
1
3
2
1
TPM
Header
Sys2 Sys1
Fan Fan
AUX Connector
POST Codes
Intrusion
Connector
0
SATA
NMI_CPU_SW
NIC#2 LED +
NIC#2 LED -
SMBus SCL
Chassis Intrusion
5
JP1
1
Software Startup
Obtaining / Configuring the IP address:
-Enter the BIOS setup
-Go to LAN configuration Menu. This menu is located under
« System Management »
-Set LAN channel IP Address source, IP Address, MAC Address,
Subnet Mask and if required the Gateway Address on the
corresponding menu.
Accessing Kontron Web Management Interface
-Type the IP address of your board in the address bar of
an Internet browser
-User Name: admin
-Password: admin
in
out
Protected
Not Protected
SMBus SDA
NIC#1 LED +
NIC#1 LED GND
SYS ID LED +
SYS ID LED -
in
out
SYS_ID_SW
JP2 (9-10) Clear CMOS in Flash
R eset SW
GND
in
out
Front Panel
Connector
PWR SW
Disable BMC Operation
Normal Operation
HDD LED -
JP2 (1-2) BMC Disabled
SYS Fault LED1SYS Fault LED2 -
in
out
Speaker
ICH10
JP3
FWM
MEZZ
HDD LED +
1
JP3 (7-8) Onboard Video
Mem0
Fan
IOH
Slot 2
PCI Express Gen1 x4
USB
JUMPER SETTINGS
Battery
Slot 3
PCI Express Gen2 x8
1
( Default Setting)
Disabled (No KVM function)
Normal Operation
i5520
Slot 1
PCI 32b / 33MHz
Speed
OFF: 10Mb/s
Amber: 100Mb/s
Green: 1000Mb/s
Fill First
i82576
Slot 4
PCI Express Gen2 x8
Front Pane Power
Rear
DDR 3 ECC Registered Channel 2 Slot 0
Slot 6
PCI Express Gen2 x8
PWR LED -
Front
Mic In
Sys3
Fan
PWR LED +
USB
Note:
A soft copy can be accessed through the Web Management Interface. The latest version is always
available from the Kontron web site at: www.kontron.com
22
KTC5520/EATX
www.kontron.com
3.4
Battery Backup
An onboard 3V lithium battery is provided to back up BIOS setup values and the real time clock (RTC).
3.4.1
Operation and Preventative Maintenance
The operational battery voltage must be between 2.4 and 3.0 volts.
When the board is stored and is kept in it's original package, the battery must be replaced when the battery voltage is
below 2.4 volts.
For preventive operational maintenance, we recommend to verify the battery voltage after 4 years. After that period, we
recommend that the safety voltage is checked more often. The normal battery life expectancy depends on the utilisation of
the board.
Battery description: CR2032 3V battery
3.4.2
Replacing the Battery
To replace the battery follow the procedure below:
1 Turn off the board and disconnect the AC power cord from the power supply.
2 Remove the battery from the socket with your fingers. Do not use any metal tool.
3 Install a new battery in the socket and observe the correct polarity. (+ must face up)
4 Reconnect the AC power cord and boot the board.
5 Enter the BIOS setup by pressing “F1” to restore the time and date configurations.
WARNING
There is a danger of explosion if you replace the battery incorrectly.
Replace the battery with the same or equivalent type .
23
KTC5520/EATX
www.kontron.com
Chapter 4
Management
4.1
4.2
4.3
4.4
4.5
4.6
4.7
Connecting to the Web Management Interface ............... 25
System................................................................... 25
Sensor ................................................................... 26
Control .................................................................. 26
Console.................................................................. 27
Maintenance ........................................................... 28
Logout ................................................................... 30
www.kontron.com
4. Management
4.1
Connecting to the Web Management
Interface
Before connecting to the Management Interface, the Management IP address needs to be confirmed. To
obtain the address or configure it:
• Enter the BIOS Setup.
• Go to LAN configuration menu, which is located under “System Management”.
• Set LAN channel IP Address source, IP Address, MAC address, Subnet Mask and if required, the Gateway
address on the corresponding menu.
• To enable the settings, select “Enable Channel”.
To access to the Web Management Interface:
• Open any web browser.
• Type the address of the management controller in the browser address bar.
• The default user name and password are admin/admin.
Note:
A maximum of 5 users can be connected simultaneously.
An automatic logout will be done after 300 seconds of inactivity.
4.2
System
4.2.1
Information
Once connected to the Web Management Interface, the first page seen is the System Information. All board
information are displayed on this page.
4.2.2
Event Log
On the left column, the Event Log section can be selected by clicking on the corresponding text. In this
section the System Event Log (SEL) Information and the Event list are shown. A maximum of 1023 events can
be displayed; the older ones will be removed when there are more than 1023. Using the arrows at the bottom
of the displaying table can browse events. They can be cleared or refreshed manually.
25
KTC5520/EATX
www.kontron.com
4.3
Sensor
4.3.1
Reading
This web management section displays all the board sensors readings. The values can be refreshed manually,
if required.
4.4
Control
4.4.1
Remote Power/Reset
This section allows to power down, shutdown, reset and power cycle the board.
Table 4-1: Payload impact
Command
Payload impact
Power Down Now
A power down will turn OFF the payload like if the Power button was pushed for 4 seconds.
Graceful Shutdown
A graceful shutdown will power off the payload in a controlled way. It will initiate a proper OS
shutdown.
Reset
A reset will immediately reboot the payload like if the Reset button was pushed.
Power Cycle
A power cycle will power down and then start the payload.
Current POST value is displayed in this page.
4.4.2
Fans
This section allows viewing and controlling the fans speed. Two modes are available to control the fans
"Switch to Manual Speed Control" or "Switch to Auto Temp Control". Click the corresponding button to
switch them. Only the manual mode can be used to modify the memory fan controls.
By default, automatic mode is selected. Targeted temperature, high and low tolerance and maximum and
minimum fan speed need to be set. Fan speed range is from 0 to 63.
The second one is the manual mode and only target speed setting can be adjusted. The lowest value is 0 and
maximum speed is 63.
To activate the new configuration, the button "Set New Speed" must be click.
26
KTC5520/EATX
www.kontron.com
4.5
Console
4.5.1
KVM/VM
This section gives access to the KVM and the VM.
4.5.1.1
KVM
To start the KVM, click on the button called “KVM (Keyboard Video Mouse)”. A small Java file will be
downloaded on the local computer. A safety warning might pop-up and asks if the application can be started.
Answer "yes" to continue. Then a new window will appear and display what is shown on the
computer(KTC5520/EATX).
The motherboard can be managed from any remote computer. Only the IP address is required to access it.
The mouse needs to be configured depending on the installed operating system. To do so, when the KVM is
started, click on Tools, located on the menu bar, then on Mouse and select the appropriate OS in the Mouse
Acceleration section; then click on OK.
4.5.1.2
VM
To start the VM, click on the button called “Virtual Media”. A small Java file will be downloaded on the local
computer. A safety warning might pop-up and asks if the application can be started. Answer "yes" to
continue. Then a new window will appear in which there will be all physical drives which are on the local
computer. Drive image can be added by clicking on "Add image" button. In this menu, select an ISO or IMG
file to be mounted. To map a drive, check the corresponding box in the window. The device will be detected as
a USB device. An operating system installation can be done remotely by mapping the source file.
27
KTC5520/EATX
www.kontron.com
4.6
Maintenance
4.6.1
Documentation
This section allows accessing the "Quick Reference Sheet" without being connected on internet. It also
provides a web link to access the manual and all the drivers required for this board. An internet connection is
required to download the latest files.
4.6.2
Firmware Upgrade
This section gives the possibility to upgrade the firmware of the Web Management Interface.
1 To proceed, simply click “browse...” and select the “.hpm” file to upload. Then click on “File Upload”.
Figure 4-1: Firmware Upgrade Step 1
Firmware Upgrade
Select File (.hpm) and Upload
2 When the file is uploaded, the file information will be displayed.
Figure 4-2: Firmware Upgrade Step 2
Firmware Upgrade
Start Firmware Upgrade
File Image Info
Image Name
kmdk_4001_v1_20_BETA.hpm
File MD5 Sum
0f17d2d735f0b688f66671ad068925a1
MD5 File Check
Passed
Version
1.20
Description
Rootfs
Firmware Length
1.20
28
KTC5520/EATX
www.kontron.com
3 Start the firmware upgrade by clicking “Start Upgrade”. A progress bar will display the upgrade status.
Figure 4-3: Firmware Upgrade Step 3
Firmware Upgrade
Upgrade Process
File Image Info
Image Name
kmdk_4001_v1_20_BETA.hpm
File MD5 Sum
0f17d2d735f0b688f66671ad068925a1
MD5 File Check
Passed
Version
1.20
Description
Rootfs
Firmware Length
1.20
Note: Do not power down before upgrade process completes!
Upgrading...
4 If the upgrade is successful, the "Reboot Management" button will appear. Click it to restart the
management interface. An automatic page reload will be done after 30 seconds. This reboot has no
payload impact. If the upgrade fails, please contact your Kontron Technical Support to obtain a procedure
to manually upgrade or restore your firmware.
Figure 4-4: Firmware Upgrade Step 4
Firmware Upgrade
Upgrade Succeeded!
File Image Info
Image Name
kmdk_4001_v1_20_BETA.hpm
File MD5 Sum
0f17d2d735f0b688f66671ad068925a1
MD5 File Check
Passed
Version
1.20
Description
Rootfs
Firmware Length
1.20
File upgrade completed successfully!
Hit reboot to complete upgrade
Note: Management reboot has no payload impact
29
KTC5520/EATX
www.kontron.com
4.6.3
Users
This section allows managing the authorized users. A maximum of five (5) users can be set. All users can be
enabled or disabled. Privilege levels are defined in the table below.
Table 4-2: Privilege Level Description
Privilege Levels
Description
Administrator
All BMC commands are allowed, including configuration settings. An Administrator can even execute
configuration commands that would disable the channel that the Administrator is working on.
Operator
All BMC commands are allowed, except for configuration settings which can change the behavior of the outof-band interfaces. For example, Operator privilege does not allow the capability to disable individual
channels, or change user access privileges.
User
Only “basic” commands are allowed. These are primarily commands that read data and retrieve status.
Commands that can be used to alter BMC configuration, write data to the management controllers, or
perform system actions such as resets, power on/off, and watchdog activation are locked.
Callback
This may be considered the lowest privilege level. Only commands necessary to support initiating a callback
are allowed.
No Access
No access is given to this user.
The User ID 1 is a user without name and password. This user can be enabled or disabled and has a privilege
level set to “User” by default.
The User ID2 is the admin user. It has the “Administrator” privileges.
The User ID3 to User ID5 are configurable. By default they are not set to “Enable”.
4.7
Logout
This button allows a safe logout of the management interface.
An automatic logout will be done after 300 seconds of inactivity.
30
KTC5520/EATX
www.kontron.com
Chapter 5
Chapter 5
Software Setup
5.1 AMI BIOS Setup Program........................................... 32
5.2 Boot Utilities.......................................................... 85
5.3 Console Redirection (VT100 Mode).............................. 86
www.kontron.com
5. Software Setup
5.1
AMI BIOS Setup Program
All relevant information for operating the board and connected peripherals are stored in the CMOS memory
backed-up by a battery or in the main BIOS flash and EEPROM. The latest is the default configuration.
5.1.1
Accessing the BIOS Setup Utility
The system BIOS (Basic Input Output System) provides an interface between the operating system and the
hardware of the KTC5520/EATX board. It uses the AMI Setup program, a setup utility in flash memory that is
accessed by pressing the <DEL> (or <F4> from a console redirection terminal) key at the appropriate time
during system boot. This utility is used to set configuration data in CMOS RAM.
To run the AMI Setup program incorporated in the ROM BIOS:
• Turn on or reboot the system.
• When you get the following messages, hit <DEL> key to enter SETUP.
AMIBIOS(C)2006 American Megatrends, Inc.
KONTRON KTC5520/EATX BIOS Version 1.28
(C) American Megatrends, Inc.
64-3047-009999-00101111-112408-TYLSBURG-5007_041-Y2KC
CPU : Intel(R) Xeon(R) CPU
E5540 @ 2.53GHz
Speed : 2.53 GHz
Reset Type: Cold Reset
BIOS Upgrade externally
Currently Running On Primary BIOS.
Press DEL to run Setup (F4 on Remote Keyboard)
Press F12 if you want to boot from the network
Press F11 for BBS POPUP (F3 on Remote Keyboard)
Initializing USB Controllers .. Done.
Memory Channel 0
Memory Channel 0
Memory Channel 1
Memory Channel 1
Memory Channel 2
Memory Channel 2
DDR3: 1016MB OK,
DIMM 0
DIMM 1
DIMM 0
DIMM 1
DIMM 0
DIMM 1
Speed:
Size 1024MB
Size Not Installed
Size Not Installed
Size Not Installed
Size Not Installed
Size Not Installed
1333MHz
USB Device(s): 1 Keyboard, 1 Storage Device
Auto-detecting USB Mass Storage Devices ..
Device #01 : Corsair Flash Voyager *HiSpeed*
01 USB mass storage devices found and configured.
Initializing Intel(R) Boot Agent GE v1.3.24
PXE 2.1 Build 086 (WfM 2.0)
Initializing Intel(R) Boot Agent GE v1.3.24
PXE 2.1 Build 086 (WfM 2.0)
32
KTC5520/EATX
www.kontron.com
The main menu of the AMI BIOS CMOS Setup Utility appears on the screen.
Main
Advanced
Security
Boot
System Management
Exit
********************************************************************************
* System Overview
* Sub-menu to display
*
* *************************************************** * memory configuration
*
* AMIBIOS
* of each DIMM
*
* BIOS Version
08.00.15
*
*
* Build Date:
11/24/08
*
*
* BIOS ID
5007_040
*
*
* FPGA Version:
2.04
*
*
*
*
*
*
*
*
* System Memory
1016MB
*
*
* System Memory Speed
1333MHz
*
*
* * Memory Size Configuration
*
*
*
* *
Select Screen
*
*
* **
Select Item
*
*
* Enter Go to Sub Screen *
*
* F1
General Help
*
* System Time
[23:33:11]
* F10
Save and Exit
*
* System Time
[23:33:14]
* F10
Save and Exit
*
*
*
*
*
*
*
********************************************************************************
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
Setup Default values provide optimum performance settings for all devices and system features.
Note:
The CMOS setup options described in this section are based on BIOS Version1.28. The options and
default settings may change in a new BIOS release. To obtain the latest release, consult the Kontron
web site.
CAUTION
These parameters have been provided to give control over the system. However, the
values for these options should be changed only if the user has a full understanding
of the timing relationships involved.
Note:
All options in Bold are the default settings.
33
KTC5520/EATX
www.kontron.com
5.1.2
Menu Bar
The Menu Bar at the top of the window lists these selections:
Menu Selection
Description
Main
Use this menu for basic system configuration.
Advanced
Use this menu to set the Advanced Features available on your system.
Security
Use this menu to configure Security features.
Boot
Use this menu to determine the booting device order.
System Management
Use this menu to set and view the System Management on your system.
Exit
Use this menu to choose Exits option.
Use the left and right arrows keys to make a selection.
5.1.2.1
Legend Bar
Use the keys listed in the legend bar on the bottom to make your selections or exit the current menu. The
chart on the following page describes the legend keys and their alternates.
Key
Function
<F1>
General Help windows (see 4.1.2.2).
<Esc>
Exit this menu.
--> arrow keys
Select a different menu.
<Home> or <End>
Move cursor to top or bottom of window.
<PgUp> or <PgDn>
Move cursor to top or bottom of window.
<->
Select the Previous Value for the field.
<+>
Select the Next Value for the field.
<F2> and <F3>
Change colors used in Setup.
<F7>
Discard the changes for all menus.
<F9>
Load the Optimal Default Configuration values for all menus.
<F10>
Save and exit.
<Enter>
Execute Command, display possible value for this field or Select the sub-menu.
To select an item, use the arrow keys to move the cursor to the field you want. Then use the plus-and-minus
value keys to select a value for that field. To save value commands in the Exit Menu, save the values displayed
in all menus.
To display a submenu, use the arrow keys to move the cursor to the submenu you want. Then press <Enter>.
5.1.2.2
Field Help Window
The help window on the right side of each menu displays the help text for the selected field.
It updates as you move the cursor to each field.
34
KTC5520/EATX
www.kontron.com
5.1.2.3
General Help Windows
Pressing <F1>on any menu brings up the General Help window that describes the legend keys and their
alternates:
General Help

Select Screen
+Change Option/Field
PGDN Next Page
HOME Go to Top of Screen
F2/F3 Change Colors
F9
Load Defaults
F10
Save and Exit

Enter
PGUP
END
F7
ESC
Select Item
Go to Sub Screen
Previous Page
Go to Bottom of Screen
Discard Changes
Exit
[OK]
5.1.3
Main menu
Feature
Options
Description
Setup Help
Version
X.YY
Displays the BIOS core version.
N/A, display only.
YYMMDD
Displays the BIOS build date in the format
YYMMDD.
N/A, display only.
BIOS ID code
Displays the BIOS identification code.
The first 5 characters uniquely identify the
board.
The last 3 digits correspond to BIOS version in
the format X.YZ.
N/A, display only.
CPU Brand string
Reads and display the 48 bytes CPU Brand
string from the CPU MSR.
N/A, display only.
Speed
X Ghz
Displays the current processor core(s) speed.
N/A, display only.
Count
x
Displays the number of physical processors.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
Set the system time.
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a field.
Use [+] or [-] to
configure system Time.
Set the system date.
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a field.
Use [+] or [-] to
configure system Date.
Build Date
ID
System Time
System Date
HH:MM:SS
MM/DD/YYYY
35
KTC5520/EATX
www.kontron.com
5.1.4
Advanced menu
Feature
Options
Description
Setup Help
CPU Configuration
N/A
Press Enter to go to sub screen "CPU
Configuration".
Configure CPU.
Drive Configuration
N/A
Press Enter to go to sub screen "Drive
Configuration".
Configure Drive
device(s).
SuperIO Configuration
N/A
Press Enter to go to sub screen "SuperIO
Configuration".
Configure SuperIO
Chipset Win627DHG.
USB Configuration
N/A
Press Enter to go to sub screen "USB
Configuration".
Configure the USB
support.
Onboard LAN
Configuration
N/A
Press Enter to go to sub screen "Onboard LAN
Configuration".
Configure the LAN
Devices.
ACPI Configuration
N/A
Press Enter to go to sub screen "ACPI
Configuration".
Section for Advanced
ACPI Configuration.
Remote Access
Configuration
N/A
Press Enter to go to sub screen "Remote Access
Configuration".
Configure Remote
Access.
Chipset Configuration
N/A
Press Enter to go to sub screen "Chipset
Configuration".
Virtualization
Configuration
N/A
Press Enter to go to sub screen "Virtualization
Configuration".
Advanced Virtualization
Settings
Trusted Computing
N/A
Press Enter to go to sub screen "Trusted
Computing".
Configure settings
related to Trusted
Computing innovations
Watchdog Configuration
N/A
Press Enter to go to sub screen "Watchdog
Configuration".
Watchdog Configuration
Event Log Configuration
N/A
Press Enter to go to sub screen "Event Log
Configuration".
Mark as read, Clear
or View Event Log
statistics.
Expansion Slots
Configuration
N/A
Press Enter to go to sub screen "Expansion
Slots Configuration".
Expansion Slots Option
ROM Configuration
36
KTC5520/EATX
www.kontron.com
5.1.4.1
CPU Configuration sub-menu
Feature
Options
Description
Setup Help
Manufacturer
Intel
Displays the processor manufacturer name.
N/A, display only.
CPU Brand string
Reads and display the 48 bytes CPU Brand
string from the CPU MSR.
N/A, display only.
Frequency
X Ghz
Displays the current processor core(s) speed.
N/A, display only.
BCLK Speed
x MHz
Displays the surrent BCLK speed
N/A, display only.
Cache L1
X KB
Displays amount of Level 1 processor cache per
processor.
N/A, display only.
Cache L2
X KB/MB
Displays amount of Level 2 processor cache per
processor.
N/A, display only.
Cache L3
X KB/MB
Displays amount of Level 3 processor cache per
processor.
N/A, display only.
Ratio Status
Unlocked
Locked
Lock status of the FSB multiplier.
Sets the ratio between
CPU Core Clock and the
FSB Frequency.
Ratio Actual Value
x
Displays current processor FSB multiplier value
(FSB time ratio = processor core speed).
N/A, display only.
Processor Power
Management
Configuration
N/A
Press Enter to go to sub screen "Processor
Power Management Configuration".
Configure CPU EIST
and C-state
function.
x
Selects the processor FSB ratio value (FSB x
ratio = processor core speed).
Sets the ratio
between CPU Core
Clock and the FSB
Frequency.
Disabled
Enabled
The hardware prefetcher looks at streams of
data. The hardware prefetcher assumes that if
a line A and A+1 were requested, then line A+2
also will be requested. The data is prefetched
into L2 from external memory. Disabling of the
hardware prefetcher may impact processor
performance.
Default should be enabled. Optionally for DP/
MP servers, the default may be set based on
performance results observed during platform
validation and testing with standard
workloads.
For UP platforms,
leave it enabled.
For DP/MP servers,
it may use to tune
performance to the
specific application.
Disabled
Enabled
When enabled the Adjacent Cache Line
Prefetcher fetches both cache lines that
comprise a cache line pair (128 bytes) when it
determines required data is not currently in its
cache. When the Adjacent Cache Line
Prefetcher is disabled, the processor will only
fetch the cache line (64 bytes) that contains
the data currently required by the processor.
Note: Single processor platforms should
enable it. It is recommended that server
platforms disable it. Optionally for DP/MP
servers, the default may be set based on
performance results observed during platform
validation and testing with standard
workloads.
For UP platforms,
leave it enabled.
For DP/MP servers,
it may use to tune
performance to the
specific application.
Ratio CMOS Setting
Hardware Prefetcher
Adjacent Cache Line
Prefetch
37
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
MPS and ACPI MADT ordering. Modren ordering
for Windows XP or later OSes. Legacy ordering
for Windows 2000 or earlier OSes.
MPS and ACPI MADT
ordering. Modern
ordering for Windows XP
or later OSes.
Legacy ordering for
Windows 2000 or earlier
OSes.
MPS and ACPI MADT
ordering
Modern ordering
Legacy odering
Max CPUID Value Limit
Disabled
Enabled
Disabled for WindowsXP
Disabled
Enabled
This enable the hardware virtualization
capability provided by Intel(R) Virtualization
Note: A full reset is required to change the
setting.
When enabled, a VMM
can utilize the
additional HW Caps.
provided by Intel(R)
Virtualization Tech.
Note: A full reset is
required to change
the setting.
Disabled
Enabled
Execute Disable Bit allows the processor to
classify areas in memory by where application
code can execute and where it cannot
preventing certain classes of malicious buffer
overflow attacks when combined with a
supporting operating system.
When disabled, force
the XD feature flag to
always return 0.
Intel(R) HT Technology
Enabled
Disabled
Delivers thread-level parallelism on each
processor resulting in more efficient use of
processor resources-higher processing
throughput-and improved performance on the
multi-threaded software of today and
tomorrow.
When 'Disabled' only
one thread per enabled
core is enabled.
Active Processor Cores
All
1
2
Number of cores to
enable in each
physical processor package.
Number of cores to
enable in each
processor package.
A20M
Disabled
Enabled
Legacy OSes and APs
may need A20M enabled.
Legacy OSes and APs
may need A20M enabled.
Intel(R) Virtualization
Tech
Execute-Disable Bit
Capability
38
KTC5520/EATX
www.kontron.com
5.1.4.1.1
Processor Power Management Configuration sub-menu
Feature
Options
Description
Setup Help
Intel(R) SpeedStep(tm)
tech
Disabled
Enabled
Enables Intel(R) SpeedStep(tm) technology for
usage by OS.
Disable: Disable GV3
Enable: Enable GV3
Intel(R) TurboMode tech
Disabled
Enabled
This is an Intel Core i7-specific BIOS feature.
When this feature is enabled, the Intel Core i7
processor can dynamically overclock one or two
of its four processing cores to improve
performance with applications that are not
multi-threaded or optimized for quad-core
processors (e.g.single-threaded applications).
Turbo mode allows
processor cores to
run faster than
marked frequency
in speific condition
Intel(R) C-STATE tech
Enabled
Disabled
Advanced power management state
(C-state) that significantly reduces the power
of the processor during
idle periods.
CState: CPU idle
is set to C2/C3/C4
C State package limit
setting
Auto
C1
C3
C6
C7
Advanced power management state
(C-state) that significantly reduces the power
of the processor during
idle periods.
Selected option will
programe into C State
package limit register
C3 State
Disabled
ACPI C2
ACPI C3
Advanced power management state
(C-state) that significantly reduces the power
of the processor during
idle periods.
Nehalem C state
action select
C6 State
Enabled
Disabled
Advanced power management state
(C-state) that significantly reduces the power
of the processor during
idle periods.
Nehalem C state
action select
Enabled
Disabled
Advanced power management state
(C-state) that significantly reduces the power
of the processor during
idle periods.
When enable, CPU
will conditionally
demote C3/C6/C7
requests to C1
based on uncore
auto-demote
information.
Enabled
Disabled
Advanced power management state
(C-state) that significantly reduces the power
of the processor during
idle periods.
When enable, CPU
will conditionally
demote C6/C7 requests
to C3 based on uncore
auto-demote
information.
C1 Auto Demotion
C3 Auto Demotion
39
KTC5520/EATX
www.kontron.com
5.1.4.2
Drive Configuration sub-menu
Feature
Options
Description
SATA#1 Configuration
Disabled
Compatible
Enhanced
Compatible mode is for IDE mode.
Enhanced mode is to control AHCI or RAID
modes.
Setup Help
AHCI: allows advanced
SATA features such as
Native Command
Queuing and hot plug.
IDE is legacy disk
usage.
Note: Any changes
need a restart to
apply in setup.
Configure SATA#1 as
IDE
RAID
AHCI
When SATA #1 is in enhanced mode, the AHCI
or RAID modes can be set.
SATA#2 Configuration
Disabled
Enhanced
Enhanced mode is to control AHCI or RAID
modes.
AHCI Configuration
N/A
Press Enter to go to sub screen "AHCI
Configuration".
Section for
AHCI Configuration.
IDE Configuration
N/A
Press Enter to go to sub screen "IDE
Configuration".
Configure the IDE
device(s).
5.1.4.2.1
Feature
AHCI BIOS Support
AHCI Port0
AHCI Port1
AHCI Configuration sub-menu
Options
Enabled
Disabled
N/A
N/A
Description
Setup Help
Support AHCI mode during BIOS control.
Enables for supporting
AHCI controller operates
in AHCI mode during
BIOS control otherwise
operates in IDE mode.
Press Enter to go to sub screen "AHCI Port0".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "AHCI Port1".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
40
KTC5520/EATX
www.kontron.com
Feature
Description
Setup Help
Press Enter to go to sub screen "AHCI Port2".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "AHCI Port3".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "AHCI Port4".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "AHCI Port5".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays device size.
N/A, display only.
SATA Port0
Auto
Not Installed
S.M.A.R.T.
Auto
Disabled
Enabled
AHCI Port2
AHCI Port3
AHCI Port4
AHCI Port5
Options
N/A
N/A
N/A
N/A
5.1.4.2.1.1 AHCI Port0 sub-menu
Feature
Select the type
of device connected
to the system.
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
41
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
KTC5520/EATX
www.kontron.com
5.1.4.2.1.2 AHCI Port1 sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
SATA Port1
Auto
Not Installed
S.M.A.R.T.
Auto
Disabled
Enabled
Select the type
of device connected
to the system.
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
5.1.4.2.1.3 AHCI Port2 sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
SATA Port2
Auto
Not Installed
S.M.A.R.T.
Auto
Disabled
Enabled
Select the type
of device connected
to the system.
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
5.1.4.2.1.4 AHCI Port3 sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
SATA Port3
Auto
Not Installed
S.M.A.R.T.
Auto
Disabled
Enabled
Select the type
of device connected
to the system.
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
42
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
KTC5520/EATX
www.kontron.com
5.1.4.2.1.5 AHCI Port4 sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays memory size.
N/A, display only.
SATA Port4
Auto
Not Installed
S.M.A.R.T.
Auto
Disabled
Enabled
Select the type
of device connected
to the system.
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
5.1.4.2.1.6 AHCI Port5 sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays memory size.
N/A, display only.
SATA Port5
Auto
Not Installed
S.M.A.R.T.
Auto
Disabled
Enabled
Select the type
of device connected
to the system.
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
43
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
KTC5520/EATX
www.kontron.com
5.1.4.2.2
Feature
Primary IDE Master
Primary IDE Slave
Secondary IDE Master
Secondary IDE Slave
Third IDE Master
Third IDE Slave
Fourth IDE Master
Fourth IDE Slave
IDE Configuration sub-menu
Options
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Description
Setup Help
Press Enter to go to sub screen "Primary IDE
Master".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "Primary IDE
Slave".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "Secondary IDE
Master".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "Secondary IDE
Slave".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "Third IDE
Master".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "Third IDE
Slave".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "Fourth IDE
Master".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "Fourth IDE
Slave".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
44
KTC5520/EATX
www.kontron.com
Feature
Fifth IDE Master
Fifth IDE Slave
Sixth IDE Master
Options
N/A
N/A
N/A
Description
Setup Help
Press Enter to go to sub screen "Fifth IDE
Master".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "Fifth IDE
Slave".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Press Enter to go to sub screen "Sixth IDE
Master".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Sixth IDE Slave
N/A
Press Enter to go to sub screen "Sixth IDE
Slave".
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
Hard Disk Write Protect
Disabled
Enabled
Disable/Enable device
write protection. This
will be effective only
if device is accessed
through BIOS.
Disable/Enable device
write protection. This
will be effective only
if device is accessed
through BIOS.
IDE Detect Time Out (Sec)
0
5
10
15
20
25
30
35
Select the maximum time out
value for detecting
ATA/ATAPI device(s).
Select the time out
value for detecting
ATA/ATAPI device(s).
5.1.4.2.2.1 Primary IDE Master sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
45
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
Type
Not Installed
Auto
CDROM
ARMD
This option sets the type of device that the
AMIBIOS attempts to boot from after the
Power-On Self-Test (POST) has completed.
Select the type
of device connected
to the system.
Cylinder
Display device geometry.
N/A, display only.
Head
Display device geometry.
N/A, display only.
Sector
Display device geometry.
N/A, display only.
Size
Display device Size.
N/A, display only.
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
LBA/Large Mode
Disabled
Auto
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
46
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
5.1.4.2.2.2 Primary IDE Slave sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
47
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
Type
Not Installed
Auto
CDROM
ARMD
This option sets the type of device that the
AMIBIOS attempts to boot from after the
Power-On Self-Test (POST) has completed.
Select the type
of device connected
to the system.
Cylinder
Display device geometry.
N/A, display only.
Head
Display device geometry.
N/A, display only.
Sector
Display device geometry.
N/A, display only.
Size
Display device Size.
N/A, display only.
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
LBA/Large Mode
Disabled
Auto
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
48
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
5.1.4.2.2.3 Secondary IDE Master sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
49
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
Type
Not Installed
Auto
CDROM
ARMD
This option sets the type of device that the
AMIBIOS attempts to boot from after the
Power-On Self-Test (POST) has completed.
Select the type
of device connected
to the system.
Cylinder
Display device geometry.
N/A, display only.
Head
Display device geometry.
N/A, display only.
Sector
Display device geometry.
N/A, display only.
Size
Display device Size.
N/A, display only.
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
LBA/Large Mode
Disabled
Auto
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
50
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
5.1.4.2.2.4 Secondary IDE Slave sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
51
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
Type
Not Installed
Auto
CDROM
ARMD
This option sets the type of device that the
AMIBIOS attempts to boot from after the
Power-On Self-Test (POST) has completed.
Select the type
of device connected
to the system.
Cylinder
Display device geometry.
N/A, display only.
Head
Display device geometry.
N/A, display only.
Sector
Display device geometry.
N/A, display only.
Size
Display device Size.
N/A, display only.
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
LBA/Large Mode
Disabled
Auto
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
52
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
5.1.4.2.2.5 Third IDE Master sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
53
KTC5520/EATX
www.kontron.com
Feature
LBA/Large Mode
Options
Disabled
Auto
Description
Setup Help
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
54
KTC5520/EATX
www.kontron.com
5.1.4.2.2.6 Third IDE Slave sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
LBA/Large Mode
Disabled
Auto
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
55
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
5.1.4.2.2.7 Fourth IDE Master sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
56
KTC5520/EATX
www.kontron.com
Feature
LBA/Large Mode
Options
Disabled
Auto
Description
Setup Help
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
57
KTC5520/EATX
www.kontron.com
5.1.4.2.2.8 Fourth IDE Slave sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
LBA/Large Mode
Disabled
Auto
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
58
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
5.1.4.2.2.9 Fifth IDE Master sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
59
KTC5520/EATX
www.kontron.com
Feature
LBA/Large Mode
Options
Disabled
Auto
Description
Setup Help
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
60
KTC5520/EATX
www.kontron.com
5.1.4.2.2.10 Fifth IDE Slave sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
LBA/Large Mode
Disabled
Auto
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
61
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
5.1.4.2.2.11 Sixth IDE Master sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
62
KTC5520/EATX
www.kontron.com
Feature
LBA/Large Mode
Options
Disabled
Auto
Description
Setup Help
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
63
KTC5520/EATX
www.kontron.com
5.1.4.2.2.12 Sixth IDE Slave sub-menu
Feature
Options
Description
Setup Help
Device
Device type
Displays the type of device (Hard Disk, CD-ROM
or ARMD).
N/A, display only.
Vendor
Disk vendor and
description
Displays the device vendor name and/or
model.
N/A, display only.
Size
X KB/MB/GB
Displays system memory size.
N/A, display only.
LBA Mode
Supported
Not Supported
Displays if LBA mode is supported or not by the
device.
N/A, display only.
Block Mode
x Sectors
Displays the Block mode size used by the
device.
N/A, display only.
PIO Mode
0-4
Displays the PIO mode used by the devices.
N/A, display only.
Async DMA
SingleWord or
MutiWord DMA-x
Displays the highest Asynchronous DMA mode
supported by the device.
N/A, display only.
Ultra DMA
x
Displays the highest Synchronous DMA mode
supported by the device.
N/A, display only.
S.M.A.R.T.
Supported or
Not Supported
Displays if S.M.A.R.T. is supported or not by the
device.
N/A, display only.
LBA (Logical Block Addressing) is a method of
addressing data on a disk drive.
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
LBA/Large Mode
Disabled
Auto
Block (Multi-Sector
Transfer) Mode
Disabled
Auto
This option sets the block mode multi sector
transfers option.
Disabled: The Data
transfer from and to
the device occurs one
sector at a time.
Auto: The Data
transfer from and to
the device occurs
multiple sectors at a
time if the device
supports it.
PIO Mode
Auto
0-4
Selects the PIO mode.
Select PIO Mode.
64
KTC5520/EATX
www.kontron.com
Feature
Options
Description
Setup Help
DMA Mode
Auto
SWDMA0
SWDMA1
SWDMA2
MWDMA0
MWDMA1
MWDMA2
UDMA0
UDMA1
UDMA2
UDMA3
UDMA4
UDMA5
UDMA6
Selects the DMA mode to access the device.
Single Word DMA [0-2] mode.
Multi Word DMA [0-2] mode.
Ultra DMA [0-6] mode.
Select DMA Mode.
Auto : Auto detected
SWDMAn:
SingleWordDMAn
MWDMAn:
MultiWordDMAn
UDMAn : UltraDMAn
S.M.A.R.T.
Auto
Disabled
Enabled
Self-Monitoring Analysis and Reporting
Technology (SMART) feature can help predict
impending drive failures.
S.M.A.R.T. stands for
Self-Monitoring,
Analysis and Reporting
Technology.
32Bit Data Transfer
Disabled
Enabled
This only affects BIOS accesses to the device.
When enabled, BIOS interrupt 13h will make 32
bits I/Os that the chipset will convert
internally to 2 consecutive 16 bits IOs.
Enable/Disable
32-bit Data
Transfer.
Auto
Floppy
Hard Disk
ATAPI Removable Media Device (ARMD) is a
device that uses removable media, such as the
LS120, MO (Magneto-Optical), or Iomega Zip
drives. If you want to boot up from media on an
ARMD, it is required that you emulate boot up
from a floppy or hard disk drive. This is
especially necessary when trying to boot to
DOS. You can select the type of emulation used
if you are booting from such a device.
Select ARMD device
emulation type by BIOS.
ARMD Emulation Type
5.1.4.3
SuperIO Configuration sub-menu
Feature
Options
Description
Setup Help
Serial Port1 Address
Disabled
3F8/IRQ4
3E8/IRQ4
2E8/IRQ4
Select the base address used by Serial Port1.
Allows BIOS to Select
Serial Port1 Base
Addresses.
Serial Port2 Address
Disabled
2F8/IRQ3
3E8/IRQ4
2E8/IRQ4
Select the base address used by Serial Port2.
Allows BIOS to Select
Serial Port2 Base
Addresses.
65
KTC5520/EATX
www.kontron.com
5.1.4.4
Feature
USB Configuration sub-menu
Options
Description
Setup Help
List USB device(s)
detected.
This feature appears when the BIOS POST has
detected USB device(s).
N/A, display only.
FullSpeed
HiSpeed
Configures the USB 2.0 Controller in HiSpeed
(480 Mbps) or FullSpeed (12 Mbps).
Configures the USB
2.0 controller in
HiSpeed (480Mbps)
or FullSpeed
(12Mbps).
BIOS EHCI Hand-Off
Disabled
Enabled
A workaround for OSes without EHCI hand-off
support can be enabled/disabled. The EHCI
ownership change should be claimed by an
EHCI driver.
This is a workaround
for OSes without EHCI
hand-off support.
The EHCI ownership
change should claim by
EHCI driver.
Legacy USB 1.1 HC
Support
Disabled
Enabled
BIOS support for Legacy USB 1.1 controller
Support USB1.1 HC.
Hotplug USB FDD Support
Disabled
Enabled
Auto
Normally, all boot devices must be detected
during POST to be able to participate in the
boot sequence. This feature can prevent the
need to reboot the system if the USB FDD was
plugged after POST.
A dummy FDD device
is created that
will be associated
with the hotplugged
FDD later. Auto
option creates this
dummy device only
if there is no USB
FDD present.
USB Mass Storage Device
Configuration
N/A
Press Enter to go to sub screen "USB Mass
Storage Device Configuration".
Configure the USB
Mass Storage Class
Devices.
USB 2.0 Controller Mode
5.1.4.4.1
USB Mass Storage Device Configuration sub-menu
Feature
Options
USB Mass Storage Reset
Delay
10 Sec
20 Sec
30 Sec
40 Sec
Device #1
USB device
description
Description
Setup Help
Number of seconds
POST waits for the
USB mass storage
device after start
unit command.
Displays the 1st USB mass storage device
description.
N/A, display only.
Emulation Type
Auto
Floppy
Forced FDD
Hard Disk
CDROM
If Auto, USB devices less than 530MB will be
emulated as Floppy and remaining as hard
drive. Forced FDD option can be used to force a
HDD formatted drive to boot as FDD (Ex. ZIP
drive).
If Auto, USB devices
less than 530MB will
be emulated as Floppy
and remaining as
hard drive. Forced FDD
option can be used to
force a HDD formatted
drive to boot as FDD
(Ex. ZIP drive).
Device #2
USB device
description
Displays the 2nd USB mass storage device
description.
N/A, display only.
66
KTC5520/EATX
www.kontron.com
Feature
Description
Setup Help
Emulation Type
Auto
Floppy
Forced FDD
Hard Disk
CDROM
If Auto, USB devices less than 530MB will be
emulated as Floppy and remaining as hard
drive. Forced FDD option can be used to force a
HDD formatted drive to boot as FDD (Ex. ZIP
drive).
If Auto, USB devices
less than 530MB will
be emulated as Floppy
and remaining as
hard drive. Forced FDD
option can be used to
force a HDD formatted
drive to boot as FDD
(Ex. ZIP drive).
Device #3
USB device
description
Displays the 3rd USB mass storage device
description.
N/A, display only.
Emulation Type
Auto
Floppy
Forced FDD
Hard Disk
CDROM
If Auto, USB devices less than 530MB will be
emulated as Floppy and remaining as hard
drive. Forced FDD option can be used to force a
HDD formatted drive to boot as FDD (Ex. ZIP
drive).
If Auto, USB devices
less than 530MB will
be emulated as Floppy
and remaining as
hard drive. Forced FDD
option can be used to
force a HDD formatted
drive to boot as FDD
(Ex. ZIP drive).
Device #4
USB device
description
Displays the 4th USB mass storage device
description.
N/A, display only.
Emulation Type
Auto
Floppy
Forced FDD
Hard Disk
CDROM
If Auto, USB devices less than 530MB will be
emulated as Floppy and remaining as hard
drive. Forced FDD option can be used to force a
HDD formatted drive to boot as FDD (Ex. ZIP
drive).
If Auto, USB devices
less than 530MB will
be emulated as Floppy
and remaining as
hard drive. Forced FDD
option can be used to
force a HDD formatted
drive to boot as FDD
(Ex. ZIP drive).
Device #5
USB device
description
Displays the 5th USB mass storage device
description.
N/A, display only.
Emulation Type
Auto
Floppy
Forced FDD
Hard Disk
CDROM
If Auto, USB devices less than 530MB will be
emulated as Floppy and remaining as hard
drive. Forced FDD option can be used to force a
HDD formatted drive to boot as FDD (Ex. ZIP
drive).
If Auto, USB devices
less than 530MB will
be emulated as Floppy
and remaining as
hard drive. Forced FDD
option can be used to
force a HDD formatted
drive to boot as FDD
(Ex. ZIP drive).
Device #6
USB device
description
Displays the 6th USB mass storage device
description.
N/A, display only.
If Auto, USB devices less than 530MB will be
emulated as Floppy and remaining as hard
drive. Forced FDD option can be used to force a
HDD formatted drive to boot as FDD (Ex. ZIP
drive).
If Auto, USB devices
less than 530MB will
be emulated as Floppy
and remaining as
hard drive. Forced FDD
option can be used to
force a HDD formatted
drive to boot as FDD
(Ex. ZIP drive).
Emulation Type
Options
Auto
Floppy
Forced FDD
Hard Disk
CDROM
67
KTC5520/EATX
www.kontron.com
5.1.4.5
Feature
Onboard LAN Configuration sub-menu
Options
Onboard LAN 1
Enabled
Disabled
Option ROM
Enabled
Disabled
MAC
Onboard LAN 2
Enabled
Disabled
Option ROM
Enabled
Disabled
MAC
5.1.4.6
Feature
Description
Setup Help
Individually Disable/Enable Onboard 82576
LAN interface.
Enable/Disable LAN
interface.
NOTE: This will not
disable Management
LAN access (KVM).
Disable/Enable LAN 1 option ROM
Enabled: Initializes LAN
Option ROM.
Disabled: LAN Option
ROM not used.
Display current MAC address of the interface.
N/A, display only.
Individually Disable/Enable Onboard 82576
LAN interface.
Enable/Disable LAN
interface.
NOTE: This will not
disable Management
LAN access (KVM).
Disable/Enable LAN 2 option ROM
Enabled: Initializes LAN
Option ROM.
Disabled: LAN Option
ROM not used.
Display current MAC address of the interface.
N/A, display only.
ACPI Configuration sub-menu
Options
Description
Setup Help
Advanced ACPI
Configuration
N/A
Press Enter to go to sub screen "Advanced ACPI
Configuration".
Advanced ACPI
Configuration settings.
Use this section to
configure additional
ACPI options.
Chipset ACPI
Configuration
N/A
Press Enter to go to sub screen "Chipset ACPI
Configuration".
Chipset ACPI related
Configuration settings.
5.1.4.6.1
Feature
ACPI Version Features
NUMA Support
Advanced ACPI Configuration sub-menu
Options
Description
Setup Help
ACPI v1.0
ACPI v2.0
ACPI v3.0
Version 1.0 only supports RSDP pointers to 32bit Fixed System Description Tables.
Version 2.0 enables RSDP pointers to 64-bit
Fixed System Description Tables.
Version 3.0 improves processor, PCI Express
and SATA support.
Enable RSDP pointers
to 64-bit Fixed System
Description Tables.
Different
ACPI version has some
addition.
Enable/Disable NUMA (Non-Uniform Memory
Access) support.
Enable : Efficiently
execute software
for NUMA aware OS.
Disable : Better
memory access
performance for
non-NUMA OS.
Enabled
Disabled
68
KTC5520/EATX
www.kontron.com
5.1.4.6.2
Chipset ACPI Configuration sub-menu
Feature
Options
Description
Energy Lake Feature
Enabled
Disabled
Energy Lake feature (Intel Quick Resume
Technology).
APIC ACPI SCI IRQ
Disabled
Enabled
IRQ9 if APIC is not used for SCI.
IRQ20 is only available for SCI if APIC is
enabled.
Enable/Disable
APIC ACPI SCI IRQ.
High Performance Event
Timer
Disabled
Enabled
Enable/Disable High Performance Event Timer
(HPET).
Enable / Disable
69
Setup Help
KTC5520/EATX
www.kontron.com
5.1.4.7
Remote Access Configuration sub-menu
Feature
Options
Description
Setup Help
Remote Access
Disabled
Enabled
Configures console redirection.
Disabling remote access will hide all related
features in this sub-menu.
Select Remote Access
type.
Serial port number
COM1
COM2
Configures serial port for console redirection.
Also used for Headless operation mode
through ACPI.
Select Serial Port for
console redirection.
Make sure the selected
port is enabled.
Base Address, IRQ
IO, IRQ
Displays the hardware address of the COM port
used for the console.
N/A, display only.
Serial Port Mode
115200 8,n,1
57600 8,n,1
38400 8,n,1
19200 8,n,1
09600 8,n,1
Configures the serial Baud rate for the serial
ports.
8 data bits, no parity and 1 stop bit parameters
are fixed.
Select Serial Port
settings.
Flow Control
Hardware
Software
None
Configures flow control for console redirection
for both serial ports.
Select Flow Control
for console
redirection.
Redirection After BIOS
POST
Disabled
Boot Loader
Always
Selects how the serial redirection done by the
BIOS will operate after the POST.
Disable: Turns off the
redirection after POST
Boot Loader:
Redirection is active
during POST and
during Boot Loader.
Always:
Redirection is always
active.
(Some OSs may not
work if set to Always)
[Enabled] - keep it
[Disabled]- deactivate
Terminal Type
ANSI
VT100
VTUTF8
Configures the type of console emulation used
for both serial ports.
Select the target
terminal type.
VT-UTF8 Combo Key
Support
Disabled
Enabled
VT-UTF8 adds escape sequences for F1 to F12
and most other control keys on a keyboard.
Enable VT-UTF8
Combination Key
Support for ANSI/VT100
terminals.
Sredir Memory Display
Delay
No delay
Delay 1 Sec
Delay 2 Sec
Delay 4 Sec
Allows additional delay during POST to give
time to display memory information by the
terminal software.
Gives the delay
in seconds to
display memory
information
Note:
BIOS doesn't change automatically the baud rate of the console redirection over LAN. The following
commands must be executed on the KTC5520/EATX.
#ipmitool -H [ip address] -I lanplus -C 1 -U [user name] -P [password] sol
set non-volatile-bit-rate [serial port speed]
#ipmitool -H [ip address] -I lanplus -C 1 -U [user name] -P [password]sol
activate
70
KTC5520/EATX
www.kontron.com
5.1.4.8
Feature
Chipset Configuration sub-menu
Options
Description
Setup Help
CPU Bridge Configuration
N/A
Press Enter to go to sub screen "CPU Bridge
Configuration".
Configure CPU Bridge
features.
North Bridge
Configuration
N/A
Press Enter to go to sub screen "North Bridge
Configuration".
Configure North Bridge
features.
South Bridge
Configuration
N/A
Press Enter to go to sub screen "South Bridge
Configuration".
Configure South Bridge
features.
5.1.4.8.1
CPU Bridge Configuration sub-menu
Feature
Options
Description
Setup Help
CPU Revision
N/A
Display CPU revision ID.
N/A, display only.
Current QPI Frequency
N/A
Display Current QPI frequency speed in GT/s
N/A, display only.
Current Memory
Frequency
N/A
Display current memory speed (DDR-3) in MHz
N/A, display only.
5.1.4.8.2
North Bridge Configuration sub-menu
Feature
Options
Description
Setup Help
NB Revision
N/A
Display Current NB revision ID.
N/A, display only.
Current QPI Frequency
N/A
Display Current QPI frequency speed in GT/s
N/A, display only.
Disabled
Enabled
Intel QuickData Technology is a platform
solution designed to
maximize the throughput of server data traffic
across a broader
range of configurations and server
environments to achieve faster,
scalable, and more reliable I/O.
Intel QuickData
Technology /
Direct Memory
Access configuration.
Disabled
Enabled
Intel QuickData Technology is a platform
solution designed to
maximize the throughput of server data traffic
across a broader
range of configurations and server
environments to achieve faster,
scalable, and more reliable I/O.
Intel QuickData
Technology /
Direct Cache Access
configuration.
Intel QuickData
Technology DMA
Intel QuickData
Technology DCA
71
KTC5520/EATX
www.kontron.com
5.1.4.8.3
South Bridge Configuration sub-menu
Feature
Options
Description
HDA Controller
Enabled
Disabled
Enable/Disable intel HDA Audio controller
device.
SMBUS Controller
Enabled
Disabled
Enable/Disable the SMBUS controller.
Restore on AC Power Loss
Power Off
Power On
Last State
Board power state value after AC Power lost.
SATA Master Break Event
Disabled
Enabled
Serial ATA master activity will cause a break
from C3/C6 state if enabled.
5.1.4.9
Serial ATA master
activity will cause a
break from C3/C6 state if
enabled.
Virtualization Configuration sub-menu
Feature
Options
Description
SR-IOV Supported
Disabled
Enabled
Enable or disable PCI-SIG I/O Virtualization
(IOV).
Intel VT-d
Disabled
Enabled
Enable VT-d feature from INTEL. This will add
DMAR table in ACPI to allows supporting OS to
take advantage of the Virtualization
Technology for Directed I/O.
Coherency Support
Disabled
Enabled
Enable / Disable Non-Isoch VTd Engine
Coherency support.
5.1.4.10
Setup Help
Setup Help
Non-Isoch VTd Engine
Coherency support.
Trusted Computing sub-menu
Feature
Options
Description
Setup Help
TCG/TPM SUPPORT
No
Yes
Enable support for Trusted Platform Module.
require to insert a TPM module to the TPM port.
Enable/Disable TPM
TCG (TPM 1.1/1.2)
support
in BIOS
Execute TPM Command
Disabled
Enabled
Enable or Disable access to TPM command from
Operating System.
Enable(Activate)/
Disable(Deactivate)
Command to TPM
Clearing the TPM
[Press Enter]
Enter
Clear the TPM to Factory values. This will
remove password and other information saved
in the TPM.
TPM Enable/Disable Status
N/A
Display the current configuration status of the
TPM.
Display the current
status of the TPM.
TPM Owner Status
N/A
Display the current configuration status of the
TPM.
Display the current
status of the TPM.
72
KTC5520/EATX
www.kontron.com
5.1.4.11
Watchdog sub-menu
Feature
Options
Description
Setup Help
Internal Watchdog
Disabled
Enabled
Enable onboard watchdog to reset board if
BIOS POST hang is detected.
Enable onboard
watchdog to reset board
if BIOS POST hang is
detected.
POST timeout
30 sec
1 min
2 min
4min
Delay until POST hang is detected.
Delay until POST hang is
detected.
OS Load Watchdog
Enabled
Disabled
Enable support for Onboard watchdog when
executing Operating System.
Enable support for
Onboard watchdog when
executing Operating
System.
OS Load Timeout
1 min
2 min
4min
8min
Delay until OS Load hang is detected.
Delay until OS Load hang
is detected.
5.1.4.12
Event Log Configuration sub-menu
Feature
Options
Description
Setup Help
View Event Log
Enter
View all unread events in the Event Log.
View all unread events
on the Event Log.
Mark all events as read
Enter
Mark all unread events as read in the Event
Log.
Mark all unread events
as read.
Clear Event Log
Enter
Discard all events in the Event Log.
Discard all events
in the Event Log.
73
KTC5520/EATX
www.kontron.com
5.1.4.13
Expansion Slots Configuration
Feature
Options
Expansion Slot 1 (PCI)
Enabled
Disabled
Expansion Slot 2 (PCIe x4)
Enabled
Disabled
Expansion Slot 3(PCIe x8)
Expansion Slot 4 (PCIe x8)
Enabled
Disabled
Enabled
Disabled
Expansion Slot 5 (PCIe x8)
Enabled
Disabled
Expansion Slot 6 (PCIe x8)
Enabled
Disabled
Description
Setup Help
Enable/Disable the Expansion Slot Option ROM
Enabled: Initializes
Expansion Slot Option
ROM
Disabled: Expansion Slot
Option ROM not used.
Enable/Disable the Expansion Slot Option ROM
Enabled: Initializes
Expansion Slot Option
ROM
Disabled: Expansion Slot
Option ROM not used.
Enable/Disable the Expansion Slot Option ROM
Enabled: Initializes
Expansion Slot Option
ROM
Disabled: Expansion Slot
Option ROM not used.
Enable/Disable the Expansion Slot Option ROM
Enabled: Initializes
Expansion Slot Option
ROM
Disabled: Expansion Slot
Option ROM not used.
Enable/Disable the Expansion Slot Option ROM
Enabled: Initializes
Expansion Slot Option
ROM
Disabled: Expansion Slot
Option ROM not used.
Enable/Disable the Expansion Slot Option ROM
Enabled: Initializes
Expansion Slot Option
ROM
Disabled: Expansion Slot
Option ROM not used.
74
KTC5520/EATX
www.kontron.com
5.1.5
Security menu
Feature
Options
Description
Setup Help
Supervisor Password
Installed
Not Installed
Indicates the status of the Supervisor
Password.
N/A, display only.
User Password
Installed
Not Installed
Indicates the status of the User Password.
N/A, display only.
Change Supervisor
Password
Enter
The supervisor password can be installed or
changed.
Install or Change the
password.
User Access Level
No Access
View Only
Limited
Full Access
Controls the user access level to the BIOS
Setup utility. Supervisor has full access to the
BIOS Setup utility.
No Access: Prevents user access to the setup
utility.
View Only: Allows read only user access to the
setup utility i.e. none of the fields ca
LIMITED: allows only
limited fields to be
changed such as Date
and Time.
NO ACCESS: prevents
User access to the
Setup Utility.
VIEW ONLY: allows
access to the Setup
Utility but the fields
can not be changed.
FULL: allows any field
to be changed except
the Supervisor
password.
Change User Password
Enter
The user password can be installed or changed.
Install or Change the
password.
Clear User Password
Enter
Immediately clears the User password.
Immediately clears the
User password.
Password Check
Setup
Always
Selects when the password is check during
POST.
Setup: Check password
while invoking setup.
Always: Check password
while invoking setup as
well as on each boot.
Boot Sector Virus
Protection
Disabled
Enabled
Enable/Disable
Boot Sector Virus
Protection.
Enable/Disable
Boot Sector Virus
Protection.
75
KTC5520/EATX
www.kontron.com
5.1.6
Boot menu
Feature
Options
Description
Setup Help
Boot Settings
Configuration
N/A
Press Enter to go to sub screen "Boot Settings
Configuration".
Configure Settings
during System Boot.
Boot Device Priority
N/A
Press Enter to go to sub screen "Boot Device
Priority".
Specifies the
Boot Device
Priority sequence.
N/A
Press Enter to go to sub screen "Hard Disk
Drives".
Specifies the
Boot Device
Priority sequence
from available
Hard Drives.
Press Enter to go to sub screen "Removable
Drives".
Specifies the
Boot Device
Priority sequence
from available
Removable Drives.
Press Enter to go to sub screen "CD/DVD
Drives".
Specifies the
Boot Device
Priority sequence
from available
CD/DVD Drives.
N/A
Press Enter to go to sub screen "USB Drives".
Specifies the
Boot Device
Priority sequence
from available
USB Drives.
N/A
Press Enter to go to sub screen "Network
Drives".
Specifies the
Boot Device
Priority sequence
from available
Network Drives.
Specifies the
Boot Device
Priority sequence
from available
Other Drives.
Hard Disk Drives
Removable Drives
CD/DVD Drives
USB Drives
Network Drives
N/A
N/A
Other Drives
N/A
Press Enter to go to sub screen "Other Drives".
BIOS Boot Configuration
Options
N/A
Press Enter to go to sub screen "BIOS Boot
Configuration Options".
76
KTC5520/EATX
www.kontron.com
5.1.6.1
Feature
Boot Settings Configuration sub-menu
Options
Description
Setup Help
Boots Graphic Adapter
Priority
Auto
Onboard VGA
Select which graphics
controller to use as
the primary boot
device.
Select which graphics
controller to use as
the primary boot
device.
Quiet Boot
Disabled
Enabled
Disabled: Displays
normal POST messages.
Enabled: Displays OEM
Logo instead of POST
messages.
Disabled: Displays
normal POST messages.
Enabled: Displays OEM
Logo instead of POST
messages.
AddOn ROM Display Mode
Force BIOS
Keep Current
Set display mode
for Option ROM.
Set display mode
for Option ROM.
Bootup Num-Lock
Off
On
Select Power-on state
for Num-Lock.
Select Power-on state
for Numlock.
PS/2 Mouse Support
Disabled
Enabled
Auto
Select support
for PS/2 Mouse.
Select support
for PS/2 Mouse.
Wait For 'F1' If Error
Disabled
Enabled
Stop BIOS boot and wait for F1 key when an
error is detected.
Wait for F1
key to be
pressed if
error occurs.
5.1.6.1.1
Feature
1st Boot Device
Boot Device Priority sub-menu
Options
Type: Boot device
Description
Setup Help
Specifies the priority of the available boot
sources.
The list includes USB CD ROM, USB Hard Drive,
Hard Drive and PXE. Other supported devices
might be dynamically added to the list.
Specifies the boot
sequence from the
available devices.
A device enclosed in
parenthesis has been
disabled in the
corresponding type
menu.
...
N th Boot Device
Type: Boot device
Specifies the priority of the available boot
sources.
The list includes USB CD ROM, USB Hard Drive,
Hard Drive and PXE. Other supported devices
might be dynamically added to the list.
77
Specifies the boot
sequence from the
available devices.
A device enclosed in
parenthesis has been
disabled in the
corresponding type
menu.
KTC5520/EATX
www.kontron.com
5.1.6.2
Feature
Hard Disk Drives sub-menu
Options
Description
Setup Help
Specifies the boot
sequence from the
available devices.
1st Drive
...
Specifies the boot
sequence from the
available devices.
N th Drive
5.1.6.3
Feature
Removable Drives sub-menu
Options
Description
Setup Help
Specifies the boot
sequence from the
available devices.
1st Drive
...
Specifies the boot
sequence from the
available devices.
4th Drive
5.1.6.4
Feature
CD/DVD Drives sub-menu
Options
Description
Setup Help
Specifies the boot
sequence from the
available devices.
1st Drive
...
Specifies the boot
sequence from the
available devices.
N th Drive
5.1.6.5
Feature
USB Drives sub-menu
Options
Description
Setup Help
Specifies the boot
sequence from the
available devices.
1st Drive
...
Specifies the boot
sequence from the
available devices.
N th Drive
78
KTC5520/EATX
www.kontron.com
5.1.6.6
Network Drives sub-menu
Feature
Options
Description
Setup Help
Specifies the boot
sequence from the
available devices.
1st Drive
...
Specifies the boot
sequence from the
available devices.
N th Drive
5.1.6.7
Other Drives sub-menu
Feature
Options
Description
Setup Help
Specifies the boot
sequence from the
available devices.
1st Drive
...
Specifies the boot
sequence from the
available devices.
N th Drive
5.1.7
System Management menu
Feature
Options
Description
Setup Help
Status of IPMC
Working or
Not Working
Indicate if the BIOS was able to communicate
with the IPMC.
N/A, display only.
BMC Synchronization
Disabled
Enabled
Synchronize Baseboard
Management Controller
initialization with BIOS
POST initialization.
Set LAN Configuration
N/A
Press Enter to go to sub screen "Set LAN
Configuration".
InPut for Set LAN
Configuration command.
See IPMI 1.5 Spec,
table 19.1
NOTE:
- Each question in
this group may take
considerable amount of
time. (direct access
to IPMC)
IPMI Device and Firmware
Information
N/A
Press Enter to go to sub screen "IPMI Device
and Firmware Information".
View IPMI Device and
Firmware Information
FRU Board Information
N/A
Press Enter to go to sub screen "FRU Board
Information".
Display FRU board and
product information,
Display IPMC device
and FW information.
79
KTC5520/EATX
www.kontron.com
5.1.7.1
Feature
Set LAN Configuration sub-menu
Options
Channel Number
Description
Setup Help
Each interface has a channel number that is
used when configuring the channel and for
routing messages between channels.
The channel number assignments are
described in IPMI Specification 1.5, table 6-1.
Enter Channel Number
for SET LAN Config
Command.
Proper value below 16.
Channel Number Status
Valid or Invalid
Display Valid if IPMC support LAN Channel.
N/A, display only.
IP Address
N/A
Press Enter to go to sub screen "IP Address".
Enter for IP Address
Configuration.
MAC Address
N/A
Press Enter to go to sub screen "MAC Address".
Enter for MAC Address
Configuration.
Subnet Mask
N/A
Press Enter to go to sub screen "Subnet Mask".
Enter for Subnet Mask
Configuration.
Gateway Address
N/A
Press Enter to go to sub screen "Gateway
Address".
Enter for Gateway
IP Address
Configuration.
VLAN ID
N/A
Press Enter to go to sub screen "VLAN ID".
Enter for VLAN ID
Configuration.
VLAN Priority
N/A
Press Enter to go to sub screen "VLAN
Priority".
Enter for VLAN
Priority
Configuration.
Active LAN Channel
Number
None
01
02
Both
Each interface has a channel number that is
used when configuring the channel and for
routing messages between channels.
The channel number assignments are
described in IPMI Specification 1.5, table 6-1.
Enter Active LAN
Channel Number
for Set LAN
Configuration
Command.
5.1.7.1.1
Feature
IP Address sub-menu
Options
Channel Number
Description
Setup Help
Each interface has a channel number that is
used when configuring the channel and for
routing messages between channels.
The channel number assignments are
described in IPMI Specification 1.5, table 6-1.
Enter Channel Number
for SET LAN Config
Command.
Proper value below 16.
Channel Number Status
Valid or Invalid
Display Valid if IPMC support LAN Channel.
N/A, display only.
IP Address Source
Static
DHCP
Select IP address asource.
Select IP Address
Source:
Static or DHCP
Current IP Address
xxx.xxx.xxx.xxx
Display the current LAN configuration stored
in IPMI NVRAM for IPMI LAN.
N/A, display only.
IP Address
Enter
This allows setting an IP Address for LAN
configuration.
Enter for IP Address
Configuration.
80
KTC5520/EATX
www.kontron.com
5.1.7.1.2
Feature
MAC Address sub-menu
Options
Description
Setup Help
Each interface has a channel number that is
used when configuring the channel and for
routing messages between channels.
The channel number assignments are
described in IPMI Specification 1.5, table 6-1.
Enter Channel Number
for SET LAN Config
Command.
Proper value below 16.
Valid or Invalid
Display Valid if IPMC support LAN Channel.
N/A, display only.
xx.xx.xx.xx.xx.xx
Display the current MAC Address stored in IPMI
NVRAM for IPMI LAN.
N/A, display only.
Channel Number
Channel Number Status
Current MAC Address
5.1.7.1.3
Feature
Subnet Mask sub-menu
Options
Channel Number
Description
Setup Help
Each interface has a channel number that is
used when configuring the channel and for
routing messages between channels.
The channel number assignments are
described in IPMI Specification 1.5, table 6-1.
Enter Channel Number
for SET LAN Config
Command.
Proper value below 16.
Channel Number Status
Valid or Invalid
Display Valid if IPMC support LAN Channel.
N/A, display only.
IP Address Source
Static
DHCP
Configure Subnet Mask from DHCP.
Select IP Address
Source:
Static or DHCP
Current Subnet Mask
xxx.xxx.xxx.xxx
Display the current Subnet Mask configuration
stored in IPMI NVRAM for IPMI LAN.
N/A, display only.
Subnet Mask
Enter
This allows setting of a Subnet Mask for LAN
configuration.
Enter for Subnet Mask
Configuration.
5.1.7.1.4
Feature
Gateway Address sub-menu
Options
Channel Number
Description
Setup Help
Each interface has a channel number that is
used when configuring the channel and for
routing messages between channels.
The channel number assignments are
described in IPMI Specification 1.5, table 6-1.
Enter Channel Number
for SET LAN Config
Command.
Proper value below 16.
Channel Number Status
Valid or Invalid
Display Valid if IPMC support LAN Channel.
N/A, display only.
IP Address Source
Static
DHCP
Configure Gateway address from DHCP.
Select IP Address
Source:
Static or DHCP
Current Gateway Address
xxx.xxx.xxx.xxx
Display the current Gateway configuration
stored in IPMI NVRAM for IPMI LAN.
N/A, display only.
Gateway Address
Enter
This allows setting an Gateway IP Address for
LAN configuration.
Enter for Gateway
IP Address
Configuration.
81
KTC5520/EATX
www.kontron.com
5.1.7.1.5
Feature
VLAN ID sub-menu
Options
Channel Number
Channel Number Status
Valid or Invalid
Description
Setup Help
Each interface has a channel number that is
used when configuring the channel and for
routing messages between channels.
The channel number assignments are
described in IPMI Specification 1.5, table 6-1.
Enter Channel Number
for SET LAN Config
Command.
Proper value below 16.
Display Valid if IPMC support LAN Channel.
N/A, display only.
VLAN ID value in
decimal. VLAN ID must
be between 1 and 4094.
802.1q VLAN ID Value
Enter VLAN ID value in
decimal. VLAN ID must
be between 1 and 4094.
Current 802.1q VLAN ID
Value
xxx
Display the current 801.1q VLAN ID
configuration stored in IPMI NVRAM for IPMI
LAN.
N/A, display only.
VLAN Tagged Packets
Status
Enabled or
Disabled
Display the current status of the 801.1q VLAN
tagged packets configuration stored in IPMI
NVRAM for IPMI LAN.
N/A, display only.
5.1.7.1.6
Feature
VLAN Priority sub-menu
Options
Channel Number
Description
Setup Help
Each interface has a channel number that is
used when configuring the channel and for
routing messages between channels.
The channel number assignments are
described in IPMI Specification 1.5, table 6-1.
Enter Channel Number
for SET LAN Config
Command.
Proper value below 16.
Channel Number Status
Valid or Invalid
Display Valid if IPMC support LAN Channel.
N/A, display only.
Current VLAN Priority
Value
x
Display the current 801.1q VLAN Priority
configuration stored in IPMI NVRAM for IPMI
LAN.
N/A, display only.
VLAN Priority
value in decimal.
Proper value below 8.
Enter VLAN Priority
value in decimal.
Proper value below 8.
802.1q VLAN Priority
Value
82
KTC5520/EATX
www.kontron.com
5.1.7.2
Feature
IPMI Device and Firmware Information sub-menu
Options
Description
Setup Help
Product ID
Product ID code (2
bytes)
Displays CPU blade product ID from IPMI "Get
Device ID Command", byte 11:12. Least
significant byte first.
N/A, display only.
IPMI Version
1.5 or
2.0
Displays IPMI Specification version.
N/A, display only.
Device ID
Varies
Displays IPMI device ID.
OEM defined, IPMI Device ID has been assigned
like this:
Renesas H8S2148 = 1
Kontron PMM
=2
Renesas H8S2145 = 3
Renesas H8S2166 = 4
Renesas H8S2138 = 5
Renesas H8S2168 = 6
N/A, display only.
Device Revision
Varies
Displays IPMI device revision.
OEM defined, specify the version of the IPMI
Device controller.
N/A, display only.
Firmware Revision
Varies
Displays IPMI firmware version.
N/A, display only.
SMR Version
Varies
Displays SMR Firmware Version.
N/A, display only.
Aux Revision Info byte 0
Varies
Displays implementation specific auxiliary
information from IPMI "Get Device ID
Command", byte 16. The byte is displayed as a
2-digit hexadecimal number.
N/A, display only.
Varies
Displays implementation specific auxiliary
information from IPMI "Get Device ID
Command", byte 14. The byte is displayed as a
2-digit hexadecimal number.
N/A, display only.
Varies
Displays implementation specific auxiliary
information from IPMI "Get Device ID
Command", byte 15. The byte is displayed as a
2-digit hexadecimal number.
N/A, display only.
Varies
Displays implementation specific auxiliary
information from IPMI "Get Device ID
Command", byte 16. The byte is displayed as a
2-digit hexadecimal number.
N/A, display only.
Aux Revision Info byte 1
Aux Revision Info byte 2
Aux Revision Info byte 3
5.1.7.3
FRU Board Information sub-menu
Feature
Options
Description
Setup Help
Board Product Name
Board name
Displays the CPU blade product name.
N/A, display only.
Board Serial Number
Varies
Displays the CPU blade serial number.
N/A, display only.
Board Part Number
Varies
Displays the CPU blade part number.
N/A, display only.
Product Name
Board name
Displays the CPU blade product name.
N/A, display only.
Product Part/Model
Varies
Displays the CPU blade part/model number.
N/A, display only.
Product Version Number
Manufacturer PCB
version
Displays the CPU blade PCB revision number.
N/A, display only.
Product Serial Number
Varies
Displays the CPU blade serial number.
N/A, display only.
83
KTC5520/EATX
www.kontron.com
5.1.8
Exit menu
Feature
Save Changes and Exit
Discard Changes and Exit
Discard Changes
Load Optimal Defaults
Load Failsafe Defaults
Save CMOS in FLASH
Options
Description
Setup Help
Enter
Saves modified settings into non-volatile
memory and reboots the system.
Exit system setup
after saving the
changes.
F10 key can be used
for this operation.
Enter
Discards modifications to settings and reverts
to the state when Setup was entered, then
complete remaining POST.
Exit system setup
without saving any
changes.
ESC key can be used
for this operation.
Discards modifications to settings and reverts
to the state when Setup was entered.
Discards changes
done so far to any of
the setup questions.
F7 key can be used
for this operation.
Enter
Loads the factory default settings.
Load Optimal Default
values for all the
setup questions.
F9 key can be used
for this operation.
Enter
Loads the factory failsafe settings.
These settings could be used when the board is
not operating correctly.
Load Failsafe Default
values for all the
setup questions.
F8 key can be used
for this operation.
Disabled
Enabled
Saving CMOS memory content into Flash
Memory will prevent loosing CMOS options
when battery fails.
Saving CMOS memory
content into Flash
Memory will prevent
loosing CMOS options
when battery fails.
Enter
84
KTC5520/EATX
www.kontron.com
5.2
Boot Utilities
AMI Boot Utilities are: Boot Menu POP-UP
Boot Menu POP-UP is a boot screen that displays a selection of boot devices from which you can boot your operating
system.
5.2.1
BOOT Menu POP-UP
Pressing <F11> (or <F3> from a Console Redirection terminal) displays the Boot Menu POP-UP with these options:
1 Load the operating system from a boot device of your choice.
2 Exit the Boot Menu POP-UP (with <ESC>) and load the operating system from the boot devices in the order specified in
Setup.
The BOOT Menu POP-UP expands your boot options by letting you choose your boot device, which could be a hard disk,
floppy disk, CDROM, Flash Disk, SCSI or LAN. You can select your boot device in Setup, or you can choose a different device
each time you boot during POST by selecting your boot device in the Boot menu POP-UP.
85
KTC5520/EATX
www.kontron.com
5.3
Console Redirection (VT100 Mode)
The VT100 operating mode allows remote setup of the board. This configuration requires a remote terminal that must be
connected to the board through a serial communication link.
5.3.1
Requirements
The terminal should emulate a VT100 or an ANSI terminal. Terminal emulation programs such as Telix©,
HyperTherminal(Windows), minicom(Linux) or ProComm©(Windows) can also be used.
5.3.2
ANSI and VT100 Keystroke Mapping
Up
<ESC>[A
Down
<ESC>[B
Right
<ESC>[C
Left
<ESC>[D
Home
<ESC>[H
End
<ESC>[K
F1
<ESC>OP
F2
<ESC>OQ
F3
<ESC>OR
F4
<ESC>OT
86
KTC5520/EATX
www.kontron.com
5.3.3
VT-UTF8 Keystroke Mapping
The following "escape sequences" are defined in the "Conventions for Keys Not in VT100 Terminal Definition and ASCII
Character Set" section of "Standardizing Out-of-Band Management Console Output and Terminal Emulation (VT-UTF8 and
VT100+)", available for download at microsoft.com.
F1 Key
<ESC>1
F2 Key
<ESC>2
F3 Key
<ESC>3
F4 Key
<ESC>4
F5 Key
<ESC>5
F6 Key
<ESC>6
F7 Key
<ESC>7
F8 Key
<ESC>8
F9 Key
<ESC>9
F10 Key
<ESC>0
F11 Key
<ESC>!
F12 Key
<ESC>@
Alt Modifier
<ESC>^A
Control Modifier
<ESC>^C
Home Key
<ESC>h
End Key
<ESC>k
Insert Key
<ESC>+
Delete Key
<ESC>-
Page Up Key
<ESC>?
Page Down Key
<ESC>/
These "escape sequences" are supported by VT-UTF8 compliant terminal connections, such as Windows Server 2003
Emergency Management Services (EMS).
AMIBIOS8 Serial Redirection supports these key sequences under two configurations:
• "Terminal Type" setup question is set to "VT-UTF8"
• "Terminal Type" setup question is set to "VT100" or "ANSI" and "VTUTF8 Combo Key Support" setup question is set to
"Enabled"
87
KTC5520/EATX
www.kontron.com
A. PCI IDSEL and Device Numbers
BUS#
DEV#
V. ID
D. ID
Funct. # Description
PCI Description
00
00
8086
3406
0
Intel Corporation X58 I/O Hub to ESI Port (rev 13)
Host bridge
00
01
8086
3408
0
Intel Corporation X58 I/O Hub PCI Express Root Port 1 (rev 13)
PCI bridge
00
03
8086
340a
0
Intel Corporation X58 I/O Hub PCI Express Root Port 3 (rev 13)
PCI bridge
00
05
8086
340c
0
Intel Corporation X58 I/O Hub PCI Express Root Port 5 (rev 13)
PCI bridge
00
09
8086
340e
0
Intel Corporation X58 I/O Hub PCI Express Root Port 7 (rev 13)
PCI bridge
00
09
8086
3410
0
Intel Corporation X58 I/O Hub PCI Express Root Port 9 (rev 13)
PCI bridge
00
13
8086
342d
0
Intel Corporation X58 I/O Hub I/OxAPIC Interrupt Controller
(rev 13)
PIC
00
14
8086
342e
0
Intel Corporation X58 I/O Hub System Management Registers
(rev 13)
PIC
00
14
8086
3422
1
Intel Corporation X58 I/O Hub GPIO and Scratch Pad Registers
(rev 13)
PIC
00
14
8086
3423
2
Intel Corporation X58 I/O Hub Control Status and RAS
Registers (rev 13)
PIC
00
14
8086
3438
3
Intel Corporation X58 I/O Hub Throttle Registers (rev 13)
PIC
System peripheral
00
16
8086
3430
0
Intel Corporation X58 Chipset QuickData Technology Device
(rev 13)
00
16
8086
3431
1
Intel Corporation X58 Chipset QuickData Technology Device
(rev 13)
System peripheral
00
16
8086
3432
2
Intel Corporation X58 Chipset QuickData Technology Device
(rev 13)
System peripheral
00
16
8086
3433
3
Intel Corporation X58 Chipset QuickData Technology Device
(rev 13)
System peripheral
00
16
8086
3429
4
Intel Corporation DMA Engine (rev 13)
System peripheral
00
16
8086
342a
5
Intel Corporation DMA Engine (rev 13)
System peripheral
00
16
8086
342b
6
Intel Corporation DMA Engine (rev 13)
System peripheral
00
16
8086
342c
7
Intel Corporation DMA Engine (rev 13)
System peripheral
00
1a
8086
3a37
0
Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller
#4
USB Controller
00
1a
8086
3a39
1
Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller
#5
USB Controller
00
1a
8086
3a39
2
Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller
#6
USB Controller
00
1a
8086
3a3c
3
Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller
#2
USB Controller
00
1b
8086
3a3e
0
Intel Corporation 82801JI (ICH10 Family) HD Audio Controller
Audio Device
00
1d
8086
3a34
0
Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller
#1
USB Controller
00
1d
8086
3a35
1
Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller
#2
USB Controller
00
1d
8086
3a36
2
Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller
#3
USB Controller
00
1d
8086
3a3a
7
Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller
#1
USB Controller
A-1
KTC5520/EATX
www.kontron.com
BUS#
DEV#
V. ID
D. ID
Funct. # Description
PCI Description
00
1e
8086
244e
0
Intel Corporation 82801 PCI Bridge (rev 90)
PCI bridge
00
1f
8086
3a16
0
Intel Corporation 82801JIR (ICH10R) LPC Interface Controller
ISA bridge
00
1f
8086
3a22
2
Intel Corporation 82801JI (ICH10 Family) SATA AHCI Controller
SATA controller
00
1f
8086
3a30
3
Intel Corporation 82801JI (ICH10 Family) SMBus Controller
SMBus
01
00
8086
10c9
0
Intel Corporation 82576 Gigabit Network Connection (rev 01)
Ethernet controller
01
00
8086
10c9
1
Intel Corporation 82576 Gigabit Network Connection (rev 01)
Ethernet controller
02
01
1a03
2000
0
ASPEED Technology, Inc. AST2000 (rev 10)
VGA compatible
controller
A-2
KTC5520/EATX
www.kontron.com
B. BIOS Setup Error Codes
B.1
Bootblock Initialization Code
Checkpoints
The Bootblock initialization code sets up the chipset, memory and other components before system memory
is available. The following table describes the type of checkpoints that may occur during the bootblock
initialization portion of the BIOS:
Checkpoint
Description
Before D1
Early chipset initialization is done. Early super I/O initialization is done including RTC and keyboard
controller. NMI is disabled.
D1
Perform keyboard controller BAT test. Check if waiking up from power management suspend state.
Save power-on CPUID value in scratch CMOS.
D0
Go to flat mode with 4GB limit and GA20 enabled. Verify the bootblock checksum.
D2
Disable CACHE before memory detection. Execute full memory sizing module. Verify that flat mode is
enabled.
D3
If memory sizing module not executed, start memory refresh and do memory sizing in Bootblock
code. Do additional chipset initialization. Re-enable CACHE. Verify that flat mode is enabled.
D4
Test base 512KB memory. Adjust policies and cache first 8MB. Set stack.
D5
Bootblock code is copied from ROM to lower system memory and control is given to it. BIOS now
executes out of RAM.
D6
Both key sequence and OEM specific method is checked to determine if BIOS recovery is forced. Main
BIOS checksum is tested. If BIOS recovery is necessary, control flows to checkpoint E0. See Bootblock
Recovery Code Checkpoints section of document for more information.
D7
Restore CPUID value back into register. The Bootblock-Runtime interface module is moved to system
memory and control is given to it. Determine whether to execute serial flash.
D8
The Runtime module is uncompressed into memory. CPUID information is stored in memory.
D9
Store the Uncompressed pointer for future use in PMM. Copying Main BIOS into memory. Leaves all
RAM below 1MB Read-Write including E000 and F000 shadow areas but closing SMRAM.
DA
Restore CPUID value back into register. Give control to BIOS POST (ExecutePOSTKernel). See POST
Code Checkpoints section of document for more information.
E1-E8
EC-EE
OEM memory detection/configuration error. This range is reserved for chipset vendors & system
manufacturers. The error associated with this value may be different from one platform to the next.
Refer to memory initialization ERROR CODE D.5
B-1
KTC5520/EATX
www.kontron.com
B.2
POST Code Checkpoints
The POST code checkpoints are the largest set of checkpoints during the BIOS pre-boot process. The
following table describes the type of checkpoints that may occur during the POST portion of the BIOS. All
POST Codes can be seen through the Web Management Interface in section Control.
Checkpoint
Description
03
Disable NMI, Parity, video for EGA, and DMA controllers. Initialize BIOS, POST, Runtime data
area. Also initialize BIOS modules on POST entry and GPNV area. Initialized CMOS as
mentioned in the Kernel Variable "wCMOSFlags."
04
Check CMOS diagnostic byte to determine if battery power is OK and CMOS checksum is OK.
Verify CMOS checksum manually by reading storage area. If the CMOS checksum is bad,
update CMOS with power-on default values and clear passwords. Initialize status register A.
Initializes data variables that are based on CMOS setup questions. Initializes both the 8259
compatible PICs in the system
05
Initializes the interrupt controlling hardware (generally PIC) and interrupt vector table.
06
Do R/W test to CH-2 count reg. Initialize CH-0 as system timer. Install the POSTINT1Ch
handler. Enable IRQ-0 in PIC for system timer interrupt.
Traps INT1Ch vector to "POSTINT1ChHandlerBlock."
08
Initializes the CPU. The BAT test is being done on KBC. Program the keyboard controller
command byte is being done after Auto detection of KB/MS using AMI KB-5.
C0
Early CPU Init Start -- Disable Cache - Init Local APIC
C1
Set up boot strap processor Information
C2
Set up boot strap processor for POST
C5
Enumerate and set up application processors
C6
Re-enable cache for boot strap processor
C7
Early CPU Init Exit
0A
Initializes the 8042 compatible Key Board Controller.
0B
Detects the presence of PS/2 mouse.
0C
Detects the presence of Keyboard in KBC port.
0E
Testing and initialization of different Input Devices. Also, update the Kernel Variables.
Traps the INT09h vector, so that the POST INT09h handler gets control for IRQ1.
Uncompress all available language, BIOS logo, and Silent logo modules.
13
Early POST initialization of chipset registers.
24
Uncompress and initialize any platform specific BIOS modules.
30
Initialize System Management Interrupt.
2A
Initializes different devices through DIM.
See DIM Code Checkpoints section of document for more information.
2C
Initializes different devices. Detects and initializes the video adapter installed in the
system that have optional ROMs.
2E
Initializes all the output devices.
31
Allocate memory for ADM module and uncompress it. Give control to ADM module for
initialization. Initialize language and font modules for ADM. Activate ADM module.
33
Initializes the silent boot module. Set the window for displaying text information.
37
Displaying sign-on message, CPU information, setup key message, and any OEM specific
information.
38
Initializes different devices through DIM. See DIM Code Checkpoints section of document
for more information.
B-2
KTC5520/EATX
www.kontron.com
Checkpoint
Description
39
Initializes DMAC-1 & DMAC-2.
3A
Initialize RTC date/time.
3B
Test for total memory installed in the system. Also, Check for DEL or ESC keys to limit
memory test. Display total memory in the system.
3C
Mid POST initialization of chipset registers.
40
Detect different devices (Parallel ports, serial ports, and coprocessor in CPU, … etc.)
successfully installed in the system and update the BDA, EBDA…etc.
50
Programming the memory hole or any kind of implementation that needs an adjustment in
system RAM size if needed.
52
Updates CMOS memory size from memory found in memory test. Allocates memory for
Extended BIOS Data Area from base memory.
60
Initializes NUM-LOCK status and programs the KBD typematic rate.
75
Initialize Int-13 and prepare for IPL detection.
78
Initializes IPL devices controlled by BIOS and option ROMs.
7A
Initializes remaining option ROMs.
7C
Generate and write contents of ESCD in NVRam.
84
Log errors encountered during POST.
85
Display errors to the user and gets the user response for error.
87
Execute BIOS setup if needed / requested.
8C
Late POST initialization of chipset registers.
8D
Build ACPI tables (if ACPI is supported)
8E
Program the peripheral parameters. Enable/Disable NMI as selected
90
Late POST initialization of system management interrupt.
A0
Check boot password if installed.
A1
Clean-up work needed before booting to OS.
A2
Takes care of runtime image preparation for different BIOS modules. Fill the free area in
F000h segment with 0FFh. Initializes the Microsoft IRQ Routing Table. Prepares the runtime
language module. Disables the system configuration display if needed.
A4
Initialize runtime language module.
A7
Displays the system configuration screen if enabled. Initialize the CPU's before boot, which
includes the programming of the MTRR's.
A8
Prepare CPU for OS boot including final MTRR values.
A9
Wait for user input at config display if needed.
AA
Uninstall POST INT1Ch vector and INT09h vector. Deinitializes the ADM module.
AB
Prepare BBS for Int 19 boot.
AC
End of POST initialization of chipset registers.
B1
Save system context for ACPI.
00
Passes control to OS Loader (typically INT19h).
61-70
OEM POST Error. This range is reserved for chipset vendors & system manufacturers. The
error associated with this value may be different from one platform to the next.
DD-DE
OEM PCI init debug POST code during DIMM init, See DIM Code Checkpoints section of
document for more information.
B-3
KTC5520/EATX
www.kontron.com
B.3
DIM Code Checkpoints
The Device Initialization Manager (DIM) gets control at various times during BIOS POST to initialize different
system busses. The following table describes the main checkpoints where the DIM module is accessed:
Checkpoint
Description
2A
Initialize different buses and perform the following functions: Reset, Detect, and Disable
(function 0); Static Device Initialization (function 1); Boot Output Device Initialization
(function 2). Function 0 disables all device nodes, PCI devices, and PnP ISA cards. It also
assigns PCI bus numbers. Function 1 initializes all static devices that include manual
configured onboard peripherals, memory and I/O decode windows in PCI-PCI bridges, and
noncompliant PCI devices. Static resources are also reserved. Function 2 searches for and
initializes any PnP, PCI, or AGP video devices.
38
Initialize different buses and perform the following functions: Boot Input Device
Initialization (function 3); IPL Device Initialization (function 4); General Device
Initialization (function 5). Function 3 searches for and configures PCI input devices and
detects if system has standard keyboard controller. Function 4 searches for and configures
all PnP and PCI boot devices. Function 5 CONFIGURES all onboard peripherals that are set to
an automatic configuration and configures all remaining PnP and PCI devices.
DD-DE
OEM PCI init debug POST code during DIMM init. DEh during BUS number assignment and
DDh during ressource allocation, Hight byte is the BUS number.
While control is in the different functions, additional checkpoints are output to port 80h as a word value to
identify the routines under execution. The low byte value indicates the main POST Code Checkpoint. The high
byte is divided into two nibbles and contains two fields. The details of the high byte of these checkpoints are
as follows:
HIGH BYTE XY
The upper nibble 'X' indicates the function number that is being executed. 'X' can be from 0 to 7.
0 = func#0, disable all devices on the BUS concerned.
1 = func#1, static devices initialization on the BUS concerned.
2 = func#2, output device initialization on the BUS concerned.
3 = func#3, input device initialization on the BUS concerned.
4 = func#4, IPL device initialization on the BUS concerned.
5 = func#5, general device initialization on the BUS concerned.
6 = func#6, error reporting for the BUS concerned.
7 = func#7, add-on ROM initialization for all BUSes.
8 = func#8, BBS ROM initialization for all BUSes.
The lower nibble 'Y' indicates the BUS on which the different routines are being executed. 'Y' can be from 0
to 5.
B-4
KTC5520/EATX
www.kontron.com
0 = Generic DIM (Device Initialization Manager).
1 = On-board System devices.
2 = ISA devices.
3 = EISA devices.
4 = ISA PnP devices.
5 = PCI devices.
B.4
Memory Initialization ERROR Code
Checkpoint
Description
E8
Memory Error - No memory installed.
EA
Memory Error - DDR3 Initialisation
EB
Memory Error - Memory test
ED
Memory Error - RDIMMs and UDIMMs are mixed
EE
Memory Error - Invalid Memory Population
EF
Memory Error - Memory structure problem
B-5
KTC5520/EATX
www.kontron.com
C. Software Update & Drivers
To update the software of your board or to get the latest drivers, visit the Kontron web site at:
www.kontron.com. All the procedures are provided with the package you will download from the web site.
C-1
KTC5520/EATX
www.kontron.com
D. Troubleshooting
Before going through in-depth troubleshooting, make sure you are using the latest softwares. These
software include the updates for the BIOS, Baseboard Management Controller & Web Management Interface.
The latest versions are available from the Kontron web site at: www.kontron.com.
If you cannot resolve your problem on your own, pleas contact your Kontron technical support department.
D-1
KTC5520/EATX
www.kontron.com
E. Getting Help
If, at any time, you encounter difficulties with your application or with any of our products, or if you simply
need guidance on system setups and capabilities, contact our Technical Support at:
North America
EMEA
Tel.: (450) 437-5682
Tel.: +49 (0) 8341 803 333
Fax: (450) 437-8053
Fax: +49 (0) 8341 803 339
If you have any questions about Kontron, our products, or services, visit our Web site at: www.kontron.com
You also can contact us by E-mail at:
North America: [email protected]
EMEA: [email protected]
Or at the following address:
North America
EMEA
Kontron Canada, Inc.
Kontron Modular Computers GmbH
4555, Ambroise-Lafortune
Sudetenstrasse 7
Boisbriand, Québec
87600 Kaufbeuren
J7H 0A4 Canada
Germany
E-1
KTC5520/EATX
www.kontron.com
E.1
Returning Defective Merchandise
Before returning any merchandise please do one of the following:
• Call
1 Call our Technical Support department in North America at (450) 437-5682 and in EMEA at +49
(0) 8341 803 333. Make sure you have the following on hand: our Invoice #, your Purchase
Order #, and the Serial Number of the defective unit.
2 Provide the serial number found on the back of the unit and explain the nature of your problem
to a service technician.
3 The technician will instruct you on the return procedure if the problem cannot be solved over
the telephone.
4 Make sure you receive an RMA # from our Technical Support before returning any merchandise.
• E-mail
1 Send us an e-mail at: [email protected] in North America and at:
[email protected] in EMEA. In the e-mail, you must include your name,
your company name, your address, your city, your postal/zip code, your phone number, and
your e-mail. You must also include the serial number of the defective product and a description
of the problem.
E-2
KTC5520/EATX
www.kontron.com
E.2
When Returning a Unit
• In the box, you must include the name and telephone number of a contact person, in case
further explanations are required. Where applicable, always include all duty papers and
invoice(s) associated with the item(s) in question.
• Ensure that the unit is properly packed. Pack it in a rigid cardboard box.
• Clearly write or mark the RMA number on the outside of the package you are returning.
• Ship prepaid. We take care of insuring incoming units.
North America
EMEA
Kontron Canada, Inc.
Kontron Modular Computers GmbH
4555, Ambroise-Lafortune
Sudetenstrasse 7
Boisbriand, Québec
87600 Kaufbeuren
J7H 0A4 Canada
Germany
E-3
KTC5520/EATX
www.kontron.com
F. Recycling your Board
Contact you Kontron Technical Support Departement for the appropriate procedure on how to recycle your
board.
F-1
KTC5520/EATX
www.kontron.com
G. Glossary
Acronyms
Descriptions
ATA
Advanced Technology Attachment
ATAPI
Advanced Technology Attachment Packet Interface
ATX
Advanced Technology Extended. Form factor for computer case.
BIOS
Basic Input/Output System
CD
Compact Disk
CDROM
(Same as CD-ROM). Compact Disk Read-Only Memory.
CD-ROM
(Same as CDROM). Compact Disk Read-Only Memory.
CMOS
Complementary Metal Oxide Semiconductor. Also refers to the small amount of battery (or capacitor)
powered CMOS memory to hold the date, time, and system setup parameters.
CPU
Central Processing Unit. This sometimes refers to a whole blade, not just a processor component.
CRC
Cyclic Redundancy Check
CTS
Clear To Send
DDR3
DDR3 SDRAM or Double-Data-Rate three (3) Synchronous Dynamic Random Access Memory.
DHCP
Dynamic Host Configuration Protocol
DSP
Digital Signal Processing
DTC
Data Transfer Controller
DTR
Data Terminal Ready
DTS
Digital Thermal Sensor in IA32 processors.
DVD
Digital Video Disk
EATX
Extanded ATX
EEB
Enterprise Electronics Bay
ETH
Same as Ethernet.
Gb
Gigabit
GB
(Same as GByte) GigaByte.
GByte
(Same as GB) GigaByte.
GbE
Gigabit Ethernet
GHz
GigaHertz
LAN
Local Area Network
OS
Operating System
PCI
Peripheral Component Interconnect
PCI-32
Peripheral Component Interconnect 32 bits
PCI®
Peripheral Component Interconnect
PCIe
(Same as PCI-E). PCI-Express. Next generation I/O standard
PCI-E
(Same as PCIe). PCI-Express. Next generation I/O standard.
PIC
Programmable Interrupt Controller
PICMG
PCI Industrial Computer Manufacturers Group
PICMG®
PCI Industrial Computer Manufacturers Group
RAM
Random Access Memory
RS-232
(Same as RS232). Recommended Standard 232.
G-1
KTC5520/EATX
www.kontron.com
Acronyms
Descriptions
RS232
(Same as RS-232). Recommended Standard 232.
SMTP
Simple Mail Transfer Protocol
SNMP
Simple Network Management Protocol
SNTP
Simple Network Time Protocol
SOL
Serial Over LAN
SPD
Serial Presence Detect. A standardized way to automatically access information about a computer
memory module.
SPI
Serial Peripheral Interface
SpeedStep
(Same as EIST). Enhanced Intel SpeedStep Technology.
SRAM
Static Random Access Memory
SSE2
Streaming SIMD Extension 2. SIMD is "Single Instruction, Multiple Data".
SSE3
Streaming SIMD Extension 3. SIMD is "Single Instruction, Multiple Data".
SSH
Secure SHell. A network protocol that allows data to be exchanged over a secure channel between
two computers.
SSI
Server System Infrastructure
UART
Universal Asynchronous Receiver Transmitter
USB
Universal Serial Bus
VGA
Video Graphics Array
G-2
KTC5520/EATX
www.kontron.com
