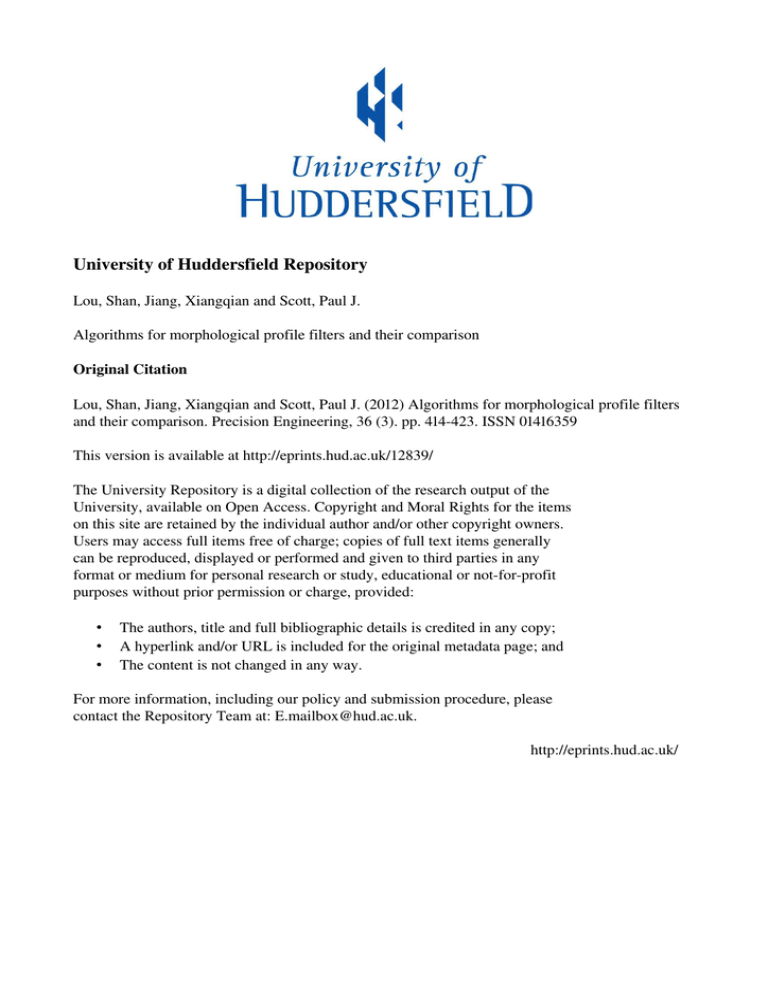

University of Huddersfield Repository

University of Huddersfield Repository
University of Huddersfield Repository
Lou, Shan, Jiang, Xiangqian and Scott, Paul J.
Algorithms for morphological profile filters and their comparison
Original Citation
Lou, Shan, Jiang, Xiangqian and Scott, Paul J. (2012) Algorithms for morphological profile filters
and their comparison. Precision Engineering, 36 (3). pp. 414-423. ISSN 01416359
This version is available at http://eprints.hud.ac.uk/12839/
The University Repository is a digital collection of the research output of the
University, available on Open Access. Copyright and Moral Rights for the items
on this site are retained by the individual author and/or other copyright owners.
Users may access full items free of charge; copies of full text items generally
can be reproduced, displayed or performed and given to third parties in any
format or medium for personal research or study, educational or not-for-profit
purposes without prior permission or charge, provided:
•
•
•
The authors, title and full bibliographic details is credited in any copy;
A hyperlink and/or URL is included for the original metadata page; and
The content is not changed in any way.
For more information, including our policy and submission procedure, please
contact the Repository Team at: [email protected]
http://eprints.hud.ac.uk/
Algorithms for Morphological Profile Filters and Their Comparison
Shan Lou, Xiangqian Jiang*, Paul J. Scott
EPSRC Centre for Innovative Manufacturing in Advanced Metrology, University of Huddersfield, Huddersfield, HD1
3DH, UK
*Corresponding author: Tel: +44 1484 473634; Fax: +44 1484 472161; E-mail: [email protected]
Abstract
Morphological filters, regarded as the complement of mean-line based filters, are useful in the analysis of
surface texture and the prediction of functional performance. The paper first recalls two existing algorithms,
the naive algorithm and the motif combination algorithm, originally developed for the traditional envelope
filter. With minor extension, they could be used to compute morphological filters. A recent novel approach
based on the relationship between the alpha shape and morphological closing and opening operations is
presented as well. Afterwards two novel algorithms are developed. By correlating the convex hull and
morphological operations, the Graham scan algorithm, original developed for the convex hull is modified to
compute the morphological envelopes. The alpha shape method depending on the Delaunay triangulation is
costly and redundant for the computation for the alpha shape for a given radius. A recursive algorithm is
proposed to solve this problem. A series of observations are presented for searching the contact points. Based
on the proposed observations, the algorithm partitions the profile data into small segments and searches the
contact points in a recursive manner. The paper proceeds to compare the five distinct algorithms in five
aspects: algorithm verification, algorithm analysis, performance evaluation, end effects correction, and areal
extension. By looking into these aspects, the merits and shortcomings of these algorithms are evaluated and
compared.
Keywords: Morphological filter, alpha shape, motif combination, Graham scan, contact point
1. Introduction
In the analysis of the surface texture, filtration techniques are widely used as a pre-process tool to
evaluate the characteristics of surfaces. They play critical roles in several respects. For instance, the
separation of different scales of features on surfaces is performed by filters. Furthermore filters help to
remove noises derived from the surface roughness or measurement interruptions in order to achieve more
stable data sets for further processes. Filters also help in functional simulation and performance prediction.
Among various filtering techniques, the envelope filter depends on the geometrical features of surfaces
[1] and thus is believed to give better results for functional prediction. With the introduction of
morphological operations [2], morphological filters emerged as the evolution of the traditional envelope
filter, offering more tools and capabilities. Acting as the complement of the mean-lines filters (e.g. the
Gaussian filter), morphological filters have found many applications in practices over the last decade. They
were applied to simulate the conformable interface of two mating surfaces [3] and analyze the inner surface
of the cylinder liner comprising of deep valleys superimposed on the plateax roughness [4].
As to the implementation of morphological filters, several approaches are of concern. Following Von
Weingraber’s work, Shunmugam & Radhakrishnan [5] developed a direct algorithm for the traditional
envelope filter. Scott [6] proposed a general mathematical theory for motifs and motif combination.
Meanwhile an efficient algorithm based on the motif combination was constructed to calculate the profile
envelope and perform the functional simulation. Recently we [7] proposed a novel method for
implementation of morphological filters, which is based on the alpha shape.
This paper first recalls two existing algorithms for the traditional envelope filter and the alpha shape
method for morphological filters. Afterward we propose two novel algorithms, the modified Graham scan
algorithm and the recursive algorithm. The five algorithms are further analyzed and compared in various
aspects, thus advantages and disadvantages of these algorithms are illustrated. Section 2 reviews the
algorithm proposed by Shunmugam & Radhakrishnan and ISO 16610. We call it the “naive” algorithm for
convenience in that this algorithm is a direct implementation to morphological operations as it will be seen in
the section. Scott’s motif combination algorithm is given in Section 3. Section 4 presents the algorithm for
morphological filters based on the alpha shape. In Section 5 we introduce the computational geometry
technique into morphological operations calculation. Based on the correlation between the convex hull and
morphological operations, the Graham scan algorithm, original developed for the convex hull computation is
modified and adapted to calculate morphological envelopes. Section 6 presents another algorithm. Aiming to
the deficit of the alpha shape method, a recursive algorithm is developed based on a series of observations
concerning with the search of the contact points. The comparison of the five algorithms is conducted in
Section 7 in five aspects: algorithm verification, algorithm analysis, performance evaluation, end effects
correction, and areal extension. Finally Section 8 gives the conclusions.
2. Naive algorithm
The naive algorithm was original developed to compute the covering envelope of the disk as it rolls over
the profile. The envelope is the locus of the center of the rolling disk, usually compensated by the disk radius.
The uncompensated envelope is in essence the morphological dilation of the profile data. If the disk rolls
over the profile from below, the envelope of the rolling disk is the erosion of the profile. Thus according to
the definition of morphological operations [8], morphological closing and opening could be obtained by
combining the dilation and erosion pairs in sequence, either dilation followed by erosion or vice versa.
The naive algorithm takes discrete representation of the input profile and the structuring element as
illustrated in Figure 1 (The structuring element is a disk in this example). The disk ordinates ei are computed
from the disk center to the two ends. These ordinates are placed over the profile ordinates with the disk
ordinate e1 over the profile point p j with height ordinate z j . The ordinate where the mapping pair
{( e , z ) | (i = j )} gives the maximum value max(e + z ) determines the height of the disk center. The
i
j
i
(
j
)
envelope ordinate is given by max( ei + z j ) − e1 . This procedure is repeated for all the profile ordinates to
obtain the whole envelope. In this sense, the naive algorithm conforms to the definition of the morphological
dilation and erosion which are defined as the Minkowski addition and subtraction of the input set and the
structuring element respectively [9].
Figure 1. Computation of the profile upper envelope.
ISO 16610 Part 41 [10] presents a basic method to compute discrete morphological filters either. It puts
the origin of the structuring element at every point of the input profile, as illustrated for a few positions of a
circular structuring element for dilation in Figure 2. Extreme value at each position is collected and they
form the output envelope. The extreme heights for input points are the results of adding the ordinates of input
profile points with the ordinates of sample points on the disk, as marked by the top-most stars at vertical
lines in the figure.
2
Figure 2. Dilation of the profile with a circular structuring element [10].
Essentially the basic approach presented by ISO 16610 is equivalent to the one proposed by Shunmugam
& Radhakrishnan. They both take discrete forms of the input profile and the structuring element and compute
the envelope ordinate at each sampling position. Figure 3 presents the pseudocode of the naive algorithm for
morphological dilation. Due to the duality of morphological dilation and erosion, the erosion of opening
profiles could be easily computed by first flipping the structuring element and later flipping the dilation
results, i.e.,
Erosion ( X , B ) = − Dilation ( X , − B ) .
(2.1)
Combining morphological dilation and erosion in two opposite sequences results in morphological
closing and opening. Figure 4 illustrates an example of applying the closing filter to a profile using the naive
algorithm. The experimental profile consists of 250 sample data with sampling interval 5 µm. The profile is
filtered by a 0.5 mm disk.
Algorithm Dilation(X, B)
{Given a profile data set S with n points and the structuring}
{element B, compute the dilation D of X by B.}
j = 1;
m = B.length/2;
while j <= n do
D(j) = max(z(j-m) : z(j+m) + B);
end while;
return D;
Figure 3. Naive algorithm for morphological dilation operation.
Height / µm
4
2
0
-2
0.2
0.4
0.6
X / mm
0.8
1
1.2
Figure 4. Closing envelope computed by the naive algorithm.
3
3. Motif combination algorithm
Scott [6] proposed an alternative way to calculate the profile envelope using the motif combination.
Couple of definitions were given as the data type used in the algorithm.
Events: an event splits the profile into a number of discrete sections. The events might be the highest
points on all the local peaks or all the upcrossing of the profile through a reference line or even every sample
point of the profile. They are numbered in order along the profile. The initial set of events is all the sample
points on the profile.
Motif: a motif ( i, j ) , where i < j , consists of that section of the profile between the i th and j th events.
Motif Combination Test: it is performed on two adjacent motifs (say, two motifs ( i, j ) and
( j, k ) ) with
the common event (say, j ) to determine if the common event is significant or not. If the event is not
significant, two adjacent motifs to that event are combined (say, motifs ( i, j ) and
( j, k ) are combined to
form a new motif ( i, k ) ) and thus the event is eliminated. For rolling a disk on the profile, the functional
motif combination test is to check if the disk is possible to contact the common event by placing the disk on
two adjacent motifs.
The motif combination algorithm starts with the set of all events, namely all the sample data on the
profile, and then it eliminates the insignificant events by repeatedly applying the motif combination test until
all adjacent motifs pass the test. Scott found a set of criteria that the motif combination had to satisfy so that
the order of the motif combinations did not matter, they all resulted in the same final answer. Both the rolling
disk and the sliding line segment satisfy these criteria. The pseudocode of the motif combination algorithm is
presented in Figure 5.
Algorithm MotifCombination(X, B)
{Given a data set X with n points and the structuring}
{element B, compute the final motifs motifs }
Chain list motifs= {(p1, p2), (p2, p3), …, (pn-1, pn)};
while 1
if CombineMotifs(motifs, B)
break;
end if;
end while;
return motifs;
Procedure CombineMotifs(motifs, B)
flag = false;
motif1 = motifs(1);
for i = 2 to motifs.length
motif2 = motifs(i);
if CombineTest(motif1, motif2, B)
motif1 = {motif1.Start, motif2.End};
motifs.Remove(motif2);
flag = true;
end if;
end for;
return flag;
Figure 5. Motif combination algorithm for morphological filters.
The profile motif combination method results in a sequence of final motifs which are significant. The set
of events specifying these motifs are the points which may contact the disk while it is traversing the profile.
With the significant motifs, the envelope ordinates of the circular structuring element are computed by
interpolating points on the arcs determined by the motifs at each sampling position. For the line segment
4
structuring element, the profile envelope ordinates are given by the smaller one of the two events of each
final motif. Using this method, the same experimental profile data used in the previous section is filtered by
morphological closing filter with the disk of the same radius. Figure 6 illustrates the closing envelope along
with the significant motifs marked by the line segments.
Height / µm
4
2
0
-2
0.2
0.4
0.6
X / mm
0.8
1
1.2
Figure 6. Closing envelope and final significant motifs computed by the motif combination algorithm.
4. Alpha shape algorithm
Recently we [7] proposed a novel method for morphological filters based on the link between the alpha
hull and morphological operations. The alpha shape was introduced by Edelsbrunner [11] aiming to describe
the specific “shape” of a finite point set with a real parameter α controlling the desired level of details. The
alpha hull is the boundary formed by rolling a ball (disk) with the given radius over the point set.
There exists a theoretical link between the alpha hull and morphological operations: the alpha hull is
equivalent to the closing of the point set X with a generalized ball of radius − 1 α and that from the duality
of closing and opening the alpha hull is the complement of the opening of X c (complement of X ) with the
same ball as the structuring element [12]. This relationship provides the theoretical basis of using the alpha
shape to compute morphological filters.
The basic idea of this approach is to compute the alpha shape of the data set and utilize it to calculate
morphological opening and closing envelopes. The calculation of the alpha shape is based on the Delaunay
triangulation. For a finite planar point set X , the Delaunay triangulation DT ( X ) results in a series of
triangles. These triangles are connected by the points in the set as their vertices and the circumscribed circles
of these triangles are all empty. The relationship between the Delaunay triangulation and the alpha shape is
that the boundary of the alpha shape ∂Sα ( X ) is contained in the Delaunay triangulation DT ( X ) , namely
∂Sα ( X ) ⊆ DT ( X ) . ∂Sα ( X ) is a collection of simplices (triangles and edges) in DT ( X ) satisfying two
properties: (i) the radius of the smallest circumcircle of the simplex is smaller than the disk radius α and the
circumcircle is empty; (ii) the simplex is a face of super simplex of the alpha shape.
The algorithm to compute the alpha shape boundary facets is illustrated in Figure 7. Following the
Delaunay triangulation of the point set X , the algorithm loops to check the edges of the triangles in two
steps. First, calculate the circumcircle of its super simplex, namely a triangle. If the radius of the circumcircle
is smaller than the given disk radius α and the edge has an unique super triangle, then it belongs to the
boundary facets. Otherwise, go to the second step. Compute the smallest circumcircle of the edge and
compare with α . If smaller than α , continue to check whether the circumcircle is empty. If all these
conditions are satisfied, then the edge is a boundary facet either.
5
Algorithm AlphaShape (X, α)
{Given a point set X and the chosen disk radius α, computes}
{the list f of the boundary facets of the alpha shape of X.}
triangle = DT(X);
i = 1;
for each edge do
R = CircumCircle(triangle);
if R < α
if Unique(triangle)
f(i) = edge;
i = i + 1;
end if;
continue;
end if;
R = CircumCircle(edge);
if R < α
if IsCircleEmpty(edge)
f(i) = edge;
i = i + 1;
continue;
end if;
end if;
end for;
return f;
Figure 7. Alpha shape algorithm for morphological filters.
With the boundary facets of the alpha shape, the envelope ordinates are computed in a manner similar to
the motif combination algorithm, i.e. interpolating point on the arcs determined by the alpha shape facets for
each sampling position. Since there may exists overlap facets for a certain sampling position, only the
extreme ordinate is retained. For instance, only the highest ordinates are retained for the closing envelope,
and vice versa for the opening envelope.
Again the alpha shape algorithm was performed on the same experimental profile data with a 0.5 mm
disk. Figure 8 shows the resultant closing envelope as well as the alpha shape boundary facets marked by the
line segments.
Height / µm
4
2
0
-2
0.2
0.4
0.6
X / mm
0.8
1
1.2
Figure 8. Closing envelope and alpha shape facets computed by the alpha shape algorithm.
5. Modified Graham scan algorithm
Morphological operations, as it were created, were first utilized to examine the geometrical structure of
rock cross sections [13]. It then led to a new quantitative approach in image analysis. The central idea of
morphological operations is to examine the geometrical structure of an image by matching it with small
patterns at various locations in the image. By varying the size and the shape of the matching patterns, called
6
structuring elements, useful information about the shape of the different part of an image and their
interrelation could be extracted. In general this procedure results in non-linear image operations which are
well suited for the analysis of the geometrical and topological structure of an image [14].
This image processing method was introduced into the surface texture analysis as a non-linear filtering
technique [2]. The measured data uniformly sampled on the surface are treated as the image pixels. In fact
the naive algorithm is a typical image processing method. It however has some limitations by dealing the
measured data as image pixels. Image has to be planar, unable to rotate in space, while the workpiece surface
is a physical object existing in space, invariant under translation and rotation. It is thus more reasonable to
view the sampled data as the point set in space rather than image pixels. As illustrated in Figure 9, the
closing envelope is obtained by rolling a disk over profile from above and taking the lower boundary of the
disks [15]. Consider the set of sample points as the discrete representation of the physical profile, it is
equivalent to roll the disk over these discrete points. This operation turns to be a computational geometry
problem instead of an image processing issue.
Figure 9. Closing envelope obtained by rolling a disk over the profile [15].
In computational geometry, the convex hull is the most ubiquitous structure, playing a central role in
many engineering computations. Intuitively the convex hull of a point set in 2D is obtained by pivoting an
infinite extending line around the point set (See Figure 10). The line-segment envelope bounding the point
set is called the convex hull. In the mathematical morphology point of view, the point set is equivalent to the
image being processed and the infinite extending line serves as the structuring element. If replacing the
infinite extending line by the desired geometrical object, for example, a disk, the convex hull turns to the
morphological envelopes. In this sense, the convex hull could be viewed as a special morphological envelope
with the infinite extending line being the structuring element. Based on that, it is able to correlate the convex
hull computation technique with the morphological envelope calculation.
Figure 10. Pivoting the infinite extending line around the point set yields the convex hull.
Among various convex hull calculation methods, the Graham scan algorithm was a very efficient method
for planar point set [16]. As illustrated in Figure 11, the algorithm sorts the points by angle counterclockwise firstly. Then the algorithm proceeds to consider each of the sorted point in sequence. It maintains a
stack structure to hold the points on the convex hull found so far. For each point, it is determined whether
moving from the two previously considered points to this point is a "left turn" or a "right turn". If it is a
"right turn", it means that the second-to-last point is not part of the convex hull and should be removed from
the stack. For example, in Figure 11, p3 , p4 and p5 forms a “right turn”, thus p4 is pop out from the stack.
7
Then the renewed chain, p2 , p3 and p5 , forms a “left turn”, and p5 is pushed into the stack. This process is
continued as long as the set of the last three points is a "right turn". As soon as a "left turn" is encountered,
the point is pushed into the stack and the algorithm moves on to the next point in the sorted array. In the end,
the points contained in the stack are all the convex hull points.
Figure 11. Graham scan algorithm for convex hull.
To compute morphological profile envelopes, we modify the Graham scan algorithm with aim of
searching the contact points, namely the points on the profile which may contact the structuring element. The
modified algorithm does not sort the data as is required in the convex hull computation in that the profile
points are naturally “sorted” in the sequence of sampling, but directly searches the contact points on the
profile. Similar to the original convex hull method, the modified algorithm maintains a stack structure to
contain the contact points.
The algorithm pseudocode is presented in Figure 12. At beginning the stack keeps the first two sample
points as the initial elements. Then it processes the rest of points incrementally. Each time the coming point
is evaluated with the top element pt and the second top element pt −1 in the stack. The chain composed by
the three points is checked whether the structuring element could contact the middle point pt −1 . If it is
unable to touch pt −1 , the point in evaluation is pushed into the stack, otherwise the top element of the stack
is popped out. The contact test is performed repeatedly until the test succeeds. Thus in this manner when all
the points are processed, the points in the final stack are all the contact points.
Algorithm GrahamScan(X, B)
{Given a point set {pi|i<n} and the structuring}
{ element B, computes the contact points.}
Stack stack = (p1, p2); t indexes top.
i = 3;
while i <= n do
if t < 2
Push(stack, pi);
continue;
end if;
if CheckContact(pt-1, pt, pi, B)
Push(stack, pi);
i = i + 1;
else
Pop(stack);
end if;
end while;
return stack;
Figure 12. Modified Graham scan algorithm for morphological filters.
Similar to the motif combination algorithm in Section 3, the envelope ordinates for the circular
structuring element are achieved by interpolating points on the arcs determined by the adjacent contact point
8
pairs at each sampling position. Likewise, for the line segment structuring element, the envelope ordinates
are achieved by interpolating points on the horizontal line that pass through the lower contact point in the
contact point pair. Figure 13 demonstrates the closing envelope of the experimental profile with disk radius
0.5 mm, computed by the modified Graham scan algorithm. The star marks in the figure are the contact
points on the profile.
Height / µm
4
2
0
-2
0.2
0.4
0.6
X / mm
0.8
1
1.2
Figure 13. Closing envelope and contact points computed by the Graham scan algorithm.
6. Recursive algorithm
As already presented in Section 4, the alpha shape is extracted from the Delaunay triangulation. In fact
the Delaunay triangulation could generate the whole family of alpha shapes. Therefore the Delaunay
triangulation data is reusable for multiple trails of ball radii for the same data set. It is a merit for
computation in that there is no need to perform the Delaunay triangulation for various radii attempts on the
same data set. It however could be a drawback in the meanwhile because the Delaunay triangulation is costly
for large data sets. Given a specific radius, the Delaunay triangulation contains much more information than
the necessity to generate the corresponding alpha shape related with the given radius. Thus in this sense there
is no need to achieve the desired alpha shape with redundant computations. A solution to this problem is to
find the alpha shape boundary facets without performing the Delaunay triangulation. In fact the vertices of
the alpha shape boundary facets are those points on the surface that contact the ball as it is rolling over the
surface, namely the contact points. By investigating the contact points and their composition, it is possible to
find the alpha shape boundary facets and afterward compute the morphological envelopes.
Supposing to use an infinite large ball ( α → ∞ ) to roll over the point set X , the boundary of the alpha
shape ∂Sα ( X ) turns to the convex hull ∂Conv ( X ) , i.e. lim ∂Sα ( X ) = ∂Conv ( X ) . In essence the infinite
α →∞
extending line used in the context of the convex hull as mentioned in Section 5 could be viewed as a part of
the infinite large ball. In this case, the boundary facets of the alpha shape of the point set are the facets of
convex hull. Therefore the convex hull points are all the contact points with the infinite large ball as the
structuring element.
Given two difference ball radius, α1 and α 2 with α1 < α 2 , it could be found that the alpha shape of α1
is contained in the alpha shape of α 2 , i.e. α1 < α 2 ⇒ Sα1 ( X ) ⊆ Sα2 ( X ) [17]. Since the contact points are
the vertices of the boundary alpha shape facets, the contact point set of the ball α 2 , P (α 2 ) must be
contained in the contact point of α1 , P (α1 ) , namely α1 < α 2 ⇒ P (α 2 ) ⊆ P (α1 ) . This indicates that the
contact points obtained from the big radius ball must be the contact points derived from the smaller radius
ball. Since the convex hull is obtained using the ball with infinite large radius ( α → ∞ ), the convex hull
point must be the contact points for arbitrary radius.
For morphological envelope of the opening profile, the disk is rolling from either above or below
depending on whether it is a closing operation or an opening operation. Thus only half of the convex hull
points are desired for a certain morphological operations. For the closing envelope, only the upper convex
hull points are the contact points. See Figure 14. These points naturally partition the profile data into small
segments. In each segment, we search other possible contact points.
9
Figure 14. The upper convex hull of the profile data.
Couples of observations are listed as follows concerning with the search of contact points. For
convenience of explanation, we take the morphological closing envelope and the disk structuring element for
demonstration. The opening envelope can be easily obtained by Formula 2.1 and the envelope using the line
segment structuring element could also be achieved in a similar but easier manner.
Given two contact points a and b and the disk radius r ,
(1)
If there are sample points lying above the simplex σ ab (left/positive side of ab ), then the contact point
is the furthest point orthogonal to ab .
In Figure 15, p1 , c , p3 are three points between the two known contact points a and b . The furthest
point c is the convex hull point for the point set {a , b, p1 , c, p3} [18]. c therefore is the contact point.
Figure 15. Search the furthest point orthogonal to ab on positive side.
(2)
If there are no points lying above σ ab and there exist points { pi } inside the circular section ab of the
disk with radius max{r , 1 2 ab } below σ ab , then the contact point c is the one among the points { pi } ,
which satisfied the condition: The circumscribed circle of σ abc have the largest radius among the
{
}
circumscribed circles of σ abpi .
Figure 16 (a) and (b) illustrates the case of ab ≤ 2r and the case of ab > 2r respectively. In the first
case, it is clear that the alpha ball with radius r is not α -exposed, thus σ ab is not the alpha shape
10
{
facets. However the circumcircle of σ abc which has the largest radius among σ abpi
} must be empty.
Thus c is the contact point. For the later case, we could find the similar result.
(b)
Figure 16. Search the contact point in the circular section below σ ab . (a): ab ≤ 2 r . (b): ab > 2 r .
(3)
If ab > 2r and there are no points lying above σ ab and also no points in the circular section ab of the
disk with radius
1
2
ab below σ ab , then the contact point is the one c that satisfies the condition: the
circumscribe circle of σ abc have the smallest radius among the circumscribed circle of
{
{σ } .
abpi
}
See Figure 17. It could be noticed that among the circumcircle of σ abpi , the circumcircle of σ abc ,
which has the smallest radius, is empty. Thus in this case, the contact point is c .
Figure 17. Search the contact point outside the circular section below σ ab with ab > 2 r .
(4)
If ab ≤ 2r and there are no points lying above σ ab and also no points in the circular section ab of the
disk with radius r below σ ab , then there is no contact point between a and b , and σ ab is a boundary
facet of the alpha shape.
With these observations, all of the contact point can be found in a recursive manner. Figure 18 presents
the pseudocode of the recursive algorithm. At the beginning, two end points of the profile data are selected
as the initial contact points for the recursive process. Then the whole profile is divided into two segments by
the partition point, i.e. the contact point found by the two initial points. This procedure is repeated in each
profile segment until two end points in recursion could hold on the disk without containing any other points,
namely the disk is empty. The final points result from the recursive procedure are all the contact points on
the profile and the envelope could be obtained by interpolating point on the arcs determined by two adjacent
contact points.
11
Algorithm CheckContactPnt(X, r)
{Given a point set X and the chosen disk}
{ radius r, computes the contact points.}
a ← the left end point of X.
b ← the right end point of X.
Partition(a, b, r);
Procedure Partition (a, b, r)
c ← contact point.
if c exist
Partition (a, c, r);
Partition (c, b, r);
else
record a, b;
return;
end
Figure 18. Recursive algorithm for morphological filters.
Figure 19 illustrates an example of the closing envelope using the recursive algorithm. It employs the
same experimental data and the disk radius as used in the previous sections. The contact points are circled in
the figure.
Height / µm
4
2
0
-2
0.2
0.4
0.6
X / mm
0.8
1
1.2
Figure 19. Closing envelope and contact points computed by the recursive algorithm.
7. Discussion
In preceding sections five different algorithms have been presented for morphological profile filters,
namely the naive algorithm, the motif combination algorithm, the alpha shape method and the modified
Graham scan algorithm and the recursive algorithm. These five algorithms achieve the same goal, whereas
they are derived from distinct origins and have their respective advantages and disadvantages. Thus in order
to expose their merits and shortcomings, we proceed to discuss these algorithms in following perspectives:
algorithm verification, algorithm analysis, performance evaluation, end effects correction and area extension.
7.1 Algorithm verification
To verify the accuracy of these algorithms, they are applied on a milled surface profile. The profile
contains 1000 points with sampling interval 10 µm. The profile is filtered by the morphological closing filter
with disk radius 500 mm. The results from the five algorithms are graphed in Figure 20. It is clear from the
figure that the five envelopes overlap except at the two ends of the profile. It indicates that the algorithms are
in agreement with each other. The edge distortion is caused by the end effect of filtration on the open surface
data. The traditional algorithm has the end effect corrected while the other algorithms do not. The end effect
correction will be discussed later.
12
Height / µm
1
0.5
Raw profile
Traditional algorithm
Motif Combination algorithm
Alpha shape algorithm
Graham scan algorithm
Recursive algorithm
0
-0.5
1
2
3
4
5
X / mm
6
7
8
9
10
Figure 20. Morphological closing envelopes generated by the five algorithms.
7.2 Algorithm analysis
The naive algorithm, being a direct approach following the definition of morphological dilation and
erosion, combines them to yield morphological closing and opening. This algorithm, may be improved by
some techniques [19], is widely used in image processing. However it has some fatal limitations. For one
thing, it is time-consuming for large data set and large structuring elements. The maximum size of the
structuring element is limited due to the huge computation requirement, while for many real applications
they may desire the structuring element size much larger than the profile length. For another, it is impossible
for this algorithm to handle non-uniform sampled data.
The motif combination algorithm emphasises the elimination of the insignificant motifs and obtains only
the significant ones. It is an iterative process in that the motifs are merged repeatedly until no more
combination occurs. The final events are the contact points on the profile. This algorithm is consistent with
the functionality of morphological filters that the features on the profile smaller than the structuring element
in size are removed by the filter. By defining the motif combination test criterion, i.e. how two adjacent
motifs are combined, various types of structuring elements are available, for instance, circular disks and line
segments. Although the structuring element is restricted to the convex object and is not allow to tilt, it could
satisfy most of the applications [6].
The approach based on the alpha shape utilizes the relationship between the alpha hull and
morphological operations that the boundary of the hull obtained by rolling the alpha ball over the point set is
identical to the closing/opening envelope. Therefore the algorithm for computing the alpha shape could be
used to calculate morphological closing and opening filters. This algorithm is based on the Delaunay
triangulation. The triangulation data could be reused for multiple attempts of various disk radii. It could save
a great deal of computing time since in real practice a multitude of trails may be made for an appropriate disk
radius. Another merit is that it works for non-uniform sampled data, bringing more generality over the naive
algorithm. Although the link puts the restriction that the structuring element must be circular, the circular
disk is most commonly used and is regarded as the default structuring element in ISO 16610.
In comparison to the naive algorithm as a typical image processing technique, which treats the measured
data as image pixels, the modified Graham scan algorithm views the data as the point set in space. Regarding
the measured data as the input set and the infinite extending line as the structuring element, the convex hull
could be viewed as a special morphological envelope. It links computational geometry techniques with the
calculation of morphological envelopes. The Graham scan algorithm original developed for the convex hull
computation is modified and adapted to calculate morphological envelopes. The method is an incremental
algorithm in that the profile data is processed in sequence and a new dealing data will cause the correction of
the processed data. It simulates moving the structuring element over the profile and obtains the contact points.
In this aspect it resembles the motif combination approach though they compute the contact points in a
different manner.
The alpha shape method depends on the Delaunay triangulation. The triangulation provides the
information for generating the whole family of alpha shapes. It saves time for multiple trails of ball radii.
However the Delaunay triangulation is costly for large data set. For a given radius, the Delaunay
triangulation is redundant for the computation of the desired alpha shape related with the given radius. The
recursive algorithm solved this problem. It searches the contact points based on a series of observations. The
13
algorithm partitions the profile into small segments and searches the contact point recursively until the two
ends of the profile segment in evaluation could hold an empty disk with the given radius.
7.3 Performance evaluation
To evaluate the performance of the five algorithms, it is necessary to analysis the time complexity of the
algorithms. For the naive algorithm, the worse case is that the size of the structuring element is equal to or
larger than twice of the profile length. The calculation of each envelope ordinate involves the whole profile
data, thus its time complexity is O ( n 2 ) . The alpha shape method depends on the Delaunay triangulation
with time complexity O ( n log n ) , therefore its time complexity is O ( n log n ) . For the motif combination
approach, the iterative process has the time complexity O ( n ) . As to the Graham scan algorithm, since it
does not need data sorting as required in the computation of the convex hull which may cost O ( n log n )
time, the computation of the contact points is also in O ( n ) time. The Graham scan algorithm has the same
time complexity as the motif combination algorithm, however it requires less memory because it is
incremental and does not need to handle all the data simultaneously. As to the recursive algorithm, in the
worse case that each set of divided segments of data is as skewed as possible, the time complexity is O ( n 2 )
although it rarely occurs in real practice. Its expected time complexity is O ( n log n ) .
To verify the actual performance, experiments are carried out on the profile data with the point amount
varying from 1000 points to 80,000 points. The profile data is sampled from a metal sheet surface in form of
the propeller blade. The evaluation length is 80 mm with sample interval 1 µm. The morphological closing
filter with disk radius 5 mm was performed on the profiles using the five algorithms. These algorithms were
implemented by Visual Studio C++ and ran on a computer with 3.16 GHz Intel Core Duo CPU and 3 GB
RAM. The performance data are listed in Table 1.
Table 1. Algorithm running times over various amount of profile data with same disk radius.
Data amount
Algorithm
Naive algorithm
Motif Combination algorithm
Alpha Shape algorithm
Modified Graham Scan algorithm
Recursive algorithm
5,000
10,000
40,000
80,000
0.0010s
0.0076s
0.0124s
0.0079s
0.0010s
1.0294s
0.0157s
0.0508s
0.0158s
0.0025s
4.8391s
0.0609s
1.0112s
0.0636s
0.0916s
9.9274s
0.1238s
2.1531s
0.1253s
0.1038s
The running time data presented in Table 1 verifies the theoretical analysis of the time complexity of the
algorithms. The naive algorithm is most time consuming, spending nearly 10 seconds for the 80,000 data set.
The alpha shape method is more efficient than the naive algorithm reducing the running time to about 2
seconds for the 80,000 data set. The alpha shape method is dependent on the Delaunay triangulation which
could be costly in its data structure support, compared with other algorithms. The motif combination
algorithm and the modified Graham scan algorithm are much more efficient, only spending 0.1 second. The
recursive algorithm runs slower than the motif combination algorithm and the Graham scan algorithm, but is
more efficient than the alpha shape algorithm and the naive algorithm.
Another experiment was carried out with aim to assess the algorithm performances with the variation of
disk radii. The experiment was performed on the 80,000 data set with the disk radius varying from 0.5 mm to
10 mm. The experimental data is presented in Table 2 and plotted in Figure 21. It is evident in the figure that
the running time of the naive algorithm grows rapidly as the disk radius increases. The alpha shape algorithm
and the recursive algorithm behave in an opposite manner: their running time decreases as the disk radius
grows. It is reasonable considering the number of the alpha shape boundary facets decreases as the disk
radius increases. And for the recursive algorithm, the recursion number reduces either with increase of the
disk radius. As to the motif combination approach and the modified Graham scan approach, the disk radius
variation has little impact on their performances.
14
Table 2. Algorithm running times with various disk radii and the same profile data.
Data amount
Algorithm
Naive algorithm
Motif Combination algorithm
Alpha Shape algorithm
Modified Graham Scan algorithm
Recursive algorithm
0.5mm
1mm
5mm
10mm
1.0167s
0.1537s
2.4061s
0.1293s
2.2728s
2.0086s
0.1386s
2.2214s
0.1302s
1.5197s
9.9274s
0.1238s
2.1531s
0.1253s
0.1038s
19.3092s
0.1200s
2.0540s
0.1259s
0.0190s
Figure 21. Algorithm running times on the same profile data using various disk radii.
7.4 End effects correction
End effects are common in the filtration of open profiles. Mean-line based filters, for example the
Gaussian filter, have distortion at both ends of the profile for half cut-off wavelength. A common solution for
mean-line filters is to add sufficient zeros to the ends of the profile, referred as zero-padding [20].
Morphological filters have similar problems. The distortion is confined to two ends of the profile
maximum for half size of the structuring elements. The solution to correct the distortion varies for specific
algorithms. The naive algorithm calculates the dilation and erosion and combines them in pairs. Both of
dilation and erosion need to correct end effects. The solution is similar to the zero-padding as used in meanline filters: the profile is assumed to drop down to the negative/positive infinity outside of the profile for
dilation/erosion respectively, known as infinity padding. It pads sufficient extreme ordinates for half size of
the structuring element on both ends. Fig. 22 illustrates the infinity padding for dilation with circular
structuring element. Since the closing and the opening are combined using the dilation and the erosion, end
effects are automatically handled [10].
Other algorithms are different from the naive algorithm in this aspect. They yield the closing and the
opening directly without combining dilation and erosion. Zero-padding does not work for them because these
algorithms depend on the geometrical properties of the profile. Thus the padded part of the profile cannot be
geometrically viewed as flat. Instead it should reflect the geometrical features of the profile ends. Therefore
padding should be made by reflection as Figure 23 presents [7].
Figure 22. Infinity padding on two ends of the profile.
Figure 23. Reflective padding on two ends of the profile.
7.5 Areal extension
All the five algorithms work for morphological profile filters. It naturally leads to investigate whether
they could be extended to areal data. It could be easily recognized that the naive algorithm could apply to
areal data by replacing the profile structuring element with its areal counterpart. For instance, the disk used
in profile data becomes the ball in areal data. In this case, extreme points are achieved by evaluating the
vector sum of the ball and the areal data in range overlapped by the ball.
The alpha shape method is also possible to extend to the areal data if replacing the disk with the ball.
Instead of a series of 2-simplexes resulted by the 2D Delaunay triangulation, the 3D Delaunay triangulation
yields a series of 3-simplexes. Subsequently by checking the smallest circumsphere of these 3-simplexes, the
facets of the alpha shape could be obtained. Then the spatial envelope ordinates can be achieved by
interpolating points on the caps determined by the alpha shape boundary facets.
As to the motif combination algorithm, it has no obvious extension to the areal data because the motif
combination test could be complex in the spatial case. For the modified Graham scan algorithm, there is no
existing extension for 3D data. An algorithm called the ball pivoting algorithm [21] was developed to
reconstruct the surface from the discrete point cloud. It simulates rolling a ball over the areal point set. In this
sense this method could be viewed as the extension of the modified Graham scan algorithm for profile data.
Obviously it is possible to extend the recursive algorithm to areal data. For example, the disk could be
replaced by the ball and the partition are assumed to be done by intersecting three planes passing through the
contact point and three vertices of the base triangle face respectively.
8. Conclusion
In this paper two existing algorithms, the naive algorithm and the motif combination algorithm, are first
recalled, which were originally developed for the traditional envelope filter. With minor extension, they
could be applied to morphological filters. A recent approach based on the alpha shape is presented as well. It
makes use of the link between the alpha hull and morphological closing and opening that the alpha hull is
theoretically equivalent to the closing and opening. Afterward two novel algorithms are developed, namely
the modified Graham scan algorithm and the recursive algorithm. By correlating the convex hull and the
morphological operation, the Graham scan algorithm for the convex hull computation is modified and
adapted to compute the morphological operations. The alpha shape method depends on the Delaunay
triangulation which is costly and redundant for the computation for a given radius. The recursive algorithm
solved this problem. A series of observations are presented for searching the contact points. Based on these
observations, the algorithm partitions the profile data into small segments and searches the contact points in a
recursive manner.
The comparison of the five algorithms is further discussed in five aspects: algorithm verification,
algorithm analysis, performance evaluation, end effects correction, and areal extension. The experimental
results show that the five algorithms are in agreement with each other except at two ends of the profile. The
naive algorithm is a direct implementation to morphological operations but it is time consuming for large
data set and large structuring element. It has several limitations, such as the size of the structuring elements
is restricted and unable to handle non-uniform sampled data. Opposed to these limitations, the alpha shape
algorithm provides more feasibility and flexibility as well as easy extension to areal data. The motif
combination approach and the Graham scan approach are most efficient in performance with the linear time
complexity. However they are hard to extend to areal data. The recursive algorithm is slower than the motif
combination algorithm and the modified Graham scan algorithm, but more efficient than the naive algorithm
and the alpha shape algorithm. A great merit of the recursive algorithm is that it is easy to extend to areal
data which would be efficient for large areal data sets and large structuring elements. The correction of end
16
effects varies for specific algorithms. Infinity padding works for the naive algorithm while the other four
algorithms use reflective padding.
Acknowledgements
The author X. Jiang gratefully acknowledges the Royal Society under a Wolfson-Royal Society Research
Merit Award. The authors gratefully acknowledge the European Research Council for its “Ideal Specific
programme” ERC-2008-AdG 228117-Surfund and the UK research council for its “manufacturing the
future” program on the EPSRC centre in advanced metrology.
References
[1] H. Von Weingraber, Zur Definition der Oberflächenrauheit, Werkstattstechnik Masch Bass 46 (1956).
[2] V. Srinivasan, Discrete morphological filters for metrology, Proceedings of the 6th ISMQC Symposium
on Metrology for Quality Control in Production TU Wien Austria (1998) 623-628.
[3] C. M. Malburg, Surface profile analysis for conformable interfaces, Transactions of ASME 125 (2003)
624-627.
[4] B. Muralikrishnan, J. Raja, Functional filtering and performance correlation of plateau honed surface
profiles, Manufacture Science and Engineering 127 (2005) 193-197.
[5] M. S. Shunmugam, V. Radhakrishnan, Two-and three dimensional analyses of surfaces according to the
E-system, Proc. Instn. Mech. Eng. 188 (1974) 691-699.
[6] P. J. Scott, The mathematics of motif combination and their use for functional simulation, Int. J. Mach.
Tools Manufact. 32 (1992) 69-73.
[7] S. Lou, X. Jiang, P. J. Scott, Fast algorithm to morphological filters, Journal of Physics: Conference
Series 311 (2011): 1-5.
[8] J. Serra, Image Analysis and Mathematical Morphology, Academic Press, New York, 1982.
[9] H. Minkowski, Volumen and oberflache, Mathematical Annals 57 (1903) 447-495.
[10] International Standards Organization, ISO 16610-41 Geometrical Product Specification (GPS)-Filtration
Part 41: Morphological profile filters: Disk and horizontal line-segment filters, Switzerland, 2010.
[11] H. Edelsbrunner, E. P. Mucke, Three-dimensional alpha shapes, ACM Trans. Graph. 13 (1994) 43-72.
[12] M. Worring, W. M. Smelders, Shape of arbitrary finite point set in R2, Journal of Mathematical Image
and Vision 4 (1994) 151-170.
[13] G. Matheron, and J. Serra, The birth of mathematical morphology, Proc. 6th Intl. Symp. Mathematical
Morphology (2002) 1-16.
[14] H. J. A .M Heijmans, Mathematical morphology: a modern approach in image processing based on
algebra and geometry. SIAM Review 37 (1995) 1-36
[15] P. J. Scott Scale-space techniques Proceedings of the X International Colloquium on Surfaces (2000)
153-161
[16] R. Graham, An efficient algorithm for determining the convex Hull of a finite planar set, Information
Processing Letters 1 (1972) 132-133.
[17] K. Fischer, Introduction to Alpha Shapes, http://www.inf.ethz.ch/personal/fischerk/pubs/as.pdf (2000)
[18] C. B. Barber, D. P. Dobkin, H. T. Huhdanpaa, The Quickhull algorithm for convex hulls, ACM
Transactions on Mathematical Software, 4 (1996) 469-483.
[19] M. H. Sedaaghi, Direct implementation of open-closing in morphological filtering, Electronic Letters 33
(1997) 198-199.
[20] International Standards Organization, ISO 16610-28 Geometrical Product Specification (GPS)Filtration-Profile Filters Part 28: profile filters: End effects, Switzerland, 2010.
[21] F. Bernardini, J. Mittleman, H. Rushmeier, C. Silva, G. Taubin, The ball-pivoting algorithm for surface
reconstruction, IEEE Transactions on Visualization and Computer Graphics 5 (1999) 349-359.
17
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
