Satel SATELLINE-3AS User guide

Satel SATELLINE-3AS User guide

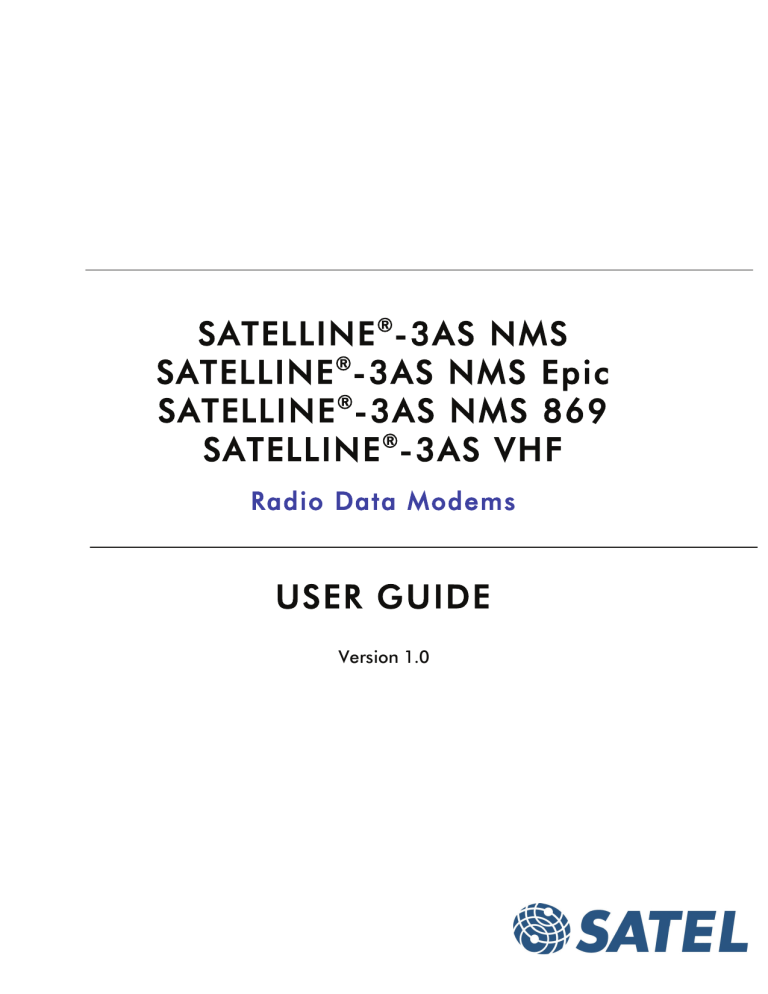

SATELLINE -3AS NMS

SATELLINE -3AS NMS Epic

SATELLINE -3AS NMS 869

SATELLINE -3AS VHF

Radio Data Modems

USER GUIDE

Version 1.0

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

IMPORTANT NOTICE

All rights to this manual are owned solely by SATEL OY (referred to in this user guide as SATEL).

All rights reserved. The copying of this manual (without the written permission from the owner) by printing, copying, recording or by any other means, or the full or partial translation of the manual to any other language, including all programming languages, using any electrical, mechanical, magnetic, optical, manual or other methods or devices is forbidden.

SATEL reserves the right to change the technical specifications or functions of its products, or to discontinue the manufacture of any of its products or to discontinue the support of any of its products, without any written announcement and urges its customers to ensure, that the information at their disposal is valid.

SATEL software and programs are delivered ”as is”. The manufacturer does not grant any kind of warranty including guarantees on suitability and applicability to a certain application. Under no circumstances is the manufacturer or the developer of a program responsible for any possible damages caused by the use of a program. The names of the programs as well as all copyrights relating to the programs are the sole property of SATEL. Any transfer, licensing to a third party, leasing, renting, transportation, copying, editing, translating, modifying into another programming language or reverse engineering for any intent is forbidden without the written consent of SATEL.

SATEL PRODUCTS HAVE NOT BEEN DESIGNED, INTENDED NOR INSPECTED TO

BE USED IN ANY LIFE SUPPORT RELATED DEVICE OR SYSTEM RELATED

FUNCTION NOR AS A PART OF ANY OTHER CRITICAL SYSTEM AND ARE

GRANTED NO FUNCTIONAL WARRANTY IF THEY ARE USED IN ANY OF THE

APPLICATIONS MENTIONED.

Salo, FINLAND 2006

1

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

RESTRICTIONS ON USE

SATELLINE-3AS(d) NMS family radio modems have been designed to operate on frequency ranges, the exact use of which differs from one region and/or country to another. The user of a radio modem must take care that the said device is not operated without the permission of the local authorities on frequencies other than those specifically reserved and intended for use without a specific permit.

SATELLINE-3AS(d) NMS (380…470 MHz) is allowed to be used in the following countries, either on licence free channels or on channels where the operation requires a licence. More detailed information is available at the local frequency management authority.

Countries*: AT, AU, BE, BR, CA, HR, CZ, CY, DK, EE, FI, FR, DE, GR, HK, HU, IN

KR

*2

, KZ, LV, LT, MT, MY, MX, NL, NO, PL, PT, RO, RU, SG, SK, SI, ZA, ES, SE, CH, TH, TR, TW

UA, GB, US and VN

*1 , ID, IS, IE, IL, IT,

*1

,

SATELLINE-3AS(d) NMS Epic (380…470 MHz) is allowed to be used in the following countries, either on licence free channels or on channels where the operation requires a licence.

More detailed information is available at the local frequency management authority.

Countries*: AT, AU, BE, CA, HR, CZ, DK, EE, FI, FR, DE, GR, HU, IN *1

MT, MY, NL, NO, PL, PT, RO, RU, SK, ZA, ES, SE, CH, TH, TR, TW

*1

, ID, IS, IE, IL, IT, KZ, LV, LT,

, UA, GB, US and VN

SATELLINE-3AS(d) NMS 869 is designed to operate in the following countries listed below on the licence free frequency band of 869.400 – 869.650 MHz (not incorporating the band

869.300 – 869.400 MHz) according to recommendation CEPT/ERC/REC 70-03. This recommendation has been drawn up by the European Radio communications Committee (ERC) under CEPT. The transmit/receive duty cycle of the individual unit is limited to 10% on this band, and a single transmission period must not exceed 36 s. In addition, the maximum allowed radiated output power is 500 mW

ERP

. The duty cycle limitation is to be controlled by the terminal equipment connected to the radio modem. The radio modem does not limit the duty cycle.

Countries*: AT, BE, CZ, CY, DK, EE, FI, FR, DE, GR, HR, HU, IS, IE, IT, LV* 3 , MT, NL, NO, PL, PT,

SI, SK, ES, SE, CH, TR and GB

* Codes of the countries follow the ISO 3166-1-Alpha-2 standard

*1 Project approval to be applied case-by-case

*2

Special versions only for Korea available

* 3 Max. ERP 10 mW

WARNING! Users of SATELLINE-3AS(d) NMS radio modems in North America should be aware, that due to the allocation of the frequency band 406.0 – 406.1 MHz for government use only, the use of radio modem on this frequency band without a proper permit is strictly forbidden.

2

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

PRODUCT CONFORMITY

SATELLINE-3AS(d) NMS

Hereby, SATEL Oy declares that SATELLINE-3AS(d) NMS radio modem is in compliance with the essential requirements (radio performance, electromagnetic compatibility and electrical safety) and other relevant provisions of Directive 1999/5/EC. Therefore the equipment is labelled with the following CE-marking. The notification sign informs user that the operating frequency range of the device is not harmonised throughout the market area, and the local spectrum authority should be contacted before the usage of the radio modem.

0523

3

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

SATELLINE-3AS(d) NMS Epic (C)

Hereby, SATEL Oy declares that SATELLINE-3AS(d) NMS Epic (C) radio modem is in compliance with the essential requirements (radio performance, electromagnetic compatibility and electrical safety) and other relevant provisions of Directive 1999/5/EC. Therefore the equipment is labelled with the following CE-marking.

0523

4

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

SATELLINE-3AS(d) NMS 869

Hereby, SATEL Oy declares that SATELLINE-3AS(d) NMS 869 radio modem is in compliance with the essential requirements (radio performance, electromagnetic compatibility and electrical safety) and other relevant provisions of Directive 1999/5/EC. Therefore the equipment is labelled with the following CE-marking.

0523

5

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

SATELLINE-3AS(d) VHF

Hereby, SATEL Oy declares that SATELLINE-3AS(d) VHF radio modem is in compliance with the essential requirements (radio performance, electromagnetic compatibility and electrical safety) and other relevant provisions of Directive 1999/5/EC. Therefore the equipment is labelled with the following CE-marking.

0523

6

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

WARRANTY AND SAFETY INSTRUCTIONS

Read these safety instructions carefully before using the product:

Warranty will be void, if the product is used in any way that is in contradiction with the instructions given in this manual, or if the radio modem housing has been opened or tampered with.

The radio modem is only to be operated at frequencies allocated by local authorities, and without exceeding the given maximum allowed output power ratings. SATEL and its distributors are not responsible, if any products manufactured by it are used in unlawful ways.

The devices mentioned in this manual are to be used only according to the instructions described in this manual. Faultless and safe operation of the devices can be guaranteed only if the transport, storage, operation and handling of the devices are appropriate. This also applies to the maintenance of the products.

To prevent damage both the radio modem and any terminal devices must always be switched OFF before connecting or disconnecting the serial connection cable. It should be ascertained that different devices used have the same ground potential. Before connecting any power cables the output voltage of the power supply should be checked.

7

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

TABLE OF CONTENTS

IMPORTANT NOTICE........................................................................... 1

RESTRICTIONS ON USE ...................................................................... 2

PRODUCT CONFORMITY ..................................................................... 3

WARRANTY AND SAFETY INSTRUCTIONS .............................................. 7

TABLE OF CONTENTS ......................................................................... 8

1 INTRODUCTION .......................................................................... 13

1.1

NOTES FOR THE USERS OF SATELLINE-3AS(d) RADIO MODEMS ..... 15

1.2

PC PROGRAMS TO BE USED WITH SATELLINE-3AS NMS FAMILY ..... 16

2 SATELLINE-3AS(D ) NMS / NMS EPIC / NMS 869 / VHF RADIO DATA

MODEMS ........................................................................................ 17

2.1

SATELLINE-3AS(d) NMS Technical specifications (380...470 MHz)... 17

2.2

SATELLINE-3AS(d) NMS Epic Technical specifications .................... 18

2.3

SATELLINE-3AS(d) NMS 869 Technical specifications .................... 19

2.4

SATELLINE-3AS(d)VHF Technical specifications.............................. 20

2.5

Order information .................................................................... 21

2.6

Settings .................................................................................. 22

3 NMS - NETWORK MANAGEMENT SYSTEM ....................................... 24

3.1

Syste m components .................................................................. 25

3.2

NMS - Installation .................................................................... 25

3.3

NMS - Usage ........................................................................... 26

3.4

NMS functionality ..................................................................... 26

3.5

Requirements for the user syste m .............................................. 27

8

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

3.6

Designing Syste ms and Ne tworks............................................... 27

4 INTERFACE - CONNECTORS & LEDS .............................................. 28

4.1

Antenna connector ................................................................... 28

4.2

LED indicators .......................................................................... 28

4.3

D15 connector ......................................................................... 29

5 SERIAL INTERFACE ....................................................................... 30

5.1

RS-232 interface ...................................................................... 30

5.2

RS-422 interface ...................................................................... 31

5.3

RS-485 interface ...................................................................... 32

5.4

Termination of RS-422/485 lines................................................ 32

5.5

Serial interface, data format ..................................................... 33

5.6

Handshaking lines .................................................................... 34

5.6.1

CTS line...................................................................................................................34

5.6.2

CD line....................................................................................................................34

5.6.3

RTS line ...................................................................................................................35

5.6.4

DTR line...................................................................................................................35

5.6.5

DSR line...................................................................................................................36

5.7

Pause length ............................................................................ 36

6 RF INTERFACE ............................................................................. 37

6.1

Transmitter .............................................................................. 38

6.2

Receiver .................................................................................. 39

6.2.1

RSSI and RSSI threshold level ....................................................................................39

6.3

Error correction ........................................................................ 40

6.4

Error checking .......................................................................... 40

6.5

Dual band version .................................................................... 41

6.6

Dual channel operation............................................................. 41

6.7

TX Delay ................................................................................. 42

6.8

Sync Interval............................................................................ 42

9

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

7 NETWORK PROTOCOL MODES ...................................................... 43

7.1

Basic - RX Priority ..................................................................... 43

7.2

Basic - TX Priority ..................................................................... 43

7.3

Basic - R epeater....................................................................... 44

7.4

Advanced Ne twork Protocol modes ............................................. 45

7.4.1

Advanced - Master...................................................................................................45

7.4.2

Advanced - Slave .....................................................................................................45

8 SYSTEM DESIGN .......................................................................... 46

8.1

General .................................................................................. 46

8.2

Configuration .......................................................................... 47

8.3

Syste m characteristics ............................................................... 48

8.3.1

Features ..................................................................................................................48

8.3.2

System requirements.................................................................................................48

8.3.3

Protocol support ......................................................................................................49

8.3.4

Network ID ..............................................................................................................49

8.4

Repeater stations ..................................................................... 49

8.5

Timing and delays during data transmission ................................ 50

8.6

Data buffering in the radio data modem .................................... 50

8.7

Factors affecting to the quality/distance of the radio connection ... 51

8.8

Radio field strength .................................................................. 52

8.9

Re marks concerning the 869 MHz frequency band ........................ 52

9 TESTS ......................................................................................... 54

9.1

Test messages ......................................................................... 54

9.1.1

Short block test ........................................................................................................54

9.1.2

Long block test ........................................................................................................54

9.1.3

Monitoring the test transmission using the receiver.....................................................55

10 LCD & PUSH BUTTONS .............................................................. 56

10.1

LCD after power-up ................................................................ 56

10.2

Info pages ............................................................................. 56

10

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10.3

How to use menus .................................................................. 57

10.4

Menu structure ....................................................................... 57

10.4.1

Main menu ............................................................................................................57

10.4.2

Radio settings........................................................................................................58

10.4.3

Protocol mode .......................................................................................................59

10.4.4

Serial Port 1 -settings .............................................................................................60

10.4.5

Serial Port 2 -settings .............................................................................................61

10.4.6

Handshaking.........................................................................................................62

10.4.7

Additional -setting .................................................................................................62

10.4.8

Tests & Counters....................................................................................................63

10.4.9

Restore factory settings...........................................................................................63

10.5

Example of changing a setting ................................................. 64

10.6

Saving the settings ................................................................. 65

10.7

Special displays ...................................................................... 65

10.7.1

Programming Mode display...................................................................................65

11 PROGRAMMING MODE (TERMINAL MENU) .................................... 66

11.1

Programming Mode ................................................................. 66

11.1.1

Changing the settings in the Programming Mode ....................................................67

11.1.2

Radio settings........................................................................................................68

11.1.3

Protocol mode -settings..........................................................................................69

11.1.4

Serial port 1 -settings.............................................................................................69

11.1.5

Serial port 2 -settings.............................................................................................70

11.1.6

Handshaking -settings ...........................................................................................71

11.1.7

Additional -settings................................................................................................72

11.1.8

Tests and counters -settings ....................................................................................72

11.1.9

Restoring factory settings EXIT and save and QUIT without saving -settings ..............73

12 SOFTWARE UPDATE .................................................................... 74

13 SL-COMMANDS ......................................................................... 75

13.1.1

Frequency related SL commands.............................................................................76

13.1.2

Radio parameters ..................................................................................................77

13.1.3

Other SL commands...............................................................................................78

14 INSTALLATION .......................................................................... 79

14.1

Installation of the radio modem ............................................... 79

14.2

Wiring ................................................................................... 80

14.2.1

RS-232 wiring - both Ports 1&2 connected (DATA and NMS in use) ..........................80

14.2.2

RS-232 wiring - Port1 without handshaking.............................................................81

11

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

14.2.3

RS-232 wiring - Port1 and handshaking signals connected......................................81

14.2.4

RS-422 wiring........................................................................................................82

14.2.5

RS-485 wiring........................................................................................................82

14.2.6

Profibus wiring.......................................................................................................83

14.2.7

Fuse ......................................................................................................................83

14.2.8

Power supply .........................................................................................................83

14.3

Antenna installation ............................................................... 84

14.3.1

Hand-held equipment ............................................................................................84

14.3.2

Mobile equipment..................................................................................................84

14.3.3

Base stations .........................................................................................................84

14.3.4 General antenna installation instructions .................................................................85

15 CHECK LIST .............................................................................. 88

16 ACCESSORIES ........................................................................... 89

16.1

RS-232 cables and adapters .................................................... 89

16.2

RS-485/422 cables and adapters .............................................. 89

16.3

NMS cable ............................................................................. 89

16.4

RF-cables ............................................................................... 89

16.5

Antennas ............................................................................... 90

16.6

Filters and lightning protectors ................................................ 90

16.7

Power supplies ....................................................................... 90

16.8

Batteries................................................................................ 90

16.9

Installation and enclosures ...................................................... 90

17 APPENDIX A - AS CII CHARACTER TABLE ....................................... 91

18 APPENDIX B - DELAYS ................................................................ 92

18.1

Functional delays.................................................................... 92

18.2

Transmission related delays ..................................................... 92

18.2.1

Transmission delays - 12.5 kHz channel, FEC OFF, no NMS....................................93

18.2.2

Transmission delays - 12.5 kHz channel, FEC ON, no NMS.....................................94

18.2.3

Transmission delays - 25 kHz channel, FEC OFF, no NMS.......................................95

18.2.4

Transmission delays - 25 kHz channel, FEC ON, no NMS........................................96

12

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

1 INTRODUCTION

SATEL Oy is a Finnish electronics and Telecommunications Company specialising in the design and manufacture of wireless data communication products. SATEL designs, manufactures and sells radio modems intended for use in applications ranging from data transfer to alarm relay systems. End users of SATEL products include both public organisations and private individuals.

SATEL is the leading European manufacturer of radio modems. SATEL radio modems have been certified in most European countries and also in many non-European countries.

SATELLINE-3AS(d) NMS family of radio modems provide the Network Management System

(NMS) feature together with an advanced flexibility to connect it to a wide variety of terminal equipment, making it an ideal solution in many wireless data communication applications.

The members of the SATELLINE-3AS(d) NMS product family are SATELLINE-3AS(d) NMS,

SATELLINE-3AS(d) NMS Epic, SATELLINE-3AS(d) NMS 869 and SATELLINE-3AS(d) VHF radio modems.

The key features include:

Network Management System – easy to use design & maintenance tools

Half duplex radio data transfer

Frequency variants: o

138...174 and 218…238 MHz (SATELLINE-3AS VHF) o

380…470 MHz (SATELLINE-3AS(d) NMS) o

400 … 470 MHz (SATELLINE-3AS(d) NMS Epic) o

869 MHz licence free frequency band (SATELLINE-3AS NMS 869)

RS232/485/422 serial interface at 1200…38 400 bps data rates

Over-the-air data rate: o

9600 bps @ 12,5 channel spacing o

19200 bps @ 25 channel spacing

Power level of the transmitter: o

10 mW…1W (SATELLINE-3AS(d) NMS) o

10 mW … 500 mW (SATELLINE-3AS(d) NMS 869) o

1 W…10 W (SATELLINE-3AS(d) NMS Epic) o

100 mW…5 W (SATELLINE-3AS VHF) o

It is possible to reach distances up to 50 km depending on topographic conditions and antenna arrangements.

LCD display and 4 push buttons o

Easy configuration, no need to use external terminal unit to change the basic settings o

Monitoring of the signal level (RSSI) and the voltage of the power supply.

LED indicators show the status of the interface signals.

Routing/repeater functions

Packet filter features provide a flexible interface to different data protocols.

Error correction (FEC)

Error detection

External command language (Extended SL commands)

OEM versions available

13

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

Typical applications of SATELLINE-3AS(d) NMS radio modems include:

Replacing cables in cases where installation of a cable is difficult or expensive

Data transmission to/from mobile or portable terminals

Telemetry

Remote control and alarm transmission

GPS-applications

• etc.

14

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

1.1

NOTES FOR THE USERS OF SATELLINE-3AS(d) RADIO

MODEMS

SATELLINE-3AS(d) NMS / NMS Epic / NMS 869 / VHF radio modems are

NOT COMPATIBLE WITH SATELLINE-3AS radio modems!

!

In order to help users to identify the differences in the operation of these products there are notices among the text marked by the symbol on the left.

DIFFERENCES OF SATELLINE-3AS(d) NMS / NMS Epic / NMS 869 / VHF compared to SATELLINE-3AS(d):

NMS (Network Management System) features

Radio messages NOT compatible

Slightly different timing in the data transfer. NMS overhead is typically 20 … 60 bytes per a radio transmission.

3AS NMS family products have a completely new setup system

Error detection improved (Partial/Full)

Packet filters, adjustable Packet pause length and other enhancements enable better connectivity to customer systems and protocols

RX/TX addresses are NOT supported, they are replaced by the NMS routing scheme

9-bit serial data is NOT supported

DTR pin control modified

COMPATIBILITY CHART OF SATELLINE-3AS(d) and SATELLINE-3AS(d) NMS

RADIO MODEMS

3AS(d)

3AS(d) EPIC

SW versions 0.xx...2.xx (.sff Flash files)

Only bug fixes are introduced to this software line

3AS(d) with ”E2” HW

3AS(d) EPIC with ”E2” HW

SW versions 3.xx…

(.sf2 Flash files)

Only bug fixes and minor new features are introduced to this software line

!!! MODELS ARE NOT RADIO COMPATIBLE ACROSS THIS LINE !!!

3AS(d) NMS

3AS(d) EPIC NMS

3AS(d) VHF

Software line to be developed further

15

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

1.2

PC PROGRAMS TO BE USED WITH SATELLINE-3AS NMS

FAMILY

SATEL NMS PC software is required in order to use the NMS features of

SATELLINE-3AS NMS radio modem family. It is also required if you want to modify the NMS routing or protocol related parameters of the

SATELLINE-3AS NMS family. SATEL NMS PC provides the management tools for designing, configuring and controlling the SATELLINE-3AS NMS network. The program is compatible with Microsoft Windows 2000 and Microsoft Windows XP operating systems. See the chapter “3

NMS - NETWORK MANAGEMENT SYSTEM “for more information.

SATERM LITE is the terminal software that is recommended in order to modify the se ttings of SATELLINE-3AS NMS family radio mode m through the

Programming menu.

SATERM LITE is software designed by SATEL Oy to assist in the basic configuration and testing of the radio modems manufactured by SATEL Oy. The program is compatible with Microsoft Windows 2000 and Microsoft Windows XP operating systems. It includes the terminal window and additional features like time stamping, transmission of special character strings, ASCII and hexadecimal presentation of characters etc.

Almost any other terminal program e .g. HyperTerminal can be utilized for the use of the

Programming menu, but SATERM LITE provides additional, useful functions for testing and monitoring of serial data.

NOTE! DO NOT USE SATERM WITH SATELLINE-3AS NMS family!

!

The reason for this is that the project files or the graphical network design tool in the Message Routing setup of

SATERM do NOT support SATELLINE-3AS NMS radio modems.

Instead, the network drawing tools for SATELLINE-3AS NMS are included in the

SATEL NMS PC.

Flash update: Reprogramming the actual firmware of the radio modem is performed by running the appropriate .exe file (for PC) that includes the desired version of the radio mode m software

. The radio mode m must be in the

Programming Mode while performing the flash update procedure.

For example, SATELLINE_3AS_NMS_sw_4_1_2.exe is the software file for updating the software version 4.1.2 in the SATELLINE-3AS(d) NMS radio modems.

16

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

2 SATELLINE-3AS(d) NMS / NMS Epic / NMS 869 / VHF

RADIO DATA MODEMS

2.1

SATELLINE-3AS(d) NMS Technical specifications (380...470 MHz)

SATELLINE-3AS(d) NMS (380…470 MHz) comply with the following international standards:

EN 300 113-1,-2, EN 301 489-1,-5, IEC 60950 and FCC CFR47 part 90.

In addition it meets the EN 300 220-1,-3 with 25 kHz channel spacing.

RADIO TRANSCEIVER

Frequency Range

Channel Spacing

Number of Channels

Frequency Stability

Type of Emission

Communication Mode

RADIO TRANSMITTER

Carrier Power

Carrier Power Stability

Adjacent Channel Power

Spurious Radiation

RADIO RECEIVER

Sensitivity

Common Channel Rejection

Adjacent Channel Selectivity

Intermodulation Attenuation

Spurious Radiation

MODEM

Interface level

Interface

Interface Connector

Data Speed of Serial Interface

Data Speed of Radio Interface

Data format

GENERAL

Operating Voltage

Power Consumption (average)

Operating Temperature Range

Antenna Connector

Housing

Size H x W x D

Installation Plate

380...470 MHz

12.5 / 20 / 25 kHz

160 / 100 / 80 or (2 x 160 / 2 x 80) * Note 1

< ± 1.5 kHz

F1D

Half-Duplex

10 mW ... 1 W / 50

+ 2 dB / - 3 dB according to EN 300 220-1/EN 300 113-1 according to EN 300 220-1/EN 300 113-1

- 115... –110 dBm (BER < 10 E-3) *Note 2

> - 12 dB

> 60 dB @ 12,5 kHz, > 70 dB @ 25 kHz

> 65 dB

< 2 nW

RS-232, RS-485, RS-422

One port for data and one for NMS

D15, female

1200 – 38400 bps

19200 bps (25 kHz channel)

9600 bps (12.5 and 20 kHz channel)

Asynchronous data

+ 9 ...+ 30 V

DC

1.4 VA (Receive), 6.0 VA (Transmit)

0.05 VA (in Standby Mode)

-25 °C...+55 °C

TNC, 50 , female

Aluminium enclosure

137 x 67 x 29 mm

130 x 63 x 1 mm

Weight

250 g

*

Note 1: The Dual Band versions operate on two separate 2 MHz wide frequency bands.

* Note 2: Depending on Receiver settings

17

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

2.2

SATELLINE-3AS(d) NMS Epic Technical specifications

SATELLINE-3AS(d) NMS Epic (400…470 MHz) comply with the following international standards: EN 300 113-1,-2, EN 301 489-1,-5, IEC 60950 and FCC CFR47 part 90.

RADIO TRANSCEIVER

Frequency Range

Channel Spacing

Number of Channels

Frequency Stability

Type of Emission

Communication Mode

RADIO TRANSMITTER

Carrier Power

Carrier Power Stability

Adjacent Channel Power

Spurious Radiation

RADIO RECEIVER

Sensitivity

Common Channel Rejection

Adjacent Channel Selectivity

Intermodulation Attenuation

Spurious Radiation

Diversity

MODEM

Interface level

Interface

Interface Connector

Data Speed of Serial Interface

Data Speed of Radio Interface

Data format

GENERAL

Operating Voltage

Power Consumption (average)

Operating Temperature Range

Antenna Connector

Housing

Size H x W x D

Installation Plate

Weight

400...470 MHz

12.5 / 20 / 25 kHz

160 / 100 / 80 or (2 x 160 / 2 x 80) *

Note 1

< ± 1.5 kHz

F1D

Half-Duplex

1 W, 2 W, 5 W, 10 W / 50

+ 2 dB / - 3 dB according to EN 300 113-1 according to EN 300 113-1

- 115... –110 dBm (BER < 10 E-3)

*Note 2

> - 12 dB

> 60 dB @ 12.5 kHz, > 70 dB @ 25 kHz

> 65 dB

< 2 nW

Space diversity

RS-232, RS-485, RS-422

One port for data and one for NMS

D15, female

1200 – 38400 bps

19200 bps (25 kHz channel)

9600 bps (12.5 / 20 kHz channel)

Asynchronous data

+ 11.8 ...+ 30 V

DC

3 VA (Receive), 33 VA (Transmit)

0.1 VA (in

Standby Mode)

-25 °C...+55 °C

TNC, 50 , female

Aluminium enclosure

154 x 123 x 29 mm without cooling part

154 x 151 x 77 mm with cooling part

130 x 63 x 1 mm

580 g without cooling part

1480 g with cooling part

*

Note 1: The Dual Band versions operate on two separate 2 MHz wide frequency bands.

* Note 2: Depending on Receiver settings

18

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

2.3

SATELLINE-3AS(d) NMS 869 Technical specifications

SATELLINE-3AS(d) NMS 869 comply with the following international standards:

EN 300 220-1,-3, EN 301 489-1,-3 and IEC 60950.

RADIO TRANSCEIVER

Frequency Range

Channel Spacing

Number of Channels

Frequency Stability

Type of Emission

Communication Mode

RADIO TRANSMITTER

Carrier Power

Carrier Power Stability

Adjacent Channel Power

Spurious Radiation

RADIO RECEIVER

Sensitivity

Common Channel Rejection

Adjacent Channel Selectivity

Intermodulation Attenuation

Spurious Radiation

MODEM

Interface

Interface Connector

Data speed of RS-Interface

Data speed of Radio Interface

Data format

869.400 ... 869.650 MHz

25 kHz

10

< ± 2.5 kHz

F1D

Half-Duplex

10 mW...500 mW / 50

+ 2 dB / - 3 dB according to EN 300 220-1 according to EN 300 220-1

-108 dBm (BER < 10 E-3) *

> - 12 dB

> 60 dB

> 60 dB

< 2 nW

RS-232 or RS-485, RS-422

D15, female

1200 – 38400 bps

19200 bps

Asynchronous RS-232 or RS-422 or RS-485

GENERAL

Operating Voltage

Power Consumption (average)

Operating Temperature Range

Antenna Connector

Housing

Size H x W x D

Installation Plate

Weight

* Depending on Receiver settings

+ 9 ...+ 30 V

DC

1.7 VA (Receive)

4.0 VA (Transmit)

0.05 VA (in Standby Mode)

-25 °C...+55 °C

TNC, 50 , female

Aluminium enclosure

137 x 67 x 29 mm

130 x 63 x 1 mm

250 g

19

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

2.4

SATELLINE-3AS(d)VHF Technical specifications

SATELLINE-3AS(d) VHF complies with the following international standards:

EN 300 113-1,-2* 1 , EN 301 489-1,-5, IEC 60950-1 and FCC CFR47 part 90.

RADIO TRANSCEIVER

Frequency Range

Channel Spacing

Number of Channels

Frequency Stability

Type of Emission

Communication Mode

RADIO TRANSMITTER

Carrier Power

Carrier Power Stability

Adjacent Channel Power

Spurious Radiation

RADIO RECEIVER

Sensitivity

Common Channel Rejection

Adjacent Channel Selectivity

Intermodulation Attenuation

Spurious Radiation

MODEM

Interface level

Interface

Interface Connector

Data Speed of Serial Interface

Data Speed of Radio Interface

Data format

GENERAL

Operating Voltage

Power Consumption (average)

Operating Temperature Range

Antenna Connector

Housing

Size H x W x D

Installation Plate

Weight

138...174 MHz (138…160 and 155…174 MHz variants)

218…238 MHz

12.5 / 25 kHz

1600 / 800

< ± 650 Hz

F1D

Half-Duplex

100 mW, 500 mW, 1 W, 5 W / 50

+ 1.5 dB / - 1.5 dB according to EN 300 220 / EN 300 113 and CRF47 part90 according to EN 300 220 / EN 300 113

- 115... –110 dBm (BER < 10 E-3)

* 2

> -12 dB

> 50 dB @ 12,5 kHz, > 60 dB @ 25 kHz

> 60 dB

< 2 nW

RS-232 or RS-485, RS-422

One port for data and one for NMS

D15, female

1200 – 38400 bps

19200 bps (25 kHz channel)

9600 bps (12.5 kHz channel)

Asynchronous data

+ 8 ...+ 30 V

DC

1.7 VA (Receive), 6.6 VA (Transmit at 1W)

0.07 VA (in

Standby Mode)

-25 °C...+55 °C

TNC, 50 , female

Aluminium enclosure

137 x 67 x 29 mm without a heat sink

137 x 80 x 56 mm with a heat sink

130 x 63 x 1 mm

265 g without a heat sink

550 g with heat sink

* 1 Full compliance with the Tx parameter limits. Please refer to specifications above

for minor deviations from Rx parameter limits.

* 2 Depending on Receiver settings

20

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

2.5

Order information

In order to ensure the correct deliveries of SATELLINE-3AS(d) NMS radio modems, the customer should specify the information listed below in the order form.

The following information MUST be provided in the order form:

1. General

Name and the SATEL code of the radio modem

• Quantity of the items

Company name, delivery address, telephone / fax number and contact person

• Purchase order number

Date of the order

• Country of destination

2. Radio frequency information

Operating frequency or limits of the required frequency bands (refer to the table below)

• Channel spacing (25, 12.5 or 20 kHz)

Ta ble 2.1.

Available RF b an ds of SATELL INE-3AS NMS / NMS Epic / NMS 869 / VHF

Product variant

SATELLINE-3AS(d) NMS

Frequency bands available

380–470 MHz

Channel spacing available

Note: the tuning range of SATELLINE-

3AS NMS is ±1MHz from the nominal center frequency.

12.5 kHz / 20 kHz / 25 kHz

SATELLINE-3AS(d) NMS Epic 400-470 MHz

Note: the tuning range of SATELLINE-

3AS NMS Epic is ±1MHz from the nominal center frequency.

SATELLINE-3AS(d) NMS 869 869.400 - 869.650 MHz

(License exempt 500 mW sub-band)

12.5 kHz / 20 kHz / 25 kHz

25 kHz only

SATELLINE-3AS(d) VHF 138–174 MHz and 218-238 MHz

Note: the tuning range covers the whole radio board range (138 – 160, 155 –

174 or 218 – 238 MHz)

12.5 kHz / 25 kHz

Note1: The radio modem is shipped with all the other settings according the default setup, unless otherwise specifically ordered. See the next chapter for the default settings.

Note2: The regulations set by the local authorities must be taken into account in the use of the radio frequency bands!

3. Order for possible accessories (antennas, cables, adapters, filters)

21

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

2.6

Settings

The snapshot of the Programming menu below presents the default setup of SATELLINE-3AS

NMS / NMS Epic / NMS 869 / VHF radio modems.

-------------------------------------------------------------------------------

SATELLINE-3ASd NMS

SW:

version_info_of_the_software_comes_here

HW:

version_info_of_the_hardware_comes_here

RF:

version_info_of_the_radio_module_comes_here

Center frequency

xxx.xxxxxx

MHz / Channel spacing

xx.xxx

kHz

SERIAL:

xxxxxxxxxx

Name: Modem_Name

-------------------------------------------------------------------------------

1 ) Radio Settings TX frequency:

nnn.nnnnnn

MHz / TX Power 1 W

RX frequency:

nnn.nnnnnn

MHz / FEC OFF /

RSSI Threshold -112 dBm / Error check OFF

TX delay 0 ms / Sync interval default

2 ) Network Mode Basic - TX Priority

3 ) Serial Port 1 DATA / RS232 / 19200 bps / 8 bit data / None parity /

1 stop bit

4 ) Serial Port 2 NMS / RS232 / 9600 bps / 8 bit data / Even parity /

1 stop bit

5 ) Handshaking CTS Clear To Send / CD RSSI threshold / RTS Ignored /

Pause length 3 bytes

6 ) Additional Setup SL-commands ON / LCD read-only OFF

7 ) Tests & Counters

A ) Restore factory settings

E ) EXIT and save settings

Note:

The default value RSSI threshold depends

Q ) QUIT without saving on the channel spacing as follows:

-112 dBm @ 25 kHz

Enter selection >

-114 dBm @ 12.5 kHz

Note: Some settings may be market area dependent. For more details contact the authorized SATEL dealer in your market area or SATEL

Technical Support ([email protected]).

Table 2.2. Serial ports 1&2 - available functions and interface levels

Port Function

!

Port 1

Port 2

DATA/NMS/OFF RS-232

NMS /DATA/OFF RS-232/485/422

Only one DATA port and one NMS port are available; if the other port is selected as the DATA port, the function of the other port must be either NMS or OFF.

Table 2.3. Possible DATA port and the NMS port configurations.

DATA

NMS

1200…38400 bps 7 or 8 bit data

9600 bps 8 bit data

None, Even, Odd

Even

1 or 2

1

22

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

Table 2.4. SETTINGS of SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

FIXED SE T TINGS defined at the time of order (these settings can be changed only in SATEL manufacturing premises)

Setting Value

Frequency band(s) limits Specified in the order form!

Notes

See table 2.1.

Channel spacing Specified in the order form! See table 2.1.

ADJUSTABLE SET TING S ( user can change these settings later on )

Setting Default value Notes

Operating frequency Centre of the Frequency band

(Exception: 3AS NMS 869 is

Any frequency inside the Frequency band(s). The receiver and the transmitter delivered with 869.4125 MHz). frequencies can be defined individually.

TxPower See Chapter 6.1

RSSI threshold

FEC

TxDelay

SyncInterval

RxDelay

Error check

Network mode

Serial port 1 settings

1 W (3AS NMS and VHF)

10 W (Epic)

0.5 W (NMS 869)

-112 dBm (12.5 kHz, 20 kHz)

-114 dBm (25 kHz)

OFF

0 ms default (=21845 bytes)

0 ms

OFF

Basic Tx-priority

Port function=DATA

Data speed=19200 bps

Data bits=8

Parity=None

Stop bits=1

See Chapter 6.2

See Chapter 6.3

See Chapter 6.7

See Chapter 6.8

See Chapter 6.4

See Chapter 7

See Chapter 5

Serial port 2 settings:

Handshaking settings

Port function=NMS

Data speed= 9600

Data bits=8

Parity=Even

Stop bits=1

Interface level=RS232

CTS=Clear to send

RTS=Ignored

CD=RSSI threshold

Pause length=3 bytes

See Chapter 5

Handshaking lines apply to the DATA port.

See Chapter 5.6

SL commands

LCD-read-only

OFF

OFF

See Chapter 13

See Chapter 10

Modem name "Modem_Name" User can give any descriptive name that will be shown on the LCD,

Programming menu and Satel NMS PC.

NMS & NETWORK LEVEL SETTINGS (for example routing, topology of the system, terminal addresses, user protocols) are configured using SATEL NMS PC PROGRAM.

The configuration can be performed by the customer, local SATEL representative (contacts on www.satel.com Distributors) or SATEL Network Design Centre ([email protected]) with all the necessary details concerning the system before ordering).

23

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

3 NMS - NETWORK MANAGEMENT SYSTEM

The purpose of the NMS (Network Monitoring System) is to provide tools for management of a radio network built on SATELLINE-3AS NMS radio modems. NMS allows user to manage, monitor, diagnose and configure SATELLINE-3AS NMS modem network remotely without disturbing user’s data flow.

This chapter includes a very short description of SATEL NMS for SATELLINE-3AS NMS radio modem family. More information is provided by the SATEL NMS PC user manual and application notes.

Figure 3.1. A typical screen shot of SATEL NMS PC software. (Routing view).

24

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

3.1

System components

SATEL NMS consists of:

• SATEL NMS PC program running on Microsoft Windows

®

operating system. The program provides the user interface showing the status of the network: o

Graphical network overview o

Sort able lists of all modems and radio links o

Link quality tests and monitoring o

Alarms generated on link failure, operating voltage drop etc. o

Remote administration of modem parameters o

Log files

• The diagnostic functions in the SATELLINE-3AS NMS radio modem software. The set of features depends on the hardware and software version of the radio modem. o

One of the modems operates as the Master modem of the system (Network Mode parameter of the radio modem set to Advanced - Master). o

The other modems are the substations of the network (Network Mode parameter of the substation radio modems set to Advanced - Slave).

3.2

NMS - Installation

Figure 3.2. SATELLINE-3AS NMS equipment

25

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

SATELLINE-3AS NMS radio modem has two serial ports -

Port1 and Port2. One of the ports is configured as the DATA port (by default

Port1) that is connected to the user application. The other port is the NMS port (by default

Port2) that is connected to the serial port of the PC running SATEL NMS PC software. See the figure above.

The easiest way to accomplish the wiring is to use a two-port serial cable (e.g. part code CRS-

NMS from SATEL). See the wiring schematic in sub clause 14.2.1.

3.3

NMS - Usage

SATEL NMS PC software provides the user interface to NMS system. Refer SATEL NMS PC User

Guide for additional information.

3.4

NMS functionality

SATEL NMS provides useful tools for maintaining the radio network. The following functions are included in the SATEL NMS system:

Status of the network can be obtained easily. Received Signal strength (RSSI) information,

Voltage, Temperature and quality of the radio links can be monitored without disturbing user’s data flow. SATEL NMS PC software collects statistics on the radio modems of the network.

Alarms (triggered e.g. by a significant decrease in signal level of a radio link) are generated for the external system usage.

The history of the parameters is saved to log files for later examination.

Remote update of the setup i.e. the settings of a radio modem.

Data communication tests. A full data communication test can be run to find out more detailed analysis of each radio link. Whenever needed this test indicate profoundly the quality of the radio communication.

NOTE: Remote update of the actual firmware of a radio modem is currently NOT supported by

SATELLINE-3AS NMS.

SATEL NMS system is subject to continuous development - new features will be introduced to respond actual customer needs. The radio modems have a comprehensive interface structure that enables even more complex functions to be added to SATEL NMS PC while radio modem needs to manage only a limited set of tasks.

The customers who want to implement their own NMS interface to SATELLINE-3AS NMS radio modems should contact SATEL technical support ([email protected]).

26

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

3.5

Requirements for the user system

SATEL NMS fits the systems that are:

• Single master systems with point-to-multipoint network structure

Based on polling protocol (the master polls the slaves regularly)

• Transferring user messages not larger than 1kByte

Other kinds of systems may also be possible but require careful consideration; in such cases the customer is advised to contact SATEL for more information.

Repeater stations are fully supported. While operating the monitoring system, radio data links are transparent. Because NMS data is invisible to the user’s system, most user protocols are not interfered by NMS. However, note that on-line NMS always affect the real time operation of any system due to the extra information transferred. In some cases this means that the parameter defining the timeout of the slave station reply must be increased. Depending on how much NMS information is required, NMS introduces an extra load of ~20…60 bytes per a message.

3.6

Designing Systems and Networks

The Routing window of SATEL NMS PC software provides a graphical tool for designing the radio network. It is used by simply dragging and dropping modem icons on the sheet and linking the modems and finally uploading these settings to individual modems.

The designing of any radio modem system requires very precise planning. Once the choices between devices, their locations, installation, maintenance etc. are clear, the project file for the system can be implemented by using SATEL NMS PC software. Please refer to the SATEL NMS

PC User Guide for more detailed description.

Please check also the chapter “2.6 Settings” before changing any settings of the radio modems

.

Configure the radio modems accordingly using SATEL NMS PC. Finally, when all the radio modems have correct settings, they are ready for further installation.

27

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

4 INTERFACE - CONNECTORS & LEDS

4.1

Antenna connector

TNC female 50 connector.

The antenna should always be connected when the power is on. Removing the antenna while the transmitter is on may damage the power amplifier inside the transmitter.

4.2

LE D indicators

There are five (5) LEDs indicating the status of the serial port ( DATA port) and the radio interface on the front panel of the radio modem. See the table below for the description of operation.

Table 4.1. SATELLINE-3AS(d) NMS, NMS Epic, NMS 869, VHF LED INDICATORS

LED Indication OFF Red Orange Green

RTS RTS-line status (D15 Pin 13)

CTS CTS-line status (D15 Pin 6)

Inactive Active

Inactive Active

-

-

-

-

TD TD-line status (D15 Pin 11)

TD indicates that the radio modem is receiving data via serial port.

RD RD-line status (D15 Pin 9)

RD indicates that the radio modem

CD is sending data via serial port.

CD indicates the status of the radio interface.

No data Data

No data Data

No signal Transmitter is ON

-

-

Test Tx active

-

Noise Reception

Note*)

The status of CD-line (D15 connector pin 2) may differ from the status of CD LED.

LED ERROR CODES:

In case the self-diagnostics routine of the radio modem detects a malfunction in the start up, ALL LEDs shine red for 1 second after which the error code is indicated.

When the self-diagnostics function of the modem discovers an error, the modem will go to the

ERROR-state. In the ERROR-state the data transmission and reception are disabled. Instead of data transfer, the LED indicators follow the sequence: All LEDs ON -> All LEDs OFF -> ERROR code -> All LEDs ON...

28

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

4.3

D 15 connector

Table 4.2. NMS 15-PIN FEMALE D CONNECTOR PINOUT

• DTE is an abbreviation for Data Terminal Equipment

I/O column below denotes the direction of the signal:

"IN" is from DTE to the radio modem, "OUT" is from the radio modem to the DTE.

PIN NAME I/O LEVEL EXPLANATION

1

2

3

4

DTR IN 0..30V Data Terminal Ready. The pin can be used to wake-up the radio module from the standby mode. >+2 VDC = ON,

Not connected = ON, <+0.6 VDC = STANDBY

Pin 2 has alternative functions depending on the Port2 configuration, see below.

CD OUT RS-232 Carrier Detect (if

Port2 selection is RS-232)

A’

A IN/OUT RS-485 Port2 Data positive. Note**) (if Port2 selection is RS-485)

Pin 3 has alternative functions depending on the

Port2 configuration, see below.

RD2

B’

B IN/OUT RS-485

Port2 Data negative. Note**) (if Port2 selection is RS-485)

Pin 4 has alternative functions depending on the configuration, see below.

TD 2

A

5

6

7, 8 GND

9

Pin 5 has alternative functions depending on the hardware assembly, see below.

B

RSSI OUT 0..5V Analogue RSSI (requires the special hardware assembly, needs to be defined in order sheet!)

C TS OUT RS-232 Clear To Send. This signal indicates that the radio modem serial interface is ready to receive data from DTE.

Note*)

- Operating voltage and Signal Ground

RD1

1 0 DSR

1 1 TD 1

OUT RS-232 Data Set Ready. Indicates that the radio modem is ON.

1 2 MODE

1 3 RTS

1 4,

1 5

V b

IN 0..30V <2VDC or connected to ground = Programming Mode

>3VDC or Not connected = Data Transfer Mode Note***)

RS-232 Request To Send from DTE.

Note*)

IN

- See Operating Voltage. spec. sheets

+10.8...30 VDC for 3AS(d) NMS Epic

+8...30 VDC for 3AS(d) NMS, NMS 869, VHF

Note! Unused pins can be left unconnected.

Note*) RTS and CTS signals apply to the Data port-either Port1 or Port2 depending on the configuration.

Note**) A and B designators are opposite in Profibus standard.

Note***) Programming Mode is for changing the settings of the radio modem via Programming menu.

Normally the MODE line is NOT connected i.e. the radio modem is in

Data Transfer Mode.

29

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

5 SERIAL INTERFACE

The radio modem is referred to as DCE (Data Communication Equipment) whereas the PC is referred to as DTE (Data Terminal Equipment). The 15-pin female ‘D’-type connector of the radio modem contains the connections required to establish data communication between the radio modem and DTE.

The radio modem contains two separate serial ports, which are designated

Port 1 and Port 2.

One and only one of the ports at a time can operate as the DATA port for user data, while the other port can be used as the NMS port for the diagnostics interface to SATEL NMS PC software.

The user can select which one of the serial ports operates as the DATA port or NMS port by configuring the radio modem in the

Programming Mode or by using the LCD interface.

The physical interface of the serial ports is as follows:

• Port 1 complies always with the RS-232 standard.

• Port 2 can comply either with the RS-232, RS-422 or RS-485 standards. The user can change the

Port 2 interface type in the Programming Mode or by using the LCD interface.

The handshaking signals apply to the selected DATA port. The handshaking signals are CD

(Carrier Detect), RTS (Ready To Send), CTS (Clear To Send), DSR (Data Set Ready) and DTR

(Data Terminal Ready). The physical level of these signals is always RS-232. See the chapter 5.6

Handshake lines for additional information.

NOTE!

WHEN THE MODE PIN (PIN 12 OF THE D-CONNECTOR) IS GROUNDED, THE RADIO

MODEM IS IN THE PROGRAMMING MODE AND PPort 1 (PINS 7, 9, 11) IS IN ACTIVE

USE!

If you normally use PPort 2 for data transmission, the serial cable must be changed to a standard (direct) serial cable when switching over to the configuration mode.

5.1

RS-23 2 interface

RS-232 standard defines the method of serial data transfer between a computer and its peripherals. The definition includes both the interface type and signal levels. Most computers and peripherals contain one or more RS-232 type serial ports. The RS-232 standard uses transmission lines, in which each single signal line level is referenced, to a common ground level. RS-232 has been designed to be use in serial transfer of data in situations where the distance between communicating equipment is less than 15 m.

The otherwise useful RS-232 standard is applied in a multitude of slightly differing ways, (e.g. different pin configurations) and for this reason different computers and peripherals are not necessarily directly compatible with each other (see also Chapter 14.2 for more information on RS-232 wiring).

30

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

When connecting equipment using RS-232 interface make sure that the equipment are connected together sharing the same ground potential. Major differences in ground potentials may result to large current flow in the GND wire of the RS-232 interface and may lead to a malfunction or damage the connected devices!

5.2

RS-42 2 interface

RS-422 standard defines a serial data transfer method, which is very similar to the RS-232 standard. In RS-422 however, the signal lines are balanced (or differential) transmission lines. A balanced (or differential) transmission line is formed by using two signal wires together to convey each single signal. Because the state of the signal is defined by the mutual voltage difference (hence the name differential), any common mode interferences induced into the lines will cancel out. The effect of different signals moving in the same cable will also be smaller than in the case of the RS-232. Transmission distance can be considerably longer than when using

RS-232 type of connection, and distances up to 1 km are possible. (See also Chapter 14.2 for more information on RS-422 wiring).

As an example, let’s examine the TX-signal: TX-signal will be transmitted using two lines (A and

B). A logical ”1” corresponds to a situation, where the voltage on line A is greater than the voltage on line B. Correspondingly a logical ”0” corresponds to a situation, where the voltage on line A is smaller than the voltage on line B.

B' B

T

A

B'

R

R

T

120

A'

Radio modem

Cable

R

T

120

Cable

A'

B

A

R

T

Terminal

Picture 5.1. RS-422 interface

31

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

5.3

RS-48 5 interface

RS-485 is an extension of the RS-422 standard and enables the connection of more than two devices on to the same bus. Communication is half-duplex, so there is only one cable pair, compared to two when using the RS-422. The RS-485 standard defines the electrical characteristics of the connections in such a way as to prevent possible data contention states as well as cable short circuits etc. from harming the devices themselves. (See also Chapter 14.2 for more information on RS-485 wiring).

B B'

T R

A

B'

R

T

120

R

T

120

A'

B

R

T

A' A

Radio modem

Cable Cable

Terminal

Picture 5.2. RS-485 interface

5.4

Termination of RS-42 2/48 5 lines

Each differential pair of wires is a transmission line. A transmission line must be terminated properly to prevent, or at least minimise, harmful reflections formed between the transmitting and receiving end of the transmission line. A common method of terminating an RS-485 type of transmission line is to connect a so-called terminating resistor between the wires at both ends of the transmission line. Even when there are more than two devices on the same transmission line, the terminating resistors are needed only at transmission line ends. The terminating resistor must be selected so that its resistance matches to the characteristic impedance of the transmission line as close as possible. Typical value range is from 100 to 120 . When using an RS-422 type of connection the terminating resistor is connected only at both receiving end.

Terminating resistors are particularly important, when long transmission lines and/or high data transfer speeds are used.

32

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

5.5

Serial interface, data format

The table below shows the available options for selected DATA port. The NMS port has fixed settings.

Table 5.1. Possible DATA port and the NMS port configurations.

DATA 1200

2400

4800

7 or 8 bit data None, Even or Odd 1 or 2

!

NMS

9600

19200

38400 bps

9600 bps 8 bit data Even

Note: 300 or 600 bps data speeds nor 9-bit data are not supported!

1

The serial interface uses an asynchronous data format. One character to be transmitted contains a start bit, the data bits (defining the specific character in question), an optional parity bit and one or two stop bits. Therefore the overall length of one character is 10 or 11 bits. This should be taken into account when calculating the data throughput capability of a system. A useful rule of thumb is that the transmission of one character will require roughly one millisecond (1 ms) with data transfer speed of 9600 bps.

Start Data Parity End

Picture 5.3. Asynchronous character data format on the serial line

Example: With an 8-bit data character length and taking, for example, a decimal value of

”204”, (corresponding to a binary value of ”11001100”) and with a start bit value of ”0”, parity bit set to either “NO” (NONE), ”0” or ”1” and with a stop bit value of ”1”, the possible combinations are listed in the table below:

DATA FORMAT CHARACTER (binary value) CHARACTER LENGTH (total)

8 bit, no parity, 1 stop bit 0110011001

8 bit, even parity, 1 stop bit 01100110001

8 bit, odd parity, 1 stop bit

8 bit, no parity, 2 stop bits

01100110011

01100110011

8 bit, even parity, 2 stop bits 011001100011

8 bit, odd parity, 2 stop bits 011001100111

10 bit

11 bit

11 bit

11 bit

12 bit

12 bit

The radio modem serial port settings and the terminal device connected to it must have equal data port settings (data speed, character length, parity and the number of stop bits.

The serial port settings can be changed in the Programming Mode or via LCD display.

33

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

5.6

Handshaking lines

When using the RS-232 serial interface, handshaking signals can be used to control data transfer on the DATA port. For example, the radio modem can inform the DTE that the radio channel is busy, and that it is not allowed to initiate transmission.

A common way of using handshaking signals is to monitor the CTS line and ignore the others.

Usually the terminal device is fast enough to handle the data received by the radio modem, so the use of RTS line is not necessary.

Handshaking is not needed if the system protocol is designed to prevent collisions (data contentions) by using poll queries, or if there is only little traffic and, if there is no harm from occasional data contention situations (two or more radio modems trying to transmit at the same time).

5.6.1

CTS line

CTS (Clear To Send) is a signal from the radio modem to the DTE. It indicates when the radio modem is ready to accept more data from the DTE. The options for CTS line controls are:

Clear To Send

CTS line is set active when the radio modem is ready to accept data for transmission. CTS will shift into inactive state during data reception, and when a pause (packet end) is detected in transmitted data. CTS shifts back into active state either when reception ends or the radio modem has finished data transmission. CTS will also shift into inactive state when the serial interface data transfer speed is greater than the radio interface transfer speed, and the transmit buffer is in danger of overflowing.

2) TTX buffer state

CTS line will shift into inactive state only when the data buffer for the data to be transmitted is in danger of overflowing.

5.6.2

CD line

CD (Carrier Detect) is a signal from the radio modem to the DTE. It indicates when there is activity on the radio channel. The options for CD line controls are:

1) RRSSI-threshold

CD is active whenever a signal exceeding the defined threshold level required for reception, exists on the radio channel. It doesn’t make any difference, whether the signal is actual data transmission, a signal of a radio transmitter not belonging into the system or even interference caused e.g. by a computer or some other peripheral device. CD is also active, when the radio modem itself is transmitting.

34

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

Data on channel

CD will switch to active state only after recognizing a valid data transmission from another

SATELLINE-3AS NMS family radio modem. CD will not react to interferences like noise or possible other signals.

3) AAlways ON

CD is always in the active state. This option is usually used with terminal equipment using the

CD line as an indicator of an active connection. In this case the radio modem can transmit and receive data at any time.

5.6.3

RTS line

RTS (Ready To Send) is a signal from the DTE to the radio modem. DTE controls the data flow from the radio modem by using RTS. The options for RTS line controls are:

1) IIgnored

RTS line status is ignored.

2) FFlow control

The radio modem transmits data to the terminal device only when the RTS line is active. Inactive state of the RTS line will force the radio modem to buffer the received data. This option is used, when the terminal device is too slow to handle data received from the radio modem.

3) RReception control

RTS line controls the reception process of the radio modem. An active RTS line enables reception. Inactive RTS line will interrupt reception process immediately, even if the radio modem is in the middle of receiving a data packet. This option is used to force the radio modem into WAIT State for an immediate channel change.

5.6.4

DTR line

DTR (Data Terminal Ready) is a signal from the DTE to the radio modem. DTR has a special function in the radio modem - it can be used as an external ON/OFF switch for power saving purposes.

The radio modem is:

ON, if the voltage at the DTR pin is more than +2 VDC.

• OFF, in the Stand-by Mode if the voltage at the DTR pin is less than +0.6 VDC.

!

Note: If the DTR pin is not connected, the radio modem is ON.

35

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

5.6.5

DSR line

DSR (Data Set Ready) is a signal from the radio modem to the DTE. It indicates that the radio modem is powered up. DSR is typically ignored.

5.7

Pause length

The radio modem recognizes a pause on the serial line (a pause is defined as a time with no status changes in the TD line). The pause detection is used as criteria for:

- End of radio transmission - When the transmit buffer is empty and a pause is detected, the modem stops the transmission and will change the radio to the receiving mode

- SL command recognition - For an SL command to be valid, a pause must be detected before the actual “SL“ prefix of the SL command.

- User address recognition

In order for detecting the message, a pause must precede it in transmission.

Traditionally, in asynchronous data communication, pauses have been used to separate serial messages from each other. However the use of non-real-time operating systems (frequently used on PC type hardware) has changed this tradition by adding random pauses in the asynchronous data stream. Such systems can’t serve the hardware UART properly when performing other tasks (other applications or tasks of the operating system itself).

The pauses described above are typically up to 100 ms. When such a pause appears in the middle of a user message, the radio modem transmits the message as two separate radio transmissions. This will generate problems in at least two ways:

1) The inter-character delay will be increased by at least the time of the modem transfer delay

2) The probability of collisions on the radio path will increase. This will be especially harmful for repeater chains

The default value for the Pause length is 3 bytes.

36

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

6 RF INTERFACE

SATELLINE-3AS(d) NMS / NMS Epic / NMS 869 / VHF have a single TNC type connector with impedance of 50 .

SATELLINE-3AS(d) NMS Epic has two antenna connectors, the one on the left for both transmitting and receiving and the other on the right for receiving only (the diversity reception); see the picture on the right.

The diversity reception i.e. the secondary receiver of the Epic can be switched off (in single antenna applications) by changing the setting

Diversity Mode OFF in the configuration. It is recommended to protect the unused antenna port by placing a suitable cap on the TNC connector.

TX&RX RX only

Epic

Picture 6.1. 3AS(d) NMS Epic

When ordering the radio modem, the frequency band (or the center frequency) to which the radio modem will be tuned to must be defined. The user can change the radio modem operating frequency afterwards by ±1 MHz from the preset centre frequency (basic tuning range), or inside 2 X 2 MHz frequency bands, when using the special Dual Band variant assembly. SATELLINE-3AS VHF allows the user to change the operating frequency within whole radio board limits (138 … 160 MHz or 155 … 174 MHz).

All local regulations set forth by the authorities must be taken into account. The 3AS NMS 869 uses ten 25 kHz channels in European licence free 869 MHz frequency band.

The radio channel spacing is set at the factory and cannot be changed afterwards by modifying system settings. The data speed of the radio interface depends on the radio channel spacing as follows:

25 kHz channel -> 19200 bps

12.5/20 kHz channel -> 9600 bps

The data speed of the radio interface depends only on the channel spacing - it is irrespective of the data speed of the serial interface. If the data speeds of the radio interface and the serial interface differ from each other, the radio modem will buffer the data, when necessary, so no data loss will occur.

NOTE!

Adjusting the active radio channel to another frequency than allocated and/or allowed by local authorities, is strictly forbidden.

Use or intended use of forbidden frequencies may lead to prosecution and penalties.

SATEL Oy is not responsible for any illegal use practiced with any devices manufactured and/or sold by SATEL Oy and is not liable to pay any damages or compensation caused by such illegal use.

37

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

6.1

Transmitter

The output power of the transmitter is adjustable (see the table below for available values). The greatest allowable power depends on limits set by local authorities, which should not be exceeded under any circumstances. The output power of the transmitter should be set to the smallest possible level that still ensures error free connection under variable conditions. High output power levels used in short link spans can, in the worst case, cause interferences and affect to the overall operation of the system.

Table 6.1. The trans mitter output power levels of the SATELLINE-3AS(d)

NMS family radio modem s.

OUTPUT POWER dBm

10 mW +10

20 mW

50 mW

100 mW

+13

+17

+20

200 mW

500 mW

1 W

2 W

5 W

10 W

+23

+27

+30

+33

+37

+40

3AS NMS

NMS 869

NMS Epic

VHF

NOTE!

Setting the radio data modem output power level to exceed the regulations set forth by local authorities is strictly forbidden. The setting and/or using of non-approved power level may lead to prosecution. SATEL Oy and its distributors are not responsible for any illegal use of its radio equipment, and are not responsible in any way of any claims or penalties arising from the operation of its radio equipment in ways contradictory to local regulations and/or requirements and/or laws.

NOTE!

Additional cooling is required in case the transmitter of SATELLINE-3AS(d) NMS Epic radio modem has over 20 % duty cycle at the full power (or the constant transmitter on-time exceeds 2 minutes at the full power). The product variant SATELLINE-3AS(d) NMS Epic C includes the necessary cooling element.

NOTE!

Additional cooling is required in case the output power of SATELLINE-3AS(d) VHF radio modem is 5 W. The product variant SATELLINE-3AS(d) VHF C includes the necessary cooling element.

38

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

6.2

Receiver

The sensitivity of the receiver depends on the channel spacing of the radio modem (=data speed of the radio interface) and on the mode of the FEC (Forward Error Correction) according to the table below:

Table 6.2. Effect of settings on the receiver sensitivity

Channel spacing

25 kHz

Sensitivity FEC OFF

-110 dBm

Sensitivity FEC ON

-113 dBm

12,5 kHz -112 dBm -115 dBm

SATELLINE-3AS(d) NMS Epic radio modem contains two separate receivers, which are used simultaneously. The selection between received signals is made in order that the stronger/better signal is used. By using this method, the signal fading caused by multipath propagation will be smaller than in case, where just one antenna and receiver is used. The recommended minimum distance between two receiving antennas is wavelengths, app. 50 cm at 450 MHz frequency range.

6.2.1

RSSI and RSSI threshold level

The radio modem measures constantly the received signal strength of the receiver. The RSSI

Threshold Level of the receiver is the important parameter determining the level, above which the search for the messages from the radio receiver transfer signal is active. It is recommended that values given in the table 6.2 are used as a basis. If the Signal Threshold Level setting is set too low (the CD LED is ON constantly), it is possible that the receiver is trying to synchronise itself with noise. In such case the actual data transmission might remain unnoticed. If the RSSI threshold is set too high, the weak data transmissions will be rejected although they could be otherwise acceptable.

The RSSI threshold should only be changed for a reason. For example in the following cases:

• Continuous interference is present and the desired signal is strong. In this case the RSSI threshold can be increased to prevent the modem from synchronising to the interfering signal(s) and /or possible noise.

Maximum sensitivity should be achieved and the desired signal is very weak. In this case the sensitivity could increase by decreasing the RSSI threshold. This type of situation is usually a sign of a poorly constructed radio network / contact. Bit errors and momentary loss of signals can be expected in this kind of a situation. Some data might be successfully transferred.

The radio modems equipped with an LCD display show the RSSI of the last received message in dBm units. The RSSI can be requested also locally by using a special SL command ([email protected]?). The

RSSI value is available 7s after the receiving the message. After that the value is returned to zero. SATELLINE-3AS NMS Epic responds by the stronger RSSI value of the two receivers.

!

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF radio modems do not include an analogue RSSI signal - it is a special hardware assembly option that must be specified in the order.

39

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

6.3

Error correction

SATELLINE-3AS(d) NMS has the error correction feature called the FEC method (FForward EError

Correction). When FEC is enabled (ON), the radio modem automatically adds additional error correction information, which increases the amount of transmitted data by 30 %. It is used by the receiving radio modem to correct erroneous bits - as long as the ratio of correct and erroneous bits is reasonable. FEC improves the reliability of data transfer via the radio interface especially in unfavourable conditions. FEC function should be used when link distances are long and/or if there are lot of interferences in the radio channels used. Using the FEC function will decreases the data transfer throughput by app. 30 %. See Appendix B for the exact transfer delays introduced by using FEC function.

NOTE!

All radio modems that are to communicate with each other must have the same setting for

FEC (ON or OFF). If the transmitting radio modem and the receiving radio modem has different settings, data will not be received correctly.

6.4

Error checking

The purpose of the error checking is to detect possible errors happened in the data transfer.

The radio modem transfers user data over the radio link by fitting it to sub-frames and adds checksums to the transmitted data. In case the error checking is switched on, the receiving modem calculates the checksums and verifies the received data before it forwards the data to the serial port. SATELLINE-3AS NMS supports three different methods of error checking in order to verify that the received data is proper:

No Error Check

In this mode the received data is NOT verified at all. This is the fastest mode because received data is given out to the terminal device immediately after it has been received. This is the default mode and it is recommended in case the user protocol includes the error checking feature of its own.

Partial Error Check

This mode means that the radio modem checks the received data in small data blocks and sends the validated sub-messages to DTE. Once an error is detected, the rest of the message is ignored. That is, if an error takes place in the middle of a message then the first part of the message is forwarded to the terminal device, but the data inside the erroneous sub-frame and the rest of the data will be ignored.

Full Error Check

In this mode the radio modem waits until the end of the reception and checks the whole received message before forwarding it to DTE. The additional time delay compared to No Error Check is roughly the time needed to transfer the user data message over the serial line.

40

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

6.5

Dual band version

SATELLINE-3AS(d) NMS radio modem is also available as a special "Dual Band" version. The radio transceiver of the Dual Band version offers two times two MHz frequency bands, and radio modem can be reconfigured to operate at any channel within those two bands. The frequency bands are tuned at SATEL manufacturing premises. The maximum separation between the highest and the lowest frequency can be 12 MHz.

The centre frequency (fc) is set to the middle of the two frequency bands. When using the SL commands, please note that SL&F=nnn.nnnn is the only command for frequency change which works in all cases. (SL&+/-=nn command can be used only when the required value for nn does not exceed 99.)

Max. 12 MHz

Max. 2 MHz fc Max. 2 MHz

Picture 6.2. Dual band scheme

NOTE!

SATELLINE-3AS(d) NMS Dual Band is a special hardware version, and the frequency adjustment is done case by case. Before starting the system design procedure, please contact the manufacturer for checking the technical details.

6.6

Dual channel operation

By setting the Rx and Tx frequencies different to each other the radio modem transmits and receives data on separate radio channels (although not simultaneously). The radio modem is initially on the receiving channel. Data flow on the TD line starts the transmitter automatically and the frequency is changed to the transmitting channel. The delay caused by the frequency change - before the actual data can be transmitted - is 40 ms, and the same time is needed for returning to the receiving channel after completing the transmission. The extra delay from a modem to another is shown below:

Start DATA to be transmitted on TD line of Modem1 End

Normal point-to-point delay (see Appendix B) + 40ms extra delay due to the Dual Channel operation

Start Received DATA on RD line of Modem2 End

Picture 6.3. Dual channel scheme

41

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

6.7

TX Delay

The radio modem can be configured to delay the beginning of a radio transmission by

1...65000 ms. This feature is for preventing packet contention in a system where all substations would otherwise answer a poll query of a base station simultaneously. During this delay data sent to the radio modem is buffered. If this function is not needed, the delay time should be kept as 0 ms (default value).

6.8

Sync Interval

Normally the length of a single radio transmission is not limited by the radio modem. The transmission ends when:

The buffer of the transmitter is empty and a pause has been detected on the serial data coming from the DTE (the default value of the Pause length parameter is 3 bytes (~1.5 ms at

19200 bps, ~3 ms at 9600 bps)

Or the buffer overflows.

In some applications, especially in the remote control systems, the transmission can be of infinite length. The radio modem transmits the synchronisation sequence and the radio message identifiers (the type of the message, addresses etc.) only in the beginning of each radio transmission. These signals might seem redundant to the user, but they are necessary for the receiver to be able to receive the transmitted message. Thus, if the receiver momentarily looses the reception of the transmitted message, it will not be able to synchronise back to the same message again. The receiver will stop reception and starts looking for the beginning of the next radio transmission, which in theory then might never come.

To overcome this problem the radio modem has the Sync Interval setting that limits the size of a radio frames. When the limit is reached the modem completes the current radio frame properly and starts the transmission of a new synchronisation sequence and the radio frame.

The drawback of this function is that the use of additional synchronisation sequences adds delays among the data transmission i.e. approximately 20ms delay will be introduced in the data flow (depending on the data speed at the serial port) each time an extra synchronisation sequence is transmitted. The optimum value of

Sync Interval setting must be derived by experimental testing depending on the application.

42

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

7 NETWORK PROTOCOL MODES

SATELLINE-3AS NMS can operate in one of the following network protocol modes, which determine the way the radio modem handles and buffers data:

Basic - RX Priority (transmit after receive)

Basic - TX Priority (transmit immediately)

Basic - Repeater (store & forward all)

Advanced - Master (routing supported)

Advanced - Slave (routing supported)

NMS, network addresses or routing is supported ONLY in the

Advanced

Master and Advanced Slave Protocol modes.

Any radio modem in

Advanced Master or Advanced Slave mode acts also as a repeater station automatically depending on the message.

The three

Basic modes require that the user equipment perform the above-mentioned functions.

The radio modems in the Advanced Protocol modes ignore the messages sent by the radio modems in the Basic Protocol modes and vice versa.

7.1

Basic - RX Priority

SATELLINE-3AS NMS works as a plain transparent radio modem in the

Basic - RX Priority mode i.e. it does NOT support routing or NMS features.

RX Priority here means that a radio modem tries to receive all data currently in the air. If a terminal device outputs data to be transmitted it will be buffered. The radio modem will wait until the reception has stopped before transmitting the buffered data. This will result in timing slacks to the system, but decreases the number of collisions on the air, which is particularly useful in systems based on multiple random accesses.

Note: In case the terminal device enters an SL command, any radio reception will be terminated and the SL command will be handled immediately.

Note: The diagnostic functions are disabled in the Basic - RX Priority mode.

7.2

Basic - TX Priority

Basic-TX priority mode means that a terminal device attached to a radio modem determines the timing of the transmission precisely. The transmitter is switched on immediately when the terminal device is starting to output data.

If the radio modem is already receiving data from the radio interface and data to be transmitted is detected on the TD line, the radio modem will stop the reception and switch to the transmit state. Thus there is no need to use RTS line to control the timing of transmission/reception.

43

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

Because the transmission has higher priority than reception normally in industrial systems, the default value of the

Protocol mode is Basic - TX Priority ON which fits to most systems directly.

Note: The diagnostic functions are disabled in the Basic-TX Priority mode.

7.3

Basic - Repeater

SATELLINE-3AS NMS operates in a store and forward fashion in the Basic - Repeater mode. This means that the radio modem acts as a repeater station i.e. it first receives a message from the radio interface, buffers the received data (the maximum size of a message is 1 kB) and after the reception it transmits the buffered data to another radio modem. Only correctly received, valid messages are forwarded.

Note: BASIC - REPEATER MODE WORKS ONLY IN ONE REPEATER SYSTEMS!

If there are two or more repeater stations on the same radio frequency, a message will be bouncing between the repeater stations forever in an infinite loop. Instead, addressing must be used in systems that include more than one repeater, in order to prevent such situation and ensure that a message finally reaches the intended radio modem. The Advanced - Master and

Advanced - Slave modes must be used in those cases - see the next two chapters.

In case a radio modem is in the range of both - original transmitter and the repeater - units, it will receive a message twice. In other words the duplicate messages appear on the serial interface. Terminal equipment can be also connected to the serial port of the repeater station. If the radio modem is already receiving a message to be forwarded, the data coming simultaneously from the serial port will be buffered until the store-and-forward procedure has been completed.

The store-and-forward procedure will be completed before transmitting any data - even in the case that the radio modem has received new data from the radio, while TX Delay is already activated and it expires in the middle of the store-and-forward procedure. The use of TX delay together with the Basic - Repeater mode should be avoided without a special reason.

Note: The diagnostic functions are disabled in the Basic-TX Priority mode.

44

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

7.4

Advanced Network Protocol modes

NMS, network addresses, use of multiple repeaters or NMS routing are supported ONLY in the

Advanced Master and Advanced Slave Protocol modes.

The whole configuration is performed by using SATEL NMS PC program that creates the NMS routing information for the master modem based on the specific project design file. It also initializes and controls the NMS (Network Management System) of the radio network.

All network related settings i.e. SATEL NMS, addresses, identifiers or NMS routing are hidden

(except the Protocol mode for the informative reason) from the LCD and the Programming menu due to their usability limitations for the purpose. Instead, SATEL NMS PC provides the user friendly interface to access all the settings.

Read through the chapter SYSTEM DESIGN to get the idea how to use the radio modem in the system.

7.4.1

Advanced - Master

The Advanced - Master mode must be used for the master modem of the user system. The master modem retains the routing information of the radio modem network and provides the gateway for SATEL NMS PC program to the network.

7.4.2

Advanced - Slave

In case NMS (Network Management System), addressed repeater stations or the routing features are required, the Advanced - Slave mode must be used for all - except for the master modem - modems of the network.

Any radio modem in Advanced - Slave mode works also as a repeater station automatically depending on the received radio message.

45

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

8 SYSTEM DESIGN

8.1

General

A. PLANNING NETWORK REQUIREMENTS

Like other engineering tasks, designing a radio modem network requires a set of rules to be followed for producing the desired result. Both the radio connections themselves and the compatibility of the surrounding system need to be considered.

The very first part of the designing is to evaluate the system environment requirements, geography and the local radio frequency and transmission laws and regulations.

GEOGRAPHY

Station locations

Topographic profiles

Buildings or other obstacles

SYSTEM ENVIRONMENT

Data protocol

Interface types

Maximum response times

Time delays

LOCAL RADIO TRANSMISSION

REGULATIONS (AUTHORITIES)

Available radio channels

Max. Radiated power

Tx/Rx duty cycle

B. PLANNING NETWORK HARDWARE

With the desired system performance and the limitations above in mind, the first version of the radio modem network can be designed:

1.

Radio modem types and serial cable wirings are specified.

2.

Radio links are simulated by giving the antenna types and heights, feeder cable lengths, and possible need of any additional repeater stations.

3.

If necessary, other system components like RF filters, RF relays, combiners, lightning protectors, power supplies and mechanical installation parts are specified.

4.

Data transmission delays are calculated for the sufficient number of RF channels.

After these four steps, the system design is typically detailed enough for a commercial quotation.

C. TESTING THE COMPONENTS BEFORE FINAL INSTALLATION

Data communication tests at the factory, radio signal propagation and radio interference tests on the field are important. The tests verify the functionality of the designed system, its compatibility to the surrounding system and the correct settings of the devices. Proper signal-tointerference margin (app. 15 – 20 dB) is essential for reliable error-free radio communication.

46

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

D. REPEATING THE TESTS AFTER FINAL INSTALLATION

By repeating the communication tests after the final installation the system designer may verify that the radio network design works properly with the desired application.

NETWORK DESIGN CENTER

In case you are not familiar in using wireless radio data modems or your system is complicated and you are not sure how to design the network, please feel free to contact SATEL representative for assistance. The fastest way of getting support is to contact the local SATEL distributor.

However, if they do not have the resources or application specific know-how, the experts at

SATEL Network Design Centre ( [email protected] ) are prepared to assist. The service could include for example:

A budgetary price to start with so you can estimate the overall expenses for your project.

This would be based on your description of the system.

Propagation measurements on site to ensure that the system will work properly

Actual designing of the network based on the measurements

Binding offer for the entire radio network including the radios, antennas, antenna feeder cables, data interface cables, connectors needed etc.

Delivery of the high quality products in a short time due to our own production

Installation of the radio network as an option together with our local distributor

Testing of the system after installation including training of your staff

Handing over of the network to you

Guarantee

8.2

Configuration

Once the choices between devices, their location, installation, maintenance etc. are clear, the design and the configuration of the SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF radio modem system can be implemented in two ways depending on the desired configuration as described below.

SATEL NMS PC program provides the access to all user settings. SATEL

NMS PC is also required in order to use the NMS or configure the routing scheme for the syste m . The procedure involves the followings steps:

1.

Create a project file for a new system and fill in the common settings of the system (radio frequency, Network IDentifier, FEC and user protocol)

2.

Draw a layout of the radio modem network using the graphical routing window.

3.

Fill in settings such as addresses of the terminal equipment.

4.

Connect and Transmit settings to the modems. When all the radio modems have correct settings, they are ready for further installation.

5.

Test the network.

6.

Start using and monitoring of the system.

See the user instructions of SATEL NMS PC program for the details of the configuration. Check also the chapter 2.6 Settings of this user manual.

47

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

If the radio modem is to be used WITHOUT NMS OR NMS ROUTING in one of the

Basic Network modes, then SATERM LITE or almost any common terminal program via the

Programming menu can be used as a configuration tool. The

Programming menu provides the access to very basic settings which are adequate for the systems where external logic takes care of the network level operation and has a total control over the data transfer of the radio network. The role of the radio modem is then to provide a plain transparent radio connection. All the messages are received by any other radio modem using the same settings.

See also the chapters

2.6 Settings and 11.1 Programming Mode.

8.3

System characteristics

The data transfer characteristics of SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF are designed to fit in real time systems. The full functionality of NMS is obtained in the user systems that have a single master polling scheme, where the master station polls every slave station regularly.

8.3.1

Features

• Transparent to user protocols.

Easy construction of a network containing several repeaters.

• Any radio modem may operate as a repeater, i.e. dedicated repeaters are not usually needed thus cutting down on costs.

• Large coverage areas may be implemented by using only one radio channel.

The system will be fully deterministic i.e. the transmission delays are predictable. Because of this, the principle of NMS Routing is connectionless.

Added redundancy by using NMS, as a failing radio modem can be by-passed with another radio modem positioned in the same coverage area.

8.3.2

Syste m requirements

NMS and the internal routing features are intended mainly for the protocols based on polling scheme and a single master station. Other kinds of are possible but require careful planning - contact SATEL in uncertain cases.

• The maximum size of a single message is 1kB (kilobyte), if repeater stations are used.

It is assumed that the position of the address field in the user messages is fixed (some special protocols can be supported though, and list will be growing).

It is assumed that there is only one message at a time inside the network. Simultaneous messages could cause collisions.

The maximum number of the routes depends on the actual hardware and the software version. Currently the maximum number of routes is 100.

48

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

8.3.3

Protocol support

Using the internal

Packet filter feature the radio modem catches and transfers only the wanted messages/protocols - NMS also enables easy addition of higher level functions, like alternative routes and alarms in future development. The list of preset protocols includes for example:

User defined

Modbus ASCII

Modbus RTU

Rockwell DT1

IEC60870-5-101

DNP 3.0

ANSI

SATELLINK

8.3.4

Ne twork ID

The Network ID is a character string which is used to prevent the reception of the messages coming from any external system. It applies only in the

Advanced Protocol modes. The radio modems operating in the same system using

NMS Routing must have the same Network ID.

Only the messages that have a matching Network ID are received. Network ID is configured by using SATEL NMS PC.

8.4

Repeater stations

In circumstances where it is necessary to extend the coverage area of a radio modem network,

SATELLINE-3AS(d) NMS / NMS Epic / NMS 869 / VHF radio modems can be used as repeater stations. The same network may include several repeaters, which operate under the same base station. Repeaters may also be chained; in which case a message is transmitted through several repeaters. In systems with more than one serial or parallel-chained repeater, addressing or routing protocol must be used to prevent a message ending up in an infinite loop formed by repeaters, and to ensure that the message finally reaches only the intended radio modem.

The maximum size of a repeated data packet is 1kB (kilobyte).

A radio modem acting as a repeater can be also connected to the serial interface:

• The radio modem in the Basic-Repeater Protocol mode will transmit all the received messages to the serial interface.

• The radio modem in the Advanced-Master or Advanced-Slave mode will transmit only the received messages addressed to its serial interface dictated by the route information in the message and the settings of the radio modem.

The radio modem will transmit the data coming from the serial interface in a normal format in all Protocol modes.

49

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

The radio modems in the

Advanced Protocol modes ignore the messages sent by the radio modems in the

Basic Protocol modes and vice versa.

Picture 8.1. Repeater stations extend the coverage of the radio network. The end-to-end latency increases correspondingly.

8.5

Timing and delays during data transmission

When using a radio modem for data transmission, the use of a radio interface and the radio modem circuitry itself introduces start-up and data transfer delays. These delays exist when the radio modem switches from Standby Mode to Data Transfer Mode and during reception and transmission of data. See Appendix B for values in each case.

8.6

Data buffering in the radio data modem

A synchronisation signal is transmitted at the beginning of each radio transmission and this signal is detected by another radio modem, which then turns into receive mode. During the transmission of the synchronisation signal the radio modem buffers the data to be transmitted into its memory. Transmission ends when a pause is detected in the data flow sent by the terminal device, and after all the buffered data has been transmitted. When the data speed of the serial port is the same or slower than the speed of the radio interface, the internal transmit buffer memory can not overflow. However, when the serial interface speed exceeds the speed of the radio interface, data will eventually fill the transmit buffer memory. After the terminal device has stopped data transmission, it will take a moment for the radio modem to get the buffered data transmitted and get the transmitter switched off. The maximum size of transmit buffer memory is one kilobyte (1 kB). If the terminal device does not follow the status of the CTS line

50

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0 and transmits too much data to the radio modem, the buffer will be cleared and the transmission is restarted.

In the receiving mode, the data coming from the radio is also buffered thus evening out differences in data transfer speeds at the serial ports.

If the terminal device transmits data to a radio modem in receiving mode, the data will go into transmit buffer memory. Transmission will start immediately when the radio channel is free, depending on the RX/TX priority setting of the radio modem: a) TX-priority ON, immediately start transmitting the data sent by the DTE or b) RX-priority ON, continue in receiving mode and buffer the data sent by the DTE. The buffered data will be transmitted when the radio channel is free (when the modem is not in the receiving state).

Terminal equipment can be also connected to the serial port of the repeater station. If the radio modem is already receiving a message to be forwarded, the data coming simultaneously from the serial port will be buffered until the store-and-forward procedure has been completed.

8.7

Factors affecting to the quality/distance of the radio connection

o

Power of the radio transmitter o

Sensitivity of the radio receiver o

Tolerance of spurious radiation’s of the radio modulating signal o

Gain of transmitting and receiving antennas o

Antenna cable attenuation o

Antenna height o

Natural obstacles o

Interference caused by other electrical equipment

The transmitter power of the base model of SATELLINE-3AS NMS is 1 W (maximum) and the sensitivity of the receiver is typically better than -115 dBm. Thus in a flat area and in free space with a 1/4 wave antenna (with antenna gain of 1dBi) and antenna height of 1 m communication distances app. 3 to 4 km can be achieved. Distances may be considerably shorter in situations where there are metallic walls or other material inhibiting the propagation of radio waves.

Over long distances, increasing antenna height can often solve problems caused by natural obstacles. A ten-fold increase in distance can be achieved by using antennas with higher gain.

Frequent topographical variations over long distances may require that at least one of the antennas be raised to a height of 10 to 20 m.

If the antenna cable is more than 10 meters long it is necessary to use a low loss cable (< 0.7 dB /10 m) in order not to waste the antenna gain. Adding a repeater station can also solve problematic radio connections. In systems with many base stations the RSSI signal can be used to assist in choosing the base station with the best signal. A communications network can also be built with a combination of cables and radio data modems.

51

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

In mobile applications the range of operation can be increased by dividing the transmitted data into shorter e.g. 50...200 bytes blocks and by re-transmitting the defected blocks.

A sufficient safety margin can be obtained by testing the communication path by using extra 6 dB attenuation at the antenna connection and with slightly less effective antennas than the ones planned to be used in the final system.

8.8

Radio field strength

Radio signal strength must be good enough for successful data transfer. Wherever the field strength is above a certain level, the operational results are very good. Below this level, a few dB margin areas occur in which errors begin to be generated by noise and interference that will eventually lead to connection losses.

The field strength is at its optimum level in open space, although increasing the distance will still reduce it. It should also be noticed that open space may have different environmental and external factors compared to another place - and that the effects on transmission quality must be taken into account when planning the system.

Ground, ground contours and buildings cause attenuation (loss of energy through absorption) and reflections of radio waves. Buildings reflect radio waves and therefore the affects of attenuation are not as acute when transmission is over a short distance.

However, the reflected waves will often be a bit delayed and when combined with the direct radio waves they interact in either weakening or strengthening way. This causes the fading effect in mobile systems. The attenuation may even reach 40 dB, typically less.

8.9

Remarks concerning the 869 MHz frequency band

It is the recommendation ERC/REC 70-03 (available on the site www.ero.dk) created by the radio communications committee of CEPT, which sets the technical requirements for the licence exempt use of short range devices on harmonized frequency bands around the Europe.

CEPT members (spectrum authorities) have to either follow the recommendation in their frequency management or inform the CEPT radio communications committee about any restrictions. Those national restrictions are listed and attached to the ERC/REC 70-03 document.

According to the recommendation, the frequency band 869.400…869.650 MHz is reserved for use of license free radio appliances. The application of this recommendation varies in each country and for this reason local regulations concerning this frequency range must always be checked.

The sub-band 869.400-869.650 MHz is specified for 0.5 Werp (effective radiated power, in reference with a half wave dipole antenna, 0 dBd = 2.15 dBi). On this band, there are 10 pcs

52

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0 of 25 kHz channels available: 869.4125, 869.4375, 869.4625, 869.4875, 869.5125,

869.5375, 869.5625, 869.5875, 869.6125 and 869.6375 MHz.

When calculating the radiated power, antenna cable attenuation and antenna gain must be taken into account. For example: when the antenna gain is 10 dBd and the antenna feeder cable attenuation is –3dB, the maximum allowed transmission power is 100 mW (+20 dBm). It should be noticed that by increasing the gain of the antennas, connection distance can be increased. This is due to the fact that the transmitting power remains constant, but the added antenna gain in the receiving end enables reception of weaker signals than otherwise possible.

System designers must also take into account that at the frequency range of 869.4…869.65

MHz the allowed transmitter duty cycle is 10% of the time (transmitter can be ON for up to 10% of the cycle time, maximum continuous transmitting time is 36 s).

Whether this limit is exceeded or not, depends on the protocol used.

Currently, the default settings of SATELLINE-3AS(d) 869 are:

Output power = 500 mW

Low limits of frequency bands 1 and 2 = 869.4125 MHz

High limits of frequency bands 1 and 2 = 869.6375 MHz

Centre frequency = 869.0125 MHz

Operating frequency = 869.4125 MHz

53

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

9 TESTS

9.1

Test messages

The radio modem can be set to transmitting mode with two kinds of test messages - the

Short block test and the Long block test. These can be utilized for example when directing antennas during system installation.

It is recommended to use the following data speed at the serial port of the receiving radio modem: 38400 bps @ 25 kHz radio channel spacing and 19200 bps @ 12.5 kHz.

The test transmissions can be started and stopped in the

Programming menu, LCD menu or

SATEL NMS PC program.

9.1.1

Short block test

In this test mode the radio modem sends a test message that is preceded by a consecutive serial number and terminated by the Line Feed character. The short data block transmission is followed by a 200 ms delay after which the transmission sequence will be repeated until the test is stopped.

Short data block test is suitable for running data communication tests. Error-free reception of data can be monitored using a terminal program, for example SaTerm Lite.

Example of a short data blocks:

$test3AS VHF ,0,1,S/N:0000000000, test line of SATELLINE – 3AS VHF ,E99C

9.1.2

Long block test

In this test mode the radio modem transmits test message continuously for 40 s. Then the transmitter is switched OFF for a 10 seconds break. This transmission sequence is repeated until the user stops it.

This test can be used in order to measure the transmitter output power, standing wave ratio

(SWR) of the antenna system or received signal strength (RSSI level) at the receiver stations.

NOTIFICATION

When Long block test is used with the full output power (10 W) of SATELLINE-3AS NMS Epic, the radio modem must be the version equipped with a cooling element.

If the Epic doesn’t have the cooling element, maximum allowed Tx output power in Long data test is 1 W.

54

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

Example of a long data blocks:

$test3AS VHF ,0,1,S/N:0000000000, test line of SATELLINE – 3AS VHF ,E99C

$test3AS VHF ,0,2,S/N:0000000000, test line of SATELLINE – 3AS VHF ,E758

$test3AS VHF ,0,3,S/N:0000000000, test line of SATELLINE – 3AS VHF ,E2E4

9.1.3

Monitoring the test transmission using the receiver

The user can monitor the quality of the received data by visually inspecting the received data stream. The packet identifier number helps to keep track of possibly lost messages. Error-free reception of data can be checked by using a suitable terminal program, which may calculate

BER (Bit Error Rate) or PER (Packet Error Rate) performance of the radio links.

The signal strength of the reception can be monitored also by:

Enquiring the RSSI level from the radio modem by using the SL command ([email protected]?). In that case the SL commands must be enabled in the radio modem setup.

Monitoring the LCD display (models equipped with the LCD)

55

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10 LCD & PUSH BUTTONS

SATELLINE-3ASd NMS includes an LCD (Liquid Crystal Display) that indicates the status and basic settings of the radio modem. LCD and the four push buttons enable easy access to the radio modem settings without a need for an external terminal program. This feature is especially handy on the field conditions.

10.1

LCD after power-up

The picture on the right shows the outlook of the LCD after the power-up i.e. the idle state of the radio modem.

The RSSI meter on the upper left corner indicates the received signal strength (RSSI) in dBm units. The value will be shown for 5 seconds after the last message has been received. The reading "---dBm" means that no signal from any other SATELLINE-3AS NMS radio modem is detected.

The voltage meter on the upper right corner indicates the supply voltage of the radio modem in Volts.

There are two options to proceed from this view:

Info pages - Press the

-button to view the info pages.

Main menu - Press the

SETUP -button to enter to the main menu in order to modify the settings.

10.2

Info pages

Scrolling between the info pages is done by pressing and

buttons. The info pages show the following settings:

1.

Transmitter: frequency and power

2.

Receiver: frequency and RSSI threshold

3.

Serial port 1 function, type, speed and character

4.

Serial port 2 function, type, speed and character

5.

SW (software) version number

6.

RF (radio) version info

7.

HW (hardware) version info

8.

Serial number

56

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10.3

How to use menus

The main menu is used to select the desired submenus. The setting modifications are performed using these submenus. It is possible to jump back to the previous (higher) level in the menu hierarchy by pressing the ”BACK”-button at any time (same button serves also as CANCEL and EXIT depending on the particular submenu).

The symbol on the left column indicates the active selection or the current value of the setting.

Pressing or button either scrolls in the menu or modifies parameters with numerical values consisting of digits. Use or button until the desired value is reached.

The inverted text shows the cursor line.

”SELECT/OK”-button confirms the selection.

10.4

Menu structure

10.4.1

Main menu

The main menu allows the user to choose from several functional parameter groups. The submenu choices will appear in the following order:

Radio settings

Network mode

Serial Port 1 settings

• Serial Port 2 settings

Handshaking

Additional settings

Tests & Counters

Restore Factory settings

Each of the submenus is described in detail in the following paragraphs.

57

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10.4.2

Radio settings

The submenu contains the following radio related parameters:

Frequency

Tx Power

RSSI Threshold

FEC

• Tx Delay

Sync Interval

Error check

Rx Delay

The following table describes each parameter, indicates the default value and if applicable, defines the allowed value range.

MAIN MENU

Radio settings

TX & RX freq.

X.X MHz

Frequ ency

TX freq.

X.X MHz

RX freq.

X.X MHz

TxPower

10 mW

20 mW

50 mW

100 mW

200 mW

500 mW

1 W

RSSI

Threshold

-80 dBm

-87 dBm

-118 dBm

[ step size

-1 dBm ]

FEC

FEC

OFF

FEC ON

Tx

Delay

0 ms

9999

[ step

size

1 ms ]

Sync Interval

Set to

Default

SELEC T

[ default value

21845 bytes ]

Note: X.X MHz is shortened from the actual display of XXX.XXXXXX MHz

scroll value up or down OR select from list indicates selected value

Custo mize

0

65535

[ step

size

1 byte ]

Error

Check

OFF

PARTIAL

FULL

Rx

Delay

0 ms

65535

[ step

size

1 ms ]

58

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10.4.3

Protocol mode

The submenu allows the setting of the network mode used by the radio modem for transmitting and receiving data on the radio modem network. The following options can be chosen:

Basic - RX Priority [default value]

Basic - TX Priority

• Basic - Repeater

Advanced - Master

Advanced - Slave

NOTE: Each of the options listed above activates the appropriate function, thus, there are no value ranges to consider.

MAIN MENU

Protocol Mode

Basic-RX Prior

Basic-TX Prior

Basic-Repeater

Advanced-Master

Advanced-Slave

59

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10.4.4

Serial Port 1 -settings

The submenu allows modifying the settings of the serial port 1. This main menu option will list the following options to choose from:

Port function type

• Serial port speed

Number of data bits

Parity

Number of stop bits

MAIN MENU

PORT1 DATA

SPEED

Serial Port 1

PORT1

DATA BITS

PORT1

PARITY

PORT1 STOP

BITS

PORT1

FUNCTION

OFF

DATA

NMS

1200 bps

2400 bps

4800 bps

9600 bps

19200 bps

38400 bps

7 bit data

8 bit data

None parity

Even parity

Odd parity

1 stop bit

2 stop bit

60

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10.4.5

Serial Port 2 -settings

The submenu allows modifying the settings of the serial port 2. This main menu option will list the following options to choose from:

Port function type

Serial port type

• Serial port speed

Parity

Number of stop bits

MAIN MENU

PORT2

FUNCTION

PORT2

TYPE

Serial Port 2

PORT2 DATA

SPEED

PORT2

DATA BITS

PORT2

PARITY

PORT2

STOP BITS

DATA

NMS

RS232

RS485

RS422

1200 bps

2400 bps

4800 bps

9600 bps

19200 bps

38400 bps

7 bit data

8 bit data

None parity

Even parity

Odd parity

1 stop bit

2 stop bit

61

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10.4.6

Handshaking

The submenu allows modifying the settings of the handshaking parameters. This main menu option will list the following options to choose from:

CTS line

RTS line

• CD line

Pause length

MAIN MENU

CTS line RTS line

Handshaking

CD line Pause length

Clear To Send

TX buffer state

Ignored

Flow control

RX control

RSSI threshold

Data on channel

Always ON

1 bytes

99 bytes

[step size

1 byte]

10.4.7

Additional -setting

The submenu the user may enable or disable the use of SL commands with.

MAIN MENU

Additional

SLcommands

OFF

ON

62

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10.4.8

Tests & Counters

Reset counters

NOTE: This option activates reset directly!

Short Block Test

NOTE: This option activates test sequence directly and is stopped by pressing any button.

Long Block Test

NOTE: This option activates test sequence directly and is stopped by pressing any button.

10.4.9

Restore factory settings

MAIN MENU

Restore Factory

Do you want to restore factory settings?

NO YES

63

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10.5

E xample of changing a setting

The following example shows how to change any parameter value using the push buttons and the LCD display of the radio modem.

Example: The data speed of the Serial Port 1 is changed to 1200 bps by following the steps:

1.

Go to SETUP – MAIN MENU by pressing the SSETUP button.

2.

Go to the Serial Port 1 submenu by scrolling with the buttons until the cursor is pointing at the Serial Port 1 selection. Press the SSELECT button.

3.

Go to the port speed submenu by scrolling with the buttons until the cursor is pointing at the data speed (bps) selection (9600 bps in this example). Press the SSELECT button.

4.

Select the desired value (1200 bps in this example) by scrolling with the buttons until the cursor is pointing at the correct selection. Press the SSELECT button.

5.

Press the BBACK button and note that the display will now show the port speed as 1200 bps (value has been changed).

6.

Press BBACK / EXIT button until the ““Save settings?” is displayed. Confirm the change by pressing YYES or change back to the previous value by pressing N display will now return to the main screen.

----dBm 12.5V

MODEMNAME

?

Setup

MAIN MENU

Network Mode

Serial Port 1

Serial Port 2

Handshaking

EXIT ??

SeLECT

SERIAL PORT 1

DATA

9600 bps

8 bit data

None Parity

BACK ??

SeLECT

1 2 3

SERIAL PORT 1

1200 bps

2400 bps

4800 bps

BACK ??

SeLECT

SERIAL PORT 1

DATA

1200 bps

8 bit data

None Parity

BACK ??

SeLECT

SAVE SETTINGS?

NO ??

4 5 6

YES

64

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

10.6

Saving the settings

After all desired modifications have been performed they MUST BE SAVED in order to make them permanent. This is accomplished by choosing ”EXIT” option from the main menu. The display shows a message (see below) asking for a confirmation for the performed modifications.

Option “YES” saves all modifications into the non-volatile memory inside the radio modem. Option ”NO” cancels all modifications performed and previous settings remain in the non-volatile memory.

Press ”YES” to save all modifications into the nonvolatile memory and ”NO”, if modifications are to be cancelled.

Save settings?

No YES

10.7

Special displays

10.7.1

Programming Mode display

LCD menu is disabled while the radio modem is in the Programming mode (see the next chapter). This is indicated by a display text

"PROGRAMMING MODE" like the menu on the right presents.

3AS NMS

4.0.0.63

PROGRAMMING MODE

MODEM_NAME

65

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

11 PROGRAMMING MODE (TERMINAL MENU)

11.1

Programming Mode

The basic settings of the radio modem are fully configurable in the

Programming Mode. The most recommended setup for changing parameters is CRS-9 cable, a power supply and the

SATEL NMS PC program. NARS-1F adapter contains a switch to enable easy shifting into the

Programming Mode. Other suitable terminal programs and cables may also be used.

The radio modem will shift into the

Programming Mode by connecting the D-connector pin 12 to ground (GND) potential. With NARS-1F adapter this can be accomplished by moving the slide switch downwards.

In the

Programming Mode, the radio modem will always use serial port PPORT1, with settings

9600 bps, N, 8,1 (data transfer speed 9600 bps, no parity, 8 data bits and 1 stop bit).

The radio modem will output the following

Programming menu to the terminal (certain configuration settings might differ from the ones shown):

-------------------------------------------------------------------------------

SATELLINE-3ASd NMS

SW: version 4.0.0.63

HW: AA01.03

RF: TC4n

Center frequency 468.200000 MHz / Channel spacing 25.000 kHz

SERIAL: 050112345 Name: MODEM_NAME

-------------------------------------------------------------------------------

1 ) Radio Settings TX frequency: 468.425000 MHz / TX Power 100 mW

RX frequency: 468.425000 MHz / FEC OFF /

RSSI Threshold -112 dBm / Error check OFF

TX delay 0 ms / Sync interval default / RX delay 0 ms

2 ) Protocol Mode Basic - RX Priority

3 ) Serial Port 1 DATA / RS232 / 19200 bps / 8 bit data / None parity /

1 stop bit

4 ) Serial Port 2 NMS / RS232 / 9600 bps / 8 bit data / None parity /

1 stop bit

5 ) Handshaking CTS Clear To Send / CD RSSI threshold / RTS Ignored /

Pause length 5 bytes

6 ) Additional Setup SL-commands ON / LCD read-only OFF

7 ) Tests & Counters

A ) Restore factory settings

E ) EXIT and save settings

Q ) QUIT without saving

Enter selection >

66

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

11.1.1

Changing the se ttings in the Programming Mode

Connect cables (RS-232 cable to PC COM port, power supply cable to power supply).

Switch on the PC and start

SaTerm Lite program (or other terminal program).

Open a terminal window and then choose ”Pr” (in case you are using some other terminal program, set the serial port parameters of the program as follows: 9600 bits/s, 8 data bits, no parity, 1 stop bit, which is always the default in

Programming Mode).

Connect PROG pin to ground (if using the NARS-1F adapter, slide the switch downwards), the radio modem shifts into the

Programming Mode. The screen should look similar to the one shown in the picture below.

Make desired changes to the settings.

Save changes by pressing ”E” in the main menu. If you don’t want to save changes, press

”Q”.

Disconnect PROG pin from ground (if using the NARS-1F adapter, slide the switch upwards), the radio modem returns to the

Data Transfer Mode.

67

11.1.2

Radio settings

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

NOTE !

Adjustment of the active radio channel of the radio modem to frequencies other than those allocated and/or allowed by local authorities is strictly forbidden. Use or intended use of forbidden frequencies may lead to prosecution and penalties. SATEL is not responsible for any illegal use practiced with any devices manufactured and/or sold by SATEL and is not liable to pay any damages or compensation caused by such illegal use.

68

11.1.3

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

Ne twork Protocol mode -settings

11.1.4

Serial port 1 -settings

69

11.1.5

Serial port 2 -settings

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

70

11.1.6

Handshaking -settings

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

71

11.1.7

Additional -settings

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

11.1.8

Tests and counters -settings

72

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

11.1.9

Restoring factory settings EXIT and save and QUIT without saving -settings

The original settings of the radio modem can be restored by selecting “A” in the Main menu and confirming ”Y” (YES) on the prompt. By pressing any other button current settings will remain active. The modem will ask this question twice to make ensure that this is a valid command.

Restoring is confirmed by pressing ”Y” (Y=YES) or cancelled by pressing ”N” (N=NO). Also pressing ”ESC” button at any point in the procedure will return the display to the previous (next higher) menu level without restoring factory settings.

All modified settings must be saved into the permanent non-volatile memory of the radio modem before switching out of the

Programming Mode. Selecting the main menu selection E)

EXIT and save settings automatically saves the settings.

NOTICE!

To switch the radio modem back into Data Transfer Mode the MODE-pin of the Dconnector (D-15 pin 12) must be disconnected from ground (GND).

73

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

12 SOFTWARE UPDATE

The software of SATELLINE-3AS(d) NMS is stored in a flash memory. If needed, the software can be updated. Reprogramming of the actual firmware of the radio modem is performed by running the appropriate .exe file that includes the desired version of the software. The radio modem must be in the

Programming Mode while performing the flash update procedure.

For example, SATELLINE_3AS_NMS_sw_4_1_2.exe is the software file for updating the software version 4.1.2 in the SATELLINE-3AS NMS radio modems.

1.

Connect RS-232 cable to PC COM-port and Port 1 of the radio modem.

2.

Connect the power supply cable.

3.

Connect PROG pin to ground (if using the NARS-1F adapter, slide the switch away from the radio modem).

4.

Switch the power ON, the radio modem shifts now into the

Programming Mode.

5.

Run the desired flash update file and follow the instructions.

6.

After the update, remember to disconnect the PROG pin (if using the NARS-1F adapter, slide the switch towards the radio modem). The radio modem returns to the

Data Transfer Mode using the updated software version.

WARNING! THE FLASH UPDATE PROCEDURE MUST BE CAREFULLY CONDUCTED. IF AN

INTERRUPTION (FOR EXAMPLE POWER LOSS) OCCURRED DURING THE TRANSFER OF THE

ACTUAL PROGRAM CODE, THE RADIO MODEM WILL NO LONGER FUNCTION AND IT

MUST BE SENT TO AN AUTHORIZED SERVICE REPRESENTATIVE FOR FLASH UPDATE.

74

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

13 SL-COMMANDS

Controlling the terminal device (DTE) can instruct the radio modem to make an action. This is accomplished with the help of the SL commands, which can be used during data transfer in the

Data Transfer Mode. For example, DTE may change the frequency or the output power of transmitter, or DTE may enquiry current settings from the radio modem.

SL commands must be enabled before they can be used by setting the

SL commands parameter

ON in the

Programming Mode.

An SL command is a one continuous string of characters, which is separated from other data by pauses that are at least three (3) characters long. The continuous here means that there are no pauses between the adjacent characters inside the SL command on the serial line.

No extra characters are allowed at the end of an SL command. The serial interface settings are the same as in normal data transfer.

The syntax of an SL command is: S L <Com m and> <CR> <LF>, where:

<Command> is the actual character string defining the actual command.

<CR> is Carriage Return (ASCII character 13, 0x0d in hexadecimal)

<LF> is LineFeed character (ASCII character 10, 0x0a in hexadecimal).

Note that the use of <LF> is optional the radio modem does not require it.

If multiple SL commands are sent to the radio modem the next command can be given after receiving the response ("Ok" or "Error" or the value) of the proceeding command. In addition, it is recommended to implement a timeout to the terminal software for recovering the case when no response is received from the radio modem.

The radio modem handles all data strings with the prefix 'SL' as SL commands. Invalid SL commands are ignored. Note also that the radio modem does not transmit the SL commands.

The radio modem responses using the following format:

<STX>SL<Response Data><ETX><CR><LF> , where

<STX> Start of Text character (0x02 in hexadecimal)

<Response Data> is a character string, the actual reply to the previous SL command.

OK" (command carried out or accepted) or the requested value, or an "EERROR" (command not carried out or interpreted as erroneous) message.

<ETX> End of Text character (0x03 in hexadecimal)

The frame characters ease the implementation of parser software for the DTE.

In case the radio modem is receiving a message, entering an SL command to the radio modem will terminate the reception and the SL command is processed.

75

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

When the power of a radio modem is switched off, the configuration settings of a radio modem always return to values defined initially using the

Programming Mode, thus resetting any settings changed using SL commands during power on. It is however possible to save changed settings permanently by using a special SL command.

In case you need more information on the time delays related to the use of SL commands, please contact the manufacturer.

13.1.1

Command

Frequency related S L commands

Description

SL&F=nnn.nnnnn Set both TX and RX frequencies to nnn.nnnnn MHz

SL&F? Get TX and RX frequencies

SL&FR=nnn.nnnnn Set RX frequency to nnn.nnnnn MHz

SL&FR? Get RX frequency

SL&FT=nnn.nnnn Set TX frequency to nnn.nnnnn MHz

SL&FT? Get TX frequency

SL&C? Get Centre Frequency

Response

"OK" or "ERROR"

"TX nnn.nnnnn MHz,

RX nnn.nnnnn MHz" or "ERROR"

"OK" / "ERROR"

"nnn.nnnnn MHz"

"OK" / "ERROR"

"nnn.nnnnn MHz"

'nnn.nnnnn MHz'

SL&+=nn

SL&-=nn

SL&N?

SL&W?

Set both RX and TX frequencies nn channels above the

Center frequency

Frequency = Center frequency + nn * Channel spacing, where nn=[0...Number of channels/2]

Set both RX and TX frequencies nn channels below the

Center frequency

Frequency = Center frequency – nn * Channel spacing, where nn=[0…Number of channels/2]

Get current frequency deviation from center frequency as channels

(Frequency – Center frequency)/Channel spacing

Get Channel spacing

"OK" or "ERROR"

"OK" or "ERROR"

"+nn" or "-nn"

"12.5 kHz",

"20 kHz" or "25 kHz"

76

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

13.1.2

Command

[email protected]?

[email protected]=xxxxx

[email protected]?

[email protected]=-xxx

[email protected]?

[email protected]?

Radio parame ters

Description

Get the minimum field strength (RSSI) of the last received message.

Note: Value is available 5s after reception. SATELLINE-

3AS-NMS Epic returns the stronger value of two receivers.

Set the RF output power, where xxxxx is the decimal value of the intended power in mill watts. Only values matching exactly the programmed power levels are accepted.

Get RF output power.

Response

"-xxx dBm", where xxx is

080….118

"OK"

”xxxxx mW”, where xxxxx is a decimal value the output power of the transmitter.

"OK" Set the minimum power level of the signal to be received

(="Signal Threshold level i.e. squelch), where xxx is a decimal value of the new intended level in dBm.

Get current "Signal Threshold Level"

Get the current RSSI. If no signal is being received, then current noise level is shown.

"-xxx dBm", where xxx is

50….118

"-xxx dBm", where xxx is

50….118

77

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

13.1.3

Command

SL**>

Other SL commands

Description

Save all current settings as permanent.

Response

"OK"

"Vn.n.n.n"

SL!H?

SL%S?

SL%I?

SL%S?

SL%T?

SL%T=n

[email protected]?

[email protected]=nnnn

SL!V?

SL%M=1

[email protected]=nnnnn

[email protected]?

Get radio board version

Get modem serial number

Get modem user given name

Get modem serial number to quit. Modem flash update is not possible.

Get test mode

Set test mode, where n is:

0= test mode off

1= short block test

2= long block test

Request the RX delay.

Set the RX delay in ms.

Get the name of the product

Swap the DATA and NMS ports

Set the TX delay in ms

Request the TX delay.

”nnnnnnnn”

"yywwnnnnn"

”nnnnnnnn”

"yywwnnnnn"

Displays the Programming menu

"0","1" or "2"

"OK"

"nnnn ms"

"OK"

For example "3AS VHF" for

SATELLINE-3AS VHF

“OK” from new DATA port

“OK”

"nnnn ms"

78

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

14 INSTALLATION

14.1

Installation of the radio modem

The radio modem should be installed with the installation accessories supplied with the radio modem. There is also available an installation component for mounting the radio modem to a

DIN rail.

1. Installation with the installation plate supplied with the radio modem. The installation plate is fastened to the backside of the radio modem.

2. Installation using the

Velcro-tape provided with the radio modem.

3. Installation can also be made directly to customer’s equipment.

The installation plate can be mounted using the holes provided on the plate.

NOTE!

When selecting a suitable location for the radio modem it must be ensured that no water can get into the radio modem under any conditions. Direct sunlight is also to be avoided. It is not recommended to install the radio modem on a strongly vibrating surface. Suitable dampening and/or isolation materials should be used in cases where the installation surface will be subjected to vibration.

79

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

14.2

Wiring

1 4. 2. 1 RS-2 3 2 wiring - both Ports 1&2 connected (DATA and NMS in use)

A typical connection between a radio modem and the PC serial ports (RS-232) is depicted in the schematic below. One of the ports serves as the DATA port while the other is for NMS.

9-PIN D-CONN.

25-PIN D-CONN.

RADIO MODEM

TD

3

2

TD

RD

2

3

TD

RD RD

11

9

5

SGND

7

SGND

SGND

7

3

2

TD2

RD2

2

3

TD2

RD2

Fuse

3AS: 630 mA slow

3AS Epic: 4 A slow

DTR

4

3

1

+Vb

+Vb 14,15

GND

GND

7, 8

5

SGND

7

SGND

NOTE!

When installing the cables of the serial interface, the operating voltage of all devices must be off (POWER OFF condition).

Due to the greater current consumption of SATELLINE-3AS-NMS Epic operating voltage must be connected to pins 14 AND 15, and ground to pins 7 AND 8. Correct fuse rating is in this case 4 A (SLOW FUSE).

80

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

14.2.2

RS-232 wiring - Port1 without handshaking

The simplest connection to PC serial port (RS-232) is depicted in the schematic below.

9-PIN D-CONN.

25-PIN D-CONN.

RADIO MODEM

TD

3

TD

RD

2

TD

RD

11

2 3

RD

9

5

SGND

7

SGND SGND

7

Fuse

3AS: 630 mA slow

3AS Epic: 4 A slow

DTR

1

+Vb

+Vb

14,15

GND

GND

7, 8

14.2.3

RS-232 wiring - Port1 and handshaking signals connected

A typical connection between the Port 1 of the radio modem and the PC serial port (RS-232) using the handshaking signals is depicted in the schematic below.

9-PIN D-CONN.

25-PIN D-CONN.

RADIO MODEM

6

5

1

4

7

8

3

2

DSR

SGND

CD

DTR

TD

RD

RTS

CTS

4

5

6

2

3

7

8

20

DSR

SGND

CD

DTR

TD

RD

RTS

CTS

Fuse

3AS: 630 mA slow

3AS Epic: 4 A slow

DSR

SGND

CD

DTR

TD

RD

RTS

CTS

+Vb

11

9

13

6

10

7

2

1

+Vb

GND

GND

14,15

7, 8

81

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

14.2.4

RS-422 wiring

RADIO MODEM

RD positive A'

2

RD negative B'

3

TD positive A

4

Termination resistor

TD negative B

5

Fuse

3AS: 630 mA slow

3AS Epic: 4 A slow

DTR

1

+Vb

+Vb 14,15

GND

GND

7, 8

If the transmission lines are long the receiving end of the lines must be terminated using a separate termination resistor (typical values range from 100 -120 depending on the characteristic impedance of the transmission line).

14.2.5

RS-485 wiring

Both ends of the transmission line must be terminated by connecting a separate terminating resistor between the positive and negative signal wire. Typical values range from 100 – 120 depending on the characteristic impedance of the line.

RADIO MODEM

Data positive A'

2

Termination resistor

Data negative B'

A

3

4

B

5

Fuse

3AS: 630 mA slow

3AS Epic: 4 A slow

DTR

1

+Vb

+Vb

14,15

GND

GND

7, 8

82

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

14.2.6

Profibus wiring

A

GND

Data positive

Data negative

Termination resistor

+Vb

GND

Fuse

3AS: 630 mA slow

3AS Epic: 4 A slow

A'

RADIO MODEM

2

B'

A

B

DTR

+Vb

GND

3

4

5

1

14,15

7, 8

14.2.7

Fuse

A proper fuse must be connected in between the radio modem and the power supply, see below:

Fuse

SATELLINE-3AS(d) NMS, NMS 869, VHF

SATELLINE-3AS(d) NMS Epic

SATELLINE-3AS(d) VHF - 5W model

1A slow

4 A slow

4A slow

14.2.8

Power supply

The allowed operating voltage is +9 … +30 V

V

DC

DC

. (SATELLINE-3AS(d) NMS Epic +11.8 … +30

). The radio modem must only be connected to a power supply with an adequate current output (power rating minimum is 10W, with the Epic model 50W). The pins 15 and 14 of the Dconnector are connected to the positive power supply line. The pins 8 and 7 of the D-connector are connected to negative power supply line (ground).

The DTR line of the radio modem (D-15 connector Pin1) can be used as an ON/STANDBY switch, which helps to conserve battery power and prolong the operational time in batterypowered applications. The radio modem is:

ON if the voltage at the DTR pin is more than +2VDC.

OFF in the Stand-by Mode if the voltage at the DTR pin is less than +0.6VDC.

!

Note: if the DTR pin is not connected, the radio modem is ON.

NOTE! There is a galvanic connection between signal ground (SGND, pin 7), ground (GND, pin 8), outer conductor of antenna connector and modem casing.

83

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

14.3

Antenna installation

NOTE!

Because of the high transmission power of SATELLINE-3AS(d) NMS Epic radio modem, only an external antenna is allowed. A whip-antenna directly connected to the antenna connector must not be used.

14.3.1

Hand-held equipment

-wave antenna (wavelength at frequency of 450 MHz is approximately 70 cm)

Helix-antenna

Antennas are installed directly to the TNC type antenna connector at the upper part of the radio modem.

14.3.2

Mobile equipment

-wave antenna

-wave antenna

The ideal installation position is vertical, and there should be at least 0.5 m of free space around the antenna. In small systems a -wave antenna is sufficient. A separate ground plane should be placed under the antenna (vehicle rooftop or the engine hood or trunk door are usually suitable). In problematic cases the most suitable type is a -wave antenna. It can be installed directly at the top of a pipe with the added benefit of gaining as much as free space around the antenna as possible. In cases that the antenna cannot be directly connected to the

TNC connector of the radio modem, a coaxial cable with 50 impedance must be used between the antenna and the TNC connector.

14.3.3

Base stations

Omni-directional antennas ( - , - or 5/8-wave antenna) directional antennas (yagi /multi-element antenna or corner antenna)

The antenna should be installed in a vertical position. The exact location of the antenna depends on several factors, such as the size of the overall system and the coverage area terrain contours. A rule of thumb is that the base station antenna should be located at the highest point of the coverage area and as close to the centre of the coverage area as possible. The base station antenna can also be located inside a building, if the walls of the building do not contain metal.

84

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

14.3.4 General antenna installation instructions

The reliability and the achievable coverage of useful signal strength can be severely affected by the positioning of the antenna. Antenna and cable connectors should have gold-plated pins and sockets, abuse of low quality connectors can lead to eventual oxidation of the connector surfaces which in turn may degrade the contact and cause additional attenuation. Good quality tools and materials must be used when installing radio modems, antennas and cables. The weather tolerance of the materials used must also be taken into account. Installed materials must withstand all foreseeable weather conditions (frost, excess sun, direct UV-radiation, seawater etc.). Also possible environmental pollution must be considered (acids, ozone etc.).

Antennas must be installed well away from metallic objects. In the case of small antennas this distance should be at least m. With large antennas the distance should be >5 m and in case of repeater antenna combinations >10 m.

If the system contains a large number of radio modems, the best location for an antenna is the highest point of a building and possibly an additional antenna mast. If a separate antenna mast is used, the antenna can, if necessary, be installed sideways about 2…3 m from the mast itself.

When installing an antenna possible interference sources must be considered. Such interference sources are, for example: mobile telephone network base station antennas public telephone network base station antennas television broadcast antennas radio relay antennas other radio modem systems

PC-related devices (approximately 5 m radius from antenna)

When ordering antennas we request you to note that antennas are always tuned to a specific frequency range. Simple antennas and antennas, which have been constructed of stacked yagiantennas, are typically rather broadband. As the number of yagi-elements increases the frequency range becomes narrower.

When designing and installing a system it is advisable to prepare to test the system, and also to consider serviceability of the system. In particular cabling should be planned to allow easy access and to allow for maintenance. It is often practical to use long antenna cables, so that the radio modem can be installed far enough from the antenna itself to a location that is easily accessible.

85

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

The type of the antenna cable is dependent on the length of the antenna cable, and the following table can be used to select a suitable type:

Length Type Attenuation 10m/450MHz

<5m RG58

0…20m RG213

>20m NK Cable RFF 1/2"-50

>20m AirCom+

3.0dB

1.5dB

0.7dB

0.8dB*

*) AirCom+ cable is partially air insulated, so the use of this cable requires that the connection between the cable and the connectors are fully airtight.

If there is a line-of-sight path between the antennas a 6 dB power marginal is usually adequate.

However, if the connection is built on the reflection and/or the knife-edge diffraction the path loss can vary even 20 dB depending on the weather conditions. In this case a short test can give a too positive result of the quality of the connection. Thus the height of the antennas and topographical obstacles must be surveyed with great care. From time to time a marginal connection can be used if the data transmission protocol is well prepared for this and the data transmission that occasionally slows down does not cause any problems to the system.

Vertical polarised antennas (antenna elements are in vertical position) are often used in radio systems. In a system between a base station and substations vertical polarisation is recommended. The radio modem antenna cannot be mounted on the same level as the other substation antennas in the same building. The best way to distinguish from the other antennas situated in the neighbourhood is to mount the antennas as far a part as possible from each other on the altitude level. The best result is generally obtained when all the antennas are in the same mast. With an extra ground plane between the antennas more isolation can be obtained between the antennas in the mast.

Horizontal polarisation can be used in data transmission between two points. With the polarisation attenuation more isolation is obtained to vertical polarised systems. The influence of the directional patterns of the antennas must, however, be taken into consideration. If an isolation to another interfering antenna is wanted with the horizontal polarised antennas there must be a good attenuation of the back lobe. In addition to this the interfering radiator should be situated behind the antenna.

When a system does not demand the use of an omni-directional antenna it is recommended that directional antennas are used e.g. two-element yagis in permanent external installations. Please note that as antenna amplification increases the setting of the direction of the antenna requires more attention.

Base stations in high places should be supplied with high-Q cavity filters. Please note that the higher the base station antenna, the larger the coverage area and in turn that the risk of interference is also increased.

86

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

SATEL recommends the use of a band-pass filter with a large Q in the antenna cable of the base station.

Example of an antenna installation: by using amplifying antennas (G=Gain) and by installing the antenna high, long connection distances can be realised using the SATELLINE-

3AS-NMS radio modems.

87

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

15 CHECK LIST

The following points must be taken into account when installing and configuring a radio modem:

1. All operating voltages of all the equipment concerned must always be switched OFF before connecting the serial interface cable.

2. When considering the exact placement of a radio modem and/or its antenna, the following points must be taken into account to guarantee optimal results:

The antenna should be installed in open space as far as possible from any possible sources of interference

The radio modem should not be installed onto a strongly vibrating surface

The radio modem should be installed in such a way as to minimise exposure to direct sunlight or excessive humidity.

3. To ensure reliable operation the voltage output of the power supply used must be stable enough and the current capability of the power supply must be sufficient.

4. The antenna must be installed according to instructions.

5. Settings of the radio modem must correspond to settings of the terminal.

6. All radio modems in the same system must be configured using same settings (radio frequency, channel spacing and data field length).

88

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

16 ACCESSORIES

16.1

RS-23 2 cables and adapters

Type Description

NARS-1F Interface adapter D15 m / D9 f,

650 mA fuse

-

NARS-1F-4A As NARS-1F with 4A fuse for Epic only

CRS-9 Interface cable D9 m / D9 f 2 m

CRS-1M

CRS-1F

CRS-2M

CRS-2F

Interface cable D15 m / D25 m

Interface cable D15 m / D25 f

Interface cable D15 m / D9 m

Interface cable D15 m / D9 f

2 m

2 m

2 m

2 m

Length Note

- including 2 m power supply cables and

Programming Mode switch including power supply cables including power supply cables including power supply cables including power supply cables

Note! In the description, m=male, f=female connector type.

16.2

RS-48 5/4 22 cables and adapters

Type

NARS-2

Description

Interface adapter D15 m / screw terminals, 650 mA fuse

Length Note

- Screw terminals for RS-485/422 and power supply

NARS-2-4A As NARS-2 with 4A fuse for Epic only -

CRS-PB Interface cable D15 m / D9 m 2 m including power supply cables

16.3

NMS cable

Type Description

CRS-NMS Interface cable D15 m / 2 x D9 f, from master modem to user system and

NMS PC.

Length Note

1.5 m including power supply cables

16.4

RF-cables

Type Description Length Note

CRF-1

CRF-5F

CRF-5M

CRF-15

Cable with TNC m/TNC f-connectors 1 m

Cable with TNC m/TNC f-connectors 5 m

RG58 (3 dB/10 m)

RG58 (3 dB/10 m)

Cable with TNC m/TNC m-connectors 5 m

Cable with TNC f/TNC f 90-degree connector

RG58 (3 dB/10 m)

15 cm RG58 (3 dB/10 m)

RG213 Low loss cable

AIRCOM+ Low loss cable

X

X

1,5 dB/10 m

0,7 dB/10 m

89

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

16.5

Antennas

Type

GAINFLEX 400-430

GAINFLEX 430-470

CA420Q

CA450Q

MINIFLEX 400-430

MINIFLEX 430-470

ANTENNA 869

Description

Half-wave antenna

Half-wave antenna

Sleeve fed quarter wave whip, 2dBi, 405–440 MHz

Sleeve fed quarter wave whip, 2dBi, 440-475 MHz

Helix antenna

Helix antenna

Quarter wave antenna for 869 MHz modems

SATEL antenna selection includes also directional and/or omni-directional antennas. These can be supplied separately on request. Antennas are also available for the 869 MHz frequency band.

16.6

Filters and lightning protectors

If a radio modem system is installed in an environment that contains high-power transmitters or sources of radio frequency interference, it is highly recommendable to insert suitable filters between each radio modem and its antenna. If a station is installed to a location exposed to lightning, it is recommended to insert a lightning protector to the feed-line outside the protected zone. SATEL Customer Support can give guidance in the selection of suitable filters or protectors.

16.7

Power supplies

Type

MAS-2

MAS-4

Description

230 Vac/12 Vdc/1A

230 Vac/12 Vdc/5A

16.8

Batteries

Type

SATEL-321

Description

Weather proof battery pack with extended life time

16.9

Installation and enclosures

Type

I-DIN

I-DIN Epic

H-WP

H-WP-X2

H-EX

Description

Installation plate for DIN rail mounting for 3AS NMS(d) modems

Installation plate for DIN rail mounting for Epic

Weather proof housing (IP54) for 3AS NMS(d) modems

Weather proof housing (IP54) for Epic modems

Housing for potentially explosive environment, EEx d IIC T6 (also IP67)

90

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

17 APPENDIX A - ASCII CHARACTER TABLE

ASCII CHARACTER TABLE

D H A D H A D H A D H A D H A D H A

0 0 NUL AC 215 D7

1 1 SOH , 87 57 W 173

2 2 STX - 88 58 X 131 83 AE 217 D9

3 3 ETX . 89 59 Y 132 84 AF 218 DA

4 4 EOT / 90 5A Z 133 85 176 B0 219 DB

5 5 ENQ 0 91 5B [ 134 86 177 B1 220 DC

6 6 ACK 1 92 5C \ 135 87 178 B2 221 DD

7 7 BEL 2 93 5D ] 136 88 179 B3 222 DE

8 8 BS 51 33 3 94 5E ^ 137 89 180 B4 223 DF

9 9 HT 52 34 4 95 5F _ 138 8A 181 B5 224 E0

10 A LF 53 35 5 96 60 ` 139 8B 182 B6 225 E1

11 B VT 54 36 6 97 61 a 140 8C 183 B7 226 E2

12 C FF 55 37 7 98 62 b 141 8D 184 B8 227 E3

13 D CR 56 38 8 99 63 c 142 8E 185 B9 228 E4

14 E SO 57 39 9 100 64 d 143 8F 186

15 F SI 58 3A : 101 65 e 144 90 187 BB 230 E6

16 10 DLE 59 3B ; 102 66 f 145 91 188

17 11 DC1 60 3C < 103 67 g 146 92 189

18 12 DC2 61 3D = 104 68 h 147 93 190 BE 233 E9

19 13 DC3 62 3E > 105 69 i 148 94 191 BF 234 EA

20 14 DC4 63 3F ? 106 6A j 149 95 192

21 15 NAK 64 40 @ 107 6B k 150 96 193

22 16 SYN 65 41 A 108 6C l 151 97 194

23 17 ETB 66 42 B 109 6D m 152 98 195

24 18 CAN 67 43 C 110 6E n 153 99 196

25 19 EM 68 44 D 111 6F o 154 9A 197

26 1A SUB 69 45 E 112 70 p 155 9B 198

27 1B ESC 70 46 F 113 71 q 156 9C 199

28 1C FS 71 47 G 114 72 r 157 9D 200

29 1D GS 72 48 H 115 73 s 158 9E 201

30 1E RS 73 49 I 116 74 t 159 9F 202

31 1F US 74 4A J 117 75 u 160 A0 203

32 20 K 118 76 v 161 A1 CC 247 F7

33 21 ! 76 4C L 119 77 w 162 A2 205

34 22 " 77 4D M 120 78 x 163 A3 206

35 23 # 78 4E N 121 79 y 164 A4 207

36 24 $ 79 4F O 122 7A z 165 A5 208

37 25 % 80 50 P 123 7B { 166 A6 209

38 26 & 81 51 Q 124 7C | 167 A7 210

39 27 ' 82 52 R 125 7D } 168 A8 211

40 28 ( 83 53 S 126 7E ~ 169 A9 212

41 29 ) 84 54 T 127 7F 170 AA

42 2A * 85 55 U 128 80 171 AB

213

214

91

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

18 APPENDIX B - DELAYS

18.1

Functional delays

Table 18.1. FFunctional delays

Function Delay (ms)

Wakeup time from STAND-BY to ON

(controlled by DTR line)

<500

Serial interface, turn-around time of RS-232 0

Serial interface, turn-around time of RS-485 <1

Intercharacter delay Max. 2-3 characters

18.2

Transmission related delays

The tables on the next pages show the typical values of the transmission delay using different sized data messages. The transmission delay is specified from the end of the transmission to the end of reception on the serial interface

:

Modem1:

TD-line

Modem 2:

RD-line start DATA end

Time

Transmission delay start DATA end

92

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

18.2.1

Transmission delays - 12.5 kHz channel, FEC OFF, no NMS

Table 18.2. Transmission delays with the following settings:

12.5 kHz channel spacing

FEC OFF (Forward Error Correction function OFF)

No NMS information included

Transmission delays are in milliseconds (10% marginal) vs. the size of a message (bytes) to be transmitted.

Data speed 1 byte 10 bytes 100 bytes 500 bytes

1200 bps

4800 bps

9600 bps

19200 bps

38400 bps

48,8 ms

42,8 ms

41,6 ms

40,4 ms

40,8 ms

47,0 ms

42,9 ms

43,8 ms

47,4 ms

48,8 ms

45,5 ms

43,4 ms

44,4 ms

76,4 ms

101,2 ms

38,3 ms

41,0 ms

44,0 ms

208 ms

332 ms

350

300

250

200

150

100

50

0

1 10 100

Number of Bytes

500

1200

4800

9600

19200

38400

93

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

18.2.2

Transmission delays - 12.5 kHz channel, FEC ON, no NMS

Table18.3. Transmission delays with the following settings:

12.5 kHz channel spacing

FEC ON (Forward Error Correction function ON)

No NMS information included

Transmission delays are in milliseconds (10% marginal) vs. the size of a message (bytes) to be transmitted.

Data speed 1 byte 10 bytes 100 bytes 500 bytes

1200 bps

4800 bps

9600 bps

19200 bps

38400 bps

58,2 ms

51,4 ms

50,4 ms

50,0 ms

49,4 ms

61,4 ms

52,0 ms

58,6 ms

61,2 ms

63,4 ms

58,6 ms

59,2 ms

80,8 ms

114,8 ms

137,2 ms

57,0 ms

59,5 ms

146 ms

376 ms

502 ms

600

500

400

300

200

100

0

1 10 100

Numbe r of Byte s

500

1200

4800

9600

19200

38400

94

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

18.2.3

Transmission delays - 25 kHz channel, FEC OFF, no NMS

Table 18.4. Transmission delays with the following settings:

25 kHz channel spacing

FEC OFF (Forward Error Correction function OFF)

No NMS information included

Transmission delays are in milliseconds (10% marginal) vs. the size of a message (bytes) to be transmitted.

Data speed 1 byte 10 bytes 100 bytes 500 bytes

1200 bps

4800 bps

9600 bps

19200 bps

38400 bps

33,9 ms

27,7 ms

26,8 ms

26,5 ms

26,7 ms

32,0 ms

26,6 ms

26,7 ms

27,3 ms

29,4 ms

31,1 ms

27,0 ms

27,2 ms

26,6 ms

43,6 ms

23,3 ms

24,6 ms

25,0 ms

24,8 ms

110 ms

120

100

80

60

40

20

0

1 10 100

Numbe r of Byte s

500

1200

4800

9600

19200

38400

95

SATELLINE-3AS NMS / NMS Epic / NMS 869 / VHF

User Guide, Version 1.0

18.2.4

Transmission delays - 25 kHz channel, FEC ON, no NMS

Table 18.5. Transmission delays with the following settings:

25 kHz channel spacing

FEC ON (Forward Error Correction function ON)

No NMS information included

Transmission delays are in milliseconds (10% marginal) vs. the size of a message (bytes) to be transmitted.

Data speed 1 byte 10 bytes 100 bytes 500 bytes

1200 bps

4800 bps

9600 bps

19200 bps

38400 bps

35,5 ms

30,2 ms

29,4 ms

28,8 ms

28,5 ms

34,1 ms

28,1 ms

31,7 ms

34,8 ms

36,8 ms

38,3 ms

30,6 ms

33,2 ms

46,2 ms

61,2 ms

34,2 ms

28,2 ms

32,8 ms

78,0 ms

192 ms

250

200

150

100

50

0

1200

4800

9600

19200

38400

1 10 100 500

Number of Bytes

96
