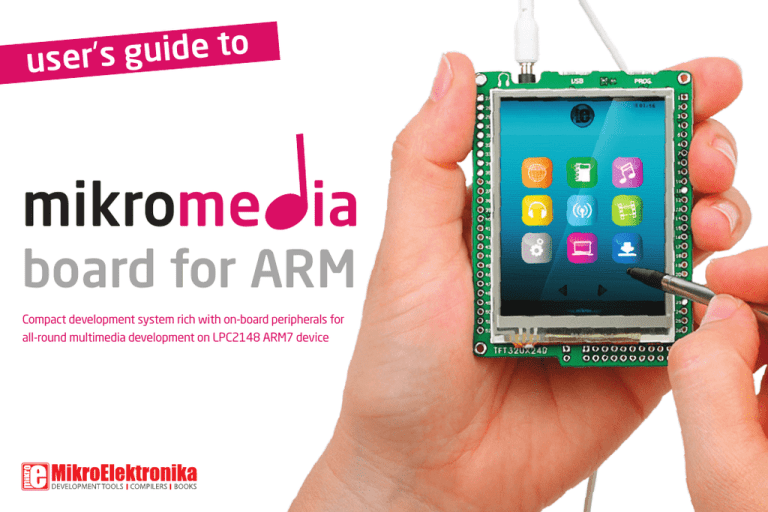

user's guide to mikro me ia board for ARM

Compact development system rich with on-board peripherals for all-round multimedia development on LPC2148 ARM7 device

TO OUR VALUED CUSTOMERS

I want to express my thanks to you for being interested in our products and for having confidence in Mikroelektronika.

The primary aim of our company is to design and produce high quality electronic products and to constantly improve the performance thereof in order to better suit your needs.

Nebojsa Matic

General Manager

The Microchip, Atmel, NXP and CYPRESS name, logo and products names are trademarks of Microchip, Atmel, NXP and CYPRESS Inc. in the U.S.A and other countries.

Page 3

Table of Contents

Introduction to mikromedia for ARM

Related material

Key Features

System Specification

1. USB power supply

2. Battery power supply

3. Programing with In-System Programer

Settings

Flash magic software step 1 – Choose Device step 2 – Choose COM port step 3 – Select baud rate step 4 – Specify oscillator freq. step 5 – Browse for .hex file step 6 – Erase Flash step 7 – Start Programming

10

12

8

9

6

7

4

5

16

16

17

18

14

15

15 step 8 – Finished!

4. LPC2148 Microcontroller

Key microcontroller features

5. Programing with JTAG programmer/debugger

6. microSD Card Slot

7. Accelerometer

8. Touch Screen

9. Audio Module

10. USB connection

11. Pads

12. Pinout

13. Dimensions

22

23

24

26

18

19

19

20

28

30

31

32

Page 3

Introduction to mikromedia for ARM

The

mikromedia for ARM

is a compact development system with lots of on-board peripherals which allow development of devices with multimedia contents. The central part of the system is a 32-bit ARM7 microcontroller

LPC2148

. The mikromedia for ARM features integrated modules such as stereo MP3 codec,

TFT 320x240 touch screen

display, accelerometer, two USB connectors: one for communication with the microcontroller one and for ISP programming,

MMC/SD card slot and other. Mikromedia is compact and slim, and perfectly fits in the palm of the hand, which makes it convenient platform for mobile devices.

Page 4 Page 5

Page 4

Related material

01

Damage resistant protective box

04 mikromedia for ARM user’s guide

02 mikromedia for ARM development system schematic

mikro me ia

Compact development system rich with on

-board peripherals for

05 mikromedia for ARM schematic

Page 5

03

DVD with documentation and examples

06

USB cable

Key Features

03

04

05

06

07

08

09

10

11

12

13

14

15

01

02

Connection Pads

TFT 320x240 display

USB MINI-B programmer connector

LI-Polymer battery connector

USB MINI-B device connector

3.5mm headphone connector

Power supply regulator

FTDI USB Uart controller

VS1053 Stereo mp3 coder/decoder

Power indicator LEDs

Accelerometer

LPC2148 microcontroller

RESET button

MicroSD Card Slot

JTAG connector

01

02

Page 6 Page 7

Page 6

03

04

05

06

13

08

10

11

07

12

09

14

15

Page 7

System Specification

power supply

Over a USB cable (5V DC)

power consumption

50mA in idle state

(when on-board modules are off)

board dimensions

8 x 6cm (3.14 x 2.36 inch)

weight

~50g (0.11 lbs)

1. USB power supply

You can provide power supply to the board using either of the two miniUSB connectors. On board voltage regulator will make sure to generate the appropriate voltage levels to each part of the board. Power LED will indicate the presence of power supply.

Page 8

Figure 1-1:

Powering your mikromedia board with USB cables

Page 9

Page 8

VCC-5V

R52

4K7

VCC-BAT

HDR3

LD3

VCC-5V

C35

2.2uF

VCC-BAT

E3

10uF

M1X2

VCC-BAT

STAT

VCC-5V

D3

U6

MBRS140T3

PROG STAT

VSS

VBAT VDD

MCP73832 for Charging Current approx. 250mA

R53

3K9

Figure 2-1: Battery charger connecting schematic

Page 9

Figure 2-2:

Li-polymer battery connected to mikromedia

2. Battery power supply

Development system can be provided with power supply using

Li-Polymer

battery, via on-board battery connector.

On-board battery charger circuit

MCP73832

enables you to charge the battery over USB power supply. Charging current value is ~250mA and charging voltage is 4.2V DC.

3. Programming with

In-System Programmer

The microcontroller can be programmed with

In-System Programmer

supported in the hardware itself. Programmer USB connector is connected to the microcontroller through USB-UART connection.

Figure 3-1:

Connecting USB cable to programming connector note

You have to download and install drivers for your USB-UART connection before programming. Drivers can be found on

FTDI website: http://www.ftdichip.com/FTDrivers.htm

Page 10 Page 11

Page 10

P0.25

D+

D-

P1.17

P0.28

P0.29

P0.30

P1.16

P0.21

P0.22

RTXC1

P1.19

RTXC2

GND

VCCA

P1.18

VREF XT

P1.28 GNDA P0.23 RESET P1.29 P0.20 P0.19 P0.18 P1.30 VCC3

LPC2148

GND VBA

P1.20

P0.17

P0.16

P0.15

P1.21

VCC3

GND

P0.14

P1.22

P0.13

P0.12

P0.11

P1.23

P0.10

P0.9

P0.8

GND P0.0 P1.31 P0.1 P0.2 VCC3 P1.26 GND P0.3 P0.4 P1.25 P0.5 P0.6 P0.7 P1.24

VCC3

P0.1

P0.0

P0.14

R23

R24

100

100

R25

100

MCU-RST#

VCC-3.3

R26

100

U2

TXD

RXD

RTS#

VCCIO

DTR#

RI#

GND

NC

DSR#

DCD#

CTS#

CBUS4

CBUS2

CBUS3

FT232RL

VCC

RESET#

GND

3V3OUT

USBDM

USBDP

OSCO

OSCI

TEST

AGND

NC

CBUS0

CBUS1

GND

C20

100nF

VCC-FTDI

C19

100nF

R11

100

LD1

RED

VCC-FTDI

E2

10uF

VCC-3.3

VCC-3.3

VCC-5V

C21

100nF

D2

MBRS340T3

VCC-FTDI

FP1

FERRITE

C18

GND 5

USB-ID ID 4

USBDP D+ 3

USBDM D- 2

VCC-USB VBUS 1

CN3

USB MINI-B

100nF

Figure 3-1: ISP programming lines are connected with USB-UART

Page 11

Settings

Device Manager on your PC contains informations on which COM port is used for USB communication with the mikromedia board for

ARM. In this case the COM4 port is used.

04

Right click on USB port, then on properties in the drop-down list.

01

02

05

03

01

02

03

From the drop menu select COM port on your PC.

Set Baud Rate to 19200.

Enter 12 in the Oscillator field (if you use different oscillator enter its value in MHz instead).

05

06

06

Select the Port Settings tab from pop-up window.

Click on the Advanced... button.

04

Page 12 Page 13

Page 12

07

In pop-up window uncheck the Serial Enumerator option and click OK.

note

Steps 4 – 7 should be adjusted only once.

Page 13

07

Flash Magic software step 1 – Choose Device

01

Figure 3-2: Flash Magic window after installation

Programming is done using specialized programming software called

Flash Magic

, which is available for download from the mikromedia for ARM webpage.

Page 14

Figure 3-3: Selecting target device

01 Click on Select device button and browse for

LPC2148

microcontroller from

ARM7

family of microcontrollers.

Page 15

Page 14

step 2 – Choose COM port step 3 – Select baud rate

01

Figure 3-4: Selecting COM Port Figure 3-5: Selecting baudrate

01

From the dropdown list choose the

COM Port

assigned to your mikromedia board after connecting it to your PC over USB cable.

Page 15

01

From the dropdown list select

19200 bps

baudrate which is the correct UART communication speed for mikromedia.

step 4 – Specify oscillator freq.

step 5 – Browse for .hex file

01

01

01

Figure 3-6: Specifying oscillator frequency Figure 3-7: Browsing for HEX file

01

Specify the value of on-board crystal oscillator

12.000 MHz

Page 16

01

Click on

Browse

and find the HEX file you want to program your mikromedia with. The path to the target file will be shown in the edit field.

Page 17

Page 16

step 6 – Erase Flash

01

02

03

01

Figure 3-8: Erasing Flash memory before programming

01

02

03

Click on the

Erase Flash icon

in the main toolbar.

Tick the

first checkbox

to specify erasing the entire flash.

Click on

Erase button

to start erasing flash.

Page 17

Figure 3-8: Write program

01

Click

OK

when Erasing is completed.

step 7 – Start Programming step 8 – Finished!

01

Figure 3-9: Program uploading

01

Figure 3-10: Uploading is finished

01

We are now ready to program the microcontroller.

Click on

Start button

to start uploading your program.

Page 18

01

When everything is completed, you will receive a

message

in the status bar.

Page 19

Page 18

Key features

- 16-bit/32-bit ARM7TDMI-S micr

- 8 kB to 40 kB of on-chip s

- 128-bit wide in

- EmbeddedICE R tatic RAM and 32 kB t terface/acceler

- In-System Programming/In-Applica

Single flash sect or or full chip er

T and Embedded T

4. LPC2148 Microcontroller

o 512 kB of on-chip flash memory.

The ase in 400 ms and pr y LQFP64 package.

the

LPC2148

microcontroller. This high-performance 32-bit

RealMonitor software and high-speed tr

- USB 2.0 Full-speed c

(In addition, the LPC2146/48 pr acing of instruction e xecution.

ation.

development system comes with

- One or two (LPC2141/42 vs. LPC2144/46/48) 10-bit ADCs pr

with conversion times as lo

- Single 10-bit D w as 2.44 μs per channel.

Key microcontroller features

LPC2148

ARM7 Local Bus

Internal SRAM controller

- Two 32-bit timers/e

PWM unit (six outputs) andwa

- Low power Real-Time Clock (R tchdog.

TC) with independen

- 32KB of RAM memory;

8 kB/16 kB/

32 kB SRAM

32 kB/64 kB/128 kB/

256 kB/512 kB

FLASH

- USB 2.0 Full Speed compliant Device

- 2-UART, 2-SPI, 2-I2C; etc.

GENERAL

PURPOSE I/O

TEST DEBUG

INTERFACE

ARM7TDMI-S

AHB BRIDGE

AHB TO VPB

BRIDGE system clock

USB clock

AMBA AHB ormance BUS)

VPB

DIVIDER

PLL0

PLL1

SYSTEM

FUNCTIONS

8 kB RAM

SHARED WITH

USB DMA(3)

AHB DECODER

DATA BUS VPB (VL

CAPTURE/

SI peripheral bus)

COMPARE

(W/EXTERNAL

CLOCK)

TIMER 0/TIMER 1

A/D

CONVERTERS

0 AND 1(2)

PWM0

D/A

CONVERTER

SPI AND SSP

USB 2.0 FULL

-SPEED

WATCHDOG

TIMER

SYSTEM

CONTROL

SERIAL

INTERFACES

I2C-BUS SERIA

INTERFACES 0 AND 1

REAL-TIME

CLOCK

UART0/

UART1

Page 19

5. Programing with JTAG programmer/debugger

Figure 5-1: Enabling

JTAG using jumper

Besides In-System programming mikromedia for ARM supports

JTAG programming

and debugging interface. In order to use it, you have to

solder 2x10 header

to the JTAG connection pads on the back side of your mikromedia board. It is also necessary to solder and set the

JTAG jumper,

located right next to the JTAG connector (Figure 5-1), in order to enable this type of programming.

Page 20 Page 21

Page 20

Figure 5-2: JTAG interface schematics

Page 21

P1.27

P1.31

P1.28

P1.29

P1.26

P1.30

R3

R6

R1

R2

R4

P1.31

P1.28

P1.30

P1.29

P1.26

P1.27

MCU-RST#

CN4

M2X10

6. microSD Card Slot

Board contains microSD card slot for using microSD cards in your projects. It enables you to store large ammounts of data externally, thus saving microcontroller memory. microSD cards use Serial Peripheral Interface (

SPI

) for communication with the microcontroller.

Figure 6-2: microSD card

Figure 6-1: Inserting microSD card

Page 22

P1.24

P0.6

P0.4

R33 27

P0.5

R32 27

R34 27

FERRITE

FP2

CN5

MICROSD CARD

Page 23

Page 22

7. Accelerometer

The accelerometer is used to measure acceleration in three axis: x- y- and z-. The acceleromer’s function is defined by the user in the program loaded into the microcontroller. Communication between the accelerometer and the microcontroller is performed over the

I2C

interface.

VCC-3.3

VCC-3.3

VCC-3.3

R16

10K

U3

VCC

GND

NC

GND

GND

VCC

R15

10K

SDI

SDO

NC

NC

INT2

INT1

ADXL345

P0.2

P0.3

VCC-3.3

C11

100nF

VCC-3.3

C12

100nF

Figure 7-1:

Accelerometer module

Figure 7-2: Accelerometer connecting schematic

Page 23

8. Touch Screen

The development system features a

TFT 320x240 display

covered with a

resistive

touch panel. Together they form a functional unit called a touch screen. It enables data to be entered and displayed at the same time. The

TFT display is capable of showing data in

262.000

diffe rent

colors

.

Figure 8-1:

Touch Screen

01 02

There are two SMD jumpers, or zeroohm resistors on board for selection of TFT communication mode. By soldering the resistor in the desired position you can select following TFT operating modes:

01

02

16-bit interface mode

8-bit interface mode

Page 24 Page 25

Page 24

P0.25

D+

D-

P1.17

P0.28

P0.29

P0.30

P1.16

P0.21

P0.22

RTCX1

P1.19

RTCX2

GND

VCCA

P1.18

VREF XT

P1.28 GNDA P0.23 RESET P1.29 P0.20 P0.19 P0.18 P1.30 VCC3

LPC2148

GND P0.0 P1.31 P0.1 P0.2 VCC3 P1.26 GND P0.3 P0.4 P1.25 P0.5 P0.6 P0.7 P1.24

P1.20

P0.17

P0.16

P0.15

P1.21

VCC3

GND

P0.14

P1.22

P0.13

P0.12

P0.11

P1.23

P0.10

P0.9

P0.8

VCC-3.3

R19

10K

VCC3

VCC-3.3

R20

10K

IM0

VCC-3.3

R54

0

P0.13

VCC-5V

D4

BAT43

R36

1K

TFT MODE

R7

NOT MOUNTED

(16-bit)

VCC-3.3

(8-bit)

R28

10K

R27

10K

R48

300K

Q2

BC846

Q3

BC846

Q4

BC846

VCC-5V

R37

12

P0.11

P0.10

IM0

VCC-3.3

GND

GND

P0.11

GND

GND

GND

GND

P1.23

P1.22

P1.21

P1.20

P1.19

P1.18

P1.17

P1.16

GND

P0.22

P0.21

P0.20

P0.19

P0.18

P0.17

P0.16

P0.15

GND

P0.25

C37

100nF

P0.9

P0.12

P0.8

P0.10

GND

R47

300K

P0.28

VCC-3.3

C36

100nF

P0.29

P0.30

P0.25

P0.28

GND

44

45

46

41

42

43

47

38

39

40

35

36

37

32

33

34

29

30

31

26

27

28

23

24

25

20

21

22

17

18

19

14

15

16

11

12

13

8

9

10

5

6

7

1

2

3

4

TFT1

RS

CS

FMARK

VCC-IO

VCC

VCC-I

GND

XR

YD

XL

YU

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

SDO

SDI

RD

WR/SCL

DOTCLK

ENABLE

DB17

DB16

DB15

DB14

DB13

DB12

DB11

DB10

DB9

DB8

LED-K

LED-A1

LED-A2

LED-A3

LED-A4

IM0

IM1

IM2

IM3

RESET

VSYNC

HSYNC

MI0283QT2

Figure 8-2: Touch Screen connection schematic

Page 25

9. Audio Module

Figure 9-1: headphones connected with mikromedia

Figure 9-2: Inserting

3.5mm headphones jack

The mikromedia for ARM features MP3 codec audio controller

VS1053

. This module enables audio reproduction by using stereo headphones connected to the system via a

3.5mm

connector CN6. All functions of this module are controlled by the microcontroller over Serial Peripheral Interface (

SPI

).

Page 26 Page 27

Page 26

VCC-1.8

VCC-1.8

C13

100nF

C14

100nF

R38

100K

P0.18

VCC-1.8

VCC-3.3

P0.19

VCC-3.3

C17

100nF

R40

100K

VCC-3.3

C24

100nF

VCC-3.3

C26

100nF

U4

MICP

MICN

XRESET

DGND0

CVDD0

IOVDD0

CVDD1

DREQ

GPIO2

GPIO3

GPIO6

GPIO7

C28 1uF

VS1053

GPIO4

GND

GPIO1

GPIO0

XTEST

CVDD3

SO

SI

SCLK

TX

RX

GPIO5

R39

100K

VCC-1.8

C15

100nF

VCC-1.8

C16

100nF

R35 27

P0.5

P0.6

P0.4

R41

100K

GPIO

RIGHT

R49

1M

X3

12.288MHz

C32

22pF

C33

22pF

LEFT

R43 10

R42

10

R45

10

R46

10

C29

47nF

VCC-3.3

C30

10nF

VCC-3.3

C31

10nF

VCC-3.3

C23

100nF

C25

100nF

C27

100nF

RIGHT

GBUF

R44 10

CN1

PHONEJACK

STEREO

OUTPUT

Figure 9-3: Audio module connecting schematic

Page 27

E1

10uF

R2

100K

E9

10uF

R48

100K

10. USB connection

LPC2148 microcontroller has integrated USB 2.0 module, which enables you to implement USB communication functionality of your mikromedia board. Connection with target USB host is done over miniUSB connector which is positioned next to the audio jack.

Figure 10-1:

Connecting USB cable to programming connector

Page 28

There are two SMD jumpers, or zero-ohm resistors on board for selection of USB communication mode. By soldering the resistor in the desired position you can select following USB operating modes:

01

02

USB Soft connection OFF

USB Soft connection ON

Page 29

Page 28

ON

OFF

R56

0

R57

NOT MOUNTED

CN7

VCC-5V

USB MINIB

MBRS140T3

D5

Figure 10-2: USB module connecting schematic

Page 29

11. Pads

RST VCC-5V

L

R

P0.7

P0.8

P0.9

P0.21

P0.10

P0.12

P0.14

P0.23

P0.25

P0.31

P1.16

P1.17

P1.18

P1.19

P0.11

P1.20

P0.1

P0.0

P0.2

P0.3

VCC-3.3

M1X26

PWM

DIR

P1.22

P1.23

P1.24

P1.25

P1.26

P1.27

P1.28

P0.17

P0.18

P0.19

P0.4

P0.5

P0.6

P0.13

P0.22

P0.28

P0.29

P0.15

P0.16

P0.20

P0.30

P1.21

VCC-3.3

M1X26

AN

INT

Pads HDR2

Figure 11-1: Pads connecting schematic

Pads HDR1

Most microcontroller pins are available for further connectivity via two 1x26 rows of connection pads on both sides of the mikromedia board. They are designed to perfectly match additional shields, such as Battery Boost shield, PROTO shield and others.

Page 30 Page 31

Page 30

12. Pinout

5V power supply

Reference Ground

SCK0 /CAP0.1/ AD0.6

MISO0 /MAT0.1/ AD0.7

MOSI0 /CAP0.2/ AD1.0

DTR1/MAT1.1/ AD1.4

AD1.7

/CAP0.0/MAT0.0

AD0.1

/CAP0.2/MAT0.2

AD0.2

/CAP0.3/MAT0.3

RI1/ EINT2 / AD1.5

EINT0 /MAT0.2/CAP0.2

MAT1.3/SSEL1/ EINT3

AD0.3

/ EINT3 /CAP0.0

PWM5 / AD1.6

/CAP1.3

AD1.7

/CAP0.0/MAT0.0

PIPESTAT2

TRACECLK

EXTIN0

RTCK

TDO

TDI

CAP1.2/ SCK1 /MAT1.2

CAP1.3/ MISO1 /MAT1.3

MAT1.2/ MOSI1 /CAP1.2

3.3V power supply

Reference Ground

Pin functions

P0.29

P0.15

P0.16

P0.20

P0.30

P0.21

P1.22

P1.23

5V

GND

P0.4

P0.5

P0.6

P0.13

P0.22

P0.28

P1.24

P1.25

P1.26

P1.27

P1.28

P0.17

P0.18

P0.19

3.3V

GND

PWM lines Analog Lines Interrupt Lines SPI Lines

Page 31

I2C Lines

L

R

RST

GND

Reset pin

Reference Ground left ch.

right ch.

audio out

P0.7

P0.8

SSEL0/ PWM2 / EINT2

TXD1 / PWM4 / AD1.1

P0.9

RXD1 / PWM6 / EINT3

P0.21

PWM5 / AD1.6

/CAP1.3

P0.10

RTS1 /CAP1.0/ AD1.2

P0.12

DSR1 /MAT1.0/ AD1.3

P0.14

DCD1/EINT1/ SDA1

P0.23

VBUS

P0.25

AD0.4

/AOUT

P0.31

UP_LED/CONNECT

P1.16

TRACEPKT0

P1.17

TRACEPKT1

P1.18

TRACEPKT2

P1.19

TRACEPKT3

P0.11

CTS1 /CAP1.1/ SCL1

P1.20

TRACESYNC

P0.1

P0.0

P0.2

P0.3

3.3V

GND

RXD0

TXD0

SCL0

SDA0

/

/

PWM3

PWM1

/CAP0.0

/ EINT0

/MAT0.0/ EINT1

3.3V power supply

Reference Ground

Pin functions

UART lines JTAG lines

13. Dimensions

80.90 mm (3.19")

73.01 mm (2.90")

3.45 mm

(0.14")

Page 32

2.54 mm

(0.10")

2.77 mm

(0.11")

Page 32

DISCLAIMER

All the products owned by MikroElektronika are protected by copyright law and international copyright treaty. Therefore, this manual is to be treated as any other copyright material. No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use, but not for distribution. Any modification of this manual is prohibited.

MikroElektronika provides this manual ‘as is’ without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties or conditions of merchantability or fitness for a particular purpose.

MikroElektronika shall assume no responsibility or liability for any errors, omissions and inaccuracies that may appear in this manual. In no event shall MikroElektronika, its directors, officers, employees or distributors be liable for any indirect, specific, incidental or consequential damages (including damages for loss of business profits and business information, business interruption or any other pecuniary loss) arising out of the use of this manual or product, even if

MikroElektronika has been advised of the possibility of such damages. MikroElektronika reserves the right to change information contained in this manual at any time without prior notice, if necessary.

HIGH RISK ACTIVITIES

The products of MikroElektronika are not fault – tolerant nor designed, manufactured or intended for use or resale as on – line control equipment in hazardous environments requiring fail – safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life support machines or weapons systems in which the failure of Software could lead directly to death, personal injury or severe physical or environmental damage (‘High Risk Activities’). MikroElektronika and its suppliers specifically disclaim any expressed or implied warranty of fitness for High Risk Activities.

TRADEMARKS

The Mikroelektronika name and logo, the Mikroelektronika logo, mikroC, mikroC PRO, mikroBasic, mikroBasic PRO, mikroPascal, mikroPascal PRO, AVRflash,

PICflash, dsPICprog, 18FJprog, PSOCprog, AVRprog, 8051prog, ARMflash, EasyPIC5, EasyPIC6, BigPIC5, BigPIC6, dsPIC PRO4, Easy8051B, EasyARM, EasyAVR5,

EasyAVR6, BigAVR2, EasydsPIC4A, EasyPSoC4, EasyVR Stamp LV18FJ, LV24-33A, LV32MX, PIC32MX4 MultiMedia Board, PICPLC16, PICPLC8 PICPLC4,

SmartGSM/GPRS, UNI-DS are trademarks of Mikroelektronika. All other trademarks mentioned herein are property of their respective companies.

All other product and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are only used for identification or explanation and to the owners’ benefit, with no intent to infringe.

© Mikroelektronika™, 2011, All Rights Reserved.

If you want to learn more about our products, please visit our website at www.mikroe.com

If you are experiencing some problems with any of our products or just need additional information, please place your ticket at www.mikroe.com/en/support

If you have any questions, comments or business proposals, do not hesitate to contact us at [email protected]

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
