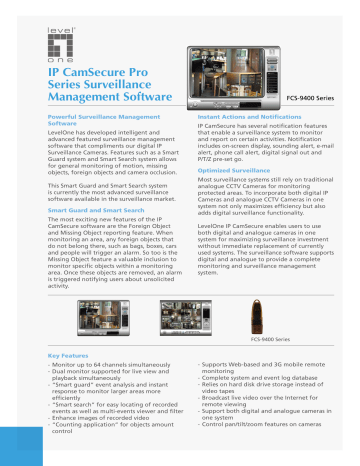

IP CamSecure Pro
Series Surveillance
Management Software
Powerful Surveillance Management
LevelOne has developed intelligent and
advanced featured surveillance management
software that compliments our digital IP
Surveillance Cameras. Features such as a Smart
Guard system and Smart Search system allows
for general monitoring of motion, missing
objects, foreign objects and camera occlusion.
This Smart Guard and Smart Search system
is currently the most advanced surveillance
software available in the surveillance market.
Smart Guard and Smart Search
The most exciting new features of the IP
CamSecure software are the Foreign Object
and Missing Object reporting feature. When
monitoring an area, any foreign objects that
do not belong there, such as bags, boxes, cars
and people will trigger an alarm. So too is the
Missing Object feature a valuable inclusion to
monitor specific objects within a monitoring
area. Once these objects are removed, an alarm
is triggered notifying users about unsolicited
FCS-9400 Series
Instant Actions and Notifications
IP CamSecure has several notification features
that enable a surveillance system to monitor
and report on certain activities. Notification
includes on-screen display, sounding alert, e-mail
alert, phone call alert, digital signal out and
P/T/Z pre-set go.
Optimized Surveillance
Most surveillance systems still rely on traditional
analogue CCTV Cameras for monitoring
protected areas. To incorporate both digital IP
Cameras and analogue CCTV Cameras in one
system not only maximizes efficiency but also
adds digital surveillance functionality.
LevelOne IP CamSecure enables users to use
both digital and analogue cameras in one
system for maximizing surveillance investment
without immediate replacement of currently
used systems. The surveillance software supports
digital and analogue to provide a complete
monitoring and surveillance management
FCS-9400 Series
Key Features
-Monitor up to 64 channels simultaneously
-Dual monitor supported for live view and
playback simultaneously
-“Smart guard” event analysis and instant
response to monitor larger areas more
-“Smart search” for easy locating of recorded
events as well as multi-events viewer and filter
-Enhance images of recorded video
-“Counting application” for objects amount
-Supports Web-based and 3G mobile remote
-Complete system and event log database
-Relies on hard disk drive storage instead of
video tapes
-Broadcast live video over the Internet for
remote viewing
-Support both digital and analogue cameras in
one system
-Control pan/tilt/zoom features on cameras I one world_one brand_one level_
Network Camera
Technical Specification
Max # of Cameras Live View, Monitor and Record
4 Channels:
IP CamSecure Pro4 Mega
8 Channels:
IP CamSecure Pro8 Mega
16 Channels:
IP CamSecure Pro16 Mega
25 Channels:
IP CamSecure Pro25 Mega
36 Channels:
IP CamSecure Pro36 Mega
64 Channels:
IP CamSecure Pro64 Mega
*Compatible with LevelOne IP cameras.
More IP cameras of other major manufacturers
supported in FCS-94xx.
Multi-Language Embedded
Turkish, Traditional Chinese, Simple Chinese, Danish,
Japanese, Hungarian, Spanish, Greek, French, Finnish,
Russian, English, Thai, Czech, Slovak, Korean, Italian,
Portugal Portuguese, Brazil Portuguese, German, Farsi
and Hebrew.
Hybrid Camera Management
Monitor IP digital and CCTV analog cameras in one
surveillance system
Dual Monitor
User is able to monitor multiple channels with
reasonable image size or live view and playback
Smart Guard
Events triggered by general motion detection, missing/
foreign object detection, signal lost, camera occlusion,
lose focus, external input or system status
Motion Detection
Camera-based motion detection with image exclude
filter for image areas of no interest in specific period
Smart Search
Search unusual events with specific parameters from
recorded video
Alarm Notification
Play sound, send emails, send SMS message, make
phone calls, PTZ PRESET GO, signal digital output, on
screen display and instant recording.
Counting Application
Count how many times objects moving between
different locations
Video Compression
Support full duplex real time audio
User Account
Multiple user authentication levels with password
restriction rules for unlimited users
Log Viewer
All unusual events ,system events by date/time and/or
Continuous recording, manual recording/snapshot,
record by schedule, record by digital input or triggered
event, and record moving only (pre/post record buffer is
up to 60 seconds).
**Monitor in 3G mobile devices which are equipped
with 3G video playback.
Support DtDNS and Dynu.
No extra charge required for the further upgrade
Simultaneously Playback
16 Channels
Image Enhancer
Improve recorded video to get better image during
playback and can be applied during export
Search for Recordings
Search for recordings based on date, time or specific
video parameters.
Controllable speed 1/16x~16x or frame by frame
Video Clip Export
Export single BMP/JPEG images to file or printer
Export video in AVI
P/T/Z and I/O
PTZ Support
Control of PTZ cameras and preset positions
Preset Patrolling
Multiple cameras patrolling
Go to Preset on Event
Input/Output Control
Support digital input/output control
Remote Access via Remote Client Application
Remote Client Application
Remote live Viewer/ Remote Playback
PTZ Support
Control of PTZ cameras
Max # of Cameras Live View
Up to 16 Channels from different servers
Max # of Cameras Playback
Up to 16 Channels
Remote Access via Web Browser
Max # of Cameras Live View
Up to 4 Channels
Minimum System Requirements
Intel P4 2.8 GHz
Mother Board
Intel 945 or 965 chip or above
MB vendor ASUS with Intel chipset recommended
Video Card
ATi Radeon 9200, nVIDIA GeForce FX-5200, Intel
945G/965G or above (ATi recommended)
Hark Disk
80GB or above
MS Windows 2000/XP Pro SP2/2003/Vista
Supported Camera Models
IP CamSecure Pro Mega Series
Model name
FCS-94 04/08/16/25/36/64
Camera Support
FCS-0010, FCS-0020, FCS-1010, FCS-1030 V1.0, FCS-1030 V2.0, FCS-1040, FCS-1050, FCS-1060, FCS-1070, FCS-1081, FCS-1081A,
FCS-1091, FCS-1101, FCS-3000, FCS-0031, FCS-3021, FCS-4x00, FCS-7011, WCS-0010, WCS-0020, WCS-1090, WCS-2010 V1.0,
WCS-2010 V2.0, WCS-2030 V1.0, WCS-2030 V2.0, WCS-2030 V3.0, WCS-2040, WCS-2060, WCS-2070, FCS-4010, FCS-5011,
FCS-5030, FCS-8005, FCS-8004
SED 2100, SED 2120, SED 2140, SED 2400, SED 2420, SED 2600, SED 2610, SEM 1110, ACM SERIES, CAM 5300, CAM 5130,
CAM 5140, CAM 5150, CAM 5500, CAM 6100, CAM 6200, CAM 6500, CAM 6510, CAM 6520, CAM 6600, CAM 7100,
CAM 7120, CAM 7200, CAM 7220, CAM 7300, CAM 7320, CAM 6620, SED 2310, SED2320, CAM 5200, CAM 5XXX, CAM 6220,
Arecont Vision
AV1300, AV2000, AV2100, AV3100, AV3130, AV5100, AV8180, AV8360
A02-IPCAM10, A02-IPCAM11, A02-IPCAM12, A02-IPCAM13 ,A02-IPCAM14, A02-IPCAM15, A02-IPCAM16, A02-IPCAM17
205, 206, 206M, 206W, 207, 207W, 207MW, 209FD, 210, 210A, 211, 211A, 212, 213, 214, 215, 216FD, 221, 225FD, 231D,
232D, 240Q, 241Q, 241QA, 241S, 241SA, 242S, 2460, 233D
DCS-6620, DCS-6620G, DCS-5220, DCS-5300, DCS-5300G, DCS-2120, DCS-3420, DCS-3220, DCS-3220G, DCS-2100, DCS-2100G,
DVS-104, DVS-301, DCS-900, DCS-G900, DCS-950, DCS-950G
TCP-690, TCP-690DN, TCP-HP930, WB-8211SD, WB-8411, CDV-3V930, TCP-690U, TCP-HP930U, WB-8211SDU, CDV-3V930U,
EP-936, EP-908, EP-601, EP-201, EP-221, EP-221DN
IQeye301, IQeye301m, IQeye301w, IQeye302, IQeye302w, IQeye303, IQeye303w, IQeye501, IQeye511, IQeye601, IQeye602,
IQeye603, IQeye701, IQeye702, IQeye703, IQeye705, IQeye751, IQeye752, IQeye753, IQeye755
VN-C20U, VN-E4(U), VN-C205U, VN-C215U, VN-C655U
le045c, le045c-dn, le075c, le075c-dn, le165c, le165c-dn, le175c, le175c-dn, le259c, le275c, le275c-dn, le375c, le375c-dn,
M10D-Night, M12D-Sec, M12D-IT-DNight, M12D-Sec-Dnight, M12M-Web, M22M-IT, M22M-Sec, M22M-Sec-Night, D12Di-IT,
BB-HCM311, BB-HCM331, BB-HCM371, BB-HCM381, BB-HCE481, BB-HCS301, BB-HCM511, BB-HCM515, BB-HCM581, BL-C10,
BL-C1, BL-C20, BL-C30, BL-C111, BL-C131, KX-HCM110, KX-HCM280A, WV-NP472, WV-NS324, WV-NF284,WV-NP1000,
WV-NP1004, WV-NM100, WV-NP240, WV-NP244, WV-NS202, WV-NW484, WV-NW964
100, 120/126/128, 200/206, 201, 205, 207, 240, 241, 261, 262, 263, 300, 400/42X, 461, 463, 1000, 1401, 2000, 4000, 8504, 405,
405M, 410, 411/412
ICA-510, ICA-700, ICA-151W, ICA-151, ICA-750, ICA-107W, ICA-107P, ICA-107
IP Fixed Camera, IP PTZ Camera
SNC-DF40, SNC-DF70, SNC-P1, SNC-P5, SNC-RZ25, SNC-RZ50, SNC-RX550, SNC-CS50, SNC-CS3, SNC-Z20, SNC-RZ30, SNC-CS10,
SNC-CS11, SNT-V704, SNC-RX530, SNC-DF50, SNC-DF80
VS 2101, VS 2401, VS 2402, VS 2403, VS 3100, VS 3101, VS 3102, VS 3102-XLTH, VS 3103, VS 3107, VS 3108, VS 6000, VS 6100,
VS 6104, VS 7000, VS 7101, SD 6000, SD 6101, SD 61x2, FD 6000, FD 61x1, FD 61x2, TC 5330, TC 5331, TC 5630, TC 5631,
IP 21x1, IP 21x2, IP 31x1, TLFN, IP 31x1, IP 31x2, IP 31x7, IP 31x8, IP 3129, IP 3132, IP 3133, IP 3134, IP 3135-PLNX, IP 3135,
IP 3136-PLNX, IP 3136, IP 3137, IP 51x2, IP 51x4, IP 5104, IP 5114, IP 5124, IP 5134, IP 6000, IP 61x2, IP 61x4, IP 61x7,
IP 6104, IP 6114, IP 6124, IP 6134, IP 7000, IP 71x4, IP 71x7, IP 7135, IP 7136, IP 7137, IP 7151, IP 7152, PT 31x2, PT 31x3,
PT 31x4, PT 31x7, PT 31X2, PT 31X3, PT 3134, PT 51x4, PT 5104, PT 5114, PT 5124, PT 5134, PT 6000, PT 61x4, PT 6104,
PT 6114, PT 6124, PT 6134, PT 7000, PT 7135, PT 7137, PZ 6000, PZ 61x2, PZ 61x4, IP 7131, IP 7132, IP 7138, IP 7139, VS 7100,
FD7131, SD7151, IP7142
D611E, D611A, D610A, F611E, F611A, F610A, V111T, S610A, F721E, F721A, F720A, F711E, F711A, F710A, F211A, F210A,
F212A, F310A, F312A, M210A, M212A, M610A, M612A, F613A, F510E, F510W, F511E, F511W, F711E, F710E, D510E, D511E,
M310A, M312A
*Please visit for the compatible product list.
**This feature depends on the mobile telecom service provided and the mobile phone model. LevelOne does not guarantee that this feature
will work in all countries.
***The specification is subject to change. Please visit for the latest specification. I one world_one brand_one level_
Network Camera
Product Diagram
Data (Cat.5)
Data + Power (Cat.5)
Analog signal (BNC Cable)
Remote Console
4 + 4 PoE Switch
1-Port PoE
Video Server
IP CamSecure
Analog Camera
Analog Camera
Capture Card
Analog Camera
Order Information
FCS-9404: IP CamSecure Pro4 Mega
FCS-9408: IP CamSecure Pro8 Mega
FCS-9416: IP CamSecure Pro16 Mega
FCS-9425: IP CamSecure Pro25 Mega
FCS-9436: IP CamSecure Pro36 Mega
FCS-9464: IP CamSecure Pro64 Mega
Package Content
CD Manual / Utility
USB Dongle
Quick Installation Guide
All mentioned brand names are registered trademarks and property of their owners. Technical specifications are subject to change without notice.
© Copyright 2009 Digital Data Communications GmbH. All Rights Reserved.
