Extech MO290-EK Building Moisture Measurement Kit

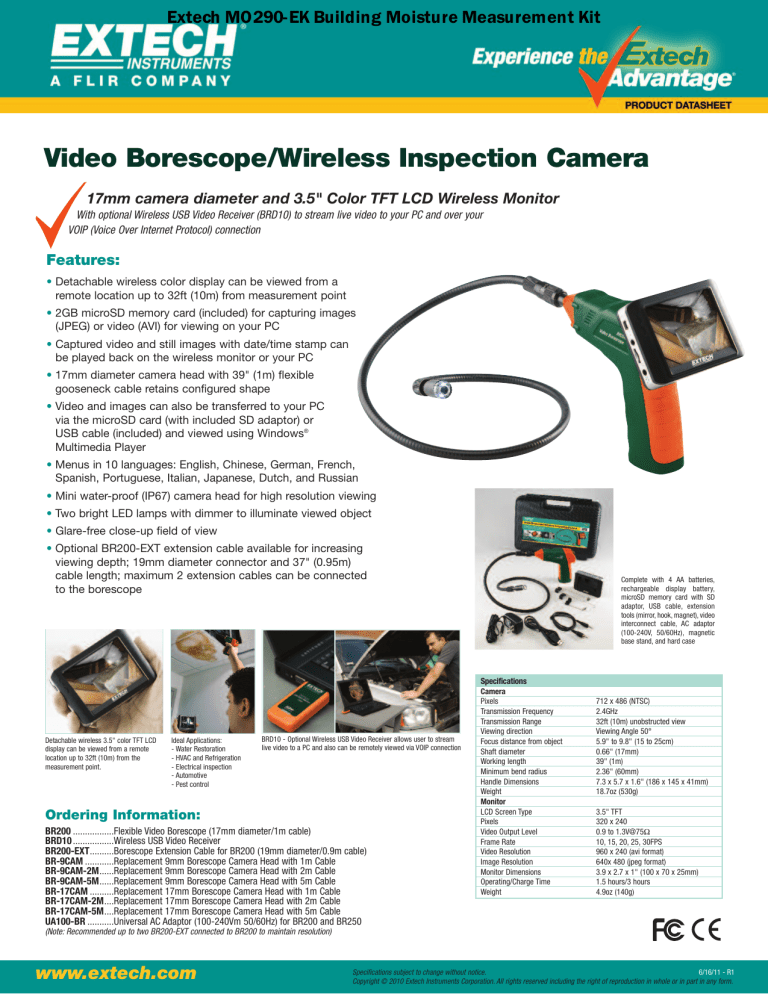

Video Borescope/Wireless Inspection Camera
17mm camera diameter and 3.5" Color TFT LCD Wireless Monitor
With optional Wireless USB Video Receiver (BRD10) to stream live video to your PC and over your
VOIP (Voice Over Internet Protocol) connection
Features:
• Detachable wireless color display can be viewed from a
remote location up to 32ft (10m) from measurement point
• 2GB microSD memory card (included) for capturing images
(JPEG) or video (AVI) for viewing on your PC
• Captured video and still images with date/time stamp can
be played back on the wireless monitor or your PC
• 17mm diameter camera head with 39" (1m) flexible
gooseneck cable retains configured shape
• Video and images can also be transferred to your PC
via the microSD card (with included SD adaptor) or
USB cable (included) and viewed using Windows®
Multimedia Player
• Menus in 10 languages: English, Chinese, German, French,
Spanish, Portuguese, Italian, Japanese, Dutch, and Russian
• Mini water-proof (IP67) camera head for high resolution viewing
• Two bright LED lamps with dimmer to illuminate viewed object
• Glare-free close-up field of view
• Optional BR200-EXT extension cable available for increasing
viewing depth; 19mm diameter connector and 37" (0.95m)
cable length; maximum 2 extension cables can be connected
to the borescope
Detachable wireless 3.5" color TFT LCD
display can be viewed from a remote
location up to 32ft (10m) from the
measurement point.
Ideal Applications:
- Water Restoration
- HVAC and Refrigeration
- Electrical inspection
- Automotive
- Pest control
BRD10 - Optional Wireless USB Video Receiver allows user to stream
live video to a PC and also can be remotely viewed via VOIP connection
Ordering Information:
BR200 .................Flexible Video Borescope (17mm diameter/1m cable)
BRD10 .................Wireless USB Video Receiver
BR200-EXT..........Borescope Extension Cable for BR200 (19mm diameter/0.9m cable)
BR-9CAM ............Replacement 9mm Borescope Camera Head with 1m Cable
BR-9CAM-2M......Replacement 9mm Borescope Camera Head with 2m Cable
BR-9CAM-5M......Replacement 9mm Borescope Camera Head with 5m Cable
BR-17CAM ..........Replacement 17mm Borescope Camera Head with 1m Cable
BR-17CAM-2M....Replacement 17mm Borescope Camera Head with 2m Cable
BR-17CAM-5M....Replacement 17mm Borescope Camera Head with 5m Cable
UA100-BR ...........Universal AC Adaptor (100-240Vm 50/60Hz) for BR200 and BR250
Complete with 4 AA batteries,
rechargeable display battery,
microSD memory card with SD
adaptor, USB cable, extension
tools (mirror, hook, magnet), video
interconnect cable, AC adaptor
(100-240V, 50/60Hz), magnetic
base stand, and hard case
Specifications
Camera
Pixels
Transmission Frequency
Transmission Range
Viewing direction
Focus distance from object
Shaft diameter
Working length
Minimum bend radius
Handle Dimensions
Weight
Monitor
LCD Screen Type
Pixels
Video Output Level
Frame Rate
Video Resolution
Image Resolution
Monitor Dimensions
Operating/Charge Time
Weight
712 x 486 (NTSC)
2.4GHz
32ft (10m) unobstructed view
Viewing Angle 50°
5.9" to 9.8" (15 to 25cm)
0.66" (17mm)
39" (1m)
2.36" (60mm)
7.3 x 5.7 x 1.6" (186 x 145 x 41mm)
18.7oz (530g)
3.5" TFT
320 x 240
0.9 to [email protected]Ω
10, 15, 20, 25, 30FPS
960 x 240 (avi format)
640x 480 (jpeg format)
3.9 x 2.7 x 1" (100 x 70 x 25mm)
1.5 hours/3 hours
4.9oz (140g)
(Note: Recommended up to two BR200-EXT connected to BR200 to maintain resolution)
www.extech.com
Specifications subject to change without notice.
6/16/11 - R1
Copyright © 2010 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
Extech MO290-EK Building Moisture Measurement Kit
CFM/CMM Thermo-Anemometer + IR Thermometer
Large display of Airflow or Air Velocity
Plus model with built-in InfraRed Thermometer
Features:
• Model AN100 — CFM/CMM Thermo-Anemometer
• Model AN200 — CFM/CMM Thermo- Anemometer
with built-in non-contact IR Thermometer measures
remote surface temperatures to 500°F (260°C) with an
8:1 distance-to-spot ratio and Laser Pointer
• Simultaneous display of Ambient Temperature and
Air Flow or Air Velocity
• Up to 8 easy to set Area dimensions (ft 2 or cm2) are
stored in the meter’s internal memory
• 20 point average function for Air Flow
• Super large LCD Backlit Display
• 3% velocity accuracy via low friction 2.83"D (72mm)
ball bearing vane wheel on 3.9ft (120cm) cable
• Data Hold and MIN/MAX
• Auto Power off
• Complete with vane sensor with 3.9ft (120cm) cable,
9V battery, protective rubber holster, and carrying case
Applications:
•
•
•
•
•
•
•
•
HVAC installation, repair, diagnostics, and optimization.
Fume hood testing, installation, and verification
Ventilation system installation, servicing, and analysis
Environmental wind and temperature testing/analysis
Boiler rooms
Ionizer flow output monitoring
Automobile aerodynamic testing
Plant/Facilities Maintenance
Patented
Specifications
Air Velocity
Air Temperature
InfraRed Temperature
(AN200 Only)
AN100 and AN200 used in
HVAC applications measuring airflow
from heating vents.
Ordering Information:
Model AN200 features built-in
non-contact IR Thermometer to
measure surface temperature
that may be hard to reach
Airflow
AN100
AN200
Dimensions/Weight
Range
0.40 to 30.00 m/s
1.4 to 108.0 km/h
80 to 5906 ft/min
0.9 to 67.2 mph
0.8 to 58.3 knots
14 to 140˚F (-10 to 60˚C)
-58 to -4˚F (-50 to -20˚C)
-4 to 500˚F (-20 to 260˚C)
Resolution
0.01 m/s
0.1 km/h
1 ft/min
0.1 mph
0.1 knots
0.1˚F/˚C
0.1˚F/˚C
1˚F/˚C
0 to 9999 CMM (m3/min)
0 to 9999 CFM (ft3/min)
0 to 999,999 CMM (m3/min)
0 to 999,999 CFM (ft3/min)
0.1
0.1
0.1
0.1
Basic Accuracy
±3% m/s
±3% km/h
±3% ft/min
±3% mph
±3% knots
±6.0˚F (3˚C)
±9.0˚F (5.0˚C)
±2% reading or
±2˚F (˚C)
whichever is greater
7 x 2.9 x 1.3" (178 x 74 x 33mm)/1.6lbs (700g)
AN100 ..........................CFM/CMM Thermo-Anemometer
AN100-NIST ................CFM/CMM Thermo-Anemometer with NIST Certificate
AN200 ..........................CFM/CMM Thermo-Anemometer + IR Thermometer
AN200-NIST ................CFM/CMM Thermo-Anemometer + IR Thermometer w/ Calibration Traceable to NIST
AN200-NISTL ..............Anemometer with Limited NIST
www.extech.com
Specifications subject to change without notice.
3/04/11 - R1
Copyright © 2007-2011 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
Extech MO290-EK Building Moisture Measurement Kit
Portable Indoor Air Quality CO2 Meter
Measures Carbon Dioxide (C02) , Temperature,
And calculates statistical 8 hour and 15 minute time weighted averages
Humidity, Dew Point, and Wet Bulb
Features:
• Checks for Carbon Dioxide (CO2) concentrations
• Calculates statistical weighted averages of TWA (8 hour time
weighted average) and STEL (15 minute short term exposure limit)
• Maintenance free NDIR (non-dispersive infrared) CO2 sensor
• Measurement ranges:
CO2: 0 to 5,000ppm
Temperature: 14 to 140°F (-10 to 60°C)
Humidity: 0.0 to 99.9%
• User programmable audible alarm
• Backlit triple LCD display
• Built-in RS-232 interface for capturing readings on PC
• Data acquisition software and cable included to record
and document CO2, Humidity and Temperature data
• Optional 33% and 75% RH calibration bottles (RH300-CAL)
• Complete with software and cable, 4 AA batteries,
and carrying case
Applications:
• Check air quality in schools, office buildings,
greenhouses, hospitals and anywhere that high
levels of carbon dioxide are generated
Measure CO2 level in office buildings to check the air quality of
conference rooms insuring proper ventilation.
Ordering Information:
Specifications
Carbon Dioxide (CO2)
Temperature
Humidity
Wet Bulb and Dew Point
Dimensions
Weight
Range
0 to 5,000ppm
14 to 140°F (-10 to 60°C)
0.0 to 99.9%
Calculated
7.9x2.7x2.3” (200x70x57mm)
6.7 oz. (190g)
Resolution
1ppm
0.1°F/°C
0.1%
CO250 ....................Portable Indoor Air Quality CO2 Meter
RH300-CAL ............33% and 75% RH Calibration Kit
www.extech.com
Specifications subject to change without notice.
6/24/09 - R1
Copyright © 2008 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
Extech MO290-EK Building Moisture Measurement Kit
Pinless Moisture Psychrometers + IR Thermometer
8-in-1 Meter with Built-in IR Thermometer
Monitor moisture in wood and other building materials with virtually no surface damage with the Pinless
Moisture sensor (Pin-type Moisture Probe included). Measure Humidity and Air Temperature with built-in
probe plus non-contact InfraRed Temperature design.
Features:
• Quickly indicates the moisture content
of materials with Pinless technology
without damaging the surface; Remote
Pin-type probe (MO290-P included) allows
for contact moisture readings (3ft/0.9m
cable length)
• Works on multiple wood types and other
building materials
• Easy to read, large dual display with
automatic backlight feature
• Simultaneously displays moisture value
of wood or material being tested, Air
Temperature, IR Temperature, or Humidity
• Pinless measurement depth to 0.75"
(19mm) below the surface
• Programmable high/low Moisture and
Humidity alarms
Measure moisture of wall
material with non-invasive
Pinless technology
• Designed with an IR circuit to measure
non-contact surface temperature; 8:1
distance to spot ratio with 0.95 fixed
emissivity
• Built-in Humidity/Temperature probe
measures Relative Humidity, Air
Temperature plus Grains Per Pound
(GPP)/(g/kg), Dew Point (DP), Vapor
Pressure, and condensation point
• Automatic calculation of differential
Temperature (IR - DP) to determine
condensation point
• Min/Max and Data Hold
• Auto power off and low battery indication
• Complete with pin moisture probe with
cable, 9V battery and case
Specifications
Sensor Type
Pinless Moisture
Pinless Depth
Pin-type Moisture (probe included)
Max Resolution
Humidity
Temperature (Air)
Temperature (IR)
Vapor Pressure
Dew Point
Mixing ratio
Field of View
Emissivity
Dimensions
Weight
Pin Moisture Probe included for
making contact moisture
measurements
Patented IR thermometer design
locates cold spots on walls, which
identifies surfaces subject to
condensation (direct differential
display of IR - DP)
Non-Penetrating
0 to 99.9 (Relative)
up to 0.75" (19mm)
0 to 99.9%
0.1, 0.1°F/°C
0 to 100%RH
-20 to 170°F (-29 to 77°C)
-4 to 392°F (-20 to 200°C)
0 to 20.0kPA
-22 to 199°F (-30 to 100°C)
0 to 999GPP (0 to 160g/kg)
8:1 Distance to Target ratio
0.95 fixed
6.5x2.8x1.5” (165x70x38)
7.4oz (210g)
Ordering Information:
MO290 ................Pinless Moisture Psychrometer + IR Thermometer
MO290-NISTL* ..MO290 with NIST Certificate
MO290-P ............Replacement Pin Moisture Probe
*NISTL is a Limited NIST: Product is certified to 33% & 75% Humidity and 77°F &150°F IR Temperature
www.extech.com
12/4/12 - R1
Specifications subject to change without notice.
Copyright © 2009-2012 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
