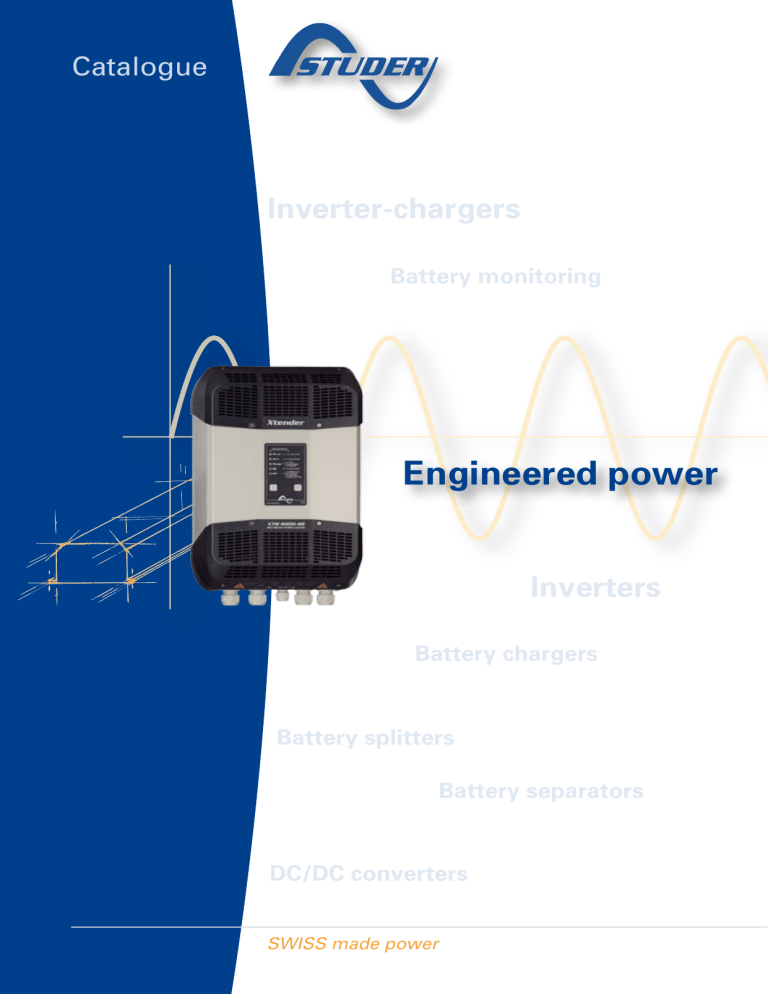

Catalogue
Inverter-chargers
Battery monitoring
Engineered power
Inverters
Battery chargers
Battery splitters
Battery separators
DC/DC converters
SWISS made power
Company
Summary
Experience and competences
The company Applications
3
6
- Applications in remote areas
6
- Mobile applications
8
- Backup applications
10
Products
In 2005, the Sommet Prize, organized among
others by the Union Bank of Switzerland was
awarded to Studer Innotec Ltd., for its capabilities to innovate as well as to export its
inverters.
12
- Sine wave inverter-chargers 12
- Sine wave inverters
20
- Battery chargers 24
- DC/DC converters 25
- Battery splitters
26
- Battery separators 26
- Battery protection 27
- Battery monitoring 27
Appendices
Studer Innotec Ltd. was founded in 1987
by Roland Studer, current General Director.
From 1987 to 1991, the company developed
its core competences in solar photovoltaics
and in energy conversion, with the first inverters (DC/AC).
95% Export Sales
The Twinpower launch in 1994, then the SI launch in 1995 ; two
sine wave inverters with many years of unbeatable performances,
make Studer Innotec’s offer very attractive to demanding foreign
markets.
These products are rooted in the start of Studer Innotec’s export sales,
which now account for more than 95% of the company turnover.
28
- Technical sheets
28
- How to find us 36
Photos credits
Robert Hofer : Studer’s products ; Getek AS : p16 ; Jeanneau : p. 8 top ; Meteorisk : p. 3, 36 ; Perspective : p. 5, 24 ;
Siblik : p. 23 ; Steca : p. 6 bottom ; Studer Innotec Ltd. : p. 13.
Graphism
Atelier Perspective, R. Gigon, Sion.
April 2011
2
3
Company
Leadership
Ease in Use and Product Versatility
Today, Studer Innotec Ltd. is one of the world leaders in the inverter
market. The company also manages a network of more than hundred « Distributors » around the world.
Quality choice will continue to guide Studer Innotec’s strategic axis
towards the future. Beyond performances, the next inverters will
have increased ease in use and will offer greater versatility to the
users.
It manages a network of more than one hundred distributors in more
than 70 countries.
Thanks to its exceptionally extensive product range, it is the only
inverter manufacturer able to collectively cover the solar, nautical,
mobile, backup and telecom markets.
Production Integration and Flexibility
The company’s philosophy has always been to master the complete
process : from development to product sales. This is why Studer
Innotec Ltd., since its beginning, is a company vertically integrated ;
therefore, capable of far greater flexibility than its competitors.
Proximity with Clients
From research to industrialization, Studer Innotec Ltd. endeavors to
carry on its human and financial investments in order to keep its lead
in terms of global offer and proximity with clients. This closeness is
maintained by a network of qualified service partners. Partner addresses can be found on the company website, under « Distributors ».
In other respects, to turn the markets expectations into products
and services, an 8 people team is fully dedicated to Research &
Development.
The Performance Choice
Studer Innotec’s high-tech concept of its products as well as the
performance and reliability selection, drive Studer Innotec Ltd. to
choose its components with the greatest care. This is the reason
why the company has selected the latest technologies ; such as
digital signal processors (DSP) that provide higher efficiency to its
inverters.
4
5
Applications
Applications in remote areas
Village electrification
Security and comfort (lighting, heating, household appliances, leisure
electronics, telecoms...) can now be provided by autonomous energy
systems ; when far away from any electrical grid, either by choice or
reason.
GENERATOR
These systems consist firstly of an energy source ; normally a
genset, a solar generator, a wind turbine or a combination of these ;
secondly of a battery storage, and then
thirdly of devices (inverter-charger, battery
charger) able to charge the battery from this
energy source and to supply users with AC
voltage (inverter, inverter-charger).
GRID
INVERTER
AC
GRID
INVERTER
DC
Xtender series p. 12
(1’000 - 72’000VA)
Various power sources supply energy to several consumer points.
The examples below show the products in
some stand-alone applications.
Hybrid system : more autonomy and flexibility
GENERATOR
AC
DC
AC
A complete solar system
This hybrid system provides great flexibility in supply and
increased autonomy in relation to each energy source. The
appliances AC voltage supply is done directly from the energy
source through the transfer relay, or from the battery through
the inverter function. The charger function allows battery
charging with the genset. The genset’s size can be reduced
thanks to the Smart-Boost function.
(Application Note AN007/www.studer-innotec.com)
REGULATOR
DC
AC
DC
A complete solar system can be built by combining an inverter from the AJ series and the « solar charge control » integrated function (as an option). One single device can then both
supply alternating current (AC) and charge the battery with
direct current (DC).
Xtender series p. 12
(1’000 - 72’000VA)
Compact series p. 18
(1’400 - 4’000VA)
3-phase grid 3 x 400Vac for high power appliances
AJ series (275 - 2’400VA)
p. 20
AC
Quality AC voltage for all electrical appliances
GENERATOR
AC
AC
DC
DC
REGULAT0R
DC
6
The inverter supplies, exclusively from a battery,
any kind of appliance using AC voltage, without
exception. It converts the battery’s DC voltage into
AC voltage at a higher quality than what is available
from the public grid.
Compact series p. 18
(1’400 - 4’000VA)
AJ series (275 - 2’400VA)
p. 20
DC
DC
Xtender series p. 12
(1’000 - 72’000VA)
REGULATOR
DC
A 3 x 400Vac 3-phase grid can be built with 3
inverters for supplying high power appliances.
In case of an increased power requirement, it
is possible to set up to 3 inverters in parallel on
each phase (Xtender only).
7
Xtender series p. 12
(1’000 - 72’000VA)
Applications
Mobile applications
3 x 400Vac 3-phase grid on-board
A simple on-board energy system is often necessary to power the
AC voltage appliances, while the vehicle or the boat is away from
the electrical grid (port, garage, camping...).
In this case, energy is stored in the battery, which is actually charged
by power sources on-board, such as a genset, solar generator, wind
turbine, alternator or a combination of these. Studer Innotec offers
the product range that secures the management and conversion of
this energy, while securing an optimal power
supply to the on-board appliances.
AC
AC
DC
DC
A 3-phase grid can be built with 3 inverters. The Xtender series enables the creation of a 3-phase grid and to simultaneously charge the
battery, even if only a single phase is available as a power source.
Xtender series p. 12
(1’000 - 72’000VA)
Variable power source assistance
VARIABLE POWER
SOURCE
AC
AC
The source being a variable power alternator, the Smart-boost will supply the power
difference in order that the power delivered
is always the same (Application Note AN004/
www.studer-innotec.com).
DC
The examples below show our products in
some mobile applications.
AC
Xtender series p. 12
(1’000 - 72’000VA)
Successive battery charging
A simple and reliable on-board system
AC
AC
DC
AC
AC
DC
DC
The inverter-charger charges the battery from the grid or
from a genset, and powers any kind of electrical appliance.
It converts the battery DC voltage to AC voltage. The
models equipped with the Smart-Boost system enable the
addition of the source’s power to that of the inverter.
DC
Xtender series p. 12
(1’000 - 72’000VA)
Compact series p. 18
(1’400 - 4’000VA)
An upgradeable power
MBR series p. 26
MBC series p. 24
MBI series p. 26
MBC series p. 24
MOTOR
DC
DC
In this system, a battery
separator enables one or several auxiliary batteries to be charged, once the primary battery is charged.
Simultaneous battery charging and DC/DC conversion
MOTOR
AC
DC
AC
AC
DC
DC
AC
DC
DC
DC
DC
Power available to the users can be adapted in the course
of time by adding inverters in parallel or by creating additional phases. Therefore, it is possible to install up to 9
inverters in a 3-phase power system.
8
Xtender series p. 12
(1’000 - 72’000VA)
A MOSFET splitter, with almost no voltage losses, splits the charge current to and among
several batteries. From the battery pack, a DC/DC converter will step up or step down the
voltage according to the voltage of the users, 12, 24 or 48Vdc.
9
MDCI-MDC series p. 25
Applications
Backup applications
Uninterruptible power supply off-line
Appliances such as fridges, PCs, emergency lights, etc. which are
supplied by the public grid and cannot afford any power cut, are electrically secured.
AC
AC
DC
An inverter-charger with transfer relay or a combination of an inverter
and a charger guarantees that the battery is well maintained and that
an uninterrupted power supply to strategic appliances is sustained.
In this configuration the grid supplies directly to the appliances, thanks to the inverter-charger’s by-pass function. In
case of a power drop or cut in the grid, the inverter-charger
guarantees the appliances’ power supply.
Studer Innotec Ltd. offers solutions from 275VA up to 72kVA with a one
of a kind product choice that remains unchallenged on the market.
Xtender series p. 12
(1’000 - 72’000VA)
Compact series p. 18
(1’400 - 4’000VA)
Individual Home backup
AC
An inverter-charger is
used there to provide a
backup power in case of
public grid outage. As
soon as the power shuts
off the inverter-charger
switches on inverter
mode and assures an
uninterruptible power
supply.
DC
AC
Xtender series p. 12
(1’000 - 72’000VA)
Compact series p. 18
(1’400 - 4’000VA)
Solsafe – a backup system for grid connected solar installations
GRID
INVERTER
DC
Uninterruptible power supply on-line
Compteur
AC
AC
DC
DC
AC
DC
AC
AJ series (275 - 2’400VA)
Solsafe
S-Box
Secured
p. 17
p. 20
Not secured
In this system, the battery charge functions and appliances’ power supply are separated :
On one side is a battery charger, and on the other, an inverter. Grid current fluctuations have
no impact on the appliances.
10
MBC series p. 24
The installation of our solution Solsafe in a grid connected solar system totally or partially
secures the power supply in case of a power cut, and thus maintains the ongoing use of
solar energy being produced (Application Note AN003/www.studer-innotec.com).
11
Xtender series p. 12
(1’000 - 72’000VA)
Compact series p. 18
(1’400 - 4’000VA)
Applications
Xtender
XTS
XTS 1000-12
XTS 1200-24
XTS 1400-48
Products
Sine wave inverter-chargers
Xtender Series
The Xtender series provides unmatched freedom of use due to its
many functions. In a basic application, it offers a total package : the
functions of inverter, battery charger, transfer system and assistance to
the source. These functions can be combined and controlled in a totally
automatic way for exceptional ease and optimal management of available energy.
The Xtender is equipped with a command entry and 2 configurable auxiliary contacts. This allows an automatic control of the genset or a loadshedding when
the battery voltage is too low. The flexibility then obtained makes it possible
to implement special functionnalities, often necessary for a good energy
management in standalone systems.
Xtender range
Battery
voltage
AC
voltage
XTS 900-12
12V
230Vac*
XTS 1200-24
24V
230Vac*
XTS 1400-48
48V
230Vac*
XTM 1500-12
12V
XTM 2000-12
Power SmartBoost
Charge
current
Transfer
current
900VA** / 500VA
900VA**
0 - 35A
16A
1200VA** / 650VA
1200VA**
0 - 25A
16A
1400VA** / 750VA
1400VA**
0 - 12A
16A
230Vac*
1500VA / 1500VA
1500VA
0 - 70A
50A
12V
230Vac*
2000VA / 2000VA
2000VA
0 - 100A
50A
XTM 2400-24
24V
230Vac*
2400VA / 2000VA
2400VA
0 - 55A
50A
XTM 2600-48
48V
230Vac*
2600VA / 2000VA
2600VA
0 - 30A
50A
XTM 3500-24
24V
230Vac*
3500VA / 3000VA
3500VA
0 - 90A
50A
XTM 4000-48
48V
230Vac*
4000VA / 3500VA
4000VA
0 - 50A
50A
XTH 3000-12
12V
230Vac*
3000VA / 2500VA
3000VA
0 - 160A
50A
XTH 5000-24
24V
230Vac*
5000VA / 4500VA
5000VA
0 - 140A
50A
XTH 6000-48
48V
230Vac*
6000VA / 5000VA
6000VA
0 - 100A
50A
XTH 8000-48
48V
230Vac
8000VA / 7000VA
8000VA
0 - 120A
50A
Features and performances
IP54
* For the 120Vac/60Hz version, -01 is added to the model designation.
** These features are valid only when using the cooling module ECF-01.
Complete technical specifications on page 28.
• Outstanding efficiency and overload.
• Perfect management and limitation of AC sources.
• Power shaving of the consumption peaks.
• Automatic allocation of the power available.
• Active filtering of the load steps on the genset.
Xtender
XTM
• Automatic protection of the sources against overload.
• Battery priority (or to renewable sources).
• Parallel and three-phase setting, up to 9 units (72kVA).
XTM 1500-12
XTM 2000-12
XTM 2400-24
XTM 2600-48
XTM 3500-24
XTM 4000-48
• Powerful multi-stage PFC charger.
• Ultra-short transfer time (from 0 to 15ms max.).
• Automatic and efficient stand-by.
• 2 programmable auxiliary contacts (optional on the XTS).
• Compatible with AC coupling.
• XTS electronically protected against reverse polarity.
• Display, programming and data logging integrated
in the remote control RCC.
Output power
P30/Pnom
Function Smart-Boost and active filtering
With this function it is possible to interact directly with the AC source (Genset or grid)
and to implement some basic functions such as :
•
Efficient and immediate limitation of the current of the source, including fore
non linear or inductive/ capacitive loads, protecting efficiently the breakers
during connection to shore power or to a camping power counter with limited
current (function of power shaving and of power assistance) (more information
on our website and in the Application Note AN001/www.studer-innotec.com).
• Power shaving of load steps on the generator allowing therefore an optimal
sizing of the generator and asssuring the best possible efficiency of the fossile
fuels (function of filtering and of power assistance).
Generator
or Grid
Xtender
Charge
Battery
The function of assistance to the source enables also to implement advanced functions such as the priority
use of renewable energy, even when the grid is available (more information on our website and in the
Application Note AN002/www.studer-innotec.com).
• Interactive with the Battery Status Processor (BSP).
Xtender
XTH
• RS-232 communication for remote supervision.
XTH 3000-12
XTH 5000-24
XTH 6000-48
XTH 8000-48
The new alpine cabin of Monte-Rosa
with a system Xtender
GENERATOR
AC
12
GRID INVERTER
DC
REGULATOR
REGULATOR
DC
The Xtender series offer an optimal use of all sources
that can be found in hybrid systems, whatever their
connecting mode (AC or DC bus), up to the nominal
power of the Xtender system (single, parallel and/or
threephase).
13
Products
Sine wave inverter-chargers
Accessories
RCC-02
RCC-03
Remote control and programming centre RCC-02 or RCC-03
Apart from the enclosure difference, adapted for wall or panel mounting, both units have exactly the same features and allow the user to survey his system and fully customize it to his needs.
RCC gives a controlled access to the many adjustable parameters of the Xtender. It enables the setting
of the charge curve of the battery, the programming of the auxiliary contacts and gives access to a lot of
operation options. Thanks to its graphic display RCC provides clear and comprehensive indications on the
state of the system in selectable language. The unit memorizes and displays the events that occurred on
an installation and so it does anticipate the problems that might appear. A slot for a SD card is available
and it allow the parameters record and download as well as the full software update.
Data logging and analysis
Analyze easily your data with the RCC-02/03 Data logger
function that will record on the SD card the main electrical
values of your Xtender system during its operation.
These standards enable the follow up on the system’s
energy consumption evolution, to check the power cuts,
the state of the auxiliary contacts, the input currents and
voltages, etc.
Studer Innotec Ltd. offers for free two graphical and analysis tools, Xtender Data Analysis Tool
and Xtender Matlab® Data Analysis (more information on our website and in the Application Note
AN006/www.studer-innotec.com).
Battery Status Processor BSP for XTENDER systems
One of the most important information for a safe and effective operating of an energy system with batteries is their state of charge.
The BSP offers, for Xtender systems, a highly precise measuring and
an extremely efficient algorithm that calculates the state of charge in
the most accurate way.
The remote control RCC-02/03 provides the display, the data logging,
the graphical display of the state of charge history and the settings.
Values of the BSP can be used in the programming of the Xtender system. Besides, 17 different values can be displayed like for instance :
•
•
•
•
•
•
State of charge
Voltage (12-24-48Vdc)
Current
Time to go
Throughput energy
Battery temperature
XTS
XTM
XTH
RCC-02/-03
The remote control module (with 2m cable) enables the setting of the parameters as well as the display of the values measured. By means of a SD card it
is possible to log the system data, to save and restore the parameters of the
system.
This module is available either for wall mounting (model RCC-02), or for panel
mounting (model RCC-03).
It requires the accessory TCM-01 in order to be used with the models XTS.
l
l
l
TCM-01
Communication and internal clock module mandatory for a connection between
the XTS and the following accessories : RCC, ARM-02, RCM-10 and Xcom. It is also
mandatory to interconnect several units together in parallel or in 3ph systems.
One module only is necessary for each XTS whatever the number and the type of
accessories connected to it. Mounting inside the inverter.
l
BTS-01
Battery temperature sensor (with 5 m cable) offering the automatic compensation of the adjustable thresholds of the battery voltage.
l
l
l
RCM-10
Module for rail DIN mounting (with 5 m cable) giving access to the main ON/OFF
and to the command entry with the models XTS and XTM.
It needs the accessory TCM-01 for a use with the models XTS.
l
l
l
BSP 500/1200
Module meant for the measuring and calculating of the battery state of charge (with
5 m cable). This module is connected to the communication bus of the Xtender.
It allows the display and the datalogging of the values measured and calculated (see
opposite screens) and also the control of the 2 auxiliary contacts of the Xtender.
The accessory TCM-01 is required to use the BSP with the models XTS.
l
l
l
Xcom-232i
Communication module with RS-232 port and 2 m RJ45 cable, allowing access to the parameters and measured values of the Xtender system. It makes
the link between an Xtender system and a SCADA supervision or control
system (not supplied).
The accessory TCM-01 is required to use this module with the models XTS.
l
l
l
Xcom-MS
Bridge for a communication between an Xtender system and one or several
MPPT chargers Tristar (with 2 m cable). With this module it is possible to
set the parameters and to have access to the values measured in the solar
charger, as well as to synchronize the charging profile of the battery.
The main values can be stored in the SD card of the module RCC or are accessible by means of the communication module Xcom-232i.
The accessory TCM-01 is required to use this module with the models XTS.
l
l
l
ARM-02
This module only meant for the XTS models and for rail DIN mounting, is
equipped with 2 auxiliary contacts controlled by the XTS.
The accessory TCM-01 is required to use this module with the models XTS.
This function is already integrated in the models XTM and XTH.
l
ECF-01
External cooling module (IP54) for models XTS. The use of this accessory will
increase the power of the XTS. The ECF-01 is directly installed on top of the
XTS casing and its mounting can be done at any time after installation.
l
X-Connect
Mounting frame for multi-XTH system, supplied as a kit. The frame is equipped
with DC breakers and fuses, and with rail DIN for the mounting of protection devices upstream and downstream (see p. 18).
The 2 models BSP 500 and BSP 1200 are supplied respectively with a
shunt 500/1200A and 2 m cable for battery connection, as well as with
5 m communication cable.
14
CAB-RJ45-8-xx
Communication cable for the connection between Xtenders and to all external accessories.
The cables are available in the following lengthes : 2, 5, 10, 20 or 50 m (xx stands for the
length). For instance : one system with 3 Xtenders requires 2 cables of 2 m. One cable is
supplied with every accessory. However a longer cable can be ordered when necessary.
15
l
l
l
l
Products
Sine wave inverter-chargers
The main configurations offered by the
Xtender series
Inverter, charger and transfer relay
The Xtender basically works as an inverter and
as a charger, combined with a transfer relay.
GENERATOR
XT
XT
GENERATOR
GENERATOR
GENERATOR
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
GENERATOR
GENERATOR
GENERATOR
Wide modularity
By the implementation of several units, it is possible to create a 3-phase
source or to set them in parallel to increase the power available without
extra cost. Up to 9 inverters of the Xtender serie shall therefore be combined together up to 72kVA !
XT
XT
XT
XT
GENERATOR
GENERATOR
GENERATOR
XT
XT
GENERATOR
2 or 3 units in parallel on 1 phase
Increase of the power on one phase by
setting 2 or 3 Xtender in parallel.
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
GENERATOR
GENERATOR
GENERATOR
GENERATOR
XT
XT
GENERATOR
GENERATOR
XT
XT
XT
GENERATOR
XT
XT
XT
XT
XT
XT
XT
GENERATOR
XT
XT
GENERATOR
GENERATOR
XT
GENERATOR
Compatible with standard
cable channel (230 x 60 mm)
1 phase in and 3 phase out
Three-phase power supply from a single
phase source.
GENERATOR
GENERATOR
GENERATOR
XT
XT
XT
XT
XT
XT
XT
GENERATOR
XT
GENERATOR
GENERATOR
XT
GENERATOR
3 phase in and 3 phase out
Three-phase source for a three-phase power
supply.
Easy set up of multi-units
XT
XT
XT
GENERATOR
GENERATOR
GENERATOR
XT
XT
XT
GENERATOR
GENERATOR
GENERATOR
Xtenders in the heart of the Spitzbergen...
3 phase + with one reinforced phase
Three-phase power supply with increase of
the power on one phase by setting 2 or 3
Xtender in parallel on this phase.
XT
GENERATOR
GENERATOR
XT
GENERATOR
GENERATOR
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
GENERATOR
GENERATOR
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT XT
XT
XT
XT
XT XT
XT
XT
XT
XT XT
XT
XT
XT
GENERATOR
GENERATOR
XT
GENERATOR
GENERATOR
3 Xtender in parallel on 3 phases
Three-phase power supply with 3 Xtender
on each phase, for power up to 72kVA.
XT
XT
XT
XT
XT
GENERATOR
16
XT
XT
XT
XT
GENERATOR
GENERATOR
GENERATOR
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
17
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
X-Connect
system
Mounting frame for Xtender multi-system
Offers a flexible and cost effective solution for high power systems
based on the XTH inverter.
GENERATOR
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
Products
Applications
Sine wave inverter-chargers
Solsafe : the anti-blackout system for grid
connected solar installations
GENERATOR
GENERATOR
GENERATOR
Solsafe
S-Box
GENERATOR
XT
Centralized
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
Despite a solar system on your house, in case of power outage, the grid
inverters will shut off and the solar generator, whatever its size, will be useless. Studer Innotec Ldt has developped, already in 2004, a concept in which
its inverter-chargers allow to keep energy available from the solar generator,
even in case of a power cut.
Compared to other similar solutions, it offers :
GENERATOR
GENERATOR
GENERATOR
Parallell
XT
XT
GENERATOR
XT
XT
XT
GENERATOR
XT
XT
XT
XT
Great system flexibility by choosing both the grid inverter
power (matching the solar generator) and the stand-alone
power (matching the needs for autonomous energy) independently, as long as the stand-alone inverter is as big as,
or bigger than the grid inverter.
• The choice of the grid inverter allows working with
standard well known products.
XT
XT
XT
GENERATOR
GENERATOR
•
3-phase
• To choose the grid inverter with any voltage input range,
independently from the battery voltage.
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
XT
Parallell + 3-phase
XT
XT
XT
XT
• A possible and easy upgrade of existing grid-connected
solar installations.
GENERATOR
GENERATOR
GENERATOR
GENERATOR
7
91
S-Box : a genuine cabling solution to
implement the Solsafe
The S-Box can be supplied in 4 versions :
For single phase application :
• Hassle free cabling
- Solsafe box 25A for Compact………………...... S-Box-25C
• Quick installation
- Solsafe box 25A for Xtender………………….... S-Box-25X
• Easy commissioning
mm
- Solsafe box 25A for Compact with ENS-26...... S-Box-25C-E
- Solsafe box 25A for Xtender with ENS-26........ S-Box-25X-E
For Solsafe implementation in 3ph systems, a schematic is at
disposal on simple request.
Up to 72kVA multi-unit system
2
1
3
3x
9x
5
Pre-installed DC circuit breakers
2
Pre-installed DC fuses
3
Pre-installed DIN rails
4
Interconnection pipes and gland for auxiliary contact wiring
5
Interconnection pipes and gland for AC wiring
6
Interconnection pipes and gland + 90 mm2 wire terminated
with appropriates ring tongues for DC wiring from Xtender
to breakers and fuses
6
Screws set for frame assembly
3x
18
AC
Solsafe – a backup system for grid
connected solar installations
The installation of our solution Solsafe
in a grid connected solar system enables
to secured totally or partially the power
supply in case of a power cut, and so to
keep on using the solar energy being
produced (Application Note AN003/
www.studer-innotec.com).
AC
4
1
GRID
INVERTER
DC
DC
981 mm
Frame is supplied with :
Secured
Not secured
19
Products
Applications
Sine wave inverter-chargers
Multifunctional contact
The 16 A. potential free contact can be programmed according to the user wishes. It reacts according to battery levels, as well as to the system status (alarm conditions, public grid presence, sunlight’s presence…), and
provides :
Compact series
The Compact series models consist of 3 fully automatic functions : a sine
wave inverter, a battery charger and a transfer system. Equipped with highend technology, they optimally perform, thanks to Studer Innotec’s extensive experience in the field of electrical supply.
1/ Automatic disconnection of
second priority users (condi tional supply).
GENERATOR
2/ Alarm signalization, acoustic
signal, MODEM, radio alarm etc.
AC
DC
3
2
DC
1
AC
DC
3/ Conditional battery charge.
AC
AC
Features and performances
• True sine wave voltage.
• Suitable for any kind of electrical appliance.
XP COMPACT
• Reliable and silent working with all kind of loads.
XPC 1400-12
XPC 2200-24
XPC 2200-48
• Outstanding overload capabilities.
• Stand-by level adjustable over a large range and from
a very low threshold.
Accessories
XP COMPACT
COMPACT
RCC-01 Remote control
State of the system displayed by LED and remote programming* (supplied with a 20 m cable).
*compulsory for the programming of the XP Compacts
l
l
CT-35 Temperature sensor
This sensor adapts charge levels to the battery’s temperature variations
(supplied with 3 m cable).
l
l
• 4 STEP battery charger with PFC.
• Ultra-fast transfer relay.
• High efficiency.
• Full internal protection.
• Ultra-fast regulation.
• Microprocessor controlled.
C 1600-12
C 2600-24
C 4000-48
E
24
ARM-01 Auxiliary relay module
Equipped with 3 programmed relays and a fourth one which is like the
inverter-charger’s auxiliary contact, this module allows the Solsafe system to be implemented (see page 11).
l
l
CFC-01 Cover
This cover provides additional connection protection by means of
glands.
l
l
C-IP22 Cover
Cover for a protection against intrusions or projections, installed after the
mounting of the device. It extends the protection index of the XP Compacts and Compacts from IP 20 to IP 22.
l
l
Norm E certification
The XPC 1400-12, XPC 2200-24, C 1600-12 and
C 2600-24 are certified to the ECE-R 10 norm.
Output power
P30/Pnom
Battery
voltage
AC
voltage
Charge current
Transfer current
XPC 1400-12
1400VA / 1100VA
12Vdc
230Vac*
0 - 45A
16A
XPC 220O-24
2200VA / 1600VA
24Vdc
230Vac*
0 - 37A
16A
XPC 2200-48
2200VA / 1600VA
48Vdc
230Vac*
0 - 20A
16A
C 1600-12
1600VA / 1300VA
12Vdc
230Vac
0 - 55A
16A
C 2600-24
2600VA / 2300VA
24Vdc
230Vac
0 - 55A
16A
C 4000-48
4000VA / 3500VA
48Vdc
230Vac
0 - 50A
16A
Compact range
Optional built-in solar charge controller (-S)
DC
The XP Compact and Compact models are
available with an optional built-in charge controller (I/U/Uo) ; making the inverter-charger
an « all in one » device for a solar installation.
* For the 120Vac/60Hz version, -01 is added to the model designation.
Complete technical specifications on page 29.
20
l
AC
DC
COMPACT
RPS-01 Remote control
The setting of the power sharing can be remotely
controlled by means of the remote control supplied with a
20 m cable.
21
Products
Applications
Sine wave inverters
Accessoire
JT8 Remote control
Enables the control (ON/OFF) and the remote display (ON / Standby /
Temporary off).
(supplied with a 5 m cable)
AJ series
The AJ range consists of sine wave inverters that convert a battery’s
DC voltage into AC voltage, which can be used by all electrical appliances.
AJ 1000-12, AJ 1300-24
AJ 2100-12, AJ 2400-24
Option plug for remote control RCM
Connection (plugs male and female) to start/stop an inverter AJ
under certain circumstances :
Features and performances
• RCM 01 : ON when a contact is closed.
• RCM 02 : ON when a voltage is present on the plug.
• RCM 03 : ON when a contact is open.
• High and steady efficiency.
• Outstanding overload capabilities.
AJ series
• Digital regulation and control by microprocessor.
AJ 275-12
AJ 350-24
AJ 400-48
For the AJ inverters 275 to 700VA.
Supplied with a « connector Jack » 3.5 mm.
• Electrical supply to any type of appliance.
• Full internal protection.
• Battery lifetime optimization (B.L.O.) function.
• Supplied with battery and AC cables.
AJ series
Option built-in solar charge controller
AJ 500-12
AJ 600-24
AJ 700-48
For a complete solar system !
E
AJ series
AJ 1000-12
AJ 1300-24
The models AJ can be supplied equipped with an optional integrated
solar charge controller, making the inverter an « all in one » device for
a solar installation.
24
Norm E certification
The AJs in 12 and 24Vdc are certified to the ECE-R
10 norm.
AJ series
AJ 2100-12
AJ 2400-24
Battery Lifetime Optimization :
B.L.O.
With this function the AJ
inverters offer an advanced
protection of the battery, by a
smart management of the low
voltage disconnection (LVD).
Output power
P30/Pnom
Battery
voltage
AC
voltage
Solar
option (-S)
AJ 275-12 (-S)
275 VA / 200 VA
12 Vdc
230 Vac*
10 A
AJ 350-24 (-S)
350 VA / 300 VA
24 Vdc
230 Vac*
10 A
AJ 400-48 (-S)
400 VA / 300 VA
48 Vdc
230 Vac*
10 A
AJ 500-12 (-S)
500 VA / 400 VA
12 Vdc
230 Vac*
15 A
+
AJ 600-24 (-S)
600 VA / 500 VA
24 Vdc
230 Vac*
15 A
SOC
AJ range
AJ 700-48 (-S)
700 VA / 500 VA
48 Vdc
230 Vac*
15 A
AJ 1000-12 (-S)
1000 VA / 800 VA
12 Vdc
230 Vac*
25 A
AJ 1300-24 (-S)
1300 VA / 1000 VA
24 Vdc
230 Vac*
25 A
AJ 2100-12 (-S)
2100 VA / 2000 VA
12 Vdc
230 Vac*
30 A
AJ 2400-24 (-S)
2400 VA / 2000 VA
24 Vdc
230 Vac*
30 A
-
B.L.O.
Rural electrification (Solar Home System)
The rural electrification and the inverters of the AJ series : excellence to the benefit of the development
of remore areas and populations. Choosing AC voltage for the rural electrification systems is going for
simplicity, reliability and cost saving. Indeed, compared with a DC
voltage one, a system with an inverter is often more efficient from
100W of solar power.
The AJ series, due to its overload
capability and to its very reliable
stand-by system adjustable from
1W, is the most suitable range of
inverters to meet the rural electrification technical and economical
requirements.
LVD
Time
* For the 120Vac/60HZ version, -01 is added to the model designation.
Complete technical specifications on pages 30-31.
22
23
Products
DC/DC converters
Battery chargers
MBC series
MDCI and MDC series
The MBC chargers enable battery charging from an AC voltage supply source (genset, public grid, shorepower, etc.). These chargers
are also watertight and therefore especially designed for outdoor
applications (IP 65).
The DC/DC converters type MDCI and MDC are used, depending on the
model, either to step up or to step down a DC voltage.
The MDCI range converters are electrically isolated.
Features and performances
Features and performances
• Universal input voltage.
• High efficiency.
• Charge of lead acid batteries with liquid or gelled
(GEL) electrolyte.
• Low consumption.
• Protection against short-circuit, overheat,
overvoltage and reverse polarity.
• Protection against battery overcharge.
• Great stability of the output voltage for a more
reliable system.
AC
AC
DC
GENERATOR
DC
DC
MBC range
Battery voltage
Input voltage
Output current
Output
MBC 12-06/1
12 Vdc
100-260 Vac
6A
1
MBC 12-15/1
12 Vdc
100-260 Vac
15 A
1
MBC 24-03/1
24 Vdc
100-260 Vac
3A
1
MBC 24-08/1
24 Vdc
100-260 Vac
8A
1
MBC 24-32/1
24 Vdc
100-260 Vac
32 A
1
Complete technical specifications on page 32.
MDCI range
Power
Output Current
Input variant
Output variant
Isolated
MDCI 100
100 W
8/4 A
A/B/C/D
12.5 or 24 Vdc
Yes
MDCI 200
200 W
16.5/8 A
A/B/C/D
12.5 or 24 Vdc
Yes
MDCI 360
360 W
30/15 A
A/B/C/D
12.5 or 24 Vdc
Yes
MDCI 360 A24
Charger
330 W
30/15 A
A
24 Vdc
Yes
A = 9-18 Vdc
MDC range
B = 20-35 Vdc
C = 30-60 Vdc
D = 60-120 Vdc
(ex. MDCI 200 D24)
Power
Output Current
Input voltage
Output voltage
Isolated
MDC 1224-7
170 W
7A
9-18 Vdc
24 Vdc
No
MDC 2412-5
65 W
5A
18-35 Vdc
13.2 Vdc
No
MDC 2412-8
105 W
8A
18-35 Vdc
13.2 Vdc
No
MDC 2412-12
160 W
12 A
20-35 Vdc
13.2 Vdc
No
MDC 2412-20
275 W
20 A
20-35 Vdc
13.8 Vdc
No
MDC 2412-30
415 W
30 A
20-35 Vdc
13.8 Vdc
No
Complete technical specifications on page 32.
The MDC 2412-20 and 2412-30, as well as the MDCI 360 A24 « Charger » can also be used to charge a
battery.
24
25
Products
Battery protection
MOSFET battery splitters
MBW series
MBI series
The MBI MOSFET battery splitters generate an insignificant voltage
drop. They supply the charger’s or alternator’s current to several batteries. All batteries are thus charged at the same time, and therefore will
not charge or discharge each other.
The Battery Watch protects the battery from an excessive discharge and
also the consumers in case of overvoltage.
Features and performances
• Programming the connection and disconnection voltages
by jumpers.
Input
Charge
current
Charge
input
Outputs
MBI 100/2
12/24 Vdc
100 A
1
2
• MOSFET switches, therefore no sparks.
MBI 150/2
12/24 Vdc
150 A
1
2
• Alarm output to indicate excessive voltage drops.
MBI 100/3
12/24 Vdc
100 A
1
3
MBI 150/3
12/24 Vdc
150 A
1
3
MBI 200/3
12/24 Vdc
200 A
1
3
MBI 2-100/3
12/24 Vdc
100 A
2
3
MBI range
Features and performances
Maximum
current
Operating voltage
range (Vdc)
MBW 40
40
6-35
MBW 60
60
6-35
200
8-32
MBW 200
• Automatic adjustment to the batteries voltage.
• Possible charge of the battery from an alternator
DC
DC
DC
Complete technical specifications on page 33.
MBW range
Complete technical specifications on page 34.
AC
DC
• Voltage drop < 0.4 V at 100 Amp.
• Suitable for electronic alternators.
Battery monitoring
MOTOR
SBM-02
DC
DC
The SBM-02 is a highly accurate battery monitor with a history data memory. It is supplied together with a 500A/50mV shunt. This device is designed
for 12 and 24V batteries. The optional SBM-PS-02 voltage pre-scaler extends
the use of the SBM-01 to 27-175V batteries.
Batteries separators
MBR series
Features and performances
The MBR batteries separators allow to supply the auxiliary battery or
the appliances, as soon as the mainbattery voltage is high enough.
Batteries
MBR 12/24-100
12/24 Vdc
100 A
2
MBR 12/24-160
12/24 Vdc
160 A
2
MBR 12/24-500
12/24 Vdc
500 A
2
MBR range
Complete technical specifications on page 33.
MOTOR
Features and performances
• Insignificant voltage drop.
DC
DC
AC
26
1. Battery voltage (V)
2. Current (A)
3. Consumed Ampere-hours (Ah)
4. Sate-of-charge (%)
5. Time-to-go (h:m)
6. Temperature (°C or °F)
Optional accessories
• Connection kit, type SBM-CAB-20, including 20 m of twisted pair cable (3 x 2 x 0.5 mm2) and
2 fuseholders.
• Communication kit, type SBM-COM, including RS232 interface box, 1.8 m of 9p DSUB serial cable
and software.
DC
• Protects the auxiliary battery from any
overvoltage.
AUX
DC
Charge
current
DC
Battery
voltage
• Digital display of the 6 most important
parameters of a DC power system :
DC
• Communication kit, type SBM-COM-USB, including USB interface box, 1.8 m of USB cable and software.
• Temperature kit, type SBM-TEMP-20, with a temperature sensor and 20 m cable.
• Shunt 1200 A / 50 mV, type SH-1200-50, for battery monitoring in large system.
27
Appendices
Technical sheets
COMPACT
series
Xtender
series
Model
Inverter
Nominal battery voltage
Input voltage range
Continuous power @ 25°C
Power 30 min. @ 25°C
Power 5 sec. @ 25°C
Maximum load
Maximum asymmetric load
* Load detection (stand-by)
Cos j
Maximum efficiency
Consumption OFF/Stand-by/ON
* Output voltage
XTS 900-12
XTS 1200-24
XTS 1400-48
XTM 1500-12
XTM 2000-12
XTM 2400-24
XTM 4000-48
XTH 3000-12
XTH 5000-24
XTH 6000-48
XTH 8000-48
12V
24V
48V
12V
24V
48V
24V
48V
12V
24V
48V
19 - 34V
38 - 68V
9.5 - 17V
19 - 34V
38 - 68V
19 - 34V
38 - 68V
9.5 - 17V
19 - 34V
38 - 68V
650**/500VA 800**/650VA 900**/750VA
1500VA
3000VA
3500VA
2500VA
4500VA
5000VA
7000VA
900**/700VA
1200**/1000VA
1400**/1200VA
1500VA
2000VA
2000VA
2400VA
2600VA
3500VA
4000VA
3000VA
5000VA
6000VA
8000VA
2.3kVA
2.5kVA
2.8kVA
3.4kVA
4.8kVA
6kVA
6.5kVA
9kVA
10.5kVA
7.5kVA
12kVA
15kVA
21kVA
96%
93%
Up to short-circuit
Up to Pcont.
2 to 25 W
0.1-1
93%
93%
93%
1.1W/1.4W/7W
1.2W/1.5W/8W
1.3W/1.6W/8W
93%
94%
96%
1.2W/1.4W/8W 1.2W/1.4W/10W 1.4W/1.6W/9W
1.8W/2W/10W
94%
1.4W/1.6W/12W 1.8W/2.1W/14W 1.2W/1.4W/14W
94%
96%
1.4W/1.8W/18W 1.8W/2.2W/22W 1.8W/2.4W/30W
Pure sine wave 230Vac (+/- 2%) / 120Vac (1)
50Hz / 60Hz (1) +/- 0.05% (crystal controlled)
Harmonic distortion
Overload and short-circuit protection
Overheat protection
Battery charger
<2%
Automatic disconnection with 3 time restart attempt
Warning before shut-off - with automatic restart
6 steps : Bulk-Absorption-Floating-Equalization-reduced floating-periodic absorption
Number of steps, thresholds, end current and times completely adjustable with the RCC-02/-03
* Charge Characteristic
35A
XTS 900-12
25A
12A
70A
100A
55A
30A
90A
50A
160A
With BTS-01 or BSP 500/1200
EN 61000-3-2
XTS 1200-24 XTS 1400-48 XTM 1500-12 XTM 2000-12 XTM 2400-24 XTM 2600-48 XTM 3500-24 XTM 4000-48 XTH 3000-12
150 to 265Vac / 50 to 140Vac (1)
45 to 65Hz
16A/20A
140A
100A
120A
XTH 5000-24 XTH 6000-48 XTH 8000-48
50A/56A
50A/80A
<15ms
Module ARM-02 with 2 contacts, in option
8.2 kg
9 kg
9.3 kg
110x210x310
110x210x310
110x210x310
IP54
Conformity
Operating temperature range
Relative humidity in operation
Ventilation
Acoustic level
Warranty
Accessoires
Remote control RCC-02 or RCC-03
Module XCOM-232i
Bridge XCOM-MS
Remote Control Module RCM-10 (3 m)
Communication module TCM-01
2 aux. contacts module ARM-02
Cooling Module ECF-01
Battery temp. sensor BTS-01 (3 m)
Communication cable for 3ph and // CAB-RJ45-8-2
Mounting frame X-Connect
XTM 3500-24
9.5 - 17V
* Output frequency
* Maximum charging current
* Temperature compensation
Power Factor Correction (PFC)
General data
* Input voltage range
Input frequency
Input current max. (transfer relay) /
Output current max.
Transfer time
Multifunction contacts
Weight
Dimension hxwxl [mm]
Protection index
XTM 2600-48
100%
Optional cooling module ECF-01
2 independent contacts (potential free 3 points, 16Aac/5Adc)
15 kg
18.5 kg
16.2 kg
21.2 kg
133x322x466
22.9 kg
133x322x466
34 kg
40 kg
230x300x500
230x300x500
42 kg
46 kg
230x300x500
IP20
Directive EMC 2004/108/EC : EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, 62040-2
Low voltage directive 2006/95/EC : EN 62040-1-1, EN 50091-2, EN 60950-1
-20 à 55°C
95% without condensation
Forced from 55°C
<40dB / <45dB (without/with ventilation)
5 years
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
* Adjustable with the RCC-02/-03
** These features are valid only when using the cooling module ECF-01.
(1)
With -01 at the end of the reference, means 120V/60Hz. Available for all Xtenders except XTH 8000-48
Model
Inverter
Nominal battery voltage
Input voltage range
Continuous power @ 25°C
Power 30 min. @ 25°C
Power 5 sec. @ 25°C
Maximum power
Maximum asymmetric load
Stand-by adjustment
XPC 1400-12 XPC 2200-24 XPC 2200-48
12V
9.5 – 16V
1100VA
1400VA
24V
19 - 32V
1600VA
2200VA
28
C 2600-24
C 4000-48
48V
12V
24V
48V
38 - 64V
9.5 - 16V
19 - 32V
38 - 64V
1600VA
1300VA
2300VA
3500VA
2200VA
1600VA
2600VA
4000VA
3 x Pnom
Up to short-circuit
Up to Pcont.
1 to 25W
0.1 - 1
Cos j
Maximum efficiency
94%
95%
94%
95%
Consumption OFF/Stand-by/ON
0.5/0.6/4W
0.8/0.9/7W
1.2/1.3/7W 0.5/0.6/6W 0.8/0.9/9W 1.2/1.4/12W
Output voltage
Sine wave 230Vac (+0/- 10%) (XPC also available in 120Vac)
Output frequency
50Hz +/- 0.05% (crystal controlled)
Total harmonic distortion
< 4%
< 2%
Dynamic behaviour
0.5 ms (on load change 0 to 100%)
Overload and short-circuit protection
Automatic disconnection with 3 time restart attempt
Overheat protection
Acoustic warning before shut-off - with automatic restart
Battery charger (4 STEP) I-U-Uo-Equalize (every 25 cycles)
Charging current adjustable
0 - 45A
0 - 37A
0 - 20A
0 - 55A
0 - 50A
Input current balance adjustment
Not available
1 - 16A
Maximum input voltage
265Vac
Input AC voltage range
Adjustable threshold from 150 to 230Vac (XPC also available in 120Vac)
Input frequency
45 - 65Hz
Power Factor Correction (PFC)
EN 61000-3-2
Battery control (thresholds and times adjustable by the user)
Absorption time
0-4 h
End charge cycle voltage*
14.4V
28.8V
57.6V
14.4V
28.8V
57.6V
Floating voltage
13.6V
27.2V
54.4V
13.6V
27.2V
54.4V
Equalization time
0-4 h
Equalization voltage
15.6V
31.2V
62.4V
15.6V
31.2V
62.4V
Deep-discharge protection
10.8V
21.6V
43.2V
10.8V
21.6V
43.2V
Temparature compensation
-3mV / ° C / Cell
(optional CT-35)
General data
Multifunction contact programmable
16A - 250Vac (potential free 3 points)
16A
Max. current on transfer relay
Transfer time
< 40 ms
Weight
11.7 kg
12.6 kg
16 kg
17.1 kg
29.4 kg
124x215x670
Dimension hxwxl [mm]
124x215x410
124x215x480
Protection index
IP20 (IP22 with top cover C-IP22)
Not availal
l
l
l
Not available
Certification ECE-R 10 (E24)
ble
EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2,
EC conformity
Low voltage directive 2006/95/EC : EN 62040-1-1, EN 50091-2, EN 60950-1
Operating temperature range
-20°C up to +55°C
Relative humidity in operation
95% without condensation
Ventilation
From 45°C
Accoustic level
<40dB / <45dB (without/with ventilation)
Warranty
5 years
Option solar charger (4 stages) I-U-Uo-Equalize (every 25 cycles)
Maximum PV open circuit voltage (V)
25V
45V
90V
25V
45V
90V
Maximum charge current (A)
30A
30A
20A
30A
30A
20A
Charging curve
I-U-Uo-Equalize (every 25 cycles)
* Factory settings
Data may change without any notice.
C 1600-12
Data may change without any notice.
29
Appendices
Technical sheets
AJ series
Model
Inverter
Nominal battery voltage
Input voltage range
Continuous power @ 25°C
Power 30 min. @ 25°C
Power 5 min. @ 25°C
Power 5 sec. @ 25°C
Maximum asymmetric load
Max. efficiency (%)
Cos j max.
Detection of the load
Current of short-circuit 2 sec. (exit)
Output voltage
Frequency
Distortion THD (resistive load)
Consumption Stand-by
Consumption « ON » no load
Overheat protection (+/-5°C)
Overload and short circuit protection
Reverse polarity protection
Deep discharge battery protection
Max. battery voltage
Acoustic alarm
General data
Weight
Dimensions
Protection index IP
Certification ECE-R 10 (E24)
EC conformity
Operating temperature
Relative humidity in operation
Ventilation forced
Acoustic level
Warranty
Approximate correction of Pnom
Recommended battery capacity
Length cables (Battery/left AC)
Options
Voltage max.
Current max.
Solar
Principle
regulator
Absorption voltage
Floating voltage
Plug for remote control (RCM)
AJ series
AJ 275-12
AJ 350-24
AJ 400-48
AJ 500-12
AJ 600-24
12V
24V
48V
12V
24V
10.5 – 16V (24V max.) 21 – 32V (44V max.)
42 – 64V (64V max.) 10.5 – 16V (24V max.) 21 –32V (44V max.)
200VA
300VA
300VA
400VA
500VA
275VA
350VA
400VA
500VA
600VA
350VA
500VA
600VA
575VA
675VA
450VA
650VA
1000VA
1000VA
1200VA
150VA
150VA
200VA
250VA
300VA
93%
94%
94%
93%
94%
0.1 – 1 up to 200 VA
0.1 – 1 up to 300 VA
0.1 – 1 up to 300 VA
0.1 – 1 up to 400VA
0.1 – 1 up to 500VA
2W (only with the solar option -S)
Adjustable : 1 g 20W
2.3A (4.6A*)
3.2A (6.4A*)
4.6A (9.2A*)
5.2A (10.4A*)
5.7A (11.4A*)
Sine wave 230Vac (120Vac*) 0 / - 10%
50Hz (60Hz*) ± 0.05% (crystal controlled)
< 5% (@ Pnom.)
0.3W**
0.5W**
1.1W**
0.4W
0.6W
2.4W
3.5W
5.2W
4.6W
7.2W
Shut down @ 75°C - Auto-restart @ 70°C
Automatic disconnection with 2 time restart attempt
Protected by internal fuse
Shut off @ 0.87 x Unom - Automatic restart @ Unom
Shut off @ >1.33 x Unom - Automatic restart @ < Umax
Before low battery or overheating disconnection
2.4 kg
2.6 kg
142mm x 163mm x 84mm
l
l
14.4V
13.6V
28.8V
27.2V
l
l
48V
42 –64V (64V max.)
500VA
700VA
900VA
1400VA
300VA
94%
0.1 – 1 up to 500VA
7A (14A*)
1.5W
12W
4.5 kg
142mm x 240mm x 84mm
IP 30 conforms to DIN 40050
l
Not available
EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 60950-1
-20°C up to +50°C
95% without condensation
From 45°C ± 5°C
< 45 dB (with ventilation)
5 years
-1.5%/°C since +25°C
> 5 x Pnom/Unom (recommended value in Ah)
1.2m / 1m
AJ 350-24-S
45V
10A
AJ 275-12-S
25V
AJ 700-48
AJ 400-48-S
90V
AJ 500-12-S
25V
Floating 3 stages (I/U/UO)
57.6V
14.4V
54.4V
13.6V
l
l
l
1.5m / 1m
AJ 600-24-S
45V
15A
Not available
AJ 700-48-S
90V
28.8V
27.2V
57.6V
54.4V
l
l
Model
Inverter
Nominal battery voltage
Input voltage range
Continuous power @ 25°C
Power 30 min. @ 25°C
Power 5 min. @ 25°C
Power 5 sec. @ 25°C
Maximum asymmetric load
Max. efficiency (%)
Cos j max.
Detection of the load
Current of short-circuit 2 sec. (exit)
Output voltage
Frequency
Distortion THD (resistive load)
Consumption Stand-by
Consumption « ON » no load
Overheat protection (+/-5°C)
Short circuit protection
Reverse polarity protection
Deep discharge battery protection
Max. battery voltage
Acoustic alarm
General data
Weight
Dimensions
Protection index IP
Certification ECE-R 10 (E24)
EC conformity
Operating temperature
Relative humidity in operation
Ventilation forced
Acoustic level
Warranty
Approximate correction of Pnom
Recommended battery capacity
Length cables (Battery/left AC)
Options
Voltage max.
Current max.
Solar
Principle
regulator
Absorption voltage
Floating voltage
Remote control JT8 supplied with
5 m cable
* 120Vac/60Hz on request
** Standby with solar option -S
* 120Vac/60Hz on request
Data may change without any notice.
Data may change without any notice.
30
AJ 1000-12
AJ 1300-24
AJ 2100-12
AJ 2400-24
12V
10.5 – 16V (24V max.)
800VA
1000VA
1200VA
2200VA
500VA
93%
0.1 – 1 up to 800VA
24V
21–32V (44V max.)
1000VA
1300VA
2000VA
2800VA
600VA
94%
0.1 – 1 up to1000VA
12V
10.5 – 16V (20V max.)
2000VA
2100VA
2450VA
5000VA
1000VA
92% @ 300VA
0.1 – 1 up to 2000VA
24V
21–32V (40V max.)
2000VA
2400VA
2800VA
5200VA
1200VA
94% @ 300VA
0.1 – 1 up to 2000VA
Adjustable : 1 g 20W
10A (20A*)
13A (26A*)
26A (52A*)
Sine wave 230Vac (120Vac*) 0 / -10%
50 Hz (60Hz*) ± 0.05% (crystal controlled)
< 5% (@ Pnom. & Uin nom.)
1.2W
0.7W
13W
16W
Shut down @ 75°C - Auto-restart @ 70°C
Automatic disconnection with 2 time restart attempt
Protected by internal fuse 100A
Not protected
Shut off @ 0.87 x Unom - Automatic restart @ Unom
Shut off @ >1.33 x Unom - Automatic restart @ < Umax
Before low battery or overheating disconnection
0.7W
10W
Protected by internal fuse 125A
8.5 kg
142mm x 428mm x 84mm
IP 30 conforms to DIN 40050
l
30A (60A*)
< 3% (@ Pnom & Uin nom.)
1.2W
16W
Protected by internal fuse 150A
19 kg
18 kg
273mm x 399mm x 117mm
IP 20 conforms to DIN 40050
l
l
l
EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 60950-1
-20°C up to +50°C
95% without condensation
From 45°C ± 5°C
< 45 dB (with ventilation)
5 years
-1.5%/°C since +25°C
> 5 x Pnom/Unom (recommended value in Ah)
1.5m / 1m
AJ 1000-12-S
25V
1.7m / 1m
AJ 1300-24-S
45V
AJ 2100-12-S
25V
25A
AJ 2400-24-S
45V
30A
Floating 3 stages (I/U/UO)
14.4V
13.6V
28.8V
27.2V
14.4V
13.6V
28.8V
27.2V
l
l
l
l
31
Appendices
Technical sheets
MBI series
MBC series
Model
Battery voltage (Vdc)
Input voltage (Vac)
Charge voltage (boost) (Vdc)
Charge voltage (float) (Vdc)
Output (A)
Cooling
Outputs
Efficiency
Ambient temp. range
Dimensions lxwxh (mm)
Weight (kg)
Switch to Floating mode (A)
Secondary fuse (A)
Input wired
Ouput wired
Warranty
MBC 12-06/1
12
MBC 12-15/1
12
155x80x36
0.9
0.2
7.5
195x100x47
1.8
0.8
20
MBC 24-03/1
24
100-260 (40 - 60 Hz)
28.8
27.6
3
Heat sink
1
> 85 %
-25 to 50°C
155x80x36
0.9
0.2
7.5
l
l
l
l
l
l
l
l
l
l
14.4
13.8
6
14.4
13.8
15
MBC 24-08/1
24
195x100x46
1.8
0.4
15
158x245x47.5
3.8
3.5
40
28.8
27.6
8
MBC 24-32/1
24
28.8
27.2
32
2 years
MBI – Battery isolator, voltage drop free
Model
Input nominal voltage (Vdc)
Input voltage range (Vdc)
Charge current max. (A)
Input number
Battery banks
Voltage drop @ 10a/20A (V)
Consumption (mA)
Alternator start
Operating temperature (°C)
Dimensions LxHxD (mm)
Weight (gr)
Nominal voltage 12 or 24V
Insulation to ground
Warranty
Norms
MBI 100/2 IG
MBI 150/2 IG
MBI 100/3 IG
MBI 150/3 IG
MBI 200/3 IG
MBI 2-100/3
150
200
100
2
12/24
8-30
100
150
100
1
2
3
0.05 / 0.1
0
l
l
l
l
l
-40 / +85
146x85x92
780
810
146x85x152
780
810
815
Automatic detection
> 500V @ 60Hz
2 years
EN 50081-1 (emission) EN 50082-1 (immunity) EN 60950-1 (safety)
780
MDCI and MDC
series
MDCI – DC/DC converter, switch-mode, isolated
Model
Power (W)
Input variants (Vdc)
Output variants (Vdc/A) ± 2%
Output current (A)
Galvanic isolation
Isolation voltage (V)
Efficiency @ full load (%)
Off-load current (mA)
Operating temperature
Ambiant temp. (20°) increase after 30 min. @ full load
Cooling
Dimensions HxWxD (mm)
Weight (gr)
* A = 9-18 Vdc
B = 20-35 Vdc
MDCI 100
100
A-B-C-D
12.5/8-24/4
8/4
MDCI 200
200
A-B-C-D
12.5/16-24/8
16.5/8
MDCI 360
360
A-B-C-D
12.5/30-24/15
30/15
MDCI 360 Charger
330
A
27.6/12
13
l
l
l
l
400
> 85
< 25
-20 / +45°C
25°C
Convection
49x88x152
500
C = 30-60 Vdc
30°C
Fan
49x88x182
600
64x163x160
1400
D = 60-120 Vdc
MDC –DC/DC converter, switch-mode, not-isolated
Model
Power (W)
Output current (A)
Input (Vdc)
Output (Vdc)
Efficiency @ full load (%)
Off-load current (mA)
Operating temperature
Ambiant temp. (20°) increase
after 30 min. @ full load
Cooling
Dimensions HxWxD (mm)
Weight (gr)
MDC 1224-7 MDC 2412-5 MDC 2412-8 MDC 2412-12 MDC 2412-20 MDC 2412-30
170
65
105
160
275
415
7
5.5
8
12
20
30
9-18
18-35
20-35
24
13.2
13.8
90
< 15
<5
25
-20 / +40°C
30°C
49x88x98
300
20°C
49x88x68
170
30°C
Convection
49x98x88
250
260
Data may change without any notice.
32
33°C
49x88x126
480
Fan
49x88x151
600
Common features MDCI & MDC
Paralleling
Max. 2 converters
Max. 95% non condensing
Humidity
Overload
Up to short-circuit
Overheating
Output voltage reduction
Transient protection
Protection Overvoltage
by Varistor
Reverse
Fuse
polarity
Casework
Anodized aluminium
Connections
6.3 mm Faston
Warranty
2 years
EN 50081-1 (emission) EN
Norms
50082-1 (immunity) 95/54/EC
(automotive directive)
MBR series
MBR – Microprocessor controlled battery separator
Model
Nominal voltage (Vdc)
Charge current max. (Amp)
Connection threshold (Vdc) ± 2%
Disconnection threshold (Vdc) ± 2%
Battery banks
Alternator start
Start contact for batteries paralleling
Micro switch for remote status indication
Dimensions LxHxD (mm)
Weight (gr)
Consumption
Protection of the auxiliary battery against overvoltage
Connection on the battery side
Other connections
Warranty
Norms
MBR 12/24-100
12/24
100
13.2/26.4
12.8/25.6
MBR 12/24-160
12/24
160
13.2/26.4
12.8/25.6
2
l
MBR 12/24-500
12/24
500
13.2/26.4
11.8/23.6
l
l
l
l
46x93x96
300
< 5mA
16 / 32Vdc
72x70x80
417
l
46x46x80
110
M6
M8
6.3 mm Faston
2 years
EN 50081-1 (emission) EN 50082-1 (immunity) Automotive Directive 95/54/CE
Data may change without any notice.
33
Technical sheets
MBW series
MBW – Battery watch
Model
Nominal voltage (Vdc) depends on
jumpers
Max. continuous current 5’ (Amp)
Peak current (Amp)
Operating voltage range (Vdc)
Consumption (mA)
Alarm output delay
Alarm output max. current (mA)
Load disconnect delay
Voltage level accuracy
Casework
Weight (gr)
Dimensions HxDxL (mm)
Battery protection
Users protection
MOSFET switches
Norms
MBW 40
40
120
MBW 60
12/24
MBW 200
60
120
200
480
8-32
<3
6-35
<7
15 seconds
500
1 minute
0.2V
2%
Anodized aluminium, black
200
80x60x40
80x60x40
Against excessive discharge
Against overvoltages (16 / 32 Vdc)
No sparks
EN 50081-1 (emission) EN 50082-1 (immunity)
Automotive Directive 95/54/CE
30 secondes
0.1V
Jumper selectable voltage
Disengage (V)
10
10.5
11
11.5
21.5
22
22.5
23
Engage (V)
11.5
12
13
13.8
24.5
25
25.5
26.5
580
145x92x85
Against overvoltages
(15.5 / 31 Vdc)
EN 50081-1 (emission)
Automotive Directive 95/54/CE
SBM-02
SBM-02 – Battery monitor 12 and 24 Vdc (27-175 Vdc in option)
Model
Supply voltage range
Consumption @ 12Vdc, without BL
Consumption @ 24Vdc, without BL
Input voltage range (« Auxiliary » battery)
Input voltage range (« Main » battery)
Input current range
Battery capacity range
Operating temperature range
Protection class
Front panel
Dimensions
Body diameter
Total depth
SBM-02
9-35 Vdc
9 mA
7 mA
2...35 Vdc
0...35 Vdc
-9999…+9999 A
20…9990 Ah
-20…50°C
IP20 (Frontpanel IP65)
Ø 64 mm
Ø 52 mm
79 mm
Standart equipment SBM-02
Potential free alarm contact
500A/50mV current shunt
Optional accessories
SBM-PS-02-Voltage pre-scaler 1:5 (adapting the SBM-02 to input voltage 27-175Vdc)
Connection kit, type SBM-CAB-20, including 20 m of twisted pair cable (3x2x0.5 mm2)
and 2 fuseholders
Communication kit, type SBM-COM, including RS232 interface box, 1.8 m of 9p DSUB
serial cable and a software
Communication kit, type SBM-COM-USB, including USB interface box, 1.8 m of USB
cable and software.
Temperature kit, type SBM ;-TEMP-20, with 20 m cable
Shunt 1200 A/50 mV, type SH-1200-50
Data may change without any notice.
34
35
London
Brussels
Francfort
Vienna
Paris
Zurich
Sion
Geneva
Lyon
Milan
Rome
Barcelona
STUDER INNOTEC Ltd.
Rue des Casernes 57
1950 Sion - Switzerland
Tél : +41 (0) 27 205 60 80
Fax : +41 (0) 27 205 60 88
[email protected]
www.studer-innotec.com
SWISS made power
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
