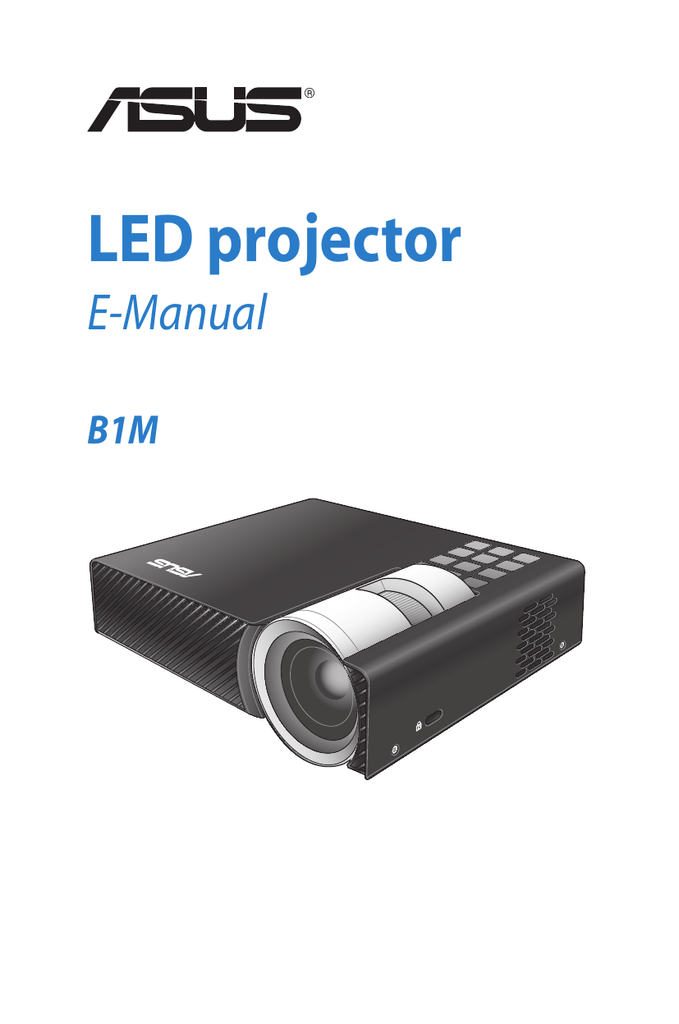

LED projector
E-Manual
B1M
DRAFT 2 12/17/12
E7777
December 2012
COPYRIGHT AND WARRANTY INFORMATION
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS,
ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN
IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
DRAFT 2 12/17/12
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2012 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are
entitled to recover damages from ASUS. In each such instance, regardless of the basis on which
you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for
bodily injury (including death) and damage to real property and tangible personal property;
or any other actual and direct damages resulted from omission or failure of performing legal
duties under this Warranty Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in
contract, tort or infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its
suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRDPARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS
OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC
CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS
SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
LED projector E-Manual
DRAFT 2 12/17/12
Table of Contents
About this manual.............................................................................................. 5
Conventions used in this manual................................................................ 6
Typography.......................................................................................................... 6
Safety precautions.............................................................................................. 7
Using your LED projector................................................................................ 7
Servicing and replacement of parts........................................................... 7
Caring for your LED projector....................................................................... 8
Proper disposal................................................................................................... 8
Chapter 1: Knowing your LED projector
Features................................................................................................................10
DRAFT 2 12/17/12
Top view.............................................................................................................10
Front view...........................................................................................................12
Rear view............................................................................................................13
Right side............................................................................................................15
Left side.............................................................................................................16
Bottom view......................................................................................................17
LED projector remote control.......................................................................18
Replacing the battery....................................................................................19
Chapter 2: Setting up
Operating your LED projector......................................................................22
1. Connect the LED projector to the power adapter...........................22
2. Connect the LED projector to your device using
the appropriate port......................................................................................24
4. Adjust the height of the LED projector...............................................27
3. Press the power button............................................................................29
5. Adjust the image focus.............................................................................30
LED projector E-Manual
DRAFT 2 12/17/12
Chapter 3: Using your LED projector
Launching programs from the onscreen display menu......................32
Control panel grid...........................................................................................33
Using your LED projector for the first time..............................................34
Accessing your LED projector’s settings...................................................35
Using the Media Center..................................................................................41
Launching the Media Center.......................................................................41
Opening files from the SD Card or USB Drive........................................42
EZLink .............................................................................................................49
WiFi
.............................................................................................................51
Appendices
DRAFT 2 12/17/12
Federal Communications Commission Statement..............................56
Canadian Department of Communications Statement....................57
Global Environmental Regulation Compliance and Declaration ..57
ASUS Recycling/Takeback Services...........................................................57
LED projector E-Manual
DRAFT 2 12/17/12
About this manual
This manual provides information about the hardware and software
features of your LED projector through the following chapters:
Chapter 1: Knowing your LED Projector
This chapter details the parts of your LED projector and its
accompanying remote control.
Chapter 2: Setting up
This chapter shows you how to set up your LED projector and
use its parts for input device connection.
Chapter 3: Using the onscreen display menu
DRAFT 2 12/17/12
This chapter talks about the features of your LED projector’s
onscreen display menu and how to navigate it using the control
panel.
Appendices
This section includes safety notices for your LED projector.
LED projector E-Manual
DRAFT 2 12/17/12
Conventions used in this manual
To highlight key information in this manual, some text are presented
as follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that
can help complete tasks.
DRAFT 2 12/17/12
WARNING! This message contains important information that must
be followed to keep you safe while performing tasks and prevent
damage to your LED projector's data and components.
Typography
Bold = This indicates a menu or an item that must be selected.
Italic = This indicates sections that you can refer to in this manual.
LED projector E-Manual
DRAFT 2 12/17/12
Safety precautions
Using your LED projector
Refer to the manual and take note of the safety instructions
before operating your LED projector.
•
Follow the notes and warnings stated in the user manual.
•
Do not place your LED projector on uneven or unstable surfaces.
•
Do not use your LED projector in smoky environments. Smoke
residue may cause build-up on critical parts and damage the
LED projector or decrease its performance.
•
Keep the LED projector’s plastic packages out of the reach of
children.
•
Do not block or place anything near the LED projector’s
ventilation holes. Doing so may cause internal heat build-up
that can degrade picture quality and damage the projector.
•
Ensure that the operating voltage of your LED projector
matches the voltage of your power source.
DRAFT 2 12/17/12
•
Servicing and replacement of parts
•
Do not disassemble or attempt to service this LED projector by
yourself. Contact your local ASUS service center for assistance.
•
When replacing parts of your LED projector, purchase items
as specified by ASUS and contact your local service center for
assistance.
LED projector E-Manual
DRAFT 2 12/17/12
DRAFT 2 12/17/12
Caring for your LED projector
•
Switch off then unplug the LED projector from the power outlet
before cleaning it.
•
When cleaning the LED projector’s housing, use a clean soft
cloth dampened with water or a mix of water and neutral
detergent. Wipe it dry using a soft dry cloth.
•
Ensure that the lens is cool before cleaning it. Gently wipe the
lens using a lens cleaning paper. Do not touch the lens with
your hands.
•
Do not use liquid or aerosole cleaners, benzene, or thinners on
your LED projector.
•
Never operate this LED projector immediately after moving it
from a cold location. When the LED projector is exposed to a
drastic change in temperature, moisture may condense on the
lens and its other internal parts. To prevent this, use the unit two
(2) hours after an extreme or sudden change in temperature
occurs.
Proper disposal
Do not throw your LED projector in municipal waste. This
product has been designed to enable proper reuse of parts
and recycling. The symbol of the crossed out wheeled bin
indicates that the product (electrical, electronic equipment
and mercury-containing button cell battery) should not
be placed in municipal waste. Check local regulations for
disposal of electronic products.
Do not throw the battery in municipal waste. The symbol
of the crossed out wheeled bin indicates that the battery
should not be placed in municipal waste.
LED projector E-Manual
DRAFT 2 12/17/12
Chapter 1:
Knowing your LED
projector
DRAFT 2 12/17/12
Chapter 1: Knowing your LED
projector
LED projector E-Manual
DRAFT 2 12/17/12
Features
DRAFT 2 12/17/12
Top view
Focus ring
The focus ring allows you to adjust the image focus of your LED
projector.
10
LED projector E-Manual
DRAFT 2 12/17/12
Control panel buttons
The control panel buttons allow you to navigate the onscreen
display menu. Individually, these buttons also correspond to a
specific LED projector setting as indicated below.
Input
Power
Image Position
Brightness
Image Quality
Keystone
Main menu/OK
Volume
Splendid
Contrast
Setting
DRAFT 2 12/17/12
Media Center
NOTE: For more information on using the control panel buttons
to access your LED projector’s settings, refer to the Accessing
your LED projector’s settings section in this manual.
LED projector E-Manual
11
DRAFT 2 12/17/12
Front view
DRAFT 2 12/17/12
Air vents
The air vents allow cool air to enter and warm air to exit the LED
projector.
WARNING! Ensure that paper, books, clothing, cables, or other
objects do not block any of the air vents or else overheating
may occur.
AV-IN
Lens
The lens projects video or image files onscreen from your input
device.
WARNING! Do not touch the lens using your hands or any sharp
object.
Lens cover
The lens cover protects the lens from scratches and possible
dirt build-up.
IMPORTANT! Remove the lens cover before using your LED
projector.
120o
12
LED projector E-Manual
DRAFT 2 12/17/12
Rear view
AV-IN
DRAFT 2 12/17/12
Infrared (IR) sensor
The IR sensor detects signal from your LED projector’s remote
control, allowing you to access the LED projector’s control
panel from a distance of up to 7 meters.
Headphone output jack port
The headphone output jack port allows you to connect your
LED projector to amplified speakers or headphones.
Audio/video input jack port
Insert a composite AV cable into this port to connect your
audio/video equipment to the LED projector.
Memory card reader
This LED projector has a single built-in memory card reader slot
120
that supports SD card formats.
o
LED projector E-Manual
13
DRAFT 2 12/17/12
HDMI port
This port is for the HDMI (High-Definition Multimedia Interface)
connector and is HDCP compliant for HD DVD, Blu-ray, and
other protected content playback.
VGA port
This port allows you to connect your LED projector to other
VGA-compatible devices.
USB 2.0 port
The USB 2.0 (Universal Serial Bus 2.0) port is compatible with
USB 2.0 or USB 1.1 devices such as flash disk drives, external
HDDs, speakers, cameras, and other file sources.
DRAFT 2 12/17/12
Audio speakers
This LED projector uses SonicMaster technology to provide hi-fi
sound quality, with richer bass sounds, straight from the builtin audio speakers.
14
LED projector E-Manual
DRAFT 2 12/17/12
Right side
DRAFT 2 12/17/12
Kensington® lock port
The Kensington® lock port allows you to secure your LED
projector using Kensington® compatible LED projector security
products.
Air vents
120
The air vents allow cool air to enter and warm air to exit the
LED projector.
o
WARNING! Ensure that paper, books, clothing, cables, or other
objects do not block any of the air vents or else overheating
may occur.
LED projector E-Manual
15
DRAFT 2 12/17/12
Left side
Power (DC) input port
Insert the bundled power adapter into this port to charge the
battery pack and supply power to your LED projector.
DRAFT 2 12/17/12
AV-IN
WARNING! The adapter may become warm to hot while in
use. Do not cover the adapter and keep it away from your body
while it is connected to a power source.
Air vents
The air vents allow cool air to enter and warm air to exit your
LED projector.
WARNING! Ensure that paper, books, clothing, cables, or other
objects do not block any of the air vents or else overheating
may occur.
120o
16
LED projector E-Manual
DRAFT 2 12/17/12
Bottom view
DRAFT 2 12/17/12
Built-in stand
This LED projector comes with a built-in stand that allows you
to adjust the height of the projector by either 5 degrees or 9.5
degrees.
Tripod socket
Connect the LED projector to a tripod using this socket.
LED projector E-Manual
17
DRAFT 2 12/17/12
DRAFT 2 12/17/12
LED projector remote control
Control panel buttons
The control panel buttons allow you to navigate the onscreen
display menu. Individually, these buttons also correspond to a
specific LED projector setting.
NOTE: For more details on using the control panel buttons, refer
to the Using the onscreen display menu section in this manual.
Battery compartment
The battery compartment allows you to use a CR2025 lithium
coin battery to power your LED projector’s remote control.
NOTE: For more details on using the battery compartment, refer
to the Replacing the battery section in this manual.
18
LED projector E-Manual
DRAFT 2 12/17/12
Replacing the battery
A. Move the battery compartment’s latch to the right to unlock the
battery holder.
B. Pull down the battery holder and remove it completely out of
the battery compartment.
DRAFT 2 12/17/12
LED projector E-Manual
19
DRAFT 2 12/17/12
DRAFT 2 12/17/12
C. Remove the old battery then insert the new CR2025 lithium coin
battery into the battery holder with the positive side (+) facing
up.
D. Slide the battery holder back into the battery compartment.
Push it all the way in until you hear a soft click, indicating that
the battery compartment is locked back in place.
20
LED projector E-Manual
DRAFT 2 12/17/12
Chapter 2:
Setting up
DRAFT 2 12/17/12
AV-IN
Chapter 2: Setting up
LED projector E-Manual
21
DRAFT 2 12/17/12
Operating your LED projector
This portable LED projector allows you to plug and play your devices
so you can easily open multimedia files, hear audio straight from its
built-in SonicMaster speakers, and experience using Wi-Fi to project
onscreen.
For your safety and to maintain the quality of this unit, refer to the
following steps when operating your LED projector.
1. Connect the LED projector to the power adapter.
A. Connect the AC/DC power cord to the power adapter.
B. Connect the AC power cord to a power source.
C. Connect the DC power connector to your LED projector.
DRAFT 2 12/17/12
NOTE: This LED projector is also compatible with ASUS power
adapters within the 65W to 95W range.
AV-IN
22
LED projector E-Manual
DRAFT 2 12/17/12
AC power cord requirements
Use the correct AC plug type according to your current location.
IMPORTANT! Contact your sales dealer if the AC power cord bundled
with your LED projector does not match your local power source.
NOTE: We highly recommend that you use a video source device that
also uses a grounding type plug to prevent signal interference due to
voltage fluctuations.
for U.S.A., Canada, and Taiwan
for Continental Europe
for U.K.
LED projector E-Manual
DRAFT 2 12/17/12
for Australia and Mainland China
23
DRAFT 2 12/17/12
2. Connect the LED projector to your device using
the appropriate port.
A. Headphone output jack port and audio/video input jack port.
DRAFT 2 12/17/12
AV-IN
B. Memory card reader
AV-IN
NOTE: For details on how to launch files from a memory card, refer to
the Launching the Media Center section in this manual.
24
LED projector E-Manual
DRAFT 2 12/17/12
C. HDMI port
AV-IN
DRAFT 2 12/17/12
D. VGA port
AV-IN
LED projector E-Manual
25
DRAFT 2 12/17/12
D. USB 2.0 port
DRAFT 2 12/17/12
AV-IN
Compatible USB 2.0 input devices:
USB cable
flash drive
Wi-Fi dongle
NOTE: For details on using the USB 2.0 port to launch supported file
formats, refer to the Launching the Media Center section in this manual.
26
LED projector E-Manual
DRAFT 2 12/17/12
4. Adjust the height of the LED projector.
Your LED projector comes with a built-in stand that helps adjust the
image height onscreen.
WARNING! Ensure that the built-in stand is fully retracted before
placing the LED projector inside the projector bag.
NOTES:
• Place the LED projector on a stable flat surface.
• Keep a space of 30 cm or more between the sides of the LED
projector.
• Consult your dealer for special installation procedures like
suspending the LED projector from the ceiling.
DRAFT 2 12/17/12
LED projector E-Manual
27
DRAFT 2 12/17/12
Screen size and projection distance table
Adjust the LED projector’s distance from the screen using the table
below.
screen size
LED projector
projection distance
DRAFT 2 12/17/12
Screen size - 16:10
28
Projection distance
(inches)
(millimeters)
(meters)
30
762
0.58
40
1016
0.78
60
1524
1.16
80
2032
1.55
100
2540
1.94
120
3048
2.33
140
3556
2.71
160
4064
3.10
LED projector E-Manual
DRAFT 2 12/17/12
3. Press the power button.
DRAFT 2 12/17/12
AV-IN
LED projector E-Manual
29
DRAFT 2 12/17/12
5. Adjust the image focus.
Move the focus ring to the left or to the right to adjust the image
focus.
DRAFT 2 12/17/12
NOTE: Use a still image when adjusting the onscreen display.
AV-IN
AV-IN
30
LED projector E-Manual
DRAFT 2 12/17/12
Chapter 3:
Using the onscreen
display menu
DRAFT 2 12/17/12
Chapter 3: Using your LED
projector
LED projector E-Manual
31
DRAFT 2 12/17/12
Launching programs from the
onscreen display menu
The onscreen display menu contains a set of programs and settings
designed to maximize your use of the LED projector. You can
navigate inside the onscreen display menu using the control panel
buttons on your LED projector or its accompanying remote control.
DRAFT 2 12/17/12
To launch options or programs shown on the onscreen display
menu, just refer to the control panel grid shown as below.
control panel grid
32
LED projector E-Manual
DRAFT 2 12/17/12
Control panel grid
The control panel grid guides you through the process of using the
control panel buttons to launch active options inside your onscreen
display menu. It represents the 8 buttons surrounding the
button on the control panel.
DRAFT 2 12/17/12
control panel
control panel grid
color
temperature
color
adjustment
color
enhance
control panel
control panel grid
LED projector E-Manual
33
DRAFT 2 12/17/12
Using your LED projector for the first
time
Refer to the following steps when using your LED projector for the
first time.
1. Set up your LED projector then press the power button. Wait for
a few minutes until the ASUS welcome screen appears.
2. Using the control panel buttons, select the language for your
LED projector.
DRAFT 2 12/17/12
3. In the Direct Mode control panel grid, select either Normal
Mode or Demo Mode.
34
•
Normal Mode - Selecting this mode proceeds you to scan
connected input devices with the LED projector.
•
Demo Mode - This mode allows you to view the demo video
that comes with your LED projector.
LED projector E-Manual
DRAFT 2 12/17/12
Accessing your LED projector’s
settings
Aside from using the control panel buttons to navigate the onscreen
display menu, you can also use each of these buttons to launch the
following LED projector settings:
IMPORTANT! Press Projector Setting on the control panel grid to
use these functions in the Media Center.
Power
Press this button to turn the LED projector on or off.
Brightness
DRAFT 2 12/17/12
Press this button to adjust the brightness of your projection
onscreen.
Keystone
Press this button to correct distorted images resulting from an
angled projection.
Main Menu/OK
Press this button to launch the main menu of your LED projector
settings, to activate a selected item, or exit the current control panel
grid.
Volume
Press this button to adjust the volume of the audio file played on
your LED projector.
LED projector E-Manual
35
DRAFT 2 12/17/12
Contrast
Press this button to set the difference between lighten or darken
your projection onscreen.
Media Center
Press this button to launch the Media Center.
NOTE: For more details, refer to the Using the Media Center section in
this manual.
Input
DRAFT 2 12/17/12
Press this button to scan the connected devices to your LED
projector.
Splendid
Press this button to activate either of the following display modes:
Standard, Blackboard, Whiteboard, Dynamic, sRGB, Theatre,
Scenary.
36
LED projector E-Manual
DRAFT 2 12/17/12
Image Setting
Press this button to access the following image settings:
Color Temperature - This option allows you to adjust the light
temperature of your LED projector according to the following
options: Low, Medium, High.
•
Color Adjustment - This option allows you to adjust the color
of your screen according to the following settings: Auto, RGB,
YUV.
•
Color Enhance - This option allows you to enhance the colors
of your projected image.
•
Sharpness - This option allows you to sharpen or soften the
appearance of the projected image.
•
Saturation - This option allows you to adjust the hue of the
projected image.
•
Tint - This option allows you to shift the colors onscreen
towards red or green,
LED projector E-Manual
DRAFT 2 12/17/12
•
37
DRAFT 2 12/17/12
Image Position
DRAFT 2 12/17/12
Press this button to access the following image position settings:
38
•
Auto Keystone - This option allows you to automatically adjust
the alignment of your image.
•
Horizontal Positioning - This option allows you to shift the
image’s position horizontally.
•
Projector Position - This option allows you to adjust the
position of the projected image based from the location of your
LED projector.
•
Vertical Positioning - This option allows you to vertically shift
the image position.
•
Aspect Ratio - This option allows you to change the projection
of your display according to the following aspect ratios: AUTO,
4:3, 16:9, and 16:10.
•
Digital Zoom - This option allows you to zoom in or zoom out
your projected display. It also allows you to pan your image to
the following directions: left, right, up, or down.
LED projector E-Manual
DRAFT 2 12/17/12
•
Aspect Ratio - This option allows you to change the projection
of your display according to the following aspect ratios: AUTO,
4:3, 16:9, and 16:10.
•
Digital Zoom - This option allows you to zoom in or zoom out
your projected display. It also allows you to pan your image to
the following directions: left, right, up, or down.
•
Phase - This option allows you to adjust the number of lines
emitted by the computer’s signal so that the LED projector
relative to the computer’s signal.
•
Clock - This option allows you to adjust the frequency of the
LED projector relative to the computer.
DRAFT 2 12/17/12
LED projector E-Manual
39
DRAFT 2 12/17/12
Setting
DRAFT 2 12/17/12
Press this button to access the following LED projector settings:
40
•
Information - This option shows you the following information
about your LED projector: currently used input port, LED
projector’s model name, and currently used Splendid mode.
•
Reset All - This option allows you to reset all the settings you
have currently set up for your LED projector.
•
Menu Timeout - This option allows you to set the timeout
rate, according to seconds, before the onscreen display menu
disappers from your projection screen.
•
Eco Mode - This option allows you to enable or disable Eco
Mode.
•
Language - This option allows you to select the language to
use on your LED projector's onscreen display menu.
•
E-Manual - This option launches the LED projector’s E-Manual.
•
Power Timeout - This option allows you to set the number of
seconds before your LED projector automatically shuts down
when not in use.
•
Demo Mode - This option launches the demo video of your LED
projector.
LED projector E-Manual
DRAFT 2 12/17/12
Using the Media Center
Show photos, play videos, listen to audio music, and view documents
using your LED projector’s Media Center. Through the Media Center,
you can also access the Wi-Fi capabilities of your LED projector and
connect to USB-enabled input devices.
Launching the Media Center
The Media Center automatically launches after the LED projector
detects an SD card, external drive, or Wi-Fi dongle connection.
You can also manually launch the Media Center by pressing
from the control panel.
DRAFT 2 12/17/12
SD Card - Select this item to open files inside your memory card.
External Drive - Select this item to open files inside your external
drive.
Ezlink - Select this item to project from USB-connected input
devices.
WiFi - Select this item to create a Wi-Fi connection between your
device/s and the LED projector. A Wi-Fi dongle is required to enable
this feature.
LED projector E-Manual
41
DRAFT 2 12/17/12
Opening files from the SD Card or USB Drive
Supported image file formats:
• JPG
•
JPEG
•
BMP
To open an image file:
1. Connect your input device to the LED projector.
2. Turn on the LED projector to launch the Media Center’s
onscreen display menu.
DRAFT 2 12/17/12
3. Select the input device you wish to access.
4. Select Photo.
5. Refer to the control panel grid to help you browse and select
the file from your input device.
6. Press
to open the selected folder or file.
7. After opening the file, press
on the control panel to
launch the Photo Slideshow control panel grid.
42
LED projector E-Manual
DRAFT 2 12/17/12
Video
Supported video formats:
• MOV
•
MP4
•
AVI
•
MKV
•
MPG
•
MPEG
•
WMV
DRAFT 2 12/17/12
To open a video file:
1. Connect your input device to the LED projector.
2. Turn on the LED projector to launch the Media Center’s
onscreen display menu.
3. Select the input device you wish to access.
LED projector E-Manual
43
DRAFT 2 12/17/12
4. Select Video.
5. Refer to the control panel grid to help you browse and select
the file from your input device.
6. Press
to open the selected folder or file.
7. After opening the file, press
on the control panel to
DRAFT 2 12/17/12
launch the video file’s control panel grid.
44
LED projector E-Manual
DRAFT 2 12/17/12
Audio
Supported audio formats:
• MP3
•
MP1
•
MP2
•
WMA
•
AAC
•
ADPCM-WAV
•
PCM-WAV
DRAFT 2 12/17/12
To project images, refer to the following steps:
1. Connect your device to the LED projector.
2. Turn on the LED projector to launch the Media Center’s
onscreen display menu.
3. Select the input device you wish to access.
4. Select Music.
LED projector E-Manual
45
DRAFT 2 12/17/12
5. Refer to the control panel grid to help you browse and
select the file from your input device. Press
6. Press
to open the selected folder or file.
7. After opening the file, press
on the control panel to
DRAFT 2 12/17/12
launch the audio file’s control panel grid.
46
LED projector E-Manual
DRAFT 2 12/17/12
Document
Supported document formats:
• PDF
•
DOC
•
DOCX
•
XLS
•
PPT
•
PPTX
•
TXT
DRAFT 2 12/17/12
To view documents, refer to the following steps:
1. Connect your device to the LED projector.
2. Turn on the LED projector to launch the Media Center’s
onscreen display menu.
3. Select the input device you wish to access.
4. Select Document.
LED projector E-Manual
47
DRAFT 2 12/17/12
5. Refer to the control panel grid to help you browse and select
the file from your input device. Press
6. Press
to open the selected folder or file.
7. After opening the file, press
on the control panel to
DRAFT 2 12/17/12
launch the Document control panel grid.
48
LED projector E-Manual
DRAFT 2 12/17/12
EZLink
This feature allows you to project from input devices, such as laptops
and desktop computers, using a USB cable.
DRAFT 2 12/17/12
To project files using EZLINK USB, you need to install the EZ USB CD
in your input device’s operating system.
For Windows®:
1. Connect your LED projector to your device using a USB cable.
2. Turn on your input device and go to My Computer.
3. Select EZ USB CD > EZ_USB_installer.exe
LED projector E-Manual
49
DRAFT 2 12/17/12
Using EZLink to project from your input device
1. Turn on your input device then connect to the LED projector
using a USB cable.
2. Turn on the LED projector. If the Media Center does not
automatically launch, press
on the control panel.
3. Select EZLink. Wait for the USB icon to appear onscreen to
verify that the LED projector was successfully connected to your
input device.
DRAFT 2 12/17/12
4. From your input device, select the EZ-USB Mirror-only icon to
start projecting from your input device to the LED projector.
50
LED projector E-Manual
DRAFT 2 12/17/12
WiFi
This feature enables wireless connections to your LED projector
from input devices equipped with Wi-Fi capabilities like laptops and
mobile phones.
IMPORTANT! A Wi-Fi dongle is required to enable this feature.
Inside WiFi
Display by AP mode
Using this mode, you can establish a one-to-one connection
between your input device and your LED projector.
DRAFT 2 12/17/12
Display by Client mode
Using this mode, you can connect your LED projector to a
another Wi-Fi hotspot to enable group access when using the
LED projector.
WiFi AP setting
This allows you to change the SSID, Security, and Password
settings when using your EZLINK WIFI's Display by AP mode.
WiFi Client setting
This scans the available WiFi hotspots that you can connect to
your LED projector to enable the Display by Client mode.
LED projector E-Manual
51
DRAFT 2 12/17/12
Installing the EZ Display app
You need to install the EZ Display app so you can project from your
input device using WiFi. Download this application online using any
of the following options:
•
If you are using an Android OS, download EZ Display from
Google Play Store.
•
If you are using an iOS, download EZ Display from iStore.
•
If you are using a Windows OS, download the EZ display
app from the link that appears after connecting to the Wi-Fi
dongle.
Using Display by AP mode
DRAFT 2 12/17/12
1. Connect the Wi-Fi dongle to your LED projector to launch the
Media Center.
NOTE: If the Media Center does not automatically launch, press
then select EZLINK-WIFI>Display by AP mode.
2. Enable the WiFi connection in your input device. Select ASUS
B1 (default SSID) or the new SSID you configured for the B1M
LED projector.
3. Type the password on your input device as shown on the LED
projector to enable the AP mode connection.
4. Open EZ Display on your input device.
52
LED projector E-Manual
DRAFT 2 12/17/12
6. Select Projector.
7. Tap the EZ Display feature you would like to use.
EZ Remote - This feature allows you to use your mobile phone
as a remote control for your LED projector.
Pix Viewer - This feature allows you to project photos from your
input device.
Web - This feature allows you to project browsing the internet
from your input device.
Live Cam - This feature enables you to project using the camera
from your input device.
DRAFT 2 12/17/12
LED projector E-Manual
53
DRAFT 2 12/17/12
Using Display by Client mode
1. Connect the Wi-Fi dongle to your LED projector to launch the
Media Center.
NOTE: If the Media Center does not automatically launch, press
then select EZLINK-WIFI
2. Select Display by Client mode.
3. Press
to scroll up or
Wi-Fi hotspots then press
to scroll down the list of available
to select the Wi-Fi hotspot you
would like to connect to.
DRAFT 2 12/17/12
4. Press
to launch the onscreen display menu’s keyboard.
Refer to the control panel grid when navigating the keyboard to
input the Wi-Fi hotspot’s password.
5. Press OK to start the Wi-Fi connection between the Wi-Fi
hotspot and your LED projector.
6. Repeat the same steps under Using Display by AP mode to
connect input devices to the LED projector.
54
LED projector E-Manual
DRAFT 2 12/17/12
Appendices
Appendices
DRAFT 2 12/17/12
Appendices
LED projector E-Manual
55
DRAFT 2 12/17/12
Federal Communications Commission Statement
DRAFT 2 12/17/12
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 15 of the Federal
Communications Commission (FCC) rules. These limits are designed
to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of
the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the distance between the equipment and receiver.
•
Connect the equipment to an outlet on a different circuit than
that which the receiver is connected to.
•
Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference that may cause
undesired operation.
56
LED projector E-Manual
DRAFT 2 12/17/12
Canadian Department of Communications
Statement
This digital apparatus does not exceed the Class B limits for
radio noise emissions from digital apparatus set out in the
Radio Interference Regulations of the Canadian Department of
Communications.
This class B digital apparatus complies with Canadian ICES-003.
Global Environmental Regulation Compliance and
Declaration
DRAFT 2 12/17/12
ASUS follows the green design concept to design and manufacture
our products, and makes sure that each stage of the product
life cycle of ASUS product is in line with global environmental
regulations. In addition, ASUS disclose the relevant information
based on regulation requirements.
Please refer to http://csr.asus.com/english/Compliance.htm for
information disclosure based on regulation requirements ASUS is
complied with:
Japan JIS-C-0950 Material Declarations
EU REACH SVHC
Korea RoHS
Swiss Energy Laws
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment
to the highest standards for protecting our environment. We believe
in providing solutions for you to be able to responsibly recycle our
products, batteries, other components as well as the packaging
materials. Please go to http://csr.asus.com/english/Takeback.htm for
detailed recycling information in different regions.
