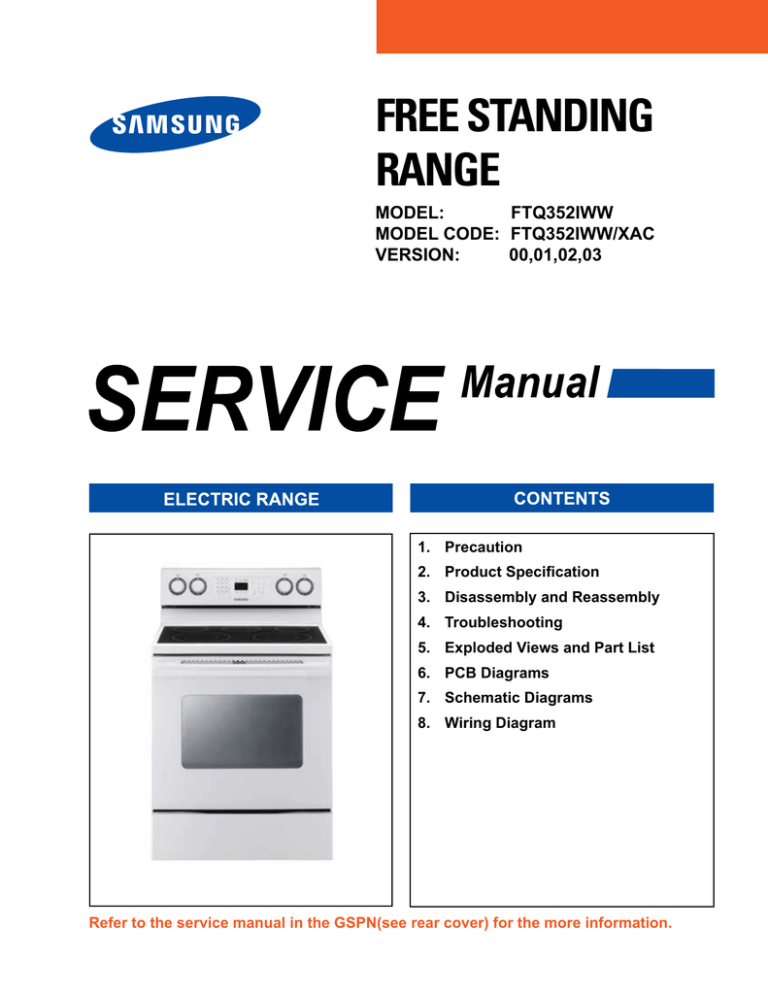

FREE STANDING
RANGE
MODEL:FTQ352IWW
MODEL CODE: FTQ352IWW/XAC
VERSION:
00,01,02,03
1. Precaution
2. Product Specification
3. Disassembly and Reassembly
4. Troubleshooting
5. Exploded Views and Part List
6. PCB Diagrams
7. Schematic Diagrams
8. Wiring Diagram
Refer to the service manual in the GSPN(see rear cover) for the more information.
• Contents
1. Precaution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1-1 Forward. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3 Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-4 Model & Serial Number Label and Tech Sheet Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
3
4
6
2. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2-1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2-2 Table of Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2-3 Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. Disassembly and Reassembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3-1 Removing Cover-Back Main Wire, Cover-Back Guard Wire and PCB-Main. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-2 Removing Regulator-Energy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-3 Removing Surface elements and The Ceramic Glass Cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-4 Removing The Latch-Door & Switch-Door Plunger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-5 Removing Heater-Broil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-7 Removing Heater-Bake (00 Version). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-6 Removing Heater-Bake (01 Version). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-7 Removing Convection Element, Fan-Covnection and Motor-Convection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-8 Removing Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-9 Removing Sensor-Thermistor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-10 Removing Assy-Drawer & Heater-Warming Drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-11 Removing and Replacing Oven Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-12 Removing Handle-Door and Glass-Inner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-13 Removing Gasket-Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-14 Removing The Panel-Side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
12
13
15
16
17
18
19
20
21
22
24
25
28
29
4. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4-1 Failure Display Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4-2 Electrical Malfunction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
5. Exploded Views and Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
5-1 Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
5-2 Main Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
5-3 Door Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
5-4 Control Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
5-5 Cook top Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
5-6 Drawer Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
5-7 Standard Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
5-8 Version Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
6. PCB Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
6-1 PCB Diagrams (Main). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
7. Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
7-1 Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
8. Schematic Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
8-1 Schematic Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
8-2 Schematic Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
1. Precaution
1-1 Forward
This SAMSUNG Service Manual, “ 30” Freestanding Self-Cleaning Electric Range,” provides the technician with
information on the operation and service of the Freestanding Self-Cleaning Electric Range. It is to be used as a
training Service Manual. For specific information on the model being serviced, refer to the “Owner’s Manual” or
“Tech Sheet” provided with the electric range.
1-2 Safety Precautions
• Repairs of the appliance should be carried out by a licensed technician only. Incorrect repairs may result in
dangerous situations. If you need repairs, contact an SAMSUNG Service Center or your dealer.
• If the power cord is defective, it must be replaced by a qualified service agent with a UL listed range cord.
• Electrical leads and cables should not be allowed to touch the oven.
• Rating plate is located on the left side of warming drawer.
• The power supply of the appliance should be turned off when it is being repaired.
WARNING
• To avoid risk of severe personal injury or death, disconnect power before working/servicing on appliance
to avoid electrical shock.
• When the oven operates, the interior parts will be very hot.
SAMSUNG Electronices assumes no responsibility for any repairs made on our products by anyone other than
Authorized Service Technicians.
1. Precaution
1-3 Important Safety Instructions
Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, injury to person,
or damage when using the range. This guide don’t cover all possible conditions that may occur. For further
assistance contact your service agent or manufacturer.
WARNING
This symbol will help alert you to hazards or unsafe practices which could cause serious bodily harm or death.
• Be sure your appliance is properly installed and
grounded by a qualified technician.
• Do not repair or replace any part of the appliance unless
specifically recommended in the manual. All other
servicing should be referred to a qualified technician.
• Always disconnect power to appliance before servicing
by removing the fuse or switching off the circuit breaker
CAUTION
Do not store items of interest to children in
cabinets above a range or on the back guard of
a range – children climbing on the range to reach
items could be seriously injured.
• Do Not Leave Children Alone - Children should not be left
alone or unattended in area where appliance is in use.
They should never be allowed to sit or stand on any part
of the appliance.
• Never Use Your Appliance for Warming or Heating the Room.
• Storage in or on Appliance – Flammable materials should
not be stored in an oven or near surface units. Be sure all
packing materials are removed from the appliance before
operating it. Keep plastics, clothes and paper away from
parts of the appliance that may become hot
• Wear Proper Apparel – Loose-fitting or hanging garments
should never be worn while using the appliance.
• Do Not Use Water on Grease Fires – Turn off oven to
avoid spreading the flame. Smother the fire or flame by
closing the door or use dry chemical, baking soda or
foam- type extinguisher.
• Use Only Dry Potholders – Moist or damp potholders on
hot surfaces may result in burns from steam. Do not let
potholder touch hot heating elements. Do not use a towel
or other bulky cloth.
WARNING
- INJURIES CAN OCCUR IF THE RANGE TIPS
- INSTALL ANTI-TIP DEVICE PACKED WITH
RANGE
- FOLLOW ALL INSTALLATION
INSTRUCTIONS
To reduce the risk of tipping of the range, the range
must be secured by properly installed anti-tip devices.
To check if the bracket is installed properly,
- Warming drawer : grasp the top rear edge of the
Range and carefully attempt to tilt it forward.
verify that the anti-tip devices are engaged.
- Storage drawer : Remove drawer and verify leveling
leg is inserted into and fully secured by the anti-tip
devices.
Refer to the installation manual for proper anti-tip
bracket installation.
• Do not step, lean or sit on the doors of the range
-this can cause the range to tip, resulting in burns or
serious injuries.
WARNING
SURFACES
•D
O NOT TOUCH SURFACE UNITS OR AREAS NEAR
UNITS – Surface units may be hot even though they
are dark in color. Areas near surface units may become
hot enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials contact
surface units or areas near units until they have had
sufficient time to cool. Among these areas are the cooktop and surfaces close to the cook-top.
WARNING
•D
O NOT TOUCH HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN – Heating
elements may be hot even though they are dark
in color. Interior surfaces of an oven become hot
enough to cause burns. During and after use,
do not touch, or let clothing or other flammable
materials contact heating elements or interior
surfaces of oven until they have had sufficient
time to cool. Other surfaces of the appliance may
become hot enough to cause burns – among
these surfaces are oven vent openings and
surfaces near these openings, oven doors, and
windows of oven doors.
WARNING
To avoid risk of electrical shock, personal injury, or
death, make sure your range has been properly
grounded and always disconnect it from main power
supply before any servicing.
1. Precaution
SURFACE COOKING UNITS
VENTILATING HOODS:
•U
se Proper Pan Size – This appliance is equipped
with one or more surface units of different sizes.
Select utensils having flat bottoms large enough
to cover the surface unit heating element. The use
of undersized utensils will expose a portion of the
heating element to direct contact and may result in
ignition of clothing. Proper relationship of utensil to
burner will also improve efficiency.
• Never Leave Surface Units Unattended at High
Heat Settings – Boil overs may cause smoking and
greasy spillovers may ignite.
• Make Sure Reflector Pans or Drip Bowls
Are in Place – Absence of these pans or bowls
during cooking may subject wiring or components
underneath to damage.
• Protective Liners – Do not use aluminum foil to line
surface unit drip bowls or oven bottoms, except as
suggested in the manual. Improper installation of these
liners may result in a risk of electric shock, or fire.
•G
lazed Cooking Utensils – Only certain types of
glass, glass/ceramic, ceramic, earthenware, or other
glazed utensils are suitable for range-top service
without breaking due to the sudden change in
temperature.
• Utensil Handles Should Be Turned Inward and
Not Extend Over Adjacent Surface Units – To
reduce the risk of burns, ignition of flammable
materials, and spillage due to unintentional contact
with the utensil, the handle of a utensil should be
positioned so that it is turned inward, and does not
extend over adjacent surface units.
•D
o Not Soak Removable Heating Elements –
Heating elements should never be immersed in water.
• Be sure you know which control pads operate each
surface unit. Make sure you turned on the correct
surface unit.
•C
lean Ventilating Hoods Frequently – Grease
should not be allowed to accumulate on hood or filter.
• When flaming foods under the hood, turn the fan on.
OVEN
• Use Care When Opening Door – Let hot air or
steam escape before you remove or replace food in
the oven
• Do Not Heat Unopened Food Containers – Buildup of pressure may cause container to burst and
result in injury.
• Keep Oven Vent Ducts Unobstructed – the oven
vent is located above the left rear surface unit. this
area could become hot during oven use. Never block
this vent and never place plastic or heatsensitive
items on vent
• Placement of Oven Racks – Always place oven
racks in desired location while oven is cool. If rack
must be moved while oven is hot, do not let potholder
contact hot heating element in oven.
• Do Not allow aluminum foil or meat probe to contact
heating elements.
GLASS/CERAMIC COOKING SURFACES
•D
o Not Cook on Broken Cook-Top – If cook-top
should break, cleaning solutions and spillovers
may penetrate the broken cooktop and create a
risk of electric shock. Contact a qualified technician
immediately.
• Clean Cook-Top With Caution – If a wet sponge
or cloth is used to wipe spills on a hot cooking area,
be careful to avoid steam burn. Some cleaners can
produce noxious fumes if applied to a hot surface.
DEEP FAT FRYERS:
SELF-CLEAN OVENS
• Use extreme caution when moving the grease kettle
or disposing of hot grease.
•D
o Not Clean Door Gasket – The door gasket is
essential for a good seal. Care should be taken not to
rub, damage, or move the gasket.
• Do Not Use Oven Cleaners – No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
• Clean in the self-clean cycle only parts listed in
this manual. Before self-cleaning the oven, remove
the broiler pan and any utensils from the oven.
•N
ever keep pet birds in the kitchen – the health
of birds is extremely sensitive to the fumes released
during an oven selfclean cycle. Fumes may be harmful
or fatal to birds. Move birds to well-ventilated room.
• Important Instruction – In the event the self-clean
mode “F” code goes on, or three long beeps sound,
oven is malfunctioning in the self-clean mode. Turn
off or disconnect appliance from power supply and
have serviced by a qualified technician.
1. Precaution
1-4 Model & Serial Number Label and Tech Sheet Locations
This Model / Serial Number label and Tech Sheet locations are shown below.
Model & Serial
Number Location
Tech Sheet Location
(On Low Rear Cover)
2. Specifications
2-1 Features
Features
Dial Control
Easy to use and unique design
Biggest Capacity
Large family food in holiday
Turkey 24lbs = 4.4 cu ft
- Samsung : Dial control
- Competitors : Stick knob
- Samsung : 5.7 cu.ft
- Competitors
A : 5.4 cu.ft B : 5.3 cu.ft
Surround Air - vection
Even cooking and energy
efficiency
Steam Cleaning
Casual clean without any smell
More frequently
- Samsung : 3 fans
- Competitors : 1 fans
- Samsung : Self clean + Steam Clean
- Competitors : Self clean
Samsung
Surround Air-vection
- Main Convection Fan with 2-Sub.Fans makes complex small Swirl.
- Optimal Heat Distribution and Even Cook Performance.
- Updated Control Algorithm (for the Swirl Improvement of Door Front/Left/Lower)
Competitors
2. Specifications
Features
Easy Steam Cleaning
- More Efficiency & Time Saving
- Available for Water and Oven Washing Liquid (Water + Detergent)
- Takes about 20minutes to Clean-out easily
- Steam fits Light and frequent cleaning,
(Pyrolitic Self-cleaning fits Greasy dirt cleaning)
2. Specifications
2-2 Table of Specifications
Model
Items
NEW MODEL
Model Name
FTQ352IWW/XAC
Category
Overall
Control
Cooktop
Convection
Width
30”
Installation type
Freestanding
Color availability
STS, WH, BK
Oven
Keypad
Cooktop
Knob
Display
LED
Electronic clock
Yes
Control lock capability
Yes
Audible preheat signal
Yes
Material
Ceramic glass
# of element
Power
Oven
5
LR
6”-1,200W
RR
6”-1,200W
CR
Warming Center (100W)
LF
Dual(6”/9”-1,200/2,500W)
RF
Dual(6”/9”-1,200/2,500W)
Capacity(cu.ft)
5.7
Broil element
3800 watts
Bake element
3000 watts
Convection System
Yes
-Convection element
No
# of Racks
2
Interior oven light
120V, 40 watts
Cleaning
Drawer
Self clean & Steam clean
Type
Warming drawer
Element
600 watts
Warming rack
No
Dimensions Oven Interior(W x H x D)
(inch)
Exterior - Width
Power
24 1/2 x 20 1/4 x 19 3/8
29 7/8
Exterior - Height
36 (cooktop),
47 5/8 (backguard top)
Exterior - Depth
25 11/16 (Door),
28 (with handle)
Net weight: Lbs (Kg)
181 lbs (82kg)
Rating(240W 60Hz)
11.9Kw(120/240V) / 8.9Kw(120/208V)
2. Specifications
2-3 Accessory
Item
Description
Code No.
Q’ty
Rack Flat
DG75-01001A
2
Tray Grate
DG63-00068A
1
Tray Broil
DG63-00067A
1
Cleaner & Cleaning pad
DG97-00085A
1
10
3. Disassembly and Reassembly
3-1 Removing Cover-Back Main Wire, Cover-Back Guard Wire and PCBMain
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
PRECAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp
edges may be present, and you can cut yourself if you are not careful.
Parts
Explaination Photo
Explaination
Cover-Back
Guard Wire
Cover-Back
Main Wire
1. Turn off the electrical supply
going to the range.
2. Pull the range away from the
wall so that you can access the
rear panel.
3. Remove the 6 screws from the
Cover-Back Main Wire and
remove the panel.
Cover-Back Main
Wire, CoverBack Guard Wire
and PCB-Main
4. Remove 3 screws from the
Cover-Back Guard Wire and
remove the cover.
5. Remove 4 screws of PCB Main
and separate PCB Main.
PCB Main
REASSEMBLY NOTE:
When you remove(replace)
membrane tail from the connector,
pull the actuator fully
11
3. Disassembly and Reassembly
3-2 Removing Regulator-Energy
WARNING
Disconnect power before servicing the range Replace all panels before operating range. Failure to do so
can result in dearh or electrical shock.
PRECAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may
be present, and you can cut yourself if you are not careful.
Parts
Explaination Photo
Explaination
1. Turn off the electrical supply going
to the range.
2. Pull the range away from the wall
so that you can access the rear
panel.
3. Remove Cover-Back Guard Wire
4. Remove Regulator-Energy
connectors which be replaced.
RegulatorEnergy
5. Pull out the Knob-Dial.
2 Screws
6. Remove 2 screws and replace
Regulator-Energy.
12
3. Disassembly and Reassembly
3-3 Removing Surface elements and The Ceramic Glass Cooktop
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock..
Parts
Explaination Photo
Explaination
1. Unplug the cord or disconnect power
2. Open oven door and remove the 3
screws located at the front of the
cook-top, then close the door.
Surface
elements
and
Ceramic
Glass
Cooktop
3
Slightly lift up and pull up the cook-top and then unplug the 2 connectors wire at the back by
squeezing side tabs and unscrew ground wire.
4. Protect the cooktop surface and turn
the assembly over.
13
3. Disassembly and Reassembly
3-3 Removing Surface elements and The Ceramic Glass Cooktop
Parts
Explaination Photo
Explaination
5. To remove the surface elements
a) Remove the wires from the
element and limiter terminals.
b) R
emove the element bracket screw
(shown above) for the element you
are servicing.
c) Carefully lift the bottom of the
bracket just far enough to remove
the element.
d) U
se sharp tool to remove the
heating element.
Surface
elements
and
Ceramic
Glass
Cooktop
REASSEMBLY NOTE: When you reinstall
the element make sure that the wires
are inserted into the correct tap then
reinstall the bracket screw to secure it
to the cooktop.
14
3. Disassembly and Reassembly
3-4 R
emoving The Latch-Door & Switch-Door Plunger
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
CAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may be
present, and you can cut yourself if you are not careful.
Parts
Explaination Photo
Explaination
1. Turn off the electrical supply going to the range.
2. Open the oven door.
3. Raise the cooktop (see page 14 for the
procedure).
4. To remove the Latch-Door:
a) Remove the 2 screws from the front of cavity.
b) Remove a screw from Cover-Back Main Guard
and remove latch-door
Latch-Door
& SwitchDoor
Plunger
5. To remove the Switch-Door Plunger
a) R
emove the Cover-Back Guard Wire (see
page 11 for the procedure).
b) Release the wire from Cable Clamp.
c) Remove the Switch-Door Plunger from the
range. take out carefully with shaking up and
down by using tool.
15
3. Disassembly and Reassembly
3-5 Removing Heater-Broil
WARNING
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
CAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may
be present, and you can cut yourself if you are not careful.
Parts
Explaination Photo
Explaination
1. Turn off the electrical supply going to the
range.
2. Open the oven door and remove the racks
from inside the oven.
3. To remove the broil element.
a) R
emove the Sensor-Thermistor and 4
screws from the front and rear brackets.
b) Remove Cover-Back Main Wire and
disconnect 2 wires from Heater-Broil
and a wire from Sensor-Thermistor.
Broil
16
3. Disassembly and Reassembly
3-7 Removing Heater-Bake (00 Version)
Parts
Explaination Photo
Explaination
1. Unplug range or disconnect power.
2. Pull the range out of its mounting location so that you can
access the rear of the unit.
3. Remove Cover-Back Main Wire.
(See step 3~4 on page 11 for procedure)
4. Remove Terminal-Block and Bracket-Cover Access(with
Adiabatic-Terminal) by unscrew 3 points.
5.
Remove Cover-Warming Heater and disconnect 2 wires.
6. Unscrew 2 points of Heater-Bake.
HeaterBake
7. Cut the Adiabatic-Rear based on the lower side.
8. Carefully pull out Heater-Bake and replace it.
17
3. Disassembly and Reassembly
3-6 Removing Heater-Bake (01 Version)
Parts
Explaination Photo
Explaination
1. Unplug range or disconnect power.
2. Pull the range out of its mounting location so that you can
access the rear of the unit.
3. Remove Cover-Back Main Wire.
4. Remove Terminal-Block and Bracket-Cover Access(with
Adiabatic-Terminal) by unscrew 2 points.
5.
Remove Cover-Warming Heater and disconnect 2 wires.
6. Unscrew 2 points of Heater-Bake.
HeaterBake
7. Cut the Adiabatic-Rear based on the lower side.
8. Carefully pull out Heater-Bake and replace it.
18
3. Disassembly and Reassembly
3-7 Removing Convection Element, Fan-Covnection and Motor-Convection
Parts
Explaination Photo
Explaination
1. Disconnect power and remove oven racks.
2. Pull the range out of its mounting location so that you can
access the rear of the unit.
Convection
Element, FanConvection ,
Motor-Convection
3. Remove Cover-Back Main Wire from the unit. (See step 3 on page 11 for procedure)
4. Remove oven door. (See Page 24 on page for procedure)
5. Remove the Cover-Casing.
6. Unscrew nut of Fan-Convection Main(CW), and 2 FanConvection Planets(CCW).
7. Unscrew 9 points and disconnect a Motor-Convection
wire and disconnect Heater-Convection wire.
CAUTION
Be careful not to bend the Fan-Convection(Blade)
19
3. Disassembly and Reassembly
3-8 Removing Lamp
WARNING
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
CAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may be
present, and you can cut yourself if you are not careful.
Parts
Explaination Photo
Explaination
Lamp
1.
2.
3.
4.
5.
Disconnect power.
Remove oven door.
Turn the glass bulb cover in the oven counterclockwise to remove.
Turn bulb counterclockwise to remove from socket.
Replace bulb and cover by turning clockwise.
CAUTION
Be careful not to scratch or chip the oven liner paint when to remove the oven light socket in the
next step.
Explaination Photo
Explaination
To replace socket assembly:
6. Disconnect the wires from the socket
terminals.
7. Use a screwdriver and bend the clips on
the socket away from the edges of the liner
hole(there are 6 clips on th e socket), and pull
the socket out of the liner. Push the socket out
from the rear of the unit.
20
3. Disassembly and Reassembly
3-9 Removing Sensor-Thermistor
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
PRECAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may
be present, and you can cut yourself if you are not careful.
Parts
Explaination Photo
Explaination
1. Turn off the electrical supply going to the range.
2. Remove oven door and racks from inside the
oven.
3. Unscrew Sensor-Thermistor.
4. Remove Cover-Back Main Wire and disconnect a
wire from Sensor-Thermistor.
5. Replace the Sensor-Thermistor.
Sensor-Thermistor
21
3. Disassembly and Reassembly
3-10 Removing Assy-Drawer & Heater-Warming Drawer
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
PRECAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may
be present, and you can cut yourself if you are not careful.
Parts
Explaination Photo
AssyDrawer &
HeaterWarming
Drawer
Explaination
To remove Assy-Drawer:
1. CAUTION -Turn power OFF before removing the Warming Drawer.
2. Open the drawer to the fully opened position.
3. Locate glide lever on each side of drawer, push down on the left glide lever and pull up on the
right glide lever.
4. Pull out the warning drawer.
22
3. Disassembly and Reassembly
3-10 Removing Assy-Drawer & Heater-Warming Drawer
Parts
Explaination Photo
Explaination
To remove Heater-Warning Drawer:
1. Remove two screws from BracketWarming Heater.
Assy-Drawer
& HeaterWarming
Drawer
2. Remove Cover-Warming Heater and
disconnect 2 wires.
3. Pull out the Heater-Warming Drawer.
23
3. Disassembly and Reassembly
3-11 Removing and Replacing Oven Door
WARNING
The door is very heavy. Be careful when removing door Do not lift door up by the Handle-Door.
Parts
Explaination Photo
Explaination
To remove Oven Door:
1. Fully open the door
2. Pull the hinge locks downward(Fig.1)
3. Firmly grasp both side of the door at the top.
4. Close door to the door removal position, which is
approximately 5 degrees. (refer to the Fig.2) Lift door up
and out until the hinge arm are clear of the slot.
Oven door
To replace door:
1. Firmly grasp both sides of the door at the top position.
2. Fully open the door.
( If the door will not fully open, it means that the
indentation is not seated correctly in the bottom edge
of the slot. Push the hinge locks up to the locked
position.)
3. Close the oven door.
24
3. Disassembly and Reassembly
3-12 Removing Handle-Door and Glass-Inner
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
PRECAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may
be present, and you can cut yourself if you are not careful.
Parts
Explaination Photo
Explaination
1. Remove the oven door from the
range (see page 3-13 for the
procedure.)
2. Place the oven door on a padded
work surface with the front glass
facing down.
3. Remove 3 bottom screws from the
door.
Door
4. Remove 2 Handle-screws from the
door.
5. Lift the door rear assembly off the
front assembly and set it aside
25
3. Disassembly and Reassembly
3-12 Removing Handle-Door and Glass-Inner
Parts
Explaination Photo
Explaination
To remove Handle-Door
1. Remove 2 screws to remove HandleDoor
Handle
Door
2. Remove each side screw to remove
Guide-Handle from Handle-Door.
To remove Glass-Inner
1. Remove 6screws from rear side of door
to remove 2 Hinge-Door.
Glass-Inner
2. Remove 4screws ro remove GlassInner Sub Assembly
3. Remove 7screws ro remove BaffleDoor
26
3. Disassembly and Reassembly
3-12 Removing Handle-Door and Glass-Inner
Parts
Explaination Photo
Explaination
4. Remove Baffle-Door and take out the Glass-Inner assembly.
Handle
Door
Explaination Photo
Explaination
5. Unfold 2 flanges of Cover-Frame Inner Glass to taking out Glass-Inner
(cf. When you reassemble the Glass-Inner, don't change it you check Glass-Inner's coating
side.)
27
3. Disassembly and Reassembly
3-13 Removing Gasket-Door
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
PRECAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may
be present, and you can cut yourself if you are not careful.
Parts
Explaination Photo
Gasket door
Explaination
1. Open the oven door to its fully down position.
2. Pull the ends of the gasket out of the liner holes.
3. Pull the oven door gasket clips out of the holes until all of the clips are removed.
REASSEMBLY NOTE: When you install the new gasket, make sure that all of the clips are
seated in their liner holes, and that the ends of the gasket are pushed fully into their holes. Use
the pointed end of a pencil to push the gasket ends into the holes.
28
3. Disassembly and Reassembly
3-14 Removing The Panel-Side
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
PRECAUTION
When you work on the electric range, be careful when handling the sheet metal parts. Sharp edges may
be present, and you can cut yourself if you are not careful.
Parts
Explaination Photo
Explaination
1. Turn off the electrical supply.
2. Remove the oven door from the range
3. Pull the range away from the wall so
you can access the back of the unit.
4. Remove the 8 screws from the rear of
Panel-Side and remove Cooktop
5. Remove the (each) 3screws from the
top the Panel-Side.
6. Pull the back of the side panel out from
the range approximately 10˚
7. Push forward and remove Panel-Side.
Panel
Side
29
4. Troubleshooting
4-1 Failure Display Codes
There is a error code and two kinds of error codes. Possible error codes
during use can be checked before service.
1. Press CLOCK AM/PM pad.
2. Press the CLOCK AM/PM pad again to select AM.
3. Press a number 1, 2, 3, 4 pad.
4. Press the SET/START pad.
5. Press CUSTOM COOK and number 0 pads at the same time for 2 seconds.
Error codes are displayed.
6. Press number 0 pad, the latest 5 error codes can be checked. But, if the oven
turns off, the stored error codes are deleted.
7. Press CLEAR/OFF pad to return to normal display mode.
Oven sensor error
Failure code
E-27
E-28
CAUSE
SOLUTION
1. Disconnect power. Open the back cover.
Disconnect sensor harness from control
Measure sensor resistance
:1080Ω at the room temperature
→ If there are any problems, replace oven
sensor.
oven sensor opened
(over 2950Ω)
2. If there is not any problem with oven sensor,
Please check whether there is a damaged
therminal or wire on harness.
Oven sensor shorted.
(Under 930Ω)
3. Check resistance of oven sensor connector on
main PCB (Normal:2850Ω)
30
4. Troubleshooting
4-1 Failure Display Codes
Safety error
Failure code
E-08
CAUSE
SOLUTION
1. Disconnect power. Open the back cover.
Disconnect sensor harness from control.
Measure sensor resistance
:1080Ω at the room temperature → If there
are any problems, replace oven sensor.
Oven heating error
2. Check the broil and bake heater. Check the
resistance of the each heater.
3. Check whether DLB of PCB, Broil and Bake
heater relay are being worked normally.
E-0A
4. Check whether there is any disconnection of
harness.
Oven heating over
5. Check the resistance of oven sensor
connector on main PCB. (Normal : 2850Ω)
1. Check whether cable of keypad has been
inserted into connector of main PCB.
- SE -
2. Check whether between main PCB and
connector or keypad and cable have a short
circuit.
Shorted key
3. If there is not a problem occurred with
connector on main PCB and cable of
keypad, replace the main PCB.
1. Disconnect power. Open the back cover.
Check wether harness has been connected
with door lock switch and motor.
2. Confirm whether resistance value of door lock
motor is to be normal one or not.
E-0E
Door locking error
3. With operating door lockout, measure a
voltage of connector on harness which is
linked with door lock motor. (Normal Voltage
: AC 120V)
4. Check whether door locking switch is being
worked normally.
31
4. Troubleshooting
4-1 Failure Display Codes (00 Version)
Safety error
Failure code
CAUSE
SOLUTION
E-27
oven sensor opened
(over 2950Ω)
1) After 20 seconds from starting to work of
oven, buzzer is beeping 10 times long and
then finally it displays “E-27” or “E-28” as
Error message.
E-28
Oven sensor shorted.
(Under 940Ω)
2) If a series of function for error is not performed
at all, please make sure through the method
of 4-1 on 30 page.
“E-27”
or
“E-28”
oven sensor
Disconnect power
No
Measure sensor resistance.
(1080Ω at the room temperature)
Replace oven sensor
END
Ok
Check the connecting condition of harness
(Oven sensor and No CN02 of main PCB)
No
*reconnect
*repair damaged
harness replace.
Ok
Measure resistance of connector CN02
of Main PCB (Nomal : 2850Ω)
No
CN02
Make sure the pattern, soldering, damaged
parts related to oven sensor of main PCB,
and repair them or replace main PCB
according to case.
(Main PCB)
END
32
4. Troubleshooting
4-1 Failure Display Codes (01 Version)
Safety error
Failure code
CAUSE
SOLUTION
E-27
oven sensor opened
(over 2950Ω)
1) After 20 seconds from starting to work of
oven, buzzer is beeping 10 times long and
then finally it displays “E-27” or “E-28” as
Error message.
E-28
Oven sensor shorted.
(Under 940Ω)
2) If a series of function for error is not
performed at all, please make sure through
the method of 4-1 on 30 page.
“E-27”
or
“E-28”
oven sensor
Disconnect power
No
Measure sensor resistance.
(1080Ω at the room temperature)
Replace oven sensor
END
Ok
Check the connecting condition of harness
(Oven sensor and CN03 of main PCB)
No
*reconnect
*repair damaged
harness replace.
Ok
Measure resistance of connector CN02
of Main PCB (Nomal : 2850Ω)
CN02
No
Make sure the pattern, soldering, damaged
parts related to oven sensor of main PCB,
and repair them or replace main PCB
according to case.
(Main PCB)
END
33
4. Troubleshooting
4-1 Failure Display Codes (02 Version)
Safety error
Failure code
CAUSE
SOLUTION
E-27
oven sensor opened
(over 2950Ω)
1) After 20 seconds from starting to work of
oven, buzzer is beeping 10 times long and
then finally it displays “E-27” or “E-28” as
Error message.
E-28
Oven sensor shorted.
(Under 940Ω)
2) If a series of function for error is not performed
at all, please make sure through the method
of 4-1 on 30 page.
“E-27”
or
“E-28”
oven sensor
Disconnect power
No
Measure sensor resistance.
(1080Ω at the room temperature)
Replace oven sensor
END
Ok
Check the connecting condition of harness
(Oven sensor and No CN02 of main PCB)
No
*reconnect
*repair damaged
harness replace.
Ok
Measure resistance of connector CN02
of Main PCB (Nomal : 2850Ω)
No
CN02
Make sure the pattern, soldering, damaged
parts related to oven sensor of main PCB,
and repair them or replace main PCB
according to case.
(Main PCB)
END
34
4. Troubleshooting
4-1 Failure Display Codes (03 Version)
Safety error
Failure code
CAUSE
SOLUTION
E-27
oven sensor opened
(over 2950Ω)
1) After 20 seconds from starting to work of
oven, buzzer is beeping 10 times long and
then finally it displays “E-27” or “E-28” as
Error message.
E-28
Oven sensor shorted.
(Under 940Ω)
2) If a series of function for error is not
performed at all, please make sure through
the method of 4-1 on 30 page.
“E-27”
or
“E-28”
oven sensor
Disconnect power
No
Measure sensor resistance.
(1080Ω at the room temperature)
Replace oven sensor
END
Ok
Check the connecting condition of harness
(Oven sensor and CN03 of main PCB)
No
*reconnect
*repair damaged
harness replace.
Ok
Measure resistance of connector CN02
of Main PCB (Nomal : 2850Ω)
CN02
No
Make sure the pattern, soldering, damaged
parts related to oven sensor of main PCB,
and repair them or replace main PCB
according to case.
(Main PCB)
END
35
4. Troubleshooting
4-1 Failure Display Codes
Safety error
Failure code
CAUSE
SOLUTION
1) It will display “E-08” after buzzer is beeping 10
times long if it could not reach 100˚F(38˚c)
within 10 minutes during oven is working.
E-08
oven heating error
2) Please make sure through the method of
4-1 on 30 page, if those series of working
for informing error take long time or not
functioned.
1) It will display “E-0A” after beeping 10 times
Bz long, if temperature is more than
650˚F(343˚c) during oven is working
excluding the case of self-cleaning.
E-0A
Oven heating over
2) Please make sure through the method of
4-1 on 30 page, if those series of working
for informing error take long time or not
functioned.
36
4. Troubleshooting
4-1 Failure Display Codes (00 Version)
Safety error
Convection
Relay
“E-08” or
“E-0A”
DLB Relay
Disconnect power and sub PCB
Broil Relay
Sub PCB
* DLB, Bake, Broil,convection relay
check.(Nomal: ∞Ω)
* Check whether there is any damaged
parts of sub PCB pattern.
* Replace sub PCB
* Solder again if pattern is damaged
or parts is wrong contacted.
No
Ok
* Measure oven sensor resistance.
(1080Ω at the room temperature)
* Check the connecting condition of
harness related with oven sensor.
Bake Relay
END
No
*Reconnect after replacing the oven
sensor.
END
Ok
* Check connector and harness connected to Sub PCB.
* Check whether harness on connector
(CN04,CN05) of sub PCB is connected normally into the
connector(CN04,CN05) or not.
No
CN04, CN05
Main PCB
Ok
CN04, CN05
With replacing sub PCB or main PCB, and make set work.
No
Sub PCB
Replace or repair the harness.
END
Replace sub PCB or main PCB
37
4. Troubleshooting
4-1 Failure Display Codes (01 Version)
Safety error
“E-08” or
“E-0A”
Disconnect power and main PCB
DLB Relay
Broil Relay
* Check the DLB, Bake and Broil relay.
(Nomal:∞ Ω)
* Check whether there is any damaged
parts of PCB pattern.
PCB
No
* Replace main PCB
* Solder again if pattern is damaged
or parts is wrong contacted.
Ok
* Measure oven sensor resistance.
(1080Ω at the room temperature)
* Check the connecting condition of
harness related with oven sensor.
Broil relay
Bake Relay
END
No
*Reconnect after replacing the oven
sensor.
END
Ok
* Check connector and harness connected to PCB.
No
Replace or repair the harness.
Ok
No
With replacing main PCB, and make set work.
END
38
Replace main PCB
4. Troubleshooting
4-1 Failure Display Codes (02 Version)
Safety error
Convection
Relay
“E-08” or
“E-0A”
DLB Relay
Disconnect power and sub PCB
Broil Relay
Sub PCB
* DLB, Bake, Broil,convection relay
check.(Nomal: ∞Ω)
* Check whether there is any damaged
parts of sub PCB pattern.
* Replace sub PCB
* Solder again if pattern is damaged
or parts is wrong contacted.
No
Ok
* Measure oven sensor resistance.
(1080Ω at the room temperature)
* Check the connecting condition of
harness related with oven sensor.
Bake Relay
END
No
*Reconnect after replacing the oven
sensor.
END
Ok
* Check connector and harness connected to Sub PCB.
* Check whether harness on connector
(CN04,CN05) of sub PCB is connected normally into the
connector(CN04,CN05) or not.
No
CN04, CN05
Main PCB
Ok
CN04, CN05
With replacing sub PCB or main PCB, and make set work.
No
Sub PCB
Replace or repair the harness.
END
Replace sub PCB or main PCB
39
4. Troubleshooting
4-1 Failure Display Codes (03 Version)
Safety error
“E-08” or
“E-0A”
Disconnect power and main PCB
DLB Relay
Broil Relay
* Check the DLB, Bake and Broil relay.
(Nomal:∞ Ω)
* Check whether there is any damaged
parts of PCB pattern.
PCB
No
* Replace main PCB
* Solder again if pattern is damaged
or parts is wrong contacted.
Ok
* Measure oven sensor resistance.
(1080Ω at the room temperature)
* Check the connecting condition of
harness related with oven sensor.
Broil relay
Bake Relay
END
No
*Reconnect after replacing the oven
sensor.
END
Ok
* Check connector and harness connected to PCB.
No
Replace or repair the harness.
Ok
No
With replacing main PCB, and make set work.
END
40
Replace main PCB
4. Troubleshooting
4-1 Failure Display Codes (00 Version)
Failure code
CAUSE
SOLUTION
*Control lockout(press cooking time and Delay
start pads at the same time for 3 seconds.)
E-0E
When 1 minute elapsed, It will display “E-0E
” after buzzer is beeping 10 times long, if
locking is occurred continually, or door locking
is not working during self-cleaning or steam is
being operated.
Door locking error
Please make sure through the method of
4-1 on 30 page if those series of working
for informing error take long time or not
functioned.
E-0E
NC
*Disconnect power.
*Get rid of harness connected with Lock motor
NO
COM
Door lock motor
* Micom switch check (com-NC,com-NO)
* Measure resistance of Lock motor
Coil.(1750~1850Ω at the room temperature)
No
* Replace micro switch or Lock motor.
END
Ok
*Check whether
*Check whether voltage(AC 120V) is offered to lock motor
with letting lock work or not.
CN02
No
Ok
Black (NC)
*Check whether harness connected normally into CN01
of main PCB.
CN01
Brown (NO)
Orange (COM)
Main PCB
No
* Repair damaged harness or
replace
*Measure resistance CN01 of main pcb.
(COM-NO: ∞, COM-NC: 4100~4200Ω at the room temperature)
*COM : orange color
*NO : brown color
*NC : black color
No
* Replace main PCB.
* Solder again if pattern is
damaged or parts is wrong
contacted.
END
41
4. Troubleshooting
4-1 Failure Display Codes (01 Version)
Failure code
CAUSE
SOLUTION
*Control lockout(press cooking time and Delay
start pads at the same time for 3 seconds.)
E-0E
When 1 minute elapsed, It will display “E0E” after buzzer is beeping 10 times long, if
locking is occurred continually, or door locking
is not working during self-cleaning or steam is
being operated.
Door locking error
Please make sure through the method of
4-1 on 30 page if those series of working
for informing error take long time or not
functioned.
E-0E
NC
*Disconnect power.
*Get rid of harness connected with Lock motor
NO
COM
Door lock motor
* Micom switch check (com-NC)
* Measure resistance of Lock motor
Coil.(1750~1850Ω at the room temperature)
No
* Replace micro switch or Lock motor.
END
Ok
*Check whether voltage(AC 120V) is offered to lock motor
with letting lock work or not.
No
Brown (NO)
Ok
*Check whether harness connected normally into CN02
of main PCB.
Orange(COM)
No
Main PCB
* Repair damaged harness or
replace
*Measure resistance CN01 of main pcb.
(COM-NO: ∞, COM-NC: 4100~4200Ω at the room temperature)
*COM : orange color
*NO : brown color
*NC : black color
No
* Replace main PCB.
* Solder again if pattern is
damaged or parts is wrong
contacted.
END
42
4. Troubleshooting
4-1 Failure Display Codes (02 Version)
Failure code
CAUSE
SOLUTION
*Control lockout(press cooking time and Delay
start pads at the same time for 3 seconds.)
E-0E
When 1 minute elapsed, It will display “E-0E
” after buzzer is beeping 10 times long, if
locking is occurred continually, or door locking
is not working during self-cleaning or steam is
being operated.
Door locking error
Please make sure through the method of
4-1 on 30 page if those series of working
for informing error take long time or not
functioned.
E-0E
NC
*Disconnect power.
*Get rid of harness connected with Lock motor
NO
COM
Door lock motor
* Micom switch check (com-NC,com-NO)
* Measure resistance of Lock motor
Coil.(1750~1850Ω at the room temperature)
No
* Replace micro switch or Lock motor.
END
Ok
*Check whether
*Check whether voltage(AC 120V) is offered to lock motor
with letting lock work or not.
CN02
No
Ok
Black (NC)
*Check whether harness connected normally into CN01
of main PCB.
CN01
Brown (NO)
Orange (COM)
Main PCB
No
* Repair damaged harness or
replace
*Measure resistance CN01 of main pcb.
(COM-NO: ∞, COM-NC: 4100~4200Ω at the room temperature)
*COM : orange color
*NO : brown color
*NC : black color
No
* Replace main PCB.
* Solder again if pattern is
damaged or parts is wrong
contacted.
END
43
4. Troubleshooting
4-1 Failure Display Codes (03 Version)
Failure code
CAUSE
SOLUTION
*Control lockout(press cooking time and Delay
start pads at the same time for 3 seconds.)
E-0E
When 1 minute elapsed, It will display “E0E” after buzzer is beeping 10 times long, if
locking is occurred continually, or door locking
is not working during self-cleaning or steam is
being operated.
Door locking error
Please make sure through the method of
4-1 on 30 page if those series of working
for informing error take long time or not
functioned.
E-0E
NC
*Disconnect power.
*Get rid of harness connected with Lock motor
NO
COM
Door lock motor
* Micom switch check (com-NC)
* Measure resistance of Lock motor
Coil.(1750~1850Ω at the room temperature)
No
* Replace micro switch or Lock motor.
END
Ok
*Check whether voltage(AC 120V) is offered to lock motor
with letting lock work or not.
No
Brown (NO)
Ok
*Check whether harness connected normally into CN02
of main PCB.
Orange(COM)
No
Main PCB
* Repair damaged harness or
replace
*Measure resistance CN01 of main pcb.
(COM-NO: ∞, COM-NC: 4100~4200Ω at the room temperature)
*COM : orange color
*NO : brown color
*NC : black color
No
* Replace main PCB.
* Solder again if pattern is
damaged or parts is wrong
contacted.
END
44
4. Troubleshooting
4-1 Failure Display Codes (00 Version)
Failure code
CAUSE
SOLUTION
When 10 seconds elapses, It will display “
-SE-” after buzzer is beeping 10 times long if
between main PCB and cable connector or
keypad and cable have a short circuit.
-SE-
short key
Please make sure through the method of
4-1 on 30 page if those series of working
for informing error take long time or not
functioned.
- SE -
Key
Connector
(CN07)
(CN06)
*Disconnect power.
*Take out keypad from the main PCB.
Main PCB (Back)
*Check whether between connector(CN06)
pin and pin on main PCB have a short
circuit.
No
* Repair the area of circuit
having short between
connector(CN06) pins on
main PCB.
* Repair after confirming
whether pattern is between
micom and connector have
a short circuit or get damaged.
Yes
END
No
*Make sure whether between keypad
have a short circuit.
Yes
* Replace or repair keypad
END
END
Control PCB
45
4. Troubleshooting
4-1 Failure Display Codes (01 Version)
Failure code
CAUSE
SOLUTION
When 10 seconds elapses, It will display
“-SE-” after buzzer is beeping 10 times long
if between main PCB and cable connector or
keypad and cable have a short circuit.
-SE-
short key
Please make sure through the method of
4-1 on 30 page if those series of working
for informing error take long time or not
functioned.
- SE -
Key
Connector
(CN07)
(CN05)
*Disconnect power.
*Take out keypad from the main PCB.
Main PCB (Back)
*Check whether between connector(CN05)
pin and pin on main PCB have a short
circuit.
No
* Repair the area of circuit
having short between
connector(CN05) pins on
main PCB.
* Repair after confirming
whether pattern is between
micom and connector have
a short circuit or get damaged.
Yes
END
No
*Make sure whether between keypad
have a short circuit.
Yes
* Replace or repair keypad
END
END
Control PCB
46
4. Troubleshooting
4-1 Failure Display Codes (02 Version)
Failure code
CAUSE
SOLUTION
When 10 seconds elapses, It will display “
-SE-” after buzzer is beeping 10 times long if
between main PCB and cable connector or
keypad and cable have a short circuit.
-SE-
short key
Please make sure through the method of
4-1 on 30 page if those series of working
for informing error take long time or not
functioned.
- SE -
Key
Connector
(CN07)
(CN06)
*Disconnect power.
*Take out keypad from the main PCB.
Main PCB (Back)
*Check whether between connector(CN06)
pin and pin on main PCB have a short
circuit.
No
* Repair the area of circuit
having short between
connector(CN06) pins on
main PCB.
* Repair after confirming
whether pattern is between
micom and connector have
a short circuit or get damaged.
Yes
END
No
*Make sure whether between keypad
have a short circuit.
Yes
* Replace or repair keypad
END
END
Control PCB
47
4. Troubleshooting
4-1 Failure Display Codes (03 Version)
Failure code
CAUSE
SOLUTION
When 10 seconds elapses, It will display
“-SE-” after buzzer is beeping 10 times long
if between main PCB and cable connector or
keypad and cable have a short circuit.
-SE-
short key
Please make sure through the method of
4-1 on 30 page if those series of working
for informing error take long time or not
functioned.
- SE -
Key
Connector
(CN07)
(CN05)
*Disconnect power.
*Take out keypad from the main PCB.
Main PCB (Back)
*Check whether between connector(CN05)
pin and pin on main PCB have a short
circuit.
No
* Repair the area of circuit
having short between
connector(CN05) pins on
main PCB.
* Repair after confirming
whether pattern is between
micom and connector have
a short circuit or get damaged.
Yes
END
No
*Make sure whether between keypad
have a short circuit.
Yes
* Replace or repair keypad
END
END
Control PCB
48
4. Troubleshooting
4-1 Failure Display Codes (00 Version)
Control PCB Operation
Sort of Control PCB
Main PCB
( Front )
( Back )
Sub PCB
( Front )
( Back )
Touch control PCB
( Front )
( Key panel )
49
4. Troubleshooting
4-1 Failure Display Codes (01 Version)
Control PCB Operation
Sort of Control PCB
Main PCB
( Front )
( Back )
Touch control PCB
( Front )
( Key panel )
50
4. Troubleshooting
4-1 Failure Display Codes (02 Version)
Control PCB Operation
Sort of Control PCB
Main PCB
( Front )
( Back )
Sub PCB
( Front )
( Back )
Touch control PCB
( Front )
( Key panel )
51
4. Troubleshooting
4-1 Failure Display Codes (03 Version)
Control PCB Operation
Sort of Control PCB
Main PCB
( Front )
( Back )
Touch control PCB
( Front )
( Key panel )
52
4. Troubleshooting
4-1 Failure Display Codes (00 Version)
* Explain of primary parts of Main PCB
( Main PCB )
Low Voltage Transformer
IC03(7805)
CN06
IC02(7812)
ZNR1
(Varistor)
CN04,CN05
CN02
CN03
CN01
CN07
Explatin of the function of primary parts.
CN01
This is connector which is connected with Door plunger switch and Door lock switch.
(COM-NO, COM-NC)
CN02
This is connector which is connected with oven sensor.
CN03
This is
to stop
operating
self-cleaning and steam mode if hot indicator lamp on cooktop is
( Sub
PCB
)
lighted with being supplied with AC120V(L1, N).
CN04,CN05
CN01on sub
Black
Blue
+ Gray
This connector isCN04,CN05
to get all operating of relay
PCB to be
connected.
CN06
This is consisted of 15 pin and take a role of getting a cable on keypad to connect with touch
PCB.
CN07
This is to supply power with primary on Low voltage transformer, and AC120V with main PCB
through harness.
Warmer Drawer Relay
ZNR1
This is the element to protect main PCB, getting varistor to work if over voltage is supplied with
varistor.
IC02
This is to supply DC12V with main PCB by voltage regulator.
IC03
This is to supply DC5V with main PCB by voltage regulator.
Broil Relay
DLB Relay
(Black, Brown or Brown, Black)
(Orange, Red or Red, Orange)
Bake Relay
(Yellow, Gray or Gray, Yellow)
53
CN06
drawer
CN02
CN04
CN01
4. Troubleshooting
4-1 Failure Display Codes (00 Version)
Explain primary parts of Sub PCB
( Sub PCB )
CN04,CN05
CN01
Black
Blue + Gray
Warmer Drawer Relay
Broil Relay
DLB Relay
(Black, Brown or Brown, Black)
(Orange, Red or Red, Orange)
Bake Relay
(Yellow, Gray or Gray, Yellow)
Explatin of the function of primary parts.
CN01
This is connector which have Door plunger switch, cooktop warming center, oven
lamp and relay of convection fan connected.
CN04,CN05
Connector(CN04,CN05) on sub PCB take a role of getting all of the operation of
relay on sub PCB to connect with main PCB(CN04,CN05).
DLB relay(Ry02)
Circuit is designed to have broil relay or convection relay worked after DLB relay is
being worked by Double line break.
(It will not be problem with reversing the order in insering Orange and Red)
Broil relay(Ry03),
Bake relay(Ry04),
Broil relay(Ry03), Bake relay(Ry04), convection relay(Ry05) will be on-off working
by micom signal after DLB relay is worked.
(Broil relay : It will not be problem with reversing the order in insering Black and Brown)
(Bake relay : It will not be problem with reversing the order in insering Yellow and Gray)
Ry-source relay(Ry01)
This is consisted of 15 pin and take a role of getting a cable on keypad to connect
with touch PCB.
W/Drawer Relay(Ry06)
and T03 terminal
This is terminal to connect harness with relay to get heater on warming drawer work.
T01 terminal
This is the terminal to supply L1 voltage(120V) with warming drawer
relay(Ry06),convection relay(Ry05).
54
4. Troubleshooting
4-1 Failure Display Codes (01 Version)
* Explain of primary parts of Main PCB
( Main PCB )
Low Voltage Transformer
IC03(7805)
CN03
CN05
IC02(7812)
Warmer DLB
drawer
BAKE BROIL
CN06
CN02
ZNR1
(Varistor)
CN04
CN01
Explatin of the function of primary parts.
CN01
CN02
CN03
This is to supply power with primary on Low voltage transformer, and AC120V with main PCB through
harness.
This is connector which is connected with Door plunger switch and Door lock switch.
(COM-NO, COM-NC)
This is connector which is connected with oven sensor.
CN05
This
is to
stop )operating self-cleaning and steam mode if hot indicator lamp on cooktop is lighted with
( Sub
PCB
being supplied with AC120V(L1, N).
CN01
+ Gray
CN04,CN05
This is consisted
of 15 pin and take a role
of gettingBlack
a cable onBlue
keypad
to connect with touch PCB.
CN06
This is connector which have door lock motor, cooktop warming center, and relay of oven lamp connected.
CN04(some model)
Ry-source relay(Ry01) Circuit is designed to all relay worked after Ry-source ralay is being worked. (For safety)
DLB relay(Ry02)
Circuit is designed to have broil relay or worked after DLB relay is being worked by Double line break.
Broil relay(Ry03),
Broil relay(Ry03), Bake relay(Ry04), will be on-off working by micom
signal
after DLB
relay is worked.
Warmer
Drawer
Relay
Bake relay(Ry04)
(Broil relay : It will not be problem with reversing the order in insering Black and Brown)
(Bake relay : It will not be problem with reversing the order in insering Yellow and Gray)
W/drawer relay(Ry06) This is terminal to connect harness with relay to get heater on warming drawer work.
and T02 terminal
ZNR1
This is the element to protect main PCB, if over voltage is supplied with PCB.
IC02
This is to supply DC12V with main PCB by voltage regulator.
IC03
This is to supply DC5V with main PCB by voltage regulator.
Broil Relay
DLB Relay
W/Drawer Relay(Ry06)
(Black, Brown or Brown, Black)
This is terminal to connect harness with relay to get heater on warming
drawer
(some
model)
(Orange,
Redwork
or Red,
Orange)
and T02
Bake Relay
(Yellow,
Gray ordrawer
Gray, Yellow)
This is the terminal to supply L1 voltage(120V)
with warming
relay(Ry06), convection relay(Ry05)
T01 terminal
(some model)
55
4. Troubleshooting
4-1 Failure Display Codes (02 Version)
* Explain of primary parts of Main PCB
( Main PCB )
Low Voltage Transformer
IC03(7805)
CN06
IC02(7812)
ZNR1
(Varistor)
CN04,CN05
CN02
CN03
CN01
CN07
Explatin of the function of primary parts.
CN01
This is connector which is connected with Door plunger switch and Door lock switch.
(COM-NO, COM-NC)
CN02
This is connector which is connected with oven sensor.
CN03
This is
to stop
operating
self-cleaning and steam mode if hot indicator lamp on cooktop is
( Sub
PCB
)
lighted with being supplied with AC120V(L1, N).
CN04,CN05
CN01on sub
Black
Blue
+ Gray
This connector isCN04,CN05
to get all operating of relay
PCB to be
connected.
CN06
This is consisted of 15 pin and take a role of getting a cable on keypad to connect with touch
PCB.
CN07
This is to supply power with primary on Low voltage transformer, and AC120V with main PCB
through harness.
Warmer Drawer Relay
ZNR1
This is the element to protect main PCB, getting varistor to work if over voltage is supplied with
varistor.
IC02
This is to supply DC12V with main PCB by voltage regulator.
IC03
This is to supply DC5V with main PCB by voltage regulator.
Broil Relay
DLB Relay
(Black, Brown or Brown, Black)
(Orange, Red or Red, Orange)
Bake Relay
(Yellow, Gray or Gray, Yellow)
56
CN06
drawer
CN02
CN04
CN01
4. Troubleshooting
4-1 Failure Display Codes (02 Version)
Explain primary parts of Sub PCB
( Sub PCB )
CN04,CN05
CN01
Black
Blue + Gray
Warmer Drawer Relay
Broil Relay
DLB Relay
(Black, Brown or Brown, Black)
(Orange, Red or Red, Orange)
Bake Relay
(Yellow, Gray or Gray, Yellow)
Explatin of the function of primary parts.
CN01
This is connector which have Door plunger switch, cooktop warming center, oven
lamp and relay of convection fan connected.
CN04,CN05
Connector(CN04,CN05) on sub PCB take a role of getting all of the operation of
relay on sub PCB to connect with main PCB(CN04,CN05).
DLB relay(Ry02)
Circuit is designed to have broil relay or convection relay worked after DLB relay is
being worked by Double line break.
(It will not be problem with reversing the order in insering Orange and Red)
Broil relay(Ry03),
Bake relay(Ry04),
Broil relay(Ry03), Bake relay(Ry04), convection relay(Ry05) will be on-off working
by micom signal after DLB relay is worked.
(Broil relay : It will not be problem with reversing the order in insering Black and Brown)
(Bake relay : It will not be problem with reversing the order in insering Yellow and Gray)
Ry-source relay(Ry01)
This is consisted of 15 pin and take a role of getting a cable on keypad to connect
with touch PCB.
W/Drawer Relay(Ry06)
and T03 terminal
This is terminal to connect harness with relay to get heater on warming drawer work.
T01 terminal
This is the terminal to supply L1 voltage(120V) with warming drawer
relay(Ry06),convection relay(Ry05).
57
4. Troubleshooting
4-1 Failure Display Codes (03 Version)
* Explain of primary parts of Main PCB
( Main PCB )
Low Voltage Transformer
IC03(7805)
CN03
CN05
IC02(7812)
Warmer DLB
drawer
BAKE BROIL
CN06
CN02
ZNR1
(Varistor)
CN04
CN01
Explatin of the function of primary parts.
CN01
CN02
CN03
This is to supply power with primary on Low voltage transformer, and AC120V with main PCB through
harness.
This is connector which is connected with Door plunger switch and Door lock switch.
(COM-NO, COM-NC)
This is connector which is connected with oven sensor.
CN05
This
is to
stop )operating self-cleaning and steam mode if hot indicator lamp on cooktop is lighted with
( Sub
PCB
being supplied with AC120V(L1, N).
CN01
+ Gray
CN04,CN05
This is consisted
of 15 pin and take a role
of gettingBlack
a cable onBlue
keypad
to connect with touch PCB.
CN06
This is connector which have door lock motor, cooktop warming center, and relay of oven lamp connected.
CN04(some model)
Ry-source relay(Ry01) Circuit is designed to all relay worked after Ry-source ralay is being worked. (For safety)
DLB relay(Ry02)
Circuit is designed to have broil relay or worked after DLB relay is being worked by Double line break.
Broil relay(Ry03),
Broil relay(Ry03), Bake relay(Ry04), will be on-off working by micom
signal
after DLB
relay is worked.
Warmer
Drawer
Relay
Bake relay(Ry04)
(Broil relay : It will not be problem with reversing the order in insering Black and Brown)
(Bake relay : It will not be problem with reversing the order in insering Yellow and Gray)
W/drawer relay(Ry06) This is terminal to connect harness with relay to get heater on warming drawer work.
and T02 terminal
ZNR1
This is the element to protect main PCB, if over voltage is supplied with PCB.
IC02
This is to supply DC12V with main PCB by voltage regulator.
IC03
This is to supply DC5V with main PCB by voltage regulator.
Broil Relay
DLB Relay
W/Drawer Relay(Ry06)
(Black, Brown or Brown, Black)
This is terminal to connect harness with relay to get heater on warming
drawer
(some
model)
(Orange,
Redwork
or Red,
Orange)
and T02
Bake Relay
(Yellow,
Gray ordrawer
Gray, Yellow)
This is the terminal to supply L1 voltage(120V)
with warming
relay(Ry06), convection relay(Ry05)
T01 terminal
(some model)
58
4. Troubleshooting
SYMPTOM
DIAGNOSIS
*
*
*
*
oven not operating
(No power,
No display)
Oven temperature
is risen slowly.
REMEDY
Measure an input voltage. (240/120V
or 208/120V)
Measure an input voltage of terminal
block.
Measure voltage of connector(CN01)
on main PCB L1~N : 120V
Measure secondary voltage of Low
Voltage Transformer.
13.5V and 7V
*
*
check circuit breaker.
Make sure that the state of wire is
connected with Terminal block.
*
Replace of repair if harness has been
loosen or disconnected.
Replace if resistance of Low voltage
transformer primary coil is over MΩ.
(Thermal Fuse out)
*
*
Measure resistance both ends of
terminal on thermostat. (normal : 0 ohoms)
* Check whether harness is connected
terminal on thermostat has been
loosen or disconnected.
* Measure voltage regulator
(IC02,IC03) on main PCB.
- IC02 : 7812(DC 12V)
- IC03 : 7805(DC 5V)
*
It will display “E-08” if it fail to reach
100˚F(38˚C) within 10 minute in a
state of room temperature.
*
Make sure whether harness is
connected with Broil and Bake heater
has been loosen or disconnected.
*
Make sure whether Broil and Bake,
heater has been disconnected.
*
Make sure that heater relay and
pattern on main PCB.
59
*
*
*
Replace the thermostat.
Replace or repair harness.
Replace or repair after confirming the state
of working of main PCB.
*
Replace after checking whether there is
any problem with oven sensor.
(1080Ω at the Room temperature)
*
Repair and replace harness.
*
After taking out terminal from each heater,
measure resistance of heater and then
replace that if it is not a normal resistance
value.
*
*
Replace or repair relay.
Replace or repair main PCB.
4. Troubleshooting
SYMPTOM
Oven temperature
is risen fast.
The self-cleaning
feature will not
operate when
warming center or
warming drawer
is on.
Keypad is not
worked normally
in partially or
entirely.
DIAGNOSIS
REMEDY
*
Check whtether temperature is risen
over 400˚F(202˚C) within 10 minutes
in a state of room temperature.
*
*
Replace or repair it if relay on main PCB
have a short circuit.
Check whether harness has been
misconnected or have a short circuit.
*
Replace or repair harness.
*
Measure resistance values of each
heater are within a normal extent or
not.
*
Replace heater is in a abnormal state.
*
This is in normal state.
*
The self-cleaning feature will not operate
when warming center or warming drawer
is on.
*
Make sure that keypad cable on
main PCB is in normal state.
*
Replace after confirming whether it has
been loosen or disconnected.
*
Make sure connector (CN05) on
main PCB or PCB pattern.
*
Replace or repair after confirming
whether keypad cable has been loosen or
disconnted.
*
Replace or repair if harness has been
loosen or disconnected.
Replace oven lamp relay(Ry09) or Rysource relay.(Ry01)
Replace main PCB.
*
Oven lamp is not
working.
Check the oven lamp relay (Ry09) on
PCB and connector (CN06).
*
*
*
Measure the resistance value of both
ends of lamp terminal.
60
*
Replace lamp if it has been
disconnected.(120V / 40W)
4. Troubleshooting
SYMPTOM
DIAGNOSIS
*
Cooktop is not
working or being
occurred a
abnormal working.
REMEDY
Make sure that Radiant element
or Infinite switch corresponded
RR(Right Rear), RF(Right Front),
LR(Left Rear), LF(Left Front).
*
Check whether harness is
connected with radiant element or
Infinite switch has been loosen or
disconnected.
*
Check whether there is any crack or
the area of being disconnected of
harness.
*
Measure whether RC(Rear Center)
Heater has been connected with
warming center relay(Ry07) on main
PCB normally or not.
*
Replace Infinite switch or Radiant element.
*
Replace or repair harness
*
Replace or repair Warming Center.
relay(Ry07)
Replace or repair Warming Ry-source relay.
Replace main PCB.
Replace or repair if harness has been
loosen or disconnected.
*
*
*
*
It has smell or smoke with burning dirt in
oven or a foreign substance when oven has
been working initially.
Ventilate after getting self cleaning mode to
work.
It has smell or
smoke when oven
has been started
initially.
*
LED display
is a little bit
dim partially or
invisible entirely.
*
LED display is inferior.
*
Replace main PCB.
*
Check the state of sound feature.
(Hidden key is oven Light and 0)
Check the state of buzzer on main
PCB and whether PCB pattern have
a short circuit or has been open.
*
*
Change the sound feature "off" to "on"
Replace or repair main PCB.
There is not
buzzer beep
sound when
keypad is being
worked.
This is in normal state.
*
*
61
4. Troubleshooting
4-2 Electrical Malfunction
Safety error
(Terminal Block)
No power
or
No display
L2
(Red)
L1
(Black)
L1
L1
L2
L2 : 240V
N : 120V
N : 120V
N
(White)
*Check terminal block voltage.
AC 240V/120V or AC208V/120V
* Reset the sirsuit breaker
or check main power.
No
Yes
END
*Thermostat open check. (150°c / 0°c )
No
* replace Thermostat.
Yes
*Check the pin voltage of connector
(CN01) on Main PCB.
(Input voltage : 120V)
Thermostat
(150/0)
Yes
No
**Reconnect and replace or
repair harness is damaged
*Check the Low voltage Transformer
Check whether varistor(ZNR1) on
main PCB has been damaged.
Yes
Low Voltage Transformer
* replace Main PCB.
IC03(7805)
IC02(7812)
ZNR1
(Varistor)
Connector
CN07(AC 120V)
62
END
4. Troubleshooting
4-2 Electrical Malfunction
* Measure resistance and voltage
of Low voltage Transformer
(please refer to Fig.1)
Low Voltage Transformer
Fig.1 : Low voltage Transformer
Input 120V
*Check whether primary resistance of
Low voltage Transformer is in normal.
No
Yes
No
voltage
resistance
Primary
120V
(input)
110 ~ 120Ω
Secondary 1
13.5V
1.5 ~ 2.5
Secondary 2
7V
1.7 ~ 2.0
*Thermal Fuse with built-in Low voltage
Transformer will be open if resistance is
more than MΩ.
Yes
* Replace Low Voltage Transformer
*Measure voltage of voltage Regulator
on main PCB.
IC02(7812) : DC 12V
IC03(7805) : DC 5V
END
Yes
* replace Main PCB.
END
63
4. Troubleshooting
4-2 Electrical Malfunction
Cooktop No heating or Abnormal working
*Single element Left Right(LR)
LR radiant element
(No heating or
Abnormal working)
Disconnect power
END
*Tighted terminal of harness by
compressing not to be loosen.
*Check the LR infinite switch
Ok
*Check whether harness connected wire and
the state of switch of LR infinite are in normal.
No
*Check whether harness in
terminal of switch has been
loosen or disconnected.
Ok
Ok
*Weld with terminal not to be
misconnected if harness is
disconnected from terminal on switch.
END
LR Infinite Switch
1-H1
2-P
Fig 2. The drawer of connected wire of harness
Position
3-L1
5-L2
4-H2
2-P
1-H1
5-L2
3-L1
4-H2
Ok
*Check whether harness is connected with
cooktop has been loosen or damaged.
Ok
*Check the LR Radiant element on cooktop.
Next Page
64
color
black+brown
red+red
yellow
blue
orange+orange+violet
4. Troubleshooting
4-2 Electrical Malfunction
(Continued)
LR radiant element
(No heating or
Abnormal working)
END
Ok
*Tighted terminal of harness by
compressing not to be loosen.
* Check the element of LR Radiant
Ok
*Check whether harness connected
wire and the state of element of LR
radiant are in normal.
*Check whether harness in
terminal of radiant has been
loosen or disconnected.
No
Ok
Ok
*Weld with terminal not to be
misconnected if harness is disconnected
from terminal on radiant.
END
Assembly LR Cooktop
WARNING
It is very dangerous when radiant heater is
working in case that harness has misconnected
2a
2b
1b
“A”
LR radiant element
Ok
*Check whether harness is connected with
LR infinite switch has been damaged or
disconnected.
Fig3. LR radiant element
Position ohms
1b-2b
∞
2a-”A” 45~50Ω
(at the room temperature)
Fig4. The drawer of connected wire of Harness
Position
“A”
2a
1b
2b
END
65
color
orange+violet
yellow
black+brown
yellow+violet
remark
240V, 1200W
165N8-L6871R
single elemaent
Ceramaspeed
4. Troubleshooting
4-2 Electrical Malfunction
(Continued)
*Dual element Left Front(LF)
LF radiant element
(No heating or
abnomal working)
END
Ok
*Tighted terminal of harness by
compressing not to be loosen.
* Disconnect power
* Check the LF infinite switch
*Check whether harness connected
wire and the state of LF infinite
switch are in normal
Ok
*Check whether harness in
terminal of switch has been
loosen or disconnected.
No
Ok
Ok
*Weld with terminal not to be misconnected
if harness is disconnected from terminal
on switch.
END
LF Infinite switch
Fig.5 The drawer of connected wire of Harness
P1
2
S1
P2
4
4A
Position
3-L1
5-L2
4-H2
2-P
1-H1
S2
Ok
*Check whether harness is connected with
cooktop has been loosen or damaged.
*Check the element of LF Radiant on cooktop.
Next Page
66
Color
black+black
red+red
blue
blue
orange+violet+gray
Remark
240V, 1250W
single switch
Invensys Co.
4. Troubleshooting
4-2 Electrical Malfunction
(Continued)
LF radiant element
(No heating or
Abnormal working)
END
*Tighted terminal of harness by
compressing not to be loosen.
*check the element of LF Radiant
Yes
*Check whether harness connected
wire and the state of LF infinite
switch are in normal.
*Check whether harness in
terminal of Radiant has
been loosen or disconnected.
No
Yes
Ok
*Weld with terminal not to be misconnected
if harness is disconnected from terminal
on Radiant.
END
WARNING
Assembly LF Cooktop
It is very dangerous when radiant heater is
working in case that harness has misconnected.
2a
2b
“1b”
“A”
Fig.6 LR radiant element
“B”
Ok
Position
ohms
1b-2b
2a-"A"
45~55Ω
2a-"B"
42~48Ω
∞
(at the room temperature)
*Check whether harness is connected with
LF infinite switch has been damaged or
disconnected.
Fig.7 The drawer of connected wire of harness
END
Position
color
remark
“A”
“B”
1b
blue
orange
yellow+yellow
240V
Dual element
ceramaspeed
2a
67
(at the room temperature)
gray+gray
4. Troubleshooting
4-2 Electrical Malfunction
*Single
*Single element
element Right
Right Rear(RR)
Rear(RR)
RR
RR radiant
radiant element
element
(No
heating
(No heating or
or
abnomal
abnomal working)
working)
END
END
Ok
Ok
*Tighted
*Tighted terminal
terminal of
of harness
harness by
by
compressing
compressing not
not to
to be
be loosen.
loosen.
** Disconnect
Disconnect power
power
** Check
Check the
the RR
RR infinite
infinite switch
switch
*Check
*Check whether
whether harness
harness connected
connected
wire
and
the
state
wire and the state of
of switch
switch of
of RR
RR
Radiant
are
in
normal.
Radiant are in normal.
Ok
Ok
*Check
*Check whether
whether harness
harness in
in
terminal
on
switch
terminal on switch has
has been
been
loosen
loosen or
or disconnected.
disconnected.
No
No
Ok
Ok
Ok
Ok
*Weld
*Weld with
with terminal
terminal not
not to
to be
be misconnected
misconnected
ifif harness
is
disconnected
from
harness is disconnected from terminal
terminal
on
on switch.
switch.
END
END
RR
RR Infinite
Infinite switch
switch
Fig.8
Fig.8 The
The drawer
drawer of
of connected
connected wire
wire of
of Harness
Harness
1-H1
1-H1
2-P
2-P
ColorColor
black+black
black+black
2-P
2-P
1-H1
1-H1
blue
blue
orange+violet
orange+violet
5-L2
5-L2
4-H2
4-H2
5-L2
5-L2
3-L1
3-L1
Position
Position
3-L1
3-L1
4-H-2
4-H-2
Ok
Ok
*Check
*Check whether
whether harness
harness is
is connected
connected with
with
cooktop
has
been
damaged
or
disconnected.
cooktop has been damaged or disconnected.
*Check
*Check the
the element
element of
of RR
RR Radiant
Radiant on
on Cooktop.
Cooktop.
Next
Next Page
Page
68
red
red
yellow
yellow
Remark
Remark
240V,1250W
240V,1250W
switch
singlesingle
switch
Invensys
Invensys Co. Co.
4. Troubleshooting
4-2 Electrical Malfunction
(Continued)
RR radiant element
(No heating or
Abnormal working)
END
*Tighted terminal of harness by
compressing not to be loosen.
*Check the element of RR Radiant
Ok
*Check whether harness connected
wire and the state of element of RR
Radiant are in normal.
*Check whether harness in
terminal of Radiant has
been loosen or disconnected.
No
Ok
Ok
*Weld with terminal not to be misconnected
if harness is disconnected from terminal
on Radiant.
END
Assembly RR Cooktop
WARNING
2a
It is very dangerous when radiant heater is
working in case that harness has misconnected.
“A”
2b
1b
Ok
*Check whether harness is connected with
LR infinite switch has been damaged or
disconnected.
Fig.9 LR radiant element
Position
ohms
1b-2b
2a-"A"
45~50Ω
∞
(at the room temperature)
Fig.10 The drawer of connected wire of harness
Position
color
remark
“A”
2a
1b
2b
orange+violet
yellow
black+brown
yellow+violet
240V,1200W
single element
ceramaspeed
69
4. Troubleshooting
4-2 Electrical Malfunction
*Dual element Left Front(LF)
(Continued)
RF radiant
radiant element
element
RF
(No
heating
or
(No heating or
abnomal
working)
abnomal working)
END
END
Yes
Yes
*Tighted terminal
terminal of
of harness
harness by
by
*Tighted
compressing not
not to
to be
be loosen.
loosen.
compressing
Disconnect power
power
** Disconnect
Check theRF
theRF infinite
infinite switch
switch
** Check
Yes
Yes
*Check whether
whether harness
harness connected
connected
*Check
wire
and
the
state
of
RF
infinite
wire and the state of RF infinite
switch
are
in
normal
switch are in normal
*Check whether
whether harness
harness in
in
*Check
terminal
of
switch
has
been
terminal of switch has been
loosen or
or disconnected.
disconnected.
loosen
No
No
Yes
Yes
Yes
Yes
*Weld with
with terminal
terminal not
not to
to be
be misconnected
misconnected
*Weld
harness is
is disconnected
disconnected from
from terminal
terminal
ifif harness
on switch.
switch.
on
END
END
RF Infinite
Infinite switch
switch
RF
Fig.5 The
The drawer
drawer of
of connected
connected wire
wire of
of Harness
Harness
Fig.5
22
44
P1
P1
Position
Position
P1
P1
S1
S1
S1
S1
P2
P2
P2
P2
4A
4A
S2
S2
Yes
Yes
4
S2
1-H1
4A
42
2
*Check whether
whether harness
harness is
is connected
connected with
with
*Check
cooktop
has
been
loosen
or
damaged.
cooktop has been loosen or damaged.
*Check the
the element
element of
of RF
RF Radiant
Radiant on
on cooktop.
cooktop.
*Check
Next Page
Page
Next
70
Color
Color
red+red
red+red
black+brown
black+brown
black+black
black+black
violet+gray
blue
(Indicator lamp)
violet+gray
sky
blue
violet+gray
blue
Remark
Remark
240V,1250W
240V,1250W
NL811226
NL811226
single switch
switch
single
Invensys Co.
Co.
Invensys
4. Troubleshooting
4-2 Electrical Malfunction
(Continued)
(Continued)
RC radiant element
RF radiant
(No
heatingelement
or
(No heatingworking)
or
Abnormal
Abnormal working)
END
END
Ok
*Tighten terminal of harness by
*Tighted
terminalnot
of harness
by
compressing
to be loosen.
compressing not to be loosen.
*Check element of RC radiant.
*check the element of RF Radiant
Ok
Yes
*Check whether harness connected
*Check whether harness connected
wire and the state of element of RC
wire and the state of RF infinite
radiant are in normal.
switch are in normal.
*Check whether harness in
*Check whether harness in
terminal of radiant has been
terminal of Radiant has
loosen or disconnected.
been loosen or disconnected.
No
No
Ok
Yes
Ok
Yes
*Weld
with
terminal
to be
misconnected
*Weld
with
terminal
notnot
to be
misconnected
if harness
is disconnected
from
terminal
if harness
is disconnected
from
terminal
on
switch.
on Radiant.
END
END
Assembly
RCCooktop
cooktop
Assembly RF
“E”
“F”
“C”“A” “B”
“D”
2a
2b“A”
“B”
WARNING
WARNING
It Itisisvery
when
radiant
heater
is is
verydangerous
dangerous
when
radiant
heater
working
that
harness
hashas
misconnected.
workinginincase
case
that
harness
misconnected.
Fig.6
LR RC
radiant
element
Fig.14
radiant
element
1b
Position
Position
1b-2b
"A"-"B"
2a-"A"
"C"-"D"
2a-"B"
"E"-"F"
RC radiant element
Yes
Ok
ohms
ohms
∞
560~600Ω
45~55Ω
∞Ω
42~48Ω
0Ω
(at
(atthe
theroom
roomtemperature)
temperature)
*Check whether harness is connected with
*Check whether harness is connected with
RF infinite switch has been damaged or
warming
zone relay on sub PCB has been
disconnected.
damaged or disconnected.
Fig.7
The
drawer
of connected
wirewire
of harness
Fig.15
The
drawer
of connected
of harness
Position
color
remark
Position
color
remark
“A”
blue
240V
“A”
red or yellow
“B”
orange
“B”
yellow
or red 1200W/2500W
120V,100W
1b
black
250T8-27913R
“C”
black or gray
2b
yellow+yellow
Dual element
“D”
gray or black
warmer element
2a
gray
Ceramaspeed Co.
“E”
yellow or violet
Ok
END
END
“F”
71
violet or yellow
4. Troubleshooting
4-2 Electrical Malfunction (00 Version)
Warming center relay(RY07)
CN04,CN05
RC radiant element
(No heating or
Abnormal working)
* Disconnect power
*Check warming center relay on sub PCB.
CN01
Sub PCB
No
*Check whether PCB pattern
have a short circuit or Relay
(Ry07) has been damaged.
Ok
Ok
*Check whether harness in terminal(CN01)
of sub PCB has been loosen or disconnected.
*Replace relay or repair PCB pattern.
Ok
Ok
*Check whether harness is between
connector (CN04,CN05) on main PCB
and connector(CN04,CN05) on sub
PCB has been connected normally.
END
Ok
No
*Tighten terminal of harness by
compressing not to be loosen.
No
Ok
*Make sure whether connector(CN04, CN05)
on main PCB is being worked well and PCB
pattern have a short circuit or get disconnected.
*Check whether harness is connected
with cooktop has been damaged or
disconnected.
Ok
Ok
END
*Check RC Radiant element of cooktop.
Next page
Main PCB(CN04,CN05)
72
4. Troubleshooting
4-2 Electrical Malfunction (01 Version)
Warming center relay(RY07)
CN04,CN05
RC radiant element
(No heating or
Abnormal working)
* Disconnect power
*Check warming center relay on sub PCB.
CN01
Sub PCB
No
*Check whether PCB pattern
have a short circuit or Relay
(Ry07) has been damaged.
Ok
Ok
*Check whether harness in terminal(CN01)
of sub PCB has been loosen or disconnected.
*Replace relay or repair PCB pattern.
Ok
Ok
*Check whether harness is between
connector (CN04,CN05) on main PCB
and connector(CN04,CN05) on sub
PCB has been connected normally.
END
Ok
No
*Tighten terminal of harness by
compressing not to be loosen.
No
Ok
*Make sure whether connector(CN04, CN05)
on main PCB is being worked well and PCB
pattern have a short circuit or get disconnected.
*Check whether harness is connected
with cooktop has been damaged or
disconnected.
Ok
Ok
END
*Check RC Radiant element of cooktop.
Next page
Main PCB(CN04,CN05)
73
4. Troubleshooting
4-2 Electrical Malfunction (02 Version)
Warming center relay(RY07)
CN04,CN05
RC radiant element
(No heating or
Abnormal working)
* Disconnect power
*Check warming center relay on sub PCB.
CN01
Sub PCB
No
*Check whether PCB pattern
have a short circuit or Relay
(Ry07) has been damaged.
Ok
Ok
*Check whether harness in terminal(CN01)
of sub PCB has been loosen or disconnected.
*Replace relay or repair PCB pattern.
Ok
Ok
*Check whether harness is between
connector (CN04,CN05) on main PCB
and connector(CN04,CN05) on sub
PCB has been connected normally.
END
Ok
No
*Tighten terminal of harness by
compressing not to be loosen.
No
Ok
*Make sure whether connector(CN04, CN05)
on main PCB is being worked well and PCB
pattern have a short circuit or get disconnected.
*Check whether harness is connected
with cooktop has been damaged or
disconnected.
Ok
Ok
END
*Check RC Radiant element of cooktop.
Next page
Main PCB(CN04,CN05)
74
4. Troubleshooting
4-2 Electrical Malfunction (03 Version)
Warming center relay(RY07)
CN04,CN05
RC radiant element
(No heating or
Abnormal working)
* Disconnect power
*Check warming center relay on sub PCB.
CN01
Sub PCB
No
*Check whether PCB pattern
have a short circuit or Relay
(Ry07) has been damaged.
Ok
Ok
*Check whether harness in terminal(CN01)
of sub PCB has been loosen or disconnected.
*Replace relay or repair PCB pattern.
Ok
Ok
*Check whether harness is between
connector (CN04,CN05) on main PCB
and connector(CN04,CN05) on sub
PCB has been connected normally.
END
Ok
No
*Tighten terminal of harness by
compressing not to be loosen.
No
Ok
*Make sure whether connector(CN04, CN05)
on main PCB is being worked well and PCB
pattern have a short circuit or get disconnected.
*Check whether harness is connected
with cooktop has been damaged or
disconnected.
Ok
Ok
END
*Check RC Radiant element of cooktop.
Next page
Main PCB(CN04,CN05)
75
4. Troubleshooting
4-2 Electrical Malfunction (00 Version)
(Continued)
RC radiant element
(No heating or
Abnormal working)
END
Ok
*Tighten terminal of harness by
compressing not to be loosen.
*Check element of RC radiant.
Ok
*Check whether harness connected
wire and the state of element of RC
radiant are in normal.
*Check whether harness in
terminal of radiant has been
loosen or disconnected.
No
Ok
Ok
*Weld with terminal not to be misconnected
if harness is disconnected from terminal
on switch.
END
Assembly RC cooktop
“C”
“D”
“A”
WARNING
“E”
“F”
It is very dangerous when radiant heater is
working in case that harness has misconnected.
Fig.14 RC radiant element
“B”
Position
"A"-"B"
"C"-"D"
RC radiant element
Ok
*Check whether harness is connected with
warming zone relay on PCB has been
damaged or disconnected.
"E"-"F"
ohms
560~600Ω
∞Ω
0Ω
(at the room temperature)
Fig.15 The drawer of connected wire of harness
Ok
END
76
Position
color
“A”
“B”
“C”
“D”
“E”
“F”
red or yellow
yellow or red
black or gray
gray or black
yellow or violet
violet or yellow
remark
240V,100W
warmer element
4. Troubleshooting
4-2 Electrical Malfunction (01 Version)
(Continued)
RC radiant element
(No heating or
Abnormal working)
END
Ok
*Tighten terminal of harness by
compressing not to be loosen.
*Check element of RC radiant.
Ok
*Check whether harness connected
wire and the state of element of RC
radiant are in normal.
*Check whether harness in
terminal of radiant has been
loosen or disconnected.
No
Ok
Ok
*Weld with terminal not to be misconnected
if harness is disconnected from terminal
on switch.
END
Assembly RC cooktop
WARNING
“C”
“A”
It is very dangerous when radiant heater is
working in case that harness has misconnected.
“D”
Fig.14 RC radiant element
“B”
Position
"A"-"B"
"C"-"D"
RC radiant element
Ok
ohms
560~600Ω
∞Ω
(at the room temperature)
Fig.15 The drawer of connected wire of harness
*Check whether harness is connected with
warming zone relay on sub PCB has been
damaged or disconnected.
Ok
END
77
Position
color
“A”
“B”
“C”
“D”
red or yellow
yellow or red
black or gray
gray or black
remark
240V,100W
warmer element
4. Troubleshooting
4-2 Electrical Malfunction (02 Version)
(Continued)
RC radiant element
(No heating or
Abnormal working)
END
Ok
*Tighten terminal of harness by
compressing not to be loosen.
*Check element of RC radiant.
Ok
*Check whether harness connected
wire and the state of element of RC
radiant are in normal.
*Check whether harness in
terminal of radiant has been
loosen or disconnected.
No
Ok
Ok
*Weld with terminal not to be misconnected
if harness is disconnected from terminal
on switch.
END
Assembly RC cooktop
“C”
“D”
“A”
WARNING
“E”
“F”
It is very dangerous when radiant heater is
working in case that harness has misconnected.
Fig.14 RC radiant element
“B”
Position
"A"-"B"
"C"-"D"
RC radiant element
Ok
*Check whether harness is connected with
warming zone relay on PCB has been
damaged or disconnected.
"E"-"F"
ohms
560~600Ω
∞Ω
0Ω
(at the room temperature)
Fig.15 The drawer of connected wire of harness
Ok
END
78
Position
color
“A”
“B”
“C”
“D”
“E”
“F”
red or yellow
yellow or red
black or gray
gray or black
yellow or violet
violet or yellow
remark
240V,100W
warmer element
4. Troubleshooting
4-2 Electrical Malfunction (03 Version)
(Continued)
RC radiant element
(No heating or
Abnormal working)
END
Ok
*Tighten terminal of harness by
compressing not to be loosen.
*Check element of RC radiant.
Ok
*Check whether harness connected
wire and the state of element of RC
radiant are in normal.
*Check whether harness in
terminal of radiant has been
loosen or disconnected.
No
Ok
Ok
*Weld with terminal not to be misconnected
if harness is disconnected from terminal
on switch.
END
Assembly RC cooktop
WARNING
“C”
“A”
It is very dangerous when radiant heater is
working in case that harness has misconnected.
“D”
Fig.14 RC radiant element
“B”
Position
"A"-"B"
"C"-"D"
RC radiant element
Ok
ohms
560~600Ω
∞Ω
(at the room temperature)
Fig.15 The drawer of connected wire of harness
*Check whether harness is connected with
warming zone relay on sub PCB has been
damaged or disconnected.
Ok
END
79
Position
color
“A”
“B”
“C”
“D”
red or yellow
yellow or red
black or gray
gray or black
remark
240V,100W
warmer element
4. Troubleshooting
4-2 Electrical Malfunction
Hot indicator Lamp failure (cooktop)
Hot Indicator Lamp
(No heating or
Abnormal working)
* Disconnect power
* Get rid of lamp from harness
END
*Get rid of lamp from bracket and
supply extra 120V voltage.
Yes
*Make sure whether lamp is lighted
when 120V voltage is supplied.
No
*Replace Hot Indicator Lamp.
Yes
*Check whether harness has been
damaged or disconnected.
“A”
END
“B”
Hot Indicator Lamp
Fig. 16 The drawer of
connected wire of harness
Position
A
B
Color
yellow+yellow
white
WARNING
Having a short circuit might cause fire or damage
of infinite switch if harness is misconnected during
cooktop is being worked.
(* Warning : Having a short circuit of harness color to be turned “Yellow+white” might
cause fire or damage of infinite switch.)
80
4. Troubleshooting
4-2 Electrical Malfunction
Component testing procedures
WARNING
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range. Replace all panels before operating range. Failure to do so
can result in death or electrical shock.
FIGURE
TESTS MEASURE
*
*
Broil Heater
*
*
Measure resistance values of
heater’s terminal after taking off
harness from heater.
Measure voltage of heater’s terminal
after making oven work by pressing
broil keypad.
Measure resistance values of
heater’s terminal after taking off
harness from heater.
Measure voltage of heater’s terminal
after making oven work by pressing
bake keypad. (Make sure that
voltage has to be measured for more
than 1 minute because heater is
supposed to on-off cycling work.)
RESULTS
*
*
*
*
*
*
*
*
Approx : 13 ~ 16Ω
(at the room temperature)
Terminal voltage of Broil heater :
AC 240V
Replace or repair harness
Replace or repair PCB
Approx : 26 ~ 30Ω
(at the room temperature)
Terminal voltage of bake heater :
AC 240V
Replace or repair harness
Replace or repair PCB
Bake Heater
*
*
Door Lock
Measure the state of micro switch
and motor after taking off harness
from the heater.
Check whether lock work normally
by pressing cooking time button and
delay start keypad at the same time
for 3 seconds.
81
*
*
*
Lock motor Resistance : 1750 ~ 1850Ω
(at the room temperature)
voltage : 120V
Micro switch
COM-NO , COM-NC
Replace or repair if harness has
been loosen or disconnected.
4. Troubleshooting
4-2 Electrical Malfunction
FIGURE
TESTS MEASURE
*
*
*
Oven Lamp Socket
Convection Fan
*
*
Sub Fan(Upper)
First of all, make sure that lamp
filament is disconnected or not.
Measure resistance socket’s terminal
after separating harness from heater
and removing lamp.
Measure the voltage of socket’s
terminal after having lamp worked by
pressing oven light keypad.
Measure resistance value of Motor
terminal after taking off harness from
Motor.
Measure Voltage of Motor’s terminal
after making oven work by pressing
bake keypad.
(Make sure that voltage has to be
measured for more than 1 minute
because Fan is supposed to on-off
Cycling work.)
Sub Fan(Lower)
82
RESULTS
∞Ω
*
Approx :
*
Terminal voltage of lamp socket :
120V
Replace or repair harness.
Replace or repair PCB
*
*
Approx
* Convection Fan : 20 ~ 30Ω
* Sub Fan : 85 ~ 100Ω*
(Upper, Lower)
* Terminal Voltage of Convection
Fan and Sub Fan : 120V
* Replace or repair harness
* Replace or repair PCB
4. Troubleshooting
4-2 Electrical Malfunction
FIGURE
TESTS MEASURE
RESULTS
*
LR Infinite Switch (Single)
Check whether harness is connected
with switch properly.
3-L1 black+black
5-L2 red+red
4-H2 yellow
2-P blue
1-H1 orange+violet
*
Measure the voltage and resistance between terminals. (Please refer to
schematic diagram)
* Check whether power level is right
with making LR cooktop work.
*
RR Infinite Switch (Single)
Check whether harness is connected
with switch properly.
3-L1 black+black
5-L2 red
4-H2 yellow
2-P blue
1-H1 orange+violet*
Measure
voltage and resistance between
terminals. (Please refer to schematic
diagram)
* Check whether power level is right
with making RR cooktop work.
*
LF Infinite Switch (Dual)
Check whether harness is connected
with switch properly.
P1 red+red
S1 black+brown
P2 black+black
S2 blue (Indicator lamp)
4A orange
4 violet+gray
2 blue
* Measure voltage and resistance
between terminals. (Please refer to
schematic diagram)
* Check whether power level is right
with making LF cooktop work.
83
Approx
* Resistance between terminals
∞
when switch is off : Ω
* When switch is on(HI) resistance
H1-L1-P : 0Ω
L2-H2 : 0Ω
* When switch is on(HI) voltage
L2=H2 ↔ H1=L1:240V
L1=P ↔ LR surface Lamp :120V
* Replace or repair harness
Approx
∞
* Resistance between terminals
when switch is off : Ω
* When switch is on(HI, Max.)
P1-2-4A : 0 Ω
S1-S2 : 0 Ω
P2-4 : 0 Ω
* When switch is on(HI, Max.)
voltage
P1=2=4A ↔ P2=4 : 240V
S1=S2 ↔ LF suface lamp : 120V
* Replace or repair harness.
4. Troubleshooting
4-2 Electrical Malfunction
FIGURE
TESTS MEASURE
RESULTS
*
LF -> RF
Check whether harness is connected
with switch properly.
P1 red+red
S1 black+brown
P2 black+black
S2 blue (Indicator lamp)
4A sky
4 violet+gray
2 blue
* Measure voltage and resistance
between terminals. (Please refer to
schematic diagram)
*
Check whether power level is right
with making RF cooktop work.
84
Approx
∞
* Resistance between
∞terminals
when switch is off : Ω
* When switch is on(HI, Max.)
P1-2-4A : 0 Ω
S1-S2 : 0 Ω
P2-4 : 0 Ω
* When switch is on(HI, Max.)
voltage
S1=S2 ↔ RF surface lamp : 120V
P1=2=4A ↔ P2=4 : 240V
4. Troubleshooting
4-2 Electrical Malfunction
FIGURE
TESTS MEASURE
*
1200W
Element
Terminal
RR or LR Radient element
Check whether harness is connected
with terminal of element properly.
element terminal :orange+violet
“A” orange+violet
2a yellow
1b black+brown
2b yellow+violet
*
Measure voltage and resistance between terminals. (Please refer
to schematic diagram)
*
1200/2500W
First element
Second element
LF Radient element
Check whether harness is connected
with terminal of element properly.
First element terminal : blue
Second element terminal : sky
“A” blue
“B” orange
1b brown+brown
2b yellow+yellow
2a gray+ gray
*
Measure voltage and resistance between terminals. (Please refer
to schematic diagram)
*
1200/2500W
First element
Second element
LF Radient element
Check whether harness is connected
with termial of element properly.
First element terminal : blue
Second element terminal : sky
“A” blue
“B” orange
1b black
2b yellow+yellow
2a gray
* Measure voltage and resistance
between terminals. (Please refer to
schematic diagram)
85
RESULTS
Approx
* Terminal resistance :
1b-2b= ∞ Ω
2a- element terminal : 45 ~ 50Ω
(at the room temperature)
* Voltage which supply radiant
element
2a - element terminal:240V
* Replace or repair harness.
Approx
* Terminal resistance :
1b-2b= ∞ Ω
2a-First element terminal:
45 ~ 50Ω
2a-second element terminal:
42 ~ 48Ω
(at the room temperature)
2a - first or second terminal
:240V
* Replace or repair harness.
Approx
* Terminal resistance :
1b-2b= ∞ Ω
2a-First element terminal:
45 ~ 50Ω
2a-second element terminal:
42 ~ 48Ω
(at the room temperature)
2a - first or second
terminal : 240V
* Replace or repair harness.
4. Troubleshooting
4-2 Electrical Malfunction
FIGURE
TESTS MEASURE
RESULTS
*
Check whether harness is connected
with terminal of element properly.
- element terminal : red, violet (It will not
be problem with reversing the order
in insering yellow and red.)
250
187 type TCO : black, gray
( It will not be problem with reversing
the order in insering black and violet)
100W
187N
Element
Terminal
RC radient element
250 type TCO : yellow,violet
( It will not be problem with reversing
the order in insering yellow and violet)
*
Measure voltage and resistance
between terminals. (Please refer to
schmatic diagram)
86
Approx
* terminal resistance
: 187 type TCO
∞ : Ω
element terminal : 560 ~ 600Ω
(at the room temperature)
* element terminal : 240V
* Replace or repair harness
4. Troubleshooting
4-2 Electrical Malfunction
FIGURE
TESTS MEASURE
*
Check the state of working of switch.
*
Make sure whether wire, housing
and terminal is connected with switch
has been damaged or not.
*
Check whether the resistance values
of oven sensor is same with a chart’s
one.
Check whether wire or housing has
been loosen or disconnected.
Door plunger switch
*
Oven Sensor
87
RESULTS
Nomal open : 0Ω
Nomal close : ∞Ω
* Replace or repair if wire or
terminal has been damaged.
Approx.
at the room temperature
:1080Ω
4. Troubleshooting
4-2 Electrical Malfunction
Oven sensor resistance (Temperature vs. Sensor resistance)
Ro = 1000 Ohms (0˚C), RP = 2757 Ohms, Up = 5V, a = 0.00375
degree F
degree C
ohms
degree F
degree C
ohms
0
-17.8
932.12
113
45
1170.17
14
-10
961.86
122
50
1188.93
23
-5
980.95
212
100
1374.93
32
0
1000.00
302
150
1558.01
41
5
1019.02
392
200
1738.06
50
10
1038.02
482
250
1915.39
59
15
1056.99
572
300
2089.69
68
20
1075.92
662
350
2261.07
77
25
1094.83
752
400
2429.52
86
30
1113.71
842
450
2595.05
95
35
1132.56
932
500
2757.65
104
40
1151.38
1000
538
2878.57
88
5. Exploded Views and Parts List
5-1 Exploded Views
(00 Version)
Z050
P233
T113
P234
H049
P232
H001
Z047
P234
M315
M348
M314
Z049
C003
Z048
C213
M243
B041
M327
M309
W002
M319
M268
M354
M248
M054
H005
M328
M015
M370
89
5. Exploded Views and Parts List
5-1 Exploded Views
(01 Version)
P236
T114
H049
H060
T113
P234
P234
M348
M314
M316
Z049
P349
M337
B041
M322
M327
M309
W002
P241
M319
W033
M268
M354
M248
M322
M339
M054
M338
M339
H005
M328
M015
90
5. Exploded Views and Parts List
5-1 Exploded Views
(02 Version)
P236
T114
H049
H060
T113
P234
P234
M348
C003
M314
M316
Z049
P349
M337
B041
M327
M309
P241
M319
M354
M033
M248
M322
H005
M328
M015
91
5. Exploded Views and Parts List
5-1 Exploded Views
(03 Version)
P236
T114
H049
H060
T113
P234
P234
M348
C003
M314
Z049
P349
M337
B041
M327
M309
W002
P241
M319
M354
M033
M248
M338
M054
M339
H005
M328
M015
92
5. Exploded Views and Parts List
5-2 Main Parts List
(00 Version)
No.
Code No.
Description
B041
DG66-00009A
LATCH-DOOR
C003
OAS-ASUB-01
ASSY PCB PARTS
C213
DG97-00121B
H001
DG31-00005A
H005
H049
Specification
Q’ty
SA/SNA
011-67508-01,-,-,-,-,30-EOVEN
1
SA
-
FTQ352IWUB/XAA , A-BETTER
1
SA
-
ASSY-HOLDER PCB SUB
FTQ352IWUW,BETTER
1
SA
-
MOTOR CONVECTION
-,SMC-U386A,-,60Hz,-,12
1
SA
-
DG97-00086A
ASSY-COVER CASING
FTQ386LWUX,5.7cu.ft.
1
SA
-
DG60-00001A
SPACER-FAN CONVECTION
BT63BSST,STKM11A,L
1
SA
-
M015
DG96-00048A
ASSY POWER CORD
CSA,Canada,125/250V/40A,
1
SA
-
M054
DG32-00002A
SENSOR-THERMISTOR
-,FTQ386LWUX,-,-,-,-,-
1
SA
-
M243
DG70-00004A
STEEL WIRE
A-1 PROJECT,MSWR,1.0,2,800,-,
1
SNA
M248
DG97-00083A
ASSY-LAMP BULB
422-899259-001,LH-01,120V
1
SA
-
M268
DG73-00003A
RUBBER-CUSHION
FTQ386LWUX,SILICON,-,50,-
1
SA
CAVITY-FRONT
M309
DG97-00058A
ASSY-VENT
FTQ386**, FTQ352**,Epoxy
1
SA
-
M314
DG97-00123A
ASSY-COVER BACK MAIN
FTQ386**, FTQ352**,
1
SA
-
M315
DG97-00076A
ASSY-COVER BACK MAIN SUB
FTQ386**, FTQ35
1
SA
-
M319
DG63-00082A
FILTER-VENT
FTQ386LWUX,-,-,-,-,-,SC21, M
1
SA
-
M327
DG47-00019A
HEATER-BROIL
-,FTQ386LWUX,Incoly840,3800
1
SA
-
M328
DG47-00020A
HEATER-BAKE
-,FTQ386LWUX,Incoly840,3000W
1
SA
-
M348
DG47-00028A
THERMOSTAT
FTQ386LWUX,-,125,15,160,0,-,-
1
SA
-
M354
DG34-00006A
SWITCH-DOOR PLUNGER
-,-,-,-,-,-,-,-,-,-,
1
SA
-
M370
DG63-00093A
GASKET-DOOR
FTQ386LWUX,STSS WOVEN WOOL,0
1
SA
-
P232
DG97-00127A
ASSY-CONVECTION MOTOR
A-1 PROJECT,30’ EL
1
SA
-
P233
DG97-00128A
ASSY-CONVECTION MOTOR SUB
A-1 PROJECT,30
1
SA
-
P234
DG75-01001A
RACK-FLAT
FTQ386LWUX,MSWR, Ni-Cr,-,630,4
1
SA
-
P234
DG75-01001A
RACK-FLAT
FTQ386LWUX,MSWR, Ni-Cr,-,630,4
1
SA
-
T113
DG63-00106A
TRAY-BROIL COATING
FTQ386LWUX,SPP,-,400,
1
SA
-
W002
DG39-00023A
WIRE HARNESS-A
FTQ352IWX,-,-,-,-,-,-,-,-
1
SA
-
Z047
DG97-00118B
ASSY-ACCESSORY A
FTQ386LWX/XAC,CLEANING
1
SNA
-
Z048
DG97-00120B
ASSY-BRACKET ANTI TIP
FTQ386LWX/XCA,A-1
1
SNA
-
Z049
DG97-00085A
ASSY-CLEANING KIT
FTQ386LWUX,-
1
SA
-
Z050
DG97-00119A
ASSY-ACCESSORY B
FTQ386LWUX,TRAY GRATE
1
SA
-
93
Remark
A-MAIN
5. Exploded Views and Parts List
5-2 Main Parts List
(01 Version)
No.
Code No.
Description
M354
DG34-00006A
SWITCH-DOOR PLUNGER
M033
DG39-00019A
B041
DG66-00009A
H005
H049
Specification
Q’ty
SA/
SNA
-,-,-,-,-,-,-,-,-,-,
1
SA
-
WIRE HARNESS-SUB
FTQ386, FTQ352,-,-,-,-,
1
SA
-
LATCH-DOOR
011-67508-01,-,-,-,-,30-EOVEN
1
SA
-
DG97-00086A
ASSY COVER CASING
FTQ386LWUX,-,-,5.7cu.f
1
SA
-
DG60-00001A
SPACER-FAN CONVECTION
BT63BSST,STKM11A,L
3
SA
-
H060
DG97-00127A
ASSY MOTOR CONVECTION
A-1 PROJECT,-,-,-,
1
SA
-
M015
DG96-00048A
ASSY POWER CORD
CSA,Canada,125/250V/40A,
1
SA
-
M248
DG97-00083A
ASSY LAMP BULB
-,LH-01,120V,40W,-,422-89
1
SA
-
M309
DG97-00058B
ASSY-VENT
FCQ321HSUX/XAA,-,A-2 PROJECT
1
SA
-
M314
DG97-00123A
ASSY COVER BACK-MAIN
FTQ386**,-,-, FTQ35
1
SA
-
M316
DG97-00135A
ASSY-TERMINAL BLOCK
FTQ386LWUX,-,-,-,-,A
1
SA
-
M319
DG63-00082A
FILTER-VENT
FTQ386LWUX,-,-,-,-,-,SC21, M
1
SA
-
M322
DG64-00142B
PANEL-SIDE COATING
FTQ386LWUX,SECC,0.6,6
2
SNA
-
M327
DG47-00019A
HEATER-BROIL
-,FTQ386LWUX,Incoly840,3800
1
SA
-
M328
DG47-00020A
HEATER-BAKE
-,FTQ386LWUX,Incoly840,3000W
1
SA
-
M337
DG63-00101A
COVER-WARMING HEATER
FTQ386LWUX,SGCC,0.6
1
SA
-
M338
DG67-00018A
FAN-CONVECTION MAIN
FSE1310AST,ALCOAT,15
1
SNA
-
M339
DG67-00019A
FAN-CONVECTION PLANET
FSE1310AST,ALCOAT,
2
SNA
-
M348
DG47-00028A
THERMOSTAT
FTQ386LWUX,-,125,15,160,0,-,-
1
SA
-
P234
DG75-01001A
RACK-FLAT
FTQ386LWUX,MSWR, Ni-Cr,-,630,4
1
SA
-
P234
DG75-01001A
RACK-FLAT
FTQ386LWUX,MSWR, Ni-Cr,-,630,4
1
SA
-
P236
DG31-00007A
MOTOR CONVECTION-SUB
-,SMC-U386B,-,60Hz,
2
SA
-
P241
DG61-00242A
BRACKET-BROIL HEATER
FTQ386LWUX,STSS,1.0
1
SA
-
P349
DG97-00120B
ASSY BRACKET-ANTI TIP
FTQ386LWX/XCA,-,-,
1
SA
-
T113
DG63-00106A
TRAY-BROIL COATING
FTQ386LWUX,SPP,-,400,
1
SA
-
T114
DG63-00105A
TRAY-GRATE COATING
FTQ386LWUX,SPP,-,365,
1
SA
-
W002
DG39-00033A
WIRE HARNESS-A
FTQ352IWX-A,-,-,-,-,-,-,-
1
SA
-
Z049
DG97-00085A
ASSY-CLEANING KIT
-,FTQ386LWUX,-
1
SA
-
94
Remark
5. Exploded Views and Parts List
5-2 Main Parts List
(02 Version)
No.
Code No.
Description
B041
DG66-00009A
LATCH-DOOR
C003
OAS-ASUB-01
H005
DG97-00086A
H049
H060
Specification
Q’ty
SA/
SNA
011-67508-01,-,-,-,-,30-EOVEN
1
SA
-
ASSY PCB PARTS
FTQ352IWUB/XAA , A-BETTER
1
SA
-
ASSY COVER CASING
FTQ386LWUX,-,-,5.7cu.f
1
SA
-
DG60-00001A
SPACER-FAN CONVECTION
BT63BSST,STKM11A,L
3
SA
-
DG97-00127A
ASSY MOTOR CONVECTION
A-1 PROJECT,-,-,-,
1
SA
-
M015
DG96-00048A
ASSY POWER CORD
CSA,Canada,125/250V/40A,
1
SA
-
M033
DG39-00019A
WIRE HARNESS-SUB
FTQ386, FTQ352,-,-,-,-,
1
SA
-
M054
DG32-00002A
SENSOR-THERMISTOR
-,FTQ386LWUX,-,-,-,-,-
1
SA
-
M248
DG97-00083A
ASSY LAMP BULB
-,LH-01,120V,40W,-,422-89
1
SA
-
M309
DG97-00058B
ASSY-VENT
FCQ321HSUX/XAA,-,A-2 PROJECT
1
SA
-
M314
DG97-00123A
ASSY COVER BACK-MAIN
FTQ386**,-,-, FTQ35
1
SA
-
M319
DG63-00082A
FILTER-VENT
FTQ386LWUX,-,-,-,-,-,SC21, M
1
SA
-
M327
DG47-00019A
HEATER-BROIL
-,FTQ386LWUX,Incoly840,3800
1
SA
-
M328
DG47-00020A
HEATER-BAKE
-,FTQ386LWUX,Incoly840,3000W
1
SA
-
M337
DG63-00101A
COVER-WARMING HEATER
FTQ386LWUX,SGCC,0.6
1
SA
-
M338
DG67-00018A
FAN-CONVECTION MAIN
FSE1310AST,ALCOAT,15
1
SA
-
M339
DG67-00019A
FAN-CONVECTION PLANET
FSE1310AST,ALCOAT,
2
SA
-
M348
DG47-00028A
THERMOSTAT
FTQ386LWUX,-,125,15,160,0,-,-
1
SA
-
M354
DG34-00006A
SWITCH-DOOR PLUNGER
-,-,-,-,-,-,-,-,-,-,
1
SA
-
P234
DG75-01001A
RACK-FLAT
FTQ386LWUX,MSWR, Ni-Cr,-,630,4
1
SA
-
P234
DG75-01001A
RACK-FLAT
FTQ386LWUX,MSWR, Ni-Cr,-,630,4
1
SA
-
P236
DG31-00007A
MOTOR CONVECTION-SUB
-,SMC-U386B,-,60Hz,
2
SA
-
P241
DG61-00242A
BRACKET-BROIL HEATER
FTQ386LWUX,STSS,1.0
1
SA
-
P349
DG97-00120B
ASSY BRACKET-ANTI TIP
FTQ386LWX/XCA,-,-,
1
SA
-
T113
DG63-00106A
TRAY-BROIL COATING
FTQ386LWUX,SPP,-,400,
1
SA
-
T114
DG63-00105A
TRAY-GRATE COATING
FTQ386LWUX,SPP,-,365,
1
SA
-
W002
DG39-00033A
WIRE HARNESS-A
FTQ352IWX-A,-,-,-,-,-,-,-
1
SA
-
Z049
DG97-00085A
ASSY-CLEANING KIT
-,FTQ386LWUX,-
1
SA
-
95
Remark
5. Exploded Views and Parts List
5-3 Door Parts List
V027
D004
D125
V002
D020
D032
D126
D019
V002
D015
(00 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
Specification
Q’ty
V027
DG97-00052C
ASSY-DOOR
FTQ352IWUW,BETTER,NEW GE WHT
1
SA
-
D004
DG94-00063A
ASSY DOOR-E
FTQ386LWUX,-,CERAMIC ENAMEL
1
SA
-
D015
DG94-00073A
ASSY DOOR-SUB
FTQ352IWUW,-,BETTER WHT
1
SA
-
D019
DG64-00147A
HANDLE-DOOR
A-1 Project,Al,2.5,-,-,-,Al
1
SNA
-
D020
DG97-00088C
ASSY-HANDLE DOOR
FTQ352IWUW,A-1 PROJECT,
1
SA
-
D032
DG61-00119C
GUIDE-HANDLE
FTQ352IWUW,PBT,55,21,50,NEW
1
SNA
-
D125
DG97-00113A
ASSY-BAFFLE DOOR
A-1 Project,-
1
SA
-
D126
DG64-00092A
GLASS-INNER
FTQ386LWUX/XAA,HEAT REFLECTI
1
SNA
-
V002
DG97-00080B
ASSY-HINGE
FTQ352*,30inch, Better
1
SA
-
96
SA/SNA Remark
5. Exploded Views and Parts List
5-3 Door Parts List
D049
D004
D170
V002
D126
D156
V002
D015
(01 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
Specification
Q’ty
D004
DG94-00063A
ASSY DOOR E
FTQ386LWUX,-,-,CERAMIC ENAME
1
SNA
-
D015
DG94-00073B
ASSY DOOR SUB
FTQ352**, FCQ321**,SECC,WH
1
SNA
-
D049
DG97-00052F
ASSY DOOR
FCQ321HSUW/XAA,-,WHITE,A-2 BET
1
SA
-
D126
DG64-00092A
GLASS-INNER
FTQ386LWUX/XAA,HEAT REFLECTI
2
SA
-
D156
DG97-00088F
ASSY HANDLE-DOOR
FTQ352**, FCQ321** WHIT
1
SA
-
D170
DG97-00113B
ASSY BAFFLE DOOR
FCQ321HSUX,ALCOAT,-,A-2
1
SA
-
V002
DG97-00080B
ASSY HINGE
FTQ352*,-,-,30inch, Better
2
SA
-
97
SA/SNA Remark
5. Exploded Views and Parts List
5-3 Door Parts List
D049
D004
D170
V002
D032
D126
D019
D156
V002
D015
(02 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
Specification
Q’ty
SA/SNA
D004
DG94-00063A
ASSY DOOR E
D015
DG94-00073B
D019
DG64-00147A
D032
D049
FTQ386LWUX,-,-,CERAMIC ENAME
1
SNA
-
ASSY DOOR SUB
FTQ352**, FCQ321**,SECC,WH
1
SNA
-
HANDLE-DOOR
A-1 Project,Al,2.5,-,-,-,Al
1
SNA
-
DG61-00119F
GUIDE-HANDLE
FTQ386**, FTQ352**, FCQ321*
2
SNA
-
DG97-00052F
ASSY DOOR
FCQ321HSUW/XAA,-,WHITE,A-2 BET
1
SA
-
D126
DG64-00092A
GLASS-INNER
FTQ386LWUX/XAA,HEAT REFLECTI
2
SA
-
D156
DG97-00088F
ASSY HANDLE-DOOR
FTQ352**, FCQ321** WHIT
1
SA
-
D170
DG97-00113B
ASSY BAFFLE DOOR
FCQ321HSUX,ALCOAT,-,A-2
1
SA
-
V002
DG97-00080B
ASSY HINGE
FTQ352*,-,-,30inch, Better
2
SA
-
98
Remark
5. Exploded Views and Parts List
5-3 Door Parts List
D049
D170
V002
D126
D156
V002
(03 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
Specification
Q’ty
SA/SNA
D049
DG97-00052F
ASSY DOOR
D126
DG64-00092A
D156
DG97-00088F
D170
V002
FCQ321HSUW/XAA,-,WHITE,A-2 BET
1
SA
-
GLASS-INNER
FTQ386LWUX/XAA,HEAT REFLECTI
2
SA
-
ASSY HANDLE-DOOR
FTQ352**, FCQ321** WHIT
1
SA
-
DG97-00113B
ASSY BAFFLE DOOR
FCQ321HSUX,ALCOAT,-,A-2
1
SA
-
DG97-00080B
ASSY HINGE
FTQ352*,-,-,30inch, Better
2
SA
-
99
Remark
5. Exploded Views and Parts List
5-4 Control Parts List
C184
C029
C184
C029
C082
C184
C223
C029
C184
C029
C003
M058
C237
C233
C211
C004
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
C003
OAS-AGMAIN-00
ASSY PCB PARTS
C004
DG34-00007B
SWITCH-MEMBRANE
C029
DG64-00113C
C082
DG97-00112F
C184
DG97-00090C
C211
DG97-00114F
C223
(00 Version)
Description
Specification
Q’ty
SA/SNA
FTQ352IWUB/XAA,A-BETTER,
1
SA
-
-,-,PC 0.5T,120V/60Hz,-,
1
SA
-
KNOB-DIAL
FTQ352IWUW,PBT,52.5,59,26,-,WH
1
SA
-
ASSY-CONTROL BOX
FTQ352IWW/XCA,BETTER,WH
1
SA
-
ASSY-KNOB DIAL
FTQ352IWUW.WHITE,5.7cu.ft
1
SA
-
ASSY-CONTROL SUB
FTQ352IWW/XCA,BETTER,WH
1
SA
-
DG64-00131A
INDICATOR-LIGHT
FTQ386LWUX,-,-,-,-,-,SP-
1
SA
-
C233
3603-001266
CIRCUIT BREAKER
120,15,-,-
1
SNA
-
C237
3721-001097
PLUG-AC POWER
3P,15A,125V,STRAIGHT,27x27
1
SNA
-
M058
6502-001117
CABLE CLAMP
DALF-94-2,-,-,EGI STEEL, SIL
1
SNA
-
100
Remark
5. Exploded Views and Parts List
5-4 Control Parts List
C184
C184
C184
C184
C235
C082
C003
C233
C234
U046
C004
C211
(01 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
C082
DG97-00112Q
ASSY CONTROL BOX
C003
OAS-AG2-01
C004
DG34-00007B
C184
C211
Specification
Q’ty
SA/
SNA
FTQ352IWW/XAC,-,WHITE,S
1
SA
-
ASSY PCB PARTS
FTQ352IWUB/XAC,A-BETTER_2
1
SA
-
SWITCH-MEMBRANE
-,-,PC 0.5T,120V/60Hz,-,
1
SA
-
DG97-00090F
ASSY KNOB DIAL
FCQ321HTUW/XAC,PBT,-,WHIT
4
SA
-
DG97-00114Q
ASSY CONTROL SUB
FTQ352IWW/XAC,-,WHITE,S
1
SA
-
C223
DG64-00131A
INDICATOR-LIGHT
FTQ386LWUX,-,-,-,-,-,SP-
4
SA
-
C234
DG44-01001A
REGULATOR-ENERGY
NL811226,FTQ386LWUX,-,-
2
SA
-
C235
DG44-01002A
REGULATOR-ENERGY
-,MDSA-W21-SKM,-,-,-,-,
2
SA
-
U046
DG67-00022A
LENS-LIGHT
FTQ386LWUX,-,-,-,-,-,-
4
SA
-
101
Remark
5. Exploded Views and Parts List
5-4 Control Parts List
C235
C082
C003
C211
C234
U046
C004
(02 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
C082
DG97-00112Q
ASSY CONTROL BOX
C003
OAS-AG2-01
C004
DG34-00007B
C211
C234
Specification
Q’ty
SA/
SNA
FTQ352IWW/XAC,-,WHITE,S
1
SA
-
ASSY PCB PARTS
FTQ352IWUB/XAC,A-BETTER_2
1
SA
-
SWITCH-MEMBRANE
-,-,PC 0.5T,120V/60Hz,-,
1
SA
-
DG97-00114Q
ASSY CONTROL SUB
FTQ352IWW/XAC,-,WHITE,S
1
SA
-
DG44-01001A
REGULATOR-ENERGY
NL811226,FTQ386LWUX,-,-
2
SA
-
C235
DG44-01002A
REGULATOR-ENERGY
-,MDSA-W21-SKM,-,-,-,-,
2
SA
-
C235
DG64-00131A
INDICATOR-LIGHT
FTQ386LWUX,-,-,-,-,-,SP-
4
SA
-
U046
DG67-00022A
LENS-LIGHT
FTQ386LWUX,-,-,-,-,-,-
4
SA
-
102
Remark
5. Exploded Views and Parts List
5-4 Control Parts List
C184
C184
C235
C233
C082
C003
C237 C233
C211
C234
U046
C004
(03 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
C082
DG97-00112Q
ASSY CONTROL BOX
C003
OAS-AGMAIN-00
C004
DG34-00007B
C184
C211
Specification
Q’ty
SA/
SNA
FTQ352IWW/XAC,-,WHITE,S
1
SA
-
ASSY PCB PARTS
FTQ352IWUB/XAA,A-BETTER,
1
SA
-
SWITCH-MEMBRANE
-,-,PC 0.5T,120V/60Hz,-,
1
SA
-
DG97-00090F
ASSY KNOB DIAL
FCQ321HTUW/XAC,PBT,-,WHIT
4
SA
-
DG97-00114Q
ASSY CONTROL SUB
FTQ352IWW/XAC,-,WHITE,S
1
SA
-
C223
DG64-00131A
INDICATOR-LIGHT
FTQ386LWUX,-,-,-,-,-,SP-
4
SA
-
C233
3603-001266
CIRCUIT BREAKER
120,15,-,-
1
SA
-
C234
DG44-01001A
REGULATOR-ENERGY
NL811226,FTQ386LWUX,-,-
2
SA
-
C235
DG44-01002A
REGULATOR-ENERGY
-,MDSA-W21-SKM,-,-,-,-,
2
SA
-
C237
3721-001097
PLUG-AC POWER
3P,15A,125V,STRAIGHT,27x27
1
SA
-
U046
DG67-00022A
LENS-LIGHT
FTQ386LWUX,-,-,-,-,-,-
4
SA
-
103
Remark
5. Exploded Views and Parts List
5-5 Cook top Parts List
M310
M340
M341
M058
M342
M321
M345
M345
H064
M113
M344
M345
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
M310
DG97-00073C
ASSY-COOKTOP
H064
DG64-00132A
INDICATOR-HOT SURFACE
M058
6502-001117
M113
DG61-00144A
M321
M340
(00 Version)
Description
Specification
Q’ty
SA/SNA
FTQ352IWUW,BETTER WHITE
1
SA
-
FTQ386LWUX,-,-,-,-
1
SA
-
CABLE CLAMP
DALF-94-2,-,-,EGI STEEL, SIL
1
SNA
-
SUPPORT-HEATER
FSE1310AST,SK-11,0.5,75,3
1
SA
-
DG97-00074C
ASSY-FRAME COOKTOP
FTQ352IWUW,BETTER, WH
1
SA
-
DG39-00017A
WIRE HARNESS-COOKTOP A
FTQ386, FTQ352,-,
1
SA
-
M341
DG39-00020A
WIRE HARNESS-GROUND A
FTQ386,FTQ352,-,-,
1
SA
-
M342
DG39-00024A
WIRE HARNESS-COOKTOP B
FTQ352,-,-,-,-,-,
1
SA
-
M344
DG61-00144B
SUPPORT-WARMING HEATER
FSE1310AST,SK-11,
1
SA
W-H-RADIANT
M345
DG47-00022A
HEATER-RADIANT
250T8L8737RC25140,FTQ386L
1
SA
-
M345
DG47-00023A
HEATER-RADIANT
165N8L8735RC25136,FTQ386L
1
SA
-
M345
DG47-00024A
HEATER-RADIANT
180N98233D000,FTQ386LWUX,
1
SA
-
104
Remark
5. Exploded Views and Parts List
5-5 Cook top Parts List
U035
M340
M341
M058
M342
M321
M345 (DG47-00023A)
H064
M113
M344
M345 (DG47-00024A)
M345 (DG47-00022A)
(01 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
H064
DG64-00132A
INDICATOR-HOT SURFACE
M058
6502-001117
M113
M321
Specification
Q’ty
SA/SNA
FTQ386LWUX,-,-,-,-
1
SA
-
CABLE CLAMP
DALF-94-2,-,-,EGI STEEL, SIL
6
SA
-
DG61-00286A
SUPPORT-HEATER
FCQ321HSUX,SK-5,0.5,-,-,-
8
SA
-
DG97-00074C
ASSY-FRAME COOKTOP
FTQ352IWUW,-,BETTER,W
1
SA
-
M340
DG39-00034B
WIRE HARNESS-COOKTOP A
FTQ386****-A,FTQ3
1
SA
-
M341
DG39-00020A
WIRE HARNESS-GROUND A
FTQ386,FTQ352,-,-,
1
SA
-
M342
DG39-00036A
WIRE HARNESS-COOKTOP B
FTQ352****-A,-,-,
1
SA
-
M344
DG61-00144B
SUPPORT-WARMING HEATER
FSE1310AST,SK-11,
2
SA
-
M345
DG47-00022A
HEATER-RADIANT
250T8L8737RC25140,FTQ386L
2
SA
W-H-RADIANT
M345
DG47-00023A
HEATER-RADIANT
165N8L8735RC25136,FTQ386L
2
SA
-
M345
DG47-00024B
HEATER-RADIANT
180N9-8896D,FCQ321****,FT
1
SA
-
105
Remark
5. Exploded Views and Parts List
5-5 Cook top Parts List
U035
M340
M341
M058
M342
M321
M345 (DG47-00023A)
H064
M113
M344
M345 (DG47-00024A)
M345 (DG47-00022A)
(02 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
H064
DG64-00132A
INDICATOR-HOT SURFACE
M058
6502-001117
M113
DG61-00286A
M321
M340
Specification
Q’ty
SA/SNA
FTQ386LWUX,-,-,-,-
1
SA
-
CABLE CLAMP
DALF-94-2,-,-,EGI STEEL, SIL
6
SA
-
SUPPORT-HEATER
FCQ321HSUX,SK-5,0.5,-,-,-
8
SA
-
DG97-00074C
ASSY-FRAME COOKTOP
FTQ352IWUW,-,BETTER,W
1
SA
-
DG39-00017A
WIRE HARNESS-COOKTOP A
FTQ386, FTQ352,-,
1
SA
-
M341
DG39-00020A
WIRE HARNESS-GROUND A
FTQ386,FTQ352,-,-,
1
SA
-
M342
DG39-00024A
WIRE HARNESS-COOKTOP B
FTQ352,-,-,-,-,-,
1
SA
-
M344
DG61-00144B
SUPPORT-WARMING HEATER
FSE1310AST,SK-11,
2
SA
-
M345
DG47-00022A
HEATER-RADIANT
250T8L8737RC25140,FTQ386L
2
SA
-
M345
DG47-00023A
HEATER-RADIANT
165N8L8735RC25136,FTQ386L
2
SA
-
M345
DG47-00024A
HEATER-RADIANT
180N98233D000,FTQ386LWUX,
1
SA
-
U035
DG97-00073N
ASSY COOKTOP
FTQ352IWW/XAC,VE, CANADA, W
1
SA
-
106
Remark
5. Exploded Views and Parts List
5-5 Cook top Parts List
U035
M340
M341
M058
M342
M321
M345 (DG47-00023A)
H064
M113
M344
M345 (DG47-00024A)
M345 (DG47-00022A)
(03 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
H064
DG64-00132A
INDICATOR-HOT SURFACE
M058
6502-001117
M113
DG61-00286A
M321
M340
Specification
Q’ty
SA/SNA
FTQ386LWUX,-,-,-,-
1
SA
-
CABLE CLAMP
DALF-94-2,-,-,EGI STEEL, SIL
6
SA
-
SUPPORT-HEATER
FCQ321HSUX,SK-5,0.5,-,-,-
8
SA
-
DG97-00074C
ASSY-FRAME COOKTOP
FTQ352IWUW,-,BETTER,W
1
SA
-
DG39-00017A
WIRE HARNESS-COOKTOP A
FTQ386, FTQ352,-,
1
SA
-
M341
DG39-00020A
WIRE HARNESS-GROUND A
FTQ386,FTQ352,-,-,
1
SA
-
M342
DG39-00024A
WIRE HARNESS-COOKTOP B
FTQ352,-,-,-,-,-,
1
SA
-
M344
DG61-00144B
SUPPORT-WARMING HEATER
FSE1310AST,SK-11,
2
SA
-
M345
DG47-00022A
HEATER-RADIANT
250T8L8737RC25140,FTQ386L
2
SA
-
M345
DG47-00023A
HEATER-RADIANT
165N8L8735RC25136,FTQ386L
2
SA
-
M345
DG47-00024A
HEATER-RADIANT
180N98233D000,FTQ386LWUX,
1
SA
-
U035
DG97-00073N
ASSY COOKTOP
FTQ352IWW/XAC,VE, CANADA, W
1
SA
-
107
Remark
5. Exploded Views and Parts List
5-6 Drawer Parts List
M317
M313
H065
M320
(00 Version)
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
Description
Specification
Q’ty
SA/SNA
Remark
M317
DG97-00117D
ASSY-DRAWER MAIN
FTQ352IWUW/XAA,BETTER,
1
SA
-
M313
DG97-00071A
ASSY-PEDESTAL
FTQ386**, FTQ352**,A-1 PJT
1
SA
-
H065
DG47-00018A
HEATER-WARMING DRAWER
-,FTQ386LWUX,Incol
1
SA
-
M320
DG97-00053D
ASSY-DRAWER
FTQ352IWUW,BETTER WHITE
1
SA
-
108
5. Exploded Views and Parts List
5-6 Drawer Parts List
M412
M335
H065
M317
M311
M312
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
(01 Version)
Description
Specification
Q’ty
SA/SNA
Remark
H065
DG47-00018A
HEATER-WARMING DRAWER
-,FTQ386LWUX,Incol
1
SA
-
M311
DG97-00091B
ASSY-SLIDER RIGHT
FTQ386**, FTQ352**,-,V
1
SA
-
M312
DG97-00092B
ASSY-SLIDER LEFT
FTQ386**, FTQ352**,-,VE
1
SA
-
M317
DG97-00117L
ASSY DRAWER-MAIN
FTQ352IWUW/XAA, FTQ352I
1
SA
-
M412
DG97-00053P
ASSY DRAWER
FTQ352IWUW/XAA, FTQ352IWW/XA
1
SA
-
P335
DG97-00071D
ASSY PEDESTAL
FTQ386**. FTQ352**,BLACK,V
1
SA
-
109
5. Exploded Views and Parts List
5-6 Drawer Parts List
M412
H065
M317
M311
M312
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
(02 Version)
Description
Specification
Q’ty
SA/SNA
Remark
H065
DG47-00018A
HEATER-WARMING DRAWER
-,FTQ386LWUX,Incol
1
SA
-
M311
DG97-00091B
ASSY-SLIDER RIGHT
FTQ386**, FTQ352**,-,V
1
SA
-
M312
DG97-00092B
ASSY-SLIDER LEFT
FTQ386**, FTQ352**,-,VE
1
SA
-
M317
DG97-00117L
ASSY DRAWER-MAIN
FTQ352IWUW/XAA, FTQ352I
1
SA
-
M412
DG97-00053P
ASSY DRAWER
FTQ352IWUW/XAA, FTQ352IWW/XA
1
SA
-
110
5. Exploded Views and Parts List
5-6 Drawer Parts List
M412
P335
H065
M317
M311
M312
(S.N.A : SERVICE NOT AVAILABLE)
No.
Code No.
(03 Version)
Description
Specification
Q’ty
SA/SNA
Remark
H065
DG47-00018A
HEATER-WARMING DRAWER
-,FTQ386LWUX,Incol
1
SA
-
M311
DG97-00091B
ASSY-SLIDER RIGHT
FTQ386**, FTQ352**,-,V
1
SA
-
M312
DG97-00092B
ASSY-SLIDER LEFT
FTQ386**, FTQ352**,-,VE
1
SA
-
M317
DG97-00117L
ASSY DRAWER-MAIN
FTQ352IWUW/XAA, FTQ352I
1
SNA
-
M412
DG97-00053P
ASSY DRAWER
FTQ352IWUW/XAA, FTQ352IWW/XA
1
SA
-
P335
DG97-00071D
ASSY PEDESTAL
FTQ386**. FTQ352**,BLACK,V
1
SA
-
111
5. Exploded Views and Parts List
5-7 Standard Parts List
(00 Version)
(S.N.A : SERVICE NOT AVAILABLE)
Level
Code No.
Description
Specification
Q’ty
1-1
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
2
1-1
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
21
SNA A-COOKTOP,S-BURNER,S-R-SIGHT,B-C-ACCESS,
1-1
6009-001395
SCREW-SPECIAL
TH,+,WP,M5,L10,PASS,STS XM
1
SNA S-HINGE
1-1
6021-001208
NUT-HEXAGON CAP
-,M4,NI PLT,SWRCH10A,-
1
SNA F-C-PLANET
1-1
6021-001211
NUT-HEXAGON CAP
-,M4,NI PLT,SWRCH10A,LEF
1
SA
F-C-MAIN
1-1
DE60-10189A
SCREW MACHINE
-,+,WS(FIBER),M4,L10,ZPC(B
1
SA
L-DOOR
1-2
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
1
SNA S-S-PANEL
1-2
6002-000171
SCREW-TAPPING
PH,+,2S,M4,L10,ZPC(YEL),SW
2
SNA S-HEATER,CABLE-CLAMP
1-2
6002-000630
SCREW-TAPPING
PH,+,2S,M3,L8,ZPC(YEL),SWR
1
SA
I-H-SURFACE
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
1
SA
H-W-G-A
1-2
6002-001237
SCREW-TAPPING
PWH,+,-,2,M3,L12,ZPC(WHT),
1
SNA A-P-MAIN
1-2
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
4
SNA A-C-BOX,-,H-DISPLAY,B-C-PANEL
1-2
DE60-00001A
SCREW MACHINE
TH,+,-,M4,L6,NI PLT,STS430
1
SNA R-ENERGY
1-2
DE60-10065A
SCREW-TAPPING
-,-,FE-FZY,-,TH,M4,-,L6,-,
1
SNA B-GLASS
1-3
6002-000630
SCREW-TAPPING
PH,+,2S,M3,L8,ZPC(YEL),SWR
1
1-3
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
5
SNA S-U-DRAWER,B-W-DRAWER,H-W-DRAWER,S-SDRA
1-3
6006-001176
SCREW-ASSY TAPT
WT,PH,+,M4,L8,ZPC(YEL)
1
SNA B-W-HEATER
1-3
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
1
SNA T-P-FRONT
1-3
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
1
SNA SLIDER
1-3
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
1
SNA P-W-DRAWER
1-3
DE60-10034A
SCREW MACHINE
TH,+,-,M4,L4,-,STS410,-,-
1
SNA -
1-4
DE60-10027A
SCREW-TAPPING
M4,+,-,L12,WP(Fiber),TH,Ta
1
1-2
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
1
1-2
6001-000547
SCREW-MACHINE
TH,+,-,M4,L25,ZPC(WHT),SWR
1
SA
-
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
1
SA
-
1-2
DE60-30016A
NUT-FLANGE
M4,MSWR10,-,-,-,-,-,-,-
1
SA
-
1-2
6001-000547
SCREW-MACHINE
TH,+,-,M4,L25,ZPC(WHT),SWR
1
SA
-
1-2
DE60-30016A
NUT-FLANGE
M4,MSWR10,-,-,-,-,-,-,-
1
SA
-
1-1
6003-001622
SCREW-TAPTITE
HEX,+,TH,S-TITE,M5,L10,ZPC
1
SA
-
1-1
6001-000033
SCREW-MACHINE
TH,+,-,M4,L10,PASS,STS304,
1
SNA -
1-1
DE60-10193A
SCREW-TAPPING
-,YEL,MSWR18,FEFZY,TH,M4,-
2
SNA H-P-SUB,T-BLOCK
1-1
DE60-10199A
SCREW-MACHINE
HEX,+,WT,M5,L10,CR PLT,SWR
1
1-1
DE60-10028A
SCREW MACHINE
HEX,+,-,M6,L10,ZPC(WHT),SW
1
1-2
6001-001377
SCREW-MACHINE
TH,+,-,M5,L25,ZPC(WHT),SWR
1
1-2
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
3
SNA A-D-E,B-I-GLASS,A-B-DOOR
1-2
6009-001395
SCREW-SPECIAL
TH,+,WP,M5,L10,PASS,STS XM
1
SNA A-HINGE
1-2
DE60-10091A
SCREW MACHINE
PH,UP,FIBER,-,L80(22),PASS
1
1-3
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
1
1-3
6001-001377
SCREW-MACHINE
TH,+,-,M5,L25,ZPC(WHT),SWR
1
112
SA/
SNA
SA
SA
SA
Remark
A-C-B-GROUND,H-W-G-A
NULL10
-
SNA THERMOSTAT
SA
A-T-BLOCK
SNA A-T-BLOCK
SA
SA
A-H-DOOR
A-H-DOOR
SNA T-DOOR
SA
-
5. Exploded Views and Parts List
5-7 Standard Parts List
(S.N.A : SERVICE NOT AVAILABLE)
Level
Code No.
Description
1-1
6006-001170
SCREW-TAPPING
1-1
6006-001174
1-1
(01 Version)
Specification
Q’ty
SA/
SNA
Remark
TH,+,WT,TC,M4,L10,ZPC(WHT)
2
SNA
A-C-B-GROUND,H-W-G-A
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
62
SNA
A-COOKTOP,B-M-CONNECTOR,B-MTOP,C-ACCESS,C-FRONT,C-WARMER,GCOOKTOP,H-BAKE,L-DOOR,M-C-SUB,MCONVECTI
6009-001395
SCREW-SPECIAL
TH,+,WP,M5,L10,PASS,STS XM
4
SNA
S-HINGE
1-1
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
8
SNA
A-C-CASING,A-VENT,H-BROIL,A-VENT_CB-MAIN
1-1
DE60-10189A
SCREW MACHINE
-,+,WS(FIBER),M4,L10,ZPC(B
2
SA
1-2
6001-000547
SCREW-MACHINE
TH,+,-,M4,L25,ZPC(WHT),SWR
1
SNA
-
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
2
SNA
-
1-2
6001-000547
SCREW-MACHINE
TH,+,-,M4,L25,ZPC(WHT),SWR
2
SNA
-
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
4
SNA
-
1-1
DE60-10199A
SCREW-MACHINE
HEX,+,WT,M5,L10,CR PLT,SWR
3
SA
A-T-BLOCK
1-1
DE60-10028A
SCREW MACHINE
HEX,+,-,M6,L10,ZPC(WHT),SW
3
SNA
A-T-BLOCK
1-2
6001-001377
SCREW-MACHINE
TH,+,-,M5,L25,ZPC(WHT),SWR
4
SNA
A-H-DOOR
1-2
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
14
SNA
A-B-DOOR,B-I-GLASS,CHASSIS-DOOR
1-2
6009-001395
SCREW-SPECIAL
TH,+,WP,M5,L10,PASS,STS XM
6
SNA
A-HINGE
1-2
DE60-10091A
SCREW MACHINE
PH,UP,BLACK FIBER,-,L80(22
2
SNA
A-H-DOOR
1-3
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
6
SNA
T-DOOR
1-3
6001-001377
SCREW-MACHINE
TH,+,-,M5,L25,ZPC(WHT),SWR
2
SNA
-
1-2
6002-000630
SCREW-TAPPING
PH,+,2S,M3,L8,ZPC(YEL),SWR
1
SNA
I-H SURFACE
1-2
6002-000643
SCREW-TAPPING
TH,+,2S,M4,L10,ZPC(YEL),SW
8
SNA
B-HEATER
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
1
SNA
H-W-G-A
1-2
DE60-00003A
SCREW-TAPPING
M3.5,+,-,L9,-,TH,ZPC(WHT),
8
SNA
CABLE-CLAMP,MICA HEATER
1-2
6002-001237
SCREW-TAPPING
PWH,+,-,2,M3,L12,ZPC(WHT),
2
SNA
B-C-P-SUB
1-2
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
11
SNA
A-C-BOX,B-C-PANEL,H-DISPLAY
1-2
DE60-00001A
SCREW MACHINE
TH,+,-,M4,L6,NI PLT,STS430
8
SNA
R-ENERGY
1-2
DE60-10065A
SCREW-TAPPING
-,-,FE-FZY,-,TH,M4,-,L6,-,
2
SNA
B-C-P-SUB
1-1
6002-000432
SCREW-TAPPING
TH,+,-,B,M4,L10,ZPC(WHT),S
5
SNA
CAVITY-B_COVER-B-M
1-1
6003-001622
SCREW-TAPTITE
HEX,+,TH,S-TITE,M5,L10,ZPC
1
SNA
B-GROUND
1-3
DE60-10034A
SCREW MACHINE
TH,+,-,M4,L4,-,STS410,-,-
4
SNA
SLIDER
1-3
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
7
SNA
P-W-DRAWER
1-4
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
3
SNA
A-C-DRAWER
1-3
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
23
SNA
B-W-DRAWER,H-W-DRAWER,S-SDRAWER,S-U-DRAWER
1-3
6006-001176
SCREW-ASSY TAPT
WT,PH,+,M4,L8,ZPC(YEL)
3
SNA
B-W-HEATER
1-3
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
2
SNA
SLIDER
1-3
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
9
SNA
T-P-FRONT
1-1
6001-000033
SCREW-MACHINE
TH,+,-,M4,L10,PASS,STS304,
1
SNA
SENSOR-TH
1-1
6021-001208
NUT-HEXAGON CAP
-,M4,NI PLT,SWRCH10A,-
2
SNA
F-C-PLANET
1-1
6021-001211
NUT-HEXAGON CAP
-,M4,NI PLT,SWRCH10A,LEF
1
SNA
F-C-MAIN
1-2
DE60-30016A
NUT-FLANGE
M4,MSWR10,-,-,-,-,-,-,-
1
SNA
-
1-2
DE60-30016A
NUT-FLANGE
M4,MSWR10,-,-,-,-,-,-,-
2
SNA
-
113
L-DOOR
5. Exploded Views and Parts List
5-7 Standard Parts List
(S.N.A : SERVICE NOT AVAILABLE)
Level
Code No.
Description
1-1
6006-001170
SCREW-TAPPING
1-1
6006-001174
1-1
(02 Version)
Specification
Q’ty
SA/
SNA
Remark
TH,+,WT,TC,M4,L10,ZPC(WHT)
2
SNA
A-C-B-GROUND,H-W-G-A
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
62
SNA
A-COOKTOP,B-M-CONNECTOR,B-MTOP,C-ACCESS,C-FRONT,C-WARMER,GCOOKTOP,H-BAKE,L-DOOR,M-C-SUB,MCONVECTI
6009-001395
SCREW-SPECIAL
TH,+,WP,M5,L10,PASS,STS XM
4
SNA
S-HINGE
1-1
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
8
SNA
A-C-CASING,A-VENT,H-BROIL,A-VENT_CB-MAIN
1-1
DE60-10189A
SCREW MACHINE
-,+,WS(FIBER),M4,L10,ZPC(B
2
SA
1-2
6001-000547
SCREW-MACHINE
TH,+,-,M4,L25,ZPC(WHT),SWR
1
SNA
-
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
2
SNA
-
1-2
6001-000547
SCREW-MACHINE
TH,+,-,M4,L25,ZPC(WHT),SWR
2
SNA
-
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
4
SNA
-
1-1
DE60-10193A
SCREW-TAPPING
-,YEL,MSWR18,FEFZY,TH,M4,-
5
SNA
T-BLOCK,H-P-SUB
1-1
DE60-10199A
SCREW-MACHINE
HEX,+,WT,M5,L10,CR PLT,SWR
3
SA
A-T-BLOCK
1-1
DE60-10028A
SCREW MACHINE
HEX,+,-,M6,L10,ZPC(WHT),SW
3
SNA
A-T-BLOCK
1-2
6001-001377
SCREW-MACHINE
TH,+,-,M5,L25,ZPC(WHT),SWR
4
SNA
A-H-DOOR
1-2
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
14
SNA
A-B-DOOR,B-I-GLASS,CHASSIS-DOOR
1-2
6009-001395
SCREW-SPECIAL
TH,+,WP,M5,L10,PASS,STS XM
6
SNA
A-HINGE
1-2
DE60-10091A
SCREW MACHINE
PH,UP,BLACK FIBER,-,L80(22
2
SNA
A-H-DOOR
1-3
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
6
SNA
T-DOOR
1-3
6001-001377
SCREW-MACHINE
TH,+,-,M5,L25,ZPC(WHT),SWR
2
SNA
-
1-2
6002-000643
SCREW-TAPPING
TH,+,2S,M4,L10,ZPC(YEL),SW
8
SNA
B-HEATER
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
1
SNA
H-W-G-A
1-2
DE60-00003A
SCREW-TAPPING
M3.5,+,-,L9,-,TH,ZPC(WHT),
8
SNA
CABLE-CLAMP,MICA HEATER
1-2
6002-001237
SCREW-TAPPING
PWH,+,-,2,M3,L12,ZPC(WHT),
2
SNA
B-C-P-SUB
1-2
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
11
SNA
A-C-BOX,B-C-PANEL,H-DISPLAY
1-2
DE60-00001A
SCREW MACHINE
TH,+,-,M4,L6,NI PLT,STS430
8
SNA
R-ENERGY
1-2
DE60-10065A
SCREW-TAPPING
-,-,FE-FZY,-,TH,M4,-,L6,-,
2
SNA
B-C-P-SUB
1-1
6002-000432
SCREW-TAPPING
TH,+,-,B,M4,L10,ZPC(WHT),S
5
SNA
CAVITY-B_COVER-B-M
1-1
6003-001622
SCREW-TAPTITE
HEX,+,TH,S-TITE,M5,L10,ZPC
1
SNA
B-GROUND
1-3
DE60-10034A
SCREW MACHINE
TH,+,-,M4,L4,-,STS410,-,-
4
SNA
SLIDER
1-3
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
7
SNA
P-W-DRAWER
1-4
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
3
SNA
A-C-DRAWER
1-3
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
23
SNA
B-W-DRAWER,H-W-DRAWER,S-SDRAWER,S-U-DRAWER
1-3
6006-001176
SCREW-ASSY TAPT
WT,PH,+,M4,L8,ZPC(YEL)
3
SNA
B-W-HEATER
1-3
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
2
SNA
SLIDER
1-3
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
9
SNA
T-P-FRONT
1-1
6001-000033
SCREW-MACHINE
TH,+,-,M4,L10,PASS,STS304,
1
SNA
SENSOR-TH
1-1
6021-001208
NUT-HEXAGON CAP
-,M4,NI PLT,SWRCH10A,-
2
SNA
F-C-PLANET
1-1
6021-001211
NUT-HEXAGON CAP
-,M4,NI PLT,SWRCH10A,LEF
1
SNA
F-C-MAIN
1-2
DE60-30016A
NUT-FLANGE
M4,MSWR10,-,-,-,-,-,-,-
1
SNA
-
1-2
DE60-30016A
NUT-FLANGE
M4,MSWR10,-,-,-,-,-,-,-
2
SNA
-
114
L-DOOR
5. Exploded Views and Parts List
5-7 Standard Parts List
(S.N.A : SERVICE NOT AVAILABLE)
Level
Code No.
Description
(03 Version)
Specification
Q’ty
SA/
SNA
Remark
1-1
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
2
SNA
A-C-B-GROUND,H-W-G-A
1-1
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
62
SNA
A-COOKTOP,B-M-CONNECTOR,B-MTOP,C-ACCESS,C-FRONT,C-WARMER,GCOOKTOP,H-BAKE,L-DOOR,M-C-SUB,MCONVECTI
1-1
6009-001395
SCREW-SPECIAL
TH,+,WP,M5,L10,PASS,STS XM
4
SNA
S-HINGE
1-1
6021-001208
NUT-HEXAGON CAP
-,M4,NI PLT,SWRCH10A,-
2
SNA
F-C-PLANET
1-1
6021-001211
NUT-HEXAGON CAP
-,M4,NI PLT,SWRCH10A,LEF
1
SNA
F-C-MAIN
1-1
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
8
SNA
A-C-CASING,A-VENT,H-BROIL,A-VENT_CB-MAIN
1-1
DE60-10189A
SCREW MACHINE
-,+,WS(FIBER),M4,L10,ZPC(B
2
SA
L-DOOR
1-2
6001-000547
SCREW-MACHINE
TH,+,-,M4,L25,ZPC(WHT),SWR
1
SNA
-
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
2
SNA
-
1-2
DE60-30016A
NUT-FLANGE
M4,MSWR10,-,-,-,-,-,-,-
1
SNA
-
1-2
6001-000547
SCREW-MACHINE
TH,+,-,M4,L25,ZPC(WHT),SWR
2
SNA
-
1-2
DE60-30016A
NUT-FLANGE
M4,MSWR10,-,-,-,-,-,-,-
2
SNA
-
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
4
SNA
-
1-3
6002-001309
SCREW-TAPPING
TH,+,-,1,M5,L25,ZPC(WHT),S
2
SNA
-
1-1
DE60-10193A
SCREW-TAPPING
-,YEL,MSWR18,FEFZY,TH,M4,-
5
SNA
T-BLOCK,H-P-SUB
1-1
DE60-10199A
SCREW-MACHINE
HEX,+,WT,M5,L10,CR PLT,SWR
3
SA
A-T-BLOCK
1-1
DE60-10028A
SCREW MACHINE
HEX,+,-,M6,L10,ZPC(WHT),SW
3
SNA
A-T-BLOCK
1-2
6001-001377
SCREW-MACHINE
TH,+,-,M5,L25,ZPC(WHT),SWR
4
SNA
A-H-DOOR
1-2
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
14
SNA
A-B-DOOR,B-I-GLASS,CHASSIS-DOOR
1-2
6009-001395
SCREW-SPECIAL
TH,+,WP,M5,L10,PASS,STS XM
6
SNA
A-HINGE
1-2
DE60-10091A
SCREW MACHINE
PH,UP,BLACK FIBER,-,L80(22
2
SA
A-H-DOOR
1-3
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
6
SNA
T-DOOR
1-3
6001-001377
SCREW-MACHINE
TH,+,-,M5,L25,ZPC(WHT),SWR
2
SNA
-
1-2
6002-000630
SCREW-TAPPING
PH,+,2S,M3,L8,ZPC(YEL),SWR
1
SNA
I-H SURFACE
1-2
6002-000643
SCREW-TAPPING
TH,+,2S,M4,L10,ZPC(YEL),SW
8
SNA
B-HEATER
1-2
6006-001170
SCREW-TAPPING
TH,+,WT,TC,M4,L10,ZPC(WHT)
1
SNA
H-W-G-A
1-2
DE60-00003A
SCREW-TAPPING
M3.5,+,-,L9,-,TH,ZPC(WHT),
8
SNA
CABLE-CLAMP,MICA HEATER
1-2
6002-001237
SCREW-TAPPING
PWH,+,-,2,M3,L12,ZPC(WHT),
2
SA
B-C-P-SUB
1-2
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
11
SNA
A-C-BOX,B-C-PANEL,H-DISPLAY
1-2
DE60-00001A
SCREW MACHINE
TH,+,-,M4,L6,NI PLT,STS430
8
SNA
R-ENERGY
1-3
DE60-10034A
SCREW MACHINE
TH,+,-,M4,L4,-,STS410,-,-
4
SNA
SLIDER
1-3
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
7
SNA
P-W-DRAWER
1-4
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
3
SNA
A-C-DRAWER
1-3
6006-001174
SCREW-ASSY TAPP
WE,TH,+,M4,L12,ZPC(YEL)
23
SNA
B-W-DRAWER,H-W-DRAWER,S-SDRAWER,S-U-DRAWER
1-3
6006-001176
SCREW-ASSY TAPT
WT,PH,+,M4,L8,ZPC(YEL)
3
SNA
B-W-HEATER
1-3
DE60-10059A
SCREW-TAPPING
TH,+,-,2,M4,L8,NI PLT,SUS4
2
SNA
SLIDER
1-3
DE60-10062A
SCREW-TAPPING
-,-,FEFZB,-,TH,M4,-,L12,-,
9
SNA
T-P-FRONT
1-1
6001-000033
SCREW-MACHINE
TH,+,-,M4,L10,PASS,STS304,
1
SNA
SENSOR-TH
115
5. Exploded Views and Parts List
5-8 Version Parts List
(S.N.A : SERVICE NOT AVAILABLE)
Level.
No.
Code No.
Version
1-1
Z066
DG69-00066A
01,02,03
1-1
H060
DG97-00127A
1-1
P348
DG97-00118B
1-1
M398
1-1
Description
Specification
Q’ty
SA/
SNA
PAD-RACK FLAT
A-1 PROJECT,-,-,W100,L80,-
4
SNA
-
01,02,03
ASSY MOTOR CONVECTION
A-1 PROJECT,-,-,-,
1
SA
-
01,02,03
ASSY ACCESSORY-A
-,FTQ386LWX/,CLEANING K
1
SNA
-
6922-000001
01,02,03
BAND PP
PP,T0.8,W18,L1650M,YEL,
DA69-90
17
SNA
-
H068
DG67-00028A
01,02,03
CAP-MOTOR CONVECTION
BT62FQBPST,GI,T0.6,
3
SNA
-
1-1
Z064
DG69-00062A
01,02,03
CUSHION-DRAWER R
FTQ386LWUX,-,-,-,-,-,-,
1
SNA
-
1-1
Z065
DG69-00062B
01,02,03
CUSHION-DRAWER L
FTQ386LWUX,EPS,-,-,-,-,
1
SNA
-
1-1
D049
DG97-00052F
01,02,03
ASSY DOOR
FCQ321HSUW/XAA,,WHITE,A-2 BET
1
SA
-
1-1
M309
DG97-00058B
01,02,03
ASSY-VENT
FCQ321HSUX/XAA,-,A-2
PROJECT
1
SA
-
1-1
U035
DG97-00073N
01,02,03
ASSY COOKTOP
FTQ352IWW/XAC,VE,
CANADA, W
1
SA
-
1-1
C082
DG97-00112Q
01,02,03
ASSY CONTROL BOX
FTQ352IWW/XAC,-,WHITE,S
1
SA
-
1-1
X009
6002-000432
01,02,03
SCREW-TAPPING
TH,+,-,B,M4,L10,ZPC(WHT),S
5
SNA
CAVITY-B_
COVER-B-M
1-1
M355
DG61-00148B
01,02,03
GUIDE-COOK TOP
FTQ386**, FTQ352**, FCQ32
4
SNA
-
1-1
Z058
DG61-00168B
01,02,03
BRACKET-COVER ACCESS
FCQ321HSUX,SECC,0.6
1
SNA
-
1-1
D162
DG62-00020B
01,02,03
BAFFLE-DOOR SHEET
FTQ386LWUX,ALCOAT,-,24
2
SNA
-
1-1
M334
DG63-00058B
01,02,03
COVER-BACK GUARD WIRE
FCQ321HSUX,SGCC,0.
1
SNA
-
1-1
M356
DG63-00061B
01,02,03
COVER-ACCESS
FCQ321HSUX,SGCC,0.5,1
27,173
1
SNA
-
1-1
M335
DG63-00062B
01,02,03
COVER-BACK MAIN WIRE
FCQ321HSUX,SGCC,0.5
1
SNA
-
1-1
M336
DG63-00065C
01,02,03
COVER-BAKE HEATER
FTQ386**, FTQ352**,ALC
1
SNA
-
1-1
M317
DG97-00117L
01,02,03
ASSY DRAWER-MAIN
FTQ352IWUW/XAA, FTQ352I
1
SNA
-
1-1
S060
DG65-00004B
03
TERMINAL-BLOCK
FTQ386LWX,PBT, Al, Copper
1
SNA
-
1-1
W002
DG39-00033A
01,03
WIRE HARNESS-A
FTQ352IWX-A,-,-,-,-,-,-,-
1
SA
-
116
Remark
6. PCB Diagrams
6-1 PCB Diagrams (Main)
(This Document can not be used without Samsung’s authorization)
⑤
⑪
⑧
③
⑩
Part Name
9
7
8
RY04
RY03
RY01
RY02
W/Drawer Relay
Warming Center Relay
Conv. Fan Relay
Lamp Relay
Door Relay
W/Drawer Relay Terminal
Live1 Terminal
DC 12V Regulator IC
DC 5V Regulator IC
BAKE Relay
BROIL Relay
RY-Source Control Relay
DLB Relay
⑨
Power Connector
Door s/w , Door Lock s/w Connector
Oven Sensor Connector
Cook Top Sensing Connector
Key Pad Connector
Relay Connector
10
RY06
RY07
RY08
RY09
RY10
T01
T02
IC02
IC03
Parts
No.
Number
CN01
CN02
CN03
CN04
CN05
CN06
1
2
3
4
5
6
11
12
13
14
15
16
17
18
19
⑬⑭⑫ ⑮
⑥
②
Function and Rule
④
This is connector which supply AC 120V(L1~N).
This is connector which connect door switch with door lock switch.
This is connector which is connected with oven sensor..
This is connector which connect regulator-energy with sense cook-top operate.
This consist of 15 pin and take a role of getting a cable on keypad to connect with touch PCB.
This is connector which connect control relay with warming center, oven lamp,
convection fan, door lock switch.
This is relay which control source of DLB,BAKE,BROIL, W/Drawer relay.
Circuit is designed to have broil relay or convection relay worked after
DLB relay is being worked by Double line break.
Broil relay(Ry03), Bake relay(Ry04) will be on-off working by micom signal after
DLB relay is worked.
(Broil relay : It will not be problem with reversing the order in insering Black and Brown)
(Bake relay : It will not be problem with reversing the order in insering Yellow and Gray)
This is relay which is connected with W/Drawer.
This is relay which is connected with Warming Center.
This is relay which is connected with Conv. Fan.
This is relay which is connected with Lamp.
This is relay which is connected with door lock motor.
This is the terminal to connect W/Drawer heater with W/Drawer relay.
This is the terminal to supply L1 voltage(120V) with warming drawer relay(Ry06)
This is to supply DC12V with main PCB by voltage regulator.
This is to supply DC5V with main PCB by voltage regulator.
①
117
6. PCB Diagrams
6-2 PCB Diagrams
(This Document can not be used without Samsung’s authorization)
RY02
1) DLB Relay Terminal1
2) DLB Relay Terminal2
T02
1) W/Drawer Relay
T02
1) W/Drawer Relay
CN05
Key Pad Connector
RY04
1) BAKE Relay Terminal1
2) BAKE Relay Terminal2
RY03
1) No Use
2) GND
3) Oven Temp. Sensor
4) GND
RY03
1) BROIL Relay Terminal1
2) BROIL Relay Terminal1
CN06
1) Warming Center Relay
2) No Pin
3) Oven Lamp Relay
4) No Pin
5) W-Cook top Relay
6) No Pin
7) Door Lock Relay
CN02
1) Door Sensing 1
2) GND
3) Door Lock
4) GND
5) Door Sensing 1
CN02
1) AC POWER NEUTRAL (AC120V)
2) No Pin
3) AC POWER L1 (AC120V)
118
7. Wiring Diagrams
7-1 Wiring Diagrams
(This Document can not be used without Samsung’s authorization)
119
8. Schematic Diagrams
8-1 Schematic Diagrams
(This Document can not be used without Samsung’s authorization)
ZNR1
TVR20391
LVT1
VRK4119-SM2
D03
D02
D01
1T4
1T4
1T4
1T4
C01
1000uF
IC02
KA7812A
KA7805A
IC03
C03
470uF
+12V
+5V
C04
100uF
C09
100nF
IC102
7033P
R03
2K
INT
RESET
C11
100nF
DOOR
DOOR-SENSING1
RESET
INTERRUPT
R06
2K
TR01
KRC246M
+5V
R02
2K
+5V
R05
2K
R15
2K
2K
DOOR-LOCK1
DOOR-SENSING2
C14
100nF
+5V
C08
100nF
22pF
22pF
C10
100nF
C20
C21
LADDER-4
LADDER-3
LADDER-2
LADDER-1
SR-2
SR-1
CONV-FAN
CONV-HEATER
(RY) DOOR-LOCK
BROIL-HEATER
WD-HEATER
BAKE-HEATER
OVEN-LIGHT
DLV
RY-SOURCE
DOOR-SENSING2
DOOR-LOCK1
DOOR-SENSING1
INT
RESET
SR-2
SR-1
LADDER-1
LADDER-2
XTL1
16MHz
C19
100nF
IC07
24LC04B
VSS
TEST
5 VDD
19 AVDD
18 VAREF
1
4
XOUT
XIN
8 RESET
10
2
3
11
12
21
22
23
28
34
41
40
33
31
29
35
32
27
26
36
37
38
39
EMCR
+5V
R33
2K
SCL
SDA
LED-G4
LED-G5
LED-G2
LED-G3
LED-G1
64
63
62
61
60
59
58
57
56
55
54
53
52
50
49
LED-S9
LED-S8
LED-S7
LED-S6
LED-S5
LED-S4
LED-S3
LED-S2
LED-S1
LED-G7
LED-G8
LED-G6
LED-G4
LED-G5
LED-G3
+5V
R38
10K
R39
LED3
RED_1.4x1.25
+5V
KEYIN-5
KEYIN-4
KEYIN-3
KEYIN-2
KEYIN-1
KEYIN-6
R44
R43
R42
R41
R61
R40
LED5
RED_1.4x1.25
KRC246M
TR12
LED-S6
LED-S7
LED-S8
LED-S9
12 S6
13 S5
14 S4
15 S3
16 S2
17 S1
LED-S8
LED-S9
12 B
13 A
18 5V
LED-S5
11 S7
10 D
11 C
+5V
LED-S4
LED-S6
LED-S7
+5V
LED-S3
9 S9
10 S8
14 5V
LED-S2
R50
2K
LED-S1
D18
1N4148M
LED-G8
8 D8
LED-S4
LED-S5
6 D3
7 G
8 F
9 E
D17
1N4148M
LED-G4
+5V
R49
2K
4 4G
R51
2K
D09
1N4148M
BAKE
R52
2K
R53
2K
D11
1N4148M
R54
2K
D13
1N4148M
R55
2K
NUM 5
LEVEL
NUM 2
ON/OFF
NUM 4 NUM 1 NUM 0
LED14
RED_1.4x1.25
D14
1N4148M
R57
2K
D15
1N4148M
LED16
RED_1.4x1.25
D16
1N4148M
LED17
RED_1.4x1.25
A2-ONLY
/OFF
CLEAR
LED15
RED_1.4x1.25
SET
NUM 9 NUM 6 NUM 3
/START
DELAYT KITCHEN CONV. NUM 7
START TIMER ROAST
NUM 8
CN05
12516HS-14
LED12
RED_1.4x1.25
LED13
RED_1.4x1.25
INDICATE LED
LED11
RED_1.4x1.25
R60
180
R56
2K
LED DISPLAY
D12
1N4148M
CONV. SELF PROOF BROIL
BAKE CLEAN
D10
1N4148M
LED-S5
CUSTOM WARMING WARMING WARMING OVEN
COOKING
COOK DRAWER CENTER CENTER LIGHT CLOCK TIME
STEAM KEEP
CLEAN WARM
D08
1N4148M
1 1G
LED-S3
C28
1nF
LED-G1
LED-S2
C26
1nF
C29
1nF
3 3G
7 D7
R64
47K
C27
1nF
1nF
C25
LED10
RED_1.4x1.25
KRC246M
TR13
DGND
BETTER ONLY
I-LED3
LED9
RED_1.4x1.25
R48
47K
2 2G
6 D6
4 D4
R62
47K
R65
47K
R47
47K
1nF
C24
R46
47K
LED8
RED_1.4x1.25
1nF
C23
LED7
RED_1.4x1.25
LED-G2
LED-G7
LED-G4
3 D3
R63
47K
1nF
C22
R45
47K
LED6
RED_1.4x1.25
R59
180
LED-G3
LED-G6
LED-G3
1 D1
2 D2
5 D5
LED-G2
LED-G5
LED-G1
DGND
TR10
KRA225M
+5V
2K
2K
2K
2K
2K
2K
MEMBRANE TYPE
KEY-INPUT
A1-BETTER OPTION
TR09
KRA225M
CTOP-S
I-LED2
LED4
RED_1.4x1.25
TR08
KRA225M
+5V
MICOM
BZ
R58
180
4
LED2
RED_1.4x1.25
TR07
KRA225M
+5V
KEYIN-5
KEYIN-4
KEYIN-3
KEYIN-2
KEYIN-1
W-COOKTOP
BZ-C
CTOP-S
I-LED3
I-LED2
I-LED1
OPTION1
SCL
SDA
LED-G1
OPTION2
LED-G2
48
47
9
16
15
6
7
KEYIN-6
+5V
KRC246M
TR11
LED1
RED_1.4x1.25
TR06
KRA225M
13
14
17
20
24
25
51
30
46
45
44
43
42
I-LED1
DGND
PC101
PC817
LED-S8
POWER SUPPLY
D04
C02
4700uF
60Hz
+5V
R04
2K
C05
10uF
R14
2K
+5V +5V +5V
R13
2K
R10
2K
2K
R11
R12
C13
100nF
26.7K
LADDER-3
LADDER-4
R36
100K
1
LED-S9
R01
1
2
3
4
5
C12
100nF
2K
R16
R19
2K
18.7K
C18
10nF
R21
14.3K
ZD01
UZ5.6BSB
TEMP. SENSOR
+12V
R20
52.3K
IC05
KIA75S358
VCC
VEE
R22
11.5K
R34
100K
R37
100K
C16
100nF
LED-S1
1T4
1T4
BUZZER
BZ-C
BZ
CN02
YW396-05V
GND
10K
R25
1K
R23
R35
100K
2K
LED-S2
D05
D06
4.7K
+12V
TR03
KRC246M
+5V
R07
2K
C15
4.7nF
RY-SOURCE
+5V
R17
13K
R26
C17
10nF
R18
80K
C07
10uF
+5V
R24
1T4
3
LED-S3
A2 MODEL OPTION
LED-S4
DSP2
HL-LED357B-A
LED-S6
1
+12V
TR04
KRA226-AT
R08
2K
TR02
KRC246M
+5V
TR05
KRA226-AT
TR14
KRC246M
C06
10uF
DLV
BROIL-HEATER
BAKE-HEATER
WD-HEATER
60HZ
26.1K
+5V
R28
1K
D07
2
LED-S7
3
+5V
OPTION
OR03
100
R09
220
C30
10uF
+12V
D19
MM4148
KRC246M
TR15
KRC246M
TR16
KRC246M
TR17
KRC246M
TR18
1
2
R27
+5V
VCC
DOOR-CONTROL
3
1
DSP1
CSE-5670B7-21
I-LED1
CN01
YW396-03AV(WHT)
+5V
OPTION1
OPTION2
MM4148
D23
MM4148
D22
MM4148
D21
G5T-1A-12VDC
RY01
DLB
RY02
T9AS1D22-12
RY03
T9AS1D22-12
RY04
T9AS1D22-12
MM4148
D24
W-COOKTOP
CONV-FAN
OVEN-LIGHT
3
4
+5V
R30
26.1K
IC06
KIA75S393F
VEE
100K
IC01
TMP86CM49FG-CHUN
C-TOP SENSING
120
RELAY CONTROL
L2
BROIL
L1
L1
BAKE
COM
W/D
+12V
KRC246M
TR19
KRC246M
TR20
KRC246M
TR21
KRC246M
TR22
DOOR-LOCK
DOOR-CONTROL
R31
10K
R32
1.87K
R29
CN04
SMW250-03AV_RED
OR02
2K
R67
47K
T01
T02
D28
MM4148
D27
MM4148
MM4148
D26
D25
MM4148
RY06
FTR-K1AK012T
RY07
G5T-1A-12VDC
RY08
G5T-1A-12VDC
RY09
G5T-1A-12VDC
RY10
G5T-1A-12VDC
BZ1
CBE2220BA
TR23
KRC246M
DGND
CN03
YW396-04V
OR01
2K
R66
47K
9
7
3
1
5
HEATER COMMON
CN06
YW396-09AV_WHT
8. Schematic Diagrams
8-2 Schematic Diagrams
(This Document can not be used without Samsung’s authorization)
5
1
3
7
9
T01
T02
T03
L2
BROIL
L1
L1
BAKE
COM
CONV.
W/D
1N4148M
D03
1N4148M
D02
G5T-1A_F3
RY01
DLV
RY02
T9CS5D22-12
RY03
T9CS5D22-12
RY04
T9CS5D22-12
1N4148M
D04
+12V
+12V
D01
1N4148M
1N4148M
D05
RY05
FTR-K1AK012T
1N4148M
D06
D10
1N4148M
D09
1N4148M
1N4148M
D08
D07
1N4148M
RY06
FTR-K1AK012T
RY07
G5T-1A_F3
RY08
G5T-1A_F3
RY09
G5T-1A_F3
RY10
G5T-1A_F3
TR01
KRC246M
KRC246M
TR02
KRC246M
TR03
KRC246M
TR04
KRC246M
TR05
KRC246M
TR06
KRC246M
TR07
KRC246M
TR08
KRC246M
TR09
KRC246M
TR10
TR11
KRC246M
DGND
RY-SOURCE
DLV
BROIL-HEATER
BAKE-HEATER
CONV-HEATER
WD-HEATER
W-COOKTOP
CONV-FAN
OVEN-LIGHT
DOOR-LOCK
DOOR-CONTROL
SUB-PCB
3
2
1
CN04
SMW250-06V(WHT)
BAKE-HEATER
4
OVEN-LIGHT
DLV
6
5
CONV-HEATER
CONV-FAN
WD-HEATER
RY-SOURCE
W-COOKTOP
BROIL-HEATER
5
4
3
2
1
CN05
SMW250-08V_WHT
DOOR-LOCK
8
6
7
DOOR-CONTROL
+12V
DGND
121
HEATER COMMON
CN01
YW396-09AV
GSPN (Global Service Partner Network)
Contry
Web Site
North America
service.samsungportal.com
Latin America
latin.samsungportal.com
CIS
cis.samsungportal.com
Europe
europe.samsungportal.com
China
china.samsungportal.com
Asia
asia.samsungportal.com
Mideast & Africa
mea.samsungportal.com
©Samsung Electronics Co., Ltd. May. 2008
Printed in Korea
Code No. : DE68-04958A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
