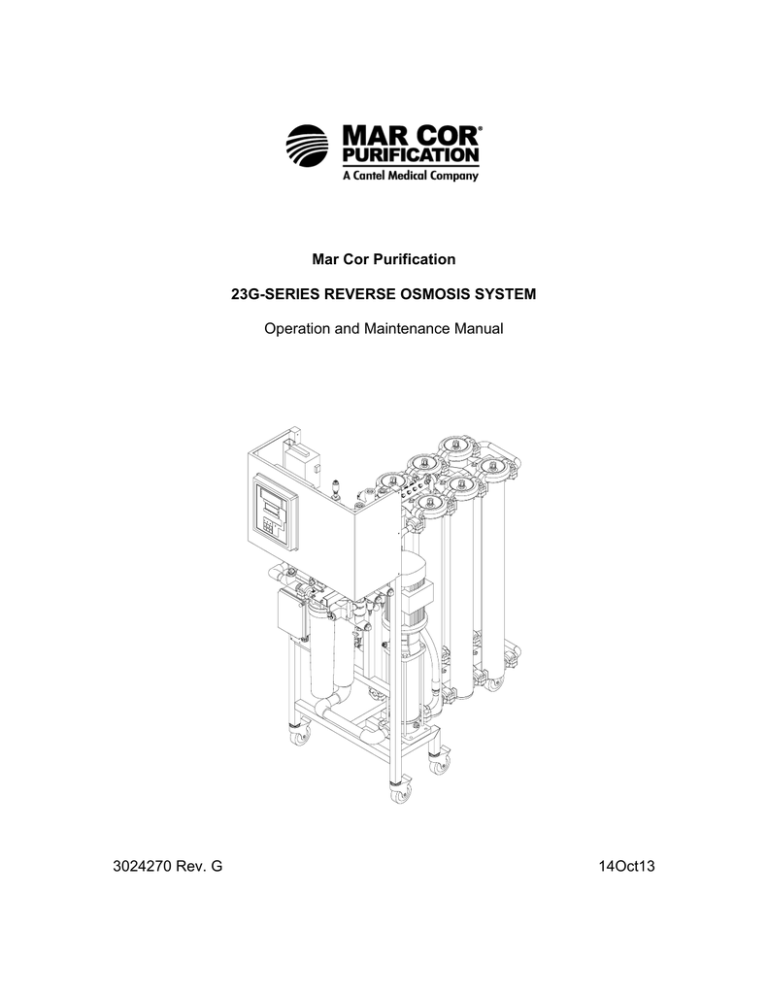

23G-SERIES REVERSE OSMOSIS SYSTEM
Operation and Maintenance Manual
3024270 Rev. G
14Oct13
NOTICE
For personal and system safety, and for
optimum product performance, make sure
you thoroughly read and understand the
contents of this manual before installing,
using, or maintaining this product.
This page intentionally left blank.
TABLE OF CONTENTS
1.0
GENERAL INFORMATION
1
1.1
General Description
1
1.2
The Manual
2
1.3
Safety Summary
1.3.1
Read This Manual
1.3.2
Use Proper Power Connections
1.3.3
Contraindications
1.3.4
Flammable Atmosphere
1.3.5
Device Labeling
2
2
2
2
2
2
1.4
Flow Description
6
1.5
Machine Nomenclature
8
1.6
Machine Permeate Quality
8
1.7
Machine Features
9
1.8
Environmental Requirement
11
1.9
Specifications for 23G Machine
1.9.1
RO Feedwater Specifications
1.9.2
Permeate (Product Water) Flow Rate
1.9.3
Concentrate Flow Rate
1.9.4
Primary Operating Pressure
1.9.5
Pump
1.9.6
Reverse Osmosis Machine Rejection
1.9.7
Power Ratings
11
11
12
13
13
13
13
15
1.10
Medical Membrane Element Specification for Water Purification
17
2.0
INSTALLATION
18
2.1
Machine Location
18
2.2
Pluming
2.2.1
2.2.2
2.2.3
2.2.4
18
18
18
18
19
Inlet Plumbing
Valve for Clean-In-Place (CIP)
Concentrate Outlet Connection
Permeate Outlet Connection
2.3
Electrical
19
2.4
Machine Lockout
23
3.0
PREPARATION AND START-UP
24
3.1
Pretreatment for Water Purification
24
3.2
Initial Start-up
25
3.3
Daily Start-up and Operation Checklist
28
3024270 Rev G
A
14Oct13
4.0
ECM-100 OPERATION
30
4.1
ECM-100 General Description of Operation
30
4.2
ECM-100 Displays and Controls
4.2.1
System Status Lights – Left Column
4.2.2
System Status Lights – Right Column
4.2.3
Keypad – Control Section
4.2.4
Keypad – Menu Select Section
4.2.5
Liquid Crystal Display (LCD)
4.2.6
ECM-100 Passcode
4.2.7
Factory Settings Storage
4.2.8
Display Menus
30
30
30
31
31
32
34
34
35
4.3
ECM-100 Operation
4.3.1
Selecting Parameters and Changing Settings
4.3.2
Responding to an Alarm
4.3.3
ECM-100 Clean-In-Place (CIP Operation)
38
39
39
40
4.4
ECM-100 Display Screens
4.4.1
ECM Display Screen Hierarchy
4.4.2
Detail of Date and Time Operation (Menu 01)
4.4.3
Detail of Alarm Limits Operation (Menu 02)
4.4.4
Detail of Timer Presets Operation (Menu 03)
4.4.5
Detail of Accumulated Hours Operation (Menu 04)
4.4.6
Detail of Log Tables Operation (Menu05)
4.4.7
Detail of Calibration Operation (Menu 06)
4.4.8
Detail of Print Current Values Operation (Menu 08)
4.4.9
Detail of Metric/US Select Operation (Menu 09)
4.4.10
Detail of Perm High Conductivity Alarm Operation (Menu 10)
4.4.11
Detail of Factory Settings Operation (Menu 11)
4.4.12
Detail of Auto-On Tank Full Operation (Menu 12)
4.4.13
Detail of Comm Port Speed Operation (Menu 13)
45
45
46
47
48
49
49
50
52
52
53
53
53
54
5.0
MACHINE OPERATION AND MAINTENANCE
55
5.1
Daily Requirements
55
5.2
Weekly Requirements
57
5.3
Monthly Requirements
57
5.4
Quarterly Requirements
58
5.5
Semi-Annual Requirements
59
5.6
Annual Requirements
59
5.7
Flushing
59
3024270 Rev G
B
14Oct13
5.8
5.9
Step-Wise Cleaning
5.8.1
Installation of the 23G CIP
5.8.2
General Clean-In-Place Procedure
Sanitizing Using a CIP System
60
61
62
65
5.10
Membrane Element Cleaners and Sanitizers for 23G Machines
66
5.11
Pre-filter Replacement Procedure
66
5.12
Recording Performance Data
67
5.13
Preparing Machine for Movement
67
5.14
Membrane Element Replacement
5.14.1
Membrane Element Removal
5.14.2
Membrane Element Installation
68
68
68
5.15
Flow Control Adjustments
5.15.1
Leaks
73
75
5.16
Permeate Divert
78
5.17
Product Water Pressure Relief
78
6.0
OPTIONAL FEATURES AND ACCESSORIES
78
6.1
Level Controls
79
6.2
PH Controller/Sensor (ECM-100-pH)
80
6.3
Printer/Computer Interface
6.3.1
Printer Interface
6.3.2
Computer Interface
6.3.3
Computer Connection
6.3.4
Printer Connection
6.3.5
Print Test
6.3.6
Print Functions
81
81
81
81
85
86
87
7.0
TROUBLESHOOTING
87
7.1
Emergency Alarm Bypass
7.1.1
Permeate Conductivity High or Rejection Low Alarms
7.1.2
Rejection Low Alarm Due to Failed Feed Conductivity Probe
7.1.3
Temperature High Alarm
7.1.4
pH Alarms
7.1.5
Pressure
7.1.6
Permeate Flow (Stuck at Zero)
95
95
96
96
96
96
97
7.2
General ECM-100 Reference/Troubleshooting Guidelines
7.2.1
Resetting the ECM-100
7.2.2
Check the Main Board Terminal Strip for Good Connections
7.2.3
Check the Relay Board Terminal Strip for Good Connections
7.2.4
Low Rejection Warning (Due to High Purity Feedwater)
7.2.5
Verifying the Temperature Circuitry of the Main Board
7.2.6
Difficulty Calibrating Permeate Conductivity
7.2.7
Information to Obtain Before Contacting Equipment Supplier
98
99
99
100
100
102
103
103
3024270 Rev G
C
14Oct13
8.0
23G SOFTWARE
103
8.1
Calibration Procedures – Version 2 Software
103
8.2
pH Calibration Procedure – Software Version V2
104
8.3
V2 Logic Board
105
8.4
Temperature Calibration Procedure – V2
8.4.1
Cleaning the Feed Conductivity Sensor
8.4.2
Calibrating the Temperature
108
108
108
8.5
Conductivity Calibration Procedure – V2
8.5.1 Measuring the Conductivity of Feed and Permeate Samples
8.5.2 Verifying the Percent Rejection Reading on the ECM-100
8.5.3 Displaying the Feed Conductivity on the ECM-100
8.5.4 Calibrating the Feed Conductivity
8.5.5 Restoring the Rejection Low Alarm Setting
8.5.6 Calibrating the Permeate Conductivity
109
109
109
110
110
111
111
8.6
Pressure Transducer Calibration Procedure – V2
113
8.7
Flow Calibration Procedure – V2
8.7.1
Calculating Permeate Flow Rate
8.7.2
Calculating Concentrate Flow Rate
8.7.3
Calibrating the Concentrate and Permeate Flow Rate Offsets
8.7.4
Verifying the Concentrate and Permeate Flow Rate Slopes
8.7.5
Calibrating the Concentrate and Permeate Flow Rate Slopes
114
114
115
116
117
118
9.0
RETURNED MATERIAL AUTHORIZATION PROCEDURE
121
10.0
SERVICE ASSISTANCE
121
11.0
SPARE PARTS LISTS
Valves
Prefilters
6-Channel Remote
Flow Block and Connectors
Sensor
Electrical
Membrane Elements
4-inch Housing Spare Parts
Test Kits
Clamps
Miscellaneous
Pump Outlet
Pump and Motor Assemblies (Three-phase, 60 Hz)
Pump and Motor Assemblies (Three-phase, 50 Hz)
Pump and Motor Assemblies (Single-phase)
122
122
122
122
122
123
124
124
124
125
125
125
125
126
127
127
3024270 Rev G
D
14Oct13
This page is intentionally left blank.
23G-Series RO System
1.0
GENERAL INFORMATION
1.1
General Description
CAUTION:
When used as a medical device, Federal law restricts this device to sale
by or on the order of a physician, per 21 CFR 801.109 (b).
Your Mar Cor Purification 23G reverse osmosis machine is a durable
piece of equipment which, with proper care, will last for many years.
These instructions give operating and maintenance details vital to the
sustained performance of the machine.
Reverse Osmosis (RO) is the separation of one component of a solution
from another component by means of pressure exerted on a
semipermeable membrane. In other words, reversing the natural passage
of a liquid from a concentrate solution to a more dilute solution by using
external pressure. Removal of ionic, organic, and suspended/dissolved
impurities occurs during the RO process. Unlike a filter, which separates
by “normal” filtration, the membrane element separates using a process
called cross-flow filtration. Feedwater solution is separated into two
streams, permeate and concentrate, and collected from both sides of the
membrane. A semipermeable RO membrane, under sufficient pressure,
allows passage of purified water while rejecting and concentrating
dissolved and suspended solids.
Mar Cor Purification manufactures a spiral-wound membrane package,
with turbulent flow design. This membrane element module collects the
purified water within a central tube (permeate tube), as represented in
Figure 1.1.
Brine Seal
Feed Solution
Permeate Tube
Feed Channel Spacer
Permeate
Membrane
Permeate Carrier
Concentrate
Membrane
Feed Channel Spacer
Outer Wrap
Figure 1.1 Membrane Element with Interconnectors
3024270 Rev G
1
14Oct13
23G-Series RO System
1.2
The Manual
This manual has been prepared to provide the operator with information
on the installation, operation, maintenance, and troubleshooting of 23G
Water Purification Systems.
The manual is supplemented with drawings and schematics for
clarification whenever possible.
1.3
Safety Summary
The safety summary does not contain all of the safety statements in the
manual. Other safety statements are included within the manual text and
are enhanced and defined as follows:
NOTE:
Indicates statements that provide further information and clarification.
CAUTION:
Indicates statements that are used to identify conditions or practices that could
result in equipment or other property damage.
WARNING:
Indicates statements that are used to identify conditions or practices that could
result in injury or loss of life. FAILURE TO FOLLOW WARNINGS COULD
RESULT IN SERIOUS INJURY OR DEATH TO HEMODIALYSIS PATIENTS OR
OPERATOR.
1.3.1 Read This Manual
Prior to operating or servicing this device, this manual must be read
and understood. Keep it and other associated information for future
reference and for new operators or qualified personnel near the
machine.
1.3.2 Use Proper Power Connections
Use proper wiring and connection methods as stated in this
manual.
1.3.3 Contraindications
WARNING:
This system is not designed, sold, or intended for use in producing
water for injection.
Furthermore, Mar Cor Purification RO systems are not intended to
be used outside of the device specifications and limitations as
outlined in this manual and other related materials.
3024270 Rev G
2
14Oct13
23G-Series RO System
1.3.4 DO NOT OPERATE IN A FLAMMABLE ATMOSPHERE:
To avoid fire or explosion, do not operate this device in an
explosive environment or near flammable anesthetics.
1.3.5 Device Labeling
Do not, under any circumstances, remove any Caution, Warning, or
other descriptive labels from the devices until the conditions
warranting the label are eliminated.
Operating definitions are provided to help you further understand
your machine:
Permeate Rate [Product Water Rate (Qp)]
Permeate rate is the flow rate of purified water which has passed
through the membrane and out of the membrane element;
expressed in gal/min (gpm) or gal/hr (gph) [in metric, liter/min (Lpm)
or cubic meters/hour (m3/h)]. Specified permeate rates are
normally at 77F (25C).
Concentrate Rate [Waste Water Rate (Qc)]
Concentrate rate is the flow rate of water containing rejected solids
to drain in gpm or gph (Lpm or m3/h).
Feed Rate (Qf)
Feed rate is the flow rate of incoming water in gpm or gph (Lpm or
m3/h). Feedwater rate equals permeate rate plus concentrate rate.
Recovery
Recovery is the percentage (%) of feedwater converted to
permeate. For example, 75% recovery means that out of a given
feed rate, 75% is produced as pure water (permeate).
Concentration
Concentration equals the Total Dissolved Solids (TDS) of any
stream (feedwater, concentrate or permeate) of a solution
expressed as milligrams per liter (mg/L) or conductivity
(microSiemens/cm).
Cf
= Feed Concentration
Cp
= Permeate Concentration
Cc
= Concentrate Concentration
Cavg
= Average Concentration in Machine
3024270 Rev G
3
14Oct13
23G-Series RO System
Salt (Ionic) Rejection
Salt (Ionic) Rejection is the percent of dissolved salt rejected by the
membrane, calculated from an average concentration over the
membrane.
Salt (Ionic) Passage
Salt (Ionic) Passage is the percent of dissolved salts passed
through the membrane.
Primary Pressure (Pp)
Primary Pressure (Pp) is the pressure between the pump discharge
and the feed port of the first membrane element housing.
Final Pressure (Pf)
Final Pressure (Pf) is the pressure between the concentrate outlet
of the last housing and the concentrate valve.
Pre-filter Pressure (Ppre)
Pre-filter Pressure (Ppre) is the water pressure entering the pre-filter.
Post-filter Pressure (Ppost)
Post-filter Pressure (Ppost) is the water pressure leaving the prefilter.
Membrane Elements
Membrane elements are the key to reverse osmosis. Interleaved
layers of semipermeable membrane, spacer and permeate carrier
spiraled around a central permeate tube make up the element. The
spacer allows for movement of the concentrate past the membrane,
and the permeate carrier carries the pure water out of the
membrane element. The elements that Mar Cor Purification uses
are spiral-wound membrane elements with a turbulent flow design.
The membrane element collects the permeate water within the
central tube, called the permeate tube.
3024270 Rev G
4
14Oct13
23G-Series RO System
Recovery 75%
100 mg/L
Cavg
Pump
100 mg/L
(Cf)
375 mg/L
(Qf)
24 gpm
6 gpm
Feed
Membrane
Porous
Backing Material
(Cc)
Concentrate
(Qc)
8.3 mg/L
(Cp)
Permeate
18 gpm
(Qp)
Figure 1.2 System Schematic
An example of how to calculate salt rejection and recovery:
Salt Rejection calculation:
Assume Cf = 100mg/L
Average Concentration (Cavg) = (Cf) + (Cc)
2
100 mg/L + 375 mg/L = 237.5 mg/L TDS
2
Rejection = (Cavg) - (Cp) x 100
(Cavg)
250 – 8.3 x 100 = 96.7%
250
Passage = (Cp) x 100
(Cavg)
8.3 x 100 = 3.3%
250
Membrane recovery flow percentage calculation:
Recovery = (Qp) x 100
(Qf)
3024270 Rev G
18 gpm x 100 = 75%
24 gpm
5
14Oct13
23G-Series RO System
1.4 Flow Description
The pretreated feedwater passes through a disposable 5 micron cartridge
filter (pre-filter) which removes suspended solids. Filtered water then flows
to the inlet control valve. This solenoid-actuated valve is controlled by
Enhanced Controller/Monitor (ECM-100) and opens when the machine is
turned on, allowing water to flow to the pump inlet. When the machine is
turned off, the valve closes, preventing laminar flow through the
membrane element, which would lead to shortened membrane life.
The pump feeds water to the membrane element housings in a series
and/or parallel configuration, depending upon the design flow rates. The
direction of water flow is indicated by an arrow on each membrane
element housing.
Permeate from each membrane element housing is collected at the
permeate manifold where a common check valve prevents backflow into
the membrane elements. A pressure sensor is provided to allow the ECM100 to monitor excessive backpressure and initiate an immediate alarm
and machine shutdown should the setpoint be exceeded. Permeate is
directed through a turbine flow sensor and contacts a conductivity sensor
before reaching the outlet point of the machine.
The concentrate leaves the last membrane element housing and flows into
the manifold block. This concentrated water is then divided into recycle
and concentrate streams. The recycle portion mixes with the feedwater by
returning to the inlet piping, allowing higher machine recovery while still
maintaining adequate crossflow through the membrane elements. The
concentrate valve on a 23G machine is used to increase the concentrate
flow rate for flushing. The normal concentrate flow rate is controlled by the
concentrate orifice. The concentrate valve or orifice has three functions: it
controls the amount of concentrate flowing to the drain; it controls the
pressure within the machine; and it helps control system recovery. A
solenoid-controlled Autoflush valve is also provided in the concentrate line
to provide periodic intervals of increased drain flow rate controlled by the
ECM-100. The concentrate portion leaving the manifold block is directed
through a turbine flow sensor before reaching the outlet point of the
machine.
3024270 Rev G
6
14Oct13
23G-Series RO System
Figure 1.3 Typical Flow Diagram for 23G Systems
3024270 Rev G
7
14Oct13
23G-Series RO System
1.5 Machine Nomenclature
Mar Cor Purification water purification machines are numbered in such a
way as to indicate the permeate flow and quality you can expect from the
machine. The nomenclature (model number) of your machine is shown on
the serial number label on the side panel of the machine.
Table 1.1
23G Model Number Matrix
RO, 23G  XXXX,
Rated Permeate Flow
GPD
3000
4500
6000
7500
9000
10500
12000
13500
15000
16500
XXX,
Volts
208/230
460
380
XXHZ,
Hertz
60HZ
50HZ
XX%,
Recovery
50%
75%
XXXX
Options
1PH (1 PHASE)
1.6 Machine Permeate Quality
23G machines use high rejection, polymeric membrane, providing the
ultimate in high purity water.
3024270 Rev G
8
14Oct13
23G-Series RO System
1.7 Machine Features
Mar Cor Purification 23G Series machines contain an array of useful
standard features to provide additional system safety and reliability, to
simplify system monitoring and data collection, and to ensure the longest
membrane life.
Standard features include:
3024270 Rev G
•
50% and 75% recovery models available.
•
Multi-stage centrifugal stainless steel pump.
•
Enhanced controller/monitor (ECM-100); includes parameter
display, alarms, and machine status indicators.
•
Automatic inlet shut-off valve.
•
Common check valve in the permeate line to prevent backflow.
•
Pre-filter housings and 5 micron cartridge filters.
•
Pre- and post-filter pressure indication.
•
Primary and final pressure indication.
•
Permeate backpressure indication.
•
Product water divert.
•
Product water pressure relief.
•
Concentrate and percent rejection indication for permeate quality
and membrane performance monitoring.
•
Temperature indication for feedwater temperature monitoring.
•
Membrane element housings made of all 304 stainless steel.
•
Autoflush - programmable periodic high velocity membrane flushing
to maintain long membrane life. Set at factory and adjustable in the
field.
•
Inlet low pressure alarm automatically shuts off the machine to
prevent pump damage, should inlet pressure fall to an inadequate
level.
•
Components in contact with the RO water (permeate) are made of
either inert plastic (nylon, poly-ethylene, Noryl*, polypropylene,
PVC, EPDM, Nitrile) or stainless steel materials.
•
Memory for more than 400 sets of historical operating data
(generated by approximately 2.5 full months of continuous
operation).
•
Comprehensive alarm package, with adjustable limits and common
time-out, to ensure safety and proper operation. Alarm is both
visual and audible. Alarms include:
9
14Oct13
23G-Series RO System
•
high/low primary pressure (immediate shutdown on primary
high pressure)
•
•
low inlet post-filter pressure
•
high permeate pressure (immediate shutdown)
•
high/low pH
•
high temperature
•
high permeate conductivity
•
low permeate conductivity
•
low permeate flow
•
low percent rejection
•
high pre-filter pressure drop
•
high membrane pressure drop
Six Channel Remote Alarm Interface. Designed to communicate an
alarm or abnormal condition of the 23G machine to a nurses’
station (or any convenient remote area). Alarms include:
•
RO Shutdown
•
Permeate Divert On
•
CIP On
•
High Temperature
•
Low Inlet Pressure
•
Tank Low
NOTE:
All alarms except high primary pressure, high permeate pressure, and
high temperature are ignored in Clean in Place (CIP) mode.
*Noryl is a trademark of General Electric Company.
3024270 Rev G
10
14Oct13
23G-Series RO System
1.8
Environmental Requirement
Minimum
Maximum
Ambient Temperature
4°C (39°F)
32°C (90°F)
Storage Temperature
2°C (36°F)
32°C (90°F)
Altitude
N/A
10,000 feet
CAUTION:
This equipment must not be allowed to freeze. Irreparable harm to
various components, including RO membranes may result.
NOTE:
The user/operator should recognize that moisture can be caused by
condensation and is not necessarily an equipment leak. This equipment
will function properly in the presence of condensation.
1.9
Specifications for 23G Machines
1.9.1 RO Feedwater Specifications
The rated flow for all machines in this section is based upon the
following feedwater specifications. Limits should not be exceeded
without consulting the factory.
Inlet Pressure6
Rated; 30 psi (2.1 bar)
Maximum; 60 psi (4.1 bar)
Minimum; 20 psi (1.4 bar)
Temperature1
35-77F (2-25C) not to exceed 85F (29C)
Langelier Saturation
Index of Concentrate2
Negative 0.1
Continuous Free Chlorine (mg/L)3
4
Silt Density Index
Iron
Less than 0.1 ppm
Less than 3
0 ppm
Other Impurities5
Pre-filter
3024270 Rev G
5 micron cartridge(s)
11
14Oct13
23G-Series RO System
Inlet Connection Thread
1-inch Female National Pipe (FNPT)
1.
Continuous operation over 85F (29C) may cause
permanent decline in the membrane element performance.
Actual permeate flow rates typically increase/decrease by
1.4% for each 1F change in temperature. For other
temperatures, use “Temperature Factor Chart” (Technote
113) to determine permeate rate. Contact authorized
equipment supplier if feedwater is outside these parameters.
2.
The Langelier Saturation Index (LSI) of the concentrate must
be negative to minimize the possibility of calcium scale
formation on the membrane surface. Refer to ASTM
Standard D3739.
3.
Chlorine should be removed prior to the PA membrane in
order to prolong the functional life of the membrane element.
Microbiological growth will not affect the membrane itself, but
may cause fouling and significant permeate flow rate
decline. See Membrane Specification Sheet for additional
information.
4.
Maintenance of feedwater Silt Density Index (SDI) as noted
would minimize membrane fouling and extend cleaning
intervals. Treatment of feed waters with higher SDI values is
possible with more frequent cleaning and/or filter changes.
Refer to ASTM Standard D4189.
5.
Components such as silica, barium, manganese, strontium,
etc., must be below saturation in the concentrate. Contact
your equipment supplier for clarification if unsure.
6.
It is recommended that an adjustable pressure regulator be
installed just prior to the RO in order to allow adjustment of
inlet pressure to RO. Regulator must be able to provide
adequate flow to RO.
1.9.2 Permeate (Product Water) Flow Rate
As stated on the serial number label (assumes no permeate
backpressure, 1000 mg/L TDS maximum feed concentration, and
rated temperature).
To estimate the permeate output with backpressure, use the
formula below:
(Permeate Flow on Label) x (Operating Pressure) - (Permeate Backpressure)
(Operating Pressure)
Maximum Permeate Backpressure:
3024270 Rev G
12
60 psi (4.1 bar)
14Oct13
23G-Series RO System
Permeate Outlet:
1-inch female NPT
1.9.3 Concentrate Flow Rate
Factory set as stated on serial number label.
Concentrate Outlet 1-inch female NPT
1.9.4 Primary Operating Pressure
Motor Frequency
(Hp)
(Hz)
Pump
Model
Minimum
Maximum
Boost Primary Boost Primary
Pressure (PSI) Pressure (PSI)
5
60
CRN-3-21
120
270
7.5
60
CRN-5-18
100
250
7.5
60
CRN-5-24
170
350
NOTE:
Boost pressure = (primary pressure — post-filter pressure).
NOTE:
Primary and final pressure parameters may vary depending upon machine design and
installation conditions.
1.9.5 Pump
Multi-stage centrifugal, approximate primary operating pressure of
200 psi (13.8 bar) excluding line pressure.
NOTE:
Actual operating pressure may vary depending upon machine design and installation
conditions.
1.9.6 Reverse Osmosis Machine Rejection
Typical Ionic Rejection (TDS)
95 - 99%
Average Molecular Weight Cutoff*
150 MW
*The molecular weight cutoff is based on the pore size of the
membranes and the nature of the organic molecule (size/shape).
3024270 Rev G
13
14Oct13
23G-Series RO System
Table 1.2 Approximate Shipping Weights and Dimensions
Model Number
23G 2 Element
23G 3 Element
23G 4 Element
23G 5 Element
23G 6 Element
23G 7 Element
23G 8 Element
23G 9 Element
23G 10 Element
23G 11 Element
3024270 Rev G
Shipping Dimensions
65” D x 34” W x 78” H
(165 cm D x 86 cm W x 200 cm H)
65” D x 34” W x 78” H
(165 cm D x 86 cm W x 200 cm H)
65” D x 34” W x 78” H
(165 cm D x 86 cm W x 200 cm H)
65” D x 34” W x 78” H
(165 cm D x 86 cm W x 200 cm H)
81” D x 34” W x 78” H
(205 cm D x 86 cm W x 200 cm H)
81” D x 34” W x 78” H
(205 cm D x 86 cm W x 200 cm H)
81” D x 34” W x 78” H
(205 cm D x 86 cm W x 200 cm H)
81” D x 34” W x 78” H
(205 cm D x 64 cm W x 200 cm H)
81” D x 34” W x 78” H
(205 cm D x 64 cm W x 200 cm H)
90” D x 34” W x 78” H
(228 cm D x 64 cm W x 200 cm H)
14
Shipping Weight
655 lbs
(298 kg)
685 lbs
(311 kg)
725 lbs
(330 kg)
815 lbs
(370 kg)
845 lbs
(384 kg)
925 lbs
(420 kg)
1025 lbs
(466 kg)
1060 lbs
(480 kg)
1100 lbs
(500 kg)
1200 lbs
(545 kg)
14Oct13
23G-Series RO System
1.9.7 Power Ratings
Table 1.3 23G Power Rating Table
Machine Part Number
3024274
3024275
3024277
3024279
3024280
3024281
3024283
3024285
3024286
3024288
3024289
3024291
3024292
3024298
3024300
3024301
3024302
3024303
3024304
3024305
3024306
3024307
3024308
3024309
3024310
3024311
3024312
3024313
3024314
3024315
3024316
3024317
3024318
3024319
3024321
3024323
3024324
3024270 Rev G
Volts
208/230~
460~
208/230~
460~
460~
460~
460~
208/230~
460~
460~
208/230~
460~
460~
460~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
208/230~
460~
208/230~
208/230~
460~
208/230~
15
Amps
15
8
15
8
8
8
8
22
11
11
22
12
12
8
15
15
23
23
23
23
23
23
23
32
32
32
32
32
32
23
32
32
12
22
22
12
22
Phase
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
3
3
3
3
HZ
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
14Oct13
23G-Series RO System
Machine Part Number
3024326
3024328
3024329
3024330
3024332
3024334
3024335
3024336
3024337
3024338
3024340
3024342
3024343
3024344
3024346
3024474
3024475
3024476
3024477
3024478
3024479
3024480
3024481
3024482
3024484
3024485
3024486
3024487
3024488
3024489
3024490
3024270 Rev G
Volts
208/230~
460~
460~
208/230~
208/230~
208/230~
460~
208/230~
460~
208/230~
208/230~
208/230~
460~
208/230~
460~
380~
380~
380~
380~
380~
380~
380~
380~
380~
380~
380~
380~
380~
380~
380~
380~
16
Amps
22
12
12
22
22
22
12
22
12
15
15
15
8
15
8
7
7
7
7
7
12
12
12
12
7
7
7
12
12
12
12
Phase
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
HZ
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
14Oct13
23G-Series RO System
1.10 Medical Membrane Element Specification
NaCl rejection: 99.0% Average (98.0% minimum)
Based on a 2,000 mg/L NaCl solution at 225 psig (1,551 kPa) operating
pressure, 77 °F (25 °C), pH 7.5, 15% recovery, after 24 hours. Individual
element flow may vary 15%.
Design Parameters
Maximum pressure:
300 psig (2070 kPa)
Typical cleaning:
<200 psig (1450 kPa)
Maximum temperature
Operating:
90 °F (32 °C)
Cleaning:
90 °F (32 °C)
Operating pH:
5.0- 10.0
Cleaning pH:
2.0 - 11.5
Feed NTU:
<1
Feed SDI:
<3
Chlorine tolerance: 1,000 ppm-hours Dechlorination recommended
Maximum Delta P: 10 psig (69 kPa) per element
Element Performance Feed Concentration
Ion
Sodium
Calcium
Magnesium
Potassium
Sulfate
Bicarbonate
Chloride
Silica
TDS
mg/L
68.0
80.0
21.0
4.1
163.0
132.0
51.0
9.3
528.0
% Rejection
99.4
99.8
99.8
99.4
99.8
99.3
99.4
92.0
99.4
Based on a mixed salt feed solution at 225 psig (1,551 kPa) operating
pressure,
77 °F (25 °C), pH 7.5, 15% recovery, after 24 hours.
3024270 Rev G
17
14Oct13
23G-Series RO System
2.0
INSTALLATION
2.1
Machine Location
At least 45 inches (114 cm) of space should be allowed above the
membrane element housings for easy removal and loading of membrane
elements. Provide adequate workspace on sides and front for easy
access.
NOTE:
If necessary, housings may be detached from the frame for membrane
element removal due to space restrictions around the machine.
2.2
Plumbing
2.2.1 Inlet Plumbing
The feedwater source should be plumbed to the 1-inch FNPT inlet
point on the 23G machine. If the inlet pressure is in excess of 60
psi (4.1 bar) or fluctuates by more than 5 psi (0.3 bar), a pressure
regulator should be installed ahead of the connection. A low
pressure sensor is installed on every 23G machine to protect
against low inlet pressure. The 23G should not be installed where
the feedwater dynamic inlet pressure is less than 20 psi (1.4 bar). If
inlet pressure is less than 20 psi (1.4 bar), a booster pump must be
installed ahead of the connection.
2.2.2 Valves for Clean-In-Place (CIP)
All 23G units have separate CIP connections. Valves should be
installed on both the main and inlet cleaning connections of the inlet
stream. The permeate outlet and concentrate outlet plumbing
streams include factory installed manual shutoff valves.
CAUTION:
Do not operate the machine with all concentrate and permeate
connections closed. Severe damage to the unit may result.
2.2.3 Concentrate Outlet Connection
Connect a 1.0-inch hose or pipe to the concentrate outlet and run to
an open drain. To avoid drainage to the machine during nonoperation, the concentrate outlet plumbing should be placed at a
height which is at least equal to the height of the machine. A siphon
break may also be installed in the concentrate line for added
protection. The concentrate outlet hose or pipe can be any length,
and the diameter should match the outlet of the machine.
3024270 Rev G
18
14Oct13
23G-Series RO System
NOTE:
Soft, flexible hose can be used, but must be installed in a manner
which prevents “kinks” or other restrictions that will increase back
pressure and reduce concentrate flow rate to the drain.
2.2.4 Permeate Outlet Connection
Connect a 1.0-inch I.D. hose or pipe to the permeate outlet and run
to the storage tank (if applicable) or distribution loop (after
distribution loop, points of use).
The pure water (permeate) should be transported to the point-ofuse via noncorroding inert-type tubing pipe or hose. Examples are:
food grade flexible nylon tubing, stainless steel tubing or PVC
piping.
NOTE:
Soft, flexible hose can be used, but must be installed in a manner
which prevents “kinks” or other restrictions that will increase back
pressure and reduce permeate flow rate.
NOTE:
Do not use copper or galvanized tubing or piping to carry the
permeate. Only food grade materials and/or appropriate NSF
materials should be used.
2.3
Electrical
The ECM-100 controls and monitors the operation of the 23G, requiring a
dedicated 115/230 VAC 60/50Hz, 15/10 A, 220 VAC, single-phase power
source. All control output devices (motor starter, solenoid valves, chemical
pumps) draw power from this source (through ECM-100 relay outputs) in
addition to the ECM-100 itself. Refer to Figures 2.3 and 2.4 for connection
details and ECM-100 inputs and outputs.
The ECM-100 monitors system-operating parameters for alarm conditions
to safeguard the machine’s operation. User variation of the alarm limits
and timer presets (set at the factory) are possible by accessing the
appropriate function from the system operations menu and following the
respective directions for making the changes.
The 23G pump is wired at the factory to an IEC overload protection
magnetic motor starter that is controlled by the ECM-100.
The procedure for connecting the electrical wiring for installation of the
23G follows:
3024270 Rev G
19
14Oct13
23G-Series RO System
1.
Connect the ECM-100 power cord to a properly grounded 15 A,
115 VAC/60Hz or 10 A 220 VAC/50Hz, single-phase outlet. An
appropriate termination should be installed on the electrical cord for
220 VAC service. Surge protection for single-phase service is
recommended.
The ECM-100 relay output contacts are rated to handle a control
ON relay-type circuit. V2 relay boards, supplied in all 23G machines
after November 1998, are designed to handle a maximum load of
3.0 AMPS. The current requirements of all output devices (such as
a remote alarm horn and light) must be within these limits.
The power cord of the ECM-100 should be connected to a power
receptacle tied to a “protective earth” ground to ensure a safe,
common ground for the entire 23G unit, including the three-phase
motor. DO NOT remove the grounding wire from the pump casing,
the unit frame or a power supply grounding terminal.
WARNING:
ALL SUPPLY CIRCUITS MUST BE DISCONNECTED BEFORE OBTAINING
ACCESS TO TERMINALS. ALSO DISCONNECT ALL POWER BEFORE
REPLACING ANY FUSE.
2.
Separate power supplies are required for CIP and main pump.
3.
Connect the magnetic motor starter to the proper voltage, phase
and cycles to match motor voltage and phase. Install the wires as
indicated in Figure 2.3 and Table 2.3 (three-phase). The overload
trip point on the pump motor starter may need to be adjusted
slightly to match the actual voltage being provided. Check the tag
on the motor starter indicating the factory wiring. A separate, fused
disconnect for the motor wiring with the proper overload and shortcircuit protection for the Hp and amp draw of the motor is required.
Bussmann Low-Peak Yellow LPS-RKSP fuses or equal are
recommended for the disconnect.
NOTE:
Field wiring must comply with all applicable national and local electrical codes.
4.
Rating
0.5 Amp
1.0 Amp
2.5 Amp
3024270 Rev G
Fuses
Voltage
250V
250V
250V
Type
Fast-Acting
Slo-Blo
Slo-Blo
20
Location
Remote Alarm
ECM-100
ECM-100
Number
1
4
2
14Oct13
23G-Series RO System
A1
L2
Table 2.3 Three-Phase
Electrical Connections
A2
Wire Color
L3
L1
T3
T1
14
T2
98
95
Motor
Starter/Thermal
Overload
60 Hz
50 Hz
Connection
Note: The connections listed below apply to 23G
models with THREE PHASE motor power
Black
Brown
96
Elect
White
Blue
A2
Enclosure
Common
Green/yellow
Ground
Red
T1
Yellow
T2
Motor
Black
T3
Common
Green/yellow
Ground
Short
Motor
Short Red
Brown
A1 to 96
Starter
Jumper
Jumper
#1
L1
#2
L2
External
Power
#3
L3
Supply
Common
Green/yellow
Ground
Wire
Source
T1
T3
96
T2
97
Figure 2.3 Three-Phase Motor Wiring
3024270 Rev G
21
14Oct13
23G-Series RO System
GROUND WIRING DIAGRAM FOR 23G
MOTOR STARTER
USING ENCLOSURE P/N 3024381
Figure 2.4 Ground Wiring Diagram
3024270 Rev G
22
14Oct13
23G-Series RO System
2.4
Machine Lockout
In general, the machine should be operated in AUTO mode in which
conditions are confirmed electronically. The ECM-100 terminal strip has
terminals available for linking other treatment equipment, such as a
softener, to the operation of the 23G machine or monitoring the status of
other equipment. The status of this equipment is indicated by LightEmitting Diode (LED) lights on the ECM-100. When operating in HAND
mode, it is the operator’s responsibility to ensure adequate feedwater
supply and storage tank capacity.
Lockouts are ignored in HAND mode, such as full tank level, etc. CIP
mode ignores temperature and pH alarms.
The Pretreatment Lockout input can be used in AUTO mode to shut down
the machine (all outputs turned off) when there is an interruption of
feedwater supply, such as when a pretreatment filter is backwashing. The
terminals for the Pretreatment Lockout on the ECM-100’s main strip look
for an “open” contact to shut down the machine and illuminate the blue
Pretreatment Lockout LED light.
3024270 Rev G
23
14Oct13
23G-Series RO System
3.0
PREPARATION AND START-UP
3.1
Pretreatment for Water Purification
Mar Cor Purification 23G machines will operate most efficiently on filtered
water with a pH less than negative concentration LSI (Langlier Saturation
Index) and a Silt Density Index (SDI) of 3 or below. If the machine is
operated on water with higher pHs, other forms of pretreatment may be
necessary. A water analysis prior to start-up of the machine is required. To
minimize the chances of calcium carbonate, calcium sulfate, or other
mineral precipitation on the membrane, your equipment supplier will
evaluate each application and water condition and make specific
recommendations to ensure continuity of membrane element warranty.
Data from the water analysis is analyzed to determine if potential
problems may exist. If the machine is to be run at a different location than
was originally intended, a new water analysis is required for warranty
consideration and should be sent to your equipment supplier for review
and recommendations for operation of the machine.
Before installing the machine, the feedwater must be filtered to 5 microns.
Machine feedwater must not contain the following chemicals or permanent
loss of rejection and/or permeate flow may result:
•
free chlorine
•
cleaning chemicals, biocides or sanitizing agents, such as formalin or
peroxide peracetic acid type products.
NOTE:
Flush system to drain under normal pressures for a minimum of one (1) hour
before exposing membranes to Minncare® . Flush system to drain under normal
pressures for a minimum of six (6) hours before exposing membranes to
formaldehyde.
•
iodine compounds
•
quaternary biocides
•
cationic surfactants
•
detergents containing non-ionic surfactants
•
cleaners not approved by Mar Cor Purification
NOTE:
A water softener should not be regenerated while the machine is running unless
safeguards such as a duplex softener are used to be sure the machine is
operated on softened water during regeneration. The machine has a
Pretreatment Lockout feature which can be used to shut the machine off during
regeneration.
3024270 Rev G
24
14Oct13
23G-Series RO System
3.2
Initial Start-Up
CAUTION:
When the 23G RO machine is first installed or membrane elements are changed,
the RO unit must be rinsed to drain under normal pressures for a minimum of
one (1) hour before exposing membranes to Minncare® and a minimum of six (6)
hours before exposing membranes to formaldehyde or irreversible damage may
occur.
1.
Open the feed line valve. At least 20 psi (1.4 bar) dynamic feed line
pressure is required.
3
Open the machine concentrate valve one or two turns. The
machine concentrate valve is located below the machine control
panel on the left.
4
Open the permeate CIP connection to flush the machine. The CIP
fitting requires a 1.0-inch MPT threaded fitting.
5
Close the permeate outlet valve.
5.
Secure the end of the hose attached to the CIP fitting to a suitable
drain.
6.
Verify that the concentrate outlet valve is open.
7.
Verify that the concentrate CIP valve is closed.
8.
De-energize the high voltage power to the pump motor starter.
Energize only the 115/230 volt control circuit by pressing the ON
key on the ECM-100 controller and then within 10 seconds, press
the CIP key. The machine must be in HAND mode in order to start
the machine alarms with the CIP key. Using the CIP key in this way
will bypass many of the alarms. Let the water flow through the
machine for at least five minutes under line pressure to purge air
from the system.
NOTE:
The high pressure pump should not be operated during this time. If a buffer
system is being used, it should be set to regulate feedwater pH at 6.5 or less.
The control range for buffer pump operation is from 1.8 to 8.0 less than the
high pH alarm setting. The buffer pump will turn on at 0.8 units less than the
high pH setting and turn off at 1.8 units less than the high pH alarm setting.
NOTE:
When the control circuit is de-energized, there should be no flow from the
concentrate outlet. The solenoid activated inlet valve should be closed when
de-energized. See Troubleshooting Guide (Section 7.0) if water continues to
flow after shutdown.
3024270 Rev G
25
14Oct13
23G-Series RO System
9.
Switch off the 115/230 volt control circuit by pressing the OFF
button on the ECM-100.
10.
Re-energize the high voltage power to the pump motor starter. The
pump should not begin to operate.
11.
Close the machine concentrate valve.
12.
Start the machine by pressing the ON key on the ECM-100. Ensure
that the pump rotation is correct by observing the primary pressure.
If the pressure is below 125 psi (8.6 bar) then the motor may be
rotating backwards.
WARNING:
High voltage electricity. Qualified personnel should perform this
procedure.
13.
To correct rotation, turn the machine OFF. De-energize the high
voltage power to the pump motor starter and the control circuit.
Verify with volt meter prior to adjusting wires. Change any two of
the three leads (for three-phase power) into the motor starter and
recheck rotation.
NOTE:
For incorrect rotation on single-phase motor installation, contact your
equipment supplier.
CAUTION:
Operation of the pump backwards may cause damage to the pump and
motor in addition to loss of pressure which affects permeate rate.
14.
Re-energize all power.
15.
Restart the machine by pressing the ON key on the ECM-100.
16.
Verify that water is flowing from the permeate CIP outlet to the
drain. The machine concentrate valve is located below the machine
control panel on the left.
NOTE:
The 23G machine is designed to operate with the concentrate valve
closed, except during initial machine start-up/flushing, cleaning, and
sanitizing.
3024270 Rev G
26
14Oct13
23G-Series RO System
17.
During typical start-up/flushing check the primary and final
pressures which should be below the typical maximum pressure of
280 psig. Field conditions may dictate slightly higher alarm
setpoints (refer to Section 1.8.4).
18.
Continue to operate the machine in this manner for a period of 8
hours.
NOTE:
When the 23G RO machine is first installed or membrane elements are
changed, the RO unit must be rinsed to drain under normal pressures for
a minimum of one (1) hour before exposing membranes to Minncare ® and
a minimum of six (6) hours before exposing membranes to formaldehyde
or irreversible damage may occur.
19.
Check permeate and concentrate flow rates and verify that they are
within the parameters listed on the machine label. Temperature
correction factors should be applied.
20.
If any of the machine operating parameters are outside of the
specifications listed on the machine label contact your equipment
supplier.
NOTE:
All operational data must be recorded on the Start-up Data Sheet
(Technote 165). The Start-up Data Sheet must be submitted to the Mar
Cor Purification Medical Facility in Plymouth, MN for warranty
consideration.
21.
Shut down machine. Open permeate outlet valve. Close permeate
CIP valve.
Machine is ready for normal operation, however do not put into
service until all applicable water tests have been completed.
In order to ensure that the RO is performing at or above AAMI
standards, it is necessary to perform an AAMI Water Quality
Analysis Test. For new units, the RO must be operated (rinsed to
drain) for at least two hours before taking a sample, to ensure that
the membranes are free of preservatives or other contaminants
which would invalidate the test.
NOTE:
Follow the procedures recommended by your water quality testing
laboratory.
3024270 Rev G
27
14Oct13
23G-Series RO System
3.3
Daily Start-Up and Operation Checklist
NOTE:
This section may be copied for placement on the 23G machine.
CAUTION:
HAND mode is for diagnostic test and CIP. It should not be operated while
unsupervised in this mode.
1.
Verify that all feedwater valves and outlet valves in the permeate
and concentrate plumbing are open. At least 20 psi (1.4 bar)
dynamic feed line pressure is required to prevent damage to pump.
2.
Make sure the ECM-100 is plugged into an appropriate circuit and
the LCD screen is active.
3.
If the feedwater pH is being adjusted for membrane compatibility or
scale inhibition, verify that the chemical feed pump power switch is
on.
NOTE:
If necessary, refer to Section 3.1 for further information on feedwater
preparation.
3024270 Rev G
4.
Verify that the ECM-100 operating mode is AUTO. The machine
operates independently of external controls, such as tank float
switch and pretreatment lockout signal, in the HAND mode. In the
AUTO mode, the machine operates according to signals from preor post- treatment equipment, tank float switches, etc.
5.
Press the ON key on the ECM-100. After a short delay, the highpressure pump will start. Alarms may occur during the first minute
of operation as the RO machine operation stabilizes. Alarms may
be bypassed and muted until the alarms clear. If alarms persist,
address the specified alarm condition shown on the LCD screen
according to the Troubleshooting Guide (Section 7.0).
6.
Verify that water is flowing from the permeate outlet. For dialysis
applications verify the water quality to ensure it meets the current
applicable quality standards. Per the AAMI standards, “It is the
responsibility of the attending physician to ensure the water quality
is appropriate.”
7.
The machine is now operating. If a pH buffer is being used with the
pH control of the ECM, readjust pump if necessary for a slowly
dropping pH reading while the injection pump is on. The control
range for the buffer pump operation is from 1.8 to 0.8 less than the
high pH alarm setting.
28
14Oct13
23G-Series RO System
8.
3024270 Rev G
Daily operating logs should be completed every 8 hours. Daily
Pretreat and RO Log Sheets (Technotes 141 and 142) are provided
in the system manual for this purpose.
29
14Oct13
23G-Series RO System
4.0
ECM-100 OPERATION
4.1
ECM-100 General Description of Operation
The ECM-100 is a state-of-the-art electronic controller/monitor designed
for 23G machines. The ECM-100 controls and monitors machine
operation including operating performance. Data is stored automatically by
the ECM-100 at preset run-time intervals and can be downloaded to a
printer or PC port via a RS-232 communication port.
4.2
ECM-100 Displays and Controls
The ECM-100 displays and controls are as follows (Reference Figure 4.5):
4.2.1 System Status Lights - Left Column
Machine On
Indicates that the machine is either
running or is in standby mode.
Alarm
Indicates an alarm condition.
Tank Full
Indicates that a signal from a tank level
control has put the machine in standby
mode.
Pretreatment Lockout
Indicates that a signal from pretreatment
equipment has put the machine in
standby mode.
Permeate Divert
Indicates that the permeate is being
diverted to drain.
4.2.2 System Status Lights - Right Column
3024270 Rev G
RO Pump On
Indicates RO pump (main high-pressure
pump) should be running.
CIP Pump On
Indicates CIP pump should be running.
Autoflush
Indicates the Autoflush valve should be
open.
30
14Oct13
23G-Series RO System
Auto-On Active
Indicates that the Auto-On feature is
active; the machine will start
automatically and run a short time if left
idle for more than a preset time. (This
inhibits bacteria growth during periods of
non-use).
Auxiliary
Indicates that an auxiliary component is
on (such as a tank transfer pump).
4.2.3 Keypad - Control Section
LED Lights
HAND - Manual on/off, ignores tank level and pretreatment
lockouts.
AUTO - Signal-controlled on/off (from pretreatment or level
controls).
CIP - Works in HAND only, locks out most alarms (Section
4.5.3).
Keys
On and Off
HAND/AUTO toggle
Clean-in-Place
Alarm bypass
Mute button
4.2.4 Keypad - Menu Select Section
LED Lights
U.S. - Units of measurement
Metric - Units of measurement
Keys
ARROW (scroll) keys
ENTER key
ESCAPE (ESC) key
3024270 Rev G
31
14Oct13
23G-Series RO System
4.2.5 Liquid Crystal Display (LCD)
Displays date, time, 10 operating parameters, and alarm or menu
messages.
Menu Abbreviations:
CVAL - Current value
SETPT - Calibration set point
Q - Flow rate
PERM - Permeate
CONC - Concentrate
NOTE:
The LCD’s permeate and concentrate Flow rate readout has an
acceptable deviation of 5% from the actual Flow rates.
3024270 Rev G
32
14Oct13
23G-Series RO System
Figure 4.5 ECM-100 Front Panel
3024270 Rev G
33
14Oct13
23G-Series RO System
4.2.6 ECM-100 Passcode
Your machine is equipped with an ECM-100 controller/monitor to
perform the machines electrical operations. Selected functions of
the ECM-100 require entry of a passcode. This passcode access
allows three functions; it allows a user to make adjustments to
setpoints, view, and download historical data. The passcode is
intended to provide access adjustment capability to authorized
personnel. The passcode for your ECM-100 is entered by pressing
the function keys on the ECM-100 keypad, in the following
sequence:
1.
HAND/AUTO
2.
CIP
3.
ALARM BYPASS
Contact your equipment supplier for assistance.
4.2.7 Factory Settings Storage
1.
The “factory settings” is a copy of all menu data stored in a
separate reserved storage area.
2.
This data can be updated by following the procedure described
as “Store Factory Settings.”
3.
Mar Cor Purification factory personnel saved a copy of menu
settings before the machine was shipped.
4.
At installation, after timers and calibrations have been tailored
for your particular application, and/or after recalibration of pH
probe, the settings need to be copied to the factory settings
area for permanent storage.
5.
In the event that the settings have been corrupted, the menu
settings can be recalled.
6.
To store Factory settings:
a. Go to the Factory Settings Menu (menu 11).
b. Push ENTER switch. The screen will display two lines of
factory settings.
c. Enter storage code in the following sequence:
HAND/AUTO
CIP
ON
ENTER
3024270 Rev G
34
14Oct13
23G-Series RO System
7.
To recall factory settings:
a. Go to the Factory Settings Menu (menu 11).
b. Push ENTER switch. The screen will display two lines of
factory settings.
c. Enter passcode (Section 4.2.6) to restore factory settings.
Contact your equipment supplier for assistance.
4.2.8 Display Menus
01 Date and Time
The Date and Time Menu should be used to change/update the
respective display.
Press ENTER to select. Enter the passcode (Section 4.2.6) to allow
for date and time adjustment. Use the ARROW keys to raise and
lower the value, then press ENTER to store and advance to the
next alarm. When all the limits have been entered, the ECM-100
will automatically return to the default menu.
02 Alarm Limits
The Alarm Limits Menu should be used to change/modify the alarm
duration(s) and setpoint(s).
Press ENTER to select. Press ENTER to advance through the list.
Enter the passcode to adjust any of the settings. Use the ARROW
keys to raise or lower the alarm limit value, then press ENTER to
store and advance to the next alarm setting or ESC to exit and
leave the value unchanged. When all of the timers have been
entered, the ECM-100 will automatically return to the default menu.
03 Timer Presets
The Timer Presets Menu should be used to change/modify timer
durations.
Press ENTER to select. Press ENTER to advance through the list.
Enter the passcode to adjust any of the settings. Use the ARROW
keys to raise or lower the timer preset value, then press ENTER to
store and advance to the next timer. When all of the timers have
been entered, the ECM-100 will automatically return to the default
menu.
04 Accumulated Hours
The Accumulated Hours Menu is used to display machine run time
and nonrunning time. Times are displayed in hours.
Press ENTER to view the accumulated hours for “RUN” time and
“OFF” time.
3024270 Rev G
35
14Oct13
23G-Series RO System
05 Log Tables
The Log Tables Menu allows the user to display and download
historical machine operational data.
Press ENTER to view the data tables. Use the ARROW keys to
advance through the data tables. Enter the passcode to download
the data tables to a printer or computer starting with the table in
view on LCD. Three pages (up to 400 lines) of historical data will be
downloaded. Use the DOWN ARROW key to advance to and
download older data tables, if desired, before exiting the log tables
menu. Repeating the download sequence twice will download the
entire historical record log (up to 10 weeks of data recorded: this is
adjustable to one reading per hour during a 40 hour work week).
06 Calibration
The Calibration Menu should be used to change/modify calibration
parameters for sensors (flow, temperature, conductivity) and
transducers (pressure).
Press ENTER to select and advance through the list. Enter the
passcode to change a calibration parameter value. Use the
ARROW keys to raise or lower the calibration value, then press
ENTER to store and advance to the next parameter. When all
calibration numbers have been entered, the ECM-100 will
automatically return to the default menu.
NOTE:
When performing the two-point pH calibration, the passcode must be entered
immediately prior to adjusting the calibration number for each pH CAL LOW and
pH CAL HIGH. The passcode must be entered even if you have already entered
the code to adjust a calibration number or parameter earlier in the list (this is to
prevent inadvertent loss of pH calibration while viewing the calibration
parameters). Be sure to store the Factory Settings (Maintenance Menu 11) after
calibrating the pH probe.
07 Maintenance
The Maintenance Menu is used to gain access to all general
operational conditions/functions (menu options 08-13).
Press ENTER to select. Use the UP ARROW key to advance
through the maintenance functions. Press ENTER to select a
function.
3024270 Rev G
36
14Oct13
23G-Series RO System
08 Print Current Values
The Print Current Values Menu is used to facilitate a download of
current operational data.
Press ENTER to print/send the data that is currently displayed on
the ECM-100 screen to a printer or computer.
09 Metric/U.S. Select
The Metric/U.S. Select Menu option is used to specify the units of
measure displayed on the ECM-100.
Press ENTER, then use the ARROW keys to toggle between
choice of units. Press ENTER to select.
10 Perm Hi Cond Alarm
The Perm Hi cond Alarm Menu is used to specify/modify the
machine’s response to a high permeate conductivity condition.
Enter the passcode to select one of the three alarm responses. Use
the ARROW keys to toggle through the responses. Press ENTER
to select.
11 Factory Settings
The Factory Settings Menu is used to store and recall menu
settings.
Enter the passcode to recall default factory settings. See Section
4.4 for saving and recalling factory settings.
12 Auto-On Tank Full
The Auto-On Tank Full Menu is used to control the machines
response to a tank full condition.
Press ENTER, then use the ARROW keys to toggle between
shutdown (default) and divert (used only if permeate divert option is
installed). Press ENTER to select or ESC to exit.
NOTE:
If “Divert” is selected, the AUTO-ON function will come on even if the tank is full,
and Perm Divert will come on anytime the tank is full (even in HAND mode).
NOTE:
Appropriate plumbing must be installed to divert permeate and to prevent
overflowing the tank. The machine should be left “ON” and in AUTO. After the
tank fills up normally, the AUTO-ON will periodically start-up and run for a short
time to flush the machine. During this time the permeate is in DIVERT mode.
3024270 Rev G
37
14Oct13
23G-Series RO System
13 Comm Port Speed
The Communication (Comm) Port Speed Menu is used to set the
baud rate of the RS-232 serial port.
NOTE:
The computer or printer must be set to the same baud rate as the ECM-100.
Press ENTER, then use the ARROW keys to scroll through the
choices. Press ENTER to select, or ESC to leave the settings
unchanged.
Refer to the ECM-100 Menu Summary included with this instruction
manual for further information on ECM-100 operation.
4.3
ECM-100 Operation
The following is a description of how the ECM-100 is used to operate the
23G machine. The passcode and storage code required to make
adjustments to various settings and timers are provided in Section 4.2.6
and Section 4.2.7.
3024270 Rev G
1.
Press ON to turn on the machine and OFF to turn it off. Press
HAND/AUTO to toggle between the two operating modes. AUTO is
defined as an operation which is controlled by tank level and pretreatment lockout inputs. HAND is defined as an operation which
ignores those same inputs and most alarms. The unit should not be
left unattended in HAND mode.
2.
On start-up, a predetermined sequence of events occurs. The inlet
valve opens and the RO pump comes on (after a time delay). The
permeate divert valve will close and the permeate outlet valve will
open after a preset duration. The RO pump start time delay and
permeate divert duration can be viewed and adjusted in the Timer
Presets Menu (03).
3.
Press the Menu select ARROW keys to scroll through the various
system operations, 01 through 07 (pressing ENTER will select
desired menu). The Maintenance Menu (07) allows access to
additional operations numbered 08 through 13. After entering the
Maintenance Menu (07), press the UP ARROW key to toggle through
the list of maintenance operations (again, pressing ENTER will select
desired menu). Press ESC twice at any time to return to the default
screen, which displays the time and date and up to 10 operating
parameters.
38
14Oct13
23G-Series RO System
4.3.1 Selecting Parameters and Changing Settings
To select a parameter:
1.
Scroll through the parameters using the ARROW keys until the
desired parameter is shown on the LCD screen.
2.
Press the ENTER key.
3.
Scroll through the settings using the ARROW keys, until the
desired setting is displayed on the LCD screen.
To change a setting:
1.
Enter the passcode.
2.
Raise or lower (toggle between) settings, using the ARROW
keys.
3.
Once the desired setting is shown on the LCD screen, press
ENTER to store and advance.
4.
Press ESC to cancel or change and ECS again to return to the
default screen.
4.3.2 Responding to an Alarm
When the machine alarm is indicated by the ECM-100 controller, a
signal is transmitted from the base unit to the ECM-100. An audible
alarm will sound, the large alarm light will turn on, and a small
alarm light (corresponding to the appropriate alarm condition) will
identify the alarm. The mute button on the unit will silence the alarm
horn, but the horn will reactivate if a new alarm condition is
indicated. The alarm light will turn off and horn will silence
automatically when the alarm conditions clear.
Pressing the Alarm Bypass key will add one minute to the
shutdown delay timer to allow time for remedy (the alarm continues
to sound, but the machine will not shutdown until after the delay).
3024270 Rev G
39
14Oct13
23G-Series RO System
4.3.3 ECM-100 Clean-in-Place (CIP) Operation
For CIP operation from the ECM-100 follow these steps:
1. Confirm the machine is in HAND mode (check LED light), as
CIP will not work in AUTO mode.
2. Press the ON key to start the machine.
3. Within 10 seconds of pressing ON, press the CIP key; the CIP
LED should illuminate.
The same sequence of events will occur on start-up as occurs
when just ON is pressed, except the CIP pump will start as soon as
the machines inlet valve opens and the pH buffer pump will not turn
on.
The following alarms are disabled and will not activate while in CIP
mode:
• high/low pH
• permeate conductivity
• low inlet pressure
• low primary pressure
• low permeate flow
• high membrane pressure drop
• high filter pressure drop
• low machine rejection alarms
NOTE:
CIP is intended to be a manual process with an operator present for the
duration of the cycle.
3024270 Rev G
40
14Oct13
23G-Series RO System
Table 4.5 ECM-100 Alarm Settings
Alarms
(Menu 02)
Range
Factory Preset
PERM COND HI
0 - 200 S/cm (Note 1, 2)
30 S/cm
TEMP HI
0 – 255 F (0-123 C)
90 F (32 C)
pH HI
0.0 - 14 pH units (Note 3)
7.0 pH units
pH LOW
0.0 - 14 pH units
3.5 pH units
POST FILTER PRESS LOW
0 - 99 psi [0 - 68 (bar x 10)]
12 psi [8 (bar x 10)]
PRIMARY PRESS HI
0 - 510 psi [0 - 352 (bar x 10)]
280 psi [193 (bar x 10)]
PRIMARY PRESS LOW
0 - 510 psi [0 - 352 (bar x 10)]
150 psi [103 (bar x 10)]
PERM PRESS HI
0 - 99 psi [0 - 68 (bar x 10)]
80 psi [55 (bar x 10)]
REJECTION LOW
0 - 99%
88%
FILTER PRESS DROP HI
0 - 99 psi [0 - 68 (bar x 10)]
(Note 4)
MEMBRN PRESS DROP HI
0 - 510 psi [0 - 352 (bar x 10)]
(Note 5)
PERM FLOW LOW
0.0 - 20.1 gpm (0.0 - 76.5 L)
(Note 6)
3024270 Rev G
1.
Adjustments range for “Permeate Conductivity High” alarm is 0
- 50 S/cm for Rev D3 software; 0 - 200 S/cm for Rev EO or
higher software.
2.
Below 200 S/cm, there are 2.5 units of specific conductance
(S/cm) per unit of TDS (ppm or mg/L CaCO3).
3.
If an acid injection pump is installed, the high pH alarm
determines when the chemical pump turns on. Once the pH
rises to 0.8 units below the alarm setting, the pump turns on.
After the chemical pump lowers the pH to 1.8 units below the
alarm setting, the pump will be turned off.
4.
Set alarm limit at 8 psi [6 (bar x 10)] greater than drop
observed during data collection for QA test form.
5.
Set alarm limit at 1.5 x the drop observed during data collection
for QA test form.
6.
Set alarm limit at 60% of flow observed during data collection
for QA test form.
41
14Oct13
23G-Series RO System
Table 4.6 ECM-100 Timer Settings
Timers (Menu 03)
Range
Factory Preset
RO PUMP DELAY
1 - 99 sec
1
6 seconds
START-UP PERM DIVERT
0 - 99 min
2 minutes
0 - 99 hr
1 hour
AUF DURATION
0 - 99 min
6 minutes
ALARM SHUTDOWN DELAY
0 - 99 sec
15 seconds
LOG PERIOD
0 - 99 hr
1 hour
AUTO-ON PERIOD
0 - 99 hr
(see note 2)
0 - 99 min
(see note 3)
AUF PERIOD
AUTO-ON DURATION
3024270 Rev G
1.
An RO pump delay of 0 will disable the RO pump.
2.
If used set to 4 hours.
3.
Set duration to 15 minutes.
42
14Oct13
23G-Series RO System
Figure 4.6 23G Series ECM-100 Main Board Electrical Diagram
3024270 Rev G
43
14Oct13
23G-Series RO System
Figure 4.7 23G ECM-100 Relay Board Electrical Diagram
3024270 Rev G
44
14Oct13
23G-Series RO System
4.4
ECM-100 Display Screens
4.4.1 ECM Display Screen Hierarchy
3024270 Rev G
45
14Oct13
23G-Series RO System
4.4.2
Detail of Date and Time Operation (Menu 01)
PASSCODE REQUIRED FOR
SETPOINT ADJUSTMENT
(refer to Section 4.2.6)
Passcode:
Enter the passcode by pressing the
following keys in sequence:
1. HAND/AUTO
2. CIP
3. ALARM BYPASS
Store Changes:
Once changes are made:
Press ENTER to store changes or
Press ESC to exit
Press ESC again to exit back to default
menu
3024270 Rev G
46
14Oct13
23G-Series RO System
4.4.3 Detail of Alarm Limits Operation (Menu 02)
* SHUTDOWN WITHIN 1 SECOND
(NON-ADJUSTABLE)
‡ SHUTDOWN WITH ADJUSTABLE DELAY
(1 – 99 SECONDS)
Refer to Table 4.5 ECM-100 Alarm Set Points for notes 1, 2, 3, & 4.
3024270 Rev G
47
14Oct13
23G-Series RO System
4.4.4 Detail of Timer Presets Operation (Menu 03)
*MACHINE MUST BE IN AUTO MODE TO FUNCTION
PASSCODE REQUIRED FOR
SETPOINT ADJUSTMENT
The time from when the inlet valve opens until the high
pressure pump starts (at machine ON, and after tank full or
pretreatment lockout).
The amount of time the machine stays in “Permeate Divert”
mode (at ON in AUTO and after tank full or pretreatment
lockout). Typically set for 2 minutes.
How often the Autoflush comes on (typically every 1 hour),
based on “run hours” timer.
The amount of time (3-6 minutes) at the end of every “AUF
Period” (usually every hour) that the concentrate flow is
increased in order to rinse the membrane.
The amount of time which certain alarms will sound before
shutting down the machine (See Section 4.6.3).
How often the current display readings are saved to the
History Log and sent to the RS-232 printer/computer.
How often the machine will start up automatically when OFF (in
AUTO mode), based on “off hours” timer. To prevent stagnation
overnight and on weekends (typically every 4 hours).
The amount of time that the machine stays on during an
AUTO-ON cycle (typically 15 minutes).
1 All values are 0-99.
2 An RO pump delay of “0” will disable the pump (see Troubleshooting Section).
* Use is optional.
3024270 Rev G
48
14Oct13
23G-Series RO System
4.4.5 Detail of Accumulated Hours Operation (Menu 04)
4.4.6 Detail of Log Tables Operation (Menu 05)
Records over 400 historical entries.
Historical entries can be downloaded.
Displays 10 operating parameters,
date, and time of entry. Use arrow
keys to scroll through entries.
3024270 Rev G
49
14Oct13
23G-Series RO System
4.4.7 Detail of Calibration Operation (Menu 06)
PASSCODE REQUIRED TO ADJUST
CALIBRATION VALUES
3024270 Rev G
50
14Oct13
23G-Series RO System
1.
Adjustment ranges remain the same whether in U.S. or Metric units; the settings
are dimensionless.
2.
Each offset unit for 100 psi sensors is equal to 0.50 psig (0.0345 bar).
3.
Each offset unit for 500 psi is sensors is equal to 2.0 psig (0.138 bar).
4.
The standard 1-inch flow turbine should be calibrated with a flow offset of zero.
Each offset unit equals 0.0264 gpm (0.1 Lpm).
5.
The “slope” for both flows should be set to 362 for 1-inch turbines. The slope
has units of Lpm/(100 turbine revolutions).
6.
Setting the Flow Offset to 99 will force the flow readings to 0.1 to temporarily bypass a failed flow sensor or turbine until replacement is installed.
7.
To calibrate pH, the passcode must be entered separately for each item, and the
pH electrode must be put in two different pH reference solutions (4.0 for Low and
10.0 for High, or 4.0 and 7.0, or 7.0 and 10.0).
8.
Pressure offsets are for field personnel to easily enter minor adjustments to the
operating pressure readings without recalibrating and are used to temporarily
“dial-out” a transducer that is beginning to fail, in order to keep the machine
running until the sensor can be replaced. Adjustment of these offsets reduces the
accuracy of the readings throughout their operating range.
3024270 Rev G
51
14Oct13
23G-Series RO System
4.4.8 Detail of Print Current Values Operation (Menu 08)
Use the arrow keys to scroll through the
maintenance menu.
4.4.9 Detail of Metric/US Select Operation (Menu 09)
4.4.10 Detail of Perm High Conductivity Alarm Operation (Menu 10)
PASSCODE REQUIRE
[HAND/AUTO] - [CIP] - [ALARM BYPASS]
3024270 Rev G
52
14Oct13
23G-Series RO System
4.4.11 Detail of Factory Settings Operation (Menu 11)
STORAGE CODE REQUIRED Refer to Section
4.2.7
PASSCODE REQUIRED Refer to Section 4.2.6
4.4.12 Detail of Auto-On Tank Full Operation (Menu 12)
PASSCODE REQUIRED
3024270 Rev G
53
14Oct13
23G-Series RO System
4.4.13 Detail of Comm Port Speed Operation (Menu 13)
PASSCODE REQUIRED
3024270 Rev G
54
14Oct13
23G-Series RO System
5.0
MACHINE OPERATION AND MAINTENANCE
Proper maintenance of the 23G RO system in accordance with this manual and
good medical practices is essential when the system is used in a medical
application for water purification for use in hemodialysis. FAILURE TO FOLLOW
THE REQUIREMENTS SET FORTH IN THIS SECTION AND GOOD MEDICAL
PRACTICES COULD POSE A RISK OF SERIOUS INJURY OR DEATH TO
HEMODIALYSIS PATIENTS.
Mar Cor Purification 23G RO systems have been designed to operate with a
minimum of operator attention. Like all mechanical systems they will operate
longer and with less trouble when routine maintenance is performed regularly.
Maintenance on an Mar Cor Purification reverse osmosis system is typically
limited to completing performance logs, cleaning, flushing, sanitizing, changing
pre-filters, regular maintenance, and replacement of damaged or failed parts.
The maintenance procedures are as follows: (specific instructions follow the
maintenance schedule).
There are seven preventative maintenance procedures which must be performed
on a regular basis:
1. Maintain the pH buffer system (if applicable).
2. Changing the pre-filter cartridges.
3. Flushing the machine.
4. Verifying product water quality.
5. Cleaning the machine with approved Mar Cor Purification cleaners.
6. Sanitizing the machine with approved Mar Cor Purification sanitizing
agents.
7. Cleaning and checking calibration of pH and conductivity probes.
5.1
Daily Requirements
NOTE:
Allow water temperature to stabilize before attempting to record results.
This prevents errors due to fluctuating temperatures.
Operating performance data should be recorded daily and kept on file and
submitted to your equipment supplier or Mar Cor Purification. Daily log
sheets are included in the instruction manual package and are useful for
recording performance data. In addition, data automatically stored by the
ECM-100 can be downloaded to a printer or computer to facilitate and
simplify record keeping. Copies of Mar Cor Purification Daily Log Sheets
will be required by Mar Cor Purification if a warranty question arises.
3024270 Rev G
55
14Oct13
23G-Series RO System
WARNING:
Determination of microbial culturing and disinfection frequency is the
responsibility of the operating facility. Failure to conduct timely microbial
culturing and disinfection could pose a risk of serious injury or death to
hemodialysis patients.
1.
Observe and record hardness level in the feedwater to the RO (for
systems with softener pretreatment).
NOTE:
Check the softener output for hardness at the beginning of each day and
at the end of each operational day to confirm adequate softener capacity.
The hardness level should be less than 1 grain per gallon (GPG).
2.
Observe and record salt level in brine tank (for systems with
softener pretreatment).
3.
Observe and record Total Chlorine (Chlorine/Chloramine)
concentrations in the feedwater of the RO. Follow instructions
included in each test kit.
WARNING:
Take corrective action or contact the equipment supplier if any pretreatment device fails to provide adequate treatment of feed water.
3024270 Rev G
4.
Allow water temperatures to stabilize before recording Mar Cor
Purification Daily log sheet data.
5.
Observe and record the pre-filter inlet and post-filter outlet pressure
gauges on the Operation Log. The difference in the pressure values
will measure the condition of the pre-filter cartridge. When the
pressure differential (delta P) doubles above the clean delta P, the
cartridges need to be changed. Refer to Section 5.9 for pre-filter
cartridge replacement procedure. Change out frequency is at least
monthly.
6.
Observe and record primary and final pressures on the Operation
Log.
7.
Observe and record the concentrate (reject) and permeate
(product) flow rates on the Operation Log. Allow water
temperatures to stabilize before attempting to record results, to
prevent errors due to fluctuating temperatures.
56
14Oct13
23G-Series RO System
8.
Observe and record the percent rejection and permeate
conductivity displayed on the ECM-100 display.
9.
Measure and record the feed water temperature on the Operation
Log. A hand held thermometer may be used. The water
temperature has a significant effect on the flow rate of the RO
membrane.
10.
Flushing
The machine should be flushed daily to remove sediment from
membrane surfaces. For flushing during on-line operation all Mar
Cor Purification 23G machines are equipped with an Autoflush
feature, which automatically increases the concentrate flow rate on
an intermittent basis.
5.2
Weekly Requirements
The actions below should be performed in addition to the daily
requirements.
5.3
1.
Observe and record the permeate conductivity using a hand
held/independent meter. Recalibrate ECM-100 as necessary.
2.
Observe and record inlet pH. Recalibrate ECM-100 as necessary.
Monthly Requirements
1.
2.
Replace pre-filters monthly or when pressure drop doubles from
new conditions. Refer to pre-filter replacement procedure (Section
5.11).
Disinfect the RO machine. The RO machine should be disinfected
monthly after initial start up. As the system is operated for a period
of time, it may be possible to extend the period of time between
disinfections (under NO conditions should the period between
disinfections exceed 3 months). Each facility will have to monitor
the bacteria levels in the RO to determine the ability to extend the
disinfection frequency.
Reference the membrane disinfection
procedures in Section 4.4. For enhanced effectiveness and
efficiency, it is recommended that the user combine the disinfection
of the RO with the disinfection of the Storage Tank and/or Loop by
following TechNote 191.
NOTE:
The monthly disinfection process can be performed without a low pH cleaning of the RO
system if the feed water to the RO machine is treated with a water softener and daily
maintenance logs reflect that output of the softeners at the end of the operational day
does not contain hardness. If there is not a softener as part of the RO pre-treatment, a
low pH cleaning of the RO system must be performed prior to the disinfection.
3024270 Rev G
57
14Oct13
23G-Series RO System
5.4
Quarterly Requirements
1.
Clean/sanitize the membrane elements. Refer to Section 5.8 for the
membrane cleaning/sanitizing procedure.
Cleaning/sanitizing the machine is vital because contaminants
and/or biological materials accumulate on the membrane surface
potentially reducing the permeate flow rate and affecting the
permeate quality. A layer left on the membrane may cause
permanent damage and reduce membrane life. A decrease in
permeate flow rate, a decrease in salt rejection, or an increased
pressure drop across the machine will indicate when cleaning is
required. Cleaning/sanitizing may be required as often as once per
week or as infrequently as once every two months, depending upon
local water supply conditions.
2.
3024270 Rev G
Sanitize the machine. Refer to Section 5.9 for the sanitizing
procedure. Prior to any sanitization, cleaning with Liquid Clean 103
(or equivalent) is required to prevent potential membrane damage.
58
14Oct13
23G-Series RO System
5.5
Semi-Annual requirements
1.
Tighten all electrical screws in the control box.
NOTE:
Disconnect from both sources of power prior to opening control box.
2.
5.6
Tighten high voltage wires to motor starter.
Annual Requirements
The actions below should be performed in addition to the monthly
requirements.
5.7
1.
An AAMI Water Quality Analysis of the product water should be
conducted at least yearly.
2.
Check the ECM monitoring for accuracy. Recalibrate as necessary.
3.
Check the instrumentation for correct functioning.
4.
Check the valves for correct operation.
5.
Check the tubing and fittings for leaks or wear.
6.
Check the switches and lights for correct operation.
Flushing
NOTE:
If the machine is to be turned off for more than 4 hours, it should be
programmed to flush to drain for 15 minutes every 4 hours. This should
minimize the growth potential of biological components in the machine. An
AUTO-ON period can be set in the timer Preset Menu (03) of the ECM100 to prevent water from stagnating. Menu (12) must also be set to
permeate divert.
The machine should be flushed daily to remove sediment from membrane
surfaces. For flushing during on-line operation, all Mar Cor Purification
23G machines are equipped with an Autoflush system, which
automatically increases the concentrate flow rate on an intermittent basis.
1.
3024270 Rev G
To manually flush the unit, open the machine concentrate valve so
the concentrate flow rate is 20 to 30% higher than during normal
operation. Operate for 10 to 20 minutes and close concentrate
valve.
59
14Oct13
23G-Series RO System
CAUTION:
Do not operate the machine with more than 30% additional concentrate
flow without prior approval from Mar Cor Purification. Operation above
this flow rate may damage the pump and motor.
2.
5.8
Use the AUTO-ON commands in the Timer Presets Menu (03) of
the ECM-100, to flush the machine automatically during extended
shutdown periods (over 4 hours). If using the AUTO-ON command,
the machine must be in the AUTO mode. The AUTO-ONACTIVE
LED will illuminate when the AUTO-ON period and duration timers
are set above zero.
Step-Wise Cleaning
NOTE:
Mar Cor Purification recommends sanitizing your machine after cleaning.
Foulants such as minerals, silt, and organic substances may collect on the
membrane element surface and cause the membrane element to foul and
diminish in its function. Many of these foulants are prevented by proper
selection of pre-treatment equipment, while others are treatable with more
sophisticated designs. Regardless of the foulant, it is essential to clean the
membranes promptly once cleaning is indicated. The longer a foulant is
allowed to remain in contact with the membrane element, the more difficult
it will be to remove.
Routine cleaning of the membrane elements in conjunction with regular
sanitizing and flushing will keep bacteria counts at a minimum and
membrane element performance at its best. Cleaning removes the silt,
organic, and mineral deposits that collect on the membrane surface, which
if left untreated, encourage bacteria growth. It will eventually impair the
membrane elements’ ability to perform.
There are a variety of indications for cleaning membranes. The most
common is a reduced product flow rate. Remember that a reduction in
inlet water temperature can also result in a reduced flow rate. Refer to the
“Temperature Correction Factor” (Technote 113) to determine the
reduction in flow that can be attributed to reduced water temperature.
Clean the membranes whenever the temperature compensated flow rate
drops by 10%. A loss in the membrane performance (percent rejection) or
increase in TDS of the product water may also be an indication to clean
the membranes. Observation of the decrease in either permeate flow rate
or salt rejection, or an increased pressure drop across the machine also
indicates when cleaning is required. A good preventative maintenance
practice is to clean the membranes every 30 - 60 days, and more often if
needed.
3024270 Rev G
60
14Oct13
23G-Series RO System
NOTE:
Cleaning may be required as often as once every week or infrequently as
every quarter, depending upon the local water supply conditions.
For more information, or for instructions on long-term machine shutdown
(greater than 72 hours), contact your equipment supplier.
Read and understand all instructions prior to beginning procedure.
CAUTION:
RO units must be rinsed to drain, under normal pressures for a minimum
of one (1) hour before exposing membranes to Minncare® and a minimum
of six (6) hours before exposing membranes to formaldehyde or
irreversible damage may occur. This includes start-up of machines with
new membranes and membrane element replacements.
WARNING:
Follow all Material Safety Data Sheet (MSDS) precautions and
Occupational Safety and Health Administrating (OSHA) standards when
introducing a chemical (i.e., cleaning and sanitizing agents).
A typical CIP system includes a tank, pump, connecting hoses which are
connected to the machine in a manner that allows a closed loop for
recirculation of cleaning solutions. Contact your equipment supplier for
assistance in designing, installing, and implementing a suitable CIP
system.
CAUTION:
Prior to sanitizing, a thorough cleaning with Liquid Clean 103 or similar
product is required to avoid membrane damage.
To circulate the cleaning solution through the machine, use noncollapsible hose piped to feed the machine from the CIP tank through the
CIP pump.
5.8.1 Installation of the 23G CIP
3024270 Rev G
1.
Remove cover on tank and remove the Clean-In-Place (CIP)
hoses and fittings.
2.
Remove plugs on feed, permeate, and concentrate CIP ports
on right side of the 23G. Install the valves and quick release
fittings provided.
61
14Oct13
23G-Series RO System
3.
Hook up the CIP feed hose to the quick connect fitting on the
pump. Hook the other end of the hose to the quick connect
fitting on the CIP tank.
4.
Place the CIP skid near the 23G so all CIP lines will reach
CIP ports on the machine.
5.
Connect the feed permeate and concentrate lines to the CIP
tank quick connect on CIP pump and then to the CIP port on
the machine. Open the CIP valves on the machine.
5.8.2 Cleaning/Sanitizing with 23G CIP
1.
Start the 23G and allow the permeate to fill the 23G skid
tank to the desired level. Turn machine off by pushing the
Off button on the ECM-100 controllers.
2.
Add and mix desired amount of cleaner or sanitizer to the
CIP tank.
3.
Mix chemical cleaning solution in a suitable (clean) tank with
purified water. RO permeate is best. Use the following to
determine cleaning solution volume:
Cleaning Solution Volume  (Permeate Flow + Concentrate Flow) x3
Permeate and Concentrate are specified in gpm (Lpm)
Cleaning solution volume will be in gallons (L)
3024270 Rev G
4.
Remove the feed CIP line from the quick connect fitting on
the side of the CIP pump. Connect it to the quick connect
fitting on the CIP feed port on the side of the 23G.
5.
Connect the concentrate CIP line to the quick connect port
on the CIP skid. Attach the other end to the quick connect
concentrate CIP port on the 23G.
6.
Close the feedwater valve which provides water from
pretreatment to the machine.
7.
Close the permeate and concentrate outlet valves on the
back side of the front panel.
8.
Then connect the long cord from the starter box on the CIP
skid to the pigtail bell fitting on the back side of the controller
box.
9.
Connect 115-volt power to the Medical cord, located on the
starter box on the CIP skid.
62
14Oct13
23G-Series RO System
10.
Return to the ECM-100 controller and push the HAND/AUTO
button to HAND. The Hand Mode light will illuminate. Push
the On button, and both the 23G pump and the 23G skid
pump will start. See Cleaning in the 23G Operator’s Manual
for cleaning instructions.
NOTE:
The CIP system must provide positive feed pressure to the RO machine.
Mar Cor Purification strongly recommends using a CIP pump to provide
sufficient inlet pressure (20 - 30 psi [1.38 - 2.07 bar]) to the high pressure
RO pump during cleaning. Failure to provide adequate inlet pressure will
damage the RO high pressure pump.
11.
In between cleaning processes rinse out the CIP container
by following step 3 above. Fill and drain the tank several
times to rinse the cleaner or disinfectant out of the CIP
container. After allowing the tank to fill, turn off the 23G.
Empty the tank by removing the CIP hose from the CIP feed
port on the 23G. Allow the tank to empty out to a floor drain.
12.
After rinsing the tank well, the CIP skid is ready for further
cleaning/sanitizing or for storage.
13.
Recirculate the cleaning solution at the same flow rate and
pressure used for flushing.
NOTE:
DO NOT allow cleaning temperature to exceed 85°F (29°C). The ECM100’s high temperature alarm is factory preset at 90°F (32°C).
3024270 Rev G
14.
Recycle the cleaning solution for approximately 15 minutes
or until the solution temperature reaches 85F (29C). If
heat rise occurs too quickly, larger volumes of cleaning
solution or use of a heat exchanger will allow the
temperature to rise at a slower pace.
15.
Turn the machine OFF and allow the cleaner to soak for 20
minutes.
16.
If applicable, turn the CIP pump control circuit OFF.
63
14Oct13
23G-Series RO System
CAUTION:
Do not leave cleaning solution in the machine for a period longer than one
hour. The cleaning solution may damage the membranes and the machine
during an extended period of contact.
17.
To flush the cleaner from the machine close the CIP inlet
valve.
18.
Open the inlet feed valve.
19.
Open the CIP tank drain valve.
20.
Permeate and concentrate will continue to flow to the CIP
tank and then to the drain.
21.
Operate the machine as described in Steps 18 - 20 for 30 60 minutes.
22.
The cleaner is sufficiently flushed-out when the feed pH and
permeate conductivity are restored to nearly their previous
levels. Typically, chemical test kits may also be used to
verify the absence of chemical residual.
23.
To return the machine to service, open the permeate valve.
24.
Open the concentrate valve.
25.
Close the CIP permeate valve.
26.
Close the CIP concentrate valve.
27.
Press the OFF key on the ECM-100. The CIP LED light will
turn off.
28.
Install new pre-filters.
NOTE:
Mar Cor Purification recommends sanitizing machine after cleaning.
Proceed to sanitizing (Section 5.8).
29.
Place the machine in AUTO mode by pressing the
HAND/AUTO key. The AUTO LED light will illuminate.
NOTE:
The RO must be operated in AUTO mode in order to respond to float
switches, pretreatment and other alarms.
3024270 Rev G
64
14Oct13
23G-Series RO System
5.9
Sanitizing Using a CIP System
WARNING:
Determination of microbial culturing and disinfection frequency is the
responsibility of the operating facility. Failure to conduct timely microbial
culturing and disinfection could pose a risk of serious injury or death to
hemodialysis patients.
CAUTION:
RO units must be rinsed to drain under normal pressures for a minimum of
one (1) hour before exposing membranes to Minncare® and a minimum of
six (6) hours before exposing membranes to formaldehyde or irreversible
damage may occur. This includes start-up of machines with new
membranes.
WARNING:
Follow all MSDS precautions and OSHA standards when introducing a
chemical (i.e., cleaning and sanitizing agents).
Sanitizing frequency may be reduced by running the machine
continuously. If the machine must be turned off for more than 4 hours, it
should be programmed to flush to drain for 15 minutes every 4 hours. This
should minimize the accumulation of bacteria onto membrane surfaces.
An AUTO-ON period can be set in the Timer Menu (03) of the ECM- 100
to minimize the potential of water from becoming stagnate.
NOTE:
The Pretreatment Lockout and Tank Level Full signals will override the
AUTO-ON feature.
Performing a regularly scheduled sanitizing procedure for the machine
may be required to control bacterial growth. The machine must be cleaned
and pre-filters changed prior to sanitizing for greatest effectiveness. A 1%
peracetic acid-based disinfectant, or 0.5% formaldehyde is typically used.
Peracetic acid-based sanitizers are oxidants, and PA membranes are
sensitive to oxidants. The presence of transitional metals such as iron on
the membrane will catalyze this oxidation reaction, leading to rapid
membrane performance degradation. The use of peracetic acid-based
chemicals is acceptable under the following conditions:
•
3024270 Rev G
Prior to peracetic acid-based chemical use, the membrane is cleaned
with a low pH cleaner to free the membrane of iron and other
transitional metals.
65
14Oct13
23G-Series RO System
•
The peracetic acid-based chemical solution is mixed with water free
from iron and other transitional metals. RO water is preferred.
•
The peracetic acid-based chemical solution temperature is kept at or
below 77°F (25°C). Ice or other cooling methods may be required to
keep temperature down.
•
The PA membranes’ exposure to the peracetic acid-based chemical
solution does not exceed one hour per week at a chemical solution
concentration of 1%.
CAUTION:
Prior to sanitizing, a thorough cleaning with Liquid Clean 103 or similar
product is required to avoid membrane damage.
The 23G machine has a CIP feed port into which sanitizing solution can
be fed from a CIP tank and pump. In this case, sanitizing can be
accomplished with the same procedure used for cleaning.
Refer to Section 5.8.2 Cleaning/Sanitizing with CIP.
5.10
Membrane Element Cleaners and Sanitizers for 23G Machines
Table 5.8 Liquid Chemical Cleaners
Cleaner
Description
Part Number
Quantity
Liquid
Clean 103
Cleaner for removal of calcium carbonate &
metal hydroxide based scales.
1228653
1 GAL
Liquid
Clean 511
Cleaner for removal of oils and organic
coagulants.
1228791
1 GAL
5.11
Pre-Filter Replacement Procedure
Five micron pre-filters are factory-installed to protect the high-pressure
pump, membranes and valves from particles in the feedwater.
The pre-filter cartridges should be replaced regularly to minimize pressure
drop and help minimize biological growth. Monthly replacement is typical.
An increase in pressure drop across the filter indicates the pre-filter
cartridges need changing. Use only Mar Cor Purification approved filters
rated for 5 microns or less. Do not attempt to clean used pre-filters.
The pre-filters should be replaced before and after cleaning or sanitizing of
the membranes elements.
1.
3024270 Rev G
To change the pre-filter, turn the water supply off. The pre-filter inlet
and outlet gauges should read zero psi.
66
14Oct13
23G-Series RO System
2.
Remove the pre-filter bowl by rotating it counterclockwise.
3.
Remove the old filter.
4.
Install the new filter.
5.
Re-install the pre-filter bowl.
NOTE:
Failure to change pre-filters may void machine warranty.
5.12
Recording Performance Data
Operating performance data should be recorded daily and kept on file or
submitted to your equipment supplier or Mar Cor Purification. Copies of
data sheets will be required by Mar Cor Purification if a warranty question
arises. Daily Log sheets are included in the instruction manual package
and are useful for recording performance data. In addition, data
automatically stored by the ECM-100 can be downloaded to a printer or
computer file to facilitate and simplify record keeping. Refer to Section 6.6.
In addition to the date, time and 10 “on-screen” performance data
readings, the ECM-100 will also download a record of permeate pressure
and an alarm code. The alarm code provides a record of what causes
machine shutdown conditions. See Section 6.6 for downloading data.
NOTE:
Copies of the logs should be submitted to your equipment supplier.
5.13
Preparing Machine for Movement
Contact your equipment supplier for moving, storage and shipping
instructions.
3024270 Rev G
67
14Oct13
23G-Series RO System
5.14
Membrane Element Replacement
As time progresses, the efficiency of the membrane elements will begin to
decline. Generally, the salt rejection of the membrane will not change
significantly when properly operated on water until about two years after
installation. Under ordinary conditions, the permeate rate may decline
slightly after one to two years of operation. This period can be extended
with frequent flushing and cleaning as outlined in these instructions.
If the membranes are to be saved, they must be cleaned and then
sanitized before removal from the machine.
Verify the membranes’ part number before replacing them. Reference
Table 5.9 for the correct parts needed to replace the membranes.
Membrane P/N
O-Rings Used
Adapters Used
OS1229398
OS1118748
OS1117167
3027262
OS1118748 &
ME41593
3027177
Table 5.9
5.14.1
5.14.2
Membrane Element Removal
1.
Disconnect the permeate tubing from the permeate
manifold.
2.
Remove the end cap and housing adapter from the
membrane element housing.
3.
Remove the membrane element from the membrane
element housing.
4.
Inspect the membrane element housing. Clean as
necessary to remove any contaminants, obstructions,
etc.
Membrane Element Installation
CAUTION:
Membrane elements are packaged with a small amount of biocide solution
to prevent biological growth. Provide adequate ventilation and use
protective gloves and eye protection when handling. Membrane elements
must be kept moist at all times in order to prevent possible damage to the
membrane material.
3024270 Rev G
68
14Oct13
23G-Series RO System
CAUTION:
Upon start-up of a new machine or installation of new membranes
machine must be operated with permeate running to drain for a period of 3
hours in order to flush out all membrane preservatives. Failure to properly
flush the membranes can result in patient safety issues. If the 23G RO
machine is going to be disinfected rinse the system to drain under normal
pressures for a minimum of one (1) hour before exposing membranes to
Minncare®.
Flush the system to drain under normal pressures for a minimum of six (6)
hours before exposing membranes to formaldehyde.
NOTE:
New membranes may produce 10 - 15% higher permeate flow than
specified. Slight adjustment of recycle and concentrate orifice may be
required to reduce flow rate.
1.
Remove the new membrane element bag containing
the membrane element from the shipping tube.
2.
Cut the bag open as close as possible to the seal at
the end of the bag so that the bag may be reused for
disposal of the old membrane element.
3.
Remove the membrane element from the bag and
remove the foam protectors from each end of the
membrane element. Set membrane aside in a clean
space and continue.
4.
New O-rings should be installed when membranes
are replaced. Make sure that all parts are clean and
free from dust and dirt. Examine O-rings for nicks or
cuts and replace if damaged.
NOTE:
O-rings are not included with membrane elements. See Spare Parts List to
order new O-rings. FilmTec membranes (P/N 3027262) use O-ring P/N
ME41593 and O-Ring P/N OS1118748 in the adapter P/N 3027177.
5.
3024270 Rev G
Locate the concentrate seal holder on one end of the
membrane element, and place the U-cup” concentrate
seal (brine seal) into the groove of the concentrate
seal holder with the open side of the U-cup facing
away from the membrane element body. Note new
direction of flow. The open side of the U-cup is on the
upstream end of the membrane element.
69
14Oct13
23G-Series RO System
Concentrate (Brine) Seal
Figure 5.8 Brine Seal at Exit End
Housing
Victaulic Clamp
Victaulic Gasket
Direction of Flow
Endcap Assembly
W/Load Transfer Device
O-Rings (2)
End Cap Adapter
O-Rings (2)
Membrane Element
Concentrate U-cup Seal (Brine Seal)
Load Transfer Device
O-Rings (2)
Plug / Adapter
Figure 5.9.1 Membrane Element Installation P/N OS1229398
3024270 Rev G
70
14Oct13
23G-Series RO System
6.
Apply a small amount of water-soluble lubricant to the
outside surface area of all O-rings installed on the
adapters.
CAUTION: Do not use petroleum jelly or other petroleum based material
as they may damage elastomer and/or thermoplastic.
Housing
Victaulic Clamp
Victaulic Gasket
Endcap Assembly
W/Load Transfer Device
Direction of Flow
New O-Rings (2)
Adapter 3027177
Product
New O-Ring
Membrane Element
Concentrate U-cup Seal (Brine Seal)
New O-Rings
ADAPTER 3027177 PLUG
Figure 5.9.2 Membrane Element Installation P/N 3027262
3024270 Rev G
7.
Determine the direction of feed flow in the membrane
element housing. Be sure to look at the “Direction of
Flow” arrow on each membrane element housing;
they may be different within a given machine. Be sure
element direction of flow matches housing direction of
flow on the plastic component.
8.
The open side of the U-cup concentrate seal must be
placed at the end of the membrane element housing
closest to the housing feed port/connection.
71
14Oct13
23G-Series RO System
9.
Once the membrane element orientation has been
determined, install a housing adapter into the end of
the permeate tube with a gradual twisting/turning
motion. Install the plug adapter into the end of the
permeate tube that will be closest to the lower end of
the housing (e.g., nearest the floor).
10.
Insert the membrane element in the housing
(including U-cup seal and housing adapter) with a
smooth and gentle twisting motion. Ensure that the
housing adapter (installed in Step 9) sits at the bottom
of the housing.
C
A
LEGEND
R
B
A ENDCAP W/ LTD
S
B INTERBANK PLUG
O-RING
C INTERBANK PLUG
D INTERCONNECTOR
E O-RINGS
F CONCENTRATE SEAL
F
G PLUG/ADAPTER
D
L
J PLUG
E
H LTD
F
K
K MEMBRANE ELEMENT
L PERMEATE TUBE
J
M PERMEATE
N FEED
P CONCENTRATE
R 4" CLAMP GASKET
H
G
S 3/4" CLAMP GASKET
Figure 5.10 Cross Sectional View Membrane Element and Housing Flow
3024270 Rev G
11.
For membrane OS1229398, insert an interconnector
into the permeate tube located closest to the open
end of the housing. For membrane 3027262 connect
the adapter to the permeate tube.
12.
Install the end cap and affix the closure device.
13.
Reconnect the permeate tube to the permeate
manifold.
14.
Repeat for other membrane elements as necessary.
15.
Before putting the machine back into normal
operation, run the permeate and concentrate streams
to drain for at least 1 hour. This is done to ensure that
72
14Oct13
23G-Series RO System
all the preservatives have been removed from the
membrane elements and prevent irreversible
damage. If the 23G RO machine is going to be
disinfected, rinse the system to drain under normal
pressures for a minimum of one (1) hour before
exposing membranes to Minncare®.
Flush the system to drain under normal pressures for
a minimum of six (6) hours before exposing
membranes to formaldehyde.
Machine is ready for normal operation, however do
not put into service until all applicable water tests
have been completed.
In order to ensure that the RO is performing at or
above AAMI standards, it is necessary to perform an
AAMI Water Quality Analysis Test. For new units, the
RO must be operated (rinsed to drain) for at least two
hours before taking a sample, to ensure that the
membranes are free of preservatives or other
contaminants which would invalidate the test.
NOTE:
Follow the procedures recommended by your water quality testing
laboratory.
5.15
Flow Control Adjustments
NOTE:
Prior to any adjustments, make sure that temperature is constant,
AUTOFLUSH is off, and concentrate valve is closed.
Refer to Figure 5.11, Flow Control Manifold.
3024270 Rev G
73
14Oct13
23G-Series RO System
CAUTION:
The flow control orifice valves are sealed to prevent tampering, and should
not be adjusted by unauthorized personnel. Damage to the machine may
occur and physical injury is possible.
•
The flow control orifices are factory set; according to the design
specifications of the machine.
•
Adjustment of the orifices in the field are permitted only with the
approval of the equipment supplier.
•
Permeate flow rates which exceed design specifications will shorten
the life of the membranes, degrade the quality of the permeate output,
and may cause injury to dialysis patients.
CAUTION:
The large orifice nuts at the base MUST NEVER be turned.
•
The large nuts must remain in the position set at the factory; with the
4 dimples from both nuts lined up with each other in a straight line
(longitudinal with the block).
•
Tightening these nuts (even by a small amount) will cause damage to
the O-ring located under the nuts.
•
Over-tightening the locking nuts will damage the threads and may
cause leaking the next time that the orifice is adjusted.
CAUTION:
Improper adjustment of the flow control orifices can cause serious damage
to the machine, and/or personal injury.
3024270 Rev G
74
14Oct13
23G-Series RO System
5.15.1 Leaks
During adjustment it is normal for a very small amount of water to
leak from under the larger nut of the orifice, and/or from around the
locking nut on the orifice adjustment screw.
•
To correct leaking under the large nut, the two O-rings need to
be replaced. Contact your equipment supplier for assistance.
•
Any other leaks on the machine should be corrected promptly.
Any cracked or broken fittings must be replaced. Contact your
equipment supplier for assistance.
NOTE:
There is a large amount of interaction between the concentrate valve and
the two orifices. Make sure concentrate valve is closed during orifice
adjustment. Adjusting one of them will affect the setting of the other. To
change the permeate or concentrate output of the machine, both orifices
will usually need to be adjusted in small amounts, alternating between the
two several times, until the correct settings are reached.
Concentrate Manifold from
the “last” membrane housing
Concentrate Orifice
11/16” Hex Head
Recycle Orifice
Autoflush Valve
To Concentrate
Outlet
Machine Concentrate
Valve
Figure 5.11 Flow Control Manifold
3024270 Rev G
75
14Oct13
23G-Series RO System
Do not make adjustments when the Autoflush light is ON. Always
wait until the Autoflush finishes and the light goes out before
adjusting the orifices. Make sure concentrate valve is closed.
1.
Concentrate Orifice - screwdriver adjustment.
•
Adjusts the concentrate flow output to the drain.
•
Adjust so that the concentrate flow rate matches the value
printed on the machine nameplate. To adjust the
concentrate flow rate:
Adjusting the Orifices - requires two wrenches and a large
screwdriver.
a. Use one wrench to hold the large nut and prevent it from
turning.
b. Use another wrench to loosen the locking nut, adjust the
flow with the screwdriver.
c. Tighten the locking nut after.
•
While adjusting, make sure that the primary pressure
reading is less than 275 psi (19.0 bar), and more than
150 psi (10.3 bar).
•
Clockwise (in) reduces the concentrate flow rate,
causing higher primary pressure and higher permeate
flow.
•
Counterclockwise (out) increases the concentrate flow
rate.
WARNING:
Be careful not to unscrew the adjustment too far, or the screw will blow out
of the orifice and may cause injury.
2.
3024270 Rev G
Recycle Orifice - screwdriver adjustment.
•
Controls the amount of concentrate being recycled back to
the pump.
•
Adjusts the primary pressure and permeate flow rate.
•
Adjust so that the permeate flow rate matches the value
printed on the machine nameplate. To adjust the permeate
flow rate:
76
14Oct13
23G-Series RO System
Adjusting the Orifices - requires two wrenches and a large
screwdriver.
a. Use one wrench to hold the large nut and prevent it from
turning.
b. Use another wrench to loosen the locking nut, adjust the
flow with the screwdriver.
c. Tighten the locking nut after.
•
While adjusting, make sure the pump boost pressure
(primary pressure less pre-filter pressure) reading never
goes outside of value listed in Section 1.8.4.
•
Clockwise (in) increases primary pressure and
permeate flow rate.
•
Counterclockwise (out) reduces primary pressure and
permeate flow rate.
WARNING:
Be careful not to unscrew the adjustment too far, or the screw will blow out
of the orifice and may cause injury.
It may be necessary to adjust orifices several times to attain
the proper settings.
Occasionally the permeate flow rate output of the machine
is too high, and cannot be adjusted low enough, even when
the recycle orifice is all the way open (unscrewed nearly all
the way out). This condition most often occurs right after
the membranes have been replaced, and indicates that the
permeate rate characteristic (flux rate) of one or more of the
membranes may be abnormally high.
3024270 Rev G
•
If the permeate conductivity reading is also abnormally
high (% rejection is low), the problem is most likely
caused by a bad O-ring seal in one of the membrane
housings.
•
If the % rejection reading is normal or higher than
normal, then the membranes are good, but one or more
has a water product rate at the high end of product
specification range. Contact your equipment supplier for
assistance.
77
14Oct13
23G-Series RO System
5.16
Permeate Divert
Factory-installed valves divert the RO permeate to drain for a preset
period of time upon machine start-up or when the RO permeate exceeds a
preset conductivity level. This optional feature ensures good quality water
flows to storage or to points of use. A start-up divert timer setting in the
timer presets menu of the ECM-100 controls the duration of permeate
divert each time the machine starts up. A high conductivity level is set in
the Alarm Limits menu so that permeate is diverted should the conductivity
exceed that level. The divert mode can be disabled if desired by setting
the start-up permeate divert timer to zero and selecting WARNING ONLY
or SHUT DOWN from the permeate high conductivity alarm function menu
(10).
5.17
Product Water Pressure Relief
The factory-installed product water pressure relief hardware includes two
1/4-inch thermoplastic pressure relief valves which relieve excessive
permeate backpressure based on a set point. Backpressure can be the
result of pressurized storage tanks, pressurized distribution loops,
restrictions in permeate plumbing and/or other factors which prevent
permeate from flowing from the machine. The valves are typically factory
preset to 60 psi (4.1 bar).
Allowing the machine to operate with permeate pressure greater than 60
psi (4.1 bar) may cause premature failure of the respective diaphragm
valve. The diaphragm valve is a “normally closed” valve that is designed to
fail in the closed position, as required for normal (non-divert) operation.
Should this valve fail, the machine will operate in the normal mode with
permeate flowing to the tank/distribution loop.
6.0
FEATURES AND ACCESSORIES
Accessory connections are provided on both the input and output terminal strips
of the ECM-100. Accessory outputs can be used to control chlorine or dispersant
feed pumps; accessory inputs can be used to control pre- or post-treatment
equipment. The output connections are switched by relays and power to the
outputs will be shut off if machine is turned off due to an alarm condition.
The ECM-100 allows you to connect to a printer and a personal computer. These
features allow you to store and print data on the 23G’s current and historical
performance.
3024270 Rev G
78
14Oct13
23G-Series RO System
6.1
Level Controls
Float switches pressurized storage tank switches or other level controls
may be connected to the ECM-100’s tank level control inputs. To
recognize the tank level status, the ECM-100 must be in the AUTO mode.
A level control system with “one” input signal may be connected to the
ECM-100 across terminals 17 and 18 of the main strip. Terminals 40 and
41 must be jumpered together in this case. An open status will shut down
the machine and a closed status will allow it to run.
CAUTION:
The level control contacts must be dry, non-powered, and compatible with
5 V signals.
NOTE:
The level control feature of the ECM-100 can be configured for two inputs
– a high level (tank full) switch and a low level switch. If properly
connected, when both switches open, the ECM-100 will shut down the
machine and illuminate the blue Tank Full LED light. As the level in the
permeate storage tank drops, the high level switch will close but the
machine will remain locked-out until the tank level drops to the height that
causes the low level switch to close as well. When both switches are
closed, the ECM-100 will restart the machine. As the level in the tank rises
and the low level switch opens, the machine will continue to run. Only
when the high level switch opens will the machine shut down. To utilize
the two input configuration, connect the level controls to terminals 17 and
18 and terminals 40 and 41. See Figure 1.3 for connection points.
It is possible to connect the high and low level switch inputs in reverse
positions on the ECM-100 terminal strip to achieve level control of a feed
water ballast tank. In this case, the machine will shut down on an “empty”
tank condition.
NOTE:
If the machine operation is controlled by the lockout status of
pretreatment, but not controlled by a storage tank level, then jumper wires
must be installed between terminals 17 and 18 and between terminals 40
and 41. The machine must be in AUTO mode to recognize the
pretreatment signal or tank level signals.
CAUTION:
In all cases “dry” contacts must be used. This eliminates the possibility of
voltages from any other source feeding into the ECM-100 terminals.
3024270 Rev G
79
14Oct13
23G-Series RO System
6.2
pH Controller/Sensor (ECM-100-pH)
A factory installed pH sensor can be connected to your ECM-100. A
high/low pH alarm is included with the pH sensor and should be set at pH
7 and 4, respectively (unless special instructions or conditions indicate
otherwise) to protect against excess or loss of buffer feed. If the high pH
alarm deactivates the machine, the buffer tank and buffer pump must be
checked to ensure that buffer is being fed properly, and that the pump is
primed. The system is restarted by pressing OFF and then ON on the
ECM-100. This will energize the chemical pump so it can be properly
adjusted. The system will stop again according to the alarm timer if the pH
remains in the high or low alarm range. When wired for acid pump control,
the ECM-100 will turn on the acid pump at 0.8 pH units less than the high
pH alarm limit and will turn off the acid pump at 1.8 pH units less than the
high pH alarm limit whenever the RO pump is running (except during CIP
mode).
Initial calibration of pH sensors is done at the factory. Accuracy should be
rechecked at startup and at least monthly when in service, with a test kit or
laboratory pH meter. Permeate pH must not be used for calibration of the
ECM-100 pH reading or adjustment of the chemical pump. To calibrate the
pH reading, refer to the calibration procedure included in Section 8.0.
The pH probe may have to be cleaned or replaced some time after 6 to 24
months of operation, depending on the type of use. Refer to the Spare
Parts List (Section 11.0) for specific Mar Cor Purification part numbers.
Clean by soaking the glass electrode for 10 minutes in a 2 pH acid (the
type used for buffer).
NOTE:
23G machines built after September 1997 contain Version 2 (V2) circuit
board. This new circuit board includes the extra electronic components
built into the circuit board. When ordering replacement pH kits identify
whether you have Version 1 (machines built prior to September 1997) or
Version 2 (machines built after September 1997).
3024270 Rev G
80
14Oct13
23G-Series RO System
6.3
Printer/Computer Interface
The ECM-100 is designed to allow data downloads to a computer or a
printer. The basic process of downloading the information to a printer or
computer is the same. Data can be downloaded as individual lines of
information (Current display), or large groups of information (Historical
log). If a computer or printer is left connected to the ECM-100 for long
periods of time, the ECM-100 will display and download (echo) each
successive set of operational data as it is stored in the historical log
table(s). The user can define the frequency of operational data storage by
accessing the Timer Presets Log Period (Menu 02) on the ECM-100.
6.3.1 Printer Interface
The ECM-100 includes a 9-pin female serial communication port
which will allow you to interface with a printer. Two print functions
are provided: Current display and History Log. See Section 6.6.6
for Print Functions.
6.3.2 Computer Interface
The serial cable on the ECM-100 is wired at the factory to connect
directly to a personal computer, requiring only a standard 9-pin
serial extension cable of appropriate length and software.
The RS-232 communication configuration is:
Baud Rate
1200, 2400, 4800, or 9600, (user must specify)
Data Length 8 bits
Parity None
Handshaking
Xon/Xoff
6.3.3 Computer Connection
Software Requirements
Requires serial communications software on your computer, such
as:
HyperTerminal® (included with Windows 95, 98, NT, ME, 2000, or
XP)
Microsoft Terminal® (available separately for Windows 3.1)
Crosstalk® and Procomm® (versions available separately for
almost any computer)
- or any of a number of similar commercial products.
3024270 Rev G
81
14Oct13
23G-Series RO System
To capture data from ECM-100 to a PC using HyperTerminal®
Go to the windows application (START menu) and choose
“Programs””Accessories””Communications””HyperTerminal”
You will then need to choose a file name, i.e. “23G RO data” click
OK
You will then need to choose the connection, i.e. COMM 1, COMM
2 etc. click OK
You will then be prompted to choose a BAUD rate. The baud rate
on the computer should match the baud rate on the ECM-100
controller. You can verify the baud rate on the controller by going
to menu 13 on the ECM-100. (Refer to the O & M manual for
instructions to change the baud rate. The factory setting on the
ECM-100 Baud rate is 1200). The ECM-100 has four different
baud rates to choose from (1200, 2400, 4800 and 9600). The
higher the baud rate the faster the information will be transferred.
You will also need to choose flow control, you should choose
“Xon/Xoff” and click OK
At the top of the hyper terminal screen choose
“Transfer””Capture text”, you will then need to give a file name,
i.e. “23 Data Oct 2003”. Once you choose the file name, put it on
your desktop so that it is easier to find once the information has
been down loaded.
You are now ready to start downloading the information from the
ECM-100. Go to Menu 05 “LOG TABLES” and press “ENTER”,
“Historical Values” will be displayed. You then will need to enter
the pass code “HAND/AUTO”, “CIP”, “ALARM BY-PASS”, at this
point you will see the letter ”P” in the upper right hand corner of the
display screen, this denotes that the information is being
transferred to the computer.
Once the information is downloaded, it can be put in different
formats, MS Excel is recommended so that different data points
can be isolated and trended if desired. The following table (6.10)
defines the two digit codes used to help determine errors.
3024270 Rev G
82
14Oct13
23G-Series RO System
Table 6.10 Two-Digit HyperTerminal Alarm Codes
Number on Left
Number on Right
0 No Alarm
0 No Alarm
1 Metric
1 Permeate Conductivity High
2 Permeate Divert
2 High Temperature
3 Metric and Divert
3 High pH
4 HAND mode
4 Low pH
5 Metric and HAND mode
5 Low Post Filter Pressure
6 Permeate DIVERT and HAND mode
6 High Primary Pressure
7 Metric and Divert and HAND mode
7 Low Primary Pressure
8 CIP
8 High Permeate Pressure
9 Rejection Low
A Prefilter Delta P
B Membrane Delta P
C Permeate Flow Low
D Tank Full
E Pretreatment Lockout
3024270 Rev G
83
14Oct13
23G-Series RO System
Table 6.11 Example ECM-100 History Log
DATE
TIME
PRESSURES
FLOWS
PRE
POS
PRI
FIN
Pp
Qc
Qp
pH
TEMP
REJ
Cp
ALARM
12/10/06
15:41
41
40
260
192
56
02.2
06.8
7.6
77
96.8
04
00
12/10/06
14:41
41
39
258
192
53
02.2
06.8
7.6
75
97.4
04
00
12/10/06
13:41
40
39
258
190
54
02.2
06.7
7.5
77
97.1
04
00
12/10/06
12:41
37
35
256
188
50
02.2
06.1
7.5
71
96.2
05
00
12/10/06
11:41
41
39
260
190
56
02.2
06.7
7.5
77
96.9
04
00
12/10/06
10:41
38
37
258
190
51
02.3
06.2
7.4
71
95.4
05
00
12/08/06
20:26
42
40
260
192
58
02.1
07.1
7.5
73
96.5
04
00
12/08/06
18:26
41
40
260
192
56
02.2
06.8
7.4
78
97.3
04
40
12/08/06
15:23
05
03
132
098
39
01.5
02.8
N/A
77
97.4
04
05
12/08/06
09:44
41
39
260
190
56
02.2
06.8
N/A
78
97.5
04
00
12/08/06
07:44
40
38
258
190
55
02.2
07.1
N/A
77
97.2
04
00
12/08/06
05:44
41
39
258
190
55
02.3
06.7
N/A
77
97.6
04
00
12/08/06
03:44
42
40
260
192
56
02.3
06.5
N/A
75
96.8
04
00
12/08/06
01:41
41
39
258
190
53
02.3
06.6
N/A
75
97.3
04
00
12/07/06
23:41
41
39
258
190
54
02.3
06.6
N/A
75
96.6
04
00
12/07/06
21:41
41
39
260
190
54
02.2
06.7
N/A
75
96.7
04
00
12/07/06
19:41
41
39
260
192
55
02.2
06.8
N/A
77
96.4
05
00
12/07/06
17:12
40
38
258
190
83
02.3
01.4
N/A
73
95.8
06
08
12/07/06
15:12
42
40
258
190
57
02.4
07.1
N/A
80
96.3
04
00
12/07/06
13:12
41
39
258
190
55
02.2
07.1
N/A
78
96.4
04
00
12/07/06
11:12
42
40
258
190
56
02.3
06.8
N/A
78
97.1
04
00
12/07/06
09:12
41
39
258
190
54
02.3
06.8
N/A
77
97.4
04
00
A printout of the ECM-100 History Log provides valuable information about
the 23G. From the example above (Table 6.11):
3024270 Rev G
•
Permeate Pressure High Alarm at 17:12 on 12/07/06
•
Inlet Pressure Low Alarm at 15:23 on 12/08/06
•
The operator ran the machine in the HAND mode for a short time
on 12/08/06, and enabled the pH probe.
•
On 12/10/06, before 1:40 am, the operator changed the Log Period
Timer Setting from 2 hours to 1 hour.
84
14Oct13
23G-Series RO System
Hardware Requirements
All new IBM personal computers and clones are supplied with a standard 9-pin
male serial port, which uses the standard 9-pin extender cable.
If your computer has only one serial port connection being used by your mouse,
you will have to either add a second serial port for connecting to the ECM-100, or
unplug the mouse and connect the cable going to the ECM-100 and operate your
computer from the keyboard. This may require rebooting.
CAUTION:
Nearly all computers have a 25-pin male connector, which is a parallel
printer port. Do not connect the ECM-100, modem or any other serial
device to this port.
If your computer has a 25-pin female connector (most likely a serial port), then
you will need to use either a 9-pin (M) to 25-pin (M) adapter connector with a
standard 9-pin extender cable, or a 9-pin (M) extender cable instead. A M-M
(male-to-male) or F-F (female-to-female) gender adapter may be needed if the
available extender cable has the wrong port connection. Alternately, a USB to 9pin adapter can be used.
All of these parts are commercially available at computer and office supply
stores.
6.3.4 Printer Connections
Connecting to a Serial Printer
Nearly all serial printers have a 25-pin female connector, so you will
need a 9-pin (M) to 25-pin (M) cable, or 9 x 25 adapter to use with
the standard 9-pin extender cable, and a “Null Modem” adapter or
cable type. In some cases a gender adapter may be needed with a
standard IBM serial printer cable or if your only available cable has
the wrong style end. These components are commercially available
at computer and office supply stores. The green and red wires at
terminals #45 and #47 can be switched to provide the same crosscross effect as a “Null-Modem.”
Printer settings (refer to the documentation provided with your
printer):
Baud Rate
1200, 2400, 4800, 9600 (user must specify)
Parity None
Data Bits
8
Handshake Xon/Xoff
3024270 Rev G
85
14Oct13
23G-Series RO System
Go to Section 6.3.5 and complete Print Test.
Connecting to a Parallel Printer
Requires a “Serial-to-Parallel” (S-P) converter box between the
ECM-100 cable and the cable to the printer (which typically uses a
36-pin Centronix connector).
NOTE:
If a serial printer is not available, a S-P converter box is commercially
available at computer and office supply stores.
Use a standard (Centronix style) printer cable from the printer to the
“Parallel” port on the S-P converter. Connect the ECM-100 to the
serial port on the S-P in the same manner for connecting to a serial
printer (described in the previous section).
Converter settings (refer to the documentation provided with our
converter):
Baud Rate
1200, 2400, 4800, or 9600, (user must specify)
Parity None
Data Bits
8
Handshake Xon/Xoff
Direction
Serial-to-parallel (S-P)
6.3.5 Print Test
The print test below prints the current displays on the ECM-100.
1.
On the ECM-100 keypad, press the ARROW keys to scroll to
the “Maintenance Menu” (07).
2.
Press ENTER select the “Maintenance Menu.”
3.
Press the ARROW keys to scroll to “Print Current Values.”
4.
Press the ENTER key.
Pressing the ENTER key caused the ECM-100 to output two lines
of text and numbers to the printer representing the readings
currently being displayed on the LCD screen.
Figure 4.6 indicates where the wires for the ECM-100
communication cable are placed on the main board terminal strip,
should they become disconnected or require replacement.
3024270 Rev G
86
14Oct13
23G-Series RO System
6.3.6 Print Functions
Printing Current Displays
1.
Connect printer to ECM-100 as described in Printer
Connections.
2.
Print current displays as described in Print Test.
Printing History Logs
1.
Connect printer to ECM-100 as described in Printer
Connections.
2.
Perform print test as described in Print Test.
3.
On the ECM-100 keypad, press the ARROW keys to scroll to
the “Log Tables Menu” (05).
4.
Press ENTER select the “Log Tables Menu.”
5.
Enter passcode to download historical data. Refer to Section
4.2.6.
All historical data will be sent to the printer and printed in
chronological order.
7.0
TROUBLESHOOTING
This troubleshooting guide can assist you in identifying common operating
problems you may experience with your machine. Many of these problems can
be easily corrected by the operator; however, for those that persist or are not
understood, you should contact your equipment supplier.
Have the following information available when calling your equipment supplier:
1.
Machine installation date
2.
Model number (found on right-hand side of front panel)
3.
Serial number (found on right-hand side of front panel)
4.
Daily Log Sheets
5.
Description of problem
6.
Software version from software module.
3024270 Rev G
87
14Oct13
23G-Series RO System
Troubleshooting Guide - Machine Performance
Symptom
Low operating
pressure
Low operating
pressure (cont.)
High operating
pressure
Possible Causes
Remedies
Pre-filters clogged.
Replace pre-filter cartridges.
Faulty pressure transducer(s),
cable(s) or connection(s) (other
pressures and flows normal).
Check terminal strip connections. Disconnect
the pressure transducer cable at the sensor
end and inspect for possible water corrosion
damage. Expose the soldered tabs to reveal a
possible short or broken connection. Take care
to avoid breaking the wires or pinching the
soldered wire end together when reinstalling
the cover onto the plug and into the sensor
body. Try plugging the pressure transducer into
other pressure transducer cables to isolate the
problem to the sensor cable. Temporarily install
a manual pressure gauge to compare readings.
Repair or replace the transducer or cable.
Insufficient feedwater pressure or
flow.
Check the feed pressure, open feedwater
valve, and check for restrictions.
Inlet diaphragm valve not
opening.
Check the inlet diaphragm valve for proper
operation.
High flow rates.
Close the machine concentrate valve (do not
close concentrate outlet valve), check the
permeate and concentrate flow rates.
Pump not operating correctly.
See pump instructions. Contact your equipment
supplier for assistance.
Insufficient electrical power.
Check the fuses or circuit breakers and
measure the voltage.
Pump rotating backwards (threephase power only).
Switch any two of the three-phase leads to the
motor starter.
Dirty or fouled membranes.
Flush, clean, and sanitize the membranes..
Recycle or concentrate orifice
plugged
Disassemble the piping to the
recycle/concentrate flow block and remove
foreign material from the machine concentrate
valve stem or orifice.
Inaccurate pressure indication.
Install a temporary manual gauge to compare
readings, and check sensor and cable as
desired for “Low Operating Pressure.” Replace
or calibrate as required.
Restricted or reduced permeate
flow rate.
See possible causes for low permeate rate.
Primary or final pressure
Calibrate or replace. Check transducer for
fouling.
transducer out of calibration.
Excessive membrane
3024270 Rev G
Severely fouled or dirty
Flush, clean, and sanitize the membranes.
88
14Oct13
23G-Series RO System
Troubleshooting Guide - Machine Performance
Symptom
pressure drop [over 15
psi (1.0 bar)] per
membrane (Note:
membrane pressure
drop equals primary
pressure - final
pressure)
Possible Causes
membranes.
Remedies
Restricted flow at housing inlet or
outlet.
Check for blockage of concentrate flow at inlets
and outlets of element housings.
Telescoped membrane covering
membrane housing outlet port.
Ensure that the anti-telescoping device (ATD)
is located properly on the membrane.
Concentrate or recycle flow rate
too high.
Adjust orifice.
Primary or final pressure
transducer out of calibration.
Calibrate or replace. Check transducer for
fouling.
Pressure does not
drop when concentrate
valve is opened
Dirty concentrate valve.
Disassemble and clean the valve.
Low permeate flow
rate (0 gpm to 20%
less than desired)
Dirty or fouled membrane.
Flush, clean, and sanitize the membranes.
Operating on cold water less than
55°F (13°C).
Install a hot/cold feedwater tempering valve if
more permeate flow is needed. Operate with a
feedwater temperature of 72-77F (22-25C).
Low operating pressure.
See possible causes for low operating
pressure.
Concentrate flow too high.
Manual concentrate valve not closed. Autoflush
is on or stuck. Verify proper Autoflush valve
operation and correct if needed.
Permeate pressure alarm
activating due to back pressure
on permeate line resulting in
instant machine shutdown.
Check the permeate plumbing for restrictions;
measure the flow from individual permeate
tubes. Verify that the distribution loop is not
deadheaded beyond the permeate pressure
alarm set point.
Membrane elements installed with
concentrate seal reversed or
damaged.
Refer to Membrane Element Installation
(Section 5.14.2) for proper membrane and
concentrate seal installation. Replace damaged
concentrate seals. After correcting membrane
element and concentrate seal installation, clean
and sanitize membrane elements.
Faulty flow turbine or cable (all
pressures normal).
Switch sensor cables between concentrate and
permeate flow turbines to isolate the problem to
cable or turbine.
Cable or turbine element
damaged.
Repair or replace the cable or turbine.
3024270 Rev G
89
14Oct13
23G-Series RO System
Troubleshooting Guide - Machine Performance
Symptom
Low concentrate flow
rate, normal or higher
than normal operating
pressure (0 gpm to
20% less than desired)
Low rejection and high
permeate flow
(hydrolyzed
membranes)
3024270 Rev G
Possible Causes
Remedies
Sensor cable not fully inserted
into flow turbine element housing.
Insert the cable so it snaps into place.
Flow indicator inaccurate
(possibly due to fouled turbine in
sensor).
Check the flow rate manually with a stopwatch
and calibrated container. If reading is off from
ECM-100 display by >10%, check for a fouled
turbine and clean or replace as required. Check
settings in Calibration Menu (06).
ECM-100 flow reading “lockup”.
Pressing the ESC button usually clears the
lockup. Power down for 2 minutes, check Alarm
Limits and Calibration Menu settings, recall
Factory Settings.
Dirty or fouled membrane
elements.
Flush, clean, and sanitize the membrane
elements.
Concentrate valve or concentrate
orifice pressure not properly
adjusted.
Remove the concentrate valve stem and/or
disassemble the plumbing to the orifice. Clean
the orifice as required.
Concentrate outlet line restricted.
Examine the concentrate line for obstructions
or kinks, and repair or replace the tubing.
Faulty flow turbine or cable (all
pressures normal).
Switch sensor cable between concentrate and
permeate flow turbines to isolate the problem to
cable or turbine.
Cable or turbine element visibly
damaged.
Repair or replace the cable or turbine.
Sensor cable not fully inserted
into flow turbine element housing.
Insert the cable so it snaps into place.
Flow indicator inaccurate
(possibly due to fouled turbine in
sensor).
Check the flow rate manually with a stopwatch
and calibrated container. If the reading is off
from the ECM-100 display by >10%, check for
a fouled turbine and clean or replace as
required. Check setting in Calibration Menu
(06).
ECM “lockup” (software version
E6.9 or greater).
Pressing the ESC button should clear the
lockup. Power down for two minutes, check
Alarm Limits and Calibration Menu settings,
and recall Factory Settings.
Membrane elements dirty or
fouled.
Flush, clean, and sanitize the membrane
elements.
O-ring seal broken or damaged.
Check the sealing surfaces on the O-ring
groove, interconnectors, and end caps.
Replace damaged parts.
90
14Oct13
23G-Series RO System
Troubleshooting Guide - Machine Performance
Symptom
Possible Causes
Remedies
Recovery too high.
Adjust concentrate/recycle orifices.
Membrane elements oxidized due
to chlorine break through.
Verify proper operation of pretreatment
(chlorine removal/carbon filtration). Damage is
irreversible, replace membranes.
New membrane elements
oxidized due to cleaning and
sanitizing prior to completion of 8hour flush to drain procedure.
Operate machine for a minimum of 8 hours to
remove biocide and stabilize permeate. Refer
to Membrane Element Installation (Section
5.14.2).
Membrane element life expired.
Replace membrane elements (clean and
evaluate before replacing).
Concentrate membrane element
seal backward or damaged.
Reverse position or replace seal.
Excessive permeate back
pressure.
Check permeate outlet valves or inlet valves.
Concentrate flow too high.
Check to see if machine is in auto flush.
Low rejection
Inlet diaphragm valve not closing
when machine is turned off.
Clean or replace the inlet solenoid valve. Make
sure the inlet diaphragm valve stops the water
flow when shut off.
Declining rejection (or
high permeate
conductivity)
Dirty or fouled membrane
elements.
Flush, clean, and sanitize the membrane
elements.
Change in incoming feedwater
quality.
Open the concentrate valve and flush. Test the
water for pH, hardness, TDS, and iron content.
A water analysis should be sent to your
equipment supplier for review.
Conductivity or rejection
reading(s) inaccurate or sensor(s)
fouled.
Calibrate the sensors with the standard solution
or check the readings with another conductivity
meter. Check the connections between the
sensor and ECM-100 board. Check the
permeate conductivity calibration. If the
rejection reading is still not matching your
calibration with a handheld instrument sampling
feed and permeate, then check the feed
conductivity calibration. The readings are most
precise at a temperature of 77°F (25°C). Clean
and/or replace the sensors.
Low rejection and high
permeate flow
(hydrolyzed
membranes)
(continued)
Check flow recovery.
3024270 Rev G
O-ring seal broken or damaged.
Check the sealing surfaces on the O-ring
groove, interconnectors, and end caps.
Replace damaged parts.
Damaged membrane elements.
Replace membrane elements.
91
14Oct13
23G-Series RO System
Troubleshooting Guide - Machine Performance
Symptom
Possible Causes
Remedies
Declining rejection (or
high permeate
conductivity)
(continued)
Overfeeding buffer solution due to
improper adjustment of pump or
low inlet pressure.
Check the pH of the concentrate and adjust to
6.0. Check the inlet pressure to be sure
siphoning of the buffer solution is not occurring.
Check pH probe calibration.
Troubleshooting Guide – EMC-100 Display Failures
Symptom
Possible Causes
Remedies
Permeate conductivity
consistently reads over
range (“O/R”) and/or
triggers the alarm
Permeate conductivity value in
excess of maximum value and/or
alarm setpoint, broken wire, probe
fouled or defective.
Check the wiring connections on the Main
Board terminals 27 and 28. Clean the permeate
conductivity probe, check calibration. Contact
your equipment supplier for assistance.
One or more pressure
readings on ECM-100
Display screen are
zero or unusually high
Faulty pressure transducer(s),
cable(s), or connection(s).
Disconnect the pressure transducer cable at
sensor end and inspect for possible water
corrosion damage. Expose the soldered tabs to
reveal a possible short or broken connection.
Take care to avoid pinching the soldered wire
ends together or breaking the wires when
reinstalling the plug on the cable end and into
the sensor body. Try plugging the pressure
transducer into other pressure transducer
cables to isolate the problem to the sensor or
sensor cable. Repair or replace the sensor or
cable. Calibrate sensor.
One or more pressure
readings on the ECM100 are “drifting” over
a period of time (days),
requiring repeated
calibration
Calibration characteristics of
pressure transducer have
changed and transducer may be
failing.
Refer to pressure calibration (Section 8.6).
Replace transducer if necessary. Contact your
equipment supplier for assistance. Debris in
port of transducer.
pH reading on ECM100 display is off by
greater than 0.4 units,
when check in a
standard solution of 4
and 7 or 10 at ambient
temperature
Faulty pH probe.
Check by soaking for 10 minutes in a 2 pH acid
solution. Recalibrate the pH probe monthly.
Replace and calibrate pH sensor as required.
Faulty pH probe.
On V2 boards, check for 3.1 to 3.3 volts DC at
the pH test points on J3 with the probe in a 4.0
pH solution, and 2.4 to 2.6 volts when in 7.0 pH
solution or 1.6 to 1.9 volts in a 10.0 pH solution.
Life expectancy for a pH probe is
18 to 24 months.
The pH probe may need to be replaced.
Replace and recalibrate probe.
Temperature in ECM100 cannot be
adjusted
Temperature circuit failure.
Refer to ECM-100 Troubleshooting
Water leaking from
O-ring or diaphragm failure.
pH reading
(continued)
3024270 Rev G
(Section 7.2).
92
Replace valve.
14Oct13
23G-Series RO System
Troubleshooting Guide – EMC-100 Display Failures
Symptom
permeate and/or
diaphragm valves
Possible Causes
Remedies
Contact your equipment supplier for
assistance.
Check fitting.
Tank level control
feature does not work
Faulty float/tank level control.
Replace float/tank level control.
Input wires not properly
connected.
Refer to Section 6.1 and Figure 4.6.
Incompatible level controller.
Water flowing when
machine is turned off
Inlet solenoid valve or diaphragm
valve not closing or seating
properly. Solenoid and diaphragm
valve tubed incorrectly.
Clean or replace the valve(s). Clean and
sanitize the membranes immediately. Water
must not pass through inlet when the machine
is off.
ECM-100 display
screen backlighting
flickers (Note: a slight
flicker is normal)
Power line disturbance.
Install a surge protector and AC line emi/rfi filter
device between the ECM power cord and the
power source. Note: Some minor flickering is
normal. Check for loose fuse on relay board,
loose wiring connection and ribbon cable
between boards.
LCD screen blank or
contains garbled text
Power line interruption or
electrical noise.
Pressing the ESC button should clear screen,
power down for 2 minutes and restart.
Most or all lights are
off
Blown fuse or loose ribbon cable
between Main and Relay Boards.
Check fuses, check and reseat the ribbon
cable. Check for loose fuse holder.
Bad Relay/Main Board.
Contact your equipment supplier for
assistance.
Lost 110/220 VAC power to the
ECM-100.
Contact your equipment supplier for
assistance.
Power surge possibly due to
lightening strike or voltage surge.
Replace damaged parts and install a surge
protector. Contact your equipment supplier for
assistance.
3024270 Rev G
93
14Oct13
23G-Series RO System
Troubleshooting Guide – 23G System Failures
Symptom
Possible Causes
23G electrical machine
shutdown
ECM-100 “lockup” (usually due to
power fluctuation).
Power down for 2 minutes, then restart.
Check alarms, timers, and calibration
settings. Recall Factory Settings.
Thermal overload relay tripped
Turn the machine of, reset the relay, check
the motor amp draw and line voltage, Adjust
the overload relay based on the motor amp
draw if required. Check for excessive
pressure or flows.
Alarm condition has turned off
machine.
Check the ECM-100 display for Alarm
identification. Remedy the alarm. The ECM100 will remain in a state of alarm until the
OFF key is pressed.
Thermal overload in motor starter.
Check amp draw of the motor and reset
thermal overload.
Motor and/or pump not operating
properly.
See pump instructions. Contact your
equipment supplier for possible repair or
replacement.
Fluid temperature over 90F
(32C).
Check the feedwater supply temperature.
Maximum operating temperature is 90F
(32°C).
No power to machine.
Check the fuses or circuit breakers, measure
the voltage.
Faulty wiring to pretreatment or
tank level switches.
Remove wires at 17, 38, 40, and 42 to isolate
problem. Repair as needed.
Shorted flow sensor.
Flow pickup sensor hot to the touch. Replace
and calibrate sensor.
Shorted pressure transducer or
faulty cable.
Contact your equipment supplier for
assistance.
Fault on Main Board.
Contact your equipment supplier for
assistance.
Faulty solenoid or wiring, or faulty
Relay or Main board.
Observe the lights on the ECM-100 front
panel, check timer, and alarm settings. Check
for AC power out of the appropriate terminal
on the Relay Board.
Loose connection at the Relay
Board.
Check all connections.
Machine will not turn
on
23G machine blowing
fuses
One or more of the
motors or solenoid
valve is not being
energized
3024270 Rev G
Remedies
94
14Oct13
23G-Series RO System
7.1
Emergency Alarm Bypass
CAUTION:
The following are regarded as emergency conditions. Bypass of the alarm
will defeat the automatic safety protection features of the ECM-100.
Bypass of these measures may cause damage to the machine or be
severely detrimental to product water quality if the condition being
monitored goes into an actual error state while the sensor is being
bypassed. Depending on which sensor is being bypassed, the machine
operation will need to be monitored closely until the problem is repaired
(while replacement parts are in transit). In many cases, the machine can
be run for short periods in emergency situations by simply turning it on in
the Manual or CIP mode. The machine should never be left unattended in
the Manual or CIP mode.
WARNING:
When the machine is operating in the CIP mode, all alarms except HIGH
TEMP, HIGH PRIMARY, AND HIGH PERMEATE, are ignored.
OPERATION OF THE 23G MACHINE WHILE THE ALARM SYSTEM IS
BYPASSED COULD POSE A RISK OF SERIOUS INJURY OR DEATH
TO HEMODIALYSIS PATIENTS.
CAUTION:
The procedures listed below are temporary. Prolonged operation as
described below will damage the machine. These procedures should only
be used to allow production of product water until repairs can be
completed. The machine should be continuously monitored while
operating in this mode.
WARNING:
Disconnect power from RO when working in any of the control boxes or
serious injury may occur.
7.1.1 Permeate Conductivity High or Rejection Low Alarms
Use a hand-held conductivity test meter to ensure that the water
quality is acceptable. Disconnect the white wire from terminal 27 on
the Main Board and terminal strip (the reading will go to 1 S).
Recheck conductivity until the problem is repaired.
If this remedy does not work, contact your equipment supplier.
3024270 Rev G
95
14Oct13
23G-Series RO System
7.1.2 Rejection Low Alarm Due to Failed Feed Conductivity Probe
Install a short piece of wire between terminals 24 and 25 on the
Main Board terminal strip (forces reading to 2550 S).
If this remedy does not work, contact your equipment supplier.
7.1.3 Temperature High Alarm
Switch wires to use the temperature element which is encapsulated
in the Permeate Conductivity probe. Remove the red and green
wires from terminals 23 and 24, and connect the red and green
wires from the permeate conductivity probe cable to terminals 23
and 24.
If this remedy does not work, contact your equipment supplier.
7.1.4 pH Alarms
Disable the pH function by entering zero (0) in the Calibration Menu
(06). Then move the wire connecting terminal 8 to terminal 11 on
the Relay Board and adjust the chemical feed pump carefully for a
slow continuous feed. Test the pH frequently (hand-held pH meter
or test kit) and readjust the pump accordingly.
If this remedy does not work, contact your equipment supplier.
7.1.5 Pressure
• First check the wiring connections, and clean any corrosion from
the connector on the back of the transducer.
• A slowly drifting pressure reading over a period of several days
can be temporarily corrected by adjusting the offset setting in the
Calibration Menu (restore to original values for calibration of new
sensors).
• Adjusting the offset value adjusts the entire operating range of
the sensor.
• To bypass a pressure sensor or cable, power down and remove
the cable from the Main Board terminal strip (see Figure 4.6).
• Add a short length of wire from the terminal where the white wire
was just removed, and connect it to a neighboring pressure
terminal containing a white sensor wire.
• Add a second length of wire from the terminal where the green
wire was removed, and connect it to the neighboring pressure
terminal containing a green wire (connect Primary to Final,
Permeate to Pre- or Post-Filter).
• Power up and set the pressure offset in the Calibration Menu (06)
to obtain a nearly normal reading for the pressure being
bypassed.
3024270 Rev G
96
14Oct13
23G-Series RO System
• Restore the offset settings and wiring when the new transducer is
installed.
• The new transducer must be calibrated (see Section 8.6).
• Remove transducer and clean port.
If this remedy does not work, contact your equipment supplier.
7.1.6 Permeate Flow (Stuck at Zero)
• Check flow turbine to ensure it spins freely.
• First check connections (Figure 4.6), power down for 2 minutes,
recall Factory Settings and check the values in the Calibration
Menu (06).
• Switch sensor cables, or insert the permeate cable into the
concentrate turbine (the machine will run normally with a
concentrate flow reading of zero).
• Unplug the cable from its turbine, and set the flow offset in the
Calibration Menu to 99 (forces the flow reading to 0.1), then set
the permeate low flow alarm to 0.0.
• Return to the proper settings after the problem is corrected.
• Remove turbine and blow through it to be sure it spins freely.
If this remedy does not work, contact your equipment supplier.
3024270 Rev G
97
14Oct13
23G-Series RO System
7.2
General ECM-100 Reference/Troubleshooting Guidelines
Software Module
ECM-100 Main Board
Terminal Strip
ECM-100 Relay Board
Terminal Strip
ECM-100 Relay Board
TB5
ECM-100 Main Board
Figure 7.11 ECM 100
3024270 Rev G
98
14Oct13
23G-Series RO System
7.2.1 Resetting the ECM-100
If exterior problems (such as power surges, lightening storm) have
damaged the ECM-100. Power down (disconnect) to reset the
ECM-100. A high quality inline surge protector suppressor is
recommended to avoid related problems.
1.
Press the ECM-100 OFF key to turn the machine OFF.
2.
Disconnect the power to the ECM-100 (for single-phase
machines, also disconnect power to the motor controls). Let
machine sit for at least 2 minutes to dissipate energy stored in
the reactive power supply devices.
3.
Reconnect the ECM-100 power cord.
4.
Start the machine. If persistent alarms occur, verify that the
settings are still valid in the following menus: Alarm Limits,
Timer Presets, Calibration and Permeate High Conductivity
Alarm. Compare the settings to the settings on the machine
Start-Up Data Sheet and Alarm Presets Data Sheet.
5.
Where settings are not valid, recall the “Factory Settings” to
restore original parameters. (If the settings were saved after
the last change.)
6.
If settings are still not valid, reset according to parameters
recorded on the Start-Up Data Sheet and Alarm Presets Data
Sheet.
7.2.2 If sporadic, unexplained alarms occur, check the Main ECM-100
Board Terminal Strip on back door for good connections.
CAUTION:
This procedure should be performed by qualified electrical service
personnel only.
3024270 Rev G
1.
Turn the machine OFF.
2.
Disconnect the power to the ECM-100. Disconnect motor
power as well.
3.
Visually inspect for signs of damaged components.
4.
Gently tug on each wire on the main board terminal strip to test
for good electrical contact.
5.
Contact your equipment supplier for assistance in repairing any
loose or broken wires.
99
14Oct13
23G-Series RO System
6.
Ensure the terminal board is firmly connected to the main
board by gently pressing on the top of the strip, pushing it
toward the main board.
CAUTION:
Do not apply too much pressure - you may damage the board.
7.
Reconnect power and test for proper operation. For additional
assistance contact your equipment supplier.
7.2.3 If sporadic, unexplained alarms occur, check the Relay Board
Terminal Strip for good connections (Relay Board).
WARNING:
ELECTRICAL SHOCK HAZARD - SERVICE TO BE PERFORMED BY
QUALIFIED ELECTRICAL PERSONNEL ONLY!
1. Turn the machine OFF.
2. Disconnect the power to the ECM-100. Disconnect motor
power as well.
3. Closely inspect each wire connection to see that none are
broken, frayed, or loose in their screw terminal and that all crimp
terminal ends are squeezed tightly on the wire and firmly
screwed to the terminal block.
4. Ensure that all terminal block screws and jumper links are
securely fastened.
5. Check for blown fuses, and squeeze the fuse holder clips
together slightly to hold the fuses securely.
For additional assistance contact your equipment supplier.
7.2.4 Low Rejection Warning (Due to High Purity Feed Water)
The ECM-100 may exhibit a low rejection warning condition when
the factory default low rejection alarm setpoint of 88% is used with
high purity feed water. The permeate conductivity may be
acceptable, but the percent (%) rejection may read low enough to
cause an alarm.
3024270 Rev G
100
14Oct13
23G-Series RO System
The ECM-100 calculates % rejection using the following equation:
% Rejection =
1-
Permeate Conductivity
Feed Conductivity
x 100
Since the % rejection is based on a ratio between the feed
conductivity and the permeate conductivity, higher quality feed
water may result in a low % rejection alarm. Higher recovery will
typically lower the permeate rejection using the ECM- 100
calculations.
If a low % rejection alarm results from high purity feed water when
the permeate conductivity is at acceptable levels, the following
three methods could be used:
1.
Reduce low % rejection alarm setpoint.
2.
Adjust the feed conductivity calibration potentiometer for a
slightly higher feed conductivity reading. See Section 8.0 for
calibration of feed conductivity.
NOTE:
Adjusting feed conductivity to a slightly higher reading will result in an
inaccurate feed conductivity displayed on the ECM-100.
3.
Use a resistor in place of the feed sensor. Remove the feed
conductivity input and replace with a resistor to simulate a feed
conductivity. A 10 K ohm resistor would indicate 250 S.
NOTE:
To properly monitor permeate conductivity make sure the PERM HI COND
ALARM Menu in the Maintenance Menu (10) is properly set. See Section
4.4.10 for accessing Permeate High Conductivity Alarm Menu.
For additional assistance contact your equipment supplier.
3024270 Rev G
101
14Oct13
23G-Series RO System
7.2.5 Verifying the Temperature Circuitry of the Main Board
1.
Turn the machine OFF.
2.
Unplug the power cord for the ECM-100.
3.
Disconnect the temperature sensor wires from terminal posts
23 and 24.
4.
Cover the temperature sensor wires which were removed from
terminal posts 23 and 24 with electrical tape. Secure these
wires in a location that prevents contact with the main circuit
board.
5.
Install a 3 K ohm resistor between terminal posts 23 and 24.
6.
Connect the power cord for the ECM-100.
7.
Adjust potentiometer marked “temp” (V2) until the temperature
reads 77°F (25°C).
NOTE:
If the temperature cannot be adjusted then the main board may need to be
replaced. Contact your equipment supplier.
8.
Unplug the power cord and remove the 3 K ohm resistor, and
install the temperature sensor wires.
9.
If the above steps do not correct the problem, replace the feed
conductivity probe.
NOTE:
When installing a new feed conductivity probe, unplug the power cord,
make all connections, and then plug the power cord in.
NOTE:
The temperature sensor can be temporarily bypassed while waiting for
replacement parts by installing a 3 K ohm resistor between terminals 23
and 24.
3024270 Rev G
102
14Oct13
23G-Series RO System
7.2.6 Difficulty Calibrating Permeate Conductivity
The integrity of the permeate conductivity circuitry on the main logic
board can be verified by connecting a fixed resistor in place of the
conductivity probe.
1.
Turn the machine OFF.
2.
Unplug the power cord for the ECM-100.
3.
Disconnect the permeate conductivity wires from terminal
posts 27 and 28.
4.
Install a 5 or 10 K ohm resistor between terminal posts 27 and
28.
5.
The resulting conductivity should be displayed on the ECM100.
6.
•
10 K ohm should give a reading of 10 S.
•
5 K ohm should give a reading of 20 S.
If the ECM-100 does not display the correct permeate
conductivity then the main board may need to be replaced.
Contact your equipment supplier.
Refer to Troubleshooting Guide (Section 7.0) for additional
information.
7.2.7 Information to Obtain Before Contacting Your Equipment Supplier
8.0
1.
Machine installation date.
2.
Model number (found on right-hand side of front panel).
3.
Serial number (found on right-hand side of front panel).
4.
Daily Log Sheets.
5.
Detailed description of problem.
6.
Software version from software module.
23G SOFTWARE
8.1
Calibration Procedures
NOTE:
If the software for your main logic board is labeled G2.1 or higher, you
have a Version 2 (V2) main logic board.
3024270 Rev G
103
14Oct13
23G-Series RO System
V1 and V2 main logic boards and relay boards are interchangeable (i.e.,
you could have a V1 main logic board and a V2 relay board and vice
versa).
23G machines built after 1997 contain Version 2 (V2) circuit boards. This
new circuit board includes extra electronic components built into the circuit
board. When ordering replacement parts identify whether you have V1
(machines built prior to 1997) or V2 (machines built after 1997). Contact
your equipment supplier with questions.
Normally, the only sensor requiring periodic calibration is the pH probe,
which should be checked semi-annually.
8.2
3024270 Rev G
pH Calibration Procedure - Software Version V2
1.
Obtain two standard pH reference solutions with different pH
values. Solutions of pH 4.0 and 7.0 or of pH 4.0 and 10.0 are
recommended.
2.
Remove the pH sensor from the incoming waterline, and rinse in
tap water.
3.
From the calibration menu, use the ENTER key to scroll to the pH
cal low menu item. Before changing the pH calibration value, place
the wetted end of the pH sensor in the standard solution with the
lower pH. Swirl it a little and leave it dipped - with at least 1 inch of
the sensor length submerged (so that the metal body of the probe
is in contact with the solution by approximately 1/4-inch).
4.
On the ECM-100, enter passcode 1. Using the ARROW keys,
change the pH cal low setting to be 10 times that of the pH of the
solutions. For example, 40 for 4.0 solution. The number indicates
tenths of a pH unit. Press the ENTER Key to store the calibration
value and go on to the high pH limit.
5.
The next setting in the calibration menu is pH cal high. Before
dipping the pH sensor in the high pH solution, rinse the pH sensor
with pH neutral water. The pH sensor may also be rinsed with some
of the high pH solution. Place the sensor in the standard solution of
higher pH. Swirl it a little bit and leave it dipped - with at least 1
inch of the sensor length submerged.
6.
On the ECM-100, enter passcode 1 again. Using the ARROW keys,
change the pH cal low setting to be 10 times that of the pH of the
solution. For example, 70 or 7.0 solution or 100 for 10.0 solution.
Again, the number indicates tenths of a pH unit. Press the ENTER
key to save the new reading.
7.
Calibration is now complete. To check it, rinse the probe with tap
water and dip it into the low pH solution again to see if it reads
accurately. Repeat the calibration if necessary.
104
14Oct13
23G-Series RO System
8.3
8.
Rinse or blot away any remaining droplets of the pH solution and
reinstall the pH sensor into the incoming waterline.
9.
Generally this 2-point pH calibration procedure should be repeated
on a bi-monthly basis. Some situations will require more frequent
recalibration while others will require less.
10.
If the probe does not seem to be responding, try soaking it in a 2.0
pH acid for 10 minutes. Repeat the calibration.
11.
If the probe will not calibrate after 2 or 3 attempts, refer to the pH
section in the Troubleshooting Guide (Section 7.0).
12.
Save the settings using passcode 2 in the maintenance menu
Factory Settings.
V2 Logic Board
NOTE:
For machines equipped with Rev G2.2 software as shipped (V2 Logic
Board). These documented specifications are subject to change,
depending on the unique characteristics of each machine during quality
assurance (QA) testing. Any “user” variation of these specifications
(including any software upgrades) in the field (after the machine has left
Mar Cor Purification shipping dock) is solely the responsibility of the user
to document and control.
Menu #2
Alarms
ECM Adjustment Range
0-200 S/cm
PERM COND HI
c
TEMP HI
0-255°F (0-123°C)
c
pH HI
pH LOW
POST-FILTER PRESS LOW
PRIMARY PRESS HI
e
PRIMARY PRESS LOW
PERM PRESS HI
c
c
e
REJECTION LOW
FILTER PRESS DROP HI
MEMBRN PRESS DROP HI
PERM FLOW LOW
3024270 Rev G
90°F (32°C)
d
9.0 pH units
0.0-14 pH units
3.5 pH units
0-99 psi (0-68 [barX10])
12 psig (8 [barX10])
0-510 psi (0-352 [barX10])
280 psig (193 [barX10])
0-510 psi (90-352 [barX10])
150 psig (103 [barX10])
0-99 psi (0-68 [barX10])
80psig (55 [barX10])
0-99%
88%
0.0-14 pH units
c
Alarm Limit
30 S/cm
ab
0-99 psi (0-68 [barX10])
f
0-510 psi (0-352 [barX10])
0.0-20.1 gpm (0.0-6.5L)
105
h
14
g
108
2.6
14Oct13
23G-Series RO System
a. Adjustment range of “Permeate Conductivity High” alarm is 0-50 S/cm for Rev D3
software; 0-200 S/cm for Rev E0 or higher software.
b. Below 200 S/cm, there are 2.5 units of specific conductance (S/cm) per unit of
Total Dissolved Solids (ppm or mg/L as CaCO3).
c. Shutdown alarms with adjustable delay (1-99 sec).
d. If an acid injection pump is installed, the high pH alarm determines when the
chemical pump turns on. After the chemical pump lowers the pH to 1.8 units below
the alarm setting, the pump will be turned off.
e. Shutdown within one second (non-adjustable).
f. Set alarm limit at 8 psi (6[barX10]) greater than drop observed during data collection
fro QA test form.
g. Set alarm limit at 1.5X the drop observed during data collection for QA test form.
h. Set alarm limit at 60% of flow observed during data collection for QA test form.
Menu #3
Timers
ECM Adjustment Range
RO PUMP DELAY
1-99 sec
Alarm Limit
a
6 sec
b
START-UP PERM DIVERT
0-99 min (select 0 or 2 min)
AUF PERIOD
0-99 hr
1 hr
AUF DURATION
0-99 min
6 min
ALARM SHUTDOWN DELAY
0-99 sec
15 sec
LOG PERIOD
0-99 hr
1hr
AUTO-ON PERIOD
AUTO-ON DURATION
0-99hr
c
0-99 min
2 min
0 hr
c
0 min
a. An RO pump delay of 0 will disable the RO pump.
b. Select zero (0), if permeate divert option is not installed. Select 2 min, if it is
installed.
c. When enabled, typical settings are auto-on period of 4 hours, and auto-on duration
of 15 minutes.
3024270 Rev G
106
14Oct13
23G-Series RO System
Menu #6
Calibrate
ECM Adjustment Range
pH
0 or 1
a
Alarm Limit
(Disable or Enable)
PRE-FILT PRESS
-99 to +99 OFFSET UNITS
bc
POST-FILT PRESS
-99 to +99 OFFSET UNITS
bc
-06
-99 to +99 OFFSET UNITS
dc
-08
-99 to +99 OFFSET UNITS
dc
-08
-99 to +99 OFFSET UNITS
bc
-06
-99 to +99 OFFSET UNITS
ef
00
-99 to +99 OFFSET UNITS
ef
00
PRIMARY PRESS
FINAL PRESS
PERMEATE PRESS
CONC Q OFFSET
PERM Q OFFSET
-06
0-255 SLOPE UNITS
gf
37
PERM Q SLOPE
0-255 SLOPE UNITS
gf
37
pH CAL LOW
0-140 pH units
h
40 or 70
0-140 pH units
h
100
CONC Q SLOPE
pH CAL HIGH
a. Adjustment range remains the same whether US or Metric units are enabled.
b. There are 0.50 psig (0.0345 bar) per offset unit of pre-filter, post-filter, and permeate
pressure.
c. Pressure transducer calibration offset value for V2 main logic board (software Rev.
G or higher) should set to d. There are 2.00 psig (0.138 bar) per offset unit of
primary and final pressure.
e. The standard 1-inch flow turbine should be calibrated with a flow offset of -04 ±4 for
both the permeate and concentrate. There are 0.10 Lpm (0.0264 gpm) per offset
unit.
f. When using a 2-inch turbine for flows above 50 gpm, use a flow offset of 45 and a
slope of 148. The 2-inch turbine is only used on special high flow machines which
use the ECM-100 as a special feature.
g. The “slope” for both permeate and concentrate flows should be set to 36 ±2 for the
1-inch flow turbine. The slope has units of: Lpm/(100 turbine revolutions).
h. To calibrate the pH, pass code 1 must be entered and the pH electrode must be put
in two pH standard solutions (4.0 and 7.0 or 4.0 and 10.0).
3024270 Rev G
107
14Oct13
23G-Series RO System
8.4
Temperature Calibration Procedure
8.4.1 Cleaning the Feed Conductivity Sensor
1.
Turn machine OFF.
2.
Locate and remove the feed conductivity sensor
The temperature sensor is encapsulated in the feed conductivity
sensor. The feed conductivity sensor is located downstream of the
pre-filters and above the inlet diaphragm valve. A bucket or
container may be needed to catch the water when the feed
conductivity sensor is removed.
3.
Clean any debris or residue from the probe tips with a clean
towel.
If either one of the tips is broken off, the probe must be replaced.
4.
Install the feed conductivity sensor back in the machine.
8.4.2 Calibrating the Temperature
NOTE:
Machine should be running while calibrating temperature.
1.
Take a sample of the feedwater [about 8 ounces (0.24 L)] from
the feed sample port on the inlet of the machine. Measure the
temperature with a recently calibrated thermometer.
2.
Locate potentiometer marked “temp” on the main circuit board.
The circuit board for the potentiometers is located in the door of the
ECM-100 enclosure.
The potentiometer marked "temp" is located just below the center
of the board.
3.
4.
3024270 Rev G
Adjust the potentiometer marked "temp" until the temperature
on the ECM-100 display matches the temperature of the handheld thermometer.
•
Clockwise (CW) rotation lowers the temperature reading.
•
Counterclockwise (CCW) rotation raises the temperature
reading.
If the temperature reading on the ECM-100 will not adjust see
Troubleshooting (Section 7.0).
108
14Oct13
23G-Series RO System
8.5
Conductivity Calibration Procedure
8.5.1 Measuring the Conductivity of Feed and Permeate Samples
NOTE:
The 23G displays conductivity in microSiemens (S).
NOTE:
Use a hand-held, recently calibrated conductivity meter. The meter should
read in microSiemens (S).
NOTE:
Some hand-held meters are not temperature compensated and, therefore
only accurate at 77°F (25°C).
1.
Take a sample of the feedwater [about 8 ounces (0.24 L)] from
the feed sample port on the inlet of the machine. Measure the
conductivity with a recently calibrated conductivity meter.
2.
Take a sample of the permeate [about 8 ounces (0.24 L)] from
the permeate sample port on the machine. Measure the
conductivity with a recently calibrated conductivity meter.
Be sure to rinse the conductivity meter thoroughly in a stream of
water from the feed sample valve before taking feed sample
reading and permeate sample reading. Follow the manufacturer’s
instructions for calibrating with a conductivity meter.
8.5.2 Verifying the Percent Rejection Reading on the ECM-100
Calculate the ECM-100 percent rejection using the following
equation:
% Rejection =
1-
Permeate Conductivity
Feed Conductivity
x 100
If the percent rejection reading is inaccurate, the feed or permeate
conductivity probes may need to be calibrated.
3024270 Rev G
109
14Oct13
23G-Series RO System
8.5.3 Displaying the Feed Conductivity on the ECM-100
1.
Press the ESC key twice to return to the default menu.
2.
Press the ARROW keys to scroll to Alarm Limits Menu (02).
3.
Press the ENTER key to select the Alarm Limits Menu.
4.
Press the ENTER key to scroll down to the “Rejection Low”
alarm function.
5.
Enter passcode by pressing the following three keys in
sequence:
6.
a.
HAND/AUTO
b.
CIP
c.
ALARM BYPASS
Change the “Rejection Low” alarm value to 42 by pressing the
DOWN ARROW.
When the rejection low alarm value is set at 42, the feed
conductivity will be displayed in the “% Rejection” location on the
ECM-100.
8.5.4 Calibrating the Feed Conductivity
If the ECM-100 feed conductivity reading matches the hand-held
meter reading, then the feed conductivity is calibrated.
1.
Press the ENTER key to save the value.
2.
Press the ESC key twice to exit back to the default screen
3.
Proceed to Permeate Calibration (Section 8.5.6).
If the feed conductivity reading and the hand-held meter reading
differ by more than 2.0 S, continue with the procedure below.
If the feed conductivity reading is less than 005 or greater than
2550, see Troubleshooting (Section 7.0).
NOTE:
Machine must be running while calibrating the feed conductivity.
4.
3024270 Rev G
Open the ECM-100 door by loosening the two captured screws
in the right side of the enclosure.
110
14Oct13
23G-Series RO System
5.
Locate the potentiometer marked “feed” on the main circuit
board.
The circuit board for the potentiometers is located in the door of the
ECM-100 enclosure.
The potentiometer marked “feed” is located in the center of the
main circuit board.
6.
Adjust the potentiometer marked “feed” until the ECM-100 feed
conductivity reading matches the conductivity as measured by
the hand-held meter [at 77°F (25°C) for some meters].
•
Counterclockwise (CCW) increases the conductivity
reading.
•
Clockwise (CW) decreases the conductivity reading.
NOTE:
The 23G displays conductivity in microSiemens (S).
NOTE:
If the feed conductivity cannot be calibrated with the potentiometer marked
“feed” the sensor may need to be replaced.
7.
Shut off the machine, remove the feed conductivity probe and
check to be sure it is not fouled and the graphite tips are not
broken.
8.
Reinstall the feed conductivity probe.
8.5.5 Restoring the Rejection Low Alarm Setting
1.
Press the UP ARROW to change the Rejection Low alarm
back to its original setting (the factory default for Rejection Low
is 88%).
2.
Press the ENTER key to save the new value.
3.
Press ESC twice to exit back to the main screen.
8.5.6 Calibrating the Permeate Conductivity
If the ECM-100 permeate conductivity reading matches the handheld meter reading, then the permeate conductivity is calibrated.
If the permeate conductivity reading is 1.0 or less refer to ECM-100
Troubleshooting (Section 7.2).
3024270 Rev G
111
14Oct13
23G-Series RO System
1.
Take a sample of the permeate from the permeate sample port
[about 8 ounces (0.24 L)] in order to establish the known
conductivity.
2.
Measure the permeate conductivity reading from the sample
collected.
Be sure to rinse the conductivity meter thoroughly in a stream of
water from the permeate sample valve before taking the reading.
3.
Locate the potentiometer marked “perm” on the main circuit
board.
The main circuit board is in the door of the enclosure.
The potentiometer marked “perm” is in the center on the right-hand
side of the circuit board.
4.
5.
While the machine is running, adjust the potentiometer marked
“perm” until the ECM-100 permeate conductivity reading
matches the conductivity as measured by the hand-held meter
[at 77F (25C) for some meters] while the machine is running.
•
Counterclockwise (CCW) increases the conductivity
reading.
•
Clockwise (CW) decreases the conductivity reading.
Saving to Factory Settings (Menu 11).
NOTE:
Whenever a value is adjusted it must be saved in the Factory Settings
Menu (11).
3024270 Rev G
•
Press ESC twice to return to the ECM-100 default menu.
•
Press the ARROW keys to scroll to the Maintenance Menu
(07).
•
Press ENTER to select the Maintenance Menu.
•
In the Maintenance Menu, use the ARROW keys to scroll to
the Factory Settings Menu (11).
•
Press ENTER to select Factory Settings.
112
14Oct13
23G-Series RO System
Two lines of factory settings will be displayed.
•
Enter the storage code using the following keys in
sequence to save the settings:
a. HAND/AUTO
b. CIP
c. ON
d. ENTER
8.6
3024270 Rev G
Pressure Transducer Calibration Procedure
1.
De-energize the 23G pump and shut inlet valve to the 23G.
2.
Energize the 23G controller.
3.
Push the HAND/AUTO button to the HAND mode. Then push the
controller ON button, wait two seconds and push the CIP button.
Observe the CIP button illuminate. In several seconds you will hear
the inlet solenoid valve open. The pump should not start.
4.
Open the feed, permeate, and concentrated sample valves. Let the
machine drain several minutes until the water is almost completely
drained out.
5.
Push the UP arrow to advance to the calibration menu, then push the
ENTER button until you reach pre-filter pressure.
6.
Insert pass code to change value on the pre-filter pressure reading on
the ECM-100 screen by pushing HAND/AUTO, then CIP, then the
ALARM/BYPASS buttons.
113
14Oct13
23G-Series RO System
7.
Use the UP arrow on the controller to advance the pre-filter pressure
reading on the screen to 6. Wait 15 seconds for the controller to
accept calibration information. Then push the DOWN arrow slowly
until it goes to the next lower number, waiting 15 seconds between
number changes. Continue with this procedure until you reach zero.
Wait 15 seconds then push the ENTER button. This enters the
calibration information into the menu and also advances you to the
post-filter pressure. Use the same procedure for post-filter, primary,
and final pressures. When you reach the permeate pressure, the
number that was changed to 6 is on the left of the word calibrate on
the second line. Calibrate the permeate pressure by using the same
procedure used on the other pressure transducers. When zero has
been reached, wait 15 seconds and then push ENTER several times
until you are out of the menu. Close all sample valves.
Open the inlet valve. Turn machine on to allow water to flow through
machine for 2 to 4 minutes to refill machine with water before starting.
Push the OFF button on the ECM-100 controller, then push the
HAND/AUTO button to AUTO position. The machine is now ready to
start up. Check to make sure all feedwater valves are open. Observe
the presence of pre-filter water pressure on the ECM-100 screen.
Energize the 23G pump. Then push the START button on the ECM
controller. Observe the pressures as the machine starts up. With
every thing running well, the calibration of the five pressure
transducers is completed.
NOTE:
The machine is designed to run in AUTO mode. Prior to restarting the
machine, confirm that the machine is in AUTO mode.
8.7
8.
Press the ON key to turn machine on.
9.
If unable to calibrate the ECM-100 as described above, see ECM-100
Troubleshooting (Section 7.2).
Flow Calibration Procedure
8.7.1 Calculating Permeate Flow Rate
3024270 Rev G
1.
Check and record the ECM-100 permeate flow while the
machine is running.
2.
Turn the machine OFF.
3.
Install a 1-inch I.D. flexible hose [at least 4 feet (1.2 m) in
length] to the CIP permeate fitting. The CIP fitting requires a 1inch MPT threaded fitting.
4.
Open the permeate CIP valve.
114
14Oct13
23G-Series RO System
5.
Close the permeate outlet valve.
6.
Secure the end of the hose attached to the CIP fitting.
7.
Turn machine ON.
8.
After 15 - 20 seconds of operation measure the permeate flow.
Measure the permeate flow with an accurate stopwatch.
Record the time needed to collect water in a container with a
known volume. Use the formula below to calculate volume:
gallons per minute (gpm) =
# of gallons
# of seconds to fill container
x 60
Mar Cor Purification recommends using a 5 gallon (19 L)
container with 1 gallon (1 L) increments.
9.
Compare the flow reading from Step 1 to the flow rate
calculated in Step 8.
If the two readings differ by more than 0.3 gpm (0.07 m 3/h)
adjust the calibration settings as described in Section 8.7.3 to
8.7.5.
8.7.2 Measuring Concentrate Flow Rate
3024270 Rev G
1.
Check and record the ECM-100 concentrate flow while the
machine is running.
2.
Turn the machine OFF.
3.
Install a 1-inch I.D. Flexible hose [at least 4 feet (1.2 m) in
length] to the CIP permeate fitting. The CIP fitting requires a 1inch MPT threaded fitting.
4.
Open the concentrate CIP valve.
5.
Close the concentrate outlet valve.
6.
Secure the end of the hose attached to the CIP fitting.
7.
Turn machine ON.
115
14Oct13
23G-Series RO System
8.
After 15 - 20 seconds of operation measure the concentrate
flow.
Measure the concentrate flow with an accurate stopwatch.
Record the time needed to collect water in a container with a
known volume. Use the formula below to calculate volume:
gallons per minute (gpm) =
# of gallons
# of seconds to fill container
x 60
Mar Cor Purification recommends using a 5 gallon (19 L)
container with 1 gallon (1 L) increments.
9.
Compare the flow reading from Step 1 to the flow rate
calculated in Step 8.
If the two readings differ by more than 0.3 gpm (0.07 m 3/h)
adjust the calibration settings as described in Section 8.7.3 to
8.7.5.
8.7.3 Calibrating the Concentrate and Permeate Flow Rate Offsets
NOTE:
The machine should be running.
Calibrating Concentrate Flow Rate Offset
3024270 Rev G
1.
Press the ARROW keys to scroll to the Calibration Menu (06).
2.
Press ENTER to select the Calibration Menu.
3.
Press ENTER until the “Conc Flow rate Offset” is displayed.
116
14Oct13
23G-Series RO System
4.
The “Conc Flow rate Offset” should read 00. If it does not read
00:
•
Enter the passcode in the following sequence to adjust the
reading:
a. HAND/AUTO
b. CIP
c. ALARM BYPASS
•
Press the ARROW keys to set the "Conc Flow rate Offset"
to 00.
•
Press ENTER to save the new value.
The Concentrate Flow Rate Offset is now calibrated.
Calibrating Permeate Flow Rate Offset
NOTE:
It is not necessary to enter the passcode for additional adjustments in the
Calibration Menu.
1.
Press ENTER until the “Perm Flow rate Offset” is displayed.
2.
The “Perm Flow Rate Offset” should read 00. If it does not read
00:
•
Press the ARROW keys to set the “Perm Flow rate Offset”
to 00.
•
Press ENTER to save the new value.
The Permeate Flow Rate Offset is now calibrated.
8.7.4 Verifying the Concentrate and Permeate Flow Rate Slopes
Verifying the Concentrate Flow Rate Slope
NOTE:
It is not necessary to enter the passcode for additional adjustments in the
Calibration Menu.
1.
3024270 Rev G
Press ENTER until the “Conc Flow Rate Slope” is displayed.
117
14Oct13
23G-Series RO System
2.
The “Conc Flow Rate Slope” should read 37. If it does not read
37:
•
Press the ARROW keys to set the “perm Flow Rate Slope”
to 37.
•
Press ENTER to save the new value.
The above steps verify the factory default sets for the concentrate
and permeate flow rate slopes. The following procedure will
calibrate the slopes.
Verifying the Permeate Flow Rate Slope
NOTE:
It is not necessary to enter the passcode for additional adjustments in the
Calibration Menu.
1.
Press ENTER until the “Permeate Flow Rate Slope” is
displayed.
2.
The “Perm Flow Rate Slope” should read 37. If it does not read
37:
a. Press the ARROW keys to set the “Perm Flow Rate Slope”
to 37.
b. Press ENTER to save the new value.
c. The above steps verify the factory default sets for the
concentrate and permeate flow rate slopes.
8.7.5 Calibrating the Concentrate and Permeate Flow Rate Slopes
Calibrating the Concentrate Flow Rate Slope
3024270 Rev G
1.
Press ESC twice to return to the ECM-100 default menu.
2.
Press the ARROW keys to scroll to the Calibration Menu (06).
3.
Press ENTER to select the Calibration Menu.
4.
Press ENTER to scroll to the “Conc Flow Rate Slope.”
118
14Oct13
23G-Series RO System
5.
Enter the passcode in the following sequence to adjust the
reading:
a. HAND/AUTO
b. CIP
c. ALARM BYPASS
6.
While machine is running, compare the concentrate flow rate
on the ECM-100 to the bucket test concentrate flow rate
measured in Step 8 of Calculating Concentrate Flow Rate
(Section 8.7.2).
7.
If the flow rates differ by more than 0.3 gpm (0.07 m 3/H) the
“Conc Flow Rate Slope” needs to be adjusted (increased or
decreased to reflect the actual flow rate of the bucket test).
8.
If the flow rate displayed on the ECM-100 is less than the
bucket test the Concentrate Flow Rate Slope setting must be
increased. If the flow rate displayed on the ECM-100 is more
than the bucket test the “Conc Flow Rate Slope” must be
decreased.
•
Press the ARROW keys to increase or decrease the slope
by increments of 2 and compare the Concentrate Flow Rate
to the bucket flow rate.
•
Press ENTER to save the value.
NOTE:
In order for the ECM-100 to acknowledge the new slope value wait 20
seconds after ENTER is pressed for a new reading.
9.
Observe “Conc Flow Rate.” If additional adjustment is
necessary, repeat Step 8.
It may be necessary to repeat this process several times in order to
properly calibrate the concentrate flow rate.
If the flow reading is always low, even with a slope value of 46,
refer to ECM-100 Troubleshooting (Section 7.2).
NOTE:
Actual flows tend to fluctuate somewhat normally, so extreme accuracy is
often not possible.
3024270 Rev G
119
14Oct13
23G-Series RO System
Calibrating the Permeate Flow Rate Slope
1.
Press ESC twice to return to the ECM-100 default menu.
2.
Press ENTER to scroll to the Calibration Menu (06).
3.
Press ENTER to select the Calibration Menu.
4.
Press ENTER to scroll to the “Perm Flow Rate Slope.”
5.
Enter the passcode in the following sequence to adjust the
reading:
a. HAND/AUTO
b. CIP
c. ALARM BYPASS
6.
While machine is running, compare the concentrate flow rate
on the ECM-100 to the bucket test permeate flow rate
measured in Step 8 of Calculating Permeate Flow Rate
(Section 8.7.1).
7.
If the flow rates differ by more than 0.3 gpm (0.07 m 3/h) the
Permeate Flow Rate Slope needs to be adjusted (increased or
decreased to reflect the actual flow rate of the bucket test).
8.
If the flow rate displayed on the ECM-100 is less than the
bucket test the Permeate Flow Rate Slope setting must be
increased. If the flow rate displayed on the ECM-100 is more
than the bucket test the Permeate Flow Rate Slope must be
decreased.
•
Press the ARROW keys to increase the slope by
increments of 2 and compare the Permeate Flow Rate to
the bucket flow rate.
•
Press ENTER to save the value.
NOTE:
It will take 20 seconds after ENTER is pressed for a new reading for the
ECM-100 to acknowledge the new slope value.
9.
Observe Permeate Flow Rate. If additional adjustment is
necessary, repeat Step 8.
It may be necessary to repeat this process several times in order to
properly calibrate the concentrate flow rate.
If the flow reading is always low, even with a slope value of 46,
refer to ECM-100 Troubleshooting (Section 7.2).
NOTE:
Actual flows tend to fluctuate. Extreme accuracy is not required.
3024270 Rev G
120
14Oct13
23G-Series RO System
9.0
RETURNED GOODS AUTHORIZATION PROCEDURE
If you wish to return materials for warranty evaluation and/or credit, please have
your original sales order, invoice, and device serial number available when you
call Mar Cor Purification. Call Mar Cor Purification at (800) 633-3080 and
request Technical Support. A representative will provide instructions and a return
authorization number, which needs to be clearly written on the outside of the
box used to ship your materials. All equipment must be shipped with the
freight prepaid by the customer. Call our Customer Service Center with any
questions or issues concerning freight claims and a representative will discuss
your situation.
All materials to be returned must be rendered into a non-hazardous condition
prior to shipping.
10.0
SERVICE ASSISTANCE
If service assistance is required, please take the following steps:
1.
Consult the troubleshooting section of this manual (Section 7). If the problem
cannot be identified and corrected by any of the procedures found in that section,
then
2.
Contact your Facility Equipment Technician. If the technician is unable to help
then
3.
Call Mar Cor Purification Technical Support Department at (800) 633-3080.
Technicians are available for all calls between 7:00 a.m. and 7:00 p.m. CST,
Monday through Friday. Technicians are also available at other times for
emergency calls only. Product consultants will be on hand to discuss the
problem with you and endeavor to rectify it over the phone. If the problem
appears to be of a more serious nature, you will be given instructions regarding
the action to be taken. Prior to making the phone call, you must be prepared to
answer two questions:
What RO do you have; i.e., 23G-6000?
What is the serial number of your RO? (Label found on side of RO.)
RO SERIAL NUMBER: ______________________
4.
In addition, for Non-Emergency issues, you may e-mail [email protected]
and a Technician will respond generally within one working day.
3024270 Rev G
121
14Oct13
23G-Series RO System
11.0
SPARE PARTS LISTS
Valves
Part Number
Control Solenoid, Stainless Steel, 3-way, 1/4 inch (Inlet, Diverts Solenoid) 220 Volt, 50 Hz
OS1202126
Control Solenoid, Stainless Steel, 3-Way, 1/4 inch, (Inlet, Diverts Solenoid) 110 Volt, 60 Hz
OS1112563
Sampling Valve, PVC, 1/4 inch, (Feed Permeate and Concentrate)
ME40291
Valve Needle, 316, 1/4 inch MPT, Straight (Concentrate Valve) (Flow Block)
OS1110979
Valve, Actuated, 1 inch Diaphragm Inlet Aquamatic Valve (Non-Spring, Permeate Divert)
OS1225678
Valve, Actuated, 1 inch Diaphragm Divert Aquamatic Valve (Spring, Concentrate)
OS1225680
Inlet Shut-Off Ball Valve, PVC, 1 inch, SOC, MIP
OS1113157
Valve, Sol, Stainless Steel, 1/4 inch FPT, 110 Volt/60 Hz (Autoflush, Flow Block)
OS1153037
Valve, Sol, Stainless Steel, 1/4 inch FPT, 220 Volt /50 Hz (Autoflush, Flow Block)
OS1162324
Valve, Relief, Pressure, Plastic, 0.25 FPT (Permeate Pressure) (2 per machine)
OS1113930
Valve, 1 inch, Aquamatic (Plumbing Inlet)
OS1110643
Prefilters
Part Number
Prefilter Cartridge, PPL, 10 inch, 5 micron, GX05-10 (40/ctn) (2 per machine)
ME40063
Prefilter Cartridge, PPL, 20 inch, 5 micron, GX05-20 (20/ctn)(2 per machine)
ME40170
Housing, FLT, PPL, 10.00, Blue, with Pressure Relief (2 per machine)
OS1157219
Housing, FLT, PPL, 20.00, Blue, with Pressure Relief (2 per machine)
OS1110573
6-Channel Remote
Part Number
Kit, 6-Channel Alarm Package (base and remote alarm) (complete 6CH) 60Hz
3024197
Kit, 6-Channel Alarm Package (base and remote alarm) (complete 6CH) 50Hz
3024198
6-Channel Remote Unit and Cable
OS1162032
Temperature Switch
OS1116319
Pressure Switch, SS, 60 PSI
OS1117699
Flow Block and Connectors
Part Number
Kit, O-ring, 0.75 Adjustable Orifice
OS1156745
O-ring, Viton, 110, 70 DUR (Orifice Plunger O-ring)
OS1114311
O-ring, Viton, 115, 70 DUR (Orifice Base O-ring) (Before Dec. 2013)
OS1113269
O-ring, EPDM, 014, 70 DUR (Orifice Base, Tip O-ring)
OS1143426
O-ring, Viton, 116, 75 DUR (Orifice Base O-ring) (After Nov. 2013)
3029257
Hosebarb, Nylon, 90°, 3/4 inch Hosebarb x 1/2 inch MPT
OS1111835
Hosebarb, Nylon, 90°, 3/4 inch Hosebarb x 1 inch MPT
OS1114832
Hosebarb, Nylon, 3/4 inch Hosebarb, x 1/2 inch MPT
OS1111540
3024270 Rev G
122
14Oct13
23G-Series RO System
Flow Block and Connectors
Part Number
Hosebarb, Nylon, 3/4 inch Hosebarb, x 3/4 inch MPT
OS1111836
Hosebarb, Nylon, 3/4 inch Hosebarb, x 1 inch MPT
OS1113279
Connector, PPL, 1/4 inch Tube x 1/4 inch MPT
OS1110294
Connector, PPL, 3/8 inch Tube x 1/4 inch FPT
OS1110293
Connector, PPL, 1/4 inch Tube x 1/8 inch MPT
OS1110039
Elbow, PPL, 90°, 1/4 inch Tube x 1/4 inch MPT
OS1110129
Elbow, PPL, 90°, 3/8 inch Tube x 1/4 inch MPT
OS1110069
Elbow, PPL, 90°, 1/4 inch Tube x 1/8 inch MPT
OS1110301
Tee, PPL, 3-way, 1/4 inch Tube x 1/4 inch Tube x 1/4 inch Tube
OS1110305
Tee, PPL, 3-way, 1/4 inch Tube x 1/4 inch Tube x 1/8 inch MPT
OS1143153
Tee, PPL, 3-way, 1/4 inch Tube x 1/4 inch Tube x 1/4 inch MPT
OS1110306
Plug, Pipe, Nylon, Square, 1/8 inch MPT
OS1110036
Plug, Pipe, Nylon, Square, 1/4 inch MPT
OS1110519
Plug, Pipe, Nylon, Square 1/2 inch MPT
OS1112653
Plug, Pipe, Nylon, Square 1 inch MPT
OS1111742
Tubing, Polyethylene, .25 inch, Blue
ME60067
Tubing, Polyethylene, .375 inch, Blue
ME60049
Coupling, Delrin, 3/8 inch MNPT x Body (Female Coupling for Permeate Manifold)
OS1162024
Coupling, Delrin, 3/8 inch Tube x Insert (Attaches to P/N OS1162024)
OS1162025
Sensor
Part Number
Sensor, Flow, Hall-Effect, Pickup Cable (Permeate and Concentrate, Cable Only)
OS1156630
Sensor, Flow, Turbine, 1 inch Element (Permeate and Concentrate)
OS1156637
Transducer, Pressure, 0-100 psi (0-6.9 bar), with Cable
OS1158824
Transducer, Pressure, 0-500 psi (0-34.5 bar), with Cable (220 Volt, ECM-100 Controller)
OS1158825
Sensor, pH, Electrode Only (115 Volt, ECM-100 Controller)
1233199
23G pH Option Kit
OS1202592
Sensor, Conductivity, Feed Water, with Cable (Also Senses Feedwater Temperature)
OS1157517
Sensor, Conductivity, Permeate Water, with Cable
OS1157516
3024270 Rev G
123
14Oct13
23G-Series RO System
Electrical
Part Number
PCB Assembly, Main Logic Board, ECM-100 60 Hz
OS1163521
PCB Assembly, Main Logic Board, ECM-100 50 Hz
3013742
PCB Assembly, Relay Board, ECM-100
OS1163520
Motor Starter
115VAC (60HZ)-5HP Motor
3024188
230VAC (50HZ)-5HP Motor
3024189
115VAC (60HZ)-7.5HP Motor
3024351
230VAC (50HZ)-7.5HP Motor
3024352
Motor Overload
3.2-16AMPS-5HP Motor
3024187
5.4-27AMPS-5HP Motor
3024186
5.4-27AMPS-7.5HP Motor
3024350
Communication Cable, ECM-100 (Connects ECM-100 to Printer or Computer)
OS1158314
Bracket, Mounting, Enclosure, ECM-100 (4 needed)
OS1202746
Connector, Electrical Cord, ECM-100
OS1116409
Membrane Elements
WARNING:
Machine Type
Membrane Part Number
23G
3027262
Installation of membrane elements other than those specified for the machine as shown above can
cause premature membrane element failure, may void warranty, and may invalidate 510 (K)
acceptance of a specific machine.
4-Inch Housing Spare Parts
Part Number
End Cap, Housing, Plastic, SH, HP808A (1 per Housing)
OS1117469
Membrane Element Housing, SH-1/411 (304) 4 Port, Victaulic
OS1157305
Adapters, 23G 4040FF
3027177
Interconnector, 4 inch Membrane Element (1 Per Housing)
OS1117167
O-Ring, EPR, Adapter (2 Per Housing)
ME41593
O-ring, EPDM, Interconnector (Requires 6 O-rings per Housing)
OS1118748
Concentrate Seal, EPDM, U-Cup for 411 Membranes
ME41035
Plug, Interbank, (Requires 1 Interbank O-ring, P/N OS1158675)
OS1156928
O-ring, Interbank, -207, EPDM, 70DUR
OS1158675
ATD for Permeate Plug (1 Per Housing)
OS1117827
(Installed at Bottom of Housing to Support Membrane Element)
Permeate Plug (1 Per Housing) (Installed on Bottom of Housing)
OS1157934
Victaulic Coupling, Complete with EPDM Gasket, 4 inch
OS1153148
Jaco Fitting Permeate Out 1/2 inch MPT x 3/8 inch (Located on Top of Housing)
OS1110103
3024270 Rev G
124
14Oct13
23G-Series RO System
Test Kits
Part Number
pH Test Kit, Range 4-10 Standard Units
OS1155478
Clamps
Part Number
Victaulic Coupling, Complete with EPDM Gasket, 3/4 inch
OS1157369
Victaulic Coupling, Complete with EPDM Gasket, 1-1/4 inch
OS1157370
Victaulic Coupling, Complete with EPDM Gasket, 4 inch
OS1153148
Miscellaneous
Part Number
Kit, Expansion, Frame (Required to expand machine from 4 to 10 housings)
3024151
Kit, Expansion, Frame, EL (Required to expand to 11 or 12 housings)
3024152
Kit, SHA Expansion (Plumbing parts provided to add 1 Stainless Steel Housing,
Membranes Extra)
OS1157184
Permeate Pressure Relief Kit
OS1157220
Foot, Self-Leveling, Threaded (Used with 1-1/2 inch or 1-1/4 inch Adapter)
OS1156927
Adapter, 1-1/4 inch, Square (1 Each, Used on Frame Extension Only)
OS1158310
Adapter, 1-1/2 inch, Square (4 Each, Used on “Main” 23G Frame)
OS1158311
Plumbing, High Pressure, Spool Piece, 3/4 x 8-1/4 inch (Used in Front of Concentrate
Return Plumbing in place of Housing)
OS1156775
Plumbing, Intermediate, Stainless Steel, 1 inch (U-Shaped Concentrate Crossover
Plumbing)
OS1155820
pH Test Kit, Range 4-10 Standard Units
OS1155478
Large Casters (4 required)
OS1160132
Small Casters (1 required with four of OS1160132)
OS1160133
Lexan Cover Replacement
OS1156570
Pump Outlet
Part Number
1” Tube End Elbow
3024199
48” Flex Hose Assy
3024200
Adapter, 1-1/4”VIC x 1” Tube
3024177
Adapter, ¾”VIC x 1” Tube
3024178
3024270 Rev G
125
14Oct13
23G-Series RO System
NOTE: Machine expansion may require a change in pump and motor assembly.
Contact your equipment supplier.
NOTE: Because of Government mandates the pump motor changed in May 2011.
Reference the table below for the correct part number.
NOTE: Please provide the Model and Serial number of your machine when calling for
information.
Motor
(hp)
23G
Model
# of
Elements
Pump and Motor Assembly Part
Number
Voltage (3PH) 60Hz
Flow
Pattern
(208/230/460 VAC)
Made before May
2011
(208/230/460 VAC)
Made on or after
May 2011
2
3024170
3027416
1-1
3
3024170
3027416
2-1
5
4
3024170
3027416
1-1-1-1
CRN 3-21
5
3024170
3027416
2-1-1-1
6
3024170
3027416
2-2-1-1
7
3024171
3027417
2-2-2-1
7.5
8
3024171
3027417
2-2-2-2
CRN 5-18
9
3024171
3027417
3-2-2-2
10
3024171
3027417
3-3-2-2
11
3024172
3027418
3-3-3-2
7.5
CRN 5-24
3024270 Rev G
126
14Oct13
23G-Series RO System
Motor
(hp)
23G
Model
# of
Elements
Pump and Motor Assembly Part
Number
Voltage (380)
Flow
Pattern
2
1-1
3
2-1
4
4
3024472
CRN 3-36
5
2-1-1-1
6
2-2-1-1
7
2-2-2-1
7.5
8
2-2-2-2
CRN 5-32
9
3024473
10
Motor
(hp)
23G
Model
# of
Elements
1-1-1-1
3-2-2-2
3-3-2-2
Pump and Motor Assembly Part
Number
Voltage (1PH)
Flow
Pattern
(208/230)
5
2
3024268
1-1
CRN 3-21
3
3024268
2-1
4
3024268
1-1-1-1
5
3024268
2-1-1-1
6
3024268
2-2-1-1
7.5
7
3024269
2-2-2-1
CRN 5-18
8
3024269
2-2-2-2
9
3024269
3-2-2-2
10
3024269
3-3-2-2
3024270 Rev G
127
14Oct13
23G-Series RO System
NOTES:
3024270 Rev G
128
14Oct13
23G-Series RO System
3024270 Rev G
129
14Oct13
Call (800-633-3080) for additional information or visit www.mcpur.com.
14550 28th AVE N
Plymouth, MN
55447
USA
Ph: 800-633-3080
FAX: 763-210-3868
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
