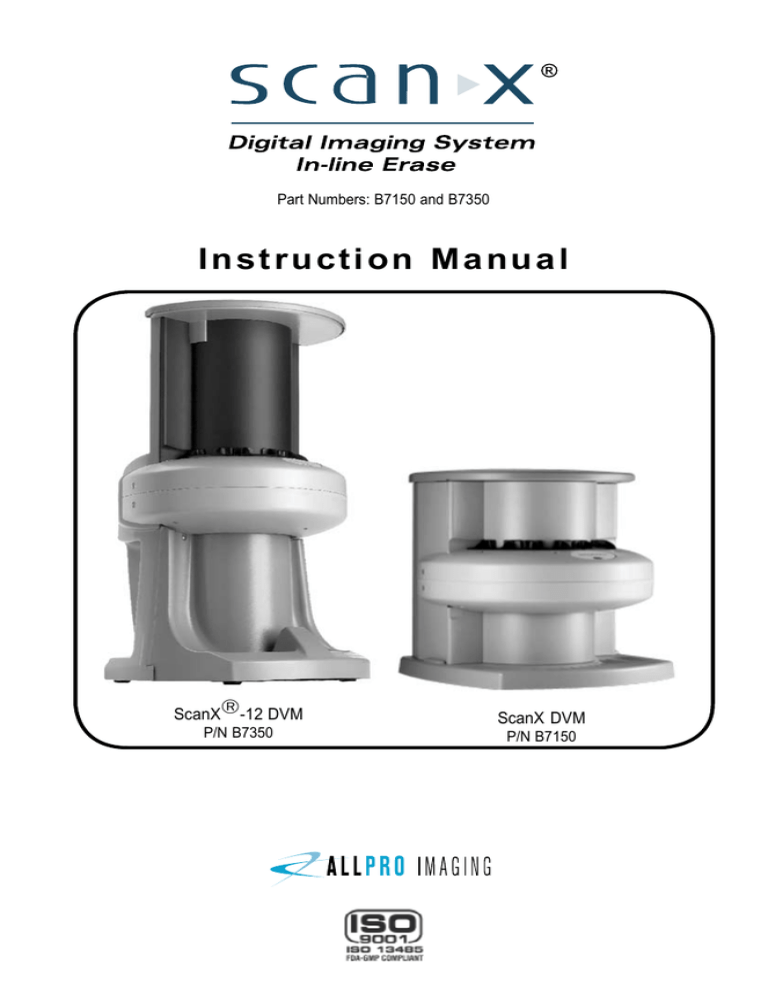

Instruction Manual ® ScanX

Instruction Manual ®  ScanX
Part Numbers: B7150 and B7350
Ins t r u c t i o n M a n u a l
ScanX®-12 DVM
P/N B7350
ScanX DVM
P/N B7150
FOREWORD
Air Techniques and its ALLPRO Imaging division have prepared this document as
a guide to the proper use of two ScanX® Digital Imaging Systems with In-Line
Erase, ScanX® -12 DVM and ScanX® DVM. References in this manual to Air
Techniques include its division ALLPRO Imaging.
TABLE OF CONTENTS
Section
Page
Congratulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
On-Line Warranty Registration . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Purpose of this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
System Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Computer System Requirements . . . . . . . . . . . . . . . . . . . . . . . 10
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Site Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Plate Care and Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Intraoral Imaging Procedures . . . . . . . . . . . . . . . . . . . . . . . . . 19
Extraoral Imaging Procedures . . . . . . . . . . . . . . . . . . . . . . . . . 22
Powering Down the System . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
CONGRATULATIONS
Congratulations on your purchase of the ScanX®-12 DVM or ScanX® DVM Digital
Imaging System with In-Line Erase, the latest imaging product from Air Techniques,
Inc./ALLPRO Imaging, a leading manufacturer of dental, medical and veterinary
equipment since 1962. The ScanX®-12 DVM is capable of processing both intraoral and extraoral imaging plates. The ScanX® DVM, however, is designed to
process intraoral imaging plates only. For details, see the sections UNPACKING
THE UNIT and SPECIFICATIONS. The ScanX®-12 DVM and ScanX® DVM are
hereafter referred to as ScanX in this manual. Each has been designed and
manufactured using state-of-the-art technology to give many years of dependable
service.
This manual covers the installation, operation and maintenance of the ScanX.
Review and follow the guidelines included in this manual to ensure that your
ScanX gives the highest level of service.
WARRANTY
The ScanX is warranted to be free from defects in material and workmanship from
the date of installation for a period of one year. These models of the ScanX are
designed solely for use in an office environment and this warranty is not applicable to other applications.
Any item returned to our factory during the warranty period through an authorized
dealer will be repaired or replaced at our option at no charge provided that our
inspection shall indicate it to have been defective and that the system is returned
to our factory in its shipping case. Dealer labor, shipping and handling charges
are not covered by this warranty.
This warranty does not apply to damage due to shipping, misuse, careless handling
or repairs by other than authorized service personnel. Air Techniques, Inc./ALLPRO
Imaging is not liable for indirect or consequential damage or loss of any nature
in connection with this equipment.
This warranty is void if the ScanX is operated with any covers removed.
This warranty is in lieu of all other warranties expressed or implied. No representative
or person is authorized to assume for us any liability in connection with the sale
of our equipment.
ON-LINE WARRANTY REGISTRATION
Quickly and easily register your new ScanX on-line. Just have your product
model and serial numbers available. Then go to the ALLPRO Imaging website,
www.allproimaging.com, click the Warranty Registration link and complete
the registration form. This on-line registration ensures a record for the warranty
period and helps us keep you informed of product updates and other valuable
information.
SAFETY NOTICE
This equipment has been designed to minimize exposure of personnel to hazards. While the ScanX is designed for safe operation, certain precautions must be
observed. Use of the ScanX not in conformance with the instructions specified in
this manual may result in permanent failure of the unit.
General Safety Information.
 Check with your authorized dealer for packing material requirements if
it is necessary to return the product to the manufacturer. Correct packing guarantees optimal safety of the device during transport. Should it
become necessary to return the device to the manufacturer during the
warranty period, Air Techniques will not accept claims for damage arising
from using incorrect packing materials.
 Before every use, the operator must check the functional safety and the
condition of the device.
 The operator must be knowledgeable in the operation of the device.
 This device is not to be used in any areas where the atmosphere could
cause fire or explosion.
Markings.
The following terms or symbols are used on the equipment or in this manual
to denote information of special importance:
CAUTION
CLASS 1 LASER PRODUCT
CLASS 3B LASER
RADIATION WHEN OPEN
AVOID EXPOSURE TO BEAM
DANGER
LASER RADIATION WHEN OPEN
AVOID DIRECT
EXPOSURE TO BEAM
The ScanX is a Class I Laser Product [Class 1 Laser Product (IEC)]
This warning label identifies the ScanX as such a product and
describes the potential danger to humans in the event the product is
opened during service. There is no laser radiation from this product
when operated and maintained as instructed.
The Laser Product Accession Number is 0212282-00
COVER REMOVED MAKES
THIS DEVICE A
CLASS IIIb LASER PRODUCT
Alerts users to important Operating and
Maintenance instructions. Read carefully to
avoid any problems.
Warns users that uninsulated voltage within
the unit may be of sufficient magnitude to
cause electric shock.
2
LABORATORY
EQUIPMENT
60CB
E234737
Indicates the
ScanX is a UL
Listed product.
Indicates item used only
once. Discard after use.
ATTENTION USERS:
Manufacturing date code on serial number label is in the format:
Month YYYY.
SAFETY NOTICE
Authorized Dealer Service Only.
The interior of the ScanX is only accessible by removing hardware with tools. It
should be opened and serviced only by an authorized dealer service technician.
Failure to heed this warning may result in equipment damage or personal injury,
and will void any and all warranties. Contact your authorized dealer for service
information.
Use of Accessory Equipment.
The use of ACCESSORY equipment not complying with the equivalent safety
requirements of this equipment may lead to a reduced level of safety of the resulting
system.
Consideration relating to the choice shall include:
- use of the ACCESSORY in the SUBJECT’S VICINITY
- evidence that the safety certification of the ACCESSORY has been
performed in accordance to the appropriate IEC 601-1 and/or IEC 601-1-1
harmonized national standard.
Use of ACCESSORIES or cables other than those specified or provided by Air
Techniques may result in increased EMISSIONS or decreased IMMUNITY of the
EQUIPMENT.
Electrical Safety Notes.
 The line cord is the main power disconnect device.
 Use only the line cord provided with the unit.
 Use only grounded electrical connections.
 To avoid risk of electric shock, fire, short-circuit or dangerous emissions,
never insert any metallic object into the equipment.
 Only use connection cable(s) delivered with the device.
 Check the device cables for possible damage before switching on.
Damaged cables, plugs and sockets must be replaced before use.
 Never touch open supply outlets and subjects simultaneously.
 Do not locate unit where it could be sprayed with water, or in a damp
environment.
SAFETY NOTICE
Knowledge of Warnings and Cautions.
Users must exercise every precaution to ensure personnel safety, and be familiar
with the warnings and cautions presented throughout this manual and summarized
below.
In this manual, the following definitions apply for all WARNINGS and CAUTION
Statements:
WARNINGS: Any operation, procedure or practice, which, if not strictly observed, may result in
injury or long-term health hazards to personnel.
CAUTIONS: Any operation, procedure or practice, which, if not strictly observed, may result in
destruction of equipment or loss of effectiveness or damage to equipment and
Phosphor Storage Plates (PSPs).
DANGER:
Opening the ScanX by removing any covers or components makes the equipment
into a Class III b Laser Product. [Class 3B Laser Product (IEC)].
WARNINGS Only trained professionals should use this device.
Federal law prohibits the sale of this device to individuals other than licensed
professionals. Use of this device, other than as described in this manual, may
result in injury.
The ScanX contains a laser and is a Class 1 [Class 1 (IEC)]
Laser Product.
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure. The laser is on
only during an active scan.
Only a trained technician from an authorized dealer should
remove a cover from the ScanX.
Direct eye contact with the output beam from the laser may cause serious damage
and possible blindness.
Do not open the ScanX to maintain it.
The ScanX contains no user serviceable parts. If there is a service problem,
contact your authorized dealer.
Operate ScanX in dry environment.
To prevent fire or electrical shock, do not expose this appliance to rain or moisture.
Do not use damaged Phosphor Storage Plates (PSPs).
Damaged PSPs may not provide reliable diagnostic images.
Do not reuse the Barrier Envelopes.
Dispose of used Barrier Envelopes in accordance with all local regulations.
Imaging Plates (PSPs) are toxic.
Never place an intraoral PSP in the mouth without first enclosing it in a sealed
barrier envelope. Try to prevent the enveloped PSP from being bitten, chewed
or swallowed.
Disposal of PSPs.
Consult with your federal, national, state and local government, for rules and
regulations on disposal of PSPs.
SAFETY NOTICE
CAUTIONS Completely clean and erase PSPs before taking an X-ray exposure.
See the PLATE PREPARATION section of this manual.
Minimize exposing an X-ray exposed PSP to light.
Transfer the PSP into the Inlet slot quickly to minimize exposure to light.
Use care in handling PSPs - Avoid fingerprints and scratching
Refer to the instructions provided with the PSP package for further information
on handling.
Use of other manufacturer’s imaging plates
Do not put PSPs designed for drum-type or other scanners in the ScanX. The
hooks and/or frames on the ends or around these PSPs, or PSPs of different
thickness (especially thicker ones) will damage the ScanX. PSPs from another
manufacturer may be used as long as the specifications are the same as those
IMPORTANT INFORMATION
General Notes.
 All instructions in this manual form an integral part of the unit. They must
be kept close to the unit and in readiness whenever required. Precise
observance of these instructions is a pre-condition for use of the unit for
the intended purpose and for its correct operation. This manual should
be passed on to any future purchaser or operator.
 Safety of the operator as well as trouble-free operation of the unit are only
ensured if use is made of original equipment parts. Moreover, use may
only be made of those accessories that are specified in the technical
documentation or that have been expressly approved and released by
Air Techniques for the intended purpose. Air Techniques cannot warranty
for the safety or proper functioning of this unit in the case where parts or
accessories are used that are not supplied by Air Techniques.
 There is no guarantee against damage arising where parts or accessories
are used that are not supplied by Air Techniques.
 Observe the usage and storage conditions.
 Appliances which accumulate condensation or become wet through a
change of temperature may only be operated after they are fully dry
again.
 Air Techniques regard themselves as being responsible for the equipment
with regard to safety, reliability and proper functioning only if assembly,
resetting, changes or modifications and repairs have been carried out by
an authorized dealer and if the equipment is used in conformity with the
instructions contained in this manual.
 The device conforms to the relevant safety standards valid at this time.
 Any reprinting of the technical documentation, in whole or in part, is subject
to prior written approval by Air Techniques.
IMPORTANT INFORMATION
Correct Usage
 Operation of the ScanX may only be carried out by suitably qualified
personnel.
 The ScanX is only to be used in the processing of exposed PSPs.
 The ScanX should be used in a room equipped for it.
 Room temperature should be in the range 50 to 105°F (10 to 40°C)
with relative humidity between 5 and 95%.
 If the device is brought into the room of operation from a cooler
environment, condensation can build up. Do not connect the device until
it has warmed up to room temperature and is absolutely dry.
 This room should be free of all possible interferences (e.g. strong magnetic
fields), as these could affect the operation.
 The ScanX may only be operated together with authorized software such as
Visix or VetRay Imaging Software.
 Correct usage includes observing all installation and operating instructions
and adherence to the set-up, operation and maintenance instructions.
 Any use, above and beyond that described in this manual as correct
usage, will invalidate the warranty.
Incorrect Usage
 Any use that is not described in this manual as correct usage is considered
as incorrect usage. The manufacturer is not to be held liable for any damage
caused as a result of incorrect usage. The operator bears all risks.
PURPOSE OF THIS MANUAL
This manual provides the information necessary for the setup, operation and routine
care and maintenance of the the ScanX®-12 DVM (P/N B7350) and the ScanX®
DVM (P/N B7150) Digital Imaging Systems with In-Line Erase.
This manual is not to be used as a replacement for training in radiography.
For information regarding the computer system and imaging software, refer to the
appropriate documentation provided with your computer hardware and software.
SYSTEM DESCRIPTION
The ScanX is a digital radiography system that utilizes reusable Phosphor
Storage Plates (PSP) in place of X-ray film to produce diagnostic quality intraoral
and extraoral digital radiographs. The ScanX produces a digital image by scanning
PSPs, which have been exposed to X-rays. The ScanX allows computer storage,
processing, retrieval and display of the computed radiographic images utilizing
a user supplied software and computer. An additional feature of the ScanX consists of an in-line plate eraser function that removes the latent image from the
plate immediately after scanning. This design provides an efficient one-operation scanning and erasing process leaving the user with a PSP ready for the next
X-ray procedure.
UNPACKING AND INSPECTION
Unpacking
The ScanX may be shipped in a very special shipping case covered by a doublewall corrugated over-packaging. A deposit fee has been paid for this case, which
may be returned to Air Techniques, Inc./ALLPRO Imaging for a full refund of the
fee using a Return Authorization (RA) number, or retained, without refund of the
fee, to protect the ScanX during transport or future shipping. Retain the overpackaging to return the shipping case.
Included System Components
Each ScanX consists of the indicated main assembly and accessory kit as listed
below: (See SPECIFICATIONS for ratings and identification for specific models.)
ScanX DVM,
P/N B7150
ScanX-12 DVM,
P/N B7350
B7110V
B7310V
Power Supply
B7095
B7095
Power Cord
73096
73096
Computer Connector Cable, USB
B3554
B3554
Instruction Manual
B7157
B7157
-
74030B
73444
73444
-
B2030
B7352
B7352
Main Assembly
Accessory Kit containing:
PSP Protective Cushion Kit
Plate Guides (Sizes 0, 1, 3, Qty. 1 ea.
and Size 2, Qty. 4)
ScanX Cleaning Sheet Sample Kit
Drivers, Utilities and Instruction
Manual Disk
Inspection
Verify that all listed items were received. If any item is missing, notify your authorized
dealer. Unpack each component of the ScanX and inspect for physical damage
such as scratched panels, damaged connectors, etc. If any damage is noted,
notify your authorized dealer immediately so corrective action can be taken.
COMPUTER SYSTEM REQUIREMENTS
IMPORTANT:To operate the ScanX, it must be connected to a compliant Computer System,
and the computer must be loaded with an authorized Imaging Software such as
Visix or VetRay. The Computer System is not provided by Air Techniques. Contact
your dealer for available Computer System and Software options.
Computer System Recommendations
The Computer System (computer, monitor, etc.) and any related peripheral or
other equipment, supplied by the user, or a third party, must comply with the
requirements for “Information Technology Equipment" (ITE) as specified in IEC
60950 (EN 60950).
The minimum computer system requirements necessary to operate the ScanX
are listed below. Items listed with an asterisk (*) are required.
Operating System:
* Windows 2000 Professional for an
Intel 32-bit processor with Service
Pack 4 or later, or Windows XP
Professional for an Intel 32-bit processor with Service Pack 1and the KB
B22603 update or later.
* Must be USB 1.1 or 2.0 or later
2.8 GHz Pentium IV
1 GB
* 200MB available disk space
required to start scanning
SVGA 17”, 1024 x768 or higher
resolution, contrast ratio 450:1,
.22 dot pitch capability.
For optimum viewing a CRT is recommended.
32 MB RAM
* CD ROM Drive
Standard Keyboard & Mouse
Backup Device
External Surge Protector
Power supply backup
*Authorized software is required
USB Port:
CPU:
RAM:
Hard Drive:
Monitor (1024 x 768 Resolution):
Video Display Adapter:
Peripherals:
Image Management Software:
10
COMPUTER SYSTEM REQUIREMENTS
System Properties.
If unsure of the operating system version installed,
check that it meets the necessary requirements by
checking the System Properties window.
This is done simply by right clicking the My Computer
icon. Selecting Properties from the menu list displays
the System Properties window as shown. The installed
operating system version is listed under the General tab.
The System Properties window can also be opened
from the Desktop Start button. Just press the Start
button and select SettingsControl Panel and
then click System icon.
CONTROLS AND INDICATORS
ERASER
Switch
Ready/Standby
Green LED indicator
FLASHING OFF
Blue LED Indicator
FLASHING
OFF
READY
READY
Switch
ERASER
ALLPRO
IMAGING
4 Scanner Track
Indicator LEDs
Keypad Control Panel
Keypad Control Panel
READY Switch
Toggles between the Standby and Ready mode as follows:
1. Press to switch from the Standby mode to the Ready mode.
2. Press and hold down for at least 2 seconds to switch to the
Standby mode from the Ready mode.
Ready/Standby
Illuminates green to indicate that the ScanX is Ready for operation.
Green LED indicator When extinguished, it indicates that the ScanX is in the Standby mode.
ERASER Switch
Toggles between turning the Erase function OFF and ON. This switch
has no effect once the plate scanning or erasing starts.
FLASHING OFF
Blue LED indicator
Illuminates steady blue to indicate that the Erase function is ON and
PSPs will be erased after scanning.
Flashes blue to indicate that the Erase function is OFF and PSPs will
not be erased after scanning.
4 Scanner Track Indicator LEDs
Illuminate green when the Scanner has been activated, indicating that
a PSP can be fed into the ScanX.
Illuminate yellow, indicating the PSP has been sensed and the
Scanner is transporting the PSP.
11
TECHNICAL DATA
Electrical Requirements:
Supply Voltage:
Supply Current: Line Cord:
Power Supply:
Physical Properties:
ScanX Part Number
Depth (inches)
Width (inches)
Height (inches)
Weight (pounds)
Environmental Conditions:
Unit in Operation
Temperature:
Humidity:
Heat emission Storage and Transport
Temperature:
Humidity:
Note:
100 to 240VAC +/- 10%, 50/60 Hz
1.2 A Maximum
North American style 10 foot long
Hospital Grade power cord, P/N 73096.
24 Volt Power Supply, P/N B7095 provided
B7110V
15.13
15.0
15.5
43
B7310V
15.4
15.0
27.8
50
50°F to 105°F (10°C to 40°C)
5% to 95% RH
<90W
-21°F to 130°F (-29°C to 54°C)
5% - 95% (Non-condensing)
Resolution of the ScanX is dependent on operating mode and specific imaging plate type
used.
Resolution Range:
P/N B7110V P/N B7310V
Horizontal:
10 to 14 (lp/mm)
2.5 to 14 (lp/mm)
Vertical:
10 to 18+ (lp/mm) 2.5 to 18+ (lp/mm)
Compliance Data:
Laser Class:
Class I Laser Product (21 CFR 1040.10)
Class 1 Laser Product (IEC 60825-1)
Laser Product Report
Accession Number:
0212282-00
Installation Category:
I
Pollution Degree:
2
User Replacement Items: Power Supply, Line Cord, Plate Guides, PSPs
and Computer Connector Cable
IEC601-1 Classification:
Class 1, Transportable, Continuous Operation,
Equipment not suitable for use in the presence of flammable anaesthetic
mixture(s). Protection against ingress of liquids -Ordinary
Electromagnetic Interference:
Electromagnetic interference between the equipment and other devices can
occur. Do not use the equipment in close conjunction with sensitive devices, or
devices creating high electromagnetic disturbances.
12
ABBREVIATIONS
Abbreviations used in this manual are summarized below.
A
ampere(s)
AC
alternating current
CD-ROM compact disk, read-only
memory
CFR
Code of Federal
Regulations
CPU
central processing unit
(your computer)
cm
centimeter
D
depth
GB
gigabyte (230 109 bytes)
GHz
Gigahertz (109 of Hertz)
H
height
Hz
Hertz (cycles per second)
IEC
International Electro-technical Commission
IMS
Image Management
Software
LED
Light emitting diode
lbs.
pounds
lp/mm
line pair per mm
lux
a measure of light intensity
MB
megabytes
(220 106 bytes)
mm
millimeter (10-3 m)
MONTH YYYY date
(Month, 4 digit year)
Phosphor
a luminescent material
PN
part number
PSP
phosphor storage plate
(imaging plate)
RAM
random access memory
RH
relative humidity
SVGA
Super Video Graphics
Array
USB
Universal Serial Bus
UL
Underwriters
Laboratories
V
Volts
W
Watts, width
°C
degree Celsius
°F
degree Fahrenheit
”, in
inch
SITE SELECTION
Note:
The ScanX is designed to be installed by your authorized dealer. The dealer or user
must provide appropriate and compliant computer hardware and software.
The ScanX may be located almost anywhere in the office. Follow these guidelines
for optimum performance:
 Lighting conditions: Set up the scanner in ordinary room light, however,
direct sunlight and light fixture(s) above and near the ScanX producing
more than 400 lux of light at the PSP inlet must be avoided.
 Provide a stable, flat countertop large enough to hold the scanner, plus
provide a working area for resting and opening cassettes.
 Locate the computer within 6 feet.
 Access to a hospital grade grounded electric Mains AC outlet using the line
cord provided, must be within line cord length.
13
SYSTEM SETUP
Note:
Authorized Imaging Software, such as Visix or VetRay, supplied by the dealer or other
company, must be installed on the computer in order to operate the ScanX.
ScanX Drivers and Utilities Installation
Before connecting the ScanX to your computer or attempting to use it for the first
time, run the Setup program on the ScanX Drivers and Utilities Disk included with
the ScanX. Normally, this program runs automatically when the CD is inserted
into the drive for the first time. If not, run the Setup program located in the root
directory of the CD (typically D:\Setup.exe).
The Setup program guides you through updating the library files on your computer, which must be completed before the ScanX will operate properly. More
information can be found in the Installation Instructions and Notes file on the
ScanX Drivers and Utilities Disk included with the ScanX.
ScanX Connection Procedure
Refer to Figure 1 and perform the following procedure to connect the ScanX for
operation for the first time.
1. Select a location that meets the SITE SELECTION guidelines.
2. Set up the computer according to the manufacturer's recommendations.
Make sure that the computer meets all requirements listed on page 10.
3. Verify that an authorized Imaging Software, such as Visix or VetRay, is
installed properly on the computer.
4. Verify that the supplied ScanX Drivers and Utilities Disk which contains the
USB drivers was properly installed per instructions above.
Note:
Always make sure to use the same USB port whenever re-connection of the USB cable
is necessary.
5. Connect the high speed USB cable between the USB Type B connector
located on the ScanX rear panel and the USB Type A connector located
on the computer.
Note:
Connect the 24V Power Supply Adapter to the ScanX prior to plugging the line cord into
the Mains outlet.
6. Connect the 24V Power Supply Adapter Output Connection Cable to the
ScanX Power Input Jack.
7. Connect the line cord between the Mains outlet and the 24V Power Supply
Adapter. The scanner is now in the Standby mode.
8. Switch the scanner from Standby to ON by pressing the membrane READY
switch ( ) located on the Keypad Control Panel on the top of the scanner.
Verify that both the green and blue LED indicators above the READY and
ERASER switches, repectively, illuminate.
Note:
The Found New Hardware Wizard may appear each time you plug the ScanX into a
different USB port on your computer.
9. With both the ScanX and computer turned on, Windows detects the ScanX
as a new USB Device and the Found New Hardware Wizard will appear.
Windows should automatically find the drivers installed from the ScanX
Drivers and Utilities Disk. After the wizard completes the first time, it will
appear and complete a second time and then third, and final time.
14
SYSTEM SETUP
Power Supply
Mains Outlet
Line Cord
(The Line Cord is the Mains
disconnect device)
Line Cord
Power Supply
Computer Connector
Cable
Green LED
Indicator
Blue LED
Indicator
FLASHING
OFF
READY
ERASER
ALLPRO
IMAGING
ERASER
Switch
READY
Switch
Press HERE
to
turn ON or OFF
TO
POWER SUPPLY
TO
COMPUTER
USB PORT
Figure 1. Typical ScanX Installation
15
PLATE CARE & PREPARATION
Prior to performing the Intraoral and
Extraoral imaging procedures provided
on the following pages, the user must
be familiar with the care, handling
and preparation of the PSP in order
to ensure successful image scanning.
Figure 2 shows the configuration of a
typical Intraoral Size #2 PSP and Figure
3 shows a typical Extraoral plate.
Tube or Sensitive
side
Figure 2. Intraoral PSP Configuration
Printed side
White or Sensitive Side
or Front of PSP
Black Side or Back of PSP
Figure 3. Typical Extraoral Plate Configuration
Handle PSPs with Care.
 Avoid scratching or soiling PSPs.
 Do not bend PSPs or apply unnecessary pressure.
 Do not store PSPs in a hot or moist area.
 Protect the PSPs from direct sunlight and ultraviolet rays.
 Pick up the PSPs using two fingers around the edges to avoid unnecessary
contact with the plates.
CAUTION: Always use a Barrier Envelope for each Intraoral plate. Exercise care in
handling the plate so as not to scratch the sensitive surface or nick the
edges.
Plate Protection
When storing or transferring PSPs use a Plate Transfer Box for Intraoral PSPs or
an X-ray Cassette for Extraoral PSPs.
Plate Transfer Box. Place the Intraoral PSP covered with a Barrier Envelope
into the Plate Transfer Box with the sensitive (front) side of the PSP facing
down.
Note:
Cassettes must not contain intensifying screens when using PSPs.
X-ray Cassette. Place the Extraoral PSP into the appropriate X-ray Cassette
with the sensitive (front) side of the PSP towards the Tube-side of the cassette
and close cassette.
16
PLATE CARE & PREPARATION
IMPORTANT:
Note:
PSPs must always be erased prior to use.
Use PSPs within 24 hours of last erasure. Repeat erasing process if PSPs have been
stored longer than 24 hours.
Erase the PSP
Each Intraoral and Extraoral PSP should be used (i.e. X-ray exposed and scanned)
within 24 hours of erasure since natural radiation will add noise to the PSP. Erase
PSPs by simply using the ScanX In-Line Erase Feature. This can be accomplished
using one of two methods as follows:
Note:
Both erasing methods will result in an erased PSP suitable for reuse. The user will not
observe any difference in ScanX operation when using either method.
Method #1
Perform the Imaging Procedures for Intraoral PSPs on page 20 or the procedures for Extraoral PSPs on page 22. Except when performing step 4 of
either Activate Scanner procedure, select the Erase option from the installed
authorized imaging software to activate the ScanX. This method does not
scan the plate and no image will be acquired.
Method #2.
Perform the normal Imaging Procedures for Intraoral PSPs on page 20
or the procedures for Extraoral PSPs on page 22. This method scans the
plate and the imaging software may acquire a “junk image” (scanned
latent plate image) that should be subsequently deleted from the imaging
software.
Cleaning Phosphor Storage Plates
For the best images, PSPs should be handled carefully and kept clean. Use the
following procedure to clean plates:
1. Use lint-free, 100% cotton gauze (not cotton balls). Gently wipe the cotton
gauze over the dry Plate surface. Wipe back and forth and then in a circular
motion.
2. To clean any remaining stains, dampen the gauze in denatured ethyl alcohol
(1% denaturant) and wipe using the same motion as above.
3. Completely dry the surface by wiping with another piece of cotton gauze.
Make sure that the PSP is completely dry before use.
IMPORTANT:
Do not soak overnight.
Note: A 2% Gluteraldehyde solutions will not damage the PSP.
Disinfecting the Phosphor Storage Plates
There is no reason to routinely disinfect the PSPs unless contamination is suspected.
If a PSP has touched a contaminated surface, it may be immersed briefly in a
cold sterilant according to sterilant manufacturers directions. Do not emerse the
plate if there is any evidence of deep scratches in the surface of the plate or
nicks in the edges of the plate. After disinfection, clean and dry the plate using
the instructions above.
Disposal of Phosphor Storage Plates
Consult with your federal, national, state and local government, for rules and
regulations on disposal of Phosphor Storage Plates.
17
PLATE CARE & PREPARATION
Barrier Envelope Handling
Always guard against contamination by using standard infectious control procedures when handling individual barrier envelopes. It is best to discard suspected
contaminated envelopes since no cleaning or disinfection procedure exist or are
required for barrier envelopes.
2
The Barrier Envelope must be used only once
and disposed of properly in accordance with
local code.
Preparing Intraoral Plates for Patient Use
Insert the erased PSP into the Barrier Envelope so the printed side of the PSP is
visible through the transparent side of the envelope. Peel off the adhesive strip
and seal the envelope. See Figures 4a - 4c below.
Figure 4a
Insert the PSP.
Figure 4b
Peel off the adhesive strip.
18
Figure 4c
Seal the Barrier Envelope.
INTRAORAL IMAGING PROCEDURES
Note:
1. The orientation letter “a”, printed on the PSP, may be used for reference
as you would use the dot on an intraoral X-ray film. In addition, a backwards “a”
(i.e. “ ”), appearing in anaimage, is an indication that the image has been flipped.
2. If using holders with alligator clips, it is advisable to file down the points to avoid
puncturing the Barrier Envelope. It is important to take care not to puncture the
Barrier Envelope or damage the PSP.
Take an X-ray Image
Put an image on the PSP by performing the following procedure.
1. Place the erased intraoral PSP in the sealed Barrier Envelope into the
subject's mouth exactly as you would use X-ray film. Make sure the opaque
side of the Barrier Envelope is facing the tubehead.
2. Take the exposure. The X-ray dose may typically be reduced by 80 - 85% of
that required for D-speed intraoral film (depending on X-ray system used;
the actual X-ray dose should be determined through experimentation).
3. Wearing gloves, remove the exposed PSP from the subject's mouth and
place to the side making sure the sensitive side of the barrier envelope is
facing away from any light source.
4. Repeat steps 1 through 3 as necessary to complete the subject's X-ray
series. When all necessay plates in the X-ray session have been exposed,
prepare each plate by performing the procedure below.
Preparing the Exposed Plate for Scanner Processing
1. Disinfect the Barrier Envelope (with plate still inside) and your gloves by
washing with disinfectant hand soap and water. Dry the Barrier Envelope
thoroughly.
2. Remove gloves and wash any powder from hands. Powder on a PSP will
degrade the image, and an accumulation of powder in the scanner will
lead to degradation of scanner performance.
IMPORTANT:
Be sure that the sensitive side of the PSP is facing down when it
lands inside the box (See Figure 5). If it is not sensitive side down,
TURN IT OVER IMMEDIATELY. Failure to do so may result in erasure of the PSP.
3. open the Plate Transfer Box with the
lid away from you. Then, remove the
exposed PSP from its washed and dried
envelope as follows:
a.Hold the enveloped exposed PSP, with
the printed side facing up, parallel to
and about an inch above the open
Plate Transfer Box.
b.Tear the envelope lengthwise starting
at the notch to eject the PSP into the
open Transfer Box. See Figure 5.
Figure 5
Ejecting a Plate into the
Plate Transfer Box
4. Bring the Plate Transfer Box with all the exposed PSPs properly prepared
to the ScanX. The PSP is now ready to be scanned to read the image from
the PS by performing the Intraoral Imaging Procedures.
19
INTRAORAL IMAGING PROCEDURES
Configure the Intraoral Plate Guides. If the desired Plate Guides are not
in place, install these Guides at this time. Do not operate the scanner without
a full complement of four Guides in place. Any combination of Guides may be
used. See Figure 6.
Figure 6. ScanX with a full Complement of Plate Guides in Place.
IMPORTANT:
Transfer the PSP from the Plate Transfer Box to the Plate Guide slot
quickly. Always keep the sensitive side away from any light source to
minimize image loss.
Activate Scanner
Activate the ScanX by performing the following procedures.
1. Make sure the ScanX and computer components are correctly connected
as shown in Figure 1.
2. Switch the scanner from Standby to ON by pressing the membrane READY
switch ( ) located on the Keypad Control Panel on the top of the scanner.
3. Verify that both the green and blue LED indicators above the READY and
ERASER switches, respectively, illuminate. (Default mode has eraser ON.)
Note:
Change in motor noise pitch levels is normal when switching to different resolution setting selections.
4. Use the user-supplied authorized Imaging
Software to activate the Scanner and to select
the desired image type and resolution.
5. Verify that the four Scanner track indicators
illuminate green when the Scanner has been
activated, indicating that PSPs can be fed
into the corresponding Plate Guide.
Scanning and Erasing Plates
Scan and erase an intraoral PSP in one operation by
performing the following procedures.
1. Carefully open the Plate Transfer Box.
2. Grasp a PSP by long edges between your
thumb and index finger. See Figure 7.
3. With printed side facing you, carefully and
quickly insert the PSP into the corresponding
Plate Guide slot as far as possible.
4. Immediately press the PSP all the way down
with your fingertip (from position Figure
8 to position Figure 9) until the scanner's
transport mechanism takes over and the PSP
moves down on its own.
5. Verify that the track light illuminates yellow,
indicating the Plate Guide slot is in use,
the PSP has been sensed and the Scanner is
transporting the PSP.
20
Figure 7. PSP Pick-up.
Figure 8
Feeding Intraoral Plate.
Figure 9.
Fully Inserted Plate.
INTRAORAL IMAGING PROCEDURES
Scanning and Erasing Plates (continued)
Note:
Up to four PSPs can be processed simultaneously. One PSP can be inserted into each
Plate Guide at a time as long as the corresponding track indicator light is illuminated
green. The next PSP may be fed into a Plate Guide slot only after the corresponding track
indicator LED changes from yellow to green.
6. Observe that a red glow eminates from the scanner exit slot.
7. Repeat steps 2 through 6 to process additional PSPs as necessary. Another
PSP may be fed into any Plate Guide slot as long as the track indicator
light illuminates green.
8. Observe that each scanned and erased PSP drops into the receiving tray
at the bottom of the scanner. Since the ScanX default operation is with
the erase mode enabled (blue LED indicator above the ERASER switch is
steadily illuminated), each PSP is erased and ready for reuse.
9. Observe that all transport indicators illuminate green and the red glow
from the exit slot extinguish after the last PSP drops to the tray.
CAUTION: Always use exercise care in handling the PSPs so as not to scratch the
sensitive surface or nick the edges.
10.Retrieve the processed (scanned and erased) PSPs for reuse or storage.
Make sure not to scratch the sensitive surface or nick the edges when
removing from the scanner outlet.
11.View and save each scanned image using the user-supplied authorized
Imaging Software.
IMPORTANT:
PSPs will not be erased after scanning when operating the ScanX
with the eraser disabled. PSPs must always be erased prior to exposure to X-rays for new images.
Scanning Plates without Erasing
The ScanX can be operated with the in-line eraser feature turned off. When the
eraser mode is disabled, the ScanX scans the same as when the eraser is enabled
except that the PSPs are not erased after scanning. Scan an intraoral PSP without
erasing the image by performing the following procedures.
1. Activate the scanner by performing the proBLUE LED
GREEN LED
Indicator
Indicator
cedures on previous page.
Note:
Upon activation, the ScanX defaults with the
eraser mode enabled. This must be disabled
prior to scanning to prevent erasing of the
scanned PSP.
FLASHING
OFF
2. Disable the eraser mode of operation by pressALLPRO
ing the membrane ERASER switch located on the
Keypad Control Panel. See Figure 10.
ERASER
READY
3. Verify that the blue LED indicator above the
Switch
Switch
ERASER switch blinks blue to indicate that
the Erase function is OFF. PSPs will not be
Figure 10.
erased after scanning.
ScanX Keypad Control Panel
4. Insert the exposed PSPs to be scanned into the ScanX Plate Guides by
performing the Scanning and Erasing Plates procedures provided on the
previous page.
5. The scanned PSPs still contain latent images that require erasure. Make
sure to erase each PSP prior to reuse for new images.
READY
ERASER
IMAGING
21
EXTRAORAL IMAGING PROCEDURES
Note:
Cassettes must not contain intensifying screens when using PSPs.
Take an X-ray Image
Put an image on the extraoral PSP by performing the following procedure.
1. Place the erased PSP into the appropriate X-ray cassette, with the Tube side
(sensitive side) of PSP towards Tube side of cassette.
2. Load cassette into the exposure device as previously done for film, and
take the exposure following the X-ray device manufacturer’s instructions for
PSPs.
3. Bring the cassette containing the exposed extraoral PSP to the ScanX. The
PSP is now ready to be scanned.
Activate Scanner
Activate the ScanX by performing the following procedures.
1. Make sure the ScanX and computer components are correctly connected
as shown in Figure 1.
2. Switch the scanner from Standby to ON by pressing the membrane READY
switch ( ) located on the Keypad Control Panel on the top of the scanner.
3. Verify that both the green and blue LED indicators above the READY and
ERASER switches, respectively, illuminate. (Default has eraser mode ON)
Note:
Change in motor noise pitch levels is normal when switching to different resolution setting selections.
4. Use the user-supplied authorized Imaging Software to activate the Scanner
and to select the desired image type and resolution.
5. Verify that the four Scanner track indicators illuminate green when the
Scanner has been activated, indicating a PSP can be fed into the ScanX.
Note:
1. Leave the four Plate Guides in place when scanning extraoral PSPs.
2. Only one extraoral exposed PSP can be fed into the ScanX at a time. The next PSP
may be fed only after all four track indicator light LEDs change from yellow to green.
Scanning and Erasing Plates
Scan and erase an extraoral PSP in one operation by performing the following
procedures.
1. Orient the cassette so that the Tube side is facing down and the hinge is away from you.
2. Open the cassette and grasp the PSP by its
ends with your finger tips, and quickly (minimizing exposure to ambient light) move it
to the ScanX, with Tube side of PSP towards
ScanX.
3. Position the extraoral plate behind the four
Plate Guides against the curved surface and
gently slide the plate down (See Figure 11)
until the transport mechanism takes over and
the plate moves on its own.
Figure 11.
4. At this point, all four track lights will turn yellow,
Feeding an Extra Oral
indicating the PSP has been sensed and the
Plate into the ScanX
Scanner is transporting the PSP.
22
EXTRAORAL IMAGING PROCEDURES
Scanning and Erasing Plates (continued)
5. Observe that a red glow eminates from the scanner exit slot.
6. Repeat steps 1 through 5 to process additional PSPs as necessary. Another
PSP may be fed into the ScanX when all four track indicator lights illuminate green.
7. Observe that the scanned PSP exits through the scanner arch. Since the
ScanX default operation is with the erase mode enabled (blue LED indicator above the ERASER switch is illuminated), the PSP is erased and ready
for reuse.
8. Observe that all transport indicators illuminate green and the red glow
from the exit slot extinguishes after the last PSP drops to the tray.
9. Retrieve the processed (scanned and erased) PSP for reuse or storage in
an X-ray cassatte. Make sure not to scratch the sensitive surface or nick the
edges when removing from the scanner outlet.
10.View and save the image using an user-supplied authorized Imaging
Software.
IMPORTANT:
PSPs will not be erased after scanning when operating the ScanX
with the eraser disabled. PSPs must always be erased prior to exposure to X-rays for new images.
Scanning Plates without Erasing
The ScanX can be operated with the in-line eraser feature turned off. When the
eraser mode is disabled, the ScanX scans the same as when the eraser is enabled
except that the PSPs are not erased after scanning. Scan an extraoral PSP without
erasing the image by performing the following procedures.
1. Activate the scanner by performing the procedures on previous page.
Note:
Upon activation, the ScanX defaults with the eraser mode enabled.
This must be disabled prior to scanning to prevent erasing of the scanned
PSP.
2. Disable the eraser mode of operation by pressing the membrane ERASER switch
located on the Keypad Control Panel. See Figure 10.
3. Verify that the blue LED indicator above the ERASER switch blinks blue to
indicate that the Erase function is OFF. The extraoral PSP will not be erased
after scanning.
4. Insert the exposed PSP to be scanned into the ScanX by performing
the Scanning and Erasing Plates procedures provided on the previous
page.
5. Retrieve the processed (scanned only) PSP and store in an X-ray cassatte.
The scanned PSPs still contain latent images that require erasure. Make
sure to erase each PSP prior to reuse for new images.
23
POWERING DOWN THE SYSTEM
IMPORTANT:
Never power down the system during a scanning
session.
The ScanX is designed to be left on continuously during the active day. At the
end of the day, or whenever desired, power down the system simply by pressing
and holding the membrane READY switch (
) on the Keypad Control Panel
for approximately two seconds, until the green LED above the READY switch
extinguishes.
MAINTENANCE
Maintenance Procedures
The ScanX is designed for many years of trouble-free operation. Maintenance as
described herein is minimal.
IMPORTANT:
Do not spray solvents or liquid directly on the scanner.
Cleaning the ScanX
Turn off the ScanX disconnect the line cord from the Mains wall outlet and disconnect the computer connection cable from the ScanX before cleaning. Wipe
the outside surfaces with a soft paper towel dampened with a disinfectant solution or non-abrasive household cleaner. Be careful not to allow solvents TO RUN
OR DRIP into the ScanX. This could cause damage to the ScanX. Allow to air dry
before plugging in or turning back on.
Note:
ScanX Cleaning Sheets cannot be used on the ScanX® Intraoral
(P/N B7100) because of height limitations.
Cleaning the Plate Transport
Over time, small debris and dust may accumulate in the plate transport mechanism causing a loss in image quality and possible damage to the PSPs.
To ensure optimal performance of the ScanX® (P/N B7350), the plate transport
should be cleaned once per week using a new ScanX Cleaning Sheet each time.
Sample sheets are included with the ScanX and additional sheets can be
purchased from your dealer. Refer to ACCESSORIES page 27.
Disinfecting the ScanX
No disinfection is required for the ScanX.
Cleaning the Plate Guides
Wash the Plate Guides with a non-abrasive cleaner and water. Dry thoroughly.
IMPORTANT:
Note:
Plate Guides must not be put in an autoclave.
Always use standard infection control procedures when handling devices that contact
the patient.
Disinfecting the Plate Guides
There is no reason to routinely disinfect the Plate Guide unless contamination
is suspected. If a Plate Guide has touched a contaminated surface, it may be
immersed briefly in a cold sterilant according to sterilant manufacturers directions.
After disinfection, clean and dry the Plate Guide using the instructions above.
24
TROUBLESHOOTING
Trouble
1. No power/
No green light on
membrane switch
Possible Cause
Corrective Action
• Not plugged in.
• Check the line cord
connection is firmly
plugged in.
• Make sure outlet is
grounded and has power.
• Call your authorized Air
Techniques dealer.
• No power at Mains
Outlet
• Defective power supply
2. Green, Blue or
• Defective light or circuitry.
Yellow indicator light
does not work.
• Call your authorized Air
Techniques dealer.
3. Image Management • Inadequate Computer
System.
Software does not
recognize the ScanX
• The ScanX has not been
when selected.
turned on.
• Verify Computer System
requirements (Page 10).
• The computer connection
cable is loose or defective.
• The computer does not
recognize that the ScanX is
connected.
• ScanX hardware problem.
• Make sure that the READY
switch is set to ON and
the green indicator light is
illuminated.
• Reconnect the cable.
Check for tightness.
Replace if necessary.
• Verify that the Setup
program was correctly
installed (Page 14).
• Call your authorized Air
Techniques dealer.
• Fully feed the PSP into the
Plate Guide.
4. Plate does not
scan properly.
• The PSP was not pushed
far enough into the ScanX.
5. No image appears
after scanning.
• The PSP fed backwards
• Quickly refeed the plate
(printed side towards ScanX).
with the printed side out.
If a substandard image
results, retake image.
• The PSP was erased prior to • Feed the PSPs into the
scanning.
scanner immediately and
quickly after removal from
the Plate Transfer Box or
the cassette.
• Hardware failure.
• Call your authorized Air
Techniques dealer.
• X-ray source failed.
• Call your X-ray service
dealer.
• PSP has been overexposed
• Use software to adjust
brightness. If this is not
possible, retake image
with proper (lower)
exposure and a newly
erased PSP.
Important:
Do not allow the
PSP to be exposed
to light between
taking an X-ray
and scanning with
the ScanX.
6.
Image is too dark.
25
TROUBLESHOOTING
Trouble
7. Intraoral image
appears skewed on
monitor.
Possible Cause
Corrective Action
• PSP was fed skewed either
behind or without a Plate
Guide in place.
• Verify that Plate Guide is
in place and PSP is fed
into slot or if a Size 4 PSP,
it is fed in straight behind a
Guide.
• Check PSP size and
ensure that the correct
Plate Guide is in place.
• When inserting PSP into
feed slot, be sure to “feel”
for resistance of light seal
brush, align PSP, and then
push down uniformly on
top edge of PSP.
• Plate Guide used was not
the proper size.
8. Extraoral image
appears skewed on
monitor.
• PSP was fed skewed.
9. Image contains ghost • PSP was not completely
images or shadows.
erased prior to use.
• Make sure ScanX is operating with eraser turned
on (blue LED indicator
above the ERASER switch
is illuminated steadily).
• Imaging Plate was exposed • Make sure the plates are
with the back of the IP facing
inserted properly into the
the tubehead.
barrier envelope or cassette with the proper orientation to the X-ray source.
• Do not store PSPs in bar• PSP has been stored too
rier envelopes or cassettes
long in barrier envelope or
for more than 24 hours.
cassette.
• Do not leave exposed
• Partial erasure of the image
PSPs in well lit areas.
due to exposure to light
Even in barrier envelopes,
during handling of the PSP
some light may penetrate
and partially erase the
PSP. Transfer PSPs from
their protective barriers
to the ScanX within one
hour of exposure.
10. Image shows
artifacts.
• The PSP surface is not
clean and has dirt, stains or
scratches on it.
• ScanX plate transport path
may contain debris.
11. Intraoral PSP does
not drop into the
receiving tray
• PSP may have clung to the
• Look below transport arch
bottom of transport arch due
and gently touch the PSP
to static electricity.
to allow it to drop.
26
• Clean the PSP. If the PSP
is scratched or stained, do
not reuse.
• Clean transport path using
a ScanX Cleaning Sheet.
ACCESSORIES
The following lists the ordering number and description for accessory components
available to maintain the ScanX to meet your professional needs. Contact your
authorized dealer for information.
Description
ScanX Cleaning Sheets*
ScanX Dust Cover Kit
SealX-2 Barrier Envelope Sealer
Quantity
Part Number
Box of 12
Box of 25
1
1
B2010
B2020
74050
B4000
1
1
1
1
73566-0
73566-1
73566-2
73566-3
package
package
package
package
package
73445-0
73445-1
73445-2
73445-3
73445-4
Intraoral Plate Guides
Size 0
Size 1
Size 2
Size 3
Intraoral Phosphor Storage Plates
Size 0
Size 1
Size 2
Size 3
Size 4
2
2
4
2
1
Intraoral Barrier Envelopes
Size 0
Size 1
Size 2
Size 3
Size 4
100 per package
100 per package
300 per package
100 per package
50 per package
73248-0
73248-1
73248-2
73248-3
73248-4
Medical Phosphor Storage Plates
8 x 10 inches
10 x 12 inches
1 per package
1 per package
Plate Protectors
8 x 10 inches
10 x 12 inches
1 per package
1 per package
B2160-8M
B2160-10
Cassettes
8 x 10 inches
10 x 12 inches
1 per package
1 per package
74190-8
74190-10
1
1
1
1
1
73470
B7095
73096
B3554
B5026
Plate Transfer Box
Power Supply
Line Cord
6-Foot Computer Connector Cable, USB
15-FootComputer Connector Cable, USB
*
per
per
per
per
per
One re-usable Release Liner is included in each box of ScanX Cleaning Sheets.
27
73578-8M
73578-10
Air Techniques and ALLPRO Imaging are leading manufacturers of
fine dental, medical and veterinary equipment from air and vacuum
systems and X-ray film processors, to an impressive line of new
products incorporating the most recent technological advances.
These new products, vital components of the innovative professional
practice, include intraoral cameras, digital imaging systems, which
utilizes phosphor plate technology and, most recently, an intraoral
digital X-ray system using sensor technology.
Air Techniques and ALLPRO Imaging have been manufacturing
quality products for the dental, medical and veterinary professional
since 1962.
Air Techniques and ALLPRO Imaging products are distributed only
through authorized dealers. Refer to www.airtechniques.com or
www.allproimaging.com to find a dealer in your area.











AccentJ Intraoral Digital X-ray Image System
Acclaim® USB Only Intraoral Digital Video Camera System
Acclaim® Intraoral Digital Video Camera System
AirStar®
A/T 2000® XR
GuardianJ Amalgam Collector
1-800-AIR-TECH
Peri-Pro®
(1-800-247-8324)
www.airtechniques.com
Rinsendo Root Canal Disinfection System
®
ScanX
STSJ
VacStarJ












100 Plus
2010
Medscope
Provecta V
ScanX® 12
ScanX® DVM
ScanX® 12 DVM
ScanX® NDT
ScanX® 12 Portable
ScanX® 14 Portable
ScanX® NDT Portable
ScanX® 14 In-Counter
© Copyright Air Techniques, Inc. 2006
P/N B7157 Rev. C
1-800-AIR-TECH
(1-800-247-8324)
www.allproimaging.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
