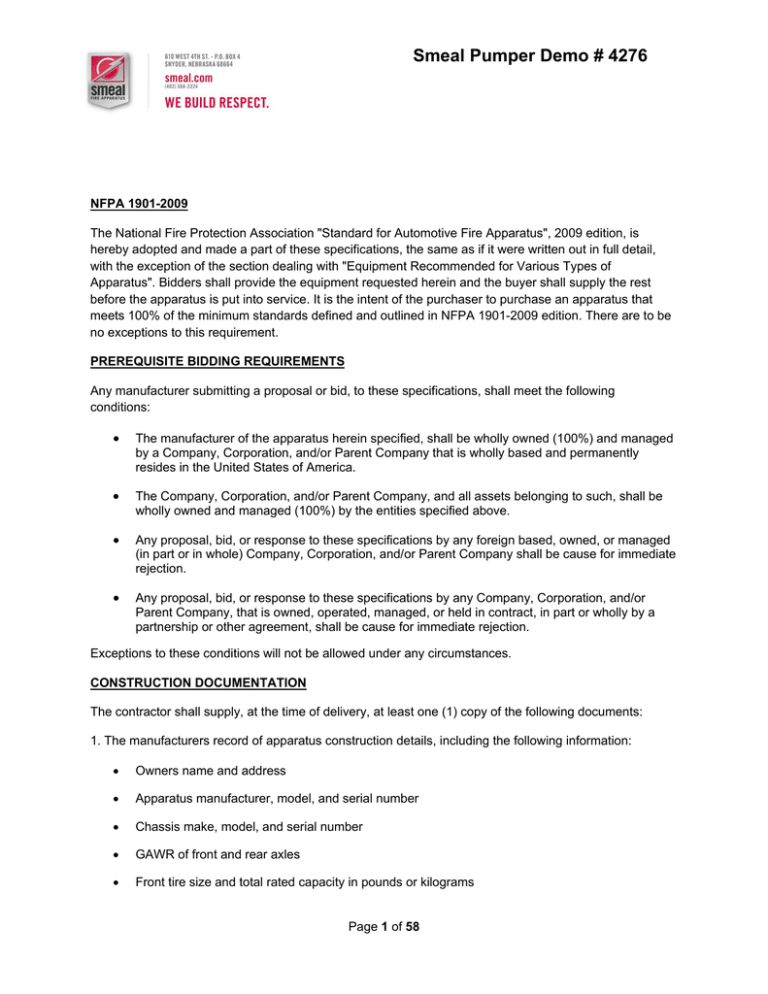

Smeal Pumper Demo # 4276
Spec Text NFPA 1901-2009 The National Fire Protection Association "Standard for Automotive Fire Apparatus", 2009 edition, is
hereby adopted and made a part of these specifications, the same as if it were written out in full detail,
with the exception of the section dealing with "Equipment Recommended for Various Types of
Apparatus". Bidders shall provide the equipment requested herein and the buyer shall supply the rest
before the apparatus is put into service. It is the intent of the purchaser to purchase an apparatus that
meets 100% of the minimum standards defined and outlined in NFPA 1901-2009 edition. There are to be
no exceptions to this requirement. PREREQUISITE BIDDING REQUIREMENTS Any manufacturer submitting a proposal or bid, to these specifications, shall meet the following
conditions: 
The manufacturer of the apparatus herein specified, shall be wholly owned (100%) and managed
by a Company, Corporation, and/or Parent Company that is wholly based and permanently
resides in the United States of America. 
The Company, Corporation, and/or Parent Company, and all assets belonging to such, shall be
wholly owned and managed (100%) by the entities specified above. 
Any proposal, bid, or response to these specifications by any foreign based, owned, or managed
(in part or in whole) Company, Corporation, and/or Parent Company shall be cause for immediate
rejection. 
Any proposal, bid, or response to these specifications by any Company, Corporation, and/or
Parent Company, that is owned, operated, managed, or held in contract, in part or wholly by a
partnership or other agreement, shall be cause for immediate rejection. Exceptions to these conditions will not be allowed under any circumstances. CONSTRUCTION DOCUMENTATION The contractor shall supply, at the time of delivery, at least one (1) copy of the following documents: 1. The manufacturers record of apparatus construction details, including the following information: 
Owners name and address 
Apparatus manufacturer, model, and serial number 
Chassis make, model, and serial number 
GAWR of front and rear axles 
Front tire size and total rated capacity in pounds or kilograms Page 1 of 58
Smeal Pumper Demo # 4276

Rear tire size and total rated capacity in pounds or kilograms 
Chassis weight distribution in pounds with water and manufacturer mounted equipment (front and
rear) 
Engine make, model, serial number, rated horsepower and related speed, and governed speed 
Type of fuel and fuel tank capacity 
Electrical system voltage and alternator output in amps 
Battery make, model, and capacity in cold cranking amps (CCA) 
Chassis transmission make, model, and serial number; and if so equipped, chassis transmission
PTO(s) make, model, and gear ratio 
If applicable, the pump make, model, rated capacity in gallons or liters per minute, and serial
number 
Pump transmission make, model, serial number, and gear ratio, if unit is equipped with a pump 
If applicable, the auxiliary pump make, model, rated capacity in gallons or liters per minute, and
serial number 
Water tank certified capacity in gallons or liters 
On aerial apparatus, the device type, rated vertical height in feet or meters, rated horizontal reach
in feet or meters, and rated capacity in pounds or kilograms 
Paint manufacturer and paint number(s) 
Company name and signature of responsible company representative 2. Certification of slip resistance of all stepping, standing, and walking surfaces 3. If the apparatus has a fire pump, a copy of the following shall be provided: pump manufacturers
certification of suction capability, apparatus manufacturers approval for stationary pumping applications,
engine manufacturers certified brake horsepower curve showing the maximum governed speed, pump
manufacturers certification of the hydrostatic test, and the certification of inspection and test for the fire
pump 4. If the apparatus has an aerial device, the certification of inspection and test for the aerial device, and all
the technical information required for inspections to comply with NFPA 1914, Standard for Testing Fire
Department Aerial Devices 5. If the apparatus has a fixed line voltage power source, the certification of the test for the fixed power
source 6. If the apparatus is equipped with an air system, test results of the air quality, the SCBA fill station, and
the air system installation Page 2 of 58
Smeal Pumper Demo # 4276
7. Weight documents from a certified scale showing actual loading on the front axle, rear axle(s), and
overall fire apparatus (with the water tank full but without personnel, equipment, and hose) 8. Written load analysis and results of the electrical system performance tests 9. When the apparatus is equipped with a water tank, the certification of water tank capacity OPERATION AND SERVICE DOCUMENTATION The contractor shall supply, at time of delivery, at least two (2) sets of complete operation and service
documentation covering the completed apparatus as delivered and accepted. The documentation shall
address at least the inspection, service, and operations of the fire apparatus and all major components
thereof. The contractor shall also provide documentation of the following items for the entire apparatus
and each major operating system or major component of the apparatus: 
Manufacturers name and address 
Country of manufacturer 
Source of service and technical information 
Parts and replacement information 
Descriptions, specifications, and ratings of the chassis, pump, and aerial device 
Wiring diagrams for low voltage and line voltage systems to include the following information:
representations of circuit logic for all electrical components and wiring, circuit identification,
connector pin identification, zone location of electrical components, safety interlocks, alternatorbattery power distribution circuits, and input/output assignment sheets or equivalent circuit logic
implemented in multiplexing systems 
Lubrication charts 
Operating instructions for the chassis, any major components such as a pump or aerial device,
and any auxiliary systems 
Precautions related to multiple configurations of aerial devices, if applicable 
Instructions regarding the frequency and procedure for recommended maintenance 
Overall apparatus operating instructions 
Safety considerations 
Limitations of use 
Inspection procedures 
Recommended service procedures 
Troubleshooting guide 
Apparatus body, chassis, and other component manufacturers warranties Page 3 of 58
Smeal Pumper Demo # 4276

Special data required by this standard 
Copies of required manufacturer test data or reports, manufacturer certifications, and
independent third-party certifications of test results 
A material safety data sheet (MSDS) for any fluid that is specified for use on the apparatus The contractor shall deliver with the apparatus all manufacturers operations and service documents
supplied with components and equipment that are installed or supplied by the contractor. STATEMENT OF EXCEPTIONS The proposed apparatus as described in this specification document and all related material with the bid
package shall meet or exceed all applicable sections for the category of apparatus as defined by NFPA
1901, unless specifically noted within this specification or other official documents associated with this
bid. Should any area, section or portion of the apparatus not meet the intent and applicable requirements, a
clearly defined listing or explanation of what and why compliance was not achieved shall be provided to
the purchaser at the time of delivery. INTENT OF SPECIFICATIONS It is the intent of these specifications to cover the furnishing and delivery to the purchaser of a complete
apparatus equipped as herein specified. With a view to obtaining the best results and the most
acceptable apparatus for service in the fire department, these specifications cover the general
requirements as to the type of construction, together with certain details as to finish, equipment, and
appliances with which the successful bidder must conform. Minor details of construction and materials
where not otherwise specified are left to the discretion of the contractor, who shall be solely responsible
for the design and construction of all features. Bids shall only be considered from companies that have an established reputation in the field of fire
apparatus construction and have been in business for a minimum of 50 years. Each bidder shall furnish satisfactory evidence of his ability to construct the apparatus specified, and shall
state the location of the factory where the apparatus is to be built. The bidder shall also show that they
are in a position to render prompt service and furnish replacement parts for said apparatus. CONTRACTOR'S SPECIFICATIONS Each bid shall be accompanied by a set of "Contractor's Specifications" consisting of a detailed
description of the apparatus and equipment proposed and to which the apparatus furnished under
contract must conform. These specifications shall indicate size, type, model, and make of all component parts and equipment. TIMELY PROPOSALS It is the bidder's responsibility to see that their proposals arrive on time. Late proposals, facsimiles, emails, telegram, or telephone bids shall not be considered. Page 4 of 58
Smeal Pumper Demo # 4276
DRAWINGS All bid drawings shall be stamped PRELIMINARY DRAFT. 
A total of six (6) "C" size (18" x 24") drawings and one (1) 11" x 17" drawing shall be supplied 
All drawings shall be drawn and printed in a 3/8 to 1 scale 
Compartment door opening dimensions shall be shown on table on the drawing which shall refer
to each compartment number, such as L1, R1, T1 
Drawings shall be five (5) views. (left, right, front, rear, top) with the exception of chassis that are
not always available as AutoCAD drawings 
Rear plumbing, such as 2-1/2" discharges, rear steamers, and direct tank fills, shall be shown 
Ladders shall be labeled with a letter designation referring to the table for an explanation of the
ladder type 
OAL (overall length) in feet & inches - Estimated length shall be rounded up to the nearest inch 
OAH (overall height) in feet & inches Estimated height shall be rounded up to the nearest inch 
Body dimensions shown - pump house width & front of the body to centerline of the rear axle 
Wheelbase in inches 
Estimated in-service weight 
Turning clearance radius 
Front and rear overhang in inches 
No pump panel or instrument panel controls, discharges or inlets. To be blank and labeled "Pump
Panel" 
Water tank outline 
Foam tank(s) fill towers 
Exterior mounted hard suction hose 
Warning lights 
D.O.T. lights 
Generator outline 
No front bumper layout Page 5 of 58
Smeal Pumper Demo # 4276

Rollup doors will be shown in open position. Lap doors will be shown in the closed position 
Compartment depth break over measurement. The measurement where the compartment
switches from full depth to shallow depth 
Angle of approach and departure 
Top view of chassis Text Block Items 
Chassis model 
Water tank capacity 
Foam tank capacity 
Hose bed capacity in cubic feet 
Total compartment cubic feet 
Drawing box is to read "BID" and utilize the bid number 
Drawings shall be printed on white paper with black ink; blue line drawings shall not be
acceptable. PURCHASER'S OBLIGATIONS The purchaser reserves the right to accept or reject any or all bids on such basis as the purchaser deems
to be in its best interest. All bidders shall be advised that the purchaser is not bound in any manner to
automatically accept the lowest bid. The purchaser shall only be obligated to purchase the lowest bid that
meets these detailed specifications as closely as possible. SAFETY REQUIREMENTS It is required that the bidder shall meet all State and Federal safety standards and laws that are in effect
on the date of the bid for the item(s) that are being specified and the particular use for which they are
meant. ACQUAINTANCE WITH SPECIFICATIONS It is the responsibility of the bidder to review all of the bidding requirements. Failure of a bidder to be
acquainted with this information shall not relieve them from any obligations of the bid requirements. QUALITY AND WORKMANSHIP The design of the apparatus shall embody the latest approved automotive engineering practices.
Experimental designs and methods shall not be acceptable. The workmanship shall be of the highest quality in its respective field. Special consideration shall be
given to the following points: accessibility of the various units that require periodic maintenance, ease of
operation (including both pumping and driving), and symmetrical proportions. Page 6 of 58
Smeal Pumper Demo # 4276
GENERAL CONSTRUCTION The complete apparatus, assemblies, subassemblies, component parts, and so on, shall be designed and
constructed with due consideration to the nature and distribution of the load to be sustained and to the
general character of the service to which the apparatus is to be subjected when placed in service. All parts of the apparatus shall be strong enough to withstand the general service under full load. The
apparatus shall be so designed that the various parts are readily accessible for lubrication, inspection,
adjustment and repair. The apparatus shall be designed and constructed, and the equipment so mounted, with due consideration
to distribution of the load between the front and rear axles, and side to side loading that all specified
equipment, including a full complement of specified ground ladders, full water tank, loose equipment, and
firefighters; shall be carried without overloading or damaging the apparatus as per requirements defined
in NFPA 1901. The main apparatus body structure shall have an approximate width of 100" in order to maximize the
enclosed compartment space of the apparatus. The 100" wide measurement represents the main body
structure measured from the bottom, outermost rear corners of the apparatus body structure.
Components affixed or fastened to the apparatus will increase the body width proportionately. LIABILITY The bidder, if their bid is accepted, shall defend any and all suits and assume all liability for the use of any
patented process, device or article forming a part of the apparatus or any appliance furnished under the
contract. WARRANTY A copy of the warranties for the chassis, pump, body, paint, and water tank shall be furnished with each
bidder's proposal. BID FORMS / SPECIFICATIONS All bid forms shall be submitted on the attached bid form. The bid form and/or these specifications shall
be filled out by checking either the "YES" or "NO" column for each and every section/paragraph. Failure
to use this form and/or these specifications shall be cause for immediate rejection of any bid. EXCEPTION TO SPECIFICATIONS The following chassis, pump, and body specifications shall be strictly adhered to. Exceptions shall be
allowed if they are equal to or superior to that specified (as judged by the customer), and provided they
are listed and fully explained on a separate page entitled "EXCEPTIONS TO SPECIFICATIONS".
Exception lists shall refer to the specification page number. Each check in the "NO" column shall be listed
and fully explained. Where no check is made in a particular paragraph with either "YES" or "NO", it shall
be assumed the bidder is taking exception to that paragraph. If a paragraph contains an empty column,
where the bidder neglected to check the proper "YES" or "NO" column, it is assumed the bidder is not
conforming to the requirements of this paragraph. If no explanation is given in the "EXCEPTIONS TO
SPECIFICATIONS" document, the bid is subject to immediate rejection. Page 7 of 58
Smeal Pumper Demo # 4276
PROPOSALS TAKING TOTAL EXCEPTION TO THESE SPECIFICATIONS WILL BE IMMEDIATELY
REJECTED. The buyer is aware that all bidders shall have to take some exceptions therefore; BIDDERS THAT TAKE
NO EXCEPTIONS shall BE REQUIRED TO MEET EVERY PARAGRAPH TO THE FULLEST EXTENT
SHOULD THEIR BID BE ACCEPTED. It is the intent of the purchaser to receive bids that do not require
telephone calls or other communications to ascertain what a bidder is intending to supply. Upon delivery, the apparatus shall be inspected against THESE specifications and not those supplied by
the bidder with their proposal. Deviations shall not be acceptable unless they were noted as exceptions at
the time of bid and the apparatus shall be rejected until said deviations are corrected to the satisfaction of
the buyer. Decisions regarding equal to or better than, shall be the sole responsibility of the recipient of the bids
rather than those companies submitting bids. All deviations, regardless of significance must be explained
in the "EXCEPTIONS TO SPECIFICATIONS" section of the bid. When exceptions are not taken but inconsistencies are noted in the submitted detailed specifications, the
bid may be subject to rejection. ROADABILITY The apparatus, when fully equipped and loaded, shall be capable of the following performance while on
dry paved roads that are in good condition: 
From a standing start, the apparatus shall be able to attain a speed of 35 mph (55 kmph) within
25 seconds on a level road. 
The apparatus shall be able to attain a minimum top speed of 50 mph (80 kmph) on a level road. 
The apparatus shall be able to maintain a speed of at least 20 mph (30 kmph) on any grade up to
and including 6 percent. The maximum top speed of the apparatus shall not exceed the tire manufacturer's maximum speed rating
for the tires installed on the apparatus. FAILURE TO MEET TESTS In the event the apparatus fails to meet the test requirements of these specifications on the first trials,
second trials may be made at the option of the bidder within 30 days of the date of the first trials. Such trials shall be final and conclusive and failure to comply with these requirements shall be cause for
rejection. Failure to comply with changes as required to conform to any clause of the specifications within
30 days after notice is given to the bidder of such changes, shall be cause for rejection of the apparatus. Permission to keep or store the apparatus in any building owned or occupied by the Department during
the specified period, with the permission of the bidder, shall not constitute acceptance. No Exceptions PROPOSAL SEQUENCE Page 8 of 58
Smeal Pumper Demo # 4276
Bid specifications shall be submitted in the same sequence as these specifications for ease of checking
compliance. There shall be no exceptions allowed to this requirement. The apparatus committee intends
to be thorough during the evaluation of bids process. In order to maximize efficiency and minimize the
time it takes to thoroughly evaluate all received bids this requirement must be strictly adhered to. AWARD OF CONTRACT All bids submitted shall be good for a minimum of 30 days during which time bid securities submitted with
the proposals shall be held by the purchaser. Criteria for the award shall include, but not be limited to, the
following: 
Apparatus Performance And Safety Levels / Considerations 
Completeness of proposal 
Accuracy of accompanying data 
Past performance of bidder 
Compliance with the detailed specifications 
Compliance with purchasers request(s) for personnel qualifications or certifications 
Exceptions and clarifications 
Financial stability of bidder 
Local representation of the manufacturer 
Serviceability of the proposed apparatus 
Service capabilities of the bidder's local representative 
Compliance with NFPA 1901 
Any other factor the purchaser deems relevant After the evaluation and award process is complete, all bidders shall be notified of the results and
securities shall be returned. OVERALL HEIGHT The actual overall height of the vehicle shall be approximately 117" from the ground. This measurement
shall be taken with the tires properly inflated with the apparatus in the unloaded condition. The actual
measurement shall be taken at the highest point of the apparatus. OVERALL LENGTH The actual overall length of the vehicle shall be approximately 372". WHEELBASE Page 9 of 58
Smeal Pumper Demo # 4276
The actual wheelbase of the vehicle shall be approximately 174". ANGLE OF APPROACH The actual angle of approach of the vehicle shall be approximately 12 degrees. ANGLE OF A DEPARTURE The actual angle of departure of the vehicle shall be approximately 12 degrees. VEHICLE TOP SPEED The apparatus Gross Vehicle Weight Rating (GVWR) is over 26,000 lbs. The vehicle’s top speed shall be
68 mph. MISCELLANEOUS EQUIPMENT ALLOWANCE The Gross Axle Weight Rating (GAWR) and the Gross Combined Weight Rating (GCWR) or Gross
Vehicle Weight Rating (GVWR) of the chassis shall be adequate to carry the weight of the unequipped
apparatus with the water tank and other tanks full, specified hose load, unequipped personnel weight,
ground ladders, and miscellaneous equipment allowance of 2,000 pounds. MISCELLANEOUS EQUIPMENT Miscellaneous equipment, as defined by NFPA 1901, sections 5.8.2 and 5.8.3, shall be the responsibility
of the customer. The apparatus shall be designed and manufactured in such a manner as to provide
ample enclosed space for which to store such equipment. OWNER'S MANUALS There shall be an owner's manual containing the construction, operation, and service documentation
provided on a USB Drive. There shall be one (1) copy of the USB provided with the apparatus. ELECTRICAL SYSTEM SCHEMATIC A complete electrical schematic for the apparatus shall be provided. This schematic shall be specifically
prepared for this individual unit rather than a generic schematic designed to accommodate all apparatus. FINAL INSPECTION The customer and/or dealer representative will inspect the final apparatus prior to it leaving the apparatus
body manufacturer’s facility. This will allow any changes that may be required, to be done so in a timely
and inexpensive manner. After leaving the facility, all repairs or alterations will be performed by either the
Dealer or an OEM approved service center. INSPECTION CERTIFICATE - NFPA 1901 COMPLIANCE A third party inspection certificate for the apparatus shall be furnished upon delivery. The purpose of this
NFPA 1901 compliance inspection shall be to serve as proof to the customer that all applicable standards
have been met or exceeded by the responsible manufacturer. Page 10 of 58
Smeal Pumper Demo # 4276
The following objectives shall be achieved as a result (this listing shall not be construed as being all
inclusive): 
Ensure that understanding of all parties respective responsibilities have been addressed by the
actual referencing of NFPA 1901 and the amendments in these specifications and the purchase
contract and documentation. 
Ensure that only structural materials complying with appropriate standards and codes are used
for construction. 
Ensure that applicable standards of design and manufacturing have been met or exceeded. 
Ensure that safety factors have been met or exceeded where required. 
Ensure that applicable standards for testing and inspection have been met or exceeded by
personnel with the appropriate qualifications, experience, and certifications. 
Ensure that where applicable components, equipment, and loose equipment carry the appropriate
characteristics, classifications, and/or certifications. 
Ensure that in general and as a whole, all applicable requirements set forth in NFPA 1901, and
those codes, standards, and specifications referenced by said parties are met, exceeded, and/or
addressed. INDEPENDENT THIRD PARTY PUMP CERTIFICATION The fire pump shall be tested and certified by Underwriter's Laboratories, a nationally recognized
independent third party testing company. Tests shall be conducted so that the pump performs as listed
below: 
100% of rated capacity at 150 pounds net pressure 
70% of rated capacity at 200 pounds net pressure 
50% of rated capacity at 250 pounds net pressure 
100% of rated capacity at 165 pounds net pressure The entire pump, both suction and discharge passages, shall be hydrostatically tested to a pressure of
600 PSI. The pump shall be fully tested at the pump manufacturer’s factory to the performance spots as
outlined by NFPA 1901. The pump shall be free from objectionable pulsation and vibration. PUMP CERTIFICATION The pump shall be certified in U.S. gallons per minute (GPM). 12 VOLT SYSTEMS TEST After completion of the unit, the 12 volt electrical system shall undergo a battery of tests as listed in NFPA
1901. These tests shall include, but not be limited to: 
Reserve capacity test Page 11 of 58
Smeal Pumper Demo # 4276

Alternator performance test at idle 
Alternator performance test at full load 
Low voltage alarm test Certification of the results shall be supplied with the apparatus at the time of delivery. TEN (10) YEAR WARRANTY BODY STRUCTURAL INTEGRITY The body shall be free of structural or design failure or workmanship for a period of ten (10) years or
100,000 miles starting thirty (30) days after the original invoice date. THREE (3) YEAR PAINT LIMITED WARRANTY The apparatus body and pump house shall be free of blistering, peeling and any other adhesion defect
caused by defective manufacturing methods or paint material selection for exterior surfaces for a prorated
period of three (3) years starting thirty (30) days after the original invoice date. Paint on the undercarriage, body interior (Line-X® coating included) or aerial structure related paint, if
applicable, is covered only under the Standard One (1) Year Limited Warranty. TEN (10) YEAR CORROSION LIMITED WARRANTY The body exterior paint shall be warranted against corrosion perforation for a prorated period of ten (10)
years starting thirty (30) days after the original invoice date. TEN (10) YEAR STAINLESS STEEL PLUMBING LIMITED WARRANTY The stainless steel plumbing and piping shall be free from corrosion perforation for a period of ten (10)
years starting thirty (30) days after the original invoice date. PUMP WARRANTY The fire pump shall be warranted by Waterous for a period of five (5) years from the date of delivery to
the fire department or five and one-half (5-1/2) years from the shipment date by Waterous, whichever
period shall be first to expire. WATER TANK WARRANTY The tank shall be complete with a lifetime warranty. The tank manufacturer shall mark the tank and
furnish notice that indicates proof of warranty. TWENTY (20) YEAR GALVANIZED SUBFRAME WARRANTY The galvanized subframe shall be free of structural or design failure or workmanship for a period of
twenty (20) years starting thirty (30) days after the original invoice date. ONE (1) YEAR BASIC LIMITED PARTS & LABOR WARRANTY - OEM FABRICATED PARTS Page 12 of 58
Smeal Pumper Demo # 4276
OEM fabricated parts shall be free of defects in material and workmanship for a period of one (1) year
starting thirty (30) days after the original invoice date. NINETY (90) DAY BASIC LIMITED PARTS & LABOR WARRANTY - OEM PURCHASED PARTS OEM installed purchased parts shall be free of defects in material and workmanship for a period of ninety
(90) days starting thirty (30) days after the original invoice date. SMEAL SIRIUS II CHASSIS The chassis shall be a Smeal Sirius II. INTEGRATE CHASSIS ELECTRICAL SYSTEM TO V-MUX BODY The chassis 12 volt non-V-Mux electrical system will be integrated to the apparatus body 12 volt V-Mux
multiplex electrical system. EXHAUST MITIGATION DEVICE The chassis supplied exhaust mitigation device shall be installed by the apparatus body manufacturer. MUD FLAPS In addition to the chassis supplied front mud flaps, there shall be two (2) mud flaps provided rearward of
the rear axles on the apparatus. The mud flaps shall be a minimum of 3/8" thick to prevent "sailing." BATTERY CHARGER A Pro Charging System Professional Series model PS3, three bank battery charger shall be installed and
wired to the shoreline receptacle and the chassis batteries. The battery charger shall be a 120 volt, 45
amp (15 amps per bank), automatic battery charger. The charger shall be a fully automatic waterproof
system. Each bank of the charging system shall be capable of producing a charge to bring the batteries
back to full charge. The unit shall turn off when the battery is at full charge and turn on automatically if the
battery voltage drops. There shall be a charge indicator display provided on the charger. The unit shall
have as standard a three year warranty. CHASSIS SUPPLIED EJECT The charger eject shall be supplied and installed by the chassis manufacturer. REMOTE CHARGE INDICATOR A bar graph shall be provided in a remote location to show what the status of the charge on the batteries. Shop Note: The indicator panel is to be located in the left center chassis window.
CHASSIS SUPPLIED SWITCH PANEL Page 13 of 58
Smeal Pumper Demo # 4276
The switch panel shall be supplied and installed by the chassis manufacturer. CHASSIS SUPPLIED FRONT BUMPER The front bumper shall be chassis supplied and installed. MIDSHIP MOUNT FIRE PUMP The fire pump shall be a Waterous CSUC20 1500 U.S. GPM (5678 LPM) single-stage midship mount
pump. PUMP TRANSMISSION
The pump shall have a Waterous model C20 series transmission. The housing of the transmission shall
be constructed of high strength, three piece, horizontally split aluminum. The drive line shafts shall be
made from alloy steel forgings, hardened and ground to a size 2.350 inch 46 tooth involute spline. The
drive and driven sprockets shall be made of steel and shall be hardened and have ground bores. The
drive chain shall be a Morse HV™ high strength involute form chain. Bearings shall be deep groove, anti
friction ball bearings and shall give support and proper alignment to the impeller shaft assembly. Bearings
shall be oil splash lubricated, completely separated from the water being pumped, and protected by a Vring and oil seal. An internal lubrication system shall deliver lubricant directly to the drive chain. This
unique design eliminates the need for an external lubrication pump and auxiliary cooling. The pump and
transmission shall be easily separable. A two-piece shaft shall be splined allowing for individual repair of
either the pump or transmission, to keep down time to a minimum. All drive line components shall have a
torque rating equal to or greater than the final net engine torque. SINGLE STAGE FIRE PUMP The pump shall be a single stage centrifugal class "A" rated fire pump, designed specifically for the fire
service. The pump shall be rated at 1500 gallons per minute. PUMP BODY The pump body shall be cast as two (2) horizontally split pieces. The body shall be made of high tensile,
close-grained gray iron with a minimum tensile strength of 40,000 PSI. FIRE PUMP MOUNTING The fire pump shall be mounted within a separate body module that is not directly connected to the
apparatus body. The pump shall be frame mounted; therefore minimizing the likelihood of the pump casing cracking
should the apparatus be involved in a collision. The pump module shall be mounted to the frame in four (4) locations and shall be reinforced
appropriately in order to carry the expected load for the life of the apparatus. PAINT PUMP GRAY/PAINT STEAMER AND INLET VALVES PRIMARY BODY COLOR Page 14 of 58
Smeal Pumper Demo # 4276
The pump body shall be painted with PPG polyurethane enamel paint. The paint color shall be a neutral
gray. The pump enclosure shall be painted the same color as the apparatus body. The steamer and partially recessed inlet valves shall be painted with a PPG polyurethane enamel paint.
The paint color shall be the same as the apparatus body. ZINC ANODES There shall be four (4) Waterous zinc anodes provided with the fire pump. The anodes shall aid in
preventing galvanic corrosion within the water pump and be easily replaceable. The anodes shall be
installed as follows: 
Two (2) on the intake side of the pump 
Two (2) in the discharge manifold of the fire pump. FLAME PLATED IMPELLER HUBS The pump impellers shall be bronze, specifically designed for the fire service and accurately balanced for
vibration free running. The stripping edges shall be located on opposite sides of the impellers to reduce
shaft deflection. The impeller shaft shall be stainless steel, accurately ground to size and supported at each end by oil or
grease lubricated anti-friction ball bearings for rigid, precise support. The bearings used on the impeller
shaft shall be automotive type bearings, easily cross-referenced and readily available at normal parts or
bearing outlets. The impeller hubs shall be flame plated with tungsten carbide to hardness approximately twice that of tool
steel to assure maximum pump life and efficiency. During the flame plating process the base metal shall
not be allowed to exceed a temperature of 300 degrees Fahrenheit to prevent altering the metallurgical
properties of the impeller material. WATEROUS IMPELLER WEAR RINGS The pump shall be equipped with replaceable bronze wear rings for increased pump life and minimum
maintenance cost. The wear rings shall be designed to fit into a groove in the face of the impeller hubs
forming a labyrinth that, as the clearance increases with age, directs water from the discharge side in
several directions eventually exiting outward, away from the eye of the impeller hub. PUMP PACKINGS The stuffing boxes shall be equipped with Waterous Grafoil® two-piece adjustable packing glands. AIR OPERATED PUMP SHIFT The pump shift actuating mechanism shall be air operated from a valve in the cab identified as "PUMP
SHIFT". Full instructions for shifting the pump shall be inscribed on the valve plate. There shall be two (2) green pump system shift indicator lights in the chassis cab. The first light shall
become energized when the pump has completed its shift into pump gear and shall be labeled "Pump
Page 15 of 58
Smeal Pumper Demo # 4276
Engaged". The second light shall become energized when the chassis parking brake has been set and
when the pump and the chassis transmissions have been shifted completely into the correct gears for
pumping, this light shall be labeled "OK to Pump". There shall be one (1) green pump system shift indicator light located on the operator's panel. This light
shall only become engaged when the chassis parking brake has been set and when the pump and the
chassis transmissions have been completely shifted into the correct gears. The light shall be located
adjacent to the throttle control and shall be labeled "Warning: Do Not Open Throttle Unless Light Is On". PRIMING PUMP There shall be a Waterous, model VPO/VPOS priming pump included with the pump. The priming pump
shall be an electrically driven rotary vane pump mounted firmly within the pump area. The pump shall be
controlled from the pump operator's panel. An indicator light on the pump panel shall show when the
primer motor is engaged. The pump shall be capable of creating suction and discharging water from a lift
of 10 feet through 20 feet of suction hose of the appropriate size, in not more than 30 seconds starting
with the pump dry. It shall be capable of developing a vacuum of 22 inches at an altitude of up to 1000
feet. WATEROUS VACUUM ACTIVATED PRIMING (VAP) VALVE There shall be a Waterous model VAP vacuum activated priming valve supplied with the pump. The valve
shall open automatically when the priming system is activated. The valve shall be installed on the pump
or mounted remotely. PRESSURE GOVERNOR The apparatus shall be equipped with a Class 1, model 117690 Total Pressure Governor (TPG) that is
connected to the engine Electronic Control Module. The TPG shall operate as a pressure sensor
(regulating) governor (PSG) utilizing the engines J1939 data for optimal resolution and response.
Programmable presets for RPM and pressure settings shall be easily configurable using the TPG's
straightforward menu structure. The TPG shall also include indication of engine RPM, system voltage,
engine oil pressure and engine temperature with audible alarm output for all. The TPG uses the J1939
data bus for engine information requiring no additional sensors to be installed. The TPG shall also include a pump hour meter to track total hours of pump operation. INTAKE RELIEF VALVE There shall be an Elkhart Brass intake relief valve installed on the suction side of the pump. The valve
shall be the preset type, adjustable from 75 to 250 PSI, and shall be designed to prevent vibration from
altering the setting. The relief outlet shall be directed below the pump with the discharge terminating in a
2-1/2" male NST connection. The discharge shall be away from the pump operator and labeled "Do Not
Cap". MASTER DRAIN VALVE A Trident manifold drain valve assembly shall be supplied. This drain shall provide the capability to drain
the entire pump by turning a single control. The valve assembly shall consist of a stainless steel plate and
Page 16 of 58
Smeal Pumper Demo # 4276
shaft in a bronze body with multiple ports. The drain valve control shall be mounted on the left side pump
panel and labeled "Master Drain". WATEROUS PUMP LUBRICATION SYSTEM An internal lubrication system shall deliver lubricant directly to the drive chain. This unique design shall
eliminate the need for an external lubrication pump and auxiliary cooling. Oil shall be supplied with the
lubrication system. PUMP AND ENGINE COOLING SYSTEM There shall be a pump and engine cooling system provided on the apparatus. The cooling system shall
keep the engine cool when running for long periords of time and the pump cool during long periods of
pumping when water is not being discharged. The cooling system shall also be setup in a way that the
cooling system lines can be easily drained through the master pump drain. The cooling system lines shall consist of high-pressure, high-temperature 3/8" (inside diameter) abraded
rubber hose. The engine cooling lines shall be installed with one (1) line going from the discharge side of
the water pump through a Class 1, model 38BV, quarter turn ball valve and continuing on to the chassis
heat exchanger. The return line from the heat exchanger shall then run into the suction side of the pump.
The pump cooling lines shall be installed with one (1) line going from the discharge side of the water
pump through a Class 1, model 38BV, quarter-turn ball valve up to the water tank. At the water tank, the
pump cooling line shall be plumbed into a 3/8" check valve on the "Tank Fill" valve. The check valve shall
prevent tank water from back flowing into the pump when the cooling system is not in use. A return line
from the water tank shall be plumbed into the water pump. The engine cooling system valve shall be controlled on the operators panel, and shall be clearly labeled,
"Engine Cooler". The pump cooling system valve shall be controlled on operators panel, and shall be clearly labeled,
"Pump Cooler". PUMP COOLER LINE There shall be a 1/2" pump cooler line installed from the discharge side of the pump to the water tank.
The line shall be used to cool the pump during long periods of pumping when water is not being
discharged. The pump cooler shall be controlled with a quarter-turn ball valve on operators panel, and
shall be clearly labeled "Pump Cooler". PUMP COOLER CHECK VALVE There shall be a check valve installed in the pump cooler line to prevent tank water from back flowing into
the pump when it is not in use. ENGINEERING FOR FUTURE FOAM SYSTEM The stainless manifold on the pump shall be engineered for the future installation of a future foam system.
In addition to the plumbing, the pump operators control panel shall also be engineered for installation of
Page 17 of 58
Smeal Pumper Demo # 4276
foam controls. A cover plate shall be provided on the pump panel in the area set aside for the foam
controls. Shop Note: The cutout shall be for a FoamPro 2001 foam system.
PLUMBING MANIFOLD The plumbing manifold shall consist of a two (2) part assembly that includes the inlet side manifold and
the discharge side manifold. Galvanized Victaulic couplings shall be used wherever possible for ease of
maintenance and superior corrosion protection. The inlet side of the plumbing manifold shall utilize schedule 10, 304 grade stainless steel tubing and
preformed elbows for inlets that are larger than 3”. Side auxiliary inlets that are 3” or smaller shall utilize
schedule 40, 304 grade stainless steel tubing and preformed elbows. The inlet manifold shall thread into
the pump auxiliary inlet ports and each inlet valve shall thread onto the inlet manifold. The discharge side of the plumbing manifold shall utilize schedule 10, 304 grade stainless steel tubing
and preformed elbows. The discharge manifold shall connect to the pump discharge ports using ½”
stainless steel flanges that shall be machined to seat an O-ring to ensure a leak proof seal. Each
discharge shall derive from a port on the manifold assembly connected to a discharge valve with 1/2” 304
grade stainless steel flanges. Discharges that terminate in a location other than the pump module (i.e.
rear discharges) shall utilize a combination of high pressure flex hose and schedule 10, 304 grade
stainless steel tubing to allow flexibility between the body and the pump module. 3" TANK-TO-PUMP There shall be a 3" tank-to-pump plumbed with a Class 1 flexible hose from the tank to the suction side of
the pump. An Akron Brass model 8830 3" Swing-Out™ valve shall be provided. The valve shall have an all brass
body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of dual
directional flow while incorporating a self-locking ball feature using an automatic friction lock design and
specially designed flow optimizing stainless steel ball. The valve shall not require lubrication of seats or
any other internal waterway parts, and must be capable of swinging out of the waterway for maintenance
by the removal of six bolts. The valve shall also include a necessary B3-SH pump flange adapter, which
shall be specifically used for the tank-to-pump line to properly adjust the plumbing based on the pitch of
the pump. The valve shall carry a ten (10) year warranty by the valve manufacturer. The valve shall be actuated by an Akron Brass model R1 manual actuator installed on the valve. The manual actuator shall be controlled by a Trident push/pull T-handle. The handle shall be chrome
plated with a recessed ID label. There shall be a check valve between the pump suction and the booster tank valve. The check valve shall
eliminate back flow into the water tank when the pump is connected to a pressurized source. Page 18 of 58
Smeal Pumper Demo # 4276
There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a black color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 2" TANK FILL There shall be a 2" tank fill plumbed from the pump to the tank. Installation shall be completed with 2"
Class 1 rubber hose and stainless steel hose couplings. An Akron Brass model 8820 2" Swing-Out™ valve shall be provided. The valve shall have an all brass
body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of dual
directional flow while incorporating a self-locking ball feature using an automatic friction lock design and
specially designed flow optimizing stainless steel ball. The valve shall not require lubrication of seats or
any other internal waterway parts, and must be capable of swinging out of the waterway for maintenance
by the removal of six bolts. The valve shall carry a ten (10) year warranty by the valve manufacturer. The valve shall be actuated by an Akron Brass model R1 manual actuator installed on the valve. The manual actuator shall be controlled by a Trident push/pull T-handle. The handle shall be chrome
plated with a recessed ID label. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a black color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 6" LEFT SIDE STEAMER INLET There shall be a 6" steamer inlet located on the left side of the pump module. The suction fittings shall
include a removable die-cast screen to provide cathodic protection for the pump thus reducing corrosion. A short steamer barrel shall be installed to accommodate an intake valve without exceeding the legal
overall body width. The intake shall terminate MNST thread. There shall be one (1) Trident model 01.003.9, 6" NST vented long handle steamer cap provided. The
cap shall have a chrome finish. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a chrome color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 6" RIGHT SIDE STEAMER INLET There shall be a 6" steamer inlet located on the right side of the pump module. The suction fittings shall
include a removable die-cast screen to provide cathodic protection for the pump thus reducing corrosion. Page 19 of 58
Smeal Pumper Demo # 4276
A short steamer barrel shall be installed to accommodate an intake valve without exceeding the legal
overall body width. There shall be a Neles Jamesbury model 815W butterfly valve provided. The valve shall be a 6" full flow
valve with a 6" NST nipple. The valve shall be controlled by a hand wheel located on the pump panel, on
the same side as the valve. The valve shall meet current NFPA standards for opening and closing speed. There shall be a Class 1 bleeder valve provided on the steamer inlet. The valve shall be used to bleed off
air or water as per NFPA requirements. INTAKE RELIEF VALVE There shall be an Elkhart Brass intake relief valve installed on the suction side of the pump. The valve
shall be the preset type, adjustable from 75 to 250 PSI, and shall be designed to prevent vibration from
altering the setting. The relief outlet shall be directed below the pump with the discharge terminating in a
2-1/2" male NST connection. The discharge shall be away from the pump operator and labeled "Do Not
Cap". There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. The intake shall terminate MNST thread. There shall be one (1) Trident model 01.003.9, 6" NST vented long handle steamer cap provided. The
cap shall have a chrome finish. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a chrome color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 2-1/2" LEFT SIDE INLET There shall be a 2-1/2" gated inlet, with 2-1/2" plumbing, provided on the left side of the pump module.
The inlet shall be located towards the rear of the pump module and shall be partially recessed behind the
panel in order to keep the valve protected from the elements. An Akron Brass model 8825 2-1/2" Swing-Out™ valve shall be provided. The valve shall have an all
brass body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of
dual directional flow while incorporating a self-locking ball feature using an automatic friction lock design
and specially designed flow optimizing stainless steel ball. The valve shall not require lubrication of seats
or any other internal waterway parts, and must be capable of swinging out of the waterway for
maintenance by the removal of six bolts. The valve shall carry a ten (10) year warranty by the valve
manufacturer. Page 20 of 58
Smeal Pumper Demo # 4276
The valve shall be actuated by an Akron Brass model TSC manual actuator installed directly on the valve.
The handle shall allow the valve to be controlled directly at the valve. There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. The intake shall terminate FNST thread. There shall be one (1) Trident model 01.007.0, 2 1/2" NST plug with chain provided. The plug shall have
a chrome finish. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a black color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 2-1/2" LEFT SIDE DISCHARGE There shall be a 2-1/2" discharge, with 2-1/2" plumbing, located on the left side of the pump module. An Akron Brass model 8625 2-1/2" Swing-Out™ valve shall be provided. The valve shall have an all
brass body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of
dual directional flow while incorporating a specially designed flow optimizing stainless steel ball. The
valve shall not require lubrication of seats or any other internal waterway parts, and must be capable of
swinging out of the waterway for maintenance by the removal of six bolts. The valve shall be
manufactured and assembled in the United States. The valve shall carry a ten (10) year warranty by the
valve manufacturer. The valve shall be actuated by an Akron Brass rack and sector actuator installed on the valve. The rack and sector actuator shall be controlled by a Trident push/pull T-handle. The handle shall be
chrome plated with a recessed ID label. There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. There shall be a Thuemling 2-1/2" water pressure gauge installed. The pressure gauge shall read
pressure in PSI and shall be capable of reading 0-400 PSI. The gauge shall be fully filled with pulse and
vibration dampening liquid to insure proper operations to minus 40 degrees and to reduce lens
condensation. A removable polished, stainless steel trim ring shall be provided with the gauge. Page 21 of 58
Smeal Pumper Demo # 4276
The discharge shall terminate MNST thread. There shall be one (1) Trident model 01.002.0, 2-1/2" Female NST swivel rocker lug x 2-1/2" Male NST
45º elbow adapter provided. The adapter shall be cast brass with a chrome plate finish. The female swivel
shall be attached using ball bearings. There shall be one (1) Trident model 01.006.0, 2-1/2" NH vented rocker lug cap with chain provided. The
cap shall have a chrome finish. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a red color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 2-1/2" RIGHT SIDE DISCHARGE There shall be a 2-1/2" discharge, with 2-1/2" plumbing, located on the right side of the pump module. An Akron Brass model 8825 2-1/2" Swing-Out™ valve shall be provided. The valve shall have an all
brass body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of
dual directional flow while incorporating a self-locking ball feature using an automatic friction lock design
and specially designed flow optimizing stainless steel ball. The valve shall not require lubrication of seats
or any other internal waterway parts, and must be capable of swinging out of the waterway for
maintenance by the removal of six bolts. The valve shall carry a ten (10) year warranty by the valve
manufacturer. The valve shall be actuated by an Akron Brass model R1 manual actuator installed on the valve. The manual actuator shall be controlled by a Trident push/pull T-handle. The handle shall be chrome
plated with a recessed ID label. There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. There shall be a Thuemling 2-1/2" water pressure gauge installed. The pressure gauge shall read
pressure in PSI and shall be capable of reading 0-400 PSI. The gauge shall be fully filled with pulse and
vibration dampening liquid to insure proper operations to minus 40 degrees and to reduce lens
condensation. A removable polished, stainless steel trim ring shall be provided with the gauge. The discharge shall terminate MNST thread. There shall be one (1) Trident model 01.002.0, 2-1/2" Female NST swivel rocker lug x 2-1/2" Male NST
45º elbow adapter provided. The adapter shall be cast brass with a chrome plate finish. The female swivel
shall be attached using ball bearings. Page 22 of 58
Smeal Pumper Demo # 4276
There shall be one (1) Trident model 01.006.0, 2-1/2" NH vented rocker lug cap with chain provided. The
cap shall have a chrome finish. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a orange color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 2-1/2" RIGHT SIDE DISCHARGE There shall be a 2-1/2" discharge, with 2-1/2" plumbing, located on the right side of the pump module. An Akron Brass model 8825 2-1/2" Swing-Out™ valve shall be provided. The valve shall have an all
brass body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of
dual directional flow while incorporating a self-locking ball feature using an automatic friction lock design
and specially designed flow optimizing stainless steel ball. The valve shall not require lubrication of seats
or any other internal waterway parts, and must be capable of swinging out of the waterway for
maintenance by the removal of six bolts. The valve shall carry a ten (10) year warranty by the valve
manufacturer. The valve shall be actuated by an Akron Brass model R1 manual actuator installed on the valve. The manual actuator shall be controlled by a Trident push/pull T-handle. The handle shall be chrome
plated with a recessed ID label. There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. There shall be a Thuemling 2-1/2" water pressure gauge installed. The pressure gauge shall read
pressure in PSI and shall be capable of reading 0-400 PSI. The gauge shall be fully filled with pulse and
vibration dampening liquid to insure proper operations to minus 40 degrees and to reduce lens
condensation. A removable polished, stainless steel trim ring shall be provided with the gauge. The discharge shall terminate MNST thread. There shall be one (1) Trident model 01.002.0, 2-1/2" Female NST swivel rocker lug x 2-1/2" Male NST
45º elbow adapter provided. The adapter shall be cast brass with a chrome plate finish. The female swivel
shall be attached using ball bearings. There shall be one (1) Trident model 01.006.0, 2-1/2" NH vented rocker lug cap with chain provided. The
cap shall have a chrome finish. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a light green
color coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to
Page 23 of 58
Smeal Pumper Demo # 4276
the back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded
on all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 4" RIGHT SIDE DISCHARGE There shall be a 4" large diameter discharge, with 4" plumbing, located on the right side of the pump
module. An Akron Brass model 8630 3" Swing-Out™ valve shall be provided. The valve shall have an all brass
body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of dual
directional flow while incorporating a specially designed flow optimizing stainless steel ball. The valve
shall not require lubrication of seats or any other internal waterway parts, and must be capable of
swinging out of the waterway for maintenance by the removal of six bolts. The valve shall be
manufactured and assembled in the United States. The valve shall carry a ten (10) year warranty by the
valve manufacturer. The valve shall be actuated by an Akron Brass manual gear actuator installed on the valve. The gear
actuator shall operate at a 50:1 gear ratio, which operates from fully open to fully closed in twelve (12)
rotations. The gear actuator shall be controlled by an Akron Brass 4" handwheel valve controller. The handwheel
worm gear shall be connected to the remote mounted valve via a rod assembly. The handwheel shall turn
a gear sector mounted on the valve for smoother and easier operations under pressure. A position
indicator shall show the position of the ball valve as per NFPA 1901. Opening and closing speed shall
comply with the current NFPA standard to minimize effects of water hammer. There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. There shall be a Thuemling 2-1/2" water pressure gauge installed. The pressure gauge shall read
pressure in PSI and shall be capable of reading 0-400 PSI. The gauge shall be fully filled with pulse and
vibration dampening liquid to insure proper operations to minus 40 degrees and to reduce lens
condensation. A removable polished, stainless steel trim ring shall be provided with the gauge. The discharge shall terminate MNST thread. There shall be one (1) Kochek model SKE54R, 4" Female NH swivel rocker lug x 5" Storz 30º elbow
adapter provided. The adapter shall be light weight aluminum with a black K-Coat finish. There shall be one (1) Kochek model CC507, 5" Storz blind cap with chain provided. The cap shall have a
K-Coat finish. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a dark green
color coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to
Page 24 of 58
Smeal Pumper Demo # 4276
the back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded
on all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 1-1/2" FRONT BUMPER DISCHARGE There shall be a 1-1/2" discharge located above the gravel shield on the left side of the front bumper. The
discharge shall be plumbed with 2" plumbing and high pressure flex hose with stainless steel couplings. The discharge shall have Class1 model 34AD automatic drains installed in the low routed areas below the
1/4 turn manual drain. The automatic drains shall open whenever pressure in the line drops below 6 psi. An Akron Brass model 8820 2" Swing-Out™ valve shall be provided. The valve shall have an all brass
body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of dual
directional flow while incorporating a self-locking ball feature using an automatic friction lock design and
specially designed flow optimizing stainless steel ball. The valve shall not require lubrication of seats or
any other internal waterway parts, and must be capable of swinging out of the waterway for maintenance
by the removal of six bolts. The valve shall carry a ten (10) year warranty by the valve manufacturer. The valve shall be actuated by an Akron Brass model R1 manual actuator installed on the valve. The manual actuator shall be controlled by a Trident push/pull T-handle. The handle shall be chrome
plated with a recessed ID label. There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. There shall be a Thuemling 2-1/2" water pressure gauge installed. The pressure gauge shall read
pressure in PSI and shall be capable of reading 0-400 PSI. The gauge shall be fully filled with pulse and
vibration dampening liquid to insure proper operations to minus 40 degrees and to reduce lens
condensation. A removable polished, stainless steel trim ring shall be provided with the gauge. The discharge shall terminate MNST thread. The discharge shall be designated as a pre-connect and no cap and chain shall be supplied. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a black color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 1-1/2" CROSSLAY PRE-CONNECT There shall be a 1-1/2" crosslay pre-connect with 2" plumbing. Page 25 of 58
Smeal Pumper Demo # 4276
An Akron Brass model 8820 2" Swing-Out™ valve shall be provided. The valve shall have an all brass
body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of dual
directional flow while incorporating a self-locking ball feature using an automatic friction lock design and
specially designed flow optimizing stainless steel ball. The valve shall not require lubrication of seats or
any other internal waterway parts, and must be capable of swinging out of the waterway for maintenance
by the removal of six bolts. The valve shall carry a ten (10) year warranty by the valve manufacturer. The valve shall be actuated by an Akron Brass model R1 manual actuator installed on the valve. The manual actuator shall be controlled by a Trident push/pull T-handle. The handle shall be chrome
plated with a recessed ID label. There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. There shall be a Thuemling 2-1/2" water pressure gauge installed. The pressure gauge shall read
pressure in PSI and shall be capable of reading 0-400 PSI. The gauge shall be fully filled with pulse and
vibration dampening liquid to insure proper operations to minus 40 degrees and to reduce lens
condensation. A removable polished, stainless steel trim ring shall be provided with the gauge. The discharge shall terminate MNST thread. The discharge shall be designated as a pre-connect and no cap and chain shall be supplied. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a yellow color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 1-1/2" CROSSLAY PRE-CONNECT There shall be a 1-1/2" crosslay pre-connect with 2" plumbing. An Akron Brass model 8820 2" Swing-Out™ valve shall be provided. The valve shall have an all brass
body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of dual
directional flow while incorporating a self-locking ball feature using an automatic friction lock design and
specially designed flow optimizing stainless steel ball. The valve shall not require lubrication of seats or
any other internal waterway parts, and must be capable of swinging out of the waterway for maintenance
by the removal of six bolts. The valve shall carry a ten (10) year warranty by the valve manufacturer. The valve shall be actuated by an Akron Brass model R1 manual actuator installed on the valve. The manual actuator shall be controlled by a Trident push/pull T-handle. The handle shall be chrome
plated with a recessed ID label. Page 26 of 58
Smeal Pumper Demo # 4276
There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. There shall be a Thuemling 2-1/2" water pressure gauge installed. The pressure gauge shall read
pressure in PSI and shall be capable of reading 0-400 PSI. The gauge shall be fully filled with pulse and
vibration dampening liquid to insure proper operations to minus 40 degrees and to reduce lens
condensation. A removable polished, stainless steel trim ring shall be provided with the gauge. The discharge shall terminate MNST thread. The discharge shall be designated as a pre-connect and no cap and chain shall be supplied. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a white color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 2-1/2" RIGHT REAR DISCHARGE There shall be a 2-1/2" discharge, with 2-1/2" plumbing, located on the right rear of the apparatus. An Akron Brass model 8825 2-1/2" Swing-Out™ valve shall be provided. The valve shall have an all
brass body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of
dual directional flow while incorporating a self-locking ball feature using an automatic friction lock design
and specially designed flow optimizing stainless steel ball. The valve shall not require lubrication of seats
or any other internal waterway parts, and must be capable of swinging out of the waterway for
maintenance by the removal of six bolts. The valve shall carry a ten (10) year warranty by the valve
manufacturer. The valve shall be actuated by an Akron Brass model R1 manual actuator installed on the valve. The manual actuator shall be controlled by a Trident push/pull T-handle. The handle shall be chrome
plated with a recessed ID label. There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. There shall be a Thuemling 2-1/2" water pressure gauge installed. The pressure gauge shall read
pressure in PSI and shall be capable of reading 0-400 PSI. The gauge shall be fully filled with pulse and
vibration dampening liquid to insure proper operations to minus 40 degrees and to reduce lens
condensation. A removable polished, stainless steel trim ring shall be provided with the gauge. Page 27 of 58
Smeal Pumper Demo # 4276
The discharge shall terminate MNST thread. There shall be one (1) Trident model 01.002.0, 2-1/2" Female NST swivel rocker lug x 2-1/2" Male NST
45º elbow adapter provided. The adapter shall be cast brass with a chrome plate finish. The female swivel
shall be attached using ball bearings. There shall be one (1) Trident model 01.006.0, 2-1/2" NH vented rocker lug cap with chain provided. The
cap shall have a chrome finish. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a burnt orange
color coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to
the back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded
on all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 2-1/2" LEFT REAR DISCHARGE There shall be a 2-1/2" discharge, with 2-1/2" plumbing, located on the left rear of the apparatus. An Akron Brass model 8825 2-1/2" Swing-Out™ valve shall be provided. The valve shall have an all
brass body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of
dual directional flow while incorporating a self-locking ball feature using an automatic friction lock design
and specially designed flow optimizing stainless steel ball. The valve shall not require lubrication of seats
or any other internal waterway parts, and must be capable of swinging out of the waterway for
maintenance by the removal of six bolts. The valve shall carry a ten (10) year warranty by the valve
manufacturer. The valve shall be actuated by an Akron Brass model R1 manual actuator installed on the valve. The manual actuator shall be controlled by a Trident push/pull T-handle. The handle shall be chrome
plated with a recessed ID label. There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. There shall be a Thuemling 2-1/2" water pressure gauge installed. The pressure gauge shall read
pressure in PSI and shall be capable of reading 0-400 PSI. The gauge shall be fully filled with pulse and
vibration dampening liquid to insure proper operations to minus 40 degrees and to reduce lens
condensation. A removable polished, stainless steel trim ring shall be provided with the gauge. The discharge shall terminate MNST thread. There shall be one (1) Trident model 01.002.0, 2-1/2" Female NST swivel rocker lug x 2-1/2" Male NST
45º elbow adapter provided. The adapter shall be cast brass with a chrome plate finish. The female swivel
shall be attached using ball bearings. Page 28 of 58
Smeal Pumper Demo # 4276
There shall be one (1) Trident model 01.006.0, 2-1/2" NH vented rocker lug cap with chain provided. The
cap shall have a chrome finish. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a brown color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. 3" DELUGE RISER DISCHARGE There shall be a 3" discharge for the deluge located above the pump module. The discharge shall be
centered in the pump module. An Akron Brass model 8630 3" Swing-Out™ valve shall be provided. The valve shall have an all brass
body with flow optimizing stainless steel ball and dual polymer seats. The valve shall be capable of dual
directional flow while incorporating a specially designed flow optimizing stainless steel ball. The valve
shall not require lubrication of seats or any other internal waterway parts, and must be capable of
swinging out of the waterway for maintenance by the removal of six bolts. The valve shall be
manufactured and assembled in the United States. The valve shall carry a ten (10) year warranty by the
valve manufacturer. The valve shall be actuated by an Akron Brass manual gear actuator installed on the valve. The gear
actuator shall operate at a 50:1 gear ratio, which operates from fully open to fully closed in twelve (12)
rotations. The gear actuator shall be controlled by an Akron Brass 4" handwheel valve controller. The handwheel
worm gear shall be connected to the remote mounted valve via a rod assembly. The handwheel shall turn
a gear sector mounted on the valve for smoother and easier operations under pressure. A position
indicator shall show the position of the ball valve as per NFPA 1901. Opening and closing speed shall
comply with the current NFPA standard to minimize effects of water hammer. There shall be a Trident Emergency Products 3/4" quarter-turn drain valve included. There shall be a
chrome plated rectangular handle provided on the drain valve to facilitate use with a gloved hand. The
drain valve shall be located just above the running board and below the pump panel to reduce clutter in
the pump panel area. The drain valve shall be connected to the valve with flexible hose that is routed in
such a manner as to assure complete drainage to below the apparatus. A matching color coded bezel
shall be included. There shall be a Thuemling 2-1/2" water pressure gauge installed. The pressure gauge shall read
pressure in PSI and shall be capable of reading 0-400 PSI. The gauge shall be fully filled with pulse and
vibration dampening liquid to insure proper operations to minus 40 degrees and to reduce lens
condensation. A removable polished, stainless steel trim ring shall be provided with the gauge. DECK GUN RISER PIPE The riser for the deck gun shall terminate with a 4-bolt flange. There shall be a two (2) piece permanent plate installed that includes a verbiage tag and a magenta color
coded bezel. The verbiage tag shall be etched on aluminum and have 3M-468 adhesive applied to the
Page 29 of 58
Smeal Pumper Demo # 4276
back for assembly into the bezel. The bezel shall be die cast aluminum construction and color coded on
all visible surfaces with an automotive grade paint. 3M VHB adhesive shall be applied to the back. WATER TANK The apparatus shall be equipped with a United Plastic Fabricating 1000 U.S. gallon rectangular water
tank. Certification of the tank capacity shall be recorded on the manufacturer's record of construction and
shall be provided to the purchaser upon delivery of the apparatus. The UPF® water tank shall be
constructed of 1/2" thick PT2E™ polypropylene sheet stock. This material shall be a non-corrosive stress
relieved thermoplastic, black in color, and U.V. stabilized for maximum protection. BOOSTER TANK The booster tank shall be of a specific configuration and shall be so designed to be completely
independent of the body and compartments. All joints and seams shall be nitrogen welded and tested for
maximum strength and integrity. The top of the booster tank shall be fitted with removable lifting eyes
designed with a 3 to 1 safety factor to facilitate easy removal. TANK BAFFLES The transverse swash partitions shall be manufactured of 3/8" PT2E™ polypropylene (natural in color)
and extend from approximately 4" off the floor to just under the cover. The longitudinal swash partitions
shall be constructed of 3/8" PT2E polypropylene (natural in color) and extend to the floor of the tank
through the cover to allow for positive welding and maximum integrity. All partitions shall be equipped with
vent and air holes to permit movement of air and water between compartments. The partitions shall be
designed to provide maximum water flow. All swash partitions shall interlock with one another and be
welded to each other as well as to the walls of the tank. TANK SUMP There shall be one (1) sump in the bottom of the water tank. The sump shall be constructed of 1/2"
polypropylene and shall be located in the left front quarter of the tank. On all tanks that require a front
suction, a 4" schedule 40 polypropylene pipe shall be installed that will incorporate a dip tube from the
front of the tank to the sump location. The sump shall be used as a combination clean-out and drain. All
tanks shall have an anti-swirl plate located approximately 2" above the sump to pre-vent air from being
entrained in the water while pumping. TANK FILL CONNECTION All tank fill couplings shall be backed with flow deflectors to break up the stream of water entering the
tank, and shall be capable of withstanding sustained fill rates of up to 1,000 GPM. TANK LID The tank lid shall be constructed of 1/2" thick PT2E™ polypropylene to incorporate a multi three-piece
locking design that allows for individual removal and inspection if necessary. The tank lid shall be
recessed 3/8" from the top of the tank and shall be welded to both sides and longitudinal partitions for
maximum integrity. Each one of the lids shall have hold downs consisting of 2" polypropylene dowels
spaced a maximum of 30" apart. These dowels shall extend through the covers and shall assist in
Page 30 of 58
Smeal Pumper Demo # 4276
keeping the covers rigid under fast filling conditions. A minimum of two lifting dowels shall be drilled and
tapped 1/2" x 13" to accommodate the lifting eyes. WATER TANK MOUNTING The water tank cradle shall be an integral part of the body sub-frame. Please reference the sub-frame
section for complete water tank mounting information. WATER TANK DRAIN There shall be a 1-1/2" drain valve provided under the sump of the water tank. The valve handle shall be
extended to the outside edge of the body for ease of access. The handle shall include a locking lever to
prevent accidental draining of the water tank. 4" WATER TANK SLEEVES The United Plastic Fabricating water tank shall contain the appropriate number of 4" tank sleeves for
plumbing to the rear of the apparatus. WATER TANK FILL TOWER The tank shall have a combination vent and manual fill tower marked "Water Fill." The fill tower shall be
constructed of 1/2" PT2E™ polypropylene and shall be a minimum dimension of 8" x 8" at the outer
perimeter. The tower shall be located in the left front corner of the tank. The tower shall have a 1/4" thick
removable polypropylene screen and a PT2E™ polypropylene hinged-type cover. The fill tower shall be
black in color. 6" WATER TANK OVERFLOW The tank shall be equipped with a minimum of a 6" schedule 40 polypropylene overflow/air vent pipe. The
pipe shall be installed in the fill tower and extend through the tank and dump to the rear of the rear axle. WATER TANK LEVEL GAUGE There shall be one (1) Class 1 Intelli-Tank™ water tank level gauge provided on the pump operator's
control panel. The water tank level gauge shall indicate the water level on an easy to read LED display
and show increments of 1/8 of a tank. The water tank level gauge shall include: 1. A pressure transducer that is mounted on the outside of the tank in an easily accessible area. 2. A super bright LED 4-light display with a visual indication at nine accurate levels. 3. A set of weather resistant connectors to connect to the digital display, to the pressure transducer
and to the apparatus power. FOAM CELL There shall be one (1) United Plastic Fabricating 20 U.S. gallon foam cell incorporated into the water
tank. There shall be one (1) pressure/vacuum vent installed on the foam tank. There shall be one (1)
drain hose connected to the foam cell. The drain shall have a quarter-turn valve installed inside the pump
module and it shall drain below the frame rail of the chassis. Page 31 of 58
Smeal Pumper Demo # 4276
Class "A" foam shall be utilized. ALUMINUM PUMP MODULE CONSTRUCTION The pump module shall be fabricated from 1/8" 5052-H32, smooth aluminum sheet. The pump module
shall be fabricated utilizing the break and bend technique in order to form a strong, yet flexible, structure.
The pump module shall be constructed with holding fixtures to ensure proper dimensioning. INDEPENDENT PUMP MODULE The pump module shall be fabricated as individual unit independent from the body. The pump module
shall be fabricated using precision holding fixtures to ensure proper dimensions. All attachment points
shall be heavily reinforced. TREAD PLATE DUNNAGE COMPARTMENT There shall be a dunnage compartment located above the pump module. The dunnage compartment floor
shall be constructed of tread plate. PUMP MODULE LIGHTS There shall be two (2) Truck-Lite model 9185-40003 incandescent lights installed in the pump module.
The lights shall be activated by an automatic switch in the right side pump module access door and shall
be located in a manner that will provide maximum lighting. CONTROL PANEL The left side of the pump enclosure shall be divided into two sections. The lower section shall be where
all valve controls, the primer control, the discharge relief valve controls (pilot valve), and other mechanical
controls are located. This surface shall be referred to as the "control panel". All valve controls shall be the self-locking type, activated by either direct control or with a direct linkage
utilizing friction locking bell cranks and universal ball swivels. The primary valve handles shall have color
coded tags installed in a recessed area to clearly denote the purpose of each control. INSTRUMENT PANEL The surface above the control panel shall contain all instruments, gauges, test fittings, and optional
controls. This surface shall be referred to as the "instrument panel". The instrument panel shall be
independent and hinged and latched so that it may be opened. All instruments, gauges, and other
equipment shall be installed with sufficient slack in any cabling, tubing, or plumbing to allow the panel to
swivel to the fully open position. The instrument and gauge panel shall be vertically hinged "swing out" to provide access for service. RIGHT SIDE PUMP PANEL A single panel shall be installed on the right side of the pump enclosure. This shall be the area where any
right side discharges, inlets, steamers, and other pump associated equipment are located. This panel
shall be easily removable and held in place with quick release push latches. It shall be fully removable for
Page 32 of 58
Smeal Pumper Demo # 4276
pump and plumbing access without the need to use hand tools. Any electrical equipment that may be
installed shall be equipped with connectors so they may be easily separated from the opening created
when the below described front access panel is removed. PANEL SURFACES The control panel, instrument panel, and right side pump panel shall be coated with black Line-X® for
maximum resistance to abrasion and to minimize glare. The material shall be capable of withstanding the
effects of extreme temperatures and weather. PUMP PANEL LIGHTS The pump operator's control panel and the right side pump panel shall each be illuminated by On-Scene
LED Night Axe lighting. The pump panel lights shall become energized upon setting the parking brake so
the gauge information provided may be consulted at any time the apparatus is parked. A stainless steel
shield shall be installed over the pump panel lights to further protect them from the elements and to act as
a reflector for additional illumination. MASTER PUMP GAUGES The pump vacuum and pressure gauges shall be supplied by Thuemling. Each gauge shall be fully filled
with pulse and vibration dampening Interlube to insure proper operations to minus 40 degrees and to
reduce lens condensation. The gauge shall read -30-0-400 PSI and shall be a minimum of 4-1/2" in
diameter. PRESSURE AND VACUUM TEST PORT There shall be a Class1 model 121384 pressure and vacuum test port provided on the pump panel. ENGINE COOLER CONTROL VALVE There shall be a Class1 model 38BV engine cooling control valve provided on the pump panel. PUMP COOLER CONTROL VALVE There shall be a Class1 model 38BV pump cooling control valve provided on the pump panel. LEFT SIDE RUNNING BOARD A modular bolt-on running board shall be installed on the side of the pump module. The running board
shall be constructed of anti-slip tread plate. The outside edge of the running board shall be flush with the
rub rail that is installed on the body to maintain a uniform appearance. The running board shall be
installed with sufficient support to form a sturdy, non-deflecting step area for personnel. RIGHT SIDE RUNNING BOARD A modular bolt-on running board shall be installed on the side of the pump module. The running board
shall be constructed of anti-slip tread plate. The outside edge of the running board shall be flush with the
rub rail that is installed on the body to maintain a uniform appearance. The running board shall be
installed with sufficient support to form a sturdy, non-deflecting step area for personnel. Page 33 of 58
Smeal Pumper Demo # 4276
CROSSLAY CONFIGURATION There shall be two (2) 1-1/2" crosslay pre-connects located above the pump module. Class1 highpressure flex hose with stainless steel couplings shall be used in the plumbing. A Trident 90º swivel elbow shall be utilized to keep the hose from kinking when pulled from either side of
the apparatus. The swivel for each crosslay shall be located outboard for ease of making connections
while changing hose. The pre-connect hose beds shall be sized to accommodate the following hose load: There shall be a heavy duty 22 oz. hypalon vinyl coated nylon cover located over the top and on each
end of the pre-connected crosslays. The top of the cover shall be connected to the top-forward portion of
the crosslays through a C-Rail channel and shall attach on the top-rear portion using velcro. The bottom
of the end covers shall be attached to the pump module utilizing hooks and bungee cord. The color of the vinyl restraint shall be red. Stainless steel rollers shall be provided at each end of the crosslay hose bed to facilitate deployment of
hose. Vertical rollers shall be installed on each side of the hose bed opening, and a horizontal roller shall
be installed under the opening. The floor of the crosslay shall be slotted sufficiently for drainage. The 1-1/2" crosslay pre-connect shall have a capacity of 200' of 1-3/4" double jacket fire hose. The crosslay pre-connect shall be capable of holding the hose in a single stack. The 1-1/2" crosslay pre-connect shall have a capacity of 200' of 1-3/4" double jacket fire hose. The crosslay pre-connect shall be capable of holding the hose in a single stack. The interior of the crosslay hose bed shall be painted the primary body color. There shall be one (1) divider in the crosslay area. The divider shall be fabricated of 3/16" aluminum and
be mounted in a channel on each end for adjustability. The crosslay dividers shall have maintenance free abraded finish. RIGHT SIDE PUMP ACCESS PANEL There shall be a tread plate door above the right hand side pump panel to allow access to the pump
compartment. The vertically hinged panel shall be of the single pan design and shall be positively latched
in the closed position utilizing a push button latch. A gas strut shall be provided on the door. An aluminum
sill protector shall be installed on the bottom of the door opening to protect the paint from chipping and
scratching. The door shall be wired into the door open warning light circuit. AIR HORN BUTTON Page 34 of 58
Smeal Pumper Demo # 4276
One (1) air horn button shall be provided on the pump panel. The button shall be red in color and included
a label reading "AIR HORN". ALUMINUM BODY CONSTRUCTION The apparatus body shall be fabricated from 1/8" 5052-H32, smooth aluminum sheet. The total outside
width of the apparatus body shall not exceed 100 inches (2.54 meters). The width measurement of the
sidewalls shall be made from the outside wall of the two opposite sides of the body. The complete apparatus body shall be fabricated utilizing the break and bend techniques in order to form
a strong, yet flexible, uni-body structure. The body shall be constructed with holding fixtures to ensure
proper dimensioning. Each apparatus body is specific in design in order to meet the unique requirements
of the purchasing fire department. The main body compartments on each side, as well as the rear center compartment if applicable, shall
contain a sweep out floor design. Each compartment shall be made to the most practical dimensions in
order to provide maximum storage capacity for the fire department's equipment. The door opening
threshold shall be positioned lower than the compartment floor permitting easy cleaning of the
compartments. Continuous, solid welded seams shall be located at the upper front and upper rear corners of the
apparatus body. The flooring of all lower, main body compartmentation shall also have solid weld seams.
All door jams, on both the top and the bottom, shall be solid welded as well. Each main door jam shall
consist of a double jam design; this is comparable to a double struck frame design, which provides
superior strength and durability. All double door jams are to be welded together utilizing the plug weld
technique. All remaining compartment walls shall be stitch welded. The compartment floors, specifically L1 and R1, shall have a minimum of two (2) 1" x 2" rectangular tubes
welded to the entire width of the compartment floor. The two (2) rear side compartments as well as the
rear center compartment, if applicable, shall be welded to the rear deck support structure. This rear deck
support structure is specially designed for the galvanized apparatus body substructure. A minimum of two
(2) squares tubes, which are 1/4" x 3" x 3", shall run the entire width of the body from sidewall to sidewall.
Each lower, rear compartment shall be adequately stitch welded to the cross tubes providing strength and
durability to the entire apparatus body. The body design shall include a "false wall" design in the lower portion of each lower, rear compartment.
This "false wall" is required in order to allow for easy accessibility to the rear electrical components found
in the rear tail light cluster area. On the upper area of the apparatus body, directly above the side compartment door openings, a header
is to be fabricated from smooth, aluminum sheet. This area shall be free from any body seams and shall
be painted the same color as the apparatus body. The height of the header may vary depending on the
following factors: apparatus design, lettering requirements, scene lights and warning light requirements as
well as various other options. A "J" channel shall be incorporated into the body design in order to provide
a rain gutter to further assist in preventing excessive moisture from getting into the compartments. ULTRA STAINLESS™ STEEL FASTENERS Page 35 of 58
Smeal Pumper Demo # 4276
Ultra Stainless™ steel fasteners shall be provided for all exposed and unpainted fasteners throughout the
body in locations such as overlays, pump panels, and other numerous hardware mounting locations. The
special ingredient in Ultra Stainless™ is Marutex®, which adds 2% molybdenum (moly) to 410 stainless.
Moly is the significant component of 316 stainless that provides extra corrosion resistance. The moly is
now added to 410 self drilling screws to produce Ultra Stainless™. This combination provides for
unprecedented corrosion resistance combined with hardness for drilling. ADDITIONAL HARDWARE There shall be a bag of stainless steel nuts, bolts, and washers supplied with the apparatus for mounting
of equipment. GS-36 BODY SUB FRAME To assure proper body alignment and clearance, the body sub frame shall be constructed in a jig and
fitted directly on the chassis. The chassis frame rails shall be fitted with fiber reinforced rubber to isolate the body frame members from
direct contact with chassis frame rails. The main body sub frame shall be constructed from steel tubing. The sub frame shall run the full length of
the body and shall be spaced the same width as the chassis frame rails. The main sub frame shall also
be the integral support for the water tank. Vertical drop tubes shall be welded to the sub frame. From
these vertical drop tubes shall extend cross members constructed of steel angle. These cross members
shall extend out to support the compartments. Cross members shall be located at the front and rear of the
body and in front and rear of the wheel well opening. The compartment area behind the rear axle shall be supported by a drop frame fabricated of steel tube
and steel angles. The rear drop frame shall be constructed using vertical drop tubes, welded to the main
sub frame. All drop frame structures shall be welded directly to the body sub frame to allow the body to be
a completely separate structure from the chassis. After fabrication the sub frame shall be hot dip galvanized for maximum protection against corrosion. BODY MOUNTING The body sub frame shall be fastened to the chassis frame with a minimum of six (6) spring loaded body
mounts. Each mount shall be configured using a two-piece bracket. The two (2) brackets shall be
fabricated of steel plates. The plates shall be painted to prevent any corrosion. Each mounting assembly
shall utilize two (2) plated bolts and two (2) heavy duty springs. The assembly design shall allow the body
and sub frame to act as one (1) component, separate from the chassis. As the chassis frame twists under
driving conditions, the spring mounting system shall limit any stress from being transferred into the body.
The spring loaded body mounts shall also prevent frame side rail or body damage caused by unevenly
distributed stress and strains due to load and chassis movement. Body mountings that do not allow relief from chassis movement shall not be acceptable. TANK MOUNTING Page 36 of 58
Smeal Pumper Demo # 4276
The water tank shall rest on the sub frame cross members which are spaced as required by the tank
manufacturer. The tank shall be isolated from the cross members through the use of hard rubber strips with a minimum
Rockwell hardness of 60 durometer. Additionally, the tank shall be supported around the entire perimeter
and captured both, front and rear as well as side to side to prevent the tank from shifting during vehicle
operations. Although the tank shall be designed on a free floating suspension principle, it shall be required that the
tank have adequate hold down restrains to minimize movement during vehicle operations. The tank shall be completely removable without disturbing or dismantling the apparatus structure. EXHAUST HEAT DEFLECTOR SHIELD There shall be a 5" heat deflector shield installed over the exhaust to aid in dissipating the heat to prevent
exhaust heat from adversely affecting anything stored in the body. LEFT SIDE BODY CONFIGURATION COMPARTMENT L1 There shall be a full height compartment located ahead of the rear wheels on the left side of the
apparatus body. This compartment shall be designated as L1 within these specifications and any ensuing
paperwork or drawings after contract execution. - Door Opening 29.00" wide x 53.50" high
- Usable Depth 25.75" lower and 15.25" upper
- Intermediate divide height 26.50" There shall be one (1) ROM rollup door installed on the compartment face. The door shall be a shutter
type with 34 millimeter slats that roll onto a spool at the top of the compartment. Each slat shall be
equipped with nylon end shoes to assure operation without the need of constant lubrication. The rollup
door shall have a satin finish. The ROM rollup door shall be supplied with a full width lift bar and finger pull handle integrated into the
bottom rail for easy one hand operation. The compartment shall have one (1), 42" ROM V4 LED compartment light installed. The light shall feature
solid state construction and be waterproof to IPX7 rating. The V4 LED light shall offer 250 lumens per foot
of lighting. There shall be four (4) galvanneal strut channels, two (2) per side, installed in the full depth portion of the
compartment. In the shallow depth portion of the compartment there shall be two (2) strut channels, one
(1) per side. There shall be one (1), aluminum adjustable shelf installed on the apparatus in the shallow depth
compartment. The shelf shall be constructed of 3/16" aluminum sheet with 2" lips. The shelf shall have an
abraded finish and shall be designed in such a manner as to allow liquids to readily drain when spilled. Page 37 of 58
Smeal Pumper Demo # 4276
There shall be two (2) applications in the compartment that shall utilize Dri-Dek interlocking squares.
Each square shall be made from polyvinyl chloride that is flame and chemical resistant. For maximum slip
resistance and drainage, each square shall have a knobby perforated surface. There shall be one (1), roll out equipment tray installed on the floor of the compartment. The tray shall be
equipped with an Austin Hardware drawer slide. The roller assembly shall have a rated capacity of 300
lbs. distributed load and shall have 100% extension capability. The tray shall be constructed of 3/16"
aluminum sheet with 3" lips to prevent items from being shifted during transportation. The tray shall be
equipped with the Austin Hardware front drawer release system which allows for one handed latch closed
position release. The tray shall have an abraded finish and shall be equipped with a locking slide in order
to hold the tray in either a fully extended or closed position. COMPARTMENT L2 There shall be a standard height compartment located above the rear wheels on the left side of the
apparatus body. This compartment shall be designated as L2 within these specifications and any ensuing
paperwork or drawings after contract execution. - Door Opening 57.00" wide x 24.00" high
- Usable Depth 15.25" There shall be one (1) ROM rollup door installed on the compartment face. The door shall be a shutter
type with 34 millimeter slats that roll onto a spool at the top of the compartment. Each slat shall be
equipped with nylon end shoes to assure operation without the need of constant lubrication. The rollup
door shall have a satin finish. The ROM rollup door shall be supplied with a full width lift bar and finger pull handle integrated into the
bottom rail for easy one hand operation. The compartment shall have two (2), 12" ROM V4 LED compartment lights installed. Each light shall
feature solid state construction and be waterproof to IPX7 rating. Each V4 LED light shall offer 250
lumens per foot of lighting. There shall be one (1) application in the compartment that shall utilize Dri-Dek interlocking squares. Each
square shall be made from polyvinyl chloride that is flame and chemical resistant. For maximum slip
resistance and drainage, each square shall have a knobby perforated surface. There shall be two (2) galvanneal strut channels, one (1) per side, installed in the standard height
compartment. COMPARTMENT L3 There shall be a full height compartment located behind the rear wheels on the left side of the apparatus
body. This compartment shall be designated as L3 within these specifications and any ensuing paperwork
or drawings after contract execution. - Door Opening 41.00" wide x 53.50" high
- Usable Depth 25.75" lower and 15.25" upper
- Intermediate divide height 26.50" Page 38 of 58
Smeal Pumper Demo # 4276
There shall be one (1) ROM rollup door installed on the compartment face. The door shall be a shutter
type with 34 millimeter slats that roll onto a spool at the top of the compartment. Each slat shall be
equipped with nylon end shoes to assure operation without the need of constant lubrication. The rollup
door shall have a satin finish. The ROM rollup door shall be supplied with a full width lift bar and finger pull handle integrated into the
bottom rail for easy one hand operation. The compartment shall have one (1), 42" ROM V4 LED compartment light installed. The light shall feature
solid state construction and be waterproof to IPX7 rating. The V4 LED light shall offer 250 lumens per foot
of lighting. There shall be four (4) galvanneal strut channels, two (2) per side, installed in the full depth portion of the
compartment. In the shallow depth portion of the compartment there shall be two (2) strut channels, one
(1) per side. There shall be one (1) application in the compartment that shall utilize Dri-Dek interlocking squares. Each
square shall be made from polyvinyl chloride that is flame and chemical resistant. For maximum slip
resistance and drainage, each square shall have a knobby perforated surface. RIGHT SIDE BODY CONFIGURATION COMPARTMENT R1 There shall be a full height compartment located ahead of the rear wheels on the right side of the
apparatus body. This compartment shall be designated as R1 within these specifications and any ensuing
paperwork or drawings after contract execution. - Door Opening 29.00" wide x 53.50" high
- Usable Depth 19.00" lower and 15.25" upper
- Intermediate divide height 25.50" There shall be one (1) ROM rollup door installed on the compartment face. The door shall be a shutter
type with 34 millimeter slats that roll onto a spool at the top of the compartment. Each slat shall be
equipped with nylon end shoes to assure operation without the need of constant lubrication. The rollup
door shall have a satin finish. The ROM rollup door shall be supplied with a full width lift bar and finger pull handle integrated into the
bottom rail for easy one hand operation. The compartment shall have one (1), 42" ROM V4 LED compartment light installed. The light shall feature
solid state construction and be waterproof to IPX7 rating. The V4 LED light shall offer 250 lumens per foot
of lighting. There shall be four (4) galvanneal strut channels, two (2) per side, installed in the full depth portion of the
compartment. In the shallow depth portion of the compartment there shall be two (2) strut channels, one
(1) per side. Page 39 of 58
Smeal Pumper Demo # 4276
There shall be one (1), aluminum adjustable shelf installed on the apparatus in the shallow depth
compartment. The shelf shall be constructed of 3/16" aluminum sheet with 2" lips. The shelf shall have an
abraded finish and shall be designed in such a manner as to allow liquids to readily drain when spilled. There shall be two (2) applications in the compartment that shall utilize Dri-Dek interlocking squares.
Each square shall be made from polyvinyl chloride that is flame and chemical resistant. For maximum slip
resistance and drainage, each square shall have a knobby perforated surface. There shall be one (1), roll out equipment tray installed on the floor of the compartment. The tray shall be
equipped with an Austin Hardware drawer slide. The roller assembly shall have a rated capacity of 300
lbs. distributed load and shall have 100% extension capability. The tray shall be constructed of 3/16"
aluminum sheet with 3" lips to prevent items from being shifted during transportation. The tray shall be
equipped with the Austin Hardware front drawer release system which allows for one handed latch closed
position release. The tray shall have an abraded finish and shall be equipped with a locking slide in order
to hold the tray in either a fully extended or closed position. COMPARTMENT R2 There shall be a standard height compartment located above the rear wheels on the right side of the
apparatus body. This compartment shall be designated as R2 within these specifications and any ensuing
paperwork or drawings after contract execution. - Door Opening 57.00" wide x 24.00" high
- Usable Depth 15.25" There shall be one (1) ROM rollup door installed on the compartment face. The door shall be a shutter
type with 34 millimeter slats that roll onto a spool at the top of the compartment. Each slat shall be
equipped with nylon end shoes to assure operation without the need of constant lubrication. The rollup
door shall have a satin finish. The ROM rollup door shall be supplied with a full width lift bar and finger pull handle integrated into the
bottom rail for easy one hand operation. The compartment shall have two (2), 12" ROM V4 LED compartment lights installed. Each light shall
feature solid state construction and be waterproof to IPX7 rating. Each V4 LED light shall offer 250
lumens per foot of lighting. There shall be one (1) application in the compartment that shall utilize Dri-Dek interlocking squares. Each
square shall be made from polyvinyl chloride that is flame and chemical resistant. For maximum slip
resistance and drainage, each square shall have a knobby perforated surface. There shall be two (2) galvanneal strut channels, one (1) per side, installed in the standard height
compartment. COMPARTMENT R3 There shall be a full height compartment located behind the rear wheels on the right side of the apparatus
body. This compartment shall be designated as R3 within these specifications and any ensuing
paperwork or drawings after contract execution. Page 40 of 58
Smeal Pumper Demo # 4276
- Door Opening 41.00" wide x 53.50" high
- Usable Depth 25.75" lower and 15.25" upper
- Intermediate divide height 25.50" There shall be one (1) ROM rollup door installed on the compartment face. The door shall be a shutter
type with 34 millimeter slats that roll onto a spool at the top of the compartment. Each slat shall be
equipped with nylon end shoes to assure operation without the need of constant lubrication. The rollup
door shall have a satin finish. The ROM rollup door shall be supplied with a full width lift bar and finger pull handle integrated into the
bottom rail for easy one hand operation. The compartment shall have one (1), 42" ROM V4 LED compartment light installed. The light shall feature
solid state construction and be waterproof to IPX7 rating. The V4 LED light shall offer 250 lumens per foot
of lighting. There shall be four (4) galvanneal strut channels, two (2) per side, installed in the full depth portion of the
compartment. In the shallow depth portion of the compartment there shall be two (2) strut channels, one
(1) per side. There shall be one (1) application in the compartment that shall utilize Dri-Dek interlocking squares. Each
square shall be made from polyvinyl chloride that is flame and chemical resistant. For maximum slip
resistance and drainage, each square shall have a knobby perforated surface. REAR BODY CONFIGURATION COMPARTMENT T1 There shall be a full height compartment located at the rear of the apparatus body. This compartment
shall be designated as T1 within these specifications and any ensuing paperwork or drawings after
contract execution. - Door Opening 41.00" wide x 42.00" high
- Usable Depth 30.00" There shall be one (1) ROM rollup door installed on the compartment face. The door shall be a shutter
type with 34 millimeter slats that roll onto a spool at the top of the compartment. Each slat shall be
equipped with nylon end shoes to assure operation without the need of constant lubrication. The rollup
door shall have a satin finish. The ROM rollup door shall be supplied with a full width lift bar and finger pull handle integrated into the
bottom rail for easy one hand operation. The compartment shall have two (2), 36" ROM V4 LED compartment lights installed. Each light shall
feature solid state construction and be waterproof to IPX7 rating. Each V4 LED light shall offer 250
lumens per foot of lighting. There shall be one (1), roll out equipment tray installed on the floor of the compartment. The tray shall be
equipped with an Austin Hardware drawer slide. The roller assembly shall have a rated capacity of 300
Page 41 of 58
Smeal Pumper Demo # 4276
lbs. distributed load and shall have 100% extension capability. The tray shall be constructed of 3/16"
aluminum sheet with 3" lips to prevent items from being shifted during transportation. The tray shall be
equipped with the Austin Hardware front drawer release system which allows for one handed latch closed
position release. The tray shall have an abraded finish and shall be equipped with a locking slide in order
to hold the tray in either a fully extended or closed position. There shall be one (1) application in the compartment that shall utilize Dri-Dek interlocking squares. Each
square shall be made from polyvinyl chloride that is flame and chemical resistant. For maximum slip
resistance and drainage, each square shall have a knobby perforated surface. There shall be four (4) galvanneal strut channels, two (2) per side, installed in the full depth, full height
compartment. COMPARTMENT AIR RELEASE Each compartment shall be vented to help remove trapped air when closing a compartment door. The
vent shall be a rubber gasket in the area of the outboard corners of the compartment. Wiring may also be
run through these areas. COMPARTMENT DRAIN HOLES Each body compartment shall be equipped with drain holes to allow standing water to exit to underneath
the apparatus. WALKWAYS AND OVERLAYS All exterior surfaces designated by the manufacturer as stepping, standing, or walking areas shall be
overlaid with 3003 H22 Bright Tread Plate to provide a slip resistant surface, even when the surface is
wet. All interior surfaces designated by the manufacturer as stepping, standing, or walking areas shall be
slip resistant when the surface is dry. The degree of slip resistance shall be in compliance with the intent
of NFPA 1901. Horizontal walkways shall have .080" aluminum tread plate overlays installed and vertical surfaces shall
have .125” aluminum overlays. Overlays shall be installed that are totally insulated from the apparatus
with nylon shoulder washers that extend into holes in the body. Stainless steel cap nuts shall be
employed where bolt ends may damage equipment or cause injury. After the apparatus is painted and the
overlays are reinstalled, they shall be additionally sealed at the edges with a caulking compound. The
exterior top tread plate overlay shall be mounted flush with the outer edges of the apparatus body. STEPPING SURFACES All steps shall have a surface area of at least 35 square inches and shall be able to withstand a load of at
least 500 pounds. Steps shall be provided at any area that personnel may need to climb and shall be
adequately lighted. GRIP STRUT REAR DECK A modular bolt-on deck shall be installed on the rear of the apparatus to form a full width step. The rear
deck shall be constructed of Grip Strut® material. The outside edge of the rear deck shall be flush with
Page 42 of 58
Smeal Pumper Demo # 4276
the rub rail that is installed on the body to maintain a uniform appearance. The depth of the rear deck
shall be 13.25". The rear deck shall be installed with sufficient support to form a sturdy, non-deflecting
step area for personnel. REAR STEPS There shall be three (3) Cast Products bolt-on steps installed on the rear of the apparatus. Each step
shall have large open slots to prevent buildup of ice or mud and to provide a handhold when necessary.
Steps shall be provided in the following locations: 
Three (3) bolt-on steps on the left rear of the apparatus. The steps shall be adequately lit with LED lighting. There shall be one (1) light located above the set of
steps on the rear face of the body. The light shall be located in a manner that shall light all of the steps. FRONT BODY STEPS AND LIGHTING There shall be three (3) Cast Products folding steps located on the front of the right side body
compartments. The folding steps shall have two large open slots to prevent the buildup of ice or mud and
to provide a handhold when necessary. The steps shall have a surface area of at least 35 square inches
and shall be able to withstand a load of 500 pounds. The steps shall be adequately lit with LED lighting. There shall be one (1) light located above the steps. FRONT VERTICAL AREA TREAD PLATE OVERLAYS There shall be a tread plate overlay on the vertical areas of each side of the apparatus body. The overlay
will be located in front of the L1 and R1 compartments. REAR WHEEL WELLS The fenders shall be integral with the body sides and compartments with a seamless appearance. The
fenders shall be fitted with bolt-in removable full circular inner liners in the wheel well area for ease of
cleaning and maintenance. There shall be sufficient clearance provided in the wheel well to allow the use
of tire chains when the apparatus fully loaded. STAINLESS STEEL REAR FENDERETTES Two (2) stainless steel fenderettes shall be installed at the outboard edge of the rear wheel well area, one
on each side. The fenderettes shall be bolted to the apparatus body using nylon washers to space them
slightly away from the body to reduce build-up of road grime. The fenderettes shall be constructed of
stainless steel that has been polished to a high quality finish. LEFT SIDE REAR WHEEL WELL POSITION - WL1 There shall be a single air bottle compartment installed in the rear wheel well area. The compartment
door, hinges and frame shall all be constructed out of stainless steel material. The door shall have a
rubber gasket in order to create a 100% seal to protect the interior of the compartment. The storage
compartment shall be a rotational, molded component that is assembled to the door and frame. This
Page 43 of 58
Smeal Pumper Demo # 4276
assembly process shall prevent the air bottle from making contact with the stainless steel frame while
loading and unloading the air bottle. The door shall have a brushed stainless steel finish. FUEL FILL The fuel fill pocket shall be located in the left rear wheel well area. The fuel fill shall utilize a stainless
steel Fire Shopp door with a brushed finish. The hinge and frame shall all be constructed out of stainless
steel material. RIGHT SIDE REAR WHEEL WELL POSITION - WR1 There shall be a single air bottle compartment installed in the rear wheel well area. The compartment
door, hinges and frame shall all be constructed out of stainless steel material. The door shall have a
rubber gasket in order to create a 100% seal to protect the interior of the compartment. The storage
compartment shall be a rotational, molded component that is assembled to the door and frame. This
assembly process shall prevent the air bottle from making contact with the stainless steel frame while
loading and unloading the air bottle. The door shall have a brushed stainless steel finish. RIGHT SIDE REAR WHEEL WELL POSITION - WR3 There shall be a single air bottle compartment installed in the rear wheel well area. The compartment
door, hinges and frame shall all be constructed out of stainless steel material. The door shall have a
rubber gasket in order to create a 100% seal to protect the interior of the compartment. The storage
compartment shall be a rotational, molded component that is assembled to the door and frame. This
assembly process shall prevent the air bottle from making contact with the stainless steel frame while
loading and unloading the air bottle. The door shall have a brushed stainless steel finish. BODY RUB RAILS Rub rails shall be installed beneath the compartment doors to protect them from damage should the body
be brushed or rubbed against another object. The rub rails shall be 3/16” aluminum channel, 2-1/2” x 1”.
The rub rails shall be highly polished and then bright dip anodized. The rub rails shall be installed on the body utilizing non-corrosive nylon spacers and secured with
stainless steel bolts. The outside edge of the rub rails shall be even with the fenderettes and bolt-on steps
to prevent snagging. REAR TOW HOOK One (1) rear tow hook shall be installed directly below the rear of the chassis frame rails. The tow hook
shall be capable of a 15,000 lb. straight pull rating. HOSE BED The hose bed shall be located above the water tank and have a minimum capacity of 55 cubic feet. The
inside of the hose bed shall be smooth aluminum. The hose bed shall exit at the rear of the apparatus
through a single access opening. The opening shall be free of obstructions that might interfere with the
deployment and loading of hose. Page 44 of 58
Smeal Pumper Demo # 4276
The floor of the hose bed compartment shall be constructed of Dura-Dek fiber reinforced plastic material.
The flooring shall be fabricated of "T" beam pultrusions in parallel connected with cross slats that are first
mechanically bonded and then epoxied, forming a large sheet. The top portion of each "T" cross section
shall measure 1-1/4" wide and 3/16" thick with beaded ends. The vertical portion shall be 3/8" thick,
beading out at the bottom to a thickness of 1/2" and tall enough to result in an overall height of 1". The "T"
sections shall be spaced 3/4" apart to allow for drainage and ventilation. Each "T" beam shall be constructed utilizing a core of 250,000 continuous glass fiber strands that are
high in resistance to tension, compression and bending. An outer sheath consisting of a continuous
strand mat to prevent lineal splitting and slipping shall surround the core. The sheath shall also serve to
draw the protective resin to the bar surface. Both reinforcements shall be pulled through an isophthalic
polyester resin, treated with antimony trioxide for fire resistance, to form a solid length. The flooring shall then be protected with a polyurethane coating to screen out ultraviolet rays. This bright
white coating shall be baked on and shall provide a pleasing contrast when installed in the apparatus. The hose bed shall be contain the following hose load: The interior of the hose bed shall be painted the primary body color. HOSE BED COVER There shall be a heavy-duty 22 oz. hypalon vinyl-coated nylon hose bed cover installed on the apparatus.
The front edge of the cover shall be retained in a "C" channel to prevent wind from lifting it. The sides of
the cover shall be attached to the sides of the hose bed using button snap fasteners. The rear of the
cover shall be connected using footman loop and J-Hooks with an adjustable buckle. The color of the vinyl restraint shall be red. HOSE BED DIVIDERS There shall be two (2) hose bed dividers installed in the hose bed. The dividers shall be fabricated from
1/4" smooth aluminum plate and an aluminum extrusion. Each divider shall have an abraded finish and
mounted on hot-dipped galvanized slide rails at the front and rear of the hose bed. Where no obstruction
such as a fill tower is present, the slide rails shall allow full movement of the dividers along the width of
the hose bed. Each hose bed divider shall have an oval shaped hand hold slot to assist in moving the
divider. This shall provide the capability for variable hose load configurations and capacities. HOSE BED CAPACITY The hose bed shall have a capacity of 66 ft³. GROUND LADDER STORAGE The ground ladders shall be stored beneath the hose bed, to the right of the water tank. The ladders shall
be stored vertically on their beam in an aluminum rack with poly scuff strips. The ladders shall be
accessible through a hinged tread plate door on the rear of the body. The following ground ladders shall be supplied with the apparatus: Page 45 of 58
Smeal Pumper Demo # 4276
One (1), Alco-Lite model FL-10 folding aluminum ladder shall be provided. The ladder shall be equipped
with heavy cast aluminum swivel safety shoes and carrying handles. The closed dimensions of the ladder
shall be 11' 5" long x 5.25" wide. The ladder shall include a heat sensor label to warn if the ladder has
been exposed to excessive heat. One (1), Alco-Lite model PRL-14, 14' aluminum roof ladder shall be provided. The ladder shall be
equipped with high strength steel rotating roof hooks with reinforcing brace and steel butt spurs and
rounded aluminum top caps for increased durability. The ladder shall include a heat sensor label to warn
if the ladder has been exposed to excessive heat. One (1), Alco-Lite model PEL-24, 24' two section aluminum ladder shall be provided. The ladder shall be
equipped with steel butt spurs and rounded aluminum top caps for increased durability, and an oversized
2 1/4" pulley for ease of operation. The ladder shall include a heat sensor label to warn if the ladder has
been exposed to excessive heat. PIKE POLE STORAGE There shall be two (2) aluminum tubes for the storage of pike poles installed in the ground ladder storage
compartment. The following pike poles shall be supplied with the apparatus: One (1), Akron Brass model UL-6, 6' fiberglass pike pole shall be provided. The light weight heavy duty
pole shall be constructed of one and one quarter inch round fiberglass with a rubber bumper butt style
handle. One (1), Akron Brass model UL-8, 8' fiberglass pike pole shall be provided. The light weight heavy duty
pole shall be constructed of one and one quarter inch round fiberglass with a rubber bumper butt style
handle. HARD SUCTION HOSE RACK WITH PIKE POLE STORAGE There shall be a hard suction hose rack above the side compartments. Capacity shall be provided to
store two (2) sections of 10' hard suction hose. Additionally, storage for two pike poles shall be provided
on the rack. The suction hose storage shall be located above the right side compartments. HARD SUCTION HOSE, FIREQUIP There shall be two (2), Firequip Maxi-Flex PVC 6” x 10’ sections of hard suction hose provided. WHEEL CHOCKS There shall be one (1) pair of Cast Products model TMC1008-4 wheel chocks provided with the
apparatus. The wheel chocks shall be mounted in Cast Products model TMC 1010 mounting brackets. The wheel chocks shall be stored in locations that are easily accessible under the front of the body on the
left side of the apparatus. Page 46 of 58
Smeal Pumper Demo # 4276
HANDRAILS All handrails, unless otherwise stated, shall be constructed of knurled aluminum of not less than 1-1/4" in
diameter. All railing shields and brackets shall be chrome plated, and shall be bolted to the body with
stainless steel bolts. The lower bracket on all vertical handrails shall have a drain hole drilled in it at the
lowest point. The following handrails shall be provided on the apparatus: There shall be a vertical handrail installed at the left rear of the apparatus. There shall be a horizontal handrail installed above the rear compartment below the hose bed. FUEL TANK GAUGE ACCESS PANEL There shall be a removable panel provided in the rear compartment to allow for access to the fuel tank
gauge without removing the fuel tank. LICENSE PLATE BRACKET There shall be a license plate bracket mounted on the rear of the apparatus. A clear LED light shall be
incorporated into the bracket. REAR STEPS TREAD PLATE OVERLAY There shall be a tread plate overlay on the vertical area behind the left side rear steps of the apparatus.
Overlays shall be totally insulated from the apparatus with nylon shoulder washers that extend into the
hole that is drilled into the body. Stainless steel cap nuts shall be employed where bolts may damage
equipment or cause injury. After painting and final construction overlays shall be additionally sealed at the
edges with a caulking compound. QL-12 ELECTRICAL SYSTEM Wiring harnesses shall be the automotive type, engineered specifically for the builder's apparatus, and
shall meet the following criteria. Under no circumstances shall diodes, resistors, or fusible links be located
within the wiring harness. All such components shall be located in an easy to access wiring junction box
or the main circuit breaker area. All wiring shall meet white book, baseline advanced design transit coach
specification and Society of Automotive Engineers recommended practices. It shall be stranded copper
wire core with cross linked polyethylene insulation complying with SAE specification J1128. Each wire
shall be hot stamp function coded every three inches starting one inch from the end and continuing
throughout the entire harness. In addition to function coding, each wire shall be number, color, and gauge
coded. Wire harnesses shall be wrapped with a high abrasion and chemical resistant thermoplastic polyester
elastomer coated polyester yarn for braiding constructions of electrical wiring systems. The braid yarn
shall have a minimum tensile strength of 15 lbs. before breaking and have a maximum of 20% elongation
before breaking. Temperature properties for the yarn shall range from a minimum 280°F (138°C) service
temperature to a maximum -112°F (-80°C) brittleness temperature with a cold flex tolerance of at least 49°F (-45°C). Page 47 of 58
Smeal Pumper Demo # 4276
Harnesses shall be modular in design; a main harness system subdivided into several smaller subharnesses. The harness subsections shall be connected using Deutsch branded, heavy duty,
environmentally sealed, connectors with silicone seals and a rear insertion/removal contact system. For
isolation of electrical "zones" the harness subsections shall consist of a main harness, a pump harness
with a separate pump gauge panel harness, a left body harness with a separate left compartment
harness, a right body harness with a separate right compartment harness, and a rear body harness with
two separate rear compartment harnesses. The main harness and three body harnesses shall interconnect at a central, easy to reach location and
their connectors shall not be obstructed by other harnesses or fuel/air lines. In addition, the main and
body harness connectors shall be color coded for ease of identification with their respective colors noted
on the accompanying electrical diagrams. Where connectors are not provided by the electrical component manufacturer, all 12 volt lights and other
electrical components (excluding rocker and toggle switches) shall connect to the harnesses using
Deutsch brand connectors; butt connectors are considered unacceptable. All Deutsch connectors shall meet the following criteria: 
All connectors shall have a minimum IP67 rating. 
Temperature range from -67°F (-55°C) to 257°F (125°C) continuous at rated current. 
Only solid contacts will be used. Stamped and formed contacts are unacceptable. 
All contacts shall be soldered unless a crimping tool or machine is used that gives an even and
precise pressure for the terminal being used. 
All contacts shall be pull-tested to insure their integrity. V-MUX ELECTRICAL MANAGEMENT SYSTEM The apparatus shall be equipped with a V-MUX Multiplex System. There are several key benefits to
multiplexing, one is to reduce the number of connections in a vehicles electrical system, because of this it
is important to limit the amount of modules that control certain functions of the vehicle. Outputs: The outputs shall perform all the following items without added modules to perform any of the tasks: 1. Load Shedding: The System shall have the capability to Load Shed with 8 levels any output. This
means you can specify which outputs (barring NFPA restrictions) you would like Load Shed.
Level 1 12.9v, Level 2 12.5V, Level 3 - 12.1V, Level 4 - 11.7V, Level 5 11.3V, Level 6 10.9V,
Level 7 10.5, Level 8 10.1. Unlike conventional load shedding devices you can assign a level to
any or all outputs. No add-on modules shall be acceptable; the module with the outputs must
perform this function. 2. Load Sequencing: The System shall be able to sequence from 0 8 levels any output. With 0 being
no delay and 1 being a 1 second delay, 2 being a 2 second delay and so on. Sequencing reduces
the amount of voltage spikes and drops on your vehicle, and can help limit damage to your
Page 48 of 58
Smeal Pumper Demo # 4276
charging system. No add-on modules shall be acceptable; the module with the outputs must
perform this function. 3. Output Device: The System shall have solid-state output devices. Each solid-state output shall be
a MOS-FET (Metal Oxide Semiconductor - Field Effect Transistors); MOS-FETs are solid-state
devices with no moving parts to wear out. A typical relay when loaded to spec has a life of
100,000 cycles. The life of a FET is more than 100 times that of a relay. No add-on modules shall
be acceptable; the module with the outputs must perform this function. 4. Flashing Outputs: The System shall be able to flash any output in either A or B phase, and logic
is used to shut down needed outputs in park, or any one of several combined interlocks. The
flash rate can be selected at either 80, or 160 FPM. This means any light can be specified with a
multiplex truck with no need to add flashers. Flashing outputs can also be used to warn of
problems. No add-on modules shall be acceptable; the module with the outputs must perform this
function. 5. PWM: The modules shall have the ability to PWM at some outputs so that a Headlight PWM
module is not needed. No add-on modules shall be acceptable; the module with the outputs must
perform this function. 6. Diagnostics: An output shall be able to detect either a short or open circuit. Inputs: 1. The inputs shall have the ability to switch by a ground or battery signal. 2. The inputs shall be filtered for noise suppression via hardware and software so that RF or dirty
power will not trick an input into changing its status. System Network: The Multiplex system shall contain a Peer-to-Peer network. A Master Slave Type network is not suitable
for the Fire/Rescue industry. A Peer-to-Peer network means that all the modules are equal on the
network; a Master is not needed to tell other nodes when to talk. System Reliability: The Multiplex system shall be able to perform in extreme temperature conditions, from -40° to +85° C (40° to +185° F.) The system shall be sealed against the environment, moisture, humidity, salt or fluids
such as diesel fuel, motor oil or brake fluid. The enclosures shall be rugged to withstand being mounted in
various locations or compartments around the vehicle. The modules shall be protected from over voltage
and reverse polarity. WEATHERPROOF DOOR SWITCHES Due the harsh environment and susceptibility to moisture on the fire ground, the fire apparatus
compartment doors shall utilize weatherproof switches. Two different types of switches shall be used.
Weatherproof proximity switches shall be utilized where space permits. In tight locations, mechanical
weatherproof switches shall be used. No Exceptions. The switches shall be used for activation of the
compartment lights and to provide a signal to the door open circuit in the cab. ELECTRICAL TERMINALS Page 49 of 58
Smeal Pumper Demo # 4276
All electrical terminals that are not grounded shall have a protective covers or be in an enclosure. TAIL LIGHTS There shall be a Weldon model 4694 tail light assembly installed on each side of the rear of the
apparatus. Each tail light assembly shall include one (1) LED red stop/tail light, one (1) LED amber turn
light and one (1) LED clear back up light. The lights shall be mounted in a cast housing one per each side
of the apparatus. The remaining slot shall be filled with a warning light specified in the warning light
section. MIDSHIP TURN SIGNALS There shall be two (2) Truck-Lite model 21 LED midship auxiliary/turn signal lights installed. One (1) light
shall be located in the rub rail on each side of the body. BODY GROUND LIGHTING There shall be four (4) Grote White 4" round, LED lights model 61E41 installed beneath the apparatus in
areas where personnel may be expected to climb on and off of the apparatus. The lights shall illuminate
the ground within 30" of the apparatus to provide visibility of any obstructions or hazards. These areas
shall include, but shall not be limited to, side running boards and the rear step area. There shall be four (4) aluminum ground light brackets provided to position each ground light so as to
illuminate the ground within 30" of the apparatus. CLEARANCE LIGHTS Grote model 65282 red LED clearance lights shall be installed in the rear tailboard as necessary to be in
full compliance with applicable ICC and DOT codes and regulations. Clearance reflectors shall be placed
on the apparatus to be in full compliance with applicable ICC and DOT codes and regulations. REAR WORK LIGHT SWITCH A switch shall be installed above the tail light bezel on the left side of the rear of the apparatus. The
switch shall be wired to the backup lights to provide additional work lighting. The rear work light circuit
shall be deactivated when the park brake is disengaged. In addition to the lights being activated by the
above switch, the lights shall also come on when the transmission is placed in reverse. GENERATOR There shall be a Harrison, model 8.0MCR-16R hydraulic driven generator installed on the apparatus. The
continuous duty rating of the generator shall be 8,000 watts, 33/66 amps, 120/240VAC volts. Current
frequency shall be stable at 60 hertz. The system shall be designed and assembled by a company with no less than 10 years experience in the
manufacture of hydraulic driven generators. The system shall be tested prior to shipping and shall be
accompanied with a test report. The generator shall be tested at various loads from no load to full load to
ensure reliable power delivery at various loads. Page 50 of 58
Smeal Pumper Demo # 4276
The motor/generator shall be placed in a frame, which affords protection to the components and provides
a unitized mounting module containing the motor/generator, reservoir, oil cooler, filtration, and an on/off
manifold containing a cross port check valve allowing unit to be started and shut down remotely. The
generator shall be a commercial type with a heavy duty bearing and of brushless design to ensure low
maintenance. No brushes or slip rings shall be allowed. The reservoir shall include an oil level sight
gauge, oil temperature gauge, fill cap, oil filter, and a venturi boost unit to provide positive pressure to the
pump suction port. The generator and motor shall be close coupled and aligned using a Morse taper with
a through bolt to secure the motor to the generator. No two (2) bearing generators shall be used. The system must be capable of producing the rated full power when driven from the vehicle PTO from
idle to maximum engine speed. The hydraulic motor and pump shall be of axial piston design to provide low internal leakage and a high
degree of frequency stability. No gear pumps or motors shall be used. The pump shall match the system
with the proper orifice, pressure compensator, and load sense settings to provide stable output regardless
of engine rpm or electrical load demands. The system shall be capable of normal operations using a commonly available ATF fluid, such as GM
Dextron III or equivalent. All fluid service points shall be in close proximity to the reservoir for ease of
scheduled maintenance. The system shall be warranted for a period of not less than two (2) years or 2000 hours, whichever
should come first. There shall be a remote start switch installed in the chassis cab for the generator. GENERATOR PTO CONNECTION The hydraulic pump for the generator shall be connected to the chassis transmission through a "Hot
Shift", electrically engaged power-takeoff system. The control to engage and disengage the power-takeoff
system shall be installed in the chassis cab. The PTO shall be capable of being operated while in "Drive". This option shall allow for onboard 120/240
volt lights to be operated while driving down the road. GENERATOR DISPLAY There shall be a FROG D, model FR800-4812, provided with the generator. The FROG D shall
automatically sense a generator signal and begin displaying information. The digital meter display shall
constantly monitor and display voltage, frequency (accurate to within 1 decimal point), and current draw
on two separate lines. The display shall be capable of displaying total accumulated run time hours when
the MODE button is pressed. This information shall be stored in a non-erasable memory. The Onan generator shall be located at the front of the body. 8 CIRCUIT NON-GFI LOAD CENTER There shall be a 120/240 volt load center incorporated into the 120/240 volt wiring system. The load
center shall include adequate circuit breakers to protect the loads specified on the apparatus. The entire
Page 51 of 58
Smeal Pumper Demo # 4276
120/240 volt electrical system shall be installed in strict compliance with NFPA 1901. This shall include all
testing, labeling, wiring methodology, and dimensional requirements. Certification of compliance shall
accompany the apparatus at the time of delivery. All 120/240 volt A.C. Wiring shall be done in accordance
with NFPA 1901 as well as nationally accepted electrical codes. BRANCH CIRCUIT OVERCURRENT PROTECTION Over current protection devices shall be provided for circuits in accordance with NFPA 1901. The load
center shall be equipped with a non-GFI two pole main breaker when the six or more individual branch
circuits are present. Over current protection devices shall be marked with labels to identify the function of
the circuit they protect. The load center shall be located on the forward bulkhead of the L1 compartment. There shall be one (1) splash guard/drip pan installed inside the compartment. The aluminum drip pan
shall catch drops of water that accumulate on the shutter and drip into the shutter compartment when the
door is being rolled up. The plastic splash guard shall act to keep water from being splashed throughout
the interior of the compartment while the door is being rolled up. The pan shall also serve to protect the
shutter from damage due to impact from behind or below. UPPER ZONE A There shall be one (1) Weldon Aero-Maxx II, 59" LED lightbar installed on the chassis cab roof. The
lightbar shall be equipped with six (6) forward facing red LED modules, four (4) forward facing white LED
modules, two (2) side facing red LED modules. The lightbar shall be equipped with clear lenses. All clear LED lights in the lightbar shall be deactivated in
the Blocking Right of Way mode. UPPER ZONE C There shall be two (2) Weldon, model 7150-7160-10 LED beacons installed high at the rear of the
apparatus. The beacons shall have red LEDs and lenses. UPPER ZONE B UPPER ZONE D LOWER ZONE A The warning lights shall be supplied and installed by the chassis manufacturer. LOWER ZONE B There shall be one (1) Weldon, model V46W-R, LED light with chrome flange installed. The light shall
have a red lens. LOWER ZONE C There shall be Two (2), Weldon, model V46W-R LED lights installed. The lights shall have red lenses. Page 52 of 58
Smeal Pumper Demo # 4276
LOWER ZONE D There shall be one (1) Weldon, model V46W-R, LED light with chrome flange installed. The light shall
have a red lens. WELDON V46S 12 VOLT LED SCENE LIGHTS There shall be two (2) Weldon Diamondback LED V46S Scenelights bezels installed. The 12 volt rear scene light shall be controlled by a switch located in the chassis cab. The switch shall
have an indicator that shall illuminate when the switch is in the “ON” position. The light shall be controlled
by one (1) switch. The switch shall be labeled "REAR SCENE." In addition to the switch located in the cab, the 12 volt rear scene light shall be activated by the rear work
light switch and when the apparatus is placed in reverse. The 12 volt scene light shall be located on the rear of the apparatus body. BROW MOUNT 12 VOLT LIGHT(S) There shall be an Extenda-Lite/Akron Brass model ELSS-SLDC-BL scene light with brow mount bracket
pole installed on the apparatus. The mounting bracket shall attach to the bottom of the lighthead and be
machined to conform to the roof radius. All mounting brackets shall be heavy duty, cast aluminum that are
powder painted white to match the light head. Wiriong shall extend from a weatherproof strain relief at the
rear of the lighthead. The Akron Brass LED SceneStar light head shall contain 8 high power LEDs and a
highly polished reflector. The light head shall operate from 10-32 VDC and maintain a stable light output
of 14,000 lumens and constant power consumption of 220W. There shall be (2) remote switches provided; one (1) on the pump operator’s panel and one (1) in the
chassis cab for the 12 volt light. The light shall be located on the front of the chassis in the center. TELESCOPING 120 VOLT LIGHT(S) There shall be an Extenda-Lite/Akron Brass model ELSS-XLAC-PS-SM2 scene light with side mount
push-up telescoping pole installed on the apparatus. All mounting brackets and pole fittings shall be
heavy duty, cast aluminum that are powder painted white to match the light head. Each telescoping pole
shall be equipped with an Akron Brass LED SceneStar Light. The light head shall contain 48 high power
LEDs and a highly polished reflector. The light head shall operate from 120 VAC and maintain a stable
light output of 20,000 lumens and constant power consumption of 1.8 amps. All inside and outside poles
shall be made only from drawn aluminum tubes. Each pole shall be deep etched, wire brushed and clear
anodized to ensure a corrosion free appearance and lasting durability. The telescoping pole(s) shall
rotate 360 degrees left or right and the light head tilt up and down. The 120 volt light shall be controlled by two (2) switches. One (1) switch shall be located in the chassis
cab and one (1) switch shall be located on the pump operator's panel. Each switch shall be a momentary
activation switch so the light can be activated in one location and deactivated in the other. Page 53 of 58
Smeal Pumper Demo # 4276
The 120 volt light shall be controlled with a circuit breaker. The light shall be located on the rear of the chassis cab on the left side. TELESCOPING 120 VOLT LIGHT(S) There shall be an Extenda-Lite/Akron Brass model ELSS-XLAC-PS-SM2 scene light with side mount
push-up telescoping pole installed on the apparatus. All mounting brackets and pole fittings shall be
heavy duty, cast aluminum that are powder painted white to match the light head. Each telescoping pole
shall be equipped with an Akron Brass LED SceneStar Light. The light head shall contain 48 high power
LEDs and a highly polished reflector. The light head shall operate from 120 VAC and maintain a stable
light output of 20,000 lumens and constant power consumption of 1.8 amps. All inside and outside poles
shall be made only from drawn aluminum tubes. Each pole shall be deep etched, wire brushed and clear
anodized to ensure a corrosion free appearance and lasting durability. The telescoping pole(s) shall
rotate 360 degrees left or right and the light head tilt up and down. The 120 volt light shall be controlled by two (2) switches. One (1) switch shall be located in the chassis
cab and one (1) switch shall be located on the pump operator's panel. Each switch shall be a momentary
activation switch so the light can be activated in one location and deactivated in the other. The 120 volt light shall be controlled with a circuit breaker. The light shall be located on the rear of the chassis cab on the right side. ELECTRIC CORD REEL There shall be Akron Brass, model ERWC-15-10, electric rewind cord reel installed on the apparatus. The
cord reel shall be equipped with a universal frame that will allow the 12 volt motor to be mounted in four
(4) different positions. All metal parts, except for the electric motor and sprocket teeth, shall be powder
painted red. All hardware shall be stainless steel. The cord reel disks shall have rolled edges to prevent
sharp edges. The cord reel shall include the solenoid, switch and circuit breaker. The reel shall be
covered by an Akron Brass five (5) year warranty. Rollers be supplied to prevent damage to the electrical
cable if pulled in any direction. Shop Note: The reel shall be centered in the T1 compartment and shall be mounted as high as possible.
The cord reel shall be equipped with 200' of yellow STW Seoprene 10/3 wire installed with a cable stop to
prevent damage to cable fittings. JUNCTION BOX There shall be an Akron Brass Extenda-Lite, model EJBX, back lighted electrical junction box equipped
with four (4) electrical receptacles, two (2) per side. Each receptacle shall be equipped with a spring
loaded snap cover. The cord reel shall be prewired to the cast aluminum junction box to supply power to
the four (4) receptacles. An extension cord shall be connected to the junction box through a heavy-duty
water resistant strain relief and flexible extender. Each side of the junction box shall be fitted with
Page 54 of 58
Smeal Pumper Demo # 4276
polypropylene faceplates, which are backlighted, so that plug orientation to the receptacles is quick and
easy to align. The junction box shall be equipped with an Akron Brass model CS cord stop. A tread plate mounting bracket shall be included. There shall be one (1) NEMA 5-20R, 120 volt, duplex, 3-wire, straight blade (household type) GFCI
receptacle installed in the junction box. The receptacle shall have a 20 ampere rating. There shall be one (1) NEMA L5-15R, 120 volt, duplex, 3-wire, twistlock receptacle installed in the
junction box. The receptacle shall have a 15 ampere rating. There shall be two (2) NEMA L5-20R, 120 volt, single, 3-wire, twistlock receptacles installed in the
junction box. Each receptacle shall have a 20 ampere rating. The reel shall be located in the T1 compartment. RECEPTACLE There shall be one (1) NEMA L5-20R, 120 volt, single, 3-wire, twistlock receptacle installed on the
apparatus. The receptacle shall have a 20 ampere rating and include a spring-loaded weather resistant
cover if mounted in an exterior location. The receptacle shall be located in the right rear wheel area. RECEPTACLE There shall be one (1) NEMA L5-20R, 120 volt, single, 3-wire, twistlock receptacle installed on the
apparatus. The receptacle shall have a 20 ampere rating and include a spring-loaded weather resistant
cover if mounted in an exterior location. The receptacle shall be located in the left rear wheel area. BODY PAINT PREPARATION After the body and components have been fabricated and assembled they then shall be disassembled
prior to painting so when the apparatus is completed there shall be finish paint beneath the removable
components. The apparatus body and components shall be metal finished as follows to provide a
superior substrate for painting. All aluminum sections of the body shall undergo a thorough cleaning process starting with a phosphoric
acid solution to begin the etching process followed by a complete rinse. The next step shall consist of a
chemical conversion coating applied to seal the metal substrate and become part of the aluminum
surface for greater film adhesion. After the cleaning process, the body and its components shall be primed with a High Solids primer and
the seams be caulked. Page 55 of 58
Smeal Pumper Demo # 4276
All bright metal fittings, if unavailable in stainless steel or polished aluminum, shall be heavily chrome
plated. Iron fittings shall be copper under plated prior to chrome plating. PAINT PROCESS The paint process shall follow the strict standards as set forth by PPG Fleet Finish Guidelines. The body shall go through a three-stage paint process: primer coat, base coat (color), and clear coat. In
the first stage of the paint process the body shall be coated with PPG F3980 Low VOC / High Solids
primer to achieve a total thickness of 2-4 mills. In the second stage of the paint process the body shall be
painted with PPG FBCH Delfleet™ High Solids Polyurethane Base Coat. A minimum of two to three coats
of paint shall be applied to achieve hiding. In the final stage of the paint process the body shall be painted
with PPG DCU-2002 Clear Coat. A minimum of two to three coats shall be applied to achieve a total dry
film thickness of 2-3 mills. As part of the curing process the painted body shall go through a Force Dry / Bake Cycle process. The
painted components shall be baked at 185 degrees for 3 hours to achieve a complete coating cure on the
finished product. HAND POLISHED After the Force Dry / Bake Cycle and ample cool down time, the coated surface shall be sanded using 3M
1000, 1200, and or 1500 grit sandpaper to remove surface defects. In the final step, the surface shall be
buffed with 3M super-duty compound to add extra shine to coated surface. No more than .5 mil of clear
shall be removed in this process. BODY COLOR The body shall be painted with PPG High Solids Polyurethane Base Coat. The single tone body shall be
painted (RED) PPG# FBCH-71096-ALT. UNDERCOATING The apparatus shall undergo a two (2) step undercoating process. The first step shall be a rubberized
polyurethane base compound that is applied after the body has been primed. The materials used
incorporate unused paint products to reduce the amount of waste released into the environment. This
coat shall be applied to all hidden pockets and surfaces that shall not be visible after completion. As a final step, the entire underside of the body shall be coated with a bituminous based automotive type
undercoating when the apparatus is completed. During this application, special care shall be taken to
avoid spraying the product on air lines, cables, or other items that would cause normal maintenance to be
hindered. COMPARTMENT COATING The interior of the body compartment shall be coated with gray Line-X®. thermoplastic polyurethane
coating. The coating shall be durable enough to withstand every day abuse of equipment removal and
shifting. Page 56 of 58
Smeal Pumper Demo # 4276
LINE-X® THERMOPLASTIC COATING In designated areas, Line-X® XS-350, a two component spray-in-place thermoplastic polyurethane
system shall be used for maximum protection of the body and equipment. Line-X® XS-350 is a 100%
high performance aromatic solids pure polyuria elastomeric membrane. The coating shall be a fast cure,
textured surface, multi-purpose material designed for commercial and industrial applications. It shall
exhibit excellent adhesion to the body and serve as a protective, abrasion resistant liner where applied. The coating shall exhibit the following minimum typical physical properties: 
Tensile strength - 3,432 PSI (ASTM D-412) 
Elongation - 162% (ASTM D-412) 
Tear Strength - 783 PLI (ASTM D-624) 
Shore D Hardness - 60 +/-1 (ASTM D-2240) TOUCH UP PAINT One (1) two ounce bottle of acrylic enamel touch-up paint or two (2) touch up paint pens, if color is
available, shall be supplied. CORROSION PREVENTION One (1) 3.75 ounce tube of Electrolysis Corrosion Kontrol (ECK) shall be provided to use whenever
additional items are mounted to the apparatus. ECK protects aluminum and stainless steel against electrolytic reaction, isolates dissimilar metals and
gives bedding protection for hardware and fasteners. ECK contains anti-seizing lubricant for threads. ECK
is dielectric and perfect for use with electrical connectors. NFPA COMPLIANT REFLECTIVE STRIPING Reflective striping shall be applied to the exterior of the apparatus in a manner consistent with NFPA
1901. It shall consist of a 1", 4", and a 1" wide stripe low across the front of the chassis and along the
sides up to the first compartment on each side where it shall angle up and back to a point in the upper
compartments where it shall then run level to the back edge of the body. There be a 1" gap provided
between each of the stripes. REFLECTIVE STRIPE FRONT TERMINATION The NFPA reflective stripe located on the side of the apparatus shall wrap around the front of the chassis
cab and terminate at chassis grill. The color of the upper reflective striping on the apparatus shall be white. The color of the main reflective striping on the apparatus shall be white. The color of the lower reflective striping on the apparatus shall be white. Page 57 of 58
Smeal Pumper Demo # 4276
RUB RAIL REFLECTIVE STRIPING There shall be 2" reflective striping installed in the rub rail channel. The reflective striping shall be
diamond grade quality material for increased visibility. The reflective shall be silver in color. CHASSIS SUPPLIED PAINT BREAK STRIPING The 1/2" gold reflective striping on the paint break line shall be supplied and installed by the chassis
manufacturer. CAB DOOR REFLECTIVE STRIPING The reflective striping on the inside of the chassis door shall be provided by the chassis manufacturer. CHEVRON REFLECTIVE STRIPING ON REAR In addition to the custom striping pattern supplied on the apparatus, there shall be additional reflective
striping applied to the entire rear of the unit. The reflective striping shall cover at least 50% of the rear
facing vertical surface per NFPA 1901. The striping shall consist of alternating reflective stripes. Each
stripe shall be a minimum of 6" in width and shall be applied to the apparatus at 45° angle. The T1 Compartment and any storage compartment doors shall be excluded from the chevron pattern. CHEVRON REFLECTIVE STRIPING, RED/FLUORESCENT YELLOW-GREEN The chevron striping shall consist of 3M part numbers 1172 EC, red and 3983, fluorescent yellow-green. Only 3M Diamond Grade™ VIP Reflective Striping shall be used. 3M Diamond Grade™ VIP Reflective
Striping is a wide angle prismatic lens reflective sheeting designed for the production of durable traffic
control signs and delineators that are exposed vertically in service. This sheeting is designed to provide
higher sign brightness than sheetings that use glass bead lenses. It is intended to also provide high sign
brightness in the legibility distance where other sheetings do not. GOLD LEAF LETTERING There shall be sixty (60) 22KT gold leaf letters provided and installed on the apparatus. The letters shall
be approximately 3" tall with black outline and shadow. Page 58 of 58
Specification
MODEL
The chassis shall be a Metro Star model. The cab and chassis shall include design considerations for
multiple emergency vehicle applications, rapid transit and maneuverability. The chassis shall be
manufactured for heavy duty service with the strength and capacity to support a fully laden apparatus,
one hundred (100) percent of the time.
MODEL YEAR
The chassis shall have a vehicle identification number that reflects a 2014 model year.
COUNTRY OF SERVICE
The chassis shall be put in service in the country of United States of America (USA).
The chassis will meet applicable U.S.A. federal motor vehicle safety standards per CFR Title 49 Chapter
V Part 571 as clarified in the incomplete vehicle book per CFR Title 49 Chapter V Part 568 Section 4
which accompanies each chassis. Spartan Chassis is not responsible for compliance to state, regional,
or local regulations. Dealers should identify those regulations and order any necessary optional
equipment from Spartan Chassis or their OEM needed to be in compliance with those regulations.
APPARATUS TYPE
The apparatus shall be a pumper vehicle designed for emergency service use which shall be equipped
with a permanently mounted fire pump which has a minimum rated capacity of 750 gallons per minute
(3000 L/min). The apparatus shall include a water tank and hose body whose primary purpose is to
combat structural and associated fires.
VEHICLE TYPE
The chassis shall be manufactured for use as a straight truck type vehicle and designed for the
installation of a permanently mounted apparatus behind the cab. The apparatus of the vehicle shall be
supplied and installed by the apparatus manufacturer.
AXLE CONFIGURATION
The chassis shall feature a 4 x 2 axle configuration consisting of a single rear drive axle with a single
front steer axle.
GROSS AXLE WEIGHT RATINGS FRONT
The front gross axle weight rating (GAWR) of the chassis shall be 20,000 pounds.
This front gross axle weight rating shall be adequate to carry the weight of the completed apparatus
including all equipment and personnel.
GROSS AXLE WEIGHT RATINGS REAR
The rear gross axle weight rating (GAWR) of the chassis shall be 27,000 pounds.
This rear gross axle weight rating shall be adequate to carry the weight of the completed apparatus
including all equipment and personnel.
PUMP PROVISION
The chassis shall include provisions to mount a drive line pump in the middle of the chassis, behind the
cab, more commonly known as the midship location.
CAB STYLE
The cab shall be a custom, fully enclosed, MFD model with a 10.00 inch raised roof over the driver,
officer, and crew area, designed and built specifically for use as an emergency response vehicle by a
company specializing in cab and chassis design for all emergency response applications. The cab shall
be designed for heavy-duty service utilizing superior strength and capacity for the application of
protecting the occupants of the vehicle. This style of cab shall offer up to eight (8) seating positions.
The cab shall incorporate a fully enclosed design with side wall roof supports, allowing for a spacious
cab area with no partition between the front and rear sections of the cab. To provide a superior finish by
reducing welds that fatigue cab metal; the roof, the rear wall and side wall panels shall be assembled
using a combination of welds and proven industrial adhesives designed specifically for aluminum
fabrication for construction.
The cab shall be constructed using multiple aluminum extrusions in conjunction with aluminum plate,
which shall provide proven strength and the truest, flattest body surfaces ensuring less expensive paint
repairs if needed. All aluminum welding shall be completed to the American Welding Society and
ANSI D1.2-96 requirements for structural welding of aluminum.
All interior and exterior seams shall be sealed for optimum noise reduction and to provide the most
favorable efficiency for heating and cooling retention.
The cab shall be constructed of 5052-H32 corrosion resistant aluminum plate. The cab shall incorporate
tongue and groove fitted 6061-T6 0.13 & 0.19 inch thick aluminum extrusions for extreme duty
situations. A single formed, one (1) piece extrusion shall be used for the “A” pillar, adding strength and
rigidity to the cab as well as additional roll-over protection. The cab side walls and lower roof skin shall
be 0.13 inch thick; the rear wall and raised roof skins shall be 0.09 inch thick; the front cab structure
shall be 0.19 inch thick.
The exterior width of the cab shall be 94.00 inches wide with a minimum interior width of 88.00 inches.
The overall cab length shall be 131.10 inches with 54.00 inches from the centerline of the front of the
axle to the back of the cab.
The cab interior shall be designed to afford the maximum usable interior space and attention to
ergonomics with hip and legroom while seated which exceeds industry standards. The crew cab floor
shall be flat across the entire walking area for ease of movement inside the cab.
The cab shall offer an interior height of 57.50 inches from the front floor to the headliner in the
non-raised roof area and a rear floor to headliner height of 65.00 inches in the raised roof area, at a
minimum. The cab shall offer an interior measurement at the floor level from the rear of the engine
tunnel to the rear wall of the cab of 49.88 inches. All interior measurements shall include the area within
the interior trimmed surfaces and not to any unfinished surface.
The cab shall include a driver and officer area with two (2) cab doors large enough for personnel in
full firefighting gear. The front doors shall offer a clear opening of 40.25 inches wide X 53.50 inches
high, from the cab floor to the top of the door opening. The cab shall also include a crew area with up
to two (2) cab doors, also large enough for personnel in full firefighting gear. The rear doors shall
offer a clear opening of 32.25 inches wide X 61.00 inches high, from the cab floor to the top of the
door opening.
The cab shall incorporate a progressive two (2) step configuration from the ground to the cab floor at
each door opening. The progressive steps are vertically staggered and extend the full width of each step
well allowing personnel in full firefighting gear to enter and exit the cab easily and safely.
The first step for the driver and officer area shall measure approximately 11.50 inches deep X 31.50
inches wide. The intermediate step shall measure approximately 8.50 inches deep X 33.00 inches wide.
The height from the first step to the intermediate step and the intermediate step to the cab floor shall not
exceed 11.00 inches.
The first step for the crew area shall measure approximately 11.50 inches deep X 21.50 inches wide.
The intermediate step shall measure approximately 10.25 inches deep X 22.50 inches wide. The height
from the first step to the intermediate step and the intermediate step to the cab floor shall not exceed
12.50 inches.
CAB FRONT FASCIA
The front cab fascia shall be constructed of 5052-H32 Marine Grade, 0.13 of an inch thick aluminum
plate which shall be an integral part of the cab. The fascia shall be Sirius II styled, offering an
aerodynamic look for a stylish appearance. The cab fascia shall encompass the front of the aluminum
cab structure from the bottom of the windshield to the lower section of the cab.
The Sirius II style cab fascia shall include provisions for headlights, turn signals and warning light
assemblies designed to permit easy access for maintenance. The fascia shall include additional intake
provisions at the lower portion just above the bumper further enhancing the total free air intake for
engine cooling.
Chrome plated molded plastic bezels shall be provided for lighting assemblies located on each side of
the cab fascia for optimum visibility.
FRONT GRILLE
The Sirius II fascia shall include a two (2) piece front grille. The upper portion of the grille shall be
hinged to provide service access behind the grille.
CAB UNDERCOAT
There shall be a rubberized undercoating applied to the underside of the cab that provides abrasion
protection, sound deadening and corrosion protection.
CAB SIDE DRIP RAIL
There shall be a drip rail along the top radius of each cab side. The drip rails shall help prevent water
from the cab roof running down the cab side.
CAB PAINT EXTERIOR
The cab shall be painted prior to the installation of glass accessories and all other cab trim to ensure
complete paint coverage and the maximum in corrosion protection of all metal surfaces.
All metal surfaces on the entire cab shall be ground by disc to remove any surface oxidation or surface
debris which may hinder the paint adhesion. Once the surface is machine ground a high quality acid
etching of base primer shall be applied. Upon the application of body fillers and their preparation, the
cab shall be primed with a coating designed for corrosion resistance and surface paint adhesion. The
maximum thickness of the primer coat shall be 2.00 mils.
The entire cab shall then be coated with an intermediate solid or epoxy surfacing agent that is designed
to fill any minor surface defects, provide an adhesive bond between the primer and the paint and
improve the color and gloss retention of the color. The finish to this procedure shall be a sanding of the
cab with 360 grit paper followed by sealing the seams with SEM brand seam sealer.
The cab shall then be painted the specific color designated by the customer with an acrylic urethane type
system designed to retain color and resist acid rain and most atmospheric chemicals found on the fire
ground or emergency scene. The paint shall have a minimum thickness of 2.00 mils, followed by a clear
top coat not to exceed 2.00 mils. The entire cab shall then be baked at 180 degrees for one (1) hour to
speed the curing process of the coatings.
CAB PAINT MANUFACTURER
The cab shall be painted with PPG Industries paint.
CAB PAINT PRIMARY/LOWER COLOR
The lower paint color shall be PPG FBCH 71096 ALT Red.
CAB PAINT SECONDARY/UPPER COLOR
The secondary/upper paint color shall be PPG FBCH 2185 white.
CAB PAINT EXTERIOR BREAKLINE
The upper and lower paint shall meet at a breakline on the cab which shall be located approximately
0.50 inch below the cab door windows on each side of the cab. The breakline shall curve downward at
the front cab corners to approximately 6.50 inches below the windshields on the front of the cab ending
at either side of the upper grille.
CAB PAINT PINSTRIPE
A 0.50 inch wide gold reflective tape with black borders shall be applied on the break line between the
two different colored surfaces.
CAB PAINT WARRANTY
The cab and chassis shall be covered by a limited manufacturer paint warranty which shall be in effect
for ten (10) years from the first owner’s date of purchase or in service or the first 100,000 actual miles,
whichever occurs first.
CAB PAINT INTERIOR
The visible interior cab structure surfaces shall be painted with a Zolatone #20-71 onyx black texture
finish.
CAB ENTRY DOORS
The cab shall include four (4) entry doors, two (2) front doors and two (2) crew doors designed for ease
of entering and egress when outfitted with an SCBA. The doors shall be constructed of extruded
aluminum with a nominal thickness of 0.13 inch. The exterior skins shall be constructed of 0.13 inch
aluminum plate.
The doors shall include a double rolled style automotive rubber seal around the perimeter of each door
frame and door edge which ensures a weather tight fit.
All door hinges shall be hidden within flush mounted cab doors for a pleasing smooth appearance and
perfect fit along each side of the cab. Each door hinge shall be piano style with a 0.38 inch pin and
shall be constructed of stainless steel.
CAB ENTRY DOOR TYPE
All cab entry doors shall be full length in design to fully enclose the lower cab steps.
CAB INSULATION
The cab ceiling and walls shall include 1.00 inch thick foam insulation. The insulation shall act as a
barrier absorbing noise as well as assisting in sustaining the desired climate within the cab interior.
CAB STRUCTURAL WARRANTY
Summary of Warranty Terms:
THE FOLLOWING IS SUMMARY OF WARRANTY TERMS FOR INFORMATION ONLY. THE
ACTUAL LIMITED WARRANTY DOCUMENT, WHICH IS ATTACHED TO THIS OPTION,
CONTAINS THE COMPLETE STATEMENT OF THE SPARTAN CHASSIS, INC. LIMITED
WARRANTY. SPARTAN’S RESPONSIBILITY IS TO BE ACCORDING TO THE TERMS OF
THE COMPLETE LIMITED WARRANTY DOCUMENT.
The cab structure shall be warranted for a period of ten (10) years or one hundred thousand (100,000)
miles which ever may occur first. The warranty period shall commence on the date the vehicle is
delivered to the first end user.
CAB TEST INFORMATION
The cab shall have successfully completed the preload side impact, static roof load application and
frontal impact without encroachment to the occupant survival space when tested in accordance with
Section 4 of SAE J2420 COE Frontal Strength Evaluation Dynamic Loading Heavy Trucks, Section 5 of
SAE J2422 Cab Roof Strength Evaluation Quasi –Static Loading Heavy Trucks and ECE R29 Uniform
Provisions Concerning the Approval of Vehicles with regard to the Protection of the Occupants of the
Cab of a Commercial Vehicles Annex 3 Paragraph 5.
The above tests have been witnessed by and attested to by an independent third party. The test results
were recorded using cameras, high speed imagers, accelerometers and strain gauges. Documentation of
the testing shall be provided upon request.
ELECTRICAL SYSTEM
The chassis shall include a single starting electrical system which shall include a 12 volt direct current
system, suppressed per SAE J551. The wiring shall be appropriate gauge cross link with 311 degree
Fahrenheit insulation. All SAE wires in the chassis shall be color coded and shall include the circuit
number and function where possible. The wiring shall be protected by 275 degree Fahrenheit minimum
high temperature flame retardant loom.
DATA RECORDING SYSTEM
The chassis shall have a Weldon Vehicle Data Recorder (VDR) system installed. The system shall be
designed to meet NFPA 1901. The following information shall be recorded:













Vehicle Speed
Acceleration
Deceleration
Engine Speed
Engine Throttle Position
ABS Event
Seat Occupied Status
Seat Belt Status
Master Optical Warning Device Switch Position
Service Brake
Engine Hours
Time
Date
Each portion of the data shall be recorded at the specified intervals and stored for the specified length of
time to meet NFPA 1901 guidelines and shall be retrievable by connecting a laptop computer to the
VDR system. The laptop connection shall be a panel mounted female type B USB connection point,
remotely mounted in the left side foot well of the cab.
ACCESSORY POWER
The electrical distribution panel shall include two (2) power studs. The studs shall be size #10 and each
of the power studs shall be circuit protected with a fuse of the specified amperage. One (1) power stud
shall be capable of carrying up to a 40 amp battery direct load. One (1) power stud shall be capable of
carrying up to a 15 amp ignition switched load. The two (2) power studs shall share one (1) #10 ground
stud.
EXTERIOR ELECTRICAL TERMINAL COATING
All terminals exposed to the elements will be sprayed with a high visibility protective rubberized coating
to prevent corrosion.
ENGINE
The chassis engine shall be a Cummins ISL9 engine. The ISL9 engine shall be an in-line six (6)
cylinder, four cycle diesel powered engine. The engine shall offer a rating of 450 horse power at 2100
RPM and shall be governed at 2200 RPM. The torque rating shall feature 1250 foot pounds of torque at
1400 RPM with 543 cubic inches (8.9 liters) of displacement.
The ISL9 engine shall feature a VGT™ Turbocharger, a high pressure common rail fuel system, fully
integrated electronic controls with an electronic governor, and shall be EPA certified to meet the 2013
emissions standards using cooled exhaust gas recirculation and selective catalytic reduction technology.
The engine shall include an engine mounted combination full flow/by-pass oil filter with replaceable
spin on cartridge for use with the engine lubrication system. The engine shall include Citgo brand
Citgard 500, or equivalent SAE 15W40 CJ4 low ash engine oil which shall be utilized for proper engine
lubrication.
A wiring harness shall be supplied ending at the back of the cab. The harness shall include a connector
which shall allow an optional harness for the pump panel. The included circuits shall be provided for a
tachometer, oil pressure, engine temperature, hand throttle, high idle and a PSG system. A circuit for
J1939 data link shall also be provided at the back of the cab.
CAB ENGINE TUNNEL
The cab interior shall include an integrated engine tunnel constructed of 5052-H32 Marine Grade, 0.19
of an inch thick aluminum. The tunnel shall be a maximum of 41.50 inches wide X 25.50 inches high.
DIESEL PARTICULATE FILTER CONTROLS
There shall be two (2) controls for the diesel particulate filter. One (1) control shall be for regeneration
and one (1) control shall be for regeneration inhibit.
ENGINE PROGRAMMING HIGH IDLE SPEED
The engine high idle control shall maintain the engine idle at approximately 1250 RPM when engaged.
ENGINE HIGH IDLE CONTROL
The vehicle shall be equipped with a high-idle speed control rocker switch, which shall be pre-set to
maintain the engine idle at a pre-determined rate when activated manually. This device shall operate
when the master switch is activated and safely interlocked only to function when the transmission is in
neutral with the parking brake set.
ENGINE PROGRAMMING ROAD SPEED GOVERNOR
The engine shall include programming which will govern the top speed of the vehicle.
AUXILIARY ENGINE BRAKE
A compression brake, for the six (6) cylinder engine shall be provided. A cutout relay shall be installed
to disable the compression brake when in pump mode or when an ABS event occurs. The engine
compression brake shall activate upon 0% accelerator when in operation mode and actuate the vehicle’s
brake lights.
The engine shall utilize a variable geometry turbo (VGT) as an integrated auxiliary engine brake to offer
a variable rate of exhaust flow, which when activated in conjunction with the compression brake shall
enhance the engine's compression braking capabilities.
AUXILIARY ENGINE BRAKE CONTROL
An engine compression brake control device shall be included. The electronic control device shall
monitor various conditions and shall activate the engine brake only if all of the following conditions are
simultaneously detected:
 A valid gear ratio is detected.
 The driver has requested or enabled engine compression brake operation.
 The throttle is at a minimum engine speed position.
 The electronic controller is not presently attempting to execute an electronically controlled final
drive gear shift.
The compression brake shall be controlled through an on/off switch and a low/medium/high selector
switch.
ELECTRONIC ENGINE OIL LEVEL INDICATOR
The engine oil shall be monitored electronically and shall send a signal to activate a warning in the
instrument panel when levels fall below normal. The warning shall activate in a low oil situation upon
turning on the master battery and ignition switches without the engine running.
FLUID FILLS
The front of the chassis shall accommodate fluid fill for the engine oil through the grille. This area
shall also accommodate a check for the engine oil. The transmission, power steering, and coolant fluid
fills and checks shall be under the cab. The windshield washer fill shall be accessible through the front
left side mid step.
ENGINE DRAIN PLUG
The engine shall include an original equipment manufacturer installed oil drain plug.
ENGINE WARRANTY
The Cummins engine shall be warranted for a period of five (5) years or 100,000 miles, whichever
occurs first.
REMOTE THROTTLE HARNESS
An apparatus interface wiring harness for the engine and transmission pump interlocks shall be supplied
with the chassis. The harness shall include a connector for connection to a chassis pump panel harness
supplied by the body builder and shall terminate in the left frame rail behind the cab for connection by
the body builder. The harness shall include circuits deemed for a pump panel and shall contain circuits
for a hand throttle, and a multiplexed gauge. Separate circuits shall also be included for a pump control
switch, “Pump Engaged” and “OK to Pump” indicator lights, open compartment ground, start signal,
park brake ground, ignition signal, master power, clean power, customer ignition, air horn solenoid
switch, high idle switch and high idle indicator light.
ENGINE PROGRAMMING REMOTE THROTTLE
The engine ECM discreet wire remote throttle circuit will be turned on for use with a discreet wire based
pump controller.
ENGINE PROGRAMMING IDLE SPEED
The engine low idle speed will be programmed at 700 rpm.
ENGINE FAN DRIVE
The engine cooling system fan shall incorporate a thermostatically controlled, Horton clutched type fan
drive.
When the clutched fan is disengaged it shall facilitate improved vehicle performance, cab heating in cold
climates, and fuel economy. The fan clutch design shall be fail safe so that if the clutch drive fails the
fan shall engage to prevent engine overheating due to the fan clutch failure.
ENGINE COOLING SYSTEM
There shall be a heavy-duty aluminum cooling system designed to meet the demands of the emergency
response industry. The cooling system shall have the capacity to keep the engine properly cooled under
all conditions of road and pumping operations. The cooling system shall be designed and tested to meet
or exceed the requirements specified by the engine and transmission manufacturer and all EPA
requirements. The complete cooling system shall be mounted to isolate the entire system from
vibration or stress. The individual cores of the cooling system shall be mounted in a manner to allow
expansion and contraction at various rates without inducing stress into the adjoining cores.
The cooling system shall utilize a charge air cooler to radiator serial flow package that provides the
maximum cooling capacity for the specified engine as well as serviceability. The main components
shall include a surge tank, an air to air charge air cooler bolted to the front of the radiator, recirculation
shields, a shroud, a fan, and required tubing.
The radiator shall be a down-flow design constructed with aluminum cores, plastic end tanks, and a steel
frame. The radiator shall be equipped with a drain cock to drain the coolant for serviceability.
The cooling system shall include a one piece injection molded polymer eleven (11) blade fan with a
fiberglass fan shroud.
The cooling system shall be equipped with a surge tank that is capable of removing entrained air from
the system. The surge tank shall be equipped with a low coolant probe and sight glass to monitor the
level of the coolant. The surge tank shall have a dual seal cap that meets the engine manufacturer's
pressure requirements, and allows for expansion and recovery of coolant into a separate integral
expansion chamber.
All radiator tubes shall be formed from aluminized steel tubing. Recirculation shields shall be installed
where required to prevent heated air from reentering the cooling package and affecting performance.
The charge air cooler shall be a cross-flow design constructed completely of aluminum with cast tanks.
All charge air cooler tubes shall be formed from aluminized steel tubing and installed with silicone
hump hoses and stainless steel “constant torque” style clamps meeting the engine manufacturer’s
requirements.
ENGINE COOLING SYSTEM PROTECTION
The engine cooling system shall include a recirculation shield designed to act as a light duty skid plate
below the radiator to provide additional protection for the engine cooling system from light impacts,
stones, and road debris.
ENGINE COOLANT
The cooling package shall include Extended Life Coolant (ELC). The use of ELC provides longer
intervals between coolant changes over standard coolants providing improved performance. The
coolant shall contain a 50/50 mix of ethylene glycol and de-ionized water to keep the coolant from
freezing to a temperature of -34 degrees Fahrenheit.
Proposals offering supplemental coolant additives (SCA) shall not be considered, as this is part of the
extended life coolant makeup.
ELECTRONIC COOLANT LEVEL INDICATOR
The instrument panel shall feature a low engine coolant indicator light which shall be located in the
center of the instrument panel. An audible tone alarm shall also be provided to warn of a low coolant
incident.
ENGINE PUMP HEAT EXCHANGER
A single bundle type coolant to water heat exchanger shall be installed between the engine and the
radiator. The heat exchanger shall be designed to prohibit water from the pump from coming in contact
with the engine coolant. This shall allow the use of water from the discharge side of the pump to assist
in cooling the engine.
COOLANT HOSES
The cooling system hoses shall be silicone heater hose with rubber hoses in the cab interior. The radiator
hoses shall be formed silicone coolant hoses with formed aluminized steel tubing. All heater hose,
silicone coolant hose, and tubing shall be secured with stainless steel constant torque band clamps.
ENGINE COOLANT OVERFLOW BOTTLE
A remote engine coolant overflow bottle shall be provided in the case of over filling the coolant system.
The overflow bottle shall capture the expansion fluid or overfill rather than allow the fluid to drain on
the ground. The overflow bottle provided on the cooling system shall only be a catch bottle and shall not
return excess coolant back into the surge tank.
ENGINE AIR INTAKE FILTER AND RESTRICTION W/REPLACEABLE
ELEMENT
The engine air intake system shall include an ember separator air intake filter which shall be located in
the front of the cab behind the right hand side fascia. This filter shall protect the downstream air filter
from embers using a combination of unique flat and crimped metal screens constructed into a corrosion
resistant steel frame. This multilayered screen shall be designed to trap embers or allow them to burn
out before passing through the pack, while creating only minimal air flow restriction through the system.
Periodic cleaning or replacement of the screen shall be all that is required after installation.
The engine shall also include an air intake filter which shall be bolted to the frame and located under the
front of the cab on the right hand side. The system shall utilize a replaceable dry type filter which
ensures dust and debris remains safely contained inside the housing during operation via leak-tight seals.
The service cover shall be located on the bottom of the housing, eliminating the chance of contaminating
the air intake system during air filter service.
The air flow distribution and dust loading shall be uniform throughout the high-performance filter
element, which shall result in pressure differential for improved horsepower and fuel economy. The air
intake ember separator shall be mounted within easy access via a hinged panel behind the right hand
side headlight module. The air intake system shall include a restriction indicator light in the warning
light cluster on the instrument panel, which shall activate when the air cleaner element requires
replacement.
AIR INTAKE PROTECTION
A light duty skid plate shall be supplied for the engine air intake system below the right front side of the
cab. The skid plate shall provide protection for the air intake system from light impacts, stones, and road
debris.
ENGINE EXHAUST SYSTEM
The exhaust system shall be mounted below the frame in the outboard position with the SCR canister in
line rearward of the DPF. The exhaust system shall utilize a 90-degree bend in the exhaust tubing from
the turbo into a side inlet DPF canister that allows the entire system to be pulled forward. The
discharge shall terminate horizontally on the right side of the vehicle ahead of the rear tires.
The exhaust system shall include a diesel particulate filter (DPF), a diesel oxidation catalyst, and a
selective catalytic reduction (SCR) catalyst to meet current EPA standards. The selective catalytic
reduction catalyst utilizes a diesel exhaust fluid solution consisting of urea and purified water to convert
NOx into nitrogen, water, and trace amounts of carbon dioxide. The solution shall be injected into the
system through the decomposition tube between the DPF and SCR.
The system shall utilize 0.07 inch thick stainless steel exhaust tubing between the engine turbo and the
DPF. Zero leak clamps seal all system joints between the turbo and DPF.
The DPF, the decomposition tube, and the SCR canister through the end of the tailpipe shall be
connected with zero leak clamps.
DIESEL EXHAUST FLUID TANK
The exhaust system shall include a molded cross linked polyethylene tank for Diesel Exhaust Fluid
(DEF). The tank shall have a capacity of six (6) usable gallons and shall be mounted on the left hand
side of the chassis frame behind the batteries below the frame.
The DEF tank shall be designed with capacity for expansion in case of fluid freezing. Engine coolant,
which shall be thermostatically controlled, shall be run through lines in the tank to help prevent the DEF
from freezing and to provide a means of thawing the fluid if it should become frozen.
The tank fill tube shall be routed under the rear of the cab with the fill neck and splash guard accessible
in the top rear step.
ENGINE EXHAUST ACCESSORIES
An exhaust temperature mitigation device shall be shipped loose for installation by the body
manufacturer on the vehicle. The temperature mitigation device shall lower the temperature of the
exhaust by combining ambient air with the exhaust gasses at the exhaust outlet.
ENGINE EXHAUST WRAP
The exhaust tubing between the engine turbo and the diesel particulate filter (DPF) shall be wrapped
with a thermal cover in order to retain the necessary heat for DPF regeneration. The exhaust wrap shall
also help protect surrounding components from radiant heat which can be transferred from the exhaust.
TRANSMISSION
The drive train shall include an Allison model EVS 3000 torque converting, automatic transmission
which shall include electronic controls. The transmission shall feature two (2) 10-bolt PTO pads
located on the converter housing.
The transmission shall include two (2) internal oil filters and Castrol TranSynd™ synthetic TES 295
transmission fluid which shall be utilized in the lubrication of the EVS transmission. An electronic oil
level sensor shall be included with the readout located in the shift selector.
The transmission gear ratios shall be:
1st
3.49:1
2nd
1.86:1
3rd
1.41:1
4th
1.00:1
5th
0.75:1
6th
0.65:1 (if applicable)
Rev 5.03:1
TRANSMISSION MODE PROGRAMMING
The transmission, upon start-up, will select five (5) speeds of operation. The sixth speed over drive
shall be available with the activation of the mode button on the shifting pad.
TRANSMISSION FEATURE PROGRAMMING
The Allison Gen V-E transmission EVS group package number 127 shall contain the 198 vocational
package in consideration of the duty of this apparatus as a pumper. This package shall incorporate an
automatic neutral with selector override. This feature commands the transmission to neutral when the
park brake is applied, regardless of drive range requested on the shift selector. This requires re-selecting
drive range to shift out of neutral for the override.
This package shall be coupled with the use of a split shaft PTO and incorporate pumping circuits.
These circuits shall be used allowing the vehicle to operate in the fourth range lockup while operating
the pump mode due to the 1 to 1 ratio through the transmission, therefore the output speed of the engine
is the input speed to the pump. The pump output can be easily calculated by using this input speed and
the drive ratio of the pump itself to rate the gallons of water the pump can provide.
A transmission interface connector shall be provided in the cab. This package shall contain the following
input/output circuits to the transmission control module. The Gen V-E transmission shall include
prognostic diagnostic capabilities. These capabilities shall include the monitoring of the fluid life, filter
change indication, and transmission clutch maintenance.
Function ID
Inputs
C
J
Outputs
C
G
Description
Wire assignment
PTO Request
Fire Truck Pump Mode (4th Lockup)
142
122 / 123
Range Indicator
PTO Enable Output
Signal Return
145 (4th)
130
103
TRANSMISSION SHIFT SELECTOR
An Allison pressure sensitive range selector touch pad shall be provided and located to the right of the
driver within clear view and easy reach. The shift selector shall have a graphical Vacuum Florescent
Display (VFD) capable of displaying two lines of text. The shift selector shall provide mode indication
and a prognostic indicator (wrench symbol) on the digital display. The prognostics monitor various
operating parameters and shall alert you when a specific maintenance function is required.
ELECTRONIC TRANSMISSION OIL LEVEL INDICATOR
The transmission fluid shall be monitored electronically and shall send a signal to activate a warning in
the instrument panel when levels fall below normal.
TRANSMISSION PRE-SELECT WITH AUXILIARY BRAKE
When the auxiliary brake is engaged, the transmission shall automatically shift to second gear to
decrease the rate of speed assisting the secondary braking system and slowing the vehicle.
TRANSMISSION COOLING SYSTEM
The transmission shall include a water to oil cooler system located in the cooling loop between the
radiator and the engine. The transmission cooling system shall meet all transmission manufacturer
requirements. The transmission cooling system shall feature continuous flow of engine bypass water to
maintain uninterrupted transmission cooling.
TRANSMISSION DRAIN PLUG
The transmission shall include an original equipment manufacturer installed oil drain plug.
TRANSMISSION WARRANTY
The Allison EVS series transmission shall be warranted for a period of five (5) years with unlimited
mileage. Parts and labor shall be included in the warranty.
DRIVELINE
All drivelines shall be heavy duty metal tube and equipped with Spicer 1710 series universal joints.
The shafts shall be dynamically balanced prior to installation to alleviate future vibration. In areas of
the driveline where a slip shaft is required, the splined slip joint shall be coated with Glide Coat®.
MIDSHIP PUMP / GEARBOX
A temporary jackshaft driveline shall be installed by the chassis manufacturer to accommodate the
mid-ship split shaft pump as specified by the apparatus manufacturer.
MIDSHIP PUMP / GEARBOX MODEL
The midship pump/gearbox provisions shall be for a Waterous CSUC20 pump.
MIDSHIP PUMP GEARBOX DROP
The Waterous pump gearbox shall have a “C” (medium length) drop length.
MIDSHIP PUMP RATIO
The ratio for the midship pump shall be 2.27:1.
MIDSHIP PUMP LOCATION C/L SUCTION TO C/L REAR AXLE
The midship pump shall be located so the dimension from the centerline of the suction to the centerline
of the rear axle is 89.50 inches.
FUEL FILTER/WATER SEPARATOR
The fuel system shall have a Fleetguard FS1003 fuel filter/water separator as a primary filter. The fuel
filter shall have a drain valve.
A water in fuel sensor shall be provided and wired to an instrument panel lamp and audible alarm to
indicate when water is present in the fuel/water separator.
A secondary fuel filter shall be included as approved by the engine manufacturer.
FUEL LINES
The fuel system supply and return lines installed from the fuel tank to the engine shall be reinforced
nylon tubing rated for diesel fuel. The fuel lines shall be brown in color and connected with brass
fittings.
ELECTRIC FUEL PRIMER
Integral to the engine assembly is an electric lift pump that serves the purpose of pre-filter fuel priming.
FUEL TANK
The fuel tank shall have a capacity of fifty (50) gallons and shall measure 35.00 inches in width X 15.00
inches in height X 24.00 inches in length. The baffled tank shall be made of 14 gauge aluminized steel.
The exterior of the tank shall be painted with a PRP Corsol™ black anti-corrosive exterior metal
treatment finish. This results in a tank which offers the internal and external corrosion resistance.
The tank shall have a vent port to facilitate venting to the top of the fill neck for rapid filling without
"blow-back" and a roll over ball check vent for temperature related fuel expansion and draw.
The tank is designed with dual draw tubes and sender flanges. The tank shall have 2.00 inch NPT fill
ports for right or left hand fill. A 0.50 inch NPT drain plug shall be centered in the bottom of the tank.
The fuel tank shall be mounted below the frame, behind the rear axle. Two (2) three-piece strap hanger
assemblies with “U” straps bolted midway on the fuel tank front and rear shall be utilized to allow the
tank to be easily lowered and removed for service purposes. Rubber isolating pads shall be provided
between the tank and the upper tank mounting brackets. Strap mounting studs through the rail, hidden
behind the body shall not be acceptable.
FUEL TANK FILL PORT
The fuel tank fill ports shall be offset with the left fill port located in the rearward position and the right
fill port located in the middle position on the fuel tank.
FUEL TANK SERVICEABILTY PROVISIONS
The chassis fuel lines shall have additional length provided so the tank can be easily lowered and
removed for service purposes. The additional 8.00 feet of length shall be located above the fuel tank and
shall be coiled and secured. The fuel line fittings shall be pointed towards the right side (curbside) of the
chassis.
FRONT AXLE
The front axle shall be a Meritor Easy Steer Non drive front axle, model number MFS-20. The axle
shall include a 3.74 inch drop and a 71.00 inch king pin intersection (KPI). The axle shall include a
conventional style hub with a standard knuckle.
FRONT AXLE WARRANTY
The front axle shall be warranted by Meritor for two (2) years with unlimited miles under the general
service application. Details of the Meritor warranty are provided on the PDF document attached to this
option.
FRONT WHEEL BEARING LUBRICATION
The front axle wheel bearings shall be lubricated with oil. The oil level can be visually checked via
clear inspection windows in the front axle hubs.
FRONT SHOCK ABSORBERS
Two (2) Bilstein inert, nitrogen gas filled shock absorbers shall be provided and installed as part of the
front suspension system. The shocks shall be a monotubular design and fabricated using a special
extrusion method, utilizing a single blank of steel without a welded seam, achieving an extremely tight
peak-to-valley tolerance and maintains consistent wall thickness. The monotubular design shall provide
superior strength while maximizing heat dissipation and shock life.
The ride afforded through the use of a gas shock is more consistent and shall not deteriorate with heat,
the same way a conventional oil filled hydraulic shock would.
The Bilstein front shocks shall include a digressive working piston assembly allowing independent
tuning of the compression and rebound damping forces to provide optimum ride and comfort without
compromise. The working piston design shall feature fewer parts than most conventional twin tube and
“road sensing” shock designs and shall contribute to the durability and long life of the Bilstein shock
absorbers.
Proposals offering the use of conventional twin tube or “road sensing” designed shocks shall not be
considered.
FRONT SUSPENSION
The front suspension shall include a nine (9) leaf spring pack in which the longest leaf measures 54.00
inch long and 4.00 inches wide and shall include a military double wrapped front eye. Both spring eyes
shall have a case hardened threaded bushing installed with lubrication counter bore and lubrication land
off cross bore with grease fitting. The spring capacity shall be rated at 21,500 pounds.
STEERING COLUMN/ WHEEL
The cab shall include a Douglas Autotech steering column which shall include a seven (7) position tilt, a
2.25 inch telescopic adjustment, and an 18.00 inch, two (2) spoke steering wheel located at the driver’s
position. The steering wheel shall be covered with black polyurethane foam padding.
The steering column shall contain a horn button, self-canceling turn signal switch, four-way hazard
switch and headlamp dimmer switch.
ELECTRONIC POWER STEERING FLUID LEVEL INDICATOR
The power steering fluid shall be monitored electronically and shall send a signal to activate an audible
alarm and visual warning in the instrument panel when fluid level falls below normal.
POWER STEERING PUMP
The hydraulic power steering pump shall be a TRW PS and shall be gear driven from the engine. The
pump shall be a balanced, positive displacement, sliding vane type.
FRONT AXLE CRAMP ANGLE
The chassis shall have a front axle cramp angle of 50-degrees to the left and 45-degrees to the right.
POWER STEERING GEAR
The power steering gear shall be a TRW model TAS 65 with an assist cylinder.
CHASSIS ALIGNMENT
The chassis frame rails shall be measured to insure the length is correct and cross checked to make sure
they run parallel and are square to each other. The front and rear axles shall be laser aligned. The front
tires and wheels shall be aligned and toe-in set on the front tires by the chassis manufacturer.
REAR AXLE
The rear axle shall be a Meritor model RS-25-160 single drive axle. The axle shall include precision
forged, single reduction differential gearing, and shall have a fire service rated capacity of 27,000
pounds.
The axle shall be built of superior construction and quality components to provide the rugged
dependability needed to stand up to the fire industry’s demands. The axle shall include rectangular
shaped, hot-formed housing with a standard wall thickness of 0.63 of an inch for extra strength and
rigidity and a rigid differential case for high axle strength and reduced maintenance.
The axle shall have heavy-duty Hypoid gearing for longer life, greater strength and quieter operation.
Industry-standard wheel ends for compatibility with both disc and drum brakes, and unitized oil seal
technology to keep lubricant in and help prevent contaminant damage will be used.
REAR AXLE WARRANTY
The rear axle shall be warranted by Meritor for two (2) years with unlimited miles under the general
service application. Details of the Meritor warranty are provided on the PDF document attached to this
option.
REAR AXLE DIFFERENTIAL LUBRICATION
The rear axle differential shall be lubricated with oil.
REAR WHEEL BEARING LUBRICATION
The rear axle wheel bearings shall be lubricated with oil.
VEHICLE TOP SPEED
The top speed of the vehicle shall be approximately 63 MPH +/-2 MPH at governed engine RPM.
REAR SUSPENSION
The single rear axle shall feature a Reyco 79KB vari-rate, self-leveling captive slipper type conventional
multi-leaf spring suspension, with 57.50 inch X 3.00 inch springs. One (1) adjustable and one (1) fixed
torque rod shall be provided.
The rear suspension capacity shall be rated from 21,000 to 31,500 pounds.
FRONT TIRE
The front tires shall be Goodyear 315/80R-22.5 20PR "L" tubeless radial G289 WHA highway tread.
The front tire stamped load capacity shall be 20,400 pounds per axle with a speed rating of 68 miles per
hour when properly inflated to 130 pounds per square inch.
REAR TIRE
The rear tires shall be Goodyear 12R-22.5 16PR "H" tubeless radial G622 RSD mixed service tread.
The rear tire stamped load capacity shall be 27,120 pounds per axle with a speed rating of 75 miles per
hour when properly inflated to 120 pounds per square inch.
The Goodyear Intermittent Service Rating load capacity shall be 29,020 pounds per axle with a speed
rating of 75 miles per hour when properly inflated to 120 pounds per square inch. The Goodyear
Intermittent Service Rating limits the operation of the emergency vehicle to no more than fifty (50)
miles of continuous operation under maximum recommended payload, or without stopping for at least
twenty (20) minutes. The emergency vehicle must reduce its speed to no more than 50 MPH after the
first fifty (50) miles of travel.
REAR AXLE RATIO
The rear axle ratio shall be 6.43:1.
TIRE PRESSURE INDICATOR
There shall be a voucher provided with the chassis for a dial style tire pressure indicator at the front tire
valve stem and a pop up style tire pressure indicator at the rear tire valve stem. The indicator shall
provide visual indication of pressure in the specific tire.
The tire pressure indicators shall be redeemed upon the vehicle manufacturer’s receipt of the voucher for
installation by the customer.
FRONT WHEEL
The front wheels shall be Alcoa hub piloted, 22.50 inch X 9.00 inch LvL One™ polished aluminum
wheels. The hub piloted mounting system shall provide easy installation and shall include two-piece
flange nuts. The wheels shall feature one-piece forged strength and shall include Alcoa’s Dura-Bright®
finish with XBR technology as an integral part of the wheel surface. Alcoa Dura-Bright® wheels keep
their shine without polishing. Brake dust, grime and road debris are easily removed by simply cleaning
the wheels with soap and water.
REAR WHEEL
The rear wheels shall be Alcoa hub piloted, 22.50 inch X 8.25 inch LvL One™ aluminum wheels with a
polished outer surface and Alcoa Dura-Bright® wheel treatment with XBR® technology as an integral
part of the wheel. The hub piloted mounting system shall provide easy installation and shall include
two-piece flange nuts.
WHEEL TRIM
The front wheels shall include stainless steel lug nut covers and stainless steel baby moons shipped loose
with the chassis for installation by the apparatus builder. The baby moons shall have cutouts for oil seal
viewing when applicable.
The rear wheels shall include stainless steel lug nut covers and band mounted spring clip stainless steel
high hats shipped loose with the chassis for installation by the apparatus builder.
The lug nut covers, baby moons, and high hats shall be RealWheels® brand constructed of 304L grade,
non-corrosive stainless steel with a mirror finish. Each wheel trim component shall meet D.O.T.
certification.
BRAKE SYSTEM
A rapid build-up air brake system shall be provided. The air brakes shall include a two (2) air tank,
three (3) reservoir system with a total of 4152 cubic inch of air capacity. A floor mounted treadle valve
shall be mounted inside the cab for graduated control of applying and releasing the brakes. An
inversion valve shall be installed to provide controlled service brake application during the unlikely
event of primary air supply loss. All air reservoirs provided on the chassis shall be labeled for
identification.
The rear axle spring brakes shall automatically apply in any situation when the air pressure falls below
25 PSI and shall include a mechanical means for releasing the spring brakes when necessary. An
audible alarm shall designate when the system air pressure is below 60 PSI.
A four (4) sensor, four (4) modulator Anti-lock Braking System (ABS) shall be installed on the front and
rear axles in order to prevent the brakes from locking or skidding while braking during hard stops or on
icy or wet surfaces. This in turn shall allow the driver to maintain steering control under heavy braking
and in most instances, shorten the braking distance. The electronic monitoring system shall incorporate
diagonal circuitry which shall monitor wheel speed during braking through a sensor and tone ring on
each wheel. A dash mounted ABS lamp shall be provided to notify the driver of a system malfunction.
The ABS system shall automatically disengage the auxiliary braking system device when required.
The speedometer screen shall be capable of reporting all active defaults using PID/SID and FMI
standards.
Additional safety shall be accommodated through Automatic Traction Control (ATC) which shall be
installed on the single rear axle. The ATC system shall apply the ABS when the drive wheels loose
traction. The system shall scale the electronic engine throttle back to prevent wheel spin while
accelerating on ice or wet surfaces.
A momentary rocker style switch shall be provided and properly labeled “mud/snow”. When the
switch is pressed once, the system shall allow a momentary wheel slip to obtain traction under extreme
mud and snow conditions. During this condition the ATC light and the light on the rocker switch shall
blink continuously notifying the driver of activation. Pressing the switch again shall deactivate the
mud/snow feature.
FRONT BRAKES
The front brakes shall be Meritor 16.50 inch x 6.00 inch S-cam drum type.
REAR BRAKES
The rear brakes shall be Meritor 16.50 inch X 7.00 inch S-cam drum type. The brakes shall feature a
cast iron shoe.
PARK BRAKE
Upon application of the push-pull valve in the cab, the rear brakes will engage via mechanical spring
force. This is accomplished by dual chamber rear brakes, satisfying the FMVSS parking brake
requirements.
PARK BRAKE CONTROL
A Meritor-Wabco manual hand control push-pull style valve shall operate the parking brake system.
The control shall be yellow in color.
The parking brake actuation valve shall be mounted on the left hand dash to the right of the steering
column within easy reach of the driver.
FRONT BRAKE SLACK ADJUSTERS
The front brakes shall include Meritor automatic slack adjusters installed on the chassis which features a
simple, durable design offering reduced weight. The automatic slack adjusters shall feature a manual
adjusting nut which cannot inadvertently be backed off and threaded grease fittings for easy
serviceability.
REAR BRAKE SLACK ADJUSTERS
The rear brakes shall include Meritor automatic slack adjusters installed on the axle which features a
simple, durable design offering reduced weight. The automatic slack adjusters shall feature a manual
adjusting nut which cannot inadvertently be backed off and threaded grease fittings for easy
serviceability.
AIR DRYER
The brake system shall include a Wabco System Saver 1200 air dryer with an integral heater with a
Metri-Pack sealed connector. The air dryer incorporates an internal turbo cutoff valve that closes the
path between the air compressor and air dryer purge valve during the compressor "unload" cycle. The
turbo cutoff valve allows purging of moisture and contaminants without the loss of turbo boost pressure.
The air dryer shall be mounted behind the battery box on the left hand side.
FRONT BRAKE CHAMBERS
The front brakes shall be provided with MGM type 30 brake chambers.
REAR BRAKE CHAMBERS
The rear axle shall include TSE 30/36 brake chambers which shall convert the energy of compressed air
into mechanical force and motion. This shall actuate the brake camshaft, which in turn shall operate the
foundational brake mechanism forcing the brake shoes against the brake drum. The TSE Type 36 brake
chamber has a 36.00 square inch effective area.
AIR COMPRESSOR
The air compressor provided for the engine shall be a Wabco® SS318 single cylinder pass-through drive
type compressor which shall be capable of producing 18.7 CFM at 1200 engine RPMs. The air
compressor shall feature a higher delivery efficiency translating to more air delivery per horsepower
absorbed. The compressor shall include an aluminum cylinder head which shall improve cooling,
reduce weight and decrease carbon formation. Superior piston and bore finishing technology shall
reduce oil consumption and significantly increasing the system component life.
AIR GOVERNOR
An air governor shall be provided to control the cut-in and cut-out pressures of the engine mounted air
compressor. The governor shall be calibrated to meet FMVSS requirements. The air governor shall be
located on the air dryer bracket on the left frame rail behind the battery box.
MOISTURE EJECTORS
Manual pet-cock type drain valves shall be installed on all reservoirs of the air supply system.
AIR SUPPLY LINES
The air system on the chassis shall be plumbed with color coded reinforced nylon tubing air lines. The
primary (rear) brake line shall be green, the secondary (front) brake line red, the parking brake line
orange and the auxiliary (outlet) will be blue.
Brass compression type fittings shall be used on the nylon tubing. All drop hoses shall include fiber
reinforced neoprene covered hoses.
AIR TANK SPACERS
There shall be spacers included with the air tank mounting. The spacers shall move the air tanks 1.50
inches inward towards the center of the chassis. This shall provide clearance between the air tanks and
the frame for body U-bolt clearance.
REAR AIR TANK MOUNTING
If a combination of wheel base, air tank quantity, or other requirements necessitate the location of one or
more air tanks to be mounted rear of the fuel tank, these tank(s) will be mounted perpendicular to frame.
WHEELBASE
The chassis wheelbase shall be 174.00 inches.
REAR OVERHANG
The chassis rear overhang shall be 54.00 inches.
FRAME
The frame shall consist of double rails running parallel to each other with cross members forming a
ladder style frame. The frame rails shall be formed in the shape of a "C" channel, with the outer rail
measuring 10.25 inches high X 3.50 inches deep upper and lower flanges X 0.38 inches thick with an
inner channel of 9.44 inches high X 3.13 inches deep and 0.38 inches thick. Each rail shall be
constructed of 110,000 psi minimum yield high strength low alloy steel. Each double rail section shall
be rated by a Resistance Bending Moment (RBM) minimum of 3,213,100 inch pounds and have a
minimum section modulus of 29.21 cubic inches. The frame shall measure 35.00 inches in width.
Proposals calculating the frame strength using the “box method” shall not be considered.
Proposals including heat treated rails shall not be considered. Heat treating frame rails produces rails
that are not uniform in their mechanical properties throughout the length of the rail. Rails made of high
strength, low alloy steel are already at the required yield strength prior to forming the rail.
A minimum of seven (7) fully gusseted 0.25 inch thick cross members shall be installed. The inclusion
of the body mounting, or bumper mounting shall not be considered as a cross member. The cross
members shall be attached using zinc coated grade 8 fasteners. The bolt heads shall be flanged type, held
in place by distorted thread flanged lock nuts. Each cross member shall be mounted to the frame rails
utilizing a minimum of 0.25 inch thick gusset reinforcement plates at all corners balancing the area of
force throughout the entire frame.
.
Any proposals not including additional reinforcement for each cross member shall not be considered.
All relief areas shall be cut in with a minimum 2.00 inch radius at intersection points with the edges
ground to a smooth finish to prevent a stress concentration point.
The frame and cross members shall carry a lifetime warranty to the original purchaser. A copy of the
frame warranty shall be made available upon request.
Proposals offering warranties for frames not including cross members shall not be considered.
FRAME WARRANTY
Summary of Warranty Terms:
THE FOLLOWING IS SUMMARY OF WARRANTY TERMS FOR INFORMATION ONLY. THE
ACTUAL LIMITED WARRANTY DOCUMENT, WHICH IS ATTACHED TO THIS OPTION,
CONTAINS THE COMPLETE STATEMENT OF THE SPARTAN CHASSIS, INC. LIMITED
WARRANTY. SPARTAN’S RESPONSIBILITY IS TO BE ACCORDING TO THE TERMS OF
THE COMPLETE LIMITED WARRANTY DOCUMENT.
The frame and cross members shall carry a limited lifetime warranty to the original purchaser. The
warranty period shall commence on the date the vehicle is delivered to the first end user.
FRAME PAINT
The frame shall be powder coated black prior to any attachment of components.
All powder coatings, primers and paint shall be compatible with all metals, pretreatments and primers
used. The cross hatch adhesion test per ASTM D3359 shall not have a fail of more than ten (10)
squares. The pencil hardness test per ASTM D3363 shall have a final post-curved pencil hardness of
H-2H. The direct impact resistance test per ASTM D2794 shall have an impact resistance of 120.00
inches per pound at 2 mils.
Any proposals offering painted frame with variations from the above process shall not be accepted.
The film thickness of vendor supplied parts shall also be sufficient to meet the performance standards as
stated above.
FRONT BUMPER
A one piece, two (2) rib wrap-around style, polished stainless steel front bumper shall be provided. The
material shall be 10 gauge 304 stainless steel, 12.00 inches high and 99.00 inches wide.
FRONT BUMPER EXTENSION LENGTH
The front bumper shall be extended approximately 21.00 inches ahead of the cab.
FRONT BUMPER EXTENSION FRAME WIDTH
The front bumper extension frame shall feature an overall width of 48.25 inches.
FRONT BUMPER APRON
The 21.00 inch extended front bumper shall include an apron constructed of 0.19 inch thick embossed
aluminum tread plate.
The apron shall be installed between the bumper and the front face of the cab affixed using stainless
steel bolts attaching the apron to the top bumper flange.
FRONT BUMPER COMPARTMENT CENTER
The front bumper shall include a compartment in the bumper apron located in the center between the
frame rails which may be used as a hose well. The compartment shall be constructed of 0.13 inch
5052-H32 grade aluminum and shall include drain holes in the bottom corners to allow excess moisture
to escape. The compartment shall include a cover constructed of 0.19 inch thick bright embossed
aluminum tread plate.
FRONT BUMPER COMPARTMENT COVER HARDWARE
The front bumper compartment cover shall include gas cylinder stays which shall hold the cover open.
The cover shall held in the closed position via a flush push button style latch.
MECHANICAL SIREN
The front bumper shall include an electro mechanical Federal Q2B™ siren, which shall be streamlined,
chrome-plated and shall produce 123 decibels of sound at 10.00 feet. The Q2B™ siren produces a
distinctive warning sound that is recognizable at long distances. A unique clutch design provides a
longer coast down sound while reducing the amp draw to 100 amps. The siren shall measure 10.50
inches wide X 10.00 inches high X 14.00 inches deep.
MECHANICAL SIREN LOCATION
The siren shall be pedestal mounted on the bumper apron on the furthest outboard section of the bumper
on the driver side.
AIR HORN
The front bumper shall include two (2) Hadley brand E-Tone air horns which shall measure 21.00 inches
long with a 6.00 inch round flare. The air horns shall be trumpet style with a chrome finish on the
exterior and a painted finish deep inside the trumpet.
AIR HORN LOCATION
The air horns shall be recess mounted in the front bumper face, one (1) on the right side of the bumper in
the inboard position relative to the right hand frame rail and one (1) on the left side of the bumper in the
inboard position relative to the left hand frame rail.
AIR HORN RESERVOIR
One (1) air reservoir, with a 1200 cubic inch capacity, shall be installed on the chassis to act as a supply
tank for operating air horns. The reservoir shall be isolated with a 90 PSI pressure protection valve on
the reservoir supply side to prevent depletion of the air to the air brake system.
ELECTRONIC SIREN SPEAKER
There shall be one (1) Federal Signal Inc. Dynamax® model ES100, 100 watt speaker provided. The
speaker shall measure 5.90 inches tall X 5.50 inches wide X 2.70 inches deep. The speaker shall
include a Federal Signal “Electric F” style grille which shall measure 6.61 inches tall X 6.78 inches
wide.
ELECTRONIC SIREN SPEAKER LOCATION
The electronic siren speaker shall be located on the front bumper face on the right side outboard of the
frame rail in the far outboard position.
FRONT BUMPER TOW HOOKS
Two (2) heavy duty tow hooks, painted to match the chassis frame, shall be installed in a rearward
position out of the approach angle area, bolted directly to the side of the chassis frame with grade 8
bolts.
CAB TILT SYSTEM
The entire cab shall be capable of tilting approximately 45-degrees to allow for easy maintenance of the
engine and transmission. The cab tilt pump assembly shall be located on the right side of the chassis
above the battery box.
The electric-over-hydraulic lift system shall include an ignition interlock and red cab lock down
indicator lamp on the tilt control which shall illuminate when holding the “Down” button to indicate safe
road operation.
It shall be necessary to activate the master battery switch and set the parking brake in order to tilt the
cab. As a third precaution the ignition switch must be turned off to complete the cab tilt interlock safety
circuit.
Two (2) spring-loaded hydraulic hold down hooks located outboard of the frame shall be installed to
hold the cab securely to the frame. Once the hold-down hooks are set in place, it shall take the
application of pressure from the hydraulic cab tilt lift pump to release the hooks.
Two (2) cab tilt cylinders shall be provided with velocity fuses in each cylinder port. The cab tilt pivots
shall be 1.90 inch ball and be anchored to frame brackets with 1.25 inch diameter studs.
A steel safety channel assembly, painted safety yellow shall be installed on the right side cab lift
cylinder to prevent accidental cab lowering. The safety channel assembly shall fall over the lift cylinder
when the cab is in the fully tilted position. A cable release system shall also be provided to retract the
safety channel assembly from the lift cylinder to allow the lowering of the cab.
CAB TILT LIMIT SWITCH
A cab tilt limit switch shall be installed. The switch will effectively limit the travel of the cab when
being tilted. The limit adjustment of the switch shall be preset by the chassis manufacturer to prevent
damage to the cab or any bumper mounted option mounted in the cab tilt arc. Further adjustment to the
limit by the apparatus manufacturer shall be available to accommodate additional equipment.
CAB TILT CONTROL RECEPTACLE
The cab tilt control cable shall include a receptacle which shall be temporarily located on the right
hand chassis rail rear of the cab to provide a place to plug in the cab tilt remote control pendant. The
tilt pump shall include 8.00 feet of cable with a six (6) pin Deutsch receptacle with a cap.
The remote control pendant shall include 20.00 feet of cable with a mating Deutsch connector. The
remote control pendant shall be shipped loose with the chassis.
CAB WINDSHIELD
The cab windshield shall have a surface area of 2825.00 square inches and be of a two (2) piece
wraparound design for maximum visibility.
The glass utilized for the windshield shall include standard automotive tint. The left and right windshield
shall be fully interchangeable thereby minimizing stocking and replacement costs.
Each windshield shall be installed using black self locking window rubber.
GLASS FRONT DOOR
The front cab doors shall include a window which is 27.00 inches in width X 26.00 inches in height.
These windows shall have the capability to roll down completely into the door housing. This shall be
accomplished manually utilizing a crank style handle on the inside of the door. A reinforced window
regulator assembly shall be provided for severe duty use.
There shall be an irregular shaped fixed window which shall measure 2.50 inches wide at the top, 8.00
inches wide at the bottom X 26.00 inches in height, more commonly known as “cozy glass” ahead of the
front door roll down windows.
The windows shall be mounted within the frame of the front doors trimmed with a black anodized ring
on the exterior.
GLASS TINT FRONT DOOR
The windows located in the left and right front doors shall have a standard green automotive tint which
shall allow seventy-five percent (75%) light transmittance.
GLASS REAR DOOR RH
The rear right hand side door shall include a window which is 27.00 inches in width X 26.00 inches in
height. This window shall roll up and down manually utilizing a crank style handle on the inside of the
door. A reinforced window regulator assembly shall be provided for severe duty use.
GLASS TINT REAR DOOR RIGHT HAND
The window located in the right hand side rear door shall include a standard green automotive tint which
shall allow seventy-five percent (75%) light transmittance.
GLASS REAR DOOR LH
The rear left hand side door shall include a window which is 27.00 inches in width X 26.00 inches in
height. This window shall roll up and down manually utilizing a crank style handle on the inside of the
door. A reinforced window regulator assembly shall be provided for severe duty use.
GLASS TINT REAR DOOR LEFT HAND
The window located in the left hand side rear door shall include a standard green automotive tint which
shall allow seventy-five percent (75%) light transmittance.
GLASS SIDE MID RH
The cab shall include a window on the right side behind the front and ahead of the crew door which shall
measure 16.00 inches wide X 26.00 inches high. This window shall be fixed within this space and shall
be rectangular in shape. The window shall be mounted using self locking window rubber. The glass
utilized for this window shall include a green automotive tint unless otherwise noted.
GLASS TINT SIDE MID RIGHT HAND
The window located on the right hand side of the cab between the front and rear doors shall include a
standard green automotive tint which shall allow seventy-five percent (75%) light transmittance.
GLASS SIDE MID LH
The cab shall include a window on the left side behind the front door and ahead of the crew door and
above the wheel well which shall measure 16.00 inches wide X 26.00 inches high. This window shall
be fixed within this space and shall be rectangular in shape. The window shall be mounted using self
locking window rubber. The glass utilized for this window shall include a green automotive tint unless
otherwise noted.
GLASS TINT SIDE MID LEFT HAND
The window located on the left hand side of the cab between the front and rear doors shall include a
standard green automotive tint which shall allow seventy-five percent (75%) light transmittance.
CLIMATE CONTROL
The cab shall include a 57,500 BTU @ 425 CFM front overhead heater/defroster which shall be
provided and installed above the windshield between the sun visors.
The cab shall also include a combination heater air-conditioning unit mounted on the engine tunnel. This
unit shall offer eight (8) adjustable louvers, four (4) forward facing and four (4) rearward facing, a
temperature control valve and two (2) blowers offering three (3) speeds which shall be capable of
circulating 550 cubic feet of air per minute. The unit shall be rated for 42,500 BTU/Hr of cooling and
36,000 BTU/Hr of heating. The temperature and blower controls shall be located on the heater/air
conditioning unit.
All defrost/heating systems shall be plumbed with one (1) seasonal shut-off valve at the front corner on
the right side of the cab.
The air conditioner lines shall be a mixture of custom bend zinc coated steel fittings and Aero-quip GH
134 flexible hose with Aero-quip EZ clip fittings.
CLIMATE CONTROL DRAIN
The climate control system shall include a gravity drain for water management. The gravity drain shall
remove condensation from the air conditioning system without additional mechanical assistance.
CLIMATE CONTROL ACTIVATION
The heating and defrosting controls shall be located on the front overhead climate control unit. There
shall be additional heating and air conditioning controls located on the engine tunnel mounted climate
control unit.
A/C CONDENSER LOCATION
A roof mounted A/C condenser shall be installed centered on the cab forward of the raised roof against
the slope rise.
A/C COMPRESSOR
The air-conditioning compressor shall be a belt driven, engine mounted, open type compressor that shall
be capable of producing a minimum of 32,000 BTU at 1500 engine RPMs. The compressor shall utilize
R-134A refrigerant and PAG oil.
UNDER CAB INSULATION
The underside of the cab tunnel surrounding the engine shall be lined with multi-layer insulation,
engineered for application inside diesel engine compartments.
The insulation shall act as a noise barrier, absorbing noise thus keeping the decibel level in the cab well
within NFPA recommendations. As an additional benefit, the insulation shall assist in sustaining the
desired temperature within the cab interior.
The engine tunnel insulation shall measure approximately 0.75 inch thick including a vertically lapped
polyester fiber layer, a 1.0 lb/ft² PVC barrier layer, an open cell foam layer, and a moisture and heat
reflective foil facing reinforced with a woven fiberglass layer. The foil surface acts as protection against
moisture and other contaminants. The insulation shall meet or exceed FMVSS 302 flammability test.
The insulation shall be cut precisely to fit each section and sealed for additional heat and sound
deflection. The insulation shall be held in place by 3 mils of acrylic pressure sensitive adhesive and
aluminum pins with hard hat, hold in place fastening heads.
INTERIOR TRIM FLOOR
The floor of the cab shall be covered with a multi-layer mat consisting of 0.25 inch thick sound
absorbing closed cell foam with a 0.06 inch thick non-slip vinyl surface with a pebble grain finish. The
covering shall be held in place by a pressure sensitive adhesive and aluminum trim molding. All
exposed seams shall be sealed with silicone caulk matching the color of the floor mat to reduce the
chance of moisture and debris retention.
INTERIOR TRIM
The cab interior shall include trim on the front ceiling, rear crew ceiling, and the cab walls. It shall be
easily removable to assist in maintenance. The trim shall be constructed of insulated vinyl over a hard
board backing.
REAR WALL INTERIOR TRIM
The rear wall of the cab shall be trimmed with vinyl.
HEADER TRIM
The cab interior shall feature header trim over the driver and officer dash constructed of 5052-H32
Marine Grade, 0.13 inch thick aluminum.
TRIM CENTER DASH
The main center dash area shall be constructed of 5052-H32 Marine Grade, 0.13 inch thick aluminum
plate. There shall be four (4) holes located on the top of the dash near each outer edge of the electrical
access cover for ventilation.
TRIM LH DASH
The left hand dash shall be constructed of 5052-H32 Marine Grade, 0.13 inch thick aluminum plate for a
perfect fit around the instrument panel and the lower control panels to the left and right of the steering
column.
TRIM RH DASH
The right hand dash shall be constructed of 5052-H32 Marine Grade, 0.13 of an inch thick aluminum
plate and shall include a glove compartment with a hinged door and a Mobile Data Terminal (MDT)
provision. The glove compartment size will measure 14.00 inches wide X 6.38 inches high X 5.88
inches deep. The MDT provision shall be provided above the glove compartment.
ENGINE TUNNEL TRIM
The cab engine tunnel shall be covered with a multi-layer mat consisting of 0.25 inch closed cell foam
with a 0.06 inch thick non-slip vinyl surface with a pebble grain finish. The mat shall be held in place by
pressure sensitive adhesive. The engine tunnel mat shall be trimmed with anodized aluminum stair
nosing trim for an aesthetically pleasing appearance.
POWER POINT DASH MOUNT
The cab shall include one (1) 12 volt cigarette lighter type receptacle in the cab dash to provide a power
source for 12 volt electrical equipment. The receptacle shall be wired to be live with the battery master
switch.
STEP TRIM
Each cab entry door shall include a three step entry. The first step closest to the ground shall be
constructed of polished 5032 H32 aluminum Grip Strut® grating with angled outer corners. The step
shall feature a splash guard to reduce water and debris from splashing in to the step. The splash guard
shall have an opening on the outer edge to allow debris and water to flow through rather than becoming
trapped within the stepping surface. The lower step shall be mounted to a frame which is integral with
the construction of the cab for rigidity and strength. The middle step shall be integral with the cab
construction and shall be trimmed with a Flex-Tred® adhesive grit surface material.
UNDER CAB ACCESS DOOR
The cab shall include an aluminum access door in the left crew step riser painted to match the cab
interior paint with a push and turn latch. The under cab access door shall provide access to the diesel
exhaust fluid fill.
INTERIOR DOOR TRIM
The interior trim on the doors of the cab shall consist of an aluminum panel constructed of Marine Grade
5052-H32 0.13 of an inch thick aluminum plate. The door panels shall include a painted finish.
DOOR TRIM CUSTOMER NAMEPLATE
The interior door trim on the front doors shall include a customer nameplate which states the vehicle
was custom built for their Department.
CAB DOOR TRIM REFLECTIVE
The interior of each door shall include a white reflective tape installed vertically along the outer rear
edge of the door. Also a 12.00 inch reflective octagon stop sign shall be installed on the inner door panel
of each door.
INTERIOR GRAB HANDLE "A" PILLAR
There shall be two (2) rubber covered 11.00 inch grab handles installed inside the cab, one on each “A”
post at the left and right door openings. The left handle shall be located 7.88 inches above the bottom of
the door window opening and the right handle shall be located 2.88 inches above the bottom of the door
window opening. The handles shall assist personnel in entering and exiting the cab.
INTERIOR GRAB HANDLE FRONT DOOR
Each front door shall include one (1) ergonomically contoured 9.00 inch cast aluminum handle mounted
horizontally on the interior door panels. The handles shall feature a textured black powder coat finish
to assist personnel entering and exiting the cab.
INTERIOR GRAB HANDLE REAR DOOR
A black powder coated cast aluminum assist handle shall be provided on the inside of each rear crew
door. A 30.00 inch long handle shall extend horizontally the width of the window just above the window
sill. The handle shall assist personnel in exiting and entering the cab.
INTERIOR SOFT TRIM COLOR
The cab interior soft trim surfaces shall be gray in color.
INTERIOR TRIM SUNVISOR
The header shall include two (2) sun visors, one each side forward of the driver and officer seating
positions above the windshield. Each sun visor shall be constructed of Masonite and covered with
padded vinyl trim.
INTERIOR FLOOR MAT COLOR
The cab interior floor mat shall be black in color.
CAB PAINT INTERIOR DOOR TRIM
The inner door panel surfaces shall be painted with Zolatone #20-71 onyx black texture finish.
HEADER TRIM INTERIOR PAINT
The metal surfaces in the header area shall be coated with Zolatone #20-71 onyx black texture finish.
TRIM CENTER DASH INTERIOR PAINT
The entire center dash shall be coated with Zolatone #20-71 onyx black texture finish. Any accessory
pods attached to the dash shall also be painted this color.
TRIM LEFT HAND DASH INTERIOR PAINT
The left hand dash shall be painted with Zolatone #20-71 onyx black texture finish.
TRIM RIGHT HAND DASH INTERIOR PAINT
The right hand dash shall be painted with Zolatone #20-71 onyx black texture finish.
DASH PANEL GROUP
The main center dash area shall include three (3) removable panels located one (1) to the right of the
driver position, one (1) in the center of the dash and one (1) to the left of the officer position. The center
panel shall be within comfortable reach of both the driver and officer.
SWITCHES CENTER PANEL
The center dash panel shall include twelve (12) rocker switch positons in a single row across the top of
the panel.
A rocker switch with a blank legend installed directly above shall be provided for any position without a
switch and legend designated by a specific option. The non-specified switches shall be two-position,
black switches with a green indicator light. Each blank switch legend can be custom engraved by the
body manufacturer. All switch legends shall have backlighting provided.
SWITCHES LEFT PANEL
The left dash panel shall include eight (8) switches in a single row configuration. Five (5) of the
switches shall be rocker type and the left three (3) shall be the headlight switch, the instrument lamp
dimmer switch and the windshield wiper/washer control switch.
A rocker switch with a blank legend installed directly above shall be provided for any position not
designated by a specific option. The non-designated switches shall be two-position, black switches with
a green indicator light. Each blank switch legend can be custom engraved by the body manufacturer. All
switch legends shall have backlighting provided.
SWITCHES RIGHT PANEL
The right dash panel shall six (6) rocker switch positions in a three (3) over three (3) switch
configuration.
A rocker switch with a blank legend installed directly above shall be provided for any position without a
switch and legend designated by a specific option. The non-specified switches shall be two-position,
black switches with a green indicator light. Each blank switch legend can be custom engraved by the
body manufacturer. All switch legends shall have backlighting provided.
SEAT BELT WARNING
A Weldon seat belt warning system, integrated with the Vehicle Data Recorder system, shall be installed
for each seat within the cab. The system shall activate an indicator light in the instrument panel, a
digital seat position indicator with a seat position legend in the switch panel, and an audible alarm.
The warning system shall activate when any seat is occupied with a minimum of 60 pounds and the
corresponding seat belt remains unfastened. The warning system shall also activate when any seat is
occupied and the corresponding seat belt was fastened in an incorrect sequence. Once activated, the
visual indicators and audible alarm shall remain active until all occupied seats have the seat belts
fastened.
SEAT MATERIAL
The seats shall be covered with Turnout Tuff™ rugged material. This material shall be semi- resistant
to UV rays and from being saturated or contaminated by fluids.
SEAT COLOR
All seats supplied with the chassis shall be gray in color. All seats shall include red seat belts.
SEAT BACK LOGO
The seat back shall include the “Smeal Fire Apparatus Co.” logo. The logo shall be centered on the
standard headrest of the seat back and on the left side of a split headrest.
SEAT DRIVER
The driver's seat shall be a Seats Inc. 911 Universal series. The four-way seat shall feature 3.00 inch
vertical travel air suspension and manual fore and aft adjustment with 6.00 inches of travel. The
suspension control shall be located on the seat below the left front corner of the bottom cushion. The
bottom seat cushion shall include an adjustment for rake angle offering added comfort.
The seat position shall include a three-point shoulder harness with lap belt and an automatic retractor
attached to the cab. The buckle portion of the seat belt shall be mounted on a semi-rigid stalk extending
from the seat base within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for this belted seating position
shall be 37.00 inches measured with the seat suspension height adjusted to the upper limit of its travel.
This model of seat shall have successfully completed the static load tests set forth by FMVSS 207/210.
This testing shall include a simultaneous forward load of 3000 pounds each on the lap and shoulder belts
and twenty (20) times the weight through the center of gravity. This model of seat installed in the cab
model, as specified, shall have successfully completed the dynamic sled testing using FMVSS 208 as a
guide with the following accommodations. In order to reflect the larger size outfitted firefighters, the
test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the 50th
percentile male dummy weighing 165 pounds as referenced in FMVSS 208.
The materials used in construction of the seat shall also have successfully completed testing with regard
to the flammability of materials used in the occupant compartments of motor vehicles as outlined in
FMVSS 302, of which dictates the allowable burning rate of materials in the occupant compartments of
motor vehicles.
SEAT BACK DRIVER
The driver’s seat shall feature a two (2) way adjustable lumbar support and offer an infinite fully
reclining adjustable titling seat back. The seat back shall also feature a contoured head rest.
SEAT MOUNTING DRIVER
The driver’s seat shall be installed in an ergonomic position in relation to the cab dash.
SEAT OFFICER
The officer's seat shall be a Seats Inc. 911 ABTS Battalion series. The seat shall feature a tapered and
padded seat, and cushion. The seat shall be a non-adjustable type seat.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall
include a three-point shoulder harness with the lap belt and automatic retractor as an integral part of the
seat assembly. The buckle portion of the seat belt shall extend from the seat base towards the driver
position within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for this belted seating position
shall be 35.00 inches.
This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This
testing shall include a simultaneous forward load of 3000 pounds each on the lap and shoulder belts and
twenty (20) times the weight through the center of gravity. This model of seat installed in the cab
model, as specified, shall have successfully completed the dynamic sled testing using FMVSS 208 as a
guide with the following accommodations. In order to reflect the larger size outfitted firefighters, the
test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the 50th
percentile male dummy weighing 165 pounds as referenced in FMVSS 208. The model of seats shall
also have successfully completed the flammability of materials used in the occupant compartments of
motor vehicles as outlined in FMVSS 302, of which decides the burning rate of materials in the
occupant compartments of motor vehicles.
SEAT BACK OFFICER
The officer seat back shall include a Ziamatic brand model QM-EZL-F mechanical self-contained
breathing apparatus (SCBA) bracket. The Mechanical walk away bracket shall meet NFPA 1901-09
9G dynamic requirements for cylinder restraint systems for use in crew compartments of fire truck cabs.
The bracket shall secure a self-contained breathing apparatus with most sizes of cylinders. The bracket
shall feature a top clamp and a footplate which securely lock the SCBA. The top clamp shall be PVC
coated to prevent damage to the cylinder. The steel back plate and cast aluminum footplate shall be
powder coated. The bracket shall also include a pull release cable with a handle which activates the lever
on the bracket saving the occupant from reaching behind the SCBA in order to release the bracket. The
handle shall be located on the front of the seat in the center.
The seat back shall include a removable padded cover which shall be provided over the SCBA cavity.
SEAT MOUNTING OFFICER
The officer’s seat shall be installed in an ergonomic position in relation to the cab dash.
SEAT BELT ORIENTATION CREW
The crew position seat belts shall follow the standard orientation which extends from the outboard
shoulder extending to the inboard hip.
SEAT REAR FACING OUTER LOCATION
The crew area shall include two (2) rear facing crew seats, which include one (1) located directly behind
the left side front seat and one (1) located directly behind the right side front seat.
SEAT CREW REAR FACING OUTER
The crew area shall include a seat in the rear facing outboard position which shall be a Seats Inc.
Battalion series. The seat shall feature a tapered and padded seat, and cushion. The seat and cushion
shall be hinged and compact in design for additional room and shall remain in the stored position until
occupied.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall
include a three-point shoulder harness with the lap belt and automatic retractor as an integral part of the
seat assembly. The buckle portion of the seat belt shall extend from the seat base towards the driver
position within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for each belted seating position
shall be 35.00 inches.
This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This
testing shall include a simultaneous forward load of 3000 pounds each on the lap and shoulder belts and
twenty (20) times the weight through the center of gravity. This model of seat installed in the cab
model, as specified, shall have successfully completed the dynamic sled testing using FMVSS 208 as a
guide with the following accommodations. In order to reflect the larger size outfitted firefighters, the
test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the 50th
percentile male dummy weighing 165 pounds as referenced in FMVSS 208. The model of seats shall
also have successfully completed the flammability of materials used in the occupant compartments of
motor vehicles as outlined in FMVSS 302, of which decides the burning rate of materials in the
occupant compartments of motor vehicles.
SEAT BACK REAR FACING OUTER
The rear facing outer seat back(s) shall include a Ziamatic brand model QM-EZL-F mechanical
self-contained breathing apparatus (SCBA) bracket. The Mechanical walk away bracket shall meet
NFPA 1901-09 9G dynamic requirements for cylinder restraint systems for use in crew compartments of
fire truck cabs.
The bracket shall secure a self-contained breathing apparatus with most sizes of cylinders. The bracket
shall feature a top clamp and a footplate which securely lock the SCBA. The top clamp shall be PVC
coated to prevent damage to the cylinder. The steel back plate and cast aluminum footplate shall be
powder coated. The bracket shall also include a pull release cable with a handle which activates the lever
on the bracket saving the occupant from reaching behind the SCBA in order to release the bracket. The
handle shall be located on the front of the seat in the center.
The seat back shall include a removable padded cover which shall be provided over the SCBA cavity.
SEAT MOUNTING REAR FACING OUTER
The rear facing outer seat shall be mounted facing the rear of the cab.
SEAT FORWARD FACING CENTER LOCATION
The crew area shall include two (2) forward facing center crew seats with both located at the center of
the rear wall.
SEAT CREW FORWARD FACING CENTER
The crew area shall include a seat in the forward facing center position which shall be a Seats Inc. 911
Battalion series. The seat shall feature a tapered and padded seat, and cushion. The seat and cushion
shall be hinged and compact in design for additional room and shall remain in the stored position until
occupied.
The seat shall feature an all belts to seat (ABTS) style of safety restraint. The ABTS feature shall
include a three-point shoulder harness with the lap belt and automatic retractor as an integral part of the
seat assembly. The buckle portion of the seat belt shall extend from the seat base towards the driver
position within easy reach of the occupant.
The minimum vertical dimension from the seat H-point to the ceiling for each belted seating position
shall be 35.00 inches.
This model of seat shall have successfully completed the static load tests by FMVSS 207/210. This
testing shall include a simultaneous forward load of 3000 pounds each on the lap and shoulder belts and
twenty (20) times the weight through the center of gravity. This model of seat installed in the cab
model, as specified, shall have successfully completed the dynamic sled testing using FMVSS 208 as a
guide with the following accommodations. In order to reflect the larger size outfitted firefighters, the
test dummy used shall be a 95th percentile hybrid III male weighing 225 pounds rather than the 50th
percentile male dummy weighing 165 pounds as referenced in FMVSS 208. The model of seats shall
also have successfully completed the flammability of materials used in the occupant compartments of
motor vehicles as outlined in FMVSS 302, of which decides the burning rate of materials in the
occupant compartments of motor vehicles.
SEAT BACK FORWARD FACING CENTER
The forward facing center seat backs shall include a Ziamatic brand model QM-EZL-F mechanical
self-contained breathing apparatus (SCBA) bracket. The Mechanical walk away bracket shall meet
NFPA 1901-09 9G dynamic requirements for cylinder restraint systems for use in crew compartments of
fire truck cabs.
The bracket shall secure a self-contained breathing apparatus with most sizes of cylinders. The bracket
shall feature a top clamp and a footplate which securely lock the SCBA. The top clamp shall be PVC
coated to prevent damage to the cylinder. The steel back plate and cast aluminum footplate shall be
powder coated. The bracket shall also include a pull release cable with a handle which activates the lever
on the bracket saving the occupant from reaching behind the SCBA in order to release the bracket. The
handle shall be located on the front of the seat in the center.
The seat back shall include a removable padded cover which shall be provided over the SCBA cavity.
SEAT FRAME FORWARD FACING
The forward facing center seating positions shall include an enclosed seat frame located and installed on
the rear wall. The seat frame shall measure 42.38 inches wide X 12.38 inches high X 22.00 inches
deep. The seat frame shall be constructed of Marine Grade 5052-H32 0.19 inch thick aluminum plate.
The seat box shall be painted with the same color as the remaining interior.
SEAT FRAME FORWARD FACING STORAGE ACCESS
There shall be two (2) access points to the seat frame storage area, one (1) on each side of the seat
frame. Each access point shall be covered by a hinged door which measures 15.00 inches in width X
10.63 inches in height.
SEAT MOUNTING FORWARD FACING CENTER
The forward facing center seats shall be installed facing the front of the cab.
CAB FRONT UNDERSEAT STORAGE ACCESS
The left and right under seat storage areas shall have a solid aluminum hinged door with non-locking
latch.
SEAT COMPARTMENT DOOR FINISH
All underseat storage compartment access doors shall have a Zolatone #20-71 onyx black texture finish.
WINDSHIELD WIPER SYSTEM
The cab shall include a dual arm wiper system which shall clear the windshield of water, ice and debris.
There shall be two (2) windshield wipers which shall be affixed to a radial wet arm. The system shall
include a single motor which shall initiate the arm in which both the left hand and right hand windshield
wipers are attached, initiating a back and forth motion for each wiper. The wiper motor shall be
activated by an intermittent wiper control located within easy reach of the driver’s position.
ELECTRONIC WINDSHIELD FLUID LEVEL INDICATOR
The windshield washer fluid level shall be monitored electronically. When the washer fluid level
becomes low the yellow “Check Message Center” indicator light on the instrument panel shall
illuminate and the message center in the dual air pressure gauge shall display a “Check Washer Fluid
Level” message.
CAB DOOR HARDWARE
The cab entry doors shall be equipped with exterior pull handles, suitable for use while wearing
firefighter gloves. The handles shall be made of a fiber reinforced plastic composite with a black matt
finish.
The interior exit door handles shall be flush paddle type with a black finish, which are incorporated into
the upper door panel.
All cab entry doors shall include locks which are keyed alike. The door locks shall be designed to
prevent accidental lockout.
DOOR LOCKS
Each cab entry door shall include a manually operated door lock. Each door lock may be actuated from
the inside of the cab by means of a red knob located on the paddle handle of the respective door or by
using a TriMark key from the exterior. The door locks are designed to prevent accidental lock out.
GRAB HANDLES
The cab shall include one (1) 18.00 inch three-piece knurled aluminum, anti-slip exterior assist handle,
installed behind each cab door. The assist handle shall be made of extruded aluminum with a knurled
finish to enable non-slip assistance with a gloved hand.
REARVIEW MIRRORS
Velvac West Coast style mirrors model 708369 shall be provided and installed on the driver’s and
officer’s doors. The mirrors shall be mounted to the cab doors with tubular stainless steel swing away
arms and the mirror heads shall be center mounted on the arms to provide rigid mounting to reduce
vibration.
The mirror heads shall measure 8.00 inches wide X 16.00 inches high. The flat mirrors shall be heated
and remote controlled with horizontal actuation. The mirror control switches shall be located within
easy reach of the driver. The mirror backs shall be stainless steel complete with amber marker lights.
Manually adjustable convex mirrors shall be provided below the flat mirrors.
REARVIEW MIRROR HEAT SWITCH
The heat for the rearview mirrors shall be controlled through a rocker switch in the mirror control panel
on the left side dash.
CAB FENDER
Full width wheel well liners shall be installed on the extruded cab to limit road splash and enable easier
cleaning. Each two-piece liner shall consist of an inner liner 16.00 inches wide made of vacuum formed
ABS composite and an outer fenderette 3.50 inches wide made of 14 gauge 304 polished stainless steel.
MUD FLAPS FRONT
The front wheel wells shall have mud flaps installed on them.
IGNITION
A master battery system with a keyless start ignition system shall be provided. Each system shall be
controlled by a one-quarter turn Cole Hersee switch, both of which shall be mounted to the left of the
steering wheel on the dash. A chrome push type starter button shall be provided adjacent to the master
battery and ignition switches.
Each switch shall illuminate a green LED indicator light on the dash when the respective switch is
placed in the “ON” position.
The starter button shall only operate when both the master battery and ignition switches are in the “ON”
position.
BATTERY
The single start electrical system shall include six (6) Harris BCI 31 950 CCA batteries with a 210
minute reserve capacity and 4/0 welding type dual path starter cables per SAE J541. The cables shall
have encapsulated ends with heat shrink and sealant.
BATTERY TRAY
The batteries shall be installed within two (2) steel battery trays located on the left side and right side of
the chassis, securely bolted to the frame rails. The battery trays shall be coated with the same material as
the frame.
The battery trays shall include drain holes in the bottom for sufficient drainage of water. A durable,
non-conducting, interlocking mat made by Dri-Dek shall be installed in the bottom of the trays to allow
for air flow and help prevent moisture build up. The batteries shall be held in place by non-conducting
phenolic resin hold down boards.
BATTERY BOX COVER
Each battery box shall include a steel cover which protects the top of the batteries. Each cover shall
include flush latches which shall keep the cover secure as well as a black powder coated handle for
convenience when opening.
BATTERY CABLE
The starting system shall include cables which shall be protected by 275 degree F. minimum high
temperature flame retardant loom, sealed and encapsulated at the ends with heat shrink and sealant.
BATTERY JUMPER STUD
The starting system shall include battery jumper studs. These studs shall be located in the forward most
portion of the driver's side lower step. The studs shall allow the vehicle to be jump started, charged, or
the cab to be raised in an emergency in the event of battery failure.
ALTERNATOR
The charging system shall include a 300 amp Delco Remy 40SI 12 volt alternator. The alternator shall
include a self-exciting integral regulator.
AUXILIARY AIR COMPRESSOR
A Kussmaul Auto Pump 120V air compressor shall be supplied. The air compressor shall be installed
behind the officer's seat. The air compressor shall be plumbed to the air brake system to maintain air
pressure.
ELECTRICAL INLET
A Kussmaul 20 amp super auto-eject electrical receptacle shall be supplied. It shall automatically eject
the plug when the starter button is depressed.
A single item or an addition of multiple items must not exceed the rating of the electric inlet that it’s
connected to.
Amp Draw Reference List:
Kussmaul 1000 Charger - 3.5 Amps
Kussmaul 1200 Charger - 10 Amps
Kussmaul 35/10 Charger - 10 Amps
1000W Engine Heater - 8.33 Amps
1500W Engine Heater - 12.5 Amps
120V Air Compressor - 4.2 Amps
ELECTRICAL INLET LOCATION
An electrical inlet shall be installed on the left hand side of cab over the wheel well.
ELECTRICAL INLET CONNECTION
The electrical inlet shall be connected to the air pump.
ELECTRICAL INLET COLOR
The electrical inlet connection shall include a yellow cover.
HEADLIGHTS
The cab front shall include four (4) rectangular halogen headlamps with separate high and low beams
mounted in bright chrome bezels.
FRONT TURN SIGNALS
The front fascia shall include two (2) Whelen model 600 4.00 inch X 6.00 inch programmable LED
amber turn signals which shall be installed in a chrome bezel outboard of the front warning and
headlamps.
HEADLIGHT LOCATION
The headlights shall be located on the front fascia of the cab directly below the front warning lights.
SIDE TURN/MARKER LIGHTS
The sides of the cab shall include two (2) Truck-Lite 10250Y LED round side marker lights which shall
be grommet mounted just behind the front cab radius corners.
MARKER AND ICC LIGHTS
In accordance with FMVSS, there shall be five (5) LED cab marker lamps designating identification,
center and clearance provided. These lights shall be installed on the face of the cab within full view of
other vehicles from ground level.
HEADLIGHT AND MARKER LIGHT ACTIVATION
The headlights and marker lights shall be controlled through a rocker switch within easy reach of the
driver. There shall be a dimmer switch within easy reach of the driver to adjust the brightness of the
dash lights. The headlamps shall be equipped with the "Daytime Running" light feature, which shall
illuminate the headlights to 80% brilliance when the battery master switch is in the "On" position and
the parking brake is released.
GROUND LIGHTS
Each door shall include an LED NFPA compliant ground light mounted to the under side of the cab step
below each door. The lights shall include a polycarbonate lens, a housing which is vibration welded
and LEDs which shall be shock mounted for extended life. The ground lighting shall be activated by the
opening of the respective door as well as being activated when the parking brake is set.
STEP LIGHTS
The middle step located at each door shall include a recess mounted 4.00 inch round LED light which
shall activate with the opening of the respective door.
ENGINE COMPARTMENT LIGHT
There shall be an incandescent NFPA compliant light mounted under the engine tunnel for area work
lighting on the engine. The light shall include a polycarbonate lens, a housing which is vibration
welded and a bulb which shall be shock mounted for extended life. The light shall activate automatically
when the cab is tilted.
SIDE SCENE LIGHTS
The cab shall include two (2) Weldon model V46S Diamondback LED 12 volt scene lights, one (1) each
side, which shall be mounted within a chrome bezel. The light heads shall measure 4.00 inches in
height X 6.00 inches in width X 2.00 inches deep.
Each lamp head shall have eight (8) LED’s which shall generate 700 lumens.
SIDE SCENE LIGHT LOCATION
The scene lighting located on the left and right sides of the cab shall be mounted rearward of the cab “B”
pillar in the 10.00 inch raised roof portion of the cab between the front and rear crew doors.
SIDE SCENE ACTIVATION
The scene lights shall be activated by two (2) rocker switches located in the switch panel, one (1) for
each light, and by opening the respective side cab doors.
INTERIOR OVERHEAD LIGHTS
The cab shall include a two-section, red and clear Weldon incandescent dome lamp located over each
door. The dome lamps shall be rectangular in shape and shall measure approximately 9.50 inches in
length X 5.00 inches in width with a black colored bezel. The clear portion of each lamp shall be
activated by opening the respective door and both the red and clear portions can be activated by
individual switches on each lamp.
An additional incandescent three (3) light module with dual map lights shall be located over the engine
tunnel which can be activated by individual switches on the lamp.
MAP LIGHTS
An Osram gooseneck style map light shall be provided. The light shall have a clear bulb and a control
switch on the base. The light shall be located on the right hand side of the dash.
DO NOT MOVE APPARATUS LIGHT
The front headliner of the cab shall include a flashing red light clearly labeled "Do Not Move
Apparatus". In addition to the flashing red light, an audible alarm shall be included which shall sound
while the light is activated.
The flashing red light shall be 6.00 inches long X 2.50 inches wide X 1.75 inches high and shall be
located centered left to right for greatest visibility.
The light and alarm shall be interlocked for activation when either a cab door is not firmly closed or an
apparatus compartment door is not closed, and the parking brake is released.
MASTER WARNING SWITCH
A master switch shall be included in the main rocker switch panel. The switch shall be a rocker type,
red in color and labeled “Master” for identification. The switch shall feature control over all devices
wired through it. Any warning device switch left in the “ON” position shall automatically power up
when the master switch is activated.
HEADLIGHT FLASHER
An alternating high beam headlight flashing system shall be installed into the high beam headlight
circuit which shall allow the high beams to flash alternately from left to right.
Deliberate operator selection of high beams will override the flashing function until low beams are again
selected. Per NFPA, these clear flashing lights will also be disabled “On Scene” when the park brake is
applied.
HEADLIGHT FLASHER SWITCH
The flashing headlights shall be activated through a rocker switch on the switch panel. The rocker
switch shall be clearly labeled for identification.
INBOARD FRONT WARNING LIGHTS
The cab front fascia shall include two (2) Weldon Diamondback V46 LED front warning lights in the
left and right inboard positions. The lights shall feature multiple flash patterns. The lights shall be
mounted to the front fascia of the cab within a chrome bezel.
INBOARD FRONT WARNING LIGHTS COLOR
The warning lights mounted on the cab front fascia in the inboard positions shall be red.
FRONT WARNING SWITCH
The front warning lights shall be controlled via rocker switch on the panel. This switch shall be clearly
labeled for identification.
INTERSECTION WARNING LIGHTS
The chassis shall include two (2) Weldon Diamondback LED intersection warning lights, one (1) each
side. The lights shall feature multiple flash patterns.
INTERSECTION WARNING LIGHTS COLOR
The intersection lights shall be red.
INTERSECTION WARNING LIGHTS LOCATION
The intersection lights shall be mounted on the side of the bumper.
SIDE WARNING LIGHTS
The cab sides shall include two (2) Weldon V46 Diamondback LED warning lights, one (1) on each
side. The lights shall feature multiple flash patterns. The lights shall be mounted to the sides of the cab
within a chrome bezel.
SIDE WARNING LIGHTS COLOR
The warning lights located on the side of the cab shall be red.
SIDE WARNING LIGHTS LOCATION
The warning lights on the side of the cab shall be mounted over the front wheel well directly over the
center of the front axle.
SIDE AND INTERSECTOR WARNING SWITCH
The side and intersector warning lights shall be controlled by a rocker switch on the switch panel. This
switch shall be clearly labeled for identification.
SIREN CONTROL HEAD
A Signal Vehicle Products SS741MG electronic siren control head shall be provided and flush mounted
in the switch panel with a location specific to the customer’s needs. The siren shall feature 200-watt
output, “standby” mode awaiting instruction. The siren shall offer integrated public address, wail, yelp
air horn, phaser, manual control and simultaneous two-tone operation. A hard wired microphone with
noise canceling circuitry and Public Address override shall be provided with the siren head.
HORN BUTTON SELECTOR SWITCH
A rocker switch shall be installed in the switch panel between the driver and officer to allow control of
either the electric horn or the air horn from the steering wheel horn button. The electric horn shall
sound by default when the selector switch is in either position to meet FMCSA requirements.
AIR HORN ACTIVATION
The air horn activation shall be accomplished through the steering wheel button for the driver and by a
single right hand side lanyard cable accessible to the officer. An air horn activation circuit shall be
provided to the chassis harness pump panel harness connector.
MECHANICAL SIREN ACTIVATION
The mechanical siren shall be actuated by two (2) Linemaster model SP491-S81 foot switches mounted
in the front section of the cab for use by the driver and officer. A red momentary siren brake rocker
switch shall be provided in the switch panel on the dash.
The siren shall only be active when master warning switch is on to prevent accidental engagement.
BACK-UP ALARM
An ECCO model 575 backup alarm shall be installed at the rear of the chassis with an output level of
107 dB. The alarm shall automatically activate when the transmission is placed in reverse.
INSTRUMENTATION
An ergonomically designed instrument panel shall be provided. Each gauge shall be backlit with LED
lamps. Stepper motor movements shall drive all gauges. The instrumentation system shall be
multiplexed and shall receive ABS, engine, and transmission information over the J1939 data bus to
reduce redundant sensors and wiring.
The instrument panel shall contain the following gauges:
One (1) electronic speedometer shall be included. The primary scale on the speedometer shall read
from 0 to 100 MPH, and the secondary scale on the speedometer shall read from 0 to 160 KM/H.
One (1) electronic tachometer shall be included. The scale on the tachometer shall read from 0 to 3000
RPM.
One (1) two-movement gauge displaying primary system, and secondary system air volumes and
integral LCD odometer/trip odometer shall be included on the lower portion of the LCD. The scale on
the air pressure gauges shall read from 0 to 150 pounds per square inch (PSI). The air pressure scales
shall be linear to operate with an accuracy of 1 degree of the measured data with a red indication zone
on the gauge showing critical levels of air pressure. A red indicator light in the gauge shall indicate a
low air pressure, as well as a message on the LCD screen. The odometer shall display up to 9,999,999.9
miles. The trip odometer shall display 9,999.9 miles. The LCD shall display Transmission
Temperature in degrees Fahrenheit on the upper portion of the LCD. The LCD screen shall also be
capable of displaying certain diagnostic functions.
One (1) four-movement gauge displaying engine oil pressure, coolant temperature, fuel level, voltmeter,
and an *indicator bar displaying Diesel Exhaust Fluid (DEF) LED bar shall be included. The scale on
the engine oil pressure gauge shall read from 0 to 120 pounds per square inch (PSI). The engine oil
pressure scale shall be linear to operate with an accuracy of 1 degree of the measured. A red indicator
light in the gauge shall indicate a low engine oil pressure, as well as a message on the LCD screen. The
scale on the coolant temperature gauge shall read from 100 to 250 degrees Fahrenheit (F). The coolant
temperature scale shall be linear to operate with an accuracy of 1 degree of the measured data with a red
indication zone on the gauge showing critical levels of air pressure. A red indicator light in the gauge
shall indicate high coolant temperature, as well as a message on the LCD screen. The scale on the fuel
level gauge shall read from empty to full as a percentage of fuel remaining. An amber indicator light
shall indicate low fuel at 25% tank level. The scale on the voltmeter shall read from 10 to 16 volts with
a red indication zone on the gauge showing critical levels of battery voltage. A red indicator light shall
indicate high or low system voltage, as well as a message on the LCD screen. The scale on the DEF
LED bar will consist of four (4) LEDs displaying levels in increments of 25% of useable DEF in green.
Upon decreasing levels, the indicator bar will change colors to notify the driver of decreasing levels of
DEF and action will be required. An amber indicator light shall indicate low levels of DEF, as well as a
message on the LCD screen and an audible alarm.
The instrument panel shall include a light bar that contains the following LED indicator lights and
produce the following audible alarms in applicable configurations:
RED LAMPS
Stop Engine-indicates critical engine fault
Air Filter Restricted-indicates excessive engine air intake restriction
Park Brake-indicates parking brake is set
Seat Belt Indicator-indicates when a seat is occupied and corresponding seat belt remains unfastened
Low Coolant-indicates engine coolant is required
AMBER LAMPS
MIL-indicates an engine emission control system fault
Check Engine-indicates engine fault
Check Trans-indicates transmission fault
High Transmission Temperature-indicates excessive transmission oil temperature
ABS-indicates anti-lock brake system fault
HEST-indicates a high exhaust system temperature
Water in Fuel-indicates presence of water in fuel filter
*DPF-indicates a restriction of the diesel particulate filter
*Regen Inhibit-indicates regeneration has been postponed due to user interaction
Range Inhibit-indicates a transmission operation is prevented and requested shift request may not occur.
*SRS-indicates a problem in the supplemental restraint system
Check Message-Turn Signal On
Check Message-Door Ajar
Check Message-Cab Ajar
*Check Message-ESC Active
*Check Message-DPF Regen Active
Check Message-No Engine Data
Check Message-No Transmission Data
Check Message-No ABS Data
Check Message-No Data All Communication With The Vehicle Systems Has Been Lost
Check Message-Check Engine Oil Level
Check Message-Check Washer Fluid Level
Check Message-Check Power Steering Fluid Level
Check Message-Low Transmission Fluid Level
Check Message-Check Coolant Level
GREEN LAMPS
Left and Right turn signal indicators
*ATC-indicates low wheel traction for automatic traction control equipped vehicles, also indicates
mud/snow mode is active for ATC system
High Idle-indicates engine high idle is active.
Cruise Control-indicates cruise control is active
OK to Pump-indicates the pump engage conditions have been met
Pump Engaged-indicates the pump is currently in use
Auxiliary Brake-indicates secondary braking device is active
BLUE LAMP
High Beam Indicator
WHITE LAMP
Wait to Start-indicates active engine air preheat cycle
AUDIBLE ALARMS FROM GAUGE PACKAGE
High Trans Temp
High or Low Voltage
Check Engine
Check Transmission
Stop Engine
Low Air Pressure
Fuel Low
Water in Fuel
*ESC
High Coolant Temperature
Low Engine Oil Pressure
Low Coolant Level
*Low DEF Level
Air Filter Restricted
Extended Left and Right Turn Remaining On
Cab Ajar
Door Ajar
ABS System Fault
Seatbelt Indicator
EXTERNAL AUDIBLE ALARM
Air Filter
Cab Ajar
Door Ajar
Check Engine
Stop Engine
Low Air Pressure
Low Engine Oil Pressure
Water in Fuel
*Low DEF
ABS System Fault
Seatbelt Indicator
*Items marked with an asterisk are provided only in applicable configurations.
BACKLIGHTING COLOR
The instrumentation gauges and the switch panel legends shall be backlit using red LED backlighting.
CAB EXTERIOR PROTECTION
The cab face shall have a removable plastic film installed over the painted surfaces to protect the paint
finish during transport to the body manufacturer.
FIRE EXTINGUISHER
A 2.50 pound D.O.T approved fire extinguisher with BC rating shall be shipped loose with the cab.
ROAD SAFETY KIT
The cab and chassis shall include one (1) emergency road safety triangle kit.
DOOR KEYS
The cab and chassis shall include a total of four (4) door keys for the manual door locks.
WARRANTY
Summary of Warranty Terms:
THE FOLLOWING IS SUMMARY OF WARRANTY TERMS FOR INFORMATION ONLY. THE
ACTUAL LIMITED WARRANTY DOCUMENT, WHICH IS ATTACHED TO THIS OPTION,
CONTAINS THE COMPLETE STATEMENT OF THE SPARTAN CHASSIS, INC. LIMITED
WARRANTY. SPARTAN’S RESPONSIBILITY IS TO BE ACCORDING TO THE TERMS OF
THE COMPLETE LIMITED WARRANTY DOCUMENT.
The chassis manufacturer shall provide a limited parts and labor warranty to the original purchaser of the
custom built cab and chassis for a period of twenty-four (24) months, or the first 36,000 miles,
whichever occurs first. The warranty period shall commence on the date the vehicle is delivered to the
first end user.
CHASSIS OPERATION MANUAL
There shall be two (2) digital copies of the chassis operation manual provided with the chassis. The
digital data shall include a parts list specific to the chassis model.
ENGINE AND TRANSMISSION OPERATION MANUALS
The following manuals specific to the engine and transmission models ordered will be included with the
chassis in the ship loose items:
(2) Digital copies of the Engine Owner’s manual
(2) Digital copies of the Transmission Operator’s manual
(2) Hard copies of the Engine Operation and Maintenance manual with CD
ENGINE SERVICE MANUALS
There shall be two (2) printed hard copy sets of Cummins ISC/ISL engine service reference manuals
which shall be provided with the chassis.
TRANSMISSION SERVICE MANUALS
There shall be two (2) printed hard copy sets of Allison 3000 transmission service manuals included
with the chassis.
CAB/CHASSIS AS BUILT WIRING DIAGRAMS
The cab and chassis shall include two (2) digital copies of wiring schematics and option wiring
diagrams.
SALES TERMS
The sale of the Spartan Chassis shall be governed by the terms contained on the Sales Terms –
Acceptance of Purchase Order document, a copy of which is attached to this option.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
