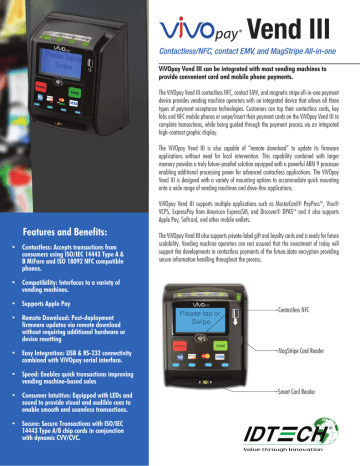

Vend III Contactless/NFC, contact EMV, and MagStripe All-in-one

Vend III Contactless/NFC, contact EMV, and MagStripe All-in-one
Vend III
Contactless/NFC, contact EMV, and MagStripe All-in-one
ViVOpay Vend III can be integrated with most vending machines to
provide convenient card and mobile phone payments.
The ViVOpay Vend III contactless NFC, contact EMV, and magnetic stripe all-in-one payment
device provides vending machine operators with an integrated device that allows all three
types of payment acceptance technologies. Customers can tap their contactless cards, key
fobs and NFC mobile phones or swipe/insert their payment cards on the ViVOpay Vend III to
complete transactions, while being guided through the payment process via an integrated
high-contrast graphic display.
The ViVOpay Vend III is also capable of “remote download” to update its firmware
applications without need for local intervention. This capability combined with larger
memory provides a truly future-proofed solution equipped with a powerful ARM 9 processor
enabling additional processing power for advanced contactless applications. The ViVOpay
Vend III is designed with a variety of mounting options to accommodate quick mounting
onto a wide range of vending machines and drive-thru applications.
ViVOpay Vend III supports multiple applications such as MasterCard® PayPass™, Visa®
VCPS, ExpressPay from American ExpressSM, and Discover® DPAS™ and it also supports
Apple Pay, Softcard, and other mobile wallets.
Features and Benefits:
• Contactless: Accepts transactions from
consumers using ISO/IEC 14443 Type A &
B MiFare and ISO 18092 NFC compatible
phones.
The ViVOpay Vend III also supports private-label gift and loyalty cards and is ready for future
scalability. Vending machine operators can rest assured that the investment of today will
support the developments in contactless payments of the future.idata encryption providing
secure information handling throughout the process.
• Compatibility: Interfaces to a variety of
vending machines.
• Supports Apple Pay
• Remote Download: Post-deployment
firmware updates via remote download
without requiring additional hardware or
device resetting
• Easy Integration: USB & RS-232 connectivity
combined with ViVOpay serial interface.
Contactless NFC
MagStripe Card Reader
• Speed: Enables quick transactions improving
vending machine-based sales
• Consumer Intuitive: Equipped with LEDs and
sound to provide visual and audible cues to
enable smooth and seamless transactions.
• Secure: Secure Transactions with ISO/IEC
14443 Type A/B chip cards in conjunction
with dynamic CVV/CVC.
Smart Card Reader
Vend III ™
Hardware
United States Sales Office
Processor:
ARM 9 Processor
Display: 122x64 high-contrast graphic display
MSR: 3-track bi-directional
Audio-Visual: Beeper and LEDs
Input Voltage: 5 - 45 VDC regulated, -0%, +10%
SAM: 3 SAMs
Corporate Headquarters
10721 Walker Street
Cypress, CA 90630
Phone: (714) 761-6368
Toll Free:(800) 984-1010
Fax: (714) 761-8880
[email protected]
Contactless Transactions
International Sales Offices
Interface: 13.56MHz ISO 14443 & ISO 18092
Type A/Type Brand MiFare
Payment Applications*:
MasterCard PayPass, Visa VCPS, American ExpressPay, Discover DPAS,
Interac Flash, EMV Level 1 & 2
Applications: Apple Pay, Softcard, and other mobile wallets
Connectivity
Interface:
Firmware upgrades: Asia
+866-3-496-6988 (Taiwan)
[email protected]
Canada
+450-465-5261
[email protected]
USB and RS-232
Remote firmware download
South America
+55-11-3079-2255
[email protected]
Physical Dimensions (excluding mounting frame)
Height (X):
107.50 mm
Length (Y):84.90 mm
Width (Z):
65.80 mm
Weight: 280g (0.64lbs)
Environmental
Operating Temp:
Storage Temp:
Operating Humidity:
Material:
IP Rating:
Europe
Germany & United Kingdom
[email protected]
ISO 9001 Certified
-4 F to +122 F (-20 C to +50 C)
-40 F to +185 F (-40 C to +85 C)
0% to 90% non condensing
Weather-proofed UV-rated plastic enclosure
IP 52
www.idtechproducts.com
©2015 International Technologies & Systems Corporation. ID TECH & ViVOpay are registered trademarks of International Technologies & Systems Corporation.
ViVOpay Vend III and Value through Innovation are trademarks of International Technologies & Systems Corporation. All specifications subject to change without notice.
80134501-001 R01/15
