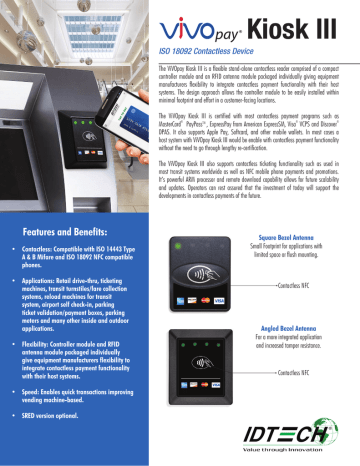

Kiosk III
ISO 18092 Contactless Device
The ViVOpay Kiosk III is a flexible stand-alone contactless reader comprised of a compact
controller module and an RFID antenna module packaged individually giving equipment
manufacturers flexibility to integrate contactless payment functionality with their host
systems. The design approach allows the controller module to be easily installed within
minimal footprint and effort in a customer-facing locations.
The ViVOpay Kiosk III is certified with most contactless payment programs such as
MasterCard® PayPass™ , ExpressPay from American ExpressSM, Visa® VCPS and Discover®
DPAS. It also supports Apple Pay, Softcard, and other mobile wallets. In most cases a
host system with ViVOpay Kiosk III would be enable with contactless payment functionality
without the need to go through lengthy re-certification.
The ViVOpay Kiosk III also supports contactless ticketing functionality such as used in
most transit systems worldwide as well as NFC mobile phone payments and promotions.
It’s powerful ARM processor and remote download capability allows for future scalability
and updates. Operators can rest assured that the investment of today will support the
developments in contactless payments of the future.
Features and Benefits:
• Contactless: Compatible with ISO 14443 Type
A & B Mifare and ISO 18092 NFC compatible
phones.
• Applications: Retail drive-thru, ticketing
machines, transit turnstiles/fare collection
systems, reload machines for transit
system, airport self check-in, parking
ticket validation/payment boxes, parking
meters and many other inside and outdoor
applications.
• Flexibility: Controller module and RFID
antenna module packaged individually
give equipment manufacturers flexibility to
integrate contactless payment functionality
with their host systems.
• Speed: Enables quick transactions improving
vending machine-based.
• SRED version optional.
Square Bezel Antenna
Small Footprint for applications with
limited space or flush mounting.
Contactless NFC
Angled Bezel Antenna
For a more integrated application
and increased tamper resistance.
Contactless NFC
Kiosk III ™
Specifications
Hardware
Processor:
Audio-Visual: Input Power: United States Sales Office
ARM Processor
Beeper and LEDs
7.5 - 36 VDC
Contactless Transactions
Interface: 13.56MHz ISO 14443 Type A/Type B, MiFare and ISO 18092
Payment Applications*:
American Express ExpressPay, Discover DPAS, Mastercard PayPass, Visa VCPS Interac, PBOC, Softcard, and Apple Pay
Other Contactless Applications: ViVOcard Pass-Through mode
Connectivity
Interface:
Firmware upgrades: RS-232, USB
Remote firmware download
Corporate Headquarters
10721 Walker Street
Cypress, CA 90630
Phone: (714) 761-6368
Toll Free:(800) 984-1010
Fax: (714) 761-8880
[email protected]
International Sales Offices
Asia
+866-3-496-6988 (Taiwan)
[email protected]
Canada
+450-465-5261
[email protected]
Physical Dimensions
Square Bezel Antenna:
South America
+55-11-3079-2255
[email protected]
Height (X):
75 mm (2.95 inches)
Length (Y):60 mm (2.36 inches)
Width (Z):
16.8 mm (0.66 inches)
Weight: 0.30lb.
Europe
Germany & United Kingdom
[email protected]
Angle Bezel Antenna:
Height (X):
96.2 mm (3.787 inches)
Length (Y):82.3 mm (3.24 inches)
Width (Z):
16.8 mm (0.66 inches)
Weight: 0.35lb.
ISO 9001 Certified
Controller:
Height (X):
105 mm (4.13 inches)
Length (Y):76.2 mm (3.00 inches)
Width (Z):
22.5 mm (0.88 inches)
Weight: 0.15lb.
Environmental
Antenna:
Operating Temp:
Storage Temp:
Operating Humidity:
Controller:
Operating Temp:
Storage Temp:
Operating Humidity:
Other:
-13°F to 122°F (-35°C to 50°C)
14 °F to 122°F (-10°C to 50°C)
5% to 90% non condensing
41°F to 122°F (5°C to 50°C)
14°F to 122°F (-10°C to 50°C)
5% to 90% non condensing
Weather-proofed UV-rated plastic enclosure
* Application specifications depend on hardware & software configuration.
©2015 International Technologies & Systems Corporation. ID TECH & ViVOpay are registered trademarks of International Technologies & Systems Corporation.
ViVOpay Kiosk III and Value through Innovation are trademarks of International Technologies & Systems Corporation. All specifications subject to change without notice.
www.idtechproducts.com
R4/15
