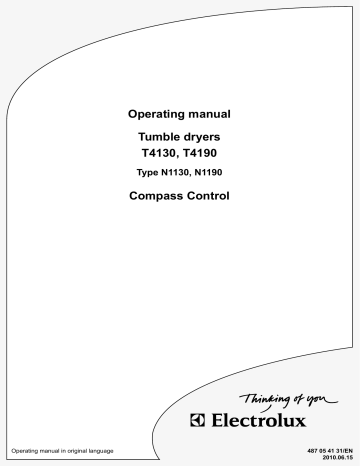

Operating manual
Tumble dryers
T4130, T4190
Type N1130, N1190
Compass Control
Operating manual in original language
487 05 41 31/EN
2010.06.15
Contents
Contents
Safety instructions......................................................................................... 5
General......................................................................................................... 7
Control panel............................................................................................ 7
Control knob............................................................................................. 7
Display...................................................................................................... 8
Drying program............................................................................................. 9
Drying functions.......................................................................................... 10
Start........................................................................................................ 10
Stop........................................................................................................ 10
Changing drying program after starting.................................................. 10
Handling.......................................................................................................11
Starting with preset button.......................................................................11
Starting with control knob............................................................................ 12
Error codes.................................................................................................. 13
Maintenance................................................................................................ 15
The manufacturer reserves the right to make changes to design and
com­ponent specifications.
3
Safety Precautions
Safety Precautions
Do not dry unwashed items in the machine
The machine is not to be used if industrial chemicals have been used for cleaning.
Do not allow minors to use the machine.
Do not hose down the machine with water.
The machine's door lock must under no circumstances be bypassed.
Items that have been soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent before being dried in the
machine.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be
dried in the machine.
Fabric softeners or similar products should be used as specified by the fabric
softener instructions.
The machine may not be used to dry floor mops that contain polypropylene.
The final part of a drying cycle occurs without heat (cool down cycle) to ensure that
the items are left at a temperature that ensures that the items will not be damaged.
WARNING. Never stop the machine before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipiated.
Remove garments from the machine as soon as they are dried. This prevents them
from becoming creased and reduces the risk of spontaneous ignition.
If the machine develops a fault, this must be reported to the person in charge as soon
as possible. This is important both for your safety and that of others.
The machine must not be located where a door, sliding door, etc., can block the
machine's door
The machine is not intended to be used by people (including minors) with reduced
physical or mental capacity or lack of experience and knowledge. Such people must
be instructed in the use of the machine by a person who has responsibility for their
safety. Minors must be supervised to ensure that they do not play with the machine.
Adequate ventilation has to be provided to avoid the back flow of gases into the room
for appliances burning other fuels, including open fires.
Gas heated tumble dryer:
The machine is not to be installed in rooms containing cleaning machines with
perchloroethylene, TRICHLOROETHYLENE or CHLOROFLUOROCONTAINING
HYDROCARBONS as cleaning agents.
If you can smell gas,
• Do not switch on any equipment
• Do not use electrical switches
• Do not use telephones in the building
• Evacuate the room, building or area
• Contact the person responsible for the machine
In order to prevent damage to the electronics (and other parts) that may occur as the
result of condensation, the machine should be placed in room temperature for 24 hours
before being used for the first time.
5
6
General
7
General
Control Panel
The control panel is used to choose the drying program with options and
to start and stop the machine. The panel houses a control knob and a display.
Some machines also have two preset buttons.
1
1
Display
Preset buttons
Control knob
2
The control knob is used to select drying program
and any other available functions.
2
Turn the knob until the required program is
shown on the display.
3
Confirm your choice by pushing in the knob.
Repeat this procedure until all the required
functions have been chosen.
3
Control knob
General
8
Display
4
The display presents the drying programs and
additional functions. The up and down arrows on
the right-hand side of the display indicate that
there are more options available in the current
menu. Turn the knob for next program.
Note!
If there is not enough room to show all the
text on the display, the first part will be displayed briefly before the text scrolls to the
side to display the second part. This sequence will be repeated as long the text in question is activated.
4
EXTRA DRY
DRY
General
Drying Program
9
1
The machine is programmed with a number of
programs adapted to the range of uses to which
the machine is intended.
EXTRA DRY
The following drying programs can be available:
1
Drying program EXTRA DRY.*
2
Drying program DRY.*
3
Drying program IRON DRY 5 %.*
DRY
2
DRY
IRON DRY 5%
* Automatic program controlled by Residual
Moisture Control (RMC) to the specified dryness.
4
Time program X MINUTES. Duration depends on
the selected time, up to 90 minutes.
3
IRON DRY 5%
15 MINUTES
4
15 MINUTES
30 MINUTES
General
10
Drying Functions
1
START
1
EXTRA DRY
Turn the control knob to the START row. Press
the knob to start the selected program.
HIGH TEMP
START
CHANGE TEMPERATURE
STOP
2
Press the control knob to stop the program.
Restart the drying program by pressing the
control knob again.
Changing drying program after starting
3
2
Press the control knob to stop the program. Turn
the control knob to the new program and press.
3
DRY
IRON DRY 5%
Handling
Handling
Starting with preset button
1
• Press the preset button for the desired program.
• If the machine has a coin meter, insert the
correct amount of coins/tokens and press the
button in order to start.
• If the machine is in a booking system it will be
necessary to book the machine in a central
system before it is possible to start it.
Note!
Pushing one of these buttons will activate the
corresponding drying program directly and
the machine will start automatically.
11
1
Handling
12
Starting with control knob
1
2
3
1
• Select the desired drying program with the
control knob and confirm by pressing the
knob.
EXTRA DRY
• Turn knob clockwise to change drying temperature.
DRY
• Press knob and select desired temperature:
HIGH (70 °C), MEDIUM (60 °C) or LOW (50
°C).
• Press knob to start.
2
EXTRA DRY
On coin-operated machines the duration of the
program is controlled by the coin/token inserted
HIGH TEMP.
CHANGE TEMP.
• Pay for the desired time.
EXIT
• Select temperature and confirm by pressing
the knob.
• Press knob to start.
3
Note!
The programmes EXTRA DRY, DRY and IRON
DRY 5% are not available on machines where
payment is done before the dryer is started.
SELECT TEMP.
HIGH TEMP.
MEDIUM TEMPERATUR
Error codes
Error codes
1
13
1
A fault in the program or in the machine is indicated by an error message comprising
an error code and a descriptive text.
The drying program and the error code can
be reset before restarting by holding in the knob
for at least 10 seconds or turning off the power to
the machine.
E10
INCORRECT
PROGRAMMING
CodeText
Cause/Action
E10 INCORRECT PROGRAMMING
Programming error/incorrect or missing parameter(s).
E11 DRYING ERROR WITH RMC
PROGRAM
Maximum allowable RMC time exceeded (non-coin E12 DRYING ERROR WITH
AUTOSTOP PROGRAM
E15 NO VACUUM DETECTED
operated models only).
Maximum allowable Autostop time exceeded
(non-coin operated models only).
The vacuum switch/pressostat does not shut within 12 seconds after the dryer is started.
For other error messages or repeated error messages, contact service personnel.
Maintenance
Maintenance
15
1
The following should be carried out at regular
intervals, depending on the frequency of use.
Daily, T4130
1
2
• Check that the drum stops when the door is
opened.
• Check that the lint screen in the door has
been cleaned. The lint screen must be removed for cleaning. Use a soft brush or your
hand. Remember to re-install the lint screen.
• Check that the gaskets around the coarse
finlter/air condenser and the door gasket have
been cleaned. Clean with a moist cloth.
• Check that the lint screen is unbroken.
• Check that the machine will not start until the
start button has been activated.
• On condensate machines, the air condenser
must also be checked for lint and dust.
Remove for cleaning.
Monthly, T4130
Machines with RMC
Wipe off/clean drum and lifters with citric acid
(Acidum citricum). If soap/softener residue remains, it is recommended also to use a coarse
sponge.
Lack of cleaning the lifters can reduce the automatic residual moisture control in the clothes
resulting in the clothes being moister than requested when the program has ended.
2
Monthly, T4130 (on condensate machines)
3
At least once a month the condenser must be
cleaned of lint by rinsing it with water until the
lamellae are clean.
Soak in hot water if required.
Quarterly/Semi-annually, T4130
• Check that the fresh-air intake at the rear of
the machine is not clogged by lint or blocked
in any other way.
• Check that the evacuation system is tight and
that the ducts are not clogged by lint or dust or
blocked in any other way.
• Remove the coarse filter for lint removal.
3
Maintenance
16
Daily, T4190
• Check that the drum stops when the door is opened.
• Check that the machine will not start until the start button has been activated.
Monthly, T4190
Dryer with RMC
Wipe off/clean drum and lifters with citric acid (Acidum citricum). If soap/softener residue remains, it is recommended also to use a coarse sponge.
Lack of cleaning the lifters can reduce the automatic residual moisture
control in the clothes resulting in the clothes being moister than requested
when the program has ended.
Quarterly, T4190
Check that the following are not clogged by lint and dust or otherwise
blocked:
• Fresh-air intake on the back of the dryer.
• Exhaust duct.
• Fresh-air intake to the room (clean as required, depending on the operating frequency).
• Check that the evacuation system connection are tight.
Quaterly/semi-annully, T4190
• For optimal function of the machine, it is important to check the filter.
• The filter must be unbroken and free of lint.
Annually, T4190
At least once a year the inside wearing parts of the machine should be
checked by a competent, skilled person and cleaned of lint.
Washer extractors, Tumble dryers, Hydro extractors
Types: W.55H., W3..., WN3..., W4.H., EXSM.X., H1..., N1130.., N1190.., N2..., N3..., N4..., N5...
Product standards:EN 60335-2-4, -7, -11
EMF standards:
EN 50366:2003 + A1
EMC standards:
EN 61000-6-1 (2001) W.55H., W3..., W4.H., N1130, N1190, N2..., N3...
EN 61000-6-3 (2001) W.55H., W3..., WN3..., W4.H., EXSM.X., N1130, N1190, N2..., N3...
A11 (2003) WN3..., N5...
EN 61000-3-11 (2001) EXSM.X.
EN 61000-6-2 (2005) WN3..., N4..., N5...
EN 61000-6-3 (2007) N4...
Försäkran om överensstämmelse
EF-samsvarserklæring
Vi,
Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Sverige
försäkrar under eget ansvar att denna produkt, med typbeteckning och enl. ovan, är tillverkad i
överensstämmelse med följande direktiv:
• LVD Directive 2006/95/EC
• EMC Directive 2004/108/EC
• GAS Directive 2009/142/EC (gäller endast N'''''' och WN3...)
• CE Marking Directive 93/68/EEC
• RoHS Directive 2002/95/EC
• WEEE Directive 2002/96/EC
• MD Directive 2006/42/EC
Vi,
Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Sverige,
erklærer på eget ansvar at dette produktet, med typebetegnelse og produksjonsnummer som
angitt nedenfor, er produsert i samsvar med bestemmelsene i følgende direktiver:
• LVD Directive 2006/95/EC
• EMC Directive 2004/108/EC
• GAS Directive 2009/142/EC (gjelder bare N'''''' og WN3... )
• CE Marking Directive 93/68/EEC
• RoHS Directive 2002/95/EC
• WEEE Directive 2002/96/EC
• MD Directive 2006/42/EC
CE Declaration of conformity
EG-Conformiteitsverklaring
We,
Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Sweden
declare under our sole responsibility that the product of the type stated above is manufactured in
conformity with the following EU directives:
Wij,
Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Zweden
verklaren hierbij op eigen verantwoordelijkheid dat het produkt van het type en met het serienummer zoals hieronder vermeld, is vervaardigd conform de volgende normen:
• LVD Directive 2006/95/EC
• EMC Directive 2004/108/EC
• GAS Directive 2009/142/EC (alleen N'''''' en WN3...)
• CE Marking Directive 93/68/EEC
• RoHS Directive 2002/95/EC
• WEEE Directive 2002/96/EC
• MD Directive 2006/42/EC
•
•
•
•
•
•
•
LVD Directive 2006/95/EC
EMC Directive 2004/108/EC
GAS Directive 2009/142/EC (N''''''... and WN3... only)
CE Marking Directive 93/68/EEC
RoHS Directive 2002/95/EC
WEEE Directive 2002/96/EC
MD Directive 2006/42/EC
EG-Konformitätserklärung
Wir, die, Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Schweden
erklären hiermit in alleiniger Verantwortung, daß das Produkt mit der oben genannten Typenbezeichnung mit folgenden EU-Richtlinien übereinstimmt:
•
•
•
•
•
•
•
LVD Directive 2006/95/EC
EMC Directive 2004/108/EC
GAS Directive 2009/142/EC (Nur N'''''' und WN3...)
CE Marking Directive 93/68/EEC
RoHS Directive 2002/95/EC
WEEE Directive 2002/96/EC
MD Directive 2006/42/EC
Déclaration de conformité CE Nous,
Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Suède
déclarons sous notre seule et unique responsabilité que le produit des type et numéro de série
indiqués ci-dessus est fabriqué conformément aux directives UE suivantes:
•
•
•
•
•
•
•
LVD Directive 2006/95/EC
EMC Directive 2004/108/EC
GAS Directive 2009/142/EC (N'''''' et WN3... uniquement)
CE Marking Directive 93/68/EEC
RoHS Directive 2002/95/EC
WEEE Directive 2002/96/EC
MD Directive 2006/42/EC
Declaración de conformidad CE
Electrolux Laundry Systems Sweden AB
con sede en SE-341 80 Ljungby, Suecia
declara bajo su exclusiva responsabilidad que el producto cuyo tipo se especifica en el
encabezado se ha fabricado conforme a las siguientes directivas:
•
•
•
•
•
•
•
LVD Directive 2006/95/EC
EMC Directive 2004/108/EC
GAS Directive 2009/142/EC (vale sólo N'''''' y WN3)
CE Marking Directive 93/68/EEC RoHS Directive 2002/95/EC
WEEE Directive 2002/96/EC
MD Directive 2006/42/EC
Erklæring om EU-overensstemmelse
Vi
Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Sverige
erklærer på eget ansvar, at produktet med typebetegnelse som angivet er fremstillet i overens­
stemmelse med følgende EU-direktiver:
•
•
•
•
•
•
•
LVD Directive 2006/95/EC
EMC Directive 2004/108/EC
GAS Directive 2009/142/EC (gælder kun N'''''' og WN3...)
CE Marking Directive 93/68/EEC
RoHS Directive 2002/95/EC
WEEE Directive 2002/96/EC
MD Directive 2006/42/EC
Dichiarazione CE di conformità
Noi
Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Svezia
dichiariamo sotto la nostra esclusiva responsabilità che il prodotto del tipo specificato sopra è
conforme alle seguenti direttive [UE]:
• LVD Directive 2006/95/EC
• EMC Directive 2004/108/EC
• GAS Directive 2009/142/EC (solo N'''''' e WN3...)
• CE Marking Directive 93/68/EEC
• RoHS Directive 2002/95/EC
• WEEE Directive 2002/96/EC
• MD Directive 2006/42/EC
Declaração CE de conformidade
Nós,
Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Suécia
declaramos sob nossa inteira responsabilidade que o produto com os números de série e de tipo
abaixo indicados é fabricado em conformidade com as seguintes directivas [UE]:
• LVD Directive 2006/95/EC
• EMC Directive 2004/108/EC
• GAS Directive 2009/142/EC (apenas N'''''' e WN3...)
• CE Marking Directive 93/68/EEC
• RoHS Directive 2002/95/EC
• WEEE Directive 2002/96/EC
• MD Directive 2006/42/EC
ΔΗΛΩΣΗ ΠΙΣΤΟΤΗΤΑΣ ΕΚ
H
Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Σουηδία
δηλώνει με αποκλειστική της ευθύνη ότι το προϊόν του ανωτέρω αναφερόμενου τύπου
κατασκευάζεται σύμφωνα με τις ακόλουθες οδηγίες της Ευρωπαϊκής Ένωσης:
• LVD Directive 2006/95/EC
• EMC Directive 2004/108/EC
• GAS Directive 2009/142/EC (N'''''' και WN3... μόνο)
• CE Marking Directive 93/68/EEC
• RoHS Directive 2002/95/EC
• WEEE Directive 2002/96/EC
• MD Directive 2006/42/EC
CE megfelelöségi nyilatkozat
Mi, az
Electrolux Laundry Systems Sweden AB
SE-341 8 Ljungby, Svédország
felelöségünk teljes tudatában kijelentjük, hogy az alább megadott típusú termék gyártása a
következö EU-irányelvekkel összhangban történik:
• LVD Directive 2006/95/EC
• EMC Directive 2004/108/EC
• GAS Directive 2009/142/EC (csak az N'''''' és WN3... esetén)
• CE Marking Directive 93/68/EEC
• RoHS Directive 2002/95/EC
• WEEE Directive 2002/96/EC
• MD Directive 2006/42/EC
Ljungby 2010.08.16
EY-Vaatimustenmukaisuusvakuutus
Me
Electrolux Laundry Systems Sweden AB
SE-341 80 Ljungby, Ruotsi
vakuutamme yksinomaan omalla vastuullamme, että tuote, jonka tyyppitunnus lukee yllä, on valmistettu seuraavien [EU]-direktiivien mukaisesti:
•
•
•
•
•
•
•
LVD Directive 2006/95/EC
EMC Directive 2004/108/EC
GAS Directive 2009/142/EC (vain N'''''' ja WN3...)
CE Marking Directive 93/68/EEC
RoHS Directive 2002/95/EC
WEEE Directive 2002/96/EC
MD Directive 2006/42/EC
Franco Panno
Vice President Technical Operations
471 1531-43/21
Page 1/2
Translation table for model name to type of approval
Commercial name
Type
W455H
W.55H.
W465H
W3...
W475H
W3...
W4105H
W3...
W4130H
W3...
W4180H
W3...
W4240H
W3...
W4300H
W3...
FOM71 CLS
W3...
WB4130H
W3...
WB4180H
W3...
PW9
W3...
W475S
W3...
W485S
W3...
W4105S
W3...
W4130S
W3...
W4180S
W3...
W4250S
W3...
W4330S
W3...
W475N
W3...
W485N
W3...
W4105N
W3...
W4130N
W3...
W4180N
W3...
W4250N
W3...
W4330N
W3...
WD4130H
WN3...
WD4240H
WN3...
W4400H
W4.H.
W4600H
W4.H.
W4850H
W4.H.
W41100H
W4.H.
W4280X
EXSM.X.
W4350X
EXSM.X.
W4600X
EXSM.X.
C240
H1...
C260
H1...
C240R
H1...
C260R
H1...
C290R
H1...
T4130
N1130..
T4190
N1190..
PD9
N1190..
T4250
N2...
T4350
N2...
T4300S
N3...
T4290
N4...
T4530
N4...
T4650
N4...
T4900
N4...
T41200
N4...
T4900CR
N4...
T41200CR
N4...
T4300LE
N5...
Ljungby 2010.08.16
Franco Panno
Vice President Technical Operations
471 1531-43/21
Page 2/2
Skrotning av maskin
När maskinen inte längre skall användas måste den lämnas till en återvinningsstation för destruktion. Många detaljer i maskinen går att återanvända,
men den innehåller även annat material som måste tas om hand på ett korrekt sätt. Lämna därför aldrig maskinen eller delar av maskinen i
hushållsavfallet, eftersom det kan leda till hälsorisker eller skador på miljön.
Scrapping of machine
When the machine is no longer to be used, it must be submitted to a recycling facility for destruction. The majority of the components in the machine
can be reused, but it also contains other material that must be taken care of in the correct way. Therefore, never mix the machine or its parts with
domestic waste as this may lead to health hazards or damage to the environment.
Entsorgung des Geräts
Wenn das Gerät nicht länger im Gebrauch ist, muss dieses einer Recyclingstation zur Entsorgung zugeführt werden. Viele Komponenten des Geräts
sind recyclingfähig, enthalten aber auch Materialien, die vorschriftsmäßig entsorgt werden müssen. Entsorgen Sie daher das Gerät oder Geräteteile
niemals im Hausmüll, da dies Gefahren für die Gesundheit oder Umweltschäden nach sich ziehen kann.
Mise au rebut de machine
Lorsque la machine n’est plus utilisée, elle doit être déposée à une installation de recyclage pour y être détruite. La majorité des composants de la
machine peuvent être réutilisés mais celle-ci contient également d’autres matériaux qui doivent être traités correctement. C’est pourquoi vous ne
devez jamais mélanger la machine ou ses pièces avec les ordures ménagères, risque de polution pour l’environnement ou la santé.
Desguace de la máquina
Cuando la máquina no tenga que utilizarse más, ha de entregarse a una instalación de destrucción para su reciclado. La mayor parte de sus
componentes pueden volver a utilizarse, pero consta también de otros materiales que han de ser tratados de la manera correcta. Por esa razón
nunca mezclar la máquina ni sus partes con la basura doméstica pues esto podría constituir un peligro para la salud o dañar el medio ambiente.
Bortskaffelse af maskinen
Når maskinen ikke længere er i brug, skal den afleveres til destruktion på en genbrugsstation. Mange dele i maskinen kan genanvendes, men den
indeholder også andre materialer, der skal håndteres korrekt. Smid derfor ikke maskinen eller dele af den ud sammen med husholdningens
almindelige affald, da det kan være forbundet med sundhedsrisiko eller give miljøskader.
Koneen hävittäminen
Kun konetta ei enää käytetä, se pitää luovuttaa kierrätyskeskukseen tuhottavaksi. Suurinta osaa koneen osista voidaan käyttää uudelleen, mutta se
sisältää myös materiaaleja, jotka pitää käsitellä asianmukaisesti. Älä sen vuoksi koskaan laita konetta tai sen osia kotitalousjätteen sekaan, sillä se
saattaa aiheuttaa terveysriskejä tai vahinkoa ympäristölle.
Skroting av maskin
Når maskinen ikke lenger skal brukes, må den leveres til en gjenvinningsstasjon for destruksjon. Det går an å gjenbruke mange deler av maskinen,
men den inneholder også annet materiale som man må ta hånd om på riktig måte. Legg derfor aldri maskinen eller deler av maskinen i
husholdningsavfallet, siden det kan føre til helse- eller miljøskader.
Afdanken van de machine
Als de machine niet langer gebruikt gaat worden, moet deze ter vernietiging worden aangeboden bij een recyclinginrichting. De meeste
componenten van de machine kunnen worden hergebruikt, maar hij bevat ook ander materiaal dat op een juiste wijze moet worden behandeld.
Daarom de machine of zijn onderdelen nooit bij het huisvuil zetten, want dat kan leiden tot gezondheidsrisico’s of schade aan het milieu.
Rottamazione della macchina
Quando la macchina non può più essere utilizzata, deve essere affidata a un centro di riciclaggio che ne effettui la rottamazione. La maggior parte
dei componenti della macchina sono riciclabili, ma ce ne sono anche alcuni che devono essere smaltiti in modo appropriato. Perciò, non mischiare
mai la macchina o parti di essa con i normali rifiuti domestici, poiché ciò potrebbe comportare rischi per la salute o per l’ambiente.
Złomowanie maszyny
Wycofaną z użytkowania maszynę należy przekazać do zakładu utylizacji w celu złomowania. Większość podzespołów maszyny nadaje się do
powtórnego wykorzystania, lecz zawiera ona także inne materiały, z którymi należy postępować w odpowiedni sposób. Z tego powodu niedozwolone
jest łączenie maszyny lub jej części z odpadami domowymi, gdyż może to prowadzić do zagrożenia zdrowia lub szkody dla środowiska.
Vyřazení přístroje
Přístroj, který již nebude používán, by měl být odevzdán k likvidaci do ekodvora. Většina součástek přístroje může být opětovně použita, některé ale
vyžadují likvidaci přesně daným způsobem. A proto nikdy nemíchejte dohromady přístoje nebo jejich části s domácím odpadem, mohlo by to vést ke
zdravotním rizikům nebo k poškození životního prostředí.
Οριστική απόσυρση μηχανήματος
Όταν το μηχάνημα δεν προορίζεται για περαιτέρω χρήση, θα πρέπει να οδηγείται σε εγκατάσταση ανακύκλωσης για καταστροφήΤο
μεγαλύτερο ποσοστό των εξαρτημάτων του μηχανήματος μπορεί να χρησιμοποιηθεί ξανά, αλλά το μηχάνημα περιλαμβάνει και άλλα
υλικά η διαλογή των οποίων θα πρέπει να πραγματοποιείται με τον κατάλληλο τρόποΚατά συνέπεια, μην αναμιγνύετε ποτέ το
μηχάνημα ή τα εξαρτήματά του με οικιακά απορρίμματα καθώς αυτό μπορεί να αποβεί επικίνδυνο για την υγεία ή επιβλαβές για το
περιβάλλον.
Art. No. 438 9041-90 / 06.21
Electrolux Laundry Systems Sweden AB
341 80 Ljungby, Sweden
www.electrolux.com/laundrysystems
Share more of our thinking at www.electrolux.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
