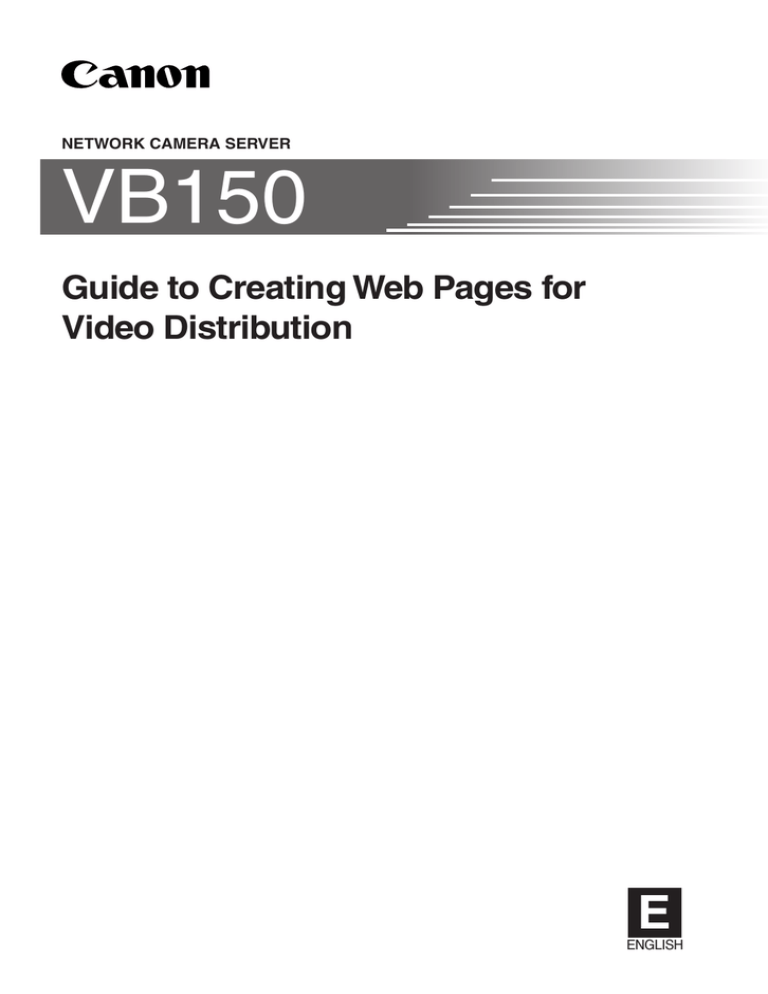

NETWORK CAMERA SERVER
VB150
Guide to Creating Web Pages for
Video Distribution
E
ENGLISH
Introduction
Thank you for purchasing the Canon Network Camera Server VB150 (referred to hereafter as the
VB150).
This manual describes how to use the VB150 for video distribution. Video can be distributed in a
number of ways, including displaying multiple images and posting still images or movies on a website.
Read this manual carefully before use.
Exclusion of Liability
If the Product is connected to a recording device (for example a VCR), Canon Inc. accepts no
responsibility whatsoever for any financial losses that may be incurred as a result of the loss of
recorded information or images, regardless of the internal or external cause of the loss.
Copyright Information
Video or still pictures recorded using your VB150 cannot be used in ways that infringe copyright
laws or without the consent of the owner, unless intended for personal use only.
Notes
1. The unauthorized transfer of all or any part of the contents of this Manual is forbidden.
2. The contents of this Manual are subject to change without notice.
3. Every effort has been made to ensure that this Manual is flawless. However, if you find any
oversights, please let us know.
4. Notwithstanding above, Canon accepts no liability for any results arising from the operation of
this product.
Trademark Notices
● Canon and Canon logo are registered trademarks of Canon Inc.
● Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States
and other countries.
● Windows is legally recognized as Microsoft Windows Operating System.
● Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems,
Inc. in the United States and other countries.
● Other brand or product names in this manual may be trademarks or registered trademarks of
their respective companies.
Request concerning disclosure of live videos
With respect to the disclosure of live videos, we request that sufficient consideration be given to
matters of privacy and rights not to be photographed. Canon considers the following points concerning
such matters when it operates camera sites for which it has been responsible to install and operate:
- We take measures such as adding limitations on zoom magnifications so that people cannot
make special specifications.
- When videos are taken of specific buildings, interiors and the like, we install the camera only after
receiving approval from the administrator.
Please note that the operator of the camera site and not Canon has full responsibility regarding the
disclosure of live videos.
© Copyright 2003 CANON INC.
ALL RIGHTS RESERVED
Contents
Web Pages for Video Distribution ............ 1
Viewer Overview........................................ 2
Viewer for Java ........................................................ 2
Viewer for PC ........................................................... 2
Viewing Sample Pages ............................. 3
Using the Viewer for Java to Distribute Videos ..... 4
Creating a Web Page that Uses the Viewer for Java .... 4
Example of a Web Page that Uses the Viewer for Java .... 5
Viewer for Java Parameters ................................. 13
Using the Viewer for PC to Distribute Videos .. 17
Example of a Web Page that Uses the Viewer for PC .... 19
Distributing Videos Using a Browser Only....20
Example of Video Distribution Using
One Global Address................................ 22
Log Messages ......................................... 23
Links from WebView World
http://www.x-zone.canon.co.jp/WebView-E/
If you are interested in having your Website linked from our WebView World Website,
please contact us from one of the following options (Be sure to read “Request
Concerning the Disclosure of Live Pictures” in the Introduction page):
1. http://www.canon.com/webview/
[Link] - [Link from WVW] - [To Link from WebView World Page]
2. Read “2. Links from WebView World” in the CD-ROM’s ReadMe-E.txt and e-mail us
with the required information.
*Note that the link may be refused in some cases.
Web Pages for Video Distribution
To distribute live video using the VB150, you create a dedicated web page. The viewers that can be used
with the VB150 are "Viewer for Java" (with or without camera control function) and "Viewer for PC", and
detailed parameters can be specified for each of these. You need to determine which of these viewers is
supported and create the Web page.
■ Example of a Web page for video distribution (VB150’s built-in page)
The above page is built into the VB150 and can be accessed from the URL below.
http://192.168.100.1*/
* The underlined portion is a sample IP address. Enter the actual IP address set for the VB150 (→ VB150
User's Manual P.36).
c
Note
● File Names
The VB150 can handle file names consisting of up to 8 characters followed
by a 3-character extension. Note that the names of applets built into the
VB150 are exceptions to this rule.
● The VB150 includes a built-in Web server. If the content of Web pages used
for distributing video is stored onto a the flash memory, the VB150 can be
used alone for distributing Web pages and videos over the Web. Refer to
step 3 on page 111 for information on saving content.
e
Tip
You can use the Language setting function for the Browser to create a multilingual Web site. For example, if you set the French-language top page as
index-fr.htm and the English-language top page as index.htm and supply
users with a URL address terminates in slash, such as http://vb150/sample/,
the server will transmit a file that corresponds with the language setting for
the Browser. For further information on the Language setting function for the
Browser, refer to the Browser Help.
1
Viewer Overview
There are two types of viewers: the Viewer for Java and the Viewer for PC.
Viewer for Java
The Viewer for Java provides two types of viewers: LiveApplet containing video display and
camera control functions, and Glimpse containing a video display function. Because both viewers
use the WebView-HTTP transfer protocol, data can pass through firewalls with no need for special
settings.
LiveApplet
Glimpse
Video display function
Video display
function
Camera control
function
Guide to Creating Web Pages for Video Distribution
Click
* The Viewer for Java is installed in the VB150
and automatically downloaded when it is
connected to the VB150.
Panorama picture
Viewer for PC
The Viewer for PC provides video display and camera control functions. In addition to WebViewHTTP, the VB150 also supports Canon’s WebView-TCP transfer protocol.
Viewer for PC
Video display function
Camera control
function
Click
* You need to install the Viewer for PC from the
supplied CD-ROM (MonSetup.exe).
Panorama picture
c
Note
● Viewer Software User’s Manual is provided on the CD-ROM supplied with the VB150
(VIEWER-E.pdf).
● Use VB Administration Tools to create a panorama picture. Refer to P.65 of the VB150
User’s Manual for details.
2
Viewing Sample Pages
Ready-made video distribution sample pages are provided with the VB150. Follow the procedure below to
view these pages. Refer to these pages when creating your own Web pages.
Viewing the Pages
1
Launch your Web browser and enter the following URL:
http://192.168.100.1/sample/
* The underlined portion is a sample IP address. Enter the actual IP address set for the VB150 (→ VB150
User's Manual P.36).
2
The page shown below appears with links to the other sample pages. Click on the link to the
sample page you want to view.
●Examples of sample pages
JavaApplet sample 1
JavaApplet sample 2
This is a LiveApplet sample page which
distributes live videos and allows users
to control the camera.
This is a sample page which combines
LiveApplet and Glimpse.
Still picture request page using JavaScript
This is a sample page which displays a live still
picture.
3
Using the Viewer for Java to Distribute Videos
This section describes how to use the Viewer for Java to provide videos. Application examples are also given.
Creating a Web Page that Uses the Viewer for Java
When you use the Viewer for Java, the viewer applet to be used must be incorporated into the
Web page you provide. However, this is not especially difficult. The page can be created using the
HTML normally used to include an applet.
LiveApplet
<applet codebase="http://192.168.100.1/-wvdoc-01-/LiveApplet/"
Guide to Creating Web Pages for Video Distribution
code="LiveApplet.class" archive="LiveApplet.zip"
width=450 height=380>
<param name=url value="http://192.168.100.1/">
<param name=cabbase value="LiveApplet.cab">
</applet>
Glimpse
<applet codebase="http://192.168.100.1/-wvdoc-01-/Glimpse/"
code="Glimpse.class" archive="Glimpse.zip"
width=160 height=120>
<param name=url value="http://192.168.100.1/">
<param name=cabbase value="Glimpse.cab">
</applet>
Enter the parameters required by the applet between the <applet> -</applet> tags.
Use the <param> tag for parameters other than the common attributes for applets (codebase,
code, archive, width and height).
* The underlined portion is a sample IP address. Enter the actual IP address set for the VB150.
4
Example of a Web Page that Uses the Viewer for Java
This section describes an example in which the Viewer for Java is used to create a Web page.
Use this example to create your own original Web page.
Embed the Viewer for Java, and display a text in a separate frame.
1
2
3
e
Tip
Frame settings
The text displayed in a
separate frame
Frame with the embedded
Viewer for Java
● Writing IP Addresses
Using the Web server functions built into the VB150, IP addresses can be
expressed as <_I_P_A_D_D_R_> (all upper-case characters, including the angle
brackets) in the two file types (htm,wvh) used by the Web server in the VB150.
Since <_I_P_A_D_D_R> is replaced with the actual IP address when accessed,
the Web page does not need to be changed even when the IP address for the
VB150 is changed. In addition, NAT can be supported by specifying a Web page
global address. (→ P.22, VB150 User's Manual P.55)
5
Using the Viewer for Java to Distribute Videos
1
sample.htm
<html>
<head>
<title>SampleSite LiveApplet</title>
</head>
<frameset rows="70,*">
<frame src="header.htm">
<frame src="lvappl.htm">
</frameset>
</html>
Guide to Creating Web Pages for Video Distribution
2
header.htm
<html>
<head>
<title>LiveApplet comment</title>
</head>
<body>
<center><h1>LiveApplet</h1></center>
</body>
</html>
3
lvappl.htm
<html>
<head>
<title>LiveApplet</title>
</head>
<body>
<applet codebase="http://192.168.100.1/-wvdoc-01-/LiveApplet/"
code="LiveApplet.class" archive="LiveApplet.zip"
width=450 height=380>
<param name=cabbase value="LiveApplet.cab">
<param name=url value="http://192.168.100.1/">
</applet>
</body>
</html>
* The underlined portion is a sample IP address. Enter the actual IP address set for the VB150.
6
Using Glimpse and LiveApplet Together
This section describes how to create a Web page that allows clients to use Glimpse to download
quickly and display live video at a low frame rate, and then use LiveApplet to view video at a high
frame rate and control the camera when they find videos they are particularly interested in.
1
Glimpse embedded in
the page.
Click the button to display
the page in which
LiveApplet is embedded.
2
7
Pop-up LiveApplet
window
Using the Viewer for Java to Distribute Videos
glimps.htm
<html>
<head>
<script language="JavaScript">
<!-function clicked(btn) {
url = btn.name
window.open(url,"LiveApplet","width=490,height=400")
}
// -->
</script>
<title>Glimpse</title>
</head>
<body>
<table>
<form name="form">
<tr><td><center>
<applet codebase="http://192.168.100.1/-wvdoc-01-/Glimpse/"
code="Glimpse.class" archive="Glimpse.zip"
width=160 height=120>
<param name=cabbase value="Glimpse.cab">
<param name=url value="http://192.168.100.1/">
</applet>
</center></td></tr>
<tr><td><center>
<input type="Button" name="popup.htm" value="click me"
onClick="clicked(this)">
</center></td></tr>
</form>
</table>
</body>
</html>
2
popup.htm
<html>
<head>
<title>LiveApplet</title>
</head>
<body>
<center>
<applet codebase="http://192.168.100.1/-wvdoc-01-/LiveApplet/"
code="LiveApplet.class" archive="LiveApplet.zip"
width=450 height=380>
<param name=cabbase
value="LiveApplet.cab">
<param name=url
value="http://192.168.100.1/">
</applet>
</center>
</body>
</html>
Guide to Creating Web Pages for Video Distribution
1
* The underlined portion is a sample IP address. Enter the actual IP address set for the VB150.
8
Providing "LiveApplet" without Camera Control
This section describes how to create a Web page that only displays live video and has no camera
control GUI for situations where you want to prohibit camera control.
<applet ... width=320 height=240>
<param name=controller_style value="none"> .................................................
Specify the camera control user interface.
"normal" = the usual style
"preset_only" = preset operation only is displayed
"none" = not displayed
Modifying the Startup and Disconnection Screens
You can modify the image files (JPEG or GIF image files) shown in the startup and disconnection screens.
Nothing Specified
■Startup screen
9
■Disconnection screen
Using the Viewer for Java to Distribute Videos
Certain Images Specified
■Startup screen
■Disconnection screen
If no particular image is specified, the "connecting to hostname" (when the hostname parameter is
specified) or "now connecting" animation is displayed at startup and the "disconnected hostname"
Guide to Creating Web Pages for Video Distribution
(when the hostname parameter is specified) or "disconnected" is displayed at disconnection.
You can modify the screens to show any image by providing images for the startup and disconnection
screens and setting the parameters. The image size is automatically adjusted to the size specified in
the video_width parameter. The display time for the specified screen at startup can also be specified.
<param name=open_image value="/opt/images/opening.jpg"> ......................
<param name=open_image_time value="3000"> ..............................................
<param name=close_image value="/opt/images/closing.jpg"> .......................
specifies the file name for the startup image screen.
specifies the display time for the startup image screen (in milliseconds).
specifies the file name for the disconnection image screen.
c
Note
You must use the absolute path name (name that begins with "/") to specify
the URL for the image file displayed.
(→ See step 3 on page 111 of the VB150 User's Manual)
e
Tip
● At startup, the default character string that is displayed while a connection
to the VB150 is being established is "now connecting...", but it can be
changed. For additional parameters for changing display character strings,
see page 15.
● If user service times have been specified (→ VB150 User's Manual P.54),
screen images are not displayed outside those times.
10
Displaying the Host Name,
Frame Count and Other Information on the Video Screen
<param name=show_fps value="on">
<param name=show_counter value="on">
<param name=hostname value="CANON">
<param name=show_hostname value="on">
<param name=comment value="VB150 site">
<param name=show_comment value="on">
specifies whether the frame rate is displayed on the screen.
"on": Displayed.
"off": Not displayed.
specifies whether the frame count is displayed on the screen.
"on": Displayed.
"off": Not displayed.
specifies the host name (any text string) to be displayed on the screen and whether the
host name is displayed.
"on": Displayed.
"off": Not displayed.
specifies a comment to be displayed on the screen and whether the comment is displayed.
"on": Displayed.
"off": Not displayed.
11
Using the Viewer for Java to Distribute Videos
Displaying Bitmap Images
on the Video Screen
Sample transparent GIF
Guide to Creating Web Pages for Video Distribution
<param name=superimpose value="/logos/newlogo.gif,0,0">
* The underlined portion "x,y" specifies the display position. When x,y = 0,0, the image is displayed in the top
left corner. If "x,y" is omitted, the image is displayed in the center of the frame.
Specifying the Background Color
<html>
<body bgcolor=#cccccc>
<applet codebase=http://...code="LiveApplet.class" width=450 height=380>
<param name=url value="http://192.168.100.1">
<param name=bg_color value="#cccccc">
</applet>
</body>
</html>
* The underlined portion is a sample IP address. Enter the actual IP address set for the VB150.
Pasting a picture to the background
<param name=bg_image valve="/opt/images/back.gif">
<param name=image_offset value="0,0">
Specify the displayed picture file.
Specify to display it at x,y (underlined portion).
12
Viewer for Java Parameters
You can specify applet parameters to provide an applet tailored to modify the behaviour or appearance of
applets. Refer to the table below to ensure that you thoroughly understand the parameters.
■LiveApplet
Parameter Name
bg_color
close_image
Yes
Yes
Description
Use this parameter to set the background color. The parameter specification format is
"#RRGGBB" (values between 0 and 255 for each component color expressed as a hexadecimal).
Eg. White: "#FFFFFF", Grey: "#AAAAAA", Green: "#00FF00"
If this parameter is omitted, the default background color is used.
You can use this parameter to specify the screen displayed in the video display
window at the time of disconnection. Specify the name of a JPEG or GIF file. If this
parameter is omitted, the default disconnection screen is displayed.
Yes
This parameter specifies the comment text string displayed as an overlay on the applet.
If this parameter is omitted, no comment is displayed.
gui-type
Yes
Specifies whether the panorama window should be pop-up displayed or embedded in
the page. Specify “embed” for making it an embedded display. When specifying
“embed”, the Width and Height of the applet tags must be specified a little larger (Eg.
width=500; height=660).
hostname
Yes
This parameter specifies the host name displayed in the applet. This value is used as the host name
in messages displayed during connection, etc. If this parameter is omitted, no host name is displayed.
open_image
Yes
You can use this parameter to specify the screen that appears in the video display
window until the first video image appears. Specify the name of a JPEG or GIF file. If
this parameter is omitted, the default startup screen is displayed.
open_image_time
Yes
When a startup screen is specified in the "open_image" parameter, this parameter specifies the
display time. The time is specified in milliseconds (1/1000 sec.), and the default value is 0. The image
is displayed until the first video frame appears. Values from 0 to 30000 (30 seconds) can be specified.
show_capture
Yes
This function specifies whether the Snapshot button is displayed. Specify "on" or "off". The
default value is "on". The button is always displayed unless "off" is explicitly specified.
show_comment
Yes
This function displays the comment as an overlay on the video image. Specify "on" or "off". The default value is "off".
comment
13
Omissible
show_counter
Yes
This function displays the frame count as an overlay on the video image. Specify "on" or "off". The default value is "off".
show_fps
Yes
This function displays the frame rate as an overlay on the video image. Specify "on" or "off". The default value is "off".
show_hostname
Yes
This function displays the host name as an overlay on the video image. Specify "on" or "off". The
default value is "off". Note that this parameter is only valid if the "hostname" parameter is specified.
show_panobutton
Yes
Specify whether or not to display the panorama window pop-up button.
superimpose
Yes
This function displays a bitmap image as an overlay on the video image. Specify the image using the "bitmap-filename,x,y"
format. Use the GIF format for bitmap images (transparent GIFs supported). The "x,y" parameters specify the coordinates
of the bitmap image position on the video frame. If "x,y" is omitted, the image is displayed in the center of the video frame.
url
No
Specify the URL of the HTTP server for applet access. Specify the IP address and
port number that match those specified in the codebase attribute.
video_width
Yes
This parameter specifies the video image display size (in pixels). Specify the width. The
display sizes are 80 to 640, and any value can be set as the width. The height is
calculated as 3/4 of the specified width. Eg. video_width="240" (height = 240 x 3/4 = 180.)
Using the Viewer for Java to Distribute Videos
Parameter Name
Omissible
Description
bg_image
Yes
The picture displayed in the background of LiveApplet can be specified. A JPEG or
GIF file can be specified. The WebView Livescope logo is not displayed if specified. If
not specified, the default picture is used. (Refer to image_offset about the display
position.)
click_action
Yes
Specifies behavior when a moving picture display area is clicked. "pt" specifies pan
and tilt; "none" specifies no reaction. The default is "pt".
connect_msg
Yes
Specifies the character string that is displayed while connection to the camera server is
being established. The default is "now connecting".
controller_style
Yes
Specifies the GUI style for controlling the camera. "normal" specifies the usual GUI
style; "preset_only" specifies preset operation only; "none" specifies that the entire GUI
will not be displayed. With "preset_only", only the Start Control button, the Camera
Control Status window, the Preset Selection bar, and the Snapshot button are
displayed.
disconnect_msg
Yes
Specifies the character string that is displayed when the connection to the camera
server is cut. The default is "disconnected".
error_msg
Yes
Specifies the character string that is displayed when connection to the camera server
has failed. The default is "can't connect".
font_size
Yes
Specifies the display size for connect_msg, disconnect_msg, error_msg,
no_connect_msg, and too_many_msg. The default makes size dependent on the
display area.
image_offset
Yes
Specifies the display position of the picture file specified at bg_image. With the upper
left coordinates of the picture at "0,0" and the right direction given as x and the down
direction as y, image_offset is specified as "x,y". The default is "335,0".
no_connect_msg
Yes
Specifies the character string to be displayed following applet startup when
auto_connect is "off". The default is "no connection".
overlay_font_color
Yes
Specifies the color of the character string specified for "comment" and "hostname". The
color is specified at "#RRGGBB". The default is yellow.
show_logo
Yes
Specifies whether or not the WebView Livescope logo should appear in the upper right
of the screen. It appears if show_logo is "on" and does not appear if it is "off".
too_many_msg
Yes
Specifies the character string that is displayed when connection to the camera server
fails because the limit on the number of connections was exceeded. The default is "too
many clients".
auto_connect
Guide to Creating Web Pages for Video Distribution
Yes
Specifies whether or not connection to the camera server should be established at the
same time that the applet starts up. Select "on" or "off". When "on" is selected,
connection is established when the applet starts up and moving pictures are displayed.
With "off", the connection is not established when the applet starts up and the
character string that was specified with the "no_connect_msg" parameter is displayed.
The "connect()" method is called up to establish connections.
14
■Glimpse
Parameter Name
15
Omissible
Description
comment
Yes
This parameter specifies the comment text string displayed as an overlay on the
applet. If this parameter is omitted, no comment is displayed.
hostname
Yes
This parameter specifies the host name displayed in the applet. This value is used as the host name
in messages displayed during connection, etc. If this parameter is omitted, no host name is displayed.
show_counter
Yes
This function displays the frame count as an overlay on the video image. Specify "on" or "off". The default value is "off".
show_hostname
Yes
This function displays the host name as an overlay on the video image. Specify "on" or "off". The
default value is "off". Note that this parameter is only valid if the "hostname" parameter is specified.
sleep
Yes
This parameter specifies the interval (in milliseconds) at which the screen is updated. If
this parameter is omitted, the screen is updated at 5-second intervals. Because the
Glimpse applet is designed to be used for displaying multiple sites as a list, this
parameter is provided as a means of reducing the processing load. Intervals between 0
and 300,000 ms (5 minutes) can be set. If 0 is specified, the interval is not adjusted.
url
No
Specify the URL of the HTTP server for applet access. Specify the IP address and
port number that match those specified in the codebase attribute.
auto_connect
Yes
Specifies whether or not connection to the camera server should be established
simultaneously with applet startup. Specify either "on" or "off". When "on", a connection
is established simultaneously with applet startup; when "off", no connection is
established when the applet starts up and the character string specified for
no_connect_msg is displayed. The connect() method is called up in order to make
connections.
connect_msg
Yes
Specifies the character string to be displayed while a connection to the camera
server is being established. The default is "now connecting".
disconnect_msg
Yes
Specifies the character string to be displayed when a connection to the camera
server is disconnected. The default is "disconnected".
error_msg
Yes
Specifies the character string to be displayed when an attempt to connect to the camera
server has failed. The default is "can't connect".
font_size
Yes
Specifies the font size for connect_msg, disconnect_msg, error_msg, and
no_connect_msg, when these messages are displayed. The default is to depend on
the display area.
no_connect_msg
Yes
Specifies the character string to be displayed after the applet starts up, if "off" is
specified for auto_connect. The default is "no connection".
Using the Viewer for Java to Distribute Videos
■Applet Tag Descriptions
Attribute Name
Omissible
Description
No
This parameter specifies the directory that contains the applet.
http://HTTP server IP address: port number/directory/
If this parameter is not specified correctly, the applet (LiveApplet or Glimpse) is not downloaded.
Directories are fixed for each applet.
Directory (LiveApplet)=-wvdoc-01-/LiveApplet
Directory (Glimpse)=-wvdoc-01-/Glimpse
width
No
This parameter specifies the size of the area acquired for the applet (in pixels).
For LiveApplet, if the value specified is smaller than the LiveApplet drawing area, the applet may not
be displayed correctly. If the camera control function GUI is to be added (controller_style=normal),
add about 130 to the value. Eg. For an image size of 320 x 240, width=450.
For Glimpse, because the areas used for the applet and for the video display are the same size,
specify the same value as the image width. Eg. For an image size of 320 x 240, width=320.
height
No
As for width.
For LiveApplet, add around 140. Eg. For an image size of 320 x 240, height=380.
For Glimpse, specify the same value as the image height. Eg. For an image size of 320 x 240, height=240.
archive
Yes
Specify LiveApplet.zip or Glimpse.zip.
code
codebase
e
Tip
Guide to Creating Web Pages for Video Distribution
No
This parameter specifies the applet file name. Enter "LiveApplet.class" or
"Glimpse.class". If this parameter is not specified correctly, the applet (LiveApplet or
Glimpse) is not downloaded.
When specifying an address included in the codebase attribute of the applet
tag and a URL parameter of the applet, specify one that can be accessed from
the client's computer. This is particulary necessary when using NAT (→ P.22).
16
Using the Viewer for PC to Distribute Videos
This section describes how to use the Viewer for PC to provide videos. Application examples are also
given.
If a client is using the Viewer for PC to receive videos, the video sender must set up the Web server and
create the necessary wvh files.
e
Tip
If the VB150 is used as the Web server, the settings described below are not
required. Refer to page 111 of the VB150 User's Manual for information on
saving Web page data.
Setting Up the Web Server
Set up the Web server to be used for providing Web page. Add the MIME type to the Web server
software and specify the extension. Refer to the manual for your Web server software for details.
MIME type video/x-webview-h
Extension wvh
For Apache
In the settings for adding the MIME type in Apache,
edit the "mime.types" file in the "conf" directory.
■Use the following syntax to add the required MIME type to the computer:
type/subtype extention
■The settings for the viewers are as follows:
video/x-webview-h wvh
c
Note
17
If the MIME setting is not specified correctly for the Web server, you may not
be able to launch the Viewer for PC. Be sure to specify the setting correctly.
Creating wvh files
This section describes how to create the wvh file required for launching the Viewer for PC application.
Use a text editor or similar program to create a new text file and type the following type of
1
code in the file:
(Example)
192.168.100.1 65310
192.168.100.1 65311
wvhttp:192.168.100.1 80
● The first line gives the IP address (or host name) of the VB150 and the TCP port
Guide to Creating Web Pages for Video Distribution
number used for the video transmission service.
The default setting is 65310 (→VB150 User's Manual P.54). The default setting will be
used if no particular value is specified.
● The second line gives the IP address (or host name) of the VB150 and the TCP port
number used for the camera control. The default setting is 65311 (→VB150 User's
Manual P.54). The default setting will be used if no particular value is specified.
● The third line gives the setting for the Viewer for PC to use HTTP protocol. After
"wvhttp:", type in the IP address of the VB150 and "80" as the HTTP port number. As a
result of this, you will be able to view video images from the VB150 through firewalls.
* Type in the actual IP address (or host name) set for the VB150 .
After you save the text file and quit the text editor program, create a wvh file by changing
2
the file name and extension. Be sure to add the ".wvh" extension, as in "WebView.wvh".
File names can contain up to 8 characters. (eg. WebView)
e
Tip
Viewer for PC supports WebView Livescope protocol and HTTP protocol.
● WebView Livescope protocol: Cannot be viewed through firewalls. This
protocol is primarily for clients who are connected directly to the Internet.
● HTTP protocol: In general, this protocol is used with Web browsers. By
using this protocol, clients inside firewalls can view videos by penetrating
firewalls. The Viewer for Java also uses this protocol.
18
Using the Viewer for PC to Distribute Videos
Example of a Web Page that Uses the Viewer for PC
This section describes an sample Web page in which the Viewer for PC is used.
1
Click the link to launch the
viewer.
Include the tags that link to the wvh file in the text or images in the Web page.
1
<A HREF="WebView.wvh">Let's view the image</A>
e
Tip
22
19
To use the sample page template in the VB150 to supply videos,
specify <A HREF=http://IP address of the VB150/sample/helper/default.wvh>.
Distributing Videos Using a Browser Only
You can also use the WebView-HTTP protocol to provide videos from the camera directly to a Web
browser. Some example of this are described in this section.
Displaying the Live Video
at Access as a Still Picture
When a client accesses the Web page that provides videos, the video shot at that point can be
supplied as a still picture.
Guide to Creating Web Pages for Video Distribution
<IMG SRC=http://192.168.100.1/-wvhttp-01-/GetStillImage>
(or)
<IMG SRC=http://192.168.100.1/-wvhttp-01-/GetOneShot>
* The underlined portion is a sample IP adderess. Enter the actual IP address set for the VB150.
Displaying a Specified Number Of Live Video
Frames As a Video at Access
The Server Push format provided as an extended function by Netscape Communications Corp.
can be used to distribute multiple-frame images. However, these images can only be displayed on
Netscape Navigator. In the coding example below, 100 frames of live video are distributed when
the client accesses the server.
<IMG SRC=http://192.168.100.1/-wvhttp-01-/GetOneShot?frame_count=100>
* The underlined portion is a sample IP adderess. Enter the actual IP address set for the VB150.
e
Tip
● frame_count=no_limit
This setting removes the limits on the number of image frames.
● Be sure to specify the camera if the Video Input (→ VB150 User’s Manual
P.40) setting on the VB150 is set to Multiple.
mux=C* (Specify * from 1 to 4)
23
20
Distributing Videos Using a Browser Only
Displaying Live Video from a Specified Angle
as Still Pictures
By specifying the camera angle as a parameter in the HTML code beforehand, you can display
the picture from a specified camera angle. The example below displays a still picture shot with the
camera panned right by 40° and tilted down 10°.
<IMG SRC=http://192.168.100.1/-wvhttp-01-/GetStillImage?p=40&t=-10>
* The underscored portion is a sample IP address. Enter the actual IP address set for the VB150.
■GetStillImage Parameters
Description
Parameter
p/pan
c
Note
24
21
Specifies the camera pan angle. "p" is a 1°unit, and "pan" is a 0.01°unit. For
example if the camera pans right 20°, then p is 20 and pan is 2000. If this
parameter is omitted, the camera pan angle is not controlled.
t/tilt
Specifies the camera tilt angle. "t" is a 1°unit, and "tilt" is a 0.01°unit. If this
parameter is omitted, the camera tilt angle is not controlled.
z/zoom
Specifies camera zoom. "z" is ten times the zoom ratio of the widest angle,
and "zoom" is the view angle in 0.01°units (horizontal direction. If this
parameter is omitted, camera zoom is not controlled.
b/back_light
Specifies camera backlight compensation. When this parameter is set to on, the picture
captured will be bright and when this parameter is set to off, the picture captured will be
dark. If this parameter is omitted, camera backlight compensation is not controlled.
camera_id
Assigns the numbers 1 to 4 to camera 1 to 4. If this parameter is omitted, the
camera that is currently selected will be used.
delay
Waiting time until camera focus is stabilized (in milliseconds). Specified in the
range 0 to 10000.
option
Specifies how errors are dealt with. When "skip_on_error" is specified, the
process will be continued. When "quit_on_error" is specified, the process will
be aborted. The following errors can occur: failure to acquire camera control
right, loss of camera control, camera selection errors and camera control
errors. To omit, the default value is "quit_on_error".
seq
Allows any number (sequence number) to be specified to avoid displaying old
still pictures (numeric value).
v/image_size
Specifies the display size of the picture. Settings of 640 x 240, 320 x 240, and
160 x 120 are possible. Styles for v and image_size are different: For v, only
the horizontal size is specified, as in "v=640", for instance; while for
image_size, both horizontal and vertical sizes are specified, as in
"image_size=320x240", for instance.
q/quality
Specifies picture quality. Use an integer between 1 and 99. If omitted, the
value set in the VB150 is used.
If old still pictures are displayed, you can prevent this recurring by specifying
a sequence number in the "seq" parameter.
Example of video distribution using one global address
One fixed global address is required if the VB150 is being used to distribute live video on the Internet. An
Internet service provider (ISP) that offers a single-address fixed global address service can be used (Note:
a router with NAT function is required).
Example:
In this example, we use the global address
192.168.1.10 assigned by the ISP. We also set the
private address 192.168.100.2 in the VB150 (and
192.168.100.1 for the router).
Viewer PC
Internet
VC-C4
COMMUNICATION
f:4-64mm
1:1.4-2.8CAMERA
VB150
Global address
192.168.1.10
Router
VB 150
Guide to Creating Web Pages for Video Distribution
192.168.100.2
Web server
192.168.100.1
Add support for
private address
192.168.100.2 (router
NAT function).
A sample page of the VB150 is automatically generated based on the IP address that was actually
assigned (192.168.100.2 in this case). In this case, this page cannot be viewed in the Viewer for
Java or the Viewer for PC when “http://192.168.1.10/sample/” is accessed through the Internet.
Set "Global Address for Web Pages" (→ VB150 User's Manual P.55) to 192.168.1.10. If you are
not using the VB150's Web server, describe the Web pages for distributing videos as follows.
Set the Viewer for Java description (→ P.6) as follows:
<applet codebase=”http:// 192.168.1.10/-wvdoc-01-/LiveApplet/”
code=”LiveApplet.class” archive=”LiveApplet.zip”
width=450 height=380>
<param name=url
value=”http:// 192.168.1.10/”>
<param name=cabbase
value=”LiveApplet.cab”>
</applet>
Set the wvh file description of the Viewer for PC (→ P.18) as follows:
192.168.1.10 65310
192.168.1.10 65311
wvhttp:192.168.1.10 80
* The underlined portion is a sample IP adderess. Enter the actual IP address set for the VB150's "Global
Address for Web Pages".
c
Contact respective manufacturers for details on setting the router.
Note
25
22
Log Messages
The Syslog log messages are classified into the following 5 categories. Classification details are dealt with
in the UNIX syslog the levels are explained on page 56 of the VB150 User's Manual.
Classification
Level
Fault Severity
crit
Error
Critical fault at the software level (stops task operation)
err
Error
Fault involving a malfunction (operation interrupted)
warning
Warning
Fault not involving malfunction
notice
Warning
Fault outside the system
info
Information
Information on correct operation
* The syslog facility is local7.
Application-related Log Messages
●A005 Camera control channel assignment error (warning)
Message
conflicting channel assignment for %1:%2
%1
Camera control port (CC1 | CC2)
%2
Cascade number (1-4)
Explanation
Response
The same camera control port (a combination of camera control port and cascade
number) is assigned to multiple video input channels. Or, the specified cascade
numbers are not in sequence. The settings may be corrupted.
Correct the settings or restore the factory default settings.
●A006 Camera control system initialization failure (err)
Message
%1
Explanation
Response
cannot open camera control port %1
Camera control port (CC1 | CC2)
The camera control port cannot be opened.
If rebooting does not solve this problem, there is a malfunction. Contact an
authorized Canon service representative.
●A007 View restriction setting error (warning)
Message
%1
Explanation
Response
inconsistent view restriction for camera[%1]
Camera number (1-4)
The view restriction settings are corrupted. The camera control functions on the
affected camera cannot be used.
Restore the factory default settings or reset the view restrictions.
●A008 Compatibility error in the view restrictions settings (warning)
Message
%1
Explanation
23
Response
unacceptable view restriction for camera[%1]
Camera number (1-4)
Even in the telephoto field of view, the view restriction settings cannot be satisfied in the horizontal or
vertical direction. When this occurs, the zoom setting is fixed at the telephoto field of view, and camera
head control is prohibited in directions that do not satisfy the permitted field of view restrictions.
Set appropriate values for the view restrictions.
●A010 Camera control driver start and stop (info)
Message
%1 driver for camera[%2] %3
%1
Camera type (Canon NU-700 | Canon VC-C3 | Canon VC-C4 | Canon VC-C4R)
%2
Camera number (1-4)
%3
started | stopped
Explanation
The camera control device was detected and the driver started up, or a camera
control device error was detected and the driver stopped.
●A011 Camera control device error (warning)
Message
%1[%2] malfunction (%3)
Camera type (Canon NU-700 | Canon VC-C3 | Canon VC-C4 | Canon VC-C4R)
%2
Camera number (1-4)
%3
Error (read | write | timeout | ...)
Explanation
Camera control device I/O error.
Response
Guide to Creating Web Pages for Video Distribution
%1
There is a malfunction if it does not reset automatically. Contact an authorized
Canon service representative.
●A012 WebView Livescope client start and stop (info)
Message
%1@%2 %3
%1
Client type(LS/C | LS/D | LS/H)
%2
Client host IP address
%3
connected | closed
Explanation
WV-TCP camera control client (LS/C), WV-TCP video transmission client (LS/D),
WV-HTTP client (LS/H) started or stopped.
●A014 Access prohibited due to host restriction (notice)
Message
LS@%1 access denied
%1
Client host IP address
Explanation
Access from the client was denied due to host restrictions.
●A016 Amount of transmitted video data (info)
Message
%1@%2 %3 frames/%4 bytes in %5 seconds
%1
Client type (LS/D | LS/H)
%2
Client host IP address
%3
Number of frames
%4
Number of bytes
%5
Video transmission time
Explanation
This shows the results of video transmission for a video transmission client.
24
●A022 Applet archive load failure (warning)
Message
%1
Explanation
Response
archive/%1 not found
Applet archive name (glimpse.cab | glimpse.zip | lvapplet.cab | lvapplet.zip |
imagemap.gif | snapanim.cab | snapanim.zip | digits.gif)
Applet archive file does not exist or is corrupted.
Copy the missing (or damaged) file in the '/archive' applet from the CD-ROM and reboot.
●A023
Status change of external device input (err)
Message
a %1 detected at %2
%1
external device input change (front-edge | rear-edge | pulse | notch)
%2
external device terminal (In1 | In2)
Explanation
A change was detected at external device terminal In1 or In2. front-edge denotes OFF → ON,
rear-edge denotes ON → OFF, pulse denotes OFF → ON → OFF, and notch denotes ON →
OFF → ON. pulse and notch are brief (10-20 milliseconds) ON and OFF periods detected during
OFF and ON states respectively.
Detection of motion (err)
Message
%1
Explanation
motion %1
Motion (detected | stopped)
Detection of motion started or stopped.
●A024 Picture recording suspended and restarted (notice)
Message
%1
Explanation
picture recording %1
suspended | recovered
Picture recording stopped because of error or picture recording restarted because of
error recovery. Error details will be output as A025.
●A025 Picture recording processing error (warning)
Message
%1
Explanation
Response
25
picture recording failed: %1
busy | index broken | index full | no video data | no storage device | I/O error
This shows the details of an error during picture recording. This message is only
displayed when errors of different types occur. (This message is not displayed if the
same error occurs repeatedly.)
If the problem is busy, no response is required. For index broken (corrupted index file),
repair the index. For index full (number of pictures that can be recorded has been
exceeded), delete some of the recorded pictures. For no video data (video signal input
error or maximum picture size exceeded), check the camera and camera settings. For
no storage device (memory card not inserted), insert a memory card. For I/O error
(input-output error), check the memory card.
Log Messages
●A026 Picture recording processing failure count (warning)
Message
%1
picture recording failed %1 times
Number of pictures that could not be recorded
Explanation
This shows the number of times picture recording failed in the period between
suspended and recovered in message A024.
Response
In addition to the responses to A025, take steps such as reducing the picture
recording frequency specified in the schedule.
●A027 Recoded picture deletion started (info)
Message
Explanation
picture deletion started
Recorded picture delete processing was started up.
●A028 Recorded picture deletion completed successfully (info)
%1
Explanation
Guide to Creating Web Pages for Video Distribution
Message
%1 pictures are deleted
Number of recorded pictures deleted
Recorded picture delete processing was completed successfully.
●A029 Recorded picture deletion ended abnormally (warning)
Message
%1
picture deletion failed: %1
index broken | no storage device | I/O error
Explanation
Processing was cancelled because an error was detected during recorded picture deletion.
Response
For index broken (corrupted index file), repair the index (rebuilding of recorded picture
list). For no storage device (memory card not inserted), insert a memory card. For I/O
error (input-output error), check the memory card.
●A030 Picture index restoration started (info)
Message
Explanation
index restoration started
Picture index restoration processing was started up.
●A031 Picture index restoration completed successfully (info)
Message
Explanation
index restoration completed
Picture index restoration processing was completed successfully.
●A032 Picture index restoration ended abnormally (warning)
Message
%1
Explanation
Response
index restoration failed: %1
no space left | no storage device | I/O error
Processing was cancelled because an error was detected during picture index restoration.
For no space left (memory card full), delete some files or replace the memory card.
For no storage device (memory card not inserted), insert a memory card. For I/O
error (input-output error), check the memory card.
26
●A033 Invalid file detected during picture index restoration (info)
Message
%1
broken file detected: %1
File name
Explanation
A file was detected during picture index restoration that is not a recorded picture.
Response
Delete any invalid files. This does not affect picture index restoration processing.
●A034 Recorded picture file read error during picture index restoration (info)
Message
%1
Explanation
Response
picture file I/O error: %1
File name
An error occurred while a recorded picture file was being read during picture index
restoration processing.
Check the contents of the file. This file is not included in the picture index.
HTTP Server-related Log Messages
●H009 URL error (notice)
Message
HTTPD: %1:Invalid URI in request %2
%1
Client host IP address
%2
HTTP request
Explanation
Response
Invalid URL was entered.(URL was not '*', or did not start with '/').
If it occurs frequently, consider the possibility that the camera server has been attacked.
●H010 Method error (notice)
Message
HTTPD: %1:Invalid method in request %2
%1
Client host IP address
%2
HTTP request
Explanation
Response
Invalid method was entered. (Method specified was other than GET, HEAD, PUT,
POST, DELETE, CONNECT, OPTIONS TRACE). Message "501 Method Not
Implemented" is returned.
If it occurs frequently, consider the possibility that the camera server may be attacked.
●H011 File specification error (notice)
Message
%1
Client host IP address
%2
File name
Explanation
27
HTTPD: %1:File does not exist: %2
The specified file was not found.
Log Messages
●H015 Client request accept failure (warning)
Message
HTTPD: accept: (client socket) (%1) error
%1
Error code
%2
HTTP request
Explanation
Failed to accept HTTP client connection request due to server overload.
●H016 Length of the URL exceeded the limit (notice)
Message
HTTPD: %1:request failed for %2, reason: URI too long
%1
Client host IP address
%2
URL
Explanation
If it occurs frequently, consider the possibility that the camera server may be attacked.
Guide to Creating Web Pages for Video Distribution
Response
Received too long request. (limited to 4096 bytes).
●H017 Request receive error (notice)
Message
HTTPD: %1: request failed for %2: error reading the headers
%1
Client host IP address
%2
URL
Explanation
Response
Reception error other than timeout.
If it occurs frequently, consider the possibility that the camera server may be attacked.
●H019 Authentication scheme specification error (notice)
Message
HTTPD: %1:client used wrong authentication scheme: %2
%1
Client host IP address
%2
Authentication scheme
Explanation
Client used an authentication scheme other than Basic for sending authentication information.
●H022 Content-length specification error (notice)
Message
HTTPD: %1: Invalid Content-Length: %2
%1
Client host IP address
%2
Content-length
Explanation
Only numbers can be used to specify a content-length.
●H023 Inappropriate method was used to send a body (notice)
Message
HTTPD: %1: %2 with body is not allowed for %3
%1
Client host IP address
%2
HTTP method (GET | TRACE | ...)
%3
URL
Explanation
GET, TRACE etc. method cannot be used for sending a body.
28
●H031 HOST field not specified (notice)
Message
HTTPD: %1: client sent HTTP/1.1 request without hostname (see RFC2068 section 9,
and 14.23): %2
%1
Client host IP address
%2
URL
Explanation
HOST field was not specified in HTTP1.1 protocol.
●H042 Host access restriction applied (notice)
Message
HTTPD: client %1 denied by server configuration: %2
%1
Client host IP address
%2
URL
Explanation
Client's access was denied due to host access restrictions.
●H043 User name specification error (notice)
Message
HTTPD: %1 :user %2 not found: %3
%1
Client host IP address
%2
User name
%3
URL
Explanation
Unknown user name was specified for user authentication.
●H044 Password specification error (notice)
Message
HTTPD: %1: user %2: password mismatch: %3
%1
Client host IP address
%2
User name
%3
URL
Explanation
Wrong password was specified for user authentication.
●H049 Embedded CGI startup error (warning)
Message
%1
Client host IP address
%2
Embedded CGI
%3
URL
Explanation
Response
29
HTTPD: %1 :"%2" not found, using default handler for: %3
Embedded CGI invocation failed. It especially occurs when there was an access to
the settings page while it already was accessed and opened.
Reboot if multiple access was not the reason. If rebooting does not solve this
problem, there is a malfunction. Contact an authorized Canon service representative.
Driver-related Log Messages
●P001 File system mounting failure (warning)
Message
AUTOMNT: %1 already mounted or %2 busy
%1
Device name
%2
Mount point
Explanation
Response
Two memory cards are inserted together or the memory card cannot be mounted
because an error occurred when it was last unmounted.
If the card cannot be mounted because an error occurred when it was last unmounted, reboot.
●P003 Memory card error (warning)
Message
AUTOMNT: cannot mount %1 on %2
Device name
%2
Mount point
Explanation
Response
Guide to Creating Web Pages for Video Distribution
%1
Mount processing was cancelled due to a memory card error.
Replace the memory card.
●P004 Device busy (err)
Message
%1
Explanation
Response
AUTOMNT: %1: device is busy
Device name
The card was unmounted during file access. This does not occur during normal operation.
If this occurred when Administration Tools Settings Page was used to unmount the
card, reboot.
●P005 Card initialization failed in card slot A (warning)
Message
Explanation
Response
ENABLER: slota enable err
Card information read from the card inserted in card slot A failed.
Re-insert the card or replace the card.
●P006 Card initialization failed in card slot B (warning)
Message
Explanation
Response
ENABLER: slotb enable err
Card information read from the card inserted in card slot B failed.
Re-insert the card or replace the card.
30
●P009 Memory card read error (err)
Message
PCMCIA ATA Card (Slot%1 sector %2): Read Sector Error
%1
Slot (A | B)
%2
Sector number
Explanation
Response
A sector read error occurred. The card may be damaged.
Check the memory card and, if necessary, reformat the card. If there is a physical
fault on the card, replace the card.
●P010 Memory card write error (err)
Message
PCMCIA ATA Card (Slot%1 sector %2): Write Sector Error
%1
Slot (A | B)
%2
Sector number
Explanation
Response
A sector write error occurred. The card may be damaged.
Check the memory card and, if necessary, reformat the card. If there is a physical
fault on the card, replace the card.
System-related Log Messages
●S001 Ethernet interface initialization failed (crit)
Message
Explanation
Response
eci: netif can't up
Network interface initialization failed.
If rebooting does not solve the problem, there is a malfunction. Contact an authorized
Canon service representative.
●S002 Ethernet route registration failure (err)
Message
Explanation
Response
eci: net route can't add
An attempt to register a route for a local Ethernet segment failed.
Correct the Ethernet settings and reboot.
●S003 Ethernet default route registration failed (err)
Message
Explanation
Response
eci: default route can't add
Registration of the default Ethernet route failed.
Correct the Ethernet settings and reboot.
●S004 System startup (info)
Message
Explanation
31
System started
The VB software started up.
Log Messages
●S005 System settings changed (info)
Message
Explanation
System settings updated
The VB software settings were modified without a reboot.
●S006 IP address conflict detection at startup (err)
Message
Detected a conflict for IP address %1 with %2
%1
IP address
%2
Ethernet address
Explanation
Response
An IP address conflict was detected during startup. If there is a device running on
the network that has the same IP address as the VB150, this error occurs when
the VB150 starts up.
Guide to Creating Web Pages for Video Distribution
Change the VB150 IP address or change the IP address of the conflicting network
device. If you change the VB150 IP address, the VB150 must be rebooted.
When there is an IP address conflict, it may not be possible to modify the settings
via Ethernet. In this event, an initial setup tool must be used to change the settings.
●S007 IP address conflict detected during operation (err)
Message
%1
Explanation
Response
Duplicate IP address. %1
Ethernet address
An IP address conflict was detected during operation. This occurs when a network
device with the same IP address as the VB150 is started up after the VB150 was
started up.
As for S006.
●S010 FAT (File Allocation Table) count error (err)
Message
%1
only 2 FATs are supported (FATs=%1)
Number of FATs
Explanation
The number of FATs is not 2. The file system may be corrupted or it may not be
formatted as a FAT file system.
Response
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
●S011 Cluster size error (err)
Message
Explanation
Response
cluster size is zero.
The size of clusters is zero. The file system may be corrupted or it may not be
formatted as a FAT file system.
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
32
●S012 Sector size error (err)
Message
Explanation
Response
logical sector size is zero.
The sector size is zero. The file system may be corrupted or it may not be formatted
as a FAT file system.
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
●S013 FAT entry count error (err)
Message
file system has %1 clusters, but only space for %2 FAT entries.
%1
Number of clusters
%2
Number of FAT entries
Explanation
Response
The FAT entry recording area for the number of clusters is not allocated. The file system
may be corrupted or it may not be formatted as a FAT file system.
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
●S014 Root directory size error (err)
Message
root directory size is zero.
Explanation
The root directory size is zero. The file system may be corrupted or it may not be
formatted as a FAT file system.
Response
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
●S015 Root directory entry count error (err)
Message
Explanation
Response
root directory doesn't span an integral number of sector sizes.
The number of root directory entries is not consistent with the recording area size for
root directory entries. The file system may be corrupted or it may not be formatted as
a FAT file system.
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
●S016 Logical sector size error (err)
Message
Explanation
Response
logical sector size is not a multiple of the physical sector size.
The logical sector size is not a multiple of the physical sector size. The file system
may be corrupted or it may not be formatted as a FAT file system.
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
●S017 Boot sector error (err)
Message
Explanation
Response
33
invalid disk format in boot sector.
A value recorded in the boot sector is not valid for the FAT format. The file system
may be corrupted or it may not be formatted as a FAT file system.
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
Log Messages
●S018 Write error during file system checking (err)
Message
Explanation
Response
chkdsk: Disk Write Error.
A write error occurred during file system checking.
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
●S019 Read error during file system checking (err)
Message
Explanation
Response
chkdsk: Disk Read Error.
A read error occurred during the file system check.
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
●S020 File system checking ended abnormally (err)
%1
Explanation
Response
Guide to Creating Web Pages for Video Distribution
Message
device name (%1) chkdsk unsuccessful.
Device name (/dev/hd0a | ata card)
This error message appears after error messages S010 to S019. If the device name
is ata card, the error is on the memory card. If the device name is /dev/hd0a, it affects
the internal file system.
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
●S021 File system structural defect (err)
Message
Explanation
Response
disk has a structural detect.
Due to a file system structural defect, file system check and mount is not possible.
If this error affects the internal file system, contact an authorized Canon service
representative. If it affects a memory card, replace the memory card.
●S023 The erase count for the on-board flash ROM exceeded the limit (err)
Message
%1
Explanation
Response
FlashROM erase count(%1)exceeded the limit
Erase count for the on-board flash ROM
The erase count limit for the on-board flash ROM has been exceeded.
Contact an authorized Canon service representative. If you continue to write data
after this error occurs, there is a risk of data corruption.
●S024 Ethernet connected (info)
Message
fe0: Link Up - %1 %2 Duplex
%1
Line speed (10Mbps | 100Mbps)
%2
Communication mode (Full | Half)
Explanation
Ethernet link is up.
34
●S025 Ethernet disconnected (info)
Message
Explanation
Response
fe0: Link Down
Ethernet link is down.
If it occurs frequently, check your cables or connectors. If there is nothing wrong with
the cables or connectors, then you need to replace the hub.
Remote Firmware Upgrade-related Log Messages
■I001 Remote firmware upgrade write error (err)
Message
Explanation
Response
cannot reboot as the firmware is broken
Reboot cannot take place because there is an error in the firmware that was written onto
read-only memory during the firmware remote upgrade. This error is not a transfer error
and has not occurred as a result of a break in transfer. This type of error occurs only when
firmware is erased from the ROM or when firmware is written onto the ROM.
Contact your local Canon service representative. There is a possibility that the flash
ROM chip has been damaged.
■I002 Application program is stopped because of the remote firmware upgrade (info)
Message
Explanation
application is halted for updating the firmware
The application program has been stopped so that the firmware can be installed
remotely. All operations for WebView, picture recording and external device output
control that are underway will be discontinued, and new commands will not be
accepted until a reboot has been carried out.
■I003 Remote firmware upgrade completed (info)
Message
Explanation
firmware is updated
The remote firmware upgrade process has been completed.
■I004 Reboot due to remote firmware upgrade timeout (warnning)
Message
35
reboot as the firmware update time is out
Explanation
The VB150 restarted due to firmware remote installer timeout. This happens when
communication with the installer has been cut for 5 minutes due to network error etc.
Response
Check to be sure that the camera server has been restarted. (Refer to the version
and revision numbers that are displayed at the top of the settings title page and
check that the numbers are that of previous version firmware).
Log Messages
Guide to Creating Web Pages for Video Distribution
36
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
U.S.A.
CANON U.S.A.,INC. NEW JERSEY OFFICE
100 Jamesburg Road, Jamesburg, NJ 08831 USA
CANON U.S.A.,INC. CHICAGO OFFICE
100 Park Blvd., Itasca, IL 60143 USA
CANON U.S.A.,INC. LOS ANGELES OFFICE
15955 Alton Parkway, Irvine, CA 92618 USA
CANON U.S.A.,INC. HONOLULU OFFICE
210 Ward Avenue, Suite 200 Honolulu, HI 96814 USA
● If you have any questions, call the Canon U.S.A. Information
Center toll-free at 1-800-OK-CANON (652-2666) (U.S.A.only)
CANADA
CANON CANADA INC.NATIONAL HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T 1P7
CANON CANADA INC. CALGARY
2828, 16th Street, N.E, Calgary, Alberta T2E 7K7
CANON CANADA INC. MONTRÉAL
5990 Côte-de-Liesse, Montréal, Québec H4T 1V7
● If you have any questions, call the CANON CANADA Customer Information
Centre toll-free at 1-800-OK-CANON (652-2666) (Canada only)
MEXICO
CENTROY
SURAMERICA
ASIA
CANON MEXICANA, S. DE R.L.DE C.V.
Periferco Sur No. 4124, Col. Ex-Rancho de Anzaldo, C.P. 01900
México, D.F.,México
CANON LATIN AMERICA, INC.
6505 Blue Lagoon Drive, Suite 325, Miami, FL 33126, USA
CANON SINGAPORE PTE. LTD.
79 Anson Road, #09-01/06, Singapore 079906 Republic of Singapore
CANON HONGKONG CO., LTD.
9/F., The Hong Kong Club Building, 3A, Chater Road, Central, Hong Kong
OCEANIA
CANON AUSTRALIA PTY.LTD.
1 Thomas Holt Drive, North Ryde, Sydney, N.S.W. 2113, Australia
EUROPE
CANON EUROPA N.V.
P.O.Box 2262, 1180 EG Amstelveen, The Netherlands
CANON EUROPE LTD.
6 Roundwood Avenue, Stockley Park, Uxbridge Middlesex,
UB11 1JA, United Kingdom
PUB. YT1-1336-000
©CANON INC. 2003
IMPRIMÉ AU JAPON
PRINTED IN JAPAN
Download PDF

advertising
