Sherwood R-772 Operating instructions

Sherwood R-772 Operating instructions

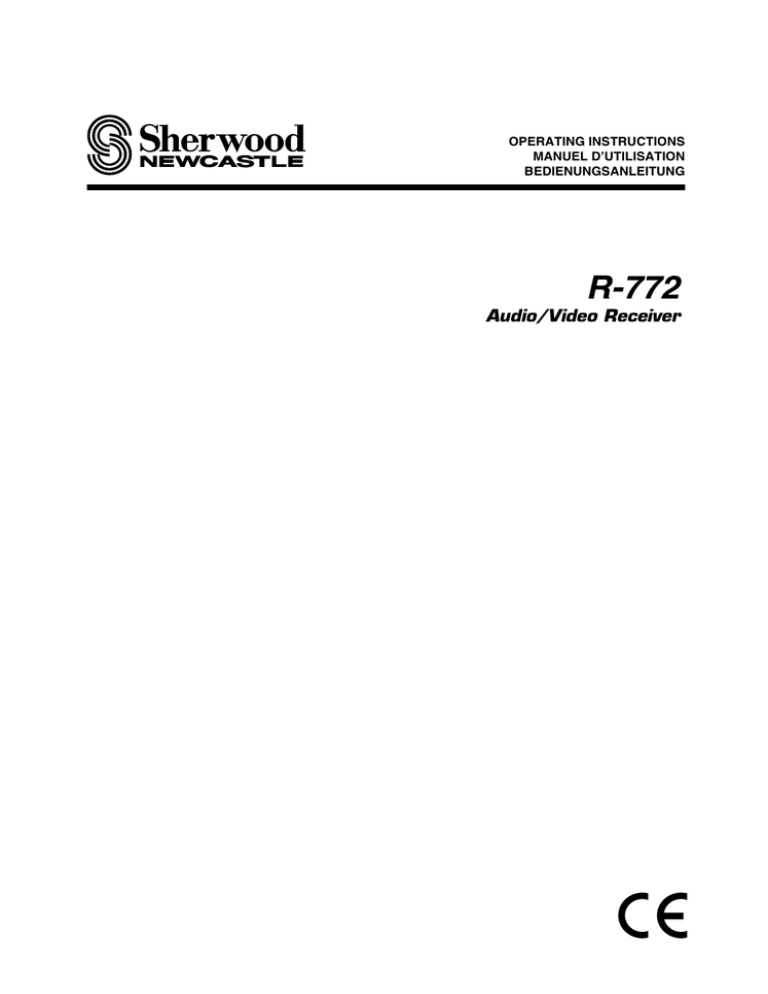

OPERATING INSTRUCTIONS
MANUEL D’UTILISATION
BEDIENUNGSANLEITUNG
Audio/Video Receiver
R-772(G)2007.9.174:43PM페이지 2
Introduction
READ THIS BEFORE OPERATING YOUR UNIT
ENGLISH
This symbol is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
CAUTION
: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Caution regarding installation
Note : For heat dispersal, do not install this unit in a confined space such as a bookcase or similar enclosure.
Do not block ventilation openings or stack other equipment on the top.
FOR YOUR SAFETY
EUROPE
AUSTRALIA
220 V
240 V
Units shipped to Australia are designed for operation on 240 V AC only.
To ensure safe operation, the three-pin plug supplied must be inserted only into a standard threepin power point which is effectively earthed through the normal household wiring. Extension cords
used with the equipment must be three-core and be correctly wired to provide connection to earth.
Improper extension cords are a major cause of fatalities. The fact that the equipment
operates satisfactorily does not imply that the power point is earthed and that the installation
is completely safe. For your safety, if in any doubt about the effective earthing of the power
point, consult a qualified electrician.
PAN-EUROPEAN UNIFIED VOLTAGE
All units are suitable for use on supplies 220-240 V AC.
CAUTION
• Leave a space around the unit for sufficient ventilation.
• Avoid installation in extremely hot or cold locations, or in an area that is exposed to direct sunlight or heating equipment.
• Keep the unit free from moisture, water, and dust.
• Do not let foreign objects in the unit.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths,
curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• Please be care the environmental aspects of battery disposal.
• The unit shall not be exposed to dripping or splashing for use.
• No objects filled with liquids, such as vases, shall be placed on the unit.
• Do not let insecticides, benzene, and thinner come in contact with the set.
• Never disassemble or modify the unit in any way.
■Notes on the AC power cord and the wall outlet.
• The unit is not disconnected from the AC power source(mains) as long as it is connected to the wall outlet, even if the unit
has been turned off.
• To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet.
• When setting up this product, make sure that the AC outlet you are using is easily acceptable.
• Disconnect the plug from the wall outlet when not using the unit for long periods of time.
Note on recycling
This product’s packaging materials are recyclable and can be reused. Please dispose of any materials
in accordance with the local recycling regulations.
When discarding the unit, comply with local rules or regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with the local
regulations concerning chemical waste.
This product and the accessories packed together constitute the applicable product according to the
WEEE directive except batteries.
2
R-772(G)2007.9.174:43PM페이지 3
• Introduction
READ THIS BEFORE OPERATING YOUR UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
• System Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
• Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
• Universal Remote Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
OPERATING COMPONENTS WITH REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . 17
REMOTE CONTROL OPERATION RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
LOADING BATTERIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
USING FUNCTIONS OF REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
• ROOM 2 Remote Controls
REMOTE CONTROL OPERATION RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
LOADING BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
• Operations
LISTENING TO A PROGRAM SOURCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
SURROUND SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
ENJOYING SURROUND SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
LISTENING TO RADIO BROADCASTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
LISTENING TO RDS BROADCASTS(FM ONLY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
(RDS Tuner(Regional Option for some countries in Europe, etc.))
OTHER FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
ROOM 2 SOURCE PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
DIGITAL AUDIO RECORDING WITH MD RECORDER . . . . . . . . . . . . . . . . . . . . . . . . . 37
• OSD Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
SETTING THE SYSTEM SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
SETTING THE INPUT SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
SETTING THE SPEAKER / ROOM EQ SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
SETTING THE CH LEVEL SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
SETTING THE SOUND PARAMETER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
SETTING THE MULTI ROOM SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
• Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
• Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
• Setup Code Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
3
ENGLISH
CONTENTS
ENGLISH
System Connections
• Please be certain that this unit is unplugged from the AC outlet before making any connections.
• Since different components often have different terminal names, carefully read the operating instructions of the
component connected.
• Be sure to observe the color coding when connecting audio, video and speaker cords.
• Make connections firmly and correctly. If not, it can cause loss of sound, noise or damage to the receiver.
1. CONNECTING ANTENNAS
• Change the position of the FM indoor antenna
until you get the best reception of your favorite
FM stations.
• A 75Ω outdoor FM antenna may be used to further improve the reception. Disconnect the
indoor antenna before replacing it with the outdoor one.
• Place the AM loop antenna as far as possible
from the receiver, TV set, speaker cords and
the AC input cord and set it to a direction for the
best reception.
• If the reception is poor with the AM loop antenna, an AM outdoor antenna can be used in
place of the AM loop antenna.
4
R-772(G)2007.9.174:43PM페이지 5
• The jacks of VIDEO 1 may also be connected to a DVD recorder or other digital video recording
component.
For details, refer to the operating instructions of the component to be connected.
• The jacks of VIDEO 2/VIDEO 3 can also be connected to an additional video component such as a cable
TV tuner or satellite system.
• Connect the jacks of VIDEO 3 to the video component in the same way.
• There are three types of video jacks (COMPONENT, SVIDEO, (composite) VIDEO) for analog video connections
and the HDMI connectors for digital video and audio
connections. Connect them to the corresponding video
jacks according to their capability.
• For your reference, the excellence in picture quality is as
follows : "HDMI” > "COMPONENT" > "S-VIDEO" >
"(composite) VIDEO" .
• When making COMPONENT VIDEO connections, connect
"Y" to "Y", "PB/CB" to "CB"(or "B-Y", "PB") and "PR/CR" to
"CR"(or "R-Y", "PR").
• When recording video program sources through VIDEO 1 OUT jacks or viewing ROOM 2 source through
ROOM 2 OUT jacks, you must connect the (composite) VIDEO IN jacks to video playback components such
as DVD player, cable TV tuner, etc.
• This unit is equipped with a function that up-converts composite video signals to S-Video signals or downconverts S-Video signals to composite video signals and outputs them from the MONITOR OUTs.
• After connecting the video components, you should set the video mode correctly, referring to the following
table on page 6. (For details, refer to "When selecting the VIDEO MODE" on page 45.)
5
ENGLISH
2. CONNECTING VIDEO COMPONENTS
R-772(G)2007.9.174:43PM페이지 6
Continued
ENGLISH
�Relationship between the video input signal and the video output signal
Video input signals
Video Mode
COMPONENT
S-VIDEO
(COMPOSITE) VIDEO
Setting
×
×
�
Auto
Component
S-Video
×
�
��
×
�
×
�
�
�
Component
Component
×
×
S-Video
×
S-Video
S-Video
×
×
�
Composite
×
Composite video
Composite video
�
�
×
Auto
Component
S-Video
S-Video
�
×
�
Auto
Component
Composite video
Composite video
MONITOR OUTs
COMPONENT*1
S-VIDEO
(COMPOSITE) VIDEO
Composite video*2
�
×
×
Auto
Component
×
×
×
�
�
Auto
×
S-Video
Composite video*2
×
�
×
Auto
×
S-Video
S-Video
×
×
�
Auto
×
Composite video
Composite video
*1 : Component video signal can be output from the COMPONENT MONITOR OUT jacks only.
*2 : The OSD menu and the momentary OSD cannot be displayed via (COMPOSITE) VIDEO MONITOR OUT jack.
�Note :
• The OSD menu and the momentary OSD cannot be displayed via the COMPONENT MONITOR OUT and the HDMI
MONITOR OUT jacks.
�HDMI (High Definition Multimedia Interface) connection : (*1)
• You can connect the source component (DVD player, etc.) to the display component (TV, projector, etc.) through this receiver
with using a commercially available HDMI cord.
• The HDMI connection can carry uncompressed digital video signals and digital audio signals.
• The HDMI video stream signals (video signals) are theoretically compatible with DVI-D. When connecting to a TV monitor,
etc., equipped with DVI-D connector, it is possible to connect using a commercially available HDMI-DVI converter cord.
Since the HDMI-to-DVI connection cannot carry any audio signals, you should make audio connections to play the audio
signals on the component equipped with DVI-D connector. (For details, refer to the operating instructions of its.)
• If you connect the HDMI INs to your video components, it is easier to do so following the default settings.
• If your HDMI connection is different from the default setting, you should assign the HDMI INs you used with the "When
selecting the HDMI ASSIGN" procedure on page 45.
• The default settings are as follows :
HDMI 1 : VIDEO 1, HDMI 2 : VIDEO 2
�Copyright protection system
• This unit supports HDCP (High-bandwidth Digital Contents Protection), technology to protect copyright of digital video signals
against illegal duplication. HDCP must also be supported on the components connected to this unit.
• This unit is HDMI Ver. 1.3 compatible.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing
LLC.
�Notes :
• For stable signal transfer, we recommend using HDMI cords that are a maximum of 5 meters in length.
• Among the components that support HDMI, some components can control other components via the HDMI connector.
However, this unit cannot be controlled by another component via the HDMI connector.
• The audio signals from the HDMI connector (including the sampling frequency and bit length) may be limited by the
component that is connected.
• The video signals will not be output properly if a component incompatible with HDCP is connected.
• If the resolutions of the video signals which are output from the HDMI MONITOR OUT and your monitor TV are not matched,
the picture is not clear, natural or displayed. In this case, change the setting of the resolution on the source component (DVD
player, etc.) to one which the monitor TV can handle. (For details, refer to the operating instructions of the source
component.)
• When you want to enjoy only the picture on your TV, not the sound, you should set the HDMI AUDIO OUT to OFF not to
output the digital audio signal from the HDMI MONITOR OUT of this receiver. (For details, refer to "When selecting the HDMI
AUDIO OUT" on page 41.)
�Component video input default settings: (*2)
• If you connect the COMPONENT VIDEO INs to your video components, it is easier to do so following the default settings.
• If your component video connections are different from the default setting, you should assign the COMPONENT VIDEO INs
you used with the “When selecting the VIDEO ASSIGN” procedure on page 45.
• The default settings are as follows:
COMPONENT IN 1 : VIDEO 1, COMPONENT IN 2 : VIDEO 2.
6
R-772(G)2007.9.174:43PM페이지 7
3. CONNECTING AUDIO COMPONENTS
ENGLISH
• For analog audio recording, the
ROOM 2 OUT jacks can be connected
to audio recording equipment such as
a tape deck, an MD recorder, etc. as
shown beside.
4. CONNECTING EXTERNAL INS
• Use these jacks to connect the corresponding outputs
of a DVD player or external decorder, etc. that has 6,
7 or 8 channel analog audio outputs.
• In case of 6 or 7 channel outputs, do not connect both
of the SURROUND BACK L and R inputs or the
SURROUND BACK R input of this unit. (For details,
refer to the operating instructions of the component to
be connected.)
7
R-772(G)2007.9.174:43PM페이지 8
ENGLISH
5. CONNECTING DIGITAL INS AND OUT
• The OPTICAL and the COAXIAL DIGITAL OUTs
of the components that are connected to this unit
can be connected to these DIGITAL INs.
• A digital input should be connected to the
components such as a CD player, DVD player,
etc. capable of outputting DTS Digital Surround,
Dolby Digital or PCM format digital signals, etc.
• If the component with OPTICAL IN jack is
connected to the OPTICAL OUT jack of this unit,
you can record the high quality sound of CDs, etc.
without degradation.
• For details, refer to the operating instructions of
the component connected.
• When making the COAXIAL DIGITAL connection,
be sure to use a 75 Ω COAXIAL cord, not a
conventional AUDIO cord.
• All of the commercially available optical fiber cords
cannot be used for the equipment. If there is an
optical fiber cord which cannot be connected to your equipment, consult your dealer or nearest service
organization.
�Notes:
• Be sure to make either a OPTICAL or a COAXIAL DIGITAL connection on each component. (You don’t need to
do both.)
• Depending on the digital audio signal format input into HDMI IN connector, some digital signals cannot be
output from the OPTICAL OUT jack.
�Digital input default settings
• If you connect the DIGITAL INs to your components, it is easier to do so following the default settings.
• If your DIGITAL connections are different from default settings, you should assign the DIGITAL INs you used
with the “When selecting the AUDIO ASSIGN” procedure on page 45.
• The default settings are as follows :
OPTICAL IN 1 : VIDEO 1, OPTICAL IN 2 : VIDEO 2, COAXIAL IN 1 : CD, COAXIAL IN 2 : AUX.
6. CONNECTING DC TRIGGER OUT
• Connect a component to DC TRIGGER OUT jack
that allows DC 12V to turn on when a specific
input source is selected.
• For details, refer to the operating instructions of
the components to be connected.
• To link DC TRIGGER OUT with a specific input
source, refer to "When selecting the DC
TRIGGER" on page 46.
�Note:
• This output voltage (12V d.c., 100mA) is for (status) control only, it is not sufficient for drive capability.
• When making DC TRIGGER connection, you should use the stereo mini cord, not a mono mini cord.
7. CONNECTING SUBWOOFER PREOUT
• To emphasize the deep bass sounds, connect a
powered subwoofer.
8
R-772(G)2007.9.174:43PM페이지 9
8. CONNECTING SPEAKERS
ENGLISH
• Be sure to connect speakers firmly and correctly
according to the channel(left and right) and the
polarity (+ and -). If the connections are faulty, no
sound will be heard from the speakers, and if the
polarity of the speaker connection is incorrect, the
sound will be unnatural and lack bass.
• For installing the speakers, refer to “Speaker
placement” on page 10.
• After installing the speakers, first adjust the speaker
settings according to your environment and speaker
layout. (For details, refer to “SETTING THE
SPEAKER/ROOM EQ SETUP” on page 48.)
�Surround back speakers
• When using only one surround back speaker, you
should connect it to SURROUND BACK/MULTI
LEFT channel.
• Because this receiver cannot drive the surround back
speakers and the ROOM 2 speakers simultaneously,
you should assign their power amplifier correctly
depending on how to use them.
(For details, refer to “CONNECTING ROOM 2
OUTS” on page 11 and “When selecting the AMP
ASSIGN” on page 40.)
�Front Bi-Amp Connections.
• Some speakers are equipped with two sets of input
terminals, for bi-amplification.
• If no other surround back speakers are used, you
can connect the FRONT and the SURROUND BACK
/MULTI channels to the bi-amp-capable speakers.
(For details, refer to the operating instructions of your
bi-amp-capable speakers.)
• To drive the bi-amp-capable speakers, you should
assign the power amplifier to "BI-AMP".
�Note :
• Before making bi-amp connections, remove the
short-circuiting bars from the terminals of your
speakers.
Caution :
• Be sure to use the speakers with the impedance of 6
ohms or above.
• Do not let the bare speaker wires touch each other or
any metal part of this unit. This could damage this
unit and/or the speakers.
9
R-772(G)2007.9.174:43PM페이지 10
ENGLISH
Speaker placement
Ideal speaker placement varies depending on the
size of your room and the wall coverings, etc. The
typical example of speaker placement and
recommendations are as follows :
■Front left and right speakers and center
speaker
• Place the front speakers with their front surfaces
as flush with TV or monitor screen as possible.
• Place the center speaker between the front left
and right speakers and no further from the
listening position than the front speakers.
• Place each speaker so that sound is aimed at the
location of the listener’s ears when at the main
listening position.
■Surround left and right speakers
• Place the surround speakers approximately 1
meter (40 inches) above the ear level of a seated
listener on the direct left and right of them or
slightly behind.
■Surround back left and right speakers
• Place the surround back speakers at the back
facing the front at a narrower distance than front
speakers.
• When using a single surround back speaker, place
it at the rear center facing the front at a slightly
higher position (0 to 20 cm ) than the surround
speakers.
• We recommend installing the surround back
speaker(s) at a slightly downward facing angle.
This effectively prevents the surround back
channel signals from reflecting off the TV or
screen at the front center, resulting in interference
and making the sense of movement from the front
to the back less sharp.
1. TV or Screen
2. Front left speaker
3. Subwoofer
4. Center speaker
5. Front right speaker
6. Surround left speaker
7. Surround right speaker
8. Surround back left speaker
9. Surround back right speaker
10. Surround center speaker
11. Listening position
■Subwoofer
• The subwoofer reproduces powerful deep bass
sounds.
Place a subwoofer anywhere in the front as desired.
■Notes :
�When using a conventional TV, to avoid interference with the TV picture, use only magnetically shielded front
left and right and center speakers.
�To obtain the best surround effects, the speakers except the subwoofer should be full range speakers.
10
R-772(G)2007.9.174:43PM페이지 11
• ROOM 2 playback feature allows you to play a different program source in another room as well as one source
in the main room at the same time.
• For ROOM 2 playback, connect the ROOM 2 OUT jacks to the amplifier, TV, etc. installed in another room, or
connect the ROOM 2 speaker terminals to the speakers.
• Because this receiver cannot drive the surround back speakers and the ROOM 2 speakers simultaneously, you
should assign their power amplifier correctly depending on how to use them. (For details, refer to "When
selecting the AMP ASSIGN" on page 40.)
• When the ROOM 2 (AUDIO) OUT jacks are not connected to the ROOM 2 amplifier, you can connect these
jacks to audio recording equipment such as a tape deck, an MD recorder, etc. for analog audio recording. (For
details, refer to "CONNECTING AUDIO COMPONENTS" on page 7.)
�Notes :
• To minimize hum or noise, use high quality connection cords.
• You cannot use the digital audio signal for ROOM 2 playback.
10. CONNECTING PC FOR UPGRADES
• This receiver incorporates USB as well as RS-232C terminal
that may be used in the future to update the operating
software so that it will be able to support new digital audio
formats, external control by using an external device and the
like.
• Connect either USB or RS-232C terminal to your PC (you
don't need to do both).
�Notes:
• Programming for upgrades and external control requires
specialized programming knowledge and for that reason we recommend that it only be done by qualified
installers. For more information on future upgrades and external control, visit the Sherwood web site at
www.sherwoodamerica.com or contact your dealer.
• Do not disconnect the connection cable while updating the operating software, etc.
Should this happen, it may be result in malfunction or cause damage to the unit.
11
ENGLISH
9. CONNECTING ROOM 2 OUTS
ENGLISH
11. CONNECTING MULTI-ROOM SYSTEM KIT
• The multi-room system kit(sold separately ) is essential for operation from a remote location .
For information on the multi-room system kit, contact the Xantech corporation at 1-800-843-5465 or
www.xantech.com.
• IR IN jack allows you to control this receiver from another room with the remote control unit.
• To control this receiver from another room with the remote control unit, connect the IR IN jack to the output of
the connecting block.
• If this receiver is located inside a cabinet or other enclosure where the infrared beams from the remote control
unit cannot enter, then operation with the remote control unit will not be possible. In such a case, connect the IR
IN jack to the output of the connecting block.
• To control other compatible component from another room with the universal remote control unit, connect the IR
OUT jack to the IR emitter.
Note:
• Remote operation may become unreliable if the IR receiver is exposed to strong light such as direct sunlight or
inverted fluorescent.
12. SWITCHED AC OUTLET
• This outlet is switched on (power-on mode) and off
(standby mode) according to power control as follows
(Maximum total capacity is 100 W (0.43A)).
Standby mode - Switched AC outlet off
Power - on mode - Switched AC outlet on
13. AC INPUT CORD
• Plug this cord into a wall AC outlet.
12
R-772(G)2007.9.174:43PM페이지 13
ENGLISH
Front Panel Controls
1. POWER switch
2. POWER ON/STANDBY button/indicator
3. VIDEO INPUT SELECTOR button
4. AUDIO INPUT SELECTOR button
5. EXTERNAL IN button
6. TUNER button
7. MASTER VOLUME CONTROL knob
8. HEADPHONE jack
9. SPEAKER button/indicator
10. SURROUND MODE button
11. STEREO button
12. SETUP button
13. CHANNEL LEVEL button
14. CONTROL UP/DOWN (▲/▼) buttons
15. ROOM 2 button
16. MEMORY/ENTER button
17. TUNING UP/DOWN(+/-) buttons
18. PRESET UP/DOWN(+/-) buttons
19. AUDIO ASSIGN button
20. MULTI CONTROL knob
21. REMOTE SENSOR
22. FLUORESCENT DISPLAY
For details, see below.
23. SETUP MIC jack
For details, see next page.
24. AUX IN jack
For details, see next page.
25. VIDEO 4 IN jacks
For details, see next page.
�FLUORESCENT DISPLAY
1. Input, frequency, volume level, operating information, etc.
2. Surround mode indicators
3. AUTO indicator
4. DIGITAL INPUT indicator
5. DIRECT indicator
6. Preset number, sleep time display
7. MEMORY indicator
13
8. PRESET indicator
9. SLEEP indicator
10. ROOM 2 indicator
11. TUNED indicator
12. STEREO indicator
13. RDS indicators
(Regional option for Europe, etc.)
R-772(G)2007.9.174:43PM페이지 14
ENGLISH
�SETUP MIC JACK
• To use Auto Setup function, connect the supplied
microphone to the SETUP MIC jack.(For details, refer
to "When selecting the AUTO SETUP" on page 48.)
�Notes:
• Because the microphone for Auto Setup is designed
for use with this receiver, do not use a microphone
other than the one supplied with this receiver.
• After you have completed the auto setup procedure,
disconnect the microphone.
�AUX IN JACK
• The AUX IN jack can be connected to an additional
audio component such as an MP3 player, etc.
� Note :
• When connecting this jack to an MP3 player, etc., you
should use the stereo mini cord, not a mono mini cord.
�VIDEO 4 IN JACKS
• The VIDEO 4 IN jacks may be also
connected to an additional video
component such as a camcorder,
a video game player, etc.
14
R-772(G)2007.9.174:43PM페이지 15
This universal remote control can operate not only this receiver but also most popular brands of audio and video
components such as CD players, tape decks, TVs, cable boxes, VCRs, DVD players, satellite receivers, etc.
• To operate 7 components other than this receiver , you should enter the setup code for each component.
(For details, refer to “USING FUNCTIONS OF REMOTE CONTROL” on page 18.)
• The numbered buttons on the remote control have different functions in different device modes. For details,
refer to "FUNCTION TABLE of the NUMBERED BUTTONS" on the next page.
�Note :
• In such a case that some components do not have the REMOTE SENSOR which receives the remote signals,
this remote control cannot operate them.
15
ENGLISH
Universal Remote Controls
R-772(G)2007.9.174:43PM페이지 16
ENGLISH
�FUNCTION TABLE of the NUMBERED BUTTONS.
�Notes :
• Some functions for each component may not be available or may work differently.
• Depending on other kinds of components that are available for each DEVICE button, some functions may not be
available or may work differently, too.
• For details about functions, refer to the operating instructions of each component.
16
R-772(G)2007.9.174:43PM페이지 17
1. Enter the setup code for each
REMOTE CONTROL OPERATION RANGE
• Use the remote control within a range of about 7
meters (23 feet) and angles of up to 30 degrees
aiming at the remote sensor.
component other
than this receiver. For detalis, refer to “Entering
a setup code” on page 18.
2. Turn on the component you want to operate.
3. Press the DEVICE button on the
remote control
corresponding to the component you wish to
operate.
4. Aim the remote control at the REMOTE
SENSOR of the component you wish to control
and press the button corresponding to the
operation you want.
LOADING BATTERIES
�When the remote control does not operate, the old batteries should be replaced. In this case, load new batteries
within several minutes after removing old batteries.
�If the betteries are removed or have been exhausted for a longer period of time, memorized contents will be
cleared. Should this happen, you should memorize them again.
2. Load two batteries (“AAA” size) matching the
1. Remove the cover.
polarity.
+
+
+
• Remove the batteries when they are not used
for a long time.
• Do not use the rechargeable batteries (Ni-Cd
type).
• Be sure to use alkaline batteries.
17
ENGLISH
OPERATING COMPONENTS WITH REMOTE CONTROL
R-772(G)2007.9.174:43PM페이지 18
ENGLISH
USING FUNCTIONS OF REMOTE CONTROL
• This remote control can control up to 8 different components.
• Before operating audio and video components other than this receiver with using this remote control, the
setup code for each component should be entered.
• For system remote control operation, “000” was stored previously in the memory of the device button “CD” for
Sherwood CD player, “DVD” for Sherwood DVD player, "AUX" for Sherwood tape deck and "TV" for Sherwood TV
respectively as its factory setup code. So, you don’t need to enter its code for each Sherwood component except
in such a case that its code does not work.
Entering a setup code
4. Enter a 3 digit code, aiming the remote control at
1. Turn on the component you want to control.
the remote sensor on the component.
Example) When entering "001".
2. Find the setup codes according to the type and
the brand name of your component, referring to
“Setup Code Table” on page 64.
3. Press and hold down both the "ENTER" button
and the desired one of the DEVICE buttons for
more than 1 second.
• If entering is performed successfully, the LED will
flicker twice.
• To be sure that the setup code is correct, press the
POWER ON(or STANDBY) button.
If your component is tuned off, the setup code is
correct.
• When your component is not turned off, repeat the
above steps 2 to 4, trying each code for your
component until you find one that works.
�Notes:
• If the LED did not flicker twice, then repeat the
above steps 3 to 4 and try entering the same
code again.
• Manufacturers may use different setup codes for
the same product category. For that reason, it is
important that you check to see if the code you
have entered operates as many controls as
possible. If only a few functions operate, check to
see if another code will work with more buttons.
• The LED will flicker once.
�Note :
• The "AUD" button is unavailable for the audio
components other than this receiver.
5. Repeat the above steps 1 to 4 for each of your
components.
18
R-772(G)2007.9.174:43PM페이지 19
Using a punch-through function
This remote control may be programmed to
operate either the AUDIO volume punch-through
or the TV volume and/or TV channel punchthrough in conjunction with any of the eight
components controlled by this remote control.
For example, since this receiver will likely be used
as the sound system while watching TV, you may
want to adjust this receiver’s volume although this
remote control is set to control the TV.
• When programming this remote control for the
AUDIO volume punch-through, press and hold
down both "AUD" button and "VOLUME ▲"
button for more than 1 second.
• If removing is performed successfully, the LED will
flicker twice.
• When you want to remove either TV volume or TV
channel punch-through, press and hold down both
"TV" button and either "VOLUME ▼" or
"CHANNEL ▼" button for more than 1 second.
�Removing all punch-through functions
Press and hold down both "AUD" button and
"AUDIO ASSIGN" button for more than 1 second.
• If programming is performed successfully, the
LED will flicker twice.
• When you want either TV volume or TV
channel punch-through, press and hold down
both "TV" button and either "VOLUME ▲" or
"CHANNEL ▲" button for more than 1 second.
�Note:
• If you use one of AUDIO and TV volume
punch-through functions, you cannot use the
other.
• If removing all punch-through functions is
performed successfully, the LED will flicker twice.
19
ENGLISH
�Removing a punch-through function
• When removing the AUDIO volume punch-through,
press and hold down both "AUD" button and
"VOLUME ▼" button for more than 1 second.
R-772(G)2007.9.174:43PM페이지 20
ENGLISH
Programming a macro function
• The macro function enables you to program a
series of button operations(up to 10) on this
remote control into a single button.
• You can store up to three separate macro
command sequences into “M1”, “M2” and “M3”
buttons.
3. Press "ENTER" button.
1. Press and hold down both "ENTER" button and
one of three NUMERIC buttons ("1"~"3")
corresponding to "M1"~"M3" buttons for more
than 1 second.
Example) When programming a series of button
operations into "M1" button.
• If the programming is performed successfully, the
LED will flicker twice.
�To remove a macro program
• When removing a macro program, perform the
above steps 1 and 3, but ignore the step 2.
�To change a macro program
• When a new macro program is stored into a
MACRO button with performing the above steps
1 to 3, the previous macro program is cleared
from the memory of the MACRO button.
• If the macro mode is entered, the LED will
flicker once.
Operating a macro function
• Aim the remote control at the REMOTE
SENSORs of the components to be controlled
and press the MACRO button you want.
Example) When pressing “M1” button.
2. Press the operation buttons you want to
program in order.
�Note:
You should press the corresponding DEVICE
buttons before pressing each operation button.
Example) When playing a DVD on the DVD player
connected to VIDEO 2 jacks of this
receiver.
①. Press "AUD" button to control this receiver.
②. Press "POWER ON" button to turn this
receiver on.
③. Press "AUD" button to control this receiver.
④. Press "VIDEO 2(7)" button to select the
desired input source.
⑤. Press "DVD" button to control the DVD player.
⑥. Press "POWER ON" button to turn the DVD
player on.
⑦. Press "DVD" button to control the DVD player.
⑧. Press "▶" button to start playback.
�Notes:
• The codes programmed into a MACRO button will
be transmitted at an interval of 0.5 seconds.
However, some components may not be able to
complete one operation in 0.5 seconds and may
miss the next code.
In this case, the macro function cannot control the
corresponding components correctly.
• Be sure to use the remote control within the remote
control operation range of the components.
• Depending on the operation status of the
components, etc., the macro function cannot
control the corresponding components correctly.
20
R-772(G)2007.9.174:43PM페이지 21
This remote control unit is an additional remote control unit for the ROOM 2 source playback only.
• You can use the ROOM 2 functions with this remote control unit more conveniently in another room than with
the universal remote control unit.
• For details on ROOM 2 operation, refer to "ROOM 2 SOURCE PLAYBACK" on page 35.
REMOTE CONTROL OPERATION RANGE
• Aim the ROOM 2 remote control(or the universal
remote control) at the IR receiver installed in
another room.(For details, refer to
“CONNECTING MULTI-ROOM SYSTEM KIT” on
page 12.)
• When you operate the ROOM 2 function in the
main room, aim the universal remote control (or
the ROOM 2 remote control) at the remote
sensor of this receiver.
LOADING BATTERY
1. Remove the cover.
2. Load the battery(CR2025) matching the polarity.
• Remove the battery when it is not used for a long
time.
21
ENGLISH
ROOM 2 Remote Controls
R-772(G)2007.9.174:43PM페이지 22
ENGLISH
Operations
�Notes:
• Before operating this receiver with the supplied remote control, refer to "Universal Remote Controls" on page
15 for details about operation.
• Before operating this receiver, first set this unit as desired for optimum performance, doing the OSD menu
setting procedures. (For details, refer to "OSD Menu Settings" on page 38.)
LISTENING TO A PROGRAM SOURCE
3. Select the desired input source.
Before operation
• Enter the standby mode.
• The POWER ON/STANDBY button
lights up amber. This means that the
receiver is not disconnected from the
AC mains and a small amount of
current is retained to support the
operation readiness.
• To switch the power off, push the
POWER switch again.
Then the power is cut off and the
POWER ON/STANDBY button goes off.
• Each time the "AUDIO" button on the front panel
is pressed, the input source changes as follows:
→ CD → AUX → TAPE
1. In the standby mode, turn the power on.
• Each time the "VIDEO" button on the front panel
is pressed, the input source changes as follows:
→ VIDEO 1→VIDEO 2→VIDEO 3 →VIDEO 4
• Each time the "TUNER" button is pressed, the
band changes as follows:
→ FM STereo → FM MONO → AM
• Each time the POWER ON/STANDBY button on
the front panel is pressed, the receiver is turned on
to enter the operating mode (the POWER ON/
STANDBY button lights up blue) or off to enter the
standby mode(the POWER ON/STANDBY button
lights up amber).
• On the remote control, press the POWER ON
button to enter the operating mode or press the
STANDBY button to enter the standby mode.
• In the standby mode, if the INPUT SELECTOR
button is pressed, the receiver is turned on
automatically and the desired input is selected.
�When selecting the EXTERNAL IN as desired,
2. Switch the speakers on.
• Depending on the power amplifier setting for the
surround back channels and the surround back
speaker setting, "EXT. IN" is displayed and 8(/7/6)
separate analog signals from the component
connected to this input pass through the tone and
volume circuits only and can be heard from your
speakers.
• Select the desired input source to cancel the
external in function.
• These analog signals can be heard only, not
recorded.
• Then the SPEAKER indicator lights up
and the sound can be heard from the
speakers connected to the speaker
terminals.
• When using the headphones for private
listening, press the SPEAKER button
again to switch the speakers off.
22
R-772(G)2007.9.174:43PM페이지 23
• When playing back the program sources with
surround sound, refer to “ENJOYING
SURROUND SOUND” on page 26.
• If the AUDIO MODE is set to the mode other
than "DIGITAL" for the corresponding input
source on the INPUT SETUP menu, you cannot
hear the sound from the selected digital input.
(For details, refer to "SETTING THE INPUT
SETUP" on page 44.)
7. Adjust the (overall) volume.
4. Press the AUDIO ASSIGN button.
Muting the sound
• "AUD ~" is displayed for several seconds.
• "AUD ~" disappears, press the AUDIO ASSIGN
button again.
5. Select the desired of the digital inputs connected
while displaying "AUD ~".
• "MUTE" flickers.
• To resume the previous sound level, press it again.
Listening with headphones
• Each time the MULTI CONTROL knob is rotated
or the CURSOR LEFT(◀)/RIGHT(▶) buttons are
pressed, the corresponding input is selected as
follows :
• Ensure that the SPEAKER button is set to off.
• Depending on the signal format which is being
input, you can listen in Dolby Headphone mode,
stereo mode, etc. (For details, refer to "Listening
in Dolby Headphone mode" on page 27).
• When the EXTERNAL IN is selected as an input
source, only front left and front right channel
signals can be reproduced through the
headphones.
■Note:
• Be careful not to set the volume too high when
using headphones.
■Notes:
• When the selected digital input is not connected
or assigned, "o1", "c1", etc. (, meaning no digital
signal input from it) or "d" (, meaning no audio
assignment) flickers and no sound will be heard.
• The selected digital input is automatically
assigned to the corresponding input source on
the INPUT SETUP menu. (For details, refer to
"SETTING THE INPUT SETUP" on page 44.)
• The sound from the component connected to the
selected digital input can be heard regardless of
the selected input source.
23
ENGLISH
6. Operate the selected component for playback.
When CD, AUX, VIDEO 1~ 4 is selected as
an input source
R-772(G)2007.9.174:43PM페이지 24
SURROUND SOUND
ENGLISH
• This receiver incorporates a sophisticated Digital Signal Processor that allows you to create optimum sound quality and sound
atmosphere in your personal Home Theater.
Surround modes
• DTS Neo : 6 Cinema
This mode is optimum for playing movies. Decoding is
performed with emphasis on separation performance to
achieve the same atmosphere with 2-channel sources as with
6.1-channel sources.
■DTS Digital Surround
DTS Digital Surround(also called simply DTS) is a multi-channel
digital signal format which can handle higher data rates. Discs
bearing the “
” include the recording of up to
5.1 channels of digital signals, which can be generally thought
to provide better sound quality due to the lower audio
compression required.
It also provides wide dynamic range and separation, resulting
in magnificent sound.
■DTS - ES Extended Surround™
(
• DTS Neo : 6 Music
This mode is suited mainly for playing music. The front left
and front right signals bypass the decoder and are played
directly so there is no loss of sound quality, and the effect of
the surround signals from the center, surround left, surround
right and surround back channels adds a natural sense of
expansion to the sound field.
)
This is a new multi channel digital signal format which greatly
improves the 360- degree surround impression and space
expression thanks to further expanded surround signals,
offering high compatibility with the conventional DTS format.
In addition to the 5.1 channels, DTS-ES Extended Surround
also offers the surround back (sometimes also referred to as
“surround center”) channel for surround playback with a total
of 6.1 channels. DTS-ES Extended Surround includes two
signal formats with different surround signal recording
methods as follows:
■DTS 96/24
Conventional surround formats used sampling frequencies of
48 or 44.1 kHz, so 20 kHz was about the maximum playback
signal frequency. With DTS 96/24, the sampling frequency is
increased to 96 or 88.2 kHz to achieve a wide frequency
range of over 40 kHz. In addition, this format has a resolution
of 24 bits, resulting in the same frequency band and dynamic
range as 96kHz / 24 bit PCM signals.
As with conventional DTS surround, DTS 96/24 is compatible
with a maximum of 5.1 channels. DTS 96/24 is fully
compatible with the conventional DTS surround format, so
DTS 96/24 sources can be played using a conventional DTS
5.1 channel decoder.
• DTS-ES™ Discrete 6.1
Because the signals for 6.1 channels (including the surround back
channel) are fully independent, it is possible to achieve a sense
that the acoustic image are moving about freely among the
background sounds surrounding the listener from 360 degrees.
Though maximum performance is achieved when sound
tracks recorded with this system are played using a DTS -ES
decoder, when played with a conventional DTS decoder, the
surround back channel signals are automatically downmixed
to the surround left and surround right channels so that none
of the signal components are lost.
"DTS" and "DTS-ES I Neo:6" are registered trademarks of
DTS, Inc. "96/24" is a trademarks of DTS, Inc.
■Dolby Digital
Dolby Digital is the multi- channel digital signal format
developed by Dolby Laboratories. Discs bearing the
“
” includes the recording of up to 5.1 channels of
• DTS - ES™ Matrix 6.1
With this format, the additional surround back channel
signals undergo matrix encoding and are input to the
surround left and surround right channels beforehand. During
playback, they are decoded to the surround left, surround
right and surround back channels.
Because the bit stream format is 100% compatible with
conventional DTS signals, the effect of the DTS-ES Matrix 6.1
format can be achieved even with DTS 5.1- channel signal
sources. Of course, it is possible to play DTS-ES Matrix 6.1 channel signal sources with a DTS 5.1 - channel decoder.
When DTS-ES Discrete 6.1 or Matrix 6.1 sources are decoded
with a DTS - ES decoder, the format is automatically detected
upon decoding and the optimum surround mode is selected.
However, some DTS - ES Matrix 6.1 sources may be detected
as DTS sources. In this case, the DTS - ES Matrix mode
should be selected manually to play these sources.
digital signals, which can reproduce much better sound
quality, spatial expansion and dynamic range characteristics
than the previous Dolby Surround effect.
■Dolby Digital EX
This mode creates the back (sometimes also referred to as
“surround center”) signals from the surround left and right
signals in Dolby Digital 5.1 channel source using a matrix
decoder and provides 6.1 channel surround playback. For the
best results, this mode should be selected during playback of
sources(bearing the “
”) recorded in Dolby Digital
EX. With this additional channel, you can experience more
dynamic and realistic moving sound especially.
When Dolby Digital EX sources are decoded with a Dolby
Digital EX decoder, the format is automatically detected upon
decoding and the Dolby Digital EX mode is selected.
However, some Dolby Digital EX sources may be detected as
Dolby Digital sources. In this case, the Dolby Digital EX mode
should be selected manually to play these sources.
�DTS Neo : 6™ surround
This mode applies conventional 2-channel signals such as
digital PCM or analog stereo signals to the high precision digital
matrix decoder used for DTS-ES Matrix 6.1 to achieve 6.1channel surround playback. DTS Neo : 6 surround includes two
modes for selecting the optimum decoding for the signal source.
24
■Dolby Pro Logic IIx surround
Dolby Pro Logic IIx decodes all stereo (2 channel ) and 5.1
channel sources and extends to 7.1channel surround
playback. It delivers the most natural, full range and
immersing 7.1 channel listening experience. Dolby Pro Logic
IIx surround includes three modes as follows :
■Dolby Headphone
The Dolby Headphone function simulates 5.1 channel
surround sound , which allows you to enjoy 5.1 channel
surround sound through 2 channel headphones, just like
listening from 5.1 channel speakers.
This mode is effective not only for 5.1 channel sources but
also for stereo ( 2 channel ) sources.
• Dolby Pro Logic IIx Movie
When enjoying movies, this mode allows you to further
enhance the cinematic quality by adding processing that
emphasizes the sounds of the action special effects.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks
of Dolby Laboratories.
• Dolby Pro Logic IIx Music
When listening to music, this mode allows you to further
enhance the sound quality by adding processing that
emphasizes the musical effects.
• The following modes apply conventional 2-channel signals
such as digital PCM or analog stereo signals to high
performance Digital Signal Processor to recreate sound
fields artificially. Select one of the 7 provided surround
modes according to the program source you want to play.
• Dolby Pro Logic IIx Game
When playing games, this mode allows you to further
enhance the dynamic surround effects by adding processing
that emphasizes the surrounded and exciting sound.
■Theater
This mode provides the effect of being in a movie theater
when watching a play.
■Dolby Pro Logic II surround
This mode applies conventional 2-channel signals such as
digital PCM or analog stereo signals as well as Dolby
Surround signals, etc. to surround processing to offer
improvements over conventional Dolby Pro Logic circuits.
Dolby Pro Logic II surround includes Dolby Pro Logic II
Movie, Dolby Pro Logic II Music and Dolby Pro Logic II
Game like Dolby Pro Logic IIx surround.
■Hall
This mode provides the ambience of a concert hall for
classical music sources such as orchestral, chamber music
or an instrumental solo.
■Dolby Virtual Speaker
This mode creates a virtual surround sound field using as few
as two front speakers, allowing you to experience listening
from 5.1 channel speakers.
This mode is effective not only for 5.1 channel sources but
also for stereo(2 channel) sources.
Dolby VIrtual Speaker includes two listening mode as follows:
■Room
This mode provides the sound field of a house with a low
ceiling and hard walls for jazz music.
• Dolby Virtual Speaker Reference
The width of the front sound image is defined by the actual
distance between front speakers.
■Classic
This mode provides the acoustic effects of a large concert
hall for classical music.
• Dolby Virtual Speaker Wide
The width of the front sound image seems to extend beyond
the front speakers.
■Multi CH Stereo
This mode is designed for playing background music. The
front, surround and surround back channels create a stereo
image that encompasses the entire area.
■Stadium
This mode provides the expansive sound field to achieve the
true stadium effect when watching baseball or soccer games.
■Panorama
This mode provides a dynamic and broad sound space to
highten the overall impact of the sound track.
• When using the EXTERNAL INs to play back the sound from the additional multi-channel decoder for surround sound, you can
enjoy the corresponding surround sound, too.( For details, refer to the operating instructions of the component to be
connected.)
For your reference, the sound from each channel can be reproduced according to the surround modes as follows:
FRONT L/R
CENTER
SURROUND L/R
DTS, DTS 96/24
Modes
Channels
�
�
�
SURROUND BACK L/R
—
SUBWOOFER
�
DTS ES DISCRETE/MATRIX
�
�
�
�
�
DTS NEO: 6 CINEMA/MUSIC
�
�
�
�
—(*)
DOLBY DIGITAL
�
�
�
—
�
DOLBY DIGITAL EX
�
�
�
�
�
DOLBY PRO LOGIC IIx MOVIE/MUSIC/GAME
�
�
�
�
�
DOLBY PRO LOGIC II MOVIE/MUSIC/GAME
�
�
�
—
�
DOLBY VIRTUAL SPEAKER
�
�
�
—
—(*)
MULTI PCM
�
�
�
�/—
�
Other Surrounds
�
�
�
�
—(*)
STEREO
�
—
—
—
—(*)
EXTERNAL IN
�
�
�
�
�
(*): Depending on the subwoofer setting, the sound from the subwoofer channel may be reproduced.
• Depending on the speaker settings and the number of the encoded channels, etc., the sound from the corresponding channels
cannot be reproduced.(For details, refer to "SETTING THE SPEAKER / ROOM EQ SETUP" on page 48.)
25
ENGLISH
R-772(G)2007.9.174:43PM페이지 25
R-772(G)2007.9.174:43PM페이지 26
ENGLISH
ENJOYING SURROUND SOUND
�Notes:
• Before surround playback, first perform the speaker setup procedure, etc. on the OSD menu for optimum performance.
(For details, refer to "SETTING THE SPEAKER/ROOM EQ SETUP" on page 48.)
• When playing digital signals from the Dolby Digital program source or selecting the surround mode such as Dolby Pro Logic II
/Dolby Pro Logic IIx Music, Dolby Headphone, Dolby Virtual Speaker modes, you can adjust their parameters for optimum
surround effect. (For details, refer to "SETTING THE SOUND PARAMETER" on page 57.)
• When the EXTERNAL IN is selected as an input source, the surround modes cannot be selected.
Depending on how to select a surround mode, select the auto surround mode or the manual surround mode.
• Each time this button is pressed, the mode changes as
follows :
Auto surround mode : The optimum surround mode will be
("AUTO" lights up.)
automatically selected depending on the signal
format being input.
Manual surround mode : You can select the desired of different
("AUTO" goes off.)
surround modes selectable for the signal
being input with using the MULTI
CONTROL knob or the SURROUND MODE
UP/DOWN ( �/� ) buttons.
■Notes :
• Even when the auto surround mode is selected and the same type of digital signal format is being input, the
optimum surround mode may vary depending on whether the speaker type is set to "NO" or not.
• When the auto surround mode is selected, the surround modes other than the optimum surround mode
cannot be selected.
■When selecting the manual surround mode with pressing the SURROUND MODE button on the front panel.
Select the desired surround mode.
• Each time the MULTI CONTROL knob is rotated or
the SURROUND MODE UP / DOWN ( >/< ) buttons
are pressed, the surround mode changes depending
on the input signal format as follows :
Signal format being input
Dolby Digital EX 6.1 channel sources,
Dolby Digital 5.1 channel sources
Dolby Digital 2 channel sources
DTS ES Discrete/Matrix 6.1 channel
sources
DTS sources,
DTS 96/24 sources
PCM (multi-channel) sources*
96 kHz PCM (2 channel) sources
PCM (2 channel) sources,
Analog stereo sources
Selectable surround mode
<DOLBY DIGITAL EX, DOLBY D + PLIIx MUSIC>, (DOLBY D + PLIIx MOVIE),
DOLBY DIGITAL, DOLBY VS REF, DOLBY VS WIDE
<DOLBY PLIIx MOVIE, DOLBY PLIIx MUSIC, DOLBY PLIIx GAME>, [DOLBY PLII MOVIE,
DOLBY PLII MUSIC, DOLBY PLII GAME], DOLBY VS REF, DOLBY VS WIDE
<corresponding DTS ES mode, DTS + PLIIx MUSIC>, (DTS + PLIIx MOVIE), DTS,
DOLBY VS REF, DOLBY VS WIDE
corresponding DTS mode, DOLBY VS REF, DOLBY VS WIDE, <DTS + NEO:6, DTS + PLIIx
MUSIC>, (DTS + PLIIx MOVIE)
MULTI PCM, <DOLBY PLIIx MOVIE, DOLBY PLIIx MUSIC>, DOLBY VS REF, DOLBY VS WIDE
<DOLBY PLIIx MOVIE, DOLBY PLIIx MUSIC, DOLBY PLIIx GAME>, [DOLBY PLII MOVIE,
DOLBY PLII MUSIC, DOLBY PLII GAME], DOLBY VS REF, DOLBY VS WIDE,
NEO:6 CINEMA, NEO:6 MUSIC, THEATER, HALL, STADIUM, ROOM, PANORAMA, CLASSIC,
MULTI CH STEREO
• Depending on surround back speaker setting, some surround modes can be selected or not as follows:
< >: Possible only when surround back speaker is not set to "NO".
[ ] : Possible only when surround back speaker is set to "NO".
( ): Possible only when surround back speaker is set to " 2CH".
* : Depending on the signal format being input, the Dolby Pro Logic IIx modes and the Dolby Virtual Speaker modes may not be selected.
26
R-772(G)2007.9.174:43PM페이지 27
Continued
• Depending on the signal format which is being input, either the stereo
mode or the 2CH downmix mode is selected.
• To cancel either the stereo mode or the 2CH downmix mode, select
the surround mode with using the MULTI CONTROL knob on the
front panel or the SURROUND MODE UP/DOWN ( >/< ) buttons on
the remote control.
�2CH downmix mode
• This mode allows the multi-channel signals encoded in DTS or Dolby Digital format, etc. to be mixed down into
2 front channels and to be reproduced through only two front speakers or through headphones.
• When the SPEAKER button is set to off to listen with headphones, if the STEREO button is pressed while
playing the multi-channel digital signals from DTS or Dolby Digital sources, etc., it will enter the 2CH downmix
mode automatically.
• To cancel the 2CH downmix mode, select the Dolby Headphone mode with using the MULTI CONTROL knob
on the front panel or the SURROUND MODE UP/DOWN ( >/< ) buttons on the remote control.
Listening in Dolby Headphone mode
• The Dolby Headphone function simulates 5.1 channel surround sound, which allows you to enjoy 5.1 channel
surround sound through 2 channel headphones, just like listening from 5.1 channel speakers.
�Note :
• Only when the SPEAKER button is set to off, the Dolby Headphone mode can be selected.
• Switch the speakers off to listen with headphones.
• Then "DOLBY HEADPHONE" (or "DOLBY H ~ ") is displayed and
the Dolby Headphone mode is selected.
• To cancel the Dolby Headphone mode, press the SPEAKER
button again.
Adjusting each channel level with test tone
2. At each channel, adjust the level as desired until
• The volume level of each channel can be
adjusted easily with the test tone function.
�Note : When the SPEAKER button is set to off,
the test tone function does not work.
the sound level of each speaker is heard to be
equally loud.
1. Enter the test tone mode.
• You can select the desired channel with pressing
the CONTROL UP/DOWN (▲/▼) buttons or the
CURSOR UP/DOWN (▲/▼) buttons.
3. Cancel the test tone function.
• The test tone will be heard from the speaker of
each channel for 2 seconds as follows:
Front Left
Subwoofer
Center
Surround Left
Front Right
Surround Right
Surround Back
Surr.Back Left Surr.Back Right
• When the speaker setting is "NO", the test tone of the
corresponding channel is not available.
• ( ) : Possible depending on whether the surround
back channel is set to "2 CH" or "1 CH".
27
ENGLISH
�To cancel the surround mode for stereo operation
R-772(G)2007.9.174:43PM페이지 28
ENGLISH
Adjusting the current channel level
• After adjusting each channel level with test tone, adjust the channel levels either according to the program
sources or to suit your tastes.
• You can adjust the current channel levels as desired. These adjusted levels are just memorized into user’s
memory ("CAL"), not into preset memory("REF 1", "REF 2").
1. Press the CHANNEL LEVEL button.
3. Adjust the level of the selected channel as
desired.
• Then the memory mode ("CAL" or "REF 1") is
displayed for several seconds.
• When the memory mode or channel level
disappears, press this button again.
2.
• The LFE level can be adjusted within the range of
-10~0 dB and other channel levels within the
range of -15~+15 dB.
• In general, we recommend the LFE level to be
adjusted to 0 dB.(However, the recommended
LFE level for some early DTS software is -10 dB.)
If the recommended levels seem too high, lower
the setting as necessary.
Select the desired channel.
4. Repeat the above steps
channel level.
• Each time these buttons are pressed, the
corresponding channel is selected as follows:
( ): Possible depending on whether the surround back channel is
set to "2 CH" or "1 CH".
< >: Possible only when the digital signals from Dolby Digital or
DTS program sources that include LFE signal are input.
• Depending on the speaker settings("NO", etc.)
and surround mode, etc., some channels cannot
be selected.
• When the SPEAKER button is set to off, only the
Front Left, Front Right (and LFE) channels can
be selected.
28
2 and 3 to adjust each
R-772(G)2007.9.174:43PM페이지 29
Recalling the memorized channel levels
Memorizing the adjusted channel levels
• You can memorize the adjusted channel levels into
preset memory("REF 1", "REF 2") and recall the
memorized whenever you want.
ENGLISH
1. Press the CHANNEL LEVEL button.
1. After performing the steps 1 ~ 4 in "Adjusting the
current channel level" procedure on page 28,
press the (MEMORY/) ENTER button.
• "REF 1" (or "CAL") is displayed for several
seconds.
• If the channel level mode display disappears,
press this button again.
• The "1" of "REF 1" indication flickers for several
seconds.
2. Select the desired one of REF 1 and REF
2. Select the desired one of REF 1 and REF 2.
2.
• Then the channel levels memorized into the
selected preset memory are recalled.
• If the preset memory disappears, perform the
above step 1 again.
3. Confirm your selection.
• The adjusted channel levels have now been
memorized into the selected memory.
29
R-772(G)2007.9.174:43PM페이지 30
LISTENING TO RADIO BROADCASTS
Manual tuning
ENGLISH
Auto tuning
• Manual tuning is useful when you already know
the frequency of the desired station.
• After selecting the desired band, press the
TUNING UP(+) / DOWN(-) buttons repeatedly until
the right frequency has been reached.
1. Select the desired band.
Auto presetting
• Each time this button is pressed, the band
changes as follows :
• Auto presetting function automatically searches
for FM stations only and store them in the
memory.
• While listening to radio broadcasts, press and
hold down the MEMORY/ENTER button for more
than 2 seconds.
→ FM STereo → FM MONO → AM
("ST" lights up)
("ST" goes off)
• When FM stereo broadcasts are poor because of
weak broadcast signals, select the FM mono
mode to reduce the noise, then FM broadcasts
are reproduced in monaural sound.
• Then "AUTO MEM" flickers and
this receiver starts auto
presetting.
• Up to 30 FM stations can be
stored.
2. Press the TUNING UP(+)/DOWN(-) buttons for
more than 0.5 second.
�Notes:
• FM stations of weak strength
cannot be memorized.
• To memorize AM stations or weak stations,
preform "Manual presetting" procedure with using
"Manual tuning" operation.
• The tuner will now search until a station of
sufficient strength has been found. The display
shows the tuned frequency and "TUNED".
• If the station found is not the desired one, simply
repeat this operation.
• Weak stations are skipped during auto tuning.
30
R-772(G)2007.9.174:43PM페이지 31
Manual presetting
Tuning to preset stations
• After selecting the tuner as an input source, select
the desired preset number.
ENGLISH
• You can store up to 30 preferred stations in the
memory.
1. Tune in the desired station with auto or manual
tuning.
2. Press the MEMORY/ENTER button.
Scanning preset stations in sequence
• "MEM" is flickering for several seconds.
3. Select the desired preset number (1~30) and
press the MEMORY/ENTER button.
• The receiver will start scanning the stations in the
preset sequence and each station is received for 5
seconds.
• At the desired station, press this button again to
stop scanning.
• The station has now been stored in the memory.
• A stored frequency is erased from the memory
by storing another frequency in its place.
• If "MEM" goes off, start again from the above
step 2.
4. Repeat the above steps 1 to 3 to memorize
other stations.
�MEMORY BACKUP FUNCTION
The following items, set before the receiver is
turned off, are memorized.
• INPUT SELECTOR settings
• Surround mode settings
• Preset stations,etc.
31
R-772(G)2007.9.174:43PM페이지 32
RDS Tuner(Regional Option for some countries in Europe, etc.)
ENGLISH
LISTENING TO RDS BROADCASTS (FM ONLY)
RDS(Radio Data System) is a method for sending information signals together with the transmitter signals. Your
tuner is capable of translating these signals and putting the information on the display. These codes contain the
following informations. Program Service name(PS), A list of Program Types(PTY), Traffic Announcement(TA),
Clock Time(CT), Radio Text(RT).
�Note :
• In the other countries, RDS tuner function cannot be available.
RDS search
TP search
• Use this function to automatically search and
receive the stations offering RDS services.
• Use this function to automatically search and
receive the stations broadcasting the traffic
program.
1. In the FM mode, select the RDS search mode.
1. In the FM mode, select the TP search mode
• Each time this button is pressed, the search
mode changes as follows :
• "TP SRCH" is displayed.
→ RDS SRCH → TP SRCH → PTY SRCH → OFF
2. While displaying "TP SRCH".
2. While displaying "RDS SRCH"
• The tuner automatically searches stations
broadcasting the traffic program.
• "NO TRAFF"is displayed if the signal is too weak
or there are no stations broadcasting the traffic
program.
• When "TP SRCH" is not displayed, repeat again
from the above step 1.
• The tuner automatically searches stations
offering RDS services and the station name is
displayed.
• If no other RDS station is found, "NO RDS" is
displayed.
• When "RDS SRCH" is not displayed, repeat
again from the above step 1.
32
R-772(G)2007.9.174:43PM페이지 33
PTY search
• Use this function to automatically search and
receive the stations broadcasting the desired
program type.
ENGLISH
3. While displaying the desired program type.
1. In the FM mode, select the PTY search mode.
• The tuner automatically searches a station
offering PTY services.
• If no station is found, "NO PROG" is displayed.
• "PTY SRCH" is displayed.
DISPLAY
2. While displaying "PTY SRCH", select the
desired program type.
• In the FM mode,
• Each time the DISPLAY button is pressed, the
display mode changes as follows:
• Each time these buttons are pressed, one of 32
different types of programs is selected.
(NEWS, AFFAIRS, INFO, SPORT, EDUCATE,
DRAMA, CULTURE, SCIENCE, VARIED, POP M,
ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M,
WEATHER, FINANCE, CHILDREN, SOCIAL,
RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ,
COUNTRY, NATION M, OLDIES, FOLK M,
DOCUMENT, TEST, ALARM, NONE)
Program
→ Frequency → Service name →
(PS)
Program
Clock
Radio
Type → Time → Text
(PTY)
(CT)
(RT)
Surround
Volume ← mode ←
• When "PTY SRCH" is not displayed, repeat again
from the above step 1.
Input
signal
←
• If the signals are too weak or no RDS service is
available, "NO NAME", "NO PTY", "NO TIME" or
"NO TEXT" will be displayed.
33
R-772(G)2007.9.174:43PM페이지 34
OTHER FUNCTIONS
ENGLISH
Operating the sleep timer
Displaying the audio information
• The sleep timer allows the system to continue to
operate for a specified period of time before
automatically shutting off.
• To set the receiver to automatically turn off after
the specified period of time.
• You can check the audio information on the input
source.
• During playback,
• Each time this button is pressed, the display
mode changes as follows :
• Each time this button is pressed, the sleep time
changes as follows:
→ 10 → 20 → 30 → --- → 90 → OFF
Input
Unit : minutes
• While operating the sleep timer, "
→ signal
→
Surround
Input
Volume →
mode →
source
" lights up.
Adjusting the brightness of the
fluorescent display
• When the EXTERNAL IN is selected as an input
source, the surround mode is not displayed.
• When RDS tuner function is available in your
country, for details on the FM mode information,
see "DISPLAY" on page 33.
• Each time this button is pressed, the brightness
of the fluorescent display changes as follows:
→ ON → dimmer → OFF
• In the display OFF mode, pressing any button will
cancel the display OFF mode.
34
R-772(G)2007.9.174:43PM페이지 35
• This function allows enjoying one source in the main room and playing another in a different room at the same time.
• When you connect the multi-room system kit to the IR IN jack of this receiver, you can control this receiver with not only the
universal remote control unit but also the ROOM 2 remote control unit in a different room, too. (For details, refer to
"CONNECTING MULTI-ROOM SYSTEM KIT" on page 12 and "ROOM 2 Remote Controls" on page 21.)
�Notes:
• The analog signals from the EXTERNAL INs and the digital signals cannot be output to the different room, meaning no
playback in a different room.
• You cannot play the ROOM 2 source in any surround mode.
■When using the buttons on the front panel.
■When using the buttons on the remote control unit.
1. Press the ROOM 2 button.
1. Press the ROOM 2 button to enter the ROOM 2 mode.
• ROOM 2 ~ is displayed for several
seconds.
• When the ROOM 2 setting mode
disappears, press the ROOM 2 button
again.
• ROOM 2 ~ is displayed for
several seconds.
• Each time this button is
pressed, the ROOM 2
mode changes as follows :
OFF : To turn off the ROOM 2
�
function. ("R2" goes off .)
ON : To turn it on. ("R2" lights up.)
�Note :
• When the ROOM 2 mode is set to OFF, you cannot
adjust the ROOM 2 volume.
2. Select the desired mode while displaying the ROOM 2
setting mode.
• Each time these buttons are
pressed, the mode changes as
follows :
ROOM 2 ~
: To turn on or
(ROOM 2 mode) off the ROOM 2
�
function.
IN ~ : To select the desired ROOM 2 source.
(ROOM 2 input)
�
VOL ~
: To adjust the volume on the power
(ROOM 2 volume) amplifier assigned to "BACK ← →
ROOM 2" or "ROOM 2".
�Note : When the ROOM 2 mode is set to OFF,
the ROOM 2 input and the ROOM 2 volume
cannot be selected
2. Select the desired input as a ROOM 2 source.
• Each time the INPUT button
on the universal remote
control unit is pressed, the
ROOM 2 input can be
selected among MAIN
source, TUNER, CD, AUX,
TAPE, VIDEO 1 ~ VIDEO 4.
3. Adjust the ROOM 2 volume.
3. Set the selected mode as desired.
■When selecting the ROOM 2 mode.
OFF : To turn off the ROOM 2
� function. ("R2" goes off.)
ON : To turn it on. ("R2" lights up.)
■When selecting the ROOM 2 input.
• You can select the desired among
MAIN source, TUNER, CD, AUX,
TAPE, VIDEO 1 ~ VIDEO 4 as a ROOM 2 source.
■When selecting the ROOM 2 volume.
• You can adjust the volume on the power amplifier
assigned to "BACK ← → ROOM 2" or "ROOM 2" when
the ROOM 2 speaker terminals are connected to the
speakers in a different room. (For details, refer to
"When selecting the AMP ASSIGN" on page 40.)
• You can adjust the volume
on the power amplifier
assigned to "BACK ← →
ROOM 2" or "ROOM 2"
when the ROOM 2 speaker
terminals are connected to
the speakers in a different
room. (For details, refer to "When selecting the AMP
ASSIGN" on page 40.)
• The MUTE button on the ROOM 2 remote control unit can
be available only when the ROOM 2 function is operating.
4. Start play on the component related to the ROOM 2
source.
4. Start play on the component related to the ROOM 2
source.
�Notes:
• When the EXTERNAL IN is selected as a main input, if the MAIN source is selected as a ROOM 2 input, no audio signal can
be heard in the different room (ROOM 2).
• Even when this receiver enters the standby mode, in such a case that "R2" lights up still and the POWER ON/STANDBY
button lights up blue as it does in the operating mode, meaning only the ROOM 2 circuitry operates, the ROOM 2 source can
be played independently.
• When you do not use the ROOM 2 function, turn off the ROOM 2 function to save electricity.
35
ENGLISH
ROOM 2 SOURCE PLAYBACK
R-772(G)2007.9.174:43PM페이지 36
ENGLISH
RECORDING
• The analog signals from the EXTERNAL INs as well as the digital signals from the coaxial or optical digital input can be
heard but cannot be recorded.
• When recording the analog signals from CD, AUX, VIDEO 1 ~ 4, be sure to select the "ANALOG" for the AUDIO MODE.
(For details, refer to "When selecting the AUDIO MODE" on page 45.)
• The volume and tone (bass, treble) settings have no effect on the recording signals.
Dubbing the audio and video signals
separately onto VIDEO 1
Recording with TAPE
• To record the analog signals onto the recording
equipment, be sure to connect the ROOM2 OUT
jacks to the recording equipment. (For details,
refer to "CONNECTING AUDIO COMPONENTS"
on page 7.)
Example: When dubbing the VIDEO 2 video signal and
the CD audio signal separately onto VIDEO 1.
1. Select VIDEO 2 as a video recording source.
1. Select the desired input as a recording source
except for TAPE.
2. Select CD as an audio recording source.
2. Turn on the ROOM 2.
3. Select the MAIN as a ROOM 2 input.
3. Start recording on the VIDEO 1.
4. Start play on the VIDEO 2 and the CD
respectively.
• The audio signal from the CD and the video
signal from the VIDEO 2 will be dubbed and you
can enjoy them on the TV set and from the
speakers.
�Note : Be sure to observe the order of the above
steps 1 and 2.
4. Start recording on the TAPE.
5. Start play on the desired input.
36
R-772(G)2007.9.174:43PM페이지 37
1. Select the desired of CD, AUX, VIDEO 1~4 as a
Dubbing from video components onto
VIDEO 1
recording source.
ENGLISH
1. Select the desired of VIDEO 2 ~ 4 as a recording
source except VIDEO 1.
�In case of recording the digital audio signal input
into a HDMI IN connector
• Select the desired recording source to which the HDMI
IN is connected and assigned and then perform the
steps 3 and 4 (, but ignore the step 2).
�Note :
• If the AUDIO MODE is set to the mode other than
"HDMI" for the corresponding recording source on the
INPUT SETUP menu, the digital audio signals will not
be output and there will be no recording. (For details,
refer to "When selecting the AUDIO MODE" on page
45.)
2. Start recording on the VIDEO 1.
3. Start play on the desired input.
• The audio and video signals from the desired
input will be dubbed onto the VIDEO 1 and you
can enjoy them on the TV set and from the
speakers.
2. For digital recording, select the digital input as
recording signal input.
DIGITAL AUDIO RECORDING WITH MD RECORDER
• Only when the OPTICAL DIGITAL OUT of this receiver is
connected to the OPTICAL DIGITAL IN of the MD recorder
or CD recorder, you can enjoy high-quality sound of digital
recording without converting the original signals. Refer to
"CONNECTING VIDEO COMPONENTS", "CONNECTING
AUDIO COMPONENTS" and "CONNECTING DIGITAL
INS AND OUT" on pages 5~8 and the operating
instructions of the MD recorder or CD recorder.
�Notes:
• Depending on the digital audio signal format input into the
HDMI IN connector, some digital signals cannot be output
from the OPTICAL DIGITAL OUT jack.
• Digital recording is available for the digital audio program
sources such as CDs, MDs, some DVDs, etc.
• In most DVDs and SACDs as well as some CDs, etc.,
digital recording may not be available depending on the
signal format.
• There are some restrictions on recording digital signals.
When making digital recordings, refer to the operating
instructions of your digital recording equipment to know
what restrictions are imposed.
�Note :
• If the AUDIO MODE is set to the mode other than
"DIGITAL" for the corresponding recording source
on the INPUT SETUP menu, the digital audio
signals from the selected digital input will not be
output and there will be no recording. (For details,
refer to "When CD, AUX, VIDEO 1~ 4 is selected
as an input source" on page 23 and "When
selecting the AUDIO MODE" on page 45.)
3. Start recording on the component connected to
the OPTICAL DIGITAL OUT.
4. Start play on the desired input.
37
R-772(G)2007.9.174:43PM페이지 38
ENGLISH
OSD Menu Settings
• The OSD (On-Screen Display) menu is a setting menu that is displayed on the monitor TV and allows you to perform
the setup procedures easily. In most situations, you will only need to set this once during the installation and layout of
your home theater, and it rarely needs to be changed later.
The OSD menu consists of 6 main menus ; system setup, input setup, speaker / room EQ setup, CH level setup,
sound parameter and multi room setup. These menus are then divided up into various sub-menus.
■Notes:
• The OSD menu and the momentary OSD cannot be displayed via the COMPONENT MONITOR OUT and the
HDMI MONITOR OUT jacks.
• Depending on the VIDEO MODE setting and the video connections between this receiver and the video component,
the OSD menu and the momentary OSD cannot be displayed via (COMPOSITE) MONITOR OUT jack, (For details,
refer to "Relationship between the video input signal and the video output signal" on page 6.)
■Navigating through the OSD menu
• The explanations here assume you are using the buttons on the remote control when performing the OSD menu
operation. However, you can use the buttons on the front panel as well.
The buttons on the front panel correspond to those on the remote control as shown below.
1. Turn the menu screen on.
MULTI
• The main menu will be shown.
• To turn the menu screen off, press this button again.
2. Select the desired menu using the CURSOR UP(▲)/DOWN(▼) buttons.
38
R-772(G)2007.9.174:43PM페이지 39
ENGLISH
3. Confirm your selection.
�When selecting the SYSTEM SETUP
�When selecting the INPUT SETUP
�When selecting the SPEAKER /ROOM EQ SETUP
�When selecting the CH LEVEL SETUP
�When selecting the SOUND PARAMETER
�When selecting the MULTI ROOM SETUP
• For the setting details, see page in �.
• Adjust the setting(s) in each setting category to your preference.
• When the SETUP button is pressed on a sub-menu, the menu screen will be turned off.
39
R-772(G)2007.9.174:43PM페이지 40
SETTING THE SYSTEM SETUP
ENGLISH
• AMP ASSIGN : To assign the surround back channels' power
amplifier correctly depending on how to use the
speakers.
• SUBWOOFER MODE : To select the desired subwoofer mode.
• HDMI AUDIO OUT : To output the digital audio signals from the
HDMI MONITOR OUT connector.
• TONE CONTROL : To adjust the tone (bass and treble) as
desired.
• CINEMA EQ : To select the desired cinema EQ mode.
• BACKGROUND : To select the desired background color of the
momentary OSD and the OSD menu.
• MOMENTARY OSD : To turn on or off the OSD that shows the
status corresponding to each operation
momentarily.
• OSD POSITION ADJUST : To adjust the position of the
momentary OSD and the OSD menu.
When selecting the AMP ASSIGN
When selecting the items other than OSD
POSITION ADJUST
• The surround back channels' power amplifier can
drive the surround back speakers, the ROOM 2
speakers or the front bi-amp capable speakers.
Depending on how to use the speakers, you
should assign the power amplifier correctly. (For
details, refer to "CONNECTING SPEAKERS" on
page 9 and "CONNECTING ROOM 2 OUTS" on
page 11.)
1. Press the CURSOR UP(▲)/DOWN(▼) buttons
to select the desired item.
BACK ← → ROOM 2 : When connecting this
receiver to the surround back
speakers and the ROOM 2 speakers
both, the power amplifier
automatically drives the surround
back speakers or the ROOM 2
speakers depending on whether the
ROOM 2 function is turned off or on.
BI - AMP : To drive the front bi-amp capable
speakers when connecting the FRONT
and the SURROUND BACK/MULTI
channels to them.
SURR BACK : To drive the surround back
speakers when connecting the
SURROUND BACK/MULTI
channels to them.
ROOM 2 : To drive the ROOM 2 speakers when
connecting the ROOM 2 channels to
them.
2. Press the CURSOR LEFT(◀)/RIGHT(▶)
buttons to set the selected item as desired.
40
R-772(G)2007.9.174:43PM페이지 41
Continued
• "SW PLUS+" mode is valid only when "FRONT" and "CENTER" are set to "FULL RANGE" and
"SUBWOOFER" is set to "YES" on the SPEAKER/ROOM EQ SETUP menu. (For details, refer to "SETTING
THE SPEAKER/ ROOM EQ SETUP" on page 48.)
NORMAL : When the low frequency signals of channels set to "FULL RANGE" are reproduced from those
channels only. In this mode, the low frequency signals that are reproduced from the subwoofer
channel is only the low frequency signals of LFE (from the multi-channel sources that contains LFE
(Low Frequency Effects) channel, also called the ".1" channel) and the channels set to the setting
value other than "FULL RANGE".
SW PLUS+ : When the low frequency signals of channels set to "FULL RANGE" are reproduced
simultaneously from those channels and the subwoofer channel.
In this mode, the low frequency range expands more uniformly through the room, but depending
on the size and shape of the room, interference may result in a decrease of the actual volume of
the low frequency range.
When selecting the HDMI AUDIO OUT
• The HDMI connection can carry uncompressed digital video signals and digital audio signals.
Depending on whether these digital audio signals are output from the HDMI MONITOR OUT of this receiver
or not, you should set the HDMI AUDIO OUT correctly.
OFF : Not to output the digital audio signals from the HDMI MONITOR OUT of this receiver, meaning these
�
signals are heard from the speakers connected to this receiver.
ON : To output the digital audio signals, meaning these signals are heard from the speakers of your TV.
�Notes:
• When the HDMI AUDIO OUT is set to ON, no sound will be heard from the speakers connected to this
receiver (except ROOM 2 speakers) even though any input source is selected.
• If your TV cannot support some digital audio formats, no sound may be heard from its speakers even when
the HDMI AUDIO OUT is set to ON.
When selecting the TONE CONTROL
OFF : To listen to a program source without the tone effect. ("DIRECT" indicator lights up.)
�
ON : To adjust the tone for your taste. ("DIRECT" indicator goes off.)
■When the TONE CONTROL is set to ON to adjust the tone (bass and treble)
①. Press the ENTER button to enter the tone adjustment mode.
41
ENGLISH
When selecting the SUBWOOFER MODE
R-772(G)2007.9.174:43PM페이지 42
Continued
ENGLISH
②. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired tone mode.
③. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to adjust the selected tone as desired.
• The tone level can be adjusted within the range of -10 ~
+10 dB.
• In general, we recommend the bass and treble to be
adjusted to 0 dB (flat level).
• Extreme settings at high volume may damage your
speakers.
• To complete tone adjustment, repeat the above steps ②
and ③.
When selecting the CINEMA EQ
OFF : To turn off the cinema EQ function.
�
ON : To compensate for edgy or shrill movie sound tracks.
When selecting the BACKGROUND
BLACK : To display the black as the color background of the momentary OSD and the OSD menu.
�
BLUE : To display the blue.
■Note : Only when no video signals are input into this unit, the selected background color will be displayed.
When selecting the MOMENTARY OSD
ON : To turn on the OSD function that shows the status corresponding to each operation on this unit
� momentarily.
OFF : To turn it off.
■Note : The momentary OSD cannot be displayed via the COMPONENT MONITOR OUT and the HDMI
MONITOR OUT jacks.
42
R-772(G)2007.9.174:43PM페이지 43
When selecting the OSD POSITION ADJUST
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the OSD POSITION ADJUST, then press the
ENTER button.
2. Press the CURSOR UP(▲)/DOWN(▼)/LEFT(◀)/RIGHT(▶) buttons to adjust the position of the momentary
OSD and the OSD menu as desired.
43
ENGLISH
• You can adjust the position of the momentary OSD and the OSD menu that are displayed on the monitor TV.
R-772(G)2007.9.174:43PM페이지 44
SETTING THE INPUT SETUP
ENGLISH
• This menu allows you to make the various settings
depending on how to use the input sources connected to
this receiver.
When selecting the items other than NAME
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired input source, then press the ENTER
button.
Example: When selecting the VIDEO 1
�When selecting the menu of page 2 or page 1.
• Press the CURSOR UP(▲)/DOWN(▼) buttons to
select "GO TO NEXT ~ ", then press the ENTER
button.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired item.
■Note :
• Depending on the input source, some items other than
DC TRIGGER cannot be selected.
3. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to set the selected item as desired.
44
R-772(G)2007.9.174:43PM페이지 45
Continued
• You should assign the connected HDMI INs to the desired of VIDEO 1 ~ VIDEO 4.
(For details, refer to "CONNECTING VIDEO COMPONENTS" on pages 5 ~ 6.)
• You can select HDMI 1 or HDMI 2.
■Note :
• In such a case that a HDMI IN is assigned to two input sources or more, when these input sources are selected, the
uncompressed digital video signals (and digital audio signals when the HDMI AUDIO OUT is set to ON) input into the same
HDMI IN can be output from the HDMI MONITOR OUT of this receiver.
When selecting the VIDEO ASSIGN
• You should assign the connected COMPONENT VIDEO INs to the desired of VIDEO 1 ~ 4.
(For details, refer to "CONNECTING VIDEO COMPONENTS" on pages 5 ~ 6.)
• You can select the desired of COMP 1 ~ 2.
■Note :
• In such a case that a COMPONENT VIDEO IN is assigned to two input sources or more, when these input sources are
selected, the component video signals can be viewed from the same COMPONENT VIDEO IN.
When selecting the VIDEO MODE
• You can select the video input signal to be output from the MONITOR OUTs.
AUTO : When there are multiple video input signals, the video input signals are detected and the video input signal to be output
from the MONITOR OUTs is selected automatically in the following order :
component video, S-video, composite video.
COMPOSITE : The signal that is input into the (COMPOSITE) VIDEO jack is always played. The composite video input signal is
up-converted and output from the S-VIDEO MONITOR OUT jack.
S-VIDEO : The signal that is input into the S-VIDEO jack is always played. The S-video input signal is down-converted and
output from the (COMPOSITE) VIDEO MONITOR OUT jack.
COMPONENT : The signals that are input into the COMPONENT jacks are always played.
Because video conversion is not performed, no video signals are output from the MONITOR OUT jacks when
there are no video signals that are input into the COMPONENT jacks.
• For details, refer to "Relationship between the video input signal and the video output signal" on page 6.
■Note :
• When selecting the VIDEO 4, S-VIDEO cannot be selected.
When selecting the AUDIO ASSIGN
• You should assign the connected DIGITAL INs to the desired of CD, AUX and VIDEO 1 ~ VIDEO 4.
(For details, refer to "CONNECTING DIGITAL INS AND OUT" on page 8.)
• You can select the desired of OPT 1, OPT 2, COAX1 and COAX 2.
■Note :
• In such a case that a DIGITAL IN is assigned to two input sources or more, when these input sources are selected, the digital
audio signals can be heard from the same DIGITAL IN.
When selecting the AUDIO MODE
• You can select the desired audio input signal to be played.
■Notes :
• Be sure to set the AUDIO MODE to the audio input which is connected and assigned to the selected input source.
• When the HDMI AUDIO OUT is set to ON, no sound will be heard from the speakers connected to this receiver (except ROOM
2 speakers).
• When the AUDIO MODE is set to HDMI, you should set the HDMI ASSIGN correctly. If not, "H1", "H2" (, meaning no digital
audio signal input from it) or "Hd" (, meaning no HDMI assignment) flickers on the unit's display and no sound will be heard.
• When the AUDIO MODE is set to DIGITAL, you should set the AUDIO ASSIGN correctly. If not, "o1", "c1", etc.(, meaning no
digital signal input from it) or "d" (, meaning no audio assignment) flickers on the unit's display and no sound will be heard.
AUTO : When there are multiple audio input signals, the audio input signals are detected and the audio input signal to be played
is selected automatically in the priority order of them :
HDMI audio > DIGITAL audio > ANALOG audio
HDMI : The signal that is input into the HDMI IN is always played.
DIGITAL : The signal that is input into the OPTICAL or the COAXIAL DIGITAL IN is always played.
ANALOG : The signal that is input into the analog AUDIO INs is always played.
45
ENGLISH
When selecting the HDMI ASSIGN
R-772(G)2007.9.174:43PM페이지 46
Continued
ENGLISH
When selecting the AUTO SURROUND
• Depending on how to select a surround mode, you can select the auto surround mode or the manual
surround mode.
ON
: The optimum surround mode will be automatically selected depending on the signal
(Auto surround mode)
format being input.
�
OFF
(Manual surround mode)
: You can select the desired of different surround modes selectable for the signal being
input with using the MULTI CONTROL knob or the SURROUND MODE UP/DOWN
( >/< ) buttons. (For details, refer to "When selecting the manual surround mode with
pressing the SURROUND MODE button on the front panel" on page 26.)
■Notes :
• Even when the auto surround mode is selected and the same type of digital signal format is being input, the
optimum surround mode may vary depending on whether the speaker type is set to "NO" or not.
• When the auto surround mode is selected, the surround modes other than the optimum surround mode
cannot be selected.
When selecting the AUDIO REMASTER
• The remastering processes the input signal digitally and converts its digital sampling frequency to twice the
current frequency (88.2/96 kHz) for a more detailed sound reproduction.
ON : To process the input signal digitally and to convert its sampling frequency to 88.2/96 kHz for a more
� detailed sound reproduction.
OFF : To turn off the remastering function.
■Note :
• The remastering function have no effect on the input digital signal from the 88.2/96 kHz source or higher as
well as the digital signal that is output from the OPTICAL DIGITAL OUT of this receiver.
When selecting the AV SYNC
• There may be a slight time delay between the video and audio signals in case that some video playback
equipments may process the video signals later than the audio signals due to signal processing procedure,
etc.. Should this happen, you can adjust the time delay of audio signals to synchronize the sound with the
picture.
• The time delay can be adjusted within the range of 0 ~ 200 msec.
When selecting the DC TRIGGER
• To turn on the component connected to the DC TRIGGER OUT jack when this input source is selected, you
should set the DC TRIGGER to ON for this input source.
OFF : To turn off the DC trigger function.
�
ON: To turn it on.
• For details, refer to "CONNECTING DC TRIGGER OUT" on page 8.
46
R-772(G)2007.9.174:43PM페이지 47
When selecting the NAME
• You can give names to the input sources other than
tuner.
• Up to 7 characters can be entered for each name.
3. Press the CURSOR LEFT(◀)/ RIGHT(▶)
ENGLISH
buttons to select the desired digit.
1. Press the CURSOR UP(▲)/DOWN(▼) buttons
to select the desired input source, then press
the ENTER button.
• Then the selected digit will flicker.
4. Press the CURSOR UP(▲)/DOWN(▼) buttons
to enter the desired character on the flickering
digit.
Example: When selecting the VIDEO 1
• You can enter the desired among blank, A ~ Z,
a ~ z, 0 ~ 9, (, ), �, +, , , -, ., /.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons
to select the NAME, then press the ENTER
button.
5. Repeat the above steps 3 and 4 to enter the
desired characters on the rest of the digits.
6. Confirm your entry.
• The name is stored in the memory.
• The first digit flickers.
■To resume its factory input source name.
• Make a blank on each digit and press the ENTER
button.
47
R-772(G)2007.9.174:43PM페이지 48
ENGLISH
SETTING THE SPEAKER / ROOM EQ SETUP
• After you have installed this receiver and connected all the components, you should adjust the speaker
settings for the optimum sound acoustics according to your environment and speaker layout.
• Even when you change speakers, speaker positions, or the layout of your listening environment, you should
adjust the speaker settings, too.
• When performing the AUTO SETUP procedure, you need not perform the SPEAKER CONFIGURATION,
SPEAKER DISTANCE, SPEAKER CROSSOVER and CH LEVEL SETUP procedures.
• AUTO SETUP : To set the speaker setup and channel level setup
automatically.
• SPEAKER CONFIGURATION : To adjust the speakers depending on
whether they are connected or not.
• SPEAKER DISTANCE: To select the distance between the listening
position and each speaker to set the delay
time automatically for optimum surround
playback.
• SPEAKER CROSSOVER : To select the desired crossover
frequency.
• ROOM EQ SETUP : To adjust the room EQ as desired.
When selecting the AUTO SETUP
• Auto Setup lets you avoid troublesome listening-based speaker setup and achieve good surround sound. Auto
Setup has the feature that provides the optimum listening environment at the listening position in your room,
where there are often multiple listeners viewing programs together.
You should connect the supplied microphone to the SETUP MIC jack so that this receiver can analyze the
information from a series of test tones emitted from speakers at the listening position and can adjust the
configuration, distance, sound level, crossover frequency and frequency response of each speaker
automatically.
• If you want to personalize your speaker setup and channel level setup by making the settings manually, perform
the "When selecting the SPEAKER CONFIGURATION" on page 50, "When selecting the SPEAKER
DISTANCE" on page 51, "When selecting the SPEAKER CROSSOVER" on page 52, "Adjusting each channel
level with test tone" on page 27 and "Adjusting the current channel level" on page 28.
• After the auto setup has been completed, set the room EQ as desired. (For details, refer to "When selecting the
ROOM EQ SETUP" on page 53.)
�Preparations
①. Check that the speakers are securely connected
to this receiver.
• If your subwoofer has adjustable volume and
crossover frequency, set the volume halfway
and set the crossover frequency to the
maximum or the low pass filter off.
②. Connect the supplied microphone to the SETUP
MIC jack on the front panel.(For details, refer to
"SETUP MIC JACK" on page 14.)
■Notes :
• Because the microphone for Auto Setup is designed
for use with this receiver, to use the auto setup
function, do not use a microphone other than the
one supplied with this receiver.
• After you have completed the auto setup procedure,
disconnect the microphone.
1. Place the microphone on a flat level surface at the listening position.
• If possible, use a tripod, etc. to attach the microphone at the same height as your ears would be when you are
seated in your listening position.
• Ensure there are no obstacles between the speakers and the microphone.
48
R-772(G)2007.9.174:43PM페이지 49
Continued
ENGLISH
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the AUTO SETUP, then press the ENTER button.
3. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the START, then press the ENTER button.
When the auto setup has been completed.
• Loud test tones are output successively and then if a series of auto setup procedure has been completed, "COMPLETED"
will be displayed.
• To stop the auto setup procedure while performing it, press the ENTER button.
In such a case that the auto setup procedure is stopped before "COMPLETED" is displayed, the results of each adjustment
may not be memorized.
• If there may be a problem with speaker or microphone connection, error message will be displayed. In this case, turn off the
power, check the connection and then retry the auto setup procedure.
■Notes :
• Before starting auto setup, be sure not to set the HDMI AUDIO OUT to ON.
• Because the test tones are loud, ensure there no infants or small children in the room.
• For best results, ensure the room is as quiet as possible during the auto setup procedure.
If there is too much ambient noise, the results may not be satisfactory.
4. To memorize the results, press the CURSOR LEFT(◀)/ RIGHT(▶) buttons to select the APPLY, then press
the ENTER button.
• Then the results are memorized and the SPEAKER/ ROOM EQ SETUP
menu is displayed.
• Each time the CURSOR LEFT(◀)/ RIGHT(▶) buttons are pressed, the
APPLY or the CANCEL is selected.
• When the CANCEL is selected, the results are not memorized.
• Check the results on each setup menu(SPEAKER CONFIGURATION
menu on page 50, SPEAKER DISTANCE menu on page 51, SPEAKER
CROSSOVER menu on page 52 and CH LEVEL SETUP menu for
"CALIBRATE" mode on page 55).
• If the results are not satisfactory, you can retry the auto setup
procedure or personalize your speaker setup and channel level setup
by making the settings manually. (For details, refer to "When selecting
the SPEAKER CONFIGURATION" on page 50, "When selecting the
SPEAKER DISTANCE" on page 51, "When selecting the SPEAKER
CROSSOVER" on page 52, "Adjusting each channel level with test
tone" on page 27 and "Adjusting the current channel level" on page 28.)
49
R-772(G)2007.9.174:43PM페이지 50
When selecting the SPEAKER CONFIGURATION
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the SPEAKER CONFIGURATION, then press the
ENGLISH
ENTER button.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired speaker.
3. Press the CURSOR LEFT(◀)/ RIGHT(▶) buttons to set the selected speaker as desired.
YES/NO: Select the desired depending on whether the
speakers are connected or not.
2CH/1CH: Select the desired depending on the number of
speakers connected to SURROUND BACK/
MULTI channels.
�Notes :
• When speakers are not set to "NO", you should set their distances from listening position and crossover
frequencies according to their frequency characteristics. (For details, refer to "When selecting the SPEAKER
DISTANCE" on page 51 and "When selecting the SPEAKER CROSSOVER" on page 52.)
• When the "SURROUND" is set to "NO", "BACK/MULTI" cannot be set to "2CH" or "1CH".
• When the surround back channels' power amplifier is assigned to "BI-AMP" or "ROOM 2", the "BACK/MULTI"
cannot be selected. (For details, refer to "When selecting the AMP ASSIGN" on page 40.)
4. Repeat the above steps 2 and 3 until the speakers are all set as desired.
50
R-772(G)2007.9.174:43PM페이지 51
When selecting the SPEAKER DISTANCE
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the SPEAKER DISTANCE, then press the ENTER
ENGLISH
button.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired item.
�Note :
• You cannot select the subwoofer and the speakers
set to "NO".
3. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to set the selected item as desired.
�When selecting the desired unit
• You can select either METERS or FEET.
• Once a unit is selected, the distances are
automatically changed in the selected unit.
�When setting the distance
• You can set the distance within the range of 0.1 ~ 9.0
meters in 0.1 meter intervals (or 0.5 ~ 30 feet in 0.5
feet intervals).
4. Repeat the above steps 2 and 3 until the distances are all set as desired.
�About the speaker distance
When enjoying multi-channel surround playback with Dolby Digital and DTS sources, etc., it is ideal that the
center, surround and surround back speakers should be the same distance from the main listening position as
the front speakers. By entering the distance between the listening position and each speaker, the delay times of
center, surround and surround back speakers are automatically adjusted to create an ideal listening environment
virtually as if the center, surround and surround back speakers were at their ideal locations respectively.
51
R-772(G)2007.9.174:43PM페이지 52
ENGLISH
When selecting the SPEAKER CROSSOVER
• Set the crossover frequency according to the frequency characteristics of the speakers connected.
(For details on the frequency characteristics, refer to the operating instructions of the speakers.)
• If the frequency range of your speaker is 100 Hz ~ 20 kHz, the crossover frequency should be set to 100 Hz
(or slightly higher).
• The low frequencies below the crossover frequency are to output from subwoofer or the speakers which are
set to "FULL RANGE" (when not using a subwoofer).
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the SPEAKER CROSSOVER, then press the
ENTER button.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired speaker.
�Note :
• You cannot select the subwoofer and the speakers
set to "NO".
3. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to set the crossover frequency as desired.
• You can adjust the crossover frequency within the
range of 40 ~ 250 Hz.
• Select "FULL RANGE" when the selected speaker
can fully reproduce the low frequencies below 40 Hz.
4. Repeat the above steps 2 and 3 until the crossover frequencies are all set as desired.
52
R-772(G)2007.9.174:43PM페이지 53
• The room EQ is a kind of room equalizer for your speakers. According to the acoustic characteristics of your
room measured by the auto setup, the room EQ automatically adjusts the frequency response of your
speakers.
• If you use different brands or sizes of speakers for some channels or have a room with unique acoustic
characteristics, such as walls, furniture, and the dimensions or the shape of the room, we recommend using
the room EQ.
■Note :
• To use the room EQ, first you should finish measuring the acoustic characteristics of your room performing
the auto setup.
(For details, refer to "When selecting the AUTO SETUP" on page 48.)
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the ROOM EQ SETUP, then press the ENTER
button.
Parameter
mode
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the MODE.
3. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to select the desired room EQ mode.
OFF : When turning off the room EQ.
FLAT : To adjust the frequency response of all speakers to
the flattest response. This mode is suitable for multi
channel music surround sound sources.
FRONT : To adjust the frequency response of the surround
and the surround back speakers to match the
characteristics of the front speakers.
USER : To adjust the tonal quality of the different speakers
(except the subwoofer) manually.
■Note :
• Only when the auto setup has been performed, the FLAT
and the FRONT modes can be selected.
53
ENGLISH
When selecting the ROOM EQ SETUP
R-772(G)2007.9.174:43PM페이지 54
ENGLISH
Continued
■When selecting the USER mode
• You can adjust the parametric EQ settings to optimize the frequency characteristics of this unit's parametric
equalizer to match the acoustic characteristics of your room.
• The parametric equalizer uses a combination of the following three parameters to provide highly precise
adjustment of the frequency characteristics.
※ Frequency
• This unit has 5 equalizer bands for each channel. You can adjust the specified frequency bands each
within the following frequency ranges :
20 Hz ~ 120 Hz, 130Hz ~ 500 Hz, 550 Hz ~ 1.9 kHz, 2 kHz ~ 7.5 kHz, 8 kHz ~ 20 kHz
※ Gain
• This parameter is adjustable within the range of -24 ~ +24 dB in 1 dB intervals.
※ Q factor
• The width of the specified frequency band is referred to as the Q factor. This parameter is adjustable within
the range of 0 ~ 24 in 1 intervals.
■Notes :
• When selecting the mode other than "USER" mode, you cannot select the EQ parameters for each channel.
• You cannot select the channel of the subwoofer and the speakers set to "NO".
①. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the CHANNEL, then press the CURSOR
LEFT(◀)/RIGHT(▶) buttons to select the desired channel.
②. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the parameter mode, then press the CURSOR
LEFT(◀)/RIGHT(▶) buttons to select the Fc (Frequency) mode.
③. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired frequency band, then press the
CURSOR LEFT(◀)/RIGHT(▶) buttons to select the desired frequency.
④. Repeat the above step ③ until the desired frequency is selected for each frequency band.
⑤. Repeat the above steps ② ~ ④ to adjust the gain of each specified frequency band.
⑥. Repeat the above steps ② ~ ④ to adjust the Q factor of each specified frequency band.
⑦. Repeat the above steps ① ~ ⑥ until the EQ parameters of other channels are all adjusted as desired.
54
R-772(G)2007.9.174:43PM페이지 55
SETTING THE CH LEVEL SETUP
■Note :
• Depending on the speaker settings("NO", etc.),
some channels cannot be selected.
Adjusting the current channel level
• You can adjust the current channel levels as desired. These adjusted levels are just memorized into user’s
memory("CALIBRATE"), not into preset memory("REFERENCE 1", "REFERENCE 2").
• After adjusting each channel level with test tone, adjust the channel levels either according to the program
sources or to suit your tastes.(For details, refer to "Adjusting each channel level with test tone" on page 27.)
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired channel.
■When adjusting the LFE LEVEL
①. Press the CURSOR UP(▲)/DOWN(▼)buttons to select the LFE LEVEL SETUP, then press the ENTER
button.
②. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired program source.
2. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to adjust the level of the selected channel or program
source's LFE as desired.
• The LFE level can be adjusted within the range of
-10 ~ 0 dB and other channel levels within the
range of -15 ~ +15 dB
• In general, we recommend the LFE level to be
adjusted to 0 dB.(However, the recommended
LFE level for some early DTS software is -10 dB.)
If the recommended levels seem too high, lower
setting as necessary.
3. Repeat the above steps 1 and 2 to adjust each channel level.
55
ENGLISH
Memory mode
R-772(G)2007.9.174:43PM페이지 56
Memorizing the adjusted channel levels
ENGLISH
• You can memorize the adjusted channel levels into preset memory("REFERENCE 1", "REFERENCE 2") and
recall the memorized whenever you want.
1. After performing the steps 1 ~ 3 in "Adjusting the current channel level" procedure on page 55, press the
CURSOR UP(▲)/DOWN(▼) buttons to select a channel (, not the MODE (memory mode) and the LFE
LEVEL SETUP), then press the ENTER button.
• The "REFERENCE 1" indication flickers.
2. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to select the desired preset memory, then press the
ENTER button.
• Each time the CURSOR LEFT(◀) or RIGHT(▶)
button is pressed, "REFERENCE 1" or
"REFERENCE 2" is selected.
• The adjusted channel levels have now been
memorized into the selected memory.
Recalling the memorized channel levels
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the MODE(memory mode).
• "CALIBRATE" may be displayed instead of
"REFERENCE 1" or "REFERENCE 2".
2. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to select the desired one of REFERENCE 1 and
REFERENCE 2.
• Then the channel levels memorized into the
selected preset memory are recalled.
56
R-772(G)2007.9.174:43PM페이지 57
• NIGHT MODE : To adjust the dynamic range compression that
makes faint sound easier to hear at low volume
levels.
• DOLBY PLII MUSIC : To adjust the various surround
parameters for optimum surround effect.
• DOLBY HEADPHONE : To select the desired listening mode for
Dolby Headphone mode.
• DOLBY VIRTUAL SPEAKER : To select the speaker layout to be
used actually for each Dolby
Virtual Speaker mode.
When selecting the NIGHT MODE
• This function compresses the dynamic range of previously specified parts of the Dolby Digital sound track
(with extremely high volume) to minimize the difference in volume between the specified and non-specified
parts.
This makes it easy to hear all of the sound track when watching movies at night at low levels.
�Notes:
• The night mode setting is valid only when the digital signals from the Dolby Digital program source are being
input.
• In some Dolby Digital softwares, the night mode setting may not be valid.
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the NIGHT MODE, then press the
ENTER button.
2. Press the CURSOR LEFT(◀)/ RIGHT(▶) buttons to adjust the dynamic range compression as desired.
0.0 (OFF)
�
0.1
Lower compression
�
0.2
:
:
:
0.9
�
1.0 (MAX)
57
Higher compression
ENGLISH
SETTING THE SOUND PARAMETER
R-772(G)2007.9.174:43PM페이지 58
ENGLISH
When selecting the DOLBY PLII MUSIC
• You can adjust the various surround parameters for optimum surround effect.
�Note:
• The parameter settings are valid only when listening in either Dolby Pro Logic II Music mode or the Dolby Pro
Logic IIx Music mode.
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the DOLBY PLII MUSIC, then press the ENTER
button.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired parameter.
3. Press the CURSOR LEFT(◀)/ RIGHT(▶) buttons to adjust the selected parameter as desired.
�When selecting the PANORAMA mode
This mode extends the front stereo image to include the
surround speakers for an exciting "wraparound" effect with
side wall imaging. Select "OFF" or "ON"(default value:OFF).
�When selecting the CENTER WIDTH control
This adjusts the center image so it may be heard only from
the center speaker, only from the left/right speakers as a
phantom image, or from all three front speakers to varying
degrees. The control can be set in 8 steps from 0 to 7
(default value : 3).
�When selecting the DIMENSION control
This gradually adjusts the soundfield either towards the
front or towards the rear. The control can be set in 7 steps
from -3 to +3(default value : 0).
4. Repeat the above steps 2 and 3 to adjust other parameters.
58
R-772(G)2007.9.174:43PM페이지 59
• You can select the desired listening mode for Dolby Headphone mode.
�Note:
• The listening mode setting is valid only when playing analog stereo, PCM 2 channel or Dolby Digital 2
channel source.
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the DOLBY HEADPHONE, then press the ENTER
button.
2. Press the CURSOR LEFT(◀)/ RIGHT(▶) buttons to select the desired listening mode.
MOVIE : This provides the surround effect suitable for movie
sources.
MUSIC 1 : This provides the surround effect suitable for
music sources.
MUSIC 2 : This provides less surround effect compared to
MUSIC 1 mode.
59
ENGLISH
When selecting the DOLBY HEADPHONE
R-772(G)2007.9.174:43PM페이지 60
When selecting the DOLBY VIRTUAL SPEAKER
ENGLISH
• You can select the speaker layout to be used actually for each Dolby Virtual Speaker mode.
�Note:
• The speaker layout settings are valid only when listening in a Dolby Virtual Speaker mode.
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the DOLBY VIRTUAL SPEAKER, then press the
ENTER button.
2. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired Dolby Virtual Speaker mode.
3. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to select the desired speaker layout.
�When selecting the Dolby Virtual Speaker Reference mode
2 SPK : When using 2 front speakers only.
3 SPK : When using 2 front and center speakers.
�When selecting the Dolby Virtual Speaker Wide mode
2 SPK : When using 2 front speakers only.
3 SPK : When using 2 front and center speakers.
4 SPK : When using 2 front and 2 surround speakers.
5 SPK : When using 2 front, center and 2 surround speakers.
�Note:
• When the speakers are set to "NO", the corresponding speaker layouts cannot be selected.
4. Repeat the above steps 2 and 3 to select the desired speaker layout for another Dolby
mode.
60
Virtual Speaker
R-772(G)2007.9.174:43PM페이지 61
SETTING THE MULTI ROOM SETUP
• ROOM 2 : To turn on or off the ROOM 2 function.
• INPUT : To select the desired ROOM 2 source.
• VOLUME : To adjust the volume on the power
amplifier assigned to "BACK ← → ROOM 2"
or "ROOM 2".
�Notes:
• The analog signals from the EXTERNAL INs and the
digital signals cannot be output to the different room,
meaning no playback in a different room.
• You cannot play the ROOM 2 source in any surround
mode.
1. Press the CURSOR UP(▲)/DOWN(▼) buttons to select the desired item.
�Note:
• The VOLUME cannot be adjusted when the AMP ASSIGN
is assigned to "BI-AMP" or "SURR BACK".
(For details, refer to "When selecting the AMP ASSIGN" on
page 40.)
2. Press the CURSOR LEFT(◀)/RIGHT(▶) buttons to set the selected item as desired.
When selecting the ROOM 2
OFF : To turn off the ROOM 2 function.
↕
ON : To turn it on.
�Notes:
• When the ROOM 2 is set to OFF, the INPUT and the VOLUME cannot be selected.
• When you do not use the ROOM 2 function, set the ROOM 2 to OFF to save electricity.
When selecting the INPUT
• You can select the desired among MAIN source, TUNER, CD, AUX, TAPE, VIDEO 1 ~ VIDEO 4 as a
ROOM 2 source.
�Note:
• When the EXTERNAL IN is selected as a main input, if the MAIN source is selected as a ROOM 2 input,
no audio signal can be heard in the different room (ROOM 2).
When selecting the VOLUME
• You can adjust the volume on the power amplifier assigned to "BACK ← → ROOM 2" or "ROOM 2" when
the ROOM 2 speaker terminals are connected to the speakers in a different room.
�Note:
• You can adjust the VOLUME only when the surround back channels' power amplifier is assigned to "BACK
← → ROOM 2" or "ROOM 2". (For details, refer to "When selecting the AMP ASSIGN" on page 40.)
61
ENGLISH
• The ROOM 2 function allows enjoying one source in the main room while playing another in a different
room at the same time.
R-772(G)2007.9.174:43PM페이지 62
Troubleshooting Guide
ENGLISH
If a fault occurs, run through the table below before taking your receiver for repair.
If the fault persists, attempt to solve it by switching the receiver off and on again. If this fails to resolve the situation, consult your
dealer. Under no circumstances should you attempt to repair the receiver yourself. This could void the warranty.
PROBLEM
POSSIBLE CAUSE
REMEDY
No power
• The AC input cord is disconnected.
• Poor connection at AC wall outlet or the outlet is
dead or off.
• Connect cord securely.
• Check the outlet using a lamp or another
appliance.
No sound
• The speaker wires are disconnected.
• The master volume is adjusted too low.
• The MUTE button is pressed to ON.
• Incorrect selection of input source.
• Incorrect connections between the components.
• The HDMI AUDIO OUT is set to ON.
• Check the speaker connections.
• Adjust the master volume.
• Press the MUTE button to cancel the muting effect.
• Select the desired input source correctly.
• Make connections correctly.
• Set it to OFF. (For details, refer to "When
selecting the HDMI AUDIO OUT" on page 41.)
• Set the settings correctly. (For details, refer to
"SETTING THE INPUT SETUP" on page 44.)
• The settings related to audio are set incorrectly.
No sound from the surround
speakers
• Surround mode is switched off(stereo mode).
• Master volume and surround level are too low.
• Monaural source is used.
• Surround speaker setting is "NO".
• Select a surround mode.
• Adjust master volume and surround level.
• Select a stereo or surround source.
• Select the desired surround speaker setting.
No sound from the center
speaker
• Dolby Virtual Speaker, stereo mode, etc is
selected.
• Center speaker setting is "NO".
• Master volume and center level are too low.
• Select the desired surround mode.
• The input signal format or the current surround
mode cannot support the 7.1(or 6.1) surround.
• Under the proper situations, perform the 7.1(or
6.1) surround playback.(For details, refer to
"ENJOYING SURROUND SOUND" on page 26.)
• Assign the power amplifier to the surround back
channels.(For details, refer to "When selecting
the AMP ASSIGN"on page 40.)
• Adjust master volume and surround back level.
• Select the desired surround back speaker setting.
No sound from the surround back
speakers
• The surround back channels' power amplifier is
assigned to "BI-AMP" or "ROOM 2".
• Master volume and surround back level are too low.
• Surround back speaker setting is "NO".
• Select the desired center speaker setting.
• Adjust master volume and center level.
• Video connections between this unit and the
monitor TV are not made correctly.
• Incorrect selection of input source on the monitor
TV.
• The settings related to video are set incorrectly.
• Make proper video connections.
• HDMI connection between this unit and the
monitor TV are not made correctly.
• The monitor TV or other equipments do not
support HDCP.
• Make proper HDMI connection.
Stations cannot be received
• No antenna is connected.
• The desired station frequency is not tuned in.
• Antenna is in wrong position.
• Connect an antenna.
• Tune in the desired station frequency.
• Move antenna and retry tuning.
Preset stations cannot be
received
• An incorrect station frequency has been memorized.
• The memorized stations are cleared.
• Memorize the correct station frequency.
• Memorize the stations again.
Poor FM reception
• No antenna is connected.
• The antenna is not positioned for the best reception.
• Weak signals.
• Connect an antenna.
• Change the position of the antenna.
• Install an outdoor FM antenna.
Continuous or intermittent hissing
noise during AM reception,
especially at night.
• Noise is caused by motors, fluorescent lamps or
lightning, etc.
• Keep the receiver away from noise sources.
Remote control unit does not
operate.
• Batteries are not loaded or exhausted.
• The remote sensor is obstructed.
• Replace the batteries.
• Remove the obstacle.
OSD function is not available.
• Video connections between this unit and the
monitor TV are not made correctly.
• Make proper video connections.
No picture
No picture with an HDMI
connection
• Select the input source correctly.
• Set the settings correctly. (For details, refer to
"SETTING THE INPUT SETUP" on page 44.)
• This unit will not output video signal unless the
connected equipments supports HDCP.
• Install an outdoor AM antenna.
62
R-772(G)2007.9.174:43PM페이지 63
�AMPLIFIER SECTION
×100 W
• Power output, stereo mode, 6 Ω, THD 1.0 %, 40 Hz~20 kHz | 2×
• Total harmonic distortion, at -3 dB, 6 Ω, 1 kHz | 0.05%
• Intermodulation distortion
60 Hz : 7 kHz= 4 : 1 SMPTE, 6 Ω, 95 W | 0.05%
• Input sensitivity/impedance
Line (CD, TAPE, VIDEO) | 300 mV/47kΩ
• Signal to noise ratio, IHF "A" weighted
Line (CD, TAPE, VIDEO) | 100 dB
• Frequency response
Line (CD, TAPE, VIDEO), 10 Hz ~ 100 kHz | +0, -3 dB
• Output level
ROOM 2 OUT, 2.2 kΩ | 300 mV
• Bass/Treble control, 100 Hz/10 kHz | ±10 dB
• Surround mode, only channel driven
Front power output, 6 Ω, 1 kHz, THD 1.0 % | 110W/110W
Center power output, 6 Ω, 1 kHz, THD 1.0 % | 110W
Surround power output, 6 Ω, 1 kHz, THD 1.0 % | 110W/110W
Surround back (/MULTI) / ROOM 2 power output, 6 Ω, 1 kHz, THD 1.0 %
ENGLISH
Specifications
| 110W/110W
�DIGITAL AUDIO SECTION
• Sampling frequency | 32, 44.1, 48, 96 kHz
• Digital input level
Coaxial, 75 Ω | 0.5 Vp-p
Optical, 660 nm
| -15 ~ -21 dBm
�VIDEO SECTION
• Video format
| PAL
• Input sensitivity(=Output level), 75 Ω
Video (Composite(normal))
|
S-Video (luminance signal)
|
(chrominance signal)
Component video (R-Y signal)
(B-Y signal)
(Y signal)
• HDMI connector
| 19 pin
1 Vp-p
1 Vp-p
| 0.286 Vp-p
| 0.5 Vp-p
| 0.5 Vp-p
| 1.0 Vp-p
�FM TUNER SECTION
• Tuning frequency range
| 87.5~108 MHz
• Usable sensitivity, THD 3%, S/N 26 dB
| 12.8 dBf
• 46 dB quieting sensitivity, mono/stereo
| 20.2 / 45.3 dBf
• Signal to noise ratio, 65 dBf, mono/stereo
| 70 / 65 dB
• Total harmonic distortion, 65 dBf,1 kHz, mono/stereo
| 0.5 / 0.8 %
• Frequency response, 30 Hz~15 kHz
| ±3 dB
• Stereo separation, 1 kHz
| 32 dB
• Capture ratio
| 4.0 dB
• IF rejection ratio | 60 dB
�AM TUNER SECTION
• Tuning frequency range
| 522~1611 kHz
• Usable sensitivity
| 500 µV/m
• Signal to noise ratio
| 40 dB
• Selectivity
| 25 dB
�GENERAL
• Power supply
| 230 V ~ 50 Hz
• Power consumption
| 370 W
• Switched AC outlet
| TOTAL 100 W (0.43 A) max.
×141×
×370 mm(17-3/8×
×5-1/2×
×14-1/2 inches)
• Dimensions (W×H×D, including protruding parts)
| 440×
• Weight (Net)
| 10.1 kg (22.3 Ibs)
Note: Design and specifications are subject to change without notice for improvements.
63
R-772(G)2007.9.174:43PM페이지 64
Setup Code Table
ENGLISH
TV
ADMIRAL
AKAI
ALBA
ALBIRAL
ALCATEL
AMSTRAD
ANAM
ARC EN CIEL
ARISTONA
ARTHUR MARTIN
ASA
ATLANTIC
AUDIOSONIC
AUSIND
AUTOVOX
BAIRD
BASICLINE
BAUR
BEKO
BLAUPUNKT
BRANDT
BRION VEGA
BRUNS
BSR
BUSH
CENTURY
CGE
CIHAN
CLARIVOX
CONDOR
CONTEC
CONTINENTAL
EDITION
CROSLEY
CROWN
CTC CLATRONIC
DAEWOO
DECCA
DEGRAAF
DIXI
DRYNATRON
DUAL
DUAL-TEC
DUMONT
ELBE
ELBIT
050
093
068
116
022
000
155
028
099
078
053
125
050
099
054
053
099
083
006
011
023
094
028
050
048
059
033
098
016
065
048
099
087
028
101
147
046
089
099
036
049
049
099
096
046
016
065
134
049
021
156
039
049
139
128
055
111
ELCIT
123
ELMAN
ELTA
EMERSON
ERRES
EUROPHON
157
043
050
145
019
081
142
149
FERGUSON
117
120
122
123
FIDELITY
FINLUX
057
113
134
144
055
019
057
049
100
039
102
040
111
043
114
145
050
110
068
101
101
132
124
050
124
074
079
079
136
132
FISHER
FORGESTONE
FORMENTI
FORTRESS
FRABA
FRONTECH
FUJITSU
FUNAI
GBC
GEC
GELOSO
GOLDSTAR
069
081
GOODMANS
GORENJE
GREATZ
136
116
111
GRANADA
GRUNDIG
039
050
060
040
109
063
043
115
145
081
HANSEATIC
HANTAREX
HEMMERMANN
HIFIVOX
HINARI
HITACHI
118
090
141
099
050
116
132
057
HYPER
IMPERIAL
INGELEN
073
64
046
132
046
090
158
049
098
132
146
116
099
034
113
015
149
099
137
075
054
025
054
109
099
103
092
076
033
066
001
129
033
115
094
114
033
111
097
127
028
158
014
056
132
093
016
001
130
097
103
050
109
127
132
098
142
046
050
097
099
051
115
040
149
149
046
073
048
041
150
057
061
053
074
050
055
079
052
057
109
109
136
053
109
111
125
109
132
017
090
060
115
134
099
152
077
134
090
049
088
109
134
049
134
057
122
123
128
058
060
142
058
108
112
099
049
109
139
043
045
034
139
084
145
143
036
110
091
081
090
099
067
081
145
117
088
124
109
079
122
132
128
133
129
059
132
060
109
003
077
049
136
058
130
099
125
100
082
047
039
033
033
109
134
099
101
058
134
075
INNO HIT
INTERFUNK
IRRADIO
ITT
JVC
KTV
KAISUI
KARCHER
KENDO
KENNEDY
KORTING
KRIESLER
LENOIR
LOEWE OPTA
LOGIK
LUMA
LUXOR
MAGNADYNE
MAGNAFON
MARANTZ
MATSUI
McMICHAEL
MEMOREX
METZ
MINERVA
MISTRAL
MITSUBISHI
MIVAR
MULTITECH
MURPHY
MAONIS
NATIONAL
NEC
NECKERMANN
NEI
NIKKAI
NOBLEX
NOBLIKO
NOGAMATIC
NOKIA
093
090
047
142
093
001
123
135
033
099
006
006
098
144
050
099
078
099
008
072
118
049
058
135
046
127
046
049
158
134
088
090
094
094
149
033
118
097
046
134
096
042
033
099
049
060
015
098
028
001
123
135
098
097
099
143
077
NORDMENDE
049
123
143
140
128
083
154
050
128
053
058
148
089
145
129
077
105
129
058
091
090
109
130
109
OCEANIC
ONCEAS
OPTONICA
ORION
OSAKI
OSIO
OSUME
OTTO VERSAND
P.T ACTTRON
PAEL
PANASONIC
019
059
049
097
149
120
139
083
097
132
097
099
090
109
111
050
019
142
PATHE CINEMA
PERDIO
PHILCO
149
047
049
050
115
PHILIPS
134
117
120
123
129
PHOENIX
PHONOLA
103
050
109
115
099
051
053
115
106
060
118
068
050
100
114
057
133
058
035
119
099
099
047
148
115
115
049
080
077
136
050
138
144
104
085
050
019
109
110
134
139
120
136
046
039
140
128
083
122
134
099
043
058
148
089
053
145
105
129
PIONEER
PRANDONIPRINCE
PREMIER
PRINCE
PROTECH
PYE
QUASAR
QUELLE
114
062
RADIOLA
RADIOMARELLI
057
081
109
130
RANK
RBM
REDIFFUSION
REX
ROBOTRON
RTF
SABA
122
134
SAISHO
SALORA
65
028
091
109
099
137
000
060
077
087
033
065
099
030
121
099
060
016
079
009
049
078
099
099
078
020
098
124
098
049
099
149
046
047
057
118
099
078
046
127
074
074
062
096
134
048
048
028
043
086
158
053
125
032
081
064
123
059
047
053
042
126
111
039
043
145
131
118
068
127
090
049
109
139
095
104
107
109
116
132
030
132
010
050
088
053
049
101
136
013
019
050
109
124
018
142
024
148
099
149
109
050
111
019
125
142
149
049
145
091
097
053
115
097
054
049
078
097
099
058
123
049
053
134
050
019
142
051
100
111
073
050
053
049
112
074
019
077
053
113
128
142
097
132
103
050
109
062
123
144
134
019
141
110
069
050
050
031
097
091
099
139
128
032
050
081
118
117
135
037
145
039
115
040
120
119
120
083
068
122
090
123
134
148
055
114
149
ENGLISH
R-772(G)2007.9.174:43PM페이지 65
R-772(G)2007.9.174:43PM페이지 66
ENGLISH
SAMBERS
SAMPO
SAMSUNG
SANYO
SBR
SCHAUB LORENZ
SCHNEIDER
SEG
SEI
SELECO
SHARP
Sherwood
SIAREM
SICATEL
SIEMENS
SIERA
SILVER
SINGER
SINUDYNE
SONOKO
SONY
STERN
TANDBERG
TANDY
TASHIKO
TATUNG
TEC
TELEAVIA
TELEFUNKEN
TELETECH
TELEVIDEON
TENSAI
THOMSON
THORNFERGUSON
TOCOM
TOSHIBA
TRANS
CONTINENTS
TRIUMPH
UHER
ULTRA VOX
046
121
015
090
001
060
049
001
129
096
141
132
046
158
016
069
033
000
046
116
005
087
099
078
054
016
158
049
146
096
133
099
002
099
096
028
081
028
090
099
049
012
145
097
051
053
115
077
026
151
002
113
142
058
130
099
109
099
153
005
118
148
109
134
049
142
054
077
136
033
071
149
122
044
054
088
123
048
136
128
050
125
052
149
019
078
144
019
141
110
059
096
134
087
137
097
050
109
115
094
036
100
111
114
049
050
019
142
149
046
046
090
007
144
050
050
109
059
109
127
027
019
033
110
038
069
118
134
060
033
060
099
039
137
063
132
040
065
115
118
043
145
091
041
145
150
086
091
053
109
111
125
028
091
032
081
039
040
014
061
029
004
040
116
041
149
054
086
150
016
033
070
074
098
158
052
098
097
053
134
111
046
125
099
050
109
UNIVERSUM
UNIVOX
VEGAVOX
VOXSON
WATSON
WATT RADIO
WEGA
WHITE
WESTINGHOUSE
YOKO
ZANUSSI
ZOPPAS
092
116
079
050
111
046
033
034
054
077
051
109
116
127
099
099
096
096
111
144
144
019
019
110
110
069
134
134
022
020
052
032
033
056
031
052
031
054
045
018
025
034
134
099
VCR
AKAI
ALBA
AMSTRAD
ANITSCH
ARC EN CIEL
ARISTONA
ASA
AWIA
BAIRD
BAUER. BOSCH
BLAUPUNKT
BRANDT
ELECTRONIQUE
BRIONVEGA
BUSH
C.EDISON
CANON
CAPEHART
CGE
CONTINENTAL
EDISON
CRAIG
CURTIS MATHES
DAEWOO
DAYTRON
DECCA
DEGRAAF
DUAL
DUMONT
DYNATECH
EMERSON
FERGUSON
FIDELITY
FINLANDIA
FINLUX
FISHER
043
057
120
66
042
008
011
009
042
045
018
011
042
014
014
042
041
008
041
014
020
011
042
000
019
001
020
011
003
042
003
011
002
042
011
003
003
000
042
033
043
043
055
056
052
040
020
042
052
056
013
052
020
021
042
006
052
011
011
018
010
059
011
030
019
052
018
006
003
011
005
018
036
R-772(G)2007.9.174:43PM페이지 67
HANSEATIC
HARMANKARDON
HIFIVOX
HINARI
HITACHI
IMPERIAL
INGELEN
INGERSOL
ITT
JENSEN
JVC
KENWOOD
KRIESLER
KUBA
LLOYD
LOEWE OPTA
LOGIK
LUXOR
MAGNADYNE
MAGNASONIC
MAGNAVOX
MARANTZ
MATUI
MEMOREX
METZ
MGA
MINERVA
MINOLTA
MITSUBISHI
MTC
MULTITECH
MURPHY
NAONIS
NATIONAL
NEC
NECKERMANN
NOGAMATIC
NOKIA
NORDMENDE
OPTONICA
ORION
011
019
014
004
008
041
003
014
054
043
004
042
002
006
011
042
027
005
033
042
042
005
045
043
011
014
008
033
041
038
019
004
010
000
014
017
055
006
060
011
008
011
042
040
004
002
042
003
052
039
045
002
062
011
042
005
043
046
056
018
018
050
052
038
055
031
053
056
008
007
052
024
011
027
042
056
052
038
041
038
042
056
050
052
056
042
031
060
060
030
052
063
018
027
038
029
014
025
003
043
046
027
005
031
OSAKI
OTTO VERAND
P. CINEMA
PALLADIUM
PANASONIC
PATHE MARCONI
PENTAX
PERDIO
PHILIPS
PHONOLA
PIONEER
PORTLAND
PROLINE
PYE
QUARTZ
QUELLE
RADIOLA
RADIOMARELLI
RCA
REALISTIC
057
REX
SABA
SAISHO
SALORA
SAMSUNG
SANSUI
SANYO
SBR
SCHAUB LORENZ
SCHNEIDER
SEI-SINUDYNE
SELECO
SENTRA
SHARP
SHINTOM
SIEMENS
SIERA
SINUDYNE
SONY
STERN
STS
SUNKAI
SYLVANIA
SYMPHONIC
TASHIKO
TATUNG
TEAC
TEKNIKA
TELEAVIA
TELEFUNKEN
TENOSAL
031
018
031
011
054
045
037
054
007
017
013
011
049
056
052
042
041
056
005
033
042
046
010
060
014
052
041
038
056
052
042
052
042
056
050
052
053
035
025
027
67
011
043
014
041
023
042
006
011
012
031
014
060
020
011
014
005
002
045
041
019
000
046
042
039
002
005
013
042
000
018
041
008
027
042
020
045
008
014
045
027
044
042
006
025
011
011
011
011
011
011
042
042
008
014
051
056
007
040
052
014
045
046
018
045
018
029
031
045
018
029
031
044
031
054
003
005
011
013
056
042
010
017
019
060
003
029
042
011
052
056
025
052
027
035
032
061
005
025
038
056
045
050
031
052
038
056
052
046
105
048
043
031
055
031
054
038
015
056
016
052
026
028
017
017
042
042
056
056
052
052
ENGLISH
FUNAI
GE
GENERAL
GOLDSTAR
GOODMANS
GRAETZ
GRANADA
GRUNDIG
029
045
R-772(G)2007.9.174:43PM페이지 68
ENGLISH
THOMSON
THORNFERGUSON
TOSHIBA
TOTELEVISION
UHER
ULTRA VOX
UNITECH
UNIVERSUM
URANYA
VECTOR
VICTOR
VIDITAL
WESTING HOUSE
WARDS
YAMAHA
ZANUSSI
ZENDER
ZOPPAS
CBL
042
056
052
039
036
001
013
042
041
013
041
041
004
042
041
041
019
004
042
052
042
042
059
030
052
034
042
056
017
058
052
ABC
014
Allegro
Archer
Bell&Howell
Century
Citizen
Comtronics
Contec
Easten
Emerson
Everquest
Focus
Garrard
Gemini
General Instrument
GoldStar
Goodmind
Hamlin
Hitachi
Hytex
Jasco
Jerrold
043
060
042
056
052
056
DVD
DENON
GE
JVC
LG
MAGNAVOX
MITSUBISHI
ONKYO
PANASONIC
PHILIPS
PIONEER
PROSCAN
RCA
SAMSUNG
SHERWOOD
SONY
THOMSON
TOSHIBA
VIETA
YAMAHA
ZENITH
017
003
007
011
019
001
009
015
019
002
003
003
016
000
022
005
003
006
014
019
011
004
Movie Time
NSC
Oak
Optimus
Panasonic
Philips
Pioneer
Popular Mechanics
RCA
Radio Shack
Recoton
Regal
Regency
Rembrandt
Sherwood
SL Marx
Smasung
Scientific Atlanta
Signal
Signature
Sprucer
Starcom
010
023
004
004
008
010
020
011
021
012
013
014
004
010
68
002
007
018
018
009
018
018
014
011
001
026
010
022
018
010
033
017
026
012
006
007
010
002
006
015
015
011
031
016
018
017
022
031
010
022
012
001
006
000
014
017
003
010
006
031
002
003
006
021
026
009
008
030
276
040
006
034
020
004
013
018
007
034
021
033
032
026
028
030
027
021
014
031
025
021
020
014
023
014
010
009
010
Stargate
Starquest
TV86
Teleview
Tocom
Tusa
Unika
United Artists
Universal
Viewstar
Zenith
Zentek
010
010
015
014
007
010
018
007
153
015
024
022
014
026
MAGAI
MARANTZ
MASPRO
METZ
MINERVA
MULTISTAR
MURATO
NEC
NEIRU
NOKIA
NORSAT
PACE
PANASONIC
PHILIPS
PHONOLA
PROSAT
PYE
QUADRAL
QUELLE
RADIOLA
REDIFFUSION
SABA
SALORA
SAMSUNG
SAT PARTNER
SATPORTNER
SCHAUB LORENZ
SCHNEIDER
SHERWOOD
SIEMENS
SIERA
SILVA
SKY
STARCOM
STARSAT
TECHNISAT
TELEFUNKEN
TELESYSTEM
THORNFERGUSON
008
019
SAT
ALBA
AMSTRAD
ARCON
ARISTONA
ASTRA
BLAUPUNKT
BUSH
CH.MASTER
CITY COM
DDC
DYNASAT
ECHOSTAR
EMME ESSE
FAIT
FERGUSON
FINLUX
FRACARRO
FTE
GOLDSTAR
GRAETZ
GROTHUSEN
GRUNDIG
HINARI
HIRSCHMANN
HITACHI
INGELEN
ITT
ITT-NOKIA
JERROLD
KATHREIN
KOSMOS
KRIESLER
LENCO
LUXOR
030
008
021
016
028
033
016
030
005
030
005
002
005
005
014
006
005
022
004
026
004
033
030
003
013
026
034
032
038
005
004
016
004
026
019
027
009
032
020
041
007
016
013
017
018
036
018
021
037
016
006
TRIAD
UNIDEN
UNITED CABLE
VTECHNOLOGY
VORTEC
ZENDER
037
018
014
022
026
037
023
021
037
69
022
012
016
036
036
022
004
040
021
026
015
001
032
003
016
030
016
030
036
016
015
035
026
003
004
021
026
005
000
033
016
004
039
038
022
003
025
005
010
043
004
022
038
004
003
022
ENGLISH
R-772(G)2007.9.174:43PM페이지 69
037
042
016
017
011
012
029
014
041
016
024
025
018
044
017
018
022
037
016
036
021
R-772(G)2007.9.174:43PM페이지 70
ENGLISH
CD
ADCOM
AIWA
AKAI
AUDIO
ARC EN CIEL
DENON
FISHER
H/K
JVC
KENWOOD
MARANTZ
MONDIAL
NAD
NAKAMICHI
NIKKO
ONKYI
PANASONIC
PHILPS
PIONEER
RCA
REALISTIC
SANSUI
SHARP
SHERWOOD
SONY
TEAC
TECHNICS
VICTOR
YAMAHA
AUX-TAPE/MD
021
045
046
016
036
230
054
006
017
028
003
015
033
048
049
016
013
051
014
005
007
045
040
019
000
058
050
055
051
001
044
SHERWOOD
039
022
014
027
012
034
020
014
047
001
010
002
042
037
052
011
008
009
041
053
035
030
029
021
019
025
026
052
043
016
AUX-LD
018
DAEWOO
DENON
GOLDSTAR
KENWOOD
MAGNAVOX
OPTIMUS
PANASONIC
PHILIPS
POINNEER
RCA
REALISTIC
SAMSUNG
SHARP
TECHINCS
TOSHIBA
YAMAHA
016
023
024
032
004
031
006
038
056
000(for tape deck)
015 016(for MD recorder)
057
70
002
012
004
003
010
007
013
010
000
006
007
001
003
013
003
008
009
005
011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
