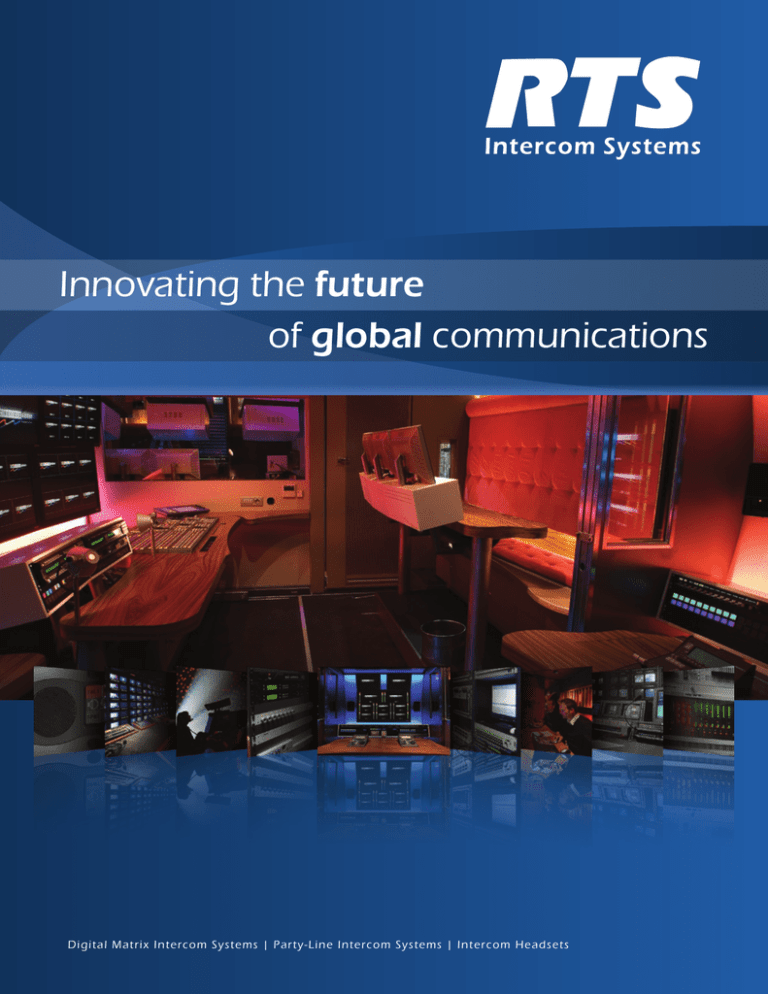

Innovating the future
of global communications
D ig it a l Ma t rix I n te r c o m S y s te ms | P a r ty -L i ne I nter c o m Sys tem s | I nter c o m H ead s ets
T a Table
b l eof Contents
Of
Contents
Forward Thinking
3
Worldwide Connectivity
4
Intercom Matrices
6
Interface Cards
8
Breakout Panels
9
RVON VoIP Devices
10
Software 12
CLD Color Display Keypanel Series
14
KP-32 Classic Keypanel Series
16
KP x12 12-Position Keypanel Series
18
KP-12 Modular Keypanel Series
20
Value Keypanel Series
22
RKP-4 Wireless Keypanel
24
Trunkmaster Series
25
System Peripherals
26
IFB System Peripherals
28
Master Stations
29
User Stations
30
Beltpacks 32
Power Supplies
33
Accessories 34
Product Specifications
36
Intercom Headsets
38
2 | RTS Intercom Systems
Forward Thinking
It is our goal to be the recognized global leader in
delivering comprehensive communications systems
and solutions to entertainment and industry.
F
orward Thinking is a philosophy that
is applied to everything we do. Every
component we build, every system we specify
is derived from one fundamental challenge:
How can we better carry our
users’ communication?
In the early days of television production,
intercommunication among the crew was
accomplished using carbon microphone conference
line intercom systems. These systems used
telephone company equipment and telephone
company technology. This technology was not
intended to conference more than two stations,
and television production needed as many as 30
stations to conference together. As the number of
stations ranged from 10 upwards, the performance
of the system was severely degraded. Some
improvements were made over the years, but
the system’s flaws were never fully addressed.
In 1975, the founders of RTS took a systems
approach to solve the fundamental system design
problem. After six months of intensive work, the
problem was solved, and products were developed
to utilize the solution. This first solution was called
the “Two-Wire Intercom System”. The company
formed then, to solve the problem and to market
the solution, was—and still is RTS Systems.
In 1979, Compact Video Systems bought RTS
Systems, Inc. Compact Video Systems was a television
production and manufacturing company and is
credited with many successful television productions.
The acquisition spawned a period of new product
development. During this interval, foundations were
laid for further growth and a dealer network was
developed. Accounting, manufacturing, engineering,
and documentation systems were put into place
to support rapid growth and improved quality.
From 1979 to 1989, RTS’ products became a standard
for the television industry. The major television
networks incorporated RTS Systems products. In
addition, RTS Systems products became the standard
for mobile units.
In 1989 Telex Communications, Inc. bought RTS
Systems and a new growth period began. This growth
included improvements in manufacturing efficiency,
a strengthened sales organization, and an advance in
manufacturing technology (surface-mount circuitry,
plastics molding and tooling resources). In 1989 RTS
won an Emmy award for Outstanding Achievement
in Engineering Development in recognition of their
engineering contribution and development of
professional two-wire intercommunications systems for
use in television production and broadcast operations.
In 1990, Telex acquired the exclusive manufacturing
rights to the McCurdy line of matrix intercoms to
complement the series of party-line intercoms
already manufactured by RTS. In the 1940’s, McCurdy
Radio Industries of Canada began manufacturing
intercom systems and in the mid 1970’s introduced
a solid-state intercom matrix called the 9100.
Upon acquiring the line of matrix intercoms from
McCurdy Radio, Telex started to extend and improve
its product portfolio. Since the RTS brand name
was well known in the broadcast market, the new
digital matrix products were branded RTS, as well.
In September 2006, Telex became part of the
Bosch Group. The acquisition brings Bosch’s
quality standards to RTS through streamlined
and modernized processes, as well as a renewed
commitment to research and development.
RTS’ renewed commitment came to fruition with the
launch of the world’s first color display keypanels:
the CLD series. These ground-breaking keypanels are
characterized by a full-color graphic interface, and
other refinements that make operation highly intuitive.
As technology moves forward, so do the innovations
from RTS. We are constantly looking for new ways
to deliver clear, reliable communications that strike
a perfect balance between our users’ demand for
increasingly complex configurations and simple,
intuitive operation. The components featured in this
catalog are just the beginning of an exciting new
era of forward thinking communications systems.
www.rtsintercoms.com | 3
W Worldwide
o r l Connectivity
d w i d e
C
ADAM
with RVON-16
KP-32
Classic
with
RVON-1
Cronus
with RVON-C
10101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101
0101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101
010101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010
010101010101010101010101010101010101010101010101010101010101010101010101010101010101
010101010101010101010101010101010101010101010101010101010101010101010101010101010
Netw
RVON-I/O
Interface
Analog
RTS Keypanels
Legacy McCurdy Keypanels
Analog Four-Wire
OR
Obsolete Product on
VoIP via RVON-I/O
GPIO-16
Relay Interface
Matrices
Zeus/Zeus II/Zeus III
4 | RTS Intercom Systems
o n n e c t i v i t y
RTS is in the business of connecting people all over the world.
Whether across the hall or across an ocean, RTS provides the
bridge to get your message heard clearly and reliably.
KP 32 CLD
with RVON-2
VoIP
Virtual
Keypanel
on PC
0101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101
0101010101010101010101010101010101010101010101010101010101010101010101010101010101010
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010100101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101
010101010101010101010101010101010101010101010101010101010101010101010101010101010101
0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 01 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0
work
DKP 612 | DKP
412 with RVON
KP 612 | KP 412 with RVON
ON AIR
External Device
www.rtsintercoms.com | 5
I
Intercom
n
t eMatrices
r c
o
m
T
he RTS family of digital intercom matrices
is the most extensive, widely used line of
intercoms in the world. From the top-ofthe-line ADAM matrix, available in sizes from 16 to
more than 1,000 users, to the original Zeus 24-port
matrix, RTS matrices are the standard for reliable,
mission-critical communications in broadcast,
military, industrial, and entertainment applications.
Intercom matrices at a glance
Attribute
ADAM
Cronus
Zeus III
Port Capacity: Single Frame
272
32
32
Rack Units
7
2
1
Redundant Power Supplies
Yes
Yes
Yes
Redundant Controllers
Yes
No
No
Bus Expansion
Yes
Yes, 4x Cronus, linking
license required
No
Link Method
Single Mode Fiber or
Multi Mode Fiber
Coax/Fiber between
Cronus frames
N/A
Cable Length
TBX fiber single mode 40
km Multi mode 550 m
Coax: 90 meters
Fiber : 15km
Audio Bits
24
24
24
VOX on Input
Yes
Yes
Yes
AES Audio
Yes
No
No
Trunking Support
Yes
Yes
Yes
Intuitive User Interface
Yes
Yes
Yes
Matrix PC Connection
Ethernet Serial
Ethernet, Serial, USB
Ethernet, Serial, USB
Non-Destructive Download
Yes
Yes
Yes
Integrated Party-Line
Interface
No
No
Yes
Remote Configuration
Yes
Yes
Yes
Relays
External GPIO-16
4
2
6 | RTS Intercom Systems
M
a
t
r
i
c
e
ADAM Advanced Digital Audio Matrix
Using a Time Division Multiplex (TDM) technique,
ADAM grows linearly as users are added; the
system comes standard with newly redesigned,
redundant high-current power supplies. The
Ethernet master controllers, MCII-e, which allow
for automatic changeover in the event of failure.
The MCII-E master controller allows Ethernet
connectivity between the ADAM intercom and
a PC running AZedit programming software. It
can support 32 simultaneous AZedit sessions
via Ethernet and three sessions via serial.
ADAM is available with the widest variety of interface
cards in the industry, which includes the AIO-16,
AES-3, and RVON-16 VoIP interfaces. It also has a
wide variety of cabling options, including RJ-11s, RJ54s, CAT-5s, DB-9s, jack fields, and many others.
Cronus DSP Matrix Intercom
RTS Cronus intercom is a modular, 32-port digital
matrix intercom in 2RU (rack units) that can hold
up to four AIO analog or RVON-C VoIP cards
with eight ports each. Based on advanced DSP
architecture, Cronus intercom has the ability to
link up to four units into a single 128-port matrix.
The Cronus can be preconfigured for fiber with
a connection up to 9.3mi (15km), or coax for a
connection up to 300’ (91.4m). When connected as
a single matrix, individual Cronus intercom controls
remain autonomous and independent at each
matrix for the highest reliability. Cronus is available
with an analog card or the RVON-C VoIP card.
Zeus III Digital Intercom Matrix
Zeus III is the next generation of compact intercom
system units, giving compact systems more options
for their intercom configurations. Zeus III has 32
channels IN/OUT and two additional configurable
party-line interface channels. Its compact size is
perfect for environments with limited space. With
integrated Ethernet, Zeus III can be configured
from virtually anywhere on the network using
AZedit Intercom software. Alternatively, Zeus
III can be directly connected to AZedit a USB
connector on the front panel. The system has 32
standard RJ45 connectors, making it easier to
connect the intercom system with audio lines and
keypanels by keeping the RTS wiring scheme.
www.rtsintercoms.com | 7
s
I
Interface
n
t eCardsr
R
f
a
c
e
TS interface cards are the core of the modular
digital matrix intercom concept. An array
of features and connectivity options allows
users to customize their ADAM matrix to integrate
seamlessly into a communications network. Each
new generation provides expanded possibilities for
existing ADAM frames, solidifying its investment
value for years to come. With features such as hot
swap and SNMP support, the ADAM subassemblies
ensure that users can scale their intercom systems
to fit their growing needs with peace of mind.
MCII-e
TBX-Tribus
The Ethernet connectivity of the MCII-E enables
multiple AZedit sessions and remote peripherals
such as the GPIO-16 (page 26). Adding Ethernet
connectivity between the ADAM intercom and a
PC running AZedit configuration software, the new
controller can support up to 35 simultaneous AZedit
sessions. Using a pair of MCII-e controller cards
provides full redundancy with seamless automatic
changeover upon failure. The MCII-e also supports
SNMP, the IETF standard protocol for monitoring
network-attached devices.
A single TBX-Tribus fiber card
can link up to four ADAM frames
together and allow them to appear
as one matrix system. This makes
it possible to increase the number
of available users on a system by
transparently integrating additional
frames. This functionality can be
very useful in mobile production
scenarios to tie systems together via
fiber using the digital audio of the
TBX-Tribus.
Ethernet Master Controller Card Kit for
ADAM
Triple-Bus Expander
Card Kit for ADAM
Interface Card Comparison
Frame
Card
ADAM
MCII-E
Ethernet Master Controller Connects to AZedit configuration software via Ethernet
ADAM
RVON-16
16-Port VoIP
Connects ADAM to panels and/or audio
tielines over standard IP networks
ADAM
AIO-16
16-Port Analog I/O
Provides 16 ports of audio IN and OUT via MDR
and 50-pin SCSI, plus individual data drivers
ADAM
AES-3
Digital Audio Interface
Supports four audio channels through eight
AES-3 connections via BNC coax.
ADAM
TBX-Tribus
Triple-Bus Expander
One Card Links up to four ADAM frames together
Cronus
RVON-C
8-Port VoIP
Connects Cronus to panels and/or audio
tielines over standard IP networks
Cronus
Cronus-AIO
8-Port Analog I/O
Provides 8 ports of audio IN and OUT via RJ-12 or MDR
8 | RTS Intercom Systems
Functionality
Backcard Connectors
Breakout
C Panels
a r
Breakout panels provide a convenient way of
expanding the port capacity of ADAM intercom
systems. There are seven breakout panels for use
d
s
with the AIO cards: XCP-32-DB9, XCP-16-DB9-T,
XCP-48-RJ45, XCP-48-TELCO, XCP-40-DB9, XCP40-RJ11, XCP-955, XCP-24, and the XCP-24-USOC.
CinevideoGroup Equips High-Def Broadcast Trucks with RTS Intercom
Netherlands-based Cinevideogroup acquired two
new RTS-equipped high-definition OB vehicles.
Cinevideogroup’s new Outside Broadcast Vans
(OBV), equipped with an RTS ADAM matrix
intercom, are widely used in mobile productions
throughout Europe. Some recent productions
include the games of Spanish first division clubs
Real Madrid, FC Barcelona, and a Berlin concert
by The Cure, and a Simply Red concert in Sicily.
To ensure optimal communication during every
production, Cinevideogroup entrusted RTS. One
broadcast van is equipped with a comprehensive
128-port ADAM matrix; the other features a Cronus.
Both broadcast vans include KP-32 Classic and
KP-12 keypanels. The multi-truck system featured
breakout panels that were used to conveniently
expand the port capacity of the ADAM.
Breakout Panel Comparison
Frame
Panel
Back Card
Connectors
XCP-955
ADAM
Telco
(25x) RJ-12
XCP-954-48
ADAM
Telco
(48x) DB-9
XCP-32-DB9
ADAM & Cronus
MDR
(32x) DB-9
XCP-16-DB9-T
ADAM & Cronus
MDR
(16x) DB-9
XCP-48-RJ45
ADAM & Cronus
MDR
(48x) RJ-45
XCP-48-Telco
ADAM & Cronus
MDR
(6x) Telco
XCP-40-DB9
ADAM
SCSI
(40x) DB-9
XCP-40-RJ12
ADAM
SCSI
(40x) RJ-12
XCP-24
ADAM
SCSI
(3x) Telco
XCP-24-USOC
ADAM
SCSI
(3x) Telco
XCP-ADAM-MC
ADAM
SCSI
(10x) DB-9, (1x DB25)
www.rtsintercoms.com | 9
R
RVON
Devices
V OVoIP N
T
he RTS Voice Over Network (RVON) series
allows the full integration of our intercom
system into your existing data network. It also
allows you to create an independent network for your
RVON equipment. Our devices are fully IP-compliant
V
o
with current VoIP standards. All RVON series devices
can be monitored via SNMP. The RVON product
family supports ancillary data control for use with
RTS Intelligent Trunking. These products enable
trunking over IP for local to worldwide connectivity.
Broadcasters Choose RTS Intercom Systems for Inaugural Coverage
Barack Obama was sworn in as the 44th president of
the United States in 2009. With a record 1.8 million
spectators in attendance Washington DC and the
surrounding community was virtually shut down for
the event. In addition, 38 million Americans watched
the inauguration on television. How did broadcasters
cope with this unprecedented viewership? They
stayed connected with RTS Intercom Systems.
RVON technology played a central role in connecting
broadcasters to their worldwide communication
networks. RVON allows the full integration of the
intercom system into a user’s existing data network.
It also allows for the creation of an independent
network for a user’s RVON equipment.
The RVON series devices are fully IP-compliant
with current VoIP standards, and can be monitored
via SNMP. The flexibility of being able to use an
existing data network simplifies the whole process.
One broadcaster used RVON to interconnect the
Newseum and production trucks at Capitol Hill
and the Library of Congress to remote stations
and the Master Control Room via trunking.
“I will say that each and EVERY remote production
truck I visited at the US Capitol had an RTS system
as their main communications system on board.
You could say that the RVON product was key
to all the critical communication used during the
inauguration.” Shawn Anderson, Systems Engineer.
The RTS VoIP Virtual Keypanel (VKP) is a Windowsbased application that allows any user to have
a fully functioning RTS Digital Matrix Intercom
user station on their PC. The Virtual Keypanel
application connects via the PC’s Ethernet
connection to any path that can support standard
IP protocols, including LAN, WAN, and VPN.
10 | RTS Intercom Systems
The RTS VKP application is compatible with any
RTS Digital Matrix Intercom equipped with the
RVON interface. The Virtual Keypanel brings
a new level of enterprise-wide and remote
access to your RTS Digital Matrix Intercom
system. The VKP requires that the
PC have a static IP address.
I
P
D
e
v
i
c
“The VKP looks and behaves just like our best-selling RTS
keypanels, but it is just an application on your computer. This
frees up physical real estate on your desk, and allows any PC user
on the network to connect the intercom system via Ethernet.”
-Christian Latzelsberger, Product Manager, RTS Intercoms
Device
VoIP Interface
Functionality
ADAM
RVON-16
16-Port VoIP Card Kit
Analog Devices
RVON-I/O
8-Port VoIP Analog Interface
KP 32 CLD
RVON-2
Two Channel VoIP Interface
for CLD Series Keypanels
KP-32 Classic
RVON-1
Single Channel VoIP Interface
KP x12
RVON
VoIP Interface
Cronus
RVON-C
8-Port VoIP Card Kit
PC Client
VKP
Virtual Keypanel
KP 12 CLD
DKP 16 CLD
e
DKP x12
RTS RVON Network Diagram Example
101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010
101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010
101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010
101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010
10101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101
01010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010
1010101010101010101010101010101010101010101010101010101010101010101010101010101010101010100101010101
Network
www.rtsintercoms.com | 11
s
S
Software
o f
t
RestrictEdit
RVONEdit
Access Management
Software
Configuration
Software for
RVON Devices
w
a
AZedit
RTS Matrix Control
Software
Intercom system configuration has never been easier with
the advent of RTS’ AZedit Intercom System Software. AZedit
is a Windows-based, full-featured configuration software,
providing online and offline configuration capabilities.
It gives you the ability to manage multiple intercom
systems, assign and reassign users to different ports, as
well as dynamically add intercom hardware to your system
setup without jumper changes, rewiring, or taking the
system offline. AZedit has the capability to load pre-set
configuration files, which means configurations saved to a
disk or computer can be uploaded to the live application
at anytime without interruption. AZedit can be used as a
monitor tool to observe the status of features like gain and
crosspoint settings, keypanel keys activated, and other
aspects of the system. AZedit can run in multiple sessions
using the MCII-e ADAM master controller to allow for remote
system configuration. AZedit is updated regularly to provide
users with the latest features and innovations available.
12 | RTS Intercom Systems
r
e
TES
TSS
TrunkEdit Software
Trunk Supervisor
Software
“The ability to have a tech login from anywhere and
see what’s happening is invaluable. Not a day goes by
where Chris or I don’t login and remotely manage the
system with RTS products.” -Bob Streeter, NBC
R
TS Software provides complete control over
your intercom system from any standard
Windows computer. Configure keypanel
settings, assign user rights, even link matrices
together that are thousands of miles away.
The RTS VoIP Virtual Keypanel (VKP) is a Windowsbased application that allows any user to have a
fully functioning RTS Digital Matrix Intercom user
station on their PC. Learn more on page 10.
RestrictEdit
RVONedit
The Restrictions Editor is a tool to create restriction
files for use with AZedit Intercom software.
Restriction Files allow administrators to manage user
access to resources and features. AZedit includes
support for user restrictions by reading a text file
(the restrictions file) and parsing out the set of
resources and features available to each user.
RVONedit is a Windows-based GUI application for
configuring and displaying RVON RTS Voice Over
Network devices connected to your Matrix system.
RVONedit is to the VoIP products as AZedit is to
ADAM, Cronus, and Zeus. An enhanced version
of RVONedit is available, which can configure
multiple RVON devices simultaneously.
TES TrunkEdit
TSS Trunk Supervisor
TrunkEdit is a GUI for programming TM-2000 or
MTM-2000 trunking devices. TrunkEdit allows the
user to set up all necessary parameters required for
trunking multiple intercom systems. Each intercom
system can be configured to work together as a
virtual-integrated, single-intercom system while still
maintaining each individual system’s autonomy.
The Trunk Supervisor Software program is a trunking
system management application. The program allows
for real-time monitoring of trunk line status information.
When used in combination with the RT-2M test set, it
allows for fully automated testing of a trunked system.
If a trunk line is found to be out of specification, the
trunk line can be pulled out of service until the issue
is resolved. The program also has the capability of
remote notification of user defined alarm events.
www.rtsintercoms.com | 13
C LCLD
D Color
C oDisplay
l o r Keypanel
D i s pSeries
l a y
T
he CLD series represents a new generation
of RTS keypanels. The panels sport advanced
features that take flexibility and ease-of-use
to the next level. CLD series keypanels feature a
revolutionary customizable GUI in integrated full-color
LCD displays. The CLD panels’ advanced functionality
is wrapped in a sleek, ergonomic design with a
contoured bezel that fits flush within a rackmount
configuration and looks great on the desktop.
Features of the CLD Keypanel Series
Full-Color LCD Display
DSP Processing
The new color display hosts a rich and
intuitive GUI that allows to indicate different
keypanel functions in different colors.
Acoustic Echo Cancellation, Equalization,
Mixing, Filtering, and Metering.
USB
Modern, Modular Design
For future expansion and other
planned interface features.
The rackmount CLD keypanel’s flush front panel
is ergonomically designed to fit easily into any
control room or truck application. The back
panels are optimized for future expansion.
User-Programmable Buttons
User-programmable buttons provide
custom shortcuts to menu functions.
Multi-Directional Keys
Multi-directional keys are used for talk, listen, and
emulation of traditional level control function.
Enhanced Features
The CLD keypanels include industry leading features
such as up to six auxiliary inputs, three relays,
independent digital gain control for microphone
sources, and configurable audio routing. Other
keypanels require external interfaces to enable these
features, but the RTS CLD series has them built-in.
Key Sequence Options
CLD Series keypanels can be ordered with the
new CLD key sequences and button screening, or
the Classic key sequences and button screening
configured for the backlit numeric keypad.
Future Expansion
Designed to allow for an expansion panel and optional
connections to the matrix through current and future
standard transmission formats. Relay mixing will
also be enabled via RC kit for added flexibility.
A color keypanel to fit every application.
14 | RTS Intercom Systems
y
K e y p a n e l
S e r i e s
KP 32 CLD 32-Position
Color Display Keypanel
EKP 32 CLD Color Display
Expansion Panel
KP 12 CLD 12-Position
Color Display Keypanel
DKP 16 CLD Color Display
Desktop Keypanel
CLD Series Accessories
Panel
Component
Functionality
Features
KP 32 CLD
DKP 16 CLD
KP 12 CLD
RVON-2
VoIP Interface
Two channels of audio in and out,
Ethernet compatible.
KP 32 CLD,
KP 32 CLD RC
Rear Connector Kit
6 AUXs, 3 Relays, 4 Opto Inputs, Headset, Foot
SW, Speaker, 2 OC Outputs, Mic In/Out
KP 12 CLD
KP 12 CLD RC
Rear Connector Panel
3 AUXs, 3 Relays, 4 Opto Ins, Headset, 2 OC Outs,
Foot SW, Mic In/Out, LCP, EXP, Frame, VoIP
DKP 16 CLD
DKP 16 CLD RC
Rear Connector Kit
5 AUXs, 3 Relays, 4 Opto Ins, Headset, 2
OC outs, Foot SW, Mic In/Out, Speaker
KP 32 CLD
LCP 16 CLD
Level Control Panel
Provides direct knob access to the volume
levels of AUX, sidetone, speaker, headset,
and other functions of the KP 32 CLD,
www.rtsintercoms.com | 15
Keypanel
K PKP-32
- 3Classic
2 C
l a s Series
s i c
T
he RTS KP-32 Classic family of keypanels
offers an unbeatable match of features,
options, and performance. Available in four-,
six-, and eight-character models, RTS is the only
intercom manufacturer to give YOU the choice of
any or ALL of these standards. KP-32 panels feature
contemporary styling and extensive programmability
for unprecedented function and performance. Each
of the models is 2RU high. The KP-32 Classic family
of DSP keypanels provides all the functionality of
the KP-12 series, and adds significant features such
as DSP processing for mixing and audio control.
Depending on the model selected, the keypanel may
provide from 16 to 32 keys, with four-, six-, or eightcharacter alphanumeric displays on fluorescent or
high-contrast LCD backlit displays. KP-32 Classic series
keypanels feature a standard mic connector and offer
a variety of standard headset connector options to
help ensure seamless compatibility with your system.
16 | RTS Intercom Systems
The RTS model KP-32 Classic keypanel fits in a
standard 19” rack and is 2RU high. It has 32 lever
keys: 30 keys are for intercom talk/listen assignment,
one for call waiting response, and one for headset/
microphone/program selection and volume setup.
KP-32 Classic combines all of the programmable
features of the KP-12 keypanel. The KP-32 Classic
features digital signal processing and binaural
headset operation with left/right assignment of
audio signals. It also has large, super-bright, longlife fluorescent displays with adjustable brightness
control, making it suitable for all types of ambient
lighting. The KP-32-RC audio board with GPI option
is available for KP-32 Classic series keypanels.
K
e y p a n e l
S e r i e s
KP-32 Classic 32-Position,
4-Character Keypanel
KP-632 24-Position, 6-Character Keypanel
KP-832 20-Position, 8-Character Keypanel
KP-32/16 16-Position, 4-Character Keypanel
EKP-32 32-Position,
4-Character Expansion Panel
KP-32 Classic Series Accessories
Panel
Component
Functionality
Features
KP-32 Classic
KP-32 RC
Rear Connector Kit
2 line-level audio inputs, unswitched
balanced microphone preamplifier output,
headset, speaker output, foot switch input,
GPIO, 4 opto-isolated inputs, 2 opencollector outputs, 2 SPDT relay outputs
KP-32 Classic
RVON-1
VoIP Interface
One channel of audio in and
out, Ethernet compatible.
KP-32 Classic
Series
LCP-32/16
16-Position Control Panel
Provides direct “knob access”
to individual listen level controls
for operator convenience.
www.rtsintercoms.com | 17
K PKP xx121 12-Position
2 1 2 - Keypanel
P o s i Series
t i o
T
he RTS KP 612 and KP 412 are 12-position
keypanels available in pushbutton or lever
key versions. The keypanels fit in a standard
19” rack and are 1RU high each. Additional desktop
versions are available. The KP 612 and KP 412 feature
two encoders. One encoder is used for headset,
microphone, auxiliary input, and matrix in volume
adjustment. The other encoder knob is used for
menu selection. The KP 612 and KP 412 keypanels
have standard numerical keypads with four extra
keys: Mic Mute, User Assignable Button, Page Up,
and Page Down keys. The keypanels feature stateof-the-art audio processors and drivers. The KP
612 features a six-character display, and the KP 412
features a four-character display. RVON options are
available to connect to RTS Voice-Over Network.
KP 612 12-Position, 6-Character
Keypanel
KP 412 12-Position, 4-Character Keypanel
EKP 612 12-Position, 6-Character
Expansion Panel
EKP 412 12-Position, 4-Character Expansion Panel
EKP 612-16 16-Position, 6-Character Expansion Panel
EKP 412-16 16-Position, 4-Character Expansion Panel
DKP 612HND 12-Position, 6-Character
Handset Keypanel
DKP 412HND 12-Position, 4-Character Handset Keypanel
DKP 612DKP 12-Position, 4-Character Desktop Keypanel
DKP 412DKP 12-Position, 4-Character Desktop Keypanel
18 | RTS Intercom Systems
n
K e y p a n e l
S e r i e s
Which keypanel series is right for you?
Feature
CLD
KP-32 Classic
KP x12
KP-12
Value Series
Display
Color LCD
Monochrome
LCD
Monochrome
Monochrome
LCD
Monochrome
Call Waiting
Window
Alpha
Characters
4, 6, or 8 Locally
Configurable
4, 6, or 8
4 or 6
4
4
Character Sets
Supported
English, Kanji,
Katakana
English,
Katakana
English, Kanji,
Katakana
English,
Katakana
English
Mounting
Rackmount,
Desktop
Rackmount
Rackmount,
Desktop
Rackmount,
Desktop
Rackmount,
Desktop,
Tektronix®,
Wallmount
Key Type
Lever Key
Lever Key
Lever Key or
Pushbutton
Lever Key or
Pushbutton
Lever Key
Color
Black/Grey
Duotone
Black or Grey
Black, Grey,
or Nickel
Black or Grey
Grey
Keypanel
Cable Length
Total 10,000 ft (3048m) per AIO-8 or 10,000 ft (3048m) per port per AIO-16,
unlimited with RVON VoIP.
Local XPT
Level Control
Yes, Integrated
into Key
Yes
Yes
Yes
Pages on Panel
4
4
4
4
4
www.rtsintercoms.com | 19
K PKP-12
- 1Modular
2 M Keypanel
o d u Series
l a r
T
he RTS KP-12 modular series of keypanels
represents the ultimate in compact, fullyprogrammable user stations. Based on a
common set of internal modules (modules also
available separately for custom designs), the
KP-12 series has a common set of very powerful
features, which makes each model attractive
in mobile applications and in other situations
where space is limited. Available in lever-key and
pushbutton versions, the basic KP-12 provides
a menu-driven, fully programmable, 12-key user
station in a single RU of space. Expansion panels
and level control panels round out the offerings in
the rackmount form factor. Desktop and Tektronix
WFM x 3RU form factor units are also available.
to point, IFB, ISO, PL, SL, relay, GPI).
•
Extremely long-life, high-visibility,
green alphanumeric LEDs.
•
•
Fully programmable via pull-down menus
selected via front-panel shaft encoder.
Removable, optional MCP-90XX gooseneck microphone.
•
•
Lever-key versions provide individual
Talk/Listen functions on each key.
Universal power supply for 100 - 240
VAC, 50/60 Hz operations.
•
•
Pushbutton versions provide
individually assignable talk, listen or
T/L function on each button.
Optional rear connector and GPI options
available for rackmount panels.
•
Wide range of keypanels and expansion
panels for specific applications.
•
All keys assignable for all functions (point
KP-12 Series Accessories
Panel
Component
Functionality
Features
KP-12
KPM-CK
Rear Connector Kit
Mic in/out, EXT line in, headset, speaker
KP-12
KPM-I/O
GPI Option Kit
4 Optos, 2 OCs, 2 Relays
The extremely compact modular circuit boards
used in the KP-12 line of products are available
in kits including the circuit boards, interconnect
wiring, switches, etc. for those applications where
a custom enclosure or mounting is required.
20 | RTS Intercom Systems
K
K e y p a n e l
S e r i e s
KP-12 12-Position Keypanel
EKP-20 20-Position Expansion Panel
LCP-20 20-Position
Level Control Panel
LCP-12 12-Position Level Control Panel
DKP-12 12-Position Desktop Keypanel
DKP-8 8-Position Desktop Keypanel
KP-8T Keypanel for
Tektronix® WFM Mounting
www.rtsintercoms.com | 21
V Value
a l Keypanel
u e Series
K e
T
he RTS Value Keypanel series is ideal where
simplicity of operation and cost are paramount.
The keypanels share a common set of features
across the entire family. The alphanumeric call waiting
window is used for scrollable access to all ports,
PLs, ISOs, IFBs, etc. and to check and make key
assignments. Keys may be assigned to any intercom
function including talk, listen, talk/listen, relay, PL, ISO,
y
p
IFB, and SL. All models use the optional RTS MCP90 series gooseneck microphones. These keypanels
are ideal for use with the RTS Zeus series intercom
matrices, but (like all RTS Digital Matrix Intercom
keypanels) are compatible with all RTS matrices,
past and present. The RTS Value Keypanel Series
provides a scribble strip for key identification.
Kaplin Medical Education Services Uses RTS to Link Their Exam Rooms
Kaplin Medical Educational Services of Newark, NJ
uses an RTS Zeus-based system to communicate
between 12 examination rooms, two wireless proctors,
and a three-position control/monitor center. A team
of licensed physicians located in the control room
monitor and evaluate student physicians in the exam
rooms on various medical practices and procedures via
small, ceiling-mounted video cameras and an intercom
station. If assistance is required, the student contacts
the control room via a wall-mounted WKP-4 station.
Based on the situation, the licensed physician, using
an MKP-12 station, either talks the student through
the problem or contacts a roving proctor. The roving
proctor, using an RKP-4 wireless 4-channel beltpack,
talks with both the control room, the exam room, and/
or a second roving proctor to resolve the problem.
The WKP-4 is designed for
wall-mounted applications.
Perfect for use in commercial
sound and industrial settings,
the WKP-4 is compatible with
the Telex U-Series flush-mount
box. Flush-mounting into
consoles, custom enclosures,
and walls is a snap. The WKP-4
requires 15-24 VDC at 1 amp.
22 | RTS Intercom Systems
a
n
e
l
S
e
r
i
e
MKP-4 4-Position
Rackmount/Desktop Keypanel
MKP-12 12-Position
Rackmount Keypanel
BKP-4 4-Position Desktop Keypanel
WKP-1 1-Position Wall Keypanel
TKP-4 4-Position Keypanel
for Tektronix® WFM Mounting
WKP-4 4-Position Wall Keypanel
Keypanel Comparison
Feature
MKP-12
MKP-4
BKP-4
WKP-4
TKP-4
WKP-1
Keys
12
4
4
4
4
1
Mounting
Rackmount
or Desktop
Rackmount
(with MCP
mounting kit)
or Desktop
Desktop
Wallmount
Tektronix®
WFM
Wallmount
Call Waiting
Window
4 Characters
4 Characters
4 Characters
4 Characters
4 Characters
N/A
Cost Effective
Yes
Yes
Yes
Yes
Yes
Yes
Headset Jack
XLR-4F
XLR-4F
XLR-4F
XLR-4F
XLR-4F
N/A
Mic Jack
¼” TRS
¼” TRS
¼” TRS
¼” TRS
¼” TRS
Integrated Mic
Speaker
Integrated
Optional
MCS-325
Integrated
Integrated
Integrated
Integrated
www.rtsintercoms.com | 23
s
RKP-4
R K
P Wireless
- 4 Keypanel
W i r e l e
T
here is nothing like the RKP-4 wireless intercom
system anywhere in the world. The RKP-4
four-button wireless keypanel intercom system
is a one-to-one (one base station to one beltpack)
full-duplex, digitally encrypted wireless intercom
that provides communication directly to RTS Digital
Matrix Intercom communication systems. The RKP-4
offers a list of standard features that are unparalleled
in the industry, like frequency agility, digital audio
encryption, advanced ClearScan, battery telemetry
to the base station, base station RF meter, and much
more. The RKP-4B, like its sister product the BTR-1,
is packed full of the latest technology- intelligent
power control, DSP digital audio processing,
and proprietary digital audio encryption.
The RKP-4 system provides a menu-driven, fully
programmable, four-key user station in a wireless
beltpack (RKP-4) and base station (RKP-4B)
combination. The alphanumeric call waiting window
is used for scrollable access to all ports, PLs, ISOs,
IFBs, etc. and to check and make key assignments
and is configured with AZedit software. Keys may
be assigned to any intercom function including
talk, listen, talk/listen, relay, PL, ISO, IFB and SL.
The RKP-4 system interfaces directly with ADAM,
Cronus, and the Zeus family of matrices.
The RKP-4B is the base station for the RKP-4
beltpack. The wireless keypanel system is a full-duplex
(simultaneous talk and listen) audio system designed
to work with ADAM, Cronus, and the Zeus Digital
Matrix Intercom Systems. The RKP-4’s operation is
very similar to the MKP-4, BKP-4, TKP-4, and WKP4 four-button wired keypanels. The base has the
ability to program the frequencies of the beltpack
over-the-air. The sidetone for the base’s local headset
and the beltpack are adjusted at the base station.
The RKP-4 is
the beltpack
for the RKP-4
keypanel system.
The wireless
system is a fullduplex audio
system that is
designed to work with ADAM, Cronus, and Zeus
family of matrices. The RKP-4’s operation is very
similar to the MKP-4, TKP-4, and WKP-4, fourbutton wired keypanels. The beltpack, via the
base station, allows communication with a Digital
Matrix and acts as a keypanel on the system.
RTS Digital Matrix System Example with Wired & Wireless Keypanels
24 | RTS Intercom Systems
e sTrunkmaster
s
K Series
e y p a n e l
What is RTS Intelligent Trunking? It is your own
private version of long distance telephone system,
allowing users of two or more (up to 31) separate
matrices to communicate with one another
instantaneously and seamlessly with all the same
presets, scroll lists, and tallies available on local
matrices. Whether the systems are located in
adjacent studios or on different continents, intelligent
trunking brings all your communications together.
The RTS trunking system consists of a RTS model
TM-2000 or MTM-2000 trunkmaster and one
or more RTS model ICP-2000 interconnection
panels, depending on the number of intercom
systems to be trunked. A backup TM-2000 may
also be added to prevent downtime in the event
of a failure of the main master control unit. Each
trunkmaster comes prepared to trunk eight
matrices, and can scale up to 31 matrices.
TM-2000 Trunkmaster
for up to 31 matrices
MTM-2000 Mini Trunkmaster
for up to 16 matrices
ICP-2000 Interconnect Panel
SWP-2000 Redundancy
Switch Over Panel
RT-2M & TSS Trunking
Supervisory Test System
www.rtsintercoms.com | 25
S
System
y s Peripherals
t e m
GPIO-16 General Purpose Interface
The GPIO-16 interface provides 16 opto-isolated
inputs and 16 relay outputs. It connects to the matrix
via serial or Ethernet for remote operations.
MDA-100 Mixing & Distribution
Amplifier
The MDA-100 contains an 8x1-summing amplifier
(mixer) and a 1x8 distribution amplifier.
SIP-ISDN SIP Telephone Interface
The SIP-ISDN has support for the SIP protocol
and incorporates an ISDN basic rate interface
(1x S0/ 2 Lines) and a LAN interface.
TIF-4000 Telephone Interface
The TIF-4000 provides bidirectional
communication between the intercom
matrix and an analog telephone line.
TIF-2000A Single-Line
Telephone Interface
The TIF-2000A provides bidirectional
communication between the intercom matrix
and a standard analog telephone line.
26 | RTS Intercom Systems
P
e
e
r
i
p
h
e
r
a
l
LCP-102 Level Control Panel
The LCP-102 functions as an analog trim panel,
used to either adjust input/output gains, partyline
assign panel, or program assign panel for IFB.
PAP-32 Program Assignment Panel
The PAP-32 enables routing of program
sources to IFB destinations.
PAM-32 Program Audio Monitor
The PAM-32 has 30 keys for monitoring inputs;
one key for scrolling alpha assignments; and
one is for headset/speaker selection.
DSI-2008 Digital System Interface
The DSI-2008 interfaces two two-wire intercom
lines to two four-wire lines, and also interfaces
balanced and unbalanced two-wire lines.
Digital hybrids eliminate all nulling and ducking
adjustments. Puts an end to concerns about echo
and feedback when interfacing two-wire lines.
SSA-324 System-to-System Adapter
The SSA-324 interfaces two two-wire intercom
lines to two four-wire lines, and also interfaces
balanced and unbalanced two-wire lines. The
SSA-324 is ideal for steady load applications.
www.rtsintercoms.com | 27
s
I
SystemSPeripherals
FIFB B
y s t
I
nterrupt Fold Back (IFB) is a broadcast term used
to describe the process of cueing on-air talent.
RTS IFB equipment is designed with a modular
approach that meets the needs of not only large
television networks, but also can be configured
for any one-way communications need. With
multiple program audio sources and individual or
simultaneous interrupts, the RTS series of IFB and
ISO products is perfect for any talent-cueing need.
The 4010 is a central IFB electronics station.
It contains all necessary control functions and
electronics, including line power, to provide an active
link between the 4001, 4002, and 4003 control
stations and the 4030 and IFB-325 user stations.
The IFB-828 interfaces up to eight RTS IFB325 or 4030 IFB beltpacks to any RTS Digital
Matrix Intercom system, and provides power to
the beltpacks. The IFB-828 may also be used as
a simple program interface to feed two separate
program sources to each of eight 4030 beltpacks
(16 program sources to eight beltpacks total).
Digital Matrix IFB System
28 | RTS Intercom Systems
e
m
The 4030 and IFB-325 are listen-only IFB earset
stations with two and one channels, respectively.
The 4030 contains electronics to provide a stereo
audio signal to the user. The IFB-325 provides
a mono (either interrupt non-interrupt selected
at 4010) audio signal to the user. The 4030 and
IFB-325 feature volume controls in extruded
aluminum cases. For earset options see page 38.
The 4001, 4002, and 4003 are IFB Control
stations with four, eight, and 12 channels, respectively
thus the control stations separate talent feeds per
channel plus one stage announce send. The control
stations feature two distinct audio sends per IFB
channel for interrupt/non-interrupt or multiple
program feeds. Each unit has illuminated switches,
programmable priority levels and gooseneck mic
connector and is shipped with a wall power supply.
Optional rack kit is also available. Requires one
4010 Central IFB. 4001 and 4002 not displayed.
Party-Line IFB System
Zeus III Integrated Partyline Interface
P Master
e r Stations
i p h
e
r
a
l
RTS Two-Wire Intercom series 800 master stations
have been the industry standard advanced for
professional party-line communication systems for
more than 25 years. With their flexible configurations,
ease of use, and legendary reliability, they are
the elite core communications control tools.
RTS Two-Wire Intercom master stations are installed
in major broadcast and industrial application
venues worldwide. With unparalleled industry
acceptance, no other product offers this level
of comprehensive communications control.
803 12-Channel
Programmable Master Station
MCE-325 2- or 4 Channel
User-Programmable Master Station
The RTS model 803 master intercom station is the
hub for the two-wire intercom system. Call signaling
is standard on all twelve intercom channels. For
applications requiring four-wire operation, IFB panel
emulation or ISO panel emulation the circuitry is
already there; you simply install an option cable to the
back panel, set one or two internal DIP switches (IFB
and ISO emulate only) and you’re ready to go. For all
other applications, everything you need is "in the box".
The MCE 325 is a four-channel, programmable
intercom station. It may be used as a headset station
or, with the addition of the MCS-325 modular speaker,
as a speaker station. It may be mounted in a console
or equipment rack via optional mounting kits. The
MCE 325 can be used with either two-wire or four-wire
intercom lines, or a combination of both. The MCE
325 can be interfaced to a variety of external devices
including external program sources, two-way radios,
paging systems, and satellite circuits. The MCE 325 can
be ordered for 4- or 5-pin operation.
RTS Two-Wire Party-Line System
www.rtsintercoms.com | 29
s
U User
s Stations
e r
R
TS Two-Wire Intercom user stations employ
a unique modular design that enables a
few station types to be configured into a
multitude of communications solutions. Rugged and
dependable RTS Two-Wire Intercom user stations
form the widest variety of stationary communications
S
t
stations in the industry. RTS Two-Wire Intercom
user stations are the perfect choice for a wide
range of applications regardless of what physical
profile is required. RTS is the only two-wire protocol
that allows two communication channels to be
connected on a single standard microphone cable.
MRT-327 User Station
The model MRT 327 is a two-channel intercom
station for use in RTS Two-Wire Intercom systems.
It may be used as a headset station or as a speaker
station (with an optional MCS-325 modular speaker,
P. 34). The MRT 327 may be installed in optional
console or rackmount configurations. The MRT-325
can be ordered for four- or five-pin operation.
RM 325 User Station
The RM 325 is a two-channel binaural headset
station. Features stereo (split feed) operation,
microphone limiter circuit, two powerful headphone
amps, and simplified operational controls including
individual volume adjusts. Packaged in ½-rack
by 1RU metal housing for added durability.
SPK 300L Portable Desktop
Speaker User Station
The SPK 300L is a desktop station with built-in
speaker. It can be used as a “public” listen box via
built in speaker or privately through the headset
connection. Features a channel-select switch, call light,
speaker on/off switch, and dual-purpose portable
desktop volume control. Packaged in a rugged,
all-metal housing perfect for table-top operation.
CM-300L Console-Mount
User Station
Two-channel select, console-mount user station.
Features microphone limiter circuit, separate
dynamic and carbon microphone input, and
30 | RTS Intercom Systems
silent channel-select switching. Solid metal
front and open back for console mounting.
a
t
i
o
n
s
WM 300L Wallmount User Station
Two-channel select, wall-mount headset station.
Features channel select switch, call light, and headset
volume control. Fits in standard two-gang outlet box.
WMS 300L Dual-Channel
Wallmount User Station with Speaker
Two-channel select, wall-mount speaker
user station. Features channel select switch,
call light, and a speaker on/off switch. Fits
in standard U.S. four-gang outlet box.
Which user station is right for you?
Feature
MRT 327
RM 325
SPK 300L
CM 300L
WM 300L
WMS 300L
Keys
Pushbutton
Pushbutton
Toggle Switch Toggle Switch Toggle Switch Toggle Switch
Mounting
Rackmount
or Desktop
Rackmount
or Desktop
Desktop
ConsoleMount
Wallmount
Wallmount
Speaker
MCS-325
MCS-325
Internal
N/A
N/A
Internal
Call Light
Yes
Yes
Yes
Yes
Yes
Yes
45 mA ±10%
60 mA ±10%
10 to 40 mA
23 mA ±10%
10-40 mA
±10%
10-40 mA
Power Consumption
Quiescent
Operating 25Ω Phones 75 mA ±10%
100 mA ±10% 50 mA
37 mA ±10%
50 mA
50 ma
Operating 25Ω
Phones + Call Light
90 mA ±10%
125 mA ±10% 70 mA
60 mA ±10%
75 mA
70 mA
Operating 8Ω Speaker
240 mA ±10% 300 mA ±10% 100 mA
Operating 8Ω Speaker
+ Call Light
300 mA ±10% 360 mA ±10%
100 mA
www.rtsintercoms.com | 31
B Beltpacks
e l t
p
U
sing the latest in space age materials,
RTS Two-Wire Intercom beltpacks are
mechanically engineered to be rugged
and dependable. Unique audio circuitry is perfect
a
c
k
s
for either high- or low-noise environments while
maintaining maximum voice intelligibility.
BP-325 Dual-Channel Binaural
Programmable Beltpack
The BP-325 is a portable beltpack for use
with RTS Two-Wire intercom systems. The BP325 is a binaural (stereo), programmable
two-channel beltpack with program-input capability.
For use with a dynamic microphone only. The
BP-325 consumes 65 to 85 mA of power.
BP-351 Dual-Channel
Portable Metal Beltpack
The BP-351 is a portable beltpack for use with
RTS Two-Wire intercom systems. The BP-351 is
a microprocessor controlled two-channel select
intercom beltpack. The BP-351 has connections
for headset/earset microphones (dynamic or
electret). The beltpack has an autosensing
function that automatically detects the headset
mic and powers it if the mic is electret. The
BP-351 consumes 45 to 70 mA of power.
BP-319 Single-Channel
Portable Metal Beltpack
The BP-319 is a portable beltpack for use with
RTS Two-Wire intercom systems. The BP-319
is a microprocessor controlled, one-channel
intercom beltpack. The BP-319 has connections
for headset/earset microphones (dynamic or
32 | RTS Intercom Systems
electret). The beltpack has an autosensing
function that automatically detects the headset
mic and powers it if the mic is electret. The
BP-319 consumes 45 to 70 mA of power.
Power Supplies
Power supplies are the heart of party-line intercom
systems. They supply operating voltage to beltpacks
and many user stations. Unique, short-circuit
reset circuitry design and unparalleled mechanical
engineering ensures reliable, trouble-free operation for
years to come. With all of the things you have to worry
about, power supplies should not be one of them.
PS 20 Power Supply
The RTS PS-20 is the new RTS Two-Wire Intercom
power supply. The PS-20 features two- and fourchannel operation, RTS monitoring, two-channel
program input, audio linking, and three-mode
operation: RTS 2-channel, RTS 4-channel, and
Clear-Com® mode. It also has double the power
output per channel of previous RTS power supplies,
which will substantially increase the number of user
stations and beltpacks that can be connected.
The PS-20 features two channels of communication
where both channels are “wet,” meaning there is
power on each channel (RTS two-channel mode). In
RTS four-channel mode, the audio signals and DC exist
on the same wire. The PS-20 can also be switched
into Clear-Com® mode. The PS-20 has a three-pin
XLR (male) connector on the front of the system,
where a RTS user station can connect and monitor
activity on either or both channels. A single PS-20
power supply has 1.8 amp per channel, which means
the user can power up more stations. If additional
user stations or beltpacks are needed, two PS-20s can
be joined together to double the power capability. A
pair of standard stereo plug connectors are available
on the back of the power supply to connect two
PS-20s through audio linking as well. The PGM IN
(three-pin XLR female Program Input) connector can
be used to send audio to both CH 1 and/or CH 2.
www.rtsintercoms.com | 33
A Accessories
c c e
s
A
full line of products to complete your
communications system, including interfaces to
party-line intercoms, cable, telephone lines, and
relays. Accessories also include control panels for IFB
levels and assignments, panels for adjusting system
audio levels, microphones, and four-wire beltpacks.
RTS Two-Wire Intercom source assignment panel
accessories are a key element in large, high-end
RTS Two-Wire Intercom party-line systems. With the
ability to turn a standard two-bus communications
system into a 12 or more bus configuration, SAPs are
vital to system expansion. Increasing the number
of usable communication busses allows the system
to be better tailored to individual user needs.
The SAP-1626 is a 2RU
source-assignment panel.
It Assigns any one of 12
intercom channels and/or
three program audio channels to 26 separate twochannel user stations via convenient thumb-wheel
switches. I/O provided via two 50-pin connectors.
Normally used in conjunction with a BOP-220
The SAP-612 sourceassignment panel transforms
a basic two-bus intercom system into a six-bus
system via convenient slide switches. Provides six
input channels and 12 two-channel TW user station
strings. I/O provided via two ¼”, three three-pin XLR
female, and twelve three-pin XLR male connectors.
Contains XLR jacks for RTS power supply.
34 | RTS Intercom Systems
s
o
r
The model 4012 is a passive
connector translation
device used specifically
for system applications
designed around the 803 master station.
The model 4012 acts as a breakout panel to
facilitate easy connections to the intercom system.
The 4012 is hardwire programmable, allowing a
variety of system configurations. Both dedicatedline and conference-line connections can be
arranged to suit individual system requirements.
The BOP-220 is
a 19”, 3RU breakout
panel, I/O connector
transition assembly.
Provides a convenient interface between a SAP1626 (25 pair 50-pin) and up to 20 user stations
or strings of stations (three-pin XLR male).
The MCS-325 is a passive modular
speaker. It can be combined with
MCE 325 and MRT 327 to provide
speaker station operation. Packaged in ½ rack
by 1RU metal housing for added durability.
The LMS-325 is a (active) linemonitor speaker station. Part of RTS’s
unique modular packaging system. Features
a full-range, 5W speaker and power amp, dualchannel inputs from Two-Wire or separate program
inputs, and volume control. Packaged in ½ rack
by 1RU metal housing for added durability and
magnetically shielded for use near video monitors.
i
e
e
s
MCP-1 Mounting Bracket
for Two Main Components
MCP-2 Single
Rackmount Kit
MCP-4 Tandem Mount Kit
MCP-3 Mounting
Kit for One
Main Component
MCP-8 Side Channels
for Two Main Components
MCP-90 Electret
Gooseneck Microphone
MCP-90-0 0” Gooseneck Microphone
MCP-90-8 8” Gooseneck Microphone
MCP-90-12 12” Gooseneck Microphone
MCP-90-18 18” Gooseneck Microphone
CIA-1000 Call Light
Indicator Assembly
TW-5W 1x5 Dual-Channel
3-Pin XLR-Type Passive Splitter
TW-7W One XLR-3F into Seven XLR-3M Out
4022 1x2 25 pair, 50-pin passive splitter
4025A 1x4 50-pin passive splitter
www.rtsintercoms.com | 35
P
rProduct
o dSpecifications
u c t
S
p
Product
Form Factor
Height
Width
Depth
Weight
Color
803
Rackmount
2RU
19” (48.26 cm)
10” (25.4 cm)
8.1 lbs (3.67 kg)
Grey
4010
Rackmount
1RU
19” (48.26 cm)
15” (38.1 cm)
10.74 lbs (4.87 kg)
Grey
4012
Rackmount
3RU
19” (48.26 cm)
5.06” (12.86 cm)
3.72 lbs (1.69 kg)
Silver
4030
Beltpack
1.5” (3.8 cm)
3.75” (9.53 cm)
1.8” (4.57 cm)
0.67 lbs (0.3 kg)
Grey
ADAM
Rackmount
7RU
19” (48.26 cm)
20” (50.8 cm)
44.75 lbs (20.3 kg)
Grey
BKP-4
Desktop
5.06” (12.86 cm)
9.25” (23.5 cm)
8” (20.32 cm)
3.2 lbs (1.45 kg)
Grey
BOP-220
Rackmount
3RU
19” (48.26 cm)
5” (12.7 cm)
2.43 lbs (1.1 kg)
Silver
BP-319
Beltpack
5” (12.7 cm)
3.5” (8.89 cm)
1.8” (4.57 cm)
0.75 lbs (0.34 kg)
Black or Grey
BP-325
Beltpack
5” (12.7 cm)
3.75” (9.53 cm)
2.05” (5.21 cm)
0.5” (0.23 kg)
Black or Grey
BP-351
Beltpack
5” (12.7 cm)
3.5” (8.89 cm)
1.8” (4.57 cm)
0.75” (0.34 kg)
Black or Grey
CIA-1000 Front Rackmount or
Desktop
1RU
8.19” (20.8 cm)
5.56” (14.13 cm)
0.94 lbs (0.43 kg )
Grey
CIA-1000 Top
Desktop
2” (5.08 cm)
8.19” (20.8 cm)
5.25” (13.34 cm)
0.94 lbs (0.43 kg)
Grey
CM 300L
Console Mount
2.75” (6.99 cm)
6.25” (15.88 cm)
6.4” (16.26 cm)
1.2 lbs (0.54 kg)
Grey
Cronus
Rackmount
2RU
19” (48.26 cm)
13.25” (33.66 cm) 14.15 lbs (6.41 kg)
Grey
CSI-200
Rackmount
1RU
8.19” (20.8 cm)
8.25” (20.96 cm) 2.2 lbs (1 kg)
Grey
DKP 16 CLD
Desktop
3.2” (8.13 cm)
10.1” (25.65 cm)
9.2” (23.37 cm)
3.78 lbs (1.71 kg)
Duotone
DKP x12
Desktop
3.1” (7.87 cm)
11.3” (28.7 cm)
7.63” (19.4 cm)
4.17 lbs (1.89 kg)
Black, Grey, or
Nickel
DKP x12HND
Desktop
3.1” (7.87 cm)
11.3” (28.7 cm)
7.63” (19.4 cm)
6.45 lbs (2.93 kg)
Black, Grey, or
Nickel
DKP-8, 12
Desktop
3.75” (9.53 cm)
9” (22.86 cm)
7.25” (18.42 cm)
4.58 lbs (2.08 kg)
Grey
DSI 2008
Rackmount
1RU
8.19” (20.8 cm)
8.25” (20.96 cm) 2.9 lbs (1.32 kg)
Grey
EKP x12
Rackmount
1RU
19” (48.26 cm)
7.5” (19.1 cm)
3.7 lbs (1.68 kg)
Black, Grey, or
Nickel
EKP x12-16
Rackmount
1RU
19” (48.26 cm)
7.5” (19.1 cm)
5.12 lbs (2.3 kg)
Black, Grey, or
Nickel
EKP-20
Rackmount
1RU
19” (48.26 cm)
7..13” (18.1 cm)
4.6 lbs (2.09 kg)
Black or Grey
EKP-32
Rackmount
2RU
19” (48.26 cm)
5” (12.7 cm)
5.6 lbs (2.54 kg)
Black or Grey
GPIO-16
Rackmount
1RU
19” (48.26 cm)
7” (17.78 cm)
5.48 lbs (2.49 kg)
Grey
ICP-2000
Rackmount
1RU
19” (48.26 cm)
0.75” (1.91 cm)
0.89 lbs (0.4 kg)
Black
IFB-325
Beltpack
1.5” (3.8 cm)
3.75” (9.53 cm)
1” (2.54 cm)
1 lb (0.45 kg)
Grey
IFB-828
Rackmount
1RU
19” (48.26 cm)
7” (17.78 cm)
8.84 lbs (4.01 kg)
Grey
KP 12 CLD
Rackmount
1RU
19” (48.26 cm)
4.28” (10.87 cm)
3.76 lbs (1.71 kg)
Duotone
KP 32 CLD
Rackmount
2RU
19” (48.26 cm)
3.25” (8.25 cm)
6.3 lbs (2.86 kg)
Duotone
KP x12
Rackmount
1RU
19” (48.26 cm)
7.5” (19.1 cm)
6.42 lbs (2.91 kg)
Black, Grey, or
Nickel
KP-12
Rackmount
1RU
19” (48.26 cm)
5.5” (14 cm)
5.1 lbs (2.31 kg)
Black or Grey
KP-32 Classic
Rackmount
2RU
19” (48.26 cm)
5” (12.7 cm)
6.4 lbs (2.9 kg)
Black or Grey
36 | RTS Intercom Systems
e
c
i
f
i
c
a
t
i
o
n
Product
Form Factor
Height
Width
Depth
Weight
Color
KP-32/16
Rackmount
2RU
19” (48.26 cm)
5” (12.7 cm)
5.9 lbs (2.68 kg)
Black or Grey
KP-632
Rackmount
2RU
19” (48.26 cm)
5” (12.7 cm)
6.28 lbs (2.85 kg)
Black or Grey
KP-832
Rackmount
2RU
19” (48.26 cm)
5” (12.7 cm)
6.28 lbs (2.85 kg)
Black or Grey
KP-8T
Tektronix
5.2” (13.21 cm)
8.38” (21.29 cm)
9” (22.86 cm)
10.9 lbs (4.94 kg)
Grey
LCP-102
Rackmount
2RU
19” (48.26 cm)
7.13” (18.1 cm)
8.28 lbs (3.76 kg)
Black or Grey
LCP-12, 20
Rackmount
1RU
19” (48.26 cm)
6.63” (16.83 cm)
3 lbs (1.36 kg)
Black or Grey
LCP-32/16
Rackmount
1RU
19” (48.26 cm)
1.75” (4.45 cm)
3 lbs (1.36 kg)
Black or Grey
LMS-325
Rackmount
1RU
8.19” (20.8 cm)
8” (20.32 cm)
2.76 lbs (1.25 kg)
Grey
MCE 325
Rackmount
1RU
8.19” (20.8 cm)
8” (20.32 cm)
4.5 lbs (2.04 kg)
Grey
MCS-325
Rackmount
1RU
8.19” (20.8 cm)
8.25” (21 cm)
2.52 lbs (1.14 kg)
Grey
MDA-100
Rackmount
1RU
19” (48.26 cm)
8.5” (21.59 cm)
7.38 lbs (3.35 kg)
Grey
MKP-12
Rackmount
1RU
19” (48.26 cm)
8” (20.3 cm)
4.96 lbs (2.25 kg)
Black or Grey
MKP-4
Rackmount
1RU
8.19” (20.8 cm)
8.25” (21 cm)
2.82 lbs (1.28 kg)
Grey
MRT 327
Rackmount
1RU
8.19” (20.8 cm)
9” (22.86 cm)
2.75 lbs (1.25 kg)
Grey
MTM-2000
Rackmount
2RU
19” (48.26 cm)
12” (30.48 cm)
26.78 lbs (12.15 kg)
Black
PAM-32
Rackmount
2RU
19” (48.26 cm)
3.5” (9 cm)
3.86 lbs (1.75 kg)
Black or Grey
PAP-32
Rackmount
2RU
19” (48.26 cm)
4.5” (11.43 cm)
5.58 lbs (2.53 kg)
Black or Grey
PS 20
Rackmount
1RU
8.19” (20.8 cm)
8.56” (21.75 cm)
5 lbs (2.27 kg)
Grey
RKP-4
Beltpack
5.35” (13.59 cm)
3.75” (9.53 cm)
2.02” (5.13 cm)
1.2 lbs (0.55 kg)
Black
RKP-4B
Rackmount
1RU
8.19” (20.8 cm)
9” 22.86 cm)
3.5 lbs (1.59 kg)
Black
RM 325
Rackmount
1RU
8.19” (20.8 cm)
8” (20.32 cm)
2.75 lbs (1.25 kg)
Grey
RVON-I/O
Rackmount
1RU
19” (48.26 cm)
8” (20.32 cm)
3.7 lbs (1.67 kg)
Grey
SAP-1626
Rackmount
2RU
19” (48.26 cm)
9.8” (24.89 cm)
10 lbs (4.54 kg)
Grey
SAP-612
Rackmount
1RU
19” (48.26 cm)
8” (20.32 cm)
4.52 lbs (2.05 kg)
Grey
SIP-ISDN
Rackmount
1RU
8.19” (20.8 cm)
8.5” (21.59 cm)
3 lbs (1.36 kg)
Duotone
SPK 300L
Desktop
4” (10.16 cm)
8” (20.32 cm)
8” *20.32 cm)
3.5 lbs (1.59 kg)
Grey
SSA-324
Rackmount
1RU
8.19” (20.8 cm)
8.25” (20.96 cm) 2.7 lbs (1.22 kg)
Grey
SWP-2000
Rackmount
1RU
19” (48.26 cm)
5.75” (14.61 cm)
Black
TIF-2000A
Rackmount
1RU
8.19” (20.8 cm)
8.25” (20.96 cm) 2.25 lbs (1.13 kg)
Grey
TIF-4000
Rackmount
4RU
19” (48.26 cm)
13” (33.02 cm)
28.45 lbs (12.9 kg)
Grey
®
4.6 lbs (2.09 kg)
TKP-4
Tektronix WFM
5.2” (13.21 cm)
3.25” (8.26 cm)
3.5” (8.3 cm)
1.84 lbs (0.83 kg)
Grey
TM-2000
Rackmount
4RU
19” (48.26 cm)
18” (45.72 cm)
37.06 lbs (16.81 kg)
Black
WKP-1
Wallmount
4.5” (11.43 cm)
4.5” (11.43 cm)
2.75” (7 cm)
0.79 lbs (0.36 kg)
Grey
WKP-4
Wallmount
6.5” (16.51 cm)
9” (22.9 cm)
2.5” (6.35 cm)
1.32 lbs (0.6 kg)
Grey
WM 300L
Wallmount
4.5” (11.43 cm)
4.5” (11.43 cm)
1.81” (4.6 cm)
0.56 lbs (0.25 kg)
Grey
WMS 300L
Wallmount
4.5” (11.43 cm)
8” (20.32 cm)
1.75” (4.45 cm)
1 lb (0.45 kg)
Grey
Zeus III
Rackmount
1RU
19” (48.26 cm)
15” (38.1 cm)
7 lbs (3.18 kg)
Duotone
®
www.rtsintercoms.com | 37
s
I
Intercom
n
t eHeadsets
r c
R
TS offers a wide variety of headset styles to
choose from, including lightweight and fullcushion headsets in either single or dual-sided
versions. We also have hearing protection headsets
that offer noise reduction of up to 24dB and earset
selection that can accommodate all applications.
o
m
Most headsets feature our new flexible
boom arms and are terminated with an A4M
connector for compatibility with RTS intercom
systems. Most headsets are also available
with an A5M connector or unterminated.
The right headset for the right application
Feature
PH-88R, -44R
PH-1R, -2R
HR-1R, -2R
PH-100R, -200R PH-10R
Single Sided
PH-88R
PH-1R
HR-1R
PH-100R
Dual Sided
PH-44R
PH-2R
HR-2R
PH-200R
PH-10R
Weight W/O cord
2.5oz, 3oz
11oz, 13oz
11oz, 15oz
16oz, 18oz
17oz
21dB
21dB
24dB
Noise Reduction
Rating Dual-Sided Only
Mic Type
Flexible Dynamic Flexible Dynamic Flexible Dynamic Flexible Dynamic Flexible Dynamic
Noise-Cancelling Noise-Cancelling Noise-Cancelling Noise-Cancelling Noise-Cancelling
Mic Sensitivity
-65dBV/Pa @1cm -65dBV/Pa @1cm -65dBV/Pa @1cm -65dBV/Pa @1cm -65dBV/Pa @1cm
Mic Frequency Range
200Hz - 10kHz
200Hz - 6kHz
150Hz - 8kHz
150Hz - 8kHz
200Hz - 6kHz
Mic Impedance
200Ω
150Ω
200Ω
200Ω
150Ω
Speaker Sensitivity
109dB SPL
@1kHz, 1mW
95dB SPL
@1kHz, 1mW
95dB SPL
@1kHz, 1mW
97dB SPL
@1kHz, 1mW
95dB SPL
@1kHz, 1mW
Speaker Frequency
Range
100Hz - 7kHz
100Hz - 10kHz
100Hz - 3kHz
500Hz - 4kHz
100Hz - 3kHz
Speaker Impedance
300Ω, 150Ω
300Ω, 150Ω
300Ω, 150Ω
300Ω, 150Ω
150Ω
RTS Announcer Earsets
The popular RTS earsets are precisely designed for
inconspicuous listening while on camera. Used by
nearly all major television networks and stations, we
have surpassed industry standards. The extremely
efficient miniature driver element requires only
nominal operating power and enables the announcer
to hear program cues while working with a live
microphone. The units are also suitable for many other
applications such as live-theater script prompting.
38 | RTS Intercom Systems
CES-1
CES-2
H
e
a
d
s
e
t
Lightweight
The PH-88R, -44R are super lightweight headsets for the
ultimate in daylong comfort. They offer a dynamic noisecanceling gooseneck microphone with a semi-rigid, fully
adjustable boom for precise positioning. The high-quality
wide band dynamic earphones are covered in moleskin
for superior fit, isolation and frequency response.
PH-88R
PH-44R
PH-1R
PH-2R
HR-1R
HR-2R
PH-100R
PH-200R
Full-Cushion, Medium Weight
The PH-1R and PH-2R series of medium-weight intercom
headsets is considered the industry-standard by many
users in all applications. With a weight of only 12 oz.,
these headsets offer the ultimate in daylong comfort.
Medium Weight
The HR-1R and HR-2R are medium-weight passive noise
reduction headsets with dynamic noise-canceling microphones.
The headsets have a noise reduction rating of 21dB; suitable
for use in a moderately noisy environment. The ergonomic
moleskin-covered headband design distributes pressure evenly
with no pressure points, ensuring hours of comfortable wear.
This headset folds into a compact form for ease of storage.
Premium Medium Weight
The PH-100R and PH-200R are premium, medium-weight, noisereduction headsets with dynamic noise-cancelling microphones.
Similar to the HR-1 and HR-2 headsets, the PH-100R and PH200R feature a unique, comfortable headband design that
distributes pressure evenly. These headsets come with highquality moleskin cushions and offer a 21dB noise-reduction rating.
In addition, the headsets fold into an extremely compact shape.
Medium Weight with 24dB NRR
The PH-10R is the ultimate in passive noise-reduction. This
heavy-duty headset offers snug-fitting, dual-sided, monaural
headphones with a dynamic, noise-canceling microphone
for use in high-noise environments. The PH-10R offers an
Environmental Protection Agency rated noise-reduction rating
of 24dB. Perfect for industrial and concert applications.
PH-10R
www.rtsintercoms.com | 39
s
For information on any of the products featured in this catalog, you can reach us at [email protected]
Please visit the RTS Digital Matrix Intercom website at: www.rtsintercoms.com
Americas
Bosch Security Systems, Inc.
12000 Portland Avenue South | Burnsville, Minnesota 55337 | United States
United States Phone: +1-877-863-4169 | Fax: +1-800-323-0498
Canada Phone: +1-866-505-5551 | Fax: +1-866-336-8467
Latin America Phone: +1-952-887-5532 | Fax: +1-952-736-4212
Europe, Africa, & the Middle East
Germany
Bosch Communications Systems (EVI Audio GmbH)
Hirschberger Ring 45, | D-94315, Straubing, Germany
Phone: +49 9421 706-0 | Fax: +49 9421 706-265
United Kingdom
Bosch Communications Systems (Telex Communications UK Ltd)
Unit 26 Fiddlebridge Industrial Center, | Lemsford Road Hatfield, Hertfordshire AL10 0DE, UK
Phone: +44 1707 280 960 | Fax: +44 1707 265 083
United Arab Emirates
Bosch Communications Systems (Telex Communications, Inc.)
Jebel Ali Free Zone, LB21 016 | P.O. Box 79129 Dubai, U.A.E.
Phone: +971 4 881 3850 | Fax: +971 4 881 3851
Asia & the Pacific Rim
Singapore Asia Pacific Regional Headquarters
Bosch Communications Systems (Robert Bosch (SEA) Pte Ltd)
38C Jalan Pemimpin | Singapore 577180
Phone: +65 6319 0616 | Direct Line: +65 6319 0613 | Fax: +65 6319 0620
China
Bosch Communications Systems (EVI Audio Ltd.)
Room 3105-3109, Tower 1, Office Building, 218 Tian Mu Xi Rd., | Shanghai, China. Post Code: 200072
Phone: +86 (21) 63172155 | Fax: +86 (21) 63173025
Hong Kong
Bosch Communications Systems (Telex EVI Audio (Hong Kong) Ltd. )
Unit 5,1/F, Topsail Plaza, 11 On Sum Street, Shek Mun, | Shatin, N.T., Hong Kong.
Phone: +852 2636 2551 | Direct Line:+852 3103 8321 | Fax:+852 2351 3329
Japan
Bosch Communications Systems (EVI Audio Japan Ltd.)
5-3-8 Funabashi, Setagaya-Ku, | Tokyo, Japan 156-0055
Phone: +81 3-5316-5024 | Fax: +81 3-5316-5030
© 2009 Bosch Security Systems, Inc.
Information in this document is subject to change without notice. Technical specifications may vary with options ordered.
LIT000430000
All trademarks are the copyrights of their respective owners.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
