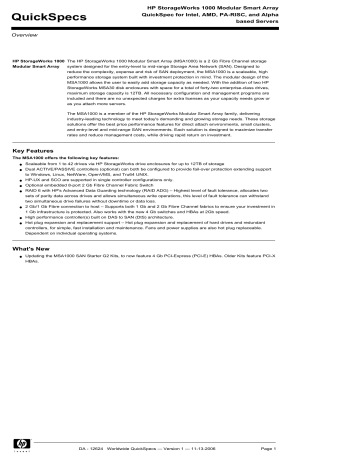

HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha
based Servers
QuickSpecs
Overview
HP StorageWorks 1000 The HP StorageWorks 1000 Modular Smart Array (MSA1000) is a 2 Gb Fibre Channel storage
Modular Smart Array
system designed for the entry-level to mid-range Storage Area Network (SAN). Designed to
reduce the complexity, expense and risk of SAN deployment, the MSA1000 is a scaleable, high
performance storage system built with investment protection in mind. The modular design of the
MSA1000 allows the user to easily add storage capacity as needed. With the addition of two HP
StorageWorks MSA30 disk enclosures with space for a total of forty-two enterprise-class drives,
maximum storage capacity is 12TB. All necessary configuration and management programs are
included and there are no unexpected charges for extra licenses as your capacity needs grow or
as you attach more servers.
The MSA1000 is a member of the HP StorageWorks Modular Smart Array family, delivering
industry-leading technology to meet today's demanding and growing storage needs. These storage
solutions offer the best price performance features for direct attach environments, small clusters,
and entry-level and mid-range SAN environments. Each solution is designed to maximize transfer
rates and reduce management costs, while driving rapid return on investment.
Key Features
The MSA1000 offers the following key features:
Scaleable from 1 to 42 drives via HP StorageWorks drive enclosures for up to 12TB of storage
Dual ACTIVE/PASSIVE controllers (optional) can both be configured to provide fail-over protection extending support
to Windows, Linux, NetWare, OpenVMS, and Tru64 UNIX.
HP-UX and SCO are supported in single controller configurations only.
Optional embedded 8-port 2 Gb Fibre Channel Fabric Switch
RAID 6 with HP's Advanced Data Guarding technology (RAID ADG) – Highest level of fault tolerance, allocates two
sets of parity data across drives and allows simultaneous write operations, this level of fault tolerance can withstand
two simultaneous drive failures without downtime or data loss.
2 Gb/1 Gb Fibre connection to host – Supports both 1 Gb and 2 Gb Fibre Channel fabrics to ensure your investment in
1 Gb infrastructure is protected. Also works with the new 4 Gb switches and HBAs at 2Gb speed.
High performance controller(s) built on DAS to SAN (DtS) architecture.
Hot plug expansion and replacement support – Hot plug expansion and replacement of hard drives and redundant
controllers, for simple, fast installation and maintenance. Fans and power supplies are also hot plug replaceable.
Dependent on individual operating systems.
What's New
Updating the MSA1000 SAN Starter G2 Kits, to now feature 4 Gb PCI-Express (PCI-E) HBAs. Older Kits feature PCI-X
HBAs.
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 1
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
MSA1000 Highlights
High Levels of
Performance,
Scalability, and
Functionality
DtS Architecture
(Direct Attach to SAN)
Data Migration
Performance – The MSA1000 cs and its components have been designed using the latest
in standard 2 Gb interconnects and Fibre Channel technology. Performance is rated at a
transmission rate of up to 30,000 IOPs from cache and bandwidth of up to 200 MB per
second.
Modular Chassis – The modular design of the MSA1000 cabinet supports up to fourteen 1"
Universal hard drives, redundant controllers, 2 Gb embedded fabric switches or hubs, fans
and power supplies in a 4U rackmount cabinet.
Scalability – The MSA1000 is easily expanded. The MSA1000 cabinet scales to 4 TB using
fourteen 300 GB, 1" HP Universal hard drives. By simply adding additional StorageWorks
disk Enclosures (two enclosures max), the MSA1000 scales to 12 TB using forty-two 300
GB 1" HP Universal hard drives – all within 10U of rack space.
MSA SAN Switch 2/8 – The optional MSA SAN Switch 2/8, which can be installed within the
MSA1000 cabinet, offers 2 Gb full fabric performance at an attractive price. A second MSA
SAN Switch 2/8 can be installed for redundancy. There are seven pluggable ports available
(four SFPs are included). The eighth port is directed internally to the controller.
MSA Hub 2/3 – Not available for use with OpenVMS or Tru64 UNIX operating systems. The
optional MSA Hub 2/3, which can be installed within the MSA 1000, offers 2 Gb
performance. With two ports accessible by the user, the MSA Hub 2/3 is the ideal
interconnect for low-cost 2-node clustering or simply attaching two servers. A second MSA
Hub 2/3 along with a second controller can be installed for redundancy. This hub ships with
two SFPs included.
Hot Plug Expansion and Replacement Support – The MSA1000 supports hot plug
expansion and replacement of hard drives, redundant controllers, fabric switches or hubs for
simple, fast installation and maintenance. Fans and power supplies are also hot plug
replaceable.
RAID 6 with HP's Advanced Data Guarding technology (RAID ADG) – This is the highest
level of fault tolerance. It allocates two sets of parity data across drives and allows
simultaneous write operations. This level of fault tolerance can withstand two simultaneous
drive failures without downtime or data loss.
DtS (Direct Attach to SAN) architecture is an exclusive MSA1000 feature that provides a quick and
easy way to migrate stored data, disks and enclosures protected by most Smart Array controllers
to a MSA1000 storage system.
Data that is currently stored on 1" Universal disk drives using recent HP Smart Array controllers,
as well as data on a RA4100 or an MSA500 can easily be migrated to the MSA1000. Simply
remove the drives from the older systems and insert them into the MSA1000. All configuration
information and data will be preserved allowing migration to be completed in minutes, not hours or
days. Refer to the MSA1000 DtS Data Migration White Paper for a list of compatible Smart Array
controllers and further details.
Broad Server,
The modular and scalable design of the MSA1000 provides an extremely flexible platform. You can
Operating System and buy what you need today and purchase additional capacity and performance as your data storage
FC Interconnect
needs grow, instead of making a large up-front investment. Additional drives, controllers, cache,
Support
fabric switches and storage enclosures can easily be added, as your storage needs change.
Fabric Support for 1, 2, and 4 Gb Infrastructure – The MSA1000 supports 1, 2, and 4 Gb
Fibre Channel fabrics to ensure that your investment in your current or future infrastructure
is protected.
Optional embedded interconnects – Both the MSA SAN Switch 2/8 and the MSA Hub 2/3
require no rack space as they are installed in the MSA1000's chassis. This not only saves
valuable rack space (up to 2U saved) but also eliminates some of the cabling needed with
external interconnects. The MSA SAN Switch 2/8 ships with 4 SFPs installed and the MSA
Hub 2/3 ships with 2 SFPs.
Universal Hard Drive – Since the MSA1000 supports HP Universal 1" Ultra2, Ultra3 and
Ultra320 drives, your investment in SCSI technology is protected and cost is minimized as
you add new drives.
Pre-Failure Warranty – Drives installed in an MSA1000 and monitored under Insight
Manager are supported by a Pre-Failure (replacement) Warranty.
NOTE: Pre-Failure Warranty allows for the replacement of designated drives in an MSA1000
before they actually fail when using Insight Manger on ProLiant servers.
NOTE: Some operating systems may not support all of these features.
Multi-platform Intel®, AMD® Opteron, PA-RISC and Alpha based Server Support – The
MSA1000 offers Multi-platform server support to allow a broad range of servers to take
advantage of the MSA1000's scalability, flexibility and connectivity, and supports ACU and
Insight Manager. When used with a ProLiant server, the MSA1000 also provides
unparalleled integration with the MSA1000 Support CD and Pre-Failure Warranty support.
SCO UnixWare support – SCO OpenServer 6.0.0, SCO UnixWare 7.1.3 with Maintenance
Pack 3 and 7.1.4 are supported in limited, single controller 2-node homogeneous
configurations.
Integrated Configuration and Management Tools – The MSA1000 utilizes a standard,
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 2
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
MSA1000 Highlights
integrated set of management and utility software. These tools consistently lower the cost of
ownership by reducing training and technical expertise necessary to install and maintain the
MSA1000.
The MSA1000 comes with/supports the following configuration and management tools depending
on what operating system:
Server Compatibility
Configuration
(solution chosen as
appropriate for operating
system)
Provides a graphical view of HP drive array configurations
Easy to use Wizards for configuration
ACU supports on-line configuration
Web Based ACU supports On-Line, Remote Web Based and Offline configuration
Management/Health
(solution chosen as
appropriate for operating
system)
Insight Manager (IM)
EMS Used in conjunction with HP-UX servers
Array Diagnostics Utility (ADU) This utility collects information
about the array controllers in the system and generates a list of
potential problems it has identified. It produces a report that can
be saved to a diskette and analyzed by support technicians to aid
in problem resolution.
HP StorageWorks Modular Smart Array SMI-S Provider for
Windows 2000/Windows Server 2003
ACU/ADU Bootable
Utility
(solution chosen as
appropriate for operating
system)
The MSA1000 Support Software CD is a bootable media that
enables a server to boot into a Linux shell and launch the ACU
allowing the user to configure the MSA1000 storage or generate a
diagnostic report without requiring a pre-installed operating system
or drivers.
All ProLiant x86 and x86_64 servers are fully supported unless noted below.
NOTE: New model testing is ongoing.
ProLiant x86 servers
BL20p G2, BL30p, BL40p, DL140 G2, DL360, DL360 G2, DL360 G3, DL380, DL380 G2, DL380
G3, DL560, DL580, DL580 G2, DL740, DL760, DL760 G2, ML370, ML370 G2, ML370 G3, ML530,
ML530 G2, ML570, ML570 G2, ML750
ProLiant AMD Opteron servers
BL25p, BL25p (Dual Core), BL35p, BL35p (Dual Core), BL45p, BL45p (Dual Core), DL145, DL145
G2 (Dual Core), DL385, DL385 (Dual Core), DL585, DL585 G2 (Dual Core) (DL145-G1 not
supported in Boot-From-SAN environment)
ProLiant INTEL EM64T servers
BL20p G3, BL20p G4, BL460c, BL480c, DL360 G4p, DL360 G4, DL360 G5, DL380 G4, DL380
G5, DL580 G3, DL580 G4, ML350 G4p, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
Integrity IA64 (Itanium) servers
rx1600, rx1620, rx2600, rx2620, rx4610, rx36xx, rx4640, rx5670, rx66xx, rx7620, rx8620, rx8800,
rx9610, zx2000, zx6000, Integrity Superdome
NOTE: BL60P (FC Mezzanine Card, FC passthru or internal McData/Brocade FC 4Gb Switch
Cube)
HP-UX specific servers
rp24xx, rp34x0, rp4440, rp54xx, rp740x, rp7410, rp7420, rp8400, rp8420, SD16000, SD32-128A,
SD32/64000, C3xxx, B2000, J5xxx, J6000, J7xxx, K-class
Supported Alpha servers
DS10, DS15, DS20, DS20E, DS25, ES40, ES45, ES47 (PCI-X), ES80 (PCI-X), GS60, GS60E,
GS80, GS140, GS160, GS320, GS1280 (PCI-X)
NOTE: Certification of new ProLiant and Integrity server models is ongoing. Not all OSes are
supported on all models. Supports most multi-vendor industry standard 32-bit Intel-based (x86)
and Opteron servers.
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 3
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
Models
HP StorageWorks
1000 Modular Smart
Array
MSA1000, with 256 MB cache
201723-B22
MSA1000 Controller, with 256 MB cache
218231-B22
256 MB Cache Module upgrade for Controller
254786-B21
MSA Fibre Channel I/O Module
218960-B21
MSA Hub 2/3 (integrated) ships with 2 SFPs installed
286763-B21
MSA SAN Switch 2/8 (integrated) ships with 4 SFPs installed
288247-B21
2 Gb SFP SW Transceiver Kit
A6515B
MSA1000 additional
drive enclosures
Modular Smart Array 30 (MSA30) drive enclosure, single bus
302969-B21
Modular Smart Array 30 (MSA30) drive enclosure, dual bus
302970-B21
MSA1000 SAN Starter
G2 Kit (NEW)
(w/ PCI-E HBAs)
HP StorageWorks MSA1000 SAN Starter G2 Kit (Windows, NetWare or Linux
compatible)
353803-B23
*NEW*
NOTE: Includes (1) MSA1000 (1) MSA SAN Switch 2/8, (2) FC1142SR 4Gb
PCI-E HBAs + cables
MSA1000 SAN Starter HP StorageWorks MSA1000 SAN Starter Kit HA Bundle
Kit High Availability G2 NOTE: Includes (1) redundant controller; (1) HP MSA SAN Switch 2/8 (4) SFP
Bundle (NEW)
transceivers (2) FC1142SR 4Gb PCI-E HBAs + cables. Designed as an upgrade
(w/ PCI-E HBAs)
for the MSA1000 SAN Starter G2 Kit. Software is required to enable path
397079-B22
*NEW*
failover. This can be Industry Standard (MPIO for Windows, QLogic for Linux) or
optional Secure Path (available for most Windows, Linux and NetWare versions)
MSA1000 SAN Starter
Kit (w/ PCI-X HBAs)
HP StorageWorks MSA1000 SAN Starter Kit (Windows, NetWare or Linux
compatible)
NOTE: Includes (1) MSA1000 (1) MSA SAN Switch 2/8 (2) FCA2214 PCI-X
HBAs + cables.
353803-B22
MSA1000 SAN Starter HP StorageWorks MSA1000 SAN Starter Kit HA Bundle
Kit High Availability
NOTE: Includes (1) redundant controller; (1) HP MSA SAN Switch 2/8 (4) SFP
Option (w/ PCI-X HBAs) transceivers (2) FCA2214 PCI-X HBAs + cables. Designed as upgrades for the
MSA1000 SAN Starter Kits. Software is required to enable path failover. This can
be Industry Standard (MPIO for Windows, QLogic for Linux) or optional Secure
Path (available for most Windows, Linux and NetWare versions)
397079-B21
Secure Path
Workgroup Editions
HP StorageWorks Secure Path v4.0C for Windows Workgroup Edition
213076-B26
HP StorageWorks Secure Path v3.0C for NetWare Workgroup Edition
222411-B22
Secure Path v3.0C for Linux Workgroup Edition
T3581A
ProLiant Cluster Starter Kit for the Entry Level SAN for Windows 2000 and
Windows 2003 (dual server, single path
364023-B21
ProLiant Cluster HA/F200 for Entry Level SAN, Windows 2000 and Windows
2003 (dual server, redundant path)
364026-B21
MSA1000 Small
HP StorageWorks MSA1000 Small Business SAN Kit
Business SAN Kit
NOTE: Includes (1) MSA1000; (1) 2/8q FC Switch; (2) FC HBA's (PN A7523A) +
(Windows and Linux 32- cables.
bit servers only)
The MSA1000 SMB Kit is not designed to connect to any other StorageWorks
SAN or interconnect. See the MSA1000 SMB link at
http://www.hp.com/go/msa1000 for additional details
A7450A
HP StorageWorks MSA1000 Small Business HA Upgrade Kit for Windows and
Linux
NOTE: Includes (1) redundant controller; (1) Fibre Channel I/O Module (1) 2/8q
FC Switch; (2) FC HBA's (PN A7523A); and cables.
It may only be used with the MSA1000 SMB Kit (A7450A)
A7452A
2 Gb, 32-Bit/133 MHz PCI-X-to-Fibre Channel Host Bus Adapters
NOTE: This is a single channel HBA for Windows 2000, Windows 2003, and
Linux. It may only be used with the MSA1000 SMB Kit (A7450A)
A7523A
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 4
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
MSA1000 Components
With the following components, your storage capacity and performance can be scaled to new levels:
HP StorageWorks
Modular Smart Array
1000
The 4U cabinet houses up to fourteen 1" Universal hot pluggable Ultra2, Ultra3, and/or Ultra320
drives. Each MSA1000 includes the following standard components: (1) MSA1000 Controller, (1)
MSA Fibre Channel I/O Module with a single SFP, dual hot pluggable fans/power supplies and
power cables, documentation and a support software CD.
The modular design of the MSA1000 makes it possible to add redundant controllers, redundant
single port Fibre Channel I/O Modules, 3-port hub, or embedded fabric switch and storage
expansion enclosures. Additional storage enclosures may be added without power cycling the
MSA1000.
MSA1000 Controller
The MSA1000 Controller is an integrated RAID controller with an LCD/LED status display and 256
MB read/write battery-backed cache (expandable to 512 MB per controller). One MSA1000
Controller is included with the MSA1000; a redundant MSA1000 Controller is an option. Purchase
of Secure Path software or use of various industry standard MPIO solutions is a requirement if a
second controller is chosen.
Key Features
Redundant controller support with mirrored cache
Fabric, Private Loop & Public Loop Support
Auto Negotiated F, FL & L Port Login
RAID 0, 1, 1+0, 5 and ADG
2 Gb/1 Gb Frequency Agile
Primary and Secondary Inter-Controller Link (ICL)
Host based configuration via ACU (OS dependent)
Optionally configurable with Command Line Interface (CLI)
Remote configuration and monitoring via ACU (offline and remote)
& Insight Manager (OS dependent)
MSA1000 Controller
Management Features
Selective Storage Presentation: allows multiple hosts to access
a single MSA1000 storage system. Host access can be defined all
the way down to a logical volume level.
Online RAID Level Migration: allows for online post-configuration
change to RAID level without destroying data or volume
information.
Online Capacity Expansion: lets you add storage to an
operational MSA1000-reducing expensive server downtime.
Global Online Spare: reduces the risk of data loss by facilitating
automatic rebuilds after a drive failure.
Fault Tolerance
Several fault tolerant configurations which keep data available and
servers running while drives are being replaced are supported including:
RAID 6 with Advanced Data Guarding: Allocates the equivalent
of two parity drives across multiple drives and allows simultaneous
write operations.
Distributed Data Guarding (RAID 5): Allocates parity data across
multiple drives and allows simultaneous write operations.
Drive Mirroring (RAID 1, (1+0 Striped Mirroring)): Allocates half of
the drive array to data and the other half to mirrored data,
providing two copies of every file.
Fault Recovery
Minimizes downtime, reconstructs data, and facilitates a quick recovery
from drive failure:
Online Spares: If a failure occurs, recovery begins with an online
spare and data is reconstructed automatically. Multiple online
spares can be assigned per array and used across multiple arrays.
It is also possible to assign different online spares across different
arrays.
Array Accelerator: Onboard, battery-backed cache memory
protects data in the event of a power failure. In the unlikely event
of a controller failure, the battery-backed cache will save critical
user data.
MSA Fibre Channel I/O Provides a single 2 Gb Fibre Channel connection per controller from the host side into the
Module
MSA1000. The MSA Fibre Channel I/O Module includes one 2 Gb, Short Wave, Small-FormFactor-pluggable Transceiver (SFP). A second MSA Fibre Channel I/O Module can be installed for
redundancy when a redundant controller is used.
The single I/O module can be used in a direct connect configuration (no switch or hub) in
Windows, Linux, NetWare, SCO and HP-UX only.
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 5
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
MSA1000 Components
MSA SAN Switch 2/8
(embedded)
The optional MSA SAN Switch 2/8 offers low price per port and full scalability, doing so while
taking zero rack space, even in a redundant configuration. This second generation integrated
switch option offers the customer more ports than our previous offering and is a full member of the
HP SAN Switch family, assuring interoperability from the smallest to the largest SAN configuration.
The HP StorageWorks MSA SAN Switch 2/8 can be used by the true entry-level customer looking
for a very inexpensive switch based on cost per port. This same switch can be attractive to the
larger customer who must have the interoperability with their other external B-Series SAN switch
products from HP and especially appreciates the rack space saving characteristics.
(The MSA SAN Switch 2/8 replaced the obsolete MSA Fabric Switch 6 option.)
Key Features
MSA Hub 2/3
(embedded)
Eight 2 Gb ports: 1 to controller, 7 user accessible
Product ships with 4 SFPs installed
No E-port restriction, accepts all optional software
Interoperates with external HP B-Series SAN Switch 2 and 4 Gb
switches
Configuration and management methodology common with SAN
Switch product line, same methods as installed base of 40,000+
HP 1 and 2Gb SAN Switches
The HP StorageWorks MSA Hub 2/3 is a low-cost interconnect designed for clustering or low cost,
high speed attachment of two servers to the MSA1000. The MSA Hub 2/3 is a 3-port Fibre
Channel Arbitrated Loop hub that is mounted on a blade that easily installs inside the MSA1000
storage unit, saving valuable rack space. Two of these hubs may be installed for redundancy
within the MSA1000. The MSA Hub 2/3 is not cascadable. It is not certified for Alpha
environments.
The hub presents the user with two SFP ports for simple direct attachment to two single or
clustered servers without having to purchase an external interconnect device. It offers the most
cost-effective solution for a user to enable a clustered server environment.
High Performance: supports MSA1000 with a 2 Gb interconnect capable of up to 200 MB
throughput
Low Cost: supports the entry-level SAN array with the most cost effective option for 2-node
clustering
Compact: installs in the MSA1000, replacing the I/O module, saving valuable rack space
Complete: comes with two SW SFPs - no need for further investment
Not qualified with servers utilizing Tru64 UNIX or OpenVMS operating systems.
2 Gb Small Form Factor2 Gb Small-Form-Factor-pluggable (SFP) SW Transceivers are industry standard connection
pluggable (SFP) SW
devices, which hot plug into 2 Gb infrastructure components such as 2 Gb Fabric Switches. HP
Transceiver Kit
StorageWorks 2 Gb SFP SW Transceivers support distances up to 300 meters at 2 Gb and 500
meters at 1 Gb using multi-mode fiber optic cable.
Multi-Mode Fibre
Channel Cables
Multi-Mode Fibre Channel cables provide a thin, flexible cabling solution that is immune to
electromagnetic interference. HP offers cables to connect the MSA1000 to both 2 Gb and 1 Gb
Fibre Channel infrastructures. LC to LC cables are used when connecting the MSA1000 to other 2
Gb Fibre Channel components because both connections will utilize small form factor transceivers.
LC to SC cables are used when connecting the MSA1000 to 1 Gb Fibre Channel components. 1
Gb components use the larger GBIC style transceivers.
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 6
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
Software Components
The MSA1000 utilizes a single, consistent set of utility software for storage and RAID management, setup, configuration and
troubleshooting. This consistency reduces the cost of ownership by reducing the training and technical expertise necessary
to install and maintain your HP storage solution.
Array Configuration
Utility
(solution chosen as
appropriate for operating
system)
Provides a graphical view of HP drive array configurations
Easy to use Wizards for configuration
ACU supports on-line configuration
Web Based ACU supports On-Line, Remote Web Based and Off-line configuration
Runs online on Microsoft Windows 2000 and 2003
Selective Storage
Presentation (SSP)
Built-in to MSA1000 Controller firmware and controlled via ACU
Allows setting of access rights to the MSA1000 storage by hosts
Access control can be set up to a logical volume level using the Array Controller Utility
Insight Manager
(solution chosen as
appropriate for operating
system)
Powerful storage, server and server option management tool
Monitor storage from a remote central location
Browser based System Insight Manager provides full access from anywhere on the Intranet,
eliminating the need for a dedicated Insight Manager management console
OS Support for Single
controller or dual
controller
configurations
Microsoft Windows Enterprise Edition 2003 (32 & 64-bit) R2
Microsoft Windows Standard Edition 2003 (32 & 64-bit) R2
Microsoft Windows 2000 Server Edition (32 & 64-bit)
Microsoft Windows 2000 Advanced Server (sp4) (32 & 64-bit)
HP-UX 11.11 and 11.23
Red Hat Linux Enterprise Advanced Server and Enterprise Linux 3.0 (32 & 64-bit) & 4.0 (32bit & 64-bit )SuSE Linux SLES8 and SLES9 (32 & 64-bit )
Netware v5.1 and 6.5.
Tru64 UNIX or OpenVMS supported in homogeneous environments only (no hub support).
SCO OpenServer 6.0.0, SCO UnixWare 7.1.3 and UnixWare 7.1.4 (single controller in 2node homogeneous environments only.
Please refer to compatibility matrix at http://www.hp.com/go/msa1000 for complete configuration
support.
HP-UX support
The MSA1000 for HP-UX supports single controller configurations only. Active/passive
configurations are not supported. HP-UX support is of a homogeneous nature. Command Line
Interface (CLI) is used for configuration and Event Monitoring Service (EMS) for monitoring.
Root/Boot/Dump/Swap/Install is also supported. PV Links is supported for multi (HBA) path / single
controller (2 HBAs) configurations. HP-UX support is enabled with the standard firmware that ships
with the MSA1000.
Command Line Interface (CLI) is used for configuration and Event Monitoring Service (EMS)
for monitoring.
Root/Boot/Dump/Swap/Install is also supported.
PV Links is supported for multi (HBA) path / single controller (2 HBAs) configurations.
Fabric, hub and direct Connect are supported
HP-UX 11.11 & 11.23, PA-RISC and Itanium
SCO UnixWare and
OpenServer
HP's MSA1000 SAN solution is available today to run on SCO UnixWare 7.1.3 and 7.1.4 and SCO
OpenServer 6.0.0. The MSA1000 with a single controller may be connected to a ProLiant server
with SCO UnixWare in one of the below described manners:
Direct Attach
Through an internal Hub
Through an internal switch
The StorageWorks FCA2214 and the FCA2214DC are the approved HBAs.
Software Certifications
Microsoft Cluster Server Certification
HP Serviceguard for Linux (& HP-UX with special 2-MSA1000 configuration)
Hewlett Packard Data Protector
VERITAS Backup Exec and NetBackup
Legato NetWorker for Windows
SteelEye LifeKeeper for Linux Certification
Please refer to compatibility matrix at http://www.hp.com/go/msa1000 for complete configuration
support.
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 7
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
Optional Software
HP StorageWorks
Secure Path
HP StorageWorks Secure Path is a family of high availability multi-pathing software products
providing continuous data access from the HP RAID Array to host servers running the Windows
Server 2003, Windows 2000, Windows NT, Linux and NetWare operating systems.
Redundant hardware, advanced RAID technology and Secure Path's automated failover capability
are used to enhance fault tolerance and availability. Secure Path effectively eliminates controllers,
disk drives, interconnect hardware and host bus adapters as single points of failure in the storage
subsystem.
The attachment of non-Secure Path (single HBA) servers to an MSA1000 with dual controllers that
has servers with Secure Path (dual HBA) attached is supported where the operating systems are
Windows or NetWare. Users must realize that in event of a controller fail-over (failure of active
controller) the single path servers will lose access to their data on the MSA1000.
NEW – Secure Path can now support up to an 8-node cluster in Windows Server 2003.
NOTE: If Secure Path for Linux is used on any node or cluster attached to an MSA1000, all nodes
must also have Secure Path installed, regardless of operating systems.
NOTE: refer to http://www.hp.com/go/securepath for the latest Secure Path parameters.
Key Features
Maintains connections to storage
Monitors I/O paths and alerts on significant events
Used in
Stand alone Configurations
Cluster configurations
SAN configurations
MSA1000 utilization of HP supports additional high availability multi-pathing capabilities within various operating systems
Industry Standard fail- and through third-party vendors, providing continuous data access from HP's RAID MSA1000 to
over solutions
host servers. Options are available for servers running the Windows and Linux operating systems.
More information and the explanation of restrictions are available at
http://h18006.www1.hp.com/products/sanworks/multipathoptions/index.html
Microsoft Windows 2000 and 2003 (32 bit EE and 64 bit EE only)can utilize the HP MPIO
Basic Failover v1.3 for MSA Arrays, a DSM available for free download at the above site.
Linux industry standard failover for the MSA1000 is available at no charge within the HBA
device driver from QLogic or Emulex.
MSA1000 clustering
Clustering is rapidly gaining in popularity as users desire a high level of data availability. Many of
the old cluster restrictions that were the product of both hardware and operating systems have
been overcome. While there still remain configuration limits, the result is a new high degree of
flexibility both in number of clusters, mixing clusters with single nodes, and the integration of
dissimilar operating systems.
For example you may mix three Microsoft (Windows Server 2003 or Windows 2000) clusters and
other individual servers, even doing so in a heterogeneous server operating system environment.
Windows Server 2003 allows a single cluster of up to eight nodes.
Single-path (single controller, non-Secure Path) NetWare clustering has been successfully tested
up to a 12-node cluster. NetWare clusters employing Secure Path (dual controller, dual HBAs) are
limited to six nodes. Multiple NetWare clusters (and single servers) may have concurrent access
with no limitation inherent to the MSA1000. Likewise up to a 16-node Linux cluster (single
controller, non-Secure Path) utilizing SteelEye LifeKeeper for Linux clustering software has been
tested and is supported. Presently a Linux/Secure Path configuration is limited to a two-node
cluster. Refer to http://www.hp.com/go/securepath for any restriction on Linux with Secure Path.
The MSA1000 has the ability to be configured with thirty-two LUNs. Best practices would dictate
generally no more than sixteen servers accessing a single MSA1000. More commonly, users have
had an average of five to eight nodes. This can be any combination of hosts or clusters with
different operating systems while holding fast to the guidelines and limits described in the above
paragraphs. Performance within these guidelines is heavily dependent on the actual number of
end users and types of applications being employed.
For more information, click on the link: http://www.hp.com/solutions/ha.
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 8
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
Optional Software
ProLiant Cluster F200
for the Entry Level SAN
(Microsoft)
The ProLiant Cluster F200 for the Entry Level SAN is designed to assist in simplifying the
configuration of cluster solutions that provide high levels of data and applications availability
in the Microsoft Windows Operating System environment through clustering to provide nosingle-point-of-failure. The ProLiant Cluster F200 for the Entry Level SAN supports a twonode cluster based on Microsoft Windows 2000 Advanced Server and two to eight-nodes
cluster based on Microsoft Windows Server 2003 Enterprise Edition operating system, the
StorageWorks Modular Smart Array 1000 (MSA1000) and MSA1500 cs, or Raid Array
RA4100 and ProLiant Servers. This solution also supports StorageWorks Secure Path
management software.
HP ProLiant Cluster HA/F200 for Entry Level SAN (Microsoft)
HP Serviceguard for
Linux
364026-B22
HP Serviceguard is a high availability solution that leverages the strength of HP's experience in the
HA business, bringing the best-in-class mission critical technologies to the Linux environment and
ProLiant and Integrity servers. HP Serviceguard provides critical applications the high availability
that enterprise customers require for 24x7 business operations. It is designed to protect
applications from a wide variety of software and hardware failures, monitoring the health of each
server (node) and quickly responding to failures including system processes, system memory, LAN
media and adapters, and application processes. Serviceguard enables customers to cluster HP
ProLiant and Integrity server families with shared storage from HP Modular Smart Array 500 to HP
StorageWorks XP disk arrays in a 2-node SCSI or 2 to 16-node Fibre Channel configuration.
Please refer to the HP ProLiant High Availability web site under Linux clustering for ProLiant for the
latest information on Serviceguard for Linux:
http://www.hp.com/servers/proliant/highavailability/serviceguard
For general Serviceguard information (HP-UX and Linux), please refer to:
http://www.hp.com/go/serviceguard
HP Serviceguard for Linux ProLiant Cluster, A.11.16 (2 license version)
305199-B26
HP Serviceguard for Linux, A.11.16 (single license version)
307754-B26
HP Serviceguard for Linux ProLiant Cluster (per 2-node cluster) A.11.15
305199-B24
HP Serviceguard for Linux (per 32-bit server) A.11.15
307754-B24
HP ProLiant Clusters
for NetWare
HP supports a broad range of solutions for NetWare Cluster services including configurations
featuring the MSA1000 and optionally with HP StorageWorks Secure Path. These solutions
provide high availability and maximum resource utilization for NetWare environments from small
file sharing implementations to enterprise business computing. Single-path (single controller, nonSecure Path) NetWare clusters of up to 12-nodes have been successfully tested. Presently 2-node
NetWare clusters with Secure Path have been tested and approved with larger NetWare cluster
testing planned. Multiple NetWare clusters are allowed.
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path for NetWare
parameters.
HP ProLiant Parallel
Database Clusters for
Oracle on MSA1000
The HP Parallel Database Clusters (PDC) for Windows and Linux provide the industry's leading
platform for deployment of Oracle 9i Real Application Clusters. The PDC is a multi-node (up to six
in Microsoft environments and up to four with Linux)) shared-storage clustering environment that
enables industry standard Windows and Linux platforms to deliver performance previously limited
to very large SMP (16 to 32 processor) environments. Every server node in the cluster has
concurrent read-write access to the common shared database residing on the MSA1000 storage
SAN. The multi-node architecture is inherently highly available, loss of any single node results in
some degradation of performance but the database remains active and accessible. When
optimally integrated with Oracle load balancing and transparent application reconnect features,
clients are completely insulated from the loss of a server resource or an Oracle instance failure on
a node. To complement the high availability of the server cluster in a Windows environment, the
Parallel Database Cluster integrates HP StorageWorks Secure Path for fully redundant access to
the database in the even of any failure in SAN connectivity. Secure Path for Linux will be available
at a later date. Combined, the Oracle clustering technology and HP platform technology deliver
cost effective and highly available enterprise solutions for database applications.
For more specific information concerning configuration, interconnect options, and dual path
software refer to the HP/Oracle site at
http://h18000.www1.hp.com/solutions/enterprise/highavailability/oracle/index.html.
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 9
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
Optional Software
HP OpenView storage Storage Virtual Replicator combines a rich set of innovative capabilities that enhances and
virtual replicator
simplifies storage management for Windows Server 2003 and Windows 2000 environments.
(Microsoft environments) Through virtualization, online volume growth, snapshot and management features, the software
complements the capabilities within the operating system. HP OpenView Storage Virtual Replicator
enables simplification of storage configuration, management, scalability and enhanced availability
with e-mail notification for event customization, enhanced pool deletion that enables deletion of
pool or disk containing snapshots, enhanced policy descriptions for easier identification.
Key Features
Support for Windows 2000 and Windows Server 2003
Virtualization - multiple storage arrays can be consolidated into a
pool of disk space for individual or clustered systems to use.
Multiple virtual disks, up to 2 terabyte in size, can be created from
a pool for users and their applications. Existing storage units with
production data can be imported into a pool. The data partition is
preserved as a virtual disk and unused capacity is added to the
pool.
Online volume growth - Enables easy, non-disruptive growth for
Windows 2000 or and Windows Server 2003 with zero downtime.
Allows a system administrator to grow an existing volume on
virtual disks and Windows 2000 basic disk. The system will remain
online, and the data on the volume will remain intact.
Snapshots - Instant, point-in-time snapshots for backup, online
restore, testing or data mining. Enable instant creation of
multipurpose virtual replicas of production data without the
requirement of a physical copy Snapshots identical to ordinary
physical disks, with both read and write capability. Snapshots can
remain online for restore operations, testing, and data mining. Full
interoperability with the Windows Server 2003 Volume Shadowcopy Service (VSS).
E-mail notification - customization of events for servers under
your span of control.
Enhanced pool deletion - delete a pool that contains snapshots
and virtual disks or delete a virtual disk that contains snapshots
with the DELTREE command.
Interoperability with StorageWorks Storage Mirroring
Enhanced policy descriptions - the policy key descriptions have
been updated for easier identification.
Please refer to the Optional Software section of this document or visit
http://www.hp.com/go/msa1000 for additional details.
Key Features
Support for Windows 2000 and Windows Server 2003
Virtualization – multiple storage arrays can be consolidated into a pool of disk space for
individual or clustered systems to use. Multiple virtual disks, up to 2 terabyte in size, can be
created from a pool for users and their applications. Existing storage units with production
data can be imported into a pool. The data partition is preserved as a virtual disk and unused
capacity is added to the pool.
Online volume growth – Enables easy, non-disruptive growth for Windows 2000 or and
Windows Server 2003 with zero downtime. Allows a system administrator to grow an existing
volume on virtual disks and Windows 2000 basic disk. The system will remain online, and
the data on the volume will remain intact.
Snapshots – Instant, point-in-time snapshots for backup, online restore, testing or data
mining. Enable instant creation of multipurpose virtual replicas of production data without the
requirement of a physical copy Snapshots identical to ordinary physical disks, with both read
and write capability. Snapshots can remain online for restore operations, testing, and data
mining. Full interoperability with the Windows Server 2003 Volume Shadow-copy Service
(VSS).
E-mail notification – customization of events for servers under your span of control.
Enhanced pool deletion – delete a pool that contains snapshots and virtual disks or delete
a virtual disk that contains snapshots with the DELTREE command.
Interoperability with StorageWorks Storage Mirroring
Enhanced policy descriptions – the policy key descriptions have been updated for easier
identification.
Please refer to the Optional Software section of this document or visit
http://www.hp.com/go/msa1000 for additional details.
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 10
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
Optional Software
HP StorageWorks
Storage Mirroring
OpenView Storage Mirroring is designed to take small-medium enterprises beyond periodic backup
to provide continuous data protection with minimal data loss and immediate recovery from any
disaster or system outage. Utilizing patented STAR technology, OV Storage Mirroring captures
byte-level changes as they happen and replicates those changes to one or more target servers at
any location in the exact sequence sent by the source. Advanced features put you in control of
bandwidth usage, queue data changes for replication during off-peak hours, enable e-mail, pager
or wireless notification when changes occur and scales organically to meet the need of your
environment. OV Storage Mirroring is the core component to the following solutions: disaster
recovery, remote availability, centralized backup, serverless backup, data distribution, mining and
server/storage migration.
Supports Microsoft Windows 2000/NT/2003servers
One-to-one failover/fail back solution for MS-Exchange, MS-SQL and Oracle providing
automatic failover and near instantaneous access to replicated data or use replicated data or
rebuild your local server.
Server Groups – enables the "grouping" of servers on the management console (GUI)
allowing focus on only those servers under your span of control
Continuous, asynchronous byte-level replication with intelligent data compression captures
changes as they occur, ensures sequence of data mirrored on target, and provides userconfigurable compression levels to ensure efficient usage of network resources.
One-to-many and many-to-one host configurations allowing multiple production servers to
use the same target server
For more information visit http://h18006.www1.hp.com/products/storage/software/sm/index.html
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 11
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
Configure to Order Program Information
HP introduces the new Configure to Order program on a limited basis. It is not yet available in all areas. The MSA1000 and
its options may or may not be factory installed in a rack with add-on controllers, switches, hubs, MSA30 enclosures and hard
drives. The MSA1000 may be integrated with 64-bit Integrity and PA-RISC servers or ProLiant or as standalone storage.
Configure to Order
Products Approved for CTO
CTO SKUs
Modular Smart Array 1000
201723-B22 #0D1
HP MSA1000 Controller 256 cache ALL
218231-B22 #0D1
256 MB Cache Upgrade
254786-B21 #0D1
2 Gb FC Port Kit
218960-B21 #0D1
MSA SAN Switch 2/8 ALL
288247-B21 #0D1
MSA1000 Embedded 3-port Hub
286763-B21 #0D1
MSA30 U320 Enclosure, single bus
302969-B21 #0D1
300 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
350964-B22 #0D1
146 GB 10K U320 Pluggable Hard Drive WW
286716-B22 #0D1
72 GB 10K U320 Pluggable Hard Drive WW
286714-B22 #0D1
146.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
347708-B22 #0D1
72 GB 15K U320 Pluggable Hard Drive WW
286778-B22 #0D1
36 GB 15K U320 Pluggable Hard Drive WW
286776-B22 #0D1
2m LC-LC multimode FC cable
221692-B21 #0D1
5m LC-LC multimode FC cable
221692-B22 #0D1
15M LC-LC multimode FC cable
221692-B23 #0D1
30M LC-LC multimode FC cable
221692-B26 #0D1
50M LC-LC multimode FC cable
221692-B27 #0D1
42U EVA cab 60Hz
338042-B21
42U EVA cab 50Hz
338043-B21
36U EVA cab 60Hz
338044-B21
36U EVA cab 50Hz
338045-B21
22U EVA cab 60Hz
338046-B21
22U EVA cab 50Hz
338047-B21
HP9000 Std Rack System E25
A4900A
HP Rack System/E, 33U, quartz color
A4901A
HP Rack System/E, 33U, graphite color
A4901D
HP Rack System/E, 41U, quartz color
A4902A
HP Rack System/E, 41U, graphite color
A4902D
HP Modular Cooling System (WW)
NOTE: The purchase of HP Modular Cooling System includes 10642 G2
rack and MCS unit attached.
AF098A
Rack 10642 42U Shock ALL
245161-B22
Rack 10636 36U Shock ALL
245162-B22
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 12
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
Service and Support, HP Care Pack, and Warranty Information
Warranty
Three-year Limited Warranty for MSA1000, Fibre Channel Cables and SFP Transceivers
3 years parts exchange
1 year labor
1 year on-site
Next business day response
Options for the MSA1000 carry their own warranty. Refer to HP's Limited Warranty Statement for
further details. In countries where available, your HP Limited Warranty includes Customer Self
Repair warranty services. Please refer to HP's Limited Warranty Statement for further details:
http://h18006.www1.hp.com/products/storageworks/warranty.html
Products included in various Kits carry their own individual warranties.
Warranty Upgrade
Options
Response – Upgrade on-site response from next business day to same day 4 hours
Coverage – Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
Duration – Select duration of coverage for a period of 1, 3, or 5 years
Storage Service
Packages
HP Care Pack is defined as an upgrade to the product warranty attribute, available for a
specific duration and hours of coverage.
HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but
the commencement date will be the same as the Warranty Start Date (delivery date to end
user customer). Proof of purchase may be required.
HP Care Pack services are prepaid.
For additional information on Product Services and HP Care Pack, as well as orderable part
numbers, please refer to the URL: http://www.hp.com/hps/carepack/.
If you have specific questions about availability or how to obtain services contact your local HP
representative. Contact information for your local area can be found at:
http://www.hp.com/services.
Software Product
Software product services
Services
Product support provides the customer access to HP's experienced technical support
resources, as well as access to HP's Information Services database for support on a variety of
multi-vendor/multiplatform software products. Product support includes escalation and problem
coordination with the appropriate engineering group. HP Services offer a variety of options to allow
you to tailor your product service to meet the needs of your organization. Basic warranty on
products can be uplifted from day one to ensure you receive the service you need when you need
it.
Warranty and support
HP warrants only that the software media will be free of physical defects for a period of ninety (90)
days from delivery.
The following services are offered as HP Care Pack Services at the time of software product
order:
Software Technical Support 24 x 7 (1 and 3 years) is available 24 hours per day, Monday
through Sunday, including holidays (includes phone-in software technical support 24 x 7 and
software product and documentation updates).
Installation Service (software installation) and Installation and Startup Service (software
installation, configuration, startup testing and knowledge transfer).
HP Care Pack services must be ordered with the product and are prepaid.
For tailored support contracts based on personalized statement of work contact your local
support center via http://www.HP.com/support.
Secure Path software services
Software product services included with Secure Path: One year of Software Technical
Support 24 x 7 HP Care Pack Services (includes phone-in software technical support 24 x 7
and software product and documentation updates).
HP Care Pack services are available to upgrade the one year of Software Technical Support
24 x 7 included with the Secure Path product to 3 full years.
Installation service (software installation)
For additional software product services information for North American HP Care Pack services,
as well as orderable part numbers, please refer to the URLs listed below:
All storage services: http://www.hp.com/hps/storage/.
All HP Care Pack Services: http://www.hp.com/hps/carepack/storage/cp_networked.html.
Software Support HP Care Pack Services:
http://www.hp.com/hps/carepack/software/cp_storage.html.
Installation and Startup Services: http://www.hp.com/hps/storage/ns_implementation.html.
If you have specific service questions contact your local HP representative. Contact information for
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 13
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
Service and Support, HP Care Pack, and Warranty Information
your local area can be found at: http://www.compaq.com/support.
Maintenance releases, bug fixes and software patches are available at:
http://www.compaq.com/support/sanworks.
Array Installation and
Startup Services
The HP Installation and startup for HP StorageWorks Disk Arrays service package provides
installation and configuration of HP StorageWorks Disk Array products. Service highlights include:
Installation and Startup provides, installation, LUN Disk Design and configuration of the MSA 1000
which includes
Service Planning
Service Deployment
Installation Verification Testing (IVT) required for this service
Customer Orientation session
Service Deployment includes the deployment of the MSA disc array into a new or pre-existing SAN
which may consist of switch, hub or SCSI bridge technology. Installation includes the
customization of up to four host servers, eight host bus adapters (hba's) and up to four high
availability software licenses.
NOTE: Refer to Step 7 in the Configuration Information section below for all Service, Warranty Plans, Installation and
Startup Services available for the MSA1000
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 14
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
Configuration Information
Step 1 – Order Required Items
HP StorageWorks Modular Smart Array 1000
201723-B22
Includes:
(1) MSA1000 Controller with 256 MB cache
(1) MSA Fibre Channel I/O Module with 2 Gb SFP SW Transceiver
Redundant Hot Pluggable Power Supply/blower assemblies
Universal Rack mounting Kit
MSA1000 Support CD & Documentation
Serial cable
(2) Power cables
NOTE: Fibre Channel cables are ordered separately.
Step 2 – Choose Optional Non-Redundant MSA1000 System Options
MSA SAN Switch 2/8 (integrated) (Includes four SFPs)
288247-B21
MSA Hub 2/3 (integrated) (Includes two SFPs )
286763-B21
NOTE: The MSA SAN Switch 2/8 has a total of eight Fibre Channel ports. There
are seven ports accessible by the user and the eighth is internal to the controller.
Four SFPs are shipped installed in the Switch.
The MSA Hub 2/3 has two external Fibre Channel ports, both of which already
have transceivers installed. (Not supported with Tru64 UNIX or OpenVMS).
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 15
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
Configuration Information
Step 3 – Choose Redundant MSA1000 System Options
MSA1000 Controller
218231-B22
256 MB Cache Modules for Controller (one additional for each controller)
254786-B21
HP StorageWorks Secure Path (appropriate model for the operating system) or
choose an industry standard failover solution where available
NOTE: Redundant configurations require two Host Adapters per server, an
additional controller and an I/O module, an MSA SAN Switch 2/8 or an MSA Hub
2/3 (for Windows or NetWare), and Secure Path or industry standard fail-over
software for each server. An industry standard fail-over solution such as
Microsoft's MPIO for Windows or the QLogic solution for Linux may be employed
in place of Secure Path. For Microsoft ProLiant Clusters, Secure Path software
can be substituted with the ProLiant Clusters HA/F200 kit.
Mixing of the MSA Fibre Channel I/O Modular and the MSA SAN Switch 2/8 or
the MSA Hub 2/3 is not supported. When configuring the MSA1000 for
redundant controllers use either two MSA Fibre Channel I/O Modules, two MSA
Hub 2/3s, or two MSA SAN Switch 2/8s.
Choose an interface
MSA Fibre Channel I/O Module (Includes one 2 Gb SFP transceiver)
matching your original MSA SAN Switch 2/8 (integrated) (Includes four 2 Gb SFP transceivers)
MSA Hub 2/3 (integrated) (Includes two 2 Gb SFP transceivers)
218960-B21
288247-B21
286763-B21
Step 4 – Choose Supported Options For 2 Gb or 1 Gb Infrastructure
2 Gb Fibre Channel
Transceiver (SFP)
2 Gb SFP SW Transceiver Kit
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
A6515A
Page 16
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
Configuration Information
2 and 4Gb Fibre
Channel Fabric "BSeries" family of
switches
HP StorageWorks MSA SAN Switch 2/8 (embedded option for MSA1000 only)
NOTE: Includes four 2Gb SFP transceivers.
4 Gb SFP SW Transceiver Kit
A7446B
HP StorageWorks 4/8 Base SAN Switch 8 port 4Gb/s switch with zero e-ports
A7984A
HP StorageWorks 4/8 SAN Switch 4Gb/s with full fabric
A8000A
HP StorageWorks 4/16 SAN Switch
A7985A
HP StorageWorks 4/16 SAN Switch Power Pack
A7987A
HP StorageWorks 4/32 SAN Switch Power Pack
A7394A
HP StorageWorks 4/32 Full SAN Switch
A7393A
HP StorageWorks 4/32 Base SAN Switch
A7537A
HP StorageWorks 4/8 4 port upgrade license
T4260A
4/64 SAN Switch Power Pack 4/64 SAN Switch with 32 active ports
AE496A
4/64 SAN Switch with 64 active ports
AG457A
HP StorageWorks Full Fabric license
T4261A
HP StorageWorks B-Series 8-31 port Power Pack License
T3573A
4/64 SAN Switch with 32 active ports
AE495A
16 port upgrade license for 4/64 SAN Switch (base model) and Power Pack
model
T4411A
StorageWorks 4/256 SAN Director
A7988A
StorageWorks 4/256 SAN Director Power Pack
A7989A
HP StorageWorks SAN Director 4/16 Blade
A7990A
HP StorageWorks SAN Director 4/32 Blade
A7991A
StorageWorks SAN Director 2/128
AA981A
StorageWorks SAN Director 2/128 Power Pack
AA982A
HP StorageWorks B-Series MP Router Blade
AG461A
Power Pack Software Upgrade Bundle
HP StorageWorks B-Series MP Router Blade
Power Pack Software Upgrade Bundle
2 and 4Gb Fibre
Channel Fabric "CSeries" family of
switches
2 Gb Fibre Channel
Integrated Hub
288247-B21
330882-B21
AG461A
330882-B21
StorageWorks SAN Director Blade
AD504A
HP StorageWorks SAN Director 4/16 Blade
A7990A
Brocade 4Gb SAN Switch for HP p-Class BladeSystem, Base
A7533A
Brocade 4Gb SAN Switch for HP p-Class BladeSystem, Full Fabric
A7534A
Brocade 4Gb SAN Switch for HP p-Class BladeSystem, Power Pack
A7535A
Brocade 4/12 SAN Switch (1) 4Gb SAN Switch; 12 ports enabled for any
combination (internal and external); two (2) short wave 4Gb SFPs
AE370A
Brocade 4/24 SAN Switch (1) 4Gb SAN Switch; 24 ports enabled (16 internal, 8
external); four (4) short wave 4Gb SFPs
AE372A
Brocade 4/24 SAN Switch Power Pack (1) 4Gb SAN Switch; 24 ports enabled
(16 internal, 8 external); four (4) short wave 4Gb SFPs
AE371A
Cisco MDS 9120 2Gb Fabric Switch w/0 SFPs
A7426A
Cisco MDS 9140 2Gb Fabric Switch w/0 SFPs
A7427A
Cisco MDS 9513 4Gb Director
AE376A
Cisco MDS 9506 4Gb Director w/Supervisor 2
AE388A
Cisco MDS 9020 4Gb Fabric Switch w/0 SFPs
AE377A
Cisco MDS 9216A Multilayer 4Gb Fabric Switch
A7557A
Cisco MDS 9216i w/0 1Gb Ethernet SFPs
AE390A
Cisco MDS 9509 4Gb Director w/Supervisor 2
AE389A
MSA Hub 2/3 (integrated option, comes complete with two SFPs)
NOTE: Not for use with ProLiant Blade servers, Tru64 UNIX or OpenVMS.
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
286763-B21
Page 17
HP StorageWorks 1000 Modular Smart Array
QuickSpecs
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
Configuration Information
2 Gb Fibre Channel
HBAs
FCA2214 2Gb Host Adapter (Linux, NetWare, SCO & 32-bit Windows)
281541-B21
FCA2214DC dual channel 2Gb Host Adapter (Linux, NetWare, SCO & 32-bit
Windows)
321835-B21
Windows 32-bit single channel 2Gb PCI-X (Windows Server 2003, W2K)
Windows 32-bit dual channel 2Gb PCI-X (Windows Server 2003, W2K)
A7387A
Host Adapter for Windows Server 2003 64-bit, Integrity servers, single channel 2
Gb PCI-X
AB467A
Host Adapter for Windows Server 2003 64-bit, Integrity servers, dual channel 2
Gb PCI-X
AB466A
Host adapter Q2300 2Gb 64-bit PCI-X for Linux, Integrity servers
A7538A
Host adapter 2Gb PCI-X Dual channel for HP-UX and Linux, Integrity servers
A6826A
HP-UX HBA: PCI 2GB Fibre Channel Adapter
A6795A
HP PCI-X 2-port 2Gb Fibre Channel and 2-port 1Gb Ethernet
AB465A
HP-UX HBA: PCI-X 2Gb Fibre Channel/1000Base-T
A9784A
HP-UX HBA: PCI-X 2Gb Fibre Channel/1000Base-SX
4 Gb Fibre Channel
HBAs
Fibre Channel Cables
for 2 or 4Gb
Infrastructure
A7388A
A9782A
FCA2684 PCI-X Single Channel 2Gb Host Adapter for OpenVMS & Tru64 UNIX
AlphaServers
DS-A5132-AA
FCA2684DC PCI-X Dual Channel 2Gb Host Adapter for OpenVMS & Tru64
UNIX AlphaServers
DS-A5134-AA
HP StorageWorks FC2142SR HBA 4Gb PCI-e for Windows, Linux
A8002A
HP StorageWorks FC2242SR DC HBA 4Gb PCI-e for Windows, Linux
A8003A
HP StorageWorks FC1142 4Gb PCI-e HBA for Windows, Linux
AE311A
HP StorageWorks FC1242 4Gb PCI-e DC HBA for Windows, Linux
AE312A
HP StorageWorks FC2143 4Gb PCI-X 2.0 HBA for Windows, Linux
AD167A
HP StorageWorks FC2243 4Gb PCI-X 2.0 DC HBA for Windows, Linux
AD168A
HP StorageWorks FC1143 4Gb PCI-X 2.0-to-Fibre Channel Host Bus Adapter
for x86, x64 and ia64 Windows and Linux.
AE369A
HP StorageWorks FC1243Dual Channel 4 Gb PCI-X 2.0-to-Fibre Channel Host
Bus Adapter for x86, x64 and ia64 Windows and Linux.
AB429A
HP-UX PCI-X single-channel, 4Gb fibre channel adapter
AB378A
HP-UX PCI-X dual-port, 4Gb fibre channel adapter
AB379A
Use 2 Gb Fibre Channel cables when connecting the MSA Fibre Channel I/O
Module, MSA Hub 2/3 or the MSA SAN Switch 2/8 to an HBA
2 m LC-LC Multi-Mode Fibre Channel Cable
221692-B21
5 m LC-LC Multi-Mode Fibre Channel Cable
221692-B22
15 m LC-LC Multi-Mode Fibre Channel Cable
221692-B23
30 m LC-LC Multi-Mode Fibre Channel Cable
221692-B26
50 m LC-LC Multi-Mode Fibre Channel Cable
221692-B27
MSA Controller
management cable
One ships standard. Orderable through HP Store or Service if original is lost
316131-001
Fibre Channel Cables
for 1 Gb Fabric
Switches and Hub
Use 1 Gb Fibre Channel cables when connecting the MSA Fibre Channel I/O
Module and any HBA(s) to 1 Gb fabric switches.
2 m LC-SC Multi-Mode Fibre Channel Cable
221691-B21
5 m LC-SC Multi-Mode Fibre Channel Cable
221691-B22
15 m LC-SC Multi-Mode Fibre Channel Cable
221691-B23
30 m LC-SC Multi-Mode Fibre Channel Cable
221691-B26
50 m LC-SC Multi-Mode Fibre Channel Cable
221691-B27
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 18
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
Configuration Information
Step 5 – Choose Hard Drives & StorageWorks Enclosures
Hard Drives
72.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
Up to 14 per MSA30 enclosure
286714-B22
146.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
Up to 14 per MSA30 enclosure
286716-B22
300 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
Up to 14 per MSA30 enclosure
350964-B22
36.4 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per MSA30 enclosure
286776-B22
72.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per MSA30 enclosure
286778-B22
146.8 GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per MSA30 enclosure
347708-B22
HP 300GB Pluggable Ultra320 Universal Hard Drive, 15,000 rpm (1")
Up to 14 per MSA30 enclosure
411089-B22
NOTE: All Ultra320 Universal Hard Drives are backward compatible to U2 or U3
speeds.
NOTE: For complete compatibility information, refer to the HP SCSI Hard Drive
Compatibility table located at http://www.hp.com/go/msa1000.
StorageWorks
Enclosures
The MSA1000 cabinet holds fourteen 1" Universal Drives. Add one
StorageWorks Enclosure to increase capacity up to 28 drives. Add two HP
StorageWorks Enclosures to increase capacity up to the maximum of 42 drives.
MSA30 single bus enclosure
NOTE: Maximum of two can be connected to the MSA1000.
302969-B21
MSA30 dual bus enclosure
NOTE: Maximum of one can be connected to the MSA1000.
302970-B21
Step 6 – Choose Rack Options
10647 (47U) Rack Cabinet – Pallet
245160-B21
10647 (47U) Rack Cabinet – Crated
245160-B23
10642 (42U) Rack Cabinet – Pallet
245161-B21
10642 (42U) Rack Cabinet – Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with
equipment installed.
245161-B22
10642 (42U) Rack Cabinet – Crated
245161-B23
10636 (36U) Rack Cabinet – Pallet
245162-B21
10636 (36U) Rack Cabinet – Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with
equipment installed.
245162-B22
10636 (36U) Rack Cabinet – Crated
245162-B23
10622 (22U) Rack Cabinet – Pallet
245163-B21
10622 (22U) Rack Cabinet – Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with
equipment installed.
245163-B22
10622 (22U) Rack Cabinet – Crated
245163-B23
S10614 (14U) Rack Cabinet – Shock Pallet
NOTE: It is mandatory to use a shock pallet in order to ship racks with
equipment installed.
292302-B22
Rail Kit for mounting in a M-Series rack
313877-B21
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 19
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
Configuration Information
Step 7 – Choose HP Care Pack Services
Hardware Product
Services
9x5, Next Business Day, On-Site Coverage, 3 years
103840-002
9x5, 4-Hour Response, On-Site Coverage, 3 years
402165-002
24x7, 4-Hour Response, On-Site Coverage, 3 years
402164-002
9x5, Next Business Day, On-Site Coverage, 5 years
170183-002
9x5, 4-Hour Response, On-Site Coverage, 5 years
170185-002
24x7, 4-Hour Response, On-Site Coverage, 5 years
170187-002
Hardware Installation
402162-002
Fixed Price Care Pack Part Numbers:
1 Yr Same Day 24x7/Onsite
UC761A/E
1 Yr Same Day 13x5/Onsite
UC772A/E
1 Yr Same Day 6 hr CTR
UC773A/E
3 Yr next Day/Onsite
U6355A/E
3 Yr 13x5 Same Day/Onsite
U6356A/E
3 Yr 24x7 Same Day/Onsite
U6357A/E
3 Yr 6 hr CTR
U9934A/E
4 Yr 13x5 Same Day/Onsite
U9398A/E
4 Yr 24x7 Same Day/Onsite
U9399A/E
5 Yr 13x5 Same Day/Onsite
U9400A/E
5 Yr 24x7 Same Day/Onsite
U9401A/E
Hardware Installation
U4368A/E
Installation and Startup
UA868A/E
Flexible Care Pack Part Numbers:
Support – MSA1000, 1 Yr ND Hardware
HA101A1-6FG
Support – MSA1000, 3 Yr ND Hardware
HA101A3-6FG
Support – MSA1000, 1 Yr 4h 13x5 Hardware
HA103A1-6FG
Support – MSA1000, 3 Yr 4h 13x5 Hardware
HA103A3-6FG
Support – MSA1000, 1 Yr 4h 24x7 Hardware
HA104A1-6FG
Support – MSA1000, 3 Yr 4h 24x7 Hardware
HA104A3-6FG
Support – MSA1000, 1 Yr 6 hr CTR
HA105A1-6FG
Support – MSA1000, 3 Yr 6 hr CTR
HA105A3-6FG
Support – MSA1000, 1 Yr Support Plus
HA109A1-6FG
Support – MSA1000, 3 Yr Support Plus
HA109A3-6FG
Support – MSA1000, 1 Yr Support Plus 24
HA110A1-6FG
Support – MSA1000, 3 Yr Support Plus 24
HA110A3-6FG
Support – MSA1000, 1 Yr Proactive 24
HA111A1-6FG
Support – MSA1000, 3 Yr Proactive 24
HA111A3-6FG
Support – MSA1000, 1 Yr Critical Service
HA112A1-6FG
Support – MSA1000, 3 Yr Critical Service
HA112A3-6FG
Configuration Examples
Two Node Redundant Cluster Solution (Intel based servers)
Quantity
Description
Part Number
1
HP StorageWorks Modular Smart Array 1000
201723-B22
1
Additional MSA1000 Controller
218231-B22
2
MSA Hub 2/3
286763-B21
4
Host Adapter (appropriate model for operating system)
4
2 m LC-LC Multi-Mode Fibre Channel Cable
221692-B21
1
ProLiant Cluster HA/F200 for MSA1000 (includes Secure Path for two servers)
364026-B21
14
36.4 GB Pluggable Ultra320 Universal Hard Drive, 15K
286776-B21
4 Host, 6TB, Redundant SAN Solution (Intel based servers)
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 20
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
Configuration Information
Quantity
Description
Part Number
1
HP StorageWorks Modular Smart Array 1000
201723-B22
1
Additional MSA1000 Controller
218231-B22
2
256 MB Cache Modules for Controller (one additional for each controller)
254786-B21
2
MSA SAN Switch 2/8 (Includes four 2 Gb SFP transceivers)
288247-B21
8
Host Adapter (appropriate model for operating system)
8
2 m LC-LC Multi-Mode Fibre Channel Cable
4
Secure Path Workgroup Edition (1 license per server), appropriate for
operating system
2
HP StorageWorks Enclosure MSA30
190209-001
42
146.8 GB Pluggable Ultra320 Universal Hard Drive, 10,000 rpm (1")
286716-B22
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
221692-B21
Page 21
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
Related Options
Storage Virtual
Replicator v4.1.1
(Microsoft operating
systems)
Secure Path v3.0C for
NetWare Workgroup
Edition
1 System LTU
T3593A
3 System LTU
T3598A
5 System LTU
T3597A
10 System LTU
T3594A
Base Media and Documentation Kit (license required)
T3591A
1 System LTU upgrade:
T3599A
3 System LTU upgrade:
T3604A
5 System LTU upgrade:
T3603A
10 System LTU upgrade:
T3600A
1 System LTU upgrade Japan
T3615A
Upgrade Media and documentation kits:
T3592A
Secure Path v3.0C for NetWare Workgroup Edition one license
222411-B22
Secure Path v3.0C for NetWare Workgroup Edition five licenses
231324-B22
Secure Path v3.0C for NetWare Workgroup Edition 10 licenses
231325-B22
Secure Path v3.0C for NetWare Workgroup Edition 25 licenses
231326-B22
Secure Path v3.0C for NetWare Workgroup Edition 50 licenses
231327-B22
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path
parameters for NetWare.
Secure Path v4.0C for
Windows Workgroup
Edition (including
Windows Server
2003/32bit and 64-bit)
(Package includes separate programs for both the MSA1000 and the RA4000
and RA41000 solutions.)
Secure Path v4.0C for Windows Workgroup one license
213076-B26
Secure Path v4.0C for Windows Workgroup Edition five licenses
231316-B26
Secure Path v4.0C for Windows Workgroup Edition 10 licenses
231317-B26
Secure Path v4.0C for Windows Workgroup Edition 25 licenses
231318-B26
Secure Path v4.0C for Windows Workgroup Edition 50 licenses
231319-B26
Secure Path v4.0C for Windows Workgroup Edition Upgrade License
261715-B24
Secure Path v4.0C for Windows Workgroup Edition for ProLiant BL line 8
licenses
325634-B23
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path
parameters for Windows.
Secure Path v3.0C for
Linux Workgroup
Edition
Secure Path v3.0C for Linux Workgroup Edition one license
T3581A
Secure Path v3.0C for Linux Workgroup Edition five licenses
T3582A
Secure Path v3.0C for Linux Workgroup Edition 10 licenses
T3584A
Secure Path v3.0C for Linux Workgroup Edition for ProLiant BL line 8 licenses
T3583A
Secure Path v3.0C for Linux Workgroup Edition 25 licenses
T3585A
Secure Path v3.0C for Linux Workgroup Edition 50 licenses
T3586A
NOTE: Refer to http://www.hp.com/go/securepath for the latest Secure Path
parameters for Linux.
Backup and Restore
Software
VERITAS NetBackup for Windows
VERITAS Backup Exec for Windows
HP Data Protector
Computer Associates BrightStor Enterprise Backup
NOTE: See Implementation Blueprint for configuration and installation
instructions for all backup and restore software.
ProLiant Cluster for
MSA1000
ProLiant Cluster Starter kit (no Secure Path)
364023-B21
ProLiant Cluster F200 for the Entry Level SAN
364026-B21
ProLiant Cluster F200 for the Entry Level SAN (Japan)
364026-291
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 22
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
Technical Specifications
Modular Smart Array
1000 (MSA1000)
LED Indicators on
Front (3)
Power
Fault detected in one or more sub-systems
Fault in Enclosure Management
LED Indicators for
Drive Modules (3)
Drive Access (center)
Online (left)
Drive Failure (right)
LED Indicators on Rear Power Supply/Blower Assembly Fault (1)
Panel (4)
EMU (3) Power, A bus, B bus
Interface
Ultra3 SCSI to Hard Drives
2 Gb Fibre Channel to Hosts
Maximum Number of
Drives
Fourteen, 1-inch HP Ultra2, Ultra3 or Ultra 320 Universal Hard Drives
(msa1000 Cabinet); expandable to 42 using two additional HP
StorageWorks 4200/4300 Enclosures
Temperature Range
Operating
50° to 95° F (10° to 35° C),
Shipping
-22° to 122° F (-30° to 50° C)
up to 8000’
NOTE: Derated 1°C per 1,000 feet of
elevation to 10,000 ft.
Relative Humidity
Input Power
Requirements
Operating
10% to 90%
Non-operating
Up to 95%
Rated Input Voltage
100 to 240 VAC
Rated Input Frequency 50 to 60 Hz
Rated Input Current
6 A Max
Input Power (max)
549 W*
The supply will handle 90Vrms - 254 Vrms (100 - 240 V, +6%, -10%)
Frequency is 47 - 63 Hz
Heat Dissipation (max) 1876 Btu/hr*
NOTE: Input Power and Heat Dissipation specifications are maximum
values and apply to worst-case conditions at full rated power supply
load. The power/heat dissipation for your installation will vary depending
on the equipment configuration.
MSA1000 Cabinet
4U Rack Form Factor
Dimensions (H x W x D) 6.9 x 19 x 20.5 in (17.5 x 48.3 x 52.1 cm)
Weight
Shipping Packaging
Net 55 to 85 lb (24.95 to 38.56 kg)
Dimensions (L x W x D) 28.5 x 14.81 x 33.13 in (72.4 x 37.6 x 84.1
cm)
Weight (Gross)
75 to 105 lb (34.02 to 47.63 kg)
User Interface
Controller display with Status Indicators (2) and push buttons (4) on
front of controller
Electrical Interface
LVD (Low Voltage Differential)
Protocol Support
Wide Ultra3 SCSI
SCSI Ports
4-channel: 2 internal, 2 external
Drives Supported
Up to 42 drives
Maximum Capacity
12TB (42 drives x 300GB)
Logical Drives (LUN)
Up to 32 Logical Drives
Maximum Logical Drive2.0TB
size
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 23
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
Technical Specifications
Modular SAN Array
1000 Controller
(218231-B22)
User Interface
Controller Display with Status Indicators (2) and Push Buttons (4)
Status Indicators on front of Controller (16)
Electrical Interface
LVD (Low Voltage Differential)
Protocol Support
Wide Ultra3 SCSI
SCSI Ports
4-channel: 2 external/2 Internal
Drives Supported
Up to 42 drives
Maximum Capacity
12TB (42 drives x 300GB)
Logical Drives
Up to 32 logical drives
RAID Support
RAID ADG (Advanced Data Guarding)
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Cache Memory
Up to 512 MB Read/Write (256 MB modules). If redundant controllers
are used they must have equally configured cache
ECC protection, battery-backed, and removable
Standard as of November 19, 2002: 256 MB cache memory (single
module)
Cache Batteries
Enables transportable cache; removable for easy replacement
Upgradeable Firmware 2 MB flashable ROM
Disk Drive and
Enclosure Protocol
Support
HP Ultra 320, Ultra3, and Ultra2 SCSI 1-inch Universal drives
Packaging
Dimensions (L x W x D) 17 x 12.5 x 7.75 in (43.2 x 31.75 x 19.7 cm)
Weight (Gross)
Modular SAN Array
Fibre Channel I/O
Module
(218960-B21)
Connector Type
LC
Number of Fibre
Channel Ports
One 2 Gb Fibre Channel Port using removable Small-Form-FactorPluggable Transceiver (SFP)
Bandwidth
200 MB/s
Operation Modes
Fibre Channel Class 2 and 3 connectionless service
Protocols Supported
Fibre Channel
Packaging
Dimensions (L x W x D) 17 x 12.5 x 7.75 in (43.2 x 31.75 x 19.7 cm)
Weight (Gross)
MSA SAN Switch 2/8
(288247-B21)
6 lb (2.72 kg)
6 lb (2.72 kg)
Performance
2.125 Gbit/sec line speed, full duplex ;1.063 Gbit/sec line speed, full
duplex; Auto-sensing of 1 Gbit/sec and 2 Gbit/sec port speeds;
optionally programmable to fixed port speed; Speed matching between
1 Gbit/sec and 2 Gbit/sec ports Aggregate bandwidth 64 Gbit/sec end to
end Fabric latency <2.1 µsec with no contention, cut-through routing at
2 Gbit/sec
Interoperability
All HP StorageWorks B-series switches
Switch bandwidth
32 Gbit/sec end to end
Maximum frame size
2112-byte payload
Port types
8 ports universal (one internal, seven external), FL_Port, F_Port, and
E_Port; self-discovery based on switch type (U_Port)
Media types
Small form-factor pluggable (SFP) four included standard; short
wavelength (SWL) up to .31 mi (500m), long wavelength (LWL) up to 21
mi ( 35 km); distance depends on fiber-optic cable and port speed
Classes of service
Class 2, Class 3, Class F (inter-switch frames)
Management access
10/100 Ethernet port (RJ-45); Serial port (RS-232)
Management
Advanced Web Tools included; Fabric Manager (optional) Management
access In-band via Management Server.
Security
Fabric security for configuration management, SAN access, and
authentication/authorization
Supported software
Telnet, SNMP, WEBTOOLS, Zoning, Fabric Watch, Extended Fabrics,
Remote Switch, Trunking, Advanced Performance Monitoring
Fabric services
Simple Name Server, Registered State Change Notification (RSN), Alias
Server (multicast); and Zoning, WEB TOOLS. Optional QuickLoop,
Fabric Watch, Extended Fabrics, and Remote Switch, Trunking,
Advanced Performance Monitoring
Diagnostics
Diagnostics POST and embedded online/offline diagnostics
Dimensions (h x w x d)
SAN Switch 2/8: 7.75 x 12.5 x 17 in (19.68 x 31.75 x 43.18 cm)
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 24
HP StorageWorks 1000 Modular Smart Array
QuickSpec for Intel, AMD, PA-RISC, and Alpha based
Servers
QuickSpecs
Technical Specifications
Shipping
6 lb (2.72.kg)
Humidity range
5% to 85% non-condensing at 104° F (40° C)
Environment
Temperature
Vibration
32° F to 104° F
(0° C to 40° C)
Non-operating
-31° F to 147° F
(-25° C to 70° C)
Operating
0.5 G p-p, 5-500 Hz
Non-operating
2.0 G p-p, 5-500 Hz
Connector Type
LC
Protocol
SCSI, IP
Data Transfer Method
64-bit/66 MHz PCI
Maximum Transfer
Rate
200 MB
Packaging
Dimensions (L x W x D) 11 x 8.5 x 3 in (27.9 x 21.6 x 7.6 cm)
Weight (Gross)
Multi-Mode Fibre
Channel Cables Kits
(218960-B21)
Operating
1 lb (0.45 kg)
Cable Type
LC-LC (2 Gb to 2 Gb connections) and LC-SC (2 Gb to 1 Gb
connections) 50 Micron multi-mode Fiber
Available Cable
Lengths
6.5 ft, 16.4 ft, and 49.2 ft (2 m, 5 m, and 15 m)
Packaging
Dimensions (L x W x D) 11.5 x 9 x 1.5 in (29.2 x 22.8 x 3.8 cm)
Weight (Gross)
0.75 to 1 lb (0.34 to 0.45 kg)
© Copyright 2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 12624
Worldwide QuickSpecs — Version 1 — 11-13-2006
Page 25
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
