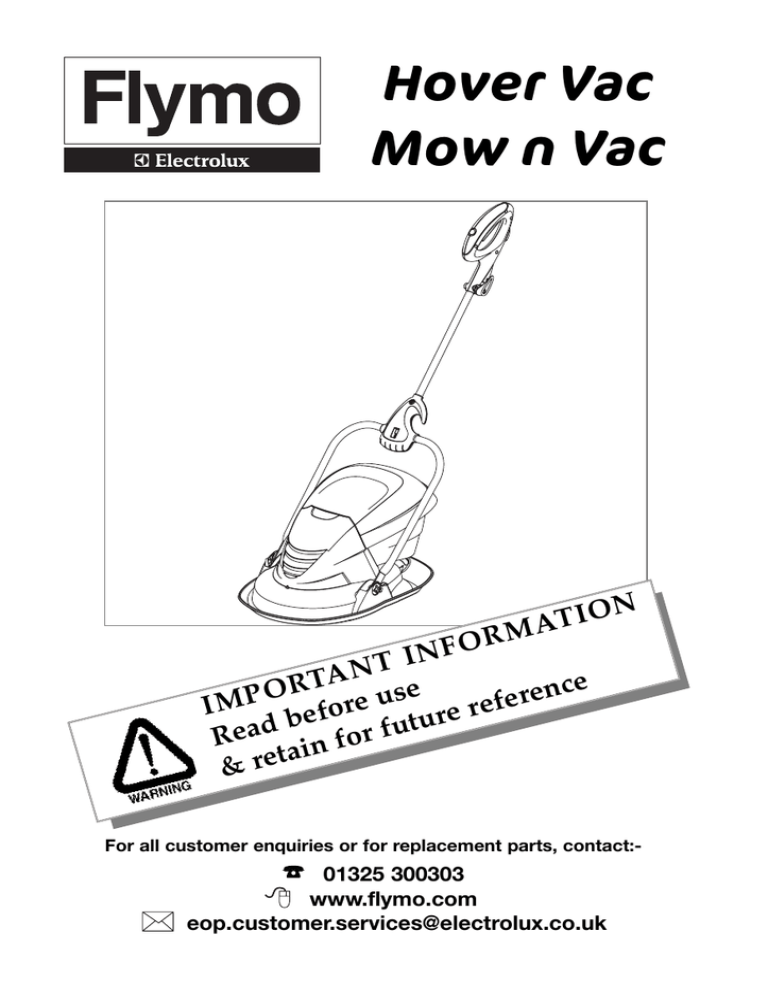

Hover Vac
Mow n Vac
IO
T
A
RM
N
NFO
I
T
TA N se
R
O
ence
r
P
u
e
f
e
M
e
r
I
befo future r
d
a
e
R
n for
i
a
t
e
&r
For all customer enquiries or for replacement parts, contact:-
☎
01325 300303
www.flymo.com
eop.customer.services@electrolux.co.uk
1
Carton Contents
switch handle
upper wing knob
bolt
M6 nut
washer
cable clip
joint
handle tube
screw
M5 nut
square headed bolt
lower wing knob
cable clip
M6 nut
washer
lower handle
fixing pin
electric cable
with moulded
on plug
instruction
manual
plastic
cutters
IMPORTANT !
Please check the contents of the carton are correct BEFORE assembling your new Flymo product.
IF ANY PARTS ARE MISSING CONTACT:Electrolux Outdoor Products Customer Service Department direct
Telephone : 01325 300303, Fax : 01325 318193
Safety
If not used properly this product can be dangerous! This product can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and
efficiency in using this product. The operator is responsible for following the warning and safety
instructions in this manual and on the product. Never use the product unless the grassbox or guards
provided by the manufacturer are in the correct position.
Explanation of Symbols on the Hover Vac/Mow n Vac
Warning
Keep bystanders away. Do not operate
whilst people especially children or pets
are in the area.
Read the user instructions carefully to
make sure you understand all the controls and what they do.
Do not operate in the rain or leave the
product outdoors while it is raining.
Switch off! Remove plug from mains
before adjusting, cleaning or if cable is
entangled or damaged. Keep the cable
away from the cutting parts.
The use of eye protection is recommended to protect against objects thrown by
the cutting parts.
General
1. Never allow children or people unfamiliar with these
instructions to use the product. Local regulations
may restrict the age of the operator.
2. Only use the product in the manner and for the
functions described in these instructions.
3. Never operate the product when you are tired, ill or
under the influence of alcohol, drugs or medicine.
4. The operator or user is responsible for accidents or
hazards occurring to other people or their property.
Electrical
1. The British Standards Institute recommend the use
of a Residual Current Device (R.C.D.) with a tripping current of not more than 30mA. Even with a
R.C.D. installed 100% safety cannot be guaranteed
and safe working practice must be followed at all
times. Check your R.C.D. every time you use it.
2. Before use, examine cable for damage, replace it if
there are signs of damage or ageing.
3. Do not use the product if the electric cables are
damaged or worn.
2
4. Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is damaged.
Do not touch the electric cable until the electrical supply has been disconnected. Do not repair a cut or
damaged cable. Replace it with a new one.
5. Your cable must be uncoiled, coiled cables can
overheat and reduce the efficiency of your product.
6. Keep cable away from product, always work away from
the power point using up and down, never in circles.
7. Do not pull cable around sharp objects.
8. Always switch off at the mains before disconnecting
any plug, cable connector or extension cable.
9. Switch off, remove plug from mains and examine electric
supply cable for damage or ageing before winding cable
for storage. Do not repair a damaged cable, replace it
with a new one. Use only Flymo replacement cable.
10. Always wind cable carefully, avoiding kinking.
11. Never carry the product by the cable.
12. Never pull on the cable to disconnect any of the plugs.
13. Use only on AC mains supply voltage shown on the
product rating label.
14. Our products are double insulated to EN60335.
Under no circumstance should an earth be connected to any part of the product.
Preparation
1. While using your product always wear substantial
footwear and long trousers.
2. Make sure the lawn is clear of sticks, stones, bones, wire
and debris; they could be thrown by the plastic cutters.
3. Before using the machine and after any impact, check
for signs of wear or damage and repair as necessary.
4. Replace worn or damaged plastic cutters together with
their fixings in sets to preserve balance.
Use
1. Use the product only in daylight or good artificial light.
2. Avoid operating your product in wet grass, where
feasible.
3. Take care in wet grass, you may lose your footing.
4. On slopes, be extra careful of your footing and wear
non-slip footwear.
5. Use across the face of slopes, never up and down.
6. Exercise extreme caution when changing direction
on slopes.
7. Using on banks and slopes can be dangerous. Do
not use on banks or steep slopes.
8. Do not walk backwards whilst operating your product, you could trip. Walk never run.
9. Never cut grass by pulling the product towards you.
10. Switch off before pushing the product over surfaces
other than grass.
11. Never operate the product with damaged guards or
without guards in place.
12. Keep hands and feet away from the cutting means at
all times and especially when switching on the motor.
13. Do not tilt the product when the motor is running,
except when starting and stopping. In this case, do
not tilt more than absolutely necessary and lift only
the part which is away from the operator. Always
ensure that the hand is in the operating position
before returning the appliance to the ground.
14. Never pick up or carry a product when it is operating or still connected to the mains supply.
15. Remove the plug from the mains :
before leaving the product unattended for any period;
before clearing a blockage;
before checking, cleaning or working on the appliance;
if you hit an object. Do not use your product until
you are sure that the entire product is in a safe
operating condition;
if the product starts to vibrate abnormally. Check
immediately. Excessive vibration can cause injury.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure the
product is in safe working condition.
2. Check the grassbox frequently for wear or deterioration.
3. Replace worn or damaged parts for safety.
4. Only use the replacement spare parts and accessories specified for your product.
5. Be careful during adjustment of the product to prevent entrapment of the fingers between moving cutting parts and fixed parts of the machine.
CABLES
IMPORTANT
• Use only 1.00mm2 size cable up to 30 metres length
maximum.
Maximum rating :
1.00mm2 size cable, 10 amps 250 volts AC.
THE HOVER VAC/MOW N VAC IS SUPPLIED
WITH CABLE WIRED DIRECTLY INTO THE
PRODUCT
1. Flymo Mains Cables and Extension Cables are
available from your local Electrolux Outdoor
Products Approved Service Centre.
2. Do not wire an extension cable directly to your product
yourself. Please contact your local Electrolux Outdoor
Products Approved Service Centre for further information on the connectors and kits available.
3. Only use extension cables specifically designed for
outdoor use.
CONNECTORS
IMPORTANT
• Flymo connectors are suitable for use with 2 core
cable only. Under no circumstances should these
connectors be used for earthed products.
• All Flymo connectors and cables are of splashproof
construction. They are not waterproof and must not
be left outside permanently nor should they be submerged or immersed in water. Do not let cable lay
or trail through pools of water or splashed with
water from hose pipes.
MAINS PLUG REPLACEMENT
• If the plug supplied is cut off it should be
destroyed. There is an electric shock hazard if a
cut off plug is inserted into a 13 amp socket.
1. No earth required. Our products are double insulated
to EN60335 and under no circumstances should an
earth be connected to any part of the product.
2. Ensure the mains voltage suits your product
3. IMPORTANT!
The wires in the mains lead are coloured in accordance with the following code:
BLUE
NEUTRAL
BROWN LIVE
The wire which is coloured BLUE must be connected to
the Terminal which is marked with the letter 'N' or
coloured BLACK. The wire which is coloured BROWN
must be connected to the Terminal which is marked
with the letter 'L' or coloured RED.
4. It is important that the outer sheath is clamped correctly into the 3-pin plug.
5. If in doubt consult your local Service Repairer or
qualified electrician before the machine is used.
6. A 13 Amp fuse must be fitted to the Mains Plug.
7. The normal plug fuse and household fuse only protect the electrical equipment and are not a safeguard against electrocution.
If your product is hard wired i.e. non detachable
mains electric cable, a conversion kit and extension cable is available from all Electrolux Outdoor
Products Approved Service Centres which can be
found in your local yellow pages.
3
Assembly Instructions
A
1
2
B
Assembly of lower handle to hood (A)
1. Place the ends of the lower handle into the slots
ensuring that the joint is facing the correct way
(A1).
2. Secure lower handle to hood by firmly pushing fixing pin through holes in hood and handle (A2).
3. Repeat on the other side.
• NOTE
Should a problem occur when securing handle
with the fixing pin, carefully lever the pin out of
location and repeat steps 1 to 3 above.
Assembly of handle tube to joint (B)
1. Ensure that the joint is centralised on the lower
handle.
2. Line up the hole in the joint with the hole in the
lower handle.
3. Insert the square headed bolt through the hole in
the joint and the hole in the lower handle.
4. Insert an M6 nut into the lower wing knob.
5. Fit washer, then wing knob and tighten.
6. Insert handle tube into joint, lining up the holes.
7. Insert screw through joint and handle tube. Fit M5
nut and tighten screw.
C
Assembly of switch handle to handle tube (C)
1. Insert the handle tube into the switch handle,
ensuring the handle is in an upright position and
lining up the holes.
2. Push bolt through the holes.
3. Insert M6 nut into the upper wing knob.
4. Fit washer, then wing knob and tighten.
D
Cable clips (D)
1. Fit the cable to the handles with the clips provided.
2. Ensure the the cable is secured under the clip on
the hood.
Starting and Stopping
E
Lock-off button
Switch lever
Starting
1. Hold as illustrated in Figure E.
2. To start, press the lock-off button down, whilst
pressing the lock-off button, squeeze the switch
lever.
Stopping
1. To stop your product, release the switch lever.
4
Adjusting the Cutting Height
HIGHEST
This symbol visible
F
LOWEST
This symbol visible
G
H
•
•
THERE ARE 2 CUTTING HEIGHTS (F & G)
Height of cut is adjusted by turning over the
cutting head.
•
Disconnect from the mains electricity supply and
wait until the cutting head has stopped rotating.
Turn your product upside down.
•
To Remove the Cutting Head and Fan (H)
Hold the fan firmly and twist the cutting head anticlockwise as illustrated. Hold the cutting head in
the centre and remove as illustrated. Hold fan in
the centre and remove as illustrated.
Inspect for damage and clean as necessary before
replacing the fan and the cutting head.
1
3
2
•
J
•
To Refit the Fan and the Cutting Head (J)
Replace the fan as illustrated. Replace the cutting
head, adjusting the height of cut as required. Hold
the fan firmly and twist the cutting head clockwise,
as illustrated.
•
IMPORTANT
ENSURE FAN AND CUTTING HEAD ARE CORRECTLY LOCATED
1
3
2
5
How to Use
K
1. Start at the edge of the lawn nearest to the power
point so the cable is laid out on the lawn you have
already cut. (K)
2. Cut your grass twice a week during the growing
season, your lawn will suffer if more than a third of
its length is cut at one time.
Do Not Overload Your Product
Using in long thick grass may cause the motor speed
to drop, you will hear a change in the motor sound. If
the motor speed drops you may overload your product
which may cause damage. When using in long thick
grass a first cut with the cutting height set higher will
help reduce the load. See Adjusting the Cutting Height.
Grassbox
L
grassbox is full
grassbox is empty
M
•
For optimum performance your product is
designed to be used with the grassbox fitted.
Grassbox full Indicator (if fitted) (L)
• Your product may be fitted with a grassbox full
indicator.
• IMPORTANT
The machine must be switched on for the
grassbox full indicator to operate.
1. When the ball reaches the top of the indicator window, it is time to empty the grassbox. See figure
L.
2. When the ball is NOT visible in the indicator window, grass is being collected. See figure L.
Emptying the Grassbox (M)
• Stop the product and wait until the cutting head
has stopped rotating before emptying the grassbox.
1. Remove the grassbox lid.
2. Lift the grassbox off the product and empty.
3. Replace grassbox and lid carefully.
• Failure to fit the grassbox and lid correctly will
cause poor collection of grass clippings.
6
Cutting System Maintenance
•
Always handle the plastic cutters with care sharp edges could cause injury. USE GLOVES.
Checking your Cutting System (N)
• The cutting system must be kept in good condition
and inspected before and after use.
• Disconnect from the mains electricity supply and
wait until the cutting head has stopped rotating.
Turn your product upside down.
1. Visually check cutting head for wear. Replace if
damaged.
2. Visually check plastic cutters for wear and replace
when necessary.
3. Plastic cutters should be straight. Replace if bent
or twisted.
Replacing Plastic cutters (P)
• Use only genuine Flymo replacement plastic cutters specified for this product. These are available
from all Electrolux Outdoor Products Service
Centres and major retail outlets.
• Plastic cutters must be replaced in pairs to retain
balance.
• Two plastic cutters of the same type should be fitted.
• Never fit a steel bar blade to this product.
To Replace Plastic Cutters
• Disconnect from the mains electricity supply and
wait until the cutting head has stopped rotating.
Turn your product upside down.
1. Push plastic cutter towards centre of cutting disc.
Lift plastic cutter away from cutting head. (Q)
2. If the plastic cutter is broken during use - lever cutter out of the slot, and dispose of carefully.
3. Fit new plastic cutters into the slots at each side of
the cutting head and pull into place. (R)
• IMPORTANT
ENSURE PLASTIC CUTTERS ARE CORRECTLY
LOCATED.
N
plastic
cutters
cutting
head
fan
hood
P
Q
R
7
•
Caring
S
It is very important that you keep your product
clean. Grass clippings left in any of the air
intakes or under the hood could become a
potential fire hazard.
Cleaning (S)
• USE GLOVES
1. Remove grass from under the hood with a piece of
wood or similar.
2. Using a soft brush - remove grass clippings from
all air intakes, the roller, grassbox and grassbox
lid.
3. Remove the cutting head, see Figure H, to gain
access to the fan and clean with a soft brush.
4. Wipe over the surface of your product with a dry
cloth.
• IMPORTANT
Never use water for cleaning your product. Do not
clean with chemicals, including petrol, or solvents
- some can destroy critical plastic parts.
U
T
Storing your product
1. Your mains cable can be stored as illustrated in
figure T.
Your product can be stored in a hanging position.
• The back of the switch handle has a hanging
slot for storing the product on the wall.
1. Push the lower handle in on both sides (figure U)
and the handle will drop down.
2. Hang the product from a hook or suitable screw as
illustrated in figure V.
V
At the End of the Season
1. Replace plastic cutters, bolts, nuts or screws, if
necessary.
2. Clean your product thoroughly.
3. Ask your local Service Centre to clean the air filter
thoroughly and carry out any service or repairs
required.
8
Fault Finding Hints
Fails to Operate
1. Is the Power Turned On?
2. Check the fuse in the plug, if blown replace.
3. Fuse continues to blow?
Immediately disconnect from the mains electricity supply and consult your local approved
Service Centre.
Poor Flotation
1. Disconnect from the mains electricity supply.
2. Clean the underside of the hood and the fan
blades.
3. Raise to a higher height of cut. See Adjusting the
Cutting Height.
4. If poor flotation persists?
Disconnect from the mains electricity supply
and consult your local approved Service
Centre.
Poor Collection
1. Is the grassbox fitted correctly?
2. Are you using in straight lines?
3. Are you cutting more than one third of the grass
length?
4. Do you need to raise the cutting height?
5. Follow the procedure described in "Poor
Flotation".
Excessive Vibration
1. Disconnect from the mains electricity supply.
2. Replace broken or missing plastic cutters.
3. Check plastic cutters are fitted correctly.
4. If vibration persists?
Immediately disconnect from the mains electricity supply and consult your local approved
Service Centre.
Service Recommendations
1. We strongly recommend that your product is serviced at least every twelve months, more often in a
professional application.
2. Always use genuine Flymo Spare Parts.
3. Prepacked spares are available from most
Electrolux Outdoor Products stockists.
4. Your product is uniquely identified by a silver and
black product rating label
5. If you have a problem with your machine contact
your local Approved Service Centre ensuring you
have full details of your product as described on
the product rating label.
6. Should it be necessary for work to be carried
out by your Service Centre, it is important to
take your complete machine including cable
and any extension cables used.
A network of specialist dealers can be found in your
local Yellow Pages. To obtain service on your Flymo
product simply telephone or visit your local Service
Centre. Should you require service under the terms
of our guarantee the Service Centre will require proof
of purchase.
All of the centres listed stock genuine Flymo
Spare Parts.NOTE: Our Service Repairers act on
their own behalf and are not empowered to commit or legally bind Electrolux Outdoor Products in
any manner whatsoever.
Environmental Information
Electrolux Outdoor Products are manufactured under an Environmental Management System (ISO 14001)
using, where practical, components manufactured in the most environmentally responsible manner, according to
company procedures, and with the potential for recycling at the end of the products’ life.
• Packaging is recyclable and plastic components have been labelled (where practical) for categorised recycling.
• Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information.
Guarantee & Guarantee Policy
If any part is found to be defective due to faulty manufacture
within the guarantee period, Electrolux Outdoor Products,
through its Authorised Service Repairers will effect the
repair or replacement to the customer free of charge providing:
(a) The fault is reported directly to the Authorised Repairer.
(b) Proof of purchase is provided.
(c) The fault is not caused by misuse, neglect or faulty
adjustment by the user.
(d) The failure has not occurred through fair wear and tear.
(e) The machine has not been serviced or repaired, taken
apart or tampered with by any person not authorised by
Electrolux Outdoor Products.
(f) The machine has not been used for hire.
(g) The machine is owned by the original purchaser.
(h) The machine has not been used outside of the country
in which it was purchased.
(i) The machine has not been used commercially.
*
This guarantee is additional to, and in no way diminishes the customers statutory rights.
Failures due to the following are not covered, therefore it is
important that you read the instructions contained in this
Operator's Manual and understand how to operate and
maintain your machine:
Failures not covered by guarantee
*
Replacing worn or damaged plastic cutters.
*
Failures as a result of not reporting an initial fault.
*
Failures as a result of sudden impact.
*
Failures as a result of not using the product in accordance with the instructions and recommendations contained in this Operator's Manual.
*
Machines used for hire are not covered by this guarantee.
*
The following items listed are considered as wearing
parts and their life is dependent on regular maintenance
and are, therefore not normally subject to a valid warranty claim: Plastic cutters, Cutting head, Electric Mains
cable.
*
Caution!
Electrolux Outdoor Products does not accept liability
under the warranty for defects caused in whole or part,
directly or indirectly by the fitting of replacement parts or
additional parts that are not either manufactured or
approved by Electrolux Outdoor Products, or by the
machine having been modified in any way
EC Declaration of Conformity
I, the undersigned M. Bowden of Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham. DL5
6UP Certify that the Product:Category........ Electric Lawn Trimmer
Make.............. Electrolux Outdoor
Products
Conforms to the specifications of Directive
2000/14/EEC
I, the undersigned M. Bowden of Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham. DL5
6UP Certify that a sample of the above
product has been tested using directive
81/1051/EEC as a guide. The maximum Aweighted sound pressure level recorded at
operator position under free field semi anechoic chamber conditions was :-
Type of Cutting Device.... Plastic Cutter
Identification of Series......See Product Rating Label
Conformity Assessment Procedure....ANNEX VI
Notified Body.................... I.T.S., Cleeve Road, Leatherhead,
Surrey. KT22 7SB England
Other Directives:-............. 98/37/EEC, 89/336/EEC, 73/23/EEC
& applicable standards:- EN786, IEC60335-1, IEC60335-2-91, EN610003-2, EN61000-3-3, EN55014-1, EN55014-2
A
B
C
D
E
F
G
H
HV280
28 cm
7,350 RPM
93 dB (A)
92 dB (A)
80.9 dB(A)
2.13 m/s2
6.3 kg
I, the undersigned M. Bowden of Electrolux
Outdoor Products, Aycliffe Industrial Park,
NEWTON AYCLIFFE, Co. Durham. DL5
6UP Certify that a sample of the above
product has been tested using ISO 5349 as
a guide. The maximum weighted root mean
square value of vibration recorded at operator’s hand position was:-
Type............................................................................
Width of Cut................................................................
Speed of Rotation of Cutting Device..........................
Guaranteed sound power level...................................
Measured Sound Power Level....................................
Level............................................................................
Value...........................................................................
Weight..........................................................................
A
B
C
D
E
F
G
H
Newton Aycliffe, 24/09/2003
M. Bowden,
Research & Development Director
Electrolux Outdoor Products
Aycliffe Industrial Park
NEWTON AYCLIFFE
Co.Durham DL5 6UP
ENGLAND
Telephone - (00) 44 1325 300303 Fax - (00) 44 1325 310339
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice.
Electrolux Outdoor Products manufacture products for a number of well known brands under various registered patents, designs and
trademarks in several countries.
© Electrolux Outdoor Products Ltd. Registered Office, Electrolux Works, Oakley Road, Luton LU4 9QQ
Registered number 974979 England
The Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million
Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are
sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
5119549-02
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
