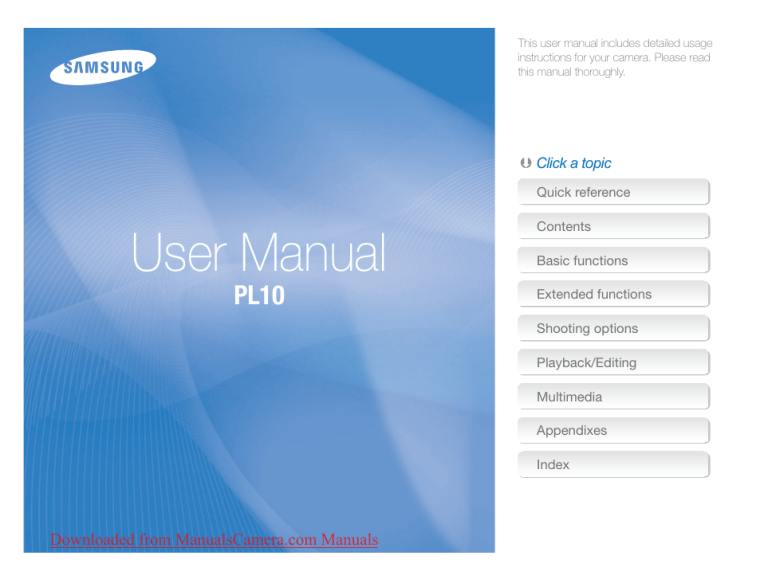

User Manual

PL10

This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly.

Ä

Click a topic

Quick reference

Contents

Basic functions

Extended functions

Shooting options

Playback/Editing

Multimedia

Appendixes

Index

Downloaded from ManualsCamera.com Manuals

Health and safety information

Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.

Warning

—situations that could cause injury to yourself or others

Caution

—situations that could cause damage to your camera or other equipment

Note

—notes, usage tips, or additional information

Prevent damage to subjects’ eyesight

Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. Using the flash too close to your subject’s eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

t

Use only Samsung-approved batteries and chargers.

Incompatible batteries and chargers can cause serious injuries or damage to your camera.

t Never dispose of batteries in a fire. Follow all local regulations when disposing of used batteries.

t

Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Safety warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Safety precautions

Handle and store your camera carefully and sensibly

t

Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer’s warranty.

Downloaded from ManualsCamera.com Manuals

1

Health and safety information t

Do not expose the camera to direct sunlight or high temperatures for an extended period of time. Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components.

t

Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

t Remove the batteries from your camera when storing it for an extended period of time. Installed batteries may leak or corrode over time and cause serious damage to your camera.

t

Protect your camera from sand and dirt when using it on beaches or in other similar areas.

t Protect your camera from impact, rough handling, and excessive vibration to avoid serious damage.

t

Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories. t

Do not insert foreign objects into any of your camera’s compartments, slots, or access points. Damage due to improper use may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

t Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0º C/32º F or above 40º C/104º F).

Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.

t Prevent batteries from making contact with metal objects, as this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage.

t

Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

t Turn off the camera when inserting or removing the memory card.

t

Do not bend, drop, or subject memory cards to heavy impact or pressure.

t Do not use memory cards that have been formatted by other cameras or by a computer. Reformat the memory card with your camera.

t

Never use a damaged charger, battery, or memory card.

Downloaded from ManualsCamera.com Manuals

2

Health and safety information

Use only Samsung-approved accessories

Using incompatible accessories may damage your camera, cause injury, or void your warranty.

Protect your camera’s lens

t Do not expose the lens to direct sunlight, as this may discolour the image sensor or cause it to malfunction.

t Protect your lens from fingerprints and scratches. Clean your lens with a soft, clean, debris-free lens cloth.

Use earphones with caution

t Do not use earphones while driving, cycling, or operating motorised vehicles. Doing so may create a traffic hazard and may be illegal in some areas.

t Use only the minimum volume setting necessary. Listening to earphones at high volume can damage your hearing.

Ensure maximum battery and charger life

t Overcharging batteries may shorten battery life. After charging is finished, disconnect the cable from your camera.

t

Over time, unused batteries will discharge and must be recharged before use.

t Disconnect chargers from power sources when not in use.

t Use batteries only for their intended purpose.

Exercise caution when using the camera in humid environments

When transferring the camera from a cold environment to a warm and humid one, condensation can form on the delicate electronic circuitry and memory card. In this situation, wait for at least 1 hour until all moisture has evaporated before using the camera.

Check that the camera is operating properly before use

The manufacturer takes no responsibility for any loss of files or damage that may result from camera malfunction or improper use.

Important usage information

Allow only qualified personnel to service your camera

Do not allow unqualified personnel to service the camera or attempt to service the camera yourself. Any damage that results from unqualified service is not covered by your warranty.

Downloaded from ManualsCamera.com Manuals

3

©2009 SAMSUNG DIGITAL IMAGING CO., LTD.

Camera specifications or contents of this manual may be changed without prior notice due to upgrade of camera functions.

Copyright information

t Microsoft Windows and the Windows logo are registered trademarks of the Microsoft Corporation.

t

Mac is a registered trademark of the Apple Corporation.

t is a registered trademark of SRS Labs, Inc. WOW

HD technology is incorporated under licence from SRS

Labs, Inc.

Downloaded from ManualsCamera.com Manuals

4

Organisation of the user manual

Basic functions

Learn about your camera’s layout, icons, and basic functions for shooting, and how to transfer files to and from your computer.

Extended functions

Learn how to take a photo by selecting a mode and how to record a video or voice memo.

Shooting options

Learn about the options you can set in shooting mode.

Playback/Editing

Learn how to play back photos, videos, or voice memos and edit photos or videos. You will also learn how to connect your camera to your photo printer or

TV.

Multimedia

Learn to use Multimedia modes: Music mode, Videos mode, and Text Viewer mode.

Appendixes

Refer to settings, error messages, specifications, and maintenance tips.

10

32

41

59

74

83

Indications used in this manual

Shooting mode

Smart Auto

Auto

Program

DIS

Photo Help Guide

Scene

Movie

Multimedia

Indication

S a p d h s v u

Icons used in this manual

Icon Function

Additional information

[ ]

( )

“

* †

Safety warnings and precautions

Camera buttons; for example: [

Shutter

] (represents the shutter button)

Page number of related information

The order of options or menus you must select to perform a step; for example: Select

Functions

“

White

Balance

(represents select

Functions

, and then

White

Balance

).

Annotation

Shooting mode icons

These icons indicate that a function is available in the corresponding modes. The s

mode may not support functions for all scenes.

e.g.)

Available in the

Program, DIS, and Movie modes

Abbreviations used in this manual

Abbreviation Definition

ACB Auto Contrast Balance

AEB Auto Exposure Bracket

Auto Focus

AF

DIS

DPOF

EV

WB

Digital Image Stabilisation

Digital Print Order Format

Exposure Value

White Balance

Downloaded from ManualsCamera.com Manuals

5

Expressions used in this manual

Pressing the shutter

t

Half-press [

Shutter

]: press the shutter halfway down t

Press [

Shutter

]: press the shutter all the way down

Exposure (Brightness)

The amount of light that enters your camera determines the exposure. You can alter the exposure with shutter speed, aperture value, and ISO speed. By altering the exposure, your photos will be darker or lighter.

Half-press [

Shutter

] Press [

Shutter

]

Subject, background, and composition

t

Subject

: the main object of a scene, such as a person, animal, or still life t

Background

: the objects around the subject t

Composition

: the combination of a subject and background

Subject

Composition

Background

Normal exposure

Downloaded from ManualsCamera.com Manuals

6

Overexposure (too bright)

Quick reference

Taking photos of people t t t s

mode > Beauty Shot, Portrait, Children f

34

Red-eye, Red-eye Fix (to prevent or correct red-eye) f

45

Face Detection f

49

Taking photos at night or in the dark t t t s

mode > Night, Dawn, Firework f

34

Flash options f

45

ISO speed (to adjust the sensitivity to light) f

46

Adjusting the exposure (brightness) t t t t t

ISO speed (to adjust the sensitivity to light) f

46

EV (to adjust exposure) f

53

ACB (to compensate for subjects against bright backgrounds) f

53

Metering f

54

AEB (to take three photos of the same scene with different exposures) f

56

Applying a different effect t t

Photo styles (to apply tones) f

57

Image adjustment (to adjust saturation, sharpness, or contrast) f

58

Taking action photos t Continuous, Motion Capture f

56

t

Reducing camera shake f

37

Taking photos of text, insects, or t flowers s

mode > Close Up, Text f

34

t t

Macro, Auto Macro, Super Macro (to take close-up photos) f

47

White balance (to change the colour tone) f

54

t Connecting your camera to a computer f

23

t t

Viewing files by category in

Smart Album f

61

Deleting all files on the memory card f

63

t t t Viewing files as a slide show f

65

Viewing files on a TV f

72

Using a multimedia mode

(listen to music, play videos and view text files) f

75

t Adjusting sound and volume f

85

t t

Adjusting the brightness of the display f

85

Changing the display language f

85

t Setting the date and time f

86

t t

Formatting the memory card f

86

Troubleshooting f

93

Downloaded from ManualsCamera.com Manuals

7

Contents

Basic functions

...................................................................... 10

Unpacking ......................................................................... 11

Camera layout ................................................................... 12

Icons ................................................................................. 14

Turning your camera on or off ........................................... 15

Selecting options ............................................................... 16

Setting the display and sound ........................................... 18

Changing the display type .................................................... 18

Setting the sound ................................................................ 18

Taking photos .................................................................... 19

Zooming ............................................................................. 20

Using the Photo Help Guide mode .................................... 21

Transferring files to your computer (for Windows) .............. 22

Installing programs

............................................................... 22

Transferring files to your PC .................................................. 23

Disconnecting the camera (for Windows XP)

.......................... 24

Transferring multimedia files to the camera ............................. 24

Using Samsung Converter

................................................... 26

Using Samsung Master ....................................................... 27

Transferring files to your computer (for Mac users) ............ 29

Transferring files to your computer ......................................... 29

Transferring multimedia files to the camera ............................. 29

Tips for getting a clearer photo .......................................... 30

Extended functions

.............................................................. 32

Shooting modes ................................................................ 33

Using the Smart Auto mode

................................................. 33

Using the Scene mode ........................................................ 34

Downloaded from ManualsCamera.com Manuals

8

Using the Beauty Shot mode

................................................ 34

Using the frame guide .......................................................... 35

Adjusting the exposure in the Night mode

.............................. 36

Using the DIS mode ............................................................ 37

Using the Program mode

..................................................... 37

Recording a video ............................................................... 38

Recording voice memos ................................................... 40

Recording a voice memo

..................................................... 40

Adding a voice memo to a photo .......................................... 40

Shooting options

................................................................... 41

Selecting a resolution and quality ...................................... 42

Selecting a resolution ........................................................... 42

Selecting image quality ........................................................ 42

Using the timer .................................................................. 43

Shooting in the dark .......................................................... 45

Preventing red-eye

.............................................................. 45

Using the flash .................................................................... 45

Adjusting the ISO speed

...................................................... 46

Changing the camera’s focus ............................................ 47

Using macro ....................................................................... 47

Using auto focus

................................................................. 47

Adjusting the focus area ....................................................... 48

Using face detection ......................................................... 49

Detecting faces ................................................................... 49

Taking a self-portrait shot ...................................................... 50

Taking a smile shot .............................................................. 50

Detecting eye blinking .......................................................... 51

Using smart face recognition ................................................ 51

Contents

Adjusting brightness and colour ........................................ 53

Adjusting the exposure manually (EV)

.................................... 53

Compensating for backlighting (ACB) .................................... 53

Changing the metering option

............................................... 54

Selecting a light source (White balance) ................................. 54

Using burst modes ............................................................ 56

Improving your photos ...................................................... 57

Applying photo styles ........................................................... 57

Defining your own RGB tone ................................................ 57

Adjusting your photos .......................................................... 58

Playback/Editing

................................................................... 59

Playing back ...................................................................... 60

Starting Playback mode ....................................................... 60

Viewing photos ................................................................... 64

Playing a video .................................................................... 66

Playing voice memos ........................................................... 67

Editing a photo .................................................................. 68

Resizing photos .................................................................. 68

Rotating a photo

.................................................................. 68

Applying photo styles ........................................................... 69

Defining your own RGB tone

................................................ 69

Correcting exposure problems ............................................. 70

Creating a print order (DPOF)

................................................ 71

Viewing files on a TV ......................................................... 72

Printing photos with a photo printer (PictBridge) ............... 73

Downloaded from ManualsCamera.com Manuals

9

Multimedia

.............................................................................. 74

Using Multimedia mode .................................................... 75

Using the Music mode ...................................................... 77

Playing music files ............................................................... 77

Using the Videos mode ..................................................... 79

Using the Text Viewer mode .............................................. 80

Multimedia mode settings menu ....................................... 81

Appendixes

............................................................................ 83

Camera settings menu ...................................................... 84

Accessing the settings menu

................................................ 84

Sound ................................................................................ 85

Display

............................................................................... 85

Settings .............................................................................. 86

Error messages ................................................................. 88

Camera maintenance ........................................................ 89

Cleaning your camera

.......................................................... 89

About memory cards ........................................................... 90

About the battery

................................................................. 91

Before contacting a service centre .................................... 93

Camera specifications ....................................................... 95

Index ............................................................................... 100

Basic functions

Learn about your camera’s layout, icons, and basic functions for shooting, and how to transfer files to and from your computer.

Unpacking

…………………………………… 11

Camera layout

……………………………… 12

Icons

…………………………………………… 14

Turning your camera on or off

…………… 15

Selecting options

…………………………… 16

Setting the display and sound

…………… 18

Changing the display type …………………… 18

Setting the sound ……………………………… 18

Taking photos

………………………………… 19

Zooming ……………………………………… 20

Using the Photo Help Guide mode

……… 21

Transferring files to your computer

(for Windows)

………………………………… 22

Installing programs …………………………… 22

Transferring files to your PC …………………… 23

Disconnecting the camera (for Windows XP) … 24

Transferring multimedia files to the camera … 24

Using Samsung Converter …………………… 26

Using Samsung Master ……………………… 27

Transferring files to your computer

(for Mac users)

……………………………… 29

Transferring files to your computer …………… 29

Transferring multimedia files to the camera … 29

Tips for getting a clearer photo

…………… 30

Downloaded from ManualsCamera.com Manuals

Unpacking

Check your product box for the following items.

Camera AC adapter/USB cable Rechargeable battery

Optional accessories

Camera case

Strap Software CD-ROM

(User manual included)

Earphones

A/V cable

Memory cards

The illustrations may differ from your actual items.

Quick Start Manual

Downloaded from ManualsCamera.com Manuals

Basic functions

11

Camera layout

Before you start, familiarise yourself with your camera's parts and their functions.

POWER button

Microphone

Shutter button

Flash

Speaker

Lens

AF-assist light/timer lamp

Multifuntion jack

Accepts the USB cable,

A/V cable, or earphone

Downloaded from ManualsCamera.com Manuals

Basic functions

12

Tripod mount

Battery chamber cover

Insert a memory card and battery

Camera layout

Display

Status lamp t

Blinking

: When saving a photo or video, being read by a computer or printer, or out of focus t

Steady

: When connecting to a computer or in focus

Zoom button t Zoom in or out in Shooting mode.

t t

Zoom in on part of a photo or view files as thumbnails in Playback mode.

Adjust volume in Playback mode or Multimedia mode.

Mode button : Open the list of shooting modes

Icon Mode Description

S

Smart Auto

Take a photo by letting the camera select a scene mode as it detects a

Auto

Take a photo quickly and easily with minimal settings p

Program Take a photo by setting options d

DIS

Take a photo with options suitable for reducing camera shake h

Photo Help

Guide

Get shooting tips and practice shooting s

Scene

Take a photo with options preset for a specific scene v

Movie

Record a video u

Multimedia Listen to MP3s, Play videos, and view text files

Downloaded from ManualsCamera.com Manuals

Basic functions

13

Button m

Description

Access options or menus.

Navigation

In Shooting mode

While setting

D

Change the display option

Move up

M

Change the macro option

Move down

F

Change the flash option t

Change the timer option

Move left

Move right o

Confirm the highlighted option or menu.

Playback

Enter Playback mode.

Function

t t

Access options in Shooting mode.

Delete files in Playback mode.

Icons

The icons displayed will change according to the mode you select or the options you set.

A

B

C

A. Information

Icon Description

Selected shooting mode

Zoom ratio

Available number of photos

Available recording time

Internal memory

Memory card inserted t t t

: Fully charged

: Partially charged

: Charging needed

Aperture and shutter speed

Voice memo

Auto focus frame

Camera shake

Current date and time

B. Icons on the right

Icon Description

Flash

Timer

Auto focus

Photo style

Face detection

Face tone

Face retouch

Image adjustment (contrast, sharpness, saturation)

Voice muted

C. Icons on the left

Icon Description

Exposure value

White balance

ISO speed

Photo resolution

Video resolution

Photo quality

Frame rate

Metering option

Long time shutter

Burst type

Downloaded from ManualsCamera.com Manuals

Basic functions

14

Turning your camera on or off

Learn how to start your camera.

Press [

POWER

] to turn your camera on or off.

Turning on your camera in Playback mode

Press [

P

]. The camera turns on and accesses Playback mode immediately.

Downloaded from ManualsCamera.com Manuals

Basic functions

15

Press and hold [

P

] to mute camera sounds.

Selecting options

You can select options by pressing [ m

] and using the navigation buttons ([

D

], [

M

], [

F

], [ t

]).

You can also access shooting options by pressing [ f

] but some options are not available.

1

In Shooting mode, press [ m

].

2

Use the navigation buttons to scroll to an option or menu.

t t

To move left or right, press [

F

] or [ t

].

To move up or down, press [

D

] or [

M

].

EV

Back Move

3

Press [ o

] to confirm the highlighted option or menu.

Going back to the previous menu

Press [ m

] again to go back to the previous menu.

Press [

Shutter

] to return to Shooting mode.

Downloaded from ManualsCamera.com Manuals

Basic functions

16

E.g. Select a white balance option in the P mode

1

2

In Shooting mode, press [

O

].

Press [

D

] or [

M

] to scroll to

Program

and then press [ t

] or [ o

].

3

Press [ m

].

Functions

Sound

Display

Settings

Exit

EV

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

Change

4

Press [

D

] or [

M

] to scroll to

Functions

and then press [ t

] or [ o

].

Selecting options

5

Press [

D

] or [

M

] to scroll to

White Balance

and then press [ t

] or [ o

].

Exit

EV

White Balance

ISO

Face Detection

Photo Size

Quality

ACB

Back

6

Press [

F

] or [ t

] to scroll to a white balance option.

Daylight

Back

7

Press [ o

].

Move

Downloaded from ManualsCamera.com Manuals

Basic functions

17

Setting the display and sound

Learn how to change the basic settings for the display and sound according to your preferences.

Changing the display type

Select a style of display for Shooting or Playback mode.

Press [

D

] repeatedly to change a display type.

Show all photographic information.

Setting the sound

Set whether your camera emits a specified sound when you operate your camera.

1

In Shooting or Playback mode, press [ m

].

2

Select

Sound

“

Beep Sound

“ an option.

Option Description

Off

1/2/3

The camera does not emit any sounds.

The camera emits sounds.

3

Press [ m

] to return to the previous mode.

Mode

Shooting

Playback

Description t Display all information about shooting t Hide information about shooting, except the available number of photos t

Display all information about the current photo t

Hide all information about the current file t Display information about the current photo, except the shooting settings and captured date

Downloaded from ManualsCamera.com Manuals

Basic functions

18

Taking photos

Learn basic actions to take photos easily and quickly in the Auto mode.

1

2

In Shooting mode, press [

O

].

Select

Auto

.

4

Half-press [

Shutter

] to focus.

t A green frame means the subject in focus.

Smart Auto

Auto

Program

DIS

Photo Help Guide

This mode minimizes user settings for quick, convenient shooting.

3

Align your subject in the frame.

5

Press [

Shutter

] to take a photo.

See page 30 for tips to get clearer photos.

Downloaded from ManualsCamera.com Manuals

Basic functions

19

Taking photos

Zooming

You can shoot close-up photos by adjusting the zoom. Your camera has a 3X optical zoom and 5X digital zoom. By using both, you can zoom in up to 15 times.

Push [

Zoom

] up to zoom in on your subject. Push [

Zoom

] down to zoom out.

Zoom ratio

Zoom in

Digital zoom

If the zoom indicator is in the digital range, your camera is using the digital zoom. The picture quality may deteriorate when you use the digital zoom.

Optical range Zoom indicator

Digital range t The digital zoom is not available when using

S

, d

, s

(in some scenes), and v

modes and when used with

Face Detection

. t

It may take longer to save a photo when using the digital zoom.

Zoom out

Downloaded from ManualsCamera.com Manuals

Basic functions

20

Using the Photo Help Guide mode

This mode provides various shooting tips. Learn how to get better photos and videos.

1

In Shooting mode, press [

O

].

2

3

Select

Photo Help Guide

.

Select a menu from the list.

Photo Help Guide

Photo Help Guide

Features to use when the image is out of focus

Features to reduce camera shake

Features to use in low light conditions

Features to use when adjusting brightness

Features to use when adjusting colours

Change

4

Select a submenu.

5

View a topic.

t

Press [

D

] or [

M

] to display the previous or next screen.

Photo Help Guide

Press the Fn button.

Move to ISO using the up and down buttons.

Back Practice

6

Press [ o

] to practice.

t Press [

D

] to return to the list.

t t

Press [

F

] to go back to the previous menu.

While practicing, you cannot set shooting options or menus.

Downloaded from ManualsCamera.com Manuals

Basic functions

21

Transferring files to your computer (for Windows)

Transfer files by connecting your camera to your PC.

Installing programs

Hardware and software requirements

Item

CPU

RAM

OS

Hard disk capacity

Others

Requirements

Pentium III 500 MHz or better

(Pentium III 800 MHz or better recommended)

256 MB or more (512 MB or more recommended)

Windows 2000/XP/Vista

250 MB or more (1 GB or more recommended) t

USB port t

CD-ROM drive t 1024 x 768 pixels, 16-bit colour display compatible monitor (24-bit colour display recommended) t Microsoft Direct X 9.0C or later t Using a self-assembled PC or a PC and OS that are not supported may void your warranty.

t

These programs may not work properly on 64-bit Edition of Windows

XP and Vista.

Programs contained on the CD

Program

Samsung Master

Samsung Converter*

Purpose

Edit photos and videos.

Convert videos so that they can be played on the camera.

Code and decode video files.

View the user manual.

Xvid Codec**

Adobe Reader

* Pentium IV or better is recommended to use the program.

** The XviD codec is distributed according to the GNU General Public

License and everyone can copy, distribute and change this codec.

This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. For more information, see the

License documents (http://www.gnu.org/copyleft/gpl.html).

Downloaded from ManualsCamera.com Manuals

Basic functions

22

Transferring files to your computer (for Windows)

1

Insert the installation CD in a compatible CD-ROM drive.

2

When the setup screen is displayed, click

Samsung

Digital Camera Installer

to start installation.

Transferring files to your PC

Once you connect the camera to your PC, the camera will be recognised as a removable drive.

The battery will be charged while the camera is connected to a PC with the

USB cable.

1

Connect your camera to your PC with the USB cable.

You must plug the end of the cable with the indicator light ( S ) into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.

3

Click

Preview

to check if a movie sample plays properly.

4

If the sample plays properly, select

Do not install

and click

Next

. t

If it does not, select

Install the codec program

and click

Install

. The codec program is installed.

5

Select programs to install and follow the onscreen instructions.

6

Click

Exit

to complete the installation and restart your computer.

Downloaded from ManualsCamera.com Manuals

Basic functions

23

2

Turn on the camera.

t The computer recognises the camera automatically.

If the camera fails to connect, a pop-up window will appear. Select

Computer

.

Transferring files to your computer (for Windows)

3

On your PC, select

My Computer

“

Removable Disk

“

DCIM

“

100SSCAM

.

4

Select the files you want and drag or save them to your

PC.

Disconnecting the camera (for Windows XP)

The way to disconnect the USB cable for Windows 2000/Vista is similar.

1

If the status lamp on your camera is blinking, wait until it stops.

2

Click screen.

on the tool bar at the bottom right of your PC

3

4

Click the pop-up message.

Remove the USB cable.

Transferring multimedia files to the camera

Requirements

Your camera will support the following file types.

Multimedia mode

Supported type

Music

Videos

Text Viewer t

File type

: MP3 (MPEG-1/2/2.5 Layer 3) t

Bit rate

: 48 - 320 Kbps (including VBR)

File type

: PMP SDC* t

File type

: TXT (smaller than 10 MB or up to

99,999 pages) t

Encoding type

Windows: ANSI (Windows 98 or later)/

Unicode/Unicode (Big-Endian)/

UTF-8 (Windows 2000/XP)

Mac: ANSI, Unicode (UTF-16) t

Language

† : English, Korean, French, German,

Spanish, Italian, Chinese, Taiwanese, Japanese,

Russian, Portuguese, Dutch, Danish, Swedish,

Finnish, Bahasa, Polish, Hungarian, Czech, Turkish

* A file type that is converted with Samsung Converter (p. 26)

Subject to change without prior notice t Duplicating multimedia files may violate copyright laws.

t Without permission of the manufacturer, you cannot duplicate, modify and/or distribute any part or all MP3 or PMP files provided in the internal memory.

Downloaded from ManualsCamera.com Manuals

Basic functions

24

Transferring files to your computer (for Windows)

Transferring multimedia files to the camera

1

Connect the camera to your PC. (p.

23)

2

3

On your PC, select

My Computer

“

Removable Disk

.

Create new folders named “MP3,” “PMP,” and “TEXT.”

4

Copy multimedia files to the corresponding folders.

t t t

MP3 files to MP3 folder

SDC files to PMP folder

TXT files to TEXT folder

Downloaded from ManualsCamera.com Manuals

Basic functions

25 t Multimedia files cannot be played or viewed if the folder names are incorrect.

t Subfolders nested directly within the MP3, PMP and TEXT folders can be created. Files saved in deeply-nested subfolders may not be played or viewed.

t You can save up to 200 files or 100 subfolders in each folder.

You can save up to 200 total files and subfolders in combination.

t

File names or folder names with more than 120 characters (60 characters for 2-byte languages, such as Chinese or Korean) will not appear in the playlist.

‰

Š

Transferring files to your computer (for Windows)

Using Samsung Converter

Convert videos so that they can be played on the camera. For details, see the Help menu.

ˆ

Œ



Ž



No.

Description

ˆ

Add video files (AVI, WMV, ASF, MPG [MPEG-1]).

‰ Add subtitles.

Š

Specify the folder path and file name for the converted file.

‹ Convert the file.

Œ

Preview.



Cropping slider; move to the point where you want the video to begin or end.

Ž

Pause and resume playback.



Set the frame size and rate or the file size limit.

‹

Downloaded from ManualsCamera.com Manuals

Basic functions

26

Transferring files to your computer (for Windows)

Using Samsung Master

You can download files or edit photos or videos stored on your

PC. For details, see the Help menu.

Downloading files using Samsung Master

When you connect the camera to the PC, a window for downloading files automatically appears.

1

Select the files you want to download.

2

Click

Next

and follow the onscreen instructions.

No.

Description

ˆ

Select a location for downloaded files.

‰ Click to download the selected files.

Š

Thumbnails of files; click an image to download.

Š

ˆ ‰

Downloaded from ManualsCamera.com Manuals

Basic functions

27

Transferring files to your computer (for Windows)

Using the Samsung Master Interface

ˆ ‰ Š ‹

No.

Description

ˆ

Toolbar

‰ Menus

Š

Click for more information about the program.

‹ Click to enlarge or reduce the thumbnails in the list.

Œ

Change the mode.

t

: View mode t

: Edit mode for photos t

: Edit mode for videos

 Preview information about the selected file.

Ž

The photos in the selected folder; double-click to switch to full-screen view.

Œ  Ž

Downloaded from ManualsCamera.com Manuals

Basic functions

28

Transferring files to your computer (for Mac users)

When you connect the camera to a Macintosh computer, the computer will recognise the device automatically. You can transfer files directly from the camera to the computer without installing any programs.

t

Mac OS X version 10.3 or later is supported.

t t

Supported file types and languages are shown on page 24.

To use PMP files, you must first convert the files using Samsung Converter on a Windows computer.

Transferring files to your computer

1

Connect your camera to a Macintosh computer with the

USB cable.

Transferring multimedia files to the camera

1

Connect the camera to a Macintosh computer with the

USB cable.

You must plug the end of the cable with the indicator light ( S ) into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.

2

Turn on the camera.

t The computer recognises the camera automatically and a removable disk icon will be displayed.

3

4

Double-click the removable disk icon.

Transfer photos or videos to the computer.

Downloaded from ManualsCamera.com Manuals

Basic functions

29

2

Turn on your camera.

t The computer recognises the camera automatically and a removable disk icon will be displayed.

3

4

5

Double-click the removable disk icon.

Create new folders named “MP3,” “PMP,” and “TEXT.”

Copy multimedia files to the corresponding folders.

t t t

MP3 files to MP3 folder

SDC files to PMP folder

TXT files to TEXT folder

Tips for getting a clearer photo

Holding your camera correctly

Make sure nothing is blocking the lens.

Reducing camera shake

Select the d

mode to reduce camera

shake digitally. (p. 37)

Half-pressing the shutter button

Half-press [

Shutter

] and adjust the focus. Focus and exposure will be adjusted automatically.

When is displayed

When shooting in the dark, avoid setting the flash option to

Slow

Sync

or

Off

. The aperture remains open longer and it may be harder to hold the camera still.

t

Use a tripod or set the flash option to

Fill in

. (p. 45)

t

Set ISO speed options. (p. 46)

The aperture value and shutter speed are automatically set.

Focus frame t Press [

Shutter

] to take the photo if displayed in green.

t

Change the frame and half-press

[

Shutter

] again if displayed in red.

Downloaded from ManualsCamera.com Manuals

Basic functions

30

Camera shake

Preventing your subject from being out of focus

It may be difficult to get your subject in focus when:

there is little contrast between the subject and background

(When your subject is wearing a colour of clothing that is similar to the background)

the light source behind the subject is too bright

the subject is shiny

the subject includes horizontal patterns, such as blinds

the subject is not positioned in the centre of the frame t When you take photos in low light

Turn on the flash.

(p. 45)

t

When subjects are moving fast

Use the continuous or motion capture

function. (p. 56)

Use the focus lock

Half-press [

Shutter

] to focus. When the subject is in focus, you can reposition the frame to change the composition.

When you are ready, press [

Shutter

] to take your photo.

Downloaded from ManualsCamera.com Manuals

Basic functions

31

Downloaded from ManualsCamera.com Manuals

Extended functions

Learn how to take a photo by selecting a mode and how to record a video or voice memo.

Shooting modes

…………………………………………… 33

Using the Smart Auto mode ……………………………… 33

Using the Scene mode ……………………………………… 34

Using the Beauty Shot mode ……………………………… 34

Using the frame guide ……………………………………… 35

Adjusting the exposure in the Night mode ………………… 36

Using the DIS mode ………………………………………… 37

Using the Program mode …………………………………… 37

Recording a video …………………………………………… 38

Recording voice memos

………………………………… 40

Recording a voice memo …………………………………… 40

Adding a voice memo to a photo ………………………… 40

Shooting modes

Take photos or record videos by selecting the best shooting mode for the conditions.

Using the Smart Auto mode

In this mode, your camera automatically chooses the appropriate camera settings based on a defected type of scene. It will be helpful if you are not familiar with the camera settings for various scenes.

1

In Shooting mode, press [

O

].

2

3

Select

Smart Auto

.

Align your subject in the frame.

t The camera selects a scene automatically. An appropriate mode icon will appear at the top left of the screen.

Icon Description

Appears when taking photos of landscapes.

Appears when taking photos of bright backgrounds.

Appears when taking photos of landscapes at night.

This is available only when the flash is off.

Downloaded from ManualsCamera.com Manuals

Extended functions

33

Icon Description

Appears when taking portraits at night.

Appears when taking photos of landscapes with backlighting.

Appears when taking portraits with backlighting.

Appears when taking portraits.

Appears when taking close-up photos.

Appears when taking close-up photos of text.

Appears when the camera and subject are stable for a while.

Appears when taking photos of actively moving subjects.

4

5

Half-press [

Shutter

] to focus.

Press [

Shutter

] to take the photo. t If the camera does not recognise a proper scene mode, change and the default settings will be used.

will not t Even if there is a face detected, the camera may not select a portrait mode depending on the subject's position or lighting.

t

The camera may not select the correct scene depending on shooting environments, such as camera shake, lighting, and distance to the subject.

t Even if you use a tripod, the on the subject's movement.

mode may not be detected depending

Shooting modes

Using the Scene mode

Take a photo with options preset for a specific scene.

1

2

In Shooting mode, press [

O

].

Select

Scene

“

a scene.

Beauty Shot

Frame Guide

Night

Portrait

Children

Landscape

Close Up

This mode is appropriate for shooting with pre-composed scenes. t For the Beauty Shot mode, see "

Using the Beauty Shot mode."

t For the Frame Guide mode, see “

Using the frame guide” on page 35.

t For the Night mode, see "

Adjusting the exposure in the Night mode" on page 36.

3

Align your subject in the frame and half-press [

Shutter

] to focus.

4

Press [

Shutter

] to take the photo.

Using the Beauty Shot mode

Take a photo of a person with options to hide facial imperfections.

1

In Shooting mode, press [

O

].

2

Select

Scene

“

Beauty Shot

.

3

To make the subject's skin tone appear lighter (face only), press [ m

].

4

Select

Functions

“

Face Tone

“ an option.

t Select a higher setting to make skin tone appear lighter.

Level 2

Back Move

5

To hide facial imperfections, press [ m

].

Downloaded from ManualsCamera.com Manuals

Extended functions

34

Shooting modes

6

Select

Functions

“

Face Retouch

“ an option.

t

Select a higher setting to hide a greater number of imperfections.

Level 1

Using the frame guide

When you want another person to take a photo of you, you can compose the scene with the frame guide feature. The frame guide will help the other person take a photo of you by showing the part of the pre-composed scene.

1

In Shooting mode, press [

O

].

2

3

Select

Scene

“

Frame Guide

.

Align your subject in the frame and press [

Shutter

].

t

Transparent guides will appear on the left and right of the frame.

Back Move

7

Align your subject in the frame and half-press [

Shutter

] to focus.

8

Press [

Shutter

] to take the photo.

The focus distance will be set to

Auto Macro

.

Cancel Frame: OK

4

Ask another person to take a photo.

t The person must align the subject in the frame by using the guides, and then press [

Shutter

] to take the photo.

5

To cancel the guides, press [ o

].

Downloaded from ManualsCamera.com Manuals

Extended functions

35

Shooting modes

Adjusting the exposure in the Night mode

In the Night mode, you can catch brief flashes of light as curved streaks by extending the exposure. Use a slow shutter speed to extend the time until the shutter closes. Increase the aperture value to prevent overexposure.

1

In Shooting mode, press [

O

].

2

3

4

5

Select

Scene

“

Night

.

Press [ m

].

Select

Functions

“

Long Time Shutter

.

Select the aperture value or shutter speed.

Aperture value

Shutter speed

Aperture

6

Select an option.

t If you select

AUTO

the aperture value or shutter speed will be adjusted automatically.

7

Align your subject in the frame and half-press [

Shutter

] to focus.

8

Press [

Shutter

] to take the photo.

Use a tripod to prevent your photos from blurring.

Back Move

Downloaded from ManualsCamera.com Manuals

Extended functions

36

Shooting modes

Using the DIS mode

Reduce camera shake and prevent blurred photos with Digital

Image Stabilisation (DIS) function.

Before correction After correction

1

In Shooting mode, press [

O

].

2

3

Select

DIS

.

Align your subject in the frame and half-press [

Shutter

] to focus.

4

Press [

Shutter

] to take the photo.

t The digital zoom will not work in this mode.

t If your subject is moving rapidly, the photo may be blurry.

Using the Program mode

Set various options (except for shutter speed and aperture value) in the Program mode.

1

In Shooting mode, press [

O

].

2

3

Select

Program

.

Set options. (For a list of options, refer to

Shooting options.

)

4

Align your subject in the frame and half-press [

Shutter

] to focus.

5

Press [

Shutter

] to take the photo.

Downloaded from ManualsCamera.com Manuals

Extended functions

37

Shooting modes

Recording a video

Record videos of up to 120 minutes in length. The recorded video is saved as an MPEG-4.AVI file.

The zoom sound may be recorded if you use the zoom while recording a video.

1

In Shooting mode, press [

O

].

2

3

4

Select

Movie

.

Press [ m

].

Select

Functions

“

Frame Rate

“ a frame rate (the number of frames per second).

t As the number of frames increases, action appears more natural, but the file size is increased.

5

6

Press [ m

].

Select

Functions

“

Voice

“ a sound option.

Option Description

On

: Record a video with sound.

Off

: Record a video without sound.

7

8

Press [ m

].

Select

Functions

“

Stabiliser

“ a stabiliser option.

Option Description

Off

: Record a video with the stabilisation function turned off.

On

: Record a video with the stabilisation function turned on to prevent your video from blurring.

9

Set other options as desired.

(For options, refer to “Shooting options.”)

10

11

Press [

Shutter

] to start recording.

Press [

Shutter

] again to stop recording.

Downloaded from ManualsCamera.com Manuals

Extended functions

38

Shooting modes

To pause recording

The camera allows you to pause temporarily while recording a video. With this function, you can record your favourite scenes as a single video.

Press [ o

] to pause while recording. Press it again to resume.

Stop Pause

Downloaded from ManualsCamera.com Manuals

Extended functions

39

Recording voice memos

a p d s

Learn how to record a voice memo that you can play back at any time. You can add a voice memo to a photo as a short reminder of shooting conditions.

You will get the best sound quality when recording 40 cm away from the camera.

Recording a voice memo

1

In Shooting mode, press [ m

].

2

3

Select

Functions

“

Voice

“

Record

.

Press [

Shutter

] to record.

Adding a voice memo to a photo

1

In Shooting mode, press [ m

].

2

3

Select

Functions

“

Voice

“

Memo

.

Align your subject in the frame and take a photo.

t

You will begin recording a voice memo right after taking the photo.

4

Record a short voice memo (10 seconds maximum).

t

Press [

Shutter

] to stop recording a voice memo.

Stop Pause t t

Press [ o

] to pause or resume recording.

You can record voice memos of up to 10 hours in length.

4

Press [

Shutter

] to stop.

t Press [

Shutter

] again to record a new voice memo.

5

Press [ m

] to switch to Shooting mode.

Downloaded from ManualsCamera.com Manuals

Extended functions

40

Shooting options

Learn about the options you can set in shooting mode.

Selecting a resolution and quality

………… 42

Selecting a resolution ………………………… 42

Selecting image quality ………………………… 42

Using the timer

……………………………… 43

Shooting in the dark

………………………… 45

Preventing red-eye …………………………… 45

Using the flash ………………………………… 45

Adjusting the ISO speed ……………………… 46

Changing the camera’s focus

……………… 47

Using macro …………………………………… 47

Using auto focus ……………………………… 47

Adjusting the focus area ……………………… 48

Using face detection

………………………… 49

Detecting faces ………………………………… 49

Taking a self-portrait shot ……………………… 50

Taking a smile shot …………………………… 50

Detecting eye blinking ………………………… 51

Using smart face recognition ………………… 51

Adjusting brightness and colour

………… 53

Adjusting the exposure manually (EV) ………… 53

Compensating for backlighting (ACB) ………… 53

Changing the metering option ………………… 54

Selecting a light source (White balance) ……… 54

Using burst modes

………………………… 56

Improving your photos

……………………… 57

Applying photo styles ………………………… 57

Defining your own RGB tone ………………… 57

Adjusting your photos ………………………… 58

Downloaded from ManualsCamera.com Manuals

Selecting a resolution and quality

Learn how to change the image resolution and quality settings.

Selecting a resolution

S a p d s v

As you increase the resolution, your photo or video will include more pixels, so it can be printed on larger paper or displayed on a larger screen. When you use a high resolution, the file size will also increase.

When taking a photo:

1

2

In Shooting mode, press [ m

].

Select

Functions

“

Photo Size

“ an option.

Option Description

3456 X 2592

: Print on A2 paper.

3456 X 2304

: Print on A3 paper in wide ratio (3:2).

3456 X 1944

: Print on A3 paper in panorama ratio (16:9).

2592 X 1944

: Print on A4 paper.

2048 X 1536

: Print on A5 paper.

1024 X 768

: Attach to email.

When recording a video:

1

In the v

mode, press [ m

].

2

Select

Functions

“

Movie Size

“

an option.

Option Description

800 X 592

: Play back on an SDTV.

640 X 480

: Play back on a general TV.

320 X 240

: Post on a web page.

Selecting image quality

a p d s

Photos you take are compressed and saved in JPEG format.

Higher quality images will result in larger sizes.

1

In Shooting mode, press [ m

].

2

Select

Functions

“

Quality

“ an option.

Option Description

Super Fine

Fine

Normal

The options may differ depending on the shooting mode.

Downloaded from ManualsCamera.com Manuals

Shooting options

42

Using the timer

S a p d s v

Learn how to set the timer to delay shooting.

1

In Shooting mode, press [ t

].

Off

2

Select an option.

Option Description

Off

: The timer is not active.

10 Sec

: Take a photo in 10 seconds.

2 Sec

: Take a photo in 2 seconds.

Double

: Take a photo in 10 seconds and take another in 2 seconds.

Motion Timer

: Detect your movement and then take a

photo. (p. 44)

The options may differ depending on the shooting mode.

Downloaded from ManualsCamera.com Manuals

Shooting options

43

3

Press [

Shutter

] to start the timer. t

The AF-assist light/timer lamp blinks. The camera will automatically take a photo at the specified time. t

Press [ t

] to cancel the timer.

t Depending on the selected face detection option, the timer is not available or some timer options are not available.

Using the timer

Using the motion timer

1

In Shooting mode, press [ t

].

2

3

4

Select .

Press [

Shutter

].

Stand within 3 m from the camera within 6 seconds after pressing [

Shutter

].

5

Make a motion, such as waving your arms, to activate the timer.

t The AF-assist light/timer lamp will start to blink rapidly when the camera detects you.

6

Pose for your photo while the AF-assist light/timer lamp is blinking.

t

The AF-assist light/timer lamp will stop blinking just before the camera automatically takes a photo.

The motion timer may not work when: t you are more than 3 m away from the camera t your movements are too subtle t there is too much light or backlight

The detection range of the motion timer

Downloaded from ManualsCamera.com Manuals

Shooting options

44

Shooting in the dark

Learn how to take photos at night or in low light conditions.

Preventing red-eye

a p s

If the flash fires when you take a photo of a person in the dark, a red glow may appear in the eyes. To prevent this, select

Red-eye

or

Red-eye Fix

.

Using the flash

S a p s

Use the flash when taking photos in the dark or when you need more light on your photos.

1

In Shooting mode, press [

F

].

Auto

2

Select an option.

Option Description

Off

: t The flash will not fire.

t Camera shake warning ( shooting in low light.

) will be displayed when

Auto

: The camera will select a proper flash setting for the detected scene in the mode.

Downloaded from ManualsCamera.com Manuals

Shooting options

45

Shooting in the dark

Option Description

Red-eye Fix

*: t

The flash fires when the subject or background is dark.

t The camera corrects red-eyes through its advanced software analysis.

Slow Sync

: t

The flash fires and the shutter stays open longer.

t

Select this when you want to capture ambient light to reveal more details in the background.

t Use a tripod to prevent your photos from blurring.

Fill in

: t The flash always fires.

t

Light intensity is adjusted automatically.

Red-eye

*: t The flash fires when the subject or background is dark.

t The camera reduces red-eyes.

Auto

: The flash fires automatically when the subject or background is dark.

The options may differ depending on the shooting mode.

* There is an interval between two bursts of the flash. Do not move until the flash fires a second time.

t Flash options are not available if you set burst options or select

Self-Portrait

or

Blink Detection

. t

Make sure that your subjects are within the recommended distance

from the flash. (p. 95)

t If there is reflected light or much dust in the air, tiny spots may appear on your photo.

Adjusting the ISO speed

p

The ISO speed is the measure of a film’s sensitivity to light as defined by the International Organisation for Standardisation (ISO).

The higher ISO speed you select, the more sensitive to light your camera becomes. With a higher ISO speed, you can get a better photo without using the flash.

1

2

In Shooting mode, press [ m

].

Select

Functions

“

ISO

“ an option.

t Select to use an appropriate ISO speed based on the brightness of the subject and lighting.

t The higher ISO speed you select, the more image noise you may get.

t

When

Motion Capture

is set, ISO speed will be set to

Auto

.

Downloaded from ManualsCamera.com Manuals

Shooting options

46

Changing the camera’s focus

Learn how to adjust the camera's focus according to your subjects.

Using macro

a p d v

Use macro to take close-up photos of subjects, such as flowers or insects. Refer to macro options in “ Using auto focus.

Using auto focus

a p d v

To take sharp photos, select the appropriate focus according to your distance from the subject.

1

In Shooting mode, press [

M

].

Normal (AF) t Try to hold the camera very still to prevent blurry photos.

t Turn off the flash if the distance to the subject is less than 40 cm.

2

Select an option.

Option Description

Normal (AF)

: Focus on a subject farther than 80 cm.

Macro

: Focus on a subject 5-80 cm (50-80 cm when using zoom).

Auto Macro

: Focus on a subject farther than 5 cm

(farther than 50 cm when using zoom).

Super Macro

: Focus on a subject between 1 to 5 cm.

The options may differ depending on the shooting mode.

Downloaded from ManualsCamera.com Manuals

Shooting options

47

Changing the camera’s focus

Adjusting the focus area

a p d s

You can get clearer photos by selecting an appropriate focus area according to your subject’s location in the scene.

1

2

In Shooting mode, press [ m

].

Select

Functions

“

Focus Area

“

an option.

Option Description

Center AF

: Focus on the centre (suitable when subjects are located in the centre).

Multi AF

: Focus on one or more of 9 possible areas.

The options may differ depending on the shooting mode.

Downloaded from ManualsCamera.com Manuals

Shooting options

48

Using face detection

a p d s

If you use face detection options, your camera can automatically detect a human face. When you focus on a human face, the camera adjusts the exposure automatically. Take photos quickly and easily by using

Blink Detection

to detect closed eyes or

Smile Shot

to capture a smiling face. You can also use

Smart Face Recognition

to register faces and prioritise the focus on them.

Detecting faces

Your camera automatically detects human faces (up to 10 human faces).

t Face detection may not be effective when:

the subject is far from the camera (The focus frame will appear

-

-

orange for

Smile Shot

and

Blink Detection

) it is too bright or too dark the subject is not facing the camera the subject is wearing sunglasses or a mask

-

the subject is in backlighting or the lighting condition is unstable the subject’s facial expression changes remarkably t Face detection is not available when using a photo style or saturation.

t

When you use the face detection option, the digital zoom will not work.

t Depending on the selected face detection option, the timer is not available or some timer options are not available.

t

The options may differ depending on the shooting mode.

1

2

In Shooting mode, press [ m

].

Select

Functions

“

Face Detection

“

Normal

. t The closest face appears in a white focus frame and the rest of the faces appear in gray focus frames.

The closer you are to the subject, the quicker your camera will detect faces.

Downloaded from ManualsCamera.com Manuals

Shooting options

49

Using face detection

Taking a self-portrait shot

Take photos of yourself. The focus distance will be set to closeup and your camera will emit a beep.

Taking a smile shot

The camera automatically releases the shutter when it detects a smiling face.

1

In Shooting mode, press [ m

].

2

3

Select

Functions

“

Face Detection

“

Self-Portrait

.

When your hear a quick beep, press [

Shutter

].

To turn the beep on or off, select

Self-Portrait

in the sound settings. (p. 85)

1

2

In Shooting mode, press [ m

].

Select

Functions

“

Face Detection

“

Smile Shot

. t When your subject smiles broadly, your camera can detect the smile more easily.

Downloaded from ManualsCamera.com Manuals

Shooting options

50

Using face detection

Detecting eye blinking

If your camera detects closed eyes, it will automatically take 2 photos in succession.

Using smart face recognition

The camera automatically registers faces that you frequently photograph (up to 10 people). This feature will automatically prioritise the focus on those faces. This feature is available only when you use a memory card.

1

2

In Shooting mode, press [ m

].

Select

Functions

“

Face Detection

“

Blink

Detection

. t t

Hold your camera still while “

Capturing

” is displayed on the screen.

When blink detection fails, “

Picture taken with eyes closed.

message appears. Take another photo.

1

2

In Shooting mode, press [ m

].

Select

Functions

“

Face Detection

“

Smart Face

Recognition

.

t

The priority of the faces will be shown by the level indicator next to the frames.

Downloaded from ManualsCamera.com Manuals

Shooting options

51

Using face detection t The camera may recognise and register faces incorrectly depending on lighting conditions, remarkable changes in the subject's pose or face, and whether or not the subject is wearing glasses.

t The camera may recognise faces and display the level indicator, even though they have not been registered.

t

You can view registered faces in order of priority while in Playback

mode. (p. 61) Even though faces are registered successfully, they may

not be classified in Playback mode.

t If the camera recognises a new face when there are 10 registered faces, it will replace the face in the lowest priority with the new one.

t The camera can recognise up to 3 faces in one scene. t When the camera does not recognise faces, it will still detect the faces without prioritising them.

t

You can manually register faces from photos you have already taken.

(p. 61)

Downloaded from ManualsCamera.com Manuals

Shooting options

52

Adjusting brightness and colour

Learn how to adjust the brightness and colour for better image quality.

Adjusting the exposure manually (EV)

p d v

Depending on the intensity of the ambient light, your photos may be too bright or dark. In these cases, you can adjust the exposure to get a better photo.

Compensating for backlighting (ACB)

p

When the light source is behind your subject or there is high contrast between your subject and the background, your subject is likely to appear dark in the photo. In this case, set the Auto

Contrast Balance (ACB) option.

Darker (-) Neutral (0) Brighter (+)

1

In Shooting mode, press [ m

].

2

3

Select

Functions

“

EV

.

Select a value to adjust the exposure.

t Once you adjust the exposure, the setting will remain the same. You may need to change the exposure value later to avoid overexposure or underexposure. t If you cannot decide on an appropriate exposure, select

AEB

(Auto

Exposure Bracket). The camera takes photos with different exposures:

normal, underexposed, and overexposed. (p. 56)

Without ACB With ACB

1

In Shooting mode, press [ m

].

2

Select

Functions

“

ACB

“ an option.

Option Description

Off

: ACB is off.

On

: ACB is on.

t t

The ACB feature is always on in the a

mode.

You cannot set burst options when this feature is on.

Downloaded from ManualsCamera.com Manuals

Shooting options

53

Adjusting brightness and colour

Changing the metering option

p d v

The metering mode refers to the way in which a camera measures the quantity of light. The brightness and lighting of your photos will vary depending on the metering mode you select.

1

In Shooting mode, press [ m

].

2

Select

Functions

“

Metering

.

Option Description

Multi

: t Your camera divides the scene into several areas, and then measures the light intensity of each area. t

Suitable for general photos.

Spot

: t Your camera measures only the light intensity of the very centre of the frame. t If a subject is not in the centre of the scene, your photo may be improperly exposed.

t

Suitable for a subject with backlighting.

Center–weighted

: t Your camera averages the meter reading of the entire frame with emphasis placed on the centre.

t Suitable for photos with subjects in the centre of the frame.

Selecting a light source (White balance)

p d v

The colour of your photo depends on the type and quality of the light source. If you want the colour of your photo to be realistic, select an appropriate lighting condition to calibrate the white balance, such as Auto WB, Daylight, Cloudy, or Tungsten.

(Auto WB)

(Cloudy)

(Daylight)

(Tungsten)

Downloaded from ManualsCamera.com Manuals

Shooting options

54

Adjusting brightness and colour

1

In Shooting mode, press [ m

].

2

Select

Functions

“

White Balance

“ an option.

Icon Description

Auto WB

: Use automatic settings depending on the lighting conditions.

Daylight

: Select when taking outdoor photos on a sunny day.

Cloudy

: Select when taking outdoor photos on a cloudy day or in shadows.

Fluorescent_H

: Select when shooting under a daylight fluorescent or three-way fluorescent light.

Fluorescent_L

: Select when shooting under white fluorescent light.

Tungsten

: Select when taking indoor photos under incandescent bulbs or halogen lamps.

Measure: Shutter

(Custom setting): Use your predefined settings.

Defining your own white balance

1

2

In Shooting mode, press [ m

].

Select

Functions

“

White Balance

“

Measure:

Shutter

.

3

Aim the lens at a piece of white paper.

4

Press [

Shutter

].

Downloaded from ManualsCamera.com Manuals

Shooting options

55

Using burst modes

p s

It can be difficult to take photos of fast-moving subjects or capture natural facial expressions and gestures of your subjects in photos. In these cases, select one of the burst modes.

Option Description

AEB

: t

Take 3 photos with different exposures: normal, underexposed, and overexposed.

t Use a tripod to prevent blurry photos.

The options may differ depending on the shooting mode.

t You can use the flash, timer, and ACB only when you select

Single

.

t When you select

Motion Capture

, the resolution will be set to

VGA and the ISO speed will be set to

Auto

.

1

In Shooting mode, press [ m

].

2

Select

Functions

“

Drive

“

an option.

Option Description

Single

: Take a single photo.

Continuous

: t While you are pressing [

Shutter

], the camera takes photos continuously.

t

The maximum number of photos depends on the capacity of your memory card.

Motion Capture

: t While you are pressing [

Shutter

], the camera takes

VGA photos (6 photos per second; maximum of 30 photos).

t

The camera automatically shows you the photos just taken and then saves them.

Downloaded from ManualsCamera.com Manuals

Shooting options

56

Improving your photos

Learn how to improve your photos by applying photo styles or colours, or make some adjustments.

Applying photo styles

a p d s v

Apply a different photo style to your photos, such as Soft, Vivid, or Forest.

Defining your own RGB tone

1

In Shooting mode, press [ m

].

2

Select

Functions

“

Photo Style Selector

“

Custom

RGB

.

3

Select a colour (R: Red, G: Green, B: Blue).

Soft Vivid Forest

1

In Shooting mode, press [ m

].

2

Select

Functions

“

Photo Style Selector

“

an option.

t

Select

Custom RGB

to define your own RGB tone.

t t

Select

Normal

if you want to use face detection options.

Depending on the selected photo style, some image adjustment options are not available.

Back Move

4

Adjust the amount of the selected colour.

(-: less or +: more)

Downloaded from ManualsCamera.com Manuals

Shooting options

57

Improving your photos

Adjusting your photos

p

Adjust the contrast, sharpness, and saturation of your photos.

1

In Shooting mode, press [ m

].

2

3

Select

Functions

“

Image Adjust

.

Select an adjustment option.

t t t

Contrast

Sharpness

Saturation

4

Select a value to adjust the selected item.

Contrast option

-

Description

Decrease the colour and brightness.

+

Increase the colour and brightness.

Sharpness option Description

-

Soften the edges on your photos (suitable for editing the photos on your computer).

+

Sharpen the edges to improve the clarity of your photos. This may also increase the noise on your photos.

Saturation option Description

-

Decrease the saturation.

+

Increase the saturation.

t

Select

0

if you do not want to apply any effects. (suitable for printing) t Depending on the selected image adjustment option, some photo styles are not available.

Downloaded from ManualsCamera.com Manuals

Shooting options

58

Downloaded from ManualsCamera.com Manuals

Playback/Editing

Learn how to play back photos, videos, or voice memos and edit photos or videos. You will also learn how to connect your camera to your photo printer or TV.

Playing back

……………………………………………… 60

Starting Playback mode …………………………………… 60

Viewing photos ……………………………………………… 64

Playing a video ……………………………………………… 66

Playing voice memos ……………………………………… 67

Editing a photo

…………………………………………… 68

Resizing photos …………………………………………… 68

Rotating a photo …………………………………………… 68

Applying photo styles ……………………………………… 69

Defining your own RGB tone ……………………………… 69

Correcting exposure problems …………………………… 70

Creating a print order (DPOF) ……………………………… 71

Viewing files on a TV

……………………………………… 72

Printing photos with a photo printer (PictBridge)

…… 73

Playing back

Learn actions to play back photos, videos, or voice memos, and managing files.

Display in Playback mode

Starting Playback mode

View photos or play videos and voice memos stored in your camera.

1

Press [

P

].

t The most recent file you have taken or recorded will be displayed.

t If the camera is off, it will turn on.

2

Press [

F

] or [ t

] to scroll through files.

t

Press and hold [

F

] or [ t

] to view files quickly.

If you want to view files stored in the internal memory, remove your memory card.

Icon v

Description

Photo includes a voice memo

Video file

Print order has been set (DPOF)

Protected file

Photo includes a registered face; Available only when you use a memory card

Folder name – File name

Downloaded from ManualsCamera.com Manuals

Playback/Editing

60

Playing back

Registering faces

You can register faces in your photos to classify them by faces in Smart Album. This feature is available only when you use a memory card.

1

In Playback mode, select a photo and press [ m

].

2

Select

File Options

“

Face Registration

“

Yes

.

t

If there are multiple faces in the photo, select a face to register, press [

Fn

], and select

Yes

.

t You can register up to 3 faces.

t If you register a new face when there are 3 faces manually registered in Smart Album, the camera will replace the oldest face with the new one.

Viewing files by category in Smart Album

View and manage files by categories, such as date, file type, or week.

1

2

In Playback mode, push [

Zoom

] down.

Press [ m

].

3

Select a category.

Option

Type

Date

Colour

Week

Face

Type

Date

Colour

Week

Face

Back Set

Description

View files by the file type.

View files by the date they were saved.

View files by the dominant colour of the image.

View files by the weekday they were saved.

View files by recognised faces. (Up to 15 people)

It may take some time for the camera to change the category and recognise files.

4

Press [

F

] or [ t

] to view files.

t

Press and hold [

F

] or [ t

] to select a date, file type, weekday, colour, or face.

5

Press [ o

] to return to the normal view.

Downloaded from ManualsCamera.com Manuals

Playback/Editing

61

Playing back

Viewing files as thumbnails

Scan thumbnails of files.

In Playback mode, push [

Zoom

] down to display 9 or 20 thumbnails (push [

Zoom

] up to return to the previous mode).

Protecting files

Protect your files from accidental deletion.

1

2

In Playback mode, press [ m

].

Select

File Options

“

Protect

“

Select

.

t To protect all files, select

All

“

Lock

.

3

Select the file you want to protect and press [ o

].

t

Press [ o

] again to cancel your selection.

Filter

To

Scroll through files

Delete files

Do this

Press [

D

], [

M

], [

F

], or [ t

].

Press [ f

] and select

Yes

.

Select

4

Press [ f

].

Set

Downloaded from ManualsCamera.com Manuals

Playback/Editing

62

Playing back

Deleting files

Delete single files or all files at once. You cannot delete protected files.

To delete a single file,

1

2

In Playback mode, select a file and press [ f

].

Select

Yes

to delete the file.

To delete multiple files,

1

In Playback mode, press [ f

].

2

3

Select

Multiple Delete

.

Select files you want to delete and press [ o

]. t Press [ o

] again to cancel your selection.

4

5

Press [ f

].

Select

Yes

.

To delete all files,

1

2

In Playback mode, press [ m

].

Select

File Options

“

Delete

“

All

“

Yes

.

Downloaded from ManualsCamera.com Manuals

Playback/Editing

63

Using the recycle bin

If you activate the recycle bin, files you delete will be sent to the recycle bin instead of being deleted permanently. This applies to single files or selected files only–if you choose to delete all files, those files will not be sent to the recycle bin.

To activate the recycle bin,

1

In Playback mode, press [ m

].

2

Select

File Options

“

Recycle Bin

“

On

.

To restore files from the recycle bin,

1

In Playback mode, press [ m

].

2

Select

File Options

“

Recycle Bin

“

Retrieve

.

t This function does not work for videos or voice memos.

t It may take longer to delete files when using the recycle bin function.

t

If you format the internal memory, all files in the recycle folder will be deleted. t The recycle bin will hold up to 10 MB of files. Once you exceed the

10 MB limit, the camera asks you whether to empty the recycle bin.

Select

Yes

to empty the recycle bin or

No

to delete only the current file.

Playing back

Copying files to the memory card

You can copy files from the internal memory to a memory card.

1

In Playback mode, press [ m

].

2

3

Select

File Options

“

Copy to Card

.

Select

Yes

to copy files.

Viewing photos

Zoom in on part of a photo or view photos in a slide show.

Enlarging a photo

In Playback mode, push [

Zoom

] up to enlarge a photo (push [

Zoom

] down to reduce a photo).

The enlarged area and zoom ratio are indicated on the top of the screen. The maximum zoom ratio may vary depending on the resolution.

Trim

To

Move the enlarged area

Trim the enlarged photo

Do this

Press [

D

], [

M

], [

F

], or [ t

].

Press [ o

] (it will be saved as a new file).

Downloaded from ManualsCamera.com Manuals

Playback/Editing

64

Playing back

Starting a slide show

You can apply effects and audio to your slide show.

1

In Playback mode, press [ m

].

2

3

Select

Multi Slide Show

.

Select a slide show effect option.

t

Skip to step 5 to start a slide show with no effects.

Option

Images

Effect

Interval

Music

Description

Set the photos you want to view as a slide show.

t

All

: View all photos in a slide show.

t

Date

: View photos captured on a specific date in a slide show.

t

Select

: View selected photos in a slide show.

t

Select a transition effect.

t

Select

Off

for no effects.

t Set the interval between photos.

t This is available when

Off

is selected in the effect option.

t When used with effect options other than

Off

, the interval will be set to 1 sec.

Select a background audio.

4

5

Set the slide show effect.

Select

Start

“

Play

.

t t

To loop the slide show, select

Repeat

.

Press [ o

] to pause or resume the slide show.

Downloaded from ManualsCamera.com Manuals

Playback/Editing

65

Playing back

Playing a video

You can play a video, capture an image from a video, or crop a video.

1

In Playback mode, select a video and press [ o

].

Trimming a video during playback

1

Press [ o

] at the point where you want the new video to begin and push [

Zoom

] up.

2

3

Press [ o

] to resume playback.

Press [ o

] at the point where you want the new video to end and push [

Zoom

] up.

4

Select

Yes

.

t The original video should be at least 10 seconds long.

t

The edited video will be saved as a new file.

Pause

2

Use the following buttons to control playback.

To Press

[

F

]

[ o

]

[ t

]

[

Zoom

] up or down

Scan backward.

Pause or resume playback.

Scan forward.

Adjust the volume level.

Capturing an image during playback

1

Press [ o

] at the point where you want to save a still image.

2

Press [

M

].

A captured image will have the same file size as the original video file and will be saved as a new file.

Downloaded from ManualsCamera.com Manuals

Playback/Editing

66

Playing back

Playing voice memos

Playing a voice memo

1

In Playback mode, select a voice memo and press [ o

].

2

Use the following buttons to control playback.

Press

[

F

]

[ o

]

[ t

]

[

M

]

[

Zoom

] up or down

To

Scan backward.

Pause or resume playback.

Scan forward.

Stop playback.

Adjust the volume level.

Playing a voice memo added to a photo

In Playback mode, select a photo that includes a voice memo and press [ o

].

t Press [ o

] to pause or resume playback.

Downloaded from ManualsCamera.com Manuals

Playback/Editing

67

Editing a photo

Perform photo editing tasks, such as resizing, rotating, eliminating red-eyes, and adjusting brightness, contrast, or saturation.

t

Edited photos will be saved as new files.

t

When you edit photos that are

or larger (p. 42), they will be

automatically resized to a lower resolution (except when resizing photos):

-

-

-

to

to

to

Rotating a photo

1

2

In Playback mode, select a photo and press [ m

].

Select

Edit

“

Rotate

“

an option.

Right 90°

Resizing photos

1

In Playback mode, select a photo and press [ m

].

2

Select

Edit

“

Resize

“ an option.

Back Move

Back Move t Select t Select

to save the photo as a start image. (p. 85)

to save the photo as an MP3 player skin. (p. 81)

t

Available options differ depending on the size of the selected photo.

Downloaded from ManualsCamera.com Manuals

Playback/Editing

68

Editing a photo

Applying photo styles

Apply a different photo style to the photo, such as Soft, Vivid, or

Forest.

Defining your own RGB tone

1

In Playback mode, select a photo and press [ m

].

2

3

Select

Edit

“

Photo Style Selector

“

Custom RGB

.

Select a colour (R: Red, G: Green, B: Blue).

Soft Vivid Forest

1

2

In Playback mode, select a photo and press [ m

].

Select

Edit

“

Photo Style Selector

“ an option.

t Select

Custom RGB

to define your own RGB tone.

Back Move

4

Adjust the amount of the selected colour.

(-: less or +: more)

Soft

Back Move

Downloaded from ManualsCamera.com Manuals

Playback/Editing

69

Editing a photo

Correcting exposure problems

Adjust ACB (Auto Contrast Balance), brightness, contrast, or saturation; remove red-eye; hide facial imperfections; or add noise to the photo.

Adjusting ACB (Auto Contrast Balance)

1

2

In Playback mode, select a photo and press [ m

].

Select

Edit

“

Image Adjust

“

ACB

.

Removing red-eye

1

In Playback mode, select a photo and press [ m

].

2

Select

Edit

“

Image Adjust

“

Red-eye Fix

.

Hiding facial imperfections

1

In Playback mode, select a photo and press [ m

].

2

3

Select

Edit

“

Image Adjust

“

Face Retouch

.

Select a level. t As the number increases, the face becomes clearer.

Downloaded from ManualsCamera.com Manuals

Playback/Editing

70

Adjusting brightness/contrast/saturation

1

In Playback mode, select a photo and press [ m

].

2

3

Select

Edit

“

Image Adjust

.

Select an adjustment option.

t : Brightness t

: Contrast t : Saturation

4

Select a value to adjust the selected item.

(-: less or +: more)

Adding noise to the photo

1

In Playback mode, select a photo and press [ m

].

2

Select

Edit

“

Image Adjust

“

Add Noise

.

Editing a photo

Creating a print order (DPOF)

Select photos to be printed and set options, such as number of copies or paper size. t

The memory card can be taken to a print shop that supports DPOF

(Digital Print Order Format) or you can print photos directly through a

DPOF-compatible printer at home.

t Wide photos may print with the left and right edges cut off, so be aware of the dimensions of your photos.

t You cannot set the DPOF for the photos stored in the internal memory.

1

In Playback mode, press [ m

].

2

Select

File Options

“

DPOF

“

Standard

“

an option.

Option

Select

Description

Print the selected photos.

All

Print all photos.

Reset

Reset your settings.

3

If you select

Select

, scroll to a photo and press [

Zoom

] up or down to select the number of copies. Repeat for the photos you want and press [ f

].

t

If you select

All

, press [

D

] or [

M

] to select the number of copies and press [ o

].

4

5

Press [ m

].

Select

File Options

“

DPOF

“

Size

“ an option.

Option

Select

Description

Specify the print size for the selected photo.

All

Specify the print size for all photos.

Reset

Reset your settings.

6

If you select

Select

, scroll to a photo and press [

Zoom

] up or down to select the print size. Repeat for the photos you want and press [ f

].

t

If you select

All

, press [

D

] or [

M

] to select the print size and press [ o

].

Printing photos as thumbnails

1

2

In Playback mode, press [ m

].

Select

File Options

“

DPOF

“

Index

“

Yes

.

If you specify the print size, you can print photos only with DPOF 1.1-compatible printers.

Downloaded from ManualsCamera.com Manuals

Playback/Editing

71

Viewing files on a TV

Play back photos or videos by connecting your camera to a TV using the A / V cable.

1

Select a video signal output according to your country or

region. (p. 87)

2

3

Turn off your camera and TV.

Connect your camera to your TV using the A/V cable.

Audio

Video

5

6

Turn on your camera and press [

P

].

View photos or play videos using the buttons on your camera.

t

On some TVs, digital noise may occur or part of an image may not appear.

t Images may not appear centred on the TV screen depending on your

TV settings.

t You can capture photos or videos while the camera is connected to a TV.

4

Turn on your TV and select the video output mode using the TV remote control.

Downloaded from ManualsCamera.com Manuals

Playback/Editing

72

Printing photos with a photo printer (PictBridge)

Print photos with a PictBridge-compatible printer by connecting your camera directly to the printer.

1

With the printer on, connect your camera to the printer with the USB cable.

Configuring print settings

Images

Size

Layout

Type

Quality

Exit

: One Photo

: Auto

: Auto

: Auto

: Auto

Print

2

Turn on your camera.

t

The printer recognises the camera automatically.

t If the camera fails to connect, a pop-up window will appear.

Select

Printer

.

t

If your printer has the mass storage feature, you must first set the

USB mode to

Printer

in the settings menu. (p. 87)

3

Press [

F

] or [ t

] to select a photo.

t Press [ m

] to set printing options. See “Configuring print settings.”

4

Press [ o

] to print.

t Printing starts. Press [

F

] to cancel printing.

Option Description

Images

: Select whether to print the current photo or all photos.

Size

: Specify the size of the print.

Layout

: Create thumbnail prints.

Type

: Select the type of paper.

Quality

: Set the printing quality.

Date

: Set to print the date.

File Name

: Set to print the name of the file.

Reset

: Reset the print options.

Some options are not supported by some printers.

Downloaded from ManualsCamera.com Manuals

Playback/Editing

73

Downloaded from ManualsCamera.com Manuals

Multimedia

Learn to use Multimedia modes: Music mode, Videos mode, and Text Viewer mode.

Using Multimedia mode

………………………………… 75

Using the Music mode

…………………………………… 77

Playing music files …………………………………………… 77

Using the Videos mode

………………………………… 79

Using the Text Viewer mode

…………………………… 80

Multimedia mode settings menu

……………………… 81

Using Multimedia mode

In Multimedia mode, you can listen to MP3s, play videos, or view text files. Before using Multimedia mode, you should transfer files to your

camera or memory card. (p. 24)

1

Plug the supplied earphones into the multifunction jack.

2

3

In Shooting mode, press [

M

].

Select

Multimedia

“ a mode.

Music

Videos

Text Viewer

4

Select a file to play.

t Files will be played automatically.

t

Files will be listed by date they were saved.

t File names in unsupported languages will appear as “ _ _ _ _

__ _.

” t If there are more than 100 files in the folder or several large files, it may take longer to access a mode.

t Power save mode will not be active during playback except when viewing text files with

Auto Scroll

or

Back Music

off.

t

The camera will enter Power save mode when you perform no operations for 30 seconds in the Music mode.

t Depending on the properties of your files, file information may not be available in the playlist.

This mode allows you to play MP3 files.

Downloaded from ManualsCamera.com Manuals

Multimedia

75

Using Multimedia mode

Locking the buttons

You can lock the buttons to prevent any unwanted camera operations during playback.

Press and hold [

M

] to lock or unlock the buttons.

t

Even though you lock the buttons, you can still operate [

POWER

] and use the USB cable.

t Press any button to exit Power save mode.

Switching to another Multimedia mode

1

Press [

M

] while an MP3 or video file is being played or text file is being viewed.

2

Select

Multimedia

“ a mode.

Music

Videos

Text Viewer

Deleting multimedia files

To delete a single file,

1

2

In the file list, press [ f

].

Select

Yes

to delete.

To delete multiple files,

1

In the file list, press [ f

].

2

3

4

Select

Multiple Delete

.

Select files you want to delete.

Press [ f

].

5

Select

Yes

.

You can also delete all files of the selected mode. (p. 82)

This mode allows you to play MP3 files.

Downloaded from ManualsCamera.com Manuals

Multimedia

76

Using the Music mode

Learn how to play MP3 files, control playback, and taking a photo during playback.

Playing music files

1

Access the Music mode and play a file. (p. 75)

AAA.mp3

2

Use the following buttons to control playback.

Press To

[

Zoom

] up or down

[

O

]

[

MENU

]

[

D

]

[

M

]

[

F

]

[ t

]

[ o

]

[ f

]

Adjust volume.

Change the mode.

Change the Music mode settings.

Open the playlist.

Lock or unlock the buttons (press and hold).

Skip backward.

Skip forward.

Pause or resume playback.

Change the equaliser type.

File List

Icon

U

Unlock

Description

Music mode

Equaliser type

Button locked

Muted

Bit rate

Play mode

Remaining battery capacity

Play time

Volume

About VBR

Variable Bit Rate (VBR) is an encoding method that keeps music at a stable quality level by adjusting the compression rate according to the complexity of the encoded audio.

Downloaded from ManualsCamera.com Manuals

Multimedia

77

Using the Music mode

Taking photos while listening to music

(Available when using a memory card)

1

2

Press [

Shutter

] during playback.

Align your subject in the frame and half-press [

Shutter

] to focus.

3

Press [

Shutter

] to take a photo.

t Select [

D

] to switch to the player screen.

t

You cannot set shooting options while listening to music.

t

Photos will be taken with the following settings.

-

-

Resolution: 3M

Quality: Fine

-

-

Flash: Auto

Focus: Auto Macro t Your MP3 player will not function normally when taking photos.

Starting a slide show while listening to music

1

Press [

MENU

] during playback.

2

3

4

5

Select

Interval

.

Select an interval between photos.

Select

Slide Show

.

Select a play mode option.

Option Description

Play

Play a slide show and return to the player screen.

Repeat

Loop a slide show.

6

To return to the player screen, press [ o

].

Downloaded from ManualsCamera.com Manuals

Multimedia

78

Using the Videos mode

Learn how to play videos and control playback.

1

Access the Videos mode and play a file. (p. 75)

BBB.sdc

File List

Icon

V

Unlock

Description

Videos mode

Button locked

Muted

Scanning speed

Remaining battery capacity

Play time

Volume

2

Use the following buttons to control playback.

Press To

[

Zoom

] up or down

[

O

]

[ m

]

[

D

]

[

M

]

[

F

]

[ t

]

[ o

]

Adjust volume.

Change the mode.

Change the Videos mode settings.

Open the playlist.

Lock the screen (press and hold).

t Skip backward.

t Scan backward (while playing)*.

t

Skip forward.

t

Scan forward (while playing)*.

Stop or resume playback.

* You can scan a file quickly to the point that you want to play. (p. 81)

t All buttons except for [

POWER

] will not work in the first and last

2 seconds of the playback.

t

Convert subtitle files (.smi) using Samsung Converter to display

subtitles. (p. 26)

t Some videos may be paused during playback and resumed automatically. It is not a malfunction.

t

During playback, the playback controls disappears automatically after a specified time. To show the controls again, press any button.

Downloaded from ManualsCamera.com Manuals

Multimedia

79

Using the Text Viewer mode

Learn how to view text files.

1

Access the Text Viewer mode and view a file. (p.

75)

1/12

Samsung.txt

This user manual includes detailed usage instructions for your camera.

Please read this manual thoroughly.

File List Volume

Icon

/

1/2

Description

Textviewer mode

(This icon indicates the encoding type*.)

Current page/Number of pages

Volume

Remaining battery capacity

* The encoding type will be displayed as or .

t

ANSI (American National Standards Institute) type

: you

have to set the language to match that of the text file. (p. 82)

t

Unicode type

: you do not have to set the language to match that of text file.

2

Use the following buttons to control playback.

Press To

[

Zoom

] up or down

[

O

]

[ m

]

Adjust volume (if the background music turns on).

Change the mode.

[

D

]

[

M

]

[

F

]

Change the Text Viewer mode settings.

t

Go to the previous page.

t

Skip 10 pages (press and hold).

t Go to the next page .

t Skip 10 pages (press and hold).

Open the file list.

t

If text is displayed incorrectly, save it as an ANSI file using a text editor on your computer (such as Notepad for Windows).

t Some characters or symbols may not be displayed correctly.

t Text files that are improperly encoded may be corrupted.

t

A file that is bigger than 10 MB may take longer to open or may not open. Divide large files into multiple, smaller files for faster access.

Downloaded from ManualsCamera.com Manuals

Multimedia

80

Multimedia mode settings menu

Learn how to change the settings for each multimedia mode.

1

Press [

MENU

] while an MP3 or video file is being played or a text file is being viewed.

2

3

Select a menu.

Select an option.

* Default

Menu

Available mode

Description

Resume

UVT

Play Mode

U

Set to start the last music file played or resume a video or text file.

(

Off

,

On

*)

Set to repeat playback or play files randomly.

t

Normal

*: Play all files in the current folder once.

t

Repeat One

: Repeat the current file.

t

Repeat

: Repeat all files in the current folder.

t

Shuffle

: Play files in the current folder in random order.

Menu

Background

Slide Show

Interval

Seeking

* Default

Available mode

Description

U

U

U

V

Select a skin for the player screen. t

Skin 1

*,

Skin 2

: Display a default image stored in the internal memory.

t

User 1

,

User 2

: Display an image saved as an MP3 player

skin in the edit menu. (p. 68)

Start a slide show while listening to

an MP3. (p. 78)

Set the length of time to skip photos in a slide show. (

2 sec

*,

3 sec

,

5 sec

)

Set the length of time to skip when scanning backward or forward.

(

Normal

,

30 sec

*,

1 min

,

3 min

,

5 min

,

10 min

)

Downloaded from ManualsCamera.com Manuals

Multimedia

81

Multimedia mode settings menu

* Default

Menu

Available mode

Description

Player Display

V

Show or hide the playback controls.

t

5 sec

*: Hide the playback controls after no operations for 5 seconds. To show the controls again, press any button.

t

Off

: Hide the playback control.

t

On

: Show the playback controls at all times.

The subtitles will be displayed regardless of the setting.

Mute

UV

Mute sound during playback.

(

Off

*,

On

)

* Default

Menu

Available mode

Description

Auto Scroll

T

Back Music

T

Language

Delete All

T

UVT

Set a delay before scrolling to the next line of text. (

Off

*,

1

,

2

,

3

,

4

,

5

)

Play background music while viewing text files.

t

Off

*: Do not play music.

t

On

: Play the last MP3 file played.

Select a language to match that of the text file.

Delete all files of a selected Multimedia mode. (

Yes

,

No

)

Downloaded from ManualsCamera.com Manuals

Multimedia

82

Downloaded from ManualsCamera.com Manuals

Appendixes

Refer to settings, error messages, specifications, and maintenance tips.

Camera settings menu

…………………………………… 84

Accessing the settings menu ……………………………… 84

Sound ……………………………………………………… 85

Display ……………………………………………………… 85

Settings ……………………………………………………… 86

Error messages

…………………………………………… 88

Camera maintenance

…………………………………… 89

Cleaning your camera ……………………………………… 89

About memory cards ……………………………………… 90

About the battery …………………………………………… 91

Before contacting a service centre

…………………… 93

Camera specifications

…………………………………… 95

Index

………………………………………………………… 100

Camera settings menu

Learn about various options to configure your camera's settings.

Accessing the settings menu

1

In Shooting or Playback mode, press [ m

].

2

Select a menu.

Functions

Sound

Display

Settings

Volume

Start Sound

Shutter Sound

Beep Sound

AF Sound

Self-Portrait

Change Exit

Menu Description

Sound

: Set various camera sounds and volume.

(p. 85)

Display

: Customise the display settings, such as

language and brightness. (p. 85)

Settings

: Change the settings for the camera system, such as memory format, default file name, and USB

mode. (p. 86)

3

Select an option and save your settings.

Volume

Start Sound

Shutter Sound

Beep Sound

AF Sound

Self-Portrait

Off

Low

Medium

High

: On

Back Set

4

Press [ m

] to return to the previous screen.

Downloaded from ManualsCamera.com Manuals

Appendixes

84

Camera settings menu

Sound Display

Item

Volume

Start Sound

Shutter Sound

Beep Sound

AF Sound

Self-Portrait

* Default

Description

Adjust the volume of any sound.

(

Off

,

Low

,

Medium

*,

High

)

Select a sound to be emitted when turning on your camera. (

Off

*,

1

,

2

,

3

)

Select a sound to be emitted when pressing the shutter button. (

Off

,

1

*,

2

,

3

)

Select a sound to be emitted when pressing the buttons or switching modes. (

Off

,

1

*,

2

,

3

)

Set a sound to be emitted when half-pressing the shutter button. (

Off

,

On

*)

Set a sound to be emitted when the camera detects your face. (

Off

,

On

*)

Item

Language

Function

Description

Start Image

Display

Brightness

Quick View

Power Save

* Default

Description

Select a language for the display text.

Display a brief description of an option or menu.

(

Off

,

On

*

)

Set a start image to display when the camera turns on.

t

Off

*: Display no start image.

t

Logo

: Display a default image stored in the internal memory. t

User Image

: Display the image you want. (p. 68)

t

Only one start image will be saved in the internal memory.

t If you select a new photo as a start image or reset your camera, the current image will be deleted.

t

A wide image or image in 3:2 ratio cannot be set as a start image.

Adjust the brightness of the screen. (

Auto

*,

Dark

,

Normal

,

Bright

)

Normal

is fixed in Playback mode even if

Auto

is selected.

Set the duration for reviewing a captured image or video before returning to Shooting mode.

(

Off

,

0.5 sec

*,

1 sec

,

3 sec

)

If you perform no operations for 30 seconds, the camera automatically switches to Power save mode

(press any button to deactivate the Power save mode). (

Off

*,

On

)

Downloaded from ManualsCamera.com Manuals

Appendixes

85

Camera settings menu

Settings

Item

Format

Reset

Date & Time

Time Zone

* Default

Description

Format the internal memory and the memory card

(all files-including the protected files-will be deleted).

(

Yes

,

No

)

If you use a memory card used with cameras from different manufacturers or a memory card reader, or one formatted on a computer, your camera may read the card incorrectly.

Format the card before using it.

Reset menus and shooting options (date and time, language, and video output settings will not be reset).

(

Yes

,

No

)

Set the date and time and select a date format.

(

dd/mm/yyyy

,

mm/dd/yyyy

,

yyyy/mm/dd

,

Off

*)

Select a region and set the daylight-saving time (DST).

Item

File No.

* Default

Description

Specify how to name files.

t

Reset

: Set the file number to start from 0001 when inserting a new memory card, formatting a memory card, or deleting all files.

t

Series

*: Set the file number to follow the previous file number when inserting a new memory card, formatting a memory card, or deleting all files.

t The default name of the first folder is 100SSCAM and the default name of the first file is SDC10001.

t The file number increases one by one from

SDC10001 to SDC19999.

t The folder number increases one by one from

100SSCAM to 999SSCAM.

t

The maximum number of files that can be stored in one folder is 9999.

t The camera defines file names according to the

Digital rule for Camera File system (DCF) standard.

If you change the names of files intentionally, the camera may not play back the files.

Downloaded from ManualsCamera.com Manuals

Appendixes

86

Camera settings menu

Item

Imprint

* Default

Description

Set whether to display the date and time on your photos when printing. (

Off

*,

Date

,

Date & Time

) t The date and time will be displayed on the bottom-right corner of the photo in yellow.

t The date and time may not be printed on some t printer models.

If you select

Text

in the s

mode, the date and time will not be displayed.

Auto Power Off

Set the camera to automatically turn off when you are not using it. (

Off

,

1 min

,

3 min

*,

5 min

,

10 min

) t

Your settings will not change after replacing the battery.

t The camera will not automatically turn off when:

it is connected to a computer or printer

-

you are playing a slide show or videos you are recording a voice memo

Item

Video Out

AF Lamp

USB

* Default

Description

Set the video signal output according to your region.

t

NTSC

*: USA, Canada, Japan, Korea, Taiwan,

Mexico.

t

PAL

(supports only BDGHI): Australia, Austria,

Belgium, China, Denmark, Finland, Germany,

England, Italy, Kuwait, Malaysia, New Zealand,

Singapore, Spain, Sweden, Switzerland,

Thailand, Norway.

Set an assistant light to help you focus in dark places. (

Off

,

On

*)

Set the function to use via a USB connection with a computer or printer.

t

Auto

*: Set your camera to select a USB mode automatically.

t

Computer

: Connect your camera to a computer for transferring files.

t

Printer

: Connect your camera to a printer for printing files.

Downloaded from ManualsCamera.com Manuals

Appendixes

87

Error messages

When the following error messages appear, try these remedies.

Error message

Card Error

Suggested remedies t Turn off your camera and then turn it on again.

t Remove your memory card and insert it again.

t Format your memory card. (p.

86)

Unlock the memory card.

Card Locked

DCF Full Error

File Error

Low Battery

Low Light

Memory Full

No Image File

File names do not match the DCF standard.

Transfer the files on the memory card to your

computer and format the card. (p. 86)

Delete the damaged file or contact a service centre.

Insert a charged battery or recharge the battery.

Turn on the flash. (p. 45)

Delete unnecessary files or insert a new memory card.

Take photos or insert a memory card that has some photos.

Downloaded from ManualsCamera.com Manuals

Appendixes

88

Camera maintenance

Cleaning your camera

Camera lens and display

Use a blower brush to remove dust and wipe the lens gently with a soft cloth. If any dust remains, apply lens cleaning liquid to a piece of cleaning paper and wipe gently.

Camera body

Wipe gently with a soft, dry cloth.

t Never use benzene, thinners, or alcohol to clean the device. These solutions can damage the camera or cause it to malfunction.

t

Do not press on the lens cover or use a blower brush on the lens cover.

Downloaded from ManualsCamera.com Manuals

Appendixes

89

Camera maintenance

About memory cards

Memory cards you can use

You can use SD (Secure Digital), SDHC (Secure Digital High

Capacity), or MMC (Multimedia Card) memory cards.

Terminal

Write-protect switch

Label (front)

You can prevent files from being deleted by using a write-protect switch on the SD or SDHC card. Slide the switch down to lock or slide it up to unlock. Unlock the card when shooting.

Memory card capacity

The memory capacity may differ depending on shooting scenes or shooting conditions. These capacities are based on a 1 GB

SD card:

P h o t o s

Size

Super fine

194

221

264

343

532

Fine

376

426

510

637

895

Normal 30 FPS 20 FPS 15 FPS

546

611

744

870

1,211

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

1,716 2,059 2,376 e o s

*

V i d

-

-

-

-

-

-

-

Approx.

35' 54"

Approx.

47' 24"

* The recordable time may vary if you use the zoom.

-

Approx.

30' 9"

-

-

-

-

Approx.

69' 52"

Approx.

92' 12"

Downloaded from ManualsCamera.com Manuals

Appendixes

90

Camera maintenance

About the battery

Use only Samsung-approved batteries.

Battery specifications

Mode

Type

Cell capacity

Voltage

Charging time

(when the camera is switched off)

SLB-0937

Lithium-ion battery

900 mAh

3.7 V

Approx. 180 min

Battery life

Average time /

Number of photos

Test conditions

(when the battery is fully charged)

This is measured under the following conditions: in the a

mode, 9M resolution, Fine quality.

Photos

Videos

MP3

PMP

Text viewer

Approx. 140 min/

Approx. 280 photos

Approx. 130 min

Approx. 330 min

Approx. 250 min

Approx. 210 min

1. Set the flash option to

Fill in

, take a single shot, and zoom in or out.

2. Set the flash option to

Off

, take a single shot, and zoom in or out.

3. Perform steps 1 and 2 for 30 seconds and repeat for 5 minutes.

Then turn off the camera for 1 minute.

4. Repeat steps 1 to 3.

Record videos at 800 x 592 resolution and 20 fps.

Play files with the screen turned off.

Play files with normal playback.

View files with background music and auto scroll.

t

The figures above are measured by Samsung’s standards and may differ depending on actual usage.

t Several videos were recorded in succession to determine the total recording time.

Downloaded from ManualsCamera.com Manuals

Appendixes

91

Camera maintenance

Notes about charging the battery

t If the indicator light is off, make sure that the battery is inserted correctly.

t Turn off your camera when charging.

t

Turn on your camera after charging the battery for more than 10 minutes. t Using the flash or recording videos depletes the battery quickly.

Charge the battery until the indicator light turns green.

t If the indicator light blinks in red or does not illuminate, reconnect the cable, or remove the battery and insert it again.

t

If you charge the battery when it is warm, the indicator light may turn orange. Charging will start when the battery cools down.

Notes about charging with a computer connected

t Use only the provided USB cable.

t The battery may not be charged when:

you use a USB hub

other USB devices are connected to your computer

you connect the cable to the port on the front side of your computer

the USB port of your computer does not support the power output standard (5 V, 500 mA)

Downloaded from ManualsCamera.com Manuals

Appendixes

92

Before contacting a service centre

If you are having trouble with your camera, try these troubleshooting procedures before contacting a service centre. If you have attempted the troubleshooting solution and are still having problems with your device, contact your local dealer or service centre.

Situation

Cannot turn on the camera

The power turns off suddenly

The camera is losing battery power quickly

Suggested remedies t Make sure that the battery is inserted.

t Make sure that the battery is inserted correctly.

t

Charge the battery.

t Charge the battery.

t Your camera may be in Power save

mode. (p. 85)

t

The camera may turn off to prevent the memory card from being damaged due to an impact. Turn on your camera again.

t The battery may lose power more quickly in low temperatures (below 0° C). Keep the battery warm by putting it into your pocket. t Using the flash or recording videos depletes the battery quickly. Recharge if needed.

t

Batteries are consumable parts that must be replaced over time. Get a new battery if the battery life is diminishing quickly.

Situation

Cannot take photos

Suggested remedies t There is no space on the memory card.

Delete unnecessary files or insert a new card.

t Format the memory card. (p.

86)

t The memory card is defective. Get a new memory card.

t The memory card is locked. Unlock the

card. (p. 88)

t

Make sure that the camera is switched on.

t Charge the battery.

t Make sure that the battery is inserted correctly.

The camera freezes

The flash does not work

The flash fires unexpectedly

Remove the battery and insert it again.

t The flash option may be set to

Off

.

(p. 45)

t

You cannot use the flash in the d

, v

, or some s

modes.

The flash may fire due to static electricity.

This is not a malfunction of the camera.

Downloaded from ManualsCamera.com Manuals

Appendixes

93

Before contacting a service centre

Situation

The date and time are incorrect

The display or buttons do not work

The memory card has an error

Suggested remedies

Set the date and time in the display settings menu.

Remove the battery and insert it again.

Cannot play back files

The memory card has not been reset.

Format the card. (p. 86)

If you change the name of a file, your camera may not play the file (the name of the file should meet the DCF standard). If you encounter this situation, play back files on your computer.

The photo is blurry t

Make sure that the focus option you set

is suitable for close-up shots. (p. 47)

t Make sure that the subject is within

range of the flash. (p. 95)

t

Make sure that the lens is clean. If not,

clean the lens. (p. 89)

The colours in the photo do not match the actual scene

An incorrect white balance can create unrealistic colour. Select the proper white balance option to suit the light source.

(p. 54)

Situation

The photo is too bright

The TV does not display your photos

Suggested remedies t Your photo is overexposed. Adjust the

exposure value. (p. 53)

t

Turn off the flash. (p. 45)

t

Make sure that the camera is correctly connected to the external monitor with the A / V cable.

t Make sure that your memory card contains photos.

Your computer does not recognise your camera t Make sure that the USB cable is connected correctly.

t

Make sure that your camera is switched on.

t Make sure that you are using a supported operating system.

Your computer disconnects the camera while transferring files

The file transmission may be interrupted by static electricity. Disconnect the USB cable and connect it again.

Downloaded from ManualsCamera.com Manuals

Appendixes

94

Camera specifications

Image sensor

Type

Effective pixels

Total pixels

Lens

Focal length

F-stop range

Digital zoom

Display

Type

Feature

Focusing

Type

Range

1/2.5" (Approx. 1.02 cm) CCD

Approx. 9.0 mega-pixels

Approx. 9.2 mega-pixels

Samsung lens 3X Inner Zoom f = 6.3 - 18.9 mm

(35 mm film equivalent: 38 - 114 mm)

F3.5 (W) - F4.5 (T) t

Still image mode: 1.0X - 5.0X

t

Play mode: 1.0X - 10.8X (depending on image size)

TFT LCD

2.7" (6.86 cm), 230,000 dots

TTL auto focus (Multi AF, Center AF, Face Recognition

AF, Face Detection AF)

Normal

Macro

Auto Macro

Super Macro

Wide (W) Tele (T)

80 cm - infinity

5 cm - 80 cm

5 cm - infinity

1 cm - 5 cm

50 cm - 80 cm

50 cm - infinity

-

Downloaded from ManualsCamera.com Manuals

Appendixes

95

Shutter speed t

1 - 1/2,000 sec.

t

AEB, Continuous: 1/4 - 1/2,000 sec.

t

Night: 16 - 1/2,000 sec.

Exposure

Control

Metering

Compensation

ISO equivalent

Flash

Program AE

Multi, Spot, Center-weighted

±2EV (1/3EV steps)

Auto, 80, 100, 200, 400, 800, 1600, 3200

Mode

Range

Off, Auto, Red-eye, Fill in, Slow Sync, Red-eye Fix t

Wide: 0.3 m - 3.8 m (ISO Auto) t

Tele: 0.5 m - 3.0 m (ISO Auto)

Recharging time Approx. 5 sec.

Shake reduction

Digital Image Stabilisation (DIS)

Effect

Shooting mode t

Photo Style Selector: Normal, Soft, Vivid, Forest,

Retro, Cool, Calm, Classic, Negative, Custom RGB t

Image Adjust: Sharpness, Contrast, Saturation

Camera specifications

White Balance

Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten,

Custom Set

Shooting

Photos

Videos t

Modes: Smart Auto (Portrait, Night Portrait,

Backlight Portrait, Backlight, Landscape, White,

Motion, Tripod, Night, Macro, Macro Text), Auto,

Program, DIS, Movie, Scene (Night, Portrait,

Children, Landscape, Text, Close Up, Sunset,

Dawn, Backlight, Firework, Beach & Snow, Frame

Guide, Beauty Shot) t

Drive: Single, Continuous, Motion Capture, AEB t

Timer: 2 sec,10 sec, Double, Motion Timer t

Format: MPEG-4 with audio (Max recording time:

2 hours) t

Size: 800 x 592 (20 FPS), 640 x 480 (15 FPS,

30 FPS), 320 x 240 (15 FPS, 30 FPS) t

3X Optical zoom with sound recording t

Frame rate: 15 FPS, 20 FPS, 30 FPS t Photo Style Selector, White Balance, Video stabilisation t

Video editing (embedded): Pause during recording,

Still image capture, Time trimming

Playback

Type

Edit

Single image, Thumbnails, Multi slide show, Movie clip, Smart Album

Resize, Rotate, Photo Style Selector, Image Adjust

Effect t

Photo Style Selector: Normal, Soft, Vivid, Forest,

Retro, Cool, Calm, Classic, Negative, Custom RGB t

Image Adjust: ACB, Red-eye Fix, Brightness,

Contrast, Saturation, Face Retouch, Add Noise

Voice recording t

Voice Recording (Max. 10 hours) t

Voice Memo in a photo (Max. 10 sec.)

Storage

Media

File format t

Internal memory: Approx. 196 MB t

External memory (Optional)

-

SD card (up to 4 GB guaranteed)

-

SDHC card (up to 8 GB guaranteed)

-

MMC Plus (up to 2 GB guaranteed)

Internal memory capacity may not match these specifications.

t

Photo: JPEG (DCF), EXIF 2.21, DPOF 1.1,

PictBridge 1.0

t

Video: AVI (MPEG-4) t

Audio: WAV

Downloaded from ManualsCamera.com Manuals

Appendixes

96

Camera specifications

Image size

Multimedia

MP3

PMP

For 1GB SD

3456 x 2592

3456 x 2304

3456 x 1944

2592 x 1944

2048 x 1536

1024 x 768

Super fine

194

221

264

343

532

1,716

Fine

376

426

510

637

895

2,059

Normal

546

611

744

870

1,211

2,376

These figures are measured under Samsung’s standard conditions and may vary depending on shooting conditions and camera settings.

t

Frequency: 20 Hz - 20 KHz t Earphone port: 20 pin port (Stereo type) t Output maximum volume: Left 40 mW + Right 40 mW (16

Ω

) t Noise ratio: 88 dB with 20 KHz LPF t File format: MP3 (MPEG-1/2/2.5 Layer 3) t Bit rate: 48 - 320 Kbps (Including VBR) t

Sound effect: SRS t

Movie: Xvid MPEG-4 (Using Samsung Converter) t

Audio: MPEG Layer 2 (Using Samsung Converter) t Play mode: Seeking in play (Max. 32X), Skipping in play, Auto skipping after one file played, Remember last played frame

Downloaded from ManualsCamera.com Manuals

Appendixes

97

Text Viewer t File: Text file (TXT extension name, smaller than 10 MB or up to 99,999 pages) t File format: Window ANSI (Windows 98 or later),

Unicode/Unicode (Big-Endian)/UTF-8 (Windows

2000/XP) Mac ANSI, Unicode (UTF-16) t Function: Auto scroll (1 - 5),

Skipping by 1 - 10 pages

Interface

Digital output connector

Audio output

Video output

DC power input connector

Power source

Rechargeable battery

USB 2.0

Mono

NTSC, PAL (selectable)

20 pins

Lithium-ion battery (SLB-0937, 900 mAh)

The power source may differ depending on your region.

Dimensions (W x H x D)

92.8 x 59.7 x 19.4 mm

Weight

120.7 g (without battery and memory card)

Camera specifications

Operating temperature

0 - 40˚ C

Operating humidity

5 - 85 %

Software

Samsung Converter, Samsung Master, Adobe Reader

Specifications are subject to change without prior notice.

Downloaded from ManualsCamera.com Manuals

Appendixes

98

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive

2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

The rechargeable battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider.

Samsung Eco-mark

It is Samsung’s own symbol mark is used to effectively communicate Samsung’s environmental friendly product activities to the consumers. The mark represents Samsung’s continuous effort on development of environmental conscious products.

Downloaded from ManualsCamera.com Manuals

Appendixes

99

Index

A

ACB 53, 70

Adjusting

Brightness 70

Contrast

in Playback mode 70

in Shooting mode 58

Saturation

In Playback mode 70

in Shooting mode 58

Sharpness 58

Adobe Reader 22

AF Lamp 87

AF Sound 85

Aperture 36

Auto Contrast Balance

(ACB) 53, 70

Auto mode 19

B

Battery

Charging 92

Life 91

Specifications 91

Beauty Shot mode 34

Blink detection 51

Burst

Auto Exposure Bracket

(AEB) 56

Continous 56

Motion capture 56

C

Camera shake 30

Capturing an image 66

Cleaning

Body 89

Display 89

Lens 89

D

Date and time 86

Deleting files 63

in Multimedia mode 76

Digital Image Stabilisation 37

Digital zoom 20

Disconnecting the device 24

DIS mode 37

Display brightness 85

Display type 18

DPOF 71

E

Editing 68

Enlarging 64

Error messages 88

Exposure 53

F

Face detection

Blink Detection 51

Normal 49

Self-portrait 50

Smart Face Recognition 51

Smile Shot 50

Facial brightness 34

Facial imperfections 34

Flash

Auto 46

Fill in 46

Off 45

Red-eye 46

Red-eye Fix 46

Slow Sync 46

Focus area

Center AF 48

Multi AF 48

Downloaded from ManualsCamera.com Manuals

Appendixes

100

Index

Focus distance

Auto Macro 47

Macro 47

Normal (AF) 47

Super macro 47

Frame guide 35

Frame rate 38

Function button 13

Function description 85

H

Half-pressing 6

I

Icons 14

Imprint 87

ISO speed 46

L

Light source

(White balance) 54

Long time shutter 36

M

Macro 47

Maintenance 89

Memory card

Capacity 90

MMC 90

SD 90

SDHC 90

MENU button 13

Metering

Centre-weighted 54

Multi 54

Spot 54

Mode button 13

Motion timer 44

Movie mode 38

MP3 skin 81

Multimedia mode 81

Music mode 77

Text Viewer mode 80

Videos mode 79

Music mode 77

Muting

Camera 15

Video 38

N

Navigation button 13

P

Photo Help Guide mode 21

Photo quality 42

Photo styles 57

Playback button 13, 15

Playback mode 60

Printing photos 73

Print order 71

Program mode 37

Protecting files 62

Q

Quick View 85

R

Recording

Video 38

Voice memo 40

Recycle bin 63

Red-eye 45

Reset 86

Resizing 68

Resolution

Photo 42

Video 42

Downloaded from ManualsCamera.com Manuals

Appendixes

101

Index

RGB tone

in Playback mode 69

in Shooting mode 57

Rotating 68

S

Samsung Converter

Installing 22

Using 26

Samsung Master

Installing 22

Using 27

Scene mode 34

Self-portrait 50

Service centre 93

Settings

Accessing 84

Camera 86

Display 85

Sound 85

Shooting mode

Auto 19

DIS 37

Movie 38

Photo Help Guide 21

Program 37

Scene 34

Smart Auto 33

Shutter speed 36

Slide show 65

Smart Album 61

Smart Auto mode 33

Smart Face Recognition 51

Smile shot 50

Start image 85

T

Text Viewer mode 80

Timer 43

Transferring files

for Mac 29

for Windows 22

V

Video

Playing 66

Recording 38

Video Out 87

Videos mode 79

Viewing files

as thumbnails 62

by category 61

on TV 72

Slide show 65

Voice memo

Playing 67

Recording 40

Volume 85

Downloaded from ManualsCamera.com Manuals

Appendixes

102

W

White Balance 54

Z

Zoom button 13

Zooming 20

Please refer to the warranty that came with your product or visit our website http://www.samsungcamera.com/ for after-

Downloaded from ManualsCamera.com Manuals

The CE Mark is a Directive conformity mark of the European Community (EC)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
