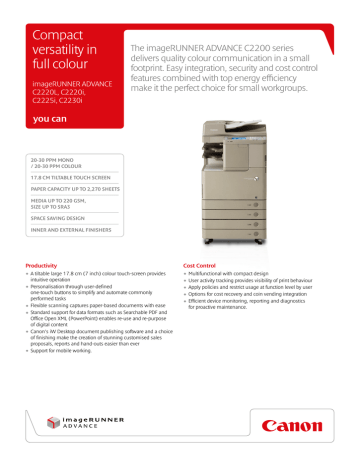

Compact
versatility in
full colour
imageRUNNER ADVANCE
C2220L, C2220i,
C2225i, C2230i
The imageRUNNER ADVANCE C2200 series
delivers quality colour communication in a small
footprint. Easy integration, security and cost control
features combined with top energy efficiency
make it the perfect choice for small workgroups.
you can
20-30 PPM MONO
/ 20-30 PPM COLOUR
17.8 CM TILTABLE TOUCH SCREEN
PAPER CAPACITY UP TO 2,270 SHEETS
MEDIA UP TO 220 GSM,
SIZE UP TO SRA3
SPACE SAVING DESIGN
INNER AND EXTERNAL FINISHERS
Productivity
tiltable large 17.8 cm (7 inch) colour touch-screen provides
•Aintuitive
operation
ersonalisation through user-defined
•Pone-touch
buttons to simplify and automate commonly
performed tasks
Flexible scanning captures paper-based documents with ease
Standard support for data formats such as Searchable PDF and
Office Open XML (PowerPoint) enables re-use and re-purpose
of digital content
Canon’s iW Desktop document publishing software and a choice
of finishing make the creation of stunning customised sales
proposals, reports and hand-outs easier than ever
Support for mobile working.
•
•
•
•
Cost Control
•Multifunctional with compact design
•User activity tracking provides visibility of print behaviour
•Apply policies and restrict usage at function level by user
•Options for cost recovery and coin vending integration
device monitoring, reporting and diagnostics
•Eforfficient
proactive maintenance.
Device and Information Security
•
Smart user authentication enables
controlled device access without
impacting convenience
Disable functions per user to prevent
unauthorised usage
Secure print ensures document
confidentiality
A variety of standard features like data
erase, IP and MAC address filtering and
IPSec protects the device and network
data transfer
An extensive range of security
options offers compliance to the
highest levels covering all aspects
of information security.
•
•
•
•
Integration
•
Sustainability
Supports industry and network
standards i.e. PCL and Adobe PostScript
for seamless integration
Shares resources and functionality with
other imageRUNNER ADVANCE devices
on the network
Collaborates with business applications
and external systems in the Cloud such
as Google DriveTM
Through the embedded MEAP platform
the device integrates tightly with a range
of powerful software solutions
Device management tools to easily
configure, manage and upgrade the
device, whether individually, or as part
of a larger fleet.
•
•
lass leading Typical Electricity
•CConsumption
(TEC*) ratings
C
onsumes
as
little
as 0.8W in sleep mode
•
I
ncorporates
recycled
materials and
• bio-plastics
•ENERGY STAR qualified.
®
•
•
Main configuration options
STAPLE FINISHER-M1
COLOUR IMAGE READER UNIT-G1
COLOUR IMAGE READER UNIT-G2
PRINTER COVER
UTILITY TRAY-A2
INNER FINISHER–F1
(Shown with Inner Finisher
Additional Tray-A1)
COPY TRAY-J1
BUFFER PASS UNIT-K1
BOOKLET
FINISHER-M1
INNER 2-WAY TRAY-F1
CASSETTE FEEDING UNIT-AF1
iR-ADV C2000 PLAIN PEDESTAL
For full details of all options, please refer to the product specifications.
*Defined by Energy Star (http://www.eu-energystar.org)
Specifications: imageRUNNER ADVANCE C2200 series
Machine type
Available Core functions
Colour Laser Multifunctional (Reader/Printer separated)
Scan methods
iR-ADV C2220L: Print, Copy*, Scan* and Optional PCL, Send and Fax
iR-ADV C2220i/2225i/2230i: Print, Copy*, Scan*, Send* and Optional Fax
* Requires COLOUR IMAGE READER UNIT-G1 or COLOUR IMAGE READER
UNIT-G2. Printer version requires PRINTER COVER-D2.
Printer Specifications
Print speed (BW/CL)
Printing method
Print resolution
Double sided printing
Printing from memory media
Printing from mobiles or
internet-connected devices and
cloud-based services
Paper input (Standard)
Paper input (Option)
Maximum paper input capacity
Paper output capacity
Finishing capabilities
Supported media types
Supported media sizes
Supported media weights
Page Description Language(s)
Fonts
Operating System compatibility
iR-ADV C2220L: 20 ppm (A4), 15 ppm (A3), 20 ppm (A4R), 20 ppm (A5R)
iR-ADV C2220i: 20 ppm (A4), 15 ppm (A3), 20 ppm (A4R), 20 ppm (A5R)
iR-ADV C2225i: 25 ppm (A4), 15 ppm (A3), 20 ppm (A4R), 25 ppm (A5R)
iR-ADV C2230i: 30 ppm (A4), 15 ppm (A3), 20 ppm (A4R), 30 ppm (A5R)
Colour Laser Beam Printing
1200 dpi x 1200 dpi, 600 dpi x 600 dpi
Automatic (Standard)
Supported memory media: USB memory key, Memory cards (SD, Compact Flash
and Memory Stick via optional MULTIMEDIA READER/WRITER-A2)
Supported file types for direct printing: JPEG, TIFF, PDF*, XPS* (* iR-ADV
C2220i/2225i/2230i require PS PRINTER KIT-AT1 for PDF or DIRECT PRINT KIT
(for PDF/XPS)-H1 for PDF/XPS. XPS direct print from removable media is not
available. PDF/XPS direct print is not available on iR-ADV C2220L).
A range of software and MEAP-based solutions is available to provide printing
from mobile devices or internet-connected devices and cloud-based services
depending on your requirements. Please contact your sales representative for
further information.
Paper cassette 1: 520 sheets (80 gsm); Paper cassette 2: 550 sheets (80 gsm);
100-sheet multi-purpose tray
2 x 550-sheet cassettes (80 gsm) (CASSETTE FEEDING UNIT-AF1)
Copy speed
Copy resolution
Multiple copy
Reduction/Enlargement
Without Finisher: 250 sheets (80 gsm)
With Inner Finisher: 750 sheets (with 1 tray); When second tray is installed:
100 sheets (upper tray) + 350 sheets (lower tray) (80 gsm)
With External Finisher: 3000 sheets (upper tray: 1300 sheets, lower tray:
1700 sheets) (80 gsm)
Standard: Collate, Group
With optional finishing units: Collate, Group, Offset, Staple, Saddle Stitch
Cassettes:
Thin, Plain, Recycled, Colour, Heavy, Pre-punched, Bond, Envelopes*
(*Envelope support via cassette 2 only. Requires optional ENVELOPE FEEDER
ATTACHMENT-D1).
Multi-purpose tray:
Thin, Plain, Recycled, Colour, Heavy, Pre-punched, Bond, Transparency,
Labels, Envelopes
Paper cassette 1: A4, A3, B5
Paper cassettes 2, 3 and 4: A4, A4R, A3, A5R, B5, Free size: 139.7 mm x 182 mm
to 304.8 mm x 457.2 mm. Envelopes*: No.10 (COM10), Monarch, ISO-C5, DL.
(*Envelope support via paper cassette 2 only. Requires optional ENVELOPE
FEEDER ATTACHMENT-D1.)
Multi-purpose tray: A4, A4R, A3, SRA3, A5, A5R, B5, Free size: 99 mm x 140
mm to 320 mm x 457 mm. Envelopes: No.10 (COM10), Monarch, ISO-C5, DL
Paper cassette 1: 64 to 120 gsm
Paper cassette 2, 3 and 4: 64 to 163 gsm
Multi-purpose tray: 64 to 220 gsm
Duplex: 64 to 120 gsm
UFRII (Standard on all models)
PCL5e/6 (Standard for iR-ADV C2220i/2225i/2230i, optional for iR-ADV
C2220L with PCL PRINTER KIT-AT1)
Adobe PostScript Level 3 (Optional for iR-ADV C2220i/2225i/2230i with
PS PRINTER KIT-AT1, not available for iR-ADV C2220L)
PCL fonts: 93 Roman, 10 Bitmap, 2 OCR fonts;
PS fonts: 136 Roman fonts
UFRII: Windows XP/Server 2003/Vista/Server 2008/Windows 7/Server 2008 R2/
Windows 8, MAC OS X (10.4.9 or later)
PCL: Windows XP/Server 2003/Vista/Server 2008/Windows 7/Server 2008 R2/
Windows 8
PS: Windows XP/Server 2003/Vista/Server 2008/Windows 7/Server 2008 R2/
Windows 8, MAC OS X (10.4.9 or later)
PPD: MAC OS 9.1 or later, MAC OS X (10.2.8 or later), Windows Server 2003/
Server 2008/XP/Vista/Windows 7/Windows 8
Please refer to http://software.canon-europe.com/ for availability of print
solutions for other operating systems and environments including AS/400,
UNIX, Linux and Citrix. Some of these solutions are chargeable.
SAP Device Types are available via the SAP Market Place.
Supported media size/s
Supported media weight/s
Scan resolution
Double sided scanning
Scan speed (A4, 300 dpi)
Optional/Standard
Send resolution
Destinations
Address Book/Speed dials
File formats
Optional Universal Send Feature Sets
Optional/Standard
Modem speed
Fax resolution
FAX memory
Speed dials
Group dials/destinations
Sequential broadcast
Memory backup
Other features
Warm-up Time
Recovery from sleep mode
Interface type
Network protocols
Processor Speed
Memory
Hard Disk Drive
Control panel
Dimensions (W x D x H)
Installation space (W x D)
Weight
Operating environment
Power Source
Power Consumption
Reading: 600 dpi x 600 dpi
Printing: 1200 dpi x 1200 dpi for characters/lines, 600 dpi x 600 dpi for
graphics/images
Zoom: 25-400 % in 1 % increments
Fixed Zoom Ratio: 25 %, 50 %, 70 %, 100 %, 141 %, 200 %, 400 %
COLOUR IMAGE READER UNIT-G1 provides: Colour flatbed scan unit and
a 50-sheet duplex automatic document feeder (DADF).
COLOUR IMAGE READER UNIT-G2 provides: Colour flatbed scan unit and
platen cover.
COLOUR IMAGE READER UNIT-G1: A3, A4, A4R, A5, A5R, B5, B5R, B6;
Free sizes (W x L): Min. 128 mm x 148 mm, Max. 297 mm x 432 mm
COLOUR IMAGE READER UNIT-G2: Max. 432 mm x 297 mm
COLOUR IMAGE READER UNIT-G1: Single-sided scanning: 42 to 128 gsm/64
to 128 gsm (BW/CL); Double-sided scanning: 50 to 128 gsm/64 to 128 gsm
(BW/CL);
100 dpi, 150 dpi, 200 dpi x 100 dpi, 200 dpi, 300 dpi, 200 dpi x 400 dpi,
400 dpi, 600 dpi
2-sided to 2-sided (Automatic)
COLOUR IMAGE READER UNIT-G1:
Single-sided: 51/51 ipm (BW/CL); Double-sided: 19.6/19.6 ipm (BW/CL)
Optional on all models (requires SUPER G3 FAX BOARD-AH2)
Super G3 33.6kbps (Up to 3 sec/page (see footnote 1)
Standard: 200 x 100 dpi
Fine: 200 x 200 dpi
Super fine: 200 x 400 dpi
Ultra fine: 400 x 400 dpi
Up to 6000 pages (see footnote 1)
Max. 200
Max. 199 dials
Max. 256 addresses from the address book plus new 256 destinations
3 hours
Fax Forwarding, Dual Access, PC Fax (TX only)
General Specifications
Approx. 5.9/8.9 sec or less (BW/CL)
Up to 999 copies
Standard for iR-ADV C2220i/2225i/2230i (with COLOUR IMAGE READER
UNIT-G2 or COLOUR IMAGE READER UNIT-G1), optional for iR-ADV C2220L
(Requires COLOUR IMAGE READER UNIT-G2 or COLOUR IMAGE READER
UNIT-G1 and COLOUR UNIVERSAL SEND KIT-R1)
100 dpi, 150 dpi, 200 dpi x 100 dpi, 200 dpi, 300 dpi, 200 dpi x 400 dpi,
400 dpi, 600 dpi
E-Mail/Internet FAX (SMTP), PC (SMB, FTP), WebDAV. Google Drive with iR-ADV
Cloud Connect MEAP application
LDAP (1000)/Local (Max. 500)
TIFF, JPEG, PDF, XPS, High compression PDF/XPS, PDF/A-1b, Searchable PDF/
XPS, Office Open XML (PowerPoint)
UNIVERSAL SEND ADVANCED FEATURE SET-E1: Create outline PDF (Trace and
Smooth) and Adobe Reader Extensions PDF.
UNIVERSAL SEND SECURITY FEATURE SET-D1: Send encrypted PDF, and add
digital device signature to PDF/XPS files.
UNIVERSAL SEND DIGITAL USER SIGNATURE KIT-C1: Add digital user signature
to PDF/XPS files.
Fax Specifications
Please, refer to the quoted print speeds
Scan Specifications
Optional/Standard
Send Specifications
2270 sheets (80 gsm)
Copy Specifications
First Copy Output Time (FCOT)
Pull scan specifications
Push Scan: Send functionality standard for iR-ADV C2220i/2225i/2230i,
optional for iR-ADV C2220L*. (*Requires optional COLOUR UNIVERSAL SEND
KIT-R1) Pull Scan: TWAIN/WIA Pull scanning available on all models.
Scan to USB Memory Key
Scan to Mobiles, internet-connected devices and cloud-based services:
A range of solutions is available to provide scanning to mobile devices,
internet-connected devices and cloud-based services depending on your
requirements. Please contact your sales representative for further information.
TWAIN via Network TWAIN Driver (Colour Network ScanGear): Supported OS:
Windows 2000/Windows XP/Windows Server 2003/Windows Vista/Windows
Server 2008/Windows 7/Windows 8 (32 bit, 64 bit in compatibility mode)*
WIA via Network WIA Driver: Supported OS: Windows Vista/Windows Server
2008/Windows 7/Windows 8 (32 bit, 64 bit)*
*The drivers are available via http://software.canon-europe.com/
Noise Levels (BW/CL)
Software and printer management
Security Features
Approx. 34 sec from power ON (Normal mode), 10 sec from power ON
(Quick Start mode)
10 sec
USB 2.0 Hi-Speed; Ethernet: 1000BaseT/100Base-TX/10Base-T; 1 x USB Host
(2.0), Optional 2 x USB Host (2.0) (Available with USB DEVICE PORT-E2)
TCP/IP* (LPD/Port 9100/WSD/IPP/IPPS/SMB/FTP), IPX/SPX (NDS, Bindery),
AppleTalk. *IPv4/IPv6 support
1.67 Ghz
4 GB Flash + 2 GB Memory
Standard 160 GB Hard Disk Drive (usable space 80 GB)
(iR-ADV C2220i/2225i/2230i only)
17.8 cm (7 inch) TFT WVGA Colour LCD Touch Panel
565 mm x 650 mm x 1117 mm (iR-ADV C2220L with CASSETTE FEEDING
UNIT-AF1 and COLOUR IMAGE READER UNIT-G1)
565 mm x 680 mm x 1117 mm (iR-ADV C2220i/2225i/2230i with
CASSETTE FEEDING UNIT-AF1 and COLOUR IMAGE READER UNIT-G1)
846 mm x 1109 mm (iR-ADV C2220L + Multi-purpose tray + Cassette drawers open)
846 mm x 1139 mm (iR-ADV C2220i/22225i/2230i + Multi-purpose tray +
Cassette drawers open)
Approx. 120 kg (with CASSETTE FEEDING UNIT-AF1 and COLOUR IMAGE READER
UNIT-G1), 113.9 kg (with CASSETTE FEEDING UNIT-AF1 and COLOUR IMAGE
READER UNIT-G2)
Temperature: 10 to 30ºC (50 to 86ºF)
Humidity: 20 to 80 % RH (no condensation)
220-240 V (±10 %), 50/60 Hz (±2 Hz), 4.3-5.6 Amp
Maximum: Approx. 1.5 KW
Standby: Approx. 75 W
Energy Saver Mode: Approx. 60 W
Sleep mode: Approx. 0.8 W or less (see footnote 2)
Typical Electricity Consumption (TEC) rating (see footnote 3):
1.43 kwh (iR-ADV C2230i), 1.15 kwh (iR-ADV C2225i), 0.94kwh
(iR-ADV C2220i/L)
Sound Pressure (see footnote 4)
Active: 47/48 dB (iR-ADV C2220i/L), 48/49 dB (iR-ADV C2225i), 48/49 dB
(iR-ADV C2230i). Standby: 25 dB
iW Management Console for centralised management of the device
(Consumables and error monitoring and alerts, address book, configuration
and firmware updating, MEAP applications distribution, meter capture, driver
and resource management); Compatible with eMaintenance services via
embedded RDS (Enables meter capture, automatic consumables management
and remote diagnostics); Content Delivery System (Remote distribution of
firmware, iR options and MEAP applications); Canon Driver Configuration Tool;
Remote User Interface (RUI); Network ScanGear; NetSpot Device Installer; MEAP
(Multifunctional Embedded Application Platform); MEAP Web
Standard: IP/Mac Address Filtering, IPSEC, SNMP V3.0, IEEE 802.1X, Trusted
Platform Module (TPM), Secure Print, HDD Password Lock, Data Erase, Universal
Login Manager, Department ID, SSO-H, Access Management System.
Optional: Encrypted Secure Print, Encrypted PDF, HDD Encryption, User and
Device signatures, Secure Watermarks, Document Scan locking, HDD removal,
MailboxLite. The following items require uniFLOW: My Print Anywhere secure
print, Data Loss Prevention.
Consumables
Toner Cartridge/s
C-EXV 34 TONER BK/CY/MG/YL (yield 23000/19000/19000/19000 pages
(see footnote 5)
Specifications: imageRUNNER ADVANCE C2200 series
Specifications for options
Staple Finisher 1
Staple Finisher 2
Booklet Finisher
Cassette Feeding Unit
INNER FINISHER-F1 (compact inner finisher)
Number of Trays: 1 (additional tray available as option)
Standard Tray Capacity: 750 sheets (A4/A5/A5R), 500 sheets (SRA3, A3, A4R)
(80 gsm)
Capacity with optional tray: Upper tray: 100 sheets (all sizes), lower tray:
350 sheets
Paper Weight: 60 to 220 gsm
Staple Position: Corner, Double
Staple Capacity: A4: 50 sheets; A3/A4R: 30 sheets
Dimensions (W x D x H): 590 mm x 550 mm x 260 mm
Weight: Approx. 12.5 kg, with additional tray: 14 kg
STAPLE FINISHER-M1 (External) (Requires BUFFER PASS UNIT-K1)
Number of Trays: 2
Tray A (Upper) Capacity: A4/A5R 1300 sheets, A3/A4R 650 sheets
Tray B (Lower) Capacity: A4/A5R 1700 sheets, A3/A4R 650 sheets
Paper Weight: 60 to 220 gsm
Staple Position: Corner, Double
Staple Capacity: A4: 50 sheets; A3/A4R: 30 sheets
Dimensions (W x D x H): 559 mm x 647 mm x 1097 mm (when the extension
tray is not extended)
Weight: Approx. 46 kg
BOOKLET FINISHER-M1 (External) (Requires BUFFER PASS UNIT-K1)
Number of Trays: 2
Tray A (Upper) Capacity: A4/A5R 1300 sheets, A3/A4R 650 sheets
Tray B (Lower) Capacity: A4/A5R 1700 sheets, A3/A4R 650 sheets
Paper Weight: 60 to 220 gsm
Staple Position: Corner, Double, Booklet Stitch
Staple Capacity: A4: 50 sheets; A3/A4R: 30 sheets
Booklet Stitch paper size: A3, A4R
Booklet Stitch Staple Capacity: 16 sheets (64 pages, 64-81 gsm) x 10 booklets
Dimensions (W x D x H): 671 mm x 656 mm x 1097 mm (when the extension
tray is not extended)
Weight: Approx. 75 kg
CASSETTE FEEDING UNIT-AF1:
Adds two additional front-loading, user-adjustable 550-sheet paper cassettes
to the standard paper supply.
Print controller accessories
Document Publishing
System accessories
Device security accessories
Document security
Accessibility accessories
Other options
Additional Options
Hardware accessories 1
Hardware accessories 2
iR-ADV C2000 PLAIN PEDESTAL: Substituted for the cassette feeding unit, the
pedestal raises the device, without adding further paper capacity.
INNER 2WAY TRAY-F1: Adds a second internal output tray to give a combined
output capacity of 350 sheets (upper tray 100 sheets/lower tray 250 sheets).
3 WAY UNIT-C1: An option for the iR-ADV C2220L, it enhances the
double-sided print productivity to 100%.
COPY TRAY-J1: Provides a simple tray for basic output needs. Output capacity
is 100 sheets (A4).
UTILITY TRAY-A2: Provides an additional tray to hold an external USB keyboard.
STAMP UNIT-B1: Enables the machine to print a stamp on the front side of
scanned and sent originals.
MiCARD PLUS PROXIMITY CARD READER: A proximity card reader for
card-based user authentication, supporting multiple card technologies
(HID, HiTag, Casi Rusco, Indala and MiFare etc).
BARCODE PRINTING KIT-D1: Enables barcode printing via jet caps technology.
IW DESKTOP: Powerful print publishing software which easily combines
documents from different sources, applies finishing to create professional
looking documents and seamlessly links to the printer. Includes PDF creation,
annotation and compression capabilities for digital workflows such as proofing
and authorisation.
WEB ACCESS SOFTWARE-H1: Provide access to websites and other web-based
online content.
SUPER G3 2ND LINE FAX BOARD-AH2: Adds second fax line.
REMOTE FAX KIT-A1: Enables the device to send and receive fax from another
device connected with a fax board.
USB DEVICE PORT-E2: Adds two additional USB Ports to use with uniFLOW or
3rd party card readers or the Multimedia Reader/Writer-A2.
SERIAL INTERFACE KIT-K1: Serial interface for Cost Recovery Solutions.
COPY CONTROL INTERFACE KIT-A1: Allows connection (CCVI I/F) between
3rd party copy control terminal and Canon’s iR-ADV range for cost recovery use.
HDD DATA ENCRYPTION KIT-C3: Encrypts all image data and device settings
before storing them on the hard drive of the device.
REMOVABLE HDD KIT-AE1: Allows the physical removal of the Hard Disk Drive
when the device is unattended or not in use to protect confidential data and
provide a greater level of security.
DOCUMENT SCAN LOCK KIT-B1: This function increases document security
levels by embedding hidden track and lock code within copied or printed
documents to restrict unauthorised copying, sending, and faxing.
SECURE WATERMARK-B1: Deters duplication of sensitive documents by
embedding hidden watermarks that become visible when copied.
ENCRYPTED PRINTING SOFTWARE-D1: Encrypts the print job in transit to
the device and requires a password at the printer before sensitive documents
can be printed.
ADF ACCESS HANDLE-A1: Attaches to the document feeder, making access
easier for seated users.
REMOTE OPERATORS SOFTWARE KIT-B1: Allows use of device control panel
screens from remote computers.
VOICE GUIDANCE KIT-F2: Recorded voice provides confirmation of basic copy
menu settings, making the system easier to use for the visually impaired.
VOICE OPERATION KIT-C2: Enables the user to set various functions on the
device using verbal instructions and audible feedback.
STAMP INK CARTRIDGE-C1
STAPLE CARTRIDGE-D3: Saddle staple cartridge for BOOKLET FINISHER-M1.
STAPLE-J1: Plain staples for Inner Finisher-F1, STAPLE FINISHER-M1,
BOOKLET FINISHER-M1
Standard disclaimers
All specifications subject to change without notice
Footnotes
1. Based on ITU-T Standard Chart No. 1
2. 1
watt sleep mode may not be possible in all circumstances. Certain network configurations and options may
prevent the device from entering deep sleep mode. Please refer to the user guide for more information
3. Typical Electricity Consumption (TEC) rating represents the typical electricity consumed by a product during 1 week,
measured in kilowatt-hours (kWh). The test methodology is defined by Energy Star (http://www.eu-energystar.org).
4. Declared noise emission in accordance with ISO 7779
5. Based on 6 % coverage
Canon Inc.
canon.com
Canon Europe
canon-europe.com
English Edition
© Canon Europa N.V., 2012
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
