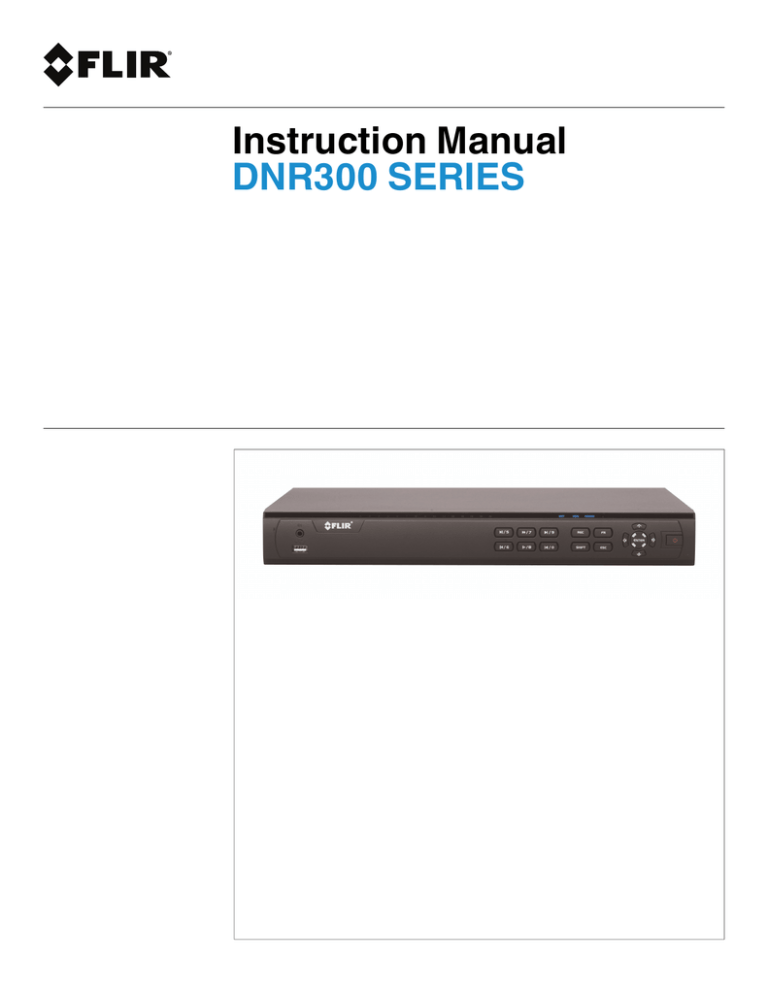

Instruction Manual
DNR300 SERIES
Instruction Manual
DNR300 SERIES
#; r. 1.0/11603/11605; en-US
iii
Thank you for purchasing this product. FLIR is committed to providing our customers with a high quality,
reliable security solution.
This manual refers to the following models:
DNR300 Series
For the latest online manual, downloads and product updates, and to learn about our complete line of
accessory products, please visit our website at:
www.flirsecurity.com/pro
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RICK OF ELECTRIC SHOCK DO NOT REMOVE
COVER. NO USER SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT
TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF THE PLUG
TO THE WIDE SLOT AND FULLY INSERT.
#; r. 1.0/11603/11605; en-US
iv
Table of contents
1
Important Safeguards ..........................................................................1
1.1
General Precautions.................................................................... 1
1.2
Installation................................................................................. 1
1.3
Service ..................................................................................... 3
1.4
Use.......................................................................................... 3
2
DNR300 Series Features.......................................................................4
3
DNR300 Series Getting Started .............................................................5
4
DNR300 Series Basic Setup ..................................................................6
5
DNR300 Series Front Panel...................................................................8
6
DNR300 Series Rear Panel....................................................................9
7
Remote Control ................................................................................. 10
8
Mouse Control .................................................................................. 11
9
Using the System .............................................................................. 12
9.1
On-Screen Display .................................................................... 12
9.2
Using the Quick Menu................................................................ 12
9.3
Adjusting Color Settings ............................................................. 13
9.4
Using the Navigation Bar ............................................................ 14
9.5
Using the Camera Toolbar .......................................................... 14
9.5.1 Using Quick Playback ..................................................... 14
9.5.2 Using Digital Zoom in Live Display ..................................... 15
9.5.3 Using Real-time Backup .................................................. 15
9.6
Using the Virtual Keyboard.......................................................... 15
9.7
Adjusting Camera Zoom & Focus ................................................. 16
10
Setting The Time ............................................................................... 17
11
Recording......................................................................................... 18
12
Search (Playback) ............................................................................. 19
12.1
Playing Back Video from the Hard Drive......................................... 19
12.2
Playback Controls ..................................................................... 20
13
Backup............................................................................................. 21
13.1
Formatting the USB Device ......................................................... 21
13.2
Backing up Video...................................................................... 21
13.3
Using Video Clip Backup ............................................................ 23
13.4
Viewing Backup Files................................................................. 23
14
Using the Main Menu ......................................................................... 26
14.1
Info ........................................................................................ 27
14.1.1 HDD Info ...................................................................... 27
14.1.2 BPS ............................................................................ 27
14.1.3 Log ............................................................................. 27
14.1.4 Version (Updating Firmware)............................................. 28
14.1.5 Online Users ................................................................. 28
14.1.6 Remote Device Info ........................................................ 29
14.2
Setting.................................................................................... 30
14.2.1 General........................................................................ 30
14.2.2 Recording..................................................................... 31
14.2.3 Schedule...................................................................... 32
14.2.4 Configuring Pre-Recording and Mirror Recording .................. 32
14.2.5 Configuring Holidays....................................................... 32
14.2.6 Network ....................................................................... 33
#; r. 1.0/11603/11605; en-US
v
Table of contents
14.3
14.4
14.5
15
14.2.7 Configuring DHCP or Fixed IP Address ............................... 33
14.2.8 Configuring System Ports................................................. 33
14.2.9 Configuring NTP ............................................................ 34
14.2.10 Configuring DDNS.......................................................... 35
14.2.11 Connecting to your system ............................................... 35
14.2.12 Configuring Email Alerts .................................................. 36
14.2.13 Configuring Switch Settings .............................................. 37
14.2.14 Motion ......................................................................... 38
14.2.15 Configuring Motion Detection Events .................................. 38
14.2.16 Display ........................................................................ 39
14.2.17 Default......................................................................... 40
Device Search.......................................................................... 41
14.3.1 Adding Cameras from the LAN.......................................... 41
14.3.2 Manual Add .................................................................. 42
14.3.3 Editing Cameras ............................................................ 43
14.3.4 Deleting Cameras .......................................................... 43
Advanced................................................................................ 44
14.4.1 HDD Management ......................................................... 44
14.4.2 Formatting Hard Drives.................................................... 44
14.4.3 Selecting Hard Drive Types .............................................. 45
14.4.4 Configuring Hard Drive Group Settings ............................... 45
14.4.5 Warning ....................................................................... 46
14.4.6 Record......................................................................... 47
14.4.7 Account ....................................................................... 48
14.4.8 Adding Accounts............................................................ 48
14.4.9 Modifying Accounts ........................................................ 49
14.4.10 Deleting Accounts .......................................................... 49
14.4.11 Adding Groups .............................................................. 50
14.4.12 Deleting Groups............................................................. 50
14.4.13 Modifying Groups........................................................... 50
14.4.14 Auto Maintain ................................................................ 51
14.4.15 Config Backup............................................................... 51
Shutdown................................................................................ 53
FLIR SyncroIP NVR CMS Central Management Software........................ 54
15.1
System Requirements................................................................ 54
15.2
Prerequisites ........................................................................... 54
15.3
Installing FLIR SyncroIP NVR CMS............................................... 54
15.4
Adding a NVR or IP Camera from the Local Area Network
(LAN) .....................................................................................55
15.5
Adding a NVR or IP Camera Using a DDNS Address ........................ 56
15.5.1 CMS Live Viewing Overview ............................................. 59
15.6
Using Alarm Rec (Event Search) .................................................. 60
15.7
Using Playback Mode ................................................................ 61
15.7.1 Playback Controls .......................................................... 62
15.8
Configuring Monitoring Tasks and Projects ..................................... 62
15.8.1 Configuring Tasks........................................................... 62
15.8.2 Configuring Projects ....................................................... 64
15.8.3 Running Tasks and Projects ............................................. 66
15.9
Using E-Map............................................................................ 66
15.9.1 Configuring E-Map ......................................................... 66
15.9.2 Opening Cameras from E-Map.......................................... 67
#; r. 1.0/11603/11605; en-US
vi
Table of contents
15.10
15.11
15.12
Configuring the CMS ................................................................. 68
15.10.1 Changing the CMS Admin Password .................................. 69
Adding User Accounts to the CMS................................................ 70
Multi-Monitor Support ................................................................ 70
15.12.1 Opening Cameras in Secondary Monitors............................ 71
15.12.2 Managing Secondary Monitors.......................................... 71
16
Remote Viewing On Internet Explorer .................................................. 73
16.1
Prerequisites ........................................................................... 73
16.1.1 IE Live Display Overview.................................................. 74
16.1.2 Using Search Mode in IE (Playback)................................... 75
17
Mobile Connectivity ........................................................................... 77
17.1
iPhone.................................................................................... 77
17.1.1 System Requirements ..................................................... 77
17.1.2 Prerequisites ................................................................. 77
17.1.3 Connecting to your system on an iPhone ............................. 77
17.1.4 Live View Interface ......................................................... 79
17.1.5 Viewing Videos with Local File .......................................... 80
17.1.6 Using Playback Mode on iPhone ....................................... 80
17.1.7 Enabling Push Notifications .............................................. 82
17.1.8 Device Manager............................................................. 84
17.2
iPad ....................................................................................... 84
17.2.1 System Requirements ..................................................... 84
17.2.2 Prerequisites ................................................................. 84
17.2.3 Connecting to your NVR on an iPad.................................... 84
17.2.4 Live View Interface ......................................................... 86
17.2.5 Device Manager............................................................. 87
17.2.6 Using Playback Mode on iPad........................................... 87
17.2.7 Enabling Push Notifications .............................................. 88
17.3
Android Phones........................................................................ 90
17.3.1 Compatible Devices........................................................ 90
17.3.2 Prerequisites ................................................................. 90
17.3.3 Connecting to your NVR on an Android Phone...................... 90
17.3.4 Live View Interface ......................................................... 92
17.3.5 Viewing Snapshots and Videos with Local Files .................... 93
17.3.6 Using Playback Mode on Android Phones ........................... 93
17.3.7 Enabling Push Notifications .............................................. 94
17.3.8 Device Manager............................................................. 96
17.4
Android Tablets ........................................................................ 96
17.4.1 System Requirements ..................................................... 96
17.4.2 Prerequisites ................................................................. 96
17.4.3 Connecting to your NVR on an Android Tablet ...................... 96
17.4.4 Live View Interface ......................................................... 98
17.4.5 Device Manager............................................................. 98
17.4.6 Using Playback Mode on Android Tablets ............................ 99
17.4.7 Enabling Push Notifications ............................................ 100
18
Setting up Remote Viewing ............................................................... 102
18.1
What Do I Need? .................................................................... 102
18.2
Network Setup / Remote Access Overview ................................... 102
18.3
Finding your IP Address and MAC Address................................... 102
18.3.1 Finding Your External IP Address ..................................... 103
#; r. 1.0/11603/11605; en-US
vii
Table of contents
18.3.2 Enabling Port Forwarding ............................................... 103
19
Auto Port Forwarding Wizard ............................................................ 104
19.1
Installation............................................................................. 104
19.2
Configuration ......................................................................... 106
19.2.1 Obtaining Your Router Model Number and Version .............. 106
19.2.2 Initial Startup: Select Language ....................................... 106
19.2.3 Step 1: Populate the Router Database .............................. 107
19.2.4 Step 2: Enter your Router Settings ................................... 108
19.2.5 Step 3: Update the Router Settings .................................. 109
19.2.6 Step 4: Test your Connection .......................................... 109
19.2.7 Configuring Multiple Routers........................................... 109
20
Setting Up DDNS Service.................................................................. 111
20.1
Registering for FLIR DDNS Service ............................................ 111
20.2
How Do I Enable DDNS On My System?...................................... 112
20.3
Connecting to your system using DDNS....................................... 113
20.3.1 CMS Software or Mobile Apps ........................................ 113
20.3.2 Internet Explorer .......................................................... 113
21
Remote Firmware Upgrade ............................................................... 114
21.1
Installing a Firmware Upgrade Over the LAN................................. 114
21.2
Installing a Firmware Upgrade Over the Internet............................. 115
22
DNR300 Series Hard Drive Installation ............................................... 117
22.1
Installing a Hard Drive.............................................................. 117
22.2
Removing the Hard Drive.......................................................... 118
22.3
Formatting Hard Drives ............................................................ 119
23
Connecting An External Monitor (DNR300 Series) ............................... 121
24
Troubleshooting .............................................................................. 122
24.1
Remote Connectivity Troubleshooting ......................................... 123
25
DNR300 Series System Specifications ............................................... 124
25.1
System ................................................................................. 124
25.2
Inputs/Outputs ....................................................................... 124
25.3
Display ................................................................................. 124
25.4
Recording ............................................................................. 124
25.5
Video Detection and Alarm ....................................................... 124
25.6
Playback and Backup .............................................................. 124
25.7
Network ................................................................................ 125
25.8
Storage ................................................................................ 125
25.9
Dimensions ........................................................................... 125
25.10 Power................................................................................... 125
26
Notices........................................................................................... 126
26.1
FCC Class A Notice ................................................................ 126
#; r. 1.0/11603/11605; en-US
viii
1
Important Safeguards
In addition to the careful attention devoted to quality standards in the manufacturing process of your product, safety is a major factor in the design of every instrument. However,
safety is your responsibility too. This sheet lists important information that will help to ensure your enjoyment and proper use of the product and accessory equipment. Please read
them carefully before operating and using your product.
1.1 General Precautions
1. All warnings and instructions in this manual should be followed.
2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents.
Use a water-dampened cloth for cleaning.
3. Do not use this product in humid or wet places.
4. Keep enough space around the product for ventilation. Slots and openings in the storage cabinet should not be blocked.
5. It is highly recommended to connect the product to a surge protector to protect from
damage caused by electrical surges. It is also recommended to connect the product to
an uninterruptible power supply (UPS), which has an internal battery that will keep the
product running in the event of a power outage.
CAUTION
Maintain electrical safety. Power line operated equipment or accessories connected to this product
should bear the UL listing mark or CSA certification mark on the accessory itself and should not be modified so as to defeat the safety features. This will help avoid any potential hazard from electrical shock or
fire. If in doubt, contact qualified service personnel.
1.2 Installation
1. Read and Follow Instructions - All the safety and operating instructions should be
read before the product is operated. Follow all operating instructions.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - Comply with all warnings on the product and in the operating
instructions.
4. Polarization - Do not defeat the safety purpose of the polarized or grounding-type
plug.
A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
#; r. 1.0/11603/11605; en-US
1
1
Important Safeguards
5. Power Sources - This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power supplied to your
location, consult your video dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the operating instructions.
6. Overloading - Do not overload wall outlets or extension cords as this can result in the
risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power
cords, damaged or cracked wire insulation, and broken plugs are dangerous. They
may result in a shock or fire hazard. Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation, have it replaced by your service
technician.
7. Power-Cord Protection - Power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them. Pay particular
attention to cords at plugs, convenience receptacles, and the point where they exit
from the product.
8. Surge Protectors - It is highly recommended that the product be connected to a
surge protector. Doing so will protect the product from damage caused by power
surges. Surge protectors should bear the UL listing mark or CSA certification mark.
9. Uninterruptible Power Supplies (UPS) - Because this product is designed for continuous, 24/7 operation, it is recommended that you connect the product to an uninterruptible power supply. An uninterruptible power supply has an internal battery that will
keep the product running in the event of a power outage. Uninterruptible power supplies should bear the UL listing mark or CSA certification mark.
10. Ventilation - Slots and openings in the case are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must
not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed
near or over a radiator or heat register. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided and the
product manufacturer’s instructions have been followed.
11. Attachments - Do not use attachments unless recommended by the product manufacturer as they may cause a hazard.
12. Water and Moisture - Do not use this product near water — for example, near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet basement, near a swimming pool
and the like.
13. Heat - The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.
14. Accessories - Do not place this product on an unstable cart, stand, tripod, or table.
The product may fall, causing serious damage to the product. Use this product only
with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold
with the product. Any mounting of the product should follow the manufacturer’s instructions and use a mounting accessory recommended by the manufacturer.
15. Camera Extension Cables – Check the rating of your extension cable(s) to verify
compliance with your local authority regulations prior to installation.
16. Mounting - The cameras provided with this system should be mounted only as instructed in this guide or the instructions that came with your cameras, using the provided mounting brackets.
#; r. 1.0/11603/11605; en-US
2
1
Important Safeguards
17. Camera Installation - Cameras are not intended for submersion in water. Not all cameras can be installed outdoors. Check your camera environmental rating to confirm if
they can be installed outdoors. When installing cameras outdoors, installation in a
sheltered area is required.
1.3 Service
1. Servicing - Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
2. Conditions Requiring Service - Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the following conditions:
•
•
•
•
•
When the power supply cord or plug is damaged.
If liquid has been spilled or objects have fallen into the product.
If the product has been exposed to rain or water.
If the product has been dropped or the cabinet has been damaged
If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the product to its normal operation.
• When the product exhibits a distinct change in performance. This indicates a need
for service.
3. Replacement Parts - When replacement parts are required, have the service technician verify that the replacements used have the same safety characteristics as the original parts. Use of replacements specified by the product manufacturer can prevent fire,
electric shock, or other hazards.
4. Safety Check - Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks recommended by the manufacturer to determine that the product is in safe operating condition.
1.4 Use
1. Cleaning - Unplug the product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
2. Product and Cart Combination - When product is installed on a cart, product and
cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
3. Object and Liquid Entry - Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or “short-out” parts that could
result in a fire or electric shock. Never spill liquid of any kind on the product.
4. Lightning - For added protection of this product during a lightning storm, or when it is
left unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage to the product due
to lightning and power line surges.
#; r. 1.0/11603/11605; en-US
3
2
DNR300 Series Features
• Easy Connection and setup with 8 integrated PoE ports and auto-discovery of IP
Cameras.
• Full HD 1080P recording provides the most detailed picture and reliable identification
with selectable area digital zoom.
• Real-time recording: [email protected] (8ch), [email protected] (16ch).
• Turbo recording bit rate of 160 Mbps.
• Dual streaming (H.264/MJPEG) and dual core processor.
• Pentaplex operation - simultaneous View, Record, Playback, Backup & Remote
Monitoring.
• ONVIF 2.0 conformance ensures compatibility with popular industry IP cameras.
• Substream recording for bandwidth efficient remote playback.
• 64 Channel CMS by FLIR included.
• Fully PC / Mac compatible.
• Mobile apps: iPhone, iPad, Android.
• HDMI / VGA / BNC simultaneous video output.
• Free DDNS service by FLIR with secure redundant servers.
• RS-485 supports Pelco D & P PTZ.
• Audio I/O: 1 in - 1 out, Alarm I/O.
• Supports 2x SATA HDDs up to 3TB (6 TB total), 2x USB 2.0 ports.
• Embedded Linux operating system, simple GUI on screen display.
• 3 year warranty.
Note
Please visit www.flirsecurity.com/pro for information, firmware, and compatibility updates for mobile
viewing.
#; r. 1.0/11603/11605; en-US
4
3
DNR300 Series Getting Started
The system comes with the following components:
Power adapter x 2
Network Video Recorder
(1 x for PoE Switch, 1 x for
NVR)
Mouse
Ethernet cable
Remote control
Quick start guides & Software
CD
Hard drive size, number of channels, and camera configuration may vary by model. Please
refer to your package for specific content details. Check your package to confirm that you
have received the complete system, including all components shown above.
#; r. 1.0/11603/11605; en-US
5
4
DNR300 Series Basic Setup
1. Connect the Cameras
• Connect IP cameras to PoE (Power over Ethernet) Ports.
OR
• Connect IP cameras to the same LAN as the NVR. For details on connecting IP
cameras over the LAN, see 14.3 Device Search, page 41.
2. Connect a Monitor
• Connect an HDMI cable (not included) from the HDMI port on the rear panel to an
HDTV or HDMI monitor.
OR
• Connect a VGA cable (not included) from the VGA port to the VGA port on your
monitor.
OR
• Connect a BNC terminated cable (not included) from the Video OUT port to a TV or
CCTV monitor.
3. Connect the Mouse
• Connect the mouse (included) to the USB mouse port on the front or rear panel.
4. Connect the Ethernet Cable
• Connect an Ethernet cable (not included) to the LAN port on the rear panel of system; connect the other end of the Ethernet cable to an empty LAN port on your
router or switch (not included).
#; r. 1.0/11603/11605; en-US
6
4
DNR300 Series Basic Setup
5. Connect the Power Adapters
5.1.
5.2.
5.3.
Connect the DC 12V power supply to the DC 12V port on the rear panel of the
system. Connect the power cable to an outlet, power strip, or surge protector.
This power adapter is used to power the main unit.
Connect the DC 48V power supply to the DC 48V port on the rear panel of the
system. Connect the power cable to an outlet, power strip, or surge protector.
This power adapter is used to power the integrated PoE ports.
Turn the power switch to the ON position.
ON
#; r. 1.0/11603/11605; en-US
7
5
DNR300 Series Front Panel
1
2
0
3
4
5
6
7 8
1. USB Port: Connect a USB mouse (included) or connect a USB flash drive (not included) for data backup or firmware upgrades.
2. IR: Not supported.
3. Channel Indicators: Glow when camera is connected to the corresponding channel.
4. Playback Controls:
•
•
Pause/Play: In live view, press to enter playback mode. Press to play/pause
playback.
Reverse: Press to reverse playback/pause playback.
•
Fast: Press to increase playback speed.
•
Next: Press to skip to next video.
•
Previous: Press to skip to previous video.
•
Slow: Press for slow playback.
5. Function Buttons:
•
•
•
•
REC: Press to open manual recording controls.
FN: Performs special functions in some menus.
SHIFT: During text input, press to switch input types.
ESC: In menus, press to go back / exit menus. In playback, press to return to live
view.
6. Directional Buttons:
• ENTER: From live view, press once to open the System Information screen; press
twice to open the Main Menu. In menus, press to confirm menu options.
• Directional Buttons: Press to move cursor in menus. In live view, press up to
change split screen layout; press left / right to select channels when single-channel
mode is selected.
7. Power Button: Press and hold to power off the system. Press to power the system
back on.
8. IR Receiver and LED Indicators: IR receiver for the remote control. Keep the IR receiver clear from obstructions.
LED Indicators:
• POWER: Glows to indicate the system is on.
• HDD: Glows to indicate hard drive is in normal state. Turns off when there is a hard
drive error.
• NET: Glows when network is in normal state. Turns off for network error.
#; r. 1.0/11603/11605; en-US
8
6
DNR300 Series Rear Panel
1
0
2
3
4
5 6
7
8 9
10
11 12 13
1. DC 48V: Port for 48V DC power supply (included) for integrated PoE ports.
2. PoE Ports: Camera input ports for IP cameras.
3. LAN: Connect an Ethernet cable to connect the system to a router or switch (not
included).
4. MIC:
• IN: BNC port for microphone (not included) for 2-way audio.
• OUT: BNC port for audio output device (e.g. speakers; not included) for 2-way
audio.
5. USB port: Connect a USB mouse or connect a USB flash drive (not included) for data
backup or firmware upgrades.
6. VIDEO OUT: Video output (BNC) to connect the system to a secondary monitor.
7. VGA: VGA port to connect the system to a VGA monitor.
8. RS232: Service only; not in use.
9. HDMI: HDMI port to connect the system to a HDMI TV/monitor.
10. ALARM IN / OUT / RS422-RS485: Alarm block to connect external alarm or motion
devices (not included).
• A/B: Connection block for an RS485 PTZ camera (not included).
11. DC 12V: Port for 12V DC power supply (included).
12. Power Switch
13. Ground
#; r. 1.0/11603/11605; en-US
9
7
Remote Control
1
7
2
3
0
8
0
4
5
9
6
0
1. Power: Press and hold to power off the system. Press to power on.
2. Playback Controls:
•
•
Pause/Play: In live view, press to enter playback mode. Press to play/pause
playback.
Reverse: Press to reverse playback/pause playback.
•
Fast: Press to increase playback speed.
•
Next: Press to skip to next video.
•
Previous: Press to skip to previous video.
•
Slow: Press for slow playback.
3. Esc: In menus, press to go back / exit menus. In playback, press to return to live view.
4. Directional Keys:
• Enter: Press once to open the System Information screen; press twice to open the
Main Menu. Press to confirm menu selections.
• Press
• Press
to move the menu cursor.
to change menu options.
5. Mult: Press to switch between full-screen and split-screen layouts.
6. Number Keys:
• 1~0: In live view, press to open channels in full-screen.
• In menus, press to input numbers or text input.
• Shift: Press to change input types.
7. Add: Configure remote control address.
8. Rec: Press to open manual record menu.
9. Fn: Press to perform special functions in some menus.
#; r. 1.0/11603/11605; en-US
10
8
Mouse Control
The mouse is the primary control device for the system. To connect a USB mouse:
1
2
3
Connect a USB mouse to the USB port on the front or rear panel.
1. Left-Button:
• In live view, click to open the Navigation Bar.
• In live view, while in a split-screen display mode, double-click an individual channel
to view it in full-screen. Double-click again to return to the split-screen display mode.
• While navigating menus, click to open a menu option.
2. Right-Button:
• During live view, right-click anywhere on the screen to open the Quick Menu.
• Within navigating menus, right-click to exit menus.
3. Scroll-Wheel: Use to change menu options.
#; r. 1.0/11603/11605; en-US
11
9
0
Using the System
Note
The default system user name is admin and password is 000000.
9.1 On-Screen Display
The system shows the following for all display views:
1
2
3
1. Display Area:
• Double-click on a channel to view in full-screen; double-click again to return to split
screen.
• Right-click to open the Quick Menu.
• Left-click to open the Navigation Bar.
• Move the mouse to the top of a channel to view the Camera Toolbar.
• Click-and-drag cameras to rearrange the channel display. This does not affect the
channels each camera is connected or recording to.
2. Channel Name
3. Channel Status Icons:
•
: Channel is recording.
•
: Motion has been detected.
•
: Camera is locked (covert mode is activated).
9.2 Using the Quick Menu
The Quick menu gives you access to the system’s key functions. To access the Quick
Menu, right-click the screen during live view.
#; r. 1.0/11603/11605; en-US
12
9
Using the System
The Quick Menu has the following options:
• View: Select a camera in full-screen or select a multi-channel display.
• Pan/Tilt/Zoom: Access controls for PTZ cameras (not included).
• AutoFocus: If your camera has a mechanical focus lens, click to configure the zoom/focus levels or activate auto focus. See 9.7 Adjusting Camera Zoom & Focus, page 16.
• Color Setting: Configure color settings for IP cameras.
• Search: Search/playback recorded video. See 12 Search (Playback), page 19.
• Record: Open the Record menu to select manual recording options. See 14.4.6 Record, page 47.
• Device Search: Open the Device Search menu to manage IP cameras.
• Alarm Output: Open the Alarm Output menu.
• Main Menu: Open the Main Menu. See 14 Using the Main Menu, page 26.
9.3 Adjusting Color Settings
Use the Color Settings menu to adjust color settings for your IP cameras.
To adjust color settings:
1. Right-click on the channel you would like to configure and select Color Setting. Enter
the system password if prompted.
2. Adjust the Hue, Brightness, Contrast, and Saturation settings that the camera will
use. To enable custom Gain controls, check Gain and use the slider to configure the
gain level.
OR
Use Color mode to select a preset color profile.
Note
•
•
Color settings will update once you save changes.
To configure the Customized1~4 profiles, click Customized.
#; r. 1.0/11603/11605; en-US
13
9
Using the System
3. Click OK to save changes.
9.4 Using the Navigation Bar
0
The
Navigation Bar gives quick access to certain functions and menus.
To open the Navigation bar:
• Left click on the screen to open the Navigation Bar. The Navigation Bar has the following options:
1
1.
2.
3.
4.
5.
6.
7.
8.
9.
2
4 5 6 7 8 9
3
Main Menu.
Collapse.
Select display layout.
PTZ.
Search.
Alarm Status.
Network.
HDD Manager.
View System Info.
9.5 Using the Camera Toolbar
The Camera Toolbar is used to perform actions on a specific channel.
To access the Camera Toolbar:
• Move the mouse to the top of the channel display. The Camera Toolbar has the following options:
1
1.
2.
3.
4.
5.
2
3
4
5
Quick Playback.
Digital Zoom.
Real-time backup.
Device Search.
Close.
9.5.1 Using Quick Playback
Quick Playback is used to playback the last 5~60 minutes of video from the selected channel. You can also access Quick Playback in split-screen mode, while still viewing live video
from the other channels.
To use Quick Playback:
1. Move your mouse to the top of the channel display and click
.
Note
By default, the NVR will begin playback from 5 minutes ago. You can increase this to up to 60 minutes using the Realtime Play setting in Main Menu>Setting>General.
#; r. 1.0/11603/11605; en-US
14
9
Using the System
2. Right-click to exit Quick Playback.
9.5.2 Using Digital Zoom in Live Display
1. Move your mouse to the top of the channel display and click
zoom. The icon will change to
to activate digital
, indicating digital zoom is activated.
Note
You may activate digital zoom in multiple channels at the same time.
2. Click and drag inside the channel to zoom in.
• Click and drag to pan the zoom area.
• Right-click to zoom out and select a new zoom area.
• Click
to disable digital zoom. Note that the channel will remain at the same
zoom level until you right-click inside it.
9.5.3 Using Real-time Backup
Real-time backup allows you to save footage from the live display to a USB flash drive (not
included) or external hard drive (not included).
To use Real-time Backup:
1. Insert the USB flash drive or external hard drive into one of the USB ports on the
system.
2. Move your mouse to the top of the channel display and click
Backup. The icon changes to
3. Click
to start Real-time
.
again to end Real-time Backup. The file is saved to your USB device.
Note
If the system prompts you to log in, you will need to click
logging in.
again to start Real-time Backup after
9.6 Using the Virtual Keyboard
The Virtual Keyboard is used to input text or numeric values in certain menus.
1
2
1.
2.
3.
3
Backspace.
Enter capital letters.
Confirm entry.
#; r. 1.0/11603/11605; en-US
15
9
Using the System
9.7 Adjusting Camera Zoom & Focus
If your camera has a motorized lens, you can control the zoom/focus level or activate auto
focus from the NVR.
To adjust the camera’s zoom focus:
1. Double-click on the channel where the motorized lens camera is connected.
2. Right-click and then click AutoFocus. Log into the system using the admin account
(default user name is admin and password is 000000).
3. Adjust the zoom and focus using the following options:
• Use the sliders to adjust the Zoom WIDE or Focus NEAR settings for the camera.
Note
Hover the mouse over the sliders and use the mouse wheel to adjust by 1% at a time.
• Click the AutoFocus button to automatically focus the camera at the current zoom
level.
• Click Reset to return the camera to the default zoom and focus levels.
• Click Refresh to refresh the settings shown on the NVR if someone has used the manual lens controls on the camera.
4. Right-click to exit and save changes.
#; r. 1.0/11603/11605; en-US
16
10
Setting The Time
CAUTION
It is highly recommended to set the time on the system prior to doing any recording.
To set the date and time:
1. In the main viewing mode, right-click and click Main Menu. Log into the system using
the admin account (default user name is admin and password is 000000).
2. Click Setting>General.
3. Enter the current date (MM DD YYYY) and time (HH MM SS) under System Time.
4. Click Save.
Note
To configure Daylight Savings Time see 14.2.1 General, page 30 . To configure NTP, see 14.2.9 Configuring NTP, page 34.
#; r. 1.0/11603/11605; en-US
17
11
Recording
By default, the system is set to immediately record at startup from connected cameras.
This is called Continuous Recording. It is highly recommended to keep Continuous Recording on at all times.
The system supports the following recording types:
• Continuous Recording: By default, all camera channels are enabled with Continuous
Recording. During Continuous Recording, the Record icon (
channel.
) appears in the
• Motion Recording: Cameras can be configured to record and mark events when motion is detected. When motion is detected, the Motion icon (
channel.
) appears in the
Note
You must enable motion recording in the Schedule before the system will record motion events. For
details, see 14.2.3 Schedule, page 32.
• Alarm Recording: Cameras can be configured to record when external alarm devices
are triggered.
#; r. 1.0/11603/11605; en-US
18
12
Search (Playback)
Search mode is used to navigate and playback recorded video files on the NVR.
12.1 Playing Back Video from the Hard Drive
1. From live view, right-click and then click Search. If needed, log in using the admin account (default user name is admin and default password is 000000).
2. Configure the following:
1
2
3
2.1.
Use the calendar on the right to select the day to playback.
2.2.
Use the drop-down menus to select the channels you would like to playback.
Note
Click the display options (
simultaneously.
2.3.
) to playback multiple channels
Click inside the video bar to select the playback time. The system will begin
playing back at the selected time.
#; r. 1.0/11603/11605; en-US
19
12
Search (Playback)
12.2 Playback Controls
1
2
3
4
5
6
14 12
10
8
7
13 11 9
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Select playback device.
Calendar: Select the day to playback.
Channel select: Select channels to playback.
Video clip backup: Select video clip start and end times.
Backup video clip: Click to save selected clip.
Playback Bar: Click inside the bar to select a playback time.
Zoom Playback Bar: Select scope of time bar.
Recording types: Click to show/hide recording types.
Speed up.
Slow.
Previous/next frame.
Play backward.
Stop.
Play.
#; r. 1.0/11603/11605; en-US
20
13
Backup
Backup video files to external USB flash drive (not included) or self-powered USB external
hard drive (not included).
13.1 Formatting the USB Device
It is recommended to format your USB device before using it with the system.
CAUTION
Formatting the USB device will permanently erase all data.
To format a USB device:
1. Insert a USB flash drive (not included) or USB external hard drive (not included) into
one of the USB ports.
2. From live view, right-click and then select Main Menu. Login if prompted.
3. Click Backup.
4. Check the USB device you would like to format and click Erase. Click OK to confirm.
13.2 Backing up Video
1. Insert a USB flash drive (not included) or USB external hard drive (not included) into
one of the USB ports.
2. From live view, right-click and then select Main Menu. Login if prompted.
3. Click Backup.
4. Check the USB device where you would like to save video.
#; r. 1.0/11603/11605; en-US
21
13
Backup
5. Click Backup.
6. Configure your search options:
• Type: Select the recording type you would like to search for or select All to search
all recording types.
• Channel: Select the channel you would like to search or select All to search all
channels.
• File Format: Select DAV to save files to save files to .dav format. You can use the
Player that is automatically saved on the USB device to playback .dav files on PC
(Mac not supported). Or, select ASF for .asf format. You can playback .asf files in
VLC Media Player (free download from www.videolan.org) on PC or Mac.
Note
VLC Media Player is a free software available from www.videolan.org. VLC Media Player is not
supported by FLIR.
• Start Time/End Time: Select the start and end time for your search.
7. Click Add. A list of files that match your search criteria appears.
8. Check files you would like to backup and then click Start. Wait for the backup to
complete.
Note
HD video files saved on the system may take up a large amount of disk space. The size of video files
selected and the amount of free space on your USB device is shown at the bottom of the screen.
#; r. 1.0/11603/11605; en-US
22
13
Backup
13.3 Using Video Clip Backup
Video clip backup allows you to select a duration of video during playback mode and save
it to a USB device (not included).
To use Video Clip Backup:
1. Insert a USB flash drive (not included) or USB external hard drive (not included) into
one of the USB ports.
2. Start playing back video using the steps in 12.1 Playing Back Video from the Hard
Drive, page 19.
3. Click
to mark the beginning of the video clip. Click
the video clip.
4. Click
again to mark the end of
to open the Backup menu.
5. Configure the following:
1
2
3
5.1.
5.2.
5.3.
Check the USB device where you would like to save the file.
Check the files you would like to backup.
Click Start. Wait for the backup to complete before removing the USB flash drive.
13.4 Viewing Backup Files
To playback .dav backup video files, use the Player that is automatically installed on the
USB device when you save a backup file.
Note
The Player is PC compatible only. For Mac users, make sure to save backup files in .asf format (select
ASF under File Format). You can playback .asf backup video files in VLC Media Player (free download
from www.videolan.org) on PC or Mac.
VLC Media Player is not supported by FLIR.
To view backup video files using the Player (PC only):
1. Insert the USB device into your computer. Open the USB device in Windows Explorer.
2. Right-click the Player.exe file and select Open as administrator. The Player opens
and begins playing all video files on the USB device in sequence.
3. Use the Player controls to control playback or select other files for playback.
#; r. 1.0/11603/11605; en-US
23
13
Backup
Video Player Controls
14
13
1
2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
3
4
5
6
7
8
9 10 11 12
Select playback time.
Open files.
Play/pause.
Stop/Stop recording.
Start recording.
Previous file.
Slow.
Back one frame.
Forward one frame.
Fast.
Next file.
Snapshot.
Shuffle/repeat.
Full-screen.
#; r. 1.0/11603/11605; en-US
24
13
Backup
Note
To view or change where manual recordings or snapshots are saved, right click in the video area and select Parameter Setting.
#; r. 1.0/11603/11605; en-US
25
14
Using the Main Menu
To open the Main Menu:
• Using the Remote Control: Press the Enter button twice.
• Using the Mouse: Right-click and click Main Menu.
Note
The system password may be required to access the Main Menu. By default the user name is admin
and the password is 000000.
1. SEARCH: Open Search/Playback mode. For details, see 12 Search (Playback), page
19.
2. INFO: View system information. Perform firmware upgrades.
3. SETTING: Configure general system, schedule, network, recording, display, and motion settings. Restore system to factory defaults.
4. DEVICE SEARCH: Connect IP cameras to the NVR.
5. ADVANCED: Configure HDD, user accounts, and error functions. Configure auto-restart. Save/restore system configuration. Access Manual Recording Menu.
6. BACKUP: Export files to USB device. For details, see 13 Backup, page 21.
7. SHUTDOWN: Logout, restart, or shutdown the system.
Note
Checkboxes on the system are filled in with a white color when settings are enabled or empty when
disabled.
#; r. 1.0/11603/11605; en-US
26
14
Using the Main Menu
14.1 Info
The Info menu contains the following sub-menus showing system information.
14.1.1
HDD Info
The HDD Info sub-menu shows information related to the hard drives installed in the system, including capacity, status, and type. Click View recording time to see the start and
end times of recordings saved on the hard drives.
14.1.2
BPS
The BPS sub-menu shows the bitrates of connected IP cameras.
14.1.3
Log
The Log sub-menu allows you to search for system logs.
#; r. 1.0/11603/11605; en-US
27
14
Using the Main Menu
To search for system logs:
1.
2.
3.
4.
Under Type, select the log type to search for.
Under Start Time and End Time, select the start and end time for your search.
Click Search.
(Optional) Click Backup to export logs to a USB flash drive connected to the system.
14.1.4
Version (Updating Firmware)
The Version sub-menu allows you to view information about the current firmware. You may
also update the firmware through the version menu.
To update the system firmware:
1. Download the latest firmware update from www.flirsecurity.com/pro.
2. Copy the firmware to a blank USB flash drive.
Note
Do not have any folders on the USB flash drive—just the firmware file.
3. Connect the USB flash drive to a USB port on the system.
4. Right-click and then select Main Menu>Info>Version.
5. Click Start to update firmware. Wait for the firmware upgrade to complete.
WARNING
Do not remove the USB flash drive until the upgrade process is complete or power off the NVR during the
upgrade process.
14.1.5
Online Users
#; r. 1.0/11603/11605; en-US
28
14
Using the Main Menu
The Online Users sub-menu shows a list of users connected to the system using remote
devices. You may click Disconnect to disconnect a user for up to 18 hours or click Block
to block a user from the system.
14.1.6
Remote Device Info
The Remote Device Info sub-menu shows information about IP cameras connected to the
system, it contains the following tabs:
• Channel Status: Shows the IP address, model number, and camera status.
• Connection Log: Search for camera status logs, including user access to cameras.
• Net Load: Shows a graph of upload and download traffic for your system.
#; r. 1.0/11603/11605; en-US
29
14
Using the Main Menu
14.2 Setting
The Setting menu allows you to configure general system, schedule, network, recording,
display, and motion settings. It also allows you to restore the system to factory defaults.
14.2.1
General
The General sub-menu allows you to configure the time and general system settings.
The General sub-menu contains the following options:
• System Time: Select the current date and time and click Save to save changes.
• Date Format: Select the date format (YYYY MM DD, MM DD YYYY, or DD MM YYYY).
• Date Separator: Select if you would like a dot (.), dash (-), or slash (/) to separate the
date display.
• DST: Check to enable daylight savings time adjustments. To configure the start and
end times for daylight savings, click Set. Then, configure the Start and End as needed,
and click OK.
• Time Format: Select 24-HOUR or 12-HOUR.
• Language: Select the system language.
• Video Standard: Select NTSC (North America) or PAL (Europe).
• Device No.: Select the remote control ID for the system.
• Device ID: Enter a custom name for the system.
• HDD Full: Select Overwrite for the system to begin overwriting the oldest recordings
when the hard drive is full or select Stop Recording for the system to stop recording
when the hard drive is full.
• Pack Duration: Enter the desired pack duration. The pack duration determines the duration of video files saved to the system.
• Realtime Play: Select the duration of videos that will be played back in Quick Playback
mode. For example, if Realtime Play is set to 5 minutes, Quick Playback will start playing back video recorded from 5 minutes ago on the selected channel.
• Mouse Property: Click MouseSet, adjust the double-click speed and click OK.
• Startup Wizard: Check to enable the Startup Wizard when your system starts. It is recommended to disable Startup Wizard once you have configured the system.
• Navigation: Check to enable the System Toolbar that appears when left clicking on the
screen.
• Auto Logout: Enter the amount of time the system will wait before logging a user out
when idle.
• IPC Time Sync: The system will regularly sync the internal clocks of connected IP cameras. Enter the interval between time syncs.
#; r. 1.0/11603/11605; en-US
30
14
Using the Main Menu
Note
Click OK when finished making changes.
14.2.2
Recording
The Recording sub-menu allows you to configure image quality settings for the recording
stream and sub-stream (used during remote connection). Settings for the recording
stream are shown on the left, and sub-stream settings are shown on the right.
To configure recording quality settings:
1. Under Channel, select the channel you would like to configure.
2. Under Resolution, select the resolution for the selected recording type. Settings available depend on the model of IP camera connected.
3. Under Frame Rate, select the frame rate for the selected recording type on the left.
Select the frame rate for the sub-stream on the right.
4. Under Bit Rate Type, select CBR (Constant Bit Rate) or VBR (Variable Bit Rate) for
the selected recording type on the left and sub-stream on the right. If you select VBR,
select the Quality from 1 (lowest) to 6 (highest).
5. Under Bit Rate (Kb/S), select the bit rate for the selected recording type on the left
and the sub-stream on the right.
6. Under Audio/Video, check the box on the left to enable audio recording (camera must
have microphone attached). Check the box in the middle to enable audio streaming to
remote users. Check the box on the far right to enable video streaming to remote users
(un-check to hide the channel from remote users.
7. (Optional) To copy settings to other channels, click Copy, select channels to apply settings to, and click OK.
8. Click OK to save changes.
#; r. 1.0/11603/11605; en-US
31
14
Using the Main Menu
14.2.3
Schedule
The Schedule sub-menu allows you to configure the recording schedule for continuous
and motion recording. It also allows you to configure holiday, pre-recording, and mirroring
settings.
Note
To use motion recording, motion detection must be enabled for the channel. For details, see 14.2.14 Motion, page 38.
1. Under Channel, select the channel you would like to configure or select All.
2. Under Period, select the day of the week you would like to configure, or select Holiday
or All.
3. Configure up to 6 separate schedule periods.
• Configure the start and end time for the time period on the left.
• Check the types of recording that will apply to the time period on the right: Continuous, MD (Motion Detection), Alarm, or MD&Alarm.
• A visual representation of the current schedule is shown below.
4. (Optional) Click Copy to copy the selected schedule to other channels. Select the
channels you would like to copy to and click OK.
5. Click OK to save changes.
14.2.4
Configuring Pre-Recording and Mirror Recording
Pre-recording determines the amount of time the system will record before events. Mirroring allows the camera to record simultaneously to a secondary mirror hard drive and primary recording hard drive.
Note
Secondary hard drive must be installed and configured to use mirror recording function.
To configure pre-recording and mirror recording:
1.
2.
3.
4.
Under Channel, select the camera you would like to configure or select All.
Under PreRecord, select the duration for pre-recording.
Check Mirroring to enable mirror recording for the selected channel.
Click OK to save settings.
14.2.5
Configuring Holidays
Holiday settings allow you to configure a special recording schedule on certain days.
#; r. 1.0/11603/11605; en-US
32
14
Using the Main Menu
To configure holidays:
1. Check the checkbox next to Holidays Setting to enable holidays.
2. Click Holidays Setting.
3. Click days in the calendar to enable them as holidays. Selected holidays are highlighted in blue.
4. Click OK. Click OK to save changes.
14.2.6
Network
The Network sub-menu allows you to configure network settings.
14.2.7
Configuring DHCP or Fixed IP Address
1. From live view, right-click and select Main Menu. Login if prompted.
2. Click Setting>Network.
3. Check DHCP to use DHCP or un-check to use a static IP address. If you un-check
DHCP, configure the following:
•
•
•
•
•
IP Address.
Subnet Mask.
Gateway.
Preferred DNS.
Alternate DNS.
4. Click Save to save your changes. Restart the system to update the IP address.
14.2.8
Configuring System Ports
The system uses the following ports:
#; r. 1.0/11603/11605; en-US
33
14
Using the Main Menu
• TCP Port (Client Port): Used for remote video streaming to computers and mobile devices. The default port number is 35000.
• HTTP Port: Used to enable connection to the system’s web browser interface. The default port number is 80.
• UDP Port: Used for special applications. The default port number is 35001.
• RTSP Port: Used for special applications. The default port number is 554.
Note
You must port forward the TCP (Client) Port and HTTP Ports to enable remote access to the system.
To configure ports:
1. Configure the TCP Port (Client), HTTP Port, UDP Port, and RTSP Port fields as
needed.
Note
Please note that if the HTTP is port is anything other than 80, you must enter http:// before the camera’s IP address and colon (:) and the HTTP port after the IP address when connecting using an Internet browser (e.g. if the HTTP port is 85, enter http://192.168.x.x:85).
2. Click Save. The system will restart to update the ports used.
14.2.9
Configuring NTP
You can sync the system clock with an Internet NTP time server.
To sync the system with a time server:
1.
2.
3.
4.
Click Network Setting.
Check NTP.
Double-click NTP to open the configuration menu.
Configure the following:
•
•
•
•
Under Server IP, enter the IP or DNS address of the NTP server.
Under Port, enter the NTP server port number.
Under Time Zone, select your time zone.
Under Update Period, enter the interval your system will sync the time with the selected server.
5. Click Manual Update to test the server settings entered and manually sync the system
time.
6. Click OK. Click Save to save your changes.
#; r. 1.0/11603/11605; en-US
34
14
Using the Main Menu
14.2.10
Configuring DDNS
The DDNS Setup window allows you to enter your FLIR DDNS settings in the NVR. This
step is required for remote access.
Prerequisites:
• Create a DDNS account. For details, “Appendix D: Setting Up DDNS Service” on
page 98.
• Port forward ports on your router to NVR’s IP address (by default, ports 35000 and 80).
• Have your DDNS account name, password, and domain name ready.
To configure DDNS settings:
1.
2.
3.
4.
5.
Click Network Setting.
Check DDNS.
Double-click DDNS.
Ensure Enable is checked. The box will be white when DDNS is enabled.
Under Domain Name, enter the Domain Name from the confirmation email you received after registering for DDNS.
6. Under User ID, enter the User Name from the confirmation email.
7. Under Password, enter the Password from the confirmation email.
8. Click OK.
9. Click OK.
10. Click Save.
14.2.11
Connecting to your system
After you have port forwarded the required port, created a DDNS account, and enabled
DDNS on your system, you must enter the DDNS URL into Internet Explorer to access
your NVR.
The DDNS URL must include http:// , the name of your DDNS URL, followed by a colon,
then the HTTP port of your NVR.
For example:
http://tomsmith.myddns-flir.com:80
Note
If you change your HTTP port number (port 80) to a different port, you must enter your port number after
the DDNS address
#; r. 1.0/11603/11605; en-US
35
14
Using the Main Menu
14.2.12
Configuring Email Alerts
You can configure the system to send out email alerts for motion detection or other events.
Note
To send out motion detection alerts, you must enable the Send Email option for motion detection on each
camera. For details, see 14.2.15 Configuring Motion Detection Events, page 38.
To configure Email Alerts:
1.
2.
3.
4.
From live view, right-click and select Main Menu. Log in if prompted.
Click Setting>Network.
Click Network Setting.
Check Email. Double-click Email.
#; r. 1.0/11603/11605; en-US
36
14
Using the Main Menu
5. Configure the following:
• SMTP Server: Enter the SMTP server address.
• Port: Enter the port used by the SMTP server.
• Anonymous: Check if your server supports anonymous log ins. Otherwise, leave
this unchecked.
• User Name: Enter the SMTP user name.
• Password: Enter the SMTP password.
• Receiver: Enter the email address that will receive alerts.
• Sender: Enter the sender’s email address.
• Attachment: Check to include a jpg image attachment of the camera.
• Title: Enter the subject line for email alerts.
• Encrypt Type: Select SSL or TLS if your server uses encryption. Select None if
your server does not use encryption.
• Event Interval: Enter the interval between alert emails.
• Health Enable: Check to enable health check emails. Health check emails will be
sent periodically to ensure that the system is functioning normally.
• Interval: Enter the interval in minutes for health check emails.
6. Click Test to send a test email.
7. Click OK.
8. Click Save to save settings.
14.2.13
Configuring Switch Settings
You can configure the networking settings for the internal PoE switch.
CAUTION
Changing this information from the default values may disrupt the connection to the cameras. Make sure
your IP cameras are using DHCP or IP addresses that are compatible with your selected settings.
#; r. 1.0/11603/11605; en-US
37
14
Using the Main Menu
To configure switch settings:
1.
2.
3.
4.
Click Network Setting.
Double-click Switch Settings.
Configure the IP Address, Subnet Mask, and Gateway for the internal PoE switch.
Click OK. Click Save to save changes. The system will restart.
14.2.14
Motion
The Motion sub-menu allows you to configure settings for motion detection.
14.2.15
Configuring Motion Detection Events
Motion Detection events allow the system to mark footage that has motion. This allows
you to quickly locate relevant footage through Search. You can also configure system responses to motion detection events, such as activating the system buzzer or sending an
email alert.
To configure Motion Detection events:
CAUTION
Using the Copy button in the Motion menu will copy all settings, including the Record Channel setting.
This means that motion detection may not trigger the correct channel to record.
1.
2.
3.
4.
Under Event Type, select Motion Detect.
Under Channel, select the channel you would like to configure.
Check Enable to enable motion detection on the selected channel.
Click Select next to Region to configure which areas of the image will be enabled for
motion detection. A grid will appear over the camera’s live view.
Motion Grid
Areas enabled for motion detection are shown in red and areas that are disabled are transparent. Click
and drag to enable or disable areas for motion detection. Right-click when finished.
#; r. 1.0/11603/11605; en-US
38
14
Using the Main Menu
5. Under Sensitivity, select the motion detection sensitivity between 1 (lowest) and 6
(highest).
6. Under Anti-dither, enter the anti-dither time. After a motion event occurs and motion
stops, if motion is detected within the anti-dither time, the system continues the motion
event and includes the new motion within the first event, rather than creating a new
motion event.
7. Under Delay, enter the post-recording time.
8. To configure a schedule when motion detection will be enabled on this channel, click
Set next to Period. Configure times when motion detection will be enabled. For example, you may want to disable motion detection during business hours and enable it outside of business hours. Click OK when finished.
Note
This setting can override scheduled motion recording. This means that motion recording will only
take place at times that are enabled both in the Schedule menu and here.
9. Configure the following system actions when motion is detected:
• Show Message: Check to enable an on-screen pop-up. On-screen pop-up shows
the channels an event occurred on and the type of event.
• Send Email: Check to enable email alerts. You must configure email alerts before
you will be able to receive them (see 14.2.12 Configuring Email Alerts, page 36).
• Record Channel: Select the channels that will record when motion is detected on
the selected channel.
• Buzzer: Check to enable the system buzzer.
• Snapshot: Check to attach a .jpg image of the camera when sending email alerts.
10. Click Save to save changes.
14.2.16
Display
The Display sub-menu allows you to configure the system’s display settings, such as the
monitor resolution.
#; r. 1.0/11603/11605; en-US
39
14
Using the Main Menu
To configure display settings:
1. Configure the following, as needed:
• Transparency: Select the menu transparency between 128 (lowest) and 255
(highest).
• Channel Name: Click Modify and enter names for your IP cameras. Click Save
when finished.
• Time Display: Check to enable system time display.
• Channel Display: Check to enable camera title display.
• Resolution: Select the correct resolution for your monitor. The system will reboot
when you save changes.
• Image Enhance: Check for the system to digitally improve the video quality on the
live display. This setting does not affect recordings.
• Enable Sequence: Check to enable Sequence mode. When Sequence mode is
activated, the system will cycle through enabled views and a (arrows) icon is shown
on screen. You can click this icon to pause Sequence mode.
• View 1/View 4/View 8: Check to enable views to be shown in Sequence mode.
View 1 allows you to enable/disable specific channels in Sequence mode. Other
View options allow you to enable/disable views based on pages. On 8-channel
models for example, View 4 #1 represents channels 1~4 and #2 represents channels 4~8.
Note
Available options depend on the number of channels your system has.
• Dwell: Enter the Dwell time in seconds. The Dwell time is the amount of time views
are shown on screen before changing in Sequence mode.
• Motion Sequence Type: Select the view type that will be viewed when motion is
detected.
2. Click Save to save changes.
14.2.17
Default
The Default sub-menu allows you to reset the system to factory default settings.
Note
Resetting to factory defaults does not reset user accounts or passwords.
To reset the system to factory default settings:
1. Check the menus you would like to reset to default settings.
2. Click OK.
#; r. 1.0/11603/11605; en-US
40
14
Using the Main Menu
14.3 Device Search
The Device Search menu allows you to manage connections to your IP cameras. SyncroIP
cameras connected to the PoE (Power over Ethernet) Ports will automatically be detected
by your NVR. Device Search also allows you to search for IP cameras connected to the
LAN. Some configuration may be required to connect IP cameras from other
manufacturers.
Note
For a list of 3rd party IP cameras supported, visit www.flirsecurity.com/pro.
14.3.1
Adding Cameras from the LAN
1. Connect the camera to a router or switch on the same network as the NVR.
2. Right-click and select Device Search. Log in using the admin account (the default
user name is admin and the default password is 000000).
3. Click IP Search. The NVR scans your LAN for compatible IP cameras.
4. Check the camera(s) you would like to add and click Add.
5. If the Status indicator is green, the camera is connected and no further configuration is
required. Click OK to save changes.
#; r. 1.0/11603/11605; en-US
41
14
Using the Main Menu
6. If the Status indicator is red, click
•
•
•
•
•
. Update the following information, as needed.
Manufacturer: Select the manufacturer of your IP camera.
User: Enter the camera’s user name.
Password: Enter the camera’s password.
RTSP Port: Enter the camera’s RTSP Port.
HTTP Port: Enter the camera’s HTTP Port.
Note
See the manufacturer’s user manual for your IP camera for the default user name, password, etc.
7. Click OK. Click OK again to save changes.
14.3.2
Manual Add
If the IP address of your IP camera does not appear when you run IP search, ensure that
the camera is connected to the same LAN as the NVR or is connected to the PoE Ports.
You may attempt to manually connect IP cameras using Manual Add.
#; r. 1.0/11603/11605; en-US
42
14
Using the Main Menu
To manually add a camera to the NVR:
1. Click Manual Add. Configure the following:
•
•
•
•
•
•
IP Address: Enter the IP address of your IP camera.
Manufacturer: Select the manufacturer of your IP camera.
User: Enter the camera’s user name.
Password: Enter the camera’s password.
RTSP Port: Enter the camera’s RTSP Port.
HTTP Port: Enter the camera’s HTTP Port.
Note
See the manufacturer’s user manual for your IP camera for the default user name, password, etc.
2. Click OK. Click OK again to save changes.
14.3.3
Editing Cameras
If the Status indicator on cameras connected to the NVR via PoE or LAN is red or if you
change the connection details for your IP cameras, you will need to update this
information.
To edit cameras:
1. Click
next to the camera you would like to edit.
2. Configure the connection information as needed.
3. Click OK. Click OK again to save changes.
14.3.4
• Click
Deleting Cameras
next to the camera you would like to delete.
#; r. 1.0/11603/11605; en-US
43
14
Using the Main Menu
14.4 Advanced
Configure HDD, user accounts, and error functions. Configure auto-restart. Save/restore
system configuration. Access Recording Menu.
14.4.1
HDD Management
HDD Management allows you to format hard drives and manage hard drive settings. The
top right corner shows hard drive status.
• O: Normal hard drive operation.
• X: Hard drive error.
• -: Hard drive is not installed.
14.4.2
Formatting Hard Drives
You must format hard drives before you may use them with the system.
CAUTION
Formatting the HDD erases all data on the hard disk. This step cannot be undone. System settings will
not be erased.
To format a hard drive:
1. From Live View, right-click and select Main Menu>Advanced>HDD Management.
#; r. 1.0/11603/11605; en-US
44
14
Using the Main Menu
2. Configure the following:
1
2
3
2.1.
2.2.
2.3.
14.4.3
Under HDD No., select the hard drive you would like to format. Information about the hard drive
appears in the lower section of the menu.
Under Set to, select Format.
Click Apply. Click OK to confirm. Wait for the hard drive to format. Hard drives become Read/
Write hard drives by default when formatted.
Selecting Hard Drive Types
The system supports the following hard drive types:
• Read/Write: Normal recording hard drive.
• Read only: Do not record on the hard drive.
• Mirroring: Record in parallel to Read/Write hard drive for cameras enabled for mirroring. This allows you to create automatic backups of recordings.
Note
Mirroring must be enabled in the schedule (for details, see 14.2.3 Schedule, page 32).
Mirroring begins backing up data starting when the hard drive is configured for mirroring.
To select hard drive types:
1.
2.
3.
4.
Under HDD No., select the hard drive you would like to format.
Under Set to, select the hard drive type.
Click Apply.
Right-click to exit the HDD Management menu. The system will restart.
14.4.4
Configuring Hard Drive Group Settings
Hard drive group settings allows you to balance recordings for your IP cameras across
multiple hard drives.
To configure hard drive group settings:
1. Click HDD Setting.
#; r. 1.0/11603/11605; en-US
45
14
Using the Main Menu
2. Under HDD Group select the group number you would like to assign to each hard
drive.
3. Click OK. The system will restart.
4. Return to the HDD Manage menu (right-click>Main Menu>Advanced>HDD Manage).
Click HDD Channel.
5. For each channel, select the hard drive group you would like it to record to.
6. Click OK.
14.4.5
Warning
The Warning sub-menu allows you to configure actions taken when system errors occur.
#; r. 1.0/11603/11605; en-US
46
14
Using the Main Menu
To configure system error actions:
1. Under Event Type, select one of the following system errors to configure: No Disk,
Disk Error, Disk No Space, Net Disconnection, IP Conflicted, or MAC Conflicted.
2. Check Enable to enable warnings for the selected Event Type.
3. Configure the following actions that will be taken when errors occur:
• Show Message: Check to show pop-up window with information related to the
error.
• Send Email: Check to enable email message. You must configure email alerts before you will be able to receive them.
• Buzzer: Check to enable system buzzer.
4. Click Save to save changes.
14.4.6
Record
The Record menu is used control manual recording for connected cameras.
The Record menu is divided into the following sections:
• The Record Mode section defines settings for the main (high quality) recording stream.
• The Substream section defines settings for an optional lower quality recording stream.
This is useful because you can record the substream to the hard drive and stream it for
playback to remote devices. This saves bandwidth during remote playback.
Note
Enabling Substream Recording is required to use playback mode on a smartphone or tablet. Substream Recording will increase the amount of disk space required for recording.
To configure manual recording:
1. Right-click in live view and select Record. Log in if prompted.
OR
Click Main Menu>Advanced>Record. Log in if prompted.
2. Under Record Mode, select the main stream recording option under each camera or
under All to configure all cameras:
• Schedule: Camera will record according to settings configured in the schedule.
• Manual: When selected, the camera will use continuous recording.
• Stop: When selected, the camera will not record.
3. Under Substream, configure recording options for the substream.
4. Click OK to save changes.
#; r. 1.0/11603/11605; en-US
47
14
Using the Main Menu
14.4.7
Account
The Account sub-menu allows you to configure user accounts. Accounts are organized into groups, and receive permission to access system functions based on their group’s settings. By default, the following user groups are configured on the system:
• admin: Accounts in the admin group are system administrators. They have full access
to the system, may configure all system settings, and can manage user accounts.
• user: Accounts in the user group are normal users. They have limited access to system
menus.
14.4.8
Adding Accounts
1. Click Add User.
2. Configure the following:
• User: Enter a user name for the account.
• Memo (Optional): Enter comments for the account.
• Password: Enter a password for the account. Repeat password under Confirm.
Note
User passwords must be 6 characters.
• Reusable: Check to enable multiple users to connect using this account.
• Group: Select the group that the account will be included in.
#; r. 1.0/11603/11605; en-US
48
14
Using the Main Menu
3. In the bottom portion of the screen, select the permissions that will apply to the user.
By default the account will have all permissions that are enabled for its group. An account cannot have more permissions than its group.
4. Click Save to save changes.
14.4.9
Modifying Accounts
Admin accounts may modify the user name, password, and permissions of user accounts.
User accounts may modify their own password.
To modify account settings:
1. Click the account in the list.
2. Click Modify User.
3. Under User, select the account you would like to modify.
4. Configure the account settings and permissions as necessary and then click Save.
To modify an account password:
1. Click Modify Password.
2. Under User, select the account you would like to modify.
3. Under Old Password, enter the account’s previous password.
4. Under New Password, enter the new password for the account. Repeat it under
Confirm.
5. Click Save.
14.4.10
Deleting Accounts
1. Click the account in the list.
#; r. 1.0/11603/11605; en-US
49
14
Using the Main Menu
2. Click Modify User.
3. Under User, select the account you would like to delete.
4. Click Delete then click OK to confirm.
14.4.11
Adding Groups
Groups allow you to easily manage permissions for multiple user accounts. A user account
by default has all permissions available to the group it is in, and it cannot be given permissions the group does not have.
To add a group:
1. Click Add Group.
2. Under Name, enter a name for the group.
3. (Optional) under Memo, enter comments for the group.
4. Configure group permissions as needed. Note that any user accounts added to the
group may not be given any permissions that are not selected.
5. Click Save.
14.4.12
Deleting Groups
1. Click Modify Group.
2. Under Group, select the user group you would like to delete.
3. Click Delete and then click OK to confirm.
14.4.13
Modifying Groups
1. Click Modify Group.
2. Under Group, select the user group you would like to modify.
#; r. 1.0/11603/11605; en-US
50
14
Using the Main Menu
3. Update group settings as needed and then click Save.
14.4.14
Auto Maintain
The Auto-Maintain sub-menu allows you to configure your system to automatically reboot
once a day or once a week. For system stability, it is recommended to enable autorebooting.
The Auto-Maintain sub-menu also allows you to set the system to automatically delete files
that are older than a specified number of days.
To configure Auto Maintain settings:
1. Under Auto-Reboot System, select the day of the week you would like the system to
reboot on, select Everyday to reboot the system everyday, or select Never to disable
auto-rebooting. On the right, select the time of day you would like the system to reboot.
2. Under Auto-Delete Old Files, select Never to disable auto-deleting of old recordings
or select Customized to enable auto-deleting.
• If you select Customized, enter the number of days the system will retain recordings.
Note
The system must have sufficient storage space to keep recordings for the specified duration.
3. Click OK to save changes.
14.4.15
Config Backup
The Config Backup sub-menu allows you to export your system configuration to a USB
flash drive (not included) or to import a saved configuration. You can import a saved configuration from another NVR of the same model and channel configuration.
#; r. 1.0/11603/11605; en-US
51
14
Using the Main Menu
To export the system configuration to a USB flash drive:
1.
2.
3.
4.
Insert a USB flash drive into one of the USB ports on the system.
Right-click and select Main Menu>Advanced>Config Backup.
Check the USB flash drive you would like to export to in the list.
Click Export.
To import a saved system configuration:
1. Insert a USB flash drive with a saved system configuration into one of the USB ports
on the system.
2. Right-click and select Main Menu>Advanced>Config Backup.
3. Check the USB flash drive with the saved system configuration file.
4. Click Import.
5. Click OK. The system will restart.
#; r. 1.0/11603/11605; en-US
52
14
Using the Main Menu
14.5 Shutdown
Use the Shutdown menu to shutdown, restart, or log out of the system.
To access the Shutdown menu:
1. From live view, right-click and select Main Menu. Login if prompted.
2. Click Shutdown.
3. Select one of the following:
• Logout menu user: Log out the account that is currently active.
• Switch user: Log out the account that is currently active, and sign in with a new
account.
• Shutdown.
• Restart system.
4. Click OK to complete the selected action.
#; r. 1.0/11603/11605; en-US
53
15
FLIR SyncroIP NVR CMS Central
Management Software
FLIR SyncroIP NVR CMS is a central management software that allows you to view and
manage multiple NVRs and IP cameras.
15.1 System Requirements
Your system must meet or exceed the system requirements below:
Description
Requirement
CPU
Core 2 Duo 3.0GHz
Operating System
Windows™ 8/7/Vista
Memory
2GB
Video
512 MB of video memory and above
Network (LAN)
10/100 BaseT Network
Network (WAN)
1 Mbps upstream.1
Note
To connect to your system on Mac, please visit www.flirsecurity.com/pro for instructions.
15.2 Prerequisites
• Port forward the Client and HTTP ports (default 80 and 35000) on the router that the
NVR or IP camera is connected to.
• Create a DDNS account.
• Enable DDNS in the NVR or IP camera.
• Enter the DDNS information into the NVR or IP camera.
• NVR or IP camera must have access to the Internet or Local Area Network (LAN).
15.3 Installing FLIR SyncroIP NVR CMS
Install FLIR SyncroIP NVR CMS from the CD included with your system or by downloading
it from www.flirsecurity.com/pro. It is recommended to visit the website for the latest software versions.
To start the software:
• Double-click the FLIR SyncroIP NVR CMS icon (
) on the desktop.
• Click Login.
1. High-speed Internet service is required to remotely connect to your system.
#; r. 1.0/11603/11605; en-US
54
15
FLIR SyncroIP NVR CMS Central Management Software
Note
The CMS default User Name is admin and the Password is admin.
15.4 Adding a NVR or IP Camera from the Local Area Network (LAN)
Once you open the software, you can add a NVR or IP camera.
Prerequisites:
• Connect the NVR or IP camera to a router or switch on the network.
• Install the CMS on a computer in the same LAN as the NVR or IP camera.
To add a NVR or IP camera:
1. Click Config Manager>Device Manage.
2. Click Search Device. If a Windows Firewall alert appears, click Allow.
3. Check the NVR or IP camera and click Add Management.
#; r. 1.0/11603/11605; en-US
55
15
FLIR SyncroIP NVR CMS Central Management Software
4. Enter the system’s user name and password (default user name for this system is adminand default password is 000000) and click OK.
5. Click OK.
6. Click Device List.
7. Perform the following steps to open the NVR or IP camera:
1
2
3
7.1.
7.2.
7.3.
Click + next to No Group.
Double-click the NVR or IP camera.
Click-and-drag the NVR or IP camera to the display area to view.
15.5 Adding a NVR or IP Camera Using a DDNS Address
If you have systems with DDNS set up, you can add them to the CMS.
Prerequisites:
• Create a DDNS account. For details, 20 Setting Up DDNS Service, page 111.
• Enter the DDNS information into the NVR or IP camera locally.
• Port forward the Client and HTTP ports (default: ports 80 and 35000) on the router.
#; r. 1.0/11603/11605; en-US
56
15
FLIR SyncroIP NVR CMS Central Management Software
To add a system using a DDNS address:
1. Click Config Manager>Device Manage.
2. Click Manual Add.
#; r. 1.0/11603/11605; en-US
57
15
FLIR SyncroIP NVR CMS Central Management Software
3. Configure the following:
1
2
3
4
5
6
7
3.1.
3.2.
3.3.
3.4.
3.5.
3.6.
3.7.
4.
5.
6.
7.
Title: Enter a name for your system of your choice (e.g. home or office).
Type: Select NVR for NVRs or IP Camera for IP cameras.
Add Type: Select Domain Name for NVRs or Single Device for IP cameras.
Domain Name: Enter the Domain Name from the confirmation email after your
registered for DDNS, followed by .myddns-flir.com.
Port: Enter the Client Port (default: 35000).
User: Enter the system’s user name (default for this system:admin).
Password: Enter the system’s password (default for this system: 000000).
Click Add, then click OK.
Click Device List.
Click + next to No Group.
Perform the following steps to open the NVR:
7.1.
7.2.
7.3.
Click + next to No Group.
Double-click the NVR or IP camera.
Click-and-drag the NVR or IP camera to the display area to view.
1
2
3
#; r. 1.0/11603/11605; en-US
58
15
FLIR SyncroIP NVR CMS Central Management Software
15.5.1
CMS Live Viewing Overview
4
1
5
6
2
3
1. Camera Controls:
1
1.1.
1.2.
1.3.
1.4.
1.5.
1.6.
2
3
4
5
6
Digital zoom: Click and drag to zoom.
Change display mode.
Manual record.
Snapshot.
Mute.
Disconnect.
2. Live View Toolbar:
1
2.1.
2.2.
2.3.
2.4.
2
3
4
Select image quality.
Latency/fluency.
Full-screen.
Display views.
3. CMS Quick Menus: Click to access key CMS and NVR or IP camera functions, such
as Playback, event search (Alarm Rec), E-Map, and software configuration (Config).
#; r. 1.0/11603/11605; en-US
59
15
FLIR SyncroIP NVR CMS Central Management Software
4. CMS Window Controls:
1 2
4.1.
4.2.
4.3.
4.4.
4.5.
3 4
5
Lock CMS.
Full menu.
Minimize.
Maximize/restore.
Quit.
5. Device List: Open NVRs and IP cameras in live display.
• Click + next to NVRs or Groups to expand.
• Click and drag NVRs, Groups, or IP cameras to the display area to open.
• Right-click NVRs, Groups, or IP cameras to view system options.
6. CMS Menus:
• PTZ Direction: Access basic PTZ controls.
• PTZ Advanced: Access advanced PTZ controls (e.g. Auto Scan, Tour, etc.).
• Tools: Contains the following menus: Begin Record Plan, NVD Control, Health Report, Log Search, Alarm Video, Alarm Output, Color Config, Volume.
• Config Manager: Contains the following menus: Scheme Task Config, Record Plan
Config, Alarm Config, Alarm Rec Config, E-Map Config, DecCard Config, User
Manage, Device Manage, Ext Screen Manage, User Config.
15.6 Using Alarm Rec (Event Search)
Alarm Rec allows you to search for events saved on the system.
To use Alarm Rec:
1. Click Alarm Rec (
).
2. At the top of the screen, select the alarm type you would like to search.
#; r. 1.0/11603/11605; en-US
60
15
FLIR SyncroIP NVR CMS Central Management Software
3. Configure the following:
•
•
•
•
Check Search
Under Device, select the system and channel you would like to search.
Enter the Start time and the End time for the search.
Click Search.
4. Click Search. A list of relevant alarms appears below.
15.7 Using Playback Mode
You can view recorded footage from your systems in the CMS software.
To use playback mode:
1. Click Playback (
).
2. Under Device, select the system and channel you would like to search.
• Check Multiple channel to playback video from multiple cameras. Select camera
and then click Add. Repeat to add additional cameras.
3. Under Parameter, select the start and end time for the search.
4. Click Search.
#; r. 1.0/11603/11605; en-US
61
15
FLIR SyncroIP NVR CMS Central Management Software
5. Select one of the following:
• Check video files to select and click Play to open.
• Click Download to download the video files to the local computer.
• Click To AVI to convert the video files to AVI and save to your local computer.
Note
You must stop playback before you may download video files.
0
15.7.1
Playback Controls
5
1 2 3 4
1.
2.
3.
4.
5.
Pause/play.
Stop.
Fast.
Slow.
Playback bars: Click and drag to select playback time. Use the top bar to select minutes and the bottom to select hours.
15.8 Configuring Monitoring Tasks and Projects
Tasks are used to configure the CMS to automatically cycle through different channel arrangements. Projects are used to automatically cycle through multiple tasks.
15.8.1
Configuring Tasks
1. Click Config Manager>Scheme Task Config.
#; r. 1.0/11603/11605; en-US
62
15
FLIR SyncroIP NVR CMS Central Management Software
2. Select the Monitor Task tab.
3. Click New.
4. Enter a Task Name of your choice.
5. Under Window, select the split-screen mode you would like to show in the task.
#; r. 1.0/11603/11605; en-US
63
15
FLIR SyncroIP NVR CMS Central Management Software
6. Under Monitor Item, configure the following:
0
• Window: Select the display window you would like to configure.
• Stream Type: Select Main Stream or Extra Stream to view the substream.
• Device: Click and drag the camera from the Device List in the main CMS window to
the field to add it.
7. Click Add. Repeat Steps 6 & 7 to configure additional screens.
8. Click OK. Click OK to save changes.
15.8.2
Configuring Projects
Once you have multiple tasks set up, you can configure projects to automatically cycle
through them.
To configure a project:
1. Click Config Manager>Scheme Task Config.
#; r. 1.0/11603/11605; en-US
64
15
FLIR SyncroIP NVR CMS Central Management Software
2. Click Monitor Project.
3. Click New.
4. Enter a Name for the project.
CAUTION
You may not change the name after the project is created.
5. Under Mode, select Tour Mode or Schedule Mode. Tour Mode will cycle through
tasks on a fixed interval. Schedule Mode will switch tasks at a pre-defined time of the
day.
6. Under Task Name, select the task you would like to add to the project.
• If you select Tour Mode, enter the Interval Time in minutes that the task will run for
before changing to the next task.
• If you select Schedule Mode, enter the time of day when the task will start running.
7. Click Add.
8. Repeat steps 6-7 for each additional task you would like to add to the project.
9. Click OK. Click OK to save changes.
#; r. 1.0/11603/11605; en-US
65
15
FLIR SyncroIP NVR CMS Central Management Software
15.8.3
Running Tasks and Projects
• Once you have configured tasks or projects, you may run them by clicking Task (
and then selecting the task or project you would like to run.
)
• You may also select a task or project to run when you first launch the CMS. For details, .
15.9 Using E-Map
The E-Map feature allows you to visually map your cameras over a .jpg image.
15.9.1
Configuring E-Map
Use the steps below to select a .jpg image to use for the E-Map and place your cameras.
To configure the E-Map:
1. Click Config Manager>E-Map Config.
2. Click Picture Edit.
3. Click Add.
4. Click Browse. Select a .jpg image on your computer to use as the E-Map.
#; r. 1.0/11603/11605; en-US
66
15
FLIR SyncroIP NVR CMS Central Management Software
0
5. Enter a Name and Title for your E-Map of your choice.
6. Click OK.
7. Click Pic.
0
Home
8. Click-and-drag the picture to the window to use it for the E-Map.
9. Click Device to view a list of connected NVR’s.
10. Click + next to an NVR. To place cameras, drag cameras from the list to the map.
11. Click Save.
Note
To delete all E-Map data, including images and camera positions, click Clear E-Map.
15.9.2
Opening Cameras from E-Map
Once you have configured your E-Map, you can use it to open cameras in live display.
#; r. 1.0/11603/11605; en-US
67
15
FLIR SyncroIP NVR CMS Central Management Software
0
To open cameras from E-Map:
1. Click E-Map (
). Click on a display area in the main CMS window.
2. Double-click on the camera to open it in the selected display area.
1
2
15.10
Configuring the CMS
You can configure settings for the CMS such as the admin password, recording directories, and start up settings through the Config menu.
To configure CMS options:
1. Click Config(
)>Options.
2. Configure the following:
• Verify password: Check to require passwords when logging into or closing the CMS.
• Log in all devices: Check to allow the CMS to log into all sytems when it opens.
• Auto start record plan: Check to have the CMS automatically start the record plan,
which allows recording to the computer hard drive when it opens. To configure the record plan, click Config Manager>Record Plan Config.
#; r. 1.0/11603/11605; en-US
68
15
FLIR SyncroIP NVR CMS Central Management Software
• Auto Login FLIR SyncroIP NVR CMS: Check for the CMS to automatically log in the
admin account when it is opened.
• Hotkey Setup: Configure hotkeys for the CMS. Use the drop-down menu to select the
command, and then click inside the box on the right and enter the hotkey.
Note
Do not use F12 as a hotkey. F12 is reserved for the system debug command.
• Displayed items in the right bar: Select which right-side menu is opened when the
CMS opens.
• Record Time (M): Select the length in minutes of video files recorded on your computer hard drive. For example, if you select 15 minutes, the system will save a new video file for every 15 minutes of recording.
• Snapshot picture path: Click ... to select the default save folder for snapshots.
• Picture file name rule: Click ... to define the file name rule for snapshots.
• Recorded file path: Click ... to select the default save folder for manual recordings.
• Recorded file name rule: Click ... to select the file name rule for manual recordings.
• Downloaded file path: Click ... to select the folder for downloaded recording files.
• Download record file name rule: Click ... to define the file name rule for downloaded
recording files.
• Device free minimum space (MB): Enter the amount of minimum space in MB to
maintain on the computer hard drive. The system will stop recording when only this
much space is left.
• Auto Start Project: Check for the CMS to automatically run a project when opened.
Select the project it will run under Project Name.
• Auto Start Task: Check for the CMS to automatically run a task when opened. Select
the task it will run under Task Name.
• Last Run: Check for the CMS to start the last used task or project when opened.
• Save last monitor status: Check to have the CMS restore the previously used display
mode when opened.
• Auto sync PC time to device: Check to have the NVR sync the clock with the system
time on the PC.
• Sync time becomes valid at: Select the time that the NVR will sync its clock with the
PC’s system time.
• Week: Select days that the NVR will sync its clock with the PC’s system time.
• Auto reboot device: Check to enable the NVR to reboot when the time sync occurs.
3. Click Ok to save changes. Close the CMS and restart it to update the configuration.
15.10.1
Changing the CMS Admin Password
You can change the admin password that is used to log into the CMS. The default password is admin.
Note
The CMS will automatically populate the admin password unless you enable Verify Password under
Config>Options.
To change the CMS admin password:
1. When logged in as the admin account, click Config(
)>Modify Password.
2. Under Old Password, enter the old password.
#; r. 1.0/11603/11605; en-US
69
15
FLIR SyncroIP NVR CMS Central Management Software
3. Under New Password and Confirm Password, enter the new password.
4. Click OK.
15.11
Adding User Accounts to the CMS
You can create multiple user accounts to the CMS with varying levels of access to the system. These user accounts are only used for access to the CMS software and are separate
from the passwords on the individual NVR or IP camera systems.
Note
To make sure users must enter their user name and password to access the CMS, you must make sure
Verify User is checked and Auto Login is unchecked in Config>Options. For details, .
To add a user account to the CMS:
1. Click Config Manager>User Manage.
2. Click Add.
3. Configure the following:
• User: Enter the user name for the account.
• Password/Confirm: Enter the password for the account.
• Name/Sex/Information: (Optional) Enter descriptive details about the user
account.
• Right: Check the permissions that will apply to the user account.
4. Click Save. Click OK to save changes.
15.12
Multi-Monitor Support
The CMS supports up to 4 monitors on a single system. The recommended system specifications are listed below. If your system does not meet the requirements below, you may
experience slow system performance.
#; r. 1.0/11603/11605; en-US
70
15
FLIR SyncroIP NVR CMS Central Management Software
Minimum system recommendations to run the CMS on multiple monitors:
• Intel Core i5 or i7 processor.
• 6 GB of RAM.
• Geforce 9500GT video card, 1GB or greater.
15.12.1
Opening Cameras in Secondary Monitors
• To open a single channel on a secondary monitor: Open it in a window on the main
screen, then right-click on the display area, and select Output current window to extension screen. Select the monitor you would like to send the channel to.
• To open multiple-channels on a secondary monitor: Open your desired channel
view, then right click in the display area, and select Output all windows to extension
screen. Select the monitor you would like to send them to.
15.12.2
Managing Secondary Monitors
Use Ext Monitor Config to configure settings for secondary monitors. You can select which
monitors you would like to enable. Enabled monitors start up when you open the CMS
software.
You can close secondary monitors by clicking on them and then pressing ESC. However,
you must close the CMS software and restart it to re-open windows on secondary
monitors.
To manage secondary monitors:
1. Click Config Manager>Ext Screen Manager.
2. Click Search to detect secondary monitors or Identify to display the monitor number
assigned to each secondary monitor.
#; r. 1.0/11603/11605; en-US
71
15
FLIR SyncroIP NVR CMS Central Management Software
3. Check monitors to open them when the CMS software opens or uncheck to disable.
4. Click OK to save changes. Restart the CMS software to open the new monitor
configuration.
#; r. 1.0/11603/11605; en-US
72
16
Remote Viewing On Internet
Explorer
You can also view your system remotely using Internet Explorer (version 8 or later
required).
Note
Remote viewing is only compatible with Internet Explorer. Mozilla Firefox, Opera, Safari, and other browsers are not supported.
16.1 Prerequisites
• The HTTP Port (default: 80) and Client Port (default: 35000) must be port forwarded to
your router.
• You must create a DDNS account, and have the DDNS settings configured in your NVR.
For details, 20 Setting Up DDNS Service, page 111.
• The NVR must have internet access.
To view your system using Internet Explorer:
1. Open Internet Explorer. It is recommended to select Run as Administrator when
opening Internet Explorer to ensure full functionality.
2. In the address bar, enter your system’s IP address or DDNS address followed by the
HTTP Port (default: 80). For example, http://192.168.1.1:80 or
http://tomsmith.myddns-flir.com:80.
Note
You MUST include http:// in order to access your system.
3. An attention bar appears at the top or bottom of the screen to prompt you to install ActiveX plugins, click Install or Allow and follow the prompts to install the plugins.
4. Enter the system user name and password (by default admin / 000000).
5. Select LAN to connect using the main (high quality) stream. Select WAN to use the
substream to conserve bandwidth and for improved performance when connecting
over the Internet.
6. Click Login to log in.
#; r. 1.0/11603/11605; en-US
73
16
Remote Viewing On Internet Explorer
0
7. Click and drag cameras to the display window to view them live.
16.1.1
IE Live Display Overview
0
Note
Some options are not available in WAN mode.
1
5
2
6
3
4
1. Cameras: Click and drag to the display area to view.
2. Live View Controls:
• Open All: Click to open all cameras.
• Local Play: Open recorded or back up video files (.dav) saved on the local
computer.
• Refresh: Click this button to refresh monitor channel name.
#; r. 1.0/11603/11605; en-US
74
16
0
Remote
Viewing On Internet Explorer
3. Camera Controls:
1
3.1.
3.2.
3.3.
3.4.
2
3
4
Digital zoom: Click and drag to select the zoom area.
Manual record.
Snapshot.
Close.
Note
Manual Recordings are saved to C:\RecordDownload. Snapshots are saved to C:\PictureDownload.
You must select Run as Administrator when you open Internet Explorer to use these functions.
4. Live View Toolbar:
1
4.1.
4.2.
4.3.
4.4.
2
3
4
Select image quality.
Fluency/latency.
Full-screen.
Select display view.
5. PTZ Controls.
6. Color Settings: Use the sliders to adjust the brightness, contrast, saturation, and hue
for the selected camera.
16.1.2
Using Search Mode in IE (Playback)
You can access recorded video from your NVR using the Internet Explorer client.
To access recorded video from your NVR:
1. Click Search.
#; r. 1.0/11603/11605; en-US
75
16
Remote Viewing On Internet Explorer
2. Configure the following search options:
•
•
•
•
•
Type: Select the type of recording to search for.
Begin Time/End Time: Select the start and end for your search.
Channel: Select the channel you would like to search or select All.
Main Stream: Check to search for main stream recordings.
Substream: Check to search for Substream recordings. Substream recordings are
lower quality recordings that may be saved on the system to reduce the bandwidth
required for remote playback.
3. Click Search.
4. Under Multiple-channel Playback, select the channels you would like to playback.
5. Click a search result and then click Playback to open or Download to save the file to
your computer hard drive.
#; r. 1.0/11603/11605; en-US
76
17
Mobile Connectivity
The system is compatible with iPhone, iPad and Android devices.
Platform
Supported Versions
and Devices
App Name
Get App From
iOS
iOS v. 6.0 and higher
iPhone:
FLIR SyncroIP NVR
Apple App Store
iPhone/iPad (1st generation and above)
Android
Android v. 2.3.3 and
above
iPad:
FLIR SyncroIP NVR
HD
Phones:
FLIR SyncroIP NVR
Google Play Store
Tablets:
FLIR SyncroIP NVR HD
See www.flirsecurity.com/pro for the latest compatibility list.
17.1 iPhone
FLIR SyncroIP NVR is an iPhone app that allows you to remotely view your system.
17.1.1
System Requirements
• iOS 4.3 or later.
17.1.2
Prerequisites
• Port 80 and 35000 (or your HTTP and Client Ports, if you have changed them) must be
port forwarded to your router.
• You must create a DDNS account, and have the DDNS settings configured in your NVR
or IP camera.
• The NVR or IP camera must have internet access.
• You must have a DDNS address to log in remotely.
• An iTunes account.
Note
You will need to create an iTunes account before you can download the app. An iTunes store account requires a valid credit card number. The app is free of charge.
17.1.3
Connecting to your system on an iPhone
1. Download FLIR SyncroIP NVR for free from the App Store.
2. Tap on the FLIR SyncroIP NVR icon (
3. Tap
) to start the app.
.
#; r. 1.0/11603/11605; en-US
77
17
Mobile Connectivity
4. Tap Device Manager.
5. Tap Add>Manually Add.
6. Configure the following:
1
tomsmith.myddns-fl ir.com
2
3
4
5
6
6.1.
6.2.
6.3.
6.4.
6.5.
6.6.
Name: Enter a name for your system of your choice.
Address: Enter your DDNS address (e.g. tomsmith..myddns-flir.com).
Port: Enter the Client Port (default: 35000).
Username: Enter the system’s User Name (default: admin).
Password: Enter the system’s Password (default: 000000).
Channel: For NVRs, enter the number of channels your NVR has. For IP cameras, enter 1.
7. Tap Save.
8. Tap
.
9. Tap Live Preview.
#; r. 1.0/11603/11605; en-US
78
17
Mobile Connectivity
10. Tap + on one of the display areas and select the camera you would like to open in the
selected display area.
11. Repeat to view additional cameras.
17.1.4
Live View Interface
You can use FLIR SyncroIP NVR in portrait and landscape mode.
1
2
3
12
4
5
6
11
10
7
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
8
9
Back: Return to Main Menu.
Display area: Double-tap to open a channel in full screen.
Disconnect: Disconnect from camera.
Connect: Connect to camera.
Connect all: Connect to all previously added cameras.
Disconnect all: Disconnect from all cameras.
PTZ: Access PTZ controls (PTZ camera required).
Access Favorites.
Open image settings.
Manual record: Tap to start/stop manual recording.
Change camera.
Snapshot.
#; r. 1.0/11603/11605; en-US
79
17
Mobile Connectivity
17.1.5
Viewing Videos with Local File
0
If you have saved videos using the app, you may open them with Local File.
Note
You may open screenshots using the Photos app.
To access Local File:
• From the Main Menu, tap Local File.
Local File Controls
1
3
2
1.
2.
3.
Back: Return to Main Menu.
Files: Tap files to open.
Delete all files.
17.1.6
Using Playback Mode on iPhone
You can access recorded video on your system using your iPhone.
Note
You must enable Sub Stream Recording to use playback mode on mobile devices. For details on enabling Sub Stream Recording, see 14.4.6 Record, page 47.
To use Playback Mode:
1. From the Main Menu, tap Playback.
Note
If Playback is not shown, tap Add, check Playback, and return to the Main Menu.
#; r. 1.0/11603/11605; en-US
80
17
Mobile Connectivity
2. Tap +.
3. Select the start and end times to playback.
4. Select a channel to playback.
5. Use the on-screen controls to control playback.
#; r. 1.0/11603/11605; en-US
81
17
Mobile Connectivity
Playback Controls
1
2
3
7
6
4
5
1.
2.
3.
4.
5.
6.
7.
Display area: Double-tap to open in full-screen.
Play/pause.
Next: Select next video file.
Previous: Select previous video file.
Slow.
Fast.
Next frame.
17.1.7
Enabling Push Notifications
You can have the app send push notifications to the notifications area on your device when
one of your cameras detects motion. Once you have received a push notification, you can
select it to open live video from the camera that detected motion.
Note
Your cameras must have motion detection activated to receive push notifications. For details on enabling
motion detection, see 14.2.14 Motion, page 38.
#; r. 1.0/11603/11605; en-US
82
17
Mobile Connectivity
To enable Push Notifications:
1. From the Main menu, tap Push Config.
Note
If Push Config is not shown, tap Add, check Push Config, and then return to the Main Menu.
2. For the system you would like to configure, set the slider to ON.
3. Tap Motion Detect and then check each channel you would like to receive push notifications from.
4. Tap OK. A test notification will be sent to your device. After this, whenever the selected
cameras detect motion, you will receive a notification.
Note
You can see a list of notifications through the Event List menu. To show the Event List menu, tap Add and
check Event List. Return to the Main Menu and select Event List. Tap on events to view live video from
the camera.
#; r. 1.0/11603/11605; en-US
83
17
Mobile Connectivity
17.1.8
Device Manager
You can use Device List to manage your systems.
To access Device List:
• From the Main Menu, tap Device Manager.
To edit a system:
1. Tap the system in Device Manager.
2. Edit the connection details as needed.
3. Tap Save.
To delete a system:
1. Swipe right on the system you would like to delete.
2. Tap Delete. Tap OK to confirm.
17.2 iPad
FLIR SyncroIP NVR HD is an iPad app that allows you to remotely view your system.
17.2.1
System Requirements
• iOS 4.3 or later.
17.2.2
Prerequisites
• Port 80 and 35000 (or your HTTP and Client Ports, if you have changed them) must be
port forwarded on your router to your system’s IP address.
• You must create a DDNS account, and have the DDNS settings configured in your NVR
or IP camera.
• The NVR or IP camera must have internet access.
• You must have a DDNS address to log in remotely.
Note
You will need to create an iTunes account before you can download the app. An iTunes store account
requires a valid credit card number. The app is free of charge.
17.2.3
Connecting to your NVR on an iPad
1. Install FLIR SyncroIP NVR HD for free from the App Store.
2. Tap on the FLIR SyncroIP NVR HD icon (
3. Tap
then
) to start the app.
.
4. Tap Device Manager.
#; r. 1.0/11603/11605; en-US
84
17
Mobile Connectivity
5. Tap Add.
6. Configure the following:
tomsmith.myddns-fl ir.com
6.1.
6.2.
6.3.
6.4.
6.5.
6.6.
1
2
3
4
5
6
Name: Enter a name for your system of your choice.
Address: Enter your DDNS address (e.g. tomsmith.myddns-flir.com).
Port: Enter the Client Port (default: 35000).
Username: Enter the system’s User Name (default: admin).
Password: Enter the system’s Password (default: 000000).
Channel Amount: For NVRs, enter the number of channels your NVR has. For
IP cameras, enter 1.
7. Tap Save.
8. Tap
.
#; r. 1.0/11603/11605; en-US
85
17
Mobile Connectivity
9. In landscape mode: tap a channel and then select the camera you would like to view
on the left.
OR
In portrait mode: tap + on one of the display areas and select the camera you would
like to open.
17.2.4
Live View Interface
You can use FLIR SyncroIP NVR HD in landscape or portrait mode.
1
2
8
3
1.
2.
3.
4.
5.
6.
7.
8.
4
5
6
7
Display area: Double-tap to open camera in full screen.
Favorites: Slide to select favorites.
Disconnect all: Disconnect all cameras.
Add to favorites: Add the current view to favorites.
Shapshot.
Change display view.
Open menus.
Select different camera.
#; r. 1.0/11603/11605; en-US
86
17
Mobile Connectivity
17.2.5
Device Manager
Device Manager allows you to manage your systems.
To access Device Manager:
1. From live view, tap
then
.
2. Tap Device Manager.
To delete a system:
1. Tap the system to select it.
2. Tap
. Tap Yes to confirm.
To modify a system:
1. Tap a system to select.
2. Tap the system again to open the edit screen.
3. Update the connection details as needed and then tap Save.
17.2.6
Using Playback Mode on iPad
You can access recorded video on your system using your iPad.
Note
You must enable Substream Recording to use playback mode on mobile devices. For details on enabling
Substream Recording, see 14.4.6 Record, page 47.
To use Playback Mode:
1. From Live View tap
#; r. 1.0/11603/11605; en-US
then
.
87
17
Mobile Connectivity
2. In Portrait Mode: Tap +, select the start time and end time for your search, and select
the camera you would like to playback.
OR
In Landscape Mode: Select the start time and end time for your search, and select the
camera you would like to playback.
3. Use the playback controls.
Playback Controls
1
3
2
1.
2.
3.
Play/pause.
Previous file.
Next file.
Note
Playback controls are only shown in portrait mode.
17.2.7
Enabling Push Notifications
You can have the app send push notifications to the notifications area on your device when
one of your cameras detects motion. Once you have received a push notification, you can
select it to open live video from the camera that detected motion.
#; r. 1.0/11603/11605; en-US
88
17
Mobile Connectivity
Note
Your cameras must have motion detection activated to receive push notifications. For details on enabling
motion detection, see 14.2.14 Motion, page 38.
To enable Push Notifications:
1. From live view, tap
then
.
2. Tap Alarm Push.
3. Set the slider to ON next to the system you would like to configure.
4. Tap Motion Detect then check each channel you would like to receive push notifications from.
5. Tap OK. A test notification will be sent to your device. After this, whenever the selected
cameras detect motion, you will receive a notification.
#; r. 1.0/11603/11605; en-US
89
17
Mobile Connectivity
Note
You can see a list of notifications through the Event List menu. To show the Event List menu, from live
view, tap
then
.
17.3 Android Phones
FLIR SyncroIP NVR allows you to remotely view your system on Android smartphones.
A separate app is available for remote viewing on Android tablets, to make better use of
the larger screen size. For details, 17.4 Android Tablets, page 96.
17.3.1
Compatible Devices
• Android OS (2.2 and above).
17.3.2
Prerequisites
• Port 80 and 35000 (or your HTTP and Client Ports, if you have changed them) must be
port forwarded on your router to your system’s IP address.
• You must create a DDNS account, and have the DDNS settings configured in your NVR
or IP camera.
• The NVR must have internet access.
• You must have a DDNS address to log in remotely.
17.3.3
Connecting to your NVR on an Android Phone
1. Download FLIR SyncroIP NVR for free from the Google Play Store.
2. Tap on the FLIR SyncroIP NVR icon (
1. Tap
) to start the app.
.
#; r. 1.0/11603/11605; en-US
90
17
Mobile Connectivity
2. Tap Device Manager.
3. Tap Add>Manually Add.
4. Configure the following:
1
tomsmith.myddns-fl ir.com
2
3
4
5
6
4.1.
4.2.
4.3.
4.4.
4.5.
4.6.
Name: Enter a name for your system of your choice.
Address: Enter your DDNS address (e.g. tomsmith.myddns-flir.com).
Port: Enter the Client Port (default: 35000).
Username: Enter the system’s User Name (default: admin).
Password: Enter the system’s Password (default: 000000).
Channel: For NVRs, enter the number of channels your NVR has. For IP cameras, enter 1.
5. Tap Save.
6. Tap
.
7. Tap Live Preview.
#; r. 1.0/11603/11605; en-US
91
17
Mobile Connectivity
8. Tap + on one of the display areas and select the camera you would like to open in the
selected display area.
9. Repeat to view additional cameras.
17.3.4
Live View Interface
You can use FLIR SyncroIP NVR in portrait and landscape mode.
1
2
3
12
4
5
6
11
10
7
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
8
9
Back: Return to Main Menu.
Display area: Double-tap to open a channel in full screen.
Disconnect: Disconnect from camera.
Connect: Connect to camera.
Connect all: Connect to all previously added cameras.
Disconnect all: Disconnect from all cameras.
PTZ: Access PTZ controls (PTZ camera required).
Access Favorites.
Open image settings.
Manual record: Tap to start/stop manual recording.
Change camera.
Snapshot.
#; r. 1.0/11603/11605; en-US
92
17
Mobile Connectivity
17.3.5
Viewing Snapshots and Videos with Local Files
If you have saved snapshots or videos using the app, you may open them with Local Files.
To access Local Files:
• From the Main Menu, tap Local Files.
1
4
2
3
1.
2.
3.
4.
5.
5
Back: Return to Main Menu.
Files: Tap to open files.
Open snapshots.
Delete all files.
Open videos.
17.3.6
Using Playback Mode on Android Phones
You can access recorded video on your system using your Android phone.
Note
You must enable Sub Stream Recording to use playback mode on mobile devices. For details on enabling Sub Stream Recording, see 14.4.6 Record, page 47.
To use Playback Mode:
1. From the Main Menu, tap Playback.
2. If Playback is not shown, tap Add, check Playback, and return to the Main Menu.
3. Tap + and select a channel to playback.
#; r. 1.0/11603/11605; en-US
93
17
Mobile Connectivity
4. Select the date then the start and end times to playback.
5. Use the on-screen controls to control playback.
Playback Controls
1
2
3
7
6
4
5
5.1.
5.2.
5.3.
5.4.
5.5.
5.6.
5.7.
17.3.7
Display area: Double-tap to open in full-screen.
Play/pause.
Next: Select next video file.
Previous: Select previous video file.
Slow.
Fast.
Next frame.
Enabling Push Notifications
You can have the app send push notifications to the notifications area on your device when
one of your cameras detects motion. Once you have received a push notification, you can
select it to open live video from the camera that detected motion.
Note
Your cameras must have motion detection activated to receive push notifications. For details on enabling
motion detection, see “14.2.14 Motion, page 38.
#; r. 1.0/11603/11605; en-US
94
17
Mobile Connectivity
To enable Push Notifications:
1. From the Main menu, tap Push Config.
Note
If Push Config is not shown, tap Add, check Push Config, and then return to the Main Menu.
2. Tap the system you would like to configure.
3. Tap Motion Detect and then check each channel you would like to receive push notifications from.
4. Tap OK. A test notification will be sent to your device. After this, whenever the selected
cameras detect motion, you will receive a notification.
#; r. 1.0/11603/11605; en-US
95
17
Mobile Connectivity
Note
You can see a list of notifications through the Event List menu. To show the Event List menu, tap Add and
check Event List. Return to the Main Menu and select Event List. Tap on events to view live video from
the camera.
17.3.8
Device Manager
You can use Device List to manage your systems.
To access Device List:
• From the Main Menu, tap Device Manager.
To edit a system:
1. Tap the system in Device Manager.
2. Edit the connection details as needed.
3. Tap Save.
To delete a system:
1. Swipe the system you would like to delete to the right.
2. Tap Delete. Tap OK to confirm.
17.4 Android Tablets
FLIR SyncroIP NVR HD is an app that allows you to remotely view your system on an Android tablet.
17.4.1
System Requirements
• Android 3.3 or later.
17.4.2
Prerequisites
• Port 80 and 35000 (or your HTTP and Client Ports, if you have changed them) must be
port forwarded on your router to your NVR’s IP address.
• You must create a DDNS account, and have the DDNS settings configured in your NVR
or IP camera.
• The system must have internet access.
• You must have a DDNS address to log in remotely.
17.4.3
Connecting to your NVR on an Android Tablet
1. Install FLIR SyncroIP NVR HD for free from the Google Play Store.
2. Tap on the FLIR SyncroIP NVR HD icon (
3. Tap
then
) to start the app.
.
#; r. 1.0/11603/11605; en-US
96
17
Mobile Connectivity
4. Tap Device Manager.
5. Tap Add.
6. Configure the following:
tomsmith.myddns-fl ir.com
6.1.
6.2.
6.3.
6.4.
6.5.
6.6.
1
2
3
4
5
6
Name: Enter a name for your system of your choice.
Address: Enter your DDNS address (e.g. tomsmith.myddns-flir.com).
Port: Enter the Client Port (default: 35000).
Username: Enter the NVR’s User Name (default: admin).
Password: Enter the NVR’s Password (default: 000000).
Channel Amount: For NVRs, enter the number of channels your NVR has. For
IP cameras, enter 1.
7. Tap Save.
8. Tap
.
9. In landscape mode, tap a channel and then select the camera you would like to view
on the left. In portrait mode, tap + on one of the display areas and select the camera
you would like to open.
#; r. 1.0/11603/11605; en-US
97
17
Mobile Connectivity
17.4.4
Live View Interface
You can use FLIR SyncroIP NVR HD in landscape or portrait mode.
1
2
8
3
1.
2.
3.
4.
5.
6.
7.
8.
4
5
7
6
Display area: Double-tap to open camera in full screen.
Favorites: Slide to select favorites.
Disconnect all: Disconnect all cameras.
Add to favorites: Add the current view to favorites.
Shapshot.
Change display view.
Open menus.
Select different camera.
17.4.5
Device Manager
Device Manager allows you to manage your systems.
To access Device Manager:
1. From live view, tap
then
.
2. Tap Device Manager.
To delete a system:
1. Tap the system to select it.
2. Tap
. Tap OK to confirm.
#; r. 1.0/11603/11605; en-US
98
17
Mobile Connectivity
To modify a system:
1. Tap a system to select.
2. Tap the system again to open the edit screen.
3. Update the connection details as needed and then tap Save.
17.4.6
Using Playback Mode on Android Tablets
You can access recorded video on your system using your Android tablet.
Note
You must enable Substream Recording to use playback mode on mobile devices. For details on enabling
Substream Recording, see 14.4.6 Record, page 47.
To use Playback Mode:
1. From Live View tap
then
.
2. In Portrait Mode: Tap +, select the start time and end time for your search, and select
the camera you would like to playback.
OR
In Landscape Mode: Select the start time and end time for your search, and select the
camera you would like to playback.
3. Use the playback controls.
#; r. 1.0/11603/11605; en-US
99
17
Mobile Connectivity
Playback Controls
1
3
2
1.
2.
3.
Play/pause.
Previous file.
Next file.
Note
Playback controls are only shown in portrait mode.
17.4.7
Enabling Push Notifications
You can have the app send push notifications to the notifications area on your device when
one of your cameras detects motion. Once you have received a push notification, you can
select it to open live video from the camera that detected motion.
Note
Your cameras must have motion detection activated to receive push notifications. For details on enabling
motion detection, see 14.2.14 Motion, page 38.
To enable Push Notifications:
1. From live view, tap
#; r. 1.0/11603/11605; en-US
then
.
100
17
Mobile Connectivity
2. Tap Alarm Push.
3. Select the system you would like to configure.
4. Tap MotionDetect then check each channel you would like to receive push notifications from.
5. Tap OK. A test notification will be sent to your device. After this, whenever the selected
cameras detect motion, you will receive a notification.
Note
You can see a list of notifications through the Event List menu. To show the Event List menu, from live
view, tap
then
.
#; r. 1.0/11603/11605; en-US
101
18
Setting up Remote Viewing
Setting up the Remote Viewing Feature requires several steps. Networking skills are required to correctly configure the remote viewing functions.
18.1 What Do I Need?
• NVR System.
• A PC with the installed CMS software.
Note
For Mac users, please visit www.flirsecurity.com/pro for instructions.
• A router (not provided with the system) and High Speed Cable or DSL Internet Connectivity (for remote viewing outside your network).
18.2 Network Setup / Remote Access Overview
To setup remote viewing:
1. With the system powered off, connect the system to the router using an Ethernet cable.
2. Power the system on.
3. Press the Enter button on the remote control or front panel to find your system's IP
address.
4. Enable Port Forwarding on your router for the Client (default: 35000) and HTTP Ports
(default: 80). To set up port forwarding, use the included Auto Port Forwarding Wizard
software (19 Auto Port Forwarding Wizard, page 104) or refer to your router manufacturer’s instruction
5. Setup an account at http://ddns.myddns-flir.com. For details, 20 Setting Up DDNS
Service, page 111.
18.3 Finding your IP Address and MAC Address
The IP and MAC address of your system are necessary for DDNS setup. DDNS allows
you to view and control your system from a remote location.
To find your IP and MAC address:
• Press Enter on the remote control or front panel.
• Left-click to open the Navigation Bar. Login if prompted. Click
Info screen.
#; r. 1.0/11603/11605; en-US
to open the System
102
18
Setting up Remote Viewing
18.3.1
Finding Your External IP Address
If you wish to find your external IP address, you can type what is my ip address into Google or use a third-party website such as http://whatismyip.org.
Your external IP address can also be found within your router settings. Refer to your
router’s user guide for further details.
18.3.2
Enabling Port Forwarding
You need to enable port forwarding on your router to allow for external communications
with your system for the following ports:
• 80 (HTTP Port).
• 35000 (Client Port).
Network Example
When a computer on the Internet needs to send data to your internal network, it sends this
data to the external IP address of the Router. The Router then needs to decide where this
data is to be sent to. This is where setting up Port Forwarding becomes important.
Port Forwarding tells the router which device on the internal network to send the data to.
When you set up port forwarding on your Router, it takes the data from the external IP address:port number and sends that data to an internal IP address:port number (i.e. Router
External IP 216.13.154.34:80 to NVR Internal IP 192.168.0.3:80).
Please see resources available at www.flirsecurity.com/pro for more assistance with port
forwarding.
#; r. 1.0/11603/11605; en-US
103
19
Auto Port Forwarding Wizard
The Auto Port Forwarding Wizard is an exclusive software that easily automates router
port forwarding. Before setting up a DDNS account, it is recommended to run the Auto
Port Forwarding Wizard to port forward the required ports.
19.1 Installation
To install the Auto Port Forwarding Wizard:
1. Download the Auto Port Forwarding Wizard from www.flirsecurity.com/pro and run the
installer file.
• The installation window opens.
2. Click Next to continue.
3. Click the Change button to change the default installation directory (optional). Click
the Next button to continue.
#; r. 1.0/11603/11605; en-US
104
19
Auto Port Forwarding Wizard
4. Select the users who can see the Auto Port Forwarding shortcut (Optional). Click the
Next button to continue.
5. Click the Next button and then click Finish to complete the software installation.
6. Double-click the Auto Port Forwarding shortcut (
program.
#; r. 1.0/11603/11605; en-US
) from your desktop to start the
105
19
Auto Port Forwarding Wizard
19.2 Configuration
You must have the following before you configure the software:
1.
2.
3.
4.
19.2.1
Your router’s model number and version number
Your router’s user name and password.
Your device’s IP address.
Your device’s port numbers that require port forwarding.
Obtaining Your Router Model Number and Version
On most routers, the model and version number can be found underneath the router,
printed on a sticker.
•
•
WGR614 refers to the model number.
v9 refers to the version number.
Note
It is recommended to upgrade your router to the latest firmware available from your router manufacturer
before running the Auto Port Forward Wizard software. Check the website for your router’s manufacturer
for details.
19.2.2
Initial Startup: Select Language
1. Click the Language drop-down menu and select a language (English, French, Spanish). Click the Start button to continue.
#; r. 1.0/11603/11605; en-US
106
19
Auto Port Forwarding Wizard
2. If software updates are available, click the Download Now button in the top-right corner. A software update includes an updated list of routers compatible with the Auto
Port forwarding Wizard.
• Run the update file and install the latest version of the software.
19.2.3
Step 1: Populate the Router Database
The Auto Port Forwarding Wizard automatically populates a list of current routers, and detects the number of connected routers.
1
2
1. (Optional) Click
to refresh the router database.
2. (Optional) Click
to check for multiple routers.
3. Click the Next button after the software detects your router configuration.
Note
If more than one router is detected, you may need to contact your ISP (Internet Service Provider to
port forward. For details on configuring multiple routers, see 19.2.7 Configuring Multiple Routers,
page 109.
#; r. 1.0/11603/11605; en-US
107
19
Auto Port Forwarding Wizard
0
19.2.4
Step 2: Enter your Router Settings
1
2
3
4
5
1. Under the Router drop-down list, select the model of your router.
• Click the Search button (
) to enter the name of your router model.
Note
You can click the Auto Detect button (
most Linksys or Netgear models).
) if you have a Linksys or Netgear router (works with
2. Under Router IP, click the Detect Router IP button (
).
• The router’s IP populates in the blank field. Click OK to exit the prompt.
3. Under Username and Password, enter the router’s username and password.
Note
The HTTP Type (default http://) and HTTP Port fields refer to the port and protocol used to access
your router’s configuration web page. You may need to change the values depending on your router
model. Consult your router manual for details.
4. Under IP, enter the IP address of your device.
Note
The IP is usually found in the information window of your system.
5. Under Port, enter the system’s HTTP Port (by default, port 80).
Under 2nd Port, enter the system’s Client Port (by default, port 35000).
6. Click Next to continue.
#; r. 1.0/11603/11605; en-US
108
19
Auto Port Forwarding Wizard
0
19.2.5
Step 3: Update the Router Settings
1. Click the Update Router button.
• You will see your router window open. The Auto Port Forwarding Wizard automatically populates your router with the relevant information. This will take a few
moments.
1
2. Close the update window when the update finishes.
19.2.6
Step 4: Test your Connection
1. Click the Test Your Connection button.
• Your system’s default browser opens and connects to your device.
Note
•
•
•
19.2.7
Ensure that Internet Explorer is your system’s default Internet browser.
A window opens that prompts you to enter in your sytem’s user name and password (do not
enter your DDNS log in information).
ActiveX warnings may appear. Accept all ActiveX installation warnings to connect to your
system.
Configuring Multiple Routers
Your network may have two or more connected routers. During the initial launch of the auto
port forwarding wizard, the program scans the network to detect the number of connected
routers.
To check for multiple routers:
Click the Detect Multiple Routers button (
window.
). A list of connected routers populates in the
• The "Possible 1st Router" refers to the router directly connected to your system. This is
the router that requires the port forward information.
• The "Possible 2nd Router" refers to the router immediate to the internet connection.
This is the router that requires you to configure a DMZ host connection.
Scenario A: Router/Modem Combination + Router
• You may have a router/modem combination, with a second router in your network.
Scenario B: Multiple Routers
• You may have two routers in your network.
In both scenarios, the router that is immediate to the internet connection (Router 2 in illustration below) must act as a "bridge" to another router (Router 1 in illustration). The
Auto Port Forwarding Wizard must connect to Router 1.
#; r. 1.0/11603/11605; en-US
109
0
0
19
Auto Port Forwarding Wizard
0
0
0
A proper DMZ configuration in Router 2 allows all incoming traffic going it to automatically pass to Router 1. Router 2 acts as a "dummy" router and passes all the incoming
data onto Router 1. Router 1 is the router that needs the port forwarding information.
Configuring a DMZ Host Connection
Internet
2
1
0
Com pute r
Router 2
Router 1
FLIR Sys tem
0
0
1.
Find the public IP address of Router 1: Connect to "Router 1" on your network (referred to as "Possible
1st Router" in the Auto Port Forwarding Wizard). Obtain the IP address of Router 1. Usually this can be
found in the "Status" section of your router menu. The IP should begin with "192.168....".
Note
The "Status Page" of a router normally includes the router’s vital information such as the IP address.
The IP information is normally under a header called "WAN" or "Internet Port". Each router has different terminology.
2.
3.
Set up Router 2 as DMZ Host: Enter the IP address obtained in the previous step into the DMZ section
of Router 2.
Once you have configured Router 2 with a DMZ connection, run the Auto Port Forwarding Wizard to set
up port forwarding on Router 1.
Note
Consult your router’s owner’s manual for details on configuring DMZ settings.
#; r. 1.0/11603/11605; en-US
110
20
Setting Up DDNS Service
FLIR offers a free DDNS service for use with your system. A DDNS account allows you to
set up a web site address that points back to your local network. The following outlines
how to set up your free DDNS account.
20.1 Registering for FLIR DDNS Service
To setup your free FLIR DDNS account:
1. In your browser, go to http://ddns.myddns-flir.com and click Create Account.
2. Complete the Account Information fields with your personal information. Complete
the Warranty Information with your purchase details (optional).
3. Complete the System Information fields:
• Product License: Select your product model from the Product License drop down
menu (i.e. DNR300 Series).
• <Product Code> - <MAC Address>: Enter the MAC address of your NVR. To find
the MAC address, see 18.3 Finding your IP Address and MAC Address, page 102.
• URL Request: Choose a URL for your DDNS connection (i.e. your name, your company or business name, or anything of your choice).
4. Click Create New Account.
5. Your account information will be sent to you at the email Address you used in Step 2.
You will need this information for remote access to your system. Record your information below:
User name:
Domain name*:
Password:
#; r. 1.0/11603/11605; en-US
111
20
Setting Up DDNS Service
20.2 How Do I Enable DDNS On My System?
Once you have registered for free DDNS service, use the information in the confirmation
email to configure DDNS settings on your system.
To enable DDNS on your system:
1. In live view, right-click and then click Main Menu. Login using the admin account if
prompted (default user name is admin and default password is 000000).
2. Click Setting>Network.
3. Click Network Setting.
4. Check DDNS.
5. Double-click DDNS.
#; r. 1.0/11603/11605; en-US
112
20
Setting Up DDNS Service
6. Configure the following:
1
2
3
4
6.1.
6.2.
6.3.
6.4.
Ensure Enable is checked. The checkbox will be white when DDNS is enabled.
Under Domain Name, enter the Domain Name from the confirmation email you
received after registering for DDNS.
Under User ID, enter the User Name from the confirmation email.
Under Password, enter the Password from the confirmation email.
7. Click OK.
8. Click Save.
Note
It may take between 10~15 minutes for the DDNS server to update with your new DDNS address.
20.3 Connecting to your system using DDNS
Note
You must port forward ports on your router to NVR’s IP address (by default, ports 35000 and 80) to connect to your system over the Internet.
Now that you have set up your system for DDNS, use the following address formats to
connect:
20.3.1
CMS Software or Mobile Apps
Example DDNS address to connect using CMS or app
tomsmith.myddns-flir.com
• For details on the CMS Software, 15 FLIR SyncroIP NVR CMS Central Management
Software, page 54.
• For details on mobile apps, 17 Mobile Connectivity, page 77.
20.3.2
Internet Explorer
Example DDNS address to connect using IE
http://tomsmith.myddns-flir.com:80
• For details, 16 Remote Viewing On Internet Explorer, page 73.
#; r. 1.0/11603/11605; en-US
113
21
Remote Firmware Upgrade
To perform a firmware upgrade over the LAN or Internet, a Config Tool is provided on the
CD or www.flirsecurity.com/pro. In an effort to continuously improve the functionality of our
products, firmware upgrades are available as a free download on our website, as they are
released.
Note
The Config Tool is supported on PC only. You may also upgrade the firmware using the system’s local
menus (see 14.1.4 Version (Updating Firmware), page 28).
21.1 Installing a Firmware Upgrade Over the LAN
Prerequisites:
• Connect your NVR or IP camera to a router or switch on your network.
• Download a firmware upgrade from www.flirsecurity.com/pro, if one is available. Extract
the contents.
To perform a firmware upgrade over the LAN:
1. Download the Config Tool from www.flirsecurity.com/pro.
2. Extract the contents into a folder.
3. Open the folder and right-click ConfigTool.exe and select Run as administrator.
Note
If a Windows Firewall warning appears, click Allow Access.
The Config Tool scans your LAN for NVRs and IP cameras.
Note
Firmware versions are different between NVRs and IP cameras.
4. Click Upgrade.
#; r. 1.0/11603/11605; en-US
114
21
Remote Firmware Upgrade
5. Configure the following:
1
2
3
5.1.
5.2.
5.3.
Check any NVRs or IP cameras you would like to upgrade.
Click Open. Select the upgrade firmware file (.bin).
Click Upgrade. Wait for the upgrade to complete. Do not power off the system or disconnect
the power cable during upgrade. The system will restart when the upgrade is complete.
21.2 Installing a Firmware Upgrade Over the Internet
Prerequisites:
• Port forward the Client Port (default: 35000) on the system’s local router.
• Obtain the public IP address of the system.
• Download a firmware upgrade from www.flirsecurity.com/pro, if one is available. Extract
the contents.
To perform a firmware upgrade over the Internet:
1.
2.
3.
4.
5.
Download the Config Tool from www.flirsecurity.com/pro.
Extract the contents into a folder.
Open the folder and right-click ConfigTool.exe and Run as administrator.
Click Login.
Under IP Address, enter the public IP address of the system. Edit the User Name,
Password, or Port if these have been changed from the default values.
6. Click Login. The Config Tool logs in to the system.
#; r. 1.0/11603/11605; en-US
115
21
Remote Firmware Upgrade
7. Configure the following:
1
2
3
7.1.
7.2.
7.3.
Click System Upgrade.
Click Open. Select the firmware file (.bin).
Click Upgrade. Wait for the upgrade to complete. Do not power off the system or disconnect
the power cable during upgrade. The system will restart when the upgrade is complete.
#; r. 1.0/11603/11605; en-US
116
22
DNR300 Series Hard Drive
Installation
0
The system comes with one or more pre-installed 3.5" SATA hard drives. You can install
up to two hard drives up to a maximum size of 3TB each (for a maximum total storage of
6TB).
22.1 Installing a Hard Drive
CAUTION
Make sure that the system is OFF and ALL power adapters have been disconnected before removing/installing the hard drive.
To remove the hard drive:
1. Power off the system, and unplug all cabling from the system.
2. Remove the screws (4x) from the back panel. Slide the cover back and up to remove.
0
3. Insert hard drive screws (4x) on the hard drive and tighten them half way.
4. Place the HDD into the NVR.
1
4.1.
4.2.
2
Place the hard drive over one set of screw holes on the bottom panel with the SATA power and
data connectors facing the middle of the unit.
Slide the hard drive into place.
#; r. 1.0/11603/11605; en-US
117
22
DNR300 Series Hard Drive Installation
5. Turn the unit over and tighten the hard drive screws.
6. Turn the unit back over and connect the SATA power and data cables to the hard drive.
0
7. Replace the cover and cover screws. Make sure to slide the lip on the cover under the
bottom of the front panel.
Note
After installation, you must format the hard drive in order to use it with the system. See 22.3 Formatting Hard Drives, page 119.
22.2 Removing the Hard Drive
CAUTION
Make sure that the system is OFF and ALL power adapters have been disconnected before removing/installing the hard drive.
1. Power off the system, and unplug all cabling from the system.
2. Remove the screws (4x) from the back panel. Slide the cover back and up to remove.
#; r. 1.0/11603/11605; en-US
118
22
DNR300 Series Hard Drive Installation
3. Remove the SATA power and data cables from the hard drive.
4. Turn the unit over and loosen the hard drive screws. Do not remove the hard drive
screws.
5. Turn the unit back over and remove the hard drive from the case.
6. Remove the hard drive screws from the hard drive.
7. Replace the cover and cover screws. Make sure to slide the lip on the cover under the
bottom of the front panel.
22.3 Formatting Hard Drives
You must format hard drives before you may use them with the system.
CAUTION
Formatting the HDD erases all data on the hard disk. This step cannot be undone. System settings will
not be erased.
To format a hard drive:
1. From Live View, right-click and select Main Menu>Advanced>HDD Management.
#; r. 1.0/11603/11605; en-US
119
22
DNR300 Series Hard Drive Installation
2. Configure the following:
1
2
3
2.1.
2.2.
2.3.
Under HDD No., select the hard drive you would like to format. Information about the hard drive
appears in the lower section of the menu.
Under Set to, select Format.
Click Apply. Click OK to confirm. Wait for the hard drive to format. Hard drives become Read/
Write hard drives by default when formatted.
#; r. 1.0/11603/11605; en-US
120
23
0
Connecting An External Monitor
(DNR300 Series)
A BNC output is available to connect the NVR to an external monitor or TV. The BNC output shows a duplication of the live display.
Vide o OUT
#; r. 1.0/11603/11605; en-US
121
24
Troubleshooting
When a malfunction occurs, it may not be serious and can be corrected easily. The following describes the most common problems and solutions. Please refer to the following before calling FLIR Technical Support:
Error
Possible Causes
Solutions
•
•
Cable from power
adapter is loose or is
unplugged.
•
Cables are connected,
but NVR is not receiving sufficient power.
•
NVR is not receiving
power, or is not powering up.
•
•
•
•
Confirm that all cables are connected
correctly.
Confirm that the power adapter is securely connected to the back of the unit.
Confirm that the unit is powered on
(LED indicators on the front should be
ON).
If the unit is connected through a power
bar or surge protector, try bypassing
the bar and connecting the power directly to the wall outlet.
Confirm that there is power at the
outlet:
•
•
•
There is no picture on
selected channels /
camera picture is not
being displayed.
•
PoE power adapter is
not connected.
•
Make sure the 48V DC power adapter
is connected to the NVR or the cameras will not receive power from the
PoE Ports.
•
Camera cables are
loose or have become
disconnected.
•
Disconnect and reconnect the cable at
the NVR and at the camera.
Try moving the camera to another channel or use another cable.
If your cameras are not using PoE,
make sure they are using the correct
power source according to the specifications provided by the manufacturer.
•
•
Camera/NVR connection to LAN has become interrupted.
•
•
Batteries in the remote
control are drained.
•
Install 2 fresh AAA batteries in the remote control.
•
There are no batteries
in the remote control.
•
Hard drive cables are
loose or not properly
connected.
•
Remove the housing and check that
hard drive cables are firmly connected.
•
Hard drive has not
been initialized (formatted) by the system.
•
For details, see 22.3 Formatting Hard
Drives, page 119
.
•
There is no hard drive
in the system.
•
Open the housing and install a 3.5" SATA hard drive.
•
•
•
Remote control is not
detected by the system.
Hard drive is not detected by the system.
#; r. 1.0/11603/11605; en-US
Connect the power cable to another
outlet.
Test the outlet with another plugged
device (such as an electric calculator or phone charger).
•
Make sure your cameras are connected
to the same LAN as the NVR.
Make sure any routers or switches in
between the NVR and IP cameras are
powered on.
122
24
Troubleshooting
Error
Possible Causes
Solutions
•
Hard drive is full and the
unit is no longer
recording.
•
Overwrite is not
enabled.
•
From the Main Menu, select General.
Beside HDD Full, select Overwrite.
Click OK to save settings. This enables
the system to continuously record by
overwriting data once the hard drive is
full.
•
Mouse not detected by
system.
•
Mouse cable is not
firmly connected to the
system.
•
Firmly connect the mouse cable to the
system.
•
Mouse is not connected to the system.
•
System needs to be
reset.
•
Re-connect the power cord to restart
the system.
•
Recording may be
disabled.
•
Right-click in live view, and click Record.
Ensure that each channel is set to
Schedule or Manual. If schedule is selected, make sure schedule settings are
correct under Setting>Schedule.
ATTENTION: For security, it is highly
recommended to keep Continuous Recording ON at all times.
•
My system does not
seem to be recording.
24.1 Remote Connectivity Troubleshooting
Error
Possible Causes
Solutions
•
•
Ports not forwarded.
•
Port forward the HTTP port (default: 80)
and Client port (default: 35000).
•
DDNS Setup not
completed.
•
Register for a DDNS account. For details, see 20 Setting Up DDNS Service,
page 111.
•
Ports are blocked by Internet Service Provider
(ISP).
•
Some ISP’s block port 80. Reassign the
HTTP port to anything above 1026. Recomplete port forwarding using the
newly assigned port.
•
Multiple routers installed in local network.
•
If you have multiple routers, additional
setup may be required. For details, see
19.2.7 Configuring Multiple Routers,
page 109.
Cannot connect to the
NVR over the Internet.
•
Could connect to system
previously, but no longer
can.
•
NVR internal IP address has changed.
•
This can occur if your router resets due
to power failure. Set up a fixed IP address for your NVR. For details, see
14.2.7 Configuring DHCP or Fixed IP
Address, page 33.
•
Cannot connect to the
NVR using a smartphone or tablet.
•
IP address used from
outside local network.
•
Use the DDNS address to connect to
the NVR using a mobile application (e.g.
tomsmith.myddns-flir.com).
•
Router is blocking
DDNS connection from
internal network.
•
Turn off WiFi connection and attempt to
connect using 3G or mobile network.
#; r. 1.0/11603/11605; en-US
123
25
DNR300 Series System
Specifications
25.1 System
Main Processor
Dual-core embedded processor
Operating
System
Embedded LINUX
Pentaplex
Operation
Simultaneous View, Record, Playback, Backup, and Remote Monitoring
25.2 Inputs/Outputs
IP Camera Input
8 channel / 16 channel
Power over
Ethernet (PoE)
8 integrated PoE ports
Audio
1 channel input (BNC), 1 channel output (BNC)
PTZ
RS-485, supports Pelco-D and Pelco-P
USB
2 ports
Alarm Input
8 Channel
Relay Out
3 Channel
25.3 Display
Interface
1 HDMI, 1 VGA, 1 BNC
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
Display Split
1/4/8/9, 1/4/8/9/16
OSD
Camera Title, Time, Camera Lock, Motion Detection, Recording Status
25.4 Recording
Compression
H.264
Resolution
1080P (1920×1080) / 720P (1280×720)
Record Rate
240FPS @ 1080P / 480FPS @ 1080P
Bit Rate
160Mbps
Record Mode
High Quality Stream/Sub-Stream Recording: Manual, Schedule, Motion Detection,
Alarm
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
25.5 Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection
Motion Detection
25.6 Playback and Backup
Sync Playback
1/4/8, 1/4/8/16
Playback
Function
8 Channel / 16 Channel
Backup Mode
USB Device / Network
Configuration
Backup
To USB Device
#; r. 1.0/11603/11605; en-US
124
25
DNR300 Series System Specifications
25.7 Network
Ethernet
RJ-45 port (10M/100M/1000M)
Network
Function
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
PPPOE, DDNS, FTP, Alarm Server, IP Search
Max. User
Access
20 simultaneous users
Smart Phone
iPhone, iPad, Android
IP Cameras
Supported
FLIR, Digimerge, Panasonic, Sony, Dynacolor, Samsung, AXIS, Arecont, Bosch,
Canon, Honeywell, Pelco, Panasonic, Vivotek
25.8 Storage
SATA Ports
2 internal SATA ports (2HDD)
Maximum Storage Capacity
6TB (2 x 3TB) internal
25.9 Dimensions
Weight
2.3kg / 5.1lbs
Package
Dimensions
438mm x 153mm x 343mm / 17.2” x 6.0” x 13.5” (W x H x D)
Cube
Cube: 0.023 Cubic Meters / 0.81 Cubic Feet
25.10
Power
Power Supply
1x 12V DC 5A (for NVR); 1x 48V DC 1A (for PoE)
As our products are subject to continuous improvement, FLIR Systems, Inc. and its subsidiaries reserve the right to modify product design, specifications, and prices without notice and without incurring any obligation. E&OE
#; r. 1.0/11603/11605; en-US
125
26
Notices
This equipment has been certified and found to comply with the limits regulated by FCC,
EMC, and LVD. Therefore, it is designated to provide reasonable protection against interference and will not cause interference with other appliance usage.
However, it is imperative that the user follows the guidelines in this manual to avoid improper usage which may result in damage to the unit, electrical shock and fire hazard
injury.
In order to improve the feature functions and quality of this product, the specifications are
subject to change without notice from time to time.
26.1 FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the manufacturer’s instruction
manual, may cause harmful interference with radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case you
will be required to correct the interference at your own expense.
#; r. 1.0/11603/11605; en-US
126
Website
last page
www.flirsecurity.com/pro
Technical Support
1-866-816-5919
Customer Service
1-866-344-4674
Copyright
© 2014, FLIR Systems, Inc.
All rights reserved worldwide. Names and marks appearing herein are either registered trademarks or trademarks of FLIR Systems and/or its subsidiaries. All other
trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners.
Legal disclaimer
Specifications subject to change without further notice. Camera models and accessories subject to regional market considerations. License procedures may apply.
Products described herein may be subject to US Export Regulations. Please refer to [email protected] with any questions.
Publ. No.:
Release:
Commit:
Head:
Language:
Modified:
Formatted:
1.0
11603
11605
en-US
2014-02-12
2014-02-12
Was this manual useful for you? yes no
Thank you for your participation!
