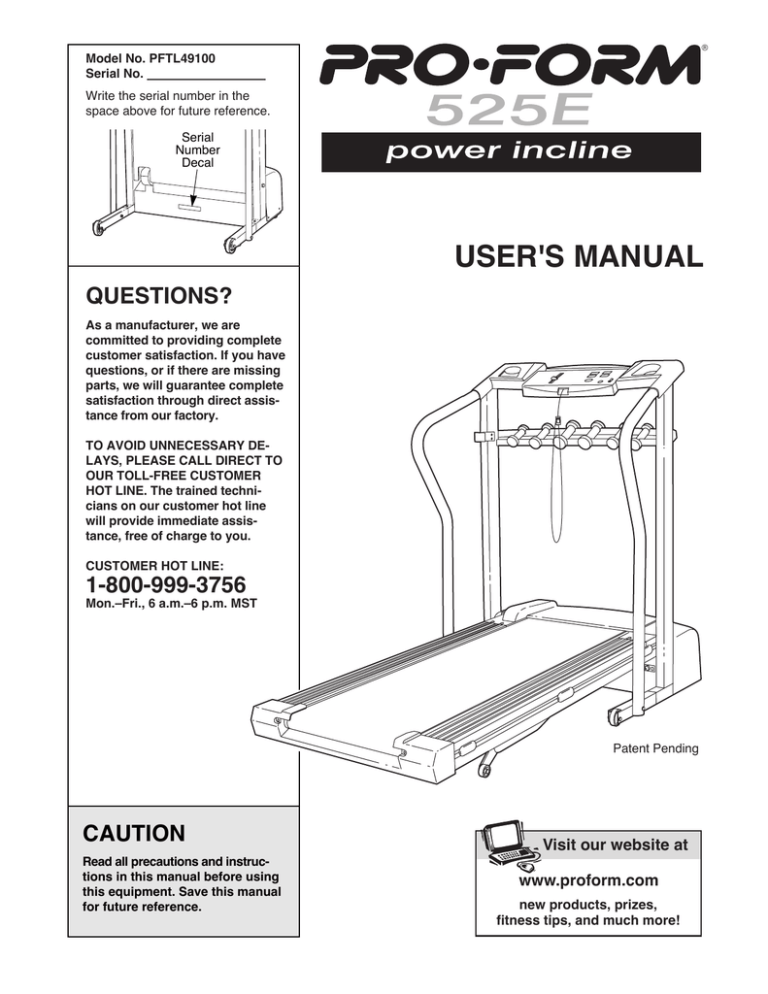

Model No. PFTL49100
Serial No.
Write the serial number in the
space above for future reference.
Serial
Number
Decal
USER'S MANUAL
QUESTIONS?
As a manufacturer, we are
committed to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, we will guarantee complete
satisfaction through direct assistance from our factory.
TO AVOID UNNECESSARY DELAYS, PLEASE CALL DIRECT TO
OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Patent Pending
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual. Save the
EXPLODED DRAWING and PART LIST for future reference.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
10. When connecting the power cord (see page 7),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
3. Place the treadmill on a level surface, with
eight feet of clearance behind it. Do not place
the treadmill on a surface that blocks any air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
11. Use only a single-outlet surge suppressor that
is UL 1449 listed as a transient voltage surge
suppressor (TVSS). The surge suppressor
must have a UL suppressed voltage rating of
400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and
15 amps. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-800-9993756 and order part number 146148.
7. The treadmill should be used only by persons
weighing 250 pounds or less.
12. Keep the power cord and the surge suppressor away from heated surfaces.
8. Never allow more than one person on the
treadmill at a time.
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BEFORE YOU BEGIN on page 4 if the treadmill is
not working properly.)
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose clothing that could become caught in the treadmill.
2
treadmill until it is properly assembled. (See
ASSEMBLY on pages 5 and 6, and HOW TO
FOLD AND MOVE THE TREADMILL on page
10.) You must be able to safely lift 45 pounds
(20 kg) to raise, lower, or move the treadmill.
14. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
15. Do not perform exercises with the hand
weights at speeds faster than a walk. Using
weights and not holding the handrails may
compromise your ability to maintain your
balance. Exercises using weights should be
attempted only by experienced users.
16. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
17. Never leave the treadmill unattended while it
is running. Always remove the key and unplug the power cord when the treadmill is not
in use.
20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
21. Inspect and tighten all parts of the treadmill
every three months.
22. Never drop or insert any object into any
opening.
23.
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
18. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
19. Do not attempt to raise, lower, or move the
DANGER: Always unplug the power
24. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decal shown below has been placed on your treadmill. If it
is missing or illegible, please call our Customer Service
Department, toll-free, to order a free replacement decal (see
ORDERING REPLACEMENT PARTS on the back cover of this
manual). Apply the decal in the location shown.
Note: Decal is shown at 38% of actual size.
3
BEFORE YOU BEGIN
Thank you for selecting the PROFORM¨ 525E treadmill. The PROFORM 525E combines advanced technology with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience
and privacy of your home. And when youÕre not exercising, the PROFORM 525E can be folded up, requiring less than half the floor space of other treadmills.
at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is PFTL49100. The serial number can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Water Bottle Holder
(Bottle not included)
Console
Weight Rack
Key/Clip
Upright
Storage Latch
Handrail
Walking Belt
RIGHT SIDE
Foot Rail
Circuit
Breaker
Power
Cord
Rear Roller
Adjustment Bolts
Cushioned Walking Platform
for maximum exercise comfort
BACK
Incline Leg
4
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. In addition to the included allen wrench
,
assembly requires a phillips screwdriver
, two adjustable wrenches
, wire
cutters
, and a rubber mallet
.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Handrail Bolt (91)Ð2
Handrail Washer (92)Ð2
Small Screw (13)Ð2
Handrail Nut (93)Ð2
Screw (33)Ð4
Rack Washer
(41)Ð2
Extension Leg
Screw (53)Ð2
1. With the help of a second person, carefully raise the
Uprights (11) until the treadmill is in the position shown.
Rack Bolt (89)Ð2
1
11
2. Insert one of the Extension Legs (34) into the treadmill
as shown. Make sure that the Base Pad (40) is on the
indicated side. Note: It may be helpful to tip the Uprights
[11] in the direction shown by the arrow as you insert
the Extension Leg. To fully insert the Extension Leg, it
may be necessary to tap it with a mallet.
2
11
53
Attach the Extension Leg (34) with an Extension Leg
Screw (53). Be sure to push on the head of the
Extension Leg Screw while tightening it.
34
Attach the other Extension Leg (34) in the same way.
40
5
3. Attach the Weight Rack (90) to the Uprights (11) with the
two Rack Washers (41) and Rack Bolts (89). Note: If necessary, spread the Uprights apart to align the holes in the
Weight Rack with the holes in the Upright.
3
41 89
90
41
1
89
Insert the Left and Right Handrails (1, 88) into the upper
end of the Uprights (11), with the lower end of each
Handrail to the outside of the Extension Leg (34) as
shown. Have a second person hold the Handrails until
step 4 is completed.
11
11
88
34
4. With the help of a second person, lower the Uprights (11)
until the Left and Right Handrails (1, 88) are resting on
the floor. Attach the lower end of the Right Handrail (88)
to the Extension Leg (34) with a Handrail Bolt (91),
Handrail Washer (92), and Handrail Nut (93) as shown.
Note: It may be necessary to push on the lower end of
the Handrail to align the hole in the Handrail with the hole
in the Extension Leg.
4
34
11
Attach the Left Handrail to the left Extension Leg (not
shown) as described above.
93
92
88
91
Raise the Uprights (11) to the position shown in step 3.
5. Cut and remove the plastic tie holding the Wires (21).
Place the Console Base (46) on the right and left
Uprights (11) (only the right Upright is shown). Connect
the two indicated Wires (21) to the two connectors in the
Console Base. Important: Make sure the Wires are
fully inserted. WARNING: Do not disconnect or connect the Wires while the treadmill power cord is
plugged in. Loosely thread four Screws (33) into the
Uprights and the Console Base. After all four Screws
have been started, tighten the Screws until they are
snug; do not overtighten the Screws.
Thread the Cable Tie (16) through the Clamp (61),
around the two Wires (21), and through the end on the
Cable Tie. Pull the Cable Tie tight and cut off the end.
6. Attach the Storage Latch (14) to the left Upright (11) with
two Small Screws (13). Be careful not to overtighten
the Screws.
Place the Weights on the Weight Rack (90) with the
3 lbs. Weights (79) in the center of the Rack and 2 lbs.
Weights next, followed by the 1 lbs. Weights.
5
11
Cable
Tie
21
Connectors
Plastic Tie
46
33
90
6
11
14
13
79
7. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the floor or carpet,
place a mat under the treadmill.
6
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking platform. Such substances will deteriorate the walking
belt and cause excessive wear.
1
HOW TO PLUG IN THE POWER CORD
Grounded Outlet Box
Surge Suppressor
DANGER: Improper connection
Grounding Pin
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the productÑif it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Grounding Pin
Grounded Outlet
Grounding Plug
2
Grounded Outlet Box
Adapter
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeÕs power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right).
Surge Suppressor
Lug
Metal Screw
To purchase a surge suppressor, see your local
PROFORM dealer or call toll-free 1-800-999-3756
and order part number 146148. Use only a singleoutlet surge suppressor that is UL 1449 listed as a
transient voltage surge suppressor (TVSS). The surge
suppressor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dissipation of
450 joules. The surge suppressor must be electrically
rated for 120 volts AC and 15 amps.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
7
DIAGRAM OF THE CONSOLE
Incline Control
Displays
Key
Speed Control
PulseSensor
Clip
CAUTION:
Before operating the
console, read the following precautions.
¥ Adjust the speed in small increments.
¥ The training zones marked beside the speed
control are general guidelines only. See page
14 for more information.
¥ Do not stand on the walking belt when turning
on the power.
¥ Always wear the clip (see the drawing above)
while using the treadmill. When the key is removed from the console, the walking belt will
stop.
¥ To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids on
the console. Use only a sealable water bottle.
springs. Close the battery cover, push up on the tab,
and then push the tab forward as shown. Be sure that
the tab locks into place.
BATTERY INSTALLATION
The console requires three "AA" batteries (not included). Alkaline batteries are recommended. To install batteries, open the battery cover as shown below.
Press the batteries into the battery compartment, with
the negative (Ð) ends of the batteries touching the
STEP-BY-STEP CONSOLE OPERATION
Before operating the console, make sure that the
power cord is properly plugged in. (See HOW TO
PLUG IN THE POWER CORD on page 7.)
Battery Cover
Next, step onto the foot rails of the treadmill. Find the
clip attached to the key (see the drawing above), and
slide the clip onto the waistband of your clothing. Test
the clip by carefully taking a few steps backward
until the key is pulled from the console. If the key
is not pulled from the console, adjust the position
of the clip as needed.
Battery
Cover Tab
Batteries
Follow the steps on page 9 to operate the console.
8
1
BURNING on page 14.) Every seven seconds, the
display will change from one number to the other, as
indicated by the mode arrows. This display also
shows your pulse when the pulse sensor is used (see
step 4).
Insert the key fully into the power switch.
Note: Inserting the key
will not turn on the displays. The displays will
turn on when the
ON/RESET button is
pressed or when the
walking belt is started. If
you just installed batteries, the displays will already be on.
2
The displays can be
reset, if desired, by
pressing the
ON/RESET button.
4
Reset the console and start the walking belt.
To measure your
Pulse Sensor
pulse, stand on the
foot rails and place
your thumb on the
pulse sensor as
shown. The pulse
sensor is pressure activatedÑfully press it
down. Do not press
too hard, or the circulation in your thumb
will be restricted, and
Pulse Indicator
your pulse will not be
detected. Next, raise
your thumb slightly until the heart-shaped indicator
in the pulse display flashes steadily. Hold your
thumb at this level. After a few seconds, three
dashes will appear in the display and your pulse
will be shown. Hold your thumb on the sensor for
another 15 seconds for the most accurate reading.
Slide the speed control to the
RESET position. Note: Each
time the walking belt is
stopped, the speed control
must be moved to the RESET
position before the walking
belt can be restarted.
Next, slowly slide the speed
control until the walking belt
begins to move at slow speed.
Carefully step onto the walking
belt and begin exercising.
Change the speed of the walking belt as desired by moving the speed control.
To stop the walking belt, step onto the foot rails and
slide the speed control to the RESET position.
3
Measure your pulse, if desired.
Follow your progress with the four displays.
If the displayed pulse appears to be too high or too
low, or if your pulse is not displayed, lift your thumb
off the sensor and allow the display to reset. Press
down again on the sensor as described above. Make
sure that your thumb is positioned as shown, and
that you are applying the proper amount of pressure
to the pulse sensor. Try the sensor several times
until you become familiar with it. Remember to stand
still while measuring your pulse.
TIME displayÑThis
display shows the
elapsed time.
DISTANCE displayÑ
This display shows the
distance that you have
walked or run, in miles.
5
To change the incline, press
the top or bottom of the incline control until the desired
incline level is reached.
SPEED displayÑThis
display shows the speed
of the walking belt, in
miles per hour.
CALORIES/FAT
CALORIES/PULSE
displayÑThis display
shows the approximate
numbers of calories and
fat calories you have
burned. (See FAT
Adjust the incline of the treadmill as desired.
6
Turn off the power.
To turn off the power, simply wait for about four
minutes. If the walking belt is stationary and the
console buttons are not pressed for four minutes,
the power will turn off automatically. Remove the
key from the console.
Mode Arrows
9
HOW TO USE THE HAND WEIGHTS
To exercise your upper body as you walk on the treadmill,
hold the 1-pound weights at your sides or press the weights
above your head. To increase the intensity of your exercise,
use the 2-pound or 3-pound weights. The hand weights can
be stored in the weight rack.
Weight
Rack
WARNING: Do not use the hand weights at speeds faster
than a walk. Using weights and not holding the handrails
may compromise your ability to maintain your balance.
Exercises using weights should be attempted only by
experienced users.
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, unplug the power cord. Caution:
You must be able to safely lift 45 pounds (20 kg) in order
to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. To decrease the possibility of injury, bend
your legs and keep your back straight. As you raise
the treadmill, make sure to lift with your legs rather
than your back. Raise the treadmill about halfway to the
vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Raise the treadmill until the storage latch
closes over the catch. Make sure that the storage latch
is fully engaged over the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85¡ Fahrenheit.
Engaged
Storage
Latch
Catch
10
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the storage latch is closed fully over the catch.
1. Hold the upper ends of the handrails. Place one foot on
the base as shown.
2. Tilt the treadmill back until it rolls freely on the front
wheels. Carefully move the treadmill to the desired location. To reduce the risk of injury, use extreme caution
while moving the treadmill. Do not move the treadmill
over an uneven surface.
Base
3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.
Front Wheels
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand
as shown. Using your left thumb, press the storage latch
and hold it. Pivot the treadmill until the frame and foot rail
are past the storage latch.
Unlatched
Storage
Latch
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Do not drop the treadmill frame to
the floor. To decrease the possibility of injury, bend
your legs and keep your back straight.
11
MAINTENANCE AND TROUBLE-SHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department tollfree at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor
that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor
must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of
450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.
Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the circuit breaker has tripped. To reset
the circuit breaker, wait for five minutes and then
press the switch back in.
c
Reset
Tripped
Tripped
Reset
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our Customer Service Department, toll-free.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Check the batteries in the console. If the batteries need to be replaced, see ÒBATTERY
INSTALLATIONÓ on page 8. Most problems are the result of drained batteries.
b. Remove the screws from the hood, and carefully remove the hood. Locate the Reed Switch (76) and the
Magnet (93) on the left side of the Pulley (77). Turn
the Pulley until the Magnet is aligned with the Reed
Switch. Make sure that there is a gap of about 1/8Ó
between the Magnet and the Reed Switch. If necessary, loosen the Screw (17) and move the Reed
Switch slightly. Retighten the Screw. Re-attach the
hood, and run the treadmill for a few minutes to check
for a correct speed reading.
12
b
44
1/8Ó
50
45
33
Top
View
4. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a. Use only a UL-listed surge suppressor, rated at 15 amps, with a 14-gauge cord of five feet or less in length.
b. If the walking belt is overtightened, treadmill performance may
decrease and the walking belt may be permanently damaged.
Remove the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened,
you should be able to lift each side of the walking belt 2 to 3
inches off the walking platform. The center of the walking belt
should just touch the walking platform. Be careful to keep the
walking belt centered. Plug in the power cord, insert the key and
run the treadmill for a few minutes. Repeat until the walking belt
is properly tightened.
b
2ÓÐ3Ó
Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-free.
5. SYMPTOM: THE WALKING BELT IS OFF-CENTER
a. If the walking belt has shifted to the left, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear roller adjustment bolt clockwise, and the right
bolt counterclockwise, 1/4 of a turn each. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
b. If the walking belt has shifted to the right, first remove the
key and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear roller adjustment bolt counterclockwise, and the
right bolt clockwise, 1/4 of a turn each. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
c. If the walking belt slips when walked on, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench,
turn both rear roller adjustment bolts clockwise, 1/4 of a turn.
When the walking belt is correctly tightened, you should be able
to lift each side of the walking belt 2 to 3 inches off the walking
platform. Be careful to keep the walking belt centered. Plug in
the power cord, insert the key and run the treadmill for a few
minutes. Repeat until the walking belt is properly tightened.
13
a
b
c
CONDITIONING GUIDELINES
WARNING:
Before beginning
this or any exercise program, consult your
physician. This is especially important for individuals over the age of 35 or individuals
with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the desired
results is to exercise with the proper intensity. The
proper intensity level can be found by using your heart
rate as a guide. The chart below shows recommended
heart rates for fat burning and aerobic exercise.
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use
stored fat calories for energy. If your goal is to burn fat,
adjust the speed and incline of the treadmill until your
heart rate is near one of the lower two numbers in your
training zone. It may also be helpful to set the speed
control on the console to FAT BURN to help you maintain the proper intensity level. (See page 9.)
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the higher number in your training
zone. It may also be helpful to set the speed control on
the console to AEROBIC to help you maintain the
proper intensity level. (See page 9.)
High Performance Athletic Conditioning
If your goal is high performance athletic conditioning,
set the speed control on the console to PERFORMANCE to help you maintain the proper intensity level.
(See page 9.) Note: During the first few weeks of your
exercise program, keep your heart rate near the low
end of your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
Warming UpÑStart each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up
increases your body temperature, heart rate, and circulation in preparation for exercise.
To find the proper heart rate for you, first find your age
on the left side of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers to
the right of your age. The three numbers are your
Òtraining zone.Ó The lower two numbers are recommended heart rates for fat burning; the higher number
is the recommended heart rate for aerobic exercise.
Fat Burning
Training Zone ExerciseÑAfter warming up, increase
the intensity of your exercise until your heart rate is in
your training zone for 20 to 60 minutes. (During the
first few weeks of your exercise program, do not keep
your heart rate in your training zone for longer than 20
minutes.)
Cooling DownÑFinish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help to prevent postexercise problems.
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
14
EXERCISE FREQUENCY
tween workouts. After a few months of regular exercise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
SUGGESTED STRETCHES
The correct form for several basic stretches is described
below. Move slowly as you stretchÑnever bounce.
1
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your
back foot flat on the floor. Bend your front leg, lean forward and
move your hips toward the wall. Hold for 15 counts, then relax.
Repeat 3 times for each leg. To cause further stretching of the
achilles tendons, bend your back leg as well. Stretches:
Calves, achilles tendons and ankles.
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold
for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
15
5
PART LISTÑModel No. PFTL49100
Key No. Qty.
1
2
3
4
5
6
7
8
9
10*
11
12
13
14
15
16
17
18
19
20*
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
1
2
2
1
1
1
1
1
1
1
1
8
1
1
7
6
1
1
1
1
1
1
1
25
1
1
1
1
1
4
1
10
2
1
2
2
4
11
4
2
1
1
1
1
1
1
4
4
1
1
2
Description
Left Handrail
Key/Clip
Incline Leg Pivot Bolt
Battery Cover
Left Foot Rail
Lift Motor
Rear Roller
Speed Potentiometer
Speed Control Knob
Console Assembly
Upright
Motor Belt
Small Screw
Storage Latch
Frame Spacer (Left)
8Ó Cable Tie
Incline Leg Pivot Nut
Pulley/Flywheel/Fan
Motor
Motor/Pulley/Flywheel/Fan
Wire Harness
Motor Pivot Nut
Motor Hood
Hood Shield
Small Screw
Controller
Motor Swivel Bolt
Motor Tension Nut
Motor Tension Star Washer
Motor Tension Washer
Motor Tension Bolt
Incline Stop Bracket
Screw
Extension Leg
Hood Shield Plug
Wheel Bolt
Wheel
Wheel Nut/Lift Nut
Washer
Base Pad
Rack Washer
Latch Catch
Reed Switch Clip
Reed Switch
Magnet
Console Base
Frame Spacer (Right)
Platform Screw
Isolator
Front Roller/Pulley
Front Roller Adj. Bolt
Incline Wheel
R0800A
Key No. Qty.
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85*
86
87
88
89
90
91
92
93
94
95
96
97
#
#
#
#
2
1
1
1
2
2
1
1
2
4
3
1
2
4
1
1
1
2
1
1
4
1
1
2
2
2
2
2
1
1
2
1
2
1
2
1
2
1
2
2
2
2
4
1
1
1
1
1
1
Description
Extension Leg Screw
Power Cord
Power Cord Grommet
Circuit Breaker
Frame Pivot Washer
Frame Pivot Bolt
Latch Decal
Motor Belly Pan
Cable Tie Clamp
Rear Platform Screw
Releasable Tie
Choke
Belt Guide
Belly Pan Fastener
Walking Belt
Walking Platform
Belly Pan
Rear Isolator Screw
Incline Wire Harness
Upright Grommet
Isolator Screw
Allen Wrench
Frame
1-lb. Weight
Incline Wheel Bolt
2-lb. Weight
3-lb. Weight
Front Hood Screw
Ground Wire
Incline Leg
Rear Roller Adj. Bolt
Rear Endcap
Extension Leg Assembly
Right Foot Rail
Belly Pan Screw
Right Handrail
Rack Bolt
Weight Rack
Handrail Bolt
Handrail Washer
Handrail Nut
Rear Isolator
Rear Platform Screw
Foot Rail Endcap (Right)
Foot Rail Endcap (Left)
8Ó White Wire, Pigtail
4Ó Blue Wire, M/F
4Ó Red Wire, M/F
UserÕs Manual
* Includes all parts shown in the box
# These parts are not illustrated
32
92
39
84
83
31
91
83
31
6
1
39
74
17
94
7
77
75
52
86
4
33
46
3
5
17
33
42
81
33
38
73
8
9
17
38
82
86
49
48
33
59
94
33
65
66
49
33
52
3
5
97
73
33
10*
77
87
48
5
37
69
68
45 44
36
66
48 15 17
2
16
73
67
50
49
17
85*
43
14
63
33
61
33
40
25
33
34
71
48
73
51
65
39
33
93
64
17
40
25
33
39
33
96
13
11
EXPLODED DRAWINGÑModel No. PFTL49100
17
49
47
30
33
60
37
25
53
31
27
28
93
29
33
19
36
33
18
20*
12
25
40
72
39
33
34
22
25
33
85*
21
25
R0800A
53
40
25
57
58
33
26
25
92
23
88
56 35
55
91
79
41 89
54
24
76
90
25
78
80
41
25
89
ORDERING REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared
to give the following information when calling:
¥ The MODEL NUMBER of the product (PFTL49100).
¥ The NAME of the product (PROFORM¨ 525E treadmill).
¥ The SERIAL NUMBER of the product (see the front cover of this manual).
¥ The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAWING in the center of this manual).
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center, products used
for commercial or rental purposes, or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 165722 R0800A
Printed in USA © 2000 ICON Health & Fitness, Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
