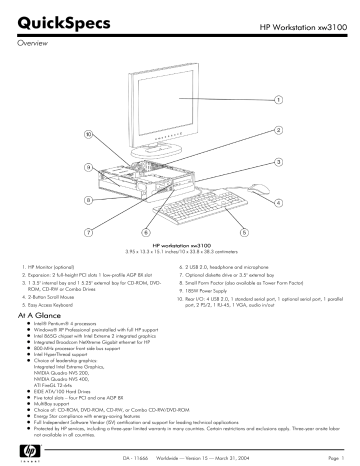

QuickSpecs
HP Workstation xw3100
Overview
HP workstation xw3100
3.95 x 13.3 x 15.1 inches/10 x 33.8 x 38.3 centimeters
1. HP Monitor (optional)
6. 2 USB 2.0, headphone and microphone
2. Expansion: 2 full-height PCI slots 1 low-profile AGP 8X slot
7. Optional diskette drive or 3.5" external bay
3. 1 3.5" internal bay and 1 5.25" external bay for CD-ROM, DVDROM, CD-RW or Combo Drives
8. Small Form Factor (also available as Tower Form Factor)
4. 2-Button Scroll Mouse
9. 185W Power Supply
10. Rear I/O: 4 USB 2.0, 1 standard serial port, 1 optional serial port, 1 parallel
port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out
5. Easy Access Keyboard
At A Glance
Intel® Pentium® 4 processors
Windows® XP Professional preinstalled with full HP support
Intel 865G chipset with Intel Extreme 2 integrated graphics
Integrated Broadcom NetXtreme Gigabit ethernet for HP
800-MHz processor front side bus support
Intel HyperThread support
Choice of leadership graphics:
Integrated Intel Extreme Graphics,
NVIDIA Quadro NVS 200,
NVIDIA Quadro NVS 400,
ATI FireGL T2-64s
EIDE ATA/100 Hard Drives
Five total slots – four PCI and one AGP 8X
MultiBay support
Choice of: CD-ROM, DVD-ROM, CD-RW, or Combo CD-RW/DVD-ROM
Energy Star compliance with energy-saving features
Full Independent Software Vendor (ISV) certification and support for leading technical applications
Protected by HP services, including a three-year limited warranty in many countries. Certain restrictions and exclusions apply. Three-year onsite labor
not available in all countries.
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 1
QuickSpecs
HP Workstation xw3100
Standard Features
Processor
Intel Pentium 4 Processors 2.6-GHz, 2.8-GHz, 3.0-GHz, or 3.2-GHz (800-MHz Front Side Bus) with HyperThreading*
* Hyper-Threading Technology requires a computer system with an Intel Pentium 4 processor supporting HT Technology and
a Hyper-Threading Technology enabled chipset, BIOS and operating system. Performance will vary depending on the
specific hardware and software you use. See http://www.intel.com/info/hyperthreading/ for more information including
details on which processors support HT Technology
Operating System
Microsoft® Windows XP Professional preinstall – Service Pack 1a
Cache Memory
512 KB integrated, full speed Level 2 cache per processor
Memory
Maximum
4 GB of dual-channel PC2700 DDR-333 or
2 GB of dual-channel PC3200 DDR-400
Network Controller
Integrated Broadcom Gbit LAN 10/100/1000Mbs Network Interface
Expansion Slots
I/O (Total)
3 total slots available
PCI - 32-bit/33 MHz
2 slots available
AGP 8X
1 slot available
(Total/Available)
3/0
Internal 3.5 inch
1 bay (for Hard Disk Drive
External 5.25 inch
1 bay (for Optical Disk Drive)
External 3.5 inch
1 bay (for optional floppy or second hard drive)
Expansion Bays
Storage
Interfaces
Floppy Diskette Drive (optional) 1.44 MB
Removable Media
CD-ROM, CD-RW, DVD-ROM, Combo DVD-ROM/CD-RW, or no optical disk
Hard Drive
40, 80 or 160 GB EIDE ATA/100 (7200 rpm)
Parallel
1 25-pin port, rear
USB 2.0
6 USB 2.0 ports (2 front, 4 rear)
Serial
One 9-pin connectors (rear)
Ultra ATA/100
2 connectors (internal)
Keyboard
1 PS/2 keyboard port (rear)
Pointing Device
1 PS/2 mouse port (rear)
Keyboard
1 PS/2 keyboard port (rear)
Network interface
1 RJ-45 connector (rear)
Microphone Jack
1 (front)
Headphone Jack
1 (front)
Line-In Jack
1 (rear)
Line-Out Jack
1 (rear)
Graphics/Video
1 VGA port (rear, for Intel Extreme integrated graphics)
IEEE 1394/Firewire (optional)
3 connectors (1 internal, 2 rear)
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 2
QuickSpecs
HP Workstation xw3100
Standard Features
Graphics
One of the following:
Integrated Intel Extreme 2 Graphics
NVIDIA Quadro NVS 200 (64M AGP LP)
NVIDIA Quadro NVS 400 (64M PCI)
ATI FireGL T2-64s (64MB AGP LP)
Audio
AC97/16-bit stereo full-duplex
Management
System Software Manager
Insight Management Agent
Altiris Express
Asset Control
Alert on LAN (AoL)
Wake on LAN (WoL)
Fault Management
Security Management
Pre-Failure Warranty (hard drives and memory)
Remote Management
Remote Wakeup
Remote ROM Flash
Remote Security
Remote Shut Down
Bios Features
Advanced Configuration and Power Interface (ACPI) 1.0b
Advanced Power Management (APM) 1.2
Desktop Management Interface (DMI) 2.0
System Management (SM) Bios 2.3
Security
Diskette write and boot control
Port Control
Flash ROM lock
Keyboard password
Network server mode
Parallel interface control
Power-on password
Serial interface control
Setup password
Cable lock provision
Kensington lock provision
Solenoid Hood Lock/Sensor (optional)
Power Supply
185 watts
Service and Support
Protected by HP Services including a three-year, limited warranty with three-year parts coverage, three year, on-site service,
and three-year labor (in many countries); 7 x 24 hardware technical phone support and on-line support through the
Internet; Pre-Failure Warranty coverage of hard drives, memory, and processors.
NOTE: Certain restrictions and exclusions apply. Consult the customer support center for details.
Three-year, onsite and labor not available in all countries.
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 3
QuickSpecs
HP Workstation xw3100
Standard Features Pre-Configured Global Models
xw3100X/PC3.00/A80/E512/XdF/s
Processor
Intel Pentium 4 processor 3.0 GHz with 800 MHz front side bus (HyperThreading support)
OS
Windows XP Professional
Cache Memory
512 KB
Memory
512 MB (2x256MB dual-channel non-ECC PC3200 DDR-400); 6.4 GB/sec
throughput
Optical Drive
DVD-ROM
Hard Drive
80GB EIDE ATA/100, 7200 rpm
Graphics
Integrated Intel Extreme Graphics Integrated in the base system
For additional functionality and performance please choose a graphics card
option below:
NVIDIA Quadro4 200NVS
NVIDIA Quadro4 400NVS
ATI FireGL T2-64s
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
Mouse
HP scroll mouse, PS/2
Other
Includes Floppy Drive and HP Easy Access Keyboard PS/2 carbonite, Energy Star
Settings
xw3100X/PC3.00/A80/E512/XdF/s Country Code Key
N. America
DL414A#ABA
NL
DL414A#ABH
Fr. Canadian
DL414A#ABC
Europe
DL414A#AK6
L. America
DL414A#ABM
Switzerland (Eng, It)
DL414A#ACN
Japan
DL414A#ABJ
Switzerland
DL414A#AR8
Japan (English)
DL414A#ACF
Dutch
DL414A#ACE
UK
DL414A#ABU
Asia/Pacific (English)
DL414A#AB4
Germany
DL414A#ABD
China
DL414A#AB2
France
DL414A#ABF
Taiwan
DL414A#AB0
Italy
DL414A#ABZ
Australia
DL414A#ABG
Spain
DL414A#ABE
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 4
QuickSpecs
HP Workstation xw3100
Configure to order options
HP workstation xw3100
Base System
When buying a basic system, you have many configuration options. The basic system includes: Small Form Factor Chassis,
System Board, Cables, etc.
Processor
Intel Pentium 4 Processor 2.6-GHz, 512-KB cache, 800-MHz front side bus (Hyper-Threading support)
Intel Pentium 4 Processor 2.8-GHz, 512-KB cache, 800-MHz front side bus (Hyper-Threading support)
Intel Pentium 4 Processor 3.0-GHz, 512-KB cache, 800-MHz front side bus (Hyper-Threading support)
Intel Pentium 4 processor 3.2 GHz, 512-KB cache, 800 MHz front side bus (Hyper-Threading support)
Operating System
Windows XP Professional SP1a preloaded; incl. Win XP recovery CD
Graphic Card
(Video Card)
Integrated Intel Extreme Graphics Graphics (Single Display)
NVIDIA Quadro4 200NVS (64 MB, Dual Display, AGP, LP)
NVIDIA Quadro4 400NVS (64 MB, Quad Display, PCI)
ATI FireGL T2-64s (64MB, Dual Display, AGP, LP)
Memory
128 MB (1x128 MB) PC2700 DDR-333 non-ECC
256 MB (2x128MB) PC2700 DDR-333 non-ECC
512 MB (2x256MB) PC2700 DDR-333 non-ECC
1 GB (2x512 MB) PC2700 DDR-333 non-ECC
512 MB (2x256 MB) PC3200 DDR-400 non-ECC
1 GB (2x512 MB) PC3200 DDR-400 non-ECC
1.5 GB (2x512,2x256) PC3200 DDR-400 non-ECC
2 GB (4x512 MB) PC3200 DDR-400 non-ECC
Monitors
HP L1825 Flat Panel Color Monitor (18-inch, Carbon/Silver)
HP L2025 Flat Panel Color Monitor (20-inch, Carbon/Silver)
HP p930 Flat screen (19-inch, Carbon/Silver or Carbonite)
HP p1230 Flat screen CRT (22-inch, Carbon/Silver)
NOTE: AssetControl monitor. AssetControl features are accessible with HP workstations featuring Intelligent
Manageability.
Primary hard disks
40 GB EIDE ATA/100 EIDE (7,200 rpm)
80 GB EIDE ATA/100 EIDE (7,200 rpm)
160 GB EIDE ATA/100 EIDE (7,200 rpm)
Secondary Hard Disks
40 GB EIDE ATA/100 EIDE (7,200 rpm)
80 GB EIDE ATA/100 EIDE (7,200 rpm)
160 GB EIDE ATA/100 EIDE (7,200 rpm)
HDD Controller
ULTRA ATA/100
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 5
QuickSpecs
HP Workstation xw3100
Configure to order options
Removable Media
HP 48X CD-ROM
HP 48X CD-RW
HP 16X DVD-ROM
HP 48X CDRW/DVD Combo
Keyboard
HP Easy Access Keyboard (PS/2) carbonite
No Keyboard option
Input Devices
HP 3-Button Mouse (PS/2)
HP Scroll Mouse (PS/2)
No Mouse option
I/O PCI Cards and Other IEEE 1394/Firewire PCI Card
Solenoid Hood Lock and Sensor
Lucent V90 56K Modem PCI card
Energy Star Settings
Floppy Disk Drive
No Floppy Disk Drive Kit
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 6
QuickSpecs
HP Workstation xw3100
After market options/Standalone accessories
Part #:
Europe/Asia
Pacific
Memory (dual-channel, DDR, 256MB (1x256MB) PC2700 DDR333 non-ECC
unbuffered, ECC)
512MB (1x512MB) PC3200 DDR400 non-ECC
Monitors
Part #:
Americas/
Japan
DC339A
DE467A
1GB (1x1GB) PC2700 DDR333 non-ECC
DC341A
1GB (1x1GB) PC2700 DDR333 non-ECC
DC341A
HP L1825 Flat Panel Color Monitor (18-inch, Carbon/Silver)
P9021W
303486-003
HP L2025 flat panel color monitor (20-inch, carbon/silver)
P4831D#XXX
303102-003
(NA only)
HP p930 flat screen CRT color monitor (19-inch, carbon/silver or carbonite)
P9009W#XXX
302268-003
(NA only)
HP p1230 Flat screen CRT Monitor color (22-inch, Carbon/Silver)
P9613A #XXX
P9613A#ABA
(NA only)
NOTE: AssetControl features are accessible with HP workstations featuring Intelligent Manageability.
Graphics
Multimedia
Communications
Integrated Intel Extreme 2 Graphics
NVIDIA Quadro4 400NVS (64 MB, Quad Display, PCI)
AA605A
NVIDIA Quadro4 400NVS DVI Cables
AA606A
DMS-59 to Dual DVI Cable for NVS cards
DL139A
ATI FireGL T2-64s
DK599A
HP 48X CD-ROM Drive
DC143B
HP 48X CD-RW Drive
DE205A
HP 16X DVD-ROM Drive
AA620A
HP 48X DVD/CD-RW Combo
DE206A
HP Gbit by Broadcom PCI Card
DC194A
Intel Pro/1000 MT Gbit PCI Card
DC193A
V92 56K PCI Modem
DC131B
IEEE 1394 Firewire PCI card
AA638A
Speakers
Labtec Spin-22 Carbon Speakers
Input Devices & Other
HP Easy Access Keyboard (PS/2)
246637-001
DC167B
HP Three Button Mouse (PS/2)
AA778A
HP Scroll Mouse (PS/2)
DD440B
Floppy Disk Drive
Security
DK518AV
Solenoid Hood Lock and Sensor
252076-B21
USB Fingerprint Identification
240238-B21
USB SmartCard Keyboard
267147-008
Corvadis USB Enhanced SmartCard Reader
240154-B21
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 7
QuickSpecs
HP Workstation xw3100
Memory
Standard Memory
This system supports both PC3200 DDR-400 and PC2700 DDR-333 non-ECC memory. The mainboard is based on the Intel 865G chipset and has 4 DIMM
slots (6.4 GB/s and 5.4 GB/s throughput respectively). It can support a maximum of 4 GB of RAM when optional memory upgrades are included.
Part #
Here are memory options available from HP:
256MB (1x256MB) PC2700 DDR333 non-ECC
DC339A
256MB (1x256MB) PC3200 DDR400 non-ECC
DE466A
512MB (1x512MB) PC3200 DDR400 non-ECC
DE467A
1GB (1x1GB) PC2700 DDR333 non-ECC
DE341A
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 8
QuickSpecs
HP Workstation xw3100
Storage
Drive Bay Locations
Drive Support
Floppy Diskette Drives
Quantity
Supported
Position
Supported
Controller
Up to 1
1
Diskette
3.5" SMART III Ultra ATA Hard Up to 2
Drives
1, 2
Integrated IDE
5 ¼" Optical Storage Drive
Up to 1
3
Integrated IDE
MultiBay Drive (optional, with
adapter)
Up to 1
3
Integrated IDE
Maximum Storage
Capacity
Internal
320 GB (Ultra ATA)
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 9
QuickSpecs
HP Workstation xw3100
TechSpecs
System Unit
Chassis Dimensions
(HxWxD)
3.95 x 13.3 x 15.1 in (10 x 33.8 x 38.3cm)
Weight
22.2 lb (10.1 kg)
(standard configuration)
Power Supply
HP Easy Access Keyboard
Custom Power Supply – PFC
With in 230V (115v/230V line switch)
Line Frequency
47 to 63 Hz
Maximum Rated Power
185 W input, 185 W output
Temperature
(Values are subject to change)
Operating
50° to 95° F (10° to 35° C)
Non-operating
-22° to 140°F (-30° to 60°C)
Humidity
(non-condensing)
(Values are subject to change)
Operating
15% to 80%
Non-operating
10% to 90%
Maximum Altitude
(nonpressurized)
Operating
10,000 ft (3,048 m )
Non-operating
15,000 ft (4,572 m)
Dimensions (HxWxD)
18.3 x 6.3 x 1.4 in (46.48 x 16.0 x 3.56 cm)
Weight
Approximately 2 lb (0.9 kg)
Input Specifications
Operating Voltage
+ 5VDC ± 5%
Power Consumption
50 mA maximum (with 3 LEDs on)
System Interface
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC98
Functionally compliant
Languages
30+ available
Keycaps
Low-profile design
Switch Actuation
55 g nominal peak force with tactile feedback
Switch Life
20 million keystrokes (using Hasco modified tester)
Switch Type
Contamination resistant membrane
Key Leveling Mechanism
For all double wide and greater length keys
Cable Length
6 ft (1.8 m)
PC98-99
Mechanically compliant
Acoustics
50 dBA maximum sound pressure level
Operating Temperature
50° to 122° F (10° to 50° C)
Non-operating Temperature
-22° to 140° F (-30° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
4 g peak acceleration
Mechanical
Environmental
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 10
QuickSpecs
HP Workstation xw3100
TechSpecs
HP PS/2 3-Button Mouse
Dimensions/Weight
Environmental
Electrical
Mechanical
Regulatory Approvals
DA - 11666
Height
1.42 in (3.6 cm)
Length
4.17 in (10.7 cm)
Width
2.87 in (7.4 cm)
Weight
5.30 oz (150 g)
Operating Temperature
32° to 104° F (0° to 40° C)
Non-operating Temperature
-4° to 140° F (-20° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-Operating Humidity
10% to 90% (non condensing at ambient)
Operating Voltage
+5 VDC ± 10%
Power Consumption
10 mA maximum
Interface
PS/2 six-pin mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s (25 cm/sec) Maximum
Tracking Acceleration
100 inches/sec/sec 2.5 m/sec/sec
Tracking Mechanism Life
Exceeds 300 miles (483) km at an average speed of 10
in/sec with no operational degradation
Switch Type
Electronically debounced micro-switch
Switch Activation
Approximately 60 g
Switch Life
1,000,000 operations with no operational degradation
Cable Length
7.0 ft (2.14 m)
Compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI
Worldwide — Version 15 — March 31, 2004
Page 11
QuickSpecs
HP Workstation xw3100
TechSpecs
HP 2-Button Scroll Mouse Scroll Wheel
8 mm
Maximum Rotation Speed 30 mm/s
Switch Type
Light force micro-switch
Switch Life
1 million operations
Mechanical Life
Minimum 200,000 revolutions
Environmental
Operating Temperature
50° to 122° F (10° to 50° C)
Non-operating Temperature
-22° to 140° F (-30° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
4 g peak acceleration
Operating Voltage
+ 5VDC ± 10%
Power Consumption
15mA
System Consumption
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC98
Functionally compliant
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Acceleration
100 in/s
Switch Actuation
85 g nominal peak force
Switch Life
1,000,000 operations (using Hasco modified tester)
Cable Length
2m
PC98-99
Mechanically compliant
Electrical
Mechanical
1.44-MB Diskette Drive
Regulatory Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C -Tick
Size
3.5 in (8.89 cm)
LED Indicators (front panel) Green
Read/Write Capacity per
Diskette (high/low)
1.44 MB/720 KB
Drive Height
One-third
Drive Rotation
300 rpm
Transfer Rate (high/low)
500/250 KB/s
Bytes/Sector
512
Sectors/Track (high/low)
18/9
Tracks/Side (high/low)
80/80
Access Times
Track-to-Track (high/low)
3/6 ms
Average (high/low)
94/173 ms
Settling Time
15 ms
Latency Average
100 ms
Cylinders (high/low)
80/80
Read/Write Heads
Two
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 12
QuickSpecs
HP Workstation xw3100
TechSpecs
EIDE ATA Hard Drives
160 GB
Capacity
160 MB
Height
1 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
80 GB
Seek time
(typical reads, including
settling)
Single track
0.8 ms
Average
< 9.1 ms
Full-stroke
17.0 ms
Rotational speed (approx)
7200 rpm
Logical blocks
320,173,056
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
80 GB
Dimensions (HxWxD)
1.00 x 4.00 x 5.75 in (2.61 x 10.16 x 14.6 cm)
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
Seek time
(typical reads, including
settling)
Single track
2.0 ms
Average
12.0 ms
Full-stroke
22.0 ms
Average rotational latency 4.2ms
40 GB
Rotational speed (approx)
7200 rpm
Logical blocks
150,301,488
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
40 GB
Dimensions (HxWxD)
1.00 x 4.00 x 5.75 in (2.61 x 10.16 x 14.6 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
Seek time
(typical reads, including
settling)
Single track
2.0 ms
Average
12.0 ms
Full-stroke
22.0 ms
Average rotational latency 4.2ms
DA - 11666
Rotational speed
7200 rpm
Logical blocks
78,165,360
Operating temperature
41° to 131° F (5° to 55° C)
Worldwide — Version 15 — March 31, 2004
Page 13
QuickSpecs
HP Workstation xw3100
TechSpecs
48X CD-ROM Drive
Capacity
650 MB CD disc
Dimensions (HxWxD)
1.7 x 5.9 x 8.0 in (4.3 x 15.0 x 20.3 cm)
Weight
2.6 lb (1200 g)
Interface
ATAPI
Mounting Orientation
Horizontal
Data Transfer Rates Read
Digital audio extraction (minimum) -1,200 KB/s
CD read - up to 7,200 KB/s
Media and Formats Read
Formats: CD-DA, CD-ROM (Mode 1 and 2), CD-XA Ready, Photo CD (Single and
Multi-session), Mixed Mode (Audio and Data combined), CD-I (FMV), CD Plus, CD-Extra;
Media: stamped, CD-R, CD-RW
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 0 (16.7
MB/s); UltraDMA Mode 2 (33.3 MB/s)
Access Times (typical)
Random
< 100 ms @ 48x
Full-Stroke
< 150 ms
Start-up Time (typical)
< 7 s (single session)
< 30 s (multisession)
Stop Time (typical)
<4s
Read Buffer size
128 KB (minimum)
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
80 dB
Channel Separation
65 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 122° F (5° to 50° C)
Humidity
10% to 90%
Approvals/
Environmental
UL 1950 (US and Canada), CSA, SEMKO, TUV; CE, FDA, FCC, IC, C-TICK
Operating Systems
Supported
Microsoft Windows 2000 and Microsoft Windows XP Pro.
Supplied Software
None
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 14
QuickSpecs
HP Workstation xw3100
TechSpecs
40+ 16XDVD-ROM Drive Capacity
with +R Read Support
Dimensions (HxWxD)
4.7 and 9.4 GB DVD disc/700 MB CD disc
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
1.72 lb (0.78 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates -
Read Digital audio extraction (minimum) -2,700 KB/s (18X)
CD read - up to 6,000 KB/s (40X)
DVD read - up to 21,600 KB/s (16X)
48/24/48+16X Combo
CD-RW/DVD-ROM
Media and Formats Read
CD Formats: CD-DA, CD-ROM (Modes 1 and 2), CD-ROM XA (Mode 2, Form 1 and
2), CD-Extra, CD-Text, CD-I (Mode 2, Form 1 and 2), PhotoCD (single and multi-session),
CD-I FMV, Video CD
CD Media: stamped, CD-R, CD-RW
DVD Formats: DVD-ROM, DVD-R (version 1.0 and 2.0), DVD-R multi-border, DVD-RW
(version 1.0 and 1.1), DVD-RAM, DVD-Video (with application support)
DVD Media: stamped (single or dual layer, single sided), DVD+RW, DVD+R, DVD-R,
DVD-RW
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
DVD-ROM single layer
(random)
< 120 ms
CD-ROM Mode 1
<100ms
Full stroke DVD (seek)
< 180 ms (seek)
Full stroke CD(seek)
< 160 ms (seek)
Start-up Time (typical)
9s
Read Buffer Size
256 Kbytes (minimum)
Stop Time (typical)
4s
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
75 dB
Channel Separation
65 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Data interface connector
40-pin, shrouded and keyed,
flat ribbon
Environmental (all
conditions non-condensing)
Temperature (operating)
41° to 122° F (5° to 50° C)
Relative humidity (operating)
15% to 85%
Approvals/
Environmental
UL 1695 (US and Canada), CSA, TUV, SEMKO, IC, CE, FDA, FCC, C-TICK, CB, EMC
(Taiwan, Korea)
Operating Systems
Supported
Microsoft Windows 2000 and Microsoft Windows XP.
Supplied software
Intervideo WinDVD 4.0: Play DVD movies
Capacity
4.7 and 9.4 GB DVD disc/700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
2.0 lb (0.9 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,200 KB/s (8X)
Media and Formats Read
CD Formats:
Formats CD-DA, CD-ROM (Modes 1 and 2), CD-ROM XA (Mode 2, Form 1 and
2), Mixed mode, CD-Extra, CD-I FMV, Video CD, Photo CD (single and multi-session),
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 15
QuickSpecs
HP Workstation xw3100
TechSpecs
CD-Text, CD-Plus
CD Media:
Media stamped, CD-R; CD-RW
DVD Formats:
Formats DVD-ROM, DVD-Video (with application support), DVD-R (version 1.0
and 2.0), DVD-RW (version 1.0 and 1.1), DVD-R multi-border
DVD Media:
Media stamped (single or dual layer, single sided), DVD+ RW, DVD+ R, DVD-R,
DVD-RW
Data Transfer Rates Write
CD-R write — 600 KB/s (4X)
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3600 KB/s (24X)
CD-R write — 4800 KB/s (32X)
CD-R write — 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
Media and Formats Write
CD Formats:
Formats CD-DA, CD-ROM (Mode 1), CD-ROM XA (Mode 2, Form 1 and 2), Mixed
mode, CD-Extra, CD-I FMV, Video CD, CD-Plus;
CD Media:
Media CD-R; CD-RW
Write Methods
Disc-at-once, session-at-once, track-at-once, incremental fixed and variable packet,
multisession
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
Random
120 ms
CD-ROM Mode 1
110 ms
Full Stroke DVD
210 ms
Full Stroke CD
160 ms
Start-up Time (typical)
<4 seconds (single session), <30 seconds (multisession)
Stop Time (typical)
4s
Write Buffer Size
2 MB (minimum)
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
74 dB
Channel Separation
65 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 122° F (5° to 50° C)
Humidity
10% to 85%
Approvals/Environmental MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI
C63.4–1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA C22.2
No. 950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV, EN60825-1
Operating Systems
Supported
Microsoft Windows 2000, Windows XP
Supplied software
Intervideo WInDVD 4.0: Play DVD movies;
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music and data
CDs, and data DVDs;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media.
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 16
QuickSpecs
HP Workstation xw3100
TechSpecs
48/24/48X CD-RW
Capacity
700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
2.0 lb (0.9 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,800 KB/s (12X)
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
Media and Formats Read
Formats:
Formats CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text, Photo CD (single and
multisession);
Media:
Media stamped, CD-R, CD-RW
Data Transfer Rates Write
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3000 KB/s (20X) to 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
Media and Formats Write
Formats:
Formats CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text;
Media:
Media CD-R, CD-RW (including ultra-speed)
Write Methods
Disc-at-once, session-at-once,, track-at-once, incremental fixed and variable packet,
multisession
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
CD-ROM Mode 1
100 ms
Full Stroke CD
160 ms (seek)
Start-up Time (typical)
<4 s (single session), <30 s (multisession)
Stop Time (typical)
<3 s
Write Buffer Size
2 MB
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
80 dB
Channel Separation
70 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 113° F ( 5° to 45° C)
Humidity
10% to 80%
Approvals/
Environmental
MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI
C63.4–1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA C22.2
No. 950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV, EN60825-1
Operating Systems
Supported
Microsoft Windows 2000, Windows XP
Supplied software
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music and data
CDs, and data DVDs;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media.
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 17
QuickSpecs
HP Workstation xw3100
TechSpecs
HP Broadcom NetXtreme
Gigabit Ethernet
Dimensions
4.7 x 2.0 x 0.08 in (12 x 5 x 1.9 cm)
Connector
RJ-45
Controller
Broadcom 5782 PCI LAN Controller
Memory
Integrated 96Kb frame buffer memory
Data rates supported
10/100/1000 Mbps
Compliance
IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture
PCI 2.2
Data path width
32-bit, 33/66 MHz bus interface
Data transfer mode
Bus-master DMA
Hardware certifications
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for European
Union
Power requirement
1.48 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
Operating temperature
32° to 131°F (0° to 55° C)
Operating humidity
85% at 131° F (55° C)
Operating system driver
support
Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP, Linux
2.2, Linux 2.4
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility
Alerting
ASF 1.0
Kit contents
Broadcom 5782, CD, Broadcom Gigabit Ethernet for HP, drivers, quick install guide,
product warranty statement
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 18
QuickSpecs
HP Workstation xw3100
TechSpecs
Intel Pro 1000 MT
Dimensions
6.4 x 4.8 x 0.8 in (16.3 x 12.1 x 1.9 cm)
Connector
RJ-45
Controller
Intel 82540EM Gigabit Controller
Memory
Integrated 96Kb frame buffer memory
Data rates supported
10/100/1000 Mbps
Compliance
IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture
PCI 2.2
Data path width
32-bit, 33/66 MHz bus interface
Data transfer mode
Bus-master DMA
Hardware certifications
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for European
Union
Power requirement
1.48 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
Operating temperature
32° to 131°F (0° to 55° C)
Operating humidity
85% at 131° F (55° C)
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility
Kit contents
The Intel Pro 1000 MT NIC, CD containing Intel PROset II NIC drivers, quick install guide,
product warranty statement
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 19
QuickSpecs
HP Workstation xw3100
TechSpecs
Lucent V.90 56K PCI Win Dimensions (L X H)
Modem
Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm), supports highand low-profile brackets
Data Transmission
V.90/K56flex technology speeds: 56,000 Kbps maximum downstream data, controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires compatible
modems at server sites. Other conditions may limit modem speed. FCC limitations allow
a maximum of 53 Kbps during download transmissions.
Data Speeds
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/
16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
Data Standards
ITU V.90, ITU-T, V.34bis, V.22bis, V.22bis, V.21, V.23, Bell 212A, and Bell 103
Fax Speeds
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
Fax Mode Capabilities
Group3 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2, Class 1
Error Correction and Data V.44 (software upgradeable), 4.2bis, V.42 and MNP2-5
Compression
Power Management
APM and ACPI states D0, D1, D2, and D3; meets PCI 2.2 requirements and PC'99
requirements
Upgradability
Software driver upgradable for v.92 and future enhancements
Video
ITU-T V.80 video ready interface
Power requirement
1.48 watts @ +3.3V AUX supply with 5V tolerance
Other
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a UARTcompatible interface
Optional ring wakeup signal
Operating Temperature
32° to 158° F (0° to 70° C)
Operating Humidity
20% to 90%, non-condensing
Power
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one electrical load
Chipset
Agere Systems 1648C (Mars 3.2)-Integrated PCI interface with 5-V tolerant buffers and
CardBus support
Connection
Dual, parallel RJ-11 support with auxiliary Tip/Ring connector
Other Features
Digital line protection, call progress monitoring via on-board piezo device, transformerbased DAA design, support for high profile and low profile brackets, PnP ID supports via
external EEPROM
Safety
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV, NEMKO,
DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO, SEMKO, CE mark
EMC
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-4-6, EN
61000-4-8
Telecom
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Health
Bare PCB material compliant to 94V-0 or better (marked as such), Microsoft Windows Me
health compliant
Other
PC'99 compliant, PCI version 2.2, WHQL approved; support for ACPI revision 1.1
Kit Contents
Lucent V.90 56-K PCI Win Modem, brackets/screws, HP installation guide
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 20
QuickSpecs
HP Workstation xw3100
TechSpecs
NVIDIA Quadro NVS 200 Form Factor
Graphics Card
Graphics Controller
Low profile
Integrated Quadro 2D/3D 128-bit graphics processor unit (GPU)
Bus Type
AGP 4x
RAMDAC
Dual 350 MHz
Memory
64 MB 166MHz 4 M x 16 SDR 6ns unified frame buffer
Connectors
Single LFH-60
Dimensions
low-profile form factor
Multi-monitor support
Dual monitors with NVIDIA's nView
nView Hardware
Architecture
Dual 350MHz RAMDACs
Integrated TMDS
Digital Vibrance Control (DVC)
32-bit color
2048 x 1536 @ 60 Hz maximum resolution
2D rendering engine optimized for 32-, 24-, 16-, 15-, and 8-bpp modes
Unified driver architecture (UDA) provides easy installation and manageability
High definition video
processor
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs
Fully compliant with OpenGL 1.3 and DirectX 8.1
Available graphics drivers Microsoft Windows XP and Microsoft Windows 2000, Linux
See: http://www.hp.com/support/workstation_drivers
NVIDIA Quadro NVS 200
Graphics Card display
resolutions & refresh rates
Single CRT display
Resolution
Maximum Refresh Rate
Bits per Pixel
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1600 x 1200
1920 x 1080
1920 x 1080
1920 x 1200
1920 x 1200
1920 x 1440
1920 x 1440
2048 x 1536
120 Hz
120 Hz
120 Hz
120 Hz
120 Hz
100 Hz
85 Hz
100 Hz
75 Hz
85 Hz
70 Hz
75Hz
60Hz
60Hz
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 21
QuickSpecs
HP Workstation xw3100
TechSpecs
NVIDIA Quadro NVS 400 Form Factor
Graphics Card
Graphics Controller
ATX
Integrated Quadro4 2D/3D 128-bit graphics processor unit (GPU)
Bus Type
PCI
RAMDAC
Dual 350 MHz
Memory
64 MB 220 MHz, 4mx 32 DDR per GPU, 32 MB per GPU unified frame buffer
Connectors
Dual LFH-60
Dimensions
Low-profile form factor
Multi-monitor support
1 to 4 displays with nView – with two cards (1 PCI per card), up to 8 monitors can be
driven
nView Hardware
Architecture
32-bit color
2048x1536 @ 75Hz maximum resolution
Dual 350MHz RAMDACs
Integrated TMDS
Digital Vibrance Control (DVC)
High-performance 2D rendering engine
Optimized for 32-, 24-, 16-, 15- and 8-bpp modes
High-definition video
processor (HDVP)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT Motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs
Fully compliant with OpenGL 1.3 and DirectX 8.1
Available graphics drivers Microsoft Windows XP and Microsoft Windows 2000, Linux
See: http://www.hp.com/workstations/support
NVIDIA Quadro NVS 400
Graphics Card display
resolutions & refresh rates
Single CRT display
Resolution
Maximum Refresh Rate
Bits per Pixel
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1600 x 1200
1920 x 1080
1920 x 1080
1920 x 1200
1920 x 1200
1920 x 1440
1920 x 1440
2048 x 1536
120 Hz
120 Hz
120 Hz
120 Hz
120 Hz
100 Hz
85 Hz
100 Hz
75 Hz
85 Hz
70 Hz
75Hz
60Hz
60Hz
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 22
QuickSpecs
HP Workstation xw3100
TechSpecs
ATI FireGL T2-64s
Graphics Card
Form Factor
Low Profile
Graphics Controller
ATI FGL 9600 GPU
Bus Type
AGP 1x/2x/4x/8x Version 3.0 compliant
RAMDAC
Dual 400MHz/30-bit
Memory
64MB DDR2 SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
VGA DB-15 and DVI-I analog/digital monitor outputs,
4-pin mini DIN providing TV output
Multi-monitor support
Dual Screen output for resolutions up to 2x2048x1536x32 bit for analog display
Additional product
features
64MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
2D and 3D acceleration provided for 16-bit and 32-bit RGBa modes
Hardware cursor with full color alpha channel
16/32 bit Z buffer, 16/32 bit W-buffer, 8-bit stored alpha and 8-bit Stencil planes
Bus mastering support for 2D/3D display lists and local memory vertex list execution
Bilinear, Trilinear and Anisotropic texturing
Cubic Environment and Perturbation Bump Mapping
Projective Texture, 3D Texture and Video Texture support
Full Scene Anti-Aliasing (FSAA) support
Video Engine supports YCrCb (4:2:2, 4:1:0, 4:2:0) to RGB conversion
Video scaling and up to 4x4 tap filtering supported for all YUV and RGB16/32 formats
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP1x/2x/4x/8x Version
3.0 compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
AGP Read and AGP Write Support
8X Fast write support
FGL 9600 GPU featuring
VGA controller supporting full standard feature set
2D Engine with 128-bit datapath processing multiple pixels per clock
PIXEL TAPESTRY III, 3D rendering engine utilizing a 4 rendering pipelines
CHARISMA ENGINE III, geometry unit utilizing 2 vertex processing engines
VIDEO IMMERSION III, industry leading video technology supporting MPEG 2
encode/decode
Dual independent display controllers with 4K x 4K address space each
128-bit external frame buffer interface providing memory bandwidth of up to 10 GB per
second
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8, 9
Available graphics drivers Windows 2000
Windows XP
Linux
See: http://www.hp.com/workstations/support
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 23
QuickSpecs
HP Workstation xw3100
TechSpecs
ATI FireGL T2-64s
Graphics Card display
resolutions & refresh rates
CRT DISPLAY (SINGLE OR DUAL)
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1152x864
1280x960
1280x1024
1600x1000
1600x1024
1600x1200
1792x1344
1920x1080
1920x1200
2048x1536
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
76Hz
100Hz
100Hz
100Hz
100Hz
85Hz
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
DIGITAL DISPLAY (SINGLE)
HP L1825 Flat Panel
Monitor (Carbon/Silver)
Single CRT Display Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1280x1024
1600x1000
1600x1200
1920x1080
1920x1200
75Hz
75Hz
75Hz
75Hz
60Hz
60Hz
60Hz
60Hz
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16,24, 24, 32
16, 24, 32
Display Type
TFT large viewing angle
Viewable Image Size
18.1 in (45.9 cm) maximum viewable
Screen Opening (WxH)
14.2 x 11.4 in (36.2 x 28.9 cm)
Viewing Angle
160° horizontal/160° vertical (10:1 minimum contrast ratio)
Pixel Pitch
0.281 mm
Pixel Clock Speed
135 MHz
Brightness
250 nits (cd/m2)
Contrast Ratio
350:1 (typical
Response Rate
30 ms (typical rise + fall)
Horizontal Frequency (kHz) 30 to 82 kHz
Vertical Frequency (Hz)
56 to 75 Hz
Color Depth Support
16.7 million colors
Graphics Controller
Genesis gm5020
Factory Preset Modes
15
Graphic Preset Modes
(non-interlaced)
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 75 Hz
1024 x 768 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
Mac Compatible Modes
(adapter required)
832 x 624 @ 75 Hz
Text Mode
720 x 400 @ 70 Hz
VGA Mode
640 x 480 @ 60 Hz, 72 Hz
User-Programmable
Modes
15
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes (accessible on HP desktops featuring Intelligent Manageability)
DA - 11666
1152 x 870 @75 Hz
Worldwide — Version 15 — March 31, 2004
Page 24
QuickSpecs
HP Workstation xw3100
TechSpecs
Plug and Play
Yes (supports VESA DDC2B; PC2001 compliant)
Protective Panel
No
Kensington Lock-ready
Yes
Accessories Included
VGA cable, DVI-D cable
VESA Mounting
100 mm x 100 mm screw-mounting option; pedestal is attached
VESA External Mounting
Yes (standard 4-hole pattern, 100 mm)
Detachable Base
Yes
Tilt
Yes (-5° to + 35° )
Swivel
Yes (-35° to + 35° )
Height Adjustable
Yes (130 mm adjustment range)
Portrait Mode Supported
Yes
Touchscreen Option
No
Fail Safe Mode
Yes
Icon Based On-Screen
Controls
Yes
User Controls
Brightness, contrast
Yes
Positioning
Yes
Color temperature
Yes (6500k, 9300k, User)
Individual color control
Yes
Serial number display
Yes
Full screen resolutions
Yes (640 x 480, 800 x 600)
Clock
Yes
Clock phase
Yes
Monitor management
No
Recall
No
Audio recall
No
Input selection
Yes
Factory reset
Yes
English
Yes
Spanish
Yes
French
Yes
German
Yes
Simplified Chinese
Yes
Italian
Yes
Australian ACA Approval
Yes
Canadian Requirements/CSA
Yes
CE Marking
Yes
China CCIB/CCEE Approval
Yes
CISPR Requirements
Yes
Eastern European Approvals
Yes
Energy Star Compliant
Yes
FCC Approval
Yes
German Ergonomic
(TUV and GS Mark)
Yes
ISO 9241-3,7,8 VDT
Guidelines
Yes
ISO 13406-2 Compliant
(Pixel Defect Guidelines)
Yes
Mexican NOM Approval
Yes
Language Selection
Agency Approvals/
Certifications
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 25
QuickSpecs
HP Workstation xw3100
TechSpecs
MIC Requirements
(New Zealand)
Yes
MPR-II Compliant
Yes
Nordic Approvals
(Nemko, Fimko, Demko,
Semko)
Yes
PC2001 Compliant
Yes
PC99 Certified
Yes
S. Korean MIC Approval
Yes
Taiwan BSMI Approval
Yes
TCO 99 (emissions,
ergonomics, environment)
Yes
TUV-Ergo
Yes
UL Listed
Yes
VCCI Approvals
Yes
Windows Certification
Microsoft Windows 98, Windows 2000, and Windows XP
Input Impedance
75 ohms ± 10%
Input Signal
Two connectors: one 15-pin mini D-sub analog VGA; and one DVI-I (VGA analog or
digital)
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on Green
Power Supply ALS
Auto-ranging, 90 to 264 VAC; internal power supply, 60 Hz
Power Rating
Maximum Mode
< 60 W
Power Saving Mode
<5W
Off Mode
<5W
With stand - min height
14.8 x 15.8 x 8.2 in (37.6 x 40.2 x 20.8 cm)
With stand - max height
19.9 x 15.8 x 8.2 in (50.6 x 40.2 x 20.8 cm)
Without stand
13.5 x 15.8 x 2.9 in (34.2 x 40.2 x 7.3 cm)
With height-adjustable stand
22.9 lb (10.4 kg)
Without stand
13.6 lb (6.2 kg)
Operating
32° to 95° F (0° to 35° C)
Non-operating
-4° to 140° F (-20° to 60° C)
Operating
20% to 80%
Non-operating
8% to 85%
Dimensions (HxWxD)
Approximate Weight
Temperature
Humidity
Warranty
Limited three years parts, labor, and on-site service, including backlight. Availability varies
by region. Consult HP Customer Service for details.
Compatibility
The following graphics controllers and chipsets have been tested and proven compatible for use with the hp L1825 Flat
Panel Monitor.
Graphic Controllers
Compatible with "VESA Video Signal Standard (VSIS) Compliant" video cards.
NOTE: Features are subject to change without notice.
HP L2025 Flat Panel
Monitor (Carbon/Silver)
Display Type
TFT large viewing angle
Viewable Image Size
20.1 in (51 cm) maximum viewable
Screen Opening (WxH)
16.2 x 22 in (41.1 x 30.9 cm)
Viewing Angle
170 degrees horizontal/170 degrees vertical (10:1 minimum contrast ratio)
Pixel Pitch
0.255 mm
Pixel Clock Speed
202 MHz
Brightness
250 nits (cd/m2) typical
Contrast Ratio
350:1 typical
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 26
QuickSpecs
HP Workstation xw3100
TechSpecs
Response Rate
25 ms typical (rise + fall)
Color Depth Support
16.7 million colors
Horizontal Frequency (kHz) 30 to 94 kHz (analog); 30 to 92 KHz (digital)
Vertical Frequency (Hz)
56 to 85 Hz
Graphics Controller
Pixelworks PW171
Factory Preset Modes
18
Graphic Preset Modes
(non-interlaced)
1600 x 1200 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85Hz
640 x 480 @ 60 Hz, 75 Hz
Mac Compatible Modes
(adapter required)
832 x 624 @ 75 Hz
Text Mode
720 x 400 @ 70 Hz
VGA Mode
640 x 480 @ 60 Hz
User-Programmable
Modes
18
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes (accessible on HP desktops featuring Intelligent Manageability)
Plug and Play
Yes
Kensington Lock-ready
Yes
Accessories Included
VGA cable, DVI-D cable
Protective Panel
No
VESA Mounting
100 mm x 100 mm screw-mounting option; pedestal is attached
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Portrait Mode Supported
No
Touchscreen Option
No
Detachable Base
Yes
Tilt
Yes (-5° to + 35° )
Swivel
Yes (-35° to + 35° )
Height Adjustable
Yes (130 mm adjustment range)
Fail Safe Mode
Yes
Icon Based On-Screen
Controls
Yes
User Controls
Brightness, contrast
Yes
Positioning
Yes
Color temperature
Yes (6500k, 9300k, User)
Individual color control
Yes
Serial number display
Yes
Full screen resolutions
Yes (640 x 480, 800 x 600)
Clock
Yes
Clock phase
Yes
Monitor management
No
Recall
No
Audio recall
No
Video PIP
Yes (size and position)
Input selection
Yes
DA - 11666
1152 x 870 @ 75 Hz
Worldwide — Version 15 — March 31, 2004
Page 27
QuickSpecs
HP Workstation xw3100
TechSpecs
(includes separate direct access key for dedicated swap
between inputs 1 and 2)
Language Selection
Agency Approvals/
Certifications
Factory reset
Yes
English
Yes
Spanish
Yes
French
Yes
German
Yes
Simplified Chinese
Yes
Italian
Yes
Australian ACA Approval
Yes
Canadian Requirements/CSA
Yes
CE Marking
Yes
China CCIB/CCEE Approval
Yes
CISPR Requirements
Yes
Eastern European Approvals
Yes
Energy Star Compliant
Yes
FCC Approval
Yes
German Ergonomic
(TUV and GS Mark)
Yes
ISO 9241-3,7,8 VDT
Guidelines
Yes
ISO 13406-2 Compliant
(Pixel Defect Guidelines)
Yes
Mexican NOM Approval
Yes
MIC Requirements
(New Zealand)
Yes
MPR-II Compliant
Yes
Nordic Approvals
(Nemko, Fimko, Demko,
Semko)
Yes
PC2001 Compliant
Yes
PC99 Certified
Yes
S. Korean MIC Approval
Yes
Taiwan BSMI Approval
Yes
TCO 99 (emissions,
ergonomics, environment)
Yes
TUV-Ergo
Yes
UL Listed
Yes
VCCI Approvals
Yes
Windows Certification
Microsoft Windows 98, Windows 2000, and Windows XP
Input Impedance
75 ohms ± 10%
Input Signal
Four connectors, including one 15-pin mini D-sub VGA; one DVI-I (VGA analog and
digital input), one composite video, and one s-video
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on Green
Power Supply ALS
Auto-Ranging, 90 to 264 VAC; internal power supply, 60 Hz
Power Rating
Maximum Mode
< 70 W
Power Saving Mode
<5W
Off Mode
<5W
With stand - min height
16.3 x 19.2 x 8.2 in (41.4 x 48.8 x 20.8 cm)
With stand - max height
21.4 x 19.2 x 8.2 in (54.4 x 48.8 x 20.8 cm)
Dimensions (HxWxD)
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 28
QuickSpecs
HP Workstation xw3100
TechSpecs
Approximate Weight
Temperature
Humidity
Warranty
Without stand
16.1 x 19.2 x 3.0 in (40.8 x 48.8 x 7.6 cm)
With height-adjustable stand
26.4 lb (12 kg)
Without stand
17.2 lb (7.8 kg)
Operating
46° to 95° F (10° to 35° C)
Non-operating
6° to 140° F (-10° to 60° C)
Operating
20% to 80%
Non-operating
5% to 85%
Three-year limited warranty parts, including backlight and on-site labor or 48 hour direct
unit replacement. Certain restrictions apply. Some terms vary depending on sales region.
Consult HP Customer Service for details.
Compatibility
The following graphics controllers and chipsets have been tested and proven compatible for use with the HP L2025 Flat
Panel Monitor.
Graphic Controllers
Compatible with "VESA Video Signal Standard (VSIS) Compliant" video cards.
NOTE: Features are subject to change without notice.
HP p930 CRT Monitor
(Carbon/Silver)
Tube Type
Diamondtron Natural Flat (NF) aperture grille tube; anti-reflection, anti-static
Picture Tube Size (diagonal) 19 in (48.26 cm)
Viewable Image Area
(diagonal)
18 in (45.72 cm)
Aperture Grille Pitch
0.24 mm
Horizontal Frequency (kHz) 30 to 110 kHz
Vertical Frequency (Hz)
50 to 160 Hz
Maximum Resolution
1920 x 1440 @ 60 Hz
Preferred Flicker Free
Resolution
1280 x 1024 @ 85 Hz
Preset Graphic Modes
(non-interlaced)
1600 x 1200 @ 85 Hz and 75 Hz
1280 x 1024 @ 85 Hz and 75 Hz
1024 x 768 @ 85 Hz
640 x 480 @ 85 Hz and 60 Hz
640 x 480 @ 85 Hz and 60 Hz
720 x 400 @ 70 Hz
User-Modes
Yes, 8 modes
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes
Plug and Play
VESA DDC2B; PC2001 compliant
Front Panel User Controls Power on/off; menu button; 4 OSD adjustment buttons; OSD exit button, information
button
On-Screen User Controls
DA - 11666
Brightness, contrast
Yes
Size and Positioning
Yes
Pincushion (barrel)
Yes
Trapezoid
Yes
Moiré Correction
Yes
Tilt (rotation)
Yes
Selectable Color Temperature
Yes
Factory Reset/Recall
Yes
Orthogonality
Yes
Current Display Mode
Yes
Degauss
Yes
Worldwide — Version 15 — March 31, 2004
Page 29
QuickSpecs
HP Workstation xw3100
TechSpecs
Approvals/
Certifications
Convergence
Yes
UL/CSA/CUL Approval
Yes
ISO9241-3, -7, -8 VDT
Guidelines Approval
Yes
MPR-II Compliant
Yes
TCO ‘99
Yes
FCC Approval
Yes
Microsoft WHQL Certified
Yes
Energy Star Compliant
Yes
CE Compliant
Yes
Signal Cable
Attached 15-pin D-sub connector, 5.9 ft (1.8 m)
Maximum Pixel Clock
Speed
290 MHz
Power Supply
Universal; 100–240 V (auto-ranging), 50–60 Hz
Maximum Power Rating
= 120 watts
Low Power Sleep Mode
< 3 watts
Off Mode
0 watts
Dimensions (HxWxD)
Unpacked
18.8 x 18.5 x 18.5 in (47.6 x 46.9 x 46.9 cm)
Packaged
22.0 x 22.3 x 22.8 in (55.9 x 56.5 x 57.8 cm)
Unpacked
55 lb (24.9 kg)
Packaged
61 lb (27.7 kg)
Weight
Tilt/Swivel Base
-5 to + 10 degrees vertical tilt; ± 45 degrees horizontal swivel
Operating Temperature
50° to 95° F (10° to 35° C) non-condensing
Operating Humidity
20% to 80% non-condensing
Warranty
Limited three-year parts and repair labor, three-year service provider labor, and three-year
on-site service warranty. Next Business Day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply. For details,
contact HP Customer Support at 970-635-1000 (USA) or 905-206-4663 (Canada).
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 30
QuickSpecs
HP Workstation xw3100
TechSpecs
HP p1230 CRT Monitor
Tube Type
Diamondtron NF Aperture Grille CRT
Picture Tube Size (diagonal) 22 in (55 cm)
Viewable Image Area
(diagonal)
20 in (51 cm)
Aperture Grille Pitch
0.24 mm
Screen Curvature
Flat
Horizontal Frequency (kHz) 30 to 140 kHz
Vertical Frequency (Hz)
50 to 160 Hz
Maximum Resolution
2048 x 1536 @ 85 Hz (GTF)
Recommended Resolution 1600 x 1200 @ 85 Hz or 1280 x 1024 @ 85 Hz
Preset VESA Graphic
Modes (non-interlaced)
1920 x 1440 @ 60 Hz, 75 Hz
1792 x 1344 @ 60 Hz, 75 Hz
1600 x 1200 @ 75 Hz, 85 Hz
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1024 x 768 @ 75 Hz, 85 Hz
800 x 600 @ 75 Hz, 85 Hz
640 x 480 @ 60 Hz, 85 Hz
Preset MAC Mode
1152 x 870 @ 75 Hz
Preset VGA Mode
640 x 480 @ 60 Hz and 720 x 400 @ 70 Hz
Maximum Pixel Clock
Speed
420 MHz
User Programmable
Modes
15 (10 preset modes and 5 additional modes)
Anti-Glare
Yes
Anti-Static
Yes
Asset Control
Yes
Default Color
Temperature
9300 K
Buttons or Switches
OSD menu, brigthness, contrast, Super Bright, dual input, power on/off
Languages
English, Spanish, French, German, Italian, Japanese
User Controls
Brightness, contrast, pincushion, pincushion balance, trapezoid, tilt (rotation), color
temperature, degauss, parallelogram, individual color control, zoom, moiré cancellation,
convergence, corner purity, image control, language, OSD control, factory reset
Plug and Play
Yes, DDC/CI compatible
Input Signal
Two 15-pin D-sub connections
Input Impedance
75 ohms
Sync Input
Separate sync (HSYNC/VSYNC)
Video Cable
Detachable 15-pin D-sub mini connector (included)
Video Cable Length
70 in (1.8 m); non-captive
Power Supply
Universal 100-120/220-240 VAC
Frequency
50/60 Hz
Maximum
135 watts
Power Saving
2 watts maximum
Off Mode
0 watts
Power Cable Length
70 in (1.8 m); non-captive
Dimensions (HxWxD)
Unpacked
(including pedestal)
19.1 x 19.5 x 18.8 in (48.6 x 49.5 x 47.7 cm)
Packaged
25.6 x 25.0 x 25.4 in (65.1 x 63.6 x 64.6 cm)
Unpacked
66.1 lb (30 kg)
Packaged
77.1 lb (35 kg)
Weight
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 31
QuickSpecs
HP Workstation xw3100
TechSpecs
Tilt Range
10° upward and 5° downward
Swivel Range
90°either side of center
Temperature – Operating
41° to 90° F (5° to 35° C) Non-condensing
Temperature –
Non-operating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
10% to 90% non-condensing
Humidity –
Non-operating
10% to 90%
Altitude – Operating
0 to 7,200 ft (0 to 2,195 m)
Altitude –
Non-operating
0 to 30,000 ft (0 to 9,144 m)
Accessories Included
Power cable, video cable (D-sub to D-sub), documentation kit
User Guide Languages
English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese, Danish, Finnish,
Greek, Japanese, Korean, Latin American Spanish, Norwegian, Polish, Russian, Slovenian,
Turkish, Swedish, Traditional Chinese, Simplified Chinese
Warranty Languages
English, French, Spanish, Brazilian Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish, Swedish, Bahasa Indonesian, Japanese,
Korean, T. Chinese, S. Chinese
Color
Carbon and silver
Certification and
Compliance
MPR-II (Low Emissions), TCO '03, Energy Star Compliant, UL Listing, ISO9241-3 VOT
Guidelines Approval, FCC Approval, CE Mark (including PFC), GS Mark
Compatibility
Compatible with platforms using the VESA standard video modes and HP Compaq
Business Desktops d500, d300, and d200 Series, Compaq Evo Desktops, HP workstations,
and HP Business Desktops d300 series.
Warranty
Limited three-year parts and repair labor, service provider labor, and on-site service. Next
business day advanced exchange direct replacement service available during warranty
period. Certain restrictions and exclusions apply.
© Copyright 2003-2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Hyper-Threading Technology requires a computer system with an Intel) Pentium) 4 processor supporting HT Technology and a Hyper-Threading Technology
enabled chipset, BIOS and operating system. Performance will vary depending on the specific hardware and software you use. See
http://www.intel.com/info/hyperthreading/ for more information including details on which processors support HT Technology.
Microsoft, Windows, and Windows NT are U.S. registered trademarks of Microsoft Corporation. Intel and Pentium are U.S. registered trademarks the Intel
Corporation.. All other product names mentioned herein may be trademarks of their respective companies.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 11666
Worldwide — Version 15 — March 31, 2004
Page 32
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
