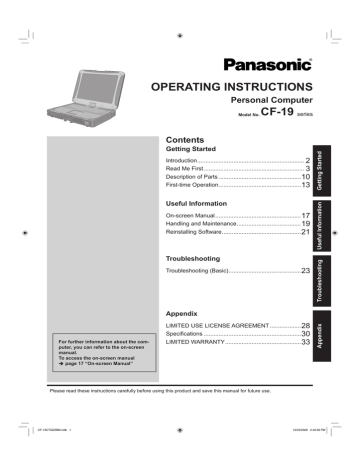

OPERATING INSTRUCTIONS

Personal Computer

Model No.

CF-19

series

Contents

Getting Started

Introduction .................................................................

Read Me First .............................................................

Description of Parts ..................................................

First-time Operation ..................................................

10

13

2

3

Useful Information

On-screen Manual ....................................................

Handling and Maintenance .......................................

Reinstalling Software ................................................

17

19

21

Troubleshooting

Troubleshooting (Basic) ............................................

23

For further information about the computer, you can refer to the on-screen manual.

To access the on-screen manual

page 17 “On-screen Manual”

Appendix

LIMITED USE LICENSE AGREEMENT ...................

Specifi cations ...........................................................

LIMITED WARRANTY ..............................................

28

30

33

Please read these instructions carefully before using this product and save this manual for future use.

2

Introduction

Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions carefully.

Terms and illustrations in these instructions

CAUTION

NOTE

:

Enter :

Fn + F5 :

: Conditions that may result in minor or moderate injury.

Useful and helpful information.

Press [Enter] key.

Press and hold [Fn] key, and then press [F5] key.

(Start) - [All Programs] : Click (Start), and then click [All Programs].

[start] - [Run] : Click [start], and then click [Run]. You may need to double-click in some cases.

: Page in these Operating Instructions or in the Reference Manual.

: Reference to the on-screen manuals.

indicates Windows

®

7 Professional Operating System.

indicates Microsoft

®

Windows

®

XP Professional Operating System or indicates Microsoft

®

Windows

®

XP Tablet Operating System.

Some illustrations are simplifi ed to help your understanding and may look different from the actual unit.

If you do not log on as an administrator, you cannot use some functions or cannot display some screens.

Refer for the latest information about optional products to the catalogs, etc.

In these instructions, the names and terms are referred as follows.

“Windows

®

“Microsoft

®

7 Professional” as “Windows” or “Windows 7”

Windows

®

XP Professional Service Pack 2 with Advanced Security Technologies” as “Windows”, “Windows XP” or “Windows XP Professional”

“Microsoft

®

Windows

®

XP Tablet PC Edition 2005” as “Windows”, “Windows XP” or “Windows XP Tablet PC Edition”

DVD-ROM & CD-R/RW drive and DVD MULTI drive as “CD/DVD drive”

Circular media including DVD-ROM and CD-ROM as “discs”

Disclaimer

Computer specifi cations and manuals are subject to change without notice. Panasonic Corporation assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft

®

, Windows

®

, Windows 7, and the Windows logo are registered trademarks of Microsoft Corporation of the

United States and/or other countries.

Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.

SDHC Logo is a trademark.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Computrace

®

is a registered trademark of Absolute

®

Software Corp.

Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective own companies.

Read Me First

Models for U.S.A.

Federal Communications Commission Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the Panasonic Service Center or an experienced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral.

Also, any changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

FCC RF Exposure Warning:

This equipment is provided with PC Card slot that could be used with wireless transmitters, which will be specifi cally recommended when they become available.

Other third-party wireless transmitters have not been RF exposure evaluated for use with this computer and may not comply with FCC RF exposure requirements.

<Only for model with wireless LAN/wireless WAN/Bluetooth>

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment has been approved for portable operation, and does not require any minimum spacing be provided between antennas and all person’s body.

If provided with wireless WAN transmitter, requires

LCD side panel spacers to provide minimum 1.5 cm spacing between antenna located within the LCD side panel, and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

This equipment may not be co-located or operated with any other antenna or transmitter.

<Optional Car Mounter / Port Replicator>

This equipment is provided with external antenna connector(s) for connection to optional Car Mounter or

Port Replicator for mobile external mounted antenna(s).

External antenna(s) must be professionally installed and cannot exceed recommended maximum antenna gain as described in individual provided supplement instructions for wireless transmitters.

For WLAN, the Car Mounter should be used with Radiall/

Larsen WLAN whip antenna, type NMO5E2400BKTNC with 5dBi antenna gain or less. Also, user must maintain minimum 20 cm spacing between external antenna(s) and all person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

25-M-1

<Only for model with wireless LAN>

This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to

5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and

5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this product.

25-M-W-1

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

6-M-1

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

1. This equipment complies with CFR47 Part 68 rules.

On the computer is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If required, this information must be provided to the telephone company.

2. An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

3. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all area, the sum of RENs should not exceed fi ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

4. If your telephone equipment cause harm to the telephone network, the telephone company will notify you in advice that temporary discontinuance of service may be required. But if advice notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to fi le a complaint with the FCC if you believe it is necessary.

5. The telephone company may take changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifi cations to maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair or warranty information, please contact Panasonic

Corporation of North America at DIAL TOLL FREE

1-800-LAPTOP5 (1-800-527-8675). If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

3

Read Me First

4

7. There are no user serviceable parts contained in this equipment.

8. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs.

9. The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the fi rst page of the transmission, the date and time it is sent and an identifi cation of the business or other entry, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. In order to program this information into your fax software, you should refer to the manual of the Fax software being used.

Models for Canada

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved modem unit.

The Industry Canada label is affi xed on the modem unit.

EQUIPMENT ATTACHEMENT LIMITATIONS

“NOTICE: The Industry Canada label identifi es certifi ed equipment. This certifi cation means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment

Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certifi ed equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.”

“NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface.

The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer

Equivalence Numbers of all the devices does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifi e le matériel homologué. Cette étiquette certifi e que le matériel est conforme aux normes de protection, d’exploitation et de sécurité des réseaux de télécommunications, comme le prescrivent les documents concernant les exigences techniques relatives au matériel terminal. Le Ministère n’assure toutefois pas que le matériel fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder aux installations de l’entreprise locale de télécommunication. Le matériel doit également être installé en suivant une méthode acceptée de raccordement.

L’abonné ne doit pas oublier qu’il est possible que la conformité aux conditions énoncées ci-dessus n’empêche pas la dégradation du service dans certaines situations.

10. According to the FCC’s electrical safety advisory, we recommend that you may install an AC surge arrestor in the AC outlet to which this equipment is connected.

Telephone companies report that electrical surges, typically lightning transients, are very destructive to customer terminal equipment connected to AC power sources and that this is a major nationwide problem.

“Caution : To reduce the risk of fi re, use only No.26 AWG or larger (e.g., 24 AWG) UL listed or CSA certifi ed telecommunication line cord.”

“ATTENTION : Pour réduire le risque d’incendie, utiliser uniquement des conducteurs de télécommunications 26

AWG ou de section supérieure (p.ex. 24 AWG) UL énumérés ou CSA certifi é.”

16-M-1

Les réparations de matériel homologué doivent être coordonnées par un représentant désigné par le fournisseur.

L’entreprise de télécommunications peut demander à l’utilisateur de débrancher un appareil à la suite de réparations ou de modifi cations effectuées par l’utilisateur ou

à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fi ls de mise à la terre de la source d’énergie électrique, des lignes téléphoniques et des canalisations d’eau métalliques, s’ il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales. Avertissement:

L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir recours à un service d’inspection des installations électriques, ou à un électricien, selon le cas.”

“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une interface. La terminaison d’ une interface téléphonique peut consister en une combinaison de quelques dispositifs, à la seule condition que la somme d’indices d’

équivalence de la sonnerie de touts les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

17-Ca-1

Canadian ICES-003

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

7-M-2

<Only for model with wireless LAN/Bluetooth>

Industry Canada

This product complies with RSS310 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

30-Ca-1-1

<Only for model with wireless LAN>

This product (local network devices) for the band 5150-

5250 MHz is only indoor usage to reduce potential for harmful interference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850

MHz and these radars could cause interference and/or damage to LELAN devices.

30-Ca-2-1

This device has been designed to operate with the Radiall/

Larsen whip antenna, type NMO5E2400BKTNC WLAN antenna having a maximum gain of 5dB. A WLAN Antenna having a higher gain is strictly prohibited per regulations of Industry

Canada. The Required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.

25-Ca-1-1

Models for Europe

<Only for model with a “CE” mark on the bottom of the computer>

Declaration of Conformity (DoC)

“Hereby, Panasonic declares that this Personal Computer is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our above mentioned products, please contact our web address: http://www.doc.panasonic.de

Authorized Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Network connection of Wired Modem.

The terminal equipment is intended for connection to the following public network;

In all the countries of European Economical Area and Turkey;

- Public Switched Telephony Networks

Technical Features of Wired Modem.

The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s

18-E-1

Important Safety Instructions / Importantes Mesures De Sécurité

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fi re, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual.

Do not dispose of batteries in a fi re. They may explode. Check with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

19-E-1

Certaines mesures de sécurité doivent être prises pendant l’utilisation de matérial téléphonique afi n de réduire les risques d’incendie, de choc électrique et de blessures. En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à laver, dans un sous-sol humide ou près d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil sans fi l) pendant un orage électrique. Ceci peut présenter un risque de choc électrique causé par la foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler une fuite de gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type de piles indiqués dans ce manual. Ne pas jeter les piles dans le feu: elles peuvent exploser. Se conformer aux règlements pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

19-F-1

Information to the User

<Only for model with wireless LAN/Bluetooth>

This product and your Health

This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe this product is safe for use by consumers.

These standards and recommendations refl ect the consensus of the scientifi c community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include:

Using this product on board of airplanes, or

In any other environment where the risk of interference to other devices or services is perceived or identifi ed as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specifi c organization or environment (e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference caused by unauthorized modifi cation of this product.

The correction of interference caused by such unauthorized modifi cation will be the responsibility of the user. We and its authorized resellers or distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these guidelines.

26-M-1

5

Read Me First

Informations destinées aux utilisateurs

<Uniquement les modèles avec réseau local sans fi l et/ou

Bluetooth>

Ce produit et votre santé

Ce produit, comme tout autre appareil radio, émet de l’

énergie radioélectrique. Toutefois, la quantité d’énergie

émise par ce produit est beaucoup moins importante que l’énergie radioélectrique émise par des appareils sans fi l tels que les téléphones portables. L’utilisation de ce produit ne comporte aucun risque pour le consommateur du fait que cet appareil opère dans les limites des directives concernant les normes et les recommendations de sécurité sur les fréquences radio. Ces normes et recommandations refl ètent le consensus de la communauté scientifi que et résultent de délibérations de jurys et comités de scientifi ques qui examinent et interprètent continuellement les nouveautés de la vaste littérature sur les recherches effectuées. Dans certaines situations ou environnements, l’utilisation de ce produit peut être restreinte par le propriétaire du bâtiment ou par les représentants responsables de l’organisation. Ces situations peuvent être les suivantes par exemple :

Safety Precautions

A bord d’un avion, ou

Dans tout autre environnement où les risques d’interférence sur d’autres appareils ou services sont perçus ou identifi ables comme dangereux.

Si vous n’êtes pas sûr de la réglementation applicable

à l’utilisation d’appareils sans fi l dans une organization ou un environnement spécifi que, (par exemple dans un aéroport) nous vous invitons à demander l’autorisation d’ utiliser ce produit avant sa mise en marche.

Informations concernant la réglementation

Nous déclinons toute responsabilité pour toute interférence radio ou télévision causée par des modifi cations non autorisées apportées à ce produit. La correction d’ interférences causées par de telles modifi cations non autorisées sera la seule responsabilité de son utilisateur.

Nousmêmes, les revendeurs offi ciels et les distributeurs ne sommes pas responsable de tout dégât ou de toute violation des règlements de l’État pouvant découler du non-respect de ces directives.

26-F-1

6

<Only for model with wireless WAN>

The following safety precautions must be observed during all phases of the operation, usage, service or repair of any

Personal Computer or Handheld Computer incorporating wireless WAN modem. Manufacturers of the cellular terminal are advised to convey the following safety information to users and operating personnel and to incorporate these guidelines into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure to comply with these precautions

*1

.

When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch Personal Computer or Handheld Computer incorporating wireless WAN modem off, if instructed to do so by the guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy.

The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interference from Personal Computer or Handheld Computer incorporating wireless WAN modem placed close to the device. If in doubt about potential danger, contact the physician or the manufacturer of the device to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their Personal Computer or Handheld Computer incorporating wireless WAN modem away from the pacemaker, while it is on.

Switch off Personal Computer or Handheld Computer incorporating wireless WAN modem before boarding an aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft is forbidden to prevent interference with communications systems. Failure to observe these instructions may lead to the suspension or denial of cellular services to the offender, legal action, or both.

Do not operate Personal Computer or Handheld Computer incorporating wireless WAN modem in the presence of fl ammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel depots, chemical plants or where blasting operations are in progress. Operation of any electrical equipment in potentially explosive atmospheres can constitute a safety hazard.

Your Personal Computer or Handheld Computer incorporating wireless WAN modem receives and transmits radio frequency energy while switched on. Remember that interference can occur if it is used close to

TV sets, radios, computers or inadequately shielded equipment. Follow any special regulations and always switch off Personal Computer or Handheld Computer incorporating wireless WAN modem wherever forbidden, or when you suspect that it may cause interference or danger.

Road safety comes fi rst! Do not use a Personal Computer or Handheld Computer incorporating wireless

WAN modem while driving a vehicle. Do not place the computer with wireless WAN modem in an area where it could cause personal injury to the driver or passengers. It is recommended to stow the unit in the boot or secure stowage area while driving.

Do not place the computer with wireless WAN modem in an area over an air bag or in the vicinity where an air bag may deploy.

Air bags infl ate with great force and if the computer with wireless WAN modem is placed in the air bag deployment area may be propelled with great force and cause serious injury to occupants of the vehicle.

IMPORTANT!

Personal Computer or Handheld Computer incorporating wireless WAN modem operate using radio signals and cellular networks cannot be guaranteed to connect in all conditions. Therefore, you should never rely solely upon any wireless device for essential communications, for example emergency calls.

Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating wireless

WAN modem must be switched on and in a service area with adequate cellular signal strength.

Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g. lock functions, fi xed dialing etc.). You may need to deactivate those features before you can make an emergency call.

Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld Computer incorporating wireless WAN modem.

27-1-2

*1

In locations where the use of wireless devices is prohibited, please turn your Wireless Switch off (CF-74 Series), or check to make sure that your Wireless Ready Indicator is off (CF-52 Series). Please note that in some cases, wireless devices may be operating even in Sleep/Standby modes.

Lithium Battery / Pile au lithium

Lithium Battery!

This computer contains a lithium battery to enable the date, time, and other data to be stored. The battery should only be exchanged by authorized service personnel.

Warning!

A risk of explosion from incorrect installation or misapplication may possibly occur.

15-E-1

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui permet de sauvegarder certaines données, notamment la date et l’heure. La pile ne doit être remplacée que par un technicien qualifi é.

Danger ! Risque d’explosion en cas de non respect de cette mise en garde!

15-F-1

For Used in Motor Vehicle /Pour L’utilisation Dans Un Véhicule Motorisé

Warning: Notebook Computer may be installed in a motor vehicle and visible to the driver only if used to support vehicle related functions such as vehicle information, system control, rear or side observation and navigation.

If used for entertainment purpose, such as television reception or video play, it must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the operator of the motor vehicle. Check with individual state/provincial laws to determine lawful use of this product while operating within a motor vehicle.

Avertissement : L’ordinateur bloc-notes peut être installé dans un véhicule motorisé et dans le champ de vision du conducteur uniquement en tant que dispositif d’aide aux fonctions du véhicule, comme par exemple pour fournir des informations sur le véhicule, comme dispositif de contrôle de système, pour l’observation à l’arrière ou sur les côtés du véhicule, ainsi que pour fournir de l’information routière. Pour toute utilisation à fi n de divertissement, comme par exemple pour regarder la télévision ou jouer

à des jeux vidéo, il doit être installé à l’arrière du siège du conducteur, en un emplacement où il ne sera pas visible, ni directement ni indirectement, pour le conducteur du véhicule motorisé. Vérifi ez les lois fédérales et nationales qui régissent l’utilisation légale de cet appareil à l’intérieur d’un véhicule motorisé.

35-M-1

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

53-M-1

Camera Light

<For model with camera>

CAUTION

Camera Light

- This equipment uses LED (Light Emitting Diode) technology that complies with IEC60825-1:1993+A1:1997+A2:2001

- CLASS 1 LED PRODUCT

- The light from the LED is strong and can injure human eyes. Do not look directly at the LEDs with naked eyes.

- Caution-Use of controls or adjustments or performance of procedures other than those specifi ed herein may result in hazardous radiation exposure.

Specifi cation

- Max Power 0.873 mW

7

Read Me First

Precautions

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR

AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR

TRAFFIC CONTROL EQUIPMENT/SYSTEMS, AIRCRAFT

COCKPIT EQUIPMENT/SYSTEMS

*2

, MEDICAL DEVICES

*3

, LIFE SUPPORT SYSTEMS OR OR ACCESSORIES

OTHER EQUIPMENTS/DEVICES/SYSTEMS THAT ARE

INVOLVED WITH ENSURING HUMAN LIFE OR SAFETY.

PANASONIC WILL NOT BE RESPONSIBLE FOR ANY

LIABILITY RESULTING FROM THE USE OF THIS PROD-

UCT ARISING OUT OF THE FOREGOING USES.

*2

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include

Class2 Electrical Flight Bag (EFB) Systems and Class1

EFB Systems when used during critical phases of fl ight

(e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Systems and 2 EFB Systems are defi ned by FAA: AC (Advisory Circular) 120-76A or JAA:

*3

JAA TGL (Temporary Guidance Leafl ets) No.36.

As defi ned by the European Medical Device Directive

(MDD) 93/42/EEC.

Panasonic cannot guarantee any specifi cations, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/

Radio Frequency Emission, etc) requirements related to aviation standards and medical equipment standards that differ from the specifi cations of our COTS (Commercial-

Off-The-Shelf) products.

Panasonic cannot guarantee any specifi cations, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio Frequency Emission, etc) requirements related to aviation standards that exceed the specifi cations of our

COTS (Commercial-Off-The-Shelf) products.

39-E-1

This computer is not intended for use in medical equipment including life-support systems, air traffi c control systems, or other equipment, devices or systems that are involved with ensuring human life or safety. Panasonic cannot be held responsible in any way for any damages or loss resulting from the use of this unit in these types of equipment, devices or systems, etc.

The CF-19 was developed based on thorough research into the real-world portable computing environments. Exhaustive pursuit of usability and reliability under harsh conditions led to innovations such has the magnesium alloy exterior, vibration damped hard disk drive and fl oppy disk drive, fl exible internal connections. The CF-19’s outstanding engineering has been tested using the strict MIL-STD- 810F (for vibration and shock) and IP (for dust and water) based procedures.

As with any portable computer device precautions should be taken to avoid any damage. The following usage and handling procedures are recommended.

Before putting the computer away, be sure to wipe off any moisture.

If a Malfunction or Trouble Occurs, Immediately Stop Use

8

If a Malfunction Occurs, Immediately Unplug the AC Plug and the Battery Pack

This product is damaged

Foreign object inside this product

Smoke emitted

Unusual smell emitted

Unusually hot

Continuing to use this product while any of the above conditions are present may result in fi re or electric shock.

If a malfunction or trouble occurs, immediately unplug the

AC plug and remove the unit from this product. Then, contact your technical support offi ce for repair.

Do Not Touch This Product and Cable When It Starts

Thundering

Electric shock may result.

Do Not Connect the AC Adaptor to a Power Source

Other Than a Standard Household AC Outlet

Otherwise, a fi re due to overheating may result. Connecting to a DC/AC converter (inverter) may damage the AC adaptor. On an airplane, only connect the AC adaptor/charger to an AC outlet specifi cally approved for such use.

Do Not Do Anything That May Damage the AC Cord, the

AC Plug, or the AC Adaptor

Do not damage or modify the cord, place it near hot tools, bend, twist, or pull it forcefully, place heavy objects on it, or bundle it tightly.

Continuing to use a damaged cord may result in fi re, short circuit, or electric shock.

Do Not Pull or Insert the AC Plug If Your Hands Are Wet

Electric shock may result.

Clean Dust and Other Debris of the AC Plug Regularly

If dust or other debris accumulates on the plug, humidity, etc. may cause a defect in the insulation, which may result in a fi re.

Pull the plug, and wipe it with a dry cloth.

Pull the plug if the computer is not being used for a long period of time.

Insert the AC Plug Completely

If the plug is not inserted completely, fi re due to overheating or electric shock may result.

Do not use a damaged plug or loose AC outlet.

Close the Connector Cover Tightly When Using This

Product Where Is a Lot of Water, Moisture, Steam, Dust,

Oily Vapors, etc.

The entry of foreign matter may cause a fi re or electric shocks.

If foreign matter has found its way inside, immediately turn the power off and unplug the AC cord, and then remove the battery pack. Then contact your technical support offi ce.

Do Not Disassemble This Product

The high-voltage areas inside may give you an electric shock, or foreign matter may enter and result in a fi re.

Keep SD Memory Cards Away from Infants and Small Children

Accidental swallowing will result in bodily injury.

In the event of accidental swallowing, see a doctor immediately.

Do Not Place This Product on Unstable Surface

If balance is lost, this product may fall over or drop, resulting in an injury.

Avoid Stacking

If balance is lost, this product may fall over or drop, resulting in an injury.

Do Not Leave This Product in High Temperature Environment for a Long Period of Time

Leaving this product where it will be exposed to extremely high temperatures such as near fi re or in direct sunlight may deform the cabinet and/or cause trouble in the internal parts.

Continued use in such a resulting condition may lead to short-circuiting or insulation defects, etc. which may in turn lead to a fi re or electric shocks.

Hold the Plug When Unplugging the AC Plug

Pulling on the cord may damage the cord, resulting in a fi re or electric shock.

Do Not Move This Product While the AC Plug Is Connected

The AC cord may be damaged, resulting in fi re or electric shock.

If the AC cord is damaged, unplug the AC plug immediately.

Use Only the Specifi ed AC Adaptor With This Product

Using an AC adaptor other than the one supplied (supplied with the unit or one sold seperately as an accessory) may result in a fi re.

Do Not Subject the AC Adaptor to Any Strong Impact

Using the AC adaptor after a strong impact such as being dropped may result in electric shock, short circuit, or fi re.

Take a Break of 10-15 Minutes Every Hour

Using this product for long periods of time may have detrimental health effects on the eyes or hands.

Do Not Turn the Volume Up to Loud When Using Headphones

Listening at high volumes that overstimulate the ear for long periods of time may result in loss of hearing.

Use the Modem with a Regular Telephone Line

Connection to an internal phone line (on-premise switches) of a company or business offi ce, etc. or to a digital public phone or use in a country or area not supported by the computer may result in a fi re or electric shocks.

Do Not Connect a Telephone Line, or a Network Cable

Other Than the One Specifi ed, into the LAN Port

If the LAN port is connected to a network such as the ones listed below, a fi re or electric shock may result.

Precautions (Battery Pack)

Networks other than 1000BASE-T, 100BASE-TX or

10BASE-T

Phone lines (IP phone (Internet Protocol Telephone), Telephone lines, internal phone lines (on-premise switches), digital public phones, etc.)

Do Not Use with Exposing the Skin to This Product for a

Long Period of Time

Using this product with exposing the skin to the heat source of this product or AC adaptor for a long period of time can cause a low-temperature burn.

Do not place the computer near a television or radio receiver.

Keep the computer away from magnets. Data stored on the hard disk may be lost.

Do Not Use with Any Other Product

The battery pack is rechargeable and was intended for the specifi ed product. If it is used with a product other than the one for which it was designed, electrolyte leakage, generation of heat, ignition or rupture may result.

Do Not Charge the Battery Using Methods Other Than

Those Specifi ed

If the battery is not charged using one of the specifi ed methods, electrolyte leakage, generation of heat, ignition or rupture may result.

Do Not Throw the Battery Pack into a Fire or Expose It to Excessive Heat

Generation of heat, ignition or rupture may result.

Avoid Extreme Heat (Near the Fire, in Direct Sunlight, for

Example)

Electrolyte leakage, generation of heat, ignition or rupture may result.

Do Not Insert Sharp Objects into the Battery Pack, Expose It to Bumps or Shocks, Disassemble, or Modify It

Electrolyte leakage, generation of heat, ignition or rupture may result.

If this product is subjected to a strong impact, stop using it immediately.

Do Not Short the Positive (+) and Negative (-) Contacts

Generation of heat, ignition or rupture may result.

Do not place the battery pack together with articles such as necklaces or hairpins when carrying or storing.

Do Not Use This Product with a Battery Pack Other Than the One Specifi ed

Use only the specifi ed battery pack (CF-VZSU48U) with your product. Use of battery packs other than those manufactured and supplied by Panasonic may present a safety hazard

(generation of heat, ignition or rupture).

When the battery pack has become degraded, replace it with a new one

Continued use of a damaged battery pack may result in heat generation, ignition or battery rupture.

Do not touch the terminals on the battery pack. The battery pack may no longer function properly if the contacts are dirty or damaged.

Do not expose the battery pack to water, or allow it to become wet.

If the battery pack will not be used for a long period of time (a month or more), charge or discharge (use) the battery pack until the remaining battery level becomes

30% to 40% and store it in a cool, dry place.

This computer prevents overcharging of the battery by recharging only when the remaining power is less than approx. 95% of capacity.

The battery pack is not charged when the computer is fi rst purchased. Be sure to charge it before using it for the fi rst time. When the AC adaptor is connected to the computer, charging begins automatically.

Should the battery leak and the fl uid get into your eyes, do not rub your eyes. Immediately fl ush your eyes with clear water and see a doctor for medical treatment as soon as possible.

CAUTION:

Risk of Explosion if Battery is replaced by an Incorrect Type.

Dispose of Used Batteries According to the Instructions.

58-E-1

NOTE

The battery pack may become warm during recharging or normal use. This is completely normal.

Recharging will not commence if internal temperature of the battery pack is outside of the allowable temperature range (0 °C to 50 °C {32°F to 122 °F}).

( Reference Manual “Battery Power”) Once the allowable range requirement is satisfi ed, charging begins automatically. Note that the recharging time varies based on the usage conditions. (Recharging takes longer than usual when the temperature is

10 °C {50 °F} or below.)

If the temperature is low, the operating time is shortened. Only use the computer within the allowable temperature range.

This computer has a high temperature mode function that prevents the degradation of the battery in high temperature environments. ( Reference Manual

“Battery Power”) A level corresponding to a 100% charge for high temperature mode is approximately equivalent to an 80% charge level for normal temperature mode.

The battery pack is a consumable item. If the amount of time the computer can be run by using a particular battery pack becomes dramatically shorter and repeated recharging does not restore its performance, the battery pack should be replaced with a new one.

When transporting a spare battery inside a package, briefcase, etc., it is recommended that it be placed in a plastic bag so that its contacts are protected.

Always power off the computer when it is not in use.

Leaving the computer on when the AC adaptor is not connected will exhaust the remaining battery capacity.

9

Description of Parts

10

A: Wireless LAN Antenna

<Only for model with wireless LAN>

Reference Manual “Wireless LAN”

B: Stylus/Digitizer pen Holder

C: Touch Pad

D: LED Indicator

: Wireless

This indicator lights when Wireless LAN, Bluetooth, and/or Wireless WAN are connected and ready. It does not necessarily indicate the On/Off condition of the wireless connection.

Reference Manual “Disabling/Enabling

Wireless Communication”

: Wireless WAN status

<Only for model with wireless WAN>

Refer to the instruction manual of the wireless device.

: Caps lock

: Numeric key (NumLk)

: Scroll lock (ScrLk)

: Hard disk drive status

E: Tablet Buttons

Reference Manual “Tablet Buttons”

F: LCD

<Only for model with touchscreen>

Reference Manual “Touchscreen”

<Only for model with dual touch>

Reference Manual “Dual Touch”

G: Bluetooth Antenna

<Only for model with Bluetooth>

Reference Manual “Bluetooth”

H: Display Release Latch

page 12 “Switching to the Tablet mode”

I: Speaker

Reference Manual “Key Combinations”

J: Function Key

Reference Manual “Key Combinations”

K: Keyboard

L: Hard Disk Drive

Reference Manual “Hard Disk Drive”

M: Battery Pack

Specifi ed Battery pack: CF-VZSU48

N: Power Switch

O: LED Indicator

: Battery status

Reference Manual “Battery Power”

: Power status

(Off: Power off/Hibernation, Green: Power on,

Blinking green: Sleep/

Standby, Blinking green rapidly: Cannot power on or resume due to low temperature.)

A lithium ion battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY for information on how to recycle this battery.

L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion.

Pour des renseignements sur le recyclage de la batterie, veuillez composer le

1-800-8-BATTERY.

48-M-1

Left side

Rear side Bottom

S

<Only for model with Camera>

A: DC-IN Jack

B: USB Port

Reference Manual “USB Devices”

C: IEEE 1394 Interface Connector

Reference Manual “IEEE 1394 Devices”

D: Modem Port

Reference Manual “Modem”

E: LAN Port

Reference Manual “LAN”

F: SD Memory Card Indicator

(Blinking: During access)

<Only for model without Camera>

When recording in stereo using a stereo microphone:

Reference Manual “SD Memory Card”

G: SD Memory Card Slot

Reference Manual “SD Memory Card”

H: Wireless Switch

Reference Manual “Disabling/Enabling Wireless

Communication”

I: <For model without Smart Card Slot>

PC Card Slot (PC)

Reference Manual “PC Card / ExpressCard”

<For model with Smart Card Slot>

Smart Card Slot (SCR)

Reference Manual “Smart Card”

J: <For model without Smart Card Slot>

ExpressCard Slot (EX)

Reference Manual “PC Card / ExpressCard”

<For model with Smart Card Slot>

PC Card Slot (PC)

Reference Manual “PC Card / ExpressCard”

K: Headphone Jack

You can connect headphones or amplifi ed speakers.

When they are connected, audio from the internal speakers is not heard.

L: Microphone Jack

A condenser microphone can be used. If other types of microphones are used, audio input may not be possible, or malfunctions may occur as a result.

Click (Start) - [Control Panel] - [Hardware and

Sound] - [Sound] - [Recording] - [Microphone] -

[Properties], and then remove a check mark of [Enable Audio Enhancements] in [Advanced].

Click [start] - [All Programs] - [SoundMAX] - [Control

Panel] and select [Microphone], and then add a check mark for [No Filtering] in [Microphone Enhancements].

When using a monaural microphone with a 2-terminal plug:

Click (Start) - [Control Panel] - [Hardware and

Sound] - [Sound] - [Recording] - [Microphone] -

[Properties], and then add a check mark for [Enable

Audio Enhancements] in [Advanced].

Otherwise, only audio on the left track will be recorded.

Click [start] - [All Programs] - [SoundMAX] - [Control Panel] and select [Microphone], and then add a check mark for [Voice Recording] in [Microphone Enhancements].

Otherwise, only audio on the left track will be recorded.

M: Security Lock

A Kensington cable can be connected.

For further information, read the manual that comes with the cable.

N: External Display Port

Reference Manual “External Display”

O: Serial Port

P: RAM Module Slot

<For model without Camera>

Reference Manual “RAM Module”

Q: External Antenna Connector

R: Expansion Bus Connector

Reference Manual “Port Replicator / Car Mounter”

S: Camera

<For model with Camera>

Remove the protection seal on the camera before using the camera.

Reference Manual “Camera”

11

Description of Parts

This computer contains a magnet and magnetic products at the locations circled in the illustration at right. Avoid leaving metallic object or magnetic media in contact with these areas.

12

Switching to the Tablet mode

A

Lift up the display so it stands perpendicular to the body.

B

Slide and hold the display release latch (A), and rotate the display clockwise until it clicks.

C

Close as the display faces up and fi x it using the latch (B).

Attaching the stylus to the computer

Use the tether to attach the stylus to the computer so you will not lose it.

There are holes (A) to attach it.

For model with dual touch, the tether and digitizer pen are already attached to the computer at purchase.

Attaching the hand strap and the shoulder strap (option)

Attach the hand strap to any two of the corners (A) using the screws.

You can connect the shoulder strap (B) to the hand strap.

(The illustration is an example.)

CAUTION

Do not use the strap to carry a heavier weight than the computer. Otherwise the strap may become loose by itself.

Do not use the strap if it becomes worn or damaged.

First-time Operation

Preparation

A

Check and identify the supplied accessories.

If you do not fi nd the described accessories, contact Panasonic Technical Support ( page 34).

• AC Adaptor . . . . . 1 • AC Cord . . . . . . . 1 • Battery Pack . . . 1

<Only for model with touchscreen>

• Stylus . . . . . . . . . . . . . . . . . . . 1

Model No: CF-AA1633A

• Tether . . . . . . . . . 1 • Soft Cloth . . . . . . 1

Model No: CF-VZSU48

Model No: CF-VNP003U

<Only for model with dual touch>

• Digitizer pen . . . . . . . . . . . . . . 1

Model No: CF-VNP012U

• Operating Instructions (This book) . . . . . . . . . . . . . . . . . . . . . . . . 1

• Product Recovery DVD-ROM Windows

®

7 Professional . . . . . . . 1

• Product Recovery DVD-ROM Windows

Windows

®

®

XP Tablet or

XP Professional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

For model with dual touch, the tether and digitizer pen are already attached to the computer at purchase.

B

Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging

( page 28).

1 Inserting the Battery Pack

A

Slide the latch (A) to the right to unlock the cover.

B

Slide the latch (A) down, and open the cover.

C

Insert the battery pack until it securely fi ts the connector.

D

Close the cover until it clicks.

E

Slide the latch (B) to the left to lock the cover.

CAUTION

Make sure the latch is securely locked. Otherwise the battery pack may fall when you carry the computer.

Do not touch the terminals of the battery pack and the computer. Doing so can make the terminals dirty or damaged, and may cause malfunction of the battery pack and the computer.

NOTE

Note that the computer consumes electricity even when the computer power is off. If the battery pack is fully charged, the battery will fully discharge in the following period of time:

• When power is off: Approx. 7 weeks

*1 *2

• In sleep ( )/standby (

• In hibernation: Approx. 3 days

*1 *2

*1

): Approx. 2 days

*1 *2

If “Wake Up from wired LAN” is disabled, the period of time in sleep will become slightly longer, and the period of time in hibernation will become about the same as during power-off.

*2

If “Wake Up from wireless LAN” is enabled, the period of time in sleep will become shorter, and the period of time in hibernation will become about the same as during power-off.

When the DC plug is not connected to the computer, disconnect the AC cord from your AC wall outlet. Power is consumed simply by having the AC adaptor plugged into an electrical outlet.

Power consumption in each mode is as follows. (When AC adaptor is connected)

• When the screen is off: Approx. 11 W

• In sleep ( )/standby ( ): Approx. 2.2 W

• The battery pack is fully charged (or not being charged) and the computer is off: Approx. 0.9 W

13

14

First-time Operation

2 Opening the Display

A

Pull up the part (A) and release the latch.

B

Lift open the display.

3 Connect your computer to a power outlet.

The battery charging starts automatically.

CAUTION

Do not disconnect the AC adaptor and do not switch the wireless switch to on until the fi rst-time operation procedure is completed.

When using the computer for the fi rst time, do not connect any peripheral device except the battery pack and AC adaptor.

Handling the AC adaptor

Problems such as sudden voltage drops may arise during periods of thunder and lightning. Since this could adversely affect your computer, an uninterruptible power source (UPS) is highly recommended unless running from the battery pack alone.

4 Turn on the computer.

A

Slide and hold the power switch (B) for approximately one second until the power indicator lights.

CAUTION

Do not slide the power switch repeatedly.

The computer will forcibly be turned off if you slide and hold the power switch for four seconds or longer.

Once you turn off the computer, wait for ten seconds or more before you turn on the computer again.

Do not perform the following operation until the hard disk drive indicator turns off.

Connecting or disconnecting the AC adaptor

Sliding the power switch

Touching the keyboard, touch pad, tablet buttons, touchscreen (only for model with touchscreen), dual touch (only for model with dual touch) or external mouse

Closing the display

Turn on/off the wireless switch

When the CPU temperature is high, the computer may not start up to prevent overheating of the CPU. Wait until the computer cools down, and then turn the power on again. If the computer does not power on even after cooling down, contact Panasonic Technical Support ( page 34).

Any changes from the default setting of the Setup Utility must not be made until the First-time Operation is completed.

Follow the on-screen instructions.

After the computer is turned on, the screen remains black or unchanged for a while, but this is not a malfunction. Wait for a moment until the Windows setup screen appears.

During setup of Windows, use the touch pad and clicking to move the cursor and to click an item.

Setup of Windows will take approximately 20 minutes.

Go to the next step, confi rming each message on the display.

CAUTION

You cannot choose the following words for user name and password: CON,

PRN, AUX, CLOCK$, NUL, COM1 to COM9, LPT1 to LPT9, @.

In particular, if you create a user name (account name) that includes an ”@” mark, a password will be requested at the log-on screen, even if no password has been set. If you try to log on without entering a password, “The user name or password is incorrect.” is displayed and you will not be able to log on to Windows ( page 25).

You can change the user name, password, image and security setting after setup of Windows.

Remember your password. If you forget the password, you cannot use the Windows. Creating a password reset disk beforehand is recommended.

The wallpaper for the fi rst logon user has already been set on “4 Setup Windows.” .

When using this computer under the Sun, the screen becomes easily viewable by changing the wallpaper to the white wallpaper.

A

Right-click on the desktop, and click [Personalize] - [Desktop Background].

B

Select [Solid Colors] at [Picture Location].

C

Select the white wallpaper and click [Save changes].

When you set date/time/time zone and click [Next], the screen may not go to the next step for a few minutes. Do not touch the keyboard or touch pad, and wait until the screen changes.

If “An unexpected error has occurred ...” (or a similar message) is displayed, click [OK]. This is not a malfunction.

Wait until the hard disk drive indicator has turned off.

6 Perform the touchscreen calibration.

<Only for model with touchscreen>

NOTE

At fi rst, log on to Windows as an administrator, and perform this calibration.

Return the rotated display to [Primary Landscape] before the touchscreen calibration.

A

Click (Start) - [Control Panel] - [Hardware and Sound] - [Tablet PC Setting].

B

Using the stylus, touch each of the “+” target marks one by one.

NOTE

Perform the following calibration for each user.

A

Click (Start) - [Control Panel] - [Hardware and Sound] - [Tablet PC Setting].

B

Click [Calibrate].

C

Using the stylus, touch each of the “+” target marks one by one, and then click [Yes].

Perform the calibration for the orientation to be used.

A

Click [start] - [All Programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen

Calibration Utility].

B

Using the stylus, touch each of the 12 “+” target marks one by one until it blinks, and then press

Enter.

C

Press

Enter.

<Only for model with Dual Touch>

NOTE

Perform these calibration for each user.

If you cannot touch the desired position, perform Digitizer Calibration again and restart the computer.

A

Run [Tablet PC Settings].

Click (Start) - [Control Panel] - [Hardware and Sound] - [Tablet PC Settings].

B

Click [Calibrate].

C

Select [Pen input].

D

Using the digitizer pen, touch each of the “+” target marks one by one, and then click [Yes].

Perform the calibration for the orientation to be used.

A

Run [Tablet and Pen Settings].

Double-click or click [start] - [Control Panel] - [Printers and Other Hardware] - [Tablet and Pen Settings].

B

Click [Settings] - [Calibrate].

C

Using the digitizer pen, touch each of the 4 “+” target marks one by one, and then click [OK].

Perform the calibration for both [Landscape] and [Portrait].

15

First-time Operation

7 Create a new account.

Click [start] - [Control Panel] - [User Accounts] - [Create a new account].

CAUTION

Remember your password. If you forget the password, you cannot use the Windows operation system. Creating a password reset disk beforehand is recommended.

NOTE

PC Information Viewer

This computer periodically records the management information of the hard disk, etc. The maximum data volume for each record is 1024 bytes.

This information is only used for estimating the cause when the hard disk goes down by any possibility. They are never sent to outside via network nor used for any other purpose except for the purpose described the above.

To disable the function, add the check mark for [Disable the automatic save function for management information history] in [Hard Disk Status] of PC Information Viewer, and click [OK].

( Reference Manual “Checking the Computer’s Usage Status”)

Precaution against Starting Up/Shutting Down

Do not do the following

Connecting or disconnecting the AC adaptor

Sliding the power switch

Touching the keyboard, touch pad, touchscreen, dual touch or external mouse

Closing the display

Turn on/off the wireless switch

NOTE

To conserve power, the following power saving methods are set at the time of purchase.

The screen automatically turns off after 15 minutes of inactivity.

The computer automatically enters sleep

*3

( )/standby

*3

(

*3

Refer to Reference Manual “Sleep or Hibernation Functions” ( tions” ( ) about resuming from sleep/standby.

) after 20 minutes of inactivity.

)/”Standby or Hibernation Func-

16

To set the screen saver

When setting the screen saver, perform the following steps to select a standard Windows screen saver.

However, do not select the [3D Text] or [Blank] screen saver.

A

Right-click any blank area on the desktop, and click [Personalize].

B

Click [Screen Saver].

C

Select any [Screen Saver] option other than [3D Text] and [Blank], and click [OK].

If you select [3D Text] or [Blank], the computer may not transition properly into sleep mode or hibernation mode while the screen saver is active, due to incompatibilities with Windows 7. In addition, the computer may not resume from sleep mode or hibernation mode even when the power switch and keys are operated.

In such cases, you will have to force shutdown by sliding and holding the power switch for four seconds or more, losing any unsaved data in the process.

To change the partition structure

You can shrink a part of an existing partition to create unallocated disk space, from which you can create a new partition. This computer has a single partition in the default setting.

A

Click (Start) and right-click [Computer], then click [Manage].

A standard user needs to enter an administrator password.

B

Click [Disk Management].

C

Right-click the partition for Windows (“c” drive in the default setting), and click [Shrink Volume].

The partition size depends on the computer specifi cations.

D

Input the size in [Enter the amount of space to shrink in MB] and click [Shrink].

You cannot input a larger number than the displayed size.

E

Right-click [Unallocated] (the shrunk space in the step D) and click [New Simple Volume].

F

Follow the on-screen instructions to make the settings, and click [Finish].

Wait until formatting is completed.

NOTE

You can create an additional partition using remaining unallocated space or newly creating unallocated space.

To delete a partition, right-click the partition and click [Delete Volume] in the step C.

On-screen Manual

You can access the Reference Manual and the Important Tips on the computer screen.

When you access the Reference Manual and the Important Tips for the fi rst time, the License Agreement of the Adobe

Reader may be displayed. Read it carefully and select [Accept] to proceed.

The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.

To access the Reference Manual:

Double-click on the desktop.

Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Reference Manual].

Click [start] - [Reference Manual].

NOTE

<For model without Camera>

Please replace the procedure for “Inserting/Removing the RAM Module” in the Reference Manual with the following procedure.

Inserting/Removing the RAM Module

1

Turn off the computer.

Do not use standby or hibernation.

2

Disconnect the AC adaptor and remove the battery pack

( Reference Manual “Replacing the Battery Pack”).

3

Remove the screws (A) and the cover (B) on the bottom of the computer.

4

Insert/Remove the RAM module.

Lift up the sheet as illustrated at right to insert/remove the RAM Module.

To insert

A

Tilt the module slightly and insert it in the slot.

B

Press down the module so that the right and left hooks (C) are locked.

The attached sheet is omitted in the illustration for explanation.

17

18

On-screen Manual

To remove

A

Carefully open the right and left hooks (C).

The module will rise.

B

Carefully remove the module from the slot.

The attached sheet is omitted in the illustration for explanation.

5

Set the cover and battery pack.

Tighten the screws in the order of 1 to 4.

1 3 4 2

The Important Tips will provide you with the battery information so that you can use the battery pack in the optimum condition to obtain longer operation time.

To access the Important Tips:

Double-click on the desktop.

Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].

Double-click on the desktop.

Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].

NOTE

When Adobe Reader update notice is displayed, we recommend you follow the on-screen procedure and update.

See http://www.adobe.com/ for the latest version of Adobe Reader.

Handling and Maintenance

Operation environment

Place the computer on a fl at stable surface. Do not place the computer upright or turn it over. If the computer is exposed to an extremely strong impact, it may become inoperable.

Temperature: Operation : 5 °C to 35 °C {41 °F to 95 °F}

Storage : -20°C to 60 °C {- 4 °F to 140 °F}

Humidity: Operation : 30% to 80% RH (No condensation)

Storage : 30% to 90% RH (No condensation)

Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in the product deterioration and will shorten the product life.

Do not place the computer in the following areas, otherwise the computer may be damaged.

Near electronic equipment. Image distortion or noise may occur.

In extremely high or low temperature.

As the computer can become hot during operation, keep it away from items that are sensitive to heat.

Handling cautions

This computer is designed to minimize shock to parts such as the LCD and the hard disk drive and equipped with a drip-proof keyboard, but no warranty is provided against any trouble caused by shock. Be extremely careful when handling the computer.

When carrying the computer:

Turn off the computer.

Remove all external devices, cables, PC Cards and other protruding things.

Do not drop or hit the computer against solid objects.

Do not leave the display open.

Do not grip the display part.

Do not put anything (e.g., a piece of paper) between the display and keyboard.

When you board an airplane, take the computer with you and never put it in your checked luggage. When using the computer on airplane, follow the airline’s instructions.

When carrying a spare battery, put it in a plastic bag to protect its terminals.

The touch pad is designed to be used with a fi nger tip. Do not place any object on its surface and do not press down strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).

Avoid any harmful substances such as oil from getting into the touch pad. The cursor may not work correctly.

Be careful not to get injured by dropping down or getting hit when carrying the computer.

Use only the included stylus/digitizer pen to touch the screen. Do not place any object on its surface and do not press down strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).

Do not use the stylus/digitizer pen when dust or dirt (e.g., oil) is on the screen. Otherwise foreign particles on the screen/stylus/digitizer pen can scratch the screen surface or obstruct the stylus/digitizer pen operation.

Use the stylus/digitizer pen only for touching the screen. Using it for any other purpose may damage the stylus/digitizer pen and result in scratches on the screen.

<Only for model with dual touch>

The dual touch uses electromagnetic induction and may not work properly near strong electrical fi eld or magnetic fi eld such as:

Near AM radio base station or relay station antennas

Near CRT displays that generate strong electromagnetic fi eld noise

Move the dual touch away from such locations so it will work properly.

The cursor cannot follow the digitizer pen movement if you move the digitizer pen too quickly.

When using peripheral devices

Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction manuals of the peripheral devices.

Use the peripheral devices conforming to the computer’s specifi cations.

Connect to the connectors in the correct direction.

If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.

If screws are included, fasten them securely.

Remove the cables when you carry the computer. Do not pull the cables forcibly.

19

20

Handling and Maintenance

Preventing your computer from unauthorized use via wireless LAN/Bluetooth/Wireless WAN

<Only for model with wireless LAN/Bluetooth/Wireless WAN>

Before using wireless LAN/Bluetooth/Wireless WAN, make the appropriate security settings such as data encryption.

Maintenance

To clean the LCD panel

Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD

Surface” that comes with the soft cloth.)

To clean areas other than the LCD panel

Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it thoroughly.

CAUTION

Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.

Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.

Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause malfunction or damage.

Reinstalling Software

Reinstalling software will return the computer to the default condition. When you reinstall the software, the hard disk data will be erased.

Back up important data to other media or an external hard disk before reinstallation.

CAUTION

Do not delete the partition with boot fi les on the hard disk.

The disk space in the partition is not available to store data.

Hard disk

Partition with boot files

(approximately 300 MB)

Area usable by Windows

Preparation

Prepare the following items:

The Product Recovery DVD-ROM (included)

Panasonic CD/DVD drive

Remove all peripherals (except for the CD/DVD drive).

Connect the AC adaptor and do not remove it until reinstallation is complete.

1 Turn off the computer and connect the CD/DVD drive to the USB port ( page 11).

When reinstalling Windows XP from Windows 7:

A

Turn on the computer, and press F2 or Del while [Panasonic] boot screen is displayed.

B

Set the Product Recovery DVD-ROM for Windows 7 into the CD/DVD drive.

C

Select the [Exit] menu, then select your CD/DVD drive in [Boot Override].

D

Press

Enter.

E

Select [Run “System Recovery Options.”], and click [Next].

F

Click [Next], and then click [Next].

G

Select [Command Prompt].

H

Enter “e:\util\recovery\BscBluet.exe /ON” and press

Enter. (In this case, CD/DVD drive is assigned to “e:”.)

I

Enter “exit” and press Enter to quit [Command Prompt].

J

Remove the Product Recovery DVD-ROM for Windows 7 from the CD/DVD drive.

K

Click [Shut Down] in [System Recovery Options] to turn off the computer.

2 Turn on the computer, and press

F2

or

Del

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

If the password is requested, enter the Supervisor Password.

3 Write down all of the contents of the Setup Utility and press

F9

.

At the confi rmation message, select [Yes] and press

Enter.

4 Press .

At the confi rmation message, select [Yes] and press

Enter.

Computer will restart.

5 Press or

Del

while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

If the password is requested, enter the Supervisor Password.

6 Set the Product Recovery DVD-ROM for Windows which you install into the CD/DVD drive.

7 Select the [Exit] menu, then select your CD/DVD drive in [Boot Override].

8 Press .

The computer will restart.

9 Click [Reinstall Windows] and click [Next].

The License Agreement screen appears.

10 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next].

11 When reinstalling Windows 7 from Windows 7:

Select the settings and click [Next].

[Reinstall Windows to the whole Hard Disk to factory default.]

You will have two partitions.

[Reinstall to the fi rst 2 partitions.]

*1

Select this option when the hard disk has already been divided into several partitions. For how to create a new partition, refer to “To change the partition structure” ( page 16).

You can keep the partition structure.

*1

This does not appear if Windows cannot be reinstalled to the partition containing boot fi les and the area usable by Windows.

21

22

Reinstalling Software

When reinstalling Windows 7 from Windows XP:

Click [Next].

12 At the confi rmation message, click [YES].

Reinstallation starts according to the instructions on the screen. (It will take approximately 30 - 60 minutes.)

Do not interrupt reinstallation, for example by turning off the computer. Otherwise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.

13 Remove the Product Recovery DVD-ROM, and then click [OK] to turn off the computer.

14 Turn on the computer.

If the password is requested, enter the Supervisor Password.

15 Perform the “First-time Operation” ( page 14).

16 Start the Setup Utility and change the settings as necessary.

17 Perform Windows Update.

The License Agreement screen appears.

To cancel partway, press 0.

10 Press to select [1. Yes, I agree to the provisions above and wish to continue!].

11 Select the settings.

[2]:

Enter.

(The size of data partition will be determined by subtracting the operating system partition size from the maximum size.)

(The size of the fi rst partition must be 30 GB or more. If smaller, installation will not be possible.)

At the confi rmation message, press

Y.

Reinstallation starts automatically. (It will take approximately 30 - 75 minutes.)

Do not interrupt reinstallation, for example by turning off the computer or pressing

Ctrl + Alt + Del. Otherwise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.

12 Remove the Product Recovery DVD-ROM, and then press any key to turn off the computer.

If additional instructions are included with the computer, be sure to read them. It may be necessary to perform additional operations during the following procedure.

13 Turn on the computer.

If the password is requested, enter the Supervisor Password.

14 Perform the “First-time Operation” ( page 14).

15 Start the Setup Utility and change the settings as necessary.

Troubleshooting (Basic)

Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the

“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact

Panasonic Technical Support ( page 34). You can also check the computer’s status in the PC Information Viewer

( Reference Manual “Troubleshooting (Advanced)”).

Cannot start up.

The power indicator or battery indicator is not lit.

The power is turned on but

“Warming up the system (up to 30 minutes)” appears.

Connect the AC adaptor.

Insert a fully charged battery.

Remove the battery pack and the AC adaptor, then connect them again.

If a device is connected to the USB port, disconnect the device, or set [USB Port] or

[Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility.

If a device is connected to the ExpressCard slot, disconnect the device, or set

[ExpressCard Slot] to [Disable] in the [Advanced] menu of the Setup Utility.

Press

Fn

+

F8 to turn off the concealed mode.

The computer is warming up before start up. Wait for the computer to start up (takes up to 30 minutes). If, “Cannot warm up the system” is displayed, the computer failed to warm up and does not start. In this case, turn off the computer, leave it in an environment of

5 °C {41 °F} or higher temperature for about an hour, and then turn on the power again.

Leave it in an environment of 5 °C {41 °F} or higher temperature for about an hour, then turn on the power again.

Cannot turn on the computer.

The computer does not re-

( sume from sleep

)/standby

( ).

(The power indicator blinks quickly in green.)

The computer does not enter sleep mode while the screen saver is running. (The screen stays black.)

You have forgotten the password.

Slide and hold the power switch for four seconds or longer to shut down the computer forcibly. (Data not saved will be lost.) Then disable the screen saver.

“Remove disks or other media. Press any key to restart” or a similar message appears.

Windows startup and operation is slow.

Supervisor Password or User Password: Contact Panasonic Technical Support ( page

34).

Administrator password:

If you have a password reset disk, you can reset the administrator password. Set the disk and enter any wrong password, then follow the on-screen instructions and set a new password.

If you do not have a password reset disk, reinstall ( page 21) and set up Windows, and then set a new password.

A fl oppy disk is in the drive and it does not contain system startup information. Remove the fl oppy disk and press any key.

If a device is connected to the USB port, disconnect the device, or set [USB Port] or

[Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility.

If a device is connected to the ExpressCard slot, disconnect the device, or set

[ExpressCard Slot] to [Disable] in the [Advanced] menu of the Setup Utility.

If the problem persists after removing the disk, it may be a hard disk failure. Contact

Panasonic Technical Support ( page 34).

F9

in the Setup Utility ( Reference Manual “Setup Utility”) to return the

Setup Utility settings (excluding the passwords) to the default values. Start the Setup

Utility and make the settings again. (Note that the processing speed depends on the application software, so this procedure may not make Windows faster.)

If you installed a resident software after purchase, turn off the residence.

service)].

Disable Indexing Service in the following menu.

Click [start] - [Search] - [Change preferences] - [With Indexing Service (for faster local

23

24

Troubleshooting (Basic)

The date and time are incorrect.

[Executing Battery Recalibration] screen appears.

[Enter Password] does not appear when resuming from

( sleep ( )/standby

)/hibernation.

Make the correct settings.

Click (Start) - [Control Panel] - [Clock, Language, and Region] - [Date and Time].

Click [start] - [Control Panel] - [Date, Time, Language, and Regional

Options] - [Date and Time].

If the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support ( page 34).

When the computer is connected to LAN, check the date and time of the server.

The 2100 A.D. or later year will not be correctly recognized on this computer.

The Battery Recalibration was canceled before Windows was shut down last time. To start up Windows, turn off the computer by the power switch, and then turn on.

The password you have set in the Setup Utility is not requested at resuming. To use the password security at resuming, set the Windows password.

A

Click

(Start)

- [Control Panel] - [User Accounts and Family Safety] - [Add or remove user accounts] and select the account, and set the password.

B

Click (Start) - [Control Panel] - [System and Security] - [Power Option] - [Require a password when the computer wakes] and add a check mark for [Require a password].

Cannot resume.

Other startup problems.

A

Click [start] - [Control Panel] - [User Accounts] and select the account, and set the password.

B

Click [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] -

[Advanced] and add a check mark for [Prompt for password when computer resumes from standby].

An error may occur when the computer automatically enters the sleep (

/ standby (

)

) or hibernation mode while the screensaver is active. In this case, turn off the screensaver or change the pattern of the screensaver.

F9

in the Setup Utility (

Utility and make the settings again.

Reference Manual “Setup Utility”) to return the

Setup Utility settings (excluding the passwords) to the default values. Start the Setup

Remove all peripheral devices.

Check to see if there was a disk error.

A

Remove all peripheral devices including an external display.

B

Click

(Start)

- [Computer] and right-click [Local Disk (C:)], and click [Properties].

C

Click [Tools] - [Check Now...].

A standard user needs to enter an administrator password.

D

Select the option in [Check disk options] and click [Start].

E

Click [Schedule disk check] and restart the computer.

A

Click [start] - [My Computer] and right-click [Local Disk(C:)], and click [Properties].

B

Click [Tools] - [Check Now].

C

Select the option in [Check disk options] and click [Start].

*1

Start the computer in Safe Mode and check the error details. When the [Panasonic] boot screen disappears

*1

at startup, press and hold

F8

until the Windows Advanced Options

Menu is displayed. Select the Safe Mode and press

Enter

.

When [Password on boot] is set to [Enabled] in the [Security] menu of the Setup Utility,

[Enter Password] appears after the [Panasonic] boot screen disappears. As soon as you enter the password and press

Enter

, press and hold

F8

.

On the [Enter Password] screen, the password cannot be entered.

Even after entering the password ( )/ Locked

( )/Type your password, is displayed again.

Cannot log on to Windows.

(“The user name or password is incorrect.” is displayed.)

The computer may be in ten-key mode.

If the NumLk indicator lights, press input.

NumLk

to disable the ten-key mode, and then

The computer may be in ten-key mode.

If the NumLk indicator lights, press input.

NumLk

The computer may be in Caps Lock mode.

to disable the ten-key mode, and then

If the Caps Lock indicator lights, press mode, and then input.

Caps Lock

to disable the Caps Lock

The user name (account name) includes an “@” mark.

- If another user account name exists:

Log on to Windows using another user account name, and delete the account name that includes “@”. Then create a new account name.

- If no other account name exists:

You need to reinstall Windows ( page 21).

Windows does not shut down.

Remove the USB device and the ExpressCard.

Wait one or two minutes. It is not a malfunction.

Display

No display.

The screen is dark.

The screen is disordered.

During Simultaneous display, one of the screens becomes disordered.

The external display is selected. Press

Fn

+

F3

to switch the display. Wait until the display has been switched completely before pressing

When using an external display,

Fn

+

F3

again.

Check the cable connection.

Turn on the display.

Check the settings of external display.

The display is turned off by the power-saving function. To resume, do not press the direct selection keys, but press any other key like

The computer entered sleep (

Ctrl

) /standby (

.

the power-saving function. To resume, press the power switch.

) or hibernation by

The screen is darker when the AC adaptor is not connected. Press

Fn

+

F2

and adjust the brightness. As you increase the brightness, battery consumption increases.

You can separately set the brightness for when the AC adaptor is connected and when not connected.

Press

Fn

+

F8 to turn off the concealed mode.

Changing the number of display colors and resolution may affect the screen. Restart the computer.

Connecting/disconnecting an external display may affect the screen. Restart the computer.

When using the Extended Desktop, use the same display colors for the external display as those used by the LCD.

If you continue to experience problems, try changing the display.

Right-click on the desktop, and click [Graphics Properties] - [Display Devices].

The external display does not work normally.

Clicking [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver for Mobile] - [Display Devices].

When the [Command Prompt] is set to “Full Screen” by pressing

Alt

+

Enter

, the picture is displayed on one of the screens only. When the window display is restored by pressing

Alt

+

Enter

, the picture is displayed on both screens.

Simultaneous display cannot be used until Windows startup is complete (during Setup

Utility, etc.).

If the external display does not support the power saving function, it may not work normally when the computer enters the power saving mode. Turn off the external display.

25

Troubleshooting (Basic)

Display

<Only for model with GPS>

The cursor cannot be controlled properly.

Operate the following steps.

A

Set [GPS] to [Disable] in the [Advanced] - [Serial Port Settings] of the Setup Utility.

B

Press

F10

and select [Yes] at the confi rmation message, and press

Enter

.

The computer will restart.

C

Log on to Windows as an administrator.

D

Click (Start) and input “c:\util\drivers\gps\GPSVista.reg” in [Start Search], and press

Enter

.

E

Click [Yes], click [Yes] and click [OK].

Then restart the computer.

F

Press

F2

while [Panasonic] boot screen is displayed.

G

Set [GPS] to [Enable] in the [Advanced] - [Serial Port Settings].

H

Press

F10

and select [Yes] at the confi rmation message, and press

Enter

.

Touch Pad / Touchscreen (only for model with touchscreen)/Dual Touch (only for model with dual touch)

The cursor does not work.

Cannot input using the touch pad.

When using the external mouse, connect it correctly.

Restart the computer using the keyboard.

Press and press two times, and press to select [Restart] and press Enter .

Press , U , and R to select [Restart].

If the computer does not respond to keyboard commands, read “No response”

( page 27).

Set [Touch Pad] to [Enable] in the [Main] menu of the Setup Utility.

The drivers for some mice may disable the touch pad. Check your mouse’s operating instructions.

<Only for model with touchscreen>

Cannot input using the touchscreen.

Set [Touchscreen Mode] to [Auto] or [Tablet] in the [Main] menu of the Setup Utility.

Cannot point the correct position using the included stylus/digitizer pen.

Set [Touchscreen Mode] to [Auto] or [Touchscreen Mode] in the [Main] menu of the

Setup Utility.

<Only for model with touchscreen>

Perform the touchscreen calibration ( page 15).

<Only for model with dual touch>

Perform the digitizer calibration and Touchscreen calibration ( page 15).

Use the included digitizer pen.

On the Windows logon screen or the Welcome screen, you may not be able to point the correct position using the included digitizer pen. Use the keyboard or the touch pad to log on.

26

The Reference Manual is not displayed.

Install Adobe Reader.

A

Log on to Windows as an administrator.

B

Click

Enter

.

(Start) and input “c:\util\reader\Setup.exe” in [Start Search] then press

C

Update Adobe Reader to its latest version.

If your computer is connected to the internet, start up Adobe Reader and click [Help]

- [Check for Updates...].

B

Click [start] - [Run], input [c:\util\reader\Setup.exe], then click [OK].

C

Update Adobe Reader to its latest version.

If your computer is connected to the internet, start up Adobe Reader and click [Help]

- [Check for updates now].

Others

No response.

Ctrl

+

Shift

+ that is not responding.

Esc

to open Task Manager and close the software application

An input screen (e.g., password input screen at startup) may be hidden behind another window. Press

Alt

+

Tab

to check.

Slide the power switch for four seconds or longer to shut down the computer, and then slide the power switch to turn it on. If the application program does not work normally, uninstall and reinstall the program. To uninstall, click (Start) - [Control Panel] - [Program] - [Uninstall a program].

click [start] - [Control Panel] - [Add or Remove Programs].

27

28

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY

DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Panasonic Corporation has developed or otherwise obtained the Programs and hereby licenses their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. Panasonic Corporation hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title, ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms, concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of which title, ownership and rights shall remain with Panasonic Corporation or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confi dentiality of the Programs. You may not distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing or otherwise, without the prior written consent of Panasonic Corporation.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the single

Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation, to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identifi cation from the Programs and you must reproduce and include any such notice or product identifi cation on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE

THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN

WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PER-

MITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate this license at any time by destroying, at your expense, the Programs and related documentation together with all copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions thereof set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all copies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND

BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,

ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-

TER OF THIS AGREEMENT.

GOVERNMENT RESTRICTED RIGHTS.

The Software is provided with “RESTRICTED RIGHTS.” Use duplication or disclosure by the government is subject to restrictions as set forth in FAR52.227-14 and DFAR252. 227-7013 et seq. or their successors.

Use of the Software by the government constitutes acknowledgement of Intel’s proprietary rights therein.

Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95052.

Contrat de licence d’usage limité

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic (le “Produit”) sont exclusivement concédés en licence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles cidessous. En utilisant les logiciels, vous vous engagez de manière défi nitive à respecter les termes, clauses et conditions des présentes.

Panasonic Corporation a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par les présentes. Vous assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour obtenir les résultats escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.

Licence

A. Panasonic Corporation vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d’utiliser les Logiciels conformément aux termes, clauses et conditions de ce contrat. Vous reconnaissez ne recevoir qu’un droit limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n’obtenir aucun droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni vis-à-vis des algorithmes, concepts, dessins, confi gurations et idées représentés par ou incorporés dans les Logiciels et la documentation les accompagnant, dont les titres, propriété et droits resteront tous à Panasonic Corporation ou à leurs propriétaires.

B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.

C. Vous et vos employés ou agents êtes requis de protéger la confi dentialité des Logiciels. Vous ne pouvez ni distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage de temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de Panasonic Corporation.

D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documentation les accompagnant pour quelque fi n que ce soit, à l’exception d’une (1) copie des Logiciels à des fi ns de sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné par les

Logiciels. Vous ne pouvez ni modifi er ni tenter de modifi er les Logiciels.

E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession du

Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous devez céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les Logiciels ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.

F. Vous ne pouvez retirer aucune marque de droits d’auteur, marque de commerce ou autre ni aucune identifi cation de produit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifi cations de produit sur toutes les copies des Logiciels.

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs copies, de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifi er, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à l’exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé au paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Termes, clauses et conditions

Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une résiliation antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée, avec application immédiate, si les conditions de résiliation défi nies ailleurs dans ce contrat se sont réalisées ou si vous ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes, clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre communication entre nous, relativement à l’objet du présent contrat.

29

30

Specifi cations

This page provides the specifi cations for the basic model.

The model number is different according to the unit confi guration.

To check the model number:

Check the bottom of the computer or the box the computer came in at the time of purchase.

To check CPU speed, memory size and the hard disk drive (HDD) size:

Run the Setup Utility ( Reference Manual “Setup Utility”) and select [Information] menu.

[CPU Speed]: CPU speed, [System Memory]: Memory size, [Hard Disk]: Hard disk drive size

Model No.

CPU

Chipset

Memory

*1*2

Video Memory

*1*4

CF-19KHRXPM CF-19KDRAXGM

Intel

®

Core™ 2 Duo Processor SU9300 (1.20

GHz

, 3

MB *1

L2 cache, 800

MHz

FSB)

Mobile Intel

®

GS45 Express Chipset

2048

MB

(4096

MB

Max.)

*3

UMA 797

MB

Max. (When Memory is 2

GB

) / UMA 1551

MB

Max. (When Memory is 4

GB

)

Hard Disk Drive

*5

Display Method

Internal LCD

*6

External Display

*7

Wireless LAN

*8

Bluetooth

TM *9

LAN

Modem

Sound

Security Chip

Card Slot PC Card

ExpressCard

*11

Smart Card

*12

SD Memory Card

*13

RAM Module Slot

Interface

Keyboard / Pointing Device

Power Supply

AC Adaptor

*24

Battery Pack

Operating Time

*15

Charging

Time

*15

Power on

Power off

Clock Battery

Power Consumption

*17

Physical Dimensions (W × H × D)

(excluding the hand strap/shoulder strap)

Weight

(excluding the hand strap/shoulder strap)

UMA 1024

MB

Max.

160

GB

10.4 XGA type (TFT)

65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots)

65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots/1280 × 768 dots/1280 × 1024 dots)

page 31

page 31

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

Data: 56 kbps

(V.92) FAX: 14.4 kbps

WAVE and MIDI playback, Intel

®

High Defi nition Audio subsystem support, Monaural speaker

TPM (TCG V1.2 compliant)

*10

Type I or Type II x 1 (3.3

V

: 400 mA

, 5

V

: 400 mA

)

ExpressCard/34 or ExpressCard/54 x 1

ISO7816 x 1 x 1, Data transfer rate = 8

MB

per second

*14

200-pin, 1.8

V

, SO-DIMM, DDR2 SDRAM, PC2-5300 Compliant

*3

USB port (4-pin, USB 2.0) x 2, Serial Port (Dsub 9-pin male), Modem port (RJ-11), LAN port

(RJ-45), External display port (Mini Dsub 15-pin female), Expansion Bus Connector (Dedicated

100-pin female), External Antenna Connector (Dedicated 50

Ω coaxial connector) x 2, IEEE

1394a Interface Connector (4-pin x 1), Microphone Jack (Miniature jack, 3.5 DIA, Stereo),

Headphone Jack (Miniature jack, 3.5 DIA, Impedance 32

Ω, Output Power 4 mW

x 2)

82 keys / Touch Pad / Touchscreen (Anti-

Refl ection, Stylus (included) touch capable)

82 keys / Touch Pad / Dual Touch (Anti-Refl ection, Stylus (included) touch capable)

AC adaptor or Battery pack

Input: 100

V

to 240

V

AC, 50

Hz

/60

Hz

, Output: 16.0

V

DC, 3.75

A

Li-ion 10.65

V

, 5.7

Ah

(typ.), 5.4

Ah

(min.)

10.0 hours

*16

Approx. 6.5 hours

Approx. 4.5 hours

Coin type lithium battery 3.0

V

Approx. 30

W

*18

/ Approx. 60

W

(maximum when recharging in the ON state)

271 mm

× 49 mm

× 216 mm

{10.7 × 1.93 × 8.5}

Approx. 2.30 kg

{Approx. 5.06 lb.

}

Operation Environment

Storage Environment

Temperature: 5

Humidity: 30

°C

to 35

°C

{41

°F

to 95

°F

}

%

to 80

%

RH (No condensation)

Temperature: -20

Humidity: 30

°C

to 60

°C

{-4

°F

to 140

°F

}

%

to 90

%

RH (No condensation)

Operating System

Utility Programs

*19

Windows

®

7 Professional

Microsoft

®

Windows

®

XP Professional Service Pack 2 with Advanced Security Technologies

(NTFS File System)

Microsoft

®

Windows

®

XP Tablet PC Edition 2005 (NTFS File System)

Adobe Reader, PC Information Viewer, Loupe Utility, Intel

Bluetooth™ Stack for Windows

®

by TOSHIBA

*9

®

PROSet/Wireless Software

*8

Battery Recalibration Utility, Panasonic Hand Writing, Display Rotation Tool, Infi neon TPM

Professional Package

*20

,

, Wireless Switch Utility, Hotkey Settings,

, Power Saving Utility, Wireless Connection Disable Utility

Concealed Mode Utility

*22

*20

,

Aptio Setup Utility, Hard Disk Data Erase Utility

*21

, PC-Diagnostic Utility

Wireless LAN <Only for model with wireless LAN>

Data Transfer Rates

Standards Supported

Transmission method

Wireless Channels Used

RF Frequency Band

IEEE802.11a : 54/48/36/24/18/12/9/6 Mbps (automatically switched)

*23

IEEE802.11b : 11/5.5/2/1 Mbps (automatically switched)

*23

IEEE802.11g : 54/48/36/24/18/12/9/6 Mbps (automatically switched)

*23

IEEE802.11n : (HT20) 144.4/130/117/115.6/104/86.7/78/65/58.5/57.8/52/43.3/39/28.926/19.5/

14.4/13/6.5 Mbps (automatically switched)

*23

(HT40) 300/270/243/240/216/180/162/130/120/117/108/104/90/81/78/60/54/52/

39/30/27/26/13 Mbps (automatically switched)

*23

IEEE802.11a / IEEE802.11b / IEEE802.11g / IEEE802.11n

OFDM system, DSSS system

IEEE802.11a : Channels 36/40/44/48/52/56/60/64/100/104/108/112/116/132/136/140/149/153/

157/161/165

IEEE802.11b/IEEE802.11g : Channels 1 to 11

IEEE802.11n : Channels 1-11/36/40/44/48/52/56/60/64/100/104/108/112/116/132/136/140/149/

153/157/161/165

IEEE802.11a : 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.58 GHz, 5.66 GHz - 5.7 GHz, 5.745 GHz -

5.825 GHz

IEEE802.11b/IEEE802.11g : 2.412 GHz - 2.462 GHz

IEEE802.11n : 2.412 GHz - 2.462 GHz, 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.58 GHz, 5.66 GHz -

5.7 GHz, 5.745 GHz - 5.85 GHz

Bluetooth

TM

<Only for model with Bluetooth>

Bluetooth Version

Transmission method

Wireless Channels Used

RF Frequency Band

2.0 + EDR

FHSS system

Channels 1 to 79

2.402-2.48 GHz

*1

*2

*3

*4

*5

*6

*7

*8

MB

= 1,048,576 bytes

You can physically expand the memory up to 4096 MB, but the total amount of usable memory available will be less depending on the actual system confi guration.

<Only for model with camera>

The memory cannot be increased.

A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video

Memory cannot be set by the user.

GB

= 1,000,000,000 bytes. Your operating system or some application software will report as fewer

A 16,777,216 color display is achieved by using the dithering function.

Maximum resolution depends on the specifi cations of the external display. Display may be impossible using some connected external displays.

Only for model with wireless LAN

*9

*10

Only for model with Bluetooth

For information on TPM, click

GB

.

(Start) and input “c:\util\drivers\tpm\README.pdf” in [Start Search] and press

Enter

, and refer to the Installation Manual of “Trusted Platform Module (TPM)”.

click [start] - [Run] and input “c:\util\drivers\tpm\README.pdf”, and refer to the Installation Manual of “Trusted

*11

Platform Module (TPM)”.

Only for model with ExpressCard slot

31

32

Specifi cations

*12

*13

*14

*16

Varies depending on the usage conditions, or when an external device is attached.

*17

*18

*19

*20

Only for model with Smart Card slot

SD Memory Cards that support high-speed transfer rates can be used.

*21

The Product Recovery DVD-ROM is required.

*22

Concealed Mode may not work properly during battery recalibration.

*23

It does not correspond to IEEE802.11a+b+g+n standards.

*24

Actual speeds may differ.

The AC adaptor is compatible with power sources up to 240

Windows ReadyBoost function is also supported.

Operation has been tested and confi rmed using Panasonic SD Memory Cards and SDHC Memory Cards with a capacity of up to 8

GB

.

Operation on other SD equipment is not guaranteed.

This computer is not compatible with MultiMediaCards. Do not insert this type of cards.

The theoretical value and actual speeds may differ. The transfer rate does not become higher even if you use a card that supports the higher transfer rate.

*15

Varies depending on the usage conditions.

Measured at LCD brightness: 60 cd/m

W

when the battery pack is fully charged (or not being charged) and the computer is OFF.

Rated power consumption

23-E-1

2

Some parts of the software in the Product Recovery DVD-ROM may not be installed depending on a model.

You need to install to use the feature.

V

AC adaptor.

The unit for North America (identifi ed by the suffi x ‘M’ on the model number) is supplied with a 125

20-M-1-1

V

AC compatible AC cord.

LIMITED WARRANTY

For U.S.A.

Panasonic Computer Solutions Company - Worldwide Product Warranties

Section 1: Limited Warranty - Hardware

Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair the products listed below with new or rebuilt parts, free of charge in the U.S.A. or other Panasonic approved location for the period specifi ed below from the date of original purchase in the event of a defect in materials or workmanship. These warranties are extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before warranty performance is rendered.

• Laptop Computers – 3 Years

• PDRC - LCD and Keyboard Assemblies – 3 Years

• MDWD – Mobile Computer and Wireless Display Assemblies (CF-07/CF-08) - 3 Years

• Ultra-Mobile PC (CF-U1/CF-H1) – 3 Years

• Hand-held Computers (P1/P2) – 1 Year

• Arbitrator Video Camera – 1 Year

• Arbitrator Recorder Unit – 1 Year

• Arbitrator Remote Control Panel – 1 Year

• Arbitrator Wireless Receiver Unit – 1 Year

• Arbitrator P2 Card(s) (All Sizes) – 1 Year

• Arbitrator Wireless Microphone(s) / Transmitter – 90 Days

• Arbitrator System Component Interconnect Cables – 90 days

Battery Warranty

The battery supplied with the product is covered under the warranty for one (1) year from date of purchase, except as excluded in Section 3. Batteries purchased separately are covered under the warranty for one (1) year from the date of purchase. A battery furnished under the warranty is covered for the remaining period of the one year warranty on the original or purchased battery.

Wireless Module Warranty

Panasonic approved wireless modems installed in Panasonic brand computers and integrated by Panasonic or an Authorized Panasonic Wireless Integrator are covered under the warranty for the remaining warranty period of the computer in which the modem is installed. For computers with less than three (3) months remaining on the unit warranty, the wireless modem will be covered for a period of three (3) months from the date of installation of the modem, covering only modem replacement or modem installation related issues.

All modems must be approved by the wireless carrier prior to use. Any use or attempted use of a wireless modem not approved and activated by the carrier for use on their network is strictly prohibited and is not sanctioned or warranted by Panasonic and may result in legal action. In addition, all modems must be approved by Panasonic as compatible with the computer hardware before installation or use.

Panasonic’s sole responsibility for the warranty or technical support of the software required to install or operate the modem is defi ned in Section 2 (Limited Software Warranty). Any attempted software installation by anyone other than a Panasonic Authorized

Wireless Integrator is not covered under warranty and may result in service charges to re-image or replace the hard drive.

Installation or attempted installation by any party other than Panasonic or an Authorized Panasonic Wireless Integrator is strictly not covered under the warranty and may void the computer warranty if damage results.

Options and Accessories warranties

The below listed Panasonic brand or supplied options and accessories are covered under this limited warranty for the period specifi ed from the date of purchase or as specifi cally stated:

• AC Adaptor / Power Cord – 3 Years

• Memory Card (Panasonic Brand) – 3 Years

• Car Mount Docking Station PCB or Complete Vehicle Docking Station – 3 Years

• Port Replicator / I-O Box / Device Cradle (like CF-08) – 3 Years

• Antenna Pass-through Cable – 3 Years

• Backlit or Full-sized keyboard - 3 Years or assumes warranty of the unit in which it is installed

• Integrated Panasonic supplied options and kits including, but not limited to Wireless WAN, Media Bay Drives (Floppy,

CD/DVD, Combo), Camera, GPS, Bluetooth, Smartcard Reader, Magnetic Card Reader, Barcode Scanner and Fingerprint readers – 3 Years or assumes warranty period of the unit in which it is installed provided the integration was performed by

Panasonic or an Authorized Options Integrator.

• Hard Drive (separately purchased) – 1 Year

• External USB Drives (CD / DVD / Floppy / Hard Drive) – 1 Year

• Optional Battery – 1 Year

• Battery Charger / Multi-Bay Battery Charger – 1 Year

• Digitizer pen or stylus – 90 Days (physical damage excluded)

33

34

LIMITED WARRANTY

Section 2 - Limited Warranty - Software

Panasonic Computer Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which the Programs are furnished will be free from defects in material and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof to you, as evidenced by your purchase receipt.

This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet your requirements or that the operation of the Programs will be uninterrupted or error free. Panasonic shall have no obligation for any defects in the disk(s) or other media on which the Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of the disk(s) or other media

Panasonic’s entire liability and your exclusive remedy under this warranty shall be limited to the replacement, in the United States or other Panasonic designated location, of any defective disk or other media which is returned to Panasonic’s Authorized Service

Center, together with a copy of the purchase receipt, within the aforesaid warranty period. The customer is responsible for ensuring that all data is backed up and made secure during normal use and before sending a unit for service.

Section 3 - Limited Warranty Exclusions

Specifi cally excluded from the warranty are:

• All consumable items; such as screen protection fi lms, logo badges, labels, cleaning cloths, carry cases, manuals, cables, straps, belts, holsters, tethers, and harnesses and any other options and accessories not listed above or covered under a separate warranty.

• Failures related to the product operating system, hard drive image, software setup, software program, virus, other program(s) or fi le(s) on the hard drive or in any computer memory location.

• Failures due to BIOS settings or changes, as well as any cosmetic or physical damage to the unit.

• Any unit or device with a missing or altered model number or serial number label

• Damage which occurs in shipment

• Failures which are caused by products not supplied by Panasonic

• Failures which result from alteration, accident, misuse, introduction of liquid or other foreign matter into the unit, abuse, neglect, installation, maladjustment of consumer controls, improper maintenance or modifi cation, use not in accordance with product use instructions

• Failures due to service by anyone other than a Panasonic Authorized Service Provider

• Failures caused by improper integration by any company other than Panasonic or a Panasonic Authorized Integrator.

• Damage, failure, or loss due to the unit being stolen, lost, misplaced, or used by anyone other than the original purchaser

• Damage that is attributable to acts of God

This warranty only covers failures due to defects in materials or workmanship which occur during normal use.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-

TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS

*1

. PANASONIC WILL NOT BE RESPONSIBLE

FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

*1

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems when used during critical phases of fl ight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Systems and 2 EFB Systems are defi ned by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leafl ets)

No.36

Other Limits and Exclusions: There are no other express warranties except as listed above.

PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES RE-

SULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND

IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR-

POSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.

For technical support or to arrange for service on your Panasonic computer product, call our toll-free hotline at 1-800-LAPTOP5.

DIAL TOLL FREE: 1-800-LAPTOP5 (1-800-527-8675)

Web Site : www.panasonic.com/toughbook

For Canada

PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the fi rst end user customer, this computer product (excluding software media), when purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under normal use, subject to the terms set forth below, during the period of warranty coverage specifi ed.

Scope of Coverage Period of Coverage

• Laptop Computers (except Battery) and AC Adaptor

• Factory/PCI installed options including Wireless WAN, GPS,

Bluetooth, Finger print reader, Backlit keyboard, Memory Card and Media Bay Drives (Floppy, CD/DVD)

• Mobile Wireless Display

• PDRC – LCD and Keyboard Assemblies

• Port Replicator

• Hand-held Computers

• Battery

• Battery charger

• Auto Adaptor

• External USB Drives

• Digitizer pen or stylus

Three (3) Years from Date of

Original End User Customer

Purchase

One (1) Year from Date of

Original End User Customer

Purchase

Ninety (90) Days from Date of

Original End User Customer

Purchase

• All consumable items including protection fi lm, cleaning cloth, carry case, tether and harness

No Coverage

Type of Failure Coverage

Defective Materials or Workmanship

Defective Materials or Workmanship

Defective Materials or Workmanship

Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the nature of the defect claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding holidays) for instructions on how to obtain service. A purchase receipt or other proof of date of original purchase is required before warranty service is performed. Defective parts covered by this Limited Warranty will be repaired or replaced with new or comparable rebuilt parts on an exchange basis. Warranty replacement or repair is subject to the terms of this Limited Warranty for the balance of the original period of warranty coverage.

No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure of, or defects in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, introduction of liquid or other foreign matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-

TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS

*2

*2

. PANASONIC WILL NOT BE RESPONSIBLE

FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems when used during critical phases of fl ight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Systems and 2 EFB Systems are defi ned by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leafl ets)

No.36

IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE

Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase. No liability is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.

SOFTWARE MEDIA LIMITED WARRANTY

Coverage – PCI warrants to you, the fi rst end user customer, that the disk(s) or other media on which software program(s) is/are supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from date of receipt as evidenced by your purchase receipt for your Panasonic Computer product.

THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software.

Please refer to the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.

Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and you return it, transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, 5770 Ambler Drive, Mississauga, Ontario L4W 2T3, within the warranty period, together with a copy of your purchase receipt, and an explanation of the suspected defect, PCI will replace in Canada the defective disk(s) or other media.

Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the media only. It does not cover any other damages, including, but not limited to, loss of use or profi t loss, or special, indirect or consequential damages, or other claims, whether or not of similar character.

No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environmental conditions other than those specifi ed by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modifi cation or attempted modifi cation of the program, or if damaged by accident or act of God. PCI is not responsible for damage to or loss of any program, data or removable storage media.

GENERAL

NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RE-

SPECT TO THE SOFTWARE, SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR

CONSEQUENTIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT,

OR FROM THE USE OF THE COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS, PROF-

IT OR GOODWILL.

IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU

FOR THE COMPUTER PRODUCT.

NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE

OF ACTION AROSE.

Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

35

GARANTIE LIMITÉE

Pour le Canada

GARANTIE LIMITÉE – ORDINATEURS ET PÉRIPHÉRIQUES PANASONIC

Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que ce produit informatique (à l’exclusion des supports des logiciels) est, au moment de sa vente par PCI ou d’un revendeur agréé par PCI, exempt de défauts de pièces et de fabrication dans les conditions normales d’utilisation, et ce, pendant la période de couverture de la garantie, sous réserve des modalités décrites ci-dessous.

Éléments couverts Durée de couverture

• Ordinateurs blocs-notes (sauf batteries) et adaptateur secteur

• Options installées en usine/par PCI incluant : WAN sans fi l,

GPS, Bluetooth, lecteur d’empreintes digitales, clavier rétroéclairé, carte mémoire et lecteurs (disquettes, CD/DVD)

• Écran mobile sans fi l

• Ensembles PDRC – ACL et clavier

• Duplicateur de port

• Ordinateurs de poche

• Batterie

• Chargeur de batterie

• Adaptateur pour voiture

• Périphériques USB

• Stylo pointeur standard ou pour numériseur graphique

Trois (3) ans à partir de la date d’achat original.

Un (1) an à partir de la date d’achat original.

Quatre-vingt-dix (90) jours à partir de la date d’achat original.

• Tous les articles consommables incluant les pellicules protectrices, chiffons de nettoyage, étuis de transport, longes et sangles

Aucune couverture

Type de couverture

Défauts de pièces et de fabrication

Défauts de pièces et de fabrication

Défauts de pièces et de fabrication

Recours – Pour obtenir des informations sur la marche à suivre dans le cas où une réclamation en vertu de la garantie deviendrait nécessaire, communiquez par téléphone avec un représentant de PCI au 1-800-668-8386, entre 9h00 et 17h00 (heure de l’Est) du lundi au vendredi (sauf les jours fériés), avant l’échéance de la garantie applicable, en prenant soin d’identifi er la nature de la défaillance.

Un reçu ou toute autre pièce justifi cative de la date d’achat original sera exigé avant toute réparation. Toute pièce défectueuse couverte par la présente garantie limitée sera réparée ou remplacée par une pièce neuve ou remise à neuf. Le remplacement ou la réparation sera fait conformément aux modalités de la présente garantie limitée pendant la durée restante de la période originale de la garantie.

Produits non couverts – La présente garantie limitée ne couvre pas les produits achetés à l’extérieur du Canada. Elle ne couvre pas non plus les dommages, la défaillance ou les défauts attribuables à une manutention inadéquate, une mauvaise installation, une utilisation anormale ou abusive, de la négligence, un accident, un déversement ou la pénétration d’un objet étranger, une modifi cation, un cas fortuit ou une réparation effectuée par une personne non agréée par PCI.

CE PRODUIT N’EST PAS DESTINÉ À ÊTRE UTILISÉ, EN TOUT OU EN PARTIE, COMME SYSTÈME/ÉQUIPEMENT NUCLÉAIRE, SYS-

TÈME/ ÉQUIPEMENT DE CONTRÔLE DU TRAFFIC AÉRIEN OU SYSTÈME/ÉQUIPEMENT DE POSTE DE PILOTAGE D’AVION

*3

. PANA-

SONIC DÉCLINE TOUTE RESPONSABILITÉ CONCERNANT L’UTILISATION DE CE PRODUIT DANS LES CAS SUSMENTIONNÉS.

*3

Les SYSTÈMES/ÉQUIPEMENTS DE POSTE DE PILOTAGE D’AVION sont dotés de systèmes OEPP (organiseur électronique de poste de pilotage) de classe 2 et de classe 1 utilisés pendant des phases critiques de vol (par exemple, pendant le décollage et l’atterrissage) et(ou) montés sur l’avion. Les systèmes OEPP de classe 1 et de classe 2 sont défi nis par le circulaire d’information FAA: AC (Advisory Circular) 120-76A ou le feuilet n° 36 JAA: JAA TGL (Temporary Guidance Leafl ets) No 36.

EXPÉDITION DU PRODUIT POUR SERVICE SOUS GARANTIE

Emballez soigneusement le produit, de préférence dans son emballage d’origine. Joignez une description de la défaillance de même qu’une pièce justifi cative de la date d’achat. Panasonic Canada Inc. ne peut être tenue responsable pour tout dommage ou perte subi pendant le transport si vous avez choisi le transporteur.

GARANTIE LIMITÉE – SUPPORTS DES LOGICIELS

Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que la ou les disquettes ou tout autre support sur lequel le ou les programmes sont fournis sont exempts de défauts de pièces et de fabrication dans des conditions normales d’utilisation au Canada, et ce, pour une période de soixante (60) jours suivant la date de réception indiquée sur la preuve d’achat.

LA PRÉSENTE GARANTIE EST LA SEULE OFFERTE PAR PCI COUVRANT LES SUPPORTS DE LOGICIELS. PCI ne garantit pas les logiciels. Reportez-vous à la garantie écrite du concédant de licence d’utilisation du logiciel (qui accompagne la copie du logiciel) pour toute réclamation en vertu de la garantie.

Réclamation – marche à suivre – Panasonic Canada Inc. remplacera toute disquette ou support défectueux si l’article en question est retourné, port payé, à son service de Marketing – produits informatiques, 5770 Ambler Drive, Mississauga (Ontario) L4W 2T3, dans les soixante (60) jours suivant la date d’achat original. Joignez à votre envoi une pièce justifi cative de votre achat et une description du problème.

Recours – La responsabilité de PCI - et votre seul recours - dans le cas de toute défaillance couverte par la garantie sur ce support de logiciel est limitée au seul remplacement du support. Elle ne couvre aucun autre dommage, y compris, mais non exclusivement, la perte d’usage ou de profi ts, ni aucun dommage spécial, indirect ou consécutif, ni aucune autre réclamation de nature similaire ou autre.

Produits non couverts – La présente garantie limitée ne s’applique pas si la ou les disquettes ou autre support ont été utilisés dans un produit d’une marque autre que Panasonic ou dans des conditions environnementales autres que celles spécifi ées par PCI ou le fabricant, ou soumis à une mauvaise utilisation, à la négligence, à une manutention inadéquate ou encore si le programme a été modifi é ou subi une tentative de modifi cation ou des dommages attribuables à un accident ou à un cas fortuit. De plus, PCI n’assume aucune responsabilité pour toute perte de, ou tout dommage à, un programme, des données ou un support de sauvegarde amovible.

GÉNÉRALITÉS

PCI NE RECONNAÎT AUCUNE AUTRE GARANTIE, EXPLICITE OU IMPLICITE, Y COMPRIS, MAIS NON EXCLUSIVEMENT, LES

GARANTIES IMPLICITES DE VALEUR COMMERCIALE ET D’UTILITÉ À UNE FIN QUELCONQUE, À L’ÉGARD DU LOGICIEL,

SUPPORTS DE LOGICIELS, PRODUITS INFORMATIQUES, PÉRIPHÉRIQUES ET ACCESSOIRES.

SOUS AUCUNE CIRCONSTANCE PCI NE POURRA ÊTRE TENUE RESPONSABLE DES DOMMAGES SPÉCIAUX, INDIRECTS

OU CONSÉCUTIFS ATTRIBUABLES À UN MANQUEMENT AUX GARANTIES LIMITÉES DÉCRITES DANS LE PRÉSENT DOCU-

MENT OU À L’UTILISATION DU PRODUIT INFORMATIQUE, Y COMPRIS, SANS RESTRICTION, LA PERTE DE DONNÉES,

D’AFFAIRES, D’ACHALANDAGE OU DE PROFIT.

DANS TOUS LES CAS, LA RESPONSABILITÉ MAXIMALE DE PCI POUR TOUT MANQUEMENT NE POURRA EXCÉDER LE

PRIX DE VENTE DU PRODUIT INFORMATIQUE.

AUCUNE RÉCLAMATION, SANS ÉGARD À SES MOTIFS, NE POURRA ÊTRE FAITE AUPRÈS DE PCI PLUS DE DEUX (2) ANS

APRÈS LES FAITS INVOQUÉS À LA BASE D’UNE TELLE RÉCLAMATION.

36

Garantie statutaires – Certaines juridictions interdisent de telles limitations ou exclusions; aussi, pourraient-elles ne pas s’appliquer.

MEMO

37

38

MEMO

39

As an

E

NERGY product meets the

S

TAR

E

®

Partner, Panasonic Corporation has determined that this

NERGY

S

TAR

®

guidelines for energy effi ciency. By enabling available power management settings, Panasonic computers enter a low-power sleep mode after a period of inactivity, saving the user energy. To learn more about power management, please visit the web site: www.energystar.gov/index.cfm?c=power_mgt.pr_power_management

The international

Outline of the International

E

NERGY

S

TAR

®

E

NERGY

S

TAR

®

Offi ce Equipment Program

Offi ce Equipment Program is an international program that promotes energy saving through the use of computers and other offi ce equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are offi ce equipment such as computers, displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.

For information about

E

NERGY

S

TAR ® , refer to the following web site:

Web Site: www.energystar.gov

22-M-1

Panasonic Computer Solutions Company

3 Panasonic Way, Panazip 2F-5,

Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga,

Ontario L4W 2T3

© Panasonic Corporation 2009

Printed in Japan

HS1009-0

DFQW5350ZA

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents

Languages
