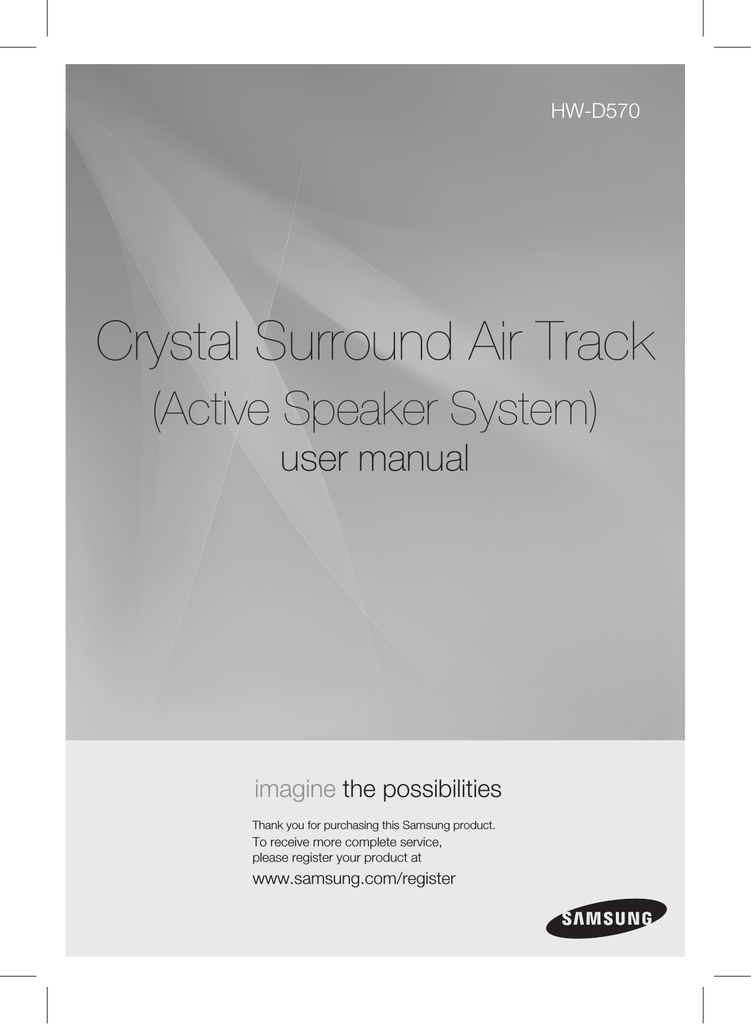

HW-D570 Crystal Surround Air Track (Active Speaker System) user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register features Active Speaker System This unit features an Active Speaker System that provides high sound quality in a single slim unit. This unit does not require any satellite loudspeakers or speaker cabling, which are normally associated with conventional surround sound systems. Multi-function Remote Control The supplied remote control can be used to control the TV connected to this unit. The remote control has a TV hotkey that enables you to perform various operations with the simple press of a button. Special Sound mode You can select from 7 different sound modes (MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, PASS (Original Sound)) depending on the type of content you want to enjoy. Compatibility with various audio Technologies This unit employs decoders compatible with Dolby Digital and DTS (Digital Theater Systems). − Dolby Digital T his is the standard audio signal format used on DVDs and other purely digital media. This surround technology delivers high-quality digital audio of up to 5.1 discrete channels to produce a directional and more realistic effect. − DTS (Digital Theater Systems) DTS provides a discrete 5.1 CH digital audio signal for both music and movie content and uses less compression than Dolby Digital for richer sound. Wireless Subwoofer Samsung’s wireless module does away with cables running between the main unit and the subwoofer. Instead, the subwoofer connects to a compact wireless module that communicates with the main unit. 3D Depth Sound The 3D sound feature adds depth and spaciousness to your listening experience. HDMI HDMI transmits video and audio signals simultaneously, and provides a clearer picture. And the unit supply ARC function so you can listen TV sound with Crystal Surround Air Track by using only HDMI Cable. (This function is only available if an ARC-compliant TV is connected.) Wireless Dock Cradle for iPod/iPhone You can enjoy finer quality of music through the speaker by sending iPod/iPhone’s audio signal using a Wireless Transmitter. EnG WHAT’s inclUDED Check for the supplied accessories below. POWER TV POWER TV INFO VOL SOUND MODE INPUT SELECT S.VOL DIMMER TV CH MUTE 3D SOUND AUTO POWER DRC SPK CONTROL S/W LEVEL HDMI AV SYNC AUDIO AH59-02330A Remote Control / Batteries (AAA size) HDMI Cable (A to C type) Bracket-Wall Mount (For Subwoofer power cable 1EA) User Manual Audio Cable Toroidal Ferrite Core CH AR GE Wireless Dock Cradle for iPod/iPhone : HT-WDC10 CH AR GE CH AR LI GE LI N NK STA BY DB Y CHAR Wireless Transmitter K STAN ND GE Charging Cradle DC power code DC power adaptor LINK STAND BY LI NK STAN DB Y ▪ The accessories may look slightly different than those pictured above. safety information Safety Warnings TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying the product. WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. •T his apparatus shall always be connected to a AC outlet with a protective grounding connection. •T o disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable. CAUTION • Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. • The Mains plug is used as a disconnect device and shall stay readily operable at any time. Wiring the Main Power Supply Plug (UK Only) IMPORTANT NOTICE The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times. IMPORTANT The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED. WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW. EnG PREcAUTiOnS 2.7 inch 3.9 inch 3.9 inch 3.9 inch Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. In order to disconnect the unit completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time. During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and malfunction of the unit. Phones Protect the product from moisture (i.e. vases) , and excess heat (e.g.fireplace) or equipment creating strong magnetic or electric fields Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. Use of this product is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using. The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash. 5 contents features 2 3 Features What’s included safety information 4 5 Safety warnings Precautions getting started 7 Before reading the user’s manual descriptions 8 9 Front panel Rear panel 2 4 7 8 10 11 remote control connections functions 18 22 23 troubleshooting appendix 10 Tour of the remote control 11 Installing the wall mount 12 Connecting the wireless subwoofer 13 Attaching the toroidal ferrite core to the power cord of the subwoofer 13 Installing toroidal ferrite to subwoofer 14 Use iPod/iPhone with a wireless dock cradle for iPod/iPhone 14 How to charge the wireless transmitter 15 How to link the wireless transmitter with the main unit 16 Connecting the Crystal Surround Air Track 18 Basic functions 18 Advanced functions 21 Software upgrade 22 Troubleshooting 23 Specifications EnG getting started Before Reading the User’s Manual Make sure to check the following terms before reading the user manual. Icons that will be used in manual Term Caution Note ● Getting Started Icon Definition This involves a case where a function does not operate or settings may be canceled. This involves tips or instructions on the page that help each function operate. About the use of this user’s manual 1) Be sure to be familiar with Safety Instructions before using this product. (See page 4) 2) If a problem occurs, check the Troubleshooting. (See page 22) Copyright ©2011 Samsung Electronics Co.,Ltd. All rights reserved; no part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. descriptions Front Panel 1 2 3 4 5 DISPLAY Displays the current mode. INPUT MODE Selects the HDMI, Optical, Audio or W.iPod input. SOUND MODE Selects the sound mode. (MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, PASS (Original Sound)) VOLUME +/- Controls the volume level. POWER BUTTON Turns the Crystal Surround Air Track on and off. ▪ When you turn on the power of this unit, there will be a 4 to 5 second delay before it reproduces sound. ONLY FOR UPDATE EnG Rear Panel 1 ONLY FOR UPDATE ● Description ONLY FOR UPDATE 6 2 AUDIO IN HDMI OUT (ARC) DIGITA L AUDIO IN 4 2 3 OPTICA L HDMI IN 2 DIGITA L AUDIO IN 1 (TV) 5 HDMI IN 1 USB PORT (FOR S/W UPDATES ONLY) You can update this unit's software through the USB port. AUDIO IN JACK Connect to the analog output of an external device. DIGITAL AUDIO IN 1,2 Connect to the digital (optical) output of an external device. HDMI OUT JACK Outputs digital video and audio signals simultaneously using an HDMI cable. 5 HDMI IN 1,2 JACKS Receives digital video and audio signals simultaneously using an HDMI cable. 6 POWER SUPPLY CABLE Plug the power supply cable into the AC wall outlet. ▪ When disconnecting the power cable from the wall outlet, hold the plug. Do not pull the cable. ▪ Do not connect this unit or other components to the main power until all connections between components are complete. remote control Tour of the Remote Control POWER BUTTON Turns the Crystal Surround Air Track on and off. POWER TV INFO Use this to display the TV channel information. VOLUME Adjusts the volume level of the unit. MUTE Mutes the sound from the unit. Press again to restore the sound to the previous volume level. 3D SOUND This feature adds depth and spaciousness to the sound. SMART VOLUME Regulates and stabilizes the volume level against a drastic volume change. TV POWER TV CHANNEL Switches between the available TV channels. TV INFO VOL TV CH MUTE 3D SOUND SOUND MODE S.VOL INPUT SELECT DIMMER DRC SPK CONTROL S/W LEVEL TV POWER BUTTON Turns your Samsung TV on and off. AUTO POWER HDMI AV SYNC AUDIO AH59-02330A DIMMER, DRC You can control the brightness of the Display. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night (Standard, MAX, MIN). SOUND MODE Selects the sound mode. (MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, PASS (Original Sound)) INPUT SELECT Selects the HDMI, the Digital (Optical), the Audio or the W. iPod input. AUTO POWER Synchronizes the Air Track via Optical connection via the Optical jack so it turns on automatically when you turn on your TV. Anynet+ Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. AUDIO This button allows you to choose to listen to audio from the Air track or your TV. S/W LEVEL, AV SYNC Adjusts the Subwoofer level. Used to help sync video to audio when connected to a digital TV. ▪ The remote control can operate TVs made by SAMSUNG only. ▪ Depending on the TV you are using, you may not be able to operate your TV with this remote control. In this case, operate the TV using the TV's remote control. Installing batteries in the Remote Control 1. Lift the cover at the back of 2. Install two AAA size batteries. the remote control upward as Make sure to match the “+” and “–” ends shown. of the batteries with the diagram inside the compartment. 3. Replace the cover. Assuming typical TV usage, the batteries last for about one year. Operation Range of the Remote Control The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor. 10 EnG connections INSTAllING THE WAll MOUNT You can use the wall mount bracket to mount this unit on a wall. Installation Precautions ● connections • Do not install on a place other than a vertical wall. • For the installation, avoid a location with high temperature or humidity, or wall that cannot sustain the weight of the set. • Check the strength of the wall. If the strength of the wall is insufficient for the product installation, make sure to reinforce the wall before the installation. • Check the material of the wall. If the wall is made of plaster board, marble, or iron board, purchase and use the appropriate fixing screws. • Cables connecting to external devices need to be connected to the set before installing. • Be sure to turn off and unplug the unit before installation. Otherwise, it may cause electric shock. 1. Place the wall mount bracket on a wall surface and then secure it with two screws (not supplied). 2. Then, fit the unit into the corresponding slots of the wall mount bracket. For secure installation, make sure the mounting studs slide firmly down into the bottom of the slots. 1 2 3. This is the completion of the suggested wall mount installation. 2 inches (5 cm) or more ▪ Do not hang onto the installed unit and avoid any impact to the unit. ▪ Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may result in an injury or damage to the product. ▪ When the unit is installed on a wall, please make sure that a child does not pull any of connecting cables, as it may cause it to fall. ▪ For the optimal performance in a wall mount installation, keep the speaker system at least 2 inches (5 cm) distant from the TV. 11 CONNECTING THE WIrElESS SUBWOOFEr The Subwoofer's linking ID is preset at the factory and the main unit and sub should link (connect wirelessly) automatically when main unit is turned on. If the link indicator does not light when main unit and subwoofer are turned on, please set the ID by following the process below. 1. Plug the power cords of the main unit and subwoofer into an AC power supply. 2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds. • The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly. STANDBY LINK POWER 3. While the main unit is powered off (STANDBY mode), press MUTE on the remote control for 5 seconds. POWER 4. The Power Indicator on the main unit lights off and on, then returns to STANDBY mode. • The main unit and the subwoofer are now linked (connected). • The Link indicator (blue LED) on the subwoofer is turned on. • You can enjoy better sound from the wireless subwoofer by selecting the sound mode. (See page 19) TV POWER TV INFO TV INFO VOL TV CH MUTE 3D SOUND SOUND MODE S.VOL INPUT SELECT DIMMER DRC SPK CONTROL S/W LEVEL VOL TV CH MUTE AUTO POWER HDMI AV SYNC AUDIO AH59-02330A TV POWER 3D SOUND SOUND MODE S.VOL INPUT SELECT DIMMER DRC SPK CONTROL S/W LEVEL AUTO POWER HDMI AV SYNC AUDIO ▪ Before moving or installing the product, be sure to turn off the power and disconnect the power cord. If the main unit is powered off, the wireless subwoofer will be in the standby mode and the STANDBY LED on the upper side will come on after 30 seconds Link indicator (Blue LED) blinking. If you use a device that uses the same frequency (5.2GHz or 5.8GHz) near the system, some sound interruption may be heard due to interference. The transmission distance of the wireless signal between the main unit and sub is about 33 ft., but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal. If the main unit doesn't make wireless connection, follow steps 1-4 above to retry the connection between the main unit and wireless subwoofer. AH59-02330A ▪ ▪ ▪ ▪ ▪ The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture. ▪ For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions. 12 EnG attacHinG tHE toroidaL fErritE corE to tHE poWEr cord of tHE SuBWoofEr If you attach a Toroidal ferrite core to the power cord of the Subwoofer, it will help to prevent RF interference from radio signals. 1. Pull the ﬁxing tab of the Toroidal ferrite core to open it. 2. Make three loops in the power cable of the subwoofer. ● connEctionS 3. Attach the Toroidal ferrite core to the Subwoofer power cord as the ﬁgure shows and press it until it clicks. inStaLLinG toroidaL fErritE to SuBWoofEr Lift up to release the lock and open the core. Close the lock back. Make three rounds on the coil with the power cable. (Start winding at 5-10cm away from the switch). 1 USEiPod/iPhoneWiTHAWiRElESSDOcKcRADlEFORiPod/iPhone You can enjoy finer quality of music through the speaker by sending iPod/iPhone’s audio signal using a Wireless Transmitter. To link the main unit with wireless transmitter, you have to make ID setting when both main unit and wireless transmitter are standby. Turn on the main unit and connect the iPod/iPhone to the Wireless transmitter. Then press InPUT SeleCT button on the remote control to select "W iPod" mode. The InPUT SeleCT mode of the main unit will switches as follows. Repeatedly press DIGI.1 ➡ DIGI.2 ➡ ANALOG ➡ W iPod ➡ HDMI.1 ➡ HDMI.2 ( See page 20 ) The Sound bar will not be turned off if iPod/iPhone is not connected to the Wireless Transmitter. For more information on HT-WDC10, refer to the HT-WDC10’s user manual. HOWTOcHARgETHEWiRElESSTRAnSMiTTER 1. Connect the Wireless Transmitter to the Charging Cradle. 2. Connect the DC power adaptor to a wall socket. • The charging indicator lights up and charging starts. After the battery is fully charged, the charging indicator turns Green. OPERATiOnSTATUSOFTHEcHARgingcRADlE'SlED LIN K STA LINK STAN DB Y ND BY CH AR Display Function gREEnlEDOn Power on /Charging completed GE CH A RG E Charging. REDlEDOn ▪ The indication is the charging state of the built-in battery in iPod main Dock. Check the charging state of iPod/iPhone by checking the charging indication of its battery. ▪ TheWirelessTransmittercanbeonlycharghedbythesuppliedadaptor. iPod/iPhoneMODElSTHATcAnBEUSEDWiTHTHiSPRODUcT iPodtouch iPodclassic iPodwithvideo (1st,2nd,3rd,4th,5th, and6thgeneration) iPhone4 iPhone3gS iPhone3g iPhone (1st,2nd,3rd,and4th generation) iPodnano ▪ “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. ▪ iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. ▪ The volume control may not be operated normally except at the referred models. If there is any error happened at the models above, please update the software of iPod/iPhone at the lastest version. 1 Set an ID of the Subwoofer before setting a Transmitter ID. (See page 12) POWER TV POWER ● connEctionS 1. Turn off your Home Theater (HW-D570). 2. Press the hold "3DSound" button on the remote control for 5 seconds. 3. Connect the iPod/iPhone to the Wireless transmitter. 4. Turn on the iPod/iPhone. Press the "iDSET" button on the back of the Wireless transmitter for 5 seconds. The link light on the wireless transmitter will blink fast. 5. Turn on your Home Theater (make sure the wireless transmitter's Link LED in ON). To listen to music from your iPod/iPhone over the Home Theater, select the iPod mode as the Home Theater's source. LIN K STA ND BY TV INFO TV CH CH VOL AR POWER • You can control the speaker volume of iPod/iPhone with a volume wheel or a volume bar. • When iPod/iPhone is stopped or in a power saving mode, a Wireless transmitter is turned to the Sleep Mode. When iPod/iPhone is turned to the Deep Sleep Mode, the Wireless transmitter is off. GE MUTE 3D SOUND SOUND MODE S.VOL INPUT SELECT TV POWER TV INFO VOL TV CH MUTE INPUT SELECT S.VOL DIMMER DRC SPK CONTROL S/W LEVEL DIMMER DRC AUTO POWER SOUND MODE 3D SOUND SPK CONTROL AUTO POWER HDMI HDMI S/W LEVEL AV SYNC AUDIO AV SYNC AUDIO AH59-02330A AH59-02330A OPERATiOnSTATUSOFTHEWiRElESSTRAnSMiTTER'SlED Display lEDOn lEDBlinK (Long blink) lEDBlinK (Short blink) Function linK (BluelED) Pairing successfully completed STAnDBy (RedlED) STANDBY LIN K STA ND Processing iPod/iPhone LOW BATTERY Processing pairing Pairing failed BY CH AR G LI N K E STAN DB Y CH AR EnG HOWTOlinKTHEWiRElESSTRAnSMiTTERWiTHTHEMAinUniT GE ▪ If you use the main unit nearby a wireless device such as a laptop computer, an AP, or Wifi, any unstable operation error can happen. ▪ Do not pairing the subwoofer and iPod/iPhone at the same time. If you pairing at the same time, iPod/iPhone and subwoofer may not connect to the Sound bar. 15 connecting the CRYSTAL SURROUND AIR TRACK HDMI is a standard digital interface for connection to such devices as a TV, projector, DVD player, Blu-ray player, set top box and more. HDMI removes any loss of signal from analog conversion, enabling you to enjoy video and audio sound quality as it was originally created in the digital source. ONLY FOR UPDATE HDMI OUT (ARC) HDMI OUT (ARC) HDMI Cable C type (Small Side) A type (Large Side) HDMI IN 1,2 HDMI IN 2 HDMI Cable C type (Small Side) HDMI IN 1 A type (Large Side) Digital Devices HDMI OUT (ARC) • The ARC function will be activated in the DIGI.1 mode. • Connect an HDMI cable from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV. • T his product supports the ARC (Audio Return Channel) functions via an HDMI cable. Note that the ARC function is supported by the HDMI OUT (ARC) port only. • T he ARC function allows digital audio to output via the HDMI OUT (ARC) port. It can be enabled only when the Air Track is connected to a TV that supports the ARC function. • Anynet+ must be turned on. AND, OPTICAL OUT HDMI IN 1,2 Connect an HDMI cable from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital devices. ▪ The small side of the HDMI cable is connected with the Air Track. ▪ The provided accessory HDMI cable is for connecting SAT and TV. In case of connecting devices having distance longer than the provided cable, purchase an A-to-C (Mini) type cable. ▪ When buying HDMI cable for connecting source devices, choose A-to-C (Mini) type cable of enough length for the connection. 16 EnG connecting the CRYSTAL SURROUND AIR TRACK This section explains two ways (digital and analog) of connecting the unit to the TV. This unit is equipped with two optical digital jacks and one audio analog jack for connecting a TV. ONLY FOR UPDATE ● connections AUDIO IN AUDIO IN Audio Cable DIGITAL AUDIO IN 1, 2 DIGITA L AUDIO IN 2 White OPTICA L or DIGITA L AUDIO IN 1 (TV) AUDIO OUT L R Red OPTICAL OUT or Optical Cable BD/DVD player/ Set-top box/ Game console AUDIO IN Connect AUDIO IN on the main unit to the AUDIO OUT of the TV or Source Device. Be sure to match connector colors. or, DIGITAL AUDIO IN (OPTICAL) 1,2 Connect the Digital Input on the main unit to the OPTICAL OUT of the TV or Source Device. ▪ Do not connect the power cord of this product or your TV to the wall outlet until all connections between components are complete. ▪ Before moving or installing this product, be sure to turn off the power and disconnect the power cord. ▪ If you select 'ANALOG' without connecting the Audio Cable, the set is turned off automatically after 20 minutes. ▪ If a TV or any device connected to Air Track with the optical cable is off and there is no digital input, the Air Track is turned off after 20 minutes. (If there has been no input signal for over 20 minutes from DIGITAL AUDIO IN 1 or 2, the Air Track will be turned off.) ▪ When Air Track isn't linked with HT-WDC10 model in the W.iPod mode, Air Track will turn off after 20 minutes. 17 functions basic functions POWER TV POWER POWER TV POWER Turning the power on/off TV INFO VOL SOUND MODE 3D SOUND AUTO POWER DRC SPK CONTROL S/W LEVEL TV INFO INPUT SELECT S.VOL DIMMER TV CH MUTE HDMI VOL TV CH MUTE AV SYNC 1.Touch POWER ( ) on the front panel. or, Press POWER on the remote control to turn on the power. AUDIO 2.Touch POWER ( ) on the front panel. or, Press POWER on the remote control again to turn off the power. AH59-02330A SOUND MODE 3D SOUND INPUT SELECT S.VOL DIMMER POWER TV POWER AUTO POWER DRC SPK CONTROL POWER HDMI TV POWER Adjusting the volume TV INFO VOL AV SYNC AUDIO INPUT SELECT S.VOL AH59-02330A HDMI VOL AV SYNC TV CH MUTE AUDIO SOUND MODE 3D SOUND AUTO POWER DRC SPK CONTROL S/W LEVEL • The numeric value of the volume level appears in the front panel display. INPUT SELECT S.VOL or, Press VOLUME +/– on the remote control to increase or decrease the volume level. AH59-02330A DIMMER Touch VOLUME +/– on the front panel. TV INFO AUTO POWER DRC SPK CONTROL S/W LEVEL S/W LEVEL SOUND MODE 3D SOUND DIMMER TV CH MUTE ▪ The volume level increases or decreases when you press VOLUME +/–. HDMI ▪ If you want to enjoy the sound only from the Crystal Surround Air Track, AV SYNC AUDIO you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV. AH59-02330A advanced functions POWER TV POWER POWER TV POWER Muting the sound TV INFO VOL SOUND MODE 3D SOUND AUTO POWER DRC SPK CONTROL S/W LEVEL This is useful when answering a doorbell or telephone call. TV INFO INPUT SELECT S.VOL DIMMER TV CH MUTE HDMI VOL TV CH MUTE 1.Press MUTE ( ) on the remote control to mute the sound. AV SYNC AUDIO AH59-02330A POWER TV POWER TV INFO VOL SOUND MODE 3D SOUND INPUT SELECT S.VOL DIMMER TV CH MUTE DRC SPK CONTROL S/W LEVEL AUTO POWER HDMI 3D SOUND SOUND MODE S.VOL INPUT SELECT DIMMER POWER AUTO POWER DRC TV POWER SPK CONTROL S/W LEVEL VOL AH59-02330A Using the 3D Depth Sound function HDMI TV SYNC INFO AV AUDIO TV CH MUTE The 3D sound feature adds depth and spaciousness to the sound by using 3D SOUND button. Press 3D SOUND on the remote control. AV SYNC AUDIO AH59-02330A 3D SOUND SOUND MODE S.VOL INPUT SELECT DIMMER DRC SPK CONTROL S/W LEVEL AH59-02330A • Each time the button is pressed, the selection changes as follows : 3D SOUND ON ➡ 3D SOUND OFF AUTO POWER HDMI ▪ When you turn on the 3D Depth Sound, the Sound Mode will automatically change to PASS. AV SYNC AUDIO 18 2.Press MUTE on the remote control again (or press VOLUME +/–) to restore the sound. You can select from 7 different sound modes (MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, PASS (Original Sound)) depending on the type of sources you want to enjoy. Press SOUND MODE on the remote control , or touch SOUND MODE ( on the front panel repeatedly to select the sound mode you want. SOUND SOUND MODE MODE EnG Using the sound mode ) SOUND MODE • Select PASS mode if you want to enjoy the original sound. POWER TV POWER TV POWER TV INFO VOL SOUND MODE S.VOL INPUT SELECT DIMMER TV INFO AUTO POWER DRC SPK CONTROL S/W LEVEL ▪ It is recommended that you select a Sound Mode based on the TV CH MUTE 3D SOUND HDMI VOL TV CH MUTE AV SYNC AUDIO Depth Sound will automatically be turned OFF. AH59-02330A POWER TV POWER 3D SOUND SOUND MODE S.VOL INPUT SELECT DIMMER POWER AUTO DRC source material and your personal taste. ▪ When you choose the Sound Mode (except PASS), the 3D POWER TV POWER Using the TV functions TV INFO VOL MUTE SOUND MODE 3D SOUND AUTO POWER DRC SPK CONTROL S/W LEVEL SPK CONTROL S/W LEVEL INPUT SELECT S.VOL DIMMER TV CH HDMI VOL POWER AH59-02330A AV SYNC HDMI TV INFO AV SYNC AUDIO TV CH TV POWER MUTE SOUND TV INFOMODE VOL S.VOL TV INPUT MUTESELECT CH DIMMER DRC 3D SOUND SPK CONTROL POWER S/WS.VOL LEVEL TV CH MUTE 3D SOUND SOUND MODE S.VOL INPUT SELECT DIMMER SPK CONTROL S/W LEVEL SOUND MODE HDMI INPUT AV SYNCSELECT AUDIO AUTO POWER DRC AH59-02330A AUTO POWER DRC DIMMER ▪ The remote control can operate TVs made by SAMSUNG only. AUTO POWER TV POWER TV INFO VOL 2.Press TV INFO on the remote control to display the TV channel information. 3.Press TV CH on the remote control to select the TV channel. AUDIO AH59-02330A 3D SOUND 1.Press TV POWER on the remote control of this unit. SPK CONTROL HDMI Using the AUTO POWER LINK function The Crystal Surround Air Track is automatically turned on when you turn the power on of a TV or any device connected to the Air Track with the optical cable. HDMI AV SYNC AUDIO S/W LEVEL AV SYNC AUDIO AH59-02330A Press AUTO POWER on the remote control of this unit. • Auto power link function turns on and off each time you press AUTO POWER. AH59-02330A AUTO POWER LINK On Off POWER TV POWER POWER 3D SOUND SOUND MODE S.VOL INPUT SELECT TV INFO VOL TV CH MUTE 3D SOUND SOUND MODE S.VOL INPUT SELECT DIMMER DRC SPK CONTROL S/W LEVEL AUTO POWER TV CH MUTE TV POWER DIMMER DRC SPK CONTROL AUTO POWER HDMI HDMI AV SYNC AUDIO S/W LEVEL AV SYNC AUDIO AH59-02330A ▪ If a TV or any device connected to Air Track with the optical cable is off and there is no digital input, the Air Track is turned off after 20 minutes. TV INFO VOL Display POWER LINK ON POWER LINK OFF ▪ Only if Anynet+ function is 'off', the unit will work. Using the S/W LEVEL function You can control the base volume with S/W Level button on the Remote control. 1.Press the S/W Level button on the Remote control. 2.“SW 00” is appeared on the Display. AH59-02330A 3.Press “+” on the LEVEL key if you want to increase the subwoofer volume. You can set it from SW+01 to SW+06. 4.Press “-” on the LEVEL key if you want to decrease the subwoofer volume. You can set it from SW-01 to SW-06. 19 ● functions POWER POWER TV POWER TV INFO VOL POWER 3D SOUND SOUND MODE S.VOL INPUT SELECT TV POWER TV INFO VOL TV CH MUTE 3D SOUND SOUND MODE S.VOL INPUT SELECT DIMMER DIMMER POWER AUTO POWER DRC SPK CONTROL S/W LEVEL TV CH MUTE DRC TV POWER SPK CONTROL HDMI AUDIO S/W LEVEL VOL AH59-02330A AV TV SYNC INFO AUDIO TV CH MUTE TV POWER AUTO POWER DRC POWER INPUT SELECT S.VOL AUTO POWER DRC SPK CONTROL S/W LEVEL DIMMER SOUND MODE 3D SOUND DIMMER TV CH TV POWER SPK CONTROL HDMI HDMI AV SYNC AUDIO S/W LEVEL AH59-02330A AV SYNC TV INFO AUDIO AH59-02330A VOL INPUT SELECT S.VOL AUTO POWER DRC SPK CONTROL S/W LEVEL DIMMER TV POWER AUTO POWER DRC SOUND MODE 3D SOUND DIMMER POWER SPK CONTROL AUDIO AH59-02330A HDMI TV INFO HDMI AV SYNC S/W LEVEL VOL AV SYNC MUTE TV CH AUDIO AH59-02330A POWER 3D SOUND SOUND MODE S.VOL INPUT SELECT TV POWER TV INFO VOL INPUT SELECT S.VOL AUTO POWER DRC SPK CONTROL S/W LEVEL DIMMER SPK CONTROL HDMI HDMI AV SYNC AUDIO S/W LEVEL • Each time the button is pressed, the selection changes as follows : DRC MIN ➡ DRC STANDARD ➡ DRC MAX AV SYNC AUDIO AH59-02330A This feature control the brightness of the Display. Press DIMMER on the remote control of this unit. • Each time the button is pressed, the selection changes as follows : DIMMER ON ➡ DIMMER OFF Using the S.VOLUME function AUTO POWER DRC SOUND MODE 3D SOUND DIMMER TV CH MUTE Press DRC on the remote control of this unit. Using the DIMMER function INPUT SELECT S.VOL TV CH MUTE This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. SOUND MODE TV POWER TV INFO TV CH MUTE 3D SOUND POWER VOL Using the DRC function INPUT SELECT S.VOL TV INFO MUTE • You can use + , - button to set the audio delay time between 0 ms and 300 ms. SOUND MODE 3D SOUND POWER Video may look slower than the audio if it is connected with digital TV. If this occurs, adjust the audio delay time to match the video. Press AV SYNC +/–. button on the remote control of this unit. HDMI AV SYNC AH59-02330A VOL Using the AV SYNC function AUTO POWER AH59-02330A This will regulate and stabilize the volume level against a drastic volume change in case of a channel change or scene transition. Press S.VOL on the remote control of this unit. • Each time the button is pressed, the selection changes as follows : SMART VOLUME ON ➡ SMART VOLUME OFF Using the input mode POWER TV POWER SOUND MODE TV INFO VOL POWER 3D SOUND SOUND MODE S.VOL INPUT SELECT TV POWER TV INFO VOL INPUT SELECT S.VOL DRC SPK CONTROL S/W LEVEL DIMMER DRC AUTO POWER SOUND MODE 3D SOUND DIMMER TV CH MUTE TV CH MUTE AUTO POWER SPK CONTROL HDMI HDMI AV SYNC AUDIO S/W LEVEL AV SYNC You can select either HDMI, Optical Digital, Audio input or W.iPod input. Press INPUT SELECT on the remote control , or touch INPUT SELECT ( ) on the front panel repeatedly to select the HDMI, Optical Digital, Audio input or W.iPod input. SOUND SOUND MODE MODE Input mode Optical Digital input AH59-02330A DIGI.1 DIGI.2 Audio input ANALOG iPod mode W.iPod AUDIO AH59-02330A Display HDMI input HDMI.1 HDMI.2 ▪ Although it appears on the input mode display, iPod connection is not possible with this model. It is only available with model HT-WDC10. 20 POWER TV POWER TV INFO VOL SOUND MODE 3D SOUND TV POWER INPUT SELECT S.VOL AUTO POWER DRC SPK CONTROL S/W LEVEL DIMMER AUTO POWER DRC SOUND MODE 3D SOUND DIMMER TV CH MUTE Using the Anynet+(HDMI-CEC) function INPUT SELECT S.VOL TV INFO VOL SPK CONTROL HDMI HDMI AV SYNC AUDIO S/W LEVEL AV SYNC AUDIO AH59-02330A AH59-02330A Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. EnG POWER TV CH MUTE Anynet+ function turns on and off each time you press Anynet+. 1.Connect the product to a Samsung TV with the HDMI cable. (See page 16) 2.Set the Anynet+ function on your TV. (See the TV instruction manual for more information.) (TV POWER, TV INFO, TV CH) POWER ▪ Depending on your TV, certain HDMI output resolutions may not TV POWER work. ▪ Please refer to the user’s manual of your TV. Please check the TV INFO VOL POWER 3D SOUND SOUND MODE S.VOL INPUT SELECT TV POWER TV INFO VOL TV CH MUTE 3D SOUND SOUND MODE S.VOL INPUT SELECT DIMMER DRC SPK CONTROL S/W LEVEL AUTO POWER DIMMER logo (If your TV has an Anynet+ function.) TV CH MUTE DRC SPK CONTROL AUTO POWER HDMI logo, then it supports AUDIO button This button enables you to select between listening to audio from your TV or audio from the Air Track when connected via HDMI. HDMI AV SYNC AUDIO S/W LEVEL AV SYNC AUDIO AH59-02330A Press AUDIO on the remote control of this unit. AH59-02330A AUDIO MODE HDMI in ARC MODE TV AVR TV AVR SOFTWARE UPGRADE Samsung may offer upgrades for the Crystal Surround Air Track's system's firmware in the future. Please visit Samsung.com or contact the Samsung call center to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on your Air Track. Scroll Display HDMI AUDIO TV HDMI AUDIO AVR SOUND TV SOUND AVR Display SND TV HDMI S MUTE TV ARC ONLY FOR UPDATE ONLY FOR UPDATE ONLY FOR UPDATE ▪ Insert a USB drive containing the firmware upgrade into the USB port on the back of the main unit. ▪ Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The main unit will turn off automatically after completing the firmware upgrade. When software is upgraded, settings you have made will return to their default (factory) settings. We recommend you write down your settings so that you can easily reset them after the upgrade. ▪ If the firnware fails to upgrade, we recommend formatting the USB data in FAT16 and trying again. ▪ For upgrading purposes, do not format USB data in NTFS because it is not a supported file system. ▪ Depending on the manufacturer, the USB may not be supported. 21 ● functions ▪ The Anynet+ function supports some buttons of the remote control. troubleshooting Before requesting service, please check the following. Symptom Check Remedy The unit will not turn on. • Is the power cord plugged into the outlet? • Connect the power plug to the outlet. A function does not work when the button is pressed. • Is there static electricity in the air? • Disconnect the power plug and connect it again. Sound is not produced. • Is the unit properly connected to your TV? • Is the Mute function on? • Is the volume set to minimum? • Connect it correctly. • Press the Mute button to cancel the function. • Adjust the volume. Picture does not appear on a TV when the function is selected. • Is the TV connected properly? • Connect it correctly. Remote control does not work. • Are the batteries drained? • Is the distance between remote control and main unit too far? • Replace with new batteries. • Operate at a close distance. The sound from the left/right channels is reversed. • Are the left/right audio output cables from the TV connected properly? • Check the left/right channel and connect it/them correctly. "Searching" is displayed on VFD. • Is the subwoofer connected? • Check the subwoofer is on. 22 EnG appendix Specifications Model name HW-D570 0.75W Main unit Power consumption Subwoofer 45W Weight Dimensions (W x H x D) AMPLIFIER 20W Main unit 9.7 kg Subwoofer 5.4 kg Main unit 1058 x 80 x 40.1 mm Subwoofer 175 x 350 x 294.9 mm Operating temperature range + 5 °C to 35 °C Operating humidity range 10 % to 75 % Rated output Main unit power Subwoofer 80W/CH, 4Ω, THD = 10%, 1kHz Input sensitivity/Impedance 570mV/20KΩ S/N ratio (analog input) 70dB Separation(1kHz) 70dB FREQUENCY Analog input RESPONSE Digital input/48kHz PCM ● appendix GENERAL Standby power consumption 150W, 3Ω, THD = 10%, 100Hz 20Hz~20kHz(±3dB) 20Hz~20kHz(±3dB) * S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES (Audio Engineering Society) guidelines. *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. - For the power supply and Power Consumption, refer to the label attached to the product. HT-WDC10 Power Consumption 10W Weight 0.10 kg (total) Dimensions (W x H x D) Wireless Transmitter : 40.6 x 89 x 28 mm Charging Cradle : 51 x 28 x 51 mm O p e r a t i n g T e m p e r a t u r e +5°C to +35°C Range Operating Humidity Range 10% ~ 75% Charging time 90min ± 10min Available running time 180min ± 30min (The time may differ under the condition of the iPod or the iPhone) 23 Česky [Czech] Samsung tímto prohlašuje, že tento Crystal Surround Air Track je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede Samsung erklærer herved, at følgende udstyr Crystal Surround Air Track overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt Samsung, dass sich das Gerät Crystal Surround Air Track in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab Samsung seadme Crystal Surround Air Track vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, Samsung, declares that this Crystal Surround Air Track is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente Samsung declara que el Crystal Surround Air Track cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ Crystal Surround Air Track ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente Samsung déclare que l'appareil Crystal Surround Air Track est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente Samsung dichiara che questo Crystal Surround Air Track è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo Samsung deklarē, ka Crystal Surround Air Track atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo Samsung deklaruoja, kad šis Crystal Surround Air Track atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederlands [Dutch] Hierbij verklaart Samsung dat het toestel Crystal Surround Air Track in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese] Hawnhekk, Samsung, jiddikjara li dan Crystal Surround Air Track jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar [Hungarian] Alulírott, Samsung nyilatkozom, hogy a Crystal Surround Air Track megfelel a vonatkozó alapvetõ követelmé-nyeknek és az 1999/5/EC irányelv egyéb elõírásainak. Polski [Polish] Niniejszym Samsung oświadcza, że Crystal Surround Air Track jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. Português [Portuguese] Samsung declara que este Crystal Surround Air Track está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko [Slovenian] Samsung izjavlja, da je ta Crystal Surround Air Track v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensky [Slovak] Samsung týmto vyhlasuje, že Crystal Surround Air Track spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi [Finnish] Samsung vakuuttaa täten että Crystal Surround Air Track tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svenska [Swedish]SS Härmed intygar Samsung att denna Crystal Surround Air Track står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Íslenska [Icelandic] Hér með lýsir Samsung yfir því að Crystal Surround Air Track er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC. Norsk [Norwegian] Samsung erklærer herved at utstyret Crystal Surround Air Track er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF. Türkiye[Türkçe] Bu belge ile, Samsung bu Crystal Surround Air Track’nin 1999/5/EC Yönetmeliginin temel gerekliliklerine ve ilgili hükümlerine uygun oldugunu beyaneder. * In the frequency range between 2454MH and 2483.5MHz, this product should be operated indoors only in France Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Area ` North America Contact Centre Web Site Canada Mexico U.S.A 1-800-SAMSUNG (726-7864) 01-800-SAMSUNG (726-7864) 1-800-SAMSUNG (726-7864) www.samsung.com www.samsung.com www.samsung.com Argentine Brazil Chile Colombia Costa Rica Dominica Ecuador El Salvador Guatemala Honduras Jamaica Nicaragua Panama Peru Puerto Rico Trinidad & Tobago Venezuela 0800-333-3733 0800-124-421 / 4004-0000 800-SAMSUNG (726-7864) 01-8000112112 0-800-507-7267 1-800-751-2676 1-800-10-7267 800-6225 1-800-299-0013 800-7919267 1-800-234-7267 00-1800-5077267 800-7267 0-800-777-08 1-800-682-3180 www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com 1-800-SAMSUNG (726-7864) www.samsung.com 0-800-100-5303 www.samsung.com Albania 42 27 5755 0810 - SAMSUNG (7267864, € 0.07/min) - ` Latin America ` Europe Austria Belgium 02-201-24-18 Bosnia Bulgaria Croatia 05 133 1999 07001 33 11 062 SAMSUNG (062 726 7864) 800-SAMSUNG (800-726786) Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8 70 70 19 70 030 - 6227 515 01 48 63 00 00 01805 - SAMSUNG (726-7864 € 0,14/Min) 06-80-SAMSUNG (726-7864) 800-SAMSUNG (726-7864) +381 0113216899 261 03 710 023 207 777 020 405 888 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) 815-56 480 0 801 1SAMSUNG (172678) / 022-607-93-33 80820-SAMSUNG (726-7864) 1. 08010 SAMSUNG (72678) doar din reţeaua Romtelecom, tarif local 2. 021.206.01.10 - din orice reţea, tarif normal 0700 Samsung (0700 726 7864) 0800-SAMSUNG (726-7864) 902-1-SAMSUNG (902 172 678) 0771 726 7864 (SAMSUNG) Czech Denmark Finland France Germany Hungary Italia Kosovo Luxemburg Macedonia Montenegro Netherlands Norway Poland Portugal Rumania Serbia Slovakia Spain Sweden www.samsung.com www.samsung.com/ be (Dutch) www.samsung.com/ be_fr (French) www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com Area Contact Centre Switzerland 0848-SAMSUNG (7267864, CHF 0.08/min) U.k Eire Lithuania Latvia Estonia 0330 SAMSUNG (7267864) 0818 717100 8-800-77777 8000-7267 800-7267 Russia Georgia Armenia Azerbaijan Uzbekistan Kyrgyzstan Tadjikistan 8-800-555-55-55 8-800-555-555 0-800-05-555 088-55-55-555 8-10-800-500-55-500 (GSM: 7799) 8-10-800-500-55-500 00-800-500-55-500 8-10-800-500-55-500 Ukraine 0-800-502-000 Belarus Moldova 810-800-500-55-500 00-800-500-55-500 Australia New Zealand China 1300 362 603 0800 SAMSUNG (0800 726 786) 400-810-5858 / 010-6475 1880 Hong Kong (852) 3698 4698 ` CIS Kazakhstan ` Asia Pacific Web Site www.samsung.com/ch www.samsung.com/ ch_fr/(French) www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.ua www.samsung.com/ ua_ru www.samsung.com www.samsung.com www.samsung.com www.samsung.com/hk www.samsung.com/ hk_en/ Singapore Thailand Taiwan Vietnam 3030 8282 / 1800 110011 / 1800 3000 8282 / 1800 266 8282 0800-112-8888 / 021-5699-7777 0120-327-527 1800-88-9999 1-800-10-SAMSUNG(726-7864) / 1-800-3-SAMSUNG(726-7864) / 1-800-8-SAMSUNG(726-7864) / 02-5805777 1800-SAMSUNG (726-7864) 1800-29-3232 / 02-689-3232 0800-329-999 1 800 588 889 Bahrain Egypt Jordan Morocco Oman Saudi Arabia Turkey U.A.E 8000-4726 08000-726786 800-22273 080 100 2255 800-SAMSUNG (726-7864) 9200-21230 444 77 11 800-SAMSUNG (726-7864) www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com Nigeria South Africa 0800-SAMSUNG (726-7864) 0860-SAMSUNG (726-7864 ) www.samsung.com www.samsung.com India Indonesia Japan Malaysia Philippines ` Middle East ` Africa www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com www.samsung.com Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems.) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
