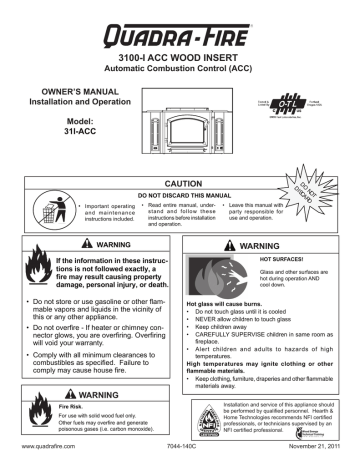

3100-I ACC WOOD INSERT
Automatic Combustion Control (ACC)
OWNER’S MANUAL
Installation and Operation
Model:
31I-ACC
D
O
ISC NO
AR T
D
CAUTION
D
DO NOT DISCARD THIS MANUAL
• Important operating
and maintenance
instructions included.
• Read entire manual, understand and follow these
instructions before installation
and operation.
WARNING
WARNING
HOT SURFACES!
If the information in these instructions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire - If heater or chimney connector glows, you are overfiring. Overfiring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
• Leave this manual with
party responsible for
use and operation.
Glass and other surfaces are
hot during operation AND
cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
WARNING
Installation and service of this appliance should
be performed by qualified personnel. Hearth &
Home Technologies recommends NFI certified
professionals, or technicians supervised by an
NFI certified professional.
Fire Risk.
For use with solid wood fuel only.
Other fuels may overfire and generate
poisonous gases (i.e. carbon monoxide).
www.quadrafire.com
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
and Welcome to the Quadra-Fire Family!
Hearth & Home Technologies welcomes you to our tradition
of excellence! In choosing a Quadra-Fire appliance, you
have our assurance of commitment to quality, durability, and
performance.
This commitment begins with our research of the market,
including ‘Voice of the Customer’ contacts, ensuring we
make products that will satisfy your needs. Our Research
and Development facility then employs the world’s most
advanced technology to achieve the optimum operation
of our stoves, inserts and fireplaces. And yet we are oldfashioned when it comes to craftsmanship. Each unit is
meticulously fabricated and gold and nickel surfaces are
hand-finished for lasting beauty and enjoyment. Our pledge
to quality is completed as each model undergoes a quality
control inspection.
We wish you and your family many years of enjoyment in
the warmth and comfort of your hearth appliance. Thank
you for choosing Quadra-Fire.
NOTE: Clearances may only be reduced by means
approved by the regulatory authority having jurisdiction
SAMPLE OF SERIAL NUMBER / SAFETY LABEL
LOCATION: UNDER ASHLIP ON PULL-OUT PLATE
CAUTION:
HOT WHILE IN OPERATION - DO NOT TOUCH - KEEP CHILDREN CLOTHING AWAY - CONTACT MAY
CAUSE SKIN BURNS. SEE NAMEPLATE AND INSTRUCTIONS. KEEP FURNISHINGS AND OTHER
COMBUSTIBLE MATERIALS FAR AWAY FROM THE APPLIANCE.
ATTENTION:
CHAUD LORS DE L'OPÉRATION. NE PAS TOUCHER. GARDEZ LES ENFANTS ET LES VÊTEMENTS LOIN DE L'ESPACE DÉSIGNÉ DE
L'INSTALLATION. LE CONTACT PEUT CAUSER DES BRÛLURES À LA PEAU. GARDEZ LES MEUBLES ET LES MATÉRIAUX
COMBUSTIBLES LOIN DE L'ESPACE DÉSIGNÉ DE L'APPAREIL. VOIR L'ÉTIQUETTE ET LES INSTRUCTIONS.
Serial No / Numéro De Série
OMNI-Test Laboratories, Inc.
Report #061-S-74-2
3100-I ACC INSERT
Mantel / Manteau de Cheminée
A
Fuel
Door
F
P
Minimum Clearances To Combustible Material
Espaces Libres Minimum Des Matériaux Combustibles
Masonry, Heat Exchanger & Zero
Clearance
CANADA
USA/États-Unis
C
A B
21.5” n/a n/a
D
15”
B
A
21.5 (546) n/a)
n/a
31"
22"
n/a
n/a
31"(787) 22"(559) n/a
n/a
21”
21”
n/a
n/a
21” (533) 21” (533) n/a
D
E
MANTEL CLEARANCES
Espace Libre Manteau de Cheminée
No Mantel Deflector
with Mantel Deflector
avec un déflecteur de cheminée
FLOOR PROTECTION / PROTECTION DU PLANCHER
Feb Mar
E
F
18"
16"
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER L'ÉTIQUETTE
7044-140C
CANADA
E
F
8"
18" (457)
12" (305)
8"
18" (457)
12” (305)
USA/États-Unis & Canada
1-1/2 inch (38) of k=0.49, R = 3.06
1 inch (25) of k=0.49, R = 2.04
Apr May June July Aug Sept Oct. Nov. Dec.
1445 N. Highway, Colville, WA 99114
Page 2
USA/États-Unis
U.S. ENVIRONMENTAL PROTECTION AGENCY - Certified to comply with July 1990 particulate emission standards.
2011 2012 2013 Jan
www.quadrafire.com
D
15"(381)
Pas de protection de cheminée
Hearth Extension / Extension de l'âtre
Floor height 0" to 6-1/2" (0 to 165 below Insert Base
Non-combustible floor protector must extend 8 inches (203mm) to both sides. See chart for
Hauteur du sol de 0” à 6-1/2” (0 à 165) sous la base de l’insert
thermal protection requirements and clearances for front hearth extensions. Minimum of 1 inch
(25mm) thermal protection, "k" value = 0.49, R value - 2.04, required under insert base on all Floor height greater than 6-1/2" (165) below Insert Base
zero-clearance can installations. Minimum of 1-1/2 inch (38mm) thermal protection, "k" value =
Hauteur de sol supérieure à 6-1/2” (165) sous la base de l’insert
0.49, R value - 3.06, required under base of factory or site made zero-clearance adjustable trim
support for all heights.
THERMAL PROTECTION / Protection Thermique
La protection de sol non-combustible doit être étendue à 8 inches (203 mm) de chaque
Floor height 0" to 6-1/2" (0 to-165) below Insert Base
côtés. Se référer aux tableaux des exigences de protection thermique et distances minimales
Hauteur du sol de 0” à 6-1/2” (0 à 165) sous la base de l’insert
des extensions de la protection sol frontale. Minimum d’un pouce de protection thermale,
valeur “k” = .49, valeur “R” – 2.04 requise sous la base de l’appareil pour toute installation Floor height greater than 6-1/2" (165) below Insert Base
sans dégagement.Minimum de 1-1/2 pouce de protection thermale, valeur “k” = .49, valeur
Hauteur de sol supérieure à 6-1/2” (165) sous la base de l’insert
“R” – 3.06 requise sous la base de tout support decorative adjustable pour tout appareil sans
dégagement qu’il soit fabriqué en usine ou sur les lieux et quelque soit leurs hauteurs.
Manufactured by / Fabriqué par:
C
n/a
En briques, Circulant la chaleur &
d'espace libre
Fascia or Trim /
Panneau ou Moulure
C
PRÉVENTION DES FEUX DE MAISON
Installez et utilisez en accord avec les instructions d'installation et d'opération du fabricant. Contactez le
bureau de la construction ou le bureau des incendies au sujet des restrictions et des inspections
d'installation dans votre voisinage.
Référez vous aux instructions du fabricant et des codes locaux pour les précautions requises pour passer
une cheminée à travers un mur ou un plafond combustibles, et les compensations maximums.
Lorsque vous utilisez un poêle inséré fabriqué en briques, installez un foyer en briques fabriqué selon des
codes national et/ou locaux. Ne pas enlever de la brique ou du mortier pour accommoder la pièce insérée.
L'installation demande un tuyau allant de la cheminée existante avec un couvert hermétique.
Installez seulement sur un foyer incombustible. Approuvé pour l'installation et l'usage dans les cheminées
avec espace libre de zéro, fabriquées en usine et se conformant aux spécifications minimum de chambre de
feu.
Les pièces exigées pour l'installation: tuyau positif ou direct pour connexion de l'assemblée ou la doublure
du tuyau enregistré.
Au Canada, un tuyau doublé de grandeur de 6 inch (152mm) S635 est exigé par le code ULC S628-93.
ATTENTION! Inspectez et nettoyez la cheminée fréquemment. Sous certaines conditions, il se peut que
la créosote s'accumule rapidement.
Ne pas connecter cet appareil à une cheminée servant un autre appareil.
DANGER: Il y a risque de décharge électrique. Déconnectez le fil électrique de la prise de contact avant le
service.
Éloignez le fil électrique de l'appareil. Ne pas faire passer le fil électrique au dessus ou en dessous de
l'appareil.
Puissance Électrique: 115 VAC, .63 Amps, 60 Hz.
N'élevez pas le feu. Bâtissez le feu de bois directement sur l'âtre.
Ne pas surchauffer. Si l'appareil de chauffage ou le tuyau de cheminée rougissent, vous surchauffez.
Opérez l'appareil seulement lorsque la porte de chargement est fermée. Ouvrez la porte seulement lorsque
vous devez ajouter des combustibles dans le feu.
Remplacez la vitre seulement avec une vitre céramique de 5 mm disponible chez votre fournisseur.
PIÈCES OPTIONNELLES: Déflecteur de cheminée d Piéce 7044-214
M
Maximum Mantel Depth - 12" (305mm)
Profondeur Maximum de la Manteau de Cheminée - 12" (305mm)
S
A
SideWall / Mur de Côté
operating instructions.
CONTACT YOUR LOCAL BUILDING OR FIRE OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA.
Refer to manufacturer's instructions and local codes for precautions required for
passing chimney through a combustible wall or ceiling.
When used as a masonry insert stove, install only in a masonry fireplace built to
national and/or local codes. Do not remove brick or mortar to accommodate
insert. Installation requires minimum of a starter pipe into existing chimney with
airtight face seal.
Install only on a non-combustible hearth. Approved for installation and use in
factory built zero-clearance fireplaces conforming to minimum fire chamber
specifications, follow instructions in the owner’s manual.
Components required for installation: positive or direct flue connection assembly
or listed vent liner.
In Canada a full length 6 inch (152mm) S635 flue liner is required as per ULC
S628-93.
WARNING - Inspect and clean chimney frequently. Under certain conditions of
use, creosote buildup may occur rapidly.
Do not connect this unit to a chimney serving another appliance.
DANGER: Risk of electrical shock. Disconnect power supply before
servicing. Route power cord away from unit. Do not route cord under or in front
of appliance.
Electrical Rating: 115 VAC .63 AMPS 60 Hz
Do not use grate or elevate fire. Build wood fire directly on firebrick.
Do not overfire. If heater or chimney connector glows, you are overfiring.
Operate only with doors closed. Open only to add fuel to the fire.
Replace glass only with 5mm ceramic available from your dealer.
OPTIONAL COMPONENTS: Mantel Deflector, Part 7044-214
APPAREIL DE CHAUFFAGE DE PIÈCE, DE TYPE DE COMBUSTIBLE SOLIDE.
E
LISTED ROOM HEATER, SOLID FUEL TYPE. "For Use with Solid Wood Fuel Only."
PREVENT HOUSE FIRES
Install and use only in accordance with manufacturer's installation, venting and
L
Tested to / Testé a:
UL 1482-96, ULC S628-93
B
007
Model / Modèle:
R
Made in U.S.A. of US and
imported parts.
Fabriqué aux
États-Unis-d’Amérique par des
pièces d’origine américaine et
pièces importées.
7044-141C
November 21, 2011
R
3100-I ACC Wood Insert
! Safety Alert Key:
•
DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
•
WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury.
•
CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
•
NOTICE: Indicates practices which may cause damage to the appliance or to property.
TABLE OF CONTENTS
Congratulations ...............................................................2
Sample of Safety/Serial Number Label ...........................2
Warranty Policy ...............................................................4-5
E.
A.
Appliance Certifications.....................................6
Mobile Home Approved.....................................6
Glass Specifications ..........................................6
BTU & Efficiency Specifications ........................6
B.
C.
D.
E.
F.
G.
H.
I.
User’s Guide
Section 2: Operating Instructions
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
L.
M.
N.
O.
P.
Q.
R.
Your Wood Appliance .......................................7
Fire Safety .........................................................8
Overfiring...........................................................8
Combustible/Non-combustible Material ............8
Seasoned Wood................................................8
Burning Process ................................................9
Automatic Combustion Control (ACC) ..............10
Air Controls .......................................................10
Burn Rates and Operating Efficiency ................11
Correct Baffle & Blanket Placement ..................12
Building a Fire ...................................................13
Wood Fuel .........................................................14
Blower Control Box Snap Disc Operations .......15
Blower Operating Instructions ...........................15
Clear Space ......................................................16
Frequently Asked Questions .............................16
Opacity (Smoke) ...............................................16
Door Closing .....................................................16
C.
D.
E.
F.
G.
Disposal of Ashes .............................................17
Chimney & Chimney Connector
Inspection/Cleaning...........................................17
Appliance Inspection - Routine .........................17
Cleaning of Plated Surfaces..............................18
Glass Cleaning ..................................................18
Inspect Firebrick ................................................18
Quick Reference Maintenance Guide ...............19
A.
B.
C.
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
Venting Systems ...............................................32
Inspections ........................................................32
Larger Chimneys ...............................................32
Masonry Chimney .............................................32-33
Metal Heat Circulating Chimney........................34
Prefabricated Metal Chimney ............................34-35
Securing Chimney Components .......................35
Altering the Fireplace ........................................35
Zero-Clearance Factory-Built Fireplaces ..........36
Ovalizing Round Stainless Steel Liners ............36
Chimney Height / Rise and Run ........................36
Section 9: Appliance Set-up
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
L.
Section 5: Service Parts Replacement
Glass Replacement ...........................................21
Snap Disc Replacement....................................21
Baffle Removal ..................................................22
Door Handle Assembly .....................................22
Appliance Dimensions.......................................29
Clearances to Combustibles (UL and ULC)
and Hearth Protection Requirements ................30
Alternate Floor Protection Calculation...............31
Section 8: Chimney Systems
Section 4: Troubleshooting Guide ..................... 20
A.
B.
C.
D.
Design, Installation & Location
Considerations ..................................................24
Draft ..................................................................24
Negative Pressure.............................................25
Locating Your Appliance and Chimney .............26
Chimney Termination Requirements.................26
2-10-3 Rule .......................................................27
Tools and Supplies Needed ..............................28
Fire Safety .........................................................28
Inspect Appliance and Components
and Pre-Use Checklist ......................................28
Section 7: Dimensions and Clearances
Section 3: Maintenance and Service
A.
B.
Installer’s Guide
Section 6: Getting Started
Section 1: Listing and Code Approvals
A.
B.
C.
D.
Tube Channel Assembly Replacement .............23
Outside Air Installation ......................................37
Disassemble Firebox & Outer Can....................38
Securing Stove Pipe/Liner to Flue Collar ..........39
Optional Offset Adapter Installation ..................39
Installing Outer Can & Leveling Bolts................40
Surround & Trim Installation..............................40
Installing Firebox to Outer Can .........................41
Securing Appliance to Stove Pipe/Liner ............41
Snap Disc & Side Panel Installation ..................42
Blower Installation .............................................42
Blower Cord Installation - Left Side ...................43
Zero-Clearance Adjustable Trim Support..........44
Section 10: Moble Home Installation ................. 45
Section 11: Reference Materials
A.
B.
C.
November 21, 2011
7044-140C
Exploded Drawings ...........................................46-47
Service Parts & Accessories .............................48-51
Contact Information ...........................................52
Page 3
R
3100-I ACC Wood Insert
Warranty Policy
Page 4
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
November 21, 2011
7044-140C
Page 5
R
3100-I ACC Wood Insert
1
Listing and Code Approvals
D. BTU & Efficiency Specifications
A. Appliance Certification
Model:
3100-I (ACC) Insert
EPA Certified:
2.0 grams per hour
Laboratory:
OMNI Test Laboratories, Inc.
Efficiency:
up to 79.8%
Report No:
061-S-74-6.2
BTU Output:
11,800 to 32,000
Type:
Solid Fuel Type, Listed Room Heater
Heating Capacity:
Standard:
UL1482 and ULC S628-93 and
(UM) 84-HUD, Mobile Home
Approved.
up to 1800 sq ft depending
on climate zone
Vent Size:
6 inches
Firebox Size:
2 cubic feet
Max Wood Length:
18 inches
Fuel:
Cord Wood
Shipping Weight:
345 lbs
NOTE: This installation must conform with local codes. In the
absence of local codes you must comply with the UL1482,
(UM) 84-HUD and NPFA211 in the U.S.A. and the ULC S62893 and CAN/CSA-B365 Installation Codes in Canada.
WARNING
Fire Risk.
The Quadra-Fire 3100 Wood Insert (ACC) meets the U.S.
Environmental Protection Agency’s 1990 particulate emission standards.
B. Mobile Home Approved
•
•
•
• This appliance is approved for mobile home installations
when not installed in a sleeping room and when an outside combustion air inlet is provided.
•
• The structural integrity of the mobile home floor, ceiling,
and walls must be maintained.
•
• The appliance must be properly grounded to the frame
of the mobile home with #8 copper ground wire, and use
only listed double-wall connector pipe.
• Outside Air Kit, part OAK-ACC must be installed in a mobile home installation.
C. Glass Specifications
This stove is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
•
•
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
Installation and use of any damaged appliance.
Modification of the appliance.
Installation other than as instructed by Hearth & Home
Technologies.
Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Operating appliance without fully assembling all
components.
Operating appliance without legs attached (if supplied with
unit).
Do NOT Overfire - If appliance or chimney connector glows,
you are overfiring.
Any such action that may cause a fire hazard.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualified
installer, service agency or your dealer.
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products,
their specifications and/or price without notice.
Quadra-Fire is a registered trademark of Hearth & Home
Technologies.
Page 6
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
User Guide
2
Operating Instructions
WARNING
HOT SURFACES!
Glass and other surfaces are hot during operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as appliance.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable materials.
• Keep clothing, furniture, draperies and other flammable materials away.
If you expect that children may come into contact with this appliance, we recommend a barrier such as a decorative screen.
See your dealer for suggestions.
A. Your Wood Appliance
WARNING! DO NOT install or operate appliance before reading entire manual and understanding
operating instructions. Failure to operate appliance according to operating instructions could cause fire
or injury.
Surround & Trim Set
Burn Rate Control
Blower Speed Control
Door Handle &
Spring Handle
ACC Start-Up
Air Control
Figure 7.1 General Operating Parts
November 21, 2011
7044-140C
Page 7
R
3100-I ACC Wood Insert
B. Fire Safety
To provide reasonable fire safety, the following should be
given serious consideration:
1.
Hearth & Home Technologies WILL NOT warranty stoves
that exhibit evidence of over-firing. Evidence of over-firing
includes, but is not limited to:
• Warped air tube
Install at least one smoke detector on each floor of
your home to ensure your safety. They should be
located away from the heating appliance and close
to the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
D. Combustible/Non-combustible Materials
2.
A conveniently located Class A fire extinguisher.
•
3.
A practiced evacuation plan, consisting of at least two
escape routes.
4.
In the event of a chimney fire:
a.
b.
Prepare occupants for immediate evacuation
Notify fire department
• Deteriorated refractory brick retainers
• Deteriorated baffle and other interior components
•
C. Overfiring
•
WARNING
Fire Risk
Combustible Material
Material made of or surfaced with wood, compressed
paper, plant fibers, plastics, or any material capable
of igniting and burning, whether flame-proofed or not,
plastered or unplastered.
Non-combustible Material
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, slate,
glass or plasters, or any combination thereof.
Non-combustible Sealant Material
Sealants which will not ignite and burn: Rutland, Inc.
Fireplace Mortar #63, Rutland 76R, Nuflex 304, GE
RTV106 or GE RTB116 (or equivalent).
Do not over-fire.
Over-firing may ignite creosote or will damage
the stove and chimney.
To prevent over-firing your stove, DO NOT:
• Use flammable liquids
• Overload with wood
• Burn trash or large amounts of scrap lumber
• Permit too much air to the fire
• Use of processed solid fuel fire logs
1. Symptoms of Over-Firing
Symptoms of over-firing may include one or more of the
following:
• Chimney connector or appliance glowing
• Roaring, rumbling noises
• Loud cracking or banging sounds
• Metal warping
• Chimney fire
2. What To Do if Your Stove is Over-Firing
• Immediately close the door and air controls to reduce
air supply to the fire.
E. Seasoned Wood
Burn only dry seasoned wood.
• Store wood under cover, out of the rain and snow.
• Dry and well-seasoned wood will not only minimize the
chance of creosote formation, but will give you the most
efficient fire.
• Even dry wood contains at least 15% moisture by weight,
and should be burned hot enough to keep the chimney
hot for as long as it takes to dry the wood out - about one
hour.
• It is a waste of energy to burn unseasoned wood of any
kind.
Dead wood lying on the forest floor should be considered wet,
and requires full seasoning time.
• Standing dead wood can be considered to be about 2/3
seasoned.
• To tell if wood is dry enough to burn, check the ends of
the logs.
• If there are cracks radiating in all directions from the center,
it is dry.
• If your wood sizzles in the fire, even though the surface
is dry, it may not be fully cured.
• If you suspect a chimney fire, call the fire department
and evacuate your house.
• Contact your local chimney professional and have
your stove and stove pipe inspected for any damage.
• Do not use your stove until the chimney professional
informs you it is safe to do so.
Page 8
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
2. Second Stage
F. Burning Process
In recent years there has been an increasing concern about
air quality. Much of the blame for poor air quality has been
placed on the burning of wood for home heating.
In order to improve the situation, we at Quadra-Fire have
developed cleaner-burning wood appliances that surpass
the requirements for emissions established by our governing
agencies.
These wood appliances must be properly operated in order
to ensure that they perform the way they are designed to
perform.
In the secondary stage wood gives off flammable gases which
burn above the fuel with bright flames.
During this stage of burning:
• The flames must be maintained and not allowed to go out
to ensure the cleanest possible fire.
• If the flames tend to go out, it is set too low for your burning conditions.
The air control located at the upper right hand corner is used to
adjust for burn rates. This is called the Burn Rate Air Control.
Figure 10.1 on page 10.
3. Final Stage
NOTICE: Improper operation can turn any wood appliance into a smoldering environmental hazard.
The final stage of burning is the charcoal stage. This occurs
when the flammable gases have been mostly burned and
only charcoal remains. This is a naturally clean portion of
the burn. The coals burn with hot blue flames.
1. Kindling or First Stage
It helps to know a little about the actual process of burning in
order to understand what goes on inside the appliance. The
first stage of burning is called the kindling stage.
• It is very important to reload your appliance while enough
lively hot coals remain in order to provide the amount of
heat needed to dry and rekindle the next load of wood.
•
In this stage:
• Wood is heated to a temperature high enough to evaporate the moisture present in all wood.
• Wood will reach the boiling point of water (212°F) and will
not get any hotter until the water is evaporated.
This process takes heat from the coals and tends to cool the
appliance.
It is best to open the Burn Rate Air and Start-Up Air Controls before reloading. This livens up the coalbed and
reduces excessive emissions (opacity/smoke).
• Open door slowly so that ash or smoke does not exit appliance through opening.
• Break up any large chunks and distribute the coals so
that the new wood is laid on hot coals.
Air quality is important to all of us, and if we choose to use
wood to heat our homes we should do so responsibly.
Fire requires three things to burn:
• Fuel
• Air
• Heat
We need to learn to burn in the cleanest way possible allowing us to continue using our wood appliances for many
years to come.
If heat is robbed from the appliance during the drying stage,
the new load of wood has reduced the chances for a good
clean burn.
It is always best to burn dry, seasoned firewood. When the
wood isn’t dry, you must open the air controls and burn at a
high burn setting for a longer time to start it burning.
The heat generated from the fire should be warming your
home and establishing the flue draft, not evaporating the
moisture out of wet, unseasoned wood, resulting in wasted
heat.
November 21, 2011
7044-140C
Page 9
R
3100-I ACC Wood Insert
G. Automatic Combustion Control (ACC)
Typically, when you build a fire, you open the air controls fully
and monitor the fire to prevent it from going into an overfire
situation and/or burning your wood up too quickly before you
shut down the air controls to the desired burn rate.
Burn Rate Air Control
HIGH
MED
When using the Automatic Combustion Control (ACC) system,
you do not have to continually monitor the fire. Once you
set the ACC system it will control the fire for you. Follow the
instructions below to learn how to operate your stove with
ease.
LOW
H. Air Controls
1. Start-Up Air Control
The Start-Up Air Control has two primary functions.
The first function is to activate the Automatic Combustion
Control system (ACC).
Start-up Air
Control
• Push the Start-Up Air Control all the way back until it stops
and then pull forward to the front of the appliance until it
stops. Figure 10.1.
• The front air channel opens and allows air to enter the front
of the appliance for approximately 20-24 minutes.
Slide back until it stops
then pull forward
• The front air channel gradually shuts down until it is completely closed at the end of the 20-24 minutes.
• The fire is now controlled by the air supplied by the Burn
Rate Air Control. Figure 10.1.
• This function should be performed each time you reload
the appliance.
Figure 10.1
Start-up and Burn Rate Air Controls
The second function of the Start-Up Air Control is operation
of the rear air system.
• Push the Start-Up Air Control 3/8 inch (9.5mm) back to
allow rear air to enter the firebox. Figure 10.1.
• The rear air is used primarily during a High Burn Rate.
• In some instances rear air is desired during normal operation to help with combustion of fuel towards the back of
the firebox particularly when burning hardwoods.
• The rear air is controlled independently from the ACC
system
2. Manual Timer Over-Ride
If you need to shut the ACC system off before it shuts itself
off after 25 minutes (i.e. overfire situation), lift up on the Startup Air Control and pull out from the appliance. Figure 10.2.
Manual Timer Over-Ride
Lift Up on Control and Pull
Away from Appliance
Figure 10.2 Manual Timer Over-Ride
Page 10
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
3. Burn Rate Air Control
• Push the Start-Up Air Control until it stops.
• The air supply enters at the upper front of the firebox,
near the top of the glass door.
• This preheated air supplies the necessary fresh oxygen
to mix with the unburned gases, helping to create the
second, third and fourth combustion process.
• This air is regulated by the Burn Rate Air Control.
• There are four settings High, Medium-High, Medium-Low
and Low.
• When the control is raised all the way up it is on the High
setting and when pushed all the down it is on the Low
setting. Figure 11.1.
• This activates the timer system (ACC).
5. Low Burn Rate - Below 10,000 BTU/hr*
• Leave the Burn Rate Air Control at the bottom marker.
• Push the Start-Up Air Control all the way back until it
stops and then pull forward until it stops.
• This activates the timer system (ACC).
*NOTE: These are approximate settings, and will vary with
type of wood or chimney draft. Due to altitude and other
environmental circumstances, this operational information is
a guideline only.
I. Burn Rates and Operating Efficiency
For maximum operating efficiency
1. This appliance has a timer system (ACC) that operates
the appliance at its maximum efficiency removing any
guess work for the homeowner. Follow the instructions
below for each burn rate for the Start-Up Air Control and
Burn Rate Air Control. Figure 11.1.
WARNING
Risk of Fire.
When set on High Burn Rate and over-riding
the Automatic Combustion Control system an
overfire situation can occur and may result in a
chimney fire.
2. Burn dry, well-seasoned wood.
Burn Rates
Overfiring will void the stove warranty.
1. Starting a Fire and Reloading
• Open both controls fully by raising the Burn Rate Air Control all the way up until it stops and push the Start-up Air
Control back until it stops.
HIGH
• The blower tends to cool the appliance. Leave the blower
off until the burn is well established, i.e., 30 minutes.
LOW
• After loading the appliance with wood and starting the
fire, set both controls to the desired setting by following
the burn rate instructions below.
Low (Closed)
High (Opened)
2. High Burn Rate - Maximum Heat*
• Raise the Burn Rate Air Control all the way up until it stops
(top marker) to a fully open position.
• Push the Start-Up Air Control all the way back until it stops
and leave it there.
Burn Rate
Air Control
• This setting over-rides the timer system (ACC) so you
must monitor the fire closely while in this setting.
3. Medium-High Burn Rate - 15,000 to 30,000 BTU/hr*
• Raise the Burn Rate Air Control all the way up until it
stops (top marker) to a fully open position.
• Push the Start-Up Air Control all the way back until it
stops and then pull forward until it stops.
• This activates the timer system (ACC).
4. Medium-Low Burn Rate - 10,000 to 15,000 BTU/hr*
• Raise the Burn Rate Air Control up to the bottom of the
middle marker and stop.
November 21, 2011
(Start-Up Air
Control) IN/OUT
Figure 11.1 Activating Timer
After activating the timer (ACC), if the control is placed
within 3/8 inch (9.5mm) inward from the full OUT position it
will allow rear air to enter the firebox. This will not interfere
with the timer gradually closing the front air channel in 20-24
minutes. If control is set full inward on “HI” it over-rides the
timer (ACC).
7044-140C
Page 11
R
3100-I ACC Wood Insert
J. Correct Baffle & Blanket Placement
INCORRECT POSITIONS
WARNING
Fire Risk
Firebox damage due to improper baffle placement is not covered by warranty. Operate the
wood burning appliance with the baffle in the
correct position only.
Not doing so could result in:
• Reduced efficiency
• Overheating the chimney
• Overheating the rear of the firebox
Ceramic Blanket and Baffle Board are NOT
in contact with the back of the firebox.
• Poor performance
Ensure correct baffle placement and replace baffle components if damaged or missing.
CORRECT POSITION
Back of Firebox
Ceramic Blanket
Ceramic Blanket is NOT in contact with the
back of the firebox and NOT even with the
Baffle Board in the front.
Back of Firebox
Ceramic Blanket
Baffle Board
Ceramic Blanket and Baffle Board MUST be
in contact with the back of the firebox and
even with each other in the front.
Baffle Board
Ceramic Blanket is bunched up at the back
of the firebox and NOT even with the Baffle
Board in the front.
Figure 12.1 - Correct Baffle and Blanket Positions
Page 12
Figure 12.2 - Incorrect Baffle and Blanket Positions
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
K. Building A Fire
WARNING
Fire Risk.
Keep combustible materials, gasoline
and other flammable vapors and liquids
clear of appliance.
• Do NOT store flammable materials in the appliance’s
vicinity.
•
Open door slowly so that ash or smoke does not exit appliance through opening.
•
Large logs burn slowly, holding a fire longer.
•
Small logs burn fast and hot, giving quick heat.
9. As long as there are hot coals, repeating steps 6 through
8 will maintain a continuous fire.
• DO NOT USE GASOLINE, LANTERN FUEL,
KEROSENE, CHARCOAL LIGHTER FLUID OR
SIMILAR LIQUIDS TO START OR “FRESHEN UP” A
FIRE IN THIS HEATER.
NOTE:
• Build fire on brick firebox floor.
• Do NOT use grates, andirons or other methods to support
fuel.
It will adversely affect emissions.
• Keep all such liquids well away from the heater while it
is in use.
• Combustible materials may ignite.
Before lighting your first fire in the appliance:
1. Confirm the baffle and ceramic blanket are correctly
positioned. They should be even with the front tube and
resting on all tubes. See page 12.
2.
Remove all labels from glass.
There are many ways to build a fire. The basic principle is
to light easily-ignitable tinder or paper, which ignites the fast
burning kindling, which in turn ignites the slow-burning firewood. Here is one method that works well:
CAUTION
Odors and vapors released during initial operation.
• Curing of high temperature paint.
• Open windows for air circulation.
Odors may be irritating to sensitive individuals.
1. Open the Burn Rate Air and Start-Up Air Controls fully.
2. Place several wads of crushed paper on the firebox floor.
Heating the flue with slightly crumpled newspaper before
adding kindling keeps smoke to a minimum.
3. Lay small dry sticks of kindling on top of the paper.
4. Make sure that no matches or other combustibles are in
the immediate area of the appliance. Be sure the room
is ventilated and the flue unobstructed.
5. Light the paper in the appliance. NEVER light or rekindle
fire with kerosene, gasoline, or charcoal lighter fluid; the
results can be fatal.
6. Once the kindling is burning quickly, add several full-length
logs 3 to 4 inches (76 - 102mm) in diameter. Be careful
not to smother the fire. Stack the pieces of wood 1/2 to
1 inch apart (13-25mm); near enough to keep each other
hot, but far enough away from each other to allow air flow
between them.
7. Set the Burn Rate Air Control and activate the timer system (ACC).
8. When ready to reload, It is best to fully open both the Burn
Rate Air and Start-up Air Controls before reloading.
•
This livens up the coalbed and reduces excessive emissions (opacity/smoke).
November 21, 2011
7044-140C
Page 13
R
3100-I ACC Wood Insert
Moisture
L. Wood Fuel
WARNING
WARNING
Fire Risk.
Fire Risk.
• Do NOT burn wet or green wood.
• Store wood in dry location.
• Stack wood so both ends are exposed to air.
Wet, unseasoned wood can cause accumulation of
creosote.
• DO NOT BURN GARBAGE OR FLAMMABLE
FLUIDS SUCH AS GASOLINE, NAPTHA OR
ENGINE OIL.
• DO NOT USE CHEMICALS OR FLUIDS TO START A
FIRE.
• Do NOT burn treated wood or wood with salt (driftwood).
• May generate carbon monooxide if burn material other
than wood.
May result in illness or possible death.
The majority of the problems appliance owners experience
are caused by trying to burn wet, unseasoned wood.
•
Wet, unseasoned wood requires energy to evaporate the
water instead of heating your home, and
•
Causes evaporating moisture which cools your chimney,
accelerating formation of creosote.
Hardwood vs Softwood
Your appliance performance depends on the quality of the
firewood you use.
Seasoned Wood
•
Cut logs to size
•
Seasoned wood contains about 8,000 BTUs per pound .
•
Split to 6 inches (152 mm) or less in diameter
•
Hard woods are more dense than soft woods.
•
Air dry to a moisture content of not more than 20%
•
Hard woods contain 60% more BTUs than soft woods.
-
Soft wood - about nine months to dry
•
Hard woods require more time to season, burn slower and
are harder to ignite.
-
Hard wood - about eighteen months to dry
•
Soft woods require less time to dry, burn faster and are
easier to ignite.
•
Start the fire with softwood to bring the appliance up to
operating temperature and to establish draft.
•
Add hardwood for slow, even heat and longer burn time.
NOTICE: Seasoning time may vary depending on drying
conditions.
Storing Wood
Steps to ensure properly seasoned wood:
Soft woods
Hard woods
•
•
•
•
•
•
•
•
•
•
•
Douglas Fir
Pine
Spruce
Cedar
Poplar
Aspen
Alder
Oak
Maple
Apple
Birch
Processed Solid Fuel Fire Logs
•
•
Stack wood to allow air to circulate freely around and
through woodpile.
•
Elevate wood pile off ground to allow air circulation
underneath.
•
Smaller pieces of wood dry faster. Any piece over 6 in.
(152 mm) in diameter should be split.
•
Wood (whole or split) should be stacked so both ends of
each piece are exposed to air. More drying occurs through
the cut ends than the sides.
•
Store wood under cover to prevent water absorption
from rain or snow. Avoid covering the sides and ends
completely.
NOT permitted for use in this appliance
WARNING
Fire Risk
Do NOT store wood:
• In front of the appliance.
• In space required for loading or ash
removal.
Page 14
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
M. Operating the Blower Control
Box with Snap Disc
1. The blower will turn on/off automatically
when set to AUTO. Figure 15.1.
2. When set to MANUAL, the fan will turn on/
off only when you turn it on or off. This
setting over-rides the internal snap disc.
3. Adjust the speed of the fan by turning the
HIGH/LOW knob to the desired setting.
MANUAL: Over-rides the
internal Snap Disc
AUTO: Fan will turn
ON/OFF automatically
and is controlled by the
internal Snap Disc
Figure 15.1
N. Blower Operating Instructions
1. Initial (cold) startup: Open both controls fully by raising
the Burn Rate Air Control all the way up until it stops and
push the Start-up Air Control back until it stops. The blower
tends to cool the appliance. Leave the blower off until the
burn is well established, i.e., 30 minutes.
2. High Burn Setting: Both controls are open. Burn Rate
Air Control is pulled up and the Start-up Air Control is fully
pushed in. Blower may remain on.
NOTICE!
Do NOT operate a circulating fan within close proximity, approximately 4 ft (1.2m), of appliance
• Can reverse air flow, blowing hot air into appliance cavity.
• Can damage appliance blower due to overheating.
3. Medium High Burn Setting*: Burn Rate Air Control is
closed then opened to 1 inch (pull up )to fully open. Blower
may remain on.
4. Medium Low Burn Setting*: Burn Rate Air Control is
closed then opened to 1/4 inch to 1/2 inch. Leave the blower
off until the burn is well established, i.e., 30 minutes.
5. Low Burn Setting*: Burn Rate Air Control is closed. Leave
the blower off until the burn is well established, i.e., 30 minutes.
*NOTE: For burn settings 3 to 5 the Start-up Air Control
needs to be pushed in (Open) then pulled forward to activate the Automatic Combustion Control (ACC).
NOTE: For maximum efficiency and lowest emissions,
when operating the blower in either the automatic or manual
setting for the low and medium low burn settings leave the
blower off until the burn is well established, i.e., 30 minutes.
6. The blower is equipped with a rheostat (speed control). The
highest blower speed is obtained by turning the rheostat on,
then adjusting back towards “OFF” as far as possible without turning the blower off. For a low blower speed, turn the
control knob clockwise as far as possible
November 21, 2011
7044-140C
Page 15
R
3100-I ACC Wood Insert
O. Clear Space
Q. Opacity (Smoke)
•
Opacity is the measure of how cleanly your appliance is
burning.
Do NOT place combustible objects within 4 ft (1.2 m) of
the front of fireplace. Figure 16.1.
Opacity is measured in percent:
• 100% opacity is when an object is totally obscured by
the smoke column from a chimney, and
WARNING
Fire Risk.
•
•
Do NOT place combustible objects within 48
inches in front of the appliance.
High temperatures may ignite clothing, furniture or
draperies.
• 0% opacity means that no smoke column can be seen.
As you become familiar with your appliance, you should
periodically check the opacity. This will allow you to know
how to burn as nearly smoke-free as possible (goal of 0%
opacity).
R. Door Closing
To operate this unit the way it was designed by the manufacturer, the door must be sealed. To seal the unit, the front
door needs to remain closed during operation.
•
Grasp metal spring on front door and push door
closed.
•
With your hand on the handle of the door, rotate the
handle clockwise, until it will no longer rotate in that
direction.
•
This will ensure that the door is properly closed, and will
not allow for any air leakage.
CL
EA
FR 4 FT R S
ON (1 PA
T O .2m CE
F I ) IN
NS
ER
T
WARNING
DO NOT operate this unit with the firebox door open for
a continuous period of time.
Figure 16.1 - Clear Space
This appliance was tested to manufacturers
specifications and operating this unit in a matter other
than specified by the manufacturer will effect the
efficiency of this unit.
NOTICE!
Do NOT operate a circulating fan within close proximity, approximately 4 ft (1.2m), of appliance
• Can reverse air flow, blowing hot air into appliance cavity.
• Can damage appliance blower due to overheating.
P. Frequently Asked Questions
ISSUES
SOLUTIONS
Odor from appliance
When first operated, this appliance may release an odor for the first several hours. This is
caused by the curing of the paint and the burning off of any oils remaining from manufacturing.
Metallic noise
Noise is caused by metal expanding and contracting as it heats up and cools down, similar to
the sound produced by a furnace or heating duct. This noise does not affect the operation or
longevity of the appliance.
Whirring sound
The blower may produce a whirring sound which increases in volume as the speed is
increased.
Page 16
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
3
Maintenance and Service
A. Disposal of Ashes
•
Frequency: When ash is within 1-3/4 inch (44mm) of
firebox lip. Leave 1/4 to 1/2 inch (6-13mm) of ash in the
bottom of the firebox.
•
By: Homeowner
WARNING! Risk of Fire! Ashes could contain hot embers.
•
Place ashes in a metal container with a tight-fitting lid.
•
The closed container should be placed on a noncombustible
floor or on the ground, well away from all combustible
materials, pending final disposal.
•
If the ashes are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the closed
container until all cinders have thoroughly cooled
Frequency: Every 2 months during heating season or
as recommended by a certified chimney sweep; more
frequently if chimney exceeds or is under 14-16 feet (4.3
to 4.8m) measured from bottom of appliance.
•
By: Certified chimney sweep
•
Remove all ash from the firebox and extinguish all hot
embers before disposal.
•
Allow the appliance to cool completely.
•
If your type of installation involves a full reline of the
chimney, it will be necessary to either remove the baffle
from the insert, or remove the insert from the fireplace
and disconnect the vent prior to cleaning the chimney.
Refer to page 22 in this manual for instructions on Baffle
Removal.
•
The creosote vapors condense in the relatively cool
chimney flue of a slow-burning fire.
•
As a result, creosote residue accumulates on the flue
lining. When ignited this creosote makes an extremely
hot fire.
•
The chimney and chimney connector shall be inspected
every two months during the heating season to determine
when a creosote buildup has occurred.
•
When creosote has accumulated it shall be removed to
reduce the risk of a chimney fire.
•
Frequency: Every 2 months at the same time the chimney and chimney connector are inspected.
•
By: Homeowner
Check for:
• Cracks in glass
• Door handle - smooth cam operation
• Baffle and ceramic blanket correct placement
• Baffle for warpage
If your type of installation is direct connect within a masonry
chimney, the insert will need to be pulled out from the
fireplace and disconnected from the flue prior to cleaning
the chimney.
•
The creosote or soot should be removed with a brush
specifically designed for the type of chimney in use.
•
Clean out fallen ashes from the firebox.
•
It is also recommended that before each heating season
the entire system be professionally inspected, cleaned
and repaired if necessary.
• Firebrick for cracks, broken or crumbly
• Door gasket. (Dollar bill test). Place a dollar bill between
the stove and the door and then shut the door. If you can
pull the dollar bill out, replace the door gasket.
• Glass frame for loose screws
D. Cleaning Plated Surfaces
•
Frequency: As desired
•
By: Homeowner
•
Clean all the fingerprints and oils from plated surfaces
BEFORE firing the appliance for the first time.
•
If not cleaned properly before lighting your first fire, the
oils can cause permanent markings on the plating.
•
After the plating is cured, the oils will not affect the finish
and little maintenance is required.
• Wipe clean as needed.
WARNING! Risk of Fire!
Do not use chimney cleaners or flame colorants in your
appliance. It will corrode your pipe.
November 21, 2011
•
C. Appliance Inspection - Routine
B. Chimney and Chimney Connector
Inspection/Cleaning
•
Creosote - Formation and Need for Removal
• When wood is burned slowly, it produces tar and other
organic vapors, which combine with expelled moisture
to form creosote.
CAUTION! Do not use polishes with abrasives. It will
scratch plated surfaces.
7044-140C
Page 17
R
3100-I ACC Wood Insert
E. Glass Cleaning
F. Inspect Firebrick
•
Frequency: As desired
•
Frequency: After each ash removal
•
By: Homeowner
•
By: Homeowner
•
Clean glass with a non-abrasive glass cleaner. Abrasive
cleaners may scratch and cause glass to crack.
•
If the deposits on the glass are not very heavy, normal
glass cleaners work well. Heavier deposits may be
removed by using a damp cloth dipped in wood ashes or
by using a commercially available oven cleaner.
•
After using an oven cleaner, it is advisable to remove any
residue with a glass cleaner or soap and water. Oven
cleaner left on during the next firing can permanently
stain the glass and damage the finish on plated metal
surfaces.
• A portion of the combustion air entering the firebox is deflected down over the inside of the door glass.
• This air flow “washes” the glass, helping to keep smoke
from adhering to its surface.
• When operated at a low burn rate, less air will be flowing
over the glass and the smoky, relatively cool condition of
a low fire will cause the glass to become coated.
• Operating the appliance with the Burn Rate Air Control
and Start-Up Air Control all the way open for 15-20 minutes should remove the built up coating.
Replace the firebrick if they become crumbly and/or if
there is a 1/4 inch (6.35mm) gap between the bricks.
The firebox is lined with firebrick, which has exceptional
insulating properties. Do not use a grate; simply build
a fire on the firebox floor. Do not operate appliance
without firebrick.
1. After the coals have completely cooled, remove all
old brick and ash from unit and vacuum firebox.
2. Remove new brick set from box and lay out to
diagram shown.
3. Lay bottom bricks in unit.
4. Install rear bricks on the top of the bottom bricks.
Slide top of bricks under clip on back of firebox wall
and push bottom of bricks back.
5. Install side bricks. Slide top of brick under clips
on side of firebox and push the bottom of the brick
until it is flush with the side of the unit.
Use Part 832-0550 when ordering individual brick. Provide
brick dimension or copy this page, mark the desired brick and
take it to your authorized dealer.
CAUTION! Handle glass assembly with care. Glass is
breakable.
•
•
•
Avoid striking, scratching or slamming glass
Avoid abrasive cleaners
Do not clean glass while it is hot
1
1
1
1
1
1
9 in.
1-1/4 in.
1-1/4 in.
1
1
1
3
1
1
1
4
2
2
2 in.
5 in.
2
2
3
2 in.
8 in.
4
3 in.
Figure 18.2
1-1/4 in.
No.
Figure 18.1
Page 18
7044-140C
Brick Size
Qty
1
9 x 4-1/2 x 1-1/4
12
2
6 x 4-1/2
4
3
9 x 4-1/2 w/angle
1
4
9 x 3 w/angle
1
November 21, 2011
R
3100-I ACC Wood Insert
G. Quick Reference Maintenance Guide
BAFFLE & BLANKET PLACEMENT
INSPECT FIREBRICKS & ASH COVER
(AFTER EACH CLEANING)
2
2
Step Top Models Only
Baffle and blanket placement is critical to heat output, efficiency and overall life of the unit. Make sure
the baffle is pushed all of the way to the back of the
firebox and the blanket is laying flat.
Firebrick is designed to protect your firebox. Replace
firebricks that are crumbling, cracked or broken. If
you have an optional ash door, check to make sure
the door is closing properly.
CHIMNEY & CAP INSPECTION
DOOR & LATCH CHECK
Keeping the door and glass
gasket in good shape will
maintain good burn times on
a low burn setting.
The chimney and chimney
cap must be inspected for
soot and creosote during
the burn season. This will
prevent pipe blockage, poor
draft, and chimney fires.
Check the glass frame for
loose screws to prevent air
leakage.
Always burn dry wood to
help prevent cap blockage
and creosote build-up.
Check the door latch for proper adjustment. This
is very important especially after the door rope has
formed to the stove face.
Start the first inspection of your unit after the first 2 months of use, or if performance changes, and adjust your schedule accordingly.
Maintenance is required for safe operation and must be performed to maintain your warranty.
NOTE: These are generic drawings and may not
represent your actual model.
November 21, 2011
7044-140C
Page 19
R
3100-I ACC Wood Insert
4
Troubleshooting Guide
With proper installation, operation, and maintenance your woodstove will provide years of trouble-free service. If you do
experience a problem, this troubleshooting guide will assist you or a qualified service person in the diagnosis of a problem
and the corrective action to be taken.
Start Fire Problems
Possible Cause
Solution
Can not get fire started
Excessive smoke or spillage
Burns too slowly
Not enough heat output
Not enough kindling/paper or no
kindling/paper
Use dry kindling, more paper. Arrange kindling &
wood for air movement.
Check for restricted termination cap
Check for blockage of outside air kit (if installed).
Check for flue blockage.
Not enough air for fire to ignite
Pre-warm flue before starting fire (refer to Building
a Fire Section).
Check for adequate vent height (refer to Chimney
Height Section).
Open window below the appliance towards the
wind.
Wood condition is too wet, too
large
Use dry, seasoned wood (refer to Seasoned Wood
Section).
Bed of coals not established
before adding wood
Start with paper & kindling to establish bed of
coals (refer to Building a Fire Section).
Flue blockage such as birds’
nests or leaves in termination
cap
Have chimney inspected for creosote and cleaned
by a certified chimney sweep.
Down draft or negative pressure
Competition with exhaust
devices
Do not use exhaust fans during start-up (refer to
Negative Pressure Section).
Fire burns too fast
Open window below the appliance towards the
wind.
Mix in hardwood.
Extremely dry or soft wood
Mix in less seasoned wood after fire is established
(refer to Wood Fuel Section).
Check for correct vent height; too much vertical
height creates overdrafting.
Overdrafting
Page 20
Check location of vent termination (refer to
Chimney Termination Requirement Section).
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
5
Service Parts Replacement
B. Snap Disc Replacement
A. Glass Replacement
(Replace with 5mm ceramic glass only)
1.
Ensure that the fire is out and the appliance is cool to
the touch.
1. Locate the snap disc bracket assembly at the bottom left
rear corner of the appliance. Figure 21.1
2.
Protect a table or counter top with padding or towels.
Protect your hands and wear gloves to prevent injury.
2. A magnet holds the bracket to the appliance. Pull the
bracket down away from the appliance to expose the snap
disc.
3.
Remove the door with the broken glass by lifting the
door up and off of the hinges.
3. Pull the snap disc and spade connectors up and out of
bracket as shown in Figure 21.2.
4.
Lay door face down on a table or counter making sure
the handle hangs over the edge so the door lays flat, on
a soft surface.
5.
Remove the screws from each glass retainer and remove
the glass. (If screws are difficult to remove, soak with
penetrating oil first).
4. Using a Phillips head screw driver, remove the 2 screws
from the snap disc and then remove the snap disc from
the spade connectors. Replace with new snap disc and
re-connect to spade connectors.
6.
Center the glass with edges evenly overlapping the
opening in the door, (i.e. same space top and bottom,
left and right sides).
7.
Replace the glass retainers. Be careful not to cross
thread the screws.
8.
Tighten each retainer just a few turns until each is
secured. Check again for centering of glass in door
frame. Continue to tighten each retainer alternately, a
few turns at a time, until the glass is secure. DO NOT
OVERTIGHTEN - can cause glass to break.
9.
Replace the door on the appliance.
5. Push the snap disc and spade connectors back inside
bracket and re-attach the bracket to the appliance.
Snap Disc
WARNING! Risk of Fire or Injury!
Use only glass that is specified in the manual, DO NOT
replace with any other material. Glass breakage will occur.
Figure 21.1 Snap Disc Location
CAUTION!
Handle glass with care.
Snap Disc
• Inspect the gasket to ensure it is undamaged.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass & door assembly
removed.
• Do NOT operate with glass cracked, broken or
scratched.
Quadra-Fire appliances are equipped with ceramic super
heat-resistant glass, which can only be broken by impact or
misuse.
Magnet
Spade
Connectors
Figure 21.2
November 21, 2011
7044-140C
Page 21
R
3100-I ACC Wood Insert
C. Baffle Removal
D. Door Handle Assembly
1. Remove all ash from the firebox, and extinguish all hot
embers before disposal into a metal container.
1. Install washer on door handle shaft.
2. The baffle board has 2 pieces. With the ceramic blanket
still in place, slide one baffle piece over the top of other one
but still keep it all components inside the firebox. Figure
22.1.
3. Install second washer(s) as shown in Figure 22.3.
3. It is easier to remove both baffle boards and ceramic
blanket after the tube channel assembly has been partially
disassembled. Follow steps 1 through 4 on page 23 for
removal of the tube channel assembly. It is not necessary
to completely remove the tube channel assembly.
2. Slide door handle through door.
4. Install key in groove.
5. Align groove in latch cam with key; slide latch cam over
shaft
6. Install locknut but do not overtighten, the handle needs
to move smoothly.
7. Install handle turning in a counter-clockwise motion to
desired location on door handle rod. Figure 22.3.
4. Re-install in reverse order. Be sure the baffle boards
and ceramic blanket are in their proper positions. Figure
22.2.
CAUTION! Do not overtighten lock nut. The door handle
needs to move smoothly.
Door Cross Section
(example)
Latch Cam
Locknut
Spring
Handle
Door Handle
Spacing
Washers
Square Key
The ceramic blanket and both baffle boards
and tube channel assembly can all be
removed at the same time.
Figure 22.3 - Door Handle for Arched Door
Figure 22.1
Latch Cam
Door Cross
Section
Door Handle Shaft
Ceramic Blanket
Baffle
Baffle
Locknut
Spacing
Washers
Square Key
Fiber Handle
Figure 22.4 - Door Handle for Rectangular Door
Figure 22.2
Page 22
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
E. Tube Channel Assembly Replacement
4. Slide the tube channel assembly all the way to left until
it is off the threads. Drop the right side down, then slide
the assembly back to right.
Removing Tube Channel Assembly
1. Remove the right side bricks (4 pieces).
2. Remove the baffle protection channel by rolling forward
and out of the firebox.
3. Locate the 2 channel nuts and 1 bolt inside of chamber
and remove using a 7/16 socket wrench.
NOTE: Soak the bolts with penetrating oil for at least 15 minutes before trying to remove them.
5. The ceramic blanket and both baffle boards can be
removed at the same time you remove the tube channel
assembly.
6. When the tube channel assembly is free of the left side
support, rotate clockwise and pull assembly, blanket and
baffles out through the front opening.
7. Re-install in reverse order.
1
3 Tube Channel Nuts
2
3
Tube Channel
Assembly
4
Rotate and
remove from
firebox
1
1
1
4
Baffle Boards
Baffle Protection Channel
Ceramic Blanket
Figure 23.1
November 21, 2011
7044-140C
Page 23
R
3100-I ACC Wood Insert
Installer’s Guide
6
Getting Started
B. Draft
A. Design and Installation Considerations
Draft is the pressure difference needed to vent appliances
successfully. When a appliance is drafting successfully, all
combustion byproducts are exiting the home through the
chimney.
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building, fire officials or
authorities having jurisdiction about restrictions, installation
inspection, and permits.
Before installing, determine the following:
Considerations for successful draft include:
•
Preventing negative pressure
•
Location of appliance and chimney
To be sure that your appliance burns properly:
•
Type of chimney connector to be used
· single wall, 6 inch (152mm) diameter, stainless steel, or •
· double wall, 6 inch (152mm) diameter, stainless steel
Must be installed meeting type HT (2100°F) requirements •
per UL 1777 (USA) or ULC S635
• Consult page 28 for clearances to combustibles
• Power outlet located close by for optional blower
•
During a low burn, the chimney draft (static pressure) should
be approximately -.04 inch water column (W.C.)
During a high burn the chimney draft should be approximately
-.10 inch (W.C.)
Measure the W.C at 6 inches (152mm) above the top of the
appliance after one hour of operation at each burn setting.
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of the
appliance system caused by:
WARNING
Asphyxiation Risk.
• DO NOT CONNECT THIS UNIT TO A CHIMNEY
FLUE SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION
DUCT OR SYSTEM.
May allow flue gases to enter the house.
WARNING
•
Inadequate draft due to environmental conditions
•
Downdrafts
•
Tight sealing construction of the structure
•
Mechanical exhausting devices
•
Overdrafting caused by excessive chimney heights
•
Ideal performance is with height of chimney between
14-16 feet (4.26-4.88m) measured from the base of
the appliance.
Fire Risk.
•
•
•
•
•
•
•
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
Installation and use of any damaged appliance.
Modification of the appliance.
Installation other than as instructed by Hearth & Home
Technologies.
Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Operating appliance without fully assembling all
components.
Operating appliance without legs attached (if supplied with
unit).
Do NOT Overfire - If appliance or chimney connector glows,
you are overfiring.
Any such action that may cause a fire hazard.
Page 24
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
C. Negative Pressure
WARNING
Asphyxiation Risk.
• Negative pressure can cause spillage of combustion fumes, soot and carbon monoxide.
• Appliance needs to draft properly for safety.
Negative pressure results from the imbalance of air available
for the appliance to operate properly. It can be strongest in
lower levels of the house.
Causes include:
•
Exhaust fans (kitchen, bath, etc.)
•
Range hoods
•
Combustion air requirements for furnaces, water heaters
and other combustion appliances
•
Clothes dryers
•
Location of return-air vents to furnace or air conditioning
•
Imbalances of the HVAC air handling system
•
Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the effects of negative air pressure:
•
Install the outside air kit with the intake facing prevailing
winds during the heating season
•
Ensure adequate outdoor air for all combustion appliances
and exhaust equipment
•
Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
•
Avoid installing the appliance near doors, walkways or
small isolated spaces
•
Recessed lighting should be a “sealed can” design
•
Attic hatches weather stripped or sealed
•
Attic mounted duct work and air handler joints and seams
taped or sealed
•
Basement installations should be avoided
November 21, 2011
7044-140C
Page 25
R
3100-I ACC Wood Insert
D. Locating Your Stove & Chimney
•
Location of the appliance and chimney will affect performance. As shown in Figure 26.1 the chimney should:
Consider the appliance location in order to avoid
floor and ceiling attic joists and rafters.
•
Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
•
Install through the warm space enclosed by the building envelope. This helps to produce more draft, especially during lighting and die down of the fire.
•
Penetrate the highest part of the roof. This minimizes
the affects of wind turbulence and down drafts.
Recommended
Location
Your local dealer is the expert in your geographic area and
can usually make suggestions or discover solutions that will
easily correct your flue problem.
Recommended
Location
Marginal
Location
Location
Not
Recommended
Location NOT
Recommended
Windward
Outside Termination Cap
Leeward
Multi-level Roofs
Figure 26.1
E. Chimney Termination Requirements
Follow manufacturer’s instructions for clearance, securing
flashing and terminating the chimney.
• Must have an approved and Listed cap
• Must not be located where it will become plugged by
snow or other material
•
Must terminate at least 3 feet (91cm) above the roof
and at least 2 feet (61cm) above any portion of the
roof within 10 feet (305cm).
•
Must be located away from trees or other structures
NOTICE: Locating the appliance in a basement or in a location
of considerable air movement can cause intermittent smoke
spillage from appliance. Do not locate appliance near
•
Frequently open doors
•
Central heat outlets or returns
NOTICE:
•
•
•
Chimney performance may vary.
Trees, buildings, roof lines and wind conditions affect
performance.
Chimney height may need adjustment if smoking or
overdraft occurs.
Page 26
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
F. 2-10-3 Rule
These are safety requirements and are not meant to assure proper flue draft.
This appliance is made with a 6 inch (152mm) diameter chimney connector as the flue collar on the unit.
•
Changing the diameter of the chimney can affect draft and cause poor performance.
•
It is not recommended to use offsets and elbows at altitudes above 4000 feet above sea level and or when
there are other factors that affect flue draft.
Less than 10 ft. (305cm)
2 ft. (61cm)
2 ft. (61cm)
3 ft. (91cm)
Minimum
10 ft. (305cm) To Nearest Roofline
3 ft. (91cm)
Minimum
Pitched Roof
Figure 27.1
10 ft. (305cm) or more
Less than 10 ft. (305cm)
Wall or Parapet
2 ft. (61cm) Minimum
3 ft. (91cm) Minimum
3 ft. (91cm) Minimum
Flat Roof
Figure 27.2
November 21, 2011
7044-140C
Page 27
R
3100-I ACC Wood Insert
Pre-Use Check List
G. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
1.
Place the appliance in a location near the final
installation area and follow the procedures below:
2.
Open the appliance and remove all the parts and
articles packed inside the Component Pack. Inspect
all the parts and glass for shipping damage. Contact
your dealer if any irregularities are noticed.
Reciprocating saw
Framing material
Pliers
High temp caulking material
Hammer
Gloves
Phillips screwdriver
Framing square
3.
All safety warnings have been read and followed.
Flat blade screwdriver
Electric drill and bits
4.
This Owner’s Manual has been read.
Plumb line
Safety glasses
5.
Floor protection requirements have been met.
6.
Level
Tape measure
Venting is properly installed per vent manufacturing
instructions.
7.
The proper clearances from the appliance and chimney to combustible materials have been met.
8.
The masonry chimney is inspected by a professional
and is clean, or the factory built metal chimney is
installed according to the manufacturer’s instructions and clearances.
1/2-3/4 in. length, #6 or #8 self-drilling screws
Misc. screws and nails
H. Fire Safety
To provide reasonable fire safety, the following should be
given serious consideration:
1.
2.
Install at least one smoke detector on each floor of
your home to ensure your safety. They should be
located away from the heating appliance and close
to the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
9.
The chimney meets the required minimum height.
10.
All labels have been removed from the glass
door.
11.
Plated surfaces have been wiped clean, if applicable.
12.
A power outlet is available nearby for use of the
blower assembly.
A conveniently located Class A fire extinguisher
to contend with small fires resulting from burning
embers.
I. Inspect Appliance and Components
•
•
•
•
Remove appliance and components from packaging and
inspect for damage.
Vent system components and doors are shipped in
separate packages.
Report to your dealer any parts damaged in shipment.
Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety and
benefit.
WARNING
Fire Risk.
Inspect appliance and components for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
Page 28
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
7
Dimensions and Clearances
NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)
A. Appliance Dimensions
A
27-5/8 in (702mm)
23-13/16 in (589mm)
5-11/16 in (144mm)
CL
8-1/2 in (216mm)
5-1/2 in (140mm)
B
38-9/16 in (979mm)
Figure 29.1 Top View
Figure 29.2 Front View
Surround Sizes
A
B
Standard
43 in. (1092mm)
31 in. (787mm)
Large
51 in. (1295mm)
34 in. (864mm)
16-5/16 in. to 19-5/8 in.
(414mm to 498mm)
11-7/8 in. to 15-3/16 in.
(302mm to 386mm)
4 in.
(102mm)
23-1/4 in (591mm)
14-1/4 in
(362mm)
CL
24-3/16 in.
(614mm)
12-1/2 in
(318mm)
Figure 29.3 - Side View With Optional Offset Adapter
November 21, 2011
21-1/2 in
(546mm)
20-7/16 in
(519mm)
7-3/4 in (197mm)
26-3/4 in (679mm)
Figure 29.4 - Side View Without Optional Offset
Adapter
7044-140C
Page 29
R
3100-I ACC Wood Insert
B. Clearances to Combustibles, United States and Canada (UL and ULC)
Minimum Clearances to Combustible Material
USA and Canada
Masonry, Heat Exchanger & Zero
Clearance
21.5” (546)
Maximum Mantel Depth - 12" (305mm)
B
C
D
n/a
n/a
15” (381)
Mantel
MANTEL CLEARANCES
No Mantel Deflector
n/a
31” (787)
22” (559)
n/a
with Mantel Deflector (Figure 30.1)
n/a
21” (533)
21” (533)
n/a
FLOOR PROTECTION
USA
Floor height 0” to 6-1/2”
(6 to 165mm) below Insert Base
Fascia or Trim
C
Canada
E
F
E
F
18”
8”
18” (457)
12” (305)
16”
8”
18” (457)
12” (305)
Insert
A
D
Fuel Door
Floor height greater thant 6-1/2”
(165mm) below Insert Base
B
SideWall
A
E
F
Hearth Extension
THERMAL PROTECTION
Floor height 0” to 6-1/2”
See Figure 31.1
(6 to 165mm) below Insert Base
Floor height greater thant 6-1/2”
(165mm) below Insert Base
In Canada a full length 6 inch (152mm) S635 flue liner
required as per ULC S628.
USA and Canada
1-1/2 inch (38) of k = 0.49, R = 3.06
In USA a minimum 5 ft length (1.82m), 6 inch (152mm)
diameter flue liner is required as per UL 1482.
See Figure 31.2
1 inch (25) of k = 0.49, R = 2.04
*See Alternative Floor Protection Worksheet on page 31
Mantel
WARNING
Fire Risk.
• Do NOT operate appliance with the
Mantel Heat Deflector removed when
used for clearance reduction.
• Failure to comply may cause house fire.
21 in.
(533mm)
Optional
Mantel
Deflector
WARNING
Fire Risk.
• Comply with all minimum clearances to
combustibles as specified.
• Failure to comply may cause house fire.
NOTE: Clearances may only be reduced by means
approved by the regulatory authority having jurisdiction
Figure 30.1
Page 30
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
Zero Clearance Floor Thermal Protection
C. Calculating Alternate Floor Protection
Material
Thermal Conductivity: k value
The k value indicates the amount of heat (in BTU’s) that
will flow in 1 hour through 1 square foot of a uniform material 1 inch thick for each degree (F) of temperature difference from one side of the material to the other.
ZERO
CLEARANCE
ONLY
The LOWER the k factor means less heat is being conducted through the non-combustible material to the combustible material beneath it.
Required
Thermal
Protection
The k value of a material must be equal or smaller then the
required k value to be acceptable.
(BTU) (inch)
(foot2 (hour) (oF)
Thermal Resistance: R value
1-1/2 inch (38mm)
Adj. Hearth
Support
0 to 6-1/2 inch
(0 to 165mm)
The R value is a measure of a material’s resisteance
to heat transfer.
1 inch (25mm)
R value is convenient when more than one material is
used since you can add the R values together, whereas you can not do this for k value.
1-1/2 inch (38mm)
The HIGHER the R factor means less heat is being
conducted through the non-combustible material to
the combustible material beneath it.
Figure 31.1
The R value of a material must be equal or larger then
the required R value to be acceptable.
Converting k to R:
Divide 1 by k and multiply the results times the thickness
in inches of the material.
R = 1/k x inches of thickness
Converting R to k:
Divide the inches of thickness by R.
k = inches of thickness/R
Calculatons:
ZERO
CLEARANCE
ONLY
Example: Floor protection requires k value of 0.84 and 3/4
inch thick.
Required
Thermal
Protection
Alternative material has a k value of 0.6 and is 3/4 inch
thick.
Divide 0.6 by .75 = k value of 0.80. This k value is smaller
than 0.84 and therefore is acceptable.
1 inch (25mm)
1 inch
(25mm)
6-1/2 inch
(165mm)
Adj. Hearth
Support
1-1/2 inch (38mm)
Figure 31.2
November 21, 2011
7044-140C
Page 31
R
3100-I ACC Wood Insert
8
Chimney Systems
A. Venting Systems
D. Masonry Chimney
Chimney Connector:
• Must meet minimum standards of NFPA 211.
It is also known as flue pipe or stove pipe. It must be
6 inches (152mm) minimum diameter stainless steel
connector pipe and must be installed meeting type HT
(2100°F) requirements per UL 1777 (USA) or ULC S635.
• Must have at least 5/8 inch (16mm) fireclay lining joined
with refractory cement. (Installations into a clay flue
without a stainless steel liner may reduce draw which affects
performance, will cause the glass to darken and produce
excessive creosote).
Chimney:
The chimney can be new or existing, masonry or
prefabricated and must meet the following minimum
requirements as specified below.
WARNING! Risk of Fire!
Follow venting manufacturer’s clearances and
instructions when installing venting system.
B. Inspections
Existing chimneys should be inspected and cleaned by a
qualified professional prior to installation. The chimney
must not have cracks, loose mortar or other signs of deterioration and blockage. Hearth & Home recommends a
NFI or CSIA certified professional or a technician, under
the direction of a certified professional, conduct a Level II
inspection per NFPA 211.
• The masonry wall of the chimney, if brick or modular
block, must be a minimum of 4 inches (102mm) nominal
thickness.
• A chimney of rubble stone must be at least 12 inches
(305mm) thick.
• Cross-sectional area shall conform to NFPA 211-2006
Section 12.4.5.1.
• Should be lined with a 6 inch (152mm) stainless steel flue
liner to improve performance and reduce creosote buildup.
• An equivalent liner must be a listed chimney liner system
or other approved material.
• No dilution air is allowed to enter the chimney.
1. Secure the fireplace damper in the open position. If this
cannot be accomplished, it will be necessary to remove
the damper
2. Seal damper area of chimney around chimney connector
with a high temperature sealant or seal insert against
the face of the fireplace.
WARNING
Fire Risk
Inspection of Chimney:
• Chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be 6 inch
(152mm) UL103 HT.
3. Both methods must be removable and replaceable for
cleaning and re-installation.
• When possible, install an airtight clean-out door to the rear
of the smoke shelf.
NOTE
C. Larger Chimneys
•
It is recommended that chimneys with larger diameters
than 6 inches (152mm) be relined. An oversized flue
can affect draft and impair performance and will allow
increased build-up of creosote.
In Canada a full length 6 inch (152mm) S635 flue
liner required as per ULC S628.
•
In USA a minimum 5 ft length (1.82m), 6 inch
(152mm) diameter flue liner is required as per UL
1482.
NOTICE: Check with your local building authorities
and/or consult the National Fire Protection Association
(NFPA 211).
NOTE: This wood unit must be connected to a
code-approved masonry chimney with flue liner.
Page 32
NOTE: In Canada, this fireplace insert must be installed
with a continuous chimney liner of a 6 inch (152mm) diameter extending from the fireplace insert to the the top of the
chimney. The chimney liner must conform to the Class 3
requirements of CAN/ULC-S635, Standard for Lining Systems for Existing Masonry or Factory-Built Chimneys and
Vents, or CAN/ULC-S640, Standard for Lining Systems
for New Masonry Chimneys.
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
Masonry Chimney (Cont’d)
This insert conforms with the UL 1482 and ULC S628
(Canada) in all respects, and is approved to UL & ULC
safety standards for installation and use within a fireplace
with a masonry chimney in accordance with NFPA 211 and
CAN/CSA-B365-01.
NOTE
It is necessary to permanently seal any opening between
the masonry of the fireplace and the facing masonry.
NOTE: Installation into fireplaces without a permit will void
the listing.
UL 1777 Insulated Stainless Steel
Liner or Other Approved Lining System
Follow Manufacturer’s
Instructions for Maximum
Liner Extension Above
Chimney
Follow Manufacturer’s Instructions
on Insulation and Support
Maximum 30 Degrees
Offset in Chimney
For Zero or Other Non-Code Clearances,
Follow Approved Liner Manufacturer’s Specific
Insulation Requirements: Different Clearances
May Require Different Specifications
Masonry Chimney Must
Have Structural Integrity
UL 1777 Insulated Stainless Steel
Liner or Other Approved Lining System
Minimum 8 in. (203mm) Masonry
Thickness in Front of Smoke Chamber
Damper Plate Removed or
Fastened in Open Position
Minimum Clearance in Accordance
with Insert Listing
Floor Protection in
Accordance with Insert
Listing
Seal with Non-Combustible Material
Combustible Floor
Figure 33.1
November 21, 2011
Generic Insert Model Shown in Illustration
7044-140C
Page 33
R
3100-I ACC Wood Insert
E. Metal Heat Circulating Masonry
This insert conforms with the safety standard UL-1482 and
ULC S628 (Canada) in all respects and is approved to UL &
ULC safety standards for installation and use within a fireplace with masonry chimney, in accordance with NFPA 211,
with a direct flue collar connection.
•The original factory-built clearance fireplace chimney
cap must be re-installed after installing the approved
chimney liner meeting type UL 103 HT requirements
(2100°F) per UL 1777.
•If the chimney is not listed as meeting HT requirements,
or if the factory built fireplace was tested prior to 1998, a
full height listed chimney liner must be installed from the
appliance flue collar to the chimney top.
F. Prefabricated Metal Chimney
•The liner must be securely attached to the insert flue collar
and the chimney top.
The chimney can be new or existing, masonry or prefabricated
and must meet the following minimum requirements:
•The air flow of the factory-built zero-clearance fireplace
system must not be altered. The flue liner top support
attachment must not reduce the air flow for the existing
air-cooled chimney system.
• Must be minimum 6 inch (152mm) inside diameter of
high temperature chimney listed to UL 103 HT (2100oF)
or ULC S628.
•No dilution air is allowed to enter the chimney.
• Must use components required by the manufacturer for
installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation
•This insert is listed to UL 1482 Standard and is approved
for installation into listed factory-built zero clearance
fireplaces listed to UL 127 conforming to the following
specifications and instructions:
1. Secure the fireplace damper in the open position. If
this cannot be accomplished, it will be necessary to
remove the damper
2. Seal damper area of chimney around chimney
connector with a high temperature sealant or seal
insert against the face of the fireplace.
3. Both methods must be removable and replaceable
for cleaning and re-installation.
Flue Liner with Required Air Space
Stainless Steel Chimney Connector
Must Extend to Flue Liner
Minimum 8” (203mm) Masonry Thickness
in Front of Smoke Chamber
Airtight Insulated Clean-Out
Minimum Clearance in Accordance with
Insert Listing
Damper Plate Removed or
Fastened in Open Position
Floor Protection in
Accordance with Insert
Listing
Seal with NonCombustible Material
Combustible Floor
Figure 34.1
Generic Insert Model Shown in Illustration
Page 34
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
Prefabricated Metal Chimney (Cont’d)
H. Altering the Fireplace
Inches
Millimeters
Minimum Width of Cavity Opening - Front
28
711
Minimum Width of Cavity Opening - Rear
24
610
Minimum Height
22-1/2
572
Minimum Depth from Front to Rear
14-1/2
368
The following modifications of factory-built fireplaces are
permissible:
The following parts may be removed:
NOTE: Refer to chimney liner manufacturer for recommendations on supporting the liner. Installtion into
fireplaces without a permit will void the listing.
NOTICE: In Canada when using a factory-built chimney it must be safety listed, Type UL103 HT (2100oF)
[1149oC] CLASS “A” or conforming to CAN/ULCS629M, STANDARD FOR 650oC FACTORY-BUILT
CHIMNEYS.
Fire Risk.
When lining air-cooled factory-built chimneys:.
• Run chimney liner approved to UL 1777 Type
HT requirements (2100 degrees F)
• Re-install original factory built chimney cap
ONLY
• DO NOT block cooling air openings in chimney
• Blocking cooling air will overheat the chimney
All joints should be secured with 3 sheet metal screws or
rivets per pipe manufacturers instructions. The sections must
be attached to the insert and to each other with the crimped
(male) end pointing toward the insert. Figure 35.1.
Fire Grate
Viewing Screen/Curtain
Doors
External trim pieces which do not affect the operation
of the fireplace may be removed providing they can be
stored on or within the fireplace for reassembly if the
insert is removed.
• If the hearth extension is lower than the fireplace opening,
the portion of the insert extending onto the hearth must
be supported.
Manufacturer designed adjustable support kit can be
ordered from your dealer.
• Final approval of this installation type is contingent upon
the authority having jurisdiction.
WARNING
THIS FIREPLACE MAY HAVE BEEN ALTERED
TO ACCOMMODATE AN INSERT. IT MUST BE
RETURNED TO ITS ORIGINAL CONDITION
BEFORE USE AS A SOLID FUEL BURNING
FIREPLACE.
250-2061
250-2061
LINER CONNECTOR
CRIMPED
END
TOWARDS
STOVE
Ember Catches
• The permanent metal warning label provided in the
component pack must be attached to the back of the
fireplace, with screws or nails, stating that the fireplace
may have been altered to accommodate the insert,
and must be returned to original condition for use as a
conventional fireplace. This warning plate needs to be
placed in a readily visible location, should the fireplace
insert be removed. Figure 35.2.
•
G. Securing Chimney Components
Smoke Shelf or Baffle
• The fireplace must not be altered, except that the damper
may be removed to accommodate a direct-connect starter
pipe or chimney liner,
•
WARNING
Damper
Figure 35.2
FLUE
GAS
DIRECTION
Figure 35.1
WARNING! Risk of Fire!
Follow venting manufacturer’s clearances and instructions
when installing venting system.
November 21, 2011
7044-140C
Page 35
R
3100-I ACC Wood Insert
J. Ovalizing Round Stainless Steel Liners
I. Zero-Clearance Fireplace
Zero Clearance Fireplaces are factory-built insulated
metal fireplaces that are usually framed into the wall and
attached to combustible framing wood lumber. The term,
“Zero Clearance” refers to the fact that wood framing material can be in contact with the outer shell of the metal ZC
fireplace or zero air space required to combustibles.
The factory-built chimney must be listed per UL 127 or ULC
610-M87 for all installations. Install thermal protection per
this appliance listing requirements.
A permit is required for all installations, final approval is
contingent of the authority having local jurisdiction. Inspect
the existing fireplace and chimney for any damage or flaws
such as burnouts, metal or refectory warping.
The base and hearth floor of the zero clearance fireplace
must be able to appropriately support the weight of the
wood insert and attached chimney liner.
Make all necessary repairs prior to installing the new wood
insert into the factory built fireplace. The factory Zero
Clearance Fireplace must be structurally sound for proper
insert support and proper operation and continued use of
the wood insert.
A full height 6 inch diameter stainless steel full height listed
chimney liner must be installed meeting type HT (2100°F)
requirements per UL 1777 (USA) or ULC S635 with “0”
clearance to masonry (Canada). The full liner must be
attached to the insert flue collar and to the top of the existing chimney.
Ovalizing round stainless steel liners to accommodate the
liner passing through the damper region of a fireplace is an
allowable and acceptable practice.
Ensure that the ovalization is minimized to the extent
required to fit through the damper.
K. Chimney Height / Rise and Run
To be sure that your Quadra-Fire insert burns properly, the
chimney draft (static pressure) should be approximately -0.10
inches water column (W.C.) during a high burn and -0.04
inches W.C. during a low burn, measured 6 inches (152mm)
above the top of the insert after one hour of operation at each
burn setting.
NOTE: These are guidelines only, and may vary somewhat
for individual installations.
• This product was designed for and tested on a 6 inch
(152mm) chimney, 14 to 16 feet (4.27-4.87m) high, (includes appliance height) measured from the base of the
appliance.
• The further your stack height or diameter varies from this
configuration, the possibility of performance problems exists.
• Chimney height may need to be increased by 2 - 3% per
each 1000 feet (304.8m) above sea level.
• It is not recommended to use offsets or elbows at altitudes
above 4000 feet (1219.2m) above sea level or when there
are other factors that affect flue draft.
The flue liner top support attachment must not reduce the
air flow for the existing air-cooled chimney system. Reinstall original factory-built chimney cap only.
To prevent room air passage to the chimney cavity of the
fireplace, seal either the damper area around the chimney
liner or the insert surround. Circulating air chamber (i.e. in
a steel fireplace liner or metal heart circulator) may not be
blocked. The air flow within and around the fireplace shall
not be altered, blocked by the installation of the insert. (i.e.
no louvers or cooing air inlet or outlet ports may be blocked
by the insert or the insert surround.
See Page 35 “Altering the Fireplace” for modifiations
allowed for factory-built fireplaces.
DO NOT CONNECT THIS APPLIANCE TO
A CHIMNEY FLUE SERVICING ANOTHER
APPLIANCE OR TO ANY AIR DISTRIBUTION
DUCT OR SYSTEM.
Do NOT pack insulation or other combustibles
between spacers.
• ALWAYS maintain specified clearances around
venting and spacers.
• Install spacers as specified.
Failure to keep insulation or other material away from
vent pipe may cause fire.
WARNING
Fire Risk.
• Chimney heights exceeding 25 feet (7.62m) from
base of appliance may create an over-draft situation.
• Overdraft condition may create over-firing.
Over-firing may ignite creosote and/or damage appliance and chimney
This may allow flue gases to enter the house.
Page 36
Fire Risk.
This appliance relies upon natural draft to operate
properly.
WARNING! Risk of Asphyxiation!
•
WARNING
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
9
Appliance Set-up
A. Outside Air Kit Installation
A source of air (oxygen) is necessary in order for combustion to
take place. Whatever combustion air is consumed by the fire
must be replaced. Air is replaced via air leakage around windows and under doors. In homes that have tightly sealed doors
and windows, an outside air source is needed. An optional Outside Air Kit is available.
Items Needed for Installation (not supplied)
• 4 inch flex aluminum pipe, or if using alternate material,
then it shall be made from durable, non-combustible, heat
resistant material up to 350oF. Cut the pipe to the required
length for your installation.
• Phillips head screw driver
• Silicone sealant
Option One - Installation Instructions
The rectangular outside air cover comes packaged with the side
panels. It is necessary to remove the right side panel and block
off the room air with the rectangular ouside air cover.
WARNING
Fire Risk.
Asphyxiation Risk.
Do not draw outside combustion air from:
•
•
•
Wall, floor or ceiling cavity
Enclosed space such as an attic or garage
Close proximity to exhaust vents or
chimneys
Fumes or odor may result
WARNING
Asphyxiation Risk.
Outside air inlet must be located to prevent blockage from:
• Leaves, snow, ice or other debris
Block may cause combustion air starvation
Smoke spillage may set off alarms or irritate sensitive individuals.
1. Remove the outside air cover plate on outer can and discard
and reuse the 4 screws.
2. Install optional flex adapter to outer can with the same
screws. Do not use plastic wire ties that come with the kit as
they will melt. NOTE: You may need to install the flex pipe
into the firebox first depending on installation. Attach flex to
adapater with at least 2 screws.
3. Ensure existing access hole in fireplace is sufficient to feed
the 4 inch flex.
WARNING
Asphyxiation Risk.
Length of outside air supply duct shall NOT exceed
the length of the vertical height of the exhaust flue.
• Fire will not burn properly
• Smoke spillage occurs when door is opened due
to air starvation.
4. After sliding can into fireplace, feed flex into cut opening to
obtain outside combustion air.
5. Level outer can and install appliance. See page 40.
Outside Air
Cover Plate
6. Remove 2 screws from right side panel and remove panel.
(Discard)
7. Remove 6 nuts securing metal screen to back of panel.
8. Attach rectangular outside air cover over the metal screen
using the same 6 nuts.
9. Ensure all wires are properly attached and then re-install
side panel.
Flex Adapter
Option Two - Installation Instructions
Termination
Cap
Rectangular Outside Air
Cover (included with Side
1. Remove the outside air cover plate on outer can and discard
and reuse the 4 screws
Panel Assembly)
2. Ensure existing acces hole in fireplace will not be covered by
the outer can. Existing outside air intake hole may be under
at the rear or side of outer can. Outside air may also enter
down existing chimney chase in some situations.
3. Repeat steps 5 through 9 above with one exception. After
installing the appliance in the outer can, seal the fireplace
opening and trim package with insulation to prevent air leakage into the room.
November 21, 2011
7044-140C
Figure 37.1
Page 37
R
3100-I ACC Wood Insert
B. Disassemble Firebox and Outer Can
For easier field installation the outer can is installed without the firebox so connecting to the flue has greater access.
The firebox slides into the outer can once the flue collar is
attached to the stove pipe/liner and optional outside air flex
pipe is installed.
1. Remove the flue collar by cutting the wire ties. Set the
flue collar and attachment bar aside.
2. Remove the 2 screws holding the timer assembly in place
and remove the timer. Figure 38.1.
3. Remove the 2 Phillips head bolts underneath the ashlip
which holds the firebox in place.
Timer Screws
4. Slide the firebox out of the outer can.
5. Remove the 2 pallet lag bolts.
Figure 38.1
Flue Collar
Attachment Bar
Outer Can
Pallet
Lag
Bolts
Timer Assembly
Firebox
Phillips Head Bolts
Figure 38.2
Page 38
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
C. Securing Stove Pipe/Liner to Flue Collar
Cast Iron Flue Located on Appliance
1. There are 4 pre-drilled holes in the flue collar 90 degrees
apart. Attach the flue collar to the stove pipe/liner. If the
seal is questionable use stove mastic Figure 39.1.
2. Attach gasket to bottom side of flue collar with a thin coat
of silicone.
Drill through all 8 countersunk
locations
Figure 39.2
Gasket
Flue Collar
Stove Pipe/Liner
Figure 39.1
D. Optional Offset Adapter Installation
In some installations the flue collar and stove pipe/liner do
not always align properly. This situation may be remedied
by using the optional offset adapter. See Appliance Dimensions page for the amount of distance this accessory can
telescope between the flue collar and stove pipe/liner.
Figure 39.3
1. Remove the cast iron flue collar from the appliance and
flip it upside down. Using the larger #7 drill bit supplied,
drill through all 8 countersunk locations. Figure 39.2.
2. Slide the gasket over the the flue collar and attach it to the
offset adapter using the 8-32 flathead screws provided.
Figure 39.3.
3. Adjust the offset adapter to desired distance. Drill holes
through the lower chamber as shown in Figure 39.4 using
the small drill bit #26 provided.
4. Cut the gasket to the proper length and slide in between
the upper and lower chambers centered on the screw
holes. Attach the upper and lower chambers with screws
provided. Figure 39.5.
Once distance is established, drill holes
and secure both chambers together.
Figure 39.4
5. Repeat the process on the bottom side.
Figure 39.5
November 21, 2011
7044-140C
Page 39
R
3100-I ACC Wood Insert
E. Installing Outer Can & Leveling Bolts
F. Surround & Trim Kit Installation
1. Align the back of surface of outer can side panels to the
front wall surface for proper placement. Figure 40.2.
Use the leveling bolts to level the outer can. Figure 40.1.
1. Lay surround face down on a protected surface to prevent scratching.
3. Thread the horizontal support bolts in until they hit the
back wall of the fireplace to help secure in place. Figure
40.3.
4. It is recommended that you use the pallet mounting holes
to lag the outer can into the fireplace floor for extra support, however it is not required.
2. Using a Phillips head screw driver attach the side surrounds to the top surround using 2 #8 sheet metal screws
provided with the kit. Figure 40.4.
3. Lay the trim face down and place the corner brackets into
position.
4. Using a standard flat screw driver tighten the corner
brackets. Figure 40.5.
5. Slide the trim over the surround set.
6. Install the surround set and trim set to the outer can.
Secure the top and side surrounds as shown in Figure
40.6
Outer Can Side Panels
Wall
Horizontal
Support Bolts
Wall
Secure 2 Side Surrounds to
Top Surround
Attachment Holes to Outer Can
Leveling Bolts
Figure 40.1
Figure 40.4
Wall
Outer Can
Side Panel
Corner Brackets
Figure 40.5
Top Surround
Figure 40.2
Side Surround
Back Wall
# 8 Screws
Horizontal Support
Bolts
Figure 40.6
Figure 40.3
Page 40
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
G. Installing Firebox into Outer Can
H. Securing Appliance to Stove Pipe/Liner
For easier installation, remove the baffle protection channel, tube channel assembly, baffle board and ceramic blanket from the appliance before installing into the outer can.
See pages 22-23 for instructions.
1. Once you have the appliance in place and secured, reach
up through the flue opening and grab the attachment bar
and pull down inside flue opening. Figure 41.3.
1. Slide the appliance into the outer can. Secure with
Phillips head bolts previously removed from under the
ashlip. Figure 41.1.
2. Insert the 5/16 bolts inside the cast flue and through the
chimney mounting bar. Securely tighten the nuts. Fasteners are provided.
3. Re-install the tube channel assembly, baffle board,
ceramic blanket and baffle protection channel.
2. Re-install the timer assembly. The timer arm must be
between the first and second control arm tabs. Figure
41.2.
Attachment Bar
3. Attach the timer arm to the timer door.
Chimney Mounting Bar
4. Test the controls to ensure the timer operates correctly.
Figure 41.3
Phillips Head Bolts
Figure 41.1
Timer Arm
Timer Door
Control Arm Tabs
Figure 41.2
November 21, 2011
7044-140C
Page 41
R
3100-I ACC Wood Insert
I. Snap Disc and Side Panel Installation
4. Tilt the side panel forward under the top and push the
panel onto the pegs on the face.
1. Place snap disc box in location shown in Figure 42.1.
2. Secure the wires through the wire clip to keep in place.
5. Attach the side panel to the appliance with 2 screws, 1 at
the top and 1 at the bottom on the right side of panel.
3. Route the blower wires underneath appliance through
the wire channel to the other side of the appliance.
6. Repeat for other side once the blower has been
installed.
Side Panel
Screws
Face Pegs
Wire Clip
Blower Wires
Wire Channel
Snap Disc Box
Figure 42.1
J. Blower Installation
1. Remove top and bottom screw from inner panel.
2. Slide blower mount with blower attached behind the
face and secure with 5 screws provided, 3 on the right
side and 2 on the left. Figure 42.2.
3. Connect the blower to the wire harness and secure
through the wire clip.
4. Install left side panel.
Blower
Mounting
Screws
Left Side
Panel Screws
CAUTION
Shock Risk.
• Do NOT remove grounding prong from plug.
• Plug directly into properly grounded 3 prong
receptacle.
• Route cord away from appliance.
• Do NOT route cord under or in front of appliance.
Page 42
Inner Panel
Wire Clip
Figure 42.2
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
K. Blower Cord Installation on Left Side
Green Ground
Wire & Nut
The blower cord is shipped to be installed on the right side
of the appliance. You may relocate the cord so it is on the
left side. You will need to remove the wires, flip them over
and remove and reverse the male and female terminals
and re-install the wires. The wire harness and components
are located on the back side of the right side panel.
Strain
Relief
Disconnect wires
from wire harness
Relocating Blower Cord to Left Side
Figure 43.1
1. Remove the green ground terminal from the stud and
unhook the neutral (white) and line power wires from the
rest of the harness. Figure 43.1.
Clip all 3 zip ties
2. Re-install the nut on the stud after removal of the ground
terminal.
3. Remove the strain relief from the side panel by gently
pressing in the tabs using needle nose pliers on the wire
harness side portion the strain relief.
Male Spade
Terminal
4. Identify the wire with the male spade terminal (this was
originally connected to the white (neutral) lead on the
power cord) and carefully clip the three small zip ties
that connect it to the rest of the harness. Figure 43.2
Figure 43.2
Male Terminal Wire 5
inches (127mm) Longer
5. Once this wire is removed from the harness reverse
the wire so that the female spade terminal is pointing
towards the rest of the harness.
6. Re-attach this wire using the small zip ties supplied in
roughly the same locations that you removed earlier.
Leave the male spade terminal 5 inches (127mm) longer
than the female spade terminal that is already attached
to the harness. Figure 43.3.
Male Terminal
Female Terminal
Figure 43.3
7. Attach the female spade terminal to the black wire that
comes out of the speed control. Figure 43.4.
Speed
Control
8. Route the long lead wires from the right side of the unit
in the wire channel that is under the unit.
9. Install the blower. See page 42 for details.
10. On the left side panel attach the power cord strain relief
into the hole that is located on the lower left. Attach the
ground terminal to the stud that is located nearest the
power cord. Figure 43.5.
Attach Female Terminal
to Black Wire
Figure 43.4
11. Attach the white lead (neutral) directly to one of the
leads coming off the blower. Attach the other blower
lead to the female spade connector to the harness that
is routed under the unit. Attach the male spade connector on the harness to the black power wire (line).
Route the wires into the wire clip that is located on the
blower mount plate. Figure 43.5.
Strain Relief
White (neutral) Wire
12. Attach the left and right side panels.
Green Ground
Wire & Nut
Figure 43.5
November 21, 2011
7044-140C
Page 43
R
3100-I ACC Wood Insert
EXPLODED VIEW OF SCISSORS
L. Zero Clearance Adjustable Trim Support,
2” to 10”
Part No. 841-0990, size 9” x 45” and
Part No. ADJSPT-12, size 12” x 50”
SCREWS ARE CIRCLED
Included in Kit: (1) Trim Top, (1) Trim Front, (2) Trim Sides,
Double-Sided Tape (already installed)
DOUBLE-SIDED TAPE
Tools Needed: Phillips Head Screwdriver, Sheet Metal
Shears, Measuring Tape, Gloves
DOUBLE-SIDED TAPE
Figure 43.1
1. The 10 screws on each set of scissors will already be
loose when shipped. Figure 44.1.
EXPAND SCISSORS TO DESIRED HEIGH T
2. Expand scissors to desired height. Tighten screws
to hold in place using Phillips Head screwdriver. See
Figure 44.2.
3. Measure front and side trims to required height to
cover scissors and mark pieces for cutting. Cut
excess material from top of trim’s edge, not bottom.
This edge will be sharp; wear gloves to prevent injury
to your hands. Figure 44.2.
4. Using sheet metal shears, cut trim along the marked
edge. The cut edge fits under lip of top trim, so it allows
for some variance in your straight edge.
INSTALL FRONT TRIM LAST.
CORNERS OVERLAP SIDE
TRIM PIECES
CUT TOP EDGE OF TRIM,
NOT BOTTOM EDGE
Figure 44.2
5. The double-sided tape that holds front and side trims
to scissors has a particularly powerful bonding adhesive. Adjustments are extremely difficult once trim has
adhered to tape. Do a dry run first without removing
paper from tape.
Decorative tile may
be installed
6. Place cut edge of trim under top lip and into position
on scissors. Place side pieces on first and then front
piece. The front piece overlaps side pieces. NOTE:
The trim in the Flush Mount Kit is one piece.
7. Once you are satisfied with the positioning, remove
trim and set aside.
8.
Figure 44.3
Remove the paper from double-sided tape that is
to accept trim side. Align side and then press hard
against tape to secure side piece. Repeat for other
side. Install front trim piece last.
9. There are 3 holes in the back flange of the top to secure
it to the wall if necessary. Use the appropriate fastener
for the type of wall material, i.e., brick, sheetrock, etc.
NOTE: 3/8” ( 9.5mm) thick tile or like material can be cut
to size and fit under lip of top trim edge for a decorative touch. Figure 44.3.
10. Thermal protection of 1-1/2 inches (38mm), “k” value of
0.49 and R value of 3.06 under the zero-clearance trim
support. Figure 44.4.
Page 44
7044-140C
Thermal
Protection
Figure 44.4
November 21, 2011
R
3100-I ACC Wood Insert
10
1.
Mobile Home Installation
An outside air inlet must be provided for combustion and
must remain clear of leaves, debris, ice and/or snow. It
must be unrestricted while unit is in use to prevent room
air starvation which can cause smoke spillage and an
inability to maintain a fire. Smoke spillage can also set
off smoke alarms.
2.
Unit must be secured to the mobile home structure at
two attachment points. Remove bolts from each side
of insert and use plumbers tape to secure to structure (a
washer may be required). Re-install bolts.
3.
Unit must be grounded with #8 solid copper grounding
wire or equivalent and terminated at each end with N.E.C.
approved grounding device.
4.
The factory-built fireplace must meet (UM)84-HUD
requirements for outside combustion air supply to the
fireplace fire chamber and the chimney must be listed to
UL103 HT or a listed UL-1777 full length six inch (152mm)
diameter liner must be used. It must be equipped with a
spark arrestor cap and the outside air must be installed
on the insert.
5.
Refer to page 30 of this manual for clearance to
combustibles and floor protections requirements. All
clearances must be followed precisely.
6.
Use silicone to create an effective vapor barrier at the
location were the chimney or other component penetrates
to the exterior of the structure.
7.
10. Burn wood only. Other types of fuels may generate
poisonous gases (e.g., carbon monoxide).
11. If unit burns poorly while an exhaust blower is on in
home, (i.e., range hood), increase combustion air.
12. Installation shall be in accordance with the Manufacturers
Home & Safety Standard (HUD) CFR 3280, Part 24.
Spark Arestor Cap
Storm Collar
Roof Flashing
Joist Shield/Firestop
Figure 45.1
Follow the chimney and chimney connector manufacturer’s
instructions when installing the flue system for use in a
mobile home.
WARNING
NOTICE:
• Offsets from the vertical, not exceeding 45°, are allowed
per Section 905(a) of the Uniform Mechanical Code
(UMC).
• Offsets greater than 45° are considered horizontal and are
also allowed, providing the horizontal run does not exceed
75% of the vertical height of the vent.
Fire Risk.
Asphyxiation Risk.
Do not draw outside combustion air from:
• Wall, floor or ceiling cavity
• Enclosed space such as an attic or garage
•
•
Double Wall
Connector Pipe
Construction, clearance and termination must be in compliance with the UMC Table 9C. This installation must also
comply with NFPA 211.
Fumes or odor may result
NOTICE: Top sections of chimney must be removable to allow
maximum clearance of 13.5 feet (411cm) from ground level
for transportation purposes.
WARNING
Asphyxiation Risk.
• NEVER INSTALL IN A SLEEPING ROOM.
Consumes oxygen in the room.
November 21, 2011
Close proximity to exhaust vents or chimneys.
CAUTION
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED
Do NOT cut through:
• Floor joist, wall, studs or ceiling trusses.
• Any supporting material that would affect the structural integrity.
7044-140C
Page 45
R
3100-I ACC Wood Insert
11
Reference Materials
A. Exploded Drawings
28
27
1
26
25
2
3
5
4
24
23
22
6
7
21
20
19
9
8
10
18
11
17
15
16
12
13
14
Part number list on following page.
Figure 46.1
Page 46
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
ITEM
DESCRIPTION
Stocked
at Depot
COMMENTS
PART NUMBER
1
Offset Adapter
OFFSET-ADAPT
2
Flue Attach Ring
SRV7044-154
3
Gasket, Flue Collar
SRV7044-194
4
Chimney Ring Attach
SRV7044-181
5
Mantel Heat Deflector
6
Tube Support Rack
SRV7044-187
7
Brick Retainer
7033-149
MANTEL-DFLCTR
Y
#8 Brick Assembly
8.1
8.1
8.1
8.1
8.1
8.1
8.4
8.2
8.2
8.1
8.1
8.1
8.1
8
8.1
8.2
Firebrick Complete Set
8.1
8.2
8.3
Pkg of 18
8.1
Brick 1 (9” x 4.5” x 1.25”)
Qty. 12 Req.
8.2
Brick 2 (6-4 1/2)
Qty. 4 Req.
8.3
Brick 3, (9” x 4.25” x 1.25”) Left Side with angle
Qty. 1 Req.
8.4
Brick 4, (9” x 3’ x 1.25”) Right side with angle
Qty. 1 Req.
Brick, Uncut (9” x 4.5” x 1.25”)
Pkg of 1
832-0550
Brick, Uncut, (9” x 4.5” x 1.25”)
Pkg of 6
832-3040
9
Ceramic Fiber Blanket, 1/2 “ Thick
10
Baffle Board
11
Tube Channel Assembly
Pkg of 2
Black
12
SRV7033-006
Side Panel Assembly Left
Logo, Quadra-Fire
832-3390
Y
SRV7033-209
Y
SRV7044-019
Y
SRV7044-025
Gold Trim
SRV7044-011
Nickel Trim
SRV7044-023
Gold
200-3180
Nickel
200-3240
Side Panel Left
SRV7044-139
Trim Ring
Black Trim
SRV7044-166
Gold Trim
SRV7044-164
Nickel Trim
SRV7044-165
Additional service part numbers appear on following page.
04/11
November 21, 2011
7044-140C
Page 47
R
3100-I ACC Wood Insert
#13 Rectangular Door Assembly
13.8
13.7
13
13.6
13.5
13.4
13.1
13.3
13.2
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
ITEM
13
DESCRIPTION
COMMENTS
Door Assembly’, Rectangular
13.1
Washer, Sae, 3/8
13.2
Stocked
at Depot
PART NUMBER
DR-31RCT
Pkg of 3
832-0990
Y
Door Handle, (Rectangular Door)
SRV7044-188
Y
13.3
Fiber Handle
SRV433-1380
Y
13.4
Glass Assembly
SRV7044-027
Y
13.5
Key, Cam Latch
430-1151
13.6
Cam Latch
430-1141
13.7
Nut, Locking Door Handle
13.8
Glass Frame Set
SRV7044-191
Component Pack (Includes Gold Spring Handles (1) 1/2” &
(2) 1/4”, (2) Gold Hinge Pins, Quadra-Fire Logo
436-5350
Pkg of 24
Gasket, Glass Tape, 3/4”
5 Ft Length
Logo, Quadra-Fire
226-0100/24
832-0460
Y
Y
200-3180
Rope, Door, 3/4” X 84”
7 Ft Length
832-1680
Y
Additional service part numbers appear on following page.
Page 48
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
#14 Standard Door Assembly
14
14.9
14.1
14.8
14.7
14.5
14.2
14.6
14.4
14.3
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
ITEM
14
DESCRIPTION
COMMENTS
Door Assembly, Standard
Stocked
at Depot
PART NUMBER
Black
832-1092
Gold Trim
832-1912
Nickel Trim
DR-31/43NL
Gold (Pkg of 2)
832-0250
14.1
Hinge Pins, 1/2”
14.2
Door Handle Only
14.3
Spring Handle, 1/2”
14.4
Trim, Ring, Door
14.5
Door Glass Assembly - 15.5 W x 11.38 H
7000-012
14.6
Glass Frame Set
832-0350
14.7
Key, Cam Latch
430-1151
14.8
Cam Latch
430-1141
14.9
Nut, Locking Door Handle
Nickel (Qty 2 req) 430-5320
430-1131
Gold
832-0620
Y
Nickel
250-8330
Y
Gold
430-2682
Nickel
430-5340
Pkg of 24
Door Handle Assembly
Y
226-0100/24
Y
832-0540
Y
Gasket, Glass Tape, 3/4”
5 Ft Length
832-0460
Y
Rope, Door, 3/4” X 84”
7 Ft Length
832-1680
Y
Screw, Flat Head Philips 8-32 X 1/2
Pkg of 10
832-0860
Y
Upgrade, Door, Nickel
UK-DRNL
Washer, Sae, 3/8
November 21, 2011
Pkg of 3
7044-140C
832-0990
Y
Page 49
R
3100-I ACC Wood Insert
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
ITEM
DESCRIPTION
COMMENTS
Stocked
at Depot
PART NUMBER
15
Blower Replacement
SRV7044-210
16
Blower Mounts (Shield & Plate)
SRV7044-122
17
Side Panel Assembly Right
18
Black Trim
SRV7044-024
Gold Trim
SRV7044-010
Nickel Trim
SRV7044-022
Side Panel Cover Plate
SRV7044-138
Side Panel Right
SRV7044-137
Screen
SRV7044-151
Y
Blower Control Plate Assembly
SRV7044-015
Blower Control Label
SRV7014-183
Knob, Speed Control
200-2041
Y
Magnet Round
SRV7000-140
Y
Rocker Switch (Round)
SRV7000-515
Y
Snap Disc, # 1, Convection Blower
SRV230-0470
Y
Speed Control Only (Rheostat)
842-0370
Y
Wire Harness
SRV7044-182
Y
#29 Baffle Protection Channel
Front, looking into unit.
Side view
Ceramic blanket
Baffle protection channel sits
in between front tube and
fiber baffle.
Fiber baffle
This tab sits behind the front tube.
19
Baffle Protection Channel
SRV7033-298
20
Rear Channel Assembly
7033-002
Y
#21 Burn Rate Control & Associated Parts
21.1
21.6
21.5
21.2
21.4
21.3
21.1
Burn Rate Control Assembly
SRV7044-037
Y
21.2
Timer Door Assembly
SRV7044-020
Y
7033-282
Y
32284/2
Y
Door Gasket, ACC Timer
21.3
Knob
Pkg of 2
21.4
Timer (Only) Replacement Assembly
SRV480-1940
Y
21.5
Timer Control Arm Assembly
SRV7044-002
Y
21.6
Rear Air Control Arm Assembly
SRV7044-003
Y
Additional service part numbers appear on following page.
Page 50
7044-140C
November 21, 2011
R
3100-I ACC Wood Insert
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
ITEM
DESCRIPTION
COMMENTS
Stocked
at Depot
PART NUMBER
22
Tube Chamber Cover Plate
SRV7044-183
23
Tube Inlet Box
SRV7044-160
24
Outer Can Bottom
SRV7044-109
25
Front Panel
SRV7044-120
26
Outside Air Cover Plate
SRV7044-217
27
Outer Can Back
SRV7044-118
28
Outer Can Top
SRV7044-110
Component Pack (Includes Touch-Up Paint, Warranty
Card, Owners Manual & “If Fireplace Altered” Label)
SRV7044-018
Gasket, Manifold
Pkg of 4
Paint Touch-Up
7038-168/4
Y
812-0910
ACCESSORIES
Adjustable Hearth Support - 12 in x 50 in, 2-10” H
ADJSPT-12
Black
SDPNL-31I-BK
Gold Trim
SDPNL-31I-GD
Nickel Trim
SDPNL-31I-NL
Surround, Large
51” x 34”
SP-31IACC-LRG
Surround, Standard
43” x 31”
SP-31IACC-STD
Side Panel (W/Blower)
Component Pack
SRV7044-036
Surround Trim Assembly 43 X 31
Surround Trim Assembly 51 X 34
Black
TRIMKIT-4331-BK
Gold
TRIMKIT-4331-GD
Nickel
TRIMKIT-4331-NL
Black
TRIMKIT-5134-BK
Gold
TRIMKIT-5134-GD
Nickel
TRIMKIT-5134-NL
FASTENERS
Avk Rivnut Repair Kit - 1/4-20 & 3/8-16 Rivnut Tools
RIVNUT-REPAIR
Y
Bolt, Shoulder, 5/16X 1/4-20
Pkg of 20
223-0170/20
Y
Nut, Ser Flange Small 1/4-20
Pkg of 24
226-0130/24
Y
Screw, Pan Head Philips 8-32 X 3/4
Pkg of 24
229-1100/24
Y
Screw, Pan Head Philips 8-32 X 3/8
Pkg of 40
225-0500/40
Y
Screw, Sheet Metal #8 X 1/2 S-Grip
Pkg of 40
12460/40
Y
04/11
November 21, 2011
7044-140C
Page 51
R
CONTACT INFORMATION:
Hearth & Home Technologies
1445 North Highway
Colville, WA 99114
Division of HNI INDUSTRIES
Please contact your Quadra-Fire dealer with any questions or concerns.
For the number of your nearest Quadra-Fire dealer,
log onto www.quadrafire.com
CAUTION
DO NOT DISCARD THIS MANUAL
• Important operating
and maintenance
instructions included.
• Read, understand and
follow these instructions
for safe installation and
operation.
D
O
ISC NO
AR T
D
D
• Leave this manual with
party responsible for
use and operation.
We recommend that you record the following pertinent
information for your 3100-I Wood Insert (ACC)
Date purchased/installed:
Serial Number:
Location on appliance:
Dealership purchased from:
Dealer phone:
Notes:
This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876, 4793322, 4811534,
5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495, 5452708, 5542407,
5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112, 5996575, 6006743, 6019099,
6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579,
6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942, 6769426, 6774802, 6796302, 6840261, 6848441, 6863064,
6866205, 6869278, 6875012, 6880275, 6908039, 6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408,
2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending.
Page 52
7044-140C
November 21, 2011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
