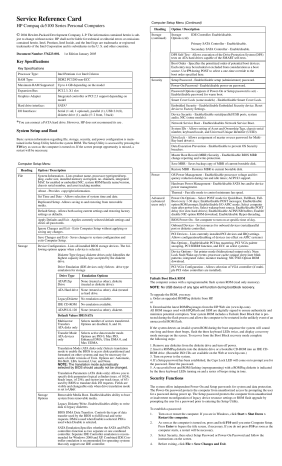

Service Reference Card
HP Compaq dc5100 Series Personal Computers
© 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. HP shall not be liable for technical or editorial errors or omissions
contained herein. Intel, Pentium, Intel Inside, and the Intel logo are trademarks or registered
trademarks of the Intel Corporation and its subsidiaries in the U. S. and other countries.
Document Number 376223-001.
Computer Setup Menu (Continued)
Heading
Storage
(continued)
Primary SATA Controller - Enable/disable.
Secondary SATA Controller - Enable/disable.
1st Edition January 2005
DPS Self-Test - Allows execution of the Drive Protection System (DPS)
tests on ATA hard drives capable of the SMART self-tests.
Key Specifications
Boot Order - Specifies the prioritized order of potential boot devices.
Each entry may be included or excluded from consideration as a boot
source. Use F9 during POST to select a one-time override to the
boot order specified here.
Key Specifications
Processor Type:
Option / Description
Storage
IDE Controller. Enable/disable.
Options (ctd)
Intel Pentium 4 or Intel Celeron
RAM Type:
DDR2 PC3200 non-ECC
Maximum RAM Supported:
Up to 4 GB depending on the model
Power-On Password - Enable/disable power-on password.
Expansion Bus:
PCI 2.3, X1 slot
Graphics Adapter
Integrated controller or PCI 2.3 support depending on
model
Password Options (appears if Power-On or Setup password is set) Enable/disable password for warm boot.
Hard drive interface:
SATA*
I/O Interfaces:
Serial (1 std, 1 optional), parallel (1), USB 2.0 (8),
diskette drive (1), audio (5: 2 front, 3 back)
Security
Setup Password - Enable/disable setup (administrator) password.
Smart Cover Lock (some models) - Enable/disable Smart Cover Lock.
Embedded Security - Enable/disable Embedded Security device. Reset
device to Factory Settings.
Device Security - Enable/disable serial/parallel/USB ports, system
audio, NIC (some models).
*You can connect a PATA hard drive. However, HP does not recommend its use .
Network Service Boot - Enables/disables Network Service Boot.
System Setup and Boot
System IDs - Allows setting of Asset and Ownership Tags, chassis serial
number, keyboard locale, and Universal Unique Identifier (UUID).
DriveLock - Allows assignment of master or user password for MultiBay hard drive(s).
Basic system information regarding file, storage, security, and power configuration is maintained in the Setup Utility held in the system ROM. The Setup Utility is accessed by pressing the
F10 key as soon as the computer is turned on. If the screen prompt opportunity is missed, a
restart will be necessary.
Data Execution Prevention - Enable/disable to prevent OS Security
breaches.
Master Boot Record (MBR) Security - Enable/disable BIOS MBR
change reporting and write-protection.
Computer Setup Menu
Heading
File
Save MBR - Saves backup copy of MBR of current bootable disk.
Restore MBR - Restores MBR to current bootable disk.
Option / Description
System Information - Lists product name, processor type/speed/stepping, cache size, installed memory size/speed, no. channels, integrated
MAC for enabled or embedded NIC, system ROM/family name/version,
chassis serial number, and asset tracking number.
Power
Hardware Power Management - Enable/disable SATA bus and/or device
power management.
About - Provides copyright information.
Set Time and Date - Allows selection of system time and date.
Replicated Setup -Allows saving to and restoring from removable
media.
Thermal - Fan idle mode to control minimum fan speed.
Advanced
(advanced
users only)
Default Setup - Allows both saving current settings and restoring factory
settings as defaults.
Onboard Devices - Set resources for onboard devices (serial/parallel
port or diskette controller).
Ignore Changes and Exit - Exits Computer Setup without applying or
saving any changes.
PCI Devices - Lists currently installed PCI devices and IRQ settings.
Allows configuration/disabling of devices (no effect on APIC systems)
Save Changes and Exit - Saves changes to system configuration and
exits Computer Setup.
Bus Options - Enable/disable PCI bus mastering, PCI VGA palette
snooping, PCI SERR# function, and ECC on select systems.
Device Configuration - Lists all installed BIOS storage devices. The following options appear when a device is selected.
Diskette Type (legacy diskette drives only) Identifies the
highest capacity media type accepted by the diskette
drive.
Device Options - Set printer mode (bidirectional output only); Num
Lock State;Wake-up events; processor cache; unique sleep state blink
patterns; integrated video; monitor tracking; NIC PXE Option ROM
download.
Drive Emulation (IDE devices only) Selects drive type
emulation for storage
PCI VGA Configuration - Allows selection of VGA controller (if multiple PCI video controllers are installed).
Drive Type
ATAPI Zip
Drive
Emulation Options
None (treated as other), diskette
(treated as diskette drive).
ATA Hard drive None (treated as other), disk (treated
as hard drive.
LegacyDiskette No emulation available.
IDE CD-ROM
No emulation available.
ATAPI LS-120
None (treated as other), diskette.
Default Values IDE/SATA
Multisector
Transfers
ATA disks only
Selects number of sectors transferred.
Options are disabled, 8, and 16.
Transfer Mode
ATA devices
only
Selects active data transfer mode.
Options are PIO 0, Max PIO,
Enhanced DMA, Ultra DMA 0, and
Max UDMA.
Translation Mode (ATA disks only) Selects translation
mode to enable the BIOS to access disks partitioned and
formatted on other systems and may be necessary for
users of older versions of Unix. Options are: Automatic,
Bit-Shift, LBA Assisted, User, and None.
NOTE: The translation mode automatically
selected by BIOS should usually not be changed.
Translation Parameters (ATA disks only) Allows you to
specify disk parameters logical cylinders (max. of 1024),
heads (max. of 256), and sectors per track (max. of 63)
used by BIOS to translate disk I/O requests. Fields are
visible and changeable only when drive translation mode
is set to User.
Storage
Options
Power-On Options - Select POST mode for QuickBoot, FullBoot, FullBoot every 1-30 days; Enable/disable POST messages; Enable/disable
option ROM prompt; Enable/disable I/O APIC mode; Select computer
state after power loss; Select wakeup boot source; Enable/disable POST
delay (for slow hard drives); Enable/disable ACPI/USB buffers; Enable/
disable NIC option ROM download; Enable/disable Hyper-threading.
BIOS Power-On - Set computer to turn on at specific time of day.
Apply Defaults and Exit - Applies currently selected default settings and
clears all passwords.
Storage
OS Power Management - Enable/disable processor voltage and frequency reduction during run and idle times; ACPI S3 support.
Removable Media Boot. Enables/disables ability to boot
system from removable media.
Legacy Diskette Write. Enables/disables ability to write
data to legacy diskettes.
BIOS DMA Data Transfers. Controls the type of data
transfer used by the BIOS to fulfill read and write
requests. DMA is used when Enable is selected. PIO is
used when Disable is selected.
SATA Emulation.Specifies whether the SATA and PATA
controllers function as two separate or one combined
controller. Separate IDE Controller emulation is recommended for Windows 2000 and XP. Combined IDE Controller emulation is recommended for operating systems
that only support one IDE controller.
Failsafe Boot Block ROM
The computer comes with a reprogrammable flash system ROM (read only memory).
NOTE: No USB device of any type will function during bootblock recovery.
To upgrade the ROM, you may:
a. Order an upgraded ROMPaq diskette from HP.
or
b. Download the latest ROMPaq images from the HP Web site (www.hp.com).
All ROM images used with HPQFlash and SSM are digitally signed to ensure authenticity and
minimize potential corruption. Your system ROM includes a Failsafe Boot Block that is protected during the flash process and allows the computer to be restarted in the unlikely event of an
unsuccessful ROM flash.
If the system detects an invalid system ROM during the boot sequence the system will sound
one long and three short beeps, flash the three keyboard LEDs twice, and display a recovery
mode message on the screen. To recover from the Boot Block recovery mode complete
the following steps:
1. Remove any diskettes from the diskette drive and turn off power.
2. Insert a ROMPaq diskette into the diskette drive or a bootable CD-ROM into an IDE CDROM drive. (Bootable ISO CDs are available on the Web at www.hp.com.)
3. Turn on power to the system.
4. If a Setup password has been established, the Caps Lock LED will come on to prompt you for
the password. Enter the password.
5. A successful boot and ROM flashing (reprogramming) with a ROMPaq diskette is indicated
by the three keyboard LEDs turning on and a series of beeps rising in tone.
Security Functions
The system offers independent Power-On and Setup passwords for system and data protection.
The Power-On password protects the computer from unauthorized access by prompting the user
for a password during power up. The Setup password protects the computer from unauthorized
or inadvertent reconfiguration of legacy device resource settings or ROM flash upgrade by
prompting the user for a password prior to entering the Setup Utility.
To establish a password:
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down >
Restart the computer.
2.
As soon as the computer is turned on, press and hold F10 until you enter Computer Setup.
Press Enter to bypass the title screen, if necessary. If you do not press F10 as soon as the
computer starts, a restart will be necessary.
3.
Select Security, then select Setup Password or Power-On Password and follow the
instructions on the screen.
4.
Before exiting, click File > Save Changes and Exit.
Security Functions (Continued)
Error Conditions and Messages
PS/2 Keyboard LED Indications
To change a Power-On or Setup password:
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down >
Restart the Computer. Run Computer Setup (F10).
NUM lock
LED
Caps Lock
LED
Scroll Lock
LED
When the key icon appears, type your current password, a slash (/) or alternate delimiter character, your new password, another slash (/) or alternate delimiter character, and your new password
again as shown:
current password/new password/new password.
On
Off
Off
ROMPaq diskette not present, faulty,
or drive problem
Password prompt
NOTE: Type the new password carefully since the actual characters do not appear on
the screen.
2.
Press Enter.
The new password will take effect the next time the computer is restarted.
To delete a password using Setup:
1.
Turn on or restart the computer. If you are in Windows, click Start > Shut Down >
Restart the Computer. To delete the setup password, run Computer Setup (F10).
2.
When the key icon appears, type your current password followed by a slash (/) or
alternate delimiter character as shown. Example: currentpassword/
3.
Press Enter.
To delete or disable the Power On and Setup passwords:
1.
Shut down (Power down) the system and disconnect the power cord from the outlet or the
system unit.
2.
Remove the chassis cover.
3.
On the system board, remove the jumper on pins 1 and 2 of header E49 and place only on
pin 2.
4.
Replace the chassis cover and reconnect the power cord.
NOTE: Setup password may be used in place of Power-on password to boot system.
Security Features
Feature
Removable Media
Boot Control
Purpose
Prevents booting from removable media
drives.
How It Is
Established
Setup Utilities. [1]
On
Off
Blinking [1]
Blinking [1]
Blinking [1]
Blinking [2]
Blinking [2]
On [3]
On [3]
On [3]
Invalid ROM and/or flash failed
Keyboard locked in network mode
Successful ROM flash
NOTES:
[1] All LEDs will blink in sync twice, accompanied by 1 long and 3 short beeps
[2] LEDs will blink in sequence (NUM, Caps, then Scroll Lock)
[3] Accompanied by rising beep tone
Chassis LED and Beep Messages
Power LED
# Beeps
Steady green
None
Event
S0 System on (normal operation)
Blinks green @ 0.5 Hz
None
S1 Suspend
Blinks green @ 0.5 Hz
None
S3 Suspend to RAM
Off (clear)
None
S4 Suspend to disk
Off (clear)
None
S5 Soft off
Blinks red 2 times @ 1 Hz [1]
2
Processor thermal shutdown
Blinks red 3 times @ 1 Hz [1]
3
Processor not seated / installed
Blinks red 4 times @ 1 Hz [1]
4
Power supply failure
Blinks red 5 times @ 1 Hz [1]
5
Memory error
Blinks red 6 times @ 1 Hz [1]
6
Video error
Blinks red 7 times @ 1 Hz [1]
7
PCA failure
Blinks red 8 times @ 1 Hz [1]
8
Invalid ROM checksum (error)
Blinks red 9 times @ 1 Hz [1]
9
Wrong power supply input voltage
Blinks red10 times @ 1 Hz [1]
10
Bad option card
Serial, Parallel,
USB, or Infrared
Interface Control
Prevents data transfer through integrated
serial, parallel, USB, or infrared interface.
Setup Utilities. [1]
Power-On
Password
Prevents use of computer until password is
entered. Can apply to both initial startup
and restart.
Setup Utilities. [1]
Setup Password
Prevents reconfiguration of computer until
password is entered.
Setup Utilities. [1]
Network Server
Mode
Provides unique security features for
computer used as server.
Setup Utilities. [1]
Screen
Message
DriveLock
Prevents unauthorized access to data on
drives supporting password protection.
Setup Utilities. [1]
101-Option
ROM Error
1L, 1S
102-System
Board
Failure
none
164-Memory
Size Error
2S
201-Memory
Error
NOTE:
[1] Power LED blinks are repeated after a 2 second pause until issue is resolved,.
Beeps continue for 5 iterations and then stop.
Common POST Error Messages
Smart
Software-controllable solenoid that, when
Cover Lock [2][3] activated, prevents unauthorized access to
chassis interior.
Setup Utilities. [1]
Smart
Cover Sensor [3]
Indicates computer cover or side panel has
been removed. Can be set to require
password for restart after cover or panel
removal.
Setup Utilities. [1]
Master Boot
Record (MBR)
Security
May prevent unintentional or malicious
changes to MBR of the current bootable
disk and provides a means of recovering
“last known” MBR image.
Setup Utilities. [1]
Drive Protection
System (DPS
Diagnostic tool built into hard drives on
select models designed to discover
problems that might result in unwarranted
drive replacement.
Setup Utilities or
Diagnostics for
Windows.
Memory Change
Alerts
Detects addition or removal of memory
modules. Notifies system administrator.
Refer to Intelligent
Manageability
Guide.
Ownership Tag
Displays ownership information as defined
by system administrator during system
startup. (Protected by setup password).
Setup Utilities. [1]
Kensington
CableLock
Provision
Inhibits access to interior of computer
Requires Kensington
chassis. Can also be used to secure
cable lock accessory
computer to a fixed object for prevent theft. to secure computer
to a fixed object.
NOTES:
[1] For more information about Setup Utilities refer to the Computer Setup Guide.
[2] If for any reason the Setup utility is not accessible to unlock the Smart Cover Lock
then a FailSafe key is required to bypass the Smart Cover Lock and open the computer.
Refer to the Hardware Reference Guide on how to use the FailSafe key. To order a FailSafe key contact HP.
[3] Available on some models.
Diagnostic Functions
Diagnostic functions are provided by the Setup Utility (in system ROM) and by Diagnostics
for Windows. Diagnostics for Windows provides detailed system information including:
•
•
•
•
•
Off
Blinking [1]
Event
Processor type and speed
Memory amount, mapping, and integrity
Hardware peripheral availability/settings
Hard drive type, space used/available
System identification, asset tracking
Diagnostics for Windows may be pre installed on some models and can be downloaded free of
charge from www.hp.com.
Beeps
Probable Cause
Recommended Action
1. System ROM
checksum error.
2. Expansion card.
3. CMOS corruption.
4. System board
1. Verify ROM, reflash if
required.
2. Remove suspected expansion
card, reboot.
3. Clear CMOS memory, reboot.
4. Replace system board.
DMA, timers
1. Clear CMOS memory.
2. Remove expansion boards.
3. Replace system board.
Incorrect memory
configuration.
1. Run Setup (F10).
2. Check DIMMs for proper
seating, proper type, and HP
compatibility.
3. Remove DIMMs singularly
and reboot to isolate faulty
DIMM.
none
RAM failure
Same as 164.
301-, 304Keyboard
Error
none
Keyboard failure.
Check keyboard connection or
keys. Replace keyboard. If 304,
possible system board problem
501-Display
Adapter
Failure
1L, 2S
Graphics controller.
1. Reseat graphics card.
2. Check monitor connection.
3. Replace graphics card.
602-Diskette
Boot Error
none
Diskette in drive A not
bootable
Remove/replace diskette.
1720SMART
Hard Drive
Detects
Imminent
Failure
none
Hard drive is about to
fail.
Run drive protection system test
if available. Check for firmware
patch for erroneous error
message.
NOTES: L = long, S = short
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
