Arkon SM614 Slim-Grip Ultra Windshield or Dash Phone Car Mount for iPhone 11, XS, XR, X, Galaxy Tablets Product Manual

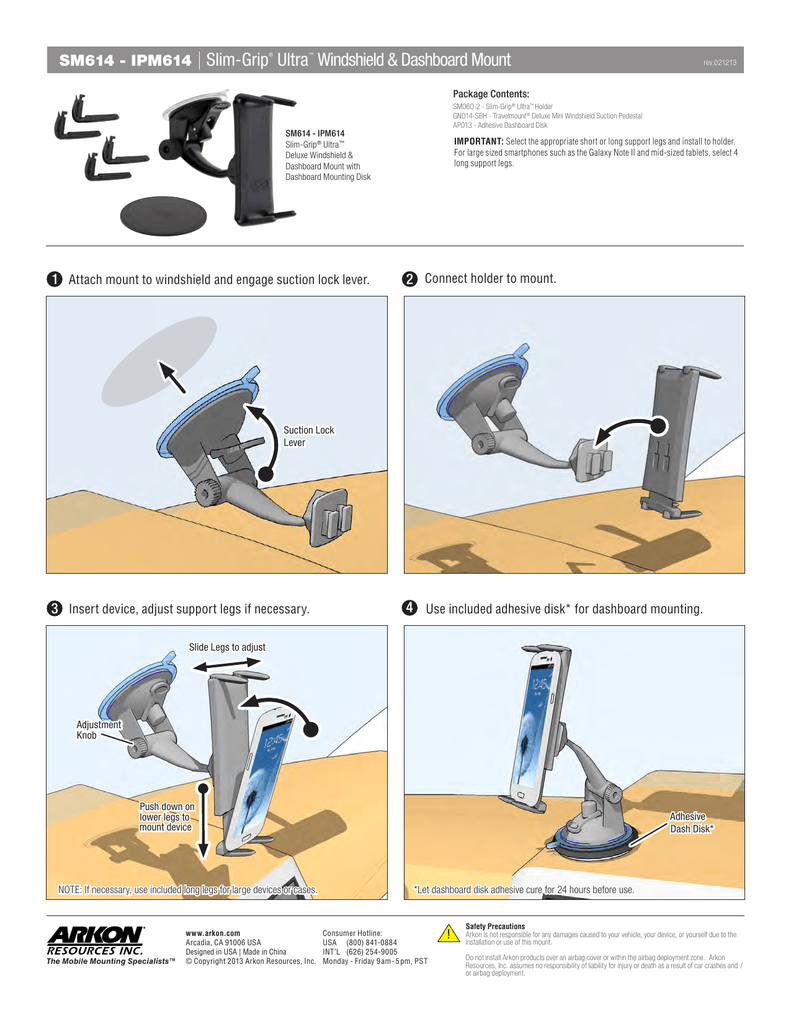

SM614 - IPM614 | Slim-Grip Ultra Windshield & Dashboard Mount
®
™
rev.021213
Package Contents:
SM060-2 - Slim-Grip® Ultra™ Holder
GN014-SBH - Travelmount ® Deluxe Mini Windshield Suction Pedestal
AP013 - Adhesive Dashboard Disk
SM614 - IPM614
Slim-Grip ® Ultra™
Deluxe Windshield &
Dashboard Mount with
Dashboard Mounting Disk
1 Attach mount to windshield and engage suction lock lever.
IMPORTANT: Select the appropriate short or long support legs and install to holder.
For large sized smartphones such as the Galaxy Note II and mid-sized tablets, select 4
long support legs.
2 Connect holder to mount.
Suction Lock
Lever
3 Insert device, adjust support legs if necessary.
4 Use included adhesive disk* for dashboard mounting.
Slide Legs to adjust
Adjustment
Knob
Push down on
lower legs to
mount device
NOTE: If necessary, use included long legs for large devices or cases.
The Mobile Mounting Specialists™
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2013 Arkon Resources, Inc.
Adhesive
Dash Disk*
*Let dashboard disk adhesive cure for 24 hours before use.
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
!
Safety Precautions
Arkon is not responsible for any damages caused to your vehicle, your device, or yourself due to the
installation or use of this mount.
Do not install Arkon products over an airbag cover or within the airbag deployment zone. Arkon
Resources, Inc. assumes no responsibility of liability for injury or death as a result of car crashes and /
or airbag deployment.
