Arkon SM615 Slim-Grip Ultra Phone Car Mount for iPhone 11 Pro Max, XS, XR, X, Galaxy Tablets Product Manual

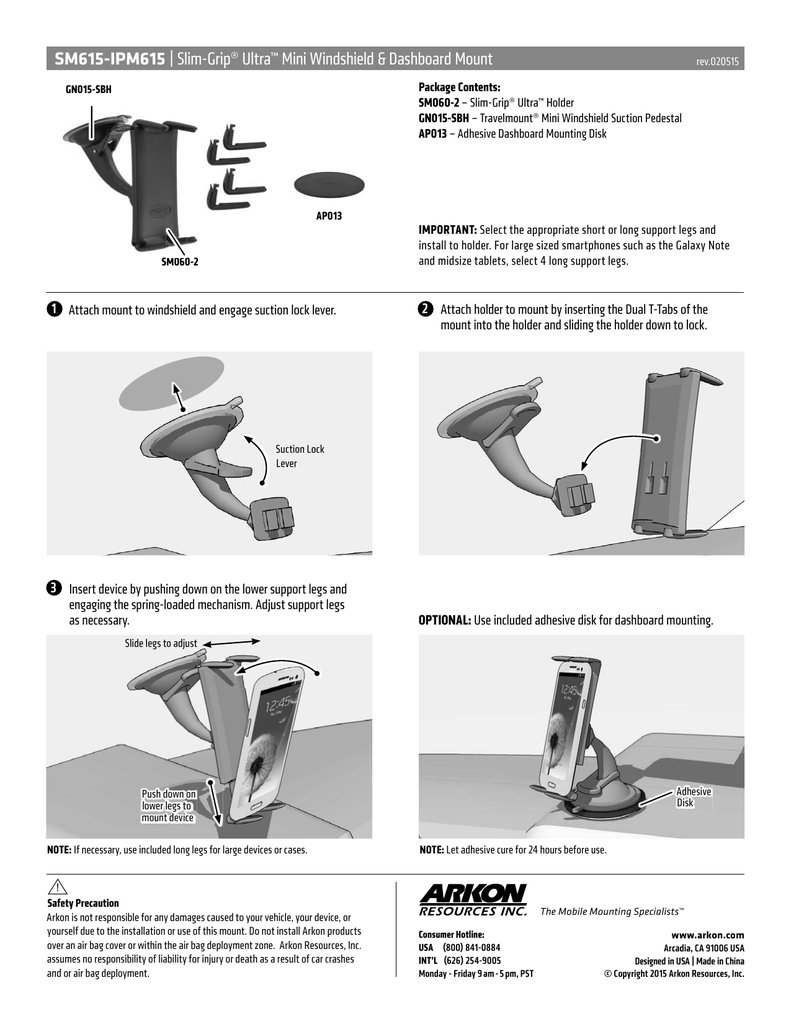

SM615-IPM615 | Slim-Grip® Ultra™ Mini Windshield & Dashboard Mount
rev.020515
Package Contents:
SM060-2 – Slim-Grip® Ultra™ Holder
GN015-SBH – Travelmount® Mini Windshield Suction Pedestal
AP013 – Adhesive Dashboard Mounting Disk
GN015-SBH
AP013
SM060-2
1 Attach mount to windshield and engage suction lock lever.
IMPORTANT: Select the appropriate short or long support legs and
install to holder. For large sized smartphones such as the Galaxy Note
and midsize tablets, select 4 long support legs.
2 Attach holder to mount by inserting the Dual T-Tabs of the
mount into the holder and sliding the holder down to lock.
Suction Lock
Lever
3 Insert device by pushing down on the lower support legs and
engaging the spring-loaded mechanism. Adjust support legs
as necessary.
OPTIONAL: Use included adhesive disk for dashboard mounting.
Slide legs to adjust
Adhesive
Disk
Push down on
lower legs to
mount device
NOTE: If necessary, use included long legs for large devices or cases.
NOTE: Let adhesive cure for 24 hours before use.
!
Safety Precaution
Arkon is not responsible for any damages caused to your vehicle, your device, or
yourself due to the installation or use of this mount. Do not install Arkon products
over an air bag cover or within the air bag deployment zone. Arkon Resources, Inc.
assumes no responsibility of liability for injury or death as a result of car crashes
and or air bag deployment.
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2015 Arkon Resources, Inc.
