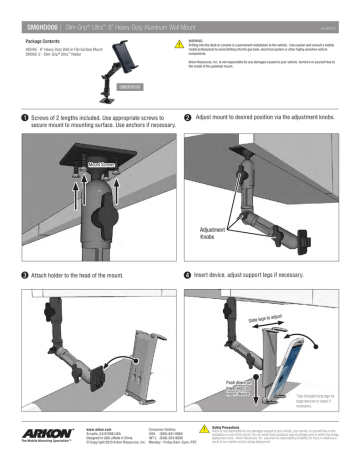

Arkon SM6HD006 Slim-Grip Ultra Heavy-Duty Multi-Angle Midsize Tablet Drilled-Base or Wall Mount Product Manual

SM6HD006 | Slim-Grip® Ultra™ 8” Heavy-Duty Aluminum Wall Mount
Package Contents:
!
HD006 - 8” Heavy-Duty Wall or Flat Surface Mount
SM060-2 - Slim-Grip ® Ultra™ Holder
rev.101013
WARNING:
Drilling into the dash or console is a permanent installation to the vehicle. Use caution and consult a mobile
install professional to avoid drilling into the gas tank, electrical system or other highly sensitive vehicle
components.
Arkon Resources, Inc. is not responsible for any damages caused to your vehicle, furniture or yourself due to
the install of the pedestal mount.
SM6HD006
1 Screws of 2 lengths included. Use appropriate screws to
secure mount to mounting surface. Use anchors if necessary.
2
Adjust mount to desired position via the adjustment knobs.
Mount Screws
Adjustment
Knobs
3 Attach holder to the head of the mount.
4 Insert device, adjust support legs if necessary.
Slide leg
Push down on
lower legs to
insert device
The Mobile Mounting Specialists™
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2013 Arkon Resources, Inc.
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
!
s to adju
st
*Use included long legs for
large devices or cases if
necessary.
Safety Precautions
Arkon is not responsible for any damages caused to your vehicle, your device, or yourself due to the
installation or use of this mount. Do not install Arkon products over an airbag cover or within the airbag
deployment zone. Arkon Resources, Inc. assumes no responsibility of liability for injury or death as a
result of car crashes and /or airbag deployment.
