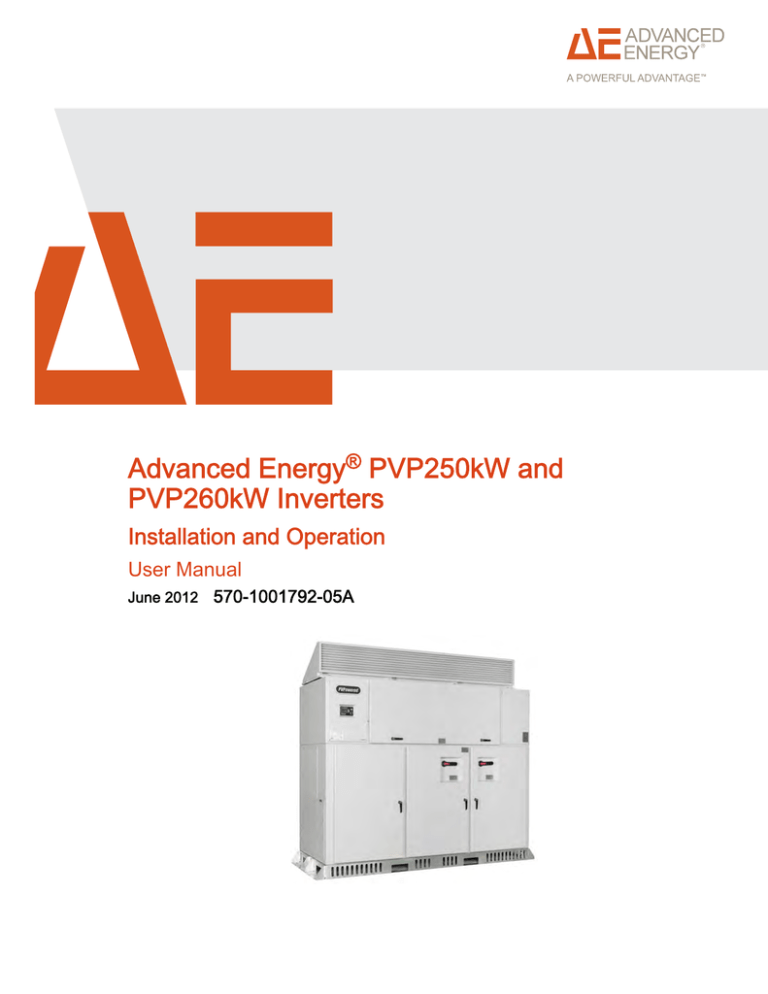

Advanced Energy® PVP250kW and
PVP260kW Inverters
Installation and Operation
User Manual
June 2012 570-1001792-05A
Advanced Energy® PVP250kW and
PVP260kW Inverters
Installation and Operation
User Manual
June 2012 570-1001792-05A
Advanced Energy
COPYRIGHT
This manual and the information contained herein are the proprietary property of Advanced
Energy Industries, Inc.
No part of this manual may be reproduced or copied without the express written permission of
Advanced Energy Industries, Inc. Any unauthorized use of this manual or its contents is
strictly prohibited. Copyright © 2012 Advanced Energy Industries, Inc. All Rights Reserved.
DISCLAIMER AND LIMITATION OF LIABILITY
The information contained in this manual is subject to change by Advanced Energy
Industries, Inc. without prior notice. Advanced Energy Industries, Inc. makes no warranty of
any kind whatsoever, either expressed or implied, with respect to the information contained
herein. Advanced Energy Industries, Inc. shall not be liable in damages, of whatever kind, as
a result of the reliance on or use of the information contained herein.
PRODUCT USAGE STATEMENT
WARNING :
Read this entire manual and all other publications pertaining to the work to
be performed before you install, operate, or maintain this equipment. Practice
all plant and product safety instructions and precautions. Failure to follow
instructions can cause personal injury and/or property damage. If the
equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired. All personnel who
work with or who are exposed to this equipment must take precautions to
protect themselves against serious or possibly fatal bodily injury.
Advanced Energy Industries, Inc., (AE) provides information on its products
and associated hazards, but it assumes no responsibility for the after-sale
operation of the equipment or the safety practices of the owner or user.
NEVER DEFEAT INTERLOCKS OR GROUNDS.
Any use of the PVP250kW/PVP260kW unit that is not expressly authorized in
this user manual or associated documentation, including, without limitation,
the use of the PVP250kW/PVP260kW unit with incompatible photovoltaic
panel technology, is expressly prohibited by AE, and AE disclaims any
responsibility or liability for such prohibited use. The PVP250kW/PVP260kW
unit should only be handled, installed, operated, and maintained by trained
personnel.
iv
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
AVERTISSEMENT :
Lire ce manuel au complet ainsi que toutes les autres publications portant
sur le travail à effectuer avant d’installer, d’utiliser ou d’entretenir cet
équipement. Pratiquer toutes les instructions et précautions de sécurité pour
l’usine et les produits. Tout manquement aux instructions suivantes peut
provoquer des blessures corporelles et/ou des dommages matériels. Si
l’équipement est utilisé de manière non spécifiée par le fabricant, la
protection fournie par l’équipement peut être compromise. Tous les membres
du personnel travaillant sur cet équipement ou qui y sont exposés doivent
observer les précautions pour se protéger contre des blessures graves, voire
mortelles.
Advanced Energy Industries, Inc. (AE) fournit des renseignements sur ses
produits et les dangers qui y sont liés, mais ne peut être tenue responsable
du fonctionnement après-vente de l’équipement ou des pratiques de sécurité
du propriétaire ou de l’utilisateur. NE JAMAIS DÉJOUER LES DISPOSITIFS
DE PROTECTION À VERROUILLAGE OU LES MISES À LA TERRE.
Toute utilisation de cette unité PVP250kW/PVP260kW qui n’est pas
expressément autorisée dans ce guide de l’utilisateur ou dans la
documentation connexe, y compris, sans s'y limiter, l’utilisation de l’unité
PVP250kW/PVP260kW avec des technologies de panneaux photovoltaïques
incompatibles, est expressément interdite par AE, et AE décline toute
responsabilité découlant d’un tel usage interdit. L'unité PVP250kW/
PVP260kW doit seulement être manipulée, installée, utilisée et entretenue
par un personnel formé.
TRADEMARKS
is a registered trademark of Advanced Energy Industries, Inc.
Advanced Power Controls™ is a trademark of Advanced Energy Industries, Inc.
Modbus® is a registered trademark of Gould, Inc.
Power Factor Pro™ is a trademark of Advanced Energy Industries, Inc.
PVPowered™ is a trademark of Advanced Energy Industries, Inc.
Windows® is a registered trademark of the Microsoft Corporation.
CUSTOMER FEEDBACK
Advanced Energy’s technical writing staff has carefully developed this manual using
research-based document design principles. However, improvement is ongoing, and the
writing staff welcomes and appreciates customer feedback. Please send any comments on the
content, organization, or format of this user manual to:
570-1001792-05A
v
Advanced Energy
• [email protected]
To order a manual, please contact AE Solar Energy Technical Support:
• [email protected]
vi
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table of Contents
Chapter 1. Safety and Product Compliance Guidelines
Important Safety Instructions ......................................................................... ....... 1-1
Save These Instructions ........................................................................................ 1-1
Danger, Warning, and Caution Boxes in the Manual ..................................... ....... 1-1
Safety Guidelines ........................................................................................... ....... 1-2
Rules for Safe Installation and Operation ....................................................... 1-2
Personal Safety ..................................................................................................... 1-3
Medical and First Aid Treatment ..................................................................... 1-3
Safety Equipment Requirements .................................................................... 1-3
Interpreting Product Labels ............................................................................ ....... 1-3
Product Compliance .............................................................................................. 1-4
Safety and EMC Directives and Standards ............................................. ....... 1-5
Safety Directives and Standards .............................................................. 1-5
Electrical Safety .............................................................................................. 1-5
Disconnect Switches ................................................................................ 1-5
Wiring Requirements ............................................................................... ....... 1-6
Wiring Information .................................................................................... 1-6
Fire Prevention ........................................................................................ ....... 1-7
Lockout and Tagout Requirements ................................................................ ....... 1-8
Acronyms and Frequently Used Terms ................................................................. 1-8
Chapter 2. Product Overview
General Description ....................................................................................... ....... 2-1
Advanced Energy Inverter Models .......................................................... ....... 2-1
Design Features ....................................................................................... 2-1
Product Features ................................................................................................... 2-2
Major Components and Functional Parts ............................................................. 2-3
Power Module Assembly ......................................................................... ....... 2-4
Card Cage Assembly ...................................................................................... 2-4
Data Monitoring Card Cage ............................................................................ 2-5
Communications Interface PCB ............................................................... 2-5
Operator Interface Controls ..................................................................... ....... 2-6
Active Cooling System .................................................................................... 2-6
DC Combiner Sub Panel ......................................................................... ....... 2-6
DC Sub Panel ................................................................................................. 2-7
DC Distribution PCB ................................................................................ ....... 2-7
AC Sub Panel .......................................................................................... ....... 2-9
Housekeeping Transformer ..................................................................... ..... 2-10
Magnetics Compartment ......................................................................... ..... 2-10
570-1001792-05A
Table of Contents
vii
Advanced Energy
Chapter 3. Planning
General Requirements for Planning and Installation ............................................. 3-1
Handling the Inverter ............................................................................................. 3-1
Storage .................................................................................................................. 3-2
Location and Clearances ............................................................................... ....... 3-2
Location ................................................................................................... ....... 3-2
Noise ....................................................................................................... ....... 3-2
Recommended Clearances ..................................................................... ....... 3-2
Conduit and Conductors ................................................................................ ....... 3-4
Environmental Requirements ................................................................................ 3-4
Grounding and Neutral Requirements ........................................................... ....... 3-5
PV Array Frame Grounding ..................................................................... ....... 3-5
System Neutral ........................................................................................ ....... 3-6
Utility Grid Interconnection ............................................................................. ....... 3-6
Utility Connection Requirements ............................................................. ....... 3-6
Contacting Your Local Utility ................................................................... ....... 3-6
Voltage Output ................................................................................................ 3-6
Inverter Monitoring ......................................................................................... ....... 3-7
Calculating DC Input Voltage ......................................................................... ....... 3-7
DC Subcombiner Options .............................................................................. ....... 3-7
Fuse Protection for DC Input ................................................................... ....... 3-8
Chapter 4. Installing
Handling and Unpacking ................................................................................ ....... 4-1
Packaging Contents ................................................................................ ....... 4-1
Handling and Unpacking the Inverter ...................................................... ....... 4-1
Pre-Installation Inspection ..................................................................................... 4-2
Pre-Installation Inspection Tools ............................................................. ....... 4-2
Step 1: External Inspection ............................................................................. 4-2
Step 2: Inspection of the Magnetics ........................................................ ....... 4-3
Step 3: AC and DC Sub Panel Compartments ............................................... 4-4
Step 4: Upper Electronics Compartment ................................................. ....... 4-5
Step 5: Upper Active Cooling Compartment ................................................... 4-6
Lifting and Mounting the Inverter ........................................................................... 4-7
Conduit Entry Points ...................................................................................... ....... 4-9
Using Gland Plates for Cable Conduit Entry and Exit ............................. ....... 4-9
Electrical Connections ......................................................................................... 4-12
AC Wiring ................................................................................................ ..... 4-13
Connecting to the Electrical Grid ...................................................... ..... 4-14
DC Wiring ................................................................................................ ..... 4-18
Connecting to the PV Arrays .................................................................. 4-18
Using the Integrated Remote Disable Input .................................................. 4-21
Making the Remote Disable Connection ................................................ 4-22
Chapter 5. Operation
viii
Table of Contents
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
System Startup Procedure ............................................................................. ....... 5-1
Inverter Operating States ............................................................................... ....... 5-2
Display Screens and Operation ..................................................................... ....... 5-4
To Operate the Display ................................................................................... 5-6
Ground Fault Interrupt Device ............................................................................... 5-6
To Respond to a Ground Fault ................................................................ ....... 5-7
To Shutdown the Inverter ...................................................................................... 5-7
De-energize/Isolation Procedures ........................................................... ....... 5-8
Inverter Enable/Disable Controls .................................................................... 5-9
Chapter 6. Data Monitoring and Controls
Networking and Performance Monitoring .............................................................. 6-1
Overview of the Communications Interface Board ................................................ 6-1
Ethernet Network Connection ......................................................................... 6-2
Connecting the Ethernet Cable ............................................................... ....... 6-3
To Establish an Internet Connection with the Inverter .................................... 6-4
To Verify Data Monitoring Connectivity ................................................... ....... 6-5
Modbus Overview .......................................................................................... ....... 6-5
Modbus Communication Protocol ................................................................... 6-5
Networking Using the Modbus Option ................................................................... 6-6
Modbus TCP Installation ......................................................................... ....... 6-6
Modbus TCP Network Configuration ....................................................... ....... 6-7
Networking Using the Modbus RS-485 Option .............................................. ....... 6-8
Network Layout ............................................................................................... 6-8
Modbus Wiring for the Communications Interface PCB .......................... ....... 6-9
Installing the Modbus RS-485 Cable ....................................................... ....... 6-9
Setting the Jumper Pins .......................................................................... ..... 6-11
To Terminate the Inverter Network ................................................... ..... 6-12
To Set the Center Inverters for the Network ..................................... ..... 6-13
To Set Network Biasing .................................................................... ..... 6-13
To Terminate the Network and Enable Biasing ................................ ..... 6-14
Setting the Modbus Address ................................................................... ..... 6-14
Modbus Commands ....................................................................................... ..... 6-19
Modbus Command Format ........................................................................... 6-19
Return Slave ID ....................................................................................... ..... 6-21
Modbus Data Types ....................................................................................... ..... 6-22
Modbus Register Mapping ............................................................................ ..... 6-22
Modbus Fixed Information Registers ............................................................ 6-22
Modbus Data Registers ........................................................................... ..... 6-25
Modbus Status and Fault Code Registers .................................................... 6-25
Modbus Command Registers .................................................................. ..... 6-28
Chapter 7. Maintenance
Visual Inspection ............................................................................................ ....... 7-2
Maintenance Schedule .......................................................................................... 7-2
570-1001792-05A
Table of Contents
ix
Advanced Energy
Replacement Parts ................................................................................................ 7-3
Checking and Replacing the Air Filters .......................................................... ....... 7-4
Maintaining the Air Filters ........................................................................ ....... 7-4
Maintaining the Card Cage Air Filter ....................................................... ....... 7-5
Chapter 8. Troubleshooting and Solar Energy Technical
Support
Troubleshooting LAN Connectivity ........................................................................ 8-1
To Test the LAN Cable ............................................................................ ....... 8-2
Troubleshooting Warnings and Faults ........................................................... ....... 8-2
Troubleshooting Warnings .............................................................................. 8-3
System Warnings ..................................................................................... 8-3
Troubleshooting Inverter Faults ...................................................................... 8-4
AC Under Voltage Fault .................................................................... ....... 8-5
Identifying A Ground Fault ................................................................ ....... 8-5
To Resolve a Ground Fault ...................................................................... 8-6
Inverter Fault Codes ......................................................................... ....... 8-8
PCB Status LEDs ................................................................................................ 8-13
Controller PCB Status LEDs ......................................................................... 8-13
Communication PCB Status LEDs .......................................................... ..... 8-14
AE Solar Energy Technical Support .................................................................... 8-18
Appendix A. Specifications
Physical Specifications ......................................................................................... A-1
Electrical Specifications ................................................................................. ...... A-1
Efficiency Specifications .......................................................................... ...... A-4
Efficiency Curves for the PVP250kW (480 VAC) Model ................... ...... A-4
Efficiency Curves for the PVP250kW (600 VAC) Model ................... ...... A-5
Efficiency Curves for the PVP260kW (480 VAC) Model ................... ...... A-6
Efficiency Curves for the PVP260kW-LV (480 VAC) Model ............. ...... A-7
Cooling Specifications .......................................................................................... A-7
Environmental Specifications ......................................................................... ...... A-8
Appendix B. System and Mechanical Diagrams
System Diagram ................................................................................................... B-1
Mechanical Diagrams ........................................................................................... B-2
x
Table of Contents
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
List of Tables
Table 1-1. Branch breaker size recommendations ........................................ ....... 1-6
Table 1-2. Acronyms and frequently used terms ........................................... ....... 1-8
Table 3-1. Inverter clearances ....................................................................... ....... 3-2
Table 3-2. Cooling and heat rejection rate requirements ............................... ....... 3-4
Table 4-1. Subcombiner wire sizing and torque values ................................. ..... 4-13
Table 4-2. Branch breaker size recommendations ........................................ ..... 4-13
Table 4-3. Operational voltage ranges per electrical panel ................................. 4-14
Table 5-1. Inverter enable/disable ....................................................................... 5-10
Table 6-1. Maximum network length per Modbus bit rate .............................. ..... 6-12
Table 6-2. Termination enabled for end device ................................................... 6-13
Table 6-3. No termination or biasing (default setting) .................................... ..... 6-13
Table 6-4. Biasing enabled ............................................................................ ..... 6-13
Table 6-5. Biasing and termination enabled (for end device) .............................. 6-14
Table 6-6. Inverter address table ................................................................... ..... 6-16
Table 6-7. Modbus commands ............................................................................ 6-19
Table 6-8. Format for Read Holding Register command .............................. ..... 6-19
Table 6-9. Response format for Read Holding Register command ............... ..... 6-20
Table 6-10. Format for Write Single Register command ..................................... 6-20
Table 6-11. Response format for Write Single Register command ..................... 6-20
Table 6-12. Format for Return Slave ID ......................................................... ..... 6-21
Table 6-13. Format for Return Slave ID command ........................................ ..... 6-21
Table 6-14. Data types ........................................................................................ 6-22
Table 6-15. Modbus fixed information registers ............................................. ..... 6-23
Table 6-16. Inverter model number ..................................................................... 6-24
Table 6-17. Bit mapping for inverter configuration register ............................ ..... 6-24
Table 6-18. Modbus data registers ................................................................ ..... 6-25
Table 6-19. Modbus status and fault code registers ...................................... ..... 6-26
Table 6-20. Modbus inverter operating status register values ....................... ..... 6-27
Table 6-21. PVM status register status code values ........................................... 6-27
Table 6-22. Modbus command registers ............................................................. 6-28
Table 7-1. Maintenance checklist .......................................................................... 7-3
Table 7-2. Inverter replacement parts ............................................................ ....... 7-4
Table 8-1. Inverter system warnings .............................................................. ....... 8-4
Table 8-2. Fault categories ............................................................................ ....... 8-8
Table 8-3. Drive (DRV) faults ......................................................................... ....... 8-9
Table 8-4. Voltage (VLT) faults ...................................................................... ..... 8-10
Table 8-5. Grid (GRD) faults .......................................................................... ..... 8-11
Table 8-6. Temperature (TMP) faults .................................................................. 8-12
Table 8-7. System (SYS) faults ........................................................................... 8-12
Table 8-8. Controller PCB LEDs .................................................................... ..... 8-13
Table 8-9. Link LED ....................................................................................... ..... 8-15
Table 8-10. Activity LED ...................................................................................... 8-15
Table 8-11. Status LED ....................................................................................... 8-16
Table 8-12. Modbus LED ............................................................................... ..... 8-17
Table 8-13. AE Solar Energy Technical Support 24 X 7 contact information ...... 8-18
570-1001792-05A
List of Tables
xi
Advanced Energy
Table A-1. Physical specifications ........................................................................ A-1
Table A-2. Electrical specifications ................................................................ ...... A-2
Table A-3. Utility interconnect voltage and frequency trip limits and times .... ...... A-3
Table A-4. Efficiency specifications for the PVP250kW (480 VAC) model .... ...... A-4
Table A-5. Efficiency specifications for the PVP250kW (600 VAC) model .... ...... A-5
Table A-6. Efficiency specifications for the PVP260kW (480 VAC) model .... ...... A-6
Table A-7. Efficiency specifications for the PVP260kW-LV (480 VAC)
model .................................................................................................................. A-7
Table A-8. Cooling specifications ......................................................................... A-7
Table A-9. Environmental specifications ........................................................ ...... A-8
xii
List of Tables
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
List of Figures
Figure 2-1. Components of the PVP250kW and PVP260kW inverters ................. 2-3
Figure 2-2. Power module assembly ..................................................................... 2-4
Figure 2-3. Card cage assembly .................................................................... ....... 2-5
Figure 2-4. Communications interface PCB .......................................................... 2-6
Figure 2-5. DC sub panel and DC combiner sub panel ................................. ....... 2-7
Figure 2-6. DC distribution PCB ............................................................................ 2-8
Figure 2-7. AC sub panel ............................................................................... ....... 2-9
Figure 2-8. AC distribution PCB ..................................................................... ..... 2-10
Figure 3-1. Inverter clearances ...................................................................... ....... 3-3
Figure 3-2. DC subcombiner options ............................................................. ....... 3-8
Figure 4-1. Bus bar terminal and connection ................................................. ....... 4-3
Figure 4-2. Screen check ............................................................................... ....... 4-3
Figure 4-3. Air deflector check ....................................................................... ....... 4-4
Figure 4-4. Bus bar connection inspection ............................................................ 4-4
Figure 4-5. Inspection of cable connections .......................................................... 4-4
Figure 4-6. Pull test of cable screw terminal connection ....................................... 4-5
Figure 4-7. Screen inspection ........................................................................ ....... 4-5
Figure 4-8. Check the bus bar connections ................................................... ....... 4-5
Figure 4-9. Fan inspection ............................................................................. ....... 4-6
Figure 4-10. Air filter check ............................................................................ ....... 4-7
Figure 4-11. DC bottom entry gland plates .................................................... ..... 4-10
Figure 4-12. DC side entry gland plates .............................................................. 4-11
Figure 4-13. Installation of conduit hub .......................................................... ..... 4-11
Figure 4-14. AC connections ............................................................................... 4-17
Figure 4-15. Bus bar connections .................................................................. ..... 4-17
Figure 4-16. DC connections ......................................................................... ..... 4-18
Figure 4-17. DC inverter connections ............................................................ ..... 4-20
Figure 4-18. DC subcombiner configurations ...................................................... 4-21
Figure 4-19. Remote disable wiring diagram ................................................. ..... 4-23
Figure 4-20. Communications interface PCB ...................................................... 4-24
Figure 5-1. Inverter display ............................................................................ ....... 5-1
Figure 5-2. Inverter with AC and DC disconnect power ON .................................. 5-2
Figure 5-3. Inverter state diagram ......................................................................... 5-3
Figure 5-4. Initialize state screen ................................................................... ....... 5-5
Figure 5-5. Energy tracking state screens ..................................................... ....... 5-5
Figure 5-6. Fault state screens ...................................................................... ....... 5-5
Figure 5-7. Warning state screen .......................................................................... 5-5
Figure 5-8. Disabled state screen .................................................................. ....... 5-6
Figure 5-9. Inverter display and switch .......................................................... ....... 5-6
Figure 5-10. Ground fault error message .............................................................. 5-7
Figure 5-11. AC and DC disconnect power OFF ........................................... ....... 5-8
Figure 6-1. Communications interface PCB .......................................................... 6-1
Figure 6-2. T-568B compliant Ethernet cable ................................................ ....... 6-4
Figure 6-3. Communication interface PCB Ethernet port location ................. ....... 6-4
Figure 6-4. Communication interface PCB in the data monitoring section ............ 6-7
570-1001792-05A
List of Figures
xiii
Advanced Energy
Figure 6-5. Daisy chain layout for RS-485 network: option A ........................ ....... 6-8
Figure 6-6. Daisy chain layout for RS-485 network: option B ........................ ....... 6-8
Figure 6-7. Daisy chain layout for RS-485 network: option C ........................ ....... 6-9
Figure 6-8. Example connection with dual Modbus slave port terminal
blocks .......................................................................................................... ....... 6-9
Figure 6-9. Communications interface PCB with Modbus slave port location ..... 6-11
Figure 6-10. Termination jumpers on the communications interface PCB .......... 6-12
Figure 6-11. Setting the inverter Modbus address ......................................... ..... 6-15
Figure 6-12. Example: Unit address switch set to address 25 ....................... ..... 6-16
Figure 7-1. Card cage air filter ....................................................................... ....... 7-5
Figure 8-1. Warning screen ................................................................................... 8-3
Figure 8-2. Screen sequence when an inverter faults ........................................... 8-5
Figure 8-3. Communication PCB with status LEDs ............................................. 8-14
Figure 8-4. Communication interface PCB with LEDs ................................... ..... 8-15
Figure A-1. Efficiency curves for the PVP250kW (480 VAC) model .............. ...... A-4
Figure A-2. Efficiency curves for the PVP250kW (600 VAC) model .............. ...... A-5
Figure A-3. Efficiency curves for the PVP260kW (480 VAC) model .............. ...... A-6
Figure A-4. Efficiency curves for the PVP260kW-LV (480 VAC) model ............... A-7
Figure B-1. PVP250kW and PVP260kW system diagram ............................. ...... B-1
Figure B-2. PVP250kW and PVP260kW mechanical diagrams: View 1 .............. B-2
Figure B-3. PVP250kW and PVP260kW mechanical diagram: View 2 ................ B-3
Figure B-4. PVP250kW and PVP260kW mechanical diagram: View 3 ................ B-4
Figure B-5. PVP250kW and PVP260kW mechanical diagram: View 4 ................ B-5
xiv
List of Figures
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Chapter
1
Safety and Product Compliance
Guidelines
IMPORTANT SAFETY INSTRUCTIONS
To ensure safe installation and operation of the Advanced Energy PVP250kW/
PVP260kW unit, read and understand this manual before attempting to install and
operate this unit. At a minimum, read and follow the safety guidelines, instructions,
and practices.
SAVE THESE INSTRUCTIONS
This manual contains important instructions for the PVP250kW/PVP260kW unit that
shall be followed during installation and maintenance of the unit.
DANGER, WARNING, AND CAUTION BOXES
IN THE MANUAL
This symbol represents important notes concerning potential harm to people, this
unit, or associated equipment. Advanced Energy includes this symbol in Danger,
Warning, and Caution boxes to identify specific levels of hazard seriousness.
1027
DANGER:
DANGER indicates an imminently hazardous situation that, if not avoided,
will result in death or serious injury. DANGER is limited to the most extreme
situations.
DANGER:
DANGER indique une situation dangereuse imminente qui, si elle n’est pas
évitée, pourrait provoquer la mort ou des blessures graves. DANGER est
réservé aux situations les plus extrêmes.
570-1001792-05A
Safety and Product Compliance Guidelines
1‑1
Advanced Energy
WARNING:
WARNING indicates a potentially hazardous situation that, if not avoided,
could result in death or serious injury, and/or property damage.
AVERTISSEMENT:
AVERTISSEMENT indique une situation potentiellement dangereuse qui, si
elle n’est pas évitée, pourrait provoquer la mort ou des blessures graves
et/ou des dommages matériels.
CAUTION:
CAUTION indicates a potentially hazardous situation that, if not avoided,
could result in minor or moderate injury, and/or property damage. CAUTION
is also used for property-damage-only accidents.
ATTENTION:
ATTENTION indique une situation potentiellement dangereuse qui, si elle
n’est pas évitée, pourrait provoquer des blessures mineures ou modérées
et/ou des dommages matériels. ATTENTION est également utilisé pour des
accidents causant uniquement des dommages matériels.
SAFETY GUIDELINES
Review the following information before attempting to install and operate the
product.
Rules for Safe Installation and Operation
Please note the following rules:
• Do not attempt to install or operate this equipment without proper training.
• Ensure that this unit is properly grounded.
• Ensure that all cables are properly connected.
• Verify that input line voltage and current capacity are within specifications
before turning on the power supplies.
• Use proper electrostatic discharge (ESD) precautions.
• Always be careful around this equipment.
1‑2
Safety and Product Compliance Guidelines
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
PERSONAL SAFETY
Ensure any personnel entering a safety zone within a four foot area around any
operating inverter wear appropriate Personal Protective Equipment (PPE) as
mandated by national, state, and local authorities.
Medical and First Aid Treatment
Personnel working in and around operating power generation equipment should be
trained in Arc Flash Hazard, Fire Extinguisher selection and use, First Aid, Cardio
Pulmonary Resuscitation (CPR), and Automated External Defibrillator (AED) use (if
available).
Safety Equipment Requirements
Authorized service personnel performing operations on this unit should have the
following minimum safety equipment available:
• Consult NFPA 70E, or applicable local standards, for PPE requirements on
switch gear operating at less than 600 V
• Electrical hazard footwear (ANSI Z41/Z85 rated)
• Lock Out Tag Out (LOTO) Kit
• Appropriate meter to verify the circuits are safely de-energized (1000 VAC and
DC rated, minimum)
• Any other equipment as applicable to your operation as required by national,
state, and local regulations
INTERPRETING PRODUCT LABELS
The following labels may appear on your unit:
Earth ground
570-1001792-05A
Safety and Product Compliance Guidelines
1‑3
Advanced Energy
Chassis ground
On or off
4588
4589
or
Phase
4590
Electrical fuse
1025
1026
4205
Alternating current
Direct current
Positive
Negative
PRODUCT COMPLIANCE
The following sections include information about unit compliance and certification,
including the conditions of use required to be in compliance with the standards and
directives.
1‑4
Safety and Product Compliance Guidelines
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Safety and EMC Directives and Standards
Certain options of this unit have been tested for and comply with the following
electromagnetic compatibility (EMC) and safety directives and standards and
industry guidelines.
☞ Important
This equipment must be installed and used in accordance with the Conditions
of Use described in this manual. If this equipment is expanded, modified, or
installed into a larger system, the user is responsible to guarantee the
compliance of the overall system. If this equipment is used with external
components, the user must ensure that the Safety and EMC requirements are
not violated.
SAFETY DIRECTIVES AND STANDARDS
• UL1741
Inverters, Converters, Controllers and Interconnection System Equipment for
Use With Distributed Energy Resources (2010)
◦ IEEE 1547
Standard for Interconnecting Distributed Resource with Electric Power
Systems
◦ IEEE 1547.1
Standard for Conformance Tests Procedures for Equipment Interconnecting
Distributed Resources with Electric Power Systems
• FCC Part 15 Class A conducted emissions
• CSA C22.2 No. 107.1-01
General use power supplies—industrial products
• National Electrical Code
Can be installed in compliance with National Electrical Code 2008 and 2011
Editions Article 690 Solar Photovoltaic Systems
Electrical Safety
DISCONNECT SWITCHES
The inverter is equipped with both AC and DC disconnects (power OFF) to stop
power conversion within the inverter. Before accessing the interior of the cabinet,
these disconnects must be in the OFF position. Since these disconnects only stop
power conversion within the inverter, both the DC (photovoltaic array) and AC
(utility grid) circuits must be isolated in order to fully ensure the inverter is deenergized. Wait five minutes for the inverter to de-energize before working on the
inverter.
570-1001792-05A
Safety and Product Compliance Guidelines
1‑5
Advanced Energy
Wiring Requirements
You must meet the following requirements when wiring the PVP250kW and
PVP260kW inverters:
Table 1‑1. Branch breaker size recommendations
Model
208 VAC
480 VAC
600 VAC
PVP250kW
N/A
400 A
350 A
PVP260kW
N/A
400 A
N/A
PVP260kW-LV
N/A
400 A
N/A
WIRING INFORMATION
☞ Important
You must use National Electrical Code (ANSI/NFPA 70) wiring methods.
DANGER:
Do not connect the PV negative or positive conductors to the ground bus
bars provided. The PV array is grounded through the integral GFDI.
Connecting the PV array positive or negative conductors to ground at any
other point in the system would defeat the ground fault protection circuit.
DANGER:
Ne pas brancher les conducteurs négatifs ou positifs du PV aux barres
omnibus mises à la terre fournies. Le panneau photovoltaïque est mis à la
terre au moyen du GFDI. La connexion des conducteurs positifs ou négatifs
du panneau photovoltaïque à la terre à tout autre point du système pourrait
déjouer le circuit de protection contre les défauts de terre.
• All wiring methods and materials shall be in accordance with the National
Electrical Code ANSI/NFPA 70 as well as all state and local code requirements.
• When sizing conductors and conduits for connection to the PVP250kW and
PVP260kW inverters, both shall be in accordance with the National Electrical
Code ANSI/NFPA 70, as well as state and local code requirements.
• The AC power conductor bus bar connections in the inverter should be
tightened to the torque value specified in the installation instructions. Each
conductor should be connected separately to the bus bar.
• The DC power conductor bus bar connections in the inverter should be
tightened to the torque value specified in the installation instructions. Each
conductor should be connected separately to the bus bar.
• AC overcurrent protection for the utility interconnect (grid-tie) must be
provided by the installers as part of the inverter installation.
1‑6
Safety and Product Compliance Guidelines
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
• Installations in Canada should be in accordance with the Canadian Electrical
Code (CEC) or applicable local standards.
• Use only conductors with an insulation rating of 90°C minimum insulation
rating.
• This equipment is intended to be installed as part of a permanently grounded
electrical system per the NEC or local standards.
The inverter is electrically connected to the DC photovoltaic array in the DC
combiner sub panel which includes a positive, negative, and grounded bus bar. The
PV array is grounded internally by means of the GFDI.
The inverter can be ordered with an optional fused subcombiner. The fused
subcombiners have individual input terminals for each fuse block. These terminals
require the use of a torque wrench to properly install the interface cables. Use proper
torque values of DC subcombiner box wire mounting hardware.
The inverter is factory configured for the appropriate three-phase output:
• PVP250kW and PVP260kW three-phase 480 VAC or three-phase 600 VAC
output
The inverter is electrically connected to the utility grid at the AC landing within the
AC section on the front right side of the inverter. These terminals require the use of a
UL-approved connector certified for use with the selected interface cables:
• Crimp-on type ring terminal
• Compression type lug
Ensure phase cables run together through conduit and gland plates, which allows any
inductive currents produced to be cancelled out. Use proper torque values for
terminal lug mounting hardware.
A copper clad earth grounding electrode must be installed within three feet (one
meter) of the unit. The AC ground busbar located in the AC section, lower front
compartment, must be used as the single point connection to the earth grounding
electrode for the inverter system. For the convenience of installers, a DC ground bus
bar is provided. The DC and AC ground bus bars are solidly bonded together inside
the cabinet. If present, a DC Grounding Electrode Conductor (GEC) may be bonded
to the DC ground bar. Where permitted by NEC, a single conductor that meets all the
requirements of both DC GEC and AC equipment ground may be bonded to the AC
ground bar.
AC overcurrent protection for the utility interconnect (grid-tied) must be provided by
installers as part of the installation.
Fire Prevention
Care must be exercised when installing DC and AC connections within the inverter.
Follow all instructions in this manual to ensure proper and safe operation of this unit.
570-1001792-05A
Safety and Product Compliance Guidelines
1‑7
Advanced Energy
DANGER:
Risk of electrical shock. In the event of a fire, disconnect power to the
inverter and do not attempt to use a water based fire extinguisher. Utilize
only a Class C extinguisher rated for electrical fire.
DANGER:
Risque d’électrocution. Dans l’éventualité d’un incendie, débranchez
l’onduleur du secteur et n’utilisez pas d’extincteur à base aqueuse. Utilisez
uniquement les extincteurs de classe C conçus pour combattre les feux
électriques.
LOCKOUT AND TAGOUT REQUIREMENTS
To prepare the PVP250kW/PVP260kW unit for maintenance or troubleshooting, you
must de-energize and isolate the AC and the DC interface energy sources before
working on the unit.
ACRONYMS AND FREQUENTLY USED
TERMS
Table 1‑2. Acronyms and frequently used terms
Term
1‑8
Description
Action delay
A predefined delay before a set point change.
A/D
Analog to digital conversion
ANSI
American National Standards Institute
BEMS
Building energy management system
CFM
Cubic feet per minute
Curtailment
A reduction of the power output level for scheduled capacity or
energy delivery. Allows limiting of system output power. Also
known as power throttling.
DHCP
Dynamic host configuration protocol
DNS
Domain name service
DSP
Digital signal processor
DVI
Digital video interface
Safety and Product Compliance Guidelines
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 1‑2. Acronyms and frequently used terms (Continued)
Term
Description
EMI
Electromagnetic interference
ESD
Electro static discharge
GEC
Grounding electrode conductor
GFDI
Ground fault detector interruptor
IEEE
Institute of Electrical and Electronics Engineers
IGBT
Insulated gate bipolar transistor
Inverter
Also called the switching section or engine, this is the part of the
unit that inverts DC current to AC current.
IP
Internet protocol
Lagging
Current follows, or lags, voltage in an inductor. A source
producing power with a lagging power factor reduces the utility
grid voltage.
Leading
Current leads the voltage in a capacitor. A source producing
power with a leading power factor increases the grid voltage.
LOTO
Lockout Tagout
MCM
1000 circular mils utilized in wire sizing
MPPT
Maximum power point tracking
NEC
National Electric Code
NFPA
National Fire Protection Association
NTP
Network time protocol
OEM mode
Original equipment manufacturer mode
PCB
Printed circuit board
PF
Power factor
PLL
Phase lock loop
PPE
Personal protective equipment
PV
Photovoltaic
PVM
PV monitoring
PVM Sync
Software application used to query inverters.
PWM
Pulse width modulation
Ramp rate
Changes in the inverter's power output at a controlled rate either
to increase or decrease power delivery.
Randomize
Allows a random delay before a set point change. The delay will
change every set point change.
Remote enable/ The inverter system can be remotely turned on or off. The
disable
inverter restarts after a five minute countdown.
RMS
570-1001792-05A
Root mean squared
Safety and Product Compliance Guidelines
1‑9
Advanced Energy
Table 1‑2. Acronyms and frequently used terms (Continued)
Term
1‑10
Description
SCADA
Supervisory control and data acquisition. A computer system that
monitors and controls infrastructure or facility-based processes.
Set point
Inverter is operating and delivering power at defined parameters.
UL
Underwriter's Laboratory
UTC
Universal time coordinate. Also known as Greenwich mean time.
VAC
Voltage alternating current
VDC
Voltage direct current
VFD
Vacuum fluorescent display
Voc
Open-circuit voltage
Safety and Product Compliance Guidelines
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Chapter
2
Product Overview
GENERAL DESCRIPTION
The Advanced Energy inverter is designed to act exclusively as a grid-tied inverter
for photovoltaic (PV) systems. The inverter converts direct current (DC) electricity
generated by the photovoltaic arrays into usable alternating current (AC) electricity.
This means the inverter must be tied to the utility grid and a photovoltaic system in
order to operate properly. Because the inverter is tied to a local utility source, if local
electrical load exceeds the power generated by the solar array, the grid automatically
supplies the additional electricity needed. Likewise, if the inverter produces more
power than is needed, it feeds the excess power back into the electrical grid.
Advanced Energy Inverter Models
This manual provides the information necessary to successfully install and operate
the applicable Advanced Energy inverter.
Within the AE product line some inverter models can be factory configured with
different three-phase outputs. For specific product characteristics, refer to the
specifications in Appendix A.
Specific inverter models are available in two configurations. The PVP260kW is
available with standard VDC input and low voltage VDC input. All other
specifications are identical.
DESIGN FEATURES
• Easy installation: The AE inverter is built for easy installation. To minimize
installation efforts, this inverter features an integrated isolation transformer and
integrated AC and DC disconnect in a compact single cabinet. The inverter can
be ordered with a range of integrated DC subcombiner fusing options for
maximum adaptability for the desired system operating scheme.
• Simple, innovative design: The AE inverter is a fully integrated solution with
standard integrated data monitoring available and an optional premium data
monitoring solution. Subcombiner monitoring and a revenue grade meter can be
added for a complete performance monitoring solution.
• Adaptability: The AE inverter has a standard DC Maximum Power Point
Tracking (MPPT) range from 295 VDC to 595 VDC.The minimum MPPT
voltage is 265 VDC on LV models. The maximum input voltage is 600 VDC.
570-1001792-05A
Product Overview
2‑1
Advanced Energy
• Versatility: The AE inverter is designed for flexibility and can be used for a
range of commercial applications, accommodating most PV system
configurations.
PRODUCT FEATURES
The design of the PVP250kW and PVP260kW inverters include the following
standard features.
• Equipped with redundant cooling system with variable speed fans and fault
detection. The built-in backup capabilities enables the inverter to deliver full
power at the maximum rated temperature even if one of the fans should fail.
Fan status is reported as a warning shown on the display and through remote
monitoring.
• Includes anti-islanding protection and monitoring functions to prevent the
inverter from feeding power to the utility grid in the event of a utility outage.
• Utilize EMI input and output filtration to prevent electromagnetic interference.
• Field-selectable voltage and frequency trip points.
• Remote monitoring system using a standard Ethernet data reporting and
communications interface PCB. With a high speed connection, this interface
can provide PV system performance data in the following methods:
◦ Subscribe to the standard monitoring service on the secure AE website. This
recommended method allows the user to track the PV system and inverter
information online. The basic monitoring service is available to all registered
users.
◦ Provide data to incentive-based performance monitoring and reporting
programs for third parties.
• Inverter control through Modbus/TCP or Modbus/RTU for standard and
optional features:
◦ Power curtailment
◦ Power factor control
◦ Monitoring
◦ Remote disable
• Inverter remote disable for remote control by opening an external switch or set
of contacts.
2‑2
Product Overview
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
MAJOR COMPONENTS AND FUNCTIONAL
PARTS
Display
Air intake hood
Power module assembly
Data monitoring
AC sub panel
Ventilation slots
DC sub panel
DC combiner sub panel
Fork slot
Figure 2‑1. Components of the PVP250kW and PVP260kW inverters
The modular design of the inverter makes them easy to access and service. As shown
in the preceding illustration the inverter is composed of two main sections:
• The upper compartments contains the power module assembly for the power
conversion electronics including:
◦ Power module assembly
◦ Control printed circuit boards (PCB)
◦ Power distribution PCB
◦ Power supply
◦ Active cooling system
◦ Dedicated data monitoring in the right compartment
• The lower and magnetics compartments house the following:
◦ DC combiner sub panel contains the optional fused subcombiner, optional
subcombiner monitoring, and the positive, negative, and ground bars
◦ DC sub panel with integrated DC ground fault detector interrupter (GFDI)
PCB, surge protection, and DC disconnect
◦ AC sub panel with AC output filtering, surge protection, and AC connection
points
570-1001792-05A
Product Overview
2‑3
Advanced Energy
◦ Magnetics compartment contains the isolation transformer and inductors
Power Module Assembly
The inverter uses insulated gate bipolar transistors (IGBTs) for converting DC power
into three-phase AC power. The inverter is protected by over-current, over-voltage,
and over-temperature detection controls. If a protection system is activated, the
power module will cease power conversion and send an interrupt signal to the digital
signal processor (DSP).
Card cage assembly
Figure 2‑2. Power module assembly
Card Cage Assembly
The card cage assembly in the following figure is designed to enable fast and easy
service and also acts as an EMI shield to ensure signal integrity on the following
PCBs:
• Communications PCB: Provides serial, internet, and Modbus communications.
• Power distribution PCB: Distributes the required logic level voltages for use
throughout the inverter.
• Controller PCB: Controls sine wave generation, logic functions, and protection
activities. All analog and digital inputs and outputs are routed to the control
PCB.
• I/O PCB: Provides a central location for a range of input, output, and control
circuits.
2‑4
Product Overview
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Controller PCB
I/O PCB
Power distribution PCB
Communications PCB
Figure 2‑3. Card cage assembly
Data Monitoring Card Cage
COMMUNICATIONS INTERFACE PCB
The communications interface PCB is located in the data monitoring section in the
front upper right of the inverter. The primary purpose of the communications
interface PCB is to provide a means to communicate with the inverter through either
Modbus RTU or Modbus TCP/IP. These connections can be used for third party
monitoring or for web-based inverter monitoring through AE's mypvpower.com
(which uses a proprietary Ethernet protocol). The communications interface PCB
includes:
• RJ45 Ethernet port for network connectivity
• Remote disable terminal blocks, which allow the inverter to be disabled through
external methods such as an e-stop, generator interlock, or fire alarm panel
• Binary Modbus device addressing switch
• Modbus slave port terminal blocks for daisy-chain connection to an RS-485
network
• Serial port is available for AE Solar Energy Technical Support use only
570-1001792-05A
Product Overview
2‑5
Advanced Energy
Inverter control wire harness connectors
Remote disable terminal block
Screws to remove remote disable terminal block
Termination jumpers
Modbus slave port terminal blocks
Address switch
RJ45 Ethernet port
Figure 2‑4. Communications interface PCB
Operator Interface Controls
The vacuum fluorescent display (VFD) located on the front upper left of the inverter
cabinet includes both a digital display screen and two buttons. The display screen
shows the inverter's state, scrolling continuously through the screens. The Scroll/
Pause button controls the display screen and the ON/OFF switch enables or disables
the inverter.
Active Cooling System
The inverters come with fans which activate as needed to keep the internal
components within preset temperature limits. These fans are located under the air
intake hood of the inverter.
DC Combiner Sub Panel
The DC combiner sub panel compartment is where the inverter connections to the PV
source circuits are completed, including the positive, negative, and ground bus bars.
Optional fused subcombiner and subcombiner monitoring are also located in the DC
combiner sub panel if selected.
DC conductors from the array can enter through the side or bottom gland plates.
2‑6
Product Overview
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
DC Sub Panel
This sub panel houses the DC disconnect, DC distribution PCB, fuses, and surge
protection.
DC positive busbar
DC disconnect
DC line filter
DC contractor
4587
Fuse subcombiner
DC negative busbar
Figure 2‑5. DC sub panel and DC combiner sub panel
DC Distribution PCB
The DC distribution PCB is located on the DC sub panel. This PCB includes the DC
voltage sensing and DC soft start circuit. The DC distribution PCB also houses the
ground fault detector interrupter (GFDI) circuit. The purpose of the GFDI is to detect
a ground fault (unintended current flow from the solar panels to earth ground) and in
the event of a ground fault, stop AC power production.
570-1001792-05A
Product Overview
2‑7
Advanced Energy
Figure 2‑6. DC distribution PCB
WARNING:
Risk of electrical shock. The GFDI functions using a fuse to connect or bond
the solar array negative (or the solar array positive, if using a positively
grounded panel array) to earth ground.
AVERTISSEMENT:
Risque d'électrocution. Les fonctions GFDI utilisent un fusible pour connecter
ou lier le négatif du panneau solaire (ou le positif du panneau solaire, si l’on
utilise un panneau mis à la masse du positif) à la prise de terre.
If the ground fault current exceeds 5 A between the grounded array terminal and the
earth ground, the GFDI fuse will open and disconnect the solar panels from their
ground reference, interrupting the ground fault. In this situation, the inverter will
cease operation, display a fault message, and the LED on the DC distribution PCB
will illuminate red. If a GFDI current of 3-5 A exists, the inverter will indicate a
ground fault warning.
2‑8
Product Overview
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
AC Sub Panel
The AC landings, filtering, and sense fusing takes place in the AC sub panel. The AC
sub panel also includes the load-break-rated AC contactor, AC disconnect, surge
modules, and the soft-start circuit.
AC disconnect
AC surge modules
Soft start contactor
Main contactor
AC line filter
Soft start and AC sense fuses
AC landing busbars (3)
AC distribution PCB
Soft start resistors
Figure 2‑7. AC sub panel
The AC distribution PCB is located on the AC sub panel. The AC distribution PCB
contains:
• Soft-start circuitry
• Fusing for the soft-start circuit
• Fusing for the AC sense circuit and 48 VDC power supply
• Fusing for the optional 24 VDC balance-of-system power supply
570-1001792-05A
Product Overview
2‑9
Advanced Energy
Soft start fuses
Power supply fuses
AC sense & DC power supply fuses
Figure 2‑8. AC distribution PCB
Housekeeping Transformer
The housekeeping transformer, located in the bottom left of the AC sub panel, is a
voltage conversion device that transforms 480 VAC to 120 VAC for use within the
inverter. On 600 VAC models the transformer converts 600 VAC to 240 VAC.
Magnetics Compartment
The magnetics compartment contains the isolation transformer and the inductors.
• Isolation transformer: The inverter comes equipped with an integral isolation
transformer. The isolation transformer is designed for class-leading inverter
efficiency.
• Inductor: The inductor is used to filter the AC waveform generated by the
power module, effectively reducing high frequency noise.
2‑10
Product Overview
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Chapter
3
Planning
GENERAL REQUIREMENTS FOR PLANNING
AND INSTALLATION
Planning for an installation of an AE inverter should only be performed by qualified
engineers with a thorough understanding of the processes involved for a successful
installation. Licensed and trained installers must comply with all local and national
code requirements for the installation of electrical power systems with AC and DC
voltages to 600 V.
The inverter must be anchored to a concrete mounting pad. The mounting pad must
meet local seismic requirements. Refer to the mechanical drawings in this manual for
optional seismic-rated concrete pad mounting requirements.
HANDLING THE INVERTER
WARNING:
Heavy equipment. PVP250kW/PVP260kW units weigh up to 2360 kg (5200
lb) with pallet and packaging. If the unit is lifted incorrectly, it may result in
death. In addition, improper handling may result in serious damage to the
unit and may also void the warranty. Keep all doors securely closed while
moving the unit. Only use lifting equipment that is rated for the weight of the
unit. Only use the specified lifting points.
AVERTISSEMENT:
Équipement lourd. Les unités PVP250kW/PVP260kW pèsent jusqu’à 2360
kg (5200 lb) avec palettes et emballage. Tout levage inadéquat de l’unité
peut provoquer la mort. De plus, toute manipulation inadéquate peut
provoquer des dommages graves à l’unité et pourrait aussi annuler la
garantie. Garder toutes les portes bien fermées lors du déplacement de
l’unité. Utiliser uniquement un équipement de levage d'une capacité
nominale convenant au poids de cette unité. Utiliser uniquement les points
de levage spécifiés.
The inverter can weigh up to 2360 kg (5200 lb) with the pallet and packaging. If the
inverter is improperly handled, serious damage can occur and the warranty may be
voided. Only use lifting equipment that is rated for the weight of the inverter. Only
570-1001792-05A
Planning
3‑1
Advanced Energy
use the specified lifting points. Leave the inverter on its shipping pallet with the
protective plastic wrap in place until it is time to install.
☞ Important
Do not lift the inverter from the upper bolt points.
STORAGE
Prior to installation, the inverter should be stored in a dry, non-condensing
environment to avoid potential rust and corrosion. Remove the transport bag when
the inverter is ready for installation. If the hood scoop is not installed it needs to be
installed immediately.
LOCATION AND CLEARANCES
Location
Select a suitable location to install the inverter. The inverter must be installed on a
flat, solid surface such as a concrete pad.
Noise
The inverter is capable of emitting audible switching noise and should be located
away from noise sensitive areas that are populated by people or animals.
Recommended Clearances
Working clearances must comply with your national and local electrical code.
Table 3‑1. Inverter clearances
Location
Distance
Description
Front
914 mm (36″)
The front clearance is required to open and maintain the unit
or as required by local code.
Rear
51 mm (2″)
The rear clearance is required behind the inverter to allow
room for full opening of the air intake hood.
3‑2
Planning
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 3‑1. Inverter clearances (Continued)
Location
Distance
Description
Sides
305 mm (12″) or
914 mm (36″)
The minimum side clearances are 305 mm (12″) on one side
of the inverter and 914 mm (36″) on the other side to allow
access to the external mounting flanges. The installer may
select which side has clearance. The 914 mm (36″) will
provide future access to the magnetics section for retorquing
bolts and thermal scans of connections. However, the 914 mm
(36″) on the side is not a NEC setback requirement. 305 mm
(12″) on each side is an acceptable installation practice.
Top
457 mm (18″)
The top clearance is required above the air intake hood to
maintain the filters and fans.
Clearances are shown in the figure below.
457 mm (18”)
305 mm or 914 mm
(12” or 36”)
51 mm (2”)
305 mm or 914 mm
(12” or 36”)
914 mm (36”)
Figure 3‑1. Inverter clearances
Only one side, right or left, is recommended to have the full 914 mm (36″) clearance
while the remaining side must have 305 mm (12″). The above example demonstrates
305 mm (12″) on the left with 914 mm (36″) on the right side. This allows access to
the magnetics section for retorquing bolts and thermal scan of connections. This is
not a code setback requirement and 305 mm (12″) on each side is an acceptable
installation practice.
570-1001792-05A
Planning
3‑3
Advanced Energy
CONDUIT AND CONDUCTORS
All the external conduit and conductors are to be supplied by the installer. All
interconnect wiring and power conductors interfacing to the inverter must be in
accordance with national and local electrical code. All conductors shall be rated for
90°C (minimum).
Large gauge wire must conform to the minimum bend radius specified by applicable
national and local codes.
External cable interfaces are through bottom or side gland plates. The gland plates
must be in place for operation of the inverter. Gland plate locations are included on
the mechanical drawings in the appendix.
ENVIRONMENTAL REQUIREMENTS
The unit may be installed either indoors or outdoors. If the installation of the inverter
is outdoors, all interconnect conduit and fittings must be rated NEMA 4 (same as the
inverter rating) as required by the NEC. For high temperature locations a shade
structure should be placed over the unit in order to reduce thermal stress and extend
the product's life.
Inverter power output will be de-rated for ambient temperatures in excess of 50°C/
122°F.
Do not cover the ventilation slots around the base of the inverter, which are essential
for proper air flow and cooling. This does not apply to AE designed PowerVault
enclosed skid solutions.
Table 3‑2. Cooling and heat rejection rate requirements
Requirement
3‑4
Rate
Description
Cooling air flow rate
(maximum)
2,300 CFM
No external intake or
exhaust air ports are
required in the building if
air flow volume needs are
met.
Heat rejection rate
(maximum)
41,000 BTU/hr.
n/a
Planning
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
GROUNDING AND NEUTRAL
REQUIREMENTS
PV Array Frame Grounding
DANGER:
Do not connect the PV negative or positive conductors to the ground bus
bars provided. The PV array is grounded through the integral GFDI.
Connecting the PV array positive or negative conductors to ground at any
other point in the system would defeat the ground fault protection circuit.
DANGER:
Ne pas brancher les conducteurs négatifs ou positifs du PV aux barres
omnibus mises à la terre fournies. Le panneau photovoltaïque est mis à la
terre au moyen du GFDI. La connexion des conducteurs positifs ou négatifs
du panneau photovoltaïque à la terre à tout autre point du système pourrait
déjouer le circuit de protection contre les défauts de terre.
CAUTION:
The inverter may be factory configured for either positive or negative ground.
It may NOT be field configured to a different grounding once it is shipped
from the factory. To identify if your inverter is configured for positive or
negative ground read the label next to the DC landing bus bar. Verify that the
grounding configuration matches your installation grounding plan. If you need
to reconfigure the ground, contact Advanced Energy for assistance. DO NOT
ground either DC lead at the time of installation. This will defeat the integral
GFDI circuit.
ATTENTION:
L’inverseur peut être configuré à l’usine pour une mise à la terre positive ou
négative. Il ne peut PAS être configuré sur le terrain à une mise à la terre
différente une fois qu’il a été expédié de l’usine. Pour savoir si votre
inverseur est configuré pour une mise à la terre positive ou négative, lire
l’étiquette près de la barre omnibus CC. Vérifier que la configuration de mise
à la terre correspond à votre plan de mise à la terre d’installation. Si on a
besoin de reconfigurer la mise à la terre, contacter Advanced Energy pour de
l’aide. NE PAS mettre à la terre le fil CC au moment de l’installation. Cela
déjouerait le circuit GFDI.
The inverter incorporates an integral GFDI device. The PV array safety ground
(frame ground) may be attached to the provided grounding bus bar. The grounding
570-1001792-05A
Planning
3‑5
Advanced Energy
bus bar is located below the DC subpanel compartment in the front left of the inverter
cabinet. The PV array is grounded internally by means of the GFDI.
The inverter is shipped preconfigured with positive or negative PV array grounding
based on the preference specified when the order is placed.
System Neutral
The inverter has been certified to national standards for installation without a neutral
conductor. Do not connect a neutral conductor from the AC service panel to the
inverter.
WARNING:
The AC output/neutral must not be bonded to ground within the equipment.
AVERTISSEMENT:
La sortie et le neutre CA ne doivent pas être branchés à la masse à
l’intérieur du dispositif.
UTILITY GRID INTERCONNECTION
Utility Connection Requirements
Review all applicable national or local codes for specific requirements for the size of
the electrical service and the amount of current that is allowed to be fed into the panel
by the inverter.
Contacting Your Local Utility
Contact your electrical utility before connecting the inverter to ensure there are no
local restrictions or special requirements. Your local utility company may require
specific inspections, equipment, or other procedures not covered in this document.
Voltage Output
This inverter is designed to be connected to a three phase, grounded, wye
transformer. The AC output voltage is available on the inverter name plate for the
output voltage wye configuration. Do not change the output voltage of the inverter.
AC and DC power requirements are included in the specifications.
3‑6
Planning
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Related Links
• “Specifications” on page 9‑1
INVERTER MONITORING
The inverter is equipped with a data monitoring module that can be used to monitor
the inverter through one of the following interfaces:
• Basic performance data can be accessed using a free web-based monitoring
service provided by AE.
• Locally through a third party monitoring system using Modbus/TCP or
Modbus/RTU.
Related Links
• “Data Monitoring and Controls” on page 6‑1
CALCULATING DC INPUT VOLTAGE
To Calculate Maximum Open Circuit Voltage
• Calculate the maximum open circuit (no load) voltage for each series module
connection. Refer to the Advanced Energy Solar Energy web site and select the
String Calculator to calculate the input from the PV array.
Contact AE Solar Energy Technical Support if you require assistance
calculating the maximum DC input voltage for your array at your specific
location.
☞ Important
Each DC input connection must be wired to deliver the same input voltage.
☞ Important
For all temperature conditions, the open circuit voltage for each series
connection must be less than or equal to 600 VDC.
DC SUBCOMBINER OPTIONS
The inverter comes with standard positive and negative bus bars for landing DC
inputs from the PV array.
570-1001792-05A
Planning
3‑7
Advanced Energy
Optional 8, 16, and 20 circuit internal subcombiner boxes are available as shown in
the figure below. In addition, the 8 and 16 circuit subcombiners can be ordered with
monitoring on each input circuit.
8 circuit option
16 circuit option
20 circuit option
4623
8 Circuit with
monitoring option
16 circuit with
monitoring option
Subcombiner with
no circuits
Figure 3‑2. DC subcombiner options
Fuse Protection for DC Input
The installer is responsible for providing proper fuse protection for the DC input
circuit if the fused subcombiner option is not included in the order.
3‑8
Planning
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Chapter
4
Installing
HANDLING AND UNPACKING
This section describes the required safe handling and unpacking procedures for the
AE inverter. Always follow the recommendations in this section to prevent accidental
damage or injury.
Packaging Contents
The following items are included with the inverter when it is packaged for shipping:
• Manual
• Warranty card
• Final test report
• Keys for door handles
Handling and Unpacking the Inverter
TOOLS REQUIRED
• Two 3/4″ wrenches or one wrench and one 3/4″ socket wrench
• Lifting device such as a forklift or pallet jack
• Utility knife
The inverter can be moved using a forklift or pallet jack that is rated to handle a
minimum of 2360 kg (5200 lb).
TO UNLOAD AND UNPACK THE INVERTER
WARNING:
Heavy equipment. PVP250kW/PVP260kW units weigh up to 2360 kg (5200
lb) with pallet and packaging. If the unit is lifted incorrectly, it may result in
death. In addition, improper handling may result in serious damage to the
unit and may also void the warranty. Keep all doors securely closed while
moving the unit. Only use lifting equipment that is rated for the weight of the
unit. Only use the specified lifting points.
570-1001792-05A
Installing
4‑1
Advanced Energy
AVERTISSEMENT:
Équipement lourd. Les unités PVP250kW/PVP260kW pèsent jusqu’à 2360
kg (5200 lb) avec palettes et emballage. Tout levage inadéquat de l’unité
peut provoquer la mort. De plus, toute manipulation inadéquate peut
provoquer des dommages graves à l’unité et pourrait aussi annuler la
garantie. Garder toutes les portes bien fermées lors du déplacement de
l’unité. Utiliser uniquement un équipement de levage d'une capacité
nominale convenant au poids de cette unité. Utiliser uniquement les points
de levage spécifiés.
1. Lift and move the inverter using the shipping pallet.
Do not penetrate the packaging or use the inverter base for unloading.
2. Remove the protective plastic wrap encasing the inverter.
If no damage is apparent, proceed with the next step. If you do see signs of
shipping damage, contact AE Solar Energy Technical Support and the carrier
immediately.
3. Using a 3/4″ wrench, loosen the bolts and nuts securing the inverter to the
pallet.
PRE-INSTALLATION INSPECTION
Before placing and installing the inverter, the inverter should be inspected to identify
possible external and internal shipping damage. If a problem is identified during any
of these inspection steps contact AE Solar Energy Technical Support.
Pre-Installation Inspection Tools
The following tools are needed to perform the pre-installation inspection of the
inverter:
• Large flat blade (common) screwdriver
• Access door entry key
• Hex wrench
Step 1: External Inspection
1. Inspect the shipping materials and the inverter for any cosmetic or structural
damage. Specifically look for any structural damage or crushing of the base or
doors.
2. Confirm all doors open freely and easily.
4‑2
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
The front doors on the main compartments of the inverter have a rotating hand
latch with integral key lock to secure the main compartment doors.
Step 2: Inspection of the Magnetics
1. Using a hex wrench remove the large cover plates on the sides of the inverter to
access the magnetics.
2. Inspect the following connections:
a. The three large bus bars at the top of the power drive into the inductors
b. Three from the inductors to the transformer
c. Three from the transformer to the back of the AC bulkhead
For each connection check the integrity of the bus bar connections and
terminals.
Figure 4‑1. Bus bar terminal and connection
3. Check the screens at the bottom of the compartment for damage or debris.
Figure 4‑2. Screen check
4. Ensure the air deflector is held firmly in place.
570-1001792-05A
Installing
4‑3
Advanced Energy
Figure 4‑3. Air deflector check
5. Replace the cover plates. Make sure the gaskets are not damaged during
replacement of the plates. Do not overtighten the screws.
Step 3: AC and DC Sub Panel Compartments
1. Check the integrity of the bus bar connections and terminals for each bus bar
landing in the AC and DC compartments.
Figure 4‑4. Bus bar connection inspection
2. Ensure the cable connections are plugged in and fully seated.
Figure 4‑5. Inspection of cable connections
3. Inspect and pull test all cable screw terminal connections.
4‑4
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Figure 4‑6. Pull test of cable screw terminal connection
4. Inspect the screens at the bottom of the compartment for damage or debris.
Figure 4‑7. Screen inspection
If any loose wires are found during the inspections, and the correct location of
the connection is unknown, contact AE Solar Energy Technical Support.
Step 4: Upper Electronics Compartment
• Check the integrity of the bus bars and their connections in the upper
electronics compartments.
Figure 4‑8. Check the bus bar connections
570-1001792-05A
Installing
4‑5
Advanced Energy
Step 5: Upper Active Cooling Compartment
1. Ensure the fans spin freely.
Figure 4‑9. Fan inspection
2. Ensure all air filters are fully seated.
4‑6
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Figure 4‑10. Air filter check
This completes the pre-installation inspections.
LIFTING AND MOUNTING THE INVERTER
The inverter base is designed to allow a properly rated forklift to lift it from the front
or back using the fork slots.
☞ Important
Before installing the inverter, make sure the pre-installation inspection steps
have been completed and no issues have been identified.
Mounting Requirements
When mounting the inverter, consider the following requirements:
• Mount the unit on a flat surface in an upright position.
• The mounting surface must comply with all national and local standards for
weight, seismic, and wind sheer requirements.
• The mounting surface must be prepared according to the site specific structural
drawing.
570-1001792-05A
Installing
4‑7
Advanced Energy
Required Tools
• Lifting device such as forklift or a pallet jack or an alternate method of lifting
and positioning the inverter may be used. Lifting devices must be rated for 2360
kg (5200 lb). Proper lifting methods may include:
◦ Using a crane with a strap rated for the weight of the inverter
◦ Using lifting beams, spreader bars, or similar equipment rated for the weight
of the inverter
To Lift and Mount the Unit
WARNING:
Do not attempt to lift the full weight of the unit from the left or right sides only.
Attempting to lift from just the left or right sides only will result in an unstable
and unsafe condition.
AVERTISSEMENT:
Ne pas tenter de soulever l’unité uniquement à partir du côté gauche ou
droit. Toute tentative de soulever l’unité par le côté gauche ou droit pourrait
occasionner une situation d’instabilité dangereuse.
CAUTION:
Care MUST be taken to protect the inverter from compressive stresses or
forces which may dent or deform the cabinet or cause damage to the
inverter. Damage caused by improper handling may void the warranty. Safe
handling, operating, and installation practices are the responsibility of the
installer.
ATTENTION:
Redoubler de vigilance pour protéger l’inverseur des contraintes ou forces en
compression qui peuvent endommager ou déformer l’armoire ou
endommager l’inverseur. Les dommages causés par la manipulation
inadéquate peuvent annuler la garantie. Les pratiques sécuritaires de
manipulation, de fonctionnement et d’installation incombent à l’installateur.
☞ Important
Damage caused by improper handling can void the warranty. Safe operating,
handling, and installation practices are the responsibility of the installer.
1. Prepare the mounting surface according to the site specific structural drawing.
2. Lift the inverter off the pallet using the forklift slots on the front or back. The
left and right fork slots are not designed for lifting the inverter.
4‑8
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
The front and back of the inverter base each have two fork slots that are 109
mm (7.5") wide and 673 (26.5") apart on center.
☞ Important
The center of gravity is toward the back, lower third of the inverter and
centered side to side. Refer to the mechanical drawings to view the
center of gravity location.
3. Position the inverter in the selected location.
Alternate methods of lifting and positioning the inverter may be used. Proper
methods may include the use of a crane with a strap rated for the weight of the
inverter; however, care MUST be taken to protect the inverter from
compressive stresses or forces which may dent or deform the cabinet or cause
damage to the inverter. Use of lifting beams, spreader bars, or similar
equipment rated for the weight of the inverter can be employed for this purpose.
4. Secure the inverter to the mounting surface by setting the anchoring hardware
through each of the six holes in the external mounting flange on the base of the
unit.
Refer to the mechanical drawings in the Appendix to review the anchoring
locations.
CONDUIT ENTRY POINTS
The inverter is shipped from the factory with side and bottom gland plates that allow
for conduit entry.
☞ Important
All penetrations in the inverter cabinet must be through the specified gland
plates which are for the sole purpose of providing a safe and convenient way to
route wiring in to and out of the inverter. Penetrating the inverter housing in
any other location besides the gland plates voids the warranty.
☞ Important
Do not block the cabinet's side access with conduit.
☞ Important
Do not attach conduit support structure to the cabinet.
Using Gland Plates for Cable Conduit Entry and Exit
All power cabling and communications wiring must enter and exit via the inverter
cabinet’s gland plates. There are gland plates on the AC and DC sides of the inverter
for bottom and side entry. In addition, there is a gland plate on the upper right side
for data monitoring wiring. Each gland plate location is selected to ensure safe
installation, proper airflow and prevention of dust, debris, moisture, insect, and
570-1001792-05A
Installing
4‑9
Advanced Energy
animal incursion. Do not penetrate the cabinet at any other location. All gland plates
need to be installed for proper operation of the inverter.
TOOLS REQUIRED
• 5/32″ hex wrench
• NEMA 4 conduit hubs
• Knockout punch
TO USE THE GLAND PLATES
☞ Important
All penetrations in the inverter cabinet must be through the gland plates which
are provided for the sole purpose of a safe and convenient way to route wiring
in to and out of the inverter. Penetrating the inverter cabinet in any other
location besides the gland plates voids the warranty.
☞ Important
Remove all metal shavings and wire scraps from the inverter prior to replacing
the gland plates.
1. Select the size(s) and location(s) of the hole(s) that need to be punched.
4346
Figure 4‑11. DC bottom entry gland plates
4‑10
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
4347
Figure 4‑12. DC side entry gland plates
2. Remove the gland plate while taking care not to damage the weatherproof
gasket material on the back side of the plate.
3. Punch holes as needed in the gland plate.
4. Attach watertight NEMA 4 conduit hubs in each hole.
The inverter is a NEMA 4 enclosure. Use only rain-tight or wet-location
conduit hubs and install these hubs as shown in the following figure.
Lower cabinet gland plate
2 inch straight metal conduit connector
4348
Figure 4‑13. Installation of conduit hub
CAUTION:
For outdoor installations make liquid-tight connections to the unit.
ATTENTION:
Pour les installations extérieures, effectuer des connexions étanches
à l’unité.
5. Replace the gland plate taking care to evenly seat the gasket material against
the cabinet.
570-1001792-05A
Installing
4‑11
Advanced Energy
6. Tighten until the gland plate is snug. Do not overtighten.
ELECTRICAL CONNECTIONS
DANGER:
Electrical connections must comply with national and local standards.
Voltage drop and other considerations may dictate that larger wire sizes be
used.
DANGER:
Les connexions électriques doivent être conformes aux normes nationales et
locales. Des chutes de tension et autres facteurs peuvent imposer l’usage de
fils de plus gros calibre.
DANGER:
RISK OF DEATH OR BODILY INJURY. Disconnect and lockout/tagout all
sources of input power before working on this unit or anything connected to
it.
DANGER:
RISQUE DE MORT OU DE BLESSURES CORPORELLES. Débrancher et
verrouiller/étiqueter toutes les sources de puissance d’entrée avant de
travailler sur cette unité ou sur tout élément qui y est raccordé.
After the inverter is properly secured to the mounting pad and the conduit hubs have
been installed the electrical connections can be completed. Terminal connections for
the inverter are located inside the inverter. When facing the inverter the connections
are located in the following areas:
• DC terminals are on the left side
• AC terminals are on the right side
Both AC and DC bus bars accept standard terminal lug-crimped wires mounted to the
bus bar fittings with standard grade 8, 3/8″ mounting hardware.
For the optional fused subcombiners, the conductor is inserted directly into the fuse
holder assembly. The following table lists the accepted wire sizing for each
subcombiner lug option.
4‑12
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 4‑1. Subcombiner wire sizing and torque values
Fuse Block
Maximum
Amperage
Maximum Wire Size
Required
Torque
Terminal
Temp.
Rating
200
Al/Cu 350kcmil-#6
42 Nm (31
ft-lb)
75°C
100
Al/Cu #2/0-6
14 Nm (10
ft-lb)
75°C
Direct to bus
bar
No wire size limit. Must use grade 8 3/8″ 54 Nm (40
hardware.
ft-lb)
90°C
AC Wiring
☞ Important
The inverter is certified for installation without a neutral conductor. Do NOT
pull a neutral conductor from the AC service panel to the inverter.
The inverter is designed for use with the following three-phase power grids.
• 480 VAC
• 600 VAC
☞ Important
The inverter must be connected to a grounded wye configuration.
The voltage output is not selectable on AE inverters. Do not attempt to change the
AC output voltage once it is set at the factory.
Use the applicable national and local electrical code to select the appropriate AC wire
sizing for your application. Correct wire sizing requires, at a minimum,
considerations for ampacity, temperature, and conduit. In addition, wire should be
sized to minimize voltage drop. Install the inverter on a dedicated branch circuit with
a recommended circuit breaker rating as specified in the following table.
Table 4‑2. Branch breaker size recommendations
Model
208 VAC
480 VAC
600 VAC
PVP250kW
N/A
400 A
350 A
PVP260kW
N/A
400 A
N/A
PVP260kW-LV
N/A
400 A
N/A
The inverter does not have internal AC fusing so it is important to size the branch
circuit protection appropriately.
When an inverter is installed on an electrical panel the AC operating voltage range of
the inverter should be considered. Voltages outside this range will cause the inverter
570-1001792-05A
Installing
4‑13
Advanced Energy
to fault. See the specifications section of this manual for AC operating voltage
ranges.
Table 4‑3. Operational voltage ranges per electrical panel
Electrical Panel
Operational Voltage Range
480 VAC
422 VAC – 528 VAC
600 VAC
528 VAC – 660 VAC
Related Links
• “Electrical Specifications” on page 9‑1
CONNECTING TO THE ELECTRICAL GRID
The inverter is connected to the electrical grid using four wires:
• Phase A voltage
• Phase B voltage
• Phase C voltage
• Ground
☞ Important
Do NOT connect a neutral wire to the wye point of the isolation transformer.
The four AC termination bus bars for phases A, B, C, and ground are located in the
lower right of the AC panel. The phase bus bars are vertically mounted and the
ground bus bar is horizontally mounted at the bottom of the cabinet. Each bus bar has
seven rows of two 3/8″ diameter holes, spaced 1″ apart vertically.
The AC connections must be made through conduit installed in the bottom or side
entry gland plates.
Tools Required
• 5/32″ Allen wrenches (Allen wrench adaptor for a socket wrench
recommended)
• 7/16″ open-end wrench or socket wrench and a 6″ extender
• Torque wrench
To Connect the AC Wiring
WARNING:
Follow the order listed in this section to wire the inverter. Failure to do so
may result in hazardous voltages or disconnection of contacts.
4‑14
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
AVERTISSEMENT:
Pour câbler l’onduleur, suivez les ordres décrits dans cette section. Tout
manquement au suivi scrupuleux des instructions est susceptible d’entrainer
des tensions anormales ou le débranchement de contacts.
DANGER:
Risk of electrical shock. High voltages are present in the inverter cabinet.
Both AC and DC disconnects must be in the OFF position when working on
the unit. Wait five minutes to discharge high voltage before opening the front
panels of the inverter.
DANGER:
Risque d’électrocution. L’intérieur de l’onduleur est soumis à des hautes
tensions. Les interrupteurs de courant alternatif et continu doivent être mis
HORS TENSION durant les travaux sur l’unité. Attendez cinq minutes afin de
permettre la décharge du courant haute tension avant de démonter les
panneaux avant de l’onduleur.
CAUTION:
To avoid an increase in AC voltage to unacceptable values while the inverter
is connected, the grid impedance value at the connection point should be as
low as possible. By keeping the grid impedance value low, the system will
achieve higher efficiency.
ATTENTION:
Afin d’éviter des surtensions inacceptables de CA lorsque l’onduleur est
branché, assurez-vous que la valeur de l’impédance aux points de connexion
au réseau public est la plus basse possible. Une faible valeur d’impédance
permet un fonctionnement plus efficace de l’appareil.
WARNING:
Do not connect a neutral wire to the WYE point of the isolation transformer.
Doing so will cause the inverter to malfunction and will void the warranty.
AVERTISSEMENT:
Ne branchez pas de câble neutre au point WYE du transformateur
d’isolation. Un tel branchement causerait un fonctionnement défectueux de
l’onduleur et annulerait la garantie.
570-1001792-05A
Installing
4‑15
Advanced Energy
CAUTION:
To reduce the risk of fire, connect only to a branch circuit with overcurrent
protection appropriately rated in accordance with your national and local
electrical codes.
ATTENTION:
Pour réduire le risque d'incendie, brancher seulement à un circuit de
dérivation avec une protection de surintensité d'une capacité nominale
conforme aux codes d’électricité nationaux et locaux.
CAUTION:
The input and output circuits are isolated from the enclosure. System
grounding, when required by national and local electrical code, is the
responsibility of the installer.
ATTENTION:
Les circuits d’entrée et de sortie sont isolés de l’enceinte. La mise à la terre
du système, lorsqu’elle est exigée par le code d’électricité national ou local,
est la responsabilité de l’installateur.
WARNING:
The AC output/neutral must not be bonded to ground within the equipment.
AVERTISSEMENT:
La sortie et le neutre CA ne doivent pas être branchés à la masse à
l’intérieur du dispositif.
1. Remove the protective plastic cover with a 7/16″ socket wrench.
2. Run the conduit from the main breaker panel to the desired gland plate on the
inverter.
3. Insert a conduit fitting in the gland plate and fasten with a locking nut.
4. Feed the PHASE A, PHASE B, PHASE C, and GROUND wires through the
conduit and into the right side conduit opening of the inverter.
5. Connect the wires to the appropriate AC landings as follows:
a. GROUND wire to the marked EARTH GROUND landing inside the
inverter.
b. Phase A, B, and C to the AC landings inside the inverter.
☞ Important
The inverter auto phases and will auto detect phase rotation.
4‑16
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Phase A
Phase B
Phase C
Ground
Figure 4‑14. AC connections
Bus bar
Crimp connector
Washer, 3/8 high strength
Screw, hex cap, 3/8 - 16 x 1, Grade 8
Washer, Belleville, 3/8, 6500 lb flat load
4618
Nut, hex, 3/8 - 16, Grade 8
Figure 4‑15. Bus bar connections
Use grade 8, 3/8″ hardware to secure the lugs of the outgoing AC cables to the
bus bars.
6. Ensure all connections are wired correctly and properly torqued. Tighten the
AC terminal screws to 54 Nm (40 ft-lb).
7. Reinstall the protective plastic cover.
570-1001792-05A
Installing
4‑17
Advanced Energy
DC Wiring
The DC bus bars, positive, negative, and ground are located in the lower left
compartment, the DC subcombiner panel. The positive and negative bars are
vertically mounted and the ground bar is horizontally mounted at the bottom of the
cabinet. The positive and negative bus bars have 32 rows of two 3/8″ diameter holes
spaced 1″ apart vertically. The ground bar has 12 rows of two 3/8″ diameter holes
spaced 1″ apart. See the following table for wire sizing limits for an inverter with an
optional fused subcombiner.
DC + (behind negative busbar)
DC -
Ground
Figure 4‑16. DC connections
CONNECTING TO THE PV ARRAYS
DANGER:
Before proceeding with the DC wiring, confirm that the PV array has been
disconnected from the inverter using the external DC disconnect.
DANGER:
Avant d’effectuer les branchements CC, assurez-vous que les piles PV sont
déconnectées de l’onduleur en utilisant le connecteur CC externe.
4‑18
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
DANGER:
Make sure the PV array polarity and voltage between the positive and
negative cables are correct before connecting the PV array cables to the DC
terminal block.
DANGER:
Assurez-vous que la polarité et le voltage des câbles positifs et négatifs des
piles PV sont corrects avant de brancher les câbles des piles PV aux bornes
CC.
DANGER:
Risk of electrical shock. When exposed to light, PV arrays create electrical
energy that could cause a hazardous condition.
DANGER:
Risque d’électrocution. Lorsqu’elles sont exposées à la lumière, les piles
photovoltaïques génèrent un courant électrique susceptible de causer des
conditions dangereuses.
Follow these steps to wire the DC inputs from the PV panels to the inverter. These
instructions are for a negatively grounded array. For a positively grounded array, use
the opposite terminals.
Tools Required
• 5/32″ Allen wrenches (Allen wrench adaptor for a socket wrench
recommended)
• Open-end wrench or socket wrench
• Torque wrench
• Voltmeter
To Connect the DC Wiring
1. Disconnect power to the DC wiring by disconnecting the PV array outside the
inverter before starting the DC wiring.
2. Clearly mark the array positive and negative leads.
3. Route the PV array leads through the conduit to the desired entry gland plate
on the DC side of the inverter.
4. Connect the PV frame ground wire(s) to the ground lug on the point marked
in the lower left side of the cabinet.
5. Connect positive DC cables(s) to the terminals located on the positive bus bar
or fuse holder as applicable. Use grade 8, 3/8″ hardware to secure the lugs of
570-1001792-05A
Installing
4‑19
Advanced Energy
the incoming DC cables to the bus bar. The DC landing torque specification is
54 Nm (40 ft-lb).
6. Connect negative DC lead(s) directly to the terminals located on the negative
DC bus bar as shown in the following figure. Use grade 8, 3/8″ hardware to
secure the lugs of the incoming DC cables to the bus bar. The DC landing
torque specification is 54 Nm (40 ft-lb).
Bus bar
Crimp connector
Washer, 3/8 high strength
Screw, hex cap, 3/8 - 16 x 1, Grade 8
Washer, Belleville, 3/8, 6500 lb flat load
4618
Nut, hex, 3/8 - 16, Grade 8
Figure 4‑17. DC inverter connections
7. Energize the DC cables.
4‑20
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
8 circuit option
16 circuit option
20 circuit option
4623
8 Circuit with
monitoring option
16 circuit with
monitoring option
Subcombiner with
no circuits
Figure 4‑18. DC subcombiner configurations
8. Using a voltmeter, check the PV array positive leads and confirm the voltage is
positive when referenced to the negative leads. The reading should not exceed
your calculated series Voc or the 600 VDC maximum inverter input
specification.
9. De-energize the DC cables.
Using the Integrated Remote Disable Input
There are two remote disable inputs available to the installer in the inverter. The
inputs are located on the communications interface PCB which is located in the data
monitoring compartment.
The remote disable inputs consist of two pairs of screw terminals to which a user can
connect separate remote switches or contacts. Using the remote disable input allows
the inverter to be shut down remotely by opening a switch or set of contacts. This
feature would typically be used in conjunction with a fire alarm panel or a generator
output signal. The contacts need to be normally closed for the inverter to operate. The
customer will need to provide a 5 V, 5 mA tolerant relay, switch, or set of contacts.
570-1001792-05A
Installing
4‑21
Advanced Energy
☞ Important
Jumpers are installed across each of the terminal pairs to allow normal
operation. Do not remove either of the jumpers unless you intend to use this
feature.
☞ Important
Closing the remote disable contact with the inverter ON/OFF switch in the ON
position will re-start the inverter.
MAKING THE REMOTE DISABLE CONNECTION
Parts or Tools Required
You need the following parts and/or tools to make the remote disable connection:
• Control wire, 22 AWG through 14 AWG
• Wire stripper
• Small screwdriver
☞ Important
Thin stranded wire is recommended.
The Remote Disable and Other On-Site Power Sources
The following information describes how to make the remote disable connection on
the PVP250kW/PVP260kW inverter. The remote disable circuit requires a normallyclosed contact capable of switching a 5 V, 5 mA signal. One or two remote disable
connections can be made to the unit.
☞ Important
The PVP250kW/PVP260kW inverter cannot operate with this remote disable
open. If the remote disable feature is not used, the remote disable terminal
block jumpers must be left in place for the inverter to operate.
You are required to establish this external remote disable connection if an additional
power source exists at your installation site that could be damaged if the PV system
continues to run when the power source turns on. For example, if you have an on-site
generator that supplies power when an electrical outage occurs, you should make the
remote disable connection from the inverter to the on-site generator to ensure the PV
system shuts downs when the generator turns on.
4‑22
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Closed Remote Contacts = Inverter Enabled
Inverter Remote
Disable Terminals
Remote Contacts
Control Wire
Open Remote Contacts = Inverter Disabled
Inverter Remote
Disable Terminals
Remote Contacts
Control Wire
Figure 4‑19. Remote disable wiring diagram
To Make the Remote Disable Connection
DANGER:
Risk of electrical shock. High voltages are present in the inverter cabinet.
Both AC and DC disconnects must be in the OFF position when working on
the unit. Wait five minutes to discharge high voltage before opening the front
panels of the inverter.
DANGER:
Risque d’électrocution. L’intérieur de l’onduleur est soumis à des hautes
tensions. Les interrupteurs de courant alternatif et continu doivent être mis
HORS TENSION durant les travaux sur l’unité. Attendez cinq minutes afin de
permettre la décharge du courant haute tension avant de démonter les
panneaux avant de l’onduleur.
☞ Important
This procedure is written for a single remote disable connection. If two remote
disables are used, follow the same steps for each remote disable connection.
1. Disconnect the power to the inverter before starting the installation.
2. Remove the data monitoring gland plate on the upper right side of the inverter.
570-1001792-05A
Installing
4‑23
Advanced Energy
The data monitoring gland plate is a small, flat piece of metal covering the side
entry port to the inverter’s data monitoring compartment.
3. Drill or punch a hole in the desired location to allow access for the remote
disable control wires.
4. Install a water-tight conduit hub connection.
5. Replace the gland plate.
6. Route the remote disable control wires from the remote device.
7. Locate the remote disable terminal block located on the communications
interface PCB in the monitoring compartment.
8. If desired remove the terminal block by loosening the two mounting screws.
9. Locate and remove one jumper from the remote disable terminal block shown
in the following illustration.
Inverter control wire harness connectors
Remote disable terminal block
Screws to remove remote disable terminal block
Termination jumpers
Modbus slave port terminal blocks
Address switch
RJ45 Ethernet port
Figure 4‑20. Communications interface PCB
10. Strip approximately 1/4″ (6 mm) of insulation from each conductor of the
control wire.
11. Insert the stripped wires in the remote disable terminal block and tighten the
screws.
12. If the terminal block was removed, reattach it by tightening the two mounting
screws.
4‑24
Installing
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Chapter
5
Operation
SYSTEM STARTUP PROCEDURE
WARNING:
Before turning on the inverter, ensure that the front panels are closed
properly.
AVERTISSEMENT:
Assurez-vous de la bonne fermeture des panneaux antérieurs avant de
mettre l’onduleur en route.
To Start the Inverter
1. Turn the ON/OFF switch to the OFF position.
The ON/OFF switch is located next to the display screen.
2. Check the polarity of the DC positive and negative connectors to ensure they
are wired correctly.
3. Confirm the PV panel open circuit voltage is at or below 600 VDC.
4. Close all upper and lower cabinet doors.
5. Turn on the external AC connection to the inverter.
6. Turn the inverter’s AC disconnect to the power ON position.
The display on the upper front panel should now be active.
Pause/Scroll button
ON/OFF switch
4599
Figure 5‑1. Inverter display
7. Turn on the external DC disconnect to provide DC power to the inverter.
8. Turn the inverter’s DC disconnect to the power ON position.
570-1001792-05A
Operation
5‑1
Advanced Energy
9. Turn the ON/OFF switch to the ON position.
After five minutes, the inverter starts to produce power into the AC grid if all
necessary operating conditions are met.
ON/OFF switch
DC disconnect in Power ON position
AC disconnect in Power ON position
4597
Figure 5‑2. Inverter with AC and DC disconnect power ON
If the unit fails to power on, use the troubleshooting information provided in
this manual. If those steps do not resolve the problem, contact your service
provider or AE Solar Energy Technical Support.
INVERTER OPERATING STATES
The PVP250kW/PVP260kW inverter has nine operating states. The inverter will
transition from one state to another only as shown in the following figure. Each
operating state is described below.
5‑2
Operation
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Initialize
Disabled
Sleep
Startup
Delay
Fault
DC
Precharge
AC
Precharge
Power
Track
(auto
mode)
Idle
4598
Figure 5‑3. Inverter state diagram
• Initialize: The inverter enters this state after a power cycle. Variables and
devices are initialized and I/O ports set. When initialization is complete, the
inverter enters the sleep state.
• Disabled: The inverter enters this state when the front-panel switch is in the
OFF position or when a disable command is received over the Modbus
connection. If a fault condition occurs, the inverter switches to the fault state.
When the fault is cleared and the condition no longer exists, the inverter returns
to the disabled state. The inverter displays a message on the screen indicating
the inverter is disabled. When an enable command is received or the front-panel
switch is changed to the ON position, the inverter switches to the sleep state.
The inverter will also enter the disabled state when the remote disable input
feature is applied.
• Fault: The inverter enters this state when any fault condition occurs. The
inverter can enter this state from any other state except initialize. Unless the
fault is latching, the inverter clears the fault when the fault condition subsides.
The inverter displays the fault codes and messages indicating the current fault
conditions. If the fault is latching, the inverter switches to the latched fault state.
The inverter enters this state when a latching fault condition occurs. The
inverter displays fault codes and messages indicating the current fault
conditions. When the fault is cleared, the inverter switches to the sleep state.
Descriptions of the inverter faults are included in the Troubleshooting chapter.
570-1001792-05A
Operation
5‑3
Advanced Energy
• Sleep: In this state, the inverter is enabled but the DC voltage is below the
minimum operating window. When the PV input voltage rises above the
starting voltage, the inverter switches to the startup delay state.
• Startup Delay: In this state, the inverter delays a specified time and then enters
the DC precharge state. The delay depends on the conditions prior to the sleep
state and the time taken to reach this state from the previous shutdown. If a grid
interactive fault occurred on the previous shutdown, the inverter will remain in
this state for five minutes.
• DC Precharge: In this state, the inverter closes the DC precharge-contactor,
which limits inrush current into the DC bus capacitors. When the DC bus
voltage reaches the PV input voltage and is greater than the DC start voltage,
the inverter switches to the AC precharge state.
• AC Precharge: In this state, the inverter closes the main DC contactor and the
AC precharge-contactor, which limits inrush current into the transformer. Once
the transformer is magnetized, the main AC contactor is closed and the AC precharge contactor is opened. After a short delay the inverter switches to the idle
state.
• Idle: In this state, the inverter stops energy conversion and displays a message
indicating that the inverter is idle. The inverter switches to the power tracking
state when the DC voltage is above the DC start voltage. If a fault condition
occurs, the inverter switches to the fault state. If the DC voltage drops below the
minimum, the inverter switches to the sleep state.
• Power Track: In this state, the inverter operates in voltage control mode using
the maximum power point tracking (MPPT) function. If a fault occurs, the
inverter switches to the fault state.
Related Links
• “Troubleshooting and Solar Energy Technical Support” on page 8‑1
DISPLAY SCREENS AND OPERATION
The digital display located on the front of the AE inverter includes both a scrolling
display screen and buttons for operating. The display provides the unit operator with
information about the current state of the inverter.
There are five sets of screens that may display depending on the state of the inverter.
The five sets are:
• Initialize: The initialize state is displayed on the screen when the inverter is first
turned on.
• Energy tracking: These are the normal power production states of idle, run, and
AC and DC precharge. Following the startup delay, the inverter goes to energy
tracking which starts with the DC and AC precharge and then goes to idle and
run.
5‑4
Operation
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
• Fault
• Warning
• Disabled
The display screens for each state are shown in the following figures. When there is a
series of display screens associated with the inverter state then the inverter will
continuously scroll through these screens.
4649
Figure 5‑4. Initialize state screen
Screen 1: Product
Screen 2: State
Screen 4: AC values
Screen 3: DC values
Screen 5: Power values
4601
Figure 5‑5. Energy tracking state screens
☞ Important
The DC current display is not a precise measurement.
Fault Codes
SYS 0020 DRV 0000
VLT 0000 TMP 0000
GRD 0000
Screen 1: Fault code(s)
Fault
AC FAST UNDERVOLT A
GFDI FAULT
Advanced Energy
phone: (877)312-3832
email:
Screen 2: Fault text
[email protected]
aei.com
Screen 3: Contact information
Figure 5‑6. Fault state screens
4654
Figure 5‑7. Warning state screen
570-1001792-05A
Operation
5‑5
Advanced Energy
4651
Figure 5‑8. Disabled state screen
To Operate the Display
The inverter display scrolls through a series of display screens based on the current
state of the inverter. To operate the display:
• Press the Pause/Scroll button to pause the display on a specific screen
• Press the Pause/Scroll button again to resume the scroll function
Pause/Scroll button
ON/OFF switch
4599
Figure 5‑9. Inverter display and switch
☞ Important
The ON/OFF switch disables the inverter, turning off inverter output power.
GROUND FAULT INTERRUPT DEVICE
The inverter is equipped with a ground fault detector interrupter (GFDI). The purpose
of the GFDI is to detect a ground fault (unintended current flow from the solar panels
to earth ground) and in this event, disable the inverter.
The GFDI functions using a 5 A fuse to connect or bond the solar array negative (or
the solar array positive, if using a positively grounded panel array) to earth ground.
If the ground fault current exceeds 5 A between the grounded array terminal and the
earth ground, the fuse will open and disconnect the solar panels from their ground
reference, interrupting the ground fault. In this situation, the inverter will cease
operation and display a fault message.
5‑6
Operation
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
To Respond to a Ground Fault
WARNING:
For the GFDI circuit to function as designed, the solar array safety ground
must not be connected to the PV array positive or negative leads. Bonding
the safety ground to the grounded leg of the array anywhere but through the
inverter will cause the GFDI circuit to be bypassed. This would defeat the
operation of the GFDI and potentially create an unsafe operating condition.
AVERTISSEMENT:
Pour que le circuit GFDI fonctionne normalement, la prise de terre de
sécurité du système PV ne doit pas être branché aux câbles positifs ou
négatifs des piles PV. Brancher la prise de terre de sécurité au pied des piles
ou à toute autre partie que l’onduleur causerait une mise hors circuit du
GFDI. Ceci ne empêcherait le fonctionnement normale du circuit GFDI et
créerait des conditions de fonctionnement potentiellement dangereuses.
• If the inverter displays a ground fault as shown in the following figure turn off
the AC and DC to the inverter and refer to the inverter maintenance and
troubleshooting information.
The following figure shows the inverter ground fault error message.
4652
Figure 5‑10. Ground fault error message
TO SHUTDOWN THE INVERTER
DANGER:
This unit contains energy storage devices that take up to 5 minutes to
discharge. Verify the high energy capacitors are completely discharged
before working on this unit.
DANGER:
Cette unité contient des dispositifs de stockage d’énergie qui prennent
jusqu’à 5 minutes pour se décharger. Vérifier que les condensateurs à haute
énergie sont complètement déchargés avant de travailler sur l’unité.
570-1001792-05A
Operation
5‑7
Advanced Energy
1. Turn the ON/OFF switch on the display to OFF position.
2. Turn the DC disconnect to the power OFF position by rotating the DC power
lever to the position shown in the following figure.
3. Wait five minutes.
4. Turn the AC disconnect to the power OFF position by rotating the AC power
lever to the position shown in the following figure.
The display on the upper front panel should be inactive.
ON/OFF switch in OFF position
DC disconnect in Power OFF position
AC disconnect in Power OFF position
4606
Figure 5‑11. AC and DC disconnect power OFF
5. Open the utility connection circuit breaker.
6. Disconnect the PV array connection to the inverter using the external PV
disconnect.
De-energize/Isolation Procedures
The following procedure should be followed to de-energize the inverter for
maintenance.
TO DE-ENERGIZE THE INVERTER
DANGER:
Risk of electrical shock. When exposed to light, PV arrays create electrical
energy that could cause a hazardous condition.
5‑8
Operation
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
DANGER:
Risque d’électrocution. L’autorisation officielle de votre compagnie locale
d’électricité est requise avant de brancher l’onduleur sur le réseau public.
Seul le personnel qualifié est autorisé à brancher le dispositif sur le réseau
public d’électricité.
DANGER:
This unit contains energy storage devices that take up to 5 minutes to
discharge. Verify the high energy capacitors are completely discharged
before working on this unit.
DANGER:
Cette unité contient des dispositifs de stockage d’énergie qui prennent
jusqu’à 5 minutes pour se décharger. Vérifier que les condensateurs à haute
énergie sont complètement déchargés avant de travailler sur l’unité.
1. Turn the inverter’s ON/OFF switch to the OFF position.
2. Disconnect the PV array connection to the inverter using the external PV
disconnect
3. Turn the DC disconnect to the power OFF position by rotating the DC power
lever to the off position.
The display on the upper front panel should be inactive.
4. Wait five minutes.
5. Turn the AC disconnect to the power OFF position by rotating the AC power
lever to the off position.
6. Open the utility connection circuit breaker or the overcurrent protection device,
a breaker or disconnect.
7. Install LOTO devices on the equipment as necessary to comply with LOTO
requirements.
Inverter Enable/Disable Controls
The table below shows the interaction of the inverter on/off controls. Cells containing
an x can be in either state.
570-1001792-05A
Operation
5‑9
Advanced Energy
Table 5‑1. Inverter enable/disable
Inverter Enable/
Disable Switch
Inverter
Disconnect
Switches
On
Closed
Enabled
Enabled
Enabled
Off
x
x
x
Disabled
x
Open
x
x
Disabled
x
x
Disabled
x
Disabled
x
x
x
Disabled
Disabled
5‑10
Remote Enable/
Modbus
Disable
Enable/Disable
Operation
Inverter Status
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Chapter
6
Data Monitoring and Controls
NETWORKING AND PERFORMANCE
MONITORING
The inverter has an integrated data monitoring module located in the dedicated data
monitoring compartment. The data monitoring module enables access to the inverter
performance data using the following methods:
• Basic performance data can be accessed using a free web-based monitoring
service provided by AE.
• The data monitoring module can deliver data to a third party monitoring system
through a Modbus/TCP over an Ethernet network, or Modbus/RTU over an
RS-485 network.
OVERVIEW OF THE COMMUNICATIONS
INTERFACE BOARD
The communications interface PCB shown in the following illustration is a standard
feature in every inverter.
Inverter control wire harness connectors
Remote disable terminal block
Screws to remove remote disable terminal block
Termination jumpers
Modbus slave port terminal blocks
Address switch
RJ45 Ethernet port
Figure 6‑1. Communications interface PCB
570-1001792-05A
Data Monitoring and Controls
6‑1
Advanced Energy
The primary purpose of the communications interface PCB is to provide a means to
communicate with the inverter through either Modbus RTU or Modbus TCP/IP.
These connections can be used for third party monitoring or for web-based inverter
monitoring through AE's mypvpower.com (which uses a proprietary Ethernet
protocol).
The communications interface PCB provides the following:
• Remote disable capabilities, which allow the inverter to be disabled through
external methods such as an e-stop, generator interlock, or fire alarm panel
• Binary Modbus device addressing
• Additional Modbus slave port terminal block, which makes it easier to run an
RS-485 daisy-chain network
Inverters with the old Comm X PCB do not support the remote disable feature or
other features associated with the communications interface PCB. To determine
whether a specific inverter has the communications interface PCB, visually inspect
the communication board in the unit to see if the remote disable terminal block is
present, and the wire harness is connected to the inverter control wire harness
connectors located at the edge of the board.
DANGER:
Risk of electrical shock. High voltages are present in the inverter cabinet.
Both AC and DC disconnects must be in the OFF position when working on
the unit. Wait five minutes to discharge high voltage before opening the front
panels of the inverter.
DANGER:
Risque d’électrocution. L’intérieur de l’onduleur est soumis à des hautes
tensions. Les interrupteurs de courant alternatif et continu doivent être mis
HORS TENSION durant les travaux sur l’unité. Attendez cinq minutes afin de
permettre la décharge du courant haute tension avant de démonter les
panneaux avant de l’onduleur.
If you have questions about the capabilities of a specific unit, contact AE Solar
Energy Technical Support.
Ethernet Network Connection
An Ethernet connection can be used to connect the unit to the internet, or to a local
Modbus/TCP network not connected to the internet. AE offers a free basic
monitoring service through the solarenergy.advanced-energy.com website. Internet
service must be set up at the installation site before the inverter can be accessed
online. The data monitoring module supports only hard-wired CAT5 solutions to the
inverter. The module does NOT support wireless configurations. To access the data
monitoring information, customers need to provide a broadband Ethernet connection
to the inverter, based on the following specifications:
6‑2
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
• Provide a DHCP-enabled, or static IP based broadband internet connection that
is always ON. This can be cable internet, a DSL line, or equivalent.
• Provide a hard-wired, Ethernet connection between the communications
interface PCB in the inverter and the closest site LAN connection.
◦ If multiple inverters are commissioned to a single site, an Ethernet hub can be
located in an outdoor-rated enclosure to distribute the LAN to the inverters.
☞ Important
The data monitoring module does not support dial-up modem connectivity.
☞ Important
Some complex networks may require a system administrator to add the inverter
to the network, or to configure the unit to a static IP address.
All AE commercial inverters come standard with an Ethernet port that is intended to
be connected to the Internet or to a local area network for Modbus/TCP. The
commercial inverter operates as an Internet appliance. The inverter communicates
with the AE data center using https (port 443). Communications is one way – the
inverter only communicates externally to the AE data center. Typically the inverter
posts approximately 50 kB of data to the data center every 15 minutes. The inverter
may post data more frequently for a short period of time if there is an inverter fault.
Connecting the Ethernet Cable
PARTS OR TOOLS REQUIRED
You need the following parts and/or tools to make the Ethernet cable connection:
• Ethernet LAN cable (Category 5 or above)
• RJ45 modular connector plugs
• Appropriate conduit fitting
• Ethernet hub, switch or router to provide network connectivity
• Cable tester
TO MAKE THE INVERTER'S ETHERNET CONNECTION
Use the following steps to complete the connection of the Ethernet cable to the
inverter's communication interface PCB:
1. Route the Ethernet (CAT5) cable from the Internet-enabled router, at the gland
plate location on the upper right side of the inverter, using the proper conduit
and hub connectors.
☞ Important
The Ethernet cable must comply with T-568B standards as shown in the
following figure. This is the only configuration supported by the data
monitoring module. Other wiring configurations will not work.
570-1001792-05A
Data Monitoring and Controls
6‑3
Advanced Energy
Front
Bottom
Figure 6‑2. T-568B compliant Ethernet cable
2. Plug the Ethernet cable into the Ethernet port on the communication interface
PCB located in the data monitoring section of the inverter. Refer to the
following figure for the port location.
Inverter control wire harness connectors
Remote disable terminal block
Screws to remove remote disable terminal block
Termination jumpers
Modbus slave port terminal blocks
Address switch
RJ45 Ethernet port
Figure 6‑3. Communication interface PCB Ethernet port location
Related Links
• “Conduit Entry Points” on page 4‑9
To Establish an Internet Connection with the Inverter
Below is a list of requirements to establish inverter communications with the AE data
center. Connectivity must be established before registration on the site is attempted.
1. Connect the inverter’s Ethernet port to a hub or router using an Ethernet cable.
6‑4
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Ethernet cables must meet the T-568B wiring standard and must be less than
320 feet in length. If a longer cable is needed additional networking hardware
may be required.
2. Provide DHCP server access to the inverter and provide a path to the Internet
for https (port 443) from the inverter.
As shipped, the inverter requires DHCP to establish its IP address. Contact AE
Solar Energy Technical Support if a fixed IP address is required for your
network.
3. Locate the inverter's MAC address on the label on the communications
interface PCB.
When the Internet connection is established, go to the AE web site and navigate to
the PVP Commercial Monitoring page to register the inverter and begin using the
monitoring tools. Contact AE Solar Energy Technical Support if additional
information is needed on how to use the online tool.
To Verify Data Monitoring Connectivity
Verify connectivity using the following information:
1. Check the status light located on the front of the communication PCB in the
card cage on the right side of the upper compartment in the data monitoring
section.
If the green status light is in a solid on state, the data monitoring connection is
established. If the status light is not solid, troubleshoot the connection.
2. Register the inverter at the AE Solar Energy web site to complete the setup for
monitoring the inverter.
Related Links
• “Troubleshooting and Solar Energy Technical Support” on page 8‑1
MODBUS OVERVIEW
The PVP250kW and PVP260kW inverter can communicate via Modbus/TCP or
Modbus/RTU.This chapter is written for PV installers, electricians, controls
contractors, and Modbus network programmers.
Modbus Communication Protocol
Modbus is a serial communications protocol and is the most commonly used means
of monitoring and communicating between devices in the PV industry. The Modbus
protocol allows for communication between a Modbus master device and multiple
Modbus slave devices connected to the same network. The physical layer for
570-1001792-05A
Data Monitoring and Controls
6‑5
Advanced Energy
Modbus/TCP is a CAT5 Ethernet network. Modbus/RTU uses a twisted pair shielded
conductor RS-485 network.
NETWORKING USING THE MODBUS OPTION
The following steps are required to set up a Modbus TCP network for your AE
inverter:
• Field installation : This step can be completed onsite by a PV installer or an
electrician that does not have working knowledge of a Modbus network
◦ Consult the facility IT administrator for network device installation support
and coordination
◦ Install the Modbus network communications cabling
• Modbus network configuration: This step can be done onsite or remotely and
should be completed by the Modbus network programmer
◦ Set the IP address assigned to the inverter and port 502 for Modbus TCP
◦ Configure the point maps for the slave devices
Modbus TCP Installation
Disconnect the power to the inverter before starting the installation.
TO INSTALL THE MODBUS TCP CABLE
DANGER:
Risk of electrical shock. High voltages are present in the inverter cabinet.
Both AC and DC disconnects must be in the OFF position when working on
the unit. Wait five minutes to discharge high voltage before opening the front
panels of the inverter.
DANGER:
Risque d’électrocution. L’intérieur de l’onduleur est soumis à des hautes
tensions. Les interrupteurs de courant alternatif et continu doivent être mis
HORS TENSION durant les travaux sur l’unité. Attendez cinq minutes afin de
permettre la décharge du courant haute tension avant de démonter les
panneaux avant de l’onduleur.
1. Remove the data monitoring gland plate on the right side of the inverter.
The data monitoring gland plate is a flat piece of metal covering the side entry
port to the inverter’s data monitoring compartment.
6‑6
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
2. Cut a hole in the desired location to allow access for the cable.
3. Install a water-tight conduit hub connection.
4. Replace the gland plate.
5. Route an Ethernet cable from a network port in the facility that has been
approved by the network administrator through the conduit hub.
6. Connect the Ethernet cable to the Ethernet port on the communication interface
PCB.
The communication interface PCB is located in the data monitoring section in
the right upper compartment of the inverter.
Inverter control wire harness connectors
Remote disable terminal block
Screws to remove remote disable terminal block
Termination jumpers
Modbus slave port terminal blocks
Address switch
RJ45 Ethernet port
Figure 6‑4. Communication interface PCB in the data monitoring section
Modbus TCP Network Configuration
TO ASSIGN THE IP ADDRESS AND PORT ID
1. Contact the facility’s IT Network Administrator (or person with similar
responsibilities) to assign an IP address to each inverter. Advanced users can
assign a static IP address.
Contact AE Solar Energy Technical Support for assistance.
2. Set the Modbus master to communicate through port 502.
570-1001792-05A
Data Monitoring and Controls
6‑7
Advanced Energy
NETWORKING USING THE MODBUS RS-485
OPTION
The following steps are required to set up a Modbus RS-485 network for the AE
inverter:
• Field installation : This step can be completed onsite by a PV installer or an
electrician that does not have working knowledge of a Modbus network
◦ Installing the Modbus network wiring
◦ Configuring end-of-line termination and network biasing
◦ Setting the Modbus address for each slave inverter
☞ Important
The contractor responsible for network programming will need to
provide the slave addresses prior to setting the Modbus address for each
slave inverter.
The final part of the RS-485 installation process is the Modbus network
configuration. These steps should be completed by the Modbus network programmer.
The last two steps are:
• Setting the device addresses so the Modbus master program will accept the
Modbus addresses assigned during the field installation
• Configuring point maps for slave devices
Network Layout
When multiple inverters or other Modbus slave devices are connected to a single
Modbus master device, the multiple devices need to be connected in one of the three
daisy chain layouts shown in the following figure.
4646
Figure 6‑5. Daisy chain layout for RS-485 network: option A
4647
Figure 6‑6. Daisy chain layout for RS-485 network: option B
6‑8
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
4648
Figure 6‑7. Daisy chain layout for RS-485 network: option C
☞ Important
When multiple devices are wired to the network, the network shield must be
terminated to earth ground at one point on the network, typically at the
beginning or the end. For device connections the shield must be rewired to
provide a continuous shield and isolated from ground.
Modbus Wiring for the Communications Interface PCB
The communications interface PCB includes two Modbus slave port terminal blocks.
The two Modbus slave port terminal blocks can be used in an in-and-out
configuration for daisy-chain networking. The two terminal blocks are electrically
bonded on the PCB. Therefore, it does not matter which one is used or the order in
which they are connected. The following illustration provides an example of how the
two terminal blocks can be used.
Communications Interface PCB
Modbus slave
4660
RS-485 Network to Field
(Inverter or Gateway)
RS-485 Network to Field
(Inverter or Gateway)
Figure 6‑8. Example connection with dual Modbus slave port terminal blocks
Installing the Modbus RS-485 Cable
MODBUS RS-485 WIRING REQUIREMENTS
The Modbus RTU connections are made using shielded, insulated, 18-24 gauge
twisted-pair communication cable that has a characteristic impedance of 120 ohms. If
570-1001792-05A
Data Monitoring and Controls
6‑9
Advanced Energy
the RS-485 network will not pass through any high voltage (> 300 V) areas, then
300 V rated cable may be used in the low voltage data monitoring compartment of
the inverter. Check with your local inspector or project engineer if you need
assistance in determining this requirement. Some appropriate 300 V data cables
include:
• Belden 3105A (1P22AWG shielded)
• Belden 3082A (1P15AWG + 1P18AWG shielded)
Belden 7897A (1P15AWG + 1P18AWG shielded) is an example of a 600 V rated
cable that may also be used; others exist as well.
TO INSTALL THE MODBUS RS-485 CABLE
DANGER:
Risk of electrical shock. High voltages are present in the inverter cabinet.
Both AC and DC disconnects must be in the OFF position when working on
the unit. Wait five minutes to discharge high voltage before opening the front
panels of the inverter.
DANGER:
Risque d’électrocution. L’intérieur de l’onduleur est soumis à des hautes
tensions. Les interrupteurs de courant alternatif et continu doivent être mis
HORS TENSION durant les travaux sur l’unité. Attendez cinq minutes afin de
permettre la décharge du courant haute tension avant de démonter les
panneaux avant de l’onduleur.
1. Disconnect the power to the inverter before starting the installation.
2. Remove the data monitoring gland plate on the upper right side of the inverter.
The data monitoring gland plate is a flat piece of metal covering the side entry
port to the inverter’s data monitoring compartment.
3. Punch or drill a hole in the desired location to allow access for the cable.
4. Install a water-tight conduit hub connection.
5. Replace the gland plate.
6. Route a RS-485 cable from the master device on the Modbus network port in
the facility that has been approved by the network administrator through the
conduit hub.
7. Connect each Modbus cable to a slave port terminal block on the
communications interface PCB. Connect the plus (+) cables to plus (+)
connections and the minus (-) cables to minus (-) connections so they
correspond throughout the network.
The Modbus slave port terminal blocks can be unplugged for easy wiring
access.
6‑10
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
☞ Important
Observe and maintain correct polarity and wiring orientation.
Note: Two slave port terminal blocks, wired in parallel, are available to
simplify wiring in a daisy-chain network.
Termination jumpers
(shown in "disabled" position)
Address switch
Modbus slave port terminal blocks
4664
Figure 6‑9. Communications interface PCB with Modbus slave port location
8. Connect a ground reference line to the terminal labeled SHLD
The shield of a communications cable may be used for this reference as long as
the shield is connected to earth ground at one point only. AE recommends that
all AE inverters have connected grounds when possible.
☞ Important
Some Modbus devices do not have a shield or reference input. In these
cases the device most often uses the DC power supply (-) as the RS-485
reference. It may be necessary to place an RS-485 isolator on these
devices or power them from a common DC supply that has its DC (-)
referenced to earth ground at the same point where the network cable
shield is earthed.
Setting the Jumper Pins
By default, the termination pins have three jumpers in the disabled position when the
inverter is shipped. The location of the jumpers can determine the following settings
for an inverter:
• Terminate the network
• Determine the center inverter(s) on the network
• Turn on biasing
570-1001792-05A
Data Monitoring and Controls
6‑11
Advanced Energy
Termination jumpers
(shown in "disabled" position)
Address switch
Modbus slave port terminal blocks
4664
Figure 6‑10. Termination jumpers on the communications interface PCB
The performance of your Modbus network may require each end of the network to be
terminated using 120 Ω termination resistors. When the network is long, relative to
the RS-485 bit rate in use, bus terminations must be installed. The network length is
determined by the total backbone cable length and not necessarily the line-of-sight
between the two furthest apart devices.
Table 6‑1. Maximum network length per Modbus bit rate
RS-485/Modbus Bit
Rate
Maximum Network
Length Without
Termination in Feet
(Meters)
Maximum Network
Length With Termination
in Feet (Meters)
9600 bps
1000 (305)
4000 (1200)
19,200 bps
500 (152)
4000 (1200)
38,400 bps
250 (76)
4000 (1200)
57,600 bps
150 (46)
4000 (1200)
TO TERMINATE THE INVERTER NETWORK
If bus termination is desired and the inverter is on the end of the Modbus network,
you need to set the termination.
1. Verify that the J7 jumper is in the lowe, NC position.
2. Move the jumper to the upper pair of J11 pins labeled Line.
3. Verify that the J10 jumper is in the lower NC position.
6‑12
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 6‑2. Termination enabled for end device
Termination
Disabled
High (J7)
X
Enabled
Line (J11)
X
Low (J10)
X
TO SET THE CENTER INVERTERS FOR THE NETWORK
Inverters in the center of the network need the termination jumpers set to the disabled
position.
1. Verify that the J7 jumper is in the lower NC position.
2. Verify that the J11 jumper is in the lower NC position.
3. Verify that the J10 jumper is in the lower NC position.
Table 6‑3. No termination or biasing (default setting)
Termination
Disabled
High (J7)
X
Line (J11)
X
Low (J10)
X
Enabled
TO SET NETWORK BIASING
Biasing sets the voltage levels on the data lines of an inactive or idle network. At
least one device on the network must provide biasing. On shorter networks with
fewer installed devices, biasing may only be needed on the device furthest away from
the master. Longer networks that are terminated on both ends may require two
devices to have their biasing enabled.
To Set the Jumpers to Use the Inverter’s Built-in Biasing
1. Move the jumper to the upper pair of J7 pins labeled High.
2. Verify that the J11 jumper is in the lower NC position.
3. Move the jumper to the upper pair of J10 pins labeled Low.
Table 6‑4. Biasing enabled
Termination
Disabled
High (J7)
570-1001792-05A
Enabled
X
Data Monitoring and Controls
6‑13
Advanced Energy
Table 6‑4. Biasing enabled (Continued)
Termination
Disabled
Line (J11)
X
Low (J10)
Enabled
X
TO TERMINATE THE NETWORK AND ENABLE BIASING
As an alternative, an end inverter on the network can require both termination and
biasing to be enabled. Set the following jumpers to configure the inverter for both
settings.
1. Move the jumper to the upper pair of J7 pins labeled High.
2. Move the jumper to the upper pair of J11 pins labeled Line
3. Move the jumper to the upper pair of J10 pins labeled Low.
Table 6‑5. Biasing and termination enabled (for end device)
Termination
Disabled
Enabled
High (J7)
X
Line (J11)
X
Low (J10)
X
Setting the Modbus Address
A Modbus network containing slave devices requires a unique address for each slave.
These unique addresses allow the master device to identify and communicate with
each slave. The Modbus network administrator must assign a unique Modbus address
to each AE inverter.
6‑14
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Termination jumpers
(shown in "disabled" position)
Address switch
Modbus slave port terminal blocks
4664
Figure 6‑11. Setting the inverter Modbus address
TO SET THE MODBUS ADDRESS
1. Remove the communications PCB from the card cage to access the address
switch.
2. Determine each slave address.
3. Set the address on each slave device.
The slave address for each inverter is set using a binary coded DIP switch.
☞ Important
0 is not an allowed address.
☞ Important
Some Modbus master devices do not allow addresses above the decimal
value of 126. AE recommends keeping the slave id number between 2
and 100.
Device Addressing Example
Each inverter must be set to a unique address specified by the site monitoring
contractor. The address is set using a binary code on the address DIP switch.
To set an inverter to an address of 25:
1. Find the desired address in the left hand column of the table below labeled
“Unit Address”.
2. Identify which switches, by switch number, must be set to the ON position.
For example, an address of 25 requires switch numbers 1, 8, and 16 to ON.
3. Once the switches are set in the ON position, the switch should look like the
figure below.
570-1001792-05A
Data Monitoring and Controls
6‑15
Advanced Energy
ON
Addr
1
2
4
8
16
32
64
19200/
9600
Figure 6‑12. Example: Unit address switch set to address 25
If you need more device addresses than the 80 provided in the following table, refer
to a complete digital to binary conversion table.
Table 6‑6. Inverter address table
Switch Number
Unit
Address
(decima
l)
1
2
3
4
5
6
7
8
32
64
128
Switch Address
1
2
4
8
16
1
ON
Off
Off
Off
Off
Off
Off
Off
2
Off
ON
Off
Off
Off
Off
Off
Off
3
ON
ON
Off
Off
Off
Off
Off
Off
4
Off
Off
ON
Off
Off
Off
Off
Off
5
ON
Off
ON
Off
Off
Off
Off
Off
6
Off
ON
ON
Off
Off
Off
Off
Off
7
ON
ON
ON
Off
Off
Off
Off
Off
8
Off
Off
Off
ON
Off
Off
Off
Off
9
ON
Off
Off
ON
Off
Off
Off
Off
10
Off
ON
Off
ON
Off
Off
Off
Off
11
ON
ON
Off
ON
Off
Off
Off
Off
12
Off
Off
ON
ON
Off
Off
Off
Off
13
ON
Off
ON
ON
Off
Off
Off
Off
14
Off
ON
ON
ON
Off
Off
Off
Off
15
ON
ON
ON
ON
Off
Off
Off
Off
16
Off
Off
Off
Off
ON
Off
Off
Off
17
ON
Off
Off
Off
ON
Off
Off
Off
18
Off
ON
Off
Off
ON
Off
Off
Off
19
ON
ON
Off
Off
ON
Off
Off
Off
20
Off
Off
ON
Off
ON
Off
Off
Off
21
ON
Off
ON
Off
ON
Off
Off
Off
22
Off
ON
ON
Off
ON
Off
Off
Off
23
ON
ON
ON
Off
ON
Off
Off
Off
6‑16
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 6‑6. Inverter address table (Continued)
Switch Number
Unit
Address
(decima
l)
1
2
3
4
5
6
7
8
32
64
128
Switch Address
1
2
4
8
16
24
Off
Off
Off
ON
ON
Off
Off
Off
25
ON
Off
Off
ON
ON
Off
Off
Off
26
Off
ON
Off
ON
ON
Off
Off
Off
27
ON
ON
Off
ON
ON
Off
Off
Off
28
Off
Off
ON
ON
ON
Off
Off
Off
29
ON
Off
ON
ON
ON
Off
Off
Off
30
Off
ON
ON
ON
ON
Off
Off
Off
31
ON
ON
ON
ON
ON
Off
Off
Off
32
Off
Off
Off
Off
Off
ON
Off
Off
33
ON
Off
Off
Off
Off
ON
Off
Off
34
Off
ON
Off
Off
Off
ON
Off
Off
35
ON
ON
Off
Off
Off
ON
Off
Off
36
Off
Off
ON
Off
Off
ON
Off
Off
37
ON
Off
ON
Off
Off
ON
Off
Off
38
Off
ON
ON
Off
Off
ON
Off
Off
39
ON
ON
ON
Off
Off
ON
Off
Off
40
Off
Off
Off
ON
Off
ON
Off
Off
41
ON
Off
Off
ON
Off
ON
Off
Off
42
Off
ON
Off
ON
Off
ON
Off
Off
43
ON
ON
Off
ON
Off
ON
Off
Off
44
Off
Off
ON
ON
Off
ON
Off
Off
45
ON
Off
ON
ON
Off
ON
Off
Off
46
Off
ON
ON
ON
Off
ON
Off
Off
47
ON
ON
ON
ON
Off
ON
Off
Off
48
Off
Off
Off
Off
ON
ON
Off
Off
49
ON
Off
Off
Off
ON
ON
Off
Off
50
Off
ON
Off
Off
ON
ON
Off
Off
51
ON
ON
Off
Off
ON
ON
Off
Off
52
Off
Off
ON
Off
ON
ON
Off
Off
53
ON
Off
ON
Off
ON
ON
Off
Off
570-1001792-05A
Data Monitoring and Controls
6‑17
Advanced Energy
Table 6‑6. Inverter address table (Continued)
Switch Number
Unit
Address
(decima
l)
1
2
3
4
5
6
7
8
32
64
128
Switch Address
1
2
4
8
16
54
Off
ON
ON
Off
ON
ON
Off
Off
55
ON
ON
ON
Off
ON
ON
Off
Off
56
Off
Off
Off
ON
ON
ON
Off
Off
57
ON
Off
Off
ON
ON
ON
Off
Off
58
Off
ON
Off
ON
ON
ON
Off
Off
59
ON
ON
Off
ON
ON
ON
Off
Off
60
Off
Off
ON
ON
ON
ON
Off
Off
61
ON
Off
ON
ON
ON
ON
Off
Off
62
Off
ON
ON
ON
ON
ON
Off
Off
63
ON
ON
ON
ON
ON
ON
Off
Off
64
Off
Off
Off
Off
Off
Off
ON
Off
65
ON
Off
Off
Off
Off
Off
ON
Off
66
Off
ON
Off
Off
Off
Off
ON
Off
67
ON
ON
Off
Off
Off
Off
ON
Off
78
Off
Off
ON
Off
Off
Off
ON
Off
69
ON
Off
ON
Off
Off
Off
ON
Off
70
Off
ON
ON
Off
Off
Off
ON
Off
71
ON
ON
ON
Off
Off
Off
ON
Off
72
Off
Off
Off
ON
Off
Off
ON
Off
73
ON
Off
Off
ON
Off
Off
ON
Off
74
Off
ON
Off
ON
Off
Off
ON
Off
75
ON
ON
Off
ON
Off
Off
ON
Off
76
Off
Off
ON
ON
Off
Off
ON
Off
77
ON
Off
ON
ON
Off
Off
ON
Off
78
Off
ON
ON
ON
Off
Off
ON
Off
79
ON
ON
ON
ON
Off
Off
ON
Off
80
Off
Off
Off
Off
ON
Off
ON
Off
6‑18
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
MODBUS COMMANDS
Basic Modbus commands are supported on applicable AE commercial units. The
commands in the following table are used to read and write (set) operating
parameters or obtain the unit's identifying information.
Table 6‑7. Modbus commands
Command Name
Command
Number
Description
Read Holding Register
03
Read value from the register
Write (preset) Single
Register
06
Write value to the register
Return Slave ID
17
Returns a text string containing the ID
number of the unit.
The format of the ID returned is
dependent on the version of the unit.
• "PVP Inverter
IDxxxxxxxxxxxxxx" on older
models
• "xxPVP Inverter
IDxxxxxxxxxxxxxx" for newer
models
Modbus Command Format
The Read Holding Register command is used to read values from Modbus registers.
Table 6‑8. Format for Read Holding Register command
Command Information
Command Layout
Modbus address
nn
Command number
03
First register MSB
xx
First register LSB
xx
Data MSB
xx
Data LSB
xx
CRC LSB
xx
CRC MSB
xx
570-1001792-05A
Data Monitoring and Controls
6‑19
Advanced Energy
Table 6‑9. Response format for Read Holding Register command
Response Information
Response Layout
Modbus address
nn
Command number
03
Number of bytes of data
n
First register MSB
xx
First register LSB
xx
Second register MSB
xx
Second register LSB
xx
Nth register MSB
xx
Nth register LSB
xx
CRC LSB
xx
CRC MSB
xx
The Write Single Register command is used to write data to a register.
Table 6‑10. Format for Write Single Register command
Command Information
Command Layout
Modbus address
nn
Command number
06
First register MSB
xx
First register LSB
xx
Nth register MSB
xx
Nth register LSB
xx
CRC LSB
xx
CRC MSB
xx
Table 6‑11. Response format for Write Single Register command
Response Information
6‑20
Response Layout
Modbus address
nn
Command number
06
Number of bytes of data
n
First register MSB
xx
First register LSB
xx
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 6‑11. Response format for Write Single Register command (Continued)
Response Information
Response Layout
Data MSB
xx
Data LSB
xx
CRC LSB
xx
CRC MSB
xx
Return Slave ID
The Return Slave ID command is used to read a text string containing the ID
number of the unit.
Table 6‑12. Format for Return Slave ID
Command Information
Modbus slave address
Command Layout
nn (1-126)
Command number
11h
The Return Slave ID command returns the ASCII string "xxPVP Inverter IDxxxxx".
for example "0x50,0xFF,PVP Inverter ID02860910080321". The first "xx" represents
two non-ASCII bytes, representing the following information:
• Byte 1:0x50: An identifier byte for the AE unit
• Byte 2:0x00: If communication with the unit is down, or
0xFF: If communication with the unit is occurring
• Byte 3 through byte n: Contains "PVP Inverter IDxxxxx"
Table 6‑13. Format for Return Slave ID command
Response Information
Modbus slave address
Response Layout
11h
Command number
n
Number of bytes of data
xx
Data 1
xx
Data 2
xx
Data n
xx
CRC LSB
xx
CRC MSB
xx
570-1001792-05A
Data Monitoring and Controls
6‑21
Advanced Energy
MODBUS DATA TYPES
Modbus data types used with the PVP250kW/PVP260kW unit are shown in the
following table.
Table 6‑14. Data types
Data Type
ASCII
Description
Two ASCII characters per register
For a text string the left-most character is the lowest register
number.
UINT16
Unsigned integer, 16 bits
Range: 0 to 65,536
SINT16
Signed integer, 16 bits
Range: –32,767 to +32,767
UINT 32
(requires two
registers)
Unsigned integer, 32 bits
SINT32
(requires two
registers)
Signed integer, 32 bits
FLOAT
(requires two
registers)
IEEE 754 standard 32-bit floating point number
Range: 0 to 4,294,967,295
Range: –2,147,483,647 to +2,147,483,647
High order 16 bits in the first of the two registers. Low order 16
bits in the second register. (Big Endian)
MODBUS REGISTER MAPPING
The following tables list the Modbus registers with their location and a description of
the data stored in the register.
Modbus Fixed Information Registers
6‑22
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 6‑15. Modbus fixed information registers
Description
Start
Register
End
Register
No. of
Modbus
Registers Address
Data
Type
Notes
Modbus base address = 0
Inverter ID
number
0
7
8
40001
ASCII
The ID number
is a 16-character
number that is
unique for each
inverter.
Inverter model
number
1
2
2
40002
ASCII
The model
number is
extracted from
four digits of the
inverter ID
number.
Table 6‑16
Firmware
version
8
11
4
40009
ASCII
This register can
contain up to 8
characters.
Example: V1.9
Map version
13
13
1
40014
UINT
The range is 1
through 4.
This number
Increments
sequentially as
the map changes.
All versions are
backwards
compatible.
Inverter
configuration
14
14
1
40015
UINT
See Table 6‑17
on page 6‑24.
Inverter serial
number
15
24
10
40016
ASCII
This register
contains the
serial number of
the inverter
(which is also on
the product
label). Up to 20
characters are
available.
Rated power
25
25
1
40026
UINT
kW
570-1001792-05A
Data Monitoring and Controls
6‑23
Advanced Energy
Table 6‑16. Inverter model number
Inverter Model
Modbus Model Number
PVP30kW
0272, 0273, 0274, 0288, 0289, 0290
PVP35kW
0300, 0301, 0302, 0303
PVP50kW
0304, 0305, 0306, 0307
PVP75kW
0276, 0277, 0278, 0279
PVP100kW
0280, 0281, 0282, 0283
PVP250kW
0312, 0313, 0314, 0315, 0316, 0317, 0318, 0319
PVP260kW
0312, 0313, 0314, 0315, 0316, 0317, 0318, 0319
PVP500kW
0386, 0387
Table 6‑17. Bit mapping for inverter configuration register
Inverter Configuration
Bit Mapping
AC volts = 208
0x0001
AC volts = 240
0x0002
AC volts = 480
0x0004
AC volts = 600
0x0200
Transformer tap position
0x0008
Instructions
This bit is:
• Set if the tap is at 265 V
• Clear if the tap is 295 V
The default is 295 V.
Transformer wiring
configuration
0x0010
This bit is:
• Set if the inverter is wired
as delta
• Clear if the inverter is
wired as wye
The default is wye.
Utility meter installation
flag
0x0100
This bit is:
• Set if the meter is installed
• Clear if the meter is not
installed
The default is not installed.
6‑24
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Modbus Data Registers
Table 6‑18. Modbus data registers
Description
Start
Register
End
Register
No. of
Modbus
Registers Address
Data
Type
Notes
Modbus base address = 1000
VoltsA L-N
1000
1001
2
41001
FLOAT ± 32 bit IEEE 754
VoltsB L-N
1002
1003
2
41003
FLOAT ± 32 bit IEEE 754
VoltsC L-N
1004
1005
2
41005
FLOAT ± 32 bit IEEE 754
Current A
1006
1007
2
41007
FLOAT ± 32 bit IEEE 754
Current B
1008
1009
2
41009
FLOAT ± 32 bit IEEE 754
Current C
1010
1011
2
41011
FLOAT ± 32 bit IEEE 754
DC input
voltage
1012
1013
2
41013
FLOAT ± 32 bit IEEE 754
DC input
current (see
note)
1014
1015
2
41015
FLOAT ± 32 bit IEEE 754
Line
frequency
1016
1017
2
41017
FLOAT ± 32 bit IEEE 754
Line kW
1018
1019
2
41019
FLOAT ± 32 bit IEEE 754
Total kWh
delivered
1020
1021
2
41021
UDINT 0 to 4.29e9
PV input
voltage
1022
1023
2
41023
FLOAT ± 32 bit IEEE 754
DC kW
(calculated)
1024
1025
2
41025
FLOAT ± 32 bit IEEE 754
Time since
epoch
1026
1027
2
41027
FLOAT Seconds since
01/01/1970
Total kWh
1028
1029
2
41029
UDINT ± 32 bit IEEE 754
Modbus Status and Fault Code Registers
The following table provides information about the registers that are used to report
status and fault codes. Each of these registers provides information about a group of
status codes or faults. For more information on the specific faults that can be reported
for each of the fault registers, see the troubleshooting information for the inverter.
For more information about the status codes, see Table 6‑20 on page 6‑27 and
Table 6‑21 on page 6‑27.
570-1001792-05A
Data Monitoring and Controls
6‑25
Advanced Energy
Table 6‑19. Modbus status and fault code registers
Description
Start
Register
End
Register
No. of
Registers
Modbus
Address
Data
Type
Notes
Modbus base address = 2000
Inverter
operating
status (state)
2100
2100
1
42101
UINT
See Table 6‑20 on
page 6‑27.
Main fault
2101
2101
1
42102
UINT
See the fault
codes descriptions
in the inverter
troubleshooting
information.
Drive fault
2102
2102
1
42103
UINT
See the fault
codes descriptions
in the inverter
troubleshooting
information.
Voltage fault
2103
2103
1
42104
UINT
See the fault
codes descriptions
in the inverter
troubleshooting
information.
Grid fault
2104
2104
1
42105
UINT
See the fault
codes descriptions
in the inverter
troubleshooting
information.
Temperature
fault
2105
2105
1
42106
UINT
See the fault
codes descriptions
in the inverter
troubleshooting
information.
System fault
2106
2106
1
42107
UINT
See the fault
codes descriptions
in the inverter
troubleshooting
information.
System
warnings
2107
2107
1
42108
UINT
See the fault
codes descriptions
in the inverter
troubleshooting
information.
PVM (PV
Monitoring)
status codes
2108
2108
1
42109
UINT
See Table 6‑21 on
page 6‑27.
6‑26
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
The following table contains the bitmap information for the inverter operating status
register. The response values for this command are shown in the bale as both hex and
decimal values.
Table 6‑20. Modbus inverter operating status register values
Description
Hex Value
Decimal Value
Modbus register number = 42101
Sleep state
0
0
Startup delay state
1
1
AC precharge state
2
2
DC precharge state
3
3
Idle state
4
4
Power track state
5
5
Reserved
6
6
Reserved
7
7
Reserved
8
8
Fault state
9
9
Initialization state
A
10
Disabled state
B
11
Latching fault state
C
12
Cool down state
D
13
The following table contains the bitmap information for the PVM status register . The
response values for this command are shown in the table as both hex and decimal
values. When multiple codes are set, the resulting status word value will be a sum of
the individual code values.
Table 6‑21. PVM status register status code values
Description
Hex Value
Decimal Value
Notes
Modbus register number = 42005
OK
0
0
Rebooting
1
1
Inverter
communication fault
2
2
Web post fault
4
4
570-1001792-05A
Data Monitoring and Controls
Results in return value
of zero for reads of
data registers listed in
Table 6‑18 on
page 6‑25.
6‑27
Advanced Energy
Table 6‑21. PVM status register status code values (Continued)
Description
Hex Value
Decimal Value
Notes
Modbus register number = 42005
DNS server fault
8
8
Real time clock error
10
16
The battery is dead or
cannot synchronize
with the network time
server.
Wrong
communications
firmware
20
32
Incompatible or
incorrect revision of
communications
firmware.
Modbus address error
40
64
Failed reading the
Modbus address
switches.
Modbus Command Registers
Table 6‑22. Modbus command registers
Description
Start
Register
End
Register
No. of
Modbus
Registers Address
Data
Type
Notes
Modbus base address = 3000
Clear fault
command
6‑28
3000
3000
1
43001
UINT
Range = CF hex
Write this value to
clear faults and try
a restart.
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 6‑22. Modbus command registers (Continued)
Description
Start
Register
End
Register
No. of
Modbus
Registers Address
Data
Type
Notes
Modbus base address = 3000
Disable
inverter
3001
3001
1
43002
UINT
Write values:
• 0xDD to
disable
• 0xEE to
enable
Reading this
register returns:
• 0 after
bootup
• 0xDD after a
disable
• 0xEE after an
enable
command is
sent
Enable
inverter
3002
3002
1
43003
UINT
Write values:
• 0xDD to
disable
• 0xEE to
enable
Reset data
3003
comm section
3003
1
43004
UINT
Write 0x99 to this
register to reset
the
communication
interface PCB.
Related Links
• “Troubleshooting Warnings and Faults” on page 8‑2
570-1001792-05A
Data Monitoring and Controls
6‑29
Advanced Energy
6‑30
Data Monitoring and Controls
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Chapter
7
Maintenance
WARNING:
These servicing instructions are for use by qualified personnel only. To
reduce the risk of electric shock, do not perform any servicing other than that
specified in the operating instructions.
AVERTISSEMENT:
Ces instructions d’entretien sont destinées uniquement à un personnel
qualifié. Pour réduire le risque d'électrocution, ne pas effectuer un entretien
autre que celui spécifié dans les instructions de fonctionnement.
WARNING:
Maintenance personnel must receive proper training before installing,
troubleshooting, or maintaining high-energy electrical equipment. Potentially
lethal voltages could cause death, serious personal injury, or damage to the
equipment. Ensure that all appropriate safety precautions are taken.
AVERTISSEMENT:
Le personnel d’entretien doit recevoir une formation appropriée avant
d’installer, de dépanner ou d’entretenir un équipement électrique à haute
énergie. Des tensions potentiellement mortelles pourraient provoquer la
mort, des blessures graves ou des dommages à l’équipement. S’assurer que
toutes les consignes de sécurité appropriées ont été respectées.
Routine maintenance of the AE inverter should be performed according the
maintenance schedule in this manual in order to maintain the overall performance of
the unit. Some maintenance procedures are required every five, ten, fifteen, and
twenty years from point of installation.
The user manual includes maintenance procedures that you can perform without
specialized equipment.
570-1001792-05A
Maintenance
7‑1
Advanced Energy
VISUAL INSPECTION
DANGER:
Risk of electrical shock. High voltages are present in the inverter cabinet.
Both AC and DC disconnects must be in the OFF position when working on
the unit. Wait five minutes to discharge high voltage before opening the front
panels of the inverter.
DANGER:
Risque d’électrocution. L’intérieur de l’onduleur est soumis à des hautes
tensions. Les interrupteurs de courant alternatif et continu doivent être mis
HORS TENSION durant les travaux sur l’unité. Attendez cinq minutes afin de
permettre la décharge du courant haute tension avant de démonter les
panneaux avant de l’onduleur.
DANGER:
RISK OF DEATH OR BODILY INJURY. Disconnect and lockout/tagout all
sources of input power before working on this unit or anything connected to
it.
DANGER:
RISQUE DE MORT OU DE BLESSURES CORPORELLES. Débrancher et
verrouiller/étiqueter toutes les sources de puissance d’entrée avant de
travailler sur cette unité ou sur tout élément qui y est raccordé.
AE recommends visually inspecting the inverter every time it is serviced. Start by
observing the front, back, and sides of the inverter for damage, foreign objects, or
dust and debris that may have accumulated around the inverter. Remove dirt and
debris from the area around the inverter at least every six months.
MAINTENANCE SCHEDULE
The following maintenance should be performed annually by a qualified service
person. Please refer to AE's Terms and Conditions of Sale for warranty-related items.
Complete the maintenance checklist below save the information for your records.
7‑2
Maintenance
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 7‑1. Maintenance checklist
Item #
A
Check or Procedure
Annual
Maintenance
General inspection and cleaning
1
Record general site conditions.
X
2
Record inverter performance data from inverter display.
X
3
Record environmental conditions.
X
4
Remove dirt and debris from underneath the inverter.
X
5
Inspect and clean interior of inverter.
X
6
Inspect air filter and clean or replace.
X
7
Inspect fans.
X
8
Confirm presence of product documentation.
X
B
Connections and wiring
9
Complete visual inspection of electrical connections and wiring.
X
10
Complete mechanical inspection of connections and wiring.
X
11
Measure torque of all electrical connections and re-torque as
needed.
X
12
Complete thermal scan of inverter connections, wiring and
electronics.
X
C
Testing
13
Confirm the inverter operating modes including standby, startup,
and on.
X
14
Check operation of protective circuits and alarms.
X
15
Validate display data accuracy.
X
D
Repair or replace
16
E
Repair or replace items that have been determined to be near the
end of their useful life.
X
Reporting
17
Complete the preventative maintenance report and
recommendation.
X
REPLACEMENT PARTS
Contact Solar Energy Technical Support for information on obtaining replacement
parts.
570-1001792-05A
Maintenance
7‑3
Advanced Energy
Table 7‑2. Inverter replacement parts
Part
Replacement Schedule
Door seal gaskets
5 years
Battery (CR1216)
When a Real Time Clock error occurs in
Modbus PVM status register 42005.
Air filters
As needed
Card cage filter
As needed
CHECKING AND REPLACING THE AIR
FILTERS
As part of preventative maintenance, every 12 months you should perform regular
checks of the self-contained cooling system to determine if the air filters need to be
replaced. Cleaning may be required more often depending on the location of the
inverter or the air filters might need to be replaced.
Maintaining the Air Filters
TOOLS REQUIRED
• Flat-head screwdriver
• 5/32″ Allen wrench
TO MAINTAIN THE AIR FILTERS
The air intake hood is mounted on gas shocks. The hood must be in the open position
to clean the filters.
1. Shutdown the inverter prior to starting this procedure and wait five minutes.
2. Using a flat-head screwdriver, turn each of the four retainer tabs a three-quarter
turn. The air intake hood can now be lifted to the open position.
3. Remove the filters using a 5/32″ Allen wrench.
4. Clean the filters by vacuuming or blowing out using an air hose with a diffuser.
If there is significant accumulation of dust or particulate matter within the filter
fabric, areas of visible blockage to air flow, or physical damage, replace the
affected filters.
7‑4
Maintenance
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Fans
Air filters
5. Inspect the filter frames for damage.
Contact AE Solar Energy Technical Support if you wish to replace the filters.
6. Close and secure the hood before resuming normal operation of the unit.
Maintaining the Card Cage Air Filter
TO MAINTAIN THE CARD CAGE FILTER
The card cage features a secondary air filter to ensure long PCB life. The card cage
air filter is located under the intake air shroud above the card cage located in the
upper right compartment.
Use the following instructions to access the secondary air filter for the card cage.
1. Shutdown the inverter and wait five minutes prior to starting this maintenance
procedure.
2. Remove the air intake shroud next to the power supplies. This will expose the
air filter.
Card cage air shroud retainer screws
Card cage air filter
4609
Figure 7‑1. Card cage air filter
570-1001792-05A
Maintenance
7‑5
Advanced Energy
3. Remove the four screws on the card cage air filter.
4. Remove the filter.
5. Clean the filter with compressed air.
6. Replace the filter and secure with the screws.
If the filter needs to be replaced, contact AE Solar Energy Technical Support.
7. Replace the shroud.
7‑6
Maintenance
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Chapter
8
Troubleshooting and Solar
Energy Technical Support
WARNING:
Maintenance personnel must receive proper training before installing,
troubleshooting, or maintaining high-energy electrical equipment. Potentially
lethal voltages could cause death, serious personal injury, or damage to the
equipment. Ensure that all appropriate safety precautions are taken.
AVERTISSEMENT:
Le personnel d’entretien doit recevoir une formation appropriée avant
d’installer, de dépanner ou d’entretenir un équipement électrique à haute
énergie. Des tensions potentiellement mortelles pourraient provoquer la
mort, des blessures graves ou des dommages à l’équipement. S’assurer que
toutes les consignes de sécurité appropriées ont été respectées.
Before calling AE Solar Energy Technical Support, perform recommended checks
and troubleshooting procedures. If you are still unable to resolve faults or warnings
and resume normal operation after following these checks and procedures, contact
AE Solar Energy Technical Support.
TROUBLESHOOTING LAN CONNECTIVITY
Most connectivity problems relate to wiring issues or corporate security settings
blocking the inverter from accessing the Internet.
Wiring problems are usually caused by the following:
• Result of a poor crimp
• Wire that exceeds 320 ft. as specified in the installation of the inverter
• Pinched wires somewhere between the inverter and the hub or router
Corporate network problems will require support from your corporate IT department
where the inverter is installed. The most common problem is the inverter has not
been provided with DHCP server access using port 443 or the static IP address has
not been set.
Troubleshooting communications issues can also be accomplished using the four
LED lights on the communications PCB.
570-1001792-05A
Troubleshooting and Solar Energy Technical Support
8‑1
Advanced Energy
To Test the LAN Cable
AE recommends using pre-made cables whenever possible. If a cable must be handcrimped, we recommend:
• Test the cable with a cable tester such as a Fluke LinkRunner™ Pro Network
Multimeter (LPRO1000).
• Verify the cable’s integrity by connecting a laptop to the cable at the inverter
and verify it has access to the Internet.
• Verify the inverter’s MAC address has been assigned an IP address by the
network.
TROUBLESHOOTING WARNINGS AND
FAULTS
WARNING:
Maintenance personnel must receive proper training before installing,
troubleshooting, or maintaining high-energy electrical equipment. Potentially
lethal voltages could cause death, serious personal injury, or damage to the
equipment. Ensure that all appropriate safety precautions are taken.
AVERTISSEMENT:
Le personnel d’entretien doit recevoir une formation appropriée avant
d’installer, de dépanner ou d’entretenir un équipement électrique à haute
énergie. Des tensions potentiellement mortelles pourraient provoquer la
mort, des blessures graves ou des dommages à l’équipement. S’assurer que
toutes les consignes de sécurité appropriées ont été respectées.
DANGER:
This unit contains energy storage devices that take up to 5 minutes to
discharge. Verify the high energy capacitors are completely discharged
before working on this unit.
DANGER:
Cette unité contient des dispositifs de stockage d’énergie qui prennent
jusqu’à 5 minutes pour se décharger. Vérifier que les condensateurs à haute
énergie sont complètement déchargés avant de travailler sur l’unité.
The inverter's display screen is the primary indicator of a possible problem with the
inverter. The inverter can detect and display inverter warnings and faults.
8‑2
Troubleshooting and Solar Energy Technical Support
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Before performing advanced troubleshooting, record the information provided on the
display screen and de-energize the inverter.
Prior to conducting the following troubleshooting steps, perform a visual inspection
to check for the following:
• Loose or disconnected wires
• Fuses
• Other connections
• Hardware issues
If the visual inspection reveals potentially unsafe conditions, discontinue
troubleshooting and contact AE Solar Energy Technical Support or email
[email protected] prior to proceeding.
Troubleshooting Warnings
Warnings are displayed if a condition is detected that does not require the inverter to
shut down but may require attention. The following screen is a sample warning
screen.
4654
Figure 8‑1. Warning screen
SYSTEM WARNINGS
The following table lists the system warnings.
570-1001792-05A
Troubleshooting and Solar Energy Technical Support
8‑3
Advanced Energy
Table 8‑1. Inverter system warnings
Hexadecimal
Value
Display String
Description
0001
FAN 1 WARNING
Fan 1 warning
0002
FAN 2 WARNING
Fan 2 warning
0008
MAG HITEMP
WARNING
Magnetics high
temperature warning
0010
HI TEMP PWR
LIMIT
Power foldback warning
0020
DELTA TEMP
WARNING
Heatsink delta
temperature warning
0080
GFDI CURRENT
WARNING
GFDI current warning
0100
AC SURGE
WARNING
AC surge warning
0200
DC SURGE
WARNING
DC surge warning
0400
DC CURRENT
WARNING
Negative DC current
warning
Action
Contact Solar Energy
Technical Support
Troubleshooting Inverter Faults
If a fault has occurred the inverter will cease power production until the fault is
cleared. A fault may be a latching or non-latching fault.
• Non-latching: Automatically clears if the fault condition is resolved and the
inverter automatically restarts after completing its startup sequence.
• Latching: Requires manual intervention to restart the inverter.
If the inverter has faulted, the display screen will show the corresponding fault
information in a series of three or more screens. The display will then cycle back
through the three screens.
• First screen: Displays the fault category followed by the hexidecimal fault
code(s) value.
• Second screen: Displays a text description of the fault code(s).
• Third screen: Displays Solar Energy Technical Support contact information.
In the following example, a system fault, SYS returned a code, indicating too many
fault restarts occurred. The 0000 indicates no fault occurred in the other fault
groups.
8‑4
Troubleshooting and Solar Energy Technical Support
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Fault Codes
SYS 0020 DRV 0000
VLT 0000 TMP 0000
GRD 0000
Screen 1: Fault code(s)
Fault
AC FAST UNDERVOLT A
GFDI FAULT
Screen 2: Fault text
Advanced Energy
phone: (877)312-3832
email:
[email protected]
aei.com
Screen 3: Contact information
Figure 8‑2. Screen sequence when an inverter faults
AC UNDER VOLTAGE FAULT
To Identify an AC Under Voltage Fault
If the inverter displays an AC Under Voltage fault and all the voltages going
into the inverter are within the tolerances provided in the specifications, continue
with the following troubleshooting tips.
1. Check the main branch circuit breaker.
a. If the breaker is not tripped:
Check the small fuses located on the AC distribution PCB (there are nine in
three sets of three). If one or more of these fuses have opened, replace them
with like parts (600 VAC, 10 A or 20 A as required)
2. If any of the fuses are open, visually inspect the wiring. Look for the following:
a. Frayed wires or carbon marks indicating a short
b. Burned traces on the PCBs
If any of these conditions are present, DO NOT START THE INVERTER.
Contact AE Solar Energy Technical Support for replacement parts or service.
IDENTIFYING A GROUND FAULT
The inverter is equipped with a Ground Fault Detector Interrupter (GFDI). The
purpose of the GFDI is to detect a ground fault (unintended current flow from the
solar panels to earth ground) and in this event, disable the inverter.
WARNING:
For the GFDI circuit to function as designed, the solar array safety ground
must not be connected to the PV array positive or negative leads. Bonding
the safety ground to the grounded leg of the array anywhere but through the
inverter will cause the GFDI circuit to be bypassed. This would defeat the
operation of the GFDI and potentially create an unsafe operating condition.
570-1001792-05A
Troubleshooting and Solar Energy Technical Support
8‑5
Advanced Energy
AVERTISSEMENT:
Pour que le circuit GFDI fonctionne normalement, la prise de terre de
sécurité du système PV ne doit pas être branché aux câbles positifs ou
négatifs des piles PV. Brancher la prise de terre de sécurité au pied des piles
ou à toute autre partie que l’onduleur causerait une mise hors circuit du
GFDI. Ceci ne empêcherait le fonctionnement normale du circuit GFDI et
créerait des conditions de fonctionnement potentiellement dangereuses.
The GFDI functions using a 5 A fuse to connect or bond the solar array negative (or
the solar array positive, if using a positively grounded panel array) to earth ground
on the DC distribution PCB.If the ground fault current exceeds 5 A between the
grounded array terminal and the earth ground, the GFDI fuse will open and
disconnect the solar panels from their ground reference, interrupting the ground fault.
In this situation, the inverter will cease operation and show a ground fault message
on the inverter display.
To Identify the Cause of a Ground Fault
1. Turn the ON/OFF switch on the display to the OFF position.
2. Turn the AC disconnect to the power OFF position.
3. Turn the DC disconnect to the power OFF position.
4. Identify the cause of the ground fault by checking the following items:
a. A configuration error during commissioning.
b. Switching the grounded conductor in the DC disconnect.
▪ For a negatively grounded system, the positive leg should be broken in the
DC disconnect.
▪ For a positively grounded system, the negative leg should be broken in the
DC disconnect.
c. A pinched wire in the installation connecting some part of the array or DC
wiring to earth ground.
d. Mismatched array strings in a multiple inverter installation.
e. An open GFDI fuse.
TO RESOLVE A GROUND FAULT
DANGER:
This unit contains energy storage devices that take up to 5 minutes to
discharge. Verify the high energy capacitors are completely discharged
before working on this unit.
8‑6
Troubleshooting and Solar Energy Technical Support
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
DANGER:
Cette unité contient des dispositifs de stockage d’énergie qui prennent
jusqu’à 5 minutes pour se décharger. Vérifier que les condensateurs à haute
énergie sont complètement déchargés avant de travailler sur l’unité.
DANGER:
Verify that no shock hazard exists between both fuse terminals and earth
ground before removing the fuse. A 600 V rated fuse pulling device is
required.
DANGER:
Vérifier qu’il n’y a aucun risque d’électrocution entre les deux bornes de
fusible et la prise de terre avant de retirer le fusible. Un arrache-fusible d’une
capacité de 600 V est requis.
1. Open the DC side door and locate the DC distribution PCB.
2. Inspect the 5 A GFDI fuse for continuity using a multimeter.
3. Remove the GFDI fuse.
4. Check for continuity (ohms) across the GFDI fuse.
If the meter indicates no continuity then a ground fault likely exists.
◦ Check the DC voltage between the grounded terminal of the array and earth
ground. The voltage should be less than 30 volts with the GFDI fuse
removed. If the voltage is higher than 30 volts, a ground fault likely still
exists. Check the array wiring. For the best results, perform this test with the
DC disconnect in both the ON and OFF positions.
◦ Make sure the grounded leg of the solar array is not disconnected in the DC
disconnect.
5. Once the ground fault condition has been eliminated, verify the voltage
between earth ground and the grounded side of the PV array is less than 30
volts.
6. Ensure the DC disconnect is in the OFF position and install the new GFDI fuse.
7. Restart the inverter.
If the ground fault cannot be eliminated, contact AE Solar Energy Technical Support.
Related Links
• “System Startup Procedure” on page 5‑1
570-1001792-05A
Troubleshooting and Solar Energy Technical Support
8‑7
Advanced Energy
INVERTER FAULT CODES
The inverter display screen provides fault information. In addition, the inverter
firmware utilizes a Modbus variable to indicate a fault condition. Each bit in this fault
variable represents a fault type, the same fault type displayed on the screen. The
Modbus information for the bit assignments and specific fault variables for the fault
categories are as follows:
Table 8‑2. Fault categories
Description
Screen
Display
Category
Bit Number
Hex Value
Decimal Value
Modbus register number = 42102
Drive fault
DRV
0
1
1
Voltage fault
VLT
1
2
2
Grid fault
GRD
2
4
4
Temperature fault
TMP
3
8
8
System fault
SYS
4
10
16
15
8000
32768
Latching fault
For each fault category, another fault variable provides detailed information on which
fault has occurred within this category. The following tables list the possible faults
within each category and related information:
• Hexidecimal value: Value displayed following the category
• Screen display text: Text displayed on the second screen
• Description: Describes the fault
• Action: Necessary steps to resolve the fault
Drive Faults
The following table lists the drive protection faults.
8‑8
Troubleshooting and Solar Energy Technical Support
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 8‑3. Drive (DRV) faults
Display
Screen Hex
Value
Display Screen Text
Description
0001
DRIVE A LOW
Drive protection fault,
phase A low
0002
DRIVE A HIGH
Drive protection fault,
phase A high
0004
DRIVE B LOW
Drive protection fault,
phase B low
0008
DRIVE B HIGH
Drive protection fault,
phase B high
0010
DRIVE C LOW
Drive protection fault,
phase C low
0020
DRIVE C HIGH
Drive protection fault,
phase C high
0040
HW OVERCURRENT A
Peak over-current,
phase A
0080
HW OVERCURRENT B
Peak over-current,
phase B
0100
HW OVERCURRENT C
Peak over-current,
phase C
0200
RMS OVERCURRENT A RMS over-current,
phase A
0400
RMS OVERCURRENT B RMS over-current,
phase B
0800
RMS OVERCURRENT C RMS over-current,
phase C
1000
DC OVERVOLTAGE
DC volts over range
2000
DC UNDERVOLTAGE
DC volts under range
Action
Contact Solar Energy
Technical Support
Voltage Faults
The following table lists the voltage faults, including VAC sense, VDC, and power
supply faults.
570-1001792-05A
Troubleshooting and Solar Energy Technical Support
8‑9
Advanced Energy
Table 8‑4. Voltage (VLT) faults
Display
Screen Hex
Value
Display Screen Text
Description
0001
VAC OVER PEAK A
Peak AC voltage high,
phase A
0002
VAC OVER PEAK B
Peak AC voltage high,
phase B
0004
VAC OVER PEAK C
Peak AC voltage high,
phase C
0008
PLL FAULT
Control PLL fault
0010
AC UNBALANCED
FAULT
AC voltages unbalanced
0020
DC OVER VOLTAGE
DC voltage high
0040
POWER SUPPLY P5
5 V power supply fault
0080
POWER SUPPLY P15
15 V power supply fault
0100
POWER SUPPLY M15
-15 V power supply
fault
0200
POWER SUPPLY 10
10 V power supply fault
0400
POWER SUPPLY 24
24 V power supply fault
1000
DC PRECHARGE
DC precharge fault
2000
PV-DC DELTA
PV input and DC bus
voltage delta
Action
Contact AE Solar
Energy Technical
Support.
Grid Faults
The grid faults in the following table include grid interactive voltage and frequency
faults.
8‑10
Troubleshooting and Solar Energy Technical Support
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 8‑5. Grid (GRD) faults
Display
Screen Hex
Value
Display Screen Text
Description
0001
AC FAST UNDERVOLT Fast AC voltage low,
A
phase A
0002
AC FAST UNDERVOLT Fast AC voltage low,
B
phase B
0004
AC FAST UNDERVOLT Fast AC voltage low,
C
phase C
0008
AC SLOW
UNDERVOLT A
Slow AC voltage low,
phase A
0010
AC SLOW
UNDERVOLT B
Slow AC voltage low,
phase B
0020
AC SLOW
UNDERVOLT C
Slow AC voltage low,
phase C
0040
AC FAST OVERVOLT A Fast AC voltage high,
phase A
0080
AC FAST OVERVOLT B Fast AC voltage high,
phase B
0100
AC FAST OVERVOLT C Fast AC voltage high,
phase C
0200
AC SLOW OVERVOLT
A
Slow AC voltage high,
phase A
0400
AC SLOW OVERVOLT
B
Slow AC voltage high,
phase B
0800
AC SLOW OVERVOLT
C
Slow AC voltage high,
phase C
1000
AC UNDER FREQ
Low frequency fault
2000
AC OVER FREQ
High frequency fault
Action
Wait for the grid to
stabilize. The inverter
cannot operate correctly
when the grid voltage is
out of range limitations
or is unstable.
Temperature Faults
The following table lists the temperature faults.
570-1001792-05A
Troubleshooting and Solar Energy Technical Support
8‑11
Advanced Energy
Table 8‑6. Temperature (TMP) faults
Display
Screen Hex
Value
Display Screen Text
Description
0001
HEATSINK TEMP A1
Module heat-sink A1
temperature high
0002
HEATSINK TEMP A2
Module heat-sink A2
temperature high
0004
HEATSINK TEMP B1
Module heat-sink B1
temperature high
0008
HEATSINK TEMP B2
Module heat-sink B2
temperature high
0010
HEATSINK TEMP C1
Module heat-sink C1
temperature high
0020
HEATSINK TEMP C2
Module heat-sink C2
temperature high
0040
BOARD TEMP HI
Control board
temperature high
0080
DRIVE TEMP LOW
Drive temperature low
0100
MAGNETICS TEMP HI
Magnetics temperature
high
0200
AMBIENT TEMP LOW
Ambient temperature
low
0400
MAG TEMP LOW
Magnetics temperature
low
0800
IPM TEMP HIGH
IPM temperature high
Action
Clean all filters. Make
sure air vents aren't
blocked and sufficient
space is provided
around all air vents.
If the filters are clean
and air flow is
insufficient, contact AE
Solar Energy Technical
Support.
System Faults
The following table lists the miscellaneous system faults.
Table 8‑7. System (SYS) faults
Display
Screen Hex
Value
8‑12
Display Screen Text
Description
0001
GROUND FAULT
Ground fault
0002
AC CONTACTOR
AC contactor fault
0004
DC CONTACTOR
DC contactor fault
Troubleshooting and Solar Energy Technical Support
Action
Check the PV array
field wiring.
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 8‑7. System (SYS) faults (Continued)
Display
Screen Hex
Value
Display Screen Text
Description
0008
WD TIMER
Watchdog fault
0010
CPU LOAD
CPU load fault
0020
RESTART LIMIT
Too many fault restarts
0040
CONFIGURATION
Configuration fault
0080
CURRENT
IMBALANCE
AC current imbalance
0100
AC VOLTAGE SENSE
No AC voltage detected
0800
DISCONNECT OPEN
Disconnect open
1000
DC MISWIRE
DC mis-wired for
configured grounding
Action
Contact AE Solar
Energy Technical
Support for service.
Check the DC wiring.
PCB STATUS LEDS
The AE commercial inverter includes status LEDs to help troubleshoot system
operation. The status LEDs are located on the following PCBs:
• Controller PCB
• Communications interface PCB
Controller PCB Status LEDs
There are two LEDs on the front of the controller PCB, a green and a red LED.
Table 8‑8. Controller PCB LEDs
LED
Color
Green
Flash
Code
Solid
570-1001792-05A
LED Sequence / Unit
Status
Inverter is on and ready to
produce power.
Action
None
Troubleshooting and Solar Energy Technical Support
8‑13
Advanced Energy
Table 8‑8. Controller PCB LEDs (Continued)
LED
Color
Flash
Code
Solid
LED Sequence / Unit
Status
The inverter is in a faulted
condition.
Action
• Check the fault code on the display
screen
• Clear the fault condition
• Inverter will auto reset
Red
Flashing A latching fault has occurred.
• Check the fault code on the display
screen
• Manually clear the fault condition
• Restart the inverter
Communication PCB Status LEDs
The communication PCB includes four status LEDs.
• Link: Indicates presence of a hardware Ethernet connection
• Activity (or ACT): Indicates internet traffic
• Status: Indicates the communication status
• Modbus: Indicates activity on the Modbus network
The four LEDs primary location is on the face of the communication PCB in the
card cage on the right side of the power module assembly as shown in the following
figure.
Status LED lights
4612
Figure 8‑3. Communication PCB with status LEDs
The other set of LEDs are on the communication interface PCB located in the data
monitoring section in the front upper right of the inverter. These four LEDs are
surface mount LEDs located near the Ethernet and Modbus connector as shown in the
following figure. These LEDs are redundant and are synchronized with
communication PCB.
8‑14
Troubleshooting and Solar Energy Technical Support
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
4672
Modbus light
Status light
Activity light
Link light
Figure 8‑4. Communication interface PCB with LEDs
Table 8‑9. Link LED
LED
Color
Amber
Flash Code
Unit Status / Description
Action
On
Hardware Ethernet connection is found
None
Off
No hardware Ethernet connection available None
Table 8‑10. Activity LED
LED
Color
Green
Flash Code
Unit Status / Description
Action
Flashes
Continuous flash to indicate the presence of None
internet traffic
Solid
May be solid in the presence of heavy
internet traffic
570-1001792-05A
None
Troubleshooting and Solar Energy Technical Support
8‑15
Advanced Energy
Table 8‑11. Status LED
LED
Color
Green
Flash Code
On
Unit Status / Description
Serial communication is established.
Inverter communications are operating
normally.
Action
None
• On solid for a few seconds
• Followed by quick flashes for several
seconds while the communications
device looks for an Internet
connection
• After a few seconds flashes more
slowly while serial communication is
established with the inverter’s main
processor
• Remains on unless a fault occurs
Short-longshort
Serial communication fault. The
None
communication PCB is communicating
with the inverter’s main processor via serial
communication. If the communication PCB
cannot establish communication with the
main processor, the serial communication
fault code will flash. It is normal for this
status code to flash for a few seconds
during startup.
Long-shortshort
DNS failure. The inverter attempts to post
data once every 15 minutes to the AE
database using Domain Name Service
(DNS) server to resolve the IP address. The
DNS failure code will flash when:
• Verify the IP
address is valid.
• DNS server cannot be found
• Invalid IP address returned
If this post succeeds, the LED returns to
normal operation until the next post
attempts to connect to the DNS server.
8‑16
Troubleshooting and Solar Energy Technical Support
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 8‑11. Status LED (Continued)
LED
Color
Flash Code
Short-ShortLong
Unit Status / Description
Action
Network connection fault. The inverter
cannot post data to the AE database server.
The status LED may indicate normal
operation before this occurs. This can
happen in the following circumstances:
• Verify network
cable is
connected.
• Verify the IP
address is valid.
• Network cable is not connected
• Network does not have a DHCP server
or the DHCP server did not provide a
valid IP address to the inverter
• AE server is down for maintenance
• Any other network problem that does
not allow data to post to the AE server
Table 8‑12. Modbus LED
LED
Color
Green
Flash Code
Short (1/8
sec.)
Unit Status / Description
Enables the installer to troubleshoot the
system by verifying that communications
are occurring on the network, indicating the
following:
• If the inverter is connected as a slave
device, the LED flashes quickly
whenever there is activity on the
network
• Modbus network commands occurring
but are not addressed to this specific
inverter
Long (1/2
sec.)
• Check the Modbus
address switches
and make sure
they correspond to
the address
programmed into
the Modbus
master.
• Confirm that the
baud rate and
other
communication
parameters of the
Modbus master
are set correctly.
Inverter sees and responds to a Modbus
None
master request message that is addressed to
this specific inverter.
Short and long Communication occurring on a Modbus
network that contains multiple Modbus
slave devices.
570-1001792-05A
Action
None
Troubleshooting and Solar Energy Technical Support
8‑17
Advanced Energy
AE SOLAR ENERGY TECHNICAL SUPPORT
Please contact AE Solar Energy Technical Support if you have questions or problems
that cannot be resolved by working through the provided troubleshooting. When you
call Solar Energy Technical Support, make sure to have the unit serial number and
part number. These numbers are available on unit labels.
Table 8‑13. AE Solar Energy Technical Support 24 X 7 contact information
Office
AE Solar Energy Technical Support
Contact
Phone (24 hrs/day, 7 days/week):
20720 Brinson Blvd
Inside the U.S., call 877.312.3832 or
Bend, OR 97701
Outside the U.S., call
+1.541.323.4143
USA
☞ Important
For returns and repairs, please
call Solar Energy Technical
Support to request an RMA
and obtain the correct shipping
address.
Email: (We will respond to email by the
next business day.)
[email protected]
If you would prefer to contact a local or regional sales or service office, visit the
Advanced Energy web site for current contact information (click on Sales and
Support):
• http://www.advanced-energy.com
8‑18
Troubleshooting and Solar Energy Technical Support
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Appendix
A
Specifications
PHYSICAL SPECIFICATIONS
Table 9‑1. Physical specifications
Description
Specification
General Physical Specifications
Enclosure rating
NEMA 4
Construction
Powder-coated steel with hot-dipped zinc base
Size
9375 mm (H) x 2512 mm (W) x 1052 mm (D)
93.5″ (H) x 98.9″ (W) x 41.4″ (D)
Maximum weight
2268 kg (5000 lb)
User Interface and Communications Protocol
Display
VFD 4 rows x 20 characters
RS-485
Screw terminal block
Ethernet
IP over Ethernet
ELECTRICAL SPECIFICATIONS
The table lists electrical specs for the following inverter models:
• PVP250kW (480 VAC)
• PVP250kW (600 VAC)
• PVP260kW (480 VAC)
• PVP260kW-LV (480 VAC)
Note the following limits:
• Accuracy limit of voltage and energy production measurements: ± 5%
• Accuracy limit of frequency measurement: ± 0.1 Hz
570-1001792-05A
Specifications
A‑1
Advanced Energy
Table 9‑2. Electrical specifications
Description
Specification
AC Characteristics
Continuous AC power
PVP250kW: 249.5 kW
PVP260kW and PVP260kW-LV models: 260 kW
Grid type
Three phase, four wire wye (not compatible with delta
service)
Nominal AC voltage (VAC)
480 VAC models: 480 wye
600 VAC models: 600 wye
Maximum output fault current and
duration Note 1
PVP250kW: 336 A rms at 208 VAC, 29 ms
PVP260kW and PVP260kW-LV models: 336 A rms at
480 VAC, 29 ms
PVP260kW and PVP260kW-LV models: 269 A rms at
600 VAC, 29 ms
Maximum utility backfeed current
PVP250kW: 593 A
PVP260kW and PVP260kW-LV: 593 A
AC maximum continuous current
PVP250kW 480 VAC: 304 A, 600 VAC: 243 A
PVP260kW and PVP260kW-LV: 316 A
CEC efficiency
PVP250kW 96.5%
PVP260kW: 97.0%
PVP260kW-LV-LV: 96.5%
Peak efficiency
PVP250kW: 97.7%
PVP260kW: 97.7%
Frequency range
59.3 Hz to 60.5 Hz
AC voltage range set points
(default)
(–12% to +10%)
AC operating range
480 VAC models: 423 VAC to 528 VAC
600 VAC models: 528 VAC to 660 VAC
Power factor at full power
> 0.99
Total harmonic distortion
< 3%
Standby losses
PVP250kW: < 90 W (600VAC), < 67 W (480VAC)
PVP260kW and PVP260kW-LV: 67 W
DC Characteristics
DC input bus bar rating
1600 A
Maximum operating input current
PVP250kW: 890 A
PVP260kW: 925 A
PVP260kW-LV: 1030 A
A‑2
Specifications
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Table 9‑2. Electrical specifications (Continued)
Description
Specification
PVP250kW and PVP260kW: 295 V to 595 V
MPPT range Note 2
PVP260kW-LV: 265 V to 595 V
Maximum voltage at open circuit
600 VOC
Startup voltage
PVP250kW and PVP260kW: :330 V
PVP260kW-LV model: 300 V
Startup power
PVP250kW: 1800 W
PVP260kW and PVP260kW-LV models: 1800 W
Note 1
Information also known as the maximum fault current contribution.
Note 2
At unity power factor and nominal AC voltage.
Table 9‑3. Utility interconnect voltage and frequency trip limits and times
Voltage and Frequency Trip Limits and Times
The default trip limits and times meet UL1741 anti-islanding requirements.
Voltage trip limit field adjustment range as a percentage of nominal: –12% to +10%
Accessible range of frequency trip times: 0.16 s to 300 s
Accessible range of low frequency setting (Hz):
• Adjustable low trip 57.5-59.8 Hz
• High trip fixed at 60.5 Hz
(The accuracy limit of time measurement is ± 0.1 s.)
480 VAC Configurations
Condition
Factory Setting
(VAC)
Range (VAC)
Default Trip Time
(seconds)
Voltage phase high
304.8
304.8 to 332.5
1.0
Voltage phase low
243.9
216.1 to 243.9
2.0
Voltage phase fast high
332.5
332.5
0.16
Voltage phase fast low
138.6
138.6
0.16
600 VAC Configurations
Condition
Factory Setting
(VAC)
Range (VAC)
Default Trip Time
(seconds)
Voltage phase high
381.1
381.1 to 415.7
1.0
Voltage phase low
304.8
270.2 to 314.8
2.0
Voltage phase fast high
415.7
415.7
0.16
Voltage phase fast low
173.2
173.2
0.16
570-1001792-05A
Specifications
A‑3
Advanced Energy
Table 9‑3. Utility interconnect voltage and frequency trip limits and times (Continued)
Voltage and Frequency Trip Limits and Times
Frequency Trip Limits and Times
Condition
Maximum Trip
Time (seconds)
Factory Setting (Hz) Range (Hz)
Line frequency low
59.3
57.5 to 59.8
0.16
Line frequency high
60.5
60.5
0.16
Efficiency Specifications
EFFICIENCY CURVES FOR THE PVP250KW (480 VAC)
MODEL
CEC Efficiency = 96.5%
100
95
Efficiency, %
90
85
80
295 Vdc
75
341 Vdc
480 Vdc
70
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
% of Rated Output Power
4620
Figure 9‑1. Efficiency curves for the PVP250kW (480 VAC) model
Table 9‑4. Efficiency specifications for the PVP250kW (480 VAC) model
Input Voltage
(VDC)
Power Level in Percent and kW
10%
20%
30%
50%
75%
100%
24.95
49.90
74.85
124.75
187.13
249.50
Weighted
VMIN
295
96.0
97.0
96.9
96.9
96.6
96.1
96.7
VNOM
341
95.6
96.6
96.7
96.8
96.4
96.0
96.5
VMAX
480
94.7
95.8
96.2
96.2
95.9
95.4
95.9
A‑4
Specifications
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
EFFICIENCY CURVES FOR THE PVP250KW (600 VAC)
MODEL
CEC Efficiency = 96.5%
100
95
Efficiency, %
90
85
80
295 Vdc
75
341 Vdc
480 Vdc
70
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
% of Rated Output Power
4619
Figure 9‑2. Efficiency curves for the PVP250kW (600 VAC) model
Table 9‑5. Efficiency specifications for the PVP250kW (600 VAC) model
Input Voltage
(VDC)
Power Level in Percent and kW
10%
20%
30%
50%
75%
100%
24.95
49.90
74.85
124.75
187.13
249.50
Weighted
VMIN
295
95.2
96.8
97.1
97.1
96.8
96.4
96.8
VNOM
341
94.8
96.5
96.8
96.9
96.6
96.3
96.6
VMAX
480
93.4
95.6
96.1
96.2
96.0
95.7
95.9
570-1001792-05A
Specifications
A‑5
Advanced Energy
EFFICIENCY CURVES FOR THE PVP260KW (480 VAC)
MODEL
CEC Efficiency = 97.0%
100
95
Efficiency, %
90
85
80
295 Vdc
75
341 Vdc
480 Vdc
70
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
% of Rated Output Power
4621
Figure 9‑3. Efficiency curves for the PVP260kW (480 VAC) model
Table 9‑6. Efficiency specifications for the PVP260kW (480 VAC) model
Input Voltage
(VDC)
Power Level in Percent and kW
10%
20%
30%
50%
75%
100%
26.00
52.00
78.00
130.00
195.00
260.00
Weighted
VMIN
295
96.0
97.5
97.7
97.6
97.1
96.4
97.2
VNOM
341
95.6
97.3
97.5
97.4
97.0
96.4
97.0
VMAX
480
94.4
96.5
96.9
97.0
96.6
96.1
96.6
A‑6
Specifications
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
EFFICIENCY CURVES FOR THE PVP260KW-LV (480 VAC)
MODEL
CEC Efficiency = 96.5%
100
95
Efficiency, %
90
85
80
265 Vdc
75
319 Vdc
480 Vdc
70
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
% of Rated Output Power
4622
Figure 9‑4. Efficiency curves for the PVP260kW-LV (480 VAC) model
Table 9‑7. Efficiency specifications for the PVP260kW-LV (480 VAC) model
Input Voltage
(VDC)
Power Level in Percent and kW
10%
20%
30%
50%
75%
100%
26.00
52.00
78.00
130.00
195.00
260.00
Weighted
VMIN
295
96.1
97.6
97.8
97.5
96.9
96.0
97.1
VNOM
341
95.6
97.3
97.5
97.3
96.7
95.9
96.9
VMAX
480
94.0
96.2
96.7
96.8
96.2
95.5
96.3
COOLING SPECIFICATIONS
Table 9‑8. Cooling specifications
Description
Specification
Cooling method
Forced convection
Maximum heat rejection rate
41,000 BTU/hr
Maximum fan air flow rate
28 liters per second (2300 CFM)
570-1001792-05A
Specifications
A‑7
Advanced Energy
ENVIRONMENTAL SPECIFICATIONS
Table 9‑9. Environmental specifications
Equipment
Status
Operating
Temperature
–30°C to +50°C
–22°F to +122°F
Relative Humidity
0% to 95% noncondensing
Air Pressure
Minimum air pressure =
81.2 kPa (812 mbar)
Equivalent altitude = 1829 m
(6000′)
Standby/Storage –40°C to +60°C
–40°F to +140°F
A‑8
0% to 95% noncondensing
Specifications
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Appendix
B
System and Mechanical Diagrams
SYSTEM DIAGRAM
2
3
4
5
6
PROPRIETARY INFORMATION
PV Powered, Inc. CONFIDENTIAL &
7
8
Revision Record
PV Powered, Inc. CONFIDENTIAL &
PROPRIETARY INFORMATION
LTR
DC BULKHEAD
MAGNETICS COMPARTMENT
1
2
1
2
DC DISTRIBUTION
4
2
5
5
3
4
6
A_OUT
DC CONTACTOR
Load Rated
DC+ CKT13
DC+ CKT14
TO CONTROL
AUX NO
1
PRECHARGE
2
5
B_IN
B_OUT
C_IN
3
3
2
6
1
2
1
48V CONTACT POWER
+
C PHASE CT
SOFT START
CONTACTOR
TO CONTROL
PLC COIL
INTERFACE
+
B
C
6
2
1
6
5
1
4
3
2
1
1
POS_IN
3
POS_OUT
SOFT START DRIVE
DC+
GND
GND
1
R9
20A 600V FUSES
8A 600V FUSES
6
3 PHASE 480V
DC+ CKT4
5
4
3
2
1
B
GND
AC SURGE STATUS
VOLTAGE MEASURE
DC SURGE
DC+ CKT6
2
3 PHASE AC OUT
GND
DC+ CKT5
4
48V CONTACT POWER
GROUND FAULT FUSE
DC+ CKT3
GROUND
2
7
5A
DC+ CKT2
AC DISTRIBUTION
3
R8
5
A
GND
DC+ CKT1
INSTALLER
LANDINGS
R7
2
A PHASE CT
1
THRESHOLD
DETECT
OPTIONAL
B PHASE CT
1
DC 16
DC 15
DC 14
DC 13
DC 4
DC 3
DC 2
DC 1
CURRENT MEASURE
+
8 CIRCUIT COMBINER
200A FUSING
260kW to Grid/Utility
480Vac, 3 phase, 60Hz
250kW to Grid/Utility
480/600Vac, 3 phase, 60Hz
GND
7
DC MEASURE
DC CONTACT DRIVE
C PHASE
+
AC CONTACT DRIVE
4
DC FILTER
DC SURGE STATUS
DC+ CKT7
2
NEG_IN
AC SURGE
VA L-N
DC IN
4
NEG_OUT
TO CONTROL
IGBT DRIVE
RIPPLE
CAPS
PWM
HEATSINK TEMP
600Vac Inverter includes 480V
transformer for components below.
TO CONTROL
DC 8
DC 7
DC 6
DC 5
DC 4
DC 3
DC 2
DC 1
GND
VB L-N
VC L-N
DC-
DC+ CKT8
A
B PHASE
PLC COIL
INTERFACE
6
GFDI
A PHASE
48V CONTACT POWER
2
DC+ CKT16
DC POS
2
1
7
SWITCHING
INDUCTORS
5
DESAT
4 CIRCUIT COMBINER
400A FUSING
24V
DRIVE BAY
DC 1
OPTIONAL
DC 2
DC+ CKT1
DC 3
DC 4
DC+ CKT2
Revenue-Grade
DC Current Meter
48V METER
Modbus 4
Power In
OPTIONAL
CONTROL CENTER
3 Phase V Sense
DC+ CKT3
24V
FAN TACH 3
FAN DRIVE 3
FAN TACH 2
FAN DRIVE 2
FAN DRIVE 1
FAN TACH 1
USER INPUT 2
USER INPUT 1
VFD Data
RS 232
RS 485
VC L-N
RJ 45
VB L-N
VA L-N
SECONDARY 24V SUPPLY
24Vdc @ 100W
480Vac
COMMUNICATION
Comm
Power Dist.
Link
+15V
ACT
FAULT
5V
-15V
Modbus
PWM
3.3V
5V
Status
DISPLAY
POST
15A
48V METER
TO CONTROL
USER INPUT 2
1
2
3
4
5
6
7
8
Ethernet
1
2
3
Modbus
GND
MODBUS 1-2
Headers are for field
connections.
15A
FAN DRIVE 1
15A
AC SURGE STATUS
GND
INVERTER ON/OFF
3A
VFD 4x20 Character
FAN TACH 1
D
48V STATUS
CAT5
DISPLAY PAUSE/SCROLL
SOFT START DRIVE
GROUND
GND
USER INPUT 1
15A
RESET
AC CONTACT DRIVE
Modbus 1
OPTIONAL
INTERFACE
48V CONTACT POWER
VFD Data
DC SURGE STATUS
AC CONTACT STATUS
508 Panel
480Vac
24V
DC- CKT19
DC- CKT20
SERVICE
COM PORT
1
2
15A
DC CONT STATUS
DC CONTACT DRIVE
RS 232
480Vac
DC OK
48V STATUS
48V
10V
C
MODBUS 2-1
1
3
4
5
6
7
8
10
11
12
13
14
I/O Ext.
Controller
DC- CKT3
Modbus
1
6
2
7
3
8
4
9
5
48V CONTROL POWER
OK
DC- CKT2
PRIMARY 48V SUPPLY
MODBUS 3-4
MODBUS 2-3
TO CONTROL
48Vdc @ 960W
Modbus 3
CAT5
Ethernet
RS 485
48V POWER IN
OPTIONAL
MODBUS 2
RJ 45
24V STATUS
CONTROL CENTER
Revenue-Grade
Power Meter
C PHASE CT
COMM-X
OPTIONAL
DC OK
DC- CKT1
DC NEG
DESAT
HEAT SINK TEMP
C PHASE CT
PWM
B PHASE CT
A PHASE CT
GFDI
MODBUS 3-4
DC MEASURE
PV MEASURE
OTHER FUSING OPTIONS:
20 x 75A
10 x 150A
5 x 300A
CUSTOM
PRECHARGE
MODBUS 3-4
C
B PHASE CT
A PHASE CT
DC 16
MODBUS 3-2
DC+ CKT4
MODBUS 3-4
DC POS
PROPRIETARY INFORMAT ION
1
4
2
DC+ CKT15
B
3
+
DC CONT STATUS
2
A_IN
C_OUT
PV MEASURE
1
C PHASE CT
DC+ CKT4
6
B PHASE CT
DC POS
DC+ CKT3
1
AC DISCONNECT
Load Rated
2
AC FILTER
Y-Y ISOLATION XFMR
+
1
S2
DC+ CKT2
A
AUX NO
1
AC CONTACT STATUS
DC+ CKT1
Date
AC CONTACTOR
Load Rated
2
A PHASE CT
OPTIONAL
Approved
AC BULKHEAD
DC DISCONNECT
Load Rated
16 CIRCUIT COMBINER
100A FUSING
ECO Number:
PROPRIETARY INFORMAT ION
1
D
FAN DRIVE 2
SERVICE FUSES
TO CONTROL
FAN TACH 2
24V STATUS
FAN DRIVE 3
INSTALLER LANDINGS
FAN TACH 3
265-500Vdc, 600Vdc Max
1030A Max
PROPRIETARY INFORMATION
PV Powered, Inc. CONFIDENTIAL &
1
2
3
PV Powered, Inc. CONFIDENTIAL &
PROPRIETARY INFORMATION
4
5
6
Drawn: JLO
Date: 04/02/09
Checked:
Date:
QC:
Date:
Released:
Date:
Title
PVP260kW and PVP250kW System Diagram
Number: *
Revision: B
Size: C
Date: 6/22/2011 Time: 11:14:05 AMSheet *
of *
20720 Brinson
Blvd
PV Powered,
Inc.
Bend, 150
OR 97701
SW Scalehouse Loop
541 312
3832OR 97702 USA
Bend,
www.pvpowered.com
(541) 312-3832
File: C:\Documents and Settings\skarr\Desktop\New Commercial Documents\260KW_System_CustomerVersion.SchDoc
7
8
Figure 10‑1. PVP250kW and PVP260kW system diagram
570-1001792-05A
System and Mechanical Diagrams
B‑1
Advanced Energy
MECHANICAL DIAGRAMS
4
2
3
1
REV ISIO N HISTO RY
REV .
N O TES:
D
1.
2.
3.
4.
5.
G EN ERA L M A TERIA L: M ILD STEEL.
G EN ERA L FIN ISH: PO WD ER C O A T, RA L 7038.
N EM A RA TIN G : 4
A PPRO XIM A TE WEIG HT: 4800LBS.
PRO V ID E WO RKIN G C LEA RA N C ES PER N EC 110.26.
41 3/ 8"
D A TE
A PPRO V ED
A .0 1
M A N UFA C TURIN G RELEA SE
5/ 7/ 2009
A EO
A .0 2
A D D ED D IM EN SIO N FO R SID E G LA N D PLA TE FRO M BA C K
A D D ED SIESM IC O PTIO N N O TE.
11/ 20/ 2009
A EO
B.01
UPD A TED C A BIN ET A SSEM BLY TO THE LA TEST REV ISIO N , UPD A TED REBA R.
1 1 / 9 / 20 1 0
A EO
C
UPD A TED G LA N D PLA TE N O TES,
8/ 4/ 2011
JLR
D ESC RIPTIO N
D
94 3/ 4"
C
D ISPLA Y A N D
C O N TRO L PA N EL
C
D A TA M O N ITO RIN G BA Y
KEY A C C ESSIBLE
D O O R LA TC H TYPIC A L
A C D ISC O N N EC T
D C D ISC O N N EC T
21"
CG
D C G LA N D PLA TE
21" X 7" C UTO UT O PEN IN G
9 3"
79 1/ 4"
C
34 "
18 7/ 8"
B
33 1 / 8 "
D C C O M BIN ER PA N EL
96 1/ 4"
104"
6 1/ 2"
LEFT SID E V IEW
ISO M ETRIC V IEW
FRO N T V IEW
UN LESS O THERW ISE SPEC IFIED
D IM EN SIO N S A RE IN IN C HES.
TO LERA N C ES A RE:
D EC IM A LS
. XX ± .0 3
. XXX ± . 0 1 0
A
PRO PRIETA RY N O TIC E
TH IS D RA W IN G IS THE PRO PERTY O F PV PO W ERED A N D M UST N O T BE LO A N ED ,
C O PIED IN W HO LE O R IN PA RT, O R USED FO R M A N UFA C TURIN G O R TEN D ERIN G
PURPO SES W ITH O UT W RITTEN C O N SEN T. IT M UST BE RETURN ED O N D EM A N D .
4
B
REV EN UE G RA D E
M ETER, ( O PTIO N A L)
3
2 0 7 2 0 B r in s o n B l v d .
B end , O R 977 01
5 4 1 - 3 1 2 -3 8 3 2
Simply More Re lia ble S olar
A N G LES
± 2°
A PPRO V A LS
D O N O T SC A LE D RA W IN G
D RA W N
TREA TM EN T
EN G R
FIN ISH
P V P o w er ed
THIRD A N G LE PRO JEC TIO N
A EO
A EO
D A TE
IN STA LLA TIO N SPEC IFIC EN C LO SURE D ETA IL, 260 kW IN V ERTER
18FEB09
18FEB09
SIZE
B
EN G R M A N A G ER
18FEB09
RELEA SE TO PRO D .
18FEB09 SC A LE
BH
RO
A
TITLE
PA RT N O .
1 :3 0
2
REV .
6 0 -6 0 0 0 1 8 -0 1
C A LC . W T
A C T. W T
SHEET
C
1 OF 4
1
Figure 10‑2. PVP250kW and PVP260kW mechanical diagrams: View 1
B‑2
System and Mechanical Diagrams
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
4
2
3
1
D
D
A C G LA N D PLA TE
C LEA R O PEN IN G , 10" X 7"
D C G LA N D PLA TE
C LEA R O PEN IN G , 21" X 7"
34 5/ 8"
C
40 1/ 8"
C
6 1/ 2 "
1 1/ 8"
3 2"
33 1/ 8"
16 "
A
D ETA IL A
100"
B
B
BO TTO M V IEW
UN LESS O THERW ISE SPEC IFIED
D IM EN SIO N S A RE IN IN C HES.
TO LERA N C ES A RE:
D EC IM A LS
. XX ± .0 3
. XXX ± . 0 1 0
A
PRO PRIETA RY N O TIC E
TH IS D RA W IN G IS THE PRO PERTY O F PV PO W ERED A N D M UST N O T BE LO A N ED ,
C O PIED IN W HO LE O R IN PA RT, O R USED FO R M A N UFA C TURIN G O R TEN D ERIN G
PURPO SES W ITH O UT W RITTEN C O N SEN T. IT M UST BE RETURN ED O N D EM A N D .
4
3
2 0 7 2 0 B r in s o n B l v d .
B end , O R 977 01
5 4 1 - 3 1 2 -3 8 3 2
Simply More Re lia ble Solar
A N G LES
± 2°
A PPRO V A LS
D O N O T SC A LE D RA W IN G
D RA W N
TREA TM EN T
EN G R
18FEB09
A EO
18FEB09
BH
RELEA SE TO PRO D .
RO
2
D A TE
A EO
EN G R M A N A G ER
FIN ISH
P V P o w er ed
THIRD A N G LE PRO JEC TIO N
18FEB09
A
TITLE
IN STA LLA TIO N SPEC IFIC EN C LO SURE D ETA IL, 260 kW IN V ERTER
SIZE
B
18FEB09 SC A LE
PA RT N O .
1 :2 0
REV .
6 0 -6 0 0 0 1 8 -0 1
C A LC . W T
A C T. W T
SHEET
C
2 OF 4
1
Figure 10‑3. PVP250kW and PVP260kW mechanical diagram: View 2
570-1001792-05A
System and Mechanical Diagrams
B‑3
Advanced Energy
4
D
2
3
1
D
69 1/ 8"
TO P V IEW
TO P V IEW D O O RS O PEN
C
C
62°
1 08 5/ 8"
B
B
A C G LA N D PLA TE,
C UTO UT O PEN IN G 21" X 7"
C
7 1/ 2"
7 1/ 2"
20"
34 "
RIG HT SID E V IEW
RIG HT SID E V IEW
A C C ESS PA N ELS O PEN
BA C K V IEW
UN LESS O THERW ISE SPEC IFIED
D IM EN SIO N S A RE IN IN C HES.
TO LERA N C ES A RE:
D EC IM A LS
. XX ± .0 3
. XXX ± . 0 1 0
A
PRO PRIETA RY N O TIC E
TH IS D RA W IN G IS THE PRO PERTY O F PV PO W ERED A N D M UST N O T BE LO A N ED ,
C O PIED IN W HO LE O R IN PA RT, O R USED FO R M A N UFA C TURIN G O R TEN D ERIN G
PURPO SES W ITH O UT W RITTEN C O N SEN T. IT M UST BE RETURN ED O N D EM A N D .
4
3
2 0 7 2 0 B r in s o n B l v d .
B end , O R 977 01
5 4 1 - 3 1 2 -3 8 3 2
S imply More Re lia ble S olar
A N G LES
± 2°
A PPRO V A LS
D O N O T SC A LE D RA W IN G
D RA W N
TREA TM EN T
EN G R
D A TE
A EO
18FEB09
A EO
18FEB09
EN G R M A N A G ER
FIN ISH
P V P o w er ed
THIRD A N G LE PRO JEC TIO N
BH
RELEA SE TO PRO D .
RO
18FEB09
A
TITLE
IN STA LLA TIO N SPEC IFIC EN C LO SURE D ETA IL, 2 60k W IN V ERTER
SIZE
B
18FEB09 SC A LE
PA RT N O .
1 :3 0
2
REV .
6 0 -6 0 0 0 1 8 -0 1
C A LC . W T
A C T. W T
SHEET
C
3 OF 4
1
Figure 10‑4. PVP250kW and PVP260kW mechanical diagram: View 3
B‑4
System and Mechanical Diagrams
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
4
2
3
1
D
D
N O TE: THIS D RA WIN G D EFIN ES IN STA LLA TIO N C O M PLIA N T W ITH SEISM IC ZO N E 4 REQ UIREM EN TS.
IF SIESM IC ZO N E 4 C O M PLIA N C E IS N O T REQ UIRED THIS M O UN TIN G TEC HN IQ UE IS O PTIO N A L.
12" M IN IM UM ED G E D ISTA N C E
C
32±1\ / 16"
C
16±1\ / 16"
100±1\ / 16"
9" M IN IM UM D EPTH
3"C LR
1"C LR
B
REIN FO RC ED W ITH A TO P A N D BO TTO M LA YER O F REBA R
# 4e 16"O C EA C H W A Y TO P A N D BO TTO M , A STM A 615-G R60.
3" C LEA R BO TTO M A N D PERIM ETER, 1" M IN C LEA R TO P.
14"
M IN IM UM THIC KN ESS
3" C LR
B
O PTIO N 1: THE A N C HO RS M UST BE 1" D IA M ETER SIM PSO N
STRO N G BO LTS EM BED D ED TO A D EPTH O F 9". (USE O F
THIS A N C HO RA G E IS LIM ITED TO D RY, IN TERIO R LO C A TIO N S.)
O PTIO N 2: THE A N C HO RS M UST BE 1" D IA M ETER STA IN LESS
STEEL RO D S (304/ 316) EM BED D ED 8" IN TO THE C O N C RETE
USIN G HILTI RE-500SD EPO XY.
SEISM IC A N C HO RA G E REQ UIREM EN TS
2007 C BC - BA SED O N A SC E 7-05
UN LESS O THERW ISE SPEC IFIED
D IM EN SIO N S A RE IN IN C HES.
TO LERA N C ES A RE:
D EC IM A LS
. XX ± .0 3
. XXX ± . 0 1 0
A
PRO PRIETA RY N O TIC E
TH IS D RA W IN G IS THE PRO PERTY O F PV PO W ERED A N D M UST N O T BE LO A N ED ,
C O PIED IN W HO LE O R IN PA RT, O R USED FO R M A N UFA C TURIN G O R TEN D ERIN G
PURPO SES W ITH O UT W RITTEN C O N SEN T. IT M UST BE RETURN ED O N D EM A N D .
4
3
2 0 7 2 0 B r in s o n B l v d .
B end , O R 977 01
5 4 1 - 3 1 2 -3 8 3 2
Simply More Re lia ble Solar
A N G LES
± 2°
A PPRO V A LS
D O N O T SC A LE D RA W IN G
D RA W N
TREA TM EN T
EN G R
FIN ISH
P V P o w er ed
THIRD A N G LE PRO JEC TIO N
D A TE
A EO
18FEB09
A EO
18FEB09
IN STA LLA TIO N SPEC IFIC EN C LO SURE D ETA IL, 2 60k W IN V ERTER
SIZE
B
EN G R M A N A G ER
18FEB09
RELEA SE TO PRO D .
18FEB09 SC A LE
BH
RO
2
A
TITLE
PA RT N O .
1 :3
REV .
6 0 -6 0 0 0 1 8 -0 1
C A LC . W T
A C T. W T
SHEET
C
4 OF 4
1
Figure 10‑5. PVP250kW and PVP260kW mechanical diagram: View 4
570-1001792-05A
System and Mechanical Diagrams
B‑5
Advanced Energy
B‑6
System and Mechanical Diagrams
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
Index
A
AC
sub panel 2‑9
AC/DC interface
understanding the 4‑13
acronyms 1‑8
address
binary conversion table 6‑14
air filters
inspecting 7‑5
maintenance 7‑4
air intake hood 2‑6
position 7‑4
alert boxes in user manual 1‑1
amperage
wire sizing 4‑12
B
battery
replacing 7‑3
bus bar
connections 4‑3, 4‑4, 4‑5, 4‑12
DC inputs 3‑7
grounding 3‑5
standard 3‑7
buttons
inverter 2‑6
C
cable
backbone 6‑11
card cage
inspecting the air filters 7‑5
PCBs 2‑4, 2‑5
categories 8‑8
checklist for maintenance 7‑2
commands
Modbus 6‑19
communications interface PCB
Ethernet connection 6‑3
jumper settings 6‑12, 6‑13, 6‑14
location of 6‑6
port 6‑9
remote disable 4‑21, 5‑9
status lights 6‑5
communications PCB
connectivity 8‑1
570-1001792-05A
compartment
main enclosure 2‑3
compliance
directives and standards 1‑5
unit 1‑4
conductor
neutral 3‑5
conductors
external 3‑4
rating 3‑4
conduit
entry location 4‑14
entry locations 4‑18
entry points 4‑9
external 3‑4
configuring
Modbus network 6‑8
connections
bus bar 4‑3, 4‑4, 4‑5, 4‑12
conduit hubs 4‑9
electrical 4‑12
network cable 6‑9
connectivity
communications PCB 8‑1
DHCP server access 8‑1
IP address 8‑2
contact information 8‑18
controls
operator interface 2‑6
cooling
inspecting the fan filters 7‑4
specifications 9‑7
customer support 8‑18
D
damage
in shipping 4‑2
data
types of data, Modbus 6‑22
data monitoring
inverter 3‑7
module 6‑1
DC
combiner sub panel 2‑6
distribution PCB 2‑7
landing 2‑6
sub panel 2‑7
Index
i
Advanced Energy
DC input voltage
calculating 3‑7
DC interface
understanding the 4‑18
de-energize
procedure 5‑8
definitions 1‑8
DHCP server access
connectivity issues 8‑1
diagrams
mechanical 10‑2
system 10‑1
directives 1‑5
disconnect
safety 1‑5
display
operation of 5‑6
door
locking handles 4‑2
on inverter 4‑2
door gaskets
replacing 7‑3
E
electrical connections
AC/DC terminals 4‑12
electrical specifications 9‑1
electromagnetic compatibility
directives and standards 1‑5
environmental
cooling requirements 3‑4
corrosion 3‑4
heat rejection rate 3‑4
environmental specifications 9‑8
Ethernet
cable 6‑3
cables 6‑4
connection 6‑2
F
fan filters
inspecting 7‑4
fans
activation of 2‑6
fault codes 8‑8
drive 8‑8
grid 8‑10
system 8‑12
temperature 8‑11
voltage 8‑9
fire
prevention 1‑7
ii
G
GFDI
handling of ground fault 5‑6
gland plates
conduit entry 4‑9
location 3‑4
ground fault
identifying 8‑5
resolving 8‑6
response to 5‑7
ground fault interrupt device
see GFDI
grounding
bus bar 3‑5
positive or negative 3‑5
requirements 3‑5
guidelines
safety 1‑2
I
icons
in user manual 1‑1
on unit 1‑3
inductor 2‑10
industry guidelines, compliance with 1‑5
inspecting
inverter 7‑2
inspection
air deflector 4‑3
connections 4‑4, 4‑5
fan 4‑6
filters 4‑6
screen 4‑3, 4‑4
terminal 4‑3, 4‑4
troubleshooting 8‑2
installation
AC/DC interface 4‑13
clearance 3‑2
conduit 4‑9
conduit entry locations 4‑14, 4‑18
DC interface 4‑18
lifting and moving 4‑1
lifting and positioning 4‑7
location 3‑2
Modbus TCP cable 6‑6
planning 3‑1
requirements 3‑1
weight 3‑1
internet
connection 6‑2
inverter
AC and DC sub panel compartments 4‑4
address 6‑14
Index
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
clearance 3‑2
communications 6‑5
communications interface 2‑4, 2‑5
components 2‑3
connectivity 6‑5
cooling compartment 4‑6
data monitoring 3‑7
DC combiner sub panel 2‑6
DC landing 2‑6
DC sub panel 2‑7
de-energize procedure 5‑8
diagram of 2‑3
display 2‑6, 5‑4, 8‑2
display operation 5‑6
distribution PCB 2‑9
door 4‑2
faults 8‑4
features 2‑2
gaskets 7‑3
general description 2‑1
ground fault 5‑7
inductor 2‑10
inspection 4‑2
lifting and moving 4‑1
lifting and positioning 4‑7
magnetics compartment 4‑3
maximum power point tracking range 2‑1
models 2‑1
mounting 4‑7
operating states 5‑2
protection system 2‑4
registering 6‑5
shutdown procedure 5‑7
storing 3‑2
sub panel 2‑9
transformer 2‑10
transformers 2‑10
troubleshooting 8‑8
upper electronics compartment 4‑5
weight 3‑1
inverterinspection 7‑2
IP address 6‑4
assigning 6‑7
connectivity issues 8‑2
J
jumpers
remote disable 4‑21, 5‑9
L
labels on unit 1‑3
LEDs
status 8‑13
570-1001792-05A
lifting
methods 4‑7
lockout and tagout
requirement 1‑8
M
MAC address
location of 6‑4
maintenance
air filters 7‑4
checklist 7‑2
overview 7‑1
replacement parts 7‑3
maximum power point tracking
range 2‑1
mechanical
diagrams 10‑2
Modbus
address 6‑14
commands 6‑19
data types 6‑22
network biasing 6‑13, 6‑14
network cable 6‑9
network settings 6‑13
network setup 6‑8
network termination 6‑12, 6‑14
protocol 6‑5
register mapping assignment 6‑22
TCP cable installation 6‑6
TCP network setup 6‑6
monitoring 2‑2
basic service 6‑2
remote 2‑2
mounting
requirements 4‑7
N
network
address 6‑14
biasing 6‑13, 6‑14
central inverter settings 6‑13
configuration 6‑7
connection 6‑3
connectivity issues 8‑1, 8‑13
daisy chain layout 6‑8
length of 6‑11
Modbus termination 6‑11
options 3‑7
shield 6‑8
termination 6‑11, 6‑12, 6‑14
networkModbus TCP 6‑6
neutral
grounding 3‑5
Index
iii
Advanced Energy
O
parts
replacements 7‑3
PCB
AC distribution 2‑9
battery replacement 7‑3
communications interface 2‑4, 2‑5, 8‑13
controller 8‑13
DC distribution 2‑7, 8‑5
status LEDs 8‑13
physical specifications 9‑1
port
address 6‑4
communications interface PCB 6‑9
ID 6‑7
preventative maintenance
checklist 7‑2
product
compliance 1‑4
labels 1‑3
protection system
detection controls 2‑4
PV array
input 3‑5
seismic
requirements 3‑1
shutdown
procedure 5‑7
specifications
cooling 9‑7
efficiency 9‑4
electrical 9‑1
environmental 9‑8
physical 9‑1
standards 1‑5
start the unit 5‑1
status lights
on communications interface PCB 6‑5
storage
of inverter 3‑2
string calculator
input voltage calculation 3‑5
sub panel
AC 2‑9
DC 2‑6, 2‑7
subcombiner
connections 4‑12
monitoring 3‑7
options 3‑7
wire sizing 4‑12
support information 8‑18
symbols
in user manual 1‑1
on unit 1‑3
system
diagram 10‑1
R
T
operating states
of inverter 5‑2
operation
normal 5‑1
starting up the unit 5‑1
P
register
Modbus mapping assignment 6‑22
registering
inverter 6‑5
remote disable
communications interface PCB 4‑21, 5‑9
making the connection 4‑22
protecting other power sources 4‑22
S
safety
directives and standards 1‑5
electrical 1‑5
equipment requirements 1‑3
fire prevention 1‑7
first aid 1‑3
guidelines 1‑2
unit lockout and tagout 1‑8
zone 1‑3
iv
technical support 8‑18
terminal blocks
options 4‑14, 4‑18
torque requirements 4‑14, 4‑18
terms frequently used 1‑8
transformer
housekeeping 2‑10
isolation 2‑10
troubleshooting
connectivity 8‑1, 8‑13
faults 8‑4, 8‑5, 8‑6
inspection 8‑2
inverter 8‑2
warnings 8‑3
turn on the unit 5‑1
U
unit
Index
icons and symbols used 1‑3
570-1001792-05A
Advanced Energy® PVP250kW and PVP260kW Inverters
lockout and tagout requirements 1‑8
startup 5‑1
turning on 5‑1
user manual
alert boxes in 1‑1
symbols and icons used 1‑1
utility
requirements 3‑6
V
voltage
calculating DC input 3‑7
output 3‑6
570-1001792-05A
W
warning in user manual 1‑1
website 2‑2
for monitoring 2‑2
weight
of inverter 3‑1
wire sizing
for amperage 4‑12
wiring
requirements 1‑6
sizing 1‑6
wye
configuration 3‑6
Index
v
Advanced Energy
vi
Index
570-1001792-05A
