Ed.
00

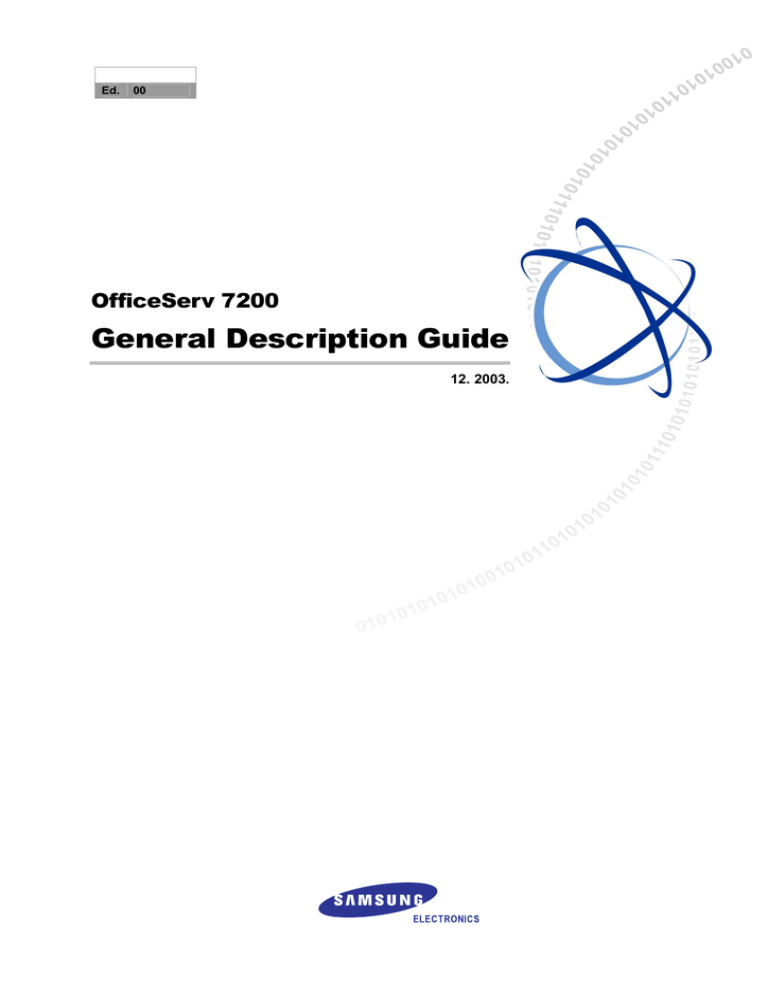

OfficeServ 7200
General Description Guide
12. 2003.
COPYRIGHT
This manual is proprietary to SAMSUNG Electronics Co., Ltd. and is protected by copyright.
No information contained herein may be copied, translated, transcribed or duplicated for any
commercial purposes or disclosed to third parties in any form without the prior written consent of
SAMSUNG Electronics Co., Ltd.
TRADEMARKS
Product names mentioned in this document may be trademarks and/or registered trademarks of their
respective companies.
This manual should be read before the installation and operation, and the operator should correctly install and
operate the product by using this manual.
This manual may be changed for the system improvement, standardization and other technical reasons without prior notice.
For further information on the updated manual or have a question the content of manual, contact Document Center at the
address below.
Address : Document Center 2nd Floor IT Center. Dong-Suwon P.O. Box 105, 416, Metan-3dong Yeongtong-gu,
Suwon-si, Gyeonggi-do, Korea 442-600
e-mail : [email protected]
Or contact Call Center at the telephone below if you have any questions or concerns regarding the operation of your system.
Phone : 82-1588-4141
http://www.samsungdocs.com
©2003 SAMSUNG Electronics Co., Ltd.
All rights reserved.
INTRODUCTION
INTRODUCTION
Purpose
This document introduces the OfficeServ 7200 from Samsung and describes the
hardware configuration, specifications, and functions of the OfficeServ 7200, which
are needed to understand the OfficeServ 7200.
Audience
This document is intended for the users who want to understand information(major
functions, hardware configuration, specifications, and functions) about the
OfficeServ 7200 from Samsung.
Document Content and Organization
This document consists of four chapters as follows:
CHAPTER 1. Introduction to the OfficeServ 7200
Describes the features and major functions of the OfficeServ 7200 and introduces
the system architecture, interfaces, and programming.
CHAPTER 2. Hardware of the OfficeServ 7200
Introduces the features of the OfficeServ 7200 hardware, cabinet configuration, and the
functions and configurations of the functional boards. Also, describes a variety of
terminals, wireless LAN equipment, and additional equipment that can be
connected with the OfficeServ 7200.
CHAPTER 3. Specifications of the OfficeServ 7200
Describes the capacity, electric specifications, power specifications, rings and tones,
and equipment specifications of the OfficeServ 7200 system.
CHAPTER 4. Functions of the OfficeServ 7200
Describes the functions related to the calls, VoIP, data, UMS, and web/system
management provided by the OfficeServ 7200.
ABBREVIATION
Introduces the acronyms and their full terms.
© SAMSUNG Electronics Co., Ltd.
Page I
Introduction
OfficeServ 7200 General Description Guide/Ed.00
Conventions
The following special paragraphs are used in this document to point out information
that must be read. This information may be set-off from the surrounding text, but is
always preceded by a bold title in capital letters.
WARNING
Provides information or instructions that the reader should follow in order to avoid
personal injury or fatality.
CAUTION
Provides information or instructions that the reader should follow in order to avoid a
service failure or damage to the system.
CHECKPOINT
Provides the operator with checkpoints for stable system operation.
NOTE
Indicates additional information as a reference.
OPERATION PROCEDURES
Indicates the operational procedures that should be executed in sequence.
References
OfficeServ 7200 Installation Guide
This guide provides the information about the installation of the OfficeServ 7200.
Revision History
Page II
EDITION
DATE OF ISSUE
00
12. 2003.
REMARKS
Original
© SAMSUNG Electronics Co., Ltd.
TABLE OF CONTENTS
INTRODUCTION
Purpose ...................................................................................................................................I
Audience..................................................................................................................................I
Document Content and Organization ......................................................................................I
Conventions............................................................................................................................II
References .............................................................................................................................II
Revision History......................................................................................................................II
CHAPTER 1. Introduction to the OfficeServ 7200
1
2
3
Introduction to the System .............................................................................................. 1-1
1.1
Major Functions ......................................................................................................... 1-1
1.2
System Architecture................................................................................................... 1-4
Interfaces........................................................................................................................... 1-6
2.1
Interfaces Between the Sub-Modules........................................................................ 1-6
2.2
Interfaces Between the VoIP Elements ..................................................................... 1-8
Programming .................................................................................................................... 1-8
CHAPTER 2. Hardware of the OfficeServ 7200
1
Hardware Features ........................................................................................................... 2-1
2
Cabinet Configuration...................................................................................................... 2-3
2.1
3
Rear Panel of the OfficeServ 7200............................................................................ 2-4
Functional Boards ............................................................................................................ 2-5
3.1
Control Boards........................................................................................................... 2-5
3.2
Voice Trunk Line Board ............................................................................................. 2-9
3.3
Voice Subscriber Line Board ................................................................................... 2-13
3.4
Data Board............................................................................................................... 2-18
3.5
Voice Application Board ........................................................................................... 2-22
3.6
Power Supply Unit ................................................................................................... 2-26
© SAMSUNG Electronics Co., Ltd.
Page III
Table of Contents
4
5
6
OfficeServ 7200 General Description Guide/Ed.00
Station Phones................................................................................................................ 2-27
4.1
Analog phones ......................................................................................................... 2-27
4.2
Digital Phones.......................................................................................................... 2-27
4.3
IP Phones ................................................................................................................ 2-31
4.4
Add On Module ........................................................................................................ 2-33
4.5
Door Phone Interface Module.................................................................................. 2-34
4.6
KDB-D/S .................................................................................................................. 2-35
Wireless LAN Equipment ............................................................................................... 2-36
5.1
Wireless LAN Base Station...................................................................................... 2-36
5.2
Mobile Station .......................................................................................................... 2-37
Additional Devices.......................................................................................................... 2-38
6.1
On Hold/Background Sound Source ....................................................................... 2-38
6.2
External Units........................................................................................................... 2-38
6.3
Loud Bell .................................................................................................................. 2-38
6.4
Common Bell ........................................................................................................... 2-39
6.5
PCMMC ................................................................................................................... 2-39
6.6
SMDR ...................................................................................................................... 2-39
6.7
CTI ........................................................................................................................... 2-40
CHAPTER 3. Specifications of the OfficeServ 7200
1
2
3
System Capacity ............................................................................................................... 3-1
1.1
Trunk Line Capacity ................................................................................................... 3-2
1.2
Station (Subscriber) Line Capacity ............................................................................ 3-2
Electrical Specifications .................................................................................................. 3-3
2.1
Signal Specifications .................................................................................................. 3-3
2.2
Transmission Characteristics..................................................................................... 3-9
2.3
Line Conditions .......................................................................................................... 3-9
Power Specifications...................................................................................................... 3-10
3.1
4
Power Supply Board ................................................................................................ 3-10
Rings and Tones ............................................................................................................. 3-11
4.1
Ring Cycles.............................................................................................................. 3-11
4.2
Tones ....................................................................................................................... 3-12
5
Available Terminals ........................................................................................................ 3-13
6
Equipment Specifications.............................................................................................. 3-14
Page IV
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
Table of Contents
CHAPTER 4. Functions of the OfficeServ 7200
1
2
Call Functions ................................................................................................................... 4-1
1.1
Dynamic IP Address Allocation .................................................................................. 4-1
1.2
VoIP UMS Interface ................................................................................................... 4-2
1.3
SIP Server Interface .................................................................................................. 4-2
1.4
Router ALG Interface ................................................................................................. 4-3
VoIP Functions.................................................................................................................. 4-4
2.1
VoIP Network ............................................................................................................. 4-4
2.2
VoIP Trunk Line Interface .......................................................................................... 4-4
2.3
Proxy Server .............................................................................................................. 4-4
2.4
User Registration ....................................................................................................... 4-4
2.5
SIP Telephone Configuration ..................................................................................... 4-5
2.6
SIP Telephone Registration ....................................................................................... 4-5
2.7
Call Log...................................................................................................................... 4-5
2.8
Forward Busy............................................................................................................. 4-5
2.9
Forward No Answer ................................................................................................... 4-5
2.10 Parallel Forking.......................................................................................................... 4-5
3
4
5
Data Functions.................................................................................................................. 4-6
3.1
Switches .................................................................................................................... 4-6
3.2
Routers ...................................................................................................................... 4-7
3.3
Security.................................................................................................................... 4-10
3.4
Data Applications ..................................................................................................... 4-12
UMS Functions ............................................................................................................... 4-13
4.1
Auto Attendant ......................................................................................................... 4-13
4.2
General Functions Related to Voice Mail ................................................................ 4-15
4.3
Additional Functions Related to Voice Mail ............................................................. 4-17
4.4
General Functions Related to E-mail....................................................................... 4-18
4.5
Additional Functions Related to E-mail.................................................................... 4-24
4.6
Integrated Messaging .............................................................................................. 4-25
4.7
UMS Management................................................................................................... 4-26
Web/System Management ............................................................................................. 4-27
5.1
Web Management ................................................................................................... 4-27
5.2
System Management............................................................................................... 4-29
ABBREVIATION
A ~ E ................................................................................................................. Abbreviation-1
F ~ L.................................................................................................................. Abbreviation-2
M ~ R ................................................................................................................ Abbreviation-3
S ~ X ................................................................................................................. Abbreviation-4
© SAMSUNG Electronics Co., Ltd.
Page V
Table of Contents
OfficeServ 7200 General Description Guide/Ed.00
LIST OF FIGURES
Page VI
Figure 1.1
Service Structure of the OfficeServ 7200 .................................................... 1-4
Figure 1.2
Interfaces Between the SIP Components.................................................... 1-8
Figure 2.1
Cabinet Configuration of the OfficeServ 7200 ............................................. 2-3
Figure 2.2
Rear Panel of the OfficeServ 7200 .............................................................. 2-4
Figure 2.3
Front View of the MCP................................................................................. 2-7
Figure 2.4
Front View of the LCP.................................................................................. 2-8
Figure 2.5
Front View of the TEPRI ............................................................................ 2-10
Figure 2.6
Front View of the 8TRK ............................................................................. 2-12
Figure 2.7
Front View of the 8SLI ............................................................................... 2-13
Figure 2.8
Front View of the 16SLI ............................................................................. 2-14
Figure 2.9
Front View of the 8DLI ............................................................................... 2-15
Figure 2.10
Front View of the 16DLI ............................................................................. 2-16
Figure 2.11
Front View of the 8HYB ............................................................................. 2-17
Figure 2.12
Front View of the WIM ............................................................................... 2-18
Figure 2.13
Front View of the LIM................................................................................. 2-20
Figure 2.14
Front View of the 4DSL.............................................................................. 2-21
Figure 2.15
Front View of the MGI ................................................................................ 2-22
Figure 2.16
Front View of the 4WLI .............................................................................. 2-25
Figure 2.17
Analog Phone ............................................................................................ 2-27
Figure 2.18
DS-24SE .................................................................................................... 2-27
Figure 2.19
DS-2024E .................................................................................................. 2-28
Figure 2.20
DS-3020S .................................................................................................. 2-28
Figure 2.21
DS–4028D ................................................................................................. 2-29
Figure 2.22
DS-5012L................................................................................................... 2-29
Figure 2.23
DS-5014D .................................................................................................. 2-33
Figure 2.24
DS-5021D .................................................................................................. 2-30
Figure 2.25
DS-5038D .................................................................................................. 2-30
Figure 2.26
ISDN Phone ............................................................................................... 2-31
Figure 2.27
ITP-5012L .................................................................................................. 2-31
Figure 2.28
ITP-5014D.................................................................................................. 2-32
Figure 2.29
ITP-5021D.................................................................................................. 2-32
Figure 2.30
DS-5064B .................................................................................................. 2-33
Figure 2.31
DPIM .......................................................................................................... 2-34
Figure 2.32
KDB-D/S for DS Phones ............................................................................ 2-35
Figure 2.33
KDB-D/S for Digital Phones ....................................................................... 2-35
Figure 2.34
WBS24....................................................................................................... 2-36
Figure 2.35
WIP-5000M ................................................................................................ 2-37
Figure 3.1
Trunk Line Loop Start Signaling................................................................... 3-3
Figure 3.2
Cabinet Configuration of the OfficeServ 7200 ........................................... 3-14
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
Table of Contents
LIST OF TABLES
Table 1.1
Interfaces Between the Sub-Modules ........................................................... 1-6
Table 2.1
Boards that can be Mounted on the Slots..................................................... 2-3
Table 2.2
Functional Boards ......................................................................................... 2-5
Table 2.3
Specifications of the MCP ............................................................................. 2-6
Table 2.4
Ports and LEDs of the MCP Board ............................................................... 2-7
Table 2.5
Ports and LEDs of the LCP ........................................................................... 2-8
Table 2.6
Ports and LEDs of the TEPRI ..................................................................... 2-10
Table 2.7
Ports and LEDs of the 8TRK....................................................................... 2-12
Table 2.8
Ports and LEDs of the 8SLI......................................................................... 2-14
Table 2.9
Ports and LEDs of the 16SLI....................................................................... 2-14
Table 2.10
Ports and LEDs of the 8DLI ........................................................................ 2-15
Table 2.11
Ports and LEDs of the 16DLI ...................................................................... 2-16
Table 2.12
Ports and LEDs of the 8HYB....................................................................... 2-17
Table 2.13
Ports and LEDs of the WIM......................................................................... 2-19
Table 2.14
Ports and LEDs of the LIM .......................................................................... 2-20
Table 2.15
Ports and LEDs of the 4DSL ....................................................................... 2-21
Table 2.16
Ports and LEDs of the MGI ......................................................................... 2-23
Table 2.17
Ports and LEDs of the 4WLI........................................................................ 2-25
Table 2.18
I/O Voltage of the PSU ................................................................................ 2-26
Table 2.19
AOM Types.................................................................................................. 2-33
Table 3.1
Capacity of the OfficeServ 7200 ................................................................... 3-1
Table 3.2
Trunk Line Capacity ...................................................................................... 3-2
Table 3.3
Station Line Capacity .................................................................................... 3-2
Table 3.4
Electrical Characteristics of the T1 Trunk Line.............................................. 3-4
Table 3.5
Electrical Characteristics of the E1 Trunk Line ............................................. 3-4
Table 3.6
Electrical Characteristics of the BRI Trunk Line............................................ 3-5
Table 3.7
Electrical Characteristics of the PRI Trunk Line............................................ 3-5
Table 3.8
Electrical Characteristics of the DLI Line ...................................................... 3-5
Table 3.9
Electrical Characteristics of the WIM Interface (V.35 Interface).................... 3-6
Table 3.10
Electrical Characteristics of the WIM Interface (RS-232C Interface)............ 3-6
Table 3.11
Electrical Characteristics of the WIM Interface (RS-499 Interface) .............. 3-6
Table 3.12
Electrical Characteristics of the LAN Interface (10Base-T) .......................... 3-7
Table 3.13
Electrical Characteristics of the LAN Interface (100Base-Tx)....................... 3-7
Table 3.14
Electrical Characteristics of the VDSL Interface ........................................... 3-8
Table 3.15
Specification of the Power Supply Board .................................................... 3-10
Table 3.16
System Ring Cycles .....................................................................................3-11
Table 3.17
Cycles of the System Tones........................................................................ 3-12
Table 3.18
OfficeServ 7200 Compatible Terminals....................................................... 3-13
© SAMSUNG Electronics Co., Ltd.
Page VII
Table of Contents
OfficeServ 7200 General Description Guide/Ed.00
This page is intentionally left blank.
Page VIII
© SAMSUNG Electronics Co., Ltd.
CHAPTER 1
Introduction to the OfficeServ 7200
This chapter describes the features and major functions of the OfficeServ 7200 and
introduces the system architecture, interfaces, and programming.
1
Introduction to the System
The OfficeServ 7200 is a communication device, which is most suitable for small
offices where less than 50 subscriber lines are used. Also, the OfficeServ 7200
allows the users to receive voice, data, and Internet services, which means that the
OfficeServ 7200 makes voice calls, and sends/receives data using data networks.
The users can easily make use of a variety of phone functions and applications on
various platforms such as digital phones, IP phones, mobile phones, and PC servers.
1.1
Major Functions
The major functions and features of the OfficeServ 7200 are described below:
Integrated Communication Environment
The OfficeServ 7200 makes voice calls and sends/receives data by using the
LAN/WAN modules. The users can use the integrated wire/wireless
platform(phones, PCs, servers, mobile phones, or peripherals) to make
communications easily.
Next-generation Platform
The OfficeServ 7200 uses an IP-based feature server to provide an IP solution,
which integrates the functions of mail servers, Session Initiation Protocol(SIP)
servers, and Voice over IP Unified Messaging Service(VoIP UMS).
The IP-based feature server is a Linux platform and can continuously add feature
server modules to be provided in the future. Examples of the feature servers include
the mobile roaming server and Authentication, Authorization and
Accounting(AAA) server.
© SAMSUNG Electronics Co., Ltd.
Page 1-1
CHAPTER 1. Introduction to the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Higher Quality IP Phone
The OfficeServ 7200 ensures the Quality of Service(QoS) of the voice calls
depending on the priorities and grouping of data and voice packets.
Layer 2 QoS : Priority Processing(802.1p), VLAN(802.1q)
Layer 3 QoS : Class Based Queuing(CBQ), RTP Priority Queuing, or the ondemand management of the bandwidth Wide Area Network(WAN)
WAN/LAN Functions
The WAN and LAN interface modules are installed in the OfficeServ 7200; thus,
data can be sent/received via the interface of the 10Base-T/100Base-Tx in both the
external Internet and the internal Intranet without any data equipment.
Wireless LAN Services
The OfficeServ 7200 offers a wireless LAN solution for both wire and wireless
services at offices. The OfficeServ 7200 uses a combined Access Point(AP), which
offers services by separating the data from voice, and supports handoff and QoS.
Because the OfficeServ 7200 uses a wireless LAN base station, it allows the users to
make wire/wireless voice/data communications or access the Internet without
establishing the LAN.
Also, an efficient and convenient working environment can be made at any time or
place because sophisticated mobile stations are used for the OfficeServ 7200.
Text-To Speech (TTS) Responses
The OfficeServ 7200 converts text messages such as e-mails to voice messages and
allows the users to listen to the messages through phones. Also, it recognizes the
voices and responds to them.
Mail Server and Instant Messaging
The OfficeServ 7200 integrates voice messages and e-mails to function as an e-mail
server, which converts the integrated messages depending on the users’ needs and
resends them, and sends/receives instant messages.
Page 1-2
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 1. Introduction to the OfficeServ 7200
A Variety of Application Solutions
The OfficeServ 7200 offers a variety of application solutions such as OfficeServ
News, OfficeServ EasySet, Internet Call Center, R-NMS, internal board-type voice
mail solutions, integrated facsimile servers, and digital integrated recording systems.
About Integrated and References
- ‘Integrated’ means that the OfficeServ 7200 system interworks with the external
solution server and the system and server perform one integrated function.
- For detailed information about how to use each application solution, refer to the
User’s Guide of each application.
Easy Installation and Expandability
The OfficeServ 7200 can be easily installed as follows : the basic cabinet and
expansion cabinet of the OfficeServ 7200 are mounted on the 19-inch rack.
Multiple service boards can be additionally installed in universal slots of the
cabinets.
© SAMSUNG Electronics Co., Ltd.
Page 1-3
CHAPTER 1. Introduction to the OfficeServ 7200
1.2
OfficeServ 7200 General Description Guide/Ed.00
System Architecture
The OfficeServ 7200 is configured with a basic cabinet and expansion cabinet
mounted on a 19-inch rack as well as the OfficeServ feature server mounted on an
external Linux server.
The Main Control Processor(MCP) is installed into the basic cabinet and manages
the entire OfficeServ 7200. It performs switching, processes signals, or manages the
phones. The expansion Line Control Processor(LCP), which is the sub-control part,
is installed into the expansion cabinet, controls boards, or sends/receives data
to/from the MCP. The other components are various interface boards, power
modules, and fans.
The service configuration diagram of the OfficeServ 7200 system is shown in the
figure below:
ISDN
PRI
Expansion
Cabinet
PSTN
T1/E1
OfficeServ 7200
LCP
16DLI
16SLI
TEPRI
8TRK
4DSL
MCP
WIM
LIM
4WLI
8HYB
MGI
WAN
Basic
Cabinet
xDSL
Dedicated Line
xDSL Modem
DSU/CSU
LAN
AP(WBS24)
WLAN
OfficeServ Feature
OfficeServ Admin
OfficeServ Solution
- VoIP UMS
- System Manager
- OfficeServ Operator
- Mail Server
- SIP Server
- OfficeServ Call
- OfficeServ News
- PCMMC
- OfficeServ EasySet
…..
Mobile Station
(WIP-5000M)
(Web management)
Laptop
…..
IP Phone
Figure 1.1 Service Structure of the OfficeServ 7200
Voice Trunk Line Part
The voice trunk line part is configured with digital trunk lines and analog trunk
lines. The TEPRI modules interface the E1, T1, or PRI digital trunk lines and
send/receive voice data through the trunk lines. They transmit the voice data of 64 Kbps
per channel. The 8TRK modules perform Polarity Reverse Detection(PRS),
Metering Pulse Detection(MPD) and Caller ID(CID) Detection in a board and
send/receive voice data via analog trunk lines. Also, it transmits the data of 64 Kbps
per line.
Page 1-4
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 1. Introduction to the OfficeServ 7200
Voice Station Part
The voice station part is configured with a Digital Line Interface(DLI), which
interfaces digital voice stations, and Subscriber Line Interface(SLI), which
interfaces analog voice stations. Multiple DLI and SLI boards can be mounted on any
slots of the main or expansion cabinet depending on the numbers of analog/digital
voice stations. 16DLI and 8DLI are Digital Line interface boards. 16SLI and 8SLI
are analog Subscriber Line interface boards. In addition, the hybrid-type 8HYB,
which contains interface circuits for analog and digital stations, exists.
Data Transmitting Part
The data module is configured with the WIM, which is a WAN interface board, and
the LIM, which is a LAN interface board. The WIM board sends or receives data to
or from the external Internet and provides ports for connecting the internal network
with a variety of external interfaces.
The LIM board sends or receives data to or from the internal Intranet and provides
an interface of 10Base-T/100Base-Tx. Also, the LIM functions as a switching hub.
The 4DSL board offers services to the data subscribers up to 1.2 km away from the
internal Intranet. The subscribers can use the Ethernet service within a transmission
distance of 1.2 km.
Voice Application Service Part
The voice application module consists of the VoIP that transmits the voice to the
data network and the WLAN that transmits the voice wirelessly. The MGI board
offers the VoIP function by converting voice into data. The 4WLI board uses a
Digital Adaptor for Subscriber Loop(DASL) to connect to the wireless BTS and
sends/receives voice to/from the phone system and wireless BTS. The 4WLI
accommodates up to four BTSs and 48 subscribers.
Configuration of the Application
The OfficeServ 7200 has a commercial server on a Linux platform outside of the
OfficeServ 7200 cabinet and provides the application software below:
The OfficeServ Solution and OfficeServ Admin have separate servers.
Mail server
SIP server
VoIP-UMS
OfficeServ Solution(CTI, OfficeServ Operator)
OfficeServ Admin(Web Management, PCMMC, OfficeServ EasySet, System
Manager)
© SAMSUNG Electronics Co., Ltd.
Page 1-5
CHAPTER 1. Introduction to the OfficeServ 7200
2
OfficeServ 7200 General Description Guide/Ed.00
Interfaces
This section describes the interfaces between the sub-modules of the OfficeServ
7200 and the ones between the VoIP elements.
2.1
Interfaces Between the Sub-Modules
Table 1.1
Type
LIM Interface
Interfaces Between the Sub-Modules
Classification
Interface
Physical Connection
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-Tx
Connector Type
RJ-45 16 port
Physical Connection
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-Tx, V.35
Connector Type
RJ-45, serial 26-pin connector(non-standard cable)
Access Protocol
PPPoE, PPP, DHCP, HDLC, Frame Relay
Physical Connection
T1, E1, Foreign Exchange Office(FXO)
Connector Type
RJ-45
Access Protocol
T1, E1, Loop Start
Physical Connection
ISDN PRI
Connector Type
RJ-45
Access Protocol
ISDN PRI
xDSL/Cable Modem
Physical Connection
IEEE 802.3u 100Base-Tx Ethernet
Interface
Connector Type
RJ-45
Access Protocol
PPPoE, DHCP
Voice Terminal
Analog Phone
Foreign Exchange Station(FXS)
Interface
Digital Phone
Samsung digital phone
Wireless LAN Access
802.11b, WBS24(wireless LAN AP of Samsung)
WIM Interface
PSTN Interface
ISDN Interface
Point(AP)
Interface between
Physical Connection
100Base-Tx Ethernet
the call server and
Signal Processing
TCP/IP
Access Protocol
UDP IPC
Interface between
Physical Connection
100Base-Tx Ethernet
the call server and
Signal Processing
SIP
Access Protocol
User Agent(UA) to UA
Interface between
Physical Connection
100Base-Tx Ethernet
the call server and
Signal Processing
TCP/IP
Access Protocol
TCP, UDP IPC
data server
SIP server
system manager
Page 1-6
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
Type
CHAPTER 1. Introduction to the OfficeServ 7200
Classification
Interface
Interface between the
Physical Connection
100Base-Tx Ethernet
data server and feature
Signal Processing
TCP/IP
Access Protocol
DHCP
Interface between the
Physical Connection
100Base-Tx Ethernet
data server and system
Signal Processing
TCP/IP
manager
Access Protocol
TCP, UDP IPC
Interface between the
Physical Connection
100Base-Tx Ethernet
feature server and
Signal Processing
TCP/IP
system manager
Access Protocol
TCP, UDP IPC
manager
© SAMSUNG Electronics Co., Ltd.
Page 1-7
CHAPTER 1. Introduction to the OfficeServ 7200
2.2
OfficeServ 7200 General Description Guide/Ed.00
Interfaces Between the VoIP Elements
The OfficeServ 7200 provides a variety of VoIP interfaces below:
VoIP networking
H.323 VoIP gateway
SIP VoIP gateway
SIP server
System SIP User Agent(UA)
IP phones
Standard SIP phones
The interface inter-working standards between the VoIP elements based on the
signal processing are as follows:
Proprietary TCP IPC
SIP UA-to-UA
UA-to-Server
ISDN
PRI
Expansion
Cabinet
PSTN
T1/E1
OfficeServ 7200
LCP
16DLI
16SLI
TEPRI
8TRK
4DSL
MCP
WIM
LIM
4WLI
8HYB
MGI
Branch Office(OfficeServ 7200)
WAN
Basic
Cabinet
LAN
AP(WBS24)
OfficeServ Feature
- VoIP UMS
WLAN
- Mail Server
- SIP Server
SIP Phone
…..
Mobile Station
(WIP-5000M)
…..
Laptop
Figure 1.2 Interfaces Between the SIP Components
Page 1-8
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
3
CHAPTER 1. Introduction to the OfficeServ 7200
Programming
The Man Machine Communication(MMC) program can change the data value used
for the system operation program. The MMC program is categorized into three
levels, which are technician, operator, and subscriber. Depending on the levels,
some MMCs can be programmed by the subscribers while some MMCs cannot.
A password is required for the technician programming or operator programming;
however, a password is not required for the subscriber programming.
Technician-Level Programming
All programs can be programmed.
Programming can be made in any of the stations in the OfficeServ system, however in
some cases, programming can be only made in a station.
Operator-Level Programming
A technician can only program the programs specified in the ‘Program 802 Range
Specification of the Operator Program.’
Programming can be made in any stations in the tenant group, however in some
cases, programming can be only made in a station.
Subscriber-Level Programming
Programming can be only made for the subscriber program.
© SAMSUNG Electronics Co., Ltd.
Page 1-9
CHAPTER 1. Introduction to the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
This page is intentionally left blank.
Page 1-10
© SAMSUNG Electronics Co., Ltd.
CHAPTER 2
Hardware of the OfficeServ 7200
This chapter introduces the hardware features, cabinet configuration, and board
functions and configuration of the OfficeServ 7200 system. Also, this chapter
describes the terminals, wireless LAN equipment, and additional equipment
available in the OfficeServ 7200 system.
1
Hardware Features
The features of the OfficeServ 7200 hardware are described below:
Reliability
The materials and parts used for the OfficeServ 7200 hardware are firm and stable.
Also, they meet with the mechanical and electrical features needed for a
communication system.
The cabinet of the OfficeServ 7200 complies with the industry
standards(19 inches) and is assembled with firm and stable metal welding.
The OfficeServ 7200 hardware does not generate poisonous or corrosive gas,
which might do harm to the human body or affect the system operation.
The OfficeServ 7200 hardware is made of materials that meet ElectroMagnetic Compliance(EMC) Standard.
The OfficeServ 7200 hardware has a fail-safe to prevent the system from being
damaged due to an over-voltage.
Modularity
The functions of the OfficeServ 7200 hardware are modularized.
Capacity can be expanded or functions can be changed in each module without
stopping the services for the existing subscribers.
Each module can be easily installed or removed in a plug-in way.
© SAMSUNG Electronics Co., Ltd.
Page 2-1
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Maintenance
The OfficeServ 7200 hardware is designed to be maintained with ease and safety.
The specifications of the 19-inch rack are followed. The rack is designed to
maintain sufficient strength.
The installers or maintainers can connect cables easily because external ports
exist on the front panel.
The front of each module has an LED that indicates failures or the operation
status so that the operator can easily identify system failures.
The back of the rack has a ground hole to which a wrist strap for preventing
static electricity can be connected.
The OfficeServ 7200 hardware is designed to prevent electronic devices from
being damaged due to an external environment while installation or
maintenance operation is being made.
Fire Resistance and Heat Processing
The OfficeServ 7200 hardware is made of fire-resistant materials and parts to
protect the hardware from fire.
The OfficeServ 7200 hardware is designed not to affect the system performance
due to heat generated from inside of the system.
A specific heat-generated part of the hardware is blocked in order not to affect
the temperature-sensitive components.
Two 80 mm fans for cooling are installed to exhale internal air to the outside.
The parts installed into the modules are located based on heat distribution.
Page 2-2
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
2
CHAPTER 2. Hardware of the OfficeServ 7200
Cabinet Configuration
The OfficeServ 7200 consists of two cabinets(basic/expansion cabinet) mounted on
the 19-inch rack and a feature server that operates externally.
The MCP, which is the main control part and is installed into the basic cabinet,
manages the entire OfficeServ 7200, performs switching, processes signals, and
manages the subscriber terminals. The LCP, which is the minor control part and is
installed into the expansion cabinet, controls the line boards and sends/receives
information to/from the MCP. In addition, line boards, power, and cooling fans are
in the OfficeServ 7200 cabinets.
Slot 0
Front View of
the Expansion
Cabinet
Slot 3
Slot 0
Front View of
the Basic Cabinet
Slot 3
Slot 1
Slot 2
Slot 4
Slot 5
Slot 1
Slot 2
Slot 4
Slot 5
Figure 2.1 Cabinet Configuration of the OfficeServ 7200
Table 2.1
Boards that can be Mounted on the Slots
Cabinet
Slot
Basic Cabinet
Slot 0
MCP only
(OfficeServ
Slot 1
All boards except for MCP, LCP, TEPRI, and LIM
Slot 2
All boards except for MCP, LCP, TEPRI, and WIM
Slot 3
All boards except for MCP, LCP, and WIM
Access)
Mountable Boards
Slot 4
Slot 5
Expansion
Slot 0
LCP only
Cabinet
Slot 1
All boards except for MCP, LCP, TEPRI, and LIM.
(OfficeServ
Expansion)
Slot 2
Slot 3
All boards except for MCP, LCP, and WIM
Slot 4
All boards except for MCP, LCP, TEPRI, and WIM
Slot 5
© SAMSUNG Electronics Co., Ltd.
Page 2-3
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
The WIM board can be mounted only on Slot 1 of the basic and expansion
cabinets.
The TEPRI board can be only mounted on Slots 3,4, and 5 of the basic cabinet
and Slot 3 of the expansion cabinet.
The LIM board cannot be mounted on Slot 1 of the basic/expansion cabinet.
About the Managed LIM
The Managed LIM is controlled by the WIM. It provides expanded functions about
the management of Layer2 QoS(e.g. 802.1p(packet priority), 802.1q(VLAN), and
IGMP snooping) as well as Layer 2 switching.
2.1
Rear Panel of the OfficeServ 7200
1
Figure 2.2 Rear Panel of the OfficeServ 7200
1 Power switch
Turn on/off the power of the OfficeServ 7200.
Power connector between the basic cabinet and expansion cabinet
This connector connects the power supplied to the basic cabinet with the
expansion cabinet.
Power I/O connector
This connector connects the power cables that are configured with three
inlets/outlets.
AC LED
This LED turns on when the AC power is supplied.
DC LED
This LED turns on when the DC power is properly supplied.
A Socket for backup battery cable
This socket connects the external batteries.
Page 2-4
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
3
CHAPTER 2. Hardware of the OfficeServ 7200
Functional Boards
Both the basic cabinet and expansion cabinet of the OfficeServ 7200 have six slots
on which boards can be mounted. The boards below can be mounted on the slots
depending on the configuration type of the OfficeServ 7200:
Table 2.2
Functional Boards
Function
Main Control Part
Boards
Basic cabinet : MCP(optional board : RCM, MFM, or MIS)
Expansion cabinet : LCP
3.1
Voice Trunk Line
TEPRI, 8TRK
Voice Station
16DLI, 8DLI, 16SLI, 8SLI, 8HYB
Data
WIM(optional board : WIMD), Managed/Unmanaged LIM, 4DSL
Voice Application
4WLI, MGI(optional board : MGI1D/2D)
Power, Fan
PSU, fan
Control Boards
This section describes the configuration and functions of the MCP, which is the
main control board that controls all the functions of the OfficeServ 7200, and those
of the LCP, which is the minor control board.
3.1.1 MCP
The MCP is the main control board that controls all the functions of the OfficeServ
7200 and is mounted on Slot 0 of the basic cabinet. The MCP performs voice
switching, processes signals, and manages the subscriber terminals.
Major Functions
The MCP performs the functions below:
Operates applications through the LAN interface.
Installation using the SmartMedia board.
Back ups the databases.
Provides ports for the Universal Asynchronous Receiver and
Transmitter(UART) test.
Holds a meeting, detects caller IDs and multi-frequency, or controls door
phones.
Functions as the internal/external MO or loud/common bell.
Sets the time and shows table time.
Functions as the Analog Phase Locked Loop(APLL) for the synchronization of
the digital subscribers.
© SAMSUNG Electronics Co., Ltd.
Page 2-5
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Specifications
The specifications of the MCP are shown in the table below:
Table 2.3
Category
CPU
SDRAM
Specifications of the MCP
Name
Specifications
Processor
MPC855T
System clock
50 MHz
Package
357P BGA
Capacity
64 MB
Data bus width
32 bit
Saves programs and data
SRAM
Capacity
4 MB
Data bus width
32 bit
Saves data
Flash ROM
Capacity
512 KB
Data bus width
8 bit
For booting
Time Switch
Others
Page 2-6
Basic switch
256(Tx)x256(Rx)
Data bus width
16 bit
Internal MOH port
1
External MOH port
2
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 2. Hardware of the OfficeServ 7200
Front View
The front view of the MCP board is shown in the figure below:
LINK 1
LINK 3
MISC1
LAN
RUN LAN
Smart Media
SM
LINK 2
MISC2
LCP
RST
SIO
MCP
Figure 2.3 Front View of the MCP
The components on the front panel of the MCP have the functions below:
Table 2.4
Ports and LEDs of the MCP Board
Ports & LEDs
Function Description
LINK1~LINK3
Ports that connect the MCP with the LCP.
MISC1~MISC2
Ports that connect external music sources, paging device, loud bell, common
bell, or door bell.
SmartMedia
Port for installing the NAND-type flash memory.
LAN
Port for establishing the 10Base-T/100Base-Tx Ethernet connection.
SIO
UART port(for tests).
RST
Button for resetting the MCP board.
RUN LED
This LED indicates the status of the MCP.
- Off : Power is not connected.
- On : Booting.
- Blink : The program is operating properly.
LAN LED
This LED indicates the status of the connection to LAN.
- Off : MCP is not connected to LAN.
- On : MCP is connected LAN.
- Blink : MCP is transmitting or receiving Data through LAN port.
SM LED
This LED indicates the status of the SmartMedia access.
- Off : The Smartmedia is not installed.
- On : The SmartMedia is installed, however is not accessed.
- Blink : The SmartMedia is installed and is being accessed.
LCP LED
This LED indicates the status of signaling message processing.
- Off : There’s no message exchange between MCP and LCP.
- On : Messages are being sent/received to/from the LCP.
© SAMSUNG Electronics Co., Ltd.
Page 2-7
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
3.1.2 LCP
The LCP is the minor control board that inter-works the MCP, which is the main
control part of the basic cabinet, with the expansion cabinet.
The LCP controls a variety of line boards and sends/receives information to/from
the MCP.
Front View
The front view of the LCP board is shown in the figure below:
LINK1
LINK3
RUN
RST
LINK2
MCP
SIO
LCP
Figure 2.4 Front View of the LCP
The components on the front panel of the LCP have the functions below:
Table 2.5
Ports and LEDs of the LCP
Ports & LEDs
Function
LINK1~LINK3
Ports that connect the MCP with the LCP.
SIO
UART port(for tests).
RST
Button for resetting the LCP board.
RUN LED
This LED indicates the status of the LCP.
- Off : Power is not connected.
- On : Booting.
- Blink : The RAM program is operating.
MCP LED
This LED indicates the status of signaling message processing.
- Off : There’s no message exchange between MCP and LCP.
- On : Messages are being sent/received to/from the MCP.
Page 2-8
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
3.2
CHAPTER 2. Hardware of the OfficeServ 7200
Voice Trunk Line Board
This section describes the boards that offer the voice service of trunk lines.
3.2.1 TEPRI
The TEPRI board provides the digital trunk line. A TEPRI board provides E1, T1,
or ISDN PRI and functions as the Q-SIG. This board transmits voice via the trunk
line and a channel transmits the voice data of 64 Kbps.
Major Functions
The TEPRI voice trunk line board performs the functions below:
Processes the T1/E1 signals by programming.
Resistor Terminations for T1 line(100 Ω) and E1 line(120 Ω).
Endures the ITU-recommended level of surge.
Protects the output port by monitoring line signals.
Crystal-less wander and jitter attenuation/compensation to TR62411.
Attenuates/compensates jitter as recommended in ITU-T I.431 and G703.
Provides the selectable line codec(HDB3, AMI).
Performs local/remote loopback for test.
Accomodates High level Data Link Control(HDLC) protocol in Common
Channel Signaling(CCS) mode or Common Associated Signal(CAS) mode.
Specifications
The specifications of the TEPRI voice trunk line board are as follows:
One trunk line port
E1 : 30 channels
T1 : 24 channels
PRI : 30 channels
© SAMSUNG Electronics Co., Ltd.
Page 2-9
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Front View
The front view of the TEPRI board is shown in the figure below:
SYNC ASI
RST
T1/E1/PRI
LOS
L2
IPC TP1
CLK TP2
SIO
TEPRI
Figure 2.5 Front View of the TEPRI
The components on the front panel of the TEPRI have the functions below:
Table 2.6
Ports and LEDs of the TEPRI
Ports & LEDs
Function Description
T1/E1/PRI
Ports that connect the T1/E1/PRI cable.
SIO
UART port(for tests).
RST
Button for resetting the TEPRI board.
SYNC LED
Clock synchronization.
- On : Clocks are not synchronized when they inter-work with the counterpart
station.
- Off : Clocks are synchronized when they inter-work with the counterpart
station.
LOS LED
This LED indicates whether signals have been lost.
- On : Signals have been lost.
- Off : Signals have not been lost.
AIS LED
This LED indicates whether the T1/E1 remote alarm has been generated.
- On : The remote alarm has been generated.
- Off : The remote alarm has not been generated.
L2 LED
This LED indicates the operation status of Layer 2
- On : The PRI Layer2 is operating properly.
- Off : The PRI Layer2 is operating abnormally.
IPC LED
This LED indicates that this board is inter-working with the higher-level module.
- On : The board is inter-working with the MCP/LCP.
- Off : The board is not inter-working with the MCP/LCP.
Page 2-10
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
Ports & LEDs
CLK LED
CHAPTER 2. Hardware of the OfficeServ 7200
Function Description
This LED indicates whether this board is a master or slave.
- On : The board has received the synchronization clock from the counterpart
station.
- Off : The board has sent the synchronization clock to the counterpart station.
TP1 LED
This LED indicates whether the T1 is established.
- This LED turns on once the T1 is established.
TP2 LED
This LED indicates whether the PRI is connected.
- This LED turns on once the PRI is connected.
3.2.2 8TRK
The 8TRK board provides 8 ports for analog trunk lines. One board has the PRS,
MPD, or CID path. Also, the board sends voice through the trunk lines and
transmits voice data of 64 kbps to one channel.
Major Functions
The 8TRK voice trunk line board performs the functions below:
Detects ring connection.
Detects on/off-hook.
Sends dial pulse.
Performs Polarity Reverse Detection(PRD).
Performs Metering Pulse Detection(MPD).
Performs the Caller ID(CID) function.
Periodically checks if the line is connected. If so, the voice data can be
transmitted. This function is called line monitoring.
Functions as the relay path of caller information(When caller information is entered
as 8TRK, connect the RCM, which is an optional board, with the MCP so that the
caller information can be checked in the RCM board.).
Specifications
The 8TRK voice trunk line board has eight trunk line ports.
© SAMSUNG Electronics Co., Ltd.
Page 2-11
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Front View
The front view of the 8TRK board is shown in the figure below:
P1
P5
P2
P3
P6
P7
P4
P1
P2
P3
P4
P5
P6
P7
P8
P8
8TRK
Figure 2.6 Front View of the 8TRK
The components on the front panel of the 8TRK have the functions below:
Table 2.7
Ports & LEDs
Ports and LEDs of the 8TRK
Function Description
P1~P8
Trunk ports.
P1~P8 LED
These LEDs indicate the status of the ports.
- Off : The trunk line is not being used.
- On : The trunk line is being used.
- Blink : The ring is being connected.
Page 2-12
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
3.3
CHAPTER 2. Hardware of the OfficeServ 7200
Voice Subscriber Line Board
This section describes the boards that offer voice paths for analog and digital
subscribers.
3.3.1 8SLI/16SLI
The 8SLI/16SLI board has 8/16 ports for analog stations. It inter-works with the
analog phones via the trunk line to make a voice communication.
Major Functions
The major functions of the 8SLI/16SLI board are as follows:
Generates a ring signal of 20/25 Hz.
Detects DTMF/dial pulse.
Detects on/off-hook.
Generates various audible tones.
Specifications
The specifications of the 8SLI/16SLI board are as follows:
8SLI board : 8 station ports
16SLI board : 16 station ports
Front View of the 8SLI
The front view of the 8SLI board is shown in the figure below:
P1
P5
P2
P6
P3
P7
P4
P1
P2
P3
P4
P5
P6
P7
P8
P8
8SLI
Figure 2.7 Front View of the 8SLI
© SAMSUNG Electronics Co., Ltd.
Page 2-13
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
The components on the front panel of the 8SLI have the functions below:
Table 2.8
Ports & LEDs
Ports and LEDs of the 8SLI
Function Description
P1~P8
Station ports for analog phones.
P1~P8 LED
These LEDs indicate the operation status of the ports.
- Off : The station is not being serviced.
- On : The station is being serviced.
Front View of the 16SLI
The front view of the 16SLI board is shown in the figure below:
P1/P9
P5/P13
P2/P10
P6/P14
P3/P11
P7/P15
P4/P12
P1 P2 P3
P9 P10 P11
P4
P12
P5 P6 P7
P13 P14 P15
P8
P16
P8/P16
16SLI
Figure 2.8 Front View of the 16SLI
The components on the front panel of the 16SLI have the functions below:
Table 2.9
Ports & LEDs
Ports and LEDs of the 16SLI
Function Description
P1~P16
Station ports for analog phones.
P1~P16 LED
These LEDs indicate the status of the ports.
- Off : The station is not being used.
- On : The station is being used.
If the LED turns green, it shows that the P1-P8 is being used.
If the LED turns red, it shows that the P9-P16 is being used.
If the LED turns yellow, it shows that both of the ports are being used
simultaneously.
Page 2-14
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 2. Hardware of the OfficeServ 7200
3.3.2 8DLI/16SLI
The 8DLI/16DLI board has 8-ports/16-ports for digital stations. It inter-works with
the Samsung digital phones via the station to make a voice communication.
Specifications
The specifications of the 8DLI/16DLI board are as follows:
8DLI board : 8 station ports and 2B+D(two voice channels and one signal
channel) provided
16DLI board : 16 station ports and 1B+D(one voice channel and one signal
channel) provided
Front View of the 8DLI
The front view of the 8DLI board is shown in the figure below:
P1
P2
P5
P6
P3
P7
P4
P1 P2 P3
P9 P10 P11
P4
P12
P5 P6 P7
P13 P14 P15
P8
P16
P8
8DLI
Figure 2.9 Front View of the 8DLI
The components on the front panel of the 8DLI have the functions below:
Table 2.10
Ports & LEDs
P1~P8
P1~P8 LED
Ports and LEDs of the 8DLI
Function Description
Station ports of Samsung digital phones.
These LEDs indicate the status of the ports.
- Off : The station is not being used.
- On : The station is being used.
© SAMSUNG Electronics Co., Ltd.
Page 2-15
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Front View of the 16DLI
The front view of the 16DLI board is shown in the figure below:
P1/P9
P2/P10
P5/P13
P6/P14
P3/P11
P7/P15
P4/P12
P1 P2 P3
P9 P10 P11
P4
P12
P5 P6 P7
P13 P14 P15
P8
P16
P8/P16
16DLI
Figure 2.10 Front View of the 16DLI
The components on the front panel of the 16DLI have the functions below:
Table 2.11
Ports and LEDs of the 16DLI
Ports & LEDs
Function Description
P1~P16
Station ports of Samsung digital phones.
P1~P16 LED
These LEDs indicate the status of the ports.
- Off : The station is not being used.
- On : The station is being used.
If the LED turns green, it shows that the P1-P8 is being used.
If the LED turns red, it shows that the P9-P16 is being used.
If the LED turns yellow, it shows that both of the ports are being used
simultaneously.
3.3.3 8HYB
The 8HYB board has 8 ports for analog stations and those of digital stations.
It inter-works with analog phones or digital phones to make a voice communication.
Major Functions
The major functions of the 8HYB board are as follows:
Generates the ring of 20/25 Hz.
Detects the DTMF/dial pulse.
Detects on/off-hook.
Generates a tone.
Page 2-16
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 2. Hardware of the OfficeServ 7200
Specifications
The specifications of the 8HYB board are as follows:
8 analog station ports
8 digital station ports
Front View
The front view of the 8HYB board is shown in the figure below:
P1/P9
P5/P13
P2/P10
P6/P14
P3/P11
P7/P15
P4/P12
P1 P2 P3
P9 P10 P11
P4
P12
P5 P6 P7
P13 P14 P15
P8
P16
P8/P16
8HYB
Figure 2.11 Front View of the 8HYB
The components on the front panel of the 8HYB have the functions below:
Table 2.12
Ports and LEDs of the 8HYB
Ports & LEDs
P1~P16
P1~P16 LED
Function Description
Station ports of Samsung digital phones.
These LEDs indicate the status of the ports.
- Off : The station is not being used.
- On : The station is being used.
If the LED turns green, it shows that the P1-P8 is being used
(analog phone port).
If the LED turns red, it shows that the P9-P16 is being used
(Samsung digital phone port).
If the LED turns yellow, it shows that both of the ports are being used while
being connected to an analog phone and Samsung digital phone
simultaneously.
© SAMSUNG Electronics Co., Ltd.
Page 2-17
CHAPTER 2. Hardware of the OfficeServ 7200
3.4
OfficeServ 7200 General Description Guide/Ed.00
Data Board
This section describes the data board for transmitting/receiving data to/from the
Internet or Intranet.
3.4.1 WIM
The WIM board allows the OfficeServ 7200 to transmit/receive data to/from the external
Internet. It offers a variety of external interfaces and ports for connecting with the internal
network. One WIM board provides applications and a variety of external interfaces.
Major Functions
The major functions of the WIM data board are as follows:
Inter-works with dedicated lines using V.35.
Provides the Ethernet port of 10Base-T/100Base-Tx that inter-works with the
xDSL or cable modem.
Provides the Ethernet port of 10Base-T for backup.
Offers the DeMilitarized Zone(DMZ) service.
Provides the Ethernet port of 10Base-T/100Base-Tx for the LAN interface.
Provides the UART port for configuration setting.
Provides applications such as a firewall and VPN.
Specifications
The specifications of the WIM data board are as follows:
One V.35 serial port
Two ports for connecting with the external Ethernet network
One Ethernet port of 10Base-T/100Base-Tx for the DMZ
One Ethernet port of 10Base-T/100Base-Tx for the station LAN
Front View
The front view of the WIM data board is shown in the figure below:
DMZ
LAN
RUN DMZ LAN
SERIAL
WAN1 WAN2 SERIAL
WAN1
WAN2
SIO
RST
WIM
Figure 2.12 Front View of the WIM
Page 2-18
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 2. Hardware of the OfficeServ 7200
The components on the front panel of the WIM have the functions below:
Table 2.13
Ports and LEDs of the WIM
Ports & LEDs
Function Description
DMZ
Internal port that does not need firewalls
LAN
Ethernet port connected with the Intranet
SERIAL
Port that connects the serial dedicated line that inter-works with the V.35
WAN1, WAN2
WAN interface port that inter-works with Ethernet of 10Base-T/100Base-Tx
SIO
UART port(for tests)
RST
Button for resetting the WIM module
RUN LED
This LED indicates the operation status of the WIM.
- Off : The WIM board is in an abnormal status or the power is not being
supplied.
- On : The WIM board is operating properly.
DMZ LED
This LED indicates the operation status of the DMZ.
- Off : The link is not connected.
- On : The link is operating.
SERIAL LED
This LED indicates the operation status of the LAN.
- Off : The link is not connected.
- On : The link is operating.
WAN1, WAN2 LED
This LED indicates the operation status of the WAN.
- Off : The link is not connected.
- On : The link is operating.
3.4.2 LIM
The LIM board sends/receives data in the Intranet, and provides an interface of 10BaseT/100Base-Tx. It functions as a hub for switching. The LIM board inter-works with
the WIM through the internal back panel to provide the VLAN function for
supporting QoS.
Major Functions
The major functions of the LIM data board are as follows:
Detects 10Base-T/100Base-Tx, or full/half duplex automatically.
Detects Tx/Rx automatically.
Offers the VLAN for supporting QoS.
Functions as a switching hub.
Specifications
The LIM data board provides 16 ports of 10Base-T/100Base-Tx.
© SAMSUNG Electronics Co., Ltd.
Page 2-19
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Front View
The front view of the LIM data board is shown in the figure below:
P1
P2
P3
P4
P9
P10
P11
P12
P5
P6
P7
P8
P13
P14
P15
P16
LIM
Figure 2.13 Front View of the LIM
The components on the front panel of the LIM have the functions below:
Table 2.14
Ports & LEDs
Ports and LEDs of the LIM
Function Description
P1~P16
Ports for connecting the Ethernet.
Left LED of each
The LED indicates if the link is operating.
port
- Blink : The link is operating.
Right LED of each
The LED indicates if the port of 10Base-T/100Base-Tx is operating.
port
- Off : The port of 10Base-T is operating.
- On : The port of 100Base-Tx is operating.
Page 2-20
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 2. Hardware of the OfficeServ 7200
3.4.3 4DSL
The 4DSL module uses the VDSL technology to send/receive data to/from the external
IP devices in the Intranet. The 4DSL provides the VLAN function to support QoS.
Specifications
4 xDSL ports
Transmission distance : 1.2 km
Up/down link : 5 Mbps
Front View
The front view of the 4DSL data board is shown in the figure below:
P1
P2
P3
P4
P1
P2
P3
P4
LAN
4DSL
Figure 2.14 Front View of the 4DSL
The components on the front panel of the 4DSL have the functions below:
Table 2.15
Ports and LEDs of the 4DSL
Ports & LEDs
Function Description
P1~P4
Ports that connect the VDSL.
LAN
Ethernet port of 10Base-T/100Base-Tx for connecting with the higher-level
Intranet.
P1~P4 LED
These LEDs indicate the status of the ports.
- Off : The link is not connected.
- On : The link is operating.
- Blink : The data is being transmitted/sent.
© SAMSUNG Electronics Co., Ltd.
Page 2-21
CHAPTER 2. Hardware of the OfficeServ 7200
3.5
OfficeServ 7200 General Description Guide/Ed.00
Voice Application Board
This section describes the interface board that uses the Digital Adaptor for
Subscriber Loop(DASL) to send/receive voice to/from the phone system and
wireless base station as well as the board that converts voice to data and then
sends/receives the data.
3.5.1 MGI
The MGI board converts voice to data and then sends/receives the data via the data
network. The MGI offers up to 16 channels and decompresses the voice of G.729,
G.723, G.726, and G.711. The MGI provides the VoIP functions to serve as both a
client and server.
Major Functions
The major functions of the MGI voice application board are as follows:
Voice decompression : G.729, G.723, G.726, and G.711
Facsimile relay : One out of the four channels is used.
Echo cancellation
Volume adjustment(-30~+30 dBm)
Silence suppression
Front View
The front view of the MGI board is shown in the figure below:
PWR RUN
RST
LAN
LAN LAN
Tx
Rx
SVC DSP RTPT RTPR
SIO
MGI
Figure 2.15 Front View of the MGI
Page 2-22
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 2. Hardware of the OfficeServ 7200
The components on the front panel of the MGI have the functions below:
Table 2.16
Ports and LEDs of the MGI
Ports & LEDs
Function Description
LAN
Port that connects the Ethernet.
SIO
UART port(for tests).
RST
Button for resetting the MGI.
PWR LED
This LED indicates the power supply status.
- Off : Power is not being supplied.
- On : Power is being supplied properly.
RUN LED
This LED indicates MCP status.
- Off : Power is not being supplied.
- On : Booting.
- Blink : The RAM program is operating.
LAN Tx LED
This LED indicates the status of the Ethernet data transmission.
- Off : Data does not exist.
- On or blink : Data is being transmitted.
LAN Rx LED
This LED indicates the reception status of the link and Ethernet data.
- Off : Data does not exist or the link is not connected.
- On or blink : Data is being received.
SVC LED
This LED indicates if the service is being offered.
- This LED blinks when the software task can be serviced.
DSP LED
This LED indicates if the VoIP DSP is operating.
- This LED blinks when the VoIP DSP operates.
RTPT LED
This LED indicates if the voice packets are being forwarded.
- This LED turns on when the voice packets are forwarded.
RTPR LED
This LED indicates if the voice packets are being received.
- This LED turns on when the voice packets are received.
© SAMSUNG Electronics Co., Ltd.
Page 2-23
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
3.5.2 4WLI
The 4WLI interface board uses the DASL to send/receive voice to/from the phone
system and wireless BTS. This board decompresses the voice of the G.726 and uses
the wireless method of 802.11b WLAN or DECT. The 4WLI accommodates four
BTSs and one BTS can accommodate four channels. One WLI platform inter-works
the DECT with the WLAN by software conversion to inter-work with the wireless
BTS.
Major Functions
The major functions of the 4WLI voice application board are as follows:
Voice decompression : G.726
Wireless specification : 802.11b WLAN or DECT
Specifications
The specifications of the 4WLI board are as follows:
Up to four BTSs.
Simultaneous calling through up to four channels per BTS.
The maximum number of mobile station subscribers is 48.
Page 2-24
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 2. Hardware of the OfficeServ 7200
Front View
The front view of the 4WLI board is shown in the figure below:
P1
P2
P3
P4
RUN
SW1 SW2 SW3
SIO
4WLI
Figure 2.16 Front View of the 4WLI
The components on the front panel of the 4WLI have the functions below:
Table 2.17
Ports & LEDs
Ports and LEDs of the 4WLI
Function Description
P1~P4
Port that connects with the WBS24 BTS.
SIO
UART port(for tests).
RUN LED
This LED turns on when the wireless LAN operates.
SW1~SW3 LED
This LED turns on when the software task operates.
© SAMSUNG Electronics Co., Ltd.
Page 2-25
CHAPTER 2. Hardware of the OfficeServ 7200
3.6
OfficeServ 7200 General Description Guide/Ed.00
Power Supply Unit
The Power Supply Unit(PSU) is installed in the cabinet of the OfficeServ 7200.
The PSU supplies the power of-48 V DC received from the external power supply
unit to each board.
The specifications of the power I/O are shown in the table below:
Table 2.18
I/O Voltage of the PSU
Item
Specification
Input Voltage
110/240 V
Output Voltage
-48 V/2.2 A
-54 V/0.4 A Backup
+5 V/8 A
+3.3 V/10 A
+12 V/0.4 A
-5.3 V/1 A
About the configuration of the PSU
For information about the configuration of the PSU and functions of each
component, refer to ‘2 Cabinet Configuration’ of this chapter.
Page 2-26
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
4
CHAPTER 2. Hardware of the OfficeServ 7200
Station Phones
This section describes the types and features of analog/digital station phones that
can be connected to the OfficeServ 7200 system.
4.1
Analog Phones
The analog phones used for voice calls are connected to the ports of the
8SLI/16SLI/8HYB board mounted on the universal slot of the OfficeServ 7200
system.
Figure 2.17 Analog Phone
4.2
Digital Phones
Digital phones are used for voice calls or data transmittance and connected to the
ports of the 8DLI/16DLI/8HYB board mounted on the universal slot of the
OfficeServ 7200 system.
The digital phones can be connected with devices such as the AOM, KDB-D, or
KDB-S for use.
4.2.1 DS-24SE
The DS-24SE phone has 24 programmable buttons which allow subscribers to
register their desired functions and use the [Up]/[Down] key to easily adjust the
volume of the speaker or handset. The DS-24SE phone, which has a speaker phone,
is available to both desks and walls.
Figure 2.18 DS-24SE
© SAMSUNG Electronics Co., Ltd.
Page 2-27
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
4.2.2 DS-2000 Series
The DS-2000 series has a speaker and programmable buttons that allow subscribers
to easily register their desired functions for use and use the [Up]/[Down] key to
easily adjust the volume of the speaker or handset. Up to 32 characters can be
displayed on the LCD by using three soft key buttons and a scroll key.
Figure 2.19 DS-2024E
4.2.3 DS-3020S
The DS-3020S phone allows the users to easily adjust the volume of the handset or
speaker by using the [Adjust Volume] button. Also, the users can use the DSS
button to dial the saved phone numbers conveniently. The DS-3020S allows the
users to check time in the cities over the world, calculate numbers, or use an alarm.
Figure 2.20 DS-3020S
Page 2-28
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 2. Hardware of the OfficeServ 7200
4.2.4 DS-4000 Series
The DS-4000 series are digital phones with a new design. The DS-4000 series
allow the users to make voice calls, transmit data, and provide advanced functions
such as a full-duplex speaker phone module(KDB-F), dual LED button, 2x16
character LCD, and multi-functional indicator. The DS-4000 series are connected
with the ports of the 8DLI/16DLI/8HYB board mounted on the universal slot of the
OfficeServ 7200 system.
Figure 2.21 DS–4028D
4.2.5 DS-5000 Series
DS-5012L
The DS-5012L is a large LCD phone and allows the users to transmit data, make
calls using the handset/speaker phone, or use full-duplex speaker phones.
Also, a USB interface can be made(at all types of mobile stations) and a variety of
functions are provided through the LCD.
The buttons of the DS-5012L are convenient to operate because the DS-5012L has
navigation buttons as well as regular buttons. Also, it provides the functions of a
phone book and call recording. For detailed information about how to use this
phone, refer to ‘OfficeServ DS-5012L User Guide’.
Figure 2.22 DS-5012L
© SAMSUNG Electronics Co., Ltd.
Page 2-29
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Connecting the DS-5012L to the system
Up to 8xDS-5012L phones can be connected with the DLI board(8DLI/16DLI) of the
OfficeServ 7200 system. 24xDS-5012L phones can be connected to both the basic
cabinet and expansion cabinet.
DS-5038D/21D/14D
The DS-5038D/5021D/5014D phone is a two-line LCD digital phone and has 38, 21, or
14 programmable buttons that allow the subscribers to register their desired
functions and make calls by using a handset/speaker phone.
The DS-5021D/5014D phone has navigation buttons that allow the users to easily use the
phone functions(recent called number, recent connected number, search phone numbers
by name, call forwarding, search abbreviated numbers, or alarm setting) and connect
with the KDB-D/S/F. For detailed information about the phones, refer to ‘OfficeServ
DS-5021/14D User Guide’.
Figure 2.23 DS-5014D
Figure 2.24 DS-5021D
Figure 2.25 DS-5038D
Page 2-30
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 2. Hardware of the OfficeServ 7200
4.2.6 ISDN Phone
The ISDN phone is used only for the ISDN service.
Figure 2.26 ISDN Phone
4.3
IP Phones
IP phones are a new concept of Internet phones that use an IP address to
send/receive voice or data. The IP phones use the installed data network lines to
make voice communications and do not need telephone lines. The IP phones can be
connected with the devices such as a switching hub and are connected with other
digital phones through the MGI board of the OfficeServ 7200 as well.
4.3.1 ITP-5000 Series
ITP-5012L
The ITP-5012L is a large LCD phone, which allows the users to transmit data,
make calls using a handset/speaker phone, or use the full-duplex speaker phone.
A variety of functions are provided through the large LCD.
The buttons of the ITP-5012L are convenient to operate because the ITP-5012L
phone has navigation buttons as well as regular buttons. Also, it provides the
functions of a phone book and call recording. For detailed information about how
to use this phone, refer to ‘OfficeServ ITP-5012L User Guide’.
Figure 2.27 ITP-5012L
© SAMSUNG Electronics Co., Ltd.
Page 2-31
CHAPTER 2. Hardware of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
ITP-5021D/14D
The ITP-5021D/5014D phone is a two line LCD digital phone and has 21 or 14
programmable buttons that allow the subscribers to register their desired functions
and make calls by using a handset/speaker phone.
The ITP-5021D/5014D phone has the navigation buttons that allow the users to easily
use the phone functions(recent called number, recent connected number, search phone
numbers by name, call forwarding, search abbreviated numbers, or alarm setting).
For detailed information about the phones, refer to ‘OfficeServ ITP-5021/14D User
Guide’.
Figure 2.28 ITP-5014D
Page 2-32
Figure 2.29 ITP-5021D
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
4.4
CHAPTER 2. Hardware of the OfficeServ 7200
Add On Module
The Add On Module(AOM) is a station module type of digital phone where the
programmable buttons and LEDs are expanded. Desired functions can be specified
into the buttons on the AOM. For information about the figure of each AOM or
how to connect the AOM, refer to the User’s Guide about the AOM.
Figure 2.30 DS-5064B
The AOMs available to the OfficeServ 7200 system and phones that can be
connected with the AOM are as follows:
Table 2.19
AOM Types
DS-5064B AOM
DS-4014 AOM
DS-4064 AOM
AOM Types
Connectable Phones
DS-5000 series digital phone
DS-4000 series digital phone
DS-24SE AOM
DS-24SE digital phone
DS-2024E AOM
DS-2000 series digital phone
DS-3020S AOM
DS-3000 series digital phone
© SAMSUNG Electronics Co., Ltd.
Page 2-33
CHAPTER 2. Hardware of the OfficeServ 7200
4.5
OfficeServ 7200 General Description Guide/Ed.00
Door Phone Interface Module
The Door Phone Interface Module(DPIM) connects door phones and door
open/close devices with the OfficeServ 7200. The line port of the door phone
connection device is connected with the DLI port of the OfficeServ 7200 system.
The door box port of the door phone connection device is connected with the line
port of the door phone.
Figure 2.31 DPIM
Reference
For information about how to connect terminals such as a door phone connection
device, refer to ‘OfficeServ 7200 Installation Guide.’
Page 2-34
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
4.6
CHAPTER 2. Hardware of the OfficeServ 7200
KDB-D/S
The KDB-D module is attached to the digital phones connected with the DLI board
for use. The KDB-D enables a digital terminal to use one out of the two B channels
received by another digital phone from the DLI board.
The KDB-S module is attached to the digital phones connected with the DLI board
for use as well. The difference from the KDB-D module is that the KDB-S module
enables an analog terminal to use one out of the two B channels received by a
digital phone from the DLI board. Both the KDB-D and KDB-S are only installed
into the digital phones which are connected with the 8DLI board for use and are not
available to ones connected with the 16DLI board.
Figure 2.32 KDB-D/S for DS Phones
© SAMSUNG Electronics Co., Ltd.
Figure 2.33 KDB-D/S for Digital Phones
Page 2-35
CHAPTER 2. Hardware of the OfficeServ 7200
5
OfficeServ 7200 General Description Guide/Ed.00
Wireless LAN Equipment
This section describes the wireless LAN BTS and mobile stations that can be
connected with the OfficeServ 7200 system.
5.1
Wireless LAN Base Station
The Wireless Base Station(WBS24) of 2.4 GHz consists of both wire and wireless
processing parts.
The wire processing part has an ISDN BRI interface connected with the OfficeServ
7200 and an IEEE 802.3 Ethernet interface connected with the LAN. The wireless
processing part has an IEEE 802.11b standard and wireless LAN RF interface with the
wireless frequency band of 2.4 GHz.
Figure 2.34 WBS24
The wire Ethernet interface is connected with the LAN based on 10BaseT/100Base-Tx and transmits/receives data(e.g., Internet access) other than voice.
The wireless processing part transmits/receives voice data for wireless voice calls
and accesses the wireless Internet.
The maximum transmittance speed on the wireless section is 5~6 Mbps. About 20 people
can simultaneously access the wireless Internet using a WBS24.
Page 2-36
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
5.2
CHAPTER 2. Hardware of the OfficeServ 7200
Mobile Station
The WIP-5000M(Wireless IP-Phone Mobile type), which is a local wireless mobile
station, uses the wireless LAN of IEEE802.11b to allow the users to make voice
calls. The WIP-5000M supports hand-over when moving between the APs(WBS24)
and can use data terminals such as laptops that enable the wireless LAN in the same
place. The WIP-5000M performs the message service functions supported by the
OfficeServ 7200 system as well.
Figure 2.35 WIP-5000M
© SAMSUNG Electronics Co., Ltd.
Page 2-37
CHAPTER 2. Hardware of the OfficeServ 7200
6
OfficeServ 7200 General Description Guide/Ed.00
Additional Devices
This section describes the types and features of devices that can be connected
optionally when the OfficeServ 7200 is installed.
6.1
On Hold/Background Sound Source
The OfficeServ 7200 is connected with cassettes or radios in addition to the basic
tone provided by the system or internal sound source to allow the subscribers to
listen to melodies other than ones specified to the subscribers. The devices such as
the cassettes or radios are called on a hold/background sound source.
The on hold/background sound source is mainly used for an on hold tone,
background music, or announcement and can be used by being connected with the
external sound source devices below:
FM radio
CD player
Cassette tape recorder
Output Resistance
The output resistance of FM radios, CD players, or cassette recorders are 8 Ω to
16 Ω.
6.2
External Units
The OfficeServ 7200 is connected with external units such as amplifiers or speakers
for consumers instead of internal speakers. The external units are connected via the
MISC1 port of the MCP card to the MIS option board. The MIS option board is
installed in the MCP.
6.3
Loud Bell
The loud bell allows the users to listen to ring signals from outside and amplifiers
or external speakers are used for the loud bell.
The loud bell is also connected via the MISC1 port of the MCP board to the MIS
option board. Once the secondary call device is connected, a call signal rings from
only a specific phone set to MMC 205 Assign Pair Station of loud bell.
Page 2-38
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
6.4
CHAPTER 2. Hardware of the OfficeServ 7200
Common Bell
The common bell is a ring that can be specified when a station group is set. Once a
station in a group rings, other stations in the same group ring. The common bell is
connected via the MISC2 port of the MCP board to the MIS option board.
6.5
PCMMC
The PC Man Machine Communication(PCMMC) is software for maintaining the
OfficeServ 7200. The functions for controlling the system database are implemented
in the form of menus in the PCMMC; thus, the PCMMC is convenient to use when
the system data is displayed or changed. Also, the users can understand and use the
system operational commands easily because the commands for maintenance are
unified.
6.6
SMDR
The Station Message Detail Recording(SMDR) manages the entire calling data
such as calls between the station subscribers connected with the OfficeServ 7200 as
well as local/long distance/international calls. The OfficeServ 7200 provides calling
data. Connect the SMDR printer or SMDR computer with the OfficeServ 7200 to
use the SMDR data provided by the OfficeServ 7200 system.
The SMDR printer can display the calling history received from the OfficeServ
7200, however it does not display data other than the calling history(i.e. toll data).
The SMDR computer displays calling history received from the OfficeServ 7200 and
calculates the toll using the SMDR software based on the calling history.
Accordingly, the SMDR computer allows the users to use data more efficiently than
the SMDR printer.
© SAMSUNG Electronics Co., Ltd.
Page 2-39
CHAPTER 2. Hardware of the OfficeServ 7200
6.7
OfficeServ 7200 General Description Guide/Ed.00
CTI
The Computer Telephony Integration(CTI) is an integrated system for computer
and telephony. That is, the CTI inter-works computers with PBXs so that the
computers make use of the PBXs as computer resources and the PBXs share the
computer resources. The CTI provides the operator with convenience and reduced
costs and the customers with enhanced services and reduced call-processing time.
Particularly, the CTI call center system configures data on the customers into
databases. Based on these databases, the call center can consult with the customers
on a one-to-one. The CTI integrates communications, computers, and databases
based on phones as a basic medium to allow the users to perform marketing using
computers such as customer-focused telemarketing.
The OfficeServ 7200 supports the standard Telephony Application Programming
Interface(TAPI), which is implemented in a client/server environment and controls the
third party calls.
Page 2-40
© SAMSUNG Electronics Co., Ltd.
CHAPTER 3
Specifications of the OfficeServ 7200
This chapter describes the capacity of the OfficeServ 7200, various signal
specifications, power specifications, rings and tones, compatible boards and
terminals, and equipment specifications.
1
System Capacity
Up to 160 lines can be installed and operated in the OfficeServ 7200 system, and
the line ratio of the station and trunk line can be adjusted within the capacity limit
depending on the users’ needs. Table 3.1 below shows the maximum line capacity
of the OfficeServ 7200:
Table 3.1
System Configuration
Basic cabinet
Capacity of the OfficeServ 7200
Maximum Line Capacity
When using the E1 : 90
When using the 8TRK : 40
When using the station : 80
When using the maximum capacity : 122(voice)
When using the LAN switch : 64
When using the VDSL : 20
When using the WLAN terminal : 48
Basic cabinet+expansion cabinet
When using the E1 : 120
When using the 8TRK : 80
When using the station : 96
When using the maximum capacity : 216(voice)
When using the LAN switch : 128
When using the VDSL : 40
When using the WLAN terminal : 48
© SAMSUNG Electronics Co., Ltd.
Page 3-1
CHAPTER 3. Specifications of the OfficeServ 7200
1.1
OfficeServ 7200 General Description Guide/Ed.00
Trunk Line Capacity
The maximum trunk line capacity of the OfficeServ 7200 is based on its configuration
and is shown in the table below:
Table 3.2
System Configuration
Basic cabinet
Trunk Line Capacity
Analog
Digital
LOOP TRK
BRI
T1 TRK
E1 TRK
40
40
72
90
PRI TRK
T1 : 72
E1 : 90
Basic cabinet+expansion
80
80
96
120
cabinet
1.2
T1 : 96
E1 : 120
Station (Subscriber) Line Capacity
The maximum station line capacity for analog phones and digital phones in the
OfficeServ 7200 is based on its configuration and is shown in the table below:
Table 3.3
System Configuration
Basic cabinet
Basic cabinet+expansion
Station Line Capacity
Analog phones
Digital Phones
80
80(DS-5012L : 24)
160
160(DS-5012L : 48)
cabinet
Page 3-2
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
2
Electrical Specifications
2.1
Signal Specifications
CHAPTER 3. Specifications of the OfficeServ 7200
The signal processing protocol is used for interfacing messages between the trunk
lines/stations and system. Also, the signal processing protocol refers to the method
for providing status information.
2.1.1 Signaling Type of the Trunk Line
Loop Start
When processing the loop start signals, the on-hook and off-hook status is
controlled by the flow of the electric current. The loop is a closed loop trunk circuit
or standard 2500-type set loop.
OPEN END
CLOSED END
GND
T
T
X
E
E
-48 VDC
(C.O.)
Key Telephone
Figure 3.1 Trunk Line Loop Start Signaling
T1 Trunk Line
The electrical characteristics of the T1 trunk line comply with the ITU G.703 and
G.704 standards.
© SAMSUNG Electronics Co., Ltd.
Page 3-3
CHAPTER 3. Specifications of the OfficeServ 7200
Table 3.4
OfficeServ 7200 General Description Guide/Ed.00
Electrical Characteristics of the T1 Trunk Line
Category
Specification
Transfer speed
1544 kbit/s ±50 ppm
Code
AMI or B8ZS
Pulse type
Regular square wave : When indicating all valid signals,
comply with the mask(G.703) regardless of the codes.
Transmission media
A pair of twisted lines
Load resistance
120 Ω
Indicated(pulse) nominal peak voltage
3.00 V
Signal
Power at the frequency of
±12~±19 dBm
Level
772 kHz
Power at the frequency of
25 dB or higher when the power is less than the power at
1544 kHz
the frequency of 772 kHz
The signaling specifications and signaling method of the T1 trunk line should
comply with the ITU G.703 and G.704 standards.
E1 Trunk Line
The electrical characteristics of the E1 trunk line comply with the ITU G.703 and
the G.704 standards.
Table 3.5
Electrical Characteristics of the E1 Trunk Line
Category
Specification
Transmission speed
2048 kbit/s ±50 ppm
Code
High Density Bipolar of Order 3(HDB3)
Pulse type
Regular square wave : When indicating all valid signals,
comply with the mask(G.703) regardless of the codes.
Nominal and pulse
244 ns
Jitter of the I/O terminal
Refer to the G.823.
Transmission media
A pair of twisted lines
Load resistance
120 Ω
Indicated(pulse) nominal peak voltage
3.00 V
Blank(non-pulse) peak voltage
0 ± 0.300 V
The signaling specification and signaling method of the E1 trunk line comply with
the ITU G.703 and G.704 standards.
Page 3-4
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 3. Specifications of the OfficeServ 7200
Characteristics of the ISDN Interface Transmission
The electrical characteristics of the ISDN(BRI) interface comply with the ITU I.430
and ETS 300 012 standards.
Table 3.6
Electrical Characteristics of the BRI Trunk Line
Category
Specification
Transmission speed
192 kbit/s ±100 ppm
Code
AMI
Pulse type
Regular square wave : When indicating all valid signals,
comply with the mask(I.403) regardless of the codes.
Transmission media
A pair of twisted lines
Load resistance
120 Ω
Indicated(pulse) nominal peak voltage
2.75 V
The electrical characteristics of the ISDN(PRI) interface comply with the ITU I.431
and ETS 300 011 standards.
Table 3.7
Electrical Characteristics of the PRI Trunk Line
Category
Specification
Transmission speed
2048 kbits/s ±50 ppm
Code
High Density Bipolar of Order 3(HDB3)
Pulse type
Regular square wave : When indicating all valid signals,
comply with the mask(I.403) regardless of the codes.
Nominal and pulse
244 ns
Transmission media
A pair of twisted lines
Load resistance
120 Ω
Indicated(pulse) nominal peak voltage
3.00 V
Blank(non-pulse) peak voltage
0 ±0.300 V
The electrical characteristics of the Digital Line Interface(DLI) are shown in the
table below:
Table 3.8
Electrical Characteristics of the DLI Line
Category
Specification
Transmission speed
144 kbits/s
Code
AMI
Pulse type
Typical AMI waveform
© SAMSUNG Electronics Co., Ltd.
Page 3-5
CHAPTER 3. Specifications of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
2.1.2 Signaling Type of the Dedicated Line
Electrical Characteristics of the WIM Interface
The electrical characteristics of the V.35 interface are shown in the table below:
Table 3.9
Electrical Characteristics of the WIM Interface (V.35 Interface)
Category
Specification
Maximum transmission speed
10 Mbit/s
Transmission code
V.35 driver
Number of transmission lines
18
Characteristic resistance
100 Ω
Indicated(pulse) nominal peak voltage
±2 V
Input differential threshold
±80 Mv
The electrical characteristics of the RS-232C(V.28) interface are shown in the table
below:
Table 3.10
Electrical Characteristics of the WIM Interface (RS-232C Interface)
Category
Specification
Maximum transmission speed
230 kbits/s
Transmission code
V.28 driver
Number of transmission lines
14
Characteristic resistance
3 KΩ-7K Ω
Indicated(pulse) nominal peak voltage
±15 V
Input threshold
+1.2-1.7 V
The electrical characteristics of the RS-449(V.11) interface are shown in the table
below:
Table 3.11
Electrical Characteristics of the WIM Interface (RS-499 Interface)
Category
Page 3-6
Specification
Maximum transmission speed
10 Mbit/s
Transmission code
V.11 driver
Number of transmission lines
24
Characteristic resistance
100 Ω
Indicated(pulse) nominal peak voltage
±10 V
Input threshold
±0.3 V
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 3. Specifications of the OfficeServ 7200
2.1.3 Signaling Type of the LAN
The electrical characteristics of the 10Base-T, which complies with the IEEE802.3
standard, are shown in the table below:
Table 3.12
Electrical Characteristics of the LAN Interface (10Base-T)
Category
Specification
Transmission speed
10 Mbit/s ±50 ppm
Transmission code
Manchester coding
- When the transmission data bit is ‘0’, the higher level of the middle
bit is inversed into the lower level. When the transmission data bit
is ‘1’, the lower level of the middle bit is inversed into the higher
level.
Access control method
CSMA/CD
Transmission media
UTP CAT3, CAT4, CAT5, STP
Number of the UTP pairs
2 pairs
Characteristic resistance
100 Ω
Cable thickness
Diameter : 0.51 mm(24 AWG), External diameter : 5 mm
The electrical characteristics of the 100Base-Tx, which complies with the
IEEE802.3u standard, are shown in the table below:
Table 3.13
Electrical Characteristics of the LAN Interface (100Base-Tx)
Category
Specification
Transmission speed
100 Mbit/s ±50 ppm
Transmission code
4B/5B+MLT-3(4bit/5bit) converts the data of 4bits to the data of 5bits
and encodes the data on the physical layer. Multi Level Transmission3(MLT-3)i encodes transmission data into 3 levels(high, middle, and low)
Access control type
CSMA/CD
Transmission media
UTP CAT5, STP
Number of UTP pairs
Two pairs
Characteristic resistance
100 Ω
Cable thickness
Diameter : 0.51 mm(24 AWG), External diameter : 6 mm
© SAMSUNG Electronics Co., Ltd.
Page 3-7
CHAPTER 3. Specifications of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
2.1.4 Signaling Type of the Station
Dial Pulse Signaling Type
Ratio-10 Pulse Per Second(PPS)
Make/Break Ratio(M/B ratio)-33 % : 66 %(It can be adjusted by the software.)
The minimum signaling time between digits-20 msec(It can be adjusted by the
software.)
DTMF Push Button Dialing
The DTMF signal processing complies with the ITU standard, which enables the
user to send/receive the signals of digital phones through the trunk line and to
process the signals of analog phones.
2.1.5 Signaling Type of the VDSL
The electrical characteristics of the VDSL for using long-distance Ethernet are
shown in the table below:
Table 3.14
Electrical Characteristics of the VDSL Interface
Category
Page 3-8
Specification
Transmission speed
1 M~16 Mbps
Modulation code
Quadrature Amplitude Modulation(QAM)
Error detection
Reed Solomon coding method
Transmission distance
1.2 km
Transmission media
One pair of twisted lines
Characteristic resistance
Splitter installed
Used frequency
138 kHz~12 MHz
Link speed
Down link : 47 Mbps(300 m), Up link : 8 Mbps(300 m)
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
2.2
CHAPTER 3. Specifications of the OfficeServ 7200
Transmission Characteristics
Attenuation
− Attenuation between subscribers : Less than 6 dB
− Attenuation between the subscriber and local trunk line : Less than 0.5 dB
Characteristic resistance of the line : 600 Ω
Weighted noise : Less than-65 dBm
Crosstalk attenuation : Less than-68 dBm
Frequency band : 300~3400 Hz
Insulation resistance : More than 1 MΩ
2.3
Line Conditions
Length for installation:
− Analog phones : Up to 1 km(When the AWG #24 cable is used)
− Digital phones : Up to 400 m(When the AWG #24 cable is used)
− Door phones : Up to 400 m(When the AWG #24 cable is used)
− AOMs : Up to 400 m(When the AWG #24 cable is used)
Leakage resistance between lines : More than 20 kΩ
Leakage resistance between grounds : More than 20 kΩ
© SAMSUNG Electronics Co., Ltd.
Page 3-9
CHAPTER 3. Specifications of the OfficeServ 7200
3
Power Specifications
3.1
Power Supply Board
OfficeServ 7200 General Description Guide/Ed.00
This board operates using the AC input power or battery power of the OfficeServ
7200 and supplies the system cabinet with the backup power of -48 V, -5 V, +5 V,
+3.3 V, +12 V, or -56 V.
Table 3.15
Specification of the Power Supply Board
Category
Power Specifications
Input condition
AC 110 V/220 V
Output condition
48 V DC, 2.2 A
+5 V DC, 8.0 A
-5 V DC, 1.0 A
+3.3 V DC, 10 A
+12 V DC, 0.4 A
-56 V Back-up 0.4 A
Page 3-10
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
4
Rings and Tones
4.1
Ring Cycles
CHAPTER 3. Specifications of the OfficeServ 7200
The OfficeServ 7200 provides the trunk line rings, station rings, door rings, and
alarm rings. The ON/OFF cycle of each ring is shown in the table below:
Table 3.16
System Ring Cycles
Ring
ON/OFF Cycle
Trunk line ring
1000/2000 ms
Station ring
400/200/400/3000 ms
Door ring
400/200/400/200/400/2000 ms
Alarm ring
400/200/400/200/400/200/400/1000 ms
Ring ON/OFF Cycle
The ON/OFF cycle can be adjusted by changing the values of the system
database.
© SAMSUNG Electronics Co., Ltd.
Page 3-11
CHAPTER 3. Specifications of the OfficeServ 7200
4.2
OfficeServ 7200 General Description Guide/Ed.00
Tones
The output voltage and frequency of the ring signals in the OfficeServ 7200 are as
follows:
Output voltage : 75 V
Frequency : 20 Hz
The OfficeServ 7200 provides the users with various tones to notify the users of the
status of functional operations and give feedback to the users. The ON/OFF cycles
of currently specified tones are shown in the table below:
Table 3.17
Cycles of the System Tones
Tone
ON/OFF Cycle
Dial tone
1000/250 ms
Busy Tone
500/500 ms
Do Not Disturb tone
250/250 ms
Ring Back tone
1000/2000 ms
Call Park tone
Continuous
Confirmation/Caution/Barge-In tone
50/50 ms
Call Back/Hold tone
500/3500 ms
Ring Back tone
1000/2000 ms
Error/Number Unobtainable tone
250/250 ms
Message Camp On tone
Continuous
Tone ON/OFF Cycle
The ON/OFF cycle can be adjusted by changing the values of the system
database.
Page 3-12
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
5
CHAPTER 3. Specifications of the OfficeServ 7200
Available Terminals
The terminals available to the OfficeServ 7200 are shown in the table below:
Table 3.18
OfficeServ 7200 Compatible Terminals
Type
Terminal
DS-5000 series digital phone
DS-5014D, DS-5021D, DS-5038D, DS-5012L
ITP-5000 series IP phone
ITP-5014D, ITP-5021D, ITP-5012L
Wireless LAN device(WLAN)
WIP-5000M(MS), WBS24(Access Point device)
DSS
DS-64B
DS-4000 series, DS-24SE, DS-24D, DS-2024E, DS-2024E,
Digital phone
DS-2021E, DS-3020S
DS-5064BAOM, DS-4014AOM, DS-4064AOM, DS-24SE
AOM
AOM, DS-2024EAOM, DS-3020SAOM
Others
KDB-S, KDB-D, DPIM, door phone
Compatible Terminals
All the compatible terminals of the iDCS 500 Premium system are available to the
OfficeServ 7200 since the compatible terminals can be changed depending on system
settings, contact the system administrator.
© SAMSUNG Electronics Co., Ltd.
Page 3-13
CHAPTER 3. Specifications of the OfficeServ 7200
6
OfficeServ 7200 General Description Guide/Ed.00
Equipment Specifications
The OfficeServ 7200 consists of the two cabinets shown in the figure below:
Expansion Cabinet
Basic Cabinet
Figure 3.2 Cabinet Configuration of the OfficeServ 7200
When the OfficeServ 7200 consists of one cabinet(basic cabinet)
440(W)×123.8(H)×410(D) mm
When the OfficeServ 7200 consists of two cabinets(basic cabinet+expansion
cabinet)
440(W)×247.6(H)×410(D) mm
Page 3-14
© SAMSUNG Electronics Co., Ltd.
CHAPTER 4
Functions of the OfficeServ 7200
This chapter describes the functions of the OfficeServ 7200 related to calls, VoIP,
data, UMS, and web/system management.
1
Call Functions
The OfficeServ 7200 processes the station calls, trunk line calls, application calls,
or various signals through the PSTN and VoIP networking.
1.1
Dynamic IP Address Allocation
DHCP Client of the MCP
The MCP is the call processing control part of the OfficeServ 7200. The MCP uses
the DHCP client function to get the IP address allocated by the data server and
operate. In this case, the data server recognizes the MCP of the call server from the
host ID of the required DHCP information and allocates the IP address specified in
the DHCP allocation table. The MCP can be operated by the fixed IP address,
which is not the dynamic DHCP allocation method.
MGI Configuration
The MGI mounted in the OfficeServ 7200 can be alternatively operated by
automatically receiving the dynamically allocated IP address from the data server
then manually setting the IP address.
IP Phone Configuration
The IP phones or SIP(Session Initiation Protocol) phones registered to the
OfficeServ 7200 also can be alternatively operated by receiving the dynamically
allocated IP address from the data server then manually setting the IP address.
© SAMSUNG Electronics Co., Ltd.
Page 4-1
CHAPTER 4. Functions of the OfficeServ 7200
1.2
OfficeServ 7200 General Description Guide/Ed.00
VoIP UMS Interface
Auto Attendant/Mailbox Interface
The OfficeServ 7200 uses the SIP and RTP that are the VoIP protocols to provide
the auto attendant and mailbox functions through the UMS and IP network
operating in the feature server. To interface with the VoIP UMS, the MGI board
should be mounted in the cabinet slot of the OfficeServ 7200.
E-mail Notice
The OfficeServ 7200 periodically checks whether any e-mails are received in the email account registered to the UMS and notifies the result to the user in voice or through the LCD
screen or LED of the telephone connected to the OfficeServ 7200.
To be notified in voice, the user should set the TTS(Text-To Speech) function.
1.3
SIP Server Interface
Standard SIP Phone Registration
The OfficeServ 7200 registers the SIP phones, which operate through the SIP
interface, to provide the call process services according to the system-numbering
plan. In this case, the user should install and operate the SIP server in the feature
server.
Basic Call Process of the Standard SIP Phone
The OfficeServ 7200 provides the station and trunk line call services by using the
standard SIP phones registered to the OfficeServ 7200.
Since the standard SIP phones do not provide the various functions of the key
phone system, they provide only the basic station and trunk line call services.
Additional Call Process of the Standard SIP Phone
The OfficeServ 7200 provides the additional services related to the station and
trunk line call services by using the standard SIP phones registered to the
OfficeServ 7200. The additional services provided by the OfficeServ 7200 are as
follows:
Call forwarding
UMS mailbox services
Group Ring(Parallel Forking) : This function is available to the called party.
Page 4-2
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
1.4
CHAPTER 4. Functions of the OfficeServ 7200
Router ALG Interface
NAT Application Level Gateway (ALG)
When various functions such as the VoIP signal process function and gateway
function executed through the IP network in the OfficeServ 7200 are executed in
the Network Address Translation(NAT) network, the conversion between the
private IP address and public IP address should be performed. In this case, the call
server and the data server interface with each other and share the information on the
conversion between the private IP and public IP, which enables the OfficeServ 7200
to provide services smoothly. Each IP address is translated automatically. This
function operates only between the call server and data server of the OfficeServ
7200.
Firewall ALG
When various functions such as the VoIP signal processing function and gateway
function executed through the IP network in the OfficeServ 7200 are executed in
the network that has a firewall, the system should be set to prohibit the firewall
from cutting off the packets not manually but automatically for smooth firewall
traversing. This function operates only between the call server and data server of
the OfficeServ 7200.
VPN ALG
When various functions such as the VoIP signal process function and gateway
function executed through the IP network in the OfficeServ 7200 are executed in
the Virtual Private Network(VPN), the system should be set to prevent packet
blocking during the IP address conversion due to the tunneling. In this case, the call
server and data server interface with each other and share the tunneling conversion
information for smooth services. This function operates only between the call
server and data server of the OfficeServ 7200.
© SAMSUNG Electronics Co., Ltd.
Page 4-3
CHAPTER 4. Functions of the OfficeServ 7200
2
OfficeServ 7200 General Description Guide/Ed.00
VoIP Functions
The VoIP functions indicate the functions executed in the SIP server. The SIP server
is a software module operating in the feature server. The SIP server is based on the
standard SIP protocol and provides the gateway function for smoothly processing
signals between the existing phones and the standard SIP user equipment. It also
provides an interface function through which the standard SIP user equipment can
interface to the phones of the OfficeServ 7200.
2.1
VoIP Network
To communicate with another system through the VoIP networking, the MGI board
must be installed in the OfficeServ 7200. The functions of the VoIP networking
coincide with that of the PRI/Q-SIG networking.
2.2
VoIP Trunk Line Interface
The OfficeServ 7200 provides the VoIP trunk line interface(H.323/SIP).
The OfficeServ 7200 controls calls and the private MGI board connects the speech
path.
2.3
Proxy Server
The OfficeServ 7200 serves as the SIP equipment controller, which interfaces the
standard SIP equipment(user agent) defined in the RFC3261 SIP standard with the
call services of the OfficeServ 7200. The OfficeServ 7200 uses the proxy server
function to perform the routing for the call process requirements such as call setting,
cancel, and the call termination through the SIP, which are received from the SIP
equipment. The OfficeServ 7200 also manages the SIP equipment status and
performs smooth call services between the SIP equipment.
2.4
User Registration
The SIP interface users are identified by the SIP address in the e-mail format.
This function saves and manages the current user’s IP address after giving a priority
to the IP address. Then, this function provides the user information according to the
valid user’s demands.
Page 4-4
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
2.5
CHAPTER 4. Functions of the OfficeServ 7200
SIP Telephone Configuration
The standard SIP telephone should be configured so that it can be used like the
telephone of the OfficeServ 7200. When entering the phone number and user ID of
the standard SIP telephone in the call server, the configuration file corresponding to
each SIP telephone is created in the IP server. When operating the SIP telephone,
the required configuration data of the SIP telephone will be downloaded to the
TFTP. The downloaded data includes the telephone number, user name, and the
order information of the OfficeServ 7200 system, which correspond to the SIP
telephone. This configuration data is used for setting the SIP telephone.
2.6
SIP Telephone Registration
After a standard SIP telephone is registered as a telephone of the OfficeServ 7200,
the OfficeServ 7200 provides the call process services between the SIP telephones,
between an SIP telephone and a digital telephone, and between an SIP telephone
and a PSTN trunk by using the assigned telephone number of the OfficeServ 7200.
2.7
Call Log
This records the related information to the call process performed in the SIP
telephone which is saved into a file, transmitted and managed into an external
system management package.
2.8
Forward Busy
The call server always monitors the SIP telephone status through the SIP server.
If the ‘Forward Busy’ function is set, the incoming call is forwarded to the specified
telephone number when a call is forwarded to a busy SIP telephone.
2.9
Forward No Answer
If the ‘Forward No Answer’ function is set, the incoming call is forwarded to the
specified telephone number when a call is not answered for a specific time.
2.10 Parallel Forking
If multiple SIP telephones are set to be used by one user in the SIP server and the
priority of the call connection is the same, all assigned telephones will ring at the
same time when the call is forwarded. When the call is answered on one of assigned
telephones, the call will be connected and other ringing telephones will be
disconnected.
© SAMSUNG Electronics Co., Ltd.
Page 4-5
CHAPTER 4. Functions of the OfficeServ 7200
3
OfficeServ 7200 General Description Guide/Ed.00
Data Functions
The OfficeServ 7200 functions as a router, switch, performs security functions, or
serves as a data network application or data access interface(WAN, LAN, DMZ).
3.1
Switches
Unmanaged Switch
The switch performs the function of the layer 2 Ethernet switch as well as the
Learning Bridge function based on the MAC address filtering and forwarding
algorithm.
The switch supports the full duplex mode by the 10Base-T/100Base-Tx auto
detection and provides 16 switch ports per switch card.
802.1d Spanning Tree
The switch configures and processes the forwarding tree based on the spanning tree
algorithm to prevent a packet forwarding loop in the switch.
802.1p Packet Priority
The switch extracts the priority field from the Ethernet frame configured according
to the 802.1p specification standard, and discriminatively processes the frame
according to the priority of the specified operation standard.
The packets are categorized into emergent packets and non-emergent packets and
are then processed.
VLAN
The Virtual Local Area Network(VLAN) groups the related equipment by the work
group according to the LAN operational policy regardless of the location of the user
equipment. The VLAN also processes switching for the work groups. The VLAN
removes the effects of unnecessary broadcasting packets and configures a stable
switching subnet only for the corresponding group by separating and processing the
group in the virtual LAN.
Accordingly, the switch can provide the differentiated QoS services and the VLAN
can be configured based on the switch port and MAC address.
The system automatically configures the VLAN for the IP telephone, signal process
gateway, media gateway, and UMS required for services of the OfficeServ 7200,
and performs the QoS process. The OfficeServ 7200 provides 32 VLAN groups.
Page 4-6
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 4. Functions of the OfficeServ 7200
IGMP Snooping
L2 switch(located in the lower layer of the IP router) without the IGMP(Internet
Group Management Protocol) function is located between the IP router and
multicast group member(host), intercepts the IGMP messages. Then the L2 switch
operates in the IP router like the group member and operates in the group member
like the IP router, which is referred to as IGMP Snooping.
The IP layer multicast group information included in the IGMP message is reflected
in the MAC filtering database, its own switching database. The group information
is processed in the MAC multicast address format mapped with the IP multicast
address.
3.2
Routers
Various Network Interfaces
The OfficeServ 7200 provides the WAN1 and WAN2 network interfaces, which are
connected to the WAN through an Ethernet interface, provides the serial network
connected through the V.35 serial interface, and provides the LAN and DMZ
network interface.
Static Routing
The OfficeServ 7200 configures a fixed routing table between each network
interface to process the static routing. In this case, the routing table cannot be
dynamically changed by the routing protocol, and specific routing services will be
provided according to the pre-set routing policy.
WAN Interface (Ethernet, PPPoE, DHCP Client)
The OfficeServ 7200 accesses the Internet through the WAN1 and WAN2 Ethernet
WAN interface by using the PPPoE and DHCP client protocols.
V.35 Interface (PPP, HDLC, Frame Relay)
The OfficeServ 7200 accesses the Internet through the V.35 serial interface in a
transfer speed of up to 2Mbps. In this case, the OfficeServ 7200 supports various
environments using the functions such as the PPP, HDLC, and Frame Relay
Encapsulation.
Subnet Routing
The network interfaces of the WAN1, WAN2, LAN, and DMZ are configured with
different sub-network interfaces, which enable them to perform the routing process
with each other.
© SAMSUNG Electronics Co., Ltd.
Page 4-7
CHAPTER 4. Functions of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Routing Protocol
The OfficeServ 7200 supports the routing information-exchanging protocol to react
on the network environmental change and to effectively process the routing.
RIPv1, RIPv2
These protocols are widely used for managing the routing information in a
middle-sized independent network such as a group of LANs
OSPFv2
This routing protocol is used prior to the RIP in a large-sized independent
network. A router detects and reports any change in the routing table or the
network to other routers. In this way, all routers share the same routing
information.
IGMPv2 Interface
This is an Internet protocol that enables an IP terminal or an Internet computer
to report multicast groups to nearby routers. The multicasting allows a host
computer to send the contents to pre-specified other IP terminals or Internet
computers.
The multicasting is used for modifying the address book of the mobile
computer users at the site, sending the company’s document according to the
distribution list, setting the multicast membership group and broadcasting the
broadband width-program of the streaming media to the audience tuning the
received wavelength.
Routing Between the VLAN Groups
The communication between the VLAN groups is done through the routing
between the VLAN groups.
CBQ/BoD (Bandwidth on Demand)
The queuing process is differentially performed according to the level table where
the routing process priority for a data server is defined.
Page 4-8
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 4. Functions of the OfficeServ 7200
RTP Priority
The RTP(Real-Time Transport Protocol) packet is a VoIP media packet.
The queuing process for the RTP packet is prior to that of other data packets, which
helps to maintain the tone quality. This function is useful when using the VoIP
function in the network where the VoIP packet that should be processed in real time
and other packets for general office work are mixed processed.
IP-ToS Process
This function checks the ToS(Type of Service) field of the IP header and processes
it according to priority of the corresponding routing in the data server. This function
reproduces the ToS field flowing into the data server, performs the routing process
first of all, and heightens the process priority in the next HOP.
© SAMSUNG Electronics Co., Ltd.
Page 4-9
CHAPTER 4. Functions of the OfficeServ 7200
3.3
OfficeServ 7200 General Description Guide/Ed.00
Security
NAT/PT (In/Out/Exclusive/Redirect)
The security function supports the conversion function between the private IP
address and public IP address in the network where security is required.
The Inbound, Outbound, Exclusive, and Redirect functions are supported.
In bound : This function performs the forwarding process for the packet
flowing from the WAN to the IP and port of the LAN specified in the NAT/PT
conversion table.
Outbound : This function converts the IP address of the transmitter into the
global IP address according to the NAT/PT conversion table for transmitting
the packet from the LAN to the WAN.
Exclusive : This function is used for the IP address that is not applied by the
NAT/PT conversion.
Redirect : When the DNS server IP in the data server management sector is
changed, each IP terminal uses the pre-DNS IP and this function changes the
DNS IP by registering the post-DNS IP into the Redirect table.
Firewall
Access filtering
This function prevents the access to disallowed IP addresses to control the
access for the resource non-disclosed to the outside and to control the external
resource for which the membership in the LAN may access.
DMZ function
This function is used for connecting the web server and mail server, which are
firewall-protected LAN networks but need to be freely accessed from the
outside, to the subnet separated from the LAN network where the firewall
blocking is not applied. In this way, the access from the outside can be more
smooth with the access control service through the firewall.
Port Forwarding
This function is almost the same as the DMZ function but is used for
connecting to a specific network without a separately divided DMZ port.
This function is used for the Extra network services as well as the DMZ
function. The Extra network is configured for a party out of the office to access
the Intranet in the office via the Internet. In this network, the user should take
care of the security on the Intranet.
Page 4-10
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 4. Functions of the OfficeServ 7200
Intrusion Detection System (IDS)
This function monitors the packets on the network and detects the packets, which
can damage the network operation, making the network more stably operated.
The IDS is divided into various types from a detection type where a specific-type
attack is detected to the abnormal traffic detecting type, which are based on the Snort
Rule(www.snort.org) defining the intrusion pattern and types. The detected packets are
sorted and processed into close connection/port or service disable/Alarm/log based
on the intrusion pattern and the level and processed. In the case of an alarm, the
system will immediately notify the system administrator.
Virtual Private Network (VPN)
VPN function
The system provides the private network function by using the Internet that is
an open network. The OfficeServ 7200 provides the VPN gateway function
based on the IPSec(IP Security), which is useful to build the enterprise network
with reduced cost and enforced security by using a public network such as the
Internet rather than the dedicated network.
VPN Transparent Mode
The data server operates as a VPN client and establishes a VPN channel to a
remote VPN equipment to enable data transmission. This mode provides the
interface function between each OfficeServ 7200 based on the IPSec and the
3DES and RSA coding function.
VPN Tunnel Mode
By establishing a tunnel through the VPN gateways between the OfficeServ
7200 data servers the VPN functions are processed. Up to 100 VPN channels are
available for one VPN.
© SAMSUNG Electronics Co., Ltd.
Page 4-11
CHAPTER 4. Functions of the OfficeServ 7200
3.4
OfficeServ 7200 General Description Guide/Ed.00
Data Applications
DHCP
The OfficeServ 7200 can assign the IP address as a DHCP server. When using the
DHCP server in another subnet, the OfficeServ 7200 operates as a DHCP relay.
The IP addresses of the IP equipments connected to the OfficeServ 7200 can be
easily managed.
SIP Aware ALG (SIP Application Gateway)
This function is used for re-creating packets for smooth communication by
checking the SIP signal process packets according to the NAT/PT table in the data
server.
When using the data server of the OfficeServ 7200, the SIP equipment can operate
regardless of the packet blocking cased by the firewall or the MAT/PT conversion.
Outside ALG Interface
This function enables the outside application to retrieve or control information such
as the NAT/PT conversion information, firewall blocking information, and the VPN
tunnel information processed in the data server. This function supports the control
packets, which are used for H.323, VoIP networking, and IP telephone operating in
the Call server, to be smoothly serviced without any blocking.
System Management Interface
This function allows the administrator to report and manage the alarms, events,
traffic, and logging information including the IDS information of the data server
into the system administrator package via the TCP/UDP. Whether to report can be
optionally specified based on the management data type.
Management Function
This function is used for configuring the data server function with CLI(Command
Line Interface) on the Telnet. The user can configure and view the operation of the
data server functional block by using a web browser.
Page 4-12
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
4
CHAPTER 4. Functions of the OfficeServ 7200
UMS Functions
The OfficeServ 7200 provides the Unified Messaging System(UMS) such as the
auto answering, voice message, and the integrated e-mail message management
functions.
The VoIP-UMS of the OfficeServ 7200 processes the call signal using the VoIP
module which has the SIP protocol for the interface to the voice switch, and
transmits the media through the RTP protocol of the TCP/IP. Accordingly, the
OfficeServ 7200 has superior architecture for capacity expansion and is economical
from the financial aspect, since there is no need of the physical interface required
for the existing UMS or VMS.
4.1
Auto Attendant
Announcement Replay and Auto Call Forward
This system replays an announcement when a calling party is connected to the
auto attendant. This announcement can be specified based on holiday, working
hour, or non-working hour.
The auto call forward connects the calling party to the desired subscriber’s
station when the calling party dials a station number in the auto attendant. In
this case, the call routing function will be also provided, which detects whether
the entered phone number is valid, or intellectually detects that the length of
the phone number can be changed.
Announcement Auto Change Based on the Schedule
This function allows the administrator to automatically change and replay the
announcement based on holiday, working hour, and non-working hour.
Announcement Change by Telephone
This function allows the administrator to change the announcement by interfacing
with the auto attendant from a remote site.
Call Forwarding to the Mailbox on the Busy Line
When a party interfaces to the auto attendant and tries to connect a call to a busy
station, the called party on the busy station can use this function to forward the call
to a voice mailbox.
© SAMSUNG Electronics Co., Ltd.
Page 4-13
CHAPTER 4. Functions of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Queuing Process on the Busy Line
When a party interfaces to the auto attendant and tries to connect a call to a busy
station, the message ‘Please hold on because the line is busy now’ is played and the
phone retries to connect the call for a specific time, if the ‘Call Forward to the
Mailbox for a Busy Line’ function is not set. If the line continues to be busy after
the maximum queuing time, a voice message is provided asking the user whether to
forward the call to their voice mailbox or disconnect the call.
Direct Connection to the Mailbox
This function allows the user to access the auto attendant and directly connect the call
to the mailbox of a specific user by using the prefix rather than trying a call to the
subscriber’s station.
Time Control for the Announcement
This function allows the administrator to control the maximum input time for the
announcement when the administrator directly records the announcement for the auto
attendant.
Cutting off Announcements when Digits are Entered
If the user enters digits as the target station number when the voice announcement
is played in the auto attendant, the system stops the announcement and processes
the entered digits.
Announcement Replay
This function allows the administrator to listen to multiple voice announcements on
a specific telephone which have been already recorded.
Page 4-14
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
4.2
CHAPTER 4. Functions of the OfficeServ 7200
General Functions Related to Voice Mail
Subscriber Authentication and Auto Login
When a subscriber tries to login to their mailbox, the subscriber authentication
function checks the password to prohibit an invalid party from logging into a
mailbox of another party. In this case, the mailbox number and password are
entered and checked in the order.
When any party directly connects a call to the mailbox with the key number of
the mailbox on the station phone, the system uses the auto login function to
require only the password, without the mailbox number, since the UMS server
knows the caller’s phone number. The user can enter their mailbox number and
connect a call to their mailbox by using the hot key(speed key) on the
telephone.
Voice Message Record/Replay/Store/Delete/Re-Send/Reply
A caller can make a call to the mailbox of the called party and leave a voice
message. The caller can send the message at a specific time(Send reservation)
or listen to their recorded message and record again.
A subscriber can login to their own mailbox to listen to voice messages as well
as the message recording time, calling number, and caller ID. The subscriber
can delete, send to another party or group, or reply to the corresponding
message while listening to the message.
The subscriber can delete all messages currently stored in the mailbox.
Voice Message Pause/Play Continue/Next Play/Previous Play/Play Again
The user can pause and replay the current message, play the next or previous
messages, or play the current message again while listening to a message.
New Message Auto Replay
The user logged-in to the mailbox can optionally set whether to automatically
replay new voice messages.
Setting the Maximum Message Number for a Mailbox
This function is used for specifying the maximum message number for a mailbox.
The number of messages in the mailbox cannot exceed the specified maximum
message number. In this case, the corresponding announcement is provided.
© SAMSUNG Electronics Co., Ltd.
Page 4-15
CHAPTER 4. Functions of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Setting the Maximum Time for Storing Messages
The system automatically deletes the voice messages after a specific time if the user
does not delete the message after listening to the voice message. In this case, the
user can specify the time for auto message deletion.
Setting the Maximum Message Length
The message length is limited. Therefore, if the user records a message for a
specific time, the recording is automatically completed and a voice announcement
is provided saying ‘Message recording is completed’.
Announcement Change based on the Schedule
This function automatically changes and provides the announcement based on a
holiday, working hour, or non-working hour.
Voice Message Notice
A new voice message is notified to the user on the LCD screen or by the LED of
the user’s telephone.
Private Mailbox Management
The user can record/listen to/delete the name of the private voice mailbox or change
the password of the private voice mailbox. The user can also record/listen to/delete
the greeting of the private voice mailbox.
Page 4-16
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
4.3
CHAPTER 4. Functions of the OfficeServ 7200
Additional Functions Related to Voice Mail
Answering Machine Emulation (AME)
This function is almost the same as that of the auto answering machine. If a called
party does not receive the call, the call is forwarded to the AME. In this case, the
called party can listen secretly to the forwarded call or reply to the call by using the
functional key.
Call Back to the Caller ID/Call Number
This function allows the users to call back to the Caller ID or called number
(a telephone number left with a voice message).
Voice Message Notification
The UMS directly connects the voice message to the subscriber’s station then
notifies the message on the LCD screen or the LED of the phone when a new voice
message arrives. Therefore, the user optionally can listen to the new message by
picking up the phone.
Call Record
This function allows the users to record the contents of the call in the user’s voice
mailbox during the call. The digital phone has a hot key through which the user can
record it by just pressing the hot key. Since the analog phone does not have the hot
key, the user should login to the web and click the corresponding button to use this
function.
Private Voice Memo
This function allows the users to memorize information such as a schedule or
telephone number by voice. This function is usually the same as the general voice
message function. However, this voice memo can be separately managed as if a
memo.
Stop the Private Mailbox Function
This function allows the users to stop the private mailbox function. If any party tries
to access the prohibited mailbox, a message will be displayed notifying that this
mailbox cannot be used.
© SAMSUNG Electronics Co., Ltd.
Page 4-17
CHAPTER 4. Functions of the OfficeServ 7200
4.4
OfficeServ 7200 General Description Guide/Ed.00
General Functions Related to E-mail
Inbox
This function allows the users to read stored mails.
List View
This function allows the users to view the list of mails stored in the Inbox.
This functional button is displayed only when two frames are selected as ‘mail
reading frame’ in setting the environment.
Modify
This function allows the users to modify and forward the read mails.
This functional button is displayed only in the Draft Folder.
Reply
This function allows the users to reply to read mail.
Forward
This function allows the users to forward the currently read mail to another
counterpart.
Delete
This function allows the users to forward read mail to the Deleted Folder.
To permanently delete a mail, move into the Deleted Folder and select the
‘Delete’ function.
Reject Receipt
This function allows the users to reject a mail from the sender of the currently
read mail. If the Reject Receipt button is clicked, a message will be displayed
notifying that the address of the party of the currently read mail is added in the
Receipt Reject list.
Transfer the Mail to Another Box
This function allows the users to forward the read mail to another box.
This functional button is not displayed in the Draft Folder since the mails
stored in the Draft folder cannot be transferred to other boxes.
Page 4-18
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 4. Functions of the OfficeServ 7200
Compose
This function allows the users to write or send mails.
To:
Enter the address of the receiver in this field. Up to six addresses can be
entered. When entering multiple addresses, enter a comma between each
address. (e.g. : [email protected], [email protected])
If the address of the receiver has been registered, click the address from the
address list to select the address.
Cc:
Enter the addresses of those who will refer to the mail. Up to six addresses can
be entered. Refer to the method above for the ‘To’ field for entering into this
field.
Subject
Enter the subject of the mail. Up to 128 English characters or 64 Korean
characters can be entered.
Text
Write the text of the mail. Up to 2 Gbytes is available for a mail.
Original Text
This function displays the text of the originally received mail. This is displayed
only when replying to the original mail or transferring the original mail.
Attachments
Specify the number of files to append. Up to 10 files can be appended and the
capacity is unlimited. Enter the number of files to append and click the button.
Then a message will be additionally displayed asking the user to select the
appendix file.
Attachment 1
Enter the target file name in the empty field or click the ‘Find’ button to select
a file saved in their own computer.
Copy Message to ‘Sent Folder’
This function allows the users to store the sent mail in the ‘Sent Folder’.
© SAMSUNG Electronics Co., Ltd.
Page 4-19
CHAPTER 4. Functions of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Append Signature
This function allows the users to send the mail with the composer’s signature at
the end of the mail. The signature can be specified by the server administrator
when first making a mail account. The account user later can change the
signature. To change the signature, click the corresponding button.
Send
This function allows the users to send the mail after composing the mail.
Save Draft
This function allows the users to temporarily store the mail into a Draft while
composing the mail. The user can modify the contents of the mail in the Draft.
Deleted Folder
This function allows the users to temporarily store the deleted mails. If the user
deletes the mails stored in the Deleted Message, the mails will be permanently
deleted.
Draft
This function allows the users to temporarily store a mail while writing the mail.
Mailbox List
This function allows the users to manage their private mailbox lists such as the
Inbox, Sent Items, Deleted Items, and Draft folders.
Page 4-20
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 4. Functions of the OfficeServ 7200
Mailbox Creation
Specify the name of a newly created mailbox. The name should be configured
with up to 32 English characters, or 16 Korean characters.
Enter the name in the ‘Create New Mailbox’ field and click ‘Add’. Then verify
that a message notifying that the mailbox is correctly created is displayed and
the name is displayed in the ‘User Mailbox’ list on the upper part of the screen.
Mailbox Change/Removal
This function allows the users to change or delete the existing mailbox.
Address List
This function allows the users to create the address list by saving frequently used
addresses.
Select Group
This function allows the users to select an address group for changing the name
or deleting the address.
Change Group Name
This function allows the users to change a group name.
Delete Group Name
This function allows the users to delete a group name.
Select All
This function allows the users to select all addresses from the address list. If this
function is enabled, all the addresses will be checked.
Selection Cancel
This function allows the users to cancel the address selection. If this function is
enabled, the checked addresses will be unchecked from the address list.
Delete Address
This function allows the users to delete an address. To delete an address, select
the target address and click the ‘Delete’ button.
Transfer Address
This function allows the users to change the address group.
© SAMSUNG Electronics Co., Ltd.
Page 4-21
CHAPTER 4. Functions of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Add Address
This function allows the users to add new addresses. If this item is clicked, a
separate window will be displayed.
A~Z
This function allows the users to retrieve an address staring with a specific
character from the address list.
External Mail Importing
The user can import mails from other accounts into the mail account of the
OfficeServ 7200. For instance, if the user already has a mail account on a site
such as ‘Yahoo’ or ‘Naver’, the user can read the mails of the corresponding
site in their OfficeServ 7200 mailbox by registering the site in the ‘External
Mail Management’ item.
External mail address
Enter the external mail address to register. Ex) [email protected]
External mail server name
Enter the external mail server name to register. Ex) yahoo.co.kr
User ID
Enter the user ID to access an external mail. Ex) jjkim
Password
Enter the password to access an external mail.
Protocol
Select the protocol type for the external mail server. To find the protocol type,
access the corresponding server.
Leaving the original message
The user can leave the original message in the external mail account when
setting an external mail to be read in the current mail account. To execute this
function, Select ‘Yes’.
Page 4-22
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
CHAPTER 4. Functions of the OfficeServ 7200
Mail Receipt Rejection
The user can register the corresponding mail ID to automatically cutoff
undesired mails such as junk mail. In this case, the system automatically
rejects the mail receipt.
Enter the e-mail address for mail receipt rejection
Ex) [email protected]
Mail Filtering
When a new mail arrives, the system sorts it according to a specific word
selected such as the sender name, receiver name, notice, or subject and then
sends it to a separate mailbox.
Filter addition
The user can set a mail that includes a specific word selected such as the
sender name, receiver name, notice, or subject to be stored in a specific
mailbox.
SMTP Sending Interface
The system supports the SMTP(Simple Mail Transfer Protocol) as an E-mail
sending protocol.
POP3 Receive Interface
The system supports POP3(Post Office Protocol 3) as an E-mail receiving protocol.
IMAP4 Receive Interface
The system supports IMAP4(Internet Message Access Protocol version 4) as an Email receiving protocol.
Web Mail Interface
The system provides the user and administrator with services for e-mails via the
web browser.
© SAMSUNG Electronics Co., Ltd.
Page 4-23
CHAPTER 4. Functions of the OfficeServ 7200
4.5
OfficeServ 7200 General Description Guide/Ed.00
Additional Functions Related to E-mail
User Account Management
The administrator can retrieve or delete an E-mail user account and register a new
user.
Mailbox Capacity Management
The system can restrict the storage capacity of a mailbox, and display an alarm
signal when the assigned capacity is exceeded.
Notice Management
The E-mail user can register or change the notices in their work group.
Logo Management
The user can register or change a screen from the screens in his work group for the
web login screen.
Page 4-24
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
4.6
CHAPTER 4. Functions of the OfficeServ 7200
Integrated Messaging
Converting Voice mails to E-mails
When a new voice mail arrives, the system converts it into a file format such as
WAV, MP3, or OGG, and then appends the converted voice mail to an e-mail.
New E-mail Notice
This function notifies of a new e-mail arrival on the LCD screen of the digital phone or
by the LED. The UMS(Unified Messaging System) optionally dials the user’s
station to notify that a new e-mail has arrived.
Reporting and Playing New E-mails
When a new e-mail arrives, the UMS dials the user’s station and reports the mail
information by using the TTS(Text-To Speech) function.
Mail information includes the number of total mails and the number of new
mails. The user can listen to the list of the mail subject or the text of a mail.
The user can login to their mailbox and listen to their mail information with
their mailbox key number.
If the e-mail is in an HTML format, the system extracts the text of the mail to
report it by using the TTS.
© SAMSUNG Electronics Co., Ltd.
Page 4-25
CHAPTER 4. Functions of the OfficeServ 7200
4.7
OfficeServ 7200 General Description Guide/Ed.00
UMS Management
Database Backup and Recovery
The user can backup or recover the UMS(Unified Messaging System) database
operating in the OfficeServ 7200.
For the backup, the database should be compacted as a file into a specific
directory. This compacted database can be downloaded to an external computer.
The backup type is divided into two types as follows : Auto backup-The
system automatically executes the backup periodically. Manual backup-The
user can backup on the web when needed.
Mailbox Management
The mailbox administrator can add or delete mailboxes. This function can be
executed on a telephone. The mailbox administrator can retrieve the mailbox
information on the web.
Voice Text Upload/Download
The user can upload/download the audio text from/to the external computer to/from
the system, which will be used as the announcement for the OfficeServ 7200.
Alarm Information Management
The user can specify the alarm level(including Major, Minor) for alarms in the
UMS and view the alarm information which has occurred for a specific time.
Operational Information Management
The user can view information such as the currently busy channel status and web
login history.
Voice CODEC Selection
The user can specify the CODEC format for the voice files of the OfficeServ 7200.
The user can select the voice CODEC(WAV, MP3, OGG) to be appended while
sending mails.
The user can select the voice CODEC(G.726, G.729) to be appended while
creating the TTS.
Page 4-26
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
5
CHAPTER 4. Functions of the OfficeServ 7200
Web/System Management
The OfficeServ 7200 provides a user interface that manages various functional
blocks of the system on the web through a web browser. The OfficeServ 7200
performs the call server configuration management and information retrieving
function through the PCMMC package. The OfficeServ 7200 also monitors and
collects the operational status of the functional blocks in the system.
5.1
Web Management
Database Backup
The user can backup the database of the data server and feature server through the
web.(However, the database of the call server cannot be backed up)
Since the database backup is actually executed in the feature server, the user can use
regular menus only when the feature server operates.
Follow the steps below to perform the backup, download, upload, and restore
functions.
Backup the database file in the /home/dbbackup directory of the feature server.
The name of the backed up file should be in the ‘module name_date_hour.tar’
format as shown below:
Ex) /home/dbbackup/MS_20030620_145632.tar
Collect the MS_*.tar, US_*.tar, SS_*.tar, and DS_*.tar files in the
/home/database directory in one ‘tar’ file and transmit it to the web client.
Ex) FSDB_20030620_142310.tar
Upload the database file of the web client into the feature server.
Restore the database file in the /home/database directory of the feature server
to the system.
User Information
The user can view user names and e-mail IDs of each station number. The mailbox
number is the same as the corresponding station number. If any regular user forgets
their password, the administrator can initialize the password.(The default password
is the phone number.)
© SAMSUNG Electronics Co., Ltd.
Page 4-27
CHAPTER 4. Functions of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Server Information
The user can view the information(IP address, web port, IPC port) on each server
module(call server, data server, feature server, system administrator) through this
function.
VoIP Web Administrator
This function displays or changes the setting status for VoIP services.
Data Web Administrator
This function displays or changes the setting status for data services.
Voice-Mail Web Administrator
This function displays or changes the setting status for voice-mail services.
E-Mail Web Administrator
This function displays or changes the setting status for e-mail services.
Page 4-28
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
5.2
CHAPTER 4. Functions of the OfficeServ 7200
System Management
Multi Site Management
The user can enter and manage the information in the site where the OfficeServ
7200 is installed.(Addresses, phone numbers, notes, system installation date, and
administrator, etc.)
Integrated System Management
The user can view the current status of(e.g. operational status, alarm information,
etc) the OfficeServ 7200 in real time. The user can collectively manage each
functional block(call server, data server, or feature server) by operating the
PCMMC package or connecting the web servers of the corresponding server.
Configuration Management
The configuration information of the OfficeServ 7200 can be displayed.
The configuration information is as follows:
OfficeServ 7200 unit configuration
OfficeServ 7200 version information
Data function setting/version information
NAT information
Feature server(SIP, UMS, mail) function setting/version information
Event Management
This function displays the various event information in the OfficeServ 7200 such as
critical errors, warnings, etc.
Access Log Management
This function displays the access log for the OfficeServ 7200. The user can group
each access log by using the arranging and searching function.
© SAMSUNG Electronics Co., Ltd.
Page 4-29
CHAPTER 4. Functions of the OfficeServ 7200
OfficeServ 7200 General Description Guide/Ed.00
Traffic Management
The user can view traffic information(telephone usage, the amount of the data
transmitting and receiving, VoIP call process, mail transmission/receive) generated
in the OfficeServ 7200 for a specified time through this function. This information
can be used as statistics for a specified time.
Call Detail Record Management
The Call Detail Record(CDR) serviced in the OfficeServ 7200 can be saved and
viewed.
Page 4-30
© SAMSUNG Electronics Co., Ltd.
ABBREVIATION
ABBREVIATION
A
AAA
Authentication, Authorization and Accounting
AC
Alternating Current
ALG
Application Level Gateway
AMI
Alternate Mark Inversion
AOM
Add On Module
AP
Access Point
BRI
Basic Rate Interface
CA
Call Agent
B
C
CID
Caller Identification
COM
Communication
CR Mode
Constant Resistance Mode
CSU
Communication Service Unit
CTI
Computer Telephony Integration
D
DASL
Digital Adaptor for Subscriber Loop
DC
Direct Current
DECT
Digital Enhanced Cordless Telecommunications
DGP
Digital Phone
DHCP
Dynamic Host Configuration Protocol
DLI
Digital Line Interface
DSU
Data Service Unit
EMI
Electro-Magnetic Interference
E
© SAMSUNG Electronics Co., Ltd.
Abbreviation-1
Abbreviation
OfficeServ 7200 General Description Guide/Ed.00
F
FXO
Foreign Exchange Office
FXS
Foreign Exchange Station
G
GARP
Generic Attribute Registration Protocol
GK
Gatekeeper
GVRP
GARP VLAN Registration Protocol
HDLC
High level Data Link Control
HLR
Home Location Register
HTML
Hypertext Markup Language
HTTP
Hypertext Transfer Protocol
ID
Identification
IDS
Intrusion Detection System
IGMP
Internet Group Management Protocol
IMAP
Internet Messaging Access Protocol
IN-SCP
Intelligent Network Service Control Point
IP
Internet Protocol
IPC
Inter Processor Communication
IPDC
Internet Protocol Device Control
IP-SCP
Internet Protocol Service Control Point
ISDN
Integrated Services Digital Network
ISUP
ISDN User Part
JDBC
Java Database Connectivity
KDB
Keyset Daughter Board
LAN
Local Area Network
LCD
Liquid Crystal Display
LCP
Local Control Processor
LED
Light Emitting Diode
LIM
LAN Interface Module
H
I
J
K
L
Abbreviation-2
© SAMSUNG Electronics Co., Ltd.
OfficeServ 7200 General Description Guide/Ed.00
Abbreviation
M
MCP
Main Control Processor
MEGACO
Media Gateway Control
MG
Media Gateway
MGC
Media Gateway Controller
MGI
Media Gateway Interface
MGCP
Media Gateway Control Protocol
MMC
Man Machine Communication
MPD
Metering Pulse Detection
MOH
Music On Hold
MUA
Mail User Agent
MTA
Mail Transfer Agent
NAT
Network Address Translation
OSPF
Open Shortest Path First
PAT
Port Address Translation
PBA
Printed circuit Board Assembly
PCM
Pulse Code Modulation
PCMMC
PC based Man Machine Communication
PLL
Phase Locking Loop
POP3
Post Office Protocol version 3
PPP
Point to Point Protocol
N
O
P
PPPoE
Point to Point Protocol over Ethernet
PRI
Primary Rate Interface
PRS
Polarity Reverse detection
PSTN
Public Switched Telephone Network
PSU
Power Supply Unit
Q-SIG
Q-Signaling
QoS
Quality of Service
RIP
Routing Information Protocol
RTCP
Real-time Transmission Control Protocol
RTP
Real-time Transmission Protocol
Q
R
© SAMSUNG Electronics Co., Ltd.
Abbreviation-3
Abbreviation
OfficeServ 7200 General Description Guide/Ed.00
S
SCP
Signal Control Processor
SDP
Session Description Protocol
SG
Signaling Gateway
SGCP
Simple Gateway Control Protocol
SIGTRAN
Signaling Transport
SIP
Session Initiation Protocol
SLI
Single Line Interface
SLT
Single Line Telephone
7200
Small Medium Enterprise
SMTP
Simple Mail Transfer Protocol
SoL
Server optimized Linux
STA
Spanning Tree Algorithm
STP
Signaling Transfer Point
T
TCAP
Transmission Control Application Part
TCP
Transmission Control Protocol
TEPRI
T1E1PRI
TRK
Trunk
UA
User Agent
UAC
User Agent Client
UART
Universal Asynchronous Receiver and Transmitter
U
UAS
User Agent Server
UCD
Uniform Call Distribution
UDP
User Datagram Protocol
USB
Universal Serial Bus
VAD
Voice Activation Detect
VLAN
Virtual LAN
VoIP
Voice over Internet Protocol
VPN
Virtual Private Network
WAN
Wide Area Network
WIM
WAN Interface Module
WLI
Wireless LAN Interface
xDSL
x-Digital Subscriber Line
V
W
X
Abbreviation-4
© SAMSUNG Electronics Co., Ltd.
